4-096-378-E1 (3)
Tr initron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
it for future reference.
KV-AR34
KV-AR29
KV-AR25
© 2003 Sony Corporation
M80B
X80B
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.

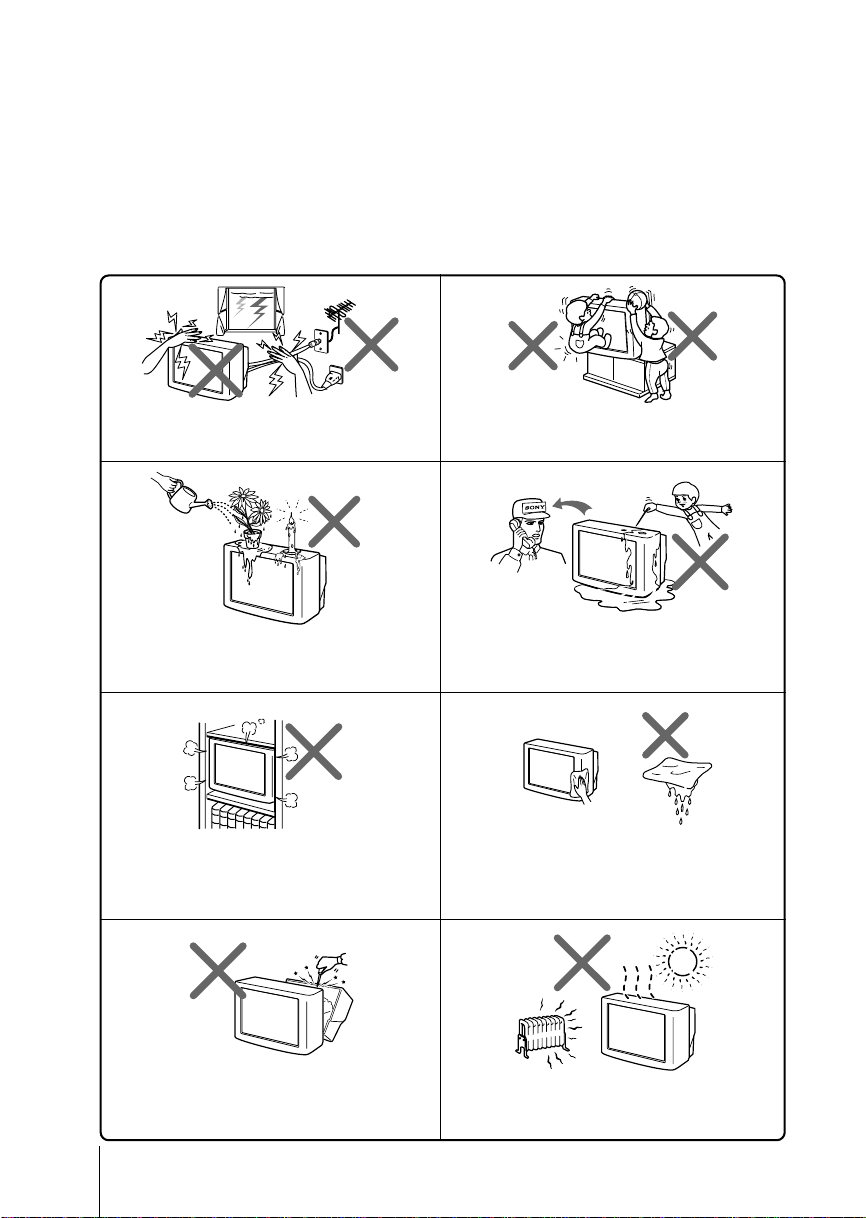

For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
2
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Product Overview
• FD Trinitron CRT
• New Intelligent Picture
• 5-Band Graphic Equalizer
(KV-AR34M80B/AR29M80B/AR25M80B only)
• DVD Signal Terminal

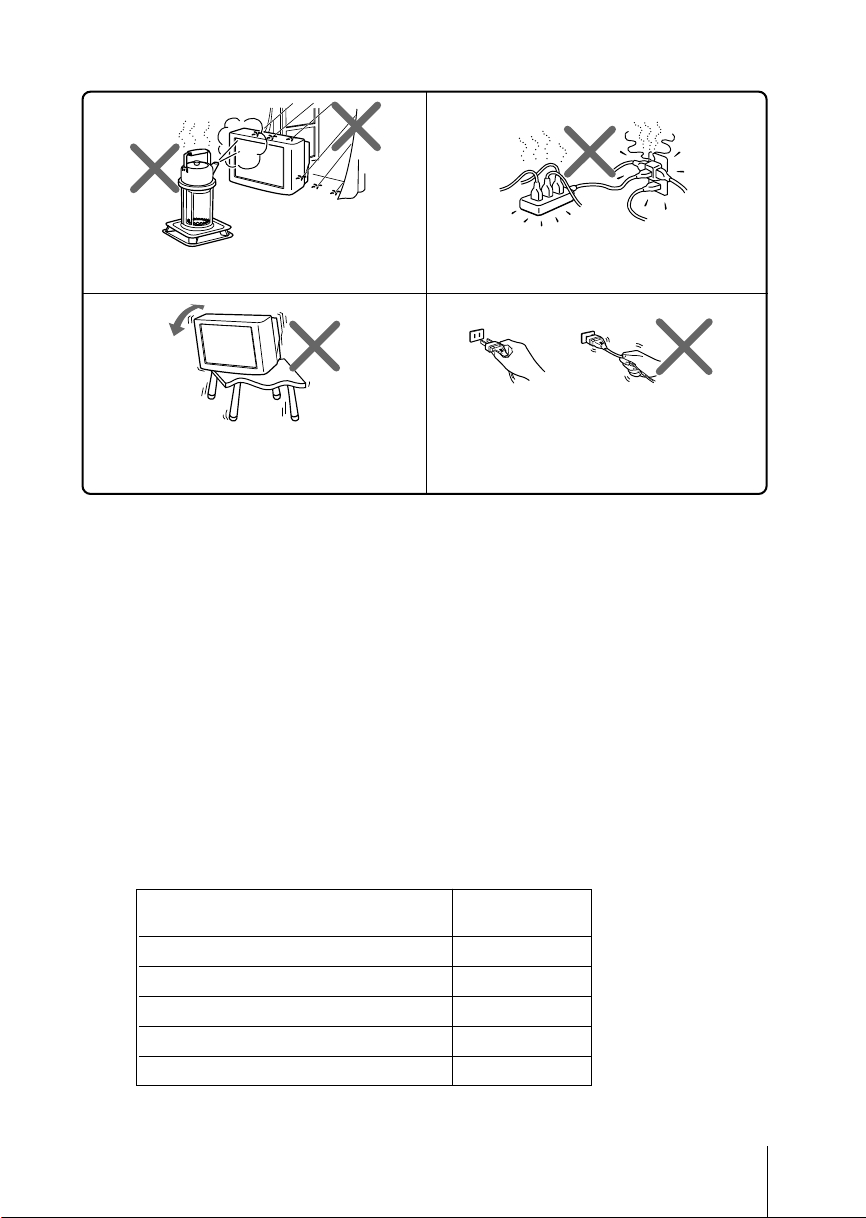

Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
Accessories
Remote Commander (RM-W104) 1
Batteries (size 5) 2
Stabilizing band 1
Stabilizing clamp 2
Screw (Dia.3.8 × 20) 3
Accessory Quantity
3

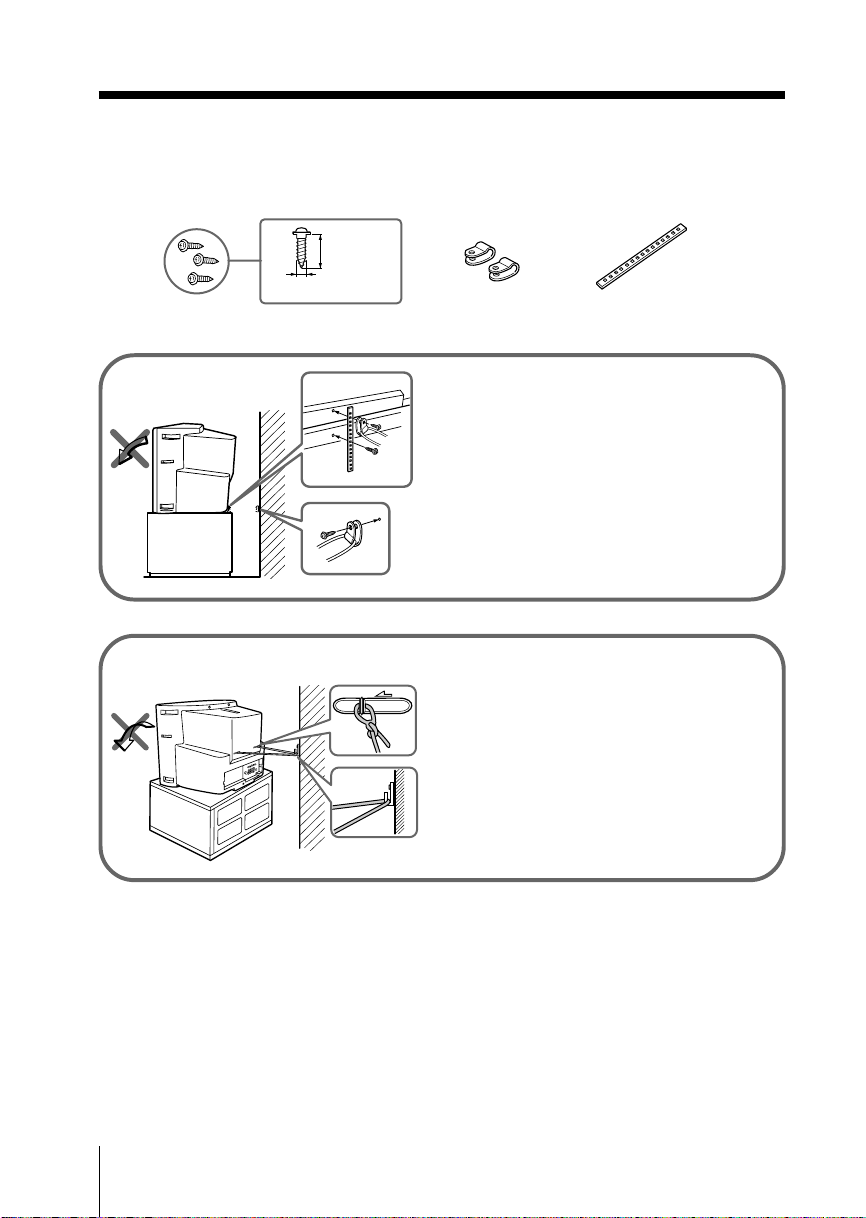

x Securing the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
1
(3)
2
Note
• Use only the supplied screws. Use of other screws may damage the TV.
(1) Screw the band and one clamp to the
(1)
(2)
provided hole at the rear of your TV.
(2) Screw the band to the TV stand.
(3) Put a cord or chain through both
clamps and screw the other clamp to a
wall or pillar.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
4
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 8
Using the remote control and
basic functions ...................................... 9
Advanced Operations
Selecting the picture and sound
modes .................................................. 11
Menu Adjustment
Introducing the menu system ...........12
Changing the “Picture” setting ......... 15
Changing the “Sound” setting .......... 16
Changing the “Timer” setting...........18
Changing the “Channel Setup”
setting ................................................... 19
Changing the “Setup” setting ...........21
Additional Information

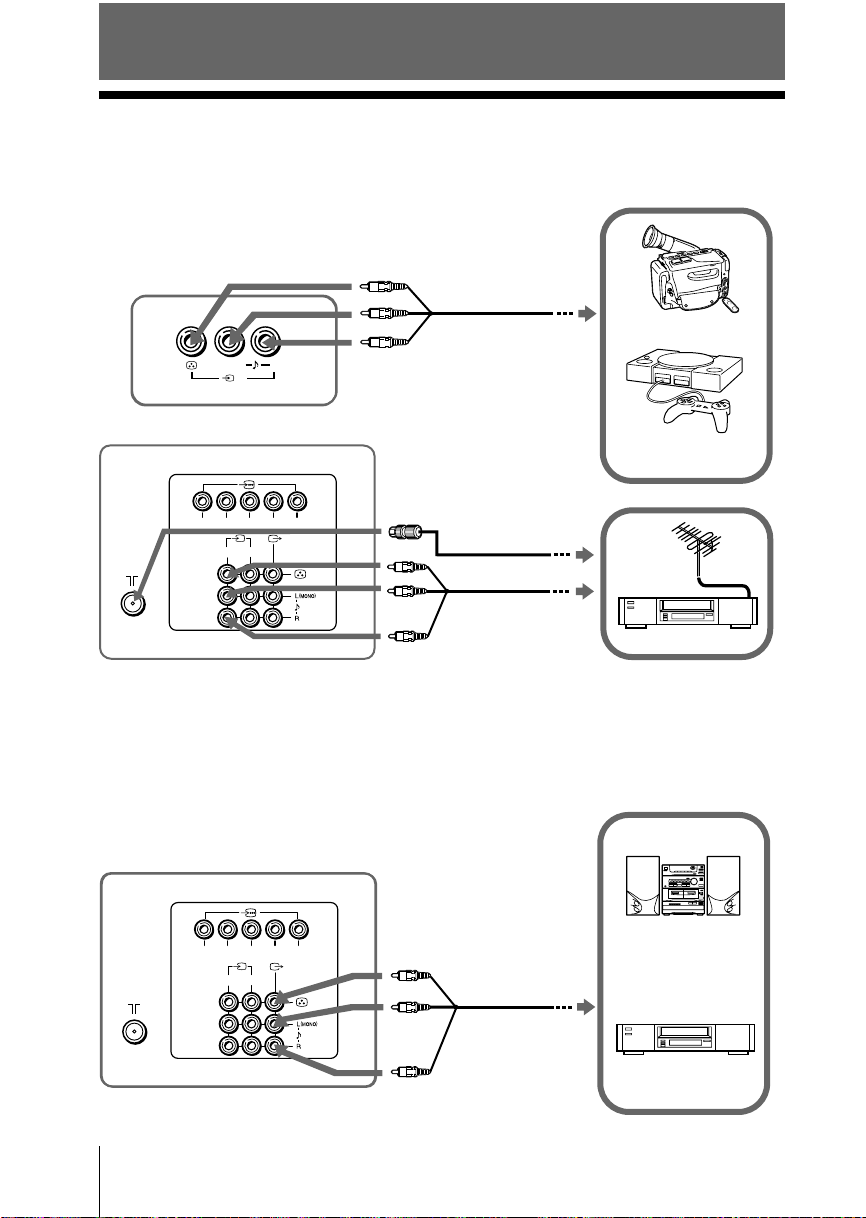

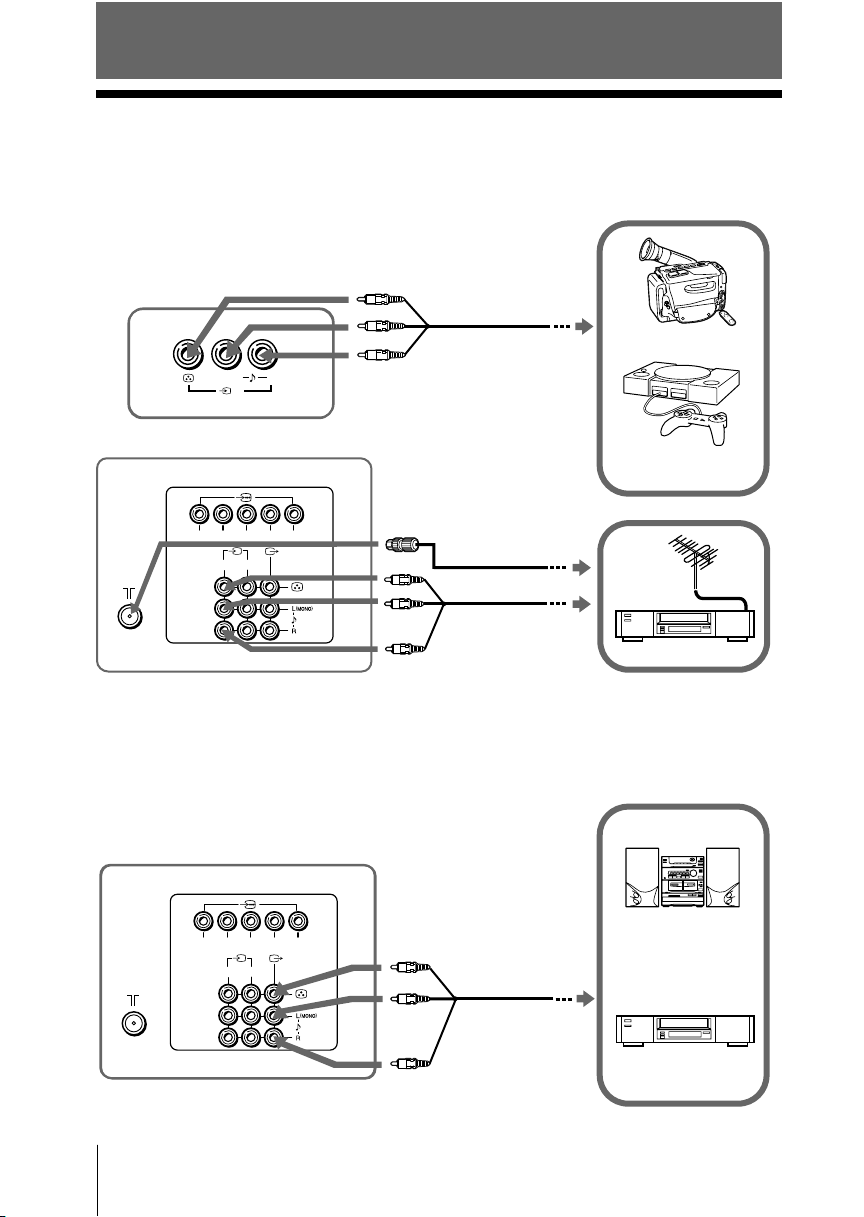

Connecting optional components .... 22

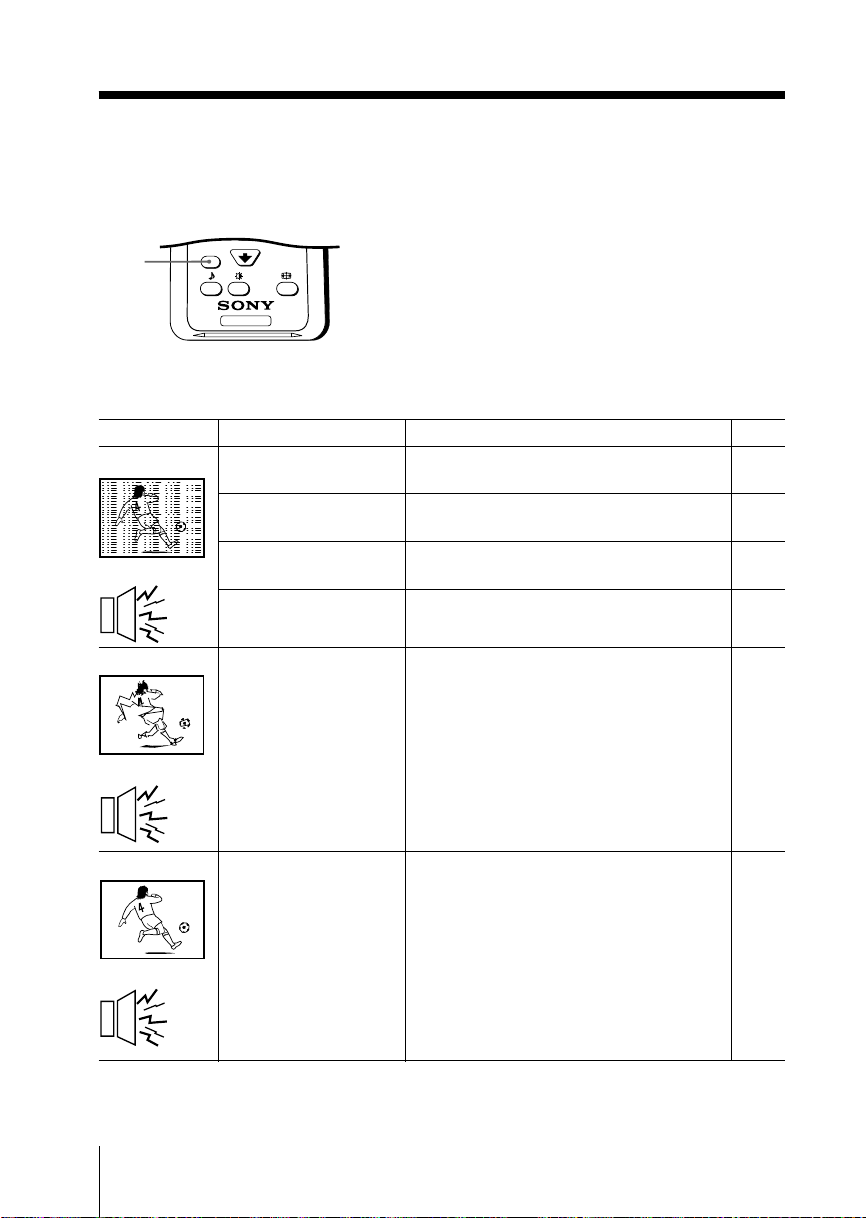

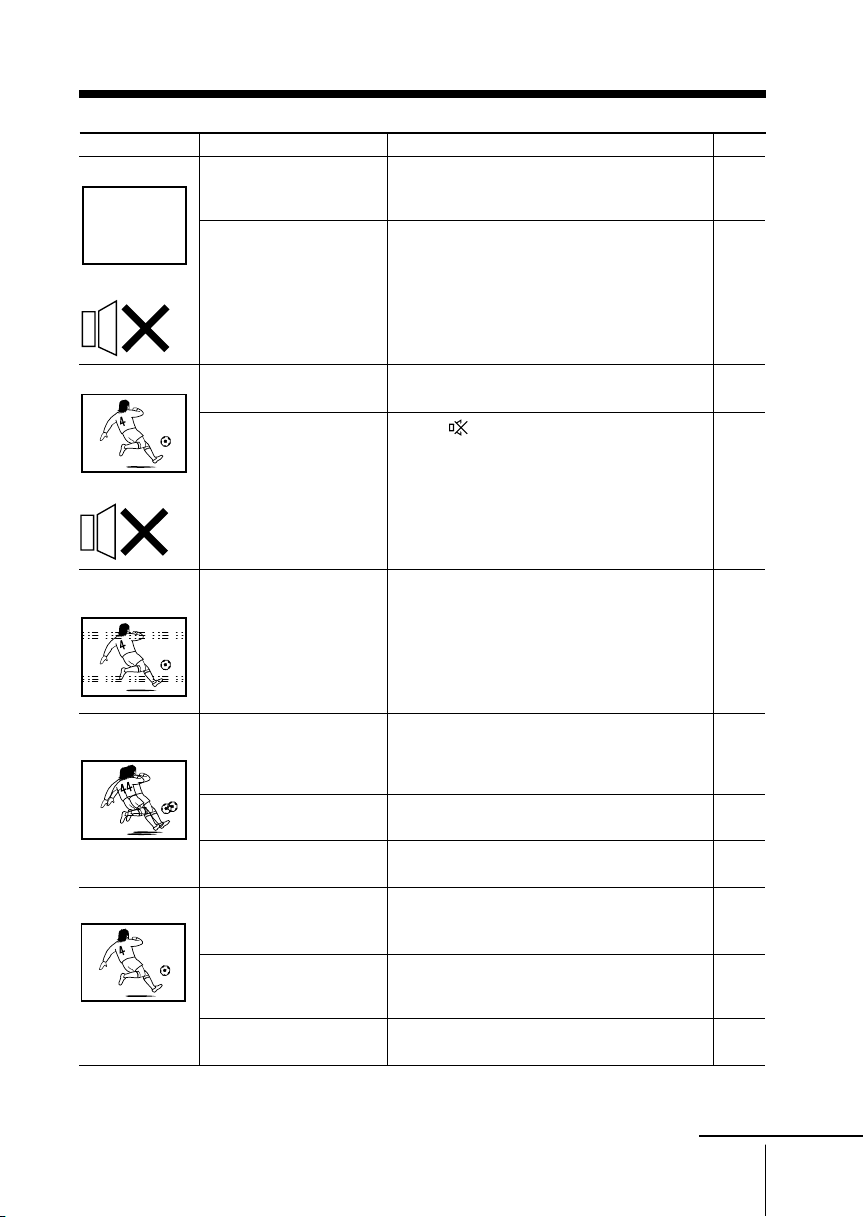

Troubleshooting ..................................24
Specifications ....................... Back cover
GB
5
Installation

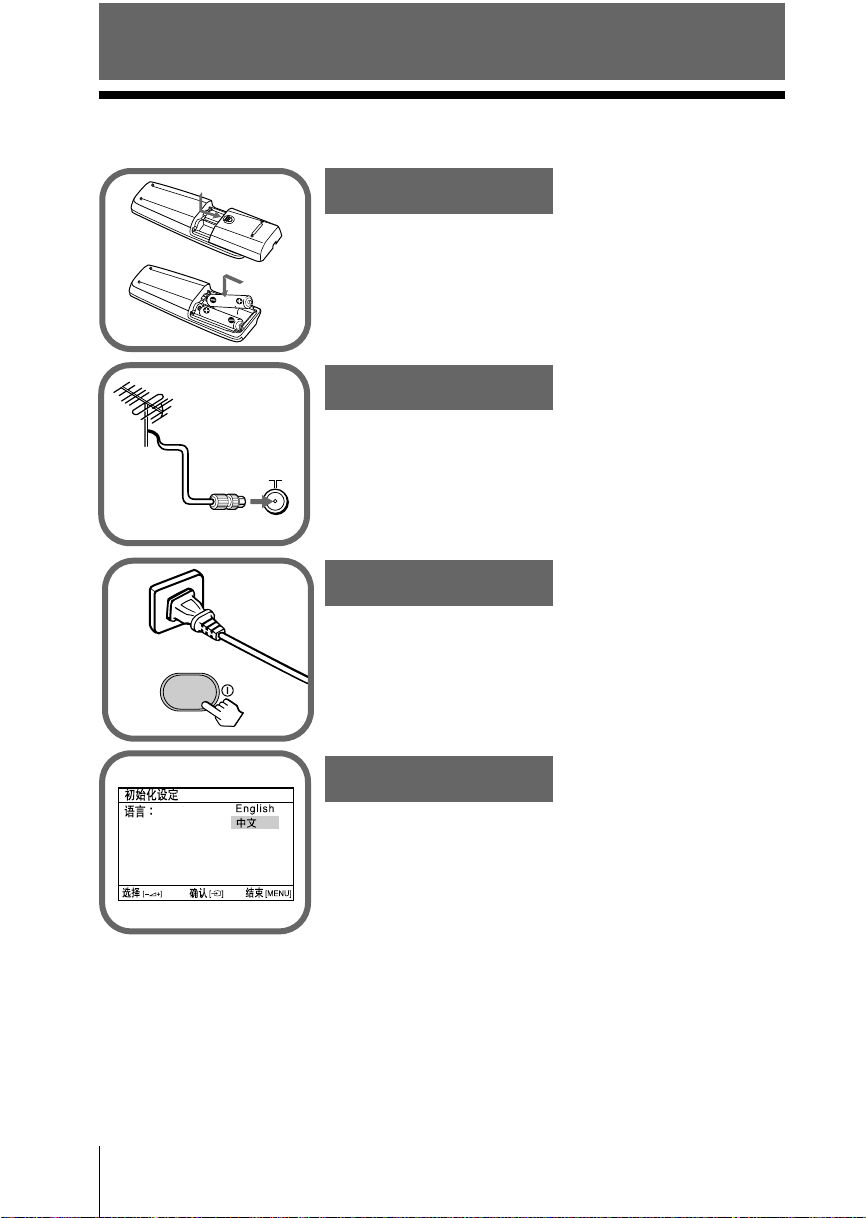

x Getting Started
1
Step 1
b
b
Insert the batteries (supplied) into the remote.
Note
• Do not use old or different types of batteries together.
Step 2
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
•You can also connect your TV to other optional components
(see page 22).
Step 3
Plug in the power cord, then press ! on the TV to
turn it on.
Note
• The 1 (standby) indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Step 4
6 Installation
Set up the TV by following the instructions of the
“
” (Initial Setup) menu (see page 7).
x
Start auto program now?

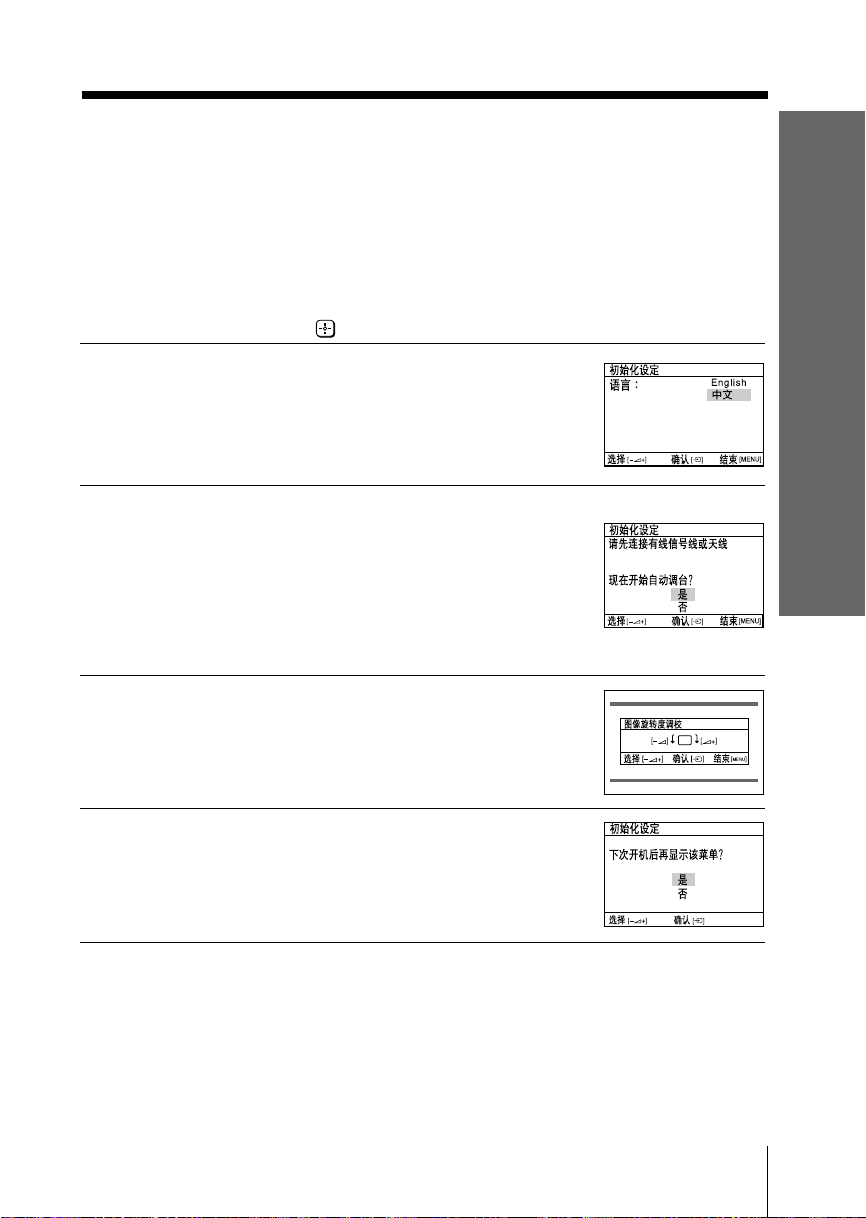

Setting up your TV
(“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You may change the menu language, preset the TV channels automatically and adjust
the picture position using the buttons on the TV front panel.
Tip
• The MENU, and V/v/B/b buttons on the remote control can also be used for the
operations below.
Press 2 +/– to select the desired menu
1
language, then press t.
The selected menu language appears.
Press 2 +/– to select “Yes”, then press t
2
to preset the channels automatically or
select “No” to skip automatic channel
presetting.
Once you select “Yes”, your TV will start
searching for all the available channels.
If the message “No channel found. Please
connect cable/antenna.” appears, check your
TV connections, then press t.
Installation
Press 2 +/– to adjust the bars on the
3
top and bottom of the menu if they are
slanted, then press t.
If no adjustment is necessary, then press
t.
Press 2 +/– to select “No”, then press t.
4
This menu will not appear again the next
time you turn on the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press t.
Tips
•You can immediately go to the end of the “Initial Setup” menu by pressing MENU.
•You can also set up your TV using the menu system (see page 12).
•You can also preset the channels automatically by pressing MENU (AUTO PROG) button on
the TV front panel for about five seconds.
Installation
7
Overview of Controls

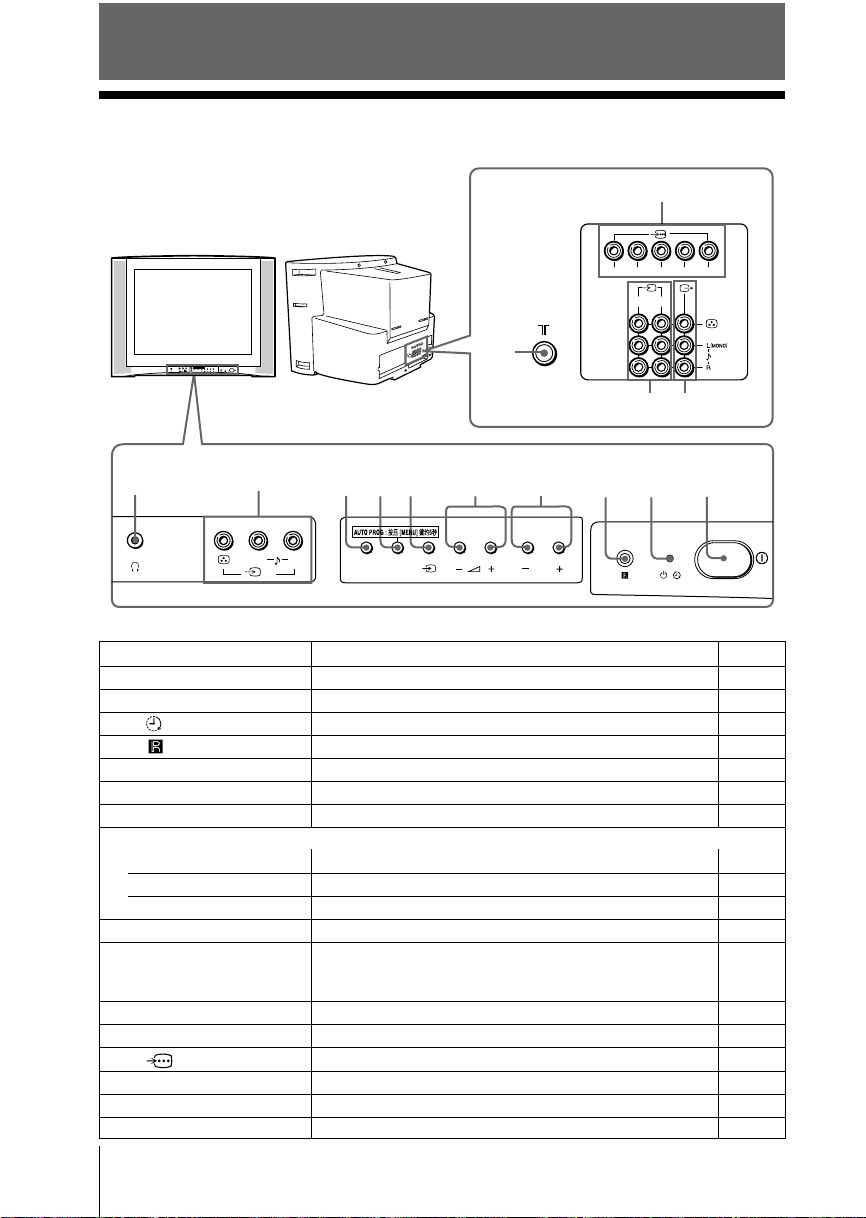

x TV front and rear panels
TV rear panel
L(MONO) R
SOUND
MENU
(AUTO PROG)
PROG
MODE
3
qs
qa
RLY
2
1
qf
qd
TV front panel
0
9
L(MONO) R
3
8
SOUND
MODE
7
(AUTO PROG)
MENU
56
4
PROG
3
2
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 6
2 1 Standby indicator. 6
2 Wake Up indicator. 18
3 Remote control sensor. –
4 PROG +/– Select program number. –
5 2 +/– Adjust volume. –
6 t Select TV or video input. 22
Menu operations
5 2 +/– Select and adjust items. –
6 t Confirm selected items. –
7 MENU Display or cancel the menu. –
7 (AUTO PROG) Preset channels automatically. 7
8 SOUND MODE Select sound mode options. 11
5-Band Graphic Equalizer display will appear
(KV-AR34M80B/AR29M80B/AR25M80B only).
9 t3Video input terminal 3. 22
0 i Headphone jack. –

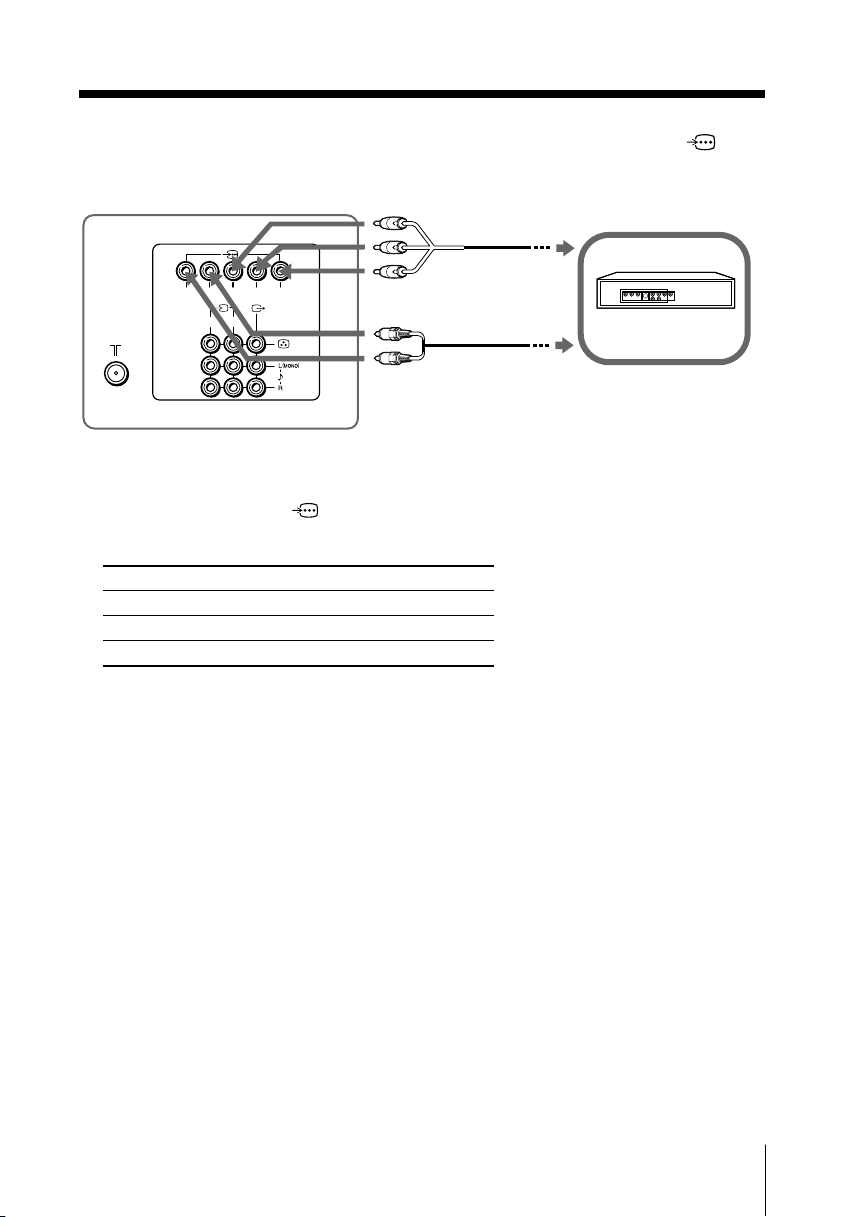

qa Component video input terminal. 23
qs 8 Antenna input terminal. 22
qd T Monitor output terminal. 22
qf t1, t2Video input terminal 1, 2. 22
8 Overview of Controls
B
C
C
R
1

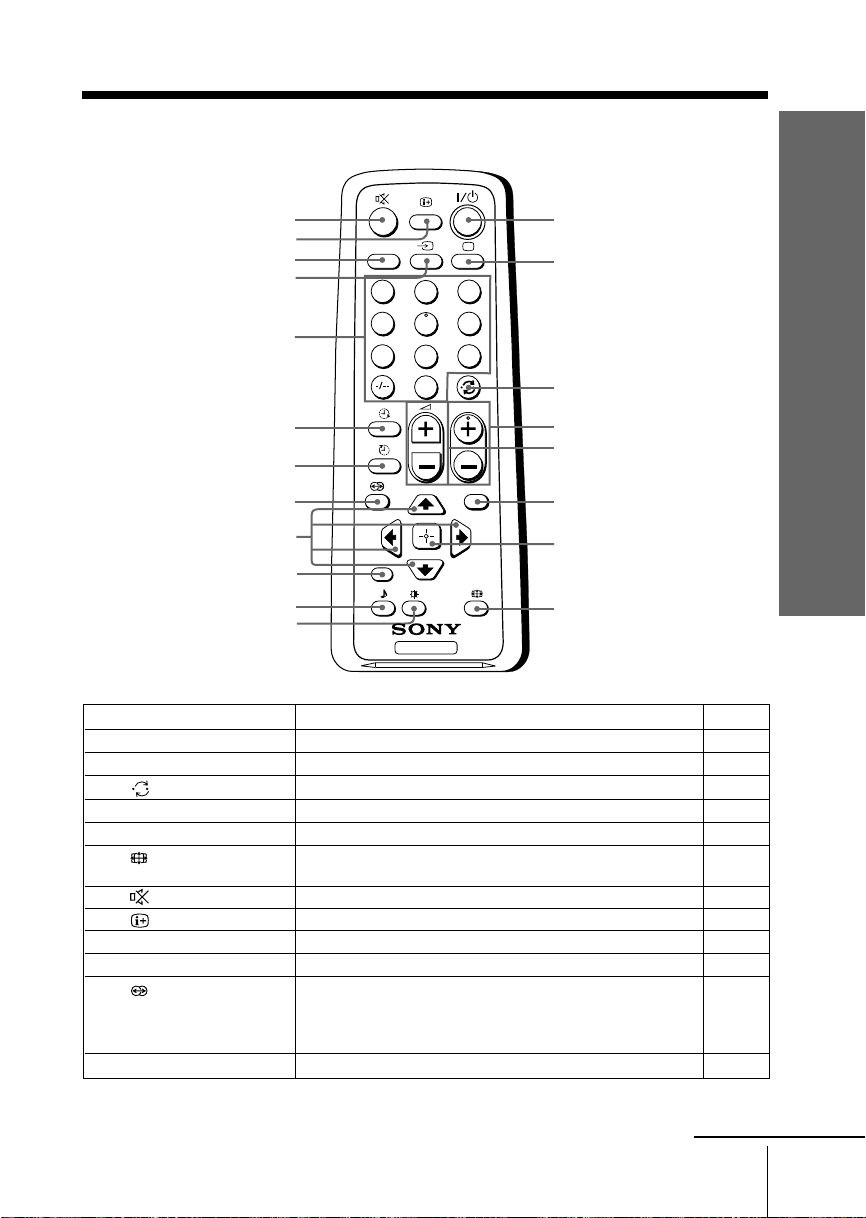

x Using the remote control and basic
functions
9
0
qa
qs
qd
qf
qg
qh
qj
qk
ql
A/B
1
4
7
RESET
3
2
6
5
9
8
0
PROG
MENU
1
2
3
4
5
6
7
8
w;
TV
Button Description Page
1 ?/1 Turn off temporarily or turn on the TV. –
2 a Display the TV program. –
3 Jump to last program number that has been –
watched for at least five seconds.
4 PROG +/– Select program number. –
5 2 +/– Adjust volume. –
8 Change the picture size: –
“On” (16:9 wide-mode), “Off”.
9 Mute the sound. –
0
Display on-screen information. –
qs t Select TV or video input. 22
qd 0 – 9, - Input numbers. –
qh Select surround mode options: –
(KV-AR34M80B/AR29M80B/AR25M80B only)
“On” (surround), “Simulated” (stereo-like
monaural sound), “Off”.
qk RESET Set TV to factory setting. 24
continue
Overview of Controls
Overview of Controls
9
continued
Button Description Page
ql Select sound mode options. 11
w; Select picture mode options. 11
Menu operations
6 MENU Display or cancel the menu. 14
7 Confirm selected items. 14
qj V, v, B , b Select and adjust items. 14
Timer operations
qf Set TV to turn on automatically. –
qg Set TV to turn off automatically. –
Stereo/bilingual operations
qa A/B Not function for your TV. –
5-band Graphic Equalizer display will appear
(KV-AR34M80B/AR29M80B/AR25M80B only).
10 Overview of Controls
Advanced Operations
x Selecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your
preference in the “Personal” option.
Selecting the picture mode
A/B
1
2
4
5
7
8
0
PROG
RESET
TV

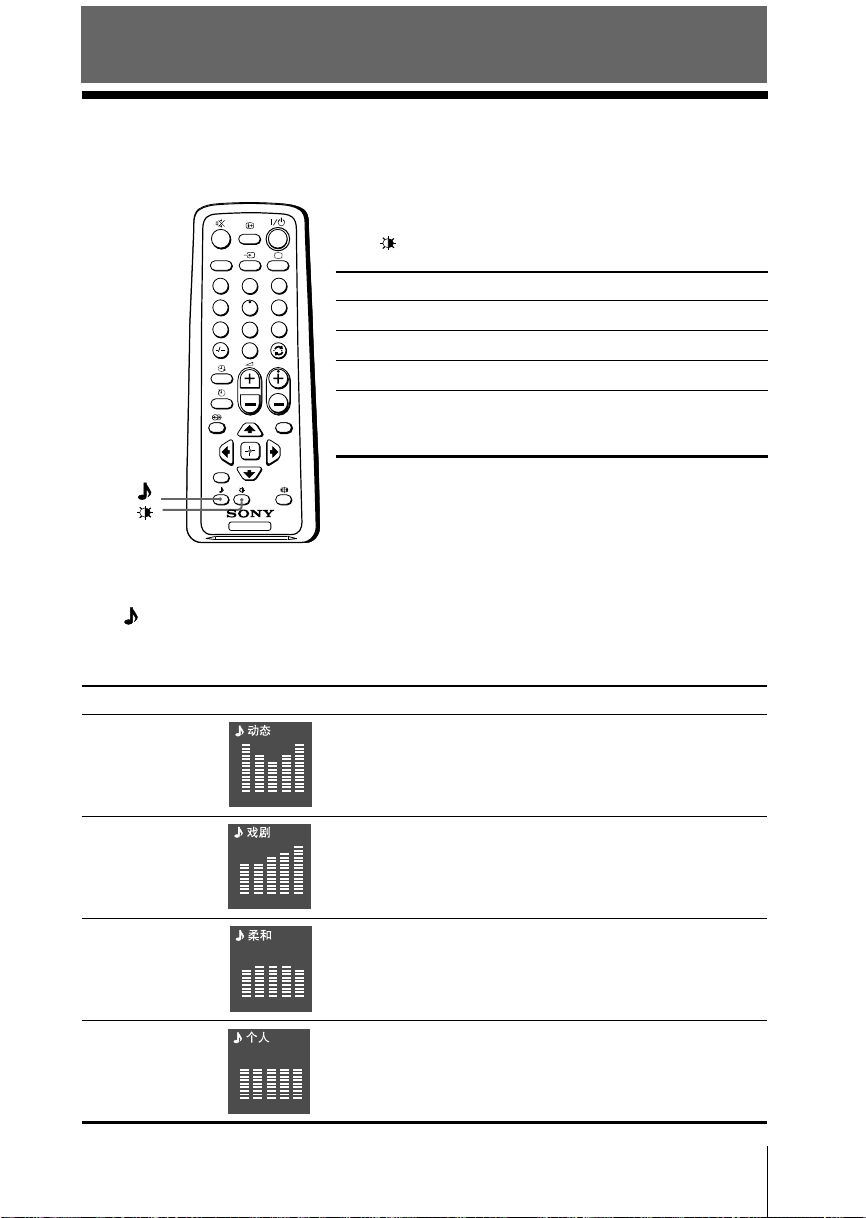

Selecting the sound mode
Press (or SOUND MODE on the front panel) to select the desired sound mode.
5-Band Graphic Equalizer display will appear (KV-AR34M80B/AR29M80B/
AR25M80B only).
Select To listen to
“Dynamic” dynamic and clear sound that emphasizes both the low
Dynamic
Press to select the desired picture mode.
3
6
9
MENU
Select To view
“Dynamic” high contrast pictures.
“Standard” normal pictures.
“Soft” mild pictures.
“Personal” the last adjusted picture setting
from the “Picture Adjustment”
option in the menu (see page 15).
and high tones.
100 300 1k 3k 8k
“Drama” sound that emphasizes voice and high tones.
“Soft” soft, natural and relaxing sounds.
“Personal” the last adjusted sound setting from the
Drama
100 300 1k 3k 8k
Soft
100 300 1k 3k 8k
Personal
“Sound Adjustment” option in the menu (see page 17).
100 300 1k 3k 8k
Advanced Operations
11
Menu Adjustment

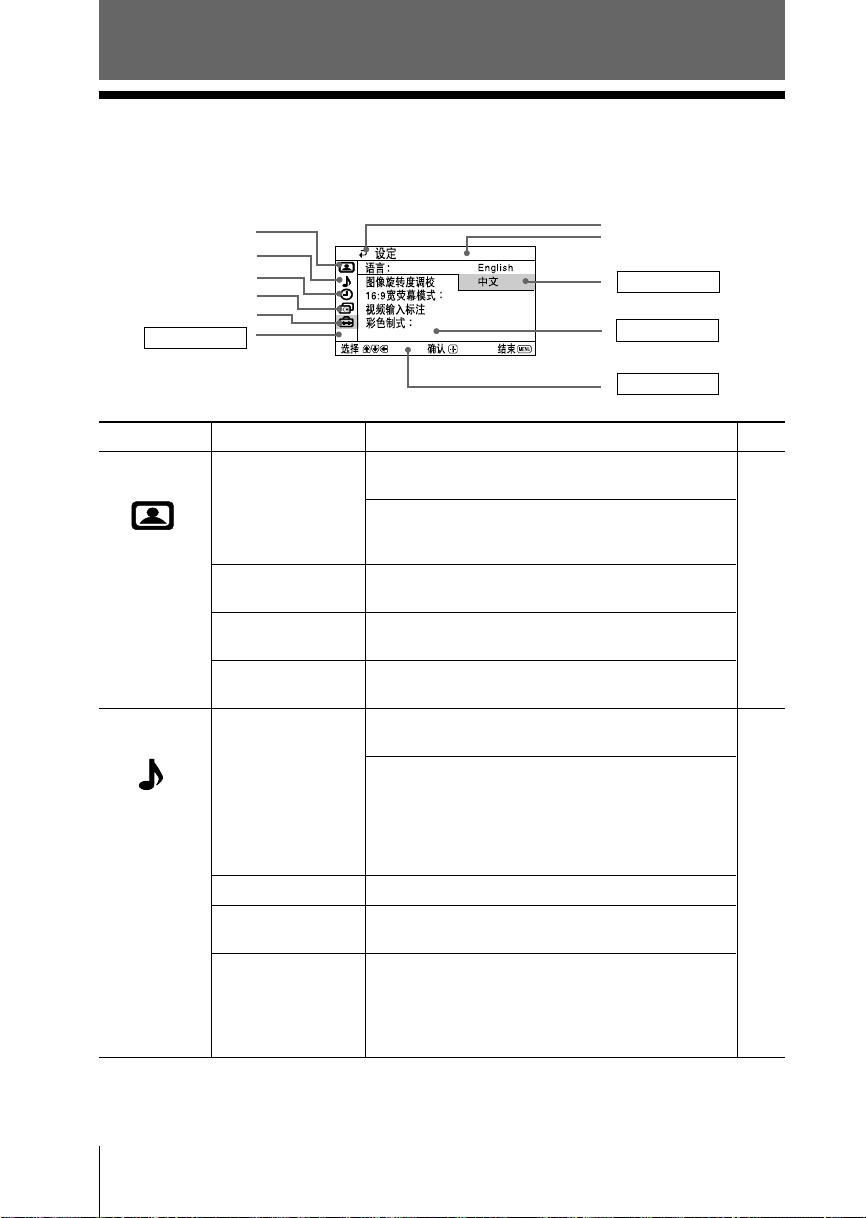

x Introducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
Picture icon
Sound icon
Timer icon
Channel Setup icon
Setup icon
Menu level 1
Setup
Language: English
Picture Rotation
Wide Mode:
Video Label
Color System:
Select
Confirm
End
Return icon
Name of the current
menu
Menu level 3
Menu level 2
User Guidance
Level 1
“Picture”
Level 2
“Mode”
“Picture Adjustment”
“Color Temperature”
“VM
“Intelligent Picture”
“Sound”
“Mode”
“Sound Adjustment”
“Balance”
“Intelligent Volume”
“Surround”
(KV-AR34M80B/
AR29M80B/
AR25M80B only)

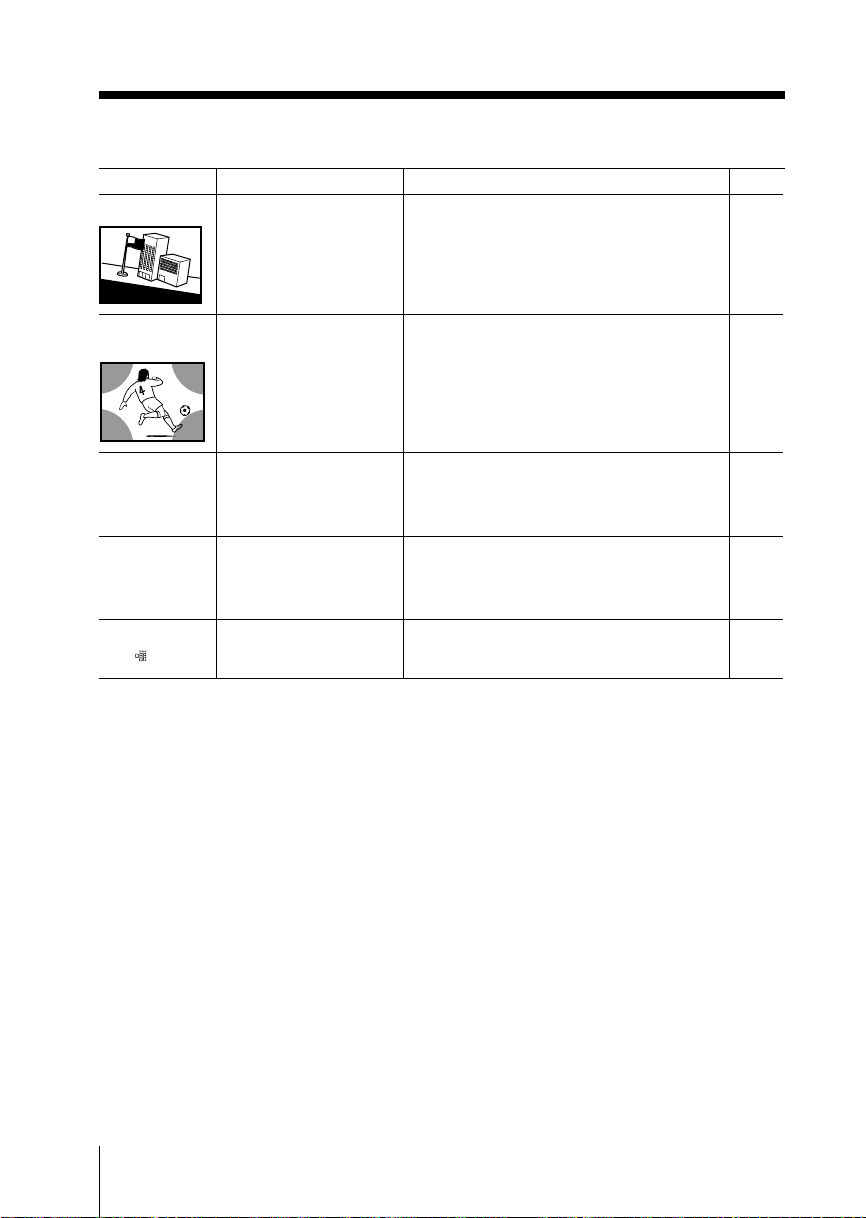

12 Menu Adjustment
Level 3/Function
Select the picture mode:
Page
15
“Dynamic” t “Standard” t “Soft” t “Personal”
Adjust the “Personal” option:
“Picture” t “Brightness” t “Color” t
“Hue” t “Sharpness” t “Reset”
Adjust white color tint:
“Cool” t “Neutral” t “Warm”
”
Sharpen the edges of each object:
“High” t “Low” t “Off”
Optimize picture quality:
“On” t “Off”
Select the sound mode:
16
“Dynamic” t “Drama” t “Soft” t “Personal”
Adjust sound frequency settings of “Personal” option:
(KV-AR34M80B/AR29M80B/AR25M80B only)
“Adjust” t “Reset”
Adjust the “Personal” option:
(KV-AR34X80B/AR29X80B only)
“Treble” t “Bass” t “Reset”
Select to emphasize the left and right speakers.
Adjust volume automatically:
“On” t “Off”
Select the surround mode:
“On” t “Simulated” t “Off”
Level 1
“Timer”
Level 2
“Sleep Timer”
“Wake Up Timer”
Level 3/Function
Set TV to turn off automatically.
Set TV to turn on automatically.
Page
18
“Channel Setup”
“Setup”
“Auto Program”
“Manual Program”
“TV System”
“Program Label”
“Program Block”
“Language”
“Picture Rotation”
“Wide Mode”
“Video Label”
“Color System”
Preset channels automatically.
Preset channels manually.
Select the TV system:
“B/G” t “ I” t “D/K” t “M”
Label the program number.
Block unwanted programs.
Change the menu language:
“English” t “ ” (Chinese)
Adjust the picture position.
Change the picture size:
“On” (16:9 wide-mode) t “Off”
Label the connected equipment.
Select the color system:
“Auto” t “PAL” t “SECAM” t“NTSC3.58” t
“NTSC4.43”
19
21
continue
Menu Adjustment
13
0
continued

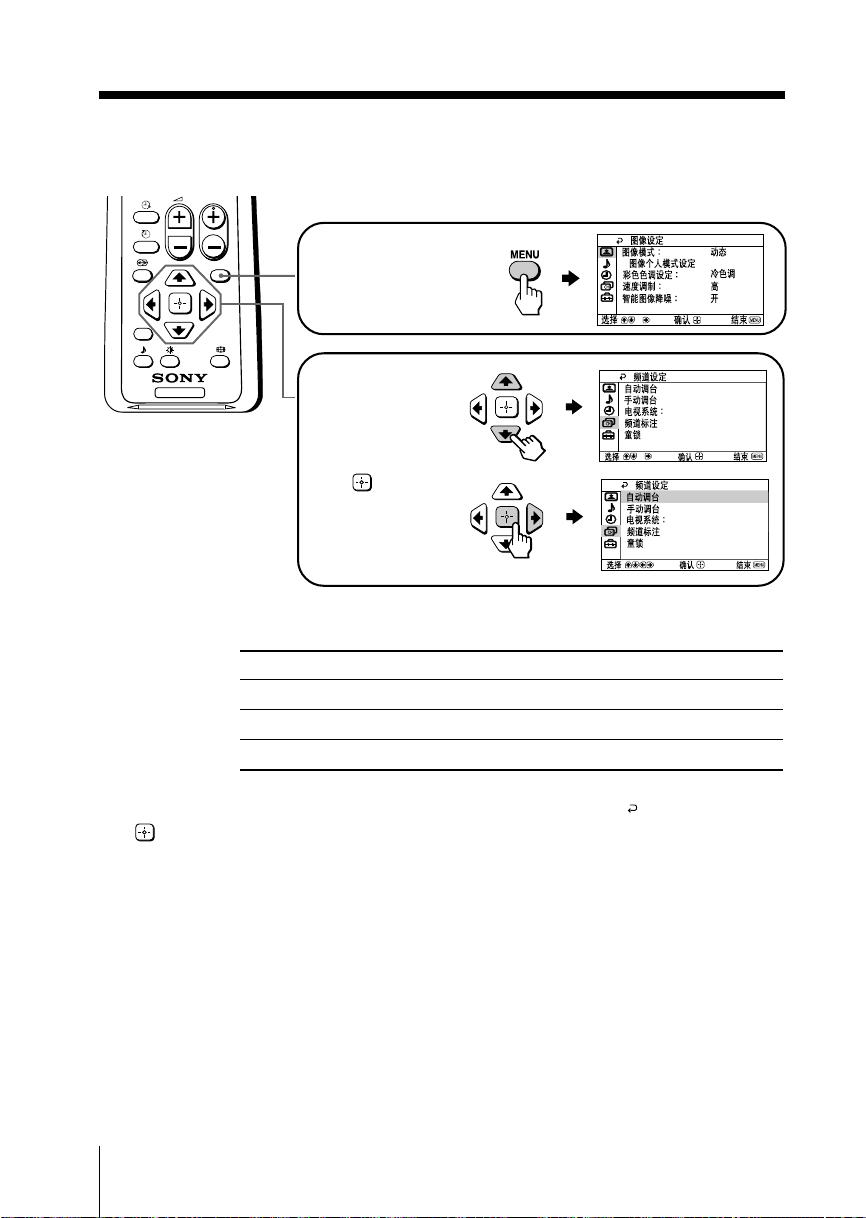

How to use the menu
RESET
PROG
MENU
Press MENU to
display the menu.
Mode: Dynamic
Picture Adjustment
Color Temperature: Cool
VM:
Intelligent Picture: On
Select
Confirm
High
End
Press V or v to select
TV
Press
(or b) to
confirm your
selection and
go to the next
level.
the desired item.
Auto Program
Manual Program
TV System:
Program Label
Program Block
Select
Auto Program
Manual Program
TV System:
Program Label
Program Block
Select
Channel Setup
Confirm
Channel Setup
Confirm
D/K
End
D/K
End
Other menu operations
To
Adjust the setting value
Move to the next/previous menu level
Cancel the menu
Press
V, v, B or b.
B or b.
MENU.
Tips
• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is
highlighted, then press .
• The MENU, t and 2 +/– buttons on the TV front panel can also be used for the operations
above (see page 8).
14 Menu Adjustment

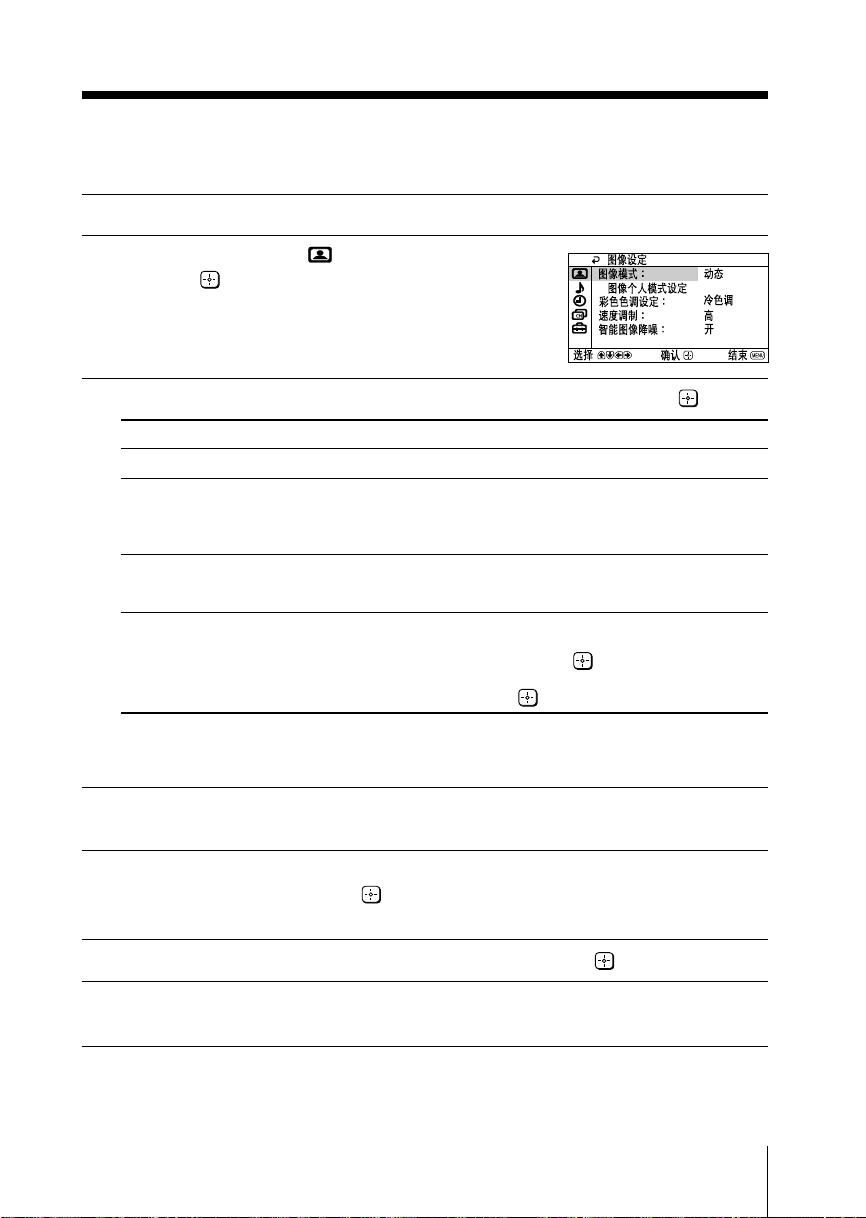

x Changing the “Picture” setting
The “Picture” menu allows you to adjust the picture settings.
Press MENU.
1
Make sure the “Picture” icon ( ) is
2
selected, then press
Press V or v to select the desired item (e.g., “Mode”), then press .
3
Select To
“Mode” choose either “Dynamic”, “Standard”, “Soft” or “Personal”* (see
“Color Temperature” adjust white color tint.
“VM” sharpen the edges of each object.
(Velocity Modulation) Choose either “High”, “Low” or “Off”.
“Intelligent Picture” optimize picture quality.
.
page 11).
Choose either “Cool” (blue tint), “Neutral” (neutral tint) or
“Warm” (red tint).
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
Mode: Dynamic
Picture Adjustment
Color Temperature: Cool
VM:
Intelligent Picture: On
Select
Confirm
High
End
*You can adjust the setting to your personal preference in the “Picture Adjustment” ,
“Color Temperature” and “VM” options only when the “Personal” mode is selected.
Adjusting the “Picture Adjustment” items under
“Personal” mode
Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
1
“Hue” (color tones) or “Sharpness”, then press
Selecting “Reset” will set your TV to the factory setting.
Press V,v,B or b to adjust the setting of your selected item, then press .
2
Repeat the above steps to adjust other items.
3
The adjusted settings will be received when you select “Personal”.
Notes
• “Hue” can be adjusted for the NTSC color system only.
• Reducing “Sharpness” can also reduce picture noise.
.
Menu Adjustment
15

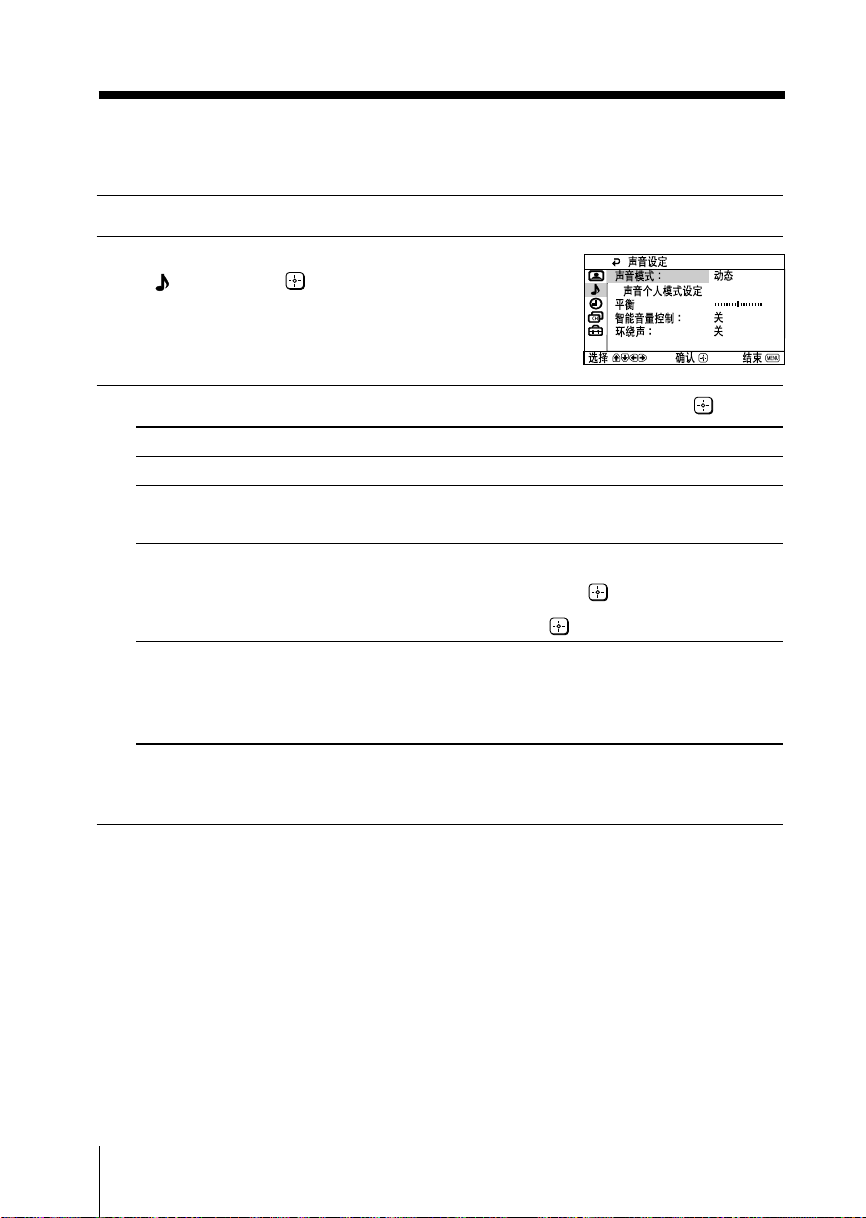

x Changing the “Sound” setting
Balance
Intelligent Volume:
Surround: Off
Off
Sound Adjustment
Dynamic
Mode:
Sound
Confirm
End
Select
The “Sound” menu allows you to adjust the sound settings.
Press MENU.
1
Press V or v to select the “Sound” icon ( ),
2
then press
Press V or v to select the desired item (e.g., “Mode”), then press .
3
Select To
“Mode” choose either “Dynamic”, “Drama”, “Soft” or “Personal”*
“Balance” Press v or B to emphasize the left speaker.
“Intelligent Volume” adjust the volume of all program numbers and video inputs
“Surround” choose either “On”, “Simulated” or “Off” (see page 9).
(KV-AR34M80B/
AR29M80B/
AR25M80B only)
.
(see page 11).
Press V or b to emphasize the right speaker.
automatically.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
16 Menu Adjustment
*You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Personal” mode is selected (see page 17).

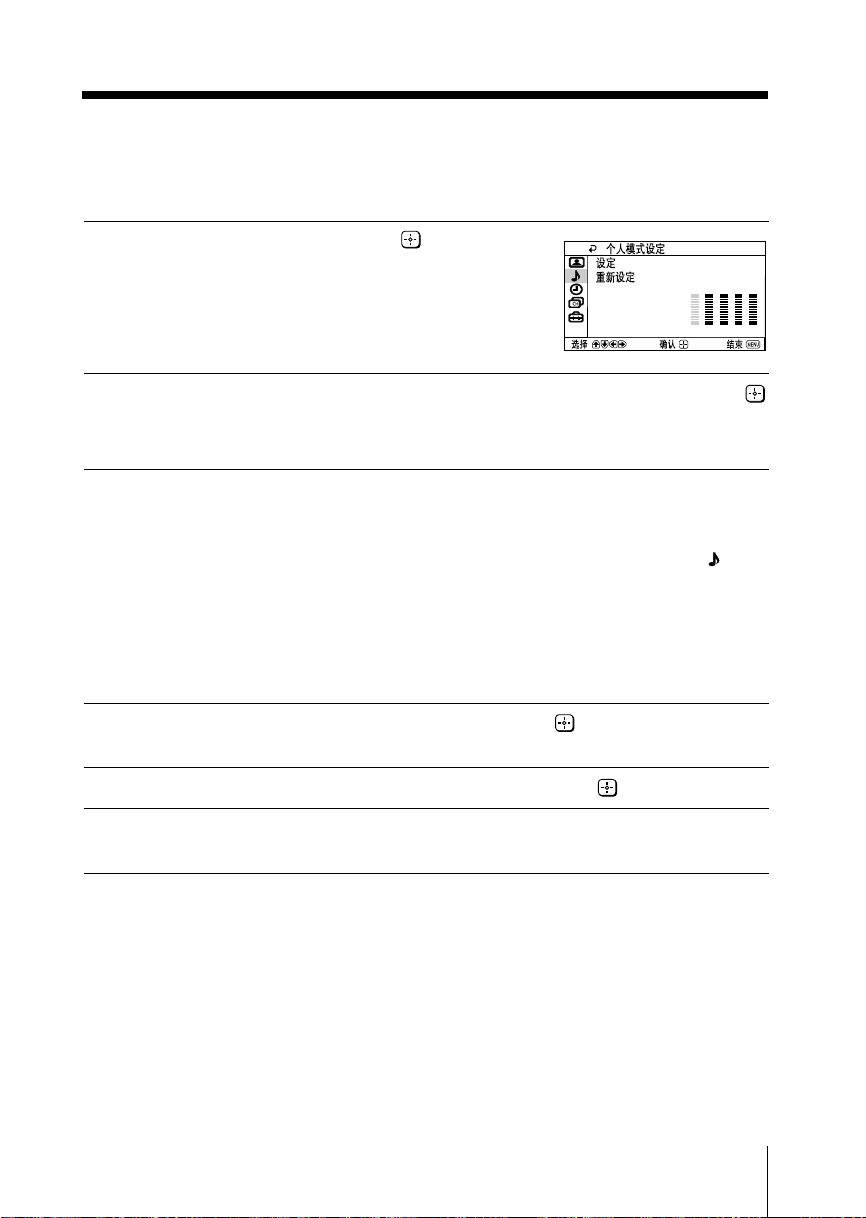

Adjusting the “Sound Adjustment” item under
“Personal” mode (KV-AR34M80B/AR29M80B/AR25M80B
only)
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Personal” mode in the menu.
Make sure that “Adjust” is selected,
1
then press
Selecting “Reset” will set your TV to
the factory setting.
Press B or b to select the desired sound frequency, then press V or v to
2
adjust the setting and press
The adjusted settings will be received when you select “Personal”.
Notes
• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency
will affect lower pitched sound.
•You may display the settings directly using the SOUND MODE button on the TV front panel
(see page 8) or button on the remote control (see page 10).
.
.
Select
Adjust
Reset
Adjustment: Personal
100 300 1k 3k 8k
Confirm
End
Adjusting the “Sound Adjustment” items under
“Personal” mode (KV-AR34X80B/AR29X80B only)
Press V or v to select either “Treble” or “Bass”, then press .
1
Selecting “Reset” will set your TV to the factory setting.
Press V,v,B or b to adjust the setting of your selected item, then press .
2
Repeat the above steps to adjust other items.
3
The adjusted settings will be received when you select “Personal”.
Menu Adjustment
17
Loading...
