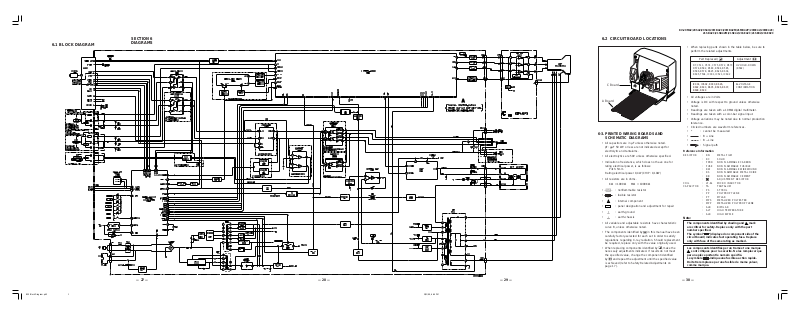

6.1 BLOCK DIAGRAM
SECTION 6
DIAGRAMS
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
6.2 CIRCUIT BOARD LOCATIONS
•When replacing parts shown in the table below, be sure to
perform the related adjustments.
C Board
A Board
6-3.PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS
•All capacitors are in µF unless otherwise noted.
pF: µµF 50 WV or less are not indicated except for
electrolytic and tantalums.
•All electrolytics are 50V unless otherwise specified.
•Indication of resistance, which does not have one for
rating electrical power, is as follows:
Pitch: 5mm
Rating electrical power 1/4W (CHIP: 1/10W)
•All resistors are in ohms.
KΩ = 1000Ω MΩ = 1000KΩ
•
•
•
•
•
•
•All variable and adjustable resistors have characteristic
•The components identified by
•When replacing components identified by
:nonflammable resistor
:fusible resistor
:internal component
:panel designation and adjustment for repair
:earth-ground
:earth-chassis
curve B, unless otherwise noted.
in this manual have been
carefully factory-selected for each set in order to satisfy
regulations regarding X-ray radiation. Should replacement
be required, replace only with the value originally used.
, make the
necessary adjustments indicated. If results do not meet
the specified value, change the component identified
and repeat the adjustment until the specified value
by
is achieved (refer to Safety Related Adjustments on
page 17).
Part Replaced ( )
DY, C511, C574, C575, D572, D573,
D574, R582, R583, R584, R585,
R586, R578, R625, R626, R634,
R635, T504, IC301, IC521, IC602
Adjustment ( )
HV HOLD-DOWN
(R582)
IC001, IC602, R030, R626,
R632, R633, R635, R636, R637,
R638, R639
B+ VOLTAGE
CONFIRMATION
•All voltages are in Volts
•Voltage is DC with respect to ground unless otherwise
noted.
•Readings are taken with a 10MΩ digital multimeter.
•Readings are taken with a color-bar signal input.
•Voltage variations may be noted due to normal production
tolerance.
•Circled numbers are waveform references.
•* :cannot be measured
-----
:B + Line
:B − Line
:Signal path
•
•
•
Reference Information
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NON FLAMMABLE CARBON
: FUSE NON FLAMMABLE FUSIBLE
: RW NON FLAMMABLE WIREWOUND
: RS NON FLAMMABLE METAL OXIDE
: RB NON FLAMMABLE CEMENT
COIL : LF-8L MICRO INDUCTOR
:
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
ADJUSTMENT RESISTOR
Note:
The components identified by shading and mark
are critical for safety. Replace only with the part
number specified.
The symbol
circuit board) indicates fast operating fuse. Replace
only with fuse of the same rating as marked.
Les composants identifiés per un tramé et une marque
sont critiques pour la sécurité. Ne les remplacer que
par une piéce portant le numéro spécifié.
Le symbole
Doit etre remplacee par une fusible de meme yaleur,
comme marque.
(displayed on component side of the
indique une fusible a action rapide.
855 Block Diagram.p65 3/31/99, 6:44 PM1
— 28 — — 29 — — 30 —— 27 —
Page 2
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
A BOARD: IC521 NJM4558M-TE2
[TUNING CONTROL, Y/C/J, POWER SUPPL Y , DEFLECTION, TUNER/IF, AUDIO MTS]
1234567891011
12
A BOARD: IC301 CXA2061S
A BOARD: IC541 TDA8172
A BOARD LOCATION LIST
DIODE
D001 F-9 D520 C-4 D635 A-1 1 Q001 F-9 Q358 G-4
D002 F-10 D541 E-3 D636 C-10 Q002 F-8 Q359 G-8
D003 H-7 D552 C-2 D637 A-11 Q003 E-8 Q380 G-8
D004 H-7 D561 C-2 D638 C-10 Q200 G-3 Q390 F-8
D201 F-2 D562 C-1 D650 H-6 Q201 G-1 Q391 F-6
D202 G-2 D571 C-2 D653 A-5 Q202 E-6 Q392 G-9
D203 H-11 D572 E-2 D670 D-9 Q203 E-9 Q393 F-8
D204 H-11 D573 E-3
D205 D-5 D574 E-3 IC001 G-9 Q206 F-4 Q501 C-5
D206 E-9 D581 E-2 IC002 H-10 Q207 F-5 Q502 B-5
D207 G-2 D601 C-7 IC003 H-9 Q252 G-9 Q556 E-8
D208 E-8 D602 D-8 IC004 F-11 Q300 F-8 Q571 D-2
D209 G-2 D603 B-8 IC200 G-3 Q301 F-7 Q601 D-7
D210 H-2 D609 B-6 IC201 F-4 Q302 F-7 Q602 F-8
D215 E-6 D611 D-6 IC202 G-2 Q303 F-3 Q605 D-6
D280 H-11 D613 C-7 IC301 G-7 Q305 F-8 Q606 E-8
D301 F-2 D614 C-7 IC302 G-5 Q340 F-4 Q607 B-10
D302 F-7 D615 C-7 IC400 E-5 Q350 G-6 Q608 D-8
D310 F-8 D616 B-6 IC401 F-5 Q351 G-6 Q650 G-6
D31 1 F-8 D617 C-6 IC402 I-4 Q352 G-6 Q670 E-9
D320 F-7 D620 B-5 IC521 E-3 Q353 G-6
D403 E-10 D631 C-9 IC541 D-3 Q354 F-7
D434 E-9 D632 B-9 IC601 B-8 Q355 G-7
D501 B-4 D633 B-10 IC602 D-6 Q356 G-7
D502 C-3 D634 A-1 1
IC
TRANSISTOR
Q205 G-6 Q394 G-8
Q357 G-7
A
B
C
D
E
F
G
A Board
855 A PWB page.p65 3/31/99, 7:52 PM1
— 31 —
— 32 —
H
I
— 33 —
— 34 —
Page 3
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
IC001 IC002 IC301 IC302
6GND
IC601
PIN VOLT PIN VOLT PIN VOLT PIN VOLT 7 .8 PIN VOLT
1 .9 1 7.0 1 3.4 1 5.1 8 6.5 1 -55.3
2 4.9 2 GND 2 5.2 2 0 9 GND 2 -57.2
3 .5 3 5.4 3 1.3 3 0 10 6.5 3 94.8
42.0 4GND 45.3 45.0 116.5 4-41.6
5 0 5GND 54.9 51.3 12GND 5-57.1
6 .1 6 4.9 6 4.5 6 0
IC402 IC602
7 NC 7 GND 7 2.0 7 5.1 PIN VOLT PIN VOLT
8 NC 8 4.9 8 5.1 8 1.1 1 4.5 1 2.5
9NC
IC003
9 0 9 5.1 2GND 2GND
10 0 PIN VOLT 10 GND 10 .8 3 4.5 3 10.9
11 .1 1 GND 11 3.8 11 0 4 4.5
All voltages are in V
12 4.9 2 GND 12 2.4 12 2.0 5 4.6
13 0 3 GND 13 3.5 13 2.8 6 4.5
14 4.9 4 GND 14 3.5 14 1.0 7 4.5
15 4.9 5 4.8 15 5.8 15 2.1 8 4.2
16 -.1 6 4.8 16 7.6 16 0 9 4.5
17 -.3 7 GND 17 .7 17 0 10 1.8
18 4.9 8 5.0 18 .8 18 0 11 4.9
19 4.9
IC004
19 3.0 19 0 12 4.9
20 1.8 PIN VOLT 20 2.6 20 0 13 1.6
21 0 1 4.9 21 1.0 21 0 14 4.5
22 2.2 2 4.9 22 1.5 22 5.1 15 4.5
23 0 3 0 23 1.5 23 5.0 16 4.5
24 2.2
IC200
24 1.5 24 0 17 4.5
25 2.3 PIN VOLT 25 .1 25 2.4 18 4.5
26 GND 1 5.9 26 4.4 26 0 19 4.6
27 4.9 2 .2 27 4.4 27 2.5 20 4.6
28 NC 3 6.1 28 4.4 28 5.1 21 9.1
29 NC 4 .2 29 0 29 2.3 22 4.5
30 4.9 5 6.1 30 4.6 30 2.3
IC521
31 4.9 6 9.1 31 4.6
IC400
PIN VOLT
32 0 7 5.3 32 4.6 PIN V OLT 1 12.5
33 4.9 8 GND 33 9.0 1 NC 2 .7
34 2.6
IC201
34 4.9 2 12.6 3 .9
35 0 PIN VOLT 35 4.9 3 2.4 4 GND
36 4.9 1 5.9 36 .1 4 GND 5 8.6
37 4.9 2 .2 37 4.4 5 0.8 6 9.8
38 4.9 3 6.1 38 5.1 6 6.0 7 1.3
39 4.8 4 .2 39 5.1 7 GND 8 12.9
40 0 5 6.1 40 GND 8 6.0
IC541
41 0 6 9.1 41 5.3 9 NC PIN VOLT
42 .1 7 5.3 42 7.2
IC401
12.6
43 4.9 8 GND 43 5.5 PIN V OLT 2 12.9
44 .1
IC202
44 9.1 1 .8 3 -11.1
45 4.9 1 6.8 45 5.3 2 NC 4 -12.9
46 4.9 2 6.8 46 4.8 3 2.4 5 0
47 0 3 6.8 47 1.9 4 13.6 6 13.6
480 4GND480 52.4 72.4
49 0 5 6.8
50 0 6 6.8
51 0 7 6.8
52 0 8 13.6
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
A BOARD SCHEMATIC DIAGRAM
123456789101112131415
A
B
C
D
16 17 18 19
20
A BOARD WAVEFORMS
1 2 3
253.1mV p-p (H) 3.5V p-p (8 MHz) 1.5V p-p (H)
5
2.0V p-p (H)
6
1.1V p-p (V)
9 10 11 12
1.4V p-p (V)
5.7V p-p (H)
13 14
2.8V p-p (H)
3.2V p-p (H)
17 18
7 8
1.8V p-p (H)
4.4V p-p (V)
15
1.5V p-p (H) 1.1V p-p (H)
19
4
4.2V p-p (V)
1.4V p-p (V)
3.1V p-p (H)
16
20
E
F
G
H
855 A Schematic.p65 3/31/99, 6:52 PM1
I
J
K
L
M
N
O
— 35 —
1.4V p-p (H)
2.6V p-p (H)
90V p-p (H)
21 22 23 24
1.05kV p-p (H) 28.0V p-p (V)
52.8V p-p (V)
25 26
6.1V p-p (V)
A BOARD IC VOLTAGE LIST
110.6V p-p (H)
A BOARD TRANSISTOR
VOLTAGE LIST
Q001 4.9 0.7 4.8
Q002 .4 0 .9
Q003 .4 0 .9
Q200 .7 0 GND
Q201 .7 0 GND
Q202 1.4 .7 GND
Q203 1.7 GND .8
Q204 0 .5 GND
Q205 4.5 GND 5.2
Q206 4.9 0 3.9
Q207 4.9 0 3.9
Q252 0 7.4 0
Q300 .6 .8 GND
Q301 3.6 1.0 3.9
Q302 3.6 GND 3.9
Q303 .7 .1 0
Q305 3.9 GND 4.4
Q340 1.2 5.0 1.3
Q350 .8 GND 1.5
Q351 1.5 8.4 .9
Q352 8.4 1.2 9.0
Q353 1.2 GND 1.8
Q354 1.1 GND 1.7
Q355 1.7 8.4 1.1
Q356 8.4 1.4 9.0
Q357 1.4 GND 2.0
Q358 6.0 9.1 5.3
Q359 3.8 5.2 4.5
Q380 4.8 GND 5.4
Q390 5.7 9.0 5.0
Q391 4.5 9.1 3.8
Q392 0 GND 2.9
Q393 2.3 GND 2.9
Q394 2.2 GND 2.9
Q501
Q502−3.1 111.9−3.1
Q556 2.1 4.4 1.5
Q571 110.8 10.7 111.6
Q601 0 13 GND
Q602 .9 3.6 .4
Q605 9.8 10.8 9.1
Q606 .1 3.9 GND
Q608 .4 1.5 0
Q650 5.7 9.1 5.1
Q670 .7 .1 0
Q607 1.5 0 152.3
— 36 — — 37 — — 38 —
18.9V p-p (H)
29.4V p-p (V)
BCE
−
.7 48.0 GND
GSD
All voltages are in V
Page 4
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
C BOARD
IC VOLTAGE LIST
IC1751
PIN VOLT
12.1
22.2
32.1
4GND
53.7
6 193.4
7 146.5
8 133.8
9 134.9
All voltages are in V
C BOARD WAVEFORMS
1 2 3
148.4V p-p (H) 118.8V p-p (H) 122.5V p-p (H)
R,G,B DRIVE
CRT DRIVE
123456
A
B
C
A BOARD (*) MARK VARIANT LIST
KV-21MB42C
KV-21MB42M
REF NO. LOC. KV-20M42
C202 B-11 # # # 1 1 1 1
C206B-9###1111
C207 B-12 # # # # # # 0. 47
C208 B-12 # # # # # # 0. 47
C209 B-13 # # # # # # 4.7
C211 B-14 # # # # # # 10
C212 C-13 # # # # # # 4.7
C213 C-13 # # # # # # 10
C214 C-16 # # # 0.22 0.22 0.22 0.22
C216 C-17 # # 0.47 0.47 0.47 0.47 0.47
C220 B-18 # # 470 25V 470 25V 470 25V 470 25V 470 25V
C229 G-2 # # # # # # 0.01
C233 D-6 # # # 1 1 1 1
C234 D-8 10 10 10 10 10 10 #
C260 D-16 1 1 1 # # # #
C304 H-11 # # # # # # 0.1 25V F
C307 H-12 # # # # # # 10
C340 F-14 # # # # # # 1
C348 I-17 # # # # # # 330p
C350 G-16 # # # # # # 0.01
C351 G-16 # # # # # # 10
C352 G-16 # # # # # # 0.01
C353 G-17 # # # # # # 0.1 25V
C354 G-17 # # # # # # 0.1 25V
C355 G-17 # # # # # # 0.22 25V
C356 G-18 # # # # # # 0.1 25V
C357 F-17 # # # # # # 0.01
C358 F-17 # # # # # # 47 25V
C359 F-17 # # # # # # 0.01
C360 F-16 # # # # # # 0.01
C361 F-15 # # # # # # 0.022
C362 I-12 # # # # # # 10
C400 D-13 # # # # # # 4.7
C401 D-14 # # # # # # 0.1
C402 D-14 # # # # # # .0047
C403 D-14 # # # # # # 4.7
C404 D-14 # # # # # # 4.7
C405 D-14 # # # # # # 4.7
C406 D-15 # # # # # # 4.7
C407 D-15 # # # # # # 10
C410 D-15 # # # # # # 4.7
C411 D-15 # # # # # # 0.1
C412 D-14 # # # # # # 0.1
C413 D-14 # # # # # # 47
C414 D-14 # # # # # # .0047
C415 D-14 # # # # # # 0.1
C416 D-14 # # # # # # 4.7
C418 F-9 10 10 10 10 10 10 4.7
C601 N-2 0.47 125V 0.47 300V 0.47 300V 0.47 125V 0.47 300V .47 300V 0.47 300V
C613 L-2 470 250V 330 400V 330 400V 470 250V 330 400V 330 400V 330 400V
C616 L-3 # 0.022 400V 0.022 400V # 0.022 400V 0.022 400V 0.022 400V
C617 M-3 # 220pF 1KV 220pF 1KV # 220pF 1KV 220pF 220pF 1KV
C638 M-2 0.47 # # 0.47 # # #
CN401 D-19 # # 2P 2P 2P 2p 2P
D202 B-11 # # # MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B
D204 B-8 # # # MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B
D206 H-2 # # # # # # MTZJ-T-77-10B
D207 D-11 # # # # # # RD3.3ES-T1B
D215 B-16 MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B # # # #
D280 G-3 # # # # # # MTZJ-T-77-10B
D609 L-3 # RU-1P RU-1P # RU-1P RU-1P RU-1P
FB350 G-16 # # # # # # JW 5MM
IC200 D-11 # # # NJM2521M-TE1 NJM2521M-TE1 NJM2521M-TE1 NJM2521M-TE1
IC202 C-13 # # # # # # NJM4558M-TE2
IC302 F-16 # # # # # # CXD2073S
IC400 B-16 TDA7056B/N1 TDA7056B/N1 # # # # #
IC401 B-18 # # TDA7057AQ/N2 TDA7057AQ/N2 TDA7057AQ/N2 TDA7057AQ/N2 TDA7057AQ/N2
IC402 C-14 # # # # # # CXA2021S
IC601 L-4 STR-F6624 STR-F6654 STR-F6654 STR-F6624 STR-F6654 STR-F6654 STR-F6654
J200 A-12 # # # # # # 2P
KV-21MB42P
KV-21ME42
KV-21ME42C
KV-20S42
KV-20S43
KV-21SB42C
KV-21SB42M
KV-21SE42
KV-21SE42C
KV-21SE82
KV-21SE82C
REF NO. LOC. KV-20M42
J201 B-10 2P 2P 2P 3P 3P 3P 3P
J202 B-8 2P 2P 2P 3P 3P 3P 3P
JW203 C-18 7.5MM 7.5MM # # # # #
JW380 F-13 # # # # # # 7.5MM
JW690 L-1 5MM # # 5MM # # #
JW691 L-1 5MM # # 5MM # # #
L351 F-17 # # # # # # 47µH
L352 F-16 # # # # # # 10µH
PS201 C-17 1-532-637-00 1-532-637-00 1-532-984-11 1-532-984-11 1-532-984-11 1-532-984-11 1-532-984-11
Q200 D-12 #
Q201 D-12 # # # # # # 2SD601A
Q202 D-17 2SD601A 2SD601A 2SD601A # # # #
Q206 C-16 # # # # # # 2SD601A
Q207 D-16 # # # # # # 2SD601A
Q340 F-14 # # # # # # 2SD601A
Q350 H-17 # # # # # # 2SB709A
Q351 H-17 # # # # # # 2SD601A
Q352 G-16 # # # # # # 2SB709A
Q353 H-16 # # # # # # 2SB709A
Q354 I-17 # # # # # # 2SB709A
Q355 H-17 # # # # # # 2SD601A
Q356 H-16 # # # # # # 2SB709A
Q357 I-15 # # # # # # 2SB709A
Q358 I-12 # # # # # # 2SD601A
Q359 I-11 # # # # # # 2SB709A
Q380 F-14 # # # # # # 2SB709A
R010 G-7 # # # 220 220 220 220
R011 G-7 # # # 220 220 220 220
R051 G-7 # # # 220 220 220 220
R053 F-8 # # # # # # 220
R070 G-8 # # # 4.7K 4.7K 4.7K 4.7K
R071 G-8 # # # 4.7K 4.7K 4.7K 4.7K
R080 F-7 # # # # # # 10K
R202 B-11 # # # 470K 470K 470K 470K
R206 B-9 # # # 470K 470K 470K 470K
R214 B-12 # # # # # # 470K
R215 B-12 # # # # # # 220
R216 B-13 # # # # # # 470K
R217 B-13 # # # # # # 220
R218 B-13 # # # # # # 5.6K
R219 B-13 # # # # # # 10K
R220 B-13 # # # # # # 10K
R221 B-13 # # # # # # 10K
R222 C-13 # # # # # # 5.6K
R223 D-13 # # # # # # 10K
R224 C-13 # # # # # # 10K
R225 C-13 # # # # # # 10K
R226 D-11 # # # # # # 4.7K
R227 D-12 # # # # # # 100K
R228 D-12 # # # # # # 4.7K
R229 D-12 # # # # # # 100K
R230 B-14 # # 12K 12K 12K 10K #
R231 D-16 # # 12K 12K 12K 10K #
R232 C-16 # # # # # # 10K
R233 D-16 # # # # # # 10K
R234 C-16 # # 3.3K 3.3K 3.3K 3.3K 2.2K
R235 D-16 3.3K 3.3K 3.3K 3.3K 3.3K 3.3K 2.2K
R237 B-18 # # 220 220 220 220 220
R238 C-18 # # 1K 1K 1K 1K 1K
R241 G-8 # # # 4.7K 4.7K 4.7K 4.7K
R245 C-17 # # 0 # # # #
R246 B-3 0 0 0 # # # #
R247 C-16 # # # # # # 100
R248 D-16 # # # # # # 100
R249 C-16 # # # # # # 22K
R250 D-16 # # # # # # 22K
R260 D-16 100K 100K 100K # # # #
R261 D-16 100K 100K 100K # # # #
R262 D-17 100 100 100 # # # #
R268 C-17 # # 3.3K 3.3K 6.8K 5.6K 22K
R269 D-17 5.6K 6.8K 3.3K 3.3K 3.3K 5.6K 22K
KV-21MB42C
KV-21MB42M
KV-21MB42P
#
KV-21ME42
KV-21ME42C
# # # # 2SD601A
KV-20S42
KV-20S43
KV-21SB42C
KV-21SB42M
KV-21SE42
KV-21SE42C
KV-21SE82
KV-21SE82C
KV-21MB42C
REF NO. LOC. KV-20M42
R283 G-2 # # # # # # 75
R287 G-3 # # # # # # 4.7K
R303 F-13 # # # # # # 100
R341 G-15 # # # # # # 47
R342 F-15 # # # # # # 100K
R343 F-14 # # # # # # 10K
R344 F-14 # # # # # # 3.3K
R350 G-17 # # # # # # 220
R351 G-17 # # # # # # 220
R352 G-17 # # # # # # 3.3K
R354 G-18 # # # # # # 3.3K
R357 F-16 # # # # # # 56K
R358 F-16 # # # # # # 560
R359 G-17 # # # # # # 2.2K
R360 H-17 # # # # # # 220pF
R361 G-17 # # # # # # 1K
R362 H-17 # # # # # # 560
R363 H-16 # # # # # # 330
R364 G-16 # # # # # # 100
R365 H-16 # # # # # # 0
R366 G-16 # # # # # # 1.5K
R367 H-17 # # # # # # 2.2K
R368 I-17 # # # # # # 100
R369 I-16 # # # # # # 680
R370 G-17 # # # # # # 220
R372 I-16 # # # # # # 270
R373 H-16 # # # # # # 100
R374 I-16 # # # # # # 100
R375 H-15 # # # # # # 1.5K
R376 I-12 # # # # # # 1K
R377 I-12 # # # # # # 1K
R378 I-11 # # # # # # 470
R379 H-16 # # # # # # 1K
R380 G-17 # # # # # # 2.2K
R382 E-14 # # # # # # 1.5K
R387 I-17 # # # # # # 100
R388 G-17 # # # # # # 100
R395 I-11 # # # # # # 100
R396 G-16 # # # # # # 100
R397 H-15 # # # # # # 100
R400 F-8 56K 56K 22K 22K 22K 22K 22K
R402 D-15 # # # # # # 1M
R403 D-15 # # # # # # 220
R404 D-15 # # # # # # 220
R432 F-9 33K 33K 12K 12K 12K 12K 8.2K
R433 F-9 27K 27K 12K 12K 12K 12K #
R651 M-2 4.7M 8.2M 8.2M 4.7M 8.2M 8.2M 8.2M
R652 M-1 # 1.8 1.8 # 1.8 1.8 1.8
R658 L-3 # 100K 100K # 100K 100K 100K
R664 L-2 390K 270K 270K 390K 270K 270K 270K
R698 L-2 JW 5.0mm 270K 270K JW 5.0mm 270K 270K 270K
T603 M-5 1-433-816-11 1-433-817-11 1-433-817-11 1-433-816-11 1-433-817-11 1-433-817-11 1-433-817-11
THP601 M-2 1-810-597-11 1-803-540-11 1-803-540-11 1-810-597-11 1-803-540-11 1-803-540-11 1-803-540-11
TU101 A-2 8-598-430-00 8-598-430-00 8-598-430-00 8-598-431-00 8-598-431-00 8-598-431-00 8-598-431-00
VDR601 N-2 1-803-585-11 1-803-587-11 1-803-587-11 1-803-585-11 1-803-587-11 1-803-587-11 1-803-587-11
KV-21MB42M
KV-21MB42P
KV-21ME42
KV-21ME42C
KV-20S42
KV-20S43
KV-21SB42C
KV-21SB42M
KV-21SE42
KV-21SE42C
KV-21SE82
KV-21SE82C
#: Not Mounted
D
C BOARD SCHEMATIC DIAGRAM
12345678
A
B
C
D
E
F
G
H
I
A Board
855 C Board.p65 3/31/99, 7:03 PM1
C Board
— 39 —
— 40 — — 41 — — 42 —
Page 5
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
CATHODE
ANODE
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
2SA1091
2SD1292
2SB709
2SD601A
2SD2137
E
C
B
E
C
B
2SC3311A
C
B
E
LETTER SIDE
E
C
B
2SC5426
E
2SK2845
C
B
G
D
S
2SC3209
2SD774
E
C
B
1SS133T-77
D3SB60F
D1NS4-TA
D1N20R-TA
RD3.3ES-T1B
CATHODE
ANODE
MA111-TX RU4AM-T3
ANODE
CATHODE
CATHODE
ANODE
ERC04-06S
MTZJ-T-77-5.1C
MTZJ-T-77-5.6C
MTZJ-T-77-6.2C
MTZJ-T-77-8.2B
MTZJ-T-77-10B
MTZJ-T-77-30D
S2L20UF
S3L20UF4
RU-1P
UDZ-TE-17-5.1B
1SS83TD
D1NL20U-TA
EL1Z-V1
ERA22-08TP3
EZ0150AV1
RGP10GPKG23
GP08DPKG23
CATHODE
ANODE
43
Page 6
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C/21XE42C
SECTION 7
EXPLODED VIEWS
Items with no part number and no
description are not stocked because they
are seldom required for routine service.
Note:
The components identified by shading andmark are
critical for safety. Replace only with part number specified.
The component parts of an assembly
are indicated by the reference
numbers in the remarks column.
Note:
Les composants identifies per un trame et une marque
sont critiques pour la securite. Ne les remplacer
quepar une piece portant le numero specifie.
7-1. CHASSIS (KV-20S43/21SE42/42C/82/82C/ME42/42C)
4-384-096-01 SCREW 4X16 TAPPING +P
4-365-808-01 SCREW 5,TAPPING
7-685-663-79 SCREW +BVTP 4X16 TYPE 2 N-S
28
3
1
5
4
11
10
9
13
12
17
8
Items marked * are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
23
22
24
25
14
26
21
20
15
19
18
16
27
2
6
REF. NO. PART NO. DESCRIPTION REMARK
1 X-1036-731-1 BEZNET ASSY (KV-21ME42/42C) 2-4
1 X-4036-797-1 BEZNET ASSY (KV-20S43) 2-4
1 X-4036-730-1 BEZNET ASSY (KV-21SE42/42C) 2-4
1 X-4035-233-1 BEZNET ASSY (KV-21SE82/82C) 2-4
7
REF. NO. PART NO. DESCRIPTION REMARK
14 1-416-572-21 COIL, DEMAGNETIC (KV-20S43)
15 * A-1298-885-A A COMPLETE PC BOARD (KV-21SE82/82C)
15 * A-1298-893-A A COMPLETE PC BOARD (KV-20S43)
15 * A-1298-882-A A COMPLETE PC BOARD (KV-21ME42/42C)
15 * A-1298-832-A A COMPLETE PC BOARD (KV-21SE42/42C)
2 4-062-604-01 DOOR (KV-21SE42/42C/21SE82/82C)
2 4-062-596-11 DOOR (KV-20S43)
2 4-062-604-11 DOOR (KV-21ME42/42C)
16 1-751-057-11 CORD, POWER (KV-21SE42/82/ME42)
16 1-769-796-71 CORD, POWER (KV-21SE42C/82C/ME42C)
16 1-790-316-31 CORD, AC POWER (KV-20S43)
3 4-062-597-11 BUTTON, MULTI (KV-20S43)
3 4-062-603-01 BUTTON, MULTI (KV-21ME42/42C/SE82/82C)
17 * 4-062-609-01 BAFFLE, SPEAKER (KV-21SE82/82C ONLY)
18 1-505-404-11 SPEAKER (8CM) (KV-21SE82/82C)
3 4-062-603-11 BUTTON, MULTI (KV-21SE42/42C)
4 4-062-607-01 GUIDE, LED (KV-21ME42/42C/SE42/42C/82/82C)
4 4-062-599-01 GUIDE, LED (KV-20S43)
5 4-046-161-01 EMBLEM (NO.8), SONY
6 * 4-031-698-01 SHEET, ADHESIVE
7 8-738-768-05 CRT 21NX (SD-275)
(KV-20S43/21/ME42/SE42/82)
7 8-738-781-05 CRT 21NX (SD-275/SA)
(KV-21ME42C/SE42C/82C)
8 1-452-277-00 MAGNET, BMC
9 8-451-440-21 DY Y21NXA-X
10 4-053-005-01 SPACER, DY
11 3-704-372-31 HOLDER, HV CABLE
12 * A-1331-917-A C MOUNTED PC BOARD
13 * 4-375-394-01 SPRING, TENSION
14 1-416-951-11 COIL, DEGAUSS (KV-21ME42/42C/SE42/42C/82/82C)
19 X-4033-616-1 COVER ASSY, SPEAKER (KV-21SE82/82C ONLY)
20 8-598-430-00 TUNER, FSS BTF-FA401 (KV-21ME42/42C)
20 8-598-431-00 TUNER, FSS BTF-WA411
21 1-766-374-11 PLUG, F-PIN
22 4-068-826-01 LABEL, REAR COVER
23 4-062-610-03 COVER, REAR (KV-21SE82/82C)
23 4-062-598-44 COVER, REAR (KV-20S43)
23 4-062-602-03 COVER, REAR (KV-21SE42/42C)
23 4-062-602-23 COVER, REAR (KV-21ME42/42C)
24 4-051-735-22 PIECE A(75), CONV. CORRECT
25 1-452-032-00 MAGNET, DISC
26 1-453-283-21 FBT (NX-1744//X4E4)
27 * 4-064-221-01 SPONGE, ACOUSTIC (KV-21SE82/82C ONLY)
28 1-505-831-11 SPEAKER (9X5CM) (KV-20S43/21ME42/42C/)
28 1-505-930-11 SPEAKER (9X5CM) (KV-21SE42/42C)
44
(KV-20S43/21SE42/42C/82/82C)
Page 7
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
Note:
The components identified by shading andmark are
critical for safety. Replace only with part number specified.
Note:
Les composants identifies per un trame et une marque
sont critiques pour la securite. Ne les remplacer
quepar une piece portant le numero specifie.
7-2. CHASSIS (KV-20M42/S42/21MB42C/42M/42P/SB42C/42M)
7-685-648-79 SCREW + BVTP 3X12 TYPE 2 IT3
4-365-808-01 SCREW 5,TAPPING
7-685-663-79 SCREW +BVTP 4X16 TYPE 2 N-S
11
10
9
13
12
14
23
22
26
24
25
21
20
15
16
3
1
5
4
6
2
8
7
REF. NO. PART NO. DESCRIPTION REMARK
1 X-4035-231-1 BEZNET ASSY (KV-20M42/21MB42C) 2-4
1 X-4035-309-1 BEZNET ASSY (KV-20S42/21SB42C/42M) 2-4
1 X-4035-306-1 BEZNET ASSY (KV-21MB42P/42M) 2-4
2 4-062-596-21 DOOR (KV-20S42/21SB42C/42M)
2 4-062-596-01 DOOR (KV-20M42/21MB42C/42M/42P)
3 4-062-597-01 BUTTON, MULTI
4 4-062-599-01 GUIDE, LED
5 4-046-161-01 EMBLEM (NO.8), SONY
6 * 4-031-698-01 SHEET, ADHESIVE
7 8-738-768-05 CRT 21NX (SD-275)
7 8-738-781-05 CRT 21NX (SD-275/SA)
8 1-452-277-00 MAGNET, BMC
9 8-451-440-21 DY Y21NXA-X
10 4-053-005-01 SPACER, DY
11 3-704-372-31 HOLDER, HV CABLE
12 * A-1331-917-A C MOUNTED PC BOARD
13 * 4-375-394-01 SPRING, TENSION
14 1-416-951-11 COIL, DEGAUSS (KV-
14 1-416-572-21 COIL, DEMAGNETIC (KV-20M42/S42)
(KV-20M42/S42/21MB42C/42M/42P/SB42C/42M)
(KV-20M42/S42/21MB42P/42M/SB42M)
(KV-21MB42C/SB42C)
21MB42C/42M/42P/SB42C/42M
18
REF. NO. PART NO. DESCRIPTION REMARK
15 * A-1298-835-A A COMPLETE PC BOARD (KV-20M42)
15 * A-1298-883-A A COMPLETE PC BOARD (KV-21SB42C/42M)
15 * A-1298-893-A A COMPLETE PC BOARD (KV-20S42)
15 * A-1298-881-A A COMPLETE PC BOARD (KV-21MB42C/42P/42M)
16 1-751-057-11 CORD, POWER (KV-21MB42P/42M/SB42M)
16 1-790-001-21 CORD, AC POWER (KV-20M42/S42)
16 1-769-796-71 CORD, POWER (KV-21SB42C/MB42C)
18 1-505-831-11 SPEAKER (9X5CM)
18 1-505-270-11 SPEAKER (9X5CM) (KV-20M42/21MB42C/42M/42P)
20 8-598-430-00 TUNER, FSS BTF-FA401
20 8-598-431-00 TUNER, FSS BTF-WA411
21 1-766-374-11 PLUG, F-PIN
22 4-068-826-01 LABEL, REAR COVER
23 4-062-598-04 COVER, REAR
24 4-051-735-22 PIECE A(75), CONV. CORRECT
25 1-452-032-00 MAGNET, DISC
)
26 1-453-283-21 FBT (NX-1744//X4E4)
(KV-20S42/21SB42C/42M)
(KV-20M42/21MB42C/42M/42P)
(KV-20S42/21SB42C/42M)
(KV-20M42/S42/21MB42C/42M/42P/SB42C/42M)
45
Page 8
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C/21XE42C
NOTES:
46
Page 9
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
SECTION 8
ELECTRICAL PARTS LIST
PARTS LISTING TABLE OF CONTENTS
Description Page
A BOARD COMMON P ARTS LIST: Parts common to all models listed in this manual...........................46
A BOARD V ARIANT PARTS LIST : Parts that belong only to the model specified.
Refer to the designated variant parts list when seeking a part indicated by an asterisk (*) on
the A board schematic, or by the word “variant” on the common parts list.
Model Page
KV-20M42 ............................................55
KV-20S42/20S43 ............................................56
KV-21MB42C/42M/42P.......................................57
KV-21ME42/42C ............................................58
KV-21SB42C/42M ............................................59
KV-21SE42/42C ............................................60
KV-21SE82/82C ............................................61
C BOARD COMPLETE PARTS LIST.....................................................................................................54
P ACKAGING LIST AND ACCESSORIES..............................................................................................63
47
Page 10
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C/21XE42C
COMMON PARTS LISTING
Note:
The components identified by in this
manual have been carefully factoryselected for each set in order to satisfy
regulations regarding X-ray radiation.
Should replacement be required, replace
RESISTORS
All resistors are in ohms
F : nonflammable
When indicating parts by
reference number, please
include the board name.
only with the value originally used.
Items marked * are not stocked
sincethey are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
C047 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C048 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C050 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C051 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
* A BOARD, COMPLETE
A-1298-832-A (KV-21SE42/42C)
A-1298-885-A (KV-21SE82/82C)
A-1298-893-A (KV-20S42/20S43)
A-1298-883-A (KV-21SB42M/42C)
A-1298-882-A (KV-21ME42/42C)
A-1298-881-A (KV-21MB42C/42M/42P)
A-1298-835-A (KV-20M42)
1-533-223-11 HOLDER, FUSE
4-382-854-1 SCREW (M3X10), P, SW (+)
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
C001 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C004 1-104-664-11 ELECT 47µF 20% 25V
C005 1-126-960-11 ELECT 1µF 20% 50V
C006 1-163-035-00 CERAMIC CHIP 0.047µF 50V
C007 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C008 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C010 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C011 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C012 1-163-009-11 CERAMICCHIP 0.001µF 10% 50V
C013 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C014 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C017 1-126-960-11 ELECT 1µF 20% 50V
C019 1-163-135-00 CERAMIC CHIP 560pF 5% 50V
C020 1-130-495-00 FILM 0.1µF 5% 50V
C027 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C028 1-163-005-11 CERAMIC CHIP 470pF 10% 50V
C030 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C034 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C037 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C038 1-126-941-11 ELECT 470µF 20% 25V
C039 1-126-964-11 ELECT 10µF 20% 50V
C046 1-104-664-11 ELECT 47µF 20% 25V
C052 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C053 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C055 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C060 1-163-005-11 CERAMIC CHIP 470pF 10% 50V
C062 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C065 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C072 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C074 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C077 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C091 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C092 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C101 1-126-963-11 ELECT 4.7µF 20% 50V
C150 1-126-935-11 ELECT 470µF 20% 16V
C151 1-104-664-11 ELECT 47µF 20% 25V
C160 1-126-382-11 ELECT 100µF 20% 16V
C200 1-107-698-11 ELECT 10µF 20% 25V
C201 1-126-960-11 ELECT 1µF 20% 50V
C202 VARIANT (SEE VARIANT PARTS LIST)
C203 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V
C204 1-107-698-11 ELECT 10µF 20% 25V
C205 1-126-960-11 ELECT 1µF 20% 50V
C206 VARIANT (SEE VARIANT PARTS LIST)
C207 VARIANT (SEE VARIANT PARTS LIST)
C208 VARIANT (SEE VARIANT PARTS LIST)
C209 VARIANT (SEE VARIANT PARTS LIST)
C211 VARIANT (SEE VARIANT PARTS LIST)
C212 VARIANT (SEE VARIANT PARTS LIST)
C213 VARIANT (SEE VARIANT PARTS LIST)
C214 VARIANT (SEE VARIANT PARTS LIST)
C215 1-126-957-11 ELECT 0.22µF 20% 50V
C216 VARIANT (SEE VARIANT PARTS LIST)
C217 1-126-959-11 ELECT 0.47µF 20% 50V
C218 1-126-941-11 ELECT 470µF 20% 25V
C219 1-130-495-00 FILM 0.1µF 5% 50V
C220 VARIANT (SEE VARIANT PARTS LIST)
C221 1-126-941-11 ELECT 470µF 20% 25V
The components identified by
shading andmark
safety. Replace only with part
number specified.
Note:
Les composants identifies per un
trame et une marque
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
are critical for
sont critiques
48
Page 11
Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
C222 1-126-964-11 ELECT 10µF 20% 50V
C226 1-107-635-11 ELECT 4.7µF 20% 160V
C228 1-126-964-11 ELECT 10µF 20% 50V
C229 VARIANT (SEE VARIANT PARTS LIST)
C232 1-126-960-11 ELECT 1µF 20% 50V
C233 VARIANT (SEE VARIANT PARTS LIST)
C234 VARIANT (SEE VARIANT PARTS LIST)
C236 1-163-021-91 CERAMIC CHIP 0.01 µF 10% 50V
C243 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C260 VARIANT (SEE VARIANT PARTS LIST)
C301 1-163-233-11 CERAMIC CHIP 18pF 5% 50V
C303 1-126-964-11 ELECT 10µF 20% 50V
C304 VARIANT (SEE VARIANT PARTS LIST)
C305 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C306 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C307 VARIANT (SEE VARIANT PARTS LIST)
C308 1-126-964-11 ELECT 10µF 20% 50V
C309 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C310 1-126-960-11 ELECT 1µF 20% 50V
C311 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C312 1-126-942-61 ELECT 1000µF 20% 25V
C313 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C314 1-163-009-11 CERAMIC CHIP .001µF 10% 50V
C316 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C317 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C318 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C319 1-126-963-11 ELECT 4.7µF 20% 50V
C320 1-126-959-11 ELECT 0.47µF 20% 50V
C321 1-163-133-00 CERAMIC CHIP 470pF 5% 50V
C330 1-163-007-11 CERAMIC CHIP 680pF 10% 50V
C340 VARIANT (SEE VARIANT PARTS LIST)
C348 VARIANT (SEE VARIANT PARTS LIST)
C350 VARIANT (SEE VARIANT PARTS LIST)
C351 VARIANT (SEE VARIANT PARTS LIST)
C352 VARIANT (SEE VARIANT PARTS LIST)
C353 VARIANT (SEE VARIANT PARTS LIST)
C354 VARIANT (SEE VARIANT PARTS LIST)
C355 VARIANT (SEE VARIANT PARTS LIST)
C356 VARIANT (SEE VARIANT PARTS LIST)
C357 VARIANT (SEE VARIANT PARTS LIST)
C358 VARIANT (SEE VARIANT PARTS LIST)
C359 VARIANT (SEE VARIANT PARTS LIST)
C360 VARIANT (SEE VARIANT PARTS LIST)
C361 VARIANT (SEE VARIANT PARTS LIST)
C362 VARIANT (SEE VARIANT PARTS LIST)
C373 1-163-038-91 CERAMIC CHIP 0.1 µF 25V
C374 1-126-935-11 ELECT 470µF 20% 16V
C375 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C376 1-104-664-11 ELECT 47µF 20% 25V
C390 1-130-495-00 FILM 0.1µF 5% 50V
C400 VARIANT (SEE VARIANT PARTS LIST)
C401 VARIANT (SEE VARIANT PARTS LIST)
C402 VARIANT (SEE VARIANT PARTS LIST)
C403 VARIANT (SEE VARIANT PARTS LIST)
C404 VARIANT (SEE VARIANT PARTS LIST)
C405 VARIANT (SEE VARIANT PARTS LIST)
C406 VARIANT (SEE VARIANT PARTS LIST)
C407 VARIANT (SEE VARIANT PARTS LIST)
C410 VARIANT (SEE VARIANT PARTS LIST)
C411 VARIANT (SEE VARIANT PARTS LIST)
C412 VARIANT (SEE VARIANT PARTS LIST)
C413 VARIANT (SEE VARIANT PARTS LIST)
C414 VARIANT (SEE VARIANT PARTS LIST)
C415 VARIANT (SEE VARIANT PARTS LIST)
C416 VARIANT (SEE VARIANT PARTS LIST)
C418 VARIANT (SEE VARIANT PARTS LIST)
C502 1-106-371-00 MYLAR 0.015µF 20% 200V
C504 1-102-228-00 CERAMIC 470pF 10% 500V
C505 1-117-626-11 FILM 2000pF 3% 1.2KV
C507 1-117-633-11 FILM 3900pF 3% 1.2KV
C508 1-106-371-00 MYLAR 0.015µF 20% 200V
C509 1-162-115-00 CERAMIC 330pF 10% 2KV
C511 1-117-665-11 FILM 0.33µF 5% 250V
C520 1-129-722-00 FILM 0.047µF 5% 630V
C531 1-106-387-00 MYLAR 0.068µF 10% 200V
C541 1-126-969-11 ELECT 220µF 20% 50V
C542 1-126-967-11 ELECT 47µF 20% 50V
C543 1-136-169-00 FILM 0.22µF 5% 50V
C552 1-102-244-00 CERAMIC 220pF 10% 500V
C553 1-107-652-11 ELECT 10µF 20% 250V
C556 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C561 1-102-244-00 CERAMIC 220pF 10% 500V
C562 1-126-941-11 ELECT 470µF 20% 25V
C563 1-137-417-11 MYLAR 0.0047µF 10% 200V
C564 1-126-941-11 ELECT 470µF 20% 25V
C571 1-126-965-11 ELECT 22µF 20% 50V
C573 1-126-963-11 ELECT 4.7µF 20% 50V
C574 1-107-635-11 ELECT 4.7µF 20% 160V
C575 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C576 1-123-024-21 ELECT 33µF 160V
C577 1-126-959-11 ELECT 0.47µF 20% 50V
C591 1-137-150-11 MYLAR 0.01µF 10% 100V
C601 VARIANT (SEE VARIANT PARTS LIST)
C602 1-113-941-11 CERAMIC 0.0047µF 20% 125V
C603 1-113-941-11 CERAMIC 0.0047µF 20% 125V
49
Page 12
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
Note: Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
C604 1-113-941-11 CERAMIC 0.0047µF 20% 125V
C605 1-113-941-11 CERAMIC 0.0047µF 20% 125V
C611 1-125-772-91 CERAMIC 1500pF 10% 2KV
C613 VARIANT (SEE VARIANT PARTS LIST)
C614 1-130-471-00 MYLAR 0.001µF 5% 50V
C616 VARIANT (SEE VARIANT PARTS LIST)
C617 VARIANT (SEE VARIANT PARTS LIST)
C618 1-136-619-11 FILM 0.0016µF 3% 2KV
C620 1-102-114-00 CERAMIC 470pF 10% 50V
C621 1-136-356-11 FILM 470pF 5% 50V
C622 1-136-479-11 FILM 0.001µF 5% 50V
C623 1-136-153-00 FILM 0.01µF 5% 50V
C626 1-126-959-11 ELECT 0.47µF 20% 50V
C628 1-104-665-11 ELECT 100µF 20% 25V
C629 1-104-665-11 ELECT 100µF 20% 25V
C630 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C631 1-126-768-11 ELECT 2200µF 20% 16V
C632 1-126-942-61 ELECT 1000µF 20% 25V
C633 1-126-967-11 ELECT 47µF 20% 50V
C634 1-124-347-00 ELECT 100µF 20% 160V
C638 VARIANT (SEE VARIANT PARTS LIST)
C641 1-102-002-00 CERAMIC 680pF 10% 500V
C643 1-113-924-11 CERAMIC 0.0047µF 20% 250V
C644 1-113-924-11 CERAMIC 0.0047µF 20% 250V
C645 1-137-605-11 FILM 0.01µF 10% 250V
CN601 * 1-580-843-11 PIN, CONNECTOR (POWER)
CN602 * 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P
DIODE
D001 8-719-921-44 DIODE MTZJ-5.1C
D002 1-810-039-21 LED UNIT
D003 8-719-991-33 DIODE 1SS133T-77
D004 8-719-991-33 DIODE 1SS133T-77
D201 8-719-110-17 DIODE RD10ESB2
D202 VARIANT (SEE VARIANT PARTS LIST)
D203 8-719-110-17 DIODE RD10ESB2
D204 VARIANT (SEE VARIANT PARTS LIST)
D205 8-719-982-22 DIODE MTZJ-30D
D206 VARIANT (SEE VARIANT PARTS LIST)
D207 VARIANT (SEE VARIANT PARTS LIST)
D208 8-719-110-17 DIODE RD10ESB2
D209 8-719-110-17 DIODE RD10ESB2
D210 8-719-110-17 DIODE RD10ESB2
D215 VARIANT (SEE VARIANT PARTS LIST)
D280 VARIANT (SEE VARIANT PARTS LIST)
D301 8-719-110-08 DIODE RD8.2ESB2
D302 8-719-921-44 DIODE MTZJ-5.1C
D310 8-719-404-50 DIODE MA111-TX
D311 8-719-404-50 DIODE MA111-TX
C646 1-107-679-91 ELECT 10µF 20% 450V
C647 1-130-467-00 MYLAR 470pF 5% 50V
C648 1-162-318-11 CERAMIC 0.001µF 10% 500V
C650 1-130-471-00 MYLAR 0.001µF 5% 50V
C651 1-126-382-11 ELECT 100µF 20% 16V
C653 1-104-664-11 ELECT 47µF 20% 25V
C654 1-126-970-11 ELECT 330µF 20% 50V
C656 1-126-965-11 ELECT 22µF 20% 50V
C657 1-102-002-00 CERAMIC 680pF 10% 500V
C690 1-126-959-11 ELECT 0.47µF 20% 50V
C691 1-126-941-11 ELECT 470µF 20% 25V
C692 1-104-664-11 ELECT 47µF 20% 25V
C693 1-137-194-81 FILM 0.47µF 5% 50V
CONNECTOR
CN203 * 1-560-124-00 PLUG, CONNECTOR (2.5MM) 4P
CN301 * 1-564-508-11 PLUG, CONNECTOR 5P
CN401 VARIANT (SEE VARIANT PARTS LIST)
CN402 * 1-564-505-11 PLUG, CONNECTOR 2P
CN501 * 1-580-798-11 CONNECTOR PIN (DY) 6P
CN502 * 1-564-509-11 PLUG, CONNECTOR 6P
D320 8-719-976-99 DIODE DTZ5.1B
D403 8-719-991-33 DIODE 1SS133T-77
D434 8-719-991-33 DIODE 1SS133T-77
D501 8-719-945-80 DIODE ERC06-15S
D502 8-719-302-43 DIODE EL1Z
D520 8-719-067-63 DIODE MDV04-600RL
D541 8-719-908-03 DIODE GP08D
D552 8-719-302-43 DIODE EL1Z
D561 8-719-979-85 DIODE EGP20G
D562 8-719-979-85 DIODE EGP20G
D571 8-719-991-33 DIODE 1SS133T-77
D572 8-719-991-33 DIODE 1SS133T-77
D573 8-719-110-08 DIODE RD8.2ESB2
D574 8-719-302-43 DIODE EL1Z
D581 8-719-991-33 DIODE 1SS133T-77
D601 8-719-510-51 DIODE D3SB60F
D602 8-719-991-33 DIODE 1SS133T-77
D603 8-719-063-70 DIODE D1NL20U
D609 VARIANT (SEE VARIANT PARTS LIST)
D611 8-719-110-17 DIODE RD10ESB2
D613 8-719-063-70 DIODE D1NL20U
D614 8-719-063-70 DIODE D1NL20U
50
Page 13
Note:
The components identified by
shading and mark are critical for
safety. Replace only with part
number specified.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
que par une piece portant le numero
specifie.
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
D615 8-719-510-02 DIODE D1NS4
D616 8-719-510-73 DIODE S3L20UF4
D617 8-719-027-43 DIODE S2L20UF
IC602 8-759-198-31 IC UPC1093J-1-T
JACK
D620 8-719-057-52 DIODE EZ0150AV1
D631 8-719-911-55 DIODE U05G
D632 8-719-911-55 DIODE U05G
D633 8-719-948-45 DIODE ERA22-08
D634 8-719-991-33 DIODE 1SS133T-77
D635 8-719-991-33 DIODE 1SS133T-77
J200 VARIANT (SEE VARIANT PARTS LIST)
J201 VARIANT (SEE VARIANT PARTS LIST)
J202 VARIANT (SEE VARIANT PARTS LIST)
J400 1-568-267-21 JACK
D636 8-719-063-70 DIODE D1NL20U
D637 8-719-109-93 DIODE RD6.2ESB2
D638 8-719-510-48 DIODE D1N20R
D650 8-719-109-89 DIODE RD5.6ESB2
D653 8-719-312-10 DIODE RU4AM-T3
D670 8-719-991-33 DIODE 1SS133T-77
FUSE
F601 1-532-506-51 FUSE 6.3A/250V (except KV-20M42/20S42/20S43)
F601 1-533-795-11 FUSE 6.3A/125V (KV-20M42/20S42/20S43 only)
FERRITE BEAD
FB501 1-410-396-41FERRITE 0.45mH
FB600 1-410-397-21 FERRITE 1.1µH
FB601 1-410-397-21 FERRITE 1.1µH
FB602 1-410-397-21 FERRITE 1.1µH
FB604 1-410-397-21 FERRITE 1.1µH
FB605 1-410-397-21 FERRITE 1.1µH
FB606 1-410-397-21 FERRITE 1.1µH
FB609 1-412-911-11 FERRITE 0µH
FB611 1-410-397-21 FERRITE 1.1µH
CHIP CONDUCTOR
JR002 1-216-295-91 SHORT
JR003 1-216-295-91 SHORT
COIL
L001 1-414-267-11 INDUCTOR 10µH
L002 1-414-273-11 INDUCTOR 100µH
L003 1-414-273-11 INDUCTOR 100µH
L150 1-414-273-11 INDUCTOR 100µH
L151 1-414-267-11 INDUCTOR 10µH
L160 1-414-267-11 INDUCTOR 10µH
L301 1-414-271-11 INDUCTOR 47µH
L302 1-414-267-11 INDUCTOR 10µH
L351 VARIANT (SEE VARIANT PARTS LIST)
L352 VARIANT (SEE VARIANT PARTS LIST)
L503 1-412-553-11 INDUCTOR 3.3µH
L504 1-412-533-21 INDUCTOR 47µH
L591 1-412-531-31 INDUCTOR 33µH
PHOTO COUPLER
PH600 8-749-010-64 PHOTO COUPLER PC123F2
IC
IC001 8-759-576-00 IC M37273MF-252SP
IC002 8-759-575-47 IC NJM78LR05BM-TE2
IC003 8-759-527-75 IC M24C04-MN6T
IC004 8-742-014-11 HYB IC SBX1981-51
IC200 VARIANT (SEE VARIANT PARTS LIST)
IC201 8-759-450-93 IC NJM2521M-TE1
IC202 VARIANT (SEE VARIANT PARTS LIST)
IC301 8-752-083-09 IC CXA2061S
IC302 VARIANT (SEE VARIANT PARTS LIST)
IC400 VARIANT (SEE VARIANT PARTS LIST)
IC401 VARIANT (SEE VARIANT PARTS LIST)
IC402 VARIANT (SEE VARIANT PARTS LIST)
IC521 8-759-100-96 IC NJM4558M-TE2
IC541 8-759-980-58 IC TDA8172
IC601 VARIANT (SEE VARIANT PARTS LIST)
IC LINK
PS201 VARIANT (SEE VARIANT PARTS LIST)
TRANSISTOR
Q001 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX
Q002 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q003 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
Q200 VARIANT (SEE VARIANT PARTS LIST)
Q201 VARIANT (SEE VARIANT PARTS LIST)
Q202 VARIANT (SEE VARIANT PARTS LIST)
Q203 8-729-216-22 TRANSISTOR 2SA1162-G
Q205 8-729-216-22 TRANSISTOR 2SA1162-G
Q206 VARIANT (SEE VARIANT PARTS LIST)
— 51 —
Page 14
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
Note: Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
Q207 VARIANT (SEE VARIANT PARTS LIST)
Q252 8-729-422-27 TRANSISTOR 2SD601A-Q
Q300 8-729-422-27 TRANSISTOR 2SD601A-Q
Q301 8-729-216-22 TRANSISTOR 2SA1162-G
Q302 8-729-216-22 TRANSISTOR 2SA1162-G
Q303 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q305 8-729-216-22 TRANSISTOR 2SA1162-G
Q340 VARIANT (SEE VARIANT PARTS LIST)
Q350 VARIANT (SEE VARIANT PARTS LIST)
Q351 VARIANT (SEE VARIANT PARTS LIST)
Q352 VARIANT (SEE VARIANT PARTS LIST)
Q353 VARIANT (SEE VARIANT PARTS LIST)
Q354 VARIANT (SEE VARIANT PARTS LIST)
Q355 VARIANT (SEE VARIANT PARTS LIST)
Q356 VARIANT (SEE VARIANT PARTS LIST)
Q357 VARIANT (SEE VARIANT PARTS LIST)
Q358 VARIANT (SEE VARIANT PARTS LIST)
Q359 VARIANT (SEE VARIANT PARTS LIST)
Q380 VARIANT (SEE VARIANT PARTS LIST)
Q390 8-729-422-27 TRANSISTOR 2SD601A-Q
Q391 8-729-422-27 TRANSISTOR 2SD601A-Q
Q392 8-729-216-22 TRANSISTOR 2SA1162-G
Q393 8-729-216-22 TRANSISTOR 2SA1162-G
Q394 8-729-216-22 TRANSISTOR 2SA1162-G
Q501 8-729-140-50 TRANSISTOR 2SC3209LK
Q502 8-729-043-43 TRANSISTOR 2SC5426-01
R013 1-247-863-91 CARBON 22K 5% 1/4W
R016 1-249-413-11 CARBON 470 5% 1/4W
R017 1-216-113-00 RES, CHIP 470K 5% 1/10W
R018 1-249-417-11 CARBON 1K 5% 1/4W
R019 1-249-425-11 CARBON 4.7K 5% 1/4W
R020 1-249-427-11 CARBON 6.8K 5% 1/4W
R021 1-249-415-11 CARBON 680 5% 1/4W
R022 1-249-416-11 CARBON 820 5% 1/4W
R023 1-249-421-11 CARBON 2.2K 5% 1/4W
R025 1-249-426-11 CARBON 5.6K 5% 1/4W
R026 1-249-426-11 CARBON 5.6K 5% 1/4W
R027 1-249-426-11 CARBON 5.6K 5% 1/4W
R028 1-216-049-91 RES, CHIP 1K 5% 1/10W
R030 1-249-429-11 CARBON 10K 5% 1/4W
R031 1-216-045-00 RES, CHIP 680 5% 1/10W
R032 1-216-033-00 RES, CHIP 220 5% 1/10W
R033 1-247-815-91 CARBON 220 5% 1/4W
R038 1-216-049-91 RES, CHIP 1K 5% 1/10W
R040 1-249-413-11 CARBON 470 5% 1/4W
R043 1-249-417-11 CARBON 1K 5% 1/4W
R044 1-216-033-00 RES, CHIP 220 5% 1/10W
R045 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R046 1-216-033-00 RES, CHIP 220 5% 1/10W
R047 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R048 1-216-025-91 RES, CHIP 100 5% 1/10W
R049 1-216-089-91 RES, CHIP 47K 5% 1/10W
Q556 8-729-422-27 TRANSISTOR 2SD601A-Q
Q571 8-729-200-17 TRANSISTOR 2SA1091-O
Q601 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q602 8-729-422-27 TRANSISTOR 2SD601A-Q
Q605 8-729-423-99 TRANSISTOR 2SD2137-OP
Q606 8-729-111-55 TRANSISTOR 2SD1312-K
Q607 8-729-044-30 TRANSISTOR 2SK2845-LB102
Q608 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q650 8-729-111-55 TRANSISTOR 2SD1312-K
Q670 8-729-140-96 TRANSISTOR 2SD774-34
RESISTOR
R001 1-249-429-11 CARBON 10K 5% 1/4W
R002 1-249-429-11 CARBON 10K 5% 1/4W
R003 1-216-033-00 RES, CHIP 220 5% 1/10W
R004 1-216-073-00 RES, CHIP 10K 5% 1/10W
R005 1-247-815-91 CARBON 220 5% 1/4W
R007 1-216-025-91 RES, CHIP 100 5% 1/10W
R008 1-216-033-00 RES, CHIP 220 5% 1/10W
R009 1-247-815-91 CARBON 220 5% 1/4W
R010 VARIANT (SEE VARIANT PARTS LIST)
R011 VARIANT (SEE VARIANT PARTS LIST)
R050 1-249-429-11 CARBON 10K 5% 1/4W
R051 VARIANT (SEE VARIANT PARTS LIST)
R053 VARIANT (SEE VARIANT PARTS LIST)
R054 1-216-073-00 RES, CHIP 10K 5% 1/10W
R055 1-216-033-00 RES, CHIP 220 5% 1/10W
R056 1-249-425-11 CARBON 4.7K 5% 1/4W
R057 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R058 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R065 1-216-033-00 RES, CHIP 220 5% 1/10W
R066 1-216-033-00 RES, CHIP 220 5% 1/10W
R070 VARIANT (SEE VARIANT PARTS LIST)
R071 VARIANT (SEE VARIANT PARTS LIST)
R072 1-247-815-91 CARBON 220 5% 1/4W
R074 1-216-073-00 RES, CHIP 10K 5% 1/10W
R075 1-216-073-00 RES, CHIP 10K 5% 1/10W
R076 1-216-121-91 RES, CHIP 1M 5% 1/10W
R077 1-216-097-91 RES, CHIP 100K 5% 1/10W
R078 1-216-049-91 RES, CHIP 1K 5% 1/10W
R080 VARIANT (SEE VARIANT PARTS LIST)
R085 1-216-073-00 RES, CHIP 10K 5% 1/10W
R086 1-216-073-00 RES, CHIP 10K 5% 1/10W
R087 1-216-045-00 RES, CHIP 680 5% 1/10W
52
Page 15
Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
R088 1-216-045-00 RES, CHIP 680 5% 1/10W
R089 1-216-045-00 RES, CHIP 680 5% 1/10W
R090 1-249-429-11 CARBON 10K 5% 1/4W
R091 1-249-429-11 CARBON 10K 5% 1/4W
R092 1-216-051-00 RES, CHIP 1K 5% 1/10W
R093 1-249-425-11 CARBON 4.7K 5% 1/4W
R096 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R097 1-216-073-00 RES, CHIP 10K 5% 1/10W
R099 1-249-425-11 CARBON 4.7K 5% 1/4W
R101 1-216-073-00 RES, CHIP 10K 5% 1/10W
R150 1-216-025-91 RES, CHIP 100 5% 1/10W
R151 1-216-025-91 RES, CHIP 100 5% 1/10W
R201 1-216-113-00 RES, CHIP 470K 5% 1/10W
R202 VARIANT (SEE VARIANT PARTS LIST)
R204 1-216-022-00 RES, CHIP 75 5% 1/10W
R205 1-247-895-91 CARBON 470K 5% 1/4W
R206 VARIANT (SEE VARIANT PARTS LIST)
R214 VARIANT (SEE VARIANT PARTS LIST)
R215 VARIANT (SEE VARIANT PARTS LIST)
R216 VARIANT (SEE VARIANT PARTS LIST)
R217 VARIANT (SEE VARIANT PARTS LIST)
R218 VARIANT (SEE VARIANT PARTS LIST)
R219 VARIANT (SEE VARIANT PARTS LIST)
R220 VARIANT (SEE VARIANT PARTS LIST)
R221 VARIANT (SEE VARIANT PARTS LIST)
R222 VARIANT (SEE VARIANT PARTS LIST)
R223 VARIANT (SEE VARIANT PARTS LIST)
R224 VARIANT (SEE VARIANT PARTS LIST)
R225 VARIANT (SEE VARIANT PARTS LIST)
R226 VARIANT (SEE VARIANT PARTS LIST)
R227 VARIANT (SEE VARIANT PARTS LIST)
R228 VARIANT (SEE VARIANT PARTS LIST)
R229 VARIANT (SEE VARIANT PARTS LIST)
R230 VARIANT (SEE VARIANT PARTS LIST)
R231 VARIANT (SEE VARIANT PARTS LIST)
R232 VARIANT (SEE VARIANT PARTS LIST)
R233 VARIANT (SEE VARIANT PARTS LIST)
R234 VARIANT (SEE VARIANT PARTS LIST)
R235 VARIANT (SEE VARIANT PARTS LIST)
R237 VARIANT (SEE VARIANT PARTS LIST)
R238 VARIANT (SEE VARIANT PARTS LIST)
R239 1-247-815-91 CARBON 220 5% 1/4W
R240 1-249-417-11 CARBON 1K 5% 1/4W
R241 VARIANT (SEE VARIANT PARTS LIST)
R242 1-249-434-11 CARBON 27K 5% 1/4W
R243 1-216-689-11 RES, CHIP 39K 5% 1/10W
R245 VARIANT (SEE VARIANT PARTS LIST)
R246 VARIANT (SEE VARIANT PARTS LIST)
R247 VARIANT (SEE VARIANT PARTS LIST)
R248 VARIANT (SEE VARIANT PARTS LIST)
R249 VARIANT (SEE VARIANT PARTS LIST)
R250 VARIANT (SEE VARIANT PARTS LIST)
R251 1-216-041-00 RES, CHIP 470 5% 1/10W
R252 1-216-041-00 RES, CHIP 470 5% 1/10W
R253 1-215-899-11 METAL OXIDE 15K 5% 2W F
R254 1-216-025-91 RES, CHIP 100 5% 1/10W
R255 1-216-025-91 RES, CHIP 100 5% 1/10W
R256 1-249-425-11 CARBON 4.7K 5% 1/4W
R257 1-216-073-00 RES, CHIP 10K 5% 1/10W
R260 VARIANT (SEE VARIANT PARTS LIST)
R261 VARIANT (SEE VARIANT PARTS LIST)
R262 VARIANT (SEE VARIANT PARTS LIST)
R268 VARIANT (SEE VARIANT PARTS LIST)
R269 VARIANT (SEE VARIANT PARTS LIST)
R280 1-216-022-00 RES, CHIP 75 5% 1/10W
R283 VARIANT (SEE VARIANT PARTS LIST)
R284 1-216-295-91 SHORT
R287 VARIANT (SEE VARIANT PARTS LIST)
R288 1-216-295-91 SHORT
R289 1-216-295-91 SHORT
R290 1-216-025-91 RES, CHIP 100 5% 1/10W
R291 1-216-065-91 RES, CHIP 2.2K 5% 1/10W
R293 1-249-429-11 CARBON 10K 5% 1/4W
R294 1-216-295-91 SHORT
R295 1-216-295-91 SHORT
R297 1-247-807-31 CARBON 100 5% 1/4W
R298 1-216-025-91 RES, CHIP 100 5% 1/10W
R301 1-216-295-91 SHORT
R303 VARIANT (SEE VARIANT PARTS LIST)
R304 1-216-073-00 RES, CHIP 10K 5% 1/10W
R306 1-216-675-11 METAL CHIP 10K 0.5% 1/10W
R307 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R308 1-247-887-00 CARBON 220K 5% 1/4W
R309 1-247-863-91 CARBON 22K 5% 1/4W
R310 1-216-049-91 RES, CHIP 1K 5% 1/10W
R312 1-216-033-00 RES, CHIP 220 5% 1/10W
R313 1-247-815-91 CARBON 220 5% 1/4W
R314 1-247-815-91 CARBON 220 5% 1/4W
R315 1-247-815-91 CARBON 220 5% 1/4W
R316 1-216-025-91 RES, CHIP 100 5% 1/10W
R317 1-249-421-11 CARBON 2.2K 5% 1/4W
R318 1-216-073-00 RES, CHIP 10K 5% 1/10W
R319 1-216-073-00 RES, CHIP 10K 5% 1/10W
R321 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
53
Page 16
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
Note: Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
R322 1-216-073-00 RES, CHIP 10K 5% 1/10W
R323 1-249-415-11 CARBON 680 5% 1/4W
R324 1-249-425-11 CARBON 4.7K 5% 1/4W
R325 1-216-097-91 RES, CHIP 100K 5% 1/10W
R329 1-216-025-91 RES, CHIP 100 5% 1/10W
R330 1-216-025-91 RES, CHIP 100 5% 1/10W
R331 1-216-025-91 RES, CHIP 100 5% 1/10W
R341 VARIANT (SEE VARIANT PARTS LIST)
R342 VARIANT (SEE VARIANT PARTS LIST)
R343 VARIANT (SEE VARIANT PARTS LIST)
R344 VARIANT (SEE VARIANT PARTS LIST)
R347 1-216-045-00 RES, CHIP 680 5% 1/10W
R350 VARIANT (SEE VARIANT PARTS LIST)
R351 VARIANT (SEE VARIANT PARTS LIST)
R352 VARIANT (SEE VARIANT PARTS LIST)
R353 1-216-295-91 SHORT
R354 VARIANT (SEE VARIANT PARTS LIST)
R356 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R357 VARIANT (SEE VARIANT PARTS LIST)
R358 VARIANT (SEE VARIANT PARTS LIST)
R359 VARIANT (SEE VARIANT PARTS LIST)
R360 VARIANT (SEE VARIANT PARTS LIST)
R361 VARIANT (SEE VARIANT PARTS LIST)
R362 VARIANT (SEE VARIANT PARTS LIST)
R363 VARIANT (SEE VARIANT PARTS LIST)
R364 VARIANT (SEE VARIANT PARTS LIST)
R365 VARIANT (SEE VARIANT PARTS LIST)
R366 VARIANT (SEE VARIANT PARTS LIST)
R367 VARIANT (SEE VARIANT PARTS LIST)
R368 VARIANT (SEE VARIANT PARTS LIST)
R369 VARIANT (SEE VARIANT PARTS LIST)
R370 VARIANT (SEE VARIANT PARTS LIST)
R372 VARIANT (SEE VARIANT PARTS LIST)
R373 VARIANT (SEE VARIANT PARTS LIST)
R374 VARIANT (SEE VARIANT PARTS LIST)
R375 VARIANT (SEE VARIANT PARTS LIST)
R376 VARIANT (SEE VARIANT PARTS LIST)
R377 VARIANT (SEE VARIANT PARTS LIST)
R378 VARIANT (SEE VARIANT PARTS LIST)
R379 VARIANT (SEE VARIANT PARTS LIST)
R380 VARIANT (SEE VARIANT PARTS LIST)
R382 VARIANT (SEE VARIANT PARTS LIST)
R383 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R384 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R385 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R387 VARIANT (SEE VARIANT PARTS LIST)
R388 VARIANT (SEE VARIANT PARTS LIST)
R390 1-216-025-91 RES, CHIP 100 5% 1/10W
R391 1-216-049-91 RES, CHIP 1K 5% 1/10W
R392 1-216-025-91 RES, CHIP 100 5% 1/10W
R393 1-216-049-91 RES, CHIP 1K 5% 1/10W
R394 1-216-025-91 RES, CHIP 100 5% 1/10W
R395 VARIANT (SEE VARIANT PARTS LIST)
R396 VARIANT (SEE VARIANT PARTS LIST)
R397 VARIANT (SEE VARIANT PARTS LIST)
R400 VARIANT (SEE VARIANT PARTS LIST)
R402 VARIANT (SEE VARIANT PARTS LIST)
R403 VARIANT (SEE VARIANT PARTS LIST)
R404 VARIANT (SEE VARIANT PARTS LIST)
R432 VARIANT (SEE VARIANT PARTS LIST)
R433 VARIANT (SEE VARIANT PARTS LIST)
R501 1-249-421-11 CARBON 2.2K 5% 1/4W
R502 1-215-923-00 METAL OXIDE 10K 5% 3W F
R508 1-215-864-00 METAL OXIDE 150 5% 1W F
R532 1-215-437-00 METAL 4.7K 1% 1/4W
R533 1-215-461-00 METAL 47K 1% 1/4W
R534 1-215-453-00 METAL 22K 1% 1/4W
R535 1-249-441-11 CARBON 100K 5% 1/4W
R541 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R542 1-249-429-11 CARBON 10K 5% 1/4W
R543 1-249-429-11 CARBON 10K 5% 1/4W
R544 1-216-377-11 METAL OXIDE 4.7 5% 2W F
R546 1-215-890-11 METAL OXIDE 470 5% 2W F
R547 1-249-385-11 CARBON 2.2 5% 1/4W F
R548 1-249-425-11 CARBON 4.7K 5% 1/4W
R549 1-216-073-00 RES, CHIP 10K 5% 1/10W
R552 1-247-887-00 CARBON 220K 5% 1/4W
R553 1-260-312-11 CARBON 47 5% 1/2W
R559 1-216-101-00 RES, CHIP 150K 5% 1/10W
R560 1-216-093-91 RES, CHIP 68K 5% 1/10W
R561 1-216-349-00 METAL OXIDE 1 5% 1W F
R562 1-216-349-00 METAL OXIDE 1 5% 1W F
R565 1-216-081-00 RES, CHIP 22K 5% 1/10W
R566 1-216-077-00 RES, CHIP 15K 5% 1/10W
R567 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R568 1-216-121-91 RES, CHIP 1M 5% 1/10W
R571 1-216-369-00 METAL OXIDE 1 5% 2W F
R572 1-249-421-11 CARBON 2.2K 5% 1/4W
R573 1-247-895-91 CARBON 470K 5% 1/4W
R574 1-249-417-11 CARBON 1K 5% 1/4W F
R575 1-247-891-00 CARBON 330K 5% 1/4W
R576 1-249-441-11 CARBON 100K 5% 1/4W
R577 1-249-432-11 CARBON 18K 5% 1/4W
R578 1-216-467-11 METAL OXIDE 56K 5% 2W F
54
Page 17
Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMMON PARTS LISTING
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
R579 1-208-777-11 RES, CHIP 620 0.5% 1/10W
R580 1-216-295-91 SHORT
R582 1-208-826-11 RES, CHIP 68K 0.5% 1/10W
R583 1-208-830-11 RES, CHIP 100K 0.5% 1/10W
R584 1-208-806-11 RES, CHIP 10K 0.5% 1/10W
R585 1-216-085-00 RES, CHIP 33K 5% 1/10W
R586 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R591 1-215-880-00 METAL OXIDE 10 5% 2W F
R602 1-249-389-11 CARBON 4.7 5% 1/4W F
R603 1-247-895-91 CARBON 470K 5% 1/4W
R608 1-240-205-91 CARBON 22M 5% 1/2W
R609 1-249-421-11 CARBON 2.2K 5% 1/4W
R610 1-249-417-11 CARBON 1K 5% 1/4W
R661 1-216-485-11 METAL OXIDE 5.6K 5% 3W F
R662 1-260-288-11 CARBON 0.47 5% 1/2W
R663 1-216-362-11 METAL OXIDE 0.27 5% 2W F
R664 VARIANT (SEE VARIANT PARTS LIST)
R670 1-249-421-11 CARBON 2.2K 5% 1/4W
R671 1-249-417-11 CARBON 1K 5% 1/4W
R672 1-216-485-11 METAL OXIDE 5.6K 5% 3W F
R674 1-249-415-11 CARBON 680 5% 1/4W
R675 1-215-859-00 METAL OXIDE 22 5% 1W F
R682 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R683 1-249-421-11 CARBON 2.2K 5% 1/4W
R688 1-216-485-11 METAL OXIDE 5.6K 5% 3W F
R698 1-215-479-00 METAL 270K 1% 1/4W
R611 1-249-437-11 CARBON 47K 5% 1/4W
R612 1-249-415-11 CARBON 680 5% 1/4W
R614 1-249-429-11 CARBON 10K 5% 1/4W
R616 1-260-302-51 CARBON 6.8 5% 1/2W
R617 1-249-415-11 CARBON 680 5% 1/4W
R620 1-219-512-11 CARBON 2.2M 5% 1/2W
R623 1-249-429-11 CARBON 10K 5% 1/4W
R625 1-215-429-00 METAL 2.2K 1% 1/4W
R626 1-215-469-00 METAL 100K 1% 1/4W
R630 1-249-421-11 CARBON 2.2K 5% 1/4W
R631 1-249-429-11 CARBON 10K 5% 1/4W
R632 1-208-806-11 RES, CHIP 10K 5% 1/10W
R633 1-215-457-00 METAL 33K 1% 1/4W
R634 1-249-417-11 CARBON 1K 5% 1/4W
R635 1-216-073-00 RES, CHIP 10K 5% 1/10W
R636 1-208-798-11 RES, CHIP 4.7K 0.5% 1/10W
R637 1-208-806-11 RES, CHIP 10K 0.5% 1/10W
R638 1-208-814-91 RES, CHIP 22K 0.5% 1/10W
R639 1-216-089-91 RES, CHIP 47K 5% 1/10W
R640 1-216-089-91 RES, CHIP 47K 5% 1/10W
R641 1-216-397-11 METAL OXIDE 4.7 5% 3W F
R643 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R644 1-249-418-11 CARBON 1.2K 5% 1/4W
R647 1-260-081-11 CARBON 33 5% 1/2W
R648 1-249-421-11 CARBON 2.2K 5% 1/4W
R649 1-249-413-11 CARBON 470 5% 1/4W
R650 1-249-415-11 CARBON 680 5% 1/4W
R651 VARIANT (SEE VARIANT PARTS LIST)
R652 VARIANT (SEE VARIANT PARTS LIST)
R655 1-216-361-00 METAL OXIDE 0.22 5% 2W F
R656 1-249-419-11 CARBON 1.5K 5% 1/4W
R657 1-247-843-11 CARBON 3.3K 5% 1/4W
R658 VARIANT (SEE VARIANT PARTS LIST)
R659 1-202-961-11 CEMENTED 1.8 5% 10W
R660 1-202-933-61 FUSIBLE 0.1 10% 1/2W F
RELAY
RY601 1-755-018-11 RELAY
RY602 1-755-266-11 RELAY, AC POWER
SWITCH
S001 1-692-431-21 SWITCH, TACTILE
S002 1-692-431-21 SWITCH, TACTILE
S003 1-692-431-21 SWITCH, TACTILE
S004 1-692-431-21 SWITCH, TACTILE
S005 1-692-431-21 SWITCH, TACTILE
S006 1-692-431-21 SWITCH, TACTILE
S007 1-692-431-21 SWITCH, TACTILE
TRANSFORMER
T501 1-437-210-11 TRANSFORMER, HORIZONTAL DRIVE
T504 1-453-283-21 TRANSFORMER ASSY, FLYBACK
T601 1-423-895-11 TRANSFORMER, LINE FILTER (LFT)
T603 VARIANT (SEE VARIANT PARTS LIST)
T604 1-431-852-11 TRANSFORMER, CONVERTER (SRT)
THERMISTOR
THP601 VARIANT (SEE VARIANT PARTS LIST)
TUNER
TU101 VARIANT (SEE VARIANT PARTS LIST)
VARISTOR
VDR601 VARIANT (SEE VARIANT PARTS LIST)
CRYSTAL
X001 1-767-487-11 VIBRATOR, CRYSTAL
X301 1-567-505-11 OSCILLATOR, CRYSTAL
55
Page 18
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
COMPLETE PARTS LISTING
Note: Note:
The components identified by
shading andmark are critical for
safety. Replace only with part
number specified.
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
RESISTOR
R1756 1-260-099-11 CARBON 1K 5% 1/2W
R1757 1-260-099-11 CARBON 1K 5% 1/2W
R1758 1-260-099-11 CARBON 1K 5% 1/2W
* A-1331-917-A C MOUNTED PC BOARD
4-382-854-11 SCREW (M3X10), P, SW (+)
CAPACITOR
C1751 1-107-652-11 ELECT 10µF 20% 250V
C1752 1-162-114-00 CERAMIC 0.0047µF 2KV
C1755 1-107-667-11 ELECT 2.2µF 20% 160V
R1759 1-260-087-11 CARBON 100 5% 1/2W
R1760 1-260-123-11 CARBON 100K 5% 1/2W
R1761 1-216-392-11 METAL OXIDE 1.8 5% 3W F
R1763 1-247-807-31 CARBON 100 5% 1/4W
R1764 1-247-807-31 CARBON 100 5% 1/4W
R1765 1-247-807-31 CARBON 100 5% 1/4W
R1770 1-260-132-11 CARBON 560K 5% 1/2W
CONNECTOR
CN1751 * 1-564-509-11 PLUG, CONNECTOR 6P
CN1752 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1753 1-695-915-11 TAB (CONTACT)
CN1754 1-695-915-11 TAB (CONTACT)
DIODE
D1754 8-719-901-83 DIODE 1SS83
D1755 8-719-901-83 DIODE 1SS83
D1756 8-719-901-83 DIODE 1SS83
D1758 8-719-302-43 DIODE EL1Z
IC
IC1751 8-759-562-43 IC TDA6108JF/N1B
JACK
J1751 1-251-688-11 SOCKET, CRT
COIL
L1751 1-408-613-31 INDUCTOR 68µH
56
Page 19
Note: Note:
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s) only:
KV-20M42
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-20M42
CAPACITOR
C234 1-126-964-11 ELECT 10µF 20% 50V
C260 1-126-960-11 ELECT 1µF 20% 50V
C418 1-126-964-11 ELECT 10µF 20% 50V
C601 1-136-311-51 FILM 0.47µF 20% 125V
C613 1-117-893-11 ELECT 470µF 20% 250V
C638 1-136-311-11 FILM 0.47µF 20% 125V
DIODE
D215 8-719-110-17 DIODE RD10ESB2
IC
IC400 8-759-490-18 IC TDA7056B/N1
IC601 8-749-015-60 IC STR-F6624
JACK
TRANSFORMER
T603 1-433-816-11 TRANSFORMER
THERMISTOR
THP601 1-810-597-11 THERMISTOR, POSITIVE
TUNER
TU101 8-598-430-00 TUNER, FSS BTF-FA401
VARISTOR
VDR601 1-803-585-11 VARISTOR ,ERZV10D271
J201 1-580-441-71 JACK, PIN 2P
J202 1-580-441-41 JACK, PIN 2P
IC LINK
PS201 1-532-637-00 LINK, IC 1A/150V
TRANSISTOR
Q202 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R231 1-216-073-00 RES,CHIP 10K 5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R246 1-216-295-91 SHORT
R260 1-216-097-91 RES, CHIP 100K 5% 1/10W
R261 1-216-097-91 RES, CHIP 100K 5% 1/10W
R262 1-216-025-91 RES, CHIP 100 5% 1/10W
R269 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R400 1-249-438-11 CARBON 56K 5% 1/4W
R432 1-249-435-11 CARBON 33K 5% 1/4W
R433 1-216-083-00 RES, CHIP 27K 5% 1/10W
R651 1-219-513-11 CARBON 4.7M 5% 1/2W
R664 1-215-483-00 METAL 390K 1% 1/4W
57
Page 20
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
Note:
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s)only:
KV-21MB42C/21MB42M/21MB42P
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21MB42C/21MB42M/21MB42P
CAPACITOR
C234 1-126-964-11 ELECT 10µF 20% 50V
C260 1-126-960-11 ELECT 1µF 20% 50V
C418 1-126-964-11 ELECT 10µF 20% 50V
C601 1-136-311-61 FILM 0.47µF 20% 300V
C613 1-128-714-11 ELECT 330µF 20% 400V
C616 1-130-202-00 FILM 0.022µF 10% 400V
C617 1-107-824-11 CERAMIC 220pF 5% 1KV
DIODE
D215 8-719-110-17 DIODE RD10ESB2
D609 8-719-311-31 DIODE RU-1P
IC
IC400 8-759-490-18 IC TDA7056B/N1
IC601 8-749-013-75 IC STR-F6654
R651 1-247-289-00 CARBON 8.2M 5% 1W
R652 1-202-961-11 CEMENTED 1.8 5% 10W
R658 1-215-929-11 METAL OXIDE 100K 5% 3W F
R664 1-215-479-00 METAL 270K 1% 1/4W
R698 1-215-479-00 METAL 270K 1% 1/4W
TRANSFORMER
T603 1-433-817-11 TRANSFORMER
THERMISTOR
THP601 1-803-540-11 THERMISTOR
TUNER
TU101 8-598-430-00 TUNER, FSS BTF-FA401
VARISTOR
VDR601 1-803-585-11 VARISTOR ,ERZV10D271
JACK
J201 1-580-441-71 JACK, PIN 2P
J202 1-580-441-41 JACK, PIN 2P
IC LINK
PS201 1-532-637-00 LINK, IC 1A/150V
TRANSISTOR
Q202 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R231 1-216-073-00 RES,CHIP 10K 5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W
R246 1-216-295-91 SHORT
R260 1-216-097-91 RES, CHIP 100K 5% 1/10W
R261 1-216-097-91 RES, CHIP 100K 5% 1/10W
R262 1-216-025-91 RES, CHIP 100 5% 1/10W
R269 1-216-069-00 RES, CHIP 6.8K 5% 1/10W
R400 1-249-438-11 CARBON 56K 5% 1/4W
R432 1-249-435-11 CARBON 33K 5% 1/4W
R433 1-216-083-00 RES, CHIP 27K 5% 1/10W
58
Page 21
Note: Note:
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s) only:
KV-21ME42/42C
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21ME42/42C
CAPACITOR
C216 1-126-959-11 ELECT 0.47µF 20% 50V
C220 1-126-941-11 ELECT 470µF 20% 25V
C234 1-126-964-11 ELECT 10µF 20% 50V
C260 1-126-960-11 ELECT 1µF 20% 50V
C418 1-126-964-11 ELECT 10µF 20% 50V
C601 1-136-311-61 FILM 0.47µF 20% 300V
C613 1-128-714-11 ELECT 330µF 20% 400V
C616 1-130-202-00 FILM 0.022µF 10% 400V
C617 1-107-824-11 CERAMIC 220pF 5% 1KV
CONNECTOR
CN401 * 1-564-505-11 PLUG, CONNECTOR 2P
DIODE
D215 8-719-110-17 DIODE RD10ESB2
D609 8-719-311-31 DIODE RU-1P
R238 1-249-417-11 CARBON 1K 5% 1/4W
R245 1-216-295-91 SHORT
R246 1-216-295-91 SHORT
R260 1-216-097-91 RES, CHIP 100K 5% 1/10W
R261 1-216-097-91 RES, CHIP 100K 5% 1/10W
R262 1-216-025-91 RES, CHIP 100 5% 1/10W
R269 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W
R400 1-247-863-91 CARBON 22K 5% 1/4W
R432 1-249-430-11 CARBON 12K 5% 1/4W
R433 1-216-075-00 RES, CHIP 12K 5% 1/10W
R651 1-247-289-00 CARBON 8.2M 5% 1W
R652 1-202-961-11 CEMENTED 1.8 5% 10W
R658 1-215-929-11 METAL OXIDE 100K 5% 3W F
R664 1-215-479-00 METAL 270K 1% 1/4W
R698 1-215-479-00 METAL 270K 1% 1/4W
TRANSFORMER
T603 1-433-817-11 TRANSFORMER
THERMISTOR
THP601 1-803-540-11 THERMISTOR
IC
IC401 8-759-490-17 IC TDA7057AQ/N2
IC601 8-749-013-75 IC STR-F6654
JACK
J201 1-580-441-71 JACK, PIN 2P
J202 1-580-441-41 JACK, PIN 2P
IC LINK
PS201 1-532-984-11 LINK, IC 2A/90V
TRANSISTOR
Q202 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R231 1-216-073-00 RES,CHIP 10K 5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W
R237 1-247-815-91 CARBON 220 5% 1/4W
TUNER
TU101 8-598-430-00 TUNER, FSS BTF-FA401
59
Page 22
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
Note:
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s)only:
KV-20S42/20S43
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-20S42/20S43
CAPACITOR
C202 1-126-960-11 ELECT 1µF 20% 50V
C206 1-126-960-11 ELECT 1µF 20% 50V
C214 1-126-957-11 ELECT 0.22µF 20% 50V
C216 1-126-959-11 ELECT 0.47µF 20% 50V
C220 1-126-941-11 ELECT 470µF 20% 25V
C233 1-126-960-11 ELECT 1µF 20% 50V
C234 1-126-964-11 ELECT 10µF 20% 50V
C418 1-126-964-11 ELECT 10µF 20% 50V
C601 1-136-311-51 FILM 0.47µF 20% 125V
C613 1-117-893-11 ELECT 470µF 20% 250V
C638 1-136-311-11 FILM 0.47µF 20% 125V
CONNECTOR
CN401 * 1-564-505-11 PLUG, CONNECTOR 2P
DIODE
D202 8-719-110-17 DIODE RD10ESB2
D204 8-719-110-17 DIODE RD10ESB2
R206 1-247-895-91 CARBON 470K 5% 1/4W
R230 1-216-075-00 RES, CHIP 12K 5% 1/10W
R231 1-216-075-00 RES, CHIP 12K 5% 1/10W
R234 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R237 1-247-815-91 CARBON 220 5% 1/4W
R238 1-249-417-11 CARBON 1K 5% 1/4W
R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R268 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R269 1-216-069-00 RES, CHIP 3.3K .5% 1/10W
R400 1-247-863-91 CARBON 22K 5% 1/4W
R432 1-249-430-11 CARBON 12K 5% 1/4W
R433 1-216-075-00 RES, CHIP 12K 5% 1/10W
R651 1-219-513-11 CARBON 4.7M 5% 1/2W
R664 1-215-483-00 METAL 390K 1% 1/4W
TRANSFORMER
T603 1-433-816-11 TRANSFORMER
THERMISTOR
THP601 1-810-597-11 THERMISTOR, POSITIVE
IC
IC200 8-759-450-93 IC NJM2521M-TE1
IC401 8-759-490-17 IC TDA7057AQ/N2
IC601 8-749-015-60 IC STR-F6624
JACK
J201 1-580-443-11 JACK, PIN 3P
J202 1-691-110-11 JACK, PIN 3P
IC LINK
PS201 1-532-984-11 LINK, IC 2A/90V
RESISTOR
R010 1-216-033-00 RES, CHIP 220 5% 1/10W
R011 1-247-815-91 CARBON 220 5% 1/4W
R051 1-216-033-00 RES, CHIP 220 5% 1/10W
R070 1-249-425-11 CARBON 4.7K 5% 1/4W
R071 1-249-425-11 CARBON 4.7K 5% 1/4W
R202 1-216-113-00 RES, CHIP 470K 5% 1/10W
TUNER
TU101 8-598-431-00 TUNER, FSS BTF-WA411
VARISTOR
VDR601 1-803-585-11 VARISTOR, ERZV10D271
60
Page 23
Note: Note:
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s) only:
KV-21SB42C/21SB42M
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21SB42C/21SB42M
CAPACITOR
C202 1-126-960-11 ELECT 1µF 20% 50V
C206 1-126-960-11 ELECT 1µF 20% 50V
C214 1-126-957-11 ELECT 0.22µF 20% 50V
C216 1-126-959-11 ELECT 0.47µF 20% 50V
C220 1-126-941-11 ELECT 470µF 20% 25V
C233 1-126-960-11 ELECT 1µF 20% 50V
C234 1-126-964-11 ELECT 10µF 20% 50V
C418 1-126-964-11 ELECT 10µF 20% 50V
C601 1-136-311-61 FILM 0.47µF 20% 300V
C613 1-128-714-11 CAPACITOR 330µF 400V
C616 1-130-202-00 FILM 0.022µF 10% 400V
C617 1-107-824-11 CERAMIC 220pF 5% 1KV
CONNECTOR
CN401 * 1-564-505-11 PLUG, CONNECTOR 2P
R070 1-249-425-11 CARBON 4.7K 5% 1/4W
R071 1-249-425-11 CARBON 4.7K 5% 1/4W
R202 1-216-113-00 RES, CHIP 470K 5% 1/10W
R206 1-247-895-91 CARBON 470K 5% 1/4W
R230 1-216-075-00 RES, CHIP 12K 5% 1/10W
R231 1-216-075-00 RES, CHIP 12K 5% 1/10W
R234 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R237 1-247-815-91 CARBON 220 5% 1/4W
R238 1-249-417-11 CARBON 1K 5% 1/4W
R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R268 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R269 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R400 1-247-863-91 CARBON 22K 5% 1/4W
R432 1-249-430-11 CARBON 12K 5% 1/4W
R433 1-216-075-00 RES, CHIP 12K 5% 1/10W
R651 1-247-289-00 CARBON 8.2M 5% 1W
R652 1-202-961-11 CEMENTED 1.8 5% 10W
R658 1-215-929-11 METAL OXIDE 100K 5% 3W F
R664 1-215-479-00 METAL 270K 1% 1/4W
R698 1-215-479-00 METAL 270K 1% 1/4W
DIODE
D202 8-719-110-17 DIODE RD10ESB2
D204 8-719-110-17 DIODE RD10ESB2
D609 8-719-311-31 DIODE RU-1P
IC
IC200 8-759-450-93 IC NJM2521M-TE1
IC401 8-759-490-17 IC TDA7057AQ/N2
IC601 8-749-013-75 IC STR-F6654
JACK
J201 1-580-443-11 JACK, PIN 3P
J202 1-691-110-11 JACK, PIN 3P
IC LINK
PS201 1-532-984-11 LINK, IC 2A/90V
RESISTOR
R010 1-216-033-00 RES, CHIP 220 5% 1/10W
R011 1-247-815-91 CARBON 220 5% 1/4W
R051 1-216-033-00 RES, CHIP 220 5% 1/10W
TRANSFORMER
T603 1-433-817-11 TRANSFORMER
THERMISTOR
THP601 1-803-540-11 THERMISTOR
TUNER
TU101 8-598-431-00 TUNER, FSS BTF-WA411
VARISTOR
VDR601 1-803-587-11 VARISTOR, ERZV10D471
61
Page 24
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
Note:
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s)only:
KV-21SE42/21SE42C
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21SE42/21SE42C
CAPACITOR
C202 1-126-960-11 ELECT 1MF 20% 50V
C206 1-126-960-11 ELECT 1MF 20% 50V
C214 1-126-957-11 ELECT 0.22MF 20% 50V
C216 1-126-959-11 ELECT 0.47MF 20% 50V
C220 1-126-941-11 ELECT 470MF 20% 25V
C233 1-126-960-11 ELECT 1MF 20% 50V
C234 1-126-964-11 ELECT 10MF 20% 50V
C418 1-126-964-11 ELECT 10MF 20% 50V
C601 1-136-311-61 FILM 0.47µF 20% 300V
C613 1-128-714-11 CAPACITOR 330µF 20% 400V
C616 1-130-202-00 FILM 0.022µF 10% 400V
C617 1-107-824-11 CERAMIC 220pF 5% 1KV
CONNECTOR
CN401 * 1-564-505-11 PLUG, CONNECTOR 2P
DIODE
D202 8-719-110-17 DIODE RD10ESB2
D204 8-719-110-17 DIODE RD10ESB2
D609 8-719-311-31 DIODE RU-1P
R071 1-249-425-11 CARBON 4.7K 5% 1/4W
R202 1-216-113-00 RES, CHIP 470K 5% 1/10W
R206 1-247-895-91 CARBON 470K 5% 1/4W
R230 1-216-075-00 RES, CHIP 12K 5% 1/10W
R231 1-216-075-00 RES, CHIP 12K 5% 1/10W
R234 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R235 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R237 1-247-815-91 CARBON 220 5% 1/4W
R238 1-249-417-11 CARBON 1K 5% 1/4W
R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R268 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R269 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R400 1-247-863-91 CARBON 22K 5% 1/4W
R432 1-249-430-11 CARBON 12K 5% 1/4W
R433 1-216-075-00 RES, CHIP 12K 5% 1/10W
R651 1-247-289-00 CARBON 8.2M 5% 1W
R652 1-202-961-11 CEMENTED 1.8 5% 10W
R658 1-215-929-11 METAL OXIDE 100K 5% 3W F
R664 1-215-479-00 METAL 270K 1% 1/4W
R698 1-215-479-00 METAL 270K 1% 1/4W
TRANSFORMER
T603 1-433-817-11 TRANSFORMER
IC
IC200 8-759-450-93 IC NJM2521M-TE1
IC401 8-759-490-17 IC TDA7057AQ/N2
IC601 8-749-013-75 IC STR-F6654
JACK
J201 1-580-443-11 JACK, PIN 3P
J202 1-691-110-11 JACK, PIN 3P
IC LINK
PS201 1-532-984-11 LINK, IC 2A/90V
RESISTOR
R010 1-216-033-00 RES, CHIP 220 5% 1/10W
R011 1-247-815-91 CARBON 220 5% 1/4W
R051 1-216-033-00 RES, CHIP 220 5% 1/10W
R070 1-249-425-11 CARBON 4.7K 5% 1/4W
THERMISTOR
THP601 1-803-540-11 THERMISTOR
TUNER
TU101 8-598-431-00 TUNER, FSS BTF-WA411
VARISTOR
VDR601 1-803-587-11 VARISTOR, ERZV10D471
62
Page 25
Note: Note:
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s) only:
KV-21SE82/21SE82C
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21SE82/21SE82C
CAPACITOR
C202 1-126-960-11 ELECT 1µF 20% 50V
C206 1-126-960-11 ELECT 1µF 20% 50V
C207 1-126-959-11 ELECT 0.47µF 20% 50V
C208 1-126-959-11 ELECT 0.47µF 20% 50V
C209 1-126-963-11 ELECT 4.7µF 20% 50V
C211 1-126-964-11 ELECT 10µF 20% 50V
C212 1-126-963-11 ELECT 4.7µF 20% 50V
C213 1-126-964-11 ELECT 10µF 20% 50V
C214 1-126-957-11 ELECT 0.22µF 20% 50V
C216 1-126-959-11 ELECT 0.47µF 20% 50V
C220 1-126-941-11 ELECT 470µF 20% 25V
C229 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C233 1-126-960-11 ELECT 1µF 20% 50V
C304 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C307 1-126-964-11 ELECT 10µF 20% 50V
C340 1-126-960-11 ELECT 1µF 20% 50V
C348 1-163-003-11 CERAMIC CHIP 330pF 10% 50V
C350 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C351 1-126-964-11 ELECT 10µF 20% 50V
C352 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C353 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C354 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C355 1-164-222-11 CERAMIC CHIP 0.22µF 25V
C356 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C357 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C413 1-126-967-11 ELECT 47µF 20% 50V
C414 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C415 1-126-956-91 ELECT 0.1µF 20% 50V
C416 1-126-963-11 ELECT 4.7µF 20% 50V
C418 1-126-963-11 ELECT 4.7µF 20% 50V
C601 1-136-311-61 FILM 0.47µF 20% 300V
C613 1-128-713-11 CAPACITOR 330µF 20% 400V
C616 1-130-202-00 FILM 0.022µF 10% 400V
C617 1-107-824-11 CERAMIC 220pF 5% 1KV
CONNECTOR
CN401 * 1-564-505-11 PLUG, CONNECTOR 2P
DIODE
D202 8-719-110-17 DIODE RD10ESB2
D204 8-719-110-17 DIODE RD10ESB2
D206 8-719-110-17 DIODE RD10ESB2
D207 8-719-109-66 DIODE RD3.3ESB2
D280 8-719-110-17 DIODE RD10ESB2
D609 8-719-311-31 DIODE RU-1P
IC
IC200 8-759-450-93 IC NJM2521M-TE1
IC202 8-759-100-96 IC NJM4558M-TE2
IC302 8-752-385-80 IC CXD2073S
IC401 8-759-490-17 IC TDA7057AQ/N2
IC402 8-752-072-39 IC CXA2021S
IC601 8-749-013-75 IC STR-F6654
C358 1-104-664-11 ELECT 47µF 20% 25V
C359 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C360 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C361 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C362 1-126-964-11 ELECT 10µF 20% 50V
C400 1-126-963-11 ELECT 4.7µF 20% 50V
C401 1-126-956-91 ELECT 0.1µF 20% 50V
C402 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C403 1-126-963-11 ELECT 4.7µF 20% 50V
C404 1-126-963-11 ELECT 4.7µF 20% 50V
C405 1-126-963-11 ELECT 4.7µF 20% 50V
C406 1-126-963-11 ELECT 4.7µF 20% 50V
C407 1-126-964-11 ELECT 10µF 20% 50V
C410 1-126-963-11 ELECT 4.7µF 20% 50V
C411 1-126-956-91 ELECT 0.1µF 20% 50V
C412 1-130-495-00 FILM 0.1µF 5% 50V
JACK
J200 1-580-441-61 JACK, PIN 2P
J201 1-580-443-11 JACK, PIN 3P
J202 1-691-110-11 JACK, PIN 3P
COIL
L351 1-414-271-11 INDUCTOR 47µH
L352 1-414-267-11 INDUCTOR 10µH
IC LINK
PS201 1-532-984-11 LINK, IC 2A/90V
63
Page 26
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
Note:
BOARD VARIANT PARTS LIST
The parts on this page belong to the following model(s)only:
KV-21SE82/82C
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Note:
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21SE82/82C
TRANSISTOR
Q200 8-729-422-27 TRANSISTOR 2SD601A-Q
Q201 8-729-422-27 TRANSISTOR 2SD601A-Q
Q206 8-729-422-27 TRANSISTOR 2SD601A-Q
Q207 8-729-422-27 TRANSISTOR 2SD601A-Q
Q340 8-729-422-27 TRANSISTOR 2SD601A-Q
Q350 8-729-216-22 TRANSISTOR 2SA1162-G
Q351 8-729-422-27 TRANSISTOR 2SD601A-Q
Q352 8-729-216-22 TRANSISTOR 2SA1162-G
Q353 8-729-216-22 TRANSISTOR 2SA1162-G
Q354 8-729-216-22 TRANSISTOR 2SA1162-G
Q355 8-729-422-27 TRANSISTOR 2SD601A-Q
Q356 8-729-216-22 TRANSISTOR 2SA1162-G
Q357 8-729-216-22 TRANSISTOR 2SA1162-G
Q358 8-729-422-27 TRANSISTOR 2SD601A-Q
Q359 8-729-216-22 TRANSISTOR 2SA1162-G
Q380 8-729-216-22 TRANSISTOR 2SA1162-G
RESISTOR
R010 1-216-033-00 RES, CHIP 220 5% 1/10W
R011 1-247-815-91 CARBON 220 5% 1/4W
R051 1-216-033-00 RES, CHIP 220 5% 1/10W
R053 1-247-815-91 CARBON 220 5% 1/4W
R070 1-249-425-11 CARBON 4.7K 5% 1/4W
R071 1-249-425-11 CARBON 4.7K 5% 1/4W
R080 1-249-429-11 CARBON 10K 5% 1/4W
R202 1-216-113-00 RES, CHIP 470K 5% 1/10W
R206 1-247-895-91 CARBON 470K 5% 1/4W
R214 1-216-113-00 RES, CHIP 470K 5% 1/10W
R215 1-216-033-00 RES, CHIP 220 5% 1/10W
R216 1-216-113-00 RES, CHIP 470K 5% 1/10W
R217 1-216-033-00 RES, CHIP 220 5% 1/10W
R218 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R219 1-216-073-00 RES, CHIP 10K 5% 1/10W
R220 1-216-073-00 RES, CHIP 10K 5% 1/10W
R221 1-216-073-00 RES, CHIP 10K 5% 1/10W
R222 1-216-067-00 RES, CHIP 5.6K 5% 1/10W
R223 1-249-429-11 CARBON 10K 5% 1/4W
R224 1-249-429-11 CARBON 10K 5% 1/4W
R225 1-216-073-00 RES, CHIP 10K 5% 1/10W
R226 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R227 1-216-097-91 RES, CHIP 100K 5% 1/10W
R228 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R229 1-216-097-91 RES, CHIP 100K 5% 1/10W
R232 1-216-073-00 RES, CHIP 10K 5% 1/10W
R233 1-216-073-00 RES, CHIP 10K 5% 1/10W
R234 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R235 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R237 1-247-815-91 CARBON 220 5% 1/4W
R238 1-249-417-11 CARBON 1K 5% 1/4W
R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R247 1-216-025-91 RES, CHIP 100 5% 1/10W
R248 1-216-025-91 RES, CHIP 100 5% 1/10W
R249 1-216-081-00 RES, CHIP 22K 5% 1/10W
R250 1-216-081-00 RES, CHIP 22K 5% 1/10W
R268 1-216-081-00 RES, CHIP 22K 5% 1/10W
R269 1-216-081-00 RES, CHIP 22K 5% 1/10W
R283 1-216-022-00 RES, CHIP 75 5% 1/10W
R287 1-216-065-91 RES, CHIP 4.7K 5% 1/10W
R303 1-216-025-91 RES, CHIP 100 5% 1/10W
R341 1-216-017-91 RES, CHIP 47 5% 1/10W
R342 1-216-097-91 RES, CHIP 100K 5% 1/10W
R343 1-216-073-00 RES, CHIP 10K 5% 1/10W
R344 1-216-061-00 RES, CHIP 3.3K 5% 1/10W
R350 1-208-766-11 RES, CHIP 220 0.5% 1/10W
R351 1-208-766-11 RES, CHIP 220 0.5% 1/10W
R352 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R354 1-208-794-11 RES, CHIP 3.3K 0.5% 1/10W
R357 1-216-091-00 RES, CHIP 56K 5% 1/10W
R358 1-216-043-91 RES, CHIP 560 5% 1/10W
R359 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R360 1-163-001-11 CERAMIC CHIP 220pF 10% 50V
R361 1-216-049-91 RES, CHIP 1K 5% 1/10W
R362 1-216-043-91 RES, CHIP 560 5% 1/10W
R363 1-216-037-00 RES, CHIP 330 5% 1/10W
R364 1-216-025-91 RES, CHIP 100 5% 1/10W
R365 1-216-295-91 SHORT
R366 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R367 1-216-057-00 RES, CHIP 2.2K 5% 1/10W
R368 1-216-025-91 RES, CHIP 100 5% 1/10W
R369 1-216-045-00 RES, CHIP 680 5% 1/10W
R370 1-216-033-00 RES, CHIP 220 5% 1/10W
R372 1-216-035-00 RES, CHIP 270 5% 1/10W
R373 1-216-025-91 RES, CHIP 100 5% 1/10W
R374 1-216-025-91 RES, CHIP 100 5% 1/10W
R375 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R376 1-216-049-91 RES, CHIP 1K 5% 1/10W
R377 1-216-049-91 RES, CHIP 1K 5% 1/10W
R378 1-216-041-00 RES, CHIP 470 5% 1/10W
R379 1-216-049-91 RES, CHIP 1K 5% 1/10W
64
Page 27
Note: Note:
The components identified by
shading andmark
safety. Replace only with part
number specified.
are critical for
Les composants identifies per un
trame et une marque sont critiques
pour la securite. Ne les remplacer
quepar une piece portant le numero
specifie.
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C
BOARD VARIANT PARTS LIST
PACKAGING LIST & ACCESSORIES
The variant parts on this page belong to the following model(s) only:
KV-21SE82/82C
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
A BOARD VARIANT LIST:
KV-21SE82/82C
R380 1-208-790-11 RES, CHIP 2.2K 0.5% 1/10W
R382 1-216-053-00 RES, CHIP 1.5K 5% 1/10W
R387 1-216-025-91 RES, CHIP 100 5% 1/10W
R388 1-216-025-91 RES, CHIP 100 5% 1/10W
R395 1-216-025-91 RES, CHIP 100 5% 1/10W
R396 1-216-025-91 RES, CHIP 100 5% 1/10W
R397 1-216-025-91 RES, CHIP 100 5% 1/10W
R400 1-247-863-91 CARBON 22K 5% 1/4W
R402 1-216-121-91 RES, CHIP 1M 5% 1/10W
R403 1-247-815-91 CARBON 220 5% 1/4W
R404 1-247-815-91 CARBON 220 5% 1/4W
R432 1-249-428-11 CARBON 8.2K 5% 1/4W
R651 1-247-289-00 CARBON 8.2M 5% 1W
R652 1-202-961-11 CEMENTED 1.8 5% 10W
R658 1-215-929-11 METAL OXIDE 100K 5% 3W F
R664 1-215-479-00 METAL 270K 1% 1/4W
R698 1-215-479-00 METAL 270K 1% 1/4W
TRANSFORMER
T603 1-433-817-11 TRANSFORMER
THERMISTOR
THP601 1-803-540-11 THERMISTOR
PACKAGING LIST AND ACCESSORIES
1-417-182-11 CONVERTER (EAC-25)
1-501-730-41 ANTENNA, TELESCOPIC
3-866-075-41 MANUAL, INSTRUCTION (KV-21SE82/82C)
3-866-072-21 MANUAL, INSTRUCTION (KV-20M42/S42/S43)
3-866-073-41 MANUAL, INSTRUCTION
(KV-21SB42C/42M/MB42C/42M/42P/ME42/42C/
SB42C/42M/21SE42/42C)
1-475-801-11 REMOTE COMMANDER (RM-Y165)
(KV-21SE82/21SE82C)
1-475-757-11 REMOTE COMMANDER (RM-Y156)
(KV-20M42/21MB42P/42C/42M/21ME42/42C)
1-475-635-11 REMOTE COMMANDER (RM-Y155)
(KV-20S42/21SB42M/42C/21SE42/42C)
1-475-631-11 REMOTE COMMANDER (RM-Y156W) (KV-20S43)
9-939-830-11 BATTERY COVER, REMOTE
4-041-254-01 BAG, PROTECTION
* 4-061-384-02 CUSHION, (UPPER) (ASSY) (KV-21SE82/82C)
* 4-061-392-01 CUSHION, (UPPER) (ASSY)
(KV-21ME42/42C/SE42/42C)
* 4-062-747-01 CUSHION, (UPPER) (ASSY)
(KV-20M42/S42/S43/21MB42C/42M/42P/SB42C/42M)
* 4-061-383-02 CUSHION, (LOWER) (ASSY) (KV-21SE82/82C)
* 4-061-391-01 CUSHION, (LOWER) (ASSY)
(KV-21ME42/42C/SE42/42C)
* 4-062-748-01 CUSHION, (LOWER) (ASSY)
(KV-20M42/S42/S43/21MB42C/42M/42P/SB42C/42M)
TUNER
TU101 8-598-431-00 TUNER, FSS BTF-WA411
VARISTOR
VDR601 1-803-587-11 VARISTOR, RZV10D471
* 4-064-000-02 CARTON, INDIVIDUAL (KV-21SE82/82C)
* 4-052-651-11 CARTON, INDIVIDUAL (KV-20M42/S42/S43)
* 4-061-395-11 CARTON, INDIVIDUAL
(KV-21ME42/42C/21SE42/42C
* 4-062-755-11 CARTON, INDIVIDUAL
(KV-21MB42C/42M/42P/21SB42C/42M)
65
Page 28
KV-20M42/20S42/20S43/21MB42C/21MB42M/21MB42P/21ME42/21ME42C/
21SB42C/21SB42M/21SE42/21SE42C/21SE82/21SE82C/21XE42C
NOTES:
66
Page 29
Sony Corporation
Sony Technology Center
Product Quality Division
Service Promotion Department9-965-855-01
English
99DS74399-1
Printed in U.S.A.
© 1999.4
Page 30
SERVICE MANUAL
MODEL COMMANDER DEST CHASSIS NO.
BA-4D CHASSIS
KV-20M42
KV-20M42
KV-20S42
KV-20S42
KV-20S43
KV-20S43
KV-21MB42C
KV-21MB42M
KV-21MB42P
KV-21ME42
KV-21ME42C
KV-21SB42C
KV-21SB42M
KV-21SE42
KV-21SE42C
RM-Y156 US SCC-S27A-A
RM-Y156 CND SCC-S28B-A
RM-Y155 US SCC-S27B-A
RM-Y155 CND SCC-S28C-A
RM-Y156W US SCC-S27C-A
RM-Y156W CND SCC-S28D-A
RM-Y156 E SCC-S25E-A
RM-Y156 MX SCC-S26A-A
RM-Y156 E SCC-S25A-A
RM-Y156 E SCC-S25B-A
RM-Y156 E SCC-S25F-A
RM-Y155 E SCC-S25G-A
RM-Y155 MX SCC-S26B-A
RM-Y155 E SCC-S25D-A
RM-Y155 E SCC-S25H-A
KV-21SE82
KV-21SE82C
Subject: A Board IC P/N Change
Correct the service manual as shown.
File this supplement with the service manual.
RM-Y165 E SCC-S25J-A
RM-Y165 E SCC-S25K-A
SUPPLEMENT-1
TRINITRON® COLOR TV
Page 31
: Modified item
☛
☛
Section 8 - Electrical Parts List (Page 51)
OLD NEW
REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION
IC301 8-752-083-09 IC CXA2061S IC301 8-752-098-78 IC CXA2133BS
9-965-855-81
Sony Corporation
Sony Technology Center
Technical Services
Service Promotion Dept.
English
2000IJ74283-1
Printed in USA
©2000.9
