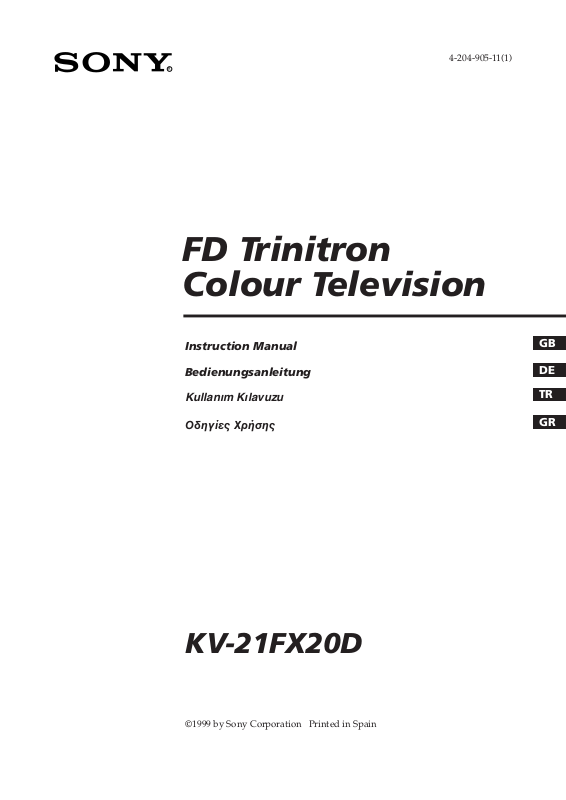

Sony KV-21FX20D User Manual

4-204-905-11(1)
R
FD Trinitron Colour Television
Instruction Manual
Bedienungsanleitung
Kullanwm Kwlavuzu
GB
DE
TR
GR
KV-21FX20D
©1999 by Sony Corporation Printed in Spain
2
Thank you for choosing this Sony TV.
Before operating the TV, please read this manual thoroughly and retain it for
future reference.
Keys to read this Instruction Manual:
• Use Getting Started if you wish to install the TV set and to get familiar with the
basic functions.
• Use Advanced Operation if you wish to know more about the additional features
of the TV set.
• Symbols used in the manual:
Informs you of possible hazards
Instruction Manual
GB
Important information
Information on a feature
1, 2 ... Sequence of instructions
MENU
Shaded buttons on the remote control show the buttons you have to
K
press to follow the sequence of instructions.
Informs you of the result of the instructions.
The process continues on the next page to get final result.
3
For Your Safety
WARNING
Safety Information
All TVs operate on extremely high voltages. To prevent fire or electric shock, please follow the safety procedures indicated below.
For General Safety
Do not expose the TV set to rain or moisture.
Do not remove the rear cover.
For your protection, refer all servicing to qualified personnel only.
For Safe Installation
Do not install the TV in hot, humid or excessively dusty places.
Do not block or cover the ventilation openings. For ventilation, leave
a space of at least 10 cm all around the set.
Do not install the TV where it may be exposed to mechanical vibrations.
Place the TV set only on a stable stand designed for the weight and
dimensions of the TV.
For Safe Operation
Do not operate the TV set on anything other than a 220-240V AC, 50Hz
supply.
Do not operate the TV if any liquid or solid objects fall in through the
ventilation slots. Have it checked immediately.
For environmental and safety reasons, it is recommended that the TV set
is not left in standby mode when not in use. Switch off at the mains.
Do not disconnect the TV by pulling on the power cable. Disconnect by
removing the mains plug.
In case of a thunderstorm, disconnect the TV set from the main supply and
the aerial. Otherwise the set may be damaged by a stroke of lightning.
4
For Your Safety
For Maintenance
Clean the TV screen with a soft dampened cloth. Do not use any abrasive
cleaners.
Dust and nicotine deposits may cause heat accumulation inside the TV set.
In the long term this could be a safety risk and may shorten the lifetime of your TV set. Therefore have your set serviced about every five years.
Table of Contents
Table of Contents
Keys to read this Instruction Manual .................................................................................................. 3
For your Safety ........................................................................................................................................ 4
Getting Started
Overview
Checking the Accessories Supplied ......................................................................................... 6
Overview of TV Buttons ........................................................................................................... 6
Overview of Remote Control Buttons ..................................................................................... 7
First Time Operation
Step 1 - Installation
Inserting Batteries into the Remote Control ........................................................................... 8
Connecting the Aerial ................................................................................................................ 8
Switching on the TV .................................................................................................................. 8
Step 2 - Basic Presetting
Selecting Language .................................................................................................................... 9
Automatically Tuning the TV using the Remote Control .................................................. 10
Changing the Programme Order of the TV channels ......................................................... 11
Advanced Operation
Advanced Presetting
Automatically Tuning the TV ................................................................................................. 12
Manually Tuning the TV ......................................................................................................... 13
Fine Tuning Channels .............................................................................................................. 14
Adjusting the Picture Rotation ............................................................................................... 15
Skipping Programme positions ............................................................................................. 16
Advanced TV Operation
Adjusting the Picture ............................................................................................................... 17
Adjusting the Sound ................................................................................................................ 18
Using the Sleep Timer ............................................................................................................. 19
Using the Wake Up Timer....................................................................................................... 20
Teletext
Viewing Teletext ....................................................................................................................... 21
GB
Optional Connections
Using Optional equipment ..................................................................................................... 22
Smartlink ................................................................................................................................... 23
Additional Information
Menu Guide .............................................................................................................................. 24
Troubleshooting........................................................................................................................ 25
Specifications ............................................................................................................................ 26
Table of Contents
5
Getting Started - Overview
Checking the Accessories Supplied
1
2
3
4
5
6
7
8
9
0
MENU
K
PROGR
Two batteries (R6 type)
RM
887
S
One Remote Control
(RM-887)
Overview of TV Buttons
On/Off Switch
Standby
indicator
Headphone jack Auto Tune button
Press the flap on the front of the TV
to reveal the front control panel
(press on the mark )
6
Getting Started - Overview
Phono Video Input jack
Audio Inputs jacks
Selecting Input source
Volume control buttons
Programme Up or Down buttons (Selects TV channels)
Getting Started - Overview
Overview of Remote Control Buttons
Muting the Sound
Press to mute TV sound.
Press again to restore the sound.
Displaying On Screen Information
Press to display all on-screen indications. Press again to cancel. +.--+++++-++++
Selecting channels
Press to select channels.
For double-digit programme numbers, e.g. 23, press -/-- first, then the buttons 2 and 3. If you enter an incorrect first digit, this should be corrected by entering another digit (0-9) and then selecting -/-- button again to enter the programme number of your choice.
+++++++++++++++...
Selecting TV mode
Press to switch off Teletext or video input.
+++++++++++++++++...
Selecting Teletext
Press to switch on Teletext.
Selecting Sound mode
Press to change the sound mode.
+++++++++++++++++...
Selecting Picture mode
Press to change the picture mode.
+++++++++++++++++...
Adjusting TV Volume
Press to adjust the volume of the TV.
To Temporarily Switch Off TV
Press to temporarily switch off TV (the standby indicator on TV lights up). Press
again to switch on TV from standby mode.
To save energy we recommend switching off completely when TV is not in use.
1
2
3
4
5
6
7
8
9
0
MENU
K
PROGR
RM
887
After 15-30 minutes without a TV signal and without any button being pressed, the TV switches automatically into standby mode.
Selecting Input source
Press repeatedly until the desired input symbol of the source appears on the TV screen.
Back to the channel last watched
Press to watch the last channel selected (watched for at least 5 seconds).
Displaying the menu system
Press to display the menu on the TV screen. Press again to remove the menu display from the TV screen.
Menu selection
Scroll Up
Scroll Down Previous menu or selection Next menu or selection
OK Confirms your selection
Selecting Screen format
Press to view programmes in 16:9 mode. Press again to return to 4:3 mode.
S
Besides TV functions, all coloured buttons as well as green symbols are also used for Teletext operation. For more details, please refer to the "Teletext" section of this instruction manual.
This button only works in Teletext mode. Function
not work with this TV.
Selecting channels
Press to select the next or previous channel.
associated to this button does
Getting Started - Overview
7
First Time Operation - Installation
Inserting Batteries into the Remote Control
Make sure to insert the batteries using the correct polarities. Always remember to dispose of used batteries in an environmental friendly way.
Connecting the Aerial
Switching on the TV
Connect a conventional aerial to the socket
marked on the rear of the TV.
Connect the TV plug to the mains socket (220-240V AC, 50Hz).
8
First Time Operation - Installation
Push in the On/Off switch on the front of the TV.
First Time Operation - Basic Presetting
Selecting Language
Use this function to change the language of the menu screens. The first time that you switch on your TV, the Language menu appears automatically. However, if you need to change the language menu afterwards, select the menu LANGUAGE in the and proceed in the same way as described below.
1 Press the on/off button on your TV set to switch on your TV. The
first time you press the on/off button on your TV set, the language menu displays automatically on the TV screen.
(SET UP) menu
LANGUAGE
ENGLISH
DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS EΛΛHNIKA POLSKI
Č
ESKI MAGYAR T
Ü
RKÇE
Select language:
LANGUAGE
Select language:
ENGLISH
DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS EΛΛHNIKA POLSKI
Č
MAGYAR T
ESKI
Ü
RKÇE
2 Press the or button on the remote control to select the
language, then press the OK button to confirm your selection.
1
2
3
4
5
6
7
8
9
0
MENU
The Auto Tuning menu appears on the TV screen in the selected language.
LANGUAGE
ENGLISH
DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS EΛΛHNIKA POLSKI
ČESKI
MAGYAR T
ÜRKÇE
Select language:
Do you want to start
automatic tuning?
YES
NO
K
PROGR
S
RM
887
First Time Operation - Basic Presetting
9
First Time Operation - Basic Presetting
Automatically Tuning the TV using the Remote Control
You need to tune the TV to receive channels (TV Broadcast). By following the instructions below, this TV automatically searches and stores all available channels for you. After having selected the language, a new menu appears automatically on the TV screen asking you to automatically tune the TV. However, if you need to change or repeat the tuning afterwards (e.g. when you move house), select the menu AUTO PROGRAMME in the (SET UP) menu and proceed in the same way as described below in step 1 or, please refer to the section "Automatically Tuning the TV using the TV buttons" of this instruction manual.
Do you want to start
1 Press the OK button on the remote control to select YES.
A new menu appears automatically on the screen asking you to check that the antenna is connected.
1
2
3
4
5
6
2 Confirm that the antenna is connected and then press the OK
button.
automatic tuning?
YES
NO
Please confirm that
antenna is connected
CONFIRM
Do you want to start
automatic tuning?
YES
NO
7
8 0
S
K
PROGR
MENU
RM
887
9
The automatic tuning starts and the message "Searching..." flashes on the screen.
This procedure could take some minutes.
When the automatic tuning is finished, the Programme Sorting menu appears on the TV screen.
Notes: • To stop the automatic tuning, press the MENU button.
• If you stop the automatic tuning by pressing the MENU button, the Programme Sorting menu does not appear automatically on the TV screen.
AUTO PROGRAMME
PROGRAMME: SYSTEM: CHANNEL:
Searching...
PROGRAMME SORTING
PROGRAMME: CONFIRM
Select Channel: Select new position: Confirm: Exit:
PROGR
MENU
01 B/G C 21
03
01
10
First Time Operation - Basic Presetting
First Time Operation - Basic Presetting
Changing the Programme Order of the TV channels
After all available channels (TV Broadcast) are captioned and stored, a new menu appears automatically on the screen to change the order in which the channels appear on the screen. However, if you wish to rearrange the order of the channels afterwards, select the menu PROGRAMME SORTING in the
(SET UP) menu and proceed in the same way as described in the b) section of this chapter.
a) If you do not wish to change the channel order:
PROGRAMME SORTING
1 Press the MENU button to exit and return to the normal TV screen.
1
2
3
4
5
6
7
8
9
Your TV is now ready for use.
b) If you wish to change the channel order:
0
MENU
K
1 Press the PROGR or button until the channel (TV Broadcast) you
wish to rearrange appears on the screen.
2 Press the or button to select the new programme number
position for your selected channel (TV Broadcast), then press the OK button.
PROGR
The word CONFIRM is highlighted for a few seconds to confirm that the new programme position is stored.
PROGRAMME: CONFIRM
Select Channel: Select new position: Confirm:
MENU
Exit:
PROGRAMME SORTING
PROGRAMME: CONFIRM
Select Channel: Select new position: Confirm:
MENU
Exit:
PROGRAMME SORTING
PROGRAMME: CONFIRM
Select Channel: Select new position: Confirm:
MENU
Exit:
PROGR
PROGR
01
01
PROGR
03
03
PROGRAMME SORTING
03
01
PROGRAMME: CONFIRM
Select Channel:
PROGR Select new position: Confirm:
MENU
Exit:
PROGRAMME SORTING
03
01
PROGRAMME: CONFIRM
Select Channel:
PROGR Select new position: Confirm:
MENU
Exit:
04
02
S
RM
3 Repeat steps 1 and 2 if you wish to change the order of the other
channels on your TV.
887
4 Press the MENU button to exit and return to the normal TV screen.
Your TV is now ready for use.
First Time Operation - Basic Presetting
11
Advanced Operation - Advanced Presetting
Automatically Tuning the TV
Besides the explanation in the section “Automatically Tuning the TV using the Remote Control“, by following the instructions below, this TV also searches and stores automatically all available channels using just one button of the TV set and one button of the remote control.
1 Press the flap on the front of the TV by pressing on the mark to
reveal the front control panel.
Please confirm that
2 Press and hold in the button on the TV set for some seconds,
until a menu appears automatically on the screen asking you to check that antenna is connected.
antenna is connected
CONFIRM
Please confirm that antenna is connected
CONFIRM
3 Confirm that the antenna is connected and then press the OK
button on the remote control.
1
2
3
4
5
6
7
8
9
0
MENU
K
The automatic tuning starts and the message "Searching..." flashes on the screen.
This procedure could take some minutes.
Please confirm that
antenna is connected
CONFIRM
AUTO PROGRAMME
PROGRAMME: SYSTEM: CHANNEL:
Searching...
01 B/G C 21
When the automatic tuning procedure is complete, the menu disappears from the TV screen and your TV is now ready for use.
PROGR
Note: To stop the automatic tuning, press the MENU button on the
remote control.
RM
887
S
12
Advanced Operation - Advanced Presetting
Advanced Operation - Advanced Presetting
Manually Tuning the TV
Use this function to preset channels or a video input source one by one to the programme order of your choice.
PICTURE CONTROL
1 Press the MENU button on the remote control to display the
menu on the TV screen.
2 Press the button to select the symbol, then press the
button to enter to the SET UP menu.
1
2
3
4
5
6
3 Press the button to select MANUAL PROGRAMME, then
7
8
9
press the
0
MENU
button.
4 With the cursor highlighting PROGRAMME, press the button
and then, press the
K
number you want to preset a channel. Press the
or button to select on which programme
button.
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING
MANUAL PROGRAMME
SET UP:
MANUAL PROGRAMME
PROGRAMME:
SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
01 B/G C 21 ON NO OFF
0
0
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PROGR
S
RM
887
5 Press the button to select CHANNEL, then press the button.
Press terrestrial channels or "S" for cable channels. Press the
or button to select the channel tuning, "C" for
button.
6 Press the number buttons to enter the channel number of the TV
Broadcast or press the available channel. If you do not wish to store this channel, press the to continue searching for the desired channel.
or button to search for the next
or button
7 If this is the desired channel you wish to store, press the OK
button and then, with the cursor highlighting CONFIRM, press the OK button again.
8 Repeat steps 4 to 7 if you wish to store more channels.
9 Press the MENU button to exit and return to the normal TV
screen.
Your TV is now ready for use.
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM:
CHANNEL:
AFT: SKIP: DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
01 B/G C 21 ON NO OFF
01 B/G
C 21
ON NO OFF
01 B/G C 21 ON NO OFF
Advanced Operation - Advanced Presetting
13
Advanced Operation - Advanced Presetting
Fine Tuning Channels
Normally, the automatic fine tuning (AFT) function is operating. If the picture is distorted, however, you can manually fine tune the TV to obtain a better picture reception.
PICTURE CONTROL
MODE: PERSONAL
1 Select the channel (TV Broadcast) you wish to fine tune, then press
the MENU button on the remote control to display the menu on the TV screen.
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to select the symbol, then press the button
to enter to the SET UP menu.
1
2
3
4
5
6
7
8
9
3 Press the button to select MANUAL PROGRAMME, then press
button.
the
0
MENU
4 Press the button to select AFT, then press the button.
K
PROGR
RM
887
5 Press the or button to adjust the fine tuning (-15 to +15), then
press the OK button.
6 With the cursor highlighting CONFIRM, press the OK button to
store.
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING
MANUAL PROGRAMME
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL:
AFT:
SKIP: DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
01 B/G C 21 ON NO OFF
01 B/G C 21
+2
NO OFF
01 B/G C 21 +2 NO OFF
0
0
S
7 Press the MENU button to exit and return to the normal TV screen.
8 Repeat steps 1 to 7 to fine tune other channels.
14
Advanced Operation - Advanced Presetting
Your TV is now ready for use.
Advanced Operation - Advanced Presetting
Adjusting the Picture Rotation
Because of the earth's magnetism, the picture might slant. In this case, you can correct the picture slanting.
1 Press the MENU button on the remote control to display the menu
on the TV screen.
1
2
3
4
5
6
7
8
9
0
MENU
2 Press the button to select the symbol, then press the button
to enter to the SET UP menu.
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
PICTURE CONTROL
0
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
K
PROGR
S
RM
887
3 With the cursor highlighting PICTURE ROTATION, press the
button.
4 Press the or button to adjust the picture rotation (adjusting
range is -5 to +5), then press the OK button.
5 Press the MENU button to exit and return to the normal TV screen.
SET UP
PICTURE ROTATION:
LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
0
+2
Your TV is now ready for use.
Advanced Operation - Advanced Presetting
15
Advanced Operation - Advanced Presetting
Skipping Programme positions
You can programme this TV to skip any unwanted programme numbers when they are selected with the PROGR +/­buttons. To cancel this function afterwards, proceed in the same way as described below by selecting NO instead of YES in step 6.
PICTURE CONTROL
MODE: PERSONAL
1 Press the MENU button on the remote control to display the menu
on the TV screen.
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to select the symbol, then press the button
to enter to the SET UP menu.
1
2
3
4
5
6
7
8
9
3 Press the button to select MANUAL PROGRAMME, then press
the button.
0
MENU
4 With the cursor highlighting PROGRAMME, press the PROGR
K
PROGR
RM
887
or button until the programme you want to skip appears on the screen.
5 Press the button to select SKIP, then press the button.
6 Press the button to select YES, then press the OK button.
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING
MANUAL PROGRAMME
SET UP:
MANUAL PROGRAMME
PROGRAMME:
SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT:
SKIP:
DECODER:
CONFIRM
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
01 B/G C 21 ON NO OFF
05 B/G C 21 ON NO OFF
05 B/G C 21 ON
YES
OFF
0
0
S
7 With the cursor highlighting CONFIRM, press the OK button.
8 Repeat steps 4 to 7 to skip other unused programme positions.
9 Press the MENU button to exit and return to the normal TV screen.
16
Advanced Operation - Advanced Presetting
When changing channels (TV Broadcasts) with the PROGR +/- buttons, the skipped programme positions do not appear. You can, however, still select them using the number buttons.
SET UP:
MANUAL PROGRAMME
PROGRAMME: SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
05 B/G C 21 ON YES OFF
Advanced Operation - Advanced TV Operation
Adjusting the Picture
Although the picture is adjusted at the factory, you can modify it to suit your own taste.
1 Press the MENU button on the remote control to display the menu
on the TV screen.
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to enter to the PICTURE CONTROL menu.
1
2
3
4
5
6
3 Press the or button to select the item you wish to change.
7
8
9
0
MENU
4 With the cursor highlighting the item you wish to change, press the
K
button.
(Refer to the table below for the effect of each control).
PICTURE CONTROL OPERATION / EFFECT
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST
BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
MODE PERSONAL (for individual settings)
LIVE (for live broadcast programmes) MOVIE (for films)
PROGR
CONTRAST Less More BRIGHTNESS* Darker Brighter
COLOUR* Less More SHARPNESS* Softer Sharper HUE** Greenish Reddish
RM
887
RESET Resets picture to the factory preset levels.
* Can be only altered if PERSONAL MODE is selected. ** Only avalaible for NTSC colour signal (e.g: US video tapes).
S
5 Press the / or / button to alter the selected item, then
press the OK button to store the new adjustment.
6 Repeat steps 3 to 5 to alter the other items.
7 Press the MENU button to exit and return to the normal TV screen.
Changing Picture Mode Quickly
1 Press the button on the remote control to directly access the
PICTURE MODE.
2 Press the button to select your desired picture mode
(PERSONAL, LIVE or MOVIE).
Advanced Operation - Advanced TV Operation
PICTURE MODE:
PICTURE MODE:
PICTURE MODE:
PERSONAL
LIVE
PICTURE MODE:
PERSONAL
17
Advanced Operation - Advanced TV Operation
Adjusting the Sound
Although the sound is adjusted at the factory, you can modify it to suit your own taste.
1 Press the MENU button on the remote control to display the menu
on the TV screen.
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to select the symbol, then press the button
to enter to the SOUND CONTROL menu.
1
2
3
4
5
6
7
8
9
3 Press the or button to select the item you wish to change.
4 With the cursor highlighting the item you wish to change, press the
0
MENU
K
button.
(Refer to the table below for the effect of each control).
SOUND CONTROL OPERATION / EFFECT
MODE PERSONAL (for individual settings)
JAZZ POP ROCK
SOUND CONTROL
MODE: PERSONAL
TREBLE BASS BALANCE DUAL SOUND: DSP: RESET
SOUND CONTROL
MODE: PERSONAL
TREBLE
BASS BALANCE DUAL SOUND: DSP: RESET
SOUND CONTROL
MODE: PERSONAL
TREBLE BASS BALANCE DUAL SOUND: DSP: RESET
STEREO ON
STEREO ON
STEREO ON
TREBLE* Less More BASS* Less More BALANCE Left Right DUAL SOUND For a stereo broadcast:
PROGR
MONO STEREO
For a bilingual broadcast: A (for channel 1 or Mono sound) B (for channel 2)
DSP (Digital sound Processor) ON OFF
RM
887
RESET Resets sound to the factory preset levels.
Can be only altered if PERSONAL MODE is selected.
*
5 Press the / or / button to alter the selected item, then
S
press the OK button to store the new adjustment.
6 Repeat steps 3 to 5 to alter the other items.
7 Press the MENU button to exit and return to the normal TV screen.
Changing Sound Mode Quickly
1 Press the button on the remote control to access directly to the
SOUND MODE.
2 Press the button to select your desired sound mode
(PERSONAL, JAZZ, POP or ROCK).
18
Advanced Operation - Advanced TV Operation
SOUND MODE:
PERSONAL
SOUND MODE:
POP
SOUND MODE:
PERSONAL
Advanced Operation - Advanced TV Operation
Using the Sleep Timer
You can select a time period for the TV to switch itself automatically into the standby mode.
1 Press the MENU button on the remote control to display the menu
on the TV screen.
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to select the symbol, then press the button
to enter to the TIMER menu.
1
2
3
4
5
6
7
8
9
3 With the cursor highlighting OFF TIMER, press the button.
TIMER
OFF TIMER: ON TIMER:
TIMER
OFF TIMER:
ON TIMER:
OFF OFF
OFF OFF
0
MENU
K
4 Press the or button to set the time period delay
OFF
TIMER
OFF TIMER: ON TIMER:
0:15
OFF
0:15 min. 0:30 min. ...
PROGR
...
4:00 hours
5 Press the OK button.
RM
887
S
6 Press the MENU button to exit and return to the normal TV screen.
One minute before the TV switches into standby mode, the time remaining is displayed on the TV screen automatically.
Notes: • When watching the TV, press the
time remaining.
• To return to normal operation from standby mode,
press the
button.
button to display the
Advanced Operation - Advanced TV Operation
19
Advanced Operation - Advanced TV Operation
Using the Wake Up Timer
You can select a time period for the TV to switch itself automatically on from standby mode.
1 Press the MENU button on the remote control to display the menu
on the TV screen.
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
2 Press the button to select the symbol, then press the button
1
2
3
4
5
6
7
8
9
to enter to the TIMER menu.
3 Press the button to select ON TIMER, then press the button.
0
MENU
K
4 Press the or button to set the time period
OFF
TIMER
OFF TIMER: ON TIMER:
TIMER
OFF TIMER:
ON TIMER:
TIMER
OFF TIMER: ON TIMER:
OFF OFF
OFF OFF
OFF
10:30
0:15 min. 0:30 min. ...
PROGR
...
12:00 hours
5 Press the OK button.
RM
887
6 Press the MENU button to exit and return to the normal TV screen.
S
7 Press the standby button .
The standby indicator on the TV flashes regularly to indicate that the Wake Up timer is active. After the selected length of time, the TV switches on automatically.
Notes: • If you use the "Wake Up Timer" to switch the TV on and
20
Advanced Operation - Advanced TV Operation
keep it on for one hour without pressing any TV or remote control button, the TV switches itself back into Standby
mode and the indicator on the TV lights.
• Any temporary power failure causes a misfunction in the "Wake Up Timer" and you will have to reset the "Wake Up timer".
Teletext
Viewing Teletext
Teletext is an information service transmitted by most TV stations.
Make sure to use a TV channel with a strong signal, otherwise teletext errors may occur.
Selecting Teletext
1 Select the TV channel which carries the teletext service you wish to
view.
1
2
4
5
7
8 0
S
K
MENU
PROGR
RM
887
3
2 Press the button on the remote control to switch on the teletext.
6
TELETEXT
Index Programme News Sport Weather
TELETEXT
Index Programme
25 153 101 98
25
News
153
Sport
101
Weather
98
9
3 Input three digits for the page number, using the numbered buttons
on the remote control. (if you have made a mistake, type in any three digits and then, re-enter the correct page number).
4 Press the button to switch off teletext.
Using other Teletext functions
TO PRESS THE BUTTON
Access the next or preceding page for next page or
for the preceding page
TELETEXT
Index
Programme
Superimpose teletext on to the TV
Freeze a teletext page
Press again to cancel teletext mode.
Press again to cancel the freeze.
TELETEXT
Index
Programme News Sport Weather
25
News
153
Sport
101
Weather
98
25 153 101 98
Reveal concealed information
(e.g: answer to a quiz) Press again to cancel.
Using Fastext
Fastext lets you access pages with one button stroke.
When Fastext is broadcast, a colour coded menu appears at the bottom of the teletext page. Press the colour button (red, green, yellow or blue) on the remote control to access the corresponding page.
Teletext
21
Optional Connections
Using Optional Equipment
You can connect optional audio or video equipment to your TV, such as a VCR, a camcorder or a video game as shown below.
Select and View the Input Signal
1
Connect your equipment to the designated TV socket.
2 Press
input symbol appears on the TV screen.
Symbol Input signals
button repeatedly on your remote control until the correct
the
k • Audio/video input signal through the Euro AV
K
q
K
connector
• RGB input signal through the Euro AV
connector
• Audio/video input signal through the Euro AV connector
2
3
• S video input signal through the Euro AV connector
• Video input signal through the phono socket Audio input signal through
E
E
D
D
B
3 Switch on the connected equipment.
4 To return to normal TV picture, press the
button on the remote control.
A
and
8mm/Hi8 camcorder
A
Front of TV
C
B
Additional Information
Connecting a VCR
Plug in VCR to the socket We recommend you tune in the VCR signal to TV programme number ‘0’ using the section “Manually Tuning the TV“ of this instruction manual.
Connecting Headphones
Plug in your headphones to the socket
Connecting Decoders
Plug in decoders to the socket
Connecting to External Audio Equipment
Plug in your Hi-Fi equipment to the to amplify the audio output from the TV.
For Mono Equipment
Connect the phono plug to the L/G/S/I socket on the front of the TV and select
input signal using the instructions above. Finally, refer to the “Adjusting the
K
Sound” section of this manual and select “A” on the sound menu screen.
* “PlayStation” is a product of Sony Computer Entertainment, Inc. * “PlayStation” is a trademark of Sony Computer Entertainment, Inc.
E
on the rear of the TV set.
C
on the front of the TV set.
on the rear of the TV.
E
F
sockets on the rear of the TV if you wish
Rear of TV
D E
2
1
“PlayStation”
F
*
Hi-Fi
VCR
22
Decoder
Optional Connections
Smartlink
Smartlink is a direct link between your TV set and a VCR.
For Smartlink you need:
• A VCR which supports Smartlink, NextView Link, Easy Link or Megalogic.
Megalogic is a trademark of Grundig Corporation. EasyLink is a trademark of Philips Corporation.
• A fully-wired 21 pin SCART cable to connect your VCR to Scart :1/
connector.
The features of Smartlink are:
• Tuning information such as the channel overview are downloaded from the TV set to the VCR.
• Direct TV recording: While watching TV you need to press just one button on the VCR to record this programme.
Rear of TV
VCR
• TV in standby mode: Press the "Play z" button on your VCR to switch the TV automatically on.
If you have connected a decoder to a VCR which supports Smartlink feature, select the menu MANUAL PROGRAMME in the (SET UP) menu and select DECODER ON to each codified channel.
For more information on Smartlink, please refer to the Instruction Manual of your VCR.
Optional Connections
23
Additional Information
AUTO PROGRAMME
PROGRAMME: SYSTEM: CHANNEL:
Searching...
01 B/G C 21
Menu Guide
Set Up Menus (for first time operation)
LANGUAGE
ENGLISH
DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS EΛΛHNIKA POLSKI
Č
ESKI MAGYAR T
Ü
RKÇE
Select language:
(For more details, please refer to the chapter "Selecting Language")
On Screen display Menus Guide
Do you want to start
automatic tuning?
YES
NO
Please confirm that
antenna is connected
CONFIRM
PROGRAMME SORTING
PROGRAMME: CONFIRM
Select Channel:
PROGR Select new position: Confirm:
MENU
Exit:
03
01
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
SOUND CONTROL
MODE: PERSONAL
TREBLE BASS BALANCE DUAL SOUND: DSP: RESET
TIMER
OFF TIMER: ON TIMER:
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
STEREO ON
OFF OFF
PICTURE CONTROL
MODE: PERSONAL
CONTRAST BRIGHTNESS COLOUR SHARPNESS HUE RESET
SOUND CONTROL
MODE: PERSONAL
TREBLE BASS BALANCE DUAL SOUND: DSP: RESET
TIMER
OFF TIMER:
ON TIMER:
STEREO ON
OFF OFF
TIMER
OFF TIMER: ON TIMER:
OFF
OFF
(For different adjustments, please refer to the section "Adjusting the Picture")
(For different adjustments, please refer to the section "Adjusting the Sound" )
(For more details, please refer to the section "Using the Sleep Timer")
TIMER
OFF TIMER:
ON TIMER:
OFF OFF
TIMER
OFF TIMER: ON TIMER:
OFF
OFF
(For more details, please refer to the section "Using the Wake Up Timer")
SET UP
0
PICTURE ROTATION:
LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
0
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
0
(For more details, please refer to the section "Picture Rotation")
Additional Information
24
SET UP
PICTURE ROTATION:
LANGUAGE: ENGLISH
AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH
AUTO PROGRAMME
PROGRAMME SORTING MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME
PROGRAMME SORTING
MANUAL PROGRAMME
SET UP
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING
MANUAL PROGRAMME
SET UP
0
PICTURE ROTATION: LANGUAGE: ENGLISH AUTO PROGRAMME PROGRAMME SORTING MANUAL PROGRAMME
0
(For more details, please refer to the section "Selecting Language")
0
Do you want to start
automatic tuning?
YES
NO
(For more details, please refer to the section "Automatically Tuning the TV using the Remote Control")
0
0
SET UP:
PROGRAMME SORTING
PROGRAMME: CONFIRM
Select channel: Select new position:
SET UP:
MANUAL PROGRAMME
PROGRAMME:
SYSTEM: CHANNEL: AFT: SKIP: DECODER:
CONFIRM
PROGR
03
01
01 B/G C 21 ON NO OFF
(For more details, please refer to the section "Changing the Programme Order of the TV channels")
(For more details, please refer to the section "Manually Tuning the TV")
Additional Information
Troubleshooting
Here are some simple solutions to the problems which may affect the picture and sound.
Problem Solution
No picture (screen is dark), no sound • Plug the TV in.
• Press the
• If the programme number button on the remote control.
• Check the aerial connection.
• Check that the selected video source is on.
• Turn the TV off for 3 or 4 seconds and then turn it on again using the
Poor or no picture (screen is dark), • Using the MENU system, select the Picture Adjustment but good sound display.
Adjust the brightness, picture and colour balance levels.
• From the Picture Adjustment display select RESET to return to the factory settings.
button on the front of TV.
indicator is on, press button or a
button on the front of the TV.
Poor picture quality when watching a • Press the button repeatedly on the remote control until RGB video source. the RGB symbol is displayed on the screen.
Good picture, no sound • Press the +/– button on the remote control.
• If
No colour on colour programmes • Using the MENU system, select the Picture Adjustment
• From the Picture Adjustment display select RESET to return
Distorted picture when changing • Turn off any equipment connected to the 21 pin Euro programmes or selecting teletext connector on the rear of the TV.
Noisy picture when viewing TV • Adjust Fine Tuning to obtain better picture reception. channel
Remote control does not function • Replace the batteries.
The standby indicator on the TV • Contact to your nearest Sony service centre. flashes even though the “Wake Up Timer” function is not use.
is displayed on the screen, press the button on the
remote control.
display. Adjust the colour balance.
to the factory settings.
If you continue to have these problems, have your TV serviced by qualified personnel.
NEVER open the casing yourself.
Additional Information
25
Additional Information
Specifications
TV system
B/G/H
Colour system
PAL, SECAM NTSC 3.58, 4.43 (only Video In)
Channel coverage
VHF: E2-E12 UHF: E21-E69 CATV: S1-S20 HYPER: S21-S41
Picture tube
Flat Display Trinitron Approx. 55 cm (21 inches) (Approx. 51 cm picture
measured diagonally), 90° deflection
Rear Terminals
:1/
:2/q 21-pin Euro connector (CENELEC
Front Terminals
k video input - phono jack
3 3
2
21-pin Euro connector (CENELEC standard) including audio/video input, RGB input, TV audio/video output
standard) including audio/video input, S-video input, monitor audio/video output
Audio outputs - phono jacks
audio inputs - phono jacks Headphones jack - minijack stereo
Sound output
2x7 W (RMS)
Power consumption
80 W
Standby Power consumption
0.5 W
Dimensions (w x h x d)
Approx. 545 x 446 x 485 mm
Weight
Approx. 26.5 kg
Accessories supplied
1 Remote Control (RM-887) 2 Batteries (IEC designated)
Other features
TELETEXT, Fastext, TOPtext Sleep Timer Wake Up Timer Smartlink
Design and specifications are subject to change without notice.
Ecological Paper - Totally Chlorine Free
Additional Information
26
FD Trinitron Farbfernseher
Wir gratulieren Ihnen zum Kauf Ihres Sony Fernsehgerätes.
Lesen Sie bitte vor der Inbetriebnahme des Gerätes diese Anleitung sorgfältig durch und bewahren Sie sie gut auf.
Über diese Bedienungsanleitung
• Verwenden Sie den Teil Inbetriebnahme beim Aufstellen und um sich mit den Grundfunktionen des Gerätes vertraut zu machen.
• Verwenden Sie den Teil Zusatzfunktionen, falls Sie die Sonder- und Zusatzfunktionen des Gerätes interessieren.
• In der Anleitung verwendete Symbole:
Mögliche Gefahren
Wichtiger Hinweis
Bedienungsanleitung
DE
Information zu einer Funktion
1, 2 ... Eine Aufzählung von Bedienschritten
MENU
Farblich hervorgehobene Tasten auf der Fernbedienung beziehen sich
K
auf die zu drückenden Tasten, um eine Bedienfolge auszuführen.
Resultat einer Bedienung.
Text geht auf der nächsten Seite weiter.
27
Zu Ihrer Sicherheit
Zu Ihrer Sicherheit
Sicherheitshinweis
Fernsehgeräte arbeiten mit sehr hohen Spannungen. Um ein Feuer oder einen elektrischen Schlag zu vermeiden, sollten Sie unbedingt die folgenden Sicherheitshinweise beachten.
Allgemeine Hinweise
Dieses Fernsehgerät ist zum Empfang und der Wiedergabe von Audio- und
Videosignalen bestimmt. Jegliche andere Verwendung des Gerätes ist nicht erlaubt.
Setzen Sie das Gerät keinesfalls Regen oder sonstiger Feuchtigkeit aus.
Öffnen Sie nie selbst die Rückwand des Gerätes.
Lassen Sie Reparaturen ausschließlich von Fachpersonal ausführen!
Zur sicheren Installation
Stellen Sie das Gerät nicht an einem heißen, feuchten oder übermäßig staubigen Platz auf.
Decken Sie die Lüftungsschlitze des Gerätes nicht ab. Lassen Sie zur Belüftung
mindestens 10 cm um das Gerät frei (z.B. in einer Regalwand).
Setzen Sie das Gerät keinen starken Erschütterungen aus.
Stellen Sie das Gerät nur auf einen stabilen TV-Stand, der für das Gewicht und die
Abmessungen des Gerätes ausgelegt ist.
Zum sicheren Betrieb
Betreiben Sie das Gerät nur an 220 - 240 V AC, 50 Hz.
Ziehen Sie sofort den Netzstecker, falls Flüssigkeiten oder Gegenstände in das Gehäuse
gelangen. Lassen Sie das Gerät auf jeden Fall überprüfen!
Schalten Sie das Gerät normalerweise mit dem Netzschalter ganz aus. Lassen Sie es nicht
unnötig im Bereitschaftsbetrieb. Ziehen Sie den Netzstecker, falls Sie das Gerät längere Zeit nicht verwenden.
Ziehen Sie beim Ausstecken immer am Stecker selbst, nicht am Kabel. Sie könnten
ansonsten das Netzkabel beschädigen.
Ziehen Sie bei einem Gewitter Netz- und Antennenkabel. Ansonsten kann das Gerät bei
einem Einschlag beschädigt werden.
28
Zu Ihrer Sicherheit
Zur Wartung
Reinigen Sie den Bildschirm mit einem weichen, feuchten Tuch. Verwenden Sie keine
scharfen Reiniger.
Langfristig können Staub- und Nikotinablagerungen zu einem Wärmestau im Gerät
führen. Dies kann ein Sicherheitsrisiko sein und die Lebensdauer Ihres Fernsehgerätes verkürzen. Wie empfehlen deshalb, das Gerät alle 5 Jahre warten zu lassen.
Inhaltsverzeichnis
Inhaltsverzeichnis
Über diese Bedienungsanleitung .......................................................................................................27
Zu Ihrer Sicherheit ................................................................................................................................28
Als erstes
Auf einen Blick
Überprüfen des mitgelieferten Zubehörs .............................................................................30
Auf einen Blick - Tasten am Gerät .........................................................................................30
Auf einen Blick - Fernbedienung ...........................................................................................31
Erstmalige Inbetriebnahme
Schritt 1- Installation
Einlegen der Batterien in die Fernbedienung ......................................................................32
Anschluß der Antenne ............................................................................................................32
Einschalten des Fernsehgerätes ............................................................................................. 32
Schritt 2 - Abspeicherung - Grundfunktionen
Menüsprache wählen ..............................................................................................................33
Automatisches Abspeichern von Sendern mit der Fernbedienung ................................. 34
Ordnen der Programmspeicherplätze .................................................................................. 35
Weitere Funktionen
Abspeicherung - Zusatzfunktionen
Automatisches Abspeichern von Sendern ........................................................................... 36
Manuelles Abspeichern von Sendern ................................................................................... 37
Feinabstimmen eines Senders ................................................................................................ 38
Einstellen der Bildrotation ......................................................................................................39
Überspringen von Programmspeicherplätzen .................................................................... 40
Bedienung des Fernsehgerätes - Zusatzfunktionen
Einstellen des Bildes ................................................................................................................ 41
Einstellen des Tons...................................................................................................................42
Die automatische Abschaltfunktion ......................................................................................43
Die automatische Einschaltfunktion ..................................................................................... 44
Videotext
Verwenden von Videotext ......................................................................................................45
DE
Anschlußmöglichkeiten
Anschluß von anderen Geräten .............................................................................................46
“Smartlink” ...............................................................................................................................47
Weitere Informationen
Das Menüsystem ......................................................................................................................48
Fehlersuche ............................................................................................................................... 49
Technische Daten .....................................................................................................................50
Inhaltsverzeichnis
29
Als erstes - Auf einen Blick
Überprüfen des mitgelieferten Zubehörs
1
2
3
4
5
6
7
8
9
0
MENU
K
PROGR
Zwei Batterien (R6)
RM
887
S
Eine Fernbedienung
(RM-887)
Auf einen Blick - Tasten am Gerät
Netzschalter (Ein/Aus)
Bereitschaftsanzeige
Kopfhörer-Buchse
Taste zur automatischen Abspeicherung von Sendern
Tasten am Gerät: Zum Öffnen
Markierung
am Gerät drücken.
30
Als erstes - Auf einen Blick
auf Abdeckung vorne
Cinchbuchse, Videoeingang
Cinch­buchsen, Audio­eingang
Taste zur Wahl des Video­eingangs
Lautstärke­regelung
Programmwahl
Loading...
+ 74 hidden pages
