Sony KV-21FV1U, KV-14FV1U User Manual

SONY©

Checking the

Connecting an Indoor

S®

Thank you for purchasing this Sony product.

After following this step by step guide you will be able to:

Insert Batteries into the Remote Control.

Connect the Aerial to your TV.

KV-14FV1U KV-21FV1U

Accessories Supplied

2 Batteries

Aerial (only for KV-14FV1U)

For a better reception we recommend you connect an external aerial. However, if your local UHF signal is strong, you can connect the supplied loop aerial as follows:

1 Insert the loop aerial into the holder on top of the Video TV until it

clicks.

2 Connect the aerial connector to the aerial socket

of the set.

3 After turning on the Video TV, adjust the aerial for optimum

reception.

on the rear

Select the language of the menu screens.

Tune your TV.

Change the Programme order of the TV channels.

Adjust Automatically clock settings.

View TV Programmes.

FD Trinitron

1 Loop aerial

(only for KV-14FV1U)

Remote Control

RM-C815

Inserting Batteries into the Remote Control

Connecting an Outdoor Aerial

Connecting cables are not supplied.

Colour Video Television

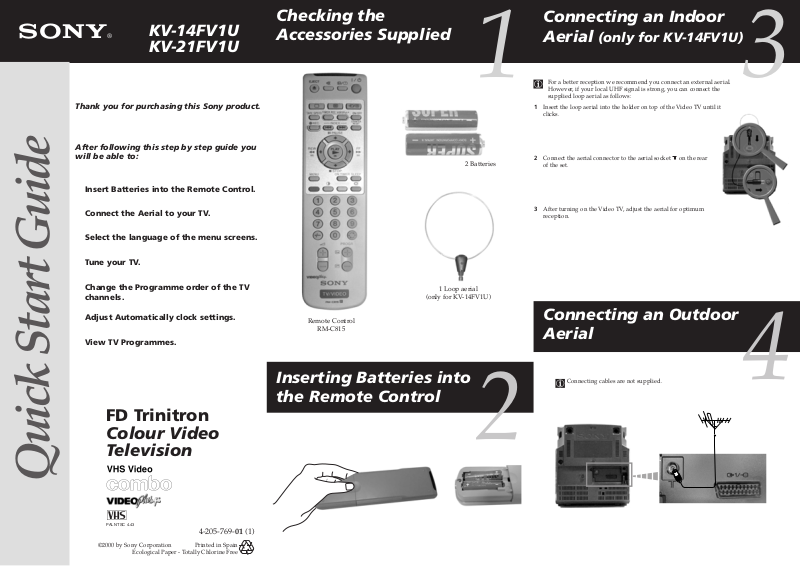

Quick Start Guide

PAL NTSC 4.43

4-205-769-01 (1)

Ecological Paper - Totally Chlorine Free

Switching on the Video

Programme: 01 -> 01 Confirm:

Programme Sorting

Select channel: PROG + Select new position: Exit:

Programme: 02 -> 04 Confirm:

Programme Sorting

Select channel: PROG + Select new position: Exit:

Programme: 01 -> 01 Confirm:

Programme Sorting

Select channel: PROG + Select new position: Exit:

Automatically Tuning the TV

You need to tune the Video TV to receive channels (TV Broadcast). By following the instructions below, this TV automatically searches and stores all available channels for you.

Changing the Programme Order of the TV channels

By following the instructions below, you can rearrange the order in which the channels appear on the screen.

Connect the TV plug to

the mains socket

(220-240V AC, 50Hz)

Press on the mark on the front

of the Video TV to reveal the front

control panel.

Press the main

on/off button on the TV set to

turn on the Video TV.

Selecting the language of the menu screens

This Video TV set works with menu screens. By following the instructions below, you can select the desired language of the menu screens.

Language

English

Deutsch Netherlands Français Italiano Español Português

Select Language:

The first time that you switch on your TV, the Language menu appears automatically.

Do you want to start

automatic tuning?

Yes

Please confirm that

aerial is connected

Confirm

Auto Tuning

Programme: 01 System: I Channel: C21

Searching...

Programme Sorting

Programme: 01 -> 01 Confirm:

Select channel: PROG + Select new position:

Exit:

a) If you do not wish to change the channel order:

Press the OK button on the remote control to select Yes .

b) If you wish to change the channel order:

Confirm that the aerial is connected and then press the OK button on the

remote control.

The Video TV starts to automatically search and store all available channels (TV Broadcast) for you.

This procedure could take some minutes. Please be patient and do not press any button while the automatic tuning is in progress. Otherwise the automatic tuning will not be completed.

When the automatic tuning is finished, the Programme Sorting menu appears on the screen.

Adjusting Automatically the Clock Settings

Press the OK button on the

remote control and go to step 9.

Press the PROGR + or - button to

select the programme number with the channel (TV Broadcast) you wish to rearrange. This TV Broadcast will appear on the screen.

Press the or button to select

the new programme number position for your selected channel (TV Broadcast), then press the OK button.

The word Confirm is highlighted for a few seconds to confirm that the new programme position is stored.

Repeat steps b)1 and b)2 if you

wish to change the order of the other channels.

When you have finished

rearranging the order of the channels, press OK.

English Deutsch Netherlands Français Italiano Español Português

Language

Select Language:

Do you want to start

automatic tuning?

Yes

Press the or button on the remote control to select the language, then press the OK button on the remote control to confirm your

selection.

The Automatic Tuning menu appears on the TV screen in the selected language.

Auto Clock Set

Adjusting Clock...

Auto Clock Set

23.09.2000 SAT 12:00

Exit:

The Video TV automatically adjusts the clock setting, and after a few seconds date and time settings will be displayed.

If you want to change the time settings, you can adjust it manually through the menu system (for details, see “Setting the Clock Manually” section of the instruction manual.

Press the MENU button to remove the menu from the screen.

Your Video TV is now ready

for use.

Your television stations are now stored in your television’s memory.
