SERVICE MANUAL

BC-5

CHASSIS

MODEL COMMANDER DEST. CHASSIS NO.

KV-14FV1B
KV-14FV1D
KV-14FV1E
KV-14FV1U

RM-C816 FR SCC-xxxx-A
RM-C814 AEP SCC-xxxx-A
RM-C814 ESP SCC-Q62B-A
RM-C815 UK SCC-xxxx-A

MODEL COMMANDER DEST. CHASSIS NO.

KV-21FV1B
KV-21FV1D
KV-21FV1E
KV-21FV1U

RM-C816 FR SCC-xxxx-A
RM-C814 AEP SCC-xxxx-A
RM-C814 ESP SCC-Q62A-A
RM-C815 UK SCC-xxxx-A

∗ Please file according to model size. ....

14

FD TRINITRON® COLOUR VIDEO TV

SPECIFICATIONS

TV Section

TV system:

I

Colour system:

PAL, SECAM
NTSC 3.58, 4.43 (only Video In)

Channel Coverage:

UHF: B-21, B69

Picture Tube:

• KV-14FV1U:
Flat Display Trinitron.
14” (approx. 37 cm. measured diagonally)

• KV-21FV1U:
Flat Display Trinitron.
21” (approx. 55 cm. measured diagonally)

VCR Section

Format:

VHS Standard

Video recording system:

Rotary 2-head helical scanning system

Audio recording system:

Monaural

Video signal:

This Video TV is designated to receive TV
programmes based on PAL (I) colour system and to
record and play on PAL system. The Video TV can
also play tapes on NTSC colour system.

Tape speed:

PAL:

SP: 23.39 mm/sec.
LP: 11.70 mm/sec.

NTSC (playback only):

SP: 33.35 mm/sec.
LP: 11.12 mm/sec.

Maximum recording time:

SP: 4 hours with E-240 tape
LP: 8 hours with E-240 tape

General

Rear Terminals

:1/ 21-pin scart connector (CENELEC standard)

including audio/video input, RGB input, TV
audio/video output.

Front Terminals

…2 video input – phono jack

2

audio input – phono jack

headphones jack

Clock

Quartz locked

Clock back up

Approx. 7 days

Power requirements

220-240 V AC, 50Hz

Sound Output:

1 x 6W (music power)
1 x 3W (RMS Mono)

Power Consumption:

• KV-14FV1U: 86 W

• KV-21FV1U: 107 W

Standby Power Consumption:

< 2 W

Dimensions:

• KV-14FV1U: Approx. 375 x 398 x 407 mm.

• KV-21FV1U: Approx. 489 x 500 x 477 mm.

Weight:

• KV-14FV1U: Approx. 15.6 Kg.

• KV-21FV1U: Approx. 27.2 Kg.

Accessories supplied:

1 Remote Control (RM-C815)
2 Batteries (IEC designated)

Other features:

Teletext, Fastext, TOPtext
Sleep Timer
Wake UP Timer
Parental Lock
Auto Head Cleaner
Dial Timer
VideoPlus+

Design and specifications are subject to change without notice.

– 2 –

TABLE OF CONTENTS

Section Title Page Section Title Page

SELF DIAGNOSIS FUNCTION...................................... 4

[ TV SECTION]

1. GENERAL ......................................................... 7

2. DISASSEMBLY

2-1. Rear Cover Removal ............................................... 16

2-2. Chassis Assy Removal ............................................ 16

2-3. Service Position (A Board) ..................................... 16

2-4. A Board Removal .................................................... 16

2-5. Harnes Location ...................................................... 17

2-6. Picture Tube Removal ............................................. 18

3. SET-UP ADJUSTMENTS

3-1. Beam Landing ......................................................... 19

3-2. Convergence ............................................................ 20

3-3. Focus Adjustment .................................................... 21

3-4. Screen (G2) Adjustment .......................................... 21

3-5. White Barance Adjustment ..................................... 22

3-6. Picture Distortion Adjustment ................................. 22

4. CIRCUIT ADJUSTMENTS

4-1. Adjustments with Commander ................................ 23

4-2. Adjustment Method ................................................. 24

4-3. Service Data ............................................................ 25

4-4. A Board Adjustment................................................ 26

5. DIAGRAMS

5-1. Block Diagrams ....................................................... 27

5-2. Circuit Boards Location .......................................... 33

5-3. Printed Wiring Boards and Schematic Diagrams .... 33

• A Board .................................................................... 34

• CVM Board .............................................................. 41

6. EXPLODED VIEWS

6-1. Picture Tube ............................................................ 77

6-2. Chassis ..................................................................... 78

7. ELECTRICAL PARTS LIST...................................... 82

[ VIDEO SECTION]

1. GENERAL ....................................................................... 46

2. DISASSEMBL Y ............................................................. 47

3. CIRCUIT ADJUSTMENTS ........................................ 48

4. INTERFACE, IC PIN FUNCTION

DESCRIPTION .............................................................. 51

5. DIAGRAMS..................................................................... 55

6. EXPLODED VIEWS ..................................................... 79

7. ELECTRICAL PARTS LIST...................................... 90

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND
THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR
CARBON PAINTED ON THE CRT, AFTER REMOVING THE
ANODE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON
THE SCHEMA TIC DIA GRAMS, EXPLODED VIEWS AND IN THE
P ARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLA CE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT
ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION
ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE
PROCEDURES WHENEVER CRITICAL COMPONENTS ARE
REPLACED OR IMPROPER OPERATION IS SUSPECTED.

ATTENTION

APRES AVIOR DECONNECTE LE CAP DE L'ANODE,
COURTCIRCUITER L'ANODE DU TUBE CATHODIQUE ET CELUI
DE L'ANODE DU CAP AU CHASSIS METALLIQUE DE
L'APPAREIL, OU AU COUCHE DE CARBONE PEINTE SUR LE
TUBE CATHODIQUE OU AU BLINDAGE DU TUBE CATHODIQUE.

ATTENTION AUX COMPOSANTS RELATIFS À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET PAR UNE
MARQUE ! SUR LES SCHÈMAS DE PRINCIPE, LES VUES
EXPLOSÈES ET LES LISTES DE PIECES SONT D'UNE
IMPORTANCE CIRTIQUE POUR LA SÈCURITÈ DU
FONCTIONNEMENT. NE LES REMPLACER QUE PAR DES
COMPOSANTS SONY DONT LE NUMÈRO DE PIÈCE EST
INDIQUÈ DANS LE PRÈSENT MANUEL OU DANS DES
SUPPLÈMENTS PUBLIÈS PAR SONY. LES RÉGLAGES DE
CIRCUIT DONT L’IMPORTANCE EST CRITIQUE POUR LA
SÉCURITÉ DU FONCTIONNEMENT SONT IDENTIFIÉS DANS LE
PRÉSENT MANUEL. SUIVRE CES PROCÉDURES LORS DE
CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU
LORSQU’UN MAUVAIS FONCTIONNEMENT EST SUSPECTÉ.

– 3 –

SELF DIAGNOSTIC FUNCTION

1. OUTLINE

• The units in this manual contain a self-diagnostic function.

• If an error occurs, the STANDBY lamp will automatically begin to flash.
The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY lamp
flash indicators is listed in the instruction manual for the user’s knowledge and reference.

• If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data
stored in memory to reveal past problems and how often these problems occur.

2. DIAGNOSTIC TEST INDICAT ORS

• When an errors occurs, the STANDBY lamp will flash a set number of times to indicate the possible cause of the problem.
If there is more than one error, the lamp will identify the first of the problem areas.

• Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not
turn on

• +B overcurrent
(OCP) or
overvoltage
(OVP)

• Vertical deflection
stopped

• White balance
failure (no
PICTURE)

No. of times

STANDBY lamp

flashes

Does not light

2 times

4 times

5 times

Self-diagnostic

display/Diagnostic

result

—

2 : 0 or
2 : 1

at the same

4 : 1

time

(Note 1)

4 : 0

or

4 : 1

5 : 0

or

5 : 1

Probable

Cause

Location

• Power cord is not plugged
in.

• Fuse is burned out F1701

• FBT

• Q802 (H OUT) shorted

• IC501

• IC301 !¢ pin

• IC606

• Q802 (H OUT) shorted

• Q803

• Q608

• R803 open

•CRT

• IC301

• Q701 - Q717
(CVM board)

• G2 is improperly adjusted.
(Note 2)

Detected

Symptoms

• Power does not come on.

• No power is supplied to the
TV.

• AC power supply is faulty.

• On standby state.

• Load on power line is
shorted
(at the same time 4 : 1 on

display).

• Has entered standby state
after horizontal raster.

• Vertical deflection pulse is
stopped.

• Horizontal deflection
stopped.

• Power line is shorted or
power supply is stopped.

• No raster is generated.

• CRT cathode current
detection reference pulse
output is small.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

• VCR EMG code List
Code Coutents

00h NO EMG
10h CAM encode NG during unloading
11h CAM encode NG during unloading
12h CAM encode NG at intial
20h T reel NG during unloading
21h S reel FG NG
22h T reel FG NG
23h S reel FG NG
24h T reel FG NG at initial
25h S reel FG NG at initial

Code Coutents

30h Capstan FG NG at initial
31h Capstan FG NG
40h Drum FG NG
41h Drum FG NG at initial
42h Drum FG NG
43h Drum PG NG
44h Drum PG NG
50h DEW
60h FL NG
70h DEW eject NG

– 4 –

3. DISPLA Y OF STANDBY LIGHT FLASH COUNT

* One flash count is not used for self-diagnostic.
< Diagnostic Item >

• +B OCP/OVP

• White balance failure

STOPPING THE STANDBY FLASH

• Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY lamp from flashing.

• Vertical deflection stopped

2 times

4 times
5 times

Lamp ON 0.3 sec.
Lamp OFF 0.3 sec.

Lamp OFF 3.0 sec.

< Flash Count >



P

PUSH

STANDBY lamp (RED)



TEMER REC REC

4. SELF-DIAGNOSTIC SCREEN DISPLAY

• For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed,
it is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up Screen Test]

• In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] / channel [5] / Sound volume [-] / Power ON u

+

˘

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

SELF CHECK

1: 2 : 1 3 : 4 : 0 5 : 1

-- --

VCR :

Note: Though "1: , 3:" indicated, not using.

diagnostic item : result

EMG code.

Numeral "0" means that no fault has been detected.
Numeral "1" means a fault has been detected.

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

• Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic

screen during repairs. When you have completed the repairs, clear the result display to “0”.

• Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

• To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnos-

tic screen is being displayed.

• Pay attention when perform by the service mode, other all electric adjustment data will be rewrite.

Channel [8] / [0]

[Quitting Self-diagnostic screen]

• To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

– 5 –

6. SELF-DIAGNOSTIC CIRCUIT

RY603
RELAY

Q601

V•STOP

LED flash

STANDBY

34

21

lamp

D1304

IC301

Y/C/J

53

LED

62

VCR PWR

60

V PULSE

SDA

IC001

µ-COM

35

SCL1

SDA1

OVP

+B LINE

49
47

64

R679

To item 2 and 5 via bus line

MEMORY

Over current

Detection(OVP)

✩

IC002

ITEM 2

Q606

R611

Q611

D636

ITEM 2.

Over voltage

Detection(OCP)

Diagnostic screen display

Q612

R656

FBT
(T801)

–

62 62

IC901

TELE TEXT

R • G • B

34

Q502

SCL

IK IN

C504

21

7

IC501

BOOST

VCC

3

CRT

Auto cut-off white balance detection(AKB)

ITEM 3.

Vertical Deflection

output Detection

(V

•

STOP)

ITEM 4.

R,G,B STOP

Q501

D502

15

R510

VM OUT

C505

[+Bovercurrent] Owing to current increase voltage of R679 decrease and that it make Q611 and Q612 to

become LOW and OFF RY601.

[+Bovervoltage] When +B voltage become more than 142.5V, Q611 and Q612 pin become LOW and

RY601 OFF.

[Verticaldeflectionstopped] Detect Vertical deflection Pulse lost by IC001 ^º pin of micro computer.

Mute the picture at !∞ pin of IC301 that performed by Y/C/J.

[Whitebalance] Detect when R.G.B. output wrong level balance of automatic white balance detecting

standard pulse which detect cathode current, or which become low almost.

– 6 –

5

GB

Main Power On/Off
switch

If you turn off the
Video TV by
using this button
and you do not
turn on it again
during 7 days, all
the settings will
be cleared.

Connecting the Aerial

Connecting cables are not supplied.

Inserting Batteries into the Remote Control

Make sure to insert the supplied batteries using the correct polarities.

Always remember you dispose of used batteries in an environmental friendly way.

Overview of Video TV Buttons

Overview-Installation

Video
Input
jack

Audio
Input
jack

TIMER
REC
(recording)
on/off
button (see
page 13)

REC (Recording)
button (see page11)

Selecting Input source

Volume control buttons

Programme Up or Down
Buttons (Selects TV channels)

DIAL TIMER
(see page 12)

TIMER REC
(recording)
indicator (see
page 13)

REC
(recording)
button (see
page 11)

Standby
indicator

Headphone
jack

Tape transport buttons
(see page 10).

Press on the mark

on the
front of the Video TV to reveal
the front control panel.

Standby on/off
button

By using this
button to turn off
the Video TV
instead of the Main
Power on/off
button, settings
will not be cleared
unless that the
power is
interrupted or you
disconnect the AC
power cord. In that
case settings will
be cleared after 7
days.

4

Descripción general de los botones del Retroproyector

Comprobación de los accsorios suministrados

Descripción general de los botones del RetroproyectorDescripción general de los botones del Retroproyector

Overview

Overview of Remote Control Buttons

Ejecting a videotape

Press to eject the videotape

Selecting Teletext

Press to switch on teletext.

Selecting TV mode

Press to switch off teletext or
video input.

VCR Operation buttons

For details refer to “VCR Operation” section
of this instruction manual.

Displaying the menu system

Press to display the menu on the TV screen.
Press again to remove the menu display from
the TV screen.

Selecting Picture mode

Press repeatedly to change the picture mode.

Fastext buttons

For details refer to “Teletext” section of this
instruction manual.

Selecting channels

Press to select channels.

For double-digit programme numbers, e.g.
23, press -/-- first, then the buttons 2 and 3.
If you enter an incorrect first digit, this
should be corrected by entering another digit
(0-9) and then selecting -/-- button again to
enter the programme number of your choice.

Adjusting TV volume

Press to adjust the volume of the TV.

Temporally Switch Off the Video TV

Press to temporarily switch off the Video TV (the
standby indicator on TV lights up). Press again
to switch on the Video TV from standby mode.

By using this button to turn off the Video TV
instead of the Main Power on/off button,
settings will not be cleared unless that the
power is interrupted or you disconnect the
AC power cord. In that case settings will be
cleared after 7 days.

Selecting input source

Press repeatedly until the desired input symbol of
the source appears on the TV screen.

•

When MENU is switched on:

Use these buttons to operate the menu system. For
details refer to “Introducing and Using the Menu
System” of this instruction manual (see page 7).

•

When MENU is switched off and a tape is inserted:

Use these buttons to operate VCR. For details refer

to “Playing a Tape and Additional Tasks” section
of this instruction manual (see page 10).

Sleep Timer

For details refer to “Switching Off the Video TV
Automatically (Sleep Timer)” section of this
instruction manual (see page 9).

On Timer

For details refer to “Switching On the Video TV
Automatically (On Timer)” section of this instruction
manual (see page 9).

Selecting the TV Screen format

Press to view programmes in 16:9 mode. Press again
to return to Normal (4:3) mode.

Back to the channel last watched

Press to watch the last channel selected (watched for
at least 5 seconds).

Selecting channels

Press to select the next or previous channel.

Besides TV functions, all buttons with green symbols are also used for Teletext operation. For more details, please refer to
"“Teletext” section of this instruction manual (see page 18).

Muting the Sound

Press to mute TV sound. Press
again to restore the sound.

Displaying on Screen information

Press once to display On-Screen indications (first level).
Press twice to display On-Screen indications (second
level)
Press a third time to cancel.

– 7 –

SECTION 1

GENERAL

The operating instructions mentioned here are partial abstracts from the
Operating Instruction Manual. The page numbers of the Operating In­struction Manual remein as in the manual.

6

Switching On the Video TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screen appear on the TV enabling you to: 1) choose the language of the
menu screen, 2) search and store all available channels (TV Broadcast), 3) change the order in which the channels (TV Broadcast)
appear on the screen and 4) confirm the clock setting.
However, if you need to change any of these settings, you can do that by selecting the appropriate menu in the (Set Up).

First Time Operation

1

Connect the TV plug to the mains socket (220-240V AC, 50Hz)
Press the main on/off button on the TV set to turn on the Video TV.
The first time you press this button, a Language menu displays automatically on the
TV screen.

2

Press the or button on the remote control to select the language, then press the

OK

button to confirm your selection. From now on all the menus will appear in the

selected language.

3

The Auto Tuning menu appears on the screen. Press the OK button to select Yes .

4

A new menu appears on the screen asking you to check that the aerial is connected.
Ensure the aerial is connected and then press the OK button.

The Video TV starts to automatically search and store all available channels
(TV Broadcast) for you.

This procedure could take some minutes. Please be patient and do not press
any button. Otherwise the automatic tuning will not be completed.

5

After all available channels are captioned and stored, the Programme Sorting menu
appears automatically on the screen enabling you to change the order in which the
channels appear on the screen.

a)

If you do not wish to change the channel order, press OK and go to step 6.

b)

If you wish to change the channel order:

1

Press the PROGR + or - button to select the programme number with the channel

(TV Broadcast) you wish to rearrange appears on the screen.

2

Press the or button to select the new programme number position for your

selected channel (TV Broadcast), then press the OK button.

The word Confirm is highlighted for a few seconds to confirm that the new
programme position is stored.

3

Repeat steps b)1 and b)2 if you wish to change the order of the other channels.

4

When you finish to rearrange the order of the channels, press OK .

6

The Video TV adjusts itself automatically clock setting, and after few seconds date
and time settings are displayed.
If you want to change the time settings, you can adjust it manually through the
menu system (for details, see “Setting the Clock Manually” section of this
instruction manual (see page 7).

7

Press the MENU button to remove the menu from the screen.

Your Video TV is now ready for use

Language

Select Language:

English

Deutsch
Netherlands
Français
Italiano
Español
Português

OK

Do you want to start

automatic tuning?

Yes

No

OK

Please confirm that

aerial is connected

Confirm

OK

Programme: 01
System: I
Channel: C21

Auto Tuning

Searching...

23.09.2000 SAT 12:00

Auto Clock Set

Exit:

OK

Programme: 02 -> 04
Confirm:

Programme Sorting

Select channel: PROG + ­ Select new position:
Exit:

OK



OK

Adjusting Clock...

Auto Clock Set

Programme: 01 -> 01
Confirm:

Programme Sorting

Select channel: PROG + ­ Select new position:
Exit:

OK



OK

7

GB

Introducing and Using the Menu System

Your Video TV uses an on-screen menu system to guide you through the operations. Use the following buttons on the
Remote Control to operate the menu system:

Menu System - TV Operation

1 Press the MENU button to switch the first level menu on.
2• To highlight the desired menu or option, press or .

• To enter to the selected menu or option, press .

• To return to the last menu or option, press .

• To alter settings of your selected option, press //or.

• To confirm and store your selection, press OK.

3 Press the MENU button to remove the menu from the screen.

Picture Adjustment

The “Picture Adjustment” menu allows you to alter the picture adjustments.

To do that: by using the menu system and after selecting the item you want to alter press

, then press repeatedly//orto adjust it and finally press OK to store the

new adjustment.
This menu also allows you to customise the picture mode based on the programme you
are watching:

Live

(for live broadcast programmes).

Movie

(for films).

Personal

(for individual settings).

• Brightness, Colour and Sharpness can only be alterated if “Personal” mode is selected.

• Hue is only available for NTSC colour signal (e.g: USA video tapes).

• Select Reset and press OK to reset the picture to the factory preset levels.

Setting The Clock Manually

The “Clock” option in the “Timer” menu allows you to set manually the clock
whilst you are in TV mode.

To do that: by using the menu system and after selecting the option press , then :

1

With Auto Adjust highlighted, press and next press or to select Off. Next

press OK.

2 Select Manual Adjust and press . With the day column highlighted, press or

to set the date, then press and proceed in the same way to set the month, year,

hour and minutes. Finally press OK.

• II t is important you to set correctly the clock to use Timer Recording, Quick-Timer recording and On
Timer functions.

• If power is interrupted or you turn off the Video TV by using the main On/off power switch or you
disconnect the AC power cord, after 7 days will cause these settings to be cleared.

• To automatically set the clock, and whilst you are in TV mode select “Auto Adjust” “On” in the step above

and in the “Programme” option select the from which programme number you want to get the time.

• Because the Video TV gets clock settings from teletext signals (sent by broadcasters), even you have selected

Auto Adjust “On”, we recommend you to check after summertime and wintertime that clock settings are
correct, if not adjust it manually.

Automatically Tuning The Video TV

The “Auto Tuning” option in the “TV Set Up” menu allows you to automatically
search for and store all available TV channels.

To do that: by using the menu system and after selecting the option, press and then
proceed in the same way as in the section “Switching On the Video TV and
Automatically Tuning”. (see page 6, steps 3 and 4).

Do you want to start

automatic tuning?

Yes

No

OK

Picture Adjustment

Mode: Personal
Contrast
Brightness
Colour
Sharpness
Hue
Reset

OK

Clock 23-09-2000 15:00

Auto Adjust: Off

Clock Programme: 03

Manual Adjust:

23 09 2000 SAT 15:00

OK

– 8 –

8

TV Operation

Changing The Programme Order Of The
TV Channels

The “Programme Sorting” option in the “TV Set Up” menu allows you to change

the order in which the channels (TV Broadcast) appear on the screen.

To do that: by using the menu system and after selecting the option, press and then
proceed in the same way as in the section “Switching On the Video TV and
Automatically Tuning” (see step 5b) on page 6).

Manually Tuning The TV

The “Manual Programme Preset” option in the “TV Set Up” menu allows you to
preset channels one by one to the programme order of your choice. To do that:

1 By using the menu system and after selecting the ”Manual Programme Preset”

option, press . Then with Programme option highlighted press . Press or
to select on which programme number you want to preset the channel. Then press

.

2 After selecting the Channel option, press . Then press or to select the

channel tuning (“C” for terrestrial channels or “S” for cable channels). Next press .
After that, press the number buttons to enter directly the channel number of the TV
Broadcast. If you do not know the channel number, press or to search for it.
When you tune the desired channel, press OK twice to store.

• Repeat all the above steps to tune and store more channels.

Fine Tuning Channels

Normally the Automatic Fine Tuning (AFT) is operating, however by using the
“Manual Programme Preset” option in the “TV Set Up” menu you can manually
fine tune the Video TV to obtain a better picture reception in the case that the
picture is distorted.

To do that: while watching the channel (TV Broadcast) you wish to fine tune, and by
using the menu system select the “Manual Programme Preset” option. Press . With
the AFT option highlighted, press . Next press or to adjust the fine tuning
between -15 and +15. Finally press OK twice to store.

Skipping Programme Positions

The “Manual Programme Preset” option in the “TV Set Up” menu allows you to
skip any unwanted programme numbers when they are selected with the PROGR
+/- buttons.

To do that: by using the menu system and after selecting the “Manual Programme
Preset” option, press . Then with the Programme option highlighted press . Next,
press or to select the programme number you want to skip. Press . Then, select
the Skip option and press . Next press or to select Yes. Finally press OK twice
to confirm and store.

• To cancel this function afterwards, select “No” instead of “Yes” in the step above.

Setting Pay-TV Channels

The “Manual Programme Preset” option in the “TV Set Up” menu allows you to
watch Pay-TV channels by connecting a Pay-TV decoder to the Scart connector
:1/ placed on the rear of the Video TV.

To do that: by using the menu system and after selecting the “Manual Programme
Preset” option, press . Then with the Programme option highlighted, press . Next
press or to select the programme number with the scrambled channel and press

. Select the Decoder option and press . Next press or to select On. Finally,

press OK twice to confirm and store.

• While you are recording a programme which is being recorded through the Pay-TV decoder, you will not

be able to view other programmes through the decoder.



Programme Sorting

Programme: 01 -> 01
Confirm:

Select channel: PROG + ­ Select new position:

OK

Manual Programme Preset

Programme:
System:
Channel:
AFT:
Skip:
Decoder:
Confirm

OK

01
I
C 21
On
No
Off

Manual Programme Preset

Programme:
System:
Channel:
AFT:
Skip:
Decoder:
Confirm

OK

01
I
C 21
On
No
Off

Manual Programme Preset

Programme:
System:
Channel:
AFT:
Skip:
Decoder:
Confirm

OK

01
I
C 21
On
No
Off

Manual Programme Preset

Programme:
System:
Channel:
AFT:
Skip:
Decoder:
Confirm

OK

01
I
C 21
On
No
Off

9

GB

Selecting The Language Of The Menu
Screens

The “Language” option in the “Set Up” menu allows you to select the language
that the menus are displayed in.

To do that: by using the menu system and after selecting the option, press and then
proceed in the same way as in the section “Switching On the TV and Automatically
Tuning” (see page 6, step 2).

Locking The Video TV

The “Parental Lock” option in the “Set Up” menu allows you to lock the buttons of
the Video TV set. In this way, after this option is selected and the Video TV set is
switched off, the buttons on the Video TV only works by using the remote control
buttons.

To do that: by using the menu system and after selecting the option, press . Then
press or to select On. Press OK to confirm and store and finally press .

• To cancel this function afterwards, select “Off” instead of “On” in the step above.

• If you have locked your Video TV and the remote commander is lost, press the

button (during more

than 5 seconds) on the set to operate it.

Adjusting The Picture Rotation

(only for KV-21FV1U)

Because of the earth’s magnetism, the picture might be slant. In this case, you can
correct the pictures slant by using the option “Picture Rotation” in the “Set Up”
menu.

To do that: by using the menu system and after selecting the option, press . Then
press or to correct any slant of the picture between -5 and +5 and finally press OK
to store.

Switching On The Video TV
Automatically (On Timer)

The “On Timer” option in the “Timer” menu allows you to preset your Video TV
to automatically switch on at a desired time. You can select the TV programme or
video playback to be switched automatically on from standby mode.

To do that: by using the menu system and after selecting the option press ,
1 With Time option highlighted, press . Press or to set the on-time hour then

press . Proceed in the same way to set the minutes and press OK.

2 With Source option highlighted, press . Then press or to select the source to

be switched on (“TV” or “VCR”). If you select “TV”, press and then press or

to select the programme number you want the Video TV turns on. Press OK.

3 With On Timer option highlighted, press and then press or to select On.

Press OK.

4 Finally press the standby button . At the selected time, the Video TV switches on

automatically.

• Any loss of power will cause these settings to be cleared.

• By pressing the ON TIMER button on the remote control you can set on/off the On Timer, but it is not
possible to change the time and programme settings.

Switching Off The Video TV
Automatically (Sleep Timer)

You can automatically switch the video TV into standby mode after a selected time

period.

To do that: Press the SLEEP button on the remote control repeatedly to set the time
period delay (OFF, 30, 60 or 90 minutes).

• While watching the TV, you can press the /

button on the remote control to display the time

remaining.

• One minute before the Video TV switches itself into standby mode, a good night message will be displayed
on the screen.

• To cancel this function afterwards, select “Off” in the step above.

TV Operation

Set Up

TV Set Up
VCR Set Up
Language
Parental Lock: Off
VHS: Others
Picture Rotation: 0

OK

Set Up

TV Set Up
VCR Set Up
Language
Parental Lock: Off
VHS: Others
Picture Rotation: 0

OK

Set Up

TV Set Up
VCR Set Up
Language
Parental Lock: Off
VHS: Others
Picture Rotation: 0

OK

On Timer

Time:
Source:
On Timer:

OK

06: 00

TV PROG01

Off

– 9 –

11

GB

Recording TV programmes

1 In standby mode, press the standby button to turn on the Video TV.
2 Insert a cassette with a safety tab.

3 Press PROGR + or –, or the number buttons to select the programme number.
4 Press TAPE SPEED to select the recording speed: SP for Standard Play or LP for

Long Play.

• In the SP mode, the tape runs twice as fast as the LP mode. It means that in LP mode you can record

double time than in SP mode.

5 Press REC

r.

The REC indicator on the front of the Video TV lights up and recording begins.

To stop recording

Press STOP p.

• When the tape reaches the end, the Video TV rewinds the tape automatically to the beginning, then stops.

This function does not work when the power of the Video TV is off.

To pause recording

You can cut out an unwanted scene during recording with this button.

1 Press PAUSE P when an unwanted scene appears on the screen, then recording

pauses.

2 Press PAUSE P again to release the pause mode at the desired scene, then recording

resumes from the point set in step 1.

• When the recording pause mode lasts for about 5 minutes, the Video TV stops recording to prevent tape
damage.

Continues Recording with the TV off

Whilst you are recording, press . The Video TV is turned off. However,
recording continues and the REC indicator on the Video TV lights up.

VCR-Recording

10

VCR-Basic Operations

Playing a tape

1 Insert a cassette with the arrow indication facing upwards.

•If you insert a cassette with its safety tab removed, playback starts automatically.

2 Press PLAY z and the playback starts. On Screen information is displayed for a few

seconds.

Additional Tasks

You can operate all the video tasks by using the remote control buttons or the

Video TV buttons.

To stop playback

Press STOP p and the Video TV returns to the normal TV picture.

To stop playback for a moment

Press PAUSE P. Press it again or press to resume playback.

¥ If you leave your Video TV in pause mode, normal playback resumes after about 5 minutes.

To fast forward or rewind the tape

Press STOP p, then press FF ) to fast forward or press REW 0.

To view the picture in fast forward or rewind mode

Press and hold FF ) during fast forward or REW 0 during rewind. While you hold
the button, you can view the picture.

When you release the button, fast forward or rewind mode is resumed.
If you use the buttons on the remote commander, press FF ) or REW0 once and

will not be necessary to hold the button. In this case to resume normal playback, press
PLAY z.

To search a tape at high speed

During playback, press and hold REW 0 (rewind) or FF ) (fast forward). A high
speed picture appears on the TV screen.

¥ To resume normal playback, release the button.

To eject a cassette

Press EJECT 6.

¥ You can eject the cassette even if the power is in standby mode.

Protecting your cassette against
accidental erasure

To prevent accidental erasure, break off the safety tab as illustrated.

¥ To record on a cassette without a safety tab, simply cover the tab hole with adhesive tape.

Displaying On-Screen Information

In Play mode, press the

/ button to display the following on-screen

information. To show only the amount of remaining tape and the linear

tape counter on the screen, press

/ again.

To make the information disappear, press / repeatedly until no
information is displayed on the screen.

Resetting the tape counter

The tape counter helps you to locate a certain scene after playback.
Press the COUNTER RESET button on the remote control to set the counter to

“00:00:00” before playing the tape. The tape counter is automatically reset to zero
whenever a cassette is inserted. The Video TV keeps counting the length of the tape
being played. Note, however, that the tape counter does not count the portions
without video signals recorded.

Adhesive
tape

Safety tab

4.12THU

E

2:05:10

S

E

S

20:00

SP

Beginning of the tape

Amount of tape remaining

End of the tape

Linear tape counter

Current date and time

or

Insert this side into recorder Do not touch the tape inside

Tape operation mode

– 10 –

12

Recording TV programmes using DIAL­TIMER

The Dial-Timer recording function allows you to preset your Video TV to record
one programme within a 24 hour period. for setting the Dial-Timer, use DIAL
TIMER button on the Video TV.

Before you begin:

• Make sure that the clock is set correctly. If it is not, refer to the “Setting the Clock
Manually” section of this instruction manual (see page 7).

• Make sure that the loaded cassette has its safety tab intact.

• Make sure that the Video TV does not enter the timer recording standby mode (the
TIMER REC indicator on the Video TV should not be lit).

1 In standby mode, press the standby button

to turn on the Video TV.

2 Press DIAL TIMER. The “Dial Timer” menu appears on the screen.
3 Turn DIAL TIMER to set the hour of the start time, then press DIAL TIMER to

confirm.

4 Proceed in the same way as in step 3 to set the minutes of the recording start time, the

recording time period and programme number to be recorded.

• The hour increases or decreases by one hour.

• The minutes increase or decrease by one minute.

• The recording time period increases or decreases by 15 minutes.

• The programme position changes as follows

0 <—> 1 <—> 2... <—> 99 <—> L1 <—> L 2 <—> 0 <—>1

• L1 is used for the equipment connected to the Scart connector

:

1/ placed on the rear

of the Video TV.

• L2 is used for the equipment connected to the front connectors … and .

5 With TAPE SPEED highlighted, turn the DIAL TIMER to select the recording

speed: SP for Standard Play or LP for Long Play, then press the DIAL TIMER.

• In LP mode you can record double time than in SP mode.

6 Turn DIAL TIMER to move the cursor to OK, then press DIAL TIMER to confirm

all the settings.

• If a warning message appear on the screen, the recording is cancelled and after proceed

according the necessities, you must re-enter again the Dial timer settings.

The Dial Timer indicator on the Video TV lights up and the Video TV enters into the timer recording
standby mode.

Changing or Cancelling the Dial Timer settings

1 Press DIAL TIMER.

The Dial Timer menu appears on the screen.

2

Turn DIAL TIMER to CHANGE (to change the recording settings) or to CLEAR (to
clear the recording settings) and press DIAL TIMER.

3 a) If you have selected CLEAR, press DIAL TIMER and all the settings will be

cleared.

b) If you have selected CHANGE, you can change all the settings by following steps

from 2 to 5 of the above section “Recording TV Programmes using DIAL TIMER”.

VCR-Recording

START DURATION PROG

23 22:00

11:00 01

SAT

TAPE SPEED: SP
OK CHANGE CLEAR

Dial Timer 23 SAT 23:00

SELECT

OK

Turn

Press

Turn

Press

START DURATION PROG

23 22:00

11:00 01

SAT

TAPE SPEED: SP
OK CHANGE CLEAR

Dial Timer 23 SAT 23:00

SELECT

OK

13

GB

VCR-Recording

This function allows you to preset your Video TV to record up to 5 programmes
within a one-month period.

Before you begin:

• Make sure that the clock is set correctly. if it is not, please refer to the section “Setting
the Clock Manually”(see page 7).

• Make sure that the loaded cassette has its safety tab intact.

Setting the Timer

1 In standby mode, press the standby button

to turn on the Video TV.

2 Press the TIMER REC button to display the Programme List menu.
3 Press or repeatedly to set the date (for daily and weekly recording, refer to the

section “Daily/Weekly Recording” below), then press .

4 Proceed in the same way as in step 3 to set recording start time, recording stop time,

programme number, tape speed (SP or LP) and VPS/PDC “On” or “Off”.

If you have made a mistake during timer setting, press to return to the
previous position and correct the setting.

• Date:
Daily/Weekly Recording
You can preset your Video TV to record the same programme every day of the

week (daily recording) or the same programme on the same day every week
(weekly recording).

Whilst you are in DATE position, with each press of , the setting changes as

follows:
23 SAT (today) —> MON-SUN —> MON-SAT —> MON-FRI —> SAT (means
every Saturday...) —> FRI —> SUN —> 22 (next month).—>...

• Time:

• The hour increases or decreases by one hour.

• The minutes increase or decrease by one minute.

• Programme number:

• The programme position changes as follows:
0 <—> 1 <—> 2... <—> 99 <—> L1 <—> L 2 <—> 0 <—>1

• L1 is used for the equipment connected to the Scart connector :1/ placed
on the rear of the Video TV.

• L2 is used for the equipment connected to the front connectors

…

and .

• Tape Speed:

• In “LP” mode you can record double than in SP mode

• VPS/PDC:

• For details refer to “Timer recording with VPS/PDC signals” section of this
instruction manual (see page 14).

5 Press OK.
6 If you want to set more programmes, press or to move the cursor to ADD and

then press OK. Repeat steps from 3 to 5.

7 After setting all your desired programmes press or and highlighting OK, press

the OK button to confirm your settings.

The TIMER REC indicator on the Video TV lights up and the Video TV enters into

timer recording standby mode.

To Stop Timer Recording

Press the ON/OFF button on the remote control. Then the TIMER REC indicator on the
Video TV turns off.

Using the Video TV before Timer Recording starts

You can watch a TV programme, check the timer settings and reset the counter in

timer recording standby mode. However, if you want to eject the cassette, use the
tape operation buttons, change or cancel the timer settings, you have to press the
ON/OFF button on the remote control to turn off the TIMER REC indicator on the
Video TV set.

Remember to press again the ON/OFF button to make the TIMER REC indicator

lights up again and the set comes back into the timer recording standby mode.

Recording TV Programmes Using the Timer

VPS
DATE START STOP PROG PDC

23 SAT 22:00 23:00 03 SP ON

OK ADD CHANGE CLEAR

Programme List 23 SAT 20:00

OK

– 11 –

14

Timer recording with VPS/PDC signals

Some broadcasting system transmits VPS (Video Programme System) signals or
PDC (Programme Delivery Control) signals with the TV programmes. These
signals assure you that your timer recordings are made regardless of broadcast
delays, early starts, or broadcast interruptions. For example, if an urgent news
bulletin interrupts a regular programme, recording stops. As soon as the
interrupted programme resumes, recording starts again. To do that:

1

When you set a programme to be recorded by using the timer, (refer to the “Setting
the Timer” section on page 13), set VPS/PDC to On.

•If recording times overlap due to a VPS/PDC time shift, the programme that was broadcast first has
priority. Recording of the second programme begins when the first programme has finished.

•If the Video TV could not receive VPS/PDC signal because it was too weak or because the station
failed to transmit VPS/PDC signals, timer recording is made without the VPS/PDC function.

Recording TV Programmes Using
VideoPlus+ *

VideoPlus+ is a trademark applied for by Gemstar Development Corp. VideoPlus+ system is
manufactured under license from Gemstar Development Corporation.

The VideoPlus+ function allows you to simplify the task of making timer
recordings. Using VideoPlus+, you can make all the necessary settings by just
entering the desired programme’s 9-digit code, which is available in your local
programme guide.

Before you begin:

• Make sure that the loaded cassette has its safety tab.

1

In standby mode, press the standby button to turn on the Video TV.

2

Press the VIDEOPLUS+ button to display the VideoPlus+ menu.

3

Press the number buttons to enter the desired programme’s VideoPlus+ number and
press OK.

• If you have made a mistake, press and re-enter the correct number.

4

On the screen appears automatically date and time recording settings. With PROG
column highlighted, press or to select the correct programme number and then
press .

5 Press or to select the recording speed: SP or LP. Then press .

• In LP mode you can record double time than in SP mode.

6 Highlighting the VPS/PDC column, press or to select On or Off. (for details,

refer to “Timer recording with VPS/PDC signals” section above). Then press .

7 The Programme List menu appears on the screen. If recording settings are correct,

highlighting OK, press the OK button to confirm.

8 If you want to check, add, change or cancel your settings please refer to the

“Checking/Adding/Changing/Cancelling the Timer Settings” section (see page 15).

The TIMER REC indicator on the front of the Video TV lights up and the set enters into timer

recording standby mode.

VCR – Recording

Plus Code

[1 2 6 - - - - - -]

Set 0-9 and press

Video Plus+ 23 SAT 22:00

OK

Plus Code

[1 2 6 1 9 6 3 3 6]

VPS

DATE START STOP PROG PDC
23SAT 22:00 23:00 03 SP ON

Select Programme:

Video Plus + 23 SAT 22:00

OK

VPS
DATE START STOP PROG PDC

23 SAT 22:00 23:00 03 SP ON

OK ADD CHANGE CLEAR

Programme List 23 SAT 20:00

OK

*

15

GB

Guide Station name
channel

001 BBC1
002 BBC2
003 ITV
004 CHANNEL 4
005 RTE (IRELAND)
006 NETWORK 2 (IRELAND)
101 SKY ONE
102 SKY NEWS
103 SKY MOVIES
104 THE MOVIE CHANNEL
105 SKY SPORT
106 NICKELODEON

VH-1 GERMANY
107 EUROSPORT
108 GALAVISION
109 MTV EUROPE
110 CHILDREN´S CHANNEL

THE FAMILY CHANNEL
111 SKY MOVIES GOLD
112 BBC WORLD SERVICE
113 RTL 4
114 SUPER SPORT

FILMNET 2

FILMNET +
115 RTL PLUS INTERNATIONAL
116 SAT 1
117 PREMIERE
118 3 SAT
119 ARD
120 PRO 7
121 TELE 5
122 TELECLUB

Guide Station name
channel

123 UK GOLD
124 DISCOVERY

THE LEARNING CHANNEL

125 BRAVO

ADULT CHANNEL
126 CNN
127 EURONEWS
129 QVC
130 UK LIVING

TV-X
131 RAI 1
132 RAI 2
133 TV5 EUROPE
134 TVE INTERNATIONAL
135 MBC/ARABIC
136 VTM
137 SPORTNET
138 COUNTRY MUSIC TV
139 VIDEO HITS ONE

VH-1
140 SKY SPORT 2 &

SOAPS & TRAVEL
141 TV ASIA
142 LA-5
143 LIVE TV
144 SUPERCHANNEL
145 JAPAN TV
146 SELECT TV
147 MOVIE CHANNEL

FILMNET 1
148 SKY SPORT 3
149 TNT

CARTOON NETWORK

Checking/Adding/Changing/Cancelling
the Timer Settings

1

Press the TIMER REC button on the remote control to display the list of the timer

settings that you preset. If you just want to check the list, go to step 4. If you want to
add, change or clear any setting, please follow all the steps below.

2 Press or repeatedly to select ADD, CHANGE or CLEAR and press OK.

3 a)To add new settings:

Repeat steps from 3 to 7 of the section “Setting the Timer” (see page 13).

b) To change the settings:

Press or repeatedly to move the cursor to the setting you want to change,
then press OK. Finally repeat steps from 3 to 7 of the section “Setting the Timer”
(see page 13).

If you notice you have overlapped timer settings, you can correct the settings as
mentioned above. Otherwise, the second programme starts recording only after
the first programme has finished.

c) To clear the settings:

Press or repeatedly to move the cursor to the setting you want to delete,

then press OK. The setting is cleared and “--“ appears.

4 When you finish adding, changing or cancelling the settings, press or to select

OK and then press the OK button.

If there are other timer setting on the list, the Video TV enters the timer
recording standby mode and the TIMER REC indicator on the Video TV set
lights up.

VCR-Recording

VPS
DATE START STOP PROG PDC

23 SAT 22:00 23:00 03 SP ON

OK ADD CHANGE CLEAR

Programme List 23 SAT 20:00

OK

Guide Channels for VideoPlus+

– 12 –

16

Playing a Tape Repeatedly

The “Auto Repeat ” option in the “VCR Set Up” menu allows you to play a
recorded tape repeatedly.

To do that: by using the menu system and after selecting the option, press . Then
press or to select On. Finally press PLAY z to start the playback. When the tape
reaches its end, the video TV rewinds the tape to the beginning and then, plays it again.

• To cancel this function afterwards, select “Off” instead of “On” in the step above.

Searching Using the Index Function

The Video TV marks the tape with an index signal at the point where each
recording begins. These signals can be used to find a specific recording. this Video
TV can search up to 99 index signals ahead of or behind the current position.

To do that:

1 Insert a tape.
2 Press INDEX = or + repeatedly to specify how many index signals ahead or

behind you want to search in relation to the current tape position. The Video TV
begins searching for the selected index. When the index is reached, playback begins
automatically.

• You can stop searching by pressing STOP p.

Adjusting the Tracking

The tracking condition is automatically adjusted on this Video TV. The AUTO
TRACKING message appears while the Video TV is searching for the best tracking
condition.
However, if streak or snow noise appear on the video playback, you can adjust the
tracking condition manually by using the “Tracking Control” menu in the “VCR
Set Up” menu.

To do that: Whilst you are in play mode and by using the menu system, select the
Tracking Control menu and press . Press or to select Manual and press .
When the tracking meter appears on the screen press or to reduce the picture
noise and get the best picture noise. Finally press OK.

• To cancel this function afterwards, select again “Auto” instead of “Manual” in the step above.

Adjusting the Picture with the
Optimum Picture Control (OPC)

The “OPC” option in the “VCR Set Up” menu allows you to improve playback and
recording quality by adjusting the system parameter automatically according to the
condition of the video tape. The OPC function works on all types of tapes, even on
rental tapes. This function is set to “On” at the factory. To maintain better picture
quality, we recommend to leave the function on.

To do that: Whilst you are in play mode and by using the menu system, select the OPC
option and press . Then press or to select On or Off. Finally press OK.

VCR-Additional Operations

Tracking Control

OK

VCR Set Up

Tracking Control:
OPC:
Auto Repeat
Format:
Colour System:

OK

On
Off
Normal
Auto

VCR Set Up

Tracking Control:
OPC:
Auto Repeat
Format:
Colour System:

OK

On
Off
Normal
Auto

Tracking Control

Auto
Manual

OK

VCR Set Up

Tracking Control:
OPC:
Auto Repeat
Format:
Colour System:

OK

On
Off
Normal
Auto

17

GB

VCR-Additional Operations

Setting the Colour System

The colour system is set in “Auto” condition. However, by using the “Colour
System Option” in the “VCR Set Up” menu allows you to, set the colour system to
the corresponding system that the tape was recorded in the case that you notice
streaks appearing on the screen during playback

To do that: Whilst you are in play mode and by using the menu system, select the
Colour System option and press . Then press or to select the corresponding
colour system (Auto, MESECAM, PAL or NTSC). Finally, press OK.

• To cancel this function afterwards, select again “Auto” in the step above.

Viewing Programmes in 16:9 Mode

When viewing recording of programmes which were originally broadcast in 16:9
mode, you can set your Video TV to 16:9 mode to prevent a distorted picture.

To do that: : Press repeatedly the button on the remote control to select 16:9 or
Normal (4:3 format). You can also do it, by using the menu system. In that case, select
the Format option in the “VCR Set Up” menu and press . Then press or to select
16:9 or Normal. Finally, press OK.

• When you change channels, switch between input sources or turn the power on and off, the Video TV will

switch back to normal mode.

When Connecting to a Sony VCR

If you use this Video TV with another Sony VCR, the remote control may
accidentally operate both the Video TV and VCR at the same time. The VHS option
in the “Set Up” menu allows you that the remote control operates only this Video
TV.

To do that: by using the menu system and after selecting the VHS option, press . Then
press or to select Sony. Finally, press OK.

• To cancel this function afterwards, select “Others” in the step above.

VCR Set Up

Tracking Control:
OPC:
Auto Repeat
Format:
Colour System:

OK

On
Off
Normal
Auto

VCR Set Up

Tracking Control:
OPC:
Auto Repeat
Format:
Colour System:

OK

On
Off
Normal
Auto

Set Up

TV Set Up
VCR Set Up
Language
Parental Lock: Off
VHS: Others
Picture Rotation: 0

OK

or

– 13 –

18

Teletext

Teletext

Teletext is an information service transmitted by most TV stations. The index
page of the teletext service (usually page 100) gives you information on how to
use the service. To operate teletext, use the remote control buttons as indicated
below.

Make sure to use a channel (TV Broadcast) with a strong signal, otherwise

teletext errors may occur.

To Switch On Teletext:

After select the channel (TV Broadcast) which carries the teletext you wish to view,

press .

To Select a Teletext page:

Input 3 digits for the page number, using the numbered buttons.

• If you have made a mistake, retype the correct page number.

• If the counter on the screen continues searching, it is because this page is not available. In

that case, input another page number.

To access the next or preceding page:

Press PROGR + ( ) o PROGR - ( ).

To superimpose teletext on to the TV:

Whilst you are viewing teletext, press . Press it again to cancel teletext mode.

To freeze a teletext page:

Some teletext pages have sub-pages which follow on automatically. To stop them,
press / .
Press it again to cancel the freeze.

To reveal concealed information (e.g: answer to a quiz):

Press / . Press it again to conceal the information.

To Switch Off Teletext:

Press .

Fastext

Fastext service lets you access pages with one button push.
While you are in Teletext mode and Fastext is broadcast, a colour coded menu

appears at the bottom of the teletext page. Press the colour button (red, green,
yellow or blue) to access the corresponding page.

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

TELETEXT

Index

Programme
News
Sport
Weather

25
153
101

98

19

GB

Connecting Optional Equipment

Using the following instructions, you can connect a wide range of optional equipment to your Video
TV set. (Connecting cables are not supplied).

* “PlayStation” is a product of Sony Computer Entertainment, Inc.
* “PlayStation” is a trademark of Sony Computer Entertainment, Inc.

Using Optional Equipment

In order to get the input signal of a connected equipment onto the TV screen, you need to select the
symbol of the connector to which you have connected the device.
e.g.: You have connected a “PlayStation” to the connector with the symbol :1/ . Press the button

… on the remote control repeatedly until you see the symbol

…1 on the screen.

1 Connect your equipment to the designated Video TV socket, as indicated above.
2 To watch the picture of the connected equipment, press the … button repeatedly until the correct input

symbol appears on the screen.

Symbol Input Signals

1 • Audio / video input signal through the Scart connector

C.

• RGB input signal through the Scart connector

C.

2 • Video and audio input signals through the phono sockets

A and B.

3

Switch on the connected equipment.

4 Press button on the remote control to return to the normal TV picture.

Editing with another VCR

Using an additional VCR and connecting as it is in the section above “Connecting Optional
Equipment”, you can edit a tape.

Additional Information

1

2

C

“PlayStation”*

VCR

AB

Decoder

– 14 –

20

Video Head Cleaning

Even the Auto Head Cleaner built into this set automatically cleans the video heads when a cassette is loaded or
unloaded. However, if the playback pictures are noisy and hardly visible or no picture appears, video heads
probably need an extra cleaning. In this case, clean the video heads using the V-25CL video head cleaning tape (not
supplied) or ask Sony service personnel to clean the video heads.

Do not use a commercially available wet-type cleaning tape, as it may damage the video heads.

Symptoms caused by contaminated video heads

Worn Video heads

If your Video TV displays a poor picture after you clean the video heads, you may need to replace them. Consult
your dealer or the Sony Service Centre nearest you.

Check the video heads after 1,000 hours of use

A Video TV is a high precision machine. It must record on or play from magnetic tapes on which the image signals
from the colour TV or the video camcorder are recorded.
The video heads or mechanical parts for transporting the tape are contaminated or worn after extended use. You
should have your Video TV checked after each 1,000 hours of use.

Additional Information

• Normal picture • Rough picture • Unclear picture • No picture (or black& white
screen appears)

initial

terminal

22

Additional Information

Solution

• Check the aerial connection.

• Plug the Video TV in and press the button on the front of TV or if the standby
indicator is on, press button.

• Using the menu system, select the “Picture Adjustment” menu and select “Reset”
to return to the factory settings.

• Check that the optional equipment is on and press the button repeatedly on
the remote control until the correct input symbol is displayed on the screen.

• Press the +/- button on the remote control.

• Using the menu system, select the “Picture Adjustment” menu and select “Reset”
to return to factory settings.

• Turn off any equipment connected to the Scart connector on the rear of the

TV.

• Using the menu system, select the “Picture Rotation” option in the “Set Up” menu
to correct the picture slant.

• Using the menu system, select the “Manual Programme Preset” menu and adjust
Fine Tuning (AFT) to obtain better picture reception.

• Reset the clock and timer settings. for details refer to the section “Setting the Clock
Manually” (see page 7).

• Switch off, disconnect the AC power cord and leave the set for about one minute.

• Using the menu system, select the “VCR Set Up” menu and check the “Colour
System” option.

• Adjust the tracking manually. For details refer to the section “Adjusting the
Tracking” (see page 16).

• Clean the video heads. For details refer to the section ”Video Head Cleaning” (see
page 20).

• Use a new tape.

• Use a new tape.

• Cover the safety tab hole. For details refer to the section “ “Protecting your
cassette against accidental erasure” (see page 10).

• Insert a cassette with its safety tab intact.

• Rewind the tape.

• Set the current time and date. For details refer to the section “Setting Clock
Manually” (see page 7).

• Cover the safety tab hole. For details refer to the section “ “Protecting your
cassette against accidental erasure” (see page 10).

• Insert a cassette with its safety tab intact.

• Rewind the tape.

• Check the settings for timer recording. For details refer to the section “Checking/
Adding/Changing/Cancelling the Timer Settings” (see page 15).

• Press EJECT 6 to eject the cassette that it is already inserted.

• Replace the batteries.

• Contact to your nearest Sony service centre.

In case of problems, have your TV serviced by qualified personnel. Never open the casing yourself.

Troubleshooting

If you have any problems while viewing your Video TV, please check the following troubleshooting guide. If the problem
persists, contact your Sony dealer.

Problem

TV Section

No picture (screen is dark) and no
sound.

Poor or no picture (screen is dark), but
good sound.

No picture when watching equipment
connected to the Scart connector.

Good picture, no sound.
No colour on colour programmes.

Distorted picture when changing
programmes or selecting teletext.

Picture slanted (only for KV-21FV1U).

Noisy picture when viewing a TV
channel.

Clock section

The clock has stopped and “--:--“ is
displayed.

Playback section

Power is on, but the tape does not run.

Poor playback picture.

The sound drops out.

Recording section

The cassette is ejected when you press
REC r .

Cannot record.

Timer recording section

Cannot program a recording using the
timer.

The cassette is ejected when you press
TIMER REC ON/OFF.

The TIMER REC indicator on the front
of the Video TV does not light up even
though you press TIMER REC ON/
OFF.

Others

A cassette cannot be inserted.

Remote control does not function.

The standby indicator on the Video
TV flashes.

– 15 –

SECTION 2

DISASSEMBLY

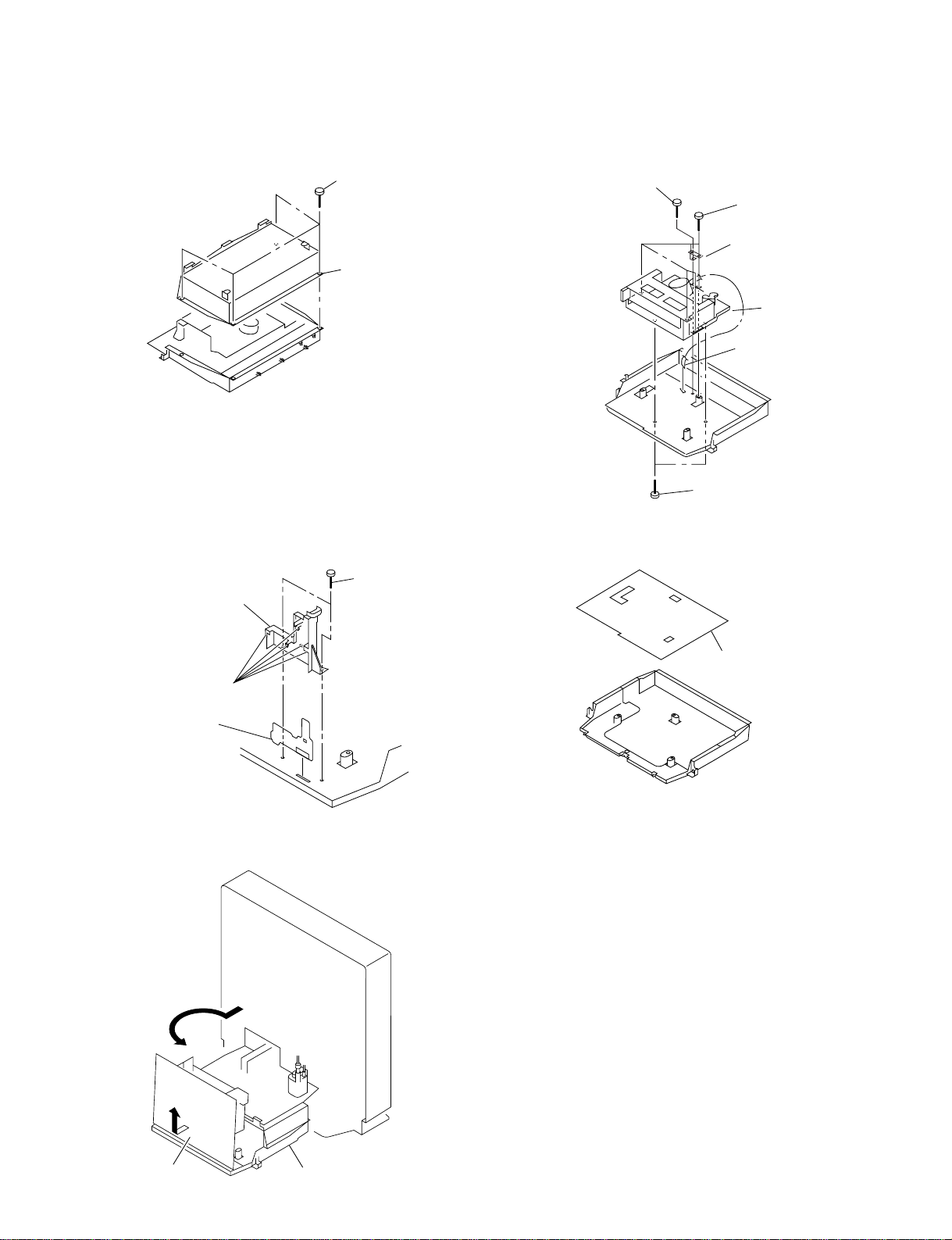

2-1. REAR COVER REMOVAL 2-2. CHASSIS ASSY REMOVAL

2

Rear cover

1

Eight screws

(+BVTP 4 X 16)

2

Chassis assy

Two screws (+BVTP 4 X 16)

1

2-3. SERVICE POSITION (A BOARD) 2-4. A BOARD REMOVAL

CV board

Insulator

Terminal board

A board

3

A board

1

(+BVTP 3 X 12)

Three screws

Claw

Claw

Note: Open the A board after slide the terminal board

– 16 –

2

Two

Claws

2-5. HARNESS LOCATION

DGC holder

Demagnetic coil

H10 board

CN002

CN001

CN1003

CN305

CN306

CN1002

CN1301

CVM board

MA10 board

CN301

CN302

Deflection yokeAnode cap

NA rotation coil

DGC holder

VM coil

Speaker

CN251

CN1703

CN1701

CN1702

CN803

CN801

FBT

CN401

CN604

CN1705

CN1801

CVM
board

CN1703

CN707

CN701

A
board

CN706

CN606

CN603
CN601

CN702

Choke coil

(21inches model only)

C703

CN1001

Power cord

– 17 –

2-6. PICTURE TUBE REMO VAL

8Demagnetization

4 CV board

5 NA rotation coil

6 Deflection yoke
0 Four screws

(Tapping screw 5)

7Two DGC clips

9Two spring

2 Two screws (+BVTP 4 X 16)

3 Chassis assmbly

1 Anode cap

Cushion

• Removal of anode-cap

NOTE : Short circuit the anode of the picture tube and the

anode cap to the metal chassis, CRT shield or car­bon paint on the CRT, after removing the anode.

• removing procedures

1 Turn up one side of the

rubber cap in the
direction indicated by
the arrow a.

a

a

!¡ Picture tube

• how to handle an anode-cap

1 Don't hurt the surface of anode-caps with shaped

objects!

2 Don't press the rubber too hard so as not to hurt inside of

anode-caps!
A metal fitting called the shatter-hook terminal is built into
the rebber.

3 Don't turn the foot of rubber over too hard!

The shatter-hook terminal will stick out of damage the
rubber.

2 Using a thumb pull up the

rubber cap firmly in the
direction indicated by the
arrow b.

3 When one side of the rubber

cap is separated from the
anode button, the anode-cap
can be removed by turning
up the rubber cap and pulling
it up in the direction of the
arrow c.

b

b

c

– 18 –

SECTION 3

SET-UP ADJUSTMENTS

• The following adjustments should be made when a complete
realignment is required or a new picture tube is installed.

• These adjustments should be performed with the rated
power supply voltage, unless otherwise noted.

The PICTURE and Brightness controls should be set as follows
unless otherwise noted:

CONTRAST.......................... 100% (LIVE)

BRIGHTNESS control.......... 50%

COLOUR .............................. 50%

HUE ....................................... 50%

SHARPNESS ........................ 50%

Preparation:

• In order to reduce the influence of external magnetic
forces on the picture tube, face the TV set in an easterly
or westerly direction.

• Turn the power switch for the unit ON and erase the magnetic
force using a degausser.

3-1. BEAM LANDING

1. Degauss CRT screen.

2. Inut all-green pattern.

3. Adjust roughly landing at the centre of the screen by moving
the purity magnet.

4. Adjust toughly landing at both right and left sides of the screen
by sliding the DY forward or backward.

5. Adjust landing according to the lupe method or the allowance
mothod.

6. Adjust DY so the horizontal tilt of DY is within the standard.
Product standard is as follows.

± 1°

Perform the adjustments in the following order:

1. Beam Landing

2. Convergence

3. Focus

4. Screen (G2)

5. White Balance

6. Picture Distortion

Note: Test Equipment Required.

1. Color bar/Pattern Generator

2. Degausser

3. Oscilloscope

BGR

Fig.3-2

Fig.3-3

± 1°

7. Use disk magnet, if landing at the corner is not good.
Disk mg shold be applyied on the funnel. Don't use mag if
possible because of picture distortion.

8. Screw down the DY.

Purity control

Fig.3-1

– 19 –

Purity control
corrects this area.

ab

cd

Deflection yoke positioning
corrects these areas.

b

d

Disk magnets or rotatable
disk magnets correct these
areas (a-d).

a

c

Fig.3-4

3-2. CONVERGENCE

B

G
R

B
G

R

BGR

BGR

B

G

R

B

G

R

1 Movement of opening or closing the

V. STAT convergence magnet.

2 Movement of tilting the V. STAT conver-

gence magnet counterclockwise.

3 Movement of tilting the V. STAT conver-

gence magnet clockwise.

4 Movement of tilting and opening or clos-

ing the V. STAT convergence magnet.

Purity

BMC magnet

Vertical static
convergence magnet

(1) Horizontal and Ver tical Static Convergence

1. Receive the channel with dot signal.

2. Minimize BRT and set picture level to the position where the
dot is easy to see.

3. Adjust horizontal convergence at the centre of the screen with
V. STAT correction piece.

4. Adjust vertical convergence of dot at the centre of the screen
with V. STAT MG.

5. Adjust repeatedly static convergence according to righe figure
in case that both HMC and VMC are not independant.
In case of both HMC and VMC exist attach BMC magnet to
neck assembly.
Case of HMC attached
Turn BMC over in case of adjustment in opposite direction.
Use BMC mg only when it is necessary, for it mak es CR T focus
worse.

Center dot

R

G

B

Horizontal static
convergence

R
G
B

Vertical static
convergence magnet

• Movement of red, green and blue dots by V. ST A T tilting
and opening or closing.

• If the blue dot did not harmonize with red and green,
then use the BMC magnet to adjust.

1)HMC (Horizontal mis-convergence) correction

HMC correction (A)

R

GB

A <

B

AB

RGB

A =

B

AB

HMC correction (B)

R

GB

A >

B

AB

RGB

B

A =

AB

RV702 (H-STAT)

Fig.3-5

– 20 –

2)VMC (Vertical mis-convergence) correction.

VMC correction (A) VMC correction (B)

C < D C = D C > D C = D

R

C

G

D

B

R

C

G

D

B

RR

C
D

C

G

D

B

G
B

(2) Convergence adjustment of screen surroundings.

(Dynamic convergence)

1. Recieve dot pattern.

2. Set BRT to main and PIC to the level where dot pattern is
easy to see.

3. Shake DY up and down. Insert DY spacer at position 'A' so
that cross MIS convergence is minimum.

4. Shake DY right or left and insert DY spacer at position 'C'
and 'D' where tilt is the smallest both on vertical and
horizontal axis.

R
G
B

B

G

R

B

G

B

R

G

R

R

G

BB

G

R

3-3. FOCUS ADJUSTMENT

1. Receive monoscope pattern.

2. Adjust FBT focus VR so that the picture has the best focus.
Adjust the focus so that the center of the screen is in the best
focus.
Turn focus VR clockwise to the end and then tur n back counter
clockwise.
While turning back, pay attention to the centre cross of the
colour pattern, and then adjust the VR so that horizontal line
because clear and vertical line begins to become unclear.
Change signal to dot pattern, confirm that corner focus is good.

3. Receiving white signal, confirm that magenta ring is hardly
noticed.

R

G

a

a-d : screen-corner
misconvergence

c

G

B

B

R

B

R

G

B

R

Fig.3-6

b

d

Fuoco

Schermo

R

B

G

G

R

G

B

3-4. SCREEN (G2) ADJUSTMENT

Fig.3-8

1. Receive a Black signal, Cross and Hatch signal or dots signal.

2. Make sure to be in Personal, reset condition.

3. Adjust screen VR on FBT so that highest level of black area
among kathodes is 175 ± 2 V.

a

b

Fig.3-7

d

c

– 21 –

3-5. WHITE BALANCE ADJUSTMENT

1. Input ehite pattern. Adjust white balance of drive side, using
service mode VP No. 22 RAMP, No. 23 GAMP and No. 24
BAMP, so that colour temperature is 8600 K + 0 MPCD.

2. Input gray pattern for 10NIT. Adjust white balance of cut-off
side, using service mode No. 25 RCUT, No. 26 GCUT and No.
27 BCUT, so that colour temperature is 8600 K + 0 MPCD.

3. To take tracking, confirm again tha t colour temperatures of both
side are within the limit of the above standard 8600 K + 0
MPCD. If necessary, re-adjust.
W/B Specification:
H/L difference = 2JND or less
C/O difference = 3JND or less

3-6. PICTURE DISTORTION ADJUSTMENT

• When performing these adjustment, do receive monoscope
signal.

VP01 (HSIZ) VP07 (AFBW)

VP02 (HPOS)

VP04 (LCPN)

VP05 (UCPN)

VP06 (AFAG) VP13 (TRAP)

VP08 (PAMP)

VP09 (VPOS)VP03 (VSIZ)

VP10 (VLIN)

VP11 (SCOR)

– 22 –

SECTION 4

CIRCUIT ADJUSTMENTS

4-1. ADJUSTMENTS WITH COMMANDER

1. ENTERING SERVICE MODE

1) Turn on the main power of the set and enter into stand-by
mode.

2) Press the following sequence of buttons on the Remote
Control Commander.

ON SCREEN DISPLAY

CH “ 5 ”

VOLUME (+)

POWER “ ON ”
(REMOTE CONTROL POWER “ ON ”)

2. TO READ THE MEMORY

1) Set to service mode.

2) When push these buttons 7 n - on the remote
commander, it would read all item's adjustment value and
switch set-up value which written in the memory.

Note: Do not read before "standard value" writing when exchange

the MEMORY IC002.

+

u

6. WRITING "STAND ARD V ALUE"

1) Set to service mode.

2) When push 5 button on the remote commander green
colored "INITIAL write" indicates on the screen right above.
Continuing to press - button while words are displaying
(about 3 seconds). Display turns to red colored "INITIAL
write" then the screen become pitch-dark and select 1ch
about 5 seconds after. Then it turns green colored "G"
display.
Perform writing "standard value" standard data in micro
computer will write to the MEMORY and set to initialization
state all.

Note: When exchange only MEMORY IC002, perform "standard

value" writing in the begginning.

3. PICTURE ADJUSTMENT

1) Select adjustment item number of service mode by 1 and
4 buttons on the remote commander.

2) Adjust 3 and 6 buttons to satisfy set-up v alue and picture
condition of the screen.

4. WRITE T O THE MEMORY

• After adjusted, write to the MEMORY by MUTE and ­buttons and push - button while green "light" word
indicated on the picture display (about 3 seconds). It takes
about 1 second to complete the writing to the MEMORY.
When red "light" displayed turns to "G" and that makes
writing completely finish.

Color of the screen displayed light word.

MUTE button on..................... Green word

- button on ........................... Red word

5. RELEASE THE SERVICE MODE

• Turn off TV set and turn on again or turn of f by the r emote
commander, and turn off by the remote commander again
by stand-by state to disappear serivce display and set to
normal TV mode.

– 23 –

4-2. ADJUSTMENT METHOD

Service adjustment to this model can be performed with the supplied Remote Control Commander RM-955, 956.

• HOW TO ENTER INTO SERVICE MODE

Entering the
service mode

When exchange
the MEMORY
IC002 (MA10 board)

Perform “standard
value” writing

YCJ adjustment

Deflection circuit
adjustment

Micro computer
adjustment

Write to
the MEMORY

Note : • Write to the MEMORY every performing one item adjustment.

• Before writing to the MEMORY adjusted data would not memorize when turn off.

• REMOTE COMMANDER'S FUNCTION IN
SERVICE MODE

When exchange
the board

A board

Release the
service mode.

• SERVICE MODE DISPLAY

When repair connect­ed with picture quality

A board deflection system
exchange CRT and DY.

No.

DATA

SERVICE

ITEM

Write memory
After pressed "0" button

Adjustment item up
Adjustment item down

Read memory
After pressed "0" button

Releace service mode

Data up

Data down

Write standard value
After pressed "0" button

Perform read and write

– 24 –

VP00 VPOS 000 SERVI

21 D05 VPS NS

4-3. SERVICE DATA

No. DISP DATA STANDARD ITEM DEVICE

VP00 SBRT 00-3F 17 SUB BRIGHT CXA2139S
VP01 HSIZ 00-3F 27 H SIZE (Y/C/J)
VP02 HPOS 00-3F 1B H POSITION
VP03 VSIZ 00-3F 1D V SIZE
VP04 LCPN 00-3F IE LOWERSIDE CORNER PIN
VP05 UCPN 00-3F 17 UPPERSIDE CORNER PIN
VP06 AFAG 00-0F 07 AFC ANGLE
VP07 AFBW 00-0F 07 AFC BOW
VP08 PAMP 00-3F 0C PIN AMPLITUDE
VP09 VPOS 00-3F 22 V POSITION
VP10 VLIN 00-0F 07 V LINEARITY
VP11 SCOR 00-0F 07 S CORRECTION
VP12 AFC 00-03 01 AFC LOOP GAIN SWITCHING
VP13 TRAP 00-0F 06 TRAPEZIUM
VP14 HBLK 00-01 00 H BLANKING
VP15 LBLK 00-0F 07 LEFT H BLANKING
VP16 RBLK 00-0F 07 RIGHT H BLANKING
VP17 VUND 00-01 00 V UNDER SCAN
VP18 EHT 00-0F 07 EHT COMP
VP19 HSS 00-01 00 SLICE LEVEL OF H SYNC SEPARATION
VP20 VSS 00-01 00 SLICE LEVEL OF V SYNC SEPARATION
VP21 HMSK 00-01 01 H MASK
VP22 RAMP 00-3F 21 R DRIVE
VP23 GAMP 00-3F 14 G DRIVE
VP24 BAMP 00-3F 0F B DRIVE
VP25 RCUT 00-0F 0F R CUTOFF
VP26 GCUT 00-0F 06 G CUTOFF
VP27 BCUT 00-0F 00 B CUTOFF
VP28 SCOL 00-3F 21 SUB COLOR FOR PAL
VP29 SHUE 00-1F 1F SUB HUE
VP30 SSHP 00-0F 07 SUB SHARPNESS
VP31 SHPF 00-01 00 SHARPNESS F0 SWITCHING
VP32 PREL 00-01 00 PRE/OVER-SHOOT RATIO SWITCHING
VP33 GAMM 00-01 02 GAMMA CORRECTION
VP34 ABLM 00-01 01 ABL MODE
VP35 VTH 00-01 01 ABL VTH
VP36 DYCL 00-01 01 DYNAMIC COLOR
VP37 YDC 00-01 01 DC TRAN
VP38 RON 00-01 01 R ON
VP39 GON 00-01 01 G ON
VP40 BON 00-01 01 B ON
VP41 CDMD 00-03 00 COUNT DOWN MODE
VP42 HOSC 00-0F 07 H VCO’S OSCILLATION
VP43 VMSW 00-01 00 VM SW
VP44 YDE 00-0F 00 Y DELAY
VP45 PAF 00-03 00 PB AFC
VP46 IDS 00-03 02 ID START
VP47 IDP 00-03 02 ID STOP
VP48 IDL 00-03 02 ID LEVEL
VP49 BELL 00-3F 25 BELL F0
VP50 SCSE 00-3F 1F SUB COLOR FOR SECAM
VP51 GDSE 00-0F 07 G DRIVE (SECAM) *DISPLAY -7 to +8*
VP52 BDSE 00-0F 07 B DRIVE (SECAM) *DISPLAY -7 to +8*
VP53 RCSE 00-1F 10 R CUTOFF (SECAM) *DISPLAY -15 to +16*
VP54 GCSE 00-1F 10 G CUTOFF (SECAM) *DISPLAY -15 to +16*
VP55 BCSE 00-1F 10 B CUTOFF (SECAM) *DISPLAY -15 to +16*
VP56 GDLI 00-0F 07 G DRIVE (LIVE) *DISPLAY -7 to +8*
VP57 BDLI 00-0F 07 B DRIVE (LIVE) *DISPLAY -7 to +8*
VP58 RCLI 00-0F 07 R CUTOFF (LIVE) *DISPLAY -7 to +8*
VP59 GCLI 00-0F 07 G CUTOFF (LIVE) *DISPLAY -7 to +8*
VP60 BCLI 00-0F 07 B CUTOFF (LIVE) *DISPLAY -7 to +8*

RANGE DATA

– 25 –

No. DISP DATA STANDARD ITEM DEVICE

IF00 AMFM 00-01 00 AUTO MUTE FM
IF01 GAIN 00-01 00 AUDIO GAIN
IF02 GATE 00-01 00 GATING (POSITIVE MODULATION)
IF03 TOP 00-1F 10 TAKE OVER POINT *DISPLAY -16 to +15* CXP85452

IF04 TAGC 00-1F 10 AGC FOR TV TUNER *DISPLAY -16 to +15*
IF05 VAGC 00-1F 10 AGC FOR VCR TUNER *DISPLAY -16 to +15*

No. DISP DATA STANDARD ITEM DEVICE

OP00 OSDH 00-3F 06 OSD HORIZONTAL POSITION
OP01 NS 00-01 01 NS COIL CXP85452
OP02 LWAI 00-1F 13 L SYSTEM TUNING WAIT TIMER (µ-COM)
OP03 HDCG 00-03 00 HEADCLOG DETECT
OP04 MUT 00-01 01 FTZ MUTE (0:OFF 1:ON)
OP05 VPS 00-01 01 VPS (0:NO EXIST 1:EXIST)
OP06 BDES 00-01 00 B DESTINATION (0:OTHERS 1:B)
OP07 UDES 00-01 00 U DESTINATION (0:OTHERS 1:U)
OP08 ID0 00-01 00 PAINTER M3A/M3C SELECT (0:M3A 1:M3C)
OP09 ID1 00-01 00 NVM-ID1 (RESERVE)

RANGE DATA

(µ-COM)

RANGE DATA

4-4. A BOARD ADJUSTMENT

1. SUB COLOUR ADJUSTMENT

1) Recieve the PAL colour bar signal.

2) Check the pin4 of CN305 by oscilloscope.

3) Adjust the part of the right waveform to become the same
level by service mode (VP28:Sub colour).

Same level

B-Out waveform

Fig.4-1

– 26 –

TV BLOCK

5-1. BLOCK DIAGRAMS

MAIN OUT

ANT

SECTION 5
DIAGRAMS

UT101(VTR)CP101 TU102(TV)

CV(Y)IN

CV OUT

BLK

R(C)

L IN

SUB OUT

D611

+3.3V

J401

G

SW

B

+33V

FMG/POS

SCL

SDA

AGC

VIDEO

AM

D101

+33V

FMG/POS

SCL

SDA

AM

AGC

AUDIO(TV)

AUDIO(REC)

VIDEO

BUFFER

Q401

VIDEO(TV)

VIDEO(REC)

43
44

41
42

27

23

25

TU V 0
TU A 0

TU V 1
TU A 1

AV V IN

AV V OUT

AV A IN

IC401

A/V SW

V OUT

IC301(1/2)

Y/C/J

CN305

R

6

G

5

B

4

IK

1

9V

3

A

TO
CVM BOARD
CN703

OSD R
OSD G
OSD B

YM/YS

X301

X302

VIDEO

43

32
31
30

29
25

28
27
26

17

48

47

TV IN

R2 IN
G2 IN
B2 IN

YS 2/YM
YS 1

R1 IN
G1 IN
B1 IN

SSCP

XTAL 1

XTAL 2

R OUT
G OUT
B OUT

IK IN

22
23
24
21

34

BUFFER

Q403

BUFFER

Q306

TEXT VIDEO

BLKFRGB

R
G
B

SSCP

R

BG

9V

B

TO
MA10 BOARD
CN001

C

TO
MA10 BOARD
CN001

TO JIG

L OUT

R IN

R OUT

CN301(1/3)

SSCP

H SYNC 0(TV)

H SYNC 1(REC)

FRGB

AUTO AGC

SCL 1

SDA 1
YM/YS
MODE
OSD B
OSD G
OSD R

B INT

TEXT VIDEO

SP AUDIO

PB A

PB V
FR LINE A
FR LINE V

VCR A
VCR V

GND
SCL
SDA

B INT

NC

BUFFER

Q405

1
2
3
4

8
17
18
19
20
21
22
23
24
26
25
27
28
30
32
34
35

1

2

3

4

5

VIDEO

(REC)

AUDIO

(REC)

VIDEO(PB)

AUDIO

BUFFER

Q404

MUTE

Q420

BUFFER

Q101

BUFFER

Q102

AUDIO(PB)

AUDIO(REC)

VIDEO(REC)

22

13
14

33

8
7
2
1

18

17

AV A OUT

SCL
SDA

SP OUT
VCR A IN
VCR V IN
FRONT A IN
FRONT V IN
VCR A OUT

VCR V OUT

A(1/3)

(TUNER,A/V SW,Y/C/J)

(Schematic diagram P.37 to 40)

(15)

– 27 – – 28 –

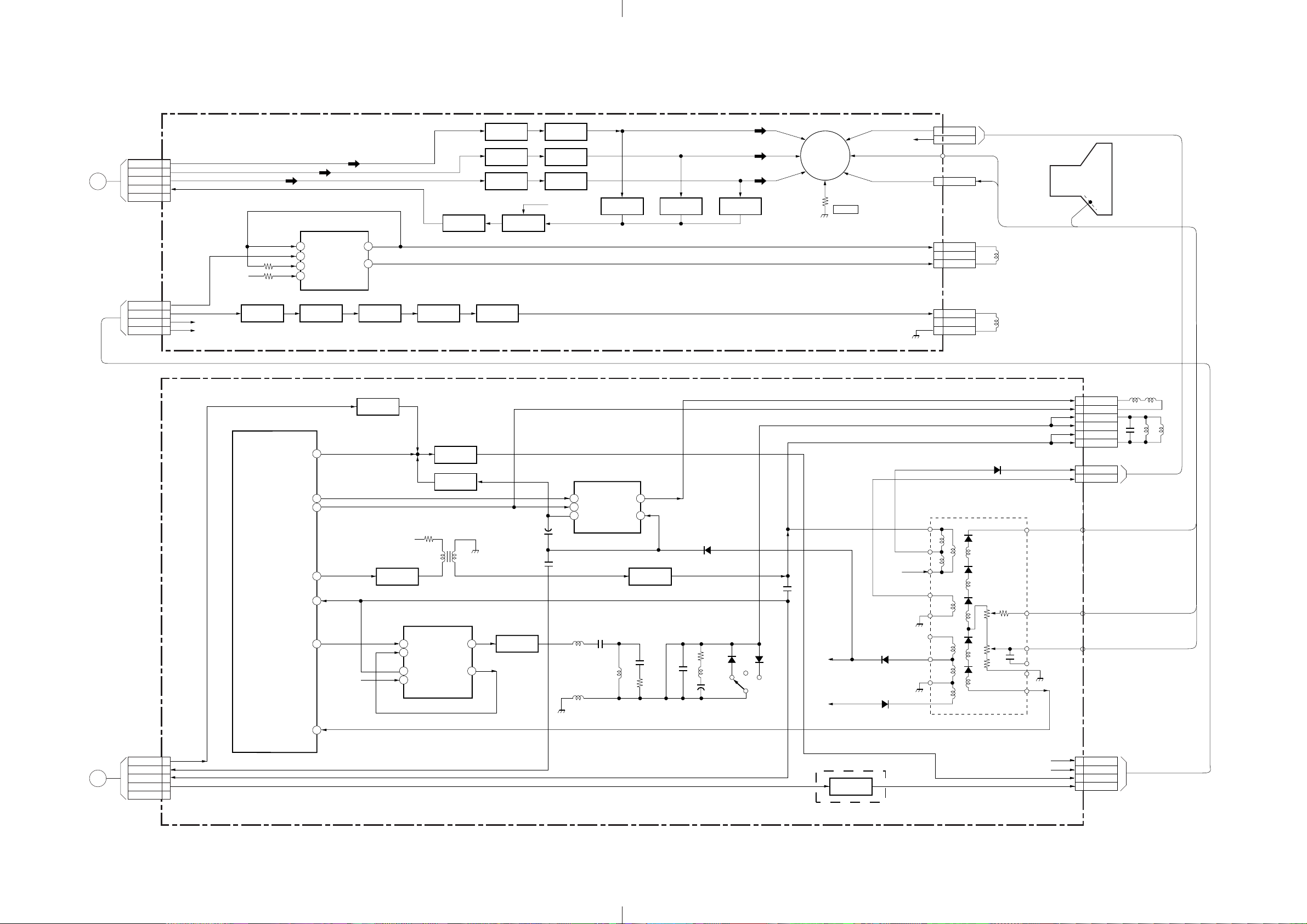

A

TO
A BOARD
CN305

CN703

R IN
G IN
B IN

AUTO CUT OFF

9V

CVM

(RGB OUT,VM)

(Schematic diagram P.41 to 43)

6
5
4
1
3

+8V

B

ROTATION OUT

2

IN 1-

3

IN 1+

6

IN 2-

5

IN 2+

G

IC1801

R

OUT 1

OUT 2

CN007

5

NC/H2

1

200V

FV

CN706

1

CN1801

1

ROT(+)
2
3

ROT(-)

G2

G2

NC

ROTATION

COIL

V901

PICTURE TUBE

B IK DET

Q710

R

G

B

KR

KG

J701

KB

H2

200V

G4

G2

RV701

H STAT

R AMP

Q702,703

G AMP

Q705,706

B AMP

Q708,709

IK BUFFER

Q711

1

7

BIAS

Q714

R OUT

Q713,715

G OUT

Q712,715

B OUT

Q701,717

9V

R IK DET

Q704

G IK DET

Q707

CN704

NS CORRECT

VM
+8V

+135V

6
5
4
1

+8V
+135V(+B)

BUFFER

Q1701

IC301(2/2)

Y/C/J

VM OUT

VD+
VD-

HP/PROTECT

ABL IN

AMP

Q1704,1705

15

13
14

19

HD

18

11

EW

3

BUFFER

Q1706

VM SW

Q304

135V
(+B)

H DRIVE

Q803

5

+V IN 2

6

-V IN 2

4

+V IN 1

5

-V IN 1

BUFFER

Q1707-Q1710

BUFFER

Q301-Q303

V PROTECT

Q501,502

T803
HDT

IC801

PIN COMP

OUT 2

OUT 1

VM DRIVE

Q1711,1712

7

1

PIN OUT

Q801

IC501

V OUT

4

REF

5

IN

7

BOOST

+

L805

L802

L808

OUT

VCC

2

3

H OUT

Q802

D503

PUMP UP

D807

+

200V

+B

D507

D804

C

R

S801

H-CENT

L

+13V

-13V

+13V RECT

D801

-13 RECT

+13V

GND

-13V

CN1703

3

VM

2

NC

1

E

T801

FBT

CHV

+B

H1

H2

COIL

D506

200V RECT

VM

FV

G2

GND

ABL

CN801

6

V DY+

5

V DY-

4

H DY-

3

H DY-

2

HDY+

1

H DY+

CN803

1

200V

5

H1

V DY

H DY

B

TO
MA10 BOARD
CN001

CN301(2/3)

GND
SCL
SDA

B INT

NC

(15)

CN306

1

+B

4

9V

5

VM OUT

6

N.S

1
2
3
4
5

A

(2/3)

(DEFLECTION)

(Schematic diagram P.37 to 40)

21inch model only

NS OUT

Q305

+B
9V

– 29 – – 30 –

D622

REG SW

Q603

21 inch

model

E

TO
MA10 BOARD
CN1703

CN606

PFC

NC

PFC

CN601

AC NUET

AC

IC602

TH601

14 inch
model

3
2
1

1

5

RY602

AC-RECT

D601

AC-RECT

D602

SW REG CONTROL

16

LINE

V FB

4

V REF

6

R605

IC606

SWITCHING REG

C SENSE

G DRIVE

P VCC
A VCC

3

D

3

11

12
13

1

ZC

POWER SWITCHING

Q605

D621

RECT

PH602

FEED BACK

T604

SRT

D616

+33V RECT

D635

D627

+5V RECT

+11V RECT

I

IO

6V STBY REG

14

23

T602

SRT

D625

+7V RECT

D605

+14V RECT

I

IC611

1

23

I

IC610

5V REG

IC604

IC603

+6V REG

IC609

9V REG

O

O

O

IC601

SW 5V REG

12

IO

4

DGC

F

TO
MA10 BOARD
CN001

CN602

CHECK
CHECK

CN603

DGC

NC

DGC

CN301(3/3)

DGC SW

VPS ON
VCR PWR
CRT PWR

OVP

2
1

3
2
1

9
10
11
12
16

A

(3/3)

RY602

DGC DRIVE

Q609

(POWER SUPPLY)

TV DRIVE

Q608

GND

REG SW

Q602

PROTECT DRIVE

Q606

(Schematic diagram P.37 to 40)

OCP/FB

V IN

REG DRIVE

Q604

SW

Q611,612

IC605

1
2

S

D606

45

VCC RECT

PH601

FEED BACK

14

23

O

+135V RECT

IC607

I2

I

D609

MOTOR

RECT

D610

AUDIO

RECT

+13.2V REG

I

O

2

RY601

RY DRIVE

Q601

35

D612

+135V RECT

IC608

+9V REG

1

IO

4

2

– 31 –

– 32 –

5-2. CIRCUIT BOARDS LOCATION

9V REG

IC610

5V REG

IC604

STBY REG

IC603

6V REG

IC605

3.2V REG

O

2

Y601

DRIVE

Q601

IC609

O

O

O

O

3

D612

+135V RECT

IC601

SW 5V REG

12

IO

4

IC608

+9V REG

1

IO

2

4

+33V STBY

STBY 9V

STBY 5V

+7V

+B(+135V)

+9V

1
3
5
6

CN302

D 5V

SW 5V

MTR 13.2V

VCC(SP)

TO
MA10 BOARD

G

CN1003

CVM

H10

MA10

A

5-3. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAMS

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
Capacitors without voltage indication are all 50V.

• All resistors are in ohms.
k = 1000 , M = 1000k

• Indication of resistance, which does not have one for rating electrical
power, is as follows.

Pitch: 5 mm
Rating electrical power: 1/4W(CHIP:1/10W)

• f : nonflammable resistor.

• F : fusible resistor.

• ¢ : internal component.

• p : panel designation and adjustment for repair.

• All variable and adjustable resistors have characteristic curve B, unless

otherwise noted.

• E : earth-chassis.

• Readings are taken with a color-bar signal input.

• Readings are taken with a 10M digital multimeter.

• Voltage variations may be noted due to normal production tolerances.

• All voltages are in V.

• Circled numbers are waveform reference.

V

P

: B + line

V

: B – line.
: signal path.

•

•

•

Reference information

RESISTOR : RN METAL FILM

: RC SOLID
: FPRD NONFRAMMABLE CARBON
: FUSE NONFRAMMABLE FUSIBLE
: RW NONFRAMMABLE WIREWOUND
: RS NONFRAMMABLE METAL OXIDE
: RB NONFRAMMABLE CEMENT
:

ADJUSTMENT RESISTOR
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM

: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE

Terminal name of semiconductors in silk screen
printed circuit ( )

Device Printed symbol Terminal name

Transistor

1

Transistor

2

3

Diode

4

Diode

Diode

5

Diode

6

Diode

7

8

Diode

Diode

9

Diode

0

Diode

!¡

Diode

!™

(Chip semiconductors that are not actually used are included.)

*

Collector

Base

Collector

Base

Cathode

Cathode

Anode

Cathode

Anode

Common

Anode

Common

Anode Cathode

Common

Anode

Common

Anode Anode

Common

Cathode

Common

Cathode

Anode
Anode

Cathode

Emitter

Emitter

Anode

(NC)

(NC)

Cathode

Anode

Cathode

Cathode

Cathode
Anode
Anode

Circuit

Ver.1.6

Note: The components identified by shading and mark

B are critical for safety. Replace only with part

nummber specified.

(15)

– 32 – – 33 –

Note: Les composants identifiés par la marque ! sont

critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.

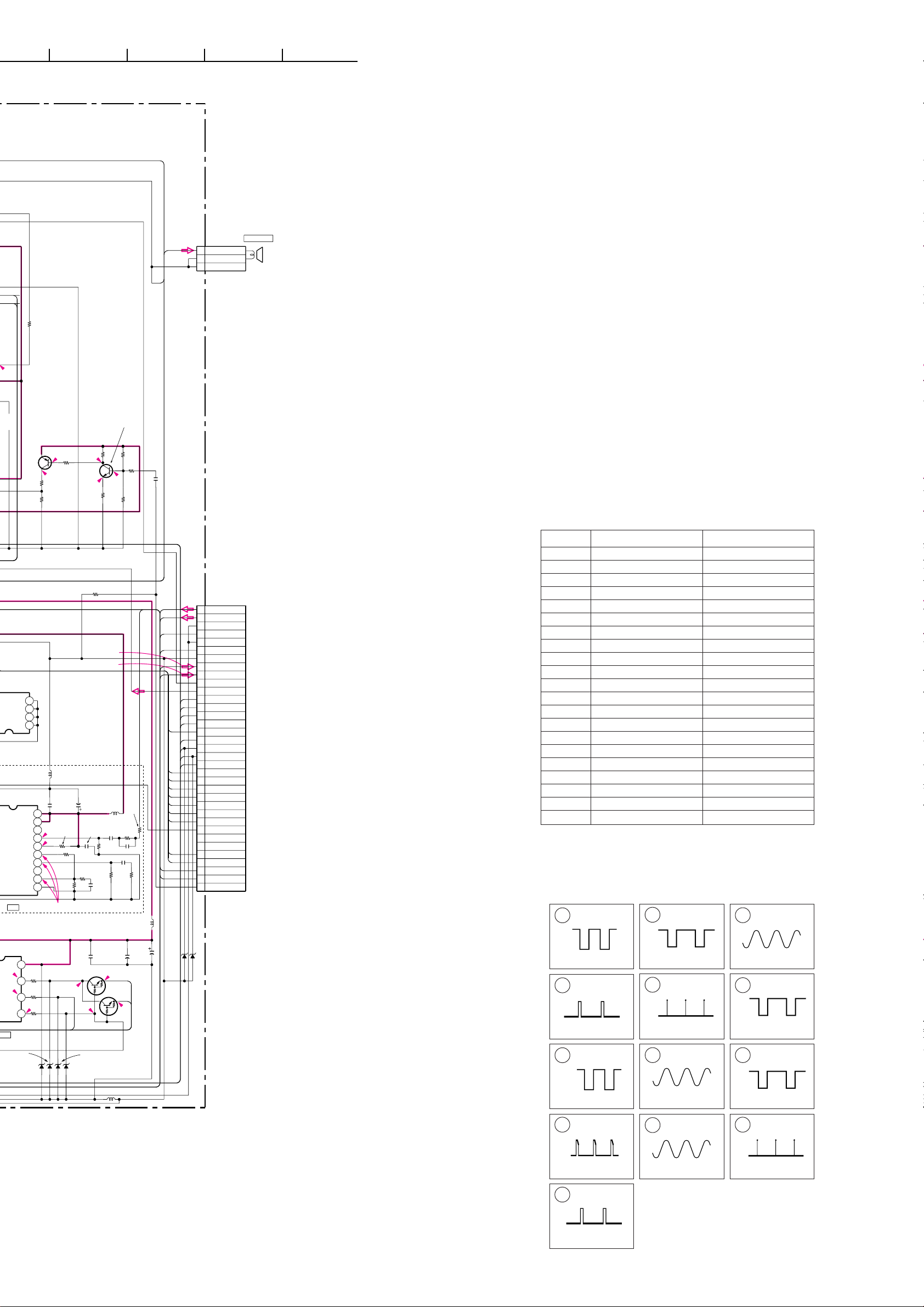

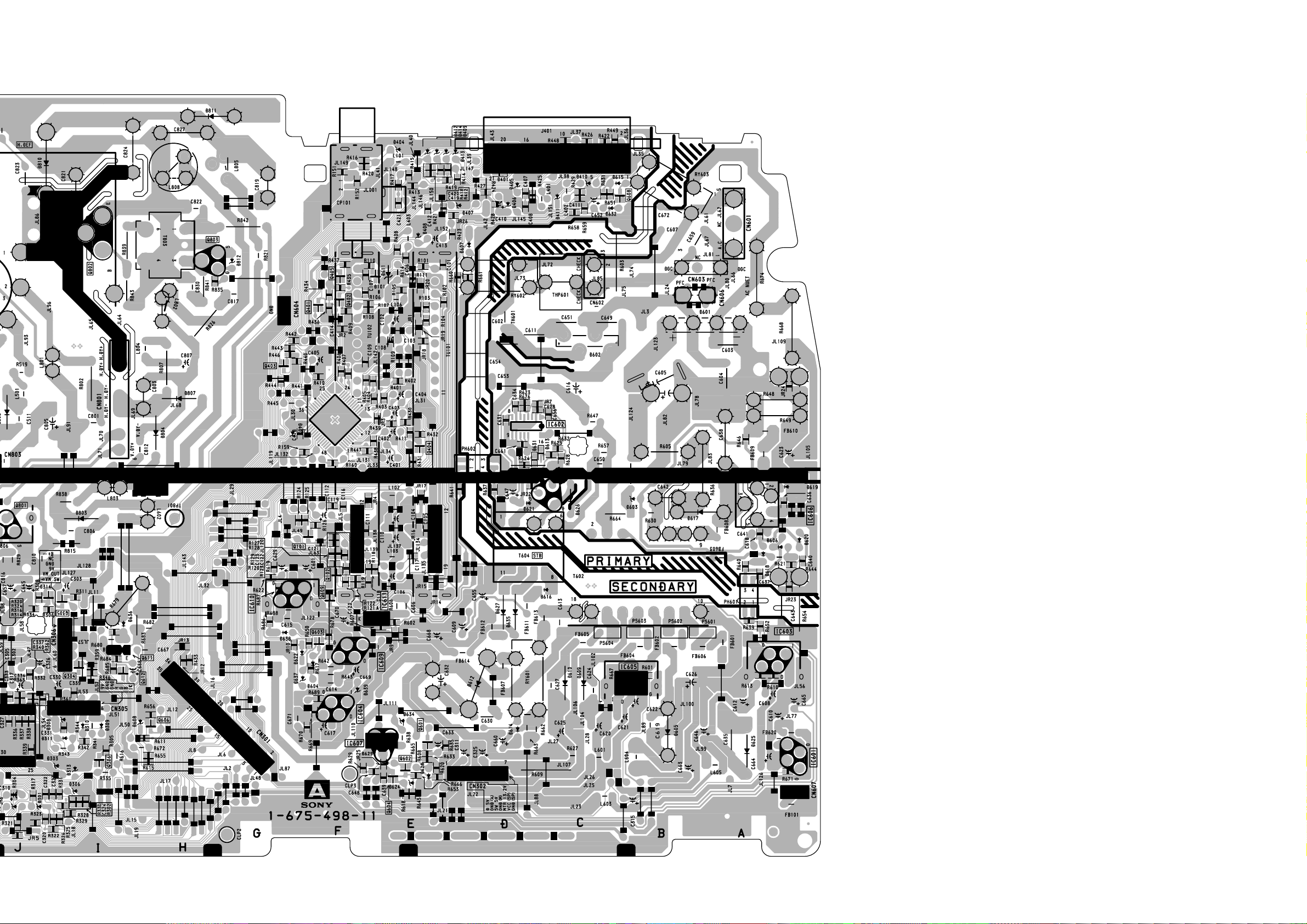

A

[

TUNER, A/V SW, Y/C/J, HV DEFLECTION, POWER SUPPLY

– A BOARD –

]

A BOARD

IC

IC301 K-2
IC401 F-6
IC501 L-4
IC601 A-2
IC602 D-6
IC603 A-3
IC604 F-2
IC605 B-3
IC606 A-4
IC607 F-2
IC608 K-3
IC609 F-3
IC610 G-3
IC611 F-3
IC801 L-2

TRANSISTOR

Q101 F-4 1
Q102 F-3 1
Q301 K-3 1
Q302 J-3 1
Q303 K-3 1
Q304 I-3 1
Q305 J-3 1
Q306 I-2 1
Q401 F-7 1
Q402 F-7 1
Q403 G-6 1
Q404 E-5 1
Q405 F-7 1
Q501 K-3 1
Q502 K-3 1
Q601 E-2 1
Q602 E-2 1
Q603 F-3 1
Q604 E-1 1
Q605 D-4 ­Q606 H-2 1
Q608 B-8 1
Q609 F-3 1
Q611 I-3 ­Q612 I-3 1
Q801 J-4 ­Q802 I-8 ­Q803 H-7 -

DIODE

D101 E-7 8
D102 –––
D103 –––
D301 J-1 ­D302 J-1 ­D304 K-2 ­D305 L-3 ­D307 K-2 ­D308 I-2 ­D313 I-1 -

: Refer to Terminal name of semiconductors

*

in silk screen printed circuit (see page 33

D314 J-3 ­D401 D-8 3
D402 G-5 ­D404 E-8 ­D405 D-8 ­D406 D-8 ­D407 E-8 ­D408 E-7 ­D409 E-8 ­D410 C-8 ­D411 C-8 ­D412 E-8 ­D413 E-8 ­D414 E-8 ­D501 L-5 ­D502 L-3 ­D503 L-4 ­D506 J-5 ­D507 L-5 ­D601 B-7 ­D602 C-7 ­D604 F-3 -

*

D605 B-2 ­D606 A-4 ­D607 D-7 ­D608 I-2 ­D609 C-3 ­D610 C-3 ­D611 E-7 ­D612 D-2 ­D613 D-5 3
D614 D-2 ­D615 C-8 ­D616 C-3 ­D617 B-4 ­D618 A-4 ­D619 A-4 ­D620 A-4 ­D621 D-4 ­D622 F-3 ­D623 –––
D624 E-1 ­D625 A-2 ­D626 C-4 ­D627 D-3 ­D628 E-1 ­D629 E-2 ­D631 D-5 3
D632 C-8 ­D633 K-3 ­D634 E-2 ­D635 D-3 ­D636 I-3 ­D637 F-2 -

*

D638 G-3 ­D639 F-2 ­D801 K-6 ­D803 I-4 ­D804 H-5 ­D805 L-3 ­D807 H-6 ­D810 J-9 ­D811 H-9
D812 G-7 -

).

NOTE:

The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.

– 34 – – 35 –

– 35 – – 36 –

1

2

43

98765

10

11

12

13

14

15

A

B

C

D

E

F

G

H

56mH

CN604

:TAB

GND

CN606

*

PFC

NC

PFC

ANT IN

ATT SW

R151

0

:CHIP

1

3
2
1

CP101

MAIN

1 2

R152

0.01
50V

B

R677

*

OUT

SUB

OUT

BST +B

C101

0.01

B:CHIP

L101

JW(5)

R101

6.8k
1/10W
:CHIP

50V

TU101

*

AGCASSCL

SDA

R102

100
1/10W
:CHIP

L104

4.7µH
C124

68p
50V

CH

R103 R159

100

100 1/10W :CHIP

1/10W
:CHIP

R104

D102

UDZS-TE-17-5.6B

R110

6.8k
1/10W
:CHIP

D101

DAN202K-T-146

R111

1M
1/10W
:CHIP

TH601

D602

D2SBA60F

C649

0.001
250V

E

L105

4.7µH

C115

68p
50V

CH

R105

1/10W
:CHIP

C103

0.01
50V

B:CHIP

100

C102

10

50V

+33V

~

+-

~

47 25V

C104

B:CHIP

L106
22µH

:EL0606

GND

NEG/POS

L/ L'

7

C105

0.1
25V

HZT33-02TA

33V STBY

C616

33

450V

C628

0.001
50V

B:CHIP

C634

0.01
50V

B:CHIP

+5VAMQSS

D611

:CHIP

VIDEO

NC

C106

47 25V

C117

1

16V

F:CHIP

L102
47µH

UDZS-TE-17-5.6B

R628

47

1/10W

R623

1k

1/10W

R676
1/10W:CHIP

D103

R614

1k

1/4W

R632

22k
1/10W
:CHIP

6.8

0.1

4.3

5.0

150k

1.9

C631

0.01
50V

B:CHIP

B:CHIP

0

0

0

C107

0.01
50V

SW REG CONTROL

TU102

AGCASSCL

L108

4.7µH

C113

68p
50V

CH

R106

100
1/10W
:CHIP

R107

100
1/10W
:CHIP

VIDEO
(PB)

R625

470

1/10W

UDZ-TE-17-16B

:CHIP

ZC

12345678

LINE

CSENSE
V FB

A VCC
P VCC

V REF

G DRIVE

P GND

F CLAMP

R GND

IC602

MC33364DR2

*

SDA

L107

4.7µH

R108

100
1/10W
:CHIP

9 10 11 12 13 16

(FOR TV)(FOR VTR)

C114

68p
50V
CH

R109

100
1/10W
:CHIP

D613

257

13.5

3.1

C108

50V

C401

10

50V

C402

10

50V

R411

100
1/10W
:CHIP

10

50V

AUDIO
(PB)

+33V

10

C109

0.01
50V

B:CHIP

R447

100
1/10W
:CHIP

R438

5.6k
1/10W
:CHIP

C403

10

50V

R439C404

5.6k

1/10W
:CHIP

R647

4.7

1/4W

:FPRD

D631

MA111-TX

D621

47 25V

4.0

4.0

4.0

4.0

GND

+5VAMQSS

NEG/POS

L/ L'

8

C110

C112

47

25V

AUDIO(TV)

C116

C111

1

0.1
16V

25V

F:CHIP

B:CHIP

L103
47µH

48

123456789101112

FRONT V IN
FRONT A IN

VCR V IN
VCR A IN

SCL

1314151617181920212223

R401

100

4.3

1/10W

4.4

:CHIP

R402

100
1/10W
:CHIP

R432

2.2k
1/10W
:CHIP

C650

0.01
250V

:PP

D626

ERA22-08TP3

DUMPER

Q605

2SK2733

POWER SWITCHING

R624

2.2k

1/10W

1.5

:CHIP

R612

3.3

1/2W

:FPRD

D1NL20U-TA2

RECT

VIDEO

NC

VIDEO(TV)

VIDEO(REC)

100
1/10W
:CHIP

R160

1/10W
:CHIP

47

100

46

4.0

45

4.0

44

TUA 0

AUDIO(REC)

4.0

43

TUV 0

1 2

IC401

CXA1855Q-T6

A/V SW

SDA

ADR

VCR V OUT

VCR A OUT

3.9

R405

0

R404

0

2.2k

4.0

:CHIP
1/10W
:CHIP

R403

220
1/10W
:CHIP

AUDIO
(REC)

VIDEO(REC)

R657
100k
1/4W

:RN

6

1

3

257

4

3

1

4

5

S

5

0.1

27

6

C647

100
25V

R120

22k

1/10W

R118

:CHIP

220

1/10W

9.4

:CHIP

C118

0.1
25V

B:CHIP

R124

220
1/10W
:CHIP

C119

0.1
25V

B:CHIP

3.9

40

41

42

TUA 1

TUV 1

2SB709A-QRS-TX

T604

R631

R119

220k
1/10W
:CHIP

R125

22k
1/10W
:CHIP

R126

220k
1/10W
:CHIP

38

39

VCC

3

SP OUT

AV V IN

AV A IN

AV A OUT

AV V OUT

4.0

3.9

R407

1.5k
1/10W
:CHIP

Q404

BUFFER

12

8

11

D1NL20-TA

9

10

10

9

11

8

V OUT

R121

1/10W

:CHIP

9.3

R127

10k

1/10W
:CHIP

37

BIAS

GND

24

220 1/10W :CHIP

FB611

1.1UH

D1NL20U-TR2
D635

FB612

D627

D2S6MF

+5V-RECT

Q102

2SA1037K-T-146-QR

BUFFER

C120

R123

(7.9)

0.047
15k

25V

<1.7>

1/10W

B:CHIP

10k

R406

F:CHIP

3.9

1/10W
:CHIP

1.9

C609
100V

:CHIP

R122

10k

1/10W
:CHIP

Q101

2SA1037K-T-146-QR

BUFFER

C121

R129

0.047 50V
15k

1/10W

B:CHIP

(3.7)<1.7>

R128

10k

1/10W
:CHIP

4.0

R445

470

1/4W

4.0

25 26 27 28 29 30 31 32 33 34 35 36

C406
16V

R431

4.7k

10

:CHIP

C123
120p

50V

CH:CHIP

R410

47k

D402

MTZJ-T-77-10B

1

1/10W
:CHIP

C405

47

25V

Q403

2SC2412K-T-146-QR

BUFFER

1.9

3.7

R446

470
1/10W
:CHIP

R441

100
1/10W
:CHIP

4.0

4.0

L403
10µH

R408

220
1/10W
:CHIP

4.5

2SA1037K-T-146-R

3.5

R409

2.2k

2SC2412K-T-146-R

1/10W
:CHIP

C414

1

16V

F:CHIP

2.5

D604

1SS119-25TD

D616

RECT

C655
1000

25V

C668

220
35V

D639

RECT

FB614

1.1UH

CN301

35P

SSCP

HSYNC 0(TV)

123456789

C122
120p

50V

CH:CHIP

C418

1

16V

F:CHIP

R443 R444

100

100

1/10W

1/10W

:CHIP

:CHIP

1.3

R442

220
1/10W
:CHIP

R434

R435

100k

2.2k

1/10W

1/10W

:CHIP

:CHIP

Q401

BUFFER

6.8

Q402

6.7

MUTE

R436

4.0

82k
1/10W
:CHIP

R617

2SC2412K-T-146-R

1k
1/10W
:CHIP

IC609

PQ30RV11

1.2

9V REG

IO

G

R642

10k 1/4W

MTZJ-T-77-8.2C

R689

1.2

1k
1/10W
:CHIP

C601

47

25V

VM SW

POS/NEG(VCR)

POS/NEG(CTV)

FRGB

HSYNC 1(REC)

5

8

7

6.1

R437

2.2k
1/10W
:CHIP

Q405

BUFFER

9V STBY

R643

C614

68k

0.47

1/4W

100V

R673
470k

1/10W

D623

MA111-TX

VC

IO

G

R669

IC604

3.9k

1/10W

PQ30RV11

:RN-CP

6V REG

TO MA10(1/3) BOARD CN001

SP AUDIO

PB A

PB V

GND(A)

VCR PWR

CRT PWR

DGC SW

VPS ON

AUTO-AGC

10111213141516171819202122232425262728293031323334

NS CTL

VPULSE

HPULSE

OVP

SDA1

SCL1

YM/YS

OSD B

MODE

432

OSD G

OSD R

6

1

TEXT VIDEO

BINT

AUDIO

AUDIO
(PB)

VIDEO
(PB)

MTZJ-T-77-6.2

MTZJ-T-77-6.2

D406

MTZJ-T-77-9.1C

R427

330
1/10W
:CHIP

C410

47

25V

VIDEO

AUDIO

C407

C408

1

0.001

16V

D405

MTZJ-T-77-9.1C

F:CHIP

50V

B:CHIP

MTZJ-T-77-4.3B

R650

47k

1/10W

4.5

:CHIP

1.4

R678

22k

D622

1/10W
:CHIP

1SS119-25TD

C669

47

25V

R670

15k

1/10W

C617

47

25V

6V STBY

FR LINE A

VCR A

FR LINE V

GND FR V

GND

AUDIO
(REC)

R412

100

1/10W

MTZJ-T-77-13

:CHIP

D410

D411

R428

22k
1/10W
:CHIP

L401

100µH

:EL0606

R425

470k
1/10W
:CHIP

D637

4.9

R686

1k
1/10W
:CHIP

D638

1SS119-25TD

R.OUT

L.OUT

GND

GNDNCGNCGND

R.IN

A.GND

VCR V

35

VIDEO
(REC)

L402

4.7µH

:EL0606

L.INBSW

D409

R413

75

75

1/10W

1/10W

:CHIP

:CHIP

R429

330
1/10W
:CHIP

D414

MTZJ-T-77-6.8A

R422

5.6k
1/10W
:CHIP

R426

R448 R449

5.6k

47k

1/10W

1/10W

:CHIP

Q603

2SA1037K-T-146-QR

REG SW

IC610

PQ30RV11

5V REG

IO

G

1/10W
:CHIP

47k

1/10W

D408

MTZJ-T-77-9.1C

STBY 5V

C615

1.2

0.47
100V

C670

47

25V

R688

R687

33k

10k

1/4W

R(C)

GND

GND

BLK

GND

MTZJ-T-77-6.8A

100 1/10W :CHIP

R420

100
1/10W
:CHIP

R415R414

75

1/10W
:CHIP

100 1/10W :CHIP

MTZJ-T-77-6.8A

CV.OUT

GND

J401

21P

CV(Y).IN

L603
10µH

:LHL08

C311

47

25V

D404

R416

75

1/10W

C421

:CHIP

0.01
50V

B:CHIP

R417

D412

MTZJ-T-77-6.8A

C412

2.2 16V F:CHIP

D407

MTZJ-T-77-6.8A

R418

0.01 50V B:CHIP

D413

C413

470

6.3V

R421

75 1/10W :CHIP

C419

C420R419

100

0.01

1/10W

50V

:CHIP

B:CHIP

R424

75

1/4W

R423

22k
1/10W
:CHIP

D401

UDZS-TE17-9.1B

VIDEO

TO MA10(1/3

CN100

SW 5V

GND(M)

D 5V

GND(A)

123

4

C315

47

25V

R

G

B

CV.OUT

GND

J401

21P

CV(Y).IN

L603
10µH

:LHL08

C311

47

25V

D404

TZJ-T-77-6.8A

R416

75

1/10W

C421

:CHIP

0.01
50V

B:CHIP

R417

1/10W :CHIP

0

W

D412

MTZJ-T-77-6.8A

C412

2.2 16V F:CHIP

D407

MTZJ-T-77-6.8A

R418

0.01 50V B:CHIP

D413

C413

470

6.3V

R421

C419

C420R419

0.01

100

50V

1/10W

B:CHIP

:CHIP

R424

75

1/4W

R423

22k
1/10W
:CHIP

D401

UDZS-TE17-9.1B

VIDEO

TO MA10(1/3) BOARD

CN1003

:S-MICRO

SW 5V

GND(M)

D 5V

GND(A)

1234567

C315

47

25V

R

G

75 1/10W :CHIP

B

VCC(SP)

GND(SP)

MTR 13.2V

CN302

7P

C325

47

25V

R334

2.2k
1/10W
:CHIP

C330

100
25V

1615

2120191817

22

23

A BOARD * MARK LIST

Ref No. 14inch model 21inch model

C303 — 10
C308 0.033 50V B:CHIP 0.47 16V B:CHIP
C801 0.015 200V :PT 0.01 400V :PT
C803 0.36 250V 0.47 250V

ABOARD : IC501 LA7840L

C806 100p 500V 100p 500V
C812 0.022 200V 0.033 250V
C813 4700p 25V SL:CHIP 0.0022 50V SL:CHIP
C817 470p 50V JW(5)
C818 330p CH:CHIP 0.01 CH:CHIP
C820 0.022 200V :PT 0.047 200V :PT
C821 680p 2kV B 470p 2kV B
C824 5600p 1.2kV 9100p 1.2kV
C827 0.015 630V :PP 0.36 400V :PP

CN606 — 3P(3.3 10W)

D314 — DAP202K-T-146

L802 1-419-551-11 1-419-552-11
L805 COIL,CHOKE(10MMH) COIL,DRAM CORE
L808 COIL,CHOKE(1.5MMH) COIL,WITH CORE

Q305 — 2SC2412K-T-146-R

R301 33k :CHIP 2.2k :CHIP
R306 — 10k :CHIP
R308 — 10k :CHIP
R311 — 10k :CHIP
R677 3.3 10W —
R801 470k :RN-CP 330k :RN-CP
R802 27 2W :RS 47 2W :RS
R805 82k :RN 33k :RN
R808 82k 1/4W :RN 56k 1/2W :RN
R810 — 22k :RN-CP
R824 110k :RN-CP 100k :RN-CP
R830 39k :RN-CP 47k :RN-CP
R831 75k :RN-CP 510k :RN-CP
R832 10k :RN-CP 2.7k :RN-CP
R838 JW(15) 100 2W :RS
T801 NX-1912-M 1-453-314-11

—: Not used

1

2SC2412K-T-146-QR

0

R305

10k
1/10W
:CHIP

2

R332

33k
1/10W
:CHIP

C326

1

50V

Q306

BUFFER

0

C321

0.1 25V F:CHIP

C327

0.001
50V

B:CHIP

R313

3.3k
1/10W
:CHIP

R301

(1.6)<1.3>

*

C308

0.1 50V B:CHIP

R309

R312

10k

:RN-CP

1/10W

C309

22

50V

R314

100 1/10W:CHIP

100

R316

:CHIP

1/10W:CHIP

L304

0.45µH

C333

0.01 50V B
R324

100 1/10W :CHIP

R327

100 1/10W:CHIP

D304

R336

R337

1/10W :CHIP

R338

2.2k
1/10W
:CHIP

100

1/4W

D308

10k
1/10W
:CHIP

2.2k

D305 D307

1SS119-25TD 1SS119-25TD

R307

22k
1/10W
:CHIP

R365

R320

1k 1/10W :CHIP

10k

C317

10

50V

MTZJ-T-77-9.1C

PROTECT

2.2k 1/10W :CHIP

R340
100k

1/10W

MTZJ-T-77-9.1C

C301

4.7
50V

*

C313

3.4

5.1

4.7

4.2

2.3

3.6

3.5

5.7

7.6

0.7

0.4

4.0

3.9

0.5

1.8

1.6

1.6

A

IC301

CXA2139S

Y/C/J

123456789101112131415161718192021222324

APED

C1 IN

ABLIN

Y1 IN

(VSAW)

MONOUT

COMBC IN

YCLAMP

COMBY IN

GND1

EW

IREF

VD+

VD-

VMOUT

REG

SSCP

HP/PROTECT

HD

AFCFIL

IKIN

ROUT

GOUT

BOUT

R343R341

100

1/4W

100 1/10W :CHIP

R342

TUNER,Y/C/J,HV DEFLECTION,
POWER SUPPLY,AV SW

C302

X301

R364

680

XTAL1

XTAL2

XTAL3

(APCFIL)

(SECAM)

10

TV IN

ABLFIL

VCR/FR IN

EB-YIN

ER-YIN

4

YUVSW

5

6

YS2/YM

7

8

9

R

GND2

EYIN

SDA

SCL

VCC

R2IN

G2IN

B2IN

R1IN

G1IN

B1IN

YS1

B

2.8

1/10W:CHIP

0

(5.2)
<4.5>

CH:CHIP

5.1

(8.6)<7.6>

R317

100

1/10W

4.3

:CHIP

4.4

R321

1/10W :CHIP

C320

4.5

50V F:CHIP

C322

4.5

50V F:CHIP

C323

4.5

50V F:CHIP

0

R331

1/10W:CHIP

4.5

4.5

4.5

0

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

C306
220p

50V

C310

10

50V

C312

4.7
50V

G

X302

100

0.01

0.01

0.01

4.7k

R335

100

1/4W

R303

10k
1/10W
:CHIP

100 25V

1k 1/10W

1k 1/10W

1k 1/10W

R

G

B

18p 50V CH:CHIP

C304

18p
50V

CH:CHIP

C307

0.22
50V

R304

VIDEO

100

1/10W

C355

:CHIP

0.01
50V

B

L305

JW(5)

D301

MTZJ-T-77-5.6

D302

MTZJ-T-77-5.6

C318

R323

R322

470 1/10W

R326

R325

470 1/10W

R329

R328

470 1/10W

R330

100
1/10W
:CHIP

D313

MTZJ-T-77-9.1C

C319

0.1
25V

F:CHIP

9V

R318

1

2

3

4

R315

1/10W
:CHIP

6

100 1/10W :CHIP

R319

1/10W
:CHIP

R
G
B

C339

0.1
25V

F:CHIP

R344

15k

1/10W

100

100

5
4
3
2
1

6
5
4
3
2
1

CN304

5P

:S-MICRO

NC
B.INT
SDA
SCL
GND

CN305

6P

:S-MICRO

R
G
B
9V
GND
IK

TO JIG

TO CVM BOARD

CN703

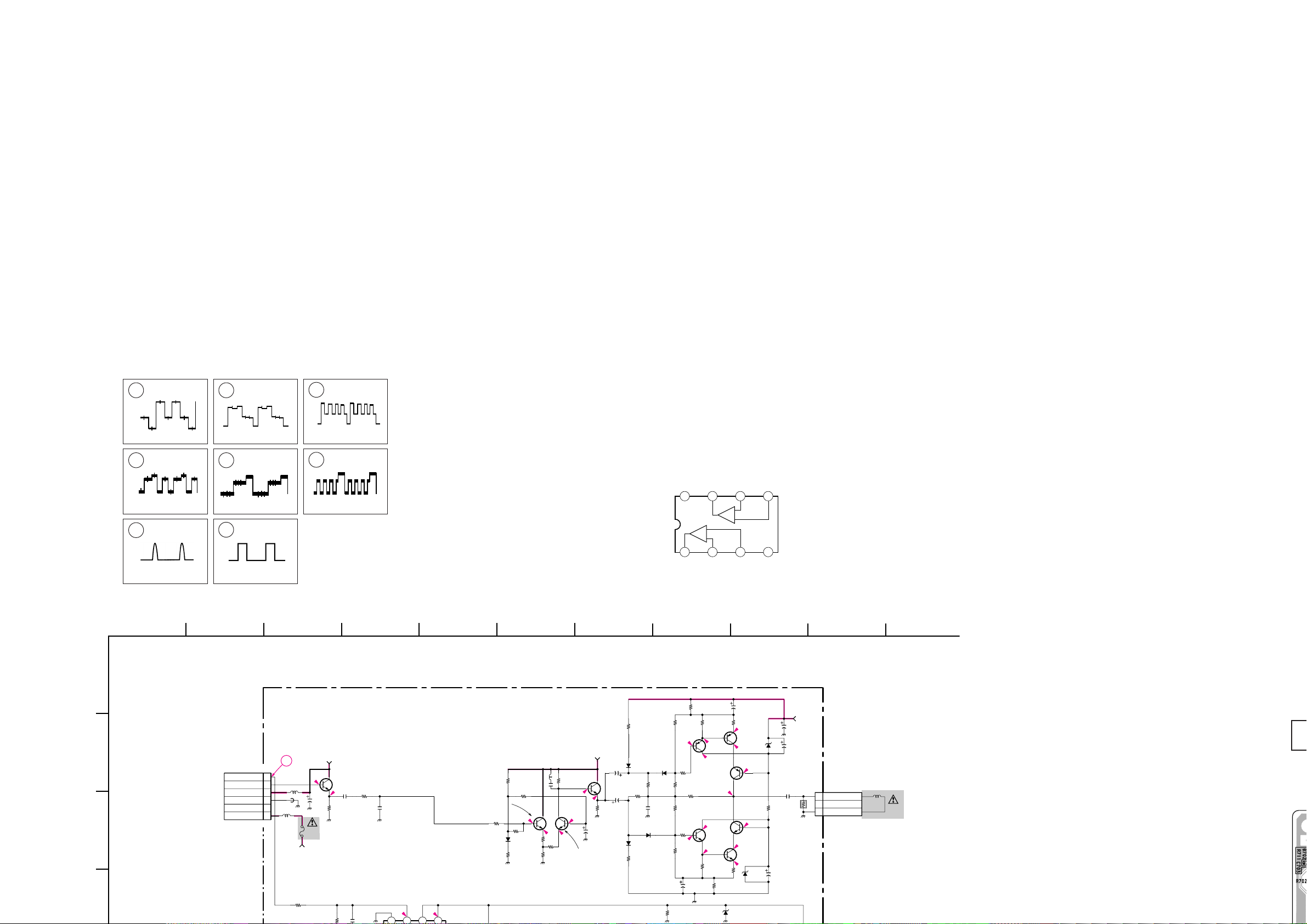

PUMP

–

+

5

INVERTING INPUT

UP

6

Vcc

1

GND

THERMAL

PROTECTION

2

Ver. OUTPUT

4

3

NON INV. INPUT

OUTPUT STAGE Vcc

AMP

ABOARD : IC606 STR-F6654

V IN

4

START

Rconst

REG.

T.S.D

O.V.P

Iconst

R2

Rconst

+

LATCH

O.S.C

–

Vth(2)

+

–

Comp2

C1

R1

R3

DRIVE

A BOARD * MARK LIST

Comp1

7

PUMP UP OUT

R4

–

Vth(1)

+

3

2

1

5

D

S

O.C.P/F.B

GND

Ref No. AEP/ESP model FR model UK model

L302
10µH

:LAV35

L301
JW(5)

5.7

0.1

Q501

UN2211-TX

V-PROTECT

C501

220
16V

2SC2412K-T-146-QR

47k

1/10W

1/10W

:CHIP

:CHIP

0.1

Q502

V-PROTECT

47k

-0.2

R504

100k
1/10W
:CHIP

R503

22k
1/10W
:CHIP

2.2k 1/10W :CHIP

R520

R502

R357

R358

2.7k
1/10W
:CHIP

C502

1

50V

2SC2412K-T-146-QR

5.7

5.7

R347

1k

0

1/10W
:CHIP

Q304

2SD601A-QRS-TX

VM SW

Q302

BUFFER

5.0

C328

10

16V

Q301

2SC2412K-T-146-Q

BUFFER

R350

15k
1/10W
:CHIP

R349

:CHIP

R351

10k
1/10W
:CHIP

C329

R352

68p

50V

470

CH:CHIP

1/10W
:CHIP

0

3.4

6.1

2.7

R354

R353

2.7

470
1/10W
:CHIP

470
1/10W
:CHIP

L303
10µH

:LAV35

Q303

2SC2412K-T-146-QR

BUFFER

5

2.1

R355

1/10W
:CHIP

470

19

R346

10k
1/10W
:CHIP

20

R359

10k
1/10W
:CHIP

1

+B

2

NC

3

GND

4

9V

5

VM OUT

6

N.S.

H.DY+

1

H.DY+

2

H.DY-

3

CN306

6P

CN801

6P

:DY

TO CVM BOARD

CN1705

TU101 BTF-EC402 BTF-EF412 BTF-EU602
TU102 BTF-EC402 BTF-EF412 BTF-EU602

—: Not used

A BOARD WAVEFORMS

PAL

1

SECAM PAL

1

2

H

257

6.8

7

2

47

D1NL20U-TR2

1

47

0

-

1

V

DUMPER

K

L

M

N

O

1/10W

C628

:CHIP

0.001
50V

R603

8.2M
1W

R660

220

R630

1M

1/4W

B:CHIP

C634

0.01
R623

50V

1k

B:CHIP

1/10W

150k

R676
1/10W:CHIP

B:CHIP

C607

0.001
250V

E

RY602

43

21

2SC2412K-T-146-QR

DGC-DRIVE

R661

220
1/10W
:CHIP

15.1

C642

0.01
630V

:PP

R619

1/10W
:CHIP

0

10k

RG1C-LFC1

DUMPER

D1NL20U-TR2

C623 C625
220
50V

D1NL20U-TR2

C640
220p

50V

B:CHIP

C641
470p

50V

B

C649

0.001
250V

E

CN606

*

R677

*

3

CN601

AC NUET

CN1702

PFC

NC

PFC

5P

:VH

A.C

NC
NC
NC

CHECK
CHECK

CN602

2P

DGC

NC

DGC

CN603

3P

2
1

5
4
3
2
1

2
1

3
2
1

C602

0.001
250V

E

IC606

STR-F6654-LF1357

SWITCHING REG

OCP/ FB

SDVIN

1 2 3 4 5

0.1

257

1.8

0.22
2W

:RS

16.7

C638

0.0015
2kV

FB609

1.1UH

FB610

1.1UH

R648 R649

0.22
2W

:RS

C659

0.0047
250V

F

THP601

D607

1SS119-25TD

R674

18k

3W

R668

18k

3W

GND

C636
470p

50V

B:CHIP

D619

AK04V0

PROTECT

R646

680
1/10W
:CHIP

1/10W
:CHIP

56mH

I

TO MA10(3/3)BOARD

J

DGC

ZC

12345678

0

0.1

CSENSE

4.3

V FB

0

5.0

V REF

0

1.9

F CLAMP

C631

0.01
50V

IC602

MC33364DR2

SW REG CONTROL

RY603

Q609

FB608

1.1UH

D617

R636

47k

3W

:RS

D606

RECT

D620

D1NL20U-TR2

C618
470p

50V

B:CHIP

D618

R621

47

1/4W

R644

2.2k
1/10W
:CHIP

LINE

13.5

A VCC
P VCC

G DRIVE

3.1

P GND

9 10 11 12 13 16

R GND

D615

1SS119-25TD

15.1

Q608

2SC2412K-T-146-QR

TV-DRIVE

C603

0.001
250V

E

C604

0.001
250V

E

R622

10k
1/10W
:CHIP

9 10

8

7

6

FB603

1.1UH

4

3

2

16.7

R640

3.3k
1/10W
:CHIP

2SK2733

POWER SWITCHING

R624

2.2k
1/10W
:CHIP

D631

MA111-TX

D621

D1NL20U-TA2

RECT

D632

1SS119-25TD

R659

0

15k
1/10W
:CHIP

D601

D4SB60L-F

AC-RECT

C605

180

450V

RN3Z-LF014-302

T602

FB606

PS601

1.1UH

11

PS602

12

13

PS603

14

15

PS604

16

17

18

FB613

1.1UH

4

3.1

3

PH601
TCET1103G
FEED BACK

C643

0.001 250V E

Q605

257

1.5

S

0.1

R612

3.3

1/2W

:FPRD

C661

0.1
50V

B:CHIP

R605

0.1

1/2W

:RF

C635

0.01
500V

E

D625

+7V-RECT

FB601

1.1UH

C619

FB602

1000p 500V

1.1UH

D605

EGP30DL-6085

+12V-RECT

FB604

1.1UH

FB605

1.1UH

1000p 500V

D609

RN1Z-LF-B1

MOTOR-RECT

1000p 500V

D610

RN1Z-LF-B1

AUDIO-RECT

FB607

RY601

1.1UH

43

21

D614

1SS119-25TD

C660

220
25V

1

2

14.2

13.2

R663

220

1/4W

R639

1.8k
1/10W
:CHIP

R662

220

1/4W

3

4

3

1

4

5

5

27

6

C647

100

R631

25V

33 1/10W :CHIP

R651

33
1/10W
:CHIP

R637

22

4.3

1/10W
:CHIP

4

3

0

IC611

µPC1093J-1-T

R627

0.47
C646
2200

C624

C627

25V

1/4W

:FPRD

C663

100
25V

C626
3300

25V

C620

470
25V

1000

50V

C630

470p 2kV B

D612

RU4AM-T3

+135V-RECT

R652

680
1/10W
:CHIP

1/10W
:CHIP

R665
100k
1/2W

R666

2.2k

8

11

RECT

D635

D1NL20-TA

RECT

9

10

FB614

1.1UH

FB612

10

9

D627

D2S6MF

+5V-RECT

11

8

R658

10k
1/10W
:CHIP

PH602

TCET1103G

6.6

R641

100
1/10W
:CHIP

5.6

2.5

123

5.5

L604

1mH

:LHL13

R609

1k
3W

:RS

C632
100
160V

C665

100
25V

D634

MTZJ-T-77-39

Q602

2SC2412K-T-146-QR

REG-SW

D628

1SS119-25TD

SW

1/10W
:CHIP

C668

220
35V

C655
1000

25V

R606
470k
1/4W

C606

0.1
50V

:MPS

R607

22k

1/10W

:RN-CP

14V

R645

3.9k

1/10W

:RN-CP

1.2 0.7

R620

15k

MTZJ-T-77-8.2C

D639

R689

1/10W
:CHIP

R602

39k

1/10W

L605
56µH

C612
2200
25V

7V

2SC2412K-T-146-QR

3.9
0

R618

1k
1/10W
:CHIP

C639

0.0047
50V

0.7

B:CHIP

R653

5.6k

1/10W

:RN-CP

D629

0.6

1SS119-25TD

BIAS

R642

10k 1/4W

1k

C601

47

25V

IC603

PQ30RV11

6V REG

1.2

IO

Q612

SW

R685

22k
1/10W
:CHIP

13.3

1/10W

25V

D623

MA111-TX

1.2

VC

IO

G

IC604

PQ30RV11

6V REG

G

R613

330
1/10W
:CHIP

R669

3.9k

1/10W

:RN-CP

R610

1.3k

1/10W

:RN-CP

C664

100
25V

R670

15k

1/10W

5.0

1SS133T-77

R683

R682

680

180k

1/4W

1/4W

:FPRD

135.2

C666

100
16V

R684

10k
1/10W
:CHIP

C667
100p

2SA1091R-TPE2

50V

B

Q604

2SC2412K-T-146-QR

REG-DRIVE

4.0

D624

MTZJ-T-77-3.9B

BIAS

134.8

0

Q611

SW

R681

4.7k
1/10W
:CHIP

+B

C648

0.1
25V

B:CHIP

C617

47

25V

R671

220
1/10W
:CHIP

4

1 2

3

IC601

PQ05RD11

5V REG

D636

R680
150k
1/4W

R638

100

1/4W

:FPRD

135.5

13.3

R629

1k

1/10W
:CHIP

FB620

C610

1.1UH

47

25V

R679

0.82
2W

:RS

AUDIO VCC

123

IC607

SE135N-LF4

+135V-RECT

R608

15k
1/10W
:CHIP

6V STBY

SW 5V

IC605
SI-3120CA
MOTOR REG

16.0

5

C621

47

25V

234

5.0

0

Q601

2SC2412K-T-146-QR

RY-DRIVE

0.2

R601

220
1/10W
:CHIP

1

0.7

R635
1/10W

:CHIP

15k

L601
10µH

:LHL08

R667

1.2k
1/10W
:CHIP

11.9

C622

47

25V

R633

1/10W
:CHIP

MOTOR VCC

15k

MTZJ-T-77-18B

1SS119-25TD

14

D812

R634

1k
1/10W
:CHIP

R833
100k

1/10W

R626

4.7k

1/10W

C644
470p

50V

B:CHIP

R801

R835

2.2k
1/10W
:CHIP

*

4.2

R616

1k

1/4W

MTZJ-T-77-9.1C

10k 1/10W :CHIP

R615

R611

15k
1/10W
:CHIP

D608

D633

C662

22

25V

1 2

C657

47

25V

R811

2.2k
1/10W
:CHIP

R816

33k
1/10W
:RN-CP

C808

0.001

50V

CH:CHIP

C809

0.1
25V

F:CHIP

R810

*

C818

S

10k 1/10W :CHIP

R655

Q606

2SC2412K-T-146-QR

PROTECT-DRIVE

R656

15k
1/10W
:CHIP

L602
47µH

:LHL08

R675

1k

1/10W
:CHIP

4.1

IC608

PQ09RD11

4

5V REG

C645

3

47

25V

R812
33k

1/10W

:RN-CP

IC801

R809

33k

NJM2903D

1/10W

PIN-COMP

:CHIP

1.2

1234

3.1

1.7

R827

10k
1/10W
:CHIP

11

-0.2

*

R818

18k

1/10W

:RN-CP

R831

*

16

15

75.0

Q803

2SK2251-01

H-DRIVE

R841

6.8k
1/2W

C830
330p
500V

B

0

0.7

9

C804

2

47

25V

:

7.6

1.

5 6 7 8

2.4

R8

12

1/1

:RN

Q802

BU4508DX-ON52

H-OUT

B

4

1
2

6

3

T803
:HDT

P

– 37 –

– 38 –

Q303

Q302

2SC2412K T 146 Q

1/10W :CHIP

B

4

3

11
2k

P

9

IP

10k 1/10W :CHIP

R655

Q606

2SC2412K-T-146-QR

PROTECT-DRIVE

R656

15k
1/10W
:CHIP

L602
47µH

:LHL08

R675

1k

1/10W
:CHIP

4.1

IC608

PQ09RD11

5V REG

2

C645

47

25V

R812

33k

1/10W

:RN-CP

R809

IC801

33k

NJM2903D

1/10W

PIN-COMP

:CHIP

1.2

1234

3.1

1.7

R818

18k

1/10W

:RN-CP

R831

*

11

R827

10k

1/10W

BU4508DX-ON5210

:CHIP

-0.2

16

15

5.0

Q803

2SK2251-01

H-DRIVE

R841

6.8k
1/2W

C830
330p
500V

B

0.7

7.6

2.4

B

C804

47

25V

Q802

H-OUT

1
2
3

5 6 7 8

1/10W

:RN-CP

T803
:HDT

0

9V

2

R837

22k

1/10W

:RN-CP

*

R830

R817

2.2k

1/10W
:CHIP

1.7

12

R823

12k

100k 1/10W :CHIP

137

C

E

4

6

R839

1

1W

:RS

:LAV35

R814

0

:CHIP

MTZJ-T-77-5.1C

R825

10k
1/10W
:CHIP

C823
220p

2kV

B

C826

0.0047
200V

:PT

R842

10k

2W

C822

0.047
250V
:MPS

No mark:PAL/SECAM
( ):PAL
< >:SECAM

R824

*

C813

R828

R843

47

1/2W

C330

100
25V

*

C821

1

*

10µH

D805

L301
JW(5)

C805

33

160V

13

C824

*

C827

*

C806

*

R822

330

1/4W

:FPRD

5.7

0.1

Q501

UN2211-TX

V-PROTECT

D502

MTZJ-T-77-5.6

PROTECT

R513

4.7k
1/10W
:CHIP

R517

4.7k
1/10W
:CHIP

D803

RGP10GPKG23

R815

(JW7.5)

C810

0.001

14.3

500V

B

7.6

S

2SK2251-01

PIN OUT

D810

ERC06-15S

DUMPER

R357

2.2k 1/10W :CHIP

R520

R502

C501

47k

220
16V

2SC2412K-T-146-QR

-15V

1 2 3 4 5 6 7

0.3 13.9 2.4 2.4

R510

100k
1/10W
:CHIP

Q801

RGP15GPKG23

DUMPER

47k

1/10W

1/10W

Q502

50V

R516

2.2
1/4W

1

L805

2

C819
250V

:CHIP

-0.2

IC501

LA7840L

V-OUT

VCC

R507

1k
1/10W
:CHIP

C803

*

*

C817

*

1

1

2

R504

100k
1/10W
:CHIP

R503

22k
1/10W
:CHIP

REF

C514

0.01
50V

F:CHIP

C807

3.3

250V

R826

1k
2W

:RS

L808

*

IN

R508

1/10W
:CHIP

R514

1/10W
:CHIP

:LHL10

L802

:CHIP

0.1

V-PROTECT

18 17

OUT

C505

0.1
50V

B:CHIP

C507

100
50V
:HT

C509

0.47
:MPS

:FPRD

R518

10k
1/10W
:CHIP

R821

6.8

1/4W

:FPRD

D811

R358

2.7k
1/10W
:CHIP

C502

1

50V

1k

10k

C510

0.01
50V

F:CHIP

R807

150

2W

L803
10mH

L804

3.3mH

C812

*

*

2SC2412K-T-146-QR

BUFFER

5.7

5.7

2SD601A-QRS-TX

+15V

-11.7

GP08DPKG23

PUMPUP

R512

220

2W

:RS

R838

2

1

5.0

R347

C328

1k

0

1/10W
:CHIP

10

16V

Q304

VM SW

BOOST

C504
100
50V
:HT

D501

MTZJ-T-77-18B

PROTECT

D503

C508

0.1
100V
:PT

R515

4.7
2W

:RS

*

R805

*

R808

*

D807

GP08DPKG23

H-CENT

R802

*

L801
33µH

GP08DPKG23

H-CENT

R

C801

*

R350

R352

15k

470

1/10W
:CHIP

1/10W
:CHIP

R349

0

3.4

:CHIP

R351

10k

1/10W

2.7

:CHIP

D506

RGP10GPKG23

200V-RECT

C511
220p
500V

B

C515

L501
47µH

10

:LHL08

250V

D507

RGP10GPKG23

+13V-RECT

C513

470
25V

D801

RGP10GPKG23

-13V-RECT

C802

470
25V

R806

0.68
1/2W

:FPRD

D804

S801

L

C

R832

*

DY

H.DY H.DY V.DY V.DY

BUFFER

C329

68p

CH:CHIP

6.1

R353

470
1/10W
:CHIP

R519

1.2

1/4W

50V

2.7

R354

470
1/10W
:CHIP

C

200V

+B

R803

0.68
1/2W

:FPRD

C820

*

2SC2412K-T-146-QR

L303
10µH

:LAV35

2.1

R355

470
1/10W
:CHIP

R311

2.4

*

0.4

Q305

*

N/S OUT

4

2

3

6

5

BUFFER

5

R359

R346

10k

10k

1/10W

1/10W

:CHIP

:CHIP

19

20

21

22

R306 R308

**

D314

*

T801

*

HV1

FV

G2

14

13

ABL

11

+24V

10

+13V

9

8

-13V

7

B-SS10253<AEP>-A-15

1

+

2

NC

3

GND

4

9V

5

VM OUT

6

N.S.

CN801

6P

:DY

H.DY+

1

H.DY+

2

H.DY-

3

H.DY-

4
5

V.DY-

6

V.DY+

C303

*

CN803

5P

:S-MICRO

1

200V

2

NC

3

GND

4

NC

5

H1



TO PICTURE TUBE

TO CVM BOARD

TO CVM BOARD

HV

J701

CN706

TO CVM BOARD

CN1705

TO CVM BOARD

CN707

TU102 BTF-EC402 BTF-EF412 BTF-EU602

—: Not used

A BOARD WAVEFORMS

PAL

1

1.0Vp-p (H) 1.4Vp-p (H)

SECAM

2

1.4Vp-p (H)

45

1.4Vp-p (V) 1.4Vp-p (V) 7.9Vp-p (H)

7

3.0Vp-p (H) 3.0Vp-p (H)

10

PAL

1.4Vp-p (H)

12

10.0Vp-p (H) 14.3Vp-p (H)

15

171Vp-p (H)

18

54.0Vp-p (V) 1190Vp-p (H)

21

SECAM PAL

1

PAL

3

1.0Vp-p (H)

8

SECAM

10

2.6Vp-p (H)

13

16

3.2Vp-p (H)

19

22

2

3

6

9

11

14

17

20

1.0Vp-p (H)

SECAM

1.4Vp-p (H)

3.0Vp-p (H)

4.0Vp-p (H)

3.0Vp-p (H)

1.2Vp-p (V)

174Vp-p (H)

– 39 –

5.5Vp-p (V) 54.0Vp-p (V)

– 40 –

CVM BOARD WAVEFORMS

C

A

B

1

2

2.3Vp-p (H) 2.3Vp-p (H)

4

5

132Vp-p (H) 125Vp-p (H)

7

8

24.0Vp-p (H) 1.4Vp-p (5msec)

1

2

CN1705

6P

NS CORRECT

VM
+8V
GND

NC

+135V

TO A BOARD

CN1306

3

2.3Vp-p (H)

6

130Vp-p (H)

CVM

(RGB OUT,VM)

2.0

C1701

F1701

6.3A

100
16V

R1701
1/10W

:CHIP

8V

2SC2412K-T-146-R

1.4

C1704

0.01
50V

B:CHIP

220

8

L1701

6

10µH

:EL0606

5
4
3

FB1701

2

0UH

1

L1704
470µH

VCC VM

Q1701

BUFFER

R1702

1k
1/10W
:CHIP

43

C1705

CH:CHIP

33p
50V

R1710

2.2k
1/10W
:CHIP

Q1704

2SC2412K-T-146-R

AMP

R1709

100

1/10W

R1711 Q1707

:CHIP

4.7k

D1703

R1712

470
1/10W
:CHIP

1/10W
:CHIP

1SS355TE-17

R1713

4.7k
1/10W
:CHIP

2.0

R1714

56
1/10W
:CHIP

R1715

150
1/10W
:CHIP

R1717

L1703

*

1.5k
1/10W
:CHIP

Q1706

2SC1740S-RT

BUFFER

C1702

5.7

*

2.0

C1709

10

1.3

50V

1.4

R1716

2SC2412K-T-146-R

180
1/10W
:CHIP

5.0

R1718

220

1/2W

Q1705

AMP

8V

D1704

0

:CHIP

C1710

0.022
250V

C1711

0.022
250V

D1705

0

:CHIP

R1722

4.7k

R1719

1/10W

1.2k

1/10W

D1707

1SS355TE-17

R1707

39k

R1708

1/4W

39k

1/4W

C1712

R1724

0.01

270k

250V

1/10W

D1706

1SS355TE-17

R1725

4.7k

1/10W

R1721

1.2k

1/10W

C1706

470
10V

CVM BOARD : IC1801 M5216P

VCC OUT2 IN2– IN2+

8

+

1

–

1

6 5

7

–

2

+

3

2

4

OUT1 IN1– IN1+ VEE

98765

R1703

100

1/4W

R1728

133.4

R1705

1k

1/10W

R1723

270k

1/10W

R1726

R1706

1k

1/10W

2.0

150

1/4W

22k

1/4W

R1727

150

1/4W

Q1709

BC327-25

BUFFER

133.4

129.7

Q1708

2SA933AS-RT

BUFFER

5.5

2SC1740S-RT

1.4

R1704

100

1/4W

C1703

470
10V

R1729

3.3

1/4W

134.5

130.1

130.1

Q1711

2SA1837

50.2

BUFFER

Q1712

2SC4793

BUFFER

5.5

4.9

BUFFER

Q1710

BC337-25

BUFFER

0.8

R1730

3.3

1/4W

D1710

MTZJ-T-77-5.6

C1716

47

160V

D1711

C1717

47

MTZJ-T-77-5.6

25V

C1715

0.1
200V
:MPS

R1732

470

R1731

1W

12k

:RS

3W

C1713

47

25V

VCC VM

3
2
1

10

CN1703

3P

:S-MICRO

VM
NC

GND

11

C

– C

VM

D

R1805

*

R1806 C1803

*

*

4.3

4.2

R1801

1234

*

D1802

*

CN1801

CVM

– CVM BOARD –

[

RGB OUT,VM

]

VIDEO section

C

C1709

F1701

1SS355TE 17

220

1/2W

100

1/10W

VCC VM

CN1306

6.3A

1/10W
:CHIP

1/10W
:CHIP

D1703

1SS355TE-17

R1712

470
1/10W
:CHIP

R1714

R1711 Q1707

56

4.7k

1/10W
:CHIP

1/10W
:CHIP

R1715

150
1/10W
:CHIP

10

1.3

50V

1.4

R1716

2SC2412K-T-146-R

180
1/10W
:CHIP

Q1705

AMP

D1705

0

:CHIP

R1721

1.2k

1/10W

R1725

4.7k

1/10W

C1706

470
10V

2.0

R1727

150

1/4W

2SC1740S-RT

BUFFER

1.4

R1730

3.3

1/4W

R1704

100

1/4W

4.9

Q1710

BC337-25

BUFFER

0.8

D1710

MTZJ-T-77-5.6

C1713

47

25V

D

E

F

G

H

K

R1805

*

R1806 C1803

*

*

4.4 4.4 4.6

R1807

*

4.3

4.2

IC1801

*

ROTATION OUT

5 6 7 8

R1809

*

R1808

C1804

*

*

R1810

R1801

1234

8V

D1801

*

*

*

R1802

*

D1802

*

D1803

*

1
2
3

CN1801

*

ROT (+)

NC

ROT (-)

ROTATION

CVM BOARD * MARK LIST

CN707

5P

:S-MICRO

1

R741

100

1/2W

:RC

200V

2

NC

3

GND

4

NC

5

NC/H2

TO A BOARD

CN706

1

TO A BOARD

CN803

G2

T801(FBT)

H

CV KR G1 G4

KG G2

KB

V901


TUBE

HV

A34LRG70X (14inchi model)
A51LPT60X (21inchi model)


TO A BOARD
T801(FBT)
HV

R704

JW(12.5)

L703

J701

FV

TO A BOARD

Be sure to connect 
the connector fo safety.

I

J

T801(FBT)

CN702

1

GND

R746

CN703

6P

1/10W

:S-MICRO

:CHIP

6

R IN

5

G IN

4

B IN

3

9V

2

GND

AUTO CUTOFF

TO A BOARD

1

CN305

RV702

110M

:RS

H-STAT

R702

22k

2W 22k

D706

139.0

1SS355TE-17

D710

D708

138.0

1SS355TE-17

1SS355TE-17

Q703

BF420-126

R AMP

C717
470p

50V

B:CHIP

D702

1SS355TE-17

R706

220

1.7

1/10W
:CHIP

C723
100p

50V

CH

R G B

1

1k

3

L706
10µH

C714

100
16V

R709

1k

1/10W

Q713

BF420-126

R OUT

R703

100

1/4W

:FPRD

1.2

2

R707

*

L701

*

C715

*

C716

*

GND

1

13

GND

11

10

9

6

4

5

B

G

R

C701

R705

0.0047

2.2k

400V

1W

:PT

D722

1SS355TE-17

138.8

C713

0.01
50V

D712

B:CHIP

137.1

8.4

Q704

Q715

R OUT

BF421-AMMO

9V

R716

220
1/10W
:CHIP

R AMP

L702

*

L705

*

R713
470k

1/10W

C720

*

6.8

2SC2412K-T-146-R

1SS355TE-17

R IK DET

BF421-AMMO

C718
470p

50V

B:CHIP

C724
100p

50V

R710

470k
1/10W
:CHIP

IK BUFFER

138.8

Q702

2SC2412K-T-146-R

C703

*

R708

47
1/10W
:CHIP

3

4

5
6

7

8

R714

2W

151.5

D714

D715

1SS355TE-17

1SS355TE-17

150.5

1.5

CH

R750

1k
1/10W
:CHIP

7.8

R725

4.7k
1/10W
:CHIP

Q711

7

R722

1k

Q712

1/10W

BF420-126

G OUT

C704

0.01

151.1

50V

R715

B:CHIP

100

1/4W

:FPRD

151.2

D721

1SS355TE-17

Q716

G OUT

BF421-AMMO

Q706

BF420-126

G AMP

D707

1SS355TE-17

Q705

2SC2412K-T-146-R

G AMP

1.0

C702

*

R719

47

R717

1/10W

*

:CHIP

D705

1SS355TE-17

9.3

Q714

BIAS

D711

2SA1037AK-T146-QR

1SS355TE-17

R733

100k 1/10W

*

R718

33k

1/2W

:RC

8.4

C708

0.0047
2kV

E

R712

2.2k
1W

D718

149.3

1SS355TE-17

R721

D716

D719

1SS355TE-17

1SS355TE-17

148.4

G IK DET

BF421-AMMO

220

1.5

C725
100p

50V

CH

R729

*

R751

1k
1/10W
:CHIP

1/4W

:FPRD

1SS355TE-17

1.0

150.9

Q707

C719
470p

50V

B:CHIP

R727

1/10W
:CHIP

R737 R732
680k

1/10W

L704
10µH

R723

R736

1k

22k

1/10W

2W

Q701

BF420-126

B OUT

149.0

100

8.3

146.7

C705

0.01 50V B:CHIP

149.2

Q717

BF421-AMMO

B OUT

Q709

BF420-126

B AMP

8.7

D709

Q708

2SC2412K-T-146-R

B AMP

C712

*

R730

47
1/10W
:CHIP

D704D703

1SS355TE-171SS355TE-17

1M

1/10W

B-SS10253<AEP>-CVM-15

R734

100

1/4W

R726

2.2k
1W

C710

0.1
250V
:MPS

D717

1SS355TE-17

Q710

BF421-AMMO

B IK DET

R701
470k
1/4W

Ref No. 14inch model 21inch model

C702 100p CH:CHIP 150p CH:CHIP
C703 100p CH:CHIP 150p CH:CHIP
C712 100p CH:CHIP 150p CH:CHIP
C715 — 68p CH:CHIP
C716 — 68p CH:CHIP

C720 — 68p CH:CHIP
C1702 — 22p CH:CHIP
C1803 — 0.022 B:CHIP
C1804 — 1 16V B:CHIP

CN1801 — 3P

D1801 — UDZ-TE-1-10B
D1802 — UDZ-TE-1-10B
D1803 — UDZ-TE-1-10B

IC1801 — M5216P

L701 — 4.7UH
L702 — 4.7UH
L703 27UH 47UH
L705 — 4.7UH

L1703 — 15UH

R707 560 :CHIP 390 :CHIP

R717 560 :CHIP 390 :CHIP

R729 560 :CHIP 390 :CHIP
R1801 — 1K :CHIP
R1802 — 1K :CHIP
R1805 — 10K :CHIP
R1806 — 680K :CHIP
R1807 — 10K :CHIP
R1808 — 10K :CHIP
R1809 — 10K :CHIP
R1810 — 10K :CHIP

—: Not used

Schematic diagram

<<

< A board

<<

– 41 –

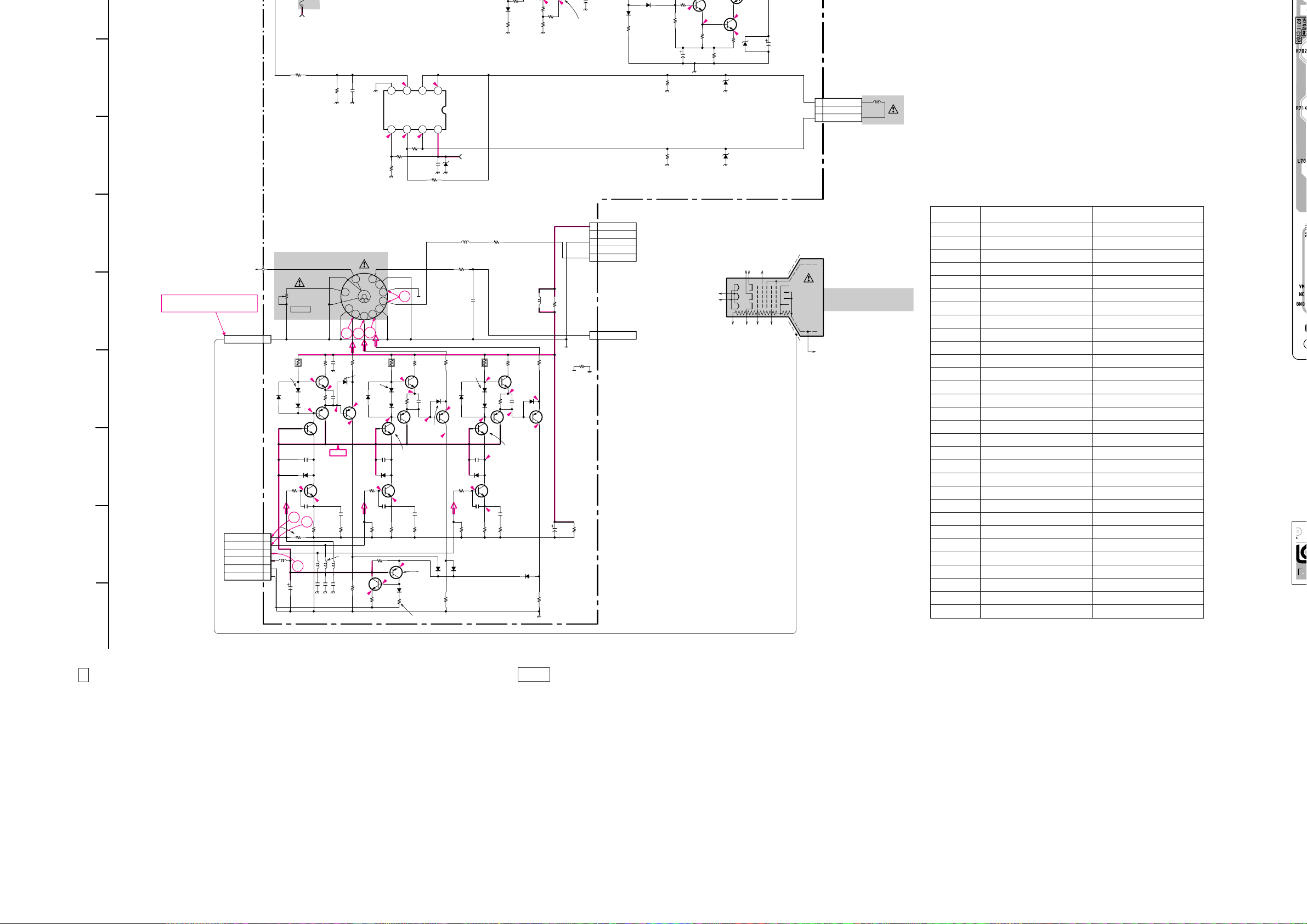

Schematic diagram

CVM board

,,

,

,,

– 42 –

NOTE:

The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.

– 43 – – 44 –

TABLE OF CONTENTS

Section Title Page Section Title Page

[ VIDEO SECTION]

1. GENERAL

1-1. INTERNAL VIEWS ............................................... 46

2. DISASSEMBLY

2-1. Top Cover Removal ................................................. 47

2-2. VCR Block Assy Removal ...................................... 47

2-3. H10 Board Removal ................................................ 47

2-4. MA10 Board Removal ............................................ 47

2-5. Service Position (MA10 Board) .............................. 47

3. CIRCUIT ADJUSTMENTS .................................... 48

4. INTERFACE, IC PIN FUNCTION DESCRIPTION

4-1. µ-COM Poart Function Description

(MA10 Board IC001) .............................................. 51

4-2. System Control-Video Block Interface

(MA10 Board IC402) .............................................. 52

4-3. System Control-Servo Peripheral Circuit Interface

(MA10 Board IC402) .............................................. 52

4-4. System Control-Mechanism Block Interface

(MA10 Board IC402) .............................................. 53

4-5. System Control-System Control Peripheral Circuit Interface

(MA10 Board IC402) .............................................. 53

4-6. System Control-Audio Block Interface

(MA10 Board IC402) .............................................. 53

4-7. Servo/System Control Port Function Description

(MA10 Board IC402) .............................................. 54

5. DIAGRAMS

5-1. Block Diagrams ....................................................... 55

5-2. Circuit Boards Location .......................................... 59

5-3. Printed Wiring Boards and Schematic Diagrams .... 59

• H10 Board ............................................................... 60

• MA10 (1/3) Board .................................................. 65

• MA10 (2/3) Board .................................................. 69

• MA10 (3/3) Board .................................................. 73

5-4. Semiconductors ....................................................... 75

6. EXPLODED VIEWS

6-3. Mechanism Deck Assembly (1) .............................. 79

6-4. Mechanism Deck Assembly (2) .............................. 80

6-5. Mechanism Deck Assembly (3) .............................. 81

7. ELECTRICAL PARTS LIST ...................................... 90

– 45 –

SECTION 1

GENERAL

1-1. INTERNAL VIEWS

- Top Side -

FE head
1-500-471-11

Drum assembly DZH-89A-R
x-xxx-xxx-xx

ACE block assembly
A-6775-791-A

Pinch press block assmbly
A-6759-863-B

Reel table (S)
3-977-507-01

- Bottom Side -

M902
Capstan motor
1-698-971-11

FL complete assembly
A-6759-619-B

Reel table (T)
3-977-508-01

Timing belt
3-977-510-01

M903
Cam motor assembly (Loading motor)
X-3947-577-1

– 46 –

SECTION 2

5 VCR BLOCK assembly

RP earth plate

1 CN701

3 Five screws

(+BVTP 3 X 12)

4 screw
(+BVTP 3 X 6)

2 Two screws
(+BVTP 3 X 12)

y

DISASSEMBLY

2-1. TOP COVER REMOVAL 2-2. VCR BLOCK ASSY REMOVAL

1 Four screws
(+BVTP 3 X 12)

2 Top cover

2-3. H10 BOARD REMOVAL

1 Two Screws

3 H holder

2 Five craws

4 H10 board

(+BVTP 3 X 12)

2-5. SERVICE POSITION (MA10 BOARD)

2-4. MA10 BOARD REMOVAL

MA10 board

MA10 board

Chassis assmbr

– 47 –

SECTION 3

)

CIRCUIT ADJUSTMENTS

Necessary items and indications for total adjustment of electric
circuit of this unit will be described in this chapter.

[ INSTRUMENTS TO BE USED ]

1) Color TV

2) Signal or dual trace type oscilloscope, band more than 30 MHz,
delay, as provided.

3) F requency counter (4 digits or more)

4) PAL pattern generater

5) Dig ital voltmeter

6) Audio level meter

7) Audio generator

8) Attenuator

9) Distortion meter

10) Alignment tape
Part code : H7099052H (MH-2)

[ CONNECTION ]

Unless otherwise specified, connect and adjust the measurement
equipment as follows.

[ SET-UP FOR ADJUSTMENT ]

The video signal from the pattern generator is used as adjustment
signal for electrical adjustment. This video signal should meet the
requirement. Connect the oscilloscpe to the video input terminal
on the MF 1 board and make sure that the amplitudes of sync signal
of video signal, video portion and burst signal are flat at
approximately 0.3, 0.7 and 0.3 V, respectively, and that the level
ratio of the burst signal and “red siganl” are 0.30 : 0.66, Fig.3-2
shows video signals (color bars) used in adjusting the electrical
adjustment.

White (approx. 100%)

Approx.

0.7V

Approx.

0.3V
Horizontal sync signal

Alignment T ape (MH-2)

Red

Fig.3-2

Burst signal
(To be flat)

Approx.

0.3V

Pattern generator

VIDEO LINE OUT (75Ω

Fig.3-1

VIDEO INPUT

Time Video signal Audio signal
1 10 minutes Starir-step 6kHz
2 5 minutes - 3kHz
3 10 minutes Color bar 1kHz
4 3 minutes RF sweep -

[ SPECIFIED INPUT/OUTPUT LEVEL IMPEDANCE ]

Input/Output terminal

Video input Pin jack

Input signal : 1Vp-p, 75 , unbalanced

Sync negative

AUDIO LINE IN Pin jack

Input level : -7.5dBs

(0dBs=0.775Vrms)

Input impedance : More than 47k

– 48 –

X’tal OSC CHECK

f

1

f

2

CARRIER DEVIATION CHECK

Mode PB
Signal Alignment tape, Stair step
Measurement Point MA10 board IC802 %ªpin(PAL)
Measurement Equipment Oscilloscope
Specified Value 500±200mVp-p

Check: 1)Confirm the frequency is 4.433619MHz±100Hz(PAL).

2)Confirm the waveform amplitude is 500±200mVp-p.

500 ± 200mVp-p

4.433619MHz ± 100Hz (PAL)

Fig.3-3

Mode E-E
Signal Color bar
Measurement Point MA10 board IC802 !•pin
Measurement Equipment Spectrum Analyzer
Specified Value f

Check: Confirm f

Confirm f

=1.00±0.08MHz

2-f1

=3.80±0.13MHz(PAL)

1

=1.00±0.08MHz

2-f1

Fig.3-5

SYNC AGC CHECK

Mode E-E
Signal Color bar
Measurement Point MA10 board Q830 emitter
Measurement Equipment Oscilloscope
Specified Value 1.0±0.1Vp-p

Check: Confirm the waveform amplitude is 1.0±0.1Vp-p.

1.0 ± 0.1Vp-p

Fig.3-4

WHITE/DARK CLIP CHECK

Mode E-E
Signal Color bar
Measurement Point MA10 board IC802 #¶pin
Measurement Equipment Oscilloscope
Specified V alue 190±20%(White), 55±20%(Dark)

Preparation: Add 3.3k r esistor between IC802 $™pin and GND.
Check: Taking the height from sync to white level as 100%, check

white clip and dark clip.

White clip

100%

Dark clip

Fig.3-6

– 49 –

REC Y LEVEL CHECK

PB Y LEVEL CHECK

Mode E-E(SP)
Signal No signal
Measurement Point MA10 board IC802 !•pin
Measurement Equipment Oscilloscope
Specified Value 260±70mVp-p(PAL)

Check: Confirm the Vp-p of the waveform is 220±70mVp-p.

260 ± 70mVp-p (PAL)

Fig.3-7

Mode PB
Signal Color bar
Measurement Point MA10 board Q830 emitter
Measurement Equipment Oscilloscope
Specified V alue 1.0±0.1Vp-p

Check: Confirm the Vp-p of the waneform is 1.0±0.1Vp-p.

1.0 ± 0.1Vp-p
(Y Level)

Fig.3-9

REC CHROMA CHECK

Mode REC(SP)
Signal Color bar
Measurement Point MA10 board IC802 !¢pin
Measurement Equipment Oscilloscope
Specified Value 350±60mVp-p(PAL)

Check: Confirm the Vp-p of the waveform is 350±60mVp-p.

350 ± 60mVp-p

(PAL)

Fig.3-8

HALF H SHIFT CHECK

Mode EE
Signal No signal
Measurement Point MA10 board IC802 !•pin
Measurement Equipment Spectrum Analyzer
Specified Value 8.2±2kHz

Check: Confirm the 1/2fH of the waveform is 8.2±2kHz.

1

fH

2

Fig.3-10

– 50 –

SECTION 4

INTERFACE, IC PIN FUNCTION DESCRIPTION

4-1. µ-COM PORT FUNCTION DESCRIPTION (MA10 BOARD IC001)

Pin No. Signal I/O Function

1 S SEL F I S-INPUT SELECT (FRONT)
2 S SEL R I S-INPUT SELECT (REAR)
3 ST I TU STEREO MODE
4 BIL I TU BILINGUAL MODE
5 DGC SW – DGC ON/OFF CONTROL
6 ST/ MONO I SET MODE STEREO/MONO
7– –
8 MAIN /SUB O TU MAIN/SUB CONTROL

9 F MONO O TU FOCE MONO CONTROL
10 VM SW O VM ON/OFF CONTROL
11 GP A I "REC PON" SW A
12 GP B I "REC PON" SW B
13 GP C I "REC PON" SW C
14 ASURA CS O CHIP SELECT FOR ASURA
15 SLAVE RESE O RESET FOR ASURA
16 J CLK O JUST CLOCK DISABLE ("H" : DISAB)
17 FACT I FACTORY MODE
18 1TU /2TU I SET MODE 1TU/2TU
19 JUST CLOCK I JUST CLOCK DET INPUT
20 SIRCS I REMOCON SIGNAL IN
21 HSYNC 1 I H SYNC DET INPUT (REC)
22 HSYNC 0 I H SYNC DET INPUT (TV)
23 SI I SIGNAL DATA INPUT
24 SO O SIGNAL DATA OUTPUT
25 SCK O SIGNAL CLOCK OUTPUT
26 Vss –
27 B INT I BUS INT
28 X TAL –
29 EXTAL –
30 RESET –
31 A MUTE O AUDIO MUTE
32 CLK OS O CHIP SELECT FOR RT CLOCK
33 KEY2 I KEY SCAN 2
34 KEY1 I KEY SCAN 1
35 AFT1 I AFT DET 1
36 AFT0 I AFT DET 0
37 OVP I OVP DET
38 G SW I "REC PON" SW
39 XLC –
40 EXLC –
41 OSD R –
42 OSD G –
43 OSD B –
44 I –
45 YS –
46 YM –
47 SDA1 O 12C BUS DATA FOR YCJ etc
48 SDA0 O 12C BUS DATA FOR NVM
49 SCL1 O 12C BUS CHECK FOR YCJ etc
50 SCL0 O 12C BUS CHECK FOR NVM
51 LED2 O POWER LED
52 LED1 O STBY LED
53 NS O NS COIL CONTROL (PWM)
54 VOL O VOLUME CONTROL (PWM)
55 MP –
56 NC –
57 Vdd –
58 Vss –
59 HPULSE I
60 VPULSE I
61 CRTPOW O CRT POWER ON
62 VCRPOW O VCR POWER ON
63 M SW I MAIN SW
64 SP MUTE O SPEAKER MUTE

– 51 –

– 52 –

4-2. SYSTEM CONTROL-VIDEO BLOCK INTERFACE (MA10 BOARD IC402)

TAPE TAPE PB · PICTURE SEARCH REC ·

Signal Pin No. I/O STOP FF REW

RF SW P (SW30) IC402 1 O*1*1*1*1*1*1*1*1*1*1*1*1*1
Q VD IC402 4 O L L L L L *2 *3 *3 *3 *3 *3 L L
V SYNC IC402 ^§ I*4*4*4*5*5*5*5*5*5*5*5*5*5

THREADING

UNTHREADING

PB PAUSE SLOW X2 CUE REVIEW REC PAUSE

*1. 30Hz 50% duty pulse synchronizing with drum rotation.
*2. Normally “L” . “H” when the video signal is not detected.
*3. V period “H” pulse.
*4. “H” in the LP mode. Selected according to the recording mode.
*5. Selected according to the tape recording mode.

4-3. SYSTEM CONTROL-SERVO PERIPHERAL CIRCUIT INTERFACE (MA10 BOARD IC402)

TAPE TAPE PB · PICTURE SEARCH REC ·

Signal Pin No. I/O STOP FF REW

REC CTL IC402 7 O HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z *1 HI-Z

CAP STOP IC402 #¢

STEP PLS IC402 (ª OLLLLLLL*2LLLLL
PB CTL IC402 ^¶ I H *6 *6 *1 H/L *2 *6 *6 *6 *1 H
DRUM PG IC402 ^• I*4*1*1*5*5*1*1*1*1*1*1*1*1
DRUM FG IC402 ^ª I*4*7*7*5*5*7*7*7*7*7*7*7*7
CAP FG IC402 &º I H/L *6 *6 *5 *5 *6 H/L *2 *6 *6 *6 *6 H/L
CAP DA IC402 &£ O*8*8*8*8*8*9*8*8*9*9*9*9*8
DRUM DA IC402 &¢ O *10 *10 *10 *10 *10 *10 *10 *10 *10 *10 *10 *10 *10
CTL RESET IC402 0 I/O HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z *11 HI-Z HI-Z HI-Z HI-Z HI-Z

O HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z HI-Z

(O.D)

L

(O.D) (O.D) (O.D) (O.D) (O.D)

THREADING

UNTHREADING

PB PAUSE SLOW X2 CUE REVIEW REC PAUSE

L*3

(O.D) (O.D) (O.D) (O.D) (O.D)

*1. 30Hz 50% pulse.
*2. Pulse in tape running.
*3. Reverse logic pulse of STEP PLS.
*4. “L” when drum rotation stops.
*5. Unstable period pulse.
*6. Pulse of Period proportionate to tape speed.
*7. 360Hz pulse.
*8. Pulse in tape running.
*9. Approx. 2 msec. period “H” or “L” pulse.

*10.Approx. 1.5 msec. period “H” or “L” pulse.

4-4. SYSTEM CONTROL-MECHANISM BLOCK INTERFACE (MA10 BOARD IC402)

– 53 –

CASSETTE CASSETTE

Signal Pin No. I/O

CAM UN LOAD
CAM LOAD IC402 8 OLLLLLLLLLLLLLLLL
MODE 1 IC402 @™ IHLL*1*1HHHHHHHHLHH
MODE 2 IC402 @¡ IHLL*1*1HHHLLLLLLLL
MODE 3 IC402 @º ILLL*1*1HLLLLLLLHLL
MODE 4 IC402 !ª ILHH*1*1LHHLLLLLLLL
C IN REC PRF
T REEL FG IC402 ^¢ I H/L H/L H/L H/L H/L H/L *3 *3 *3 H/L *3 *3 *3 *3 *3 H/L
S REEL FG IC402 ^£ I H/L H/L H/L *3 *3 H/L *3 *3 *3 H/L *3 *3 *3 *3 *3 H/L

T/S LED

CAP STOP
CAP RVS IC402 &™ O L H L H/L H L H H H/*5 H H L H H

T SENS IC402 ^¡ I*4*4*4*6*6*6*6*6*6*6*6*6*6*6*6*6
S SENS IC402 ^™ I*4*4*4*6*6*6*6*6*6*6*6*6*6*6*6*6

IC402 9 O HI-Z H L H L *7 *7 *7 *7 *7 *7 *7 *7 *7 *7 *7

IC402 !¶ I L *2 *2 *2 *2 *2 *2 *2 *2 *2 *2 *2 *2 *2 *2 *2

IC402 #∞

IC402 #¢

EJECTED

O

(O.D)

O

(O.D)

LOADING

*4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4 *4

LLLHHLHHHL*5HHHHL

UNLOADING

TAPE TAPE PB · PICTURE SEARCH REC ·

THREADING

UNTHREADING

STOP FF REW PB PAUSE SLOW X2 CUE REVIEW REC PAUSE

*1. Uncertainty.
*2. “L” when the erasing protection tab is bent, “H” when not bent.
*3. Pulse of period proportionate to reel rotation speed.
*4. Apporx. 2 msec. period “H” pulse.
*5. Pulse in tape running.
*6. Normally “L”. 2 msec. period “H” pulse when tape top or tape end is detected.
*7. “L” when unloading to switchover. “H” when loading. “HI-Z” when CAM motor is stop.

4-5. SYSTEM CONTROL-SYSTEM CONTROL PERIPHERAL CIRCUIT INTERFACE (MA10 BOARD IC402)

Signal Pin No. I/O Function
ASURA RESET IC402 $º I Normally "H"."L"when service interruption is detected or restored.
ASURA CS IC402 $¢ I Chip select signal from the timer microprocessor. V period “L” pulse.
S IN 0 IC402 $∞ I Serial communication data from the timer microprocessor. V period “L” pulse.
S OUT 0 IC402 $§ O Serial communication data to the timer microprocessor. V period “L” pulse.
S CLK IC402 $¶ I Serial communication clock with the timer microprocessor. V period “L” pulse.

4-6. SYSTEM CONTROL-AUDIO BLOCK INTERFACE (MA10 BOARD IC402)

TAPE TAPE PB · PICTURE SEARCH REC ·

Sigmal Pin No. I/O STOP FF REW
A MUTE IC402 $ª

O

(O.D)

L L LLL*1HHHHHLL

*1. 30Hz 50% duty pulse approximately 5 msec. delayed from RF SW P.

LOADING

UNLOADING

PB PAUSE SLOW X2 CUE REVIEW REC PAUSE

4-7. SERVO/SYSTEM CONTROL PORT FUNCTION DESCRIPTION (MA10 BOARD IC402)

– 54 –

Pin No. Signal I/O Function

1 RF SWP O RF SWITCHING PULSE
2– –
3– –
4 QVD O QUASI VD
5 CTLHYS HIGH O CTL CONTROL
6– –
7 REC CTL O REC CTL SIGNAL
8 CAM LOAD O CAM LOADING

9 CAM UNLOAD O CAM UNLOADING
10 CTL RESET O CTL CONTROL
11 – –
12 – –
13 – –
14 – –
15 – –
16 – –
17 C IN I CASSETTE IN
18 – –
19 MODE4 I MD MODE DET
20 MODE3 I MD MODE DET
21 MODE2 I MD MODE DET
22 MODE1 I MD MODE DET
23 LED6 O REC PON LED
24 LED5 O ON TIMER LED
25 LED4 O REC LED
26 LED3 O TIMER REC LED
27 – –
28 SDA I/O I
29 – –
30 SCL O I
31 – –
32 – –
33 GND O
34 CAP STOP O
35 T/S LED O T/S LED CONTROL
36 GND O
37 GND O
38 GND O
39 MP –
40 ASURA RESET –
41 Vss –
42 XTAL –
43 EXTAL –
44 ASURA CS I ASURA u-COM CHIP SELECT
45 S IN 0 I SERIAL DATA IN
46 S OUT 0 O SERIAL DATA OUT
47 S CLK I SERIAL CLOCK
48 GND O
49 MUTE O AUDIO MUTE
50 POS I SWITCHING POSITION ADJ MODE

2

C BUS DATA FOR VIDEO/HiFi

2

C BUS CLOCK FOR VIDEO/HiFi

Pin No. Signal I/O Function

51 GND O

52 AVss –
53 AV ref –
54 AVdd –
55 SECAM/SVHS I SVHS DET IN
56 GND O
57 DEW I DEW SENSOR
58 GND O
59 – –
60 RF ENV I VIDEO RF ENVELOPE DET
61 T SENS I TAPE TOP SENSOR
62 S SENS I TAPE END SENSOR
63 SREEL FG I S-REEL FG
64 TREEL FG I T-REEL FG
65 GND O
66 VSYNC I V SYNC SIGNAL IN
67 PB CTL I PB CTL SIGNAL
68 DRM PG I DRUM PG
69 DRM FG I DRUM FG
70 CAP FG I CAPSTAN FG
71 – –
72 CAP RVS O CAPSTAN REVERSE
73 CAP DA O CAPSTAN D/A OUTPUT
74 DRM DA O DRUM D/A OUTPUT
75 JOG O JOG CONTROL
76 S VHS O S VHS DET OUT
77 REC COUNT I REC CTL COUNT
78 – –
79 – –
80 SO 1 O SERIAL DATA OUTPUT FOR RP AMP
81 SCK1 O SERIAL CLOCK FOR RP AMP
82 GND O
83 V PB O VIDEO PB MODE
84 CAP PWM O CAPSTAN
85 – –
86 – –
87 – –
88 Vss –
89 Vdd –
90 – –
91 – –
92 – –
93 – –
94 – –
95 – –
96 – –
97 – –
98 – –
99 STEP PLS O

100 – –

SECTION 5

5-1. BLOCK DIAGRAMS

VIDEO BLOCK

CN702

GND

4

RF SWP

PB RF

REC CUR

CN?

SP1 S

SP2 S

VCR V

VCR A
RF LINE V
RF LINE A

PB V
PB A

SP AUDIO

CN1004

V IN

SW POSI

FACT MODE

V OUT

V PB

A OUT

GND(A)

A IN

SP AUDI0

3
2
1

6

4

5

1
2
4
6
8
9

11

1
2
3
4
5
6
7
8
9

SP CH1

SP CH2

TO
A BOARD
CN301

CHECK

CONNECTOR

C

FOR JIG

SP COMON F

CN001(1/2)

J101

V

A

VIDEO RF(PB)

VIDEO RF(PB)

VIDEO RF(REC)

AUDIO

FACT MODE

SP AUDIO

BUFFER

Q1804

DIAGRAMS

IC701

VIDEO REC/PB AMP

30

REC CUR

3

PB VIDEO

2

SW(REC)

5

PB VIDEO

6

SW(REC)

4

REC VIDEO

LOGIC

VIDEO(PB)

AUDIO(PB)

BUFFER

Q1804

VIDEO RF

22

PB RF

VIDEO RF

28

REC RF

17

RF SWP

18

COMP SYNC

19

DATA

20

COCK

26

RF ENV

BUFFER

Q1804

SECAM CHROMA PROCESS

2

CLK IN

13

PB IN

17

PB OUT

27

SYNC IN

8

1.1MHz BELL

21

4.43MHz BELL

16

PB H

14/21 FV1B model ONLY

(PB)

(REC)

IC1801

BUFFER

Q701

Y/C MIX

Q815

REC IN

REC OUT

SECAM DET OUT

MODE

5

Y IN

1

C IN1

3

C IN2

12

NT+2FSC

C BUFFER

Q825

BUFFER

Q821

2
1

IC801

1H DELAY

CLK BUFFER

Q823

OSC

Q1001

+3.3V

7

Y OUT

13

C OUT

10

CLK

Y BUFFER

Q824

T1001

BIAS OSC TRANS

IC1001

AUDIO HEAD SW

32

5

4

AUDIO(PB)

3

OUT 1

CTL AMP

IC405

O

+V IN 1

IC902

3.3V REG

1

I

D5V

SW 5V

MTR13.2V

VCC(SP)

3
2
1

7
6

3
4

1
2
5

1
3
5
6

CN1001

GND(AC)

NC

FE HEAD

CN1002

CTL(X)
CTL(Y)

A HEAD REC

A HEAD PB

A ERASE HEAD

GND(AV)
GND(AV)

CN1003

D5.6V
SW5V

MTR 13.2V

VCC(SP)

FULL

ERASE

HEAD

X

CTL HEAD

X

AUDIO ERASE

HEAD

X

AUDIO

REC/PB HEAD

G

TO
A BOARD
CN302

IC802

Y/C PROCESS

17 42

V PB

JOG SW

Q809

SDA 0
SCL 0

QVD

A MUTE

ME SECAM

NT JUDGE

REC CTL

CTL RESET

PB CTL

XTAL

E XTAL

BUFFER

VIDEO(PB)

AUDIO(PB)

28
30

4

40

55

79

7

77
10

67

5

42

43

17

C IN

Q812

VIDEO RF(PB)

REC PRF

X430

16MHz

S451

20

V SUB PB

21

TRICK HIGH OUT

15

V PB IN

18

Y REC

14

C REC

66

C ROT IN

37

COMP SYNC

45

PB IN C (SECAM)

30

VCR V IN

73

VCR A IN

38

PB V OUT

79

NOR AU

77

PB A OUT

64

SDA

63

SCL

33

QVD

70

MUTE CTL

65

ME SECAM

62

ACK OUT

SW

Q402

MA10

SYSTEM CONTROL,Y/C PROCESS,
VIDEO REC/PB AMP,

AMP

Q803

BUFFER

Q801

BUFFER

Q1806

15

17
26

1

SECAM SW

Q1802

BELL SW

Q1807,1808

AMP

Q808

VIDEO RF(REC)

BUFFER

Q830

IC402(1/2)

SYSTEM CONTROL

1

RF SWP

66

V SYNC

60

RF ENV

80

S01

81

SCK1

50

SW POS

83

V PB

34

VCR REC OUT

35

VCR REC IN

11

SECAM DET

12

SECAM ON

58

OSC

REC COUNT

CTL HYS HIGH

Y OUT

C OUT 1
C OUT 2

NT+2FSC

REC/PB SIG

CLAMP IN

AUDIO OUT(REC)

BIAS SW

A-H SW

AUDIO IN(PB)

(1/2)

OSC

OSC
C IN

Y IN

7
5

50
48

43

59

60
52

40

25

26

5

6

80

7

CTL AMP

OUT 2

-V IN 2

X801

4.43MHz

AUDIO(REC)

BIAS SW

IC404

-V IN 1

VIDEO(REC/PB)

Q1002

OUT1

SECAM CHROMA PROCESOR

(Schematic diagram P.65 to 74)

(15)

1

– 55 – – 56 –

X251

32.768kHz

SP

HEADPHONE

1

DIAL TIMER

D1301-D1306

H10

(Schematic diagram P.60)

AC IN

E

TO

A BOARD

CA601

IC252

MEMORY

EXCEPT

14/21FV1E

model

GND(SP)
GND(SP)

SP L OUT

J1102

S1302

LED

S1301

EJECT

X OUT

X IN

3

3
2
1

SDA 1

SCL 1

AUDIO

LED DRIVE

Q1301

SCL

CS

52

SIO

7

6

I/O SW

Q005,006

IC005

VPS PROCESSOR

SDA

5

4

14

DAVN

SCL

IC201

AUDIO OUT

OUT

GP A

1

GP B

2

D TMR

7

LED(D.TMR)

38

LED(TMR REC)

4

LED(REC)

5

D5V

6

LED(STBY)

8

9

EJECT

10

GND(A)

SVRR

VOL

MUTE

TV A

3

10

9
4

7
6
5
3

2
1

(FUNCTION SW,LED)

AC IN

1

AC IN

2

AC

1

AC NUET

5

MA10

F1701

T1701

S1701

(2/2)

SYSTEM CONTROL,MAIN -COM,
AUDIO,VCR SERVO

D5V

10

CN002CN1301

IC001

MAIN µ-COM

INVERTER

Q008

28

X001

8.38MHz

IC1101
SIRCS

2 20

IC003

RESET

O 30I

MUTE

Q009

MUTE

Q201

SP AUDIO

RESET SW

Q902

X901

SCL 1

SDA 1

AUDIO

7

3

5

XTAL

E XTAL

29

VPS INT

38

SIRCS

RESET

SP MUTE

11

VOL

54

A MUTE

31

FACT MODE

10

TEXT RST

TEXT BUSY

9

12

GP A

13

GP B

35

KEY 0

FUNCTION

KEY

S1101-1109

TELE TEXT

TEXT BUSY

17 37

SLAVE RESET

43

XTAL IN

41

XTAL OUT

42

49

SCL

50

SDA

H SYNC 1(REC)

IC901

SCK

ASURA CS

ASURA RST

SDA 1
SCL 1

DGC SW

VPS ON

VCR PWR

CRT PWR

OVP

VM SW

V PULSE

H PULSE

AGC DEFEAT

AUTO DGC

FRGB

B INT

MODE

H SYNC 0

KEY 1

LED(STBY)

V SYNC

V BLK

H SYNC

OSD BLK

CORB

CVBS(TEXT)

2332

SO

24

25

15
16

D903

SDA 1
SCL 1

V PLS

BUFFER

Q903

V PLS

47

49

1
63
62
61
64

7
60
59
52

NS

2
33
818
27
36

22
21

34

53

15

36

34

R

33

G

32

B

35
29

23

S OUT 0 -V INCLK CS

46

S IN 0

45

S CLK

47

ASURA CS

44

ASURA RESET

40

LED(D.MTR)

24

26

LED(TMR REC)

25

LED(REC)

IC402(2/2)

SYSTEM CONTROL

BUFFER

Q901,904

CAP DA OUT 1SI

CAP STOP

STEP PLS

CAP RVS

CAP FG

CAP PWM

T/S LED

T SENS

S SENS

DRM FG
DRM PG

DRM DA

CAM LOAD

CAM UNLOAD

MODE 4
MODE 3
MODE 2
MODE 1

T REEL FG

S REEL FG

IC403(1/2)

CAP MOTOR D/A AMP

73

34
99

72
70

64

35

61

62

69
68

74

8
9

19
20
21
22

64

63

2 1

LED DRIVE

Q451

IC403(2/2)

DRUM D/A AMP

-V IN 2

6 7

CAM 1

3 2

CAM 2

4 10

CAM MOTOR DRIVE

T REEL FG

S REEL FG

INVERTER

Q003

T/S LED

TAKE-UP

END SENSOR

END SENSOR

OUT2

CAM(-)

CAM(+)

IC401

PH452

PH451

D451

Q452

Q453

SUPPLY

SDA 1
SCL 1

D5V

A1
B1
A2
B2
A3
B3
A4
B4
A5

1
2
3
4
5

1
2
3

1
2
3
4
5

CN001(2/2)

27
26
25

VCR PWR

24

CRT PWR

20

31
23
22
21

28

AUTO AGC
32
12
16
34

H SYNC 0

33

H SYNC 1
13
14
15
18
19
17
35
10

TEXT VIDEO

CN403

SW 5V

CAP RVS

CAP FG

REF

CAP VS

LIM

MTR 13V

GND(M)
GND(A)

CN401

GND(M)

D FG
D PG
D VS

MTR 12V

CN404

CAM(-)
CAM(+)
CAM(+)

CN401

MODE 4
MODE 3
MODE 2
MODE 1
GND(A)

DGC SW

VPS ON

OVP

VM SW

V PLS
H PLS

NS CTL

F RGB

B INT

MODE

OSD R
OSD G

OSDB
SDA 1
SCL 1
YM/YS

SSCP

1
2
3
4
5
6
7
8
9

CAPSTAN MOTOR

1
2
3
4
5

1
2
3

1
2
3
4
5

CAP FG

AMP

IC1

CAPSTAN

MOTOR DRIVE

14

15
16

32

FRC

VS

FRC

22

LIMIT

FRC

21

IC1 DRUM MOTOR DRIVE

OUTPUT

OUTPUT

MATRIX

DRUM FG

DRUM PG

DRUM MOTOR

M903

LOADING MOTOR

M

ROTARY

SWITCH

MECHA

POSITION

TO
A BOARD

F

CN301

TO
A BOARD

D

CN301

TO
A BOARD

B

CN301

CAPSTAN AM

FG

SENSOR

M902

CAPSTAN

M

MOTOR

U(+)

1

U(-)

2

V(+)

3
4
5
6

V(-)
W(+)
W(-)

HALL

DRIVE

M901

DRUM

MOTOR

M

HALL

DEVICE

(Schematic diagram P.65 to 74)

(15)

– 57 – – 58 –

5-2. CIRCUIT BOARDS LOCATION

Ver.1.6

(Chip semiconductors that are not actually used are included.)

Y

1

A

B

C

D

2

43

CVM

CN1301

H10

TO
MA10(1/3)
BOARD
CN002

MA10

A

5-3. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAMS

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
Capacitors without voltage indication are all 50V.

• All resistors are in ohms.
k = 1000 , M = 1000k

• Indication of resistance, which does not have one for rating electrical
power, is as follows.

Pitch: 5 mm
Rating electrical power: 1/4W(CHIP:1/10W)

• f : nonflammable resistor.

• F : fusible resistor.

• ¢ : internal component.

• p : panel designation and adjustment for repair.

• All variable and adjustable resistors have characteristic curve B, unless

otherwise noted.

• E : earth-chassis.

• Readings are taken with a color-bar signal input.

• Readings are taken with a 10M digital multimeter.

• Voltage variations may be noted due to normal production tolerances.

• All voltages are in V.

no mark : REC/PB
( ): REC
< > : PB

• Circled numbers are waveform reference.

V

P

: B + line

V

: B – line.
: signal path.

•

•

•

Reference information

RESISTOR : RN METAL FILM

: RC SOLID
: FPRD NONFRAMMABLE CARBON
: FUSE NONFRAMMABLE FUSIBLE
: RW NONFRAMMABLE WIREWOUND
: RS NONFRAMMABLE METAL OXIDE
: RB NONFRAMMABLE CEMENT

:
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM

: PS STYROL

: PP POLYPROPYLENE

: PT MYLAR

: MPS METALIZED POLYESTER

: MPP METALIZED POLYPROPYLENE

: ALB BIPOLAR

: ALT HIGH TEMPERATURE

: ALR HIGH RIPPLE

ADJUSTMENT RESISTOR

Terminal name of semiconductors in silk screen
printed circuit ( )

Device Printed symbol Terminal name

Transistor

1

Transistor

2

3

Diode

4

Diode

Diode

5

Diode

6

Diode

7

*

Collector

Base

Collector

Base

Cathode

Cathode

Anode

Cathode

Anode

Common

Anode

Common

Anode Cathode

Circuit

Emitter

Emitter

Anode

(NC)

(NC)

Cathode

10P

GP A

GP B
LED(D.TMR)
LED(TMRREC)

LED(REC)

D 5V
D TMR

LED (STBY)

EJECT

GND (A)

(FUNCTION SW,LED)

0

1

0

2

0.1

3

5.4

4

5.4

5
6

5.4

7

4.7

8

5.4

9

10

D1302

SLR-325VCT31

D1301

SLR-325VCT31

D1304

SLR-325VCT31

TIME

REC

STB

H10

Note: The components identified by shading and mark

B are critical for safety. Replace only with part

nummber specified.

Note: Les composants identifiés par la marque ! sont

critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.

– 59 –

– 60 –

H10

43

65

[

FUNCTION SW, LED

]

– H10 BOARD –

H10

(FUNCTION SW,LED)

0
0

0.1

5.4

5.4

5.4

4.7

5.4

0

D1302

SLR-325VCT31

D1301

SLR-325VCT31

D1304

SLR-325VCT31

TIMER REC

REC

STBY

S1301

EJECT

C

AB

R1308

10k

:CHIP

R1301 R1302

68

1/4W

D1305

SLR-325DCT31

D1306

SLR-325DCT31

Q1301

UN2215-QRS(TX)

LED DRIVE

B-SS10253<AEP>-H10-15

0.1

SLR-325DCT31

*

S1302

DIAL
TIMER

R1307

10k

:CHIP

120

1/4W

DIAL
TIMER

D1303

– 60 –

– 61 –

MA10 (1/3)

– MA10 BOARD –

SYSTEM CONTROL, MAIN MICON
VCR SERVO, AUDIO

MA10 (2/3)
MA10 (3/3)

[

Y/C PROCESS, SECAM CHROMA PROCESS

[

AC IN, VIDEO REC/PB AMP

]

MA10 BOARD

IC

IC001 C-6
IC002 B-6
IC003 C-7
IC005 J-4
IC201 K-2
IC252 A-4
IC401 D-7
IC402 G-7
IC403 E-4
IC404 A-3
IC405 A-3
IC701 J-2
IC801 E-2
IC802 C-3
IC901 I-7
IC902 I-8
IC1001 B-1
IC1101 A-9
IC1801 F-2

TRANSISTOR

Q003 B-7 1
Q005 C-4 1
Q006 C-4 1
Q008 C-5 1
Q009 C-8 1
Q201 L-3 1
Q402 A-4 1
Q451 G-6 ­Q452 B-5 ­Q453 J-5 ­Q701 I-2 1
Q801 F-4 1
Q803 D-4 1
Q808 D-4 1
Q809 D-3 1
Q812 D-4 1
Q815 C-3 1
Q821 D-3 1
Q822 C-1 1
Q824 E-2 1
Q825 E-1 1
Q830 E-2 1
Q901 J-8 1
Q902 I-8 1
Q903 I-6 1

: Refer to Terminal name of semiconductors

*

in silk screen printed circuit (see page 59

Q904 J-8 1
Q1001 A-2 ­Q1002 B-2 1
Q1801 G-3 1
Q1802 H-2 1
Q1804 H-2 1
Q1805 G-2 1
Q1806 H-2 1
Q1807 G-3 1
Q1808 G-3 1

DIODE

D001 C-5 ­D002 B-6 ­D004 B-7 ­D005 B-8 ­D006 C-8 ­D007 B-8 ­D008 B-6 ­D009 –––
D201 A-7 ­D202 A-7 ­D251 A-4 ­D252 B-4 -

*

D253 B-4 ­D254 B-4 ­D402 E-4 ­D403 E-7 ­D405 G-1 ­D406 B-5 ­D407 B-5 ­D432 F-7 ­D433 H-7 ­D451 F-5 ­D901 H-8 ­D902 J-7 ­D903 J-7 8
D904 J-7 ­D905 I-8 ­D1101 J-8 ­D1102 J-9 ­D1103 J-9 ­D1104 J-9 ­D1105 J-9 ­D1106 B-5 ­D1107 B-5 ­D1108 A-5 ­D1109 A-5 ­D1110 B-9 -

*

]

).

– 62 –

– 63 –

– 63 – – 64 –

1

A

B

C

D

E

F

G

H

I

K

L

M

N

O

P

J

2

1

10

98765

43

0.3

2.6

2.5

2.5

2.5

2.5

2.5

2.5

2.5

4.8

6.3

0.3

2.3

2.4

2.0

1.2

1.9

2.1

1.4
(1.7)
<1.3>

4.9

2.3

2.0

1.9

0.1

4.9

4.9
*
*

0.3

4.2(SECAM)

(0)<1.2>

0.5

4.8

(2.3)<1.7>

0.1

2.8

2.5

2.5

2.5

2.4

0

4.8

4.8

0

2.8

0.1

4.9

2.7

2.5

2.5

4.9

0.1

0.1

0.1

4.9

4.9

(0.3)<0>

4.9

3.6

3.6

(1.8)<1.4>

0.2

4.7(SECAM)

5.2

0.2(SECAM)

0

(2.3)
<2.8>

0.5

4.8

2.6

*

4.4

0.8

0.8

0.2

4.9

1.1

2.5

0

0.7

0.5

1.7

1.2

4.9

1.2

2.5

*

*

AUDIO

AUDIO

1

2

3

5

6

7

4

SW5V

(CAP & Drum)

DA CONVERTER

CAM MOTOR DRIVER

SYSTEM CONTROL

SP AUDIO

LED(REC)

LED(TMR REC)

D.TMR

LED(TMR REC)

LED(D.TMR)

LED(D.TMR)

GP A

GP B

LED(REC)

D 5V

LED(STBY)

V PB

MTR 12V

D VS

D PG

D FG

GND (M)

EJECT

GND(A)

A OUT

V IN

SW POSI

A IN

V OUT

REC

TIMER REC INSEL

VOL- VOL+

PLAY CH- FWD

CH+

PAUSEREWSTOP

SECAM DET

SECAM ON

ME SECAM

GND(SP)

D 5.8V

VCC(SP)

MTR 13.2V

GND(A)

GND(M)

SW 5V

A IN

Vdd

Vss

Vss

NCNCNC

NC

NC

NC

NC

NC

NC

NC

GND

GND

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

A MUTE

GND

V PB

MTR GND

CAM 1

CAM 2

VCL

VCH

V REF

VCC 1

VCC 2

GND(A)

FACT MODE

STEP PLS

V IN

CAM(+)

CAM(-)

CAM(+)

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

GND

GND

CAM LOAD

CAM UNLOAD

MTR 13V

LIM

CAP VS

REF

SCL

SDA

MODE4

MODE3

MODE2

MODE1

C IN

CTL RESET

REC CTL

CTLHYS HIGH

CAP PWM

NT JUDGE

REC COUNT

SW POS

T/S LED

CAP STOP

CTL CHECK

TO DRUM MOTOR

GND(A)

FOR JIG TO A BOARD CN302

S SENS

T SENS

TO MODE SW

TO
CAPSTAN M0T0R

TO CAM M0TOR

T.SENS

T.S

S.REEL

T.REEL

MODE 4
MODE 3
MODE 2
MODE 1

AV ref

SO1

RF SWP

Vdd

Vss

NC

NC

SCK1

ASURA RESET

Vss

XTAL

EXTXL

ASURA CS

S IN 0

S OUT 0

SCLK

QVD

CAP RVS
CAP DA
DRM DA

CAP FG

DRM FG

DRM PG

PB CTL

VSYNC

TREEL FG

SREEL FG

RF ENV

AVDD

AVSS

CAM(-)

CAM(+)

SW 5V

CAP RVS

CAP FG

GND (M)
GND (A)

T1

T2

S0

L1

L3

L4

L3

L1

L4

S2

K2

G16

G15

G16
G15

S30

S19

G13

C2

S8

N3

N2

I4
I3
I2
I1

S14

N1

S7

G12

G13

G14

F4

A2

A1

B4

G7

C1

A2

A1

D4

D3

D2

D1

G10

G9

F5

F1

G2

B3

C3

C1

C3

F6

F5

F2
F1

F4

F3

I1

I2

S4

L2

O2

C2

G14

G12

G10

G9

G7

G5

G4

G5

F6

D1

D4
D3
D2

H5

H4

H3

H2

H1

G4

G3

G1

F3

F2

B2

B1

B4

B3

B2

B1

G1

G3

G2

1

2

1

2

ME SECAM

≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠SECAM ON

SECAM DET

V

V

CTL(X)
CTL(Y)

QVD

SCL

SW 5V

GND(A)

COMP SYNC
DATA
CLOCK

A MUTE

SDA

NT JUDGE

RF SWP

RF ENV

GND(A)

D 5V

GND(A)

MTR 12V

D 5V

GND(M)

SW 5V

CXP87852-063Q-TL

MTZJ-T-77-6.2B

MTZJ-T-77-6.2B

MTZJ-T-77-6.2B

:CHIP1/10W18k

:CHIP1/10W5.6k

:CHIP1/10W3.3k

MTZJ-T-77-6.2B

:CHIP

1/10W

1.2k

:CHIP

1/10W

330

:CHIP

1/10W

330

:CHIP

1/10W

820

:CHIP

1/10W

1.8k

:CHIP

1/10W

820

:CHIP

1/10W

5.6k
:CHIP

1/10W

3.3k

:CHIP

1/10W

75

:CHIP

1/10W

1.8k
:CHIP

1/10W

680

:CHIP

1/10W

1.2k

:

1/

:CHIP

1/10W

680

:CHIP

1/10W

1k

:CHIP

1/10W

1k

:CHIP

1/10W

1k

:CHIP

1/10W

4.7k

:CHIP

1/10W

1k

:CHIP

1/10W

1k

:CHIP

1/10W

1k

:CHIP

1/10W

10k

:CHIP

1/10W

470

:CHIP

1/10W

470

:CHIP

1/10W

470

:CHIP

1/10W

470

:CHIP

1/10W

680

:CHIP

1/10W

33k

:CHIP

1/10W

2.2k

:CHIP

1/10W

33k

:CHIP

1/10W

2.2k

:CHIP

1/10W

15k

:CHIP

1/10W

22k

:CHIP

1/10W

12k

:CHIP

1/10W

22k

:CHIP

1/10W

12k

:CHIP

1/10W

47k

:CHIP1/10W1k

:CHIP

1/10W

47k

:CHIP

1/10W

47k

:CHIP

1/10W

47k

:CHIP

1/10W

47k

:CHIP

1/10W

4.7k

:CHIP

1/10W

560

:CHIP

1/10W

1k

:CHIP

1/10W

10k

:CHIP

1/10W

330

:CHIP

1/10W

4.7k

:RN-CP

1/10W

10k

:CHIP

1/10W

180k

:CHIP

1/10W

2.2k

:CHIP

1/10W

2.2k

:RN-CP

1/10W

10k

:CHIP

1/10W

1k

:CHIP

1/10W

39k

:CHIP

1/10W

18k

:CHIP

1/10W

680k

:CHIP

1/10W

100k

:CHIP

1/10W

100k

:CHIP

1/10W

390k

:CHIP

1/10W

220k

:CHIP

1/10W

100k

:CHIP

1/10W

100k

:CHIP

1/10W

2.2k

:CHIP

1/10W

4.7k

:CHIP

1/10W

1k

:CHIP

1/10W

10k

:CHIP

1/10W

10k

:CHIP

1/10W

1.5k

:CHIP

1/10W

1.5k

:CHIP

1/10W

10k

:CHIP

1/10W

10k

:CHIP

1/10W

1k

:CHIP

1/10W

10k

:CHIP

1/10W

10k

B:CHIP

50V

0.0068

B:CHIP

50V

0.01

B:CHIP

50V

0.01

F:CHIP

50V

0.022

B:CHIP

50V

0.001

B:CHIP

50V

0.001

B:CHIP

50V

0.001

B:CHIP

50V

0.001

F:CHIP

50V

0.01

CH:CHIP

50V

15p

CH:CHIP50V10p

50V

1

B:CHIP

50V

0.0056

50V

2.2

:PT

50V

0.027

F:CHIP

50V

0.01

:PT

50V

0.033

CH:CHIP

50V

330p

50V

1

F:CHIP

50V

0.047

F:CHIP

50V

0.01

F:CHIP

50V

0.01

F:CHIP

50V

0.047

10V

100

GP3S120

GP3S120

9P

10V

47

25V

22

10V

47

10V

47

6.3V

330

5P

SIR

IC SBX

MTZJ-T-77-6.2

MTZJ-T-77-6.2

MTZJ-T-77-6.2

MTZJ-T-77-6.2

1SS119-25TD

:FPRD

1/4W

39

11ES2-TA1B

BA6305F-E2

11ES2-TA1B

:FPRD

1/4W

120

:FPRD

1/4W

39

F:CHIP

25V

0.1

UN2113-TX

2P

BA10393F-E2

NJM062M-TE2

11ES2-TA1B

11ES2-TA1B

2.2k

2SC2412K-T-146-QR

MTZJ-T-77-4.7B

10µH

1µH

:EL0405

100µH

7P

9P

10µH

LB1643

16V

47

10V

100

10µH

F:CHIP

25V

0.1

B:CHIP

25V

0.1

RPT-37PBT32

MTZJ-T-77-6.2

:CHIP

0

:CHIP

0

10µH

GL52

3P

F:CHIP

25V

0.1

IC402

R1109

R1111

R1113

D1107

D1106

D433

D432

S1105

S1109

S1101

C436

R1106

C402

C419

C417

C412

C409

C424

C414

C455

PH452

PH451

IC1

C1102

C1101

D1102

D1105

D1104

R1116

D1103

D402

R487

R465

R407

R406

R452

D406

IC405

CTL AMP

CTL AMP

D405

C

TO H10 BOARD CN1301

C425

CN401

CN1004

R

R1136

R1115

L1104

L1103

C1107

C1106

C1105

C1103

D005

Q009

MUTE

R007

C415

R1110

R1108

R1104 R1102

R1112

R1103

S1106S1104S1103S1102 S1107

R454

CN1003

L1102

C456

D407

CN403

L403

IC401

R1129

R1128

L1101
JW(5)

JW401

7.5MM

D403

C406

C407

C405

C401

L401

JW(5)

C410

C422

C421

C413

IC404

L402

R449

R448

R447

R446

C432

R421

X430

16MHz

IC403

CAP/DRUM D/A AMP

J1101

C408

Q452

TAKE-UP END SENSOR

R463

R461

R459

R450R445

J1102

D1101

R444

R438

R401

R410

R460

R403

R404

R409

R408

R405

R474

R402

R412

R415

R414

R411

Q402

SW

R437

R436

R435

R429

R418

R419

R416

R417

R430R420

R484

R481

R480

R479

R478

R477

R476

R470

R471

R472

R473

R443

C441

C416

L431

D4

C430

C431

CN404

C435

R442

R441

R440

R439

S401

C457

R453

2SC1815GR-TPE2

Q451

LED DRIVER

R451

R432

R422

R424

R428

R423

R427

R425

R426

C418

7654321

10987654321

8765

4 3 2 1

8765

4 3 2 1

8 7 6 5

4321

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

50494847464544434241403938373635343332

31

302928272625242322212019181716151413121110987654321

987654321

B4

B3

B2

B1

A5

A4

A3

A2

A1

3

4

2

1

3

4

2

1

10

987654321

54321

V

3

2

1

HEAD PHONE

TO
MA

TO MA10(2

0

L404

– 65 –

TO A BOARD CN302

N

N

<

D 5.8V

GND(A)

GND(M)

SW 5V

6

TA1B

10

CN1003

7P

GND(SP)

VCC(SP)

MTR 13.2V

7654321

D407

11ES2-TA1B

2SC1815GR-TPE2

11

CTL(X)

TO

CTL(Y)

MA10(2/3)BOARD

SW 5V

TO MA10(2/3)BOARD

GND(A)

G1

RF ENV

G2

RF SWP

G3

COMP SYNC

G4

DATA

G5

CLOCK

G7

NT JUDGE

G9

SCL

G10

SDA

G12

A MUTE

G13

ME SECAM

G14

QVD

G15

SECAM DET

G16

≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠SECAM ON

Q009

2SC2412K-T-146-QR

MUTE

D005

MTZJ-T-77-4.7B

R451

2.2k
1/10W
:CHIP

R453

39

1/4W

:FPRD

0.5

Q451

LED DRIVER

R007

2.2k

0.7

R452
1/4W

:FPRD

0

D 5V

39

T.S.LED

D451

GL528V1

C455

330

1.7

6.3V

VCR V
VCR A

VIDEO(REC)

S0
S2

AUDIO(REC)
VIDEO(PB)

PB V
PB A

R101
10k

:CHIP

S7
S8

AUDIO(PB)

D007

1SS119

R15

D006

MTZJ-T-77-5.1C

12

R15

R1

IC201

TDA7494

AUDIO OUT

R204

100

1/4W

:FPRD

R205

1k
1/10W
:CHIP

R206

R218

330k

220k

1/10W

1/10W

:CHIP

:CHIP

TV(R)

SW

0.3

0.1

F:CHIP

C209

0.33
50V

VOL

C211

2.2
50V

C208

4.7
50V

R211

10k
1/10W
:CHIP

C210

0.01

50V

13

TV A

NC

MON OUT

9.6

C214

220
25V

AUDIO

R210

2.2k
1/10W
:CHIP

R212

1k
1/10W
:CHIP

9.6

SVRR

GND

ST-BY SW

0.2

4.9

10

50V

C216

R901

4.7k
1/10W
:CHIP

GND

MUTE

PS201

C218
1000

25V

C217

0.47
50V

JW201

5MM

NC

VCC

14

OUT

GND

151413121110987654321

0.6

R216

2.2

1/4W

:FPRD

C219

0.1
25V

F:CHIP

R30

TEXT BUSY

S0

R902

100
1/10W
:CHIP

AUDIO AMP.

C220

25V1000

R219

220

1/10W

9.6

:CHIP

MA10

Q201

2SD601A-QRS-TX

MUTE

0

R220

4.7k
1/10W
:CHIP

R913

100
1/10W
:CHIP

Q903

2SD601A-QRS-TX

BUFFER

0

0

R910

330

1/10W

C906

0.1
25V

B:CHIP

AUDIO

R911

4.7k
1/10W
:CHIP

C912

0.1
25V

B:CHIP

C913

B:CHIP

1615

GND GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

0

V-BLK
TEXT RESET
TEXT BUSY
GND
GND
GND
GND
GND

1.1

CVBS(TEXT)

0.2

CVBS(AUTO CLOCK)

0.7

SYNC FILTER

1.3

IREF

26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

0.1
25V

R912

24k
1/10W
:CHIP

(1/3)

SAA5563PS/M3/0189

(SYSTEM CONTROL, MAIN µ-COM, VCR SERVO, A

D 5V 3.3V

TEXT/OSD

SLAVE RESET

XTAL OUT

11

XTAL IN
OSC GND

12

V SYNC
H SYNC

13

OSD BLK

IC901

TELE TEXT

L904
JW(5)

GND

SDA

SCL
GND
GND
GND
GND

Vddp

Vddc
Vssp

Vdda

GND

CORB

GND

NC

R
G
B

D901

MTZJ-T-77-5.6

5251504948474645444342414039383736353433323130292827

R904

100

1/10W

4.3

:CHIP

4.3

R905

:EL0606

C902

1

16V

F:CHIP

0

1.6

X901

1.6

F:CHIP

-0.1

0.5

DAN202K-T-146

R909

470

1/10W

D904

MTZJ-T-77-5.6B

:CHIP1/10W100
L901
10µH

CH:CHIP

C907

1

16V

R915

150

1/10W

F:CHIP16V1

C910

D903

OI

G

L78L33ABZ-AP

3.3V

C903

33p
50V

C904

33p
50V

CH:CHIP

L902
10µH

:EL0606

D902

MTZJ-T-77-3.9B

R916

150

1/10W

L903

C905

10µH

470

:EL0606

10V

AUDIO

IC902

3.3V REG

C901

0.001
50V

B:CHIP

C908

470
10V

R903

1/10W100

Q6

R908

Q5

1/10W100

Q4

R914

1/10W100

R919

150

1/10W

SW5V

Q3

Q2
Q1

R906

4.7k
1/10W
:CHIP

D905

Q902

MTZJ-T-77-3.9B

0

RESET SW

2SD601A-QRS-TX

0.6

:CHIP1/10W100

:FPRD1/4W100

CH:CHIP

R917

R918

R907

47k
1/10W
:CHIP

C909
100p

50V

Q901

2SB709A-QRS-TX

BUFFER

4.7

R922

3.3k

1/10W

0.1

R920

1/10W
:CHIP

1/10W
:CHIP

470

R921

1k

:CHIP

R929

4.7k

1/10W

20191817

Q904

2SD601A-QRS-TX

BUFFER

R923

R924

820

10k

1/10W

1/10W

:CHIP

:CHIP

4.5

0.4

0.1

R926

R927

22k

1k

1/10W

1/10W

:CHIP

:CHIP

R928
100k

1/10W

R925

47k
1/10W
:CHIP

R930

10k
1/10W

S4

1.2

1

2

C457

0.001
50V

B:CHIP

R1136

1.2k
1/10W
:CHIP

S1107

PH452

GP3S120

T.REEL

2

1

D 5V

R454

120

1/4W

:FPRD

1.2

C456

0.001
50V

B:CHIP

3

*

4

K2

L1L3L4

D1106

MTZJ-T-77-6.2B

D1107

MTZJ-T-77-6.2B

PH451

GP3S120

S.REEL

1

2

2

1

I1

I2

*

4

3

2.5

1/10W
:CHIP

T.SENS

R1116

820
1/10W
:CHIP

4.9

R1101

680
1/10W
:CHIP

Q452

RPT-37PBT32

TAKE-UP END SENSOR

L2

IC1101

IC SBX1981-51

SIRCS

1/10W
:CHIP

R456

47k

R1119
:CHIP

R455

47k

0

D456

C458

0.001
50V

B:CHIP

4.5

VCC

I4

I3

#

R457

33k
1/10W
:CHIP

K5

MTZJ-T-77-6.2

C1104

0.1
25V

F:CHIP

GND

OUT

R458

33k
1/10W
:CHIP

4.9

C460

0.001
50V

B:CHIP

Q453

RPT-37PBT32

SUPPLY END SENSOR

S.SENS

GND (A)

R468

47k
1/10W
:CHIP

REC PRF

D1110

O2

:CHIP

R076

1/10W

4.7k

S451

D 5V

S1108

POWERPAUSE

K1

1/10W

R067

100

1/10W

R068

100

C021

0.001
50V

B:CHIP
:CHIP

C022

0.001
50V

B:CHIP

:CHIP

T1

H4
H5

R15

CH:CHIP

R10

R21
R9

R098

T2

R009

1/10W
:CHIP

≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠

TEXT RST

C025
220p

50V

1/10W
:CHIP

1/10W
:CHIP

R060

1k

1/10W

:CHIP

100

R30

1k

R065

1k
1/10W
:CHIP

R064

1k
1/10W
:CHIP

R004

1k
1/10W
:CHIP

D 5V
GND(A)

R056

220
1/10W
:CHIP

1/10W
:CHIP

R001

1k

0

5.2

R059

1k

0

0

*

:CHIP1/10W

0

4.7

5.2

5.3

R013

1k
1/10W
:CHIP

D009

1SS355TE-17

Q003

UN2211-TX

INVERTER

R17

R4

R5

R057

1k

R053

2.2k

1/10W

R2

R3

:CHIP

0

4.1

R078

10k
1/10W
:CHIP

R077

47k
1/10W
:CHIP

R055

220
1/10W
:CHIP

5.2

0

64636261605958575655545352

R054

1k
1/10W
:CHIP

5.0

4.8

-0.1

CH:CHIP50V220p

C024

4.3

OVP

DGC SW

VPS ON

VPULSE

CRTPWR

AGC DEFEAT
NC
GND
NC
NC
VM SW
FRGB
TEXT BUSY

TEXT RST
SP MUTE
GP A
GP B
NC
ASURA CS
ASURA RST
NC
FACT MODE

19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

NC

R012

100
1/10W
:CHIP

VCRPWR

5.2

CXP85452-233Q-TL

5.2

0

HSYNC1

(REC)

SIRCS

SI

HSYNC0

23

22

21

20

0.2

0.2

4.9

0.2

R014

1k

H2

1/10W
:CHIP

R015

1k

K5

1/10W
:CHIP

CH:CHIP

MAIN µ-COM

SO

24

0.2

1.7

H3

R016

1k

1/10W
:CHIP

C001

30p
50V

C014

C015

10V100

Vss

HPULSE

910

IC001

BINT

SCK

Vss

26

25

5.2

H1

R075

1k

1/10W

:CHIP

R017

100
1/10W
:CHIP

F:CHIP25V0.1

MTZJ-T-77-6.2

L2

4.9

0.2

Vss

Vdd

VOL

Vdd

VSP INT

8

AUTO DGC

RESET

EXTAL

XTAL

30

29

28

27

0

2.6

2.6

5.2

R018

470

1/10W

:CHIP

X001

8.38MHz

D004

C013

10

50V

R084

220
1/10W
:CHIP

R048

680

R058

1/10W
:CHIP

1/10W
:CHIP

0.8

NS

LED

NC

SCL0
SCL1

(std By)

SDA0
SDA1

NC
NC
NC
NC
NC
NC

EXLC

XLC

NC

MODE
KEY0
KEY1

CLK CS

A MUTE

32

31

R085

1k

5.0

1/10W
:CHIP

R005

47k
1/10W
:CHIP

R026

1k

4.9

1/10W
:CHIP

C002

22p
50V

CH:CHIP

GND(A)

R1

R052

10k
1/10W
:CHIP

R029

1k

390

1/10W
:CHIP

R041

4.7k
1/10W
:CHIP

1/10W

R039

:CHIP

100

1/10W

51504948474645444342414039383736353433

:CHIP

4.3

4.3

R038

4.2

R037

4.2

1/10W

R036

100
1/10W
:CHIP

3.0

3.0

5.2

R027

0

5.2

5.2

R025

10k
1/10W
:CHIP

5.2

D001

R006

470

1/10W
:CHIP

0.2

Q008
UN2213-TX
INVERTER

R25

R096

6.8k
1/10W
:CHIP

R051

4.7k
1/10W
:CHIP

R097

10k
1/10W
:CHIP

R043

4.7k
1/10W
:CHIP

100

:CHIP1/10W

100

:CHIP

L001

:EL040518µH

:CHIP1/10W18k

:CHIP1/10W10k

R100

10k
1/10W
:CHIP

R022

4.7k

1/10W

B:CHIP50V0.001

:CHIP

C004

F:CHIP50V0.01

OI

G

IC003

PST572C-T

RESET IC

R044

4.7k
1/10W
:CHIP

C007

39p
50V

CH:CHIP

C009

0.001
50V

B:CHIP

R020

100
1/10W
:CHIP

R042

4.7k

R030

220
1/10W
:CHIP

R040

C005

MTZJ-T-77-6.2B

D.5V

L004
10µH

L002
10µH

:EL0607

C006

39p
50V

CH:CHIP

K1

K2

R045

0

:CHIP

Q8

Q1
Q2

R7

R049

4.7k
1/10W
:CHIP

D008

MTZJ-T-77-6.2B

Q7

C262

8p

50V

CH:CHIP

R3

IC002

4.3

4.3

C008

0.47
16V

F:CHIP

M24C16-MN6T

N.V.M

SDA

VSS

CLK

A2
A1

8 7 6 5

A0

VDD

R046

100
1/10W
:CHIP

R047

100
1/10W
:CHIP

JW001

5MM

D002

MTZJ-T-77-6.2

EXCEPT FOR KV-14/21FV1E

IC005

*

VPS PROCESSOR

GND

R011

Q1
Q2

R050

GND
NC

*

4.4

SCL
SDA
CSO
VCS
NC
DAVN
FHE

10 9 8 7 6 5 4 3 2 1

CVBS
IREF

4.4

*

5.3

VPS

D1108

MTZJ-T-77-6.2B

D1109

MTZJ-T-77-6.2B

X251

0.9

32.768kHz

0.7

IC252

S-3510ACFJA-TB

MEMORY

VDD

NC

(0.6)
<1.3>

X OUT SIO

(1.0)
<1.8>

SCL

X IN

4 3 2 1

GND

CS

CLOCK

D252

C263

8p

50V

CH:CHIP

MTZJ-T-77-6.2

D251

MTZJ-T-77-6.2

VIDEO(PB)

AUDIO(PB)

4321

L005

*

C099

C033

*

VDD

20191817161514131211

VDD

(1.4)

NC

<1.0>

1.5

VCO

PD2

NC

PD1

TI

(2.6)<0:PAL><5.1:SECAM>

R263

8765

100
1/10W
:CHIP

R264

100

1/10W
:CHIP

0.2

R265

0

:CHIP

*

R087

C018

*

R089

*

R090

*

R091

*

Q005

UN2213-TX

I/O SW

1.2

0.3

H1

D253

MTZJ-T-77-6.2

D254

MTZJ-T-77-6.2

L003

*

C010

*

*

R092

*

C017

*

C016

R088

*

C019

R083

*

C259

C258

0.33F

0.1

5.5V

25V

F:CHIP

0.2

Q006

UN2213-TX

I/O SW

10µH

L202

S0

AUDIO

R095

*

R093

*

*

*

L201
10µH

C260

100
10V

H2

H3

0.2

B-SS10253

T1

T2

987654321

10

GP A

GP B

LED(TMR REC)

LED(D.TMR)

TO H10 BOARD CN1301

D 5V

D.TMR

LED(REC)

LED(STBY)

EJECT

CN002

GND(A)

10P

VOLTAGE
no mark:REC/PB
( ):REC
< >:PB

– 66 – – 67 –

212019

R918

Q902

µ-COM, VCR SERVO, AUDIO)

N3

CN251

3P

:S-MICRO

1

SP L OUT

2

GND(SP)

3

GND(SP)

Q2
Q1

6
k

W

R907

47k
1/10W
:CHIP

RESET SW

2SD601A-QRS-TX

0.6

AUDIO

N2

N1

22

SPEAKER

23

C909
100p

50V

:FPRD1/4W100

CH:CHIP

2SB709A-QRS-TX

R920

470
1/10W
:CHIP

R921

1k
1/10W
:CHIP

IC002
C16-MN6T
N.V.M

4321

VSS

A

A2

K

A1
A0

D

FV1E

IC005

*

PROCESSOR

VDD
VDDD

NC

CVBS

IREF

VCO
PD2

NC

PD1

N

TI

VPS

Q904

2SD601A-QRS-TX

BUFFER

R923

R929

4.7k

1/10W

820
1/10W
:CHIP

4.5

R927

1/10W

:CHIP

0.1

1k

R924

10k
1/10W
:CHIP

R926

22k
1/10W
:CHIP

0.4

Q901

BUFFER

4.7

R922

3.3k

1/10W

0.1

:CHIP

VIDEO(PB)

AUDIO(PB)

L005

*

C099

C033

C018

R089

*

R090

*

L003

*

*

C010

*

*

R092

*

C017

*

C016

R088

*

C019

R083

*

*

20191817161514131211

(1.4)

R087

<1.0>

*

1.5

R091

*

(2.6)<0:PAL><5.1:SECAM>

R928

100k

1/10W

R925

47k
1/10W
:CHIP

R930

10k
1/10W

R095

R093

*

*

*

S0

AUDIO

*

L201
10µH

C911

0.001
50V

B

VIDEO(REC)

S0
S2

AUDIO(REC)

S30

S14

S7

S8

Q7
Q6
Q5
Q4

R7

Q3

Q2

Q1

Q8

R25

R2
R3
R4
R5

R17

R10

R21

R9
S19
S4

CN001

35P

1

VCR V

2

VCR A

3

GND FR V

4

FR LINE V

5

GND FR V

6

FR LINE A

7

GND(A)

8

PB V

9

PB A

10

TEXT VIDEO

11

SP AUDIO

12

B INT

13

OSD R

14

OSD G

15

OSD B

16

MODE

17

YM/YS

18

SDA1

19

SCL1

20

OVP

21

NS CTL

22

H PLS

23

V PLS

24

CRT PWR

25

VCR PWR

26

VPS ON

27

DGC SW

28

AUTO AGC

29

NC

30

NC

31

VM SW

32

F RGB

33

H SYNC 1

34

H SYNC 0

35

SSCP

TO A BOARD

CN301

MA10(1/3) BOARD * MARK LIST

Ref No. FR/AEP/UK model ESP model

C010 0.033 25V B:CHIP —
C016 0.022 B:CHIP —
C017 150p CH:CHIP —
C018 0.047 25V B:CHIP —
C019 0.033 25V B:CHIP —
C033 100 10V —
C099 0.1 25V F:CHIP —

IC005 SDA5650X-GEG —

L003 10µH —

L005 JW(5) —
R011 100 :CHIP —
R050 100 :CHIP —
R083 6.8k :CHIP —
R087 100k :CHIP —
R088 1.2M :CHIP —
R089 100 :CHIP —
R090 6.8k :CHIP —
R091 1.2M :CHIP —
R092 1M :CHIP —
R093 2.2k :CHIP —
R095 0 :CHIP —

MA10(1/3) BOARD WAVEFORMS

REC/PB

1

REC

2

3

—: Not used

REC/PB

C252

0ACFJA-TB

EMORY

R263

8765

VDD

100
1/10W
:CHIP

1.3>

SIO

R264

100

1.8>

1/10W

SCL

:CHIP

0.2

CS

R265

0

:CHIP

OCK

D252

MTZJ-T-77-6.2

D251

MTZJ-T-77-6.2

C258

0.1
25V

F:CHIP

Q005

UN2213-TX

I/O SW

1.2

H1

MTZJ-T-77-6.2

MTZJ-T-77-6.2

0.3

Q006

UN2213-TX

I/O SW

D253

D254

L202

0.2

C259

C260

0.33F

100

5.5V

10V

D202

H2

H3

0.2

10µH

B-SS10253<AEP>-MA10-P1-15

MTZJ-T-77-6.2



D201

MTZJ-T-77-6.2

5.0Vp-p (V)

REC/PB

4

3.8Vp-p (V)

REC/PB

7

4.9Vp-p (1.3msec)

REC/PB

10

5.3Vp-p (V)

REC/PB

13

3.5Vp-p (H)

4.4Vp-p (V) 5.0Vp-p (16MHz)

REC/PB

5

5.0Vp-p (20msec)

REC/PB

8

6

5.1Vp-p (1.6msec)

9

5.0Vp-p(8.38MHz) 5.5Vp-p (H)

REC/PB

11

2.5Vp-p (50nsec)

12

6.0Vp-p (V)

REC/PB

REC/PB

REC/PB

– 68 –

1

A

B

C

D

E

F

G

H

I

K

L

M

J

2

3

4.7

0.3

0.5

4.7

1.9

37

VIDEO RF

VIDEO RF

AUDIO(P

1

2

3

1 2

2728

1

2

3

4

5

6

7

R831

C1803

C

C1815

C18

R1804

C

IC1801

R1809

R1812

R1816

CN1002

CN1001

0

:CHIP

7P

3P

:S-MICRO

PB RF

GND

5V

REC RF

RF ENV

RF SWP

COMP SYNC

DATA

CLOCK

*

*

*

*

*

*

*

*

TO RP BLOCK

FE HEAD

NC

GND(AV)

A HEAD PB

A HEAD REC

GND(AV)

CTL(Y)

CTL(X)

AERASE HEAD

MODE

CLK IN

SYNC GATE

TIMING

SYNC-IN

SECAM CHROMA PROSESS

GND(AV)

TO
MA10(3/3)
BOARD

FULL ERASE HEAD

CTL

HEAD

AUDIO

REC/PB

HEAD

AUDIO

HEAD

ERASE

MA10(2/3) BOARD WAVEFORMS

1

3

0.32Vp-p (H)

5

0.25Vp-p (H)

7

1.0Vp-p (H) 3.8Vp-p (H)

9

2.3Vp-p (H) 2.4Vp-p (H)

11

REC:0.4Vp-p(H)

PB:0.3Vp-p(H)

12

REC:0.3Vp-p(H)

PB:0.2Vp-p (H)

15

REC:0.46Vp-p(H)

PB:0.3Vp-p (H)

17

0.38Vp-p (H)

20

3.8Vp-p (H)

Schematic diagram

<<

< MA10(1/3) board

<<

0.3Vp-p (H) 0.32Vp-p (H)

SECAM

REC

PB

PB

SECAM

REC REC

REC/PB

PAL SECAM

PAL

SECAM

PAL

PB

SECAM

REC/PB

SECAM

2

4

0.28p-p (H) 0.32Vp-p (H)

REC/PB

6

0.5Vp-p (H)

8

REC/PB

9

SECAM

11

REC:0.3Vp-p(H)

PB:0.2Vp-p (H)

REC/PB

13

0.4Vp-p(H)

SECAM

15

REC:0.3Vp-p(H)

PB:0.2Vp-p (H)

18

SECAM

1.0Vp-p (H)

PB

PAL

REC

REC

2

5

7

8

10

0.54Vp-p (4.43MHz)

12

REC:0.4Vp-p(H)

14

16

19

PB

SECAM

0.36Vp-p (H)

PB

PAL

REC

PAL

1.2Vp-p(H)

PB

4.0Vp-p (H)

REC/PB

PAL

PB:0.3Vp-p (H)

REC/PB

0.4Vp-p (H)

REC

SECAM

0.4Vp-p (H)

REC/PB

SECAM

0.38Vp-p (H)

– 69 –

MA10(2/3) BOARD * MARK LIST

Ref No. FR model AEP/UK/ESP model

C1801 0.01 B:CHIP —
C1802 150p CH:CHIP —
C1803 220p CH:CHIP —
C1804 0.0047 B:CHIP —
C1805 0,0047 B:CHIP —
C1806 0.1 25V B:CHIP —
C1807 0.01 B:CHIP —
C1808 0.01 B:CHIP —
C1809 0.001 B:CHIP —
C1810 0.01 F:CHIP —
C1811 0.01 F:CHIP —
C1812 47 10V —
C1813 82p CH:CHIP —
C1814 680p CH:CHIP —
C1815 0.01 B:CHIP —
C1816 220p CH:CHIP —
C1817 0.1 25V B:CHIP —
C1818 0.022 B:CHIP —
C1819 10 —
C1820 0.47 —
C1821 1 —
C1822 0.01 B:CHIP —
C1824 2.2 —
C1826 100p CH:CHIP —

IC1801 LA7337 —

L1801 6.8µH —
L1802 22µH —
L1803 68µH —
L1804 27µH —
L1805 JW(5) —

L1806 47µH —
Q1801 2SA1162-YG-TE85L —
Q1802 UN211L-TX —
Q1804 2SC2712-YG-TE85L —
Q1805 2SC2712-YG-TE85L —
Q1806 2SC2712-YG-TE85L —
Q1807 UN2213-TX —
Q1808 UN2111-TX —
R1801 47k :CHIP —
R1802 8.2k :CHIP —
R1803 9.1k :CHIP —
R1804 20k :CHIP —
R1805 27k :CHIP —
R1806 8.2k :CHIP —
R1807 1k :CHIP —
R1808 39k :CHIP —
R1809 27k :CHIP —
R1810 470 :CHIP —
R1811 5.6k :CHIP —
R1812 22k :CHIP —
R1813 15k :CHIP —
R1814 10k :CHIP —
R1815 47k :CHIP —
R1816 2.7k :CHIP —
R1817 47k :CHIP —
R1818 47k :CHIP —
R1819 10k :CHIP —
R1820 0 :CHIP —
R1821 27k :CHIP —
R1822 39k :CHIP —
R1823 10k :CHIP —
R1831 0 :CHIP —

—: Not used

Schematic diagram

MA10(2/3) board

,

,,

,,

– 7

0

2

4

V

W

01
CRO

(AV)

NC

EAD

2

L(X)
L(Y)

(AV)
D PB
REC

(AV)

HEAD

OCK

43

3
2
1

98765

10

VOLTAGE
no mark:REC/PB
( ):REC
< >:PB

11

12

13

SW5V

7
6
5
4
3
2
1

AUDIO(PB)

VIDEO RF(REC)

VIDEO RF(PB)

C1803

*

R1804

*

0.3

0.5

TIMING

SYNC-IN

SYNC GATE

*

IC1801

MODE

CLK IN

1 2 3 4 5 6 7 8 9 10 11 12 13 14

SECAM CHROMA PROSESS

4.7

*

R1812

1.9

*

R1816

C1821

R1809

*

C1824

*

C1804

*

4.7

(4.0)

OUT

SECAM-DET

AFC

FILTER

3.7

*

C1815

*

AUDIO(REC)

C1802

C1805

2.8

2.7

<4.5>

DET C

S/H C2

BGP

TIMING

4.3MHz

OFFSET

0.4

0.1

*

C1816

*

*

R1817

C1818

*

*

L1801

S/H C1

1.1MHz

OFFSET

0.1

C1814

4.3MHZ
BELL

*

Vcc

GND

2.4

R1831

*

*

R1818

L1804

C1822

2.4

2.4

R1802

2.4

BELL

4.3MHz

1.1MHz

BELL

*

R1811

R1813

Q1805

BUFFER

1.1MHZ

*

BELL

*

*

2.4

VREF4

VREF1

2.4

*

*

2.4

2.4

*

R1821

*

C1801

(1.8)

<4.7>

*

R1803

2.3

IREF1

2.2

(0.3)
<3.0>

*

R1805

2.1

IREF4

16

C1826

L1806

R882

39k
1/10W
:CHIP

R1801

*

C1806

2.4

LIM

EXC

REC-OUT

2.3

*

*

Q1801

BUFFER

*

*

PB-OUT

19

REG

4.3

R1810

R1820



R881

47k

L801

1/10W

470µH

:CHIP

C801

0.15
16V

B:CHIP

2.1

2SD601A-QRS-TX

BUFFER

R801

470
1/10W
:CHIP

Q801

R803

2.2k
1/10W
:CHIP

(3.1)
<4.7>

1.5

*

C1807

*

2.6

(0.4)

<4.7>

18

1516171819202122232425262728

PB-H

REC-IN

17

PB-IN

AGC

FILTER

R1807

2.4

(3.0)<2.4>

C1809

*

C1820

R1815

*

*

L1805

*

C1819

*

*

R1001
JW(5)

R1002

180

1/4W

:FPRD

R810

470

C804 C808

1/10W

39p

:CHIP

50V

(2.4)

CH:CHIP

<4.0>

Q803

2SD601A-QRS-TX

AMP

(2.4)
<0.8>

1/10W
:CHIP

R811

470
1/10W
:CHIP

Q1802

*

SECAM SW

5.2

*

C1813

*

L1803

*

*

C1001

0.047
100V

:PT

L803
39µH

:EL0405

R813

820

L804
39µH

:EL0405

C807

10p
50V

CH:CHIP

4.7

(0.3)
<4.7>

C1002

0.01
50V

F:CHIP

C1003

0.01
50V

B:CHIP

R814

470
1/10W
:CHIP

Q1807

R1823

C1817

VIDEO RF(PB)

0.01
50V

F:CHIP

SW5V

R1819

*

Q1808

(4.7)

*

<0.1>

SW

*

SW

*

3.8

*

Q1001

2SD879-AA

1

25

34

2.3

R1004

3.9k
1/10W
:CHIP

R1005

47

1/4W

:FPRD

1k

1/10W
:CHIP

1.7

OSC

(4.4)
<4.8>

C1004

47

10V

L1001
100µH

3.1

Q808

2SD601A-QRS-TX

AMP

C813
100p

50V

CH:CHIP

L808
15µH

R824

1k
1/10W
:CHIP

(1.1)<4.8>

R1003

1

1/4W

(1.0)<4.8>

T1001

7

6

8

R819 R823

22k
1/10W
:CHIP

R820

22k
1/10W
:CHIP

1.0

(B model only)

VOLTAGE: SECAM REC/PB mode

R1806

*

C1808

*

(0.2)

3.9

<3.3>

R1814

*

(3.1)
<3.5>

R1822

*

R1808

Q1806

*

BUFFER

Q1804

*

BUFFER

(3.6)
<3.2>

*

C1810

*

Q812

2SD601A-QRS-TX

BUFFER

R827

100
1/10W
:CHIP

(JOG)

0

Q809

UN2213-TX

JOG SW

C1811

*

R1006
1/10W

:CHIP

(3.9)
<0.3>

3.1

C1812

12k

2.5

R829

4.7k

1/10W

:CHIP

L1802

*

*

IC1001

BA7755AF-E2

AUDIO HEAD SW

1234

0

SW5V

5 6 7 8

R1007

18k
1/10W
:CHIP

2.2

VIDEO RF(REC)

2SD601A-QRS-TX

BIAS SW

47 10V

C1007

AUDIO(PB)

R1008

270
1/10W
:CHIP

C1006

0.01 50V B:CHIP

R835

470

VIDEO RF C

1/10W

:CHIP

Q815

1.5

2SD601A-QRS-TX

Y/C MIX

2.1

VIDEO RF(PB)

R875

0 :CHIP

C879
220p

50V

CH:CHIP

Q1002

L1003

C1009

10

50V

3.6k 1/10W :CHIP

L815

120µH

R837

10k
1/10W
:CHIP

C1011

0.0015
50V

B:CHIP

(0.8)<4.8>

4.7 50V

C1008

C1010

0.01 50V :PT

R1010

330k
1/10W
:CHIP

820 1/10W :CHIP

C823

1

50V

0.047 25V B:CHIP

R841

0.022 50V B:CHIP

0.01 50V F:CHIP

R843

470
1/10W
:CHIP

VIDEO RF Y

R840

100
1/10W
:CHIP

0.01 50V F:CHIP
C822

22

25V

C815

33p
50V

CH:CHIP

C819
390p

50V

CH:CHIP

C825
180p

CH:CHIP

R838

4.7k
1/10W
:CHIP

C868

22p
50V

CH:CHIP

R1014

1.2k
1/10W
:CHIP

R1013

18k

1/10W
:CHIP

C1012

0.0015

AUDIO(REC)

50V

B:CHIP

R1011

10k

1/10W

:CHIP

R1012

C1013

1 16V F:CHIP

C820

C824

0.01 50V F:CHIP

C816

C817

(3.1)<1.4>

R815

470

1/4W

:FPRD

C818

L809

100µH

(2.4)<1.8>

50V

R839

1.8k
1/10W
:CHIP

2.2

2.2

(2.2)
<0.1>

(0.8)
<0>

2.2

2.3

R1015

6.8k

2.2

1/10W

:CHIP

2.2

(2.7)
<2.2>

2.3

1.8

(2.5)<0>

(0)<3.0>

2.5

2.1

4

3.1

0

1.6

(0)<1.4>

VIDEO
(REC/PB)

R1020

100
1/10W
:CHIP

C1016

C1015

(3.9)

AMP

REC-EP,LP

AMP

EQ

BAL

1

KIL

PB-EQ

N

REC

EQ

DEMOO

TRICK

R1017

5.6k
1/4W

:FPRD

R1018

3.3k
1/10W
:CHIP

1

50V

<0.3>

2.2

80

A-H.SW

REC

BIAS

C-LPF

R

S-EQ

S

S

N

79

AUTO

REC

P

LIMIT

47 16V

R1019

10k
1/10W
:CHIP

0

REC

REC

RP

2

3

MOO

DOUBLE

C1014

0.01
50V

F:CHIP

123456789101112131415161718192021222324

A-GND

PB-EP

PB-LP,SP

TC1

HIGH OUT

5

PEAKING EMPH

SUB

LPF

MAIN

CLAMP

R

Y-GND

P

6

2526272829

2.2

3.1

C829

1 16V F:CHIP

Q821

BUFFER

VIDEO

2SD601A-QRS-TX

(REC/PB)

(1.1)<1.5>

R845

2.2k
1/10W
:CHIP

VIDEO(REC)

4.7

C1017

2.2

78

AMP

PB

P

FM

AGC

DET

50V

MUTE

LINE

PB

MAIN

EMPH

N.L.

EMPH

DETAIL

ENH

R

AGC

CLAMP

SW5V

R1023

5.6k
1/10
:CHIP

C1019

47

10V

C102

1

50

AUDIO(PB)

76

77

A-VCC

ALC

DET

ACC

DET

R

P

ACC

AMP

MAIN

CONV

YC

MIX

P

CLAMP

30 75

(2.2)<0>

(2.5)<3.1>

1 16V F:CHIP

C832

L

2.2

4.1

R847

C834

F

V

F
P
D
NC
NV

TA
CK

R831

0

:CHIP

)

– 70 –

– 71 –

12

13

14

1615

2120191817

22

R1014

1.2k
1/10W
:CHIP

R1013

18k

1

1/10W

15

:CHIP

IP

C1012

0.0015

AUDIO(REC)

50V

B:CHIP

.8>

4.7 50V

010

50V :PT

R1011

10k
1/10W
:CHIP

R1012

820 1/10W :CHIP

C1013

1 16V F:CHIP

C823

1

50V

C820

7 25V B:CHIP

C824

CHIP

0.01 50V F:CHIP

(0)<3.0>

C816

C817

1 50V F:CHIP

(3.1)<1.4>

43

70
10W
HIP

R815

RF Y

470

1/4W

:FPRD

C818

1 50V F:CHIP

822
22

25V

L809

(0)<1.4>

100µH

(2.4)<1.8>

819

50V
:CHIP

C825
180p

50V

CH:CHIP

R839

1.8k
1/10W
:CHIP

2.2

2.2

(2.2)
<0.1>

(0.8)
<0>

2.2

2.3

R1015

6.8k

2.2

1/10W
:CHIP

2.2

(2.7)
<2.2>

2.3

1.8

(2.5)<0>

2.5

2.1

4

3.1

0

1.6

VIDEO
(REC/PB)

SW5V

R1020

100

1/10W

C1014

0.01
50V

F:CHIP

123456789101112131415161718192021222324

A-GND

REC-EP,LP

PB-EP

AMP

PB-LP,SP

BAL

TC1

PB-EQ

EQ

HIGH OUT

TRICK

5

PEAKING EMPH

MAIN

6

R1017

5.6k
1/4W

:FPRD

R1018

3.3k
1/10W
:CHIP

C1015

1

50V

(3.9)

<0.3>

A-H.SW

REC

AMP

EQ

1

KIL

R

S

N

REC

DEMOO

SUB

LPF

R

P

80

S

N

2.2

AUTO

BIAS

REC

P

C-LPF

S-EQ

LIMIT

CLAMP

:CHIP

C1016

47 16V

R1019

1/10W
:CHIP

0

79

REC

REC

2

3

MOO

DOUBLE

Y-GND

10k

4.7

C1017

2.2

78

AMP

PB

P

RP

EMPH

EMPH

ENH

R

FM

AGC

DET

50V

AUDIO(PB)

76

77

A-VCC

MUTE

ALC

DET

LINE

PB

ACC

DET

P

ACC

AMP

MAIN

CONV

MAIN

N.L.

MIX

DETAIL

P

AGC

CLAMP

L1004

R1023

5.6k
1/10W
:CHIP

C1019

47

10V

C1020

1

50V

75

R

YC

CLAMP

47µH

2.2

VREF

BGA

SUB

BPF

BPF2

CTL

7

REG

2.2

74

REC

P

PIC

123

AUDIO(REC)

R1024

68k
1/10W
:CHIP

R1025

10 50V

1/10W
:CHIP

C1021

(1.0)<0>

71

72

73

ALC

R,A B

P

R

PB

BGA-B

SUB

CONV

BPF1

R

DHP

NC

CLAMP

R872

2.2k
1/10W
:CHIP

2.2M

0.2

CTL

DE-EN

PR

AGC

N.L.

VIDEO

252627282930313233343536373839

2.2

3.1

C829

1 16V F:CHIP

Q821

BUFFER

VIDEO

2SD601A-QRS-TX

(REC/PB)

(1.1)<1.5>

R845

2.2k
1/10W
:CHIP

4.1

(2.2)<0>

(2.5)<3.1>

R847

0 :CHIP

1 16V F:CHIP

C834

C832

0.1 25V F:CHIP

C835

0.1 25V F:CHIP

47 10V

C837

0.2

R804

2.2k 1/10W :CHIP

3.0

(2.2)<0>

R849

:CHIP

L811
22µH

C840

100
10V

F:CHIP

VIDEO(REC)

R871

2.2k
1/10W
:CHIP

C846

R873

0.01

1k

50V

1/10W

B:CHIP

:CHIP

0.9(1.5 SECAM)<0.9 SECAM>

69

SECAM

DET

DECODER

SERIAL

APC

DET

PB

AFC

DET

TH

DL

EQ

KIL

FBC

R

SEP

Y-VCC

68

P

SYNC

67

IN

RF SW

COMB

PR

1/2

INS

QV/QH

VIDEO

AMP

2.3

IN

DET

66

C-ROT

KIL

LPF

0.4

4.1(SECAM)

65

10

VX02

VX01

REC

APC

DET

LPF VCO INV

SLD

NAP

P

R

YNR CLAMP

9

OUT

BPFAMP CNC

70

MUTE

R

2.4

PB

BGA-A

P

P

B.D

8

40

C845

C841

10

50V

0

C842

0.01
50V

0.6

C843

100
10V

R848

4.7k
1/10W
:CHIP

1.8

VIDEO(PB)

1

3.0

16V

F:CHIP

(0)<3.0>

R850

4.7k
1/10W
:CHIP

Q830

2SB709A-QRS-TX

BUFFER

0.8

C844

10

50V

R885

1k
1/10W
:CHIP

(0)<3.8>

0

0

ACK

1.8

0.047 25V B:CHIP

3.6

2SD601A-QRS-TX

X801

2.0

4.43MHz

(0.2 SECAM)
<3.3 SECAM>

C-GND

2.2

C847

0

0.1
25V

F:CHIP

3.0

(0)

1.5k 1/10W :CHIP

<3.7>

0

3.7

2.6

C849

1

50V

(0.2)<2.7>

1.8

1.7

NT+2FSC

0.4

1.9

60/50C-VCC

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

IC802

LA71514M-MPB

Y/C PROCESSOR

1.5

R883

1k
1/10W
:CHIP

C828

0.01
50V

F:CHIP

1k 1/10W :CHIP

C855

Q822

CLK BUFFER

2.1

R859

1.8k

R862

1/10W

680

:CHIP

1/10W
:CHIP

R856

8.2k
1/10W
:CHIP

C850

0.01
50V

F:CHIP

R852

0.022

B:CHIP

C852

47 10V

C853

0.1 25V F:CHIP

C848

0.01
C854

50V

F:CHIP

50V

MA10

R857

1k
1/10W
:CHIP

R858

C859

0.1
25V

F:CHIP

1.4

C858

1

50V

C851

0.047
25V

B:CHIP
C856

1

50V

C857

50V

L812
22µH

1

R860

3.3k
1/10W
:CHIP

(2/3)

R861

47k
1/10W
:CHIP

L813
47µH

R867

C860

2.2k

1

1/10W

16V

:CHIP

F:CHIP

2.0

SW5V

VIDEO(PB)

(Y/C PROCESS,SECAM CHROMA PROCESS)

GND(A)
PB A

TO
MA10(1/3)

SW 5V

BOARD

GND(A)
PB V

TO SERVO BLOCK

CTL(X)
CTL(Y)
VCR A
A MUTE
SDA
SCL

NT JUDGE

ME SECAM

QVD
VCR V

SECAM ON≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠
SECAM DET

0.0039 50V B:CHIP

C861

0.01
50V

F:CHIP

11

C862

0.01

50V

F:CHIP

2SB709A-QRS-TX

Y BUFFER

IC801

LC89977M-TE-L

1H DELAY

2.6

1234567

C-IN1

VDD

2.6

12

C-IN2

NC

2.2

13

Y-IN

NC

1.4

14

Y-OUT

Q824

C-OUT

NT+2FSC

VIDEO(REC)

AUDIO(PB)

C863

47 10V

C864

VSS

1.3

4FSC

0.9

CLK

2.1

VCO

9.0

8 9 10 11 12 13 14

RD

R870

2.2k

1/10W

1.2

:CHIP

Q825

2SD601A-QRS-TX

C BUFFER

15

0.4

C865

0.1 25V B:CHIP

R869

1k 1/10W :CHIP

C867

0.01 50V B:CHIP

C866

0.1
25V

B:CHIP

VIDEO(PB)

AUDIO(REC)

TO
MA10(1/3)
BOARD

– 72 –

COMP SYNC
RF ENV
RF SWP
DATA
CLOCK

B-SS10253<AEP>-MA10-P2-15

A

B

C

D

E

F

1

SP CH2

SP CH1

2

CN701

6P

1

LP2 S

2

LP COMMON F

3

LP1 S

4

SP2 S

5

SP COMMON F

6

SP1 S

VOLTAGE
no mark:REC/PB
( ):REC
< >:PB

1
2
3
4
5
6

VIDEO
RF(PB)

43

C711

0.022

F:CHIP

VIDEO
RF(PB)

C705

R702

0.022

680

50V

1/10W

F:CHIP

:CHIP

C706

VIDEO RF(REC)

22p
50V

CH:CHIP

C701

0.022
50V

F:CHIP

C709

39p
50V

CH:CHIP

C707

0.022
50V

F:CHIP

C717

0.01
50V

F:CHIP

C728

0.01
50V

F:CHIP

50V

C713

39p
50V

CH:CHIP

C712

0.022
50V

F:CHIP

R701

100
1/10W
:CHIP

(1.8)
<2.2>

(3.8)

<0>

(0.1)
<0.6>

(3.8)

<0>

(0)

<0.6>

(3.8)

<0>

(4.5)
<2.1>

C716

0.022
50V

F:CHIP

2.1

0.6

0.6

0.01 50V F:CHIP

C727

50V

(3/3)

10

VIDEO
RF(PB)

1
2
3
4

98765

IC701

HA118295NT

VIDEO REC/PB AMP

123456789101112131415

SW7

REC

SP

SW3

SW4

SW8

SW9

0

SW5

0

SW6

SW10

REC

REC

REC

PB

PB

SP

EP

PB

PB

EP

SW1

SW2

REC

REC

SP

DET

DET

COMP

EP

VCA

R.MUTE

REC

ADJ

DET

1

VCA

IDLE

REC

DET

SP/EP

ENV DET

AGC CONT

LOGIC

REC/PB

T.PLAY

DET

HPF AMP

ENV

VCC

VCC

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

C720

100
10V

R705

1.8k
1/10W
:CHIP

(3.6)
<4.8>

C718

0.01
50V

F:CHIP

(1.9)
<2.2>

(0.3)
<1.3>

(1.6)
<0.8>

3.6

(1.2)
<2.9>

3.2

3.1

0.3

(2.8)
<2.2>

F:CHIP

L703

100µH

1/10W
:CHIP

F:CHIP

C719

0.1
25V

F:CHIP

F:CHIP

1/10W
:CHIP

3

R706

22k
1/10W
:CHIP

L704

100µH

4

F:CHIP

C723

0.1
25V

C724

100
10V

R708

1k

2SD601A-QRS-TX

C725

0.1
25V

(1.2)
<2.9>

C702

0.01
50V

VIDEO
RF(PB)

R707

10k

C722

0.1

25V

VIDEO
RF(REC)

Q701

BUFFER

(0.6)
<2.2>

R709

3.3k
1/10W
:CHIP

2

VIDEO
RF(PB)

R710

1k
1/10W
:CHIP

VIDEO RF(REC)

R711

1k
1/10W
:CHIP

R712

1k
1/10W
:CHIP

MA10

C726

0.01

F:CHIP

11

CN702

4P

REC CUR
PB RF
RF SWP
GND

CHECK CONNECTOR

CLOCK
DATA

COMP SYNC
RF SWP
RF ENV
GND
REC RF
5V

PB RF
GND

TO
MA10(2/3)
BOARD

(AC IN, VIDEO REC/PB AMP)

G

H

AC IN

CN1701

2P

:VH

AC IN
AC IN

CN1703

0P

:TAB

GND

F1701

1
2

1

:FUSE

FH1701

C1703

0.0047
250V

E

VDR601

S1701

23

41

R1701

1M

1/2W

C1701

0.1
300V
:MPS

T1701

1

3

JW186

12.5MM

JW185

12.5MM

2

C1702

0.1
300V
:MPS

4

CN1702

1

AC

2

NC

3

NC

4

NC

5

AC NUET

TO A BOARD
CN601

5P

:VH

B-SS10253<AEP>-MA10-P3-15

• MA10 (3/3) BOARD WAVEFORMS

REC

1

62mVp-p (H)

REC/PB

34

2.2Vp-p (H)

2

PB

0.36Vp-p (H)

PB

5.0Vp-p (H)

– 73 – – 74 –

5-4.SEMICONDUCTORS

E

B

C

IC

BA10393F-E2
BA6305F-E2
BA7755AF-E2
M24C16-MN6T
NJM062M
S-3510ACFJA-TB

1

TOP VIEW

8pin SOP

CXA1855Q

3748

1

12

13 24

TOP VIEW

36

25

CXA2139S

1

TOP VIEW

48pin DIP

CXP85452-233Q-TL

3351

52

64

TOP VIEW

32

20

191

CXP87852-063Q-TL

5180

81

INDEX

100

TOP VIEW

50

31

301

GP3S120

HA118295NT

1

TOP VIEW

30pin DIP

LA6393DLL
M5216P

1

TOP VIEW

8pin DIP

LA71514M-MPB

65

80

TOP VIEW

LA7337

1

TOP VIEW

28pin DIP

LA7840L

MARKING SIDE VIEW

1

7pin SIP

LB1643

1

5

LC89978M-TE-L

1

TOP VIEW

16pin SOP

L78L33ABZ-AP

1

2

3

TRANSISTOR

MC33364DR2

SDA5650-GEG

BC327-25
BC337-25
2SA1091O
2SC1815-GR

1

TOP VIEW

16pin SOP

PC123F2

4164

40

25

241

1

4

3

2

PQ05RD11

1

TOP VIEW

20pin SOP

SE-135N-LF4

1

2

3

2SD879

E

C

BF420-126

B

PQ09RD11

SI-3120C

2SA1837
2SC4793

B

C

E

2SA933AS-QT
2SC2785-HFE

LETTER SIDE

E

C

B

DAP202K

3

2

1

2

1

DTZ10B
DTZ-TT11-16B
MA111
1SS355TE-17

ANODE

CATHODE

RU4AM-T3

CATHODE

3

ANODE

RN1Z-LF-B1
RN3Z-LF014-302

CATHODE

ANODE

D2SB60F

UDZS-TE17-5.6B
UDZS-TE17-9.1B

ANODE

CATHODE

1

2

3

4

PQ30RV11

2

1

4

3

5

STR-F6654-LF135

B

C

E

BU4508DX-ON5210
2SC5388

2SK2251-01
2SK2733(LBS4SONY)

G

D

S

-

-

~

D4SB60L

~

-

GL528V1

-

-

~

~

-

-

~

EGP30D

CATHODE

ANODE

MTZJ-13
MTZJ-4.3B
MTZJ-4.7C
MTZJ-5.1C
MTZJ-6.2B
RD10ESB2

-

~

-

CATHODE

ANODE

SLR-325DCT31
SLR-325VCT31

ANODE

CATHODE

1

4

PST572C

2

3

1

SAA5563PS/M3/0189

1

TOP VIEW

52pin DIP

SBX1981-51(21)

1

3

2

4

5

TDA7494

MARKING SIDE VIEW

1

15pin ZIP

µPC1093J-1-T

B

E

C

DTC114TK
UN211L
UN2113
UN2211
UN2213
2SA1037AK-T146-R
2SA1162-G
2SC1623-L5L6
2SC2712-YG
2SD601A-Q

RPT-37PBT32
RPT-37PB3F

DIODE

AK04V0
D1NL20U
D1NL20U-TR2
D2S6MF
EGP20G
EL1Z
ERA22-08
ERC06-15S
GP08D
RG1C-LFC1
1SS133T-77

CATHODE

RD18ES-B2
RD3.9ES-B2

µPC574J

ANODE

3

1

2

ANODE

CATHODE

E

C

DAN202K

2

1

2

1

3

3

RD39ES-B2
RD5.6ESB2
RD6.2ESB-2
RD6.8ES-B2
RD8.2ES-B3
RD9.1ES-B3
1SS119-25
11ES2

CATHODE

ANODE

– 75 – – 76 –

SECTION 6

12

3

2

4

5

8

10

9

11

1

30
31
32

15

16

20

17

29

18

19

22

23

14

24

27

28

26

27

28

21

13

25

6

7

EXPLODED VIEWS

The components identified by shading
and mark
Replace only with part number specified.

! are critical for safety.

NOTE:

• Items with no part number and no description are
not stocked because they are seldom required
for routine service.

6-1. PICTURE TUBE

: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
: 7-685-663-79 +BVTP 4X16

• The construction parts of an assembled part are
indicated with a collation number in the remark
column.

• Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

– 77 –

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­18 4-074-601-01 SPACER, DY (14inch model)

18 4-704-495-01 SPACER, DY (21inch model)
19 2-163-920-01 PLATE, TLH CORRECTION
20 ! 8-738-570-05 PICTURE TUBE (A34LRG70X)

20 ! 8-738-836-05 PICTURE TUBE (A51LPT60X)

21 ! 1-416-864-12 COIL, VM
22 ! 8-451-401-21 DEFLECTION YOKE (Y14RSA-L)

22 ! 8-451-505-41 DEFLECTION YOKE (Y21RSA-L)
23 ! 1-452-728-61 COIL, NA ROTATION (RT-154)
24 4-369-318-21 SPRING, TENSION
25 ! 1-419-548-11 COIL, DEGAUSSING (14inch model)

25 ! 1-419-772-11 COIL, DEGAUSSING (21inch model)
26 4-203-390-11 CUSHION, DGC (21inch model)
27 4-205-377-01 HOLDER, DGC (14inch model)
27 4-204-900-01 BAND, DGC (21inch model)

28 4-205-314-01 REAR COVER (14) (14inch model)
28 4-205-316-01 REAR COVER (21) (21inch model)
29 ! 1-251-317-32 CAP ASSY, HIGH VOLTAGE 17

30 1-452-032-00 MAGNET,DISK ; 10mmø
31 1-452-094-00 MAGNET, ROTATABLE DISK ; 15mmø
32 4-051-736-21 PIECE A(90), CONV. CORRECT

(14inch model)
(21inch model)

(14inch model)
(21inch model)
(21inch model)

(14inch model)

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­ 1 X-4200-633-1 BEZNET ASSY (14FV1D, 14FV1E) 2-13

1 X-4200-643-1 BEZNET ASSY (14FV1B) 2-13
1 X-4200-644-1 BEZNET ASSY (14FV1U) 2-13
1 X-4200-628-1 BEZNET ASSY (21FV1D, 21FV1E) 2-13
1 X-4200-638-1 BEZNET ASSY (21FV1U) 2-13

1 X-4200-639-1 BEZNET ASSY (21FV1B) 2-13
2 4-205-325-01 GUIDE, LIGHT
3 4-050-155-01 SPRING, FL
4 4-205-318-01 DOOR, CONTROL
5 4-205-326-01 WINDOW, REMOTE

6 3-703-035-11 SHAFT, LID
7 4-072-192-01 CHATCHER, PUSH
8 4-045-250-01 DAMPER
9 4-204-426-01 SPRING
10 4-205-387-01 LABEL CONTROL (AEP/ESP/UK model)

10 4-205-387-11 LABEL CONTROL (FR model)
11 4-205-323-01 BUTTON, POWER
12 4-205-319-01 TRAY, CASSETTE
13 * 4-203-553-11 SHEET, BLOTTING (21inch model)
14 * A-1639-006-A CVM BOARD COMPLETE (14inch model)

14 * A-1639-005-A CVM BOARD COMPLETE (21inch model)
15 1-529-474-11 SPEAKER (5CM) (14inch model)
15 1-529-710-11 SPEAKER (5X9CM) (21inch model)
16 4-365-808-01 SCREW (5), TAPPING
17 4-203-097-01 HOLDER, HV (14inch model)

6-2. CHASSIS

: 7-685-648-79 +BVTP 3X12
: 7-682-147-01 +P 3X6

The components identified by shading
and mark
Replace only with part number specified.

! are critical for safety.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

52

53

64

54

56

55

57

68

69

51

67

62

61

66

65

70

59

63

71

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­51 * A-1632-904-A A BOARD, COMPLETE (14FV1D,14FV1E)

51 * A-1632-910-A A BOARD, COMPLETE (14FV1B)
51 * A-1632-911-A A BOARD, COMPLETE (14FV1U)
51 * A-1632-900-A A BOARD, COMPLETE (21FV1D,21FV1E)
51 * A-1632-907-A A BOARD, COMPLETE (21FV1B)

51 * A-1632-906-A A BOARD, COMPLETE (21FV1U)
52 4-205-324-01 BUTTON, RECORDING
53 4-205-332-01 BUTTON, MAIN POWER
54 * A-1635-042-A MA10 BOARD, COMPLETE(14FV1D,14FV1U)
54 * A-1635-043-A MA10 BOARD, COMPLETE (14FV1E)

54 * A-1635-044-A MA10 BOARD, COMPLETE (14FV1B)
54 * A-1635-042-A MA10 BOARD, COMPLETE(21FV1D,21FV1U)
54 * A-1635-043-A MA10 BOARD, COMPLETE (21FV1E)
54 * A-1635-044-A MA10 BOARD, COMPLETE (21FV1B)

55 1-900-905-61 CONNECTOR ASSY 35P
56 1-900-905-74 CONNECTOR ASSY, MICRO 5P (21inch model)
57 1-900-905-56 CONNECTOR ASSY 7P
58 1-900-905-60 CONNECTOR ASSY 5P
59 4-205-331-01 BOARD TERMINAL

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­60 3-979-508-01 SCREW +HXA TPSW 3X8

61 8-598-536-00 FRONTED BTF-EF412 (VTR) (FR model)
61 8-598-532-00 FRONTED BTF-EC402 (VTR) (AEP/ESP model)
61 8-598-528-00 FRONTED BTF-EU602 (VTR) (UK model)
62 8-598-536-00 FRONTED BTF-EF412 (TV) (FR model)

62 8-598-532-00 FRONTED BTF-EC402 (TV) (AEP/ESP model)
62 8-598-528-00 FRONTED BTF-EU602 (TV) (UK model)
63 ! 8-598-852-00 TRANSFORMER ASSY, FLYBACK (NX-1912//M)

63 ! 1-453-314-11 TRANSFORMER ASSY, FLYBACK
64 * A-1646-216-A H10 BOARD, COMPLETE
65 ! 1-765-286-11 CORD, POWER (AEP,ESP,FR model)

65 ! 1-776-860-12 POWER CORD, FILTER (UK) (UK model)
66 4-022-115-00 HOLDER, AC CORD
67 * 4-205-333-01 COVER, TOP
68 * 4-316-015-00 HOLDER, WIRE

69 * 4-205-327-01 BRACKET, MAIN
70 ! 1-900-900-24 LEAD ASSY, FOCUS

71 1-419-494-44 COIL, CHOKE 56.0MM (21inch model)

(14inch model)
(21inch model)

– 78 –

6-3. MECHANISM DECK ASSEMBLY (1)

: 7-685-646-79 +BVTP 3X8

207

208

206

205

204

203

224

210

209

Not supplied

212

211

202

201

201

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­201 3-977-509-01 WASHER, THRUST

202 3-977-507-01 TABLE, REEL (S)
203 3-977-508-01 TABLE, REEL (T)
204 1-500-471-11 HEAD, FE
205 3-977-495-01 SHAFT TG2

206 3-977-494-01 HOLDER, FEH
207 A-6759-619-B FL COMPLETE ASSY 208-210
208 3-977-535-01 PLATE, LUMINOUS(END SENSOR)
209 3-977-536-01 PLATE, LUMINOUS(TOP SENSOR)
210 3-970-471-01 SPRING (DECK OPEN), TORSION

211 A-6759-863-B PRESS BLOCK ASSY, PINCH 212
212 3-958-455-01 SPRING (PINCH), TENSION

213

221

223

220

222

219

216

214

215

217

218

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­213 3-977-447-01 GEAR, ELEVATOR

214 3-977-514-01 OPENER, LID
215 3-977-441-03 GEAR, PINCH PRESSING

216 3-977-445-02 GEAR, TG8 ARM DRIVING
217 3-062-763-01 SPRING,EXTENSION(RVS BRAKE)
218 X-3947-582-1 ARM ASSY, RVS BRAKE
219 3-977-446-01 GEAR, TG8 ARM
220 X-3947-590-1 TG8 ASSY 221,222

221 3-059-300-03 LOCK ACE SCREW
222 3-059-958-01 SPRING, TG8
223 A-6775-791-A ACE BLOCK ASSY (ALPS) (EURO3)
224 3-979-508-01 SCREW +HEXA TP SW 3X8

– 79 –

6-4. MECHANISM DECK ASSEMBLY (2)

: 7-685-646-79 +BVTP 3X8

266

269

267

268

253

258

256

255

254

260

257

252

251

261

265

262

259

263

263
262

264

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­251 X-3947-581-4 BRAKE ASSY,MAIN(T)

252 3-977-462-01 SPRING,EXTENTION. (MAIN BRAKE)
253 X-3947-573-1 ARM ASSY, PENDULUM
254 X-3947-580-5 BRAKE ASSY, MAIN(S)
255 3-050-810-04 LEVER, REC. PROOF

256 3-976-767-01 SPRING, TENS. (REC. PROOF)
257 3-977-487-01 BOSS, TG1 FULCRUM
258 X-3950-427-1 TG1 ASSY (SD)
259 3-969-632-04 BASE, DRUM
260 3-977-488-01 SPRING (POWER TENSION)

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­261 A-6775-922-A SHUTTLE (S) BLOCK ASSY, ST 262,263

262 3-965-178-01 SPRING
263 X-3948-050-1 ROLLER ASSY, GUIDE
264 A-6750-328-G SHUTTLE (T) BLOCK ASSY 262,263
265 3-977-501-01 PLATE, LUMINOUS

266 A-6746-074-G ROLLER BLOCK ASSY, HC 267,268
267 X-3947-255-1 ROLLER ASSY, HC
268 3-975-724-07 ARM, HC
269 x-xxx-xxx-xx DRUM ASSY (XXX)

– 80 –

6-5. MECHANISM DECK ASSEMBLY (3)

: 7-685-646-79 +BVTP 3X8
: 7-685-133-19 +BVTP 2.6

316

315

317

334

333

304

332

312

309

305

311

310

308

306

303

314

313

307

336

328

327

326

318

329

335

303

319

320

321

322

323

324

325

331

303

302

337

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­301 3-977-437-01 RETAINER,CAM MOTOR

302 X-3947-584-1 ASSY, REEL DIRECT
303 3-977-443-01 WASHER, STOPPER
304 3-977-438-01 WORM - WHEEL
305 3-977-506-01 ARM, LIMITTER SELECTION

306 3-977-444-01 GEAR, PINCH TRANSMISSION
307 3-977-515-01 GUIDE, FL SLIDER
308 3-977-517-01 PLATE, SLIDE, FL
309 3-977-519-01 SPRING, TENS. (LIMIT, FL)
310 3-977-518-02 PLATE, LIMITTER, FL

311 3-977-516-01 HOLDER, FL SLIDER
312 3-977-877-01 PLATE, RETAINER
313 3-977-504-01 GEAR, CLUTCH
314 X-3947-585-1 GEAR ASSY, PULLEY
315 3-977-510-01 BELT, RUBBER

316 3-056-952-11 WASHER, STOPPER
317 3-977-439-01 GEAR, CAM
318 3-977-442-01 SLIDER
319 3-977-455-01 GEAR, LOADING(T)

301

330

– 81 –

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- ------------­320 3-977-456-03 SPRING, TORSION (LOAD T)

321 X-3948-132-2 LEVER ASSY, LOADING(T)
322 3-977-451-01 GEAR, LOADING(S)
323 3-977-452-01 SPRING, TORSION (LOAD S)
324 X-3948-133-1 LEVER ASSY, LOADING(S)
325 A-6759-616-A GEAR BLOCK ASSY, LOADING(S)322-324

326 3-977-468-01 SHAFT, CAPSTAN BRAKE
327 3-977-467-02 SPRING, CAP BRAKE
328 X-3947-583-1 BRAKE ASSY, CAPSTAN
329 3-977-489-01 ARM, TG1 DRIVING
330 3-989-917-01 SPACER (REC PROOF)

331 X-3947-577-1 MOTOR ASSY, CAM (LOADING) 332-334
332 1-766-723-21 CONNECTOR, BOARD TO BOAR 3P
333 1-541-309-11 MOTOR, L (RF-370C)
334 3-977-436-01 WORM
335 3-056-824-01 WASHER, STOPPER

336 1-698-971-11 MOTOR, DC
337 3-974-477-01 WASHER, (GEAR, LIMITTER)

SECTION 7

The components identified by shading
and mark

ELECTRICAL PARTS LIST

Replace only with part number specified.

A

NOTE:

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

The components identified by shading and

! are critical for safety.

mark
Replace only with part number specified.

Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

TV BLOCK

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

*A-1632-910-AA BOARD, COMPLETE (KV-14FV1B)

*A-1632-904-AA BOARD, COMPLETE (KV-14FV1D/14FV1E)

*A-1632-911-AA BOARD, COMPLETE (KV-14FV1U)

*A-1632-907-AA BOARD, COMPLETE (KV-21FV1B)

*A-1632-900-AA BOARD, COMPLETE (KV-21FV1D/21FV1E)

*A-1632-906-AA BOARD, COMPLETE (KV-21FV1U)

1-555-110-00 CABLE, PIN (TU101-CP101)
4-382-854-01 SCREW (M3X8), P, SW (+)

4-382-854-11 SCREW (M3X10), P, SW (+) (IC606)

C101 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C102 1-126-964-11 ELECT 10UF 20.00% 50V
C103 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C104 1-104-664-11 ELECT 47UF 20.00% 25V
C105 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V

C106 1-104-664-11 ELECT 47UF 20.00% 25V
C107 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C108 1-126-964-11 ELECT 10UF 20.00% 50V
C109 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C110 1-104-664-11 ELECT 47UF 20.00% 25V

C111 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C112 1-104-664-11 ELECT 47UF 20.00% 25V
C113 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V
C114 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V
C115 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V

C116 1-164-346-11 CERAMIC CHIP 1UF 16V
C117 1-164-346-11 CERAMIC CHIP 1UF 16V
C118 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C119 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C120 1-163-809-11 CERAMIC CHIP 0.047UF 10.00% 25V

C121 1-104-760-11 CERAMIC CHIP 0.047UF 10.00% 50V
C122 1-163-253-11 CERAMIC CHIP 120PF 5.00% 50V
C123 1-163-253-11 CERAMIC CHIP 120PF 5.00% 50V
C124 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V
C301 1-126-963-11 ELECT 4.7UF 20.00% 50V

C302 1-163-233-11 CERAMIC CHIP 18PF 5.00% 50V
C303 1-126-964-11 ELECT 10UF 20.00% 50V

C304 1-163-233-11 CERAMIC CHIP 18PF 5.00% 50V
C306 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V
C307 1-126-957-11 ELECT 0.22UF 20.00% 50V

C308 1-115-185-11 CERAMIC CHIP 0.033UF 10.00% 50V

****************************

***************************

***************************

***************************

***************************

***************************

(IC501, IC603, IC605, IC608, IC610, Q802)

<CAPACITOR>

• Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

• All variable and adjustable resistors have
characteristic curve B, unless otherwise noted.

RESISTORS

• All resistors are in ohms

• F : nonflammable

(21inch model)

(14inch model)

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C308 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C309 1-126-965-11 ELECT 22UF 20.00% 50V

C310 1-126-964-11 ELECT 10UF 20.00% 50V
C311 1-104-664-11 ELECT 47UF 20.00% 25V

C312 1-126-963-11 ELECT 4.7UF 20.00% 50V
C313 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C315 1-104-664-11 ELECT 47UF 20.00% 25V
C317 1-126-964-11 ELECT 10UF 20.00% 50V
C318 1-104-665-11 ELECT 100UF 20.00% 25V

C319 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C320 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C321 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C322 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C323 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C325 1-104-664-11 ELECT 47UF 20.00% 25V
C326 1-126-960-11 ELECT 1UF 20.00% 50V

-------------------------------------------------------------------------------------------------------------------------------

C327 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C328 1-107-714-11 ELECT 10UF 20.00% 16V
C329 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V

C330 1-104-665-11 ELECT 100UF 20.00% 25V
C333 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C335 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C339 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C401 1-126-964-11 ELECT 10UF 20.00% 50V

C402 1-126-964-11 ELECT 10UF 20.00% 50V
C403 1-126-964-11 ELECT 10UF 20.00% 50V
C404 1-126-964-11 ELECT 10UF 20.00% 50V
C405 1-104-664-11 ELECT 47UF 20.00% 25V
C406 1-164-346-11 CERAMIC CHIP 1UF 16V

C407 1-164-346-11 CERAMIC CHIP 1UF 16V
C408 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C410 1-104-664-11 ELECT 47UF 20.00% 25V
C412 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C413 1-126-935-11 ELECT 470UF 20.00% 6.3V

C414 1-164-346-11 CERAMIC CHIP 1UF 16V
C418 1-164-346-11 CERAMIC CHIP 1UF 16V
C419 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C420 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C421 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C501 1-126-934-11 ELECT 220UF 20.00% 16V
C502 1-126-960-11 ELECT 1UF 20.00% 50V
C504 1-107-910-11 ELECT 100UF 20.00% 50V
C505 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C507 1-107-910-11 ELECT 100UF 20.00% 50V

C508 1-106-220-00 MYLAR 0.1UF 10.00% 100V
C509 1-137-194-81 FILM 0.47UF 5.00% 50V
C510 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C511 1-102-244-00 CERAMIC 220PF 10.00% 500V
C513 1-126-941-11 ELECT 470UF 20.00% 25V

-------------------

C514 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C515 1-107-652-11 ELECT 10UF 20.00% 250V
C601 1-104-664-11 ELECT 47UF 20.00% 25V
C602 ! 1-117-699-51 CERAMIC 0.001UF 250V
C603 ! 1-117-699-51 CERAMIC 0.001UF 250V

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

When indicating parts by reference number,
please include the board name.

• CAPACITORS
PF : µµ F

• There are some cases the reference number on
one board overlaps on the other board. Therefore,
when ordering parts by the reference number,
please include the board name.

(21inch model)

– 82 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C604 ! 1-117-699-51 CERAMIC 0.001UF 250V
C605 1-125-991-11 ELECT 180UF 20% 450V
C606 1-136-165-00 FILM 0.1UF 5.00% 50V
C607 ! 1-117-699-51 CERAMIC 0.001UF 250V
C609 1-107-929-11 ELECT 10UF 20.00% 100V

C610 1-104-664-11 ELECT 47UF 20.00% 25V
C612 1-126-943-11 ELECT 2200UF 20.00% 25V
C614 1-130-785-11 MYLAR 0.47UF 10.00% 100V
C615 1-130-785-11 MYLAR 0.47UF 10.00% 100V
C616 1-107-681-41 ELECT 33UF 20.00% 450V

C617 1-104-664-11 ELECT 47UF 20.00% 25V
C618 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V
C619 1-164-645-11 CERAMIC 1000PF 10.00% 500V
C620 1-126-941-11 ELECT 470UF 20.00% 25V
C621 1-104-664-11 ELECT 47UF 20.00% 25V

C622 1-104-664-11 ELECT 47UF 20.00% 25V
C623 1-126-969-11 ELECT 220UF 20.00% 50V
C624 1-164-645-11 CERAMIC 1000PF 10.00% 500V
C625 1-126-972-11 ELECT 1000UF 20.00% 50V
C626 1-126-944-21 ELECT 3300UF 20.00% 25V

C627 1-164-645-11 CERAMIC 1000PF 10.00% 500V
C628 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C630 1-162-134-11 CERAMIC 470PF 10.00% 2KV
C631 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C632 1-127-759-51 ELECT 100UF 20% 160V

C634 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C635 1-102-050-00 CERAMIC 0.01UF 500V
C636 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V
C638 1-109-880-11 FILM 0.0015UF 3.00% 2KV
C639 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V

C640 1-163-001-11 CERAMIC CHIP 220PF 10.00% 50V
C641 1-102-114-00 CERAMIC 470PF 10.00% 50V
C642 1-130-338-91 FILM 0.01UF 5.00% 630V
C643 1-117-699-11 CERAMIC 0.001UF 250V
C644 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V

C645 1-104-664-11 ELECT 47UF 20.00% 25V
C646 1-126-943-11 ELECT 2200UF 20.00% 25V
C647 1-104-665-11 ELECT 100UF 20.00% 25V
C648 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C649 ! 1-117-699-51 CERAMIC 0.001UF 250V

C650 1-137-605-11 MYLAR 0.01UF 10.00% 250V
C655 1-126-942-61 ELECT 1000UF 20.00% 25V
C657 1-104-664-11 ELECT 47UF 20.00% 25V
C659 1-161-964-51 CERAMIC 0.0047UF 250V
C660 1-104-666-11 ELECT 220UF 20.00% 25V

C661 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C662 1-128-551-11 ELECT 22UF 20.00% 25V
C663 1-104-665-11 ELECT 100UF 20.00% 25V
C664 1-104-665-11 ELECT 100UF 20.00% 25V
C665 1-104-665-11 ELECT 100UF 20.00% 25V

C666 1-126-933-11 ELECT 100UF 20.00% 16V
C667 1-102-106-00 CERAMIC 100PF 10.00% 50V
C668 1-126-949-11 ELECT 220UF 20.00% 35V
C669 1-104-664-11 ELECT 47UF 20.00% 25V
C670 1-104-664-11 ELECT 47UF 20.00% 25V

C801 1-106-371-00 MYLAR 0.015UF 99% 200V
C801 1-107-364-11 MYLAR 0.01UF 10.00% 400V
C802 1-126-941-11 ELECT 470UF 20.00% 25V

C803 1-119-859-11 FILM 0.36UF 5.00% 250V
C803 1-117-667-11 FILM 0.47UF 5.00% 250V

C804 1-104-664-11 ELECT 47UF 20.00% 25V
C805 1-123-024-21 ELECT 33UF 160V
C806 1-162-117-00 CERAMIC 100PF 10.00% 500V

C806 1-102-228-00 CERAMIC 470PF 10.00% 500V
C807 1-107-650-11 ELECT 3.3UF 20.00% 250V

! are critical for safety.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

A

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C808 1-163-275-11 CERAMIC CHIP 0.001UF 5.00% 50V
C809 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C810 1-162-318-11 CERAMIC 0.001UF 10.00% 500V
C812 1-107-366-11 MYLAR 0.022UF 10.00% 200V

C812 1-136-196-11 MYLAR 0.033UF 10.00% 250V

C813 1-117-721-11 CERAMIC CHIP 4700PF 5.00% 25V
C813 1-164-690-91 CERAMIC CHIP 0.0022UF 5.00% 50V
C817 1-102-114-00 CERAMIC 470PF 10.00% 50V
C818 1-163-263-11 CERAMIC CHIP 330PF 5.00% 50V
C818 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C819 1-115-522-11 FILM 1UF 5.00% 250V
C820 1-106-375-12 MYLAR 0.022UF 99% 200V

C820 1-106-383-00 MYLAR 0.047UF 10.00% 200V
C821 ! 1-162-116-51 CERAMIC 680PF 10.00% 2KV
C821 ! 1-162-134-51 CERAMIC 470PF 10.00% 2KV

C822 1-136-207-11 MYLAR 0.047UF 10.00% 250V
C823 1-162-131-11 CERAMIC 220PF 10.00% 2KV
C824 ! 1-117-637-31 FILM 5600PF 3.00% 1.2KV

C824 ! 1-117-643-21 FILM 9100PF 3.00% 1.2KV
C826 1-137-417-11 MYLAR 0.0047UF 10.00% 200V

-------------------------------------------------------------------------------------------------------------------------------

C827 ! 1-129-716-51 FILM 0.015UF 5.00% 630V
C827 ! 1-135-840-51 FILM 0.036UF 3% 400V
C830 1-102-030-00 CERAMIC 330PF 10.00% 500V

<CONNECTOR>

CN301 1-785-386-11 SOCKET, CONNECTOR 35P
CN302 * 1-564-510-11 PLUG, CONNECTOR 7P
CN304 * 1-564-508-11 PLUG, CONNECTOR 5P
CN305 * 1-564-509-11 PLUG, CONNECTOR 6P
CN306 * 1-564-509-11 PLUG, CONNECTOR 6P

CN601 * 1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P
CN602 * 1-508-786-00 PIN, CONNECTOR (5mm PITCH) 2P
CN603 * 1-508-765-00 PIN, CONNECTOR (5mm PITCH) 3P
CN604 1-695-915-11 TAB (CONTACT)
CN606 * 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P

CN801 * 1-580-798-11 CONNECTOR PIN (DY) 6P
CN803 * 1-564-508-11 PLUG, CONNECTOR 5P

<COMPOSITION CIRCUIT BLOCK>

CP101 1-251-658-11 SPLITTER RF

<DIODE>

D101 8-719-914-43 DIODE DAN202K
D102 8-719-069-55 ZENER DIODE UDZS-TE17-5.6B
D103 8-719-069-55 ZENER DIODE UDZS-TE17-5.6B
D301 8-719-109-89 ZENER DIODE RD5.6ESB2
D302 8-719-109-89 ZENER DIODE RD5.6ESB2

D304 8-719-110-14 ZENER DIODE RD9.1ES-B3

-------------------

D305 8-719-911-19 DIODE 1SS119-25
D307 8-719-911-19 DIODE 1SS119-25
D308 8-719-110-14 ZENER DIODE RD9.1ES-B3
D313 8-719-110-14 ZENER DIODE RD9.1ES-B3

D314 8-719-914-44 DIODE DAP202 (21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)
(14inch model)
(14inch model)
(21inch model)

(14inch model)
(21inch model)
(14inch model)
(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(21inch model)

– 83 –

The components identified by shading
and mark
Replace only with part number specified.

A

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

D401 8-719-069-60 ZENER DIODE UDZS-TE17-9.1B
D402 8-719-110-17 ZENER DIODE RD10ESB2
D404 8-719-109-97 ZENER DIODE RD6.8ES-B2
D405 8-719-110-14 ZENER DIODE RD9.1ES-B3

D406 8-719-110-14 ZENER DIODE RD9.1ES-B3
D407 8-719-109-97 ZENER DIODE RD6.8ES-B2
D408 8-719-110-14 ZENER DIODE RD9.1ES-B3
D409 8-719-921-86 ZENER DIODE MTZJ-13
D410 8-719-921-54 ZENER DIODE MTZJ-6.2B

D411 8-719-921-54 ZENER DIODE MTZJ-6.2B
D412 8-719-109-97 ZENER DIODE RD6.8ES-B2
D413 8-719-109-97 ZENER DIODE RD6.8ES-B2
D414 8-719-109-97 ZENER DIODE RD6.8ES-B2
D501 8-719-110-49 ZENER DIODE RD18ES-B2

D502 8-719-109-89 ZENER DIODE RD5.6ESB2
D503 8-719-908-03 DIODE GP08D
D506 8-719-302-43 DIODE EL1Z
D507 8-719-302-43 DIODE EL1Z
D601 ! 8-719-510-63 DIODE D4SB60L-F

D602 ! 8-719-510-35 DIODE D2SBA60F
D604 8-719-911-19 DIODE 1SS119-25
D605 8-719-979-50 DIODE EGP30D
D606 8-719-063-74 DIODE D1NL20U-TR2
D607 8-719-911-19 DIODE 1SS119-25

D608 8-719-110-49 ZENER DIODE RD18ES-B2
D609 8-719-064-47 DIODE RN1Z-LF-B1
D610 8-719-064-47 DIODE RN1Z-LF-B1
D611 8-759-157-40 HTC µPC574J
D612 8-719-312-10 DIODE RU4AM-T3

D613 8-719-978-69 ZENER DIODE DTZ-TT11-16B
D614 8-719-911-19 DIODE 1SS119-25
D615 8-719-911-19 DIODE 1SS119-25
D616 8-719-063-74 DIODE D1NL20U-TR2
D617 8-719-077-12 DIODE RG1C-LFC1

D618 8-719-063-74 DIODE D1NL20U-TR2
D619 8-719-043-76 DIODE AK04V0
D620 8-719-063-74 DIODE D1NL20U-TR2
D621 8-719-063-70 DIODE D1NL20U
D622 8-719-911-19 DIODE 1SS119-25

D623 8-719-073-01 DIODE MA111-(K8).S0
D624 8-719-109-72 ZENER DIODE RD3.9ES-B2
D625 8-719-067-78 DIODE RN3Z-LF014-302
D626 8-719-948-45 DIODE ERA22-08
D627 8-719-023-07 DIODE D2S6MF

D628 8-719-911-19 DIODE 1SS119-25
D629 8-719-911-19 DIODE 1SS119-25
D631 8-719-073-01 DIODE MA111-(K8).S0
D632 8-719-911-19 DIODE 1SS119-25
D633 8-719-911-19 DIODE 1SS119-25

D634 8-719-110-88 ZENER DIODE RD39ES-B2
D635 8-719-063-70 DIODE D1NL20U
D636 8-719-991-33 DIODE 1SS133T-77
D637 8-719-982-11 ZENER DIODE MTZJ-4.3B
D638 8-719-911-19 DIODE 1SS119-25

D639 8-719-110-09 ZENER DIODE RD8.2ES-B3
D801 8-719-302-43 DIODE EL1Z
D803 8-719-302-43 DIODE EL1Z
D804 8-719-908-03 DIODE GP08D
D805 8-719-921-44 ZENER DIODE MTZJ-5.1C

D807 8-719-908-03 DIODE GP08D
D810 8-719-945-80 DIODE ERC06-15S
D811 8-719-979-85 DIODE EGP20G
D812 8-719-110-14 ZENER DIODE RD9.1ES-B3

<FERRITE BEAD>

FB601 1-410-397-21 FERRITE 1.1UH
FB602 1-410-397-21 FERRITE 1.1UH
FB603 1-410-397-21 FERRITE 1.1UH
FB604 1-410-397-21 FERRITE 1.1UH

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

FB605 1-410-397-21 FERRITE 1.1UH
FB606 1-410-397-21 FERRITE 1.1UH

FB607 1-410-397-21 FERRITE 1.1UH
FB608 1-410-397-21 FERRITE 1.1UH
FB609 1-410-397-21 FERRITE 1.1UH
FB610 1-410-397-21 FERRITE 1.1UH

FB611 1-410-397-21 FERRITE 1.1UH
FB613 1-410-397-21 FERRITE 1.1UH
FB614 1-410-397-21 FERRITE 1.1UH
FB620 1-410-397-21 FERRITE 1.1UH

IC301 8-752-090-41 IC CXA2139S
IC401 8-752-068-45 IC CXA1855Q
IC501 8-759-444-83 IC LA7840L
IC601 8-759-471-81 IC PQ05RD11
IC602 8-759-678-14 IC MC33364DR2

IC603 8-759-098-24 IC PQ30RV11
IC604 8-759-098-24 IC PQ30RV11
IC605 8-749-921-21 IC SI3120C
IC606 ! 8-749-016-20 IC STR-F6654-LF1357
IC607 ! 8-749-016-19 IC SE135N-LF4

IC608 8-759-459-99 IC PQ09RD11
IC609 8-759-098-24 IC PQ30RV11
IC610 8-759-098-24 IC PQ30RV11
IC611 8-759-198-31 IC uPC1093J-1-T
IC801 8-759-659-67 IC LA6393DLL

-------------------------------------------------------------------------------------------------------------------------------

J401 1-695-551-11 SOCKET 21P

JR2 1-216-295-11 SHORT 0
JR3 1-216-295-11 SHORT 0
JR4 1-216-296-91 SHORT 0
JR5 1-216-295-11 SHORT 0
JR6 1-216-296-91 SHORT 0

JR7 1-216-295-11 SHORT 0
JR9 1-216-296-91 SHORT 0
JR10 1-216-295-11 SHORT 0
JR12 1-216-295-11 SHORT 0
JR13 1-216-296-91 SHORT 0

JR14 1-216-296-91 SHORT 0
JR15 1-216-296-91 SHORT 0
JR16 1-216-296-91 SHORT 0
JR17 1-216-296-91 SHORT 0
JR18 1-216-296-91 SHORT 0

JR19 1-216-296-91 SHORT 0
JR20 1-216-296-91 SHORT 0
JR23 1-216-295-11 SHORT 0
JR24 1-216-295-11 SHORT 0

JR25 1-216-295-11 SHORT 0
JR26 1-216-295-11 SHORT 0
JR130 1-216-295-11 SHORT 0

L102 1-408-611-31 INDUCTOR 47UH
L103 1-408-611-31 INDUCTOR 47UH
L104 1-412-002-31 INDUCTOR CHIP 4.7UH
L105 1-412-002-31 INDUCTOR CHIP 4.7UH
L106 1-408-607-31 INDUCTOR 22UH

-------------------

L107 1-412-002-31 INDUCTOR CHIP 4.7UH
L108 1-412-002-31 INDUCTOR CHIP 4.7UH
L302 1-414-856-11 INDUCTOR 10UH
L303 1-414-856-11 INDUCTOR 10UH
L304 1-410-396-41 FERRITE 0.45UH

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

<IC>

<JACK>

<CHIP CONDUCTOR>

<COIL>

– 84 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

L401 1-408-615-31 INDUCTOR 100UH
L402 1-408-599-31 INDUCTOR 4.7UH
L403 1-414-856-11 INDUCTOR 10UH
L501 1-412-533-21 INDUCTOR 47UH
L601 1-412-525-31 INDUCTOR 10UH

L602 1-412-533-21 INDUCTOR 47UH
L603 1-412-525-31 INDUCTOR 10UH
L604 1-406-983-11 INDUCTOR 1MH
L605 1-412-534-31 INDUCTOR 56UH
L801 1-412-531-31 INDUCTOR 33UH

L802 ! 1-419-551-11 COIL, HORIZONTAL LINEARITY (14inch model)
L802 ! 1-419-552-11 COIL, HORIZONTAL LINEARITY (21inch model)
L803 1-406-677-11 INDUCTOR 10MH
L804 1-412-553-11 INDUCTOR 3.3MH
L805 1-406-989-21 INDUCTOR 10MH (14inch model)

L805 1-459-111-00 INDUCTOR 10MH (21inch model)
L808 1-406-984-11 INDUCTOR 1.5MH (14inch model)
L808 1-419-263-11 COIL, WITH CORE (21inch model)

PH601 ! 8-749-016-21 PHOTO COUPLER TCET1103G
PH602 ! 8-749-016-21 PHOTO COUPLER TCET1103G

PS601 ! 1-532-686-91 LINK, IC (2.7A/150V)
PS602 ! 1-532-686-91 LINK, IC (2.7A/150V)
PS603 ! 1-532-686-91 LINK, IC (2.7A/150V)
PS604 ! 1-532-686-91 LINK, IC (2.7A/150V)

Q101 8-729-026-50 TRANSISTOR 2SA1037AK-T-146-QR
Q102 8-729-026-50 TRANSISTOR 2SA1037AK-T-146-QR
Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q303 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q304 8-729-422-27 TRANSISTOR 2SD601A-Q
Q305 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (21inch model)
Q306 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q401 8-729-216-22 TRANSISTOR 2SA1162-G
Q402 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q403 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q404 8-729-216-22 TRANSISTOR 2SA1162-G
Q405 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q501 8-729-421-22 TRANSISTOR UN2211
Q502 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q603 8-729-026-50 TRANSISTOR 2SA1037AK-T-146-QR
Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q605 8-729-053-40 TRANSISTOR 2SK2733(LBS4SONY)

Q606 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q608 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q609 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q611 8-729-200-17 TRANSISTOR 2SA1091-O
Q612 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q801 8-729-038-82 TRANSISTOR 2SK2251-01
Q802 8-729-051-82 TRANSISTOR BU4508DX-ON5210
Q803 8-729-038-82 TRANSISTOR 2SK2251-01

R101 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R102 1-216-025-11 RES-CHIP 100 5% 1/10W
R103 1-216-025-11 RES-CHIP 100 5% 1/10W
R104 1-216-025-11 RES-CHIP 100 5% 1/10W
R105 1-216-025-11 RES-CHIP 100 5% 1/10W

R106 1-216-025-11 RES-CHIP 100 5% 1/10W

! are critical for safety.

<PHOTO COUPLER>

<IC LINK>

<TRANSISTOR>

<RESISTOR>

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

A

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R107 1-216-025-11 RES-CHIP 100 5% 1/10W
R108 1-216-025-11 RES-CHIP 100 5% 1/10W
R109 1-216-025-11 RES-CHIP 100 5% 1/10W
R110 1-216-069-00 RES-CHIP 6.8K 5% 1/10W

R111 1-216-121-11 RES-CHIP 1M 5% 1/10W
R118 1-216-033-00 RES-CHIP 220 5% 1/10W
R119 1-216-105-91 RES-CHIP 220K 5% 1/10W
R120 1-216-081-00 RES-CHIP 22K 5% 1/10W
R121 1-216-073-00 RES-CHIP 10K 5% 1/10W

R122 1-216-073-00 RES-CHIP 10K 5% 1/10W
R123 1-216-077-91 RES-CHIP 15K 5% 1/10W
R124 1-216-033-00 RES-CHIP 220 5% 1/10W
R125 1-216-081-00 RES-CHIP 22K 5% 1/10W
R126 1-216-105-91 RES-CHIP 220K 5% 1/10W

R127 1-216-073-00 RES-CHIP 10K 5% 1/10W
R128 1-216-073-00 RES-CHIP 10K 5% 1/10W
R129 1-216-077-91 RES-CHIP 15K 5% 1/10W
R151 1-216-295-11 SHORT 0
R152 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

R159 1-216-025-11 RES-CHIP 100 5% 1/10W
R160 1-216-025-11 RES-CHIP 100 5% 1/10W
R301 1-216-085-00 RES-CHIP 33K 5% 1/10W

R301 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R303 1-216-073-00 RES-CHIP 10K 5% 1/10W
R304 1-216-025-11 RES-CHIP 100 5% 1/10W

R305 1-216-073-00 RES-CHIP 10K 5% 1/10W
R306 1-216-073-00 RES-CHIP 10K 5% 1/10W

R307 1-216-081-00 RES-CHIP 22K 5% 1/10W
R308 1-216-073-00 RES-CHIP 10K 5% 1/10W

-------------------------------------------------------------------------------------------------------------------------------

R309 1-216-073-00 RES-CHIP 10K 5% 1/10W
R311 1-216-073-00 RES-CHIP 10K 5% 1/10W

R312 1-216-675-91 METAL CHIP 10K 0.50% 1/10W
R313 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R314 1-216-025-11 RES-CHIP 100 5% 1/10W

R315 1-216-025-11 RES-CHIP 100 5% 1/10W
R316 1-216-025-11 RES-CHIP 100 5% 1/10W
R317 1-216-025-11 RES-CHIP 100 5% 1/10W
R318 1-216-025-11 RES-CHIP 100 5% 1/10W
R319 1-216-025-11 RES-CHIP 100 5% 1/10W

R320 1-216-049-11 RES-CHIP 1K 5% 1/10W
R321 1-216-025-11 RES-CHIP 100 5% 1/10W
R322 1-216-041-00 RES-CHIP 470 5% 1/10W
R323 1-216-049-11 RES-CHIP 1K 5% 1/10W
R324 1-216-025-11 RES-CHIP 100 5% 1/10W

R325 1-216-041-00 RES-CHIP 470 5% 1/10W
R326 1-216-049-11 RES-CHIP 1K 5% 1/10W
R327 1-216-025-11 RES-CHIP 100 5% 1/10W
R328 1-216-041-00 RES-CHIP 470 5% 1/10W
R329 1-216-049-11 RES-CHIP 1K 5% 1/10W

R330 1-216-025-11 RES-CHIP 100 5% 1/10W
R331 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R332 1-216-085-00 RES-CHIP 33K 5% 1/10W
R334 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R335 1-247-807-31 CARBON 100 5% 1/4W

R336 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R337 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R338 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R340 1-216-097-11 RES-CHIP 100K 5% 1/10W
R341 1-247-807-31 CARBON 100 5% 1/4W

R342 1-216-025-11 RES-CHIP 100 5% 1/10W

-------------------

R343 1-247-807-31 CARBON 100 5% 1/4W
R344 1-216-077-91 RES-CHIP 15K 5% 1/10W
R346 1-216-073-00 RES-CHIP 10K 5% 1/10W
R347 1-216-049-11 RES-CHIP 1K 5% 1/10W

R349 1-216-295-11 SHORT 0

(14inch model)
(21inch model)

(21inch model)

(21inch model)

(21inch model)

– 85 –

The components identified by shading
and mark
Replace only with part number specified.

A

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R350 1-216-077-91 RES-CHIP 15K 5% 1/10W
R351 1-216-073-00 RES-CHIP 10K 5% 1/10W
R352 1-216-041-00 RES-CHIP 470 5% 1/10W
R353 1-216-041-00 RES-CHIP 470 5% 1/10W

R354 1-216-041-00 RES-CHIP 470 5% 1/10W
R355 1-216-041-00 RES-CHIP 470 5% 1/10W
R357 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R358 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R359 1-216-073-00 RES-CHIP 10K 5% 1/10W

R364 1-216-045-00 RES-CHIP 680 5% 1/10W
R365 1-216-073-00 RES-CHIP 10K 5% 1/10W
R401 1-216-025-11 RES-CHIP 100 5% 1/10W
R402 1-216-025-11 RES-CHIP 100 5% 1/10W
R403 1-216-033-00 RES-CHIP 220 5% 1/10W

R404 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R405 1-216-295-11 SHORT 0
R406 1-216-033-00 RES-CHIP 220 5% 1/10W
R407 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R408 1-216-033-00 RES-CHIP 220 5% 1/10W

R409 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R410 1-216-089-11 RES-CHIP 47K 5% 1/10W
R411 1-216-025-11 RES-CHIP 100 5% 1/10W
R412 1-216-025-11 RES-CHIP 100 5% 1/10W
R413 1-216-022-00 RES-CHIP 75 5% 1/10W

R414 1-216-022-00 RES-CHIP 75 5% 1/10W
R415 1-216-022-00 RES-CHIP 75 5% 1/10W
R416 1-216-022-00 RES-CHIP 75 5% 1/10W
R417 1-216-025-11 RES-CHIP 100 5% 1/10W
R418 1-216-025-11 RES-CHIP 100 5% 1/10W

R419 1-216-025-11 RES-CHIP 100 5% 1/10W
R420 1-216-025-11 RES-CHIP 100 5% 1/10W
R421 1-216-022-00 RES-CHIP 75 5% 1/10W
R422 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R423 1-216-081-00 RES-CHIP 22K 5% 1/10W

R424 1-247-804-11 CARBON 75 5% 1/4W
R425 1-216-113-00 RES-CHIP 470K 5% 1/10W
R426 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R427 1-216-037-00 RES-CHIP 330 5% 1/10W
R428 1-216-081-00 RES-CHIP 22K 5% 1/10W

R429 1-216-037-00 RES-CHIP 330 5% 1/10W
R431 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R432 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R434 1-216-097-11 RES-CHIP 100K 5% 1/10W
R435 1-216-057-00 RES-CHIP 2.2K 5% 1/10W

R436 1-216-095-00 RES-CHIP 82K 5% 1/10W
R437 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R438 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R439 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R441 1-216-025-11 RES-CHIP 100 5% 1/10W

R442 1-216-033-00 RES-CHIP 220 5% 1/10W
R443 1-216-025-11 RES-CHIP 100 5% 1/10W
R444 1-216-025-11 RES-CHIP 100 5% 1/10W
R445 1-249-413-11 CARBON 470 5% 1/4W
R446 1-216-041-00 RES-CHIP 470 5% 1/10W

R447 1-216-025-11 RES-CHIP 100 5% 1/10W
R448 1-216-089-11 RES-CHIP 47K 5% 1/10W
R449 1-216-089-11 RES-CHIP 47K 5% 1/10W
R502 1-216-089-11 RES-CHIP 47K 5% 1/10W
R503 1-216-081-00 RES-CHIP 22K 5% 1/10W

R504 1-216-097-11 RES-CHIP 100K 5% 1/10W
R507 1-216-049-11 RES-CHIP 1K 5% 1/10W
R508 1-216-049-11 RES-CHIP 1K 5% 1/10W
R510 1-216-097-11 RES-CHIP 100K 5% 1/10W
R512 1-215-888-00 METAL OXIDE 220 5% 2W

R513 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R514 1-216-073-00 RES-CHIP 10K 5% 1/10W
R515 1-216-377-11 METAL OXIDE 4.7 5% 2W
R516 1-249-385-11 CARBON 2.2 5% 1/4W
R517 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R518 1-216-073-00 RES-CHIP 10K 5% 1/10W
R519 1-249-382-11 CARBON 1.2 5% 1/4W
R520 1-216-089-11 RES-CHIP 47K 5% 1/10W
R601 1-216-033-00 RES-CHIP 220 5% 1/10W
R602 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

R603 ! 1-218-265-21 METAL 8.2M 5% 1W
R605 ! 1-220-778-11 FUSIBLE 0.1 10% 1/2W
R606 1-247-895-91 CARBON 470K 5% 1/4W
R607 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R608 1-216-077-91 RES-CHIP 15K 5% 1/10W

R609 1-215-917-11 METAL OXIDE 1K 5% 3W
R610 1-216-654-11 METAL CHIP 1.3K 0.50% 1/10W
R611 1-216-077-91 RES-CHIP 15K 5% 1/10W
R612 1-249-480-11 CARBON 3.3 5% 1/2W
R613 1-216-037-00 RES-CHIP 330 5% 1/10W

R614 1-249-417-11 CARBON 1K 5% 1/4W
R615 1-216-073-00 RES-CHIP 10K 5% 1/10W
R616 1-249-417-11 CARBON 1K 5% 1/4W
R617 1-216-049-11 RES-CHIP 1K 5% 1/10W
R618 1-216-049-11 RES-CHIP 1K 5% 1/10W

R619 1-216-073-00 RES-CHIP 10K 5% 1/10W
R620 1-216-077-91 RES-CHIP 15K 5% 1/10W
R621 1-249-401-11 CARBON 47 5% 1/4W
R622 1-216-073-00 RES-CHIP 10K 5% 1/10W
R623 1-216-049-11 RES-CHIP 1K 5% 1/10W

R624 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R625 1-216-041-00 RES-CHIP 470 5% 1/10W
R626 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R627 1-249-377-11 CARBON 0.47 5% 1/4W
R628 1-216-017-91 RES-CHIP 47 5% 1/10W

R629 1-216-049-11 RES-CHIP 1K 5% 1/10W

-------------------------------------------------------------------------------------------------------------------------------

R630 1-247-903-00 CARBON 1M 5% 1/4W
R631 1-216-013-00 RES-CHIP 33 5% 1/10W
R632 1-216-081-00 RES-CHIP 22K 5% 1/10W
R633 1-216-077-91 RES-CHIP 15K 5% 1/10W

R634 1-216-049-11 RES-CHIP 1K 5% 1/10W
R635 1-216-077-91 RES-CHIP 15K 5% 1/10W
R636 1-215-927-00 METAL OXIDE 47K 5% 3W
R637 1-216-009-91 RES-CHIP 22 5% 1/10W
R638 1-249-405-11 CARBON 100 5% 1/4W

R639 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R640 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R641 1-216-025-11 RES-CHIP 100 5% 1/10W
R642 1-216-675-91 METAL CHIP 10K 0.50% 1/4W
R643 1-216-695-11 METAL CHIP 68K 0.50% 1/4W

R644 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R645 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W
R646 1-216-045-00 RES-CHIP 680 5% 1/10W
R647 1-249-389-11 CARBON 4.7 5% 1/4W
R648 1-216-361-00 METAL OXIDE 0.22 5% 2W

R649 1-216-361-00 METAL OXIDE 0.22 5% 2W
R650 1-216-089-11 RES-CHIP 47K 5% 1/10W
R651 1-216-013-00 RES-CHIP 33 5% 1/10W
R652 1-216-045-00 RES-CHIP 680 5% 1/10W
R653 1-216-669-11 METAL CHIP 5.6K 0.50% 1/10W

R655 1-216-073-00 RES-CHIP 10K 5% 1/10W
R656 1-216-077-91 RES-CHIP 15K 5% 1/10W
R657 1-215-469-00 METAL 100K 1% 1/4W
R658 1-216-073-00 RES-CHIP 10K 5% 1/10W
R659 1-216-077-91 RES-CHIP 15K 5% 1/10W

R660 1-216-033-00 RES-CHIP 220 5% 1/10W
R661 1-216-033-00 RES-CHIP 220 5% 1/10W
R662 1-249-409-11 CARBON 220 5% 1/4W
R663 1-249-409-11 CARBON 220 5% 1/4W
R665 1-260-123-11 CARBON 100K 5% 1/2W

-------------------

R666 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R667 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R668 1-216-488-11 METAL OXIDE 18K 5% 3W
R669 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W
R670 1-216-679-11 METAL CHIP 15K 0.50% 1/10W

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

– 86 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R671 1-216-033-00 RES-CHIP 220 5% 1/10W
R673 1-216-113-00 RES-CHIP 470K 5% 1/10W
R674 1-216-488-11 METAL OXIDE 18K 5% 3W
R675 1-216-049-11 RES-CHIP 1K 5% 1/10W
R676 1-216-101-00 RES-CHIP 150K 5% 1/10W

R677 1-202-962-11 CEMENTED 3.3 5% 10W
R678 1-216-081-00 RES-CHIP 22K 5% 1/10W

R679 1-216-368-11 METAL OXIDE 0.82 5% 2W
R680 1-247-883-00 CARBON 150K 5% 1/4W
R681 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R682 1-247-885-00 CARBON 180K 5% 1/4W
R683 1-247-711-11 CARBON 680 5% 1/4W
R684 1-216-073-00 RES-CHIP 10K 5% 1/10W
R685 1-216-081-00 RES-CHIP 22K 5% 1/10W
R686 1-216-049-11 RES-CHIP 1K 5% 1/10W

R687 1-216-073-00 RES-CHIP 10K 5% 1/10W
R688 1-249-435-11 CARBON 33K 5% 1/4W
R689 1-216-049-11 RES-CHIP 1K 5% 1/10W
R801 1-218-768-11 METAL CHIP 470K 0.50% 1/10W

R801 1-218-764-11 METAL CHIP 330K 0.50% 1/10W

R802 1-216-447-00 METAL OXIDE 27 5% 2W
R802 1-215-884-11 METAL OXIDE 47 5% 2W
R803 1-249-377-11 CARBON 0.47 5% 1/4W

R805 1-214-775-00 METAL 82K 1% 1/4W
R805 1-214-765-00 METAL 33K 1% 1/4W

R806 1-249-377-11 CARBON 0.47 5% 1/4W
R807 1-215-887-00 METAL OXIDE 150 5% 2W
R808 1-214-775-00 METAL 82K 1% 1/4W

R808 1-214-907-00 METAL 56K 1% 1/2W
R809 1-216-085-00 RES-CHIP 33K 5% 1/10W
R810 1-216-683-11 METAL CHIP 22K 0.50% 1/10W
R811 1-216-057-00 RES-CHIP 2.2K 5% 1/10W

R812 1-216-687-11 METAL CHIP 33K 0.50% 1/10W
R814 1-216-295-11 SHORT 0
R816 1-216-687-11 METAL CHIP 33K 0.50% 1/10W

R817 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R818 1-216-681-11 METAL CHIP 18K 0.50% 1/10W
R821 1-249-391-11 CARBON 6.8 5% 1/4W
R822 1-249-411-11 CARBON 330 5% 1/4W
R823 1-216-677-11 METAL CHIP 12K 0.50% 1/10W

R824 1-218-753-11 METAL CHIP 110K 0.50% 1/10W
R824 1-216-699-91 METAL CHIP 100K 0.50% 1/10W
R825 1-216-073-00 RES-CHIP 10K 5% 1/10W

R826 1-215-892-11 METAL OXIDE 1K 5% 2W
R827 1-216-073-00 RES-CHIP 10K 5% 1/10W

R828 1-216-097-11 RES-CHIP 100K 5% 1/10W
R830 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

R830 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R831 1-218-769-11 METAL CHIP 510K 0.50% 1/10W
R831 1-216-696-11 METAL CHIP 75K 0.50% 1/10W

R832 1-216-675-91 METAL CHIP 10K 0.50% 1/10W
R832 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W
R833 1-216-699-91 METAL CHIP 100K 0.50% 1/10W

R835 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R837 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

! are critical for safety.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(14inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)
(14inch model)
(21inch model)

(14inch model)
(21inch model)

A CVM

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R838 1-215-886-11 METAL OXIDE 100 5% 2W
R839 1-216-349-00 METAL OXIDE 1 5% 1W

R841 1-260-338-51 CARBON 6.8K 5% 1/2W
R842 1-215-898-11 METAL OXIDE 10K 5% 2W
R843 1-260-083-11 CARBON 47 5% 1/2W

<RELAY>

RY601 ! 1-755-198-12 RELAY, AC POWER
RY602 ! 1-755-198-12 RELAY, AC POWER
RY603 ! 1-755-245-11 RELAY, AC POWER

<SWITCH>

S801 1-572-707-11 SWITCH, LEVER (H-CENT)

<TRANSFORMER>

T602 ! 1-435-635-11 TRANSFORMER, CONVERTER (SRT)
T604 ! 1-435-634-11 TRANSFORMER, CONVERTER (SRT)
T801 ! 8-598-852-00 TRANSFORMER ASSY, FLYBACK (NX-1912//M)

T801 ! 1-453-314-11 TRANSFORMER ASSY, FLYBACK
T803 1-437-210-11 TRANSFORMER, HORIZONTAL DRIVE

<THERMISTOR>

TH601 ! 1-803-586-11 THERMISTOR, NTC
THP601! 1-809-827-11 THERMISTOR, POSITIVE

-------------------------------------------------------------------------------------------------------------------------------

TU101 8-598-528-00 FRONTEND BTF-EU602 (VTR) (UK model)
TU101 8-598-532-00 FRONTEND BTF-EC402 (VTR)

TU101 8-598-536-00 FRONTEND BTF-EF412 (VTR) (FR model)
TU102 8-598-528-00 FRONTEND BTF-EU602 (TV) (UK model)
TU102 8-598-532-00 FRONTEND BTF-EC402 (TV)

TU102 8-598-536-00 FRONTEND BTF-EF412 (TV) (FR model)

X301 1-567-504-11 OSCILLATOR, CRYSTAL
X302 1-567-505-11 OSCILLATOR, CRYSTAL

**********************************************************************************

*A-1639-006-ACVM BOARD, COMPLETE (14inch model)

*A-1639-005-ACVM BOARD, COMPLETE (21inch model)

4-352-844-01 PIN, LEAD, COATING (LP701, LP702, LP703)
4-382-854-01 SCREW (M3X8), P, SW (+) (Q1711, Q1712)

C701 1-137-043-11 MYLAR 0.0047UF 10.00% 400V
C702 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

C702 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V
C703 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

-------------------

C703 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V

C704 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C705 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

<TUNER>

<CRYSTAL>

********************************

********************************

<CAPACITOR>

(21inch model)

(14inch model)
(21inch model)

(AEP/ESP model)

(AEP/ESP model)

(14inch model)
(21inch model)
(14inch model)
(21inch model)

– 87 –

The components identified by shading
and mark
Replace only with part number specified.

CVM

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C708 1-162-114-00 CERAMIC 0.0047UF 2KV
C710 1-136-189-00 MYLAR 0.1UF 10.00% 250V
C712 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

C712 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V
C713 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C714 1-104-665-11 ELECT 100UF 20.00% 16V
C715 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V

C716 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V

C717 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V
C718 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V
C719 1-163-005-11 CERAMIC CHIP 470PF 10.00% 50V
C720 1-163-113-00 CERAMIC CHIP 68PF 5.00% 50V

C723 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C724 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

C725 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C1701 1-104-665-11 ELECT 100UF 20.00% 16V
C1702 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V

C1703 1-126-925-11 ELECT 470UF 20.00% 10V
C1704 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C1705 1-163-239-11 CERAMIC CHIP 33PF 5.00% 50V
C1706 1-126-925-11 ELECT 470UF 20.00% 10V
C1709 1-126-964-11 ELECT 10UF 20.00% 50V
C1710 1-106-375-12 MYLAR 0.022UF 10.00% 250V

C1711 1-106-375-12 MYLAR 0.022UF 10.00% 250V
C1712 1-136-203-11 MYLAR 0.01UF 10.00% 250V
C1713 1-104-664-11 ELECT 47UF 20.00% 25V
C1715 1-104-999-11 MYLAR 0.1UF 5.00% 200V
C1716 1-107-639-11 ELECT 47UF 20.00% 160V

C1717 1-104-664-11 ELECT 47UF 20.00% 25V
C1803 1-163-033-91 CERAMIC CHIP 0.022UF 50V

C1804 1-164-346-11 CERAMIC CHIP 1UF 16V

<CONNECTOR>

CN702 1-695-915-11 TAB (CONTACT)
CN703 * 1-564-509-11 PLUG, CONNECTOR 6P
CN706 1-695-915-11 TAB (CONTACT)
CN707 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1703 * 1-564-506-11 PLUG, CONNECTOR 3P

CN1705 * 1-564-509-11 PLUG, CONNECTOR 6P
CN1801 * 1-564-506-11 PLUG, CONNECTOR 3P (21inch model)

<DIODE>

D702 8-719-988-61 DIODE 1SS355TE-17
D703 8-719-988-61 DIODE 1SS355TE-17
D704 8-719-988-61 DIODE 1SS355TE-17
D705 8-719-988-61 DIODE 1SS355TE-17
D706 8-719-988-61 DIODE 1SS355TE-17

D707 8-719-988-61 DIODE 1SS355TE-17
D708 8-719-988-61 DIODE 1SS355TE-17
D709 8-719-988-61 DIODE 1SS355TE-17
D710 8-719-988-61 DIODE 1SS355TE-17
D711 8-719-988-61 DIODE 1SS355TE-17

D712 8-719-988-61 DIODE 1SS355TE-17
D714 8-719-988-61 DIODE 1SS355TE-17
D715 8-719-988-61 DIODE 1SS355TE-17
D716 8-719-988-61 DIODE 1SS355TE-17
D717 8-719-988-61 DIODE 1SS355TE-17

D718 8-719-988-61 DIODE 1SS355TE-17
D719 8-719-988-61 DIODE 1SS355TE-17
D721 8-719-988-61 DIODE 1SS355TE-17
D722 8-719-988-61 DIODE 1SS355TE-17

(14inch model)

(21inch model)

(21inch model)
(21inch model)

(21inch model)

(21inch model)

(21inch model)
(21inch model)

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

D1703 8-719-988-61 DIODE 1SS355TE-17
D1704 1-216-295-11 SHORT 0

D1705 1-216-295-11 SHORT 0
D1706 8-719-988-61 DIODE 1SS355TE-17
D1707 8-719-988-61 DIODE 1SS355TE-17
D1710 8-719-109-89 ZENER DIODE RD5.6ESB2

D1711 8-719-109-89 ZENER DIODE RD5.6ESB2
D1801 8-719-977-28 ZENER DIODE DTZ10B (21inch model)
D1802 8-719-977-28 ZENER DIODE DTZ10B (21inch model)
D1803 8-719-977-28 ZENER DIODE DTZ10B (21inch model)

F1701 ! 1-576-470-21 LINK, FUSE (6.3A)

FB1701 1-412-911-11 FERRITE 0UH

IC1801 8-759-603-37 IC M5216P (21inch model)

J701 ! 1-251-595-11 SOCKET, PICTURE TUBE

L701 1-412-947-11 INDUCTOR 4.7UH (21inch model)

-------------------------------------------------------------------------------------------------------------------------------

L702 1-412-947-11 INDUCTOR 4.7UH (21inch model)
L703 1-412-530-31 INDUCTOR 27UH (14inch model)
L703 1-412-533-21 INDUCTOR 47UH (21inch model)
L704 1-414-183-41 INDUCTOR 10UH

L705 1-412-947-11 INDUCTOR 4.7UH (21inch model)
L706 1-414-183-41 INDUCTOR 10UH
L1701 1-414-183-41 INDUCTOR 10UH
L1703 1-412-953-11 INDUCTOR 15UH (21inch model)
L1704 1-412-545-11 INDUCTOR 470UH

Q701 8-729-046-28 TRANSISTOR BF420-126
Q702 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q703 8-729-046-28 TRANSISTOR BF420-126
Q704 8-729-200-17 TRANSISTOR 2SA1091-O
Q705 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q706 8-729-046-28 TRANSISTOR BF420-126
Q707 8-729-200-17 TRANSISTOR 2SA1091-O
Q708 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q709 8-729-046-28 TRANSISTOR BF420-126
Q710 8-729-200-17 TRANSISTOR 2SA1091-O

Q711 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q712 8-729-046-28 TRANSISTOR BF420-126
Q713 8-729-046-28 TRANSISTOR BF420-126
Q714 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q715 8-729-200-17 TRANSISTOR 2SA1091-O

Q716 8-729-200-17 TRANSISTOR 2SA1091-O
Q717 8-729-200-17 TRANSISTOR 2SA1091-O
Q1701 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1704 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1705 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q1706 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q1707 8-729-119-78 TRANSISTOR 2SC2785-HFE

-------------------

Q1708 8-729-026-39 TRANSISTOR 2SA933AS-QT
Q1709 8-729-049-09 TRANSISTOR BC327-25
Q1710 8-729-049-10 TRANSISTOR BC337-25

Q1711 8-729-017-05 TRANSISTOR 2SA1837
Q1712 8-729-017-06 TRANSISTOR 2SC4793

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

<FUSE>

<FERRITE BEAD>

<IC>

<JACK>

<COIL>

<TRANSISTOR>

– 88 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R701 1-247-895-91 CARBON 470K 5% 1/4W
R702 1-215-900-11 METAL OXIDE 22K 5% 2W
R703 1-247-807-31 CARBON 100 5% 1/4W
R705 1-215-871-11 METAL OXIDE 2.2K 5% 1W
R706 1-216-033-00 RES-CHIP 220 5% 1/10W

R707 1-216-043-91 RES-CHIP 560 5% 1/10W
R707 1-216-039-00 RES-CHIP 390 5% 1/10W
R708 1-216-017-91 RES-CHIP 47 5% 1/10W

R709 1-216-049-11 RES-CHIP 1K 5% 1/10W
R710 1-216-113-00 RES-CHIP 470K 5% 1/10W

R712 1-215-871-11 METAL OXIDE 2.2K 5% 1W
R713 1-216-113-00 RES-CHIP 470K 5% 1/10W
R714 1-215-900-11 METAL OXIDE 22K 5% 2W
R715 1-247-807-31 CARBON 100 5% 1/4W
R716 1-216-033-00 RES-CHIP 220 5% 1/10W

R717 1-216-043-91 RES-CHIP 560 5% 1/10W
R717 1-216-039-00 RES-CHIP 390 5% 1/10W
R718 1-202-814-11 SOLID 33K 10% 1/2W

R719 1-216-017-91 RES-CHIP 47 5% 1/10W
R721 1-247-807-31 CARBON 100 5% 1/4W

R722 1-216-049-11 RES-CHIP 1K 5% 1/10W
R723 1-216-049-11 RES-CHIP 1K 5% 1/10W
R725 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R726 1-215-871-11 METAL OXIDE 2.2K 5% 1W
R727 1-216-033-00 RES-CHIP 220 5% 1/10W

R729 1-216-043-11 RES-CHIP 560 5% 1/10W
R729 1-216-039-00 RES-CHIP 390 5% 1/10W
R730 1-216-017-91 RES-CHIP 47 5% 1/10W

R732 1-216-121-91 RES-CHIP 1M 5% 1/10W
R733 1-216-097-11 RES-CHIP 100K 5% 1/10W

R734 1-247-807-31 CARBON 100 5% 1/4W
R736 1-215-900-11 METAL OXIDE 22K 5% 2W
R737 1-216-117-00 RES-CHIP 680K 5% 1/10W
R741 1-202-549-00 SOLID 100 20% 1/2W
R746 1-216-049-11 RES-CHIP 1K 5% 1/10W

R750 1-216-049-11 RES-CHIP 1K 5% 1/10W
R751 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1701 1-216-033-00 RES-CHIP 220 5% 1/10W
R1702 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1703 1-247-807-31 CARBON 100 5% 1/4W

R1704 1-247-807-31 CARBON 100 5% 1/4W
R1705 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1706 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1707 1-249-436-11 CARBON 39K 5% 1/4W
R1708 1-249-436-11 CARBON 39K 5% 1/4W

R1709 1-216-025-11 RES-CHIP 100 5% 1/10W
R1710 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1711 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1712 1-216-041-00 RES-CHIP 470 5% 1/10W
R1713 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R1714 1-216-019-00 RES-CHIP 56 5% 1/10W
R1715 1-216-029-00 RES-CHIP 150 5% 1/10W
R1716 1-216-031-00 RES-CHIP 180 5% 1/10W
R1717 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R1718 1-260-091-11 CARBON 220 5% 1/2W

R1719 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R1721 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R1722 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1723 1-216-107-00 RES-CHIP 270K 5% 1/10W
R1724 1-216-107-00 RES-CHIP 270K 5% 1/10W

R1725 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1726 1-249-433-11 CARBON 22K 5% 1/4W
R1727 1-249-407-11 CARBON 150 5% 1/4W

! are critical for safety.

<RESISTOR>

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(14inch model)
(21inch model)

(14inch model)
(21inch model)

(14inch model)
(21inch model)

CVM

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R1728 1-249-407-11 CARBON 150 5% 1/4W
R1729 1-249-387-11 CARBON 3.3 5% 1/4W

R1730 1-249-387-11 CARBON 3.3 5% 1/4W
R1731 1-216-487-11 METAL OXIDE 12K 5% 3W
R1732 1-215-867-00 METAL OXIDE 470 5% 1W
R1801 1-216-049-11 RES-CHIP 1K 5% 1/10W

R1802 1-216-049-11 RES-CHIP 1K 5% 1/10W

R1805 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1806 1-216-117-00 RES-CHIP 680K 5% 1/10W
R1807 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1808 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1809 1-216-073-00 RES-CHIP 10K 5% 1/10W

R1810 1-216-073-00 RES-CHIP 10K 5% 1/10W

<VARIABLE RESISTOR>

RV702 ! 1-241-656-21 RES, ADJ, METAL FILM 110M (H-STAT)

**********************************************************************************

-------------------------------------------------------------------------------------------------------------------------------

-------------------

(21inch model)
(21inch model)

(21inch model)
(21inch model)
(21inch model)
(21inch model)
(21inch model)

(21inch model)

– 89 –

The components identified by shading
and mark
Replace only with part number specified.

MA10

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

*A-1635-042-AMA10 BOARD, COMPLETE

*********************************

*A-1635-043-AMA10 BOARD, COMPLETE (KV-14/21FV1E)

*A-1635-044-AMA10 BOARD, COMPLETE (KV-14/21FV1B)

3-960-273-11 SPACER, TOP END (Q452, Q453)

*3-960-274-01 SPACER, LED (D451)

4-352-844-01 PIN, LEAD, COATING (LP001, LP002)

*4-374-846-01 COVER, CAPACITOR, CAP TYPE (VDR601)

4-382-854-01 SCREW (M3X8), P, SW (+) (IC201)

C001 1-163-104-00 CERAMIC CHIP 30PF 5.00% 50V
C002 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C004 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C005 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C006 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V

C007 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V
C008 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V
C009 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C010 1-163-989-11 CERAMIC CHIP 0.033UF 10.00% 25V

C013 1-126-964-11 ELECT 10UF 20.00% 50V
C014 1-163-038-11 CERAMIC CHIP 0.1UF 25V

C015 1-124-584-00 ELECT 100UF 20.00% 10V
C016 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V

C017 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V
C018 1-163-809-11 CERAMIC CHIP 0.047UF 10.00% 25V

C019 1-163-989-11 CERAMIC CHIP 0.033UF 10.00% 25V
C021 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V

C022 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C024 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V
C025 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V

C033 1-124-584-00 ELECT 100UF 20.00% 10V
C099 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C208 1-126-963-11 ELECT 4.7UF 20.00% 50V

C209 1-124-252-00 ELECT 0.33UF 20.00% 50V
C210 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C211 1-119-821-11 ELECT MELF 2.2UF 20% 50V
C214 1-104-666-11 ELECT 220UF 20.00% 25V
C216 1-126-964-11 ELECT 10UF 20.00% 50V
C217 1-126-959-11 ELECT 0.47UF 20.00% 50V
C218 1-126-942-61 ELECT 1000UF 20.00% 25V

C219 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C220 1-126-942-61 ELECT 1000UF 20.00% 25V
C258 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C259 1-107-791-11 DOUBLE LAYER 0.33F 5.5V
C260 1-104-665-11 ELECT 100UF 20.00% 10V

C262 1-163-091-00 CERAMIC CHIP 8PF 0.25PF 50V
C263 1-163-091-00 CERAMIC CHIP 8PF 0.25PF 50V
C401 1-163-035-00 CERAMIC CHIP 0.047UF 50V
C402 1-104-664-11 ELECT 47UF 20.00% 10V
C405 1-104-664-11 ELECT 47UF 20.00% 16V

C406 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C407 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C408 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C409 1-104-664-11 ELECT 47UF 20.00% 10V
C410 1-163-035-00 CERAMIC CHIP 0.047UF 50V

C412 1-126-960-11 ELECT 1UF 20.00% 50V
C413 1-163-263-11 CERAMIC CHIP 330PF 5.00% 50V
C414 1-104-664-11 ELECT 47UF 20.00% 10V

*********************************

*********************************

<CAPACITOR>

(KV-14/21FV1D,-14/21FV1U)

(except ESP model)

(except ESP model)
(except ESP model)
(except ESP model)

(except ESP model)

(except ESP model)
(except ESP model)

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C415 1-130-489-00 MYLAR 0.033UF 5.00% 50V
C416 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C417 1-128-551-11 ELECT 22UF 20.00% 25V
C418 1-130-488-00 MYLAR 0.027UF 5.00% 50V
C419 1-126-961-11 ELECT 2.2UF 20.00% 50V
C421 1-104-665-11 ELECT 100UF 20.00% 10V
C422 1-163-018-00 CERAMIC CHIP 0.0056UF 10.00% 50V

C424 1-126-960-11 ELECT 1UF 20.00% 50V
C425 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C430 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V
C431 1-163-231-11 CERAMIC CHIP 15PF 5.00% 50V
C432 1-163-038-11 CERAMIC CHIP 0.1UF 25V

C435 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C436 1-124-584-00 ELECT 100UF 20.00% 10V
C441 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C455 1-126-924-11 ELECT 330UF 20.00% 6.3V
C456 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V

C457 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C458 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C460 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C701 1-163-033-91 CERAMIC CHIP 0.022UF 50V
C702 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C705 1-163-033-91 CERAMIC CHIP 0.022UF 50V
C706 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C707 1-163-033-91 CERAMIC CHIP 0.022UF 50V
C709 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V
C711 1-163-033-91 CERAMIC CHIP 0.022UF 50V

C712 1-163-033-91 CERAMIC CHIP 0.022UF 50V
C713 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V
C716 1-163-033-91 CERAMIC CHIP 0.022UF 50V
C717 1-163-031-11 CERAMIC CHIP 0.01UF 50V

-------------------------------------------------------------------------------------------------------------------------------

C718 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C719 1-163-038-11 CERAMIC CHIP 0.1UF 25V

C720 1-104-665-11 ELECT 100UF 20.00% 10V
C722 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C723 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C724 1-104-665-11 ELECT 100UF 20.00% 10V

C725 1-163-038-91 CERAMIC CHIP 0.1UF 25V
C726 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C727 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C728 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C801 1-164-492-11 CERAMIC CHIP 0.15UF 10.00% 16V

C804 1-163-241-11 CERAMIC CHIP 39PF 5.00% 50V
C807 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V
C808 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C813 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C815 1-163-239-11 CERAMIC CHIP 33PF 5.00% 50V

C816 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V
C817 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C818 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C819 1-163-131-00 CERAMIC CHIP 390PF 5.00% 50V
C820 1-163-809-11 CERAMIC CHIP 0.047UF 10.00% 25V

C822 1-128-551-11 ELECT 22UF 20.00% 25V
C823 1-126-960-11 ELECT 1UF 20.00% 50V
C824 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C825 1-163-257-11 CERAMIC CHIP 180PF 5.00% 50V
C828 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C829 1-164-346-11 CERAMIC CHIP 1UF 16V
C832 1-164-346-11 CERAMIC CHIP 1UF 16V
C834 1-163-038-91 CERAMIC CHIP 0.1UF 25V
C835 1-163-038-91 CERAMIC CHIP 0.1UF 25V
C837 1-104-664-11 ELECT 47UF 20.00% 10V

C840 1-104-665-11 ELECT 100UF 20.00% 10V
C841 1-126-964-11 ELECT 10UF 20.00% 50V

-------------------

C842 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C843 1-104-665-11 ELECT 100UF 20.00% 10V
C844 1-126-964-11 ELECT 10UF 20.00% 50V

C845 1-164-346-11 CERAMIC CHIP 1UF 16V
C846 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

VIDEO BLOCK

– 90 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C847 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C848 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C849 1-126-960-11 ELECT 1UF 20.00% 50V

C850 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C851 1-163-809-11 CERAMIC CHIP 0.047UF 10.00% 25V
C852 1-104-664-11 ELECT 47UF 20.00% 10V
C853 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C854 1-126-960-11 ELECT 1UF 20.00% 50V

C855 1-163-809-11 CERAMIC CHIP 0.047UF 10.00% 25V
C856 1-126-960-11 ELECT 1UF 20.00% 50V
C857 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V
C858 1-126-960-11 ELECT 1UF 20.00% 50V
C859 1-163-038-11 CERAMIC CHIP 0.1UF 25V

C860 1-164-346-11 CERAMIC CHIP 1UF 16V
C861 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C862 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C863 1-104-664-11 ELECT 47UF 20.00% 10V
C864 1-163-016-00 CERAMIC CHIP 0.0039UF 10.00% 50V

C865 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C866 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C867 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C868 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C879 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V

C901 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C902 1-164-346-11 CERAMIC CHIP 1UF 16V
C903 1-163-239-11 CERAMIC CHIP 33PF 5.00% 50V
C904 1-163-239-11 CERAMIC CHIP 33PF 5.00% 50V
C905 1-126-925-11 ELECT 470UF 20.00% 10V

C906 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C907 1-164-346-11 CERAMIC CHIP 1UF 16V
C908 1-126-925-11 ELECT 470UF 20.00% 10V
C909 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C910 1-164-346-11 CERAMIC CHIP 1UF 16V

C911 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C912 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C913 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C1001 1-137-397-11 MYLAR 0.047UF 5.00% 100V
C1002 1-163-031-11 CERAMIC CHIP 0.01UF 50V

C1003 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1004 1-104-664-11 ELECT 47UF 20.00% 10V
C1006 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1007 1-104-664-11 ELECT 47UF 20.00% 10V
C1008 1-126-963-11 ELECT 4.7UF 20.00% 50V

C1009 1-126-964-11 ELECT 10UF 20.00% 50V
C1010 1-137-150-11 MYLAR 0.01UF 5.00% 50V
C1011 1-163-011-11 CERAMIC CHIP 0.0015UF 10.00% 50V
C1012 1-163-011-11 CERAMIC CHIP 0.0015UF 10.00% 50V
C1013 1-164-346-11 CERAMIC CHIP 1UF 16V

C1014 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C1015 1-126-960-11 ELECT 1UF 20.00% 50V
C1016 1-104-664-11 ELECT 47UF 20.00% 16V
C1017 1-126-963-11 ELECT 4.7UF 20.00% 50V
C1019 1-104-664-11 ELECT 47UF 20.00% 10V

C1020 1-126-960-11 ELECT 1UF 20.00% 50V
C1021 1-126-964-11 ELECT 10UF 20.00% 50V
C1101 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C1102 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C1103 1-163-033-91 CERAMIC CHIP 0.022UF 50V

C1104 1-163-038-11 CERAMIC CHIP 0.1UF 25V
C1105 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1106 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1107 1-163-019-00 CERAMIC CHIP 0.0068UF 10.00% 50V
C1701 ! 1-136-516-12 FILM 0.1UF 20.00% 300V

C1702 ! 1-136-516-12 FILM 0.1UF 20.00% 300V
C1703 ! 1-113-924-91 CERAMIC 0.0047UF 20.00% 250V
C1801 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C1802 1-163-255-11 CERAMIC CHIP 150PF 5.00% 50V

! are critical for safety.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(FR model)
(FR model)

MA10

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

C1803 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V

C1804 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C1805 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V
C1806 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C1807 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1808 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V

C1809 1-163-009-11 CERAMIC CHIP 0.001UF 10.00% 50V
C1810 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C1811 1-163-031-11 CERAMIC CHIP 0.01UF 50V
C1812 1-104-664-11 ELECT 47UF 20.00% 10V
C1813 1-163-249-11 CERAMIC CHIP 82PF 5.00% 50V

C1814 1-163-137-00 CERAMIC CHIP 680PF 5.00% 50V
C1815 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1816 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V
C1817 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V
C1818 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V

C1819 1-126-964-11 ELECT 10UF 20.00% 50V

-------------------------------------------------------------------------------------------------------------------------------

C1820 1-126-959-11 ELECT 0.47UF 20.00% 50V
C1821 1-126-960-11 ELECT 1UF 20.00% 50V
C1822 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C1824 1-126-961-11 ELECT 2.2UF 20.00% 50V

C1826 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

<CONNECTOR>

CN001 1-785-386-11 SOCKET, CONNECTOR 35P
CN002 * 1-766-715-11 CONNECTOR, BOARD TO BOARD 10P
CN251 * 1-564-506-11 PLUG, CONNECTOR 3P
CN401 1-695-328-11 SOCKET, CONNECTOR 5P
CN403 1-779-723-11 CONNECTOR, BOARD TO BOARD 9P

CN404 * 1-766-716-11 CONNECTOR, BOARD TO BOARD 3P
CN701 * 1-695-329-31 PIN, CONNECTOR (PC BOARD) 6P
CN702 * 1-560-892-00 PIN, CONNECTOR 4P
CN1001 * 1-564-506-11 PLUG, CONNECTOR 3P
CN1002 * 1-569-926-11 SOCKET, CONNECTOR 7P

CN1003 * 1-564-510-11 PLUG, CONNECTOR 7P
CN1004 1-784-038-11 CONNECTOR, BOARD TO BOARD 9P
CN1701 * 1-580-843-11 PIN, CONNECTOR (POWER)
CN1702 * 1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P
CN1703 1-695-915-11 TAB (CONTACT)

<DIODE>

D001 8-719-109-93 ZENER DIODE RD6.2ESB2
D002 8-719-921-54 ZENER DIODE MTZJ-6.2B
D004 8-719-921-54 ZENER DIODE MTZJ-6.2B

-------------------

D005 8-719-921-40 ZENER DIODE MTZJ-4.7C
D006 8-719-921-44 ZENER DIODE MTZJ-5.1C

D007 8-719-911-19 DIODE 1SS119-25
D008 8-719-109-93 ZENER DIODE RD6.2ESB2
D009 8-719-988-61 DIODE 1SS355TE-17

(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)

– 91 –

The components identified by shading
and mark
Replace only with part number specified.

MA10

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

D201 8-719-921-54 ZENER DIODE MTZJ-6.2B
D202 8-719-921-54 ZENER DIODE MTZJ-6.2B

D251 8-719-921-54 ZENER DIODE MTZJ-6.2B
D252 8-719-921-54 ZENER DIODE MTZJ-6.2B
D253 8-719-921-54 ZENER DIODE MTZJ-6.2B
D254 8-719-921-54 ZENER DIODE MTZJ-6.2B
D402 8-719-911-19 DIODE 1SS119-25

D403 8-719-200-82 DIODE 11ES2
D405 8-719-200-82 DIODE 11ES2
D406 8-719-200-82 DIODE 11ES2
D407 8-719-200-82 DIODE 11ES2
D432 8-719-109-93 ZENER DIODE RD6.2ESB2

D433 8-719-109-93 ZENER DIODE RD6.2ESB2
D451 8-719-048-26 DIODE GL528V1
D901 8-719-109-89 ZENER DIODE RD5.6ESB2
D902 8-719-109-72 ZENER DIODE RD3.9ES-B2
D903 8-719-914-43 DIODE DAN202K

D904 8-719-109-89 ZENER DIODE RD5.6ESB2B
D905 8-719-109-72 ZENER DIODE RD3.9ES-B2
D1101 8-719-921-54 ZENER DIODE MTZJ-6.2B
D1102 8-719-921-54 ZENER DIODE MTZJ-6.2B
D1103 8-719-921-54 ZENER DIODE MTZJ-6.2B

D1104 8-719-921-54 ZENER DIODE MTZJ-6.2B
D1105 8-719-921-54 ZENER DIODE MTZJ-6.2B
D1106 8-719-109-93 ZENER DIODE RD6.2ESB2
D1107 8-719-109-93 ZENER DIODE RD6.2ESB2
D1108 8-719-109-93 ZENER DIODE RD6.2ESB2

D1109 8-719-109-93 ZENER DIODE RD6.2ESB2
D1110 8-719-921-54 ZENER DIODE MTZJ-6.2B

<FUSE>

F1701 ! 1-576-232-21 FUSE (H.B.C.) (5A/250V)
FH1701 * 1-533-725-11 HOLDER, FUSE; F1701

<IC>

IC001 8-752-917-77 IC CXP85452-233Q-TL
IC002 8-759-527-77 IC M24C16-MN6T
IC003 8-759-510-43 IC PST572C
IC005 8-759-484-61 IC SDA5650X-GEG (except ESP model)
IC201 8-759-442-73 IC TDA7494

IC252 8-759-530-93 IC S-3510ACFJA-TB
IC401 8-759-353-59 IC LB1643
IC402 8-752-918-13 IC CXP87852-063Q-TL
IC403 8-759-702-02 IC NJM062M
IC404 8-759-510-73 IC BA10393F-E2

IC405 8-759-438-83 IC BA6305F-E2
IC701 8-759-357-84 IC HA118295NT
IC801 8-759-439-50 IC LC89977M-TE-L
IC802 8-759-479-25 IC LA71514M-MPB
IC901 8-759-689-43 IC SAA5563PS/M3/0189

IC902 8-759-591-02 IC L78L33ABZ-AP
IC1001 8-759-499-30 IC BA7755AF-E2
IC1101 8-742-014-21 HYB IC SBX1981-51(21)
IC1801 8-759-438-17 IC LA7337 (FR model)

<JACK>

J1101 1-779-205-11 JACK, PIN 2P (VIDEO/AUDIO IN)
J1102 1-568-267-21 JACK (HEADPHONE)

<CHIP CONDUCTOR>

JR001 1-216-295-11 SHORT 0
JR101 1-216-295-11 SHORT 0
JR103 1-216-295-11 SHORT 0
JR109 1-216-295-11 SHORT 0
JR110 1-216-295-11 SHORT 0

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

JR111 1-216-295-11 SHORT 0
JR112 1-216-296-91 SHORT 0
JR113 1-216-296-91 SHORT 0
JR114 1-216-296-91 SHORT 0
JR115 1-216-296-91 SHORT 0

JR116 1-216-296-91 SHORT 0
JR117 1-216-296-91 SHORT 0
JR118 1-216-296-91 SHORT 0
JR119 1-216-296-91 SHORT 0
JR121 1-216-295-11 SHORT 0

JR122 1-216-295-11 SHORT 0
JR123 1-216-296-11 SHORT 0
JR125 1-216-296-11 SHORT 0
JR126 1-216-296-11 SHORT 0
JR127 1-216-295-11 SHORT 0

JR136 1-216-295-11 SHORT 0
JR137 1-216-295-11 SHORT 0
JR138 1-216-295-11 SHORT 0
JR140 1-216-295-11 SHORT 0
JR142 1-216-295-11 SHORT 0

JR143 1-216-295-11 SHORT 0
JR144 1-216-295-11 SHORT 0
JR145 1-216-295-11 SHORT 0
JR146 1-216-295-11 SHORT 0
JR147 1-216-295-11 SHORT 0

JR148 1-216-295-11 SHORT 0
JR149 1-216-295-11 SHORT 0
JR150 1-216-296-91 SHORT 0
JR151 1-216-296-91 SHORT 0
JR152 1-216-296-91 SHORT 0

JR153 1-216-296-91 SHORT 0

-------------------------------------------------------------------------------------------------------------------------------

JR154 1-216-296-91 SHORT 0
JR155 1-216-296-91 SHORT 0
JR156 1-216-296-91 SHORT 0
JR157 1-216-296-91 SHORT 0

JR158 1-216-296-91 SHORT 0
JR159 1-216-296-91 SHORT 0
JR160 1-216-296-91 SHORT 0
JR163 1-216-296-91 SHORT 0
JR164 1-216-296-91 SHORT 0

L001 1-469-013-31 INDUCTOR 18UH
L002 1-410-509-11 INDUCTOR 10UH
L003 1-414-856-11 INDUCTOR 10UH (except ESP model)
L004 1-414-856-11 INDUCTOR 10UH
L201 1-414-856-11 INDUCTOR 10UH

L202 1-414-856-11 INDUCTOR 10UH
L402 1-410-509-11 INDUCTOR 10UH
L403 1-414-856-11 INDUCTOR 10UH
L404 1-216-295-11 SHORT 0
L431 1-410-509-11 INDUCTOR 10UH

L703 1-408-615-31 INDUCTOR 100UH
L704 1-408-615-31 INDUCTOR 100UH
L801 1-410-439-11 INDUCTOR 470UH
L803 1-408-977-21 INDUCTOR 39UH
L804 1-408-977-21 INDUCTOR 39UH

L808 1-414-184-41 INDUCTOR 15UH
L809 1-408-615-31 INDUCTOR 100UH
L811 1-414-185-41 INDUCTOR 22UH
L812 1-414-185-41 INDUCTOR 22UH
L813 1-414-187-11 INDUCTOR 47UH

L815 1-414-190-31 INDUCTOR 120UH
L901 1-414-856-11 INDUCTOR 10UH

-------------------

L902 1-414-856-11 INDUCTOR 10UH
L903 1-414-856-11 INDUCTOR 10UH
L1001 1-408-615-31 INDUCTOR 100UH

L1003 1-420-872-00 COIL, AIR CORE
L1004 1-414-187-11 INDUCTOR 47UH

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

<COIL>

– 92 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

L1102 1-408-982-11 INDUCTOR 100UH
L1103 1-414-177-11 INDUCTOR 1UH
L1104 1-414-183-41 INDUCTOR 10UH

L1801 1-408-968-21 INDUCTOR 6.8UH (FR model)
L1802 1-408-974-21 INDUCTOR 22UH (FR model)
L1803 * 1-408-980-21 INDUCTOR 68UH (FR model)
L1804 1-408-975-21 INDUCTOR 27UH (FR model)
L1806 1-408-978-21 INDUCTOR 47UH (FR model)

PH451 8-749-013-23 PHOTO INTERRUPTER GP3S120
PH452 8-749-013-23 PHOTO INTERRUPTER GP3S120

PS201 ! 1-532-605-91 LINK, IC (0.4A/150V)

Q003 8-729-421-22 TRANSISTOR UN2211
Q005 8-729-421-19 TRANSISTOR UN2213
Q006 8-729-421-19 TRANSISTOR UN2213
Q008 8-729-421-19 TRANSISTOR UN2213
Q009 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q201 8-729-422-27 TRANSISTOR 2SD601A-Q
Q402 8-729-424-18 TRANSISTOR UN2113
Q451 8-729-281-53 TRANSISTOR 2SC1815-GR
Q452 8-729-042-88 TRANSISTOR RPT-37PB3F
Q453 8-729-042-88 TRANSISTOR RPT-37PB3F

Q701 8-729-422-27 TRANSISTOR 2SD601A-Q
Q801 8-729-422-27 TRANSISTOR 2SD601A-Q
Q803 8-729-422-27 TRANSISTOR 2SD601A-Q
Q808 8-729-422-27 TRANSISTOR 2SD601A-Q
Q809 8-729-421-19 TRANSISTOR UN2213

Q812 8-729-422-27 TRANSISTOR 2SD601A-Q
Q815 8-729-422-27 TRANSISTOR 2SD601A-Q
Q821 8-729-422-27 TRANSISTOR 2SD601A-Q
Q822 8-729-422-27 TRANSISTOR 2SD601A-Q
Q824 8-729-216-22 TRANSISTOR 2SA1162-G

Q825 8-729-422-27 TRANSISTOR 2SD601A-Q
Q830 8-729-216-22 TRANSISTOR 2SA1162-G
Q901 8-729-216-22 TRANSISTOR 2SA1162-G
Q902 8-729-422-27 TRANSISTOR 2SD601A-Q
Q903 8-729-422-27 TRANSISTOR 2SD601A-Q

Q904 8-729-422-27 TRANSISTOR 2SD601A-Q
Q1001 8-729-802-91 TRANSISTOR 2SD879
Q1002 8-729-422-27 TRANSISTOR 2SD601A-Q
Q1801 8-729-216-22 TRANSISTOR 2SA1162-G (FR model)
Q1802 8-729-424-56 TRANSISTOR UN211L (FR model)

Q1804 8-729-230-49 TRANSISTOR 2SC2712-YG (FR model)
Q1805 8-729-230-49 TRANSISTOR 2SC2712-YG (FR model)
Q1806 8-729-230-49 TRANSISTOR 2SC2712-YG (FR model)
Q1807 8-729-421-19 TRANSISTOR UN2213 (FR model)
Q1808 8-729-424-08 TRANSISTOR UN2111 (FR model)

R001 1-216-049-11 RES-CHIP 1K 5% 1/10W
R004 1-216-049-11 RES-CHIP 1K 5% 1/10W
R005 1-216-089-11 RES-CHIP 47K 5% 1/10W
R006 1-216-041-00 RES-CHIP 470 5% 1/10W
R007 1-249-421-11 CARBON 2.2K 5% 1/4W

R009 1-216-049-11 RES-CHIP 1K 5% 1/10W
R011 1-216-025-11 RES-CHIP 100 5% 1/10W

R012 1-216-025-11 RES-CHIP 100 5% 1/10W
R013 1-216-049-11 RES-CHIP 1K 5% 1/10W
R014 1-216-049-11 RES-CHIP 1K 5% 1/10W

R015 1-216-049-11 RES-CHIP 1K 5% 1/10W

! are critical for safety.

<PHOTO COUPLER>

<IC LINK>

<TRANSISTOR>

<RESISTOR>

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(except ESP model)

MA10

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R016 1-216-049-11 RES-CHIP 1K 5% 1/10W
R017 1-216-025-11 RES-CHIP 100 5% 1/10W
R018 1-216-041-00 RES-CHIP 470 5% 1/10W
R020 1-216-025-11 RES-CHIP 100 5% 1/10W

R022 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R025 1-216-073-00 RES-CHIP 10K 5% 1/10W
R026 1-216-049-11 RES-CHIP 1K 5% 1/10W
R027 1-216-079-00 RES-CHIP 18K 5% 1/10W
R029 1-216-049-11 RES-CHIP 1K 5% 1/10W

R030 1-216-033-00 RES-CHIP 220 5% 1/10W
R036 1-216-025-11 RES-CHIP 100 5% 1/10W
R037 1-216-025-11 RES-CHIP 100 5% 1/10W
R038 1-216-025-11 RES-CHIP 100 5% 1/10W
R039 1-216-025-11 RES-CHIP 100 5% 1/10W

R040 1-216-073-00 RES-CHIP 10K 5% 1/10W
R041 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R042 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R043 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R044 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R045 1-216-295-11 SHORT 0
R046 1-216-025-11 RES-CHIP 100 5% 1/10W
R047 1-216-025-11 RES-CHIP 100 5% 1/10W
R048 1-216-045-00 RES-CHIP 680 5% 1/10W
R049 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R050 1-216-025-11 RES-CHIP 100 5% 1/10W
R051 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R052 1-216-073-00 RES-CHIP 10K 5% 1/10W
R053 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R054 1-216-049-11 RES-CHIP 1K 5% 1/10W

R055 1-216-033-00 RES-CHIP 220 5% 1/10W

-------------------------------------------------------------------------------------------------------------------------------

R056 1-216-033-00 RES-CHIP 220 5% 1/10W
R057 1-216-049-11 RES-CHIP 1K 5% 1/10W
R058 1-216-039-00 RES-CHIP 390 5% 1/10W
R059 1-216-049-11 RES-CHIP 1K 5% 1/10W

R060 1-216-049-11 RES-CHIP 1K 5% 1/10W
R064 1-216-049-11 RES-CHIP 1K 5% 1/10W
R065 1-216-049-11 RES-CHIP 1K 5% 1/10W
R067 1-216-025-11 RES-CHIP 100 5% 1/10W
R068 1-216-025-11 RES-CHIP 100 5% 1/10W

R075 1-216-049-11 RES-CHIP 1K 5% 1/10W
R076 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R077 1-216-089-11 RES-CHIP 47K 5% 1/10W
R078 1-216-073-00 RES-CHIP 10K 5% 1/10W
R083 1-216-069-00 RES-CHIP 6.8K 5% 1/10W

R084 1-216-033-00 RES-CHIP 220 5% 1/10W
R085 1-216-049-11 RES-CHIP 1K 5% 1/10W
R087 1-216-097-11 RES-CHIP 100K 5% 1/10W

R088 1-216-123-11 RES-CHIP 1.2M 5% 1/10W
R089 1-216-025-11 RES-CHIP 100 5% 1/10W

R090 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R091 1-216-123-11 RES-CHIP 1.2M 5% 1/10W
R092 1-216-121-11 RES-CHIP 1M 5% 1/10W
R093 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R095 1-216-295-11 SHORT 0 (except ESP model)
R096 1-216-069-00 RES-CHIP 6.8K 5% 1/10W

R097 1-216-073-00 RES-CHIP 10K 5% 1/10W
R098 1-216-025-11 RES-CHIP 100 5% 1/10W

-------------------

R100 1-216-073-00 RES-CHIP 10K 5% 1/10W
R101 1-216-073-00 RES-CHIP 10K 5% 1/10W

R204 1-247-807-31 CARBON 100 5% 1/4W
R205 1-216-049-11 RES-CHIP 1K 5% 1/10W
R206 1-216-109-00 RES-CHIP 330K 5% 1/10W

(except ESP model)

(except ESP model)

(except ESP model)
(except ESP model)
(except ESP model)

(except ESP model)
(except ESP model)
(except ESP model)
(except ESP model)

– 93 –

The components identified by shading
and mark
Replace only with part number specified.

MA10

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R210 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R211 1-216-073-00 RES-CHIP 10K 5% 1/10W

R212 1-216-049-11 RES-CHIP 1K 5% 1/10W
R216 1-249-385-11 CARBON 2.2 5% 1/4W
R218 1-216-105-91 RES-CHIP 220K 5% 1/10W
R219 1-216-033-00 RES-CHIP 220 5% 1/10W
R220 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R263 1-216-025-11 RES-CHIP 100 5% 1/10W
R264 1-216-025-11 RES-CHIP 100 5% 1/10W
R265 1-216-295-11 SHORT 0
R401 1-216-073-00 RES-CHIP 10K 5% 1/10W
R402 1-216-073-00 RES-CHIP 10K 5% 1/10W

R403 1-216-049-11 RES-CHIP 1K 5% 1/10W
R404 1-216-073-00 RES-CHIP 10K 5% 1/10W
R405 1-216-073-00 RES-CHIP 10K 5% 1/10W
R406 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R407 1-216-053-00 RES-CHIP 1.5K 5% 1/10W

R408 1-216-073-00 RES-CHIP 10K 5% 1/10W
R409 1-216-073-00 RES-CHIP 10K 5% 1/10W
R410 1-216-049-11 RES-CHIP 1K 5% 1/10W
R411 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R412 1-216-057-00 RES-CHIP 2.2K 5% 1/10W

R414 1-216-097-11 RES-CHIP 100K 5% 1/10W
R415 1-216-097-11 RES-CHIP 100K 5% 1/10W
R416 1-216-105-91 RES-CHIP 220K 5% 1/10W
R417 1-216-111-00 RES-CHIP 390K 5% 1/10W
R418 1-216-097-11 RES-CHIP 100K 5% 1/10W

R419 1-216-097-11 RES-CHIP 100K 5% 1/10W
R420 1-216-117-00 RES-CHIP 680K 5% 1/10W
R421 1-216-079-00 RES-CHIP 18K 5% 1/10W
R422 1-216-689-11 RES-CHIP 39K 5% 1/10W
R423 1-216-049-11 RES-CHIP 1K 5% 1/10W

R424 1-216-675-91 METAL CHIP 10K 0.50% 1/10W
R425 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R426 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R427 1-216-103-00 RES-CHIP 180K 5% 1/10W
R428 1-216-675-91 METAL CHIP 10K 0.50% 1/10W

R429 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R430 1-216-037-00 RES-CHIP 330 5% 1/10W
R432 1-216-073-00 RES-CHIP 10K 5% 1/10W
R435 1-216-049-11 RES-CHIP 1K 5% 1/10W
R436 1-216-043-11 RES-CHIP 560 5% 1/10W

R437 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R438 1-216-295-11 SHORT 0
R439 1-216-089-11 RES-CHIP 47K 5% 1/10W
R440 1-216-089-11 RES-CHIP 47K 5% 1/10W
R441 1-216-089-11 RES-CHIP 47K 5% 1/10W

R442 1-216-089-11 RES-CHIP 47K 5% 1/10W
R443 1-216-049-11 RES-CHIP 1K 5% 1/10W
R444 1-216-295-11 SHORT 0
R445 1-216-089-11 RES-CHIP 47K 5% 1/10W
R446 1-216-075-00 RES-CHIP 12K 5% 1/10W

R447 1-216-081-00 RES-CHIP 22K 5% 1/10W
R448 1-216-075-00 RES-CHIP 12K 5% 1/10W
R449 1-216-081-00 RES-CHIP 22K 5% 1/10W
R450 1-216-077-91 RES-CHIP 15K 5% 1/10W
R451 1-216-057-00 RES-CHIP 2.2K 5% 1/10W

R452 1-249-400-11 CARBON 39 5% 1/4W
R453 1-249-400-11 CARBON 39 5% 1/4W
R454 1-249-406-11 CARBON 120 5% 1/4W
R455 1-216-089-11 RES-CHIP 47K 5% 1/10W
R456 1-216-089-11 RES-CHIP 47K 5% 1/10W

R457 1-216-085-00 RES-CHIP 33K 5% 1/10W
R458 1-216-085-00 RES-CHIP 33K 5% 1/10W
R459 1-216-085-00 RES-CHIP 33K 5% 1/10W
R460 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R461 1-216-085-00 RES-CHIP 33K 5% 1/10W

R465 1-216-045-00 RES-CHIP 680 5% 1/10W
R468 1-216-089-11 RES-CHIP 47K 5% 1/10W

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R470 1-216-041-00 RES-CHIP 470 5% 1/10W
R471 1-216-041-00 RES-CHIP 470 5% 1/10W
R472 1-216-041-00 RES-CHIP 470 5% 1/10W

R473 1-216-041-00 RES-CHIP 470 5% 1/10W
R474 1-216-073-00 RES-CHIP 10K 5% 1/10W
R476 1-216-049-11 RES-CHIP 1K 5% 1/10W
R477 1-216-049-11 RES-CHIP 1K 5% 1/10W
R478 1-216-049-11 RES-CHIP 1K 5% 1/10W

R479 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R480 1-216-049-11 RES-CHIP 1K 5% 1/10W
R481 1-216-049-11 RES-CHIP 1K 5% 1/10W
R484 1-216-049-11 RES-CHIP 1K 5% 1/10W
R487 1-216-045-00 RES-CHIP 680 5% 1/10W

R701 1-216-025-11 RES-CHIP 100 5% 1/10W
R702 1-216-045-00 RES-CHIP 680 5% 1/10W
R705 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R706 1-216-081-00 RES-CHIP 22K 5% 1/10W
R707 1-216-073-00 RES-CHIP 10K 5% 1/10W

R708 1-216-049-11 RES-CHIP 1K 5% 1/10W
R709 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R710 1-216-049-11 RES-CHIP 1K 5% 1/10W
R711 1-216-049-11 RES-CHIP 1K 5% 1/10W
R712 1-216-049-11 RES-CHIP 1K 5% 1/10W

R801 1-216-041-00 RES-CHIP 470 5% 1/10W
R803 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R804 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R810 1-216-041-00 RES-CHIP 470 5% 1/10W
R811 1-216-041-00 RES-CHIP 470 5% 1/10W

R813 1-216-047-91 RES-CHIP 820 5% 1/10W
R814 1-216-041-00 RES-CHIP 470 5% 1/10W
R815 1-249-413-11 CARBON 470 5% 1/4W

-------------------------------------------------------------------------------------------------------------------------------

R819 1-216-081-00 RES-CHIP 22K 5% 1/10W
R820 1-216-081-00 RES-CHIP 22K 5% 1/10W

R823 1-216-049-11 RES-CHIP 1K 5% 1/10W
R824 1-216-049-11 RES-CHIP 1K 5% 1/10W
R827 1-216-025-11 RES-CHIP 100 5% 1/10W
R829 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R831 1-216-295-11 SHORT 0

R835 1-216-041-00 RES-CHIP 470 5% 1/10W
R837 1-216-073-00 RES-CHIP 10K 5% 1/10W
R838 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R839 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R840 1-216-025-11 RES-CHIP 100 5% 1/10W

R841 1-216-062-00 RES-CHIP 3.6K 5% 1/10W
R843 1-216-041-00 RES-CHIP 470 5% 1/10W
R845 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R847 1-216-295-11 SHORT 0
R848 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R849 1-216-295-11 SHORT 0
R850 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R852 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R856 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R857 1-216-049-11 RES-CHIP 1K 5% 1/10W

R858 1-216-049-11 RES-CHIP 1K 5% 1/10W
R859 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R860 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R861 1-216-089-11 RES-CHIP 47K 5% 1/10W
R862 1-216-045-00 RES-CHIP 680 5% 1/10W

R867 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R869 1-216-049-11 RES-CHIP 1K 5% 1/10W
R870 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R871 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R872 1-216-057-00 RES-CHIP 2.2K 5% 1/10W

R873 1-216-049-11 RES-CHIP 1K 5% 1/10W

-------------------

R875 1-216-295-11 SHORT 0
R881 1-216-089-11 RES-CHIP 47K 5% 1/10W
R882 1-216-689-11 RES-CHIP 39K 5% 1/10W
R883 1-216-049-11 RES-CHIP 1K 5% 1/10W

R885 1-216-049-11 RES-CHIP 1K 5% 1/10W

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

– 94 –

The components identified by shading
and mark
Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R901 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R902 1-216-025-11 RES-CHIP 100 5% 1/10W
R903 1-216-025-11 RES-CHIP 100 5% 1/10W
R904 1-216-025-11 RES-CHIP 100 5% 1/10W

R905 1-216-025-11 RES-CHIP 100 5% 1/10W
R906 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R907 1-216-089-11 RES-CHIP 47K 5% 1/10W
R908 1-216-025-11 RES-CHIP 100 5% 1/10W
R909 1-216-041-00 RES-CHIP 470 5% 1/10W

R910 1-216-037-00 RES-CHIP 330 5% 1/10W
R911 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R912 1-216-082-00 RES-CHIP 24K 5% 1/10W
R913 1-216-025-11 RES-CHIP 100 5% 1/10W
R914 1-216-025-11 RES-CHIP 100 5% 1/10W

R915 1-216-029-00 RES-CHIP 150 5% 1/10W
R916 1-216-029-00 RES-CHIP 150 5% 1/10W
R917 1-216-025-11 RES-CHIP 100 5% 1/10W
R918 1-247-807-31 CARBON 100 5% 1/4W
R919 1-216-029-00 RES-CHIP 150 5% 1/10W

R920 1-216-041-00 RES-CHIP 470 5% 1/10W
R921 1-216-049-11 RES-CHIP 1K 5% 1/10W
R922 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R924 1-216-073-00 RES-CHIP 10K 5% 1/10W
R925 1-216-073-00 RES-CHIP 10K 5% 1/10W

R927 1-216-049-11 RES-CHIP 1K 5% 1/10W
R928 1-216-097-11 RES-CHIP 100K 5% 1/10W
R929 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R930 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1002 1-249-408-11 CARBON 180 5% 1/4W

R1003 1-249-381-11 CARBON 1 5% 1/4W
R1004 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R1005 1-249-401-11 CARBON 47 5% 1/4W
R1006 1-216-075-00 RES-CHIP 12K 5% 1/10W
R1007 1-216-079-00 RES-CHIP 18K 5% 1/10W

R1008 1-216-035-00 RES-CHIP 270 5% 1/10W
R1010 1-216-109-00 RES-CHIP 330K 5% 1/10W
R1011 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1012 1-216-047-91 RES-CHIP 820 5% 1/10W
R1013 1-216-079-00 RES-CHIP 18K 5% 1/10W

R1014 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R1015 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R1017 1-249-426-11 CARBON 5.6K 5% 1/4W
R1018 1-216-061-00 RES-CHIP 3.3K 5% 1/10W
R1019 1-216-073-00 RES-CHIP 10K 5% 1/10W

R1020 1-216-025-11 RES-CHIP 100 5% 1/10W
R1023 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R1024 1-216-093-91 RES-CHIP 68K 5% 1/10W
R1025 1-216-129-00 RES-CHIP 2.2M 5% 1/10W
R1101 1-216-045-00 RES-CHIP 680 5% 1/10W

R1102 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R1103 1-216-045-00 RES-CHIP 680 5% 1/10W
R1104 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R1106 1-216-022-00 RES-CHIP 75 5% 1/10W
R1108 1-216-061-00 RES-CHIP 3.3K 5% 1/10W

R1109 1-216-079-00 RES-CHIP 18K 5% 1/10W
R1110 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R1111 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R1112 1-216-047-91 RES-CHIP 820 5% 1/10W
R1113 1-216-061-00 RES-CHIP 3.3K 5% 1/10W

R1115 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R1116 1-216-047-91 RES-CHIP 820 5% 1/10W
R1119 1-216-295-11 SHORT 0
R1128 1-216-037-00 RES-CHIP 330 5% 1/10W
R1129 1-216-037-00 RES-CHIP 330 5% 1/10W

R1136 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R1701 ! 1-260-135-91 CARBON 1M 5% 1/2W
R1801 1-216-089-11 RES-CHIP 47K 5% 1/10W

R1802 1-216-071-00 RES-CHIP 8.2K 5% 1/10W

! are critical for safety.

Les composants identifiés par la marque

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

(FR model)
(FR model)

MA10

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

R1803 1-216-072-00 RES-CHIP 9.1K 5% 1/10W

R1804 1-216-080-00 RES-CHIP 20K 5% 1/10W
R1805 1-216-083-00 RES-CHIP 27K 5% 1/10W
R1806 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R1807 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1808 1-216-689-11 RES-CHIP 39K 5% 1/10W

R1809 1-216-083-00 RES-CHIP 27K 5% 1/10W
R1810 1-216-041-00 RES-CHIP 470 5% 1/10W
R1811 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R1812 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1813 1-216-077-91 RES-CHIP 15K 5% 1/10W

R1814 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1815 1-216-089-11 RES-CHIP 47K 5% 1/10W
R1816 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R1817 1-216-089-11 RES-CHIP 47K 5% 1/10W
R1818 1-216-089-11 RES-CHIP 47K 5% 1/10W

R1819 1-216-073-00 RES-CHIP 10K 5% 1/10W

-------------------------------------------------------------------------------------------------------------------------------

R1820 1-216-295-11 SHORT 0 (FR model)
R1821 1-216-083-00 RES-CHIP 27K 5% 1/10W

R1822 1-216-689-11 RES-CHIP 39K 5% 1/10W
R1823 1-216-073-00 RES-CHIP 10K 5% 1/10W

R1831 1-216-295-11 SHORT 0 (FR model)

<SWITCH>

S401 1-771-155-11 SWITCH, ROTARY (MODE SW)
S451 1-762-108-11 SWITCH, PUSH (1 KEY) (REC PRF)
S1101 1-571-532-21 SWITCH, TACTIL (TIMER REC)
S1102 1-570-577-11 SWITCH, PUSH (STOP/REC)
S1103 1-570-577-11 SWITCH, PUSH (REW/VOL -)

S1104 1-570-577-11 SWITCH, PUSH (PLAY/VOL +)
S1105 1-571-532-21 SWITCH, TACTIL (CH -)
S1106 1-570-577-11 SWITCH, PUSH (FWD/CH +)
S1107 1-570-577-11 SWITCH, PUSH (PAUSE)
S1108 1-571-532-21 SWITCH, TACTIL (POWER)

S1109 1-571-532-21 SWITCH, TACTIL (INPUT SELECT)
S1701 ! 1-571-433-31 SWITCH, PUSH (AC POWER)

<TRANSFORMER>

T1001 1-431-097-11 TRANSFORMER, BIAS OSCILLATION
T1701 ! 1-427-962-11 TRANSFORMER, LINE FILTER

<VARISTOR>

VDR601!1-803-830-31 VARISTOR (ERZV14D621)

-------------------

<CRYSTAL>

X001 1-767-755-11 VIBRATOR, CRYSTAL
X251 1-579-463-11 VIBRATOR, CRYSTAL
X430 1-760-494-11 VIBRATOR, CRYSTAL

(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)
(FR model)
(FR model)
(FR model)
(FR model)

(FR model)

(FR model)
(FR model)
(FR model)

– 95 –

KV-14FV1B/FV1D/FV1E/FV1U

RM-816 RM-814 RM-814 RM-815

KV-21FV1B/FV1D/FV1E/FV1U

RM-816 RM-814 RM-814 RM-815

MA10

REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

X801 1-579-608-11 VIBRATOR, CRYSTAL
X901 1-578-774-11 VIBRATOR, CRYSTAL

**********************************************************************************

*A-1646-216-AH10 BOARD, COMPLETE

CN1301 1-766-719-11 CONNECTOR, BOARD TO BOARD 10P

D1301 8-719-053-43 DIODE SLR-325VCT31 (REC)
D1302 8-719-053-43 DIODE SLR-325VCT31 (TIMER REC)
D1303 8-719-061-96 DIODE SLR-325DCT31 (DIAL TIMER)
D1304 8-719-053-43 DIODE SLR-325VCT31 (STBY)
D1305 8-719-061-96 DIODE SLR-325DCT31 (DIAL TIMER)

D1306 8-719-061-96 DIODE SLR-325DCT31 (DIAL TIMER)

JR165 1-216-296-91 SHORT 0

Q1301 8-729-902-99 TRANSISTOR DTC114TK

R1301 1-249-403-11 CARBON 68 5% 1/4W
R1302 1-249-406-11 CARBON 120 5% 1/4W
R1307 1-216-073-00 RES-CHIP 10K 5% 1/10W
R1308 1-216-073-00 RES-CHIP 10K 5% 1/10W

S1301 1-762-196-21 SWITCH, TACT (EJECT)
S1302 1-418-156-11 ENCODER, ROTARYRY (DIAL TIMER)

H10

*******************************

<CONNECTOR>

<DIODE>

<CHIP CONDUCTOR>

<TRANSISTOR>

<RESISTOR>

<SWITCH>

The components identified by shading
and mark
Replace only with part number specified.

Les composants identifiés par la marque

! are critical for safety.

------------------------------------------------------------------------------------------------------------------------------­REF. NO. PART NO. DESCRIPTION REMARK

------------ ------------- ------------------- -------------

! 1-251-317-32 CAP ASSY, HIGH VOLTAGE (14inch model)
! 1-416-864-12 COIL, VM
! 1-419-548-11 COIL, DEGAUSSING (14inch model)

1-419-494-11 COIL, CHOKE 56.0 mH (21inch model)

! 1-419-772-11 COIL, DEGAUSSING (21inch model)

1-452-032-00 MAGNET, DISC ; 10mmø
1-452-094-00 MAGNET, ROTATABLE DISC ; 15mmø

! 1-452-728-61 COIL, NA ROTATION (RT-154) (21inch model)

1-529-474-11 SPEAKER (5CM) (14inch model)
1-529-710-11 SPEAKER (5X9CM) (21inch model)

! 1-765-286-11 CORD, POWER (FR/AEP/ESP model)
! 1-776-860-12 POWER CORD, FILTER (UK) (UK model)

1-900-905-56 CONNECTOR ASSY 7P
1-900-905-60 CONNECTOR ASSY 5P
1-900-905-61 CONNECTOR ASSY 35P

1-900-905-74 CONNECTOR ASSY, MICRO 5P(21inch model)

! 8-451-401-21 DEFLECTION YOKE (Y14RSA-L) (14inch model)

V901 ! 8-738-570-05 PICTURE TUBE (A34LRG70X) (14inch model)
V901 ! 8-738-836-05 PICTURE TUBE (A51LPT60X)(21inch model)

**********************************************************************************

-------------------------------------------------------------------------------------------------------------------------------

! 8-451-505-41 DEFLECTION YOKE (Y21RSA-L) (21inch model)

ACCESSORIES AND PACKING MATERIALS
*****************************************************

1-501-615-31 ANTENNA, LOOP (14inch UK model)
*4-039-905-02 BAG, PROTECTION (14inch model)
*4-395-957-01 BAG, PROTECTION (21inch model)
*4-205-654-01 CUSHION LOWER ASSY (14inch model)
*4-205-655-01 CUSHION UPPER ASSY (14inch model)

4-205-660-01 INDIVIDUAL CARTON (14inch model)

4-205-687-11 INSTRUCTION, MANUAL (ESP model)

4-205-687-21 INSTRUCTION, MANUAL (FR model)

4-205-687-31 INSTRUCTION, MANUAL (UK model)

4-205-687-41 INSTRUCTION, MANUAL (AEP model)

4-205-687-51 INSTRUCTION, MANUAL (ESP model)

4-205-687-61 INSTRUCTION, MANUAL (AEP model)

! sont critiques pour la sécurité.

Ne les remplacer que par une pièce
portant le numéro spécifié.

MISCELLANEOUS
**********************

**********************************************************************************

Sony Ichinomiya Corporation

9-927-400-01

Quality Assurance Division

**********************************************************************************

REMOTE COMMANDER

*****************************
1-476-246-11 REMOTE COMMANDER (RM-814)
1-476-247-11 REMOTE COMMANDER (RM-815)
1-476-248-11 REMOTE COMMANDER (RM-816)
9-882-043-01 POCKET, COVER (FOR RM-814/815/816)

-------------------

(AEP/ESP model)

(UK model)
(FR model)

00FN7169-1

Printed in the UK

© 2000. 7

– 96 –

English
