Sony KP-XA43 User Manual

Projection TV

KP-XA43

4-083-403-12 (1)

Projection TV

Operating Instructions Mode d’emploi xxxxxxxxxx xxxxxxxxxx

EN F C C PR A

KP-XA43

M61, M91, M31

L(MONO)

AU T O PROGRAM PR: 01

TV SYS: B / G VHF L O W

ENTER MENU

WARNING

To prevent fire or shock hazard, do not expose the projection TV to rain or moisture. Dangerously high voltages are present inside the projection TV. Do not open the cabinet. Refer servicing to qualified personnel only.

For general safety:

• Do not expose the projection TV to rain or moisture.

• Do not open the rear cover.

Getting Started

For safe installation:

• Do not block the ventilation openings.

• Do not install the projection TV in hot, humid or

excessively dusty places.

• Do not install the projection TV where it may be

exposed to mechanical vibrations.

• Avoid operating the projection TV at temperatures below 5°C (41°F).

• If the projection TV is transported directly from a cold to a warm location, or if the room temperature has changed suddenly, the picture may be blurred or show poor color. This is because moisture has condensed on the mirror or lenses inside. If this happens, let the moisture evaporate before using the projection TV.

• To obtain the best picture, do not expose the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the projection TV in a room where the floor and walls are not of reflecting material. If necessary, cover them with dark carpeting or wall paper.

• Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

For safe operations:

• Do not operate the projection TV on anything but 110–120/220-240 V AC, 50/60 Hz.

• Do not operate the projection TV if any liquid or solid object falls in it—have it checked immediately.

• Do not keep the projection TV plugged in if you are not going to use it for several days.

• Do not pull the power cord to disconnect the projection TV. Pull it out by the plug.

6 Connections

9 Installing the projection TV 10 Getting to know the remote commander 11 Introducing the menu system 12 Changing the menu language 13 Presetting channels 16 Adjusting the convergence (CONVERGENCE)

Operations

17 Watching the TV 19 Adjusting the picture and sound 21 Listening with dynamic sound (POWER BASSO) 22 Listening to the surround sound (HYPER

SURROUND)

23 Selecting a stereo or bilingual program 24 Viewing Teletext 25 Operating optional components 27 Viewing a video game screen (GAME MODE) 28 Customizing the TV

Additional Information

29 Troubleshooting 30 Cleaning the screen 30 Specifications

Caution

• When using TV games, computers, and similar

products with your projection TV, keep the brightness and contrast functions at low settings. If a fixed (non-moving) pattern such as a station logo is left on the screen for long periods of time at a high brightness or contrast setting, the image can be permanently imprinted onto the screen. These types of imprints are not covered by your warranty.

• Avoid touching the screen surface and do not scratch

it with hard objects.

Getting Started

-EN

Getting Started

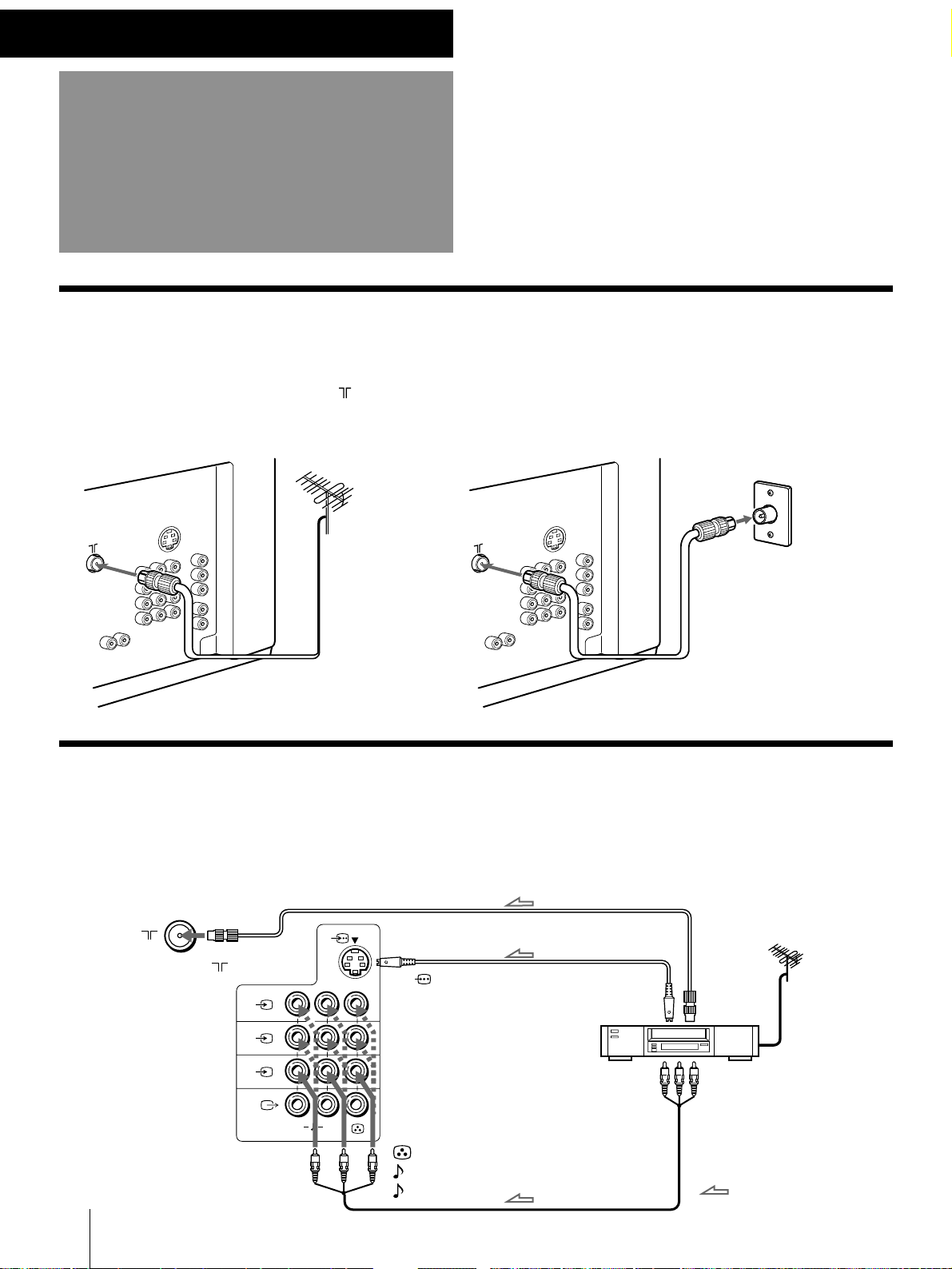

Connections

Connecting a VHF antenna or a combination VHF/UHF antenna — 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the (antenna) socket at the rear of the TV.

Rear of TV

On a wall

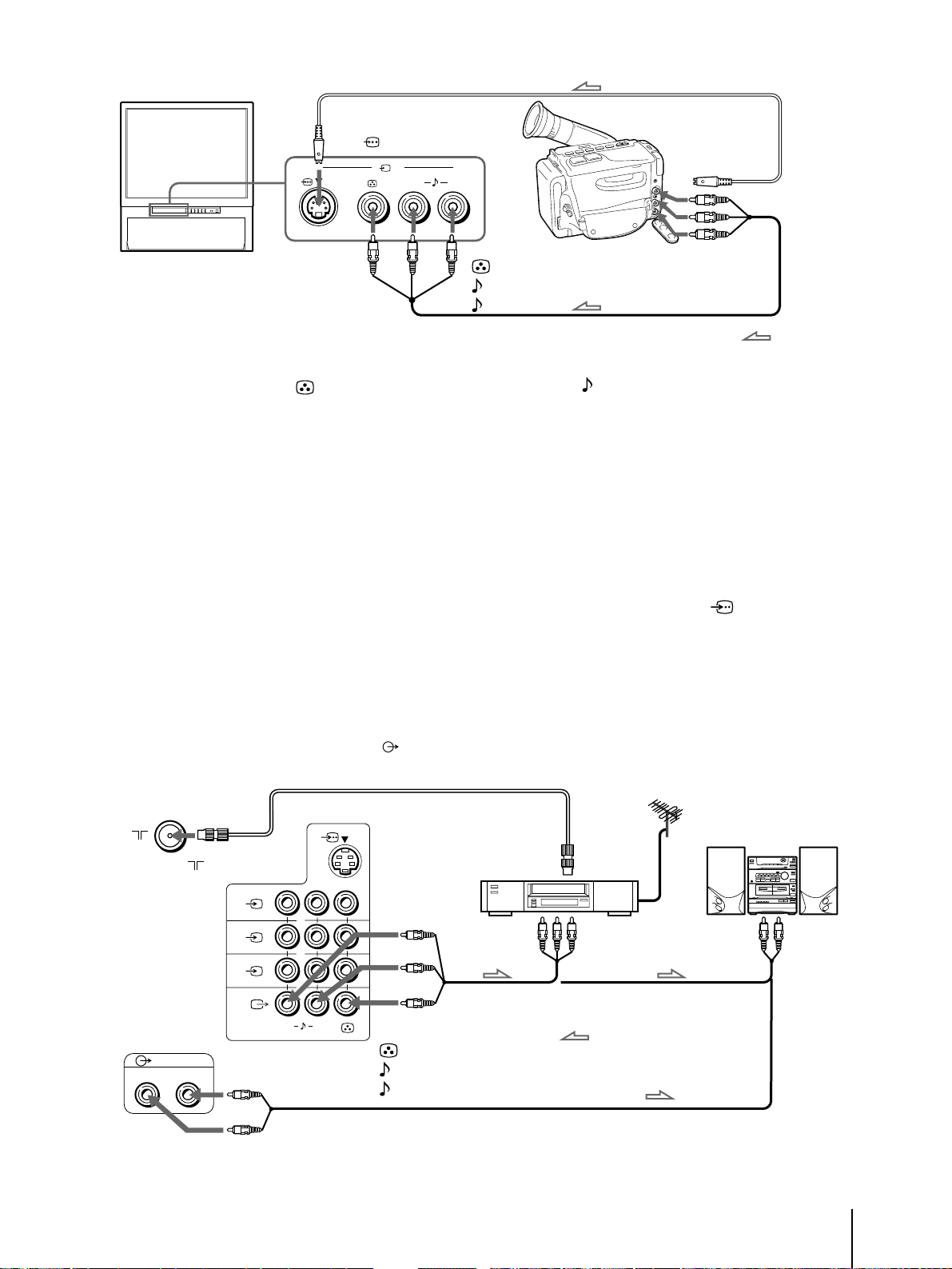

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video game or stereo system.

Connecting video equipment using video input jacks

Rear of TV

-EN

to (antenna) socket

Getting Started

to (S video input)

(MONO)

to … 1, 2, or 3 (video input)

(yellow)

-L (MONO)(white)

-R (red)

VCR

to S video output

to antenna output

to video and audio outputs

: Signal flow

Front of TV

to (S video input)

L(MONO)

Camcorder

to S video output

to … 3 (video input)

(yellow)

-L (MONO)(white)

-R (red)

to video and audio outputs

: Signal flow

When connecting a monaural VCR

Connect the yellow plug to (video input) and the black plug to -L (MONO) (audio input).

When connecting video game equipment

Connect video game equipment to the … 3 (video input) jacks at the front or the rear of your TV.

When connecting a VCR to the (antenna) terminal

Preset the signal output from the VCR to the program position 0.

When connecting video equipment to the … 3 (video input) jacks at the front and the rear

Do not connect video equipment to the … 3 (video input) jacks at the front and the rear of your TV simultaneously; otherwise the picture will not be displayed properly on the screen.

If both S Video and video signals are input simultaneously

The S video input signal is selected. To view a video input signal, disconnect the (S video) connection.

Note on the video input

When no signal is input, the screen becomes blue.

Connecting audio/video equipment using Ú (monitor/TV output) jacks

When the audio cable is connected to the (VARIABLE) jacks, you can adjust the volume with Á +/–.

Rear of TV

Audio system

to audio inputs

Getting Started

to (antenna) socket

(VARIABLE)

VCR

(MONO)

to Ú (monitor/TV output)

(yellow)

-L (MONO)(white)

-R (red)

antenna output

to video and audio inputs

: Signal flow

-EN

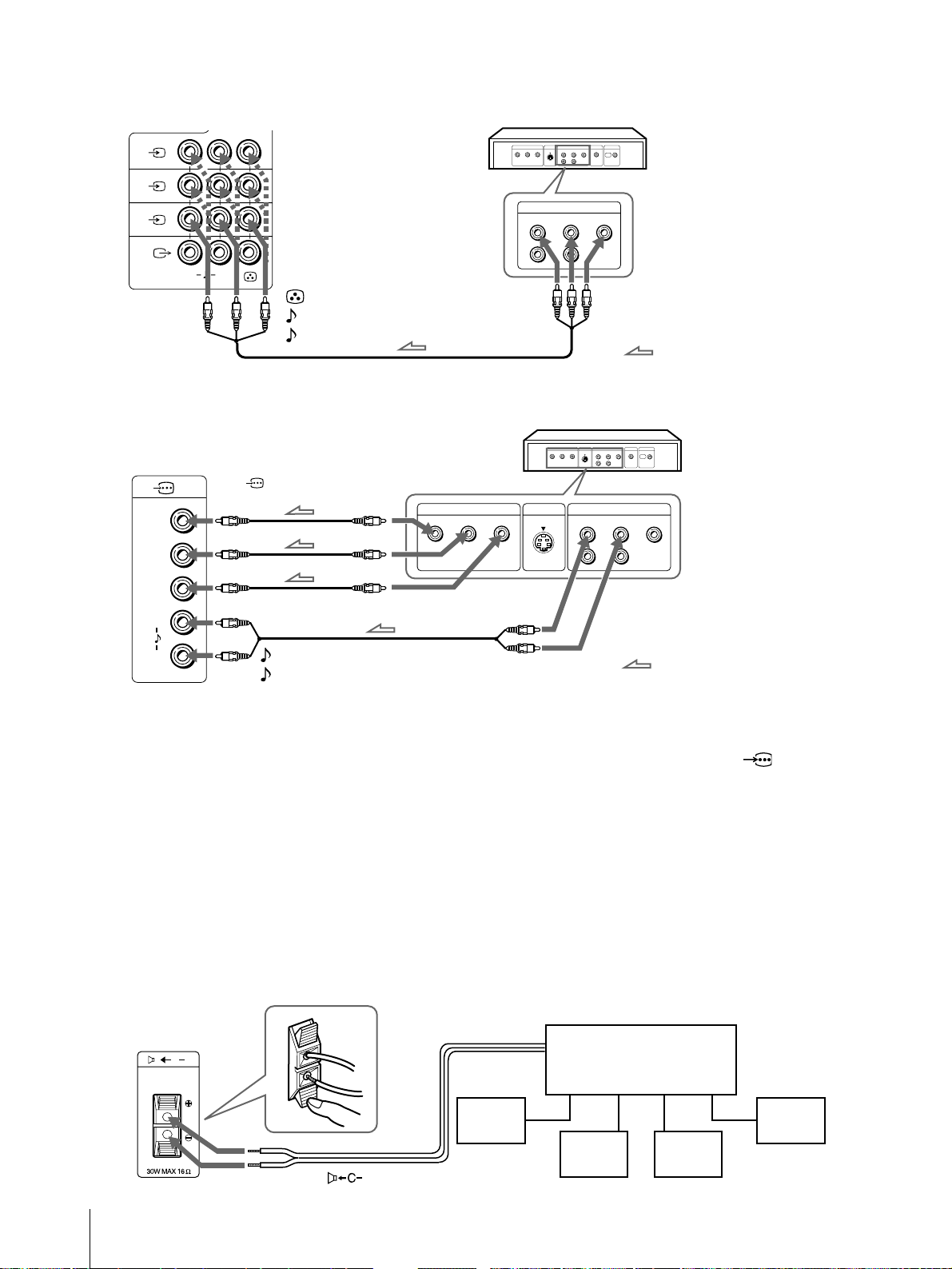

Connecting a DVD player

Rear of TV

(MONO)

to … 1, 2, or 3 (video input)

DVD player

LINE OUT

R-AUDIO-L VIDEO

(yellow)

-L (MONO)(white)

-R (red)

Connecting a DVD player with component video output connectors

DVD player

Rear of TV

to (component video input) Y/CB/B-Y/CR/R-Y

COMPOMENT VIDEO OUT

/B-YYC

/R-Y

S VIDEO OUT

R-AUDIO-L VIDEO

to audio/ video outputs

LINE OUT

: Signal flow

B-Y

CR/

R-Y

-L (white)

to component video output

to audio output

-R (red)

Notes

• Since the high quality pictures on a DVD disc contain a lot of

• If your DVD player can output interlace and progressive mode

information, picture noise may appear. In this case, adjust the sharpness (SHARP) in the VIDEO ADJUST menu. (See page 19.)

• Connect your DVD player directly to your TV. Connecting the DVD player through other video equipment will cause unwanted picture noise.

Connecting an amplifier with Dolby* Pro Logic decoder

Even though you use an amplifier with Dolby Pro Logic

* Manufactured under license from Dolby Laboratories

decoder instead of the projection TV’s audio system, you can still use the projection TV’s center speaker.

Rear of TV

: Signal flow

signals, select the interlace output when connecting to (component video input) on your TV. Your TV can receive either 525i/60 Hz or 625i/50 Hz interlace signals.

Licensing Corporation. DOLBY, the double-D symbol a and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation.

Amplifier with Dolby Pro Logic decoder

Rear speaker (L)

Front speaker (L)

Front speaker (R)

Rear speaker (R)

to (center speaker inputs)

-EN

Getting Started

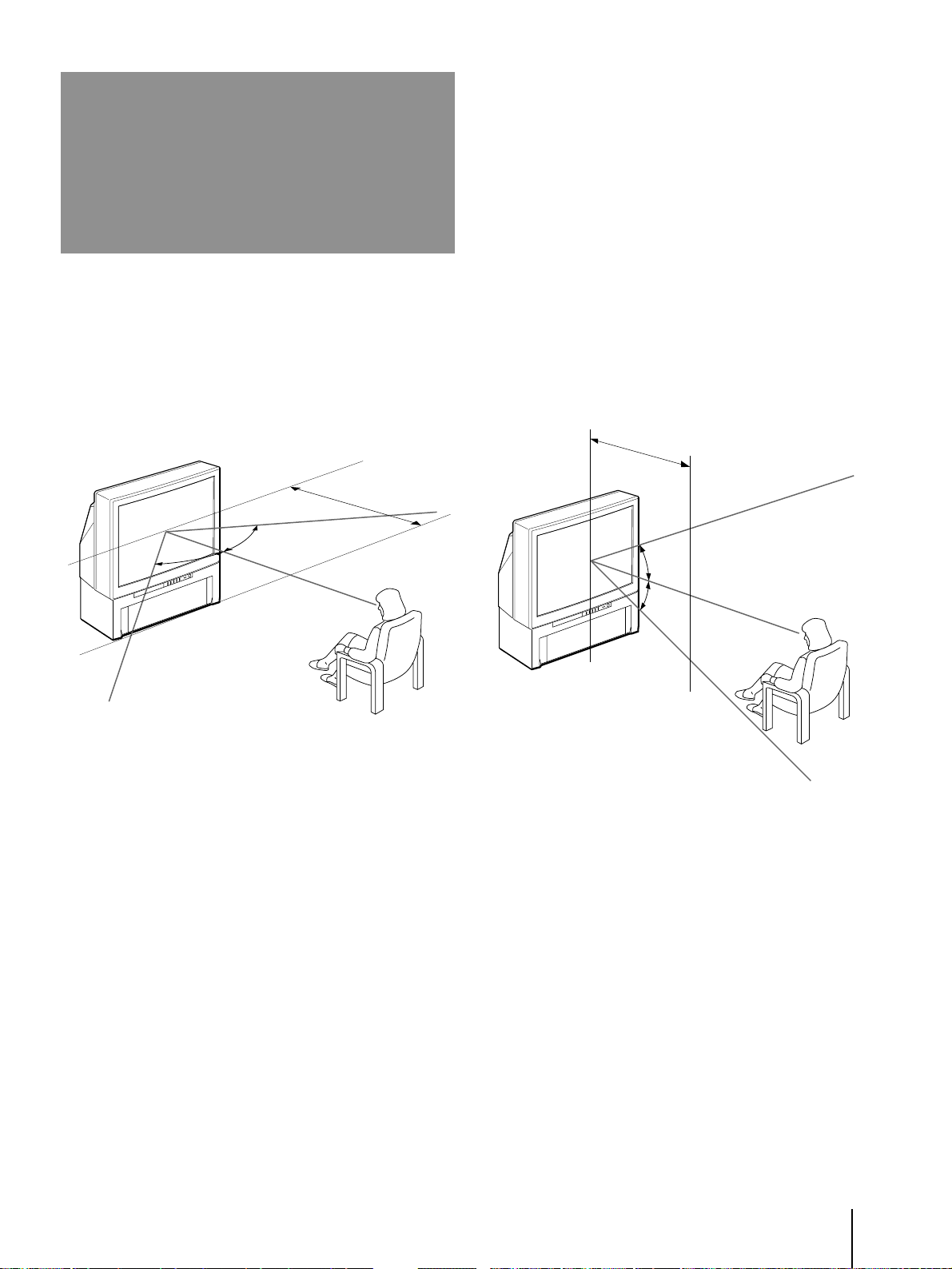

Installing the projection TV

For the best picture quality, install the projection TV within the areas shown below.

Optimum viewing area (Horizontal)

min 1.5m (5 ft.)

75°

Optimum viewing area (Vertical)

min 1.5m (5 ft.)

27°

Getting Started

-EN

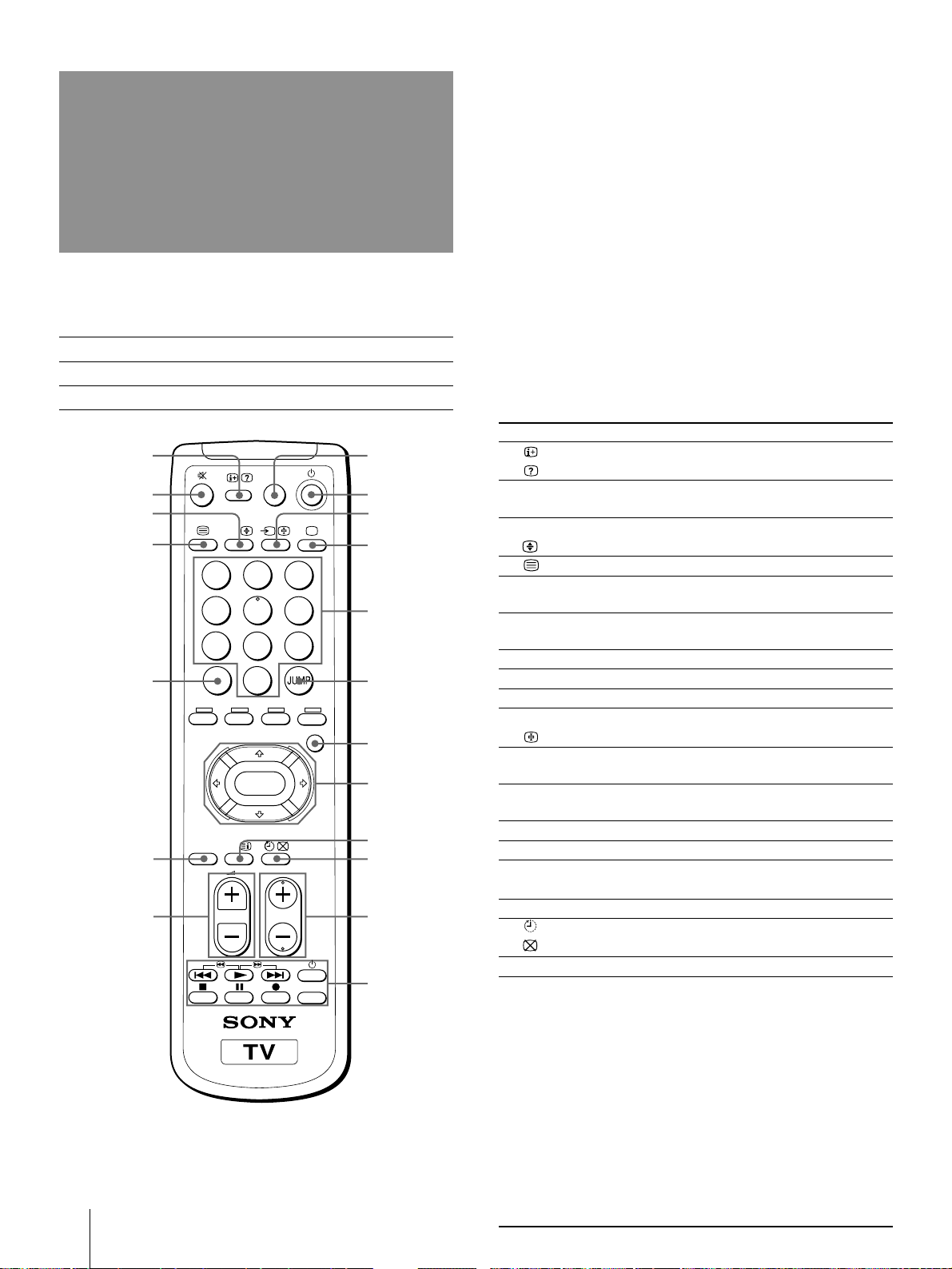

Getting to know the remote commander

Names/symbols of buttons on the remote commander are indicated in different colors to represent the available functions.

Label color Button function

Grey For general TV operations. Green For Teletext operations.

POWER

BASSO

1 4 7

-/--

GAME

A/B

6 9

8 0

ENTER

PROGR

VIDEO

TITLE

!º

!¡

!™

!£

!¢

!∞

!§ !¶

!•

!ª

Symbol

2 ¤ 3 A/B

4 5 ÷ 6 POWER

BASSO

7 .+/– 8 GAME 9 u !º …

!¡ ; !™ 1,2,3,4,5,

6,7,8,9,0

!£ JUMP !¢ MENU !∞ V/b/v/B

ENTER

!§ © !¶

!• PROGR +/– !ª

VIDEO u +/#

( =/3

p P r

TITLE

Name Refer to page

On-screen display button 18 Teletext: Reveal button 25 Mute on/off button 18 Sound select button 23 Teletext: Enlarge button 25 Teletext button 24 Double-digit entering button 17 POWER BASSO button 21

Volume control button 17 GAME button 25 TV standby button 17 Input mode selector 18 Hold button 24 TV power on/TV mode selector 18 Number buttons 17

JUMP button 18 MENU button 11 Cursor control key 11

Enter button 11 Teletext: INDEX button 24 Sleep timer button 18 Teletext: Text clear button 25 Program selectors 17 DVD, VCR, MDP, CD, MD 25

operation buttons Power button 25 Fastforward/search forward 26 button Play button 26 Rewind/search backward 26 button Stop button 26 Pause button 26 Record button 26 TITLE button 26

-EN

Getting Started

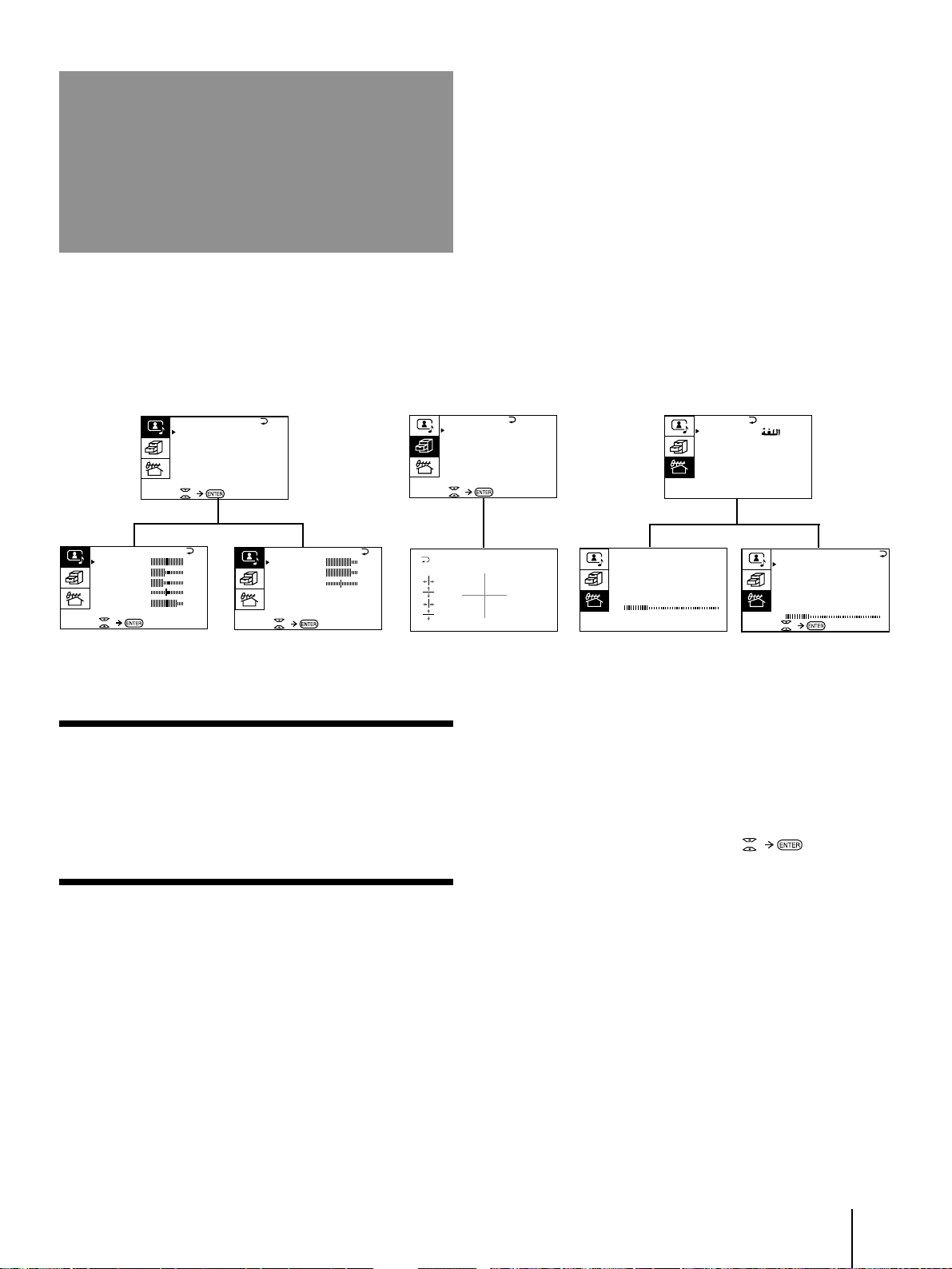

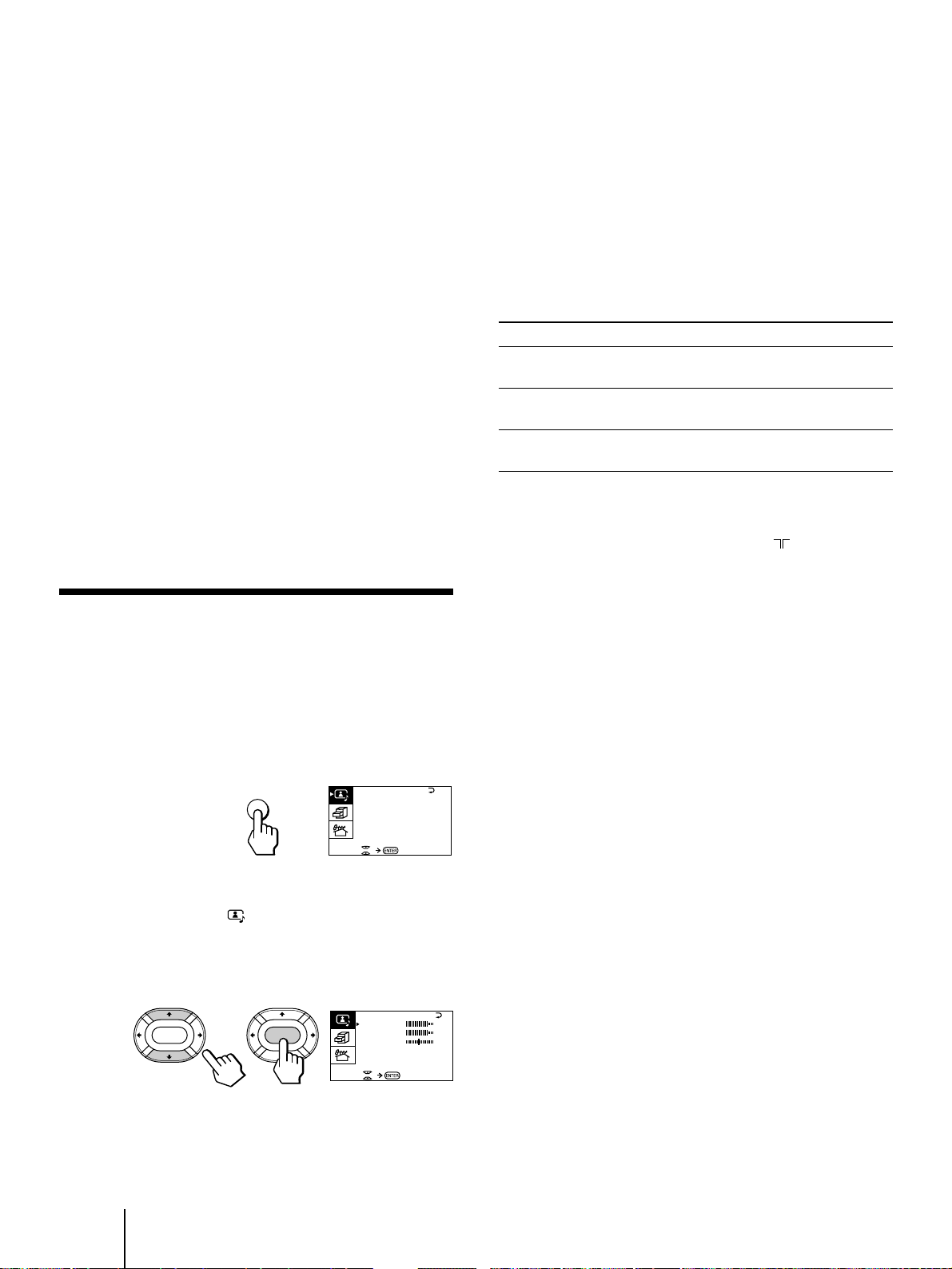

Introducing the menu system

You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen menus. You can use the buttons on both the remote commander and the TV to operate the menus.

A/V CONTROL

A / V CONTROL DYNAMI C STANDARD SOFT PERSONAL

V I DEO ADJUST AUDIO ADJUST

V I DEO ADJUST P I CTURE COLOR BR I GHT HUE SHARP VM: HIGH

90 50 50 0 50

AUDIO ADJUST BASS TREBLE BALANCE SPEAKER:

MAIN

80 80 00

Getting back to the previous menu (except for AUTO PROGRAM)

Press V or v to move the cursor (z) to the first line (N) of each menu, and press ENTER.

Cancelling the menu screen

Press MENU.

FEATURES

FEATURES GAME MODE HYPER SURROUND :

OFF

AV OUT:

MONITOR

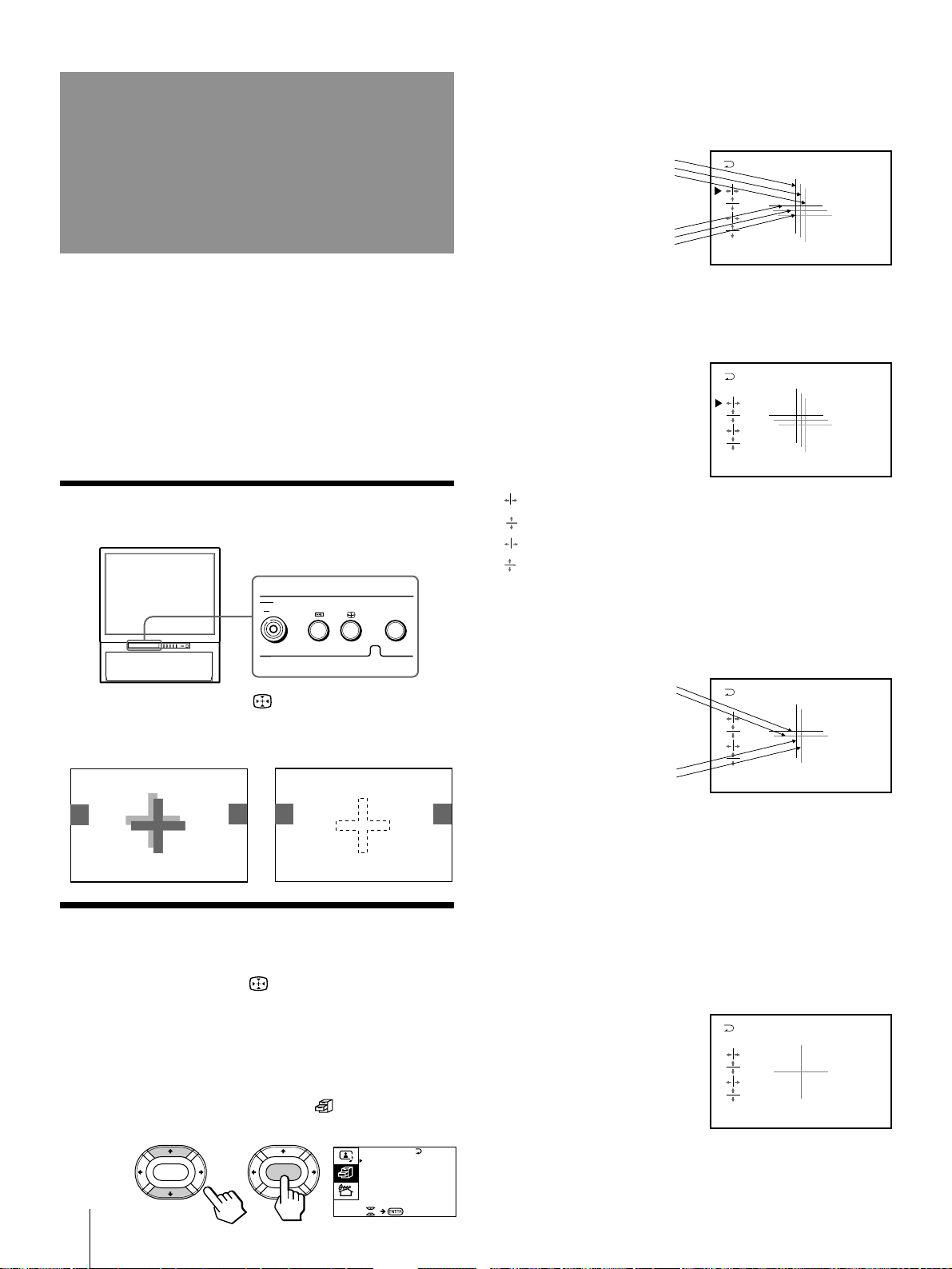

CONVERGENCE

Notes (except for AUTO PROGRAM)

• When a menu is selected after pressing ENTER, the color of both the menu and the menu symbol change and the cursor (z) appears beside the first item of the menu.

• When an item on the menu is selected after pressing ENTER, the color of the item changes.

• You can refer to the guide ( menus (except for the and PRESET menu) for the basic operations of the menu.

• If more than approximately 60 seconds elapse after you press a button, the menu screen disappears automatically.

AU TO P ROGRAM PR: 01

TV SYS: B / G

VHF LO

PRESET

PRESET L ANGUA GE /

AU TO P ROGRAM MANUA L P ROGRAM TV SYS: B / G COL

SYS : AUTO

SKIP:

ENGL I SH

PR02 OFF

MANUA L P ROGRAM PR: 01 TV SYS: B / G AT T : OFF

VOLUME: 0 VHF

) at the bottom of the

LOW

Getting Started

-EN

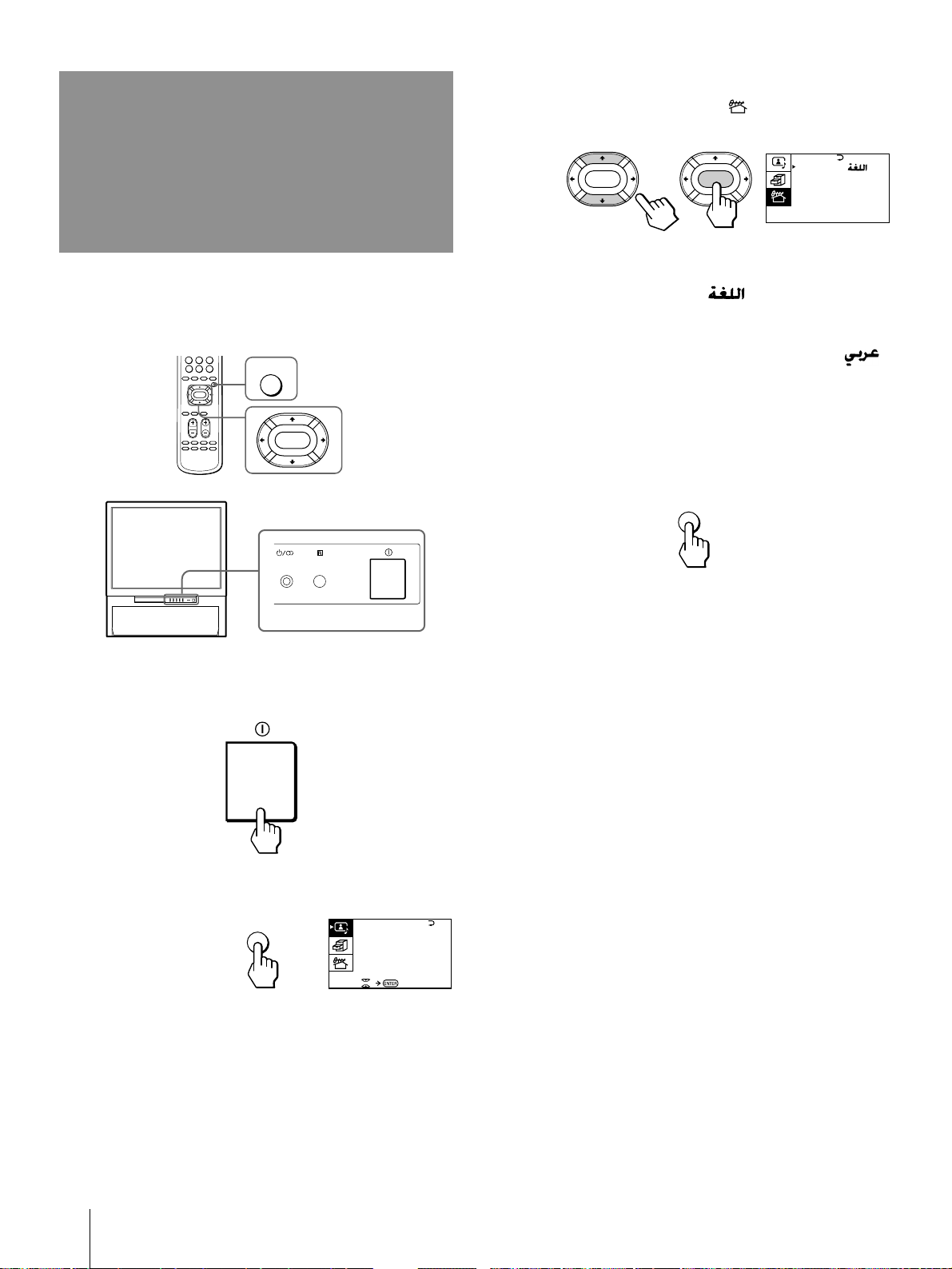

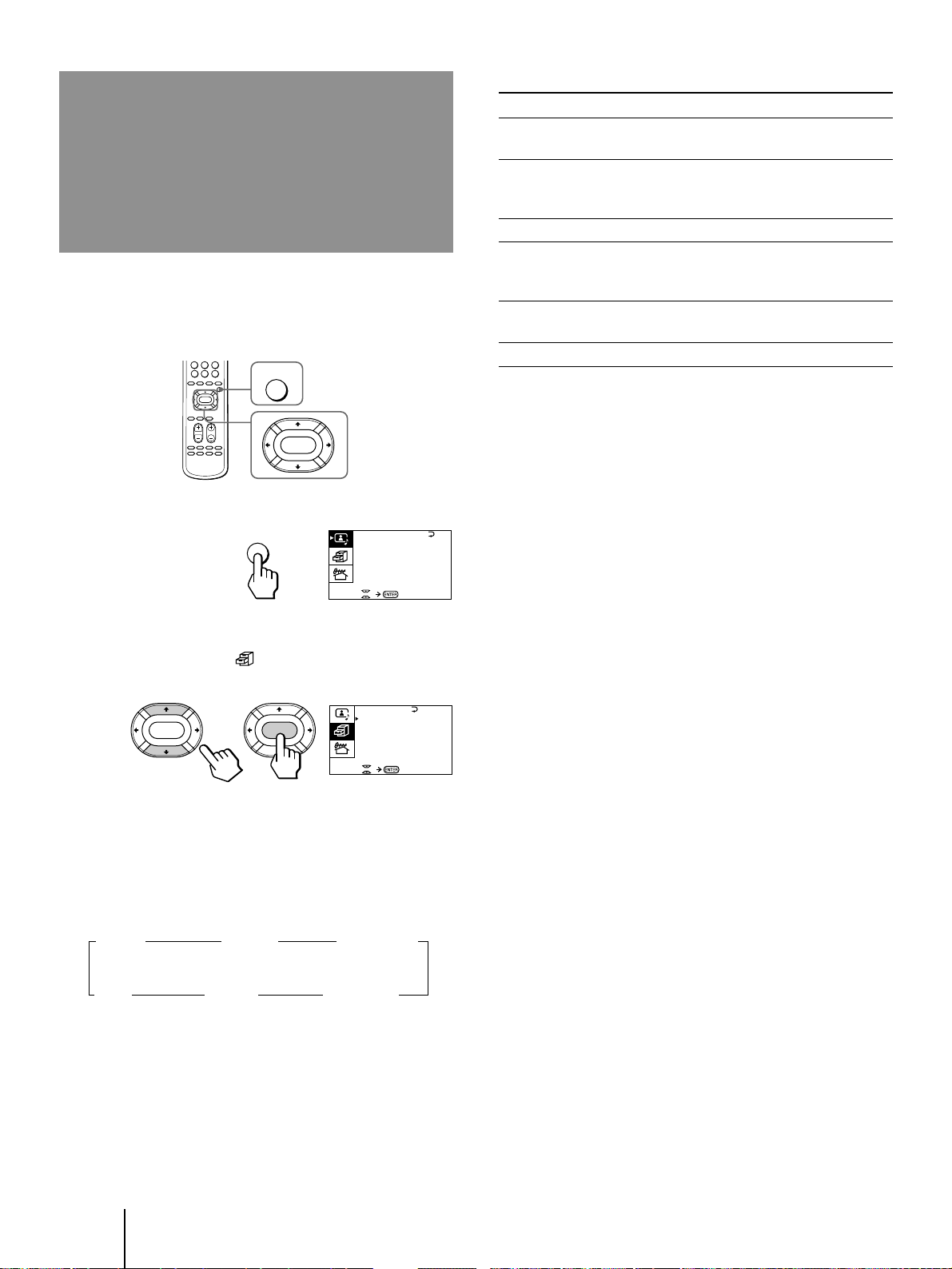

Changing the menu

3 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

language

If you prefer Chinese (for M61/M31 model)/Arabic (for M91 model) to English, you can change the menu language. You can use buttons on both the remote commander and the TV.

ENTER

ENTER ENTER

PRESET LANGUAGE/

AU T O PROGRAM MANUA L PROGRAM TV SYS: B /G COL SYS : AUTO SKI P: PR02 OFF

ENGL I SH

4 Make sure the cursor (z) appears beside

LANGUAGE/ ( ), and press ENTER.

5 Press V/b/v/B to select ( ), and press

ENTER.

All of the menus change to Chinese (Arabic).

6 Press MENU to return to the normal screen.

1 Press U to turn on the TV.

2 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

-EN

Getting Started

ENTER

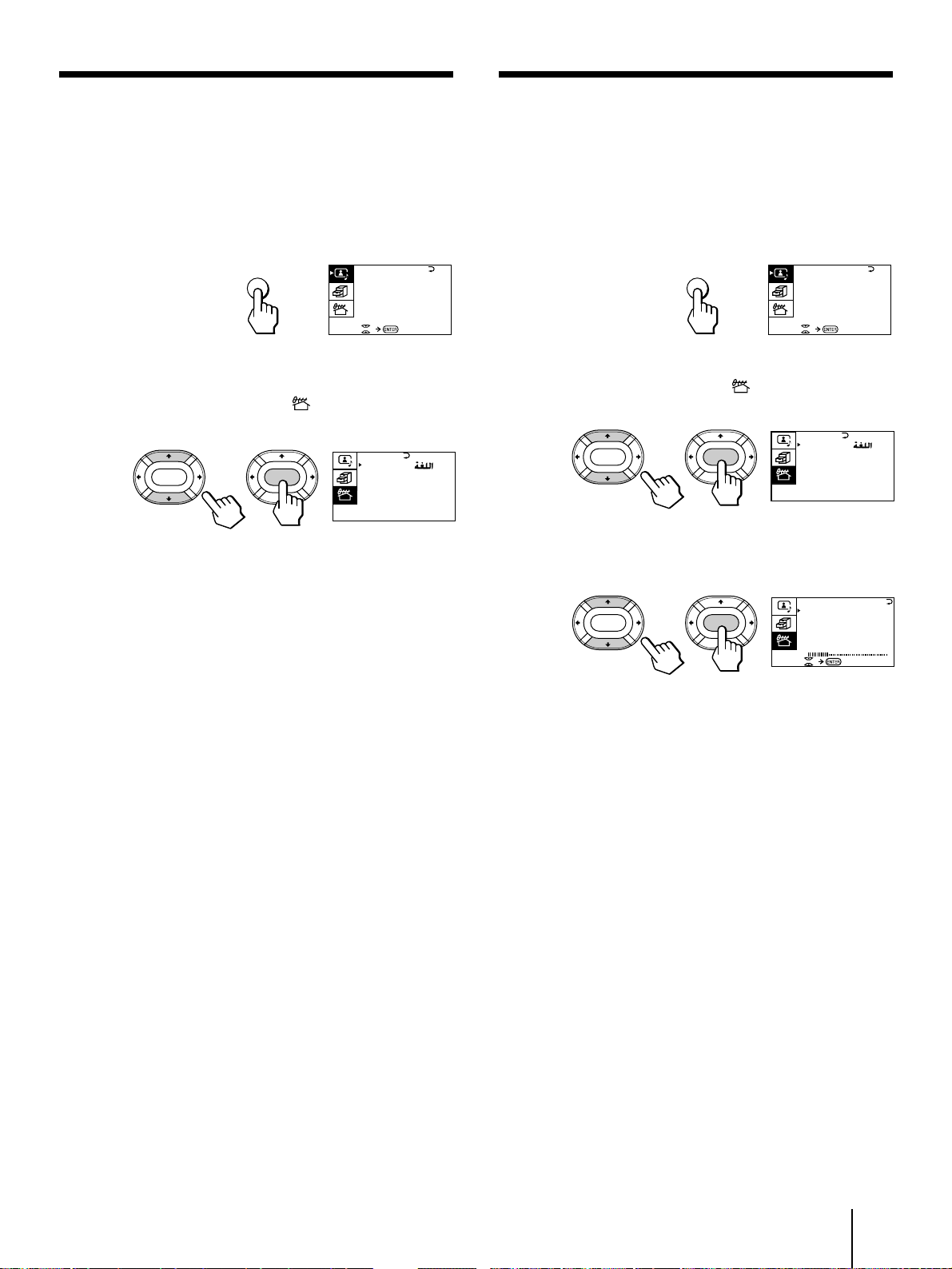

Presetting channels

You can preset TV channels easily by storing all the receivable channels automatically. You can also preset channels manually or disable program positions (see page 15 ).

Presetting channels automatically

You can preset up to 100 TV channels in numerical sequence from the program position 1. You can preset channels automatically using the button on the TV or the menu.

To preset channels automatically using the menu

1 Press MENU.

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

3 Press V or v to move the cursor (z) to AUTO

PROGRAM, and press ENTER.

Presetting channels manually

To change the program position for a channel or to receive a channel with a weak signal which you cannot receive by automatic presetting, preset the channel manually.

ENTER

1 Press U to turn on the TV.

2 Press .

AU T O PROGRAM PR: 01

TV SYS:B/G VHF LO

The TV starts scanning and presetting channels automatically. When all of the receivable channels are stored, the AUTO PROGRAM menu disappears.

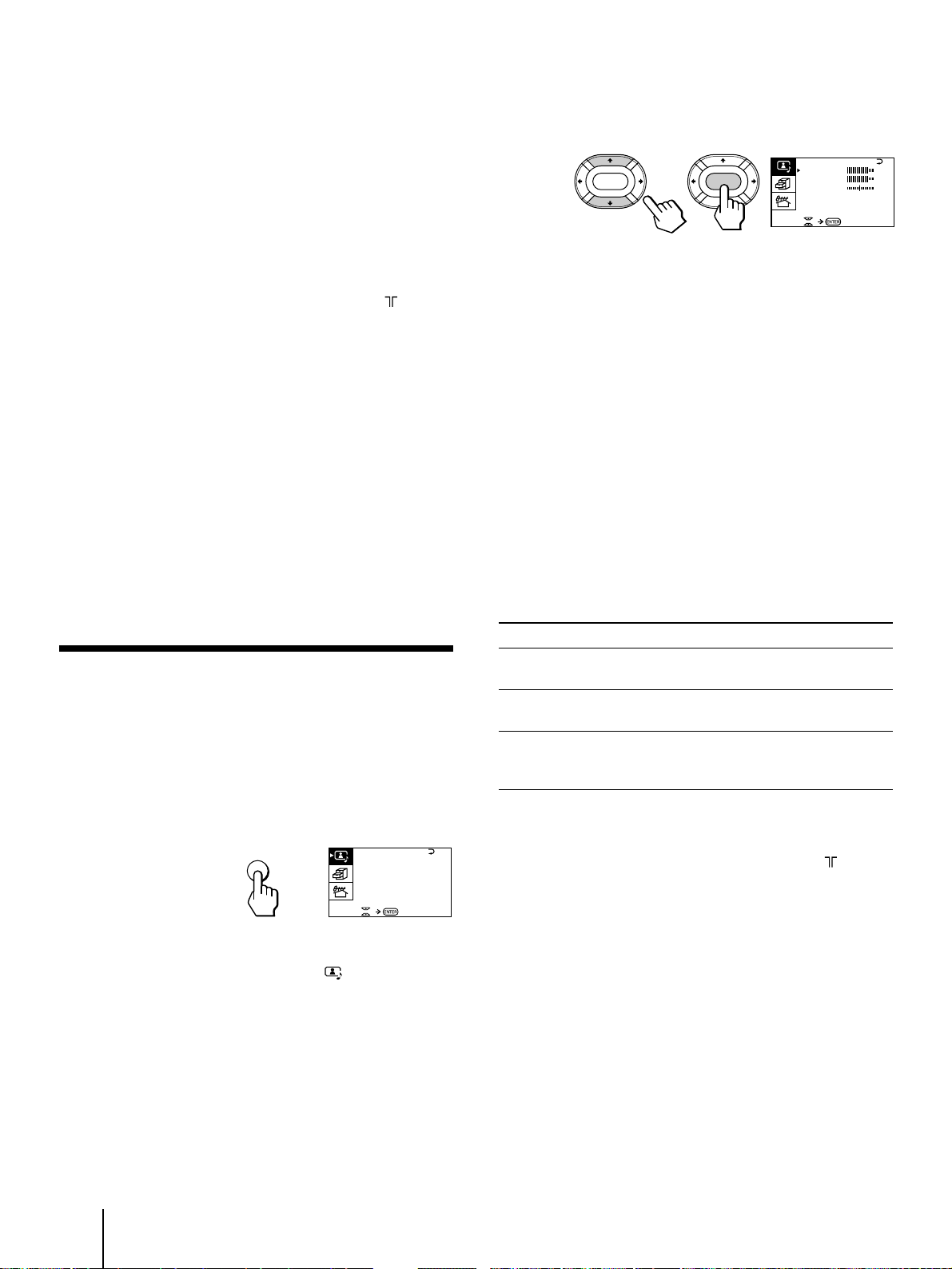

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

ENTER ENTER

PRESET LANGUAGE/

AU T O PROGRAM MANUA L PROGRAM TV SYS: B /G COL SYS : AUTO SKIP: PR02 OFF

ENGL I SH

3 Select your local TV system.

(1) Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

(2) Press V/b/v/B until your local TV system appears

on the menu, and press ENTER.

Getting Started

-EN

4 Press V or v to move the cursor (z) to

MANUAL PROGRAM, and press ENTER.

MANUA L PROGRAM PR: 01

ENTER ENTER

TV SYS:B/G AT T : OFF VOLUME: 0 VHF

Attenuating the signal for individual programs

If the TV signal is too strong, the picture may be distorted. You can reduce the picture distortion by attenuating the signal individually.

5 Select the program position to which you

want to preset a channel.

(1) Make sure the cursor (z) appears beside PR, and

press ENTER.

(2) Press V/b/v/B until the program position you

want appears on the menu, and press ENTER.

6 Select the desired channel.

(1) Press V or v to move the cursor (z) to VHF LOW

(VHF Hi or UHF), and press ENTER.

(2) Press V/b/v/B until the desired channel picture

appears on the TV screen, and press ENTER.

7 Press MENU to return to the normal screen.

If the TV system is not properly selected

The picture color may be poor and/or the sound may be noisy. In this case, select the appropriate TV system.

1 Press PROGR +/– or the number buttons to select

the program position.

2 Display the PRESET menu. 3 Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

4 Press V/b/v/B until the appropriate TV system

appears, and press ENTER.

1 Display the PRESET menu.

ENTER ENTER

PRESET LANGUAGE/

AU T O PROGRAM MANUA L PROGRAM TV SYS: B /G COL SYS : AUTO SKIP: PR02 OFF

ENGL I SH

2 Press V or v to move the cursor (z) to

MANUAL PROGRAM, and press ENTER.

MANUA L PROGRAM PR: 01

ENTER ENTER

TV SYS:B / G AT T : OFF VOLUME: 0 VHF

3 Press V or v to move the cursor (z) to ATT,

and press ENTER.

MANUA L PROGRAM PR: 01

ENTER ENTER

TV SYS:B/G AT T : OFF VOLUME: 0 VHF

4 Press V/b/v/B to select ON, and press ENTER.

Notes

• The TV SYS (TV system), the ATT (attenuator), and the VOLUME (volume offset) settings are memorized for each program position.

• If you do not know your local TV system, consult your nearest Sony dealer or authorized service center.

-EN

Getting Started

Disabling program positions

By disabling unused or unwanted program positions, you can skip those positions when you press PROGR +/–.

Presetting the volume level for individual programs

If the volume of the selected program is louder than that of other programs, set the volume level.

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

ENTER ENTER

PRESET LANGUAGE/

AU T O PROGRAM MANUA L PROGRAM TV SYS: B / G COL SYS : AUTO SKIP: PR02 OFF

ENGL I SH

3 Press V or v to move the cursor (z) to SKIP,

and press ENTER.

4 Press V or v until the unused or unwanted

program position appears on the menu, and press ENTER.

5 Press V/b/v/B to select ON, and press ENTER. 6 To disable other program positions, repeat

steps 4 and 5.

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

PRESET LANGUAGE/

ENTER ENTER

ENGL I SH AU T O PROGRAM MANUA L PROGRAM TV SYS: B /G COL SYS : AUTO SKIP: PR02 OFF

3 Press V or v to move the cursor (z) to

MANUAL PROGRAM, and press ENTER.

MANUA L PROGRAM PR: 01

ENTER ENTER

TV SYS:B/G AT T : OFF VOLUME: 0 VHF

4 Press V or v to move the cursor (z) to

VOLUME, and press ENTER.

7 Press MENU to return to the normal screen.

To cancel the skip setting 1 Display the PRESET menu. 2 Press V or v to move the cursor (z) to SKIP, and

press ENTER.

3 Press V or v until the program position you want to

cancel the skip setting appears, and press ENTER.

4 Press V/b/v/B to select OFF, and press ENTER.

5 Press V/b/v/B to set the level, and press

ENTER.

The level can be set as 0, –1, –2, ....–6 (minimum).

Getting Started

-EN

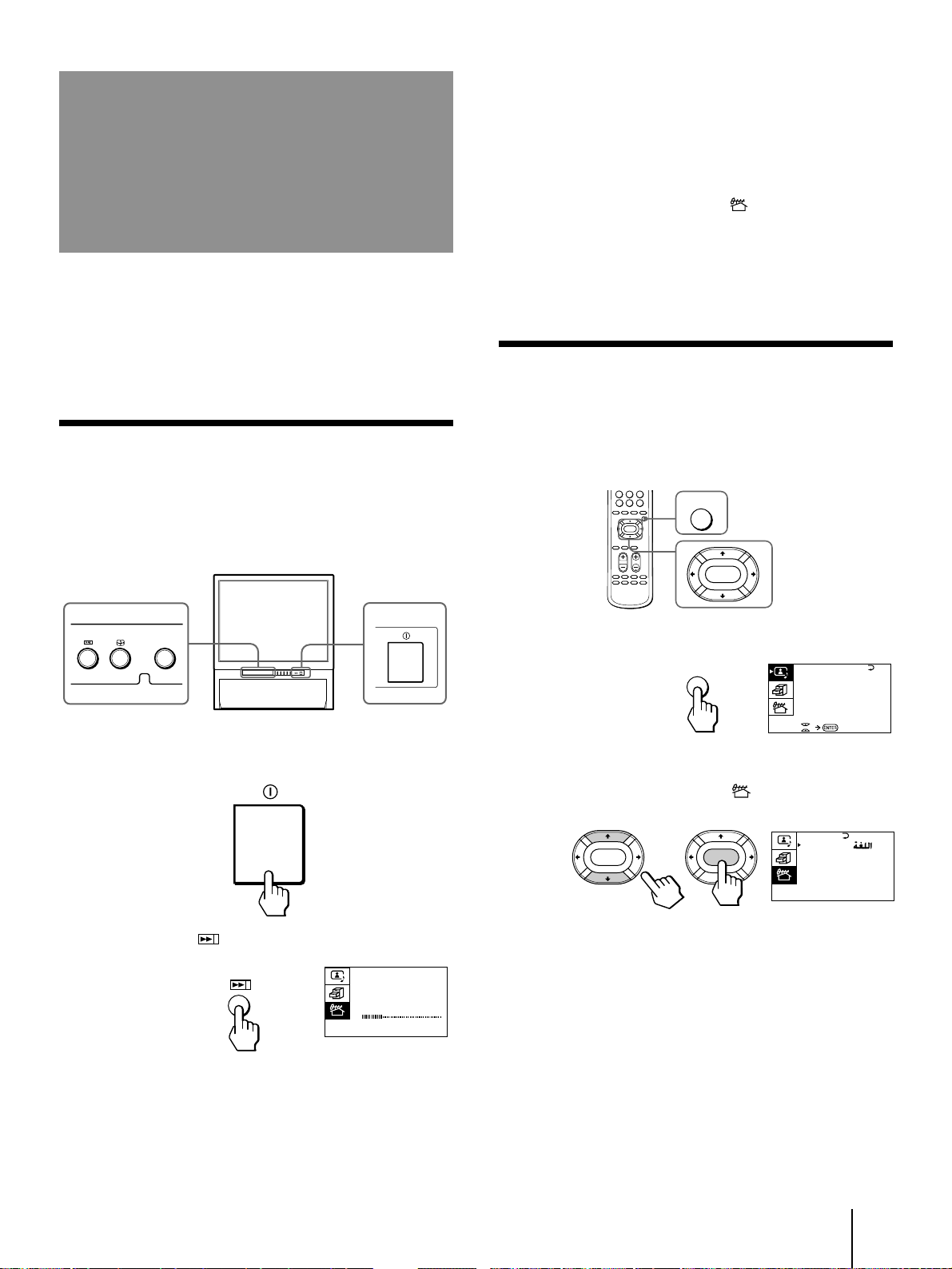

Adjusting the convergence (CONVERGENCE)

3 Press V or v to move the cursor (z) to

CONVERGENCE and press ENTER.

The CONVERGENCE adjustment screen appears.

Before you use the projection TV, adjust convergence. The projection tube image appears on the screen in three layers (red, green and blue). If they do not converge, the color is poor and the picture blurs. To correct this, adjust convergence. After 20-30 minutes of turning on the power, adjust convergence.

Adjusting the convergence automatically

Press on the TV.

The auto convergence function works for about 30 seconds.

ENTER

R=Red G=Green B=Blue

R G B

4 Press V or v to move the cursor (z) to the

symbol showing the line you want to adjust, and press ENTER.

: Red vertical line (left/right adjustment) : Red horizontal line (up/down adjustment) : Blue vertical line (left/right adjustment) : Blue horizontal line (up/down adjustment)

5 Press V or v to move the line until it

converges with the center green line, and press ENTER.

G+B

(Light blue)

Adjusting the convergence manually

When the auto convergence function does not work correctly with , adjust convergence by selecting CONVERGENCE of the FEATURES menu.

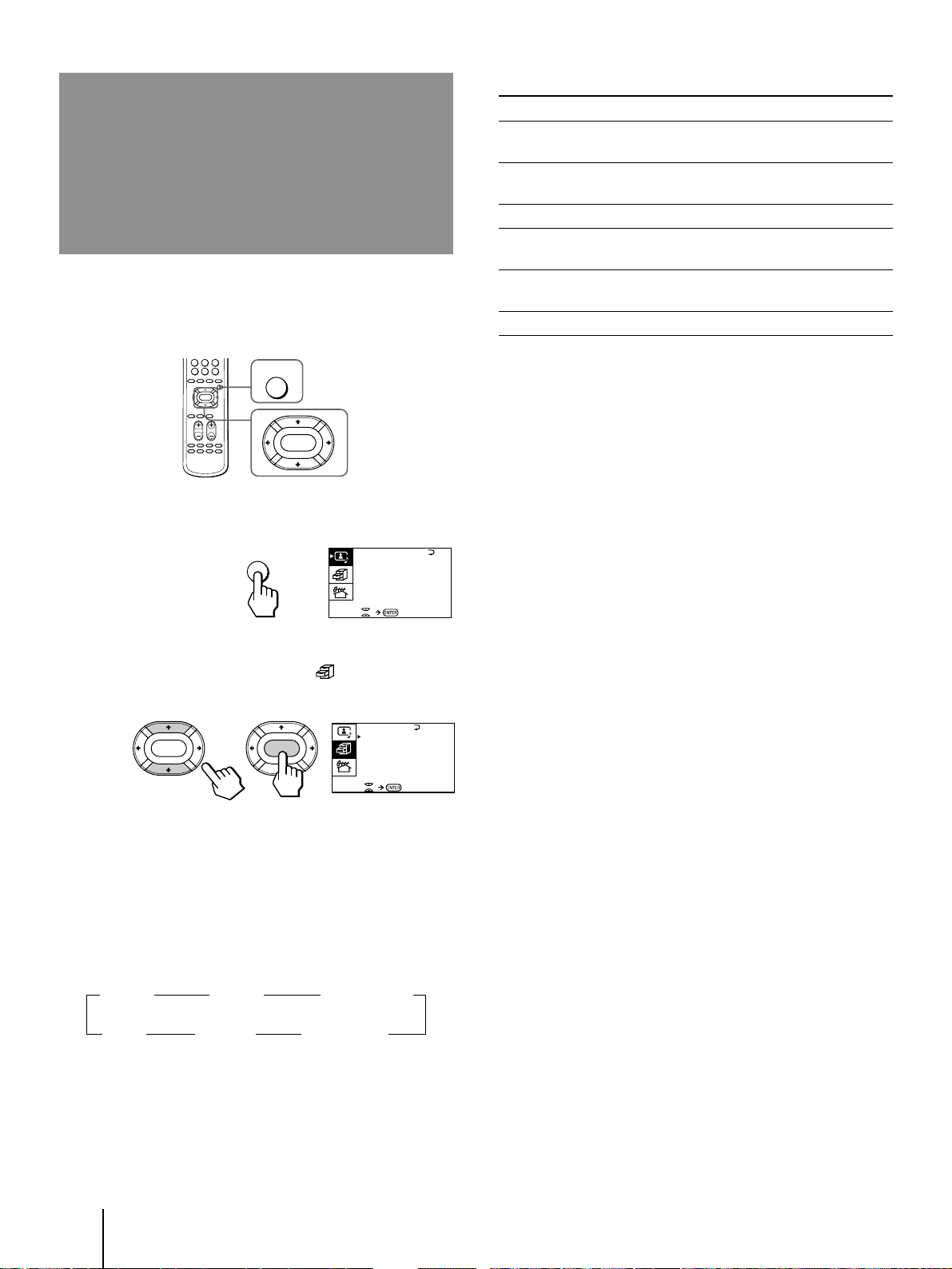

1 Press MENU. 2 Press V or v to move the cursor (z) to the

FEATURES menu ( ), and press ENTER.

FE AT URES GAME MODE HYPER SURROUND :

OFF

AV OUT :

MON I TOR

CONVERGENCE

-EN

Getting Started

ENTER ENTER

G+B

(Light blue)

To move up/right, press V. To move down/left, press v.

6 Repeat steps 4 and 5 to adjust the other

lines until all three lines converge and are seen as a white cross.

7 Press MENU to return to the normal screen.

Operations

PROGR

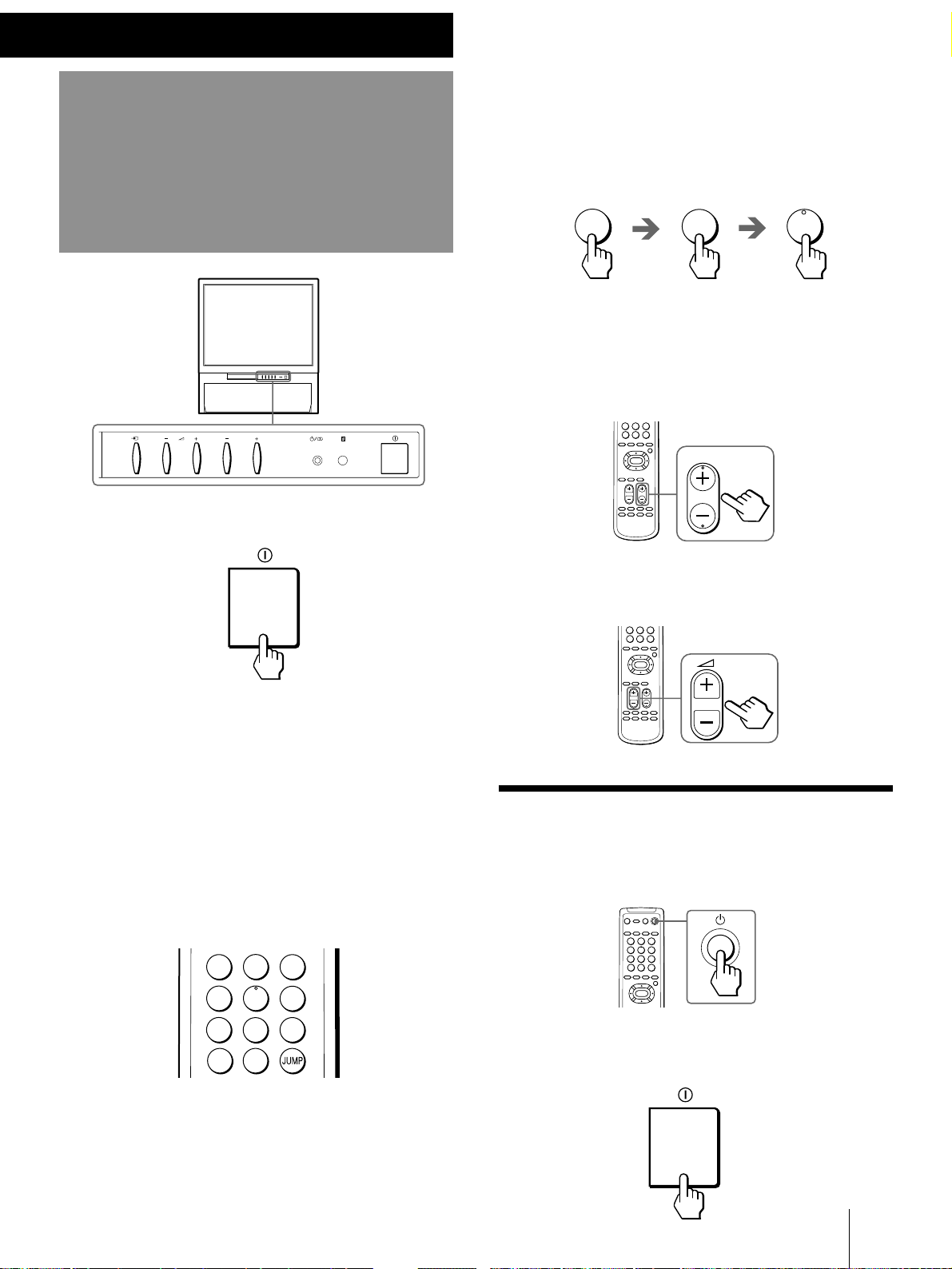

Watching the TV

PROGR

To scan through program positions

Press PROGR +/– on the remote commander or the TV until the program position you want appears.

3 Press Á +/– on the remote commander or

the TV to adjust the volume.

1 Press U to turn on the TV.

When the TV is turned on in the standby mode, the u/Â indicator on the TV lights up. To turn on the TV completely, press u on the remote commander.

2 Select the TV program you want to watch.

To select a program position directly

Press the number button.

1 4 7

-/--

6 9

8 0

Turning off the TV

To turn off the TV temporarily

Press u on the remote commander. The u/Â indicator lights up.

To turn off the TV completely

Press U on the TV.

To select a two-digit program position, press “÷” before the number buttons. For example: to select program position 25, press “÷,” then “2” and “5.”

-/--

Operations

-EN

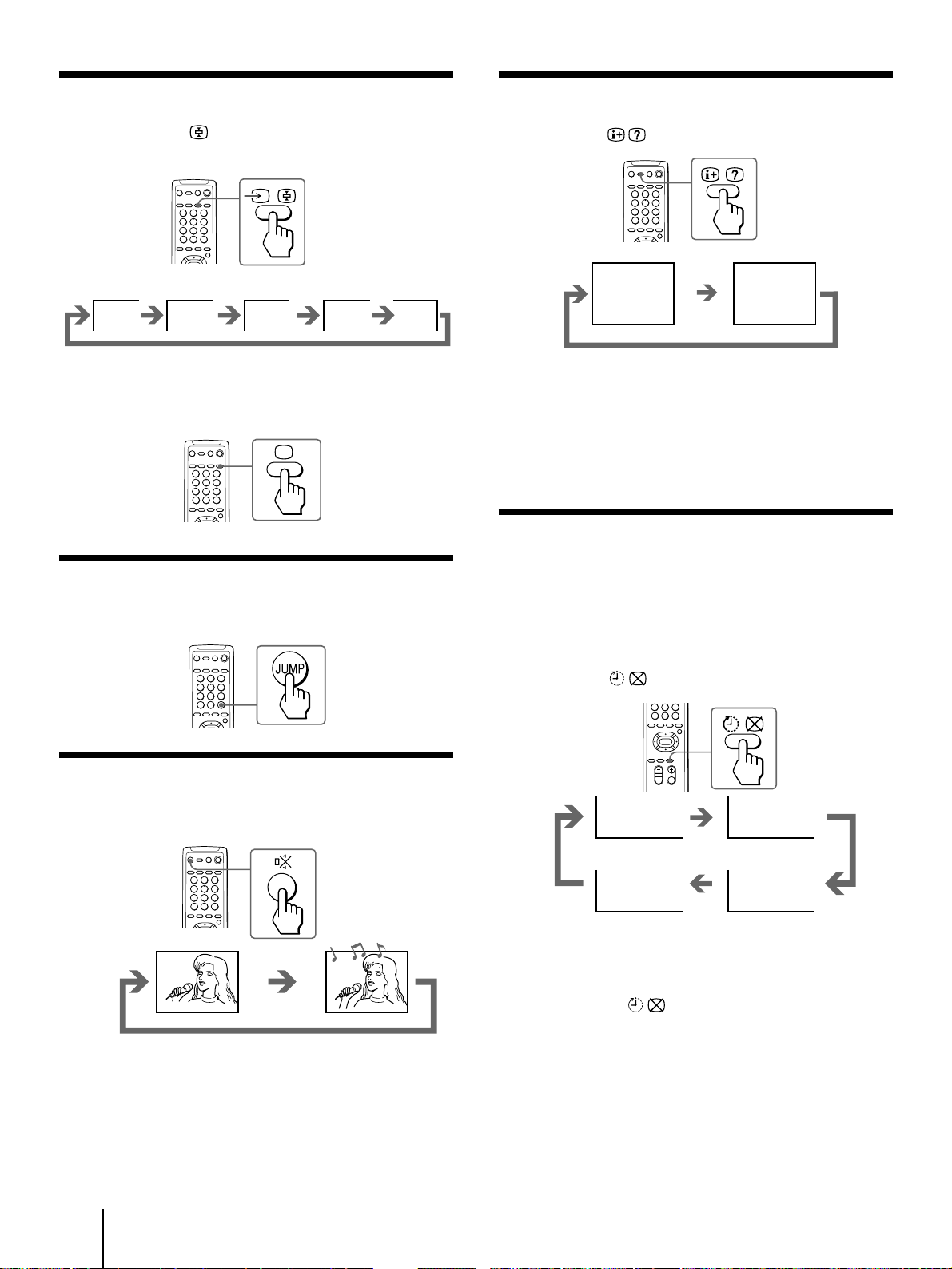

Watching the video input

Displaying the on-screen information

Press … on the remote commander or … on the TV.

VIDEO 1 VIDEO 2 VIDEO 3 1

DVD

To watch TV

Press ; on the remote commander or … on the TV.

Switching back quickly to the previous channel

Press JUMP.

Press .

DYNAMIC POWER BASSO: ON

Note

• The on-screen display shows the program position or the video mode, the picture and sound information. The on-screen display for the picture and sound information disappears after being displayed for approximately three seconds.

Setting the Sleep Timer

You can set the TV to turn off automatically after the period of time you want.

Press .

Muting the sound

Press ¤.

MUTING

-EN

Operations

SLEEP TIMER:30M SLEEP TIMER:60M

After 30 minutes

SLEEP TIMER:OFF SLEEP TIMER:90M

No Sleep Timer

After 60 minutes

After 90 minutes

To cancel the Sleep Timer, press repeatedly until “SLEEP TIMER: OFF” appears, or turn the TV off.

+ 39 hidden pages

Sony KP-XA43 User Manual

Table of contents

Getting Started

Connections

Installing the projection TV

Getting to know the remote commander

Introducing the menu system

Presetting channels

Adjusting the convergence (CONVERGENCE)

Operations

Watching the TV
