SERVICE MANUAL

RG-2

CHASSIS

MODEL COMMANDER DEST. CHASSIS NO.

KP-EF41ME3 RM-871 ME SCC-N72G-A KP-EF41MN3 RM-871 GE SCC-N69G-A KP-EF41SN3 RM-871 AUS SCC-N73G-A

MODEL COMMANDER DEST. CHASSIS NO.

KP-EF48MN3 RM-871 GE SCC-N69H-A KP-EF48SN3 RM-871 NZ SCC-P55A-A

RM-871

KP-EF41ME3/EF41MN3/

KP-EF41SN3

∗ Please file according to model size. ...

KP-EF48MN3/EF48SN3

PROJECTION TV

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

SPECIFICATIONS

Projection system 3 picture tubes, 3 lenses,

horizontal in-line system

Picture tube 7 inch high-brightness

monochrome tubes (6.3 raster size), with optical coupling and liquid cooling system

Projection lenses High performance, large-diameter

hybrid lens F1.0

Screen size 41 inches (KP-EF41)

48 inches (KP-EF48)

Television system B/G, I, D/K, M Color system PAL, PAL 60, SECAM,

4.43, NTSC3.58

NTSC

Channel coverage B/G

VHF: E2 to E12 UHF: E21 to E69 CATV: S01 to S03, S1 to S41

UHF: B21 to B68 CATV: S01 to S03, S1 to S41

D/K

VHF: C1 to C12, R1 to R12 UHF: C13 to C57, R21 to R60 CATV: Z1 to Z39, S01 to S03, S1 to S41

VHF: A2 to A13 UHF: A14 to A79 CATV: A-8 to A-2, A to W+4, W+6 to W+84

Stereo system NICAM stereo B/G, I, D/K Antenna 75 ohm external antenna terminal Audio output (Speaker) 15 W x 2 Number of terminals Video Input: 4, Output: 1,

phono jacks, 1 Vp-p, 75 ohms

Audio Input: 5, Output: 1,

VARIABLE output: 1, phono jacks, 500 mVrms

S video Input: 2,

Y:1 Vp-p, 75 ohms, unbalanced, sync negative, C:0.286 Vp-p, 75 ohms

Component video Input: 1, phono jacks

Y:1.0 Vp-p, 75 ohms, sync negative

B/B-Y: 0.7 Vp-p, 75 ohms

C CR/R-Y: 0.7 Vp-p, 75 ohms Audio: 500 mVrms

Headphone Output: 1,minijack Power requirement 110-240 V AC, 50/60 Hz Power consumption 160 W Dimensions (w/h/d) 948 x 992 x 511 mm (KP-EF41)

1,091 x 1,336 x 575 mm (KP-EF48)

Mass Approx. 43 kg (KP-EF41)

Approx. 68 kg (KP-EF48)

Supplied accessories Remote commander RM-871 (1)

Size R6 (AA) battery (2)

Optional accessories AV rack SU-EF41 (KP-EF41),

SU-EF4853 (KP-EF48)

CAUTION SHORT CIRCUIT THE ANODE OF HTE PICTURE TUBE AND THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT, AFTER REMOVING THE ANODE.

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK

! ON THE SCHEMATIC DIAGRAMS, EXPLODED

VIEWS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

– 2 –

Section Title PageSection Title Page

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

1. GENERAL ................................................................. 4

2. DISASSEMBLY

2-1. Rear Board Removal ......................................... 19

2-2. Main Bracket Section Removal ........................ 19

2-3. Service Position ................................................. 20

2-4. H1 Board, H2 Board and Resistor

(High Voltage) Removal ................................... 21

2-5. Beznet Section Removal ................................... 22

2-6. G Board Removal ............................................... 23

2-7. P1 Board and V2 Board Removal...................... 23

2-8. UG Board, AG Board and S Board Removal .... 23

2-9. Chassis Block Removal...................................... 24

(1) H1, H2 Boards and Resistor Removal .............. 24

(2) Main Bracket Removal ...................................... 24

(3) Chassis Block Removal ..................................... 25

2-10. High-Voltage Cable Installation and Removal .. 26

2-11. Mechasel Assy Removal .................................... 26

3. SET-UP ADJUSTMENTS

3-1. Screen Voltage Adjustment

(Rough Alignment) ........................................... 27

3-2. Focus Adjustment .............................................. 27

3-3. Screen (G2) Adjustment .................................... 27

3-4. Deflection Yoke Tilt Adjustment ...................... 27

3-5. 2-Pole Magnet Adjustment ................................ 28

3-6. 4-Pole Magnet Adjustment ................................ 28

3-7. Defocus Adjustment (Blue) ............................... 28

3-8. Green and Red Focus Adjustment ..................... 28

3-8-1. Green and Red Lens Focus Adjustment ....... 28

3-8-2. Green and Red Electrical Focus

Adjustment .................................................... 28

6. DIAGRAMS

6-1. Block Diagrams .................................................. 45

6-2. Frame Schematic Diagram................................. 54

6-3. Circuit Boards Location ..................................... 58

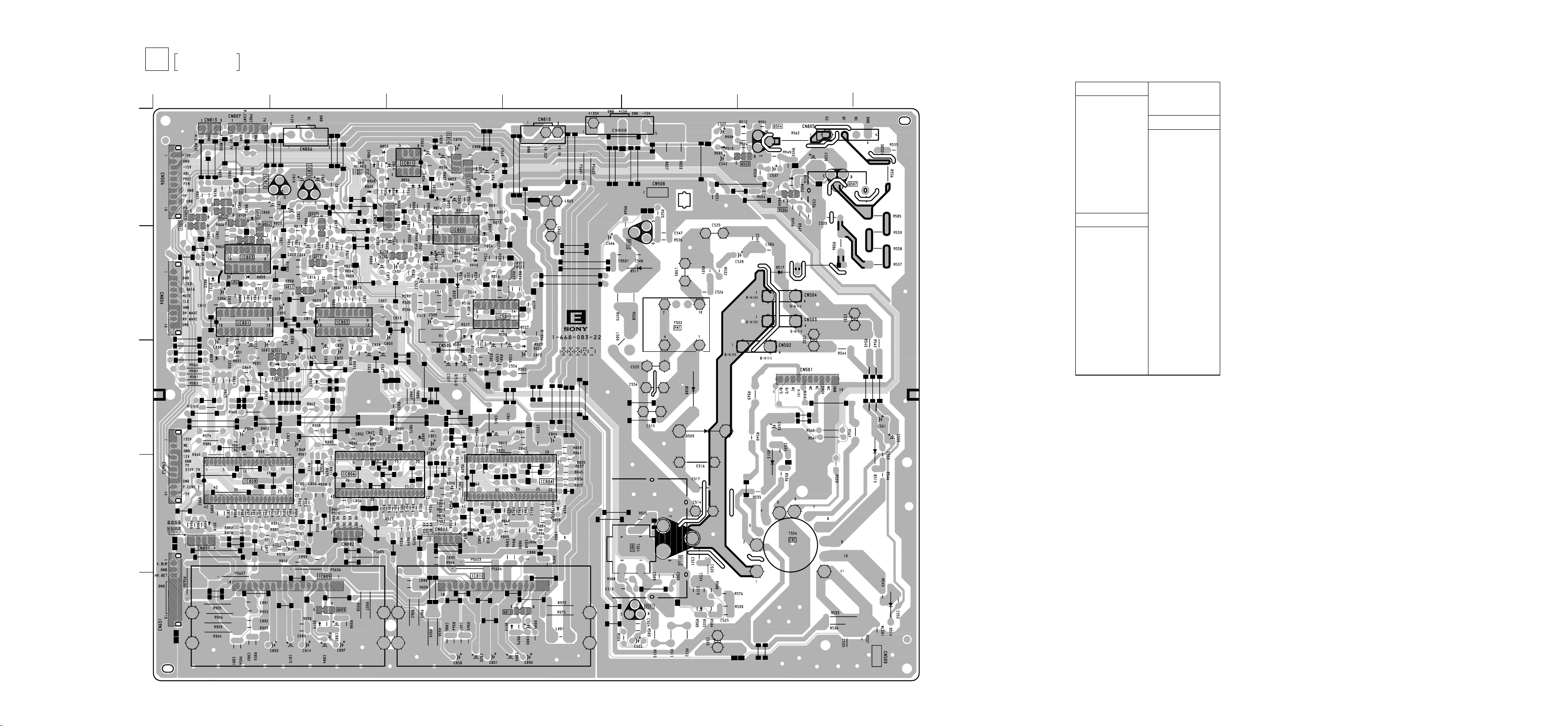

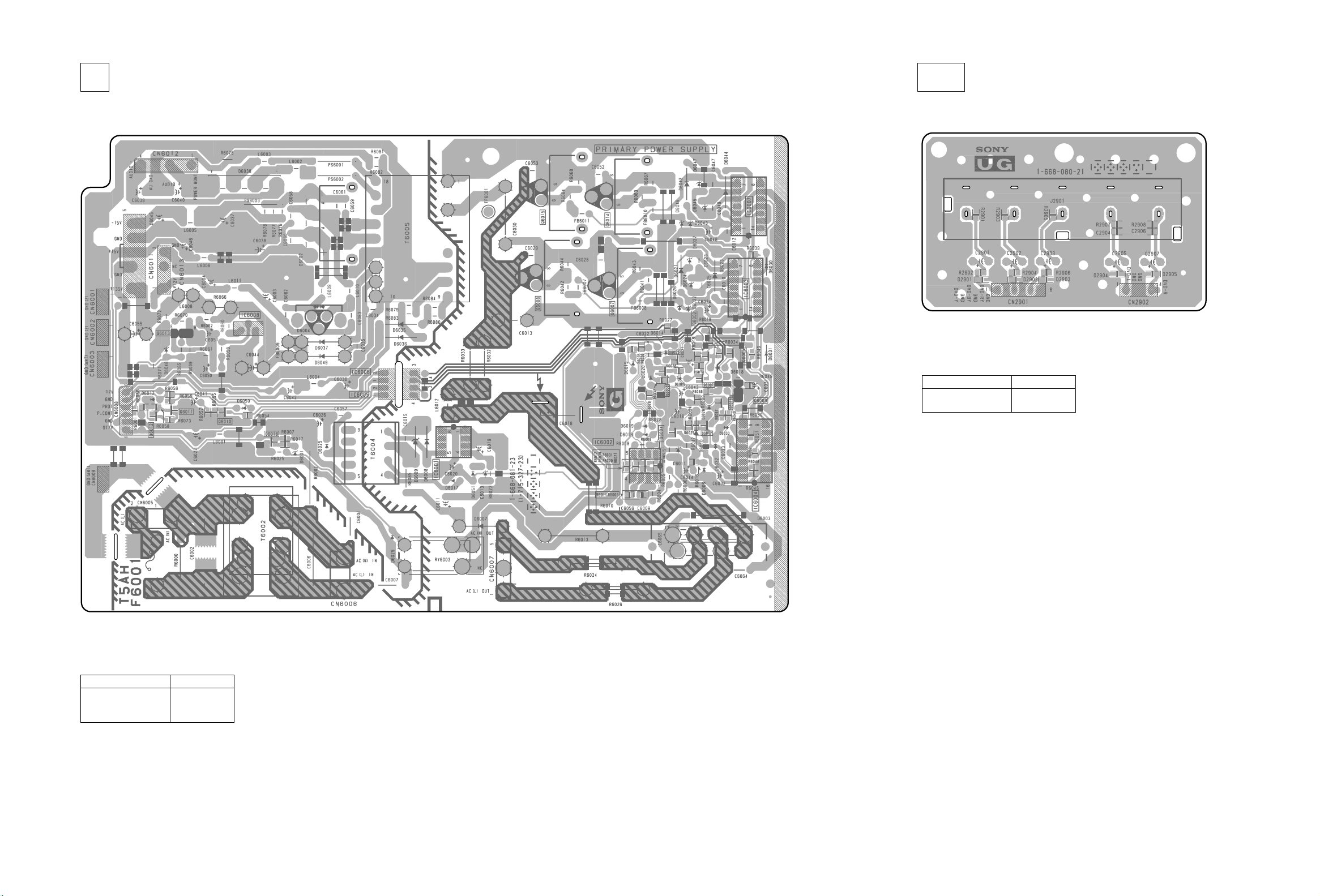

6-4. Schematic Diagrams and Printed Wiring

Boards ................................................................. 59

(1) Schematic Diagram of AG (1/3) Board ............. 63

(2) Schematic Diagram of AG (2/3) Board ............ 67

(3) Schematic Diagrams of AG (3/3), CB, CG and

CR Boards ......................................................... 71

(4) Schematic Diagram of E Board ......................... 75

(5) Schematic Diagram of D Board ........................ 85

(6) Schematic Diagrams of P1 and V2 Boards ....... 89

(7) Schematic Diagrams of H1, H2, S,

ZG and ZR Boards ............................................. 97

(8) Schematic Diagrams of G and UG Boards ........ 100

6-5. Semiconductors ................................................. 105

7. EXPLODED VIEWS

7-1. Screen and Cover Block (KP-EF41) ................. 107

7-2. Cabinet and Panel Block (KP-EF41) ................ 108

7-3. Chassis and Picture Tube Block (KP-EF41) ..... 109

7-4. Screen and Cover Block (KP-EF48).................. 110

7-5. Cabinet and Panel Block (KP-EF48) ................. 111

7-6. Chassis and Picture Tube Block (KP-EF48) ..... 112

8. ELECTRICAL PARTS LIST ............................ 113

4. SAFETY RELATED ADJUSTMENT

4-1. HV Hold Down Adjustment ............................. 29

5. CIRCUIT ADJUSTMENTS

5-1. Adjustments with Commander ......................... 30

5-2. Adjustment Method ........................................... 31

5-3. Adjustment After IC1001 and IC1702

Replacement ....................................................... 31

5-4. Registration (Convergence)Adjustment

Method ................................................................ 38

5-5. Auto Convergence Adjustment .......................... 43

5-6. White Balance Adjustment ................................ 44

5-7. Text Position Adjustment................................... 44

5-8. Picture Quality Adjustments ............................. 44

– 3 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

-EN

Getting Started

(MONO)

Connecting a VHF antenna or a combination VHF/UHF antenna — 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the

(antenna) socket at the rear of the TV.

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video game or stereo system.

Connecting video equipment using video input jacks

Connections

On a wall

Rear of TV

VCR

to S video output

to antenna output

to video and audio outputs

: Signal flow

Getting Started

(antenna) socket

…

1, 2, or 3 (video input)

(yellow)

-L (MONO)(white)

-R (red)

(S video input)

-EN

Getting Started

(MONO)

(VARIABLE)

Camcorder

to S video output

to video and audio outputs

: Signal flow

Rear of TV

VCR

to antenna output

to video and audio inputs

Audio system

to audio inputs

: Signal flow

L( MONO)

(S video input)

…

3 (video input)

(yellow)

-L (MONO)(white)

-R (red)

(antenna) socket

(monitor/TV output)

(yellow)

-L (MONO)(white)

-R (red)

When connecting a monaural VCR

Connect the yellow plug to

(video input) and the black plug to

-L (MONO) (audio input).

When connecting video game equipment

Connect video game equipment to the … 3 (video input) jacks at the front or the rear of your TV.

When connecting a VCR to the

(antenna) terminal

Preset the signal output from the VCR to the program position 0.

When connecting video equipment to the … 3 (video input) jacks at the front and the rear

Do not connect video equipment to the … 3 (video input) jacks at the front and the rear of your TV simultaneously; otherwise the picture will not be displayed properly on the screen.

If both S Video and video signals are input simultaneously

The S video input signal is selected. To view a video input signal, disconnect the

(S video) connection.

Note on the video input

When no signal is input, the screen becomes blue.

Connecting audio/video equipment using Ú (monitor/TV output) jacks

When the audio cable is connected to the

(VARIABLE) jacks, you can adjust the volume with Á +/–.

Front of TV

The operating instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers of the Operating Instruction Manual remein as in the manual.

– 4 –

SECTION1

GENERAL

RM-871

-EN

Getting Started

COMPOMENT VIDEO OUT

S VIDEO OUT

LINE OUT

/B-YYC

/R-Y

R-AUDIO-L VIDEO

CR/ R-Y

B-Y

(MONO)

LINE OUT

R-AUDIO-L VIDEO

Connecting a DVD player

Connecting an amplifier with Dolby* Pro Logic decoder

Even though you use an amplifier with Dolby Pro Logic decoder instead of the projection TV’s audio system, you can still use the projection TV’s center speaker.

* Manufactured under license from Dolby Laboratories

Licensing Corporation. DOLBY, the double-D symbol a and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation.

Amplifier with Dolby Pro Logic decoder

Rear speaker (L)

Rear speaker

(R) Front speaker (L)

Front speaker (R)

(center speaker

inputs)

Rear of TV

Connecting a DVD player with component video output connecors

Notes

• Since the high quality pictures on a DVD disc contain a lot of information, picture noise may appear. In this case, adjust the sharpness (SHARP) in the VIDEO ADJUST menu. (See page 20.)

• Connect your DVD player directly to your TV. Connecting the DVD player through other video equipment will cause unwanted picture noise.

Rear of TV

: Signal flow

to audio/ video outputs

DVD player

…

1, 2, or 3 (video input)

(yellow)

-L (MONO)(white)

-R (red)

Rear of TV

: Signal flow

-L (white)

-R (red)

(component video

input) Y/C

/B-Y/C

/R-Y

to component video output

to audio output

DVD player

-EN

Getting Started

For the best picture quality, install the projection TV within the areas shown below.

Optimum viewing area (Horizontal)

KP-EF41

Installing the projection TV

min 1.5m (5 ft.)

75°

KP-EF48

min 1.8m (6 ft.)

75°

– 5 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

-EN

Getting Started

Optimum viewing area (Vertical)

KP-EF41

min 1.5m (5 ft.)

27°

KP-EF48

min 1.8m (6 ft.)

27°

-EN

Getting Started

Name Refer to page

On-screen display button 19 Teletext: Reveal button 29 Mute on/off button 19 Sound select button 24 Teletext: Enlarge button 29 Teletext button 28 Double-digit entering button 18 Input select for PIP button 26 PIP freezing button 27 PIP TEXT button 30 POWER BASSO button 22

Volume control button 18 GAME button 31 TV standby button 18 Input mode selector 19 Hold button 28 TV power on/TV mode selector 19 Number buttons 18

JUMP button 19 Swapping picture button 27 PIP display button 26 MENU button 12 Cursor control key 12 Enter button 12 PROGR INDEX button 25

Wake up button (not in use for your model) Teletext: INDEX button 28 Sleep timer button 19 Teletext: Text clear button 29 Program selectors 18

Symbol

2 ¤ 3 A/B

4 5 ÷ 6 7 8 PIP TEXT 9 POWER

BASSO

!º .+/– !¡ GAME !™ u !£ …

!¢ ; !∞ 1,2,3,4,5,

6,7,8,9,0

!§ JUMP !¶ a !• ´ !ª MENU @º V/b/v/B

ENTER

@¡ PROGR

INDEX

@™

@£

@¢ PROGR +/–

Names/symbols of buttons on the remote commander are indicated in different colors to represent the available functions.

Label color Button function

White For general TV operations.

Green For Teletext operations.

Yellow For PIP and PROGRAM INDEX operations.

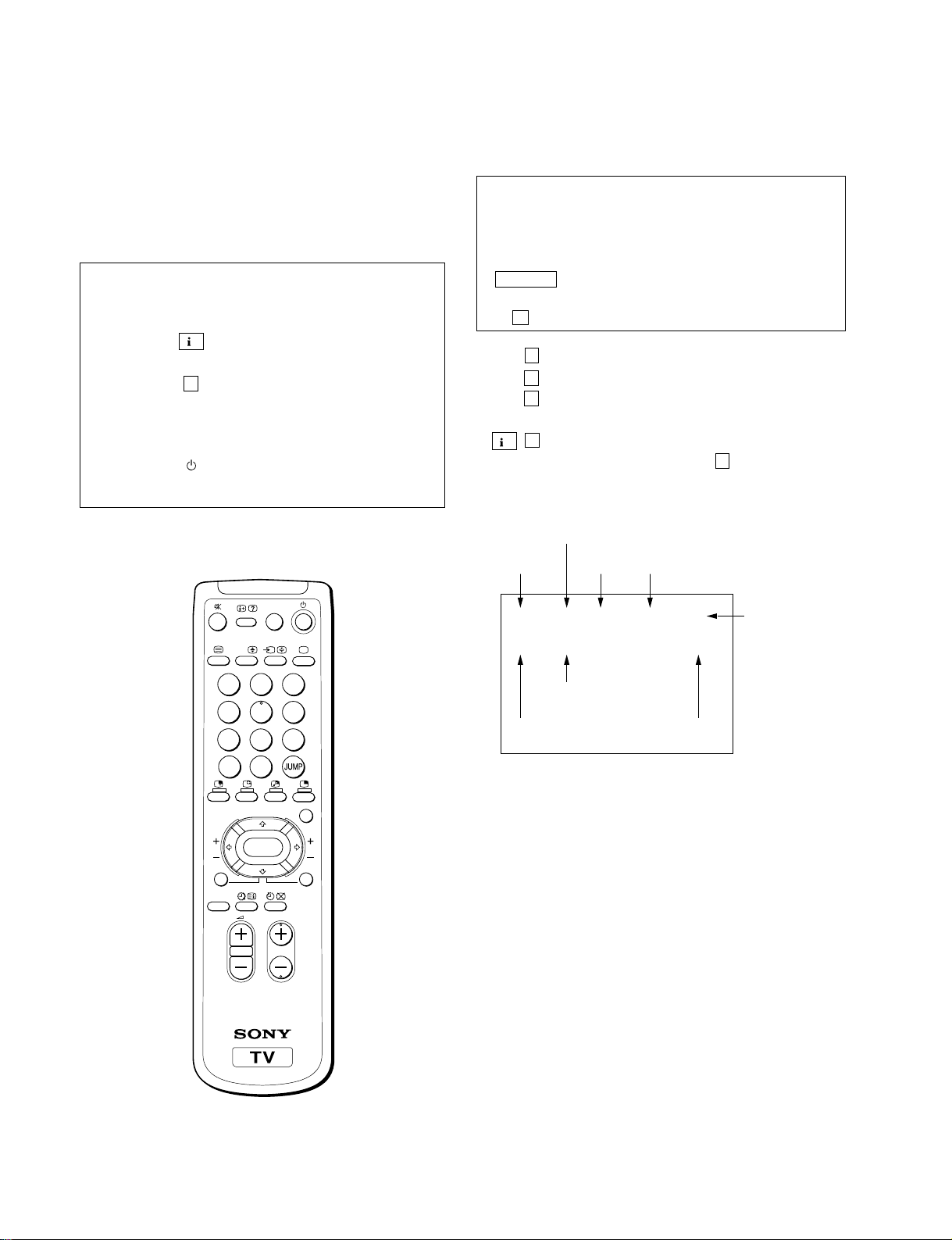

Getting to know the remote commander

PROGR

PIP PROGR

A/B

GAME

PROGR

INDEX

PIP

TEXT

8 0

-/--

ENTER

POWER BASSO

2 3

6 7

@¡ @™

!º

@£

@¢

@º

!ª

!•

!¶

!§

!∞

!¢

!£

!™

!¡

– 6 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

-EN

Getting Started

A/V CONTROL

PIP

FEATURES

Getting back to the previous menu (except for AUTO PROGRAM)

Press V or v to move the cursor (z) to the first line (N) of each menu, and press ENTER.

Cancelling the menu screen

Press MENU.

Notes (except for AUTO PROGRAM)

• When a menu is selected after pressing ENTER, the color of both the menu and the menu symbol change and the cursor (z) appears beside the first item of the menu.

• When an item on the menu is selected after pressing ENTER, the color of the item changes.

• You can refer to the guide (

) at the bottom of the menus (except for the A/V CONTROL and PRESET menus) for the basic operations of the menu.

• If more than approximately 60 seconds elapse after you press a button, the menu screen disappears automatically.

PIP

PIP: OFF

PI P TEXT STROBE POS I T ION:

PROGR I ND EX

PRESET

Introducing the menu system

You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen menus. You can use the buttons on both the remote commander and the TV to operate the menus.

TV SYS: B/ G

AUTO P ROGRAM

VHF LO

PR: 01

A / V CONTROL DYNAM I C

SOFT

STA NDARD PERSONAL

V IDEO AD JUST AUDIO ADJUST

GAME MODE HYPER SURROUND :

OFF MON I TO R

AV OUT:

FE ATURES

CONVERGENCE

PRESET

SKI P:

PR02 OFF

TV SYS: B/ G COL

SYS :AUTO

ENGL I SH AUTO P ROGRAM MANUAL PROGRAM

LA NGUAGE /

BASS

80 00

TREBLE BALANCE

AUDIO ADJUST

SPEAKER:

MAIN

P IC TURE

V IDEO AD JUST COLOR

BR I GHT HUE SHARP VM: HIG H

50 0

TV SYS: B /G

VHF

LOW

PR: 01 AT T : OFF

MANUAL PROGRAM

VOLUME: 0

-EN

Getting Started

Changing the menu language

Press V or v to move the cursor (z) to the PRESET menu (

), and press ENTER.

Make sure the cursor (z) appears beside LANGUAGE/

( ), and press ENTER.

Press V/b/v/B to select

(

), and press

ENTER.

All of the menus change to Chinese (Arabic).

Press MENU to return to the normal screen.

If you prefer Chinese (for MN3 model)/Arabic (for ME3 model) to English, you can change the menu language. You can use buttons on both the remote commander and the TV.

Press U to turn on the TV.

Press MENU.

ENTER

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

PRESET

SKIP : PR02 OFF

TV SYS: B/G COL SYS: AUTO

ENGL I SH AUTO PROGRAM MANUAL P ROGRAM

LANGUAGE/

ENTER

– 7 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

-EN

Getting Started

You can preset TV channels easily by storing all the receivable channels automatically. You can also preset channels manually or disable program positions (see page 16 ).

Presetting channels automatically

You can preset up to 100 TV channels in numerical sequence from the program position 1. You can preset channels automatically using the button on the TV or the menu.

Press U to turn on the TV.

Press

The TV starts scanning and presetting channels automatically. When all of the receivable channels are stored, the AUTO PROGRAM menu disappears and the first nine preset TV programs appear on the nine sub screens. The nine sub screens disappear after being displayed for several seconds.

Presetting channels

Note

• If you want to return to the normal screen while the nine sub screens are being displayed, you can press PROGR INDEX on the remote commander.

To preset channels automatically using the menu

1 Press MENU.

2 Press V or v to move the cursor (z) to the

PRESET menu (

), and press ENTER.

3 Press V or v to move the cursor (z) to AUTO

PROGRAM, and press ENTER.

Presetting channels manually

To change the program position for a channel or to receive a channel with a weak signal which you cannot receive by automatic presetting, preset the channel manually.

Press MENU.

Press V or v to move the cursor (z) to the PRESET menu (

), and press ENTER.

Select your local TV system.

(1) Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

(2) Press V/b/v/B until your local TV system appears

on the menu, and press ENTER.

ENTER

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

TV SYS:B /G

AUTO PROGRAM

VHF LO

PR: 01

123

456

789

PRESET

SKIP : PR02 OFF

TV SYS: B/G COL SYS: AUTO

ENGL I SH AUTO PROGRAM MANUAL PROGRAM

LA NGUAGE /

ENTER

L(MONO)

PROGR

ENTER MENU

-EN

Getting Started

Attenuating the signal for individual programs

If the TV signal is too strong, the picture may be distorted. You can reduce the picture distortion by attenuating the signal individually.

Display the PRESET menu.

Press V or v to move the cursor (z) to MANUAL PROGRAM, and press ENTER.

Press V or v to move the cursor (z) to ATT, and press ENTER.

Press V/b/v/B to select ON, and press ENTER.

Press V or v to move the cursor (z) to MANUAL PROGRAM, and press ENTER.

Select the program position to which you want to preset a channel.

(1) Make sure the cursor (z) appears beside PR, and

press ENTER.

(2) Press V/b/v/B until the program position you

want appears on the menu, and press ENTER.

Select the desired channel.

(1) Press V or v to move the cursor (z) to VHF LOW

(VHF Hi or UHF), and press ENTER.

(2) Press V/b/v/B until the desired channel picture

appears on the TV screen, and press ENTER.

Press MENU to return to the normal screen.

If the TV system is not properly selected

The picture color may be poor and/or the sound may be noisy. In this case, select the appropriate TV system.

1 Press PROGR +/– or the number buttons to select

the program position.

2 Display the PRESET menu. 3 Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

4 Press V/b/v/B until the appropriate TV system

appears, and press ENTER.

Notes

• The TV SYS (TV system), the ATT (attenuator), and the VOLUME (volume offset) settings are memorized for each program position.

• If you do not know your local TV system, consult your nearest Sony dealer or authorized service center.

PRESET

SKIP : PR02 OFF

TV SYS: B / G COL SYS:AUTO

ENGL I SH AUTO PROGRAM MANUAL P ROGRAM

LANGUAGE/

ENTER

TV SYS:B/G

VHF

PR: 01 ATT : OFF

MANUAL PROGRAM

ENTER

VOLUME: 0

TV SYS:B /G

VHF

PR: 01 ATT : OFF

MANUAL PROGRAM

ENTER

VOLUME: 0

TV SYS:B/G

VHF

PR: 01 ATT : OFF

MANUAL PROGRAM

ENTER

VOLUME: 0

– 8 –

RM-871

-EN

Getting Started

Disabling program positions

By disabling unused or unwanted program positions, you can skip those positions when you press PROGR +/–.

Press MENU.

Press V or v to move the cursor (z) to the PRESET menu (

), and press ENTER.

Press V or v to move the cursor (z) to SKIP, and press ENTER.

Press V or v until the unused or unwanted program position appears on the menu, and press ENTER.

Press V/b/v/B to select ON, and press ENTER.

To disable other program positions, repeat steps 4 and 5.

Press MENU to return to the normal screen.

To cancel the skip setting 1 Display the PRESET menu. 2 Press V or v to move the cursor (z) to SKIP, and

press ENTER.

3 Press V or v until the program position you want to

cancel the skip setting appears, and press ENTER.

4 Press V/b/v/B to select OFF, and press ENTER.

Presetting the volume level for individual programs

If the volume of the selected program is louder than that of other programs, set the volume level.

Press MENU.

Press V or v to move the cursor (z) to the PRESET menu (

), and press ENTER.

Press V or v to move the cursor (z) to MANUAL PROGRAM, and press ENTER.

Press V or v to move the cursor (z) to VOLUME, and press ENTER.

Press V/b/v/B to set the level, and press ENTER.

The level can be set as 0, –1, –2, ....–6 (minimum).

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

PRESET

SKIP: PR02 OFF

TV SYS: B / G COL SYS: AUTO

ENGL I SH AUTO PROGRAM MANUAL PROGRAM

LA NGUAGE /

ENTER

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

PRESET

SKIP: PR02 OFF

TV SYS: B /G COL SYS: AUTO

ENGL I SH AUTO PROGRAM MANUAL PROGRAM

LANGUAGE/

ENTER

TV SYS:B /G

VHF

PR: 01 ATT : OFF

MANUAL PROGRAM

ENTER

VOLUME: 0

-EN

Getting Started

Press V or v to move the cursor (z) to CONVERGENCE and press ENTER.

The CONVERGENCE adjustment screen appears.

Press V or v to move the cursor (z) to the symbol showing the line you want to adjust, and press ENTER.

: Red vertical line (left/right adjustment) : Red horizontal line (up/down adjustment) : Blue vertical line (left/right adjustment) : Blue horizontal line (up/down adjustment)

Press V or v to move the line until it converges with the center green line, and press ENTER.

To move up/right, press V. To move down/left, press v.

Repeat steps 4 and 5 to adjust the other lines until all three lines converge and are seen as a white cross.

Press MENU to return to the normal screen.

Adjusting the convergence (CONVERGENCE)

Before you use the projection TV, adjust convergence. The projection tube image appears on the screen in three layers (red, green and blue). If they do not converge, the color is poor and the picture blurs. To correct this, adjust convergence. After 20-30 minutes of turning on the power, adjust convergence.

Adjusting the convergence automatically

Press

on the TV.

The auto convergence function works for about 30 seconds.

Adjusting the convergence manually

When the auto convergence function does not work correctly with

, adjust convergence by selecting

CONVERGENCE of the FEATURES menu.

Press MENU.

Press V or v to move the cursor (z) to the FEATURES menu (

), and press ENTER.

R=Red G=Green B=Blue

GAME MODE HYPER SURROUND:

OFF MONITOR

AV OUT:

FE ATURES

ENTER

CONVERGENCE

G+B

(Light blue)

G+B

(Light blue)

L(MONO)

PROGR

ENTER MENU

– 9 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

Operations

-EN

Watching the TV

To scan through program positions

Press PROGR +/– on the remote commander or the TV until the program position you want appears.

Press Á +/– on the remote commander or the TV to adjust the volume.

Turning off the TV

To turn off the TV temporarily

Press u on the remote commander. The u/Â indicator lights up.

To turn off the TV completely

Press U on the TV.

Press U to turn on the TV.

When the TV is turned on in the standby mode, the u/Â indicator on the TV lights up. To turn on the TV completely, press u on the remote commander or the TV.

Select the TV program you want to watch.

To select a program position directly

Press the number button.

To select a two-digit program position, press “÷ ” before the number buttons. For example: to select program position 25, press “÷ ,” then “2” and “5.”

PROGR

-/--

Operations

8 0

-/--

PROGR

-EN

Operations

Watching the video input

Press …

on the remote commander or … on

the TV.

To watch TV

Press ; on the remote commander or … on the TV.

Switching back quickly to the previous channel

Press JUMP.

Muting the sound

Press ¤.

MUTING

POWER BASSO: ON

DYNAMIC

After 30 minutes

After 60 minutes

No Sleep Timer

After 90 minutes

SLEEP TIMER:30M

SLEEP TIMER:60M

SLEEP TIMER:OFF

SLEEP TIMER:90M

Displaying the on-screen information

Press

Note

• The on-screen display shows the program position or the video mode, the picture and sound information. The on-screen display for the picture and sound information disappears after being displayed for approximately three seconds.

Setting the Sleep Timer

You can set the TV to turn off automatically after the period of time you want.

Press

To cancel the Sleep Timer, press

repeatedly until

“SLEEP TIMER: OFF” appears, or turn the TV off.

VIDEO 1

VIDEO 2

VIDEO 3

DVD

– 10 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

Operations

-EN

Selecting the picture and sound modes

Press MENU.

Make sure the cursor (”) appears in the A/V CONTROL menu (

), and press ENTER.

Press V or v to move the cursor (”) to DYNAMIC, STANDARD, SOFT, or PERSONAL, and press ENTER.

Select To

DYNAMIC Receive high contrast picture with

powerful sound.

STANDARD Receive normal contrast picture with

medium listening sound.

SOFT Receive mild picture with soft sound.

PERSONAL Receive the last picture and sound

settings that are adjusted using VIDEO ADJUST and AUDIO ADJUST.

Press MENU to return to the normal screen.

Adjusting the picture and sound

ENTER

Press V/b

Increase picture contrast.

Increase color intensity.

Brighten the picture.

Make picture tones become greenish.

Sharpen the picture.

Increase emphasis on picture edges.

Adjusting the picture settings (VIDEO ADJUST)

You can adjust the picture settings to suit your taste with the VIDEO ADJUST option. The adjusted settings are stored in the PERSONAL option.

Press MENU.

Make sure the cursor (”) appears in the A/V CONTROL menu (

), and press ENTER.

Press V or v to move the cursor (”) to VIDEO ADJUST, and press ENTER.

Press V or v to move the cursor (”) to the item you want to adjust, and press ENTER.

Press V/b/v/B to adjust the selected item, and press ENTER.

For detrils on each item, see “Description of adjustable items” below.

To adjust other items, repeat steps 4 and 5.

Press MENU to return to the normal screen.

Description of adjustable items

Item Press v/B

PICTURE Decrease picture

contrast.

COLOR Decrease color

intensity.

BRIGHT Darken the picture.

HUE Make picture tones

become reddish.

SHARP Soften the picture.

VM Decrease emphasis

on picture edges.

Note

• You can adjust HUE for the NTSC color system only. (Note that you can't adjust the NTSC color system of the component inputs.)

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST


V IDEO ADJ UST COLOR

BR IGHT HUE SHARP VM: HIGH

50 0

ENTER

-EN

Operations

Press V/b

Increase the bass sound.

Increase the treble sound.

Increase the right speaker's volume.

If the picture is slightly snowy

You may try to improve the picture by changing the VM setting as described below:

1 Display the VIDEO ADJUST menu. 2 Press V or v to move the cursor (”) to VM, and

press ENTER.

3 Press V/b/v/B to select LOW, and press ENTER. If the picture color is abnormal when receiving

programs through the ˘ (antenna) terminal

Change the color system or the TV system from the PRESET menu as described below until the color becomes normal.

1 Display the PRESET menu. 2 Press V or v to move the cursor (”) to

COL SYS or TV SYS, and press ENTER.

3 Press V/b/v/B to change the color system or the

TV system until the color becomes normal, and press ENTER.

Note

• Normally set the color system (COL SYS) to AUTO.

Adjusting the sound settings (AUDIO ADJUST)

You can adjust the sound settings to suit your taste with the AUDIO ADJUST option. The adjusted settings are stored in the PERSONAL option.

Press MENU.

Make sure the cursor (”) appears in the A/V CONTROL menu (

), and press ENTER.

Press V or v to move the cursor (”) to AUDIO ADJUST, and press ENTER.

Press V or v to move the cursor (”) to the item you want to adjust, and press ENTER.

Press V/b/v/B to adjust the selected item, and press ENTER.

For details on each item, see “Description of adjustable items” below.

To adjust other items, repeat steps 4 and 5.

Press MENU to return to the normal screen.

Description of adjustable items

Item Press v/B

BASS Decrease the bass

sound.

TREBLE Decrease the treble

sound.

BALANCE Increase the left

speaker's volume

If the sound is distorted or noisy when receiving programs through the

(antenna)

terminal

Change the TV system from the PRESET menu as described below until the sound becomes normal.

1 Display the PRESET menu. 2 Press V or v to move the cursor (”) to TV SYS, and

press ENTER.

3 Press V/b/v/B to change the TV system until the

sound becomes normal, and press ENTER.

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

BASS

80 00

TREBLE BALANCE

AUDI O AD JUST

ENTER

SPEAKER:

MAIN

– 11 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

-EN

Operations

The HYPER SURROUND feature enables you to enjoy a surround sound effect that is like being in a concert hall or movie theater when receiving stereo signals.

Press MENU.

Press V or v to move the cursor (z) to the FEATURES menu (

) , and press ENTER.

Press V or v to move the cursor (z) to HYPER SURROUND, and press ENTER.

Press V/b/v/B to select MOVIE, MUSIC, NEWS〈BBE〉, HALL〈SRS〉 or SPACE, and press ENTER.

MOVIE n

MUSIC nNEWS

〈

BBE

〉

OFF N SPACE N HALL

〈

SRS

〉

For details on each item, see “Description of adjustable items” below.

Press MENU to return to the normal screen.

Description of adjustable items

Select To

MOVIE Listen to a sound that emphasizes the bass

audio effect of movie theater.

MUSIC Listen to a dynamic and clear sound that

emphasizes the low and high audio sounds.

NEWS〈BBE〉 Listen to a sound that emphasizes voice. HALL〈SRS〉 Listen to a sound that spreads out over a

large area, giving the feeling of being at a concert hall.

SPACE Listen to a monaural sound that gives a

stereo-like effect.

OFF Turn off the surround sound.

Notes

• The BBE is manufactured by Sony Corporation under license from BBE Sound, Inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word “BBE” and the BBE symbol are the trademarks of BBE Sound, Inc.

• The (r)

SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license from SRS Labs, Inc. It is covered by U.S. Patent No. 4,748,669. The word “SRS” and the SRS symbol (r) are registered trademarks of SRS Labs, Inc.

Listening to the surround sound (HYPER SURROUND)

ENTER

A / V CONTROL

DYNAM IC SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

GAME MODE HYPER SURROUND:

OFF MONITOR

AV OUT:

FEATURES

ENTER

CONVERGENCE

Operations

-EN

Listening with dynamic sound (POWER BASSO)

The POWER BASSO sound mode enables you to enjoy a high quality sound with the best combination of all types of sound. It reproduces dynamic and clear sounds and emphasizes low and high audio effects as well.

Press POWER BASSO.

The sound mode of the TV program or the video input changes to the POWER BASSO sound.

To cancel the POWER BASSO mode

Press POWER BASSO again.

Note

• You can select any of the surround sound modes (HYPER SURROUND) to cancel the POWER BASSO sound.

POWER

BASSO

POWER BASSO: ON

Setting the speaker

If you connect a Dolby Pro Logic-compatible amplifier to the center speaker terminals, you can use the projection TV speakers as center speakers.

Press MENU.

Make sure the cursor (z) appears in the A/V CONTROL menu (

), and press ENTER.

Press V or v to move the cursor (z) to AUDIO ADJUST, and press ENTER.

Press V or v to move the cursor (z) to SPEAKER, and press ENTER.

Press V/b/v/B to set the speaker, and press ENTER.

To use the projection TV speakers as center speakers, select CENTER IN. To listen to the sound from a projection TV, select MAIN.

Press MENU to return to the normal screen.

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUD IO ADJUST

BASS

80 00

TREBLE BALANCE

AUDI O AD JUST

ENTER

SPEAKER:

MAIN

BASS

80 00

TREBLE BALANCE

AUDI O AD JUST

ENTER

SPEAKER:

MAIN

– 12 –

RM-871

Operations

-EN

On-screen display

(Selected sound)

You can enjoy stereo sound or bilingual programs of NICAM and A2 (German) stereo systems.

Press A/B

repeatedly until you receive the

sound you want.

The on-screen display changes corresponding to the selected sound and the u/Â indicator also lights up.

When receiving a NICAM program

Broadcasting

NICAM stereo n

NICAM

MONO

(Stereo sound) (Regular sound)

NICAM bilingual n

NICAM

MONO

MAIN SUB (Regular sound)

(Main sound) (Sub sound)

NICAM monaural n

NICAM

MONO

MAIN (Regular sound)

(Main sound)

When receiving an A2 (German) program

Broadcasting

A2 (German) stereo

A2 (German) bilingual

Receiving area for NICAM and A2 (German) programs

System Receiving area

NICAM Hong Kong, Singapore, New Zealand,

Malaysia, Thailand, etc.

A2 (German) Australia, Malaysia, Thailand, etc.

Notes

• If the signal is very weak, the sound becomes monaural.

• If the stereo sound is noisy when receiving a NICAM program, select “MONO.” The sound becomes monaural, but the noise is reduced.

If the sound is distorted or noisy when receiving a monaural program through the ˘ (antenna) terminal

Press A/B

repeatedly until “MONO” appears on the

screen while the u/Â indicator is off.

To cancel the monaural sound setting, press A/B again until “AUTO” appears on the screen.

Notes

• The “MONO” or “AUTO” setting memorized for each program position.

• You cannot receive stereo broadcast signal when the TV is in the “MONO” setting.

Selecting a stereo or bilingual program

On-screen display

(Selected sound)

A/B

MAIN

SUB

(Main sound) (Sub sound)

MONO

STEREO

(Regular sound) (Stereo sound)

MONO

AUTO

-EN

Operations

To restore the normal screen

Press PROGR INDEX again or

. You can also select PROGR INDEX or PIP : OFF from the PIP menu, and press ENTER to restore the normal screen.

To view multiple programs on the nine sub screens using the menu

Press MENU.

Press V or v to move the cursor (z) to the PIP menu (

), and press ENTER.

Make sure the cursor (z) appears beside PROGR INDEX, and press ENTER.

Notes

• You can change the position of the nine sub screens using the

PIP menu (see “Changing the position of the PIP screen” on page 27).

• You can hear the sound of the main screen when viewing

multiple programs on the nine sub screens.

• You can use the number buttons on the remote commander to

change the program position of the main screen when viewing multiple programs on the nine sub screens.

Viewing multiple programs at the same time (PROGRAM INDEX)

The PROGRAM INDEX feature allows you to view all the preset TV programs and the video inputs on the nine sub screens at the same time.

You can view multiple programs on the nine sub screens using the button on the remote commander or the menu.

Press PROGR INDEX.

The first nine preset programs appear on the nine sub screens.

To view the next or the previous nine preset programs on the nine sub screens

Press PROGR +/– on the remote commander or the TV.

To select the program you want to watch directly after viewing multiple programs

Press the number buttons, …

, or press

V/b/v/B to move the cursor (>>>) to the screen of the program you want to watch, and press ENTER.

PROGR

INDEX

123

456

789

>>>

123

456

789

10 11 12

V1 V2 V3

123

>>> >>>

PIP

PIP: OFF

PIP TEXT STROBE POS I TI ON:

PROGR IND EX

ENTER

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

– 13 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

Operations

-EN

With the Picture-in-Picture (PIP) feature, you can display a sub screen within the main picture of different TV programs or video inputs.

Displaying the PIP screen

You can display the PIP screen using the button on the remote commander or the menu.

Press

Selecting a TV program or video input in the PIP screen

To select a TV program, press V or v, and press ENTER. To select a video input, press

on the remote

commander or … on the TV.

To display the PIP screen using the menu

Press MENU.

Press V or v to move the cursor (”) to the PIP menu (

), and press ENTER.

Press V or v to move the cursor (”) to PIP, and press ENTER.

Press V/b/v/B to select ON, and press ENTER.

Press MENU to return to the normal screen.

Using the Picture-inPicture (PIP) features

Displaying frameby-frame pictures (STROBE)

You can watch a slow motion movement of the main screen picture which is displayed frame-by-frame on the nine sub screens.

Press MENU.

Press V or v to move the cursor (z) to the PIP menu (

), and press ENTER.

Press V or v to move the cursor (z) to STROBE, and press ENTER.

To restore the normal screen

Select STROBE again or PIP : OFF from the PIP menu, and press ENTER. You can also press ;, …

, PROGR +/–, or

restore the normal screen.

Notes

• You can change the position of the nine sub screens using the PIP menu (see "Changing the position of the PIP screen" on page 27).

• You can hear the normal sound when using the STROBE feature.

ENTER

PIP

PIP: OFF

PIP TEXT STROBE POS I TI ON:

PROGR IND EX

ENTER

;

…

V/v/ENTER

8 0

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

-EN

Operations

Swapping pictures between the main and PIP screens

Press

Freezing the PIP screen

Press

The PIP screen will freeze.

To restore the normal screen

Press

again.

Notes

• When you display a video input on the PIP screen at any speed other than the normal one, the picture may be disrupted, depending on the VCR.

• If you display different color systems on the main screen and the PIP screen, the size of the PIP screen may be different and the PIP picture may be disrupted. This does not indicate a malfunction of the TV.

Changing the position of the PIP screen

Press MENU.

Press V or v to move the cursor (”) to the PIP menu (

), and press ENTER.

Press V or v to move the cursor (z) to POSITION, and press ENTER.

Press V/b/v/B to select the position you want, and press ENTER.

Press MENU to return to the normal screen.

PIP

PIP: OFF

PI P TEXT STROBE POSI T I ON:

PROGR IND EX

ENTER

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

– 14 –

RM-871

Operations

-EN

TV stations broadcast an information service called Teletext via a TV channel. Teletext service allows you to receive various information such as weather forecasts or news at any time.

Displaying Teletext

Select a TV channel that carries the Teletext broadcast you want to watch.

Press

to display the Teletext.

A Teletext page (normally the index page) is displayed. If there is no Teletext broadcast, “100” is displayed at the top left corner of the screen.

To turn off Teletext

Press ;.

Superimposing a Teletext page on the TV picture

Press

Each time you press

, the screen changes as follows:

n Teletext n Teletext and TV n TV

Viewing Teletext

Checking the contents of a Teletext service (INDEX)

Press

to display an overview of the Teletext

contents and page numbers.

Using FASTEXT

This feature allows you to quickly access a Teletext page that uses FASTEXT. When a FASTEXT program is broadcasted, the colored menus appear at the bottom of the screen. The colors of the menus correspond to the red (

), green (

), yellow (

), and blue (

)

colored-coded buttons on the remote commander.

To access a FASTEXT menu

Press the color-coded button on the remote commander that corresponds to the colored menu which appears at the bottom of the screen. The menu page appears on the screen after several seconds.

Selecting a Teletext page

Press the number buttons to enter the threedigit page number of the Teletext page you want.

If you make a mistake, re-enter the correct page number.

To access the next or previous page

Press PROGR +/–.

You can also access a Teletext page of any page numbers that appear in the colored column at the bottom of the screen using the corresponding colorcoded button on the remote commander.

Holding a Teletext page (HOLD)

A Teletext page may consist of several subpages. You can stop the page scrolling in order to read the text at your own pace.

Press

The HOLD symbol “H” appears at the top left corner of the screen.

To resume normal Teletext operation

Press

again or

;

Number

PROGR +/–

Green

Red

Yellow Blue

8 0

-EN

Operations

Revealing concealed information (REVEAL)

The REVEAL option lets you disclose concealed information, such as an answer to a quiz that you find on some of the Teletext pages.

Press

To conceal the information

Press

again.

Enlarging the Teletext display (ENLARGE)

Press

Each time you press

, the Teletext display changes as

follows:

n Enlarge upper half n Enlarge lower half

Normal size N

Waiting for a Teletext page while watching a TV program (TEXT CLEAR)

Enter the page number of the Teletext that you want to refer to, then press

When the page number is displayed on the screen, press

to turn on the Teletext.

– 15 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

Operations

-EN

To display a Teletext page on the PIP screen using the menu

Press MENU.

Press V or v to move the cursor (z) to the PIP menu (

) , and press ENTER.

Press V or v to move the cursor (z) to PIP TEXT, and press ENTER.

Press V/b/v/B to select the Teletext page you want to watch.

Notes

• You can also use the color-coded buttons (see page 28) while displaying a Teletext page on the PIP screen.

• To select a Teletext page on the PIP screen, press V/b/v/B once only. If you press V/b/v/B continuously, the Teletext page numbers also change continuously at a fast speed.

• You can change the position of a Teletext page on the PIP screen using the PIP menu (see "Changing the position of the PIP screen" on page 27).

PIP

PIP: OFF

PIP TEXT STROBE POS I TI ON:

PROGR IND EX

ENTER

The PIP TEXT feature enables you to display a Teletext page on the PIP screen while watching a TV program.

You can display the Teletext on the PIP screen using the button on the remote commander or the menu.

Select a TV channel that carries the Teletext broadcast you want to watch.

Press PIP TEXT.

To restore the normal screen

Press PIP TEXT again, or press ;, …

, or PROGR +/–. You can also select PIP : OFF from the PIP menu, and press ENTER to restore the normal screen.

Displaying Teletext on the PIP screen (PIP TEXT)

PIP

TEXT

P166 SECTEXT 166 FR1 MAR 03:59:09

Fom Singapore To PARIS

To OSAKA

To ROMA

To SYDNEY

Day Dep/Arr Flight Alrcraft

1.6 220/0588 SQ28 747 2 2130/1225 PA115 L15 3 2115/1330 SQ26 747

2.7 2130/0745 SQ24

747

4 2300/0915 AZ487 747

2.5 1000/1715 SQ6 747

4.6 0930/2015 CX522 L10

1 2210/0610 SQ21A 747 2 2100/0835 SQ21A 747

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

-EN

Operations

To restore the normal picture and sound modes

Press ;, …

, or PROGR +/–.

Notes

• If you press the GAME button when the TV is in the standby mode, the TV turns on automatically and the picture and sound change to the mode that is suitable for video games.

• To display a video game screen, connect the video game equipment to the … 3 (video input) jacks at the front or the rear of the TV.

The GAME MODE feature optimizes the video game screen by giving a soft picture and dynamic sound effect.

You can display a video game screen using the button on the remote commander or the menu.

Press GAME.

The picture and sound change to the mode that is suitable for video games.

To view a video game screen using the menu

Press MENU.

Press V or v to move the cursor (z) to the FEATURES menu (

), and press ENTER.

Make sure the cursor (z) appears beside GAME MODE, and press ENTER.

Viewing a video game screen (GAME MODE)

GAME

A / V CONTROL DYNAMIC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

GAME MODE HYPER SURROUND:

OFF MONITOR

AV OUT:

FEATURES

ENTER

CONVERGENCE

– 16 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

Operations

-EN

Customizing the TV

Using the AV OUT (advanced rec-out) terminal

You can select the output signal from the Ú (monitor/ TV output) jacks at the rear of the TV. However, the signals of the PROGRAM INDEX, STROBE, PIP modes, the signals from the

(component video input) jacks, and the Teletext broadcast cannot be output even though MONITOR is selected.

Press MENU.

Press V or v to move the cursor (z) to the FEATURES menu (

), and press ENTER.

Press V or v to move the cursor (z) to AV OUT, and press ENTER.

Press V/b/v/B to select the output signal, and press ENTER.

Select To

TV Output the signal of the TV broadcast.

MONITOR Output the signal of the picture you are

watching as a main picture.

Notes

• Do not change the channel while recording with a VCR

through the Ú (monitor/TV output) jacks. If you change the channel, it also changes the channel you are recording.

• When the signals from the

(component video input) jacks are displayed on the main screen, the signals can't be output even though MONITOR is selected.

A / V CONTROL DYNAM IC

SOFT

STA NDARD PERSONAL

V IDEO ADJ UST AUDI O AD JUST

GAME MODE HYPER SURROUND :

OFF MONITOR

AV OUT:

FE ATURES

ENTER

CONVERGENCE

-EN

Additional Information

If you have any problems, read this manual again and check the countermeasure for each of the symptoms listed below. If the problem persists, contact your nearest Sony dealer or authorized service center.

Snowy picture Noisy sound

/ Check the antenna. / Check the antenna connection on the TV

and on the wall.

/ Check the TV system (TV SYS) setting. / Check the ATT (attenuator) setting.

Dotted lines or stripes

/ This may be caused by local interference

(e.g. cars, neon signs, hair dryers, etc.). Adjust the antenna for minimum interference.

Double images or “ghosts”

/ This may be caused by reflections from

nearby mountains or buildings. A highly directional antenna may improve the picture.

Troubleshooting

Good picture Noisy sound

/ Check the TV system (TV SYS) setting.

No picture No sound

/ Press u. / Press U to turn off the TV for about five

seconds and then turn it on again.

/ Check the power cord connection. / Check the antenna connection. / Check the VCR connections.

Good picture No sound

/ Press Á +. / If “CENTER IN” is displayed on the

screen, select “SPEAKER: MAIN” of the AUDIO ADJUST menu.

/ Press ¤. / Press A/B

No color

/ Adjust the COLOR level in the VIDEO

ADJUST menu of the PERSONAL option.

/ Check the color system (COL SYS) setting.

TV cannot receive stereo broadcast signal

/ Press A/B

until “AUTO” appears on

the screen.

TV cabinet creaks

/ Even if the picture or the sound is normal,

changes in the room temperature sometimes make the TV cabinet expand or contract, making a noise. This does not indicate a malfunction.

Additional Information

– 17 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

Additional Information

-EN

Projection system

3 picture tubes, 3 lenses, horizontal in-

line system

Picture tube 7 inch high-brightness monochrome

tubes (6.3 raster size), with optical coupling and liquidcooling system

Projection lenses High performance, large-diameter

hybrid lens F1.0

Screen size 41 inches (KP-EF41)

48 inches (KP-EF48)

Television system

B/G, I, D/K, M

Color system PAL, PAL 60, SECAM, NTSC

4.43

NTSC

3.58

Specifications

Channel coverage

B/G

VHF: E2 to E12 UHF: E21 to E69 CATV: S01 to S03, S1 to S41

UHF: B21 to B68 CATV: S01 to S03, S1 to S41

D/K

VHF: C1 to C12, R1 to R12 UHF: C13 to C57, R21 to R60 CATV: Z1 to Z39, S01 to S03, S1 to S41

VHF: A2 to A13 UHF: A14 to A79 CATV: A-8 to A-2, A to W+4,

W+6 to W+84

Stereo system NICAM stereo B/G, I, D/K

A2 stereo (German) B/G

Antenna 75 ohm external antenna terminal Audio output (Speaker)

15 W × 2

Number of terminals

Video Input: 4, Output: 1

phono jacks, 1 Vp-p, 75 ohms

Audio Input: 5, Output: 1, VARIABLE output:

1, phono jacks, 500 mVrms

S video Input: 2,

Y: 1 Vp-p, 75 ohms, unbalanced, sync negative, C: 0.286 Vp-p, 75 ohms

Component video

Input: 1, phono jacks Y: 1.0 Vp-p, 75 ohms, sync negative C

/B-Y: 0.7 Vp-p, 75 ohms

/R-Y: 0.7 Vp-p, 75 ohms

Audio: 500 mVrms

Headphone Output: 1, minijack

Power requirement

110 – 240 V AC, 50/60 Hz

Power consumption

160 W

Dimensions (w/h/d)

948 × 992 × 511 mm (KP-EF41) 1091 × 1336 × 575 mm (KP-EF48)

Mass Approx. 43 kg (KP-EF41)

Approx. 68 kg (KP-EF48)

Supplied accessories

Remote commander RM-871 (1) Size R6 (AA) battery (2)

Optional accessory

AV rack SU-EF413 (KP-EF41)

Design and specifications are subject to change without notice.

Cleaning the screen

• To clean the screen with a cloth, please use a soft cloth lightly moistened with a mild detergent solution or water. Do not use any type of abrasive pad, alkaline cleaner, scouring powder or solvent, such as alcohol or benzine, or anti static spray. As a safety precaution, unplug the TV before cleaning it.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items, like a ball point pen or a screw driver. Otherwise, this type of contact may result in a scratched screen.

– 18 –

RM-871

SECTION 2

4 Rear board

1 Nine screws

(Hexagon head)

3 Purse

lock

2 Five screws

(Hexagon head)

DISASSEMBLY

2-1. REAR BOARD REMOVAL

• KP-EF41 • KP-EF48

2 Rear board

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

3 Purse

lock

1 Thirteen screws

(Hexagon head)

2-2. MAIN BRACKET SECTION REMOVAL

• KP-EF41 • KP-EF48

1 Optical shield

2 Two screws

(BVTP 4X16)

1 Light

interception plate

3 Main bracket section

2 Two screws

(Hexagon head)

3 Main bracket section

– 19 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

2-3. SERVICE POSITION

• KP-EF41 • KP-EF48

Main bracket section

– 20 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

2-4. H1 BOARD, H2 BOARD AND RESISTOR (FCOUS PACK) REMOVAL

• KP-EF41

8 Screw

(BVTP 3X12)

9 H1 board

7 Bracket (H)

!¡ H2 board

5 Control panel ass’y

4 Two screws

(BVTP 4X16)

!£ Resistor (Focus Pack)

!™ Screw (BVTP 4X16)

6 Two screws (BVTP 4X16)

0 Screw (BVTP 3X12)

1 Speaker grille

3 Front board

RM-871

• KP-EF48

5 Bracket (H)

2 Two screws

(Hexagon head)

7 H1 board

3 Control panel

ass’y

4 Two screws

6 Screw

(BVTP 3X12)

8 Screw

2 Five screws

(Hexagon head)

(BVTP 4X16)

(BVTP 3X12)

9 H2 board

!£ Resistor

(Focus Pack)

!™ Screw (BVTP 4X16)

1 Speaker grille

!¡ Front board

0 Five screws

(Hexagon head)

– 21 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

2-5. BEZNET SECTION REMOVAL

• KP-EF41

!¡ Screen holder (V)

!™ Diffusion plate (F)

!£ Diffusion plate (L)

!¢ Contrast screen

4 Beznet ass’y

3 Four screws

7 Eight screws

(BVTP 4X16)

5 Four screws

(BVTP 4X12)

8 Screen holder (H)

0 Screen holder (H)

2 Seven screws

(BVTP 4X16)

!∞ Mirror cover

6 Four screws

(BVTP 4X12)

9 Screen holder (V)

1 Four screws

(BVTP 4X16)

• KP-EF48

!™ Contrast screen

3 Beznet ass’y

7 Ten screws

!¡ Diffusion plate (L)

0 Diffusion plate

(F)

(BVTP 4X12)

8 Screen

holder (V)

4 Ten screws

(BVTP 4X12)

5 Screen

holder (H)

9 Screen

holder (H)

2 Ten screws

(BVTP 4X16)

!¢ Mirror cover

!£ Four screws

(Hexagon head)

6 Screen

holder (V)

1 Four screws

(Hexagon head)

– 22 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

2-6. G BOARD REMOVAL 2-7. P1 BOARD AND V2 BOARD

REMOVAL

RM-871

1 Three holder PWB

1 Two claws

2 G Board

2-8. UG BOARD, AG BOARD AND S BOARD REMOVAL

3 Two claws

4 V2 board

2 P1 board

0 AG board

!¡ S board

1 SW screws

(M3X10)

7 Bracket (A)

8 Two claws

9 UG board

6 Claw

5 Terminal board

(GA)

4 Screw

(BVTP 4X16)

2 Six screws

(BVTP 3X12)

3 Two screws

(BVTP 4X16)

– 23 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

4 Four

connectors

1 Two screws

(Hexagon head)

2 Control panel

ass’y

5 Screw

(BVTP 4X16)

6 Resistor

(Focus Pack)

3 Three connectors

RM-871

2-9. CHASSIS BLOCK REMOVAL

(1) H1, H2 BOARDS AND RESISTOR REMOVAL

• KP-EF41

4Four connectors

1 Two screws

(BVTP 4X16)

2 Control panel ass’y

• KP-EF48

6 Resister (Focus Pack)

5 Screw

(BVTP 4X16)

3 Three connectors

(2) MAIN BRACKET REMOVAL

* Pay particular attention to the wires of each PCB when puling out the main bracket.

• KP-EF41

3 Set the main

bracket.

2 Pull the main

bracket.

1 Two screws

(Hexagon head)

• KP-EF48

3 Set the main

bracket.

1 Two screws

(Hexagon head)

2 Pull the main

bracket.

– 24 –

(3) CHASSIS BLOCK REMOVAL

* Pull out the chassis block by gripping the handles as shown in the diagram.

At this time, pay particular attention to the components removed in (1).

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

• KP-EF41

2 Pull the chassis

block.

1 Six screws

(Hexagon head)

• KP-EF48

2 Pull the chassis

block.

1 Six screws

(Hexagon head)

– 25 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

2-10. HIGH-VOLTAGE CABLE INSTALLATION AND REMOVAL

(1) Remover

1 Rubber cap 2 HV cable

turn 90°

2-11. MECHASEL ASSY REMOVAL

(2) Installation

2 Rubber cap

1 HV cable

Hook

Gutter

Removing the arrow-marked screw is strictly inhibited. If removed, it may cause liquid spill.

1 Four screws

(BVTP 4X16)

– 26 –

5 Four screws

(BVTP 4X16)

6 Mechaseal assy (R)

4 Deflection yoke 3 Neck assy

2 CR board

7 Extension spring

SECTION 3

KR, KG, KB

5.6K/3W X3

<2.2K/3W>

GND

200V

(A)

Minimize both A and B.

SET-UP ADJUSTMENTS

3-1. SCREEN VOL T A GE ADJUSTMENT

(ROUGH ALIGNMENT)

1. Receive the Monoscope signal.

2. Set 50% BRIGHTNESS and minimum PICTURE.

3. Turn the red VR on the FOCUS Pack all the way to the left and then gradually turn it to the right until the point where you can see the retrace line.

4. Next gradually turn it to the left to the position where the retrace line disappears.

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

SCREEN

FOCUS

FOCUS Pack

Fig. 3-1

3-2. FOCUS ADJUSTMENT

1. Loose the lens screw.

2. Set in service mode.

3. Place the caps on the red and blue lens so that only the green color is shown.

4. Press the Commander button and select OSD (CHSW) to display the test signal (crosshatch) on the screen.

5. Rotate the green lens and align with the optimal focus point from the test signal.

6. Rotate the green VR on the FOCUS Pack and align to obtain the optimal focus point.

7. Perform the same alignment for red and blue lenses and electric focus.

8. Fix lens screw.

Fig. 3-3

Scanning line visible.

Lens

Fig. 3-4

Fig. 3-5

3-4. DEFLECTION YOKE TIL T ADJUSTMENT

1. Set to receive the Monoscope signal.

2. Set in service mode.

3. Place the caps on the red and blue lens so that only the green color.

4. Loosen the deflection yoke setscrew and align the tilt of the Deflection Yoke so that the bars at the center of the monoscope pattern are horizontal.

5. After aligning the deflection yoke, fasten it securely to the funnel-shaped portion (neck) of the CRT.

6. The tilt of the deflection yoke for red and Blue is aligned the same as was done for green.

3-3. SCREEN (G2) ADJUSTMENT

1. Connect JIG (A) to 200 V and GND.

2. Select VIDEO mode without signals.

3. Connect JIG to the TP701(KR), TP731(KG) or TP761(KB) of CR board, CG board and CB board.

4. Adjust R, G and B screen voltage to until retrace line disappears with screen VR on the focusblock.

Test signal

Fig. 3-2

– 27 –

2-pole magnet

Neck Assy

4-pole magnet

Deflection yoke

Anode cap

Fig. 3-6

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

RM-871

3-5. 2-POLE MAGNET ADJUSTMENT

1. Set in service mode.

2. Set to receive the Dot signal.

3. Place the caps on the red and blue lens so that only the green color is shown.

4. Turn the green VR on the focus b lock to the right and set to overfocus to enlarge the spot.

5. Now align the 2-Pole Magnet so that the enlarged spot is in the center of the Just Focus spot.

6. Align the green focus VR and set for just (precise) focus.

7. Perform the same alignment for red and blue.

Use the center dot

Fig. 3-7

3-6. 4-POLE MAGNET ADJUSTMENT

1. Set in service mode.

2. Set to receive the Dot signal.

3. Place the caps on the red and blue lens so that only the green color is shown.

4. Turn the green VR on the focus block to the left and set to underfocus to enlarge the spot.

5. Now align the 4-Pole Magnet so that the enlarged spot becomes a perfect circle.

6. Perform the same alignment for red and blue.

3-8. GREEN AND RED FOCUS ADJUSTMENT

3-8-1. Green and Red Lens Focus Adjustment

1) Input a monoscope signal.

2) Place a lens cover over Red and Blue lenses and project only Green.

3) Rotate the Green lens and ajust to obtain the best lens focus.

4) Fix lens screw.

5) Repeat above process for Red.

3-8-2. Green and Red Electrical Focus Adjustment

1) Input a monoscope signal.

2) Project only Green.

3) Rotate the green focus volume on the focus pack and adjust to obtain an optimal electrical focus in the top right corner, taking care of center focus is not NG. obtain a compromise between center and corner focus.

4) Repeat above process for Red.

Adjust Point

Fig. 3-11

Use the center dot

Blue Defocus just focus

x : y = 1 : 2

Fig. 3-8

3-7. DEFOCUS ADJUSTMENT (Blue)

1. Receive the Dot signal.

2. Place the caps on the red and green lens so that only the blue color is shown.

3. Rotate the blue focus volume on the focus pack and adjust to obtain best electrical focus.

4. Rotate Blue focus volume of focus pack clocwise, so that diameter of the Dot see Caution.

Adjust Point

Fig. 3-12

– 28 –

KP-EF41ME3/MN3/SN3, EF48MN3/SN3

SECTION 4

SAFETY RELATED ADJUSTMENT

RM-871

When replacing the following components marked with on the schematic diagram, always check hold-down voltage and if necessary re-adjust.

Part Replaced ( )

E Board C515, C516, C554, D504, D507,

L506, Q502, R1, R514, R516, R517, T502, T504 (FBT)

G Board IC6008

4-1. HV HOLD-DOWN ADJUSTMENT

1. Remove CN810. Connect HV meter to HV Block.

2. Connect External Power Supply to CN810 2 pin (+135V) and 1 pin (GND).

Power Supply

–

CN810

Fig. 4-1

Remove the cap off from the unused terminal and connect a static voltmeter there.

E BOARD

– CONDUCTOR SIDE –

CN810

CN505

Fig. 4-3

CN505

Fig. 4-4

3. Turn on the set.

4. Slowly up the supply voltage from 0V to 135V.

5. Receive dot picture and set PICTURE/BRIGHTNESS to minimum.

6. Slowly up the voltage until hold-down circuit works (picture disappear).

7. Read the HV meter of peak HV voltage. Spec: 34.5±0.75KV

8. If Hold-down voltage is less than 33.75KV then solder R1=820K.

9. If hold-down voltage is over than 35.25KV then take-off R514 and solder R1=9.1K.

Fig. 4-2

– 29 –

+ 67 hidden pages

Sony KP-EF41ME3, KP-EF41MN3, KP-EF41SNS, KP-EF48MN3, KP-EF48SN3 Service Manual

SPECIFICATIONS

TABLE OF CONTENTS

GENERAL

DISASSEMBLY

2-1. REAR BOARD REMOVAL

2-2. MAIN BRACKET SECTION REMOVAL

2-3. SERVICE POSITION

2-5. BEZNET SECTION REMOVAL

2-6. G BOARD REMOVAL 2-7. P1 BOARD AND V2 BOARD

2-8. UG BOARD, AG BOARD AND S BOARD REMOVAL

2-9. CHASSIS BLOCK REMOVAL

(1) H1, H2 BOARDS AND RESISTOR REMOVAL

(2) MAIN BRACKET REMOVAL

(3) CHASSIS BLOCK REMOVAL

2-10. HIGH-VOLTAGE CABLE INSTALLATION AND REMOVAL

2-11. MECHASEL ASSY REMOVAL

SET-UP ADJUSTMENTS

3-2. FOCUS ADJUSTMENT

3-4. DEFLECTION YOKE TIL T ADJUSTMENT

3-3. SCREEN (G2) ADJUSTMENT

3-5. 2-POLE MAGNET ADJUSTMENT

3-6. 4-POLE MAGNET ADJUSTMENT

3-8. GREEN AND RED FOCUS ADJUSTMENT

3-8-1. Green and Red Lens Focus Adjustment

3-8-2. Green and Red Electrical Focus Adjustment

3-7. DEFOCUS ADJUSTMENT (Blue)

SAFETY RELATED ADJUSTMENT
