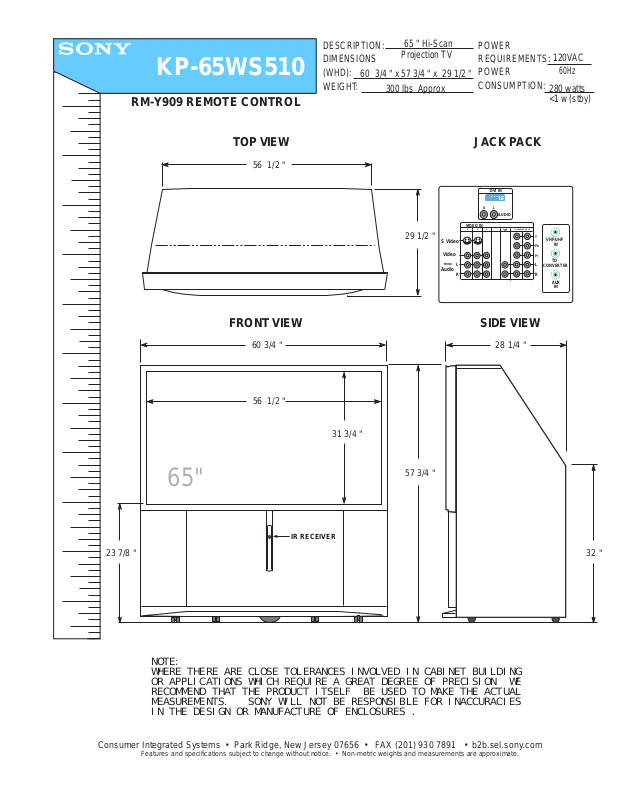

KP-65WS510
RM-Y909 REMOTE CONTROL
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
60 3/4 " x 57 3/4 " x 29 1/2 "
300 lbs Approx
65 " Hi-Scan
Projection TV
POWER
REQUIREMENTS:
120VAC
POWER
CONSUMPTION:
280 watts
<1 w (stby)
60Hz
TOP VIEW
JACK P ACK
56 1/2 "
DVI IN
R L
AUDIO
29 1/2 "
S Video
Video
MONO
Audio
L
R
VIDEO IN
1 2 3
AUDIO
COMPONENT / HD IN
OUT
FRONT VIEW SIDE VIEW
60 3/4 "
35 1/4 "
56 1/2 "
31 3/4 "
28 1/4 "
Y
Pb
Pr
TO
L
CONVERTER
R
VHF/UHF
IN
AUX
IN
65"
57 3/4 "
IR RECEIVER
23 7/8 " 32 "
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
