Page 1

LCD Colour TV

Operating Instructions

KLV-52Z550A

KLV-46Z550A

KLV-40Z550A

Page 2

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

DLNA and DLNA CERTIFIED are trademarks and/or service marks of Digital Living Network Alliance.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“BRAVIA” and are trademarks of Sony Corporation.

“XMB” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

DynaFont is used for Traditional Chinese characters. The typefaces used on the screen display are solely developed by DynaComware.

Page 3

Table of Contents

Start-up Guide 4

Safety Information ............................................................................................................................8

Precautions .......................................................................................................................................9

Remote and TV Controls/Indicators..............................................................................................10

Watching TV

Watching TV ....................................................................................................................................15

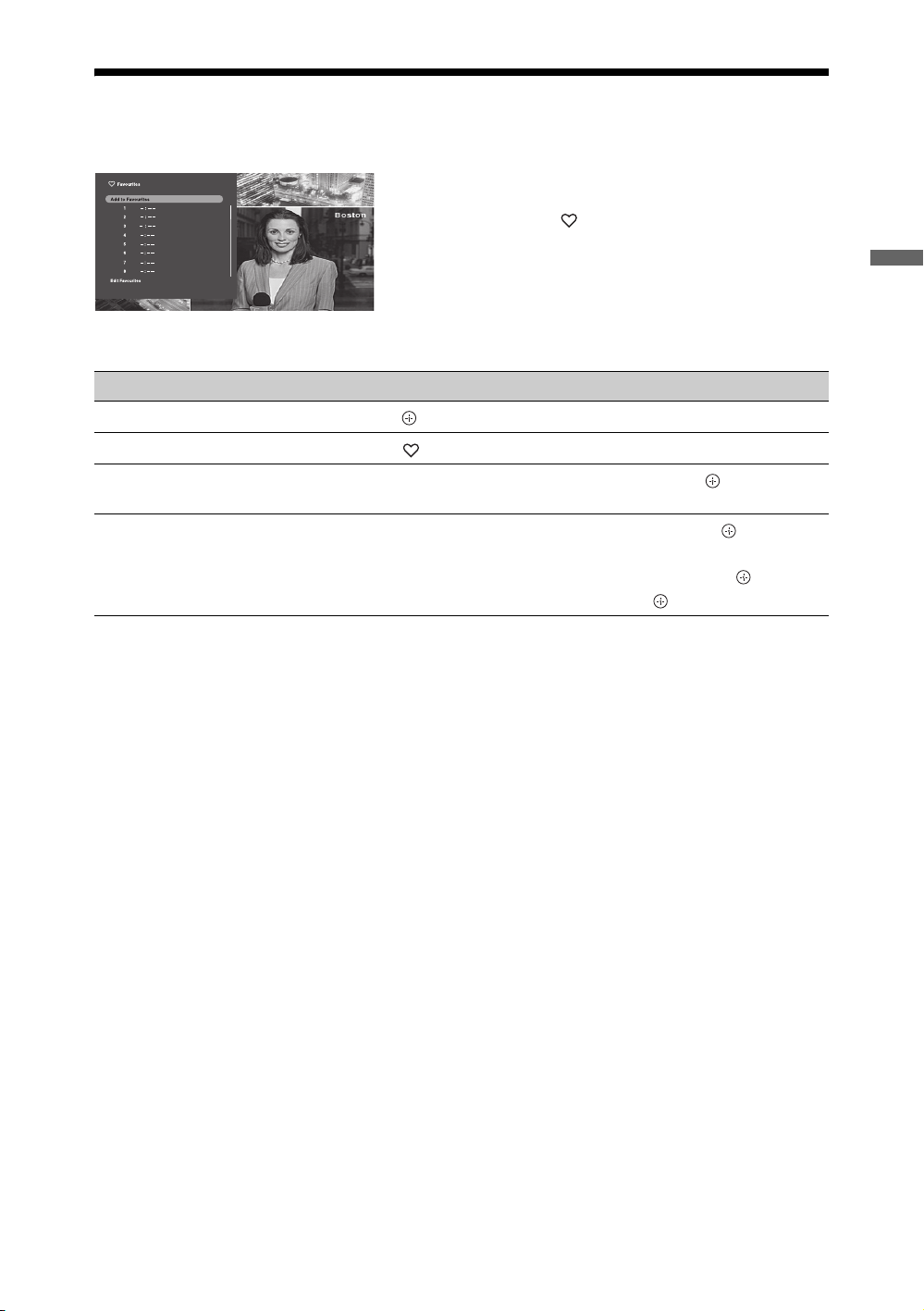

Using the Favourite List ................................................................................................................17

Using Optional Equipment

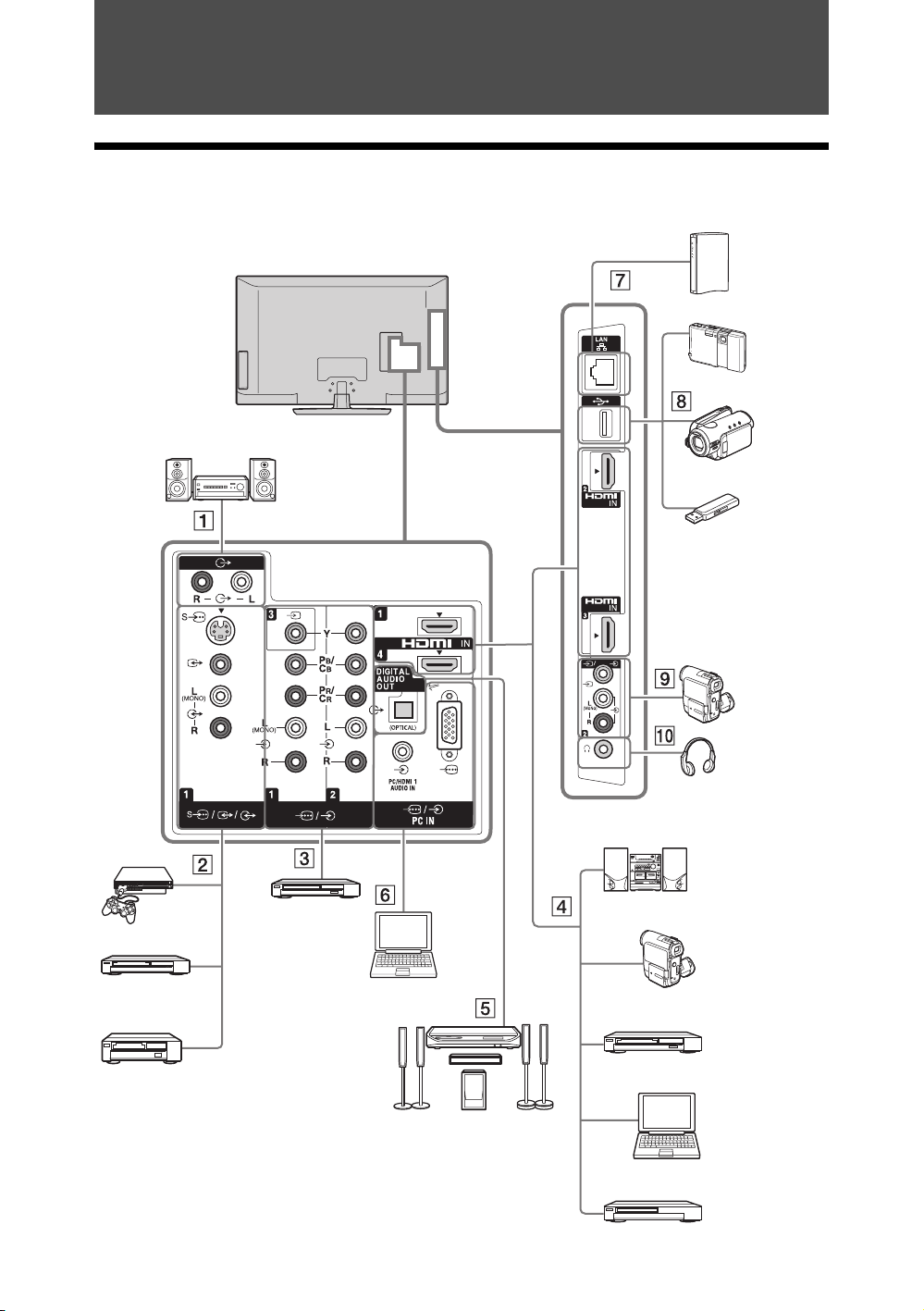

Connecting Optional Equipment ..................................................................................................18

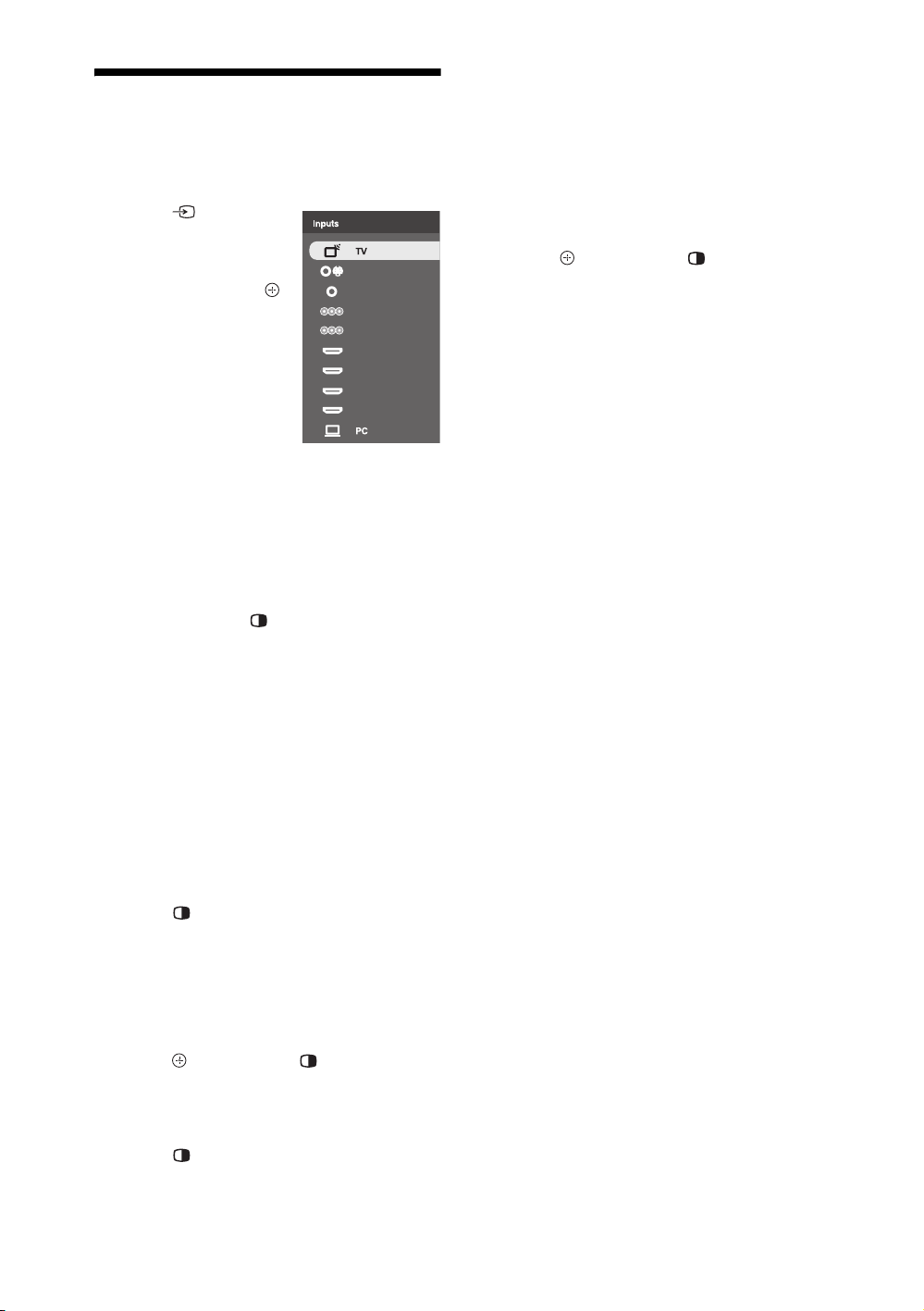

Viewing Pictures from Connected Equipment.............................................................................20

Playing back Photo/Music/Video via USB ....................................................................................21

Using BRAVIA Sync with Control for HDMI..................................................................................23

Operating Optional Equipment using the TV Remote .................................................................24

Using Home Network Features

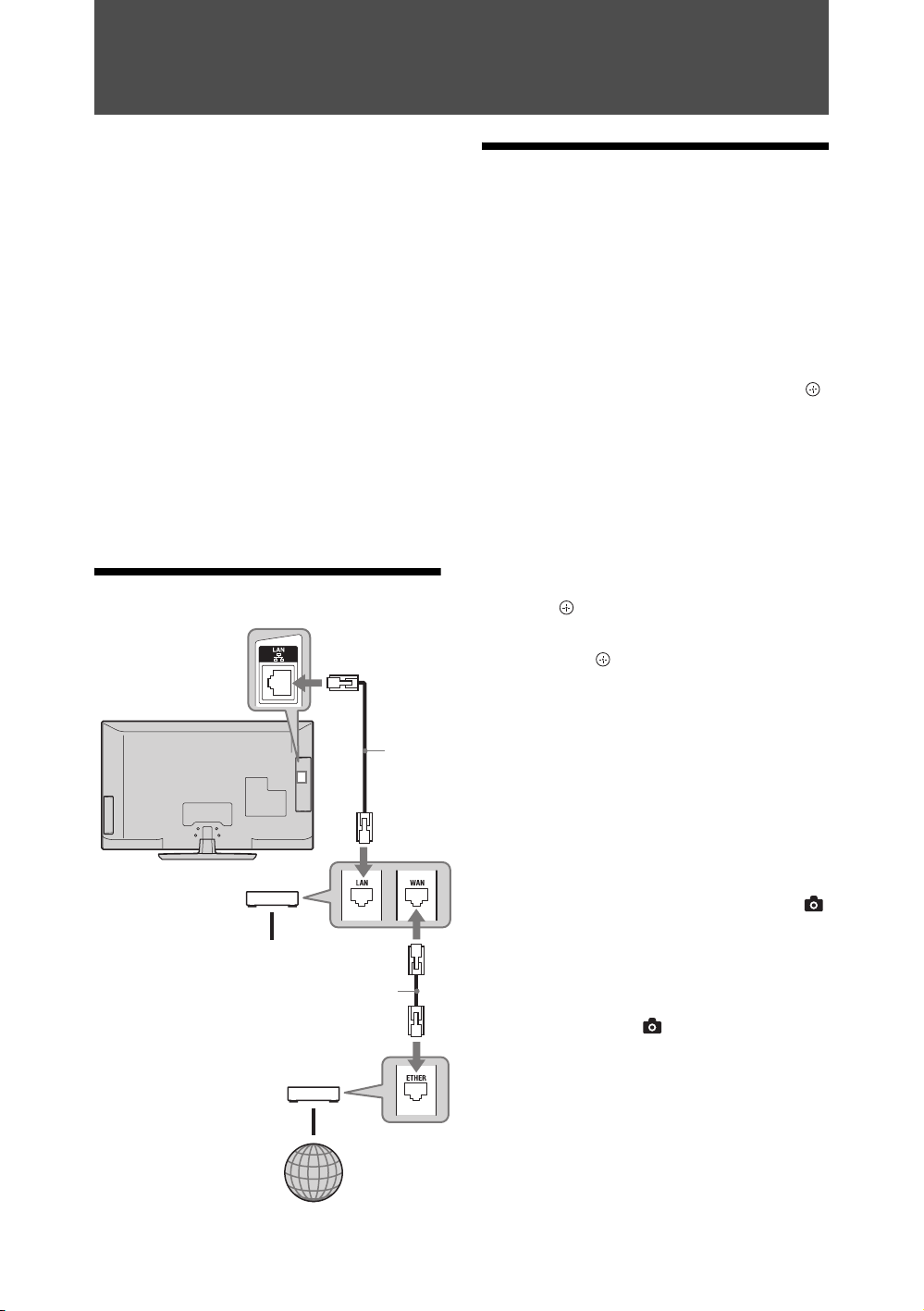

Connecting to the Network ............................................................................................................26

Enjoying Photo/Music/Video Files via the Network.....................................................................26

Checking the Network Connection................................................................................................27

Adjusting the Server Display Settings..........................................................................................28

Using Menu Functions

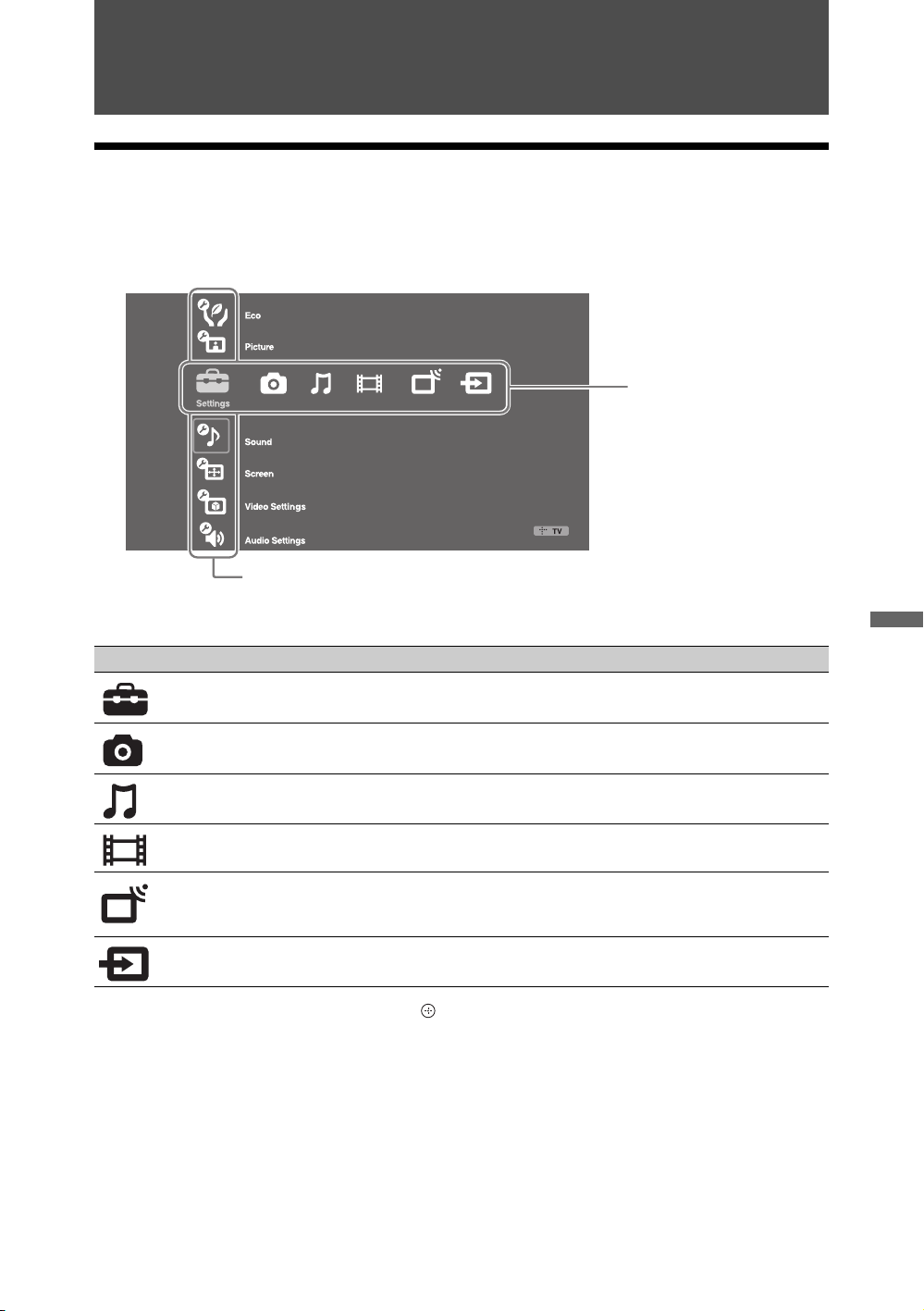

Navigating through TV Home Menu on XMB™............................................................................29

TV Settings Menu............................................................................................................................30

Additional Information

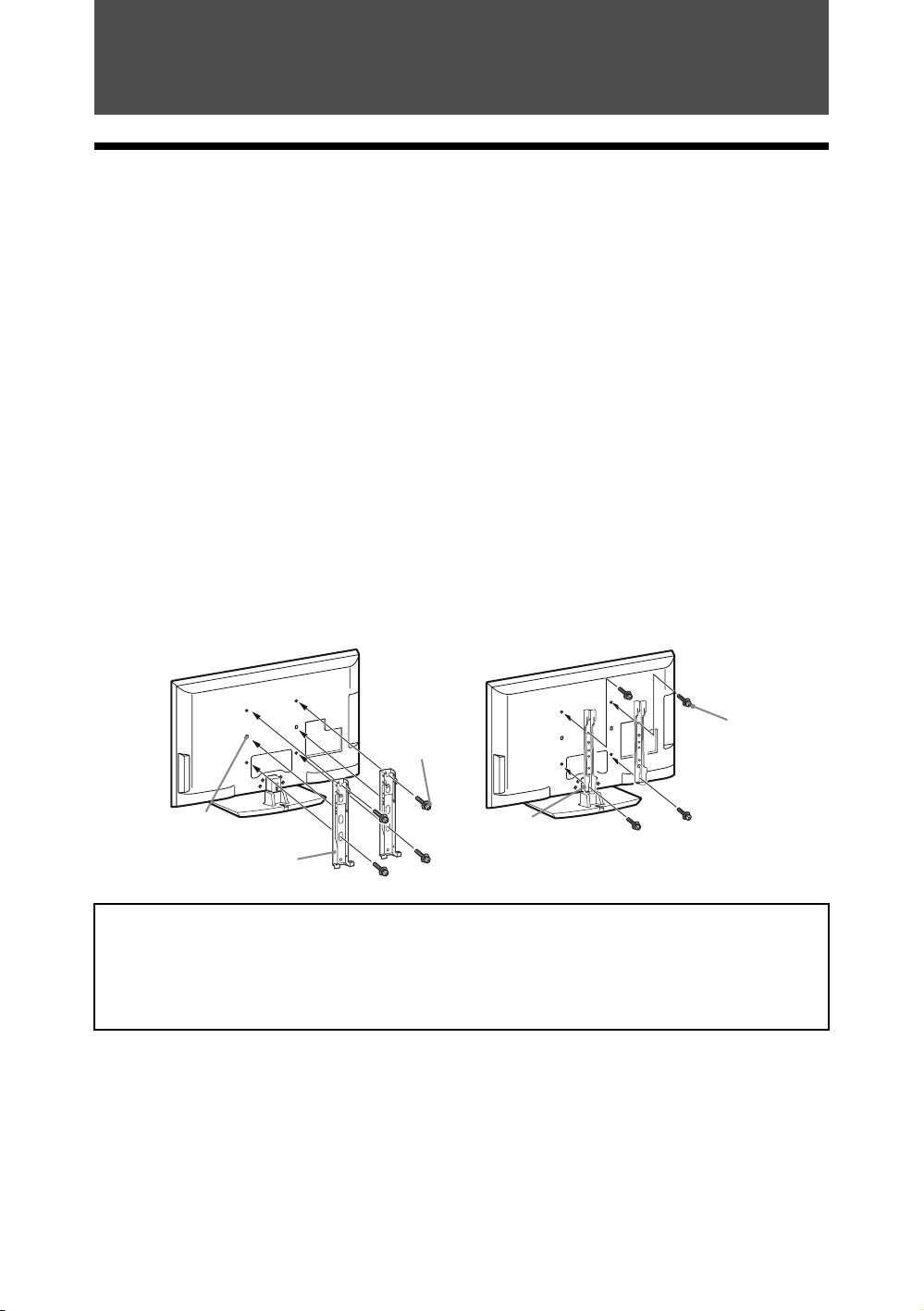

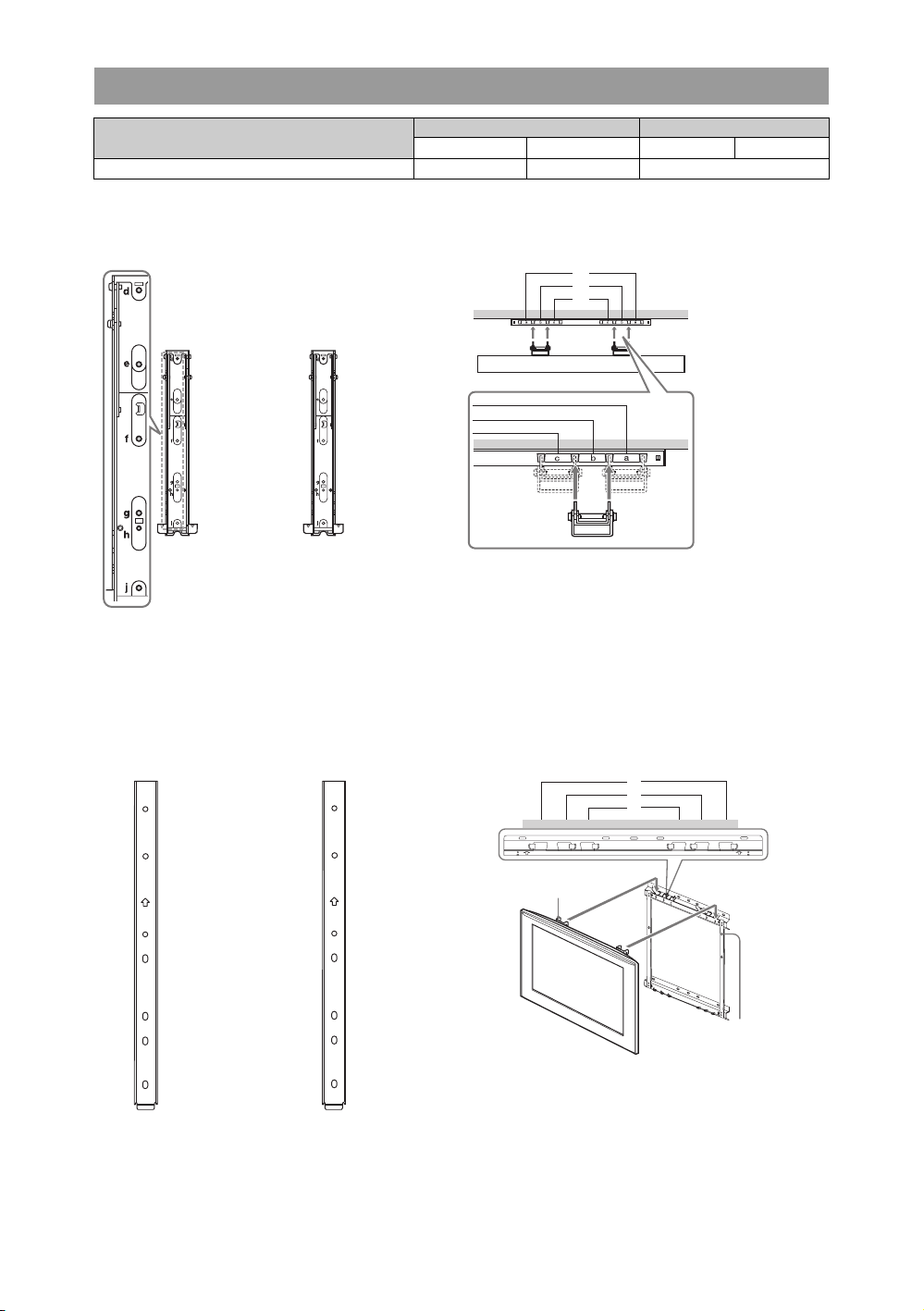

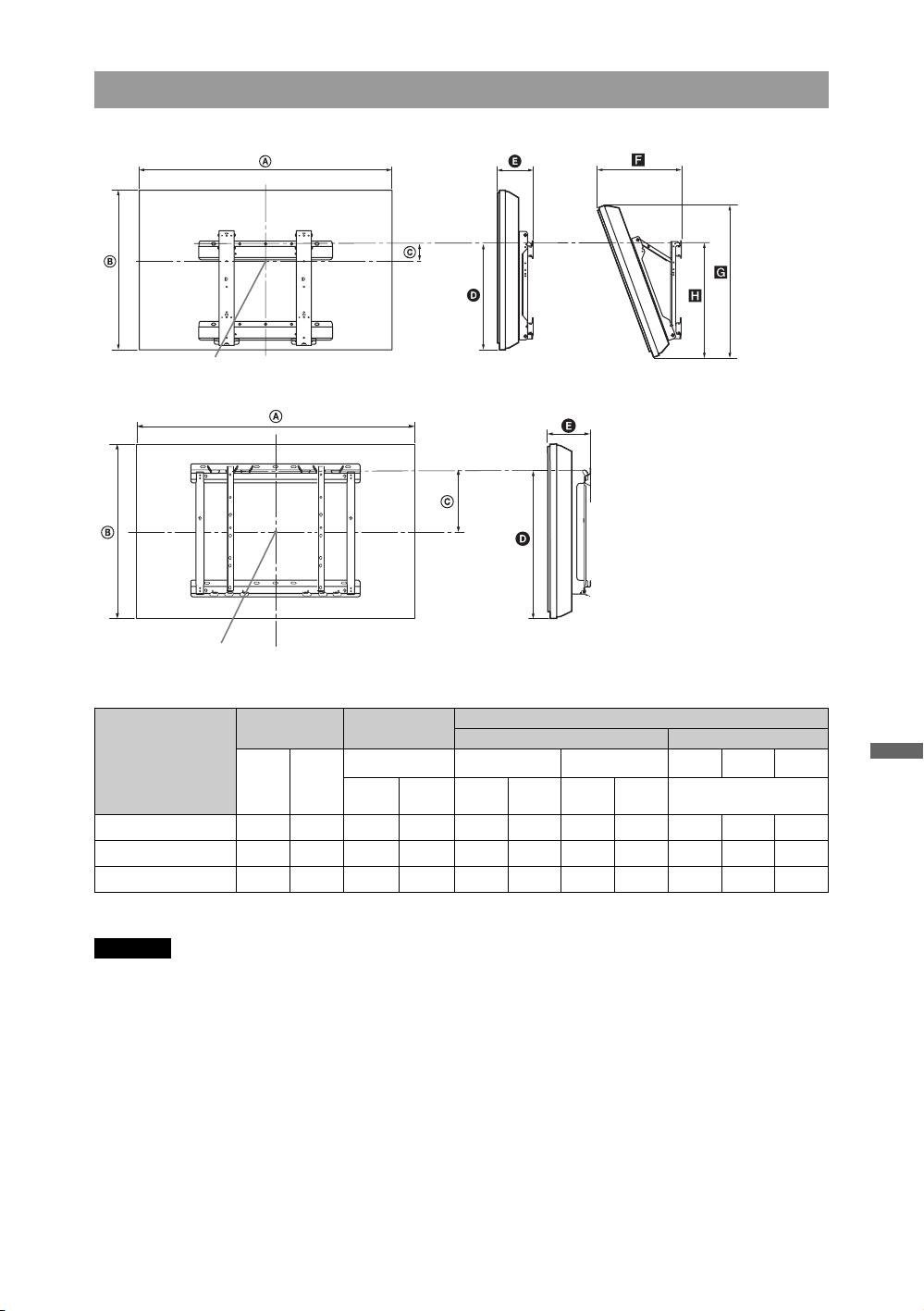

Installing the Accessories (Wall-Mount Bracket).........................................................................40

Specifications..................................................................................................................................43

Troubleshooting..............................................................................................................................45

Before operating the TV, please read “Safety Information” (page 8). Retain this manual for future reference.

Page 4

Start-up Guide

Before Use

To check the accessories

Mains lead/AC power cord

Cable holder (1)

Stand (1) and screws (4) (For KLV-46Z550A/ 40Z550A)

Remote RM-GA017 (1)

Size AA batteries (R6 type) (2)

To insert batteries into the remote

Push and lift the cover to open.

1: Attaching the stand (For KLV-46Z550A/40Z550A)

• If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m (15 kgf·cm).

Page 5

2: Connecting an antenna/ cable/VCR

Connecting an antenna/cable

Antenna cable (not supplied)

Connecting an antenna/cable and VCR

3: Preventing the TV from toppling over

Start-up Guide

AV cable (not supplied)

VCR

Antenna cable (not supplied)

S-Video cable (not supplied)

Antenna cable (not supplied)

1 Install a wood screw (4 mm in diameter,

not supplied) in the TV stand.

2 Install a machine screw (M4 × 20, not

supplied) into the screw hole of the TV.

3 Tie the wood screw and the machine

screw with a strong cord (not supplied).

• An optional Sony support belt kit is used to secure the TV. Contact your nearest Sony service centre to purchase a kit. Have your TV model name ready for reference.

Page 6

4: Bundling the cables

5: Performing the initial set-up

You can also install the cable holder here. (After installation, you will not be able to remove it.)

• Do not bundle the mains lead/AC power cord together with other cables.

* The shapes of mains plug/AC power plug and mains

socket/AC power outlet differ depending on the region.

Follow the instructions on the screen.

Location: Select “Home” for the best TV settings to use the TV in the home.

Programme Sorting: If you want to change the order of channels, follow the steps in “Programme Sorting” (page 37).

Eco Preset: When you select “Yes”, the “Eco” settings are changed into recommended values to reduce power consumption.

• You can also tune channels manually (page 38).

• Language options vary depending on model.

Page 7

Adjusting the viewing angle of the TV

This TV can be adjusted within the angles shown below.

Adjust the angle left and right (swivel)

Top view

Front

Detaching the Table-Top Stand from the TV

• Remove the screws guided by the arrow marks of the TV.

• Do not remove the Table-Top Stand for any reason other than listed below. – To wall-mount the TV.

Start-up Guide

Page 8

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet.

• Place the TV set on a stable, level surface to avoid it from falling down and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including:

– Wall-mount bracket SU-WL500 – Wall-mount bracket SU-WL50B

• Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Screw (supplied with the Wall-mount bracket)

Mounting Hook Hook attachment on rear

of TV set

Transporting

• Before transporting the TV set, disconnect all cables.

•Two or three people are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown on the right. Do not put stress on the LCD panel and the frame around the screen.

• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration.

• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.

Installed on the wall

30 cm

10 cm 10 cm

Leave at least this space around the set.

10 cm

Installed with stand

30 cm

10 cm

Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust:

– Do not lay the TV set flat, install

upside down, backwards, or sideways.

– Do not place the TV set on a shelf,

rug, bed or in a closet.

– Do not cover the TV set with a cloth,

such as curtains, or items such as newspapers, etc.

– Do not install the TV set as shown

below.

Air circulation is blocked.

10 cm

6 cm

Wall Wall

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

– The shape of AC power plug, which is

supplied with the TV set, varies depending on the regions. Be sure to connect the appropriate supplied AC power cord with the plug that fits into the AC power outlet.

– Use only Sony supplied AC power

cords, not those of other brands.

– Insert the plug fully into the AC power

outlet.

– Operate the TV set on a 110–240 V AC

supply only.

– When wiring cables, be sure to unplug

the AC power cord for your safety and take care not to catch your feet on the cables.

– Disconnect the AC power cord from

the AC power outlet before working on or moving the TV set.

– Keep the AC power cord away from

heat sources.

– Unplug the AC power plug and clean it

regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes

• Do not use the supplied AC power cord on any other equipment.

• Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.

• Do not modify the AC power cord.

• Do not put anything heavy on the AC power cord.

• Do not pull on the AC power cord itself when disconnecting the AC power cord.

• Do not connect too many appliances to the same AC power outlet.

• Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Page 9

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.

• As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.

• However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC

power cord immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

– AC power cord is damaged. – Poor fitting of AC power outlet. – TV set is damaged by being dropped,

hit or having something thrown at it.

– Any liquid or solid object falls through

openings in the cabinet.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen contains a smal l amount of liquid crystal. Mercury is sometimes contained depending on the kind of fluorescent tubes. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set from AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/ cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.

• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Batteries

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

Page 10

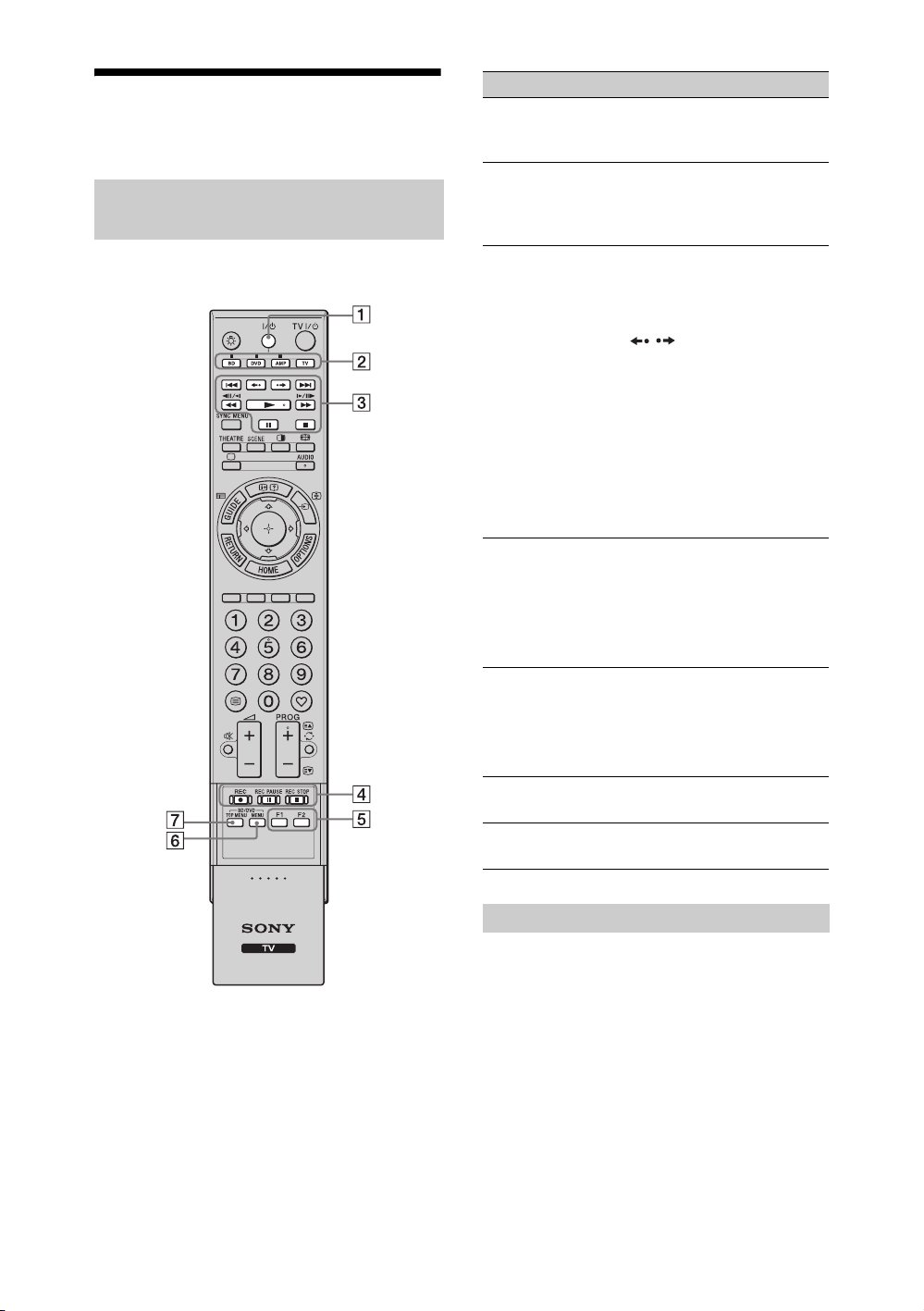

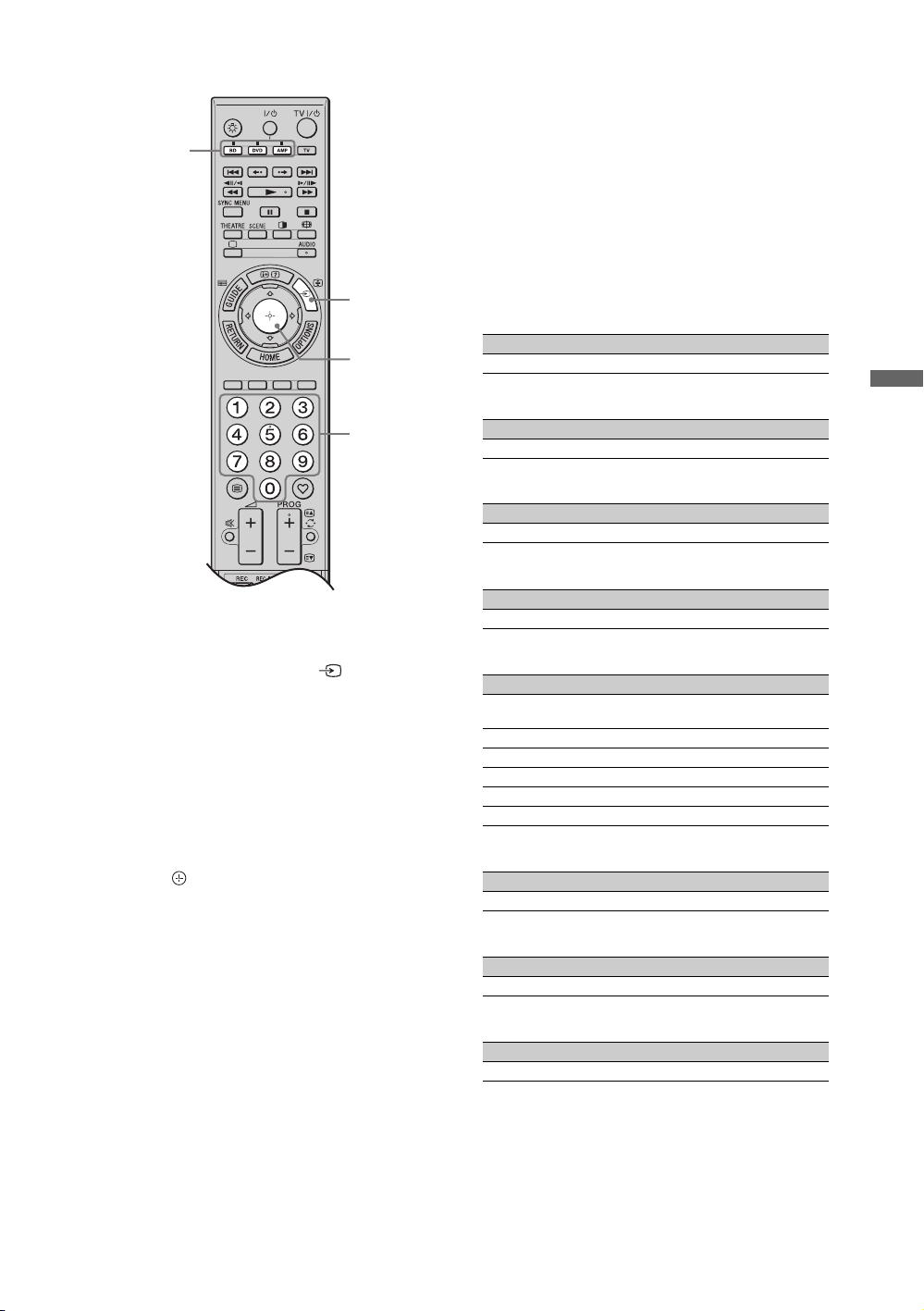

Remote and TV Controls/Indicators

Remote and TV controls

Buttons on the TV will work the same as those on the remote.

* In the TV menu, these buttons will work as F/f/G/g/.

• The number 5, N, PROG + and AUDIO buttons on the remote have

a tactile dot. Use the tactile dots as a reference when operating the TV.

Button/Switch Description

1 TV "/1 (TV

standby)

2 1 (Power) Press to turn the TV on or off.

Press to turn the TV on or to switch to standby mode.

• When ENERGY SAVING SWITCH is off,

the TV cannot be turned on.

• To turn the TV completely off, turn off the TV, then unplug the mains lead/AC power cord from the mains/AC power.

3 ENERGY

SAVING SWITCH

Press to turn the TV on or off. When ENERGY SAVING SWITCH is switched off, power consumption is reduced. If the TV is in standby mode when ENERGY SAVING

SWITCH is switched off, switching ENERGY SAVING SWITCH on puts the TV back into

standby mode only.

• When ENERGY SAVING SWITCH is switched off, you will not be able to perform functions such as saving clock settings or updating the TV’s software.

Page 11

F/f/G/g/ Press F/f/G/g to move the on-screen cursor.

Press to select/confirm the highlighted item. When playing a photo file: Press to pause/ start a slideshow. Press F/G to select the previous file. Press f/g to select the next file. When playing a music/video file: Press to pause/start the playback. Press and hold G/g to fast forward/fast reverse, then release the button at the point where you want to resume playback. Press F to start playback from the beginning of the current file. Press f to go to the next file.

5 HOME Press to display the TV Home Menu (page 29). 6 RETURN Press to return to the previous screen of the

displayed menu. When playing a photo/music/video file: Press to stop the playback (the display returns to the file or folder list).

7 PROG +/–//In TV mode: Press to select the next (+) or

8 2 +/–

(Volume)

9 % (Mute) Press to mute the sound. Press again to restore

0 / (Input

select/Text hold)

qa OPTIONS Press to display a list that contains “Device

qs / (Text) Press to display text information (page 15). qd / (Info/

Text reveal)

previous (–) channel. In Text mode: Press to select the next ( ) or previous ( ) page.

Press to adjust the volume.

the sound.

• In standby mode, if you want to turn on the TV without sound, press this button.

In TV mode: Press to display a list of inputs. In Text mode: Press to hold the current page.

Control” or shortcuts to some setting menus. Use the “Device Control” menu to operate equipment that is compatible with control for HDMI. The listed options vary depending on the input source.

Press once to display current channel number, scene mode, sound mode and screen mode. Press again to display clock information. Press third time to remove the display from the screen. In Text mode (page 15): Reveals hidden information (e.g. answers to a quiz).

(Continued)

Page 12

qf GUIDE/ This button has no function for this TV. qg

(Favourite)

qh Coloured

buttons

qj Number

buttons

qk (Wide

Mode)

ql SCENE Press to display the “Scene Select” menu.

Press to display the Favourite List that you have selected (page 17).

In Text mode: When the coloured buttons are available, an operation guide appears on the screen.

In TV mode: Press to select channels. For channel numbers 10 and above, press the next digit quickly. In Text mode: Press to enter a page number.

Press to change the screen format (page 16).

When you select the desired scene option, the optimum sound quality and picture quality for the selected scene are automatically set. Press F/f/G/g to select the scene option, then press . Cinema: Delivers picture scenes just like those in a theatre-like atmosphere with dynamic sound. Sports: Delivers picture scenes that enable you experience realistic picture and sound like those in a stadium. Photo: Delivers picture scenes that authentically reproduces the texture and colour of a printed photo. Music: Delivers sound effects that enable you experience dynamic and clear sound like that at a concert. Game: Delivers picture scenes that enable you enjoy your game-playing experience to the fullest with superb picture and sound quality. Graphics: Delivers picture scenes that ease your prolonged monitor viewing experience and reduce fatigue by displaying clearer detailed pictures. General: Use this setting when you do not optimise the sound quality and picture quality for any scene. Auto: The optimum sound quality and picture quality are automatically set according to the input source, though there may not be any effect depending on the connected devices.

• When you set Theatre Mode (page 13) to on, the “Scene Select” setting switches to “Cinema” automatically.

• The options you can adjust vary depending on the situation.

• Unavailable options are greyed out or not displayed.

Page 13

w; AUDIO Press to change the dual sound mode

(page 33).

wa (TV mode) Exit Text mode, or switches to a TV display

— Twin Picture/PIP

wd (Previous

channel)

wf THEATRE You can set Theatre Mode to on or off. When

wg SYNC MENU Displays the menu of connected HDMI

wh Buttons for

using optional equipment

wj (Light) Press to illuminate the buttons on the remote so

when displaying external input.

Displays two pictures simultaneously (page 20).

Returns to the previous channel watched (for more than five seconds).

Theatre Mode is set to on, the optimum sound quality (if the TV is connected with an audio system using an HDMI cable) and picture quality for film-based contents are automatically set.

• If you turn the TV off, Theatre Mode is also turned off.

• When you change the “Scene Select” setting, Theatre Mode turns off automatically.

• “Control for HDMI” (BRAVIA Sync) is only available with the connected Sony equipment that has the BRAVIA Sync or BRAVIA Theatre Sync logo or is compatible with control for HDMI.

equipment. While viewing other input screens or TV programmes, “HDMI Device Selection” is displayed when the button is pressed.

• “Control for HDMI” (BRAVIA Sync) is only available with the connected Sony equipment that has the BRAVIA Sync logo or is compatible with control for HDMI.

You can operate the equipment connected to the TV (page 24).

that you can see them easily even if the room is dark.

(Continued)

Page 14

Indicators

Indicator Description

1 (Picture Off /

Timer)

2 1 (Standby) Lights up in red when the TV is in standby mode. 3 " (Power) Lights up in green when the TV is on. 4 Light sensor

(page 30)

5 Remote control

sensor

Lights up in green when you select “Picture Off” (page 30). Lights up in orange when you set the timer (page 30) or “Picture Frame” (page 21).

Do not put anything over the sensor, doing so may affect its function.

Receives signals from the remote. Do not put anything over the sensor. The sensor may not work properly.

• Make sure that the TV is completely turned off before unplugging the main lead/AC power cord. Unplugging the main lead/AC power cord while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

About the operation guide on the TV screen

Operation Guide Example: Press or RETURN (see 4 on page 11 or 6 on page 11).

The operation guide provides help on how to operate the TV using the remote, and is displayed at the bottom of the screen. Use the remote buttons shown on the operation guide.

Page 15

Watching TV

To access Text

Press /. Each time you press /, the display changes cyclically as follows: Text and TV picture t Text t No Text (exit the Text service) To select a page, press the number buttons or

/. To hold a page, press . To reveal hidden information, press .

• You can also jump directly to a page by selecting

the page number displayed on the screen. Press and F/f/G/g to select the page number, then press

• When four coloured items appear at the bottom of

the Text page, you can access pages quickly and easily (Fastext). Press the corresponding coloured button to access the page.

Watching TV

1 Press 1 on the TV to turn on the TV.

When the TV cannot be turned on, switch ENERGY SAVING SWITCH on, then press 1 on the TV (page 10). When the TV is in standby mode (the 1 (standby) indicator on the TV front panel is red), press TV "/1 on the remote to turn on the TV.

2 Press the number buttons or PROG +/– to

select a TV channel.

(Continued)

Page 16

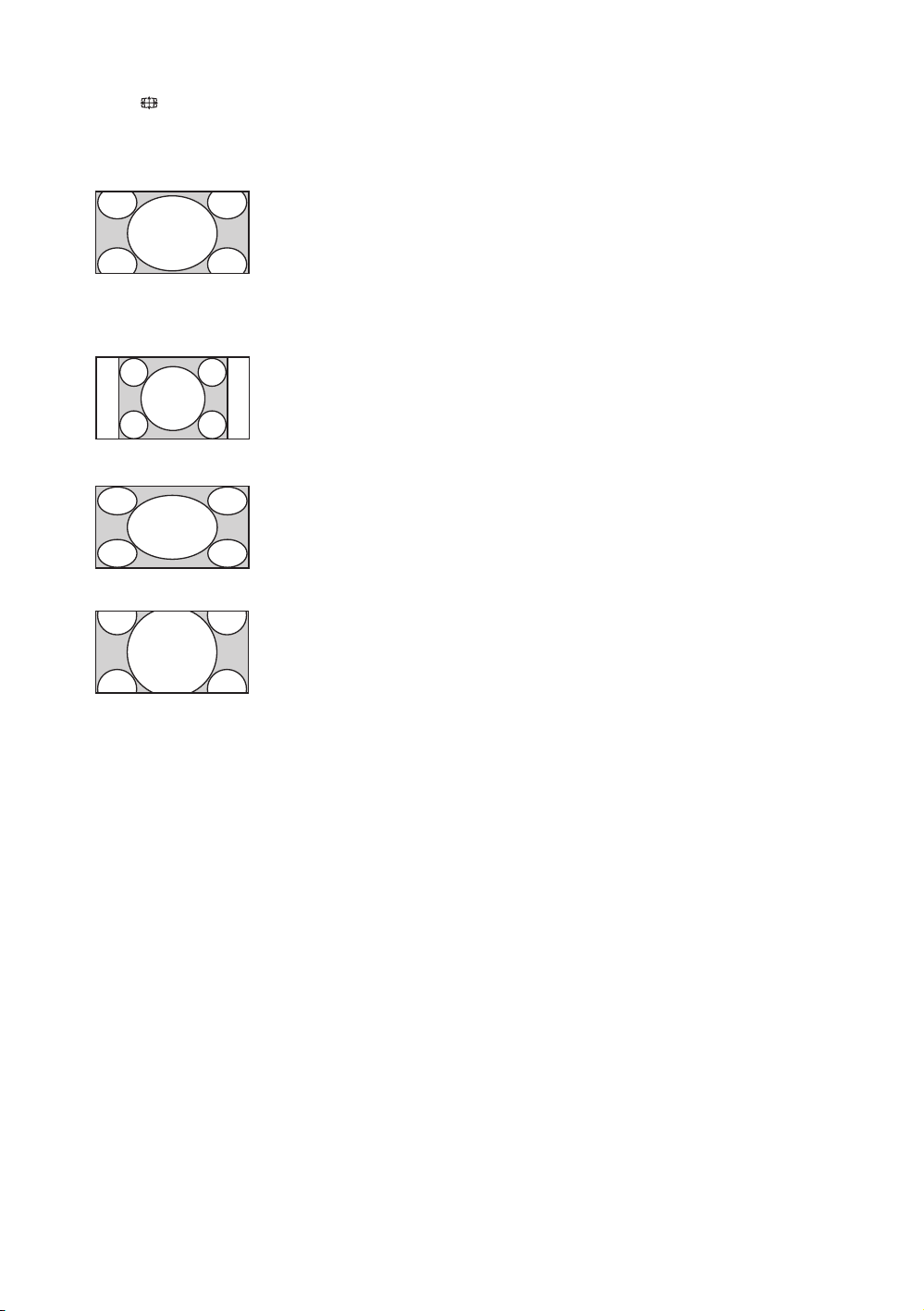

To change the Wide Mode manually

Press repeatedly to select the desired Wide Mode.

Wide Zoom*

Enlarges the centre portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen.

Normal

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.

Full

Stretches the 4:3 picture horizontally, to fill the 16:9 screen.

Zoom*

Displays the cinemascopic (letter box format) picture in the correct proportion.

* Parts of the top and bottom of the picture may be cut off.

You can adjust the vertical position of the picture. Press F/f to move the picture up or down (e.g. to read subtitles).

• When you select “Wide Zoom”, some characters and/or letters at the top and the bottom of the picture may not be visible. In such a case, adjust “Vertical Size” in the “Screen” menu (page 34).

• When “Auto Wide” (page 34) is set to “On”, the TV will automatically select the best mode to suit the input from an external equipment.

• If 720p, 1080i or 1080p source pictures are displayed with black borders on the screen edges, select “Wide Zoom” or “Zoom” to adjust the pictures.

Page 17

Using the Favourite List

Favourites

Favourite List

To Do this

Watch a channel Press .

Turn off the Favourite list Press .

Add a current channel to the Favourite list

Remove a channel from the Favourite list

Press F/f to select “Add to Favourites”, then press .

1 Press F/f to select “Edit Favourites”, then press .

The “Favourite Set-up” screen appears.

2 Press F/f to select the channel number, then press . 3 Press F/f to select “– – –”, then press .

The Favourite feature lets you select programmes from a list of up to 16 favourite channels that you specify.

1 Press . 2 Perform the desired operation as shown in

the following table or displayed on the screen.

Watching TV

Page 18

Using Optional Equipment

Connecting Optional Equipment

You can connect a wide range of optional equipment to your TV.

Broadband router

Digital still camera

Camcorder

Video game equipment

DVD player

Hi-Fi audio equipment

DVD player with component output

USB storage media

Camcorder

Headphones

Audio system

Camcorder

VCR

DVD player

Home theatre system with digital input

PC (HDMI-output)

Blu-ray disc player

Page 19

Connecting audio-video equipment (quality order, high to low)

Connect to Connect with Description

4 HDMI IN 1, 2, 3, or 4

HDMI cable

Digital video and audio signals are input from the connected equipment. In addition, when you connect the equipment that is compatible with control for HDMI, communication with the connected equipment is supported. See page 36 to set up this communication. If the equipment has a DVI socket/jack, connect the DVI socket/ jack to the HDMI IN 1 socket/jack through a DVI - HDMI adaptor interface (not supplied), and connect the equipment’s audio out socket/jack to the PC/HDMI 1 AUDIO IN socket/jack in the PC IN sockets/jacks (the PC/HDMI 1 AUDIO IN socket/ jack is used as the audio in socket/jack for both the PC IN and HDMI IN 1 sockets/jacks).

• Be sure to use only an authorized HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable (high speed type).

• When connecting an audio system that is compatible with control for HDMI, be sure to also connect it to the DIGITAL AUDIO OUT (OPTICAL) socket/jack.

3 / 1 or 2 Component

video cable, audio cable

When using the component video jack 1 as the video jack

3, select “Video 3” in the “Video 3/Component 1 Input”

menu (page 36).

• You cannot use the component video jack 1 and the video jack 3 at the same time.

2 9 1, 1 or 2, and 1 or

S-video cable or composite video cable, audio cable

To avoid picture noise, do not connect the camcorder to the video jack and the S video jack 1 at the same time. If you connect a mono equipment, connect to the L (MONO) jack or 2. When using the video jack and audio jack as output jacks, select “Output” in the “Video 1 Input/Output” menu (page 36).

Using Optional Equipment

Connecting audio/portable equipment

Connect to Connect with Description

5 DIGITAL AUDIO OUT (OPTICAL)

1 Audio cable

8 USB USB cable

Optical audio cable

You can listen to TV sound on the connected Home theatre system with digital input.

You can listen to TV sound on the connected Hi-Fi audio equipment.

You can enjoy photo/music/video files stored in a Sony digital still camera, camcorder or USB storage device (page 21).

Connecting other equipment

Connect to Connect with Description

6 / PC IN PC cable with

ferrites, audio cable

7 LAN LAN cable 0 i Headphones

It is indispensable to use a PC cable with ferrite cores.

You can enjoy the TV’s network features (page 26).

You can listen to TV sound through headphones.

Page 20

Viewing Pictures from Connected Equipment

Turn on the connected equipment, then perform the following operation.

1 Press . 2 Press F/f to select

the desired input source, then press .

To view two pictures simultaneously – Twin Picture/PIP (Picture in Picture)

You can view two pictures (external or PC input and TV programme) on the screen simultaneously. Each time you press , the viewing mode changes cyclically from “Twin Picture”, to “PIP”, to single picture mode.

Video 1

Video 2

Component 1

Component 2

HDMI 1

HDMI 2

HDMI 3

HDMI 4

The picture from the connected PC or equipment is displayed in full size and the TV programme is displayed in the bottom right corner. The sub screen picture is framed in grey when the main screen is audible. You can use F/f to move the sub screen position.

2 Press , RETURN or repeatedly to

return to single picture mode.

• Because the video processing modes are different, the picture quality may differ between the main and sub screens. This is not a malfunction.

• “PC Power Management” (page 30) is not available in PIP mode.

• You can switch the audible picture by pressing G/g.

• You can select the TV channel with the number buttons or

For Twin Picture mode

1 Press (except HDMI (PC) or PC

2 Press , RETURN or repeatedly to

For PIP mode

1 Press again.

PROG +/–.

input).

The picture from the connected equipment is displayed on the left and the TV programme is displayed on the right. The picture framed in grey is audible.

return to single picture mode.

The mode changes from “Twin Picture” to “PIP”.

Page 21

Playing back Photo/Music/ Video via USB

You can enjoy photo/music/video files stored in a Sony digital still camera or camcorder through a USB cable or USB storage device on your TV.

Connect a supported USB device to the TV.

2 Press HOME. 3 Press G/g to select “Photo”, “Music” or

“Video”.

4 Press F/f to select a USB device, then

press . The file or folder list appears.

To display a thumbnail list, press the yellow button while the list is displayed.

5 Press F/f/G/g to select a file or folder,

then press . When you select a folder, select a file,

then press . Playback starts.

Photo Playback Auto Start

The TV automatically starts photo playback when the TV is turned on and a digital still camera or other device storing photo files is connected to the USB port then turned on (page 36).

• While the TV is accessing the data on the USB device, observe the following: – Do not turn off the TV or connected USB device. – Do not disconnect the USB cable. – Do not remove the USB device. The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

• USB playback is supported for the following photo file formats: – JPEG (JPEG format files with the extension

“.jpg” and conforming to DCF 2.0 or EXIF 2.21)

– RAW (ARW/ARW 2.0 format files with the

extension “.arw” for preview only)

• USB playback is supported for the following music file format: – MP3 (files with the extension “.mp3” that have

not been copyrighted)

• USB playback is supported for the following video file format: – MPEG1 (files with the extension “.mpg”)

• Photo Playback Auto Start works only for photo files in the newest digital still camera folder (DCFcompliant, highest-numbered “DCIM” folder).

• Playback may not start automatically when some digital still cameras (such as cameras with internal memory) are connected.

• The file name and folder name support only English.

• When you connect a Sony digital still camera, set the camera’s USB connection mode to Auto or “Mass Storage”. For more information about USB connection mode, refer to the instructions supplied with your digital camera.

• Check the website below for updated information about compatible USB devices. http://www.sony-asia.com/bravia/flash.html

• Use a USB storage device that is compliant with USB mass storage device class standards.

• You can register the background music to be played during a slideshow using (Photo). While playing back music, press OPTIONS, then select “Add to Slideshow”, or while displaying a photograph, press OPTIONS, select “Playback options”, then select “Slideshow Music”.

To display a photograph — Picture Frame

You can display a photograph on the screen for a selected period of time. After that period, the TV automatically switches itself into standby mode.

1 Select a photograph.

See “Playing back Photo/Music/Video via USB”.

Press

OPTIONS

while the selected photograph is displayed, select “File Options”, then press

F/f

to select “Picture

Frame Image” and press .

Press

RETURN

repeatedly to return to the

Home Menu.

Press G/g to select “Photo”, then select “Picture Frame” and press . The TV is switched to Picture Frame mode,

and the selected photograph is displayed on the screen.

To set the duration of displaying a photograph

Press

OPTIONS

, then select “Duration” and press . Then, select the duration, and press . The duration appears on the screen.

To return to the XMB™

Press

RETURN

• If the photograph is selected from a USB device, it must remain connected to the TV.

• If “Sleep Timer” is activated, the TV will automatically switch into standby mode.

(Continued)

Using Optional Equipment

Page 22

To display a photograph with the location on the map

When using a digital still camera with GPS function, it is possible to display a photograph with a map of the location where the photograph was taken using a function of GPS for recording longitude and latitude. Because map information is downloaded from the Internet online map service, the network connection must be required and the TV has to be connected to the network (page 26).

1 Select a photograph (page 21). 2 Press the green/red buttons to zoom in/out

on the map.

To change the display position of the map on the TV screen, press the blue button repeatedly.

• Because the Internet online map service is provided by a third party, service may be changed or terminated without prior notification to the user.

• The position indicated on the map may differ depending on the digital still camera.

• Only a large-scale map that cannot be zoomed in or out is displayed if the TV is not connected to the Internet or the Internet online map service is terminated.

• A map can be displayed in the case of photograph’s EXIF data includes a date information, and the associated longitude and latitude information (“Log files”) has been recorded using a Sony GPS unit. Follow the procedure described below.

1 Connect the GPS unit to the USB port. 2 Press HOME. 3 Press G 4 Press F

press .

5 Select the following items using F

set them using F

– Time Zone – DST

g to select “Photo”.

f to select the GPS unit, then

f, then

6 Select “Yes”, then press .

The GPS log files are loaded.

7 Disconnect the GPS unit and connect the

device on which the photograph is stored.

8 Select a photograph (page 21). 9 Press the green/red buttons to zoom in/out

on the map.

Page 23

Using BRAVIA Sync with Control for HDMI

The control for HDMI function enables the TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer Electronics Control). For example, by connecting Sony equipment that is compatible with control for HDMI (with HDMI cables), you can control them together. Be sure to connect the equipment correctly, and make the necessary settings.

Control for HDMI

• Automatically turns the connected equipment off when you switch the TV to standby mode using the remote.

• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play.

• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.

• Adjusts the volume (2 +/–) and mutes the sound (%) of a connected audio system.

• You can operate the connected Sony equipment that has the BRAVIA Sync logo by the TV remote by pressing:

– N/x/X/m/M to operate the connected

equipment directly.

– SYNC MENU to display the menu of the connected

HDMI equipment on the screen. After displaying the menu, you can operate the menu screen by using F/f/G/g, , colour buttons and RETURN.

– OPTIONS to display “Device Control”, then select

options from “Options” and “Content List” to operate the equipment.

– Refer to the instruction manual of the equipment for

available control.

• If “Control for HDMI” of the TV is set to “On”

, “Control for HDMI” of the

connected equipment is also automatically switched to “On”.

To connect the equipment that is compatible with control for HDMI

Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, be sure to also connect the DIGITAL AUDIO OUT (OPTICAL) jack of the TV and the audio system using an optical audio cable. For details, see page 18.

To make the control for HDMI settings

The control for HDMI settings must be set on both the TV side and connected equipment side. See “HDMI Set-up” (page 36) for the TV side settings. For settings on the connected equipment, refer to the operating instructions for that equipment.

Using Optional Equipment

Page 24

Operating Optional Equipment using the TV Remote

Buttons for using optional equipment

For details, refer to the operating instructions supplied with the connected equipment.

Item Description

1 "/1 Turns on or off the optional

equipment you have selected with the function buttons.

2 Function

buttons

3 BD/DVD

operating buttons

4 DVD record

buttons

5 F1/F2 • Selects a disc when using a

6 BD/DVD

7 BD/DVD

TOP MENU

Allows you to operate the corresponding equipment. For details, see “Programming the remote” on page 24.

• ./>: Goes to the

beginning of the previous/ next title/chapter/scene/ track.

• / : Replays the scene/ briefly fast forwards the scene.

• m/M: Fast reverses/fast forwards the disc when pressed during playback.

• N: Plays a disc at normal speed.

• X: Pauses the playback.

• x: Stops the playback.

• z REC: Starts the recording.

• X REC PAUSE: Pauses the recording.

• x REC STOP: Stops the recording.

disc changer.

• Selects a function when using a combination unit (e.g. a DVD/HDD).

Displays the BD/DVD disc menu.

Displays the top menu of the BD/DVD disc.

• The N button has a tactile dot. Use the tactile dot

as a reference when operating other equipment.

Programming the remote

This remote is preset to operate Sony TVs, and most Sony Blu-ray disc players, DVD players, DVD/HDD recorders, and audio systems (Home Theatre, etc.). To control such Sony Blu-ray disc players, DVD players, and DVD/HDD recorders, programme the remote as follows.

• Before you start, look up the code of your equipment from the “Manufacturer’s codes” (page 25).

Page 25

If your equipment is not working, or some of the functions do not work

Enter the correct code or try the next code

listed for the brand. Note that the list may not include codes for all models of all brands.

To return to normal TV operation

Press the TV function button.

Manufacturer’s codes

DVD players

Manufacturer Code

SONY 0001, 0024, 0023, 0025, 0038

1 Press and hold the BD, DVD, or AMP

function button you want to programme on the remote, then press .

The selected function button (BD, DVD, or AMP) flashes.

2 Press the number buttons to enter the

manufacturer’s code number when the function button flashes.

If you do not enter the code within 30 seconds, you need to go back to step 1.

3 Press .

The selected function button flashes twice. If the selected function button flashes five times, repeat from step 1.

4 Turn on your equipment and check that

the following main functions work.

For Blu-ray disc players, DVD players and DVD/HDD recorders, check:

N (playback), x (stop), m (rewind), M (fast forward), channel selection.

For DVD players and DVD/HDD recorders, check:

TOP MENU/MENU and F/f/G/g.

Blu-ray disc (BD) players

Manufacturer Code

SONY 0501 – 0503

DVD/video cassette recorders

Manufacturer Code

SONY 0207, 0222

DVD/HDD recorders

Manufacturer Code

SONY 0219, 0220, 0221

VCRs

Manufacturer Code

SONY VTR1:Betamax 1001, 1007, 1010, 1011

VTR2:8mm 1002, 1008 VTR3:VHS 1003, 1009 VTR4:DV 1004 VTR5:DV 1005 VTR6:DV 1006

DAV Home Theatre Systems

Manufacturer Code

SONY (DAV) 4501 – 4506

AV receivers

Manufacturer Code

SONY 4001, 4002, 4056, 4057, 4085

Digital terrestrial receivers

Manufacturer Code

SONY 3101, 3102

Using Optional Equipment

Page 26

Using Home Network Features

With this TV, you can enjoy contents stored in DLNA-compatible devices on the home network. Devices that store and provide contents, such as photo/music/video files, are called “server”. The TV receives the photo/music/video files from the server via the network, and you can enjoy them on the TV even in other rooms. To enjoy the home network, a DLNA compatible device (VAIO, Cyber-shot, etc.) is necessary as a server. In addition, when you connect your TV to the Internet, you can enjoy displaying a photograph that shows its location on the map (page 22).

• You will need to contract with an Internet service provider to connect to the Internet.

Connecting to the Network

Network cable (not supplied)

Broadband router

To network devices

Network cable (not supplied)

DSL modem/ Cable modem

Internet

Enjoying Photo/Music/ Video Files via the Network

You can enjoy photo/music/video files on the server easily by selecting an icon on the Home Menu of the TV.

1 Press HOME. 2 Press G

“Video”.

3 Press F

The file or folder list appears. To display the thumbnail list, press the yellow button while the list is displayed.

When the server cannot be found

See “Checking the Network Connection” (page 27) and “Adjusting the Server Display Settings” (page 28).

4 Press F

press .

When you select a folder, select a file, then press . Playback starts.

• A map can be displayed with a photograph in the case of longitude and latitude information has been recorded to photograph’s EXIF data (page 22).

g to select “Photo” , “Music” or

f to select a server, then press .

f to select a file or folder, then

• Depending on the network device, it may be necessary to register the TV with the network device.

• Picture quality may appear coarse when using (Photo) because images may be enlarged depending on the file. Also, images may not fill the entire screen depending on the image size and aspect ratio.

• Some photo files may take some time to be displayed when using (Photo).

• To play files that are received from a network device, they need to conform to one of the following file formats: – Still images: JPEG format – Music: MP3 format or linear PCM format – Video: The following file formats stored on the

server: AVCHD, HDV, MPEG2-PS (which in some cases may not be able to be played)

Page 27

Depending on the network device, the file format may be converted before transfer. In such cases, the file format resulting after conversion is used for playback. For details, refer to the instruction manual for the network device being used. Even files conforming to one of the file formats given above cannot be played in some cases.

• The file name and folder name support only English.

To enjoy photographs, music and videos on the TV screen by operating devices – Renderer

Renderer is a feature for playing photo, music and video files stored in network devices (digital still cameras, mobile phones, etc.) on the TV by operating the controller device in question. To use this feature, a renderer compatible device such as a digital still camera or mobile phone is required as the controller. Refer as well to the instruction manual supplied with the controller.

1 Set “Renderer Function”, “Renderer

Access Control” and “Renderer Set-up” in “Network Settings” if necessary (page 39).

2 Play the file selected using the controller

on the TV.

The file is played on the TV over the connected network. Use the controller or the TV’s remote to perform operations during playback.

Checking the Network Connection

Enter the respective (alphanumeric) values for your router. The items that need to be set may differ, depending on the Internet service provider or the router. For details, refer to the instruction manuals that have been provided by your Internet service provider or supplied with the router.

1 Press HOME. 2 Press G to select “Settings”. 3 Press F

then press .

4 Select “Network”, then press . 5 Select “IP Address Settings”, then press

6 Select an item, and press .

When you select “DHCP (DNS automatic)”

Go to step 7.

When you select “DHCP (DNS manual)”

Set “Primary DNS”/“Secondary DNS” using F/f

When you select “Manual”

Set the following items using F/f/g and the number buttons.

• IP Address

• Subnet Mask

• Default Gateway

• Primary DNS/Secondary DNS

If your ISP has a specific proxy server setting

Press OPTIONS, then press F/f to select “Proxy Set-up” and press . Then enter the settings.

7 Press . 8 Press g to select “Test”, then press 9 Press G/g to select “Yes”, then press .

The network diagnostic starts. When the message “Connection successful.” appears, press RETURN repeatedly to exit.

• If “Connection successful.” does not appear, see “Troubleshooting” (page 45).

f to select “Network Settings”,

g and the number buttons.

Using Home Network Features

Page 28

Adjusting the Server Display Settings

You can select home network servers to be displayed on the Home Menu. Up to 10 servers can be displayed on the Home Menu automatically.

1 Set the server to allow connections from

the TV.

For details on settings on the server, refer to the Operating Instructions supplied with the server.

2 Press HOME. 3 Press G/g to select “Settings”. 4 Press F/f to select “Network Settings”,

then press .

5 Select “Server Display Settings”, then

press .

6 Select the server you want to display on

the Home menu, then press .

7 Select “Yes”, then press .

If you cannot connect to your home network

The TV can check if the server is being correctly recognised.

1 Press HOME. 2 Press G/g to select “Settings”. 3 Press F/f to select “Network Settings”,

then press .

4 Select “Server Diagnostics”, then press . 5 Select “Yes”, then press .

The server diagnostic starts. When the server diagnostic is complete, the diagnostic result list appears.

6 Select the server you want to confirm,

then press .

The diagnostic results of the selected server appear.

• If the diagnostic results indicate a failure, look up the possible causes and what to do, and check connections and settings. For details, see “Troubleshooting” (page 45).

Page 29

Using Menu Functions

Navigating through TV Home Menu on XMB™

The XMB™ (XrossMediaBar) is a menu of BRAVIA features and input sources displayed on the TV screen. The XMB™ is an easy way to select programmes and adjust settings on your BRAVIA TV.

1 Press HOME to display the XMB™.

Media Category Bar

Category Object Bar

2 Press G/g to select the category.

Media category icon Description

Settings You can make advanced settings and adjustments. For details about

settings, see page 30.

Photo You can enjoy photo files via USB devices or the network (page 21,

26).

Music You can enjoy music files via USB devices or the network (page 21,

26).

Video You can enjoy video files via USB devices or the network (page 21,

26).

TV You can select a channel or Favourite list (page 17).

You can also select a channel using the number buttons or

PROG +/–.

External Inputs You can select equipment connected to the TV.

To assign a label to an external input, see “Video Labels” (page 36).

3 Press F/f to select the item, then press . 4 Follow the instructions on the screen. 5 Press HOME to exit.

• The options you can adjust vary depending on the situation.

• Unavailable options are greyed out or not displayed.

Using Menu Functions

Page 30

TV Settings Menu

System Update

Used to update the TV system’s software in the future.

BRAVIA Tips

Introduces how to enjoy the TV.

Clock/Timers

Sleep Timer Sets the TV to automatically switch to standby mode after a certain amount of

time. When “Sleep Timer” is activated, the (Timer) indicator on the TV front panel lights up in orange.

• When you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.

On Timer Sets the TV to automatically turn on from standby mode.

Clock Set Allows you to adjust the clock manually.

• “Clock Set” will automatically reset when you turn off the AC power or

ENERGY SAVING SWITCH.

Eco

Reset Resets all the “Eco” settings to the factory settings.

Power Saving Reduces power consumption of the TV by adjusting the backlight.

Idle TV Standby Turns the TV off after it has been kept idle for the preset length of time.

PC Power Management

Light Sensor Automatically optimises the picture settings according to the ambient light in the

When you select “Picture Off”, the picture is switched off, and the (Picture Off) indicator on the TV front panel lights up in green. The sound remains unchanged.

Switches the TV to standby mode when the TV receives no signal from the PC input source for 30 seconds.

room.

• Do not put anything over the sensor, doing so may affect its function. See page 14 to check the position of the sensor.

Page 31


Target Inputs Allows you to select whether to use the common settings or to make custom

settings for the input you are currently viewing.

Common Applies common settings to all inputs in which “Target

Inputs” is set to “Common”.

Name of current input (e.g. Video

Picture Mode Sets a picture mode. The options that can be selected differ depending on the

“Scene Select” settings.

Vivid Enhances picture contrast and sharpness.

Standard For standard pictures. Recommended for home

Custom Allows you to store your preferred settings.

Cinema For viewing film-based content. Most suitable when viewing

Photo-Vivid For viewing photographs. Enhances picture contrast and

Photo-Standard For viewing photographs. Provides the optimum picture

Photo-Original For viewing photographs. Represents the picture quality used

Photo-Custom For viewing photographs. Allows you to store your preferred

Sports Provides the optimum picture quality for viewing sports.

Game Most suitable for when playing games on your TV.

Graphics Provides the optimum picture quality for viewing graphics.

Reset Resets all the “Picture” settings to the factory settings excluding “Target Inputs”,

“Picture Mode” and “Advanced Settings”.

Backlight Adjusts the brightness of the backlight.

Picture Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Increases or decreases colour intensity.

Hue Increases or decreases the green tones and red tones.

Allows you to make custom settings for the input.

entertainment.

the TV in a theatre-like environment.

sharpness.

quality for viewing in the home.

when imaging developed photographs.

settings.

• “Hue” can be adjusted only for the NTSC colour signal (e.g. U.S.A. video tapes).

Colour Temperature Adjusts the whiteness of the picture.

Cool Gives white colours a blue tint.

Neutral Gives white colours a neutral tint.

Warm 1/Warm 2 Gives white colours a red tint. “Warm 2” gives a redder tint

than “Warm 1”.

• “Warm 1” and “Warm 2” are not available when “Picture Mode” is set to “Vivid” (or “Photo-Vivid”).

Sharpness Sharpens or softens the picture.

Noise Reduction Reduces the noise level of pictures (snowy pictures).

MPEG Noise Reduction

Reduces picture noise in MPEG-compressed videos. This is effective when viewing a DVD.

Using Menu Functions

(Continued)

Page 32

Motionflow Provides smoother picture movement and reduces picture blur.

High Provides smoother picture movement such as for film-based

contents.

Standard Provides smooth picture movement. Use this setting for

standard use.

Off Use this setting when the “High” or “Standard” settings result

in noise.

• Depending on the video, you may not see the effect visually, even if you have changed the setting.

Cinema Drive Provides improved picture movement when playing DVD or VCR images taken on

film, reducing picture blur and graininess.

Auto 1 Provides smoother picture movement than the original film-

based content. Use this setting for standard use.

Auto 2 Provides the original film-based content as is.

Off Turns off the “Cinema Drive” feature.

• If the image contains irregular signals or too much noise, “Cinema Drive” is automatically turned off even if “Auto 1” or “Auto 2” is selected.

Advanced Settings Allows you to set “Picture” settings in more detail. These settings are not available

when “Picture Mode” is set to “Vivid” (or “Photo-Vivid”).

Reset Resets all the advanced settings to the factory settings.

Black Corrector Enhances black areas of the picture for stronger contrast.

Adv. Contrast Enhancer

Gamma Adjusts the balance between bright and dark areas of the

Auto Light Limiter

Clear White Emphasises white colours.

Colour Space Changes the colour reproduction gamut. “Wide” reproduces

Live Colour Makes colours more vivid.

White Balance Adjusts the temperature of each colour.

Automatically adjusts “Backlight” and “Picture” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes, and will increase the contrast distinction of the darker picture scenes.

picture.

Reduces glare such as in scenes where the entire screen is white.

the vivid colour and “Standard” reproduces the standard colour.

Sound

Target Inputs Allows you to select whether to use the common settings or to make custom

settings for the input you are currently viewing.

Common Applies common settings to all inputs in which “Target

Inputs” is set to “Common”.

Allows you to make custom settings for the input.

Name of current input (e.g. Video

Page 33

Sound Mode Sets a sound mode. “Sound Mode” includes options best suited for video and

photographs, respectively. The options that can be selected differ depending on the “Scene Select” settings.

Dynamic Enhances the treble and bass sounds.

Standard For standard sounds. Recommended for home entertainment.

Clear Voice Makes voice sound clearer.

Reset Resets all the “Sound” settings to the factory settings excluding “Target Inputs”,

Treb le Adjusts higher-pitched sounds.

Bass Adjusts lower-pitched sounds.

Balance Emphasises the left or right speaker.

Intelligent Volume Minimizes the difference in volume level between all programmes and adverts (e.g.

Volume Offset Adjusts the volume level of the current input relative to other inputs, when “Target

Surround Allows you to select the suitable surround effects depending on the genre of TV

Voice Zoom Adjusts the sound level of human voices. For example, if the voice of a news

Sound Enhancer Enhances high-frequency sounds.

Sound Booster Produces a fuller sound for more impact, by emphasizing the treble and bass

Dual Sound Sets the sound from the speaker for a stereo or bilingual broadcast.

“Sound Mode” and “Dual Sound”.

adverts tend to be louder than programmes).

Inputs” is set to the current input name (e.g. Video 1).

programme (movie, sport, music, etc.) or video game. The options that can be selected differ depending on the “Scene Select” settings.

S-FORCE Front Surround

Simulated Stereo Adds a surround-like effect to mono programmes.

Cinema Delivers surround effects just like the high-grade audio

Music Delivers surround effects that make you feel like you are

Sports Delivers surround effects that make you feel like you are

Game Delivers surround effects that enhance game sound.

Off Converts and reproduces multi-ch audio to 2ch audio. In the

announcer is indistinct, you can turn up this setting to make the voice louder. Conversely, if you are watching a sports programme, you can turn down this setting to soften the voice of the commentator.

Reproducing the sound with much clearness by adjusting high-frequency bands.

sounds.

Stereo/Mono For stereo broadcasts.

Main/Sub/Mono For bilingual broadcasts, select “Main” for sound channel 1,

Delivers surround effects that help you enjoy the virtual multi-ch surround audio with just the two internal TV speakers.

systems found in movie theatres.

surrounded by sound as in a music hall.

watching a live sports contest.

case of other audio formats, the original audio is reproduced.

“Sub” for sound channel 2, or “Mono” for mono channel, if available.

Using Menu Functions

• For other equipment connected to the TV, set “Dual Sound” to “Stereo”, “Main”, or “Sub”.

Page 34

Screen (for inputs other than a PC)

Target Inputs Allows you to select whether to use the common settings or to make custom

Wide Mode See “To change the Wide Mode manually” (page 16).

Auto Wide Automatically changes “Wide Mode” to match input signals. If you want to use the

4:3 Default Sets the default Wide Mode for 4:3 broadcasts.

Display Area Adjusts the picture display area.

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture when “Wide Mode” is set to “Wide

Vertical Size Adjusts the vertical size of the picture when “Wide Mode” is set to “Wide Zoom”.

settings for the input you are currently viewing.

Common Applies common settings to all inputs in which “Target

Name of current input (e.g. Video

setting that you specified in “Wide Mode”, select “Off”.

Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, keeping the

Normal Displays conventional 4:3 broadcasts in the correct

Off Uses the setting that you specified in “Wide Mode”.

Auto Automatically switches to the most appropriate display area.

Full Pixel Displays the picture for 1080/50i, 1080/60i, 1080/50p and

+1 Displays pictures in their original size.

Normal Displays pictures in their recommended size.

-1/-2 Enlarges the picture so that the edges are outside the visible

Zoom” or “Zoom”.

Inputs” is set to “Common”.

Allows you to make custom settings for the input.

original image as much as possible.

proportion.

1080/60p sources (HDMI or component input only) or 1080/ 24p sources (HDMI input only) in the original size.

display area.

Screen (for PC input)

Auto Adjustment Automatically adjusts the display position, phase, and pitch of the picture when the

TV receives an input signal from the connected PC.

• “Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.

Reset Resets all PC screen settings to factory settings.

Phase Adjusts the phase when the screen flickers.

Pitch Adjusts the pitch when the picture has unwanted vertical stripes.

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture.

Page 35

Wide Mode Sets “Wide Mode” for displaying pictures from your PC.

Normal Displays the picture in its original size.

Full 1 Enlarges the picture to fill the vertical display area, while

Full 2 Enlarges the picture to fill the display area.

maintaining its original proportion.

Video Settings

x.v.Colour Displays moving pictures that is more faithful to the original source by matching

the colour space of source.

• The setting is fixed to “Normal” when the input signal is HDMI (RGB), even if “x.v.Colour” is selected.

Photo Colour Space Selects an option (sRGB, sYCC, Adobe RGB) to set the picture quality best suited

to the colour space of the photograph. If equipment converts the output colour space of a photograph from sYCC or Adobe RGB to x.v.Colour or xvYCC, select “sYCC”. Results in picture quality best suited to the original colour space. If an RGB signal is being input through HDMI input, automatically set to “sRGB” even if you have selected “sYCC”.

Colour System Sets the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”)

according to the input signal from the input source.

Audio Settings

Speaker TV Speaker Turns on and outputs the TV’s sound from the TV speakers.

Audio System Turns off the TV speakers and outputs the TV’s sound from

external audio equipment connected to the audio output sockets/jacks on the TV. You can also turn on the connected equipment that is compatible with control for HDMI, after making the appropriate settings of control for HDMI.

Audio Out Variable When using an external audio system, volume output from

audio out can be controlled using the TV’s remote.

Fixed The audio output of the TV is fixed. Use your audio

receiver’s volume control to adjust the volume (and other audio settings) through your audio system.

Headphone Settings i Speaker Link Switches the TV’s internal speakers on/off when you connect

headphones to the TV.

i Volume Adjusts the volume of the headphones when “i Speaker

Link” is set to “Off”.

i Dual Sound Sets the sound from the headphones for a bilingual broadcast.

Optical Out Sets the audio signal that is output from the DIGITAL AUDIO OUT (OPTICAL)

jack of the TV. Set to “Auto”, when connecting equipment compatible with Dolby Digital. Set to “PCM”, when connecting equipment not compatible with Dolby Digital.

Using Menu Functions

Page 36

Set-up

USB Auto Start

Automatically starts photo playback when the TV is turned on and a digital still camera or other device storing photo files is connected to the USB port then turned on.

• Playback does not start automatically if the TV is turned on after connecting the digital still camera or other device to the USB port.

Quick Start

Video Labels Assigns an icon or name to the external inputs. The icon and name appears briefly

Video 1 Input/Output Switches the video jack and audio jack between input and output modes.

Auto S Video Sets the input signal from S video socket/jack Video 1 when you have

Video 3/Component 1 Input

HDMI Set-up Allows the TV to communicate with equipment that is compatible with the control

The TV turns on faster than usual by turning on the power using the remote. However, power consumption in standby mode is approximately 16 watts higher than usual. Up to 3 out of 5 time zones can be set.

on the screen when the particular input is being selected.

1 Press F/f to select the desired input source, then press .

Skip Inputs For each input, sets whether or not to display on the Home

Menu or in a list of inputs that will appear when you press

Auto

Displays the icon and name only when the equipment is connected.

Always Display

Always displays the icon and name regardless of whether or not the equipment is connected.

Skip

Does not display the icon and name even if the equipment is connected.

2 Press g to assign an icon and name.

Label Inputs Uses preset labels to assign a name to connected equipment.

Allows you to create your own label when you select “Edit”.

Edit

Allows you to edit the name in the edit screen and choose the appropriate icon.

When set to “Output”, outputs whatever is being viewed on the screen (except signals from the / 1 or 2, HDMI IN1, 2, 3, or 4 and / PC IN sockets/ jacks).

equipment connected to the Video 1 and Video 1 sockets/jacks.

Switches between the component video jack 1 and the video jack 3.

• You cannot use the component video jack 1 and the video jack 3 at the same time.

for HDMI function, and connected to the HDMI sockets/jacks of the TV. Note that communication settings must also be made on the connected equipment.

Control for HDMI Sets whether or not to link the operations of the TV and the

connected equipment that is compatible with control for HDMI. When set to “On”, the following functions are available. If the specific Sony equipment that is compatible with control for HDMI is connected, this setting is applied to the connected equipment automatically when the “Control for HDMI” is set to “On” using the TV.

Auto Devices Off When this is set to “On”, the connected equipment that is

compatible with control for HDMI turns off when you turn off the TV by remote.

Page 37

Auto TV On When this is set to “On”, the TV turns on when you turn on

the connected equipment that is compatible with control for HDMI.

HDMI Device List Displays a list of connected equipment that is compatible

with control for HDMI.

• You cannot use “Control for HDMI” if the TV operations are linked to the operations of an audio system that is compatible with control for HDMI.

Auto Start-up You can run the initial set-up that appeared when you first connected the TV, and

select the language and country/area, or tune in all available channels again. Even if you have made the settings when you first connected the TV, you may need to change the settings after moving house, or to search for newly launched channels.

Logo Illumination Lights up and turns off the Sony logo on the front of the TV.

Language Sets the language displayed on the menu screens.

Product Information Displays product information of the TV.

Factory Settings Resets all settings to factory settings except for the “Programme Block” setting,

“Favourites” setting, and programme preset data. After completing this process, the initial set-up screen is displayed. Completing auto tuning in initial set-up will reset the settings that are not reset by “Factory Settings”. To retain the settings, skip the “Auto Tuning”.

Channel Set-up

1 Digit Direct When “1 Digit Direct” is set to “On”, you can select a channel using one preset

number button (0 – 9) on the remote.

• When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above by entering two digits on the remote.

Favourite Set-up Allows you to set your favourite channels by assigning the desired channel

numbers. To reset the favourite channels, select “– – –”.

Auto Tuning Tunes in all the available channels.

You can retune the TV after moving house, or to search for newly launched channels.

Programme Sorting Changes the order of channels stored in the TV.

1 Press F/f to select the channel you want to move to a new position, then press

2 Press F/f to select the new position for the channel, then press .

Programme Labels Assigns a channel name of your choice, up to five letters or numbers. The name

appears briefly on the screen when you select the channel. Names for channels are usually taken automatically from Text (if available).

1 Press F/f to select the channel you want to name, then press . 2 Press F/f to select the desired letter or number (“_” for a blank space), then

press g.

If you enter a wrong character

Press G/g to select the wrong character. Then, press F/f to select the correct character.

3 Repeat step 2 until you finish entering the name. 4 Press to exit the labeling procedure.

Using Menu Functions

(Continued)

Page 38

Programme Block Blocks an individual channel from being watched.

1 Press F/f to select the channel you want to block, then press . 2 Press F/f to select “Block”, then press .

To watch the channel, select “Allow”.

Intelligent Picture On with Indicator Automatically reduces the picture noise. The signal level bar

is displayed when the channel is changed or the display is changed from an input screen to a TV programme.

On Automatically reduces the picture noise.

Off Turns off the “Intelligent Picture” feature.

Manual Programme Preset

To preset a channel, press PROG +/– to select the programme number, before selecting “Label”, “AFT”, “Audio Filter”, “Skip”, “Signal Booster” or “Colour System”. You cannot select a programme number that is set to “Skip” (page 38).

Programme/ TV System/ Frequency

Presets programme channels manually.

1 Press F/f to select “Programme”, then press . 2 Press F/f to select the programme number you want to

manually tune (if tuning a VCR, select programme 0), then press .

3 Press F/f to select “TV System”, then press . 4 Press F/f to select the best received TV broadcast

systems, then press .

5 Press F/f to select “Frequency”, then press . 6 Press G/g to search for the next available channel. The

frequency band (“VHF Low”, “VHF High” or “UHF”) is changed accordingly.

Label Assigns a name of your choice to the selected channel. This

AFT Allows you to fine-tune the selected channel manually if you

Audio Filter Improves the sound of individual channels when distortion

name appears briefly on the screen when you select the channel. To input characters, follow steps 2 to 4 in “Programme Labels” (page 37).

feel that a slight tuning adjustment may improve picture quality. When “On” is selected, fine tuning adjustments are made automatically.

occurs in mono broadcasts in TV system “B/G”, “I” and “D/K”.

• You cannot receive stereo or dual sound when “Low” or “High” is selected.

Skip Skips unused channels when you press PROG +/– to select

channels. To select channels you have programmed to skip, use the corresponding number buttons.

Signal Booster Improves the picture quality if the TV signal is too strong or

Colour System Selects the colour system (“Auto”, “PAL”, “SECAM”,

Signal Level Displays the signal level for programme currently being

weak. Press F/f to select either “Off” if the signal is too strong (picture distorted; picture with lines; signal interference) or “Auto” if the signal is weak (snowy picture), then press .

“NTSC3.58” or “NTSC4.43”) according to the channel.

watched.

Page 39

Network Settings

Network IP Address

Server Display Settings

Server Diagnostics Diagnoses whether the TV can connect to each server on the home network.

Renderer Function Enables playback of photo/music/video files on the TV through other control

Renderer Access Control

Renderer Set-up Automatic

Settings

Tes t Diagnoses whether the network is correctly connected.

IP Address/ Subnet Mask/ Default Gateway/ Primary DNS/ Secondary DNS

MAC Address Displays the MAC address, which is a fixed, globally unique

Displays the connected server list and allows you to select the server you want to display on the Home Menu.

devices on the network, such as a digital still camera or mobile phone.

Allows you to specify the accessible controller to the TV. When this setting is set to “On”, you can playback photo/music/video files on the TV using the controller.

Access Permission

Renderer Name Allows you to set the name of the TV to be shown on the

Manual

Allows you to set the network settings according to your network environment.

DHCP (DNS manual)

Automatically acquires the network settings except for DNS server settings. You can manually set the DNS settings.

DHCP (DNS automatic)

Automatically acquires the network settings through the Dynamic Host Configuration Protocol server function of the router or Internet service provider.

You need to configure each item when “Manual” is selected in “IP Address Settings”. When “DHCP (DNS manual)” is selected, be sure to enter “Primary DNS” and “Secondary DNS” server addresses manually.

identifier of the network device.

Allows you to select whether to permit access to the TV automatically when a network device accesses the TV for the first time.

controller.

Using Menu Functions

Page 40

Additional Information

Installing the Accessories (Wall-Mount Bracket)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installing of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Your TV can be installed using the SU-WL500/SU-WL50B Wall-Mount Bracket (sold separately).

• Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

• Refer to “Detaching the Table-Top Stand from the TV” (page 7).

• Refer to “TV installation dimensions table” (page 41).

• Refer to “Screw and Hook Locations diagram/table” (page 42).

• Place the TV on the Table-Top Stand, when securing the Mounting Hook.

SU-WL500:

Screw (+PSW 6 × 16)

Square hole

Mounting Hook

SU-WL50B:

Screw (+PSW 6 × 16)

Mounting Hook

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Page 41

TV installation dimensions table

SU-WL500:

Screen centre point

SU-WL50B:

bba

Screen centre point

Unit: mm

Length for each mounting angle

Angle (0°) Angle (20°)

SU-

WL50B

WL500

SU-

WL50B

SU-WL500 only

Model Name

KLV-52Z550A

KLV-46Z550A

KLV-40Z550A

Display

dimensions

Screen centre

dimension

C DEFGH

1,240 767 46 99 445 498 135 136 369 729 476

1,091 672 87 140 436 489 135 136 340 632 467

958 596 126 179 436 489 135 136 314 561 467

SU-

WL500

SU-

WL50B

SU-

WL500

Figures in the above table may differ slightly depending on the installation.

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. Refer to “Specifications” (page 43) for its weight.

Additional Information

(Continued)

Page 42

Screw and Hook Locations diagram/table

Model Name

Screw location Hook location

SU-WL500 SU-WL50B SU-WL500 SU-WL50B

KLV-52Z550A/KLV-46Z550A/KLV-40Z550A d, g d, i b

SU-WL500:

Screw location

When installing the Mounting Hook on the TV.

Hook location

When installing the TV onto the Base Bracket.

a* b c*

* Hook location “a” and “c” cannot be used for the models

in the table above.

SU-WL50B:

Screw location

When installing the Mounting Hook on the TV.

Hook location

When installing the TV onto the Base Bracket.

a* b

Mounting Hook

Base Bracket

* Hook location “a” and “c” cannot be used for the

models in the table above.

Page 43

Specifications

Model name System

Panel system

TV system

Colour/video system

Channel coverage

Sound output

Input/Output jacks

Antenna cable

COMPONENT IN1 / 3

COMPONENT IN2

COMPONENT IN1, 2

HDMI IN1, 2, 3, 4

DIGITAL AUDIO OUT (OPTICAL)

PC IN

LAN

Power and others

Power requirements

Screen size (measured diagonally)

Display resolution

Power consumption

Dimensions

wi t h Ta b le-Top S t a n d (Approx.) (w × h × d)

without Table-Top

Stand

Mass (Approx.)

wi t h Ta b le-Top S t a n d

without Table-Top Stand

Supplied accessories

Optional

Wall-Mount Bracket accessories

KLV-40Z550A KLV-46Z550A KLV-52Z550A

LCD (Liquid Crystal Display) Panel

B/G, I, D/K, M

PAL, PAL60 (only video input), SECAM, NTSC3.58, NTSC4.43 (only video input)

B/G: VHF: E2 to E12 / UHF: E21 to E69 /CATV: S01 to S03, S1 to S41 I: UHF: B21 to B69 / CATV: S01 to S03, S1 to S41 D/K: VHF: C1 to C12, R1 to R12 /UHF: C13 to C57, R21 to R60 /CATV: S01 to S03, S1 to

S41, Z1 to Z39

M: VHF: A2 to A13/UHF: A14 to A79/CATV: A8 to A2, A to W+4, W+6 to W+84

10 W + 10 W

75 ohm external terminal for VHF/UHF

S video input (4-pin mini DIN)

Video input (phono jacks)/Monitor out

Audio input (phono jacks)/Monitor out

Video input (phono jack)

Audio input (phono jacks)

COMPONENT IN1 Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Y: 1 Vp-p, 75 ohms, 0.3V negative sync/P P

R/CR: 0.7 Vp-p, 75 ohms

3 Video input (phono jack)

Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Y: 1 Vp-p, 75 ohms, 0.3V negative sync/P P

R/CR: 0.7 Vp-p, 75 ohms

Audio input (phono jacks)

Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

Analogue audio input (minijack) (HDMI IN1 only)

PC Input (see page 44)

Digital optical jack (Two channel linear PCM, Dolby Digital)

Audio output (phono jacks)

PC Input (D-sub 15-pin) (see page 44) G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/ R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-p

PC audio input (minijack)

USB port

Headphones jack

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

110 V – 240 V AC, 50/60 Hz

40 inches (Approx.

101.6 cm)

1,920 dots (horizontal) × 1,080 lines (vertical)

Indicated on the rear of the TV.

958 mm × 649 mm × 303 mm

958 mm × 596 mm × 86 mm

20.8 kg 25.3 kg 31.3 kg

17.9 kg 21.9 kg 27.2 kg

See “To check the accessories” (page 4).

SU-WL500/SU-WL50B

46 inches (Approx.

116.8 cm)

1,091 mm × 725 mm × 330 mm

1,091 mm × 672 mm × 86 mm

B/CB: 0.7 Vp-p, 75 ohms/

52 inches (Approx.

132.2 cm)

1,240 mm × 821 mm × 358 mm

1,240 mm × 767 mm × 86 mm

Additional Information

Design and specifications are subject to change without notice.

(Continued)

Page 44

PC input signal reference chart for PC and HDMI IN 1, 2, 3, 4

Resolution Signals Horizontal

(Pixel)

VGA

SVGA

XGA

WXGA

SXGA

HDTV

640 × 480 31.5 60 VESA

640 × 480 37.5 75 VESA

720 × 400 31.5 70 VESA

800 × 600 37.9 60 VESA

800 × 600 46.9 75 VESA

1024 × 768 48.4 60 VESA

1024 × 768 56.5 70 VESA

1024 × 768 60.0 75 VESA

1280 × 720 45.0 60 EIA

1280 × 768 47.4 60 VESA

1280 × 768 47.8 60 VESA

1280 × 960 60.0 60 VESA

1360 × 768 47.7 60 VESA

1280 × 1024 64.0 60 VESA

1920 × 1080 66.6 60 VESA*

1920 × 1080 67.5 60 EIA*

× Vertical

(Line)

Horizontal frequency (kHz)

Vertical frequency (Hz)

Standard

* 1080p timing when applied to the HDMI input will be treated as a video timing and not a PC timing. This

affects the “Video Settings” menu and “Screen” menu settings. To view PC contents, set “Wide Mode” to “Full” and “Display Area” to “Full Pixel”.

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC input does not support interlaced signals.

• For the best picture quality, it is recommended to use the signals in the above chart with a 60 Hz vertical frequency (boldfaced).

Page 45

Troubleshooting

Check whether the 1 (standby) indicator is flashing in red.

When the 1 (standby) indicator is flashing

The self-diagnosis function is activated.

1 Count how many times the 1 (standby) indicator flashes between each two second break.

For example, the indicator may flash three times, go off for two seconds, then flash again three times.

2 Press 1 on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony

service centre of how the indicator flashes (number of flashes).

When the 1 (standby) indicator is not flashing

1 Check the items in the tables below. 2 If the problem persists, have your TV serviced by qualified service personnel.

Condition Explanation/Solution


There is no picture (screen is dark) and no sound.

No picture or menu information from equipment connected to the video input jack appears on the screen.

Ghosting occurs, or double images appear.

Only snow and noise appear on the screen.

The picture is distorted (dotted lines or stripes appear).

There is picture or sound noise when viewing a TV channel.

Tiny black points and/or bright points appear on the screen.

The picture contours are distorted.

The picture is not displayed in colour.

The picture from equipment connected to the 1 or 2 sockets/jacks is not displayed in colour, or is displayed in irregular colours.

• Check the antenna/cable connection.

• Connect the TV to the mains/AC power, and press 1 on the TV.

• If the 1 (standby) indicator lights up in red, press TV "/1.

• Press to display the list of inputs, then select the desired input.

• Check the connection between the optional equipment and the TV.

• Check the antenna/cable connection.

• Check the antenna location and direction.

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).

• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optional equipment.

• When installing optional equipment, leave some space between the optional equipment and the TV.

• Check the antenna/cable connection.

• Keep the antenna/cable TV cable away from other connecting cables.

• Adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 38).

• The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.

• Select “Standard” or “Off” in “Motionflow” (page 32). If the symptom still persists, change the current setting of “Cinema Drive” to other settings (page 32).

• Select “Reset” (page 31).

• Check the connection of the 1 or 2 sockets/jacks and check if the sockets/jacks are firmly seated in their respective sockets/jacks.

Additional Information

(Continued)

Page 46

Condition Explanation/Solution

No picture from the connected equipment appears on the screen.

• Turn the connected equipment on.

• Check the cable connection.

• Press to display the list of inputs, then select the desired input.

• Correctly insert the memory card or other storage device in the digital still camera.

• Use a digital still camera memory card or other storage device that has been formatted according to the instruction manual supplied with the digital still camera.

• Operations are not guaranteed for all USB devices. Also, operations differ depending on the features of the USB device and the video being played.

You cannot select the connected equipment on the

• Check the cable connection.

• Set the server to be displayed on the Home Menu (page 28).

Home Menu or you cannot switch the input.

Sound

The picture is good, but there is no sound.

•Press 2 +/– or % (Mute).

• Check if the “Speaker” is set to “TV Speaker” (page 35).

• When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (OPTICAL) may not output audio signals.

No sound or noisy sound. • Check if the TV system setting is appropriate (page 38).

Channels

Some channels are blank. • The channel is for scrambled/subscription service only. Subscribe to a

pay TV service.

• The channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

Network

Connection diagnostic results indicate a failure.

Check Connections

• Use a straight cable for the LAN cable.

• Check if the cable is connected firmly.

• Check the connection between the TV and the router.

Check Settings

• Change the IP address for the DNS server (see “Checking the Network Connection” on page 27) while referring to the following: –Contact your Internet service provider. –Specify the IP address of the router if you do not know the DNS of your Internet service provider.

• Confirm the proxy server settings (page 27).

The server cannot be found, a list cannot be retrieved, and playback fails.

• Once server settings are changed, turn the TV off and on by pressing 1 on the TV.

• Execute “Server Diagnostics” (page 28).

When using a PC as the server

• Check if the PC is turned on. Do not turn off the PC while accessing.

• If security software is installed on the PC, be sure to allow connections from external devices. For details, refer to the manual supplied with your security software.

• The load on the PC may be too high or the server application may become unstable. Try the following: –Stop the server application and restart it. –Restart the PC. –Reduce the number of applications running on the PC. –Reduce the amount of content.

Changes on the server are not being applied or displayed content differs from content

• Sometimes changes are not applied to displays on the TV even though content has been added and/or deleted on the server. If this happens, go back up one level and try opening the folder or server again.

on the server.

Page 47

Condition Explanation/Solution

Photo, music and/or video files do not appear or icons are not displayed.

Preliminary Check

• Check that the connected device supports DLNA.

• Operations are not guaranteed for all servers. Also, operations differ depending on the features of the server and the content in question.

• Turn the connected device on.

Check Connections

• Check that the LAN cable and/or mains lead/AC power cord of the server has not become disconnected.

Check Settings

• Check that the connected device is registered under “Server Display Settings” (page 28).

• Check that the server is correctly configured.

• Check that the selected device is connected to the network and can be accessed.

• If the “IP Address Settings” in “Network” under “Network Settings” is set to “DHCP (DNS automatic)” or “DHCP (DNS manual)”, it may take some time to recognise devices if there is no DHCP server. Execute “Server Diagnostics” (page 28).

The TV cannot be found from renderer-compatible device (the controller).

Check Connections

• Check that the LAN cable and/or mains lead/AC power cord of the server has not become disconnected.

Check Settings

• Check if the “Renderer Function” is activated (page 39).

• Check that the connected device is registered under “Renderer Access Control” (page 39).

General

The TV power cannot be

• Check if ENERGY SAVING SWITCH is on (page 10).

turned on.

The TV turns off automatically (the TV enters standby mode).

The TV turns on

• Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer” (page 30).

• Check if the “Idle TV Standby” is activated (page 30).

• Check if the “On Timer” is activated (page 30).

automatically.

Some input sources cannot be selected.

• Select “Video Labels” and cancel the “Skip” setting for the input source (page 36).

The remote does not function. • Replace the batteries.

HDMI equipment does not

• Check that your equipment is compatible with control for HDMI.

appear on “HDMI Device List”.

You cannot select “Off” in “Control for HDMI”.

• If you have connected any audio system that is compatible with control for HDMI, you cannot select “Off” in this menu. If you want to change the audio output to the TV speaker, select “TV Speaker” in the “Speaker” menu (page 35).

Additional Information

Page 48

Instructions on “Installing the Wall-Mount Bracket” are not supplied in the form of a separate leaflet with this TV. These installation instructions are included within this TV’s instructions manual.

Customer support

Printed in Malaysia

(2)
