SONY KDL-52S4100 Service Manual

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
SERVICE MANUAL
MODEL NAME REMOTE COMMANDER DESTINATION
KDL-52S4100 KDL-52S4100
RM-YD025 CANADA
FX
CHASSIS
ORIGINAL MANUAL ISSUE DATE: 10/2008
:UPDATED ITEMS
REVISION DATE SUBJECT
10/2008 No revisions or updates are applicable at this time. 12/2008 Updated G Board Schematic. Replaced pages 44-46.
LCD DIGITAL COLOR TELEVISION
9-883-808-02
SERVICE MANUAL
MODEL NAME REMOTE COMMANDER DESTINATION
FX
CHASSIS
KDL-52S4100 KDL-52S4100
RM-YD025 CANADA
9-883-808-02
KDL-52S41000 RM-YD025
LCD DIGITAL COLOR TELEVISION
KDL-52S4100

TABLE OF CONTENTS

SECTION TITLE PAGE SECTION TITLE PAGE
Specifi cations ................................................................................. 4
Warnings and Cautions - ENGLISH ............................................... 6
Warnings and Cautions - FRENCH ................................................ 7
Safety-Related Component Warning .............................................. 8
Safety Check-Out ......................................................................... 10
Self-Diagnostic Function ................................................................11
SECTION 1: DISASSEMBLY ............................................................... 12
1-1. Rear Cover Removal ............................................................ 12
1-2. Function Key and H1 Board Removal .................................. 12
1-3. A Board and G Board Removal ............................................ 13
1-4. Table-Top Stand Assembly and Under Cover Removal ....... 14
1-5. AC Inlet, Structural Frames and Brackets Removal ............. 15
1-6. Loudspeaker Removal ......................................................... 15
1-7. LCD Panel Removal ............................................................. 16
1-7-1. Detaching the Inverter Connector Assembly ............. 16
1-7-2. Attaching the Inverter Connector Assembly ............... 17
1-7-3. Cleaning the LCD Panel ............................................ 17
1-8. Bottom Cover, H2 Board, H3 Board, LED Lens and
IR Lens Removal .................................................................. 18

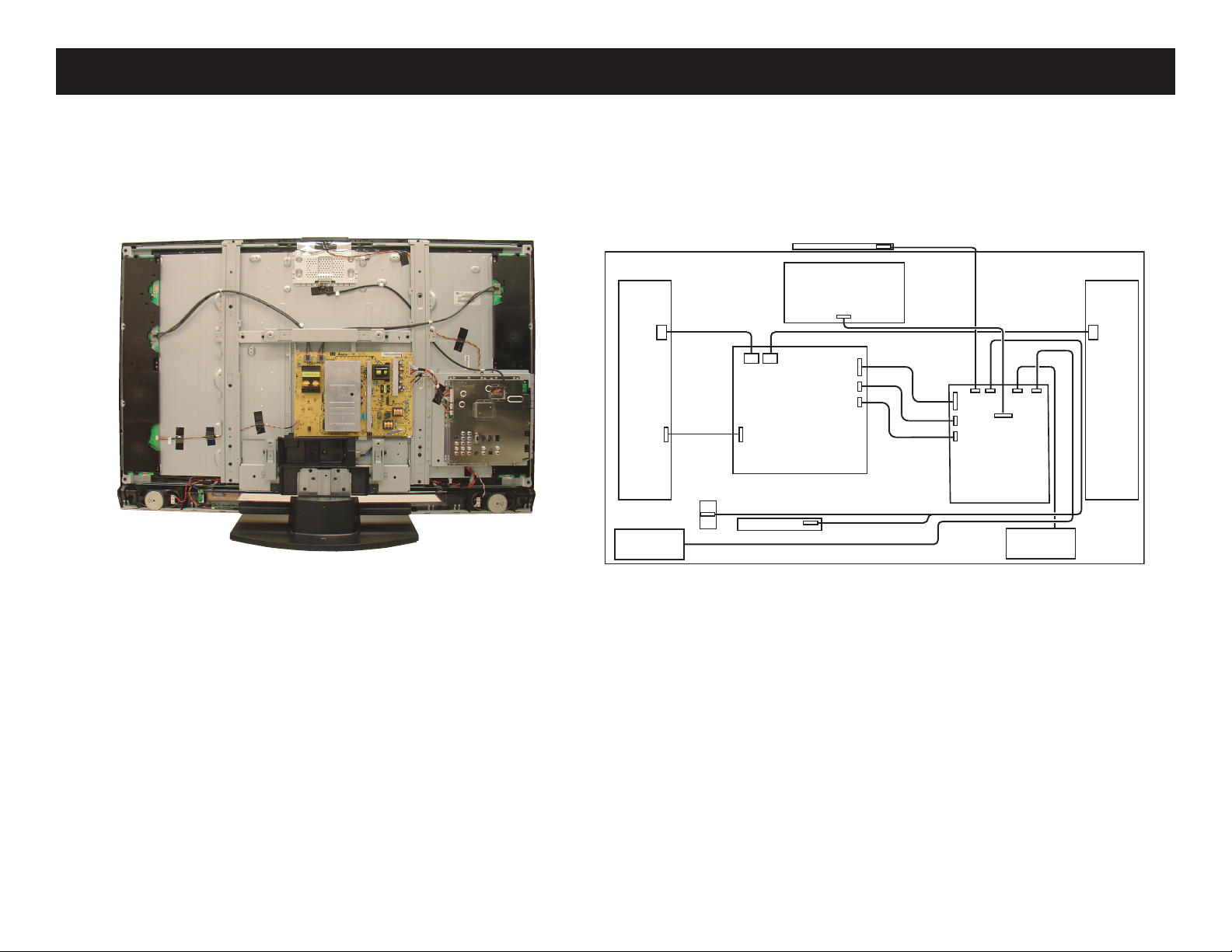

Wire Dressing ............................................................................... 19
SECTION 2: SERVICE ADJUSTMENTS ............................................. 20

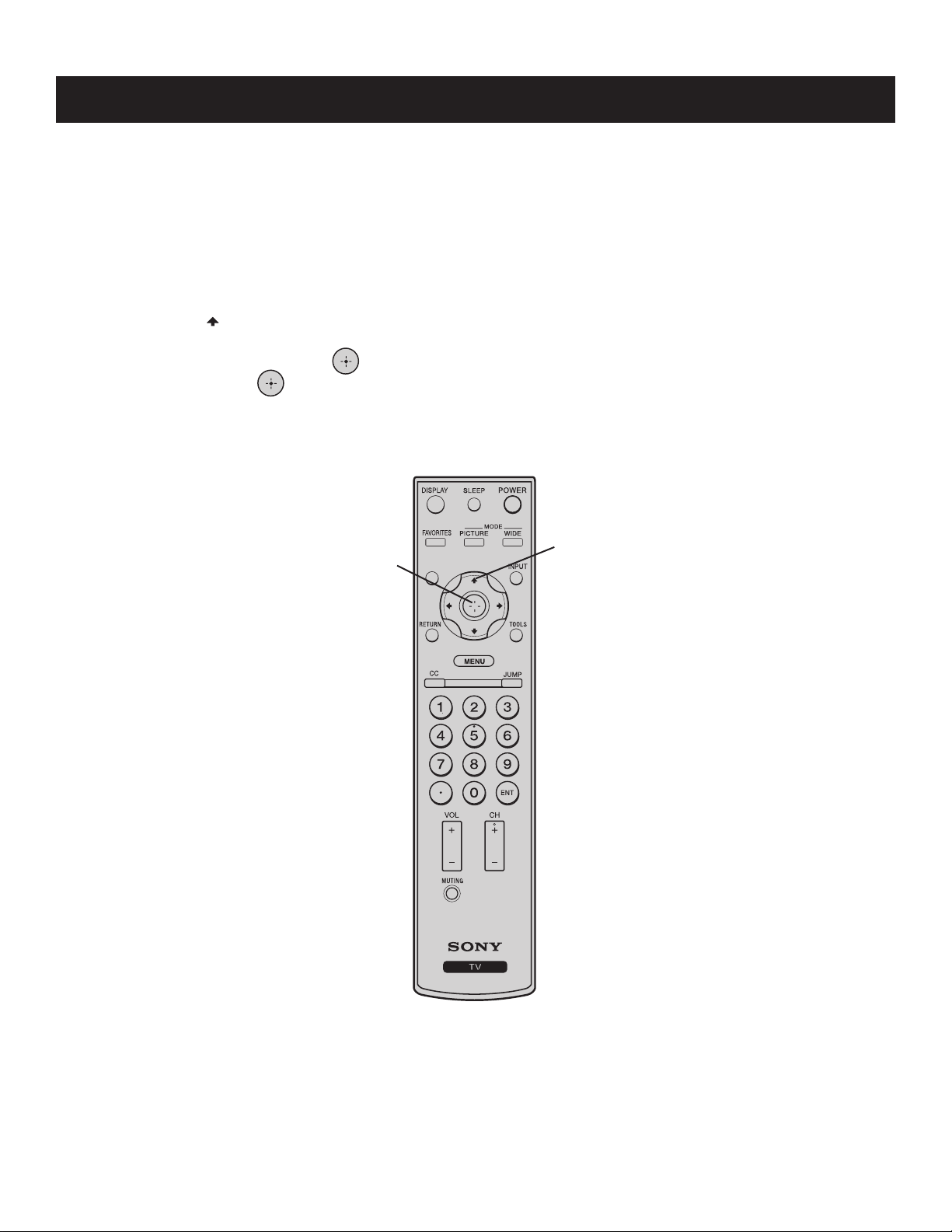

2-1. Resetting to Factory Defaults after Board Replacement ...... 20
SECTION 3: DIAGRAMS ..................................................................... 21

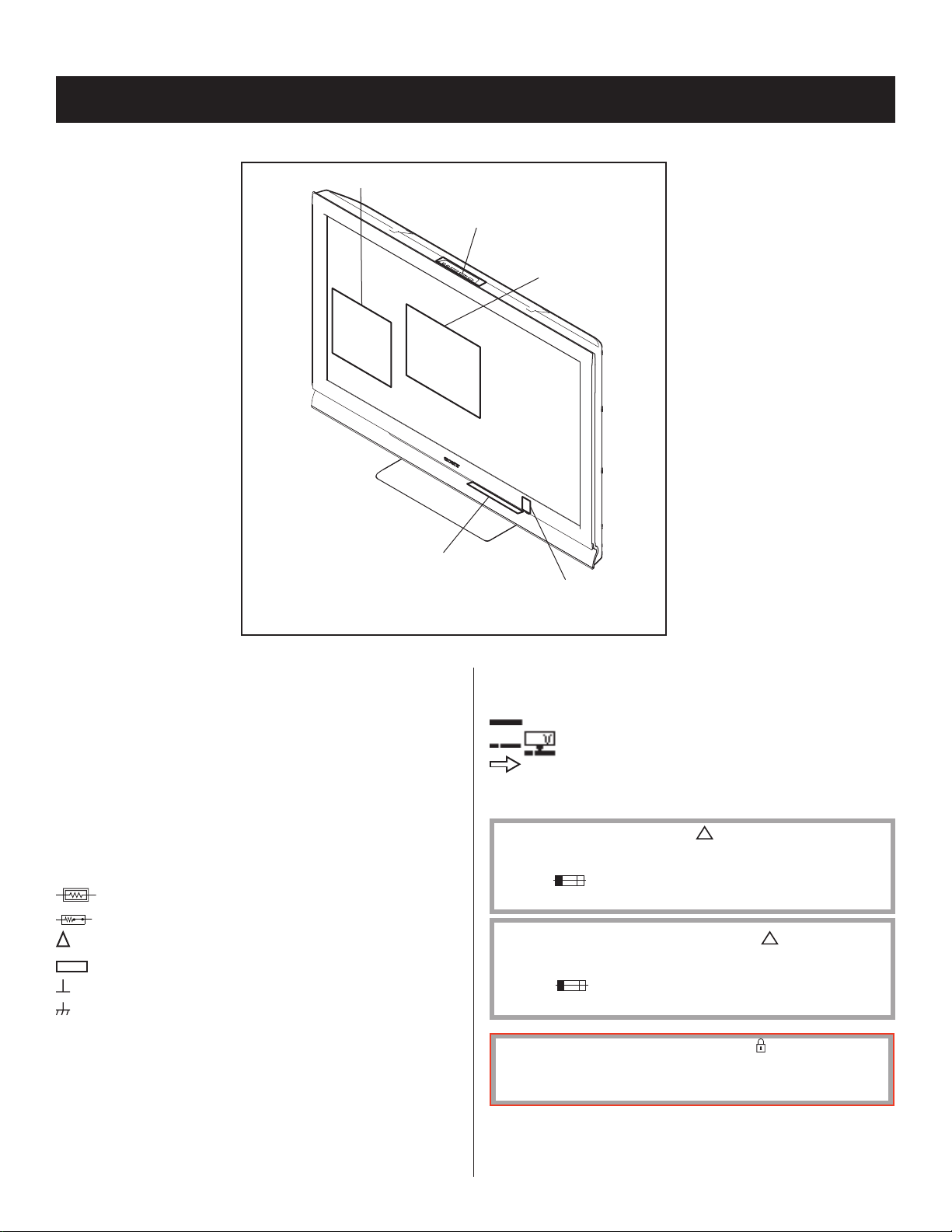

3-1. Circuit Boards Location ........................................................ 21

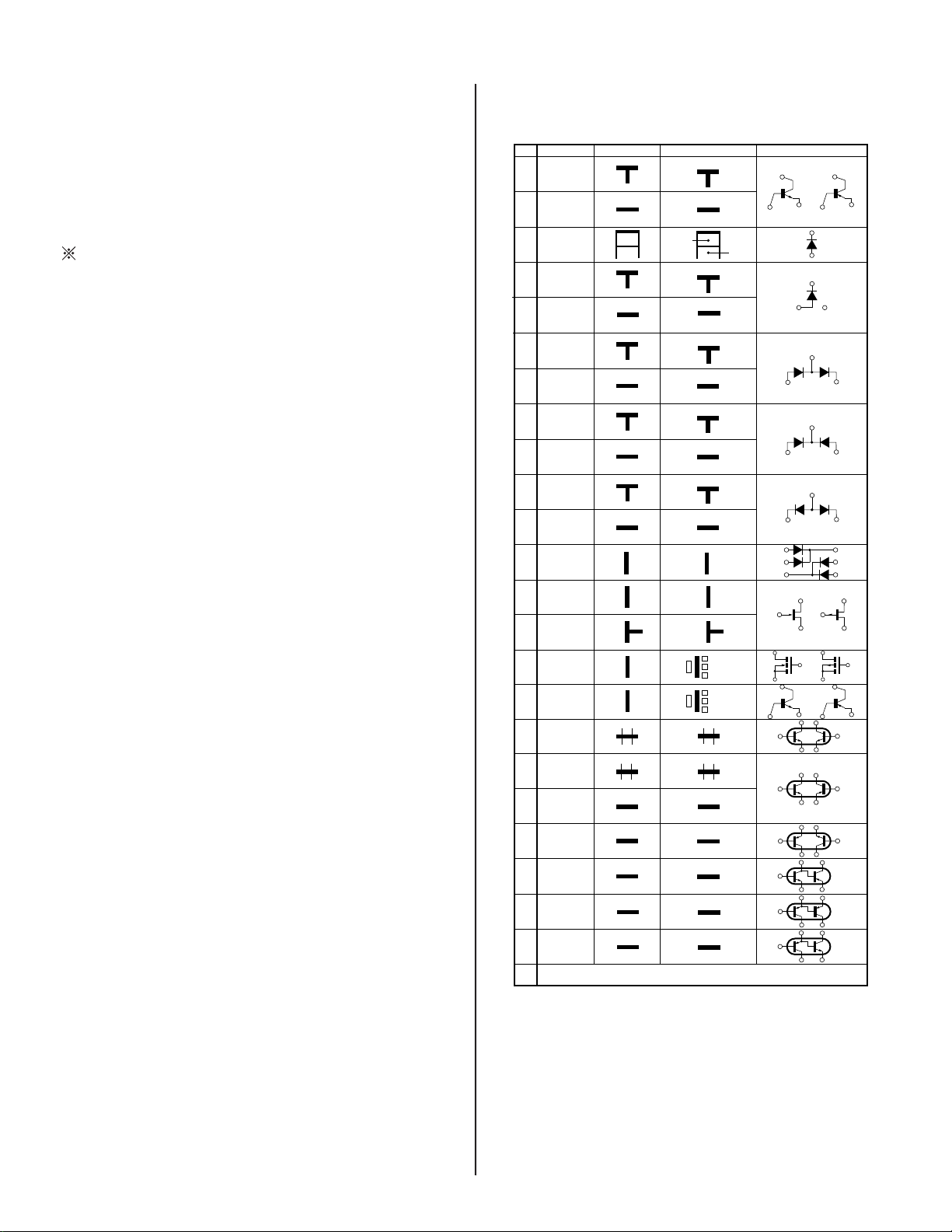

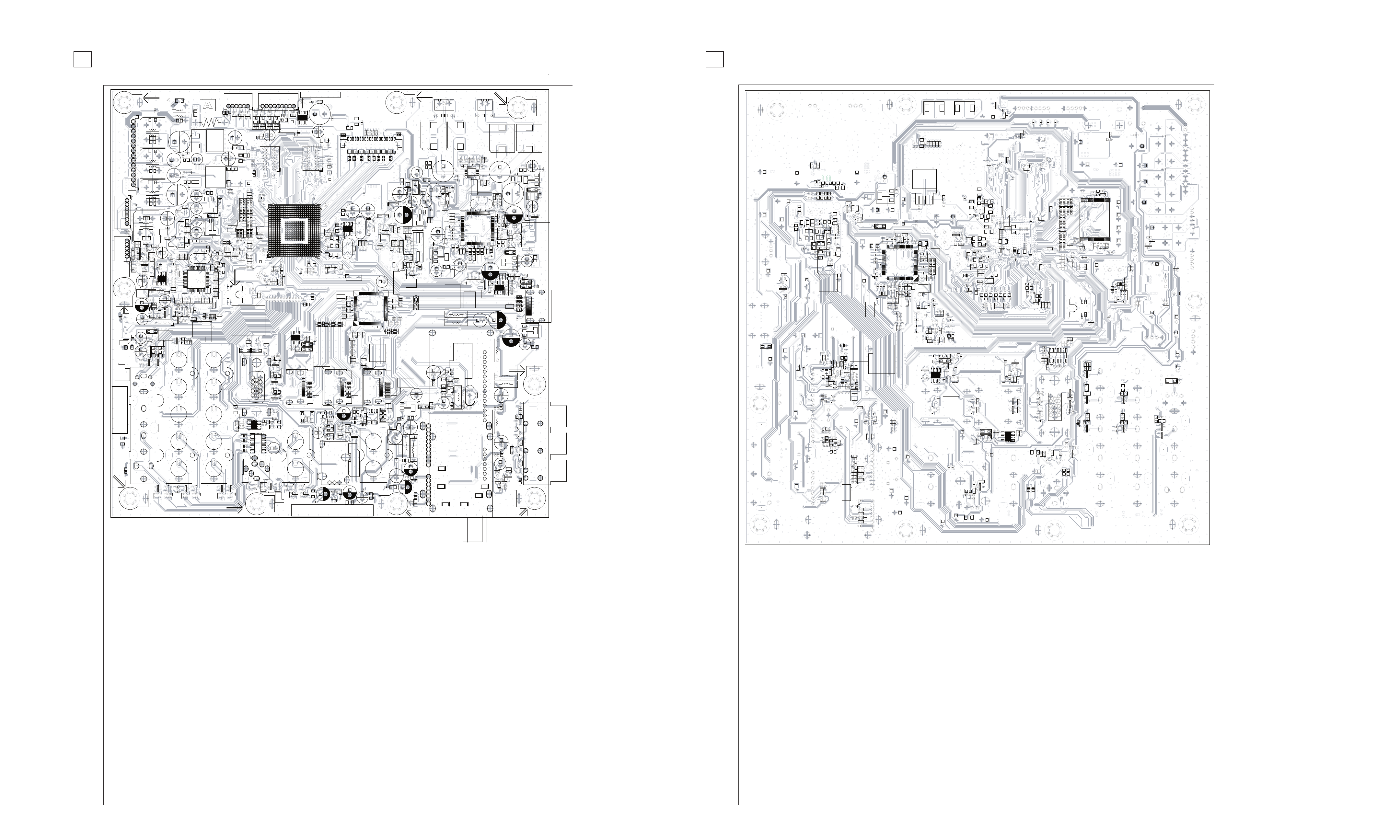

3-2. Printed Wiring Boards and
Schematic Diagrams Information ......................................... 21

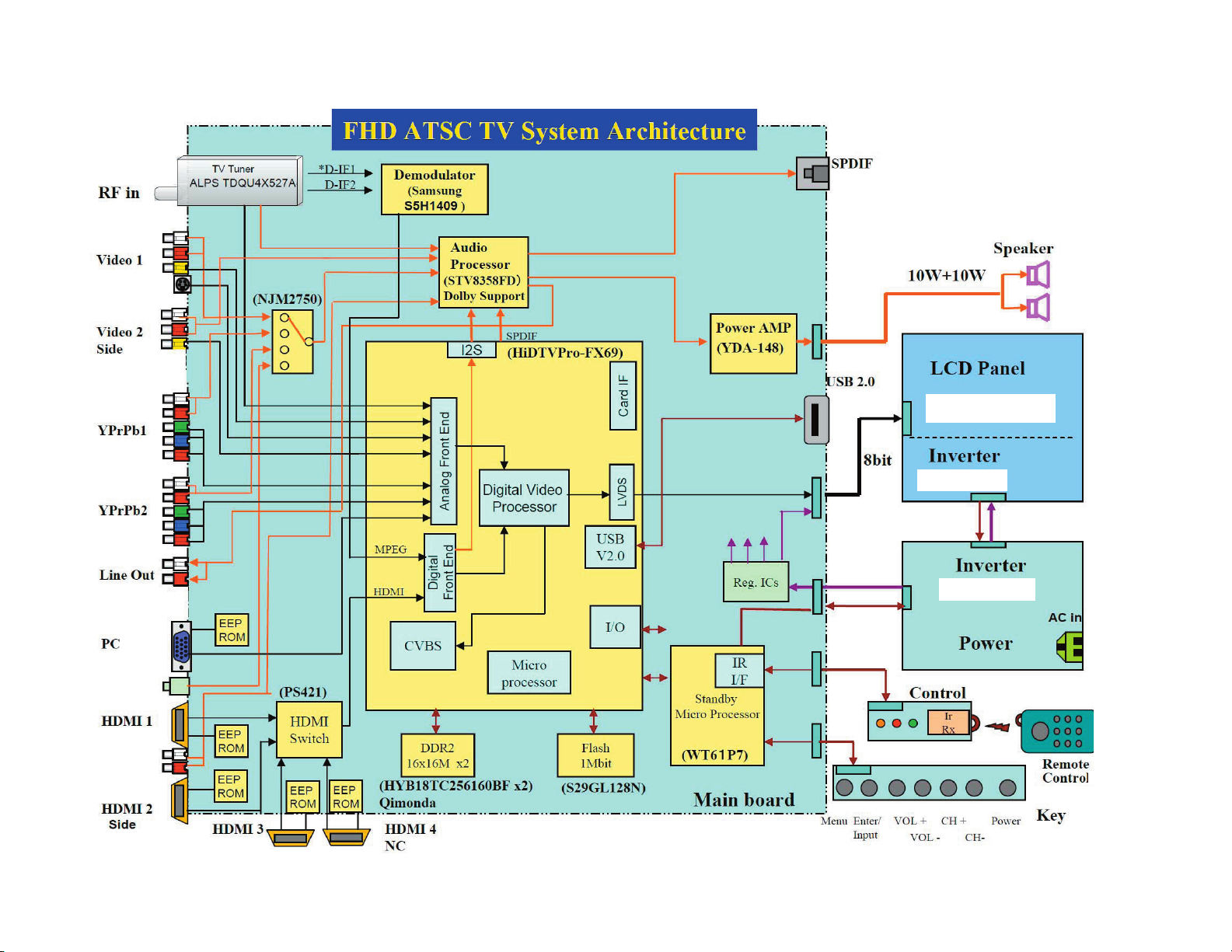

3-3. Block Diagram ...................................................................... 23
3-4. Schematics and Supporting Information .............................. 24

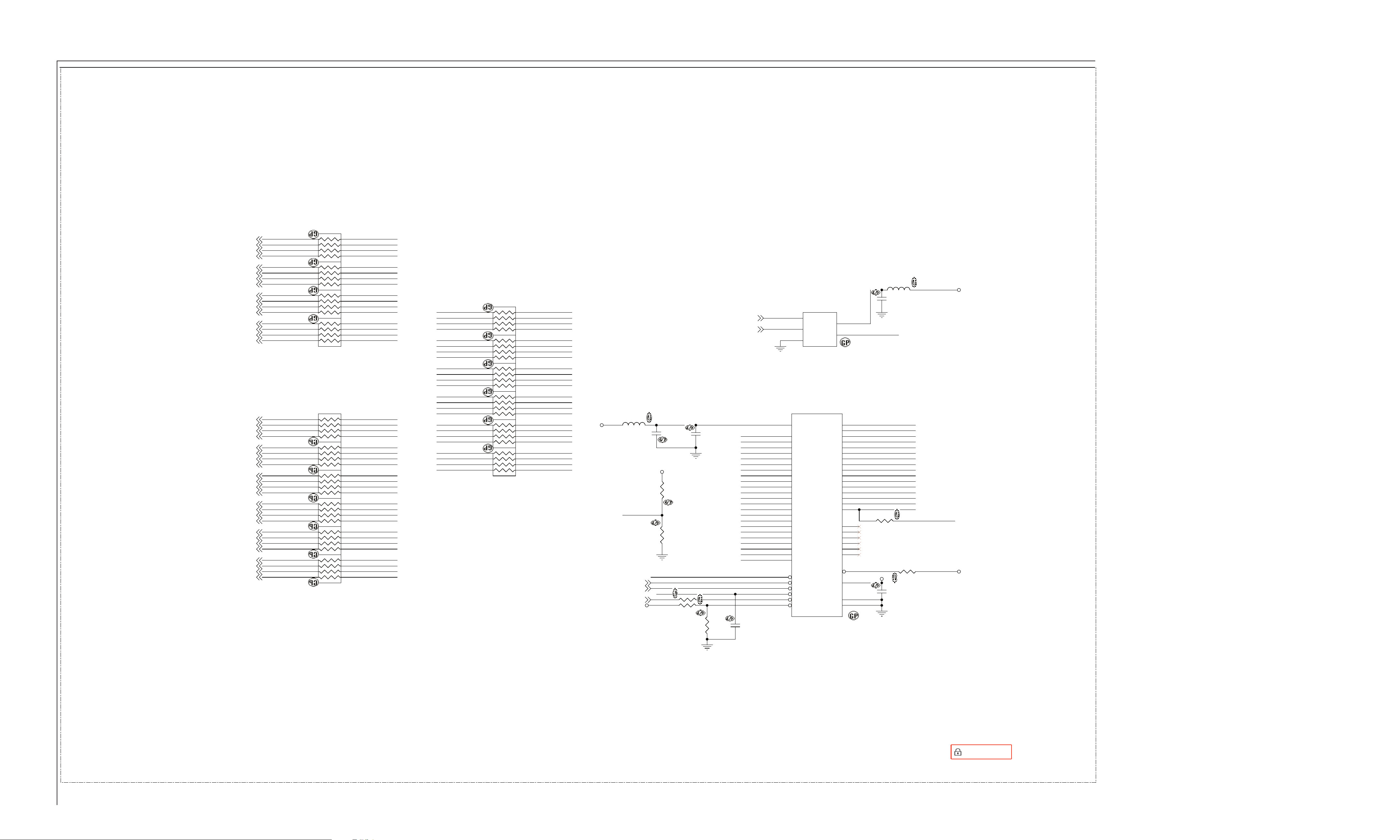

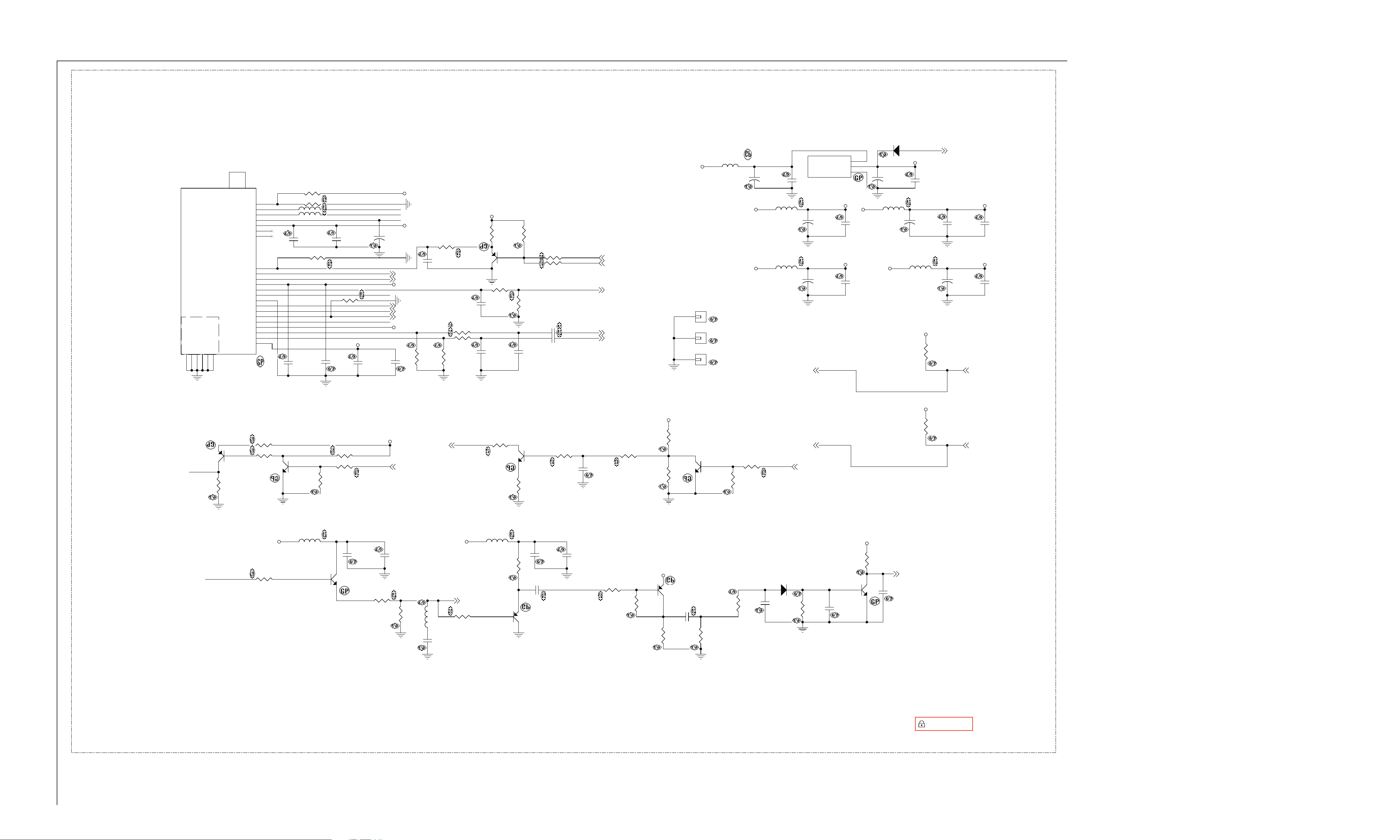

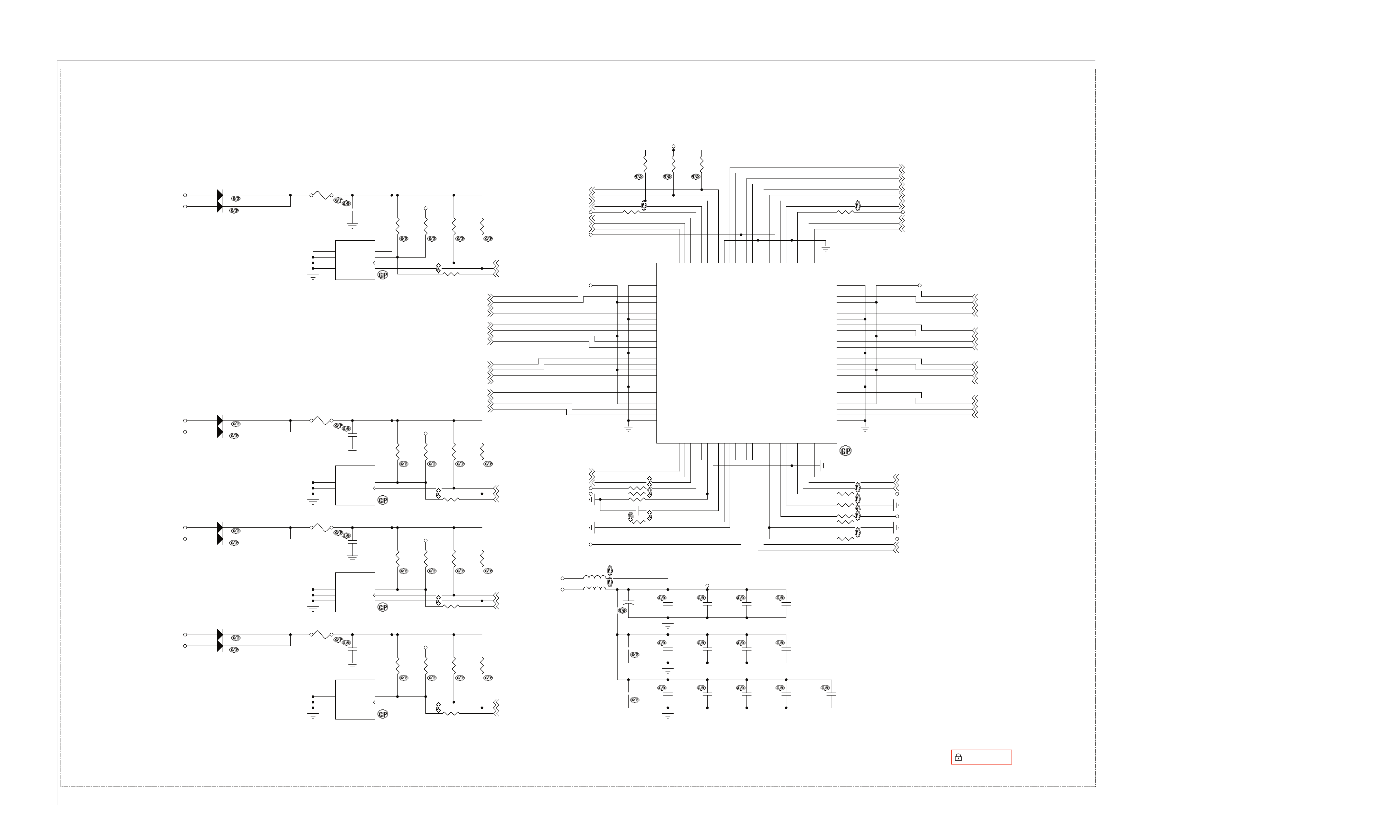

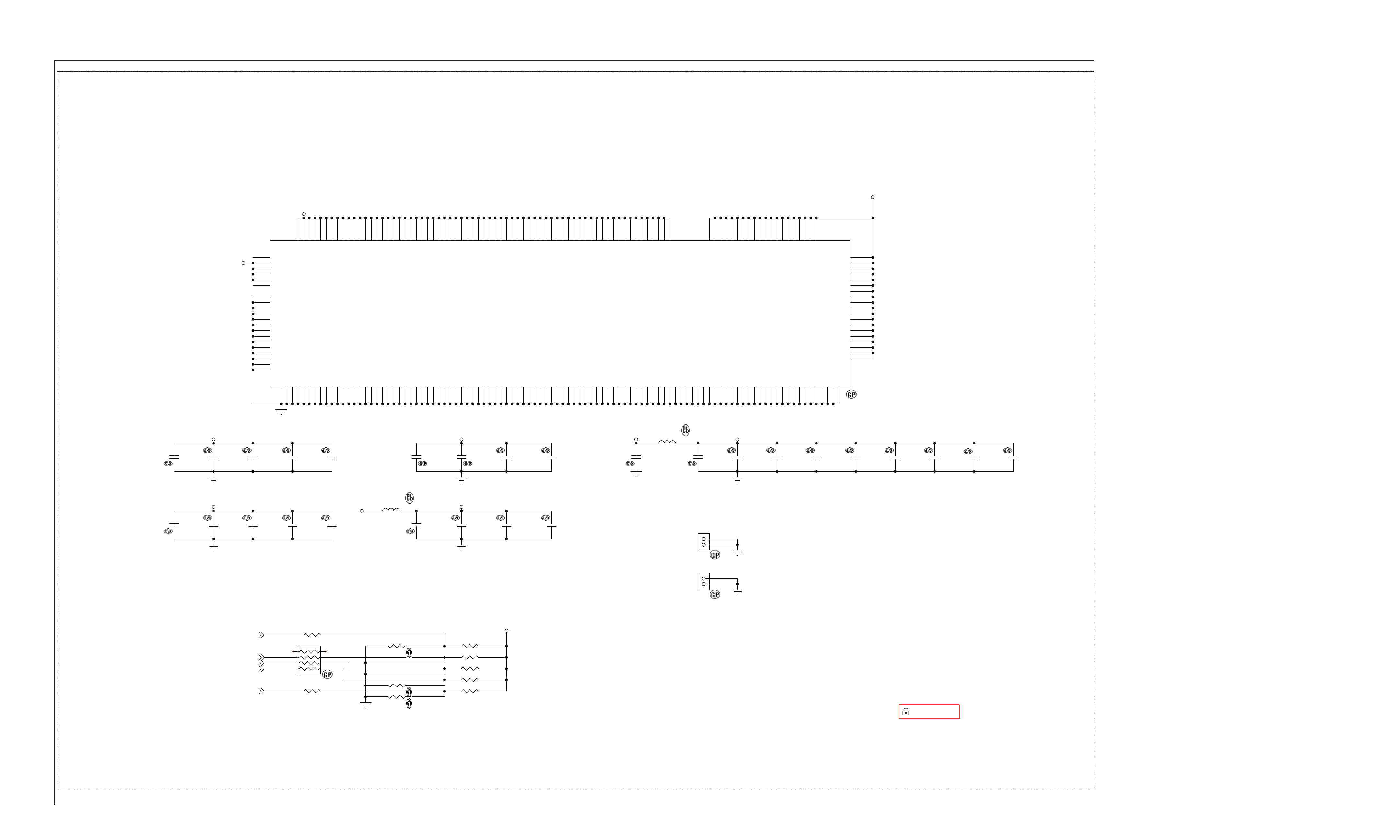

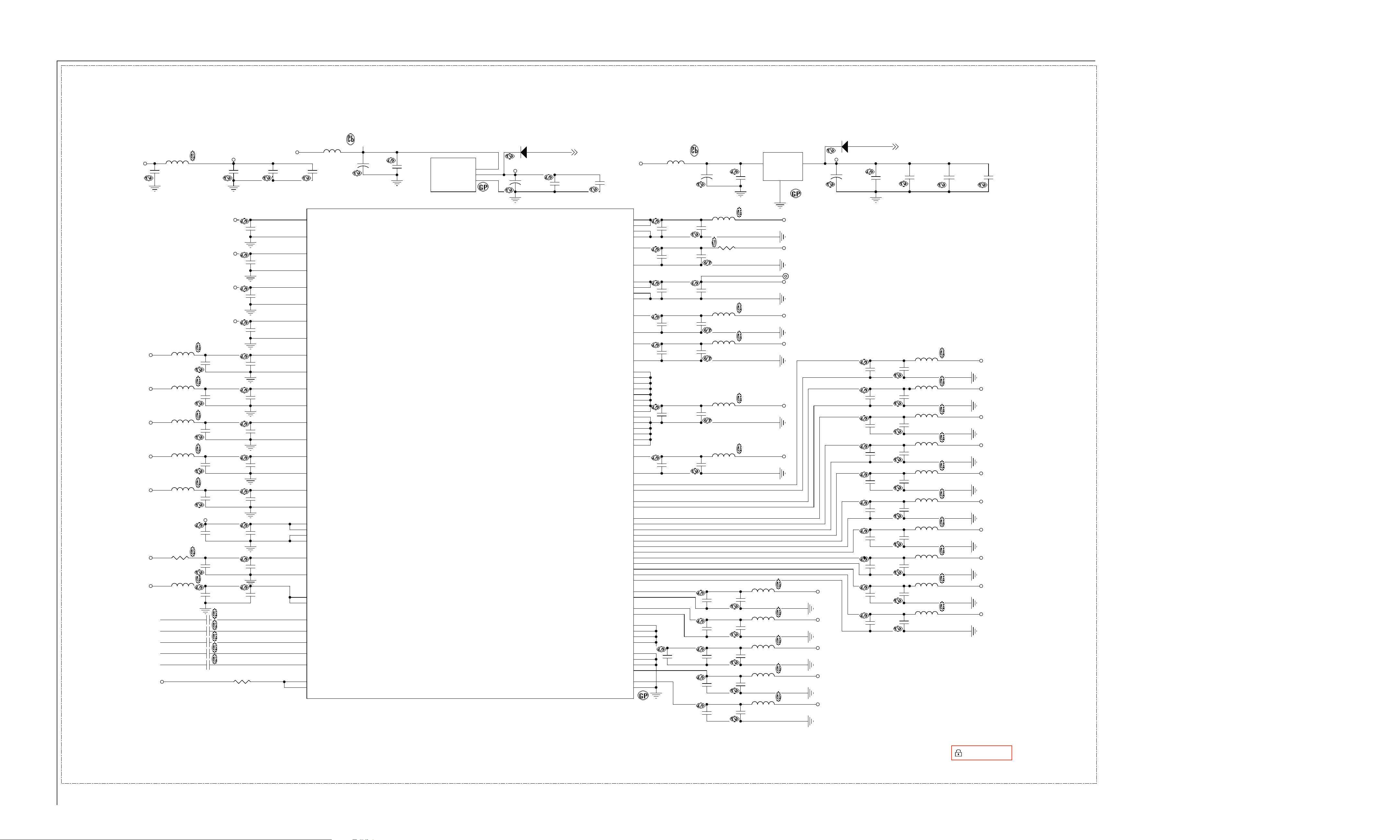

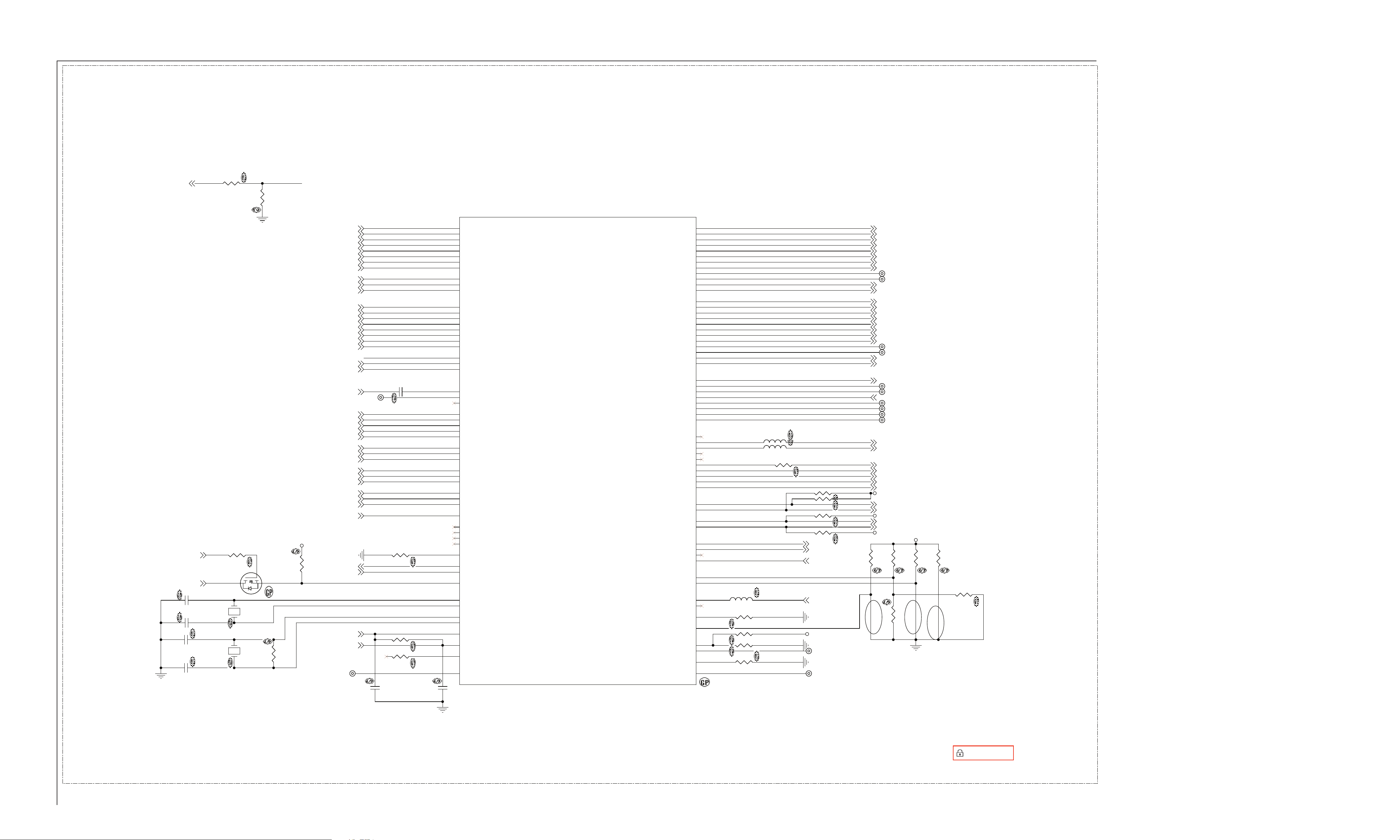

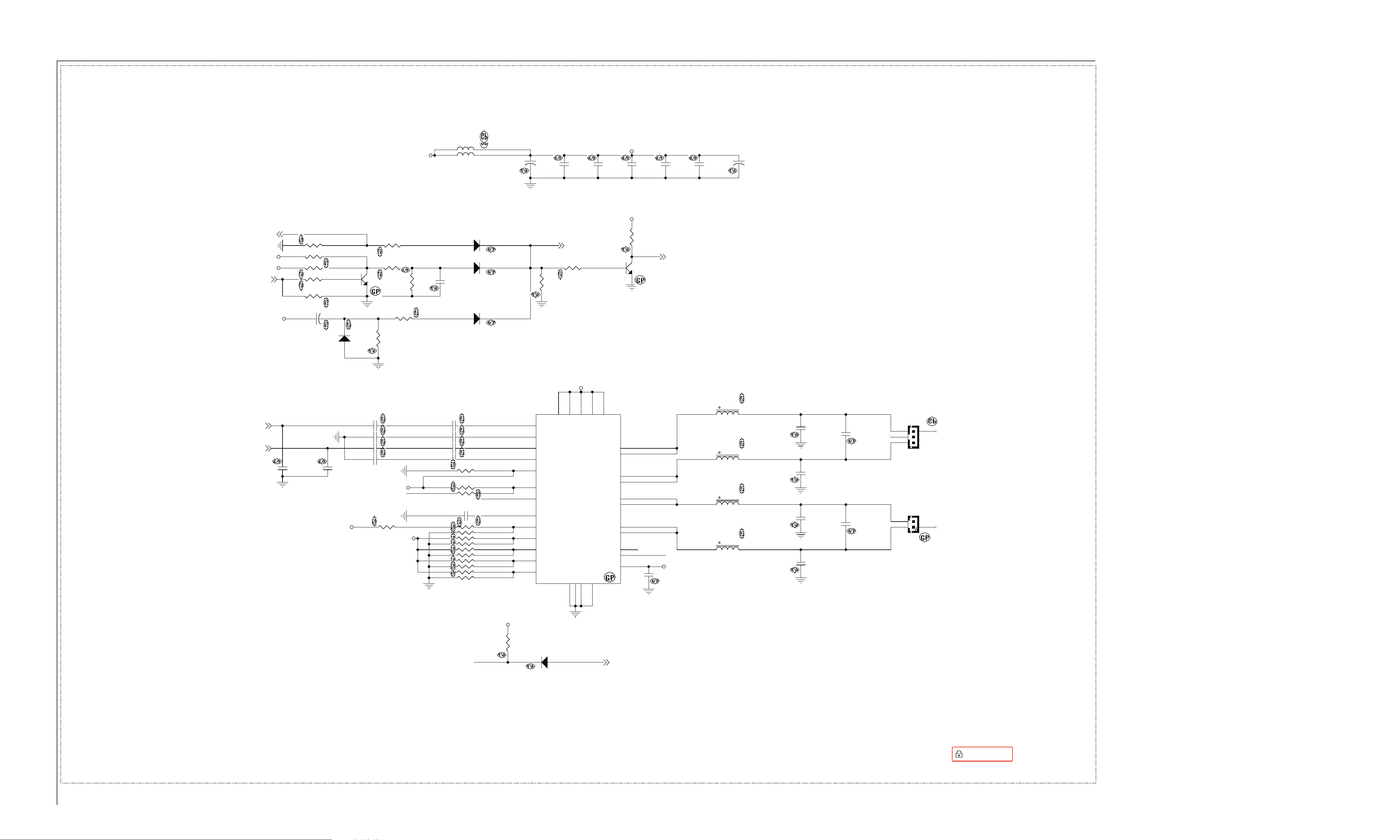

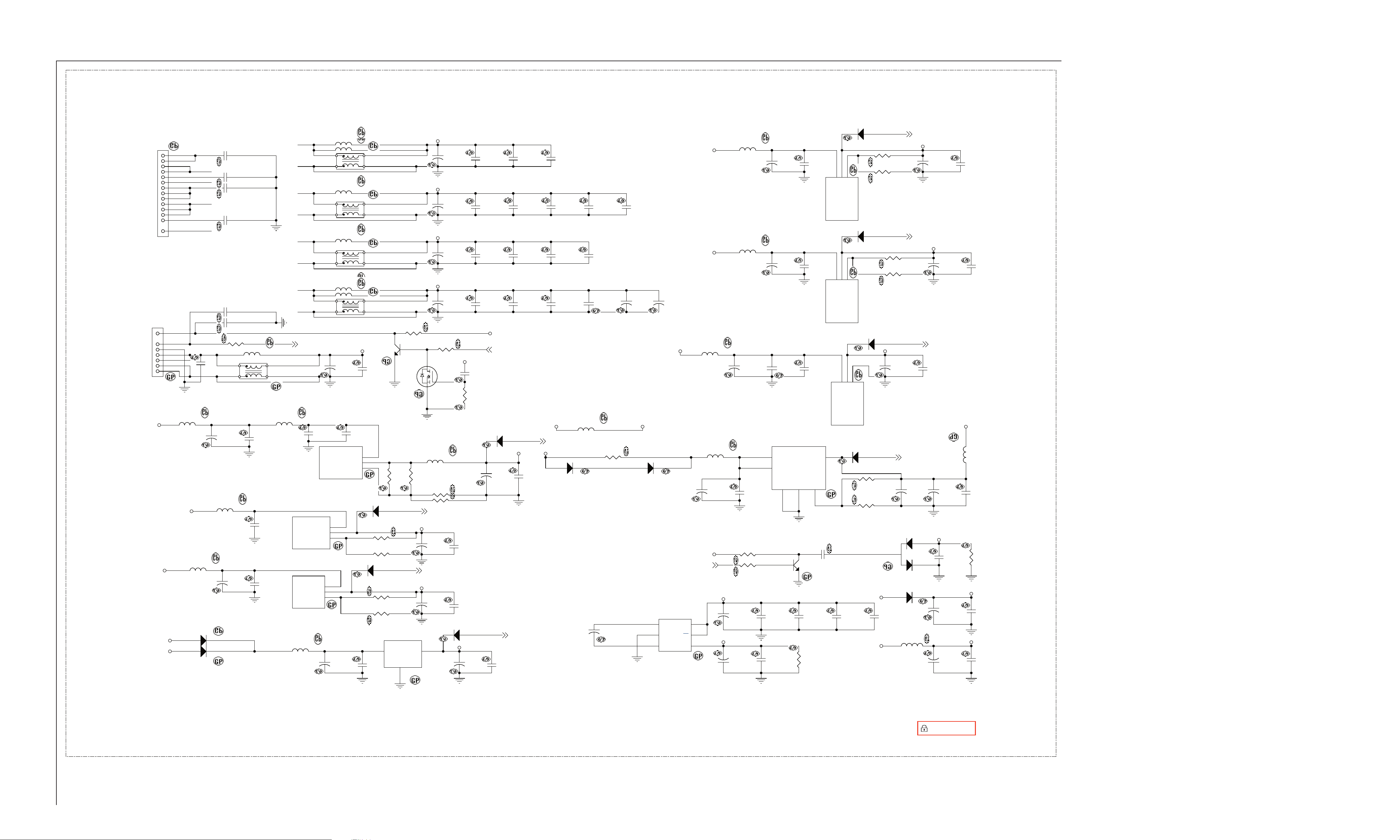

A Board Schematic Diagram (1 of 19) .................................. 24

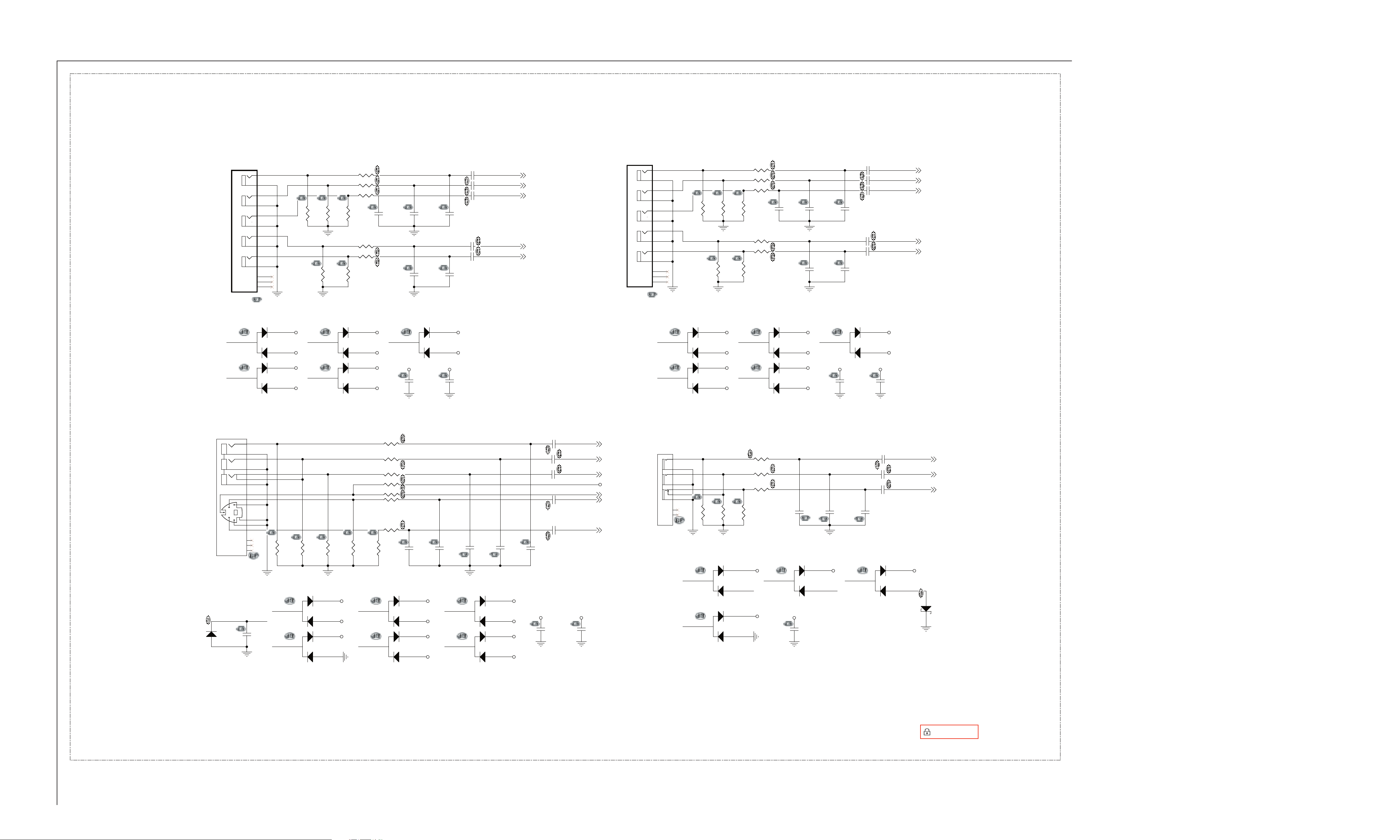

A Board Schematic Diagram (2 of 19) .................................. 25
A Board Schematic Diagram (3 of 19) .................................. 26
A Board Schematic Diagram (4 of 19) .................................. 27
A Board Schematic Diagram (5 of 19) .................................. 28

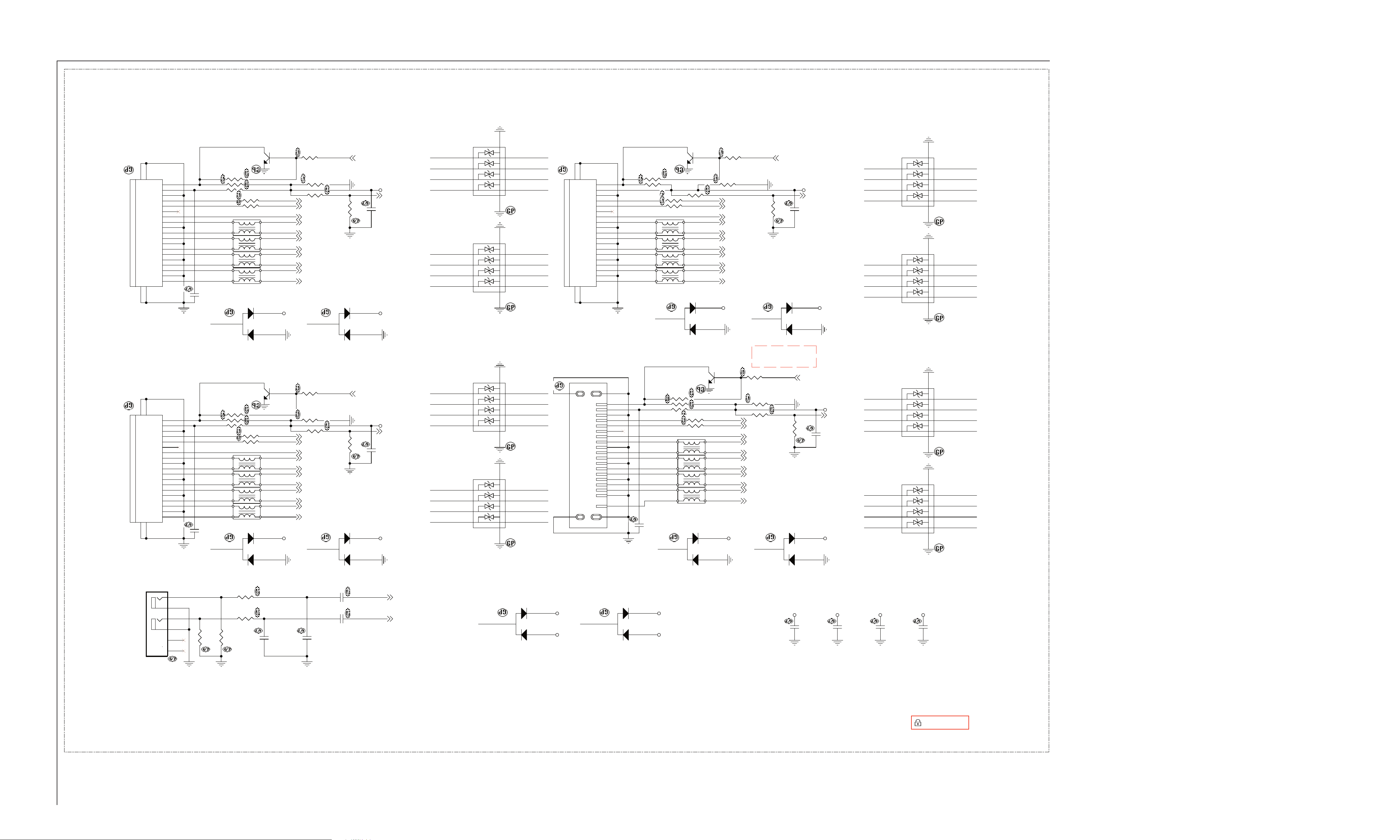

A Board Schematic Diagram (6 of 19) .................................. 29
A Board Schematic Diagram (7 of 19) .................................. 30

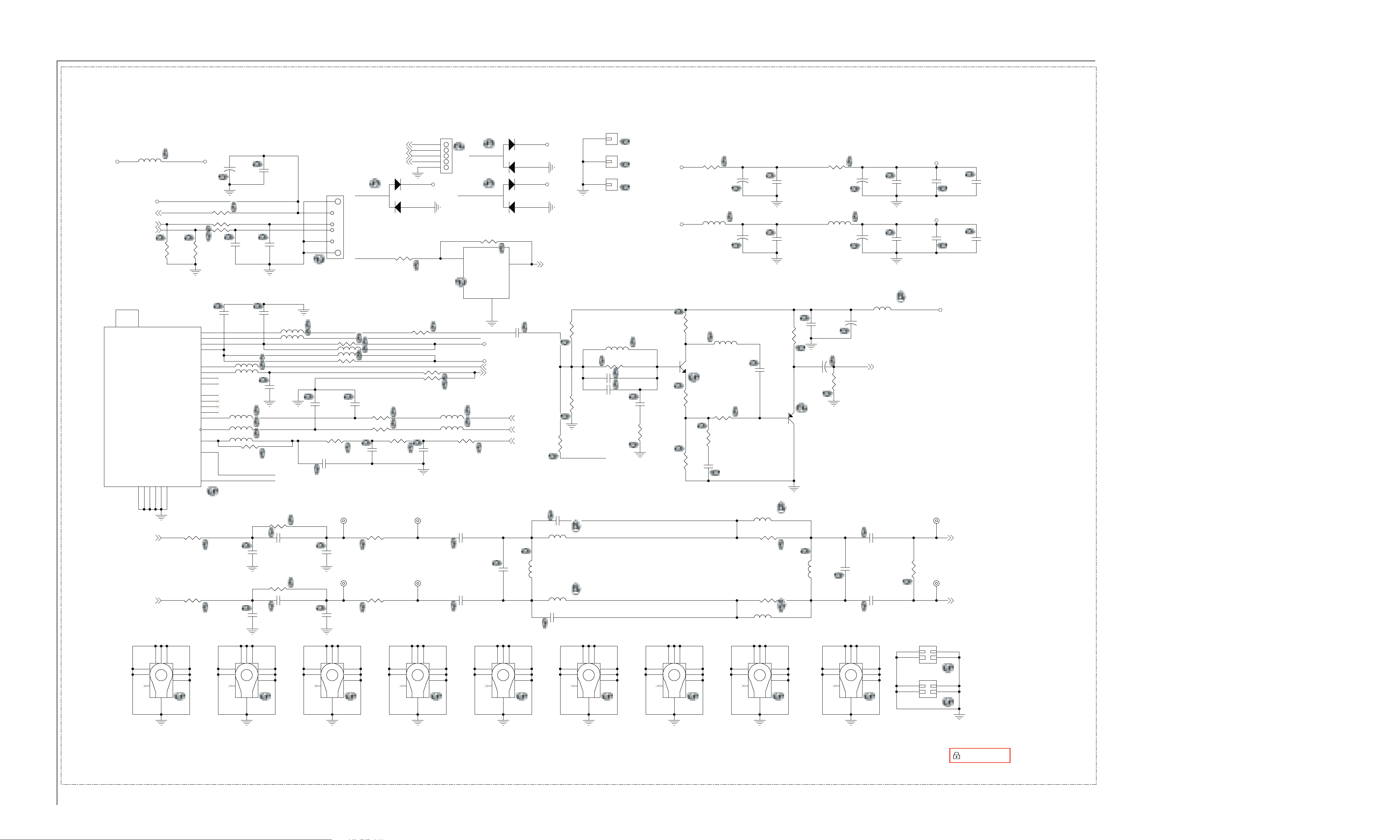

A Board Schematic Diagram (8 of 19) .................................. 31
A Board Schematic Diagram (9 of 19) .................................. 32

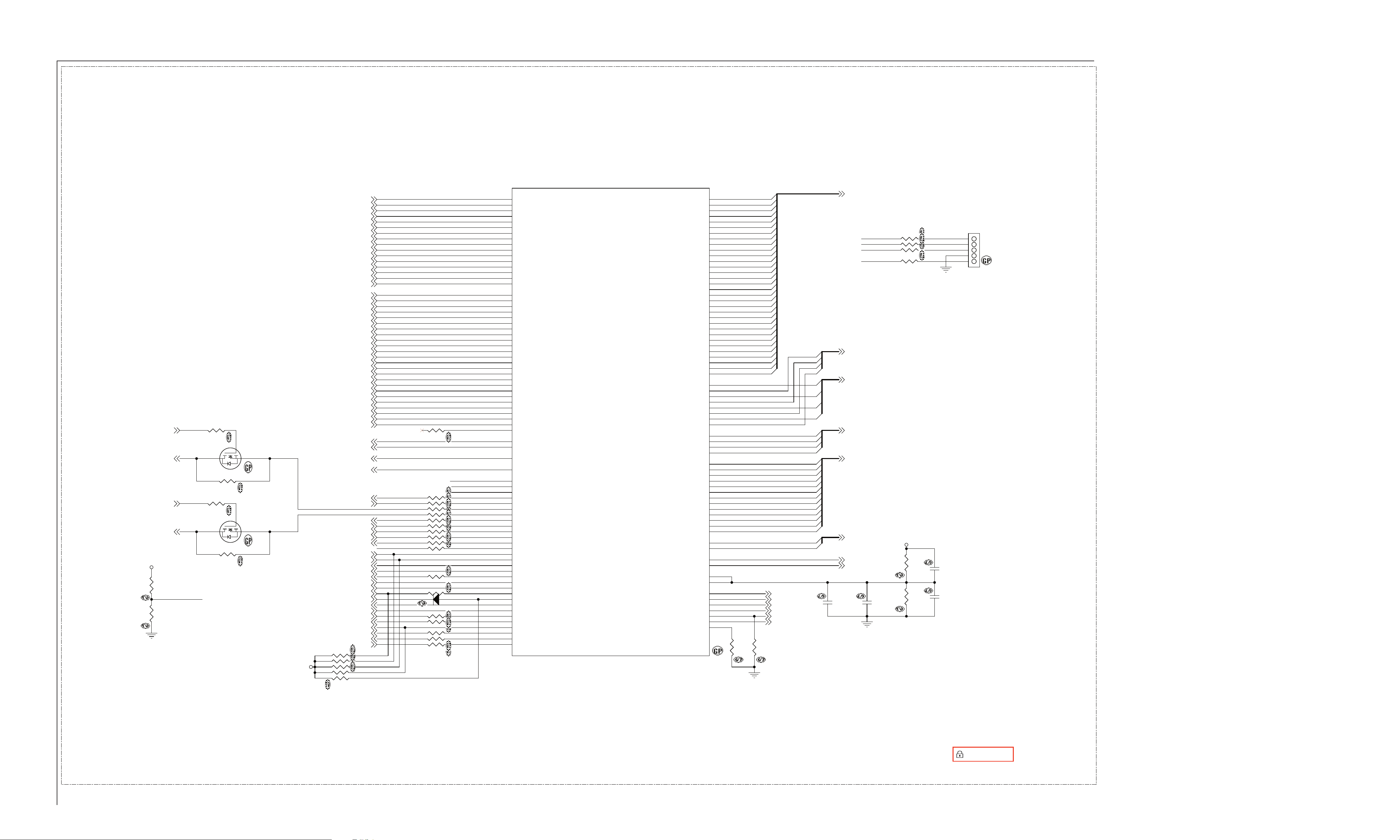

A Board Schematic Diagram (10 of 19) ................................ 33
A Board Schematic Diagram (11 of 19) ................................ 34
A Board Schematic Diagram (12 of 19) ................................ 35

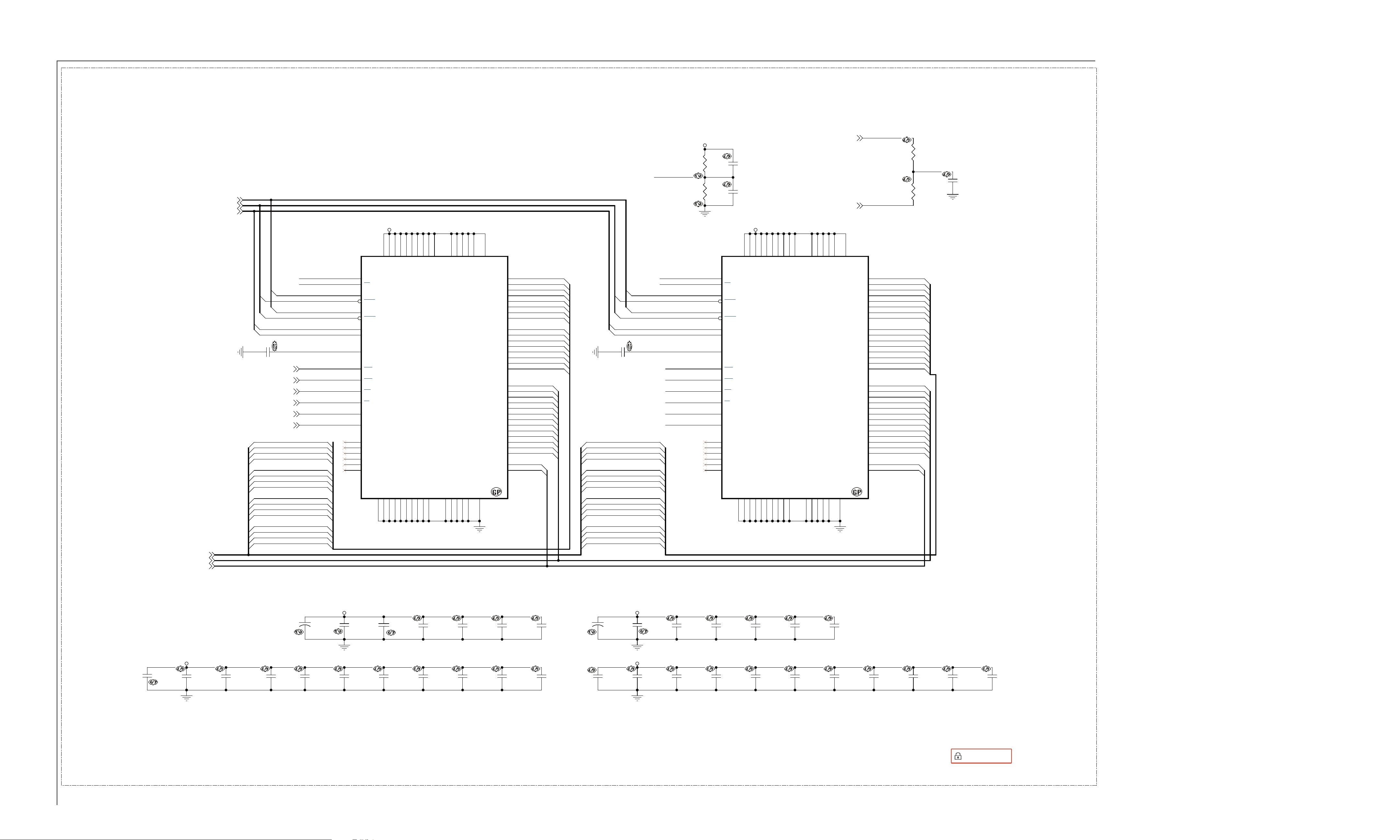

A Board Schematic Diagram (13 of 19) ................................ 36
A Board Schematic Diagram (14 of 19) ................................ 37

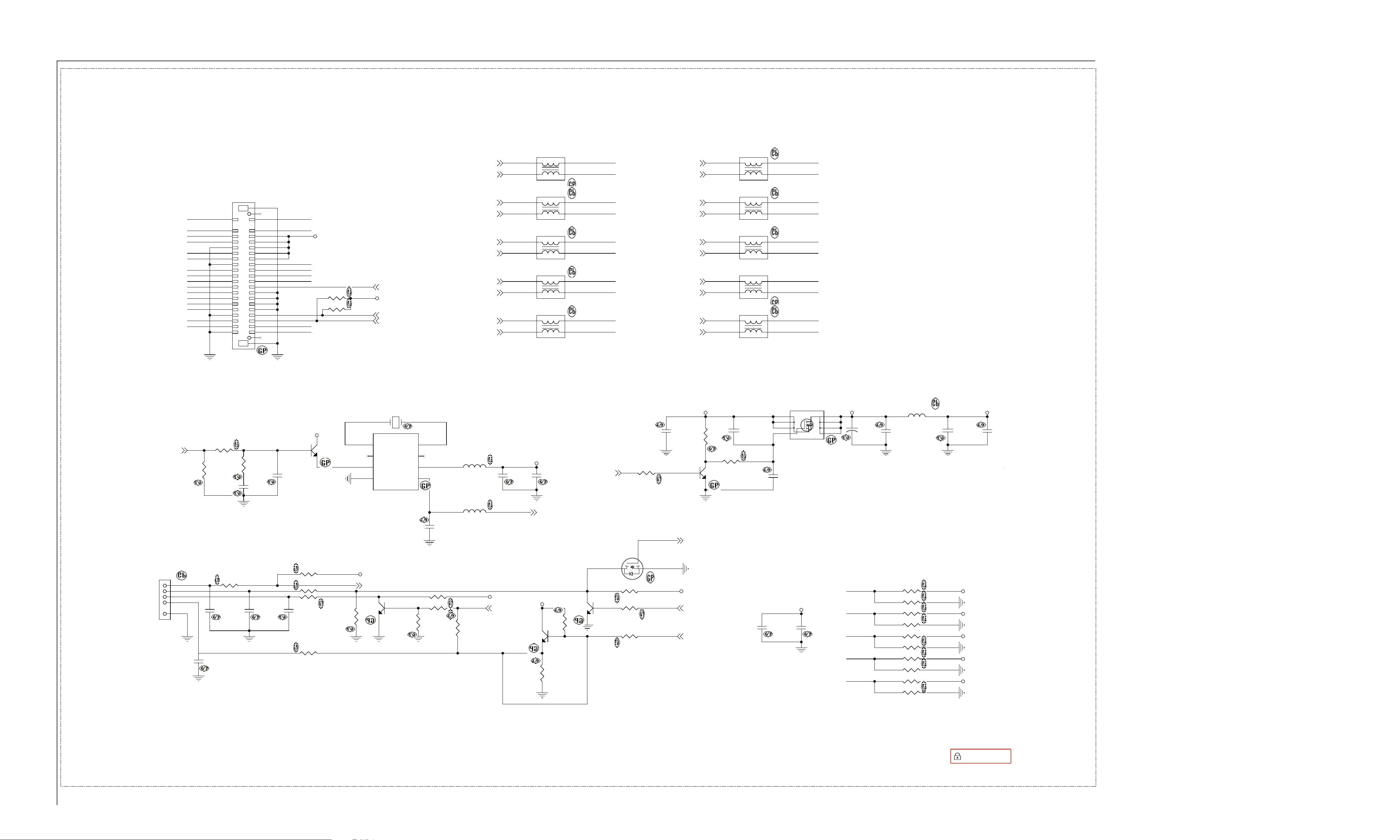

A Board Schematic Diagram (15 of 19) ................................ 38
A Board Schematic Diagram (16 of 19) ................................ 39
A Board Schematic Diagram (17 of 19) ................................ 40
A Board Schematic Diagram (18 of 19) ................................ 41

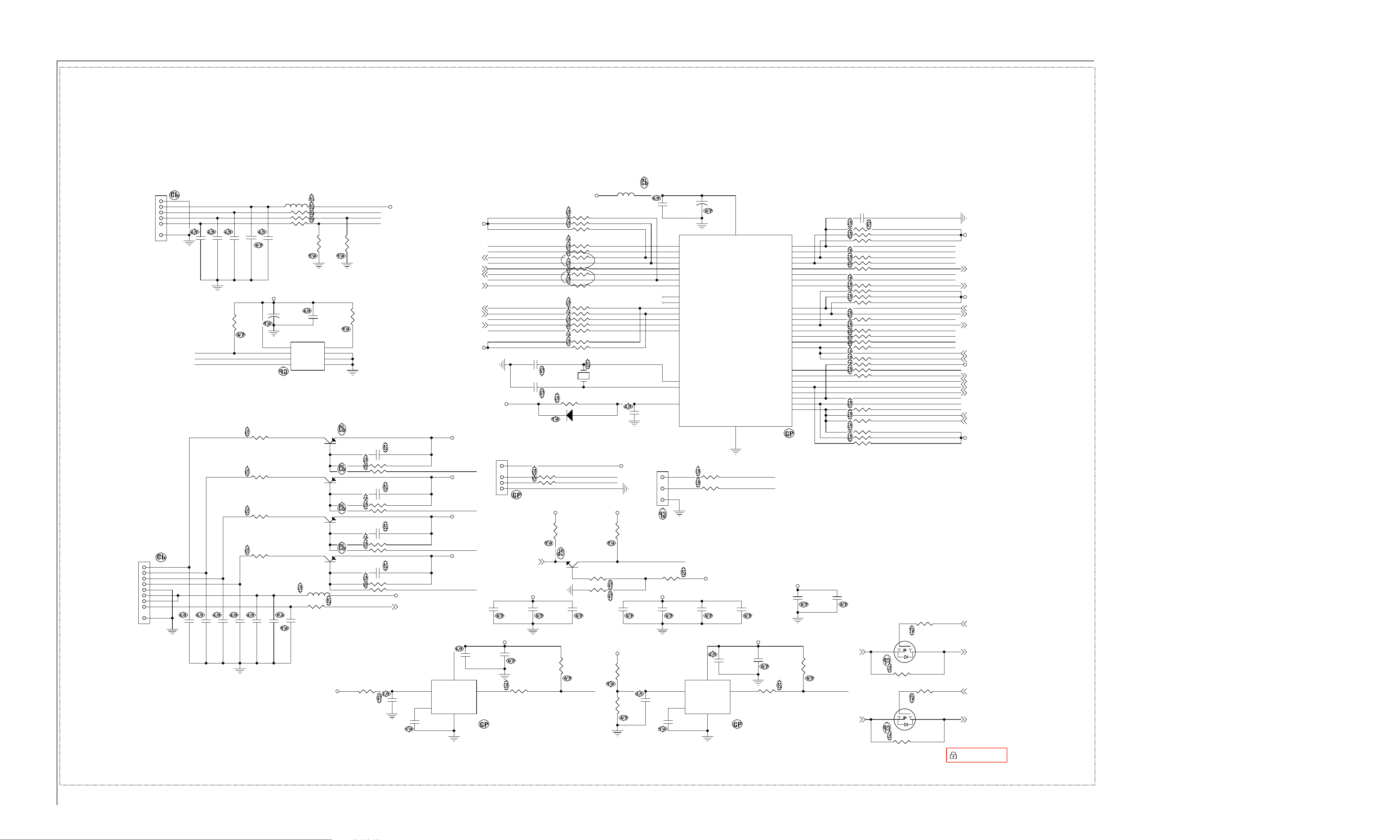

A Board Schematic Diagram (19 of 19) ................................ 42

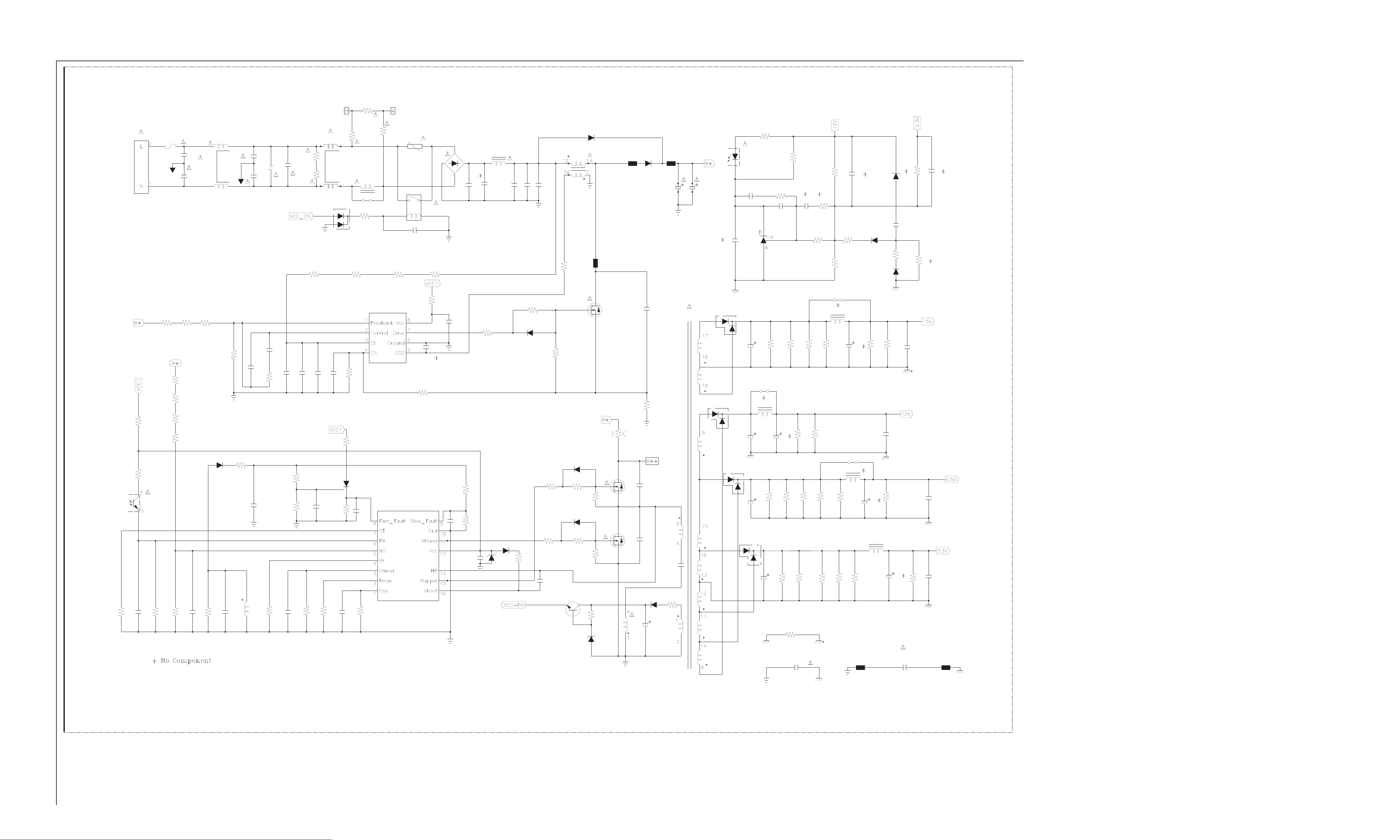

G Board Schematic Diagram (1 of 3) ................................... 44

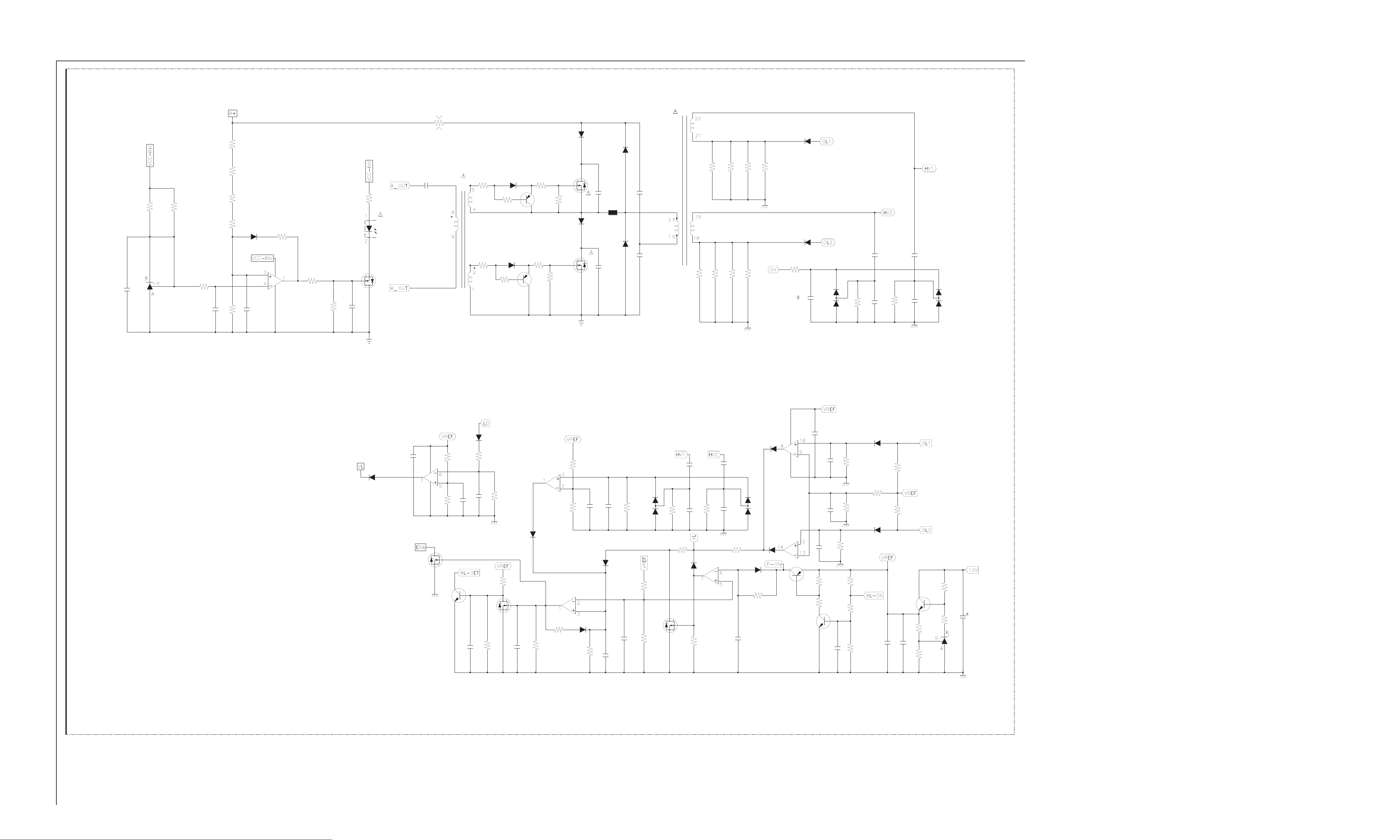

G Board Schematic Diagram (2 of 3) ................................... 45
G Board Schematic Diagram (3 of 3) ................................... 46

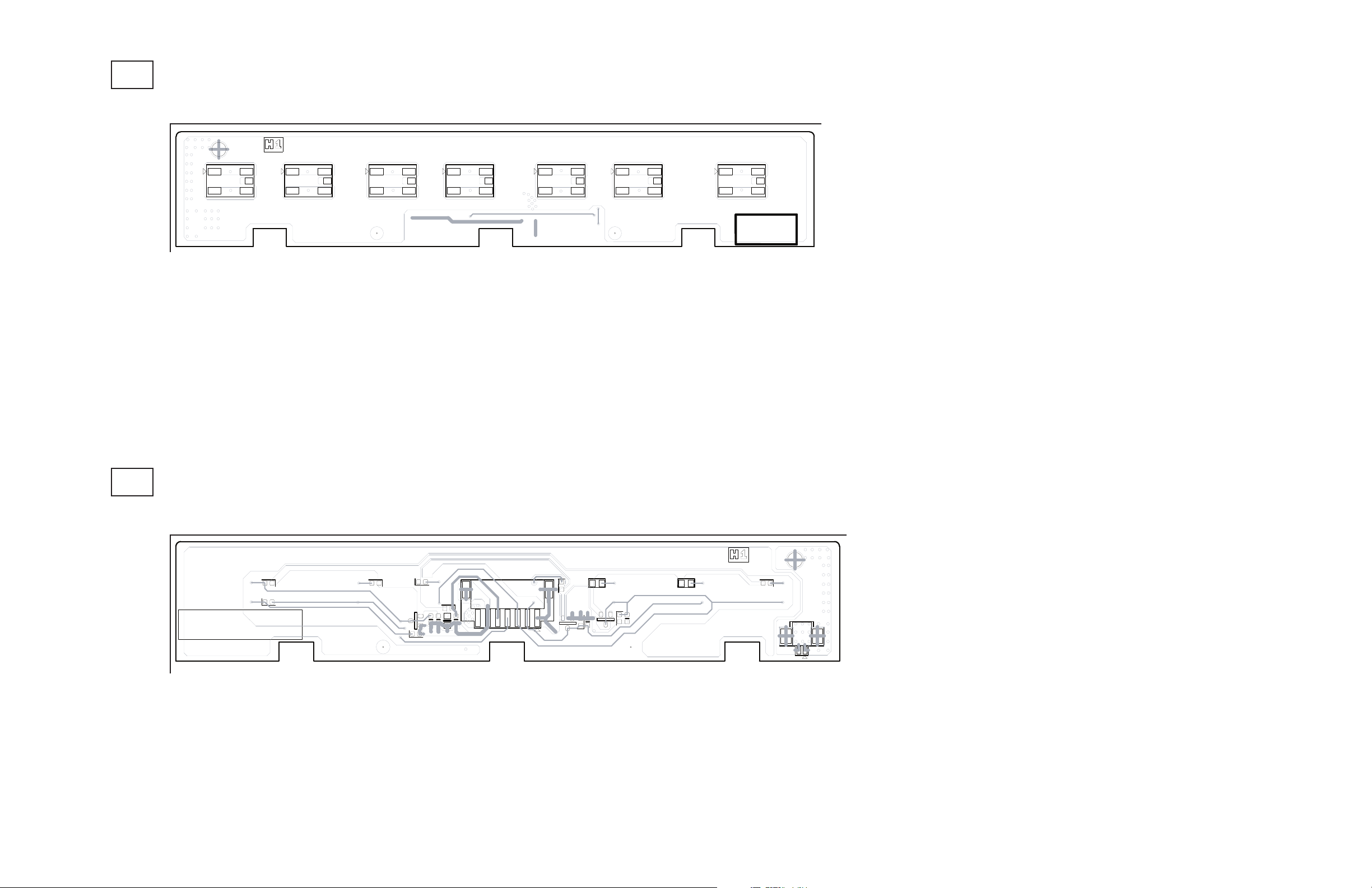

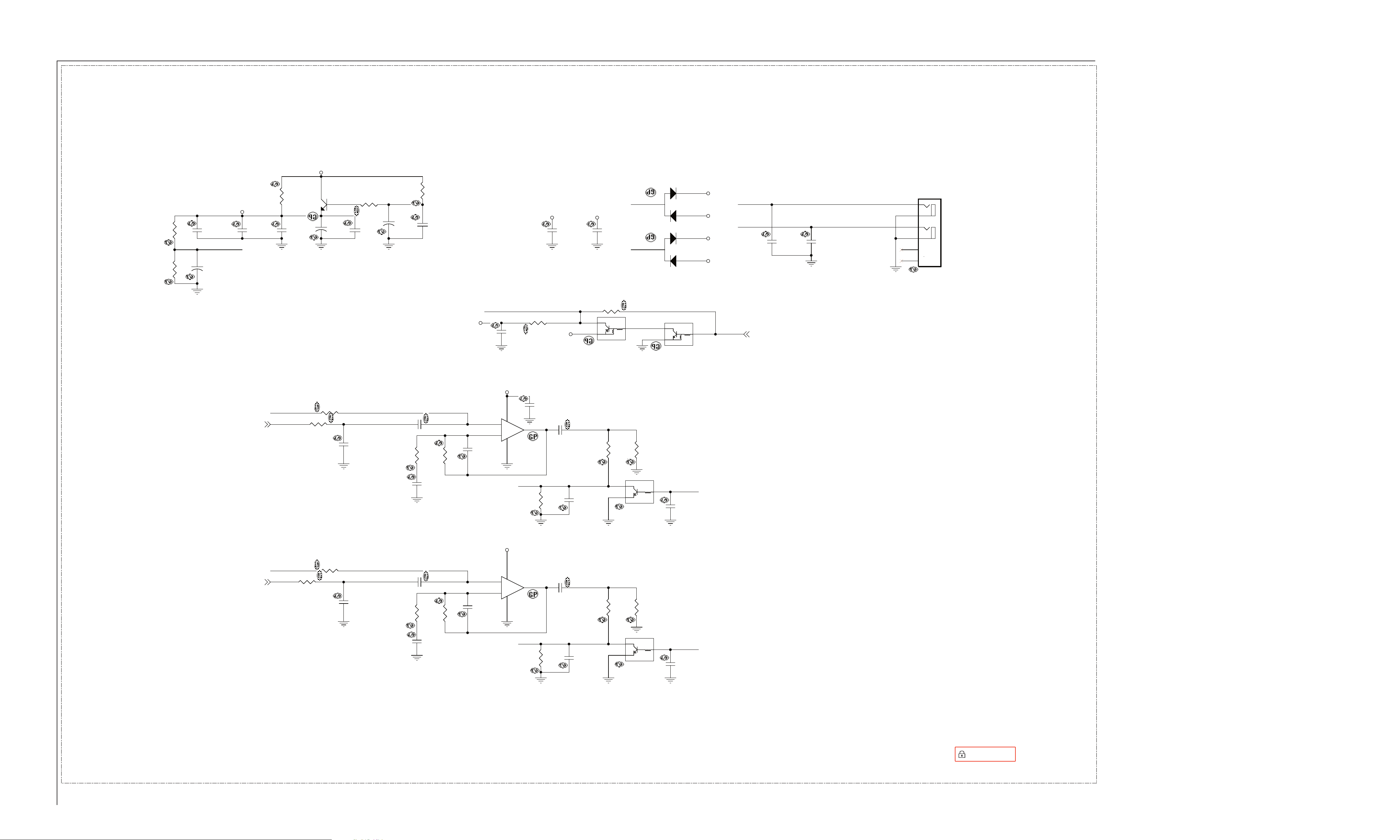

H1 Board Schematic Diagram .............................................. 48

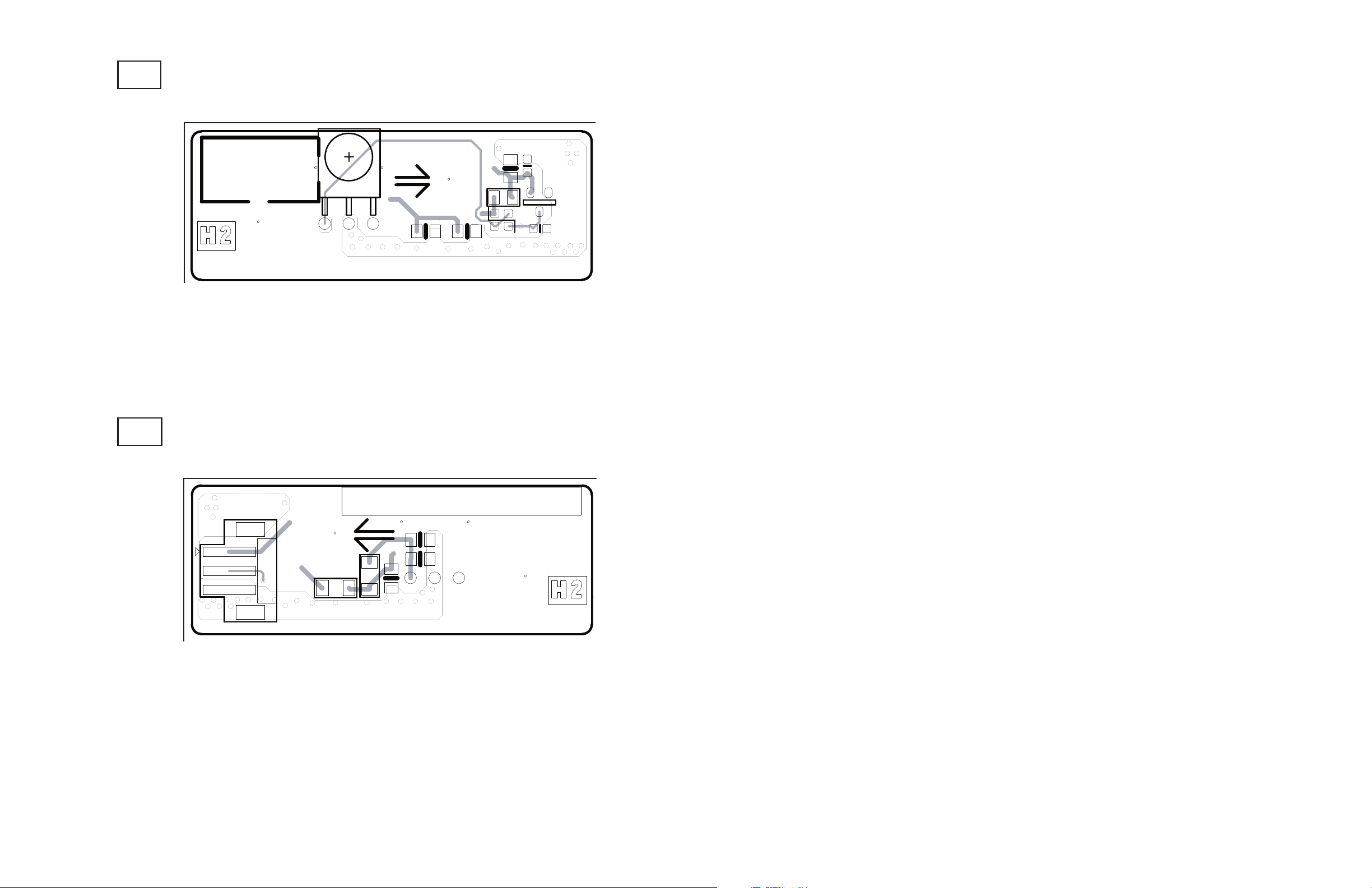

H2 Board Schematic Diagram .............................................. 50

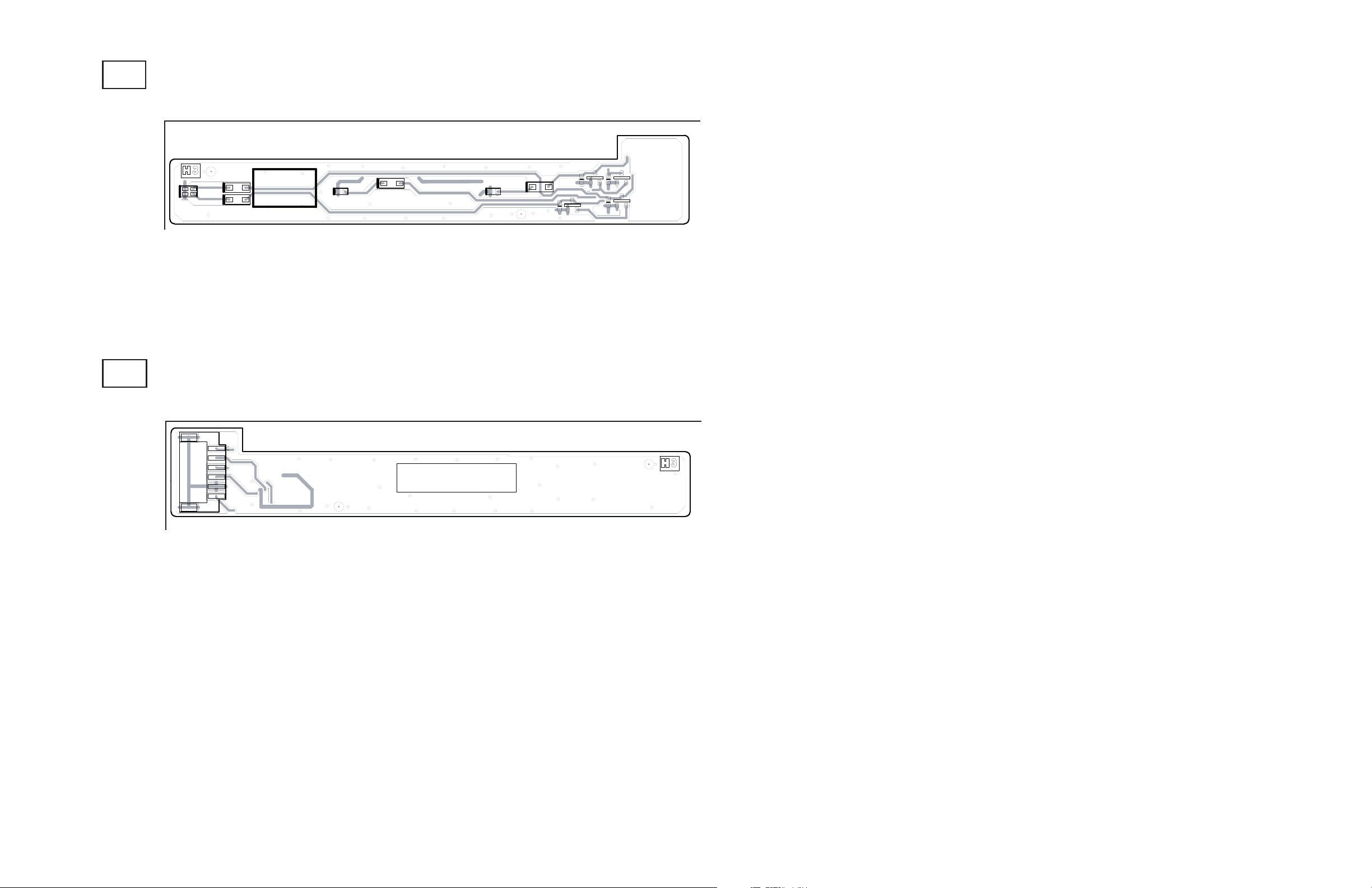

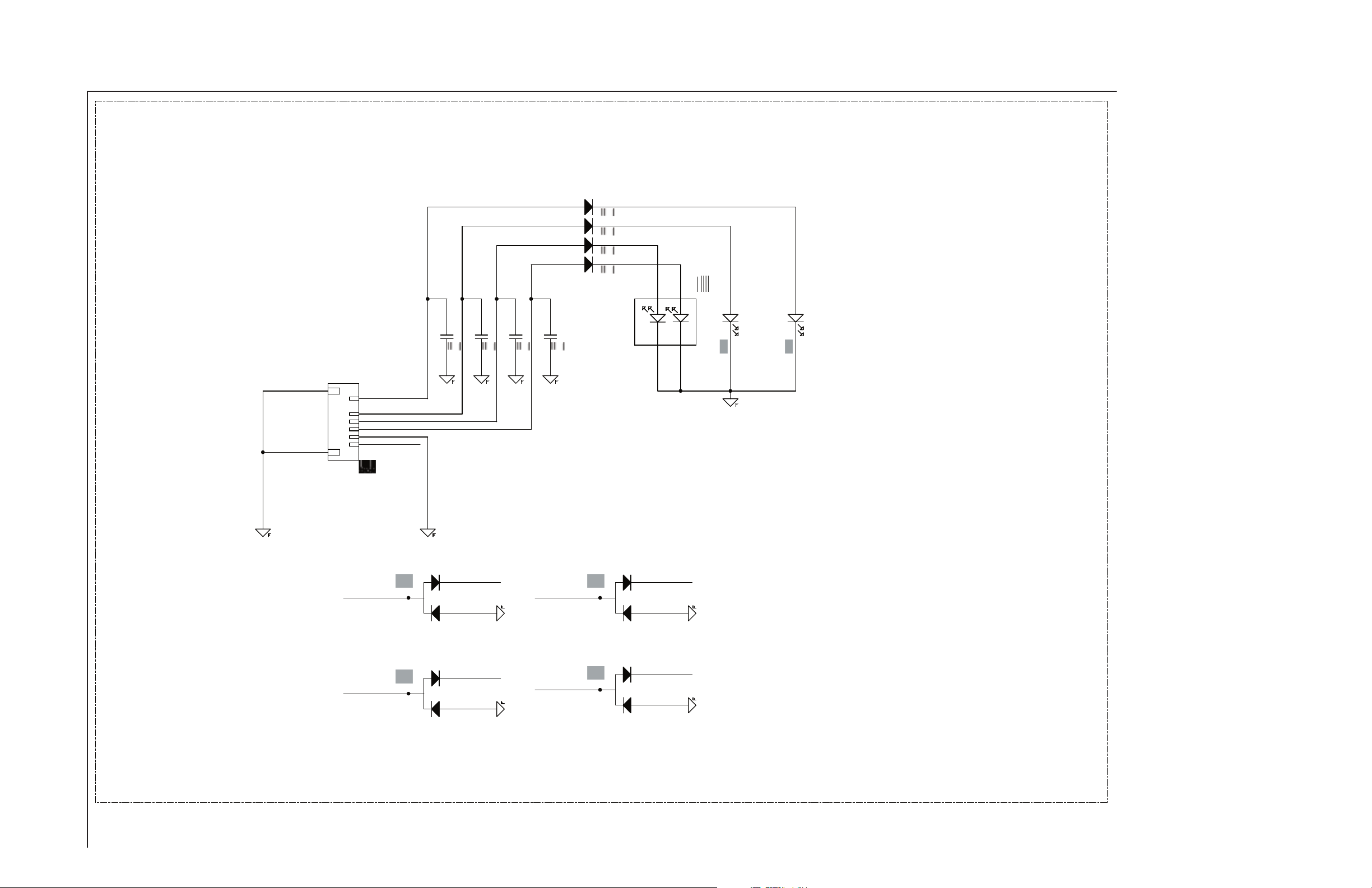

H3 Board Schematic Diagram .............................................. 52
KDL-52S4100

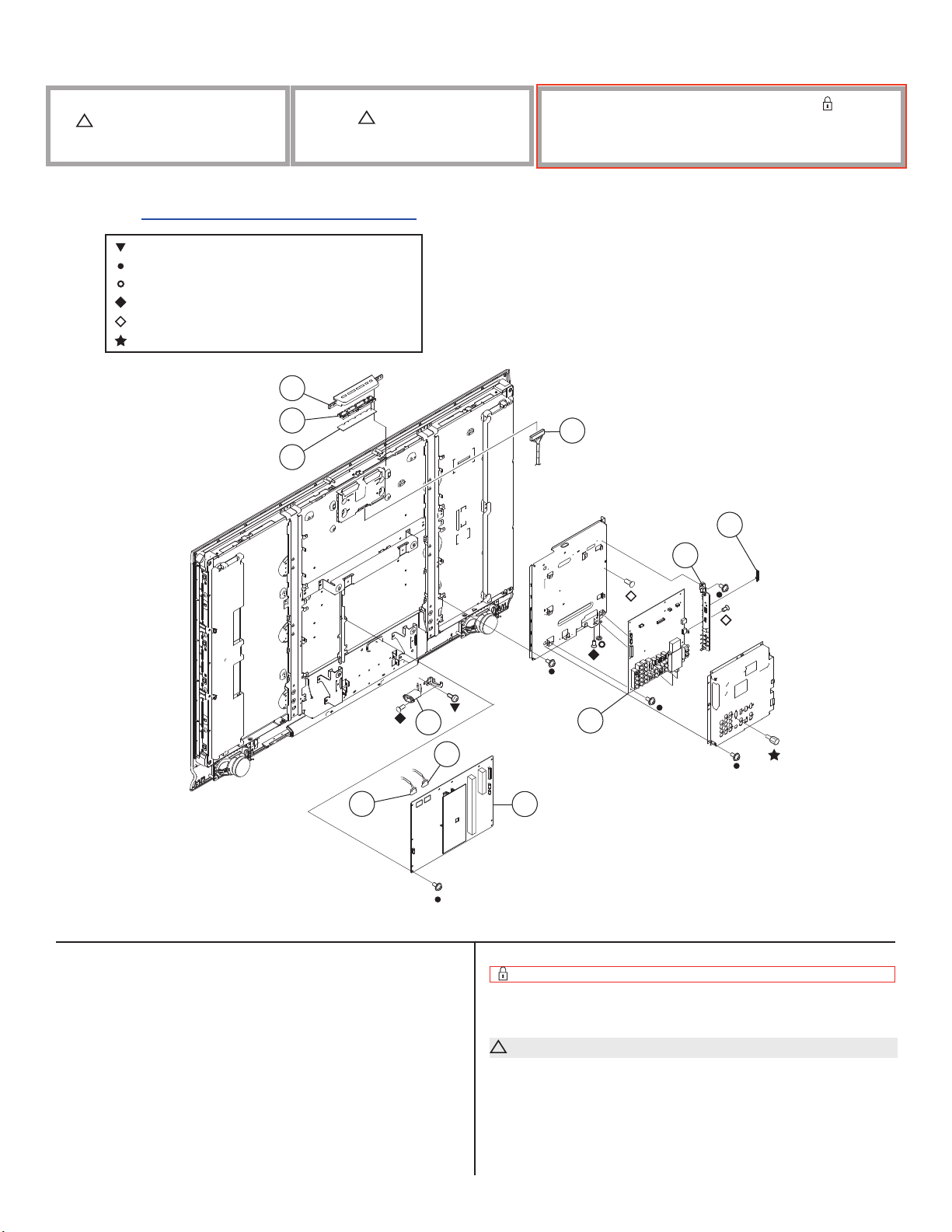

SECTION 4: EXPLODED VIEWS ........................................................ 54

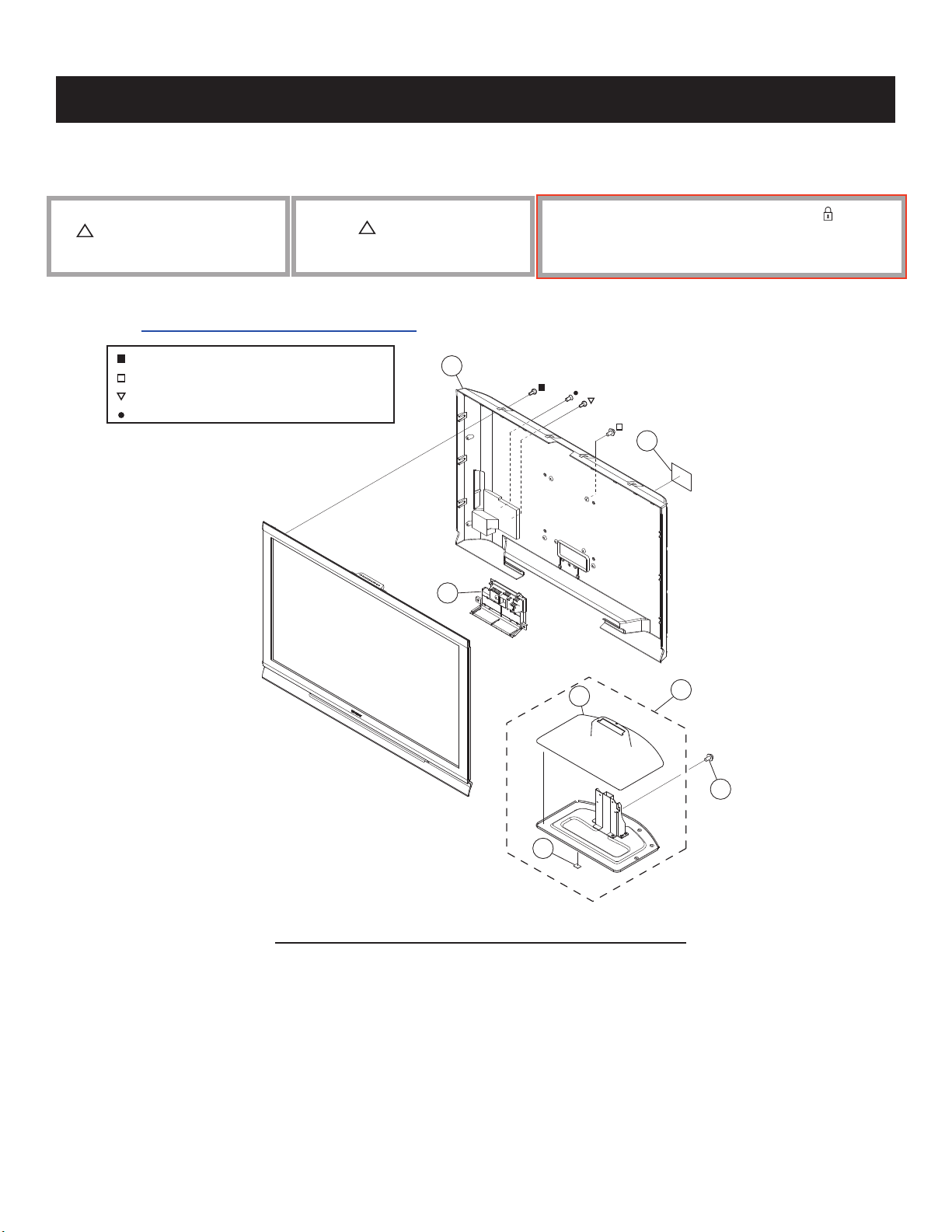

4-1. Rear Cover Assembly and Table-Top Stand Assembly ....... 54
4-2. Chassis ................................................................................ 55

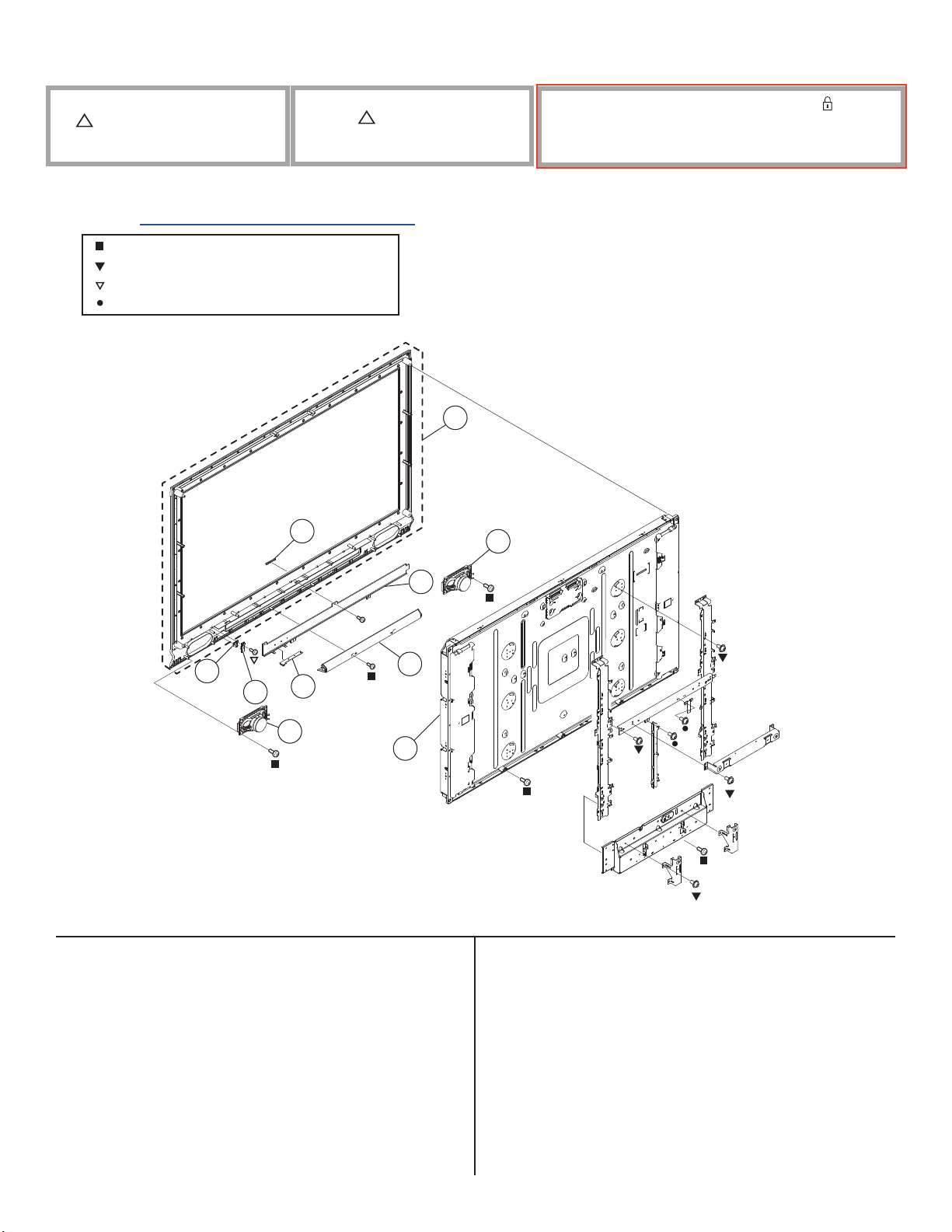

4-3. Bezel Assembly and LCD Panel .......................................... 56
4-4. Screw Legend ...................................................................... 57
APPENDIX A: ENCRYPTION KEY COMPONENTS ..........................A-1
3

SPECIFICATIONS

KDL-52S4100
Power Requirements
120V - 240V AC, 50/60Hz
VIDEO (IN) 1/2: S Video (4-Pin Mini DIN) (Video 1 only) Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Video
1 Vp-p, 75 ohms unbalanced, sync negative
Audio
500 mVrms (100% modulation) Impedance:47 kilohms
COMPONENT IN 1/2: YP
(Component Video)
BPR
Y:1.0 Vp-p, 75 ohms unbalanced, sync negative PB:0.7 Vp-p, 75 ohms PR:0.7 Vp-p, 75 ohms Signal format: 480i, 480p, 720p, 1080i, 1080p
Audio
500 mVrms (100% modulation) Impedance: 47 kilohms
HDMI IN 1/2/3: HDMI
Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p Audio: Two channel linear PCM 32, 44.1, and 48 kz, 16, 20 and 24 bits Audio (HDMI IN 1 only): 500 mVrms (100% modulation) Impedance: 47 kilohms
AUDIO OUT: 500 mVrms (100% modulation) More than 500 mVrms (Fixed)
DIGITAL AUDIO OUT (OPTICAL): Optical Digital Audio Output (PCM/Dolby Digital)
PC IN: Analog RGB (D-sub 15-pin):
0.7 Vp-p, 75 ohms, positive Audio (Stereo mini jack): 500 mVrms Impedance: 47 kilohms
4RADEMARK)NFORMATION
-ACINTOSHISATRADEMARKOF!PPLE)NCREGISTEREDINTHE53ANDOTHER COUNTRIES
($-)THE($-)LOGOAND(IGH$EFINITION-ULTIMEDIA)NTERFACEARE TRADEMARKSORREGISTEREDTRADEMARKSOF($-),ICENSING,,#
-ANUFACTUREDUNDERLICENSEFROM$OLBY,ABORATORIES$OLBYANDTHE DOUBLE$SYMBOLARETRADEMARKSOF$OLBY,ABORATORIES
"LURAY$ISCISATRADEMARK h"2!6)!v AND ARETRADEMARKSORREGISTEREDTRADEMARKSOF 3ONY#ORPORATION
h0,!934!4)/.vISAREGISTEREDTRADEMARKANDh03vISATRADEMARKOF 3ONY#OMPUTER%NTERTAINMENT)NC
KDL-52S4100
Design and specifi cations are subject to change without notice.
4
KDL-52S4100
)
Power Consumption
in use
in standby Less than 1.0 W
Speaker Output (W)
10W + 10W
Speaker/Full Range(2
mm 65 x 147 mm
in
2
Dimensions (W x H x D)
with stand
mm
1274 x 873 x 346
1/4
50
in
x 34
without stand
1274 x 833 x 119 mm
mm
in
50
1/4
x 32
wall-mount hole pattern (mm) 300 x 300 wall-mount screw size (mm) M6 8-12
Mass
with stand
kg
lbs
84 lbs 4 oz
without stand
kg
lbs 72 lbs 5 oz
All measurements are approximations.
295W
5/8
x 5
3/8
7/8
38.2 kg
32.8 kg
7/8
in
x 13
x 4
3/4
5/8
KDL-52S4100
in
in
Television system
NTSC American TV Standard ATSC (8VSB terrestrial) ATSC compliant 8VSB QAM on cable ANSI/SCTE 07 2000
Channel coverage
Analog Digital Terrestrial 2-69 2-69 Cable 1-135 1-135
Antenna
75-ohm external terminal for VHF/UHF
Panel System
LCD (Liquid Crystal Display) Panel
Display Resolution (horizontal x vertical):
1,920 dots x 1,080 lines
Screen Size (measured diagonally)
approx. 52 inches
Supplied Accessories
Remote Commander RM-YD025 Two Size AA (R6) Batteries AC Power Cord Cable Band Operating Instructions Quick Setup Guide Warranty Card
Optional Accessories
Connecting Cables Support Belt Kit Wall-Mount Bracket SU-WL500
KDL-52S4100
5
KDL-52S4100

WARNINGS AND CAUTIONS - ENGLISH

CAUTION
These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualifi ed to do so.
CARRYING THE TV
To avoid dropping the TV and causing serious injury, be sure to follow these guidelines:
Before carrying the TV, disconnect all cables. Carrying the large size TV requires two or more people. When you carry the TV, place your hand as illustrated and hold it
securely. Do not put stress on the LCD panel.
When carrying, do not subject the TV to shocks or vibration, or excessive force.
When lifting or moving the TV, hold it firmly from the bottom. Place your palm directly underneath but do not squeeze the panel’s speaker grille area.
When carrying the TV, to avoid pinching your hands or fingers do not put your hands between the TV and stand, or hold the bottom corner of the TV.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis. The chassis of this receiver is directly connected to the ac power line.
! SAFETY-RELATED COMPONENT WARNING!!
Components identifi ed by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identifi ed in this manual. Follow these procedures whenever critical components are replaced or improper operation is suspected.
KDL-52S4100
6
KDL-52S4100

WARNINGS AND CAUTIONS - FRENCH

ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualifi é seulement. Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.
TRANSPORTER LE TÉLÉVISEUR
Pour éviter d’échapper le téléviseur et de causer des blessures graves, assurez-vous de suivre ces directives :
Avant de transporter le téléviseur, débranchez tous les câbles.
Il faut deux personnes ou plus pour transporter le téléviseur de grande dimension.
Lorsque vous transportez le téléviseur, placez votre main tel qu’illustré et tenez-le fermement. N’imposez pas de charge sur le panneau ACL.
Lorsque vous transportez le téléviseur, ne le soumettez pas à des chocs, à des vibrations ou à une force excessive.
Lorsque vous soulevez ou déplacez le téléviseur, tenez-le fermement à partir du bas. Placez votre paume directement en dessous, mais n’appuyez pas sur le panneau avant ou la région encastrée.
Lorsque vous transportez le téléviseur, pour éviter de pincer vos mains ou vos doigts, ne placez pas vos mains entre le téléviseur et le suppor ou ne tenez pas le coin inférieur du téléviseur.
Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est directement raccordé à l’alimentation du secteur.
! ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.
KDL-52S4100
7

SAFETY-RELATED COMPONENT WARNING

KDL-52S4100
There are critical components used in LCD color TVs that are important for safety. These components are identifi ed with shading and mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number specifi ed in the electrical parts list to prevent electric shock, fi re, or other hazard.
NOTE: Do not modify the original design without obtaining written permission from the manufacturer or you will void the original parts and labor guarantee.
!
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When installing the LCD panel on a wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
To avoid damaging the LCD panel:
do not press on the panel or frame edge to avoid the risk of electric shock. do not scratch or press on the panel with any sharp objects. do not leave the module in high temperatures or in areas of high humidity for an extended period of time. do not expose the LCD panel to direct sunlight. avoid contact with water. It may cause a short circuit within the module. disconnect the AC adapter when replacing the backlight (CCFL) or inverter circuit.
(High voltage occurs at the inverter circuit at 650Vrms.)
always clean the LCD panel with a soft cloth material. use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short. protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
LEAKAGE CURRENT HOT CHECK CIRCUIT
KDL-52S4100
8
The circuit boards used in these models have been processed using Lead Free Solder. The boards are identified by the LF logo located close to the board designation e.g. H1 etc [ see example ]. The servicing of these boards requires special precautions to be taken as outlined below.
KDL-52S4100
example 1
It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints. Lead Free Solder is available under the following part numbers :
rebmuntraP retemaiD skrameR
91-500-046-7mm3.0gK52.0
02-500-046-7mm4.0gK05.0
12-500-046-7mm5.0gK05.0
22-500-046-7mm6.0gK52.0
32-500-046-7mm8.0gK00.1
42-500-046-7mm0.1gK00.1
52-500-046-7mm2.1gK00.1
62-500-046-7mm6.1gK00.1
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.
For more information on the use of Lead Free Solder, please refer to
http://www.sony-training.com
KDL-52S4100
9

SAFETY CHECK-OUT

KDL-52S4100
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.
The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale. The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also at earth ground. If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the lamp should light at normal brilliance if the screw is at ground potential (see Figure B).
Leakage Test
0.15 F
Figure A. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground.
To Exposed Metal Parts on Set
Earth Ground
AC Voltmeter (0.75V)
Trouble Light
AC Outlet Box
Ohmmeter
Cold-water Pipe
KDL-52S4100
10
KDL-52S4100

SELF-DIAGNOSTIC FUNCTION

IMPORTANT: The units in this manual DO NOT contain a self-diagnostic function. If an error occurs, the TV will not stay on. It is our recommendation that if a repair is required for this set, the technician should bring both the A Board and the G Board to the customer location.
Control Buttons
TIMER STANDBY POWER
Description of LED Indictors
The units in this manual DOES NOT contain a self-diagnostic function.
KDL-52S4100
11

1-1. REAR COVER REMOVAL

1
Remove 2 screws from HDMI connectors
2
Remove 2 screws from terminal positions
3
Remove 4 screws
4
Remove 20 screws
KDL-52S4100

SECTION 1: DISASSEMBLY

Rear Cover
1
2
4

1-2. FUNCTION KEY AND H1 BOARD REMOVAL

1
Slide out Function Unit from Bezel
2
Release hooks and remove Function Key and H1 Board from Key Cover
3
Disconnect 1 connector
4
Remove 2 screws and release Ground Wire from LCD Panel
Key Cover
Function Key
H1 Board
3
1
2
3
KDL-52S4100
Bezel
4
4
12

1-3. A BOARD AND G BOARD REMOVAL

Remove 1 screw from Side Bracket
1
Remove 1 screw from HDMI position
2
Disconnect 4 connectors
3
Remove 2 HEX screws
4
Remove 8 screws
5
Remove 9 screws
6
Remove 1 FH screw
7
Remove Hexagon Nut from tuner
8
Remove 1 FH screw
9
Remove 5 screws
10
Disconnect 7 connectors
11
Remove 8 screws
12
KDL-52S4100
Bezel
12
10
11
G Board
Main Bracket
9
8
7
A Boar d
Side Bracket
3
6
1
2
Main Shield
4
5
KDL-52S4100
13

1-4. TABLE-TOP STAND ASSEMBLY AND UNDER COVER REMOVAL

Place the TV set face down onto the soft cloth
1
2
Remove 4 screws
3
Remove 1 screw
2
Table-Top Stand Assembly
3
Under Cover
1
KDL-52S4100
Bottom Bracket
KDL-52S4100
14

1-5. AC INLET, STRUCTURAL FRAMES AND BRACKETS REMOVAL

Remove 2 screws from Top Vesa Bracket
1
Remove 2 screws from G Support 2
2
Remove 2 screws from G Board frame
3
Remove 2 screws from Center Frame
4
Remove 10 screws from Spine Frames
5
Remove 1 screw from AC Bracket
6
Remove 2 screws from AC Inlet
7
Remove 4 screws from both Bottom Vesa Brackets
8
Remove 4 screws from Bottom Bracket
9
Spine Frame
AC Bracket
AC Inlet
Top Vesa Bracket
2
G Support 2
Center Frame
6
7
KDL-52S4100
1
3
G Board Frame
4
Spine Frame
5
8
Bottom Vesa Bracket
9

1-6. LOUDSPEAKER REMOVAL

Remove 8 screws from both Loudspeakers
1
Bottom Bracket
Bezel
1
Speakers
1
KDL-52S4100
15

1-7. LCD PANEL REMOVAL

Disconnect LVDS connector
1
Disconnect 2 Inverter (Balancer Board) connector assemblies (See Detaching the Inverter Connector Assembly)
2
Disconnect 1 connector
3
Remove 3 screws
4
1
KDL-52S4100
2
4
3
LCD Panel
Bezel
1-7-1. DETACHING THE INVERTER CONNECTOR ASSEMBLY
CAUTION: Follow the instructions provided to remove the Inverter Connector Assembly
(1) Slide the slider to
release the slider lock
Unlock
(2) Press the center
lock tab to release the lock
- 4 -
(3) Gently pull the
connector up
locked state
KDL-52S4100
16
1-7-2. ATTACHING THE INVERTER CONNECTOR ASSEMBLY
CAUTION: Follow the instructions provided to reconnect the Inverter Connector Assembly.
KDL-52S4100
(1) Hold the center
of the connector
(2) Press the center of
the connector to insert it
(3) Slide the
slider to lock the connector
Lock
CAUTION: Secure the Inverter Connector Assembly
by locking the housing in place as shown.
Not Locked Correctly Locked
1-7-3. CLEANING THE LCD PANEL
CAUTION: When cleaning the TV, be sure to unplug the power cord to avoid any chance of electric shock.
Clean the cabinet of the TV with a dry soft cloth.
Wipe the LCD screen gently with a soft cloth.
Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.
If using a chemically pretreated cloth, please follow the instruction provided on the package.
Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
INVERTER CONNECTOR
KDL-52S4100
17

1-8. BOTTOM COVER, H2 BOARD, H3 BOARD, LED LENS AND IR LENS REMOVAL

1
Remove 2 screws
2
Disconnect 1 connector and slide out H3 (LED) Board
3
Disconnect 1 connector and remove 1 screw from H2 (IR) Board
4
Remove 1 screw from IR Lens
5
Remove 4 screws from LED Lens
Bottom Cover
1
LED Lens
5
H3 (LED) Board
2
KDL-52S4100
3
IR Lens
H2 (IR) Board
4
KDL-52S4100
18
Loading...
+ 41 hidden pages
