SONY KDE61XBR950 Service Manual
KDE61XBR950
SERVICE MANUAL
SPECIFICATIONS
US Model
Canadian Model
Panel System Plasma Display panel
Display resolution 1365 pixels (horizontal) × 768 pixels (vertical)
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Channel Coverage VHF 2-13
UHF 14-69
DTV 1-999
CATV 1-125
Power Requirements 120V, 60 Hz
Inputs/Outputs
DVI-HDTV 1 terminal, 3.3V T.M.D.S., 50 ohms
Video (IN) 3 total (1 on front panel) 1 Vp-p, 75 ohms unbalanced, sync negative
SVideo (IN) 3 total (1 on front panel) Y: 1 Vp-p, 75 ohms unbalanced, sync negative
Audio (IN) 6 total (1 on front panel) 500 mVrms (100% modulation)
Component Video Input 2 (Y, P
CONTROL S (IN) 1 minijack
CONTROL S (OUT) 1 minijack
Digital Audio Optical Output
(PCM/Dolby Digital)
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is not
intended for use with personal computers.
C: 0.286 Vp-p (Burst signal), 75 ohms
Impedance: 47 kilohm
B, PR)
1
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
P
B: 0.7 Vp-p, 75 ohms
P
R: 0.7 Vp-p, 75 ohms
Optical Rectangular (1)
FLAT PANEL COLOR TV
i.LINK 3 total (1 on front panel) 4-pin S400 i.LINK terminal
Variable/Fixed Audio (OUT) More than 408 mVrms at the maximum volume
1
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Sub woofer (OUT) phono jack
1
RF Inputs 2
Screen Size (measured diagonally) 61 inches
Speaker Output 15W × 2
Dimensions (W × H × D) PDM-6110 1797 × 937 × 110 mm
7
(70
/8 × 37 × 4 3/8 in)
MBD-XBR950 430 × 79 × 342.8 mm
1
(17 × 3
/8 × 13 1/2 in)
Mass Display unit
PDM-6110: 71kg (156 lbs 8 oz)
Media receiver unit
MBD-XBR950: 6.5kg (14 lbs 5 oz)
Power Consumption In Use Display unit
PDM-6110: 770 W
Media receiver unit
MBD-XBR950: 53 W
In Standby Under 1.5 W
i.LINK standby Under 22 W
Supplied Accessories Media receiver unit
Remote Control (1)
RM-Y1000
AA (R6) Batteries (2)
AC power code (2)
AC plug holder (1)
Display interface cable (1)
Antenna cable (1)
Cleaning cloth (1)
Display unit
Frame bars (2)
Screws (2)
Design and specifications are subject to change without notice.
KDE61XBR950 (UC) 2
SAFETY CHECK-OUT
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder
splashes and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched” or contact high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps,
and mounting hardware have been replaced. Be absolutely
certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. P oint them
out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend
the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC Leakage.
Check leakage as described right.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part
having a return to chassis, must not exceed 0.5 mA (500
microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT -540A. Follow the manuf acturers’ instructions to use these
instruments.
2. A battery-operated A C milliammeter . The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are
examples of a passive V OMs that are suitable. Nearly all battery operated digital multimeters that have a 2 V AC range
are suitable. (See Fig. A)
WARNING!!
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
! ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION
ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE
PROCEDURES WHENEVER CRITICAL COMPONENTS
ARE REPLACED OR IMPROPER OPERATION IS
SUSPECTED.
AVERTISSEMENT!!
ATTENTION AUX COMPOSANTS RELATIFS À LA
SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET
UNE MARQUE ! SONT CRITIQUES POUR LA SÉCURITÉ.
NE LES REMPLACER QUE PAR UNE PIÈCE PORTANT
LE NUMÉRO SPECIFIÉ. LES RÉGLAGES DE CIRCUIT
DONT L’IMPORTANCE EST CRITIQUE POUR LA
SÉCURITÉ DU FONCTIONNEMENT SONT IDENTIFIÉS
DANS LE PRÉSENT MANUEL. SUIVRE CES
PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE
COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS
FONCTIONNEMENT EST SUSPECTÉ.
To Exposed Metal
Parts on Set
AC
0.15 µF
1.5 k
Ω
Earth Ground
Voltmeter
(0.75 V)
Fig. A. Using an AC voltmeter to check AC leakage.
KDE61XBR950 (UC) 3
TABLE OF CONTENTS
1. DISASSEMBLY ............................................ 1-1
1-1. DISPLAY UNIT (PDM-6110) ........................... 1-1
1-1-1. REAR COVER REMOVAL ......................... 1-1
1-1-2. G1 BOARD REMOVAL ............................... 1-2
1-1-3. F1 AND K2 BOARDS REMOVAL ............. 1-2
1-1-4. DEM AND K3 BOARDS REMOVAL ......... 1-3
1-1-5. G2 BOARD REMOVAL ............................... 1-3
1-1-6. SPEAKER BOX ASSY REMOVAL ............ 1-4
1-1-7. FILTER GLASS BRACKET
ASSY REMOVAL ......................................... 1-5
1-1-8. R1 BOARD REMOVAL ............................... 1-6
1-1-9. R2 BOARD REMOVAL ............................... 1-6
1-1-10. PLASMA DISPLAY PANEL ....................... 1-7
1-2. MEDIA RECEIVER UNIT (MBD-XBR950) ... 1-8
1-2-1. TOP COVERS REMOVAL .......................... 1-8
1-2-2. QH BOARD REMOVAL .............................. 1-8
1-2-3. H1, H2, H3 AND H4 BOARDS
REMOVAL .................................................... 1-9
1-2-4. G BOARD REMOVAL ................................. 1-9
1-2-5. A BOARD REMOVAL ................................. 1-10
2. ADJUSTMENTS ........................................... 2-1
2-1. VS, VD VOLTAGE ADJUSTMENT
(PDM-6110) ...................................................... 2-1
2-2. WHITE BALANCE ADJUSTMENT
(PDM-6110) ...................................................... 2-1
(8) Schematic Diagram of UD Board ..................... 3-49
3-5. SEMICONDUCTORS ....................................... 3-51
4. EXPLODED VIEWS ...................................... 4-1

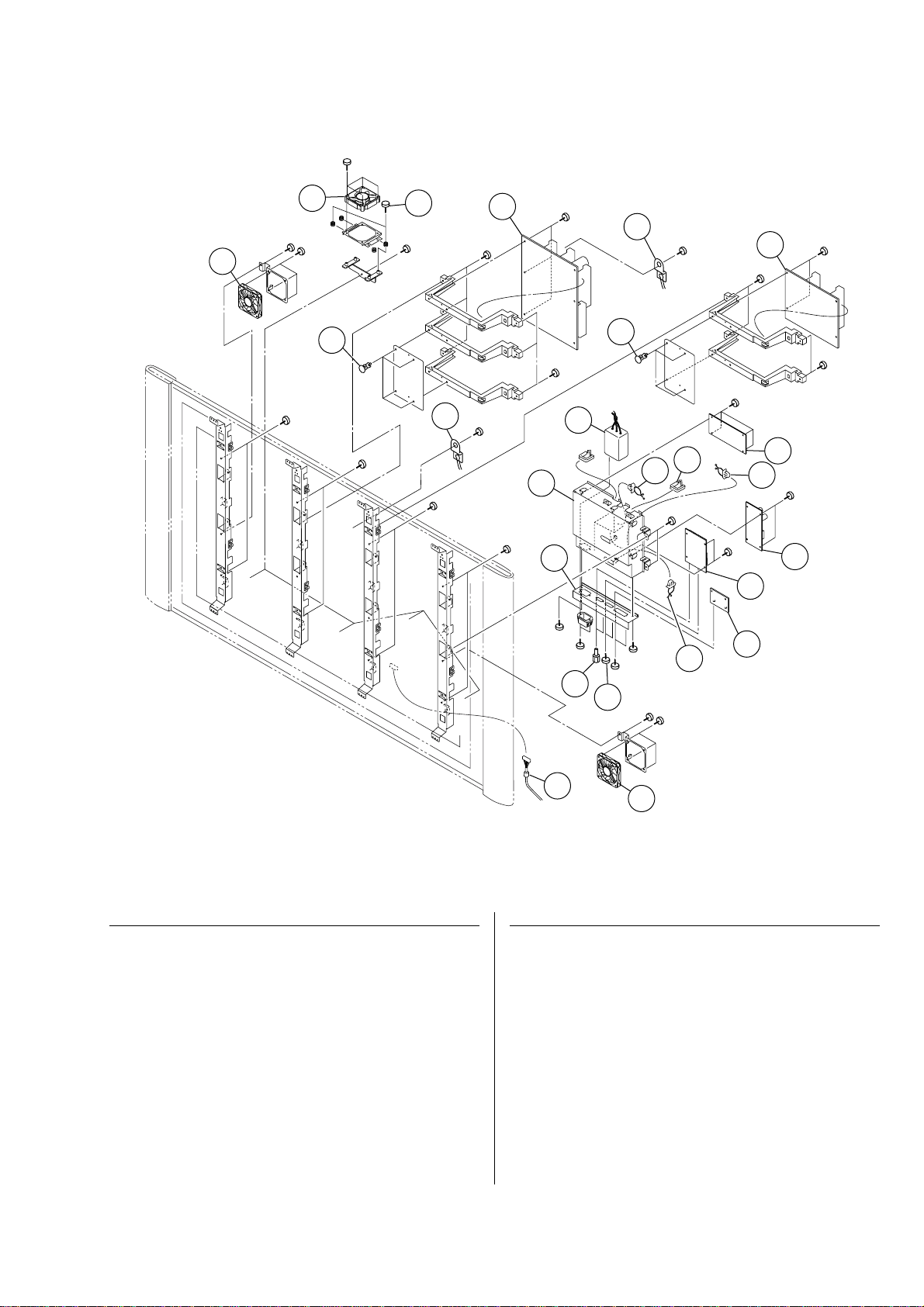

4-1. DISPLAY UNIT-1 (PDM-6110) ....................... 4-2
4-2. DISPLAY UNIT-2 (PDM-6110) ....................... 4-3
4-3.
MEDIA RECEIVER UNIT-1 (MBD-XBR950) ...
4-4.
MEDIA RECEIVER UNIT-2 (MBD-XBR950) ...
4-5.
MEDIA RECEIVER UNIT-3 (MBD-XBR950) ...
4-6. PACKING MATERIALS FOR DISPLAY UNIT
(PDM-6110) ......... 4-7
4-7. PACKING MATERIALS FOR DISPLAY UNIT
(MBD-XBR950) .. 4-8
4-4
4-5
4-6
5. ELECTRICAL PARTS LIST ......................... 5-1
3. DIAGRAMS ................................................... 3-1
3-1. BLOCK DIAGRAMS ........................................ 3-1
3-1-1. DISPLAY UNIT (PDM-6110) ...................... 3-1
3-1-2.
MEDIA RECEIVER UNIT (MBD-XBR950) ..
3-2. FRAME DIAGRAM .......................................... 3-11
3-3. CIRCUIT BOARDS LOCATION ..................... 3-12
3-3-1. DISPLAY UNIT (PDM-6110) ...................... 3-12
3-3-2.
MEDIA RECEIVER UNIT (MBD-XBR950) ..

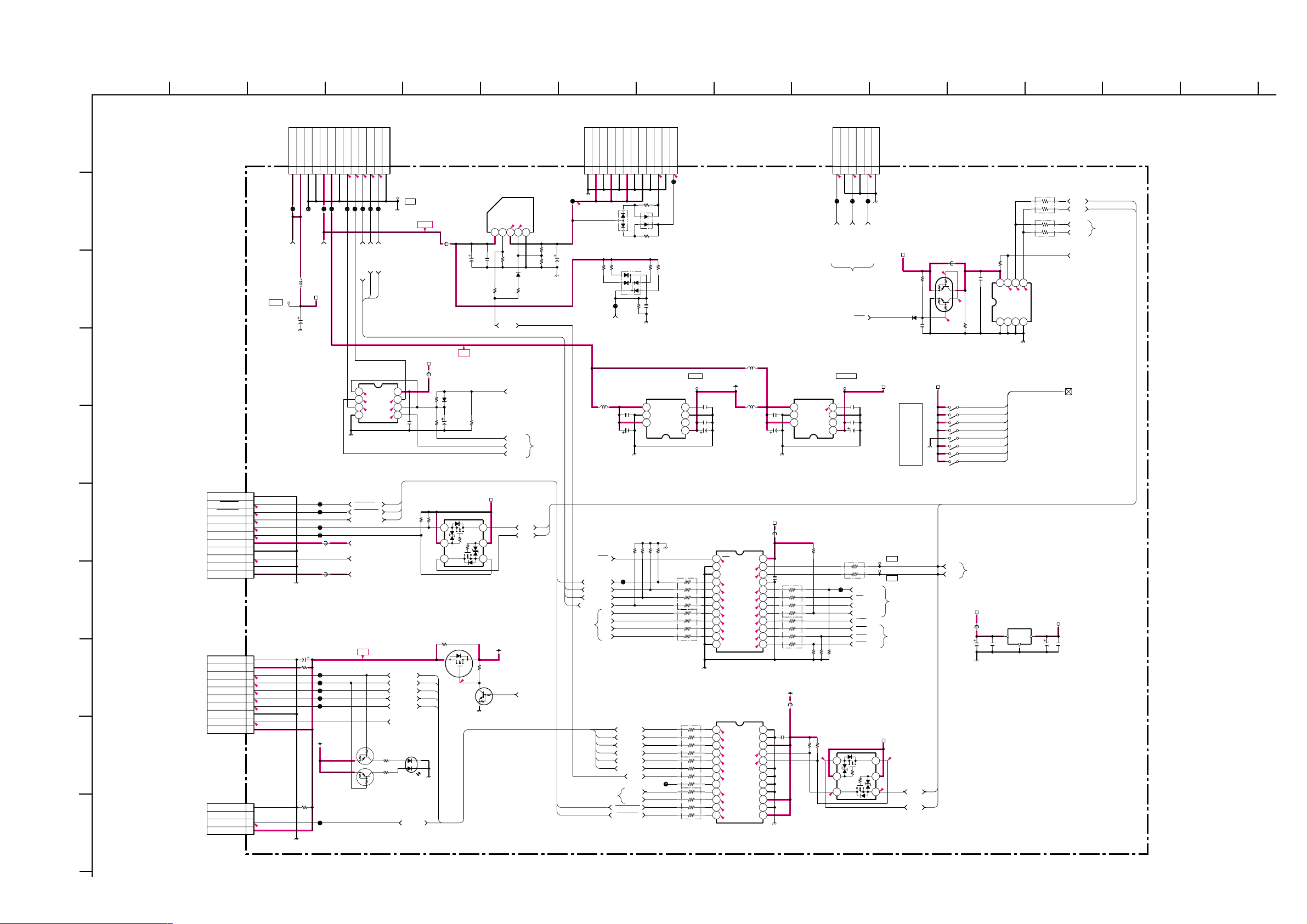

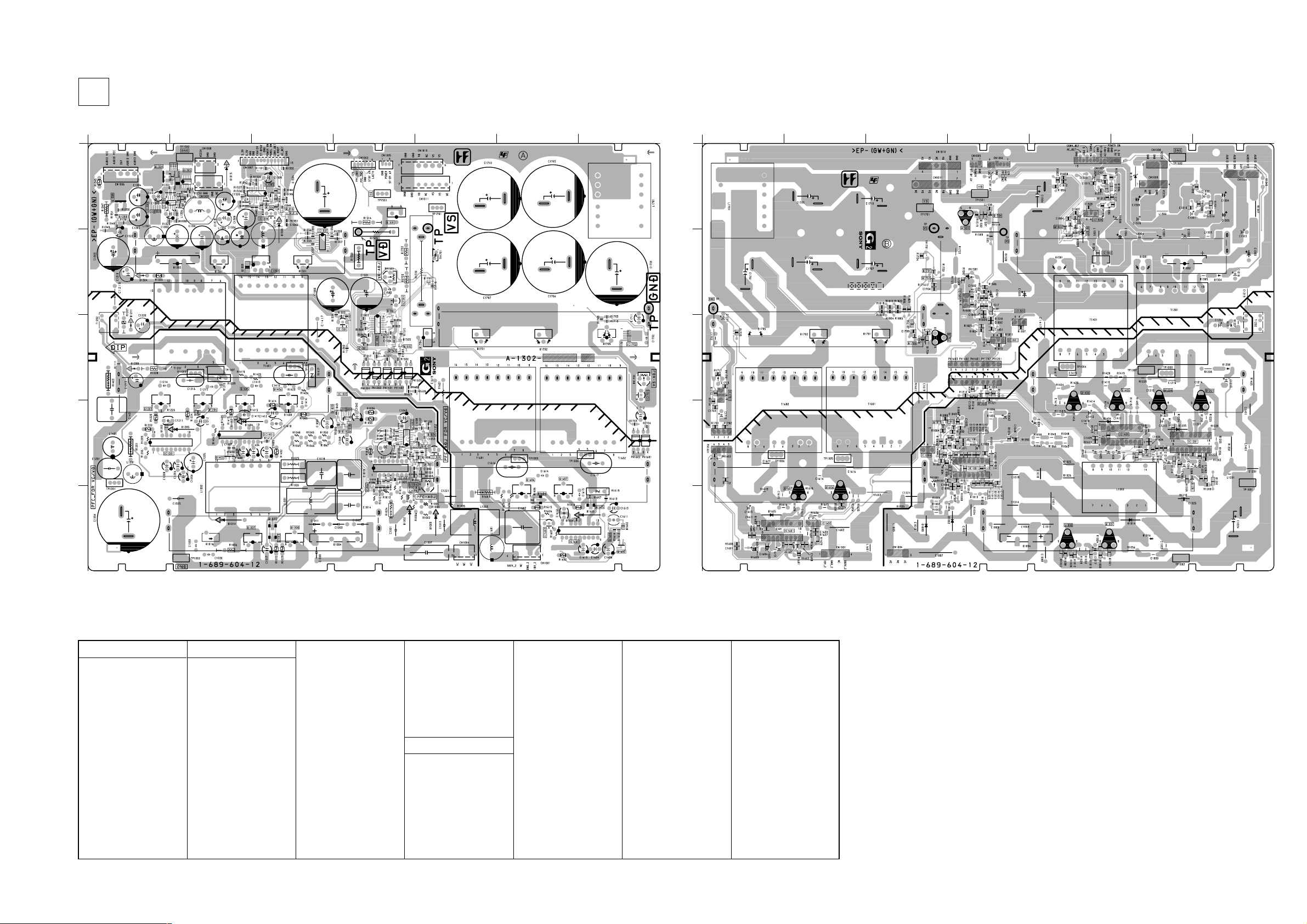

3-4. SCHEMATIC DIAGRAMS AND PRINTED
WIRING BOARDS ........................................... 3-12
3-4-1. DISPLAY UNIT (PDM-6110) ...................... 3-13
(1) Schematic Diagram of F1 Board ...................... 3-13
(2) Schematic Diagrams of DEM Board ................ 3-14
(3) Schematic Diagram of G1 Board ..................... 3-23
(4) Schematic Diagram of G2 Board ..................... 3-25
(5) Schematic Diagram of K2 Board ..................... 3-27
(6) Schematic Diagram of K3 Board ..................... 3-29
(7) Schematic Diagram of R1 Board ...................... 3-30
(8) Schematic Diagram of R2 Board ...................... 3-30
3-4-2.
MEDIA RECEIVER UNIT (MBD-XBR950) ..
(1) Schematic Diagrams of A Board ...................... 3-31
(2) Schematic Diagram of G Board........................ 3-36
(3) Schematic Diagram of H1 Board ..................... 3-38
(4) Schematic Diagram of H2 Board ..................... 3-39
(5) Schematic Diagram of H3 and H4 Boards ....... 3-41
(6) Schematic Diagram of IF Board ....................... 3-42
(7) Schematic Diagrams of M Board ..................... 3-43
3-5
3-12
3-31
KDE61XBR950 (UC) 4
1-1. DISPLAY UNIT (PDM-6110)
1-1-1. REAR COVER REMOVAL
SECTION 1
DISASSEMBLY
1 Four screws
(+PSW 4x12)
1 Six screws
(+PSW 4x12)
2 Six screws
(+PSW 4x12)
2 Six screws
(+PSW 5x16)
3 Five screws
(+PSW 3x8)
4 Rear cover
2 Six screws
(+PSW 5x16)
1 Four screws
(+PSW 4x12)
KDE61XBR950 (UC) 1-1
1-1-2. G1 BOARD REMOVAL
1 Two screws
(+PSW 4x12)
2 G1 bracket
3 Two screws
(+BVTP 3x12)
4 G1 board
1 Two screws
(+PSW 4x12)
1-1-3. F1 AND K2 BOARDS REMOVAL
1 Two screws
(+PSW 3x8)
2 F1 board
3 Two screws
(+PSW 3x8)
4 K2 board
KDE61XBR950 (UC) 1-2
1-1-4. DEM AND K3 BOARDS REMOVAL
3 Four screws
(+PSW 3x8)
4 DEM board
6 K3 board
1 Two screws
(HEX)
2 Two screws
(M2.6 S HEAD EG GRIP)
5 Four screws
(+PSW 3x8)
1-1-5. G2 BOARD REMOVAL
3 Three screws
(+BVTP 3x12)
1 Three screws
(+PSW 4x12)
4 G2 board
1 Three screws
(+PSW 4x12)
2 G2 Bracket
KDE61XBR950 (UC) 1-3
1-1-6. SPEAKER BOX ASSY REMOVAL
1 Ten screws
(+BTP 4x18)
3 Six screws
(+BVTP 4x16)
2 Four screws
(+PSW 4x10)
4 Speker box (RL)
6 Ten screws
(+BTP 4x18)
Speker
terminal (B)
5 Speker box (L) assy
Speker terminal (A)
Speker terminal (A)
0 Speker box (R) assy
7 Four screws
(+PSW 4x10)
9 Speker box (RR)
8 Six screws
(+BVTP 4x16)
Speker
terminal (B)
KDE61XBR950 (UC) 1-4
1-1-7. FILTER GLASS BRACKET ASSY REMOVAL
1 Four screws (+BVTP 4x12)
2 Two screws
(+PSW 4x12)
3 Filter bracket assy (V)
!º Four screws (+PSW 4x12)
!¡ Two screws (+BVTP 4x12)
5 Two screws
(+BVTP 4x12)
6 Filter bracket
assy (H)
@¡ Filter glass
brackety assy
@º Bar (V)
!ª Two Fixid screws
!£ Six Fixid screws
4 Four screws
(+PSW 4x12)
!™ Filter bracket assy (H)
9 Filter bracket assy (V)
7 Two screws
(+PSW 4x12)
8 Four screws
(+BVTP 4x12)
!§ Bar (H) assy
!∞ Six Fixid screws
!¢ Bar (H) assy (UPPER)
!¶ Two Fixid screws
!• Bar (V)
KDE61XBR950 (UC) 1-5
1-1-8. R1 BOARD REMOVAL
1 Two screws
(+P 3x16)
4 R1 board
3 PC board spacer
2 Filter bracket (V) block assy
1-1-9. R2 BOARD REMOVAL
2 Filter bracket (H) block assy
3 PC board spacer
1 Four screws
(+PSW 4x12)
4 R2 board
KDE61XBR950 (UC) 1-6
1-1-10.PLASMA DISPLAY PANEL
1 Two screws
(+P 3x16)
3 Four screws (+PSW 4x12)
2 Filter bracket (V) block assy
5 61 Inch prasma display panel
4 Filter bracket (H) block assy
61 Inch optical filter
KDE61XBR950 (UC) 1-7
1-2. MEDIA RECEIVER UNIT (MBD-XBR950)
1-2-1. TOP COVERS REMOVAL
2 Top cover
1 Four screws
(M3,SW)
3 screw
(M3,SW)
4 Screw
(+BVTP 3x12)
4 Five screws
(+BVTP 3x12)
3 screw
(M3,SW)
3 Two screws
(M3,SW)
4 Screw
(+BVTP 3x12)
3 Two screws
(M3,SW)
5 Four screws
(HEX)
6 Two screws
(GRIP,M2.6 S HEAD)
7 Rear panel assy
1-2-2. QH BOARD REMOVAL
2 QH board
1 Screw
(+BVTP 3x12)
8 Front panel assy
3 Two screw
(+BVTP 3x12)
Front panel assy
KDE61XBR950 (UC) 1-8
1-2-3. H1, H2, H3 AND H4 BOARDS REMOVAL
1 Two screws
(+BVTP 3x12)
2 H1 board
4 H2 board
3 Four screws
(+BVTP 3x12)
6 H3 board
8 H4 board
5 Two screws
(+BVTP 3x12)
7 Three screws
(+BVTP 3x12)
1-2-4. G BOARD REMOVAL
1 Seven screws
(+PSW 3x8)
2 G board
KDE61XBR950 (UC) 1-9
1-2-5. A BOARD REMOVAL
1 RFcable
2 Two screws
(+PSW 3x8)
2 Two screws
(+PSW 3x8)
3 D block assy
4 Two screw
(+PSW 3x8)
8 RFcable
4 Two screw
(+PSW 3x8)
5 Case(UP)
M block shield
6 Three screws
(+PSW 3x8)
7 A board
KDE61XBR950 (UC) 1-10E
SECTION 2
ADJUSTMENTS
2-1. VS, VD Voltage Adjustment
(PDM-6110)
• Preparation for adjustment
1. Slide the DIP switch (S3201) No. 8 of P board to on
position with no silkscreen mark r.
2. Connect a digital voltmeter to the following terminals of
G board.
VS voltage=G board TP1701 (VS)-TP1502 (GND)
VD voltage=G board TP1501 (VD)-TP1502 (GND)
3. Connect a AC cord in DISPLAY UNIT.
4. Perform the adjustment in 10 seconds after connecting
the cord.
• Procedure for adjustment
1. Slide the DIP switch (S3201) No. 7 of P board to on
position with no silkscreen mark r.
2. Confirm the lighting of SONY LOGO LED.
3. Adjust the VS voltage to the following voltage value.
VS voltage of proper value for each model.
Ex.) VS proper value=185V thru 185.6V at 185V.
(Check the proper value with a seal on upper left of
panel unit. Refer to right Fig.)
4. Adjust the VD voltage to the following voltage value.
VD voltage ±0.3V of proper value for each model.
Ex.) VD proper value=64.7V thru 65.3V at 65.0V.
(Check the proper value with a seal on upper left of
panel unit. Refer to right Fig.)
5. Check a Fan rotation.
6. Slide the DIP Switch (S3201) No. 7 of P board to the off
position with the silkscreen mark r.
7. Slide the DIP Switch (S3201) No. 8 of P board to the off
position with the silkscreen mark r.
8. Disconnect an AC cord of DISPLAY UNIT.
9. Reconnect the AC cord in one second.
10. Assure that “POWER ON/STANDBY” LEDs is
flashing amber.
+6V
–0V
values of 6500K, 8000K, 9300K, 10000K and 13550K
to following values of X/Y.
W/B standardized values:
6500K+8MPCD 8000K+8MPCD 9300K+8MPCD
W/B
X 0.3133±0.003 0.2944±0.003 0.2838±0.003
Y
W/B
X
Y
6. After adjusting the values, at the values of the “SCNR”
or “SCNB” exceeding 128 (initialize value).
1) Reset a lager value of the “SCNR” or “SCNB” at 128.
2) Set the White Balances with the last of items and
“SCNG” to the X/Y values above.
7. After the above step, when these item are nonqualified
following conditions, set the largest one at 128 and
readjust the White Balance with the last two item.
1) No one of “SCNR”, “SCNB” and “SCNG” exceeding
128.
2) Confirm the item value 128 at least one item.
8. As a result above, input the sequential number of value
to the “SCNR”, “SCNB” and “SCNG”.
9. Repeat the same step 5 thru 8 for the W/B 1 thru 4 after
setting the “0 WBNO” at each W/B number.
10.Input following signals from the Signal generator (VG828D).
1) All-white signal (255/255) input
Y (luminance)=45cd/m
2) 1/25Window (255/255) input
Y (luminance)=45cd/m2 or more
012
0.3297±0.003
10000K 13550K
34
0.2806±0.003
0.2883±0.003
0.3100±0.003 0.2981±0.003
0.2684±0.003
0.2700±0.003
2
or more
2-2. White Balance Adjustment
(PDM-6110)
• Measurement equipment
1. Color analyzer (CA-100 manufactured by MINOLTA)
1. Signal generator (ASTRO DESIGN VG-828D)
• Measuring procedure
1. Dab the W/B adjustment jig (CA-100) at the glass face
of the panel.
2. Connect the Signal generator (VG-828D) to the DVI
terminal.
3. Input All-white signal and set the picture mode to
DYNAMIC.
4. Select”PNLCTRL” in the service mode menu and set “0
WBNO” at “0”
5. Select “SCNR” “SCNB” of “PDPWB” in the service
mode menu, and then adjust following W/B standardized
KDE61XBR950 (UC) 2-1E
3-1. BLOCK DIAGRAMS
3-1-1. DISPLAY UNIT (PDM-6110)
D3108 D3111
OVER VOLTAGE
PROTECTER
RES
Q3101
+3.3V
Q3110
SW
IC3102
RXD/TXD/RES
BUFFER
9
3A
6
2Y
2
1A
12
4A
1,4,10,13
IC3101
VOLTAGE COMP.
B+
D3104,3106
Q3118
(BLACK)
(WHITE)
STBY
MODE
DDC
DDC
JIG
B11
A7
IC 3103,3111
LVD RX/TX
7
8
5
6
5
6
7
8
RES
8
3Y
5
2A
3
1Y
MODE
11
4Y
AO
DET
BO
IIC BUFFER
WC
WC
SECTION 3
DIAGRAMS
Q3119,3120
3.2V
VCC SW
PD0
PD1
2
3
3
2
Q3118
+3.3V
LCLYSX
SY
IC3104
IC3107
SERIAL BUS SELEG
12
14
15
11
1
5
2
4
10
9
Q3108
WP
IC3107
SERIAL BUS SELEG
Q3108
12
14
15
11
1
5
2
4
SEL0
10
SEL1
9
WP
WP
+3.3V
4
3
1
IC3112(1/2)
IC3104
5V 3.3V
SEL0
SEL1
2
SDA
SCL
RV10 RV17
GY17 GY17
BU10 BU17
IC3501(1/2)
CPU
RA01 RA09
GA01 GA09
BA01 BA09
103,104
129,130
154-056
166,167
168
179,180
190-192
201,202
214
203
226-228
215,216
237-240
426
399
427
52
77
22
PSS
HSYNC
VSYNC
DE
SD
SCK
IC3801
LVDS TRANSMITTER
1-10
RA01 RA09
81,84
1
79,80
GA01 GA09
93-96
99,100
77,78
85-92
BA01 BA09
54
HSYNC
55
VSYNC
DE
56
63
SD
64
SCK
22
9
PD
IC3802
LVDS TRANSMITTER
R0 RI-
7
RI+
RARA+
RBRB+
RC-
-
RC+
RCLKRCLK+
RDRD+
RE-
RE+
RFRF+
RGRG+
RH-
RH+
1
2
50
49
47
46
45
44
42
41
39
38
37
36
34
33
32
31
29
28
11
12
13
14
15
16
18
19
20
21
22
23
25
26
27
29
4
5
6
7
8
9
CN3801
RARA+
RBRB+
RC-
-
RC+
RCLK-
RCLK+
RDRD+
RERE+
RFRF+
RG-
RG+
RH-
RH+
MSEL
PSPS+
ALARML
TO
PDP UNIT
10
Q3111
IC3109
SDA
SCL
ODCK
VSYNC
HSYNC
PD
IC3252
FPGA
VS
HS
DCK
DIN
IC3253
PROM
TDI
TMS
220,205
205,208
193,194
242,289
253,254
265,266
277,278
241,229
232,230
219,217
VS1
181
HSCS1
182
CLKI1
197
DE1
171
HSADOUT1
167
3
5
4-7
R4 R7
G0 G7
B0 B7
8
Q3251
EVEL SHIFT
SCL
SDA
DCK
44
46
47
48
SCDT
8
2
PD2
IC3110
7
10-13
3
134-141
123,124
126
129-133
84
P3
85
P2
86
P1
87
P0
26
SCL
27
SDA
18 GCK2
19
DEI
21 VSI
21
HSI
R0 R7
G0 G7
B0 B7
R0 R7
G0 G7
B0 B7
PROGRAM
VSO
HSO
DCK
DEO
CCLK
DIN
TDI
DONE
INIT
TCK
TDO
58-56
50-46
67-62
60-59
83
80-74
42
41
44
43
37
39
32
72
68
69
2
34
RO0 7
GO0 7
RO0 7
43
40
31
15
13
10
7
CONCNFIGURATION
CLK
D0
TDO
CE
OE
CF
TCK
6
5
DEM (1/2)
1 VCC
2 TRST
3 TDI
4 TDO
5 TMC
6 TCK
7 MODE
8 GND
(LVDS TRANSMITTER,FPGA,,CPU)
➃➓
CN3251
8P
KDE61XBR950 (UC) 3-1
A
TO G2 BOARD
CN1007
B
TO K2 BOARD
CN3001
C
TO R1 BOARD
CN701
D
TO R2 BOARD
CN751
TO FAN
CN3304
3.3v
3.3V
12V
STBY_6V
POWER_ON
PANEL_ON
CONV_DEP
G_PROT
AC_DET
CN3306
PANEL
HIC
HIC2
CN3301
SPDIF
SDA
SCL
AU_PROT
AU_MUTE
AU_RES
CN3302
SIRCS
MUTE
TIMER 2
TIMER 1
POWER
STBY
STBY 5V
CN3303
LOGO
STBY 5V
CN3305
DRV
DRV
DRV
DRV
DRV LOW
DRV LOW
1
2
5
6
8
9
10
11
12
1
3
5
3
6
7
8
9
10
2
4
5
6
7
8
9
2
1
2
4
6
8
10
12
+3.3V
+12V
SPDIF
SIRCS
Q3305,33306
SW
3
3
TO 1/2
IC3305
3.3V REG
VOUT
1/2
2
3
4
5
6
1
+5V
VIN
CONT
IC3304
5V REG
7
VIN VOUT +3.3V
5
CONT
P0
P1
8
P2
TO
P3
SCL
SDA
Q3304
LEVEL
SHIFT
IC3308
D/A CONVERTER
A02
A03
A04
A05
A06
A01
SDA SDA
20
1
2
A011
A012
A07
A09
A010
21
+12V
4
7
6
5
8
9
10
11
22
23
11
12
10
1
SCL
SDA
7
9
IC3306
I/O EX
I/O00
I/O03
I/O02
I/O01
I/O04
I/O05
I/O06
I/O07
SDA
SCL
SEL0
SEL1
Q3303
LEVEL
SHIFT
I/O07
I/O13
I/O15
I/O12
I/O11
I/O09
I/O16
I/O10
INT
IC3305
3.3V REG
7
VIN
5
CONT
20
16
18
15
14
13
19
17
1
+3.3V
6
VOUT
PANEL ON
POWER ON
PD3
SCDT
PD2
PD1
PD0
WP
SCDT
Q3106,3107
+3.3V
TO 1/2
SDA
SCL
1
+5V
IC3301
OR
7
3
IC3112(2/2)
5
6
TO 1/2
9
TO 1/2
7
TO 1/2
4
5
TO 1/2
+3.3V
Q3351
2
3
6
5
3
TO 1/2
2
IC3351
EEPROM
SCL
SDA
WP
IC3401
PANEL MCU
IC3403
FLASH MEMORY
1 9
84
PANEL ON
82
AC SW
83
POWER ON
30
TEST
22
14
THERMO PANEL
15
THERMO H1C
13
THERMO HIC2
47
SCL2O
48
6
5
7
48
46
42
57
SCL2I
SDA2I
SDA20
NVM WP
LED ON
103-109
A0-A18
111-118
D0-D15
RY/BY
AS
RD
WR0
WR1
CS1
MCLK
CS0
BUS-SW
CLS
PLLBP
P-ALARM
XO
XI
SO0
SO1
SI0
SI1
SW-1
CABLE DET
RESET
1-4
85-100
40
81
70
71
72
59
79
58
41
68
67
33
54
53
26
29
25
28
80
21
22
X3401
10.5MHz
TXD0
TXD1
RXD0
RXD1
MODE
DET
RESET
10
A1-A20
D0-D15
A1-A20
D0-D15
TO 1/2
1
30
TO 2/2
IC3402
RESET
VOUT
S3351
SW
48
16-25
29-36
38-45
11
15
28
26
2-7
9-14
16
18
19
20
21
22
47
48
2-7
9-14
18-20
48
49
A0
A18
D0
D15
WE
RY/BY
OE
CE
IC3405
BUS SW
2A3
2A4
2A5
2A6
2A7
2A8
1OE
2OE
IC3406
BUS SW
1OE
2OE
RES
1B1-1B8
2B1-2B6
2B3
2B8
1B1-1B8
2B1-2B6
11
34-40
42-46
33
31
30
29
28
27
29-31
33-40
42-46
CPUA0-12
CPUD0-15
371
396-398
423-425
452,453
478-480
445
CPURD-X
392
418
CPUWR0-X
472
CPUWR1-X
444
CPUAS-X
391
CPUCLK-X
393,395
419-422
446-450
473-477
54
CL_X
27
PLLBP
IC3501(1/2)
CPU
CPUA0
CPUA12
CPUCS-X
CPUD0
CPUD15
DEM (2/2)
(FPGA,MCU,CPU)
TEST
SW-4
SW-3
12C_EN
27
69
78
37
KDE61XBR950 (UC) 3-2
H
TO F1 BOARD
CN603
L
TO G2 BOARD
CN1004
CN2005
AC
AC
CN2001
AC
AC
D2004
RECT
Q2008
CONVERTER
L2001-2003 D2016
Q2009
CONVERTER
+12V
Q2003
+12V
Q2005
DRIVE
PH2202
ISOLATER
Q2202
SW
IC2003
REG
31
OUT VCC
CTL
2
Q2018
OVP
Q2019
Q2020
LATCH
+12V
+6V
+12V
RY2001
Q2015
RELAY
DRIVE
2
1
1
3
CN2004
18V_2
41380V_2
CN2002
1 12V
CN2003
1
12V
2
PFC_SW1
3
PFC_SW2
5
STBY 6V
6
LATCH(NC)
K
TO G2 BOARD
CN1001
G
TO K3 BOARD
CN3003
J
TO G2 BOARD
CN1002
D2002
D2009
D2008
Q2001
RESET
Q2004
SS RES
10
6
8
IC2001
DRIVE
ENA
IAC
VRMS
VCC
OUT
VREF
IERR
SS
VFB
15
16
9
3
13
11
IC2004
Q2011
SS RES
RV2001
VREF
2
3
Q2012
LVP
Q2013
Q2017
SS
Q2006
SS
Q2024
OVP
IC2002
SS/PROTECT
12
14
13
3
1
2
5
7
6
10
8
9
G
1(POWER)
KDE61XBR950 (UC) 3-3
L
TO G1 BOARD
CN2001
K
TO G1 BOARD
CN2004
J
TO G1 BOARD
CN2003
I
TO F1 BOARD
CN604
CN1004
AC
AC
CN1001
18V-2
GND
CN1002
12
PPC-SW1
PPC-SW2
STBY5V
CN1005
POWER
STBY5V
2
1
1
2
3380V_2
1
2
3
5
6LATCH
2
3
D1002
G2
12V
6V
Q1014,1016
6V
D1009
Q1004
Q1001
RESET
SS RES
D1008
(POWER)
10
6
8
D1004
RECT
LATCH
IC1001
DRIVE
ENA
IAC
VRMS
L1001-1003 D1016
VCC
15
16
OUT
VREF
9
IERR
3
Q1011
SS RES
13
SS
11
VFB
RV1001
Q1009
CONVERTER
+12V
Q1003
Q1005
DRIVE
IC1004
VREF
2
3
D1208
PH1202
ISOLATER
IC1003
+12V
Q1012
LVP
Q1013
Q1017
SS
Q1006
REG
31
OUT VCC
CTL
Q1018
IC1002
SS/PROTECT
12
13
3
2
5
6
10
9
SS
Q1024
OVP
Q1202
SW
2
OVP
7
7
14
1
7
8
T1202
PIT
2
4
Q1019
Q1020
LATCH
D1601
Q1601
SW
Q1602
SS RES
D1204
D1201
Q1401
SW
Q1404
SW
Q1201
SS
2F/B
IC1201
DRIVER
VC18
7SS
F/B2
IC1401
DRIVER
VSENSE
VC1
SS
F/B2
IC1601
DRIVER
VSENCE
VC1
SS
Q1603
REGULATOR
16VG(H)
VS 15
VG(L) 12
OCP 9
20V
VG(H)116
158 VS
127 VG(L)
9OCP
161 VG(H)
VS815
VG(L)712
9
OCP
10
VC2
D1602
Q1203
CONVERTER
Q1204
CONVERTER
D1208
Q1604
Q1605
1
2
3
4
PH1201
ISOLATER
4
3
Q1405
CONVERTER
Q1406
CONVERTER
PH1401
ISOLATER
PH1402
ISOLATER
Q1606
CONVERTER
Q1607
CONVERTER
PH1601
ISOLATER
PH1602
ISOLATER
1
2
T1201
PIT
+12V
13
12
9
7
6
13
12
2
D1313
D1314
T1401
PIT
1
6
IC1501
CONTROL
3 1
2
T1601
PIT
3
6
T1602
PIT
3
6
2
D1304
IC1301
CONTROL
13
15
12
10
14
11
14
11
IC1701
CONTROL
13
D1302
D1301
Q1303
LATCH
Q1306
LATCH
D1501
RV1501
VD_ADJ
D1701,1702
RV1701
VS_ADJ
26V
12V
D1306
D1310
70V
190V
D1321
Q1701
SW
D1305
Q1501,1502
DISCHARGE
DISCHARGE
Q1702
CONTROL
IC1302
1 2VIN SW OUT
IC1303
+5V REG
2CTL
IC1305 OVP,LVP
7
1
6
11
13
10
4
2
5
Q1502
SW
D1503
Q1704
Q1705
INV
Q1801
SW
REG
OUTVCC 31
9
8
+5V
+5V
IC1304
V REF
3
2
PH1403
ISOLATER
Q1503
Q1802,1804
D1703
IC1802
1
SW
14
IC1307 BUFF
20V
IC1402
VREF
3
2
7
6
Q1811,1809
SW
Q1308
VCC SW
Q1309
VCC CONTROL
IC1306
DRIVE
HDRV
25
VOC
1
FB
VC
14
1
11
10
5
4
9
8
LDRV
IC1801
VREF
3
12
13
2
3
13
2
14
IC1802
CONTROL
6
Q1304
CONV
Q1305
Q1307
3
2
CONV
SW
CN1006
1
AUDIO Vcc
2
AUDIO Vcc
3
26V
4
GND
5
GND
CN1007
3.3V
1
3.3V
2
GND
3
GND
4
5
10
11
12
13
6
7
8
9
1
3
4
1
2
3
5
6
2
3
5
FAN 12V
STBY 6V
GND
POWER ON
PANEL ON
CONV_DET
G PROT
THERMO
GND
CN1008
GND
GND
CN1010
GND
CN1011
5V
NC
VD
VS
VS
VS
VS
VD
6V
E
TO K2 BOARD
CN3002
A
TO DEM BOARD
CN3304
TO
PANEL
BLOCK
TO
PANEL
BLOCK
TO
PANEL
BLOCK
KDE61XBR950 (UC) 3-4
B
R1
(SIRCS, LED)
TIMER 2
TIMER 1
POWER
STBY
MUTE
SIRCS
STBY5V
CN701
GND
8
SAVING 9
GND
10
7
6
5
4
2
1
3
CN3302
TO DEM BOARD
IC701
SIRCS
OUT
VCC
Q701-706
LED SW
STBY 5V
D701
POWER
D703
TIMER
D705
MUTE
C
R2
(LED)
GND
LOGO
STBY5V
CN751
NC
4
2
1
3
CN3303
Q751-754
LED SW
D751
|
D754
D
TO DEM BOARD
2
1AC
AC
CN601
AC INLET
2
1
AC
AC
CN603
CN604
ST-BY 6V
POWER ON
3
2
1 GND
T601,602
LFT
T604
LFT
T603D601
1
RELAY DRIVE
Q601
F601 RY601
IC601
DRIVER
VCC
DRAIN
SOURCE
SOURCE
FB
VDD
PH601
D603
4
5
7
8
2
1
3
5
4
4
3
KA
IC602
REFERENCE VOLTAGE
D604
10
8
1
23
2
F
1(LINE FILTER)
TH601
TO G1 BOARD
CN2005
TO G2 BOARD
CN1005
H
I
TO DEM BOARD
CN3301
E
TO G2 BOARD
CN1006
CN3001
+3.3V
GND
SPDIF
GND
+12V
SDA2
SCL2
SP-PROT
MUTE
RES
GND
CN3002
AUDIO Vcc
AUDIO Vcc
GATE-DRIVE
GND
GND
+3.3V
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
K2
X3001
24.576MHz
+12V
L3006
(AUDIO OUT)
44
29
30
33
34
31
F3003
F3001
F3002
IC3001
S/PDIF RECEIVER
RX1
XTO
XTI
SDA
SCL
PDN
VCC REG.
27
MCKO2
26
BICK
25
SDTO
24
LRCK
37
INT1
Q3003-3005
SW
Q3002
3.3V
Q3002
SW
Q3001
SW
IC3002
AUDIO PROCESSOR
1
MCLK_IN
17
SCLK
19
SDIN
18
LRCLK
7
RESET
IC3002
AND
8
5
2B
2
1B1A2Y
1
PWM-AP_L
PWM-AM_L
PWM-AP_R
PWM-AM_R
VALID_L
MUTE
13
6
IC3004
AUDIO OUT
35
34
29
28
23
38
1
2
16
15
14
32
17
28
29
20
21
5
1
2
16
15
32
17
28
29
20
21
PWM-AP
PWM-AM
PWM-BP
PWM-BM
RRESET
PVDDA2
PVDDB2
PVDDA1
PVDDA1
PVDDB1
PVDDB1
PVDDB1
AUDIO AMP
PWM-AP
PWM-AM
PWM-BP
PWM-BM
PVDDA2
PVDDB2
PVDDA1
PVDDA1
PVDDB1
PVDDB1
OUTPUTA
OUTPUTA
OUTPUTB
OUTPUTB
IC3005
OUTPUTA
OUTPUTA
OUTPUTB
OUTPUTB
26
27
22
23
26
27
22
23
4
3
2
1
CN3003
L-
L+
R-
R+
F
TO K3 BOARD
CN7002
F
TO K2 BOARD
CN3003
G
TO G1 BOARD
CN2004
CN7002
L+
L-
R+
R-
CN3003
12V
4
3
2
1
1
K3
+12V
(SP RELAY)
RY7001
+12V
RY7002
+12V
4
3
2
1
+R
-R
CN7005
-L
+L
CN7004
L+
L-
R-
R+
SPEAKER
L
R
KDE61XBR950 (UC) 3-5
3-1-2. MEDIA RECEIVER UNIT (MBD-XBR950)
TU6202(M)
TU6201(S)
TO M BOARD
M
CN4404
VIDEO1
VIDEO2
HD/DVD
S VIDEO
VIDEO
AUDIO
S VIDEO
AUDIO
G
TO H2 BOARD
CN9601
C
TO UD BOARD
CN7003
B
TO UD BOARD
CN7003
IN
L
R
VIDEO
L
R
J9407
D1-Y
D1-CB
D1-CR
J9406
D1-L
D1-R
J9405
D2-Y
D2-CB
D2-CR
J9404
2P
D2-L
D2-R
J9402
CN9401
R2
L2
V2
C2
Y2
S2-2
S_SW2
CN8400
PR
PB
Y
L
R
CN8403
5V
D_PR
D_PB
D_Y
CN8402
D_L
D_R
3P
3P
34
12
34
12
2
4
6
8
10
11
12
1
3
5
7
9
1
3
5
7
1
3
SDA
SDA
SCL
SCL
AFT OUT
SAP IND
DET OUT
Q6201
BUFFER
A
Q8200
IC8506
LIN
MCK
RIN
AOUTL
AOUTR
Q8205
XI
XO
VIDEO
72
73
10
11
11
10
CN8001
BINT
11a
IC8509
2
3
5
6
RESET_DELVPRESET
11b
12a
9
8
14
11
1
16
3
6
8
-
1
+
7+
-
13a
IC8502
BUFFER
RF AGC
Q6203
INVERTER
SW
MODE
Q6206
F MONO
,
BUFFER
62
LTV
64
RTV
61
RV6
59
LV6
15
V3
17
Y3
19
C3
16
LV3
18
RV3
21
S3
8
V2
10
Y2
12
C2
9
LV2
10
RV2
14
22
V4
24
Y4
26
C4
23
LV4
25
RV4
29
SCL
SDA
DET OUT 2
S2
S4
L OUT
R OUT
VIDEO
AUDIO R
Q6205
AUDIO L
IC9400
AV SW1
Y/V OUT2
COMPONENT-I/F
1
IN3-1
2
IN3-2
3
IN3-3
41
IN2-1
42
IN2-2
43
IN2-3
33
IN1-1
34
IN1-2
35
IN1-3
7
IN4-1
8
IN4-2
9
IN4-3
30
SCL
31
SDA
YOUT1
COUT1
C OUT2
LOUT1
ROUT1
LOUT2
ROUT2
SCL
SDA
IC8400
SELYOUT
SELCBOUT
SELCROUT
EXTCLK/XTAL
SCL
SDA
AFT OUT
SCL
SDA
Q9415,9403
56
58
27
26
25
20
Q9405,9417
SCL
12C_M
SDA
X8400
44
47
52
54
43
45
33
34
BUFFER
VIDEO
AUDIO L
AUDIO R
Q9406,9402
Q9416,9404
12C_M
DE-EM OUT
DET OUT 2
,Q6202
Q6201
SCL
SDA
IC8200
AV SW2
22
V4
23
LV4
25
RV4
15
V3
16
LV3
18
RV3
Y1
3
5
C1
44
10
12
2
LV1
4
RV1
9
LV2
11
RV2
62
LTV
64
RTV
29
LV5
31
RV5
33
34
V/YOUT2
Y2
C2
SCL
SDA
COUT2
YOUT1
COUT1
SEL_L OUT
SEL_R OUT
IC8503
BUS BUFFER
13
12
1
2
4
5
10
9
47
56
58
43
45
11
3
6
8
AUDIO L
AUDIO R
Q8206
Q8201
19
19
IC8507
D/A CONV.
DRCK
2
MCLK
6
BICK
3
SDAT
4
A/D CONV.
BCKO
(AV SW,COMPONENT-I/F,TUNER,AUDIO AMP)
STBY 5V
FAN_PWR_SW
13b
14b
STBY5V
IC8402
VIDEO SW
-
2
+
4
5
10
9
IC8508
3
+
2
-
6
-
5
+
SCL
SDA
X8601
14MHz
FAN_SPEED
LINE_MUTE
WOOFER MUTE
15a
16a
17a
6
7
5
12
3
2
1
72
7
73
16
17
19
20
CONTROL_S
SUR-R-OUT
SUR-L-OUT
17b
19b
21a
AUDIO L
AUDIO R
AUDIO R
Q8407
SW
IC8600
OUTA
OUTB
SDAT
SCLK
LPF1OUT
XI
XO
VAR-R
VAR-L
22b
24a
Q8410
BUFFER
Q8411
BUFFER
BCKO
31
30
MCK
LRC
32
SDI0
25
3
SD00
LIN
42
43
RIN
28
NT-SW
MAIN-HSYNC
24b
26a
+9V
AUDIO L
Q8809
Q8412
BUFFER
IC8504
RESET
SLC/SCK
SDA/SDOUT
SUB-HSYNC
MAIN-AFT
26b
27a
Q8807
VIDEO
13
5
6
XI
10
XO
11
64
62
63
61
60
SUB-AFT
AGC
27b
28a
X7002
12MHz
IC8805
SURRUOND
LIN
FLIN
RIN
FRIN
RLIN
O-SAP
I-SAP
28b
29a
Q8501
SW
OUTA
OUTB
FMONO
SDA-STBY(NC)
29b
30a
IC8803
6
1
7
5
16
36
SCL-STBY(NC)
SDA-MAIN
SCL-MAIN
/AC_INT
30b
32a
32b
35a
SCL(12C-MAIN)
SDA(12C-MAIN)
3
2
SCL
SDA
IC8804
2
-
1
3
+
5
7+
6
-
TV-RXO
/BOX-RST
35b
36a
+
-
7
AUDIO L/R
IC8806
3
+
2
6
5
+11V
P-SW(-)
36b
IC8072
BUFFER
1
+
-
AUDIO L
-
+
TVT-XD
AC_RLY_iLINK
ATSC_OVP
AC_RLY_STBY
OVP
37b
38a
+
-
1
IC9301
3.3V REG
5
IC9302
2.5V REG
5
IC9303
1.8V REG
5
38b
39a
7
3
+
2
-
FAN_PROT
39b
+3.3V
37a
5
6
IC8800
BUFFER
5
6
1
7-
AUDIO R
12
12
12
AC_DET
40a
AUDIO L
AUDIO R
+2.5V
+1.8V
STBY 5V
STBY 5V
42b
43b
STBY5V
SET 5V
SET 5V
44b
45b
SET5V
Q8806
MUTE
IC8801
BUFFER
6
+
5
-
2
+
3
-
SET 6.5V
SET 6.5V
SET 6.5V
46b
47b
48b
1
7
SET 6.5V
SET 9V
49a
50b
SET6.5V
SET9V
Q8806
MUTE
ATSC 9V
SET 9V
SET 6.5V
ATSC 5V
D 5V
A 5V
33V
STBY 5V
AUDIO L
AUDIO R
+5V
+1.8V
+2.5V
+9V
VIDEO
+33V
+5V
+9V
SET 11V
MS 15V
J9403
WOFFER
CN8401
2a
5V
4b
5V
6b
1.8V
8b
1.8V
10b
1.8V
12b
I_BINT
15a
I_MICON_VP
20b
3.3V
22b
3.3V
25a
B_12C_SCL_5V
27a
B_12C_SDAL_5V
38b
I_BOARD_RESET_VP
40b
2.5V
41a
I_SUB_C/CB
42b
2.5V
43a
I_SUB_Y/CV
44b
2.5V
45a
I_MAIN_CR
46b
9V
47a
I-MAIN_C/CB
48b
9V
49a
I-MAIN_Y/CV
CN9406
AC_DET
1
P SW(-)
2
AC RELY
3
FAN PROT
4
iLINK STBY
5
MS DET
7
9V_OVP
8
FAN ON/OFF
9
FAN HIGH/LOW
10
CN9407
TV_TXDM-Y
A1
TV_RXD
B1
BOX_RST
A2
AC_INT
A3
+33V
B3
+5V
A4
+9V
A5
+9V
A6
CN9405
SET11V
1
SET11V
2
REG SW
5
MS 15V
6
CN9403
ATSC 9V
1
ATSC 9V
2
SET 9V
5
SET 6.5V
7
ATSC 5V
9
ATSC 5V
10
CN9404
D5V
1
A5V
3
33V
5
STBY5V
7
L
R
H
TO IF BOARD
CN9851
I
TO G BOARD
CN6005
TO QM BOARD
J
TO G BOARD
CN6004
K
TO G BOARD
CN6002
L
TO G BOARD
CN6003
KDE61XBR950 (UC) 3-6
TO
PANEL
BLOCK
M
TO A BOARD
CN8001
CN4000
RXIN0-
RXIN0+
DRAIN
RXIN1-
RXIN1+
DRAIN
RXIN2-
RXIN2+
DRAIN
RXCLK-
RXCLK+
DRAIN
RXIN3-
RXIN3+
CN4404
MAIN_SLICER(NC)
SUB_SLICER(NC
BINT
RESET_GL
VP
RESET
STBY_5V
FAN-PWR-SW
FAN-SPEED
LINE-MUTE
WOOFER_MUTE
CONTROL_S
SUR-R-OUT
SUR-L-OUT
VAR_R
VAR_L
NT-SW
MAIN_HSYNC
SUB_HSYNC
MAIN_AFT
SUB_AFT
AGC
O-SAP
I-SAP
FMONO
SDA-STBY
SCL-STBY
SDA-MAIN
SCL-MAIN
GRANT
/AC-INT
TV-RXD
/BOX-RST
P_SW(-)
TV-TXD
AC_RLY_ILINK
ATSC_OVP
AC_RLY_STBY
OVP
FAN_PROT
AC_DET
STBY 5V
STBY 5V
SET 5V
SET 5V
SET 6.5V
SET 6.5V
SET 6.5V
SET 6.5V
SET 9V
10
11
12
13
14
6a
8a
11a
11b
12a
13a
13b
14b
15a
16a
17a
17b
19b
21a
22b
24a
24b
26a
26b
27a
27b
28a
28b
29a
29b
30a
30b
32a
32b
34b
35a
35b
36b
36a
37a
37b
38a
38b
39a
39b
40a
42b
43b
44b
45b
46b
47b
48b
49b
50b
IC4000
1
2
3
4
5
6
7
8
9
9
10
11
12
15
16
17
18
19
20
+5V
SDA-STBY
SCL-STBY
SDA-STBY
SCL-STBY
+5V
+5V
+6.5V
+9V
RECEIVER
RXCLKOUT
RXOUT23
RXOUT27 7
IC4201
IC4901
INV
3.3V
1
4
2
26
2
39
41
43
45
Y
47
49
50
51
53
54
29
R5-R7
30
32
C
33
G5-G7
34
35
37
B5-B7
38
YS/YM
2
1
3
5
7
6
+11V
IC4905
IC4202
ROUT2
ROUT9
GOUT2
GOUT9
BOUT2
BOUT9
RST-X
GBRCLK
GBRHOUT
GBRVOUT
CCLK
CDTI
CLK0
SDT0
BICK
LRCK
+3.3V
+2.5V
+1.8V
BUS
DEN
SCL
SDA
PD
CS
PD
199
CLK
VIN
165
HIN
164
191
189
185
Y
183
169
166
204
200
C
196
192
149
OSDIRIN5
148
147
OSDIRIN7
OSDIGIN5
140
137
OSDIGIN7
136
OSDIBIN5
130
129
OSDIBIN7
125
YM1
158
YS1
157
OSD1HOUT
111
OSD1VOUT
106
AUDIO CONTROL
AINL3
AINR2
AOUTL-25
AOUTL+26
AOUTR+28
AOUTR-27
IC9301
2.5V REG
12
5
IC6302
2.5V REG
12
CK
5
IC4405
1.8V REG
12
5
172
103
100
99
97
93
87
84
82
79
74
69
65
64
186
68
62
63
61
159
160
19
17
16
15
21
13
12
11
19
X4008
24M
3.3V
IC4906
4
RESET
IC4906
LEVEL
CONVERTER
IC4203
PCM-SPDIF
SCL34
33 SDA
30 XTI
28 DAUX
29 BICK
24 LRCK
IC4408
IC4407
TRANSCEIVER
X4400
66.1565M
3.3V QCK
35
SCL
SDA
PDN
NVM
CLK
DAT
WP
SA0
Q4426,4427
4RESET
Q4418,4423
IC4400
IC4405
FF
16TX1
31
6
5
7
8
MUTE
3
7
5
9
RESET
IC4204
BS6.5V
Q4411
Q4407-4409
D4407
OSDH1OUT
IC4404
2
1
OUT
4
21
R5-R7
G5-G7
B5-B7
01VS
01VS
IC4406
BUS-SW
1
3
12
10
6
8
Q4404
Q4406
5V
IC4410
ANALOG-UCOM
DAT131
28 CLK1
CABLE-ERRORP
29 CLK0
DAT030
NVM-RST
38
39 NVM-RST
41
BUS-SW2
RESET12
AUDIO-PDN
57
AUDIO-DATP
56
AUDIO-CLKP
55
AUDIO-CSM
54
FAN-ILG-PROT
58
FAN-PWR-SW
60
FAN-SPEED
61
LINE-MUTE
67
RESET DL
54
B_INT81
CV_COMP_SW37
ATSC_GRANT52
50 ATSC_OVP
51 BS_REC
MAIN
20
ON/OFF
43 BOX_RST
5
R0
32
R1
89
R2
10
G0
33
G1
90
G2
11
B0
34
B1
89
B2
22
YM
21
YS
OSD-H62
OSD-V64
OSDOSC17
93 MAIN AFT
74 I_SAP
73 O_SAP
19 AGC_ATT
25 M/S_SW
23 SUB_HIN
65 ANT-M
SET POWER CONT
92 SUB-AFT
79 FMONO
13
2
5
4
Q4419
Q4421
11
9
BUS-SW3
BUS-SW1
CNVSS
TXD-PDP
RXD-RDP
TMDS-RSTP
M-SENSEP
SIRCSIN
MP WRN
XOUT
XIN
NC
KEY 1
POWER LED
ANT-M
ANT-S
POWER LEDP 47
STB-LED
TIMER LED
D-OVP
DCP,TMDS TRANSMITTER,
M
42
40
76
9
36
35
4
3
84
56
7
78
13
15
75
94
77
65
68
46
45
44
49
X4401
16MHz
IC4301
NVM
SDA
SCL
AUDIO CONTROL,
LVDSI/O,MAIN CPU
IC5205
SELECTOR
4
15
5
6
WP
7
Q4413,4415
5
3
2
1
910
Q4400
INV
IC4303
SELECTOR
4
15
LATCH
10 9
Q4414
LATCH
SDA
(12C-DEV)
SCL
(12C-DEV)
3
5
1
2
SDA(12C-TMDS)
SCL(12C-TMDS)
IC4306
VOLTAGE CONVERT
Q4402
LATCH
IC4601
SELECTOR
1
6
MCL-4
MDA-4
1
2
13
12
5
1
4
2
Q4428,4429
LATCH
7
6
5
IC4401
SV
IC4304
SELECTOR
9 10
Q4100
LEVEL
SHIFT
Q4101
LEVEL
SHIFT
VD4801-4803
IC4803
TMDS_TRANSMITTER
R2
43
R9
36
53
G2
56
G9
47
44
63
B2
58
B9
55
54
57
CLK
2
DEN
4
HS
5
VS
14
D_SDA
D_SCL
15
7
LXLVSX
23
7 MD_MDA
D_MCL
8
15
14
4
3
6
11
30
TX2
31
27
TX1
28
24
TX0
25
22
TX0+
21
TXO-
9
13
RST
M-SENSE
11
IC4300
BUFFER
5
6
4
3
2
1
89
10
11
12
13
IC4302
TMDA RECEIVER
15
9
5
3
14
13
2
1
11
10
7
6
SPDIF+
SPDIF-
SIRCS+
SIRCS-
UART_0-
UART_0+
UART_1-
UART_1+
D4803-4808
LIMITTER/PROTECT
T2-
T2+
T1-
T1+
LIMITTER
T0-
PROTECT
T0+
TC+
TC-
Q4805
LEVEL
SHIFT
Q4102-4104,
SW
3
1
2
5
7
6
IC4305
CABLE_DET
D4306-4309
L4300-4303
PROTECT
IC4307
1
2
&
FL
&
4 B5 P_ON
12C_SDA
12C_SCL
STBY5V
5V
SCL-STBY
SDA-STBY
10
17
18
23
24
16
B7
B1
B3
B9
B8
B11
B13
A11
A13
A8
A10
A1
A3
A4
A6
10
11
12
14
15
CN4801
1
2
9
HOT_PLUGDET
6
7
CN4301
1
2
4
5
6
CN4300
RESERVER 1
RESERVER 2
RESERVER 3
CN4406
2
3
5
6
7
8
9
CN4501
1
2
CN4301
1
2
5
7
8
TIMER LED
9
SRTBY LED
POWER LED
SCL-STBY
DATA2-
DATA2+
DATA1-
DATA1+
DATA0-
DATA0+
CLOCK+
CLOCK-
DDC SCL
DDC SDA
SDA
SCL
UD_BINT3
DVI_NRST
MUTE
VGA
CABLE_DET
FIELD_DET
CH STATUS
NC2
SPDIF+
SPDIF-
SIRCS+
SIRCS-
UART_0-
UART_0+
UART_1-
UART_1+
BINT
SDA
SCL4
ROM-SDA
ROM-SCL
ROM-WP
BUS-SEL
TMDS-RST
MS1
MS2
KEY 1
KEY 2
STBY 5V4
5V
P_SW
P-ON
ILINK LED
SDA-STBY
DISPLAY_SIGNAL_OUT
(WHITE)
D
TO UD BOARD
CN7002
DISPLAY_SIGNAL_OUT
(BLACK)
N
TO A BOARD
CN6211
A
TO H4 BOARD
CN9707
E
TO H2 BOARD
CN980
KDE61XBR950 (UC) 3-7
D9521
(RELAY BOARD)
IF
O_DIS_Y
5V
O_DIS_CB
1.8V
O_DIS_CR
1.8V
O_DIS_HS
1.8V
O_DIS_VS
O_DIS_YS
I_MICOM_VP
I_BINT
3.3V
3.3V
2.5V
I_SUB_C/CB
2.5V
I_SUB_Y/CV
2.5V
I_MAIN_CR
9V
9V
I_MAIN_C/CB
I_MAIN_Y/CV
I_BOARD_RESET
O_ATHEN3_S_BLOCK
O_PAL_FILM_MOD
O_ATHEN3_M_BLOCK
5V
O_DIS_Y
5V
O_DIS_CB
1.8V
O_DIS_CR
1.8V
O_DIS_HS
1.8V
O_DIS_VS
O_DIS_YS
I_MICOM_VP
I_BINT
3.3V
3.3V
2.5V
I_SUB_C/CB
2.5V
I_SUB_Y/CV
2.5V
I_MAIN_CR
9V
9V
I_MAIN_C/CB
I_MAIN_Y/CV
I_BOARD_RESET
B_I2C_SCL_5V
I_MS_ALL_R_IN
B_I2C_SDA_5V
I_MS_MAIN_CV_IN
O_ATHEN3_S_BLOCK
O_PAL_FILM_MOD
O_ATHEN3_M_BLOCK
5V
2b
3a
4b
5a
6b
7a
8b
9a
10b
11a
12b
13a
15a
20b
22b
25a
26b
27a
32b
33b
34b
35a
38b
40b
41a
42b
43a
44b
45a
46b
47a
48b
49a
2b
3a
4b
5a
6b
7a
8b
9a
10b
11a
12b
13a
15a
20b
22b
32b
33b
34b
38b
40b
41a
42b
43a
44b
45a
46b
47a
48b
49a
B_I2C_SCL_5V
I_MS_ALL_R_IN
25a
26b
I_MS_MAIN_CV_IN
35a
B_I2C_SDA_5V
27a
TO A BOARD
CN8401
TO DIC2 BOARD
H
TIMER
D9520
POWER/STBY
D9001-9009
D9512
iLINK STBY
Q9511-9517
LED SW
D9801-9806,9812
Q9801-9807
LED DRIVER
S9501
POWER
+5V
A01,03,04
DA10-DA11
1,3
4,10
11
(LED)
H1
IC9001
LED CONTROL
SDA
SCL
CN9705
1
S9702,9704,
S9706,9708,
S9710,9712
+5V
1
3
4
5
6
7
8
CN9503
STBY 5V
P_SW
P ON
TIMER LED
iLINK LED
STBY LED
POWER LED
ST5V
F
TO H2 BOARD
CN9803
CN980
1
STBY5V
2
4
P_SW
5
P ON
6
TIMER LED
7
ILINK LED
8
STBY LED
9
POWER LED
11
12
5V
SCL
SDA
E
TO M BOARD
CN4401
(KEY INPUT)
H3
+5V
21
20
KEY3
CN9704
1
S9201,9703
S9705,9707
S9709,9711
(KEY INPUT)
H4
1
2
CN9707
KEY1
KEY2
A
TO M BOARD
CN4301
VIDEO 2
IN
S VIDEO
VIDEO
AUDIO
CN9803
1
STBY5V
3
P_SW
4
P ON
5
TIMER LED
6
ILINK LED
7
J9601
L
R
(INPUT TERMINAL)
H2
8
2
4
6
8
10
12
STBY LED
POWER LED
CN9601
R2
L2
V2
C2
Y2
S_SW2
F
TO H1 BOARD
CN9503
G
TO A BOARD
CN9401
KDE61XBR950 (UC) 3-8
AUDIO
CN9401
L
R
B
TO A BOARD
CN8402
C
TO A BOARD
CN8403
D
TO M BOARD
CN4301
CN7003
D-R
D-L
D-Y
D-PB
D-PR
5V
CN7002
VGA
MUTE
DVI-NRST
UD-BINT
SCL
SDA
2
4
6
8
10
12
2
3
4
5
6
7
DVI5V
IC7002
18
VGA
21
MUTE
8
RESET
MCU
UD (DVI DRIYER)
AIN7
SCL
SDA
OSCOUT
OSXCIN
IC7004
FL7000-7002
BPF
IC7006
NVM
6
SCL
X7001
12MHz
7
WP
5
SDA
10
24
28
2
3
DVI DRIVER
10
IOR/Y
13
IOG/PB
16
IOB/PR
32
SDA
31
SCL
DVI-SCL
35
36
DVI-SDA
RX2+
RX2-
RX1-
RX1+
RX0-
RX0+
RXC+
RXC-
XTALOUT
TCLK
46
47
53
52
59
58
61
62
95
94
X7000
14.318MHz
IC7003
ESD
1
2
CN7001
1
RX2-
2
SCL
SDA
DVI5V
DVI5V
IC7001
ESD
5
6
1
2
5
6
IC7003
ESD
1
2
5
6
RX2+
6
SCL
7
SDA
9
RX1-
10
RX1+
5V
14
16
HPO
RX0-
17
RX0+
18
RXC+
23
24
RXC-
TO
PANEL
BLOCK
KDE61XBR950 (UC) 3-9
AC INLET
CN6001
AC IN
IC6003
DRIVER
2
VDD
20
D6020
3
2
F6001
1AC IN
T6001
RY6001
D6007
RY6002
STBY6.5V
1
4
RELAY DRIVE
D6010-6013
1
2
PH6001
4
3
2
3
Q6001
4
5
D7005
VCC
DRAIN
IC6003
DRIVER
D6004
D6006
D6006
SOURCE
SOURCE
FB
VDD
PH6002
ST-BY TRANSFORMER
1
3
5
7
4
8
2
1
18
8
7
2
T6003
VD
VC1
F/B
4
3
10
8
4
3
IC6002
DRIVER
PH6002
D6016
PH6003
VG(H)
VS
VG(L)
OCP
1
2
1
2
16
15
12
9
3
IC7004
V.REF
K
IC6004
V.REF
Q6004
CONVERTER
Q6003
CONVERTER
2
23
AK
T7003
PIT FOR VCC
5
3
8
7
10
13
14
11
12
15
16
17
18
IC6001
AC OFF DETECT
5
B1
D6020
D6022
D6017,6018
D6019
D6026
D6016
RST1
7
Q1
19
18
6
Q6751
12
12
D6016
CONVERTER
D6016
VOUT
VDD
VOUT
VOUT
VDD
VDD
OCL+
VDD
OCL-
VDD
IC6007
+9V REG
OI
IC6006
5V REG
OI
IC6009
5V REG
OI
IC6010
+5V REG
IO
D6006
Q6004
11
12
13
25
27
Q6012
33V REG
L6750
IC6751
FAN DRIVE
1
Q6010,6011
SW
D6753
2
3
D66101
D6102
CN6005
1
AC DET
2
P SW(-)
3
AC RELAY
4
FAN PROT
5
ILINK STBY
7
MS DET(NC)
8 9V OVP
9
FAN ON/OFF
10
FAN HIGH/LOW(NC
CN6002
1
ASTC 9V
2
ASTC 9V
5
SET 9V
7
SET 6V
5
ASTC 5V
6
ASTC 5V
CN6003
1
D 5V
3
A 5V
5
33V
7
STBY 5V
CN6004
1
SET 11V
2
SET 11V
5
REG SW
7
MS 11V
CN6101
1
FAN POWER
2
FAN PROT1
4
FAN POWER
5
FAN PROT2
)
TO FAN
I
TO A BOARD
CN9406
K
TO A BOARD
CN9403
L
TO A BOARD
CN9404
J
TO A BOARD
CN9405
(POWER)
G
KDE61XBR950 (UC) 3-10
3-2. FRAME DIAGRAM
CN3102
24PIN
:DVI-D
HOTPLUG DET
CLOCK-
CLOCK+
GND
DATA5+
DATA5-
GND
DATA0+
DATA0-
DDC GND
+5V POWER
DATA3+
DATA3-
GND
DATA1+
DATA1-
NC
DDC SDA
DDC SCL
DATA4+
DATA4-
GND
DATA2+
DATA2-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CN3101
26PIN
:MDR
JIG
MODE
RXD
TXD
RESET
STBY
GND
Field det
UART_I+
Status
UART_O-
Power on
UART_O+
SIRCS+
Cable det
SIRCS-
SPDIF+
SPDIF-
UART_I-
GND
GND
GND
GND
GND
GND
GND
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
PANEL
GND12
3
4
5
CN3306
6P
1.5MM
:SENS
GND
DRV
GND
1
2
3
4
5
6
7
8
9
10
11
12
CN3305
12P
1.5MM
FAN
GND
STBY
POWER
TIMER1
TIMER2
MUTE
STBY5V
SIRCS
GND
123456789
10
CN3302
10P
1.5MM
LOGONCGND
123
4
CN3303
4P
1.5MM
UNIT
PDP
TO
N-V6
ALARML
PS+
PS-
MSEL
RH+
RH-
RG+
RG-
RF+
RF-
RE+
RE-
RD+
RD-
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
GND
GND
GND
GND
GND
GND
GND
GND
GND(NC)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
CN3801
31P
:FI-TWE31PB-VF
GND
+12V
SPDIF
GND
+3.3V
AU_PROT
GND
SDA
SCL
1
2
3
4
5
6
7
8
9
10
11
CN3301
11P
1.5MM
+12V
AC_DET
PANEL ON
G PROT
STBY 6V
GND
GND
POWER ON
+3.3V
+3.3V
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
CN3304
13P
2.0MM
1
2
3
4
5
6
7
8
9
10
11
CN3001
11P
1.5MM
GND
GND
GND
AUDIO_Vcc
AUDIO_Vcc
12345
CN3003
5P
:VH
3.3V
GND
GND
3.3V
GND
POWER ON
ST-BY 6V
FAN12V
PANEL ON
CONV_DET
G PROT
THERMO
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
CN1007
13P
GND
AUDIO VCC
AUDIO VCC
GND
26V
12345
CN1006
5P
:VH
GND
VD
VS
NC
VS
GND
1
2
3
4
5
6
CN1010
6P
:VH
GND
VCC5V
GND
GND
1
2
3
4
CN1009
4P
:VH
GND
SAVING
STBY
POWER
TIMER 1
TIMER 2
MUTE
STBY5V
SIRCS
GND
123456789
10
CN701
10P-L
:TO P
NC
LOGO
STBY5V
GND
123
4
CN751
4P-L
:TO P
R1 R2
ST-BY 6V
POWER
GND
123
CN1005
3P
G2
K2
DEM
WHITE
CABLE
CABLE
BLACK
AU_MUTE
AU_RES
(WHITE)
TO PANEL UNIT
CLOCK-
CLOCK+
GND
DATA5+
DATA5-
GND
DATA0+
DATA0-
HOT PLUGDET
GND
+5V POWER
DATA3+
DATA3-
GND
DATA1+
DATA1-
NC
DDC SDA
DDC SCL
DATA4+
DATA4-
GND
DATA2+
DATA2-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CN4100
24P
(BLACK)
GND
GND
CABLE DET
POWER_ON
GND
GND
SPDIF-
GND
SPDIF+
SIRCS-
GND
SIRCS+
GND
UART_I+
GND
UART_I-
UART_O+
GND
UART_O-
TO PANEL UNIT
RESERVE3
RESERVE2
RESERVE1
NC
NC
CH_STATUS
FIELD_DET
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
CN4300
26P
RESET
G
EPM
BUSY
SCLK
RXD
TXD
CE
CNVSS
3.3V
1
2
3
4
5
6
7
8
9
10
CN4403
10P
WHT
:S-MICRO
RXIN3+
RXIN3-
RXCLK+
RXCLK-
RXIN2+
RXIN2-
DRAIN
DRAIN
DRAIN
RXIN1+
RXIN1-
DRAIN
RXIN0+
RXIN0-
45678
9
1011121314
CN4000
FI-E14S
M
B-SS4393<UC.>-KESSENZU
CONV_DET
STBY5V
STBY5V
DRV
GND
DRV
GND
DRV
GND
DRV LOW
GND
DRV LOW
6
HIC
GND
HIC2
GND
SCL2
SDA2
GND
SP_PROT
+3.3V
GND
SPDIF
MUTE
RES
+12V
GND
321
GND
MODE
TCK
TMS
TD0
TDI
TRST
VCC
1234567
8
CN3251
8P
7P
CN4301
7654321
VGA
MUTE
DVI_NRST
GND
UD_BINT
SCL
SDA
TX24-100R-LT-H1
BUS CONNECT
10P
:1.5DL
15P
:1.5MM
WHT
4P
CN4404
CN4406
CN4401 CN4501
432
1
1514131211
10
987654321
50b
50a
49b
49a
48b
48a
47b
47a
46b
46a
45b
45a
44b
44a
43b
43a
42b
42a
41b
41a
40b
40a
39b
39a
38b
38a
37b
37a
36b
36a
35b
35a
34b
34a
33b
33a
32b
32a
31b
31a
30b
30a
29b
29a
28b
28a
27b
27a
26b
26a
25b
25a
24b
24a
23b
23a
22b
22a
21b
21a
20b
20a
19b
19a
18b
18a
17b
17a
16b
16a
15b
15a
14b
14a
13b
13a
12b
12a
11b
11a
10b
10a
9b
9a
8b
8a
7b
7a
6b
6a
5b
5a
4b
4a
3b
3a
2b
2a
1b
1a
10
987654321
FAN-PWR-SW
FAN-SPEED
RESET_DL
SCL-STBY
SDA-STBY
TMDS_RST
VAR_R
VAR_L
MAIN_AFT
MAIN_HSYNC
SUB_HSYNC
STBY 5V
STBY 5V
STBY 5V
KEY2
MAIN_SLICER
SUB_SLICER
GND
GND
TO ANT-SW
MS2
MS1
GND
9V
GND
GND
GND
GND
GND
GND
GND
BINT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SET 5V
SET 5V
SET 6.5V
SET 6.5V
SET 6.5V
GND
GND
GND
GND
GND
GND
GND
GND
SET 6.5V
SET 9V
FAN_PROT
CONTROL-S
STBY 5V
P_SW
TIMER LED
ILINK LED
STBY LED
POWER LED
P_SW(-)
WOOFER-MUTE
GND
GND
GND
GND
GND
GND
LINE-MUTE
GND
GND
GND
GND
GND
TV-RXD
GND
ATSC_OVP
OVP
AC_RLY_ILINK
AC_RLY_STBY
AC_DET
RESET
VP
/AC-INT
/BOX-RST
GRANT
TV-TXD
GND
BUS-SEL
ROM-WP
ROM-SCL
ROM-SDA
GND
BINT
SDA
SCL
GND5VGND
GND
P-ON
KEY1
GND
SCL-MAIN
SDA-MAIN
I-SAP
O-SAP
SCL-STBY
SDA-STBY
FMONO
AGC
SUB-AFT
NT-SW
SUR-R-OUT
SUR-L-OUT
RCA
3P
2P
12P
:1.5MM
10P
7P
8P
12P
3P
3P
12P
J9403
J9402
J9406
J9404
CN9407
CN9406CN9405CN9404
CN9401
J9407
J9405
J9401
CN9403
10
987654321
43
21
43
21
8765432
1
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
7654321
121110
987654321
121110
987654321
FAN On/Off
FAN High/Low
AC_DET
ATSC 5V
Set 6.5V
R2L2V2C2Y2
S2-2
S_SW2
STBY 5V
9V_OVP
iLINK STBY
MS DET
FAN PROT
AC RELY
P SW(-)
MS 11V
REG SW
SET 11V
SET 11V
33V
A5V
D5V
GND
GND
GND
GND
GND
GND
GND
GND
ATSC 5V
GND
Set 9V
GND
GND
GND
GND
GND
ATSC 9V
ATSC 9V
D2-Y
D2-CB
D2-CR
D2-R
D2-L
D1-R
D1-L
D1-CR
D1-CB
D1-Y
GND
GND
GND
GND
GND
HD/DVD
IN
VIDEO1
S VIDEO
VIDEO
L
R
AUDIO
AUDIO
R
L
VIDEO
S VIDEO
VIDEO2
SIRCS IN
SIRCS OUT
L
R
AUDIO
SUB WOOFER
OUT
TX24-100R-6STH1
TX25-100P-LH-H1
:1.5MM
8P
:1.5MM
WHT
4P
:2.0MM
10P
CN8401
CN8001
CN8403
CN8402
CN8400
50b
50a
49b
49a
48b
48a
47b
47a
46b
46a
45b
45a
44b
44a
43b
43a
42b
42a
41b
41a
40b
40a
39b
39a
38b
38a
37b
37a
36b
36a
35b
35a
34b
34a
33b
33a
32b
32a
31b
31a
30b
30a
29b
29a
28b
28a
27b
27a
26b
26a
25b
25a
24b
24a
23b
23a
22b
22a
21b
21a
20b
20a
19b
19a
18b
18a
17b
17a
16b
16a
15b
15a
14b
14a
13b
13a
12b
12a
11b
11a
10b
10a
9b
9a
8b
8a
7b
7a
6b
6a
5b
5a
4b
4a
3b
3a
2b
2a
1b
1a
50b
50a
49b
49a
48b
48a
47b
47a
46b
46a
45b
45a
44b
44a
43b
43a
42b
42a
41b
41a
40b
40a
39b
39a
38b
38a
37b
37a
36b
36a
35b
35a
34b
34a
33b
33a
32b
32a
31b
31a
30b
30a
29b
29a
28b
28a
27b
27a
26b
26a
25b
25a
24b
24a
23b
23a
22b
22a
21b
21a
20b
20a
19b
19a
18b
18a
17b
17a
16b
16a
15b
15a
14b
14a
13b
13a
12b
12a
11b
11a
10b
10a
9b9a8b8a7b7a6b6a5b5a4b4a3b3a2b2a1b
1a
10
9
8
7
6
5
4
3
2
1
432
1
8765432
1
PR
GND
PB
GND
Y
GND
L
GND
R
GND
GND
BINT
VP
RESET
GND
GND
GND
GND
GND
LINE-MUTE
GND
GND
SET6.5V
GND
SET6.5V
SET6.5V
SET6.5V
GND
GND
GND
GND
SET 5V
SET 5V
GND
STBY 5V
GND
STBY 5V
GND
FAN_PROT
OVP
GND
GND
GND
GND
GND
GND
GND
GND
GND
AC_DET
ATSC_OVP
TVT-XD
P_SW(-)
GRANT
SCL-MAIN
SDA-MAIN
WOOFER-MUTE
CONTROL-S
SUR-R-OUT
SUR-L-OUT
VAR-R
VAR-L
NT-SW
MAIN-HSYNC
SUB-HSYNC
MAIN-AFT
SUB-AFT
O-SAP
I-SAP
FMONO
SDA-STBY
SCL-STBY
GND
/BOX-RST
TV-RXD
AC_RLY_ILINK
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
AGC
GND
SET 9V
AC_RLY_STBY
/AC_INT
GND
GND
GND
MAIN_SLICER
SUB_SLICER
STBY 5V
GND
GND
RESET_DEL
FAN-PWR-SW
FAN-SPEED
5V
GND
D_PR
GND
D_PB
GND
D_Y
GND
D_L
GND
D_R
GND
B_MS/CNM_USB_D+
B_MS/CNM_USB_D-
I_MS/CNM_AC_DET
I_MS/CNM_RESET
I_MS_MAIN_CV_IN
I_MS_SUB_CV_IN
O_ATHENA3_S_BLOCK
O_PAL_FILM_MOD
O_ATHENA3_M_BLOCK
GND
GND
GND
5V
O_DIS_Y
GND
GND
5V
O_DIS_CB
GND
GND
1.8V
O_DIS_CR
GND
GND
1.8V
O_DIS_HS
GND
GND
1.8V
O_DIS_VS
GND
GND
I_BINT
O_DIS_YS
GND
GND
GND
GND
O_DRC_VP
O_MID_BUSY
I_MICOM_VP
MS_3.3V
GND
MS_3.3V
GND
GND
3.3V
GND
GND
3.3V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
I_SUB_CR
GND
GND
2.5V
GND
GND
2.5V
GND
GND
2.5V
I_MAIN_CR
GND
GND9VGND
GND9VGND
GND
GND
I_MS_AU_L_IN
B_I2C_SCL_5V
I_MS_AU_R_IN
B_I2C_SDA_5V
O_MS_AU_L_OUT
O_CNM_UART_TX
O_MS_AU_R_OUT
I_CNM_UART_RX
I_BOARD_RESET
I_SUB_C/CB
I_SUB_Y/CV
I_MAIN_C/CB
I_MAIN_Y/CV
+33V
TV_TXD
TV_RXD
BOX_RST
GND
AC_INT
+5V
GND
+9V
GND
+9V
GND
QM
A
TX25-100P-LT-H1
-H1
TX25-100P-12ST
CN9851
CN9850
50b
50a
49b
49a
48b
48a
47b
47a
46b
46a
45b
45a
44b
44a
43b
43a
42b
42a
41b
41a
40b
40a
39b
39a
38b
38a
37b
37a
36b
36a
35b
35a
34b
34a
33b
33a
32b
32a
31b
31a
30b
30a
29b
29a
28b
28a
27b
27a
26b
26a
25b
25a
24b
24a
23b
23a
22b
22a
21b
21a
20b
20a
19b
19a
18b
18a
17b
17a
16b
16a
15b
15a
14b
14a
13b
13a
12b
12a
11b
11a
10b
10a
9b9a8b8a7b7a6b6a5b5a4b4a3b3a2b2a1b
1a
50b
50a
49b
49a
48b
48a
47b
47a
46b
46a
45b
45a
44b
44a
43b
43a
42b
42a
41b
41a
40b
40a
39b
39a
38b
38a
37b
37a
36b
36a
35b
35a
34b
34a
33b
33a
32b
32a
31b
31a
30b
30a
29b
29a
28b
28a
27b
27a
26b
26a
25b
25a
24b
24a
23b
23a
22b
22a
21b
21a
20b
20a
19b
19a
18b
18a
17b
17a
16b
16a
15b
15a
14b
14a
13b
13a
12b
12a
11b
11a
10b
10a
9b9a8b8a7b7a6b6a5b5a4b4a3b3a2b2a1b
1a
5V
B_MS/CNM_USB_D+
B_MS/CNM_USB_D-
I_MS/CNM_AC_DET
O_ATHEN3_M_BLOCK
O_PAL_FILM_MOD
O_ATHEN3_S_BLOCK
I_MS_MAIN_CV_IN
I_CNM_UART_RX
O_MS_AU_R_OUT
O_CNM_UART_TX
O_MS_AU_L_OUT
B_I2C_SDA_5V
I_MS_ALL_R_IN
I_MS_ALL_L_IN
B_I2C_SCL_5V
I_MS/CNM_RESET
I_MS_SUB_CV_IN
I_BOARD_RESET
GND
GND
GND
I_MAIN_Y/CV
I_MAIN_C/CB
9V
GND
GND9VGND
GND
I_MAIN_CR
2.5V
GND
GND
I_SUB_Y/CV
2.5V
GND
GND
I_SUB_C/CB
2.5V
GND
GND
I_SUB_CR
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
3.3V
GND
GND
3.3V
GND
GND
I_BINT
GND
MS_3.3V
MS_3.3V
O_DRC_VP
GND
GND
I_MICOM_VP
O_MID_BUSY
GND
GND
O_DIS_YS
GND
GND
O_DIS_VS
1.8V
GND
GND
O_DIS_HS
1.8V
GND
GND
O_DIS_CR
1.8V
GND
GND
O_DIS_CB
5V
GND
GND
O_DIS_Y
GND
GND
GND
5V
B_MS/CNM_USB_D+
B_MS/CNM_USB_D-
I_MS/CNM_AC_DET
O_ATHEN3_M_BLOCK
O_PAL_FILM_MOD
O_ATHEN3_S_BLOCK
I_MS_MAIN_CV_IN
I_CNM_UART_RX
O_MS_AU_R_OUT
O_CNM_UART_TX
O_MS_AU_L_OUT
B_I2C_SDA_5V
I_MS_ALL_R_IN
I_MS_ALL_L_IN
B_I2C_SCL_5V
I_MS/CNM_RESET
I_MS_SUB_CV_IN
I_BOARD_RESET
GND
GND
GND
I_MAIN_Y/CV
I_MAIN_C/CB
9V
GND
GND9VGND
GND
I_MAIN_CR
2.5V
GND
GND
I_SUB_Y/CV
2.5V
GND
GND
I_SUB_C/CB
2.5V
GND
GND
I_SUB_CR
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
3.3V
GND
GND
3.3V
GND
GND
I_BINT
GND
MS_3.3V
MS_3.3V
O_DRC_VP
GND
GND
I_MICOM_VP
O_MID_BUSY
GND
GND
O_DIS_YS
GND
GND
O_DIS_VS
1.8V
GND
GND
O_DIS_HS
1.8V
GND
GND
O_DIS_CR
1.8V
GND
GND
O_DIS_CB
5V
GND
GND
O_DIS_Y
GND
GND
GND
7P
12P
2P
24P
CN7002
CN7003
J7001
CN7001
7654321
12
11
10
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
RL
DVI_NRST
MUTE
VGA
GND
UD_BINT
SCL
SDA
GND
D-R
GND
D-L
GND
D-Y
GND
D-PB
GND
D-PR
GND
5V
RX2-
RX2+
SCL
SDA
5V
RX1-
RX1+
HPD
RXO-
RXO+
RXC+
RXC-
:1.5DL
WHT
2P
CN9705
2
1
KEY3
GND
:1.5DL
WHT
3P
:1.5DL
WHT
2P
CN9707
CN9704
3
2
1
2
1
KEY3
GND
KEY1
KEY2
GND
:1.25DL
WHT
12P
:1.5DL
WHT
12P
:1.5DL
WHT
9P
J9601
CN9802
CN9601
CN9803
43
21
9
8
7
6
5
4
3
2
1
121110
987654321
12
11
10
9
8
7
6
5
4
3
2
1
R2L2V2C2Y2
S2-2
S_SW2
GND
GND
GND
GND
GND
GND
POWER LED
STBY LED
ILINK LED
TIMER LED
P ON
P_SW
GND
STBY 5V
SDA
SCL
GND
POWER LED
STBY LED
ILINK LED
TIMER LED
P ON
P_SW
GND
5V
STBY 5V
VIDEO2
IN
S VIDEOVIDEOLR
AUDIO
:1.5DL
WHT
9P
CN9503
9
8
7
6
5
4
3
2
1
P_SW
ILINK LED
GND
STBY 5V
P ON
TIMER LED
STBY LED
POWER LED
GND
3P
TAB(CONTACT)
1P
7P
TAB(CONTACT)
1P
10P8P
12P
:1.5DH
WHT
6P
TAB(CONTACT)
1P
CN6001
CN6011
CN6004
CN6010
CN6005
CN6003
CN6002
CN6101
CN6009
3
2
1
1
1
10
987654321
8765432
1
1
7654321
121110
987654321
6
5
4
3
2
1
AC(N)
NC
AC(L)
GND
GND
FAN POWER
FAN POWER
FAN High/Low
FAN On/Off
Set 6.5V
ATSC 5V
STBY 5V
9V_OVP
iLINK STBY
MS DET
FAN PROT
AC RELY
P SW(-)
AC DET
MS 11V
REG SW
SET 11V
SET 11V
33V
A5V
D5V
GND
GND
GND
GND
GND
GND
GND
GND
ATSC 5V
GND
Set 9V
GND
GND
GND
GND
GND
ATSC 9V
ATSC 9V
FAN-PROT1
FAN-PROT2
GND
GND
GND
G
H1
H2
H4 H3
FAN
TO
AC INLET
UD
TO PANEL BLOCK
IF
DIC2
GND
R-
R+
L-
L+
12345
CN7002
5P
:VH
12V
GND12
CN7001
2P
:VH
12345
K3
SPEAKER
R+R-L-
L+
123
4
CN7004
4P
:VH
GND
R-
R+
L-
L+
AC INLET
CN601
2P
:VH
ACAC1
2
CN603
2P
:VH
AC
AC
1
2
CN604
3P
:S-MICRO
ST-BY 6V
POWER ON
GND
123
F1
CN2005
2P
:VH
ACAC1
2
CN2002
4P
:VH
CN2003
6P
:S-MICRO
G1
380V-2
18V-2
NC
GND-2
123
4
CN1001
4P
:VH
GND
12V
PFC-SW2
PFC-SW1
123
4
CN1002
6P
:VH
5
6
LATCH
STBY6V
AC
AC
NC
123
CN1004
3P
:VH
VS
VS
VD
NC
GND
NC
1
2
3
4
5
6
CN1011
7P
:VH
GND 6
VCC5V
GND
GND
1
2
3
CN1008
3P
:VH
380V-2
18V-2
NC
GND-2
123
4
GND
12V
PFC-SW2
PFC-SW1
123
4
5
6
LATCH
STBY6V
AC
AC
NC
123
CN2001
3P
:VH
AC
AC
1
2
CN1003
2P
:VH
MBD-XBR950
PDM-6110
KDE61XBR950 (UC) 3-11
3-3. CIRCUIT BOARDS LOCATION
G
D
S
B1 E1
C2
B2 C1
E2
2
3
4
5
6
7
8
9
0
!¡
!™
!¢
!§
!¶
!•
–
1
G
D
S
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
!ª
B1 E1
E2
C1(B2)
C2
@º
B1
E2
C1
C2
@™
@£
(B2)
E1
(B2)
E1
E2
B1
C2
C1
@¡
B1
E1
C2
B2
C1
E2
G
S
S
D
G
D
B1
E1
C2
B2
C1
E2
B1
E2
C2C1(B2)
E2
B1
C1
C2E1(B2)
C2
B1
C1
E2E1(B2)
C2
B1
C1
E2
B2
E1
C2
Ver.1.6
Transistor
(FET)
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Discrete semiconductot
(Chip semiconductors that are not actually used are included.)
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Source
Source
Anode
Anode
(NC)
(NC)
Cathode
Anode
Cathode
Common
Cathode
Cathode
Common
Cathode
Cathode
Common
Common
Common
Common
Cathode
Anode
Base
Emitter
Collector
Base
Emitter
Collector
Drain
Gate
Gate
Drain
Device Printed symbol Terminal name
Circuit
Terminal name of semiconductors in silk screen
printed circuit ( )
Anode
Anode
Anode Cathode
Anode Anode
Cathode
!£
Transistor
(FET)
Transistor
(FET)
!∞
Emitter
Collector
Base
Transistor
Source
Gate
Drain
Cathode
Anode
Anode
Cathode
Anode
Anode
*
TO A1/12, A2/12_1
• Divided circuit diagram
Schematic diagrams of A, MS, P, TU and U boards are divided into
serveral pieces. Information to where the line is to be connected is printed
at the end of wach line.
For example, [ TO A1/12, A2/12_1 ] means the line is connected to
Ref. No. 1 of A (1/12) and A (2/12) schematic diagrams.
Ref. No.
Circuit diagram division code
3-3-1. DISPLAY UNIT (PDM-6110)
G1 Board
F1 Board
3-3-2. MEDIA RECEIVER UNIT (MBD-XBR950)
K2 Board
H1 Board
H2 Board
H4 Board
G Board
G2 Board
R1 Board
H3 Board
K3 Board
DEM Board
A Board
QH Board
R2 Board
3-4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
Note:
• All capacitors are in µF unless otherwise noted. (pF: µµF)
Capacitors without voltage indication are all 50 V.
• Indication of resistance, which does not have one for rating electrical
power, is as follows.
Pitch: 5 mm
Rating electrical power 1/4 W (CHIP : 1/10 W)
• All resistors are in ohms.
• : nonflammable resistor.
• : fusible resistor.
• : internal component.
• : panel designation, and adjustment for repair.
• All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
• : earth-ground.
• : earth-chassis.
• When replacing the part in below table, be sure to perform the related
adjustment.
• All voltages are in V.
• Readings are taken with a 10 M digital multimeter.
• Readings are taken with a color-bar signal input.
• Voltage variations may be noted due to normal production tolerances.
•
• Circled numbers are waveform references.
• : B + bus.
• : B – bus.
• : Signal path.
Note: The components identified by shading and
Note: Les composants identifiés par un tramé et
: Can not be measured.
*
mark ! are critical for safety. Replace only
with part number specified.
une marque ! sont critiques pour la
sécurité. Ne les remplacer que par une pièce
portant le numéro spécifié.
KDE61XBR950 (UC) 3-12
C622
Q601
R610
R611
123
A
B
3-4-1. DISPLAY UNIT (PDM-6110)
(1) Schematic Diagram of F1 Board
C
D
A
B
E
F
1
2
43
765
• F1 BOARD SEMICONDUCTOR LOCATION
IC
CN601
2P
:VH
AC
AC
TO AC INLET
2
1
F1
D601
DF06M
T604
10MH
C601
4700p
500V
:E
‘
‘
C602
4700p
4700p
500V
:E
VDR604
1608SGXA
C603
4700p
500V
:E
+-
TH601
C604
500V
:E
VDR603
ERZV10D621
C608
0.1
25V
B:CHIP
IC601
MIP2C2
CONV.
F601
T15A
250V
C605
450V
22
VDR601
R602
#
D605
MA113
R614
8.2
1W
:RS
C607
2200p
500V
R615
0.47
1/4W
:FPRD
SOURCE
SOURCE
1.1
5.6
CL
FB
VDD
1 2 3 4
R603
390k
:CHIP
RY601
ERZV14D621
Q601
2SD2114K
RELAY DRIVE
R601
100k
1W
:RS
:E
D602
EG01VCO
578
C612
DRAIN
17.5
2.2
VCC
:FPRD
C610
2200p
:CHIP
C609
1
275V
ECQ-UL
T601 T602
3.6MH 3.6MH
12
43
15k
:CHIP
B:CHIP
C617
470p
250V
ST-BY TRANSFORME
10
VDR605
#
R604
56
1/4W
C613
470p
630V
R:CHIP
4
3.0
3
R605
PH601
15k
:CHIP
PC123Y22OOF
ISOLATER
C611
1
275V
ECQ-UL
12
43
R610R611
4.7k
:CHIP
C622
0.01
:B
T603
6V
1
3
4
5
D603
D1NL20U-TR2
R616
1k
:CHIP
6.25.6
1
2
5.2
11
10
9
8
7
6
C618
1000p
B:CHIP
R607
470
:CHIP
+6V
C623
1000p
B:CHIP
C619
470
D604
16V
:ZL
D1NL20U-TR2
2.9
K
A
IC602
MM1431ATT
VREF
VDR602
ERZV14D621
L602
H˚10
2.9
R608
C621
100
22k
10V
:CHIP
R606
47
:CHIP
3
2
B-SS11650<J..>-F1.
C620
0.1
25V
B:CHIP
4.5
1
R609
15k
:CHIP
CN603
2P
:VH
AC
1
AC
2
TO G1 BOARD
CN2005
CN604
3P
:S-MICRO
3
ST-BY 6V
2
POWER ON
1
GND
TO G2 BOARD
CN1005
Component
()
IC601 A-2
IC602 A-1
TRANSISTOR
Component
()
Q601 A-1 1
Component
()
D601 A-3 D602 A-2 D603 A-2 D604 A-1 D605 A-3 3
: Refer to Terminal name of
*
semiconductors in silk screen
printed circuit (see page 3-12)
Conductor
()
Side
Conductor
()
Side
DIODE
Conductor
()
Side
Side
Side
Side
*
*
F1
— F1 BOARD —
123
R616
C610
R603
R615
R605
T601
IC601
PH601
C608
VDR603
C609
VDR604
TH601
C605
C604
C602
C617
C601
T604
D605
RY601
C603
D601
VDR601
R614
R609
IC602
R607
C620
R608
A
C621
VDR602
CN603
CN604
L602
R606
C618
D604
C619
C623
T602
T603
D602
D603
C613
R604
C612
VDR605
R601
C607
B
C611
<COMPONENT SIDE> <CONDUCTOR SIDE>
F601
R602
FH602 FH601
CN601
KDE61XBR950 (UC) 3-13
2.9
2.9
2.9
2.9
4.0
0
4.5
2.9
2.9
4.9
5.0
2.9
2.9
3.2
0
5.0
0.9
2.2
0
0
2.2
3.3
2.9
2.9
3.3
3.3
2.9
3.3
1.1
1.4
1.1
4.4
1.4
0
2.3
1.4
1.0
1.0
1.1
1.3
3.3
1.3
3.3V
2
1
3.3V
3.3
0
1.5
1.1
1.1
1.4
0
4.8
0
03.1
1.3
1.3
1.1
1.4
1.7
3.3
0
0
3.2
4.9
3.1
4.9
4.9
4.9
4.9
5V
0
4.9
4.9
4.9
4.9
0
3.1
3.1
3.2
3.1
0
3.1
3.1
0
0
3.1
1.9
3.1
3.1
3.3V
3.1
3.1
GND
1A
1B
2Y
GND
AO
A-
A+
VCC
1Y
2B
2A
VCC
BO
B-
B+
Y
Z
B
A
GND
D
R
VCC
Y
Z
B
A
GND
D
R
VCC
GNDNCLX
SX
VCC
LYSYNC
A0
GNDA2A1
VCC
SCL
SDA
WC
GND
A2A1NC VCC
SCL
SDA
WC
GND
2C
2Y1
2Y0
INH
GND
2Y3
2Y2
VCC1C1Y1
A
B
1Y2
1Y0
1Y3
#
R3169
(WHITE)
(BLACK)
BUFF
RXD/TXD/MODE/RES
NORMAL/JIG SELECT
TO
MEDIA RECEIVER
UNIT
VOLTAGE COMPARATOR
VCC SW
VCC SW
VCC SW
SERIAL BUS SELECT
SERIAL BUS SELECT
VCC SW
VCC SW CTRL
SERIAL BUS EEPROM
READ/WRITE SEL
SERIAL BUS EEPROM
READ/WRITE SEL
SW DRIVER
3.3V-2 SW
UNIT
MEDIA RECEIVER
TO
TO(3/8)(4/8)
TO(4/8)
TO(4/8)
TO(3/8)
TO(3/8)
TO(3/8)
TO(4/8)
TO(3/8)
TO(4/8)
TO(3/8)
TO(3/8)
TO(4/8)
TO(4/8)
TO(3/8)
TO(4/8)
TO(3/8)
TO(3/8)
TO(2/8)
TO(3/8)
TO(2/8)(3/8)(4/8)
(TMDS RECEIVER)
DEM(1/8)
B-SS11804<J..>-DEM-P1
QO23
OVDD
AGND
RX2+
RX2-
AVDD
RX1+
RX1-
AVDD
RX0+
RX0-
AVDD
RXC+
RXC-
AVDD
DDC_SCL
DDC_SDA
DDC_SA
PROM_SCL
PROM_SDA
PVDD1
PGND
PVDD2
OCK_INV
OGND
DFO
ST
PIXS
DGND
DVDD
SCDT
QE0
QE1
QE2
QE3
QE4
QE5
QE6
QE7
OVDD
OGND
QE8
QE9
QE10
QE11
QE12
QE13
QE14
QE15
OGND
OVDD
QE16
QE17
QE18
QE19
QE20
QE21
QE22
QE23
DVDD
DGND
CTL1
CTL2
OVDD
ODCK
OGND
DE
VSYNC
HSYNC
QO0
QO1
QO2
QO3
QO4
QO5
QO6
QO7
OVDD
OGND
QO8
QO9
QO10
QO11
QO12
QO13
QO14
QO15
CAP
DGND
QO16
QO17
QO18
QO19
QO20
QO21
QO22
STAG
PDO
PD
HDCPDDC
VCC
DATA2-
DATA2+
GND
DATA4-
DATA4+
DDC SCL
DDC SDA
NC
DATA1-
DATA1+
GND
DATA3-
DATA3+
+5V POWER
DDC GND
DATA0-
DATA0+
GND
DATA5-
DATA5+
GND
CLOCK+
CLOCK-
RSVD
HOTPLUG DET
GND
2C
1C
1Y1
A
B
2Y1
2Y0
INH
GND
2Y3
2Y2 1Y2
1Y0
1Y3
GND
GND
GND
GND
GND
GND
GND
UART_I-
SPDIF-
SPDIF+
SIRCS-
Cable det
SIRCS+
UART_O+
Power on
UART_O-
Status
UART_I+
GND
GND
JIG
VCC
GND
4A4Y3A
3Y
1A1Y2A
2Y
HST
VST
Field
A00 A00
TXD
RXD
1OE
4OE
3OE
2OE
VCC
GND Y
A
B
STBY
RESET
MODE
Line 1
NC
NC
Line 3
Vcc
NC
NC
GND
Line 2
Line 4
Line 1
NC
NC
Line 3
Vcc
NC
NC
GND
Line 2
Line 4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
1 2 3 456 7
891011121314
123
4
5
1 2 3 4
5
678910
1 2 3 4
5
678910
G2
G1S1D2
D1
S2
1 2 3 456 7 8 9 10 11 12 13 141516 17 18 19 20 21 22 23 24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
515253545556575859
606162636465666768697071727374
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1 2 3 4
5
678
1 2 3 4
5
678
1 2 3 456 7 8
910111213141516
1 2 3 456 7 8
910111213141516
1 2 3 4
5
678
1234
5
6 7 8
S
1 2 3 4
5
678
1 2 3 4
5
678
1234
5
6 7 8
G2
G1S1D2
D1
S2
Q3101
CN3101
JL3101
JL3102
JL3104
JL3105
D3101
D3102
TP3101
D3103
IC3101
JL3107
JL3108
JL3111
VD3101VD3102VD3103VD3104
D3108
D3109
D3110
D3111
VD3105
VD3106VD3107VD3108
D3112
JL3112
JL3113
Q3105
Q3106
Q3107
JL3114
JL3115
JL3116
IC3107
C3113
Q3108
IC3109
Q3109
C3129
JL3117
JL3118
JL3119
JL3120
JL3121
JL3122
TP3102
TP3103
FB3102
FB3103
FB3104
FB3105
R3134
Q3110
RB3103 RB3104
RB3105
RB3106
RB3108
RB3109
RB3101
RB3102
IC3104
C3101
C3102
C3103
C3104
C3119
R3122 R3123
R3130
R3131
R3140
R3143
R3145
R3148
R3149
R3151
IC3102
Q3111
IC3110
R3154
C3105
C3108
C3106
C3107
C3109
C3112
C3128
C3122
C3114
C3115
C3116
C3117
C3118
C3120
C3121
C3123
C3124
C3125
C3126
C3127
C3130
R3127
R3101
R3102
R3106
R3103
R3105
R3110
R3111
R3115
R3116
R3117
R3118
R3119
R3120
R3121
R3133
R3135
R3136
R3137
R3138
R3139
R3141
R3142
R3144 R3146
R3147
R3150
R3152
R3153
R3155
R3156
R3158
R3109
R3157
R3124
R3125
R3128
R3129
R3126
FB3106
C3132
JL3103
JL3123
JL3124
R3159
JL3125
JL3126
CN3102
JL3127
R3163
R3113
R3114
R3107
R3164
JL3106
R3108
FB3107
FB3101
R3104
R3132
IC3105
C3111
R3167 R3168
R3166
R3165
R3112
C3131
C3110
Q3117
JL3110
JL3109
IC3112
RB3107
R3170
R3171
R3172
D3114D3113
Q3102
D3105
D3107
IC3106 IC3108
Q3118
Q3119
Q3120
R3162
Q3116
D3104
D3106
C3133
R3160
IC3103
IC3111
47
6.3V
:AL-CP
SN74LV4052A
#
HN1D03FU
HN1D03FU
HN1D03FU
HN1D03FU
NJM2903V
SSM6N15FU
LEVEL SHIFT
DTC114EUA
47
6.3V
:AL-CP
UDZS5.6B
UDZS5.6B
DTC144EUA
SI2301DS
DTC114EUA
26PIN
:MDR
TFP501PZP
TMDS RECEIVER
1608SGXA
UDZS5.6B
#
1608SGXA1608SGXA
1608SGXA
1608SGXA
1608SGXA
1608SGXA
1608SGXA
BLM11A601S
BLM11A601S
BLM11A601S
BLM11A601S
#
DTC114EUA
22*4 22*4 22*4 22*4
22*4
22*4
100*2
100*2
BA8274F
IIC BUFF
#
#
#
#
#
##
#
#
#
##
#
#
#
SN74LV125A
SSM6N15FU
LEVEL SHIFT
TC7SA00FU
INV.
#
0.47
6.3V
B:1608
0.47
6.3V
B:1608
0.1
10V
B:1005
0.1
10V
B:1005
0.1
10V
B:1005
0.1
10V
B:1005
0.1
10V
B:1005
4.7
6.3V
B:2012
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01 16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
0.01
16V
B:1005
100
:RN1005
0 :1608
0 :1608
0 :1608
4.7k
:1005
10k
:1005
47k
:1005
10k
:1005
4.7k
:1005
4.7k
:1005
10k
:1005
47k
:1005
10k
:1005
4.7k
:1005
4.7k
:1005
10k
:1005
4.7k
:1005
4.7k
:1005
4.7k
:1005
4.7k
:1005
1k
:1005
10k
:1005
10k
:1005
0
:10050:1005
0
:1005
22
:1005
4.7k
:1005
10k
:1005
22
:1005
22
:1005
10k
:1005
22
:1005
22
:1005
###
#
100
:RN1005
BLM11A601S
0.1
10V
B:1005
10k
:1005
24PIN
:DVI-D
100
:1005
100
:1005
100
:1005
100
:1005
100
:1005
100
:1005
BLM11A601S
#
0
:1608
10k
:1005
SN74LV4052A
0.1
10V
B:1005
10k
:1005
10k
:1005
4.7k
:1005
4.7k
:1005
1k
:1005
0.1 10V
B:1005
0.1 10V
B:1005
2PD601AR
SN74LVC2G08DCU
#
10k
:1005
10k
:1005
10k
:1005
MA111MA111
DTC114EUA
DAN202U
DAN202U
M24C02-W M24C04-W
RN4902
10K/10K
RN4902
10K/10K
RN4902
10K/10K
100
:1005
DTC143XUA
RCLAMP0504M
RCLAMP0504M
0.1 10V
B:1005
1k
1005
SN65LVDS179DGKR
LVDS RXTX
SN65LVDS179DGKR
LVDS RXTX
SPDIF
SIRCS
3.3V
5V-4
5V-4
3.3V
5V-4
RES
3.3V
3.3V-2
3.3V-2
3.3V-2
3.3V-2
PD1
TMDS_ON
SCDT
CABLE_DET
SEL0
SEL1
WP
3.3V-4
3.3V-4
BOX_SW
SCL
SDA
TMDS
PD2
3.3V-4
PD0
3.3V-4
TXD0
RXD0
RXD1
TXD1
3.3V-4
MODE
3.3V-4
DVI
PC
3
6
3
6
3
6
3
6
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
B0B1B2B3B4B5B6B7G0G1G2G3G4G5G6
G7
R0
R1
R2
R3
R4
R5
R6
R7
RC-
RC+
R0-
R1-
R2-
R0+
R1+
R2+
R2-
R1-
R0-
R2+
R1+
R0+
RC+
RC-
DCK
DE
VS
HS
SPDIF-
SPDIF+
SIRCS-
SIRCS+
TXD+
TXD-
RXD-
RXD+
SPDIF-
SPDIF+
TXD-
TXD+
SIRCS-
SIRCS+
RXD+
RXD-
(2) Schematic Diagrams of DEM Board
1
2
A
B
C
D
E
F
G
H
I
J
43
10
98765
11
12
13
14
15
KDE61XBR950 (UC) 3-14
A
B
C
D
E
F
G
H
1
2
43
TO(3/8)
P0P1P2
P3
RB3258 RB3259
22*4 22*4
C3258
0.1
10V
B:1005
C3260
0.1
10V
B:1005
C3262
0.1
10V
B:1005
C3265
0.1
10V
B:1005
C3266
0.1
10V
B:1005
:1005
R3254
R3255
4.7k
:1005
R3268
4.7k
:1005
4.7k
C3268
:1005
B:1005
R3269
4.7k
0.1
10V
B0B1B2B3B4B5B6
B7
98765
10
11
CORBU_IN1
TO(5/8)
12
13
14
15
3.3V
B0
B1
B2
B3
B4
B5
B6
B7
G0
G1
G2
G3
G4
G5
G6
G7
R0
R1
R2
R3
R4
R5
R6
R7
DCK DCK
DE DE
VS VS
HS HS
TMDS
TO(1/8)
3.3V
FB3251
BLM11P300S
C3251
22
6.3V
:AL-CP
C3252 C3254
0.47
6.3V
B:1608
I
B0
B1
RB3251
#
B2
B3
B4
B5
RB3252
#
B6
B7
G0
G1
RB3253
#
G2
G3
G4
G5
RB3254
#
G6
G7
R0
R1
RB3255
#
R2
R3
R4
R5
RB3256
#
R6
R7
R3251
0
:1005
RB3257
#
FB3252
BLM11P300S
IC3251
BA25BC0FP
1.0A
2.5V REG
12
OUTVCC
GND
3
C3253
220
0.1
4V
10V
:AL-CP
B:1005
3.3V
2.5V
B0
B1
B2
B3
B4
B5
B6
B7
G0
G1
G2
G3
G4
G5
G6
C3255
0.1
10V
B:1005
C3256
0.1
10V
B:1005
C3257
0.1
10V
B:1005
106107108
105
M2
VCCO
VCCO
109
M0
110
GND
111
M1
112
113
114
115
116
117
118
119
GND
120
121
122
123
B0
124
B1
125
VCCINT
126
B2
127
VCCO
128
GND
129
B3
130
B4
131
B5
132
B6
133
B7
134
G0
135
GND
136
G1
137
G2
138
G3
139
G4
140
G5
141
G6
142
TMS
143
GND
144
VCCO
VCCO
TCK
G7R0R1
1 2 3 456 7 8 9 10 11 12 13 141516 17 18 19 20 21 22 23 242526 27 28 29 30 31 32 33 343536
C3259
0.1
10V
B:1005
G7
TO(1/8)(3/8)(4/8)
1001011021031044
GND
R3
C3261
0.1
10V
B:1005
VCCINT
R4R5R6
GND
PWDN
R2
R0R1R2R3R4R5R6
SCL
SDA
VCCO
GCK1
VCCINT
VCCINT
IC3252
XC2S50-5TQG144C
FPGA
VCCINT
GCK2
VCCO
GCK3
DEI
GND
R7
JL3251 JL3252
C3263 C3264
0.1
0.1
10V
10V
B:1005
B:1005
DCK
Q3251
SSM6N15FU
DE
R3252 R3253
4.7k
:1005
D2
G1
S1
R7
LEVEL SHIFT
S2
G2
D1
VS
GND
VSI
GCK0
HSI
JL3253
HS
4.7k
:1005
B0B1B2B3B4B5B6
GND
VCCINT
SCL
SDA
VCCINT
GND
JL3256
JL3257
C3267
0.1
R3256 R3257
4.7k
10V
:1005
B:1005
WRITE
4.7k
:1005
CS
TDI
GND
737475767778798081828384858687888990919293949596979899
B7
GND
DONE
VCCO
VCCO
PROGRAM
INIT
VCCINT
TRDY
VCCO
IRDY
DOUT
CCLK
VCCO
VCCO
TDO
C3269 C3270
0.1
10V
B:1005
B:1005
BUS_SW
TO(4/8)
GND
GND
GND
DCK
DEO
VSO
HSO
DIN
0.1
10V
C3271
0.1
10V
C3273
0.1
10V
B:1005
C3274
0.1
10V
B:1005
JL3258
Q3252
#
B:1005
C3272
0.1
10V
B:1005
R3262 R3263 R3264
330
:1005
C3278
0.1
10V
B:1005
4.7k
:1005
G0
G1
RB3260
22*4
G2
G3
G4
G5
RB3261
22*4
G6
G7
R0
R1
RB3262
22*4
R2
R3
R4
R5
RB3263
22*4
R6
R7
R3258
DCK
#
R3259
DE
22
:1005
R3260
VS
22
:1005
R3261
HS
22
:1005
4.7k
:1005
C3279
0.1
10V
B:1005
D4CFNC
VCCO
3.0
NC
12
OE
13
3.2
D6
14
CE
15
3.2
VCCO
16
VCC
17
18
19
20
21
22
XC18V02-VQG44CES
GND
D7
NC
CEO
NC
PRGRAMMABLE
CONFIGURATION PROM
NC
NC
23 242526 27 28 29 30 31 32 33
C3277
0.1
10V
B:1005
R3265
4.7k
:1005
TCK
GND
2.4
IC3253
D3D5VCCO
GND
R3266 R3267
4.7k
:1005
NCNCNC
TMS
3.1
D1
NCNCNC
4.7k
3.3V
:1005
3.3V
1234567891011
TDI
3.2
NC
44
CLK
43
3.1
D2
42
GND
41
D0
40
0.2
NC
VCC
NC
VCCO
VCC
NC
2.7
TDO
C3275
39
38
37
36
35
34
0.1
10V
B:1005
C3276
0.1
10V
B:1005
DEM(2/8)
JL3259
JL3260
JL3261
JL3262
JL3263
JL3264
RB3264
100*4
FB3253
BLM11P300S
CN3251
8P
GND
8
MODE
7
TCK
6
TMS
5
TD0
4
TDI
3
2
TRST
1
VCC
72
71
70
69
68
67
G0
66
G1
G2
65
64
G3
63
G4
62
G5
61
60
G6
G7
59
R0
58
R1
57
R2
56
55
54
53
52
51
R3
50
49
R4
48
R5
47
R6
46
R7
45
44
43
42
41
40
39
38
37
(FPGA)
J
B-SS11804<J..>-DEM-P2
KDE61XBR950 (UC) 3-15
Loading...
