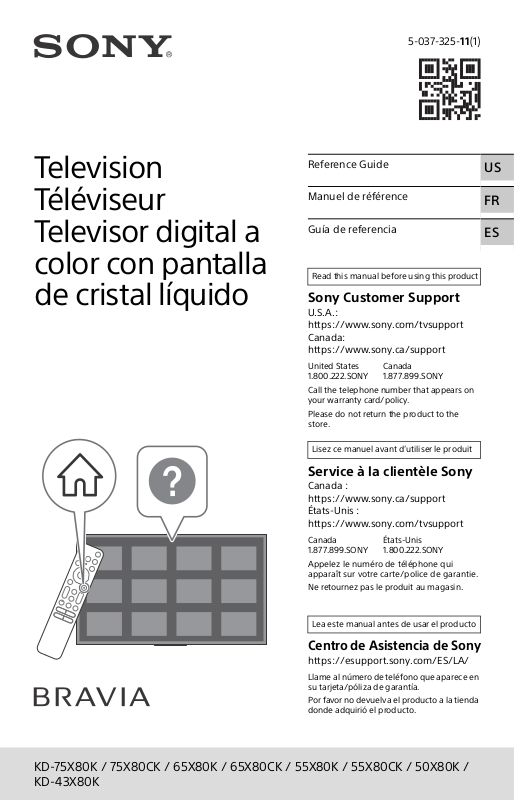

5-037-325-11(1)
Television
Téléviseur
Televisor digital a
color con pantalla
de cristal líquido
Reference Guide
Manuel de référence
Guía de referencia
Read this manual before using this product
Sony Customer Support
U.S.A.:
https://www.sony.com/tvsupport
Canada:
https://www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Call the telephone number that appears on
your warranty card/policy.
Please do not return the product to the
store.
Lisez ce manuel avant d’utiliser le produit
Service à la clientèle Sony
Canada :
https://www.sony.ca/support
États-Unis :
https://www.sony.com/tvsupport
Canada États-Unis
1.877.899.SONY 1.800.222.SONY
Appelez le numéro de téléphone qui
apparaît sur votre carte/police de garantie.
Ne retournez pas le produit au magasin.
US
FR
ES
Lea este manual antes de usar el producto
Centro de Asistencia de Sony
https://esupport.sony.com/ES/LA/
Llame al número de teléfono que aparece en
su tarjeta/póliza de garantía.
Por favor no devuelva el producto a la tienda
donde adquirió el producto.
KD-75X80K / 75X80CK / 65X80K / 65X80CK / 55X80K / 55X80CK / 50X80K /
KD-43X80K
About Manuals
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting,
wall-mount installation, specification, etc.
Help Guide (On screen Manual)
• Settings, functions, Internet connection,
troubleshooting, etc.
• To open it, press (Input) on the remote
control and select [Help]. If [Help] does
not exist, select [Edit] and add [Help].
IMPORTANT – Read the End User Software License
Agreement before using your Sony product. Using your
product indicates your acceptance of the End User
Software License Agreement. The software license
agreement between you and Sony is available online at
Sony website (https://www.sony.net/tv-softwarelicenses/) or on your product screen. Press (Quick
Settings) on the remote control and select [Settings]
[System] [About] [Legal information] [End user
license agreement].
Note
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the
actual product.
• Setting menus are subject to change without notice due
to software updates.
For latest information, visit Sony support website.
The 75” class has a 74.5 inch (189.3 cm) viewable image
size, the 65” class has a 64.5 inch (163.9 cm) viewable
image size, the 55” class has a 54.6 inch (138.8 cm)
viewable image size, the 50” class has a 49.5 inch
(125.7 cm) viewable image size and the 43” class has a
42.5 inch (108.0 cm) viewable image size (measured
diagonally).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are
located on the rear of the TV.
• You can refer to the Help Guide with your
smartphone.
https://rd1.sony.net/
help/tv/jusltn1/h_usltn/
IMPORTANT NOTICE
Owner’s Record
The model and serial numbers are located at the side
and/or rear of the TV. Record these numbers in the
spaces provided below. Refer to them whenever you call
upon your Sony dealer regarding this TV.
Model Name
Serial No.
IMPORTANT NOTICE FOR MEXICO
Operation of this equipment is subject to the following two
conditions: (1) it is possible that this equipment or device
may not cause harmful interference and (2) this equipment
or device must accept any interference, including
interference that may cause undesired operation.
For information related to the certificate number, refer to
the package label and / or product.
Note:
This product uses the following module for wireless
functionalities:
Model: DHUR-SY63
Brand: Wistron NeWeb Corporation
Information for the remote control with voice command
included with this product:
Model: RMF-TX800U or RMF-TX900U*
Brand: Sony
Note: Uses the following device for wireless functionalities:
Model: UE878
Brand: UEI
* To see the model name of the remote control, open the
remote control cover and see the label on the remote
control.
US
2
CAUTION
To prevent electric shock and blade exposure, do not use
this AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted.
• Operate the TV only on 110 V - 240 V AC (U.S.A./Canada
120 V AC).
Note
• This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
Safety Information
Notice for customers in the United States
of America
Supplier’s Declaration of Conformity
Trad e Nam e: SO NY
Model: KD-75X80K / KD-75X80CK / KD-65X80K /
KD-65X80CK / KD-55X80K / KD-55X80CK / KD-50X80K /
KD-43X80K
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Safety and Regulatory
FCC regulations restrict operation of this device to indoor
use only.
Notice for customers in Canada
This dev ice contains licen ce-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
High-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Notice for customers in the United States
of America and Canada
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines and
RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except
Grant condition.
Compatible Wall-Mount Bracket
Information
Use the following Sony Wall-Mount Bracket with your TV
model.
Sony TV Model No.
KD-75X80K / 75X80CK /
65X80K / 65X80CK /
55X80K / 55X80CK
Sony Wall-Mount
Bracket Model No.
Use with other Wall-Mount Brackets*
and could result in property damage or injury.
*1 Only for limited region/country/model.
*2 For instructions on using the Wall-Mount Bracket with
your TV please go to https://www.sony.com/am/
support for your TV model and download “Wall-Mount
Bracket”.
1
SU-WL855*
2
may cause instability
To C ustomers
Sufficient expertise is required for TV installations. Be sure
to subcontract the installation to a Sony dealer or licensed
contractor and pay adequate attention to safety during the
installation.
Before setting up your TV
Some TV models are packaged with a detached Table-Top
Stand so you can mount your TV to a wall right away. See
“Installing the TV to the Wall” if you want to mount the TV
to a wall. If you are not mounting the TV to a wall, you will
need to attach the Table-Top Stand (refer to the Setup
Guide).
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
• Two or more persons are needed to transport a large TV
set.
• Correct hand placement while carrying the TV is very
important for safety and to avoid damage.
US
US
3
• Ensure your TV has adequate ventilation, refer to the
Angle brace
(not supplied)
Stand
12
4
VS
M6 machine screw
(not supplied)
Screw
(not supplied)
Rope or chain
(not supplied)
1.5 N·m
{15 kgf·cm}
Screw hole on the rear cover
(supplied)
VS
10 mm - 12 mm
Screw (M6)
Rope or chain
safety documentation.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and
floor materials.
• Avoid moving the TV from a cold area to a warm area.
Sudden room temperature changes may cause moisture
condensation. This may cause the TV to show poor
picture and/or poor color. Should this occur, allow
moisture to evaporate completely before powering the TV
on.
Securing the TV
Sony strongly recommends taking
measures to prevent the TV from
toppling over.
Unsecured TVs may topple and result
in property damage, serious bodily
injury or even death.
Preventing the TV from Toppling
• Secure the TV to a wall and/or Stand.
• Do not allow children to play or climb on furniture and TV
sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
— slippery, unstable and/or uneven surfaces.
— furniture that can easily be used as steps, such as a
chest of drawers.
• Install the TV where it cannot be pulled, pushed, or
knocked over.
• Install the TV so that the TV’s Table-Top Stand does not
protrude out from the Stand (not supplied). If the
Table-Top Stand protrudes out from the Stand, it may
cause TV set to topple over, fall down, and cause personal
injury or damage to the TV.
• Rope or chain (strong enough to support the weight of
the TV). Make sure that there is no excess slack in the
rope or chain.
The length of the M6 machine screw differs depending
on the rope or chain diameter. Please refer to below
illustration.
• Route all AC power cords and connecting cables so that
they are not accessible to curious children.
Recommended Measures to Secure the
TV
Consider the following measures when securing your TV to
a Stand (not supplied).
1 Secure the Stand for the TV.
Make sure the Stand can adequately support the weight
of the TV. Use two angle braces (not supplied) to secure
the Stand. For each angle brace use the appropriate
hardware to:
• Attach one side of the angle brace to the wall stud.
• Attach the other side to the Stand.
2 Secure the TV to the Stand.
Use the optional hardware listed as follows (not
supplied):
• M6 machine screws (screwed into the TV’s rear cover).
• A screw or similar (attach it to the Stand).
US
4
3 Anchor the TV to the wall by using bolts, wall anchor and
VS
M6 eye bolts (not supplied)
Rope or
chain (not
supplied)
Wall-mount holes (supplied)
Wall-anchor
(not supplied)
VS
10 mm – 12 mm
TV’s rear cover
M6 eye
bolt
chain (or rope).
Please refer to below illustration for M6 eye bolt length.
The BRAVIA® 4K TV Experience
Thank you for choosing Sony! Your new BRAVIA® TV
opens the door to the “4K TV Experience”. This
document will help you get the most out of your TV.
Please take a moment to register your TV at:
U.S.A.: https://productregistration.sony.com
Canada: https://www.sony.ca/registration
Four Steps to a 4K TV Experience
Set, Source, Sound, and Setup.
1 Set
Now that you have made the best selection in LED
backlit LCD TV technology, be sure to remove all of the
accessories from the packaging before setting up your
TV.
2 Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to
high-definition (4K) by contacting your HD service
provider.
• Bring the astonishing resolution of your Sony 4K
Ultra HD TV to life with Sony 4K Ultra HD Blu-ray
Player. (The availability depends on region)
• Receive over-the-air HD broadcasts with an
HD-quality antenna connected directly to the back
of your TV.
Visit https://www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution Blu-ray Disc™ player and
other Sony HD equipment.
3 Sound
Complete the high-definition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4 Setup
Install your TV and connect your sources. To help
assure the highest quality for your HD experience, use
Premium High Speed HDMI (High-Definition
Multimedia Interface) cables.
This TV displays all video input signals in a resolution of
3840 dots × 2160 lines.
US
Note
• Your TV is shipped with screws attached to the rear of the
TV depending on the TV model. (They are fastened in the
screw holes for wall mounting.) Be sure to remove the
upper two screws prior to anchoring the TV to a wall.
• Securing the TV to the Stand without securing the TV and
the Stand to the wall provides minimum protection
against the TV toppling over. For further protection, be
sure to follow the three measures recommended.
Note
• For details of supported formats, refer to the
“Specifications” in this manual.
• For supported PC formats, refer to the online Help Guide.
5
US
Remote Control and TV
ȩ
Ȫ
ȫ
Ȭ
Light
sensor*
2*3
MIC
Buzzer*
2*4
The remote control shape, layout,
availability and function of remote
control buttons may vary depending on
your region/country/TV model/TV
settings*
1
.
App buttons
(Power)
Display TV channel list or switch to
TV:
input.
(Quick settings): Display Quick
Settings.
(Input): Display and select the
input source, etc.
123 (Control menu): Display the
Control menu.
/ / / / : On screen menu
navigation and selection.
(Back)
(Home)
(Google Assistant) /
(Microphone):
Assistant*5*6.
+ / – (Volume)
7
(Mute)*
CH + / – (Channel)
/
Display the digital
(Guide):
program guide of TV or Cable/Satellite
box*8.
US
6
Use Google
BUILT-IN MIC SWITCH*
5
: Turn on/off
the built-in MIC.
(Power)
Remote Control sensor / Light
sensor / LED
Built-in MIC*
5*6*9
: To enable the
built-in MIC, press the Google Assistant
button on the remote control and
follow the on-screen instructions.
*1 For other remote control models, refer to the
online Help Guide for details.
*2 RMF-TX900U only. To see the model name of
the remote control, open the remote control
cover and see the label on the remote control.
*3 The remote control backlight will illuminate
when the light sensor detects the ambient
light is low. Automatic illumination of the
backlight can be turned off.
*4 The buzzer will emit a sound when you use the
remote finder function. Refer to the online
Help Guide for details.
*5 Only for limited region/country/model/
language.
*6 Google Assistant requires an Internet
connection.
*7 Accessibility shortcut is available by pressing
and holding (Mute).
*8 [Cable/Satellite box setup] setting is required.
*9 Power consumption will increase when the
built-in MIC is enabled as it is always listening.
For more information, refer
to the Help Guide.
Press (Input) on the
remote control and select
[Help]. If [Help] does not
exist, select [Edit] and add
[Help].
Guidelines for IR Remote Control
• Point your remote control directly at the IR
sensor located on your TV.
• Make sure that no objects are blocking
Screw (M6)
Wall-Mount Bracket
10 mm – 12 mm
the path between the remote control and
the IR sensor on your TV.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
• Sony is not liable for any damage or injury
caused by mishandling or improper
installation.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
US
• Fluorescent lamps can interfere with your
remote control; try turning off the
fluorescent lamps.
• If you are having problems with the
remote control, reinsert or replace your
batteries and make sure that they are
correctly inserted.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket
(SU-WL855 only)* (not supplied)
To Customers:
For product protection and safety reasons,
Sony strongly recommends that installation
of your TV be performed by Sony dealers or
licensed contractors. Do not attempt to
install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the
installation, periodic maintenance and
examination of this product.
Wall-Mount Bracket Installation
Information
For instructions on Wall-Mount Bracket
installation, see the Installation Information
(Wall-Mount Bracket) on the Sony Customer
Support website for your TV model at the
following address.
https://www.sony.com/am/support
VS
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied safety documentation for
additional safety information.
* Only for limited region/country/model.
Using the optional Wall-Mount Bracket
(Except SU-WL855) (not supplied)
This TV’s instruction manual only provides
the steps to prepare the TV for Wall-Mount
installation before it is installed on the wall.
Your TV can be mounted to a wall using a
suitable Wall-Mount Bracket (not supplied).
If the Table-Top Stand is attached to the TV,
the TV may require detaching the Table-Top
Stand; see “Detaching the Table-Top Stand
from the TV”.
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety
reasons, Sony strongly recommends that
installation of your TV on the wall be
performed by qualified professionals. Do
not attempt to install it yourself.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
US
7
• The screws for installing the Wall-Mount
Screw (M6)
Wall-Mount Bracket
10 mm – 12 mm
VS
1.5 N·m
{15 kgf·cm}
Wall-Mount Bracket
(not supplied)
Screw
(not supplied)
Bracket to the TV are not supplied.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
VS
• Refer to the following table for
wall-mount hole pattern.
Wall-mount hole
Model Name
KD-75X80K /
75X80CK
KD-65X80K /
65X80CK
KD-55X80K /
55X80CK
KD-50X80K 200 × 200 mm
KD-43X80K 200 × 200 mm
pattern
×
300 × 300 mm
300 × 300 mm
300 × 300 mm
1 Remove the screws from the rear of
the TV.
2 Attach the Wall-Mount Attachment
(supplied with the TV) to the rear of
the TV (to make it parallel with the
wall).
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied safety documentation for
additional safety information.
• For more detailed information, visit Sony
Customer Support website.*
* Only for limited region/country/model.
US
8
3 Attach the Wall-Mount Bracket (not
supplied) using the screws (not
supplied).
Note
• If using an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to fasten the Wall-Mount
Attachment when attaching them to the TV.
Use only a flat head screwdriver to install
the Wall-Mount Attachment. Use of another
tool might result in over torqueing the
Wall-Mount Attachment and damaging the
TV.
Detaching the Table-Top Stand from the
TV
1 Remove one side of the Table-Top
Stand at a time. Firmly hold the
Table-Top Stand securely with both
hands while the other people lift up
the TV.
2 Repeat the previous step and
remove the other side of the
Table-Top Stand.
Note
• Three or more people are required to detach
the Table-Top Stand.
• Be careful not to use excessive force while
detaching the Table-Top Stand from the TV
as it may cause the TV set to fall resulting in
personal injury or physical damage to the
TV.
• Take care when handling the Table-Top
Stand to prevent damage to the TV.
• Be careful when lifting the TV as the
Tab le-Top S ta nd is d etach ed , th e Ta ble -Top
Stand may topple over and cause personal
injury.
• Take care when removing the Table-Top
Stand from the TV to prevent it from falling
over and damaging the surface that the TV
is sitting on.
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• Be sure the TV is vertical before turning on.
To avoid uneven picture uniformity do not
power on the TV with the LCD panel facing
down.
Optional Camera and
icrophone Unit Cable
M
anagement
M
Troubleshooting
General troubleshooting for issues like:
black screen, no sound, frozen picture, TV
does not respond, or network is lost, do the
following steps.
1 Restart your TV by pressing the power
button on the remote control for about
five seconds. The TV will restart. If the TV
does not recover, try unplugging the AC
power cord then press the power button
on the TV and release it. Wait for two
minutes, and plug in the AC power cord.
Or, press the power button on the TV for
about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and
perform a software update. Sony
recommends you to keep your TV
software updated. Software updates
provide new features and performance
improvements.
4 Visit Sony support website (information
provided at the end of this manual).
5 Perform the factory data reset.
US
US
9
When you plug in the TV, the TV may not
be able to turn on for a while even if you
press the power button on the remote
control or the TV.
It takes time to initialize the system. Wait for
about one minute, then operate it again.
How to reset the TV to factory settings
WARNING: The reset will clear all of your
customized settings including the parental
lock setting.
• You can reset the TV to factory settings by
selecting [Factory data reset]. How to select
[Factory data reset], refer to the online Help
Guide.
• To force factory data reset, unplug the AC
power cord. Press and hold button on the
TV, then plug in the AC power cord.
• For security purposes, be sure to remove all
personal and account information before
discarding, selling or passing your TV to
someone else by: unlinking/unregistering,
signing out of and deactivating all network
services as well as factory reset the TV.
The remote control does not function.
• Replace the batteries.
The parental lock password has been
forgotten.
• Enter 4357 for the PIN and enter the new PIN.
For more information on
troubleshooting, refer to the
Help Guide.
Press (Input) on the
remote control and select
[Help]. If [Help] does not
exist, select [Edit] and add
[Help].
Specifications
System
TV system: Depend on your country/area
selection/TV model
NTSC: American TV Standard
ATSC (8VSB Terrestrial): ATSC compliant
8VSB
NEXTGEN TV: ATSC 3.0 compliant (Single
tuner)
QAM on cable: ANSI/SCTE 07 2000 (Does
not include CableCARD functionality)
Channel coverage: Depend on your
country/area selection/TV model
Analog terrestrial: 2 - 69 / Digital
terrestrial: 2 - 69*
1
Analog Cable: 1 - 135 / Digital Cable:
1 - 135
Panel system: LCD (Liquid Crystal Display)
Panel, LED Backlight
Speaker output: 10 W + 10 W
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 4.2
Input/Output jacks
CABLE/ANTENNA
75 ohm external terminal for RF inputs
VIDEO IN
Video/Audio input (mini jack)
HDMI IN 1/2/3/4 (HDCP 2.3-compatible)
Video:
4096 × 2160p (60 Hz)*2*3, 4096 × 2160p
(24 Hz)*2, 3840 × 2160p (60 Hz)*3,
3840 × 2160p (24, 30 Hz), 1080p (30,
60 Hz), 1080/24p, 1080i (60 Hz), 720p
(30, 60 Hz), 720/24p, 480p, PC
Formats*
Audio:
In eARC (Enhanced Audio Return
Channel) mode
Except eARC mode
eARC/ARC (Enhanced Audio Return
Channel/Audio Return Channel) (HDMI IN 3
only)*
In eARC mode
Refer to the online Help Guide for
details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits,
Dolby Audio, Dolby Atmos, DTS
Digital optical jack (Two channel linear
PCM: 48 kHz 16 bits, Dolby Audio, DTS)
USB port 1 supports High Speed USB
(USB 2.0)
USB port 2 supports Super Speed USB
(USB 3.2 Gen 1)
4
Refer to the online Help Guide for
details.
5.1 channel linear PCM: 32/44.1/48/
88.2/96/176.4/192 kHz 16/20/24 bits,
Dolby Audio, Dolby Atmos, DTS
5
DIGITAL AUDIO OUT (OPTICAL)
1, 2
10
US
LAN
10BASE-T/100BASE-TX connector
(Depending on the operating
environment of the network, connection
speed may differ. The communication
rate and quality are not guaranteed.)
Home Network supported files and
4
formats*
REMOTE
RS-232C mini jack, IR IN mini jack
These jacks are for receiving the external
control signal.
Power and others
Power requirements
110 V - 240 V AC, 50/60 Hz (U.S.A./Canada
120 V AC, 60 Hz)
Power consumption
In use
KD-75X80K / 75X80CK: 306 W
KD-65X80K / 65X80CK: 230 W
KD-55X80K / 55X80CK: 202 W
KD-50X80K: 140 W
KD-43X80K: 103 W
In standby*6*
7
Less than 0.5 W with 120 V AC and less
than 0.5 W with 240 V AC
Screen size (measured diagonally) (Approx.)
KD-75X80K / 75X80CK: 189.3 cm /
74.5 inches (75” class)
KD-65X80K / 65X80CK: 163.9 cm /
64.5 inches (65” class)
KD-55X80K / 55X80CK: 138.8 cm /
54.6 inches (55” class)
KD-50X80K: 125.7 cm / 49.5 inches
(50” class)
KD-43X80K: 108.0 cm / 42.5 inches
(43” class)
Display resolution (horizontal × vertical)
(pixels)
3840 × 2160
Output rating
500 mA (for USB 1), 900 mA (for USB 2)
Dimensions (Approx.) (w × h × d) (mm) /
(inches)
with stand
KD-75X80K / 75X80CK:
1675 × 1040 × 410 / 66 × 41 × 16 1/
KD-65X80K / 65X80CK:
1452 × 905 × 338 / 57 1/4 × 35 3/4 × 13 3/
KD-55X80K / 55X80CK:
1233 × 782 × 338 / 48 5/8 × 30 7/8 × 13 3/
KD-50X80K:
1119 × 715 × 286 / 44 1/8 × 28 1/4 × 11 3/
4
8
8
8
KD-43X80K:
964 × 628 × 286 / 38 × 24 3/4 × 11 3/
8
without stand
KD-75X80K / 75X80CK:
1675 × 962 × 73 / 66 × 37 7/8 × 2 7/
KD-65X80K / 65X80CK:
1452 × 836 × 72 / 57
KD-55X80K / 55X80CK:
1233 × 713 × 72 / 48
KD-50X80K:
1119 × 649 × 70 / 44
1
/4 × 33 × 2 7/
5
/8 × 28 1/8 × 2 7/
1
/8 × 25 5/8 × 2 7/
KD-43X80K:
964 × 563 × 69 / 38 × 22 1/4 × 2 3/
8
8
8
8
4
wall-mount hole pattern
KD-75X80K / 75X80CK: 300 × 300 mm
KD-65X80K / 65X80CK: 300 × 300 mm
KD-55X80K / 55X80CK: 300 × 300 mm
KD-50X80K: 200 × 200 mm
KD-43X80K: 200 × 200 mm
wall-mount screw size (mm)
M6 (length: see “Installing the TV to the
Wall”.)
Mass (Approx.) (kg) / (lb.)
with stand
KD-75X80K / 75X80CK: 33.4 / 73.6
KD-65X80K / 65X80CK: 22.6 / 49.8
KD-55X80K / 55X80CK: 16.8 / 37.1
KD-50X80K: 13 / 28.7
KD-43X80K: 10.6 / 23.4
without stand
KD-75X80K / 75X80CK: 32.2 / 71
KD-65X80K / 65X80CK: 21.7 / 47.8
KD-55X80K / 55X80CK: 15.9 / 35.1
KD-50X80K: 12.4 / 27.4
KD-43X80K: 10.1 / 22.3
Others
Optional accessories
Wall-Mount Bracket: SU-WL855
(KD-75X80K / 75X80CK / 65X80K /
65X80CK / 55X80K / 55X80CK only)
Camera and Microphone Unit: CMU-BC1
Operating temperature: 0 ºC – 40 ºC /
32 ºF - 104 ºF
*1 2 – 36 for NEXTGEN TV scanning range in U.S.A.
*2 When 4096 × 2160p is input and [Wide mode]
is set to [Normal], the resolution is displayed as
3840 × 2160p. To display 4096 × 2160p, set
[Wide mode] setting to [Full 1] or [Full 2].
*3 Refer to the on screen menu to set [HDMI
signal format].
*4 Refer to the online Help Guide for details.
*5 Connect your audio system to the HDMI IN 3 to
route TV audio to your audio system.
*6 Specified standby power is reached after the
TV finishes necessary internal processes.
*7 Standby power consumption will increase
when your TV is connected to the network.
US
US
11
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
without notice.
• Subscriptions for services and applications may
be required and additional terms, conditions
and/or charges may apply when using Google
Assistant.
Licensing Information
• The terms HDMI, HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby
Audio, and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation. Manufactured
under license from Dolby Laboratories.
Confidential unpublished works.
Copyright © 1992-2021 Dolby
Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and
logotype, “Powered by Gracenote” logo
are either registered trademarks or
trademarks of Gracenote, Inc. in the
United States and/or other countries.
• Google, Google TV and related logos are
trademarks of Google LLC.
• For DTS patents, see
http://patents.dts.com. Manufactured
under license from DTS, Inc. DTS, Digital
Surround, and the DTS logo are registered
trademarks or trademarks of DTS, Inc. in
the United States and other countries.
© 2020 DTS, Inc. ALL RIGHTS RESERVED.
• Netflix is a registered trademark of Netflix,
Inc.
• TUXERA is a registered trademark of
Tuxera Inc. in the US and other countries.
• All other trademarks are the property of
their respective owners.
US
12
Loading...
