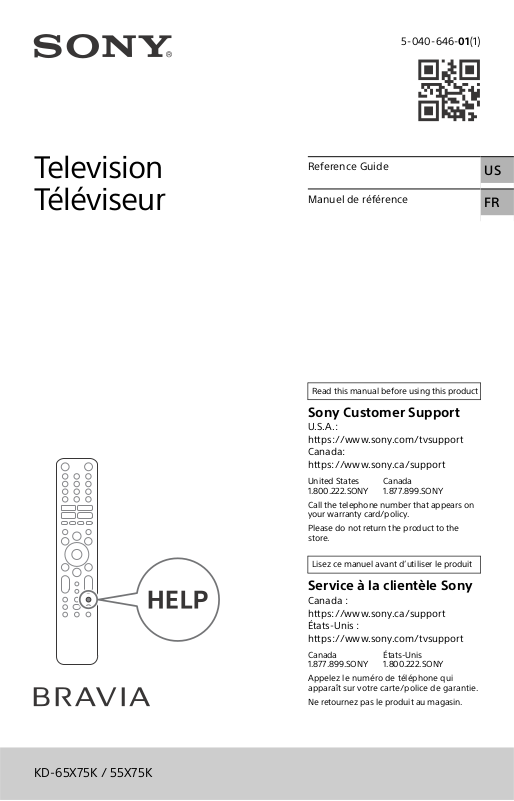

5-040-646-01(1)
Television
Téléviseur
Reference Guide
Manuel de référence
Read this manual before using this product
Sony Customer Support
U.S.A.:
https://www.sony.com/tvsupport
Canada:
https://www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Call the telephone number that appears on
your warranty card/policy.
Please do not return the product to the
store.
US
FR
KD-65X75K / 55X75K
Lisez ce manuel avant d’utiliser le produit
Service à la clientèle Sony
Canada :
https://www.sony.ca/support
États-Unis :
https://www.sony.com/tvsupport
Canada États-Unis
1.877.899.SONY 1.800.222.SONY
Appelez le numéro de téléphone qui
apparaît sur votre carte/police de garantie.
Ne retournez pas le produit au magasin.
About Manuals
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting,
wall-mount installation, specification, etc.
Help Guide (On screen Manual)
• Settings, functions, Internet
connection, troubleshooting,
etc.
• To open it, press the HELP
button on the remote control
and select Help Guide.
IMPORTANT – Read the End User Software License
Agreement before using your Sony product. Using your
product indicates your acceptance of the End User
Software License Agreement. The software license
agreement between you and Sony is available online at
Sony website (https://www.sony.net/tv-softwarelicenses2/) or on your product screen. Press (Quick
Settings) on the remote control and select [Settings]
[System] [About] [Legal information] [End user
license agreement].
Note
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the
actual product.
• Setting menus are subject to change without notice due
to software updates.
For latest information, visit Sony support website.
The 65” class has a 64.5 inch (163.9 cm) viewable image
size and the 55” class has a 54.6 inch (138.8 cm) viewable
image size (measured diagonally).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are
located on the rear of the TV.
• You can refer to the Help Guide with your
smartphone.
https://rd1.sony.net/
help/tv/jusltnr3/
h_usltn/
IMPORTANT NOTICE
Owner’s Record
The model and serial numbers are located at the side
and/or rear of the TV. Record these numbers in the
spaces provided below. Refer to them whenever you call
upon your Sony dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electric shock and blade exposure, do not use
this AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted.
• Operate the TV only on 110 V - 240 V AC (U.S.A./Canada
120 VAC).
Note
• This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable televisio n
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
US
2
Safety Information
Notice for customers in the United States
of America
Supplier’s Declaration of Conformity
Trade Name: SONY
Model: KD-65X75K / 55X75K
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential in stallation. This equip ment generates, uses and
can radiate radio frequency e nergy and, if not i nstalled and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation . If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiv er.
• Connect the equipment into an outlet on a c ircuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Safety and Regulatory
FCC regulations restrict operation of this device to indoor
use only.
Notice for customers in Canada
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
High-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Notice for customers in the United States
of America and Canada
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncont rolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines and
RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except
Grant condition.
Before setting up your TV
Some TV models are packaged with a detached Table-Top
Stand so you can mount your TV to a wall right away. See
“Installing the TV to the Wall” if you want to mount the TV
to a wall. If you are not mounting the TV to a wall, you will
need to attach the Table-Top Stand (refer to the Setup
Guide).
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying th e TV.
• Two or more persons are needed to transport a large TV
set.
• Correct hand placement while carrying the TV is very
important for safety and to av oid damage.
• Ensure your TV has adequate ventilation, refer to th e
safety documentation.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and
floor materials.
• Avoid moving the TV from a cold area to a warm area.
Sudden room temperature changes may cause moisture
condensation. This may cause the TV to show poor
picture and/or poor color. Should this occur, allow
moisture to evaporate completely befo re powering the TV
on.
Securing the TV
Sony s trongly recommends taking
measures to prevent the TV from
toppling over.
Unsecured TVs may topple and result
in property damage, serious bodily
injury or even death.
Preventing the TV from Toppling
• Secure the TV to a wall and/or Stand.
• Do not allow ch ildren to play or climb on furniture and TV
sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
— slippery, unstable and/or uneven su rfaces.
— furniture that can easily be used as steps, such as a
chest of drawers.
• Install the TV where it cannot be pulled, pushed, or
knocked over.
• Install the TV so that the TV’s Table-Top Stand does not
protrude out from the Stand (not supplied). If the
Table-Top Stand protrudes out from the Stand, it may
cause TV set to topple over, fall down, and cause personal
injury or da mage to the TV.
• Route all AC power cords and connecting cables so that
they are not accessible to curious children.
US
US
3
Topple prevention
8 mm – 12 mm
M6 screw (supplied)
1.2 N·m/{12 kgf·cm}
Screw
(not supplied)
Cord
(not supplied)
(Models with supplied support belt kit)
Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for aff ixing to a solid
object made of wood.
(Except models with supplied support belt
kit)
The BRAVIA® 4K TV Experience
Thank you for choosing Sony! Your new BRAVIA® TV
opens the door to the “4K TV Experience”. This
document will help you get the most out of your TV.
Please take a moment to register your TV at:
U.S.A.: https://productregistration.sony.com
Canada: https://www.sony.ca/registration
Four Steps to a 4K TV Experience
Set, Source, Sound, and Setup.
1 Set
Now that you have made the best selection in LED
backlit LCD TV technology, be sure to remove all of the
accessories from the packaging be fore setting up your
TV.
2 Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to
high-definition (4K) by contacting your HD service
provider.
• Bring the astonishing resolution of your Sony 4K
Ultra HD TV to life with Sony 4K Ultra HD Blu-ray
Player. (The availability depends on region)
• Receive over-the-air HD broadcasts with an
HD-quality antenna connected directly to the back
of your TV.
Visit https://www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution Blu-ray Disc™ player and
other Sony HD equipment.
3 Sound
Complete the high-def inition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4 Setup
Install your TV and connect your sources. To help
assure the highest quality for your HD experience, use
Premium High Speed HDMI (High-Definition
Multimedia Interface) cables.
This TV displays all video input signals in a resolution of
3840 dots × 2160 lines.
4
US
Note
• For details of supported formats, refer to the
“Specifications” in this manual.
• For supported PC formats, refer to the online Help Guide.
Remote Control and TV
The remote control shape, layout,
availability and function of remote
control buttons may vary depending on
your region/country/TV model/TV
settings.
GUIDE/ : Display the digital
program guide of TV or Cable/Satellite
1
box*
.
DVR: Display the Rec list of DVR*
INPUT: Display and select the input
source, etc.
(Action menu): Display Action
menu.
BACK
HOME
VOL +/– (Volume)
JUMP
MUTE
CH +/– (Channel)
4
*
AUDIO
multilingual source or dual sound
(depend on program source).
: Select the sound of
SUBTITLE/CC
Display the Customer Support
HELP:
menu.
///
Record the currently viewed
REC:
program on DVR*
1*3
.
DISPLAY: Display information.
1*3
.
US
(Google Assistant) /
(Microphone):
Assistant*
on how to control your TV, press the
microphone button on the remote
control and say “voice hints”.*
Use Google
1*2
or voice search*2. For hints
////: On screen menu
navigation and selection.
TV: Switch to a TV channel or input.
(Power)
Number buttons
(dot)
Display a list of installed apps.
APPS:
YouTube™ / NETFLIX*1 / Disney + /
Prime Video / Colour buttons
(Power)
1
Remote Control sensor / LED
*1 Only for limited region/country/model/
language.
*2 Google Assistant or voice search requires an
Internet connection.
*3 [Cable/Satellite box setup] setting is required.
*4 Accessibility shortcut is available by pressing
and holding AUDIO.
For more information,
refer to the Help Guide.
US
5
Guidelines for IR Remote Control
8 mm – 12 mm
Screw (M6)
TV’s rear cover
Wall-Mount Bracket
• Point your remote control directly at the IR
sensor located on your TV.
• Make sure that no objects are blocking
the path between the remote control and
the IR sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the
fluorescent lamps.
• If you are having problems with the
remote control, reinsert or replace your
batteries and make sure that they are
correctly inserted.
Installing the TV to the Wall
This TV’s instruction manual only provides
the steps to prepare the TV for Wall-Mount
installation before it is installed on the wall.
Your TV can be mounted to a wall using a
suitable Wall-Mount Bracket (not supplied).
If the Table-Top Stand is attached to the TV,
the TV may require detaching the Table-Top
Stand; see “Detaching the Table-Top Stand
from the TV”.
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety
reasons, Sony strongly recommends that
installation of your TV on the wall be
performed by qualified professionals. Do
not attempt to install it yourself.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
• The screws for installing the Wall-Mount
Bracket to the TV are not supplied.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
US
6
• Refer to the following table for
Wall-Mount Bracket
(not supplied)
Screw
(not supplied)
wall-mount hole pattern.
Wall-mount hole
Model Name
KD-65X75K /
KD-55X75K
pattern
×
400 × 200 mm
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied safety documentation for
additional safety information.
• For more detailed information, visit Sony
Customer Support website.*
* Only for limited region/country/model.
1 Remove the screws from the rear of
the TV.
2 Attach the Wall-Mount Bracket (not
supplied) using the screws (not
supplied).
Note
• If using an electric screwdriver, set the
torque at approximately 1.2 N·m {12 kgf·cm}.
• Be sure to fasten the Wall-Mount
Attachment when attaching them to the TV.
Use only a flat head screwdriver to install
the Wall-Mount Attachment. Use of another
tool might result in over torqueing the
Wall-Mount Attachment and damaging the
TV.
US
US
7
Detach ing the Table -Top Stand from the
1
TV
1 Detaching one side of the Table-Top
Stand at a time: remove the screws
firstly then the Table-Top Stand.
Firmly hold the Table-Top Stand
securely with both hands while the
other people lift up the TV.
2 Repeat the previous step and
remove the other side of the
Tab l e -Top S t and.
Note
• Three or more people are required to detach
the Table-Top Stand.
• Be careful not to use excessive force while
detaching the Table-Top Stand from the TV
as it may cause the TV set to fall resulting in
personal injury or physical damage to the
TV.
• Take care when handling the Table-Top
Stand to prevent damage to the TV.
• Be careful when lifting the TV as the
Table-Top Stand is detached, the Table-Top
Stand may topple over and cause personal
injury.
• Take care when removing the Table-Top
Stand from the TV to prevent it from falling
over and damaging the surface that the TV
is sitting on.
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• Be sure the TV is vertical before turning on.
To avoid uneven picture uniformity do not
power on the TV with the LCD panel facing
down.
• When attaching the Table-Top Stand again,
be sure to fasten the screws (previously
removed) to the original holes on the rear of
the TV.
Troubleshooting
General troubleshooting for issues like:
black screen, no sound, frozen picture, TV
does not respond, or network is lost, do the
following steps.
1 Restart your TV by pressing the power
button on the remote control until a
menu appears. Select Restart to restart
the TV. If the TV does not recover, try
unplugging the AC power cord then
press the power button on the TV and
release it. Wait for two minutes, and plug
in the AC power cord.
Or, press the power button on the TV for
about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and
perform a software update. Sony
recommends you to keep your TV
software updated. Software updates
provide new features and performance
improvements.
4 Visit Sony support website (information
provided at the end of this manual).
5 Perform the factory data reset.
When you plug in the TV, the TV may not
be able to turn on for a while even if you
press the power button on the remote
control or the TV.
It takes time to initialize the system. Wait for
about one minute, then operate it again.
US
8
Loading...
