Sony KD-60X690E, KD-70X690E Operating Instruction

4-696-721-01(1)

.S.A.: ttp://www.sony.com/tvsupport

nada:

ttp://www.sony.ca/support

nited States Canada

.800.222.SONY 1.877.899.SONY

e Do Not Return

Product to the Store

ervice à la clientèle Sony

nada :

ttp://www.sony.ca/support tats-Unis : ttp://www.sony.com/tvsupport

a États-Unis

877.899.SONY 1.800.222.SONY

e retournez pas le produit au magasin

Television Téléviseur

Operating Instructions (Setup Guide)

Manuel d’instructions (Guide d’installation)

Sony Customer Support

U h Ca h

U 1

Pleas the

Ca h É h

Canad

KD-70X690E / 60X690E

Table of Contents

IMPORTANT NOTICE . . . . . . . . . . . . . . . . 4

Safety Information . . . . . . . . . . . . . . . . . 4

Getting Started

Setting Up Your TV . . . . . . . . . . . . . . . .7

Securing the TV . . . . . . . . . . . . . . . . . .7

Preventing the TV from Toppling . . . . . 7

Recommended Measures to Secure

the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Precautions . . . . . . . . . . . . . . . . . . . . . . . 9

Parts and Controls

TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Remote Control . . . . . . . . . . . . . . . . . 11

Guidelines for Remote Control . . . . . 13

Connecting TV to the Internet

Setting up the Internet

Connection . . . . . . . . . . . . . . . . . . . . . 14

Type 1: Secured network with Wi-Fi

Protected Setup™ (WPS) . . . . . . . . . . . 14

Type 2: Secured network without

Wi-Fi Protected Setup™ (WPS) . . . . . . 15

Type 3: Unsecured network with

any type of wireless LAN router . . . . . 15

Type 4: Wired network set-up . . . . . . . 15

Preparing a Wired Network . . . . . . . . . 16

Viewing the Network Status . . . . . . . . 16

If You Cannot Connect to the

Internet . . . . . . . . . . . . . . . . . . . . . . . .16

Watching TV

Select Your Content Source . . . . . . . . . 17

Adjust Screen Shape and Aspect

Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Customize Sound and Picture

Quality . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing the Viewing Style . . . . . . . 18

Changing the Wide Mode . . . . . . . . . . 18

Setting Scene Select. . . . . . . . . . . . . . . 18

Navigating through Home Menu

All Apps. . . . . . . . . . . . . . . . . . . . . . . . 19

Photo Sharing Plus. . . . . . . . . . . . . . . . 19

Using the TV as a Photo Frame

Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Favorites . . . . . . . . . . . . . . . . . . . . . . .20

Media . . . . . . . . . . . . . . . . . . . . . . . . . 21

Playback Photo/Music/Video via

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Playback Photo/Music/Video via

Home Network . . . . . . . . . . . . . . . . . . . 22

Settings. . . . . . . . . . . . . . . . . . . . . . . .23

Preferences . . . . . . . . . . . . . . . . . . . . . . 23

Customer Support . . . . . . . . . . . . . . . . 32

Accessibility . . . . . . . . . . . . . . . . . . . . . 33

Viewing Pictures from Connected Equipment

Connection Diagram . . . . . . . . . . . . .34

Connecting the TV. . . . . . . . . . . . . . .35

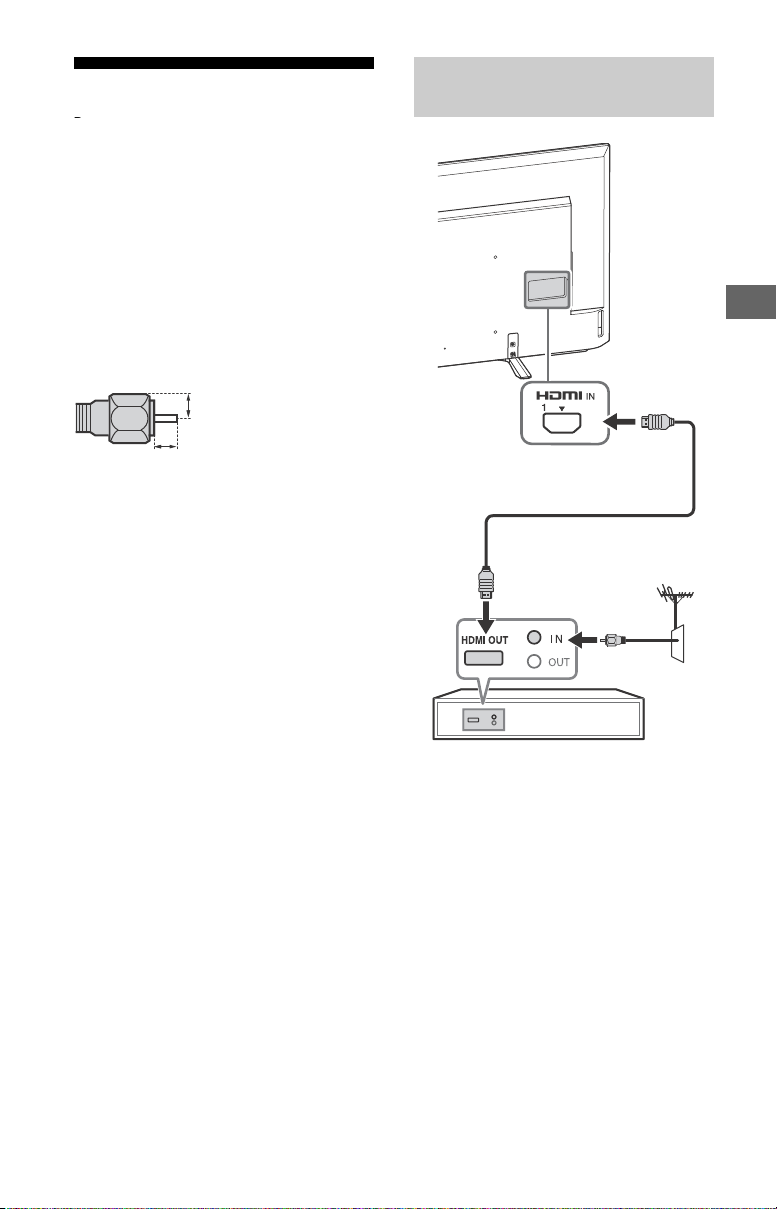

Showing a Set Top Box with HDMI

connection . . . . . . . . . . . . . . . . . . . . . . 35

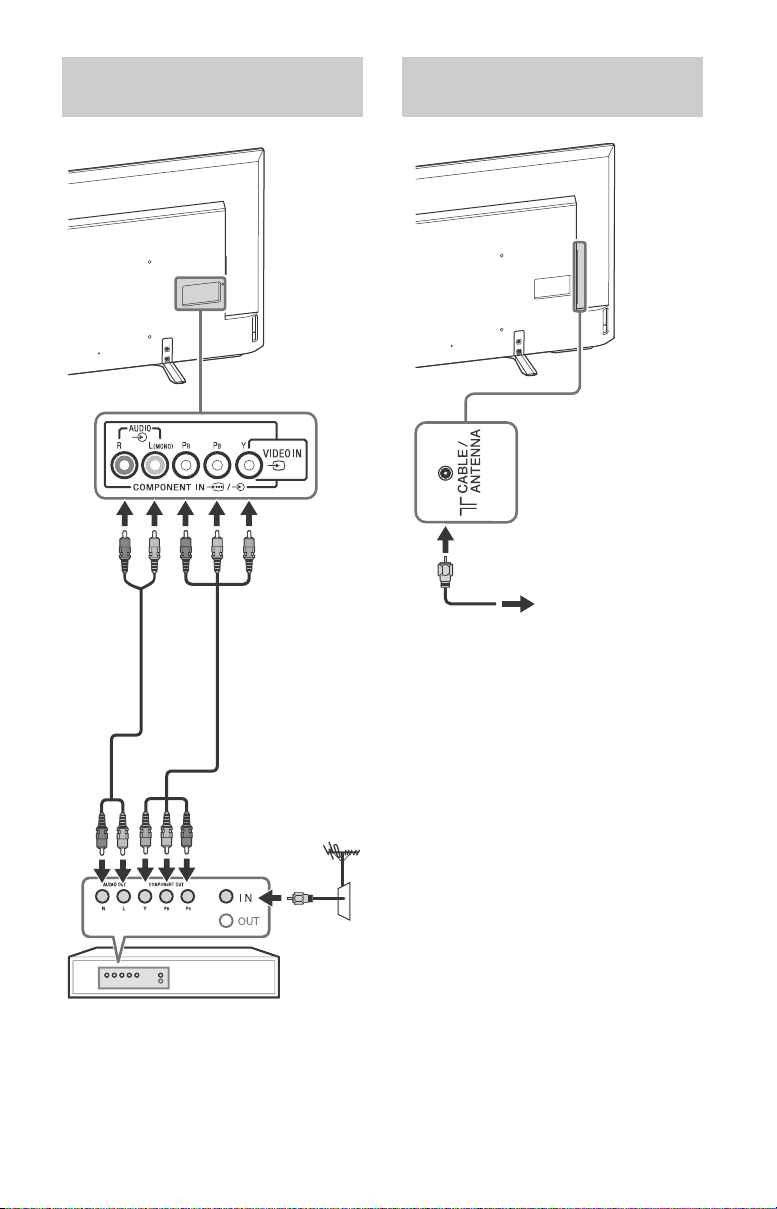

Showing a Set Top Box with

Component connection . . . . . . . . . . . 36

Cable System or VHF/UHF Antenna

System . . . . . . . . . . . . . . . . . . . . . . . . . 36

Showing HD BRAVIA® Sync™ Basic

Connection . . . . . . . . . . . . . . . . . . . . . . 37

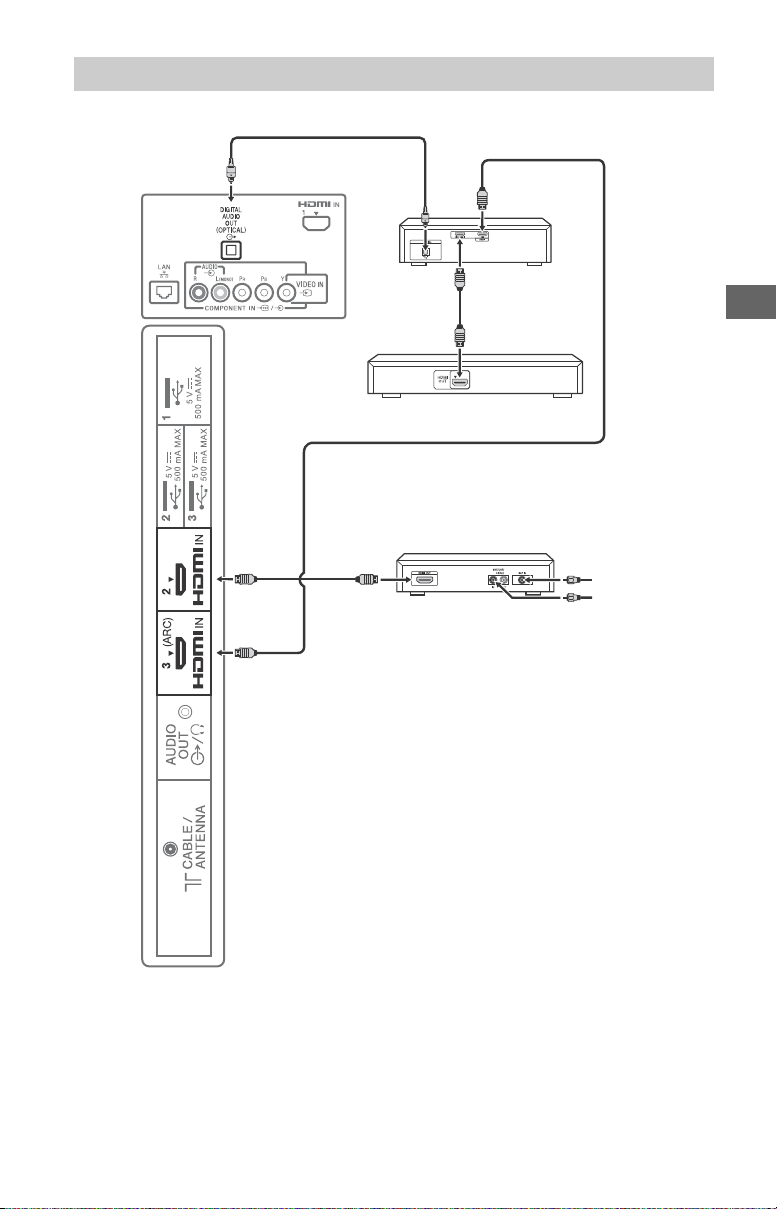

Showing HD Basic Connection with

Home Theater System. . . . . . . . . . . . . 38

Showing PC Connection with SD

VCR/DVD . . . . . . . . . . . . . . . . . . . . . . . 39

Using Audio and Video

Equipment . . . . . . . . . . . . . . . . . . . . .40

Using Screen Mirroring . . . . . . . . . . .40

Additional Information

Installing the TV to the Wall . . . . . . . 41

Installing the TV against a wall or

enclosed area. . . . . . . . . . . . . . . . . . . 42

Troubleshooting. . . . . . . . . . . . . . . . .43

Picture. . . . . . . . . . . . . . . . . . . . . . . . . . 43

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Channels. . . . . . . . . . . . . . . . . . . . . . . . 44

Network . . . . . . . . . . . . . . . . . . . . . . . . 44

General . . . . . . . . . . . . . . . . . . . . . . . . . 45

Specifications. . . . . . . . . . . . . . . . . . .46

Introduction

Note

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

The 70” class has a 69.5 inch (176.6 cm) viewable image size, 60” class has a 60 inch (152.7 cm) viewable image size (measured diagonally).

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

IMPORTANT NOTICE

Safety Information

Declaration of Conformity

Trade Name: SONY Model: KD-70X690E / 60X690E Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Owner’s Record

The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Operate the TV only on 110 V - 240 V AC (U.S.A./Canada

0 V AC).

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

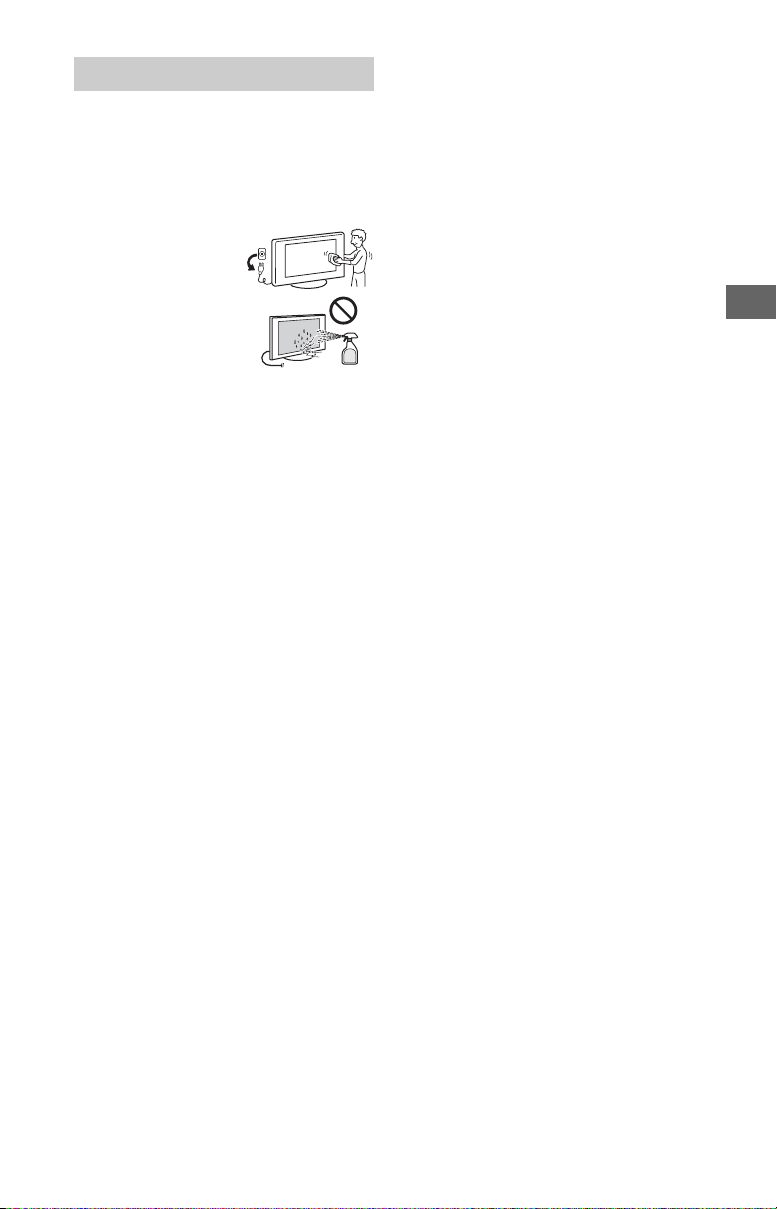

Cleaning

When cleaning, be sure to unplug the power cord to avoid any chance of electric shock.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly

ened with a solution of mild soap and warm water.

moist

• If using a chemically pretreated cloth, please follow the

uction provided on the package.

instr

• Never use strong solvents such as a thinner, alcohol or

or cleaning.

benzine f

• See the supplied Safety Booklet for additional

ormation.

inf

FCC Related Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety and Regulatory

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition.

Educating children about the dangers of

climbing on furniture to reach the television set or its controls.

Keep small accessories out of the reach of

children, so that they are not mistakenly swallowed.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by

the manufacturer of the television set.

Only using furniture that can safely support

the television set.

Ensuring the television set is not

overhanging the edge of the supporting furniture.

Not placing the television set on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

Not placing the television set on cloth or

other materials that may be located between the television set and supporting furniture.

The BRAVIA® 4K TV Experience

Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the “4K TV Experience.” This document will help you get the most out of your TV. Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com Canada: http://www.sony.ca/registration

•Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Media Player. (The availability depends on region)

•Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.

•Discover the wealth of entertainment

Four Steps to a 4K TV Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all of the accessories from the packaging before setting up your TV.

2 Source

To exper i ence the st u nning detail of your BRAVIA TV, you need access to HD programming.

•Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.

now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 34 for sample connection diagrams. To help assure the highest quality for your 4K experience, use Sony HDMI (High-Definition Multimedia Interface) cables.

To learn more about 4K TV, visit:

U.S.A.: http://www.sony.com/HDTV Canada: http://www.sony.ca/hdtv

This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.

The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.

INPUT VIDEO AUDIO

HDMI

4K/

COMPONENT

VIDEO

*1 For details of supported formats, refer to the “Specifications” in this manual.

Composite

video

connection

Audio L/R

4K*11080/

24p/30p

SUPPORTED FORMATS

1080p*11080i

24p/30p

720/

720p*1480p 480i PC*

Getting Started

Securing the TV

Setting Up Your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 41 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task. Look for the supplied Setup Guide. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate

mber of people; larger size TVs

nu require two or more people.

• Correct hand placement while carrying

is very important for safety and

the TV to avoid damage.

• Do not put stress on the LCD panel or

frame around the screen.

the

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb furniture and TV sets.

• Avoid placing or hanging items on the

• Never install the TV on:

 slippery, unstable and/or uneven

surfaces.

 furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be

pulled, pushed, or knocked over.

• Install the TV so that the TV's Table-Top nd does not protrudes out from the

Sta Stand (not supplied). If the Table-Top Stand protrudes out from the Stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Ensure your TV has adequate tilation, see page 42.

ven

• For best picture quality, do not expose

he screen to direct illumination or

t sunlight.

• Avoid installing the TV in a room with

eflective wall and floor materials.

• Avoid moving the TV from a cold area

o a warm area. Sudden room

t temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

• Route all AC power cords and onnecting cables so that they are not

c accessible to curious children.

Recommended Measures to Secure

Stand

Angle braces (not supplied)

Screw hole on the rear cover

M4 machine screw (not supplied)

Rope or chain (not supplied)

Screw (not supplied)

TV's rear cover

Rope or chain

Screw M4

8 mm - 12 mm

the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:

 Attach one side of the angle brace to

the wall stud.

 Attach the other side to the Stand.

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not supplied):

 M4 machine screws (screwed into the

TV's rear cover).

 A screw or similar (attach it to the

Stand).

 Rope or chain (strong enough to

support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

The length of the M4 machine screw differs depending on the rope or chain diameter. Please refer to below illustration.

3 Anchor the TV to the wall by using

bolts, wall anchor and chain (or rope).

Note

Wall-mount holes

M6 eye bolts (not supplied)

Rope or chain (not supplied)

Wall-anchor (not supplied)

8 mm - 12 mm

M6 eye bolt

TV’s rear cover

Please see below illustration for M6 eye bolt length.

• Your TV is shipped with screws attached to the rear of the T V depen ding on the TV mod el. (Th ey are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the Stand without securing the TV and the Stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Precautions

How to care for your BRAVIA TV

Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided.

Unplug the TV and

ther connected

o equipment from the wall outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with

oth slightly moistened with a

a cl solution of mild soap and warm water.

• If using a chemically pretreated cloth,

ease follow the instruction provided

pl on the package.

• Never spray water or detergent directly

n the TV set. It may drip to the

o bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a

nner, alcohol or benzine for

thi cleaning.

• Do not plug in the TV into the wall

until the moisture from cleaning

outlet has evaporated.

• Do not touch the TV if your hand is

overed in any chemical substance

c such as hand cream or sunblock.

The TV should also be placed on a stable surface to prevent it from toppling over (see page 7). If you have young children or pets at home, check regularly to ensure the TV is securely fastened.

Note

Parts and Controls

 (Power) / + / –

Short press  to turn the TV on. Long press  un

When the TV is on, Volume

Press + or – button to increase/decrease the volume. You can also press  until notification is displayed. Increases/ decreases the volume by pressing the + or – button.

Input

Press  until notification is displayed. Moves the selected input source by pressing + (up) or – (down) button.

Channel

Press  until CH notification is displayed. Select the channel by pressing + (up) or – (down) button.

til the TV turn off.

 (Sensors/LED indicator)

• Receives signals from the remote

control. Do not put anything over the sensor. Doing so may affect its function.

• Lights up in amber when the [Sleep

Timer] or [On Timer] is set (page 30), or the TV is in Photo Frame Mode (page 20).

• Lights up in green when [Power

aving] is set to [Picture Off]

(page 32).

• Lights up in green when the TV is

turned on.

• Does not light up when the TV is in

standby mode

• Flashes while the remote control is

being operated.

• Make sure that the TV is completely turned off before unplugging the AC power cord.

• To disconnect the TV from the AC power completely, pull the plug from the mains socket.

• Please wait for a while when perform input se

lection to change to other input.

Remote Control

The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

 INPUT

Displays and selects the input source.

 SYNC MENU

Press to display the BRAVIA Sync Menu and then select connected HDMI equipment from [Device Selection]. The following options can be selected from BRAVIA Sync Menu.

Device Control:

Use the [Device Control] to operate equipment that is compatible with BRAVIA Sync Control. Select options from [Home (Menu)], [Options], [Content List] and [Power Off] to operate the equipment.

Speakers:

Select [TV Speakers] or [Audio System] to output the TV’s sound from the TV speakers or connected audio equipment.

TV Control:

Use the [TV Control] menu to operate th

e TV from the [Home (Menu)] or

[Options] menu.

Return to TV:

Select this option to return to TV

ogram.

 0-9

Select channels. For channel numbers 10 and above, enter the next digit quickly.



Use with 0-9 to select digital channels. For example, to enter 2.1, press ,

, and .

 Color buttons

Displays operation guide (when colored buttons are available).

 YouTube (Only on limited region/

country/TV model)

Accesses the “YouTube” online service.

 DISPLAY

Displays information. Press once to display information about the program/ input you are viewing. Press again to remove the display from the screen.

 SLEEP

Press repeatedly until the TV displays the time in minutes [Off]/[15 min]/ [30 min]/[45 min]/[60 min]/[90 min]/ [120 min] that you want the TV to remain on before shutting off. To cancel the sleep timer, press SLEEP repeatedly until [Off] appears.

////

• Select or adjust items.

• Confirm selected items.

 RETURN

• Returns to the previous screen of any displayed menu.

• Stops playback when playing photo/ music/video file.

 HOME

Hint

Displays or cancels the menu.

 VOL +/–

Adjust the volume.

 MUTING

Mutes the sound. Press again to restore the sound.

 AUDIO

Selects the sound of multilingual source or dual sound for the program currently being viewed (depending on program source).

 (fast rewind)/ (PLAY)/

 (fast forward)/ (PREV)/  (PAUSE)/ (STOP)/ (NEXT)

• Operate media contents on TV and connected BRAVIA Sync-compatible device.

• This key also can be used to operate VOD (Video on Demand) service playback. Availability is depend on VOD service.

 (REPLAY)/ (ADVANCE)

Replays the scene/briefly fast forwards the scene (USB and IPTV Video playback only).

 POWER

Turns the TV on or switches to standby mode.

 PIC OFF

Press to turn picture off, and sound remains on.

 NETFLIX (Only on limited region/

country/TV model)

Accesses the “NETFLIX” online service.

 WIDE

Adjusts the screen display. Press repeatedly to select the desired wide mode (page 18).

 OPTIONS

Displays a list that contains shortcuts to some setting menus. The listed options vary depending on the current input and content.

 JUMP

Returns to the previous channel or input viewed more than 15 seconds.

 CH +/–

Select the next (+) or previous (–) channel.

 CC/SUBTITLE

Changes the subtitle setting (page 29).

•The number 5, , CH + and AUDIO buttons

have a tactile dots. Use the tactile dots as references when operating the TV.

Guidelines for Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your

emote control; try turning off the

r fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Note

Connecting TV to the Internet

Setting up the Internet Connection

To use the network features of your TV it needs to be connected to the Internet. The set-up procedure differs depending on the type of network and LAN router. Before setting up the Internet connection, be sure to set up a LAN router. Check your wireless LAN environment using the following chart.

Wireless LAN

Secure Wireless LAN? NO

YES 

Do you use a wireless LAN

outer compatible with Wi-Fi

r Protected Setup™ (WPS)?

YES 

pe 1*

Wired LAN  Type 4

* Type 1 is easier to set up if your router has an

automatic setting button, e.g. Air Station OneTouch Secure System (AOSS). Most of the latest routers have this function. Check your router.

Type 1: Follow the configuration for

Type 2: Follow the configuration for

Type 3: Follow the configuration for

Type 4: Follow the configuration for Wired

Secured network with Wi-Fi Protected Setup™ (WPS).

Secured network without Wi-Fi Protected Setup™ (WPS).

Unsecured network with any type of wireless LAN router.

network set-up.

 Ty

pe 3

pe 2

Type 1: Secured network with Wi-Fi Protected Setup™ (WPS)

The WPS standard makes security of a wireless home network as straightforward as pressing the WPS button on the wireless LAN router. Before setting up a wireless LAN, check the location of the WPS button on the router and verify how to use it. For security purpose, [WPS (PIN)] provides a PIN code for your router. PIN code is renewed every time you select [WPS (PIN)].

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 IP Address setting/Proxy server:

– automatic setting: [Set up network connection]  [Easy] – manual setting: [Set up network connection]  [Expert]  [Wired Set-up] or [Wireless Set-up]

3 Select [WPS (Push Button)] for Push

Button method or [WPS (PIN)] for PIN method.

Note

Button name of the WPS may differ depending on the router (e.g. AOSS button).

4 Follow the instructions on the set-up

screen.

• If you use WPS for network set-up, the security settings of the wireless LAN router activate, and any equipment previously connected to the wireless LAN in a non-secure status will be disconnected from the network. In this case, activate the security settings of the dis

connected equipment and then reconnect. Or, you can deactivate the security settings of the wireless LAN router, and then connect the equipment to a TV in a non-secure status.

• To use the network with IPv6, select [Settings]

 [

Preferences]  [Setup]  [Network] 

[IPv6/IPv4 Priority]  [ in [Set up network connection].

• When IPv6 is selected, HTTP Proxy cannot be set.

IPv6], then select [Easy]

Note

Type 2: Secured network without Wi-Fi Protected Setup™ (WPS)

To set up a wireless LAN, SSID (wireless network name) and security key (WEP or WPA key) will be required. If you do not know them, consult the instruction manual of your router.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 IP Address setting/Proxy server:

– automatic setting: [Set up network connection]  [Easy] – manual setting: [Set up network connection]  [Expert]  [Wired Set-up] or [Wireless Set-up]

3 Select [Scan], then select a network

from the list of scanned wireless networks.

4 Follow the instructions on the set-up

screen.

• To use the network with IPv6, select [Settings]

 [Preferences]  [Setup]  [Network]  [IPv6/IPv4 Priority]  [ in [Set up network connection].

• When IPv6 is selected, HTTP Proxy cannot be se

• Please make sure your surrounding is secure w

hen you key in your password.

IPv6], then select [Easy]

Type 3: Unsecured network with any type of wireless LAN router

To set up a wireless LAN, SSID (wireless network name) will be required.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 IP Address setting/Proxy server:

– automatic setting: [Set up network connection]  [Easy] – manual setting: [Set up network connection]  [Expert]  [Wired Set-up] or [Wireless Set-up]

3 Select [Scan], then select a network

from the list of scanned wireless networks.

4 Follow the instructions on the set-up

screen.

• Security key (WEP or WPA key) will not be required because you do not need to select any security method in this procedure.

• To use the network with IPv6, select [Settings]  [Preferences]  [Setup]  [Network]  [IPv6/IPv4 Priority]  [I in [Set up network connection].

• When IPv6 is selected, HTTP Proxy cannot be se

Pv6], then select [Easy]

Type 4: Wired network set-up

Enter the respective alphanumeric values for your router if necessary. The items that need to be set (e.g. IP Address, Subnet Mask, DHCP) may differ depending on the Internet service provider or router. For details, refer to the instruction manuals provided by your Internet service provider, or those supplied with the router.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 IP Address setting/Proxy server:

– automatic setting: [Set up network connection]  [Easy] – manual setting: [Set up network connection]  [Expert]  [Wired Setup] or [Wireless Set-up]

3 Follow the instructions on the set-up

screen.

[Network Setup] can also be set from [Initial Setup] menu.

• Allows automatic configuration of your wired/ wireless network.

When connecting with LAN cable: Wired When connecting with built-in Wireless LAN:

Wireless

When connecting with both of the cables:

Wired

• Set to [Easy], sets the IP address automatically. F

or proxy server is not use.

• To use the network with IPv6, select [Settings]  [

Preferences]  [Setup]  [Network] 

[IPv6/IPv4 Priority]  [I in [Set up network connection].

• When IPv6 is selected, HTTP Proxy cannot be se

Pv6], then select [Easy]

Note

Preparing a Wired Network

Internet

Modem with router functions

Router

Modem

Internet

• For LAN connections, use a Category 7 cable (not supplied).

Viewing the Network Status

You can confirm your network status.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 Select [Network Status].

If You Cannot Connect to the Internet

Use the diagnosis to check possible causes for network connection failures, and settings.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Network Setup].

2 Select [Network Status]. 3 Select [Check Connection].

This may take several minutes. You cannot cancel the diagnosis after selecting [Check Connection].

Privacy Policy

When you use the following functions to connect to the Internet, certain information will be sent to Sony Corporation’s global servers, which is considered to be personal information, and requires your agreement in order for that service providers to use it.

• System software updates by connecting to Sony Corporation’s global servers via the Internet.

• Internet contents or other Internet services from service providers like Youtube.

This TV has the setting screens in Initial Setup or Setting Menu to confirm your agreement to this after you read the detail of the Privacy Policy. If you want to use these functions, please check [Agree] in each setting screen. If [Disagree] is

checked, the above two functions are not available. However, even in this case, if [On] is selected at [Automatic Software Download] in Initial Setup or Setting Menu, the system software updating is available. You can change this setting by pressing HOME, then select [Settings]  [Preferences]  [Setup]  [Privacy Policy].

Watching TV

1 Press  on the TV or POWER on the

remote control to turn on the TV.

2 Press PIC OFF to turn picture off, and

sound remains on.

3 Press the number buttons or CH +/–

to select a TV channel.

4 Press VOL +/– to adjust the volume.

Select Your Content Source

Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or Blu-ray Disc; or connecting to your PC, you need to choose the correct input using your remote control:

•Press the INPUT button repeatedly

until your selection is highlighted on-screen.

The boxy 4:3 aspect ratio (common to most SD signals) must be adjusted to fill the screen.

Adjust Screen Shape and Aspect Ratio

High Definition and Standard Definition signals are transmitted with different aspect ratios (the width-to-height ratio of the image). The 16:9 aspect ratio (common to most HD signals) looks perfect on your BRAVIA.

•Press the WIDE button on your remote

control to display the [Wide Mode] setting of your preference.

Customize Sound and Picture Quality

You can choose optimum sound and picture settings to match the content you are displaying on your TV:

• Press the remote control’s HOME

button, select [Settings]  [Preferences], then select the [Picture] and [Sound] settings to adjust the picture and sound quality of your content.

Refer to your operating instructions manual for more information on adjusting or customizing your settings.

Changing the Viewing Style

Changing the Wide Mode

1 Press WIDE repeatedly to select the

wide mode.

[Wide Zoom]* [Normal]

[Full] [Zoom]*

* Parts of the top and bottom of the picture

may be cut off.

For HDMI PC Input (PC timing)

[Normal] [Full 1]

[Full 2]

For HDMI DCI 4K (4096 × 2160p)

[Normal] [Full 1]

[Full 2]

Setting Scene Select

1 Press OPTIONS. 2 Press / then to select [Scene

Select].

When you select the desired scene option, the optimum picture and sound quality for selected scene are automatically set. The options you can select may vary. Unavailable options are greyed out.

Note

Navigating through Home Menu

The HOME button allows you to access a variety of TV settings and features.

All Apps

Internet Contents delivers a variety of ondemand entertainment straight to your TV. You can enjoy your favorite internet content, Photo Sharing Plus and Photo Frame Mode.

• Be sure to connect your TV to the Internet and complete [Network Setup] (page

28).

To use Internet Contents

1 Press HOME, then select [All Apps]. 2 Press /// to select the

desired internet service in service list.

3 Press to launch the desired

internet contents.

4 Press the yellow/blue/red/green

button to filter the app category by Photo/Music/Video/All.

To exit Internet Contents

Press HOME.

• If you experience difficulties with this feature, check that the Internet connection is set up properly.

• The inter face to Internet content depend s on the Internet content providers.

• To update Internet Contents services, Press HOME, th

en select [Settings]  [Prefere nces] 

[Setup]  [Network]  [Refresh Internet Content].

To use NETFLIX

Press NETFLIX button on the remote control to launch menu.

Photo Sharing Plus

Connect, view and save favourite photos on TV using your devices (eg. smartphones or tablets).

HOME  [All Apps]  [Photo Sharing Plus]

• Follow the instructions on the screen to connect your device to the TV.

• Open web browser on device after all connections are established, then follow the instructions on the screen to access the URL.

To display photo on TV

1 Tap on your device to start. 2 Select a photo.

The selected photo will be displayed automatically on TV.

To save a photo displayed on TV

1 Tap thumbnail on your device, then

hold the photo to open the context menu.

2 Select [OK].

• Connect a USB flash drive to store up to 50 photos.

• Up to 10 smartphones or tablets can be connected to the TV at the same time.

• Maximum file size of each pho

• You can also throw a background music with a max

imum file size of 30 MB.

• The default browser for Android 2.3 or later is s

upported.

• The default browser for iOS is supported; however

, some functions cannot be used

depending on the version of your iOS.

to is 20 MB.

• It is possible that Netflix cannot be used via a Proxy server.

Note

Using the TV as a Photo Frame Mode

Photo Frame Mode displays the clock and calendar at the same time as displaying a photo and listening to music.

HOME  [All Apps]  [Photo Frame Mode]

Duration

To save power, the TV continually plays back in Photo Frame Mode for up to 24 hours before powering off automatically. After automatic power off, do not use Photo Frame Mode for at least one hour to avoid panel burn-in. You can change the setting of the [Duration] in the [Photo Frame Settings] (page 28).

To launch Photo Frame Mode while playback USB media

1 Press OPTIONS while playback a

photo or music file.

2 Press / then to select [Photo

Frame Mode] to launch Photo Frame.

To select Display mode

You can change the Photo Frame Mode display by selecting [Display Mode] in the [Photo Frame Settings] (page 28).

To select Clock Display mode

You can select among three clock display modes by selecting [Clock Display] in the [Photo Frame Settings] (page 28).

• This TV does not have a battery powered backup for the clock. If there is a power failure or if you disconnect the power cord, the current date and time will reset automatically.

To avoid panel burn-in, the positio photo, clock and calendar are switched automatically every hour.

n of the

Favorites

1 Press HOME. 2 Press / then to select

[Favorites].

3 Press /// then to select a

program.

Note

Media

Playback Photo/Music/Video via USB

You can enjoy photo/music/video files stored in a Sony digital still camera/ camcorder/smartphone (depending on models)* through a USB cable or USB storage device on your TV.

1 Connect a supported USB device to

the TV.

* Device needs to be in Media transfer mode

(MTP).

2 Press HOME. 3 Press / then to select [Media]. 4 Press / then to select [Photo],

[Music] or [Video].

5 [Device Selection] appears. Press

/ then to select a device.

6 Press /// then to select a

file or folder.

Playback Method

Press the yellow color button in thumbnail view to display list of USB playback settings.

Display Settings

Press OPTIONS in thumbnail view to display the option to change the thumbnail view to list view.

To adjust the picture and sound quality of USB media

Press OPTIONS during media playback then select [Picture] or [Sound].

• Press /// then to select and adjust an

item.

To play a photo as a slideshow (Photo)

1 Press the blue button in thumbnail/

list view to start slideshow. To set [Slideshow Effect] and [Slideshow Speed], press OPTIONS  [Playback Method]. To stop a slideshow, press RETURN.

• While the TV is accessing the data on a USB device, observe the following:

 Do not turn off the TV.  Do not disconnect the USB cable.  Do not remove the USB device.

The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or l

oss of, data on the recording media due to a

malfunction of any connected devices or the TV.

• USB Auto Start shows photo files in the newest di

gital still camera folder (DCF-compliant,

highest-numbered “DCIM” folder).

• USB Auto Start may not work automatically when

some digital still cameras are connected.

• When you connect a Sony digital still camera, set th

e camera’s USB connection mode to “Auto” or “Mass Storage.” For more information about USB connection mode, refer to the instructions supplied with your digital camera.

• Use a USB storage device that is compliant with USB Mas

• The file system on the USB device supports

• The file name and folder name may not display

• If a selected file has incorrect container

USB Video format

•AVI (.avi)

•ASF (.wmv, .asf)

• MP4 (.mp4, .mov, .3gp)

s Storage Class standards.

T16, FAT32 and NT FS.

orrectly in some cases.

inf

ormation, or is incomplete, it cannot be

played back.

Video Codec: MPEG1, MPEG2, Xvid,

Audio Codec: PCM, MPEG1 Layer1/2,

Video Codec: WMV v9, Xvid, VC-1 Audio Codec: MP3, WMA v8

Video Codec: MPEG4, H.264, H.263,

Audio Codec: MPEG1 Layer1/2, MP3,

MPEG4, H.264, Motion JPEG

MP3, MPEG2 AAC (2ch), MPEG4 AAC (2ch), MPEG4 HE-AAC (2ch), Dolby Digital (2ch), WMA v8, Dolby Digital Plus (2ch)

Motion JPEG, H.265

MPEG2 AAC, MPEG4 AAC, MPEG4 HE-AAC

Note

•MKV (.mkv)

Video Codec: WMV v9, MPEG4, H.264,

Audio Codec: PCM, MPEG1 Layer1/2,

VC-1, VP8, VP9, H.265

MP3, MPEG2 AAC (2ch), MPEG4 AAC (2ch), MPEG4 HE-AAC (2ch), Dolby Digital (2ch), WMA v8, Dolby Digital Plus (2ch), DTS, FLAC, VORBIS

•WebM (.webm)

Video Codec: VP8, VP9 Audio Codec: VORBIS

• PS (.mpg, .mpeg, .vro, .vob)

Video Codec: MPEG1, MPEG2 Audio Codec: MPEG1 Layer1/2, MP3,

Dolby Digital (2ch), Dolby Digital Plus (2ch), DTS, DTS 2.0

• TS (.ts, .m2ts)

Video Codec: MPEG2, H.264, VC-1,

Audio Codec: MPEG1 Layer1/2, MP3,

USB Music format

H.265

MPEG2 AAC, MPEG4 AAC, MPEG4 HE-AAC, Dolby Digital (2ch), Dolby Digital Plus (2ch), DTS, DTS 2.0

• LPCM, DTS-CD (.wav)

•MPEG1 audio layer3 (.mp3)

•WMA V8 (.wma)

• FLAC (.flac)

USB Photo format

• JPEG (.jpg, .jpeg)

• Playback of the above file formats is not guaranteed.

Playback Photo/Music/Video via Home Network

You can enjoy various content (e.g. photo/ music/video files) stored on DLNA Certified™ media servers. The home network feature allows you to enjoy network content in other rooms.

Playing photo/music/video

1 Press HOME, then select [Media] 

[Photo], [Music] or [Video]  the desired media server.

2 Select files or folders to play from

the list.

• The server is required to be DLNA Certified™.

• Files from a network device need to be in the following formats: Still i

mages: JPEG

Music: MP3, linear PCM, WMA Video: AVCHD, MPEG2, MPEG1, MP4 (AVC),

MP4 (MPEG4), WMV

• Depending on the file, playback may not be pos

sible even when using the supported

formats.

Renderer

You can play back photo, music and video files stored in network devices (e.g. digital still cameras, mobile phones, PC) on the TV screen by directly operating the target device. The network should also be renderer-compatible devices.

Renderer settings

Press HOME, then select [Settings]  [Preferences]  [Setup]  [Network]  [Home Network Setup]  [Renderer].

Display Settings for Media Servers

Select home network servers to be displayed in the Home Menu. Up to 10 servers can be displayed.

1 Press HOME, then select [Settings]

 [Preferences]  [Setup]  [Network]  [Home Network Setup]  [Show/Hide Media Servers].

2 Select the server to display in the

Device Selection.

Settings

Note

Preferences

• The options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed.


Mastered in 4K

Optimizes picture quality for Blu-ray Discs mastered in 4K. Applies to 1080/24p signals only.

Random noise reduction

Reduce repetitive random noise.

Digital noise reduction

Reduce video compression noise.

Picture Mode

Sets a picture mode.

Reset

Resets all the [Picture] settings except [Picture Mode] to the default settings.

Brightness

Adjust the backlight luminance.

Contrast

Adjust the picture white level.

Black level

Adjust the picture black level.

Color

Adjust the color saturation level.

Hue

Adjust the green and red tones.

Color Temperature

Adjust the color temperature.

Sharpness

Adjust the picture detail.

Reality Creation

Adjusts fineness and noise for realistic picture.

Resolution: Adjusts fineness and

clarity. Select [Manual] from [Reality Creation] to adjust the [Resolution].

Motionflow

Refines moving images.

CineMotion

Provides improved picture movement when playing BD (Blu-ray Disc), DVD or VCR images taken on film. Select [Auto] to represent original film-based content as it is.

• If the image contains irregular signals or too much noise, [CineMotion] is automatically turned off even if [Auto] is selected.

Advanced Settings

Sets [Picture] settings in more detail.

Reset: Resets all the advanced

settings to the factory settings.

Adv. Contrast Enhancer:

Automatically adjusts the contrast based on picture brightness.

Black adjust: Enhance the black in

images for stronger contrast.

Gamma: Adjust the light and dark

balance.

Live Color: Improve the vividness of

colors.

Adv. color temperature: Adjust the

color temperature in detail.

Color Gamma Adjustment Points

This function is for advanced users and requires professional picture calibration tools. 10 adjustment points are available to alter pixel drive at 10 input signal levels.

Note

Sound

ClearAudio+

Let you enjoy the best sound quality by the combination of a well-balanced digital signal processing technology.

Sound Mode

Select according to content you want to enjoy.

Reset

Reset [Surround], [Surround effect], [Sound restoration (DSEE)], [Equalizer], [Voice Zoom], [Advanced auto volume], [Balance], and [Volume Offset] settings.

Surround

Virtually reproduce realistic surround sound.

Surround effect

Adjust the surround sound effect.

Sound restoration (DSEE)

Reproduce the spatial natural sound quality by decoding high frequencies and small sound often lost by digital compression.

Equalizer

Adjusts sound frequency settings.

Voice Zoom

Emphasize voice or ambient audio.

Advanced auto volume

Automatically compensates for the volume level that may vary by program or input.

Balance

Emphasizes left or right speaker balance.

Volume Offset

Adjusts the volume level of the current input relative to other inputs.

MTS Audio

Enjoy stereo, bilingual and mono programs.

Stereo: Select for stereo reception

when viewing a program broadcast in stereo.

Auto SAP: Select to automatically

switch the TV to second audio programs when a signal is received. If no SAP signal is present, the TV remains in [Stereo] mode.

Mono: Select for mono reception.

Use to reduce noise during weak stereo broadcasts.

Alternate Audio

Digital channels only.

Select among the available options to switch among the alternate audio streams. The program you are tuned to may be broadcasted in a different language in the alternate audio streams.

Advanced Settings

Dynamic Range: Compensates for

differences in the audio level between different channels.

• The effect may not function or may vary depending on the program regardless of the [Dynamic Range] setting.

Dolby Digital Plus Out: Select

[Auto] to pass through Dolby Digital Plus stream to ARC when Dolby Digital Plus is available through connected Audio System.

During Dolby Digital Plus stream is output, Digital Audio Out (optical) is muted.

Select [Off] to convert Dolby Digital Plus stream to Dolby Digital for both ARC (Audio system) and Digital Audio Out (optical).

HE-AAC Audio Level: Adjust the

HE-AAC audio sound level.

MPEG Audio Level: Adjusts the

MPEG audio sound level.

Screen

Wide Mode

For details about wide mode, see page

18.

Auto Wide

Automatically changes the wide mode according to the input signal from an external equipment.

Auto Program

Automatically sets up the channel list on the TV for all receivable channels. Select [Auto Program]. Select [OK] to automatically sets up the channel list.

Add Digital Channels

Select [Add Digital Channels]. Select [OK] to add digital channels.

4:3 Default

Sets the default [Wide Mode] for a 4:3 input signal.

Auto Display Area

Select [On] to automatically adjusts the display area based upon the content or [Off] to choose from the [Display Area] options.

Display Area

Adjusts the picture display area.

Horizontal Center

Adjusts the horizontal position of the picture.

Vertical Center

Adjusts the vertical position of the picture.

Vertical Size

Adjusts the vertical size of the picture when [Wide Mode] is set to [Wide Zoom].

PC / DCI 4K Settings

Select [Wide Mode], see page 18.

Channel

Signal Type

Cable: Select if you are receiving

cable channels via Cable TV provider.

Antenna: Select if you are using an

antenna.

Show/Hide Channels

Allows you to show or hide channels that appear when you use the CH +/– buttons. Press / to scroll through the channels until you find the channel you want to show or hide. Then press

to select it.

Press / to determine if the channel will be shown or hidden. Then press

to select it.

Edit Channel Labels

Allows you to assign labels (such as station call letters) to channel numbers. Press / to scroll through the channel numbers. Then press to select the channel number that you want to assign a label. Press / to scroll through the label characters ([A-Z], [0-9], etc.). Press  to move to the next character. Repeat the previous steps to add up to seven characters to the label. When finished, press .

Analog Channel Adjustment

Channel: Selects a channel number. Analog Fine Tune: [Custom]

selection allows you to fine-tune the selected analog channel manually if you feel that a slight tuning adjustment may improve picture quality. Select [Auto] to adjust to the most appropriate analog channel.

Audio Filter: Select [Low] or [High]

to improve the sound of individual channels when distortion occurs in mono broadcasts.

Note

Hint

Parental Lock

Pass word

Sets a PIN code to block channels, external inputs and Internet services. Use 0-9 on the remote to enter a fourdigit password.

Change Password

Select to change your password.

Country

U.S.A.: Select to use U.S.A. ratings

(page 27).

Canada: Select to use Canadian

ratings (page 27).

Rating

Off: Turn parental rating off. No

programs are blocked from viewing.

Child: Maximum ratings permitted

are:

U.S.: TV-Y, TV-G, G Canada: C, G, TV-Y, TV-G

Youth: Maximum ratings permitted

are: U.S.: TV-Y, TV-Y7, TV-G, TV-PG, G,

PG Canada: C, G, C8+, PG, 8 ans+,

TV-Y, TV-Y7, TV-G, TV-PG

Young Adult: Maximum ratings

permitted are: U.S.: TV-Y, TV-Y7, TV-G, TV-PG, TV-

14, G, PG, PG-13 Canada: C, G, C8+, PG, 14+,

8 ans+, 13 ans+, TV-Y, TV-Y7, TV-G, TV-PG, TV-14

Custom: Select to set ratings

manually.

U.S.: See page 27 for details. Canada: See page 27 for details.

Downloadable U.S. Rating

(Available only in U.S.A. where advanced ratings exist)

Off: Turn [Downloadable U.S.

Rating] off. No programs that

contain downloadable ratings are blocked from viewing.

Custom: Select to block programs

based on downloadable ratings.

Clear All: Select to clear the entire

downloadable rating system.

Unrated

(Available only when Country is set to U.S.A.)

Allow: Allows programs and movies

that are broadcasted without a rating.

Block: Blocks all programs and

movies that are broadcasted without a rating.

Channel Block

Allows you to block channels regardless of program ratings.

To View a Blocked Channel

Press when tuned to the blocked channel then enter the password.

External Input Block

Locks an external input from being watched. To view a blocked external input, select [Unblocked].

• Entering the correct password for blocked channel or external input will temporarily deactivates the [Parental Lock] feature. To reactivate the [Parental Lock] settings, turn off and on the TV.

• Selecting [Clear All] will delete the current [Downloadable U.S. Rating] menu and the menu will no longer be available until the TV is tuned to a channel that contains downloadable ratings.

• If you lost your password, see page 45.

US Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for the U.S., select [U.S.A.] in the [Country] setting (page 26).

Movie Rating

G: All children and general

audience.

PG: Parental guidance suggested. PG-13: Parental guidance for

children under 13.

R: Restricted viewing, parental

guidance is suggested for children under 17.

NC-17 and X: No one 17 or under

allowed.

TV Rating

Block programs by their rating, content or both Age-Based Ratings

TV-Y: All children. TV-Y7: Directed to children age 7

and older.

TV-G: General audience. TV-PG: Parental guidance

suggested.

TV-14: Parents strongly cautioned. TV-MA: Mature audience only.

Content-Based Ratings

FV: Fantasy violence. D: Suggestive dialog. L: Strong language. S: Sexual situations. V: Violence.

Canadian Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for Canada, select [Canada] in the [Country] setting (page 26).

English Rating

C: All children. C8+: Children 8 years and older. G: General programming. PG: Parental guidance. 14+: Viewers 14 and older. 18+: Adult programming.

French Rating

G: General programming. 8 ans+: Not recommended for

young children.

13 ans+: Not recommended for ages

under 13.

16 ans+: Not recommended for

ages under 16.

18 ans+: Not recommended for

ages under 18.

U.S.A. Rating

See “US Models” on page 27 for details.

Internet Lock

Locks internet contents from being watched. To view an internet contents, select [Unblocked].

Note

Setup

Network

Network Setup: Sets the network

status settings.

IPv6/IPv4 Priority: Switch between

[IPv6] and [IPv4 (Recommended)].

• To use the network with [IPv6], select [IPv6], then select [Easy] in [Set up network connection].

• When IPv6 is selected, HTTP Proxy cannot be set.

• When IPv6 is selected, some Internet browser sites, applications or contents cannot be watched.

Built-in Wi-Fi: Turns the built-in Wi-

Fi [On] or [Off]. Set to [Off], if you do not use the built-in Wi-Fi. When you switch from [Off] to [On], establish the network connection via [Network Setup].

Wi-Fi Direct: Turns on/off to

connect your TV with Wi-Fi Direct device such as PC, mobile phone or digital camera.

Wi-Fi Direct Settings: Set to

connect a Wi-Fi direct device to the TV using the Wi-Fi Direct function. If you cannot connect, press OPTIONS key and select [Manual].

Device Name: Change the name of

the TV shown on the connected device.

Refresh Internet Content: Connect

to the internet to receive available Internet content services.

Samba Interactive TV: Select

[Enable] to activate this feature. Connect your devices to Samba

Interactive TV by downloading apps that work with your TV.

• Network feature is subject to change without notice.

Home Network Setup:

Show/Hide Media Servers

Displays the connected server list. You can select the server to display in the Device Selection.

Media Server Troubleshooting

Diagnoses whether the TV can connect to each server on the home network.

Remote Start

This feature allow connected device in the home network to turn on the TV.

• The standby power consumption will increase if [On] is set.

Renderer

Enables the TV to play media files on a device (e.g. digital still camera).

Renderer Access Control

Allows access from a specified control device.

Renderer Options

Adjusts the [Renderer Options] detailed settings.

Select [Agree] or [Disagree] for Privacy Policy confirmation. (page 16)

Photo Frame Settings

Display Mode: Allows you to select

the display mode. Select from [Image and Clock], [Full Screen Image] and [Full Screen Clock].

Clock Display: Allows you to select

the clock display.

• This option is available when [Display Mode] is set to [Image and Clock] or [Full Screen Clock].

Audio Application: Sets [Music] or

[Off] as audio application.

Image Selection: Select image. Music Selection: Select music. Slideshow Setting: Select from

showing slideshow mode or single view photo.

Music Playback Setting: Select from

listening to all tracks or a single music track.

Duration: Select the time period

after which the TV automatically switches to standby mode.

First day of the week: Sets [Sunday]

or [Monday] as the first day of the week on the calendar.

USB Auto Start

When USB device is connected to the USB port, select [On] to automatically view the thumbnail of the last played Photo/Music/Video.

Closed Captions (CC)

Allows you to select from several closed caption modes (for programs that are broadcast with closed captioning).

CC Display:

[Closed Captions (CC)] is turned on.

Off

[Closed Captions (CC)] is turned off.

On when Muting

[Closed Captions (CC)] is turned on when the TV is muted.

Analog CC: Allows you to select

basic analog (EIA-608) closed caption options.

CC1, CC2, CC3, CC4

Displays a printed version of the dialog or sound effects of a program. (Should be set to [CC1] for most programs.)

Text1, Text2, Text3, Text4

Displays network/station information presented using either half or the whole screen (if available).

Digital CC: When the digital closed

caption service is available, select from the [Service 1-6] or [CC1-4].

Digital CC Options: Allows you to

make additional settings for digital closed caption options. Select [As Broadcast] or [Custom].

Custom: Allows you to customize

the following settings:

Character Size

Small, Standard, Large

Character Style

Style 1-7

Character Color

Color 1-8

Character Opacity

Solid, Flashing, Translucent

Edge Type

None, Raised, Depressed, Uniform, Left Shadow, Right Shadow

Edge Color

Color 1-8

Background Color

Color 1-8

Background Opacity

Solid, Translucent

Window Color

None, Color 1-8

Window Opacity

Solid, Translucent

Audio Description

Provides an audio description (narration) of visual information, when available.

Info Banner

Displays the information related to the input signal you are watching. Select [Small] to display minimal channel and program title or select [Large] to display detailed channel and program information along with the TV icon if you are viewing the TV. Select [Hidden] to hide information about the TV channel or program. This information will appear if it is available from the broadcaster. Info banner appears on the screen each time the channel and external inputs are changed or when DISPLAY on the remote control is pressed.

Clock/Timers

Note

Sets the timer and clock.

Sleep Timer: Sets the time in

minutes that you would like the TV to remain on before shutting off automatically.

On Timer: Turns on the TV from

standby mode at a time you set, and tuned to a channel or input of your preference or Photo Frame Mode. Before setting this function, make sure you set the correct current time.

Current Time: Sets the current time

and date.

Date (Month/Day/Year)

Set current date.

Time

Set Current Time.

Initial Setup

Starts the initial setup procedure. This option allows you to retune the TV after moving houses, or to search for new channels that have been launched by broadcasters.

Language

Select the language in which the menus are displayed.

Physical keyboard (for web browser only)*

Select the physical keyboard language when physical keyboard is connected to the TV.

* Only on limited region/ country/ TV model.

Start-up Logo

Select [On] to display the logo when the TV is turned on. Select [Off] to disable it.

LED Indicator

Select [On] to light up the LED indicator. Select [Off] to disable it.

AV Setup

Manage Inputs: Assigns name to

external equipment input. Select [Auto] to display names when the equipment is connected, or [Always] to display regardless of connection status or [Off] to disable input (only for TV).

Speakers: Select sound output from

the TV speakers or external audio equipment.

Headphone/Audio Out: Sets the

sound output to headphone, external audio systems or Active Subwoofer connected to the TV. Disconnect headphone from the TV when you select [Audio out (Fixed)], [Audio out (Variable)] or [Subwoofer].

Audio out (Fixed)

The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.

Audio out (Variable)

When using an external audio system, volume output from audio out can be controlled using the TV’s remote control.

Headphone Speaker Link: Switches

the TV’s internal speakers on/off when you connect headphone to the TV.

Headphone Volume: Adjusts the

volume of the headphone.

• This option is not available, when [Headphone/Audio Out] is set to [Audio out (Fixed)], [Audio out (Variable)] or [Subwoofer].

Subwoofer: To enable, set

[Headphone/Audio Out] to [Subwoofer].

Subwoofer Level

Adjust subwoofer volume level.

Phase

Select the phase polarity.

Subwoofer Sync

Adjusts the time lag of Subwoofer sound.

+ 74 hidden pages
