Television

Reference Guide

KD-65S8500D / 55S8500D / 50S8000D

Table of Contents

Note

Safety Information . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Using Remote Control . . . . . . . . . . . . . . . . 8

Remote Control Parts Description. . . . . . . . . 8

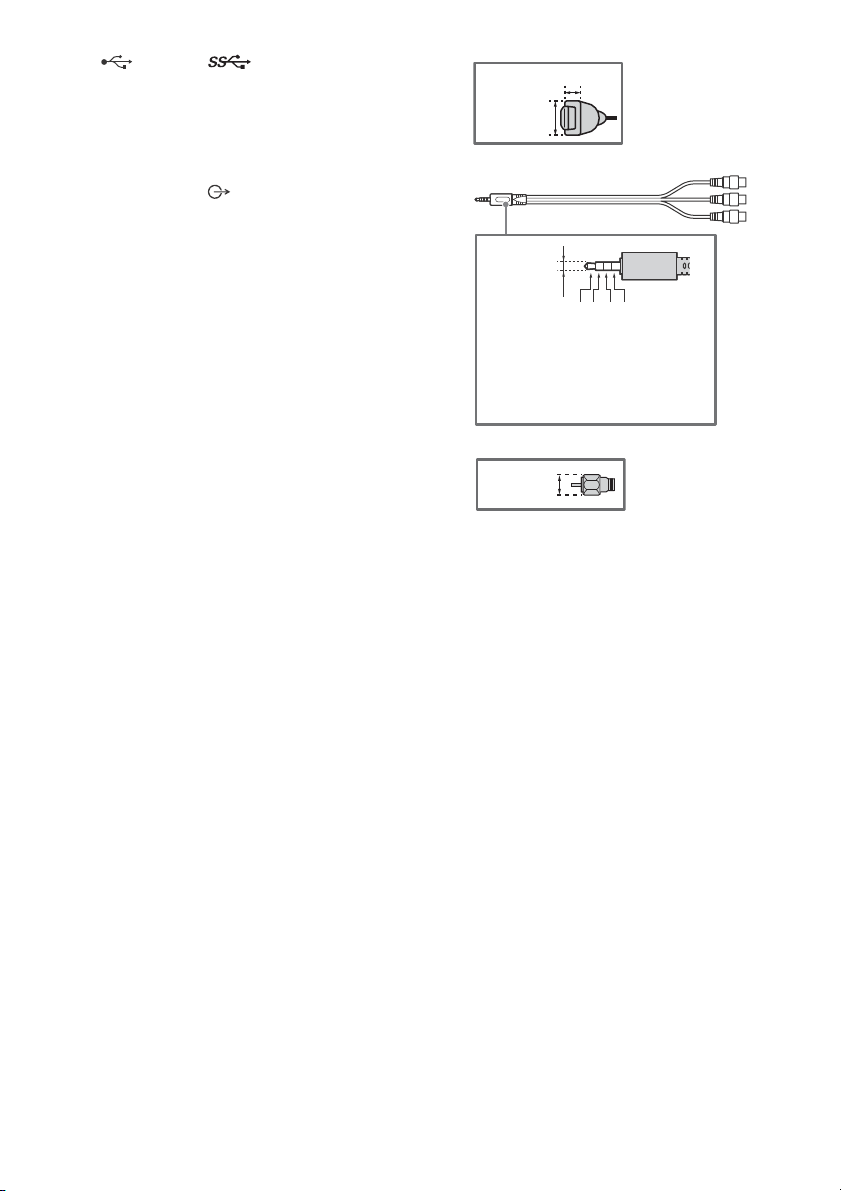

Connection Diagram . . . . . . . . . . . . . . . . 10

Installing the TV to the Wall . . . . . . . . . . 14

SU-WL450 . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . 20

Troubles and Solutions. . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . 22

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture ref erence.

• Before operating the TV, please read the “Safety Information” (page 2).

• Instructio ns about “Installing the TV to the Wall” are included within this TV’s instruction manual.

• Imag es and illust rations used in t he Setup Guid e and this manual are for reference only and may differ from the actual product.

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Help Guide

Help Guide explains the info rmation on how to use the T V's features. To display Help Guide on the TV, press HELP on the remote control and select [Help Guide].

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

For models with supplied AC adapter: Labels for the AC ada pter Model No. and S erial No. are located on the bottom of the AC adapter.

Safety Information

WARN ING

Batteries must not be expose d to excessive heat such as sunshine, fire or the like. Never place a television set in an unstable location . A television set may fall, ca using serious personal inju ry or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:  Using cabi nets or stands recommended by the manufacturer of

the television set.

 Only us ing furniture that can safely sup port the television set.  Ensuri ng the television set is not ove rhanging the edge of t he

supporting furniture.

 Not plac ing the television set on tall furniture (for example,

cupboards or bookcases) w ithout anchoring both the furniture and the television s et to a suitable support.

 Not plac ing the television set on cloth or other materials that

may be located between the television set and supporting furniture.

 Educating c hildren about the dangers of climbing on furniture

to reach the television set or its controls. If your existing television set is b eing retained and relocated, the same considerations as above should be ap plied.

Installation/Set-up

Screw (M6)

Wall-Mount Bracket

8 mm - 12 mm

TV’s rear cover

Screw (not supplied)

Cord (not supplied)

M6 screw (not supplied)

8 mm - 12 mm

Install and use the TV s et in accordance with the instruction s below in order to avoid any risk of fire, electric shock or damage and/or in juries.

Installation

• The TV se t should be insta lled near an easily accessible AC power outlet (mains socket).

• Place the TV on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that yo u use Sony accessories, includ ing:  Wall-Mou nt Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Moun t Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transpo rting the TV set by han d, hold it as shown below. Do not put stress on the LCD pane l and the frame around th e screen.

Topple prevention

KD-65S8500D, KD-55S8500D only

• When transpo rting the TV set, do not su bject it to jolts or excessive vibration.

• When transpo rting the TV set for repairs or when moving, pack it using the original carton and packing material.

Except KD-65S8500D, KD-55S8500D

Screw (not supplied)

Cord (not supplied)

M6 screw (not supplied)

8 mm - 12 mm

30 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

Vent ilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space arou nd the TV set as shown b elow.

• It is strongly recommende d that you use a Sony Wall-Mount Bracket in order to provide adequate air c irculation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do no t lay the TV set flat, install ups ide down, backwards, o r

sideways.

 Do no t place the TV set on a shelf, rug, bed or in a closet.  Do not cover th e TV set with a cloth, such as curtains, or items

such as newspapers, etc.

 Do no t install the TV set as show n below.

AC power cord (mains lead)

Handle the AC power cord (ma ins lead) and outlet (mains s ocket) as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:  The shape of AC power plug (mains plug), which is supplied

with the TV set, varies de pending on the region. B e sure to connect the appropriate supplied AC power cord (mains lead) with the plug that fits i nto the AC power outlet (main s socket).

 Use only Sony supplied AC power cords (mains lead), not those

of other brands.

 Inser t the plug fully into the AC power outlet (mains socket ).  Operate the TV set on a 110 V - 240 V AC supply only (except

models with supplied AC adapter).

 Operate the TV set on a 100 V - 240 V AC supply only (models

with supplied AC adapter only).

 When wiring cables, be sure to unplug the AC power cord

(mains lead) for yo ur safety and take care not to catch your feet on the cables.

 Discon nect the AC power cord (main s lead) from the AC pow er

outlet (mains socket) before working on or moving the TV set.

 Keep the AC p ower cord (mains lead) away from he at sources.  Unplug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its insulation m ay deteriorate, which could resu lt in a fire.

Note

• Do not use th e supplied AC power cord (mains lead) on any other equipment.

• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.

• Do not modif y the AC power cord (mains lead ).

• Do not put any thing heavy on the AC powe r cord (mains lead).

• Do not pull on the AC power cord (mains lead) itself when disconnecting the AC power cord (mains lead).

• Do not connect too many appliances to th e same AC power outlet (mains socket).

• Do not use a poor fitting AC power outlet (mains socket).

NOTE ON AC ADAPTER (models with supplied AC adapter only)

Warni ng

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the appa ratus. Do not install t his equipment in a confin ed space, such as a booksh elf or similar unit.

• Please ens ure that the AC power outlet (mai ns socket) is installed near the equip ment and shall be ea sily accessible.

• Be sure to use the supplied AC adapter and AC pow er cord (mains lead). Otherwise it may cause a malfunction.

• Connect the AC ad apter to an easily accessible AC pow er outlet (mains socket).

• Do n ot coil the AC power cord (mains lead) around the AC adapter. The core wire may be cut and/or it ma y cause a malfunction of the TV.

• Do not touch the AC adapter with wet hands.

• If you notice an ab normality in the AC ada pter, disconnect it from the AC power outlet ( mains socket) immediately.

• The set is not disconnected from the AC source as long as it is connected to the AC power outlet (mains socket), even if the set itself has been turned off.

• As the AC adapter w ill become warm when it is us ed for a long time, you may feel hot when touc hing it by hand.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as tho se listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

• Outdoors (in di rect sunlight), at the seashore, on a ship or othe r vessel, inside a vehicle, in medical institutions, un stable locations, near water, rain, moistu re or smoke.

Environments:

• Places that a re hot, humid, or excessively du sty; where insects may enter; where it migh t be exposed to mechanical vi bration, near flammable objects (candles, etc). Th e TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufac turer. Disconnect the TV s et from AC power outlet (m ains socket) and antenna (aerial) during lightning storms.

• Instal l the TV so that it sticks o ut into an open spac e. This may res ult in injur y or damage from a person or object bumping into the TV.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the TV in places subject to extreme tempe rature, such as in direct sunlight, near a radiator or a he ating vent. The TV may overheat in such condition s which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room te mperat ure cha nges may cau se moisture conde nsatio n. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow mois ture to evaporate completely before powering the TV on.

Broken pieces:

• D o not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surfa ce of the TV set cracks, do not touch it unt il you have unplugged the AC power cord (m ains lead). Otherwis e this may cause an electric shock.

When not in use

• If you will n ot be using the TV set for seve ral days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.

• As the TV set is not disconnected from the AC power (mains) when the TV set is just tu rned off, pull the plug from the AC power outlet (mains so cket) to disconnect the TV set compl etely.

• Some TV sets may have features that require the T V set to be left in standby to work correctly.

For children

• Do not allo w children to climb on the T V set.

• Keep small accessorie s out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off th e TV set and unplug the AC pow er cord (mains lead) immediately if any of the following problems occur. Ask your dealer or Sony s ervice centre to have it checked by qualified service personnel.

When:

 AC power cord (mains lead) is damaged.  Poor fitting of AC power outlet (mains socket).  TV set is damaged by being dropped, hit or having something

thrown at it.

 A ny liquid or so lid object falls through open ings in the cabi net.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate li ght, as viewing th e TV in poor light or during long period of time, strains your eyes.

• When using he adphones, adjust th e volume so as to avoid excessive levels , as hearin g damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or mo re of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantl y on the LCD screen. This is a struct ural property of the LCD screen and is n ot a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is use d in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when thi s TV set is in use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC powe r cord (mains lead) connected to the TV set from AC power ou tlet (mains socket) before clean ing. To avoid material degradation or screen coatin g degradation, observe the following precautions.

• To remove dust from the sc reen surface/cabinet, wipe gently with a soft cloth. If dus t is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or de tergent directly on the TV set. It may drip to th e bottom of the screen or exterior parts and enter the TV set, and may cause dam age to the TV set.

• Never use any type of abrasive pad, alkaline/acid cl eaner, scouring powder, or volatile so lvent, such as alco hol, benzene, thinner or insecticide. Using such material s or maintaining prolon ged contact with rubber or vinyl materials m ay result in damage to the s creen surface and cabinet material.

• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.

• When adju sting the angle of the TV s et, move it slowly so as to prevent the TV set from m oving or slipping off f rom its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation awa y from the TV set. Other wise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunctio n of the medica l equipment.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe th e correct polarity when inserting batteri es.

• Do not use different ty pes of batteries together o r mix old and new batteries.

• Dispose o f batteries in an environmentall y friendly way. Certain regions may regulate the d isposal of batteries. Pleas e consult your local autho rity.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote cont rol in a location near a heat source, a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Parts and Controls



KD-65S8500D, KD-55S8500D only Except KD-65S8500D, KD-55S8500D

Controls and Indicators

 Remote Control sensor* / Light sensor*

/ Illumination LED

The illumination LED lights up or blinks according to the status of the TV.

•White When turning on the TV/picture off mode/software update, etc.

•Cyan When connecting with a mobile device wirelessly.

•Amber Timer is set.

 (Power)

 CH +/– (Channel)

 +/– (Volume)

 TV

Switch to a TV channel or input from other applications.

 (Input select)

Display and select the input source.

 (Power) / + / –

When the TV is off,

Press  to power on.

When the TV is on,

Long press  to power off. Press  repeatedly to change the function, then press + or – button to:

• Adjust the volume

• Select the channel

• Select the input source of TV

* Do not place anything near the sensor.

Using Remote Control

MIC

Ȱ Ȳ

Except KD-65S8500D, KD-55S8500DKD-65S8500D, KD-55S8500D only

Remote Control Parts Description

The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

Ȭ ȭ

Ȱ ȱ

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

(Microphone)

Use Voice Function. (e.g., Search various content by voice.)

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

 Number buttons

 (Text)

Display text information.

 EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

 / (Info/Text reveal)

Display information.

 Google Play

Access the “Google Play” online service.

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

Colour buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

• Switch to a TV channel or input from other applications.

• Turn on the TV to display TV channel or input.

GUIDE/

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

//// (Item select/Enter)

 AUDIO

Change the language for the programme currently being viewed.

//////

Operate media contents on TV and connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

(Wide mode)

Change the screen format.

 HELP

Display Help Menu. Help Guide can be accessed from here.

 SYNC MENU

Display the BRAVIA Sync Menu.

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next () or previous () page.

Connection Diagram

AUDIO L-R

VIDEO/

DVI-Audio Out

DVD player with component output

VCR/Video game equipment/ DVD player/Camcorder

Home Audio System with ARC/ HDMI Device

DVI-HDMI Adapter/HDMI Device

HDMI Device

Cable/Antenna

Headphone/ Home Audio System/ Subwoofer

Digital still camera/ Camcorder/ USB storage media

HDMI Device

VCR/Video game equipment/DVD player/Camcorder

Home Audio System with Optical Audio Input

Router

For more information on connections, refer to the Help Guide (page 2).

KD-65S8500D, KD-55S8500D only

 USB 1/2, USB3

< 12 mm

< 21 mm

3.5 mm

1234

1: L 2: Video 3: Ground 4: R

< 14 mm

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 AUDIO OUT*5 /

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

 HDMI IN 1/2/3/4

• If the device has a DVI jack, connect it to HDMI IN 3 through a DVI - HDMI adapter interface (not supplied), and connect the device's audio out jack to HDMI 3 AUDIO IN.

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

/ VIDEO IN 1

• For a composite connection, use the supplied Analogue Extension Cable*

*4 When connecting mono equipment, connect to the

L (MONO) audio jack (socket).

*5 Supports 3-pole stereo mini jack only.

*6 Only on limited region/country/TV model.

Except KD-65S8500D, KD-55S8500D

DVD player with component output

VCR/Video game equipment/DVD player/Camcorder

Home Audio System with Optical Audio Input

HDMI Device

Headphone/Home Audio System/ Subwoofer

Digital still camera/ Camcorder/USB storage media

HDMI Device

Home Audio System with ARC/HDMI Device

HDMI Device

VCR/Video game equipment/DVD player/ Camcorder

Router

Cable/Antenna

 USB 1/2, USB 3

< 12 mm

< 21 mm

3.5 mm

1234

1: L 2: Video 3: Ground 4: R

< 14 mm

Standard definition (SD) videos have picture signals with a vertical resolutio n of 480 (NTSC) or 576 (PAL/SECAM) line s.

High definition (HD) videos have picture signals with a vertical resolution of 720 or 1,080 lines. (For 4K vertical resol ution: 2,160 lines)

Picture Quality

• AV composite cable

• Antenna (aerial) cable

• Component cable

•HDMI cable

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 AUDIO OUT*5 /

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

 HDMI IN 1/2/3/4

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technolog y, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

/ VIDEO IN 1

• For a composite connection, use the supplied Analogue Extension Cable*

*4 When connecting mono equipment, connect to the

L (MONO) audio jack (socket).

*5 Supports 3-pole stereo mini jack only.

*6 Only on limited region/country/TV model.

Installing the TV to the Wall

Note

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Custo m er s :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

• Be sure to store the removed screws in a safe place, keeping them away from children.

1 Remove the stand cover.

KD-65S8500D, KD-55S8500D only

2 Remove the screws from the rear of the TV.

KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D

Note

SU-WL450

Screen centre point

Standard mounting

Slim mounting

1 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 22-23 (Specifications) for the TV’s weight.

Display dimensions

Model Name

KD-

65S8500D 1,456 841 86 512 151 109

55S8500D 1,238 718 152 517 141 100

50S8000D 1,124 654 184 517 135 93

Screen

centre

dimension

Length for mounting

Standard

mounting

Unit: mm

Slim

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

Note

Screw (+PSW 6 x 20) 

Pulley 

Spacer (60 mm) 

Screw (+PSW 6 x 50) 

Belt 

Screw (+PSW 6 x 50) 

Spacer (60 mm) 

Screw (+PSW 6 x 20) 

Pulley 

referring to “1” of the Wall-Mount Bracket Installation Guide.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting

KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D

Slim mounting

Note

Pulley 

Spacer (20 mm) 

Screw (+PSW 6 x 20) 

Belt 

Pulley 

Spacer (20 mm) 

Screw (+PSW 6 x 20) 

Belt 

• You cannot use some of the terminals on the rear of the TV when using this mounting style. Connect the Analogue Extension Cable (Availability depends on countries/regions/TV models) if you need to use the / VIDEO IN 1 jack.

KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D

3 Connect necessary cables to the TV.

Note

a b c

• You cannot access to any terminal after installing the TV to the wall.

4 Detach the Table-Top Stand from the TV.

KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KD- Hook location

65S8500D b

55S8500D c

50S8000D c

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Troubleshooting

Updating...

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. The following screen with [Updating…] will appear while software is updating.

Do not unplug the AC power cord (mains lead) during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help]  [System software update]  [Automatic software download]  [Off]. When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV, because it takes time to initialize the system. Wait for about one minute, then operate it again. When you turn on by pressing the power button on the remote control or the TV, it takes some time to turn on the illumination LED and for the remote control to be functional.

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the AC power cord (mains lead) for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to troubleshooting in the Help Guide or perform self-diagnosis by selecting [Help]  [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press  on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

The remote control does not function.

 Replace the batteries.

The [Parental lock (Broadcast)] password has been forgotten.

 Enter 9999 for the PIN code. Update PIN code by

selecting [Settings]  [Parental lock (Broadcast)]  [Change PIN code].

The TV surrounds become warm.

 Whe n the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes, then plug it in again.

The , CH +/–,  +/–,  and TV buttons

Rear of TV

KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D KD-65S8500D, KD-55S8500D only

Except KD-65S8500D, KD-55S8500D

cannot be located on the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to light up the illumination LED,

you can turn it off. Press HOME, then select [Settings]  [Illumination LED]  [Off].

Cannot find the required network name in network setup.

 Select [[Manual entry]] and press to enter

network name.

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

 If you use WEP security, select [Easy] 

[Wi-Fi]  [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depend on your country/area selection Analogue: B/G, I, D/K, M Digital: DVB-T/DVB-T2

Colour system

PAL, SECAM, NTSC3.58, NTSC4.43

Channel coverage

Depend on your country/area selection Analogue: UHF/VHF/Cable Digital: UHF/VHF

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n (IEEE802.11ac may not be available depending on countries/regions.) Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

/ VIDEO IN 1

Video/Audio input (mini jack)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)

VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution, HDCP

2.2-compatible)

KD-65SD8500D, KD-55SD8500D only Video:

4096 × 2160p (50, 60 Hz)*, 4096 × 2160p (24 Hz)*, 3840 × 2160p (50, 60 Hz), 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats * 3840 × 2160p is displayed when 4096 × 2160p

is input Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS ARC (Audio Return Channel) (HDMI IN 4 only) (Two channel linear PCM, Dolby Digital, DTS)

Except KD-65S8500D, KD-55S8500D Video:

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

3840 × 2160p is displayed when 4096 × 2160p is input

HDMI IN 2 / 3 only. Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM, Dolby Digital, Dolby Digital Plus, DTS)

1, *2

, 4096 × 2160p

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)

KD-65S8500D, KD-55S8500D only HDMI 3 AUDIO IN

Analogue audio input (Stereo mini jack)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio output, Subwoofer

1, 2, 3

USB device port. USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0).

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

DC IN 19.5 V (KD-55S8500D /

KD-50S8000D)

AC adapter input

Others

Optional accessories

Wall -Moun t Bracket: SU-W L45 0 Wireless Subwoofer: SWF-BR100 Except KD-65S8500D, KD-55S8500D Voice Remote Control: RMF-TX200P

Operating temperature

0 ºC – 40 ºC

Power and others

Note

Power requirements

except models with supplied AC adapter 110 V - 240 V AC, 50/60 Hz models with supplied AC adapter only

19.5 V DC with AC adapter Rating: Input 100 V - 240 V AC, 50/60 Hz

Screen size (measured diagonally) (Approx.)

KD-65S8500D: 65 inches / 163.9 cm KD-55S8500D: 55 inches / 138.8 cm KD-50S8000D: 50 inches / 125.7 cm

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Powe r consumption

Indicated on the rear of the TV

Output Rating

USB 1/2: 5 V, 500 mA MAX USB 3: 5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d)

wi t h Tabl e-Top S tan d

KD-65S8500D: 1,456 × 895 × 287 mm KD-55S8500D: 1,238 × 772 × 262 mm KD-50S8000D: 1,124 x 702 x 222 mm

without Table-Top Stand

KD-65S8500D: 1,456 × 841 × 93 mm KD-55S8500D: 1,238 × 718 × 84 mm KD-50S8000D: 1,124 x 654 x 76 mm

Mass (Approx.)

wi t h Tabl e-Top S tan d

KD-65S8500D: 32.9 kg KD-55S8500D: 24.7 kg KD-50S8000D: 17.8 kg

without Table-Top Stand

KD-65S8500D: 29.4 kg KD-55S8500D: 21.4 kg KD-50S8000D: 16.7 kg

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

Notes on Digital TV function

• Any functions related to Digital TV ( ) will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG4 AVC) digital terrestrial signals are broadcast. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live.

• This TV set complies with DVB-T/DVB-T2 specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial broadcasts are not guaranteed.

• Some Digital TV functions may not be available in some countries/areas.

Trademark Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

Customer Support and Contact:

Help Guide

KD-65S8500D / 55S8500D

KD-50S8000D

Sony KD-50S8000D Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Information

Precautions

Parts and Controls

Controls and Indicators

Using Remote Control

Remote Control Parts Description

Connection Diagram

Installing the TV to the Wall

SU-WL450

Troubleshooting

Troubles and Solutions

Specifications
