Television

Reference Guide

KD-65S8500D / 55S8500D / 50S8000D

Table of Contents

Note

Safety Information . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Parts and Controls . . . . . . . . . . . . . . . . . . . 7

Controls and Indicators . . . . . . . . . . . . . . . . . 7

Using Remote Control . . . . . . . . . . . . . . . . 8

Remote Control Parts Description. . . . . . . . . 8

Connection Diagram . . . . . . . . . . . . . . . . 10

Installing the TV to the Wall . . . . . . . . . . 14

SU-WL450 . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . 20

Troubles and Solutions. . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . 22

Introduction

Thank you for choosi ng this Sony product. Before operating the TV, please read this manual thoroughly and retain it for fu ture ref erence.

• Before operating the TV, please read the “Safety Information” (page 2).

• Instructio ns about “Installing the TV to the Wall” are included within this TV’s instruction manual.

• Imag es and illust rations used in t he Setup Guid e and this manual are for reference only and may differ from the actual product.

Location of the Setup Guide

Setup Guide is placed on top of the cushion inside the TV carton.

Help Guide

Help Guide explains the info rmation on how to use the T V's features. To display Help Guide on the TV, press HELP on the remote control and select [Help Guide].

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

For models with supplied AC adapter: Labels for the AC ada pter Model No. and S erial No. are located on the bottom of the AC adapter.

This television is designed for use in Hong Kong and ensured the usage in Hong Kong on ly.

Safety Information

WARN ING

Batteries must not be expose d to excessive heat such as sunshine, fire or the like. Never place a television set in an unstable location . A television set may fall, ca using serious personal inju ry or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:  Using cabi nets or stands recommended by the manufacturer of

the television set.

 Only us ing furniture that can safely sup port the television set.  Ensuri ng the television set is not ove rhanging the edge of t he

supporting furniture.

 Not plac ing the television set on tall furniture (for example,

cupboards or bookcases) w ithout anchoring both the furniture and the television s et to a suitable support.

 Not plac ing the television set on cloth or other materials that

may be located between the television set and supporting furniture.

 Educating c hildren about the dangers of climbing on furniture

to reach the television set or its controls. If your existing television set is b eing retained and relocated, the same considerations as above should be ap plied.

Installation/Set-up

Screw (M6)

Wall-Mount Bracket

8 mm - 12 mm

TV’s rear cover

Screw (not supplied)

Cord (not supplied)

M6 screw (not supplied)

8 mm - 12 mm

Install and use the TV s et in accordance with the instruction s below in order to avoid any risk of fire, electric shock or damage and/or in juries.

Installation

• The TV se t should be insta lled near an easily accessible AC power outlet (mains socket).

• Place the TV on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that yo u use Sony accessories, includ ing:  Wall-Mou nt Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Moun t Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than t hose supplied may result in internal damage to the TV se t or cause it to fall, etc.

Tran spo rti ng

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transpo rting the TV set by han d, hold it as shown below. Do not put stress on the LCD pane l and the frame around th e screen.

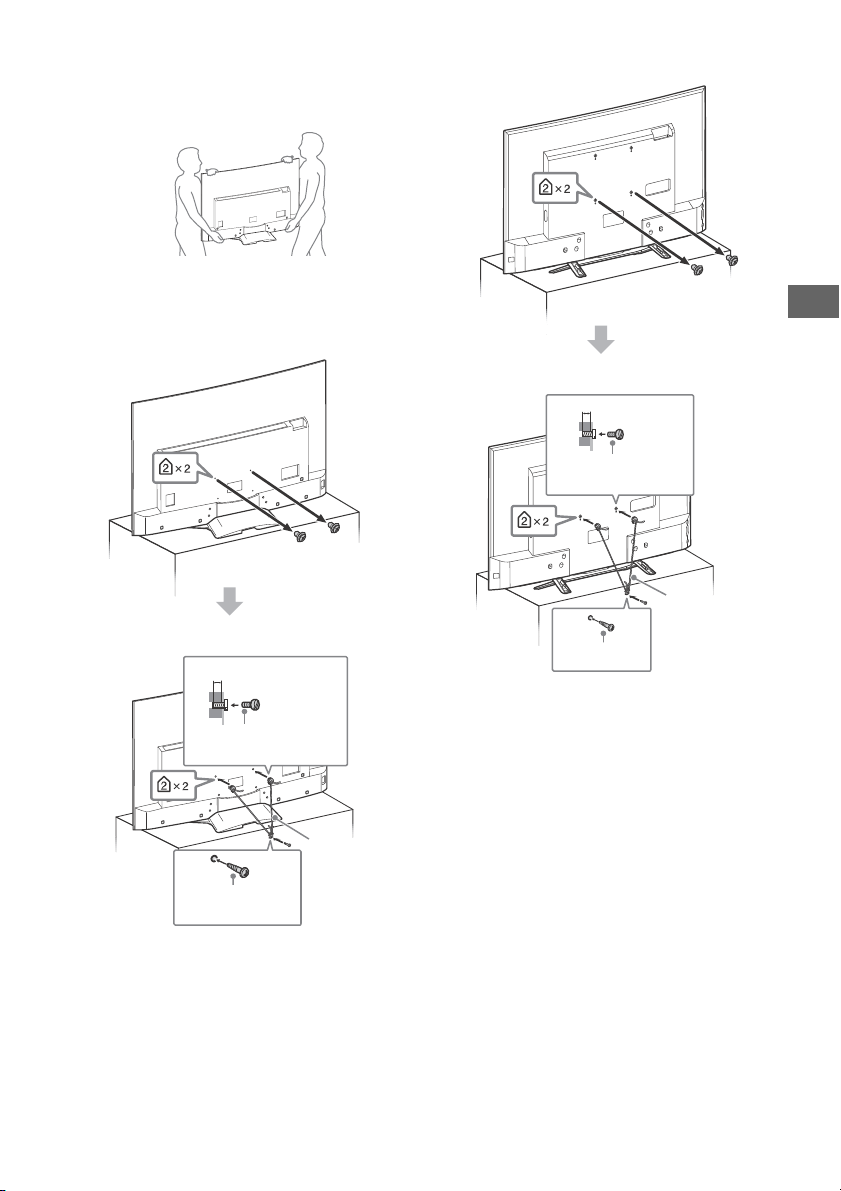

Topple prevention

KD-65S8500D / 55S8500D only

• When transpo rting the TV set, do not su bject it to jolts or excessive vibration.

• When transpo rting the TV set for repairs or when moving, pack it using the original carton and packing material.

Except KD-65S8500D / 55S8500D

Screw (not supplied)

Cord (not supplied)

M6 screw (not supplied)

8 mm - 12 mm

30 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm

Leave at least this space around the set.

6 cm

Air circulation is blocked.

Wall Wall

Vent ilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space arou nd the TV set as shown b elow.

• It is strongly recommende d that you use a Sony Wall-Mount Bracket in order to provide adequate air c irculation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do no t lay the TV set flat, install ups ide down, backwards, o r

sideways.

 Do no t place the TV set on a shelf, rug, bed or in a closet.  Do not cover th e TV set with a cloth, such as curtains, or items

such as newspapers, etc.

 Do no t install the TV set as show n below.

AC power cord (mains lead)

Handle the AC power cord (ma ins lead) and outlet (mains s ocket) as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:  Use only Sony supplied AC power cords (mains lead), not those

of other brands.

 Inser t the plug fully into the AC power outlet (mains socket ).  Operate the TV set on a 220 V - 240 V AC supply only.  When wiring cables, be sure to unplug the AC power cord

(mains lead) for yo ur safety and take care not to catch your feet on the cables.

 Discon nect the AC power cord (main s lead) from the AC pow er

outlet (mains socket) before working on or moving the TV set.

 Keep the AC p ower cord (mains lead) away from he at sources.  Unplug the AC power plug (mains plug) and clean it regularly. If

the plug is covered with dust and it picks up moisture, its insulation m ay deteriorate, which could resu lt in a fire.

Note

• Do not use th e supplied AC power cord (mains lead) on any other equipment.

• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.

• Do not modif y the AC power cord (mains lead ).

• Do not put any thing heavy on the AC powe r cord (mains lead).

• Do not pull on the AC power cord (mains lead) itself when disconnecting the AC power cord (mains lead).

• Do not connect too many appliances to th e same AC power outlet (mains socket).

• Do not use a poor fitting AC power outlet (mains socket).

NOTE ON AC ADAPTER (models with supplied AC adapter only)

Warni ng

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the appa ratus. Do not install t his equipment in a confin ed space, such as a booksh elf or similar unit.

• Please ens ure that the AC power outlet (mai ns socket) is installed near the equip ment and shall be ea sily accessible.

• Be sure to use the supplied AC adapter and AC pow er cord (mains lead). Otherwise it may cause a malfunction.

• Connect the AC ad apter to an easily accessible AC pow er outlet (mains socket).

• Do n ot coil the AC power cord (mains lead) around the AC adapter. The core wire may be cut and/or it ma y cause a malfunction of the TV.

• Do not touch the AC adapter with wet hands.

• If you notice an ab normality in the AC ada pter, disconnect it from the AC power outlet ( mains socket) immediately.

• The set is not disconnected from the AC source as long as it is connected to the AC power outlet (mains socket), even if the set itself has been turned off.

• As the AC adapter w ill become warm when it is us ed for a long time, you may feel hot when touc hing it by hand.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as tho se listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

• Outdoors (in di rect sunlight), at the seashore, on a ship or othe r vessel, inside a vehicle, in medical institutions, un stable locations, near water, rain, moistu re or smoke.

Environments:

• Places that a re hot, humid, or excessively du sty; where insects may enter; where it migh t be exposed to mechanical vi bration, near flammable objects (candles, etc). Th e TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufac turer. Disconnect the TV s et from AC power outlet (m ains socket) and antenna (aerial) during lightning storms.

• Instal l the TV so that it sticks o ut into an open spac e. This may res ult in injur y or damage from a person or object bumping into the TV.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the TV in places subject to extreme tempe rature, such as in direct sunlight, near a radiator or a he ating vent. The TV may overheat in such condition s which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room te mperat ure cha nges may cau se moisture conde nsatio n. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow mois ture to evaporate completely before powering the TV on.

Broken pieces:

• D o not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surfa ce of the TV set cracks, do not touch it unt il you have unplugged the AC power cord (m ains lead). Otherwis e this may cause an electric shock.

When not in use

• If you will n ot be using the TV set for seve ral days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.

• As the TV set is not disconnected from the AC power (mains) when the TV set is just tu rned off, pull the plug from the AC power outlet (mains so cket) to disconnect the TV set compl etely.

• Some TV sets may have features that require the T V set to be left in standby to work correctly.

For children

• Do not allo w children to climb on the T V set.

• Keep small accessorie s out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off th e TV set and unplug the AC pow er cord (mains lead) immediately if any of the following problems occur. Ask your dealer or Sony s ervice centre to have it checked by qualified service personnel.

When:

 AC power cord (mains lead) is damaged.  Poor fitting of AC power outlet (mains socket).  TV set is damaged by being dropped, hit or having something

thrown at it.

 A ny liquid or so lid object falls through open ings in the cabi net.

About LCD TV Temperature

When the LCD TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate li ght, as viewing th e TV in poor light or during long period of time, strains your eyes.

• When using he adphones, adjust th e volume so as to avoid excessive levels , as hearin g damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or mo re of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantl y on the LCD screen. This is a struct ural property of the LCD screen and is n ot a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is use d in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when thi s TV set is in use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the AC powe r cord (mains lead) connected to the TV set from AC power ou tlet (mains socket) before clean ing. To avoid material degradation or screen coatin g degradation, observe the following precautions.

• To remove dust from the sc reen surface/cabinet, wipe gently with a soft cloth. If dus t is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or de tergent directly on the TV set. It may drip to th e bottom of the screen or exterior parts and enter the TV set, and may cause dam age to the TV set.

• Never use any type of abrasive pad, alkaline/acid cl eaner, scouring powder, or volatile so lvent, such as alco hol, benzene, thinner or insecticide. Using such material s or maintaining prolon ged contact with rubber or vinyl materials m ay result in damage to the s creen surface and cabinet material.

• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.

• When adju sting the angle of the TV s et, move it slowly so as to prevent the TV set from m oving or slipping off f rom its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation awa y from the TV set. Other wise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunctio n of the medica l equipment.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use di fferent types of batteries together or mix old and new batteries.

• Dispose o f batteries in an environmentall y friendly way. Certain region may regulate the dispo sal of batteries. Please con sult your local authority.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote cont rol in a location near a heat source, a place subject to direct sunlight, or a damp room.

Parts and Controls



KD-65S8500D / 55S8500D only Except KD-65S8500D / 55S8500D

Controls and Indicators

 Remote Control sensor* / Light sensor*

/ Illumination LED

The illumination LED lights up or blinks according to the status of the TV.

•White When turning on the TV/picture off mode/software update, etc.

•Cyan When connecting with a mobile device wirelessly.

•Amber Timer is set.

 (Power)

 CH +/– (Channel)

 +/– (Volume)

 TV

Switch to a TV channel or input from other applications.

 (Input select)

Display and select the input source.

 (Power) / + / –

When the TV is off,

Press  to power on.

When the TV is on,

Long press  to power off. Press  repeatedly to change the function, then press + or – button to:

• Adjust the volume

• Select the channel

• Select the input source of TV

* Do not place anything near the sensor.

Using Remote Control

MIC

ȭ ȱ

Except KD-65S8500D / 55S8500DKD-65S8500D / 55S8500D only

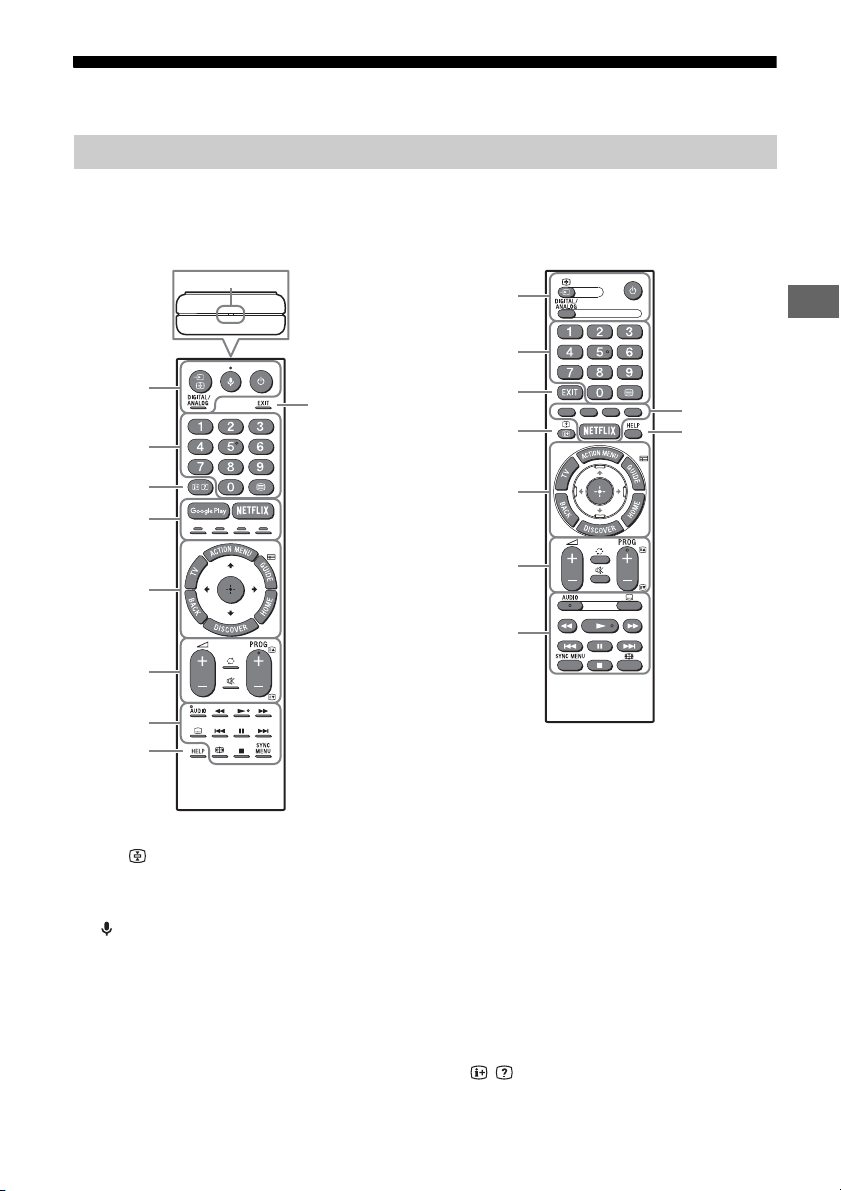

Remote Control Parts Description

The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model.

Ȭ ȭ

Ȱ ȱ

/ (Input select/Text hold)

In TV mode: Display and select the input source. In Text mode: Hold the current page.

(Microphone)

Use Voice Function. (e.g., Search various content by voice.)

 (TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

 Number buttons

 (Text)

Display text information.

 EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

 / (Info/Text reveal)

Display information.

 Google Play

Access the “Google Play” online service.

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

Colour buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

• Switch to a TV channel or input from other applications.

• Turn on the TV to display TV channel or input.

GUIDE/

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

//// (Item select/Enter)

 AUDIO

Change the language for the programme currently being viewed.

//////

Operate media contents on TV and connected BRAVIA Sync-compatible device.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

(Wide mode)

Change the screen format.

SYNC MENU

Display the BRAVIA Sync Menu.

 HELP

Display Help Menu. Help Guide can be accessed from here.

 +/– (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

 (Muting)

Mute the sound. Press again to restore the sound.

PROG +/–//

In TV mode: Select the channel. In Text mode: Select the next () or previous () page.

Connection Diagram

DVI-Audio Out

DVD player with component output

VCR/Video game equipment/ DVD player/Camcorder

Home Audio System with ARC/ HDMI Device

DVI-HDMI Adapter/HDMI Device

HDMI Device

Cable/Antenna

Headphone/ Home Audio System/ Subwoofer

Digital still camera/ Camcorder/ USB storage media

HDMI Device

VCR/Video game equipment/DVD player/Camcorder

Home Audio System with Optical Audio Input

Router

For more information on connections, refer to the Help Guide (page 2).

KD-65S8500D / 55S8500D only

 USB 1/2, USB3

< 12 mm

< 21 mm

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 AUDIO OUT*3 /

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

 HDMI IN 1/2/3/4

• If the device has a DVI jack, connect it to HDMI IN 3 through a DVI - HDMI adapter interface (not supplied), and connect the device's audio out jack to HDMI 3 AUDIO IN.

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

*2 When connecting mono equipment, connect to the

L (MONO) audio jack (socket).

*3 Supports 3-pole stereo mini jack only.

Except KD-65S8500D / 55S8500D

DVD player with component output

Home Audio System with ARC/ HDMI Device

HDMI Device

Cable/Antenna

Headphone/Home Audio System/ Subwoofer

Digital still camera/ Camcorder/USB storage media

HDMI Device

VCR/Video game equipment/DVD player/Camcorder

Home Audio System with Optical Audio Input

Router

VCR/Video game equipment/DVD player/Camcorder

 USB 1/2, USB3

< 12 mm

< 21 mm

3.5 mm

1234

1: L 2: Video 3: Ground 4: R

Standard definition (SD) videos have picture signals with a vertical resolutio n of 480 (NTSC) or 576 (PAL/SECAM) line s.

High definition (HD) videos have picture signals with a vertical resolution of 720 or 1,080 lines. (For 4K vertical resol ution: 2,160 lines)

Picture Quality

• AV composite cable

• Antenna (aerial) cable

• Component cable

•HDMI cable

•Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 AUDIO OUT*4 /

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

 HDMI IN 1/2/3/4

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technolog y, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

/ VIDEO IN 1

• For a composite connection, use the supplied Analogue Extension Cable*

*3 When connecting mono equipment, connect to the

L (MONO) audio jack (socket).

*4 Supports 3-pole stereo mini jack only.

*5 Only on limited region/country/TV model.

Installing the TV to the Wall

Note

This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Custo m er s :

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

• Be sure to store the removed screws in a safe place, keeping them away from children.

1 Remove the stand cover.

KD-65S8500D / 55S8500D only

2 Remove the screws from the rear of the TV.

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

Note

SU-WL450

Screen centre point

Standard mounting

Slim mounting

1 Make sure that the wall has enough space for the TV and is capable of supporting a

weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 22-23 (Specifications) for the TV’s weight.

Display dimensions

Model Name

KD-

65S8500D 1,456 841 86 512 151 109

55S8500D 1,238 718 152 517 141 100

50S8000D 1,124 654 184 517 135 93

Screen

centre

dimension

Length for mounting

Standard

mounting

Unit: mm

Slim

• Figures in the table may differ slightly depending on the installation.

• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by

Note

Screw (+PSW 6 x 20) 

Pulley 

Spacer (60 mm) 

Screw (+PSW 6 x 50) 

Belt 

Screw (+PSW 6 x 50) 

Spacer (60 mm) 

Screw (+PSW 6 x 20) 

Pulley 

referring to “1” of the Wall-Mount Bracket Installation Guide.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

Slim mounting

Note

Except KD-65S8500D / 55S8500D KD-65S8500D / 55S8500D only

Pulley 

Spacer (20 mm) 

Screw (+PSW 6 x 20) 

Belt 

Pulley 

Spacer (20 mm) 

Screw (+PSW 6 x 20) 

Belt 

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

3 Connect necessary cables to the TV.

Note

a b c d

• You cannot access to any terminal after installing the TV to the wall.

4 Detach the Table-Top Stand from the TV.

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the

Wall” of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KD- Hook location

65S8500D b

55S8500D / 50S8000D c

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Troubleshooting

Updating...

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. The following screen with [Updating…] will appear while software is updating.

Do not unplug the AC power cord (mains lead) during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help]  [System software update]  [Automatic software download]  [Off]. When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV, because it takes time to initialize the system. Wait for about one minute, then operate it again. When you turn on by pressing the power button on the remote control or the TV, it takes some time to turn on the illumination LED and for the remote control to be functional.

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the AC power cord (mains lead) for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to troubleshooting in the Help Guide or perform self-diagnosis by selecting [Help]  [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and

press  on the TV or remote control.

Some programmes cannot be tuned.

 Check the antenna (aerial)/cable connection.

The remote control does not function.

 Replace the batteries.

The [Parental lock (Broadcast)] password has been forgotten.

 Enter 9999 for the PIN code. Update PIN code by

selecting [Settings]  [Parental lock (Broadcast)]  [Change PIN code].

The TV surrounds become warm.

 Whe n the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

 Perform a simple reset of the TV by unplugging

the AC power cord (mains lead) for two minutes, then plug it in again.

The , CH +/–,  +/–,  and TV buttons

Rear of TV

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D only

Except KD-65S8500D / 55S8500D

cannot be located on the TV.

 See below illustration for location of the buttons

on the TV.

The illumination LED is turned on.

 If you do not wish to light up the illumination LED,

you can turn it off. Press HOME, then select [Settings]  [Illumination LED]  [Off].

Cannot find the required network name in network setup.

 Select [[Manual entry]] and press to enter

network name.

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

 If you use WEP security, select [Easy] 

[Wi-Fi]  [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: I, D/K, B/G, M Digital: DTMB

Colour system

PAL, SECAM, NTSC3.58, NTSC4.43

Channel coverage

Analogue: UHF/VHF/Cable Digital: UHF

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

KD-65S8500D / 55S8500D only

/ VIDEO IN 1

Video/Audio input (phono jack)

VIDEO IN 2

Video input (common phono pin with Y input)

Except KD-65S8500D / 55S8500D

/ VIDEO IN 1

Video/Audio input (mini jack)

VIDEO IN 2

Video input (common phono pin with Y input)

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)

HDMI IN 1, 2, 3, 4 (support 4K resolution, HDCP

2.2-compatible)

KD-65S8500D / 55S8500D only Video:

4096 × 2160p (50, 60 Hz)*, 4096 × 2160p (24 Hz)*, 3840 × 2160p (50, 60 Hz), 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats * 3840 × 2160p is displayed when 4096 × 2160p

is input

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS ARC (Audio Return Channel) (HDMI IN 4 only) (Two channel linear PCM, Dolby Digital, DTS) Except KD-65S8500D / 55S8500D Video:

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

3840 × 2160p is displayed when 4096 × 2160p is input

HDMI IN 2 / 3 only. Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM, Dolby Digital, Dolby Digital Plus, DTS)

1, *2

, 4096 × 2160p

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)

KD-65S8500D / 55S8500D only HDMI 3 AUDIO IN

Analogue audio input (Stereo mini jack)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio output, Subwoofer

1, 2, 3

USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0).

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

DC IN 19.5 V (KD-55S8500D / 50S8000D)

AC adapter input

Others

Optional accessories

Wall -Moun t Bracket: SU-W L45 0 Wireless Subwoofer: SWF-BR100 Voice Remote Control: RMF-TX200P (Except KD-65S8500D / KD-55S8500D)

Operating temperature

0 ºC – 40 ºC

Operating humidity

10 % – 80 % RH (non-condensing)

Power and others

Note

Power requirements

except models with supplied AC adapter 220 V - 240 V AC, 50 Hz models with supplied AC adapter only

19.5 V DC with AC adapter Rating: Input 220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

KD-65S8500D: 65 inches / 163.9 cm KD-55S8500D: 55 inches / 138.8 cm KD-50S8000D: 50 inches / 125.7cm

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Powe r consumption

Indicated on the rear of the TV

Output Rating

USB 1/2: 5 V, 500 mA MAX USB 3: 5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d)

wi t h Tabl e-Top S tan d

KD-65S8500D: 1,456 x 895 x 287 mm KD-55S8500D: 1,238 x 772 x 262 mm KD-50S8000D: 1,124 x 702 x 222 mm

without Table-Top Stand

KD-65S8500D: 1,456 x 841 x 93 mm KD-55S8500D: 1,238 x 718 x 84 mm KD-50S8000D: 1,124 x 654 x 76 mm

Mass (Approx.)

wi t h Tabl e-Top S tan d

KD-65S8500D: 32.9 kg KD-55S8500D: 24.7 kg KD-50S8000D: 17.8 kg

without Table-Top Stand

KD-65S8500D: 29.4 kg KD-55S8500D: 21.4 kg KD-50S8000D: 16.7 kg

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

Trademark Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

24GB2

註

螺絲 (M6)

掛鉤 ( 底座 )

8 毫米 - 12 毫米

電視機後蓋

安全資訊 . . . . . . . . . . . . . . . . 2

預先注意事項 . . . . . . . . . . . . . . 5

組件及控件 . . . . . . . . . . . . . . 6

控件及指示燈 . . . . . . . . . . . . . . 6

使用遙控器 . . . . . . . . . . . . . . 7

遙控器組件說明 . . . . . . . . . . . . . 7

連接圖 . . . . . . . . . . . . . . . . 9

將電視機安裝在牆上 . . . . . . . . . 13

SU-WL450 . . . . . . . . . . . . . . . 15

故障排除 . . . . . . . . . . . . . . 19

故障及解決方案 . . . . . . . . . . . . 19

規格 . . . . . . . . . . . . . . . . 20

簡介

感謝您購買這項 Sony 產品。使用電視機之前，請詳閱本手冊，並保留下來以便將來參考。

• 使用電視機之前，請詳讀 “ 安全資訊 ”( 第 2 頁 )。

• 有關 “將電視機安裝在牆上 ”的說明已包含在這台電視機的使用說

明書。

• 安裝指南和本說明書中使用的影像和插圖僅作參考並可能與實際產品不同。

安裝指南的位置

安裝指南位於電視機包裝箱內部膠墊的頂部。

說明指南

說明指南解釋如何使用電視機功能的資訊。要在電視機上顯示說明指南，按下遙控器上的 HELP （說明）按鈕並選擇 [ 說明指南 ]。

識別標籤的位置

電視機型號和電源等級的標籤位於電視機背面。隨附 AC 電源供應器的型號：

AC 電源供應器型號和系列號的標籤位於 AC 電源供應器底部。

本電視設計在香港使用，只保證能在香港使用。

安全資訊

警告

不可將電池曝露於如陽光、火或類似的過熱源。切勿將電視安置在不穩定的地方。電視可能跌落、造成嚴重人身傷害或導致死亡。為避免由其是對孩童造成傷害，可採取簡單的預先注意事項，如：

 使用電視製造商推薦的機櫃或支架。  僅使用可安全支撐電視的傢俱。  確保電視不會置於支撐傢俱的邊緣處。  未將傢俱與電視固定在合適的支架上時，勿將電視置於較高的傢俱

（如櫥櫃或書櫃）之上。

 切勿在電視與支撐傢俱之間擺放布料或其他材料。  教育孩童攀爬傢俱去觸摸電視或其控制器是相當危險的。

如果您現有的電視仍在使用且已重新安放，則同樣適用上述注意事項。

安裝 / 設定

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來安裝和使用電視機。

安裝

• 應將電視機安裝在易於插拔的 AC 電源插座附近。

• 將電視機擺在平穩的水平表面上，以防止傾倒而造成人員的傷害或

者損及電視機。

• 應將電視機安裝在不容易被拉、推或碰倒之處。

• 僅可由合格的維修人員執行掛壁安裝。

• 為了安全起見，強烈建議您使用 Sony 配件，包括：

 壁掛式支架 SU-WL450

• 將掛鉤 ( 底座 )/ 壁掛式支架安裝於電視機上時，務必要使用隨附於壁掛式支架的螺絲。隨附螺絲如插圖所示設計從掛鉤 ( 底座 )/ 壁掛式支架安裝表面量起。螺絲的直徑和長度會因為壁掛式支架的型號而有所不同。使用隨附螺絲以外的螺絲可能會造成電視機內部損壞或者掉落等等。

搬動

螺絲（無附帶）

繩子（無附帶）

M6 螺絲

（無附帶）

8 毫米 - 12 毫米

繩子（無附帶）

導線（無附帶）

M6 螺絲

（無附帶）

8 毫米 - 12 毫米

• 搬動電視機之前，請斷開所有纜線的連接。

• 大尺寸電視機需要兩到三人搬動。

• 用手搬動電視機時，請如下圖所示抓握。請勿對液晶面板以及螢幕

周圍的框邊施加壓力。

• 搬動電視機時，請勿使其受到搖晃或過度震動。

• 搬動電視機以進行維修或移動時，請使用原有的紙箱和包裝材料進

行包裝。

防止傾倒

僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

通風

註

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

30 厘米

10 厘米

在電視機周圍至少留出所示的空間。

6厘米

空氣流通被阻擋。

牆壁牆壁

• 切勿遮擋通風孔或將任何物體插入機殼內。

• 如下圖所示，在電視機周圍保留通風空間。

• 強烈建議您使用 Sony 壁掛式支架以確保足夠的空氣流通。

安裝在牆壁上

安裝在底座上

• 為了確保正確通風及防止髒物或灰塵堆積：

 請勿將電視機平放、上下倒轉安裝、向後安裝或側面安裝。  請勿將電視機放置於架子、地毯、床或壁櫥中。  請勿用布（如窗簾）或物件（如報紙等）覆蓋電視機。  請勿如下圖所示安裝電視機。

AC 電源供應器注意事項（僅限隨附 AC 電源供應器的型號）

警告

為了避免火災或觸電造成危險，請勿將本機暴露於雨水或濕氣。為了避免火災或觸電，請勿將裝有液體的物體（例如花瓶）置於本機上。請勿將本機安裝到封閉區域，例如書架或相似裝置上。

• 請確保將 AC 電源插座安裝到裝置附近並方便操作。

• 確保使用隨附的 AC 電源供應器和 AC 電源線。否則會引起故障。

• 將 AC 電源供應器連接到方便操作的 AC 電源插座。

• 請勿將 AC 電源線纏繞在 AC 電源供應器周

圍。否則線芯會被割斷和 / 或會引起電視機故障。

• 請勿手濕時觸摸 AC 電源供應器。

• 如果您注意到 AC 電源供應器內有異常，則立

即從 AC 電源插座上將其拔下。

• 即使已經關閉本機，只要連接 AC 電源插座，本機也未從交流電源上斷開。

• 由於 AC 電源供應器在長時間使用後會變熱，在用手觸摸時會感到發燙。

使用限制

請勿在下列地點、環境或情況條件下安裝 / 使用電視機，否則電視機可能會發生故障並造成火災、觸電、損壞及 / 或受傷等危險。

地點：

• 室外（在直射的陽光中），海邊，船上或其他船艦上，車內，醫療機構中，不穩定的場所，靠近水、雨、濕氣或煙霧的地方。

環境：

• 炎熱、潮濕或太多灰塵的地方；昆蟲可能進入的地方；可能受到機械式震動的地方；靠近易燃物體（蠟燭等）的地方。不應該讓液體滴濕或噴濕電視機，而且裝滿液體的物體（例如花瓶）不應該擺在電視機上。

情況條件 :

• 機殼被拆卸或使用非生產商推薦的附件時，雙手潮濕狀態下使用。出現雷電天氣時請將電視機電源線從 AC 電源插座和天線拔下。

• 將電視機安裝在會延伸出開放空間的位置。這樣會導致人或物體撞擊電視機而引起傷害或損壞。

AC 電源線

為了避免火災、觸電或損壞及 / 或受傷等危險，請遵照下列指示來處理 AC 電源線和插座 :

 僅使用 Sony 隨附的 AC 電源線，不能使用其他品牌的電源線。  將插頭完全插入 AC 電源插座。  僅在 220 V - 240 V AC 電源範圍內操作本電視機。  連接纜線時，為了安全起見請務必拔下 AC 電源線，以免被纜線絆

到腳。

 在進行作業或移動電視機之前，請從 AC 電源插座上斷開 AC 電源

線的連接。

 保持 AC 電源線遠離熱源。  拔下 AC 電源插頭，定期進行清潔。如果插頭上有灰塵積聚並帶有

濕氣，則其絕緣品質可能已經劣化，並可能會造成火災。

• 請勿將隨附的 AC 電源線用於任何其他設備。

• 請勿過度擰捏、彎曲或扭轉 AC 電源線。否則線芯可能會曝露在外

或折斷。

• 請勿改裝 AC 電源線。

• 請勿將任何重物放在 AC 電源線上。

• 當拔下 AC 電源線 ( 電源線 ) 時，不可拉扯電源線 ( 電源線 )。

• 請勿在相同的 AC 電源插座上連接太多設備。

• 請勿使用不適當的 AC 電源插座。

• 將電視機放置在潮濕或多塵的空間，或有油煙或蒸氣的場所（靠近灶台或加濕器）。這可能導致火災、觸電或本機彎曲。

• 將電視機安裝在會遭受極端溫度的位置，如陽光直射、靠近散熱器或加熱裝置通風孔的地方。電視機在這種環境下可能會過熱而導致外殼變形及 / 或電視機故障。

• 如果放置電視機在公共浴室或溫泉的更衣室內，電視機可能會被空氣中的硫磺等損壞。

• 若要獲得最佳的畫面品質，請勿將螢幕放在直射光源或陽光下。

• 避免將電視機從寒冷的區域移至溫熱的區域。突然的室溫變化可能導致濕氣凝結。這可能造成電視機顯示劣質圖像及 / 或暗淡的顏色。如果發生這種情形，讓濕氣完全蒸發之後才開啟電視機。

打破電視機螢幕：

• 請勿將任何物品丟向電視機。否則螢幕可能會因為受到撞擊而破裂並造成嚴重傷害。

• 如果電視機的表面破裂，在拔下 AC 電源線以前請勿觸摸它。否則會引起觸電。

不使用時

• 如果您不使用電視機數天，為了環保和安全原因，應將電視機電源線從 AC 電源插座上拔下。

• 關閉電視機電源時，電視機並未與 AC 電源斷開連接，請將插頭從 AC 電源插座上拔下以完全斷開電視機的電源連接。

• 某些電視機可能具有需要將電視機保持在待命模式下才能正常工作的特點。

對於兒童

• 請勿讓兒童爬上電視機。

• 將體積小的配件放在兒童拿不到的地方，以便不會被兒童誤吞。

如果出現下列問題 …

如果出現以下任何問題，請立刻關閉電視機並拔下 AC 電源線。請諮詢您的經銷商或 Sony 服務中心以交由合格的服務人員進行檢查。

當：

 AC 電源線損壞。  AC 電源插座不適當。  電視機由於跌落、敲擊或撞擊而損壞。  任何液體或固體物件通過開口處掉入機殼內。

關於液晶電視機溫度

長時間使用液晶電視機時，面板周圍溫度會升高。用手觸摸這些地方時可能會覺得很燙。

預先注意事項

觀賞電視

• 請在適當光線條件下觀賞電視，因為在光線不足條件下或長時間觀賞電視會損傷您的眼睛。

• 使用耳機時，請調整音量以免音量過高損傷聽力。

LCD 螢幕

• 雖然 LCD 螢幕採用最精密技術製造且 99.99 % 以上的像素有效，但還是可能會出現黑點或 LCD 螢幕上可能會經常出現亮點（紅、藍或綠色）。這是 LCD 螢幕的結構特性，並不是故障。

• 請勿按壓或刮傷前濾光面板或在電視機頂部放置物件。畫面可能會不均，或者 LCD 螢幕可能會損壞。

• 如果在寒冷地點使用本電視機，畫面上可能會出現模糊或變暗。這並不是故障。溫度上升後這些現象就會消失。

• 畫面靜止不動將會產生重影。片刻後該現象將消失。

• 電視機使用過程中，螢幕和機殼會變熱。這不是故障。

• LCD 螢幕包含少量液晶。請按照您當地的法規進行廢棄物處理。

使用和清潔電視機的螢幕表面 / 機殼

清潔前，務必將電視機的 AC 電源線從 AC 電源插座上斷開連接。為了避免物質或螢幕塗層剝離，請遵照下列預先注意事項。

• 若要擦去螢幕表面 / 機殼上的灰塵，請用軟布輕輕擦拭。如果灰塵較難除去，請用稍稍蘸有稀釋中性清潔溶劑的軟布進行擦拭。

• 絕對不能將水或清潔劑直接噴灑在電視上。液體可能滴落螢幕的底部或外部零件上並滲入電視內，而毀壞電視。

• 切勿使用任何類型的磨砂墊、鹼性 / 酸性清潔劑、擦洗粉或揮發溶劑，如酒精、汽油、稀釋劑或殺蟲劑。使用上述材料或與橡膠或乙烯材料長時間接觸可能會造成螢幕表面和機殼材料的損壞。

• 如果手上塗有任何化學品，例如手霜或防曬霜，請勿觸摸電視機。

• 建議您定期吸塵以清理通風口以確保通風順暢。

• 當調整電視機的角度時，請慢慢地調動以防電視機從其桌面型底座

移動或滑落。

選購設備

將產生電磁輻射的選購元件或任何其他設備遠離電視機。否則可能會造成畫面失真及 / 或噪聲。

本機的無線功能

• 請勿在醫療設備（心臟起搏器等）附近操作本機，因為會引起醫療設備故障。

• 雖然本機發送 / 接收已加密信號，請小心未經授權的截取。我們不對此造成的任何問題負責。

注意有關處理遙控器

• 安裝電池時請注意正確的極性位置。

• 請勿同時使用不同類型的電池或混合使用新舊電池。

• 請以符合環境保護規定的方式來丟棄電池。特定地區可能有制訂廢

棄電池的相關規定。請向您當地的主管機關查詢。

• 請小心拿取遙控器。請勿讓遙控器掉落或踩在遙控器上，或是讓任何液體濺到遙控器。

• 請勿將遙控器放置在接近熱源的地方，放置在受日光直射地方或潮濕的房間。

組件及控件



僅限 KD-65S8500D / 55S8500D KD-65S8500D / 55S8500D 除外

控件及指示燈

 遙控器感應器* / 光感應器* / 照明 LED

根據電視機的狀態，照明 LED 會亮起或閃爍。

• 白色開啟電視機 / 關閉畫面模式 / 軟體更新等時。

• 青色無線連接行動裝置時。

• 琥珀色計時器已設定。

（電源）

 CH +/– （頻道）

 +/– （音量）

 TV

切換至一個電視頻道或從其他應用程式輸入。

（輸入選擇）

顯示並選擇輸入來源。

（電源）/ + / –

當電視機關閉時，

按  可打開電源。

當電視機開啟時，

長按  可關閉電源。反覆按  可變更功能，然後按+或-按鈕以便：

• 調節音量

• 選擇頻道

• 選擇電視機的輸入來源

* 請勿在感應器附近放置任何物品。

使用遙控器

麥克風

ȭ ȱ

KD-65S8500D / 55S8500D 除外僅限 KD-65S8500D / 55S8500D

遙控器組件說明

遙控器外形、按鈕的位置、可用性與功能視您的國家 / 區域 / 電視機型號而可能略有不同。

/ (輸入選擇/文字保留)

電視模式︰顯示並選擇輸入來源。文字模式︰保留當前頁面。

（麥克風）

使用語音功能。（例如，透過語音搜尋各種內容。）

 （電視待機）

開啟或關閉電視機（待機模式）。

DIGITAL/ANALOG

在數位及模擬模式之間切換。

 數字按鈕

 （文字）

顯示文字資訊。

 EXIT

返回至上一個畫面，或從選單退出。如果交互式應用服務可供使用，按下即可退出服務。

 / （顯現資訊 / 文字）

顯示資訊。

 Google Play

訪問 “Google Play” 線上服務。

NETFLIX （僅限限制的區域 / 國家 / 電視機型號）

訪問 “NETFLIX” 線上服務。

顏色按鈕

屆時執行相應的功能。

 ACTION MENU

顯示情境功能清單。

• 切換至一個電視頻道或從其他應用程式輸入。

• 開啟電視機顯示電視通道或輸入。

GUIDE/

顯示數位節目指南。

BACK

返回上一個畫面。

HOME

顯示電視主選單。

DISCOVER

調出內容列，搜尋內容。

//// （項目選擇 / 輸入）

 +/– （音量）

調節音量。

（跳轉）

在兩個頻道或兩次輸入之間前後跳轉。電視在當前頻道 / 輸入以及選擇的上一個頻道 / 輸入之間交替切換。

 （靜音）

將聲音消除。再次按下可恢復聲音。

PROG +/–//

電視模式︰選擇頻道。文字模式︰選擇下一個（) 或上一個 () 頁面。

 AUDIO

變更目前觀看之節目的語言。

//////

運行電視機和相連的 BRAVIA Sync 相容裝置上操作媒體內容。

（字幕設定）

開啟或關閉字幕（此功能可用時）。

（寬螢幕模式）

變更螢幕格式。

SYNC MENU

顯示 BRAVIA 同步選單。

 HELP

顯示說明選單。可以從此處訪問說明指南。

連接圖

DVI 音訊輸出

帶有色差輸出的 DVD 播放機

錄影機 / 電玩設備 /DVD 播放機 / 攝像機

帶有 ARC 的家庭音訊系統 /HDMI 裝置

DVI-HDMI 轉接器 / HDMI 裝置

HDMI 裝置

纜線/天線

耳機 / 家庭音訊系統 / 超低音揚聲器

數碼相機 / 攝像機 /USB 儲存媒介

HDMI 裝置

錄影機/電玩設備/ DVD 播放機 / 攝像機

帶有光學音訊輸入的家庭音訊系統

路由器

有關連接的更多資訊，請參閱說明指南(第2頁)。

僅限 KD-65S8500D / 55S8500D

 USB 1/2, USB3

< 12 毫米

< 21 毫米

• 連接大型 USB 裝置可能會干擾旁邊連接的其他裝置。

• 連接大型 USB 裝置時，請連接至 USB 1 埠。

 AUDIO OUT*3 /

• 如需透過相連設備聆聽電視聲音，請按 HOME。選擇 [ 設定 ]  [ 聲音設定 ]  [ 耳機 / 聲音輸出 ]，並選擇所需的項目。

 HDMI IN 1/2/3/4

• 如果裝置擁有 DVI 插孔，請透過 DVI HDMI 轉接器接口（無附帶）將其連接至 HDMI IN3，並將裝置的音訊輸出插孔連接至 HDMI 3 AUDIO IN。

• 如果連接與音訊回傳信道（ARC）技術相容的數位音訊系統，請使用 HDMI IN 4。否則，必須額外連接 DIGITAL AUDIO OUT (OPTICAL)。

*2 連接單聲道裝置時，請連接 L （MONO）音訊插孔。 *3 支援 3 極立體聲聲迷你插孔。

KD-65S8500D / 55S8500D 除外

帶有色差輸出的 DVD 播放機

帶有 ARC 的家庭音訊系統 /HDMI 裝置

HDMI 裝置

纜線/天線

耳機 / 家庭音訊系統 / 超低音揚聲器

數碼相機 /攝像機 /USB 儲存媒介

HDMI 裝置

錄影機 / 電玩設備 / DVD 播放機 / 攝像機

帶有光學音訊輸入的家庭音訊系統

路由器

錄影機 / 電玩設備 /DVD 播放機 / 攝像機

 USB 1/2, USB3

< 12 毫米

< 21 毫米

3.5 毫米

12 34

1: 左 2: 視訊 3: 接地 4: 右

標準清晰度（SD）視訊圖像視訊圖像信號的垂直解析度為 480 （NTSC）或 576 （PAL/SECAM）條線。

高清晰度（HD）視訊圖像信號的垂直解析度為 720 或 1080 條線。

（對於 4K 垂直解析度：2160 條線）

圖像品質

• AV 複合訊號線

• 天線的連接訊號線

• 色差訊號線

• HDMI 訊號線

• 連接大型 USB 裝置可能會干擾旁邊連接的其

他裝置。

• 連接大型 USB 裝置時，請連接至 USB 1 埠。

 AUDIO OUT*4 /

• 如需透過相連設備聆聽電視聲音，請按 HOME。選擇 [ 設定 ]  [ 聲音設定 ]  [ 耳機 / 聲音輸出 ]，並選擇所需的項目。

 HDMI IN 1/2/3/4

• 如果連接與音訊回傳信道（ARC）技術相容的數位音訊系統，請使用 HDMI IN 3。否則，必須額外連接 DIGITAL AUDIO OUT (OPTICAL)。

/ VIDEO IN 1

• 如需完成複合連接，請使用附带的類比延伸訊號線

。

*3 連接單聲道裝置時，請連接 L （MONO）音訊插孔。 *4 支援 3 極立體聲聲迷你插孔。 *5 僅限某些地區 / 國家 / 電視機型號。

將電視機安裝在牆上

註

本電視機的使用說明書僅顯示安裝至牆壁之前的電視機安裝準備工作。

致客戶 : 出於產品保護及安全原因，Sony 強烈建議由 Sony 經銷商或授權的承包商安裝電視機。請勿嘗試自

行安裝電視機。

致 Sony 經銷商和承包商 : 安裝、定期維護及檢查本產品時，請充分注意安全。

安裝本產品須具備充足的專業知識，確定牆壁是否能夠承受電視重量時重量。務必委託 Sony 經銷商或授權的承包商將本產品安裝至牆壁上，並在安裝期間充分注意安全。對於因錯誤操作或安裝不當引致的任何損害，Sony 概不負責。

使用壁掛式支架 SU-WL450 （無附帶）將電視機安裝到牆上。安裝壁掛式支架時，亦請參閱壁掛式支架附帶的使用說明書及安裝指南。

• 務必將取下的螺絲存放在兒童接觸不到的安全位置。

1 卸下支架蓋。

僅限 KD-65S8500D / 55S8500D

2 從電視機背面卸下螺絲。

僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

註

SU-WL450

螢幕中心點

標準安裝簡易安裝

1 確保牆壁有足夠空間以及能支撐至少電視機四倍的重量。

請參閱以下列表有關在牆上安裝電視機。請參閲第 20-21 頁（規格）有關電視機的重量。

顯示幕螢幕中心尺寸安裝的長度

型號名稱

KD-

標準安裝簡易安裝

65S8500D 1456 841 86 512 151 109

55S8500D 1238 718 152 517 141 100

50S8000D 1124 654 184 517 135 93

單元 : 毫米

• 視乎安裝情況而定，表內的數字可能略有不同。

• 將電視機安裝在牆上後，電視機的上側略微前傾。

2 安裝壁掛式支架的附件組件。參閱壁掛式支架安裝指南之 “1”，檢查附件組件。

註

螺絲（+PSW 6 x 20） 

滑輪 

墊片（60 毫米） 

螺絲（+PSW 6 x 50） 

皮帶 

螺絲（+PSW 6 x 50） 

墊片（60 毫米） 

螺絲（+PSW 6 x 20） 

滑輪 

• 使用電動螺絲批時，請將扭力設定為約 1.5 N·m {15 kgf·cm}。

• 務必將未使用的組件存放於安全位置，以備日後使用。保管好本說明書，以供日後參考。

標準安裝僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

簡易安裝

註

KD-65S8500D / 55S8500D 除外僅限 KD-65S8500D / 55S8500D

滑輪 

墊片（20 毫米） 

螺絲（+PSW 6 x 20） 

皮帶 

滑輪 

墊片（20 毫米） 

螺絲（+PSW 6 x 20） 

皮帶 

• 選用此安裝樣式，則無法使用電視機後面的某些端子。

僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

3 將必要的連接線連接至電視機。

註

a b c d

• 將電視機安裝至牆壁後，無法連接任何端子。

4 從電視機拆卸桌面底座。

僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

5 將電視機安裝至底座。請參閱壁掛式支架附帶的安裝指南之 “5” 以及使用說明書之 “ 將電視機

安裝在牆上 ”。

型號名稱 KD- 掛鉤位置

65S8500D b

55S8500D / 50S8000D c

請參閱您所擁有型號之壁掛式支架附帶的說明書，將電視機安裝在牆上。

故障排除

Updating...

電視機背面僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

為了即時更新您的電視軟體，須透過數位廣播系統或網路下載最新軟體資訊，從而更新軟體。選擇 [ 立即更新 ] 啟動產品更新。軟體更新時，照明 LED 閃白燈。更新軟體時，顯示帶有 [Updating…] （正在更新 …）的下列螢幕。

軟體更新期間，請勿拔出 AC 電源線。否則，軟體更新不會徹底完成，並且可能引致軟體故障。軟體更新可能持續長達 30 分鐘。如果您不想自動更新軟體，請按 HOME 並選擇 [ 說明 ]  [ 系統軟體更新 ]  [ 軟體自動下載 ]  [關]。在插入電視機時，即使按遙控器或電視機上的電源按鈕，電視機也可能在一定時間不能開啟，因為系統啟動需要時間。等待大約一分鐘，然後再次操作。在按遙控器或電視機上的電源按鈕開啟時，需要一定時間打開照明 LED 以及使遙控器工作。

當照明 LED 閃紅燈時，計算閃爍次數（間隔時間為三秒）。若照明 LED 閃爍紅色，斷開 AC 電源線兩分鐘，然後再開啟電視機，以此來重設電視機。如果問題仍然存在，請聯繫您的經銷商或 Sony 服務中心並告知照明 LED 閃紅燈的次數（間隔時間為三秒）。拔掉 AC 電源線，然後告訴您的經銷商或 Sony 服務中心。

當照明 LED 沒有閃爍，檢查以下列表中的項目。您也可參閱說明指南中的故障排除或通過選擇 [ 說明]  [ 自行診斷 ] 以進行自行診斷。如果問題仍然存在，請將您的電視機交給合格的維修人員修理。

故障及解決方案

沒有畫面（螢幕是黑的）也沒有聲音。

 檢查天線 / 訊號線連接。  將電視機連接至 AC 電源，然後按電視機或遙控器

上的 。

無法調諧某些節目。

 檢查天線 / 訊號線連接。

遙控器無效。

 更換電池。

忘記[親子鎖碼（廣播）]密碼。

 PIN 碼輸入 9999。通過選擇 [ 設定 ]  [ 親子鎖碼

（廣播）]  [ 變更 PIN 號碼 ] 更新 PIN 碼。

電視機周圍溫度升高。

 當長時間使用電視機時，電視機周圍溫度會升高。

用手觸摸這些地方時可能會覺得很燙。

停頓音訊或視訊、空白螢幕或電視機對電視或遙控器按鈕沒有反應。

 拔下 AC 電源線兩分鐘之後再次連接以進行簡單的

電視機重設。

在電視機上找不到 、CH +/–、 +/–、 和 TV 按鈕。

 請參閲下圖有關電視機上按鈕的位置。

照明 LED 開啓。

僅限 KD-65S8500D / 55S8500D

KD-65S8500D / 55S8500D 除外

 如果您不要發光 LED 亮起，您可將之關閉。

按 HOME，然後選擇 [ 設定 ]  [ 照明 LED]  [關]。

規格

系統

面板系統

LCD （液晶顯示）面板，LED 背光源

電視系統

類比：I, D/K, B/G, M 數位：DTMB

彩色系統

PAL, SECAM, NTSC3.58, NTSC4.43

頻道涵蓋範圍

類比：UHF/VHF/ 纜線數位：UHF

聲音輸出

10 瓦 + 10 瓦

無線技術

IEEE802.11ac/a/b/g/n 協議藍牙版本 4.1

無法以 WPS 連接無線路由器 (Wi-Fi Protected Setup)。

 如果您使用 WEP 安全加密，選擇 [ 簡易 ] 

[Wi- Fi]  [ 依掃描清單連接 ]。然後，選擇您要連接的網絡名稱（SSID）。

無法在網絡設定中找到所需的網絡名稱。

 選擇 [[ 手動輸入 ]] 選擇以輸入網絡名稱。

輸入 / 輸出插孔

天線 / 纜線

VHF/UHF 的 75 歐姆外接端子

僅限 KD-65S8500D / 55S8500D

/ VIDEO IN 1

視訊 / 音訊輸入（phono 插孔）

VIDEO IN 2

視訊輸入（備有 Y 輸入的常見 phono 針）

KD-65S8500D / 55S8500D 除外

/ VIDEO IN 1

視訊 / 音訊輸入（迷你插孔）

VIDEO IN 2

視訊輸入（備有 Y 輸入的常見 phono 針）

/ COMPONENT IN

YPBPR （色差視頻）：1080p （50，60 Hz），1080i

（50，60 Hz），720p （50，60 Hz），576p，576i，

480p，480i 音訊輸入（phono 接腳插孔）

HDMI IN 1, 2, 3, 4（支援 4K 解析度、HDCP 2.2 相容）

僅限 KD-65S8500D / 55S8500D 視訊：

4096 × 2160p （50，60 Hz）

（24Hz）

，3840 × 2160p （50，60 Hz），

3840 × 2160p （24，25，30 Hz），1080p （30，50，60 Hz），1080/24p，1080i （50，60 Hz），720p （30，50，60 Hz），

720/24p，576p，576i，480p，480i，PC 格式

當輸入為 4096 × 2160p 時，顯示效果為 3840 × 2160p

音訊：5.1 聲道線性 PCM：32, 44.1, 48, 88.2, 96, 176.4 和 192 kHz, 16, 20 和 24 bits, Dolby Digital 和 DTS

，4096 × 2160p

ARC （音頻回傳信道）（僅限 HDMI IN 4）

註

（兩聲道線性 PCM，Dolby Digital，DTS)

KD-65S8500D / 55S8500D 除外視訊 :

4096 × 2160p （50，60 Hz） 4096 × 2160p （24 Hz）

（50，60 Hz）

30 Hz），1080p （30，50，60 Hz），1080/24p， 1080i （50，60 Hz），720p （30，50，60 Hz）， 720/24p，576p，576i，480p，480i，PC 格式

*1當輸入為 4096 × 2160p 時，

顯示效果為 3840 × 2160p

僅限 HDMI IN 2 / 3。

音訊：5.1 聲道線性 PCM：32, 44.1, 48, 88.2, 96, 176.4 和 192 kHz, 16, 20 和 24 bits, Dolby Digital, Dolby Digital Plus 和 DTS ARC （音頻回傳信道）（僅限 HDMI IN 3）

（兩聲道線性 PCM，Dolby Digital，Dolby Digital

Plus，DTS）

，3840 × 2160p （24，25，

*1， *2

，

，3840 × 2160p

DIGITAL AUDIO OUT (OPTICAL)

數位光纖插孔（兩聲道線性 PCM，Dolby Digital， DTS）

僅限 KD-65S8500D / 55S8500D HDMI 3 AUDIO IN

類比音訊輸入（立體聲迷你插孔）

AUDIO OUT / （立體聲迷你插孔）

耳機、音訊輸出、超低音揚聲器

1, 2, 3

USB 連接埠 1 和 2 支援高速 USB （USB2.0） USB 連接埠 3 支援超快速 USB （USB3.0）

LAN

10BASE-T/100BASE-TX 接頭（視網絡的作業環境而定，連線速度可能不同。不保證本電視的 10BASE-T/100BASE-TX 通訊率和通訊品質。）

DC IN 19.5 V (KD-55S8500D / 50S8000D)

AC 電源供應器輸入

其他

選購配件

壁掛式支架 : SU-WL450 無線重低音揚聲器 : SWF-BR100 語音遙控器 : RMF-TX200P

（KD-65S8500D / 55S8500D 除外）

作業溫度

0 °C – 40 °C

操作濕度

10 % – 80 % 相對濕度（非冷凝）

電源和其他規格

電源需求

隨附 AC 電源供應器的型號除外

220 V - 240 V AC, 50 Hz

僅限隨附 AC 電源供應器的型號

帶有 AC 電源供應器的 19.5 V DC

額定規格：輸入 220 V – 240 V AC，50 Hz

螢幕尺寸（對角測量）（大約）

KD-65S8500D: 65 英寸 / 163.9 厘米

KD-55S8500D: 55 英寸 / 138.8 厘米

KD-50S8000D: 50 英寸 / 125.7 厘米

顯示解析度

3840 像素（水平） × 2160 條線（垂直）

耗電量

見電視機背面

輸出率

USB 1/2: 5 V, 500 mA 最大值

USB 3: 5 V, 900 mA 最大值

尺寸（大約）（寬×高×深）

包含桌面底座

KD-65S8500D: 1456 x 895 x 287 毫米

KD-55S8500D: 1238 x 772 x 262 毫米

KD-50S8000D: 1124 x 702 x 222 毫米

不含桌面底座

KD-65S8500D: 1456 x 841 x 93 毫米

KD-55S8500D: 1238 x 718 x 84 毫米

KD-50S8000D: 1124 x 654 x 76 毫米

重量（大約）

包含桌面底座

KD-65S8500D: 32.9 千克

KD-55S8500D: 24.7 千克

KD-50S8000D: 17.8 千克

不含桌面底座

KD-65S8500D: 29.4 千克

KD-55S8500D: 21.4 千克

KD-50S8000D: 16.7 千克

• 選購配件的供應視國家 / 區域 / 電視機型號 / 存貨而定。

• 設計與規格可能變更而不事先通知。

商標資訊

• HDMI 和 HDMI High-Definition Multimedia Interface 專用名詞以及 HDMI 標誌是 HDMI Licensing LLC 在美國和其他國家的商標或註冊商標。

• 本產品經過杜比實驗室的授權而製造。 Dolby、Dolby Audio 和雙 D 記號是杜比實驗室的商標。

• “BRAVIA” 和是 Sony Corporation 的商標。

• Gracenote、Gracenote eyeQ、Gracenote VideoID、Gracenote Video Explore、 Gracenote 標誌和標誌字型以及 “Powered by Gracenote” 標誌是 Gracenote 在美國和 / 或其他國家的註冊商標或商標。

• Wi-Fi、Wi-Fi Direct、Miracast、Wi-Fi Protected Setup 和 Wi-Fi CERTIFIED 標識是 Wi-Fi Alliance 的商標或註冊商標。

• Bluetooth® 字標和標誌乃 Bluetooth SIG, Inc. 擁有的注冊商標，Sony Corporation 在授權下使用這些標記。其他的商標和商品名稱屬於其各自的所有者。

• TUXERA 是 Tuxera Inc. 在美國及其他國家 / 地區的註冊商標。

• USB-IF 超快速 USB 是 Forum, Inc 公司的註冊商標

Customer Support and Contact:

;

䒌㆚㒓㍘⏰俓䳅

Help Guide

娎㕲㉫⊻

KD-65S8500D / 55S8500D

KD-50S8000D

Sony KD-50S8000D Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual
