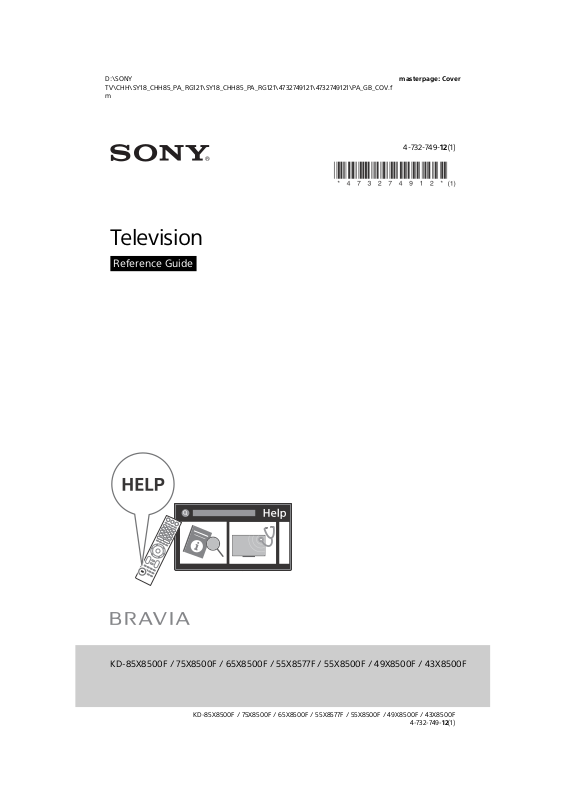

Television
Reference Guide
4-732-749-12(1)
KD-85X8500F / 75X8500F / 65X8500F / 55X8577F / 55X8500F / 49X8500F / 43X8500F
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . .3
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts and Controls . . . . . . . . . . . . . . . . . . . 9
Controls and Indicators . . . . . . . . . . . . . . . . .9
Using Remote Control . . . . . . . . . . . . . . . 10
Remote Control Parts Description. . . . . . . . 10
Connection Diagram . . . . . . . . . . . . . . . . 12
Installing the TV to the Wall . . . . . . . . . . 14
Using the optional Wall-Mount Bracket . . . 14
SU-WL500 (KD-85/75X8500F only). . . . . . . 16
SU-WL450 (Except KD-85/75X8500F) . . . . . 19
Troubleshooting. . . . . . . . . . . . . . . . . . . . 23
Troubles and Solutions. . . . . . . . . . . . . . . . .23
Specifications . . . . . . . . . . . . . . . . . . . . . . 24
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and
retain i t for fu ture reference.
Note
• Before operating the TV, please read the “Safety Information”
(page 3).
• Instructions about “Installing the TV to the Wall” are included
within this TV’s instruction manual.
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.
Attaching the Table-Top Stand to the TV
Refer to the Setup Guide on top of the cushion.
Help
Find more troubleshooting and other useful information
directly from your TV. Press HELP on the remote contro l to
display a list of topics, or to search by keyword.
Help Guide (Manual)
For more detailed information, select [Help Guide] from the
Help menu on your TV. You can also check the Help Guide from
your PC or smartphone (information provided on the back
cover).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located
on the rear of the TV.
For models with supplied AC adapter:
Labels for the AC adapter Model No. and Serial No. are located on
the bottom of the AC adapter.
Notice for customers in Thailand
This telecommunication equipment and device conforms with
NBTC standard or NBTC requirements.
This radio communication equipment has the electromagnetic
field strength in compliance with the Safety Standard for the Use
of Radio communication Equipment on Human Health
announced by the National Telecommunications Commission.
Notes for Australia and New Zealand model
This product is ENERGY RATING qualified in the default mode.
ENERGY RATING is a programme designed to promote energy
efficient products and practices.
• When the TV is initially set up, it is designed to meet ENERGY
RATING requirements while maintaining optimum picture
quality.
• Changes to certain features, settings and functionalities of this
TV (e.g. TV Guide, Picture/So und, Eco setting) can slightly
change the power consumption.
Depending upon such changed settings (e.g. Shop mode), the
power consumption may vary which possibly could exceed the
stated energy rating.
To reset the TV to ENERGY RATING qualified settings, complete
the initial set-up procedure in [Settings] t [Storage & reset] t
[Factory data reset].
After factory data reset, downloaded application data will be
deleted. Please download them again.
GB
2
Safety Information
Screw (M6)
Wall-Mount Bracket
TV’s rear co ver
8 mm – 12 mm
Screw (M6)
Wall-Mount Bracket
TV’s rear co ver
10 mm - 13 mm
WARNING
Caution
Risk of explosion if the battery is replaced by an incorrect type.
Batteri es must not be exp osed to exce ssive h eat such as
sunshine, fire or the like or extremely low air pressure that can
result in an explosion or leakage of flammable liquid or gas.
Stability Hazard
The television set may fall, causing serious personal injury or
death.
Never place a television set in an unstable location. A television
set may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple
precautions such as:
• Using cabinets or stands recommended by the manufacturer of
the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the
supporting furniture.
• Not placing th e television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture
and the television set to a suitable support.
• Not placing the television set on cloth or other materials that
may be located between the television set and supporting
furniture.
• Educating children about the dangers of climbing on furniture
to reach the television set or its controls.
If your existing television set is being retained and relocated, the
same considerations as above should be applied.
Installation/Set-up
Install and use the TV set in accordance with the instructions
below in order to avoid any risk of fire, electric shock or damage
and/or injuries.
Apparatus connected to the protective earthing of the building
installation through the mains connection or through other
apparatus with a connection to protective earthing – and to a
television distribution system using coaxial cable, may in some
circumstances create a fire hazard. Connection to a television
distribution system therefore has to be provided through a device
providing electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
Installation
• The TV set should be installed near an easily accessible AC
power outlet (mains soc ket).
• Place the TV on a stable, level surface to prevent it from falling
over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked
over.
• Install the TV so that the TV’s Table-Top Stand does not protrude
out from the TV stand (not supplied). If the Table-Top Stand
protrudes out from the TV stand, it may cause TV set to topple
over, fall down, and cause personal injury or damage to the TV.
• Only qualified service personnel should carry out wall-mount
installations.
• For safety reasons, it is strongly recommended that you use
Sony acce ssories , inclu ding:
Wall-Mount Bracket SU-WL500 (KD-85/75X8500F only)
Wall-Mount Bracket SU-WL450 (Except KD-85/75X8500F)
• Be sure to use the screws supplied with the Wall-Mount Bracket
when attaching the Wall-Mount Bracket to the TV set. The
supplied screws are designed as indicated by illustration when
measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Use of screws other than those supplied may result in internal
damage to the TV set or cause it to fall, etc.
KD-85/49/43X8500F
KD-75/65/55X8500F, KD-55X8577F
GB
3
Tran spor ting
8 mm – 12 mm
M6 screw (not supplied)
Screw (not
supplied)
Cord (not supplied)
1.5 N·m/1,5 N·m
{15 kgf·cm}
• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85X8500F)
are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the LCD panel and the frame around the
screen.
• When lifting or moving the TV set, hold it firmly from the
bottom.
KD-85X8500F
KD-75/65/55X8500F, KD-55X8577F
Topple prevention
(Except models with supplied support belt kit)
KD-85X8500F
KD-49/43X8500F
• When transporting the TV set, do not subject it to jolts or
excessive v ibration .
• When transporting the TV set for repairs or when moving, pack
it using the original carton and packing material.
GB
4
KD-75/65/55X8500F, KD-55X8577F
10 mm – 13 mm
M6 screw (not supplied)
Screw (not
supplied)
Cord (not supplied)
1.5 N·m/1,5 N·m
{15 kgf·cm}
8 mm – 12 mm
M6 screw (not supplied)
Screw (not
supplied)
Cord (not supplied)
1.5 N·m/1,5 N·m
{15 kgf·cm}
30 cm
10 cm 10 cm
Leave at least this space around the set.
10 cm
Leave at least this space around the set.
30 cm
10 cm
10 cm
6 cm
KD-49/43X8500F
Ventilation
• Never cover the ventilation holes or insert anything in the
cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount
Bracket in order to provide adequate air circulation.
Installed on the wall
Installed with stand
GB
5
• To ensure proper ventilation and prevent the collection of dirt or
Air circulation is blocked.
Wall Wall
dust:
Do not lay the TV set flat, install upside down, backwards, or
sideways.
Do not place the TV set on a shelf, rug, bed or in a closet.
Do not cover the TV set with a cloth, such as curtains, or items
such as newspapers, etc.
Do not install the TV set as shown below.
AC power cord (mains lead)
Handle the AC power cord (mains lead) and outlet (mains socket)
as follows in order to avoid any risk of fire, electric shock or
damage and/or injuries:
• The shape of AC power plug (mains plug), which is supplied
with the TV set, varies depending on the region. Be sure to
connect the appropriate supplied AC power cord (mains lead)
with the plug that fits into the AC power outlet (mains socket).
• Use only Sony supplied AC power cords (mains lead), not those
of other brands.
• Insert the plug fully into the AC power outlet (mains socket).
• Operate the TV set on a 110 V – 240 V AC supply only (except
models with supplied AC adapter).
• Operate the TV set on a 100 V – 240 V AC supply only (models
with supplied AC adapter only).
• When wiring cables, be sure to unplug the AC power cord
(mains lead) for your safety and take care not to catch your feet
on the cables.
• Disconnect the AC power cord (mains lead) from the AC power
outlet (mains socket) before working on or moving the TV set.
• Keep the AC power cord (mains lead) away from heat sources.
• Unplug the AC power plug (mains plug) and clean it regularly. If
the plug is covered with dust and it picks up moisture, its
insulation may deteriorate, which could result in a fire.
Note
• Do not use the supplied AC power cord (mains lead) on any
other equipment.
• Do not pinch, bend, or twist the AC power cord (mains lead)
excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord (mains lead).
• Do not put anything heavy on the AC power cord (mains lead).
• Do not pull on the AC power cord (mains lead) itself when
disconnecting the AC power cord (mains lead).
• Do not connect too many appliances to the same AC power
outlet (mains socket).
• Do not use a poor fitting AC power outlet (mains socket).
NOTE ON AC ADAPTER (models with supplied
AC adapter only)
Warni ng
To reduce the risk of fire or electric shock, do not expose this
appara tus to ra in or m oistu re.
To prevent fire or shock hazard, do not place objects filled with
liquids, such as vases, on the apparatus. Do not install this
equipment in a confined space, such as a bookshelf or similar
unit.
• Please ensure that the AC powe r outlet (mains socket) is
installed near the equipment and shall be easily accessible.
• Be sure to use the supplied AC adapter and AC power cord
(mains lead). Otherwise it may cause a malfunction.
• Connect the AC adapter to an easily accessible AC power outlet
(mains socket).
• Do not coil the AC power cord (mains lead)
around the AC adapter. The core wire may
be cut and/or it may cause a malfunction of
the TV.
• Do not touch the AC adapter with wet
hands.
• If you notice an abnormality in the AC adapter, disconnect it
from the AC power outlet (mains socket) immediately.
• The set is not disconnected from the AC source as long as it is
connected to the AC power outlet (mains so cket), even if the set
itself has been turned off.
• As the AC adapter will become warm when it is used for a long
time, you may feel hot when touching it by hand.
Prohibited Usage
Do not install/use the TV set in locations, environments or
situations such as those listed below, or the TV set may
malfunction and cause a fire, electric shock, damage and/or
injuries.
Locations:
• Outdoors (in direct sunlight), at the seashore, on a ship or other
vessel, inside a vehicle, in medical institutions, unstable
locations, near water, rain, moisture or smoke.
Environments:
• Places that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration,
near flammable objects (candles, etc.). The TV set shall not be
exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the TV.
Situations:
• Use when your hands are wet, with the cabinet removed, or
with attachments not recommended by the manufacturer.
Disconnect the TV set from AC power outlet (mains socket) and
antenna (aerial) during lightning storms.
• Install the TV so that it sticks out into an
open space. Injury or damage from a
person or object bumping into the TV
may result.
GB
6
• Place the TV in a humid or dusty space,
or in a room with oily smoke or steam
(near cooking tables or humidifiers).
Fire, electric shock, or warping may
result .
• Install the TV in places subject to
extreme temperature such as in direct sunlight, near a radiator
or a heating vent. The TV may overheat in such condition which
can cause deformation of the enclosure and/or TV malfunction.
• If the TV is placed in the changing room
of a public bath or hot spring, the TV may
be damaged by airborne sulfur, etc.
• For best picture quality, do not expose
the screen to direct illumination or
sunlight.
• Avoid moving the TV from a cold area to
a warm area. Sudden room temperature changes may cause
moisture condensation. This may cause the TV to show poor
picture and/or poor colour. Should this occur, allow moisture to
evaporate completely before powering the TV on.
Broken pieces:
• Do not throw anything at the TV set. The screen glass may break
by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have
unplugged the AC power cord (mains lead). Otherwise this may
cause an electric shock.
When not in use
• If you will not be using the TV set for several days, the TV set
should be disconnected from the AC power (mains) for
environmental and safety reaso ns.
• As the TV set is not disconnected from the AC power (mains)
when the TV set is just turned off, pull the plug from the AC
power outlet (mains socket) to disconnect the TV set
completely.
• Some TV sets may have features that require the TV set to be
left in standby to work correctly.
For children
• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they
are not mistakenly swallowed.
If the following problems occur...
Turn o ff the TV set and unplug the AC power cord (mains lead)
immediately if any of the following problems occur.
Ask your dealer or Sony service centre to have it checked by
qualified service personnel.
When:
• AC power cord (mains lead) is damaged.
• Poor fitting of AC power outlet (mains socket).
• TV set is damaged by being dropped, hit or having something
thrown at it.
• Any liquid or solid object falls through openings in the cabinet.
About LCD TV Temperature
When the LCD TV is used for an extended period, the panel
surrounds become warm. You may feel hot when touching there
by the hand.
Precautions
Viewing the TV
• View the TV in moderate light, as viewing the TV in poor light or
during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid
excessive levels, as hearing damage may result.
LCD Screen
• Although the LCD screen is made with high-precision
technology and 99.99 % or more of the pixels are effective,
black dots may appear or bright points of light (red, blue, or
green) may appear constantly on the LCD screen. This is a
structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of
this TV set. The image may be uneven or the LCD screen may be
damaged.
• If this TV set is used in a cold place, a smear may occur in the
picture or the picture may become dark. This does not indicate a
failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed
continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This
is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow
your local ordinances and regulations for disposal.
Handling and cleaning the screen surface/
cabinet of the TV set
Be sure to unplug the AC power cord (mains lead) connected to
the TV set from AC power outlet (mains socket) before cleaning.
To avoid material degradation or screen coating degradation,
observe the following precautions.
• To remove dust from the screen surface/cabinet, wipe gently
with a soft cloth. If dust is persistent, wipe with a soft cloth
slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on
the TV set. It may drip to the bottom of the
screen or exterior parts and enter the TV set,
and may cause damage to the TV set.
• Never use any type of abrasive pad,
alkaline/acid cleaner, scouring powder, or
volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining
prolonged contact with rubber or vinyl materials may result in
damage to the screen surface and cabinet material.
• Do not touch the TV if your hand is covered in any chemical
substance such as hand cream or sunblock.
• Periodic vacuuming of the ventilation open ings is
recommended to ensure proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to
prevent the TV set from moving or slipping off from its table
stand.
Optional Equipment
• Keep optional components or any equipment emitting
electromagnetic radiation away from the TV set. Otherwise
picture distortion and/or noisy sound may occur.
Wireless Function of the unit
• Do not operate this unit near medical equipment (pacemaker,
etc.), as this may result in the malfunction of the medical
equipment.
• Although this unit transmits/receives scrambled signals, be
careful of unauthorised interception. We cannot be responsible
for any trouble as a result.
Caution about handling the remote control
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and
new batteries.
• Dispose of batteries in an environmentally friendly way. Certain
regions may regulate the disposal of batteries. Please consult
your local authority.
• Handle the remote control with care. Do not drop or step on it,
or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source,
a place subject to direct sunlight, or a damp room.
GB
7
Disposal of the TV set
Disposal of old electrical &
electronic equipment (applicable in
the European Union and other
countries with separate collection
systems)
Disposal of Old Electrical &
Electronic Equipment (Applicable in
Republic of India)
This symbol and its variations indicate that this
product and its components, consumables,
parts or spares thereof shall not be treated as
household waste and may not be dropped in
garbage bins. Product owners are advised to
deposit their product at the nearest collection
electronic equipment. Your co-operation shall facilitate proper
disposal and help prevent potential negative consequences/
hazards to the environment and human health, which could
otherwise be caused by inappropriate waste disposal including
improper handling, accidental breakage, damage and/or
improper recycling of e-waste. The recycling of materials will help
to conserve natural resources. For more detailed information
about recycling of this product, please contact your local civic
office, your household waste disposal service provider or the
store where you made the purchase. You may contact our
company’s toll free number in India for assistance.
Toll Free: 1800-103-7799
Visit: www.sony.co.in for product recycling
Reduction in the Use of Hazardous Substances
in Electrical & Electronic Equipment (Applicable
in Republic of India)
This product and its components, consumables, parts or
spares comply with the hazardous substances restriction of
India’s E-Waste (Management) Rules. The maximum allowable
concentrations of the restricted substances are 0.1 % by weight
in homogenous materials for Lead, Mercury, Hexavalent
Chromium, Polybrominated Biphenyls (PBB) and
Polybrominated Diphenyl Ethers (PBDE), and 0.01 % by weight
in homogenous materials for Cadmium, except for the
exemptions specified in Schedule II of the aforesaid Rules.
point for the recycling of electrical and
Notice for customer in UAE
TRA
REGISTERED No: ER47793/16
DEALER No: DA0065531/11
GB
8
Parts and Controls
ȩ
ȩ
Controls and Indicators
KD-85/75/65/55X8500F, KD-55X8577F
KD-49/43X8500F
(Power) /+/–
When the TV is off,
Press to power on.
When the TV is on,
Press and hold to power off.
Press repeatedly to change the function,
then press + or – button to:
• Adjust the volume.
• Select the channel.
• Select the input source of TV.
Remote Control sensor* / Light
sensor* / Illumination LED
The illumination LED lights up or blinks
according to the status of the TV.
For more information, refer to the Help
Guide.
* Do not place anything near the sensor.
GB
9
Using Remote Control
MIC
Ȫ
ȩ
ȫ
Ȭ
ȭ
Ȯ
Remote Control Parts Description
The remote control shape, location, availability and function of remote control buttons may vary
depending on your region/country/TV model.
(Microphone)
Use Voice Search. (e.g., Search
various content by voice.)
EXT.BOX MENU
Display the connected External Box
(cable/satellite box) menu.
• For models with supplied IR Blaster,
connect and set up the IR Blaster
(page 13).
• The External Box menu may be
displayed for some HDMI CEC
compatible devices when the IR
Blaster is not supplied/connected.
//// (Navigation D-Pad)
On screen menu navigation and
selection.
TV
Switch to a TV channel or input and
display the TV Menu Bar.
/ (Input select/Text hold)
In TV mode: Display and select the input
source.
In Text mode: Hold the current page.
(TV standby)
Turn on or turn off the TV (standby mode).
DIGITAL/ANALOG
Switch between digital and analogue mode.
GB
10
Number buttons
/ (Info/Text reveal)
Display information.
(Text)
Display text information.
Google Play
Access the “Google Play” online service.
NETFLIX (Only on limited region/
country/TV model)
Access the “NETFLIX” online service.
Colour buttons
Execute corresponding function at that time.
ACTION MENU
Display a list of contextual functions.
GUIDE/
Display the digital programme guide.
APPS
Access various services and applications.
BACK
Return to the previous screen.
HOME
Display the TV Home Menu.
+/– (Volume)
Adjust the volume.
(Jump)
Jump back and forth between two channels
or inputs. The TV alternates between the
current channel or input and the last
channel or input that was selected.
(Muting)
Mute the sound. Press again to restore the
sound.
PROG +/–//
In TV mode: Select the channel.
In Text mode: Select the next () or
previous () page.
AUDIO
Change the language for the programme
currently being viewed.
///.//>/
Operate media contents on the TV and
connected BRAVIA Sync-compatible device.
(Subtitle setting)
Turn subtitles on or off (when the feature is
available).
HELP
Display the Help menu. Help Guide can be
accessed from here.
EXIT
Return to the previous screen or exit from
the menu. When an Interactive Application
service is available, press to exit from the
service.
SYNC MENU
Display the BRAVIA Sync Menu.
GB
11
Connection Diagram
*1
Headphone/Audio System/
Subwoofer
Digital still camera/
Camcorder/USB
storage media
DVD player with
component output
Audio System with ARC/
HDMI Device
HDMI Device
IR Blaster
VCR/Video game equipment/
DVD player/Camcorder
HDMI
Device
Cable/Antenna
Router
Audio System
with Optical
Audio Input
< 14 mm
HDMI Device
For more information on connections, refer to the Help Guide by pressing HELP on the remote control.
GB
12
USB1/2, USB3
<
<
12 mm
21 mm
• Connecting a large USB device may
interfere with other connected devices
beside it.
• When connecting a large USB device,
connect to the USB 1 port.
AUDIO OUT /
• Supports 3-pole stereo mini jack only.
• To listen to the TV’s sound through the
connected equipment, press HOME.
Select [Settings] t [Sound] t
[Headphone/Audio out] and then select
the desired item.
HDMI IN 1/2/3/4
• HDMI interface can transfer the digital
video and audio on a single cable.
•
• HDMI IN 2/3
To enjoy high quality 4K 50p/60p
contents, connect a Premium High Speed
HDMI cable to the HDMI IN 2/3 and set the
[HDMI signal format] to [Enhanced
format].
For details of supported formats, refer to
the “Specifications” in this manual
(page 24 - 25).
• HDMI IN 3 ARC (Audio Return Channel)
Connect your audio system to the
HDMI IN 3 to route TV audio to your audio
system. An audio system that supports
HDMI ARC can send video to the TV, and
receive audio from the TV via the same
HDMI cable. If your audio system does not
support HDMI ARC, an additional
connection with DIGITAL AUDIO OUT
(OPTICAL) is necessary.
IR BLASTER*
2
• Use your Sony remote control to control
your External Box (cable/satellite box).
Connect the IR Blaster Cable*2 to the IR
Blaster port on your TV. Place one or both
of the other two ends as shown below.
• To perform IR Blaster setup, press HOME
and select [Settings] t [External inputs]
t [IR Blaster setup].
*1 When connecting mono equipment, connect to the
L (MONO) audio jack (socket).
*2 Only on limited region/country/TV model.
GB
13
Installing the TV to the Wall
Using the optional Wall-Mount Bracket
This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation
before it is installed on the wall.
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be
performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this
product.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers
or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for
any damage or injury caused by mishandling or improper installation.
Use the Wall-Mount Bracket SU-WL500 (not supplied) (KD-85/75X8500F only) or SU-WL450 (not
supplied) (Except KD-85/75X8500F) to install the TV to the wall.
When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide
supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when
removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43X8500F
only)
GB
14
Remove the screws from the rear of the TV.
KD-85X8500F KD-75/65/55X8500F, KD-55X8577F
KD-49/43X8500F
To d e tach th e Ta b le-Top S t and fro m the TV ( K D - 4 9 /4 3 X 8 500F onl y )
GB
15
SU-WL500 (KD-85/75X8500F only)
Mounting Hook
Screw (+PSW 6 × 16)
Mounting Hook
Screw (+PSW 6 × 16)
1 Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.
Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.
Model Name Screw location
KD-85X8500F d, j
KD-75X8500F d, g
Screw location
When installing the Mounting Hook on the TV.
KD-85X8500F
KD-75X8500F
GB
16
2 Make sure that the wall has enough space for the TV and is capable of supporting a
Screen centre point
weight of at least four times that of the TV. Refer to the following table on installing the TV
to the wall. See page 24-25 (Specifications) for the TV’s weight.
Unit: mm
Model Name
KD-85X8500F 1,911 1,098 131 683 133
KD-75X8500F 1,673 963 27 515 114
Note
• Only applicable for 0º for this TV model.
• Figures in the table may differ slightly depending on the installation.
Display dimensions
Screen centre
dimension
Length for mounting
Angle (0º)
3 Connect necessary cables to the TV.
Note
• You cannot access to any terminal after installing the TV to the wall.
GB
17
4 Detach the Table-Top Stand from the TV.
a
KD-85X8500F
KD-75X8500F
5 Install the TV on the wall.
Model Name Hook location
KD-85X8500F
KD-75X8500F
Hook location
When installing the TV onto the Base Bracket.
a
Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
GB
18
SU-WL450 (Except KD-85/75X8500F)
Screen centre point
Standard
mounting
Slim
mounting
1 Make sure that the wall has enough space for the TV and is capable of supporting a
weight of at least four times that of the TV. Refer to the following table on installing the TV
to the wall. See page 24-25 (Specifications) for the TV’s weight.
Unit: mm
Display dimensions
Model Name
Screen
centre
dimension
Length for mounting
Standard
mounting
KD-65X8500F 1,450 836 99 523 115 73
KD-55X8577F
KD-55X8500F
KD-49X8500F 1,098 644 15 315 120 78
KD-43X8500F 965 569 23 315 120 78
Note
• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.
1,231 713 106 468 115 73
Slim
mounting
GB
19
2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by
ʲ
ʷ
ʯ
ʮ
ʸ
Belt
Screw (+PSW 6 x 50)
Pulley
Screw (+PSW 6 x 20)
Spacer (60 mm)
ʲ
ʷ
ʯ
ʮ
ʸ
Screw (+PSW 6 x 50)
Pulley
Screw (+PSW 6 x 20)
Spacer (60 mm)
Belt
Soft cloth
referring to “1” of the Wall-Mount Bracket Installation Guide.
Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.
Standard mounting
KD-65/55X8500F, KD-55X8577F
KD-49/43X8500F
20
GB
Slim mounting
ʲ
ʯ
ʱ
ʮ
Belt
Screw (+PSW 6 x 20)
Pulley
Spacer (20 mm)
ʲ
ʱ
ʮ
ʯ
Belt
Screw (+PSW 6 x 20)
Pulley
Spacer (20 mm)
Soft cloth
Note
• You cannot use some of the terminals on the rear of the TV when using this mounting style.
KD-65/55X8500F, KD-55X8577F KD-49/43X8500F
KD-65/55X8500F, KD-55X8577F
KD-49/43X8500F
3 Connect necessary cables to the TV.
Note
• You cannot access to any terminal after installing the TV to the wall.
GB
21
4 Detach the Table-Top Stand from the TV (KD-65/55X8500F, KD-55X8577F only).
a
b
c
d
5 Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the
Wall” of Operating Instructions supplied with the Wall-Mount Bracket.
Model Name Hook location
KD-65X8500F
KD-55X8577F
KD-55X8500F
KD-49X8500F c
KD-43X8500F d
b
Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
GB
22
Troubleshooting
Updating...
General troubleshooting for issues like: black
screen, no sound, frozen picture, TV does not
respond, or network is lost, do the following
steps.
1 Restart your TV by pressing the power button
on the remote control until a message
appears. The TV will restart. If the TV does not
recover, try unplugging the TV from the AC
power cord (mains lead) for two minutes and
then plug it in again.
2 Refer to the Help menu by pressing HELP on
the remote control.
3 Connect your TV to the Internet and perform
a software update.
4 Visit Sony support website (information
provided on the back cover).
When [A new TV system software update is
available...] message is displayed.
Sony strongly recommends you to update the
TV software by selecting [Update Now]. These
software updates improve your TV performance
or add new features.
The following screen with [Updating...] will
appear and the illumination LED flashes white
while software is updating.
Do not unplug the AC power cord (mains lead)
during the software update. If you do, the
software update may not finish completely, and
it may cause a software malfunction. Software
updates can take up to 15 minutes.
When you plug in the TV, the TV may not be
able to turn on for a while even if you press
the power button on the remote control or
the TV.
It takes time to initialize the system. Wait for
about one minute, then operate it again.
Troubles and Solutions
When the illumination LED is flashing in red.
• Count how many times it flashes (interval time is
three seconds).
Reboot the TV by disconnecting the AC power
cord (mains lead) for two minutes, then turn on
the TV.
If the problem persists, disconnect the AC power
cord (mains lead), and contact your dealer or Sony
service centre with the number of times the
illumination LED flashes.
There is no picture (screen is dark) and no
sound.
• Check the antenna (aerial)/cable connection.
• Connect the TV to the AC power (mains), and
press the power button on the TV or the remote
control.
Some programmes cannot be tuned.
• Check the antenna (aerial)/cable connection.
The remote control does not function.
• Replace the batteries.
The EXT.BOX MENU button on the remote
control does not work.
• Connect and set up the IR Blaster (models with
supplied IR Blaster only) (page 13).
• Connect HDMI CEC compatible device (except
models with supplied IR Blaster) and change to
that input.
The parental lock for broadcast password has
been forgotten.
• Enter 9999 for the PIN code and select [Change
PIN code].
The TV surrounds become warm.
• When the TV is used for an extended period, the
TV surrounds become warm. You may feel hot
when touching there by the hand.
23
GB
Specifications
System
Pane l system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Depend on your country/area selection
Analogue: B/G, I, D/K, M
Digital: DVB-T/DVB-T2
Colour system
PAL/SECAM/NTSC3.58/NTSC4.43
Channel coverage
Depend on your country/area selection
Analogue: UHF/VHF/Cable
Digital: UHF/VHF
Sound output
10 W + 10 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n
(IEEE802.11ac may not be available depending on
countries/regions.)
Bluetooth Version 4.1
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
/ COMPONENT IN
YPBPR (Component Video): 1080p (50, 60 Hz),
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,
480p, 480i
Audio input (phono pin jack)
VIDEO IN
Video input (common phono pin with Y input)
HDMI IN 1/2/3/4 (support 4K resolution, HDCP
2.2-compatible)
Video:
4096 × 2160p (50, 60 Hz)*
1
(24 Hz)*
, 3840 × 2160p (50, 60 Hz)*2, 3840 ×
2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (30, 50,
60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC
3
Formats*
*1 When 4096 × 2160p is input and [Wide mode] is
set to [Normal], the resolution is displayed as
3840 × 2160p. To display 4096 × 2160p, set [Wide
mode] setting to [Full 1] or [Full 2].
*2 HDMI IN 2/3 only. To support 18 Gbps, set [HDMI
signal format] to [Enhanced format].
*3 Refer to the Help Guide for details.
Audio:
5.1 channel linear PCM: 32/44.1/48/88.2/96/
176.4/192 kHz 16/20/24 bits, Dolby Digital,
Dolby Digital Plus and DTS
1*2
, 4096 × 2160p
ARC (Audio Return Channel) (HDMI IN 3 only)
(Two channel linear PCM: 48 kHz 16 bits, Dolby
Digital, Dolby Digital Plus, DTS)
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM:
48 kHz 16 bits, Dolby Digital, DTS)
AUDIO OUT / (Stereo mini jack)
Headphone, Audio output, Subwoofer
1, 2, 3
USB port 1 and 2 support High Speed USB
(USB 2.0)
USB port 3 supports Super Speed USB (USB 3.1
Gen 1)
LAN
10BASE-T/100BASE-TX connector (Depending on
the operating environment of the network,
connection speed may differ. 10BASE-T/
100BASE-TX communication rate and
communication quality are not guaranteed for
this TV.)
DC IN 19.5 V (models with supplied AC
adapter only)
AC adapter input
IR BLASTER*
IR Blaster Cable input (mini jack)
1
Others
Optional accessories
Wall-Mount Bracket: SU-WL500 (KD-85/75X8500F
only)
Wall-Moun t Bracket: SU-WL450 (Except KD- 85/
75X8500F)
Operating temperature
0ºC – 40ºC
Power and others
Power requirements
except models with supplied AC adapter
110V – 240V AC, 50/60Hz
models with supplied AC adapter only
19.5 V DC with AC adapter
Rating: Input 100V – 240V AC, 50/60Hz
Energy Efficiency Class*
(For Jordan only)
KD-85X8500F: A
KD-75X8500F: A+
KD-65X8500F: A+
KD-55X8577F / KD-55X8500F: A
KD-49X8500F: A
(For Egypt only)
KD-75X8500F: A
KD-65X8500F: A
KD-55X8577F / KD-55X8500F: A
KD-49X8500F: B
2
24
GB
Screen size (measured diagonally) (Approx.)
KD-85X8500F: 85 inches / 214.8 cm
KD-75X8500F: 75 inches / 189.3 cm
KD-65X8500F: 65 inches / 163.9 cm
KD-55X8577F / KD-55X8500F: 55 inches /
138.8 cm
KD-49X8500F: 49 inches / 123.2 cm
KD-43X8500F: 43 inches / 108.0 cm
Power consumption
Indicated on the rear of the TV
Power Consumption*
2
In [Standard] mode
(For Jordan only)
KD-85X8500F: 230 W
KD-75X8500F: 149 W
KD-65X8500F: 121 W
KD-55X8577F / KD-55X8500F: 103 W
KD-49X8500F: 91 W
(For Egypt only)
KD-75X8500F: 145.0 W
KD-65X8500F: 121.0 W
KD-55X8577F / KD-55X8500F: 101.0 W
KD-49X8500F: 89.0 W
In [Vivid] mode
KD-85X8500F: 378 W
KD-75X8500F: 250 W
KD-65X8500F: 196 W
KD-55X8577F / KD-55X8500F: 170 W
KD-49X8500F: 145 W
Average annual energy consumption*
(For Jordan only)*
3
2
KD-85X8500F: 319 kWh
KD-75X8500F: 207 kWh
KD-65X8500F: 168 kWh
KD-55X8577F / KD-55X8500F: 143 kWh
KD-49X8500F: 126 kWh
(For Egypt only)*
4
KD-75X8500F: 397 kWh
KD-65X8500F: 332 kWh
KD-55X8577F / KD-55X8500F: 277 kWh
KD-49X8500F: 244 kWh
Standby power consumption*2*5*
6
0.50 W
Display resolution
3,840 pixels (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1/2
5V , 500mA MAX
USB 3
5V , 900mA MAX
Dimensions (Approx.) (w × h × d)
with Table-Top Stand
KD-85X8500F: 1,911 × 1,176 × 429 mm
KD-75X8500F: 1,673 × 1,031 × 371 mm
KD-65X8500F: 1,450 × 900 × 315 mm
KD-55X8577F / KD-55X8500F: 1,231 × 776 ×
315 mm
KD-49X8500F: 1,098 × 703 × 279 mm
KD-43X8500F: 965 × 628 × 279 mm
without Table-Top Stand
KD-85X8500F: 1,911 × 1,098 × 73 mm
KD-75X8500F: 1,673 × 963 × 54 mm
KD-65X8500F: 1,450 × 836 × 52 mm
KD-55X8577F / KD-55X8500F: 1,231 × 713 × 52 mm
KD-49X8500F: 1,098 × 644 × 58 mm
KD-43X8500F: 965 x 569 x 58 mm
Mass (Approx.)
with Table-Top Stand
KD-85X8500F: 46.2 kg
KD-75X8500F: 40.1 kg
KD-65X8500F: 26.5 kg
KD-55X8577F / KD-55X8500F: 20 kg
KD-49X8500F: 13.7 kg
KD-43X8500F: 11.3 kg
without Table-Top Stand
KD-85X8500F: 44.1 kg
KD-75X8500F: 38.9 kg
KD-65X8500F: 25.6 kg
KD-55X8577F / KD-55X8500F: 19.1 kg
KD-49X8500F: 13.2 kg
KD-43X8500F: 10.8 kg
*1 Only on limited region/country/TV model.
*2 This information is for EU and other countries whose
relevant regulation is based on EU energy labelling
regulation.
*3 Energy consumption per year, based on the power
consumption of the television operating 4 hours per
day for 365 days. The actual energy consumption
will depend on how the television is used.
*4 Energy consumption per year, based on the power
consumption of the television operating 8 hours per
day for 360 days. The actual energy consumption
will depend on how the television is used.
*5 Specified standby power is reached after the TV
finishes necessary internal processes.
*6 Standby power consumption will increase when
your TV is connected to the network.
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
without notice.
25
GB
Notes on Digital TV function
• Any functions related to Digital TV ( )
will only work in countries or areas where
DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4
AVC) digital terrestrial signals are
broadcast. Please confirm with your local
dealer if you can receive a DVB-T/DVB-T2
signal where you live.
• This TV set complies with DVB-T/DVB-T2
specifications, but compatibility with future
DVB-T/DVB-T2 digital terrestrial broadcasts
are not guaranteed.
• Some Digital TV functions may not be
available in some countries/areas.
Trademark information
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the
United States and other countries.
• Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, and the
double-D symbol are trademarks of Dolby
Laboratories.
• “BRAVIA”, and BRAVIA Sync are
trademarks or registered marks of Sony
Corporation.
• Gracenote, the Gracenote logo and
logotype, “Powered by Gracenote” logo are
either registered trademarks or trademarks
of Gracenote, Inc. in the United States and/
or other countries.
• Vewd® Core. Copyright 1995-2017 Vewd
Software AS. All rights reserved.
• Google, Android TV, Google Play,
Chromecast built-in, YouTube and other
related marks and logos are trademarks of
Google LLC.
• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and
Miracast® are registered trademarks of
Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of
Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification
mark of Wi-Fi Alliance.
• For DTS patents, see http://
patents.dts.com. Manufactured under
license from DTS, Inc. DTS, the Symbol, &
DTS and the Symbol together are registered
trademarks, and DTS Digital Surround is a
trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
• The Bluetooth® word mark and logos are
registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under license.
Other trademarks and trade names are
those of their respective owners.
• Netflix is a registered trademark of Netflix,
Inc.
• TUXERA is a registered trademark of Tuxera
Inc. in the US and other countries.
• USB-IF SuperSpeed USB Trident logo is a
registered trademark of USB Implementers
Forum, Inc.
• All other trademarks are the property of
their respective owners.
26
GB
Actual resolution:
3840 x 2160 pixels
GB
27
Customer Support and Contact:
Help Guide
http://rd1.sony.net/help/tv/fga1/h_ga/
© 2018 Sony Visual Products Inc.
Loading...
