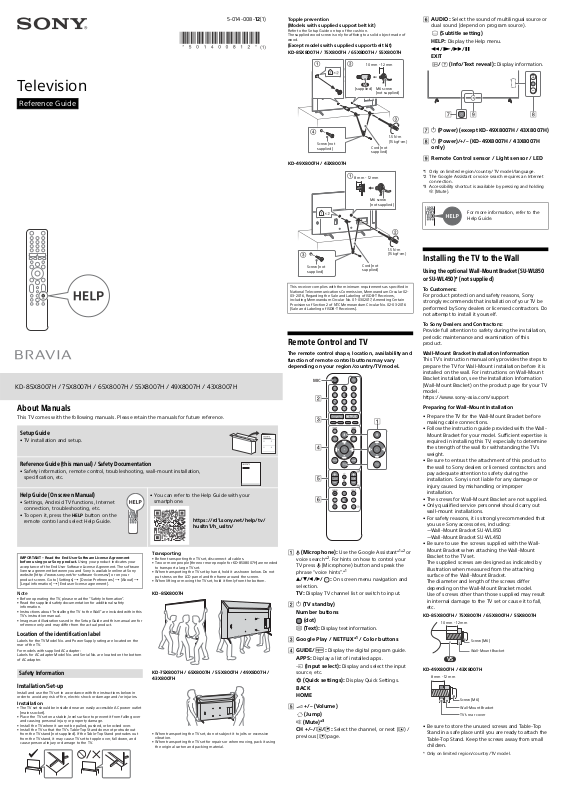

Sony KD-43X8007H Users guide

12

4

VS

10 mm - 12 mm

M6 screw
(not supplied)

Screw (not
supplied)

Cord (not
supplied)

1.5 N·m
{15 kgf·cm}

(supplied)

1

3

8 mm - 12 mm

M6 screw
(not supplied)

Screw (not
supplied)

Cord (no t
supplied)

1.5 N·m
{15 kgf·cm}

MIC

Ȫ

ȫ

Ȭ

ȭ

Ȯ

ȩ



Screw (M6)

Wall-Mount Bracket

10 mm - 12 mm

Screw (M6)

Wall-Mount Bracket

8 mm - 12 mm

TV’s rear cover

Television

Reference Guide

5-014-008-12(1)

Topple prevention
(Models with supplied support belt kit)

Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for affixing to a solid object made of
wood.

(Except models with supplied support belt kit)
KD-85X8007H / 75X8007H / 65X8007H / 55X8007H

KD-49X8007H / 43X8007H

 AUDIO: Select the sound of multilingual source or

dual sound (depend on program source).

(Subtitle setting)

Display the Help menu.

HELP:
///
EXIT

/ (Info/Text reveal):



 (Power) (except KD-49X8007H / 43X8007H)

Display information.

  (Power)/+/– (KD-49X8007H / 43X8007H

only)

 Remote Control sensor / Light sensor / LED

*1 Only on limited region/country/TV model/language.
*2 The Google Assistant or voice search requires an Internet

connection.

*3 Accessibility shortcut is available by pressing and holding

 (Mute).

For more information, refer to the
Help Guide.

KD-85X8007H / 75X8007H / 65X8007H / 55X8007H / 49X8007H / 43X8007H

About Manuals

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation,
specification, etc.

Help Guide (On screen Manual)

• Settings, Android TV functions, Internet
connection, troubleshooting, etc.

• To open it, press the HELP button on the
remote control and select Help Guide.

IMPORTANT – Read the End User Software License Agreement
before using your Sony product. Using your product indicates your

acceptance of the End User Software License Agreement. The software
license agreement between you and Sony is available online at Sony
website (http://www.sony.net/tv-software-licenses/) or on your
product screen. Go to [Settings]  [Device Preferences]  [About] 
[Legal information]  [End user license agreement].

Note

• Before operating the TV, please read the “Safety Information”.

• Read the supplied safety documentation for additional safety
information.

• Instructions about “Installing the TV to the Wall” are included within this
TV’s instruction manual.

• Images and illustrations used in the Setup Guide and this manual are for
reference only and may differ from the actual product.

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the
rear of the TV.

For models with supplied AC adapter:
Labels for AC adapter Model No. and Serial No. are located on the bottom
of AC adapter.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in
order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet
(mains socket).

• Place the TV set on a stable, level surface to prevent it from falling over
and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out
from the TV stand (not supplied). If the Table-Top Stand protrudes out
from the TV stand, it may cause TV set to topple over, fall down, and
cause personal injury or damage to the TV.

• You can refer to the Help Guide with your
smartphone.

https://rd1.sony.net/help/tv/
husltn1/h_usltn/

Tran spor ting

• Before transporting the TV set, disconnect all cables.

• Two or more people (three or more people for KD-85X8007H) are needed
to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not
put stress on the LCD panel and the frame around the screen.

• When lifting or moving the TV set, hold it firmly from the bottom.

KD-85X8007H

KD-75X8007H / 65X8007H / 55X8007H / 49X8007H /
43X8007H

• When transporting the TV s et, do not subject it to jolts or excessive
vibration.

• When transporting the TV set for repairs or when moving, pack it using
the original carton and packing material.

This receiver complies with the minimum requirements as specified in
National Telecommunications Commission, Memorandum Circular 02­03-2016, Regarding the Sale and Labeling of ISDB-T Receivers,
including Memorandum Circular No. 01-0302017, Amending Certain
Provisions of Section 2 of NTC Memorandum Circular No. 02-03-2016
(Sale and Labeling of ISDB-T Receivers).

Remote Control and TV

The remote control shape, location, availability and
function of remote control buttons may vary
depending on your region/country/TV model.

 (Microphone): Use the Google Assistant*1*2 or

voice search*2. For hints on how to control your
TV press (Microphone) button and speak the
phrase “voice hints”.*

////: On screen menu navigation and

selection.

TV: Display TV channel list or switch to input.

  (TV standby)

Number buttons

(dot)

 (Text):

Display text information.

 Google Play / NETFLIX*

 GUIDE/ : Display the digital program guide.

APPS: Display a list of installed apps.
 (Input select): Display and select the input

source, etc.

(Quick settings): Display Quick Settings.
BACK
HOME

  +/– (Volume)

(Jump)

 (Mute)*

3

CH +/–//: Select the channel, or next () /

previous () page.

1

1

/ Color buttons

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850
or SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony
strongly recommends that installation of your TV be
performed by Sony dealers or licensed contractors. Do
not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation,
periodic maintenance and examination of this
product.

Wall-Mount Bracket Installation Information

This TV’s instruction manual only provides the steps to
prepare the TV for Wall-Mount installation before it is
installed on the wall. For instructions on Wall-Mount
Bracket installation, see the Installation Information
(Wall-Mount Bracket) on the product page for your TV
model.
https://www.sony-asia.com/support

Preparing for Wall-Mount Installation

• Prepare the TV for the Wall-Mount Bracket before
making cable connections.

• Follow the instruction guide provided with the Wall­Mount Bracket for your model. Sufficient expertise is
required in installing this TV, especially to determine
the strength of the wall for withstanding the TV’s
weight.

• Be sure to entrust the attachment of this product to
the wall to Sony dealers or licensed contractors and
pay adequate attention to safety during the
installation. Sony is not liable for any damage or
injury caused by mishandling or improper
installation.

• The screws for Wall-Mount Bracket are not supplied.

• Only qualified service personnel should carry out
wall-mount installations.

• For safety reasons, it is strongly recommended that
you use Sony accessories, including:

Wall-Mount Bracket SU-WL850
Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall­Mount Bracket when attaching the Wall-Mount
Bracket to the TV set.
The supplied screws are designed as indicated by
illustration when measured from the attaching
surface of the Wall-Mount Bracket.
The diameter and length of the screws differ
depending on the Wall-Mount Bracket model.
Use of screws other than those supplied may result
in internal damage to the TV set or cause it to fall,
etc.

KD-85X8007H / 75X8007H / 65X8007H / 55X8007H

VS

KD-49X8007H / 43X8007H

• Be sure to store the unused screws and Table-Top
Stand in a safe place until you are ready to attach the
Table-Top Stand. Keep the screws away from small
children.

* Only on limited region/country/TV model.

Note

VS

1.5 N·m
{15 kgf·cm}

• Place the TV with its screen facing down on a level and stable
surface covered with a thick and soft cloth when removing
the Table-Top Stand from the TV to prevent damaging the
surface of the LCD display. (KD-49X8007H / 43X8007H)

KD-85X8007H / 75X8007H / 65X8007H / 55X8007H

1 Remove the screws from the rear of the TV.

2 Attach the Wall-Mount Attachment (supplied

with the TV) to the rear of the TV (to make it
parallel with the wall).

Note

• If using an electric screwdriver, set the torque at
approximately 1.5 N·m {15 kgf·cm}.

• Be sure to fasten the Wall-Mount Attachment when
attaching them to the TV.
Use only a flat head screwdriver to install the Wall-Mount
Attachment. Use of another tool might result in over
torqueing the Wall-Mount Attachment and damaging the TV.

Detaching the Table-Top Stand from the TV

KD-85X8007H / 75X8007H / 65X8007H / 55X8007H

1 Remove one side of the Table-Top Stand at a

time. Firmly hold the Table-Top Stand securely
with both hands while the other people lift up
the TV.

2 Repeat the previous step and remove the

other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top
Stand.

• Be careful not to use excessive force while detaching the
Table-Top Stand from the TV as it may cause the TV set to fall
resulting in personal injury or physical damage to the TV.

• Take care when handling the Table-Top Stand to prevent
damage to the TV.

• Be careful when lifting the TV as the Table-Top Stand is
detached, the Table-Top Stand may topple over and cause
personal injury.

• Take care when removing the Table-Top Stand from the TV to
prevent it from falling over and damaging the surface that
the TV is sitting on.

KD-49X8007H / 43X8007H

Troubleshooting

General troubleshooting for issues like: black screen,
no sound, frozen picture, TV does not respond, or
network is lost, do the following steps.

1 Restart your TV by pressing the power button on

the remote control for about five seconds. The TV
will restart. If the TV does not recover, try
unplugging the AC power cord (mains lead). Then
press the power button on the TV, and release it.
Wait for two minutes, and plug in the AC power
cord (mains lead).

2 Refer to the Help menu by pressing HELP on the

remote control.

3 Connect your TV to the Internet and perform a

software update. Sony recommends you to keep
your TV software updated. Software updates
provide new features and performance
improvements.

4 Visit Sony support website (information provided at

the end of this manual).

When you plug in the TV, the TV may not be able to turn
on for a while even if you press the power button on
the remote control or the TV.

It takes time to initialize the system. Wait for about
one minute, then operate it again.

The remote control does not function.

• Replace the batteries.

The parental lock password has been forgotten.

• Enter 4357 for the PIN and enter the new PIN.

For more information on
troubleshooting, refer to the Help
Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED
Backlight

TV system

Analog: M
Digital: ISDB-T

Color system: NTSC/PAL N (Video Only)/PAL M (Video
Only)

Channel coverage

Analog: UHF/VHF/Cable

Digital: UHF/VHF
Sound output: 10 W + 10 W
Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

VIDEO IN

Video/Audio input (mini jack)
HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-

compatible)

Video:

4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p
(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p
(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,
576p, 480p, PC Formats*

Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/
192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos,
DTS

ARC (Audio Return Channel) (HDMI IN 3 only)*

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio,

Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM:
48 kHz 16 bits, Dolby Audio, DTS)

 (Stereo mini jack)

Headphone

1, 2
USB port 1 supports High Speed USB (USB 2.0)
USB port 2 supports Super Speed USB (USB 3.1 Gen 1)

LAN
10BASE-T/100BASE-TX connector (Depending on the
operating environment of the network, connection
speed may differ. The communication rate and
quality are not guaranteed.)

DC IN 19.5 V (models with supplied AC adapter

only)

AC adapter input

Power and others

Power requirements

except models with supplied AC adapter
220 V - 240 V AC, 50/60 Hz
models with supplied AC adapter only

19.5 V DC with AC adapter
Rating: Input 100 V - 240 V AC, 50/60 Hz

Screen size (measured diagonally) (Approx.)

KD-85X8007H: 85 inches / 214.8 cm
KD-75X8007H: 75 inches / 189.3 cm
KD-65X8007H: 65 inches / 163.9 cm
KD-55X8007H: 55 inches / 138.8 cm
KD-49X8007H: 49 inches / 123.2 cm
KD-43X8007H: 43 inches / 108.0 cm

Power consumption

KD-85X8007H: 367 W
KD-75X8007H: 363 W
KD-65X8007H: 239 W
KD-55X8007H: 196 W
KD-49X8007H: 107 W
KD-43X8007H: 97 W

Standby power consumption*

0.5 W

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1

5 V , 500 mA MAX

USB 2

5 V , 900 mA MAX

3

4

5*6

Dimensions (Approx.) (w × h × d) (mm)

with Table-Top Stand (without Table-Top Stand)

KD-85X8007H: 1,899 × 1,174 × 442 (1,899 × 1,089 × 71)
KD-75X8007H: 1,686 × 1,042 × 414 (1,686 × 969 × 72)
KD-65X8007H: 1,462 × 905 × 340 (1,462 × 841 × 71)
KD-55X8007H: 1,243 × 782 × 340 (1,243 × 718 × 71)
KD-49X8007H: 1,101 × 704 × 286 (1,101 × 645 × 57)
KD-43X8007H: 970 × 630 × 286 (970 × 570 × 57)

Mass (Approx.) (kg)

with Table-Top Stand (without Table-Top Stand)

KD-85X8007H: 45.6 (44.1)
KD-75X8007H: 32.9 (31.8)
KD-65X8007H: 22.6 (21.7)
KD-55X8007H: 16.8 (16)
KD-49X8007H: 12.1 (11.6)
KD-43X8007H: 9.8 (9.4)

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 (KD-75X8007H /
65X8007H / 55X8007H only)
Wall-Mount Bracket: SU-WL450

Operating temperature: 0 ºC – 40 ºC

*1 When 4096 × 2160p is input and [Wide mode] is set to

[Normal], the resolution is displayed as 3840 × 2160p. To
display 4096 × 2160p, set [Wide mode] setting to [Full 1] or
[Full 2].

*2 To support 18 Gbps, set [HDMI signal format] to [Enhanced

format].
*3 Refer to the online Help Guide for details.
*4 Connect your audio system to the HDMI IN 3 to route TV

audio to your audio system.
*5 Specified standby power is reached after the TV finishes

necessary internal processes.
*6 Standby power consumption will increase when your TV is

connected to the network.

Note

• Optional accessories availability depends on countries/

region/TV model/stock.

• Design and specifications are subject to change without

notice.

• Subscriptions for services and applications may be required

and additional terms, conditions and/or charges may apply
when using the Google Assistant.

Trademark information

• The terms HDMI, HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc.

• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and

the double-D symbol are trademarks of Dolby
Laboratories. Manufactured under license from
Dolby Laboratories. Confidential unpublished works.
Copyright © 2012-2018 Dolby Laboratories. All rights
reserved.

• Gracenote, the Gracenote logo and logotype,

“Powered by Gracenote” logo are either registered
trademarks or trademarks of Gracenote, Inc. in the
United States and/or other countries.

• Google, Google Play, Chromecast, YouTube, Android

TV and other related marks and logos are
trademarks of Google LLC.

• For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS, Inc.
DTS, the Symbol, DTS and the Symbol together, and
Digital Surround are registered trademarks or
trademarks of DTS, Inc. in the United States and/or
other countries. © DTS, Inc. All Rights Reserved.

• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in

the US and other countries.

• All other trademarks are the property of their

respective owners.

Support

https://www.sony-asia.com/support

© 2020 Sony Corporation Printed in Malaysia
