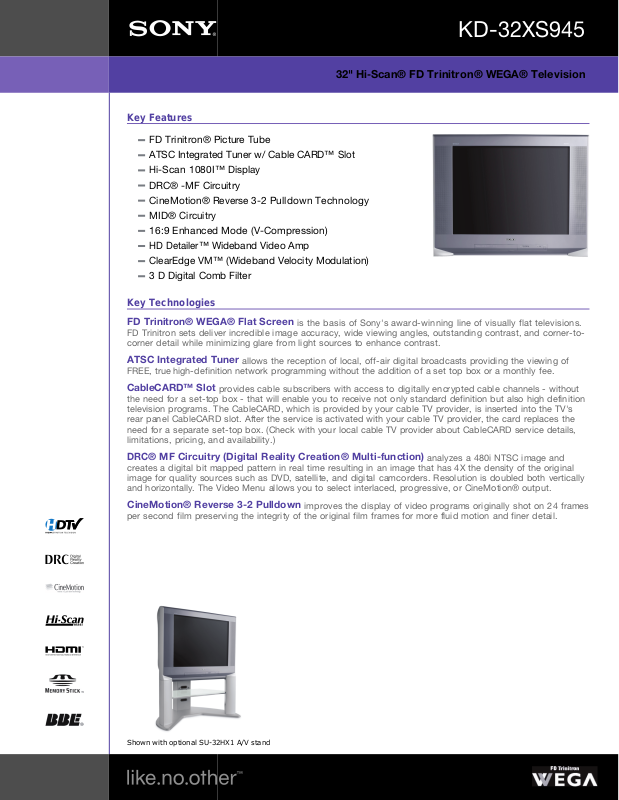

Sony KD-32XS945 Operating Instructions

KD-

32XS945

32" Hi-Scan® FD Trinitron® WEGA® Television

Shown with optional SU-32HX1 A/V stand

Key Features

FD Trinitron® Picture Tube

ATSC Integrated Tuner w/ Cable CARD™

Slot

-Scan 1080I™

Display

DRC® -MF Circuitry

CineMotion®

Reverse 3

-2 Pulldown Technology

MID®

Circuitry

16:9 Enhanced Mode (V-Compression)

HD Detailer

™ Wideband Video Amp

ClearEdge VM

™ (Wideband Velocity Modulation)

3 D Digital Comb Filter

Key Technologies

FD Trinitron® WEGA® Flat Screen

is the basis of Sony's award-winning line of visually flat televisions. FD Trinitron sets deliver incredible image accuracy, wide viewing angles, outstanding contrast, and corner-tocorner detail while minimizing glare from light sources to enhance contrast.

ATSC Integrated Tuner

allows the reception of local, off-air digital broadcasts providing the viewing of

FREE, true high-definition network programming without the addition of a set top box or a monthly fee.

CableCARD™ Slot

provides cable subscribers with access to digitally encrypted cable channels - without the need for a set-top box - that will enable you to receive not only standard definition but also high definition television programs. The CableCARD, which is provided by your cable TV provider, is inserted into the TV's rear panel CableCARD slot. After the service is activated with your cable TV provider, the card replaces the need for a separate set-top box. (Check with your local cable TV provider about CableCARD service details, limitations, pricing, and availability.)

DRC

® MF Circuitry (Digital Reality Creation® Multi-function)

analyzes a 480i NTSC image and creates a digital bit mapped pattern in real time resulting in an image that has 4X the density of the original image for quality sources such as DVD, satellite, and digital camcorders. Resolution is doubled both vertically and horizontally. The Video Menu allows you to select interlaced, progressive, or CineMotion® output.

CineMotion® Reverse 3-2 Pulldown

improves the display of video programs originally shot on 24 frames

per second film preserving the integrity of the original film frames for more fluid motion and finer detail.

KD-

32XS945

32" Hi-Scan® FD Trinitron® WEGA® Television

Sony Electronics Inc. • 16530 Via Esprillo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 10/12/2005

Optional SU-32HX1 A/V stand

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

General

Auto SAP:

Yes

Channel Fix:

Yes

Closed Caption (CC):

Yes

ID1 Detection:

Yes

Magnetic Quadra Pole:

Yes

Video Label:

Yes

XDS (Extended Data Service):

Yes

Video

Screen or Display Technology:

FD Trinitron

CRT

Tuner:

8 VBS, ATSC, NTSC, Clear QAM

Video Signal System:

ATSC, NTSC

Auto White Balance:

Yes

Color Temperature:

Cool/Neutral/Warm

Dynamic Picture™ Processor Circuitry:

Yes

Trinitone® Color Temperature:

Yes

CineMotion® Reverse 3:2 Pulldown

Technology:

Yes

Screen Modes (4:3):

Zoom

Slide Show Mode:

Yes

ClearEdge VM™ Technology:

High, Medium,

Low, Off

Comb Filter:

3D Digital

DRC® MultiFunction Circuitry:

Yes (DRC MF)

DRC® Mode:

Interlaced, Progressive,

CineMotion® Technology

Dynamic Focus™ Circuitry:

Yes

HD Detailer™ Wide Band Video Amplifier:

Yes

Vertical Aperture Compensation:

Yes

Tilt Correction:

+7 to -7

Vertical Correction:

+5 to -5

Advanced Video Menu:

Yes

Picture Modes:

Vivid/Standard/Movie/Pro

Audio

Tone Control(s):

Treble and Bass

MTS Stereo Decoder:

Yes

Audio Mute:

Yes

Speaker On/Off:

Yes

Simulated Surround:

Yes

SRS® TruSurround® Audio Effect:

Yes

Dolby® Digital:

Yes

Convenience

Channel Caption:

Yes

Channel Label:

Yes

Channel Skip/Add:

Yes

Channel Jump:

Yes

Favorite Channel:

Yes

Speed Surf™ Channel Selection:

Yes

Program Guide Access:

Yes

Auto Channel Programming:

Yes

Menu Color:

Yes

Multiple Language Display:

English, Español,

Français

Parental Control (V-Chip):

Yes

Mode Memory:

Yes

Info Banner:

Yes

Programmable Timer:

2 Event

Sleep Timer:

15, 30, 45, 60, 90, Off

Timer Events:

Timer 1, Timer 2

Caption Vision:

On/Off

Clock:

Yes

Specifications

General

Aspect Ratio:

4:3

Screen Size:

32"

Video

Native Resolution:

1080i

Audio

Speaker Type:

2 way

Speakers (Total):

3 (2 + sub)

Audio Power Output:

30W Total (7.5W x 2 With

15W Woofer)

Inputs and Outputs

Analog Audio Input(s):

7 (1 Front/6 Rear)

Audio Out (Variable/Fixed):

1 (Rear)

CableCARD™ Slot:

1 (Rear)

Component Video (Y/Pb/Pr ) Input(s):

2 (Rear)

Composite Video Input(s):

4 (1 Front/3 Rear)

Control-S Input(s):

1 (Rear)

Control-S Output(s):

1 (Rear)

Digital Audio Output(s):

Dolby® Digital Optical

Output

- 1 (Rear)

HDMI

™ Connection Input(s):

1 (Rear) with

Analog Audio

Memory Stick® Media Slot:

Memory Stick

Duo

™ and Memory Stick PRO Duo™, Memory

Stick PRO

™

1 (1 Front)

Monitor Output:

1 (Rear)

RF Connection Input(s):

2 (Rear)

S-Video Input(s):

3 (1 Front/2 Rear) with Detection

Power

Internal Power Supply:

Yes

Power Consumption (in Operation):

240 W

Power Consumption (in Standby):

3 W

Power Requirements:

AC 120V, 60Hz

Power Consumption (CableCARD™

Function in Standby):

20 W

Service and Warranty Information

Limited Warranty:

90 Days Labor / 1 Year

Parts / 2 Years Picture Tube

Dimensions

Weight:

175 lbs, 8 oz (79.6 Kg)

Measurements:

35-3/8" x 27-1/2" x 23-1/2" (898

x 698 x 598 mm)

Supplied Accessories

Remote Control (RM-Y199) AA Battery (2) Instruction Manual

Optional Accessories

TV Stand (SU

-32HX1)

UPC Code:

0272426714850

Please visit the Dealer Network for the latest product information at

www.sony.com/dn.
