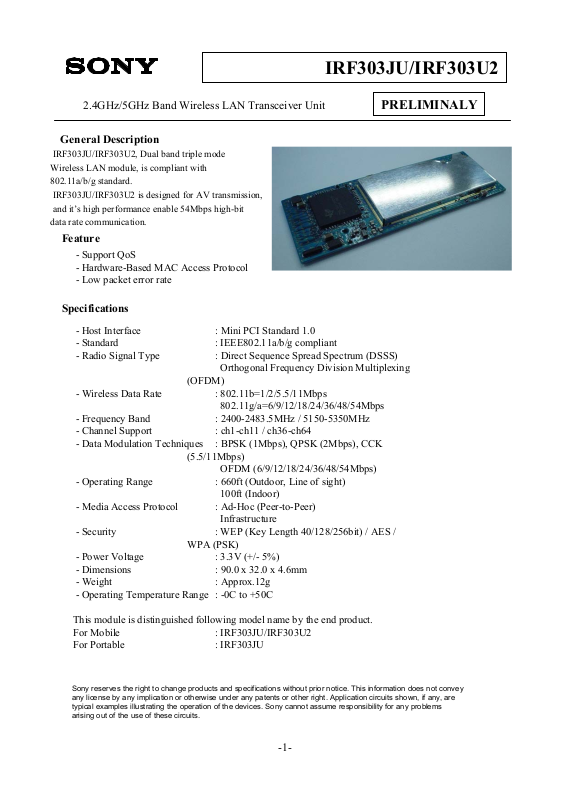

Sony IRF303 User Manual

IRF303JU/IRF303U2

2.4GHz/5GHz Band Wireless LAN Transceiver Unit

General Description

IRF303JU/IRF303U2, Dual band triple mode

Wireless LAN module, is compliant with

802.11a/b/g standard.

IRF303JU/IRF303U2 is designed for AV transmission,

and it’s high performance enable 54Mbps high-bit

data rate communication.

Feature

- Support QoS

- Hardware-Based MAC Access Protocol

- Low packet error rate

Specifications

- Host Interface : Mini PCI Standard 1.0

- Standard : IEEE802.11a/b/g compliant

- Radio Signal Type : Direct Sequence Spread Spectrum (DSSS)
Orthogonal Frequency Division Multiplexing

(OFDM)

- Wireless Data Rate : 802.11b=1/2/5.5/11Mbps

802.11g/a=6/9/12/18/24/36/48/54Mbps

- Frequency Band : 2400-2483.5MHz / 5150-5350MHz

- Channel Support : ch1-ch11 / ch36-ch64

- Data Modulation Techniques : BPSK (1Mbps), QPSK (2Mbps), CCK

(5.5/11Mbps)

OFDM (6/9/12/18/24/36/48/54Mbps)

- Operating Range : 660ft (Outdoor, Line of sight)
100ft (Indoor)

- Media Access Protocol : Ad-Hoc (Peer-to-Peer)
Infrastructure

- Security : WEP (Key Length 40/128/256bit) / AES /

WPA (PSK)

- Power Voltage : 3.3V (+/- 5%)

- Dimensions : 90.0 x 32.0 x 4.6mm

- Weight : Approx.12g

- Operating Temperature Range : -0C to +50C

PRELIMINALY

This module is distinguished following model name by the end product.
For Mobile : IRF303JU/IRF303U2
For Portable : IRF303JU

Sony reserves the right to change products and specifications without prior notice. This information does not convey
any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are
typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems
arising out of the use of these circuits.

-1-

IRF303JU/IRF303U2

NOTIFICATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference with radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the use is encouraged to try to correct the interference by one or more of the

following measures:

Reoriented or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that t which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC WARNIG

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

For customers in the United States

This product contains mercury. Disposal of this product may be regulated if sold in the United States.

For disposal or recycling information, please contact your local authorities or the Electronics Industries

Alliance (http://eiae.org).

This device complies with Part 15 of the FCC Rules.

Operation is subjected to the following two conditions:

(1)This device may not cause harmful interference,

and

(2)This device must accept any interference received, including interference that may cause undesired operation

*This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

*When using the unit with 802.11a (5.15-5.25GHz), use in doors.

【For mobile use】: FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth at uncontrolled equipment.

This equipment should be installed and operated with minimum distance at least 20cm between the radiator and

persons body (excluding extremities: hands, wrist, feet and legs) and must not be co-located or operated with

any other or transmitter.

【For portable use】: FCC Radiation Exposure Statement

The available scientific evidence does not show that any health problems are associated with using low power

wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low

power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being

used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that

does not produce heating effects causes no known adverse health effects. Many studies of low-level RF

exposures have not found any biological effects. Some studies have suggested that some biological effects

might occur, but such findings have not been confirmed by additional research. IRF303JU has been tested and

found to comply with FCC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC

radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The maximum SAR levels tested for

IRF303JU has been show to be 2.4GHz 1.42W/kg,5.2GHz 0.445W/kg at Body.　
