soNv:

3-867-484-21

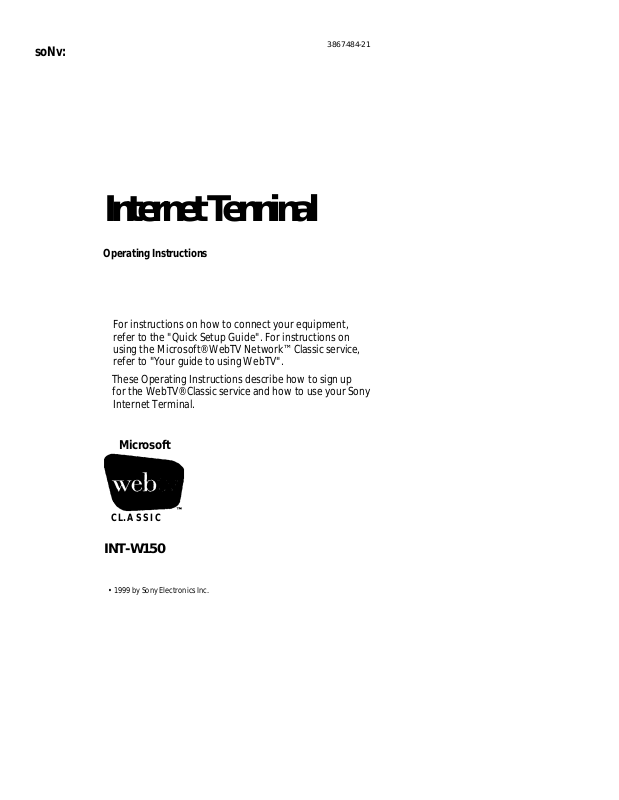

Internet Tenninal

Operating Instructions

For instructions on how to connect your equipment,
refer to the "Quick Setup Guide". For instructions on
using the Microsoft® WebTV Network™ Classic service,
refer to "Your guide to using WebTV".

These Operating Instructions describe how to sign up
for the WebTV® Classic service and how to use your Sony

Internet Terminal.

Microsoft

C L. A S S I C

INT-W150

• 1999 by Sony Electronics Inc.

WARNING

To prevent fire or shock hazard, do not expose the Internet Terminal
to rain or moisture.

This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.

This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.

Note to the CATV Installer

This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building as close
to the point of cable entry as practical.

! To prevent electric shock, do not use this polarized plug with an

extension cord, receptacle, or other outlet unless the blades can
be fully inserted to prevent blade exposure.

^ Any changes or modifications not expressly approved in these Operating Instructions

could void your authority to operate this equipment.

II

Smart Card Slot

Your Sony Internet Terminal is equipped with a Smart Card Slot. To
avoid damaging your Internet Terminal, do not insert foreign
objects into the slot.

Owner's Record

The model and serial numbers are located on the rear panel of fhe
Internef Terminal. Record the serial number in the space provided
below. Refer fo these numbers whenever you call upon your Sony
dealer regarding this product.

Model No.
Serial No. _

INT-W150

Trademarks

Microsoft, WebTV Network, WebTV, Around Town and the WebTV
logo are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.

Other company or product names mentioned herein may be
trademarks of their respective owners.

Ill

Notice

Your Internet Terminal provides access to the Internet and the World
Wide Web. Information on the Internet and World Wide Web is
created by millions of individuals and organizations. This is what
gives the Internet its diversity and value. However, some
information may include material which you find objectionable.
Sony is not responsible for the content of maferial accessed through
your Internet Terminal.

The Internet Terminal, like other Internet devices, does not support
all data formats.

The Internet Terminal is intended only for use within the United
States and Canada.

The subscription fee for the Microsoft® WebTV Network’^^' is a flat
monthly fee, depending on the type of service. The service is not
available as a local call everywhere.

The WebTV® Classic service is available as a local call in most areas.
Contact your telephone company to determine if toll charges may
apply.

Around Town “ is not available everywhere.

iV

Contents

Introduction

Package Contents

Batteries for the Remote Control.............................................3

About these Operating Instructions

Using the Remote Control and Basic Functions

Signing Up for the WebTV Classic Service

Signing Up..................................................................................9

Completing the Sign-Up Process

.............................................................

......................................................................

.......................................

...........

..................

..........................................

12

Other Information.................................................. 13

Connecting Your TV

Connecting a Printer
Front Panel View

Back Panel View.......................................................................18

Programming the Remote Control

Programmable Codes

Limited Warranty....................................................................21

FCC Regulations and Information........................................22

Specifications............................................................................23

Troubleshooting....................................................................... 24

...............................................................

...............................................................

.....................................................................

.......................................

.............................................................

13
14
17

19
20

1

2

3

5

9

Introduction

Congratulations on your purchase of the Sony Internet Terminal. To
access the Internet with this product, you need to subscribe to the
Microsoft® WebTV Network Classic service (referred to in these
Operating Instructions as the "WebTV® Classic service"). Becoming
a subscriber is easy (see "Signing Up" on page 9).

This chapter reviews package contents and battery requirements.

^ The WebTV Classic service is constantly expanding. For instructions on using the

WebTV Classic service, refer to the on-screen help or to "Your guide to using
WebTV".

Internet Terminal Operating Instructions

Package Contents

Make sure you have received all of the following items in your
Internet Terminal package.

Telephone Cable

Telephone Cable T Splitter

If you are missing any of these items, contact your Sony dealer.

^ Use only the supplied External Power Supply when connecting the internet Terminal

to a power outlet.

S-Video Cable

' Size AA

Batteries (2)

Introduction

Batteries for the Remote Control .

Insert two size A A batteries (supplied) into the remote control as
shown.

Be sure to match the + and - marks on the batteries with the + and ■
marks inside the battery compartment.

Under normal conditions, batteries will last up to six months. If the remote control
is not working properly, the batteries may be worn out. When replacing batteries,
replace both batteries, and do not mix different brands and types. After you replace
batteries, you may need to reprogram the remote control. See "Programming the
Remote Control" on page 19 for details.

About these Operating Instructions

These Operating Instructions describe how to connect to the

Internet via the WebTV Classic service. Once you're connected to
the WebTV Classic service, you can use the on-line instructions and
take a tour. To get additional help on using your Internet Terminal,
and using the WebTV Classic service, refer to "Your guide to using
WebTV".

Using the Remote Control and Basic Functions

Although the Internet Terminal's remote control is preset to operate
Sony brand TV's, you can program the remote control to operate
other manufacturer's TV's. This will enable you to operate your TV
when viewing regular broadcast TV using the remote control. For
information, see "Programming the Remote Control" on page 19.
