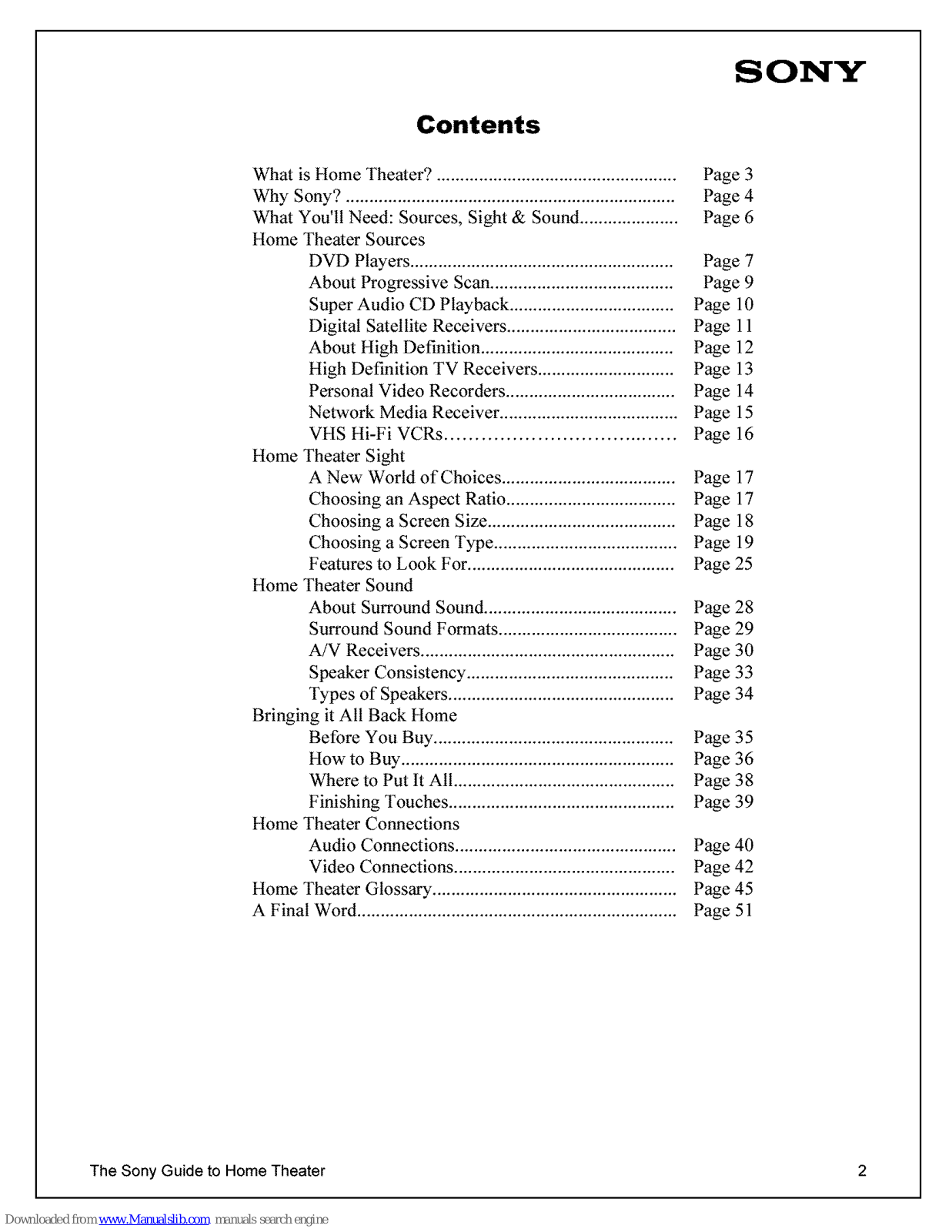

Contents
What is Home Theater? ................................................... Page 3
Why Sony? ...................................................................... Page 4
What You'll Need: Sources, Sight & Sound ..................... Page 6
Home Theater Sources
DVD Players ........................................................ Page 7
About Progressive Scan ....................................... Page 9
Digital Satellite Receivers .................................... Page 11
About High Definition ......................................... Page 12
High Definition TV Receivers ............................. Page 13
Personal Video Recorders .................................... Page 14
Network Media Receiver ...................................... Page 15
VHS Hi-Fi VCRs ...................................... Page 16
Home Theater Sight
A New World of Choices ..................................... Page 17
Choosing an Aspect Ratio .................................... Page 17
Choosing a Screen Size ........................................ Page 18

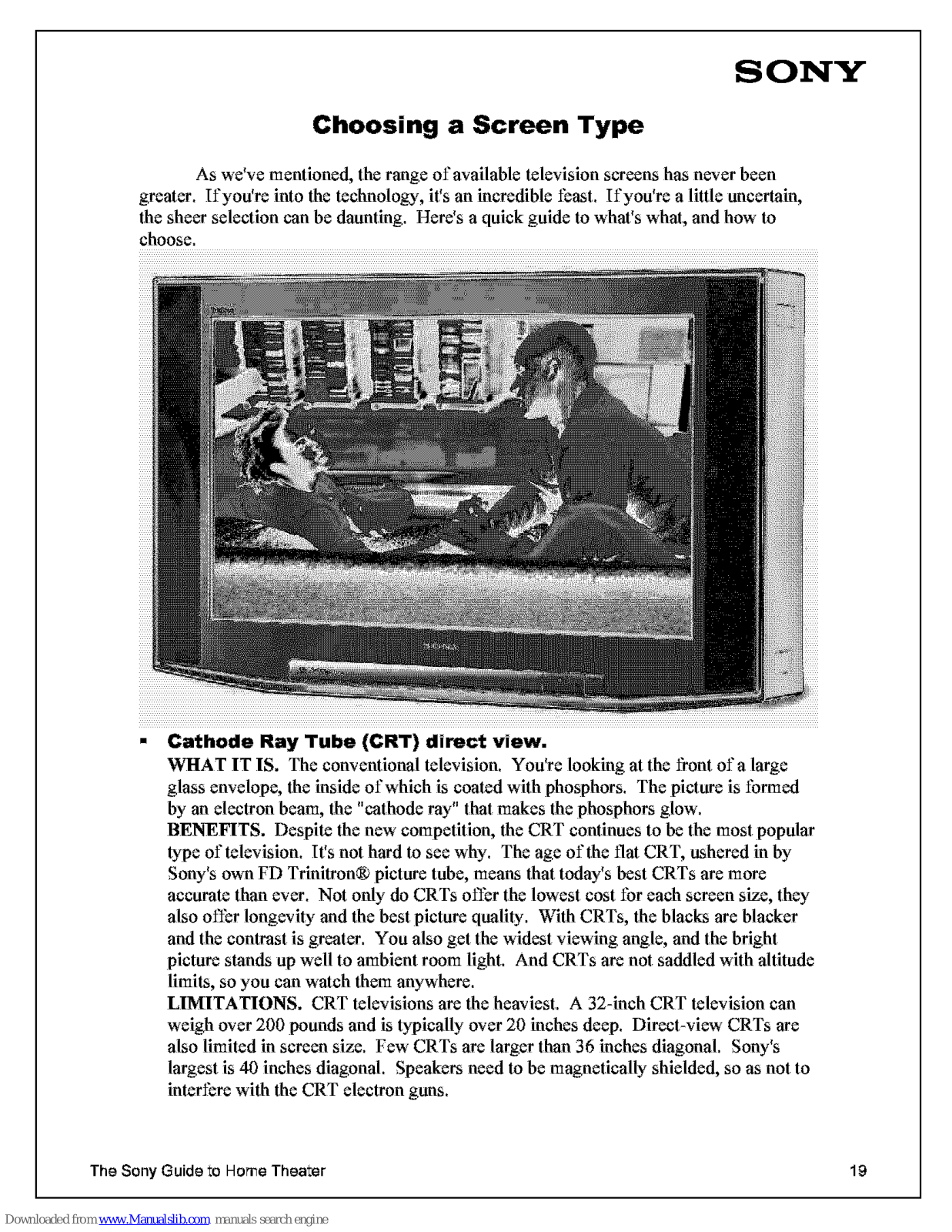

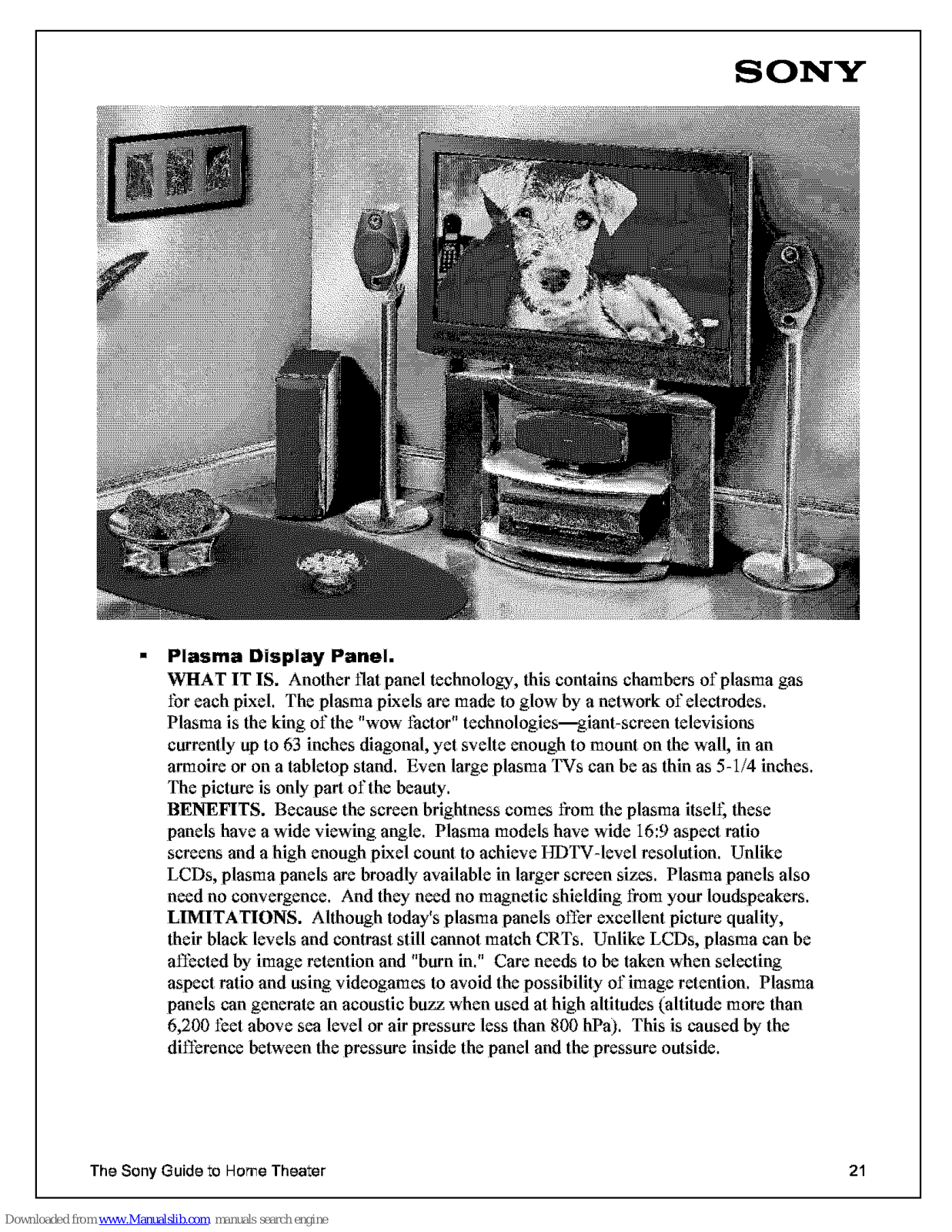

Choosing a Screen Type ....................................... Page 19
Home Theater Sound
Surround Sound Formats ...................................... Page 29

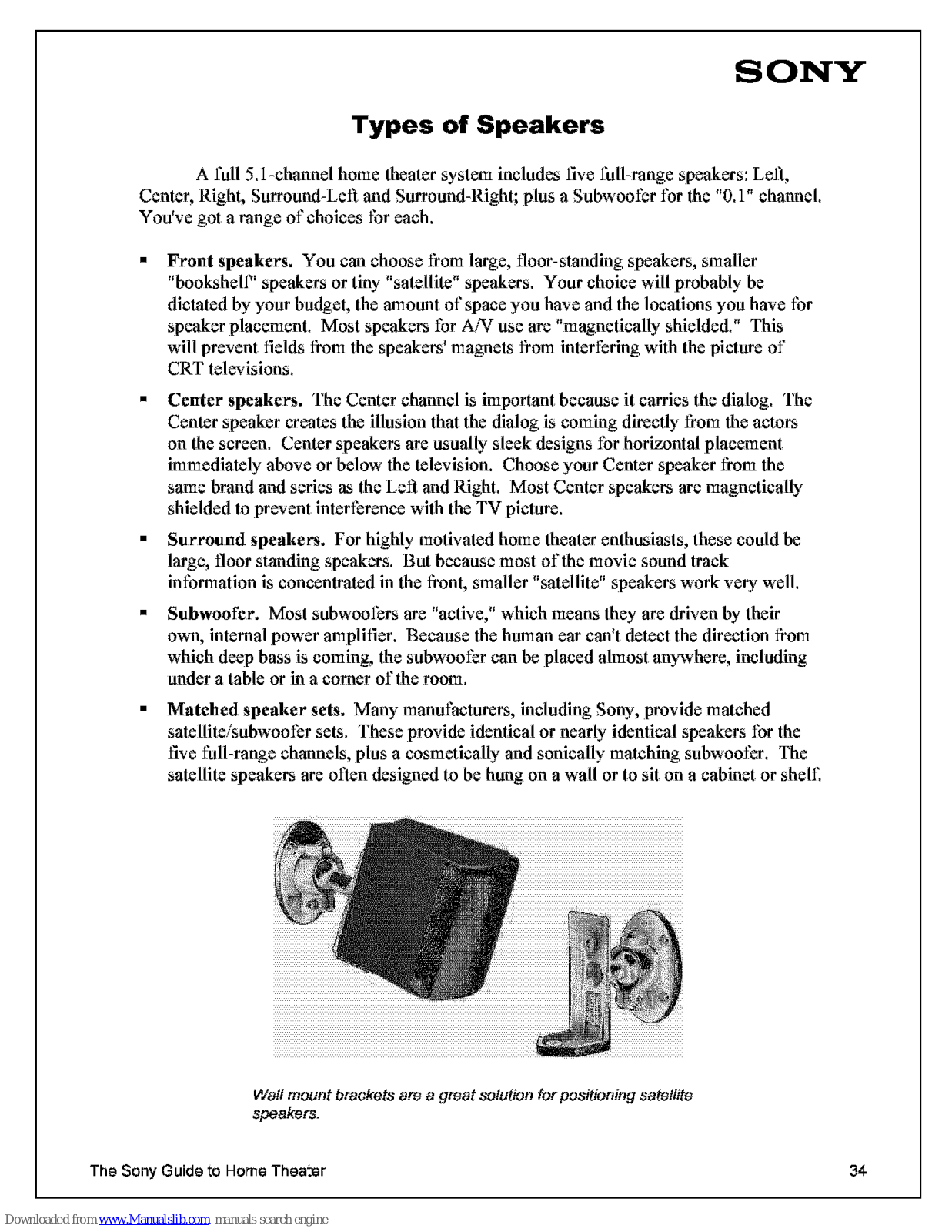

Speaker Consistency ............................................ Page 33

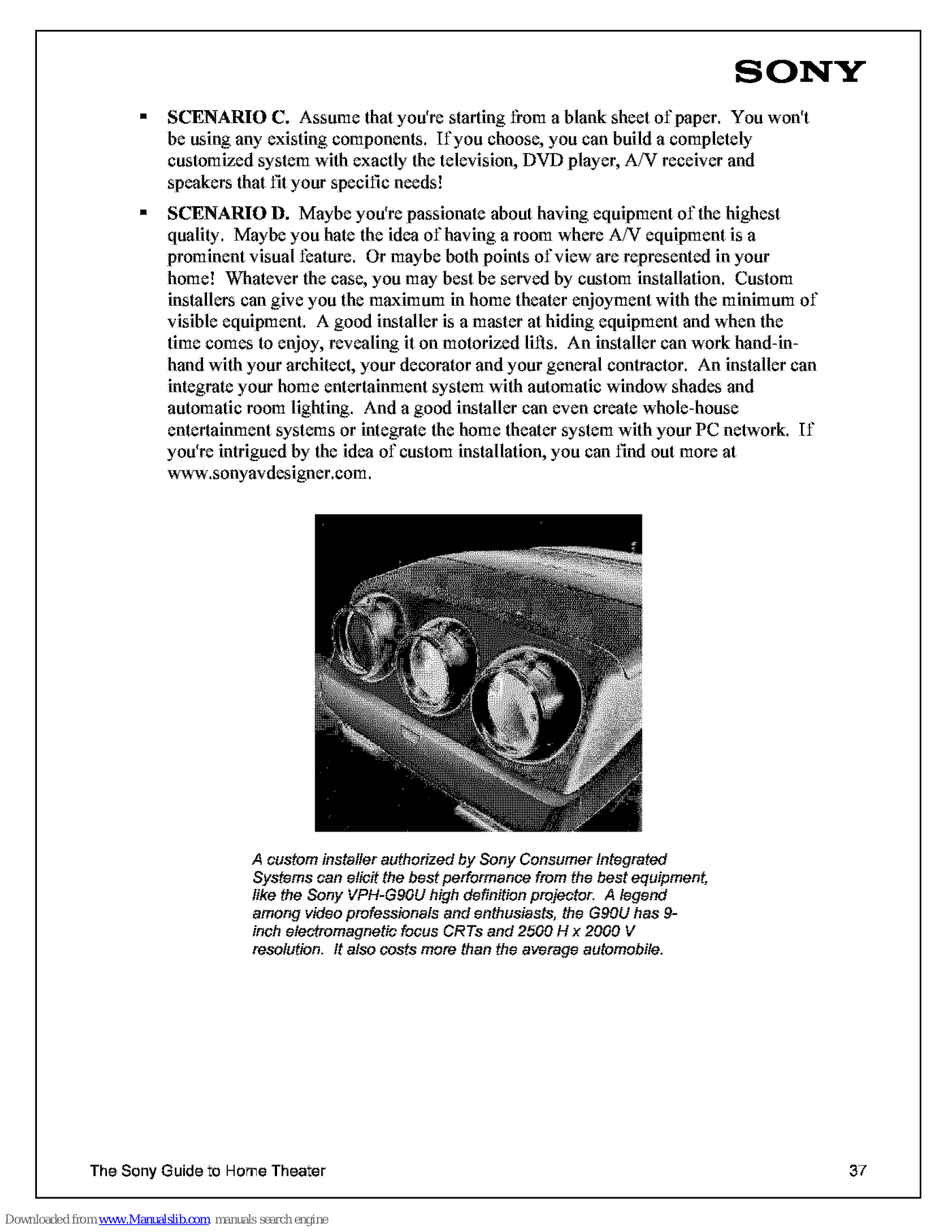

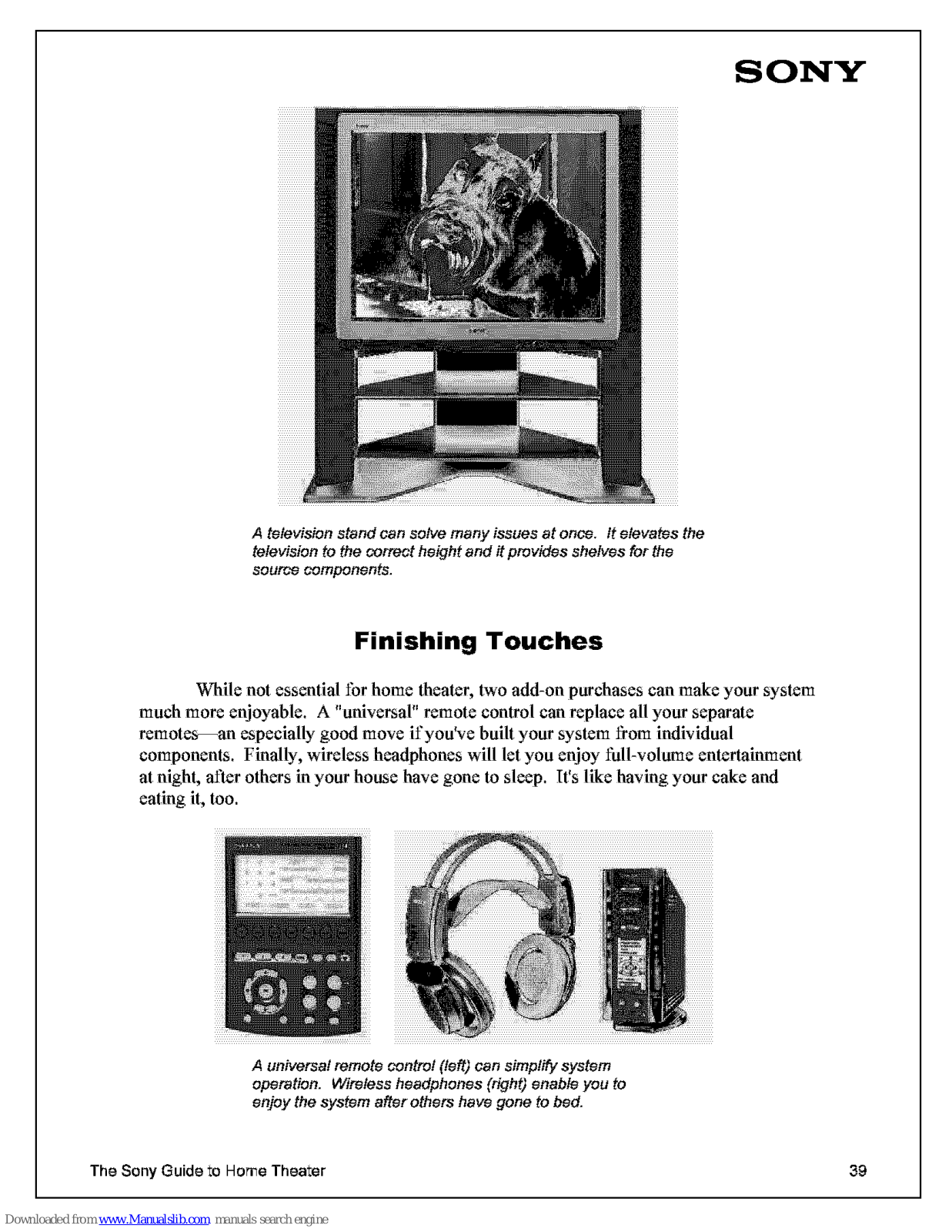

Bringing it All Back Home
Home Theater Connections
Audio Connections ............................................... Page 40
Video Connections ............................................... Page 42

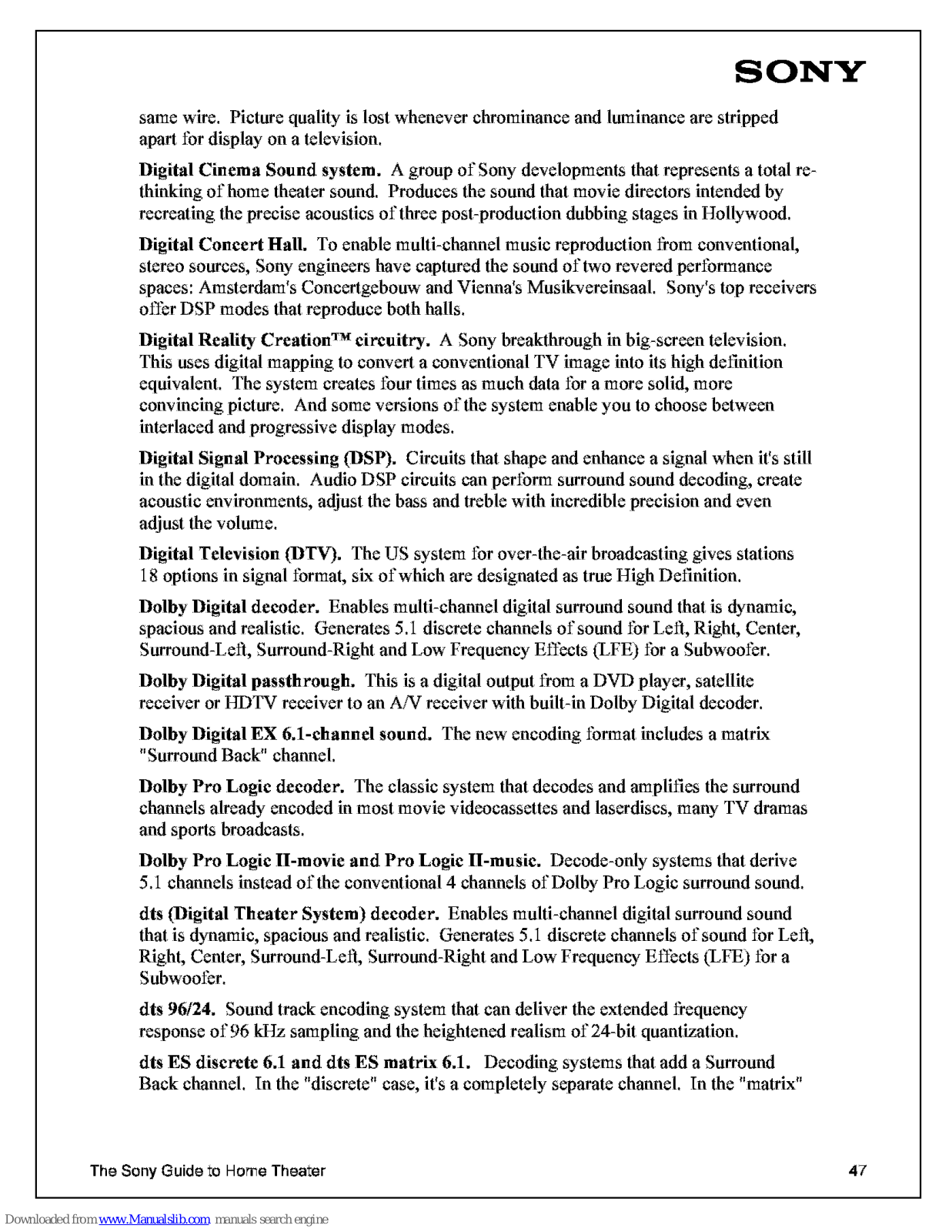

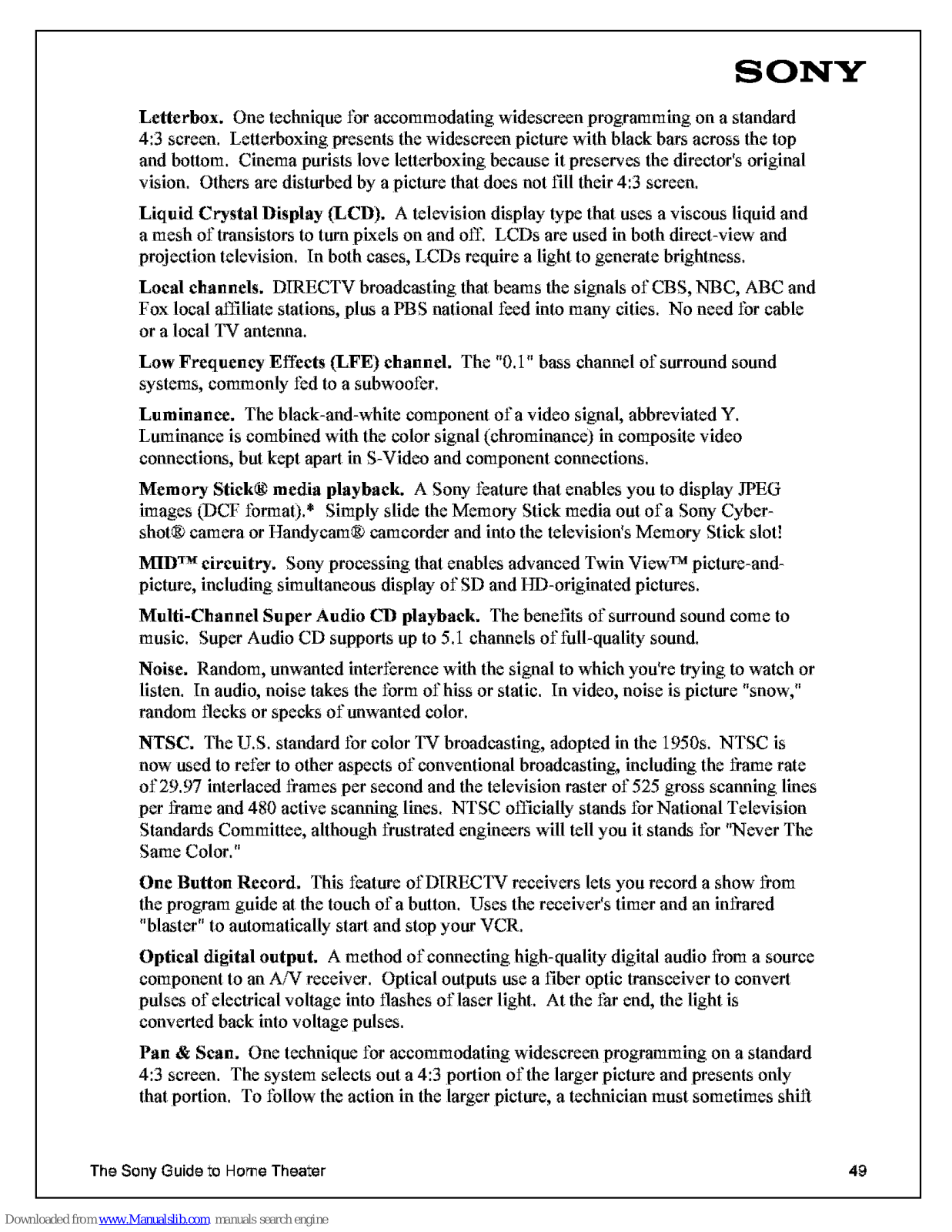

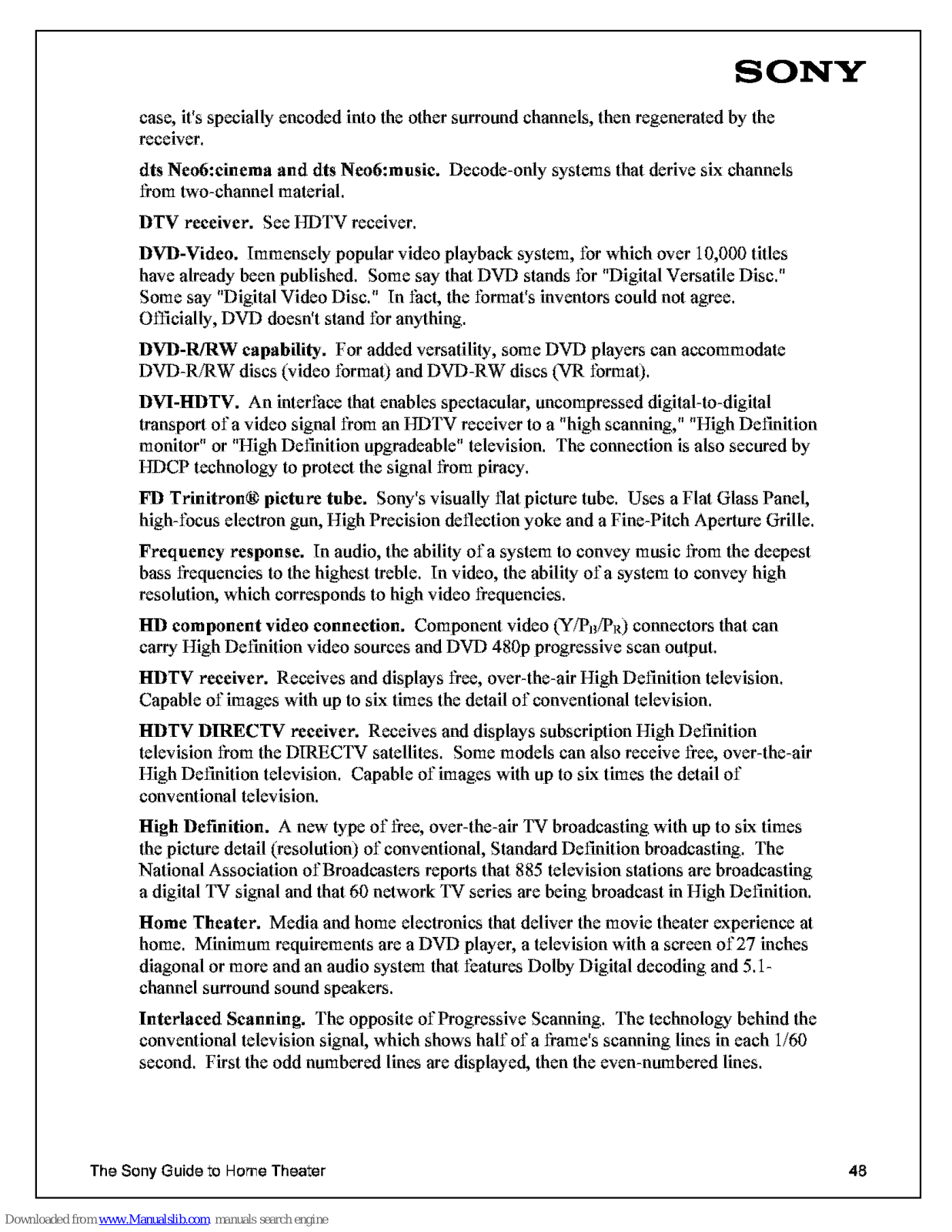

Home Theater Glossary .................................................... Page 45
A Final Word .................................................................... Page 51
The Sony Guide to Home Theater 2
SONY

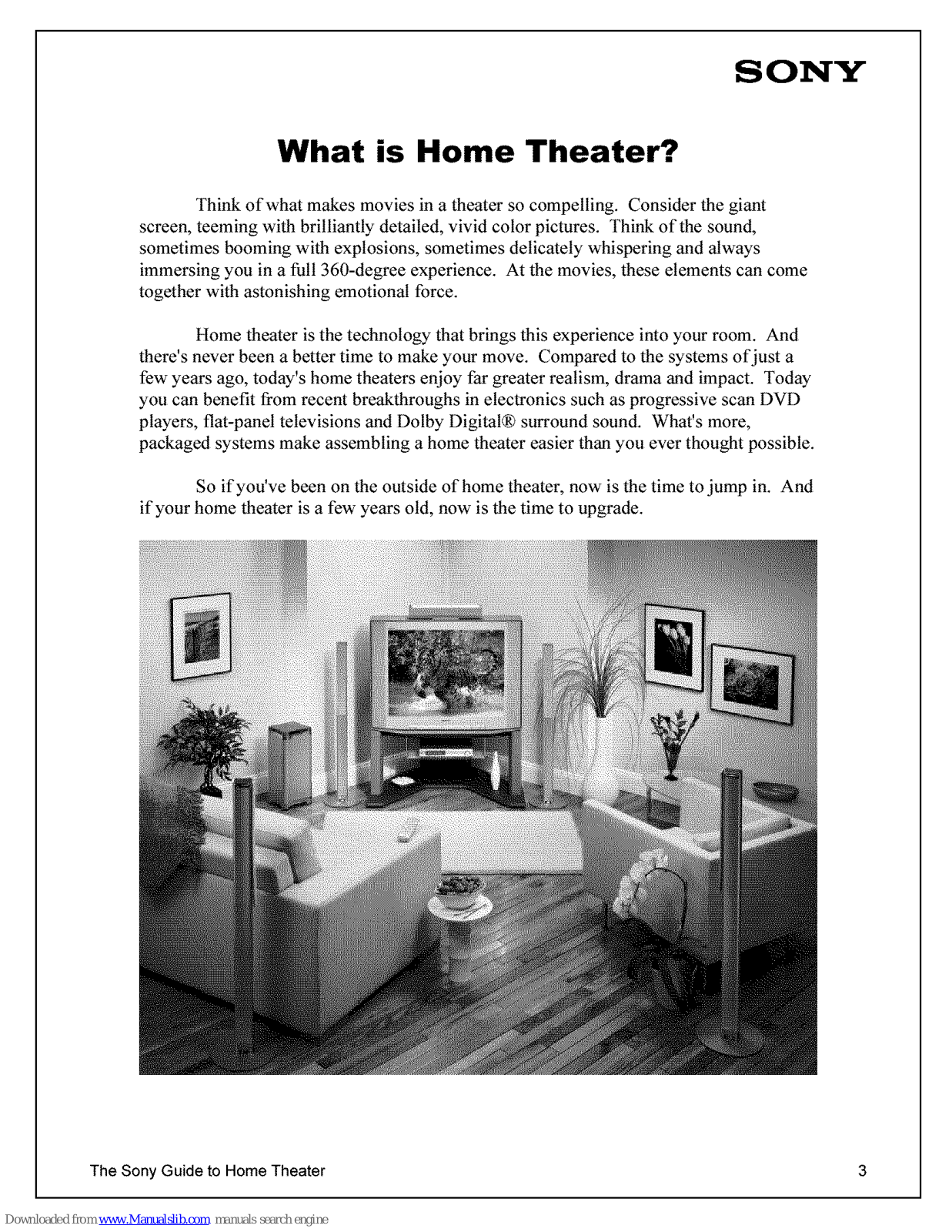

What is Home Theater?
Think of what makes movies in a theater so compelling. Consider the giant
screen, teeming with brilliantly detailed, vivid color pictures. Think of the sound, sometimes booming with explosions, sometimes delicately whispering and always
immersing you in a full 360-degree experience. At the movies, these elements can come
together with astonishing emotional force.
Home theater is the technology that brings this experience into your room. And
there's never been a better time to make your move. Compared to the systems of just a few years ago, today's home theaters enjoy far greater realism, drama and impact. Today you can benefit from recent breakthroughs in electronics such as progressive scan DVD players, flat-panel televisions and Dolby Digital® surround sound. What's more, packaged systems make assembling a home theater easier than you ever thought possible.
So if you've been on the outside of home theater, now is the time to jump in. And
if your home theater is a few years old, now is the time to upgrade.
The Sony Guide to Home Theater 3
SONY

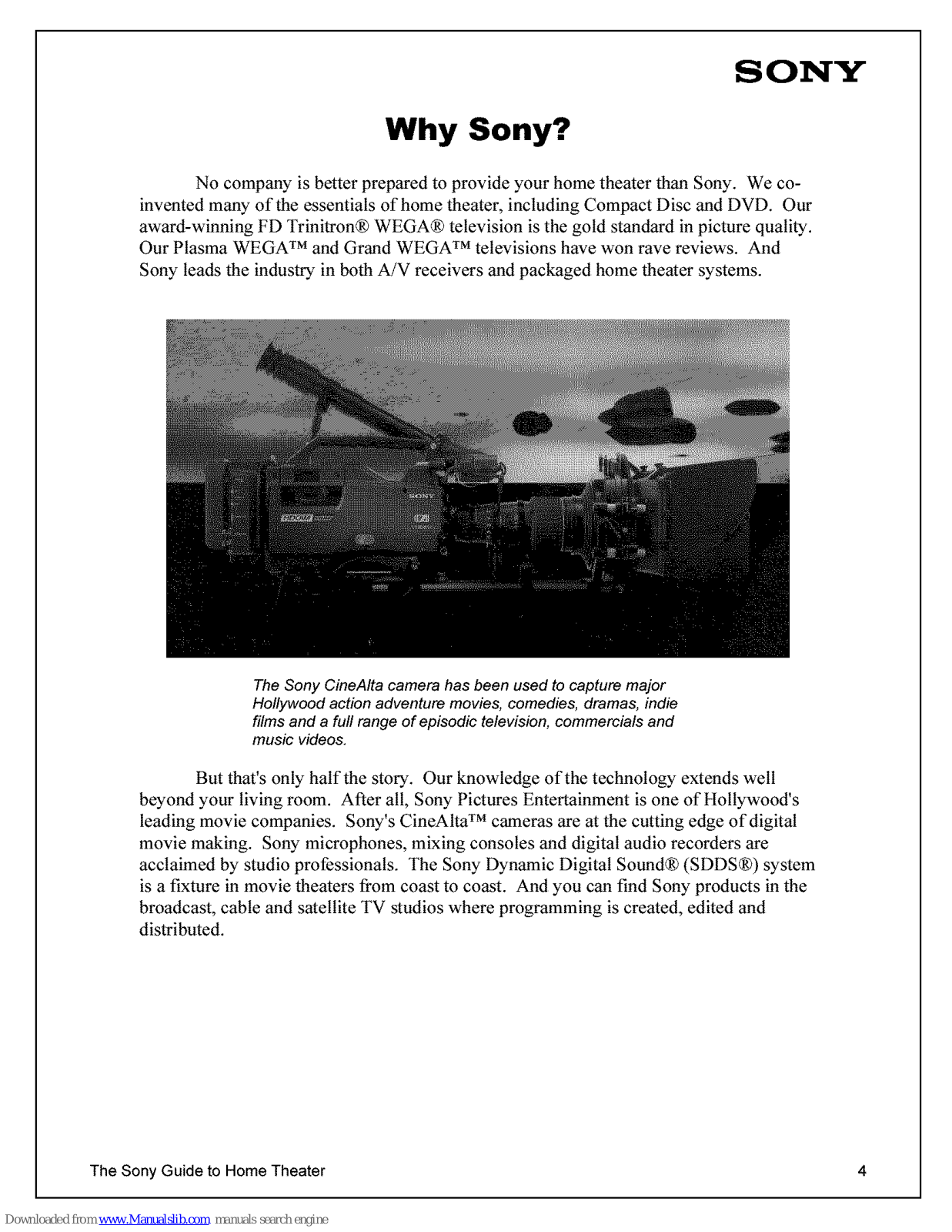

Why Sony?
No company is better prepared to provide your home theater than Sony. We co-
invented many of the essentials of home theater, including Compact Disc and DVD. Our
award-winning FD Trinitron® WEGA® television is the gold standard in picture quality. Our Plasma WEGA TM and Grand WEGA TM televisions have won rave reviews. And
Sony leads the industry in both A/V receivers and packaged home theater systems.
The Sony CineAIta camera has been used to capture major
Hollywood action adventure movies, comedies, dramas, indie films and a full range of episodic television, commercials and
music videos,
But that's only half the story. Our knowledge of the technology extends well
beyond your living room. After all, Sony Pictures Entertainment is one of Hollywood's
leading movie companies. Sony's CineAlta TM cameras are at the cutting edge of digital movie making. Sony microphones, mixing consoles and digital audio recorders are acclaimed by studio professionals. The Sony Dynamic Digital Sound® (SDDS®) system
is a fixture in movie theaters from coast to coast. And you can find Sony products in the broadcast, cable and satellite TV studios where programming is created, edited and distributed.
The Sony Guide to Home Theater 4
SONY

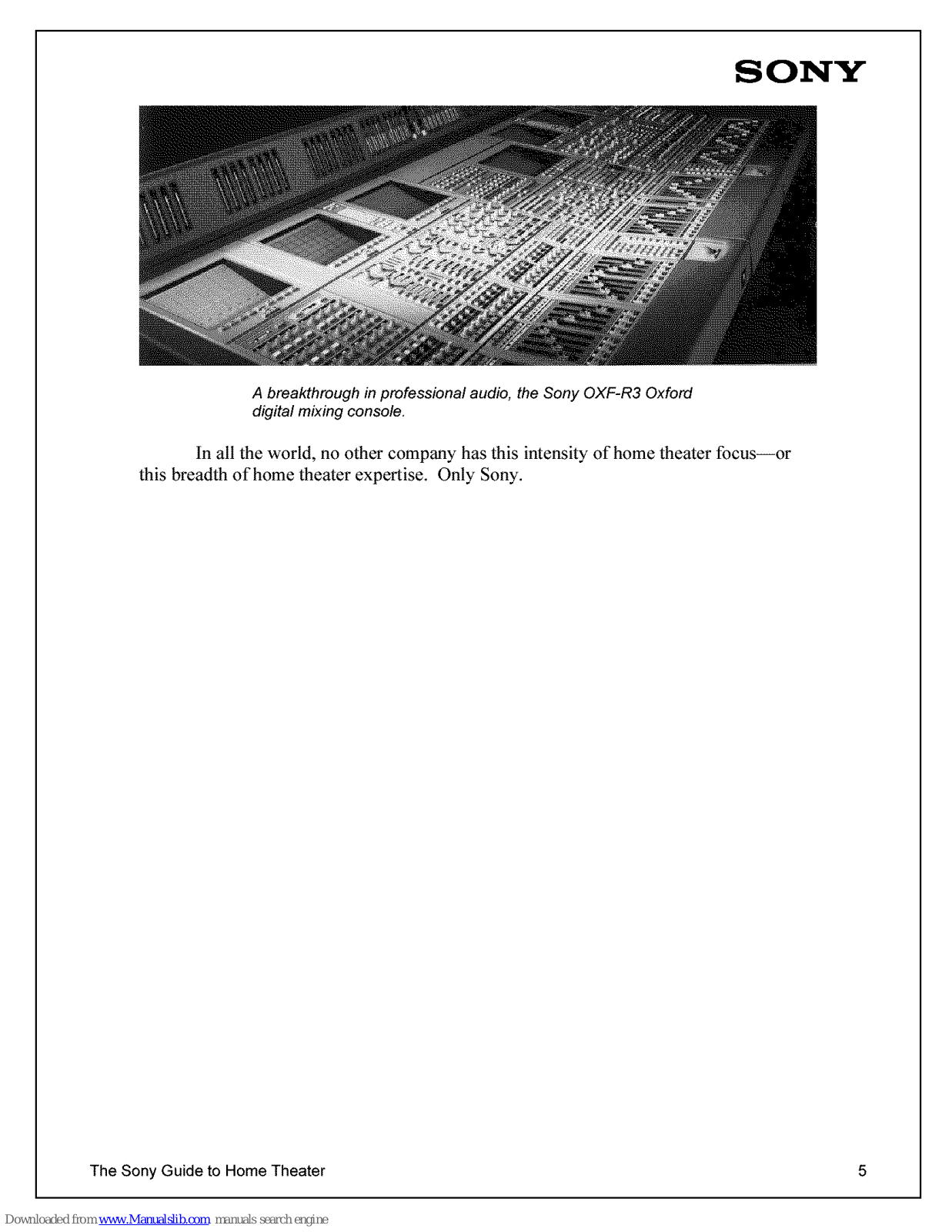

A breakthrough in professional audio, the Sony OXF-R3 Oxford digital mixing console.
In all the world, no other company has this intensity of home theater focus--or
this breadth of home theater expertise. Only Sony.
The Sony Guide to Home Theater 5
SONY
What You'll Need:
Sources, Sight & Sound
Home theater combines three essential elements into one powerful experience.
These elements are Sources, Sight and Sound.

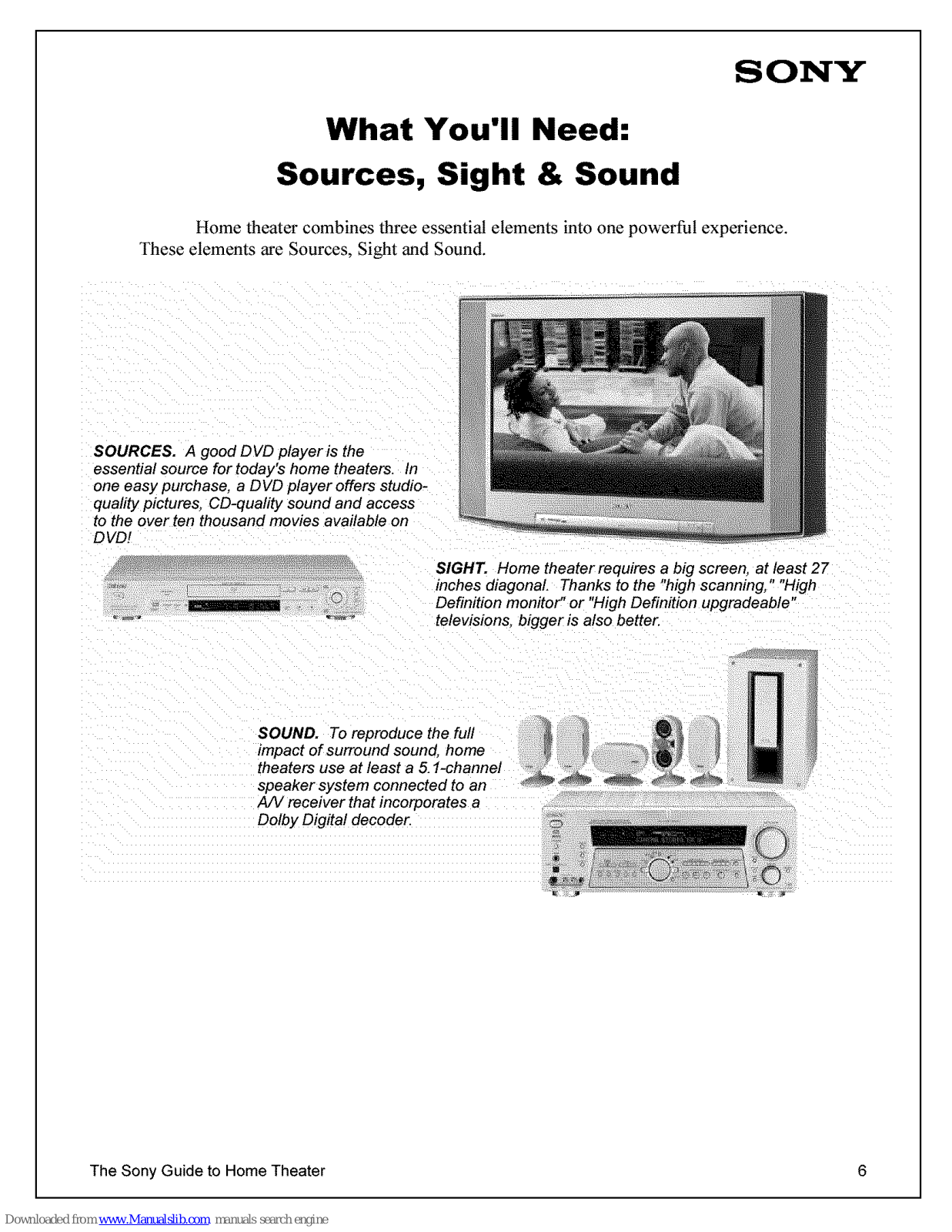

SOURCES. A good DVD player is the essential source for today's home theaters. In one easy purchase, a DVD player offers studio- quality pictures. CD-quality sound and access
to the over ten thousand movies available on
DVD!
SIGHT. Home theater requires a big screen, at least 27 inches diagonal Thanks to the "high scanning," "High Definition monitor" or "High Definition upgradeable" televisions, bigger is also better.
SOUND. To reproduce the full impact of surround sound, home
theaters use at least a 5.1-channel speaker system connected to an
A/V receiver that incorporates a
Dolby Digital decoder.
The Sony Guide to Home Theater 6
SONY
Home Theater Sources
DVD Players

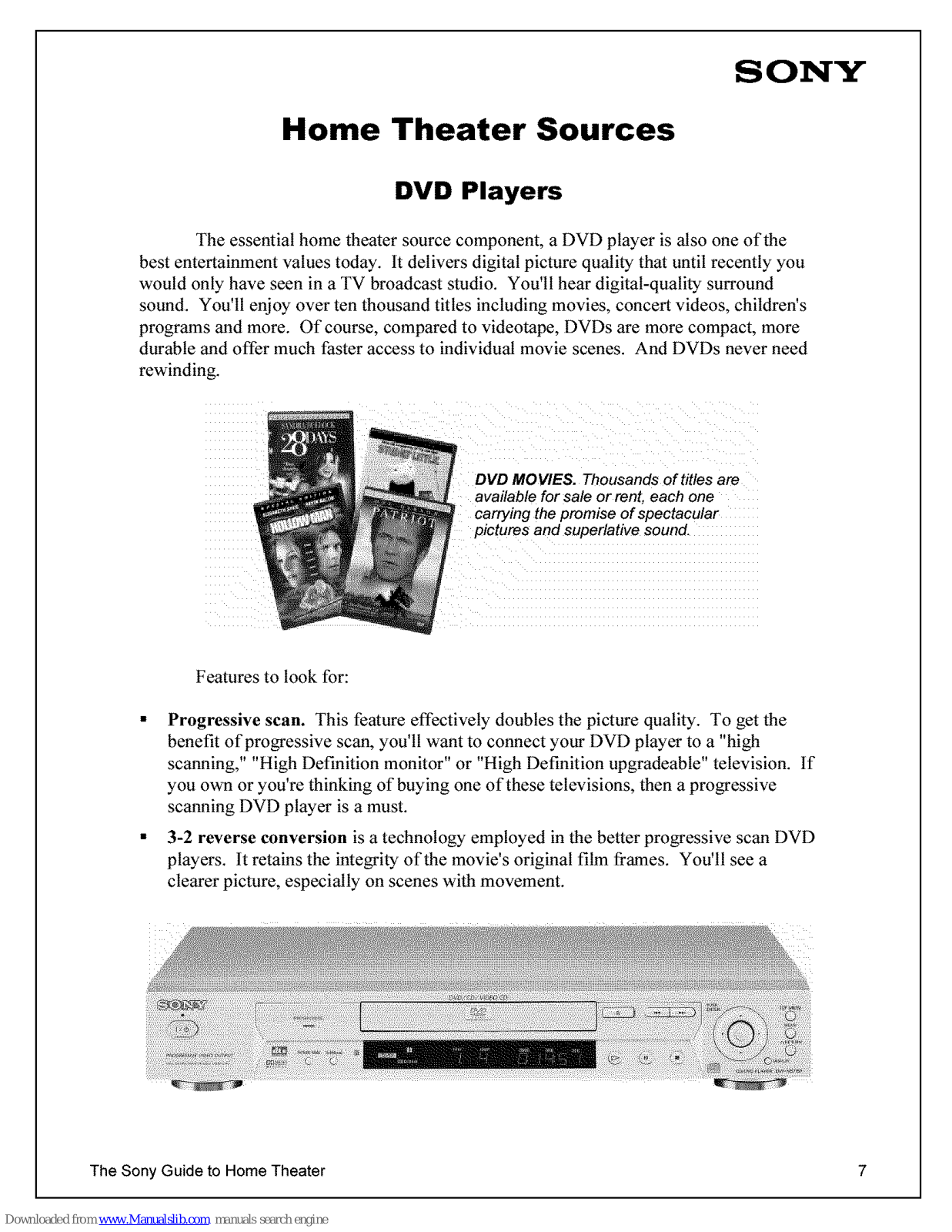

The essential home theater source component, a DVD player is also one of the best entertainment values today. It delivers digital picture quality that until recently you would only have seen in a TV broadcast studio. You'll hear digital-quality surround sound. You'll enjoy over ten thousand titles including movies, concert videos, children's programs and more. Of course, compared to videotape, DVDs are more compact, more
durable and offer much faster access to individual movie scenes. And DVDs never need rewinding.
OVD MOVIES. Thousands of titles are
available for sale or rent. each one carrying the promise of spectacular
pictures and superlative sound.
Features to look for:
Progressive scan, This feature effectively doubles the picture quality. To get the benefit of progressive scan, you'll want to connect your DVD player to a "high scanning," "High Definition monitor" or "High Definition upgradeable" television. If
you own or you're thinking of buying one of these televisions, then a progressive scanning DVD player is a must.
3-2 reverse conversion is a technology employed in the better progressive scan DVD players. It retains the integrity of the movie's original film frames. You'll see a clearer picture, especially on scenes with movement.
The Sony Guide to Home Theater 7
SONY

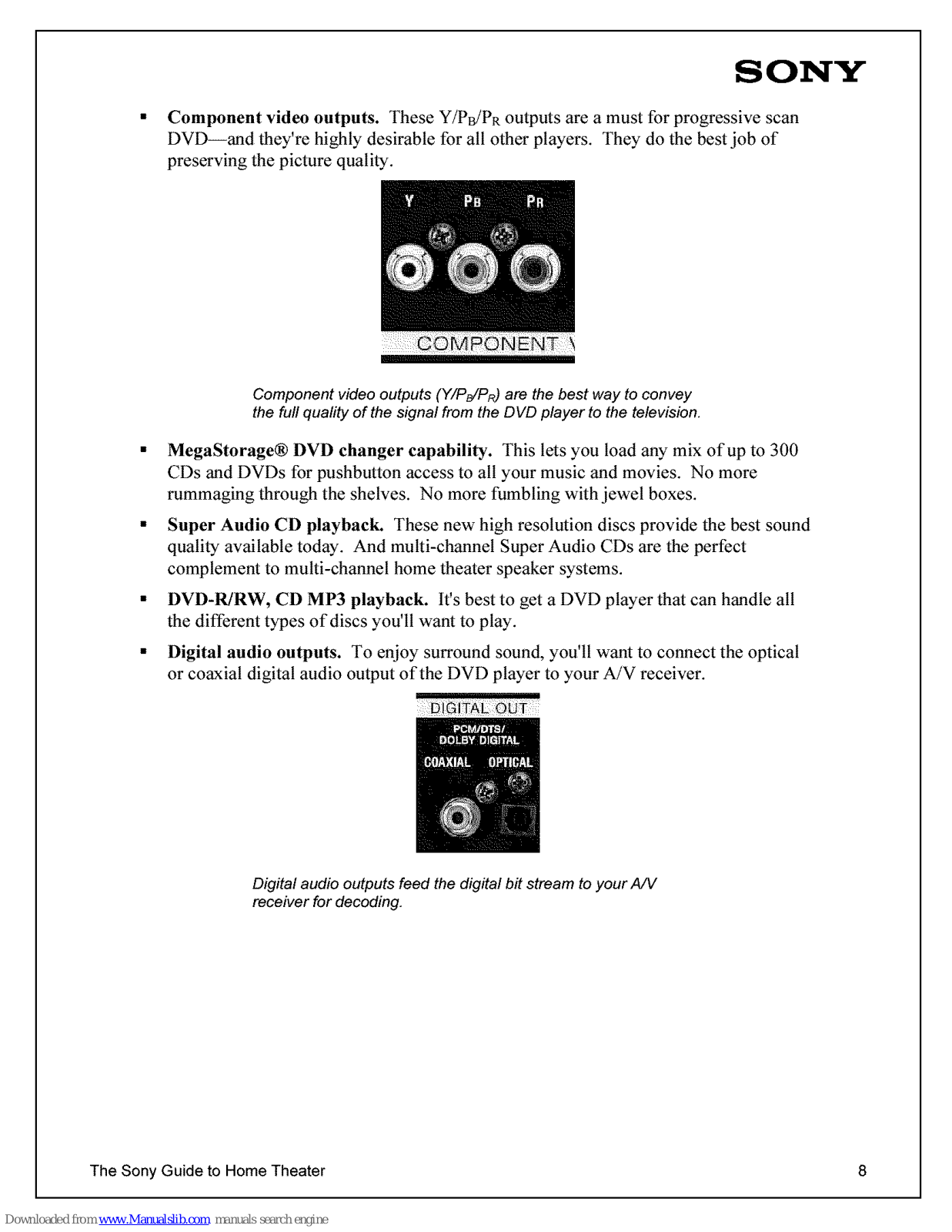

Component video outputs. These Y/PB/PR outputs are a must for progressive scan DVD--and they're highly desirable for all other players. They do the best job of preserving the picture quality.
Component video outputs (Y/PJPp,) are the best way to convey
the full quafity of the signal from the DVD player to the television.
MegaStorage® DVD changer capability. This lets you load any mix of up to 300 CDs and DVDs for pushbutton access to all your music and movies. No more rummaging through the shelves. No more fumbling with jewel boxes.
Super Audio CD playback. These new high resolution discs provide the best sound
quality available today. And multi-channel Super Audio CDs are the perfect complement to multi-channel home theater speaker systems.
DVD-R/RW, CD MP3 playback. It's best to get a DVD player that can handle all the different types of discs you'll want to play.
Digital audio outputs. To enjoy surround sound, you'll want to connect the optical or coaxial digital audio output of the DVD player to your A/V receiver.
Digital audio outputs feed the digital bit stream to your A/V receiver for decoding,
The Sony Guide to Home Theater 8
SONY

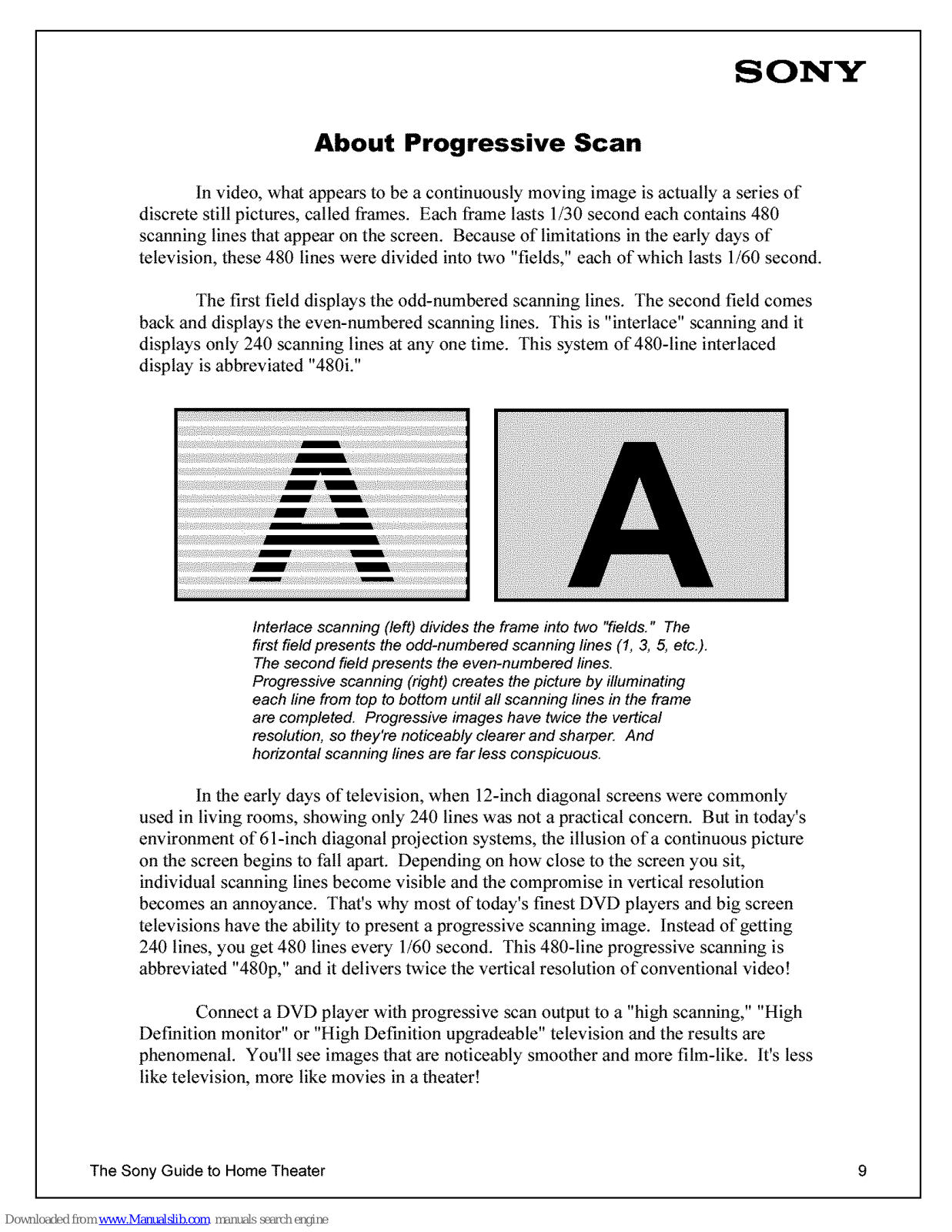

About Progressive Scan
In video, what appears to be a continuously moving image is actually a series of discrete still pictures, called frames. Each frame lasts 1/30 second each contains 480
scanning lines that appear on the screen. Because of limitations in the early days of television, these 480 lines were divided into two "fields," each of which lasts 1/60 second.
The first field displays the odd-numbered scanning lines. The second field comes back and displays the even-numbered scanning lines. This is "interlace" scanning and it displays only 240 scanning lines at any one time. This system of 480-1ine interlaced
display is abbreviated "480i."
Interlace scanning (left) divides the frame into two "fields." The
first field presents the odd-numbered scanning lines (1, 3, 5, etc.).
The second field presents the even-numbered lines.
Progressive scanning (right) creates the picture by illuminating each line from top to bottom until all scanning lines in the frame
are completed. Progressive images have twice the vertical resolution, so they're noticeably clearer and sharper. And
horizontal scanning lines are far less conspicuous.
In the early days of television, when 12-inch diagonal screens were commonly used in living rooms, showing only 240 lines was not a practical concern. But in today's environment of 61-inch diagonal projection systems, the illusion of a continuous picture on the screen begins to fall apart. Depending on how close to the screen you sit,
individual scanning lines become visible and the compromise in vertical resolution becomes an annoyance. That's why most of today's finest DVD players and big screen televisions have the ability to present a progressive scanning image. Instead of getting 240 lines, you get 480 lines every 1/60 second. This 480-line progressive scanning is
abbreviated "480p," and it delivers twice the vertical resolution of conventional video!
Connect a DVD player with progressive scan output to a "high scanning," "High
Definition monitor" or "High Definition upgradeable" television and the results are phenomenal. You'll see images that are noticeably smoother and more film-like. It's less
like television, more like movies in a theater!
The Sony Guide to Home Theater 9
SONY

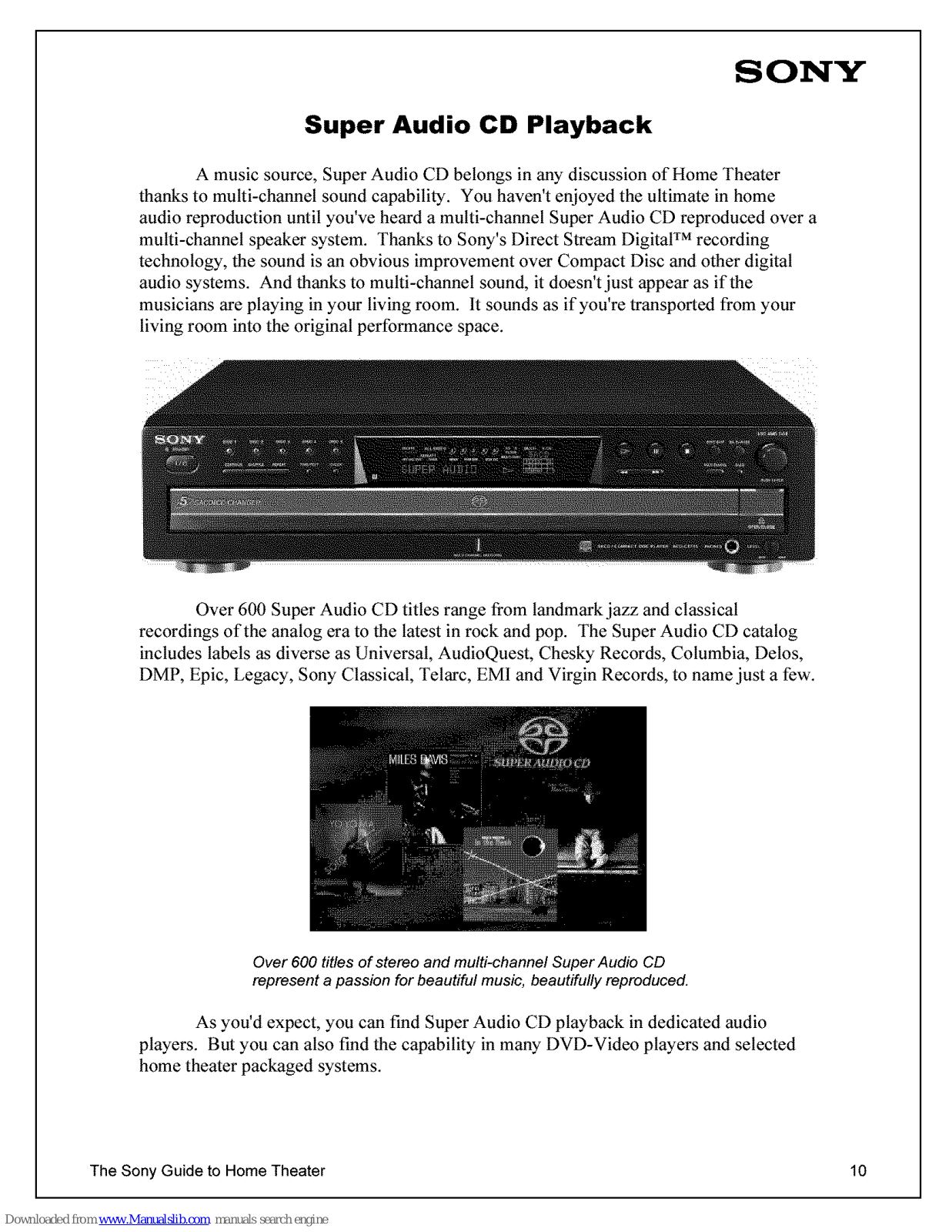

Super Audio CD Playback
A music source, Super Audio CD belongs in any discussion of Home Theater
thanks to multi-channel sound capability. You haven't enjoyed the ultimate in home audio reproduction until you've heard a multi-channel Super Audio CD reproduced over a multi-channel speaker system. Thanks to Sony's Direct Stream Digital TM recording technology, the sound is an obvious improvement over Compact Disc and other digital
audio systems. And thanks to multi-channel sound, it doesn't just appear as if the musicians are playing in your living room. It sounds as if you're transported from your
living room into the original performance space.
Over 600 Super Audio CD titles range from landmark jazz and classical
recordings of the analog era to the latest in rock and pop. The Super Audio CD catalog
includes labels as diverse as Universal, AudioQuest, Chesky Records, Columbia, Delos, DMP, Epic, Legacy, Sony Classical, Telarc, EMI and Virgin Records, to name just a few.
Over 600 titles of stereo and multi-channel Super Audio CD
represent a passion for beautiful music, beautifully reproduced,
As you!d expect, you can find Super Audio CD playback in dedicated audio
players. But you can also find the capability in many DVD-Video players and selected home theater packaged systems.
The Sony Guide to Home Theater 10
SONY
Digital Satellite Receivers

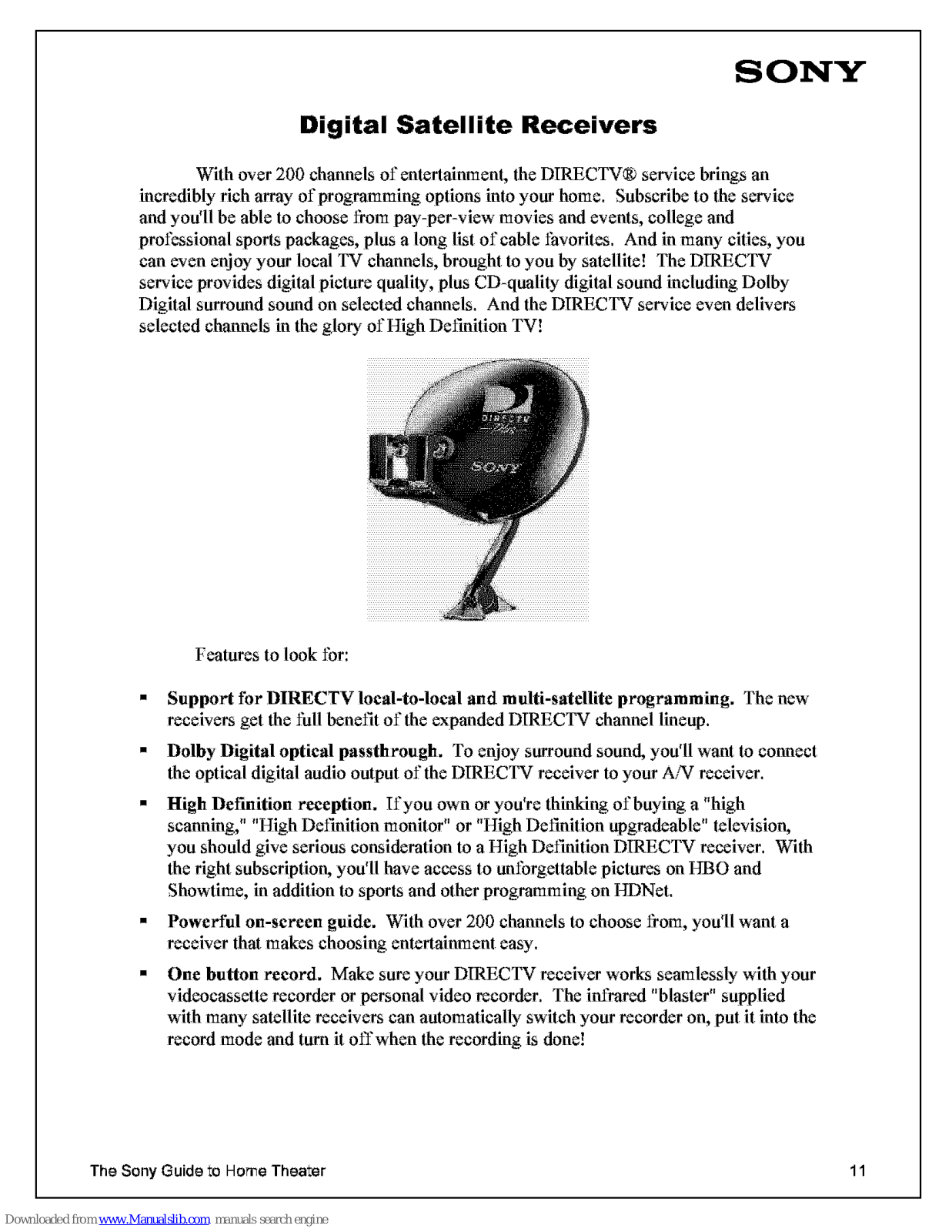

With over 200 channels of entertainmenL the DIRECTV® service brings an
incredibly rich array of programming options into your home. Subscribe to the service and you'll be able to choose _om pay-per-view movies and events, college and professional sports packages, plus a long list of cable favorites. And in many cities, you can even enjoy your local TV channels, brought to you by satellite! The DIRECTV
service provides digital picture quality, plus CD-quality digital sound including Dolby Digital surround sound on selected channels. And the DIRECTV service even delivers selected channels in the glory of High Definition TV!
Features to look ]br:
Support for DIRECTV local-to-local and multi-satellite programming. The new receivers get the full benefit of the expanded DIRECTV channel lineup.
Dolby Digital optical passthrough. To enjoy surround sound, you'll want to connect
the optical digital audio output of the DIRECTV receiver to your Ai_,r receiver. High Definition reception. If you own or you're thinking of buying a "high
scanning," "High Definition monitor" or "High Definition upgradeable" television, you should give serious consideration to a High Defifflfion DIRECTV receiver. With the right subscription, youql have access to un]brgettable pictures on HBO and
Showfime, in addition to sports and other programming on HI)Net.
Powerful on-screen guide. With over 200 channels to choose _om, you'll want a receiver that makes choosing entertainment easy.
One button record. Make sure your DIRECTV receiver works seamlessly with your videocassette recorder or personal video recorder. The i_ffrared "blaster" supplied
with many satellite receivers can automatically switch your recorder on, put it into the record mode and turn it offwhen the recording is done!
The Seny Guide te Home Theater 11
SONY
About High Definition Television

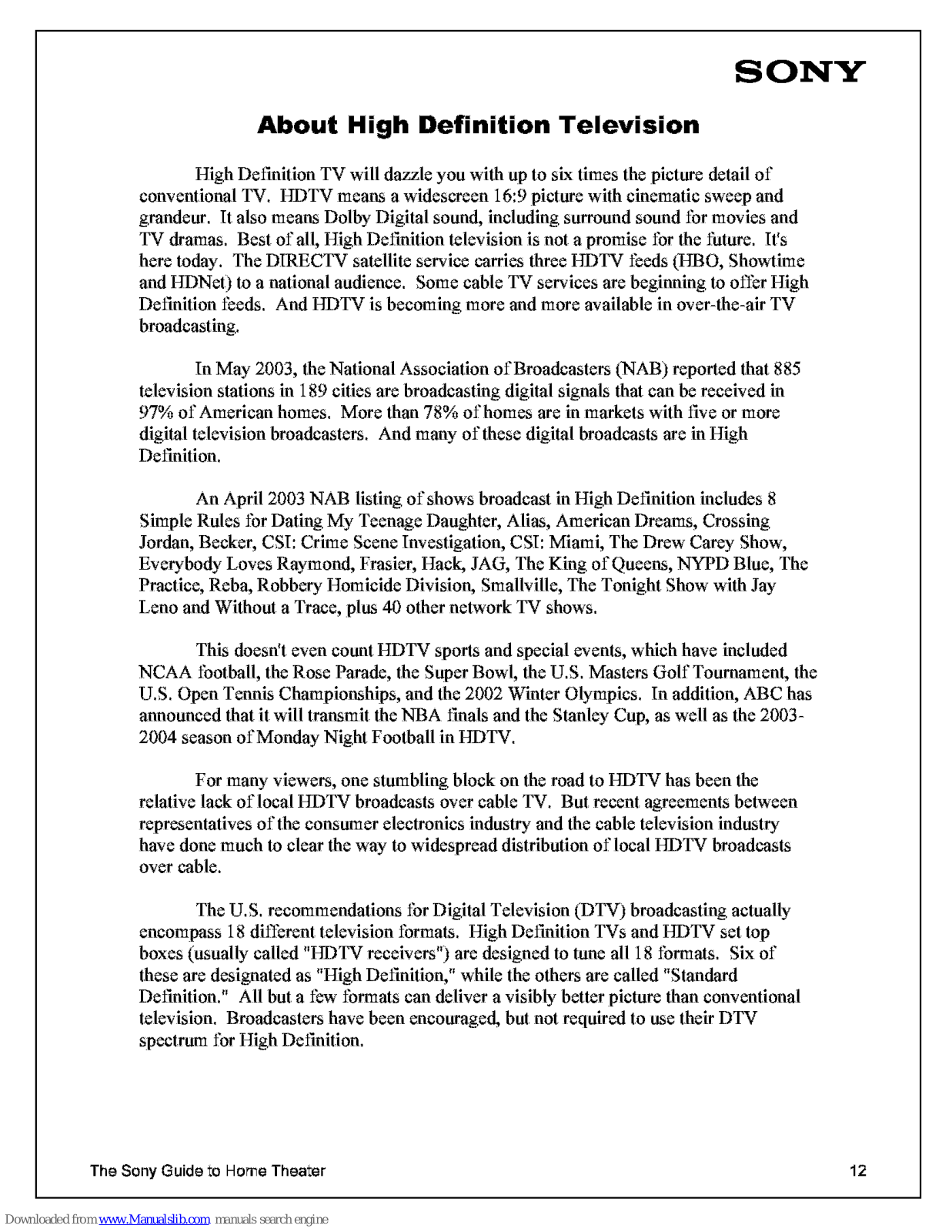

High Delinition TV will dazzle you with up to sLx times the picture detail of
conventional TV. HDTV means a wides_reen 16:9 picture with cinematic sweep and grandeur. It also means Dolby Digital sound, including surround sound lbr movies and TV dramas. Best of all, High Definition television is not a promise lbr the future. It's here today. The DIRECTV satellite service carries three HDTV feeds (I-IBO, Showtime
and HDNet) to a national audience. Some cable TV services are beginning to ofl'_r High Definition feeds. And HDTV is becoming more and more available in over-the-air TV broadcasting.
In May 2003, the National Association of Broadcasters (NAB) reported that 885
television stations in 189 cities are broadcasting digital signals that can be received in 97% of American homes. More than 78% of homes are in markets with five or more
digital television broadcasters. And many of these digital broadcasts are in High Definition.
An April 2003 NAB listing of shows broadcast in High Definition includes 8
Simple Rules _br Dating My Teenage Daughter, Alias, American Dreams, Crossing Jordan, Becker, CSI: Crime Scene Investigation, CSI: Miami, The Drew Carey Show, Everybody Loves Raymond, Frasier, Hack, JAG, The King of Queens, NYPD Blue, The
Practice, Reba, Robbery Homicide Division, Smallville, The Tonight Show with Jay Leno and Without a Trace, plus 40 other network TV shows.
This doesn't even count HDTV sports and special events, which have included
NCAA _botball, the Rose Parade, the Super Bowl, the U.S. Masters Golf Tournament, the U.S. Open Tennis Championships, and the 2002 Winter Olympics. In addition, ABC has
announced that it will transmit the NBA finals and the Stanley Cup, as well as the 2003- 2004 season of Monday Night Football in HDTV.
For many viewers, one stumbling block on the road to HDTV has been the
relative lack of local HDTV broadcasts over cable TV. But recent agreements between representatives of the consumer electronics industry and the cable television indastry have done much to clear the way to widespread distribution of local HDTV broadcasts
over cable.
The U.S. recommendations lbr Digital Television (DTV) broadcasting actually encompass 18 different television lbrmats. High Definition TVs and HDTV set top boxes (usually called "HDTV receivers") are designed to tune all 18 lbrmats. Six of these are designated as "High Definition," while the others are called "Standard
Definition." All but a few lbrmats can deliver a visibly better picture than conventional television. Broadcasters have been encouraged, but not required to use their DTV spectrum for High Definition.
Tho Seny Guido l:e Home Thoal:er 12
SONY
Active Horizontal Aspect Picture Rate (_ames Defifflfion
Scanning PLxels Ratio per second)
Lines P = progressive
i = interlace
1080 1920 16:9 30i, 30P, 24P High Definition
720 1280 16:9 60P, 30P, 24P High Definition 480 704 16:9 or 60P, 30i, 30P, 24P Standard Definition
4:3
480 640 4:3 60P, 30i, 30P, 24P Standard Definition
Of the eighteen D TV broadcast formats, only the top six are designated High Definition. The Federal government has encouraged, but net required broadcasters to use their DTV
spectrum for High Definition broadcasting.

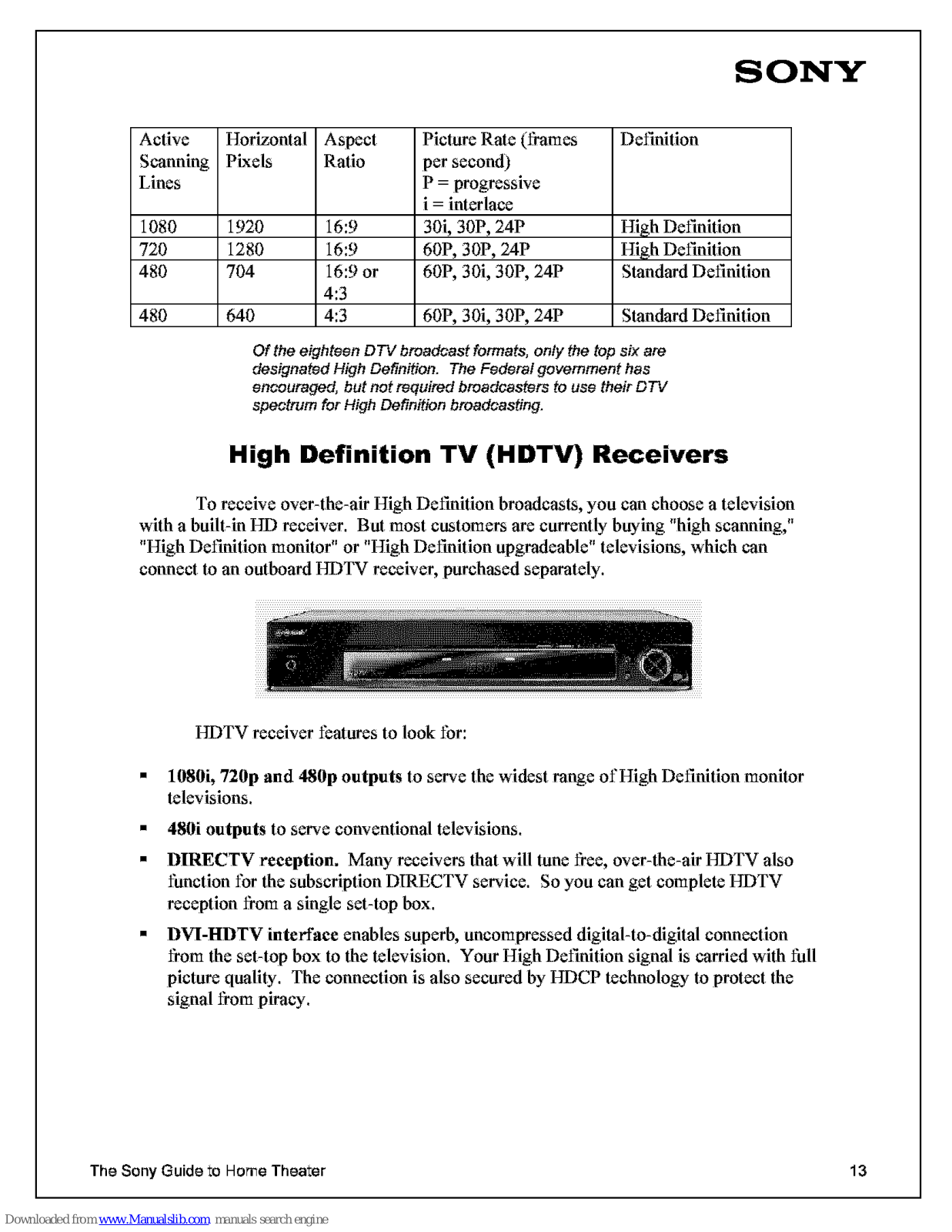

High Definition TV (HDTV) Receivers
To receive over-the-air High Definition broadcasts, you can choose a television
with a built-in HD receiver. But most customers are currently buying "high scanning,"
"High Defifflfion monitor" or "High Definition upgradeable" televisions, which can
connect to an outboard HDTV receiver, purchased separately.
HDTV receiver features to look _br:
1080i, 720p and 480p outputs to serve the widest range of High Definition monitor
televisions.
480i outputs to serve conventional televisions. DIRECTV reception. Many receivers that will tune bee, over-the-air HDTV also
function lbr the subscription DIRECTV service. So you can get complet_ HDTV reception _om a single set-top box.
DVI-HDTV interface enables superb, uncompressed digital-to-digital connection _om the set-top box to the television. Your High Defiffltion signal is carried with full
picture quality. The connection is also secured by HDCP technolog3, to protect the signal _om piracy.
The Sony Guide to Home Theater 13
SONY

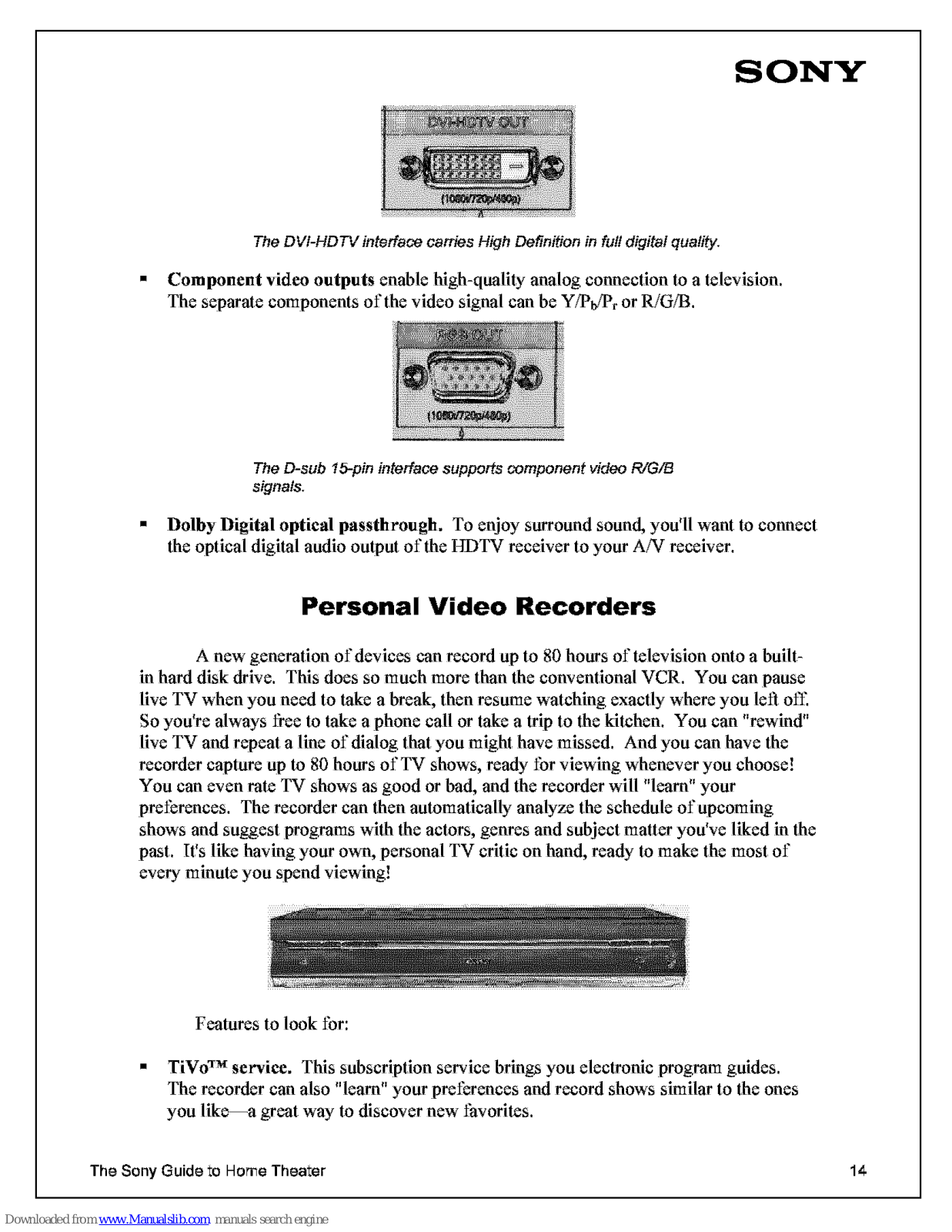

The DVf-HD TV interface carries High Definition in full digital quality.
• Component video outputs enable high-quality analog connection to a television.
The separate components of the video signal can be YiP_P,. or RiG/J3.
The D-sub !5-pin interface supports component video R/G/B signals.
Dolby Digital optical passthrongh, To enjoy surround sound, you'll want to connect the optical digital audio output of the HDTV receiver to your A-_I receiver.
Personal Video Recorders
A new generation of devices can record up to 80 hours of television omo a built-
in hard disk drive. This does so much more than the conventional VCR. You can pause live TV when you need to take a break, then resume watching exactly where you left o_t:
So you're always bee to take a phone call or take a trip to the kitchen. You can "rewind"
live TV and repeat a line of dialog that you might have missed. And you can have the recorder capture up to 80 hours of TV shows, ready _br viewing whenever you choose! You can even rate TV shows as good or bad, and the recorder will "learn" your preferences. The recorder can then automatically analyze the schedule of upcoming shows and suggest programs with the actors, genres and subject matter you've liked in the
past. It's like having your m_u, personal TV critic on hand, ready to make the most of every minute you spend viewing!
Features to look _br:
TiV@ Mservice. This subscription service brings you electronic program guides. The recorder can also "learn" your preferences and record shows similar to the ones you like--a great way to discover new favorites.
The Sony Guido 1:oHome Thoal:er 14
SONY

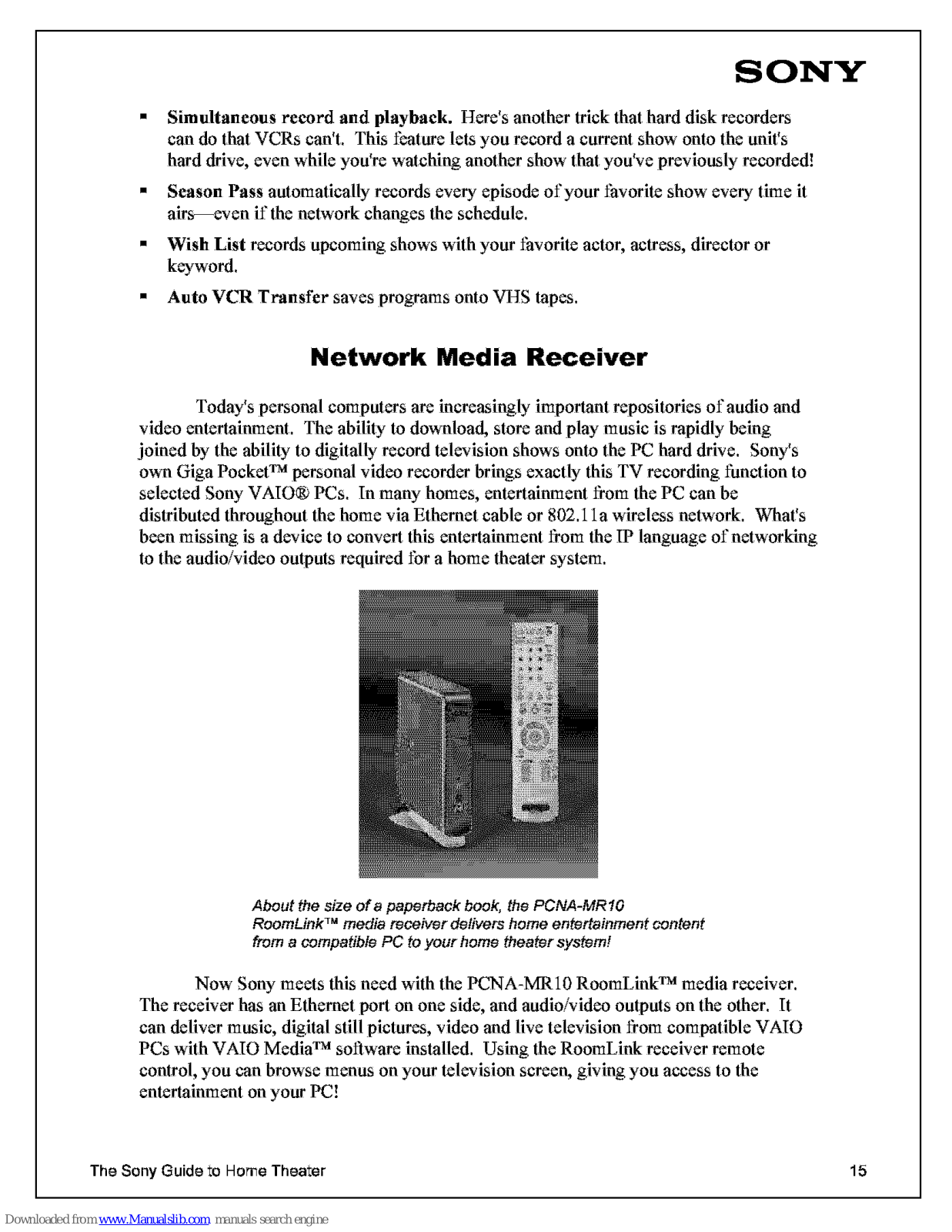

Simultaneous record and playback. Here's another trick that hard disk recorders can do that VCRs can't. This i'_ature lets you record a current show onto the unit's hard drive, even while you're watching another show that you've previously recorded!
Season Pass automatically records every episode of your ihvorite show every time it airs--even if the network changes the schedule.
Wish List records upcoming shows with your ihvorite actor, actress, director or keyword.
Auto VCR Transfer saves programs onto VHS tapes,
Network Media Receiver
Today's persmkal computers are increasingly important repositories of audio and
video cmtertainmem. The ability to download, store and play music is rapidly being
joined by the ability to digitally record television shows onto the PC hard drive. Sony's
own Giga Pocket TM personal video recorder brings exactly this TV recording function to selected Sony VAIO® PCs. In many homes, cmtertainmem _om the PC can be distributed throughout the home via Ethernut cable or 802.11a wireless network. V_at's
been missing is a device to convert this cmtertainmem _om the IP language of networking to the audio/video outputs required lbr a home theater system.
About the size of a paperback book, the PCNA-MRIO
_M
RoomLink media receiver delivers home entertainment content from a compatible PC to your home theater system!
Now Sony meets this need with the PCNA-MR10 RoomLink TM media receiver.
The receiver has an Ethernet port on one side, and audio/video outputs on the other. It can deliver music, digital still pictures, video and live television _om compatible VAIO
PCs with VAIO Media TM software installed. Using the RoomLink receiver remote control, you can browse menus on your television screen, giving you access to the entertainment on your PC!
The Sony Guide to Home Theater 15
SONY

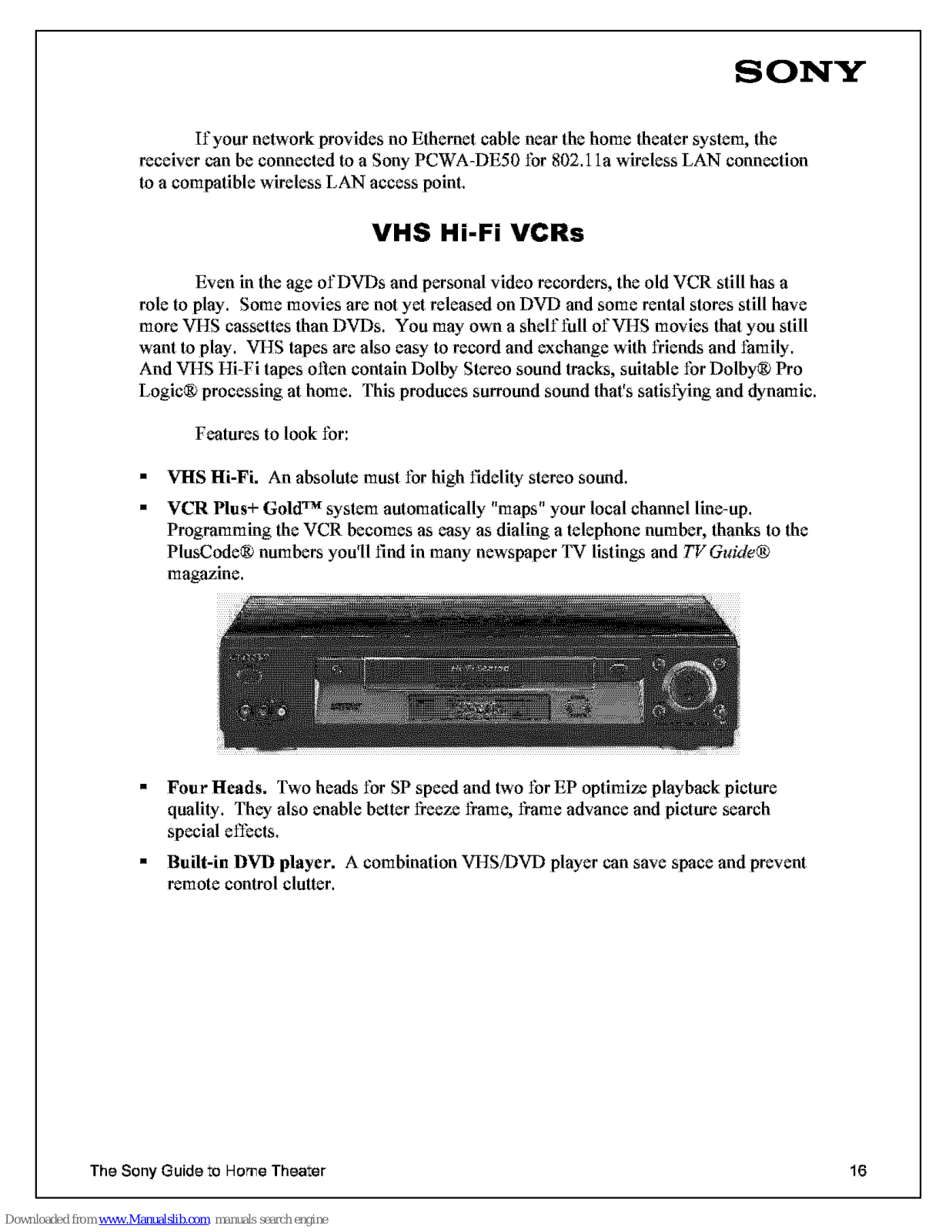

If your network provides no Ethernet cable near the home theater system, the receiver can be connected to a Sony PCWA-DE50 lbr 802.1 la wireless LAN connection to a compatible wireless LAN access point.
VHS Hi-Fi VCRs
Even in the age of DVDs and personal video recorders, the old VCR still has a role to play. Some movies are not yet released on DVD and some rental stores still have more VHS cassettes than DVDs. You may o_+u a shelf full of VHS movies that you still want to play. x,,q-IStapes are also easy to record and exchange with friends and family.
And VHS Hi-Fi tapes olten contain Dolby Stereo sound tracks, suitable lbr Dolby® Pro Logic® processing at home. This produces surround sound that's satisfying and dynamic.
Features to look lbr:
VHS Hi-Fi. An absolute must lbr high fidelity stereo sound. VCR Plus+ Gold TM system automatically "maps" your local channel line-up.
Programming the VCR becomes as easy as dialing a telephone number, thanks to the PlusCode® numbers you'll find in many newspaper TV listings and TV Guide® magazine.
Four Heads. Two heads for SP speed and two lbr EP optimize playback picture quality. They also enable better _eeze _ame, _ame advance and picture search special effects.
Built-in DVD player. A combination VHSiDVD player can save space and prevent remote control clutter.
The Sony Guido 1:oHome Thoa1:er 16
Loading...
+ 35 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
