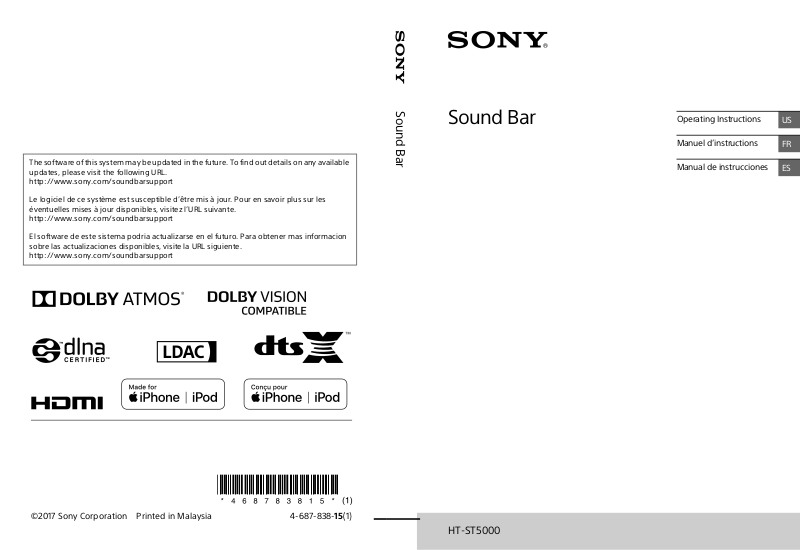

Sony HT-ST5000 Users guide [en, fr]

Sound Bar

Operating Instructions

The software of this system may be updated in the future. To find out details on any available updates, please visit the following URL. http://www.sony.com/soundbarsupport

Le logiciel de ce système est susceptible d’être mis à jour. Pour en savoir plus sur les éventuelles mises à jour disponibles, visitez l’URL suivante. http://www.sony.com/soundbarsupport

El software de este sistema podria actualizarse en el futuro. Para obtener mas informacion sobre las actualizaciones disponibles, visite la URL siguiente. http://www.sony.com/soundbarsupport

Manuel d’instructions

Manual de instrucciones

HT-ST5000

Owner’s Record

The model and serial numbers are located on the rear of the Bar Speaker. Record the serial numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. HT-ST5000

Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

To reduce the risk of fire, do not cover the ventilation ope ning of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

Indoor use only.

For the customers in the U.S.A.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert

the user to the presence of

important operating and

maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comp ly with FCC technical regulations.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet

on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals in order to meet FCC emission limits.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This equipment must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

Compliance with FCC requirement

15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Frequency Tolerance: ±20 ppm or less

For the customers in Canada

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals.

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause

interference; and

(2) This device must accept any

interference, including interference that may cause undesired operation of the device.

extremities: hands, wrists, feet and ankles).

5.15 - 5.25 GHz band is restricted to indoor operations only.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 56505850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding

Table of Contents

What’s in the Box .......................... 7

What You Can Do with the

System .....................................8

Guide to Parts and Controls ........ 10

About the Home Menu ................ 15

Setup

Startup Guide

Basic Setup

Connecting a 4K TV and 4K

Devices ...................................17

Connecting a TV Compatible with

eARC ...................................... 19

Connecting a TV or Portable Audio

Device via the ANALOG IN

Jack ........................................20

Connecting to a Wired

Network ..................................21

Connecting to a Wireless

Network .................................22

Mounting the Main Unit on a

Wall ........................................24

Attaching the Grille Frame ..........26

(separate



document)

Listening to the Sound

Listening to the TV ......................27

Listening to the Connected AV

Device ....................................27

Listening to Music on a USB

Device ....................................28

Selecting the Sound Effect

Setting the Sound Effect that is

Tailored to Sound Sources

(SOUND FIELD) .......................30

Enjoying Clear Sound with Low

Volume at Midnight

(NIGHT) .................................. 31

Making Dialogues Clearer

(VOICE) ...................................32

Adjusting the Volume of the

Subwoofer .............................32

Adjusting the Delay Between the

Picture and Sound .................33

Adjusting the Dialog Volume While

the DTS:X Content is Played

Back .......................................34

Listening to Music/Sound with the BLUETOOTH® Function

Listening to Music from a Mobile

Device ....................................35

Listening to Sound of the

Connected TV or Device from

Headphones ..........................38

Listening to Music/Sound Using the Network Function

Listening to Music on your PC via a

Home Network ......................40

Listening to Music on the Mobile

Device with Sony | Music

Center .................................... 41

Using Chromecast built-in ...........42

Using Spotify ................................43

Using the MUSIC SERVICE

Button ....................................44

Connecting the Wireless Multi

Room-Compatible Device

(Wireless Multi Room) ...........45

Using the Various Functions/ Settings

Customizing the Speaker Settings

for Surround Sound ...............46

Performing the Wireless Connection

of the Subwoofer

(SECURE LINK) ........................47

Playing Compressed Audio Files or

CDs by Upscaling to Near HiResolution Sound Quality

(DSEE HX) .............................. 49

Enjoying Multiplex Broadcast Sound

(AUDIO) ................................. 49

Deactivating Buttons on the Main

Unit ........................................50

Changing the Brightness of the

Front Panel Display and BLUETOOTH Indicator

(DIMMER) .............................. 50

Saving Power in Standby

Mode ......................................51

Sending the Remote Signal to the

TV via the Main Unit ..............51

Using the Control for HDMI

Function .................................52

Using the “BRAVIA” Sync

Function ................................ 54

Using the Setup Display .............. 55

Options Menu List ....................... 62

Troubleshooting

Troubleshooting .......................... 63

Resetting the System ...................71

Additional Information

Specifications ...............................72

Power Consumption by the Setting

Value for Each Standby

Mode ......................................75

Playable Types of Audio Files ......76

Supported Input Audio

Formats ..................................77

Supported HDMI Video

Formats ..................................78

On BLUETOOTH

Communication ....................80

END USER LICENSE

AGREEMENT ...........................81

Precautions ................................. 85

Index ............................................89

What’s in the Box

•Bar Speaker (1)

•Grille frame (1)

•Subwoofer (1)

• Remote control (1)

• HDMI cable (supports the specification equal to Premium High Speed HDMI cable with Ethernet) (1)

• WALL MOUNT TEMPLATE (1)

•Startup Guide

• Operating Instructions

• R03 (size AAA) battery (2)

What You Can Do with the System

“Listening to Music on a USB Device” (page 28)

Blu-ray Disc™ player, cable box, or satellite box, etc.

“Using the Control for HDMI Function” (page 52) “Using the “BRAVIA” Sync Function” (page 54)

“Performing the Wireless Connection of the Subwoofer (SECURE LINK)” (page 47)

“Using Spotify” (page 43)* “Using the MUSIC SERVICE Button” (page 44)

“Listening to the TV” (page 27) “Listening to the Connected AV Device” (page 27)

* This service may not be available in some

countries/regions.

* To play on the system, you need the Spotify

Premium account.

Connecting the TV and other devices (refer to “Startup Guide” (separate document) or see “Connecting a TV or Portable Audio Device via the ANALOG IN Jack” (page 20).)



“Listening to Music from a Mobile Device” (page 35) “Listening to Music on the Mobile Device with Sony | Music Center” (page 41)

“Listening to Sound of the Connected TV or Device from Headphones” (page 38)

“Listening to the Same Music in Different Rooms (Wireless Multi Room)” (page 45)

“Connecting to a Wired Network” (page 21)

Internet

Router

Modem

Wireless LAN router

“Connecting to a Wireless Network” (page 22)

“Listening to Music on your PC via a Home Network” (page 40)

Guide to Parts and Controls

Details are omitted from the illustrations.

Bar Speaker (Main Unit)

Front

 (power) button

Turns on the system or sets it to standby mode.

 (input select) button

(page 15, 27)

 BLUETOOTH PAIRING button

(page 35)

 (MUSIC SERVICE) button

(page 44)

 +/– (volume) buttons  (USB) port (page 28)  N-Mark (page 36)

When using the NFC function, touch your NFC-compatible device to the mark.

 Remote control sensor

Point the remote control at the remote control sensor to operate the system.

 Front panel display  BLUETOOTH indicator

– Flashes quickly in blue: During

pairing standby status

– Flashes in blue: BLUETOOTH

connection is being attempted

– Lights in blue: BLUETOOTH

connection has been established

Rear

 ANALOG IN jack  TV IN (OPT) jack  HDMI OUT (TV (eARC/ARC)) jack

Connect a TV that has an HDMI input jack with an HDMI cable. The system is compatible with eARC and ARC. ARC is the function that sends TV sound to an AV device such as the system from the TV’s HDMI jack. eARC is an extension of ARC and enables transmission of the object audio and multi-channel LPCM content that cannot be transmitted with ARC. For details of eARC, see “Connecting a TV Compatible with eARC” (page 19). For supported audio formats, see “Supported Input Audio Formats” (page 77). For specifications and notes on connections, see “Supported HDMI Video Formats”

(page 78).

 HDMI IN 1 jack

For the specifications and note on connections, see “Supported HDMI Video Formats” (page 78).

 HDMI IN 2 jack

For the specifications and note on connections, see “Supported HDMI Video Formats” (page 78).

 HDMI IN 3 jack

For the specifications and note on connections, see “Supported HDMI Video Formats” (page 78).

 LAN(100) port

Subwoofer

 On/standby indicator

– L ights in red: The subwoofer is not

connected to the system

– Lights in green: The subwoofer is

connected to the system

– L ights in orange: The subwoofer is

connected to the system with the Secure Link function

– Flashes in green: The subwoofer is

attempting to connect to the system

– Flashes in orange: The subwoofer

is attempting to connect to the system with the Secure Link function

– Turns off: The subwoofer is in

standby mode

/ (on/standby) button

Turns on the subwoofer or sets it to standby mode.

 SECURE LINK button (page 47)  Ventilation holes

For safety, do not block the ventilation holes.

Remote Control

 INPUT +/– (page 15, 27)

 (power)

Turns on the system or sets it to standby mode.

 DISPLAY**

Displays playback information on the TV screen. Playback information is not displayed for TV input.

 CLEAR AUDIO+ (page 30)

SOUND FIELD (page 30) VOICE (page 32) NIGHT (page 31)

 DIMMER (page 50)  Color buttons

Shortcut keys for selecting items on some menus.

 MUSIC SERVICE (page 44)

BLUETOOTH PAIRING (page 35)

 OPTIONS** (page 33, 62)

Displays the options menu on the TV screen. The options menu is not displayed for the TV input.

BACK (page 15) /// (page 15)

(enter) (page 15)

HOME (page 15)

 (muting)

Turns off the sound temporarily.

 (volume) +*/–

Adjusts the volume.

SW  (subwoofer volume) +/–

Adjusts the volume of the subwoofer.

 Playback operation buttons

/ (rewind/fast forward)

Searches backward or forward.

/ (previous/next)

Selects the previous/next chapter, track, or file.

 (play)*

Starts or re-starts playback (resume play).

 (pause)

Pauses or re-starts playback.

 (stop)

Stops playback.

 B LUETOOTH RX/TX (BLUETOOTH

receiver/transmitter) (page 39)

 AUDIO* (page 49)

*The AUDIO, , and  + buttons have a

tactile dot. Use it as a guide during operation.

**When watching HDR signal and certain

4K format video, the OPTIONS and DISPLAY buttons do not work and the On-Screen Display (OSD) of the system is not displayed. For details about the 4K video format, see “Supported HDMI Video Formats” (page 78).

About the Home Menu

[Setup]

Input list

HOME

BACK

///, (enter)

You can display the home menu on the TV screen by connecting the system and TV with the HDMI cable (supplied). From the home menu, you can set the various settings by selecting [Setup] or select the input or service that you want to watch from the input list. The home menu is displayed in the language that is selected in [Easy Setup]. (The following screen is an example when selecting English.)

Using the Home Menu

1 Press HOME.

The home menu appears on the TV screen.

2 Press /// to select [Setup] or an item on the input list, then press

The selected input or setup display appears on the TV screen. To return to the previous screen, press BACK.

Input list

Input name Explanation [TV] Outputs the TV sound. (page 27) [HDMI1] Outputs the sound of device that is connected to the HDMI IN 1

[HDMI2] Outputs the sound of device that is connected to the HDMI IN 2

[HDMI3] Outputs the sound of device that is connected to the HDMI IN 3

[Bluetooth Audio] Outputs the sound of device that is connected with the

[Analog] Outputs the sound of device that is connected to the ANALOG IN

[USB] Outputs music files stored on a connected USB device. (page 28) [Home Network] Outputs music files on the device that is connected via the

[Music Service List] Displays the operation method for music services. (page 44)

jack. (page 27)

BLUETOOTH function. (page 35)

jack. (page 27)

network. (page 40)

[Setup]

See “Using the Setup Display” (page 55).

Tip

You can also select the input by pressing INPUT +/– repeatedly.

About the Steps Description

In these Operating Instructions, the operations are described as steps that are operated on the home menu displayed on the TV screen by using the remote control while the system and TV are connected with the HDMI cable (supplied).

The operating steps that select items on the TV screen by using /// and are simplified in the following way.

Example: Select [Setup] from the home menu.

The operation that selects an item by pressing /// and is expressed as “select.”

Example: Select [Network Settings] - [Internet Settings] - [Wired Setup] on the home menu.

When repeating the operation that selects an item by pressing /// and , the selected items are linked with “-.”

Tips

• You can use the buttons on the main unit if they have the same or similar names as those on the remote control.

• Characters in brackets [ ] appear on the TV screen. Characters in quotes “ ” appear in the front panel display.

Setup

HDCP2.2-

compatible

HDMI jack

Blu-ray Disc playe r, cable box, or satellite box, etc.

HDCP2.2-

compatible

HDMI jack

Basic Setup

Refer to Startup Guide (separate document).

Connecting a 4K TV and 4K Devices

All HDMI jacks on the system support 4K video format and HDCP2.2 (Highbandwidth Digital Content Protection System Revision 2.2). To watch 4K video content, connect the 4K TV and 4K devices to the system via an HDCP2.2-compatible HDMI jack on each device. You can only view 4K video content through the HDCP2.2-compatible HDMI jack connection.

When an HDCP2.2Compatible HDMI Jack on the TV is Labeled with “eARC” or “ARC”

 HDMI cable (supplied)  HDMI cable (not supplied)

Use an HDMI cable which supports the 4K video format that you want to watch. For details, see “Supported HDMI Video Formats” (page 78).

1 Check which HDMI IN jack on your

HDCP2.2-

compatible

HDMI jack

Blu-ray Disc player, cable box, or satellite box, etc.

HDCP2.2-

compatible

HDMI jack

TV is compatible with HDCP2.2.

Refer to the operating instructions of the TV.

2 Connect the HDCP2.2-compatible

HDMI IN jack on the TV and HDMI OUT jack on the main unit with the HDMI cable (supplied).

TV connection is completed.

3 Connect the HDCP2.2-compatible

HDMI OUT jack of the 4K device and HDMI IN jack of the main unit with the HDMI cable (not supplied).

Refer to the operating instructions of the 4K device to check that the HDMI OUT jack of the 4K device is compatible with HDCP2.2. 4K device connection is completed.

When an HDCP2.2Compatible HDMI Jack on the TV is not Labeled with “eARC” or “ARC”

If your TV’s HDCP2.2-compatible HDMI IN jack is not compatible with eARC or ARC, the TV sound is not output from the system. In this case, connect the optical output j ack of th e T V a nd th e T V I N ( OP T) ja ck on the main unit with the optical digital cable (not supplied).

 HDMI cable (supplied)  HDMI cable (not supplied)

Use an HDMI cable which supports the 4K video format that you want to watch. For details, see “Supported HDMI Video Formats” (page 78).

 Optical digital cable (not supplied)

Setup

Setting the HDMI Signal Format to Watch 4K Video Content

Connecting a TV Compatible with eARC

To watch 4K video content, select the appropriate setting for the connected 4K TV and 4K device.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] from the home

menu.

The setup display appe ars on the TV screen.

3 Select [System Settings] - [HDMI

Settings] - [HDMI Signal Format].

4 Select the setting you want.

• [Standard format] (default setting): Select when the connected TV and devices support standard bandwidth video formats.

• [Enhanced format]: Select when both the connected TV and devices support high bandwidth video formats such as 4K 60p 4:4:4 etc.

For the relation of the [HDMI Signal Format] setting options, supported video format signals, and HDMI cables to be used, see “Supported HDMI Video Formats” (page 78).

Notes

• Depending on the TV, the TV setting for HDMI output may be required. Refer to the operating instructions of the TV.

• When the picture is not displayed after [HDMI Signal Format] is set to [Enhanced format], set it to [Standard format].

The system is compatible with eARC (Enhanced Audi o Return Channel). e ARC is a new function standardized by HDMI

2.1 and supports latest audio formats in addition to audio formats that are supported with existing ARC (Audio Return Channel). You can enjoy object audio content, such as Dolby Atmos - Dolby TrueHD and DTS:X, or multi-channel LPCM content that cannot be transmitted with ARC by connecting the system and TV compatible with eARC using an HDMI cable. For the connection, refer to Startup Guide (separate document).

Preparing to Use the eARC Function

1 If the HDMI output jack of the

system is labeled with “ARC,” perform a software update (page 56).

The system is compatible with the eARC function if the HDMI output jack of the system is labeled with “eARC/ARC.”

2 Press HOME.

The home menu appears on the TV screen.

3 Select [Setup] from the home

menu.

The setup display appea rs on the TV screen.

4 Select [System Settings] - [HDMI

Smartphone, WALKMAN®, other audio devices etc.

Analog audio out

Analog audio cable (not supplied)

Settings] - [eARC] - [On].

The eARC function is enabled and it works while connecting a TV compatible with eARC. The ARC function works while connecting a TV compatible with ARC (not compatible with eARC).

Notes

• If [eARC] does not appear on the setup display in step 4, perform a software update (page 56).

• When [eARC] is set to [On], make sure of the eARC setting of the connected TV. For details, refer to the opera ting instructions of the TV.

Connecting a TV or Portable Audio Device via the ANALOG IN Jack

To connect following devices to the system, connect them via the ANALOG IN jack on the system. – TV that does not have an HDMI jack

and optical digital output jack

– Portable audio device such as a

smartphone, WALKMAN®

Note

If the TV’s headphone jack also serves as an audio output jack, check the audio output settings of the TV. For details, refer to the operating instructions of the TV.

Setup

Connecting to a Wired

Internet

LAN cable (not supplied)

Server

Router

Modem

Network

Prepare the network by connecting the system and PC to your home network with a LAN cable.

Connecting to a PC or Router with a LAN Cable

The following illustration is the example for connection of the system and PC to your home network.

Connecting by Obtaining the Network Information Automatically

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] from the home

menu.

The setup display appea rs on the TV screen.

3 Select [Network Settings] -

[Internet Settings] - [Wired Setup].

4 Select [Auto].

The system starts network settings and the network setting status appears. Press / to browse information, and then press .

5 Select [Save & Connect].

The system starts connecting to the network. For details, refer to the messages that appear on the TV screen.

Connecting by Using a

Fixed IP Address

Note

The server needs to be connected to the same network as that of the system.

Tip

We recommend that you use a shielded straight interface cable (not supplied).

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] from the home

menu.

The setup display appea rs on the TV screen.

3 Select [Network Settings] -

[Internet Settings] - [Wired Setup].

4 Select [Manual].

5 Perform the setting by following

the on-screen instructions.

The system starts network settings and the network setting status appears. Press / to browse information, and then press .

6 Select [Save & Connect].

The system starts connecting to the network. For details, refer to the messages that appear on the TV screen.

Connecting to a Wireless Network

Prepare the network by connecting the system and PC to your wireless LAN router.

Note

The server needs to be connected to the same network as that of the system.

Connecting with the WPS Button

When your wireless LAN router (access point) is Wi-Fi Protected Setup (WPS)compatible, you can easily set the network settings with the WPS button.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] from the home

menu.

The setup display a ppears on the TV screen.

3 Select [Network Settings] -

[Internet Settings] - [Wireless Setup] - [Wi-Fi Protected Setup™ (WPS)].

4 Select [Start]. 5 Press the WPS button on the

access point.

The system starts connecting to the network.

Setup

Connecting by Selecting the Network Name (SSID)

Connecting by Using a Fixed IP Address

If your wireless LA N router (access point) is not compatible with Wi-Fi Protected Setup (WPS), check the following information in advance. – The network name (SSID)*

_____________________________________

– The security key (password)**

_____________________________________

* SSID (Service Set Identifier) is a name that

identifies a particular access point.

**This information should be available

from a label on your wireless LAN router/ access point, from the operating instructions, from the person who set up your wireless network, or from the information provided by your Internet service provider.

1 Press HOME.

The home menu appears on the TV screen.

2 Select [Setup] from the home

menu.

The setup display appe ars on the TV screen.

3 Select [Network Settings] -

[Internet Settings] - [Wireless Setup].

The list of the network name appears on the TV screen.

4 Select the desired network name

(SSID).

5 Enter the security key (or

password) using the software keyboard, and then select [Enter].

The system starts connecting to the network.

Select [New connection registration] [Manual registration] in step 4 of “Connecting by Selecting the Network Name (SSID)”and follow the on-screen instructions.

Connecting by Using a PIN Code

Select [New connection registration] in step 4 of “Connecting by Selecting the Network Name (SSID)” and select [(WPS) PIN Method].

Connecting by Sony | Music Center

Sony | Music Center can connect the system to the same wireless network as that of the mobile device. For details, follow the instruction of the app or refer to the following URL. http://www.sony.net/smcqa/

Mounting the Main Unit

Main unit

(A)

(B)

on a Wall

You can mount the main unit on a wall.

Notes

• Prepare screws (not supplied) that are suitable for the wall material and strength. As a plasterboard wall is especially fragile, attach the screws securely in the wall beam. Install the speakers horizontally, hung by screws in studs in a continuous flat section of the wall.

• Have the installation done by a Sony dealer or licensed contractor and pay special attention to safety during the installation.

• Sony shall not be held responsible for accidents or damage caused by improper installation, insufficient wall strength, improper screw installation or natural disaster, etc.

About the Installation Location of the Main Unit

The main unit outputs the surround sound toward the ceiling. To ensure that the TV does not interfere with the output sound from the main unit, decide on the installation location of the main unit by referring to the following estimated values.

Depth of the mounted TV (A)

Less than 66 mm (2 5/8 in)

66 mm (2 5/8 in) to less than 100 mm (4 in)

100 mm (4 in) or more

Dimensions to the main unit from the TV (B)

50 mm (2 in) or more

100 mm (4 in) or more

200 mm (7 7/8 in) or more

Setup

Mounting the Main Unit on a

Hole on the rear of the main unit

4mm (3/16 in)

More than 30 mm (1 3/16 in)

4.6 mm (3/16 in)

10 mm (13/32 in)

Center of the TV

WALL MOUNT TEMPLATE

Adhesive tape, etc.

Screw position

422 mm (16 5/8 in)

11 mm to 12 mm

(approx. 7/16 in)

Wall

1 Prepare screws (not supplied) that

are suitable for the wall mount holes on the rear of the main unit.

2 Stick WALL MOUNT TEMPLATE

(supplied) on a wall.

3 Mark the screw positions

described as bellow on SCREW LINE () of WALL MOUNT TEMPLATE.

Measure the distance described below with a scale, then mark using a pencil, etc.

4 Fasten the screws into the mark.

5 Remove WALL MOUNT TEMPLATE. 6 Hang the main unit on the screws.

Align the holes of the rear of the main unit with the screws, then hang the main unit on the two screws.

1 Align TV CENTER LINE () of

WALL MOUNT TEMPLATE with the center line of your TV.

2 Decide on the height of WALL

MOUNT TEMPLATE by referring to “About the Installation Location of the Main Unit” (page 24), then stick the WALL MOUNT TEMPLATE on a wall by using a commercially available adhesive tape, etc.

Note

When sticking WALL MOUNT TEMPLATE, smooths it out fully.

Attaching the Grille Frame

You can protect the speakers by attaching the supplied grille frame. We recommend that you use the main unit without attaching the grille frame if you will be listening to High-Resolution Audio.

Attach the grille frame parallel to the front panel.

Insert the projections of the grille frame into the hole on the main unit.

Tip

The grille frame is fixed by a magnet.

Listening to the Sound

Listening to the TV

1 Press HOME.

The home menu appears on the TV screen.

2 Select [TV] on the home menu. 3 Select the program using the TV’s

remote control.

The selected TV program appears on the TV screen and the TV sound is output from the system.

4 Adjust the volume.

• Adjust the volume by pressing 

+/– on the remote control.

• Adjust the subwoofer volume by

pressing SW  +/– on the remote control (page 32).

Note

Set the speakers setting of the TV (BRAVIA) to Audio System. Refer to the operating instructions of your TV regarding how to set the TV.

Tip

You can select [TV] by pressing INPUT +/– on the remote control.

Listening to the Connected AV Device

1 Press HOME.

The home menu appears on the TV screen.

2 Select the input that the desired

device is connected on the home menu.

The image of the selected device appears on the TV screen and the sound is output from the system. If you select [Analog], the [Analog] screen is displayed on the TV screen.

3 Adjust the volume.

• Adjust the volume by pressing 

+/– on the remote control.

• Adjust the subwoofer volume by

pressing SW  +/– on the remote control (page 32).

Tip

You can select the input by pressing INPUT +/– on the remote control.

Changing the Input Name Displayed on the Home Menu

You can change the input name of [HDMI1], [HDMI2], or [HDMI3] that is displayed on the home menu.

1 Press HOME.

The home menu appears on the TV screen.

2 Put the cursor on [HDMI1],

[HDMI2], or [HDMI3] on the home menu, then press OPTIONS.

The options menu appears on the TV screen.

3 Select [Input Label Setting].

4 Select the input name.

You can select the input name from the following.

•[BD Player]

•[DVD Player]

•[Cable Box]

• [Satellite]

•[GAME]

•[PC]

5 Press to complete.

Tip

When you change the input name, the displayed icon is also changed automatically.

Listening to Music on a USB Device

You can play music files stored on a connected USB device. For playable types of files, see “Playable Types of Audio Files” (page 76).

1 Connect the USB device to the

(USB) port.

2 Press HOME.

The home menu appears on the TV screen.

3 Select [USB (Connected)] from

the home menu.

4 Select the folder on which songs

are stored - song.

The selected song is played and sound is output from the system.

5 Adjust the volume.

• Adjust the volume by pressing 

+/– on the remote control.

• Adjust the subwoofer volume by

pressing SW  +/– on the remote control (page 32).

Listening to the Sound

Note

Do not remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the system off before connecting or removing the USB device.

Tip

You can perform various operations from the options menu (page 62).

Selecting the Sound Effect

SOUND FIELD

CLEAR AUDIO+

Setting the Sound Effect that is Tailored to Sound Sources (SOUND FIELD)

You can easily enjoy pre-programmed sound effects that are tailored to different kinds of sound sources.

1 Press SOUND FIELD.

The sound field menu appears on the TV screen.

2 Press the button repeatedly to

select the desired sound field.

Sound field Explanation [ClearAudio+]

[3D Surround]

The appropriate sound setting is automatically selected for the sound source.

Enjoy movies, music, and more with sound that flows all around the room, surrounding you from all directions.

Sound field Explanation [Movie]

[Music]

[Game Studio]

[Sports]

[Standard]

Notes

• When using the wireless multi room function or Chromecast built-in, or setting [Bluetooth Mode] to [Transmitter] (page 57), the sound field function is not available.

• The sound field menu does not appear on the TV screen for TV input.

• When you set [Sound Effect] to [Off], the sound field function is disabled.

You feel immersed by the sound that travels behind you and surrounds your entire body. This mode is suitable for watching movies.

Vividness and glossiness of the sound are expressed in detail. This mode is suitable for enjoying music in a way that moves you.

You can immerse yourself in your game by reproducing the feeling of movement and distance of objects, as well as clearly hearing the dialog.

You can experience an atmosphere as if you were watching an event in a stadium. However, narrations of commentators are reproduced vividly.

The sound of a TV program can be heard clearly. This mode is suitable for watching news because voices are clear.

+ 261 hidden pages

Sony HT-ST5000 Users guide [en, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual
