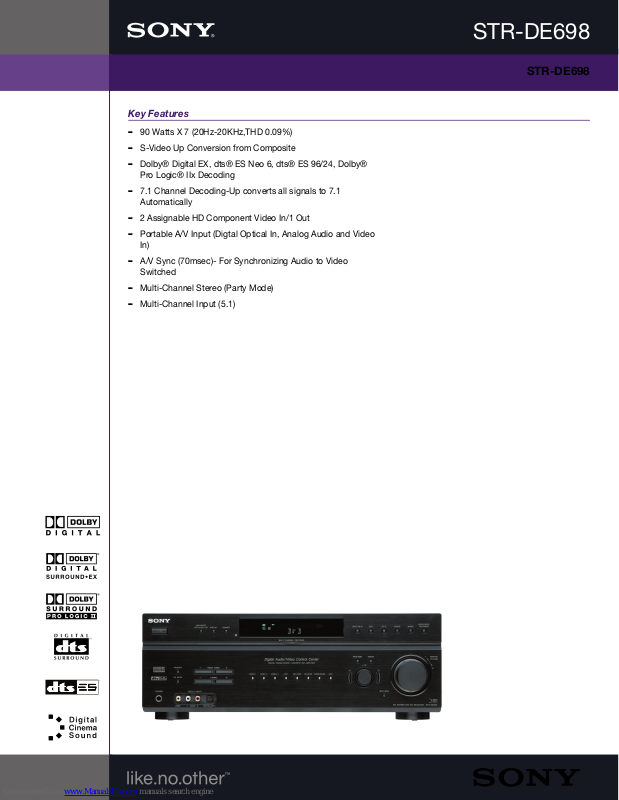

Key Features



90 Watts X 7 (20Hz-20KHz,THD 0.09%)



S-Video Up Conversion from Composite



Dolby® Digital EX, dts® ES Neo 6, dts® ES 96/24, Dolby®
Pro Logic® IIx Decoding



7.1 Channel Decoding-Up converts all signals to 7.1
Automatically



2 Assignable HD Component Video In/1 Out



Portable A/V Input (Digtal Optical In, Analog Audio and Video
In)



A/V Sync (70msec)- For Synchronizing Audio to Video
Switched



Multi-Channel Stereo (Party Mode)



Multi-Channel Input (5.1)

STR-DE698

STR-DE698

STR-DE698

STR-DE698

Specifications

Audio

Impedance: Subwoofer Pre-Out Level Impedance:

2V/1 kohm

Tuning Range: AM: 530 - 1710 kHz; FM: 87.5 - 108

MHz

Channel Power Rating: 90 Watts Per Channel x 7 (8

ohms 20 Hz-20kHz, THD 0.09%)

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s): x2
Component Video (Y/Pb/Pr) Output(s): x1
S-Video Input(s): x3
S-Video Output(s): x2
Composite Video Output(s): x2
Composite Video Input(s): x4 (3 Rear, 1 Front)
Optical Audio Input(s): x4 (3 Rear, 1 Front)
Optical Audio Output(s): x1
Coaxial Audio Digital Input(s): x2
RCA Audio Input(s): x7 (6 Rear, 1 Front)
RCA Audio Output(s): x2
Multi-Channel Input(s): x1 (5.1 channel)
Subwoofer Output(s): x1
Antenna Terminal(s): x1 AM Clip Type
RF Connection Input(s): x1 FM 75ohm Antenna
Headphone Jack: 1/4"
AC Outlet: x1 Switched

Power

Power Requirements: AC120V, 60 Hz
Power Consumption: In use: 220 Watts; Standby: 0.2

Watts

STR-DE698

Weight

19 lbs, 13oz (9 Kg)

Dimensions (WHD)

17"x 6-1/5" x 14-9/16" (430 x 157.5 x 370mm)

UPC Code

0272426671050

©20 05 So ny El ectro nics Inc .
Son y, Re mote Com mande r and Di gital Ci nema Sou nd ar e tra demar ks
of Son y. Do lby, Dol by Di gital , Pro Logic ar e reg ister ed tr adema rks o f
Dol by La borat ories . dts is a tra demar k of Dig ital The ater Sys tems, L. P.
All ot her t radem arks are pr opert y of the ir re spect ive o wners .
Fea tures an d spe cific ation s are su bject to ch ange wit hout not ice.

®
