Overview
This user’s guide explains how to operate the Network Camera from a computer. User
should read this manual completely and carefully before you operate the device.
Introduction
This camera is an inexpensive and fully scalable surveillance device. Because the
Network Cameras can be plugged into your existing local area network (LAN), you will
potentially save thousands of dollars from unnecessary cabling.
The device is accessible via the LAN or Internet connection. Connect your device
directly to a local area network or xDSL modem, and wi th Microsoft® Internet Explorer
you get instant, on demand video streams. Within minutes you can set up the device to
capture a video sequence to a PC. The live video can be u ploaded to a website for the
world to see.
Features
z Superior quality SONY HQ1 1/3” CCD, 540TVL
z CS mount for camera lens
z DC Iris control
z Composite video output
z Easy installation with setup wizard
z Dynamic IP Service, DIPS®, to search your IP camera from Internet easily
z MPEG4 and JPEG video compression simultan eously
z Multi-profile encoder
z UDP / TCP / HTTP protocols selectable
z 802.3af PoE support (option)
z 3GPP for 3G mobile remote application
z 30 fps for all resolutions
z Two-way audio
z Digital zoom
z Built-in and external microphone
z Sensor input and alarm output
z Intelligent motion detection
z Voice alerting while motion triggered
6/83
Network Camera User’s Guide
z Image transmission using an FTP or e-mail for event
z DDNS and PPPoE
z Support UPnP device discovery and NAT router transversal
z Multi-channel control software for surveillance application
z On-line firmware upgrade
Minimum System Requirements
z Microsoft Internet Explorer 6.0 or later
z VGA Monitor resolution 1024 x 768 or higher
z Pentium-4, 2.0 GHz or higher
z Memory Size: 512MB or more
z Windows 2000, XP, Vista
7/83
Network Camera User’s Guide
Package Contents
User can find the following items in the package:
Item Descriptions
1. This Unit is the main el ement of the product.
2. Camera Mount Kit and pads
3. Power Adapter dedicates 12V
DC electric power output to
Network Camera.
4. User’s Manual CD provides
important information and
instructions for operating the
Network Camera..
5. Quick Start Guide provides
important information and
instructions for installing this device.
If any of the above items are missing, please contact your dealer immediately.
Note: Using a power supply with a different voltage than the one included with the
Network Camera will cause damage and void the warranty for this product.
8/83
Network Camera User’s Guide
Physical Description
Front View
Lens
Internal
Lens
User could adjust the focus to get the best picture quality.
Internal Microphone
The Camera has built-in an internal microphone. This microphone is hidden in the
pinhole located on the front panel.
Rear View
Audio Output Jack
Audio-out Jack allows this device to output audio for two-way communication or alertin g
sound.
DC Power Jack
The input power is 12VDC. Note that supply the power to the Camera with the power
adapter included in package. Otherwise, the imprope r power adapter may damage the
unit and result in danger.
9/83
Network Camera User’s Guide
Video Out
Audio
Output Jack
Jack
Factory
Default Reset
DI/DO
DC Power
DC Iris
LAN Socket
The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or
100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or
negotiate the transmission speed of the network automatically. Please use Category 5
“straight through” cable to connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub. Note that, in case you need to connect the device to PC or
notebook directly, you should use “cross-over” cable instead.
Factory Default Reset
This button is hidden in the pinhole. Please refer to the Ap pendix A in this manual for
more information.
Power & LAN LED (green c ol or )
This LED is used to indicate whether DC power is on or not. In addition, this LED will be
flashing while network accessing via Ethernet.
LAN Socket
External MIC
Jack
Power &
LAN LED
Connector
DI/DO Connector
The Camera provides a terminal block with 4 pins of connectors for DI and DO. Please
refer to the Appendix B in this manual for more information.
External Microphone
The Camera also supports external microphone. User can plug in an external
microphone to pick up voice more.
Local Video Output (RCA connector)
The Camera also provides composite video o utput. User can use cable to connect the
Camera with a TV monitor or VCR.
DC Iris
The Camera provides Iris control interface which can connect to DC-driver Iris lens.
10/83
Network Camera User’s Guide
Install the Camera in LAN
1. Attach the Camera with the included stand
2. Fix camera to desired location with stand
Fixed it by
3. Plug an Ethernet cable into the Camera
Connect an Ethernet cable to the L AN socket located on the camera ’s rear and a ttach it
to the network.
Ethernet
Cable
11/83
Network Camera User’s Guide
4. Connect the external power supply to Camera
Connect the attached power adapter to the DC power jack o f the camera . Note: Use the
power adapter, 12VDC, included in the package and connect it to wall outlet for AC
power.
Power
Cable
Once you have installed the camera well and powered it on, the power LED will turn on.
It means the system is booting up successfully. Furthermore, if you have a proper
network connection, and access to the camera, the LED will flash green under wired
mode.
5. Done
12/83
Network Camera User’s Guide
Preparation
Search and Set up by IPWizard
When you installed the Camera on a LAN environment, you have two easy ways to
search your Cameras by IPWizard or UPnP discovery. Here is the way to execute
IPWizard to discover Camera’s IP address and set up related parameter in a Camera.
Search
When click Search button, a searching window will pop up. IPWizard is starting to
search Network Cameras on the LAN . The mes sage “No Network Camera Is Foun d” will
appear on this window if IPWizard can not find any device on the LAN. Otherwise,
existed devices will be listed as below.
13/83
Network Camera User’s Guide
If IPWizard finds network devices, Wizard button will be available. Please select the
device you want to set-up or connect and click the left button of the mouse on the
Information Box. The words on the Information Box will turn from white to yellow which
means this device is selected. Or you cou ld double c lick the left button to connec t to the
network device. Relative settings will be carried out after you press Installation Wizard.
Details of Installation Wizard will be specified as below.
Wizard
14/83
Network Camera User’s Guide
When Wizard button is available, you can proceed to set up relative settings on the
selected device. Further procedures can be c arried out when device is available on the
LAN.
After pressing Installation Wizard, please key in authorized username of the device and
password when login dialog box appears on the screen. You can login the setting page if
authorized name and password is approved.
Wizard page 1: Username and Password
This page is about the change of the authorized name and password of the selected
device. If you don’t want to change them for the time being, please click on “Next” to
move to the next page. Press “Exit” button if you don’t want to set up right now. If you
want to change authorized username or password, you have to click on the box.
Authorized username should contain at least 5~20 characters and password should
contain at least 4~8 characters.
Wizard page 2: LAN Setting
15/83
Network Camera User’s Guide
Wizard page 3: Confirmation
This page shows the information of the selected device to check if there is an y mistake
or not. If it is correct, please press “Submit” button and the setting information will be
uploaded to the selected device. Click on “Exit” b utton i f you don’t w ant to se t i t up ; Click
on “Prev.” button to go back to the previous page for the modification.
16/83
Network Camera User’s Guide
Using UPnP of Windows® XP or Vista
UPnP™ is short for Universal Plug and Play, which is a networking architecture that
provides compatibility among networking equipment, software, and peripherals. This
device is an UPnP enabled device. If the operating system, Windows XP or Vista, of
your PC is UPnP enabled, the Network Camera will be very easy to be found.
Please refer to Appendix K to enable UPnP settings on ly if your operating s ystem of PC
is running Windows XP.
Note: Windows 2000 does not support UPnP feature.
To discover your device, go to your Desktop and click My Network Places.
Click the targete d Device. Then Internet Explorer will connect to this Network Camera
automatically.
17/83
Network Camera User’s Guide
Install the Device behind a NAT
Router
Once installed, the device is accessible on your LAN. To access the device from the
Internet you must configure your broadband router to allow incomin g data traffic to the
device. If the device is installed on the LAN with a rou ter, then it may get a dynamic IP
address from the DHCP server. However, if the device wants to be accessed from the
WAN, its IP address needs to be s etup as fixed IP, also the port forwarding or Virtual
Server function of router needs to be setup.
However, if your NAT router supports UPnP feature, it can be very easy to achieve NAT
traversal automatically. To do this, enable the NAT-traversal fea ture, which will attempt
to automatically configure the router to allow access to the camera.
Installing the device with an UPnP router on your network is an easy 3–step procedure:
(1) Enable UPnP option of your NAT router (2) Enable UPnP NAT traversal option of the Network Camera
(3) Access your Network Camera by DIPS
(1) Enable UPnP option of your NAT router
To use UPnP IGD function (NAT traversal), you need to mak e sure the U PnP function is
enabled in your router. Most new home routers should support this function. Some of
routers are default enable and others are not. Please check use r’s manual of your NAT
router for detail.
(2) Enable UPnP NAT traversal option of the Network Camera
Refer to Setting Î Network Î UPnP page for detail NAT traversal setting.
(3) Access your Network Camera by DIPS
Refer to Setting Î System Î System page for detail DIPS information.
18/83
Network Camera User’s Guide
Access the device from the Internet
Explorer for the first time
1. Start the web browser on the computer and type the IP address of the Camera you
want to monitor as below:
The Login Window of the Camera is prompted:
2. Type in your login name and password under “USERNAME” and “PASSWORD”
textbox.
For the first time use (default value), input the
User Name: admin
Password:
That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD
textbox blank. Click “OK” button to start the main menu.
19/83
Network Camera User’s Guide
3. According your browser’s security setting, the IE Web Page may prompt the
“Security Warning” window. If so, select “Yes” to ins tall and run the ActiveX control into
your PC. Otherwise, the system will load the ActiveX silently.
4.After the ActiveX control was installed and ran, the first image will be displayed.
Logging in as an User
If you log in the Camera as an ordinary User, “Setting” function will be not accessible.
Logging in as an Administrator
If you log in the Camera as the Administrator, you can perfor m all the settings provided
by the device.
20/83
Network Camera User’s Guide
p
Operating the Network Camera
Start-up screen will be as follow no matter an ordinary users or an administrator.
Video
Profile
Streaming
Protocol
Language
Setting
Menu
2-Way
Audio
ActiveX
Control
Monitor Image
Section
Vertical
Fli
Status Bar De-Interlace
Monitor Image Section
The image shot by the device is shown here. The date and time are displayed at the top
of the window.
Video Profile
The device supports either mega-pixel or multi-profile mode for both MEPG4 and JPEG
simultaneously. User can chose the proper and/or preferred profile which is listed here.
21/83
Network Camera User’s Guide
Streaming Protocol
User can select proper streaming protocol according to networking environment.
Language
The device could provide multiple languages to meet customer’s requirement.
De-Interlace
The device also supports de-interlace function inside ActiveX. User can chose to enable
or disable this function by toggling the icon below.
: Disable de-interlace function.
: Enable de-interlace function.
2-W ay Audio
The device supports 2-way audio function. User can chose to enable or disable this
function by toggling the icon below.
: Disable audio uploading function.
: Enable audio uploading function.
Vertical Flip
According to camera position, user might need this function to correct the view angle
avoiding upside down. User can chose to enable or disable this function by toggling the
icon below.
: Disable vertical flip function.
: Enable vertical flip function.
22/83
Network Camera User’s Guide
Status Bar
Shows information of the connected device such as encoder format, image resolution,
frame per second, and bitrate.
ActiveX Control
The plug-in ActiveX control supports a lot of functions by cli cking the left mouse button.
Note that this feature only supports on the ActiveX control within Microsfoft® Internet
Explorer.
On the ActiveX control icon, click the LeftMouseButton, then a menu pop-up. This menu
provides features that are unique to the ActiveX control. These features include:
• “Digital Zoom”,
• “Record”,
• “Snapshot”,
• “Voice”,
• “Statistics”,
• “About”
23/83
Network Camera User’s Guide
Digital Zoom
Click Digital Zoom to active this function as above. User can drag or scale the box over
the video to adjust zoom ratio and position.
Record
24/83
Network Camera User’s Guide
Click Record to activate this function. Press Record bu tton to start record ing. The video
file is saved as ASF format into your local PC. While you w ant to stop it, press Stop to
stop recording. Select Browser, the pop-up window to select the save path and file
name prefix, select OK to continue.
After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.asf
The ASF files can be display by the standard Windows Media Player, but it needs the
DixectX 9.0 or later version to be installed.
Snapshot
Click Snapshot to activate this function. Press Snapshot button to take a picture. The
image file is saved as JPEG format into your local PC. Select Browser, the pop-up
window to select the save path and file name prefix, select OK to continue.
If you like to retrieve the saved image, select the file to display the save d i mage b y using
any one of graph editing tools.

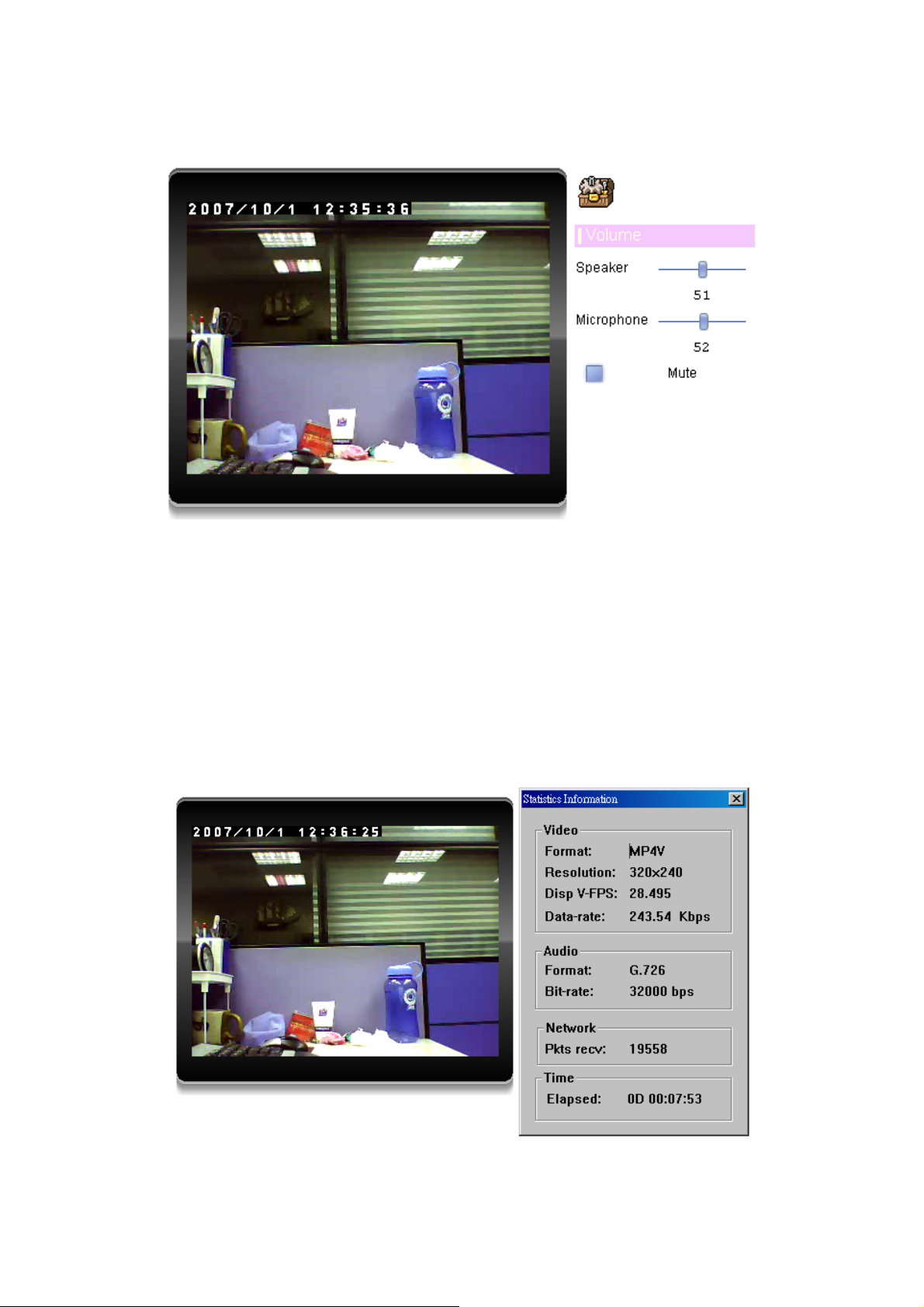

Voice
25/83
Loading...
+ 58 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
