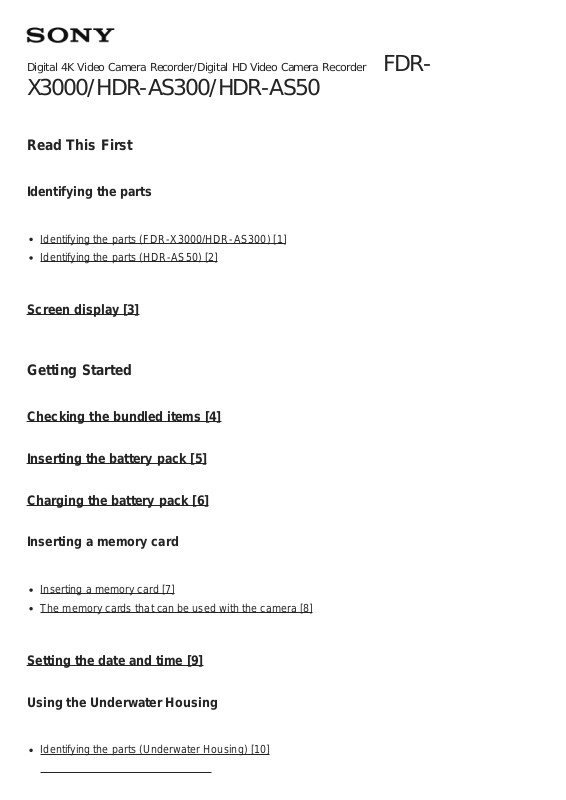

Digital 4K Video Camera Recorder/Digital HD Video Camera Recorder

X3000/HDR-AS300/HDR-AS50

Read This First

Identifying the parts

Screen display [3]

Getting Started

Checking the bundled items [4]

Inserting the battery pack [5]

Charging the battery pack [6]

Inserting a memory card

Setting the date and time [9]

Using the Underwater Housing

Identifying the parts (FDR-X3000/HDR-AS300) [1] Identifying the parts (HDR-AS50) [2]

FDR-

Inserting a memory card [7] The memory cards that can be used with the camera [8]

Identifying the parts (Underwater Housing) [10]

Using the Underwater Housing [11]

On waterproof performance of the Underwater Housing [12]

Using accessories

Shooting

Shooting movies and still images

Changing the Settings

List of setting items

Shooting settings

Notes on use for the Underwater Housing [13] Water leakage [14] Waterproof packing [15] How to check for water leaks [16] Maintenance [17]

Using the attachment buckle [18] Notes on using the adhesive mount (sold separately) [19]

Shooting movies (Movie mode) [20] Shooting still images (Photo mode) [21] Time-lapse capture mode [22] Loop recording mode [23] Using the zoom [24] Notes on long-time recording [25]

List of setting items [26] How to set the setting items [27]

Image quality setting [28]

Camera settings

Movie format [29] Time-lapse capture image size [30] Loop recording time [31] Still image mode switching [32] Still image shooting interval [33] Self-timer [34] Time-lapse shooting interval [35] Time-lapse shot number [36] SteadyShot (Movie) [37] SteadyShot (Still) (FDR-X3000/HDR-AS300) [38] Angle setting [39] Zoom setting [40] Flip [41] AE shift [42] Time-lapse AE mode [43] Scene [44] White balance [45] Color mode [46] Audio recording setting [47] Wind noise reduction [48]

Airplane mode [49] Wi-Fi connection setting [50] Wi-Fi Hi power setting [51] Bluetooth setting [52] Bluetooth remote controller power setting [53] GPS log (FDR-X3000/HDR-AS300) [54] Format [55] Time code/user bit (FDR-X3000) [56] IR remote (FDR-X3000) [57] HDMI settings (FDR-X3000/HDR-AS300) [58] USB power supply [59] Beep [60] Beep volume [61] Lamp setting [62]

One touch recording [63]

Viewing

Viewing images on a TV (FDR-X3000/HDR-AS300) [71]

Viewing using the Live-View Remote [72]

Delete [73]

Create your movie

Highlight Movie Maker

Stream real-time movie to a movie streaming site

Live Streaming with your camera (Real time movie streaming)

Auto power off [64] Switching NTSC/PAL [65] Date & time setting [66] Area setting [67] Daylight saving time (summer time) setting [68] Version [69] Resetting the settings [70]

Creating the highlight movie [74] Importing the BGM [75]

Live Streaming [76] Preparing for Live Streaming [77] Performing Live Streaming [78] Restrictions [79]

Using the camera connected to other devices via Wi-Fi

Connecting to your smartphone

Connecting to the Live-View Remote

Connecting to Handycam

Editing images imported to your computer

Using the Action Cam Movie Creator

Preparation for connecting to your smartphone [80] Sample smartphone screen display [81] Using One-touch Functions to Connect to an NFC-enabled Android Smartphone (FDR-X3000/HDR-

AS300) [82] Connecting a smartphone to Wi-Fi via QR Code (Android device) [83] Performing the Wi-Fi setting on a smartphone via QR Code (iPhone/iPad) [84] Connecting to a smartphone using ID/password (Android device) [85] Connecting to a smartphone using ID/password (iPhone/iPad) [86]

Connecting a single camera to Live-View Remote (Single connection) [87] Connecting multiple cameras to Live-View Remote (Multi connection) [88]

Connecting a single camera to Handycam (Single connection) [89] Connecting multiple cameras to Handycam (Multi connection) [90]

Useful functions of Action Cam Movie Creator [91] Installing Action Cam Movie Creator on your computer [92]

Editing images imported to your smartphone/tablet

Using the Action Cam App

Information

Recordable time

Battery pack

Using the camera abroad

Precautions

Useful functions of Action Cam App [93] Installing Action Cam App [94]

Estimated duration of recording and playback for supplied battery pack [95] Estimated recording time of movies [96] Estimated number of recordable still images [97]

On charging the battery pack [98] Effective use of the battery pack [99] About the remaining battery charge [100] How to store the battery pack [101] On battery pack life [102] To reduce the battery consumption [103]

On TV color systems (FDR-X3000/HDR-AS300) [104] Countries and regions where NTSC TV is used [105] Countries and regions where PAL TV is used [106] The list of time differences for world capitals [107]

Do not use/store the camera in the following places [108]

Specifications [120]

Trademarks [121]

Notes on License

List of Default Setting [123]

Troubleshooting

Troubleshooting [124]

Battery pack and power

On carrying [109] Care and storage of the lens [110] On cleaning [111] On operating temperatures [112] On moisture condensation [113] Notes on optional accessories [114] On using the camera in close proximity to vibrating motors and engines (FDR-X3000/HDR-AS300)

[115] Note on disposal/transfer of the memory card [116] On GPS (FDR-X3000/HDR-AS300) [117] On GPS errors (FDR-X3000/HDR-AS300) [118] On GPS use restriction (FDR-X3000/HDR-AS300) [119]

On GNU GPL/LGPL applied software [122]

Cannot turn on the camera. [125] The power turns off suddenly. [126] Battery life is short. [127] Cannot charge the camera. [128]

The remaining charge indicator is incorrect. [129]

Memory card

Shooting images

Viewing images

GPS

Computers

Wi-Fi

Operations using the memory card cannot be performed. [130]

Cannot record images. [131] Cannot insert dates on images. [132]

Cannot playback images. [133] The image does not appear on the TV. (FDR-X3000/HDR-AS300) [134]

The camera is not receiving a GPS signal. (FDR-X3000/HDR-AS300) [135] Excessive error in location information. (FDR-X3000/HDR-AS300) [136] It takes time to triangulate although the GPS assist data is taken in. (FDR-X3000/HDR-AS300)

[137] The location information has not been recorded. (FDR-X3000/HDR-AS300) [138]

Your computer does not recognize the camera. [139] Cannot import images. [140] Action Cam Movie Creator cannot be installed. [141] Action Cam Movie Creator does not work correctly. [142] Cannot play back images on your computer. [143]

It takes too much time to transfer an image. [144]

Others

Warning indicators and messages

Warning indicators and error messages [148]

[1] Read This First

Identifying the parts (FDR-X3000/HDR -AS300)

The lens gets fogged. [145] The camera becomes warm when you use it for a long time. [146] The date or time is incorrect. [147]

Identifying the parts

[2] Read This First

Identifying the parts (HDR- AS50)

*1 *2

(on/standby) button

GPS sensor IR remote receiver (FDR-X3000) MENU button Display panel UP button/DOWN button REC lamp REC (Movie/still image) button/ENTER (Menu execute) button REC/LIVE lamp

(N Mark)

Lens

Speaker

Microphones

HDMI OUT jack

Multi/Micro USB terminal

Mic jack

CHG (Charge) lamp

Battery cover

Battery housing

Battery ejection lever

Connector cover (HDMI OUT jack, Multi/Micro USB Terminal/Mic jack)

REC lamp

Lock lever

Screw hole for tripod

Access lamp

Memory card insertion slot

Memory card cover

. .

When an external microphone (sold separately) is connected, audio cannot be recorded through the built-in microphone. The length of the corresponding tripod screw should be less than 5.5 mm (7/32 in.).

Identifying the parts

(on/standby) button

MENU button Display panel UP button/DOWN button REC lamp REC (Movie/still image) button/ENTER (Menu execute) button REC/LIVE lamp Lens Speaker Microphones Multi/Micro USB terminal

CHG (Charge) lamp

Battery cover

Battery housing

Battery ejection lever

Connector cover (Multi/Micro USB terminal)

REC lamp

Lock lever

Screw hole for tripod

Access lamp

Memory card insertion slot

Memory card cover

. .

The length of the corresponding tripod screw should be less than 5.5 mm (7/32 in.).

[3] Read This First

Screen display

The indicators described below are displayed on the camera. This screen display is an example of when shooting movies.

Display icons at 1

Display icons and value at 2

Display items at 3

Display icons at 4

: Wi-Fi connection setting (single connection)

: Wi-Fi connection setting (multi connection)

: Bluetooth is connected

: Searching for GPS satellites to receive GPS signals. Location information cannot be received.

(FDR-X3000/HDR-AS300)

: Recording location information available by triangulating (FDR-X3000/HDR-AS300)

: Temperature of the camera is increased

: Battery level indicator of camera

: Airplane mode enabled

: Movie format

: Frame rate during movie shooting

: SteadyShot

: Time-lapse shot number

: Streaming viewers

Numbers of streaming viewers

: Still image mode

: Self-timer

: Audio recording is set to OFF

Recordable time, recording time, loop recording time Number of recordable still images, time-lapse shot number ON AIR: Streaming start Warning/Error message

: Movie mode : Photo mode

: Time-lapse capture mode

: Live streaming mode

[4] Getting Started

Checking the bundled items

Make sure that you have following bundled items. The number in parentheses indicates the quantity of that item bundled.

: Loop recording mode

: Angle setting

: Zoom ratio

: UP button/DOWN button operation guide (zoom switching, shooting mode switching, invalid

operation)

Camera (1) The camera is set in the Underwater Housing. Open the cover of the case as illustrated below.

Micro USB cable (1)

Rechargeable battery pack (NP-BX1) (1)

Underwater Housing (1)

Attachment Buckle (1)

[5] Getting Started

Inserting the battery pack

Startup Guide (1) Reference Guide (1)

Slide down the lock lever to open the battery cover.

Insert the battery pack.

：Align the direction of the arrow on the camera and the battery pack.

Close the battery cover and slide the lock lever up to lock.

To remove the battery pack

Open the cover and slide the battery ejection lever, then remove the battery pack.

To set auto power off function

It is recommended that you set the camera to turn off automatically, in order to decrease the battery consumption. Press the

Settings) button.

The default setting is power off

[6] Getting Started

Charging the battery pack

Confirm that the yellow mark on the lock lever is not visible.

Close the battery cover securely. Not doing so may cause a water leakage.

MENU button, then press the UP button or DOWN button to select the (Camera

(Auto power off) - time until the power is turned off, then press the REC/ENTER

(60 seconds). Change the setting as necessary. For details, see “Auto

”.

Turn off the power of the camera.

Charging is not possible when the camera is turned on.

Open the connector cover, connect the camera to an activated computer with the

micro USB cable (supplied).

The CHG (Charge) lamp lights in amber.

: Connector cover : Micro USB cable : CHG (Charge) lamp

The time takes for charging

Supplied battery pack (NP-BX1)

Checking the remaining battery charge

A remaining charge indicator appears on the upper right of the display panel.

The displayed remaining charge indicator may not be correct under certain circumstances.

When charging is finished, disconnect the micro USB cable between the camera and

the computer.

Charging is complete when the CHG (Charge) lamp turns off (full charge).

Via a computer: Approx. 265 minutes

Time required to charge a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer under certain circumstances or conditions.

It takes about one minute until the correct remaining charge indicator appears.

Note

You can use only type X battery with this camera. Turn off the camera while charging the battery. The charging stops when you turn on the camera while

charging. Do not apply force to the camera when you connect the camera to a computer. This may cause damage to

the camera or the computer. When you connect the camera to a notebook computer that is not connected to an AC power source, the

battery of the notebook computer may be depleted rapidly. Do not leave the camera connected to the computer for a long time.

Charging the battery pack or the connection with customized or hand-built computers is not guaranteed. Depending on the type of USB device used, charging may not function properly.

Operation with all computers is not assured. If you do not intend to use the camera for an extended period, charge the camera once every 6 to 12

months or remove the battery pack from the camera to maintain battery performance. Rapid charging is possible by using the AC adaptor (sold separately). To connect the AC adaptor, use the

micro USB cable (supplied).

[7] Getting Started

Inserting a memory card

To eject the memory card

Open the cover, then lightly push the memory card once.

Open the memory card cover.

Insert the memory card until it clicks.

microSD card/microSDHC card/microSDXC card: Insert in the direction of Memory Stick Micro (M2) media: Insert in the direction of

: Printed side : Terminal side

Close the memory card cover.

Note

Insert the memory card properly, confirming each side is facing the correct direction. Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction, the

memory card, memory card slot, or image data may be damaged. Format the memory card in the camera before use.

Save important data on the memory card on other media such as a computer, before formatting the memory

card.

[8] Getting Started

The memory cards that can be used with the camera

The memory cards that can be used with the camera are listed below.

*1 *2

Do not insert anything other than the compliant size of memory card into the memory card slot. Otherwise, a malfunction may result.

When inserting or ejecting the memory card, be careful to prevent the memory card from popping out and dropping.

Inserting a memory card

Memory card MP4 XAVC S

Memory stick micro (M2)

microSD memory card

microSDHC memory card

microSDXC memory card

SD speed class4: Memory card that satisfies all the conditions below.

4 GB or more capacity. SD speed class10:

If you want to record more than 100 Mbps, UHS speed class 3:

or faster, or UHS speed class1: or faster.

(Mark2 only)

*1 *2

or faster, or UHS speed class1 : or faster.

—

is necessary. (FDR-X3000)

Note

When you shoot long time with XAVC S or MP4 to the SDHC memory card, the file will be divided into 4 GB files. By using the Action Cam Movie Creator, you can unify the data and treat as 1 file.

To playback the divided files with the camera, it will be played back continuously. (FDR-X3000/HDR-AS300) Operation with all memory cards is not assured. For details about memory cards other than cards

manufactured by Sony, contact the individual makers. Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction, the

memory card, memory card slot, or image data maybe damaged. Format the memory card with the camera before use. Confirm that the connector cover and the battery pack/memory card cover are securely closed and any

foreign matter is not stuck in the cover before use. Otherwise, it may result in water immersion.

[9] Getting Started

Setting the date and time

Press the area/summer time/date and time will be displayed on the screen. Use the camera after setting the

date and time.

[10] Getting Started

Identifying the parts (Underwater Housing)

(on/standby) button to turn on the camera for the first time, the setting for

Press the UP button or DOWN button to select the setting, then press the

REC/ENTER button.

The following items are displayed on the screen in order.

: Area setting

: Daylight saving time (summer time) setting

Year/Month/Day Time setting

When the date and time/area confirmation screen is displayed, press the REC/ENTER

button.

Hint

The area is determined by the time difference in your area and Greenwich Mean Time (GMT). For the time difference, see “The list of time differences for world capitals”.

These settings can be performed on the camera settings. See “Date & time setting”, “Area setting” and “Daylight saving time (summer time) setting”.

Using the Underwater Housing

FDR-X3000/HDR-AS300

HDR-AS50

Case body

(on/standby) button

[11] Getting Started

Using the Underwater Housing

By inserting the camera in the Underwater Housing, you can shoot images underwater up to a depth of 60 m (197 feet) for 30 minutes continuously.

Leash attachment hole

(on/standby)/REC HOLD switch

REC (movie/still image) button/ENTER (menu execute) button Case cover MENU button Tripod screw hole UP button DOWN button Buckle lock

Buckle

Lead

Adaptor (HDR-AS50)

Waterproof packing

. .

Using the Underwater Housing

Slide the buckle lock in the direction of and hold it, then hold the circled parts

and swing out the buckle in the direction of

Open the case cover.

Insert the camera in the case body.

Insert the tab of the case body into the slot of the case cover.

Hook the buckle over the tab on the lower part of the case cover , then close the

buckle in the direction of

Make sure the buckle and buckle lock are firmly locked. (If you do not lock it securely, water may leak, or the camera may fall out.)

Note

Thread a suitable cord through the leash attachment hole of the Underwater Housing, then attach the cord

You cannot operate the (on/standby) button and REC/ENTER button when the REC HOLD switch is set to the lock position. Release the lock in the direction of the arrow below, before operation.

When using FDR-X3000/HDR-AS300 with the Underwater Housing supplied with HDR-AS50, detach the adaptor (

) from the Underwater Housing.

When using HDR-AS50, be sure that the adaptor is attached to the Underwater Housing. If the adaptor is not attached, the images that you shoot may be affected.

You can record audio while the camera is in the Underwater Housing, but the sound level is reduced.

to an item you intend to use with the camera.

[12] Getting Started

On waterproof performance of the Underwater Housing

Using the Underwater Housing

When the camera is inserted in the supplied Underwater Housing, the camera can shoot up to a water depth of 60 m (197 feet) for 30 minutes continuously. The waterproof performance is based on the testing standards of our company. Do not subject the Underwater Housing to pressurized water, such as from a tap. Do not use the Underwater Housing in hot springs. Use the Underwater Housing in water that is less than 40°C (194°F). Sometimes waterproof performance is lost if the Underwater Housing is subjected to a strong shock such as from being dropped. We recommend the Underwater Housing be inspected at an authorized repair shop (chargeable). Waterproof performance in all situations is not guaranteed.

Anti- fog sheet (AKA-AF1 (sold separately))

Insert the anti-fog sheet indoors with low humidity. Insert the anti-fog sheet in the camera a couple of hours before shooting. If you do not use the anti-fog sheet, place it in a bag and keep the top sealed. By drying the anti-fog sheet sufficiently, you can use it approximately 200 times repeatedly.

Note

When inserting the anti-fog sheet (AKA-AF1), place the camera into the Underwater Housing, then place the anti-fog sheet in the gap on the bottom of the camera and the Underwater Housing.

If you place the anti-fog sheet before placing the camera, the anti-fog sheet may be sandwiched and make it difficult to take out the camera.

: Anti-fog sheet

[13] Getting Started

Using the Underwater Housing

Notes on use for the Underwater Housing

[14] Getting Started

Water leakage

In the unlikely event that a malfunction of the Underwater Housing causes damage due to water leakage, Sony does not guarantee against damages to the equipment contained in it (camera, battery pack, etc.) and the recorded contents, nor expenses entailed in the photography.

[15] Getting Started

Waterproof packing

The camera uses an waterproof packing to maintain its water resistance. The waterproof packing maintenance is very important. Failure to do waterproof packing maintenance according to the instructions may lead to water leaks and cause the camera to sink.

Inspecting the waterproof packing

Do not throw the Underwater Housing into the water. Avoid using the Underwater Housing under the following situations. In these situations moisture condensation or water leakage may occur and damage the camera. In a very hot or humid place In water hotter than +40°C (104°F) At temperatures lower than –10°C (14°F) Do not leave the Underwater Housing under direct sunlight or in a very hot and humid place for a long period of time. If you cannot avoid leaving the Underwater Housing under direct sunlight, be sure to cover the Underwater Housing with a towel or other protection. When the camera overheats, it may be automatically turned off or recording may malfunction. To use the camera again, leave it in the cool place for a while to cool down. If sun oil is on the Underwater Housing, be sure to wash it off thoroughly using lukewarm water. If the Underwater Housing is left with sun oil on its body, the surface of the Underwater Housing may become discolored or damaged (such as cracks on the surface).

Using the Underwater Housing

Carefully check that there is no dirt, sand, hair, dust, salt, threads, sea water, etc., on the waterproof packing. If found, be sure to wipe off with a soft cloth. Lightly run your fingertip around the waterproof packing to check for any invisible dirt. Be careful not to leave any cloth fibers on the waterproof packing after wiping it. Check the waterproof packing for cracks, skewing, distortion, fine splitting, scratches, embedded sand, etc. Inspect the waterproof packing contact surface on the case body in the same way.

Note

[16] Getting Started

How to check for water leaks

Before installing the camera, always close the Underwater Housing and immerse it in water to make sure no water leaks in.

When finding a malfunction of Underwater Housing

If a malfunction is found by inspection of the waterproof packing or check for water leaks, stop using the camera immediately and take it to the nearest Sony dealer.

[17] Getting Started

Maintenance

Be sure to perform the above maintenance each time you use the Underwater Housing. Do not use any type of solvent such as alcohol, benzine or thinner for cleaning, as this might damage the surface finish of the Underwater Housing.

Water leaks may occur if you use the Underwater Housing while dirt, sea water, or other foreign objects are adhered to the “1. waterproof packing”. Before use, be sure to check that there is no dirt, sea water, or other foreign object adhered to the “1. waterproof packing” and be sure to check that there are no water leaks by following the instructions in “How to check for water leaks”.

Using the Underwater Housing

After recording in a location with a sea breeze, wash the camera thoroughly in fresh water with the buckle fastened to remove salt and sand, then wipe with a soft dry cloth. It is recommended that you submerge the Underwater Housing in fresh water for about 30 minutes. If it is left with salt on it, metal portions may be damaged or rust may form and cause water leakage. If sun oil is on the Underwater Housing, be sure to wash it off thoroughly using lukewarm water. Wipe the inside of the Underwater Housing with a soft dry cloth. Do not wash it with water.

When storing the Underwater Housing

[18] Getting Started

Using the attachment buckle

The attachment buckle is used for fixing the camera or Underwater Housing to an optional accessory you intend to use.

The procedure for fixing the attachment buckle to the Underwater Housing is explained here.

To detach the attachment buckle from the accessory

Press and hold the circled parts of the attachment buckle to unlock, then slide it in the opposite direction of step 2.

To prevent deterioration of the waterproof packing, store the Underwater Housing in a cool, wellventilated location. Do not fasten the buckle. Prevent dust from collecting on the waterproof packing. Avoid storing the Underwater Housing in a cold, very hot or humid place, or together with naphthalene or camphor, as these conditions might damage the Underwater Housing.

Using accessories

Align the tripod screw hole in the bottom of the Underwater Housing with the tripod

screw of the attachment buckle, and fix firmly with the tripod screw.

Attach the attachment buckle to the accessory by sliding it until it clicks into place.

Example of optional accessory attachment

Universal head mount kit BLT-UHM1

Backpack Mount VCT-BPM1

[19] Getting Started

Notes on using the adhesive mount (sold separately)

The adhesive mount is used for fixing the camera to an item you intend to use. The adhesive mount is general term for the attachment buckle, flat adhesive mount, and curved adhesive mount.

Note

Thread a suitable leash through the leash attachment hole of the Underwater Housing, then attach the leash to an item you intend to use with the camera.

Before use, confirm that the screw on the attachment buckle is not loose.

Using accessories

Press firmly on the adhesive portion.

The adhesive strength is greatest 24 hours after the item has been attached.

The flat adhesive mount and curved adhesive mount cannot be used again once they are

[20] Shooting

Shooting movies (Movie mode)

Record movies.

To stop shooting

Press the

detached from the location surface. When detaching, peel off slowly. If peeled off forcibly, the surface on which the mount is fixed might be damaged. Before attaching, check the surface of the item to be used. If it is dirty, or dust, moisture or oily substances are attached, adhesive strength may be impaired and the item could detach with slight impact. Use the appropriate adhesive mount (flat or curved) for the surface where the camera will be located. If the mount is not suitable for the surface, it may detach by slight impact. Before use, confirm that the screw hole on the attachment buckle is not loose, and the flat or curved adhesive mount is securely attached to the surface.

Shooting movies and still images

Press the (on/standby) button to turn on the power.

Press the MENU button.

Press the UP button or DOWN button to select mode), then press the REC/ENTER button.

Press the REC/ENTER button to start shooting.

The icon of the current selected shooting mode is displayed.

(shooting mode) - (Movie

REC/ENTER button during shooting.

Hint

While the one touch recording is set to ON, if you press the REC/ENTER button when the power is turned off, shooting starts in the previously selected shooting mode.

[21] Shooting

Shooting movies and still images

Shooting still images (Photo mode)

Record still images.

[22] Shooting

Time-lapse capture mode

The camera records still images at regular intervals and stops shooting when it reaches the set number.

Press the (on/standby) button to turn on the power.

Press the MENU button.

Press the UP button or DOWN button to select mode), then press the REC/ENTER button.

The icon of the current selected shooting mode is displayed.

Press the REC/ENTER button to shoot.

(shooting mode) - (Photo

Shooting movies and still images

Press the

Press the MENU button.

Press the UP button or DOWN button to select lapse capture mode), then press the REC/ENTER button.

The icon of the current selected shooting mode is displayed.

(on/standby) button to turn on the power.

(shooting mode) - (Time-

To stop shooting

[23] Shooting

Loop recording mode

The loop recording mode keeps recording according to the set time. The camera continuously keeps shooting in the shooting time set by the loop recording time.

Press the REC/ENTER button to start shooting.

If you select shooting.

Hint

To change the image size, see “Time-lapse capture image size.” To change the shooting interval, see “Time-lapse shooting interval.” To change the shot number, see “Time-lapse shot number.” When the Time-lapse shot number is set to

button to stop shooting. The still pictures you shot can be downloaded to the computer using “Action Cam Movie Creator” and you

can create a time-lapse movie. You can also create a time-lapse movie by downloading the still pictures to a smartphone, etc., using the smartphone/tablet application “Action Cam App”.

Shooting stops when the number set in the “Time-lapse shot number” has finished.

in the “Time-lapse shot number”, press the REC/ENTER button during

, the shooting continues until you press REC/ENTER

Shooting movies and still images

Press the

Press the MENU button.

Press the UP button or DOWN button to select recording mode), then press the REC/ENTER button.

The icon of the current selected shooting mode is displayed.

(on/standby) button to turn on the power.

(shooting mode) - (Loop

Press the REC/ENTER button to start shooting.

To stop shooting

Press the

[24] Shooting

Using the zoom

When the digital zoom is set to ON, the camera can zoom up to 3 times for shooting. Regardless the angle setting, you can always enlarge up to 3 times. The image quality will deteriorate due to digital processing.

REC/ENTER button during shooting.

Hint

The movies and still images shot before starting loop recording cannot be deleted. On the recording media life and the write time

If you keep long time recording at a high bit rate in the loop recording mode, the memory card life may be shorter significantly. If you lower the recording bit rate in long recording, you may minimize bad effects on the memory card life. If you record movies for a long time in the loop recording mode, data fragmentation may occar in the memory card. The camera may take time to write data and automatically stop recording. Formatting a memory card may improve the recording conditions. Also, you may minimize bad effects of the data fragmentation by formatting a memory card in advance to increase the free space of memory.

Loop recording cannot be started if the free space of the media could not secured. In that case, a warning [05-04] appears on the screen.

Shooting movies and still images

The zoom cannot be operated with the camera during movie shooting, loop recording, live streaming, or time-lapse capture. Operate the zoom from a smartphone connected to the camera or the Live-View Remote.

Be sure that

Press the UP button or DOWN button to change the zoom magnification.

is not displayed, check “Zoom setting”.

is displayed on the screen and the digital zoom is set to ON.

UP button: Telephoto DOWN button: Wide angle

A beep will be heard if it is set to ON.

Note

[25] Shooting

Notes on long-time recording

Describes long-time recording.

[26] Changing the Settings

List of setting items

The items that can be set differ depending on the shooting mode.

Items you can set in

When the camera is multi connected to the Live-View Remote, pressing the UP button or DOWN button controls the following operations.

Operation with the camera When

When Operation with the Live-View Remote

Switches the live view screen of the connected camera When zoom is used, the angle of view will be changed. Before shooting, check the angle of view on PlayMemories Mobile, then start shooting.

, changes the zoom magnification

, switches the shooting mode

Shooting movies and still images

When you continue to shoot for a long time, the temperature of the camera rises. If the temperature reaches above a certain level, shooting stops automatically. Leave the camera for 10 minutes or longer to allow the temperature inside the camera to decrease to a safe level. Under high ambient temperatures, the temperature of the camera rises quickly. When the temperature of the camera rises, the image quality may deteriorate. It is recommended that you wait until the temperature of the camera drops before continuing to shoot. Camera body may get warm with use - this is normal.

List of setting items

* (Shooting modes)

: Movie mode

: Photo mode

: Time-lapse capture mode

: Live streaming mode

: Loop recording mode

The icon of current selected shooting mode is displayed.

/ / / / (Shooting settings)

Setting items

Image quality setting

Movie format

Time-lapse capture image size

Loop recording time

Still image mode switching

(FDR-X3000/HDR-AS300)

Still image shooting interval

– – –

– – – –

–

– – –

(HDR-AS50)

Still image shooting interval

Self-timer

Time-lapse shooting interval

Time-lapse shot number

(FDR-X3000/HDR-AS300)

SteadyShot (Movie)

(HDR-AS50)

SteadyShot (Movie)

–

– – – –

– –

– – –

(FDR-X3000/HDR-AS300)

SteadyShot (Still)

Angle setting

–

– – –

Items you can set in

Zoom setting

Flip

AE shift

Time-lapse AE mode

Scene

White balance

Color mode

– – – –

– –

Audio recording setting

Wind noise reduction

: Airplane mode

: Wi-Fi connection setting

: Wi-Fi Hi power setting

: Bluetooth setting

: Bluetooth remote controller power setting

: GPS log (FDR-X3000/HDR-AS300)

: Format

: Time code/user bit (FDR-X3000)

: IR remote (FDR-X3000)

: HDMI settings (FDR-X3000/HDR-AS300)

: Back ground music

: USB power supply

: Beep

: Beep volume

: Lamp setting

: One touch recording

: Auto power off

: Switching NTSC/PAL

: Date & time setting

– –

(Camera Settings)

: Area setting

: Daylight saving time (summer time) setting

[27] Changing the Settings

How to set the setting items

You can set items using the following 4 buttons on the camera.

: Version

: Resetting the settings

This setting is only available in some countries and regions.

List of setting items

: MENU button

Displays the menu

: REC/ENTER button

Executes the menu

: UP button

Goes to the previous menu

: DOWN button

Goes to the next menu

Press the (on/standby) button to turn on the power.

To power off, press the

(on/standby) button again.

Press the MENU button.

Press the UP button or DOWN button to select the icon of the item, then press the

REC/ENTER button.

To retry, press

, then press the REC/ENTER button.

[28] Changing the Settings

Shooting settings

Image quality setting

You can set the image resolution and frame rate for shooting movies and loop recording. Image qualities that can be set depend on the “Movie format” setting.

Press the MENU button.

Press the UP button or DOWN button to select / (Shooting settings) -

(Image quality setting) - setting value, then press the REC/ENTER button.

Hint

Setting value The display changes according to NTSC/PAL switching setting.

When NTSC is selected, left side of / is displayed. When PAL is selected, right side of / is displayed. (Example) 1080 60p PS (NTSC)/1080 50p PS (PAL)

When movie format is set to (recording in MP4)

Recorded image: Highest resolution (smooth image recorded at 2× frame rate) Resolution: 1920×1080

Imaging frame rate Playback frame rate

Recorded image: Highest resolution Resolution: 1920×1080

Imaging frame rate Playback frame rate

Recorded image: High resolution Resolution: 1280×720

Imaging frame rate Playback frame rate

: 60p/50p

: 30p/25p

*2,*4

Recorded image: High speed recording (smooth image recorded at 4× frame rate)

Resolution: 1280×720 Imaging frame rate Playback frame rate

: 120p/100p

(FDR-X3000/HDR-AS300)

Recorded image: High speed recording (smooth image recorded at 8× frame rate) Resolution: 800×480

Imaging frame rate Playback frame rate

: 240p/200p

When movie format is set to (recording in XAVC S)

Recorded image: XAVC S 50 Mbps Resolution: 1920×1080

Imaging frame rate Playback frame rate

Recorded image: XAVC S 50 Mbps Resolution: 1920×1080

Imaging frame rate Playback frame rate

: 60p/50p

: 30p/25p

(only when switching NTSC/PAL is set to NTSC)

Recorded image: XAVC S 50 Mbps Resolution: 1920×1080 Imaging frame rate: 24p Playback frame rate: 24p

(FDR-X3000)

Recorded image: XAVC S 100 Mbps High speed recording Resolution: 1280×720

Imaging frame rate Playback frame rate

: 240p/200p

(FDR-X3000)

Recorded image: XAVC S 60 Mbps High speed recording Resolution: 1280×720

Imaging frame rate Playback frame rate

: 240p/200p

(FDR-X3000)

Recorded image: XAVC S 100 Mbps High speed recording Resolution: 1920×1080

Imaging frame rate Playback frame rate

: 120p/100p

(FDR-X3000)

Recorded image: XAVC S 60 Mbps High speed recording

Resolution: 1920×1080 Imaging frame rate Playback frame rate

: 120p/100p

When movie format is set to (recording in XAVC S) (FDR-X3000)

Recorded image: XAVC S 100 Mbps Resolution: 3840×2160

Imaging frame rate Playback frame rate

: 30p/25p

Recorded image: XAVC S 60 Mbps Resolution: 3840×2160

Imaging frame rate Playback frame rate

: 30p/25p

(only when switching NTSC/PAL is set to NTSC)

Recorded image: XAVC S 100 Mbps Resolution: 3840×2160 Imaging frame rate: 24p Playback frame rate: 24p

(only when switching NTSC/PAL is set to NTSC)

Recorded image: XAVC S 60 Mbps Resolution: 3840×2160 Imaging frame rate: 24p Playback frame rate: 24p

Frame rate depends on the NTSC/PAL setting.

SteadyShot is disabled. (HDR-AS50)

Action Cam Movie Creator allows you to specify the smooth slow-motion playback section for editing.

The angle of view is fixed to .

Depending on your device and software, images will play at the standard speed of 60p/50p.

Note

Continuous movie shooting time is approximately 13 hours maximum. However, when the “Movie format” is set to MP4 and the imaging frame rate is 240p/200p in high speed recording, the continuous movie shooting time is approximately 4 hours 50 minutes maximum, when the imaging frame rate is 120p/100p in high speed recording, the continuous movie shooting time is approximately 9 hours 40 minutes maximum.

The times shown are recordable times using a Sony memory card. When you play images recorded in high speed, the frame rate will be 60p/50p, and playback will be standard

speed.

[29] Changing the Settings

Movie format

Select the movie format for shooting movies or loop recording.

[30] Changing the Settings

Time-lapse capture image size

You can set the image size of still images shot during time-lapse capture.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / (Shooting settings) -

(Movie format) - setting value, then press the REC/ENTER button.

: Records a 4K (XAVC S) movie (FDR-X3000).

Select the desired image quality from the image quality setting.

: Records a HD (XAVC S) movie.

Select the desired image quality from the image quality setting.

: Records an MP4 movie.

Select this format if you want to transfer to your smartphone or upload to a website.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select (Time-lapse capture mode

setting) REC/ENTER button.

(Shoots still images in 4K (3840 x 2160) (image size 8.3 M)) (Shoots still images in HD (1920 x 1080) (image size 2.1 M))

(Time-lapse capture image size) - setting value, then press the

[31] Changing the Settings

Shooting settings

Loop recording time

Set the time range (media area) for loop recording. The range can be set after setting the camera to the loop recording mode.

Press the MENU button.

Press the UP button or DOWN button to select (Loop recording mode setting) -

(Loop recording time) - setting value, then press the REC/ENTER button.

(Sets the loop recording time to 5 minutes. The size of created movie is 1 minute

per file.)

(Sets the loop recording time to 20 minutes. The size of created movie is 5

minutes per file.)

(Sets the loop recording time to 60 minutes. The size of created movie is 15

minutes per file.)

(Sets the loop recording time to 120 minutes. The size of created movie is 15

minutes per file.)

(Keeps recording continuously up to the limit of free space of a memory. The size

of created movie is 15 minutes per file.) See

here for the estimated recordable time when set to .

Hint

When loop recording time is set to 5 minutes

The movie files of one minute per file are created in order.

When the recording time exceeds five minutes, the sixth movie file (

Before creating the seventh file (

Estimated shooting time necessary for loop recording (free space of a memory)

Addition to the set loop recording time, you need estimated shooting time (free space of a memory) for 2

files.

(Example)

is set

), the camera deletes the first movie file ( ) and keeps recording.

) is created.

20 min. + 5 min. + 5 min. = 30 min. or more is needed.

[32] Changing the Settings

Still image mode switching

You can set the mode for still image recording.

To shoot successfully in Motion Shot LE mode

Try the following shooting methods.

To shoot successfully in burst shooting mode

You can check the estimated shooting time by setting the shooting mode to “Movie mode.”

Even you have a free space of a memory card according above estimated time, a warning [05-04] may display on the screen due to image quality setting or movie format setting. In this case, increase more free space of a memory card or change the image quality setting or movie format setting.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select (Photo mode setting) - (Still

image mode switching) - setting value, then press the REC/ENTER button.

(Single shooting. Shoots a single still image.)

Image size FDR-X3000/HDR-AS300: 12.0 M (Angle setting:

(Angle setting:

)

HDR-AS50: 11. 9 M (Angle setting:

(Burst shooting. Shoots at the interval set in the (FDR-X3000/HDR-AS300)/

(HDR-AS50) (Still image shooting interval).)

Image size FDR-X3000/HDR-AS300: 12.0 M (Angle setting:

(Angle setting:

)

HDR-AS50: 11.9 M (Angle setting:

(Motion Shot LE. Generates a still image from the still images continuously shot at the

interval set in the

(FDR-X3000/HDR-AS300)/ (HDR-AS50) (Still image shooting

interval).) Image size FDR-X3000/HDR-AS300: 2.1 M HDR-AS50: 3.0 M

) /6.1 M (Angle setting: ) /3. 0 M

)/7. 0 M (Angle setting: )

) /6.1 M (Angle setting: ) /3.0 M

)/7.0 M (Angle setting: )

Stabilize the camera to prevent camera shake. Use the remote control function with a smartphone or Live-View Remote, or the self-timer function to prevent camera shake for better results. Make sure that the moving objects are not too large or too many. Shoot in a bright location and avoid changes in brightness.

Try the following shooting methods.

[33] Changing the Settings

Still image shooting interval

You can select the continuous shooting setting for using burst shooting or Motion Shot LE.

Stabilize the camera to prevent camera shake. Use the remote control function with a smartphone or Live-View Remote, or the self-timer function to prevent camera shake for better results.

Note

If automatic generation in Motion Shot LE mode fails, [05-06] is displayed on the display panel. Depending on the display timing of [05-06], the image may not be saved.

After shooting with Burst Shooting or Motion Shot LE mode, there is a processing time during which the next operation cannot be operated.

Only one still image can be transferred to the smartphone. (In burst shooting mode, the last still image can be transferred. In Motion Shot LE mode, the generated

image can be transferred.)

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select (Photo mode setting) -

(FDR-X3000/HDR-AS300)/ (HDR-AS50) (Still image shooting interval) setting value, then press the REC/ENTER button.

(Records a total of 10 still images in 1 second at a speed of 10 still images per

second) (FDR-X3000/HDR-AS300) Suitable for shooting fast-moving objects.

(Records a total of 10 still images in 1.25 seconds at a speed of 8 still images per

second) (HDR-AS50) Suitable for shooting fast-moving objects.

(Records a total of 10 still images in 2 seconds at a speed of 5 still images per second)

Suitable for action shots of objects.

(Records a total of 10 still images in 5 seconds at a speed of 2 still images per second)

Suitable for shooting slow-moving objects.

Note

[34] Changing the Settings

Self-timer

You can use self-timer when shooting still images.

[35] Changing the Settings

Time-lapse shooting interval

You can set the interval of the time-lapse shooting.

“10f1s” (FDR-X3000/HDR-AS300), “8f1s” (HDR-AS50), “5f2s”, and “2f5s” are estimates of the maximum speed. The maximum speed may not be reached depending on the shooting conditions.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select (Photo mode setting) -

(Self-timer) - setting item, then press the REC/ENTER button.

(Does not use self-timer)

(Sets the self-timer to 2-second)

(Sets the self-timer to 10-second)

Note

You cannot use self-timer when recording movies. The self-timer function is enabled until it is cancelled. Set the self-timer to

after you finish using it.

Shooting settings

Press the MENU button.

[36] Changing the Settings

Time-lapse shot number

You can set the number of still images shot during time-lapse capture.

Press the UP button or DOWN button to select (Time-lapse capture mode

setting) - (Time -lapse shooting interval) - setting value, then press the

REC/ENTER button.

(Continues to record still images at about 1-second intervals)

(Continues to record still images at about 2-second intervals) (Continues to record still images at about 5-second intervals)

(Continues to record still images at about 10-second intervals)

(Continues to record still images at about 30-second intervals)

(Continues to record still images at about 60-second intervals)

Note

The first photo is recorded immediately when recording starts, without waiting for the completion of the set interval. The second and subsequent still images are recorded at the set intervals.

Depending on your shooting condition, the speed may not reach the set speed.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select (Time-lapse capture mode

setting) REC/ENTER button.

(Shoots 300 still images)

(Shoots 600 still images)

(Shoots 900 still images)

(Continue to shoot still images until you stop shooting)

(Time-lapse shot number) - setting value, then press the

Hint

The maximum number of continuous shots is 40,000.

[37] Changing the Settings

Shooting settings

SteadyShot (Movie)

You can activate the camera-shake reduction when shooting movies. This function is available in Movie mode, Live streaming mode, and Loop recording mode.

[38] Changing the Settings

SteadyShot (Still) (FDR -X3000/HDR-AS300)

You can activate the camera-shake reduction while shooting still images. This function is available in Photo mode.

Press the MENU button.

Press the UP button or DOWN button to select / / (Shooting settings) -

(FDR-X3000/HDR- AS300)/ (HDR-AS50) (SteadyShot (Movie)) - setting

value, then press the REC/ENTER button.

FDR-X3000/HDR-AS300

(Uses all-encompassing SteadyShot function when shooting movies) (Uses SteadyShot function when shooting movies)

(Does not use SteadyShot function when shooting movies)

HDR-AS50

(Uses SteadyShot function when shooting movies)

(Does not use SteadyShot function when shooting movies)

Note

This function is not available when the image quality setting mode is set to the high speed recording quality (frame rate is more than 120p) (HDR-AS50) .

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select

(SteadyShot (Still)) - setting value, then press the REC/ENTER button.

(Photo mode setting) -

[39] Changing the Settings

Angle setting

You can configure the angle of view of the camera for shooting.

[40] Changing the Settings

Zoom setting

You can set whether to use the digital zoom.

(Uses SteadyShot function when shooting still images.)

(Does not use SteadyShot function when shooting still images.)

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

: Wide (Records with a wide angle of view)

: Medium (Records with a standard angle of view (FDR-X3000/HDR-AS300))

: Narrow (Records with a narrow angle of view)

Note

When shooting with high speed (frame rate is more than 120p), the angle of view is fixed to . When Time-lapse capture image size is When SteadyShot (Movie) is

(Angle setting) - setting value, then press the REC/ENTER button.

, the angle of view is fixed to .

, the angle of view is fixed to . (HDR-AS50)

When the movie format is

, the angle of view is fixed to . (FDR-X3000)

Shooting settings

Press the MENU button.

[41] Changing the Settings

Flip

You can record the image upside down. This function is useful when the camera is attached upside down.

[42] Changing the Settings

AE shift

You can adjust the exposure according to your preference.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

(Uses the digital zoom function)

(Do not use the digital zoom function)

(Zoom setting) - setting value, then press the REC/ENTER button.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

(Flips the image vertically and swaps the left and right sound channels)

(Does not flip the image)

(Flip) - setting value, then press the REC/ENTER button.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

(Does not use the AE shift) (Uses the AE shift (Set +0.3EV for example))

(AE shift) - setting value, then press the REC/ENTER button.

[43] Changing the Settings

Shooting settings

Time-lapse AE mode

Set the adjustment method of automatic exposure (AE) during time-lapse capture.

[44] Changing the Settings

Scene

You can select suitable image quality according to the shooting scene.

Press the MENU button.

Press the UP button or DOWN button to select (Time-lapse capture mode

setting) button.

(Adjusts the exposure for each shot. Smoothly follows changes in brightness) (Sets a fixed exposure when shooting starts)

(Time-lapse AE mode) - setting value, then press the REC/ENTER

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

(Shoots images in the standard quality)

(Shoots images in an image quality suitable for underwater shooting)

Note

If you select , you cannot set the white balance.

(Scene) - setting value, then press the REC/ENTER button.

Use the supplied Underwater Housing for underwater shooting.

[45] Changing the Settings

White balance

You can adjust the color balance to the recording environment.

[46] Changing the Settings

Color mode

You can change the image color tone for movie shooting/loop recording/Live streaming.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / / / (Shooting

settings) -

(Adjusts the white balance automatically so that the colors appear natural)

(Adjusts for the color temperature of the light source (from 2500K to 9900K))

(Uses the setting acquired from )

(Acquires the base white color for shooting under the light source)

Place a white reference object under the same lighting conditions as the subject and press the REC/ENTER button.

Note

If scene is set to , you cannot set the white balance.

(White balance) - setting value, then press the REC/ENTER button.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / (Shooting settings) -

(Color mode) - setting value, then press the REC/ENTER button.

(Records in natural colors) (Records in vivid colors)

Note

[47] Changing the Settings

Audio recording setting

You can turn the audio recording setting ON/OFF.

[48] Changing the Settings

Wind noise reduction

This function automatically cuts low-range wind noise while recording audio using the built-in microphone.

If you shoot with , the image contrast may appear low. This is not a malfunction.

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / (Shooting settings) -

(Audio recording setting) - setting value, then press the REC/ENTER button.

(Records sound when shooting a movie)

(Does not record sound when shooting a movie)

Shooting settings

Press the MENU button.

Press the UP button or DOWN button to select / / (Shooting settings) -

(Wind noise reduction) - setting value, then press the REC/ENTER button.

(Cuts low-range to reduce wind noise)

(Does not reduce wind noise)

Note

[49] Changing the Settings

Airplane mode

When you are in an airplane or other restricted areas, you can set the camera to temporarily disable all functions related to the wireless applications such as Wi-Fi/Bluetooth GPS, etc. If you set airplane mode to ON, an airplane mark will be displayed on the display panel.

[50] Changing the Settings

Wi- Fi connection setting

You can operate the camera by using compatible devices (Live-View Remote, smartphone, etc.) connected to the camera via Wi-Fi.

(Does not operate a camera with the compatible device)

This function does not activate while an external microphone is connected to the camera (FDR-X3000/HDRAS300).

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Airplane mode) - setting value, then press the REC/ENTER button.

(The Wi-Fi/Bluetooth/GPS function* is disabled. Select this when you are on board an

airplane)

(The Wi-Fi/Bluetooth/GPS function* is enabled)

The GPS function is only for FDR-X3000/HDR-AS300.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (Wi-Fi

connection setting) - setting value, then press the REC/ENTER button.

(Operates a single camera with the compatible device)

[51] Changing the Settings

Wi- Fi Hi power setting

When you switch the Wi-Fi power setting, the communication distance between the camera and a Live-View Remote

camera with the Live-View Remote from a distance. This setting is only available in some countries and regions.

(Operates multiple cameras with the compatible device)

Select a shooting mode ( / / / ).

Connect the camera to the compatible device via Wi-Fi.

Operate the camera with the compatible device.

Note

Battery consumption is quicker when you operate the camera with the compatible device. The camera should only be connected to the devices described in “Using the camera connected to other

devices via Wi-Fi” via Wi-Fi, and should not be connected to other Wi-Fi access points. If you choose to connect the camera to other Wi-Fi access points, you do so at your own risk. In such cases, the camera may be subject to unauthorized access, and any communication could be intercepted.

Camera settings

connected via Wi-Fi can be extended by about two times, so you can operate the

When using RM-LVR3.

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (Wi-

Fi Hi power setting) - setting value, then press the REC/ENTER button.

(High power mode. The communication distance is longer than in standard mode)

(Standard mode)

Note

[52] Changing the Settings

Bluetooth setting

When the camera and corresponding devices have Wi-Fi connections, the camera can communicate with the corresponding devices via Bluetooth. The mutual registration process that allows the devices (the camera and corresponding device) to communicate with each other via Bluetooth is called “pairing.” Once pairing is complete, these devices can automatically communicate via Bluetooth when they are connected again.

Pairing with the smartphone

Perform the following operations with the camera and a smartphone that is connected via Wi-Fi. For connecting the camera to your smartphone, see “Connecting to your smartphone”.

After pairing is complete, a sound is heard.

When set to ON, depending on the physical environment and the distance between the camera and the LiveView Remote, you may not be able to use the Live-View Remote to turn the camera on/off. In such cases, operate the Live-View Remote closer to the camera until

Depending on the physical environment and connected device, the communication distance will be changed. When the Wi-Fi Hi power setting is set to ON, the battery is consumed faster than when set to OFF. The Wi-Fi icon may not be displayed on the screen immediately after switching the Wi-Fi Hi power setting,

but the icon of the switched setting will be displayed after a moment. This function cannot be used when the Wi-Fi setting is OFF or when airplane mode is ON.

on the screen changes to .

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Bluetooth setting) - setting value, then press the REC/ENTER button.

(Bluetooth communication enabled. or is displayed on the screen.)

(No Bluetooth communication. Bluetooth icon does not appear on the screen.)

Turn on the Bluetooth setting on the smartphone.

Start PlayMemories Mobile application on the smartphone.

Use the application to turn on the remote power function of the camera.

Use the application to select the camera to be connected.

On the application screen that appears, allow pairing for the selected camera.

Check the screen to be displayed and the sound prompting the pairing setting permission of the

selected camera, then press the REC/ENTER button on the camera.

Hint

[53] Changing the Settings

Bluetooth remote controller power setting

A device that has already been paired with the camera is able to turn the camera on and off.

To enable this function, it is necessary to turn on the above setting and the Bluetooth setting of both the camera and the corresponding device in advance. For setting and operating the Live-View Remote (RM-LVR3), refer to “Bluetooth remote controller power setting” in the help guide of the Live-View Remote. http://rd1.sony.net/help/cam/1650/h_zz/

For setting up and operating a smartphone, see below. Also, check the latest information and function information of the PlayMemories Mobile as well. http://www.sony.net/pmm/

Bluetooth remote controller power setting for smartphones

The default Bluetooth setting for the camera is ON. When the Live-View Remote (RM-LVR3) is connected to Wi-Fi for the first time, Bluetooth pairing with the camera is automatically completed, and the

displayed on the camera screen switches to

icon

Note

When Airplane mode is ON, the Bluetooth icon does not appear on the screen, and Bluetooth communications are disabled, even if the Bluetooth setting is ON.

The camera can be paired with up to 15 Bluetooth devices. If a 16th device is paired with the camera, the pairing information of the first registered device is deleted.

When the camera is communicating via Bluetooth, another device cannot be paired. When the camera is initialized, the pairing information is also reset. To pair again, the pairing information of

the connected compatible device should also be deleted. When pairing is performed while shooting with the camera, a sound will not be heard.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Bluetooth remote controller power setting) - setting value, then press the REC/ENTER button.

(Ability to turn the camera on/off with a corresponding device is enabled.) (Ability to turn the camera on/off with a corresponding device is disabled.)

Perform the following operations with the camera and a smartphone that is connected via Wi-Fi. For connecting the camera to your smartphone, see “Connecting to your smartphone”.

After pairing complete a sound is heard and power operation of the camera is enabled.

Operating the power of the camera with a smartphone

To turn the camera on/off, start PlayMemories Mobile and tap [Camera Remote Power ON/OFF].

[54] Changing the Settings

GPS log (FDR-X3000/HDR -AS300)

You can record the location information and the movement speed while recording movies using the camera’s GPS function. Action Cam Movie Creator allows you to import movies recorded with GPS log to your computer and view them with a map showing movement speed and tracking actions. You can also record the location information and show the shooting location on the map when shooting still images.

Turn on the Bluetooth setting on the smartphone.

Start PlayMemories Mobile application on the smartphone.

Use the application to turn on the remote power function of the camera.

Use the application to select the camera to be connected.

On the application screen that appears, allow pairing for the selected camera.

Check the screen to be displayed and the sound prompting the pairing setting permission of the

selected camera, then press the REC/ENTER button on the camera.

Hint

If the camera and Live-View Remote “RM-LVR3” are connected, the power of the camera is turned on when the power of the Live-View Remote is turned on. When the camera has a multi connection with a Live-View Remote “RM-LVR3”, up to five cameras can be turned on simultaneously when the Live-View Remote is turned on.

Note

This function cannot be used when the airplane mode is ON. Even if camera is turned off, the corresponding device will remain on. Even if the camera is turned off, battery will consume when this function is turned on. After use, remove the

battery from the camera for storage.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select

log) - setting value, then press the REC/ENTER button.

(Camera Settings) - (GPS

Checking triangulating status

The indicator changes according to the strength of GPS signal reception when GPS is activated.

About GPS assist data

The time for the GPS acquiring location information can be shortened by taking in GPS assist data. If connection via Internet is made using the software, Action Cam Movie Creator, the GPS assist data can be updated automatically.

Using the support tool

You can also update the GPS assist data by inserting a memory card into the computer. Display the camera setting’s screen of Action Cam Movie Creator, select “ memory card drive to be installed on your computer, and then update the GPS assist data. If you insert this memory card into the camera, the GPS assist data will be reflected on the camera.

(Records movies with the GPS log or still images with location information)

(Does not use the GPS log function)

No indicator (The GPS log functions is off): The GPS log is set to OFF or an error occurred.

(Searching/Difficult): Your camera is searching for GPS satellites. (It may take several

minutes to start triangulating.)

(Triangulating): Your camera is receiving a GPS signal. (Your camera can record location

information.)

If the Date & time Setting of the camera is not set, or set time is shifted greatly, the time for the GPS acquiring location information cannot be shortened. If the term of validity of GPS assist data has run out, the time for the GPS acquiring location information cannot be shortened.

Update GPS Assist Data” - the desired

Note

During takeoff and landing of an airplane, set airplane mode to ON. Use GPS in accordance with the regulations of the place or situation. It may take from several tens of seconds to several minutes to record the location information when you use

the GPS for the first time or use it again after long intervals. Triangulating time can be shortened by taking in GPS assist data.

Do not cover the GPS sensor with your finger when searching for GPS satellites or when triangulating. This decreases the sensitivity of the GPS sensor and triangulation may fail.

Sony does not collect location information and routing information. To display location information and routing information as a map on a computer, Sony provides data of

location information and routing information to Google Inc. Although the camera does not have the function to delete log files, you can delete them by formatting the

media. The maximum number of log files that can be recorded is 256/day. When the maximum number of recorded

log files is reached, you can continue to shoot images, but cannot record log files.

[55] Changing the Settings

Camera settings

Format

Formatting is the process of deleting all images in the memory card, and restoring the memory card to its initial state.

[56] Changing the Settings

Time code/user bit (FDR-X3000)

About time code

Time code is a useful function for advanced image editing, which records hours/minutes/seconds/frames on the image data.

About user bit

User bit is a function that can record information (8-digit hexadecimal numbers) such as date/time/scene number. This function is useful for editing movies created using two or more cameras.

Press the MENU button.

Press the UP button or DOWN button to select

(Format), then press the REC/ENTER button.

Formatting starts when you select appears.

Formatting cancels when you select The formatting completes when a screen with check mark is displayed. Press the REC/ENTER

button to return to the previous MENU.

Note

Save important images before formatting. The protected data is also initialized. Do not perform any of the following operations while formatting.

Press a button.

Eject the memory card.

Connect/disconnect a cable.

Insert/remove the battery pack.

, then press the REC/ENTER button. The progress bar , then press the REC/ENTER button.

(Camera Settings) -

Camera settings

Note

When the image quality setting is MP4, the time code/user bit is not available.

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Time code/user bit) - setting item, then press the REC/ENTER button.

The set items and details are as follows.

(Displays the time code/user bit)

: Displays the time code.

: Displays the user bit.

: Does not display the time code/user bit.

(Sets the time code)

1. Press the UP button or DOWN button to select 2-digit numbers, then press the REC/ENTER button.

2. Repeat step 1 until you set four 2-digit numbers, then return to the previous MENU. The time code can be selected within the following range.

When selecting 30p or 60p 00:00:00:00 - 23:59:59:29

When selecting 25p or 50p 00:00:00:00 - 23:59:59:24

When selecting 24p, you can set the last 2 time code digits of the frames in multiples of 4, between 0 and 23.

(Resets the time code)

Reset is executed when you select

, then press REC/ENTER button.

(Selects the time code recording method)

: Records the time code in drop frame.

: Records the time code in non-drop frame.

In the following situations, the time code is fixed to . When the image quality is set to 24p.

When the NTSC/PAL switching is set to

(Sets the time code count up format)

: The time code advances only while recording XAVC S movies. It is recorded

sequentially from the time code on the image recorded last time.

: The time code advances sequentially, regardless of the operation of the

camera.

[57] Changing the Settings

IR remote (FDR -X3000)

You can start/stop recording and initialize the time code using the infrared remote control (sold separately).

(Sets the time code to be recorded)

and the new time code is recorded sequentially from the last time code.

(Sets the user bit)

1. Press the UP button or DOWN button to select 2-digit numbers, then press the REC/ENTER

button.

2. Repeat step 1 until you set four 2-digit numbers, then return to the previous MENU. The user bit can be selected within the following range.

00 00 00 00 - FF FF FF FF

(Initializes the user bit)

: The newly set-up time code is recorded on recording media.

: The last time code of the previous recording is read out from the recording media

Reset is executed when you select

(Sets the recording time of the user bit)

: Records the time as a user bit.

: Does not record the time as a user bit.

Camera settings

, then press REC/ENTER button.

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (IR

remote) - setting value, then press the REC/ENTER button.

(Allows you to operate the camera using the infrared remote control)

(Prevents operation of the camera using the infrared remote control)

Note

The remote commander & IR receiver kit RMT-VP1K and RMT-845 (sold separately) are required to use this function.

Purchase a RMT-845 at a Sony service center.

You can operate only the following settings using the RMT-845 (sold separately). Other settings are

[58] Changing the Settings

HDMI settings (FDR -X3000/HDR-AS300)

Set the HDMI output signal.

inoperable.

Initialize the time code. When initializing the setting, the REC lamp blinks in blue for about 5 seconds. Start/stop recording.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(HDMI settings) - setting item, then press the REC/ENTER button.

The set items and details are as follows.

: Sets the output resolution of the HDMI signal.

: Sets the HDMI resolution signal automatically. (FDR-X3000): Sets the HDMI resolution signal to 2160p. : Sets the HDMI resolution signal to 1080p.

: Sets the HDMI resolution signal to 1080i.

: Sets the HDMI resolution signal to 720p.

: Sets the output HDMI signal frame rate.

: Output HDMI signal is 60p.

: Output HDMI signal is 24p.

Available only when in movie mode (not available when playback).

This setting is disabled when image quality setting is set to a setting other than 1080 24p.

This setting is disabled when the HDMI resolution is set to a setting other than 1080.

: Sends the time code or the user bit information to a device connected with HDMI (FDR-

X3000).

: Sends the time code or user bit information.

: Does not send the time code or user bit information.

Unavailable when movie format is set to MP4.

: Controls the recording on a device connected with HDMI (FDR-X3000).

: Controls the recording on the device.

[59] Changing the Settings

USB power supply

When connecting the camera to a computer or USB device with the micro USB cable (supplied), the camera receives power from the connected device.

Using the camera with an external power supply

The camera is compatible with the following external power supply.

: Does not control the recording on the device.

Unavailable when movie format is set to MP4.

Note

Available for external recorders/players compatible with . When Depending on the settings and the condition of an external recorder/player, it may not work properly, even

when

is , is set to .

for the camera is set to . Confirm that it works before using it with the camera.

Camera settings

The USB power supply can be available by selecting ON from the following operation.

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (USB

power supply) - setting value, then press the REC/ENTER button.

(Power received when connected by the micro USB cable)

(No power received when connected by the micro USB cable)

External power supply of 1.5 A FDR-X3000/HDR-AS300: Battery power consumption is lessened during shooting/playback HDR-AS50: Receives USB power from the connected device

Note

If you change the USB power supply setting while the micro USB cable is connected, disconnect the cable, then reconnect.

If you turn on the camera while charging the battery pack, charging stops and power is supplied to the

[60] Changing the Settings

Beep

You can set the audible notification of operations ON/OFF.

camera from the device connected via USB. You can shoot and play back images using a USB power supply. However, the battery pack is not charged

simultaneously. When using the camera with an external power supply, check that the icon (

power is being supplied is displayed on the screen. While USB power is being supplied, the continuous movie shooting time may be shortened due to the

camera heating up. Even if the AC adaptor is connected to the camera, the battery will not be charged if the camera is turned

on. Do not remove the battery while the access lamp is lit. The data in the memory card might be corrupted.

FDR-X3000/HDR-AS300

To shoot/play back while receiving external power, insert the charged battery into the camera. Do not remove the battery from the camera when using the camera while receiving external power.

) indicating that USB

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Beep) - setting value, then press the REC/ENTER button.

(All operation sounds are enabled)

(Operation sounds are emitted for the following operations only)

Power turned on Recording started Recording stopped Shutter pressed A disabled operation was selected or an error occurred Established Wi-Fi connection Power turned off (FDR-X3000/HDR-AS300)

(All operation sounds are disabled)

[61] Changing the Settings

Beep volume

You can set the beep volume when operating the camera.

[62] Changing the Settings

Lamp setting

To prevent the lamp light from reflecting off of the subject, you can limit the number of REC lamps that turn on when recording.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to set (Camera Settings) - (Beep

volume) - setting value, then press the REC/ENTER button.

(Loud beep volume)

(Soft beep volume)

Hint

When Beep is set to OFF, this function cannot be set.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to set (Camera Settings) - (Lamp

setting) - setting value, then press the REC/ENTER button.

(All of the REC lamps light up)

(Only the REC lamp of connector cover lights up)

(The REC lamps do not light up)

Hint

Change the lamp setting for the camera if objects such as glass may be reflected on the shooting direction.

[63] Changing the Settings

Camera settings

One touch recording

Press the on and start recording. This function is available when the shooting mode is movie, time-lapse capture, loop recording, or live streaming.

[64] Changing the Settings

Auto power off

You can change the setting of the auto power off function.

REC/ENTER button of the camera while the camera is turned off, and the camera will turn

Press the MENU button.

Press the UP button or DOWN button to set (Camera Settings) - (One

touch recording) - setting value, then press the REC/ENTER button.

(One touch recording enabled)

(One touch recording disabled)

Note

With One touch recording, the recording will start in the shooting mode that was set immediately before the power was turned off.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (Auto

power off) - setting value, then press the REC/ENTER button.

(Turns the power off after about 20 seconds)

(Turns the power off after about 60 seconds) (Does not turn off automatically)

Note

[65] Changing the Settings

Switching NTSC/PAL

You can select the NTSC/PAL setting, depending on the TV system of the country or region where you use the camera.

Auto power off is not available in the following situations.

When recording data to media When shooting movies, or shooting in time-lapse capture mode During movie playback When Wi-Fi connection is being established, Wi-Fi remote control is connected, an image is being uploaded to a smartphone, or live streaming HDMI connection is being made. (FDR-X3000/HDR-AS300) Supplying power from a connected USB device Connecting a mass storage device IR remote is set to ON. (FDR-X3000)

In the following cases, even if you have selected time that elapses before the power turns off will be extended.

While adjusting the menus. While playing back still images

or in the auto power off function, the

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

/ (Switching NTSC/PAL), then press the REC/ENTER button.

(Switches the camera from NTSC to PAL) (Switches the camera from PAL to NTSC)

When you try to change the current setting, the confirmation screen appears. Go to step 3.

Press the UP button or DOWN button to select , then press the REC/ENTER

button.

When the setting change is completed, the camera restarts automatically.

[66] Changing the Settings

Date & time setting

You can set the year/month/day.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) - (Date &

time setting), then press the REC/ENTER button.

The year/month/day setting screen will be displayed.

Set the year/month/day.

Press the UP button or DOWN button to set the year, then press the REC/ENTER button. The cursor moves to month so, repeat the same operation to set the month and day.

The time setting screen appears.

Set the time by repeating the same procedure as step 3.

Press the REC/ENTER button.

The time is set and the display returns to the previous menu.

Note

Select 0:00 for midnight, 12:00 for noon. When the GPS log is set to ON, the camera automatically adjusts the date and time during shooting mode.

(FDR-X3000/HDR-AS300) The display order of year/month/day cannot be changed.

[67] Changing the Settings Camera settings

Area setting

You can adjust the clock on the camera to match the time in your area without stopping the clock. The area is determined by the time difference from Greenwich Mean Time (GMT). See “The list of time differences for world capitals”.

[68] Changing the Settings

Daylight saving time (summer time) setting

Sets whether to reflect daylight saving time (summer time) in the date and time settings.

Press the MENU button.

Press the UP button or DOWN button to set

setting) - time difference, then press the REC/ENTER button.

Confirm the time on the displayed screen, then press the REC/ENTER button.

Hint

When the GPS log is set to ON, the camera automatically adjusts the area setting during shooting mode. (FDR-X3000/HDR-AS300)

(Camera Settings) - (Area

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select (Camera Settings) -

(Daylight saving time (summer time) setting) - setting value, then press the REC/ENTER button.

(Sets the Daylight Saving Time (summer time))

(Does not set the Daylight Saving Time (summer time))

[69] Changing the Settings

Version

The software version of the camera can be displayed.

[70] Changing the Settings

Resetting the settings

You can reset the settings to their defaults.

Camera settings

Press the MENU button.

Press the UP button or DOWN button to select

(Version), then press the REC/ENTER button.

Camera settings

Press the MENU button.

(Camera Settings) -

Press the UP button or DOWN button to select

(Resetting the settings), then press the REC/ENTER button.

Select , then press the REC/ENTER button.

To cancel resetting, select The camera automatically restarts when resetting is complete.

Note

When you reset the settings, the Bluetooth pairing information will also be reset. To reconnect, delete the pairing information on the connected device before connecting.

, then press the REC/ENTER button.

(Camera Settings) -

[71] Viewing

Viewing images on a TV (FDR-X3000/HDR -AS300)

Connect the camera to a TV which has an HDMI terminal using a micro HDMI cable (sold separately). Refer also to the instruction manuals of the TV.

To control a content being played back

rewind/fast-forward, each time you press the button, the speed changes in 4 levels.

Turn off both the camera and the TV.

Open the connector cover and connect the camera to the TV with the micro HDMI

cable (sold separately).

Turn on the TV and set the input of the TV to [HDMI input].

Press the

Press the MENU button.

Press the UP button or DOWN button to select (playback on TV) - desired

format of movie/image to view.

Select the settings below.

displayed when PAL is selected.) (FDR-X3000) X3000)

(on/standby) button on the camera to turn on.

: MP4 movies

: Still images

: XAVC S 4K (30p) movie ( is displayed when NTSC is selected and is : XAVC S 4K (24p) movie ( is only displayed when NTSC is selected.) (FDR-

: XAVC S HD movie

Press the REC/ENTER button.

Playback starts. Playback pauses when you press the REC/ENTER button again.

Fast-rewind/fast-forward (movies only): Press the UP button or DOWN button. During the fast-

Pause (movies only): Press the REC/ENTER button.

If you press the UP button or DOWN button during pause, rewind or forward can be performed. If

To adjust the volume

1. Press the

2. Press the UP button or DOWN button to select display the volume controller.

3. Press the UP button or DOWN button to increase or decrease the volume.

Notes on playing back on other devices

Movies recorded using the camera may not play back normally on devices other than the camera. Also, movies recorded on other devices may not play back properly on the camera.

[72] Viewing

Viewing using the Live -View Remote

Play back images recorded with the camera using the Live-View Remote. The procedure below explains how to play back movies using the Live-View Remote “RM-LVR3”. The display differs depending on the Live-View Remote you are using.

you press and hold the UP button or DOWN button during pause, slow rewind or slow forward can be performed.

Starting a slideshow (still images only): Press the REC/ENTER button. Ending playback: Press the MENU button, then select shooting mode.

The icon of the current selected shooting mode is displayed.

(shooting mode) to switch to the

MENU button during the playback or pause.

- , then press the REC/ENTER button to

Press the MENU button on the remote control while the camera is in shooting mode.

Press the UP button or DOWN button on the remote control to select

(playback using the remote control), then press the REC/ENTER button of the remote control.

Select the desired image by pressing the UP button or DOWN button.

Press the REC/ENTER button of the remote control to start playback.

Press the REC/ENTER button again to pause playback.

Returning to the shooting mode

To return to shooting mode, perform either operation.

[73] Viewing

Delete

Unwanted images in the memory card are deleted by using a smartphone installed with PlayMemories Mobile or the Live-View Remote. Refer to the instruction manual on the website for how to operate PlayMemories Mobile or the LiveView Remote.

[74] Create your movie

Creating the highlight movie

The camera detects characteristic scenes from the movies shot with the camera and creates the movie composed of them (highlight movie) automatically. You can copy highlight movies with your smartphone. By operating your smartphone, you can start the highlight movie creation and make the creation settings.

Press the MENU button on the Live-View Remote to select (shooting mode), then press the REC/ENTER button of the remote control.

Press the REC/ENTER button on the camera.

Note

Audio cannot be played back. The image frame rate displayed on the LCD screen when using the remote control for playback will change

according to the Wi-Fi communication status of the camera and remote control. This frame rate is different from the one used when shooting.

Hint

You can fast-forward by pressing the UP button of the remote control and fast-rewind by pressing the DOWN button.

Note

If you want to delete all images in the memory card, format the memory card in the camera.

Highlight Movie Maker

Open the PlayMemories Mobile of your smartphone and connect to the camera via

Wi-Fi.

Refer to “Connecting to your smartphone” to connect the camera to your smartphone.

Select “Highlight Movie Maker” in “In-Camera Application Setting ” from the

“Settings” of the PlayMemories Mobile.

Press the

movie.

icon to select a content format that you want to add in a highlight

Select a movie that you want to add in a highlight movie from the date or the

content list, then press the “Next” button.

The highlight movie creation starts.

You cannot select MP4 and XAVC S contents at the same time. You can select up to 100 movies by date or file. If you disconnect Wi-Fi connection of the camera and your smartphone while creating the highlight movie, the camera continues to create movie. Press the REC/ENTER button of the camera to finish creating the highlight movie.

Hint

Use the “Settings” menu in advance to change the movie length, BGM* and the audio mix.

This setting is only available in some countries and regions.

After creating the highlight movie, you can “Copy” it to your smartphone.

[75] Create your movie

Importing the BGM

By default, the camera includes eight songs that you can use as background music while playing back a highlight movie. When you use the Action Cam Movie Creator connecting the camera with your computer, you can replace the background music of the camera with the music of your computer. Install the Action Cam Movie Creator to your computer in advance.

Hint

Use the movie player application of a smartphone to play the copied highlight movie.

Note

Update PlayMemories Mobile to the latest firmware version in advance. The created highlight movie’s format is MP4. The following contents are not compatible with the highlight movie.

XAVC S 4K (FDR-X3000) XAVC S HD 24p High speed recording

The operation methods and display screens for the application are subject to change without notice by future.

See more details about “PlayMemories Mobile” from the following website.

http://www.sony.net/pmm/)

( Background music preinstalled on this product have officially been contracted between Sony and licensors.

Movies containing the said background music are allowed for private use, duplication, distribution, or public transmission only when the said movies are intended for nonprofit purposes and without receiving any kind of consideration from the person to whom the said movies are presented to.

Highlight Movie Maker

Press the MENU button.

Press the UP button or DOWN button to select the

(Camera Settings) -

(Back ground music) - , then press the REC/ENTER button.

Connect the camera to the computer with the supplied micro USB cable.

The Music Transfer of Action Cam Movie Creator starts automatically.

To preview the BGM

Refer to the following website for how to preview the pre-installed background music in the camera. http://guide.d-imaging.sony.co.jp/mt_bgm/index.html

To delete all BGM

1. Press the

2. Press the UP button or DOWN button to select the music) -

[76] Stream real-time movie to a movie streaming site movie streaming)

Live Streaming

You can deliver movies in real-time via video sharing websites such as Ustream by using a Wi-Fi router or smartphone that can tether the camera. You can also send messages to your registered SNS

to announce that you have started Live Streaming of video

Use the Music Transfer of Action Cam Movie Creator to replace the BGM.

appears when delete finishes.

MENU button.

(format), then press the REC/ENTER button.

Hint

If the camera and the Action Cam Movie Creator cannot be connected, execute the procedure in “To delete all BGM.”

Note

This setting is only available in some countries and regions. Background music preinstalled on this product have officially been contracted between Sony and licensors.

(Camera Settings) - (Back ground

Live Streaming with your camera (Real time

Registration to a video streaming site or SNS is required.

The following settings must be configured for live streaming.

Set the following distribution settings in the live streaming settings of the camera:

[77] Stream real-time movie to a movie streaming site movie streaming)

Preparing for Live Streaming

Wi-Fi

3G/LTE

Tethering mode

Ustream

Viewers

Comments from viewers

User registration to Ustream A smartphone (capable of tethering) or a Wi-Fi network environment

For more information about smartphone tethering settings or Wi-Fi network settings, refer to the operating instructions supplied with the smartphone or network service. For further details about the network environment, contact your network service provider. Live Streaming feature is dependent upon the Third Party Internet Provider’s service and terms in your region. The feature may not be available due to your region’s broadband and internet service restriction.

Live Streaming with your camera (Real time

Before you start live streaming, get Ustream account and install the computer-exclusive

application, “Action Cam Movie Creator.” Download “Action Cam Movie Creator” from the following website.

http://www.sony.net/acmc/ Connect the camera to your computer with supplied micro USB cable.

Configure the network settings, register an account at a video distribution site and configure the

SNS settings on “Camera Settings for Live Streaming” of the Action Cam Movie Creator’s camera

What you can set on Camera Settings for Live Streaming

Network settings

Streaming settings

SNS settings

About Ustream

Ustream is a video sharing site through which you can stream and view videos with the Live Streaming function of the camera. For details of Ustream, see the following site. http://www.ustream.tv/

[78] Stream real-time movie to a movie streaming site movie streaming)

Performing Live Streaming

You can start Live Streaming after the preparation is complete. When Live Streaming for the first time, it is recommended that you rehearse streaming in a prepared environment after setting up with a computer in advance.

settings.

Refer to the following website for how to operate the Action Cam Movie Creator. http://www.sony.net/guide/nst/

You can set the Wi-Fi network to which your camera connects to. Network SSID, password, security mode

You can set the streaming method. Streaming site, channel, image quality and the saving settings of the streaming site Title and description of streaming video

By configuring this setting, you can post a comment through social network services when starting streaming video.

Connection settings for network services Comments you post

Note

Your personal information (information required when logging in to the SNS) is set in the camera. If you dispose or give away the camera, press the MENU button, then press the UP button or DOWN button

to select

(Camera Settings) - (Resetting the settings) - and delete the settings.

Live Streaming with your camera (Real time

Hint

When is set to ON, the time code and user bit will be embedded to the video streaming. (FDR-X3000)

Press the MENU button.

Display during Live Streaming

Preparing to connect to the network distribution site

1 There is an audience. The number displayed is viewers. 2 Starts streaming

REC/LIVE lamp indicator during Live Streaming

If you select Live Streaming mode, you can see the streaming status for Live Streaming with the REC/LIVE lamp on the camera.

Press the UP button or DOWN button to select the (Live streaming mode), then press the REC/ENTER button.

The icon of the current selected shooting mode is displayed.

Press the REC/ENTER button to start streaming.

The REC lamp of the top of the camera lights up in blue.

(shooting mode) -

Note

There may be time lag of 10 - 20 seconds between the start of Live Streaming on your camera and video streaming on the video streaming site.

You can record movies that are being live distributed in the memory card of the camera. When the memory card is already inserted, movies are recorded at the same time as the distribution

When the capacity of the memory card is full, only the movie recording will stop without stopping the distribution. Only movie distributions will be performed when no memory card is inserted.

Simultaneously recorded movies are processed on MP4/HQ mode.

To stop the live distribution

Press the

[79] Stream real-time movie to a movie streaming site movie streaming)

Restrictions

Notification of the restriction when using live streaming.

Restrictions for Ustream

GPS and Wi-Fi functions during Live Streaming

Network connection

Simultaneous Live Streaming with multiple cameras

Effects due to wireless communication conditions

Connection for Live Streaming

REC/LIVE lamp OFF: Before distribution Lights up in blue: Distributing

Blinks in blue: Distributing (There is an audience) Blinks in red: Distribution error

REC/ENTER button again.

There are some restrictions for video streaming on Ustream. For details, see the Ustream site.

The GPS function is disabled automatically during Live Streaming (FDR-X3000/HDR-AS300). You cannot monitor images using a smartphone or the Live-View Remote during Live Streaming.

Live Streaming with your camera (Real time

Use a smartphone capable of tethering or Wi-Fi router for Live Streaming. However, proper operation with all smartphones or Wi-Fi routers is not guaranteed. Public wireless LANs cannot be used as connections for Live Streaming.

You cannot live stream videos simultaneously using the same account on more than one camera. You need to connect using another account.

When connected using the tethering function of a smartphone or via a Wi-Fi router, images and sounds may be interrupted, or the communication may be cut off due to wireless communication conditions.

The communication time you can use for Live Streaming is limited according to the contract of

your smartphone or Wi-Fi router. Confirm it in advance.

Continuous streaming time

Restrictions of network connections

[80] Using the camera connected to other devices via Wi-Fi

Preparation for connecting to your smartphone

Install the PlayMemories Mobile on your smartphone. Update PlayMemories Mobile to the latest version if you have already installed it on your smartphone. For the latest information details about the functions of PlayMemories Mobile, refer to the website below. http://www.sony.net/pmm/

Search for PlayMemories Mobile on Google Play, then install it.

Search for PlayMemories Mobile on App Store, then install it.

If the password is lost

1. Connect the camera to a computer with the micro USB cable (supplied).

2. Turn on the camera.

3. Display [Compute] - [PMHOME] - [INFO] - [WIFI_INF.TXT] on your computer, then check the user ID and password.

Continuous Live Streaming using the camera is limited to about 13 hours.

In some countries or regions, you cannot connect to Live Streaming sites. Use this function in accordance with the laws of that country or region.

Connecting to your smartphone

Installing the application on your smartphone

Note

Google play may not be supported depending on country or region. In this case, search for “PlayMemories Mobile” on the internet then install it.

An NFC-enabled smartphone or tablet is required for using One-touch functions (NFC) (FDR-X3000/HDRAS300).

The Wi-Fi and Bluetooth functions described here are not guaranteed to work with all smartphones and

tablets.

[81] Using the camera connected to other devices via Wi-Fi

Sample smartphone screen display

Connecting to your smartphone

: Features of the Wi-Fi remote control function

To check the field of view before and while recording To monitor images while recording

: Various settings

: Shooting mode settings

[Movie mode]

[Photo mode]

[Time-lapse capture mode]

[Loop recording mode]

: Start/stop recording

Note

When Airplane mode is set to ON, the Wi-Fi and Bluetooth functions are not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly.

[82] Using the camera connected to other devices via Wi-Fi

Connecting to your smartphone

Using One-touch Functions to Connect to an NFCenabled Android Smartphone (FDR -X3000/HDRAS300)

Perform preparation for connecting to your smartphone before connecting.

About NFC

NFC is a technology for short-range wireless communication between various devices, such as a mobile phones and IC tags. Data communication is achieved simply by touching devices together at a specific point. NFC (Near Field Communication) is an international standard of the short-range wireless communication technology.

[83] Using the camera connected to other devices via Wi-Fi

Connecting a smartphone to Wi -Fi via QR Code (Android device)

Perform preparation for connecting to your smartphone before connecting.

Set the camera's Wi-Fi connection setting to ON.

Touch the (N mark) on the smartphone to the (N mark) on the camera.

Cancel the sleep and screen lock function of the smartphone beforehand. Continue touching without moving until PlayMemories Mobile starts (1-2 seconds). Touch the (N Mark) on the smartphone, refer to the instruction manual of the smartphone for the touch area. If the camera and the smartphone cannot be connected by NFC, see “ smartphone to Wi-Fi via QR Code (Android device)” and connect them.

(N Mark) of the smartphone to the (N Mark) of the camera. If there is no

Connecting a

Note

When Airplane mode is set to ON, the Wi-Fi and Bluetooth functions are not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly. When operating multiple cameras with a connected device, the NFC One-touch function is not available.

Connecting to your smartphone

Press the MENU button on the camera.

Press the UP button or DOWN button to select

connection setting) -

Select the shooting mode (

Start PlayMemories Mobile on the smartphone.

, then press the REC/ENTER button.

/ / / ).

(Camera Settings) - (Wi-Fi

Select [Scan QR Code of the Camera ] on the PlayMemories Mobile.

Select [OK] (Select [OK] again when a message is displayed.)

[84] Using the camera connected to other devices via Wi-Fi

Performing the Wi-Fi setting on a smartphone via QR

Scan the QR Code that is printed on a sticker attached to the rear of the camera's

battery cover.

When [Connect with the camera? ] is displayed on the smartphone, select [OK].

Note

When Airplane mode is set to ON, the Wi-Fi function is not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly. When operating multiple cameras with a connected device, you cannot connect a smartphone to Wi-Fi via

QR Code.

Connecting to your smartphone

Code (iPhone/iPad)

Perform preparation for connecting to your smartphone before connecting.

Press the MENU button on the camera.

Press the UP button or DOWN button to select

connection setting) -

Select the shooting mode (

Start PlayMemories Mobile on the smartphone.

, then press the REC/ENTER button.

/ / / ).

(Camera Settings) - (Wi-Fi

Select [Scan QR Code of the Camera ] on the PlayMemories Mobile.

Select [OK] (Select [OK] again when a message is displayed.)

Scan the QR Code that is printed on a sticker attached to the rear of the camera's

battery cover.

According to the instruction on the screen, complete the installation of profile

(setting information).

If asked for the passcode, enter the iPhone/iPad passcode.

On the Home screen, select the [Settings] - [Wi - Fi].

Select the SSID that is printed on a sticker attached to the rear of the camera's

battery cover.

Return to the Home screen, then start PlayMemories Mobile.

Note

When Airplane mode is set to ON, the Wi-Fi function is not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly. When operating multiple cameras with a connected device, you cannot set the Wi-Fi on a smartphone via

QR Code.

[85] Using the camera connected to other devices via Wi-Fi

Connecting to your smartphone

Connecting to a smartphone using ID/password (Android device)

Perform preparation for connecting to your smartphone before connecting.

Press the MENU button on the camera.

Press the UP button or DOWN button to select

connection setting) -

Select the shooting mode (

Start PlayMemories Mobile on the smartphone.

, then press the REC/ENTER button.

/ / / ).

(Camera Settings) - (Wi-Fi

Select the SSID that is printed on a sticker attached to the rear of the camera's

battery cover.

[86] Using the camera connected to other devices via Wi-Fi

Connecting to a smartphone using ID/password (iPhone/iPad)

Perform preparation for connecting to your smartphone before connecting.

Enter the password printed on the sticker attached to the rear of the camera's

battery cover (only for the first time).

Note

When Airplane mode is set to ON, the Wi-Fi function is not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly.

Connecting to your smartphone

Press the MENU button on the camera.

Press the UP button or DOWN button to select (Camera Settings) - (Wi-Fi

connection setting) - , then press the REC/ENTER button.

Select the shooting mode ( / / / ).

In the Home screen on the smartphone, select [Settings] – [Wi-Fi].

Select the SSID that is printed on a sticker attached to the rear of the camera's

battery cover.

Enter the password printed on the sticker attached to the rear of the camera's

battery cover (only for the first time).

Confirm that the SSID that is printed on a sticker attached to the rear of the

camera’s battery cover is connected.

Return to the Home screen, then start PlayMemories Mobile.

Note

When Airplane mode is set to ON, the Wi-Fi function is not available. Depending on local electrical interference or the smartphone’s capabilities, the live view images may not be

displayed smoothly.

[87] Using the camera connected to other devices via Wi-Fi

Connecting to the Live-View Remote

Connecting a single camera to Live-View Remote (Single connection)

This section explains how to connect to Live-View Remote “RM-LVR3”. If you are using other LiveView Remote, see Help Guide of the relevant remote control.

Turn on the Live -View Remote.

For details, refer to “Connecting the remote control to a single camera via Wi-Fi” in the Help Guide of the Live-View Remote (RM-LVR3). http://rd1.sony.net/help/cam/1650/h_zz/

Set the connection mode of the camera.

Press the MENU button, then press the UP button or DOWN button to select Settings) -

Select the SSID that is printed on the sticker attached to the rear of the camera's

battery cover with the Live-View Remote.

The connection beep sounds, then

(Wi-Fi connection setting) - , then press the REC/ENTER button.

is displayed on the display panel.

(Camera

Press the UP button or DOWN button to select

button.

Note

, then press the REC/ENTER

When Beep is set to OFF, the connection beep does not sound.

[88] Using the camera connected to other devices via Wi-Fi

Connecting multiple cameras to Live- View Remote (Multi connection)

This section explains how to connect to Live-View Remote “RM-LVR3”. If you are using other LiveView Remote, see Help Guide of the relevant remote control.

If the connection does not complete, congestion of the radio wave might be the cause. Retry the connection by changing the place.

Connecting to the Live-View Remote

Turn on the Live -View Remote.

For details, refer to “Connecting the remote control to multiple cameras via Wi-Fi” in the Help Guide of the Live-View Remote (RM-LVR3). http://rd1.sony.net/help/cam/1650/h_zz/

Set the camera.

When you connect the camera to Live-View Remote for the first time Press the MENU button, then press the UP button or DOWN button to select

Settings) the REC/ENTER button.

When the connection beep sounds and camera using the Live-View Remote.

appears on the display panel of the camera when connecting finishes. Press the

REC/ENTER button. When you connect the camera to Live-View Remote since second time

Press the MENU button, then press the UP button or DOWN button to select Settings) the REC/ENTER button.

If you will continue to connect multiple cameras, repeat from step 2.

(Wi-Fi connection setting) - (multi connection) - , then press

is displayed on the display panel, register the

(Wi-Fi connection setting) - (multi connection) - , then press

(Camera

Note

When Beep is set to OFF, the connection beep does not sound.

[89] Using the camera connected to other devices via Wi-Fi

Connecting to Handycam

Connecting a single camera to Handycam (Single connection)

You can operate the camera using a Handycam that supports the multi camera control function.

Turn on the Handycam.

For details, refer to “Connecting this product to one camera with Multi Camera Control (Single Connection)” in the Help Guide of the Handycam. Example: Help Guide of FDR-AX40/AX53/AX55/AXP55 http://rd1.sony.net/help/cam/1630/h_zz/

Set the connection mode of the camera.

Press the MENU button, then press the UP button or DOWN button to select Settings) -

Select the SSID that is printed on the sticker attached to the rear of the camera's

battery cover with the Handycam.

The connection beep sounds, then

(Wi-Fi connection setting) - , then press the REC/ENTER button.

is displayed on the display panel.

(Camera

Press the REC/ENTER button.

Note

[90] Using the camera connected to other devices via Wi-Fi

Connecting multiple cameras to Handycam (Multi connection)

You can operate the camera using a Handycam that supports the multi camera control function.

When Beep is set to OFF, the connection beep does not sound.

Connecting to Handycam

Turn on the Handycam.

For details, refer to “Connecting this product to more than one camera with Multi Camera Control (Multi Connection)” in the Help Guide of the Handycam. Example: Help Guide of FDR-AX40/AX53/AX55/AXP55 http://rd1.sony.net/help/cam/1630/h_zz/

Set the connection mode of the camera.

When you connect the camera to Handycam for the first time Press the MENU button, then press the UP button or DOWN button to select

Settings) the REC/ENTER button.

When the connection beep sounds and camera, register the camera using the Handycam.

appears on the display panel of the camera when connecting finishes.

When you connect the camera to Handycam since second time

(Wi-Fi connection setting) - (multi connection) - , then press

is displayed on the display panel of the

(Camera

Press the MENU button, then press the UP button or DOWN button to select Settings) the REC/ENTER button.

If you will continue to connect multiple cameras, repeat from step 2.

Note

When Beep is set to OFF, the connection beep does not sound.

(Wi-Fi connection setting) - (multi connection) - , then press

(Camera

[91] Editing images imported to your computer

Using the Action Cam Movie Creator

Useful functions of Action Cam Movie Creator

Action Cam Movie Creator them in various ways.

Visit the following URL to install the software. http://www.sony.net/acmc/ Action Cam Movie Creator, which can import movies and edit movies and PlayMemories Home, which can playback, will be installed simultaneously.

Useful functions of Action Cam Movie Creator

Useful functions of PlayMemories Home

[92] Editing images imported to your computer

Installing Action Cam Movie Creator on your computer

allows you to import movies to your computer and edit images, to use

Importing movies and still images Editing movies (for FDR-X3000/HDR-AS300 movies, tracking information and movement speed are displayed)

Playing back movies and still images

Note

When you import movies to your computer, use Action Cam Movie Creator. If you import using another method, GPS information is not imported from FDR-X3000/HDR-AS300.

Use the micro USB cable (supplied) when connecting the camera to your computer.

Using the Action Cam Movie Creator

Install Action Cam Movie Creator on your computer. Follow the steps below.

[93] Editing images imported to your smartphone/tablet

Useful functions of Action Cam App

Turn on the computer.

Log on as an Administrator. Close all applications running on the computer before installing the software.

Visit the following URL with the Internet browser of the computer and install Action

Cam Movie Creator.

http://www.sony.net/acmc/ When installation is complete, Action Cam Movie Creator starts up.

Connect the camera to the computer with the supplied micro USB cable.

New function may be added to Action Cam Movie Creator. Even if Action Cam Movie Creator is already installed on your computer, connect the camera to your computer.

Note

Do not disconnect the micro USB cable (supplied) from the camera while the computer screen indicates that the camera is being operated or accessed. Doing so may cause data corruption.

To disconnect the computer from the camera, click are using Windows Vista, click

on the task tray.

on the task tray then click (Icon to remove). If you

Using the Action Cam App

With Action Cam App for smartphone/tablet, you can capture the movie taken with your smartphone, and you can edit the movie with a simple operation. You can also add effects such as multi-view and variable speed playback, you can also create a timelapse movie.

For the latest information details about the functions of Action Cam App, see the website below. http://www.sony.net/acap/

[94] Editing images imported to your smartphone/tablet

Installing Action Cam App

Install Action Cam App compatible to your smartphone/tablet. For latest information and function information on Action Cam App, see the following website. http://www.sony.net/acap/

Search for Action Cam App on Google play, then install it.

Google play may not be supported depending on country or region. Search for Action Cam App on App Store, then install it.

[95] Information

Estimated duration of recording and playback for supplied battery pack

Approximate time available when you use a fully charged battery pack.

Using the Action Cam App

Recordable time

Recording time

FDR-X3000

HDR-AS300

HDR-AS50

FDR-X3000

HDR-AS300

The time measured when using one fully charged battery pack ( ) indicates the recording duration when the Wi-Fi remote control is set to off, and for playing time, when the camera is connected to a TV by an HDMI cable (sold separately). The recording time may be shorter, depending on the recording conditions.

The recording time may be longer when you set the Wi-Fi or GPS

Image quality: 4K 30p Continuous recording time: 50 minutes (60 minutes)

Typical recording time: 40 minutes (45 minutes) Image quality: HQ

Continuous recording time: 125 minutes (135 minutes) Typical recording time: 80 minutes (85 minutes)

Image quality: HQ Continuous recording time: 125 minutes (135 minutes)

Typical recording time: 80 minutes (85 minutes)

Image quality: HQ Continuous recording time: 165 minutes (195 minutes)

Typical recording time: 110 minutes (130 minutes)

Playing time

Image quality is 4K 30p: 90 minutes (100 minutes) Image quality is HQ: 170 minutes (195 minutes)

Image quality is HQ: 170 minutes (195 minutes)

setting to OFF.

GPS is only for FDR-X3000/HDR-AS300

Shooting 4K movies and connecting to the Wi-Fi network requires a lot of electric power, so continuous movie shooting may cause overheating of the camera. To protect the camera, the power turns off automatically when overheating occurs. When you start shooting a movie after leaving the camera turned off for a while, the continuous movie shooting time (the time from the start to the end of shooting) shown below is available. The recordable time may be shorter, especially when you shoot 4K movies in a high temperature environment.

Continuous movie shooting time

(*1)

Movie format

Sony X3000, HDR-AS300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
