Sony MHC-GX45, HCD-RG440S Schematic

HCD-GX45/RG440

SERVICE MANUAL

Ver. 1.2 2005. 04

• HCD-GX45/RG440 is the
tuner, deck, CD and amplifier
section in MHC-GX45/RG440S.

(Photo: HCD-GX45)

CD CD Mechanism Type CDM74F-K6BD71A
Section Base Unit Name BU-K6BD71A

Tape Deck Model Name Using Similar Machanism CX-JT8
Section Tape Transport Mechanism Type CWM43FF-13

US Model

Canadian Model

HCD-GX45

AEP Model

UK Model

Australian Model

HCD-RG440

Model Name Using Similar Mechanism NEW

Optical Pick-up Name KSS-213DCP

AUDIO POWER SPECIFICATIONS
(HCD-GX45 USA model only)
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

With 6 ohm loads, both channels driven, from
120 – 10,000 Hz; rated 120 watts per channel
minimum RMS power, with no more than 10 %
total harmonic distortion from 250 milliwatts to
rated output.

Amplifier section

North American models:
HCD-GX45:

Front speaker
Continuous RMS power output (reference):

120 + 120 watts (6 ohms at
1 kHz, 10% THD)

Total harmonic distortion less than 0.07% (6 ohms at

1 kHz, 60 W)
Sub woofer
Continuous RMS power output (reference):

120 watts (6 ohms at

60 Hz, 10% THD)
Total harmonic distortion less than 0.07% (6 ohms at

60 Hz, 60 W)

European and Russian models:
HCD-RG440:

Front speaker
DIN power output (rated): 80 + 80 watts

(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference):

100 + 100 watts (6 ohms at

1 kHz, 10% THD)
Music power output (reference):

200 + 200 watts (6 ohms at

1 kHz, 10% THD)

SPECIFICATIONS

Sub woofer
DIN power output (rated): 80 watts (6 ohms at

60 Hz, DIN)

Continuous RMS power output (reference):

100 watts (6 ohms at
60 Hz, 10% THD)

Music power output (reference):

200 watts (6 ohms at
60 Hz, 10% THD)

Other models:
HCD-RG440:

The following measured at AC 120, 220, 240 V,
50/60 Hz
DIN power output (rated): 80 + 80 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference):

100 + 100 watts (6 ohms at
1 kHz, 10% THD)

Inputs
GAME INPUT AUDIO L/R (phono jacks):

voltage 250 mV,
impedance 47 kilohms

GAME INPUT VIDEO (phono jack):

1 Vp-p, 75 ohms
Outputs
PHONES (stereo mini jack):

accepts headphones of

8 ohms or more

– Continued on next page –

COMPACT DISC DECK RECEIVER

9-961-068-03

2005D04-1
© 2005. 04

Sony Corporation

Personal Audio Group
Published by Sony Engineering Corporation

1

HCD-GX45/RG440

VIDEO OUT (phono jack):max. output level

1 Vp-p, unbalanced, Sync
negative, load impedance
75 ohms

SPEAKER: accepts impedance of 6 to

16 ohms

SUB WOOFER OUT: accepts impedance of 6 to

16 ohms

CD player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ=780 nm)
Emission duration:

continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 780 – 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB

Tape deck section

Recording system 4-track 2-channel, stereo
Frequency response 50 – 13,000 Hz (±3 dB),

using Sony TYPE I

cassettes

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range
Russian models 65.0 – 74.0 MHz

(There is no stereo effect)

87.5 – 108.0 MHz
Other models 87.5 – 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz

AM tuner section

Tuning range
Pan-American models: 530 – 1,710 kHz (with the tuning

interval set at 10 kHz)
531 – 1,710 kHz (with the tuning
interval set at 9 kHz)

European, Russian, Middle Eastern and Philippine models:

531 – 1,602 kHz (with the tuning
interval set at 9 kHz)

Other models: 530 – 1,710 kHz (with the tuning

interval set at 10 kHz)
531 – 1,602 kHz (with the tuning

interval set at 9 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz

Speaker

North American models:
Front speaker SS-RG440 for HCD-GX45:

Speaker system 3-way, 3-unit, bass-reflex

type
Speaker units
Sub Woofer: 13 cm, cone type
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx. 240 × 325 × 243 mm
Mass Approx. 4.3 kg net per

speaker

Sub woofer speaker SS-WG990 for HCD-GX45:

Speaker system Bass-reflex type
Speaker units
Woofer: 20 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx. 265 × 325 × 350 mm
Mass Approx. 6.4 kg

European and Russian models:
Front speaker SS-RG440 for HCD-RG440:

Speaker system 3-way, 3-unit, bass-reflex

type
Speaker units
Woofer: 13 cm, cone type
Sub Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx. 240 × 325 × 243 mm
Mass Approx. 4.3 kg net per

speaker

Sub woofer speaker SS-WG990 for HCD-RG440:

Speaker system Bass-reflex type
Speaker units
Woofer: 20 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d) Approx. 265 × 325 × 350 mm
Mass Approx. 6.4 kg

General

Power requirements
North American models: 120 V AC, 60 Hz
European and Russian models:

230 V AC, 50/60 Hz
Australian model: 230 – 240 V AC, 50/60 Hz
Argentine model: 220 V AC, 50/60 Hz
Mexican model: 127 V AC, 60 Hz
Saudi Arabian model: 120 – 127 V/220 V or

230 – 240 V AC,

50/60 Hz

Adjustable with voltage

selector
Korean model: 220 V AC, 60 Hz
Other models: 120 V, 220 V or 230 –

240 V AC, 50/60 Hz

Adjustable with voltage

selector

Power consumption
USA model:
HCD-GX45: 180 watts
European and Russian models:
HCD-RG440: 150 watts

0.35 watts (at the Power

Saving Mode)
Other models:
HCD-RG440: 150 watts

Dimensions (w/h/d) Approx. 280 × 325 × 407 mm

Mass
North American models:
HCD-GX45: Approx. 9.0 kg
European and Russian models:
HCD-RG440: Approx. 9.0 kg

Supplied accessories: AM loop antenna (1)

Remote Commander (1)

Batteries (2)

FM lead antenna (1)

Speaker pads (12)

Design and specifications are subject to change without
notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

HCD-GX45/RG440

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

Notes on Chip Component Replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270°C during
repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick­up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for A C leakage. Check leakage as
described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a V OM
or battery-operated A C v oltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

To Exposed Metal
Parts on Set

0.15µF

1.5k

Ω

AC
voltmeter
(0.75V)

SETTING AND RELEASING THE CD DISC TRAY LOCK
FUNCTION

This set has a disc tray lock function to prevent discs for
demonstration at shops from theft. While this lock function is set,
the tray will not be delivered out even when the OPEN/CLOSE
button is pressed.

Setting method:

Press the OPEN/CLOSE button while pressing the STOP button.
After a few seconds, the message “LOCKED” will appear on the
fluorescent indicator tube with the tray locked.

Releasing method:

Just as the lock is set, press the OPEN/CLOSE button while
pressing the STOP button.
After a few seconds, the message “UNLOCKED” will appear with
the lock released.

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

LASER DIODE AND FOCUS SEARCH OPERATION
CHECK

Carry out the “S curve check” in “CD section adjustment” and check
that the S curve waveforms is output three times.

3

HCD-GX45/RG440

MODEL IDENTIFICATION

– BACK PANEL –

PARTS No.

TABLE OF CONTENTS

1. GENERAL

Main Unit ................................................................................ 5

Remote Control ....................................................................... 5

2. DISASSEMBLY

2-1. Case (Top) ........................................................................... 7

2-2. CD Door .............................................................................. 7

2-3. CD Mechanism Block ......................................................... 8

2-4. Front Panel Section ............................................................. 9

2-5. Tape Mechanism Deck ...................................................... 10

2-6. Panel Board, 6 Stream Led Board, Remote Board............ 10

2-7. Game Jack Board, H/P Jack Board ................................... 11

2-8. Back Panel Section............................................................ 11

2-9. Main Board ....................................................................... 12

2-10. Power Amp Board, Subwoofer Board ...............................12

2-11. SW Board, Driver Board................................................... 13

2-12. CD Block Assy.................................................................. 13

2-13. Sensor Board ..................................................................... 14

2-14. Motor (TB) Board ............................................................. 14

2-15. Motor (LD) Board ............................................................. 15

2-16. BD Board .......................................................................... 15

2-17. Optical Pick-up ................................................................. 16

3. TEST MODE ..................................................................... 17

4. ELECTRICAL ADJUSTMENTS................................. 20

5. DIAGRAMS

5-1. IC Pin Descriptions ........................................................... 21

5-2. Block Diagram –CD Section–........................................... 25

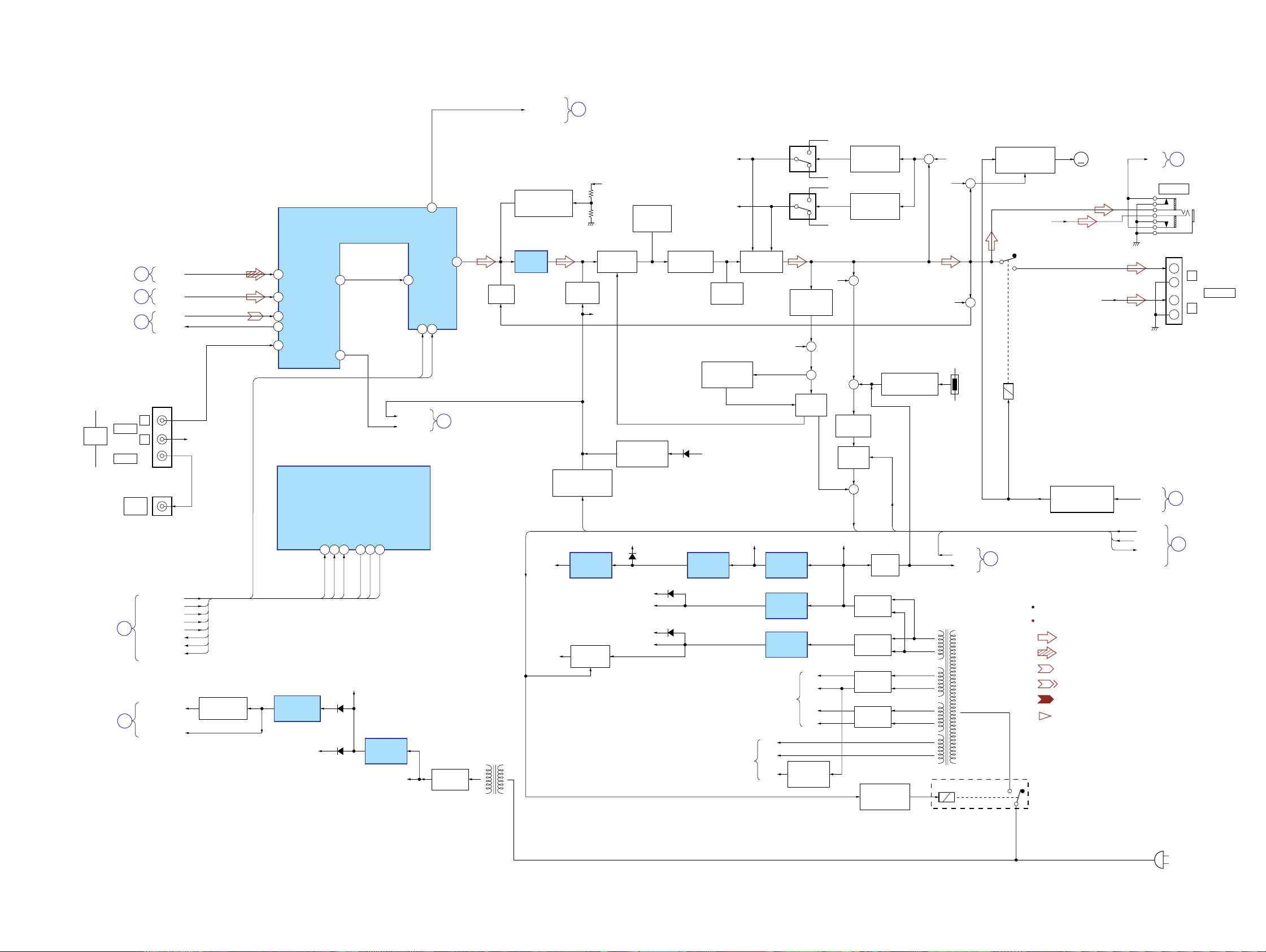

5-3. Block Diagram –Tuner/Tape/Panel Section– ....................26

5-4. Block Diagram –Amp/Power Supply Section–................. 27

5-5. Block Diagram –Sub Woofer Section– ............................. 28

5-6. Note for Printed Wiring Boards

and Schematic Diagrams .................................................. 29

5-7. Waveforms......................................................................... 29

MODEL PARTS No.

GX45: US, CND 4-244-697-31
RG440: AEP , UK, AUS 4-244-697-41

• Abbreviation
CND : Canadian model
AUS : Australian model

5-8. Circuit Boards Location .................................................... 29

5-9. Printed Wiring Board –CD Mechanism Section (1/2)– .... 30

5-10. Schematic Diagram –CD Mechanism Section (1/2)– ....... 31

5-11. Printed Wiring Boards –CD Mechanism Section (2/2)– ... 32

5-12. Schematic Diagram –CD Mechanism Section (2/2)– ....... 33

5-13. Schematic Diagram –Main Section (1/4)– ........................34

5-14. Schematic Diagram –Main Section (2/4)– ........................35

5-15. Schematic Diagram –Main Section (3/4)– ........................36

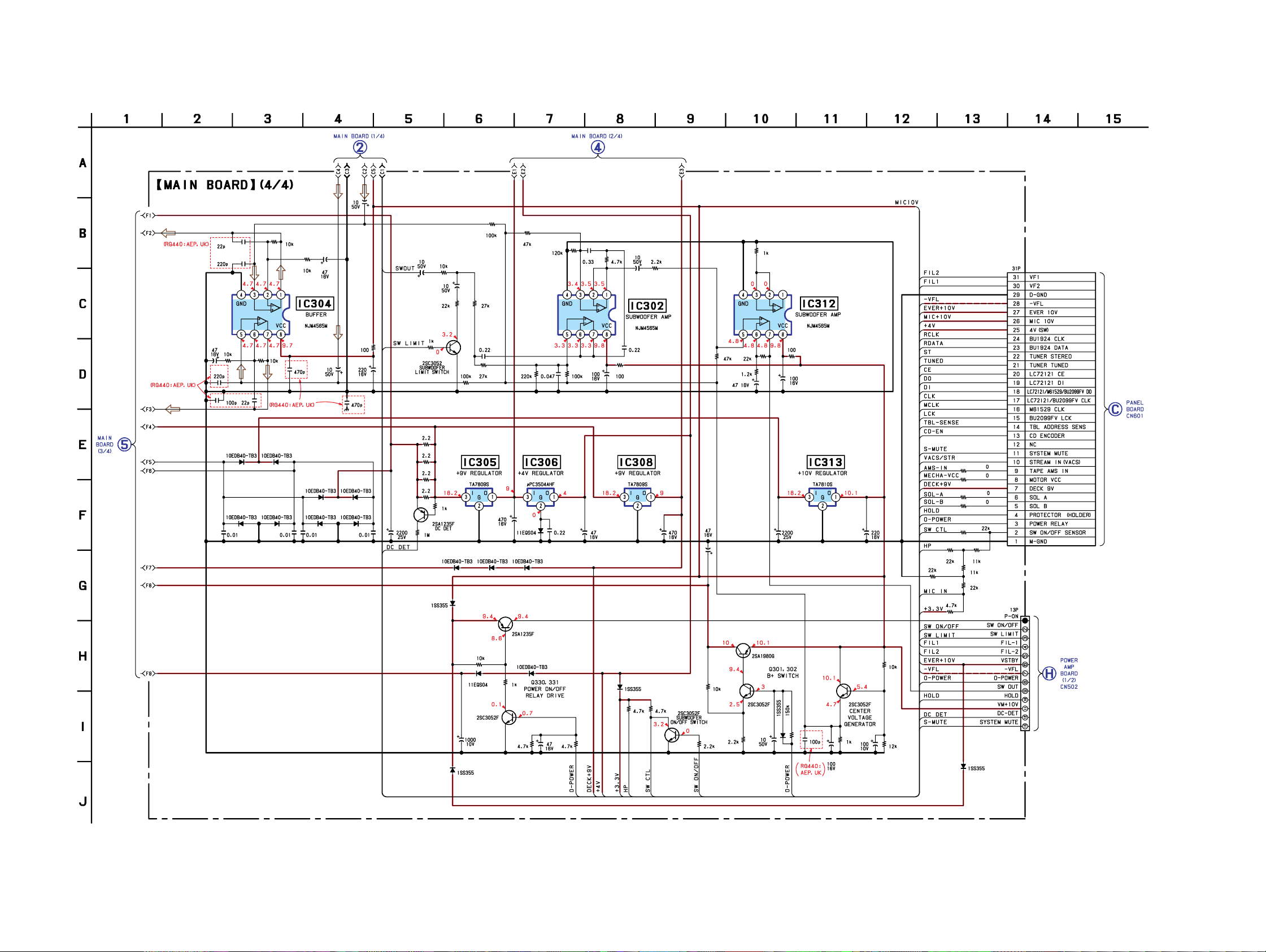

5-16. Schematic Diagram –Main Section (4/4)– ........................37

5-17. Printed Wiring Board –Main Section– .............................. 38

5-18. Printed Wiring Boards and Schematic Diagram

–Jack Section– ................................................................... 39

5-19. Printed Wiring Boards –Panel Section– ............................ 40

5-20. Schematic Diagram –Panel Section– ................................ 41

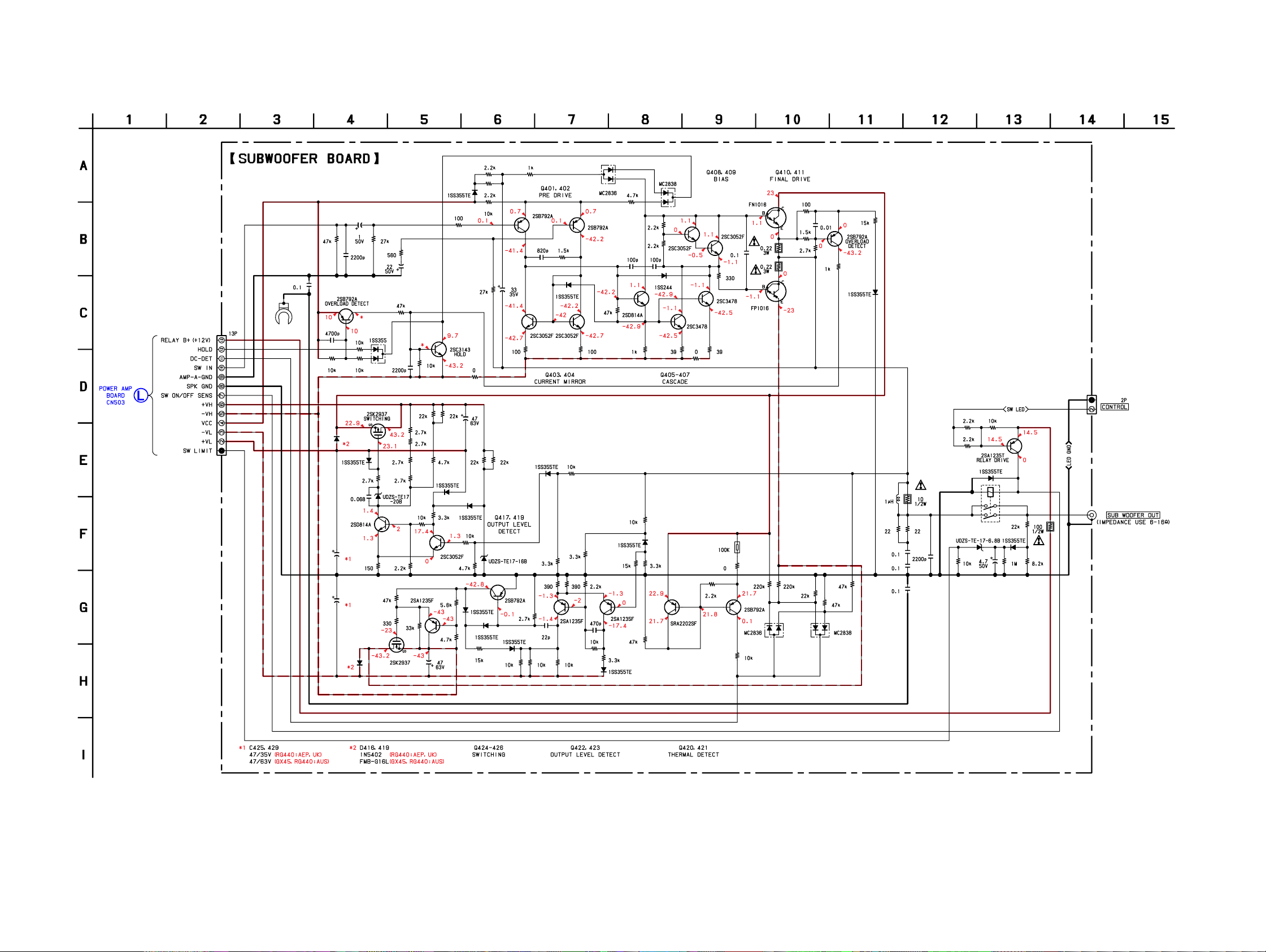

5-21. Printed Wiring Board –Sub Woofer Section– ................... 42

5-22. Schematic Diagram –Sub Woofer Section– ...................... 43

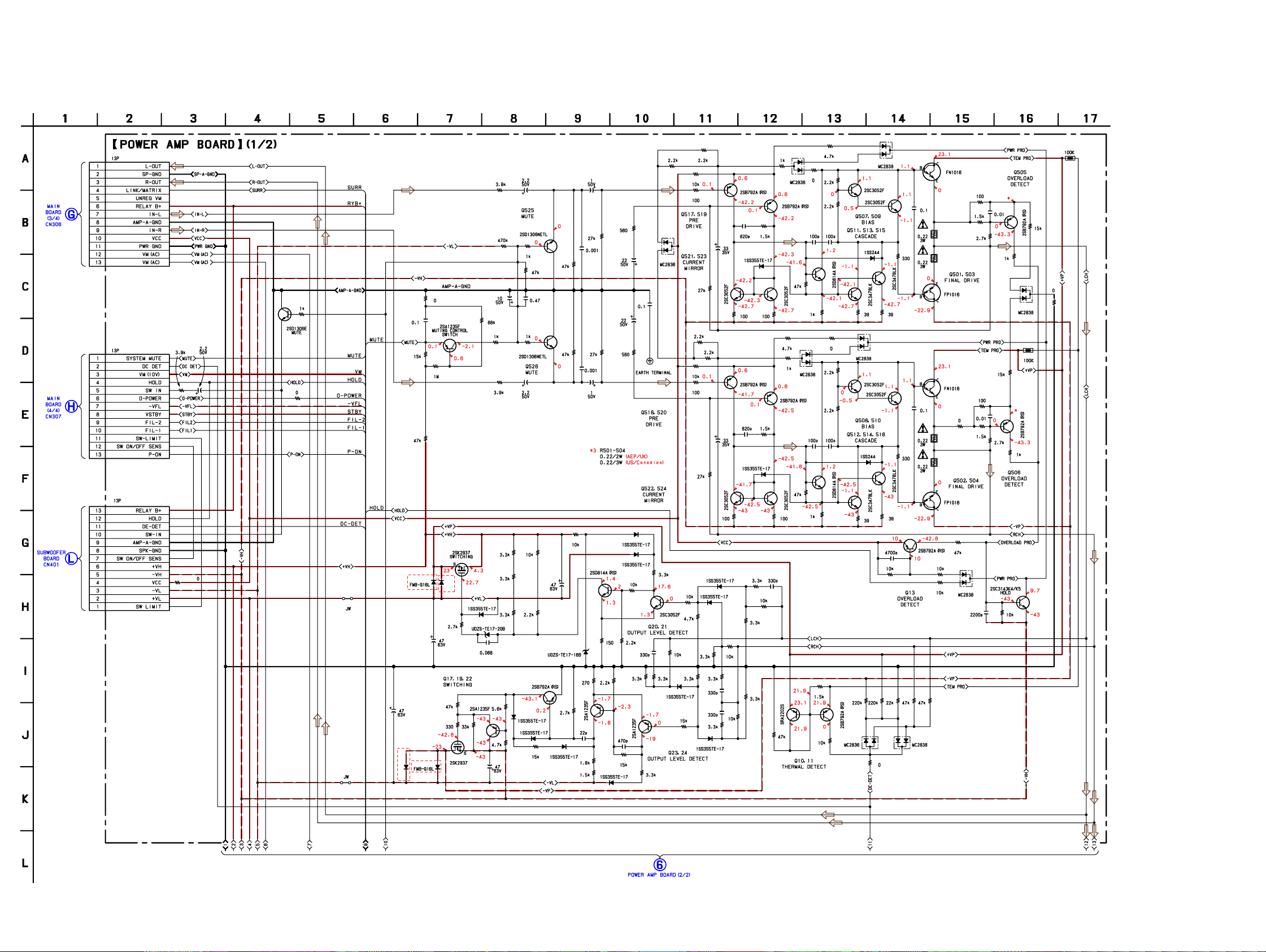

5-23. Schematic Diagram –Power Amp Section (1/2)– ............. 44

5-24. Schematic Diagram –Power Amp Section (2/2)– ............. 45

5-25. Printed Wiring Board –Power Amp Section– ................... 46

5-26. Printed Wiring Board

–Transformer Section– ...................................................... 47

5-27. Schematic Diagram –Transformer Section– ..................... 48

5-28. IC Block Diagrams............................................................ 49

6. EXPLODED VIEWS

6-1. Main Section ..................................................................... 52

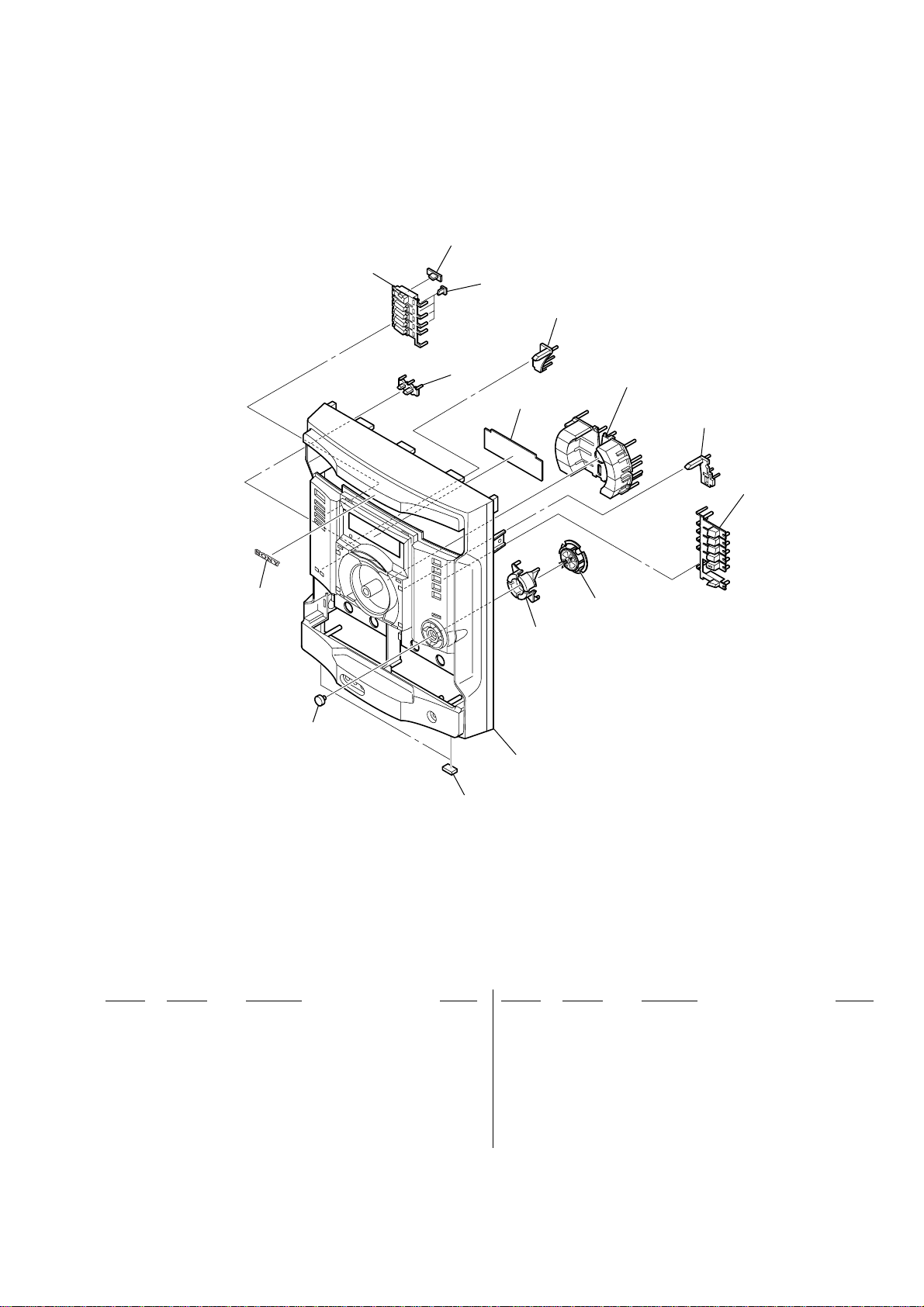

6-2. Front Panel Section (1)...................................................... 53

6-3. Front Panel Section (2)...................................................... 54

6-4. Front Panel Section (3)...................................................... 55

6-5. Main Board Section .......................................................... 56

6-6. CD Mechanism Deck Section (1) ..................................... 57

6-7. CD Mechanism Deck Section (2) ..................................... 58

6-8. Base Unit Section ..............................................................59

7. ELECTRICAL PARTS LIST ........................................ 60

4

SECTION 1

GENERAL

HCD-GX45/RG440

This section is extracted
from instruction manual.

5

HCD-GX45/RG440

Note : Disassemble the unit in the order as shown below.

SET

2-1. CASE (TOP)

(Page 7)

2-2. CD DOOR

(Page 7)

2-3. CD MECHANISM BLOCK

(Page 8)

2-11. SW BOARD,

DRIVER BOARD
(Page 13)

2-13. SENSOR BOARD

2-14. MOTOR (TB) BOARD

2-15. MOTOR (LD) BOARD

SECTION 2

DISASSEMBLY

(Page 14)

(Page 14)

(Page 15)

2-12. CD BLOCK ASSY

(Page 13)

2-16. BD BOARD

(Page 15)

2-17. OPTICAL PICK-UP

(Page 16)

2-4. FRONT PANEL SECTION

(Page 9)

2-6. PANEL BOARD,

6 STREAM LED BOARD,
REMOTE BOARD
(Page 10)

2-5. TAPE MECHANISM DECK

2-7. GAME JACK BOARD,

2-8. BACK PANEL SECTION

(Page 11)

2-9. MAIN BOARD

(Page 12)

2-10. POWER AMP BOARD,

SUBWOOFER BOARD
(Page 12)

(Page 10)

H/P JACK BOARD
(Page 11)

6

Note : Follow the disassembly procedure in the numerical order given.

)

2-1. CASE (TOP)

HCD-GX45/RG440

6

two screws (case 3 TP2)

7

screw (case 3 TP2)

9

(+BVTP 3

qf

case (side-L)

screw

case (top)

qs

×

10)

qs

8

screw

(+BVTP 3

×

q;

10)

qd

qs

qs

qa

two screws (+BVTP 3

case (side-R)

5

×

10)

3

screw

(+BVTP 3

1

two screws

(case 3 TP2)

×

10

2-2. CD DOOR

CD mechanism deck (CDM74F-K6BD71B)

1

Turn the pulley to the direction of the arrow.

pulley

Front panel side

2

Pull-out the disc tray.

3

4

CD door

4

(+BVTP 3

2

screw (case 3 TP2)

screw

×

10)

7

HCD-GX45/RG440

)

2-3. CD MECHANISM BLOCK

5

3

screw

(+BVTP 3

6

8

CD mechanism block

1

CN701

×

10)

2

three

(+BVTP 3

screws

×

10)

MAIN board

MAIN board

7

CN312
(flat type)

4

screw

(+BVTP 3

×

10

8

2-4. FRONT PANEL SECTION

8

(+BVTP 3

screw

3

×

8)

TRANS board

CN311
(flat type)

1

CN003

HCD-GX45/RG440

4

CN305

0

front panel section

2

CN304
(flat type)

7

9

three screws (+BVTP 3

CN310

× 8

6

5

CN202

)

CN203

9

HCD-GX45/RG440

)

)

2-5. TAPE MECHANISM DECK

1

connector

3

tape mechanism deck

2

six

screws

(+BVTP 2.6

×

8

2-6. PANEL BOARD, 6 STREAM LED BOARD, REMOTE BOARD

5

three

(+BVTP 2.6

0

CN607

qa

REMOTE board

screws

×

8)

6

two

(+BVTP 2.6

9

6 STREAM LED board

screws

×

8

two

(+BVTP 2.6

3

(+BVTP 2.6

2

three

(+BVTP 2.6

7

PANEL board

8)

screws

×

4

two

(+BVTP 2.6

two

screws

screws

8)

screws

×

8)

×

8)

×

8

10

1

volume knob

2-7. GAME JACK BOARD, H/P JACK BOARD

d

1

two

screws

(+BVTP 2.6

2

GAME JACK boar

3

screw

(+BVTP 2.6

HCD-GX45/RG440

×

8)

×

8)

2-8. BACK PANEL SECTION

7

back panel section

5

4

H/P JACK board

4

screw

(+BVTP 3

3

two

screws

(+BVTP 3

×

10)

×

10)

6

CN303

chassis section

1

CN101
(flat type)

2

two

screws

(+BVTT 3

×

8)

11

HCD-GX45/RG440

d

2-9. MAIN BOARD

MAIN board

2

MAIN boar

2-10. POWER AMP BOARD, SUBWOOFER BOARD

3

screw

(+BVTP 3

5

screw

1

CN902

(+BVTP 3

6

screw

(+BVTP 3

×

10)

×

10)

×

8)

9

(transistor)

two

two claws

screws

4

screw

(+BVTP 3

7

POWER AMP board

qd

1

two

(+BVTP 3

×

8)

0

bracket (A)

qs

screws

×

bracket (B)

qg

10)

bracket (PWB)

12

qa

three

(transistor)

qh

SUBWOOFER board

screws

8

screw

(+BVTT 3

×

10)

qf

screw

(+BVTT 3

×

2

10)

CN401

2-11. SW BOARD, DRIVER BOARD

d

2

SW board

7

CN702 (flat type)

4

CN703

6

DRIVER boar

HCD-GX45/RG440

2-12. CD BLOCK ASSY

3

1

screw

(+BTTP (M2.6))

2

holder (213) assy

qa

CD block assy

9

two

insulators

CN704

5

two

screws

(+BTTP (M2.6))

0

1

floating

(+PTPWH M2.6)

5

two

insulators

two

coil springs

4

(insulator)

screw

8

two

coil springs

(insulator)

7

two stoppers (BU)

6

(BTTP M2.6)

two screws

3

two floating

(+PTPWH M2.6)

screws

13

HCD-GX45/RG440

2-13. SENSOR BOARD

2

tray

1

floating

(+PTPWH M2.6)

6

floating

(+PTPWH M2.6)

7

gear (geneva)

screw

8

screw

(+BTTP (M2.6))

screw

9

SENSOR board

0

CN731

3

belt (table)

4

floating

(+PTPWH M2.6)

5

screw

pulley (table)

2-14. MOTOR (TB) BOARD

claw

1

claw

5

table motor assy (M741)

3

MOTOR (TB) board

4

Remove the two solderings of motor.

14

2

two

screws

(+BTTP (M2.6))

)

2-15. MOTOR (LD) BOARD

4

Remove the two solderings of motor.

5

loading motor assy (M751)

2

two

screws

(+BTTP (M2.6))

3

MOTOR (LD) board

HCD-GX45/RG440

2-16. BD BOARD

2

1

4

BD board

Remove the two solderings of motor.

belt (loading)

5

1

screw

(+BTP 2.6

CN708 (flat type

×

8)

3

Remove the two solderings of motor.

15

HCD-GX45/RG440

2-17. OPTICAL PICK-UP

3

Remove the optical pick-up
(KSS-213D) in the direction
of the arrow

B

B

.

1

gear (A)

2

sled shaft

A

1

Slide the lever
in the direction of arrow

A

.

16

SECTION 3

TEST MODE

HCD-GX45/RG440

[COLD RESET]

• The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning the
set to the customer.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GROOVE] and [POWER] simultaneously.

3. The message “COLD RESET” is displayed on the fluorescent

indicator tube momentarily, then becomes standby states.

[TUNER STEP CHANGE-OVER]

(Except AEP and UK models)

•A step of AM channels can be changed over between 9 kHz and
10 kHz.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [TUNER BAND] key to select “AM”.

3. Press the [POWER] key to turn the power OFF.

4. Press two keys of [TUNER/BAND] and [POWER] simultaneously.

5. The message “9K STEP” or “10K STEP” is displayed on the

fluorescent indicator tube, and thus the channel step is changed
over.

[CD SHIP MODE]

•This mode moves the optical pick-up to the position durable to
vibration. Use this mode when returning the set to the customer
after repair.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press two keys of [CD] and [POWER] simultaneously.

4. The message “LOCK” is displayed on the fluorescent indicator

tube, and the CD ship mode is set.

[CD TRAY LOCK MODE]

•This mode is used to unable to take sample disc out of tray in the
shop.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Set disc on the tray.

4. While pressing the x key, press the Z key for 5 seconds.

5. The message “LOCKED” is displayed on the fluorescent

indicator tube and the tray is locked. (Even if pressing
the Z key, the message “LOCKED” is displayed on the
fluorescent indicator tube and the tray is locked)

6. To release from this mode, while pressing the x key, press

the Z key for 5 seconds.

7. The message “UNLOCKED” is displayed on the fluorescent

indicator tube and the tray is unlocked.

[AMP TEST MODE]

•This mode is used to set the parameter of AMP IC for adjustment
of tone quality and VACS level and display VACS status.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [EFFECT ON/OFF]

simultaneously.

3. When the AMP test mode is activated, the message “AMP

TEST” is displayed on the fluorescent indicator tube
momentarily.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously, mode

is changed over to parameter setting of AMP IC and display of
VACS status.

5. When the VACS status, the message VACS level, VACS signal

level, and VACS signal hold level is display ed on the fluorescent
indicator tube.

6. Press the [GROOVE] key, DBFB ON/OFF is changed over.

7. Press the [GAME MIXING] key, surround ON/OFF is changed

over.

8. To release from this mode, press two keys of [GAME EQ] and

[MOVIE EQ] simultaneously.

17

HCD-GX45/RG440

[AGING MODE]

• This mode can be used for operation check of CD section and
tape deck section.
CD section and tape deck section work in parallel.

If an error occurred:

The aging operation stops only an error occurred sections and
display then status.

If no error occurs:

The aging operation continues repeatedly.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Set disc on the tray and set tape into the deck.

4. Set the “ALL DISCS” mode and “REV OFF” mode.

5. Press three keys of x , [GAME EQ] and [DISC SKIP/EX-CHANGE]

simultaneously.

6. The message “AGING” is displayed on the fluorescent

indicator tube momentarily, then aging operations of CD and
tape are started at the same time.

7. To release from this mode, operate the “COLD RESET”.

1. Display at the Aging Mode

Display operating state of CD section and tape deck section
alternately.
If an error occurred, stop display which that section.

2. CD Section

The sequence during the aging mode is following as below.
Display at the aging mode is the same as the normal operation.

Aging mode sequence (CD section) :

3. Tape Deck Section

The sequence during the aging mode is following as below.
If an error occurred, stop display that step.

Aging mode sequence (tape deck section) :

Rewind the tape A and B

“AAG-1 or 2”

Shut off

FWD play the tape A

“AAG-3”

2 minutes

Fast forward the tape A

“AAG-4”

Shut off or 20 seconds

REV play the tape A

“AAG-5”

2 minutes

Rewind the tape A

“AAG-6”

Shut off

FWD play the tape B

“BAG-3”

Start (from disc 1)

Disc chucking

TOC read

Play first track for 2 seconds

Play last track for 2 seconds

EX-change open/close

Open the disc tray

Disc skip

Close the tray

Change the next disc.

2 minutes

Fast forward the tape B

“BAG-4”

Shut off or 20 seconds

REV play the tape B

“BAG-5”

2 minutes

Rewind the tape B

“BAG-6”

Shut off

Note: “*AG-*” is display of each step.

18

HCD-GX45/RG440

[GC TEST MODE]

• This mode is used to check the fluorescent indicator tube, LED
and key.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [DISC 2] simultaneously.

3. Fluorescent indicator tube and LEDs are all turned ON.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously , mode

is changed over.

5. In the key check mode, press each key, the def ined key number

of every each key list is displayed on the fluorescent indicator
tube.

6. In the key count check mode, “KEYCNT 0” is displayed on the

fluorescent indicator tube. Each time a key is pressed,
“KEYCNT” value increases. Howev er , once a key is pressed , it
is no longer taken into account.

7. In the headphone input check mode, connect the headphone,

the message “H_P ON” is displayed on the fluorescent
indicator tube, and disconnect the headphone, the message “H_P
OFF” is displayed on the fluorescent indicator tube.

8. In the volume check mode, turn the [VOLUME] knob, the

display on the fluorescent indicator tube is changed over to
“VOLUME UP”, “VOLUME FLAT” or “VOLUME DOWN”

[MC TEST MODE]

•This mode is used to check operations of Amplifier.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press three keys of x , [GAME EQ] and [DISC 3] simultaneously.

3. When the MC test mode is activated, the message “TEST

MODE” is displayed on the fluorescent indicator tube
momentarily, then VACS level is displayed on the fluorescent
indicator tube.

4. Press the [MUSIC EQ] key, the display on the fluorescent

indicator tube is changed over to “GEQ MAX”, press the
[EFFECT ON/OFF] key, the display on the fluorescent indicator
tube is changed over to “GEQ FLAT”, press the [MOVIE EQ]
key, the display on the fluorescent indicator tube is changed
over to “GEQ MIN”,

5. Turn the [VOLUME] knob, the display on the fluorescent

indicator tube is changed over to “VOLUME MAX”, “V OLUME
16” or “VOLUME MIN”

6. Press the [GROOVE] key, VACS ON/OFF is changed over.

7. When the [REC PAUSE/START] key is pressed with a tape set in

the deck-B, the function is switched “MD” or “VIDEO” and
recording starts. When the m or M key is pressed during
recording, the tape is rewound back to the beginning of
recording, the function is switched to “T APE B”, then playback
starts.

8. When the [CD SYNC] key is pressed with the test tape (AMS-

100, AMS-110A) in the deck, number of space between tunes
is counted, then if AMS-110A is set, “OK” is displayed on the
fluorescent indicator tube and if AMS-100 is set, “NG” is
displayed on the fluorescent indicator tube.

9. To release from this mode, press the [POWER] key.

[MODEL, DESTINATION AND VERSION DISPLAY]

•This mode is used to check the model, destination and software
version.

Procedure:

1. Set to the standby state.

2. Press three keys of x , [GAME EQ] and [MOVIE EQ]

simultaneously.

3. When the model, destination and version display mode is

activated, the model an destination is displayed on the
fluorescent indicator tube.

4. Press two keys of [GAME EQ] and [DISC 2] simultaneously, mode

is changed over to model and destination display mode and
version display mode.

5. To release from this mode, press the two keys of [GAME EQ]

and [MOVIE EQ] simultaneously.

[CD ERROR CODE DISPLAY]

• This mode can be used for error display of CD section.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and [DISC 1] simultaneously.

Note: Error code is not displayed on the fluorescent indicator tube.

[CD SERVICE MODE]

•This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the optical pick-up.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and Z simultaneously.

4. When the CD service mode is activated, the message

“TRA VERS ON” is displa yed on the fluorescent indicator tube.

5. Press the M key, optical pick-up move to outside track and

the message “SLED OUT” is displayed on the fluorescent
indicator tube.

6. Press the m key, optical pick-up move to inside track and

the message “SLED IN” is displayed on the fluorescent
indicator tube..

7. Press the [MOVIE EQ] key, traverse ON/OFF is changed over.

[5 REPEAT LIMIT CANCEL]

• Number of repeat for CD playback is 5 times when the repeat
mode is “REPEAT”. This mode is used to enables CD to repeat
playback for limitless times.

Procedure:

1. Press the [POWER] key to turn the power ON.

2. Press the [CD] key to select “CD”.

3. Press three keys of x , [GAME EQ] and G simultaneously.

19

HCD-GX45/RG440

p

p

SECTION 4

ELECTRICAL ADJUSTMENTS

CD SECTION

Note:

1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.

2. Use YEDS-18 (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MW impedance.

4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.

S-CURVE CHECK

Oscilloscope

BD board

TP(FE)
TP(VC)

Procedure :

1. Connect an oscilloscope to TP (FE) and TP (VC).

2. Turn the power on.

3. Load a disc (YEDS-18) and actuate the focus search. (In
consequence of open and close the disc tray, actuate the focus
search)

4. Confirm that the oscilloscope waveform (S-curve) is
symmetrical between A and B. And confirm peak to peak level
within 3 ± 0.5 Vp-p.

Note: Clear RF signal waveform means that the shape “ ◊ ” can be

clearly distinguished at the center of the waveform.

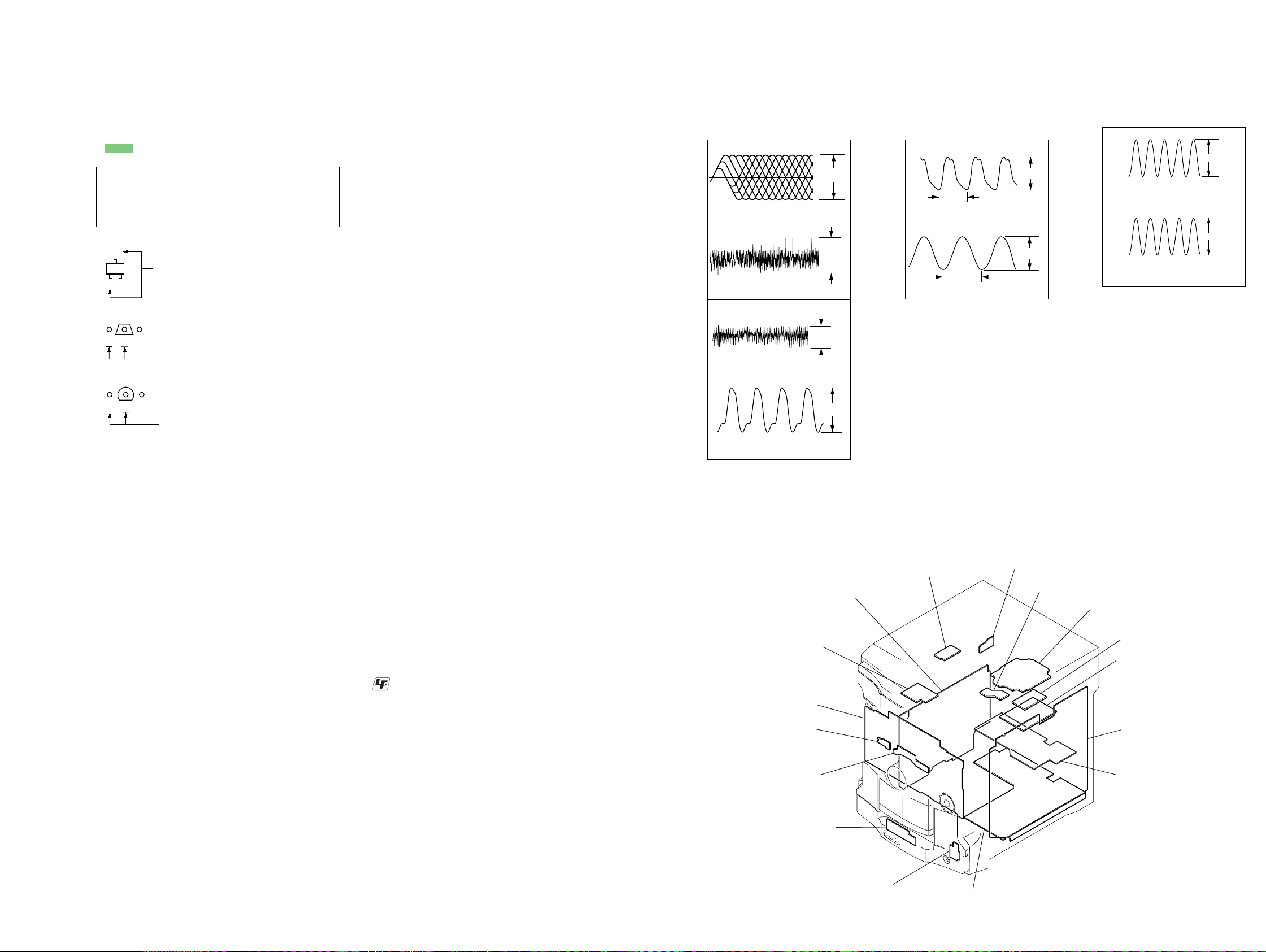

RF signal waveform

VOLT/DIV : 200mV
TIME/DIV : 500ns

level : 1.3

±

0.3Vp-

Connecting Location: BD board

– BD Board (Conductor side) –

S-curve waveform

symmetry

A

±

within 3

B

0.5Vp-

Note: •Try to measure several times to make sure than the ratio

of A : B or B : A is more than 10 : 7.

•Take sweep time as long as possible and light up the
brightness to obtain best waveform.

RF LEVEL CHECK

BD board

TP(RF)
TP(VC)

Procedure :

1. Connect an oscilloscope to TP (RF) and TP (VC).

2. Turn the power on.

3. Load a disc (YEDS-18) and playback.

4. Confirm that oscilloscope waveform is clear and check if RF
signal level is correct or not.

oscilloscope

TP (RF)

TP (VC)

TP (FE)

IC721

TP (TE)

20

HCD-GX45/RG440

SECTION 5

DIAGRAMS

5-1. IC PIN DESCRIPTIONS

• IC309 BU2099FV (MULTI CONTROLLER) (MAIN BOARD)

Pin No. Pin Name I/O Pin Description

1 VSS — Ground pin
2NC—Not used. (Open)
3DATAISerial data input from the tape mechanism controller
4 CLOCK I Serial data transfer clock signal input from the system controller
5 LCK I Serial data latch pulse clock signal input from the system controller
6 REC O Recording on/off control signal output “L”: recording
7BIAS O Recording bias on/off control signal output “L”: bias on

8A/BO

9 PB MUTE O

10 REC MUTE O

11 TUNER MUTE O Tuner muting on/off control signal output to the tuner unit “H”: muting on
12 LM-R (CD) O Loading motor drive signal output
13 LM-L (CD) O Loading motor drive signal output
14 TM-R (CD) O Table motor drive signal output
15 TM-L (CD) O Table motor drive signal output
16 SP RERAY O Front speaker on/off relay drive control signal output “L”: front speaker on
17 LINK/MATRIX O Surround speaker on/off relay drive control signal output “H”: surround speaker on
18 SO O Serial data output to the bass boost controller
19 OE — Not used. (Connect to ground.)
20 VDD — Power supply pin (+3.3 V)

Deck-A/B selection signal output to the deck-A/B select switch
“L”: deck-B, “H”: deck-A
Playback muting on/off control signal output to the recording/playback equalizer
amplifier “H”: muting on
Recording muting on/off control signal output to the recording/playback equalizer
amplifier “L”: muting on

21

HCD-GX45/RG440

• IC310 BU2099FV (BASS BOOST CONTROLLER) (MAIN BOARD)

Pin No. Pin Name I/O Pin Description

1 VSS — Ground pin
2NC—Not used. (Open)
3DATAISerial data input from the multi controller
4 CLOCK I Serial data transfer clock signal input from the system controller
5 LCK I Serial data latch pulse clock signal input from the system controller

6 to 8 NC — Not used. (Open)

9MOTOR VCC O Motor power control signal output “L”: motor power on
10 SOL A O SOL-A control signal output
11 SOL B O SOL-B control signal output
12 LINE OUT MUTE O Line out mute signal output terminal “H”: mute on Not used in this set. (Open)
13 CD MUTE O CD mute signal output terminal “H”: mute on Not used in this set. (Open)

14 to 16 CONT 1 to 3 O Bass boost control signal output “H”: bass boost

17 NC — Not used. (Open)
18 SO O Serial data output Not used. (Open)
19 OE — Not used. (Connect to ground.)
20 VDD — Power supply pin (+3.3 V)

22

HCD-GX45/RG440

• IC601 LC876780B-51Y0-E (SYSTEM CONTROL, FLD CONTROL) (PANEL BOARD)

Pin No. Pin Name I/O Pin Description

1 SYS MUTE O System mute signal output
2BU1924 DATA I GX45: Not used. (Connected to ground.) RG440: Serial data signal input
3 PWR DOWN I Power down signal input
4 LC78646 RESET O CD reset signal output
5 LC78646 CE O CD CE signal output
6 LC78684 CE (MP3) O CD CE (MP3) signal output
7 M61519 CLK O Clock signal output
8BU2099FV LCK O LCK signal output

9 LC72121 CE O CE signal output
10 LC78684 SYNC I SYNC signal input
11 RESET I Reset signal input from the IC603
12 XT1 I Oscillater connect pin (32.768 kHz)
13 XT2 O Oscillater connect pin (32.768 kHz)
14 VSS1 — Ground pin
15 CF1 I Ceramic vibrator connect pin (8.64 MHz)
16 CF2 O Ceramic vibrator connect pin (8.64 MHz)
17 VDD1 — Power supply pin (+3.3 V)
18 TAPE A STAT I Tape A start signal input
19 TAPE B STAT I Tape B start signal input
20 CD ENCODER I CD encoder switch signal input
21 SW ON/OFF SENSOR I Switch control on/off signal input
22 STREAM IN I Stream in signal input
23 VACS I VACS signal input
24 KEY2 I Key signal input 2
25 KEY1 I Key signal input 1
26 KEY0 I Key signal input 0
27 PROTECTOR (HOLD) I Protector (Hold) signal input
28 REMOCON IN I Remote control signal input from the RM602
29 BU1924 CLK I GX45: Not used. (Connected to ground.) RG440: Serial clock signal input

30 to 41 G12 – G1 O FLD control signal output
42 to 45 P1 – P4 O FLD control signal output

46 VDD3 — Power supply pin (+3.3 V)

47 to 50 P5 – P8 O FLD control signal output

51 VPP — Ground pin

52 to 55 P9 – P12 O FLD control signal output

56 SW1 (a) P13 O FLD control signal output
57 SW2 (b) P14 O FLD control signal output
58 SW3 (c) P15 O FLD control signal output
59 SW4 (d) P16 O FLD control signal output
60 SW5 P17 O FLD control signal output
61 SW6 P18 O FLD control signal output
62 SW7 P19 O FLD control signal output
63 SW8 P20 O FLD control signal output

64, 65 P21, P22 O FLD control signal output

66 ENTER LED O Not used in this set. (Open)
67 MD/VIDEO LED O Not used in this set. (Open)
68 GAME LED O GAME LED (LED612) drive signal output
69 TAPE LED O TAPE A/B LED (LED609) drive signal output
70 TUNER LED O TUNER/BAND LED (LED608) drive signal output
71 CD LED O CD LED (LED607) drive signal output
72 VDD4 — Power supply pin (+3.3 V)
73 CD VDD O CD power control signal output

23

HCD-GX45/RG440

Pin No. Pin Name I/O Pin Description

74 TUNER TUNED I Tuner tuning signal input from the tuner unit
75 TUNER STEREO I Tuner stereo signal input from the tuner unit
76 CD DRF I CD DRF signal input
77 CD WRQ I CD WRQ signal input
78 CD NUMBER SENSOR I CD number sensor signal input
79 TAPE AMS IN I Tape AMS signal input
80 VR ENCODER A I VR encoder (VR601) signal input
81 VR ENCODER B I VR encoder (VR601) signal input
82 TAPE REEL A I Tape reel A signal input
83 TAPE REEL B I Tape reel B signal input
84 MODE SW IN I Mode switch signal input
85 STREAM 1 LED O Stream LED drive signal output
86 STREAM 2 LED/CD MUTE O Stream LED drive signal output
87 STREAM 3 LED O Stream LED drive signal output

88

89 VSS2 — Ground pin
90 VDD2 — Power supply pin (+3.3 V)

91

92

93 POWER LED O POWER LED (LED614) drive signal output
94 POWER RELAY O Power relay signal output

95

96 LC72121 DI I Serial data signal input
97 LC72121/BU2099FV CLK O Serial clock signal output
98 LC78646/LC78684 DO O Serial data signal output
99 LC78646/LC78684 DI I Serial data signal input

100 LC78646/LC78684 CLK O Serial clock signal output

STREAM 4 LED/

MECHA VCC

STREAM 5 LED/

TAPE SOL A

STREAM 6 LED/

TAPE SOL B

LC72121/M61529/

BU2099FV DO

O Stream LED drive signal output

O Stream LED drive signal output

O Stream LED drive signal output

O Serial data signal output

24

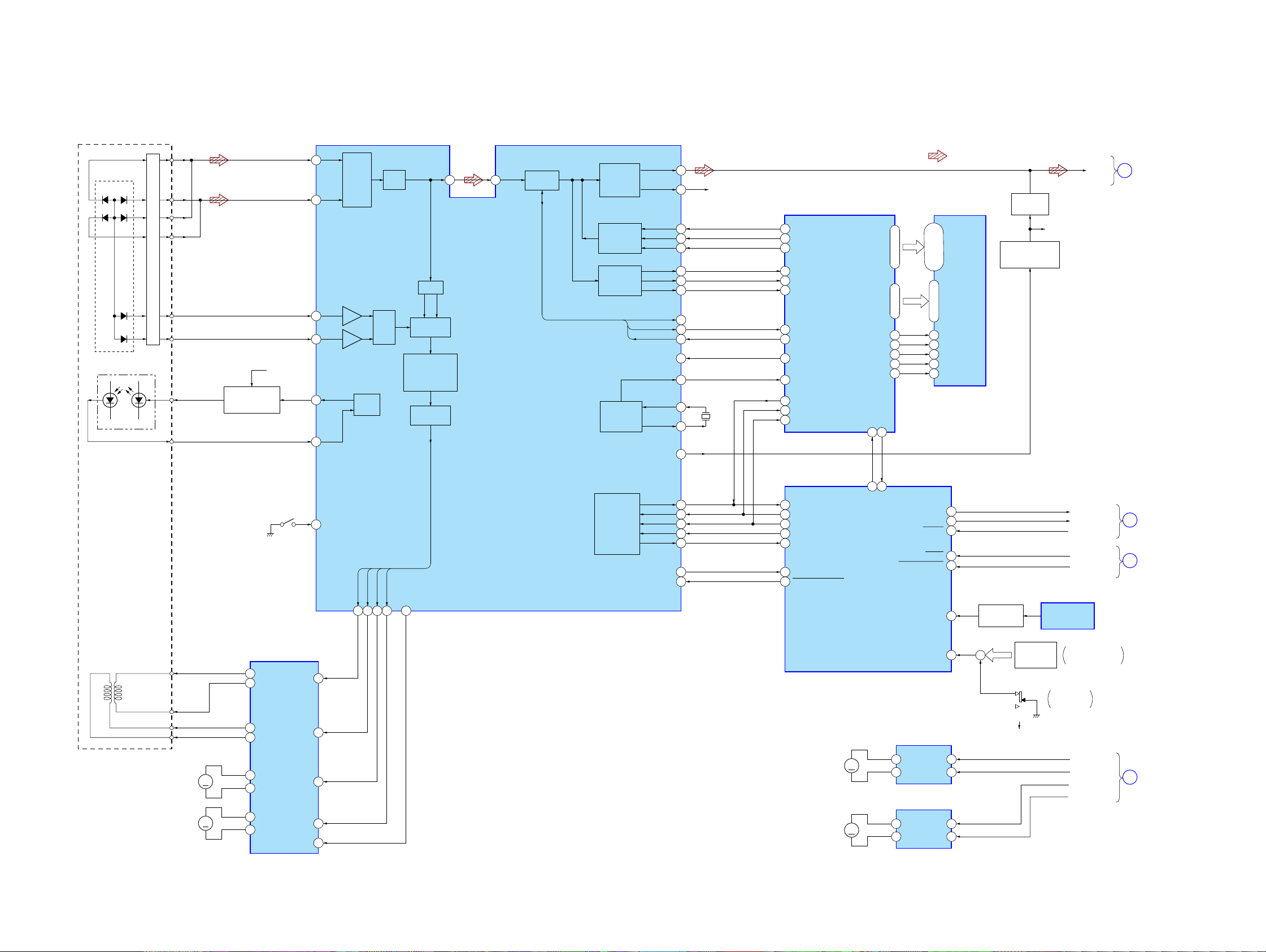

5-2. BLOCK DIAGRAM — CD SECTION —

A

DETECTOR

A

D

C

B

E

F

LASER DIODE

PD

OPTICAL PICK-UP

BLOCK

(KSS-213DCP)

D

C

I-V AMP

B

E

F

+3.3V

LD

LD

PD

AUTOMATIC

POWER CONTROL

Q701

S701

(LIMIT)

FIN2

8

FIN1

7

TIN1

9

TIN2

10

LDD

80

LDS

79

70 LIMIT SW

RF AMP

APC

TBAL

EQ,

AGC

RF

PH, BH

A/D

CONVERTER

SERVO

PROCESSOR

D/A

CONVERTER

HCD-GX45/RG440

RF AMP, FOCUS/TRACKING ERROR AMP,

DIGITAL SIGNAL PROCESSOR, DIGIRAL SERVO PROCESSOR,

4

3

EFMIN

DIGITAL FILTER, D/A CONVERTER

ERROR

CORRECT

IC721

D/A

CONVERTER

EXTERNAL

AUDIO IN

SERIAL OUT

CLOCK

GENERATOR

COMMAND
INTERFACE

LCHO

RCHO

ASDFIN
ASDACK
ASLRCK

DATA

DATACK

LRSY

EFLG

C2F

FSX/16MIN

16MOUT

XIN

XOUT

*WRQ

42

45

R-CH

MP3 DECODER

IC801

57
56
55

60
59
58

53
52
50

26MP3RES

54

49

48

X701

16.9344MHz

72CD MUTE

DO

64

DI

63

CL

62

CE

61
65

67DRF
66*RES

2 ADDATA
3 ADBCK
4 ADLRCK

79 DATAIN
80 DATACK

1 LRSY

5 C2FIN
9 CKOUT

78 RESB

7 CKIN

73 CMDOUT
74 CMDIN
75 CL

99 I-LC78646/LC78684 DI
98 O-LC78646/LC78684 DO

100 O-LC78646/LC78684 CLK

5 O-LC78646 CE

77 I-CD WRQ

76 I-CD DRF

4 O-LC78646 RESET

MDATA0

– MDATA15

MADRS0

– MADRS8

CE

FSYNC

76 66

106

O-LC78684 CE

I-LC78684 SYNC

• R-ch is omitted due to same as L-ch.

• SIGNAL PATH

: CD PLAY

MEMORY

IC802

2-5, 7-10,

I/01 – I/016

23-30, 33-4060-53, 50

35-38, 40-43

A0 – A8

18-21, 24-28

29 OE45OEB
15 WE42WEB
16 RAS41RASB
31 LCAS43CASLB
30 UCAS44CASUB

1O-SYS-MUTE
94O-POWER RELAY
27I-HOLD

11RESET

3I-POWER DOWN

S-MUTE

O-POWER

HOLD

RESET

POWER DOWN

MUTING

Q311

MUTING CONTROL

SWITCH

Q312

R-CH

CD-L

S-MUTE
O-POWER

HOLD

RESET

POWER DOWN

AMP/POWER SUPPLY

A

SECTION

(Page 27)

AMP/POWER SUPPLY

B

SECTION

(Page 27)

AMP/POWER SUPPLY

C

SECTION

(Page 27)

2-AXIS
DEVICE

(FOCUS)

(TRACKING)

M701

(SLED)

M702

(SPINDLE)

TDO

FDO23SLDO22SPDO25CONT4

20

21

FOCUS/TRACKING COIL DRIVE,

SPINDLE/SLED MOTOR DRIVE

M

M

VO3(+)

18
17 VO3(–)

11 VO2(+)
12 VO2(–)

26 VO4(+)

27 VO4(–)

2 VO1(+)

1 VO1(–)

IC722

FOIN

I-CD ENCODER

20TIN

10

25SLIN

3SPIN

7MUTE

SYSTEM CONTROLLER

M751

(LOADING)

M741

(TABLE)

IC601 (1/2)

M

M

LOADING MOTOR DRIVE

4 OUT1

2 OUT2

TABLE MOTOR DRIVE

4 OUT1

2 OUT2

78I-CD NUMBER SENS

20

IC701

IC712

LEVEL SHIFT

Q731

+

CLOSE

LM-F

7FIN

LM-R

9RIN

TM-F

7FIN

TM-R

9RIN

OPEN

ROTARY

ENCODER

RE701

TABLE ADDRESS

SENSOR

IC731

DISC TRAY

ADDRESS DETECT

S751

OPEN/CLOSE

DETECT

LM-F

LM-R

TM-F

TM-R

TUNER/TAPE/PANEL

D

SECTION

(Page 26)

25 25

HCD-GX45/RG440

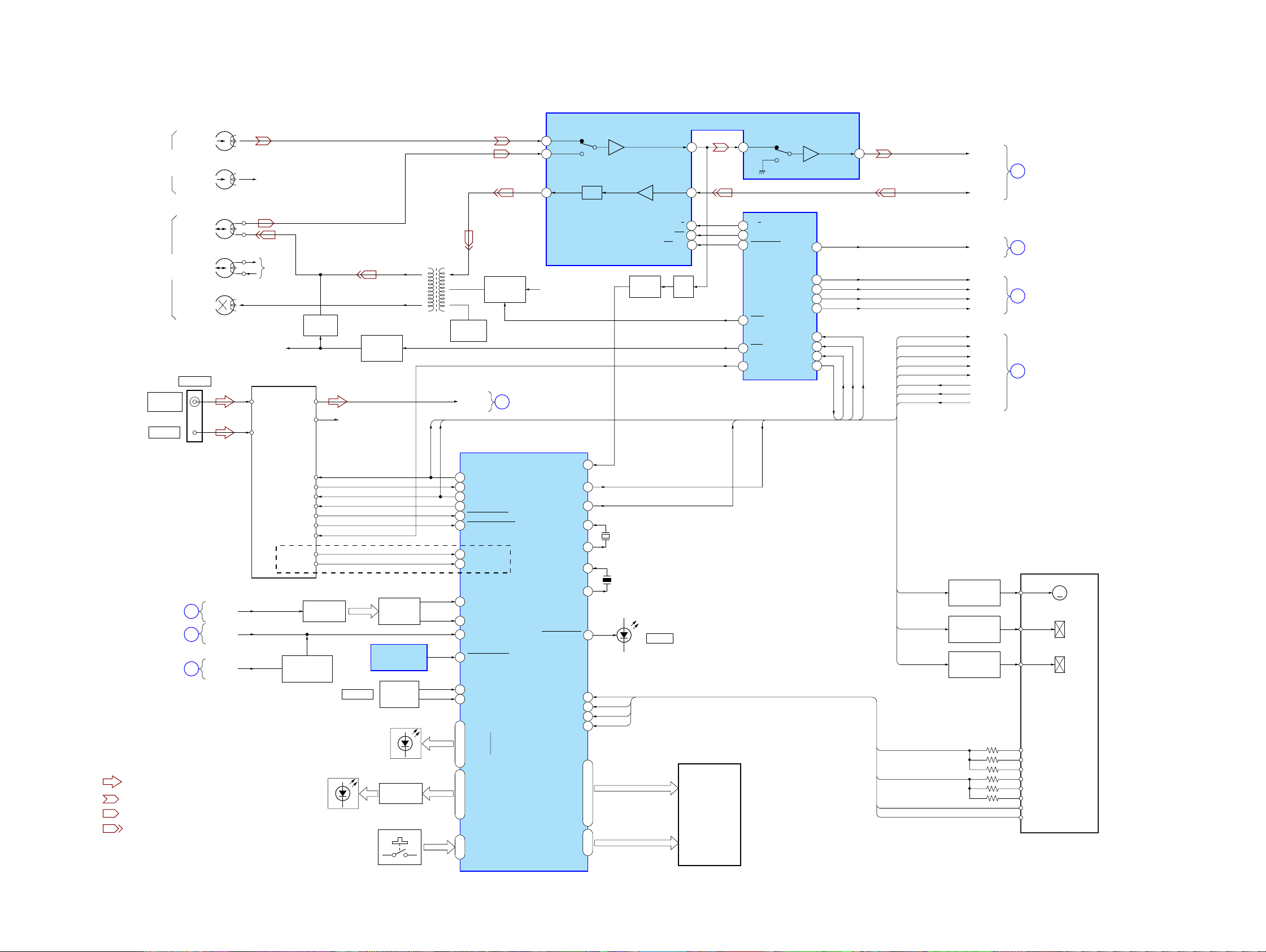

5-3. BLOCK DIAGRAM — TUNER/TAPE/PANEL SECTION —

L-CH

HP1
(PB)

(DECK-A)

HRPE1

(REC/PB/ERASE)

(DECK-B)

FM 75Ω

COAXIAL

AM LOOP

R-CH R-CH

L-CH

R-CH R-CH

ERASE

ANTENNA

(Page 27)

AMP/POWER SUPPLY

SECTION

AMP/POWER SUPPLY

SECTION

E

F

VACS/STR

(Page 27)

SUBWOOFER

SECTION

L

SW ON/OFF

(Page 28)

• R-ch is omitted due to same as L-ch.

• SIGNAL PATH

: TUNER (FM/AM)

: TAPE PLAY (DECK-A)

: TAPE PLAY (DECK-B)

: REC

DECK A/B SELECT SWITCH, REC/PB EQ AMP

AIN (L)

32

BIN (L)

34

REC­OUT (L)

21

BIAS OSC

L201

REC BIAS

SWITCH

Q228

MUTING

Q219, 221

R-CH

TU901

TUNER UNIT

FM ANT

AM ANT

VACS/STR

HP

L-CH

R-CH R-CH

DI

DO

CLK

CE

TUNED

ST

TU-MUTE

RDS DATA

RDS INT

BUFFER

Q609,610

SUBWOOFER

ON/OFF SWITCH

Q326

LED607

I

LED609,

LED612

FRONT PANEL KEY

REC ON/OFF

Q222, 225

VOLUME

LED601-606

(STREAM1-6)

SWITCH

BAND-PASS

FILTER

REMOTE CONTROL

RECEIVER

RM602

ROTARY

ENCODER

VR601

LED DRIVER

Q602-604,607

BIAS OSC

Q223

TUNER-L

DI

CLK

95 O-LC72121/M61529/BU2099 DO
96 I-LC72121 DI
97 O-LC72121/BU2099 CLK

9 O-LC72121 CE
74 I-TUNER TUNE
75 I-TUNER STEREO

(RG440)

2 I-BU1924 DI
29 I-BU1924 CLK

22 I-STREAM-IN

23 I-VACS

21 I-SW ON/OFF SENSOR

28 I-REMOCON-IN

80 I-VR-ENCODER-A
81 I-VR-ENCODER-B

O-STREAM 1 LED

85

I

88

•

91

•

92

O-STREAM 6 LED

O-GAME LED

68

•

69

O-TAPE LED

•

70

O-TUNER LED

•

71

O-CD LED

24

I-KEY2

I

I

26

I-KEY0

J

SYSTEM CONTROLLER

IC601 (2/2)

+9V

(Page 27)

AMP/POWER SUPPLY

SECTION

I-TAPE AMS IN

O-BU2099 LCK

O-M61529 CLK

I-TAPE A STAT
I-TAPE B STAT
I-TAPE REEL A
I-TAPE REEL B

XT1

CF1

CF2

P1

P4

P5

P8

P9

P22

G1

G12

IC201

MUTE

EQOUT (L)

28 27

EQ

79

8

7

X601

32.768kHz

1312XT2

15

RES601

8.64MHz

16

93O-POWER LED

18
19
82
83

42

I

I

45

•

•
47

I

I

50

•

•
52

I

I

65

30

I

I

41

REC-IN (L)

A/B

MUTE-ON/OFF

REC MUTE-ON/OFF

AMS

Q210,211EQQ212

LED614

POWER

24

13
14
15

FLD601

FLUORESCENT

INDICATOR TUBE

TAI (L)

MULTI CONTROLLER

8

A/B

PB MUTE

9

10

REC MUTE

7 BIAS

6 REC

11 TUNER MUTE

LCK

MCLK

IC309

SP RELAY

LM-L (CD)
LM-R (CD)
TM-L (CD)
TM-R (CD)

PB-OUT (L)

16

13
12
15
14

3DATA
4CLOCK
5LCK

18SO

26

SP-F

LM-F

LM-R

TM-F

TM-R

SO

LCK

CLK

DI

MECHA-VCC

SOL-A

SOL-B

TAPE A STAT

TAPE B STAT

TAPE REEL A
TAPE REEL B

TAPE-L

REC-L

SP-F

LM-F
LM-R

TM-F
TM-R

DI
SO
CLK
MCLK
LCK
MECHA-VCC
SOL-A
SOL-B

CAPSTAN/REEL

MOTOR DRIVE

Q618

PLUNGER DRIVE

(DECK-A)

Q616

PLUNGER DRIVE

(DECK-B)

Q617

AMP/POWER SUPPLY

G

SECTION

(Page 27)

AMP/POWER SUPPLY

H

SECTION

(Page 27)

CD

D

SECTION

(Page 25)

AMP/POWER SUPPLY

K

SECTION

(Page 27)

TAPE MECHANISM

DECK BLOCK

CAPM+

(CAPSTAN/REEL)

A-SOL

(DECK-A)

B-SOL

(DECK-B)

A-MODE
A-HALF
REC (REW)

B-MODE
B-HALF
REC (FWD)
A-PHOTE
B-PHOTE

MM

2626

5-4. BLOCK DIAGRAM — AMP/POWER SUPPLY SECTION —

HCD-GX45/RG440

CD

SECTION

(Page 25)

TUNER/TAPE/PANEL

SECTION

(Page 26)

TUNER/TAPE/PANEL

SECTION

(Page 26)

AUDIO

GAME
INPUT

VIDEO

TUNER/

TAPE/

K

PANEL

SECTION

(Page 26)

CD

C

SECTION

(Page 25)

A

J

G

L

R

VIDEO

OUT

POWER DOWN

CD-L

TUNER-L

TAPE-L

REC-L

JK001

JK004

CLK

MCLK

LCK

MECHA VCC

SOL-A
SOL-B

RESET

DI

SO

R-CH

RESET SWITCH

Q601

INPUT SELECT SWITCH, TONE CONTROL,

ELECTRICAL VOLUME, BASS BOOST AMP

CD-L

40

39

38

35

36

RESET SIGNAL

TOUT2

TUNER-L

TAPE-L

RECB-2

GAME-L

SWOUT

BASS BOOST CONTROLLER

GENERATOR

IC603

+3.3V (SUB)

29

24

DATA4CLOCK

3

CLK

SO

D617

IC301

IC310

LCK

5

LCK

+4V

MOTOR VCC

SOL-A11SOL-B

9

10

MECHA VCC

SOL-A

SOL-B

REGULATOR

IC602

EVER+10V

+4V

VOLIN2

28

21

SW MUTE
SW IN

VACS/STR

19

SAOUT

OUT2

DATA22CLOCK

MCLK

DI

D902 – 905

25

SUBWOOFER

M

(Page 28)

RECT

SECTION

SUB POWER

TRANSFORMER

MUTE

T902

Q321

VACS/STR

CENTER VOLATAGE

GENERATOR

Q324

BUFFER

IC304

MUTING CONTROL

+1.8V

O-POWER

(MP3)

VCC

TUNER/TAPE/PANEL

E

(Page 26)

MUTING

Q525

R-CH

SWITCH

Q527

S-MUTE

+1.8V

REGULATOR

IC803

B+ SWITCH

Q301, 302

SECTION

VM+10V

PRE DRIVE

Q517, 519

POWER OFF

MUTING DRIVER

Q529, 530

+3.3V (MAIN)

DECK+9V, M+9V

VM+9V

VM+10V

CURRENT

MIRROR

Q521, 523

P+7V

Q511, 513, 515

D313 – 315

D102

CASCADE

D513

REGULATOR

R-CH

R-CH

BIAS

Q507, 509

OVER CURRENT

DETECT

Q13

VM+10V

+4V

IC306

TO

FLUORESCENT

INDICATOR TUBE

SWITCHING

SWITCHING

Q17, 19, 22

–VP

+VP

FINAL DRIVE

Q501, 503

REGULATOR

REGULATOR

REGULATOR

POWER AMP

BLOCK

VF1

VF2

–VFL

Q18

IC305

IC308

IC313

TO

R-CH

+9V

+9V

+10V

REGULATOR

Q534 – 536

OVER LOAD

DETECT

Q505

+

+

HOLD

Q12

+VH

–VH

+VL

–VL

–30V

R-CH

+VH

+VL

–VH

–VL

DC DETECT

RELAY B++9V

OUTPUT LEVEL

DETECT
Q20, 21

OUTPUT LEVEL

DETECT
Q23, 24

+

+

Q5,6

HOLD

Q7 – 9

+

HOLD

RECT

D301 – 304

RECT

D319 – 322

RECT

D3-6

RECT

POWER ON/OFF

RELAY DRIVE

THERMAL DETECT

O-POWER

DC DET

Q329

D2

Q330, 331

Q10, 11

+

R-CH

R-CH

MAIN POWER

TRANSFORMER

T901

VM

VM

VH

VH

VL

VL

RY902

R-CH

+

+

TH501,

502

HOLD
DC DET

ON/OFF SWITCH

SUBWOOFER

N

SECTION

(Page 28)

FAN MOTOR

Q371,373

R-CH

RY501

ON/OFF RELAY DRIVE

S-MUTE, O-POWER, HOLD

M731

M

(FAN)

R-CH

FRONT SPEAKER

Q304

R-ch is omitted due to same as L-ch.

SIGNAL PATH

: TUNER (FM/AM)

: CD PLAY

: TAPE PLAY

: REC

: MD (VIDEO) IN

: MIC INPUT

HP

SP-F

S-MUTE
O-POWER
HOLD

F

JK002

PHONES

+
–

+
–

H

B

(Page 25)

TUNER/TAPE/PANEL

SECTION

(Page 26)

L

JK502

SPEAKER

R

TUNER/TAPE/PANEL

SECTION

(Page 26)

CD

SECTION

27 27

(AC IN)

HCD-GX45/RG440

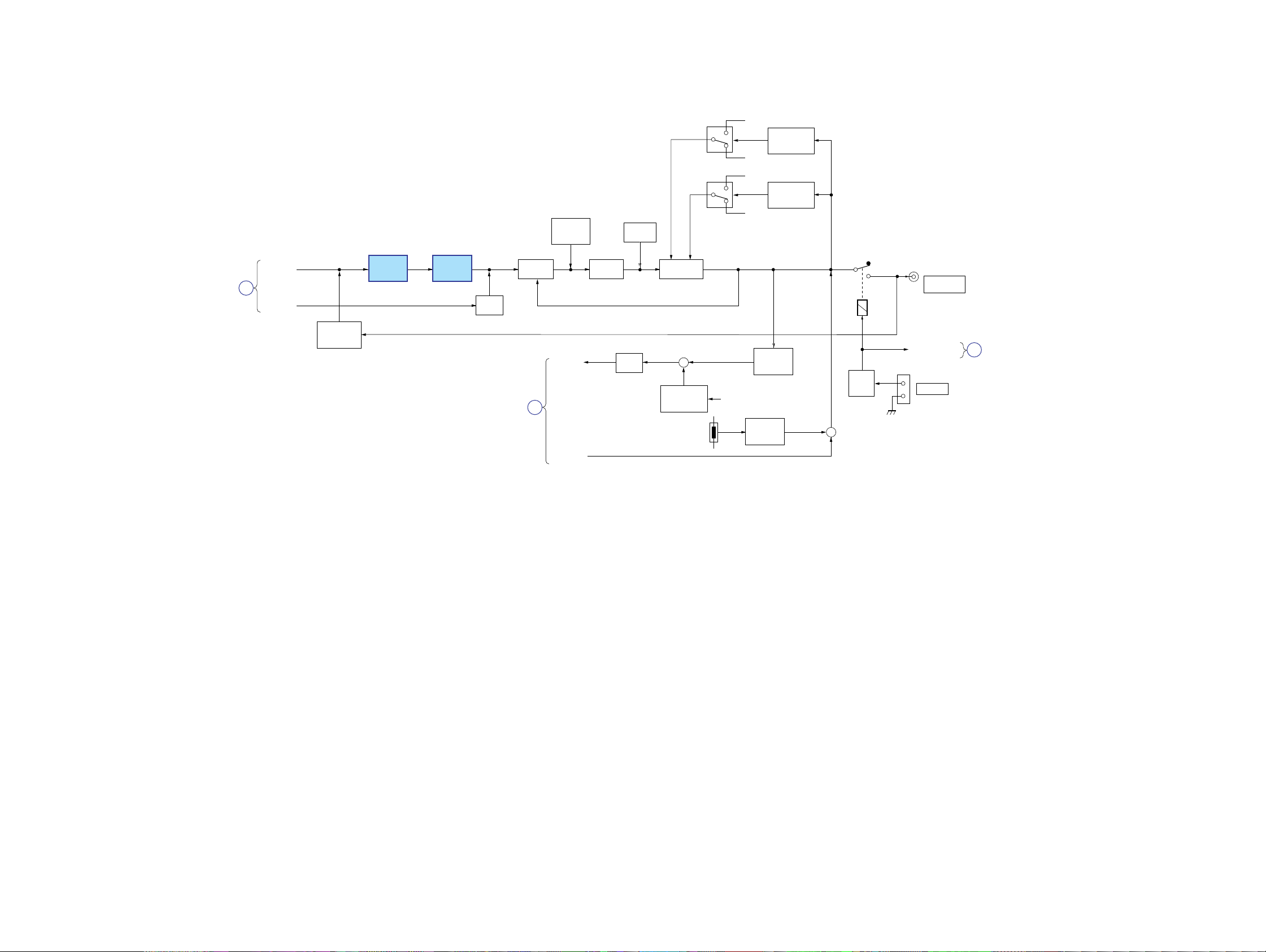

5-5. BLOCK DIAGRAM — SUB WOOFER SECTION —

AMP/POWER SUPPLY

SECTION

(Page 27)

SWITCHING

Q416

SWITCHING

Q424-426

SW IN

SUBWOOFER

AMP

IC302

SUBWOOFER

AMP

IC312

PRE DRIVE

Q401,402

CURRENT

MIRROR

Q403,404

CASCADE
Q405-407

BIAS

Q408,409

+VP

–VP

FINAL DRIVE

Q410,411

M

SW MUTE

SUBWOOFER

LIMIT SWITCH

Q309

MUTE
Q528

AMP/POWER SUPPLY

SECTION

(Page 27)

HOLD

N

DC DET

HOLD

Q414

+

OVER CURRENT

DETECT

Q415

TH401

VCC
(+10V)

+VH

+VL

–VH

–VL

OVERLOAD

DETECT

THERMAL

DETECT

Q420,421

OUTPUT LEVEL

DETECT

Q417,419

OUTPUT LEVEL

DETECT

Q422,423

Q412

JK401

SUBWOOFER

OUT

RY401

TUNER/TAPE/PANEL

L

SECTION

(Page 26)

RELAY

DRIVE

Q413

SW ON/OFF SENS

CN402

2

CONTROL

1

+

2828

5-6. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 5-7. WAVEFORMS

MAIN board

SUBWOOFER board

DRIVER board

SW board

MOTOR (LD) board

MOTOR (TB) board

VIDEO OUT board

BD board

SENSOR board

TRANS board

POWER AMP board

H/P JACK board

GAME JACK board

PANEL board

REMOTE board

6 STREAM LED board

HCD-GX45/RG440

Note on Printed Wiring Board:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

• : Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.

• Indication of transistor.

C
Q

B

E

B

B

These are omitted.

Q

CE

These are omitted.

Q

CE

These are omitted.

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

• 2 : nonflammable resistor.

• C : panel designation.

Note:

The components iden­tified by mark 0 or dot­ted line with mark 0
are critical for safety.
Replace only with part
number specified.

• A : B+ Line.

• B : B– Line.

•Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(): CD PLAY
[]: TAPE PLAY (DECK-A)
{ } : TAPE PLAY (DECK-B)
〈〈 〉〉 : REC

•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc­tion tolerances.

•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc­tion tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : TUNER (FM/AM)
J : CD PLAY
E : TAPE PLAY (DECK-A)
d : TAPE PLAY (DECK-B)
G : REC
j : MD (VIDEO) IN
N : MIC INPUT

• Abbreviation
CND : Canadian model
AUS : Australian model

: Impossible to measure

∗

4

W or less unless otherwise

Note:

Les composants identifiés
par une marque 0 sont cri­tiques pour la sécurité.
Ne les remplacer que par
une piéce portant le numéro
spécifié.

– BD Board –
(CD PLAY mode)

1

1.3Vp-p

4

(RF)

IC721

2

Approx.
180

mVp-p

qd

(FE)

IC721

3

Approx.
150mVp-p

qg

(TE)

IC721

4

4Vp-p

16.9344MHz

IC721 rk (XOUT)

5-8. CIRCUIT BOARDS LOCATION

– MAIN Board –
(REC mode)

qa

11.3µs

(Base)

Q223

qs

11.3µs

(Collector)

Q223

1.7Vp-p

15.8Vp-p

– PANEL Board –

1

32.768kHz

qs

(XT1)

IC601

2

8.64MHz

IC601 qg (CF1)

1.2Vp-p

1Vp-p

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than

ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to about
350 °C.
Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscou-s (sticky , less prone to flo w) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may also
be added to ordinary solder.

29 29

HCD-GX45/RG440

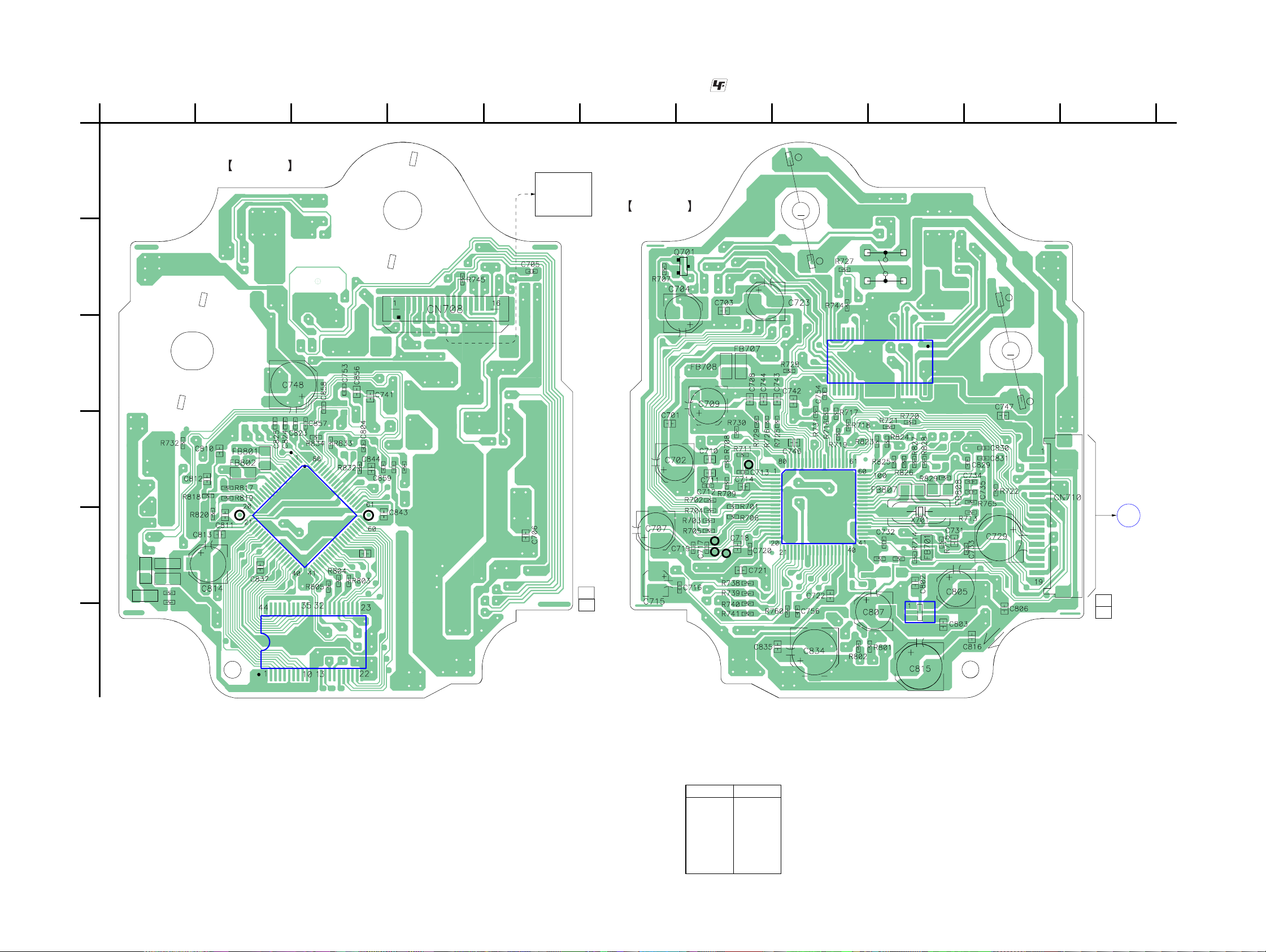

5-9. PRINTED WIRING BOARD — CD MECHANISM SECTION (1/2) — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

1

234567891011

BD BOARD

(SIDE A)

OPTICAL
PICK-UP

BLOCK

(KSS-213DCP)

BD BOARD

(SIDE B)

B

E

C

+

M

M702

(SPINDLE)

–

S701

(LIMIT IN)

IC722

+

7114 8

M701

M

(SLED)

22 2815 21

–

D

E

F

FB806

FB805

FB803

FB804

R806
R807

IC801

IC802

C817

C860

R860

1-688-077-

11

(11)

TP

(VC)

TP

TP

(FE)

(TE)

• Semiconductor
Location

Ref. No. Location
IC721 E-8

IC722 C-9
IC801 E-3
IC802 F-3
IC803 F-9

(RF)

TP

IC721

R747 R746

5

34

1-688-077-

11

(11)

BOARD

A

(Page 38)

MAIN

CN312

IC803

Q701 B-7

3030

• Refer to page 29 for Waveforms.

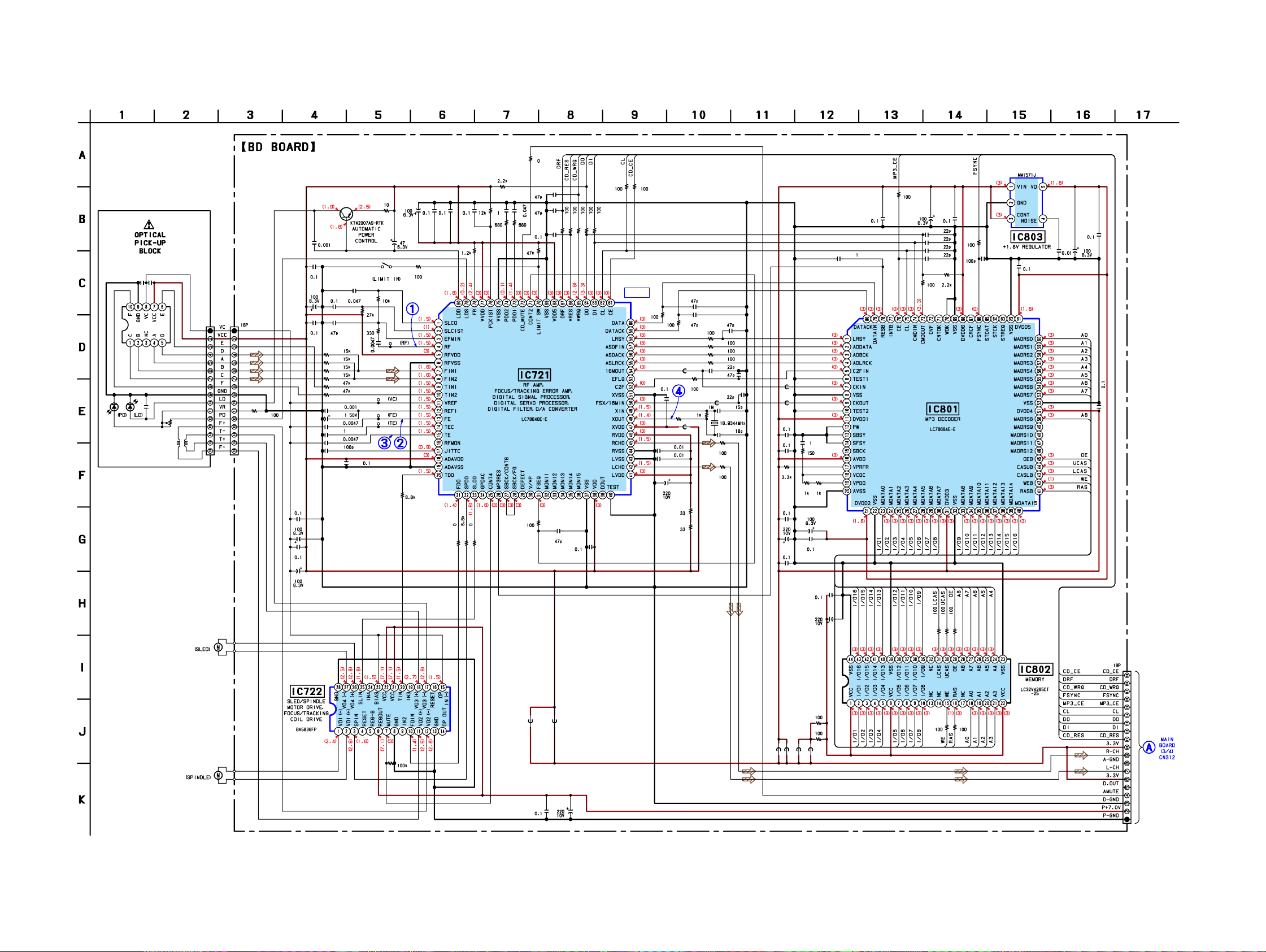

5-10. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 49 for IC Block Diagrams.

R732

(KSS-213DCP)

CN708

R745

C701

C702

C706

C723

C714

C705

C711

C712

R702

R703

R704

R705

R701

R706

C716

C715

C717

C718

C719

C720

C721

Q701

R709

R711

C713

R707

S701

R708C710

TP

TP

TP

C709

C746 C708 R729

C704

R727C703

TP

R738

R739

R730

R740

R741

C744

R731

C753

C754C742

C743

R725R726

C741

R728

IC721

R760

C756

R716

C722

R717

R718

R719

R720

R721

R722

IC B/D

R823

C731

C733

C732

C729

R824

R713

R747

R746

C823

C824

R825

FB808

R829

R765 C734

FB701

R826

R827

R828

C830

C829

FB807

R715

R714

C735

C825

C831

X701

FB801

FB802

C811

C810

R817

C816

C815

C837

C812

R818

C814

C813

HCD-GX45/RG440

IC803

R834

C807

C844

C856

R819R820

C802

C804

C859

C858

C857

R833 R832

IC801

R860

C860

C843

C803

C806

C805

C817

M702

M701

C707

IC722

R744

C747

C748

C835

C834

FB803

FB805

R807

R806

FB806

FB707FB708

FB804

R805

R804

R803

R801 R802

CN710

IC802

(Page 36)

31 31

HCD-GX45/RG440

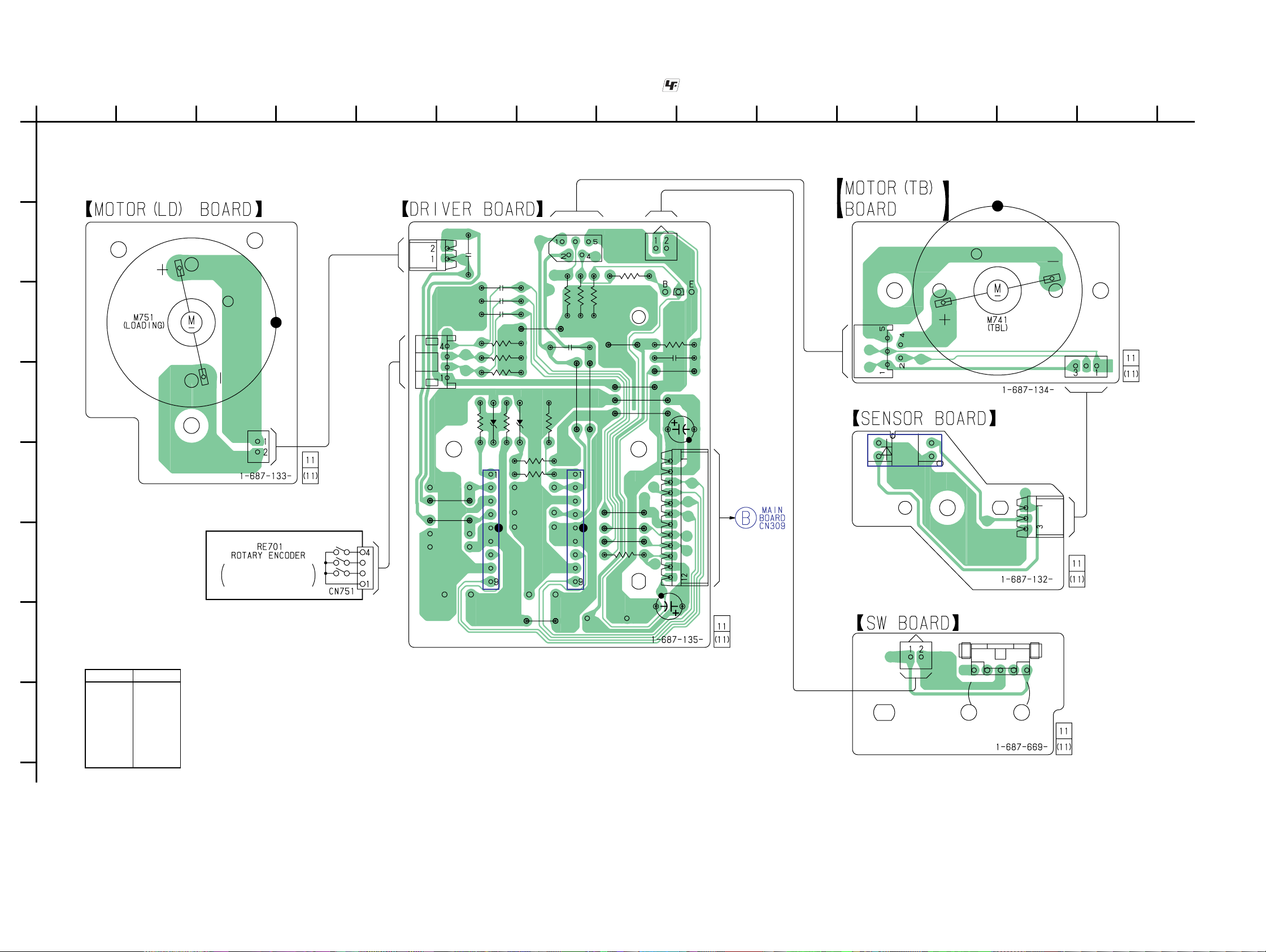

5-11. PRINTED WIRING BOARDS — CD MECHANISM SECTION (2/2) — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

23456789101112131415

CN704

CN703

C751

R702

C737

C736

C735

R723

R722

R721

D701

R701

JW710

D711

C741

R713

CN702

R735

JW709

R734

JW708

R732

JW711

R733

JW707

JW706

JW705

CN705

JW712

R751

C752

Q731

CN741

CN742

C715

E

F

G

H

• Semiconductor
Location

Ref. No. Location
D701 D-6

D711 D-7
IC701 F-6

IC712 F-7
IC731 E-11

Q731 C-9

CN721

DISC TRAY

ADDRESS DETECT

JW713

JW714

IC701

R711

R712

JW701

IC712

JW704

JW703

JW702

R731

C731

CN701

(Page 38)

IC731

CN731

CN751

S751

OPEN/CLOSE

DETECT

3232

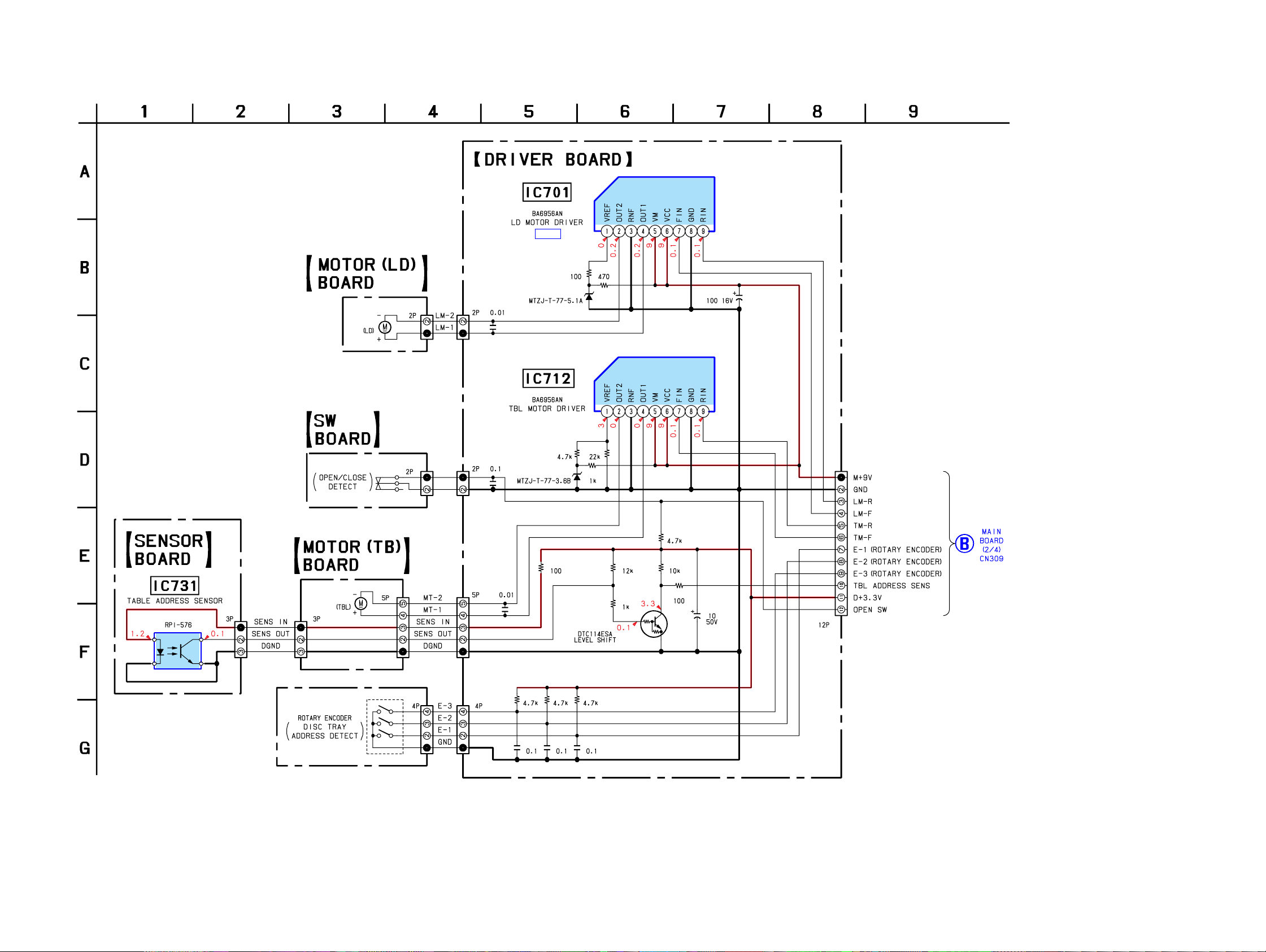

5-12. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 50 for IC Block Diagrams.

IC701

IC B/D

R701

R702

HCD-GX45/RG440

IC731

CN731 CN741

S751

M741

M751

CN742

CN721

CN751

CN704

C751

C752CN705

D701

IC712

R713

R712

D711

R735

C741CN702

R711

Q731

R733

R751

R732R734

R731

C715

(Page 35)

C731

CN701

RE701

CN751

CN703

R723 R721R722

C735C736C737

33 33

HCD-GX45/RG440

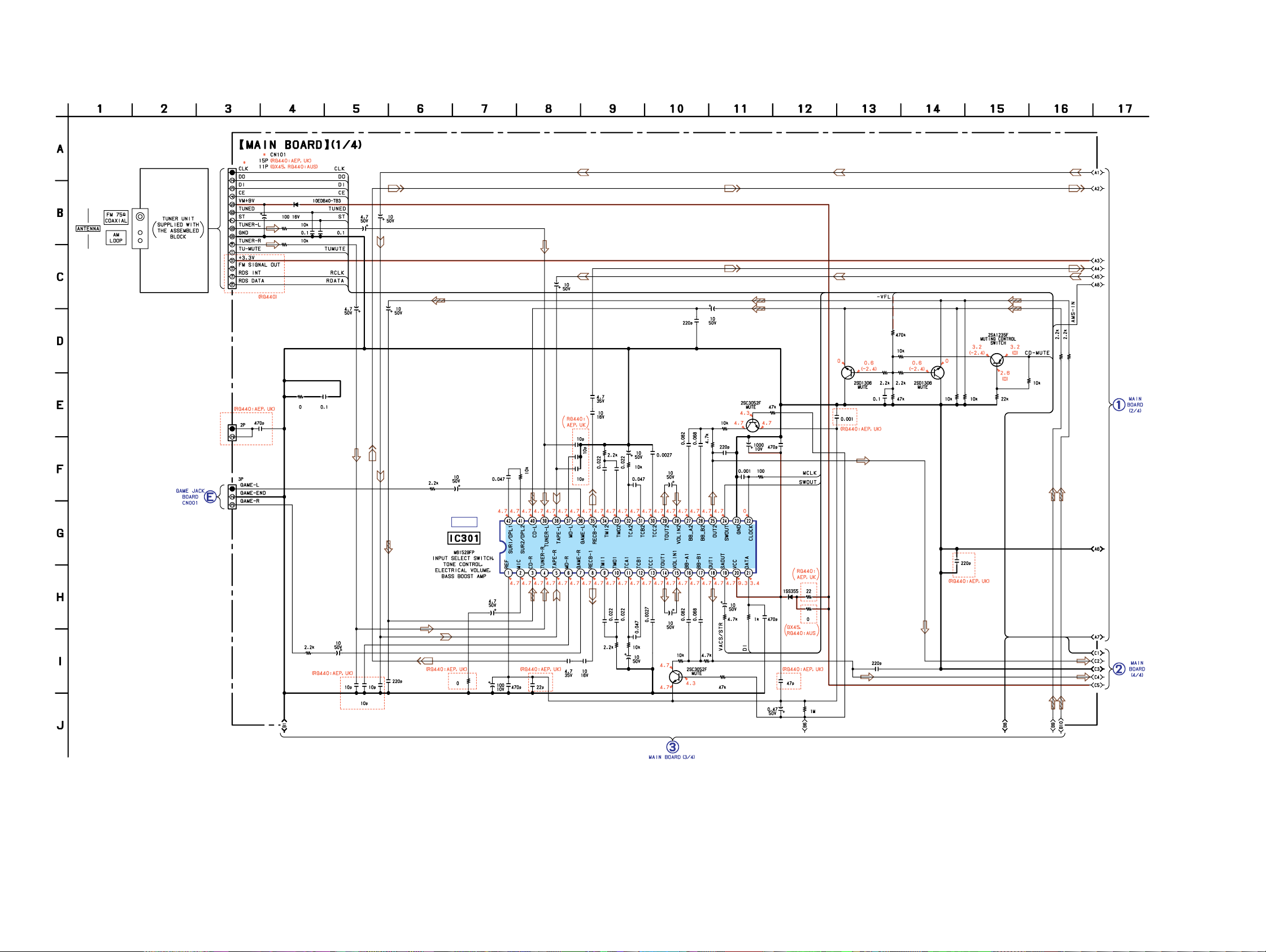

5-13. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 50 for IC Block Diagram.

CN101

D102

TU901

C103

R101

C107

R102

C106

C101

C310

C309

(Page 39)

CN102

CN305

C105

JR300

R306

C300

C102

C308

C432 C434

C436

C312

C366

R305

C307

IC B/D

IC301

JR124

C304

C303

C353

R330

C424

C431

C433

C311

C365

C430

Q312

R316

R395

R396

(Page 35)

(Page 37)

R380

R397

Q311 Q310

R355 R356

C411

C313

C317

R317

C435

C323

C321

C324

C320

R318

C314C412

R325

C325C319

C326

R326

C318

C328

C327

C349

C350

R322

C331

C332

Q322

C333

C334

R319

R320

R344

R321

C361

C337

R328

C354

Q321

R323

C357

R324

R345

C356

C355

C393

D317

C425

R329

JR358

R365

C342 R354 R358

C428

C362

R399 R398

3434

(Page 36)

• Refer to page 29 for Waveforms.

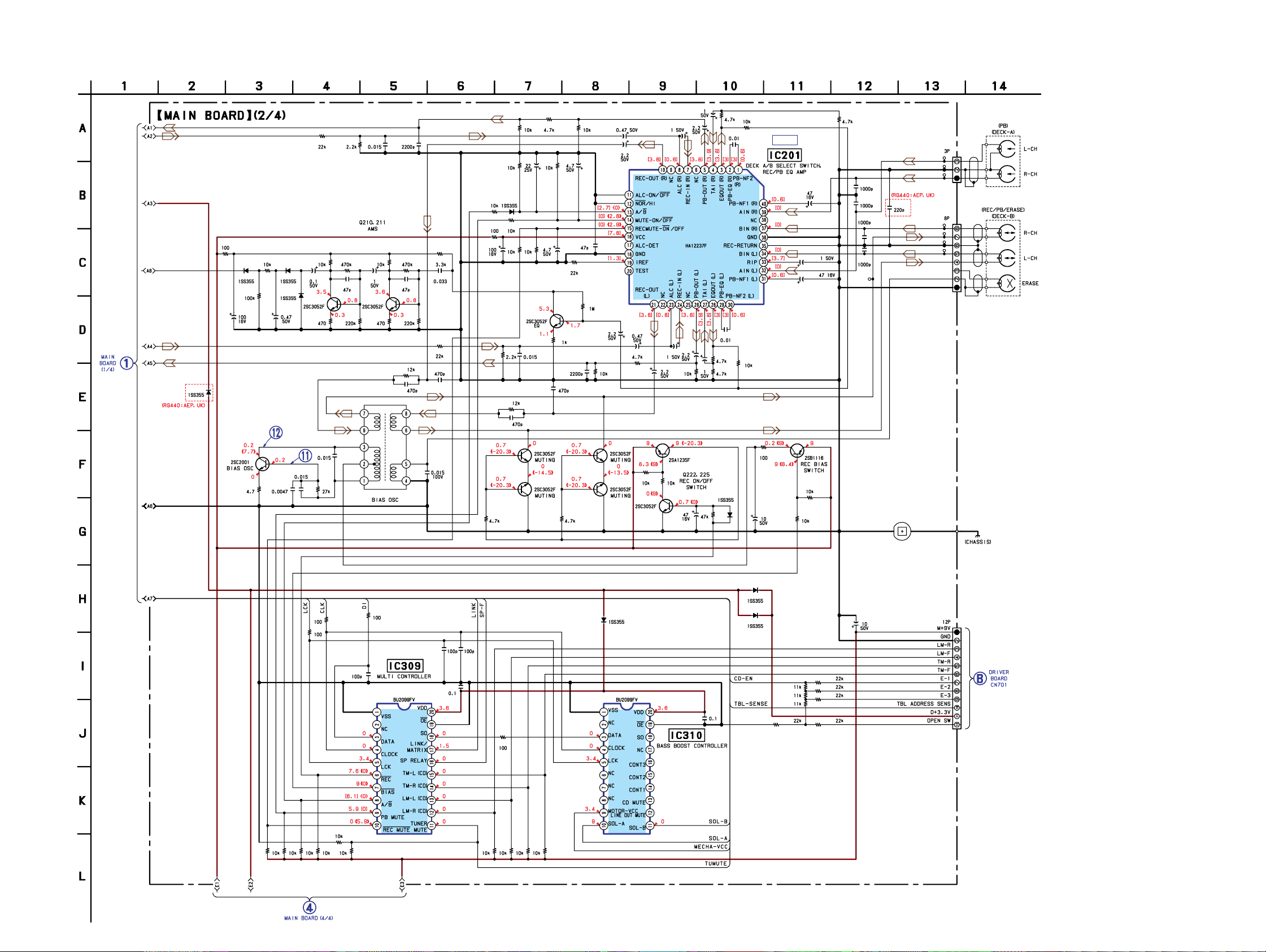

5-14. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 51 for IC Block Diagram.

R286

R216

C234

(Page 34)

D101

R258

D210 D203

C236

R262

R263

C256

R256 R249

C257

D204

R257 R250 R261 R218

C231

R232R234

C235

Q210Q211

R226

C228

C230

C286

R238R264

R239

C265

R233

C226

C253

R235

R225

D205

R270R282

R283

R231

C259

R284

C233

Q212

C254

R287R288

C258

C206

R278

R236

C285 R285

C225

R272

R237

C255

C260

C250

C261

R215

C249

C273

C272

C247

R271

C248

IC201

C268

C269

R265

R267

C267

R266

C266

R220

R219

IC B/D

C232

C244

C237

R268

TP60

C202

C201

C204

C203

C205

TP63

TP62

TP61

TP56

TP57

TP58

TP59

HCD-GX45/RG440

HP1

CN203

HRPE1

CN202

Q223

R251

C241

C242

R368

R307

C239

R252

C392

R369

L201

IC309

C223

C391 C390

C401

C227

Q221 Q218

R241 R242

R486

D305

Q220Q219

Q222

IC310

Q225

R245R273

D206

C221

R246

C402

D306

D324

R260

C240

R353

R352

R455

R466

R253

R269

Q228

R424

R425

R426

R406

C450

GA1

CN309

(Page 33)

R430

R400 R401 R402 R404 R405

(Page 37)

R407 R408 R409 R410

35 35

HCD-GX45/RG440

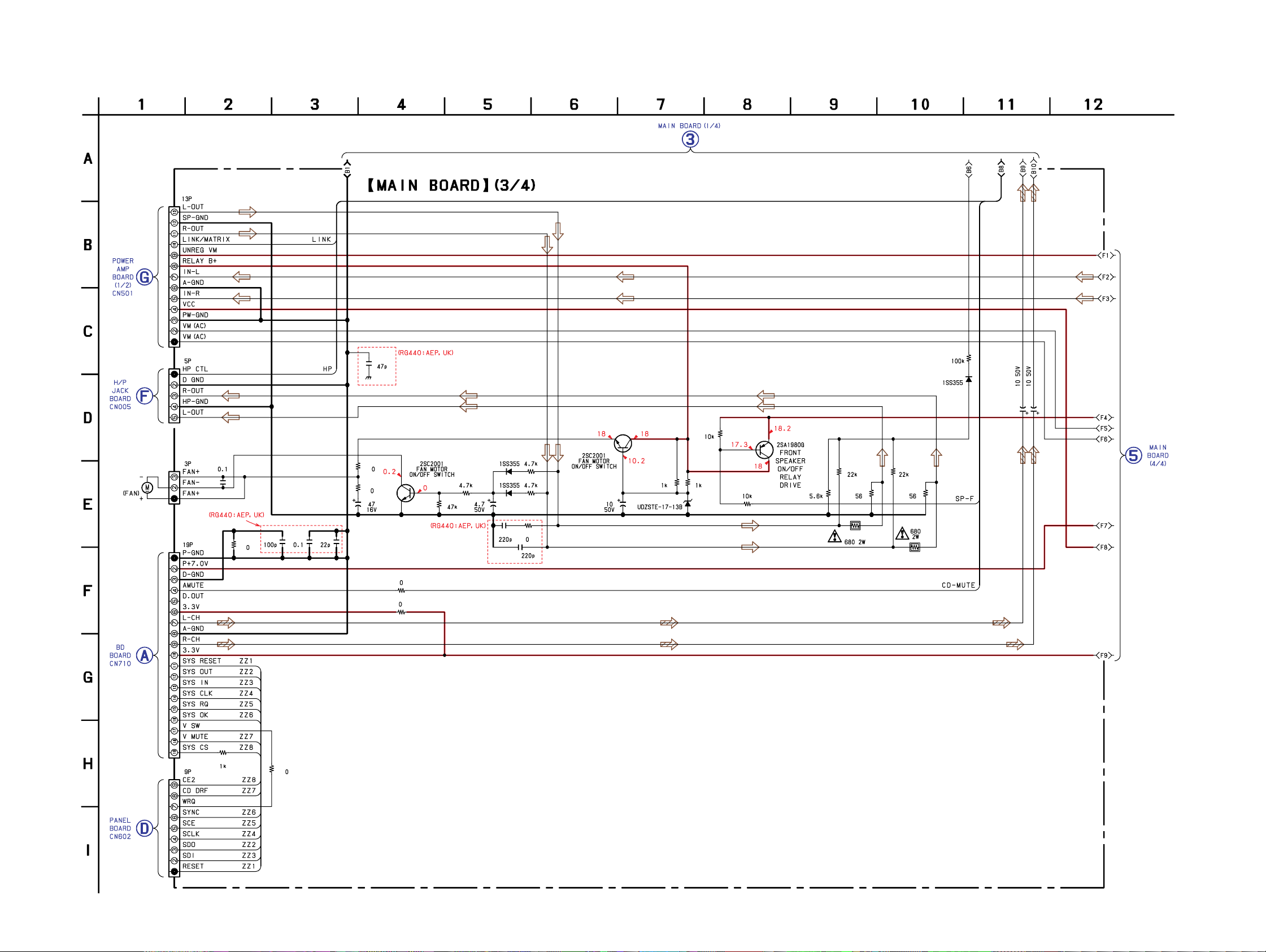

5-15. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) —

(Page 44)

(Page 34)

CN306

(Page 39)

M731

(Page 31)

CN310

CN303

CN312

C378 JR344

JR333

C386

C448

C453 C449

JR343

C444

G2

JR339

JR341

Q371

R374

R373

C377

R371

D371

R372

D374

C451 JR453

C452

Q373

C398

R460 R461

D312

R421

Q304

R364

D311

C369

C370

R362

R361R480

R423 R422

R433

R363

(Page 37)

R434

(Page 41)

CN311

JR345

JR360

3636

5-16. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) —

C363

HCD-GX45/RG440

(Page 34) (Page 35)

(Page 36)

C305

C437

C348

C438

R312

C306

C429

D319 D320

D321 D322

R310

R309

C346

R311

C359

IC304

R432

D304D303

C445

C339C364

C374C373

C375

C426

D301 D302

C419C418

R376

C394

R357

Q309

R428

R487

R488

R427

R429

Q329

R435

D315 D313

D307

R313

R342R383

C368

R314

R471

IC305 IC308 IC313

D314

R349

R472 C338 R343

C380

D318 C441

IC306

R473

C336 R350

C344

C381

R476

C335

C409

IC302

R474

C399

C371

R458 R381

R382

C376

R475

R477

C389

C420 C421

IC312

R465

R459

JR330

JR329

JR331

JR332

R346

R456

R457

CN304

(Page 41)

R384R348

CN307

D308

C417

D323

R484

Q330

Q331

D316

R483

C423

R482 R481

D366

R377 R360

R378

Q326

R351

37 37

R379

Q302

Q301

C372

D364

R386

Q324

431
R

C427

C345

R388

C397

R387

D325

(Page 44)

HCD-GX45/RG440

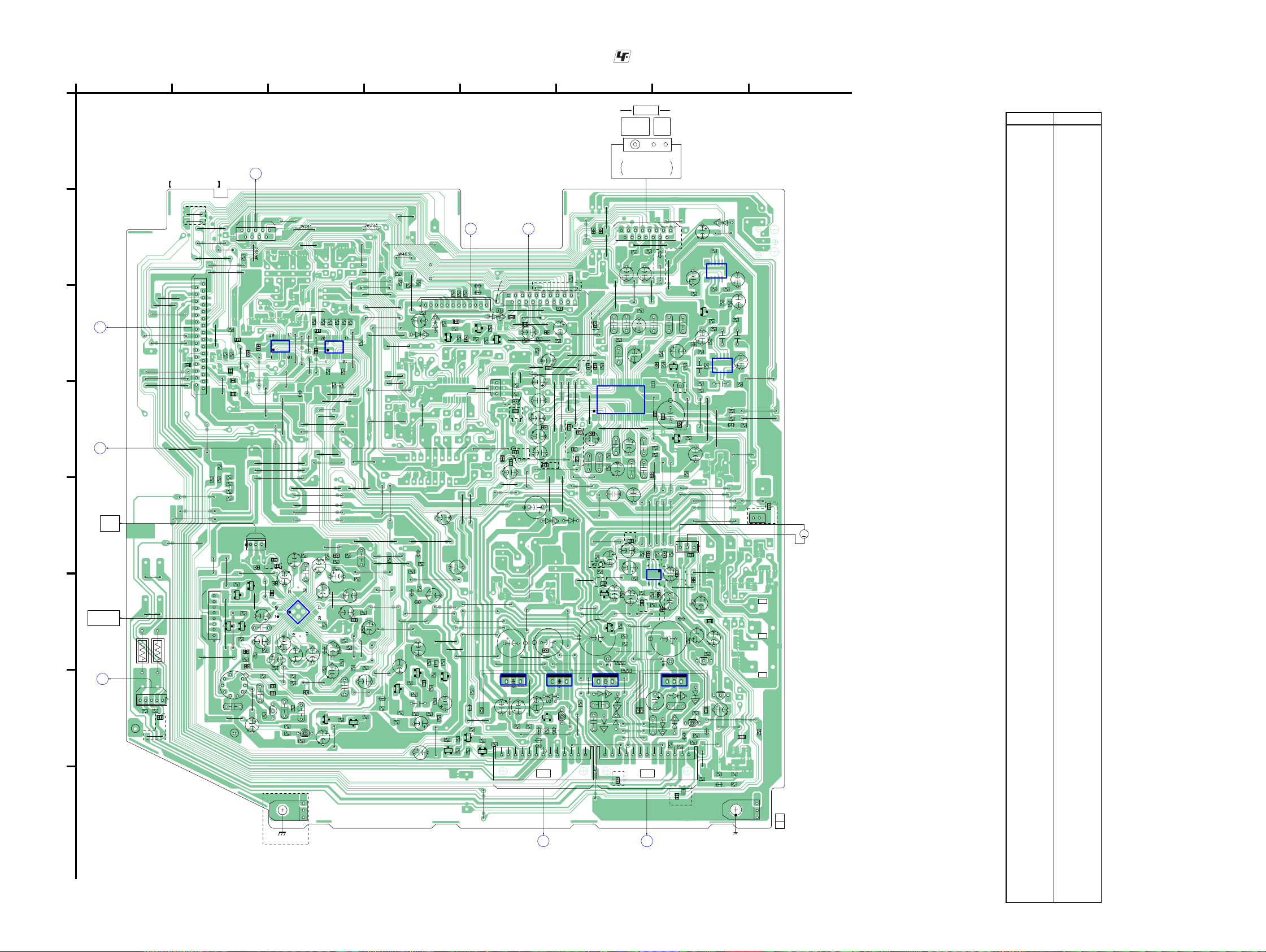

5-17. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

(Page 40)

D

(Page 39)

E

F

G

H

C

PANEL

BOARD

CN601

E

GAME JACK

BOARD

CN001

HP1

(PB)

(DECK-A)

HRPE1

(REC/PB/ERASE)

(DECK-B)

F

H/P

JACK
BOARD
CN005

(Page 39)

1

2

3

4

567

ANTENNA

FM 75Ω
COAXIAL

AM

8

• Semiconductor
Location

Ref. No. Location
D101 B-7

D102 B-7

TUNER UNIT

SUPPLIED WITH THE

PANEL BOARD

MAIN BOARD

D

(RG440:AEP, UK)

JW401

JW402

JW403

9

CN311

JW407

R346

CN202

JW436

JW239

8

JW406

R380

JW408

JW409

R369

JW426

C392

R307

C402

R368

C390

JW428

JR329

JR331

JW427

JR332

JW429

R384

R456

R457

R348

R459

R465

13

CN203

(RG440:AEP, UK)

C202

JW201

8

1

C223

JW203

JW202

R242

E

E

Q220

JW278

R241

JW205

Q219

JW200

E

E

Q221

R220

C228

R226
C226

9

1

C239

JW237

JW238

CLP3

C240

JW405

31

30

JW416

JW417

JW418

JW274

JW419

JR330

JW422

JW423

JW424

2

1

CN304

JW435

JW495

JW496

JW497

JW498

JW2

JW1

R434

R433

L201

15

CN310

R422

R423

CLP2

C444

(RG440:AEP,UK)

JW290

BIAS OSC

(Page 40)

CN602

JW271

JW453

JW454

JW455

JW207

JW211

JW452

JW448

R353

R455

R406

R352

JW457

JW466

JW467

JW225

JW462

R219

Q212

R258

JW494

D203

C255

R237

C450

D313

R233

R263

D204

JW219

C257

Q210

R261

C230

R236

C265

R239 R264

C236

C423

1

R466

JW481

JW217

D210

R262

JW216

JW280

R249

R250

R218

R238

JW440

JW499

JW459

JW461

JW468

JW263

JW493

JW209

JW210

JW212

JW213

JW226

JW228

C249

D206

R246

JW270

1

2

IC310

JW432

JW433

C205

Q218

C204

C232

C268

R266

C248

R268

R225

C228

Q223

R251

JW438

JW484

JW485

JW486

C201

C203

C237

JW204

C266

C272

R272

C225

E

R260

(RG440:AEP,UK)

G2

(CHASSIS)

JW411

JW272

JW450

JW415

R486

C401

JW444

JW441

JW443

JW442

JW445

D305

JW472

JW473

JW439

JW487

JW488

JW489

JW490

JW491

C244

R271

C247

C267

C273

IC201

C250

C260

R216

JW235

JW252

R286

C286

C242

C241

R252

Q228

R253

E

R269

R405

R407

R410

R409

R408

C391

IC309

JW446

R402

R404

R400

R401

JW469

JW471

JW474

JW475

JW482

JW483 JW276

JW492

JW206

R231

C285

R215

R285

R265

R267

C269

JW214

C253

C206

R278

R283

C258

D205

R270

R287

C259

R288

R235

R232

C234

Q222

R245

E

E

Q225

JW236

C221

JW458

C233

JW234

C261

R282

R284

JW298

R234

R273

R430

C254

JW227

(Page 32)

DRIVER BOARD

B

D324

R424

R426

R425

D306

CN309

D315

JR339

Q311

R316

JW283

R355

R358

E

R354

R397

C342

JW265

(RG440:AEP,UK)

(RG440:AEP,UK)

JW375

JW374

C411

JW220

JW281

JW268

JW222

JW221

JW223

R357

D366

C235

JW231

R481

R360

R483

E

Q330

E

Q331

R351

R482

JW456

D314

E

Q312

C309

C256

JW218

JW282

C231

R257

E

Q211

R256

R377

JW251

Q326

CN701

(RG440:AEP, UK)

12

C453

R356
Q310

CN305

JW358

C310

JW273

IC308

R484

1

2

JR343

E

1

3

C448

JR300

JW372

JW373

C399

C371

(Page 30)

A

JW338

JW339

JR341

C369

R395

C307

JW351

JW352

R305

R306

JR124

C430

C300

(RG440:AEP,UK)

JW470

JW392

C372

JW460

JW350

R378

R379

BD BOARD

CN710

(RG440:AEP, UK)

JW337

CN312

JW341

C448

JW346

R398

R399

C365

C308

C366

(RG440:AEP,UK)

JW371

C417

JW267

C380

JW330

C381

Q302

D307

R431

D308

D325

CN307

H

C447
C370

R396

C311

JW349

JW351

C313

JW334

JW335

C312

C304

JW359

C449

JW361

JW368

D316

(RG440:AEP,UK)

JW253

C441

JW320

IC306

Q301

E

E

D364

JW398

POWER AMP BOARD

CN502

JR345

19

18

(RG440:AEP,UK)

JW342

JW345

(RG440:AEP,UK)

JW333

C435

C433

C434

JW362

JW363

JW367

D323

JW277

(RG440:AEP,UK)

JW389

JW370

JW380

JW430

JW112

C432

C353

C320

C436

R388

JW383

JW385

JW360

R435

C373

131 131

ASSEMBLED BLOCK

1

2

C106

C107

C101

JW108

C323

C431

C321

R325

C325

R330

C319
42 22

IC301

JW329

1

JW328

C326

C350

C303

R326

R318

C318

C324

C412

JW365

(RG440:AEP,UK)

JW376

C363

C397

R387

C364

JW382

C427

C345

E

Q324

R386

(RG440:AEP,UK)

JW340

Q329

C375

R488

JW264

D302

C374

D303

D301

JW397

(RG440:AEP,UK)

C452

JW420

R101

C317

C349

C328

C429

(RG440:AEP,UK)

R314

C348

R429

JW386

R487

R427

JW300

R428

IC305

D304

JW394

JW396

JW266

CN101

C102

JW107

R317

21

C332

C314

R313

R312

C438

JW384

JW387

JW410

CN306

R102

D101

JW106

C327

R321

C361

C354

C355

C356

JW308

R322

C334
R320

JW322

C362

JW326

JW327

C437

IC304

R310

R432

C421

C418

D321

POWER AMP BOARD

G

15

14

JW103

(RG440:AEP,UK)

JW105

JW104

C331

C346

R319

Q321

(RG440:AEP,UK)

C424

C357

Q322

JW319

JW321

JW324

JW325

JW323

R309

(RG440:AEP,UK)

C305

C359

C306

(RG440:AEP,UK)

C426

C420

IC313

13131313

D319

R363

R372

C451

(RG440:AEP,UK)

CN501

JW102

C389

R477

C333

C376

R342

R345

R471

R343

JW307

C425

(RG440:AEP,UK)

C337

R328

CN303

1

C378

R311

C428

JW336

C339

R365

D312

R460

D322

C419

Q304

E

R371

D374

JR453

D102

JW101

C103

R475

14

IC312

R381 R382

Q309

R383

R349

C394

C338

R472

JW306

JW305

R344

JW313

JW314

JW315

JW316

JW318

3

JW391

C445

C393

JR333

C398

C386

R461

E

Q373

D320

R421

JW393

R362

JW395

R361

85

R474

R473

14

IC302

85

C368

R324

R323

D317

JW304

Q371

E

JW400

JW390

D371

R373 R374

D311

(CHASSIS)

C376

C409

R458

R350

C336

C335

R476

R329(RG440:AEP,UK)
JR358(GX45,RG440:AUS)

JW309

JW310

C377

JR344

R364

G1

C344

JW301

JW302

JW303

(RG440:AEP,UK)

CN102

1

1-688-080-

C105

M731

M

(FAN)

R480

13

(13)

(Page 46) (Page 46)

D203 F-4
D204 F-4
D205 F-3
D206 G-4
D210 E-4
D301 G-6
D302 G-6
D303 G-6
D304 G-6
D305 D-3
D306 C-5
D307 G-5
D308 G-5
D311 H-7
D312 F-7
D313 C-4
D314 C-4
D315 C-5
D316 E-5
D317 D-7
D318 G-5
D319 G-7
D320 G-7
D321 G-7
D322 G-7
D323 E-6
D324 C-5
D325 G-5
D364 G-5
D366 G-5
D371 G-7
D374 G-7

IC201 F-3
IC301 D-6
IC302 C-7
IC304 F-6
IC305 G-6
IC306 G-6
IC308 G-5
IC309 C-3
IC310 C-3
IC312 B-7
IC313 G-7

PH301 B-8
Q210 G-4

Q211 G-4
Q212 G-4
Q218 F-2
Q219 F-2
Q220 F-2
Q221 F-2
Q222 G-3
Q223 G-3
Q225 G-3
Q228 G-3
Q301 G-6
Q302 G-5
Q304 G-7
Q309 C-7
Q310 C-5
Q311 C-5
Q312 C-4
Q321 C-7
Q322 D-7
Q324 F-6
Q326 G-4
Q329 F-6
Q330 G-5
Q331 G-5
Q371 G-7
Q373 F-7

3838

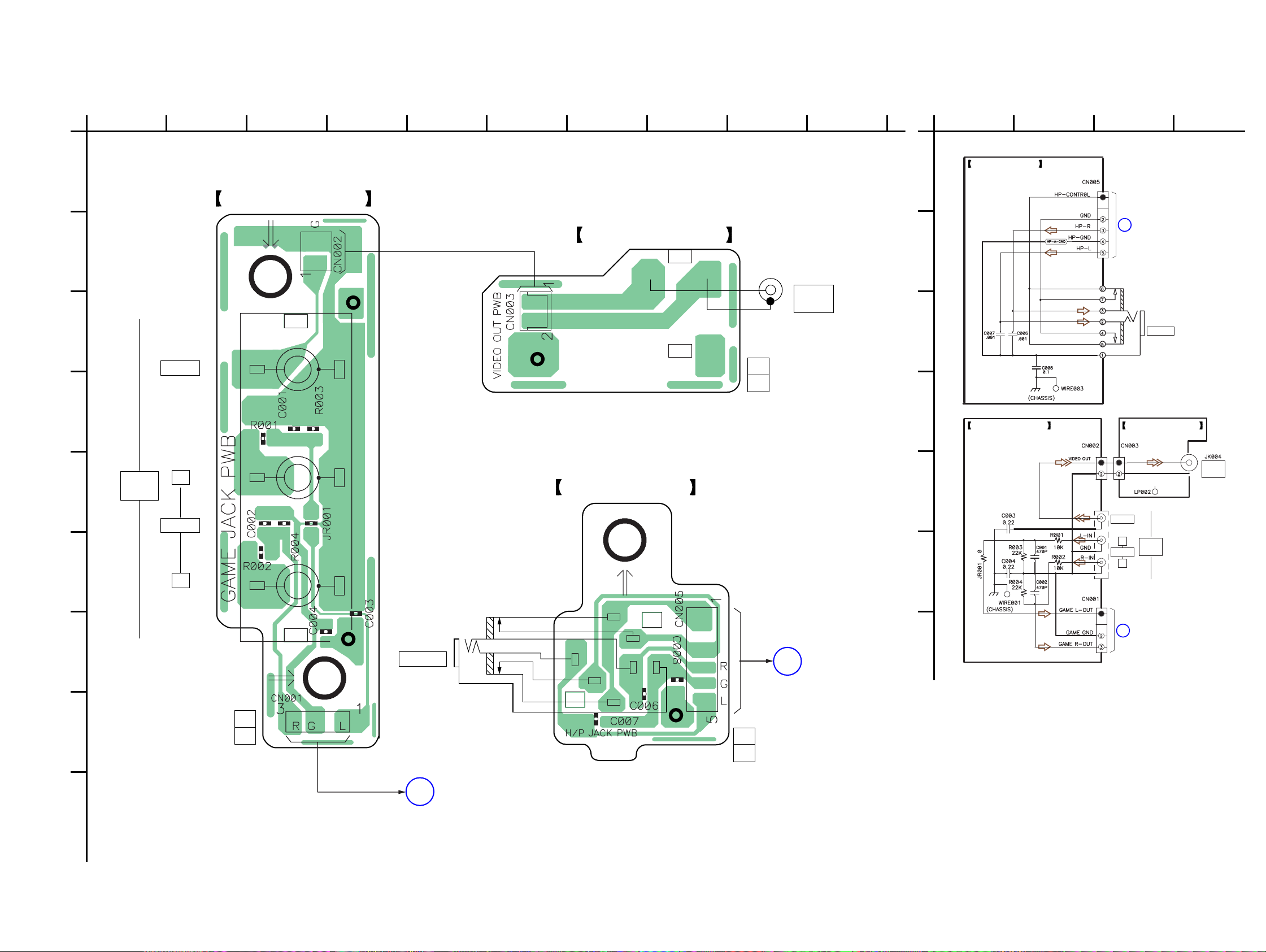

5-18. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAM — JACK SECTION — • Refer to page 29 for Circuit Boards Location.

HCD-GX45/RG440

A

B

C

D

E

F

G

1

JK001

GAME
INPUT

-1

VIDEO

-2
L

AUDIO

R

-3

2345678910

GAME JACK BOARD

VIDEO OUT BOARD

JK004

WRE004

VIDEO

OUT

LP002

1-688-084-

12

(12)

H/P JACK BOARD

WRE001

JK002

PHONES

F

MAIN

BOARD

CN310

(Page 38)

A

B

C

D

E

F

G

1

H/P JACK BOARD

GAME JACK BOARD VIDEO OUT BOARD

234

5P

MAIN

BOARD

F

CN310

(Page 36)

JK002

PHONES

2P 2P

-1
VIDEO

-2

AUDIO

-3

3P

L

GAME

INPUT

R

MAIN

BOARD

E

CN305

(Page 34)

JK001

VIDEO

OUT

H

1-688-086-

12

(12)

WRE003

1-688-087-

12

(12)

MAIN

E

BOARD

I

CN305

(Page 38)

39 39

HCD-GX45/RG440

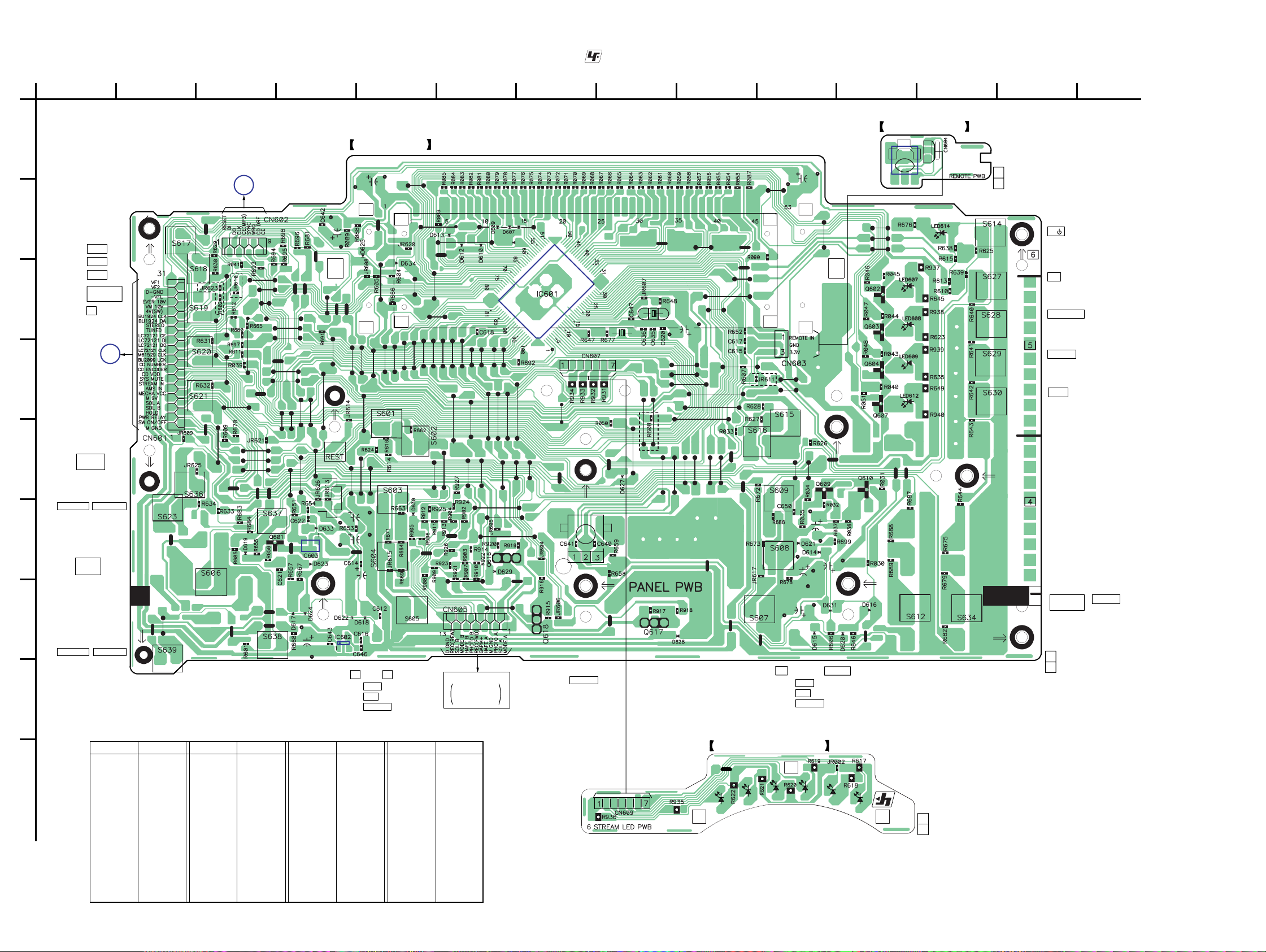

5-19. PRINTED WIRING BOARDS — PANEL SECTION — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

1

S617 DISC1

S618 DISC2

S619 DISC3

S620 DISC SKIP/
EX-CHANGE

S621 Z

C

MAIN

BOARD

CN304

(Page 38)

234567891011 12 13 14

REMOTE BOARD

PANEL BOARD

(Page 38)

MAIN BOARD CN311

D

(GX45,RG440:AUS)

(RG440:AEP,UK)

C639

C601

FLD601(FLUORESCENT INDICATOR TUBE)

D606

D608

X601

RES601

C604

(GX45,RG440:AUS)

C602

RM601

1-688-083-

(12)

12

LED614,S614

I /

LED607,S627

CD

TUNER/BAND

TAPE A/B

GAME

LED608,S628

LED609,S629

LED612,S630

E

F

G

H

(RG440:AEP,UK)

S616 G

C648

C638

C637

S615 DISPLAY

M

S609

–

S608 .
S607 ALBUM –

C649

1-688-085-

S612

REC PAUSE/

START

12

(12)

S634

CD SYNC

S623

MOVE EQ

S639

GROOVE

S636

EFFECT
ON/OFF

S606

GAME

MIXING

S637

MUSIC EQ

S638

GAME EQ

3

C644

FB601

C603

C619

C611

S601

X

S603 M +
S604 >
S605 ALBUM +

S602

x

TAPE DECK BLOCK

SUPPLIED WITH

THE ASSEMBLED

BLOCK

VR601

VR601

VOLUME

• Semiconductor Location

Ref. No. Location
D606 B-7

D607 B-6

I

D608 B-6
D609 B-6
D610 B-6
D612 B-6
D613 B-6
D614 F-10
D615 G-10
D616 G-11
D617 G-4
D618 G-5
D619 F-3
D620 G-11

Ref. No. Location
D621 F-10

D622 G-4
D623 F-4
D624 G-4
D625 B-5
D627 E-8
D628 G-9
D629 F-6
D630 F-5
D631 G-10
D633 F-4
D634 C-5

IC601 C-7

Ref. No. Location Ref. No. Location
IC602 G-4

IC603 F-4

Q601 F-3
Q602 C-11

Q603 C-11
LED601 I-11
LED602 I-10
LED603 I-10
LED604 I-10
LED605 I-9
LED606 I-9
LED607 C-11

Q604 D-11

Q607 D-11

Q609 E-10

Q610 E-11

Q616 F-6

Q617 G-8

Q618 G-7
LED608 C-11
LED609 D-11

RM601 A-11
LED612 D-11
LED614 B-12

6 STREAM LED BOARD

LED606

LED606

(STREAM6)

LED605

LED605

(STREAM5)

LED604

LED604

(STREAM4)

LED603

LED603

(STREAM3)

LED602

LED602

(STREAM2)

LED601

LED601

(STREAM1)

1-688-081-

12

(12)

4040

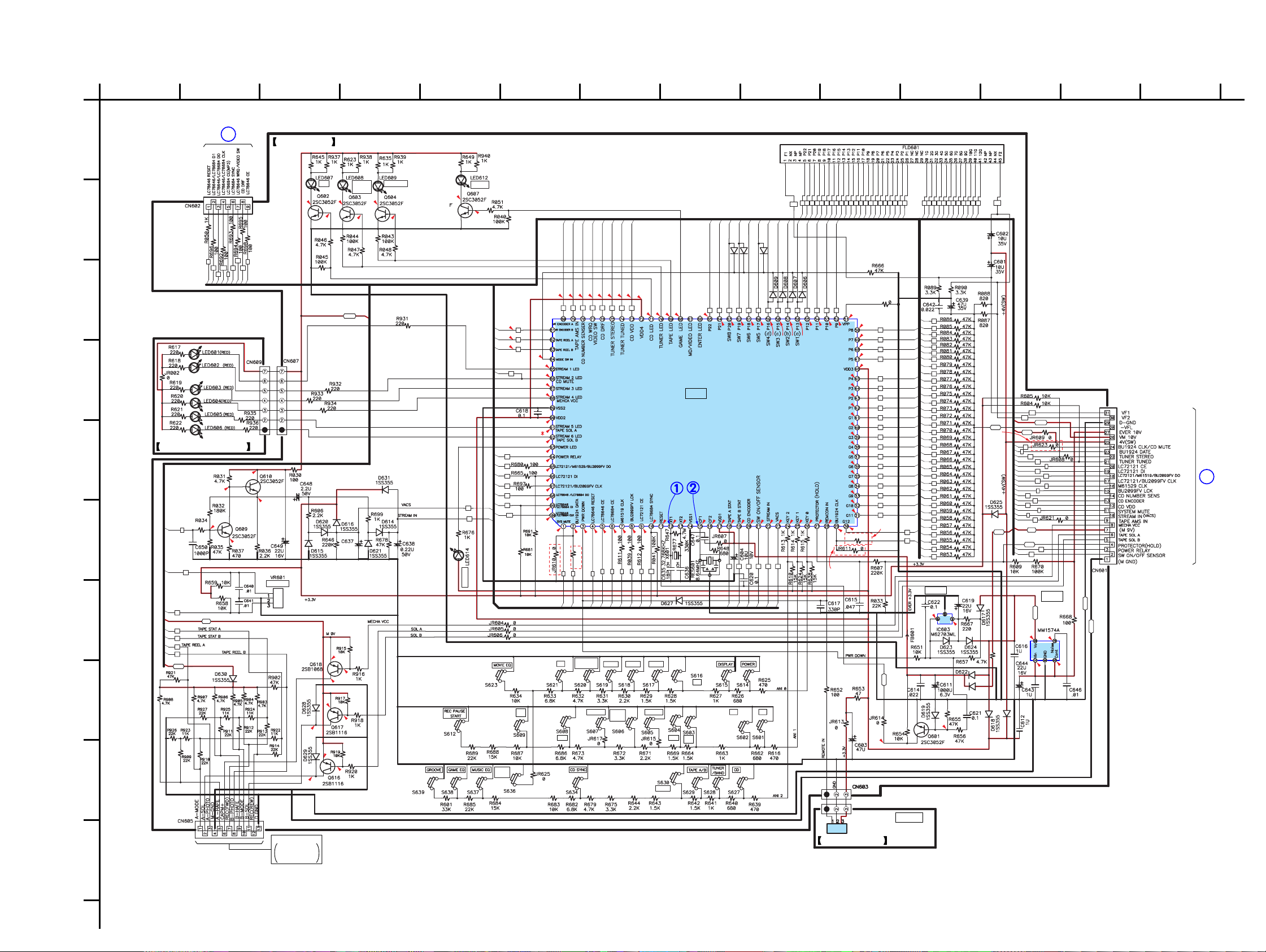

5-20. SCHEMATIC DIAGRAM — PANEL SECTION — • Refer to page 29 for Waveforms.

HCD-GX45/RG440

A

B

C

D

E

F

G

H

I

J

1

LED601-606

SEL5223S-TP15

234567891011121314

(Page 36)

MAIN BOARD CN311

D

9P

4

1006107776

99

98

(STREAM1)

(STREAM2)

(STREAM3)

(STREAM4)

(STREAM5)

(STREAM6)

6 STREAM LED BOARD

Q609, 610

BUFFER

81

18

19

82

83

4VSW

S

13P

5.7

1

4.7k

0.4

80

M9V

PANEL BOARD

LED607 – 609, 612

EFFECT
ON/OFF

3.6

3.4

3.4

HL-30105Q2AT

Q602 – 604,0607

LED DRIVE

81

82

83

86

94

95

96

97

98

99

100

m

–

1,2

0.8

0.8

0.8

0.8

3.3

8.6

3.3

3.1

3.3

3.5
0

3.3

3.6
0

(GX45,RG440:AUS)

3.6

1.6

-1.5

-1.5

78 77

79

80

0

0

3.3

R602 100

(RG440:AEP,UK)

14

2

DISC SKIP/

Z

EX-CHANGE

ALBUM –

.

-1.5

3.6

3.6

76

75

74

00000

3.4

5

7

6

DISC3

MIXING

-1.5

3.2

73

0

3.2

0

0

LC876780B-51Y0-E

3.6

3.3

9

8

10

DISC1

DISC2

ALBUM +GAME

>

GAME

65

-25.8

IC601

IC601

SYSTEM CONTROL,

FLD CONTROL

1.4

1.7

1.6

22p

G

m

+

D606–610,612,613

D613

63

64

3.3

-25.8

1.7

3.33303

18

19

D612

-25.8

1SS355

20 21

-25.8

VF2

33

D610

-25.8

61

5859

62636465

57

VF1

60

52

53

5556575859606162

54

0

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

3.3

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

-25.8

1.5

1.6

3.3

3.3

23

22

3.3

1.9

-25.8

3.3

0

R608 100

(GX45,RG440:

AUS)

-25.8

AEP,UK)

4849505253545556

JR620

50

49

48

47

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

(RG440:

4243

40

44

47

65

64

63

62

61

60

59

58

57

56

55

54

53

52

50

49

48

47

45

44

43

42

41

40

39

38

37

36

35

34

30

33

29

32

31

30

39 38

41

45

IC603

3.5

RESET

37 36 35

RESET

3.4

31

32

30

34

VF1

VF2

–VFL

(RG440:

AEP,UK)

4VSW

VM10V

4VSW

29

2

75

74

9

96

95

97

7

8

78

20

73

1

S

79

M9V

HOLD

94

21

C

MAIN
BOARD
CN304

(Page 37)

31P

IC602

1SS355

D633

1SS355

JR626 0

EVER +4V

REG

EVER4V

IC602

4

1.3

7.5

D–GND

M–GND

7.5

Xx

0

3.3

10V

Q601 RESET SWITCH

D634

1SS355

3P

CN604 3P

RM601
RPM7240-H4

REMOTE BOARD

RM601

REMOTE CONTROL

RECEIVER

TAPE A/BCD

TUNER

0

/BAND

0 8.6

0.7

VM10V

0

8.6

5

7P

7P

GAME

8.6

0

9.7

5.2

0.22
50V

23

22

HL-30105Q2AT

VOLUME

Q618

CAPM

DRIVE

9

9

1.2

POWER

9

0

/

1.2

9

0

1.2

Q616

Q617

TAPE SOL B

DRIVE

TAPE DECK BLOCK

SUPPLIED WITH

THE ASSEMBLED

BLOCK

TAPE SOL A

DRIVE

41 41

HCD-GX45/RG440

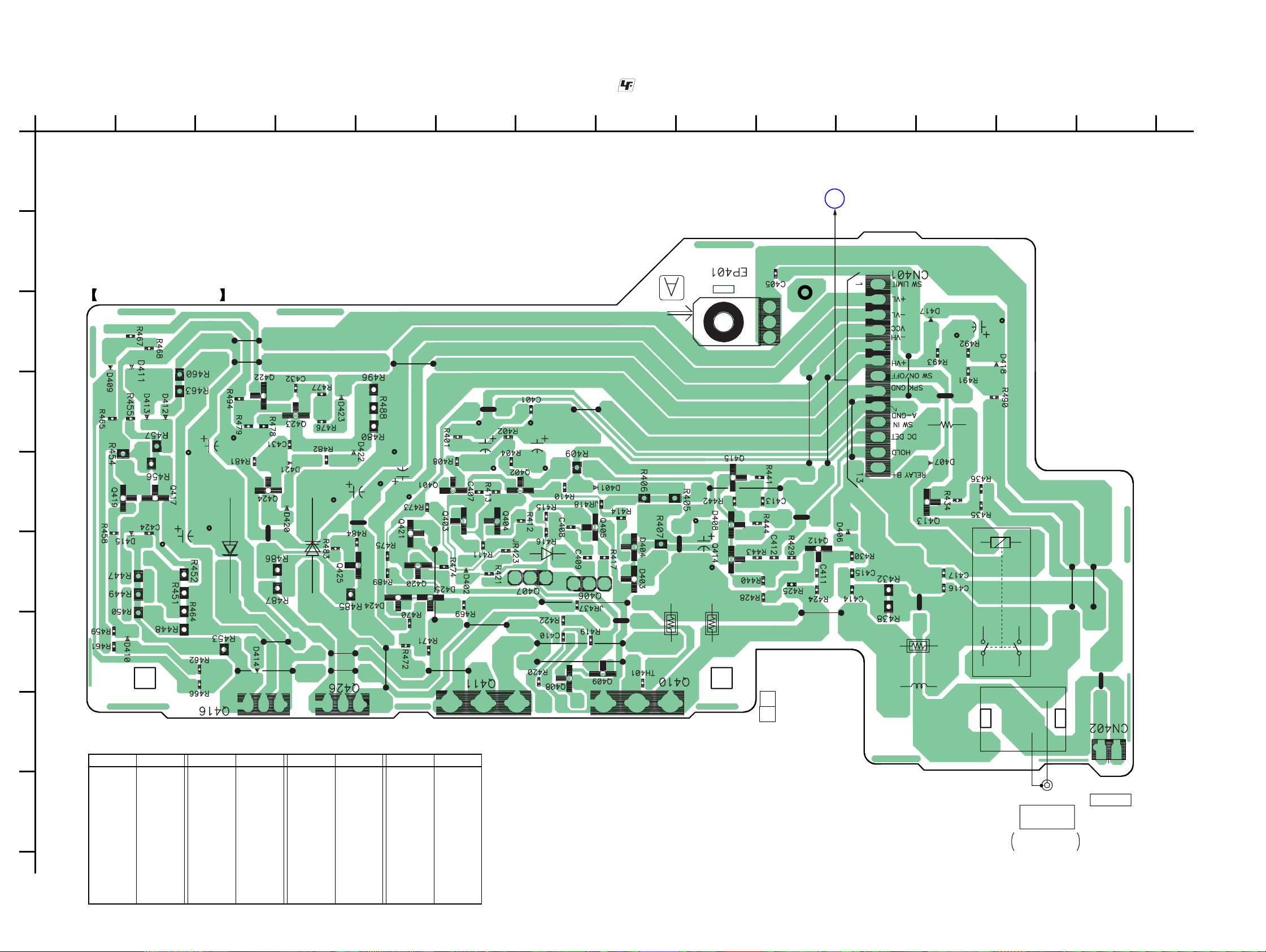

5-21. PRINTED WIRING BOARD — SUB WOOFER SECTION — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

E

F

1

SUBWOOFER BOARD

234567891011 12 13 14

POWER AMP BOARD

C421

C425

D416

JW427

JW428

JW430

D419

C430

JW429

C429

JW426

JW424

C404C402

D405

JW423

C406

JW432

CLP1

JW419

JW421

JW418

L

JW416

CN503

(Page 46)

C428

JW433

JW414

R433

JW415

RY401

G

H

JW410

JW425

JW431

JW403

JW401

• Semiconductor Location

Ref. No. Location
D401 E-8

D402 F-6
D403 F-8
D404 F-8

I

D405 F-7
D406 F-11
D407 E-11
D408 E-9
D409 D-1
D410 G-2
D411 C-2
D412 D-2
D413 D-2

Ref. No. Location
D414 G-3

D415 F-2
D416 F-3
D417 C-12
D418 C-13
D419 F-4
D420 E-4
D421 E-4
D422 E-5
D423 D-4
D424 F-5
D425 F-6

Ref. No. Location Ref. No. Location
Q401 E-6

Q402 E-7
Q403 E-6
Q404 E-6
Q405 E-8
Q406 F-7
Q407 F-7
Q408 G-7
Q409 G-8
Q410 H-8
Q411 H-6
Q412 F-10
Q413 E-12

JW402

JW404

JW405

Q414 F-9
Q415 E-9
Q416 H-3
Q417 E-2
Q419 E-2
Q420 F-5
Q421 F-5
Q422 D-3
Q423 D-4
Q424 E-3
Q425 F-4
Q426 H-3

JW406

JW407

JW409

JW408

R427

R426

1-688-749-

11

(11)

JW411

JW422

R431

L401

JK401

SUB WOOFER

INPEDANCE USE

JK401

OUT

6-16Ω

JW413

JW412

JW402

12

CN402

CONTROL

4242

5-22. SCHEMATIC DIAGRAM — SUB WOOFER SECTION —

HCD-GX45/RG440

(Page 44)

CN401

R401

C405

EP401 C413

R441 R442

C401

Q415

D416

D414

C424

C425

C429

D419

C402

R402

D408

R444

Q416

R453

Q417

R454 R455

C404

R486

R487

R404

D415

R440

C412

R449

R447

Q426

R448

R450

R456 R457

Q425

R485

R405

R406

D401 R414

R410

R408

R409

Q414

R443

C430

R452

R483

R484

D412

Q419

R451R464

R459

JR418

C421

R460 R463

D413

R458

D420

D421

R482

R407

Q401

R413

C407

C406

D411

Q424

R481

D422

R496 R488 R480

D402

Q403 Q404

D410 R462

R461

R479 R494 R478

C431

R465

Q423

R420

R419

R468R467

D405

D404

Q408

Q421

Q406

R474

Q410

Q409

R426

C410

R427

R422

Q407

Q411

R421JR423R417R416

TH401

JR437

Q420

D424 D425

R473

R424

R489

R469

Q412

D406

R430

L401

C414

C415

C417

R432R438

R431

C416

R435 R434

R436

Q413

D407

RY401

D417

C428

R490

D418

CN402

JK401

R433

R491R492R493

C411

R425

R428

R429

R472R471

R470

D403

Q402

C408 C409

R415

Q405

R412R411

R466

D409

Q422

C432

R477

R475

R476

D423

43 43

HCD-GX45/RG440

5-23. SCHEMATIC DIAGRAM — POWER AMP SECTION (1/2) —

(Page 36)

(Page 37)

CN501

CN502

CN503

R566

C528

Q528

JR516

R565

C530

R592

R591

R562

Q527

R561

C521 C517

R559

R569

R557

C540

R500

R558

R560

Q525

C538JR514

Q526

R599

R555

R556

R553

C520

C518C522

C519

R554

R549

C514

C513

R550

C523

EP501

R543 R541

D510

R539

R545

R540

R546

R542

R548

R547

R544

C511

C512

Q523

Q524

C509

C510

Q519

Q520

D508

D507

R531

R533R535

R532

R537

D501

Q517 R523

R527

Q521

R530

R538

Q518

R528

Q522

R534R536

JR513

C507 C505

D502

C508 C506

R526

R529

R521

JR501

R522

R524

Q515

Q516

Q507

Q509

D505

Q513

R519R525 R517

D504

Q508

Q510

D506

Q514

R520

D503

R518

Q511

Q512

R515

R516

R501

R503

R502

R504

C503

C504

Q503

Q502

Q504

Q501

JR517

R505

R507

R509

R506

C502

R508

C501

R510

R514

R511

R512

Q506

Q505

D509

TH502

TH501

R513

JR511

(Page 43)

JR515

Q18

(GX45)

D41

D26

1N5402

(GX45)

D42

(RG440)

R83

C33

R74

R78R58

Q19

JW1

C41

(RG440)

1N5402

D27

R86

R81

R99

D24

R92

R93

D25

C35

R79

Q17

D33

D34

R72

C34

R71

R95

C37

D30

Q22

R59

R60

Q23

C42

D35

R56

R55

D29

D23

Q20

R91

R75

C43

R70

D36JW2

R76

R82

R94

D32

Q21

R96

R85

R69

C40

R43

R53

Q24

R77

R41 R64

D37

R54

R98

C30

C45

R26

D38

R61D31

C31

R63

R97

R62

R42

R27

Q11

R52

R51

Q10

R50

D19 D18

C26

R65

R49 R48 R47

JR512

Q13

R67

R66

R90

D20

R45R46

Q12

C25 R68

(Page 45)

4444

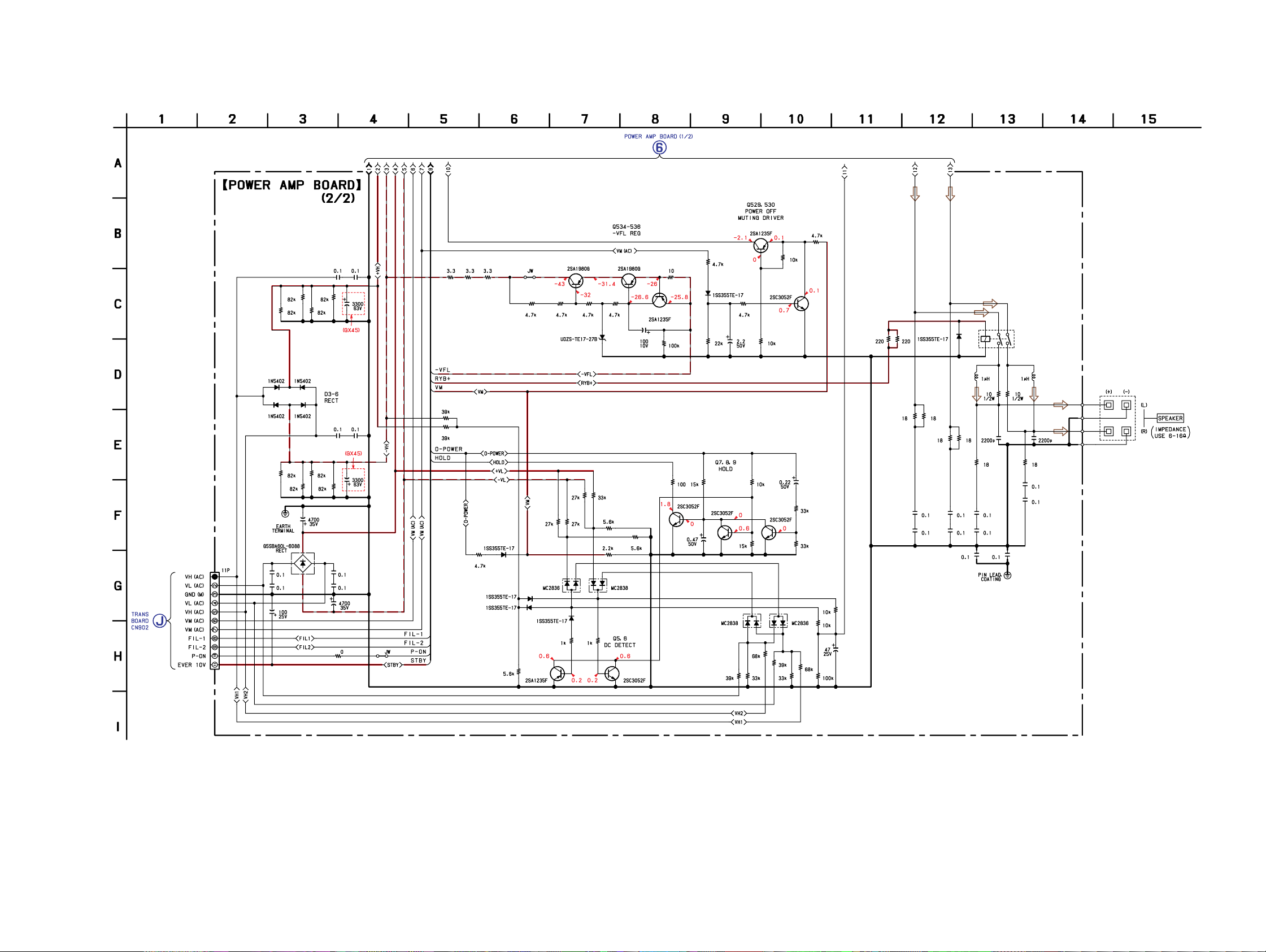

5-24. SCHEMATIC DIAGRAM — POWER AMP SECTION (2/2) —

HCD-GX45/RG440

(Page 44)

(Page 48)

Q530

Q534

R567 R568

D515

R8

R7R6

D12

D514

R16 R17

D11

D39

D40

JW501

R563 R564

R102

Q5 Q6

C1 C2

R105

D3 D6

D4 D5

R107

EP01

D2

CN1

C5

C6

C13

R108

R103

R104R106

R109

R110

C11

C9

C3 C4

C10

C7

C8

C12

JW3JR2

R31

R73

R44

R29R100

R4

Q535

R9

R12

R13

D13

R580

Q536

C531

R581

R14

R577

D513

R575

C529

R576

Q7

Q8

C22

R21 R23

R32 R33

Q529

R593

R20R19R18

R34

R589

R594

D511

R574R578

L501

R603R601

R604R602

R573

C23

R22

Q9

R40

D17D16

R38

C24

R35

R37

R36

R39

C541 C542

C525

C527

C544C543

C535 C534

RY501

L502

R570R571

JK502

C532C533

R572

C524

C526

EP502

45 45

HCD-GX45/RG440

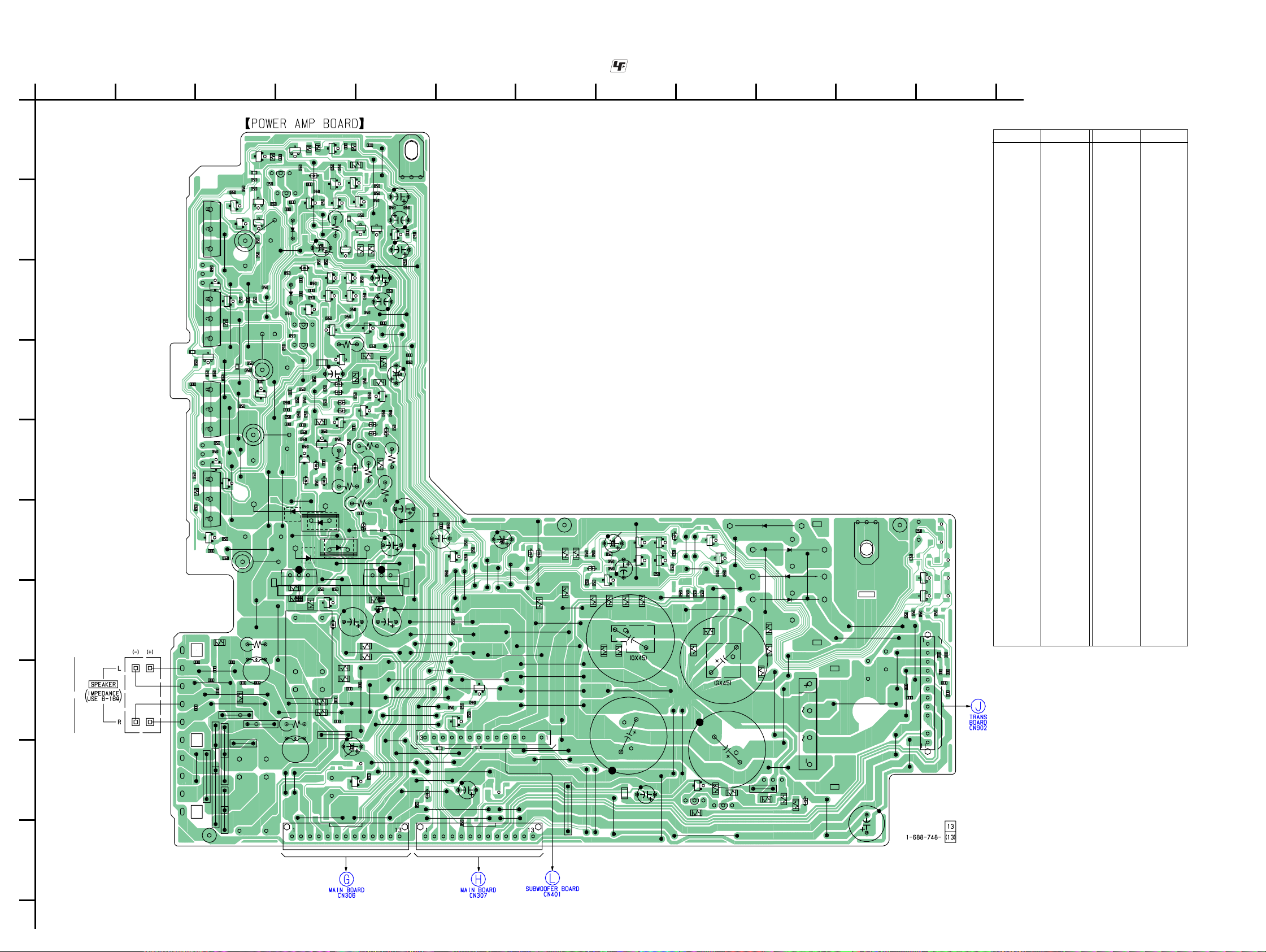

5-25. PRINTED WIRING BOARD — POWER AMP SECTION — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

A

B

C

D

E

F

G

H

1

23456789101112

• Semiconductor Location

R67

D20

R68

C25

Q514

C30

JW516

R69
C40

JW522

Q512

R525

R45

JW513

R58

CN501

C508

C506

JW512

D505

R519

R517

R62

JW595

D506

C31

R26

R42
R60

(RG440)

D27

R78

R570

L502

JW594

R526

D508

C510

D507

C507

C505

Q513

Q511

R61

R64

R53

C45

Q22

JW517

Q19

JW543

JW542

JW586

R66

R532

Q516

C512

R531

C509

R527

Q515

JW14

R43

D33

JW46

(RG440)

D26

R79

R74

JW527

JR513

R63

JW17

R27

R70

D34

RY501

Q12

JR512

R47

R50

R520

R52

JK502

C535

JR511

C503

R511

R513

R505

C532

JW540

JW555

D509

R514

TH501

Q505

JW551

C501

Q508

R523

R521

C525

JW9

R512

R573

R51

Q504

R522

Q502

R506

Q503

Q501

R507

R509

JW536

C527

JW6

C534

Q10

JW534

Q510

TH502

JW530

JW528

Q507

Q509

C533

C524

R572

JW10

Q11

JW532

JW523

JR517

JW521

JW526

JW11

JW7

R524

R510

R508

C502

R515

JW519

C504

JW514

JW535

JW554

D18

D19

Q506

JW556

JW593

R571

L501

JW552

R516

R501

R518

R504

R48

R49

R46

JW525

R502

R503

JW520

C526

I

JW13

EP502

JW16

JW15

JW12

C26

C523

R534

Q518

R538

R535

D37

Q24

R75

R56

C42

D35

(GX45)

R72

C544

C529

D42

R601

D502

R548

R537

D511

R603

R536

Q524

Q523

Q519

R529

JW537

D503

D31

C43

R55

(GX45)

C543

C542

R576

JR501

R553

D501

C35

JW45

C34

Q529

R90

Q520

R530

R96

R41

R77

D36

D504

R542

Q20

D23

D29

R86

R83

R574

R578

C541

JW541

R65

R545

R539

Q525

R541

R99

R557

R54

R92

D25

D24

JW585

JW524

D510

R549

R94

JW515

R550

R540

R91

JW18

R575

JW529

R546

R554

R544

C519

R81

Q18

JW511

Q21

R76

D30

R93

C37

Q526

JW531

JW539

R543

C41

JW544

JW582

JW550

JW533

C513

R555

C517

R82

JW48

JW591

C521

R85

R95

C33

JW590

EP501

R560

R559

JW51

JW584

C514

R556

C518

C520

C522

C538
R599

JW546

JW547

JW548

JW545

R577

JW592

JW43

JW589

JR516

JW588

CN502

R558

JR514

JW64

JW583

C540

JW42

JW549

JW587

JW581

D513

JW580

JW1

JW2

JW579

C530

R500

R589

Q527

R569

Q528

R561

JW26

JW75

R591

R593

R566

R592

JW25

Q530

C528

JW58

JR515

R594

R565

R562

JW57

CN503

JW74

C24

JW56

R39

JW577

JW578

JW60

JW37

JW61

JW34

R581

R12

JW78

JW501

D3

R29

R563

JW77

R31

D4

D6

D5

JW69

JW68

R100

R564

JW24

JW76

R567

JW20

D2

D515

JW66

R20

C23

LP902

D39

D40

R102

JW53

R73

R44

JW35

JW36

JW38

JW39

JW40

JW41

JW44

JW52

JW575

JW3

JW33

R40

R38

R22

R13

R23

D11

R4

R18

R110

R103

JW574

JW573

Q8

JW59

R19

C22

Q7

R108

R109

C9

R104

JW30

12

C

JR2

JW72

Q9

C531

R107

D514

Q5

Q6

R16

R21

JW73

R17

JW29

JW28

JW63

JW54

R105

Q536

Q535

JW62

JW32

R568

R6R7R8

D12

R9

R106

JW571

D13

R14

JW31

JW55

C10

C11

R580

Q534

JW27

JW50

C13

EP01

JW21

LP903

JW70

JW67

R34

JW71

R33

C3

JW65

JW23

C4

R36

D16D17

R32

R35

R37

C5

C1

C6

C2

C8

C7

CN1

(Page 47)

Q13

Q522

R528

JW538

R533

Q521

Q517

R547

C511

R97

D32

R98

D38

R59

Q23

R71

D41

JW47

Q17

R602

R604

JW8

Ref. No. Location
D2 H-10

D3 F-10
D4 F-10
D5 G-10
D6 F-10
D11 F-7
D12 F-9
D13 F-9
D16 G-12
D17 G-12
D18 B-3
D19 B-3
D20 A-4
D23 E-5
D24 G-5
D25 F-5
D26 F-4
D27 F-4
D29 E-5
D30 E-5
D31 D-4
D32 D-4
D33 E-4
D34 E-4
D35 E-4
D36 E-4
D37 D-4
D38 D-4
D39 F-7
D40 F-7
D41 F-4
D42 F-4
D501 D-4
D502 B-4
D503 C-4
D504 B-5
D505 C-4
D506 B-4
D507 C-4
D508 A-4
D509 D-3
D510 B-5
D511 G-4
D513 I-5
D514 F-8
D515 I-10

Q5 F-8
Q6 F-8

Ref. No. Location
Q7 G-8

Q8 F-8
Q9 F-8
Q10 B-3
Q11 B-3
Q12 A-3
Q13 A-4
Q17 G-4
Q18 F-5
Q19 F-4
Q20 D-5
Q21 D-5
Q22 E-4
Q23 E-4
Q24 E-4
Q501 E-3
Q502 C-3
Q503 D-3
Q504 B-3
Q505 F-3
Q506 D-3
Q507 E-3
Q508 C-3
Q509 E-3
Q510 C-3
Q511 D-4
Q512 B-4
Q513 C-4
Q514 A-4
Q515 C-4
Q516 B-4
Q517 C-4
Q518 B-4
Q519 C-4
Q520 B-4
Q521 C-4
Q522 B-4
Q523 C-4
Q524 B-4
Q525 C-5
Q526 B-5
Q527 F-6
Q528 H-6
Q529 I-4
Q530 H-6
Q534 I-9
Q535 I-9
Q536 I-9

J

(Page 38)(Page 38) (Page 42)

4646

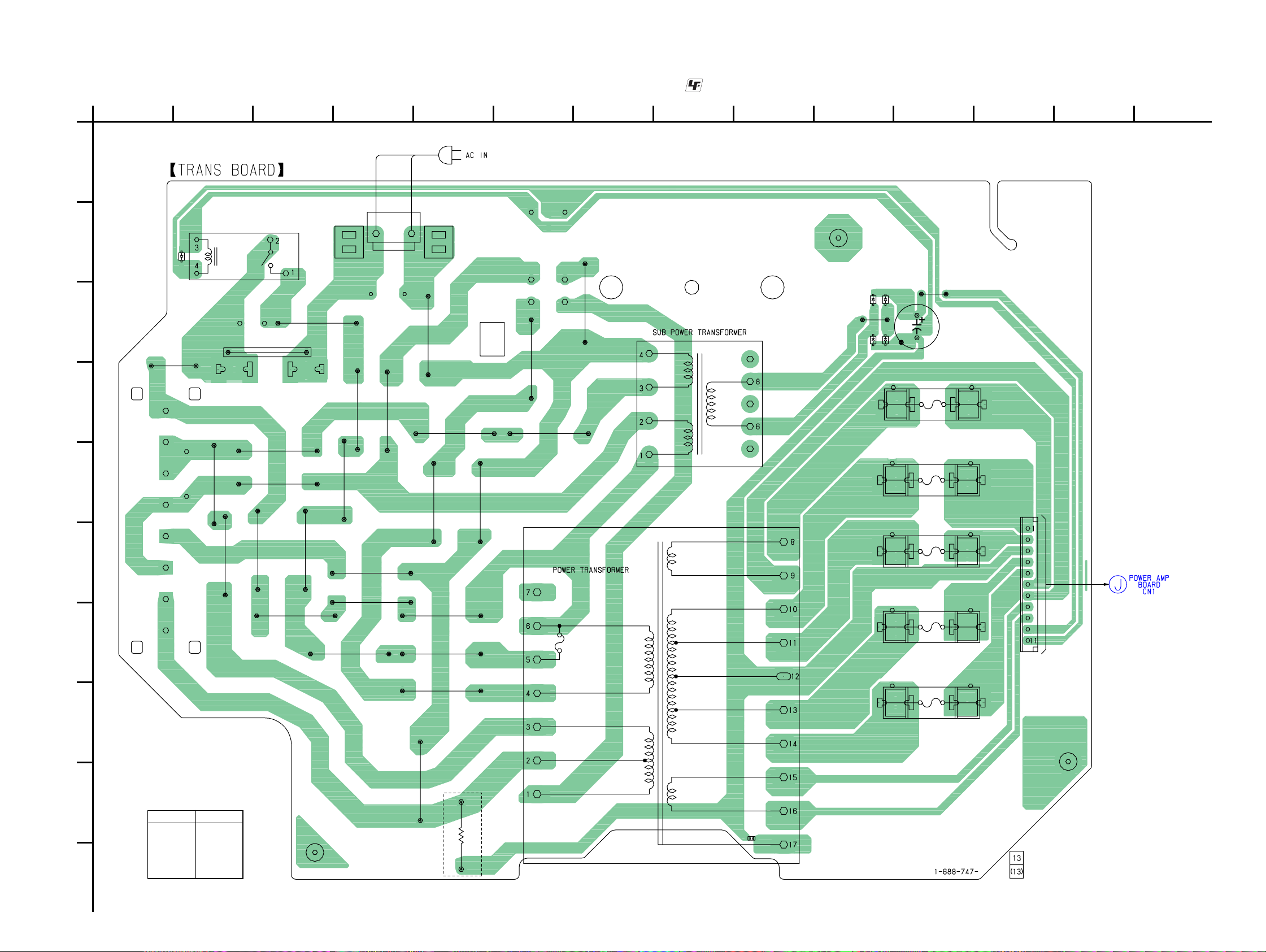

5-26. PRINTED WIRING BOARD — TRANSFORMER SECTION — • Refer to page 29 for Circuit Boards Location. : Uses unleaded solder.

HCD-GX45/RG440

A

B

C

D

E

1

JW

234567891011 12 13 14

LP906

JW

D903

934

D902

D905

D904

C902

JW

F902

F905

935

D906

901

920
JW

RY902

JW

JW

JW

909

922

921

JW926

AC002

927
JW

923
JW

CN901

928
JW

931
JW

924
JW

JW

AC001

929

925
JW

932
JW

JW

933
JW

T902

930

F

G

H

J

911

910

JW

JW

• Semiconductor

I

Location

Ref. No. Location
D902 C-10

D903 C-10
D904 C-10
D905 C-10
D906 B-2

JW

912
JW

913

LP904

JW

914

JW

JW

919

918

902
JW

917

JW

916

JW

915

JW

(US,CND)

T901

F903

CN902

(Page 46)

F904

F906

LP901

C901

R901

47 47

HCD-GX45/RG440

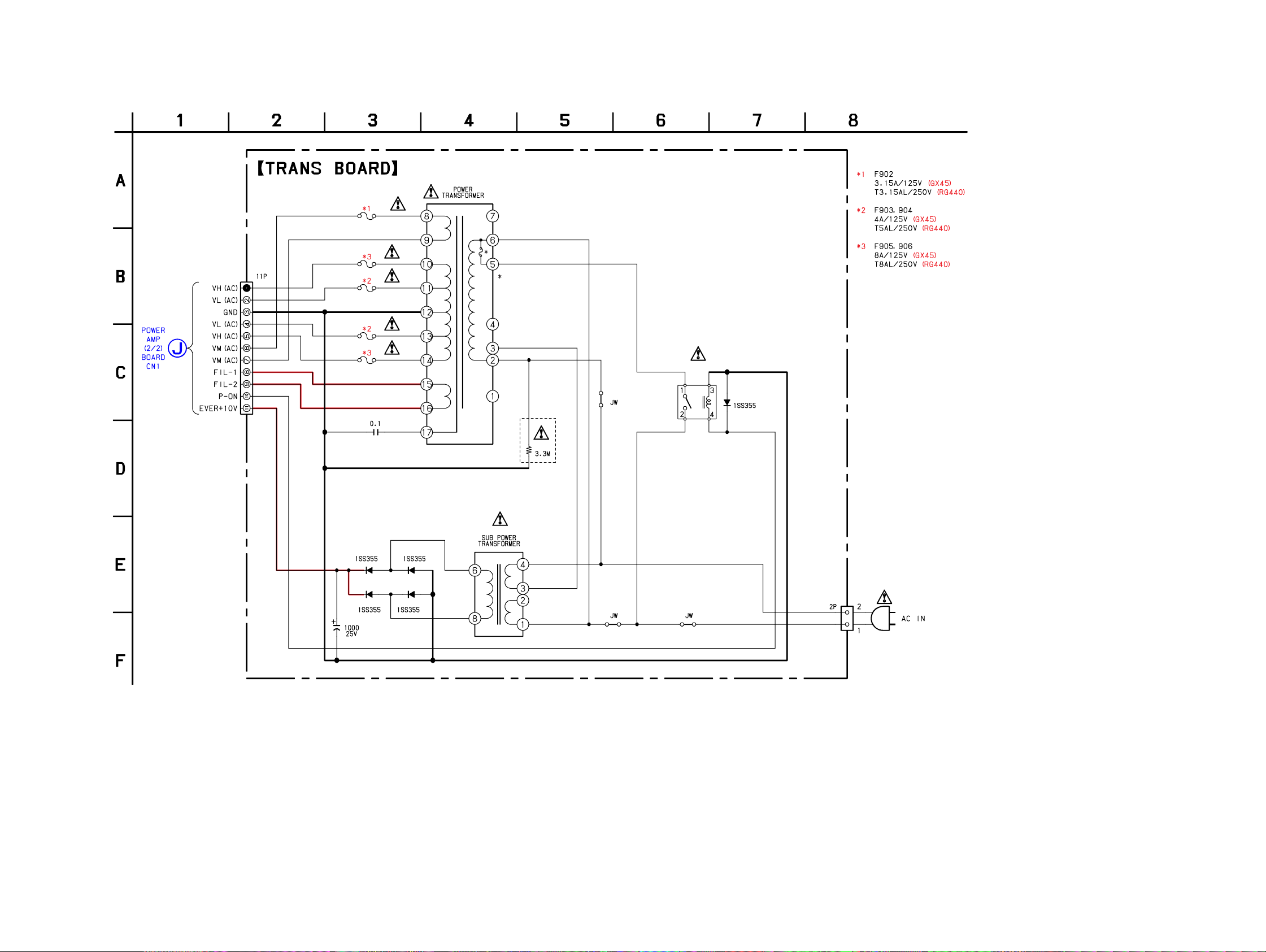

5-27. SCHEMATIC DIAGRAM — TRANSFORMER SECTION —

T901

F902

F905

(Page 45)

CN902

F903

F904

F906

C901

NOT REPLACEABLE
BUILT IN TRANSFORMER

RY902

JW902

(US,CND)

R901

T902

D902D903

D906

D905 D904

C902

JW901

JW909

CN901

4848

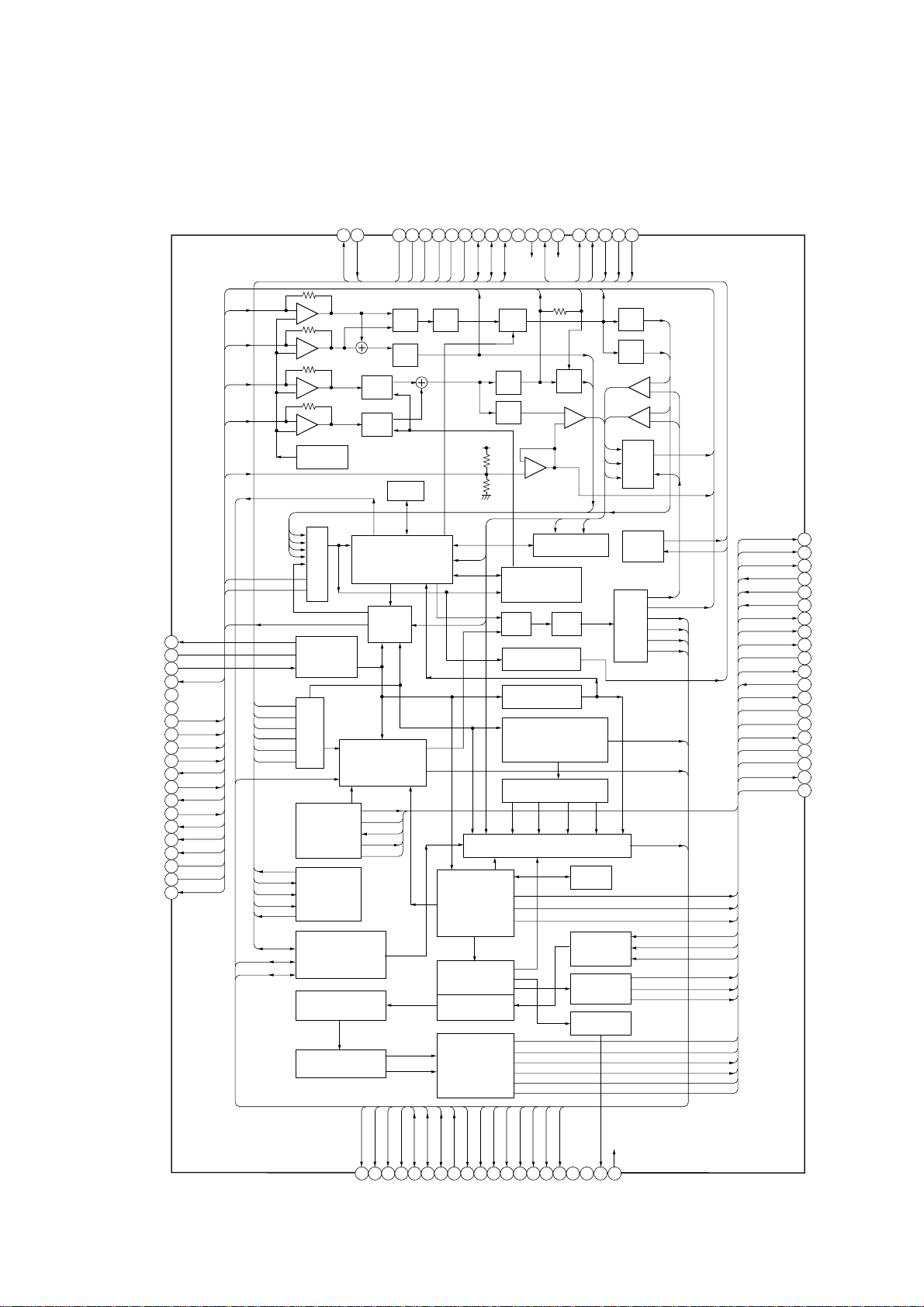

5-28. IC BLOCK DIAGRAMS

IC721 LC78646E-E (BD Board)

FIN1

FIN2

TIN1

TIN2

REFI

DEFECT

+
–

+
–

+
–

+
–

LEVEL SET

LDS80LDD

FR

VVDD

PCKIST

VVSS

VVDD

PCKIST

VVSS

EQ

PDO2

PDO2

79 78 77 76 75 74 73 72 71

LDS

LDD

FR

MIX

LPF

TBAL

TBAL

RAM

PDO1

PDO1

VSS

CONT1

CONT1

FE

VDD5

CONT270CONT3

69 68 67 66 65 64 63 62 61

CONT3

AGC

LPF

LPF

DRF

TE

–

+

CONT2

DRF

RES

SW

+

–

WRQDODICLCE

WRQDODICLCE

RF

TEC

PH

BH

MONI
CONT

HCD-GX45/RG440

+

–

+

–

RFMON

VREF

SLCO

SLCIST

EFMIN

RFVDD
RFVSS

FIN1

FIN2
TIN1
TIN2

VREF

REFI

TEC

RFMON

JITTC
ADAVDD
ADAVSS

TDO

DRF

EFLG

ASDFIN

DATA

LRSY

LVDD

LVSS
LCHO
RCHO
RVDD
RVSS

C2F

DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
16MOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
16MOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD

FDO
SPDO
SLDO

GPDAC

FSEQ

V/P

MONI1-5

LDD

LDS

TDO

FSX/16MIN

ASDACK
ASLRCK

DATACK

TRACK JUMP

AUTO ADJUST

SW

RUPTURE DEFECT

DETECT,PROTECT,INSERT,

SUBCODE DECODE CRC

D/A

DRF

FRAME SYNC

EFM DECODE

RAM

EXTERNAL

AUDIO IN

SERIAL

AUDIO OUT

PORTS

8FS

1BIT DAC

SERVO PROCESSOR

JITTER

DETECT

CLV,CAV

CONTROL

16MOUT
XVSS
XIN
XOUT
XVDD

MONITOR SIGNAL SELECTOR

ERROR

CORRECTION

AUDIO CD

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

LPF

ADAVDD
ADAVSS

JITTC

SLCO

1

SLCIST

2

EFMIN

3

RF

4

RF

5
6

FIN1

7

FIN2

8

TIN1

9

TIN2

10

VREF

11

REFI

12

FE

13

FE

TE

14
15
16
17
18
19
20

TEC

TE

RFMON

JITTC

ADAVDD

ADAVSS

TDO

PDO1
PDO2

FR
PCKIST
VVDD
VVSS

SBCK/FG

WRQ
CL
CE
DI
DO

CONT1-3

SBCK/CONT6
CONT4,5

A/D

SLICE LEVEL

CONTROL

PLL

VCEC

CLOCK

GENERATOR

COMMAND
INTERFACE

GENERAL PURPOSE

DIGITAL FILTER

APC

S/H

OUT

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

DEFECT

SBCK/FG

SBCK/CONT6

DEFECT

SBCK/FG

SBCK/CONT6

V/P

V/P

FSEQ

FSEQ

MONI1

MONI2

MONI1

MONI3

MONI2

MONI4

MONI3

MONI4

MONI5

MONI5

VSS

39 40

DOUT

VDD(3.3V)

TEST

49

HCD-GX45/RG440

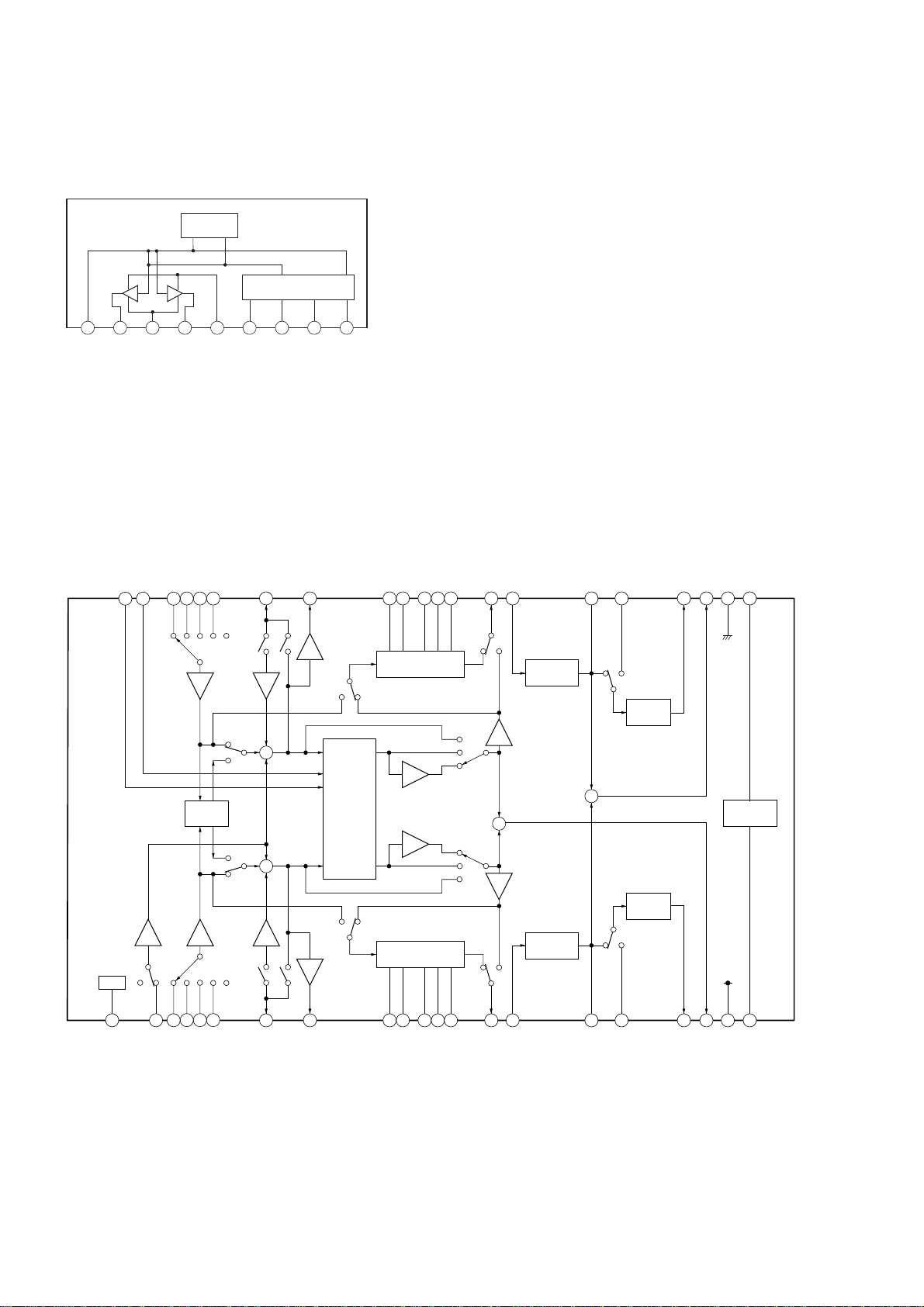

IC701, 712 BA6956AN (DRIVER Board)

TSD

CONTROL LOGIC

1 2 3 4 5 6 7 8 9

VREF

OUT2

RNF

OUT1

VM

VCC

FIN

GND

RIN

IC301 M61529FP (MAIN Board)

INPUT

ATT

INB238INC237IND2

39

RECA1/INEX235RECB2

36

SUR1/DPL141SUR2/DPL240INA2

42

+

VOCAL

CUT

+

EXTERNAL
INPUT ATT

REF

INPUT

ATT

SURROUND

OR

DPL BUFFER

TMI233TMO232TCA231TCB230TCC229TOUT2

34

TONE CONTROL

(BASS/MID/TREBLE)

TONE CONTROL

(BASS/MID/TREBLE)

+

VOLIN2

28

TONE ATT

TONE ATT

ELECTRICAL

VOLUME

ELECTRICAL

VOLUME

BB A226BB B2

27

+

BASS

BOOST

BASS

BOOST

OUT224SWOUT23GND

25

CLOCK

22

MCU

INTERFACE

50

4

1

2

REF

MIC

3

INA1

INB15INC1

6

IND1

7

RECA1/INEX1

8

RECB1

9

10

TMI1

TMO1

11

TCA112TCB113TCC1

14

TOUT1

15

VOLIN1

16

BB A117BB B1

18

OUT1

19

20

SAOUT

VCC

21

DATA

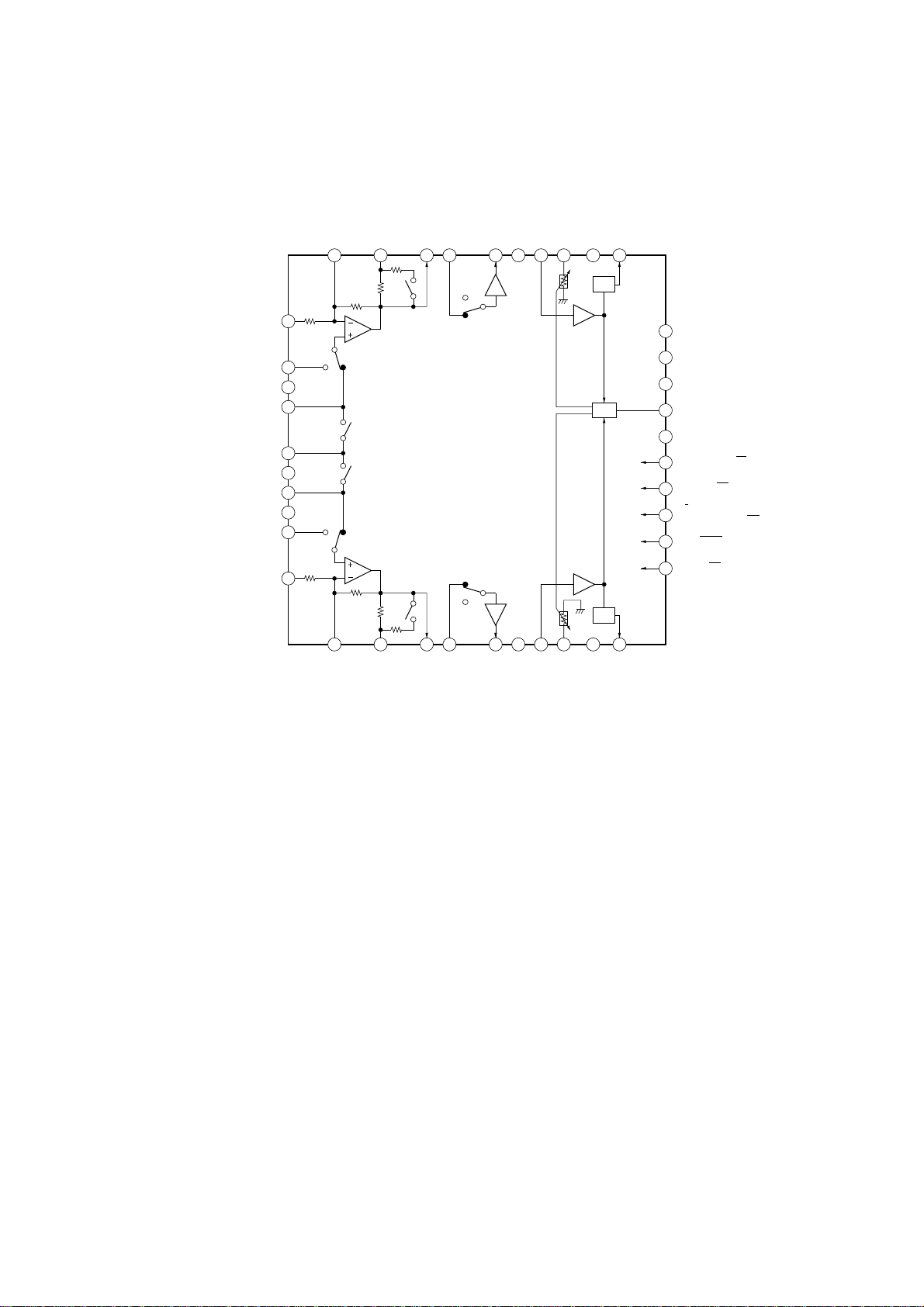

IC201 HA12237F (MAIN Board)

PB-NF2 (L)29PB-EQ (L)28EQOUT (L)27TAI (L)26PBOUT (L)25NC24RECIN (L)23ALC (L)22NC21RECOUT (L)

30

HCD-GX45/RG440

EQ

31PB-NF1 (L)

32AIN (L)

AB

33RIP

34BIN (L)

35REC-RETURN

36GND

37BIN (R)

38NC

AB

39AIN (R)

40PB-NF1 (R)

1

PB-NF2 (R)

(HIGH/NORM)

RETURN SW

RETURN SW

(HIGH/NORM)

2

PB-EQ (R)

93/120

93/120

3

4

EQOUT (R)

MUTE

MUTE

TAI (R)

5

6NC7

PBOUT (R)

8

ALC (R)

RECIN (R)

ALC

EQ

9NC10

RECOUT (R)

20 TEST MODE

19 IREF

18 GND

17 ALC DET

16 VCC

15 REC MUTE OFF/ON

14 MUTE ON/OFF

A/B

13

(REC RETURN ON/OFF)

12 HIGH/NORM

11 ALC ON/OFF

51

HCD-GX45/RG440

NOTE:

• The mechanical parts with no reference
number in the exploded views are not supplied.

• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.

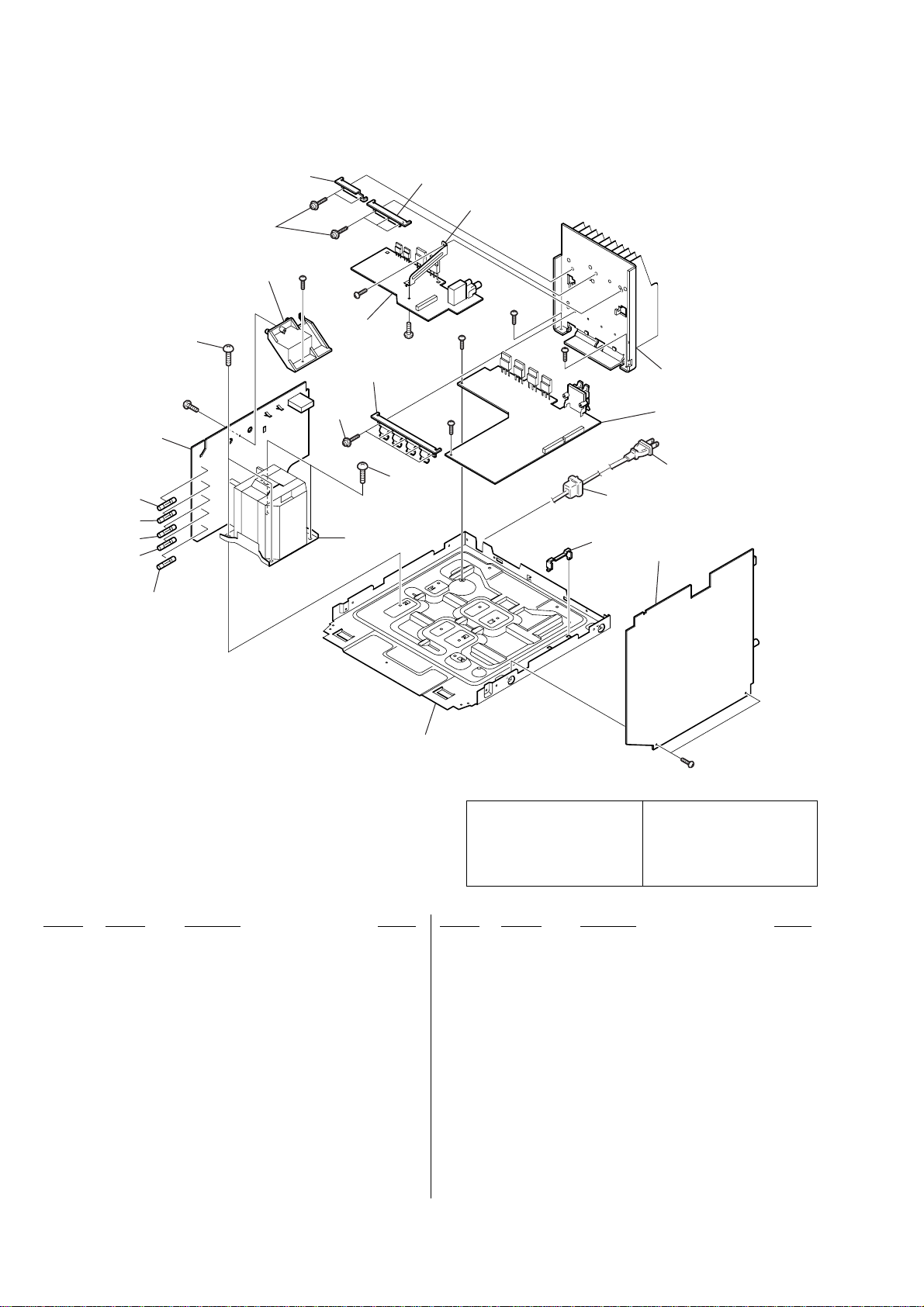

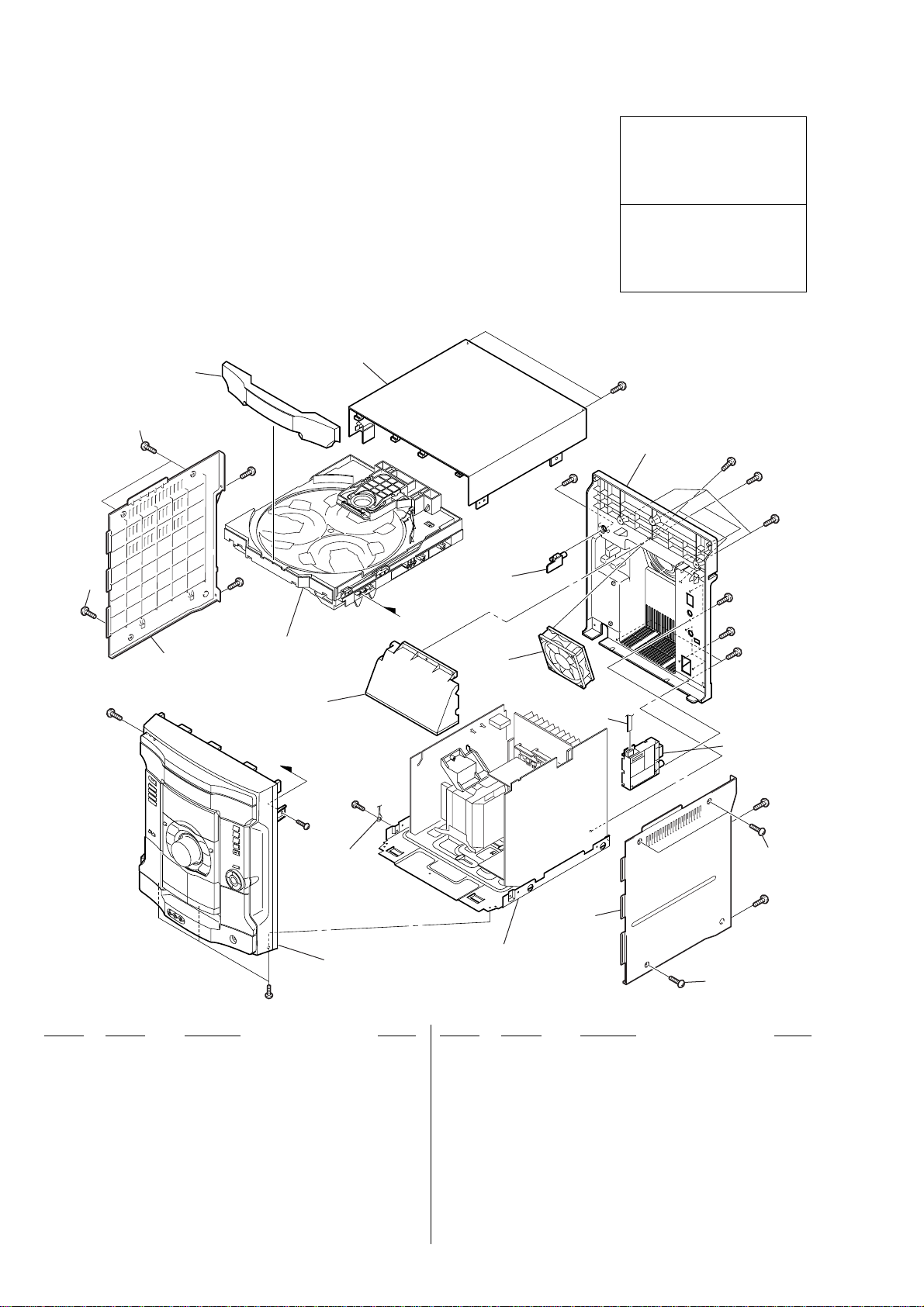

6-1. MAIN SECTION

SECTION 6

EXPLODED VIEWS

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• Accessories are given in the last of this
parts list.

• Abbreviation
CND : Canadian model
AUS: Australian model

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

5

4

#1

1

#1

#3

1

3

CDM74F-K6BD71A

#1

not supplied

A

#1

not supplied
(VIDEO OUT board)

A

M731

#1

not supplied

6

#1

#1

#1

#2

TU901

#1

#1

#1

#1

not
supplied

front panel section

#2

Ref. No. Part No. Description Remark

1 3-363-099-41 SCREW (CASE 3 TP2)
2 4-245-184-21 CASE (SIDE-R) (GX45)
2 4-245-184-31 CASE (SIDE-R) (RG440)
3 4-245-183-21 CASE (SIDE-L) (GX45)
3 4-245-183-31 CASE (SIDE-L) (RG440)

4 4-244-662-51 CD DOOR (GX45)
4 4-244-662-61 CD DOOR (RG440)
5 4-244-849-01 CASE (TOP) (GX45)
5 4-244-849-11 CASE (TOP) (RG440)
6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (GX45)

6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (RG440)

52

1

#3

2

main board section

1

Ref. No. Part No. Description Remark

M731 1-763-072-11 FAN, DC
TU901 1-693-625-11 TUNER PACK (FM/AM) (ANTENNA) (GX45)
TU901 1-693-626-11 TUNER PACK (FM/AM) (ANTENNA)

(RG440:AEP,UK)
TU901 1-693-628-11 TUNER PACK (FM/AM) (ANTENNA) (RG440:AUS)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

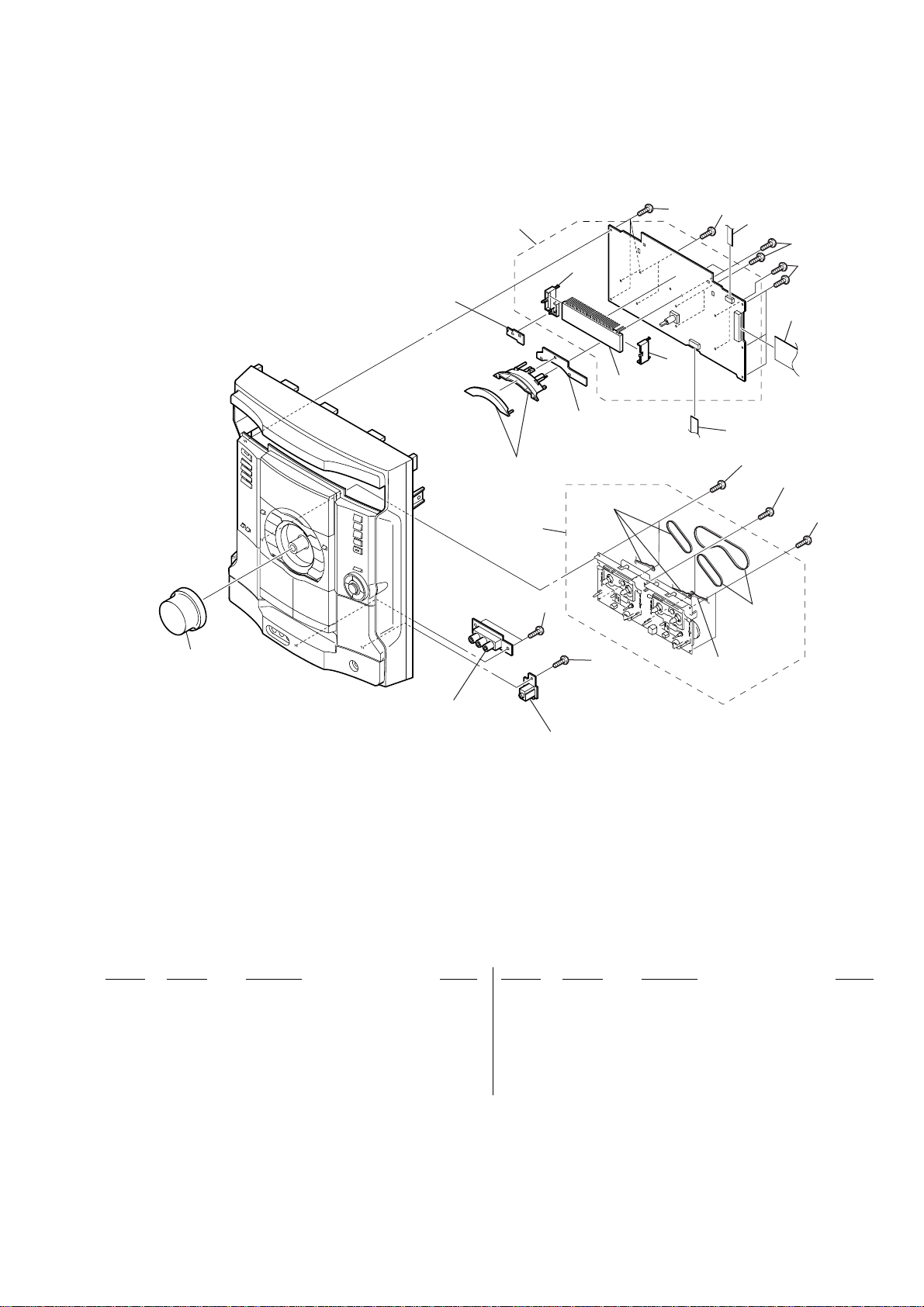

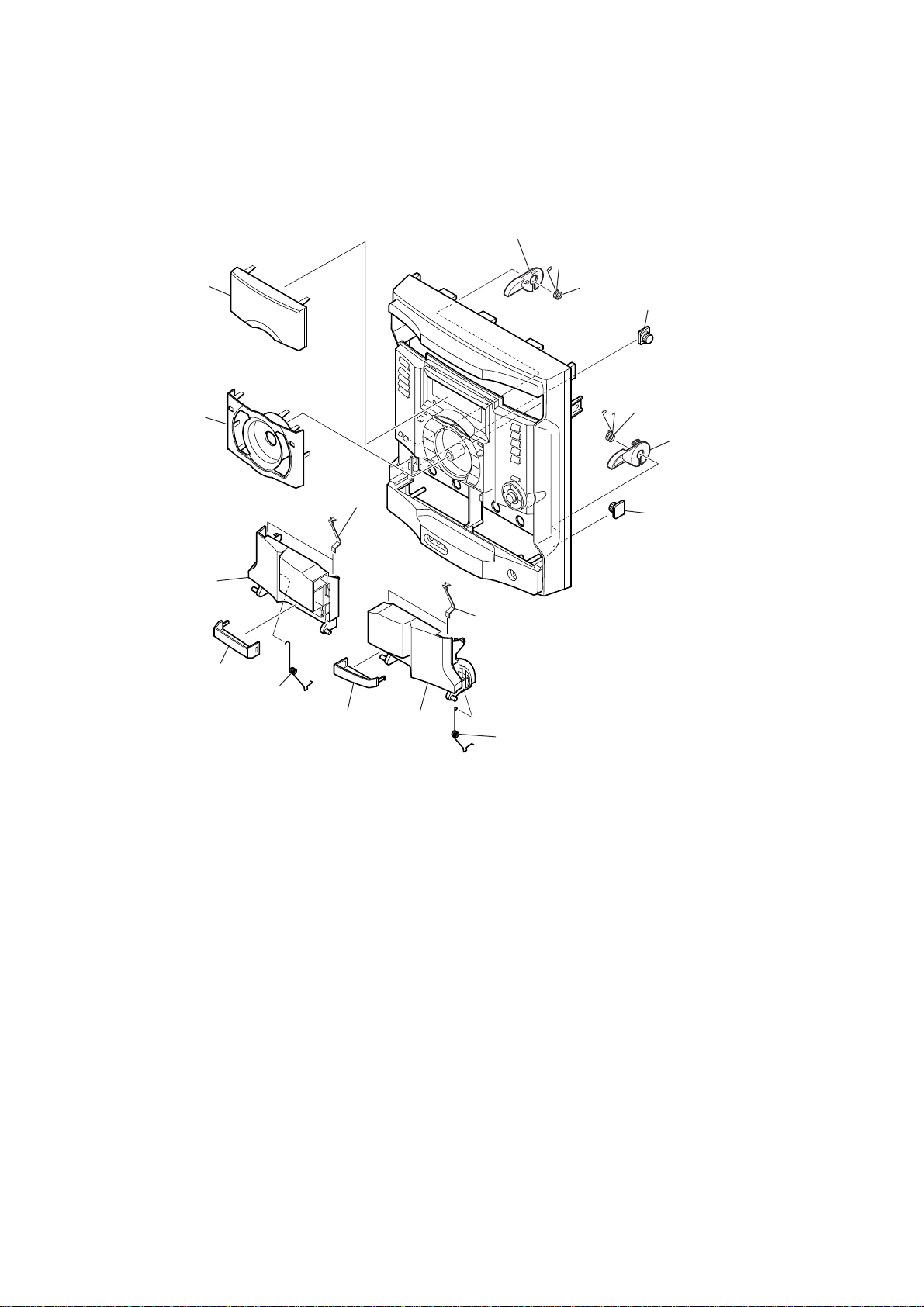

6-2. FRONT PANEL SECTION (1)

not supplied
(REMOTE board)

54

55

FLD601

HCD-GX45/RG440

57

57

56

58

59

57

57

51

not supplied

not supplied
(GAME JACK board)

53

not
supplied

52

57

57

not supplied
(H/P JACK board)

60

57

not
supplied

not
supplied

57

57

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 4-244-686-01 VOLUME KNOB
52 1-796-485-51 DECK, MECHANICAL
53 1-688-081-21 6 STREAM LED BOARD
54 A-4748-707-A PANEL BOARD, COMPLETE (GX45)
54 A-4748-713-A PANEL BOARD, COMPLETE (RG440)

55 4-244-690-01 FL HOLDER (L)

56 4-244-691-01 FL HOLDER (R)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-769-914-11 WIRE (FLAT TYPE) (9 CORE)
59 1-773-322-11 WIRE (FLAT TYPE) (31 CORE)
60 1-827-145-11 WIRE (FLAT TYPE) (13 CORE)

FLD601 1-518-863-11 INDICATOR TUBE, FLUORESCENT

53

HCD-GX45/RG440

6-3. FRONT PANEL SECTION (2)

110

109

108

107

106

105

104

111

112

113

114

102

112

102

103

101

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 4-244-701-01 CASS DOOR SPRING (B)
102 4-238-631-01 TAPE SPRING
103 4-244-666-01 CASS (DOOR) (R)
104 4-244-668-01 CASS WINDOW (R)
105 4-244-700-01 CASS DOOR SPRING (A)

106 4-244-667-01 CASS WINDOW (L)
107 4-244-663-01 CASS (DOOR) (L)

108 4-244-661-01 SUB PANEL
109 4-244-669-01 DISPLAY WINDOW
110 4-231-824-01 CAM (A), HEART
111 4-231-836-01 SPRING (HEART CAM-A)
112 4-224-104-41 DAMPER

113 4-231-841-01 SPRING (HEART CAM-B)
114 4-231-825-01 CAM (B), HEART

54

6-4. FRONT PANEL SECTION (3)

HCD-GX45/RG440

155

154

156

158

164

153

157

152

160

not supplied

161

162

163

159

151

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 4-244-660-11 FRONT PANEL (RG440)
151 4-244-660-31 FRONT PANEL (GX45)
152 4-225-252-01 CUSHION (FOOT)
153 4-244-680-01 GAME MIXING BUTTON
154 4-244-676-01 FUNCTION BUTTON

155 4-244-677-01 POWER LENS
156 4-244-678-01 FUNCTION LENS
157 4-244-683-01 RECORD BUTTON (A)

158 4-246-086-01 DISPLAY BUTTON (A)
159 4-244-684-01 EQ BUTTON
160 4-244-906-01 CONTROL BUTTON (B)
161 4-246-087-01 PAUSE BUTTON (A)
162 4-244-679-01 DISC BUTTON

163 4-244-687-01 GAME MIXING HOLDER
164 3-038-018-01 EMBLEM, SONY

55

HCD-GX45/RG440

6-5. MAIN BOARD SECTION

F902
F905

F903
F904

203

F906

204

#1

not supplied

207

not supplied

#1

#1

208

not supplied

207

T901

not supplied

#1

204

not supplied

#1

#1

#2

#2

not supplied

209

205

206

202

201

not supplied

#3

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 A-4748-704-A MAIN BOARD, COMPLETE
202 4-988-533-01 HOLDER, PWB
203 1-688-747-11 TRANS BOARD
204 4-242-527-01 S-SCREW, ITC+4-8 R

0205 1-690-608-11 CORD, POWER (RG440:AUS)

0205 1-777-071-83 CORD, POWER (RG440:AEP,UK)
0205 1-783-532-11 CORD, POWER (GX45)

* 206 3-703-244-00 BUSHING (2104), CORD

207 3-905-609-01 SCREW (TRANSISTOR)
208 A-4732-797-A SUBWOOFER BOARD, COMPLETE

209 A-4748-696-A POWER AMP BOARD, COMPLETE (GX45)
209 A-4748-701-A POWER AMP BOARD, COMPLETE (RG440)

0F902 1-533-451-12 FUSE, GLASS TUBE (DIA.5) (3.15A/125V) (GX45)
0F902 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (T3.15AL/250V)

(RG440)

0 F903 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX45)
0 F903 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V) (RG440)
0 F904 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX45)
0 F904 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V) (RG440)
0 F905 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX45)

0 F905 1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V) (RG440)
0 F906 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX45)
0 F906 1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V) (RG440)
0 T901 1-439-810-11 TRANSFORMER, POWER (GX45)
0 T901 1-439-811-11 TRANSFORMER, POWER (RG440:AEP,UK)

0 T901 1-443-025-11 TRANSFORMER, POWER (RG440:AUS)

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-872-09 SCREW +BVTP 3X8 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

56

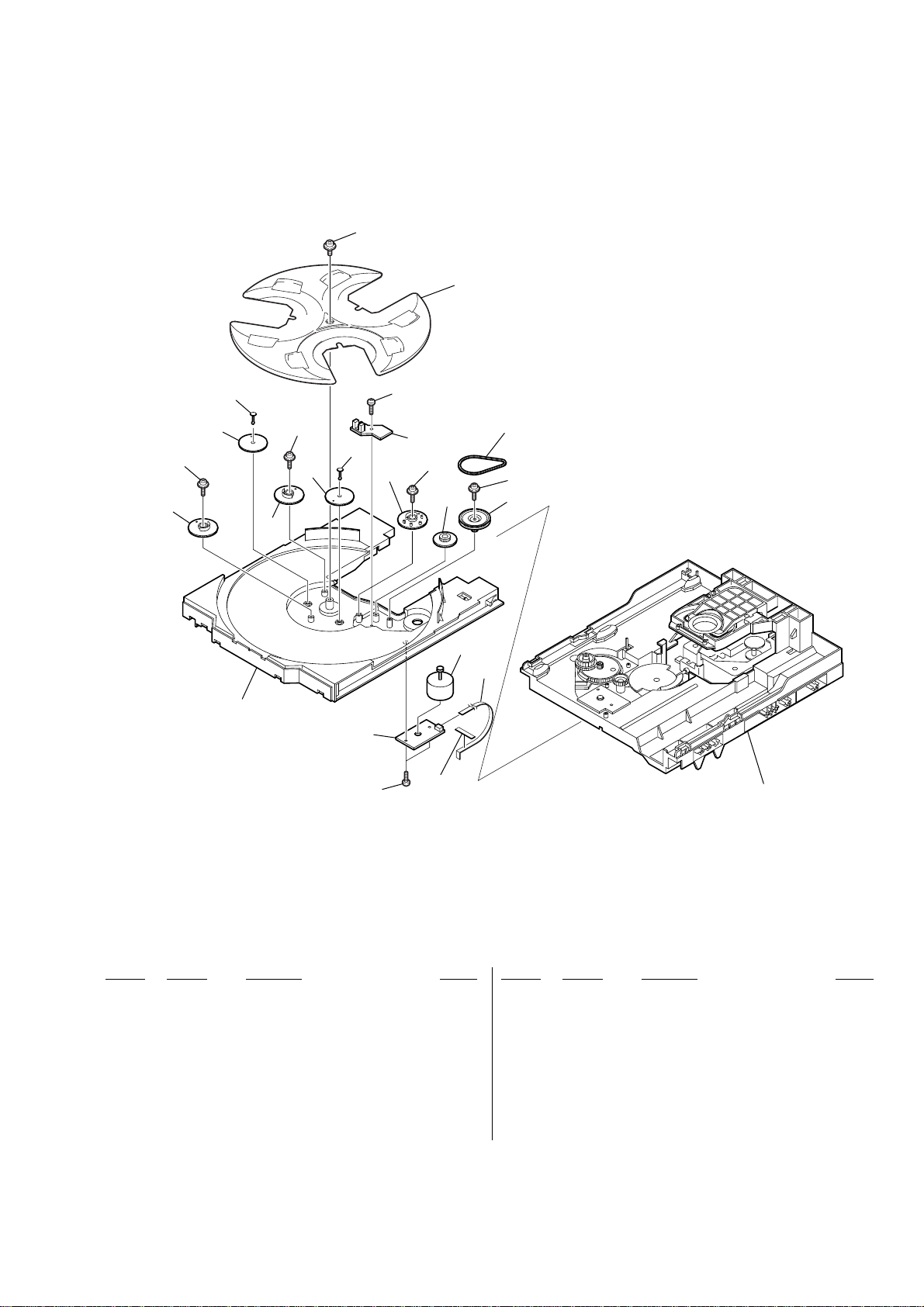

6-6. CD MECHANISM DECK SECTION (1)

(CDM74F-K6BD71A)

256

HCD-GX45/RG440

262

255

256

257

258

254

255

256

257

258

253

251

261

251

259

264

260

266

263

264
265

M741

252

chassis assy

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 4-218-253-21 SCREW (M2.6), +BTTP
252 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
253 1-687-134-11 MOTOR (TB) BOARD
254 4-243-815-01 TABLE (LOADING)
255 4-245-571-02 GEAR (STOPPER)

256 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
257 4-245-570-01 GEAR (JOINT)
258 4-245-572-01 BUSHING (GEAR)
259 1-687-132-11 SENSOR BOARD

260 4-243-820-01 GEAR (TABLE)
261 4-243-819-01 GEAR (GENEVA)
262 4-243-816-01 TRAY
263 4-243-823-01 BELT (TABLE)
264 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING

265 4-243-821-01 PULLEY (TABLE)
266 3-231-598-01 SHEET (BA)
M741 A-4723-963-A MOTOR ASSY, TABLE (TABLE)

57

HCD-GX45/RG440

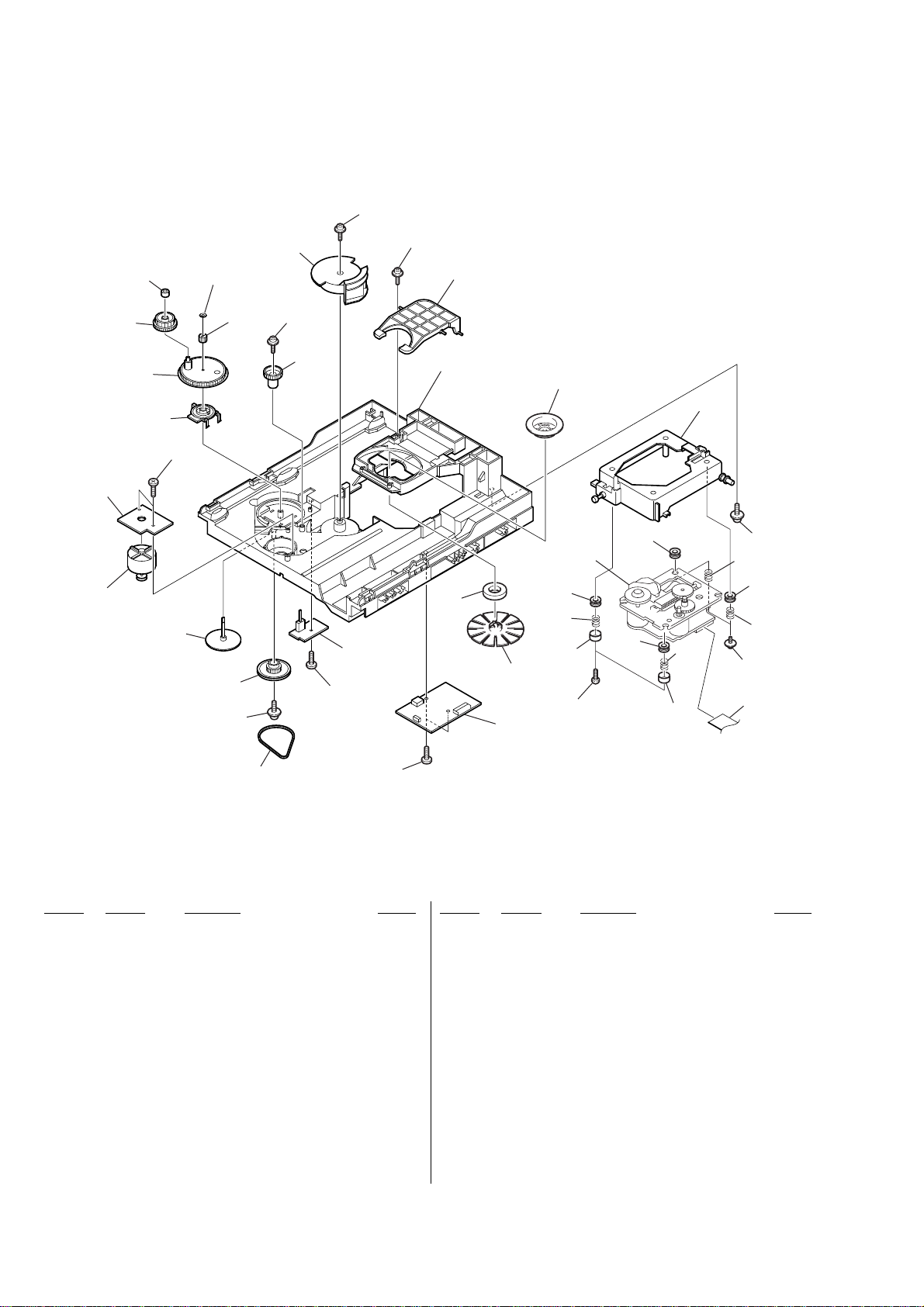

6-7. CD MECHANISM DECK SECTION (2)

(CDM74F-K6BD71A)

305

308

M751

310

311

309

RE701

302

307

312

306

313

305

315

305

314

302

303

305

326

317

316

BU-K6BD71A

325

301

318

320
321

322

324

320

320

321

322

319

305

321

320

321

305

323

304

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

301 1-687-135-11 DRIVER BOARD
302 4-218-253-31 SCREW (M2.6), +BTTP
303 1-687-669-11 SW BOARD
304 4-244-034-01 BELT (LOADING)
305 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING

306 4-225-844-01 GEAR (LOADING A)
307 4-224-613-01 GEAR (SHAFT)
308 1-687-133-11 MOTOR (LD) BOARD
309 4-244-108-01 GEAR, SWING
310 4-224-609-01 GEAR (LOADING C)

311 4-224-608-01 COLLAR, SWING
312 3-016-533-11 WASHER (FR), STOPPER
313 4-224-611-01 GEAR (LOADING B)
314 4-224-606-01 GEAR (RV)
315 4-243-818-01 GEAR (U/D)

302

316 4-243-822-01 LEVER (LIFTER)
317 1-471-035-11 MAGNET ASSY
318 4-231-189-01 PULLEY (B), CHUCKING
319 X-4955-536-1 HOLDER (213) ASSY
320 4-227-549-11 INSULATOR

321 4-227-045-31 SPRING (INSULATOR), COIL
322 4-231-151-01 STOPPER (BU)
323 1-827-146-11 WIRE (FLAT TYPE) (19 CORE)
324 4-218-253-21 SCREW (M2.6), +BTTP
325 X-4955-707-1 PULLEY (A5) ASSY, CHUCKING

326 4-243-817-01 CHASSIS
M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-11 ENCODER, ROTARY

(DISC TRAY ADDRESS DETECT)

58

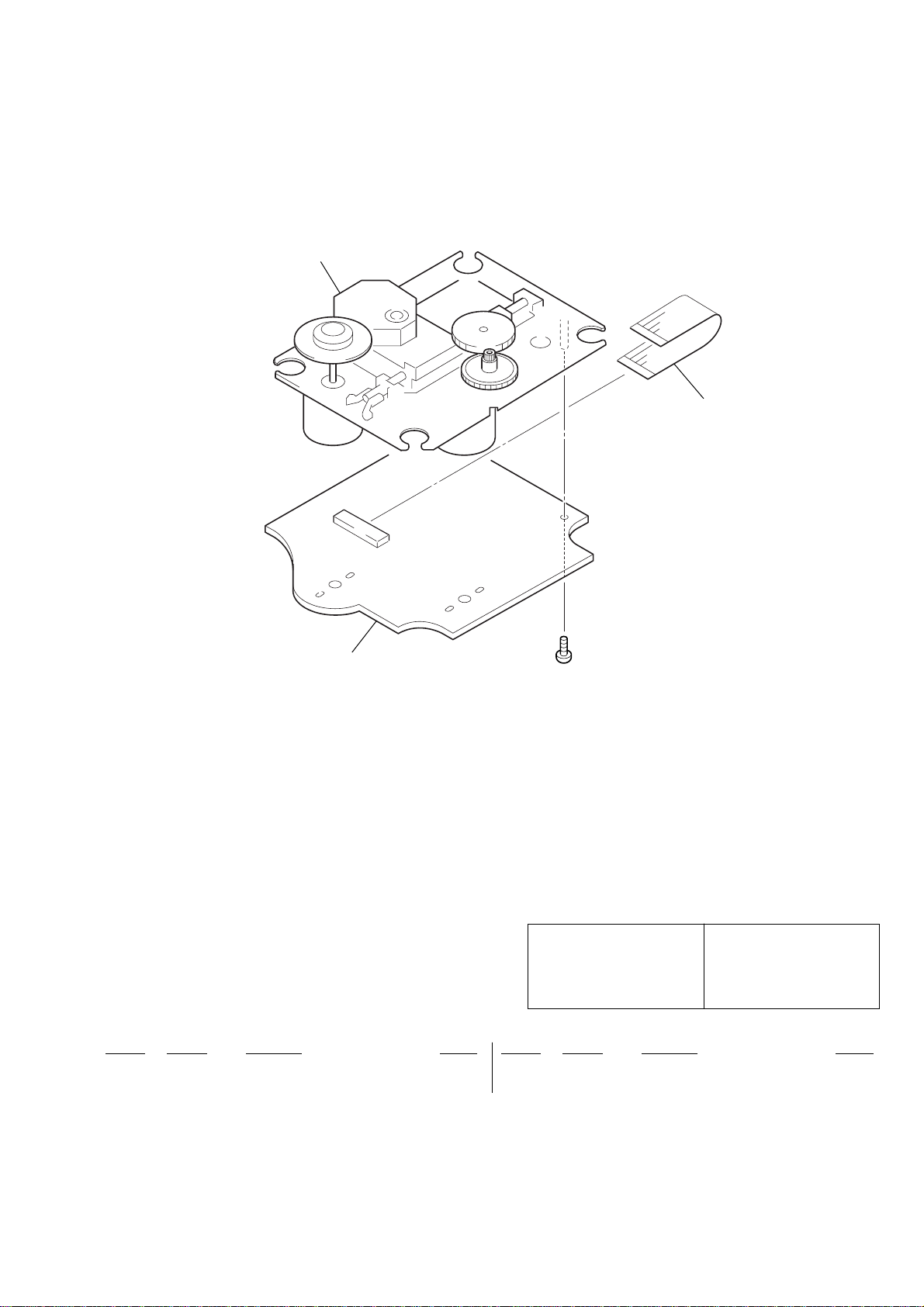

6-8. BASE UNIT SECTION

(BU-K6BD71A)

HCD-GX45/RG440

Ver. 1.2

351

352

353

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

0 351 A-4735-357-A BASE ASSY, OP

352 1-792-024-11 WIRE (FLAT TYPE) (16 CORE)

353 A-4732-699-A BD BOARD, COMPLETE
#4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S

#4

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

59

HCD-GX45/RG440

SECTION 7

BD

NOTE:

• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-4732-699-A BD BOARD, COMPLETE

*******************

< CAPACITOR >

C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C702 1-126-392-11 ELECT CHIP 100uF 20% 6.3V
C703 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C704 1-126-391-11 ELECT CHIP 47uF 20% 6.3V
C705 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C706 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C707 1-126-392-11 ELECT CHIP 100uF 20% 6.3V
C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C709 1-126-392-11 ELECT CHIP 100uF 20% 6.3V
C710 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C711 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C712 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C713 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C714 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C715 1-126-401-21 ELECT CHIP 1uF 20% 50V

C716 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C717 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C718 1-115-156-11 CERAMIC CHIP 1uF 10V
C719 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C720 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

C721 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C722 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C723 1-126-392-11 ELECT CHIP 100uF 20% 6.3V
C729 1-128-360-11 ELECT CHIP 220uF 20% 10V
C731 1-164-156-11 CERAMIC CHIP 0.1uF 25V

ELECTRICAL PARTS LIST

• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.

• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS
uF : µF

• COILS
uH : µH

• Abbreviation
CND : Canadian model
AUS: Australian model

C803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C804 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C805 1-126-392-11 ELECT CHIP 100uF 20% 6.3V
C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C807 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C812 1-115-156-11 CERAMIC CHIP 1uF 10V
C813 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C814 1-126-392-11 ELECT CHIP 100uF 20% 6.3V

C815 1-128-360-11 ELECT CHIP 220uF 20% 10V
C816 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C817 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C823 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C824 1-162-949-11 CERAMIC CHIP 47PF 5% 50V

C825 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C829 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C830 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C831 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C834 1-128-360-11 ELECT CHIP 220uF 20% 10V

C835 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C837 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C843 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C844 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C856 1-115-156-11 CERAMIC CHIP 1uF 10V

C857 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C858 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C859 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C860 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

When indicating parts by reference
number, please include the board.

C732 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C733 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C734 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C735 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C741 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C742 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C743 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C744 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C746 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C747 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C748 1-128-360-11 ELECT CHIP 220uF 20% 10V
C753 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C754 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C756 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V

60

< CONNECTOR >

CN708 1-817-244-11 CONNECTOR, FFC 16P
CN710 1-778-874-11 CONNECTOR, FFC (LIF(NON-ZIF)) 19P

< FERRITE BEAD >

FB701 1-550-907-21 BEAD, FERRITE (CHIP)
FB707 1-550-907-21 BEAD, FERRITE (CHIP)
FB708 1-550-907-21 BEAD, FERRITE (CHIP)
FB801 1-550-907-21 BEAD, FERRITE (CHIP)
FB802 1-550-907-21 BEAD, FERRITE (CHIP)

FB803 1-550-907-21 BEAD, FERRITE (CHIP)
FB804 1-550-907-21 BEAD, FERRITE (CHIP)
FB805 1-550-907-21 BEAD, FERRITE (CHIP)
FB806 1-550-907-21 BEAD, FERRITE (CHIP)
FB807 1-550-907-21 BEAD, FERRITE (CHIP)

HCD-GX45/RG440

BD DRIVER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

FB808 1-550-907-21 BEAD, FERRITE (CHIP)

< IC >

IC721 6-701-796-01 IC LC78646E-E
IC722 6-704-220-01 IC BA5836FP
IC801 6-704-008-01 IC LC78684E-E
IC802 6-704-009-01 IC LC32V4265CT-25-MPB-E
IC803 6-704-007-01 IC MM1571J

< TRANSISTOR >

R817 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R818 1-216-811-11 METAL CHIP 150 5% 1/10W
R819 1-216-821-11 METAL CHIP 1K 5% 1/10W
R820 1-216-821-11 METAL CHIP 1K 5% 1/10W
R823 1-216-809-11 METAL CHIP 100 5% 1/10W

R824 1-216-809-11 METAL CHIP 100 5% 1/10W
R825 1-216-809-11 METAL CHIP 100 5% 1/10W
R826 1-216-809-11 METAL CHIP 100 5% 1/10W
R827 1-216-809-11 METAL CHIP 100 5% 1/10W
R828 1-216-809-11 METAL CHIP 100 5% 1/10W

Q701 8-729-054-57 TRANSISTOR KTN2907AS-RTK

< RESISTOR >

R701 1-216-841-11 METAL CHIP 47K 5% 1/10W
R702 1-216-835-11 METAL CHIP 15K 5% 1/10W
R703 1-216-835-11 METAL CHIP 15K 5% 1/10W
R704 1-216-835-11 METAL CHIP 15K 5% 1/10W
R705 1-216-835-11 METAL CHIP 15K 5% 1/10W

R706 1-216-841-11 METAL CHIP 47K 5% 1/10W
R707 1-216-797-11 METAL CHIP 10 5% 1/10W
R708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R709 1-216-838-11 METAL CHIP 27K 5% 1/10W
R711 1-216-815-11 METAL CHIP 330 5% 1/10W

R713 1-216-821-11 METAL CHIP 1K 5% 1/10W
R714 1-216-809-11 METAL CHIP 100 5% 1/10W
R715 1-216-809-11 METAL CHIP 100 5% 1/10W
R716 1-216-809-11 METAL CHIP 100 5% 1/10W
R717 1-216-809-11 METAL CHIP 100 5% 1/10W

R718 1-216-809-11 METAL CHIP 100 5% 1/10W
R719 1-216-809-11 METAL CHIP 100 5% 1/10W
R720 1-216-809-11 METAL CHIP 100 5% 1/10W
R721 1-216-809-11 METAL CHIP 100 5% 1/10W
R722 1-216-821-11 METAL CHIP 1K 5% 1/10W

R725 1-216-819-11 METAL CHIP 680 5% 1/10W
R726 1-216-819-11 METAL CHIP 680 5% 1/10W
R727 1-216-809-11 METAL CHIP 100 5% 1/10W
R728 1-216-841-11 METAL CHIP 47K 5% 1/10W
R729 1-216-834-11 METAL CHIP 12K 5% 1/10W

R730 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R731 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R732 1-216-864-11 METAL CHIP 0 5% 1/10W
R738 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R739 1-216-864-11 METAL CHIP 0 5% 1/10W

R740 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R741 1-216-864-11 METAL CHIP 0 5% 1/10W
R744 1-216-845-11 METAL CHIP 100K 5% 1/10W
R745 1-216-809-11 METAL CHIP 100 5% 1/10W
R746 1-216-803-11 METAL CHIP 33 5% 1/10W

R747 1-216-803-11 METAL CHIP 33 5% 1/10W
R760 1-216-809-11 METAL CHIP 100 5% 1/10W
R765 1-216-857-11 METAL CHIP 1M 5% 1/10W
R801 1-216-809-11 METAL CHIP 100 5% 1/10W
R802 1-216-809-11 METAL CHIP 100 5% 1/10W

R803 1-216-809-11 METAL CHIP 100 5% 1/10W
R804 1-216-809-11 METAL CHIP 100 5% 1/10W
R805 1-216-809-11 METAL CHIP 100 5% 1/10W
R806 1-216-809-11 METAL CHIP 100 5% 1/10W
R807 1-216-809-11 METAL CHIP 100 5% 1/10W

R829 1-216-809-11 METAL CHIP 100 5% 1/10W
R832 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R833 1-216-809-11 METAL CHIP 100 5% 1/10W
R834 1-216-809-11 METAL CHIP 100 5% 1/10W
R860 1-216-809-11 METAL CHIP 100 5% 1/10W

< SWITCH >

S701 1-771-853-11 SWITCH, DETECTION (LIMIT)

< VIBRATOR >

X701 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)

*************************************************************

1-687-135-11 DRIVER BOARD

*************

< CAPACITOR >

C715 1-126-933-11 ELECT 100uF 20% 16V
C731 1-126-964-11 ELECT 10uF 20% 50V
C735 1-164-159-21 CERAMIC 0.1uF 50V
C736 1-164-159-21 CERAMIC 0.1uF 50V
C737 1-164-159-21 CERAMIC 0.1uF 50V

C741 1-162-306-11 CERAMIC 0.01uF 30% 16V
C751 1-162-306-11 CERAMIC 0.01uF 30% 16V
C752 1-164-159-21 CERAMIC 0.1uF 50V

< CONNECTOR >

CN701 1-785-338-11 PIN, CONNECTOR (LIGHT ANGLE) 12P
CN702 1-784-766-11 CONNECTOR, FFC 5P

* CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P

< DIODE >

D701 8-719-921-42 DIODE MTZJ-5.1A
D711 8-719-109-69 DIODE RD3.6ES-B2

< IC >

IC701 8-759-598-69 IC BA6956AN
IC712 8-759-598-69 IC BA6956AN

< TRANSISTOR >

Q731 8-729-029-66 TRANSISTOR DTC114ESA

< RESISTOR >

R701 1-249-413-11 CARBON 470 5% 1/4W
R702 1-247-807-31 CARBON 100 5% 1/4W
R711 1-249-417-11 CARBON 1K 5% 1/4W
R712 1-249-425-11 CARBON 4.7K 5% 1/4W

61

HCD-GX45/RG440

DRIVER MAINGAME JACK H/P JACK

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R713 1-249-433-11 CARBON 22K 5% 1/4W
R721 1-249-425-11 CARBON 4.7K 5% 1/4W
R722 1-249-425-11 CARBON 4.7K 5% 1/4W
R723 1-249-425-11 CARBON 4.7K 5% 1/4W
R731 1-247-807-31 CARBON 100 5% 1/4W

R732 1-249-429-11 CARBON 10K 5% 1/4W
R733 1-249-417-11 CARBON 1K 5% 1/4W
R734 1-249-430-11 CARBON 12K 5% 1/4W
R735 1-247-807-31 CARBON 100 5% 1/4W
R751 1-249-425-11 CARBON 4.7K 5% 1/4W

*************************************************************

C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C202 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C203 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C204 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C205 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C206 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C221 1-126-947-11 ELECT 47uF 20% 16V
C223 1-137-350-11 MYLAR 0.015uF 5% 100V
C225 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C226 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

GAME JACK BOARD

****************

< CAPACITOR >

C001 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C002 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C003 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C004 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

< JACK >

JK001 1-815-684-11 JACK, PIN 3P (GAME INPUT

VIDEO,AUDIO L/R)

< JUMPER RESISTOR >

JR001 1-216-864-11 METAL CHIP 0 5% 1/10W

< RESISTOR >

R001 1-216-833-11 METAL CHIP 10K 5% 1/10W
R002 1-216-833-11 METAL CHIP 10K 5% 1/10W
R003 1-216-837-11 METAL CHIP 22K 5% 1/10W
R004 1-216-837-11 METAL CHIP 22K 5% 1/10W

*************************************************************

H/P JACK BOARD

**************

C227 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C228 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C230 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C231 1-162-949-11 CERAMIC CHIP 47PF 5% 50V
C232 1-126-947-11 ELECT 47uF 20% 16V

C233 1-130-485-00 MYLAR 0.015uF 5% 50V
C234 1-130-485-00 MYLAR 0.015uF 5% 50V
C235 1-126-960-11 ELECT 1uF 20% 50V
C236 1-126-933-11 ELECT 100uF 20% 16V
C237 1-126-960-11 ELECT 1uF 20% 50V

C239 1-130-485-00 MYLAR 0.015uF 5% 50V
C240 1-126-964-11 ELECT 10uF 20% 50V
C241 1-130-479-00 MYLAR 0.0047uF 5% 50V
C242 1-130-485-00 MYLAR 0.015uF 5% 50V
C244 1-126-947-11 ELECT 47uF 20% 16V

C247 1-126-961-11 ELECT 2.2uF 20% 50V
C248 1-126-961-11 ELECT 2.2uF 20% 50V
C249 1-126-961-11 ELECT 2.2uF 20% 50V
C250 1-126-961-11 ELECT 2.2uF 20% 50V
C253 1-126-933-11 ELECT 100uF 20% 16V

C254 1-126-963-11 ELECT 4.7uF 20% 50V
C255 1-126-961-11 ELECT 2.2uF 20% 50V
C256 1-126-959-11 ELECT 0.47uF 20% 50V
C257 1-126-956-11 ELECT 0.1uF 20% 50V
C258 1-126-963-11 ELECT 4.7uF 20% 50V

< CAPACITOR >

C006 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C007 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C008 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< JACK >

JK002 1-691-293-21 JACK (PHONES)

*************************************************************

A-4748-704-A MAIN BOARD, COMPLETE

*********************

7-685-872-09 SCREW +BVTT 3X8 (S)

< CAPACITOR >

C101 1-126-963-11 ELECT 4.7uF 20% 50V
C102 1-126-963-11 ELECT 4.7uF 20% 50V
C103 1-126-933-11 ELECT 100uF 20% 16V
C105 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(RG440:AEP,UK)

C106 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C107 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C259 1-128-551-11 ELECT 22uF 20% 25V
C260 1-126-959-11 ELECT 0.47uF 20% 50V
C261 1-126-959-11 ELECT 0.47uF 20% 50V
C265 1-130-489-00 MYLAR 0.033uF 5% 50V
C266 1-130-483-00 MYLAR 0.01uF 5% 50V

C267 1-130-483-00 MYLAR 0.01uF 5% 50V
C268 1-126-960-11 ELECT 1uF 20% 50V
C269 1-126-960-11 ELECT 1uF 20% 50V
C272 1-126-960-11 ELECT 1uF 20% 50V
C273 1-126-960-11 ELECT 1uF 20% 50V

C285 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C286 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C300 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C303 1-104-665-11 ELECT 100uF 20% 10V
C304 1-126-963-11 ELECT 4.7uF 20% 50V

C305 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(RG440:AEP,UK)

C306 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(RG440:AEP,UK)
C307 1-126-964-11 ELECT 10uF 20% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
C309 1-126-964-11 ELECT 10uF 20% 50V

62

HCD-GX45/RG440

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C310 1-126-964-11 ELECT 10uF 20% 50V
C311 1-126-964-11 ELECT 10uF 20% 50V
C312 1-126-964-11 ELECT 10uF 20% 50V
C313 1-107-714-11 ELECT 10uF 20% 16V
C314 1-107-714-11 ELECT 10uF 20% 16V

C389 1-126-933-11 ELECT 100uF 20% 16V
C390 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C391 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C392 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C393 1-126-959-11 ELECT 0.47uF 20% 50V

C317 1-126-964-11 ELECT 10uF 20% 50V
C318 1-126-964-11 ELECT 10uF 20% 50V
C319 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C320 1-130-487-00 MYLAR 0.022uF 5% 50V
C321 1-130-487-00 MYLAR 0.022uF 5% 50V

C323 1-130-487-00 MYLAR 0.022uF 5% 50V
C324 1-130-487-00 MYLAR 0.022uF 5% 50V
C325 1-130-491-00 MYLAR 0.047uF 5% 50V
C326 1-130-491-00 MYLAR 0.047uF 5% 50V
C327 1-130-476-00 MYLAR 0.0027uF 5% 50V

C328 1-130-476-00 MYLAR 0.0027uF 5% 50V
C331 1-130-494-11 MYLAR 0.082uF 5% 50V
C332 1-130-494-11 MYLAR 0.082uF 5% 50V
C333 1-130-493-00 MYLAR 0.068uF 5% 50V
C334 1-130-493-00 MYLAR 0.068uF 5% 50V

C335 1-136-169-00 FILM 0.22uF 5% 50V
C336 1-136-171-00 FILM 0.33uF 5% 50V
C337 1-126-964-11 ELECT 10uF 20% 50V
C338 1-130-491-00 MYLAR 0.047uF 5% 50V
C339 1-126-934-11 ELECT 220uF 20% 16V

C342 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C344 1-126-933-11 ELECT 100uF 20% 16V
C345 1-126-933-11 ELECT 100uF 20% 16V
C346 1-126-964-11 ELECT 10uF 20% 50V
C348 1-126-947-11 ELECT 47uF 20% 16V

C349 1-126-964-11 ELECT 10uF 20% 50V
C350 1-126-964-11 ELECT 10uF 20% 50V
C353 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C354 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C355 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C356 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C357 1-126-926-11 ELECT 1000uF 20% 10V
C359 1-126-947-11 ELECT 47uF 20% 16V
C361 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C362 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C363 1-126-964-11 ELECT 10uF 20% 50V
C364 1-126-964-11 ELECT 10uF 20% 50V
C365 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C366 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C368 1-136-169-00 FILM 0.22uF 5% 50V

C369 1-126-964-11 ELECT 10uF 20% 50V
C370 1-126-964-11 ELECT 10uF 20% 50V
C371 1-126-947-11 ELECT 47uF 20% 16V
C372 1-126-964-11 ELECT 10uF 20% 50V
C373 1-130-483-00 MYLAR 0.01uF 5% 50V

C374 1-130-483-00 MYLAR 0.01uF 5% 50V
C375 1-126-943-11 ELECT 2200uF 20% 25V
C376 1-126-947-11 ELECT 47uF 20% 16V
C377 1-126-963-11 ELECT 4.7uF 20% 50V
C378 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C380 1-126-935-11 ELECT 470uF 20% 16V
C381 1-126-947-11 ELECT 47uF 20% 16V
C386 1-126-947-11 ELECT 47uF 20% 16V

C394 1-126-964-11 ELECT 10uF 20% 50V
C397 1-104-665-11 ELECT 100uF 20% 10V
C398 1-126-964-11 ELECT 10uF 20% 50V
C399 1-126-935-11 ELECT 470uF 20% 16V
C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C409 1-126-964-11 ELECT 10uF 20% 50V
C411 1-107-713-11 ELECT 4.7uF 20% 35V
C412 1-107-713-11 ELECT 4.7uF 20% 35V
C417 1-126-926-11 ELECT 1000uF 20% 10V

C418 1-130-483-00 MYLAR 0.01uF 5% 50V
C419 1-130-483-00 MYLAR 0.01uF 5% 50V
C420 1-126-943-11 ELECT 2200uF 20% 25V
C421 1-126-934-11 ELECT 220uF 20% 16V
C423 1-126-947-11 ELECT 47uF 20% 16V

C424 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(RG440:AEP,UK)

C425 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

(RG440:AEP,UK)

C426 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(RG440:AEP,UK)

C427 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(RG440:AEP,UK)

C428 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

(RG440:AEP,UK)

C429 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(RG440:AEP,UK)

C430 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C431 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C432 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C433 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C434 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C435 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C436 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(RG440:AEP,UK)

C437 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C438 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C441 1-165-128-11 CERAMIC CHIP 0.22uF 16V

(RG440:AEP,UK)

C444 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

(RG440:AEP,UK)

C445 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

(RG440:AEP,UK)

C448 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(RG440:AEP,UK)

C449 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

(RG440:AEP,UK)

C450 1-126-964-11 ELECT 10uF 20% 50V

63

HCD-GX45/RG440

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C451 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C452 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

(RG440:AEP,UK)

C453 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

(RG440:AEP,UK)

* G1 1-537-738-21 TERMINAL, EARTH
* G2 1-537-738-21 TERMINAL, EARTH (RG440:AEP,UK)

< EARTH TERMINAL >

< IC >

< CONNECTOR >

CN101 1-568-830-11 CONNECTOR, FFC 11P (GX45/RG440:AUS)
CN101 1-784-776-11 CONNECTOR, FFC 15P (RG440:AEP,UK)

* CN102 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P

(RG440:AEP,UK)

* CN202 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P
* CN203 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

* CN303 1-564-506-11 PLUG, CONNECTOR 3P

CN304 1-784-792-11 CONNECTOR, FFC 31P

* CN305 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

CN306 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P
CN307 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P

CN310 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
CN311 1-568-828-11 CONNECTOR, FFC 9P
CN312 1-784-780-11 CONNECTOR, FFC 19P

< DIODE >

D101 8-719-988-61 DIODE 1SS355TE-17 (RG440:AEP,UK)
D102 6-500-522-21 DIODE 10EDB40-TB3
D203 8-719-988-61 DIODE 1SS355TE-17
D204 8-719-988-61 DIODE 1SS355TE-17
D205 8-719-988-61 DIODE 1SS355TE-17

D206 8-719-988-61 DIODE 1SS355TE-17
D210 8-719-988-61 DIODE 1SS355TE-17
D301 6-500-522-21 DIODE 10EDB40-TB3
D302 6-500-522-21 DIODE 10EDB40-TB3
D303 6-500-522-21 DIODE 10EDB40-TB3

D304 6-500-522-21 DIODE 10EDB40-TB3
D305 8-719-988-61 DIODE 1SS355TE-17
D306 8-719-988-61 DIODE 1SS355TE-17
D307 8-719-988-61 DIODE 1SS355TE-17
D308 8-719-988-61 DIODE 1SS355TE-17

IC201 6-702-130-01 IC HA12237F
IC301 6-703-650-11 IC M61529FP-D60G
IC302 8-759-710-97 IC NJM4565M-D
IC304 8-759-710-97 IC NJM4565M-D
IC305 8-759-701-59 IC NJM78M09FA

IC306 6-701-760-01 IC uPC3504AHF
IC308 8-759-701-59 IC NJM78M09FA
IC309 6-704-046-01 IC BU2099FV
IC310 6-704-046-01 IC BU2099FV
IC312 8-759-710-97 IC NJM4565M-D

IC313 8-759-231-57 IC TA7810S

< JUMPER RESISTOR >

JR124 1-216-864-11 METAL CHIP 0 5% 1/10W

(RG440:AEP,UK)
JR300 1-216-864-11 METAL CHIP 0 5% 1/10W
JR329 1-216-864-11 METAL CHIP 0 5% 1/10W
JR330 1-216-864-11 METAL CHIP 0 5% 1/10W
JR331 1-216-864-11 METAL CHIP 0 5% 1/10W

JR332 1-216-864-11 METAL CHIP 0 5% 1/10W
JR333 1-216-864-11 METAL CHIP 0 5% 1/10W
JR339 1-216-864-11 METAL CHIP 0 5% 1/10W
JR341 1-216-864-11 METAL CHIP 0 5% 1/10W
JR343 1-216-864-11 METAL CHIP 0 5% 1/10W

JR344 1-216-864-11 METAL CHIP 0 5% 1/10W
JR358 1-216-864-11 METAL CHIP 0 5% 1/10W

(GX45/RG440:AUS)

JR453 1-216-864-11 METAL CHIP 0 5% 1/10W

(RG440:AEP,UK)

< COIL >

L201 1-424-849-11 COIL, OSCILLATION (BIAS)

D311 8-719-988-61 DIODE 1SS355TE-17
D312 8-719-083-63 DIODE UDZS-TE17-13B
D313 6-500-522-21 DIODE 10EDB40-TB3
D314 6-500-522-21 DIODE 10EDB40-TB3
D315 6-500-522-21 DIODE 10EDB40-TB3

D316 6-500-522-21 DIODE 10EDB40-TB3
D317 8-719-988-61 DIODE 1SS355TE-17
D318 8-719-085-36 DIODE 11EQS04-TB5
D319 6-500-522-21 DIODE 10EDB40-TB3
D320 6-500-522-21 DIODE 10EDB40-TB3

D321 6-500-522-21 DIODE 10EDB40-TB3
D322 6-500-522-21 DIODE 10EDB40-TB3
D323 8-719-085-36 DIODE 11EQS04-TB5
D324 8-719-988-61 DIODE 1SS355TE-17
D325 8-719-988-61 DIODE 1SS355TE-17

D364 8-719-988-61 DIODE 1SS355TE-17
D366 8-719-988-61 DIODE 1SS355TE-17
D371 8-719-988-61 DIODE 1SS355TE-17
D374 8-719-988-61 DIODE 1SS355TE-17

64

< TRANSISTOR >

Q210 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q211 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q212 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q218 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q219 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q220 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q221 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q222 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q223 8-729-142-46 TRANSISTOR 2SC2001-LK
Q225 6-550-289-01 TRANSISTOR 2SA1235F

Q228 8-729-140-04 TRANSISTOR 2SB1116A-L
Q301 6-550-296-01 TRANSISTOR 2SA1980G
Q302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q304 6-550-296-01 TRANSISTOR 2SA1980G
Q309 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q310 8-729-052-79 TRANSISTOR 2SD1306NETL
Q311 8-729-052-79 TRANSISTOR 2SD1306NETL
Q312 6-550-289-01 TRANSISTOR 2SA1235F

HCD-GX45/RG440

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Q321 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q322 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q324 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q326 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q329 6-550-289-01 TRANSISTOR 2SA1235F

R284 1-216-833-11 METAL CHIP 10K 5% 1/10W
R285 1-216-833-11 METAL CHIP 10K 5% 1/10W
R286 1-216-833-11 METAL CHIP 10K 5% 1/10W
R287 1-216-833-11 METAL CHIP 10K 5% 1/10W
R288 1-216-833-11 METAL CHIP 10K 5% 1/10W

Q330 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q331 6-550-289-01 TRANSISTOR 2SA1235F
Q371 8-729-142-46 TRANSISTOR 2SC2001-LK
Q373 8-729-142-46 TRANSISTOR 2SC2001-LK

< RESISTOR >

R101 1-216-833-11 METAL CHIP 10K 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R216 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R218 1-216-849-11 METAL CHIP 220K 5% 1/10W

R219 1-216-833-11 METAL CHIP 10K 5% 1/10W
R220 1-216-833-11 METAL CHIP 10K 5% 1/10W
R225 1-216-834-11 METAL CHIP 12K 5% 1/10W
R226 1-216-834-11 METAL CHIP 12K 5% 1/10W
R231 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R232 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R233 1-216-837-11 METAL CHIP 22K 5% 1/10W
R234 1-216-837-11 METAL CHIP 22K 5% 1/10W
R235 1-216-833-11 METAL CHIP 10K 5% 1/10W
R236 1-216-821-11 METAL CHIP 1K 5% 1/10W

R237 1-216-857-11 METAL CHIP 1M 5% 1/10W
R238 1-216-853-11 METAL CHIP 470K 5% 1/10W
R239 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R241 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R242 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R305 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R306 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R307 1-216-809-11 METAL CHIP 100 5% 1/10W
R309 1-216-833-11 METAL CHIP 10K 5% 1/10W
R310 1-216-833-11 METAL CHIP 10K 5% 1/10W

R311 1-216-833-11 METAL CHIP 10K 5% 1/10W
R312 1-216-833-11 METAL CHIP 10K 5% 1/10W
R313 1-216-845-11 METAL CHIP 100K 5% 1/10W
R314 1-216-845-11 METAL CHIP 100K 5% 1/10W
R316 1-216-833-11 METAL CHIP 10K 5% 1/10W

R317 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R318 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R319 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R321 1-216-833-11 METAL CHIP 10K 5% 1/10W

R322 1-216-833-11 METAL CHIP 10K 5% 1/10W
R323 1-216-821-11 METAL CHIP 1K 5% 1/10W
R324 1-216-809-11 METAL CHIP 100 5% 1/10W
R325 1-216-833-11 METAL CHIP 10K 5% 1/10W
R326 1-216-833-11 METAL CHIP 10K 5% 1/10W

R328 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R329 1-216-801-11 METAL CHIP 22 5% 1/10W

(RG440:AEP,UK)
R330 1-216-833-11 METAL CHIP 10K 5% 1/10W
R341 1-216-821-11 METAL CHIP 1K 5% 1/10W
R342 1-216-838-11 METAL CHIP 27K 5% 1/10W

R245 1-216-833-11 METAL CHIP 10K 5% 1/10W
R246 1-216-841-11 METAL CHIP 47K 5% 1/10W
R249 1-216-853-11 METAL CHIP 470K 5% 1/10W
R250 1-216-849-11 METAL CHIP 220K 5% 1/10W
R251 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R252 1-216-838-11 METAL CHIP 27K 5% 1/10W
R253 1-216-833-11 METAL CHIP 10K 5% 1/10W
R256 1-216-833-11 METAL CHIP 10K 5% 1/10W
R257 1-216-817-11 METAL CHIP 470 5% 1/10W
R258 1-216-809-11 METAL CHIP 100 5% 1/10W

R260 1-216-809-11 METAL CHIP 100 5% 1/10W
R261 1-216-817-11 METAL CHIP 470 5% 1/10W
R262 1-216-845-11 METAL CHIP 100K 5% 1/10W
R263 1-216-833-11 METAL CHIP 10K 5% 1/10W
R264 1-216-833-11 METAL CHIP 10K 5% 1/10W

R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R266 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R267 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R268 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R269 1-216-833-11 METAL CHIP 10K 5% 1/10W

R270 1-216-833-11 METAL CHIP 10K 5% 1/10W
R271 1-216-833-11 METAL CHIP 10K 5% 1/10W
R272 1-216-833-11 METAL CHIP 10K 5% 1/10W
R273 1-216-833-11 METAL CHIP 10K 5% 1/10W
R278 1-216-837-11 METAL CHIP 22K 5% 1/10W

R343 1-216-845-11 METAL CHIP 100K 5% 1/10W
R344 1-216-841-11 METAL CHIP 47K 5% 1/10W
R345 1-216-841-11 METAL CHIP 47K 5% 1/10W
R346 1-216-837-11 METAL CHIP 22K 5% 1/10W
R348 1-216-837-11 METAL CHIP 22K 5% 1/10W

R349 1-216-841-11 METAL CHIP 47K 5% 1/10W
R350 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R351 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R352 1-218-717-11 METAL CHIP 11K 5% 1/10W
R353 1-218-717-11 METAL CHIP 11K 5% 1/10W

R354 1-216-841-11 METAL CHIP 47K 5% 1/10W
R355 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R356 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R357 1-216-821-11 METAL CHIP 1K 5% 1/10W
R358 1-216-837-11 METAL CHIP 22K 5% 1/10W

R360 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R361 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R362 1-216-837-11 METAL CHIP 22K 5% 1/10W
R363 1-216-837-11 METAL CHIP 22K 5% 1/10W
R364 1-216-845-11 METAL CHIP 100K 5% 1/10W

R365 1-216-857-11 METAL CHIP 1M 5% 1/10W
R368 1-216-809-11 METAL CHIP 100 5% 1/10W
R369 1-216-809-11 METAL CHIP 100 5% 1/10W
R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R372 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R282 1-216-809-11 METAL CHIP 100 5% 1/10W
R283 1-216-833-11 METAL CHIP 10K 5% 1/10W

R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R374 1-216-841-11 METAL CHIP 47K 5% 1/10W

65

HCD-GX45/RG440

MAIN PANELMOTOR (LD) MOTOR (TB)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R376 1-216-833-11 METAL CHIP 10K 5% 1/10W
R377 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R378 1-216-833-11 METAL CHIP 10K 5% 1/10W
R379 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R380 1-216-853-11 METAL CHIP 470K 5% 1/10W

R480 1-216-833-11 METAL CHIP 10K 5% 1/10W
R481 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R482 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R483 1-216-821-11 METAL CHIP 1K 5% 1/10W
R484 1-216-833-11 METAL CHIP 10K 5% 1/10W

R381 1-216-837-11 METAL CHIP 22K 5% 1/10W
R382 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R383 1-216-837-11 METAL CHIP 22K 5% 1/10W
R384 1-218-717-11 METAL CHIP 11K 5% 1/10W
R386 1-216-833-11 METAL CHIP 10K 5% 1/10W

R387 1-216-834-11 METAL CHIP 12K 5% 1/10W
R388 1-216-821-11 METAL CHIP 1K 5% 1/10W
R395 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R396 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R397 1-216-833-11 METAL CHIP 10K 5% 1/10W

R398 1-216-833-11 METAL CHIP 10K 5% 1/10W
R399 1-216-833-11 METAL CHIP 10K 5% 1/10W
R400 1-216-833-11 METAL CHIP 10K 5% 1/10W
R401 1-216-833-11 METAL CHIP 10K 5% 1/10W
R402 1-216-833-11 METAL CHIP 10K 5% 1/10W

R404 1-216-833-11 METAL CHIP 10K 5% 1/10W
R405 1-216-833-11 METAL CHIP 10K 5% 1/10W
R406 1-216-837-11 METAL CHIP 22K 5% 1/10W
R407 1-216-833-11 METAL CHIP 10K 5% 1/10W
R408 1-216-833-11 METAL CHIP 10K 5% 1/10W

R409 1-216-833-11 METAL CHIP 10K 5% 1/10W
R410 1-216-833-11 METAL CHIP 10K 5% 1/10W
R421 1-216-833-11 METAL CHIP 10K 5% 1/10W
R422 1-216-806-11 METAL CHIP 56 5% 1/10W
R423 1-216-806-11 METAL CHIP 56 5% 1/10W

R424 1-216-837-11 METAL CHIP 22K 5% 1/10W
R425 1-216-837-11 METAL CHIP 22K 5% 1/10W
R426 1-216-837-11 METAL CHIP 22K 5% 1/10W
R427 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R428 1-216-134-00 METAL CHIP 2.2 5% 1/8W

R429 1-216-821-11 METAL CHIP 1K 5% 1/10W
R430 1-216-833-11 METAL CHIP 10K 5% 1/10W
R431 1-216-847-11 METAL CHIP 150K 5% 1/10W
R432 1-216-809-11 METAL CHIP 100 5% 1/10W

0R433 1-215-891-11 METAL OXIDE 680 5% 2W F

0R434 1-215-891-11 METAL OXIDE 680 5% 2W F

R435 1-216-857-11 METAL CHIP 1M 5% 1/10W
R455 1-218-717-11 METAL CHIP 11K 5% 1/10W
R456 1-218-717-11 METAL CHIP 11K 5% 1/10W
R457 1-216-837-11 METAL CHIP 22K 5% 1/10W

R458 1-216-841-11 METAL CHIP 47K 5% 1/10W
R459 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R460 1-216-821-11 METAL CHIP 1K 5% 1/10W
R461 1-216-821-11 METAL CHIP 1K 5% 1/10W
R465 1-216-837-11 METAL CHIP 22K 5% 1/10W

R466 1-216-837-11 METAL CHIP 22K 5% 1/10W
R471 1-216-838-11 METAL CHIP 27K 5% 1/10W
R472 1-216-849-11 METAL CHIP 220K 5% 1/10W
R473 1-216-846-11 METAL CHIP 120K 5% 1/10W
R474 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R475 1-216-821-11 METAL CHIP 1K 5% 1/10W
R476 1-216-809-11 METAL CHIP 100 5% 1/10W
R477 1-216-809-11 METAL CHIP 100 5% 1/10W

R486 1-216-809-11 METAL CHIP 100 5% 1/10W
R487 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R488 1-216-134-00 METAL CHIP 2.2 5% 1/8W

*************************************************************

1-687-133-11 MOTOR (LD) BOARD

*****************

*************************************************************

1-687-134-11 MOTOR (TB) BOARD

*****************

< CONNECTOR >

CN742 1-784-727-11 CONNECTOR, FFC 5P

*************************************************************

A-4748-707-A PANEL BOARD, COMPLETE (GX45)
A-4748-713-A PANEL BOARD, COMPLETE (RG440)

**********************

4-244-690-01 FL HOLDER (L)
4-244-691-01 FL HOLDER (R)

< CAPACITOR >

C601 1-124-247-11 ELECT 10uF 20% 35V
C602 1-124-247-11 ELECT 10uF 20% 35V
C603 1-124-589-11 ELECT 47uF 20% 16V
C604 1-124-261-00 ELECT 10uF 20% 50V
C611 1-126-916-11 ELECT 1000uF 20% 6.3V

C612 1-115-156-11 CERAMIC CHIP 1uF 10V
C614 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C615 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C616 1-115-156-11 CERAMIC CHIP 1uF 10V
C617 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C619 1-124-234-00 ELECT 22uF 20% 16V
C620 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C635 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C636 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C637 1-124-464-11 ELECT 0.22uF 20% 50V
C638 1-124-464-11 ELECT 0.22uF 20% 50V
C639 1-126-947-11 ELECT 47uF 20% 35V

C640 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C641 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C642 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C643 1-115-156-11 CERAMIC CHIP 1uF 10V
C644 1-124-234-00 ELECT 22uF 20% 16V

C646 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C647 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C648 1-124-257-00 ELECT 2.2uF 20% 50V
C649 1-124-234-00 ELECT 22uF 20% 16V
C650 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

66

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

HCD-GX45/RG440

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< CONNECTOR >

CN601 1-784-753-11 CONNECTOR, FFC 31P
CN602 1-784-731-11 CONNECTOR, FFC 9P
CN603 1-816-422-11 PIN, CONNECTOR 3P
CN605 1-784-735-11 CONNECTOR, FFC 13P

* CN607 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P

< DIODE >

D606 8-719-988-61 DIODE 1SS355TE-17 (GX45)
D607 8-719-988-61 DIODE 1SS355TE-17 (GX45)
D608 8-719-988-61 DIODE 1SS355TE-17
D609 8-719-988-61 DIODE 1SS355TE-17
D610 8-719-988-61 DIODE 1SS355TE-17

D612 8-719-988-61 DIODE 1SS355TE-17
D613 8-719-988-61 DIODE 1SS355TE-17
D614 8-719-988-61 DIODE 1SS355TE-17
D615 8-719-988-61 DIODE 1SS355TE-17
D616 8-719-988-61 DIODE 1SS355TE-17

JR613 1-216-864-11 METAL CHIP 0 5% 1/10W
JR614 1-216-864-11 METAL CHIP 0 5% 1/10W
JR615 1-216-864-11 METAL CHIP 0 5% 1/10W
JR617 1-216-864-11 METAL CHIP 0 5% 1/10W
JR620 1-216-864-11 METAL CHIP 0 5% 1/10W

JR621 1-216-864-11 METAL CHIP 0 5% 1/10W
JR623 1-216-864-11 METAL CHIP 0 5% 1/10W

(RG440:AEP,UK)
JR625 1-216-864-11 METAL CHIP 0 5% 1/10W
JR626 1-216-864-11 METAL CHIP 0 5% 1/10W

< DIODE >

LED607 6-500-414-01 LED HL-30105Q2AT (CD)
LED608 6-500-414-01 LED HL-30105Q2AT (TUNER/BAND)
LED609 6-500-414-01 LED HL-30105Q2AT (TAPE A/B)
LED612 6-500-414-01 LED HL-30105Q2AT (GAME)
LED614 6-500-414-01 LED HL-30105Q2AT (POWER)

< TRANSISTOR >

D617 8-719-988-61 DIODE 1SS355TE-17
D618 8-719-988-61 DIODE 1SS355TE-17
D619 8-719-988-61 DIODE 1SS355TE-17
D620 8-719-988-61 DIODE 1SS355TE-17
D621 8-719-988-61 DIODE 1SS355TE-17

D622 8-719-988-61 DIODE 1SS355TE-17
D623 8-719-988-61 DIODE 1SS355TE-17
D624 8-719-988-61 DIODE 1SS355TE-17
D625 8-719-988-61 DIODE 1SS355TE-17
D627 8-719-988-61 DIODE 1SS355TE-17

D628 8-719-988-61 DIODE 1SS355TE-17
D629 8-719-988-61 DIODE 1SS355TE-17
D630 8-719-988-61 DIODE 1SS355TE-17
D631 8-719-988-61 DIODE 1SS355TE-17
D633 8-719-988-61 DIODE 1SS355TE-17

D634 8-719-988-61 DIODE 1SS355TE-17

< COIL >

FB601 1-412-473-21 INDUCTOR (SMALL TYPE)

< FLUORESCENT INDICATOR >

FLD601 1-518-863-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 6-803-327-01 IC LC876780B-51Y0-E
IC602 6-704-045-01 IC MM1574A
IC603 8-759-533-04 IC M62703ML-E1

< JUMPER RESISTOR >

JR604 1-216-864-11 METAL CHIP 0 5% 1/10W
JR605 1-216-864-11 METAL CHIP 0 5% 1/10W
JR606 1-216-864-11 METAL CHIP 0 5% 1/10W
JR607 1-216-864-11 METAL CHIP 0 5% 1/10W
JR608 1-216-864-11 METAL CHIP 0 5% 1/10W

JR609 1-216-864-11 METAL CHIP 0 5% 1/10W
JR610 1-216-864-11 METAL CHIP 0 5% 1/10W

(GX45/RG440:AUS)

JR611 1-216-864-11 METAL CHIP 0 5% 1/10W

(GX45/RG440:AUS)

Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q603 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q607 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q609 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q616 8-729-140-04 TRANSISTOR 2SB1116A-L
Q617 8-729-140-04 TRANSISTOR 2SB1116A-L
Q618 8-729-116-56 TRANSISTOR 2SB1068-L

< RESISTOR >

R030 1-216-809-11 METAL CHIP 100 5% 1/10W
R031 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R032 1-216-848-11 METAL CHIP 180K 5% 1/10W
R033 1-216-837-11 METAL CHIP 22K 5% 1/10W
R034 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R035 1-216-841-11 METAL CHIP 47K 5% 1/10W
R036 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R037 1-216-817-11 METAL CHIP 470 5% 1/10W
R039 1-216-809-11 METAL CHIP 100 5% 1/10W
R040 1-216-845-11 METAL CHIP 100K 5% 1/10W

R041 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GX45)
R043 1-216-845-11 METAL CHIP 100K 5% 1/10W
R044 1-216-845-11 METAL CHIP 100K 5% 1/10W
R045 1-216-845-11 METAL CHIP 100K 5% 1/10W
R046 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R047 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R048 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R050 1-216-821-11 METAL CHIP 1K 5% 1/10W
R051 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R053 1-216-841-11 METAL CHIP 47K 5% 1/10W

R054 1-216-841-11 METAL CHIP 47K 5% 1/10W
R055 1-216-841-11 METAL CHIP 47K 5% 1/10W
R056 1-216-841-11 METAL CHIP 47K 5% 1/10W
R057 1-216-841-11 METAL CHIP 47K 5% 1/10W
R058 1-216-841-11 METAL CHIP 47K 5% 1/10W

R059 1-216-841-11 METAL CHIP 47K 5% 1/10W
R060 1-216-841-11 METAL CHIP 47K 5% 1/10W

67

HCD-GX45/RG440

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R061 1-216-841-11 METAL CHIP 47K 5% 1/10W
R062 1-216-841-11 METAL CHIP 47K 5% 1/10W
R063 1-216-841-11 METAL CHIP 47K 5% 1/10W
R064 1-216-841-11 METAL CHIP 47K 5% 1/10W
R065 1-216-841-11 METAL CHIP 47K 5% 1/10W

R634 1-216-833-11 METAL CHIP 10K 5% 1/10W
R635 1-216-198-11 RES-CHIP 1K 5% 1/8W
R638 1-216-835-11 METAL CHIP 15K 5% 1/10W
R639 1-216-817-11 METAL CHIP 470 5% 1/10W
R640 1-216-819-11 METAL CHIP 680 5% 1/10W

R066 1-216-841-11 METAL CHIP 47K 5% 1/10W
R067 1-216-841-11 METAL CHIP 47K 5% 1/10W
R068 1-216-841-11 METAL CHIP 47K 5% 1/10W
R069 1-216-841-11 METAL CHIP 47K 5% 1/10W
R070 1-216-841-11 METAL CHIP 47K 5% 1/10W

R071 1-216-841-11 METAL CHIP 47K 5% 1/10W
R072 1-216-841-11 METAL CHIP 47K 5% 1/10W
R073 1-216-841-11 METAL CHIP 47K 5% 1/10W
R074 1-216-841-11 METAL CHIP 47K 5% 1/10W
R075 1-216-841-11 METAL CHIP 47K 5% 1/10W

R076 1-216-841-11 METAL CHIP 47K 5% 1/10W
R077 1-216-841-11 METAL CHIP 47K 5% 1/10W
R078 1-216-841-11 METAL CHIP 47K 5% 1/10W
R079 1-216-841-11 METAL CHIP 47K 5% 1/10W
R080 1-216-841-11 METAL CHIP 47K 5% 1/10W

R081 1-216-841-11 METAL CHIP 47K 5% 1/10W
R082 1-216-841-11 METAL CHIP 47K 5% 1/10W
R083 1-216-841-11 METAL CHIP 47K 5% 1/10W
R084 1-216-841-11 METAL CHIP 47K 5% 1/10W
R085 1-216-841-11 METAL CHIP 47K 5% 1/10W

R086 1-216-841-11 METAL CHIP 47K 5% 1/10W
R087 1-216-820-11 METAL CHIP 820 5% 1/10W
R088 1-216-820-11 METAL CHIP 820 5% 1/10W
R089 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R090 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R641 1-216-821-11 METAL CHIP 1K 5% 1/10W
R642 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R643 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R645 1-216-198-11 RES-CHIP 1K 5% 1/8W

R646 1-216-849-11 METAL CHIP 220K 5% 1/10W
R647 1-200-397-11 METAL 4.7M 5% 1/10W F
R648 1-216-819-11 METAL CHIP 680 5% 1/10W
R649 1-216-198-11 RES-CHIP 1K 5% 1/8W
R651 1-216-833-11 METAL CHIP 10K 5% 1/10W

R652 1-216-809-11 METAL CHIP 100 5% 1/10W
R653 1-216-805-11 METAL CHIP 47 5% 1/10W
R654 1-216-833-11 METAL CHIP 10K 5% 1/10W
R655 1-216-841-11 METAL CHIP 47K 5% 1/10W
R656 1-216-841-11 METAL CHIP 47K 5% 1/10W

R657 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R658 1-216-833-11 METAL CHIP 10K 5% 1/10W
R659 1-216-833-11 METAL CHIP 10K 5% 1/10W
R662 1-216-819-11 METAL CHIP 680 5% 1/10W
R663 1-216-821-11 METAL CHIP 1K 5% 1/10W

R664 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R665 1-216-809-11 METAL CHIP 100 5% 1/10W
R666 1-216-841-11 METAL CHIP 47K 5% 1/10W
R667 1-216-813-11 METAL CHIP 220 5% 1/10W
R668 1-216-809-11 METAL CHIP 100 5% 1/10W

R601 1-216-839-11 METAL CHIP 33K 5% 1/10W
R602 1-216-809-11 METAL CHIP 100 5% 1/10W

(RG440:AEP,UK)
R604 1-216-833-11 METAL CHIP 10K 5% 1/10W
R605 1-216-833-11 METAL CHIP 10K 5% 1/10W
R606 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R607 1-216-849-11 METAL CHIP 220K 5% 1/10W
R608 1-216-809-11 METAL CHIP 100 5% 1/10W

(RG440:AEP,UK)
R609 1-216-833-11 METAL CHIP 10K 5% 1/10W
R610 1-216-835-11 METAL CHIP 15K 5% 1/10W
R611 1-216-809-11 METAL CHIP 100 5% 1/10W

R612 1-216-809-11 METAL CHIP 100 5% 1/10W
R613 1-216-821-11 METAL CHIP 1K 5% 1/10W
R614 1-216-821-11 METAL CHIP 1K 5% 1/10W
R615 1-216-821-11 METAL CHIP 1K 5% 1/10W
R616 1-216-817-11 METAL CHIP 470 5% 1/10W

R623 1-216-198-11 RES-CHIP 1K 5% 1/8W
R624 1-216-835-11 METAL CHIP 15K 5% 1/10W
R625 1-216-817-11 METAL CHIP 470 5% 1/10W
R626 1-216-819-11 METAL CHIP 680 5% 1/10W
R627 1-216-821-11 METAL CHIP 1K 5% 1/10W

R628 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R629 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R630 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R631 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R632 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R633 1-218-867-11 METAL CHIP 6.8K 5% 1/10W

R669 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R670 1-216-845-11 METAL CHIP 100K 5% 1/10W
R671 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R672 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R673 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R675 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R676 1-216-821-11 METAL CHIP 1K 5% 1/10W
R677 1-216-851-11 METAL CHIP 330K 5% 1/10W
R678 1-216-841-11 METAL CHIP 47K 5% 1/10W
R679 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R680 1-216-809-11 METAL CHIP 100 5% 1/10W
R681 1-216-833-11 METAL CHIP 10K 5% 1/10W
R682 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R683 1-216-833-11 METAL CHIP 10K 5% 1/10W
R684 1-216-835-11 METAL CHIP 15K 5% 1/10W

R685 1-216-837-11 METAL CHIP 22K 5% 1/10W
R686 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R687 1-216-833-11 METAL CHIP 10K 5% 1/10W
R688 1-216-835-11 METAL CHIP 15K 5% 1/10W
R689 1-216-837-11 METAL CHIP 22K 5% 1/10W

R691 1-216-833-11 METAL CHIP 10K 5% 1/10W
R692 1-216-809-11 METAL CHIP 100 5% 1/10W
R693 1-216-809-11 METAL CHIP 100 5% 1/10W
R694 1-216-809-11 METAL CHIP 100 5% 1/10W
R695 1-216-809-11 METAL CHIP 100 5% 1/10W

R696 1-216-809-11 METAL CHIP 100 5% 1/10W
R697 1-216-809-11 METAL CHIP 100 5% 1/10W
R698 1-216-809-11 METAL CHIP 100 5% 1/10W

68

HCD-GX45/RG440

PANEL POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R699 1-216-821-11 METAL CHIP 1K 5% 1/10W
R902 1-216-841-11 METAL CHIP 47K 5% 1/10W
R903 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R904 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R905 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

S619 1-762-875-21 SWITCH, KEYBOARD (DISC 3)
S620 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE)
S621 1-762-875-21 SWITCH, KEYBOARD (Z)
S623 1-762-875-21 SWITCH, KEYBOARD (MOVIE EQ)
S627 1-762-875-21 SWITCH, KEYBOARD (CD)

R906 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R907 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R908 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R909 1-216-837-11 METAL CHIP 22K 5% 1/10W
R910 1-216-837-11 METAL CHIP 22K 5% 1/10W

R911 1-216-837-11 METAL CHIP 22K 5% 1/10W
R912 1-216-837-11 METAL CHIP 22K 5% 1/10W
R913 1-216-837-11 METAL CHIP 22K 5% 1/10W
R914 1-216-837-11 METAL CHIP 22K 5% 1/10W
R915 1-216-833-11 METAL CHIP 10K 5% 1/10W

R916 1-216-821-11 METAL CHIP 1K 5% 1/10W
R917 1-216-833-11 METAL CHIP 10K 5% 1/10W
R918 1-216-821-11 METAL CHIP 1K 5% 1/10W
R919 1-216-833-11 METAL CHIP 10K 5% 1/10W
R920 1-216-821-11 METAL CHIP 1K 5% 1/10W

R921 1-216-841-11 METAL CHIP 47K 5% 1/10W
R922 1-218-717-11 METAL CHIP 11K 5% 1/10W
R923 1-218-717-11 METAL CHIP 11K 5% 1/10W
R924 1-218-717-11 METAL CHIP 11K 5% 1/10W
R925 1-218-717-11 METAL CHIP 11K 5% 1/10W

R926 1-216-837-11 METAL CHIP 22K 5% 1/10W
R927 1-216-837-11 METAL CHIP 22K 5% 1/10W
R931 1-216-813-11 METAL CHIP 220 5% 1/10W
R932 1-216-182-00 RES-CHIP 220 5% 1/8W

(GX45)

R933 1-216-182-00 RES-CHIP 220 5% 1/8W

(GX45)

R934 1-216-182-00 RES-CHIP 220 5% 1/8W

(GX45)
R937 1-216-198-11 RES-CHIP 1K 5% 1/8W
R938 1-216-198-11 RES-CHIP 1K 5% 1/8W
R939 1-216-198-11 RES-CHIP 1K 5% 1/8W
R940 1-216-198-11 RES-CHIP 1K 5% 1/8W

S628 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
S629 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B)
S630 1-762-875-21 SWITCH, KEYBOARD (GAME)
S634 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)
S636 1-762-875-21 SWITCH, KEYBOARD (EFFECT ON/OFF)

S637 1-762-875-21 SWITCH, KEYBOARD (MUSIC EQ)
S638 1-762-875-21 SWITCH, KEYBOARD (GAME EQ)
S639 1-762-875-21 SWITCH, KEYBOARD (GROOVE)

< ROTARY ENCODER >

VR601 1-477-194-11 ENCODER, ROTARY (12 TYPE) (VOLUME)

< VIBRATOR >

X601 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

A-4748-696-A POWER AMP BOARD, COMPLETE (GX45)
A-4748-701-A POWER AMP BOARD, COMPLETE (RG440)

***************************

< CAPACITOR >

C1 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C2 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C3 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C4 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C5 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C6 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C7 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C8 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C9 1-135-516-11 ELECT 3300uF 20% 63V

(GX45)

C10 1-135-516-11 ELECT 3300uF 20% 63V

(GX45)

< VIBRATOR >

RES601 1-795-880-11 VIBRATOR, CERAMIC (8.64MHz)

< SWITCH >

S601 1-762-875-21 SWITCH, KEYBOARD (X)
S602 1-762-875-21 SWITCH, KEYBOARD (x)
S603 1-762-875-21 SWITCH, KEYBOARD (M +)
S604 1-762-875-21 SWITCH, KEYBOARD (>)
S605 1-762-875-21 SWITCH, KEYBOARD (ALBUM +)

S606 1-762-875-21 SWITCH, KEYBOARD (GAME MIXING)
S607 1-762-875-21 SWITCH, KEYBOARD (ALBUM –)
S608 1-762-875-21 SWITCH, KEYBOARD (.)
S609 1-762-875-21 SWITCH, KEYBOARD (m –)
S612 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START)

S614 1-762-875-21 SWITCH, KEYBOARD (POWER)
S615 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S616 1-762-875-21 SWITCH, KEYBOARD (G)
S617 1-762-875-21 SWITCH, KEYBOARD (DISC 1)
S618 1-762-875-21 SWITCH, KEYBOARD (DISC 2)

C11 1-126-955-11 ELECT 4700uF 20% 35V
C12 1-126-955-11 ELECT 4700uF 20% 35V
C13 1-104-665-11 ELECT 100uF 20% 25V
C22 1-126-959-11 ELECT 0.47uF 20% 50V
C23 1-126-957-11 ELECT 0.22uF 20% 50V

C24 1-126-947-11 ELECT 47uF 20% 25V
C25 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C26 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C30 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C31 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C33 1-128-552-51 ELECT 47uF 20% 63V
C34 1-128-552-51 ELECT 47uF 20% 63V
C35 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V
C37 1-128-552-51 ELECT 47uF 20% 63V
C40 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C41 1-128-552-51 ELECT 47uF 20% 63V
C42 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C43 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C45 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C501 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V

69

HCD-GX45/RG440

POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C502 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C503 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C504 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C505 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C506 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

D23 8-719-988-61 DIODE 1SS355TE-17
D24 8-719-988-61 DIODE 1SS355TE-17
D25 8-719-083-67 DIODE UDZS-TE17-20B
D26 6-500-378-01 DIODE 1N5402GW(F20) (RG440)
D27 6-500-378-01 DIODE 1N5402GW(F20) (RG440)

C507 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C508 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C509 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C510 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C511 1-126-966-11 ELECT 33uF 20% 35V

C512 1-126-966-11 ELECT 33uF 20% 35V
C513 1-126-965-11 ELECT 22uF 20% 50V
C514 1-126-965-11 ELECT 22uF 20% 50V
C517 1-126-960-11 ELECT 1uF 20% 50V
C518 1-126-960-11 ELECT 1uF 20% 50V

C519 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C520 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C521 1-126-961-11 ELECT 2.2uF 20% 50V
C522 1-126-961-11 ELECT 2.2uF 20% 50V
C523 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C524 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C525 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C526 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C527 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C528 1-126-961-11 ELECT 2.2uF 20% 50V

C529 1-126-961-11 ELECT 2.2uF 20% 50V
C530 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C531 1-104-665-11 ELECT 100uF 20% 10V
C532 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C533 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C534 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C538 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C540 1-126-964-11 ELECT 10uF 20% 50V
C541 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C542 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C543 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C544 1-165-319-11 CERAMIC CHIP 0.1uF 50V

D29 8-719-988-61 DIODE 1SS355TE-17
D30 8-719-083-52 DIODE UDZS-TE17-16B
D31 8-719-988-61 DIODE 1SS355TE-17
D32 8-719-988-61 DIODE 1SS355TE-17
D33 8-719-988-61 DIODE 1SS355TE-17

D34 8-719-988-61 DIODE 1SS355TE-17
D35 8-719-988-61 DIODE 1SS355TE-17
D36 8-719-988-61 DIODE 1SS355TE-17
D37 8-719-988-61 DIODE 1SS355TE-17
D38 8-719-988-61 DIODE 1SS355TE-17

D39 8-719-988-61 DIODE 1SS355TE-17
D40 8-719-988-61 DIODE 1SS355TE-17
D41 8-719-312-08 DIODE FMB-G16L (GX45)
D42 8-719-312-08 DIODE FMB-G16L (GX45)
D501 6-500-334-01 DIODE MC2836

D502 6-500-334-01 DIODE MC2836
D503 6-500-335-01 DIODE MC2838
D504 6-500-335-01 DIODE MC2838
D505 8-719-970-83 DIODE HSS82-TJ
D506 8-719-970-83 DIODE HSS82-TJ

(GX45)

D507 8-719-988-61 DIODE 1SS355TE-17
D508 8-719-988-61 DIODE 1SS355TE-17
D509 6-500-335-01 DIODE MC2838
D510 6-500-334-01 DIODE MC2836
D511 8-719-988-61 DIODE 1SS355TE-17

D513 8-719-988-61 DIODE 1SS355TE-17
D514 8-719-988-61 DIODE 1SS355TE-17
D515 8-719-083-70 DIODE UDZS-TE17-27B

< EARTH TERMINAL >

* EP01 1-537-738-21 TERMINAL, EARTH
* EP501 1-537-738-21 TERMINAL, EARTH

< TERMINAL BOARD >

< CONNECTOR >

CN501 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
CN502 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P

< DIODE >

D2 6-500-340-01 DIODE G5SBA60L-6088
D3 6-500-378-01 DIODE 1N5402GW(F20)
D4 6-500-378-01 DIODE 1N5402GW(F20)
D5 6-500-378-01 DIODE 1N5402GW(F20)
D6 6-500-378-01 DIODE 1N5402GW(F20)

D11 8-719-988-61 DIODE 1SS355TE-17
D12 6-500-334-01 DIODE MC2836
D13 6-500-335-01 DIODE MC2838
D16 6-500-335-01 DIODE MC2838
D17 6-500-334-01 DIODE MC2836

D18 6-500-335-01 DIODE MC2838
D19 6-500-334-01 DIODE MC2836
D20 6-500-335-01 DIODE MC2838

70

JK502 1-694-884-11 TERMINAL BOARD (4P) (SPEAKER)

< JUMPER RESISTOR >

JR2 1-216-864-11 METAL CHIP 0 5% 1/10W
JR501 1-216-864-11 METAL CHIP 0 5% 1/10W
JR511 1-216-864-11 METAL CHIP 0 5% 1/10W
JR512 1-216-864-11 METAL CHIP 0 5% 1/10W
JR513 1-216-864-11 METAL CHIP 0 5% 1/10W

JR514 1-216-864-11 METAL CHIP 0 5% 1/10W
JR515 1-216-864-11 METAL CHIP 0 5% 1/10W
JR516 1-216-864-11 METAL CHIP 0 5% 1/10W
JR517 1-216-864-11 METAL CHIP 0 5% 1/10W

< COIL >

L501 1-422-009-13 COIL, AIR-CORE
L502 1-422-009-13 COIL, AIR-CORE

HCD-GX45/RG440

POWER AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< TRANSISTOR >

Q5 6-550-289-01 TRANSISTOR 2SA1235F
Q6 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q10 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q11 8-729-055-91 TRANSISTOR SRA2202SF
Q12 6-550-645-01 TRANSISTOR 2SC3143K4-TB
Q13 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q17 6-550-289-01 TRANSISTOR 2SA1235F

Q18 6-550-293-01 FET 2SK2937
Q19 6-550-293-01 FET 2SK2937
Q20 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q21 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q22 6-550-316-01 TRANSISTOR 2SB792A(RS)

Q23 6-550-289-01 TRANSISTOR 2SA1235F
Q24 6-550-289-01 TRANSISTOR 2SA1235F
Q501 6-550-291-01 TRANSISTOR FN1016
Q502 6-550-291-01 TRANSISTOR FN1016
Q503 6-550-292-01 TRANSISTOR FP1016

Q504 6-550-292-01 TRANSISTOR FP1016
Q505 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q506 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q508 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q509 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q510 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q511 6-550-413-01 TRANSISTOR 2SC3478LK
Q512 6-550-413-01 TRANSISTOR 2SC3478LK
Q513 6-550-413-01 TRANSISTOR 2SC3478LK

Q514 6-550-413-01 TRANSISTOR 2SC3478LK
Q515 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q516 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q517 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q518 6-550-316-01 TRANSISTOR 2SB792A(RS)

Q519 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q520 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q521 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q522 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q523 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q524 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q525 8-729-052-79 TRANSISTOR 2SD1306NETL
Q526 8-729-052-79 TRANSISTOR 2SD1306NETL
Q527 6-550-289-01 TRANSISTOR 2SA1235F
Q528 8-729-052-79 TRANSISTOR 2SD1306NETL (GX45)

Q529 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q530 6-550-289-01 TRANSISTOR 2SA1235F
Q534 6-550-296-01 TRANSISTOR 2SA1980G
Q535 6-550-296-01 TRANSISTOR 2SA1980G
Q536 6-550-289-01 TRANSISTOR 2SA1235F

< RESISTOR >

R4 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6 1-216-838-11 METAL CHIP 27K 5% 1/10W
R7 1-216-838-11 METAL CHIP 27K 5% 1/10W
R8 1-216-838-11 METAL CHIP 27K 5% 1/10W
R9 1-216-838-11 METAL CHIP 27K 5% 1/10W

R12 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R13 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R14 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R16 1-216-821-11 METAL CHIP 1K 5% 1/10W
R17 1-216-821-11 METAL CHIP 1K 5% 1/10W

R18 1-216-809-11 METAL CHIP 100 5% 1/10W
R19 1-216-835-11 METAL CHIP 15K 5% 1/10W
R20 1-216-833-11 METAL CHIP 10K 5% 1/10W
R21 1-216-835-11 METAL CHIP 15K 5% 1/10W
R22 1-216-839-11 METAL CHIP 33K 5% 1/10W

R23 1-216-839-11 METAL CHIP 33K 5% 1/10W
R26 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R27 1-216-833-11 METAL CHIP 10K 5% 1/10W
R29 1-216-138-00 METAL CHIP 3.3 5% 1/8W
R31 1-216-138-00 METAL CHIP 3.3 5% 1/8W

R32 1-216-840-11 METAL CHIP 39K 5% 1/10W
R33 1-216-839-11 METAL CHIP 33K 5% 1/10W
R34 1-216-843-11 METAL CHIP 68K 5% 1/10W
R35 1-216-840-11 METAL CHIP 39K 5% 1/10W
R36 1-216-839-11 METAL CHIP 33K 5% 1/10W

R37 1-216-843-11 METAL CHIP 68K 5% 1/10W
R38 1-216-833-11 METAL CHIP 10K 5% 1/10W
R39 1-216-845-11 METAL CHIP 100K 5% 1/10W
R40 1-216-833-11 METAL CHIP 10K 5% 1/10W
R41 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R42 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R43 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R44 1-216-236-11 RES-CHIP 39K 5% 1/8W
R45 1-216-841-11 METAL CHIP 47K 5% 1/10W
R46 1-216-841-11 METAL CHIP 47K 5% 1/10W

R47 1-216-837-11 METAL CHIP 22K 5% 1/10W
R48 1-216-849-11 METAL CHIP 220K 5% 1/10W
R49 1-216-849-11 METAL CHIP 220K 5% 1/10W
R50 1-216-833-11 METAL CHIP 10K 5% 1/10W
R51 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R52 1-216-841-11 METAL CHIP 47K 5% 1/10W
R53 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R54 1-216-835-11 METAL CHIP 15K 5% 1/10W
R55 1-260-101-11 CARBON 1.5K 5% 1/2W F
R56 1-249-420-11 CARBON 1.8K 5% 1/4W

R58 1-216-186-00 RES-CHIP 330 5% 1/8W
R59 1-216-184-00 RES-CHIP 270 5% 1/8W
R60 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R61 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R62 1-216-833-11 METAL CHIP 10K 5% 1/10W

R63 1-216-833-11 METAL CHIP 10K 5% 1/10W
R64 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R65 1-216-833-11 METAL CHIP 10K 5% 1/10W
R66 1-216-833-11 METAL CHIP 10K 5% 1/10W
R67 1-216-841-11 METAL CHIP 47K 5% 1/10W

R68 1-216-833-11 METAL CHIP 10K 5% 1/10W
R69 1-216-833-11 METAL CHIP 10K 5% 1/10W
R70 1-216-835-11 METAL CHIP 15K 5% 1/10W
R71 1-216-835-11 METAL CHIP 15K 5% 1/10W
R72 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R73 1-216-236-11 RES-CHIP 39K 5% 1/8W
R74 1-216-238-11 RES-CHIP 47K 5% 1/8W
R75 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

71

HCD-GX45/RG440

POWER AMP

Ref. No. Part No. Description Remark

R76 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R77 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R78 1-216-234-00 RES-CHIP 33K 5% 1/8W
R79 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R81 1-260-111-11 CARBON 10K 5% 1/2W F

R82 1-216-833-11 METAL CHIP 10K 5% 1/10W
R83 1-216-208-00 RES-CHIP 2.7K 5% 1/8W
R85 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R86 1-260-105-11 CARBON 3.3K 5% 1/2W F
R90 1-216-222-00 RES-CHIP 10K 5% 1/8W

R91 1-216-178-00 RES-CHIP 150 5% 1/8W
R92 1-260-105-11 CARBON 3.3K 5% 1/2W F
R93 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R94 1-216-833-11 METAL CHIP 10K 5% 1/10W
R95 1-260-111-11 CARBON 10K 5% 1/2W F

R96 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R97 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R98 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R99 1-260-105-11 CARBON 3.3K 5% 1/2W F
R100 1-216-138-00 METAL CHIP 3.3 5% 1/8W

R102 1-216-216-00 RES-CHIP 5.6K 5% 1/8W
R103 1-216-244-00 RES-CHIP 82K 5% 1/8W
R104 1-216-244-00 RES-CHIP 82K 5% 1/8W
R105 1-216-244-00 RES-CHIP 82K 5% 1/8W
R106 1-216-244-00 RES-CHIP 82K 5% 1/8W

Ref. No. Part No. Description Remark

R529 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R530 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R531 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R532 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R533 1-216-809-11 METAL CHIP 100 5% 1/10W

R534 1-216-809-11 METAL CHIP 100 5% 1/10W
R535 1-216-809-11 METAL CHIP 100 5% 1/10W
R536 1-216-809-11 METAL CHIP 100 5% 1/10W
R537 1-260-328-11 CARBON 1K 5% 1/2W F
R538 1-260-328-11 CARBON 1K 5% 1/2W F

R539 1-216-833-11 METAL CHIP 10K 5% 1/10W
R540 1-216-833-11 METAL CHIP 10K 5% 1/10W
R541 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R542 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R543 1-216-206-00 RES-CHIP 2.2K 5% 1/8W

R544 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R545 1-216-809-11 METAL CHIP 100 5% 1/10W
R546 1-216-809-11 METAL CHIP 100 5% 1/10W
R547 1-216-838-11 METAL CHIP 27K 5% 1/10W
R548 1-216-838-11 METAL CHIP 27K 5% 1/10W

R549 1-216-818-11 METAL CHIP 560 5% 1/10W
R550 1-216-818-11 METAL CHIP 560 5% 1/10W
R553 1-216-838-11 METAL CHIP 27K 5% 1/10W
R554 1-216-838-11 METAL CHIP 27K 5% 1/10W
R555 1-216-841-11 METAL CHIP 47K 5% 1/10W

R107 1-216-244-00 RES-CHIP 82K 5% 1/8W
R108 1-216-244-00 RES-CHIP 82K 5% 1/8W
R109 1-216-244-00 RES-CHIP 82K 5% 1/8W
R110 1-216-244-00 RES-CHIP 82K 5% 1/8W
R500 1-216-821-11 METAL CHIP 1K 5% 1/10W

0R501 1-245-545-11 METAL OXIDE 0.22 5% 3W F
0R502 1-245-545-11 METAL OXIDE 0.22 5% 3W F
0R503 1-245-545-11 METAL OXIDE 0.22 5% 3W F
0R504 1-245-545-11 METAL OXIDE 0.22 5% 3W F

R505 1-216-809-11 METAL CHIP 100 5% 1/10W

R506 1-216-809-11 METAL CHIP 100 5% 1/10W
R507 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R508 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R509 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R510 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R511 1-216-821-11 METAL CHIP 1K 5% 1/10W
R512 1-216-821-11 METAL CHIP 1K 5% 1/10W
R513 1-216-835-11 METAL CHIP 15K 5% 1/10W
R514 1-216-835-11 METAL CHIP 15K 5% 1/10W
R515 1-216-815-11 METAL CHIP 330 5% 1/10W

R516 1-216-815-11 METAL CHIP 330 5% 1/10W
R517 1-216-804-11 METAL CHIP 39 5% 1/10W
R518 1-216-804-11 METAL CHIP 39 5% 1/10W
R519 1-216-804-11 METAL CHIP 39 5% 1/10W
R520 1-216-804-11 METAL CHIP 39 5% 1/10W

R521 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R522 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R523 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R524 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R525 1-216-821-11 METAL CHIP 1K 5% 1/10W

R526 1-216-821-11 METAL CHIP 1K 5% 1/10W
R527 1-216-841-11 METAL CHIP 47K 5% 1/10W
R528 1-216-841-11 METAL CHIP 47K 5% 1/10W

R556 1-216-841-11 METAL CHIP 47K 5% 1/10W
R557 1-216-821-11 METAL CHIP 1K 5% 1/10W
R558 1-216-821-11 METAL CHIP 1K 5% 1/10W
R559 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R560 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R561 1-216-843-11 METAL CHIP 68K 5% 1/10W
R562 1-216-857-11 METAL CHIP 1M 5% 1/10W
R563 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R564 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R565 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GX45)

R566 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

(GX45)
R567 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R568 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R569 1-216-853-11 METAL CHIP 470K 5% 1/10W
R570 1-260-076-21 CARBON 10 5% 1/2W F

R571 1-260-076-21 CARBON 10 5% 1/2W F
R572 1-216-156-00 RES-CHIP 18 5% 1/8W
R573 1-216-156-00 RES-CHIP 18 5% 1/8W
R574 1-216-182-00 RES-CHIP 220 5% 1/8W
R575 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R576 1-216-837-11 METAL CHIP 22K 5% 1/10W
R577 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R578 1-216-182-00 RES-CHIP 220 5% 1/8W
R580 1-216-150-11 RES-CHIP 10 5% 1/8W
R581 1-216-246-00 RES-CHIP 100K 5% 1/8W

R589 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R591 1-216-841-11 METAL CHIP 47K 5% 1/10W
R592 1-216-835-11 METAL CHIP 15K 5% 1/10W
R593 1-216-833-11 METAL CHIP 10K 5% 1/10W
R594 1-216-833-11 METAL CHIP 10K 5% 1/10W

R599 1-216-841-11 METAL CHIP 47K 5% 1/10W

72

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

HCD-GX45/RG440

Ver 1.1

POWER AMP REMOTE SENSOR SUBWOOFER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R601 1-216-156-00 RES-CHIP 18 5% 1/8W
R602 1-216-156-00 RES-CHIP 18 5% 1/8W
R603 1-216-156-00 RES-CHIP 18 5% 1/8W
R604 1-216-156-00 RES-CHIP 18 5% 1/8W

< RELAY >

RY501 1-755-373-11 RELAY

C425 1-128-552-51 ELECT 47uF 20% 63V

(GX45/RG440:AUS)

C428 1-126-963-11 ELECT 4.7uF 20% 50V
C429 1-126-947-11 ELECT 47uF 20% 35V

(RG440:AEP,UK)

C429 1-128-552-51 ELECT 47uF 20% 63V

(GX45/RG440:AUS)

C430 1-128-552-51 ELECT 47uF 20% 63V

< THERMISTOR >

TH501 1-805-217-11 THERMISTOR (1012)
TH502 1-805-217-11 THERMISTOR (1012)

*************************************************************

REMOTE BOARD

**************

< CONNECTOR >

CN604 1-816-423-11 SOCKET, CONNECTOR 3P

< IC >

RM601 6-600-174-01 IC RPM7240-H4 (IR)

*************************************************************

1-687-132-11 SENSOR BOARD

**************

< CONNECTOR >

CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P

< IC >

IC731 6-600-022-01 IC RPI-576

*************************************************************

A-4732-797-A SUBWOOFER BOARD, COMPLETE

***************************

< CAPACITOR >

C401 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C402 1-126-960-11 ELECT 1uF 20% 50V
C404 1-126-965-11 ELECT 22uF 20% 50V
C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C406 1-126-966-11 ELECT 33uF 20% 35V

C407 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C408 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C409 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C410 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C411 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V

C431 1-162-945-11 CERAMIC CHIP 22PF 5% 50V
C432 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

< CONNECTOR >

* CN401 1-564-516-11 PLUG, CONNECTOR 13P
* CN402 1-564-517-11 PLUG, CONNECTOR 2P (CONTROL)

< DIODE >

D401 8-719-988-61 DIODE 1SS355TE-17
D402 8-719-988-61 DIODE 1SS355TE-17
D403 6-500-334-01 DIODE MC2836
D404 6-500-334-01 DIODE MC2836
D405 8-719-970-83 DIODE HSS82-TJ

D406 8-719-988-61 DIODE 1SS355TE-17
D407 8-719-988-61 DIODE 1SS355TE-17
D408 8-719-988-61 DIODE 1SS355TE-17
D409 8-719-988-61 DIODE 1SS355TE-17
D410 8-719-988-61 DIODE 1SS355TE-17

D411 8-719-083-52 DIODE UDZS-TE17-16B
D412 8-719-988-61 DIODE 1SS355TE-17
D413 8-719-988-61 DIODE 1SS355TE-17
D414 8-719-988-61 DIODE 1SS355TE-17
D415 8-719-083-67 DIODE UDZS-TE17-20B

D416 6-500-802-01 DIODE 1N5042TM (RG440:AEP,UK)
D416 8-719-312-08 DIODE FMB-G16L (GX45/RG440:AUS)
D417 8-719-978-33 DIODE UDZS-TE17-6.8B
D418 8-719-988-61 DIODE 1SS355TE-17
D419 6-500-802-01 DIODE 1N5042TM (RG440:AEP,UK)

D419 8-719-312-08 DIODE FMB-G16L (GX45/RG440:AUS)
D420 8-719-988-61 DIODE 1SS355TE-17
D421 8-719-988-61 DIODE 1SS355TE-17
D422 8-719-988-61 DIODE 1SS355TE-17
D423 8-719-988-61 DIODE 1SS355TE-17

D424 6-500-334-01 DIODE MC2836
D425 6-500-584-01 DIODE MC2838TP-1F

< EARTH TERMINAL >

* EP401 1-537-738-21 TERMINAL, EARTH

C412 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C413 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C414 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C415 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C416 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C417 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C421 1-128-552-51 ELECT 47uF 20% 63V
C424 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V
C425 1-126-947-11 ELECT 47uF 20% 35V

(RG440:AEP,UK)

< JACK >

JK401 1-774-785-11 JACK, PIN 1P (SUBWOOFER OUT)

< JUMPER RESISTOR >

JR418 1-216-864-11 METAL CHIP 0 5% 1/10W
JR423 1-216-864-11 METAL CHIP 0 5% 1/10W
JR437 1-216-864-11 METAL CHIP 0 5% 1/10W

< COIL >

L401 1-422-009-13 COIL, AIR-CORE

73

HCD-GX45/RG440

SUBWOOFER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< TRANSISTOR >

Q401 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q402 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q403 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q404 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q405 6-550-317-01 TRANSISTOR 2SD814A(RS)

Q406 6-550-413-01 TRANSISTOR 2SC3478LK
Q407 6-550-413-01 TRANSISTOR 2SC3478LK
Q408 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q409 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q410 6-550-291-01 TRANSISTOR FN1016

Q411 6-550-292-01 TRANSISTOR FP1016
Q412 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q413 6-550-289-01 TRANSISTOR 2SA1235F
Q414 6-550-645-01 TRANSISTOR 2SC3143K4-TB
Q415 6-550-316-01 TRANSISTOR 2SB792A(RS)

Q416 6-550-293-01 FET 2SK2937
Q417 6-550-317-01 TRANSISTOR 2SD814A(RS)
Q419 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q420 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q421 8-729-055-91 TRANSISTOR SRA2202SF

Q422 6-550-289-01 TRANSISTOR 2SA1235F
Q423 6-550-289-01 TRANSISTOR 2SA1235F
Q424 6-550-316-01 TRANSISTOR 2SB792A(RS)
Q425 6-550-289-01 TRANSISTOR 2SA1235F
Q426 6-550-293-01 FET 2SK2937

< RESISTOR >

R401 1-216-841-11 METAL CHIP 47K 5% 1/10W
R402 1-216-838-11 METAL CHIP 27K 5% 1/10W
R404 1-216-818-11 METAL CHIP 560 5% 1/10W
R405 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R406 1-216-206-00 RES-CHIP 2.2K 5% 1/8W

R407 1-216-198-00 RES-CHIP 1K 5% 1/8W
R408 1-216-809-11 METAL CHIP 100 5% 1/10W
R409 1-216-232-00 RES-CHIP 27K 5% 1/8W
R410 1-216-833-11 METAL CHIP 10K 5% 1/10W
R411 1-216-809-11 METAL CHIP 100 5% 1/10W

R412 1-216-809-11 METAL CHIP 100 5% 1/10W
R413 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R415 1-216-841-11 METAL CHIP 47K 5% 1/10W
R416 1-216-821-11 METAL CHIP 1K 5% 1/10W

R417 1-216-804-11 METAL CHIP 39 5% 1/10W
R419 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R420 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R421 1-216-804-11 METAL CHIP 39 5% 1/10W
R422 1-216-815-11 METAL CHIP 330 5% 1/10W

R424 1-216-809-11 METAL CHIP 100 5% 1/10W
R425 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

0R426 1-245-545-11 METAL OXIDE 0.22 5% 3W F
0R427 1-245-545-11 METAL OXIDE 0.22 5% 3W F

R428 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R429 1-216-821-11 METAL CHIP 1K 5% 1/10W
R430 1-216-835-11 METAL CHIP 15K 5% 1/10W

0R431 1-260-076-11 CARBON 10 5% 1/2W F

R432 1-216-158-00 RES-CHIP 22 5% 1/8W

0R433 1-260-087-11 CARBON 100 5% 1/2W F

R434 1-216-833-11 METAL CHIP 10K 5% 1/10W
R435 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R436 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R438 1-216-158-00 RES-CHIP 22 5% 1/8W
R440 1-216-841-11 METAL CHIP 47K 5% 1/10W

R441 1-216-833-11 METAL CHIP 10K 5% 1/10W
R442 1-216-833-11 METAL CHIP 10K 5% 1/10W
R443 1-216-833-11 METAL CHIP 10K 5% 1/10W
R444 1-216-833-11 METAL CHIP 10K 5% 1/10W
R447 1-216-208-00 RES-CHIP 2.7K 5% 1/8W

R448 1-216-208-00 RES-CHIP 2.7K 5% 1/8W
R449 1-216-208-00 RES-CHIP 2.7K 5% 1/8W
R450 1-216-208-00 RES-CHIP 2.7K 5% 1/8W
R451 1-216-230-00 RES-CHIP 22K 5% 1/8W
R452 1-216-206-00 RES-CHIP 2.2K 5% 1/8W

R453 1-216-208-00 RES-CHIP 2.7K 5% 1/8W
R454 1-216-178-00 RES-CHIP 150 5% 1/8W
R455 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R456 1-216-222-00 RES-CHIP 10K 5% 1/8W
R457 1-216-210-00 RES-CHIP 3.3K 5% 1/8W

R458 1-216-833-11 METAL CHIP 10K 5% 1/10W
R459 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R460 1-216-230-00 RES-CHIP 22K 5% 1/8W
R461 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R462 1-216-833-11 METAL CHIP 10K 5% 1/10W

R463 1-216-230-00 RES-CHIP 22K 5% 1/8W
R464 1-216-230-00 RES-CHIP 22K 5% 1/8W
R465 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R466 1-216-833-11 METAL CHIP 10K 5% 1/10W
R467 1-216-835-11 METAL CHIP 15K 5% 1/10W

R468 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R469 1-216-841-11 METAL CHIP 47K 5% 1/10W
R470 1-216-837-11 METAL CHIP 22K 5% 1/10W
R471 1-216-849-11 METAL CHIP 220K 5% 1/10W
R472 1-216-849-11 METAL CHIP 220K 5% 1/10W

R473 1-216-833-11 METAL CHIP 10K 5% 1/10W
R474 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R475 1-216-841-11 METAL CHIP 47K 5% 1/10W
R476 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R477 1-216-833-11 METAL CHIP 10K 5% 1/10W

R478 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R479 1-216-816-11 METAL CHIP 390 5% 1/10W
R480 1-216-222-00 RES-CHIP 10K 5% 1/8W
R481 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R482 1-216-835-11 METAL CHIP 15K 5% 1/10W

R483 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R484 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R485 1-216-234-00 RES-CHIP 33K 5% 1/8W
R486 1-216-238-11 RES-CHIP 47K 5% 1/8W
R487 1-216-186-00 RES-CHIP 330 5% 1/8W

R488 1-216-222-00 RES-CHIP 10K 5% 1/8W
R489 1-216-238-11 RES-CHIP 47K 5% 1/8W
R490 1-216-837-11 METAL CHIP 22K 5% 1/10W
R491 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R492 1-216-857-11 METAL CHIP 1M 5% 1/10W

R493 1-216-833-11 METAL CHIP 10K 5% 1/10W
R494 1-216-816-11 METAL CHIP 390 5% 1/10W
R496 1-216-222-00 RES-CHIP 10K 5% 1/8W

74

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

HCD-GX45/RG440

SUBWOOFER

Ref. No. Part No. Description Remark

< RELAY >

RY401 1-755-373-11 RELAY

< THERMISTOR >

TH401 1-805-217-11 THERMISTOR (1012)

*************************************************************

1-687-669-11 SW BOARD

**********

< SWITCH >

S751 1-786-514-11 SWITCH, LEVER (SLIDE)

(OPEN/CLOSE DETECT)

*************************************************************

1-688-747-11 TRANS BOARD

*************

* 1-533-213-31 HOLDER, FUSE

< CAPACITOR >

SW TRANS 6 STREAM LEDVIDEO OUT

Ref. No. Part No. Description Remark

1-688-081-21 6 STREAM LED BOARD

*******************

< JUMPER RESISTOR >

JR002 1-216-864-11 METAL CHIP 0 5% 1/10W

< DIODE >

LED601 8-719-058-04 LED SEL5223S-TP15 (STREAM 1)
LED602 8-719-058-04 LED SEL5223S-TP15 (STREAM 2)
LED603 8-719-058-04 LED SEL5223S-TP15 (STREAM 3)
LED604 8-719-058-04 LED SEL5223S-TP15 (STREAM 4)
LED605 8-719-058-04 LED SEL5223S-TP15 (STREAM 5)

LED606 8-719-058-04 LED SEL5223S-TP15 (STREAM 6)

< RESISTOR >

R617 1-216-182-00 RES-CHIP 220 5% 1/8W
R618 1-216-182-00 RES-CHIP 220 5% 1/8W
R619 1-216-182-00 RES-CHIP 220 5% 1/8W
R620 1-216-182-00 RES-CHIP 220 5% 1/8W
R621 1-216-182-00 RES-CHIP 220 5% 1/8W

C901 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C902 1-126-942-61 ELECT 1000uF 20% 25V

< CONNECTOR >

CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

* CN902 1-764-334-11 PLUG, CONNECTOR 11P

< DIODE >

D902 8-719-988-61 DIODE 1SS355TE-17
D903 8-719-988-61 DIODE 1SS355TE-17
D904 8-719-988-61 DIODE 1SS355TE-17
D905 8-719-988-61 DIODE 1SS355TE-17
D906 8-719-988-61 DIODE 1SS355TE-17

< RESISTOR >

0 R901 1-219-237-11 SOLID 3.3M 20% 1/2W F

< RELAY >

0 RY902 1-755-276-11 RELAY, POWER

< TRANSFORMER >

0 T902 1-439-734-11 TRANSFORMER, POWER (GX45)
0 T902 1-439-735-11 TRANSFORMER, POWER (RG440:AEP,UK)
0 T902 1-439-736-11 TRANSFORMER, POWER

(RG440:EXCEPT AEP,UK)

*************************************************************

R622 1-216-182-00 RES-CHIP 220 5% 1/8W
R935 1-216-182-00 RES-CHIP 220 5% 1/8W
R936 1-216-182-00 RES-CHIP 220 5% 1/8W

*************************************************************

VIDEO OUT BOARD

****************

< CONNECTOR >

* CN003 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P

< JACK >

JK004 1-774-227-11 JACK, PIN 1P (VIDEO OUT)

*************************************************************

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

75

HCD-GX45/RG440

Ref. No. Part No. Description Remark

MISCELLANEOUS

***************

6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (GX45)
6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (RG440)
52 1-796-485-51 DECK, MECHANICAL
58 1-769-914-11 WIRE (FLAT TYPE) (9 CORE)
59 1-773-322-11 WIRE (FLAT TYPE) (31 CORE)

60 1-827-145-11 WIRE (FLAT TYPE) (13 CORE)

0205 1-690-608-11 CORD, POWER (RG440:AUS)
0205 1-777-071-83 CORD, POWER (RG440:AEP,UK)
0205 1-783-532-11 CORD, POWER (GX45)

252 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)

317 1-471-035-11 MAGNET ASSY
323 1-827-146-11 WIRE (FLAT TYPE) (19 CORE)
352 1-823-859-11 WIRE (FLAT TYPE) (16 CORE)

0F902 1-533-451-12 FUSE, GLASS TUBE (DIA.5) (3.15A/125V) (GX45)
0F902 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (T3.15AL/250V)

0F903 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX45)
0F903 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V) (RG440)
0F904 1-533-452-12 FUSE, GLASS TUBE (DIA.5) (4A/125V) (GX45)
0F904 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V) (RG440)
0F905 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX45)

(RG440)

0F905 1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V) (RG440)
0F906 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A/125V) (GX45)
0F906 1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V) (RG440)

M731 1-763-072-11 FAN, DC
M741 A-4723-963-A MOTOR ASSY, TABLE (TABLE)

M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-11 ENCODER, ROTARY

0T901 1-439-810-11 TRANSFORMER, POWER (GX45)
0T901 1-439-811-11 TRANSFORMER, POWER (RG440:AEP,UK)
0T901 1-443-025-11 TRANSFORMER, POWER (RG440:AUS)

TU901 1-693-625-11 TUNER PACK (FM/AM) (ANTENNA) (GX45)
TU901 1-693-626-11 TUNER PACK (FM/AM) (ANTENNA)

TU901 1-693-628-11 TUNER PACK (FM/AM) (ANTENNA) (RG440:AUS)

(DISC TRAY ADDRESS DETECT)

(RG440:AEP,UK)

76

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.

MEMO

HCD-GX45/RG440

77

HCD-GX45/RG440

REVISION HISTORY

Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2003. 07 New

1.1 2004. 03 Part number correction of IC731. (SPM-04019)

1.2 2005. 04 Part number correction of Ref. No. 352. (SPM-05053)

78
