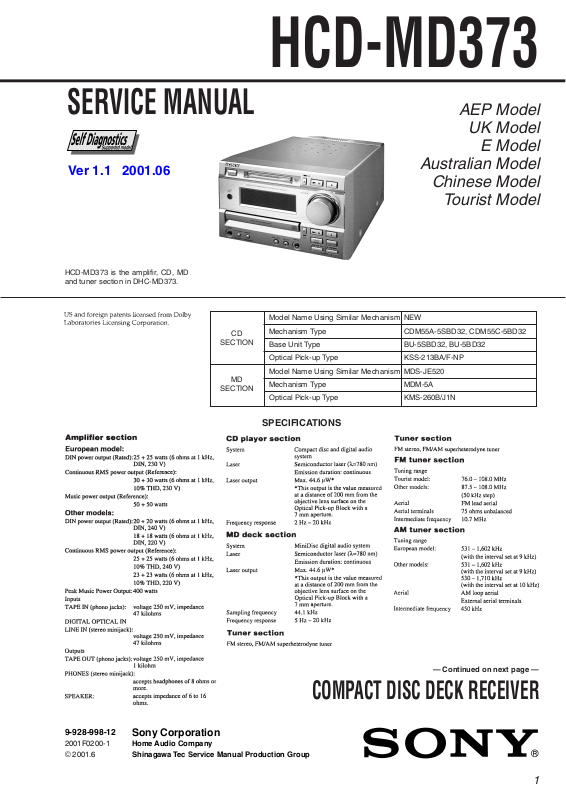

HCD-MD373

SERVICE MANUAL

Ver 1.1 2001.06

HCD-MD373 is the amplifir, CD, MD and tuner section in DHC-MD373.

Model Name Using Similar Mechanism NEW

SECTION

Mechanism Type CDM55A-5SBD32, CDM55C-5BD32 Base Unit Type BU-5SBD32, BU-5BD32 Optical Pick-up Type KSS-213BA/F-NP Model Name Using Similar Mechanism MDS-JE520 Mechanism Type MDM-5A Optical Pick-up Type KMS-260B/J1N

AEP Model

UK Model

E Model

Australian Model

Chinese Model

Tourist Model

SPECIFICATIONS

COMPACT DISC DECK RECEIVER

— Continued on next page —

9-928-998-12

Sony Corporation

Home Audio Company

Shinagawa Tec Service Manual Production Group

SELF-DIAGNOSIS FUNCTION

The self-diagnosis function consists of error codes for customers which are displayed automatically when errors occur, and error codes which show the error history in the test mode during servicing. For details on how to view error codes for the customer, refer to the following box in the instruction manual. For details on how to check error codes during servicing, refer to the following “Procedure for using the SelfDiagnosis Function (Error History Display Mode)”.

Procedure for using the Self-Diagnosis Function (Error History Display Mode). Note: Perform the self-diagnosis function in the “error history display mode” in the test mode. The following describes the least required

procedure. Be careful not to enter other modes by mistake. If you set other modes accidentally, press the MENU/NO “R” button to exit the mode.

1. When the power ON, press the 1/u button while pressing the p (MD) button and r REC button together.

2. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and when “[Service]” is displayed, press the ENTER/YES “R” button. (If nothing is displayed, press the FUNCTION button and set the function to “MD”.)

3. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and display “ERR DP MODE”.

4. Pressing the ENTER/YES “R” button sets the error history mode and displays “total rec”.

5. Select the contents to be displayed or executed using the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button.

6. Pressing the SYNC REC button will display or execute the contents selected.

7. Pressing the SYNC REC button another time returns to step 4.

8. Pressing the MENU/NO “R” button displays “ERROR DP MODE” and exits the error history mode.

9. To exit the test mode, press the REPEAT/STEREO/MONO button. The unit sets into the STANDBY state, and the test mode ends.

Note 1: About “R” As this unit has only a few buttons, some operations require the use of remote commander (RM-SJ373/provided with unit: 1-418-554-11) buttons. These operations are indicated as “R” in this manual. Example: MENU/NO “R” ...Press the MENU/NO button of the remote commander.

Note 2:

Incorrect operations may be performed if the test mode is not set properly. In this case, press the RESET button of the back panel.

ITEMS OF ERROR HISTORY MODE ITEMS AND CONTENTS

Selecting the Test Mode

Display

total rec

total play

retry err

total err

err history

Details of History

Displays the recording time. Displayed as “rππππππh”. The displayed time is the total time the laser is set to the high power state. This is about 1/4 of the actual recording time. The time is displayed in decimal digits from 0h to 65535h.

Displays the play time. Displayed as “pππππππh”. The time displayed is the total actual play time. Pauses are not counted. The time is displayed in decimal digits from 0h to 65535h.

Displays the total number of retries during recording and number of retry errors during play. Displayed as “rππ pππ”. “r” indicates the retries during recording while “p” indicates the retry errors during play. The number of retries and retry errors are displayed in hexadecimal digits from 00 to FF.

Displays the total number of errors. Displayed as “total ππ”. The number of errors is displayed in hexadecimal digits from 00 to FF.

Displays the 10 latest errors. Displayed as “0π E@@”. π indicates the history number. The smaller the number, the more recent is the error. (00 is the latest). @@ indicates the error code. Refer to the following table for the details. The error history can be switched by pressing the =0/MD/CD/ TUNING – button or )+/MD/CD/TUNING + button.

er refresh

tm refresh

Table of Error Codes

Error Code

E00 E01

E02

E03 E04

No error Read error. PTOC cannot be read (DISC ejected) TOC error. UTOC error (DISC not ejected) Loading error Address cannot be read (Servo has deviated)

Mode which erases the “retry err”, “total err”, and “err history” histories. When returning the unit to the customer after completing repairs, perform this to erase the past error history, After pressing the SYNC REC button and “er refresh?” is displayed, press the ENTER/YES “R” button to erase the history. “Complete!” will be displayed momentarily. Be sure to check the following when this mode has been executed.

• The data has been erased.

• The mechanism operates normally when recording and play are performed.

Mode which erases the “total rec” and “total play” histories. These histories serve as approximate indications of when to replace the optical pickup. If the optical pickup has been replaced, perform this operation and erase the history. After pressing the SYNC REC button and “tm refresh?” is displayed, press the ENTER/YES “R” button to erase the history. “Complete!” will be displayed momentarily. Be sure to check the following when this mode has been executed.

• The data has been erased.

• The mechanism operates normally when recording and play are performed.

Details of Error

Error Code

E05 E06 E07 E08 E09

E0A

Details of Error

FOK has deviated Cannot focus (Servo has deviated) Recording retry Recording retry error Playback retry error (Access error) Play retry error (C2 error)

Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

This caution label is located inside the unit.

MODEL IDENTIFICATION — BACK PANEL —

Parts No.

P ARTS No. MODEL

4-221-082-1π AEP, UK 4-221-082-3π HK, SP, MY, AR, AUS, KR, JE 4-221-082-4π CH

• Abbreviation HK : Hong Kong model SP : Singapore model MY : Malaysia model AR : Argentine model AUS : Australian model KR : Korea model CH : Chinese model JE : Tourist model

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK ! OR DO TTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

Ver 1.1 2001.06

1. SERVICING NOTE .......................................................... 6

2. GENERAL ........................................................................ 16

3. DISASSEMBLY

3-1. Case ................................................................................... 19

3-2. Front Panel ......................................................................... 20

3-3. Back Panel ......................................................................... 20

3-4. Main Board and Power Transformer ................................. 21

3-5. CD Mechanism Deck ......................................................... 21

3-6. Tray, Gear and Cam ........................................................... 22

3-7. CD Base Unit ..................................................................... 22

3-8. Optical Pick-up Section of CD (KSS-213BA/F-NP) .........22

3-9. BD (CD) Board, Spindle Motor (M101) and

Sled Motor (M102) ............................................................ 23

3-10.MD Mechanism Deck ........................................................ 23

3-11.Slider (Cam) ...................................................................... 24

3-12.Base Unit (MBU-5A) and BD (MD) Board ...................... 24

3-13.Over Write Head ................................................................ 25

3-14.Optical Pick-up of MD (KMS-260B/J1N) ........................ 25

3-15.Spindle Motor (M901) and SLed Motor (M902) (MD) .... 25

4. TEST MODE ..................................................................... 26

5. ELECTRICAL ADJUSTMENTS ............................... 31

6. DIAGRAMS

6-1. Circuit Boards Location ..................................................... 40

6-2. Block Diagrams

• BD (CD) Section ............................................................ 41

• BD (MD) Section (1/2) ................................................... 42

• BD (MD) Section (2/2) ................................................... 43

• Main Section ................................................................... 44

6-3. Printed Wiring Board – BD (CD) Section – ...................... 46

6-4. Schematic Diagram – BD (CD) Section – ......................... 47

6-5. Printed Wiring Board – BD (MD) Section – ..................... 48

6-6. Schematic Diagram – BD (MD) Section – (1/2) ............... 49

6-7. Schematic Diagram – BD (MD) Section – (2/2) ............... 50

6-8. Schematic Diagram – SP Section – ................................... 51

6-9. Printed Wiring Board – SP Section – ................................ 51

6-10.Printed Wiring Board – Main Section – ............................ 52

6-11.Schematic Diagram – Main Section – (1/3) ...................... 53

6-12.Schematic Diagram – Main Section – (2/3) ...................... 54

6-13.Schematic Diagram – Main Section – (3/3) ...................... 55

6-14.Schematic Diagram – MD Digital Section – ..................... 56

6-15.Printed Wiring Board – MD Digital Section – .................. 57

6-16.Schematic Diagram – AMP Section – ............................... 58

6-17.Printed Wiring Board – AMP Section – ............................ 59

6-18.Schematic Diagram – Panel Section – ............................... 60

6-19.Printed Wiring Board – Panel Section – ............................ 61

6-20.Schematic Diagram – Power Section – ............................. 62

6-21.Printed Wiring Board – Power Section – ........................... 63

6-22.Schematic Diagram – BD Switch Section – ...................... 64

6-23.Printed Wiring Board – BD Swtich Section – ................... 64

6-24.Schematic Diagram – Loading Section – .......................... 64

6-25.Printed Wiring Board – Loading Section –........................ 64

6-26.IC Block Diagrams ............................................................ 65

6-27.IC Pin Functions ................................................................ 69

7. EXPLODED VIEWS

7-1. Case and Front Panel Section ............................................ 77

7-2. Chassis Section .................................................................. 78

7-3. MD Mechanism Section (MDM-5A) ................................ 79

7-4. MD Base Unit Section (MBU-5A) .................................... 80

7-5. CD Mechanism Section (CDM55A-5SBD32)................... 81

7-6. CD Base Unit Section (BU-5SBD32) ............................... 82

7-7. CD Mechanism Section (CDM55C-5BD32) ..................... 83

7-8. CD Base Unit Section (BU-5BD32) .................................. 84

8. ELECTRICAL PARTS LIST ........................................ 85

SECTION 1

SERVICING NOTE

Note 1: “R” As this unit has only a few buttons, some operations require the use of remote commander (provided with RM-SJ373/unit: 1-418-554-11) buttons. These operations are indicated as “R” in this manual. Example: MENU/NO “R” ...Press the MENU/NO button of the remote commander.

DRAWING OUT THE TRAY DURING POWER OFF

Tray (CDM)

Move the Cam block in the direction of arrow with a finger.

REMOVING THE INDICATION PLATE (FL)

Note: Follow the disassembly procedure in the numerical order given.

• Press the of the front panel from the rear and remove the 7 indication plate (FL).

Indication plate (FL)

Nut

Knob (VOL)

CLEANING THE OPTICAL PICKUP (CD PLAYER)

CD mechanism deck

Panel board

Filter (FL)

Ring (VOL)

(Remove the two claws from the Front panel back side.)

Floating screw

(BVTP 3x10)

Six screws

Optical pick-up block

Clean the lens block with applicator.

CD mechanism deck

SERVICE POSITION THE MD MECHANISM

MD mechanism deck

SERVICE POSITION THE CD MECHANISM

SERVICE POSITION THE POWER BOARD

Power board

Main board

CN993

Amp board

CN802

Extension cable (4P) (J-2501-042-A)

Extension cable (3P) (J-2501-045-A)

Cold Reset

• The cold reset clears all data inculuding preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer.

Procedure 1: (recommended) Press the RESET button on the back panel.

Procedure 2:

1. When the power ON, press the 1/u button while pressing the PLAY MODE/TUNING MODE button and p (CD) buttons together.

2. “COLD RESET” is displayed on the fluorescent indicator tube and reset is executed.

Hot Reset

• This mode reset the preset data kept in the memory. The hot reset mode functions same as if the power cord is plugged in and out.

Procedure :

1. When the power ON, press the 1/u button while pressing the PLAY MODE/TUNING MODE button and ^ (CD) buttons together.

2. Turn off the unit and reset is executed.

LED and Fluorescent Indicator Tube All Lit, Key Check Mode

Procedure :

1. When the power ON, press the 1/u button while pressing the PLAY MODE/TUNING MODE button and 6 (CD) buttons together.

2. LEDs and fluorescent indicator tube are all turned on.

3. Press ^ (MD) button to turn set on.

4. In the key check mode, the fluorescent indicator tube displays “Key 0 Vol 0”. Each time a button is pressed, “Key” value increases.

However, once a button is pressed, it is no longer taken into account. “Vol” Value increases like “1, 2, 3 ...” if rotating VOLUME knob in the clockwise direction, or decreases like “0, 9, 8 ...” if rotating in the counterclockwise diretion.

5. To exit from this mode, press three buttons in the same procedure as step 1, or disconnect the power cord.

Note:

Press the =0/MD/CD/TUNING– button or )+/MD/CD/TUNING+ button for more than 1 second.

Change-over of AM tuner Step between 9kHz and 10kHz.

• A step of AM channels can be changed over between 9kHz and 10kHz.

1. Press 1/u button to turn set on.

2. Select the function “TUNER”, and press TUNER/BAND button to select the BAND “AM”.

3. Press 1/u button to turn on the set OFF.

4. When the power OFF, press 1/u button while pressing the PLAY MODE/TUNING MODE button.

The display of fluorescent indicator tube changes to “AM 9k STEP” or “AM 10k STEP”, and thus the channel step is changed over.

CD Text Display

• This unit displays CD text. Text is displayed for the first 50 track only and will not be displayed from the 51st track onwards. Do not suspect a fault in this case. In some cases, some special characters will not be displayed and may be replaced by other characters. Donot suspect a fault in this case.

Aging Mode

• Mode for repeating operations of the CD player automatically.

When errors occur:

Aging stops and a message indicating that an error has occurred such as “CD MEC ERR” is displayed. (For details of errors, refer to “Error History Display Mode”.)

When no errors occur:

Aging is repeatedly performed.

Procedure:

1. Load any CD.

2. Press the FUNCTION button and set the function to CD.

3. While pressing the PLAY MODE/TUNING MODE button and ^ (MD) button, press the 1/u button.

4. “AGING” is displayed on the fluorescent display tube briefly.

5. When the aging mode is set, the CD mark and MD mark on the fluorescent tube blink.

6. Pressing the ^ (CD) button starts aging. Operations are performed in the following sequence during aging.

Reading of TOC

Playback of first track

Playback of last track

CD tray open

CD tray close

7. To end aging, while pressing the PLAY MODE/TUNING MODE button and ^ (CD) button, press the 1/u button. (Hot reset is executed.)

Error History Display Mode

Mode for checking the history of errors which have occurred in the CD player. Execute this mode after ending the aging mode.

Procedure:

1. Press the FUNCTION button, and set the function to “CD”.

2. While pressing the p (MD) button and )+/MD/CD/TUNING+ button, press the 1/u button.

3. “EMC@@EDC**” id displayed. @@ : Number of mechanism errors (Past 3 errors) ** : Number of errors (NO DISC ERROR) which occurred after chucking (Past 3 errors)

4. T o check the history of mechanism errors, press the PLA Y MODE/TUNING MODE button, and to check BD errors, press the REPEAT/ STEREO/MONO button, and switch the display.

5. To end, press the 1/u button and turn OFF the power.

6. To erase the error history, perform COLD reset. (While pressing the PLAY MODE/TUNING MODE button and p (CD) button, press the 1/u button.)

• Reading the Mechanism Error History Display

(To switch the history, press the PLAY MODE/TUNING MODE button.)

Display E@@M**#*$*

@@: Error number. 00 is the latest *: Invalid #: Load in operations related

D: Operations stopped due to problems other than mechanism related during CLOSE E: Operations stopped due to problems other than mechanism related during OPEN C: Operations stopped due to problems other than mechanism related during chucking up

$: Load out operations related

1: Operations stopped during chucking up 2: Operations stopped during chucking down

• Reading the BD Error History Display

(To switch the history, press the REPEAT/STEREO/MONO button.)

Display E@@D##SS%*

@@: Error number. 00 is the latest ##: Error details

01: Focus error 02: GFS error 03: Setup error

$$: Retry performed/not performed

00: Determined as NO DISC without chucking retry 02: Determined as NO DISC after chucking retry

%: State when determined as NO DISC

1: When stopped 2: During setup 3: During TOC READ 4: During access 5: During playback 6: During PAUSE 7: During manual search (during playback) 8: During manual search (during Pause)

*: Invalid

JIG FOR CHECKING BD (MD) BOARD WAVEFORM

The special jig (J-2501-149-A) is useful for checking the waveform of the BD (MD) board. The names of terminals and the checking items to be performed are shown as follows.

GND : Ground I+3V : For measuring IOP (Check the deterioration of the optical pick-up laser) IOP : For measuring IOP (Check the deterioration of the optical pick-up laser) TEO : TRK error signal (Traverse adjustment) VC : Reference level for checking the signal RF : RF signal (Check jitter)

Mechanism deck

TEO

IOP

I+3V

GND

TEO

CN110

6P connecto

5P connector

RF VC TEO For MDMIOP I+3V

IOP

I+3V

GND

VC RF TEO

For MDM-5

IOP I+3V

GND

IOP DATA RECORDING AND DISPLAY WHEN OPTICAL PICK-UP AND NON-V OLATILE MEMORY (IC171 OF BD (MD) BOARD) ARE REPLACED

The IOP value labeled on the optical pick-up can be recorded in the non-volatile memory. By recording the value, it will eliminate the need to look at the value on the label of the optical pick-up. When replacing the optical pick-up or non-volatile memory (IC171 of BD (MD) board), record the IOP value on the optical pick-up according to the following procedure.

Record Precedure:

1. When the power ON, press the 1/u button while pressing the p (MD) button and r (REC) button together.

2. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button to display “[Service]”, and press the ENTER/ YES “R” button.

3. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button to display “ lop. Write”, and press the ENTER/ YES “R” button.

4. The display becomes “Ref=@@@.@” (@ is an arbitrary number) and the numbers which can be changed will blink.

5. Input the IOP value written on the optical pick-up. To select the number :Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button. To select the digit : Press the SYNC REC button.

6. When the ENTER/YES “R” button is pressed, the display becomes “Measu=@@@.@” (@ is an arbitrary number).

7. As the adjustment results are recorded for the 6 value. Leave it as it is and press the ENTER/YES “R” button.

8. “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop Write”.

9. Press the REPEAT STEREO/MONO button to complete. “Standby” will be displayed.

Display Precedure:

1. When the power ON, press the 1/u button while pressing the p (MD) button and r (REC) button together.

2. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button to display “[Service]”, and press the ENTER/ YES “R” button.

3. Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button to display “lop.Read”.

4. “@@.@/##.#” is displayed and the recorded contents are displayed. @@.@ : indicates the Iop value labeled on the pick-up. ##.# : indicates the Iop value after adjustment

5. To end, press the SYNC REC button or MENU/NO “R” button to display “Iop Read”. Then press the REPEAT STEREO/MONO button to display “Standby”.

CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS

Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent. Details of the procedures are described in “5 Electrical Adjustments”.

Laser power check (5-6-2 : See page 33)

Traverse check (5-6-3 : See page 33) Focus bias check (5-6-4 : See page 34)

C PLAY check (5-6-5 : See page 34)

Self-recording/playback check (REC/PLAY) (5-6-6 : See page 34)

TEMP check (Temperature compensation offset check) (5-6-1 : See page 33)

Criteria for Determination (Unsatisfactory if specified value is not satisfied)

• 0.9 mW power Specified value : 0.84 to 0.92 mW

• 7.0 mW power Specified value : 6.8 to 7.2 mW lop (at 7mW)

• Labeled on the optical pickup Iop value ± 10mA

• Traverse waveform Specified value : Below 10% offset

• Error rate check Specified value : For points a, b, and c C1 error : Below 220 AD error : Below 2

• Error rate check Specified value: a.When using test disc (MDW-74/AU-1)

C1 error : Below 80 AD error : Below 2

b.When using check disc (TDYS-1)

C1 error : Below 50

• CPLAY error rate check Specified value: C1 error : Below 80 AD error : Below 2

• Unsatisfactory if displayed as T=@@ (##) [NG]” NG (@@, ## are both arbitrary numbers)

Measure if unsatisfactory:

• Clean the optical pick-up

• Adjust again

• Replace the optical pick-up

If always unsatisfactory:

• Replace the overwrite head

• Check for disconnection of the circuits around the overwrite head

If occasionally unsatisfactory:

• Check if the overwrite head is distorted

• Check the mechanism around the sled

• Check for disconnection of the circuits around D101 (BD board)

• Check the signals around IC101, IC121, CN102, CN103 (BD board)

Note:

The criteria for determination above is intended merely to determine if satisfactory or not, and does not serve as the specified value for adjustments. When performing adjustments, use the specified values for adjustments.

FORCED RESET

The system microprocessor can be reset in the following procedure. Use these procedure when the unit cannot be operated normally due to the overrunning of the microprocessor, etc.

Procedure :

Press the S101 ( RESET button of the back panel) on the MAIN board.

[MAIN BOARD] (Component Side)

SET REAR PANEL

S101

RESET button

RETRY CAUSE DISPLAY MODE

• In this test mode, the causes for retry of the unit during recording can be displayed on the fluorescent indicator tube. During playback, the “track mode” for obtaining track information will be set. This is useful for locating the faulty part of the unit.

• The following will be displayed : During recording and stop: Retry cause, number of retries, and number of retry errors. During playback : Information such as type of disc played, part played, copyright. These are displayed in hexadecimal.

Precedure:

1. Load a recordable disc whose contents can be erased into the unit.

2. Press the MENU/NO “R” button. When “Edit/Menu” is displayed on the fluorescent indicator tube, press the =0/MD/CD/

TUNING – button or )+/MD/CD/TUNING + button to display “All Erase?”.

3. Press the ENTER/YES “R” button.

4. When “All Erase??” is displayed on the fluorescent indicator tube, the music calendar number blinks.

5. Press the ENTER/YES “R” button to display “Complete!!”, and press the p (MD) button immediately. W ait for about 10 seconds while

pressing the button.

6. When the “TOC” displayed on the fluorescent display tube goes off, release the p (MD) button.

7. Press the r REC button to start recording. Then press the ^ (MD) button and start recording. If recording cannot be performed, press

the FUNCTION button and set a different section.

8. To check the “track mode”, press the ^ (MD) button to start play.

9. To exit the test mode, press the 1/u button, and turn OFF the power. When “T OC” disappears, disconnect the power plug from the outlet.

If the test mode cannot be exited, refer to “Forced Reset” on page 8.

Fig. 1 Reading the Test Mode Display (During recording and stop)

RTs@@c##c**

Fluorescent display tube display

@@ : Cause of retry ## : Number of retries ** : Number of retry errors

Lower Bits

Hexadecimal

Bit

Binary

Higher Bits

84218421

b7 b6 b5 b4 b3 b2 b1 b0

00000001

00000010

00000100 00001000 00010000 00100000 01000000 10000000

Hexa-

decimal

04 08 10 20 40 80

Fig. 2 Reading the Test Mode Display (During playback)

@@####**$$

Fluorescent display tube display

@@ : Parts No. (name of area named on TOC) ## : Cluster ** : Sector $$ : Track mode (Track information such as copyright infor-

Reading the Retry Cause Display

Cause of Retry Occurring conditions

shock

ader5

Discontinuous address DIN unlock FCS incorrect IVR rec error CLV unlock Access fault

} Address (Physical address on disc)

mation of each part)

When track jump (shock) is detected When ADER was counted more than five times continuously When ADIP address is not continuous When DIN unlock is detected When not in focus When ABCD signal level exceeds the specified range When CLV is unlocked When access operation is not performed normally

Reading the Display:

Convert the hexadecimal display into binary display. If more than two causes, they will be added.

Example

When 42 is displayed: Higher bit : 4 = 0100 n b6 Lower bit : 2 = 0010 n b1 In this case, the retry cause is combined of “CLV unlock” and “ader5”.

When A2 is displayed: Higher bit : A = 1010 n b7+b5 Lower bit : 2 = 0010 n b2 The retry cause in this case is combined of “access fault”, “IVR rec error”, and “ader5”.

Reading the Track Mode Display

Higher Bits Lower Bits

Hexadecimal

Bit

Binary

Reading the Display:

Convert the hexadecimal display into binary display. If more than two causes, they will be added.

Example When 84 is displayed:

Higher bit : 8 = 1000 n b7 Lower bit : 4 = 0100 n b2 In this case, as b2 and b7 are 1 and others are 0, it can be determined that the retry cause is combined of “emphasis OFF”, “monaural”, “original”, “copyright exists”, and “write allowed”.

Example When 07 is displayed:

Higher bit : 0 = 1000 n All 0 Lower bit : 7 = 0111 n b0+b1+b2 In this case, as b0, b1, and b2 are 1 and others are 0, it can be determined that the retry cause is combined of “emphasis ON”, “stereo”, “original”, “copyright exists”, and “write prohibited”.

84218421

b7 b6 b5 b4 b3 b2 b1 b0

00000001 00000010 00000100 00001000 00010000 00100000 01000000 10000000

Hexa-

decimal

01 02 04 08 10 20 40 80

When 0 When 1

Emphasis OFF Monaural This is 2-bit display. Normally 01. 01:Normal audio. Others:Invalid Audio (Normal) Original Copyright Write prohibited

Details

Emphasis ON Stereo

Invalid Digital copy No copyright Write allowed

Hexadecimal n Binary Conversion Table

Hexadecimal Binary Hexadecimal Binary

0 1 2 3 4 5 6 7

0000 0001 0010 0011 0100 0101 0110 0111

9 A B C D E

1000 1001 1010 1011 1100 1101 1110 1111

Front Panel

SECTION 2

GENERAL

21 20

18 17 16

9 10

LOCATION OF PARTS AND CONTROLS

1 1/u (power) switch 2 MD slot 3 6 (Eject) (MD) button 4 MD indicator 5 (P (MD) button 6 p (MD) button 7 VOLUME (CD) knob 8 (P (CD) button 9 p (CD) button 10 TUNER/BAND button 11 FUNCTION button 12 MD/CD =0/)+ + button 13 MD/CD =0/)+ – button 14 CD indicator 15 6 (CD) button 16 LINE IN jack 17 r REC button 18 CD/MD SYNC button 19 Disc tray 20 REPEAT, STEREO/MONO button 21 PLAY MODE/TUNING MODE button 22 PHONES jack 23 Remote sensor 24 Display window

This section is extracted from instruction manual.

SECTION 3

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

Case (Page 19)

Front panel (Page 20)

Back panel (Page 20)

CD base unit section (Page 22)

MD mechanism deck (Page 23)

Main board and Power transformer (Page 21)

Optical pick-up (CD) (Page 22)

BD (CD) board Sled motor (M102) Spindle motor (M101) (Page 23)

Tray, Gear and Cam section (Page 22)

MD base unit BD (MD) board (Page 24)

Slider (CAM) (Page 24)

Over write head section Optical pick-up (MD) (Page 25)

Sled motor (M902) Spindle motor (M901) (Page 25)

Note: Follow the disassembly procedure in the numerical order given.

3-1. CASE

Two screws

(Case 3 TP2)

Case

Two screws

(Case 3 TP2)

3-2. FRONT PANEL

Front panel block

(Two claws)

Claw

Screw

(BVTT 3x6)

Flat type wire

(31 core)

Claw

Screw

(BVTT 3x6)

Claw

Ground wire (Red)

Screw

(BVTT 3x10)

Screw

(BVTT 3x6)

(25 core)

Ground wire (Black)

MD mechanism bloc

Flat type wire

3-3. BACK PANEL

Claw

Back panel

(Two claws)

Claw

Hole

Three screws

(BVTP 3x10)

Claw

Four screws

(BVTP 3x10)

3-4. MAIN BOARD AND POWER TRANSFORMER

Connector (2P)

!™

Power transformer

Screw

(BVTP 3x6)

Amp board (CN801)

Connector (2P)

Connector (4P)

Connector (Amp board, CN801)

(Take note of the claw)

Screw

(BVTP 3x6)

Connector (3P)

3-5. CD MECHANISM DECK

Flat type wire

(15 core)

Flat type wire

(19 core)

!¡

Four screws

(BVTT 3x6)

Screw

(BVTT 3x6)

Two screws

(BVTT 3x6)

Holder (MDM)

SP board

Power board

Main board

CD mechanism deck

(Two claws)

Connector (5P)

Two claws

(BVTT 3x6)

Screw

(BVTT 3x6)

Flat type wire

(19 core)

3-6. TRAY, GEAR AND CAM

Push the claw in tne

direction of arrow

Gear (B)

Roller

Bushing

Cam (CDM55)

Belt (CDM55)

Pulley (LDG)

Gear (A)

Pull out the tray in the arrow direction A,

and release the lock while pressing

this claw in the arrow direction

3-7. CD BASE UNIT

Floating screw

(PTPWH M2.6)

Pull out the tray.

Remove the Holder (BU) assembly

in the direction of arrow A.

Release

3-8. OPTICAL PICK-UP SECTION OF CD

(KSS-213BA/F-NP)

Optical pick-up (for CD)

Release the lever in the

arrow direction

Sled shaft

Flat type wire

(16 core)

3-9. BD (CD) BOARD, SPINDLE MOTOR (M101) AND SLED MOTOR (M102)

)

Gear (M)

Flatness gear (P)

Sled motor

Two Insulators (BU)

!¡

Spindle motor

(M101)

Sled shaft

Two Insulators (BU)

BD (CD) board

Two screws

(P 2x3)

(M102)

Screw

(BVTP 2.6x8)

Remove the four solders.

M101

IC102

M102

IC103

IC101

3-10. MD MECHANISM DECK

(BVTPWH M3)

MD mechanism deck

Two Step screws

Flat type wire

(21 core)

Bracket (MDM

Two Step screws

(BVTPWH M3)

Connector (7P)

Flat type wire

(23 core)

3-11. SLIDER (CAM)

Slider (CAM)

• Note for installation of Slider (CAM)

Bracket (GUIDE L)

Two screws

(BTP 2.6x6)

Leaf spring

When attaching the slider (cam), this part of the over write head should be inside arrow

Bracket (GUIDE R)

3-12. BASE UNIT (MBU-5A) AND BD (MD) BOARD

Set the shaft of Cam gear to be at the position in the figure.

Set the shaft of Lever (O/C) to be at the position in the figure.

Two screws

(BTP 2.6x6)

Flexible board

CN104

CN101

(M 1.7x4)

CN110

Screw

Three screws

(BTP 2.6x6)

BD (MD) board

Base unit (MBU-5A)

Spindle motor

Sled motor

Remove the two solders.

Remove the two solders. Read wire's color Red : + Black :

3-13. OVER WRITE HEAD

Spindle motor

(M901)

Sled motor

(M902)

Three screws

(B 2x5)

Two screws

(P 1.7x2.5)

Screw (M1.7)

Gear (SL-B)

Gear (SL-A)

The BD (MD) board is soldered at two parts. (See page 24.)

Screw (P 1.7x6)

Over write head

(HR901)

Flexible board

3-14. OPTICAL PICK-UP OF MD (KMS-260B/J1N)

Note: Turn the optical pick-up inside out, and pull out the flexible board.

Main shaft

Screw (B 2x8)

Optical pick-up (for MD)

Leaf spring (SHAFT)

Flexible board

3-15. SPINDLE MOTOR (M901) AND SLED MOTOR (M902) (MD)

SECTION 4

TEST MODE

4-1. PRECAUTIONS FOR USE OF TEST MODE

• As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it. Even if the 6 (MD) button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will not stop rotating. Therefore, it will be ejected while rotating. Be sure to press the 6 (MD) button after pressing the MENU/NO “R” button and the rotation of disc is stopped.

4-1-1. Recording laser emission mode and operating buttons

• Continuous recording mode (CREC MODE)

• Laser power check mode (LDPWR CHECK)

• Laser power adjustment mode (LDPWR ADJUST)

• Traverse (MO) check (EF MO CHECK)

• Traverse (MO) adjustment (EF MO ADJUST)

• When pressing the rREC button.

4-2. SETTING THE TEST MODE

The following are two methods of entering the test mode. Procedure 1:Press the FUNCTION button, and set the function to “MD”. When the power ON, press the 1/u button while pressing the p

(MD) button and r REC button together. When the test mode is set, “[Check]” will be displayed. Pressing the =0/MD/CD/TUNING – button or )+/MD/ CD/TUNING + button switches between the following four groups; ···Nn Check Nn Adjust Nn Service Nn Develop Nn ···.

Procedure 2:Press the FUNCTION button, and set the function to “MD”. When the power ON, press the 1/u button while pressing the p

(MD) button and SYNC REC button together. When the test mode is set, “TEMP CHECK” will be displayed. By setting the test mode using this procedure, only the “Check” group of procedure 1 can be executed.

4-3. EXITING THE TEST MODE

Press the REPEAT/STEREO/MONO button.

4-4. BASIC OPERATIONS OF THE TEST MODE

All operations are performed using the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button, ENTER/YES “R” button, and MENU/NO “R” button. The functions of these buttons are as follows.

Function name

=0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button ENTER/YES “R” button MENU/NO “R” button

Changes parameters and modes Proceeds onto the next step. Finalizes input. Returns to previous step. Stops operations.

Function

4-5. SELECTING THE TEST MODE

There are 31 types of test modes as shown below. The groups can be switched by pressing the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button. After selecting the group to be used, press the ENTER/YES “R” button. After setting a certain group,

pressing the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button switches between these modes. Refer to “Group” in the table for details selected. All items used for servicing can be treated using group S. So be carefully not to enter other groups by mistake.

Display

TEMP CHECK LDPWR CHECK EF MO CHECK EF CD CHECK FBIAS CHECK S curve CHECK VERIFY MODE DETRK CHECK TEMP ADJUST LDPWR ADJUST EF MO ADJUST EF CD ADJUST FBIAS ADJUST EEP MODE MANUAL CMD SVDATA READ ERR DP MODE SLED MOVE ACCESS MODE 0920 CHECK HEAD ADJUST CPLAY2 MODE CREC2 MODE ADJ CLEAR AG Set (MO) AG Set (CD) Iop Read Iop Write INFORMATION CPLAY MODE CREC MODE

Contents

Temperature compensation offset check Laser power check Traverse (MO) check Traverse (CD) check Focus bias check S letter check Non-volatile memory check Detrack check Temperature compensation offset adjustment Laser power adjustment Traverse (MO) adjustment Traverse (CD) adjustment Focus bias adjustment Non-volatile memory control Command transmission Status display Error history display, clear Sled check Access check Outermost circumference check Head position check Same functions as CPLAY MODE Same functions as CREC MODE Initialization of non-volatile memory of adjustment value Auto gain output level adjustment (MO) Auto gain output level adjustment (CD) IOP data display IOP data write Microprocessing version display Continuous play mode Continuous recording mode

Mark

(X) (X) (X)

(X) (!) (X) (X)

(X) (X) (X) (X) (X) (X)

Group (*)

CS C S CS CS CS C C C

AS AS AS AS AS

D D D

D D D D D

D AS AS AS

CS CASD CASD

Group (*)

C: Check S: Service

A: Adjust D: Develop

• For details of each adjustment mode, refer to “5. Electrical Adjustments”. For details of “ERR DP MODE”, refer to “Self-Diagnosis Function” on page 2.

• If a different mode has been selected by mistake, press the MENU/NO “R” button to exit that mode.

• Modes with (X) in the Mark column are not used for servicing and therefore are not described in detail. If these modes are set accidentally, press the MENU/NO “R” button to exit the mode immediately . Be especially careful not to set the modes with (!) as they will o verwrite the non-volatile memory and reset it, and as a result, the unit will not operate normally.

4-5-1. Operating the Continuous Playback Mode

1. Entering the continuous playback mode

1 Set the disc in the unit. (Whichever recordable discs or discs for playback only are available.) 2 Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and display “CPLAY MODE”. 3 Press the ENTER/YES “R” button to change the display to “CPLAY MID”. 4 When access completes, the display changes to “C1 = AD = ”.

Note : The numbers “ ” displayed show you error rates and ADER.

2. Changing the parts to be played back 1 Press the ENTER/YES “R” button during continuous playback to change the display as below.

“CPLAY MID” n “CPLAY OUT” n “CPLAY IN”

When pressed another time, the parts to be played back can be moved.

2 When access completes, the display changes to “C1 = AD = ”. Note : The numbers “ ” displayed show you error rates and ADER.

3. Ending the continuous playback mode

1 Press the MENU/NO “R” button. The display will change to “CPLAY MODE”. 2 Press the 6 (MD) button to remove the disc.

Note : The playback start addresses for IN, MID, and OUT are as follows.

IN 40h cluster MID 300h cluster OUT 700h cluster

4-5-2. Operating the Continuous Recording Mode (Use only when performing self-recording/palyback check.)

1. Entering the continuous recording mode

1 Set a recordable disc in the unit. 2 ress the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and display “CREC MODE”. 3 Press the ENTER/YES “R” button to change the display to “CREC MID”. 4 When access completes, the display changes to “CREC ( )” and r REC indicator lights up.

Note : The numbers “ ” displayed shows you the recording position addresses.

2. Changing the parts to be recorded 1 When the ENTER/YES “R” button is pressed during continuous recording, the display changes as below.

“C REC MID” n “C REC OUT” n “C REC IN”

When pressed another time, the parts to be recorded can be changed. r REC indicator goes off.

2 When access completes, the display changes to “CREC ( )” and r REC indicator lights up. Note : The numbers “ ” displayed shows you the recording position addresses.

3. Ending the continuous recording mode

1 Press the MENU/NO “R” button. The display changes to “CREC MODE” and r REC indicator goes off. 2 Press the 6 (MD) button to remove the disc.

Note 1 : The recording start addresses for IN, MID, and OUT are as follows.

IN 40h cluster MID 300h cluster OUT 700h cluster

Note 2 : The MENU/NO “R” button can be used to stop recording anytime. Note 3 : Do not perform continuous recording for long periods of time above 5 minutes. Note 4 : During continuous recording, be careful not to apply vibration.

4-5-3. Non-Volatile Memory Mode (EEP MODE)

This mode reads and writes the contents of the non-volatile memory. It is not used in servicing. If set accidentally, press the MENU/NO “R” button immediately to exit it.

4-6. FUNCTIONS OF OTHER BUTTONS

Mode display

Error rate display

Address display

Auto gain display (Not used in servicing)

Detrack check display (Not used in servicing)

IVR display (Not used in servicing)

Function

^ (MD)

p (MD) )+/MD/CD/TUNING + =0/MD/CD/TUNING –

CLEAR “R” PLAY MODE/TUNING MODE DISPLAY “R” 6 (MD) REPEAT/STEREO/MONO

Sets continuous playback when pressed in the STOP state. When pressed during continuous playback, the tracking servo turns ON/OFF. Stops continuous playback and continuous recording. The sled moves to the outer circumference only when this is pressed. The sled moves to the inner circumference only when this is pressed. Switches between the pit and groove modes when pressed. Switches the spindle servo mode (CLV S ˜ CLV A). Switches the displayed contents each time the button is pressed. Ejects the disc Exits the test mode

Contents

Use the remote commander (RM-SJ373/provided with unit: 1-418-554-11) buttons for operations indicated as “R”.

4-7. TEST MODE DISPLAYS

Each time the DISPLAY “R” button is pressed, the display changes in the following order.

1. Mode display

Displays “TEMP ADJUST”, “CPLAYMODE”, etc.

2. Error rate display

Displays the error rate in the following way.

C1 =

AD = C1 = Indicates the C1 error. AD = Indicates ADER.

3. Address display

The address is displayed as follows. (MO:recordable disc, CD:playback only disc) Pressing the CLEAR “R” button switches between the groove display and pit display. h = s = (MO pit and CD) h = a = (MO groove) h = Indicates the header address. s = Indicates the SUBQ address. a = Indicates the ADIP address.

Note: “–” is displayed when servo is not imposed.

4. Auto gain display (Not used in servicing)

The auto gain is displayed as follows. AG = / [ ]

5. Detrack check display (Not used in servicing)

The detrack is displayed as follows. ADR =

6. IVR display (Not used in servicing)

The IVR is displayed as follows. [ ][ ][

MEANINGS OF OTHER DISPLAYS

Display

( (MD) * P (MD) * r REC *

SYNC LEVEL-SYNC OVER 1 REPEAT TRACK DISC SHUFFLE MONO

During continuous playback (CLV: ON) Tracking servo OFF Recording mode ON CLV low speed mode ABCD adjustment completed Tracking offset cancel ON Tracking auto gain OK Focus auto gain OK Pit High reflection CLV S CLV LOCK

When Lit

* Items shown correspond to the indicated button indicators.

Contents

When Off

STOP (CLV: OFF) Tracking servo ON Recording mode OFF CLV normal mode

Tracking offset cancel OFF

Groove Low reflection CL V A CLV UNLOCK

SECTION 5

ELECTRICAL ADJUSTMENTS

MD SECTION 5-1. PARTS REPLACEMENT AND ADJUSTMENT

• Check and adjust the MDM and MBU as follows. The procedure changes according to the part replaced

• Temperature compensation offset check

• Laser power check

• Traverse check

• Focus bias check

• C PLAY check

• Self-recording/playback check

• Abbreviation OP : Optical pick-up OWH: Overwrite head

Parts Replacement and Repair

Has the OWH been replaced?

Has OP, IC171, IC101, or IC121 been replaced?

YES

Initial setting of the adjustment value

Has OP or IC171 been replaced?

Check the sleding and spindle mechanisms. Other causes can be suspected.

YES

IOP information recording (IOP value labeled on OP)

Has IC171 or D101 been replaced?

YES

Temperature compensation offset adjustment

• Laser power adjustment

• Traverse adjustment

• Focus bias adjustment

• Error rate adjustment

• Focus bias check

• Auto gain adjustment

5-2. PRECA UTIONS FOR CHECKING LASER DIODE

EMISSINON

T o check the emission of the laser diode during adjustments, never view directly from the top as this may lose your eye-sight.

5-3. PRECAUTIONS FOR USE OF OPTICAL PICK-

UP (KMS-260B)

As the laser diode in the optical pick-up is easily damaged by static electricity, solder the laser tap of the flexible board when using it. Before disconnecting the connector, desolder first. Before connecting the connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily.

pick-up

laser tap

flexible board

Optical pick-up flexible board

5-4. PRECAUTIONS FOR ADJUSTMENTS

1) When replacing the following parts, perform the adjustments and checks with ¬ in the order shown in the following table.

D101

BD Board

IC101, IC121

IC192

1. Initial setting of adjustment value

2.Recording of IOP information (Value written in the pick-up)

3.Temperature compensation offset adjustment

Optical

Pick-up

IC171

¬G¬¬

¬G¬GG

¬¬GGG

4) Use the following tools and measuring devices.

• Check Disc (MD) TDYS-1 (Parts No. 4-963-646-01)

• Test Disk (MDW-74/AU-1) (Parts No. 8-892-341-41)

• Laser power meter LPM-8001 (Parts No. J-2501-046-A)

MD Laser power meter 8010S (Parts No. J-2501-145-A)

• Oscilloscope (Measure after performing CAL of prove.)

• Digital voltmeter

• Thermometer

• Jig for checking BD board waveform (Parts No. : J-2501-149-A)

5) When observing several signals on the oscilloscope, etc., make sure that VC and ground do not connect inside the oscilloscope. (VC and ground will become short-circuited.)

6) Using the above jig enables the waveform to be checked without the need to solder. (Refer to Servicing Note on page 6.)

7) As the disc used will affect the adjustment results, make sure that no dusts nor fingerprints are attached to it.

Note:

When performing laser power checks and adjustment (electrical adjustment), use of the new MD laser power meter 8010S (J-2501145-A) instead of the conventional laser power meter is convenient. It sharply reduces the time and trouble to set the laser power meter sensor onto the objective lens of the optical pick-up.

5-5. CREATING CONTINUOUSLY RECORDED DISC

* This disc is used in focus bias adjustment and error rate check.

The following describes how to create a continuous recording disc.

1. Insert a disc (blank disc) commercially available.

2. press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CREC MODE”.

3. Press the ENTER/YES “R” button again to display “CREC MID”. Display “CREC (0300)” and start to recording.

4. Complete recording within 5 minutes.

5. Press the MENU/NO “R” button and stop recording .

6. Press the 6 (MD) button and remove the disc.

The above has been how to create a continuous recorded data for the focus bias adjustment and error rate check.

Note :

• Be careful not to apply vibration during continuous recording.

4.Laser power adjustment

5.Traverse adjustment

6.Focus bias adjustment

7.Error rate check

8. Auto gain output level adjustment

¬G¬¬¬

¬G¬¬G

2) Set the test mode when performing adjustments. After completing the adjustments, exit the test mode. Perform the adjustments and checks in “group S” of the test mode.

3) Perform the adjustments to be needed in the order shown.

5-6. CHECKS PRIOR TO REPAIRS

Specified value : Below 10% offset value

Offset value (%) = X 100

A – B

2 (A + B)

Specified value : Below 10% offset value

Offset value (%) = X 100

A – B

2 (A + B)

These checks are performed before replacing parts according to “approximate specifications” to determine the faulty locations. For details, refer to “Checks Prior to Parts Replacement and Adjustments” (See page 13).

5-6-1. Temperature Compensation Offset Check

When performing adjustments, set the internal temperature and room temperature to 22 to 28°C.

5. Press the MENU/NO “R” button and display “LDPWR CHECK” and stop the laser emission. (The MENU/NO “R” button is effective at all times to stop the laser emission.)

Note 1: After step 4, each time the ENTER/YES “R” button is

pressed, the display will be switched between “LD 0.7 mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”. Nothing needs to be performed here.

Checking Procedure:

1. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “TEMP CHECK”.

2. Press the ENTER/YES “R” button.

3. “T=@@(##) [OK]” should be displayed. If “T=@@ (##) [NG]” is displayed, it means that the results are bad. (@@ indicates the current value set, and ## indicates the value written in the non-volatile memory.)

5-6-2. Laser Power Check

Before checking, check the IOP value of the optical pick-up. (Refer to 5-8. Recording and Displaying IOP Information.)

Laser power meter

Optical pick-up objective lens

Digital volt mete

BD (MD) board

CN110 pin

(I+3V)

(IOP)

Connection : Checking Procedure:

1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the =0/ MD/CD/TUNING – button or )+/MD/CD/TUNING + button continuously to move the optical pick-up.) Connect the digital volt meter to CN110 pin 5 (I+3V) and CN110 pin 4 (IOP).

2. Then, press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and display “LDPWR CHECK”.

3. Press the ENTER/YES “R” button once and display “LD 0.9 mW $ ”. Check that the reading of the laser power meter become 0.84 to 0.92 mW.

4. Press the ENTER/YES “R” button once more and display “LD

7.0 mW $ ”. Check that the reading the laser power meter and digital volt meter satisfy the specified value.

Specified Value :

Laser power meter reading : 7.0 ± 0.2 mW Digital voltmeter reading : Optical pick-up displayed value ± 10%

5-6-3. T raverse Check

Connection :

Oscilloscope

BD (MD) board

CN110 pin

(TE)

(VC)

V : 0.5 V/div H : 10 ms/div Input : DC mod

Checking Procedure:

1. Connect an oscilloscope to CN110 pin 3 (TE) and CN110 pin 1 (VC) of the BD (MD) board.

2. Load a disc (any available on the market). (Refer to Note 1.)

3. Press the )+/MD/CD/TUNING + button continuously and move the optical pick-up outside the pit.

4. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “EF MO CHECK”.

5. Press the ENTER/YES “R” button and display “EFB = MOR”. (Laser power READ power/Focus servo ON/tracking servo OFF/ spindle (S) servo ON)

6. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the =0/MD/CD/ TUNING – button or )+/MD/CD/TUNING + button. (Read power traverse checking)

(Traverse Waveform)

7. Press the ENTER/YES “R” button and display “EFB = MOW”.

8. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the =0/MD/CD/ TUNING – button or )+/MD/CD/TUNING + button. (Write power traverse checking)

(Traverse Waveform)

(Optical pick-up label)

KMS

260A 27X40 B0825

Iop = 82.5 mA in this case Iop (mA) = Digital voltmeter reading (mV)/1 (Ω)

(For details of the method for checking this value, refer to “5-8. Recording and Displaying IOP Information”.)

9. Press the ENTER/YES “R” button display “EFB = MO-P”.

Then, the optical pick-up moves to the pit area automatically and servo is imposed.

10. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the =0/MD/CD TUNING– button or )+/MD/CD/TUNING+ button.

(Traverse Waveform)

Specified value : Below 10% offset value

A – B

Offset value (%) = X 100

2 (A + B)

11. Press the ENTER/YES “R” button display “EF MO CHECK” The disc stops rotating automatically.

12. Press the 6 (MD) button and remove the disc.

13. Load the check disc (MD) TDYS-1.

14. Press the )+/MD/CD/TUNING + button and display “EF CD CHECK”.

15. Press the ENTER/YES “R” button and display “EFB = CD”. Servo is imposed automatically.

16. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the =0/MD/CD TUNING– button or )+/MD/CD/TUNING+ button.

(Traverse W aveform)

5-6-4. Focus Bias Check

Change the focus bias and check the focus tolerance amount.

Checking Procedure :

1. Load a test disk (MDW-74/AU-1).

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button twice and display “CPLAY MID”.

4. Press the MENU/NO “R” button when “C1 = AD = ” is displayed.

5. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “FBIAS CHECK”.

6. Press the ENTER/YES “R” button and display “ / c =

”. The first four digits indicate the C1 error rate, the two digits after “/” indicate ADER, and the 2 digits after “c =” indicate the focus bias value. Check that the C1 error is below 220 and ADER is below 2.

7. Press the ENTER/YES “R” button and display “ / b = ”.

Check that the C1 error is below 220 and ADER is below 2.

8. Press the ENTER/YES “R” button and display “ / a = ”.

Check that the C1 error is below 220 and ADER is below 2.

9. Press the MENU/NO “R” button, next press the 6 (MD) but-

ton, and remove the test disc.

5-6-5. C PLAY Checking

MO Error Rate Check

Checking Procedure :

1. Load a test disk (MDW-74/AU-1).

2. Press the =0/MD/CD/TUNING – button or )+/

MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button and display “CPLAY MID”.

4. The display changes to “C1 =

AD = ”.

5. If the C1 error rate is below 80, check that ADER is below 2.

6. Press the MENU/NO “R” button, stop playback, press the 6

(MD) button, and test disc.

Specified value : Below 10% offset value

A – B

Offset value (%) = X 100

2 (A + B)

17. Press the ENTER/YES “R” button and display “EF CD CHECK”.

18. Press the 6 (MD) button and remove the check disc (MD) TDYS-1.

Note 1 : MO reading data will be erased during if a recorded disc is

used in this adjustment.

Note 2 : If the traverse waveform is not clear, connect the oscillo-

scope as shown in the following figure so that it can be seen more clearly.

Oscilloscop

330 k

BD (MD) board CN110 pin CN110 pin

(TE)

(VC)

Ω

10pF

CD Error Rate Check

Checking Procedure :

1. Load a check disc (MD) TDYS-1.

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button twice and display “CPLAY MID”.

4. The display changes to “C1 = AD = ”.

5. Check that the C1 error rate is below 50.

6. Press the MENU/NO “R” button, stop playback, press the 6 (MD) button, and the test disc.

5-6-6. Self-Recording/playback Check

Prepare a continuous recording disc using the unit to be repaired and check the error rate.

Checking Procedure :

1. Insert a recordable disc (blank disc) into the unit.

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “CREC MODE”.

3. Press the ENTER/YES “R” button to display the “CREC MID”.

4. When recording starts, r REC indicator lights up displayed, this becomes “CREC (@@@@)" (@@@@ is the address), and recording starts.

5. About 1 minute later, press the MENU/NO “R” button to stop continuous recording.

6. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “C PLAY MODE”.

7. Press the ENTER/YES “R” button to display “C PLAY MID”.

8. “C1 = AD = ” will be displayed.

9. Check that the C1 error becomes below 80 and the AD error below 2.

10. Press the MENU/NO “R” button to stop playback, and press

the 6 (MD) button and remove the disc.

5-7. INITIAL SETTING OF ADJUSTMENT VALUE

Note:

Mode which sets the adjustment results recorded in the non-volatile memory to the initial setting value. However the results of the temperature compensation offset adjustment will not change to the initial setting value. If initial setting is performed, perform all adjustments again excluding the temperature compensation offset adjustment. For details of the initial setting, refer to “5-4. Precautions on Adjustments” and execute the initial setting before the adjustment as required.

Setting Procedure :

1. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “ADJ CLEAR”.

2. Press the ENTER/YES “R” button. “Complete!” will be displayed momentarily and initial setting will be executed, after which “ADJ CLEAR” will be displayed.

5-8. RECORDING AND DISPLAYING THE IOP

INFORMATION

The IOP data can be recorded in the non-volatile memory . The IOP value on the label of the optical pickup and the IOP value after the adjustment will be recorded. Recording these data eliminates the need to read the label on the optical pick-up.

Recording Procedure :

1. When the power ON, press the 1/u button while pressing the p (MD) button and r (REC) button together.

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “[Service]”, and press the ENTER/YES “R” button. (If nothing is displayed, press the FUNCTION button and set the function to “MD”.

3. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “Iop.Write”, and press the ENTER/YES “R” button.

4. The display becomes Ref=@@@.@ (@ is an arbitrary number) and the numbers which can be changed will blink.

5. Input the IOP value written on the optical pick-up. T o select the number : Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button. To select the digit : Press the SYNC REC button.

6. When the ENTER/YES “R” button is pressed, the display becomes “Measu=@@@.@” (@ is an arbitrary number).

7. As the adjustment results are recorded for the 6 value. Leave it as it is and press the ENTER/YES “R” button.

8. “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop Write”.

Display Procedure :

1. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “Iop.Read”.

2. When the ENTER/YES “R” button is pressed, “@@.@/##.#” will be displayed and the recorded contents are displayed. @@.@ indicates the Iop value labeled on the pick-up. ##.# indicates the Iop value after adjustment

3. T o end, press the SYNC REC button or MENU/NO “R” button to display “Iop Read”.

5-9. TEMPERATURE COMPENSATION OFFSET

ADJUTMENT

Save the temperature data at that time in the non-volatile memory as 25 ˚C reference data.

Note :

1. Usually, do not perform this adjustment.

2. Perform this adjustment in an ambient temperature of 22 ˚C to 28 ˚C. Perform it immediately after the power is turned on when the internal temperature of the unit is the same as the ambient temperature of 22 ˚C to 28 ˚C.

3. When D101 has been replaced, perform this adjustment after the temperature of this part has become the ambient temperature.

Adjusting Procedure :

1. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “TEMP ADJUST”.

2. Press the ENTER/YES “R” button and select the “TEMP ADJUST” mode.

3. “TEMP = [OK]” and the current temperature data will be displayed.

4. To save the data, press the ENTER/YES “R” button. When not saving the data, press the MENU/NO “R” button.

5. When the ENTER/YES “R” button is pressed, “TEMP = SAVE” will be displayed and turned back to “TEMP ADJUST” display then. When the MENU/NO “R” button is pressed, “TEMP ADJUST” will be displayed immediatelly.

Specified Value :

The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 0F”, “10 - 1F” and “20 - 2F”.

5-10. LASER POWER ADJUSTMENT

Check the IOP value of the optical pick-up before adjustments. (Refer to 5-8. Recording and Displaying IOP Information.)

Connection :

Laser power meter

Optical pick-up objective lens

Digital volt mete

BD (MD) board

CN110 pin

(I+3V)

(IOP)

Adjusting Procedure :

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “LDPWR ADJUST”. (Laser power : For adjustment)

3. Press the ENTER/YES “R” button once and display “LD 0.9 mW $

”.

4. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button so that the reading of the laser power meter becomes 0.85 to 0.91 mW. Press the ENTER/YES “R” button after setting the range knob of the laser power meter, and save the adjustment results. (“LD SAVE $ ” will be displayed for a moment.)

5. Then “LD 7.0 mW $ ” will be displayed.

6. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button so that the reading of the laser power meter becomes 6.9 to 7.1 mW , press the ENTER/YES “R” button and save it.

Note : Do not perform the emission with 7.0 mW more than 15

seconds continuously.

7. Then, Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button and display “LDPWR CHECK”.

8. Press the ENTER/YES “R” button once and display “LD 0.9 mW $ ”. Check that the reading of the laser power meter become 0.85 to 0.91 mW.

9. Press the ENTER/YES “R” button once more and display “LD

7.0 mW $ ”. Check that the reading the laser power meter and digital volt meter satisfy the specified value. Note down the digital voltmeter reading value.

Specified Value :

Laser power meter reading : 7.0 ± 0.1 mW Digital voltmeter reading : Optical pick-up displayed value ± 10%

(Optical pick-up label)

KMS

260A 27X40 B0825

Iop = 82.5 mA in this case Iop (mA) = Digital voltmeter reading (mV)/1 (Ω)

(For details of the method for checking this value, refer to “5-8. Recording and Displaying IOP Information”.)

10. Press the MENU/NO “R” button and display “LDPWR CHECK” and stop the laser emission. (The MENU/NO “R” button is effective at all times to stop the laser emission.)

11. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “Iop.Write”.

12. Press the ENTER/YES “R” button. When the display becomes Ref=@@@.@ (@ is an arbitrary number), press the ENTER/ YES “R” button to display “Measu=@@@.@” (@ is an arbitrary number).

13. The numbers which can be changed will blink. Input the Iop value noted down at step 9. To select the number : Press the =0/MD/CD/TUNING – button or )+/MD/CD/TUNING + button. To select the digit : Press the SYNC REC button.

14. When the ENTER/YES “R” button is pressed, “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop Write”.

Note 1: After step 4, each time the ENTER/YES “R” button is

pressed, the display will be switched between “LD 0.7 mW

”, “LD 6.2 mW $ ”, and “LD Wp $ ”.

$ Nothing needs to be performed here.

5-11. TRA VERSE ADJUSTMENT

Connection :

BD (MD) board

CN110 pin

3 1

(TE) (VC)

Adjusting Procedure :

1. Connect an oscilloscope to CN110 pin 3 (TE) and CN110 pin 1 (VC) of the BD board.

2. Load a disc (any available on the market). (Refer to Note 1.)

3. Press the )+/MD/CD/TUNING + button continuously and move the optical pick-up outside the pit.

4. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “EF MO ADJUST”.

5. Press the ENTER/YES “R” button and display “EFB = R”. (Laser power READ power/Focus servo ON/tracking servo OFF/ spindle (S) servo ON)

6. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button so that the waveform of the oscilloscope becomes the specified value. (When the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button is pressed, the of “EFB= ” changes and the waveform changes.) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. (Read power traverse adjustment)

(Traverse Waveform)

Specification A = B

7. Press the ENTER/YES “R” button and save the result of adjustment to the non-volatile memory (“EFB = displayed for a moment. Then “EFB = MO-W” will be displayed).

8. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button so that the waveform of the oscilloscope becomes the specified value. (When the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button is pressed, the of “EFB- ” changes and the waveform changes.) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. (Write power traverse adjustment)

Oscilloscope

V : 0.5 V/div H : 10 ms/div Input : DC mod

MO-

SA VE” will be

(Traverse Waveform)

Specification A = B

9. Press the ENTER/YES “R” button, and save the adjustment

results in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment.)

10. “EFB = MO-P”. will be displayed. The optical pick-up moves to the pit area automatically and servo is imposed.

11. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button until the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible.

(Traverse Waveform)

Specification A = B

12. Press the ENTER/YES “R” button, and save the adjustment results in the non-volatile memory. (“EFB =

SAVE” will be displayed for a moment.) Next “EF MO ADJUST” is displayed. The disc stops rotating automatically.

13. Press the 6 (MD) button and remove the disc.

14. Load the check disc (MD) TDYS-1.

15. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “EF CD ADJUST”.

16. Press the ENTER/YES “R” button and display “EFB = CD”. Servo is imposed automatically.

17. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button so that the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible.

5-12. FOCUS BIAS ADJUSTMENT

Adjusting Procedure :

1. Load a test disk (MDW-74/AU-1).

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button and display “CPLA Y MID”.

4. Press the MENU/NO “R” button when “C1 = AD = ” is displayed.

5. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “FBIAS ADJUS”.

6. Press the ENTER/YES “R” button and display “ / a =

”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [a =] indicate the focus bias value.

7. Press the )+/MD/CD/TUNING + button and find the focus bias value at which the C1 error rate becomes about 200 (Refer to Note 2).

8. Press the ENTER/YES “R” button and display “ / b =

”.

9. Press the =0/MD/CD/TUNING – button and find the focus bias value at which the C1 error rate becomes about 200.

10. Press the ENTER/YES “R” button and display “ / c =

”.

11. Check that the C1 error rate is below 50 and ADER is 00. Then

press the ENTER/YES “R” button.

12. If the “( ” in “ - - ( ” is above 20, press the ENTER/

YES “R” button. If below 20, press the MENU/NO“R” button and repeat the adjustment from step 2.

13. Press the 6 (MD) button to remove the test disc.

Note 1 : The relation between the C1 error and focus bias is as

shown in the following figure. Find points a and b in the following figure using the above adjustment. The focal point position C is automatically calculated from points a and b.

Note 2 : As the C1 error rate changes, perform the adjustment us-

ing the average vale.

C1 error

(Traverse Waveform)

Specification A = B

18. Press the ENTER/YES “R” button, display “EFB = SA VE” for a moment and save the adjustment results in the non-volatile memory. Next “EF CD ADJUST” will be displayed.

19. Press the 6 (MD) button and remove the check disc (MD) TDYS-1.

Note 1 : MO reading data will be erased during if a recorded disc is

used in this adjustment.

Note 2 : If the traverse waveform is not clear, connect the oscillo-

scope as shown in the following figure so that it can be seen more clearly.

BD (MD) board

CN110 pin

(TE)

(VC)

330 k

Ω

Oscilloscop

10pF

about 200

c a Focus bias value

(F. BIAS)

5-13. ERROR RATE CHECK

5-13-1. CD Error Rate Check

5-15. AUTO GAIN CONTROL OUTPUT LEVEL

ADJUSTMENT

Checking Procedure :

1. Load a check disc (MD) TDYS-1.

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button twice and display “CPLAY MID”.

4. The display changes to “C1 = AD = ”.

5. Check that the C1 error rate is below 20.

6. Press the MENU/NO “R” button, stop playback, press the 6 (MD) button, and remove the test disc.

5-13-2. MO Error Rate Check

Checking Procedure :

1. Load a test disc (MDW-74/AU-1).

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button and display “CPLAY MID”.

4. The display changes to “C1 = AD = ”.

5. If the C1 error rate is below 50, check that ADER is 00.

6. Press the MENU/NO “R” button, stop playback, press the 6 (MD) button, and remove the test disc.

5-14. FOCUS BIAS CHECK

Change the focus bias and check the focus tolerance amount.

Checking Procedure :

1. Load a test disc (MDW-74/AU-1).

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “CPLAY MODE”.

3. Press the ENTER/YES “R” button twice and display “CPLAY MID”.

4. Press the MENU/NO “R” button when “C1 = AD = ” is displayed.

5. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button and display “FBIAS CHECK”.

6. Press the ENTER/YES “R” button and display “ / c =

7. Press the ENTER/YES “R” button and display “ / b = ”.

Check that the C1 error is below 220 and ADER is below 2.

8. Press the ENTER/YES “R” button and display “ / a = ”.

Check that the C1 error is below 220 and ADER is below 2

9. Press the MENU/NO “R” button, next press the 6 (MD) but-

ton, and remove the test disc.

Be sure to perform this adjustment when the pickup is replaced. If the adjustment results becomes “Adjust NG!”, the pickup may be faulty or the servo system circuits may be abnormal.

5-15-1. CD Auto Gain Control Output Level Adjustment

Adjusting Procedure :

1. Insert the check disc (MD) TDYS-1.

2. Press the =0/MD/CD/TUNING – button or )+/ MD/CD/TUNING + button to display “AG Set (CD)”.

3. When the ENTER/YES “R” button is pressed, the adjustment will be performed automatically. “Complete!!” will then be displayed momentarily when the value is recorded in the non-volatile memory, after which the display changes to “AG Set (CD)”.

4. Press the 6 (MD) button to remove the disc.

5-15-2. MO Auto Gain Control Output Level Adjustment

Adjusting Procedure :

1. Insert the reference disc (MDW-74/AU-1) for recording.

2. Press the =0/MD/CD/TUNING – button to display “AG Set (MO)”.

4. Press the 6 (MD) button to remove the disc.

Note 1 : If the C1 error and ADER are above other than the speci-

fied value at points a (step 8. in the above) or b (step 7. in the above), the focus bias adjustment may not have been carried out properly. Adjust perform the beginning again.

5-15. ADJUSTING POINTS AND CONNECTING POINTS

[BD (MD) BOARD] (SIDE A)

CN101

D101

NOTE

IC171

GND I+3V

IOP TE

RF VC

CN110

CD SECTION

Note:

1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks.

S Curve Check

BD (CD) board

TP (FE) TP (VC)

Procedure :

1. Connect the oscilloscope to test points TP (FE) and TP (VC).

2. Connect TP (FEI) and Ground, and TP (AGCCON) and Ground of the BD board with lead wires.

3. Press the 1/u button to turn the set ON.

4. With the disc (YEDS-18) loaded, press the ^ (CD) button and perform focus search. (Focus search will be performed in the same way even while the disc table is pushed in and out.)

5. Check the symmetry and peak to peak level of the oscilloscope waveform (S curve) at this time.

S-curve waveform

oscilloscope

+ –

symmetry

Note: Clear RF signal waveform means that the shape “◊” can be

clearly distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV : 200mV TIME/DIV : 500ns

level : 1.45 ± 0.3 Vp-p

Checking Location : BD (CD) board

E-F Balance (1 Track Jump) check

oscilloscope

BD (CD) board

TP (TE) TP (VC)

+ –

Procedure:

1. Connect oscilloscope to test point TP (TE) and TP (VC) on BD (CD) board.

2. Press the 1/u button to turn the unit ON.

3. Put disc (YEDS-18) in to play the number five track.

4. Press the ^ (CD) button.

5. Check the level B of the oscilloscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following:

• A/B x 100 = less then ± 22 (%)

• B = 1.3 ± 0.6 Vp-p

[BD (MD) BOARD] (SIDE B)

IC101

IC121

IC192

NOTE:It is useful to use the jig. for checking the waveform. (Refer

to Servicing Note on page 11.)

Within 4

1 Vp-p

6. After check, remove the lead wire connected in step 2. Note: • Try to measure several times to make sure than the ratio of

A : B or B : A is more than 10 : 7.

• Take sweep time as long as possible and light up the brightness to obtain best waveform.

Checking Location : BD (CD) board

RF Level Check

oscilloscope

BD (CD) board

TP (RF) TP (VC)

+ –

Procedure :

1. Connect oscilloscope to test point TP (RF) and TP (VC) on BD board.

2. Connect TP (AGCCON) and Ground of the BD (CD) board with lead wires.

3. Press the 1/u button to turn the set ON.

4. Put disc (YEDS-18) in and playback 5track.

5. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not.

6. After check, remove the lead wire connected in step 2.

1 track jump waveform

level : 1.3

0.6 Vp-p

Checking Location : BD (CD) board

[ BD (CD) BOARD ] — SIDE B —

TP (VC)

IC103

TP (RF)

TP (AGCCON)

TP (FE)

(TE)

(FEI)

Center of the waveform

A (DC voitage)

Symmetry

39 39

HCD-MD373

6-1. CIRCUIT BOARDS LOCATION

Power board

MD digital board

SECTION 6

DIAGRAMS

Amp board

SP board

Tuner unit

Panel board

BD (MD) board

TUNER UNIT i s supplied as the assembled block.

Main board

SW board

Loading board

BD (CD) boar

6-2. BLOCK DIAGRAMS

– BD (CD) SECTION –

OPTICAL PICK-UP BLOCK

• SIGNAL PATH : CD : CD (Digital out)

(KSS-213BA/NP)

DETECTOR

ABC

LASER DIODE

TRACKING

COIL

FOCUS

COIL

POWER

M102 SLED

MOTOR

M101

SPINDLE

MOTOR

HCD-MD373

IC101

DIGITAL SERVO

DIGITAL SIGNAL PROCESSOR

RF AC

ASY1

ASYMMETRY CORRECTION

ASY0

RFDC

FE TE

TFDR TRDR

FFDR FRDR

SRDR SFDR

MDP

OPERATIONAL

AMPLIFIER

ANALOG SWITCH

PWM

GENERATOR

TRACKING

PWM

GENERATOR

FOCUS

PWM

GENERATOR

SLED PWM

GENERATOR

DIGITAL

CLV

39 41

30 31

32 33

29 28

DIGITAL

PLL

A/D

CONVERTER

SERVO DSP

TRACKING

SERVO

FOCUS SERVO

SLED

SERVO

16K

RAM

EFM

DEMODULATION

SUBCODE

PROCESSOR

SERIAL IN

INTERFACE

OVER SAMPLING

DIGITAL FILTER

3rd ORDER

NOISE SHAPER

PWM PWM

DATA BUS

ERROR

CORRECTOR

D/A

INTERFACE

SERVO

AUTO

SEQUENCER

APCLD/PD

MUTE

SUMMING

ERROR

TRACKING

ERROR

AMP

5 6

2 3

23 24

25 27

IC103

RF AMP

AMP

FOCUS

AMP

TFDR TRDR

FFDR FRDR

SRDR SFDR

BUFFER

HOLD SW

RF EQ

AMP

14 49

LDON

REF

1521

INTEGRATOR

VCC VC

A C D B

E F

DRIVE

Q101

T+

T–

F+

F–

SD+

SD–

SP+

SP–

VREF

IC102 FOCUS/TRACKING COIL DRIVE SPINDLE/SLED MOTOR DRIVE

CH2OUTR

CH2OUTF

CH1OUTF

CH1OUTR

CH3OUTF

CH3OUTR

CH4OUTF

CH4OUTR

CH2FIN

CH2RIN

CH1FIN

CH1RIN

CH3RIN

CH3FIN

CH4SIN CH4BIN

TIMING

LOGIC

DIGITAL

CPU

INTERFACE

SERVO

INTERFACE

XTA1

STAO

D OUT

OUT

XRST SQSO SQCK

SENS

DATA

XLAT

CLOK

SCOR XLON

SCLK 33 SSTP

RMUT

LMUT

AIN1

LOUT1

LOUT2

AIN2

LOUT2

3 1 2

5 6

20 14

S101

LIMIT SW

X101

16.9344MHz

59 32

81 58

DOUT

XRST SQSO

SENS

DATA XLT

CLOK

SCOR

SQCK +5V

CD-L

(L-OUT)

R OUT HOLD

MAIN

SECTION

(Page 44)

41 41

HCD-MD373

– BD (MD) SECTION (1/2) –

OVER WRITE

• R-ch is omitted

• Siganl path : PB : REC : RB (Digital out) : REG (Digital in)

OPTICAL PICK-UP BLOCK

(KMS-260B/J1N)

DETECTOR

CDB

ILCC

HR901

HEAD

D101

LASER ON

Q101

APC

Q162,163

HEAD

DRIVE

Q181,182

TEMPR

TEMPI

•

48 47 46 40

RFO

MORFI

MORFO

RF AMP

IV AMP

CVB

TEMP

AMP

APCREF

APC

AGCI

BALANCE

VCC

E-F

OVER WRITE HEAD DRIVE

•

12 10

•

4 5

RF AMP

IC101

RF AGC & EQ

BPF

VICONV

EQADJ

3TADJ

2522 23

P-P

WBLADJ

IC181

PEAK

BOTTOM

ABCD

AMP

FOCUS ERROR

AMP

TRACKING

ERROR

AMP

SERIAL

PARALLEL DECODER

DIGITAL SERVO SIGNAL PROCESSOR, DIGITAL SIGNAL PROCESSOR

EFM/ACIRC ENCODER/DECODER, SHOCK-PROOF MEMORY CONTROLLER,

BOTM

PEAK

ABCD

ADAGC

BPF

ADFM

ADFG

CSLED

SWDT

SCLK

XLAT

FOCNT

1 2

FILTER

AUX

33 67

36 37

34 66

ADIN

16 17 18

EFMO

100

PCO

FILI

60 61 62

AUX1

64 63

75 74

ADFG

82 81 80

FILO CLTV

RFI

BOTM PEAK

ABCD

FE VC

TE SE

DTRF CKRF

XLRF

FOCNT

PLL

ANALOG

MUX

ADIP

DEMODULATOR/

DECODER

SPINDLE

SERVO

ATRAC ENCODER/DECODER

EFM,

ACIRC,

ENCODER/

DECODER

SPFD

FG IN

SPRD

95 10

XRST

IC121

RECP

15 14

XINIT

SHOCK

RESISTANT

MEMORY

CONTROLLER

A/D

CONVERTER

APC

PWM

GENERATOR

APCREF

FFDR

FRDR

TFDR

TRDR

ATRAC

ENCODER/

DECODER

SAMPLING

RATE

CONVERTER

SERVO

DSP

SFDR

SRDR

D0 D3 A00 A09

91928586898883

49 • 48 • 50 • 51

DIGITAL

AUDIO

I/F

CLOCK

GENERATOR

SUBCODE

PROCESSOR

MONITOR CONTROL

CPU

I/F

AUTO

SEQUENCER

34 31 • 36 40 • 45

DIN0

DIN1

ADDT

DADT

DOUT

XBCK LRCK

OSCI

SQSY DQSY

MNT3 MNT2 MNT1 MNT0

SENS SRDT

SCLK

SWDT

XLAT

XWE XRAS XCAS XOE

28 27

BUFFER IC123

11 12

4 3 2 1

9 8 6 5 7

DRAM

IC124

3 46 44 43

XWE

XRAS

XCAS

XOE

DQ1

•

• DQ4

6 9

•

11 15

• A9

DIN0

DIN1

ADDT

SCTX XINT

DADT

DOUT (NON CONNECT)

BCK LRCK

512FS

SQSY DQSY

MNT3 MNT2 MNT1

MNT0

SENS SRDT SCLK SWDT XLAT CH

LDON

BD (MD) SECTION (2/2)

(Page 43)

TRACKING

MODULE

COIL

FOCUS

COIL

SLED MOTOR

SPINDLE MOTOR

M902

M901

HF MODULE

IC103,Q102-104

SLED/SPINDLE MOTOR DRIVE

FOCUS/TRACKING COIL DRIVE

TRK– TRK+

FSC+ FSC–

SLED+

SLED–

SPDL+

SPDL–

10 12

21 23

27 25

6 8

DRIVER

IC152

PSB

TFDR

TRDR

FRDR

FFDR

SFDR

SRDR

SPFD

SPRD

XRST

EEP ROM

IC171

M903

LOADING MOTOR

DETECT SW S101, S102,

S601-602, 604

SDA

WRPWR

MOD

SDA

SCLSCL

LIMIT-IN REFLECT PROTECT CHACK IN SW PACK OUT SW PLAY-P SW REC P SW

LOAD-IN LOAD-OUT

DIG-RST

– BD (MD) SECTION (2/2) –

A/D,D/A CONVERTER

IC201

DATAO VINL1

VINR1

HCD-MD373

R-CH

MD REC-L

(AD IN L)

BD (MD)

SECTION (1/2)

(Page 42)

ADDT

BCK LRCK DADT

512FS

SCTX

XINT SQSY DQSY MNT3 MNT2 MNT1 MNT0 SENS SRDT

SCLK

SWDT

XLATCH

LIMIT-IN

REFLECT

PROTECT

CHACKIN SW

PACK-OUT SW

PB P SW

REC-P SW

LD ON

WRPWR

MOD

LOAD-IN

LOAD OUT

MOTER

DRIVE IC153

IC202 IC202

911

X201

22MHz

72 73 27 75 79 80 81 82 78 36 37 35 66 63 58 59 51 53 60 74 57 67 65

16 17 19

810

SYSTEM CONTROL

SCTX XINT SQSY DQSY MNT3(S-LOCK) MNT2(X-BUSY) MNT1(SHOCK) MNT0(F-OK) SENS SRDT SCLK SWDT XLATCH LIMIT-IN REFLECT PROTECT

CHACKIN PACK-OUT PB-P

REC-P LDON WR PWR MOD

LD-IN

LD OUT

IC316

BCK

WS DATAI

SYSCLK

L3-CLK

L3-DATA

L3-MODE

LEVEL-L

X OUT

X IN

VOUTL VOUTR

L3MODE

L3CLK

L3DATA

21 22 69

13 15

26 24

R-CH

13 14 15

X302

10MHz

MD-L

(DATA OUT L)

MD LEVEL L

MD LEVEL R

MAIN SECTION

(Page 44)

MAIN

SECTION

(Page 44)

SDA SCL

DIG-RST

DIN 0

DIN 1

DIN

I2C CLK

I2C DATA

P.DOWN

LOADING SW

Q350

IC202

LD-LOW

SDA

SCL

DIG-RST

P.DOWN

I2C CLK

I2C DATA

S.RST

RESET

MAIN SECTION

(Page 44)

43 43

HCD-MD373

– MAIN SECTION –

ANTENNA

FM 75 Ω

FM 300 Ω

J101

TAPE

INPUT

J602 LINE

BD (CD) SECTION

(Page 41)

BD (MD)

SECTION (2/2)

(Page 43)

IC121

OPTICAL DIGITAL

TUNER UNIT

CD-L

D-OUT

I2C-SCL

I2C-SDA

MD-LEVEL L

MD-REC-L

MD-L DIG-IN RESET

P.DOWN

STEREO

TUNED

MUTE

R-CH

DIGITAL INPUT

CLK

RDS

R-CH

12 911 10

1 2

IC131

SELECTOR

IC302

INPUT SELECTOR

SELECT

SWITCH

6910

39 38 37 36

BASS

TU TC CD MD

SELECT

SWITCH

MICON

INTERFACE

A T

20 21 22

K L C

R-CH

IC301

DIGITAL SOUND

CONTROLLER

MUTE SW

Q551

MUTE CONTROL

Q552

AEP, UK

BUFFER

Q401

MUTE SW

Q101

REC OUT MUTE

Q102

FLUORESCENT

INDICATOR

TUBE

FL601

MUTE SW

Q801

RDS DECODER

MUX

RDATA RCLK

R-CH

11 62

64 24

31 33

IC401

162

IC601

DISPLAY DRIVER

DIG11

DIG1

DIG14

SDATA

DIG12 SEG34

SEG27

SEG26

SEG0

DIG15

DIG0

RST

SCK

STEREO

MD-REC-L

MD-RESET

Q932

TUNED

I2C-SDA

X401

4.332 MHz

J101

TAPE

OUTPUT

14 15 16

BUFFER

Q601

BUFFER

Q602

4950 51 525354 55 56 575859 66677071 72 7981 82

ST-CE

ST-DIN

ST-CLK

ST-DOUT

TA-MUTE

ST-MUTE

I2C-SDL

62LAT

62DATA

REC OUT CONT

F-RY

STKPOWER

62CLK

FUNC-SEL1

OPT-SEL

SWITCH

Q501

VP (–30V)

B.UP +3.3V

2021

RQS-DATA

BT921

BACKUP

BATTERY

RDS-INT

FL-RESET

34 3536 3738 424345 4647 48

D944

PROTECT-IN

FL-CHIP SELECT

D945

MUTE SW

DBFB SW

PROTECT SW

Q872–873

BD (CD) SECTION

(Page 41)

32 33

SENS

CD DATA

CD-RESET

SQ-DATA-IN

MASTER CONTROL

FL-CLK

FL-DATA

POWER-ON

SWITCH

Q974

–30V REG

Q971, D979–980

CHARGER

Q921

AC ON RESET

Q941

RESET

Q841

Q301

8 5

S101

2 8

CD CLK

CD-LAT

IC501

SCOR

CD-POWER

POWER AMP

IC801

OVER LOAD DET

IC171

MOTOR

DRIVE

7 5

HOLD

SQ-CLK

MD-RESET

D987

AC OFF DETECTOR

IC941, D941–943

DBFB DET

D881

Q802, 871

OPEN-SW

AC-CUT

2227282930

SWITCH

Q975

+5V REG

IC921

M103

MOTOR

DRIVE

IN-SW

LOAD-IN

D921

LOAD-OUT

RESET

D986

VOLUME

ROTARY

ENCODER

S601

86 87 88 89 9193

VOL A

VOL B

FL-ON

SIRCS

IC602

RELAY DRIVE

Q881

S602–616

SIRCS

HEADPHONE

XOUT

X501

16MHz

VF SW

Q972, 973

RECTIFIER D975–978

RECTIFIER D971–974

RECTIFIER D992–993

KEY 0

XIN

D602–609

KEY 1

KEY 2

LED DRIVE

Q607–610

SUBXIN

10 1112 13 15

X502

32.768kHz

RY881

LED

STANDBY

SUBXOUT

T900

POWER

TRANSFORMER

T901

SUB

TRANSFORMER

R-CH

VOLTAGE

SELECTOR

S991

–

TM881

SPEAKER

J601

PHONES

RELAY DRIVER

AC IN

RY901

Q991

• SIGNAL PATH

: FM

: PB (TAPE)

: REC (TAPE)

: CD

: CD (Digital out)

: PB (MD)

: REC (MD)

: PB (Digital out)

: REC (Digital in)

A+7.5V

DIG+5V

RESET SWITCH

Q931

CD+5V

SWITCH

Q912

ST+12V

+7V REG

IC902

A+3.3V

SYS+3.3V

MD RESET

IC931

SWITCH

Q911

MOTOR

D101

A+5V

–B

+12V REG

IC901

+5V REG

IC913

+3.3V REG

IC912

+5V REG

IC911

+7V REG

IC903

D911

D912

D913

D914

+7V

RECTIFIER

D832

RECTIFIER D982–985

RECTIFIER

D981

HCD-MD373

0.46Vp-p

0.1Vp-p

3.1Vp-p

22.581MHz

3.8Vp-p

11.29MHz

3.2Vp-p

176.4kHz

(

)

(

)

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and 1/ specified.

•

: internal component.

• C : panel designation.

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

• U : B+ Line.

• V : B– Line.

• H : adjustment for repair .

• Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.

• Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : FM E : PB (T APE) d : PB (TAPE) G : REC (DECK B) J : CD c : CD (digital out) E : PB (MD) j : REC (MD) p : PB (digital out) l : REC (dihgital in)

• Abbreviation AUS : Australian model. SP : Singapore model.. MY : Malaysia model. JE : Tourist model. HK : Hong Kong model. AR : Argentine model. CH :Chinese model. KR : korea model.

W or less unless otherwise

WAVEFORMS – BD ( CD) SECTION –

16.9MHz

IC101 %º XT AI

1.2Vp-p

(PLAY)

IC101 %¡ TE

APPROX 500mVp-p

IC101 $¡ FE

PLAY

APPROX 200m Vp-p

IC101 #ª FE

PLAY

7.5µsec

IC101 @§ MDP

3.1Vp-p

2.5V

2.4Vp-p

– BD (MD) (1/2) SECTION –

IC101 1, 2 (I, J) (PLAY mode)

IC101 4 (A) (PLAY mode)

0.06Vp-p

IC101 8, 9 (E, F) (PLAY mode)

– BD (MD) (2/2) SECTION –

IC121 !§ (OSCI)

3.2Vp-p

44.1kHz

IC121 @¶ (LRCK)

3.8Vp-p

2.822MHz

IC121 @• (XBCK)

IC121 @ª (FS256)

– MAIN (3/3) SECTION –

5.2Vp-p

32.768kHz

IC501 !¡ XC-OUT

5.5Vp-p

16MHz

IC501 !£ X-OUT

– MD DIGITAL SECTION –

3.2Vp-p

10MHz

IC316 !£ (XOUT)

For printed wiring boards.

Note:

• X : parts extracted from the component side.

• p : parts mounted on the conductor side.

•

: Through hole.

• b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.)

• Indication of transistor

These are omitted

IC121 (º (FS4)

45 45

HCD-MD373

6-3. PRINTED WIRING BOARD – BD (CD) SECTION –

• See page 40 for Circuit Boards Location.

(VC)

(RF)

(TE)

(AGC CON)

(FE)

(TEI)

MAIN BOARD

(Page 52)

46 46

6-4. SCHEMATIC DIAGRAM – BD (CD) SECTION –

• See page 45 for Waveforms.

• See page 67 for IC Block Diagrams.

• See page 69 for IC Pin Functions.

HCD-MD373

(TE1)

(RF)

(FEI)

(TE)

AGC CON

(FE)

(VC)

MAIN BOARD

(3/3)

(Page 55)

47 47

HCD-MD373

6-5. PRINTED WIRING BOARD – BD (MD) SECTION –

• See page 40 for Circuit Boards Location.

• Semiconductor Location

Ref. No. Location D101 A-1

D181 D-3 D183 D-3

IC103 B-1 IC123 D-2 IC171 D-1

Q102 B-1 Q103 C-1 Q104 B-1

• Semiconductor

48 48

Location

Ref. No. Location

IC101 A-3 IC121 C-3 IC124 C-3 IC152 B-1 IC181 C-1 IC192 C-1

Q101 B-3 Q162 B-3 Q163 B-3 Q181 C-2 Q182 C-2

(Page 57) (Page 57)

6-6. SCHEMATIC DIAGRAM – BD (MD) SECTION (1/2) –

• See page 45 for Waveforms.

• See page 65 for IC Block Diagrams.

• See page 71 for IC Pin Functions.

HCD-MD373

(Page 50)

49 49

(Page 50)

(Page 50) (Page 50)

(Page 50)

HCD-MD373

6-7. SCHEMATIC DIAGRAM – BD (MD) SECTION (2/2) –

• See page 45 for Waveforms.

• See page 48 for Printed Wiring Board.

• See page 66 for IC Block Diagrams.

MD DIGITAL

BOARD

(Page 56)

(Page 49)

MD DIGITAL

BOARD

(Page 56)

BA033FP-E2

50 50

HCD-MD373

6-8. SCHEMATIC DIAGRAM – SP SECTION –

(Page 58)

6-9. PRINTED WIRING BOARD – SP SECTION –

• See page 40 for Circuit Boards Location.

(Page 59)

(Page 53)

SPEAKER

51 51

(Page 52)

HCD-MD373

6-10. PRINTED WIRING BOARD – MAIN SECTION –

• See page 40 for Circuit Boards Location.

• Semiconductor Location

Ref. No. Location

D171 E-2 D301 C-10 D302 C-9 D901 B-7 D911 D-7 D912 D-6 D913 D-6 D914 D-6 D921 E-6 D922 E-5 D923 E-5 D924 E-5 D941 E-7 D942 E-5 D943 E-4 D944 E-5 D945 E-4 D946 C-4

(SHORT PIN)

(Page 57) (Page 46)

(Page 51)

IC121 E-11 IC131 B-4 IC171 E-1 IC301 C-9 IC302 C-10 IC501 C-3 IC901 B-7 IC902 B-6 IC903 C-7 IC911 C-7 IC912 D-7 IC913 C-6 IC921 E-6 IC931 D-5 IC941 E-4

Q101 B-11 Q102 C-4 Q111 E-11 Q112 E-11 Q113 E-10 Q114 E-10 Q151 B-11 Q301 C-10 Q351 D-10 Q501 E-6 Q551 D-5 Q552 D-4 Q911 B-6 Q912 B-6 Q921 E-5 Q931 D-4 Q932 E-4 Q941 E-4

(Page 61)

(Page 64)

AEP, UK

C402

OUT

SYSTEM

AEP, UK

R402

C401

R401

C404

C406

C407

AEP, UK

IC401

R404

C403

149

C405

Q401

R403

CONTOROL

RESET

OPTICAL DIGITAL

52 52

(Page 63)

6-11. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) –

• See page 68 for IC Block Diagrams.

HCD-MD373

(Page 55) (Page 54) (Page 54) (Page 55) (Page 54)

53 53

(Page 51)

HCD-MD373

6-12. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) –

• See page 52 for Printed Wiring Board.

• See page 68 for IC Block Diagrams.

(Page 62)

(Page 53)(Page 53)

(Page 53)

(Page 55) (Page 55) (Page 55) (Page 55) (Page 55) (Page 55)

54 54

(Page 56)

6-13. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) –

• See page 45 for Waveforms.

• See page 52 for Printed Wiring Board.

• See page 68 for IC Block Diagrams.

• See page 75 for IC Pin Functions.

HCD-MD373

(Page

54)

(Page 53) (Page 54) (Page 54) (Page 54) (Page 54) (Page 53) (Page 54)

(Page 47)

(Page 64)

55 55

(Page 60)

HCD-MD373

6-14. SCHEMATIC DIAGRAM – MD DIGITAL SECTION –

• See page 45 for Waveforms.

• See page 67 for IC Block Diagrams.

(Page 54)

(Page 64) (Page 50) (Page 50)

56 56

6-15. PRINTED WIRING BOARD – MD DIGITAL SECTION –

• See page 40 for Circuit Boards Location.

HCD-MD373

(Page 64)

(Page 48)

57 57

(Page 52)

HCD-MD373

6-16. SCHEMATIC DIAGRAM – AMP SECTION –

(Page 51)

(Page 62)

58 58

6-17. PRINTED WIRING BOARD – AMP SECTION –

• See page 40 for Circuit Boards Location.

HCD-MD373

(Page 51)

(Page 63)

59 59

HCD-MD373

6-18. SCHEMATIC DIAGRAM – PANEL SECTION –

60 60

(Page 55)

6-19. PRINTED WIRING BOARD – PANEL SECTION –

• See page 40 for Circuit Boards Location.

HCD-MD373

• Semiconductor Location

Ref. No. Location

D602 A-2 D603 A-2 D604 E-4 D605 A-3 D606 D-2 D607 D-2 D608 D-3 D609 A-8

IC601 C-6 IC602 C-8

Q601 C-3 Q602 C-3 Q604 A-1 Q605 A-1 Q606 E-6 Q607 A-1 Q608 C-2 Q609 E-1 Q610 E-3

(Page 52)

61 61

HCD-MD373

6-20. SCHEMATIC DIAGRAM – POWER SECTION –

(Page 58)

(Page 54)

62 62

6-21. PRINTED WIRING BOARD – POWER SECTION –

• See page 40 for Circuit Boards Location.

• Semiconductor Location

Ref. No. Location

D971 B-3 D972 B-2 D973 B-3 D974 B-2 D975 A-3 D976 A-3 D977 A-3 D978 A-3 D979 A-2 D980 A-3 D981 B-1 D982 A-1 D985 A-1 D986 A-5 D987 A-5 D991 A-4 D992 C-2 D993 C-2

HCD-MD373

(Page 52)

Q971 B-2 Q972 A-5 Q973 A-5 Q974 A-4 Q975 B-3 Q991 B-3

(Page 59)

EXCEPT AEP, UK

JW974

VOLTAGE

SELECTOR

S991

AEP, UK

F901

EXCEPT AEP, UK

63 63

JW973

JW971

JW972

AEP, UK

HCD-MD373

6-22. SCHEMATIC DIAGRAM – BD SWITCH SECTION –

MD DIGITAL

BOARD

(Page 56)

6-24. SCHEMATIC DIAGRAM – LOADING SECTION –

SWITCH

M103

MOTOR

CN1

GND

OPEN

LOAD +

LOAD –

MAIN BOARD

(3/3)

(Page 55)

6-23. PRINTED WIRING BOARD – BD SWITCH SECTION –

• See page 40 for Circuit Boards Location.

MD DIGITAL

BOARD

(Page 57)

6-25. PRINTED WIRING BOARD – LOADING SECTION –

• See page 40 for Circuit Boards Location.

(Page 52)

64 64

6-26. IC BLOCK DIAGRAMS

• BD (MD) Board (1/2)

IC101 CXA2523AR

MORFO47MORFI46RFO45OPN

– +

RFA1

–

CVB

3VC

IVR

GSW IV

+ –

RFA2

– –

–

1 2

GRVA

HLPT

CFST

GRV

+ –

FBAL

OPO43ADDC42COMPP41COMPO40AGCI39RF AGC38RF37PEAK

USROP

EE'

–1

–2

–1

+ + + +

+ + – –

– – + +

FF'

+ –

BPF3T

PTGR

ABCDA

FEA

BPF22

WBL

ATA

WBL

– + – +

EFB TESW

RF AGC EQ

USRC

PEAK

BOTTOM

WBL

PTGR

ADIP

AGC

PEAK3T

P-P

WBL

3T WBL

PBH

DET

–1

–2

–1

–2

TEMP

DET

BPFC

SEA

TEA

VI CONV

BOTM

ABCD

AUX

32 ADFG

31 ADAGC

30 ADIN

29 ADFM

28 SE

27 CSLED

26 TE

25 WBLADJ

AUXSW

TEMPR

COMMAND

SCRI - PARA

DECODE

SCLK

SWDT

BGR

VREF

XLAT

XSTBY

F0CNT

VREF

EQADJ

3TADJ

VCC

10PD

11APC

12APCREF

–

GND

TEMPI

IC152 BH6511FS-E2

• BD (MD) Board (2/2)

IC121 CXD2654R

CAPA–

CAPA+

IN2R

IN2F

VM2

OUT2F

PGND2

OUT2R

VM12

OUT1R

PGND1

OUT1F

VM1

IN1F

IN1R

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

IN4F

TEST0

SPFD

AMP

VM4

SPRD

INTERFACE

CHARGE

PUMP.

OSC

INTERFACE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

GND

EFMO

100

IN4R

DVSS

TEST3

TEST2

99 98 97 96 95 94 93

TEST1

AMP

OUT4F

PGND4

SFDR91SRDR90FS489FRDR88FFDR87DVDD86TFDR85TRDR84LDDR83APCREF82DTRF81CKRF80XLRF79F0CNT78ADFG77APC76DCHG

OUT4R

VM34

AMP

OUT3R

PGND3

AMP

PREDRIVEPREDRIVE

AMPAMPAMP

OUT3F

VM3

INTERFACE

IN3F

IN3R

PSB

MNT0

MNT1

MNT2

MNT3

SWDT

SCLK

XLAT

SRDT

SENS

XRST

SQSY

DQSY

RECP

XINT

OSCI

OSCO

XTSL

DIN0

DIN1

DOUT

SPINDLE

EACH BLOCK

DEMODULATOR/

DECODER

EACH BLOCK

SERVO

ADIP

SHOCK RESISTANT

MEMORY CONTROLLER

DIGITAL

AUDIO

I/F

MONITOR CONTROL

CPU I/F

SUBCODE

PROCESSOR

CLOCK

GENERATOR

SERVO

DSP

APC

SAMPLING

RATE

CONVERTER

PWM

A/D

CONVERTER

AUTO

SEQUENCER

ENCODER/

EFM/ACIRC

ANALOG

MUX

DECODER

COMP

PLL

AVSS

ADRB

ADRT

AVDD

ADIO

AUX1

ABCD

BOTM

PEAK

CLTV

FILO

FILI

PCO

AVSS

RFI

BIAS

AVDD

ASYI

ASYO

DATAI

LRCKI

XBCKI

ADDT

LRCK

XBCK

DADT

FS256

DVDD

ATRAC

ENCODER/DECODER

ADDRESS/DATA BUS A00 - A11, D0 - D3

A1140A0839A0738A0637A0536A0435A1034A0033A0132A0231A03

DVSS

DRAM

MVCI

A09

XOE

XCAS

XRAS

50D249D048D147

XWE

• BD (CD) Board

IC101 CXD2587Q

LRCK

PCMD

BCK

EMPH

XVDD

XTAI XTAO XVSS

AVDD1 AOUT1

AIN1

LOUT1

AVSS1 AVSS2

LOUT2

AIN2

AOUT2 AVDD2

RMUT

LMUT

VDD

AVDD3

DOUT

DIGITAL

OUT

66 67 68 69 70 71

73 74

77 78

79 80

D/A

INTERFACE

TIMING

LOGIC

OVER SAMPLING

PWM

3rd ORDER

NOISE SHAPER

DIGITAL FILTER

SERIAL IN

INTERFACE

INTERNAL BUS

PWM

VSS

ERROR

CORRECTOR

16K

RAM

SUBCODE

PROCESSOR

FILI

PCO

DIGITAL

PLL

EFM

DEMODULATOR

SERVO

INTERFACE

SERVO AUTO

SEQUENCER

CPU

INTERFACE

FILO

CLTV

AVSS3

ASYI

BIAS

RFAC

ASYMMETRY CORRECTION

ASYO

AVDD0

IGEN

AVSS0

ADIO

SERVO DSP

FOCUS SERVO

TRACKING

SERVO

SLED

SERVO

RFDC

OPERATIONAL

AMPLIFIER

ANALOG SWITCH

A/D

CONVERTER

PWM GENERATOR

CLOCK

GENERATOR

FOCUS PWM GENERATOR

TRACKING

PWM GENERATOR

SLED PWM

GENERATOR

DIGITAL

CLV

MIRR, DFCT,

FOK

DETECTOR

XTSL

TES1

TEST

VSS

34 33

FRDR

FFDR TRDR

TFDR

SRDR

29 28

SFDR

SSTP

MDP

26 25

LOCK

FOK

DFCT

23 22

MIRR

COUT

SQCK

SQSO

C103 CXA2568M-T6

APC PD AMP

VEE

HOLD

AGCVTH

VEE

VREF

VEE

XRST

SYSM

VCC

VEE

RF SUMMING AMP RF_EQ_AMP

APC LD AMP

ERROR AMP FOCUS

VCC

DATA

VCC

XLAT

CLOK

23 22

21 20

18 17 16

SENS

VCC

LC/PD LD_ON

HOLD_SW AGCCONT

(50%/30% OFF)

RF_BOT

RFTC RF_1

RFO

RFE

SCLK

11 12

VDD

ATSK

SPOA

SPOB

1516171819

XUGF

XLON

WFCK

XPCK

GFS

C2PO

SCOR

• MD DIGITAL Board

IC153 LB1830M-S-TE-L

IN2 IN1 VM VREF VCONT

10 9 8 7 6

LOGIC

PREDRIVER

VCC OUT2 GND OUT1 VS

2 3

VREF

VC BUFFER

VCC

VEE

TRACKING ERROR AMP

• MAIN Board (3/3)

IC302 MC14052B

IC171 LB1641

T.S.D O.C.P

MOTOR

DRIVE

FWD/REV/STOP

CONTROL LOGIC

2 3

GND

DRIVE

MOTOR

NOISE

FILTER

5 6 7 8 9 10

VCC 1

FWD.IN

REV.IN

CLAMP

VCC 2

• MAIN Board (1/3)

IC301 M62428AFP

CLK

DVDD

AVDD

OUT2

INBB2

NFBB2

FBB2

SW19

BASS BOOST SW

MICROCOMPUTER

INTERFACE

470

FIN

AMP2

FIN

AMP1

NOISE

470

MOTOR

DRIVE

FILTER

DRIVE

MOTOR

SW18

BASS BOOST SW

2X0

2X2

2XCOM

2X3

2X1

INH

VEE

VSS

• MAIN Board (2/3)

IC931 M62016L

DARA

LATCH

DGND

OUT 1

INBEE1

NFBB1

FBB1

GND INT RESET CD VCC

COM

+ –

COM

+ –

2 3

VDD

XCOM

INTERRUPT SIGNAL GENERATING BLOCK

RESET SIGNAL

GENERATING BLOCK

VOL IN2

TONE OUT2

FTRE2

FBAS2

NFBAS2

INBAS2

REC OUT2

IN2D

IN2C

IN2B

IN2A

MIC IN

VREFD

AGND

24k 10k

4.5k

8.5k 3k

1.5k

VOL IN 1

TONE OUT 1

FTRE1

FBAS1

NFBAS1

INBAS1

REC OUT1

IN1D

IN1C

IN1B

IN1A

SUR C

SUR R

VREF1

34.7k

TONE AMP1

VR1

34.7k

SW10

10k

MIX

AMP1

44.7k

45.8k

SW13

10k

SW16-B

SW16-C

SW14-B

SW14-C

BUFFER

AMP1

44.7k

19k

195k

BASE AMP1

SW8

SW6

SW4

SW2

SURROUND SW

SW1

195k

22.5k

100k100k100k100k

45.8k

10k

MIX

AMP2

44.7k

SW11

44.7k

AGND

VR2

10k

TONE AMP2

51k

34.7k

24k 10k

195k

4.5k

22.5k

8.5k 3k

1.5k

100k

195k

SW17-B

SW17-C

SW15-B

SW15-C

BASE AMP2

56k 56k

100k

SW9

100k100k100k

SW7

SW5

SW3

BUFFER

AMP2

REF AVCD

MIC

AMP

REF

AMP

19k

SW13

6-27. IC PIN FUNCTIONS

• IC101 DIGITAL SIGNAL PROCESSOR (CXD2587Q) (BD(CD) board)

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

SQSO SQCK XRST SYSM DAT A XLAT CLOK SENS SCLK VDD ATSK SPOA SPOB XLON WFCK XUGF XPCK GFS C2PO SCOR COUT MIRR DFCT FOK LOCK MDP SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS TEST TES1 XTSL VC FE SE

Pin Name

I/O Function

Sub-Q 80-bit and PCM peak level data output (CD text data output)

Clock input for SQSO read-out

System reset “L” : reset

Muting input “H” : mute

Serial data input, supplied from CPU

Latch input, supplied from CPU

Serial data transfer clock input, supplied from CPU

SENS signal output to CPU

SENS serial data read-out clock input

—

Digital power supply

I/O

Input pin for anti-shock (Connected to ground)

Microcomputer escape interface input A

Microcomputer escape interface input B

Microcomputer escape interface output

WFCK output (Not used)

Not used

Sub-code sync output

I/O

Not used

I/O

Mirror signal input/output (Not used)

I/O

Defect signal input/output (Not used)

I/O

Focus OK input/output (Not used)

I/O

Not used

Output to control spindle motor servo

Input signal to detect disc inner most track

Sled drive output

Tracking drive output

Focus drive output

—

Digital ground

TEST pin connected normally to ground

X'tal selection input (Connected to ground)

Center voltage input pin

Focus error signal input

Sled error signal input

• Abbreviation GFS : Guarded Frame Sync

Pin No. Pin Name

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

TE CE RFDC ADIO AVSS0 IGEN AVDD0 ASYO ASYI BIAS RF AC AVSS3 CLTV FILO FILI PCO AVDD3 VSS VDD DOUT LRCK PCMD BCK EMPH XVDD XTAI XT AO XVSS AVDD1 AOUT1 AIN1 LOUT1 AVSS1 AVSS2 LOUT2 AIN2 AOUT2 AVDD2 RMUT LMUT

I/O Function

Tracking error signal input

Center servo analog input

RF signal input

Test pin (Not used)

Analog ground

—

Stabilized current input for operational amplifiers

Analog power supply

—

EFM full swing output

EFM asymmetry comparate voltage input

Asymmetry circuit constant current input

EFM signal input

Analog ground

—

Control voltage input for master VCO1

Filter output for master PLL

Filter input for master PLL

Charge-pump output for master PLL

Analog power supply

—

Digital ground

—

Digital power supply

—

Digital-out output pin

D/A interface LR clock output (ƒ = Fs) (Not used)

D/A interface serial data output (Not used)

D/A interface bit clock output (Not used)

Playback disc output in emphasis mode (Not used)

Power supply for master clock

—

X'tal oscillator circuit input (16.9344MHz)

X'tal oscillator circuit output (16.9344MHz)

Ground for master clock

—

Analog power supply

—

L-ch analog output

L-ch operational amplifiers input

L-ch line output

Analog ground

—

Analog ground

—

R-ch line output

R-ch operational amplifiers input

R-ch analog output

Analog power supply

—

R-ch “0” detection flag output

L-ch “0” detection flag output

• Abbreviation EFM : Eight to Fourteen Modulation PLL : Phase Locked Loop

• IC101 RF Amplifier (CXA2523AR) (BD(MD) board)

Pin No.

1 2 3

4 to 9

10 11 12 13 14 15 16 17 18 19

21 22 23 24 25 26 27 28 29 30 31 32

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Pin Name I/O

I J VC A to F PD APC APCREF GND TEMPI TEMPR SWDT SCLK XLAT XSTBY

F0CNT

VREF EQADJ 3TADJ Vcc WBLADJ TE CSLED SE ADFM ADIN ADAGC ADFG

AUX

FE ABCD BOTM PEAK RF RF AGC AGCI COMPO COMPP ADDC OPO OPN RFO MORFI MORFO

I-V converted RF signal I input

I-V converted RF signal J input

Middle point voltage (+1.5V) generation output

Signal input from the optical pick-up detector

Light amount monitor input

Laser APC output

Reference voltage input for setting laser power

—

Ground

Temperature sensor connection

Reference voltage output for the temperature sensor

Serial data input from the CXD2650R or CXD2652AR

Serial clock input from the CXD2650R or CXD2652AR

Latch signal input from the CXD2650R or CXD2652AR “L”: Latch

Stand by signal input “L”: Stand by Center frequency control voltage input of BPF22, BPF3T, EQ from the CXD2650R or

CXD2652AR

Reference voltage output (Not used)

I/O

Center frequency setting pin for the internal circuit EQ

I/O

Center frequency setting pin for the internal circuit BPF3T

—

+3V power supply

I/O

Center frequency setting pin for the internal circuit BPF22

Tracking error signal output to the CXD2650R or CXD2652AR

—

External capacitor connection pin for the sled error signal LPF

Sled error signal output to the CXD2650R or CXD2652AR

FM signal output of ADIP

ADIP signal comparator input ADFM is connected with AC coupling

—

External capacitor connection pin for AGC of ADIP

ADIP duplex signal output to the CXD2650R or CXD2652AR I

3 signal/temperature signal output to the CXD2650R or CXD2652AR

(Switching with a serial command)

Focus error signal output to the CXD2650R or CXD2652AR

Light amount signal output to the CXD2650R or CXD2652AR

RF/ABCD bottom hold signal output to the CXD2650R or CXD2652AR

RF/ABCD peak hold signal output to the CXD2650R or CXD2652AR

RF equalizer output to the CXD2650R or CXD2652AR

—

External capacitor connection pin for the RF AGC circuit

Input to the RF AGC circuit The RF amplifier output is input with AC coupling

User comparator output (Not used)

User comparator input (Fixed at “L”)

I/O

External capacitor pin for cutting the low band of the ADIP amplifier

User operation amplifier output (Not used)

User operation amplifier inversion input (Fixed at “L”)

RF amplifier output

Groove RF signal is input with AC coupling

Groove RF signal output

Function

• Abbreviation APC: Auto Power Control AGC: Auto Gain Control

• IC121 Digital Signal Processor, Digital Servo Signal Processor, EFM/ACIRC Encoder/Decoder, Shock-proof Memory Controller, ATRAC Encoder/Decoder, 2M Bit DRAM (CXD2654R) (BD (MD) board)

Pin No.

2 3 4 5 6 7 8 9

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 to 34

36 to 40

41 42 43 44 45 46 47

Pin Name I/O

MNT0 (FOK)

MNT1 (SHCK) MNT2 (XBUSY) MNT3 (SLOC) SWDT SCLK XLAT SRDT SENS XRST

SQSY

DQSY

RECP XINT TX OSCI OSCO XTSL DIN0 DIN1 DOUT DADTI LRCKI XBCKI ADDT DADT LRCK XBCK FS256 DVDD A03 to A00 A10 A04 to A08 A11 DVSS XOE XCAS A09 XRAS XWE

Function

FOK signal output to the system control (monitor output)

“H” is output when focus is on Track jump detection signal output to the system control (monitor output)

Monitor 2 output to the system control (monitor output)

Monitor 3 output to the system control (monitor output)

Writing data signal input from the system control

Serial clock signal input from the system control

I (S)

Serial latch signal input from the system control

I (S)

Reading data signal output to the system control

O (3)

Internal status (SENSE) output to the system control

O (3)

Reset signal input from the system control “L”: Reset

I (S)

Subcode Q sync (SCOR) output to the system control

“L” is output every 13.3 msec. Almost all, “H” is output Digital In U-bit CD format or MD format subcode Q sync (SCOR) output to the system

control Laser power switching input from the system control “H”: Recording, “L”: Playback

Interrupt status output to the system control

Recording data output enable input from the system control

System clock input (512Fs=22.5792 MHz)

System clock output (512Fs=22.5792 MHz) (Not used)

System clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz (Fixed at “H”)

Digital audio input (Optical input)

Digital audio output (Optical output)

Serial data input

LR clock input “H” : Lch, “L” : R ch

Serial data clock input

Data input from the A/D converter

Data output to the D/A converter

LR clock output for the A/D and D/A converter (44.1 kHz)

Bit clock output to the A/D and D/A converter (2.8224 MHz)

11.2896 MHz clock output (Not used)

+3V power supply (Digital)

—

DRAM address output

DRAM address output (Not used)

DRAM address output

DRAM address output (Not used)

Ground (Digital)

—

Output enable output for DRAM

CAS signal output for DRAM

Address output for DRAM

RAS signal output for DRAM

Write enable signal output for DRAM (Used : CXD2652AR, Not used : CXD2650R)

* I (S) stands for Schmidt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O

Pin No.

48 49

50, 51

52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85

Pin Name I/O

D1 D0 D2, D3 MVCI ASYO ASYI AVDD BIAS RFI AVSS PCO FILI FILO CLTV PEAK BOTM ABCD FE AUX1 VC ADIO AVDD ADRT ADRB AVSS SE TE DCHG APC ADFG F0CNT XLRF CKRF DTRF APCREF TEST0 TRDR

I/O I/O I/O

I (S)

I (A)

— I (A) I (A)

—

O (3)

I (A)

O (A)

I (A) I (A) I (A) I (A) I (A) I (A) I (A)

O (A)

— I (A) I (A)

— I (A) I (A) I (A) I (A) I (S)

O O O O O O O

Function

Data input/output for DRAM

Clock input from an external VCO (Fixed at “L”) Playback EFM duplex signal output Playback EFM comparator slice level input +3V power supply (Analog) Playback EFM comparator bias current input Playback EFM RF signal input Ground (Analog) Phase comparison output for the recording/playback EFM master PLL Filter input for the recording/playback EFM master PLL Filter output for the recording/playback EFM master PLL Internal VCO control voltage input for the recording/playback EFM master PLL Light amount signal peak hold input from the CXA2523R Light amount signal bottom hold input from the CXA2523R Light amount signal input from the CXA2523R Focus error signal input from the CXA2523R Auxiliary A/D input Middle point voltage (+1.5V) input from the CXA2523R Monitor output of the A/D converter input signal (Not used) +3V power supply (Analog) A/D converter operational range upper limit voltage input (Fixed at “H”) A/D converter operational range lower limit voltage input (Fixed at “L”) Ground (Analog) Sled error signal input from the CXA2523R Tracking error signal input from the CXA2523R Connected to +3V power supply Error signal input for the laser digital APC (Fixed at “L”) ADIP duplex FM signal input from the CXA2523R (22.05 ± 1 kHz) Filter f

0 control output to the CXA2523R

Control latch output to the CXA2523R Control clock output to the CXA2523R Control data output to the CXA2523R Reference PWM output for the laser APC PWM output for the laser digital APC (Not used) Tracking servo drive PWM output (–)

• Abbreviation EFM: Eight to Fourteen Modulation PLL : Phase Locked Loop VCO: Voltage Controlled Oscillator

Pin No.

86 87 88 89 90 91 92 93 94 95

96 to 98

100

• Abbreviation EFM: Eight to Fourteen Modulation

Pin Name I/O

TFDR DVDD FFDR FRDR FS4 SRDR SFDR SPRD SPFD FGIN TEST1 to TEST3 DVSS EFMO

Tracking servo drive PWM output (+)

+3V power supply (Digital)

—

Focus servo drive PWM output (+)

Focus servo drive PWM output (–)

176.4 kHz clock signal output (X’tal) (Not used)

Sled servo drive PWM output (–)

Sled servo drive PWM output (+)

Spindle servo drive PWM output (–)

Spindle servo drive PWM output (+)

I (S)

T est input (Fixed at “L”)

Ground (Digital)

—

EFM output when recording

Function

• IC501 MASTER CONTROL (M30620ECFP-A21) (MAIN board)

Pin No.

1 STK-POWER O Power amp ON/OFF signal output 2 P O Power ON/OFF signal output (Not used) 3 F-RY O Front speaker relay control output 4 R-RY O Rear speaker relay control output (Not used) 5 CD-POWER O CD power on signal output 6 TA-MUTE O Line mute ON/OFF signal output 7 DBFB-H O DBFB H/L select signal output (Not used)

8, 9 — — Not used

10 SUBXIN I X’tal (32.768kHz) input 11 SUBXOUT O X’tal (32.768kHz) output 12 RESET I Reset signal input 13 X-OUT O X’tal (16MHz) output 14 VSS — Ground 15 X-IN I X’tal (16MHz) input 16 VCC — Power supply (+5V) 17 NMI I Not used (PULL UP EVER+5V) 18 WAKE UP I WAKE UP (Fixed at fixed at “L”) 19 SCOR I Subcode data request signal output 20 RDS-INT I 21 RDS-DATA I 22 AC-CUT I AC power cut detection signal input 23 PL-CLK O Clock signal to pro-logic (Not used) 24 PL-DATA O Data signal to pro-logic (Not used) 25 PL-LAT O Latch signal to pro-logic (Not used) 26 TIMER LED O Timer LED ON/OFF (Not used) 27 PROTECTOR IN I Speaker protect signal input 28 MD-RESET O MD reset signal output 29 IIC-CLK I/O I2C bus CLK input/output 30 IIC-DAT A I/O I2C bus DATA input/output 31 TXQ — Not used 32 SQ-DATA I Subcode Q data input 33 SQ-CLK O Subcode Q data output 34 FL-RESET O FL reset signal 35 FL-DATA O FL data output 36 FL-CHIP SELECT O FL chip select signal 37 FL-CLK O FL clock output 38 62-LAT O M62428AFP (IC301) latch signal output 39 ST-BY LED O Sub clock signal output (Test mode)

40, 41 V-CINE O Not used

42 FL-ON O FL switch ON 43 POWER-ON O Stand by relay ON 44 B-FREQ O FREQ high/low signal for SYNC bass (Not used) 45 FUNC-SEL1 O Function select signal output “L” : TAPE, “H” : LINE IN 46 OPT-SEL O Digital input select signal output 47 62-DATA O M62428AFP (IC301) data output 48 62-CLK O M62428AFP (IC301) clock output 49 ST-MUTE O ST mute signal output

Pin Name I/O Function

RDS data input

Pin No.

50 STEREO I Stereo signal input from the tuner 51 TUNED I Tuned signal input from the tuner 52 ST-CE O Tuner chip enable output 53 ST-DOUT O Tuner data output 54 ST-DIN I Tuner data input 55 ST-CLK O Tuned clock output 56 SENS I BD Condition signal input 57 HDLD O Mode hold signal output 58 CD-LAT O CD latch signal output 59 CD-RESET O CD reset signal output 60 DISC-SENS I Slit sensor of disc table input 61 TABLE-SENS I CD table detection signal input 62 VCC — Power supply (+5V) 63 TABLE-L O Table motor control output (Not used) 64 VSS — Ground 65 TABLE-R O Table motor control output (Not used) 66 LOAD-OUT O 67 LOAD-IN O 68 UP-SW I 69 DISC-LED I 70 IN-SW I Loading in signal input 71 OUT-SW I Loading out signal input 72 LED O CD play 73 LED O MD disc in 74 LED O MD play 75 LED O MD pass 76 LED O CD pass 77 LED O CD disc in 78 LED O MD REC 79 STANDBY O Stand by 80 LED O Timer select (Not used) 81 CD DATA O CD data signal output 82 CD CLK O CD clock signal output 83 REC OUT CONT O REC out control “L” : MUTE

84, 85 JOG A, JOG B — Not used

86 VOL A I Volume signal input A 87 VOL B I Volume signal input B 88 SIRCS I SIRCS signal input

89 to 91 KEY 0 to KEY 2 I key input

92 MD-REC-R I MD REC level signal input (R) 93 HERDPHONE I Heardphone detect “H” : YES, “L” : NO 94 MD-REC-L I MD REC level signal input (L) 95 MODEL-IN I MODEL input signal (Not used) 96 AG — Ground (Analog) 97 SPEC-IN I SPEC input 98 VREF I Reference voltage input 99 AVCC I +5.5V power supply

100 TEST —

Pin Name

I/O Function

Loading motor control signal output

Disc tray address detect encoder input

SECTION 7

FL601

Supplied with S601

not supplied

Including Panel board (Ref No. 12)

MDM-5A

EXPLODED VIEWS

NOTE:

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

• Hardware (# mark) list and accessories and packing materials are given in the last of this parts list.

• Abbreviation

7-1. CASE AND FRONT PANEL SECTION

HK : Hong Kong model SP : Singapore model MY : Malaysia model AR : Argentine model AUS : Australian model KR : Korea model CH : Chinese model JE : Tourist model

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark

1 4-221-106-01 KNOB (VOL) 2 4-221-105-01 RING (VOL) 3 4-221-087-01 PLATE (FL), INDICATION (EXCEPT AEP,UK) 3 4-221-087-11 PLATE (FL), INDICATION (AEP,UK) 4 X-4951-763-3 PANEL ASSY, FRONT

* 5 4-930-336-71 FOOT (FELT)

6 4-962-708-61 EMBLEM (4-A), SONY 7 4-216-729-41 LID (CARTRIDGE) 8 4-223-771-01 SPRING (LID) 9 4-221-099-01 FILTER (FL)

10 4-993-842-11 CASE 11 3-363-099-11 SCREW (CASE 3 TP2)

Ref. No. Part No. Description Remark

12 A-4426-073-A PANEL BOARD, COMPLETE 13 4-221-103-01 HOLDER (FL) 14 4-951-620-01 SCREW (2.6X8), +BVTP

15 A-4426-083-A MD DIGITAL BOARD, COMPLETE 16 1-773-212-11 WIRE (FLAT TYPE) (25 CORE) 17 1-791-211-11 WIRE (FLAT TYPE) (23 CORE) 18 1-777-240-11 WIRE (FLAT TYPE) (21 CORE) 19 4-221-097-01 BRACKET (MDM)

20 4-212-589-01 SCREW (+BVTPWH M3), STEP 21 4-221-098-01 PANEL, LOADING 22 1-791-223-11 WIPE (FLAT TYPE) (31 CORE) FL601 1-517-901-11 INDICATOR TUBE, FLUORESCENT

7-2. CHASSIS SECTION

not supplied

T901

T900

#1 #1

CDM55A-5SBD32

not supplied

6262

not supplied

UK,HK

EXCEPT AR,AUSARAUS

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 A-4426-076-A AMP BOARD, COMPLETE 52 A-4426-081-A POWER BOARD, COMPLETE (AEP,UK) 52 A-4426-088-A POWER BOARD, COMPLETE (EXCEPT AEP,UK) 53 4-221-082-11 PANEL, BACK (AEP,UK) 53 4-221-082-31 PANEL, BACK (EXCEPT AEP,UK)

* 54 4-930-336-71 FOOT (FELT)

55 1-674-628-11 SP BOARD 56 A-4426-080-A MAIN BOARD, COMPLETE (AEP,UK) 56 A-4426-087-A MAIN BOARD, COMPLETE

(AUS,AR,HK,MY,SP,KR,CH)

56 A-4426-756-A MAIN BOARD, COMPLETE (JE)

57 1-693-473-41 TUNER (EXCEPT JE) 58 3-703-244-00 BUSHING (2104), CORD

59 1-773-115-11 WIRE(FLAT TYPE) (19 CORE) 60 1-773-006-11 WIRE(FLAT TYPE) (15 CORE) 61 1-569-972-21 SOCKET, SHORT 2P

! 62 1-696-847-11 CORD, POWER (AUS) ! 62 1-769-744-11 CORD, POWER (AEP,UK,HK,JE,MY,SP,KR,CH) ! 62 1-783-941-11 CORD, POWER (AR)

63 1-569-008-21 ADAPTOR, CONVERSION 2P (JE) 63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)

! T901 1-433-965-11 TRANSFORMER, POWER (AEP,UK) ! T901 1-433-966-11 TRANSFORMER, POWER (EXCEPT AEP,UK) ! T900 1-433-969-11 TRANSFORMER, SUB POWER (AEP,UK) ! T900 1-433-970-11 TRANSFORMER, SUB POWER (EXCEPT AEP,UK)

7-3. MD MECHANISM DECK (MDM-5A)

124

113

not supplied

109

103

107

108

102

101

110

113

111

114

112

115

116

117 118

103

119

121

120

122

123

107

125

126

106

M903

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* 101 1-668-111-11 SW BOARD * 102 4-996-217-01 CHASSIS

103 4-996-223-01 INSULATOR (F)

* 104 4-996-218-01 BRACKET (GUIDE R)

105 4-996-277-01 SPRING (O/C), TENSION

106 4-996-226-01 LEVER (O/C) 107 4-999-347-01 INSULATOR (R)

* 108 4-996-225-01 BRACKET (GUIDE L)

109 4-988-466-21 SPRING (ELECTROSTATIC), LEAF 110 4-996-219-01 GEAR (CAM GEAR)

111 4-996-220-01 GEAR (A) 112 4-996-221-01 GEAR (B) 113 4-933-134-01 SCREW (+PTPWH M2.6X6) 114 4-996-224-01 SCREW (1.7X3), +PWH 115 4-996-227-01 LEVER (HEAD)

* 123 X-4949-245-7 HOLDER ASSY * 124 4-996-211-01 SLIDER (CAM)

104

MBU-5A

116 4-996-229-01 SPRING (HEAD LEVER), TORSION 117 4-996-212-01 LEVER (LIMITTER) 118 4-996-213-01 SPRING (LIMITTER), TORSION 119 4-996-214-01 SPRING (SLIDER), TENSION 120 4-996-216-01 SPRING (HOLDER), TENSION

121 4-210-396-01 SPRING (LOCK), TENSION 122 X-4951-631-1 SLIDER ASSY

125 4-998-763-01 SPRING (SHUTTER), LEAF

126 A-4680-417-A HOLDER COMPLETE ASSY M903 X-4949-264-1 MOTOR ASSY, LOADING

105

7-4. MD BASE UNIT (MBU-5A)

164

152

165

not supplied

HR901

171

163

170

not supplied

M901

S102

154

153

166

M902

162

161

152

157

167

169

168

155

156

159

160

158

151

152

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 151 A-4699-893-A BD (MD) BOARD, COMPLETE

152 3-372-761-01 SCREW (M1.7), TAPPING

* 153 4-996-267-01 BASE (BU-D) * 154 4-996-255-01 BASE (BU-C)

155 4-900-590-01 SCREW, PRECISION SMALL

156 4-996-258-01 SPRING, COMPRESSION 157 4-996-262-01 GEAR (SL-C) 158 1-667-954-11 FLEXIBLE BOARD

* 159 4-210-664-01 BASE (BU-A) ! 160 8-583-058-01 OPTICAL PICK-UP KMS-260B/J1N

* 161 4-996-252-01 CHASSIS, BU * 162 4-996-254-01 BASE (BU-B)

163 4-967-688-11 MAGNET, ABSORPTION 164 4-996-260-01 GEAR (SL-A)

165 4-996-261-01 GEAR (SL-B)

166 4-211-036-01 SCREW (1.7X2.5), +PWH 167 4-996-265-01 SHAFT, MAIN 168 4-996-256-01 SL(BASE) 169 4-996-257-01 RACK (SL) 170 4-996-263-01 SPRING (CLV), TORSION

171 4-988-560-01 SCREW (+P 1.7X6) HR901 1-500-502-11 HEAD, OVER WRITE HR901 1-500-502-21 HEAD, OVER WRITE S901 1-762-148-21 SWITCH, PUSH (2 KEY) M901 A-4672-474-A MOTOR ASSY, SLED

M902 A-4672-475-A MOTOR ASSY, SPINDLE

7-5. CD MECHANISM DECK (CDM55A-5SBD32)

(CDM identification: cleam colored chassis)

Ver 1.1 2001.06

201

203

205

204

M103

206

211

209

214

212 208

210

213

207

not supplied

214

215

217

214

202

216

BU-5SBD32

216

218

not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 4-925-315-31 DAMPER 202 1-674-336-11 LOADING BOARD 203 4-220-231-01 TRA Y (CDM) 204 4-220-229-01 LEVER (SW) 205 4-220-239-01 SPRING, TORSION

206 4-220-237-01 GEAR (A) 207 4-220-238-01 GEAR (B) 208 4-220-234-01 PULLEY (LDG) 209 4-221-815-01 ROLLER 210 4-220-233-01 CAM (CDM55)

211 4-221-816-01 BEL T (CDM55) 212 4-221-916-01 BUSHING 213 A-4672-773-A PULLEY (A 214 4-985-672-01 SCREW (+PTPWHM2.6), FLOA 215 4-220-230-01 CHASSIS

216 4-959-996-01 SPRING (932), COMPRESSION 217 A-4672-772-A HOLDER (BU) ASSY 218 4-221-817-02 SHAFT (BU) M103 A-4672-771-A MOTOR (LD) ASSY (LOADING) S1 1-771-799-11 SWITCH, LEVER (SLIDE)(LOADING SWITCH)

T) ASSY

TING

Ver 1.1 2001.06

7-6. CD BASE UNIT (BU-5SBD32)

(BU identification: black plastic turntable with magnet)

255

256

257

253

M102

254

M101 (including

258

252

251

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 4-951-620-01 SCREW (2.6X8), +BVTP

* 252 A-4724-375-A BD (CD) BOARD, COMPLETE

253 4-917-565-01 SHAFT, SLED 254 4-951-940-01 INSULATOR (BU)

!255 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP

256 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) 257 4-917-567-01 GEAR (M) 258 4-917-564-01 GEAR (P), FLATNESS M101 X-4952-989-1 BASE (OUTSART) ASSY (SPINDLE) M102 A-4917-504-1 MOTOR ASSY (SLED)

The components identified by mark ! or dotted line with mark ! are critical for safety . Replace only with part number specified.

7-7. CD MECHANISM DECK (CDM55C-5BD32)

(CDM identification: black colored holder (AT) (319), pulley (313) with magnet)

311

Ver 1.1 2001.06

301

303

305

304

M103

306

309

314

308

310

313

307

319

314

315

317

314

#11

302

316

BU-5BD32

316

318

not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

301 302 303 304 305

306 307 308 309 310

4-925-315-41 DAMPER 1-674-336-11 LOADING BOARD 4-224-894-11 TRAY (CDM55D) 4-220-229-01 LEVER (SW) 4-220-239-01 SPRING, TORSION

4-220-237-01 GEAR (A) 4-220-238-01 GEAR (B) 4-220-234-01 PULLEY (LDG) 4-221-815-11 ROLLER 4-220-233-01 CAM (CDM55)

311 313 314 315 316

317 318

319 M103 S1

4-221-816-11 BELT (CDM55) 1-452-925-21 MAGNET ASSY 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 4-227-236-01 CHASSIS 4-923-109-01 SPRING (BU5), COMPRESSION

A-4672-993-A HOLDER (BU) ASSY 4-221-817-11 SHAFT (BU)

4-227-218-21 HOLDER (AT)

A-4672-771-A MOTOR (LD) ASSY (LOADING)

1-771-799-11 SWITCH, LEVER (SLIDE)(LOADING SWITCH)

Ver 1.1 2001.06

7-8. CD BASE UNIT (BU-5BD32)

(BU identification: metal turntable without magnet)

355

356

357

353

354

M101 (including

352

351

Ref. No. Ref. No.

351

* 352

353 354

!355

Part No. Description Remark 4-951-620-01 SCREW (2.6X8), +BVTP

A-4724-375-A BD (CD) BOARD, COMPLETE 4-917-565-01 SHAFT, SLED 4-951-940-01 INSULATOR (BU) 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP

356 357 358 M101 M102

354

M102

358

The components identified by mark ! or dotted line with mark ! are critical for safety . Replace only with part number specified.

Part No. Description Remark 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)

4-917-567-01 GEAR (M) 4-917-564-01 GEAR (P), FLATNESS X-4952-989-1 BASE (OUTSART) ASSY (SPINDLE) A-4917-504-1 MOTOR ASSY (SLED)

SECTION 8

ELECTRICAL PARTS LIST

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

When indicating parts by reference number, please include the board name.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-4426-076-A AMP BOARD, COMPLETE

********************

1-533-293-11 FUSE HOLDER

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX, -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• RESISTORS

All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable

• SEMICONDUCTORS

In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD...

! F801 1-532-504-31 FUSE (T4AL/250V) ! F802 1-532-504-31 FUSE (T4AL/250V)

• CAPACITORS uF : µ F

• COILS uH : µ H

• Abbreviation

HK : Hong Kong model SP : Singapore model MY : Malaysia model AR : Argentine model AUS : Australian model KR : Korea model CH : Chinese model JE : Tourist model

< FUSE >

AMP

< CAPACITOR >

C801 1-124-721-11 ELECT 10uF 20% 50V C802 1-162-286-31 CERAMIC 220PF 10% 50V C803 1-126-964-11 ELECT 10uF 20% 50V C804 1-162-288-31 CERAMIC 330PF 10% 50V C805 1-126-051-11 ELECT 47uF 20% 50V

C806 1-126-051-11 ELECT 47uF 20% 50V C807 1-136-495-11 FILM 0.068uF 5% 50V C808 1-136-495-11 FILM 0.068uF 5% 50V C821 1-126-965-11 ELECT 22uF 20% 50V C822 1-126-052-11 ELECT 100uF 20% 50V

C823 1-136-165-00 FILM 0.1uF 5% 50V C824 1-164-159-11 CERAMIC 0.1uF 50V C831 1-126-052-11 ELECT 100uF 20% 50V C832 1-136-165-00 FILM 0.1uF 5% 50V C833 1-127-734-51 ELECT MELF 4700uF 20% 35V

C834 1-136-165-00 FILM 0.1uF 5% 50V C835 1-127-734-51 ELECT MELF 4700uF 20% 35V C836 1-136-165-00 FILM 0.1uF 5% 50V C841 1-126-960-11 ELECT 1uF 20% 50V C851 1-124-721-11 ELECT 10uF 20% 50V

C852 1-162-286-31 CERAMIC 220PF 10% 50V C853 1-126-964-11 ELECT 10uF 20% 50V C854 1-162-288-31 CERAMIC 330PF 10% 50V C855 1-126-051-11 ELECT 47uF 20% 50V C856 1-126-051-11 ELECT 47uF 20% 50V

C857 1-136-495-11 FILM 0.068uF 5% 50V C858 1-136-495-11 FILM 0.068uF 5% 50V C871 1-126-933-11 ELECT 100uF 20% 16V

< IC >

IC801 8-749-920-13 IC STK4132MK2

< TRANSISTOR >

Q801 8-729-044-08 TRANSISTOR 2SD1915(F)-T(TA).SO Q802 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q841 8-729-900-80 TRANSISTOR UN4211-TA Q851 8-729-044-08 TRANSISTOR 2SD1915(F)-T(TA).SO Q852 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Q871 8-729-119-76 TRANSISTOR 2SA1115TP-EF Q872 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q873 8-729-620-05 TRANSISTOR 2SC2603TP-EF

< RESISTOR >

R801 1-249-421-11 CARBON 2.2K 5% 1/4W F R802 1-249-429-11 CARBON 10K 5% 1/4W R803 1-249-437-11 CARBON 47K 5% 1/4W R804 1-249-437-11 CARBON 47K 5% 1/4W R805 1-249-417-11 CARBON 1K 5% 1/4W F

R806 1-249-437-11 CARBON 47K 5% 1/4W R807 1-260-103-11 CARBON 2.2K 5% 1/2W R808 1-260-103-11 CARBON 2.2K 5% 1/2W

! R809 1-217-151-00 METAL 0.22 10% 2W

R810 1-249-417-11 CARBON 1K 5% 1/4W F

R811 1-249-431-11 CARBON 15K 5% 1/4W R812 1-260-076-11 CARBON 10 5% 1/2W

! R821 1-212-881-11 FUSIBLE 100 5% 1/4W F

R822 1-260-099-11 CARBON 1K 5% 1/2W R823 1-260-099-11 CARBON 1K 5% 1/2W

< CONNECTOR >

CN801 1-770-731-11 CONNECTOR, BOARD TO BOARD 12P

* CN802 1-564-518-11 PLUG, CONNECTOR 3P

< DIODE >

D801 8-719-911-19 DIODE 1SS133T-72 D802 8-719-911-19 DIODE 1SS133T-72 D832 8-719-025-03 DIODE RBA-402 D851 8-719-911-19 DIODE 1SS133T-72 D852 8-719-911-19 DIODE 1SS133T-72

R824 1-249-441-11 CARBON 100K 5% 1/4W R825 1-249-433-11 CARBON 22K 5% 1/4W

! R831 1-212-881-11 FUSIBLE 100 5% 1/4W F

R841 1-249-437-11 CARBON 47K 5% 1/4W R842 1-249-437-11 CARBON 47K 5% 1/4W

R843 1-249-441-11 CARBON 100K 5% 1/4W R844 1-247-807-31 CARBON 100 5% 1/4W R845 1-249-441-11 CARBON 100K 5% 1/4W R851 1-249-421-11 CARBON 2.2K 5% 1/4W F R852 1-249-429-11 CARBON 10K 5% 1/4W

AMP BD (CD)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R853 1-249-437-11 CARBON 47K 5% 1/4W R854 1-249-437-11 CARBON 47K 5% 1/4W R855 1-249-417-11 CARBON 1K 5% 1/4W F R856 1-249-437-11 CARBON 47K 5% 1/4W R857 1-260-103-11 CARBON 2.2K 5% 1/2W

R858 1-260-103-11 CARBON 2.2K 5% 1/2W

! R859 1-217-151-00 METAL 0.22 10% 2W

R860 1-249-417-11 CARBON 1K 5% 1/4W F R861 1-249-431-11 CARBON 15K 5% 1/4W R862 1-260-076-11 CARBON 10 5% 1/2W

C162 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C163 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C165 1-163-038-91 CERAMIC CHIP 0.1uF 25V C167 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C168 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C171 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C172 1-163-123-00 CERAMIC CHIP 180PF 5% 50V

C181 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C182 1-163-123-00 CERAMIC CHIP 180PF 5% 50V

R871 1-249-441-11 CARBON 100K 5% 1/4W R872 1-249-429-11 CARBON 10K 5% 1/4W R873 1-249-439-11 CARBON 68K 5% 1/4W R874 1-249-437-11 CARBON 47K 5% 1/4W

**************************************************************

* A-4724-375-A BD (CD) BOARD, COMPLETE

***********************

< CAPACITOR >

C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C102 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C104 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C109 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C112 1-163-038-91 CERAMIC CHIP 0.1uF 25V C113 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C114 1-163-038-91 CERAMIC CHIP 0.1uF 25V C115 1-126-607-11 ELECT CHIP 47uF 20% 4V C116 1-126-607-11 ELECT CHIP 47uF 20% 4V C117 1-126-209-11 ELECT CHIP 100uF 20% 4V C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CN101 1-778-874-11 CONNECTOR,FFC(LIF(NON-ZIF))19P CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P

< FERRITE BEAD >

FB101 1-500-445-21 FERRITE 0UH FB102 1-216-295-91 SHORT 0 FB103 1-500-445-21 FERRITE 0UH FB104 1-216-295-91 SHORT 0

< IC >

IC101 8-752-386-85 IC CXD2587Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-085-51 IC CXA2568M-T6

< TRANSISTOR >

Q101 8-729-010-08 TRANSISTOR MSB710-RT1

< RESISTOR >

R101 1-216-077-91 RES,CHIP 15K 5% 1/10W R102 1-216-097-91 RES,CHIP 100K 5% 1/10W R103 1-216-077-91 RES,CHIP 15K 5% 1/10W R104 1-216-085-00 METAL CHIP 33K 5% 1/10W R105 1-216-073-00 METAL CHIP 10K 5% 1/10W

C119 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C121 1-163-038-91 CERAMIC CHIP 0.1uF 25V C122 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C123 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C124 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C125 1-163-038-91 CERAMIC CHIP 0.1uF 25V C126 1-163-038-91 CERAMIC CHIP 0.1uF 25V C127 1-128-065-11 ELECT CHIP 68uF 20% 10V C128 1-163-038-91 CERAMIC CHIP 0.1uF 25V C129 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C130 1-164-346-11 CERAMIC CHIP 1uF 16V C131 1-124-779-00 ELECT CHIP 10uF 20% 16V C133 1-164-346-11 CERAMIC CHIP 1uF 16V C140 1-164-346-11 CERAMIC CHIP 1uF 16V C141 1-164-346-11 CERAMIC CHIP 1uF 16V

C143 1-163-038-91 CERAMIC CHIP 0.1uF 25V C151 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C153 1-163-038-91 CERAMIC CHIP 0.1uF 25V C154 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C156 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C157 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C161 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

R106 1-216-049-91 RES,CHIP 1K 5% 1/10W R107 1-216-073-00 METAL CHIP 10K 5% 1/10W R108 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R109 1-216-121-91 RES,CHIP 1M 5% 1/10W R110 1-216-025-91 RES,CHIP 100 5% 1/10W

R111 1-216-121-91 RES,CHIP 1M 5% 1/10W R113 1-216-121-91 RES,CHIP 1M 5% 1/10W R114 1-216-073-00 METAL CHIP 10K 5% 1/10W R116 1-216-001-00 METAL CHIP 10 5% 1/10W R117 1-216-049-91 RES,CHIP 1K 5% 1/10W

R119 1-216-041-00 METAL CHIP 470 5% 1/10W R123 1-216-073-00 METAL CHIP 10K 5% 1/10W R124 1-216-097-91 RES,CHIP 100K 5% 1/10W R131 1-216-033-00 METAL CHIP 220 5% 1/10W R135 1-216-295-91 SHORT 0

R136 1-216-295-91 SHORT 0 R137 1-216-295-91 SHORT 0 R138 1-216-295-91 SHORT 0 R143 1-216-103-00 METAL CHIP 180K 5% 1/10W R144 1-216-103-00 METAL CHIP 180K 5% 1/10W

R147 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R148 1-216-001-00 METAL CHIP 10 5% 1/10W R149 1-216-001-00 METAL CHIP 10 5% 1/10W

BD (MD)BD (CD)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R158 1-216-111-00 METAL CHIP 390K 5% 1/10W R159 1-216-101-00 METAL CHIP 150K 5% 1/10W

R161 1-216-308-00 METAL CHIP 4.7 5% 1/10W R162 1-216-101-00 METAL CHIP 150K 5% 1/10W R171 1-216-078-00 RES,CHIP 16K 5% 1/10W R172 1-216-073-00 METAL CHIP 10K 5% 1/10W R173 1-216-077-91 RES,CHIP 15K 5% 1/10W

R181 1-216-078-00 RES,CHIP 16K 5% 1/10W R182 1-216-073-00 METAL CHIP 10K 5% 1/10W R183 1-216-077-91 RES,CHIP 15K 5% 1/10W

< NETWORK >

RN101 1-233-576-11 RES, CHIP NETWORK 100 RN102 1-233-576-11 RES, CHIP NETWORK 100

C136 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C142 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C143 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C144 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C146 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C151 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C152 1-163-038-91 CERAMIC CHIP 0.1uF 25V C153 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C156 1-163-038-91 CERAMIC CHIP 0.1uF 25V C158 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V

C160 1-104-601-11 ELECT CHIP 10uF 20% 10V C161 1-104-601-11 ELECT CHIP 10uF 20% 10V C163 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C164 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C167 1-163-038-91 CERAMIC CHIP 0.1uF 25V

< SWITCH >

S101 1-572-085-11 SWITCH, LEAF (LIMIT IN SW)

< VIBRATOR >

X101 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)

**************************************************************

* A-4699-893-A BD (MD) BOARD, COMPLETE

***********************

< CAPACITOR >

C101 1-125-822-11 TANTALUM 10uF 20% 10V C102 1-163-038-91 CERAMIC CHIP 0.1uF 25V C103 1-125-822-11 TANTALUM 10uF 20% 10V C104 1-125-822-11 TANTALUM 10uF 20% 10V C105 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C106 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C107 1-163-038-91 CERAMIC CHIP 0.1uF 25V C108 1-163-038-91 CERAMIC CHIP 0.1uF 25V C109 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C111 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V

C112 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C113 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C115 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C116 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C117 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C168 1-163-038-91 CERAMIC CHIP 0.1uF 25V C169 1-125-822-11 TANTALUM 10uF 20% 10V C171 1-163-038-91 CERAMIC CHIP 0.1uF 25V C181 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C183 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C184 1-117-970-11 ELECT CHIP 22uF 20% 10V C185 1-164-611-11 CERAMIC CHIP 0.001uF 10% 500V C187 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C188 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C189 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V

C190 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C191 1-163-038-91 CERAMIC CHIP 0.1uF 25V C196 1-163-038-91 CERAMIC CHIP 0.1uF 25V C197 1-163-038-91 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN101 1-569-479-21 CONNECTOR, FPC 21P CN102 1-784-833-21 CONNECTOR,FFC(LIF(NON-ZIF))21P CN103 1-784-834-21 CONNECTOR,FFC(LIF(NON-ZIF))23P CN104 1-770-687-11 CONNECTOR, FFC/FPC 4P CN110 1-695-440-21 PIN, CONNECTOR (PC BOARD) 6P

< DIODE >

D101 8-719-988-61 DIODE 1SS355TE-17 D181 8-719-046-86 DIODE F1J6TP D183 8-719-046-86 DIODE F1J6TP

< IC >

C118 1-163-038-91 CERAMIC CHIP 0.1uF 25V C119 1-125-822-11 TANTALUM 10uF 20% 10V C121 1-125-822-11 TANTALUM 10uF 20% 10V C122 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C123 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C124 1-163-038-91 CERAMIC CHIP 0.1uF 25V C127 1-163-038-91 CERAMIC CHIP 0.1uF 25V C128 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C129 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C130 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C131 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C132 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C133 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C134 1-163-038-91 CERAMIC CHIP 0.1uF 25V C135 1-163-038-91 CERAMIC CHIP 0.1uF 25V

IC101 8-752-080-95 IC CXA2523AR IC103 8-729-903-10 TRANSISTOR FMW1-T-148 IC121 8-752-389-44 IC CXD2654R IC123 8-759-096-87 IC TC7WU04FU(TE12R) IC124 8-759-498-44 IC MSM51V4400-70TS-K

IC152 8-759-430-25 IC BH6511FS-E2 IC171 8-759-487-04 IC BR24C02F-E2 IC181 8-759-481-17 IC MC74ACT08DTR2 IC192 8-759-460-72 IC BA033FP-E2

< COIL >

L101 1-414-813-11 FERRITE 0uH L102 1-414-813-11 FERRITE 0uH L103 1-414-813-11 FERRITE 0uH L105 1-414-813-11 FERRITE 0uH

BD (MD)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

L106 1-414-813-11 FERRITE 0uH

L121 1-414-813-11 FERRITE 0uH L122 1-414-813-11 FERRITE 0uH L151 1-412-029-11 INDUCTOR CHIP 10uH L152 1-412-029-11 INDUCTOR CHIP 10uH L153 1-412-032-11 INDUCTOR CHIP 100uH

L154 1-412-032-11 INDUCTOR CHIP 100uH L161 1-414-813-11 FERRITE 0uH L162 1-414-813-11 FERRITE 0uH L181 1-216-295-91 SHORT 0

Q101 8-729-403-35 TRANSISTOR UN5113-TX Q102 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q103 8-729-402-93 TRANSISTOR UN5214-TX Q104 8-729-402-93 TRANSISTOR UN5214-TX Q162 8-729-101-07 TRANSISTOR 2SB798-T1DK

Q163 8-729-403-35 TRANSISTOR UN5113-TX Q181 8-729-018-75 TRANSISTOR 2SJ278MYTR Q182 8-729-017-65 TRANSISTOR 2SK1764KYTR

R103 1-216-049-91 RES,CHIP 1K 5% 1/10W R104 1-216-073-00 METAL CHIP 10K 5% 1/10W R105 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R106 1-216-133-00 METAL CHIP 3.3M 5% 1/10W R107 1-216-113-00 METAL CHIP 470K 5% 1/10W

R109 1-216-295-91 SHORT 0 R110 1-216-073-00 METAL CHIP 10K 5% 1/10W R111 1-216-295-91 SHORT 0 R112 1-216-089-91 RES,CHIP 47K 5% 1/10W R113 1-216-049-91 RES,CHIP 1K 5% 1/10W

R115 1-216-049-91 RES,CHIP 1K 5% 1/10W R117 1-216-113-00 METAL CHIP 470K 5% 1/10W R120 1-216-025-91 RES,CHIP 100 5% 1/10W R121 1-216-097-91 RES,CHIP 100K 5% 1/10W R123 1-216-295-91 SHORT 0

R124 1-216-025-91 RES,CHIP 100 5% 1/10W R125 1-216-025-91 RES,CHIP 100 5% 1/10W R127 1-216-025-91 RES,CHIP 100 5% 1/10W R129 1-216-295-91 SHORT 0 R130 1-216-295-91 SHORT 0

MD DIGITAL

< TRANSISTOR >

< RESISTOR >

R149 1-216-073-00 METAL CHIP 10K 5% 1/10W R150 1-216-295-91 SHORT 0 R151 1-216-073-00 METAL CHIP 10K 5% 1/10W R152 1-216-073-00 METAL CHIP 10K 5% 1/10W R158 1-216-097-91 RES,CHIP 100K 5% 1/10W

R159 1-216-097-91 RES,CHIP 100K 5% 1/10W R160 1-216-295-91 SHORT 0 R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R162 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R164 1-216-045-00 METAL CHIP 680 5% 1/10W R165 1-216-097-91 RES,CHIP 100K 5% 1/10W R167 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R169 1-219-724-11 METAL CHIP 1 1% 1/4W R170 1-216-073-00 METAL CHIP 10K 5% 1/10W

R171 1-216-073-00 METAL CHIP 10K 5% 1/10W R173 1-216-121-91 RES,CHIP 1M 5% 1/10W R175 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R177 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R179 1-216-085-00 METAL CHIP 33K 5% 1/10W

R180 1-216-073-00 METAL CHIP 10K 5% 1/10W R182 1-216-089-91 RES,CHIP 47K 5% 1/10W R183 1-216-089-91 RES,CHIP 47K 5% 1/10W R184 1-216-073-00 METAL CHIP 10K 5% 1/10W R185 1-216-081-00 METAL CHIP 22K 5% 1/10W

R186 1-216-089-91 RES,CHIP 47K 5% 1/10W R188 1-216-073-00 METAL CHIP 10K 5% 1/10W R189 1-216-073-00 METAL CHIP 10K 5% 1/10W R190 1-216-073-00 METAL CHIP 10K 5% 1/10W R195 1-216-073-00 METAL CHIP 10K 5% 1/10W

R196 1-216-295-91 SHORT 0 R197 1-216-295-91 SHORT 0 R198 1-216-296-91 SHORT 0

< SWITCH >

S101 1-762-596-21 SWITCH, PUSH (1 KEY)

**************************************************************

* A-4426-083-A MD DIGITAL BOARD, COMPLETE

**************************

< CAPACITOR >

R131 1-216-073-00 METAL CHIP 10K 5% 1/10W R132 1-216-097-91 RES,CHIP 100K 5% 1/10W R133 1-216-117-00 METAL CHIP 680K 5% 1/10W R134 1-216-049-91 RES,CHIP 1K 5% 1/10W R135 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R136 1-216-049-91 RES,CHIP 1K 5% 1/10W R137 1-216-295-91 SHORT 0 R140 1-216-029-00 METAL CHIP 150 5% 1/10W R142 1-216-073-00 METAL CHIP 10K 5% 1/10W R143 1-216-073-00 METAL CHIP 10K 5% 1/10W

R144 1-216-025-91 RES,CHIP 100 5% 1/10W R145 1-216-073-00 METAL CHIP 10K 5% 1/10W R146 1-216-037-00 METAL CHIP 330 5% 1/10W R147 1-216-025-91 RES,CHIP 100 5% 1/10W R148 1-216-045-00 METAL CHIP 680 5% 1/10W

C171 1-163-038-91 CERAMIC CHIP 0.1uF 25V C172 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C201 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C202 1-163-229-11 CERAMIC CHIP 12PF 5% 50V C203 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

C216 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C341 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C342 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C343 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C350 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C351 1-163-038-91 CERAMIC CHIP 0.1uF 25V C352 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C353 1-163-038-91 CERAMIC CHIP 0.1uF 25V C355 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C357 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V

MD DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C358 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C359 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C360 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C362 1-163-038-91 CERAMIC CHIP 0.1uF 25V C363 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C503 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C509 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C510 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C522 1-163-038-91 CERAMIC CHIP 0.1uF 25V C527 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C528 1-163-038-91 CERAMIC CHIP 0.1uF 25V C529 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2001 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

R385 1-216-073-00 METAL CHIP 10K 5% 1/10W R386 1-216-073-00 METAL CHIP 10K 5% 1/10W R391 1-216-073-00 METAL CHIP 10K 5% 1/10W

R395 1-216-073-00 METAL CHIP 10K 5% 1/10W R400 1-216-073-00 METAL CHIP 10K 5% 1/10W R816 1-216-174-00 RES,CHIP 100 5% 1/8W R817 1-216-174-00 RES,CHIP 100 5% 1/8W R818 1-216-174-00 RES,CHIP 100 5% 1/8W

R819 1-216-174-00 RES,CHIP 100 5% 1/8W R2002 1-216-073-00 METAL CHIP 10K 5% 1/10W R2004 1-216-041-00 METAL CHIP 470 5% 1/10W R2005 1-216-025-91 RES,CHIP 100 5% 1/10W R2006 1-216-025-91 RES,CHIP 100 5% 1/10W

LOADING

MAIN

< CONNECTOR >

CN101 1-793-311-11 CONNECTOR,FFC(LIF(NON-ZIF))25P CN102 1-784-687-41 PIN, CONNECTOR (PC BOARD) 7P CN103 1-784-834-21 CONNECTOR,FFC(LIF(NON-ZIF))23P CN104 1-784-833-21 CONNECTOR,FFC(LIF(NON-ZIF))21P

< IC >

IC153 8-759-481-19 IC LB1830M-S-TE-L IC201 8-759-553-65 IC UDA1341TS IC202 8-759-564-53 IC MC74HCU04ADTR2 IC316 8-759-643-90 IC M30624MG-A13FP

< COIL >

L181 1-424-675-11 INDUCTOR 33uH L201 1-500-445-21 FERRITE 0uH L202 1-500-445-21 FERRITE 0uH

< TRANSISTOR >

Q350 8-729-028-99 TRANSISTOR RT1N144M-TP-1

< RESISTOR >

R201 1-216-121-91 RES,CHIP 1M 5% 1/10W R202 1-216-041-00 METAL CHIP 470 5% 1/10W R203 1-216-049-91 RES,CHIP 1K 5% 1/10W R204 1-216-089-91 RES,CHIP 47K 5% 1/10W R205 1-216-113-00 METAL CHIP 470K 5% 1/10W

R207 1-216-025-91 RES,CHIP 100 5% 1/10W R210 1-216-041-00 METAL CHIP 470 5% 1/10W R330 1-216-073-00 METAL CHIP 10K 5% 1/10W R331 1-216-097-91 RES,CHIP 100K 5% 1/10W R333 1-216-073-00 METAL CHIP 10K 5% 1/10W

R349 1-216-073-00 METAL CHIP 10K 5% 1/10W R351 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R352 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R353 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R358 1-216-073-00 METAL CHIP 10K 5% 1/10W

R361 1-216-073-00 METAL CHIP 10K 5% 1/10W R363 1-216-073-00 METAL CHIP 10K 5% 1/10W R366 1-216-097-91 RES,CHIP 100K 5% 1/10W R367 1-216-097-91 RES,CHIP 100K 5% 1/10W R370 1-216-073-00 METAL CHIP 10K 5% 1/10W

R383 1-216-073-00 METAL CHIP 10K 5% 1/10W R384 1-216-073-00 METAL CHIP 10K 5% 1/10W

R2007 1-216-025-91 RES,CHIP 100 5% 1/10W R2008 1-216-073-00 METAL CHIP 10K 5% 1/10W R2009 1-216-073-00 METAL CHIP 10K 5% 1/10W

< VIBRATOR >

X201 1-767-286-11 VIBRATOR, CRYSTAL (22MHz) X302 1-781-155-21 VIBRATOR, CERAMIC (10MHz)

**************************************************************

1-674-336-11 LOADING BOARD

**************

< CONNECTOR >

* CN151 1-568-943-11 PIN, CONNECTOR 5P

< SWITCH >

S1 1-771-799-11 SWITCH, LEVER (SLIDE)

**************************************************************

A-4426-087-A MAIN BOARD, COMPLETE

********************

(AUS,AR,HK,MY,SP,KR,CH)

A-4426-080-A MAIN BOARD, COMPLETE (AEP,UK)

****************************

A-4426-756-A MAIN BOARD, COMPLETE (JE)

*************************

< CAPACITOR >

C101 1-162-282-31 CERAMIC 100PF 10% 50V C102 1-162-294-31 CERAMIC 0.001uF 10% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C121 1-126-933-11 ELECT 100uF 20% 16V C131 1-164-159-11 CERAMIC 0.1uF 50V

C132 1-162-282-31 CERAMIC 100PF 10% 50V C141 1-126-933-11 ELECT 100uF 20% 16V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-126-933-11 ELECT 100uF 20% 16V C144 1-126-964-11 ELECT 10uF 20% 50V

C145 1-126-964-11 ELECT 10uF 20% 50V C151 1-162-282-31 CERAMIC 100PF 10% 50V C152 1-162-294-31 CERAMIC 0.001uF 10% 50V C153 1-126-964-11 ELECT 10uF 20% 50V

MAIN

Ref. No. Part No. Description Remark

C161 1-126-933-11 ELECT 100uF 20% 16V

C166 1-162-282-31 CERAMIC 100PF 10% 50V C167 1-162-294-31 CERAMIC 0.001uF 10% 50V C171 1-164-159-11 CERAMIC 0.1uF 50V C172 1-162-306-11 CERAMIC 0.01uF 30% 16V C173 1-126-933-11 ELECT 100uF 20% 16V

C174 1-164-159-11 CERAMIC 0.1uF 50V C175 1-164-159-11 CERAMIC 0.1uF 50V C301 1-126-964-11 ELECT 10uF 20% 50V C302 1-162-302-11 CERAMIC 0.0022uF 30% 16V C303 1-126-964-11 ELECT 10uF 20% 50V

C304 1-130-475-00 MYLAR 0.0022uF 5% 50V C305 1-124-721-11 ELECT 10uF 20% 50V C306 1-162-302-11 CERAMIC 0.0022uF 30% 16V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-964-11 ELECT 10uF 20% 50V

C309 1-162-282-31 CERAMIC 100PF 10% 50V C310 1-162-294-31 CERAMIC 0.001uF 10% 50V C311 1-124-721-11 ELECT 10uF 20% 50V C312 1-136-165-00 FILM 0.1uF 5% 50V C313 1-126-957-11 ELECT 0.22uF 20% 50V

C314 1-130-473-00 MYLAR 0.0015uF 5% 50V C315 1-124-721-11 ELECT 10uF 20% 50V C316 1-136-165-00 FILM 0.1uF 5% 50V C317 1-136-165-00 FILM 0.1uF 5% 50V C323 1-124-721-11 ELECT 10uF 20% 50V

C324 1-124-724-11 ELECT 47uF 20% 50V C325 1-130-477-00 MYLAR 0.0033uF 5% 50V C326 1-162-286-31 CERAMIC 220PF 10% 50V C351 1-126-964-11 ELECT 10uF 20% 50V C352 1-162-302-11 CERAMIC 0.0022uF 30% 16V

C353 1-126-964-11 ELECT 10uF 20% 50V C354 1-130-475-00 MYLAR 0.0022uF 5% 50V C355 1-124-721-11 ELECT 10uF 20% 50V C356 1-162-302-11 CERAMIC 0.0022uF 30% 16V C357 1-126-964-11 ELECT 10uF 20% 50V

Ref. No. Part No. Description Remark

C407 1-164-031-11 CERAMIC 33PF 5% 50V

AEP,UK C501 1-164-025-51 CERAMIC 18PF 5% 50V C502 1-164-025-51 CERAMIC 18PF 5% 50V C503 1-162-306-11 CERAMIC 0.01uF 30% 16V

C504 1-162-306-11 CERAMIC 0.01uF 30% 16V C505 1-164-159-11 CERAMIC 0.1uF 50V C506 1-162-306-11 CERAMIC 0.01uF 30% 16V C507 1-126-933-11 ELECT 100uF 20% 16V C508 1-162-282-31 CERAMIC 100PF 10% 50V

C521 1-164-159-11 CERAMIC 0.1uF 50V C901 1-124-721-11 ELECT 10uF 20% 50V C902 1-124-721-11 ELECT 10uF 20% 50V C903 1-124-721-11 ELECT 10uF 20% 50V C904 1-126-964-11 ELECT 10uF 20% 50V

C905 1-126-926-11 ELECT 1000uF 20% 10V C906 1-124-721-11 ELECT 10uF 20% 50V C911 1-126-052-11 ELECT 100uF 20% 50V C912 1-124-721-11 ELECT 10uF 20% 50V C913 1-126-964-11 ELECT 10uF 20% 50V

C914 1-126-926-11 ELECT 1000uF 20% 10V C915 1-126-964-11 ELECT 10uF 20% 50V C916 1-126-926-11 ELECT 1000uF 20% 10V C917 1-126-933-11 ELECT 100uF 20% 16V C921 1-126-964-11 ELECT 10uF 20% 50V

C922 1-126-926-11 ELECT 1000uF 20% 10V C923 1-126-933-11 ELECT 100uF 20% 16V C931 1-126-933-11 ELECT 100uF 20% 16V C932 1-126-960-11 ELECT 1uF 20% 50V C933 1-164-159-11 CERAMIC 0.1uF 50V

C934 1-162-306-11 CERAMIC 0.01uF 30% 16V C935 1-164-159-11 CERAMIC 0.1uF 50V C941 1-126-947-11 ELECT 47uF 20% 35V C942 1-164-159-11 CERAMIC 0.1uF 50V C943 1-164-159-11 CERAMIC 0.1uF 50V

C945 1-164-159-11 CERAMIC 0.1uF 50V

C358 1-126-964-11 ELECT 10uF 20% 50V C359 1-162-282-31 CERAMIC 100PF 10% 50V C360 1-162-294-31 CERAMIC 0.001uF 10% 50V C361 1-124-721-11 ELECT 10uF 20% 50V C362 1-136-165-00 FILM 0.1uF 5% 50V

C363 1-126-957-11 ELECT 0.22uF 20% 50V C364 1-130-473-00 MYLAR 0.0015uF 5% 50V C365 1-124-721-11 ELECT 10uF 20% 50V C366 1-136-165-00 FILM 0.1uF 5% 50V C367 1-136-165-00 FILM 0.1uF 5% 50V

C401 1-126-933-11 ELECT 100uF 20% 16V

C402 1-162-286-31 CERAMIC 220PF 10% 50V

C403 1-126-961-11 ELECT 2.2uF 20% 50V

C404 1-162-291-31 CERAMIC 560PF 10% 50V

C405 1-126-933-11 ELECT 100uF 20% 16V

C406 1-164-031-11 CERAMIC 33PF 5% 50V

AEP,UK

< CONNECTOR >

* CN101 1-766-955-11 CONNECTOR, BOARD TO BOARD 11P * CN102 1-566-856-11 SOCKET, CONNECTOR 5P

CN103 1-770-731-11 CONNECTOR, BOARD TO BOARD 12P CN105 1-784-776-11 CONNECTOR, FFC 15P CN106 1-568-683-11 PIN, CONNECTOR (PC BAORD) 2P

CN107 1-784-786-11 CONNECTOR, FFC 25P CN109 1-784-780-11 CONNECTOR, FFC 19P

* CN110 1-568-954-11 PIN, CONNECTOR 5P

CN111 1-784-792-11 CONNECTOR, FFC 31P

< DIODE >

D171 8-719-921-40 DIODE MTZJ-T-72-4.7B D301 8-719-109-85 DIODE MTZJ-T-72-5.1B D302 8-719-911-19 DIODE 1SS133T-72 D901 8-719-200-82 DIODE 11ES2-TA2B D911 8-719-200-82 DIODE 11ES2-TA2B

D912 8-719-911-19 DIODE 1SS133T-72 D913 8-719-911-19 DIODE 1SS133T-72 D914 8-719-911-19 DIODE 1SS133T-72 D921 8-719-200-82 DIODE 11ES2-TA2B

MAIN

Ref. No. Part No. Description Remark

D922 8-719-911-19 DIODE 1SS133T-72

D923 8-719-911-19 DIODE 1SS133T-72 D924 8-719-911-19 DIODE 1SS133T-72 D941 8-719-911-19 DIODE 1SS133T-72 D942 8-719-911-19 DIODE 1SS133T-72 D943 8-719-911-19 DIODE 1SS133T-72

D944 8-719-911-19 DIODE 1SS133T-72 D945 8-719-911-19 DIODE 1SS133T-72 D946 8-719-911-19 DIODE 1SS133T-72

< GROUND TERMINAL >

EP1 1-537-770-21 TERMINAL BOARD, GROUND EP2 1-537-770-21 TERMINAL BOARD, GROUND

< IC >

IC121 8-749-923-05 TORX178A (OPTICAL DIGITAL IN) IC131 8-759-916-12 IC SN74HC00AN IC171 8-759-822-09 IC LB1641 IC301 8-759-494-39 IC M62428AFP IC302 8-759-000-48 IC MC14052BCP

IC401 8-759-560-51 IC BU1924F (AEP,UK) IC501 8-759-648-14 IC M30620ECFP-A21 IC901 8-759-394-35 IC BA12T IC902 8-759-604-86 IC M5F7807L IC903 8-759-450-49 IC BA07T

IC911 8-759-450-47 IC BA05T IC912 8-759-445-59 IC BA033T IC913 8-759-450-47 IC BA05T IC921 8-759-450-47 IC BA05T IC931 8-759-481-02 IC M62016L

IC941 8-759-637-58 IC PST592C-T

< JACK >

J101 1-779-653-12 JACK, PIN (TAPE IN/OUT)

< TRANSISTOR >

Q101 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q102 8-729-900-63 TRANSISTOR UN4112-TA Q111 8-729-048-96 TRANSISTOR 2SK1825 Q112 8-729-048-96 TRANSISTOR 2SK1825 Q113 8-729-900-63 TRANSISTOR UN4112-TA

Q114 8-729-422-73 TRANSISTOR UN4212-TA Q151 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q301 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q351 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q401 8-729-620-05 TRANSISTOR 2SC2603TP-EF (AEP,UK)

Q501 8-729-422-73 TRANSISTOR UN4212-TA Q551 8-729-422-73 TRANSISTOR UN4212-TA Q552 8-729-900-63 TRANSISTOR UN4112-TA Q911 8-729-118-01 TRANSISTOR 2SB1014TP-34 Q912 8-729-422-73 TRANSISTOR UN4212-TA

Q921 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q931 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q932 8-729-422-73 TRANSISTOR UN4212-TA Q941 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Ref. No. Part No. Description Remark

< RESISTOR >

R101 1-249-441-11 CARBON 100K 5% 1/4W R102 1-249-417-11 CARBON 1K 5% 1/4W F R103 1-249-429-11 CARBON 10K 5% 1/4W R104 1-249-417-11 CARBON 1K 5% 1/4W F R105 1-249-441-11 CARBON 100K 5% 1/4W

R106 1-249-441-11 CARBON 100K 5% 1/4W R111 1-249-393-11 CARBON 10 5% 1/4W F R112 1-249-393-11 CARBON 10 5% 1/4W F R113 1-249-437-11 CARBON 47K 5% 1/4W R114 1-249-441-11 CARBON 100K 5% 1/4W

R121 1-249-413-11 CARBON 470 5% 1/4W F R131 1-249-441-11 CARBON 100K 5% 1/4W R132 1-249-417-11 CARBON 1K 5% 1/4W F R133 1-249-417-11 CARBON 1K 5% 1/4W F R141 1-249-417-11 CARBON 1K 5% 1/4W F

R151 1-249-441-11 CARBON 100K 5% 1/4W R152 1-249-417-11 CARBON 1K 5% 1/4W F R153 1-249-429-11 CARBON 10K 5% 1/4W R154 1-249-417-11 CARBON 1K 5% 1/4W F R155 1-249-441-11 CARBON 100K 5% 1/4W

R156 1-249-441-11 CARBON 100K 5% 1/4W R171 1-249-409-11 CARBON 220 5% 1/4W F R172 1-249-414-11 CARBON 560 5% 1/4W F R302 1-247-843-11 CARBON 3.3K 5% 1/4W R303 1-249-441-11 CARBON 100K 5% 1/4W

R304 1-249-417-11 CARBON 1K 5% 1/4W F R306 1-249-417-11 CARBON 1K 5% 1/4W F R307 1-249-417-11 CARBON 1K 5% 1/4W F R308 1-249-441-11 CARBON 100K 5% 1/4W R309 1-249-437-11 CARBON 47K 5% 1/4W

R312 1-249-424-11 CARBON 3.9K 5% 1/4W F R313 1-247-885-00 CARBON 180K 5% 1/4W R314 1-249-435-11 CARBON 33K 5% 1/4W R315 1-247-903-00 CARBON 1M 5% 1/4W R316 1-249-441-11 CARBON 100K 5% 1/4W

R321 1-249-435-11 CARBON 33K 5% 1/4W R322 1-247-903-00 CARBON 1M 5% 1/4W R323 1-249-417-11 CARBON 1K 5% 1/4W F R324 1-249-417-11 CARBON 1K 5% 1/4W F R325 1-249-417-11 CARBON 1K 5% 1/4W F

R326 1-249-413-11 CARBON 470 5% 1/4W F R352 1-247-843-11 CARBON 3.3K 5% 1/4W R353 1-249-441-11 CARBON 100K 5% 1/4W R354 1-249-417-11 CARBON 1K 5% 1/4W F R356 1-249-417-11 CARBON 1K 5% 1/4W F

R357 1-249-417-11 CARBON 1K 5% 1/4W F R358 1-249-441-11 CARBON 100K 5% 1/4W R359 1-249-437-11 CARBON 47K 5% 1/4W R362 1-249-424-11 CARBON 3.9K 5% 1/4W F R363 1-247-885-00 CARBON 180K 5% 1/4W

R364 1-249-435-11 CARBON 33K 5% 1/4W R365 1-247-903-00 CARBON 1M 5% 1/4W R366 1-249-441-11 CARBON 100K 5% 1/4W R401 1-249-417-11 CARBON 1K 5% 1/4W F

(AEP,UK)

MAIN

Ref. No. Part No. Description Remark

R402 1-249-417-11 CARBON 1K 5% 1/4W F

(AEP,UK)

R403 1-249-429-11 CARBON 10K 5% 1/4W

(AEP,UK)

R404 1-259-880-11 CARBON 2.2M 5% 1/4W

(AEP,UK)

R405 1-249-417-11 CARBON 1K 5% 1/4W F

(AEP,UK) R501 1-247-807-31 CARBON 100 5% 1/4W R502 1-249-417-11 CARBON 1K 5% 1/4W F

R503 1-249-417-11 CARBON 1K 5% 1/4W F R504 1-249-417-11 CARBON 1K 5% 1/4W F R505 1-249-437-11 CARBON 47K 5% 1/4W R506 1-249-417-11 CARBON 1K 5% 1/4W F R507 1-247-807-31 CARBON 100 5% 1/4W

R508 1-247-807-31 CARBON 100 5% 1/4W R509 1-247-807-31 CARBON 100 5% 1/4W R510 1-249-417-11 CARBON 1K 5% 1/4W F R511 1-247-807-31 CARBON 100 5% 1/4W R512 1-247-807-31 CARBON 100 5% 1/4W

R513 1-247-807-31 CARBON 100 5% 1/4W R514 1-247-807-31 CARBON 100 5% 1/4W R515 1-247-807-31 CARBON 100 5% 1/4W R516 1-247-807-31 CARBON 100 5% 1/4W R517 1-247-807-31 CARBON 100 5% 1/4W

R518 1-247-807-31 CARBON 100 5% 1/4W R519 1-249-417-11 CARBON 1K 5% 1/4W F R520 1-249-417-11 CARBON 1K 5% 1/4W F R521 1-247-807-31 CARBON 100 5% 1/4W R522 1-247-807-31 CARBON 100 5% 1/4W

R523 1-249-417-11 CARBON 1K 5% 1/4W F R524 1-247-807-31 CARBON 100 5% 1/4W R525 1-249-417-11 CARBON 1K 5% 1/4W F R526 1-247-807-31 CARBON 100 5% 1/4W R527 1-247-807-31 CARBON 100 5% 1/4W

R528 1-247-807-31 CARBON 100 5% 1/4W R529 1-247-807-31 CARBON 100 5% 1/4W R530 1-247-807-31 CARBON 100 5% 1/4W R531 1-249-417-11 CARBON 1K 5% 1/4W F R532 1-249-417-11 CARBON 1K 5% 1/4W F

R533 1-249-417-11 CARBON 1K 5% 1/4W F R534 1-249-417-11 CARBON 1K 5% 1/4W F R535 1-249-417-11 CARBON 1K 5% 1/4W F R536 1-249-417-11 CARBON 1K 5% 1/4W F R537 1-249-417-11 CARBON 1K 5% 1/4W F

R538 1-249-417-11 CARBON 1K 5% 1/4W F R539 1-249-417-11 CARBON 1K 5% 1/4W F R540 1-249-417-11 CARBON 1K 5% 1/4W F R541 1-249-417-11 CARBON 1K 5% 1/4W F R542 1-249-417-11 CARBON 1K 5% 1/4W F

Ref. No. Part No. Description Remark

R549 1-247-807-31 CARBON 100 5% 1/4W R550 1-247-807-31 CARBON 100 5% 1/4W R551 1-249-437-11 CARBON 47K 5% 1/4W R552 1-249-429-11 CARBON 10K 5% 1/4W R553 1-249-417-11 CARBON 1K 5% 1/4W F

R554 1-249-417-11 CARBON 1K 5% 1/4W F R555 1-249-429-11 CARBON 10K 5% 1/4W R556 1-249-429-11 CARBON 10K 5% 1/4W R557 1-249-429-11 CARBON 10K 5% 1/4W R558 1-249-429-11 CARBON 10K 5% 1/4W

R559 1-249-429-11 CARBON 10K 5% 1/4W R560 1-249-427-11 CARBON 6.8K 5% 1/4W F R561 1-249-427-11 CARBON 6.8K 5% 1/4W F R562 1-249-427-11 CARBON 6.8K 5% 1/4W F R563 1-249-417-11 CARBON 1K 5% 1/4W F

R564 1-249-417-11 CARBON 1K 5% 1/4W F R565 1-249-426-11 CARBON 5.6K 5% 1/4W

(AEP,UK)

R565 1-249-412-11 CARBON 390 5% 1/4W F

(AUS,AR,HK,MY,SP,KR,CH)

R565 1-249-418-11 CARBON 1.2K 5% 1/4W F

(JE)

R566 1-249-416-11 CARBON 820 5% 1/4W F

(AEP,UK)

R566 1-249-426-11 CARBON 5.6K 5% 1/4W

(AUS,AR,HK,JE,MY,SP,KR,CH) R567 1-247-843-11 CARBON 3.3K 5% 1/4W R568 1-249-429-11 CARBON 10K 5% 1/4W R569 1-249-429-11 CARBON 10K 5% 1/4W R570 1-249-429-11 CARBON 10K 5% 1/4W

R571 1-249-441-11 CARBON 100K 5% 1/4W R572 1-249-441-11 CARBON 100K 5% 1/4W R573 1-247-807-31 CARBON 100 5% 1/4W R911 1-249-409-11 CARBON 220 5% 1/4W F R921 1-247-807-31 CARBON 100 5% 1/4W

R922 1-249-429-11 CARBON 10K 5% 1/4W R923 1-249-433-11 CARBON 22K 5% 1/4W R924 1-249-411-11 CARBON 330 5% 1/4W R931 1-247-887-00 CARBON 220K 5% 1/4W R932 1-249-441-11 CARBON 100K 5% 1/4W

R933 1-249-433-11 CARBON 22K 5% 1/4W R941 1-249-413-11 CARBON 470 5% 1/4W F R942 1-249-429-11 CARBON 10K 5% 1/4W R943 1-249-437-11 CARBON 47K 5% 1/4W R946 1-249-433-11 CARBON 22K 5% 1/4W

R947 1-249-437-11 CARBON 47K 5% 1/4W R949 1-249-429-11 CARBON 10K 5% 1/4W

< SWITCH >

S101 1-762-871-11 SWITCH, KEYBOARD (RESET)

R543 1-249-417-11 CARBON 1K 5% 1/4W F R544 1-249-417-11 CARBON 1K 5% 1/4W F R545 1-249-417-11 CARBON 1K 5% 1/4W F R547 1-247-807-31 CARBON 100 5% 1/4W R548 1-247-807-31 CARBON 100 5% 1/4W

< VIBRATOR >

X401 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz) (AEP,UK) X501 1-781-107-21 VIBRATOR, SERAMIC (16MHz) X502 1-567-098-41 VIBRATOR, CRYSTAL (32.768MHz)

**************************************************************

PANEL

Ref. No. Part No. Description Remark

A-4426-073-A PANEL BOARD, COMPLETE

**********************

* 1-690-880-31 LEAD (WITH CONNECTOR)

4-221-103-01 HOLDER (FL)

< CAPACITOR >

C601 1-162-306-11 CERAMIC 0.01uF 30% 16V C602 1-162-306-11 CERAMIC 0.01uF 30% 16V C603 1-124-261-00 ELECT 10uF 20% 50V C604 1-162-306-11 CERAMIC 0.01uF 30% 16V C605 1-162-306-11 CERAMIC 0.01uF 30% 16V

C606 1-162-306-11 CERAMIC 0.01uF 30% 16V C623 1-162-306-11 CERAMIC 0.01uF 30% 16V C635 1-124-261-00 ELECT 10uF 20% 50V C636 1-124-234-00 ELECT 22uF 20% 16V C640 1-162-282-31 CERAMIC 100PF 10% 50V

C647 1-162-286-31 CERAMIC 220PF 10% 50V C648 1-162-286-31 CERAMIC 220PF 10% 50V C649 1-162-286-31 CERAMIC 220PF 10% 50V C650 1-162-286-31 CERAMIC 220PF 10% 50V C651 1-162-286-31 CERAMIC 220PF 10% 50V

C652 1-162-286-31 CERAMIC 220PF 10% 50V C653 1-162-286-31 CERAMIC 220PF 10% 50V C654 1-162-286-31 CERAMIC 220PF 10% 50V C655 1-162-286-31 CERAMIC 220PF 10% 50V C656 1-162-286-31 CERAMIC 220PF 10% 50V

C657 1-162-286-31 CERAMIC 220PF 10% 50V C658 1-162-286-31 CERAMIC 220PF 10% 50V C659 1-162-286-31 CERAMIC 220PF 10% 50V C660 1-162-286-31 CERAMIC 220PF 10% 50V C661 1-162-286-31 CERAMIC 220PF 10% 50V

C662 1-162-286-31 CERAMIC 220PF 10% 50V C664 1-124-261-00 ELECT 10uF 20% 50V C665 1-124-589-11 ELECT 47uF 20% 16V C671 1-162-294-31 CERAMIC 0.001uF 10% 50V C672 1-162-294-31 CERAMIC 0.001uF 10% 50V

C673 1-162-306-11 CERAMIC 0.01uF 30% 16V C674 1-162-294-31 CERAMIC 0.001uF 10% 50V C681 1-249-425-11 CARBON 4.7K 5% 1/4W F C686 1-162-600-11 CERAMIC 0.0047uF 30% 16V C687 1-162-306-11 CERAMIC 0.01uF 30% 16V

< CONNECTOR >

CN601 1-784-753-11 CONNECTOR, FFC 31P

< DIODE >

D602 8-719-032-86 DIODE SEL5420E-TP15 (^(MD)) D603 8-719-032-98 DIODE SEL5820A-TP15 (^(MD)) D604 8-719-812-44 DIODE SEL5220S-TP15 (rREC(MD)) D605 8-719-812-44 DIODE SEL5220S-TP15 (6(MD)) D606 8-719-032-86 DIODE SEL5420E-TP15 (^(CD))

D607 8-719-032-98 DIODE SEL5820A-TP15 (^(CD)) D608 8-719-812-44 DIODE SEL5220S-TP15 (6(CD)) D609 8-719-812-44 DIODE SEL5220S-TP15 (I/u,STANBY)

FL601 1-517-901-11 INDICATOR TUBE, FLUORESCENT

Ref. No. Part No. Description Remark

< IC >

IC601 8-759-297-23 IC M66004M8FP IC602 8-759-459-85 IC NJL63H400A

< JACK >

J601 1-764-106-21 JACK (PHONES) J602 1-764-106-21 JACK (LINE-IN)

< TRANSISTOR >

Q601 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q602 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q604 8-729-900-80 TRANSISTOR UN4211-TA Q605 8-729-900-80 TRANSISTOR UN4211-TA Q606 8-729-900-80 TRANSISTOR UN4211-TA

Q607 8-729-900-80 TRANSISTOR UN4211-TA Q608 8-729-900-80 TRANSISTOR UN4211-TA Q609 8-729-900-80 TRANSISTOR UN4211-TA Q610 8-729-900-80 TRANSISTOR UN4211-TA

< RESISTOR >

R601 1-249-441-11 CARBON 100K 5% 1/4W R602 1-249-441-11 CARBON 100K 5% 1/4W R603 1-249-417-11 CARBON 1K 5% 1/4W F R604 1-249-417-11 CARBON 1K 5% 1/4W F R607 1-249-441-11 CARBON 100K 5% 1/4W

R608 1-249-434-11 CARBON 27K 5% 1/4W R609 1-249-417-11 CARBON 1K 5% 1/4W F R610 1-249-417-11 CARBON 1K 5% 1/4W F R611 1-249-417-11 CARBON 1K 5% 1/4W F R612 1-249-417-11 CARBON 1K 5% 1/4W F

R615 1-247-807-31 CARBON 100 5% 1/4W R616 1-247-807-31 CARBON 100 5% 1/4W R617 1-247-807-31 CARBON 100 5% 1/4W R618 1-247-807-31 CARBON 100 5% 1/4W R619 1-247-807-31 CARBON 100 5% 1/4W

R620 1-247-807-31 CARBON 100 5% 1/4W R621 1-247-807-31 CARBON 100 5% 1/4W R624 1-249-407-11 CARBON 150 5% 1/4W F R625 1-249-407-11 CARBON 150 5% 1/4W F R628 1-249-415-11 CARBON 680 5% 1/4W F

R630 1-249-412-11 CARBON 390 5% 1/4W F R632 1-249-407-11 CARBON 150 5% 1/4W F R633 1-249-407-11 CARBON 150 5% 1/4W F R636 1-249-413-11 CARBON 470 5% 1/4W F R637 1-249-417-11 CARBON 1K 5% 1/4W F

R639 1-249-393-11 CARBON 10 5% 1/4W F R641 1-249-415-11 CARBON 680 5% 1/4W F R642 1-249-417-11 CARBON 1K 5% 1/4W F R643 1-249-419-11 CARBON 1.5K 5% 1/4W F R644 1-247-843-11 CARBON 3.3K 5% 1/4W

R645 1-249-425-11 CARBON 4.7K 5% 1/4W F R646 1-249-415-11 CARBON 680 5% 1/4W F R647 1-249-417-11 CARBON 1K 5% 1/4W F R648 1-249-419-11 CARBON 1.5K 5% 1/4W F R649 1-247-843-11 CARBON 3.3K 5% 1/4W

R650 1-249-425-11 CARBON 4.7K 5% 1/4W F

PANEL POWER

Ref. No. Part No. Description Remark

R651 1-249-429-11 CARBON 10K 5% 1/4W R652 1-249-435-11 CARBON 33K 5% 1/4W R681 1-162-600-11 CERAMIC 0.0047uF 30% 16V R682 1-249-441-11 CARBON 100K 5% 1/4W

R686 1-249-425-11 CARBON 4.7K 5% 1/4W F R687 1-249-441-11 CARBON 100K 5% 1/4W

< SWITCH >

S601 1-473-392-11 ENCODER, ROTARY (VOLUME) S602 1-762-875-21 SWITCH, KEYBOARD (I/u (POWER) S603 1-762-875-21 SWITCH, KEYBOARD (p(CD)) S604 1-762-875-21 SWITCH, KEYBOARD (^(CD)) S605 1-762-875-21 SWITCH, KEYBOARD (6(CD))

S606 1-762-875-21 SWITCH, KEYBOARD (p(MD)) S607 1-762-875-21 SWITCH, KEYBOARD (^(MD)) S608 1-762-875-21 SWITCH, KEYBOARD (6(MD)) S609 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S610 1-762-875-21 SWITCH, KEYBOARD

(MD/CD )+ TUNING+)

S611 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S612 1-762-875-21 SWITCH, KEYBOARD

(MD/CD =0 TUNING-)

S613 1-762-875-21 SWITCH, KEYBOARD (rREC) S614 1-762-875-21 SWITCH, KEYBOARD (SYNC,REC) S615 1-762-875-21 SWITCH, KEYBOARD (REPEAT STEREO/MONO)

S616 1-762-875-21 SWITCH, KEYBOARD

(PLAY MODE TUNING MODE)

Ref. No. Part No. Description Remark

* CN993 1-564-519-11 PLUG, CONNECTOR 4P * CN994 1-770-730-11 CONNECTOR, BOARD TO BOARD 11P

< DIODE >

D971 8-719-200-82 DIODE 11ES2-TA2B D972 8-719-200-82 DIODE 11ES2-TA2B D973 8-719-200-82 DIODE 11ES2-TA2B D974 8-719-200-82 DIODE 11ES2-TA2B D975 8-719-200-82 DIODE 11ES2-TA2B

D976 8-719-200-82 DIODE 11ES2-TA2B D977 8-719-200-82 DIODE 11ES2-TA2B D978 8-719-200-82 DIODE 11ES2-TA2B D979 8-719-983-86 DIODE MTZJ-T-72-33A D980 8-719-947-12 DIODE MTZJ-T-72-4.7A

D981 8-719-025-03 DIODE RBA-402 D982 8-719-200-82 DIODE 11ES2-TA2B D985 8-719-200-82 DIODE 11ES2-TA2B D986 8-719-911-19 DIODE 1SS133T-72 D987 8-719-911-19 DIODE 1SS133T-72

D991 8-719-911-19 DIODE 1SS133T-72 D992 8-719-911-19 DIODE 1SS133T-72 D993 8-719-911-19 DIODE 1SS133T-72

< FUSE >

! F991 1-532-388-31 FUSE (T2AL/250V) (AUS,AR,HK,JE,MY,SP,KR,CH)

< TRANSISTOR >

**************************************************************

A-4426-081-A POWER BOARD, COMPLETE (AEP,UK)

******************************

A-4426-088-A POWER BOARD, COMPLETE

**********************

(AUS,AR,HK,JE,MY,SP,KR,CH)

1-533-293-11 FUSE HOLDER (AUS,AR,HK,JE,MY,SP,KR,CH)

< CAPACITOR >

C971 1-136-165-00 FILM 0.1uF 5% 50V C972 1-126-936-11 ELECT 3300uF 20% 16V C973 1-136-165-00 FILM 0.1uF 5% 50V C974 1-126-968-11 ELECT 100uF 20% 50V C975 1-126-964-11 ELECT 10uF 20% 50V

C976 1-126-964-11 ELECT 10uF 20% 50V C981 1-136-165-00 FILM 0.1uF 5% 50V C982 1-115-364-11 ELECT 22000uF 20% 16V C983 1-136-165-00 FILM 0.1uF 5% 50V C984 1-126-943-11 ELECT 2200uF 20% 25V

! C991 1-113-925-00 CERAMIC 0.01uF 250V

C992 1-126-961-11 ELECT 2.2uF 20% 50V

< CONNECTOR >

CN991 1-564-321-00 PIN, CONNECTOR 2P

* CN992 1-564-321-21 PIN, CONNECTOR 2P AEP,UK * CN992 1-564-687-11 PIN, CONNECTOR 3P

(AUS,AR,HK,JE,MY,SP,KR,CH)

Q971 8-729-141-83 TRANSISTOR 2SB1375 Q972 8-729-922-37 TRANSISTOR 2SD2144S-TP-UVW Q973 8-729-922-37 TRANSISTOR 2SD2144S-TP-UVW Q974 8-729-900-63 TRANSISTOR UN4112-TA Q975 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Q991 8-729-620-05 TRANSISTOR 2SC2603TP-EF

< RESISTOR >

! R971 1-219-153-11 FUSIBLE 10 5% 1/4W F

R972 1-249-421-11 CARBON 2.2K 5% 1/4W F R973 1-249-429-11 CARBON 10K 5% 1/4W R974 1-249-413-11 CARBON 470 5% 1/4W F R975 1-249-413-11 CARBON 470 5% 1/4W F

R976 1-249-429-11 CARBON 10K 5% 1/4W R977 1-249-429-11 CARBON 10K 5% 1/4W R978 1-249-441-11 CARBON 100K 5% 1/4W R979 1-249-417-11 CARBON 1K 5% 1/4W F R980 1-249-417-11 CARBON 1K 5% 1/4W F

! R981 1-219-121-81 FUSIBLE 0.22 5% 1/4W F ! R982 1-219-124-81 FUSIBLE 0.68 5% 1/4W F

R991 1-249-429-11 CARBON 10K 5% 1/4W R992 1-249-429-11 CARBON 10K 5% 1/4W R993 1-249-417-11 CARBON 1K 5% 1/4W F

R994 1-249-417-11 CARBON 1K 5% 1/4W F R995 1-247-843-11 CARBON 3.3K 5% 1/4W

< RELAY >

! RY991 1-755-276-11 RELAY, POWER

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

POWER SP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< SWITCH >

! S991 1-571-309-11 SWITCH (VOLTAGE SELESTOR)

(AUS,AR,HK,JE,MY,SP,KR,CH)

< TRANSFORMER >

! T900 1-433-969-11 TRANSFORMER, POWER (AEP,UK) ! T900 1-433-970-11 TRANSFORMER, POWER

(AUS,AR,HK,JE,MY,SP,KR,CH)

! T901 1-433-965-11 TRANSFORMER, SUB POWER (AEP,UK) ! T901 1-433-966-11 TRANSFORMER, SUB POWER

(AUS,AR,HK,JE,MY,SP,KR,CH)

T992 1-424-485-11 FILTER, LINE

**************************************************************

1-674-628-11 SP BOARD

*******

< CAPACITOR >

C881 1-126-959-11 ELECT 0.47uF 20% 50V C882 1-136-495-11 FILM 0.068uF 5% 50V C883 1-136-495-11 FILM 0.068uF 5% 50V C884 1-136-495-11 FILM 0.068uF 5% 50V C885 1-136-495-11 FILM 0.068uF 5% 50V

< CONNECTOR >

* CN881 1-770-747-11 CONNECTOR, BOARD TO BOARD 12P * CN882 1-770-747-11 CONNECTOR, BOARD TO BOARD 12P

< DIODE >

D881 8-719-911-19 DIODE 1SS133T-72 D882 8-719-911-19 DIODE 1SS133T-72

< COIL >

R895 1-260-076-11 CARBON 10 5% 1/2W

! R896 1-215-891-11 METAL OXIDE 680 5% 2W F

! R896 1-216-454-11 METAL OXIDE 390 5% 2W F

(AUS,AR,HK,JE,MY,SP,KR,CH)

< RELAY >

RY881 1-515-921-11 RELAY (12V)

< TERMINAL >

TM881 1-537-238-31 TERMINAL BOARD (SPEAKER)

**************************************************************

1-668-111-11 SW BOARD

*******

< CONNECTOR >

* CN601 1-506-486-11 PIN, CONNECTOR 7P

< SWITCH >

S601 1-572-126-21 SWITCH, PUSH (1 KEY) S602 1-572-126-21 SWITCH, PUSH (1 KEY) S604 1-771-264-11 SWITCH, PUSH(DETECTION)(1 KEY)

**************************************************************

MISCELLANEOUS

*************

16 1-773-212-11 WIRE (FLAT TYPE) (25 CORE) 17 1-791-211-11 WIRE (FLAT TYPE) (23 CORE) 18 1-777-240-11 WIRE (FLAT TYPE) (21 CORE) 22 1-791-223-11 WIRE (FLAT TYPE) (31 CORE) 55 1-674-628-11 SP BOARD

(AEP,UK)

L881 1-420-872-00 COIL, AIR-CORE L882 1-420-872-00 COIL, AIR-CORE

< TRANSISTOR >

Q881 8-729-111-29 TRANSISTOR 2SD1616-TP-K

< RESISTOR >

! R881 1-215-864-00 METAL OXIDE 150 5% 1W F ! R882 1-215-864-00 METAL OXIDE 150 5% 1W F ! R883 1-215-864-00 METAL OXIDE 150 5% 1W F ! R884 1-215-864-00 METAL OXIDE 150 5% 1W F

R885 1-247-903-00 CARBON 1M 5% 1/4W

R886 1-249-431-11 CARBON 15K 5% 1/4W R887 1-249-431-11 CARBON 15K 5% 1/4W R888 1-249-429-11 CARBON 10K 5% 1/4W R889 1-247-843-11 CARBON 3.3K 5% 1/4W R890 1-249-429-11 CARBON 10K 5% 1/4W

! R891 1-215-891-11 METAL OXIDE 680 5% 2W F

(AEP,UK)

! R891 1-216-454-11 METAL OXIDE 390 5% 2W F

(AUS,AR,HK,JE,MY,SP,KR,CH) R892 1-260-076-11 CARBON 10 5% 1/2W R893 1-260-076-11 CARBON 10 5% 1/2W R894 1-260-076-11 CARBON 10 5% 1/2W

57 1-693-473-41 TUNER (EXCEPT JE) 59 1-773-115-11 WIRE (FLAT TYPE) (19 CORE) 60 1-773-006-11 WIRE (FLAT TYPE) (15 CORE) 61 1-569-972-21 SOCKET, SHORT 2P

! 62 1-696-847-11 CORD, POWER (AUS)

! 62 1-769-744-11 CORD, POWER (AEP,UK,HK,JE,MY,SP,KR,CH) ! 62 1-783-941-11 CORD, POWER (AR)

63 1-569-008-21 ADAPTOR, CONVERSION 2P (JE) 63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK) 158 1-667-954-11 FLEXIBLE BOARD

! 160 8-583-058-01 OPTICAL PICK-UP KMS-260B/JIN ! 255 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP

256 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) FL601 1-517-901-11 INDICATOR TUBE, FLUORESCENT HR901 1-500-502-11 HEAD, OVER WRITE

HR901 1-500-502-21 HEAD, OVER WRITE S1 1-771-799-11 SWITCH, LEVER (SLIDE)(LOADING SWITCH) S102 1-762-148-21 SWITCH, PUSH (2 KEY)

! T900 1-433-969-11 TRANSFORMER, SUB POWER (AEP,UK) ! T900 1-433-970-11 TRANSFORMER, SUB POWER (EXCEPT AEP,UK)

! T901 1-433-965-11 TRANSFORMER, POWER (AEP,UK)

**************************************************************

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

HCD-MD373

Ver 1.1 2001.06

Ref. No. Part No. Description Remark

*************

HARDWARE LIST

*************

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B) #2 7-685-650-91 SCREW +BVTP 3X16 TYPE2 TT(B) #3 7-685-871-01 SCREW +BVTT 3X6 (S) #4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #5 7-627-852-08 SCREW,PRECISION +P 1.7X2.5

#6 7-621-772-40 SCREW +B 2X8 #7 7-621-772-20 SCREW +B 2X5 #8 7-685-133-19 SCREW (DIA. 2.6) (IT3B) #9 7-621-772-10 SCREW +B 2X4 #10 7-621-772-30 SCREW +B 2X6

#11 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S

MEMO

HCD-MD373

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.1 2001.06 Addition of CD mechanism (CDM55C-5BD32) and base unit

(BU-5BD32). (SPM-01016)

1.0 1999.08 New.

Sony HCD-MD373 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SELF-DIAGNOSIS FUNCTION

TABLE OF CONTENTS

SERVICING NOTE

GENERAL

DISASSEMBLY

TEST MODE

ELECTRICAL ADJUSTMENTS

DIAGRAMS

EXPLODED VIEWS

ELECTRICAL PARTS LIST

AMP BD (CD)

BD (MD)BD (CD)

MD DIGITAL

LOADING

MAIN

PANEL

PANEL POWER
