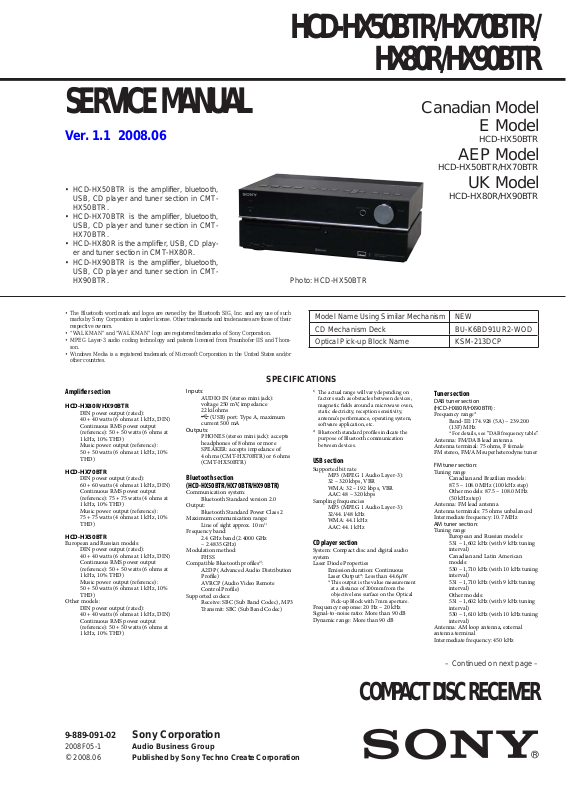

Page 1
HCD-HX50BTR/HX70BTR/
HX80R/HX90BTR
SERVICE MANUAL
Ver. 1.1 2008.06
• HCD-HX50BTR is the amplifi er , bluetooth,
USB, CD player and tuner section in CMTHX50BTR.
• HCD-HX70BTR is the amplifi er , bluetooth,
USB, CD player and tuner section in CMTHX70BTR.
• HCD-HX80R is the amplifi er , USB, CD play-
er and tuner section in CMT-HX80R.
• HCD-HX90BTR is the amplifi er , bluetooth,
USB, CD player and tuner section in CMTHX90BTR.
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under license. Other trademarks and trade names are those of their
respective owners.
• “WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thom-
son.
• Windows Media is a registered trademark of Microsoft Corporation in the United States and/or
other countries.
Amplifier section
HCD-HX80R/HX90BTR
DIN power output (rated):
40 + 40 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 50 + 50 watts (6 ohms at
1 kHz, 10% THD)
Music power output (reference):
50 + 50 watts (6 ohms at 1 kHz, 10%
THD)
HCD-HX70BTR
DIN power output (rated):
60 + 60 watts (4 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 75 + 75 watts (4 ohms at
1 kHz, 10% THD)
Music power output (reference):
75 + 75 watts (4 ohms at 1 kHz, 10%
THD)
HCD-HX50BTR
European and Russian models:
DIN power output (rated):
40 + 40 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 50 + 50 watts (6 ohms at
1 kHz, 10% THD)
Music power output (reference):
50 + 50 watts (6 ohms at 1 kHz, 10%
THD)
Other models:
DIN power output (rated):
40 + 40 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output
(reference): 50 + 50 watts (6 ohms at
1 kHz, 10% THD)
Inputs:
AUDIO IN (stereo mini jack):
voltage 250 mV, impedance
22 kilohms
(USB) port: Type A, maximum
current 500 mA
Outputs:
PHONES (stereo mini jack): accepts
headphones of 8 ohms or more
SPEAKER: accepts impedance of
4 ohms (CMT-HX70BTR) or 6 ohms
(CMT-HX50BTR)
Bluetooth section
(HCD-HX50BTR/HX70BTR/HX90BTR)
Communication system:
Bluetooth Standard version 2.0
Output:
Bluetooth Standard Power Class 2
Maximum communication range:
Line of sight approx. 10 m
Frequency band:
2.4 GHz band (2.4000 GHz
– 2.4835 GHz)
Modulation method:
FHSS
Compatible Bluetooth proles
A2DP (Advanced Audio Distribution
Prole)
AVRCP (Audio Video Remote
Control Prole)
Supported codecs:
Receive: SBC (Sub Band Codec), MP3
Transmit: SBC (Sub Band Codec)
2)
Photo: HCD-HX50BTR
SPECIFICATIONS
1)
:
Canadian Model
E Model
HCD-HX50BTR
AEP Model
HCD-HX50BTR/HX70BTR
UK Model
HCD-HX80R/HX90BTR
Model Name Using Similar Mechanism NEW
CD Mechanism Deck BU-K6BD91UR2-WOD
Optical Pick-up Block Name KSM-213DCP
1)
e actual range will vary depending on
factors such as obstacles between devices,
magnetic elds around a microwave oven,
static electricity, reception sensitivity,
antenna’s performance, operating system,
soware application, etc.
2)
Bluetooth standard proles indicate the
purpose of Bluetooth communication
between devices.
USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 – 320 kbps, VBR
WMA: 32 – 192 kbps, VBR
AAC: 48 – 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
CD player section
System: Compact disc and digital audio
system
Laser Diode Properties
Emission duration: Continuous
Laser Output*: Less than 44.6μW
* is output is the value measurement
at a distance of 200mm from the
objective lens surface on the Optical
Pick-up Block with 7mm aperture.
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 90 dB
Tuner section
DAB tuner section
(HCD-HX80R/HX90BTR) :
Frequency range*
Band-III: 174.928 (5A) – 239.200
(13F) MHz
* For details, see “DAB frequency table”.
Antenna: FM/DAB lead antenna
Antenna terminal: 75 ohms, F female
FM stereo, FM/AM superheterodyne tuner
FM tuner section:
Tuning range
Canadian and Brazilian models:
87.5 – 108.0 MHz (100 kHz step)
Other models: 87.5 – 108.0 MHz
(50 kHz step)
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz
AM tuner section:
Tuning range
European and Russian models:
531 – 1,602 kHz (with 9 kHz tuning
interval)
Canadian and Latin American
models:
530 – 1,710 kHz (with 10 kHz tuning
interval)
531 – 1,710 kHz (with 9 kHz tuning
interval)
Other models:
531 – 1,602 kHz (with 9 kHz tuning
interval)
530 – 1,610 kHz (with 10 kHz tuning
interval)
Antenna: AM loop antenna, external
antenna terminal
Intermediate frequency: 450 kHz
9-889-091-02
2008F05-1
2008.06
©
– Continued on next page –
COMPACT DISC RECEIVER
Sony Corporation
Audio Business Group
Published by Sony Techno Create Corporation
Page 2
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
DAB frequency table (Band-III)
Frequency Label Frequency Label
174.928 MHz 5A 209.936 MHz 10A
176.640 MHz 5B 211.648 MHz 10B
178.352 MHz 5C 213.360 MHz 10C
180.064 MHz 5D 215.072 MHz 10D
181.936 MHz 6A 216.928 MHz 11A
183.648 MHz 6B 218.640 MHz 11B
185.360 MHz 6C 220.352 MHz 11C
187.072 MHz 6D 222.064 MHz 11D
188.928 MHz 7A 223.936 MHz 12A
190.640 MHz 7B 225.648 MHz 12B
192.352 MHz 7C 227.360 MHz 12C
194.064 MHz 7D 229.072 MHz 12D
195.936 MHz 8A 230.784 MHz 13A
197.648 MHz 8B 232.496 MHz 13B
199.360 MHz 8C 234.208 MHz 13C
201.072 MHz 8D 235.776 MHz 13D
202.928 MHz 9A 237.488 MHz 13E
204.640 MHz 9B 239.200 MHz 13F
206.352 MHz 9C
208.064 MHz 9D
General
Power requirements
European and Russian models:
220 – 240 V AC, 50/60 Hz
Canadian model: 120 V AC, 60 Hz
Mexican model: 127 V AC, 60 Hz
Argentina model: 220 – 240 V AC,
50/60 Hz
Korean model: 220 – 240 V AC,
50/60 Hz
Latin American models (except for
Mexican and Argentina models):
120 – 127, 220 – 240 V AC, 50/60 Hz,
adjustable with voltage selector
Other models:
220 – 240 V AC, 50/60 Hz
Power consumption
HCD-HX90BRT: 40 watts
HCD-HX80R: 40 watts
HCD-HX70BTR: 50 watts
HCD-HX50BTR: 40 watts
Dimensions (w/h/d) (excl. speakers):
Approx. 305 × 116 × 226 mm
(HCD-HX80R/HX90BTR)
Approx. 305 × 116 × 225 mm
(HCD-HX50BTR/HC70BTR)
Design and specications are subject to
change without notice.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270 °C during
repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures other than
those specifi ed herein may result in hazardous radiation exposure.
is appliance is classied as a CLASS 1
LASER product. is marking is located
on the rear exterior.
SAFETY-RELATED COMPONET WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
2
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
Page 3
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
TABLE OF CONTENTS
1. SERVICING NOTES ............................................. 4
2. GENERAL .................................................................. 6
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 8
3-2. Panel (Top) Block ........................................................... 9
3-3. Panel (Front) Block ......................................................... 9
3-4. Knob Assy ....................................................................... 10
3-5. MAIN Board ................................................................... 10
3-6. Loading Mechanism Block ............................................. 11
3-7. Base Unit (BU-K6BD91UR2-WOD) ............................. 11
3-8. Belt .................................................................................. 12
3-9. Optical Pick-up Block (KSM-213D) .............................. 12
4. TEST MODE ............................................................ 13
5. ELECTRICAL CHECKS ...................................... 15
6. DIAGRAMS
6-1. Block Diagram - CD SERVO Section - .......................... 16
6-2. Block Diagram
- TUNER/USB/BLUETOOTH Section - ........................ 17
6-3. Block Diagram - MAIN Section - ................................... 18
6-4. Block Diagram - AMP Section - ..................................... 19
6-5. Block Diagram - PANEL/POWER SUPPLY - ............... 20
6-6. Printed Wiring Boards - CD Section - ............................ 22
6-7. Schematic Diagram - CD Board - ................................... 23
6-8. Printed Wiring Board - USB Board - .............................. 24
6-9. Schematic Diagram - USB Board - ................................. 25
6-10. Printed Wiring Boards - BLUETOOTH Section
(HX50BTR/HX70BTR/HX90BTR) - ............................. 26
6-11. Schematic Diagram - BLUETOOTH Section
(HX50BTR/HX70BTR/HX90BTR) - ............................. 27
6-12. Printed Wiring Board
- DAB Board (HX80R/HX90BTR) - .............................. 28
6-13. Schematic Diagram
- DAB Board (HX80R/HX90BTR) - .............................. 29
6-14. Printed Wiring Board - MAIN Section - ......................... 30
6-15. Schematic Diagram - MAIN Section (1/3) - ................... 31
6-16. Schematic Diagram - MAIN Section (2/3) - ................... 32
6-17. Schematic Diagram - MAIN Section (3/3) - ................... 33
6-18. Printed Wiring Board
- AMP Board (HX50BTR/HX80R/HX90BTR) - ........... 34
6-19. Schematic Diagram
- AMP Board (HX50BTR/HX80R/HX90BTR) - ........... 35
6-20. Printed Wiring Board - AMP Board (HX70BTR) - ........ 36
6-21. Schematic Diagram - AMP Board (HX70BTR) - ........... 37
6-22. Printed Wiring Boards - INPUT/OUTPUT Section - ..... 38
6-23. Schematic Diagram - INPUT/OUTPUT Section - .......... 39
6-24. Printed Wiring Boards - PANEL Section - ..................... 40
6-25. Schematic Diagram - PANEL Section - .......................... 41
6-26. Printed Wiring Board - SW POWER Board - ................. 42
6-27. Schematic Diagram - SW POWER Board - ................... 43
8. ELECTRICAL PARTS LIST .............................. 64
7. EXPLODED VIEWS
7-1. Panel (Top) Section ......................................................... 57
7-2. Chassis (Top) Section ..................................................... 58
7-3. Panel (Front) Section ...................................................... 59
7-4. Main Section ................................................................... 60
7-5. Chassis Section ............................................................... 61
7-6. Loading Mechanism Section .......................................... 62
7-7. Base Unit Section (BU-K6BD91UR2-WOD) ................ 63
3
Page 4
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
MODEL IDENTIFICATION
– Back Panel –
Model Part No.
HX50BTR: AEP model
HX50BTR: Canadian model
HX50BTR: Russian model
HX50BTR: Singapore model
HX50BTR: Korean model
HX50BTR: Mexican model
HX50BTR: Chilean and Peruvian models
HX50BTR: Argentina model
HX50BTR: Brazilian model
HX70BTR
HX90BTR
HX80R
PART No.
3-284-497-0[]
3-284-497-1[]
3-284-497-2[]
3-284-497-3[]
3-284-497-5[]
3-284-497-7[]
3-284-497-8[]
3-284-497-9[]
3-290-773-0[]
3-290-773-1[]
3-290-773-2[]
3-290-773-3[]
RELEASING THE ANTITHEFT LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Releasing Procedure:
1. Press the [
2. While pressing the [
] button to turn the power on.
?/1
x/CANCEL
] button, press the [
Z
] button unit “UNLOCKED” displayed on the fl uorescent indicator
tube (around 5 seconds) .
Note: When “LOCKED” is displayed, the tray lock is not released by
turning power on/off with the [?/1] button.
NOTE THE IC904 ON THE BT BOARD REPLACING
When IC904 cannot exchange with single. When IC904 is damaged, exchange the entire mounted board.
4
Page 5
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Remove the panel (side R).
(Illustration of disaaaembly is omitted.)
Make a small hole in the location
of the figure.
12 mm
12 mm
Open the tray.
chassis (main)
– chassis (main) side R view –
panel (front) block
Insert the driver.
ATTENTION WHEN INSTALLING Q12
Note 1: Be sure to use an original screw
(Part. No. 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3),
never use a screw longer than an original screw.
panel (back)
Q12
heatsink (REG)
screw (BVTP3x8)
Push the lever.
SW POWER board
chassis (main)
SW POWER board
chassis (main)
Q12
more than 5 mm
Note 2: Open more than 5 mm of screw (BVTP3x8)
installing Q12 in heatsink (REG)
to a chassis (main) from a screw point.
5
Page 6
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SECTION 2
GENERAL
This section is extracted
from instruction manual.
Guide to parts and controls
is manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Unit
Front panel
Top panel
Remote (RM-AMU009)
/ (power) button
Press to turn on the system.
STANDBY indicator
Lights up when the system is turned o.
Remote sensor
BLUETOOTH indicator (HX50BTR/
HX70BTR/HX90BTR only)
Lights up when the Bluetooth function
is active.
BLUETOOTH button (HX50BTR/
HX70BTR/HX90BTR only)
Press to make a connection,
disconnection, or pairing with a
Bluetooth device.
Unit: VOLUME control
Remote: VOLUME +/– button
Turn or press to adjust the volume.
(USB) port
Connect to an optional USB device.
(open/close) button
Press to open or close the disc tray.
AUDIO IN jack
Connect to an optional audio
component.
PHONES jack
Connect the headphones.
Playback buttons and function
buttons
Unit: BLUETOOTH (play/
pause) button (HX50BTR/
HX70BTR/HX90BTR only)
Press to select the Bluetooth function.
Press to start or pause playback of the
music on the Bluetooth device (Bluetooth
mobile phone, etc.).
Unit: USB (play/pause)
button
Press to select the USB function.
Press to start or pause playback of an
optional USB device.
Unit: CD (play/pause)
button
Press to select the CD function.
Press to start or pause playback of a disc.
Remote: (play) button,
(pause) button
Press to start or pause playback.
Unit: TUNER/BAND button
Press to select the TUNER function.
Press to select FM or AM reception
mode.
Unit: DMPORT (play/pause)
button (HX80R only)
Press to select the DMPORT function.
Press to start or pause playback of the
audio device connected to the DIGITAL
MEDIA PORT adapter.
Unit: FUNCTION button
Remote: FUNCTION +/– button
Press to select the function.
Unit: /CANCEL (stop/cancel)
button
Remote: (stop) button
Press to stop playback.
Press to cancel search.
SEARCH button (HX50BTR/
HX70BTR)
Press to enter or exit search mode.
SEARCH/DAB AUTO SCAN button
(HX80R/HX90BTR)
Press to enter or exit search mode.
Press to run the DAB Automatic Scan.
Unit: ENTER button
Remote:
Press to enter the settings.
(enter) button
/ (go back/go forward)
button
Press to select a track or le.
Unit: TUNE +/– (tuning) button
Remote: +/– (tuning) button
Press to tune in the desired station.
+/– (select folder) button
Press to select a folder.
/ (rewind/fast forward)
button
Press to nd a point in a track or le.
CD-USB SYNC/REC1 button
Press to record from a disc onto the
connected optional USB device.
USB MENU button
Press to erase audio les and folders from
the connected optional USB device.
Press to select which memory to read
to if the USB device has more than one
memory.
Sound buttons
Unit: DSGX button
Remote: EQ button
Press to select the sound eect.
CLEAR button
Press to delete a pre-programmed track
or le.
Press to erase the pairing registration
information of the Bluetooth device.
TIMER MENU button
Press to set the clock and the Play Timer.
TOOL MENU button
Press to select a menu when using the
DIGITAL MEDIA PORT adapter.
Battery compartment lid
RETURN button
Press to return to the previous menu
when using the DIGITAL MEDIA PORT
adapter.
/// button
Press to select the menu items.
TUNER MEMORY button
Press to preset the radio station.
PLAY MODE/TUNING MODE
button
Press to select the play mode of a CD,
MP3 disc or an optional USB device.
Press to select the tuning mode.
XK
REPEAT/FM MODE button
Press to listen to a disc, a single track or
le repeatedly.
Press to select the FM reception mode
(monaural or stereo).
XL
SLEEP button
Press to set the Sleep Timer.
XM
DISPLAY button
Press to change the information on the
display.
6
Page 7
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Information on the display
Play/Pause
BLUETOOTH (HX50BTR/HX70BTR/
HX90BTR only)
Lights up when the Bluetooth function
is selected.
Tuner reception mode
Tuner reception
REC
Text information
Audio format
Play mode
DSGX
Timer
USB MEMORY
Lights up when an optional USB device
is connected.
DAB service reception (HX80R/
HX90BTR only)
Lights up when secondary service is
received.
Setting the clock
Use buttons on the remote to set the
clock.
1
Press / to turn on the
system.
2
Press TIMER MENU .
e hour indication ashes in the
display.
If “PLAY SET?” ashes in the display,
press / repeatedly to select
“CLOCK SET?” and then press .
3
Press / repeatedly to set
the hour, and then press
4
Use the same procedure to set
the minutes.
e clock settings are lost when you
disconnect the power cord or if a
power failure occurs.
To display the clock when the system
is off
Press DISPLAY XM. e clock is displayed
for about 8 seconds.
.
7
Page 8
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SET
3-2. PANEL (TOP) BLOCK
(Page 9)
3-3. PANEL (FRONT) BLOCK
(Page 9)
3-4. KNOB ASSY
(Page 10)
3-5. MAIN BOARD
(Page 10)
3-6. LOADING MECHANISM BLOCK
(Page 11)
3-7. BASE UNIT
(BU-K6BD91UR2-WOD)
(Page 11)
3-8. BELT
(Page 12)
3-9. OP BASE ASSY
(KSM-213D)
(Page 12)
8
Page 9
Note: Follow the disassembly procedure in the numerical order given.
3-2. PANEL (TOP) BLOCK
five claws
RG
screw
RT
(BVTP3 × 8)
screw
(BVTP3 × 8)
panel (side L)
R
connector
claw
screw
(BVTP3 × 8)
RI
(CN507)
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
three screws
RE
(BVTP3 × 8)
panel (top) block
RK
screw
RB
RH
(BVTP3 × 8)
screw
(BVTP3 × 8)
3-3. PANEL (FRONT) BLOCK
flexible flat cable (11 core)
(CN518)
(HX80R/HX90BTR)
flexible flat cable (15 core)
(CN502)
connector
R
(CN501)
screw
(BVTP3 × 8)
panel (front) block
RE
screw
(BVTP3 × 8)
two claws
RT
claw
panel (side R)
screw
(BVTP3 × 8)
chassis (top) block
screw
(BVTP3 × 8)
DAB cable
(HX80R/HX90BTR)
flexible flat cable (15 core)
(CN609)
two screws
(BVTP3 × 8)
screw
(BVTP3 × 8)
two claws
RB
9
Page 10
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
3-4. KNOB ASSY
Insert a screw driver into the position shown in the fig
and push it to remove the knob assy,
not giving an excessive force.
knob assy
panel (front) block
knob assy
hole
screw driver
PANEL board back view
3-5. MAIN BOARD
flexible flat cable (11 core)
(CN502)
screw
RT
(BVTP3 × 8)
earth wire
RE
(HX80R/HX90BTR)
flexible flat cable (19 core)
(CN510)
MAIN board
RG
connector
(CN504)
three screws
RB
(BVTP3 × 8)
flexible flat cable (9 core)
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR models),
flexible flat cable (11 core)
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
(tuner (FM/AM), MAIN board (CN518))
tuner (FM/AM)
connector
R
(CN908)
two screws
(BVTP3 × 8)
flexible flat cable (27 core)
(CN701)
flexible flat cable (21 core)
(CN751)
10
flexible flat cable (5 core)
(CN720)
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND : Canadian model
E51 : Chilean and Peruvian model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Page 11
3-6. LOADING MECHANISM BLOCK
loading mechanism block
R
two screws
(BV3)
panel (CD)
two claws
flexible flat cable (5 core)
(CN001)
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
DMP board block
screw
(BVTP3 × 8)
screw
(BV3)
flexible flat cable (27 core)
(CN202)
3-7. BASE UNIT (BU-K6BD91UR2-WOD)
floating screw
two floating screws
two springs (insulator)
insulator
insulator
insulator
– Bottom view –
two floating screws
two springs
(insulator)
insulator
base unit
(BU-K6BD91UR2-WOD)
loading (BK) assy
11
Page 12
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3-8. BELT
position of belt
belt
claw
belt
tray (AU)

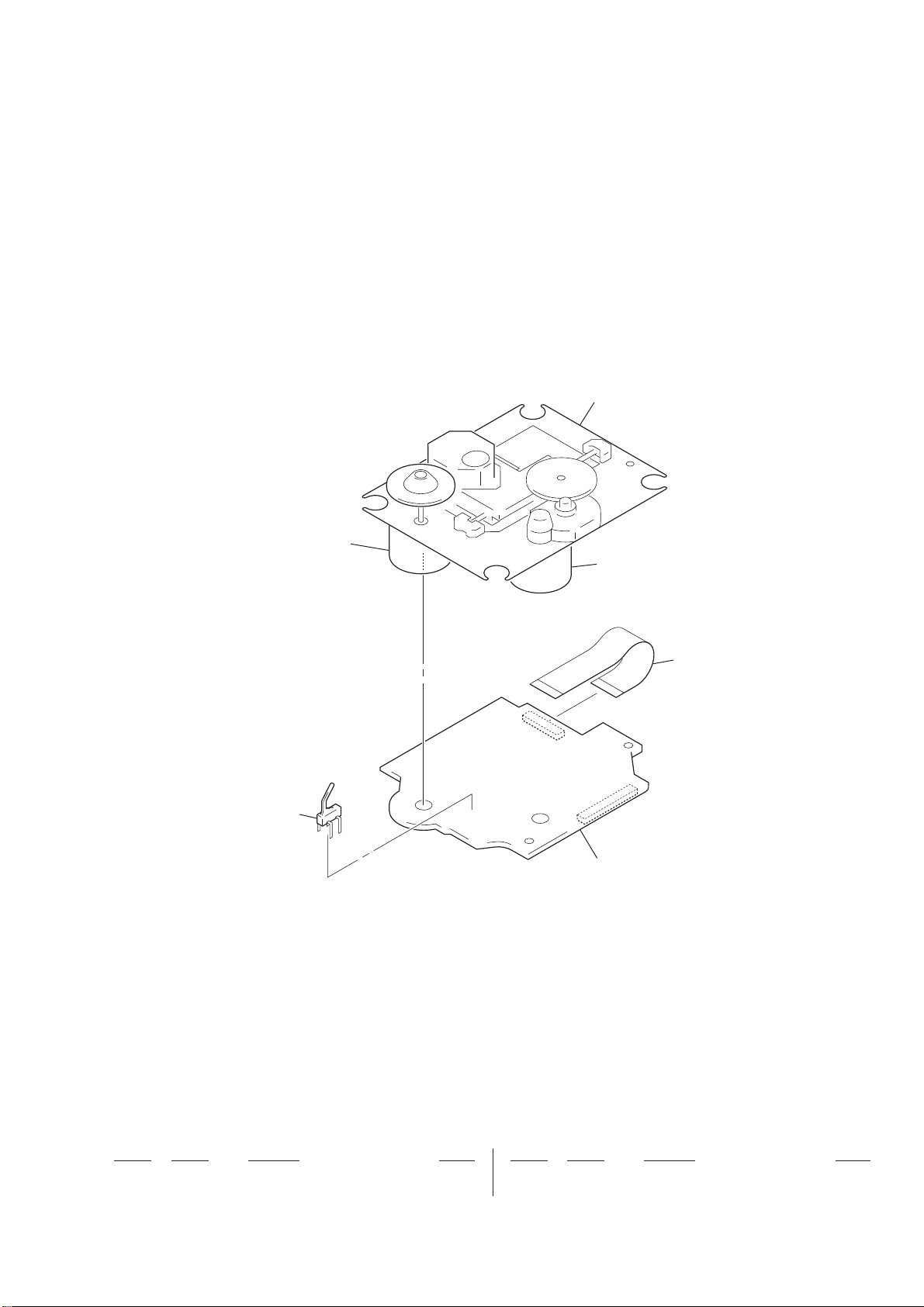

3-9. OPTICAL PICK-UP BLOCK (KSM-213D)
claw
op base assy
(KSM-213D)
flexible flat cable (16 core)
(CN301)
12
CD board
Remove four solders.
Page 13
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SECTION 4
TEST MODE
Ver. 1.1
COLD RESET
The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning the
set to the customer.
Procedure:
1. Press three buttons of [x/CANCEL], [DSGX] and [?/1] simultaneously.
2. The system is reset and becomes standby states.
COMMON TEST MODE
This mode is used to check operations of amplifi er.
Procedure:
1. Press the [
2. Press three buttons of [x/CANCEL], [ENTER] and [Z] simultaneously.
3. When the COMMON test mode is activated, “AUDIO IN”
is displayed on the fl uorescent indicator tube and “c PLAY
SLEEP” blink on the fl uorescent indicator tube.
4. Each time [EQ] button on the remote commander is pressed,
the display changes starting “TONE MAX”, “TONE MIN”
and “TONE FLAT” this order.
5. Turn the [VOLUME] knob counterclockwise, “VOLUME
MIN” is displayed on the fl uorescent indicator tube. Turn the
[VOLUME] knob clockwise, “VOLUME MAX” is displayed
on the fl uorescent indicator tube.
6. To release this mode, press the [
PANEL TEST MODE
This mode is used to check the fl uorescent indicator tube, LED,
model, destination, software version and key.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press three buttons of [x/CANCEL], [DSGX] and [Z] simultaneously.
3. All segments on the fl uorescent indicator tube, [STANDBY]
LED and [BLUETOOTH OPR] LED (HX50BTR/HX70BTR/
HX90BTR only) light up.
4. Press the [DSGX] button, the model and destination are displayed on the fl uorescent indicator tube.
5. Press the [DSGX] button again, MC version is displayed on
the fl uorescent indicator tube.
6. Each time [DSGX] button is pressed, the display changes
starting from MC version, GC version, USBL version , USBM
version, BT version (HX50BTR/HX70BTR/HX90BTR only),
CLA version, CD version, CDD version, CDMA version,
CDMB version, BDA version, BDB version, ST version, TA
version and TM version this order, and returns to the MC version display.
7. When [SEARCH] button is pressed while the MC version is
displayed, year, month and day of the software creation is displayed. When [SEARCH] button is pressed again, the display
returns to the MC version display.
8. Press the [ENTER] button, the key test mode is activated and
“K 0 V0” is displayed on the fl uorescent indicator tube.
9. Each time a button is pressed, “K” value increases. However,
once a button is pressed, it is no longer taken into account.
All keys are pressed, display becomes “K17” (HX80R) or
“K18” (HX50BTR/HX70BTR/HX90BTR).
10. “V” value increases 2, 4, 6 ... if turn the [VOLUME] knob
clockwise, or it decreases 8, 6, 4 ... if turn the knob counterclockwise
11. To release this mode, press three buttons in the same manner as
step 2, or disconnect the power cord.
] button to turn the power on.
?/1
?/1
] button.
TUNER STEP CHANGE
(HX50BTR: Canadian, Chilean, Peruvian, Mexican, Brazilian, Singapore, Argentina and Korean models)
A step of AM tuning interval can be changed over between 9 kHz
or 10 kHz.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press the [TUNER/BAND] button to select “AM”.
3. Press the [
4. Press two buttons of [TUNER/BAND] and [
ously.
5. The message “AM 9kHz Step” or “AM 10kHz Step” is displayed on the fl uorescent indicator tube and thus the tuning
interval is changed over.
CD SHIP MODE
This mode moves the optical pick-up to the position durable to
vibration. Use this mode when returning the set to the customer
after repair.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press the [FUNCTION] button to select “CD”.
3. Press two buttons of [SEARCH] and [
4. After the “STANDBY” display blinks, “LOCK” is displayed
on the fl uorescent indicator tube, the ship mode is set.
CD SHIP MODE & MEMORY CLEAR
This mode is used to perform CD ship mode and cold reset simultaneously.
Procedure:
1. Press the [
2. Press three buttons of [SEARCH], [DSGX] and [?/1] simultaneously.
3. After the “STANDBY” display blinks, “LOCK” is displayed
on the fl uorescent indicator tube the ship mode is set and the
system is reset.
ANTITHEFT LOCK MODE
This mode is used to unable to take sample disc out of disc tray in
the shop.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press the [Z] button to open the disc tray and set the CD disc.
3. Press the [Z] button to close the disc tray.
4. Press two buttons of [x/CANCEL] and [Z] for 5 seconds.
5. The message “LOCKED” is displayed on the fl uorescent indi-
cator tube and the disc tray is locked. (Even if pressing the [Z]
button, the message “LOCKED” is displayed on the fl uores-
cent indicator tube and the disc tray is locked)
6. To release from this mode, press two buttons of [x/CANCEL]
and [Z] for 5 seconds.
7. The message “UNLOCKED” is displayed on the fl uorescent
indicator tube and the disc tray is unlocked.
CD POWER MANAGE
This mode is used to changed over CD power on/off for decreasing
of reception noise in the tuner mode.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press the [FUNCTION] button to select “CD”.
3. Press the [
4. Press two buttons of [
5. The message “CD POWER ON” or “CD POWER OFF” is displayed on the fl uorescent indicator tube, and CD power on/off
is changed over in the tuner mode.
] button again to turn the power off.
?/1
?/1
] button to turn the power on.
?/1
] button again to turn the power off.
?/1
/CANCEL] and [?/1] simultaneously.
x
] simultane-
?/1
] simultaneously.
13
Page 14
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
CD SERVICE MODE
This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the optical pick-up.
Procedure:
1. Press the [?/1] button to turn the power on.
2. Press the [FUNCTION] button to select “CD”.
3. Press three buttons of [SEARCH], [ +] and [Z] simultaneously, the message “SERVICE MODE” is displayed on the
fl uorescent indicator tube.
4. Press the [ –] button to move the optical pick-up to inside
track and the message “SLED IN” is displayed on the fl uores-
cent indicator tube, or press the [ +] button to outside track
and the message “SLED OUT” is displayed on the fl uorescent
indicator tube.
5. Press the [DSGX] button, “LD ON” or “LD OFF” is displayed
on the fl uorescent indicator tube. Each time [DSGX] button is
pressed, laser diode on/off is changed over.
6. To release this mode, press the [
BT TEST MODE
(XH50BTR/HX70BTR/HX90BTR)
This mode is used to check the fi rmware version and address of
bluetooth module.
Procedure:
1. Press the [
2. Press the [FUNCTION] button to select “BLUETOOTH”.
3. Press three buttons of [SEARCH], [FUNCTION] and [BLUTOOTH OPR] simultaneously, the message “BT Test” is displayed on the fl uorescent indicator tube. Then, the display is
automatically changed to the fi rmware version of bluetooth
module.
4. Press the [DISPLAY] button on the remote commaner, address
of bluetooth module is displayed on the fl uorescent indicator
tube.
5. To release this mode, press the [?/1] button.
] button to turn the power on.
?/1
?/1
] button.
14
Page 15
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1515
SECTION 5
ELECTRICAL CHECKS
FM TUNE LEVEL CHECK
Procedure:
1. Turn on the set.
2. Input the following signal from signal generator to FM antenna
input directly.
Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation :75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note: Use 75 ohm coaxial cable to connect signal generator and the set.
You cannot use video cable for checking.
Use signal generator whose output impedance is 75 ohm.
3. Set to FM tuner function and tune A, B and C signals.
4. Confi rm “TUNED” is lit on the display for A, B and C sig-
nals.
When the selected station signal is received in good condition,
“TUNED” is displayed.
Note:
1. CD Block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specifi ed value with the fol-
lowing checks.
5. Check the focus bias check when optical pick-up block is replaced.
FOCUS BIAS CHECK
Procedure:
1. Connect oscilloscope to TP121 (RFI) and TP124 (VC) on the
CD board.
2. Press the [?/1] button to turn the power on.
3. Set disc (YEDS-18) on the disc tray and press the [CD u]
button to playback.
4. Confi rm that oscilloscope waveform is as shown in the fi gure
below. (eye pattern)
A good eye pattern means that the diamond shape (◊) in the
center of the waveform can be clearly distinguished.
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level:
1.2 ± 0.3 Vp-p
Checking Location:
TUNER SECTION CD SECTION
signal
generator
set
oscilloscope
(DC range)
CD board
TP121 (RFI)
TP124 (VC)
+
–

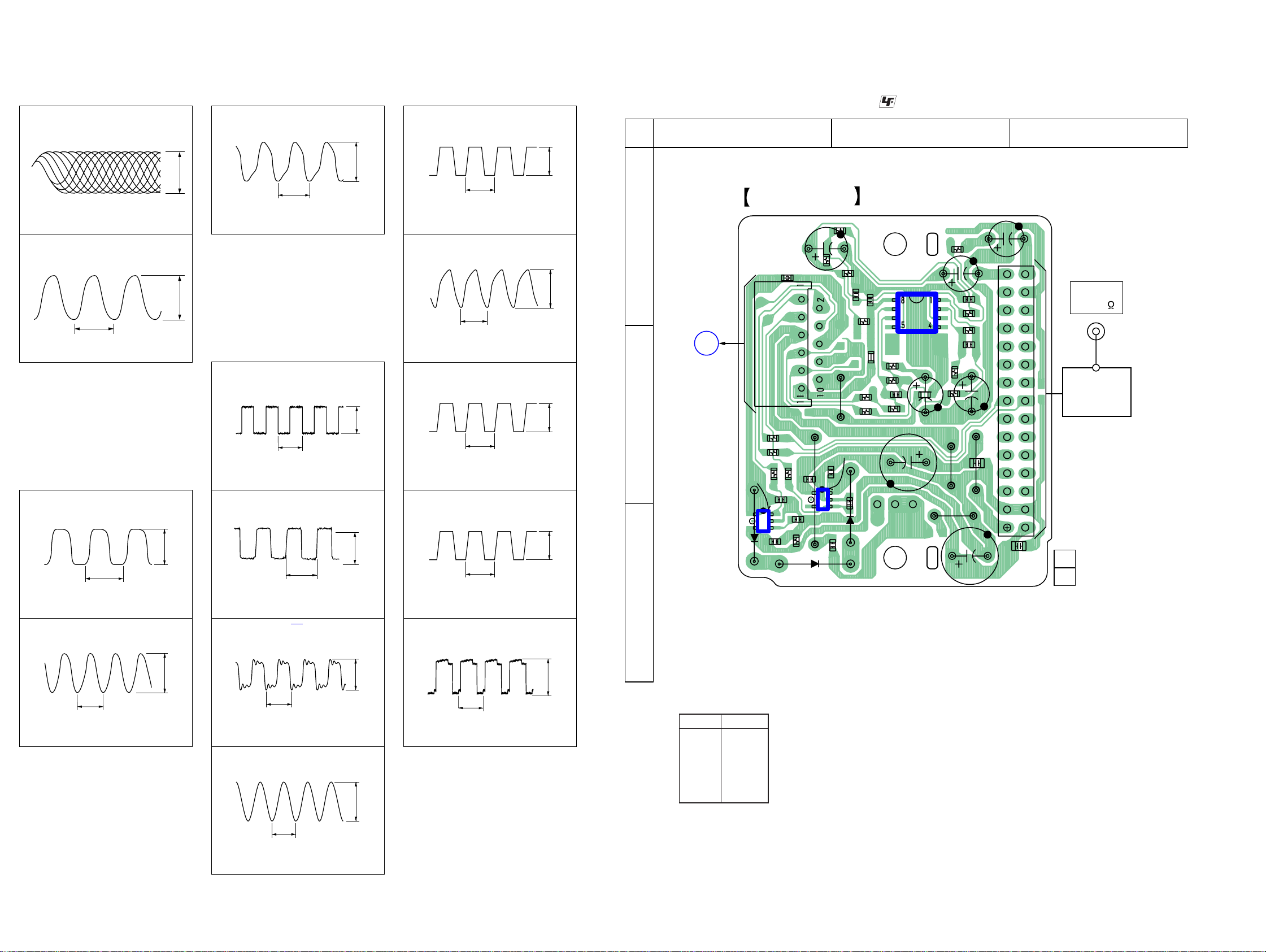

– CD Board (Conductor Side) –
TP124
(VC)
TP121
(RFI)
IC101
Page 16
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1616
SECTION 6
DIAGRAMS
6-1. BLOCK DIAGRAM - CD SERVO Section -
SYSTEM CONTROLLER
IC301 (1/5)
CD-MP3 PROCESSOR
IC101
MUTE
2-AXIS
DEVICE
(TRACKING)(FOCUS)
95
89
A
AVDD
+3.3V
DETECTOR
FNi1 (A)
RFo
97 FPi1 (B)
88
2
AGCi
3RFRP RFZi
76TEi TEZi
83RFEQo 81 RFi
82 RFRPi
30LO
27RO
65AIN (PI4)
66BCKi (PI5)
BCK
A-IN
BUS1
BUS0
BUS2
BUS3
BUCK
67LRCKi (PI6)
LRCK
51PIO3
GATE
49PIO1
ST-REQ
38BUS0
R-CH
94 FNi2 (C)
96 FPi2 (D)
100 TNi (E)
98 TPi (F)
91 LDo 92MDi
2VO1+
1VO1–
13 DMO
AUTOMATIC
POWER CONTROL
Q301
LD
PD
LASER DIODE
OPTICAL PICK-UP
BLOCK
(KSM-213DCP)
B
C
D
E
F
12 FMO
10 TRo
9FOo
20 IO0 (/HSO)
I-V AMP
M401
(SPINDLE)
M402
(SLED)
12 VO2–
11 VO2+
18 VO3+
17 VO3–
26 VO4+
27
7
IN4’
24
IN3’ 20
IN2’
9
IN1
3
BIAS
23
84 VRo
VO4–
M
M
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE MOTOR DRIVE
IC401
S201
(LIMIT)
DVDD
+3.3V
24
XO
23
XI
X102
16.9344MHz
95 CD DRIVER MUTE
LOADING
MOTOR DRIVE
IC701
CDM LOAD IN
53
CDM LOAD OUT
CDM OPEN SW
CDM CLOSE SW
54
51
52
M
A
CD-L
B
DATA, CLOCK,
A-IN, BCK, LRCK,
GATE, ST-REQ
C
BUS0 – BUS3,
BUCK, CCE, REQ
: CD PLAY
SIGNAL PATH
R-ch is omitted due to same as L-ch.
: USB
VCC
A
B
C
D
E
F
LD
PD
SP+
VC
SP–
SL+
SL–
T+
T–
F+
F–
1 2 3 CD BUS0
13
39BUS1 4 3 2 CD BUS1
5
40BUS2 (SO) 8 9 1 CD BUS2
23 CD CLK
6
41BUS3 (SI) 11 10 100 CD BUS3
12
BUS SWITCH
IC754
1 2
13
4 3
5
8 9
6
11 10
12
BUS SWITCH
IC753
DATA SELECTOR
IC751
A/B
Q352
42BUCK (CLK) 4
2
3
CCE
21 CD CCE
43XCCE
54SBSY
48PIO0
7
7 MP3 IREQ
25 DEC BUS SEL
19 SBSY
37XRST 94 CD XRST
5
REQ
6
12
14
13
9
10
11
1
S001
DISC TRAY
OPEN/CLOSE DETECT
OPEN
CLOSE
M001
(LOADING)
47AOUT2 (PO5)
63BCK (PO8)
CLOCK
DATA
(Page 18)
(Page 17)
(Page 17)
Page 17
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1717
6-2. BLOCK DIAGRAM - TUNER/USB/BLUETOOTH Section -
BUS1
BUS0
BUS2
BUS3
BUCK
CCE
REQ
LB
I/O0 – I/O15
D0 – D15
S-RAM
IC921
39
UB
40
OE
41
WE
17
CE
6
79 D+
80 D–
77 USBOC
USB CONTROLLER
IC901
35 USB TXD_OUT
SYSTEM CONTROLLER
IC301 (2/5)
CN902
(USB)
3
2
1
D+
D–
78 USBPON
70 CS2
64
RD
65 WR
66 SRLLB
67 SRLUB
VBUS
B
DATA, CLOCK,
A-IN, BCK, LRCK,
GATE, ST-REQ
C
BUS0 – BUS3,
BUCK, CCE, REQ
VBUS POWER
ON/OFF SWITCH
IC915
5
1
4OUT
EN
3
FLG
IN
VBUS
+5V
93DATA
92BCK
BCK
A-IN
LRCK
GATE
ST-REQ
71LRCK
94GATE
97ST-REQ
55BUS0
56BUS1
88RXD1
36 USB RXD_IN87TXD1
38 USB RTS2DI
6 USB_CTS84DO
5 USB_RESET1/RESET
57BUS2
58BUS3
59/BUCK
60/CCE
96REQ
7 – 10, 13 – 16,
29 – 32, 35 – 38
18 – 25, 28 – 35
A0 – A15
A1 – A16
44 – 42, 27 – 24,
21 – 18, 5 – 1
37 – 43, 46 – 54
73
X2
75
X1
X901
9MHz
: USB
CLOCK
DATA
85DATA
86CLOCK
: AUDIO
: CD PLAY
SIGNAL PATH
R-ch is omitted due to same as L-ch.
: TUNER (FM/AM)
ANT901
33 BT CTS
34 BT RTS
31 BT TXD_OUT
32 BT RXD_IN
IC904
BLUETOOTH MODULE
10A_OUT_P_L
9A_OUT_N_L
5A_IN_P_L
4A_IN_N_L
8A_OUT_P_R
7A_OUT_N_R
41UART_TXD
40UART_RXD
38UART_CTS
39UART_RTS
49 BT RESET
45 BT AV ROLE12PIO_00
46RESET
MIX AMP
IC902
3A_IN_P_R
2A_IN_N_R
D
TUNER-L
PATTERN
ANTENNA
(FOR BLUETOOTH)
R-CH
R-CH
LINE AMP
IC901
(HX50BTR/HX70BTR/HX90BTR)
E
BT-L
F
BT OUT-L
TUNER (FM/AM)
AM
FM ANT
AM ANT
L OUT
R OUT
DO/STEREO
R-CH
RDS DATA
RDS CLK
ST DIN
ST CLK
ST CE
FM75Ω
COAXIAL
ANTENNA
82 ST DATA IN/STEREO
83 RDS DATA
18 RDS INT
80 ST DATA OUT
81 ST CLK
79 ST CE
HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR
: BLUETOOTH IN
: BLUETOOTH OUT
TUNED
76 ST TUNED
(Page 16)
(Page 16)
(Page 18)
(Page 18)
(Page 18)
Page 18
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1818
6-3. BLOCK DIAGRAM - MAIN Section -
(HX50BTR/HX70BTR/HX90BTR)
(HX80R/HX90BTR)
OUTPUT SELECTOR
IC510
A
13
14
12
10
AUDIO IN
R-CH
J981
CD-L
A
BT-L
E
TUNER-L
D
6
9
4
2
10A9
B
SEL A
70
SEL B
71
26
SDA25SCL
AMP IIC_SDA
24
AMP IIC_CLK
22
TA LINE-MUTE
89
HP MUTE
87
HP DET
86
AUDIO IN DET
85
G
(HX50BTR/HX70BTR/HX90BTR)
L-CH
F
BT OUT-L
X
X1
X0
OUT2
INPUT SELECTOR, ELECTRICAL VOLUME,
SURROUND/TONE CONTROL
IC501
SYSTEM CONTROLLER
IC301 (3/5)
: AUDIO
: CD PLAY
SIGNAL PATH
R-ch is omitted due to same as L-ch.
: DMPORT
: TUNER (DAB)
: AUDIO IN
: TUNER (FM/AM)
PHONES
R-CH
J982
15
12
BT AUD OUT MUTE
88
6
INHSEL INH
72
Q370
Q371(HX80R/HX90BTR)
Q372
Q388
INPUT SELECTOR
IC503
13
X0
14
X1
X2
C2
8
D2
SEL2
VOL2
B2
A2
X
12
MUTING
Q511
R-CH
19
MUTING
CONTROL SWITCH
Q389, 504
MUTING
Q554
R-CH
R-CH
MUTING
CONTROL SWITCH
Q387, 551
HEADPHONE
AMP
IC551
CN901
13
11
L+
L–
DMPORT
(HX50BTR/HX70BTR/HX90BTR)
(HX80R)
(HX50BTR/HX70BTR/HX90BTR)
DAB TXD_OUT
47
DAB RXD_IN
48
DAB TUNER MODULE
DAB ANT AUDL
AUDR
S1_DOUT
R-CH
S1_DIN
LOW-PASS
FILTER
IC803
ANTENNA
DAB 75Ω
14
12
R+
R–
6
5
TXD
RXD
7
DET
LINE AMP
IC521
CLINK RXD_IN
78
DMPORT DET
84
CLINK TXD_OUT
77
(Page 16)
(Page 17)
(Page 17)
(Page 17)
(Page 19)
Page 19
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1919
6-4. BLOCK DIAGRAM - AMP Section -
SYSTEM CONTROLLER
IC301 (4/5)
L-CH
SD
G
13
A/D CONVERTER
IC701 (HX50BTR/HX80R/HX90BTR)
IC701 (HX70BTR)
STREAM PROCESSOR
IC705 (HX50BTR/HX80R/HX90BTR)
IC705 (HX70BTR)
LI-N
31 DATA
6 SCKI
DOUT
9
30 BCKBCK
8
29 LRCK
36 XFSIIN
48 XFSOIN
LRCK
7
S-MASTER DATA
39
OUTL1 11
DIGITAL POWER AMP
IC707
4 PWM_A
6 PWM_B
16
3
PWM_D
/SD
14 PWM_C
OUT_A
33
OUT_B
30
OUT_D
22
OUT_C
25
OUTL2 9
15
/RST_CD
5
/RST_AB
OUTR1
6
OUTR2
4
X702
49.152MHz
21 SCDT
S-MASTER SHIFT
40
22 SCSHIFT
S-MASTER LATCH
42
23 SCLATCH
S-MASTER PG MUTE
27
20 PGMUTE
S-MASTER SOFT MUTE
28
19 SOFTMUTE
S-MASTER NSP MUTE
43
18 NSPMUTE
S-MASTER INIT
44
27 INIT
S-MASTER RST
37
S-MASTER SD
26
CLOCK SHIFT
IC703
(HX50BTR/HX80R/HX90BTR)
IC703 (HX70BTR)
CLOCK BUFFER
IC709
(HX50BTR/HX80R/HX90BTR)
IC709 (HX70BTR)
(HX50BTR/HX80R/HX90BTR)
DIGITAL POWER AMP
IC707
2 BP
17 AP
3
/SD
OUT_B
29
OVER LOAD
DETECT
Q702, 703
OVER LOAD
DETECT
Q752, 753
OUT_A
25
OUT_B
30
OUT_A
26
4
/RST
DIGITAL POWER AMP
IC708
2 BP
17 AP
3
/SD
OUT_B
29
OUT_A
25
OUT_B
30
OUT_A
26
4
/RST
(HX70BTR)
L.P.F.
L.P.F.
L.P.F.
L.P.F.
PROTECT
DETECT
Q701
R
L
+
–
+
–
SPEAKER
J860
: AUDIO
SIGNAL PATH
R-ch is omitted due to same as L-ch.
H
(Page 18)
(Page 20)
Page 20
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2020
6-5. BLOCK DIAGRAM - PANEL/POWER SUPPLY Section -
FL901
FLUORESCENT
INDICATOR TUBE
DA
CP
CS
1G, 12G
VH
Q1, Q12
GRID DRIVE
Q901, 902
VH B+
F+
VDD
VFD +7V
EVER +3.3V
D909
REMOTE CONTROL
RECEIVER
IC951
SYSTEM CONTROLLER
IC301 (5/5)
90STBY_RELAY
20AC_CUT
RESET SIGNAL
GENERATOR
IC401
RESET SWITCH
Q312
B+ SWITCH
Q952
69AC DET
12RESET
65 VOLUME JOG
KEY1 – KEY3
66 – 68
60 STBY LED
4 SIRCS
D951
STANDBY
LED DRIVE
Q951
63 BT LED
D953
BLUETOOTH
LED DRIVE
Q953
ROTARY
ENCODER
VOLUME
RV952
13
XOUT
15
XIN
X302
5MHz
11
XCOUT
10
XCIN
X301
32.768kHz
FL SD
58
FL SCLK
56
FL CS
57
FL RESET
59
74 KEY WAKE UP
S951 – 954,
S961 – 963,
S965 – 968,
S970 – 976
(AC IN)
T51
SUB POWER
TRANSFORMER
T31
MAIN POWER
TRANSFORMER
F1
LINE
FILTER
T1
RECT
D1
93CD ON
55FL POWER ON
D51
D14
4
POWER
CONTROL
IC51
VCC
5 DRAIN
2 FB
POWER CONTROL
IC11
1 VSENSE
2 F/B
9 OCP
16 VG (H)
ISOLATOR
PH51
FEED BACK
SWITCH
Q51
ISOLATOR
PH12
SHUNT
REGULATOR
IC71
18VD
SWITCHING
Q12
12 VG (L)
SWITCHING
Q11
15 VS
8 VC1
Q2
RECT
D32
RECT
D31
D33
+27V
DAB +9V
DVDD
+3.3V
+1.5V
AVDD
+3.3V
+12V
D401
+3.3V
EVER
+3.3V
VCC
TUNER +9V
FUNC +9V
AMP +5V
VH B+
+5V
REGULATOR
IC505
+9V
REGULATOR
IC502
50BT POWER
DC/DC
CONVERTER
Q906, 907
B+ SWITCH
IC901-2, Q904, 908
+3.3V
(FOR ADC )
+3.3V
REGULATOR
Q513
+1.5V
REGULATOR
IC201
DC DETECT
Q64, 82 – 84
POWER ON/OFF
CONTROL SWITCH
Q81
92USB POWER
USB
+3.3V
RESET
D474
(HX80R/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
(HX80R/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
FOR
ROTARY ENCODER
TH1
ISOLATOR
PH11
POWER CONTROL
SWITCH
IC901-1, Q903, 905
B+ SWITCH
Q602, 606, 624
+
B+ SWITCH
Q316, 399
PROTECTOR
Q71, 72
+
HX50BTR:
CND, E51, MX, BR
(HX50BTR: E51, BR)
(HX50BTR: CND, MX)
HX50BTR: AEP, RU, SP, AR, KR/
HX70BTR/HX80R/HX90BTR
RECT
D43, 44
AC DETECT
Q60 – 63
+3.3V
REGULATOR
Q392, 706, 707
+3.3V
REGULATOR
Q393, 702 – 704
+12V
REGULATOR
Q707
BT +9V
+3.3V REGULATOR
IC702
(HX50BTR/HX80R/HX90BTR)
IC702 (HX70BTR)
+5V REGULATOR
IC507
+5V REGULATOR
IC506
91DMPORT POWER
DMP +5V
AMP D +3.3V
+1.8V REGULATOR
IC704
(HX50BTR/HX80R/HX90BTR)
IC704 (HX70BTR)
+1.8V
+3.3V REGULATOR
IC801
+1.2V REGULATOR
IC802
75DAB-POWER_1.2
73DAB-POWER_3.3
DAB +3.3V
VFD +7V
DAB +1.2V
BT +3.3V
+3.3V REGULATOR
IC903
VBUS +5V
HP AMP +12V
RIPPLE FILTER
Q555
D +12V
SUHT DOWN
CONTROL SWITCH
Q426, 716
SUHT DOWN
CONTROL SWITCH
Q326, 390
SD
H
Abbreviation
: Canadian modelCND
: Chilean and Peruvian modelsE51
: Russian modelRU
: Korean modelKR
: Mexican modelMX
: Singapore modelSP
S1
VOLTAGE SELECTOR
120 – 127V
220 – 240V
: Argentina modelAR
: Brazilian modelBR
(Page 19)
Ver. 1.1
Page 21
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2121
• Circuit Boards Location
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.
• f : internal component.
• 2 : nonfl ammable resistor.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– CD Board –
no mark : CD PLAY
[ ] : USB
– USB and USB POWER Boards –
no mark
: USB
– BT Board –
no mark
: BLUETOOTH
– DAB Board –
no mark
: TUNER (DAB)
– Other Boards –
no mark
: TUNER (FM/AM)
( ) : CD PLAY
[ ] : USB
{ } : BLUETOOTH
* : Impossible to measure
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.Voltage varia-
tions may be noted due to normal produc-tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
f : TUNER (FM/AM)
J : CD PLAY
d : USB
E : BLUETOOTH IN
j : BLUETOOTH OUT
: DMPORT
O : TUNER (DUB)
h : AUDIO IN
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND :
Canadian model
E51 : Chilean and Peruvian models
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : parts extracted from the conductor side.
• f : internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note:
The components identifi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specifi ed.
Note:
Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le numéro spécifi é.
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Ver. 1.1
C
Q
B
E
Q
B
CE
These are omitted.
These are omitted.
PANEL board
CD board
TOP PANEL board
JACK board
ANT board
(HX50BTR/HX70BTR/HX90BTR)
MAIN board
MOTOR board
TUNER (FM/AM)
DAB board
(HX80R/HX90BTR)
MODULE (DAB TUNER)
(HX80R/HX90BTR)
BT board
(HX50BTR/HX70BTR/HX90BTR)
DMP board
SW POWER board
SP TERMINAL board
AMP board
USB board
Page 22
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
6-6. PRINTED WIRING BOARDS - CD Section -
12345678910
A
CD BOARD (COMPONENT SIDE)
C401
B
C405
C
R415
R213
C202
C201
R216
R121
R211
C206
R201
C212
C207
135
4
C205
C204
D
IC201
E
C115
X102
R112
R111
R212
R214
C133
F
• See page 21 for Circuit Boards Location.
R118
C153
R114
C108
R119
C112
R155
C130
R302
R303
R304
R301
C307
1-872-620-
C128
E
Q301
C309
X102
• : Uses unleaded solder.
CD BOARD (CONDUCTOR SIDE)
M401
(SLED)
C125
C124
TP124(VC)
C122
R140
C123
R142
R143
C143
C141
C144
C148
C137
C138
C139
C140
C142
R144
C146
C147
C149
R148
C150
R151
TP121
(RFI)
C106
C306
11
(11)
R136
R135
R146
C145
R134
C118
R139
R145
R147
R149
R150
R128
R130
C100
C105
C104
C117
CN301
R129
C136
C135
C120
C107
C119
M
IC101
C102
C101
C103
R101
C126
C127
C113
R109
C303
R108
R102
R106
C301
R402
R105
C302
R414
C109
R104
C132
(LIMIT)
C110
S201
R154
R405
C404
C403
IC401
M
R408
R224
R210
R209
R110
R218
R219
R220
R221
R153
R222
C116
R223
R157
R156
C217
R208
R207
R206
R205
R204
R203
CN202
C151
C152
R202
M402
(SPINDLE)
A
MAIN BOARD
CN701
(Page 30)
G
MOTOR BOARD
R
MAIN BOARD
CN720
(Page 30)
H
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
CN001
M
M001
(LOADING)
OPTICAL PICK-UP
S001
DISC TRAY
OPEN/CLOSE
DETECT
OPEN5CLOSE
1-866-548-
BLOCK
(KSM-213DCP)
21
(21)
1-872-620-
11
(11)
2222
Page 23
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2323
6-7. SCHEMATIC DIAGRAM - CD Board -
• See page 28 for Waveforms. • See page 44 for IC Block Diagrams. • See page 50 for IC Pin Function Description.
IC B/D
A
MAIN
BOARD
(3/3)
CN701
2
1
IC B/D
OPTICAL
PICK-UP
BLOCK
(KSM-213DCP)
M
M
CLOCK
GATE
ST_REQ
GPIN/AIN
SF SY/BCKIN
ZDET/LRCKIN
M-MUTE
MGND
VM (7V)
DVDD (3.3V)
D-OUT
DGND
SBSY
REQ
BUCK
BUS3
BUS2
BUS1
BUS0
AGND
DACGND
AVDD (3.3V)
L-OUT
R-OUT
CCE
DATA
R224 100
R121
100
R108
R109 100
R154
R153
C201
R304
R201
R110
R303
R203
R204
R205
R206
R207
R208
R209
R210
R219
R223
R222
R221
R218
R112
R202
R211
Q301
R301
C202
R157
TP121 (RFI)
TP124 (VC)
R156
CN301
R101
C401
R415
R102
R128
R129
R143
R142 R139
R114
R140
R151
R220
R150
R212
IC101
R105
R106
IC201
X102
C301
C307
C309
C100
C138
C153
C151
C204
C130
C128
C113
C127
C126
C103
C102
C120
C118
C117
C101
C124
C125
R145
R146
R147
R148
R149
C149
C105
C143
C146
C145
C148
C104
C405
C404
C403
C205
C116
C133
CN202
C110
R111
C115
R155
C109
C132
R104
C123
C122
C139
C150
R136 R135
R134
C112 C108
R119
R118
C136
C107
R130
R144
C144
C147
C140
C137
C141
C142
C106
R302
C306
C303C302
R405
R402
R408
R414
C207
C152
C206
IC401
1M
1M
100
10V
2.2
0
10k
C212
100k
2.2
100
100
100
100
100
100
100
100
100k
100k
100k
100k
100k
100
0
100
2SA2119K
100k
100
10V
100
100
16P
220
220
10V
47k
10k
470k
1k
47k
22k 47k
10k
0
0
100k
0
TK63115SCL-G@GT
0.1
1
0.001
0.1
470p
0.0022
0.1
0.1
0.0022
0.1
0.1
0.1
0.01
0.01
0.022
C119
0.022
0.1
0.0047
0.0047
0
0
0
0
0
22p
0.1
0.01
470p
0.01
47p
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
100
22
6.3V
47
0.1
0.1
0
470p
470p
0.01
0.001
22k 470k
1M
0.1 0.1
47p
0.1
4.7k
22k
0.1
0.1
0.01
0.01
0.0022
0.1
100
10V
0
100
10V
1010
10k
2.2k
2.2k
4.7k
1
0.0022
1
BA5826SFP-E2
SP-
SP+
SL+
SL-
100
R213 100
R214 100
R216
100
1M
1k
16.9344MHz
TC94A70FG-101
5p
5p
27P
0
100k
IC101
CD-MP3 PROCESSOR
IC401
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE MOTOR DRIVE
IC201
+1.5V REGULATOR
SPSP+
SL+
SL-
M401
(SPINDLE)
M402
(SLED)
AUTOMATIC POWER
CONTROL
S201
(LIMIT)
0.1
C217
100k
RST
(Page
33)
Page 24
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
6-8. PRINTED WIRING BOARD - USB Board -
1 2 3 4 5 6 7 8 9 10
USB BOARD (COMPONENT SIDE)
C901
C910
C912
(NC)
CN904
R901
R938
R937
C915
R934
C913
R922
R919
X901
R913
A
R928
31
IC915
45
C916
B
CN908
C
A/K
D905
A
C917
C918
K
D
MAIN BOARD
C
CNA506
(Page 30)
• See page 21 for Circuit Boards Location.
C909
R983
C908
C902
R986
R915
C907
R981
R985
C906
C903
C904
C905
C922
R978
R979
R932
R977
R982
R984
R976
• : Uses unleaded solder.
C921
(22)
MAIN BOARD
B
(Page 30)
22
CN907
21
1-872-405-
CN751
USB BOARD (CONDUCTOR SIDE)
RB922 RB921
IC921
R975
R974
R973
R972
R971
R970
RB924
RB923
R941
R902
R942
R943
R904
R903
R944
R907
IC901
R905
JR902
R906
R916
R949
R917
FB901
R933
R924
R923
R947
R921
R945
R926
C920
R925
A
A/K
D902
D901
A/K
K
L901
CN902
(USB)
C930
R920
C914
K
FB902
A
EP901
14
22
1-872-405-
(CHASSIS)
(22)
• Semiconductor
Location
Ref. No. Location
D901 C-9
D902 C-10
D905 C-1
IC901 B-8
IC915 B-1
IC921 B-7
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2424
Page 25
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2525
6-9. SCHEMATIC DIAGRAM - USB Board -
• See page 28 for Waveforms. • See page 44 for IC Block Diagrams. • See page 50 for IC Pin Function Description.
R970
R971
R972
R973
R974
R975
R976
R977
R979
R978
R932
R982
R984
RB922
RB921
RB923
RB924
C907
C906
C921
R901
C901
R937
R983
C902
JR902
C903
C922
R907
R906
R905
R904
R903
R902
R917
R915
R913
C908
R919
C909
R916
C910C912
R944
R943
R942
R941
C905
C904
R933
R934
R938
C915
C913
C914
R981
R922
R924
R923
R921
IC921
CN904
R926
R925C920
IC915
C916
R920
CN907
CN902
EP901
CN908
FB901
C930
D905
D902
C918C917
IC901
R928
D901
X901
R949
100
100
100
100
100
100
100
100
100
100
100
100
100
47
47
47
47
0.1
0.1
0.1
10k
0.1
100
100
10
16V
0
10
16V
0.1
4.7k
4.7k
4.7k
4.7k
4.7k
4.7k
0
10k
100k
0.1
100
22p
0
22p10p
100k
100k
100k
100k
0.1
10
16V
0
R945 4.7k
R947 4.7k
10k
100
0.1
0.1
0.1
100
R985 100
R986 100
100k
27
27
100k
IS61LV6416-10T
7P
15k
15k0.1
R5523N001BTR-F
0.1
10k
21P
4P
2P
0.1
0
9MHz
4.7k
A13
A14
A15
D0
D1
D2
D3
D4
D5
D6
D7
RD
WR
LB
UB
SRAM-CS
A8
A9
A10
D7
D4
D5
D6
WR
D0
D1
D2
D3
SRAM-CS
A11
A12
A13
A14
A15
LB
UB
RD
A7
A8
A9
A10
A11
A12
A4
A5
A6
D12
D13
D14
D15
A4
A5
A6
D8
D9
D10
D11
D12
D13
D14
D15
BUS0
BUS1
BUS2
BUS3
BUCK
CCE
USB-SI
USB-SO
DO
DATA
CLOCK
USB-RST
LRCK
BCK
REQ
ST-REQ
A-IN
GATE
LRCK
CCE
BUCK
BUS3
BUS2
BUS1
BUS0
DO
DI
USB-SO
USB-SI
DATA
CLOCK
BCK
A-IN
GATE
REQ
ST-REQ
USB-RST
DI
A7
A16
A16
A1
A2
A3
A1
A2
A3
D11
D10
D9
D8
BOOT
AMO
TXD1
RXD1
RESET
BOOT
AM0
TXD1
RXD1
RESET
EN
FLG
EN
FLG
MC2837
MC2837
10220
6.3V
TMP92CD28AFG-6VD8
MC2837
D+
DAM0
DVSS
DVSS
RVOUT1
RVIN
RVIN
RVOUT2
DVSS
DVSS
DVSS
AM1
X2
DVSS
X1
VBUS-5V
DVDD 3.3V
DVSS
LRCK
CCE
BUCK
BUS3
BUS2
BUS1
BUS0
USB-RST
ST-REQ
REQ
GATE
A-IN
BCK
VBUS-GND
BOOT
RESET
RXD1
TXD1
DVSS
VCC
AM0
CLOCK
DATA
USB-SI
DO
DI
USB-SO
NC
A6
A5
A4
A3
NC
I/O8
I/O10
I/O11
VDD
GND
I/O12
I/O13
I/O14
I/O15
A2
A1
A0
I/O9
NC
A7
A8
A9
A10
I/O7
I/O6
I/O5
I/O4
GND
VDD
I/O3
I/O2
I/O1
I/O0
A11
A12
A13
A14
A15
WE
CELB
UB
OE
A13
GND
D+
D-
VBUS
(CHASSIS)
EN
GND
OUT
INFLG
(USB)
(NC)
S-RAM
VBUS POWER ON/OFF SWITCH
A12
A11
A10
A9
A8
DVCC
A7
A6
A5
A4
A3
A2
A1
A0
D15
D14
D13
D12
D11
D10
D9
D8
DVCC
D7
D6
D5
D4
D3
S2
D1
D0
DVSS
DVCC
DVCC
DVSS
NO USE
NO USE
NO USE
DVCC
G-3
NO USE
NO USE
DI
G-2
G-1
ST-REQ
REQ
DVCC
GATE
DATA
BCK
SCL
SDA
NO USE
RXD1
TXD1
CLOCK
DATA
DO
NO USE
USBPON
USBOC
DVCC
BOOT
NO USE
SRLUB
SRLLB
RD
WR
CS2
DVCC
NO USE
/CCE
/BUCK
BUS3
BUS2
BUS1
BUS0
A16
A15
A14
USB CONTROLLER
LRCK
/RESET
0
FB902
0
L901
(Page
33)
(Page 32)
Page 26
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR

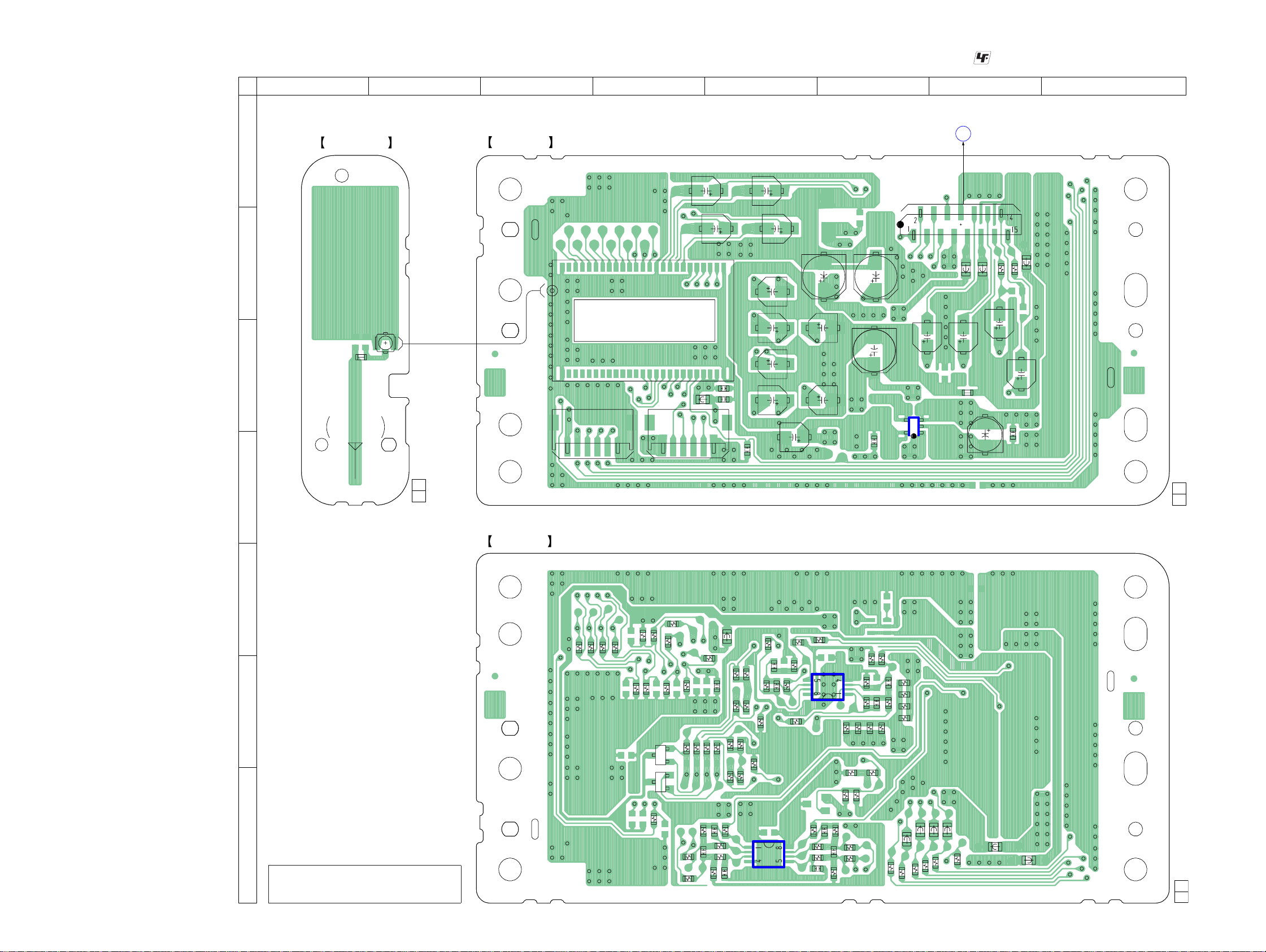

6-10. PRINTED WIRING BOARDS - BLUETOOTH Section (HX50BTR/HX70BTR/HX90BTR) -
1234567 8
ANT BOARD
BT BOARD (SIDE A)
A
C927
C928
B
IC904
CN904
C914
BLUETOOTH MODULE
C
FB907
ANT901
PATTERN
ANTENNA
(FOR BLUETOOTH)
D
1-873-213-
11
(11)
CN903
6
(NC)
CN902
161
(NC)
• See page 21 for Circuit Boards Location.
C929
C930
125
C907
C954
C952
C966
C958
C905
C953
C951
C965
C904
C906
5026
C908
C912
IC903
C903
• : Uses unleaded solder.
MAIN BOARD
D
CN609
(Page 30)
CN901
FB903
FB904
FB914
FB913
FB905
C942
C921
3
4
1
5
C922
JR902
C901
C902
C941
1-873-212-
11
(11)
E
F
G
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Note: When IC904 cannot exchange with
single. When IC904 is damaged, exchange the entire mounted board.
BT BOARD (SIDE B)
R938
R939
R940
R966
R917
R965
R913
R918
K
K
R937
R935
D902D901
R916
R934
R932
R936
R900
R915
C957
R959
R961
R960
C924
C926
R962
R928
C932
A
A
A
A
R930
R954
R922
R926
R924
FB906
R956
R955
R953
R957
R963
R958
R964
R949
C967
R945
R951
R952
IC902
C945
R967
R943
R947
R950
R921
R925
R923
C931
R941
IC901
R914
C923
C925
R927
R929
R911
R946
R971
R944
R970
R933
R931
R968
R909
R969
C946
R908
C968
R910
FB911
R942
R948
R901
R902
R974
R973
R972
R907
R903
FB910
R904
FB909
R905
FB908
R906
FB901
FB902
1-873-212-
11
(11)
2626
Page 27
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2727

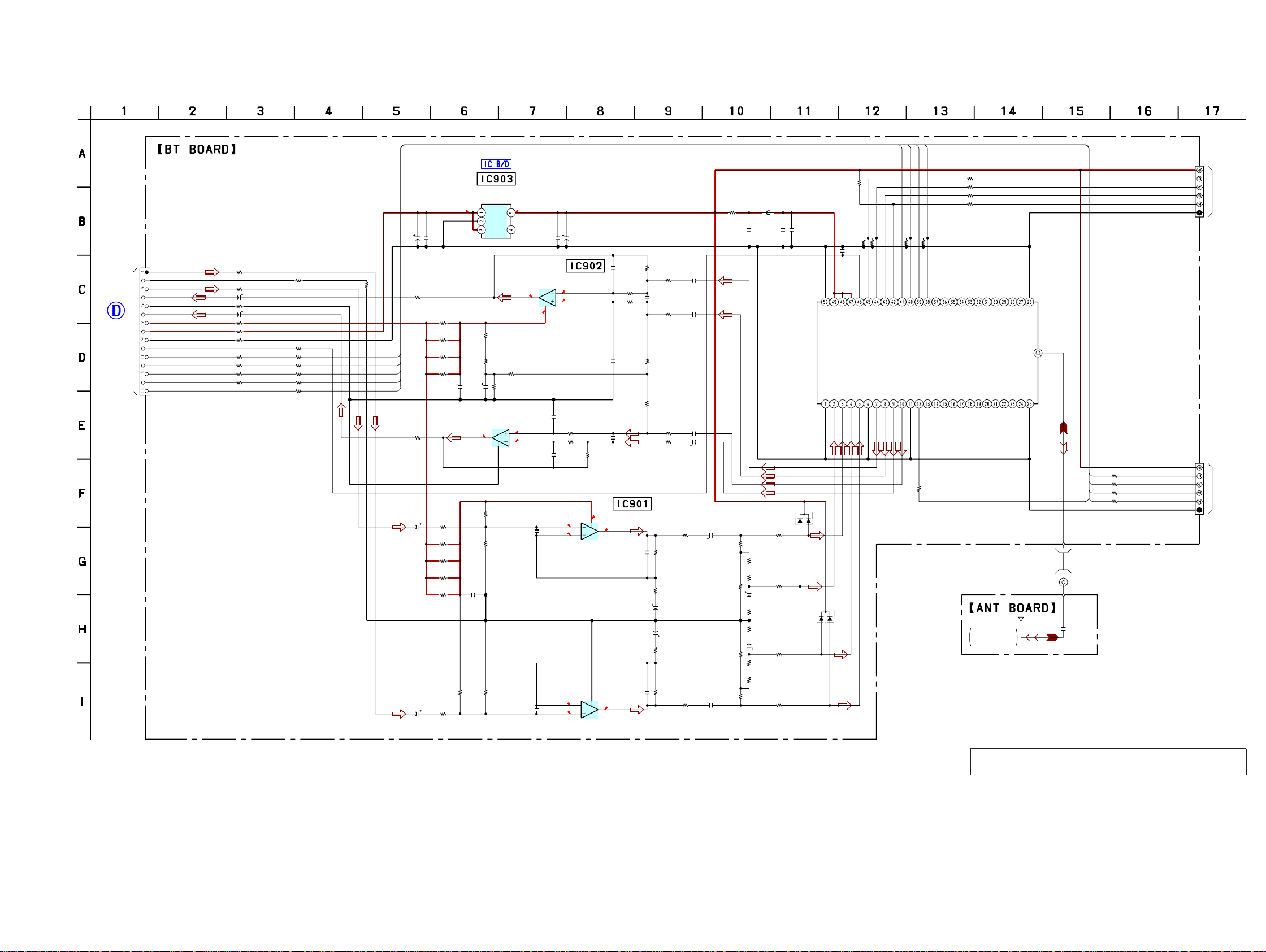

6-11. SCHEMATIC DIAGRAM - BLUETOOTH Section (HX50BTR/HX70BTR/HX90BTR) -
• See page 44 for IC Block Diagrams.
FB905
R901
R902
R903
R904
R905
R906
CN901
FB913
FB914
FB904
FB903
FB902
FB901
FB908
FB909
FB910
FB911
C921
C922
R941
R974
R973
R972
R907
R967 R943
R944
R949
R945C945
R955
R957
C966
R948
IC901(1/2)
IC901(2/2)
C946 R946
C965
R947
R968
R942
R950
R963
R953
R951
C953
R956
R958
R952
C954
R964
R954
R921
R922
R925
R929
IC902(2/2)
R908
R971
R970
R969
C931
C923
R923
R909
R911
R910
R914
IC902(1/2)
C932
R924
R926
R930C924
R928
R927
C925
C926
R931
R933
C929
R932
R934
C928
C902
R962
R960
R961
R959
D901
C901
IC903
C903
C904
C905 C957
FB907
FB906
R918
R917
R916
R915
D902
R936
R937
R900
R935
CN902
R938
R939
R940
R966
CN903
JR902
C908C907
C927
C912
R965
C958
C941
C942
C951
C952
C930
C906
R913
IC904
CN904
C914
ANT901
0
100
100
100
100
100
100
15P
0
0
0
0
0
0
0
0
0
0
1 50V
1 50V
100
470
470
470
470
100k 100k
100k
1k
100k22p
100k
1M
0.22
50V
47k
NJM14558V-
NJM14558V-
22p 100k
0.22
50V
47k
100k
100
1k
100k
47k
1k
1
50V
100k
1M
1k
1
50V
100k
47k
100
100
220
4.7k
NJM14558V-
470
470
470
470
470p
470p
220
2.2k
0
2.2k
0
NJM14558V-
470p
220
220
4.7k470p
4.7k
4.7k
0.0047
0.0047
4.7k
4.7k
2.2
50V
4.7k
4.7k
2.2
50V
0.1
100
100
100
100
MC2838-T11
22
16V
XC6213B332MR
0.1
4.7
35V
22p 22p
0
47k
47k
47k
47k
MC2838-T11
100
100
100
100
6P
100
100
100
100
6P
0
47
16V
47
16V
2.2
50V
47
16V
100
22p
0.22
50V
0.22
50V
1
50V
1
50V
2.2
50V
0.1
47k
BLUETOOTH MODULE
CXN1404-3BGL
2p
ROLE
TXD
CTS
RXD
RTS
RTS
TXD
RXD
CTS
TXD
RXD
RTS
CTSROLE
DGND
AVCC9V
VCC
UART_TXD
UART_RXD
UART_/RTS
UART_/CTS
GND
GND
VCC
SPI_MOSI
SPI_MISO
SPI_CLK
SPI_CSB
AOUTR
AGND
AOUTL
AGND
(BT_AV_ROLE)
AINL
AINR
VIN
VSS
CE
NC
VOUT
GND
A-IN_N_R
A-IN_P_R
A-IN_N_L
A-IN_P_L
GND
A-OUT_N_R
A-OUT_P_R
A-OUT_N_L
A-OUT_P_L
GND
PIO-00
PIO-01
PIO-03
PIO-04
PIO-06
PIO-07
PIO-08
PIO-09
PIO-10
PIO-11
RSV
GND
PIO-05
PIO-02
GND
VDD
VDD
VDD/VREF
SPI_MOSI
SPI_CLK
SPI_MISO
SPI_CSB
USB_VBUS
USB_DP
USB_DN
PCM_CLK
PCM_SYNC
PCM_IN
PCM_OUT
AIO-00
AIO-01
AIO-02
AIO-03
GND
DVDD5V
(BT_TXD)
(BT_RESET)
(BT_RTS)
(BT_RXD)
(BT_CTS)
+3.3V REGULATOR
MIX AMP
1
2
3
8
7
4
5
6
LINE AMP
(NC)
(NC)
UART_CTS
UART_RTS
UART_RXD
UART_TXD
RESET
PATTERN
ANTENNA
(FOR BLUETOOTH)
1
2
38
4
5
6
7
C968
22p
C967
22p
MAIN
BOARD
(2/3)
CN609
5.1
4.2
4.2
4.2
8.4
4.2
4.3
4.3
4.3
4.3
4.3
4.3
8.6
4.2
4.2
3.3
(Page 32)
Note: When IC904 cannot exchange with single. When IC904 is
damaged, exchange the entire mounted board.
Page 28
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
• Waveforms
– CD Board –
IC101 JB (RFi)
(CD play mode)
200 mV/DIV, 500 ns/DIV
IC101 XG (XO)
(CD play mode)
59.1 ns
1 V/DIV, 20 ns/DIV
– MAIN Board –
IC301 RB (XCOUT)
XB
30.4 µs
2 V/DIV, 20 µs/DIV
0.5 to 1.3 Vp-p
3.3 Vp-p
2.7 Vp-p
– USB Board – – PANEL Board –
IC901 VE (X2)
RB
1 V/DIV, 50 ns/DIV
– AMP Board –
IC701 (LRCK)
FB
1 V/DIV, 10 µs/DIV
IC701 (BCK)
FT
1 V/DIV, 100 ns/DIV
111 n s
3.7 Vp-p
3.2 Vp-p
22.8 µs
3.6 Vp-p
324 ns
IC901
SB
IC901
ST
IC901
SE
Q906, 907 (Base)
SG
45.6 µs
5 V/DIV, 20 µs/DIV
46.8 µs
2 V/DIV, 20 µs/DIV
45.6 µs
2 V/DIV, 20 µs/DIV
45.6 µs
5 V/DIV, 20 µs/DIV
9.4 Vp-p
5.5 Vp-p
4.9 Vp-p
6.6 Vp-p
6-12. PRINTED WIRING BOARD - DAB Board (HX80R/HX90BTR) -
• See page 21 for Circuit Boards Location.
• : Uses unleaded solder.
123
DAB BOARD
R823
R825
JW805
IC802
C802
JW802
1
3
C830
R807
R826
C811
R819
R820
JR801
C808
D806
IC803
C825
R809
R805
C813
R803
C824
C815
JR802
R808
C817
R804
JW803
R810
JW804
C823
C816
A
B
E
MAIN
BOARD
CN512
(Page 30)
R800
IC801
C803
5
4
C804
D804
L802
CN801
R830
R832
R801
1
3
C807
C806
C805
5
4
R833
D805
C
C818
3029
C812
R824
R806
C814
CN800
JW801
C821
12
C820
1-876-122-
ANTENNA
DAB 75
DAB
TUNER
MODULE
12
(12)
IC301 RE (XOUT)
XT
3.3 Vp-p
200 ns
1 V/DIV, 100 ns/DIV
FE
FG
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
IC703 (Q2)
82 ns
1 V/DIV, 50 ns/DIV
IC709
20.3 ns
1 V/DIV, 10 ns/DIV
4 Vp-p
3.9 Vp-p
Q906, 907 (Collector)
SH
45.6 µs
5 V/DIV, 20 µs/DIV
11.2 Vp-p
• Semiconductor
Location
Ref. No. Location
D804 C-1
D805 C-1
D806 C-2
IC801 C-1
IC802 B-1
IC803 A-2
2828
Page 29
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
2929

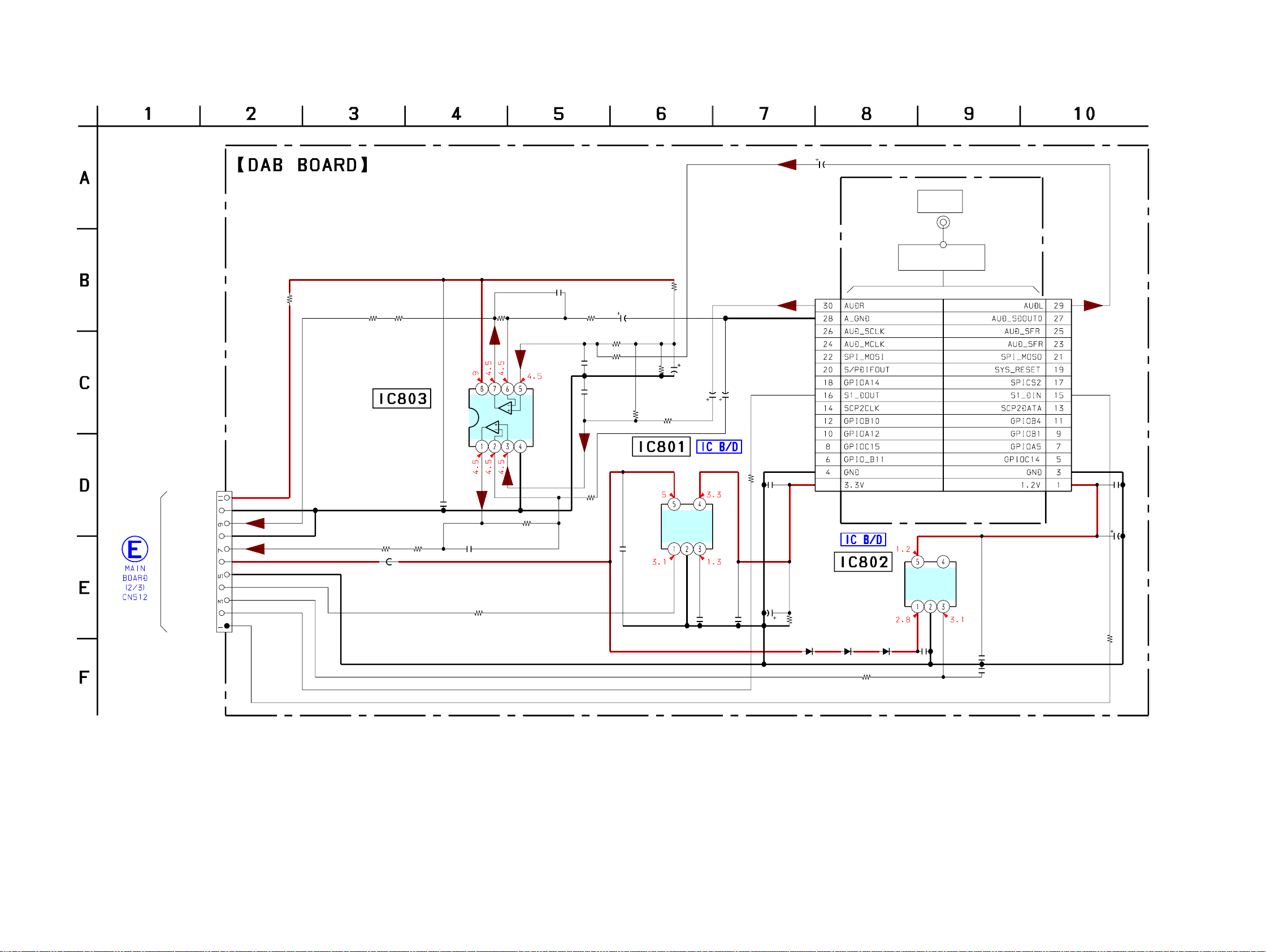

6-13. SCHEMATIC DIAGRAM - DAB Board (HX80R/HX90BTR) -
• See page 44 for IC Block Diagrams.
R820 R804
C825
R800
C803
R806
R810
IC801
R819 R803 R805
C813
R809
C815
R825
R823
R807
R824
R808
R826
R832
C820
CN800
CN801
C806
C804
R833
C823
IC802
D804 D805 D806
R801
R830
C821
JR801
L802
C814
C816
C818
C805
C812
C811
C817
C802
C807
C808
C824
IC803
0 100
0.1
10k
0.22
22k
22k
TK11133CSCL
0 100 22k
220p
22k
1
50V
4.7k
22k
22k
22k
22k
4.7k
100
10
30P
11P
0.01
1
100
470
4V
MM3291CNRE
1N4002-B5 1N4002-B5 1N4002-B5
47k
100
10
0
220p
1
50V
1
50V
100
6.3V
220p
220p
1
50V
1
1
1
470
4V
NJM4558M
-TE2
DAB-S1DI
DAB-S1DO
DGND
DAB1.2V_ON
DAB3.3V_ON
AGND
AGND
L
R
DAB_LPF_VCC
VO
VI
CONT
GND
NOISE
DAB VDD5V
GND
OUT
NC
VDD
CE
VCC
GND
+3.3V REGULATOR
REGULATOR
+1.2V
2
TUNER MODULE
DAB
DAB 75 Ω
ANTENNA
LOW-PASS
FILTER
(Page 32)
Page 30
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
• Semiconductor
Location
Ref. No. Location
D401 C-5
D402 B-3
D474 C-5
D509 B-2
D541 G-1
D551 F-4
IC301 C-4
IC401 B-3
IC501 G-6
IC502 F-5
IC503 E-6
IC505 B-2
IC506 A-2
IC507 G-3
IC510 G-5
IC521 E-6
IC551 G-6
IC701 F-3
IC751 E-3
IC753 F-2
IC754 F-2
Q312 B-4
Q316 B-3
Q325 E-3
Q326 B-5
Q370 D-6
Q371 C-6
Q372 D-6
Q387 G-6
Q388 H-5
Q389 H-4
Q390 B-5
Q392 C-3
Q393 B-2
Q399 B-3
Q426 A-2
Q504 H-4
Q511 G-4
Q513 G-2
Q551 G-7
Q554 H-7
Q555 F-5
Q602 G-3
Q606 G-3
Q624 G-3
Q702 B-1
Q703 B-1
Q704 B-1
Q706 C-2
Q707 C-2
Q716 A-2

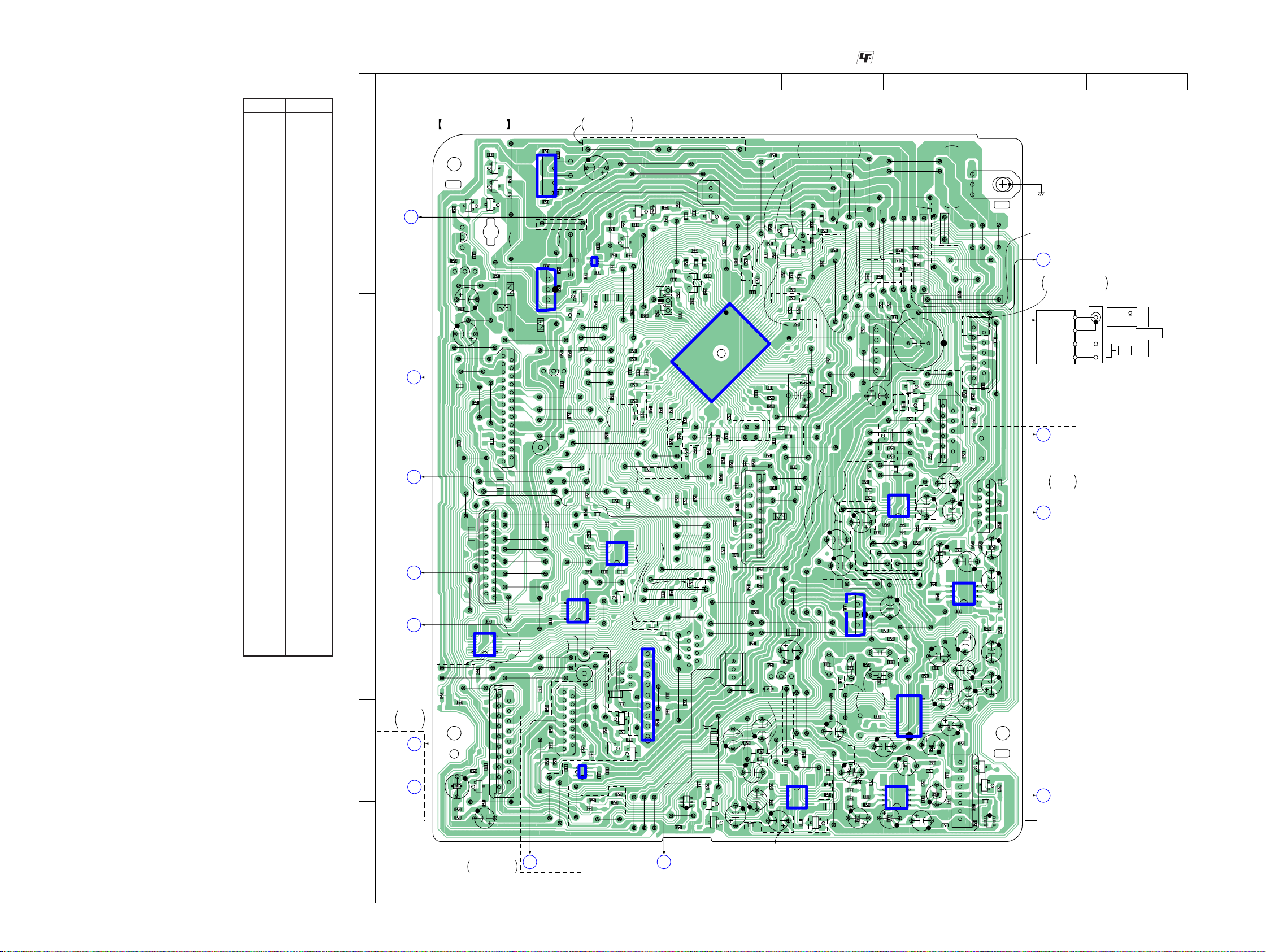

6-14. PRINTED WIRING BOARD - MAIN Board -
12345678
C504
2
4
R529
JW711
R522
R524
JW539
E
JW544
R308
JW564
JW565
JW569
R336
IC754
8
14
C754
CLP302
1
15
R206
JW651
JW650
1
5
D509
IC401
C532
Q392
E
Q707
R395
C356
R306
JW570
JW571
R764
JW588
R752
2
CN609
14
4
5
C533
JW649
C402
JW561
JW562
R321
JW631
IC507
HX50BTR/HX70BTR/
HX90BTR
JW712
C537
R416
C401
4
3
R420
5
1
C420
JR507
R400
JW542
JW543
R301
JW545
JW546
JW547
R325
HX50BTR/
HX70BTR/
JW563
HX50BTR/HX70BTR/
HX90BTR
R323
JR522
IC751
R761
9
16
C751
JW589
7
JW591
1
JW590
JW702
JW701
R605
R205
R105
3
1
C507
R232
R131
R132
JW648
TOP PANEL BOARD
MAIN BOARD
A
C
USB
BOARD
B
CN908
(Page 24)
R362
C355
C
C716
Q716
E
Q426
E
E
E
Q393
Q704
R346
Q702
E
C361
Q703
JW550
JW555
JW556
E
JW551
C701
JW554
R715
JW541
C702
1
A
CD
BOARD
CN202
(Page 22)
D
G
PANEL
BOARD
(Page 40)
E
JR526
R713
C715
JW567
JW579
JR523
JW578
JW553
20
JW552
JR525
JR524
21
CN751
B
USB
BOARD
CN907
(Page 24)
R
MOTOR
BOARD
(Page
34)
(Page
36)
CN001
(Page 22)
HX50BTR/
HX70BTR/
HX90BTR
BOARD
CN700
BOARD
CN700
(HX70BTR)
F
G
J1
AMP
AMP
J2
IC753
JW706
R103
C520
R542
R541
H
JW705
R203
JW580
8
14
JW633
R543
D541
2
1
C753
7
1
R328
19
CN510
C544
1
Q513
E
R544
JW652
C519
HX50BTR/HX70BTR/
HX90BTR
JW538
R732
R731
HX50BTR/HX70BTR/
HX90BTR
JW540
R710
IC505
R711
JW549
2
Q706
CN701
CLP301
26
27
JW572
JW573
JW574
JW575
JW577
JW582
JW583
JW584
JW585
JW586
JW581
HX50BTR/HX70BTR/
HX90BTR
JW704
JW703
JW632
18
2
D
R527
IC506
R528
C502
1
3
R709
E
JW566
JW548
JW576
JW587
R343
R751
R233
R133
R106
JW709
(Page 26)
BT BOARD
CN901
• See page 21 for Circuit Boards Location.
JW532
R316
Q399
E
R399
R320
JW536
R319
JW537
R326
R327
C326
R331
R332
HX90BTR
R304
JW568
R302
8
1
JR521
Q325
E
4
CN720
2
JR528
C722
Q624
E
R603
E
R604
Q606
E
C503
R231
CNA906
(Page 40)
JW303
Q316
C320
JW535
L316
R303
HX50BTR/
HX70BTR/
HX90BTR
JR701
9
5
1
JW654
1
Q602
JW647
E
R429
R333
JW559
R334
JW531
JW534
R430
R335
JR520
JW646
D402
R417
R401
C311
C310
JW560
JW645
R412
X302
30
31
R341
R338
JW597
R339
IC701
C706
JW630
R708
R705
F
R402
R447
JW596
R342
JW627
JW644
R207
JW533
R313
C316
(HX50R/HX70BTR)
R448
R337
JW599
JW626
JW629
4
6
JW628
JW713
JR505
R305
R309
X301
R349
JW592
JW593
JW594
JW595
R707
Q511
C312
JR527
R311
R446
R351
JW557
R340
R345
JW598
3
1
R350
2
1
CNA506
E
Q312
R394
JR511
JW530
L399
C304
1
100
R307
IC301
50
51
R354
(HX80R/HX90BTR)
JW407
JW406
R452
R352
R451
R357
R356
R355
JW558
R344
R358
L511
R353
JW621
JW624
JW625
CN507
JW642
HX90BTR
HX50BTR/HX70BTR/
JR519
JW643
R107
R510
E
Q504
E
Q389
(HX50BTR/HX70BTR/HX90BTR)
JW529
R360
R359
R422
1
3
C106
R108
C398
JW528
14
R468
R367
C148
JR518
R497
R365
2
JW641
C248
R467
R584
(HX80R)
R208
JR201
C247
R391
HX50BTR: CND, E51,
RU, MX, BR, SP, AR, KR
JW526
R426
E
(EXCEPT HX50BTR: SP, K R)
R490
R390
C390
R397
R486
R383
81
80
C465
C362
R363
L362
C466
R466
R366
JW653
1
L502
CN502
R519
15
JW619
R368
R424
JW622
JW623
D551
C206
C147
JW600
JW608
R585
R228
R226
HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR
R491
JW525
Q326
E
Q390
R492
R386
R385
R384
R381
R382
R483
D474
C301
L301
JR509
JR508
C467
JW607
C468
JW617
JW708
JW620
JR516
C566
C267
Q555
E
JW638
JW639
JW640
R504
R521
JW636
C516
IC510
16
1
8
9
JR515
JW518
JR504
R318
R484
R418
JW524
R485
JW521
R474
JW523
JW522
K
A
D401
K
(HX80R/HX90BTR)
JW405
JW404
JW601
JW602
HX50BTR/
HX70BTR/
HX90BTR
HX80R/
HX90BTR
C115
C215
JW502
JW707
IC502
C268
R260
C259
JW637
JW710
C150
JR514
JW635
R126
R212
R128
R575
JR513
E
Q388
• : Uses unleaded solder.
JW305
JW302
JW514
JW516
JW515
JW517
R348
JW519
JW512
JW520
R469
JW304
C506
(HX50BTR/HX70BTR)
JW408
JW409
JW604
R124
R119
R137
R125
JW715
C114
JW410
1
C505
3
C260
R160
HX50BTR/
HX80R/
HX90BTR
JW634
C510
(HX80R)
JR101
C207
R213
IC551
R211
C208
R577
R215
R578
C562
JW507
(HX80R/HX90BTR)
JW509
JW510
JW513
R378
R375
R347
R373
R523
R369
C369
1
CN504
5
JR517
R507
Q370
E
R509
R508
JW605
JR503
JW606
IC503
8
9
16
1
R503
R224
C515
R219
JW609
R229
JW610
JW611
JW716
JW612
R324
JW618
R322
C160
JW615
C159
C168
C167
15
28
C250
JR512
C107
4
5
8
1
C563
C564
JW714
JW402
C508
JW614
JW616
JW508
R379
R377
R376
C501
E
Q371
E
JW403
R225
C543
R502
14
IC501
1
R202
R112
R115
C108
C212
Q372
JW603
R113
R237
C249
R241
JW401
R144
R129
JR501
C263
JW506
JW503
11
CN512
1
C214
R238
C153
R111
C112
R216
JW307
C113
C204
R201
C149
HX50BTR: AEP/HX70BTR/
JW505
R380
10
2
R141
5
8
C521
JW613
R116
HX80R/HX90BTR
JW308
JW309
11
R234
R244
C213
C205
IC521
C253
C152
C163
R102
R101
1
CN501
8
JW306
CN518
JR502
R240
R239
4
1
R146
E
1
10
C151
R117
R217
JW501
R134
R235
R135
2
1
3
EP501
JW301
10
2
C531
11
1
Q387
Q551
JR510
1-876-123-
E
CN514
C104
C252
C251
6
4
(CHASSIS)
(HX50BTR/HX70BTR/HX90BTR)
JW504
JR506
JW511
JR301
R530
R140
R139
(Page 38)
C105
R138
R246
R561
(Page 38)
Q554
12
(12)
(Page 42)
SW POWER
BOARD
L
CNA32
HX50BTR: AEP/
HX70BTR/HX80R/HX90BTR
TUNER
(FM/AM)
E
DAB
(Page
BOARD
28)
CN801
HX80R/
HX90BTR
K
DMP
BOARD
CN902
JACK
BOARD
CNA903
H
FM 75
COAXIAL
AM
ANTENNA
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3030
Page 31
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3131

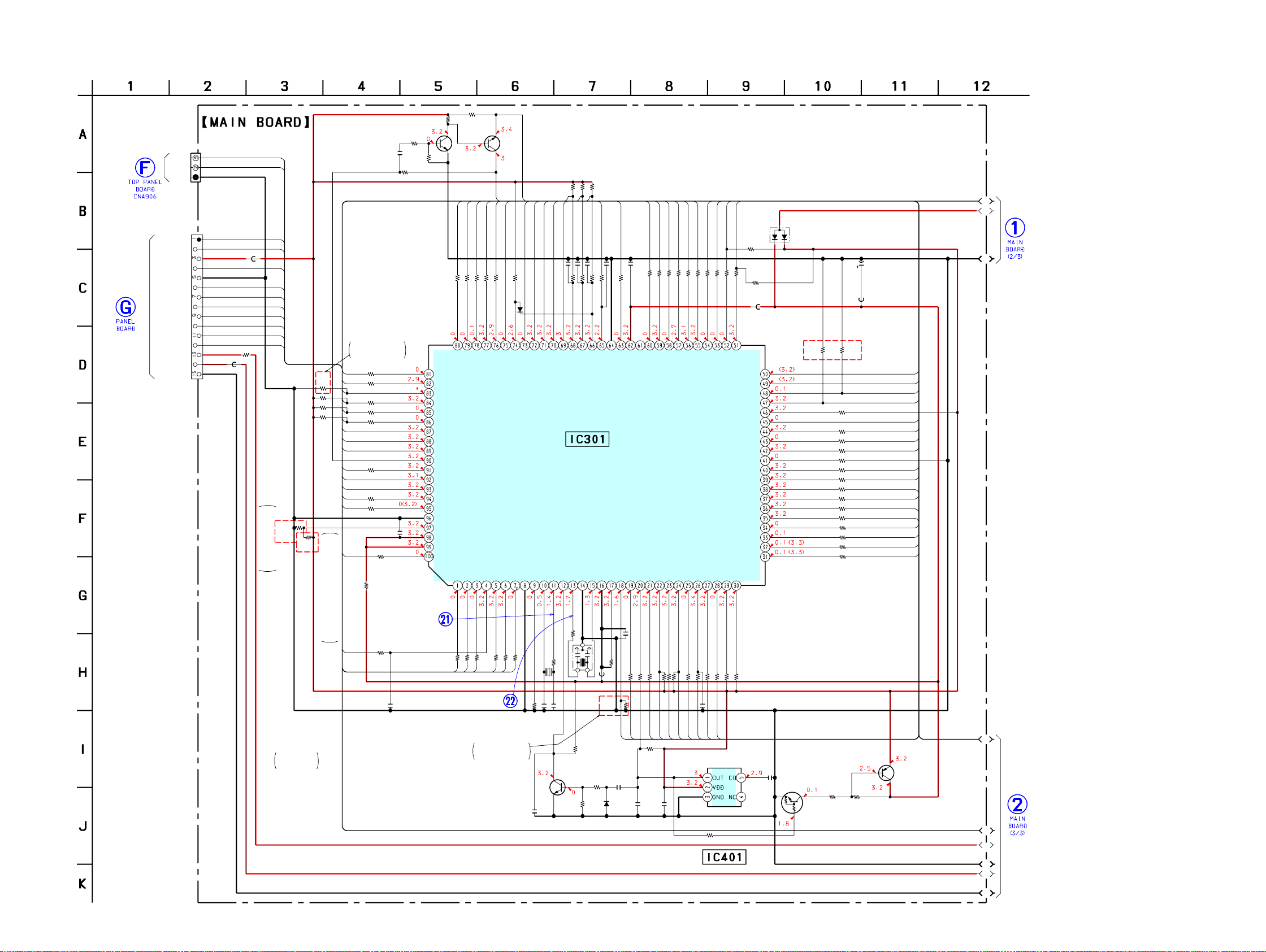

6-15. SCHEMATIC DIAGRAM - MAIN Section (1/3) -
• See page 28 for Waveforms. • See page 50 for IC Pin Function Description.
R420
R412
Q312
D401
D402
Q326
R484
R485
R486
Q390
Q399
R491
Q316
R416
R492
IC401
R399
R368
R367
R366
R365
R474
D474
R380
R379
R378
R377
R376
R468 R467
R466
CN502
R519
R483
R386
R385
R384
R382
R381
R391
R394
R395
R400
C304
R304
R301
R302
R303
R305
R306
R307
R311
X301
R309
C310 C311
R402
R401
R313
R417
R319
R320
R321
R422
R424
R323
R325
R326
R327
R328
R429
R430
R418
R331
R333
R332
R334
R335
R336
R337
R338
R339
R340
R341
R342
R343
R344
R446
R447 R448
R452
R451
R359
R358
R357
R360
R356
R355
R354
R353
R352
R351
R316
CN507
R426
L502
L511
R390
R490
C390
C468
C467
C466
C465
C362
R363
L362
L301
C301
IC301
C398
L399
R397
R497
C312
C320
C420
C401
L316
X302
C316
C326
C402
10k
10k
2SC3052F
MC2836
1SS355W
2SC3052F
10k
10k
10k
2SC3052F
ISA1235AC1TP-1EF
47k
RT1N441C
2.2k
2.2M
PST3628NR
100k
1k
1k
1k
1k
1M
1SS355W
1k
1k
100
100
1k
10k 10k
10k
15P
1
1k
1k
1k
1k
1k
1k
10k
100
1k
100
1000p
1k
100
100
100
100
100
100
220k
32.768KHz
10k
18p 22p
47k
47k
0
10k
100
47k
100
4.7k
4.7k
100
100
1k
100
100
4.7k
4.7k
1k
100
100
100
100
100
100
100
100
100
100
10k
100
100
100
10k
1k 1k
10k
10k
470
470
470
100
470
470
1k
1k
1k
1k
47k
3P
100k
1k
1M
1
0.01
0.01
0.01
0.01
1
1k
0.22F
5.5V
R5F3640DDFAR
(HX50BTR/HX70BTR/HX80R)
R5F3640MDFAR
(HX90BTR)
1
0
4.7k
0.1
0.1
0.1
0.1
5MHz
1
0.01
0.1
A1
A2
A3
C1
C2
C3
C4
C5
C6
7
3
91
92
19
53
32
31
25
34
5
6
89
82
83
84
38
4
1
2
54
22
23
24
87
44
81
80
43
68
26
7
88
33
35
36
42
67
77
78
79
100
95
94
93
51
52
66
65
4
47
48
49
50
21
18
45
55
56
57
58
59
60
65
66
67
68
73
72
75
76
26
90
69
70
71
39
40
37
55
56
57
58
59
60
63
63
28
27
85
86
∗
SIRCS
BYTE
XCIN
XCOUT
XOUT
Vss
XIN
Vcc
NMI
Vcc
Vss
AVss
VREF
AVcc
FL RESET
FL SD
FL CS
FL SCLK
SBSY
BT LED
USB LED
STBY LED
AUDIO IN DET
HP DET
KEY WAKE UP
CD BUS2
CD BUS1
CD BUS0
VOLUME JOG
DGND
EVER+3.3V
LED STANDBY
SIRCS
VOLUME JOG
FL POWER ON
PULL DOWN
PULL UP
VFD RESET
VFD SD
VFD CS
VFD SCLK
VFD PWR ON
VFD +7V
VFD DGND
RDS DATA
CD XRST
DAB TXD_OUT
ST CE
ST CLK
BT CTS
BT RTS
USB TXD OUT
USB RXD IN
USB RTS
USB POWER
BT AV ROLE
BT AUDIO OUT MUTE
TA LINE-MUTE
HP MUTE S-MASTER INIT
S-MASTER NSP MUTE
S-MASTER SHIFT
S-MASTER DATA
S-MASTER SD
S-MASTER RST
S-MASTER PG MUTE
CLINK_TXD_OUT
CLINK_RXD_IN
DMPORT DET
DMPORT POWER
CDM LOAD OUT
CDM LOAD IN
CDM CLOSE SW
CD ON
CD DRIVER MUTE
MP3 IREQ
CD CEE
CD CLK
DEC BUS SEL
KEY3
KEY2
KEY1
DGND
VFD +12V
BT TXD
CDM
OPEN SW
OUT
IN/STEREO
ST DATA
BT LED
ST DATA
CD
BUS3
SOFT MUTE
S-MASTER
BT
POWER
BT
RESET
DAB
RXD_IN
(1/3)
Q326,390
CONTROL SWITCH
S-MASTER LATCHSYSTEM CONTROLLER
BT RXD_IN
_OUT
IIC_DATA
IIC_CLK
AMP IIC_CLK
AC-CUT
RDS-INT
RESET
USB_CTS
USB_RESET
SPEC-N
STBY-RELAY
ST TUNED
DAB-POWER_1.2
DAB-POWER_3.3
SEL INH
SEL B
SEL A
DC DET
KEY 2
KEY 3
KEY 1
(HX50BTR/HX70BTR)
MX,BR,SP,AR,KR
MX,BR,SP,AR,KR
HX50BTR:CND,E51,RU
HX50BTR:CND,AEP,RU,E51,MX,BR,AR/
HX70BTR/HX80R/HX90BTR
∗
R497
220 (HX50BTR:RU)
470 (HX50BTR:E51,MX,AR)
1k
4.7k
HX70BTR/HX80R/
(HX50BTR:CND,BR)
RESET SWITCH
MX,BR,SP,AR,KR
HX50BTR:CND,E51,RU,
HX50BTR:CND,E51,RU,
RESET SIGNAL GENERATOR
B+ SWITCH
Q316,399
SHUT DOWN
CNVss
HX50BTR:AEP/
HX90BTR
AMP IIC_SDA
(Page 41)
(Page 41)
(Page 32)
(Page 33)
Ver. 1.1
Page 32
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3232

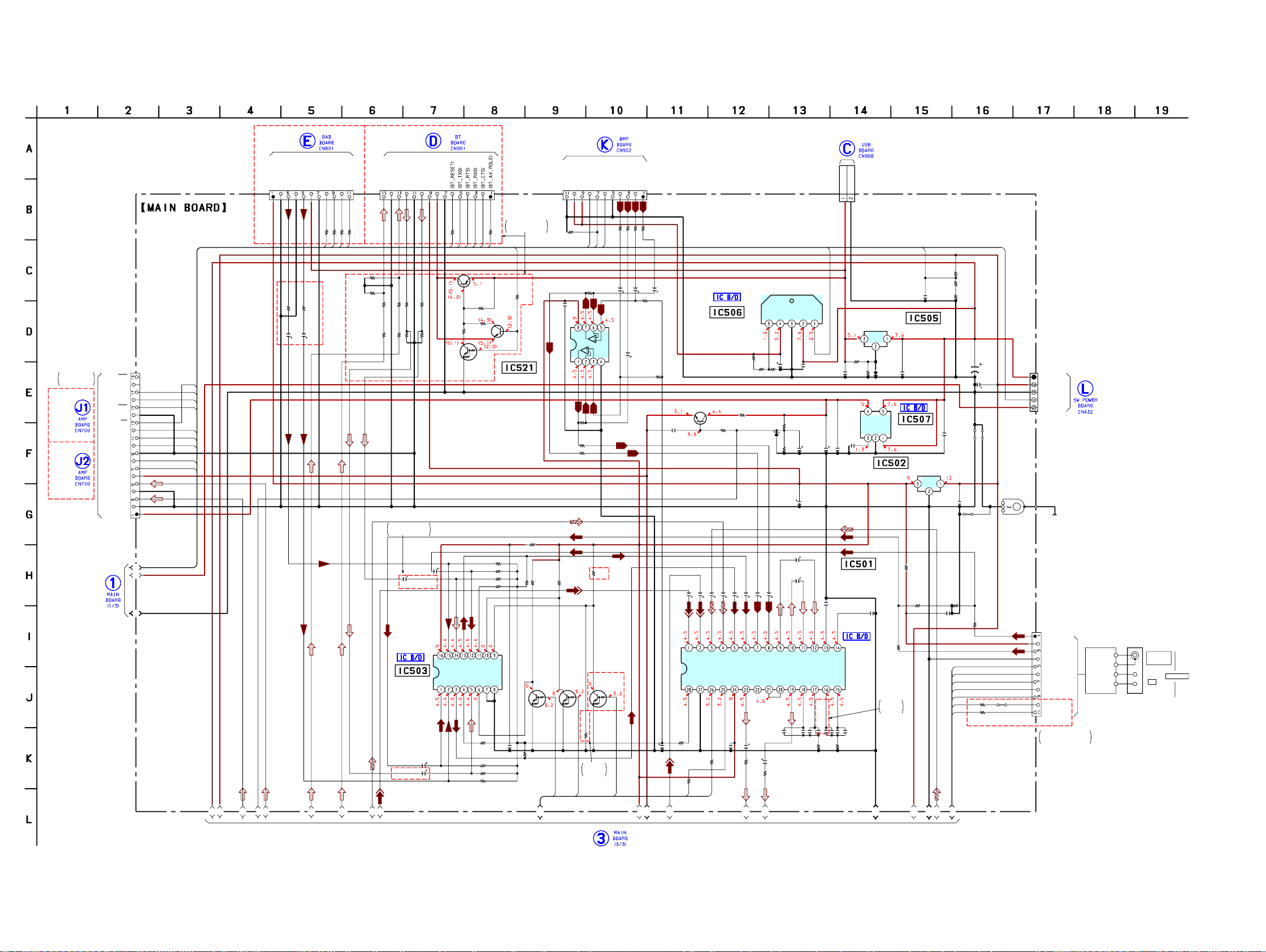

6-16. SCHEMATIC DIAGRAM - MAIN Section (2/3) -
• See page 44 for IC Block Diagrams.
D509
IC502
Q513
C519
R524
IC505
IC507
R522
D541
C520
R528
R529 C537
R507
IC503
Q372
C205
R530
IC501
IC506
Q370
C153
C253
R541
R502
C543
CN510 CN504
CN514
CNA506CN512
R144
R244
C214
R233
R133
R132
R131
R232
R205
R105
R231
R206
R106
Q606
R605
R603
Q624
R604
Q602
R350
C104 C204
C105
R141
R238
R138
R146
C544 R542
R544
R543
C533
C508
R373
R375
R348
R347
R349
R345
R139
R140
R239
R240
R527
C506
R469
R369
R523
EP501
R235
R134
R234
C249
C149
C215
R237
R225
R219
R224
R229
Q371
R322
R324
R108
R260 R160
R383
R318 JW505
CN609
C114
R241
C521
IC521
C504 C532
C505
C503 JW502 JW503
C369
C502 C501
JW501
C263C163
C250 C150 C251
C252
C152
C151
C168
C268 C260
C259
C159
C160
C167C267
C206
C106R208
C510
C531
R135
JR502
JR517
C515
R508
R509
R129
R119
R125
R124
C113
C115
R137
R503
C213
R246
C507
CN518
1N4002-B5
KIA7809API
2SC3052F
220
10V
470
KIA7805API
TK11150CSCL
10
UDZW-TE17-3.9B
470
10V
47k
100k 47
35V
10k
MC14052BD
TR2
RT1N141C
2.2
50V
100k
BD3499FV
BA00BC0WT-V5
RT1N141C
2.2
50V
2.2
50V
220
0
220
10V
19P 5P
11P
2P11P
100
100
1
50V
4.7k
4.7k
4.7k
2.2k
4.7k
4.7k
4.7k
2.2k
47k
47k
2SA1365
10k
470
RT1N141C
22k
2SC3052F
1k
2.2
50V
2.2
50V
2.2
50V
15k
15k
15k
100
11k
47
10k
1
470
10V
1k
1k
470
470
1k
1k
15k
15k
15k
15k
47k
100
16V
100k
10k
22k
47k
2.2k
2.2k
4.7
50V
4.7
50V
150V
100k
100k
100k
100k
100k
RT1N141C
470
470
220
4.7k 4.7k
1k
1k
15P
1
50V
15k
0.1
NJM4558M
-TE2
11
0.1
0.1
0.01
1
2200p2200p
4.7
50V
4.7
50V
4.7
50V
4.7
50V
4.7
50V
4.7
50V
0.1
0.1
0.047
0.047
220
0.1
0.1
47k
0
0
0.1
10k
10k
100k
100k
100k
100k
1 50V
150V
100k
1k
1
50V
100
0.01
11P
A1
A2
A3
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B13
B14
B15
B18
B20
B21
B22
B23
B24
B25
77
78
33
31
34
32
47
48
45
49
50 69
73
75
76
79
80
81
84
90
91
82
18
83
27
28
37
26
39
40
42
43
44
72
70
71
22
24
∗
∗∗
∗∗
∗
∗
INH
VEE
GND
VCC
Y0
Y2
Y
Y3
Y1
B
A
X3
X0
X
X1
X2
VCC
A1
A2
B1
B2
C1
D1
D2
C2
SEL2
SEL1
VOL1
VOL2
TC2
TC1
BCB2
BCA2
BCB1
BCA1
OUT2
GND
SCL
SDA
VCC/2
OUT1
SB2
SB1
SR
POWER ON
ST-BY 4V
VBUS_5V
VBUS_5V
PGND
PGND
DAB-S1DI
DAB-S1DO
DGND
DAB1.2V_ON
DAB3.3V_ON
AGND
AGND
L
R
DAB_LPF_VCC
VO
VI
CONT
GND
NOISE
DAB VDD5V
VBUS_5V
CONT
GND
VO
VI
F.B.
RDS DATA
RDS CLK
DO/STEREO
ST CLK
ST DIN
ST CE
R OUT
AGND
L OUT
+9V
TUNED
A+5V
AGND
R IN
AGND
L IN
D+3.3V
INIT
NSP MUTE
DGND
SC LATCH
SC SHIFT
SC DT
DGND
SOFT MUTE
PG MUTE
OVF
OTW
RST
SD
DGND
CLINK TXD
CLINK RXD
GND
D7.5V
D12V
DVDD5
AGND
AOUTL
AOUTR
DGND
AGND
AINL
AINR
AVCC9V
R-
R+
L-
L+
(CHASSIS)
(2/3)
DMP-DET
HX90BTR
HX50BTR/HX80R/
(HX70BTR)
REGULATOR
+5V
VCC
GND
LINE AMP
REGULATOR
+5V
GO
+5V REGULATOR
∗
C501
470 10V (HX50BTR/HX70BTR)
4700 10V (HX80R/HX90BTR)
REGULATOR
+9V
TUNER
(FM/AM)
AM
FM 75 Ω
COAXIAL
INPUT SELECTOR
ELECTRICAL VOLUME
SORROUND/TONE CONTROL
ANTENNA
HX50BTR:AEP/HX70BTR/
HX80R/HX90BTR
∗
C160,260
0.1 (HX50BTR/HX80R/HX90BTR)
(HX70BTR)
HX50BTR/
HX80R/
HX90BTR
∗
(HX50BTR/HX80R/HX90BTR)
(HX70BTR)
C106,206
1 50V
4.7 50V
∗
(HX50BTR/HX80R/HX90BTR)
(HX70BTR)
C167,267
0.022
0.047
INVERTER INVERTER INVERTER
(HX80R/HX90BTR)
HX70BTR
HX50BTR/
(HX80R/HX90BTR)
HX50BTR/HX70BTR/
HX900BTR
INPUT
SELECTOR
(HX50BTR/HX70BTR/HX90BTR)
B+ SWITCH
Q602,606,624
(HX80R/HX90BTR)
HX50BTR/HX70BTR/
HX900BTR
(HX80R/HX90BTR)
REGULATOR
+3.3V
I
OGI
0.22
JW501
(Page
35)
(Page
37)
(Page 31)
(Page 33)
(Page 43)
(Page 25)
(Page 39)
(Page 27)(Page 29)
Page 33
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3333

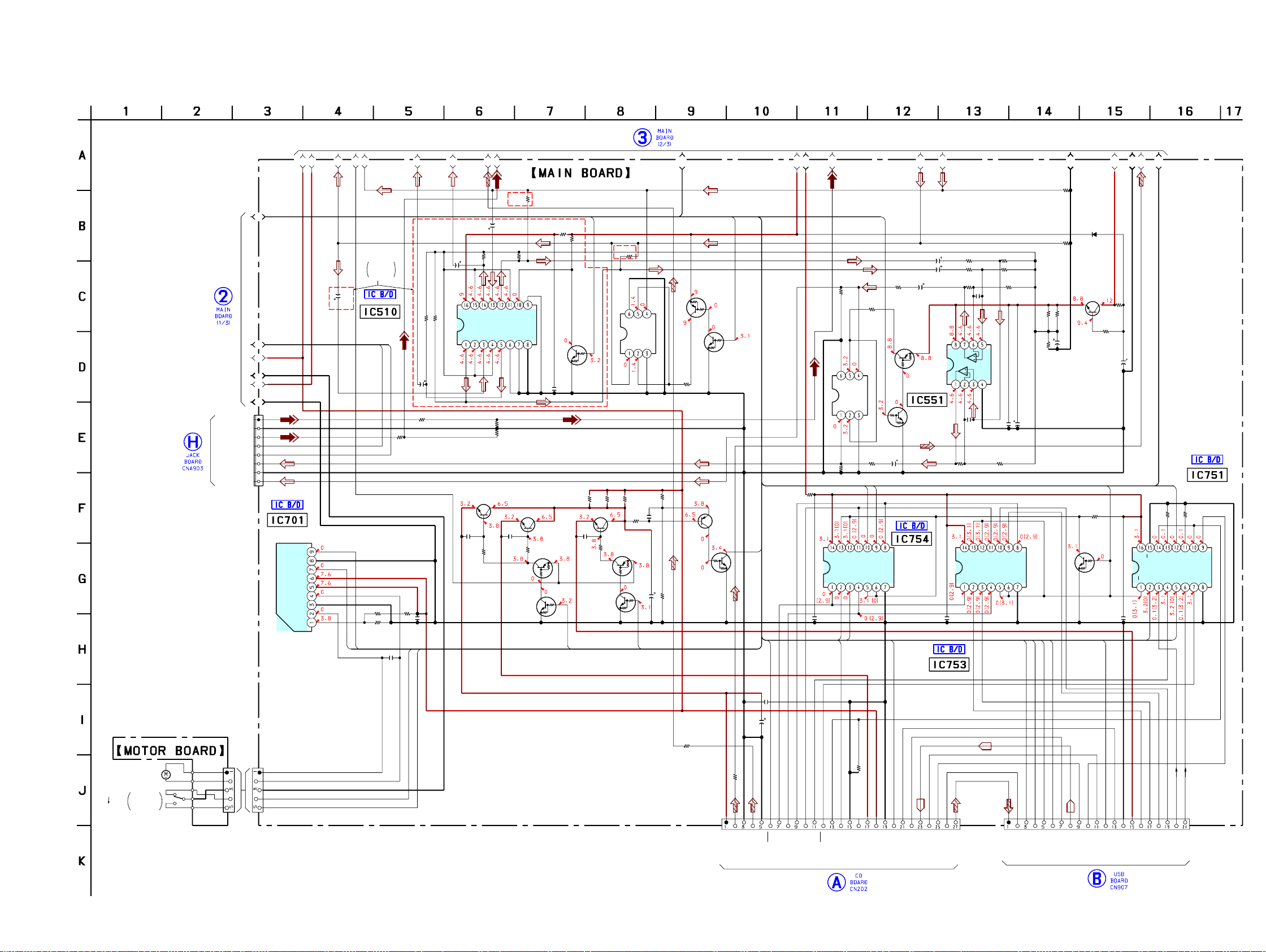

6-17. SCHEMATIC DIAGRAM - MAIN Section (3/3) -
• See page 44 for IC Block Diagrams.
R116
R216
R117
C212
R103
IC701
Q702
R715
IC751IC753IC754
R751
R752
R761R764
Q504
Q551
IC551
R578
Q555
R584
C566
R585
C562
Q716
R308
R346
C207
Q703
Q706
Q707
Q387
Q389
Q392
Q426
Q325
Q554
Q511
Q704
C702
Q393
CN501
D551
C247
R226
R228
C148
R128
R504 R521
JR101
JR201
Q388
C516
R102
R202
R101
R201
R708
R705
R707
CN720
R362
R709 R710 R711
C716
R732
R731
R713
CN701
R115
R113
C564
C112
C107
R215
R211
R111 R112
R212
R213
R577
R575
R217
IC510
R561
R203
C701
C208
C108
C563
R107
R207
C751
C753
C754
C361 C356C355
C706
C722
S001
CN001
CN751
R510
C248
C147
R126
C715
47
47
100k
220
10V
1k
BA6956AN
KTC3205Y-A
100k
TC74VHC157FTTC74HC4066AFTTC74HC4066AFT
100
10k
100k100k
RT1P141C
RT1P141C
NJM4580MD
2.2k
KTC3198GR
1k
100
16V
10k
220
10V
ISA1235AC1TP-1EF
100
47
1
50V
KTC3203Y-A
KTC3203Y
RT1P141C
RT1N141C
RT1N141C
RT1N141C
RT1N141C
RT1N141C
RT3X99M
RT3X99M
RT1P141C
470
10V
RT1N141C
8P
1SS355W
1
50V
100k
100k
1
50V
100k
1k 10k
0
0
RT1N141C
0.1
47k
47k
4.7k
4.7k
0
1k
1k
5P
100
22 22 22
1
22k
22k
100k
27P
22k
4.7k
220
10V
220
10V
150V
22k
1k
1k 100k
100k
4.7k
22k
2.2k
100k
MC14052BD
TR2
2.2k
1k
470
10V
22p
22p
0.1
10k
10k
0.1
0.1
0.1
111
1
0.1
5P
21P
10k
1
50V
1 50V
100k
0.1
C1
C2
C3
C4
C5
C6
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B13
B14
B15
B18
B20
B21
B22
B23
B24
B25
1
100
38
36
35
2
3
19
5
6
7
21
23
25
51
52
53
87
89
88
92
93
94
95
26
54
86
85
C2
B2
E2
E1
B1
C1
C2
B2
E2
E1
B1
C1
VC
O+
O-
VM
VCC
I+
I-
GND
GND
INH
VEE
GND
VCC
Y0
Y2
Y
Y3
Y1
X3
X0
X1
X2
A
B
X
GATE
ST_REQ
GPIN/AIN
SFSY/BCKIN
MGND
VM(7V)
DVDD(3.3V)
D-OUT
DGND
SBSY
REQ
CCE
BUCK
BUS3
BUS2
BUS1
BUS0
RST
AGND
L-OUT
DACGND
R-OUT
AVDD(3.3V)
1A
1B
2B
2A
2C
3C
GND
VCC
1C
4C
4A
4B
3B
3A
CLOSE SW
OPEN SW
DGND
CLOSE
OPEN
AUDIO IN L
AUDIO IN GND
AUDIO IN R
HP GND
HP L
HP R
HP DET
AUDIO IN DET
1A
1B
2B
2A
2C
3C
GND
VCC
1C
4C
4A
4B
3B
3A
A
/B
1A
1B
1Y
2A
2B
2Y
GND
VCC
G
4A
4B
4Y
3A
3B
3Y
DATA
CLOCK
LRCK
CCE
BUC
K
BUS3
BUS2
BUS1
BUS0
DVDD3
.3V
DVSS
USB-RST
ST-REQ
REQ
GATE
A-IN
BCK
USB-SI
USB-SO
DI
DO
DATA
CLOCK
VCC
GND
(3/3)
OUTPUT
LOADING MOTOR DRIVE
SELECTOR
INVERTER
MUTING
Q511
MUTING
Q389,504
CONTROL SWITCH
Q387,551
MUTING CONTROL
SWITCH
Q554 MUTING
HEADPHONE
AMP
RIPPLE
FILTER
SELECTOR
DATA
INVERTER
BUS SWITCH
M-MUTE
ZDET/LRCKIN
Q426,716
CONTROL
SWITCH
REGULATOR
+3.3V
Q392,706,707
REGULATOR
+3.3V
Q393,702-704
BUS
SWITCH
DISC TRAY
OPEN/CLOSE
DETECT
M001
(LOADING)
CLOSE
OPEN
HX50BTR/
HX90BTR
HX70BTR/
(HX80R)
(HX80R)
SHUT DOWN
(Page 31)
(Page 39)
(Page 23)
(Page 25)
(Page 32)
Page 34
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR

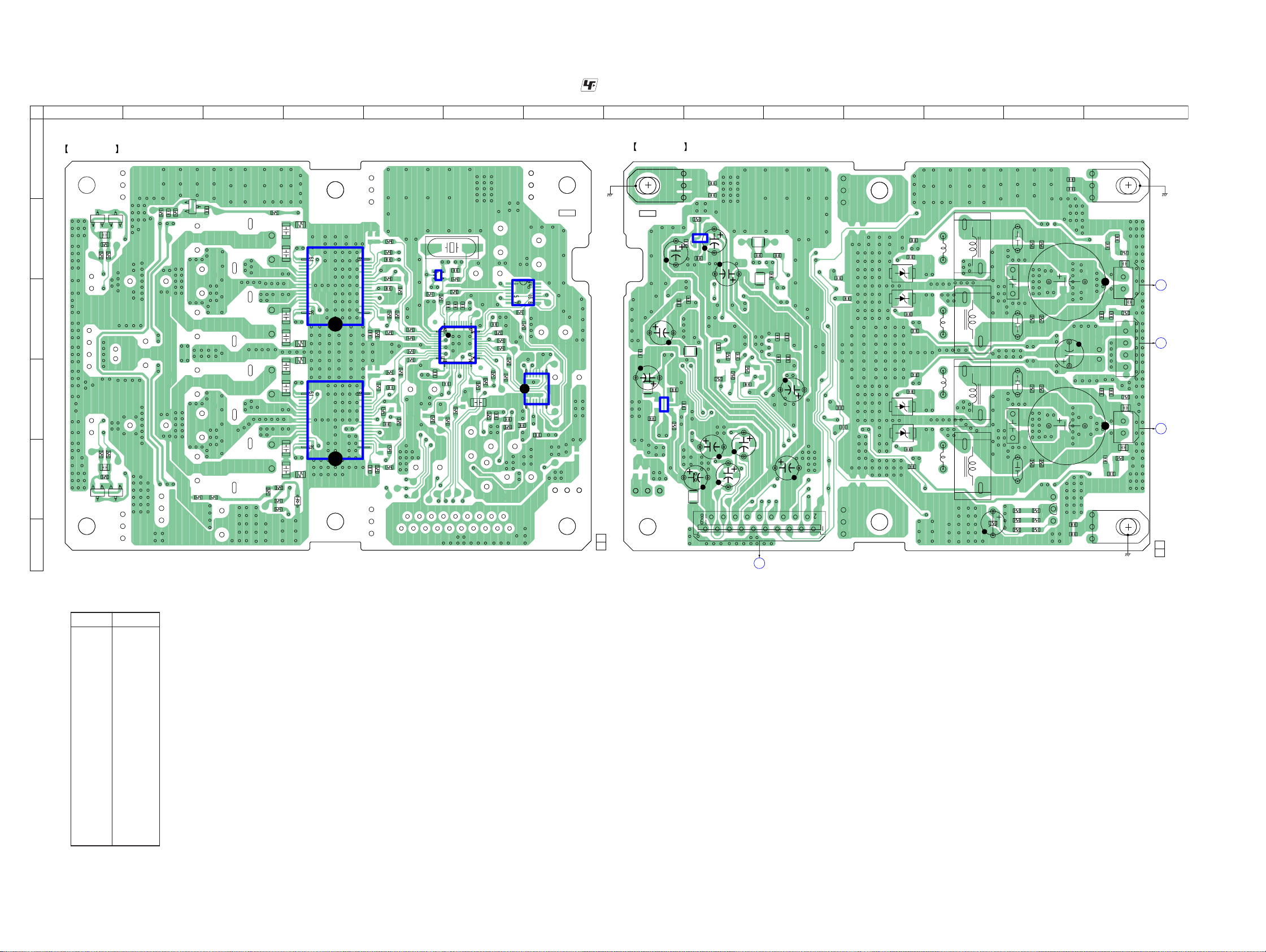

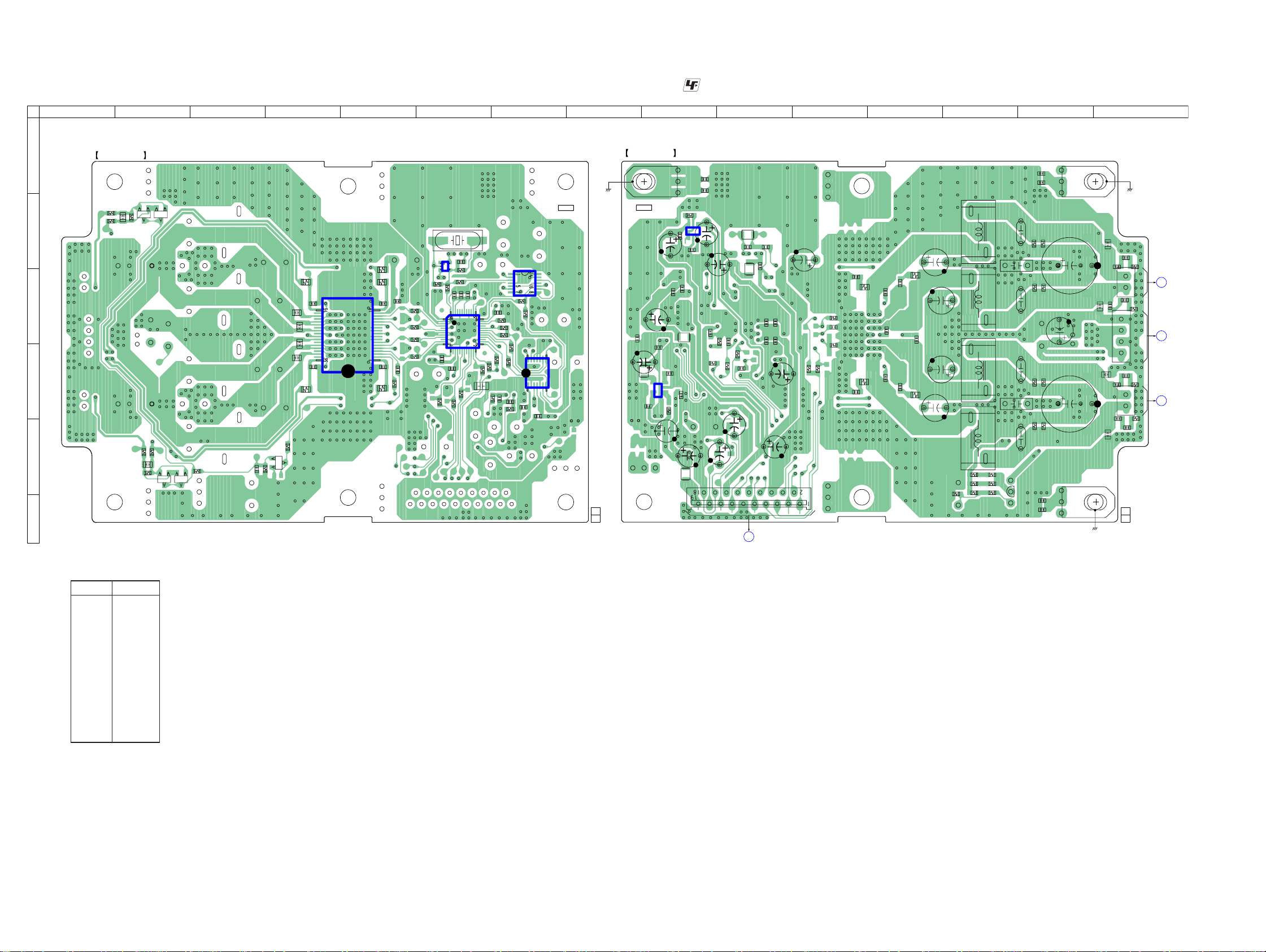

6-18. PRINTED WIRING BOARD - AMP Board (HX50BTR/HX80R/HX90BTR) -
1234567891011121314 15
A
B
C
D
E
F
AMP BOARD (COMPONENT SIDE)
EE
R778
Q752
R776
C778
R777
R728
C726
R727
• Semiconductor
Location
Ref. No. Location
IC701 D-7
IC702 D-9
IC703 C-7
IC704 B-9
IC705 C-6
IC707 C-5
IC709 B-6
Q753
R726
EE
Q703
R770
C756
IC707
19
C767
C766
C765
C764
36
C712
R719
R765
C794
R793
Q701
R792
Q702
E
R757
R769
C762
18
1
C706
R720
R782
C758
R754
R752
R714
R713
R711
R712
• See page 21 for Circuit Boards Location.
X702
IC709
1
3
1
12
13
C787
R784
C784
5
4
R781
R780
R783
C780
C779
48 37
IC705
C788
R788
R787
IC703
1
14
78
C799
36
25
24
R741
R790
R789
C804
R751
R733
C746
R749
R748
R731
R747
R746
R745
8714
IC701
C743
1
C742
C730
R701
C733
1-869-747-
(21)
21
AMP BOARD (CONDUCTOR SIDE)
EP703
(CHASSIS)
IC704
C798
C757
C801
C735
C741
L702
IC702
4
3
5
1
C739
R722
C738
• : Uses unleaded solder.
C831
C832
R750
C747
5
4
C761
3
1
C797
C737
C744
C745
L703
R742
C736
C732
C731
L701
L705
C783
C781
C786
L704
R786
R744
C806
R785
R743
C701
C753
C751
CN700
MAIN
BOARD
J1
CN510
C790
C785
C752
C754
C796
C704
C740
(Page 30)
C856
C855
L761
C710
R709
C717
R710
R755
C760
R759
R756
R706
C714
C716
C768
C763
R707
C713
C715
C709
C718
C708
L711
C707
R708
R809
C777
R768
C791
L760
C770
C728
C702
C720
L710
R804
R802
R803
R807
E
R805
Q707
R808
C854
C851
EP702
(CHASSIS)
EP701
C846
C845
(CHASSIS)
C847
C725
C844
1-869-747-
C774
C775
R775
2
CN703
1
C772
C773
R774
1
CN704
4
C724
R725
2
CN702
1
R724
C722
C723
21
(21)
SP
TERMINAL
N1
BOARD
CN870
(Page 38)
SW POWER
BOARD
P1
CN31
(Page 42)
SP
TERMINAL
M1
BOARD
CN850
(Page 38)
R773
C769
R772
C729
R718 R771
R740
C719
R721
R739
Q701 E-4
Q702 E-2
Q703 E-2
Q707 E-13
Q752 B-2
Q753 B-2
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3434
Page 35
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3535

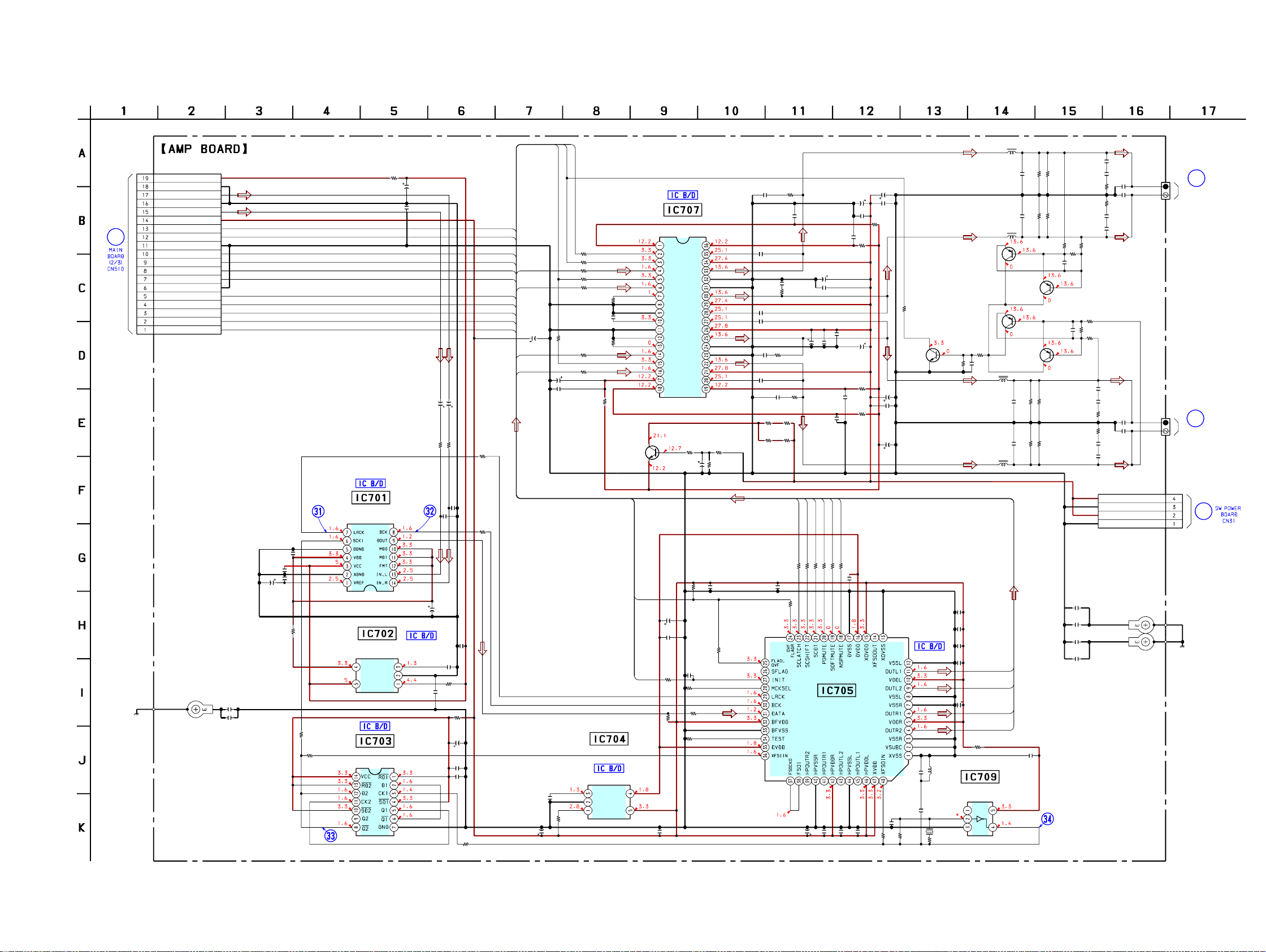

6-19. SCHEMATIC DIAGRAM - AMP Board (HX50BTR/HX80R/HX90BTR) -
• See page 28 for Waveforms. • See page 44 for IC Block Diagrams.
R792
R749
IC705
R747
R773
R706
R708
R709
R711
R712 C713
C716
C706
CN702
CN703
C844
C845
C722
C723
R724
R725
C724
C725
R726 R728R727
C726
Q702
Q703
R739
R740
R721
R718
C846
C847
C772
C773
R774
R775
C774
C775
R772R771
R768
R776
R778
R777
C778
Q752
Q753C794R793
C769
C791
R765
C719
C702
R770
R719C712
C707
R707C714
C764
R720
R769
C756
C768
C763
C766
C767
C709
C718
C765
C708
C715
R710C717
IC707
C762
C760
R755
R757
C758
C790
R756
R713
R752
R754
CN704
R784
R785
R786
R787
R788
R789
C787
R790
C788
L704
R783
C785
R782
L705
C783
C784
R781
X702
C780C779C799
C781
C806
R744
R748
R741
C745
C746
R742
C747
C797
C761
C798
C754
C752
C796
C704
C753
IC709
R780
C737
R722
C736
R745
R746
R733
IC703
C744
C757
C735
IC701
C733
C732
R751
R731
C831
C832
C740
C804
C731
C742
C738
R701
C701
C751
CN700
R714
C739
R743
C720
C728
L710
L711
L760
L761
Q701
C777
C770
EP701
EP702
C710
C786
R750
IC704
IC702
EP703
L703
R759
C730
0
0
CXD9788AR
470
10k
100
12
12
100
100 0.047
560p
0.1
2P
2P
0.1
0.1
0.0022
0.0022
4.7
4.7
0.0022
0.0022
220k 220k100k
2.2
2SA1235
2SA1235
10k
10k
10k
10k
0.1
0.1
0.0022
0.0022
4.7
4.7
0.0022
0.0022
10k10k
10k
220k
220k
100k
2.2
2SA1235
2SA1235147k
1800
35V
C729
1000
16V
0.1
0
1800 35V
0.1
3.3
3.30.1
47
35V
12560p
0.1
3.3
3.3
0.1
0.047
0.047
0.1
0.1
47
35V
0.047
0.1
4
7 35V
560p
12
R804
220
R802
220
R805
220
R803
220
R807
22k
R808
22
C741
2.2
R809
22k
50V
560p
CXD9845AM
0.1
0.1
100
3.3
0.1
100 16V
100
100
100
100
4P
100
100
100
100
100
100
0.001
100
0.1
22
10p
1M
10p
0.001
100
49.152MHz
0.0010.010.011050V
0.1
0
47k
100
0.01
0.01
10k
100
10V
0.01
0.01
10
50V
0.001
C855
1
C856
0.01
C851
1
C854
0.01
0.1
0.1
0.001
100
10V
MC74VHC1GU04
22
0.0047
47k
C801
0.01
0.01
100
100
470
MC74VHC74DTR2
0.1
10
50V
10
50V
PCM1808
0.1
0.1
100
L702
0
470
1
0.01
220
10V
0.001
100
10V
2200p
C743
2200p
10
50V
100
2.2 50V
2.2
50V
19P
100
L701
0
0.01
100
1
1
2SC3052
1
1
47 35V
0.001
47k
TK11118 CSCL
TK11133CSCL
15k
0.1
NSPMUTE
SOFTMUTE
PGMUTE
SCDT
SCSHIFT
SCLATCH
/OTW
/SD
/RST
A
B
C
C
D
D
INIT
OVF
INIT
NSPMUTE
SCLATCH
SCSHIFT
SCDT
/SD
/RST
SOFTMUTE
PGMUTE
OVF
/OTW
A
B
GND
GND
AGND
SCDT
DGND
DGND
NSPMUTE
SOFTMUTE
PGMUTE
/OTW
SCSHIFT
SCLATCH
AGND
L-IN
R-IN
/RST
OVF
/SD
L+
L-
INIT
R-
R+
A+5V
D+3.3V
(CHASSIS)
(CHASSIS)
Q702,703
OVER LOAD DETECT
OVER LOAD DETECT
Q752,753
PROTECT DETECT
+27V
+27V
DIGITAL POWER AMP
GND
GND
BST_B
OUT_B
BST_C
OUT_C
GND
OUT_D
GND
PVDD_D
BST_DVDD
PWM_C
M1
M2
GND
VREG
GND
GND
PWM_B
PWM_A
/SD
/OTW
/RST
_AB
GVDD
_A
GVDD
_B
OC_
ADJ
/RST
_CD
PWM
_D
_C
BST
_A
PVDD
_A
OUT
_A
PVDD
_B
PVDD
_C
GVDD
_D
CLOCK BUFFER
VCC
NC
GND
STREAM PROCESSOR
+1.8V REGULATOR
NOISE
GND
CONT
VOUT
VIN
A/D CONVERTER
+3.3V REGULATOR
NOISE
GND
CONT
VOUT
VIN
CLOCK SHIFT
GVDD
10μH
10
μ
H
10
μ
H
10
μ
H
0
1
μ
H
0
Q707
KTC3198
+12V
REGULATOR
M1
J1
N1
P1
SP TERMINAL
BOARD
CN850
SP TERMINAL
BOARD
CN870
(Page 32)
(Page 39)
(Page 39)
(Page 43)
Page 36
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
6-20. PRINTED WIRING BOARD - AMP Board (HX70BTR) -
12345678910111213 14
A
B
C
D
E
F
AMP BOARD (COMPONENT SIDE)
R792
C794
Q752
Q753
EE
C778
R777
R776
R778
R726
R728
C726
R727
EE
Q702
Q703
• Semiconductor
Location
Ref. No. Location
D705 D-11
D706 D-11
D713 E-4
D755 C-11
D756 B-11
R793
Q701
C703
E
R765
C765
R769
C764
19
IC708
C766
R770
C767
C715
R719
C714
19
IC707
C716
R720
C717
R717
R738
R716
R715
R800
R801
D713
• See page 21 for Circuit Boards Location.
IC709
R782
R737
R736
R735
R734
1
5
34
R783
48 37
1
12
13
C787
R784
X702
C780
IC705
C788
R787
C784
R781
R780
C779
C799
24
C804
R788
IC703
1
14
7
8
R733
C746
R731
36
R749
R748
R747
R746
25
R790
R789
14 8
R741
R745
C743
R751
17
C742
C730
R701
C733
R764
R762
18
R761
R759
R758
C758
R795
R756
136
R752
C757
R754
R714
R794
R711
18
R712
R709
R708
C708
R706
136
R704
R702
C707
• : Uses unleaded solder.
AMP BOARD (CONDUCTOR SIDE)
EP703
(CHASSIS)
IC704
C793
C801
C735
IC701
1-869-748-
21
(21)
IC702
L702
4
5
C739
R722
C831
C832
R750
C747
4
5
C798
C761
1
3
C797
C737
C744
C745
L703
R742
C736
3
C732
1
C738
C731
L701
L705
C783
C795
C806
R744
R743
R786
R785
C751
C701
CN700
J2
C785
C786
L704
C754
C752
C796
C704
C753
C740
MAIN
BOARD
CN510
C759
C782
C709
C781
C762
C763
D756
D755
C768
C756
C712
C713
D706
D705
C718
C706
L761
L758
L759
L708
L711
L709
C777
C791
L760
C770
C728
C702
L710
C720
R804
R802
R805
R803
R809
C741
R808
R807
C856
C855
EP702
(CHASSIS)
R773
R768
C769
R771
R772
C711
R718
R740
C719
R739
R721
E
Q707
C854
C851
C774
C775
R775
C847
CN703
2
1
C846
R774
CN704
C773
C772
1
4
R725
C724
C725
C845
CN702
2
1
C844
C722
R724
C723
EP701
1-869-748-
(CHASSIS)
SP
TERMINAL
N2
BOARD
CN870
(Page 38)
SW
POWER
P2
BOARD
CN31
(Page 42)
SP
TERMINAL
M2
BOARD
CN850
(Page 38)
21
(21)
(Page 30)
IC701 D-7
IC702 D-8
IC703 C-6
IC704 B-9
IC705 C-6
IC707 D-4
IC708 C-4
IC709 B-5
Q701 B-2
Q702 E-1
Q703 E-1
Q707 E-13
Q752 B-1
Q753 B-1
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3636
Page 37
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3737

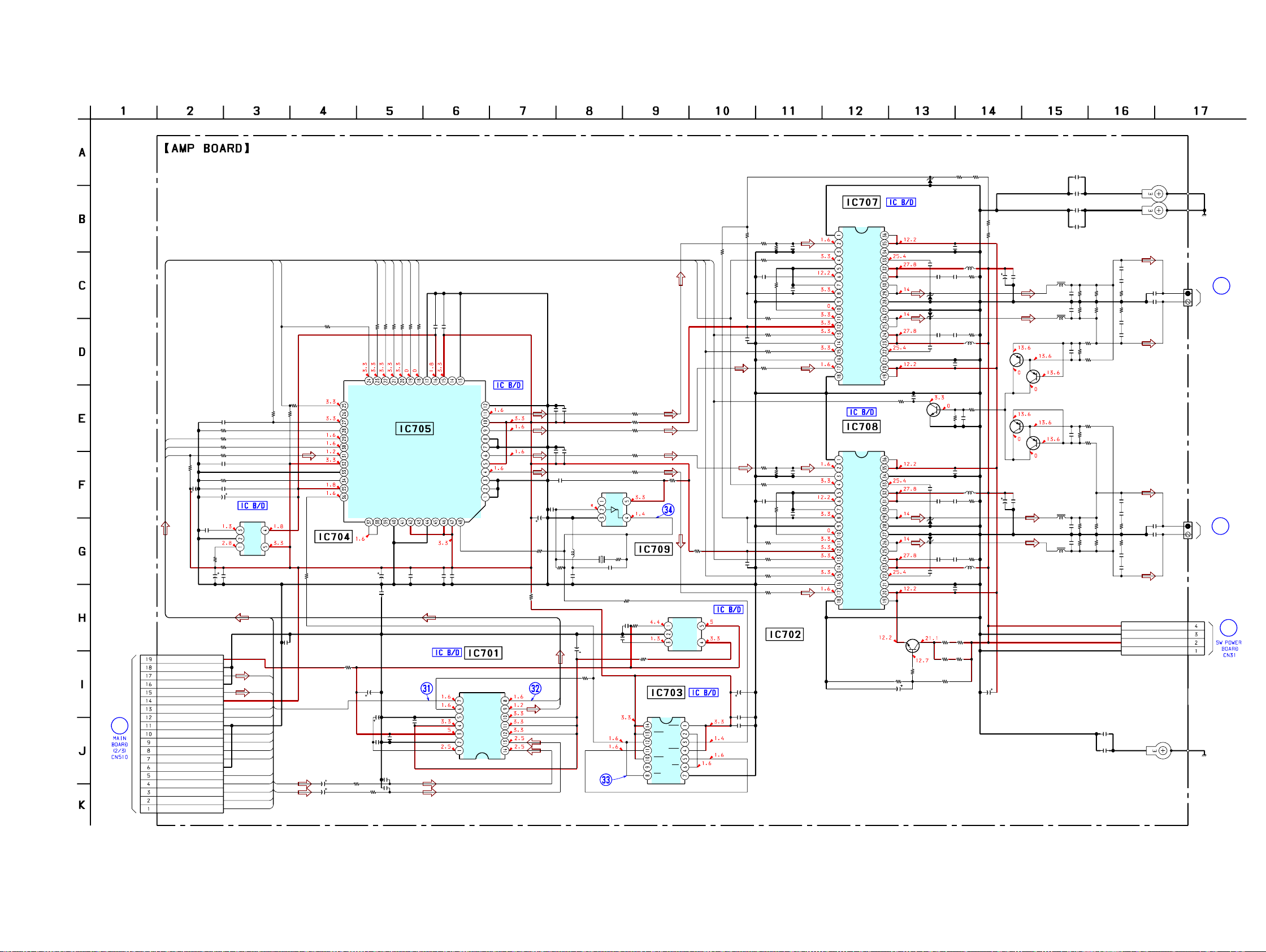

6-21. SCHEMATIC DIAGRAM - AMP Board (HX70BTR) -
• See page 28 for Waveforms. • See page 44 for IC Block Diagrams.
R727
R777
R711
R712
R756
R746
L703
R761
R762
C797
C844
C845
C722
C723
R724
R725
C724
C725
R739
R740
R721
R718
C728
C720
L710
L711
R728
R726
C846
C847
C772
C773
R774
R775
C774
C775
R772
R773
R771
R768
C770
C777
L760
L761
R776
R778
C778R793
C713
D705
C718
C716 C717
R716 R715
C714 C715
D706
C712
C706
R738
R717
C767C766
C765C764
D755
D756
C768
C711
C756
C762C763
R704
R706
C708R708
C781
R709
R714
C709
C757R752R754
R765
C703
Q701
C794
R792
C719
C702
C769
C791
C758
R758
C782
R759
R764
C759
R800
R801
R794
IC709
X702 R781
C796
C704
C754
C752
D713
R783
C780C779C799
C795
R790
R789
R788
R787
R786
R785
R784
C788
C787
R742
R741
R743
R750
C806
R744
R747
C745
R749
C746
C747
IC704
C783
Q702
C726
Q752
R780
R733
C793
R722
C739
C736
R731
L702
C735
C732
C733
C743
C742
C730
C738
R701
R751
C731
C701
C751
C761
R745
C798
L701
CN700
R737
R795
L704
C786
C753
R734
R735
R736
EP701
EP702
IC705
IC708
IC707
C784
L705
C785
R782
EP703
IC703
CN703
CN702
CN704
C832
C831
L709
R720
R719
L708
L759
R770
R769
L758
IC702
R748
C740
IC701
Q703
Q753
C804
C737
C744
100k
100k
100
100
100
100
100
100
0.01
0.1
0.1
0.0022
0.0022
4.7
4.7
0.0022
0.0022
10k
10k
10k
10k
1
1
220k
220k
0.1
0.1
0.0022
0.0022
4.7
4.7
0.0022
0.0022
10k
10k
10k
10k
1
1
220k
220k
2.247k
0.047
P6SMB39A
T3
0.047
0.22 0.22
1k 1k
0.22 0.22
P6SMB39AT3
1
1
1k
1k
0.220.22
0.220.22
P6SMB39AT3
P6SMB39A
T3
0.047
1000
16V
1
10.047
390
100
0.1100
0.1
100
470
0.1
47p22k390
0
0.01
2SC3052
1
0
2200
35V
0.1
2200
35V
0.1
0.1
100
0.1
100
470
0.1
1k
1k
0
MC74VHC1GU04
49.152MHz 100
0.1
0.001
0.001
0.1
UDZW-TE17-2.4B
22
0.0010.010.01
10
50V
100
100
100
100
100
100
100
0.1
0.001
10k
100
100
47k
0.1
0
470
0.01
0
0.01
100 10V
TK11118 CSCL
10p
1SA1235AC1TP-1EF
2.2
1SA1235AC1TP-1EF
22
470
10
50V
47k
0.01
0.01
470
10
50V
0.1
0.1
2200p
2200p
0.1
10 50V
100
100
100
10V
2.2
50V
2.2
50V
0.01
100
10
50V
19P
10
0
0.001
100
10V
10
10
10
CXD9788AR
CXD9774M
CXD9774M
0.001
10p
1M
MC74VHC74DTR2
2P
2P
4P
0.01
1
3.3
3.3
3.3
3.3
TK11133CSCL
47k
220
10V
1SA1235AC1TP
-1EF
1SA1235AC1TP
-1EF
0.001
0.0047
0.1
NSPMUTE
SOFTMUTE
PGMUTE
SCDT
SCSHIFT
SCLATCH
OVF
INIT
/OTW
SCLATCH
SCSHIFT
SCDT
PGMUTE
SOFTMUTE
NSPMUTE
/OTW
/SD
OVF
INIT
/SD
/RST
/RST
LRCK
LRCK
R-IN
R-IN
L-IN
L-IN
BCK
BCK
DOUT
DOUT
GND
+27V
GND
+27V
AGND
SCDT
DGND
DGND
NSPMUTE
SOFTMUTE
PGMUTE
/OTW
SCSHIFT
SCLATCH
AGND
L-IN
R-IN
/RST
OVF
/SD
L+
L-
INIT
R-
R+
A+5V
D+3.3V
(CHASSIS)
(CHASSIS)
SFLAG
INIT
MCKSEL
LRCK
BCK
DATA
BFVDD
BFVSS
TEST
DVDD
XFSIIN
FSOCKO
FSOI
HPOUTR2
HPVSSR
HPOUTR1
HPVDDR
HPOUTL2
HPVSSL
HPOUTL1
HPVDDL
XVDD
XFSOIN
SCLATCH
SCSHIFT
SCDT
PGMUTE
SOFTMUTE
NSPMUTE
DVSS
DVDD
XOVDD
XFSOOUT
XOVSS
VSSL
OUTL1
VDDL
VSSL
VSSR
OUTR1
VDDR
OUTR2
VSSR
VSUBC
XVSS
OUTL2
OVF
FLAGR
FLAGL
OVF
VCC
D2
CK2
Q2
RD2
SD2
Q2
D1
CK1
Q1
GND
RD1
SD1
Q1
RGND
BP
BM
RGND
GREG
M3
DREG
DVSS
M1
M2
DVDD
RESV
AM
AP
RGND
/RST
/SD
/OTW
PVSS
BST_B
PVDD_B
PVDD_B
OUT_B
OUT_B
PVSS
PVSS
OUT_A
OUT_A
PVDD_A
PVDD_A
BST_A
PVSS
PVDD
GREG
RGND
BP
BM
RGND
GREG
M3
DREG
DVSS
M1
M2
DVDD
RESV
AM
AP
RGND
/RST
/SD
/OTW
PVSS
BST_B
PVDD_B
PVDD_B
OUT_B
OUT_B
PVSS
PVSS
OUT_A
OUT_A
PVDD_A
PVDD_A
BST_A
PVSS
PVDD
GREG
Q702,703
OVER LOAD DETECT
OVER LOAD DETECT
Q752,753
DIGITAL POWER AMP
PVDD
GREG
GREG
PVDD
DIGITAL POWER AMP
PROTECT DETECT
+3.3V REGULATOR
VCC
NC
GND
VIN
VOUT
CONT
GND
NOISE
CLOCK SHIFT
STREAM PROCESSOR
+1.8V REGULATOR
VOUT
NOISE
GND
CONT
VIN
A/D CONVERTER
CLOCK BUFFER
10μH
10μH
0
10μH
10μH
1μH
0
0
0
C851
C854
1
0.01
C855
C856
1
0.01
C707R702
47p22k
C801
0.01
PCM1808
SCKI
DGND
VDD
VCC
AGND
VREF
BCK
DOUT
MD0
MD1
FMT
IN_L
IN_R
LRCK
R802
220
R804
220
R803
220
R805
220
R807
22k
R809
22k
C741
2.2
50V
R808
22
Q707
KTC3198GR
+12V REGULATOR
J2
M2
N2
P2
SP TERMINAL
BOARD
CN850
SP TERMINAL
BOARD
CN870
(Page 32)
(Page 39)
(Page 39)
(Page 43)
Page 38
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3838

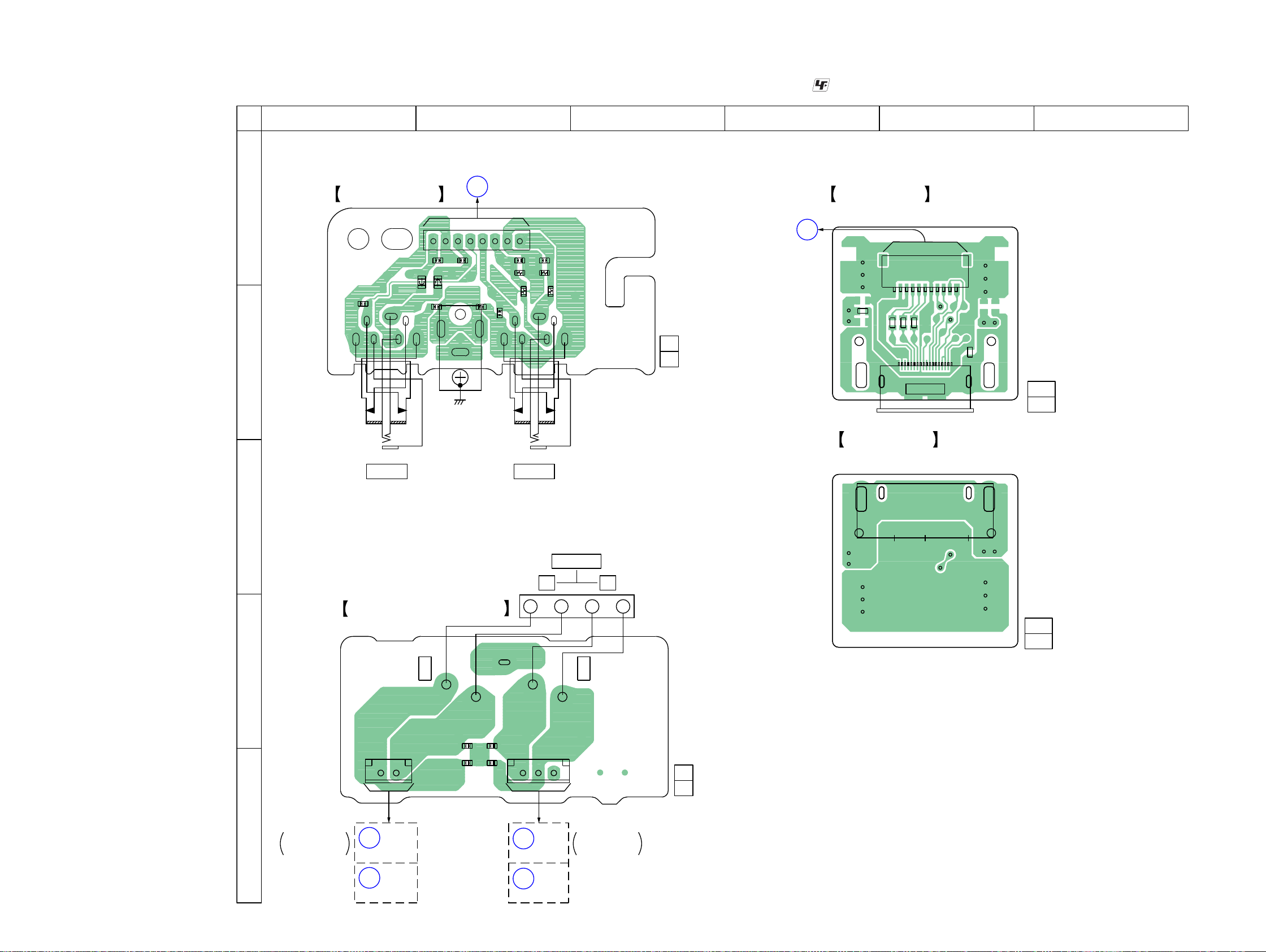

6-22. PRINTED WIRING BOARDS - INPUT/OUTPUT Section -
• : Uses unleaded solder.
• See page 21 for Circuit Boards Location.
CNA903
1
8
EP982
L983
L982
C990
C989
C999
C984
C982
C997
C987
C991
R932
R941
R931
R942
CN870
CN850
C851
C852
3121
C853
C854
118
11
1
R904
R905
R906
R909
R908
CN901
DMPORT
CN902
A901
JACK BOARD
(CHASSIS)
AUDIO IN
J981
PHONES
J982
1-876-119-
12
(12)
H
MAIN BOARD
CN501
SP TERMINAL BOARD
SPEAKER
J860
–+–+
RL
1-876-121-
12
(12)
N1
AMP
BOARD
CN703
N2
AMP
BOARD
CN703
M1
AMP
BOARD
CN702
M2
AMP
BOARD
CN702
HX50BTR/HX80R/
HX90BTR
(HX70BTR)
HX50BTR/HX80R/
HX90BTR
(HX70BTR)
A
B
C
D
E
123456
1-875-502-
11, 12
(11, 12)
DMP BOARD
(COMPONENT SIDE)
1-875-502-
11, 12
(11, 12)
DMP BOARD
(CONDUCTOR SIDE)
K
MAIN
BOARD
CN514
(Page 30)
(Page 30)
(Page 34)
(Page 36)
(Page 34)
(Page 36)
Page 39
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
3939

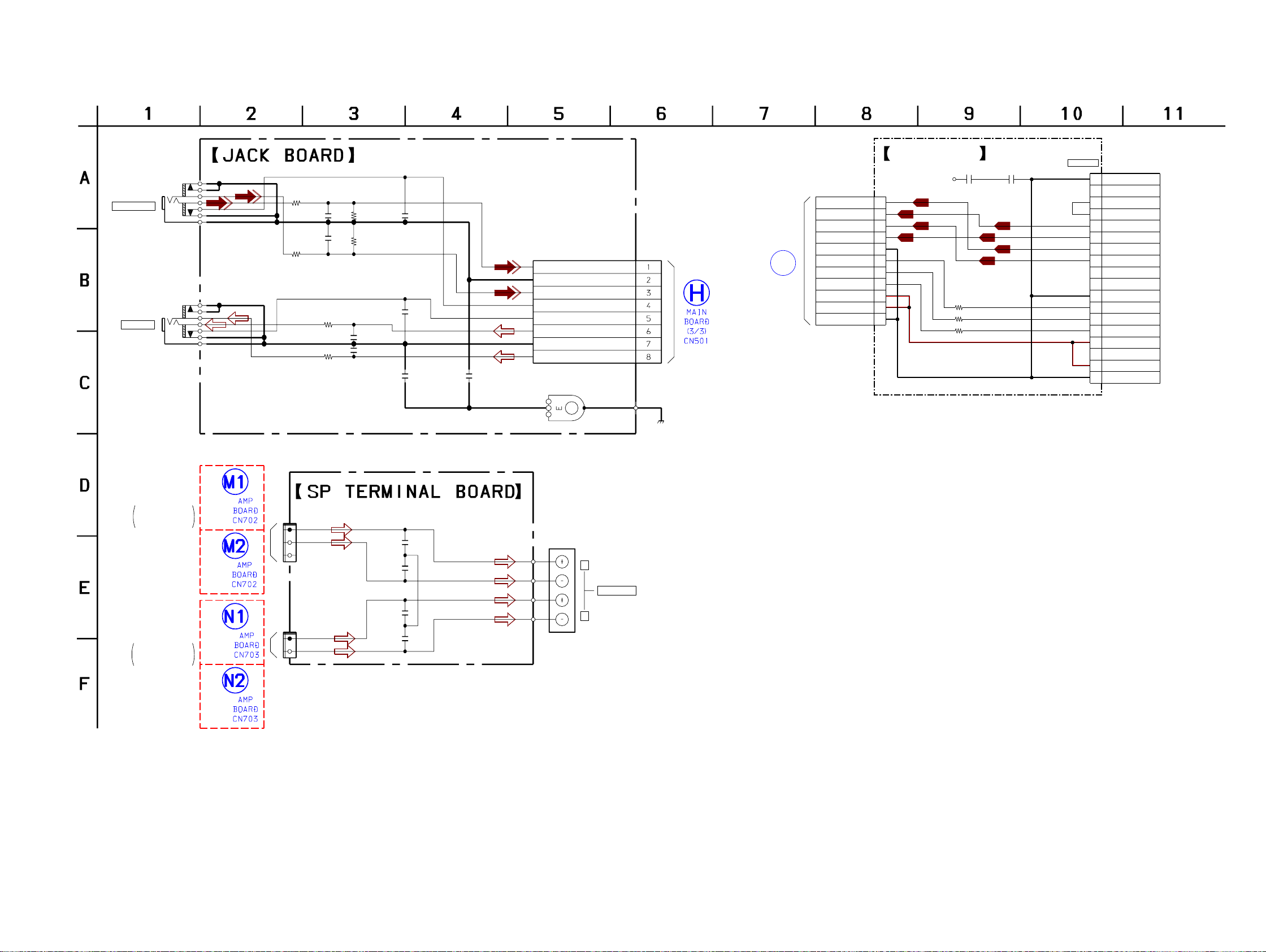

6-23. SCHEMATIC DIAGRAM - INPUT/OUTPUT Section -
R941
R931
CN870
CN850
EP982
R942
R932
C984
L982
L983
J981
J982
C854
C853
C852
C851
C997
C987
C999
C989
C990
C991
C982
CNA903
1k
1k
2P
3P
100k
100k
0.1
0
0
470p
470p
470p
470p
470p
470p
0.022
0.022
0.1
0.1
0.1
8P
AUDIO IN
AUDIO IN L
AUDIO IN GND
AUDIO IN R
HP GND
HP L
HP R
HP DET
AUDIO IN DET
(CHASSIS)
L-
R+
L+
R-
SPEAKER
L
R
J806
HX90BTR
HX50BTR/HX80R/
HX90BTR
HX50BTR/HX80R/
(HX70BTR)
(HX70BTR)
PHONES
K
BOARD
(2/3)
MAIN
CN514
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18P
CN901
PGND
VBUS(5V)
NC
VBUS(5V)
RXD
TXD
DET
DGND
WM DET
NC
L-
R-
L+
R+
WM AX
WM TX
VIDEO
VGND
0R906
0R905
0R904
1
2
3
4
5
6
7
8
9
10
11
11P
CN902
PGND
VBUS_5V
VBUS_5V
CLINK RXD
CLINK TXD
DMP-DET
DGND
L+
L-
R+
R-
0.01R908
DMP BOARD
DMPORT
0.01R909
(Page
35)
(Page
37)
(Page
35)
(Page
37)
(Page 32)
(Page 33)
Page 40
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR

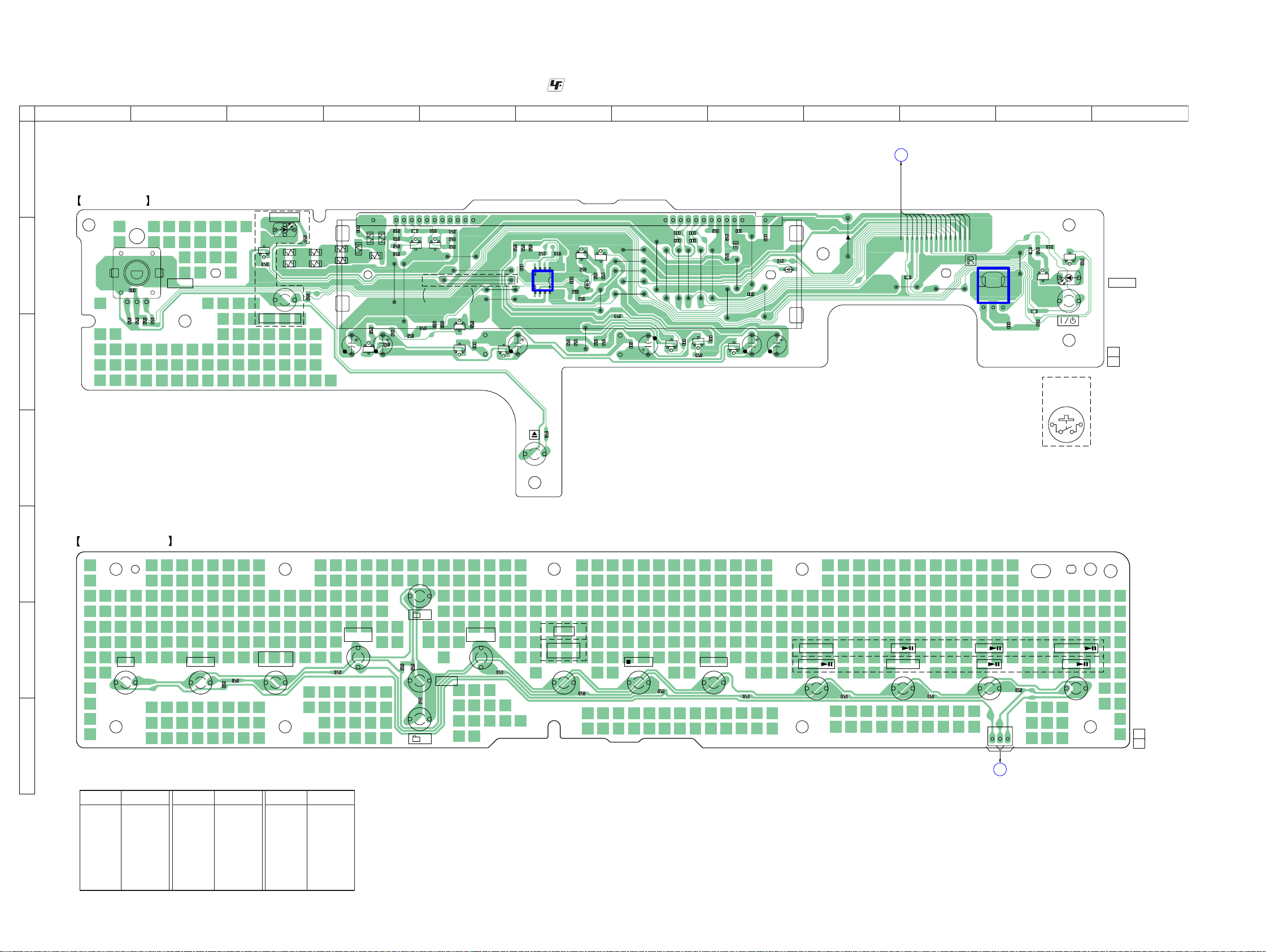

6-24. PRINTED WIRING BOARDS - PANEL Section -
123456789101112
A
PANEL BOARD
BLUETOOTH
D953
Q953
R980
RV952
R992
1
R990
ROTARY
ENCODER
VOLUME
R989
B
C962
3
R991
E
R955
R956
S952
BLUETOOTH OPR
(HX50BTR/HX70BTR/HX90BTR)
C
• See page 21 for Circuit Boards Location.
R921
R905
JW921
E
Q904
A
R910
R904
K/A
14
JW922
R927
K
C917
4
1
R950
R981
R957
R951
R982
R958
C922
C926
R983
E
Q908
R984
R959
R985
R970
C920
R903
R902
R906
R911
JW927
R949
R952
R924
JR901
E
Q901
JW926
R907
E
Q902
JW923
HX50BTR/HX70BTR/
HX90BTR
R928
R923
D906
D905
JW924
JW925
A
• : Uses unleaded solder.
MAIN BOARD
G
CN502
(Page 30)
JW914
JW917
C913
39
C924
C923
JW913
JW911
JW912
Q906
C909
E
JW910
Q907
C906
R937
C927
C925
R901
R909
R908
JW909
JW908
JW907
K/A
C907
D907
E
A
FL901
R920
E
Q905
R934
C903
R918
R939
R940
FLUORESCENT
INDICATOR TUBE
E
Q903
R919
D911
R917
JW919
JW920
R948
R943
JW915
JW916
JW918
R936
R926
R933
R935
R929
R930
IC901
C905
K/A
C916
K
52
49
C921
C910
C902
R953
JW905
C912
D903
JW904
C904
JW906
C901
K
D909
JR904
JW903
JW902
151
IC951
1
R944
R945
JR903
Q952
E
R947
E
Q951
R954
D951
S951
S951 – 954,
S961 – 963,
S965 – 968,
S970 – 976
1-876-118-
D951
STANDBY
12
(12)
JW901
JR902
3
C954
R979
D
S954
TOP PANEL BOARD
E
S966
+
.-
TUNE +
F
USB MENUDSGX
S961
S962
R960
R961
CD-USB SYNC
/REC1
S963
R963
S974
R965
R966
S967
S968
ENTER
R967
–
TUNE –
S953
.-
R978
G
• Semiconductor Location
Ref. No. Location
D903 B-8
D905 C-5
D906 C-5
D907 C-8
D909 B-9
D911 B-6
D951 B-11
D953 B-3
Ref. No. Location Ref. No. Location
IC901 B-6
IC951 B-10
Q901 B-4
Q902 B-5
Q903 B-6
Q905 B-6
Q906 C-7
Q907 C-7
Q908 C-4
Q951 B-11
Q952 B-11
Q953 B-3
Q904 C-5
(HX50BTR/HX70BTR)
SEARCH
SEARCH/DAB
AUTO SCAN
(HX80R/HX90BTR)
S976
R977
/CANCEL FUNCTION
S975
R976
S965
R975
TUNER/BAND
S973
R974
(HX50BTR/HX70BTR/HX90BTR)
CD
S972
R973
(HX80R)
USB
BLUETOOTH
CDTUNER/BAND
R972
S971
CNA906
1
3
MAIN BOARD
F
CN507
(Page 30)
USBDMPORT
S970
12
(12)
1-876-117-
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
4040
Page 41
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
4141

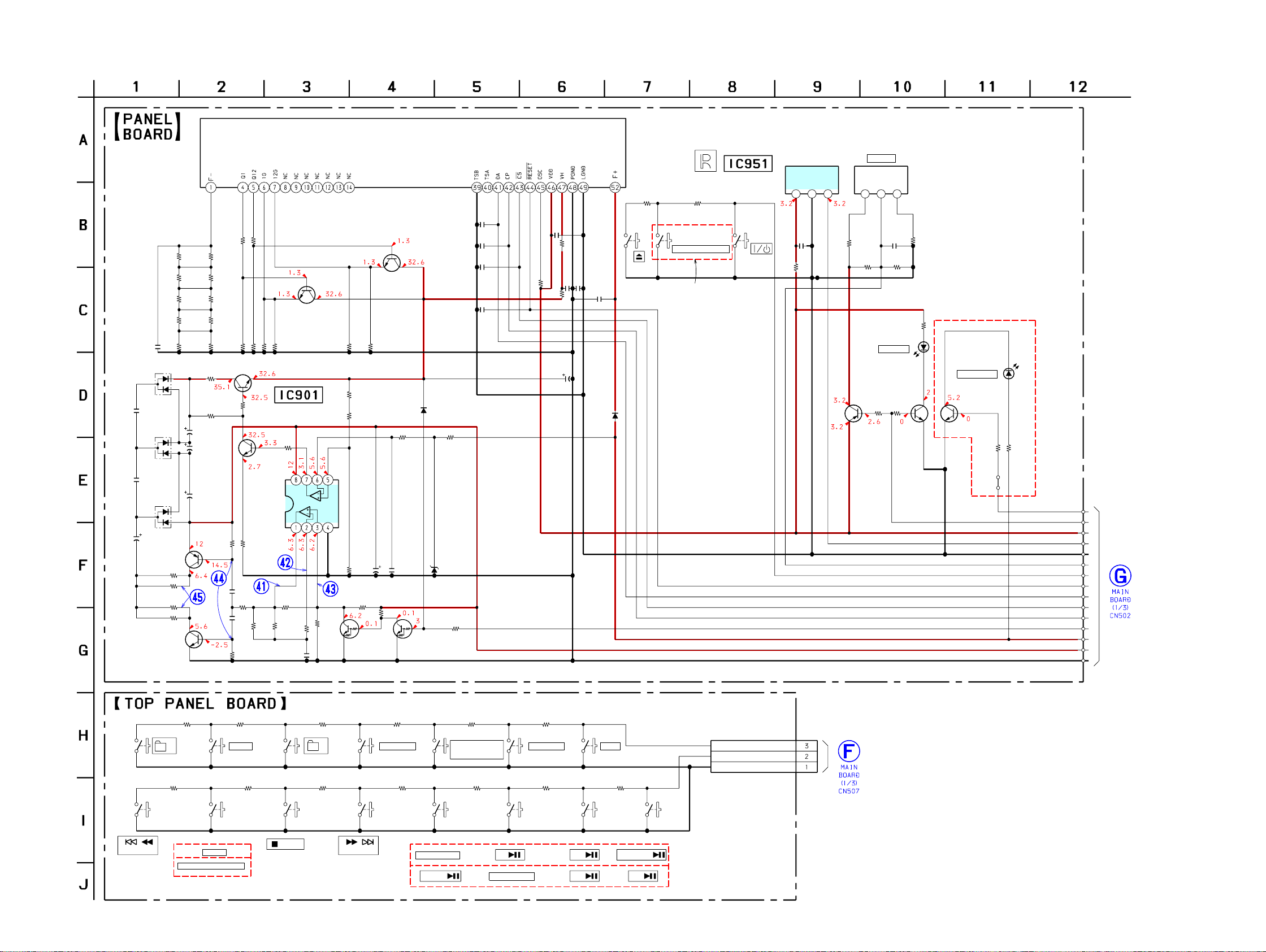

6-25. SCHEMATIC DIAGRAM - PANEL Section -
• See page 28 for Waveforms.
R945
Q951
R944
R951
R919
R953
IC901
R930
Q908
D906
D905
D907
R985
Q901
Q902
R936
Q904
Q906
Q907
R935
R943
R940
Q905
Q903
R979
R952
Q952
R939
R948
R927
IC951
C921
C902
S954
S952 S951
R970 R984
R959 R983
R958 R982
R957 R981
R956 R980 R911
R910
R902
R903 R904 R905
R906
R907
R901
R908
C901
R909
C910
R954
R989
R990 R992
R991
R947
R950R955
JW923
Q953
C905
R929
R926
R933
C912
R937 R928
C916
C920
R949
R921
C904
R917
R934
D911
C922
R918R920
D903
R923
R924
FL901
C923
C924
C925
C927
D951
D909
D953
C917
C913
C909
C926
C903
C906
C907
R960R966 R961R963
R977 R976
CNA906
R965R967
R978 R975 R974 R972R973
S968
S967
S966
S965
S963 S962 S961
S970S971S972S973S974S975S976S953
RV952
C962
C954
10k
2SC3052F
10k
1k
22k
2.2k
NJM4558M
10k
2SC3052F
MC2837
MC2837
MC2837
100
2SC3052F
2SC3052F
10k
2SC3052F
2SC3440
2SA1365
1k
47
47
RT1N441C
RT1N441C
2.2k
47
ISA1235AC1TP
-1EF
47
47
1k
NJL24H400A
0.1
0.1
4.7 4.7
4.7 4.7
4.7 4.7
4.7 4.7
4.7 4.7 10k
10k
100k
47k 100k 47k
2.2k
2.2k
47k
10
0.1
10
0.1
100
2.2k
4.7k 10k
1k
470
22010k
2SC3052F
1000p
10k
47k
22k
10
50V
10k 10k
10
50V
10
50V
10k
10k
10
50V
22k
22k
UDZW-TE17
-5.6B
10
50V
4701k
1SS355W
1k
47k
100p
100p
100p
100p
1N4002-B5
1
1
10
50V
0.1
0.1
0.1
0.1
1k10k 2.2k2.2k
15k 10k
3P
4.7k15k
47k 4.7k 2.2k 1k2.2k
ROTARY
ENCODER
0.1
1
A
B
COM
VOLUME
+3.3V
GND
OUT
DGND
EVER+3.3V
LED STANDBY
SIRCS
VOLUME JOG
VFD RESET
VFD SD
VFD CS
VFD SCLK
VFD PWR ON
VFD +7V
VFD DGND
KEY1
VFD +12V
BT LED
FLUORESCENT INDICATOR TUBE
BLUETOOTH OPR
B+ SWITCH
LED DRIVE
LED DRIVE
BLUETOOTH
STANDBY
1
15
(HX50BTR/HX70BTR/HX90BTR)
B+ SWITCH
VCC
GND
B+ SWITCH
Q904,908
Q901,902
GRID DRIVER
POWER CONTROL SWITCH
Q903,905
POWER CONTROL SWITCH,
DC/DC
CONVERTER
Q906,907
(HX50BTR/HX70BTR/HX90BTR)
SEARCH
SEARCH/DAB AUTO SCAN
ENTER DSGX
DGND
KEY2
KEY3
FUNCTION CD-USB SYNC+-
/REC1
USB MENU
TUNE -
(HX50BTR/HX70BTR)
(HX80R/HX90BTR)
/CANCEL
TUNE +
USBCDTUNER/BAND
DMPORT
TUNER/BAND CD USB
(HX80R)
(HX50BTR/HX70BTR/HX90BTR)
BLUETOOTH
REMOTE CONTROL
RECEIVER
213 123
(Page 31)
(Page 31)
Page 42
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
• Semiconductor
Location
Ref. No. Location
D1 C-3
D2 C-2
D3 D-3
D11 E-5
D14 F-5
D15 E-5
D16 E-5
D17 E-5
D31 G-5
D32 F-2
D33 G-4
D43 G-6
D44 G-6
D51 C-5
D52 D-5
D72 D-6
D81 G-6
IC11 E-5
IC51 C-6
IC71 D-7
PH11 F-6
PH12 F-6
PH51 D-6
Q2 E-6
Q11 E-4
Q12 E-2
Q51 C-6
Q60 G-5
Q61 G-5
Q62 G-5
Q63 G-5
Q64 G-6
Q71 E-7
Q72 E-6
Q81 F-6
Q82 F-6
Q83 F-6
Q84 G-6

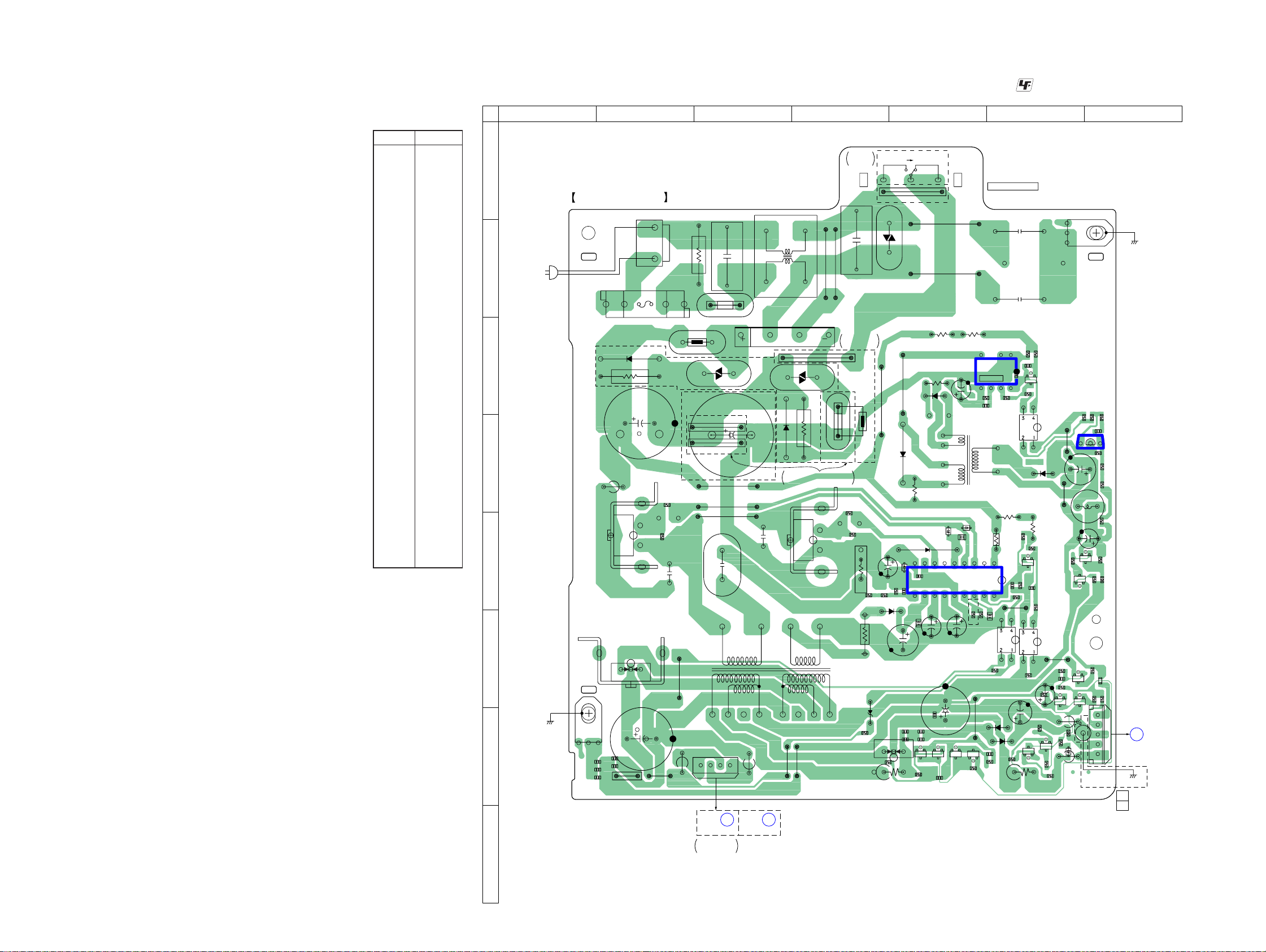

6-26. PRINTED WIRING BOARD - SW POWER Board -
1234567
A
SW POWER BOARD
2
CN1
R2
1
B
C
(AC IN)
FH1
(HX50BTR: E51, BR)
D2
R3
F1
FH2
C11
TH3
TH1
VR002
JW5
JW6
LINE FILTER
C1
C12
D
(HX50BTR: CND, E51, MX, BR)
FB11
R27
HT2
G
D
Q12
R20
S
E
HT4
C22
JW24
JW23
JW22
C23
C24
T31
MAIN POWER
TRANSFORMER
F
D32
(CHASSIS)
G
EP12
C43
C42
C41
C39
C38
C32
JW36
H
JW14
CN31
4
JW9
FB54
(Page 34) (Page 36)
HX50BTRHX80R/
HX90BTR
AMP
BOARD
CN704
P1
1
FB53
AMP
P2
BOARD
CN704
(HX70BTR)
• See page 21 for Circuit Boards Location.
S1
120 - 127 V 220 - 240 V
JW3
(HX50BTR: CND, MX)
VR001
JW26
JW25
D52
C20
10
D15
R17
9
C17
R16
D14
C25
C47
C48
E
D31
R63
R64
R62
JW29
JW27
R51
R54
D51
R56
D11
C19
C16
C18
C37
C34
C35
E
Q60
Q61
C60
T1
D1
VR003
D3
HX50BTR: AEP, RU, SP, AR, KR/
HX70BTR/HX80R/HX90BTR
HT1
D
Q11
JW10
JW13
HX50BTR:
E51, BR
C2
JW30
JW31
HX50BTR: CND,
E51, MX, BR
JW28
TH2
JW4
R4
R29
G
R18
S
R23
R11
R25
D33
R33
R52
C54
T51
SUB POWER
TRANSFORMER
D17
D16
C21
IC11
C15
(HX70BTR)
C31
E
Q62
Q63
R66
• : Uses unleaded solder.
S1
VOLTAGE SELECTOR
C5
C4
R58
8
7
5
IC51
4
R60
C53
18
1
R10
C14
R15
D43
JW15
D44
C62
E
R65
C51
E
C52
Q51
1
R57
R55
PH51
R12
R5
R22
R7
E
Q2
R14
C13
C6
R24
JW16
PH11
PH12
R32
R41
R85
C33
Q84
R88
E
R80
EP11
R53
JW20
IC71
3
C73
D72
JW19
R13
R74
Q72
R8
JW1
R83
E
C82
Q81
C81
R82
E
E
Q82
Q83
FB51
R68
R81
E
L54
Q64
D81
R67
FB52
R89
R71
L72
C74
E
Q71
E
W1
1-876-116-
(CHASSIS)
R72
R77
C72
1
R78
R76
R75
R70
R73
L53
R79
R86
JR10
R87
R84
5
L
CNA32
MAIN BOARD
CN504
1
(Page 30)
(CHASSIS)
(HX80R/HX90BTR)
12
(12)
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
4242
Page 43
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
4343

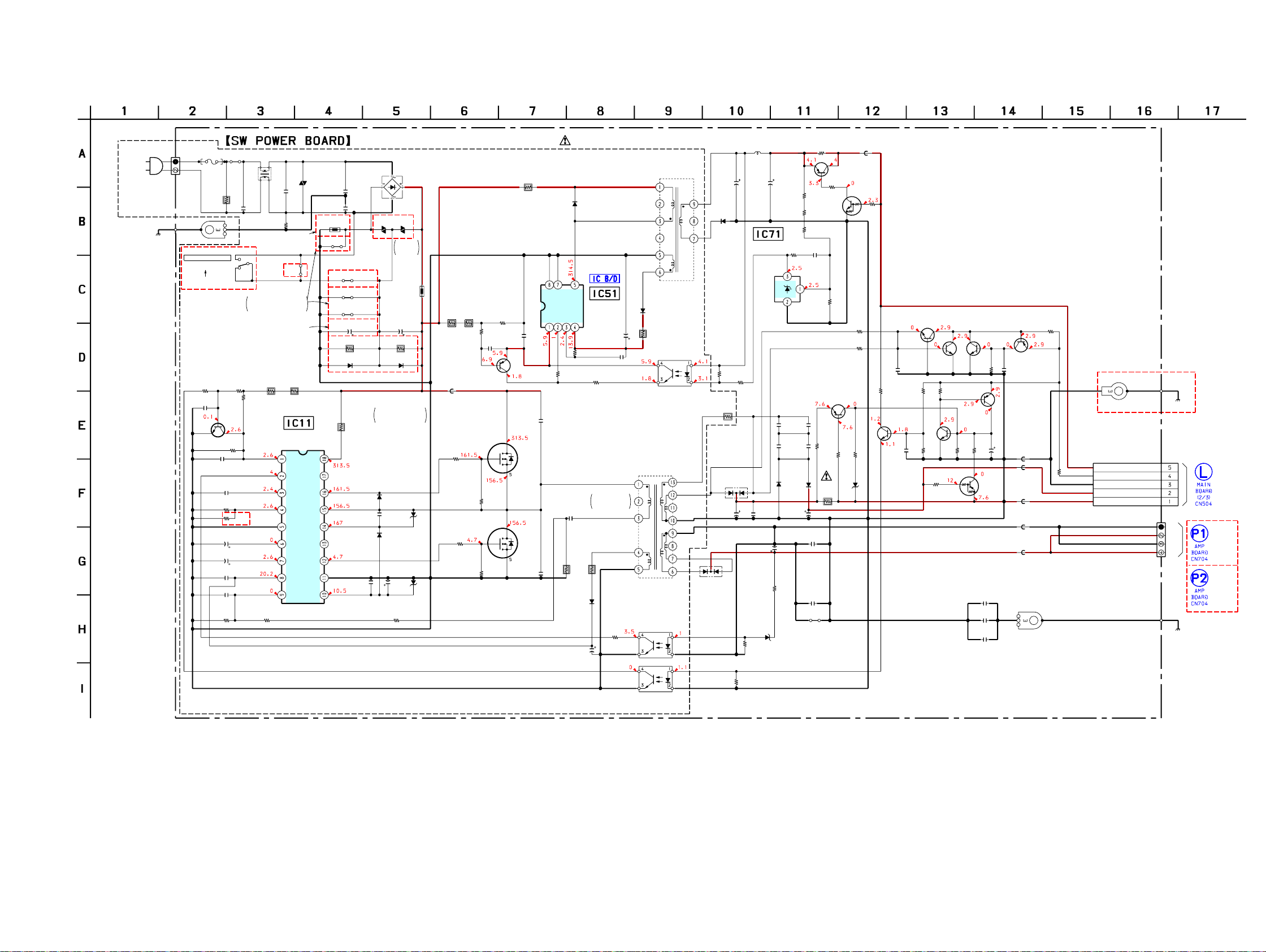

6-27. SCHEMATIC DIAGRAM - SW POWER Board -
• See page 44 for IC Block Diagrams. • See page 50 for IC Pin Function Description.
FH1
FH2
D11
D1
D31
Q12
Q11
C25
D14
R11
IC11
R32
D15
IC51
R57
IC71
D72
L72
PH51
R53
Q84
Q2
Q81 Q83
D16
R41
R58
R83
R20
R82
R24
R71
R8
R86
R72
R27
R29
R77
C20
Q51
Q82
R33
R79
Q72
Q71
R73
D17
R70
R74
R88
R66
Q60
Q61
Q62
Q63
Q64
R68
PH12
CN1
T1
VR001
C2
EP11
R1
TH2
D3
D2
TH1
R51 R52
R55
R60
R54C54
D51
D52
R56
C73 C74
R76
R64
R63
R65
W1
CN31
R87
C81
R67R85
R84
R81
D81
R89
D43
D44
C35 C34
C48 C47
C31
C33
C39
D32
PH11
R25
T31
R18
R22
R16
C18
C16
C15
R15
R5
EP12
F1
TH3
JW4
JW28
JW6
JW5
R4
C12
JW3
R13 R12
C6
R14
C13
C14
C17
R17
C19
C21
C11
R7
R10
C23
R23
C24
C22
C52
C51
FB11
R3
VR002VR003
C4
C5
S1
T51
R75
C72
L53
R78
C62
C82
R80
R62
C32
FB54
FB53
FB52
FB51
L54
CNA32
C43
C42
C41
JW36
C38
C37
C53
R2
C1
C60
UF4005/23
D3SB60F3
D10SC6M
2SK3561(LB2SONY)
2SK3561(LB2SONY)
220
35V
10ERB20-TB3
0
CXD9841P
1k
UDZW15B
MIP2F2
0
FAN431AZXA
10ERB20-TB3
TLP421F(D4-GRJ)
220k
ISA1235AC1TP-1EF
2SC3052F
2SC3052F 2SC3052F
UDZW-TE17
-15B
100k
100k
47k
10k
10k
1k
1k
1k
1k
470
10
10
47
47
35V
ISA1235AC1TP-1EF
ISA1235
AC1TP-1EF
470
10k
RT1N141C
ISA1235AC1TP-1EF
47
RB751V-40TE-17
2.2k
2.2k
1k
10k
2SC3052F
2SC3052F
2SC3052F
ISA1235AC1TP-1EF
RT1P141C
470
TLP421F(D4-GRJ)
2P
0.22
2.2M
S2V60-TA
S2V60-TA
2.2M 2.2M
15k
470k
471
50V
10ERB20-TB3
ST02D-200T
A
1
220
10V
220
10V
10μH
22k
2.2k
2.2k
10k
4P
1k
10
50V
47k10k
10k
470
UDZW-TE17-10B
1k
10ERB20-TB3
10ERB20-TB3
11
11
2200
10V
47
25V
1
RB085T-90
TLP421F(D4-GRJ)
33
10k
1k
100
0.1
4.7
50V
10
35V
T5A
250V
1M 1/2W
390 250V
4.7M 4.7M
0.01
470k
0.01
1000p
1000p
0.01
0.22150k
220p
1kV
0.1
2W
220p
1kV
0.1
1
1.1μH
1M 1/2W
470p
250V
470p
250V
4.7k
0.1
47k
0.01
0.01
0.1
1W
0.1
1W
1.1μH
1.1μH
1.1μH
1.1μH
5P
1000p
0.1
10.01
1
2200p
2.2M
1/2W
0.22
275V
1
POWER ON
ST-BY 4V
VDD
FB
CL
VCC
SOURCE
SOURCE
DRAIN
VSENSE
F/B
CT
RT
GND
SS
VC1
OCP
VC2
P-GND
VG(L)
VB
VS
VG(H)
VD
GND
GND
GND
AC_L
AC_N
PROTECT
27V
27V
D12V
D7.5V
(CHASSIS)
(CHASSIS)
(CHASSIS)
LINE FILTER
(AC IN)
POWER CONTROL
82 (HX70BTR)
100 (HX50BTR/HX80R/HX90BTR)
(HX70BTR)
∗
C11
∗
100 450V
130 450V
390 250V
(HX50BTR:CND,E51,MX,BR)
HX50BTR:AEP,RU,SP,AR,
KR/HX80R/HX90BTR
∗
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
∗R7
150K
180K
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)270K
330K
∗
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
∗R15
15K
18K
(HX70BTR)
SWITCHING
SWITCHING
ISOLATOR
ISOLATOR
(HX70BTR)0.039 1KV
0.033 800V
HX90BTR
HX50BTR/HX80R
ISOLATOR
POWER
CONTROL
VOLTAGE SELECTOR
120-127V
220-240V
(HX50BTR:E51,BR)
(HX50BTR:CND,MX)
(HX50BTR:CND,E51,MX,BR)
(HX50BTR:CND,E51,MX,BR)
(HX50BTR:E51,BR)
(HX50BTR:CND,E51,MX,BR)
SUB POWER
TRANSFORMER
REGULATOR
SHUNT
Q71,72
PROTECTOR
Q60-63
AC DETECT
DC DETECT
Q64,82-84
TRANSFORMER
MAIN POWER
∗
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
∗C32
1800 35V
2200 35V
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
(HX80R/HX90BTR)
SWITCH
FEED BACK
HX50BTR:AEP,RU,SP,AR,KR/
HX70BTR/HX80R/HX90BTR
INVERTER
Q81
POWER ON/OFF
CONTROL SWITCH
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
D33
MTZJ-T77-27A
MTZJ-T77-27B
HX50BTR:
E51,BR
(Page 32)
(Page
35)
(Page
37)
Ver. 1.1
Page 44
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
4444

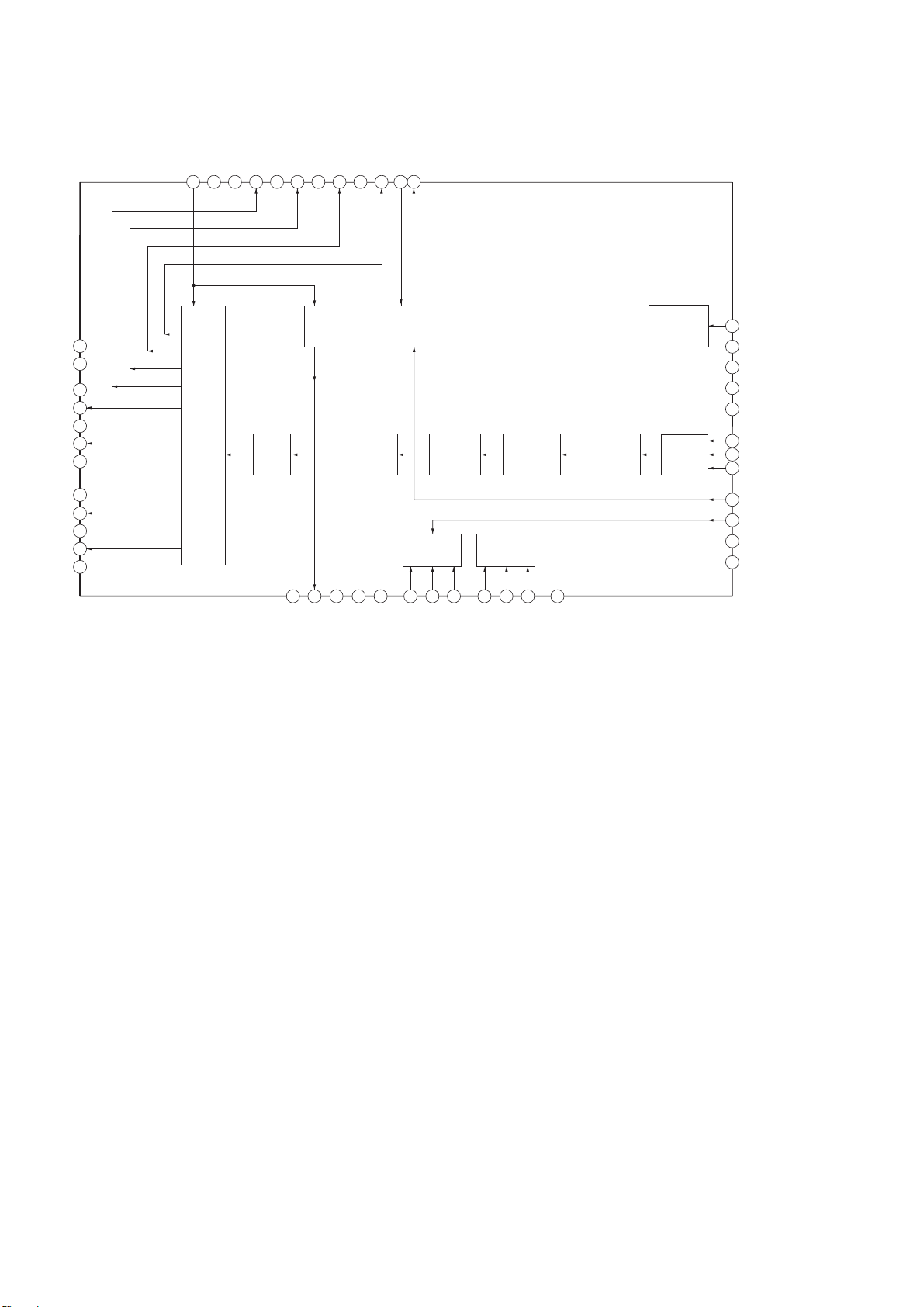

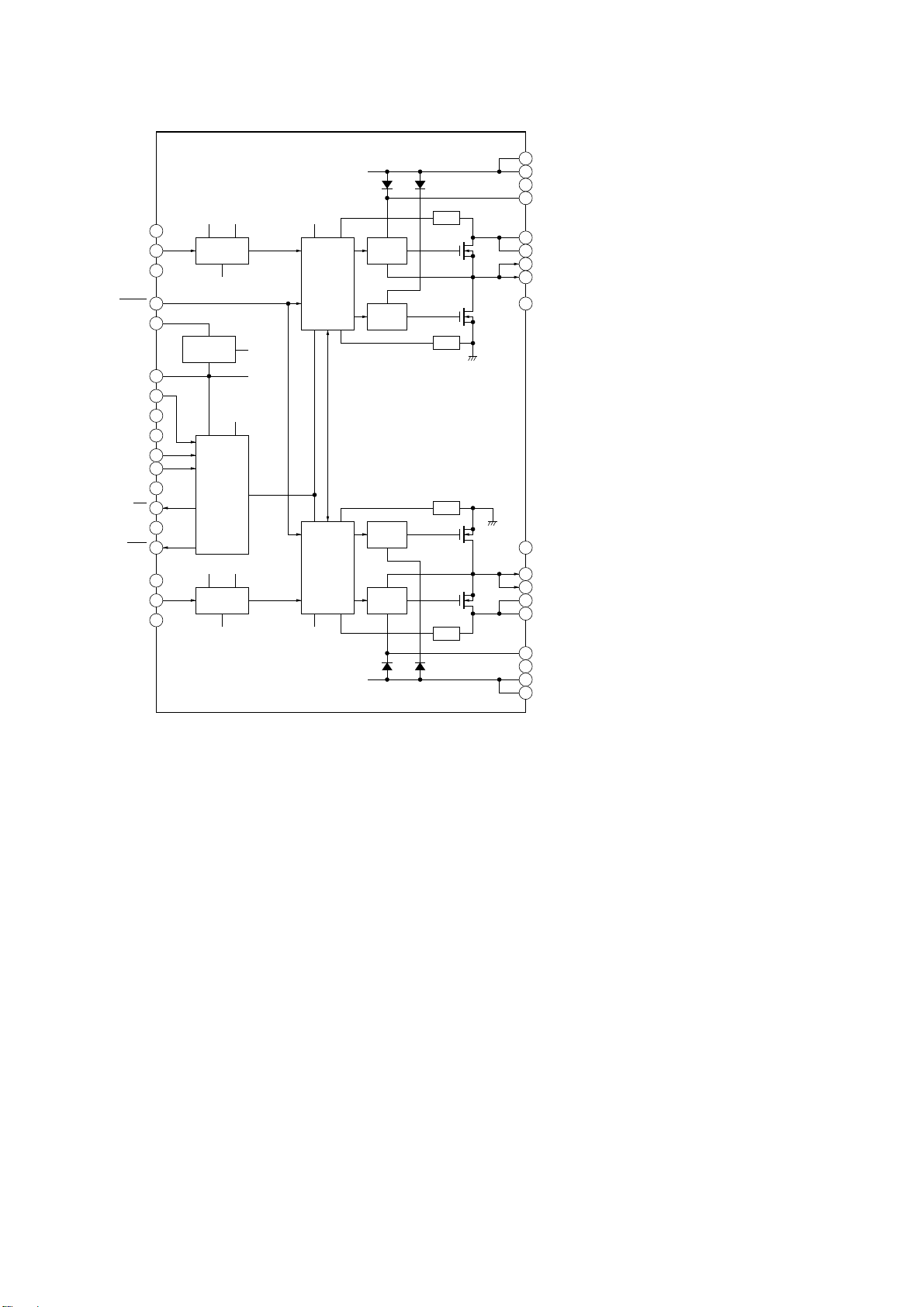

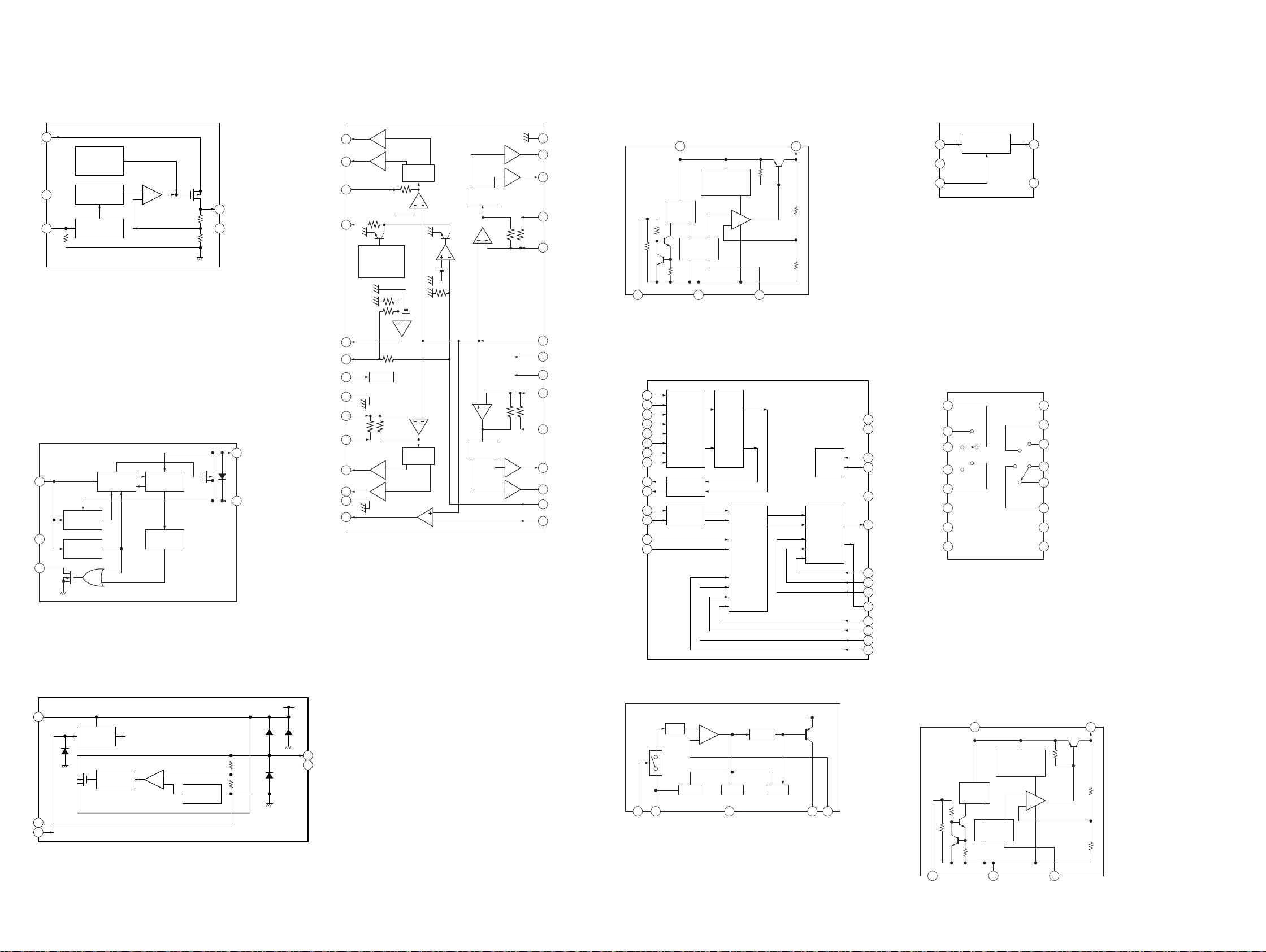

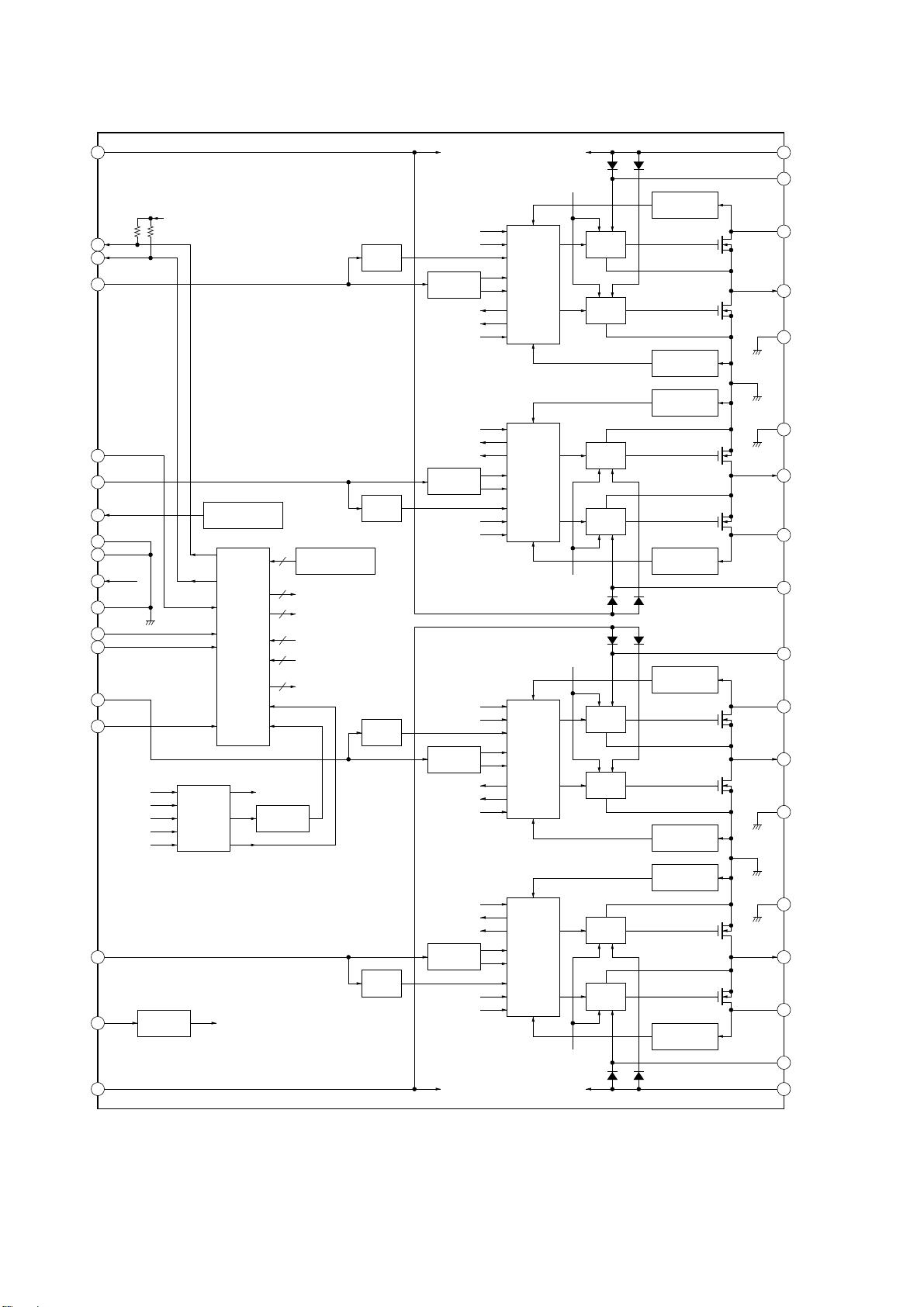

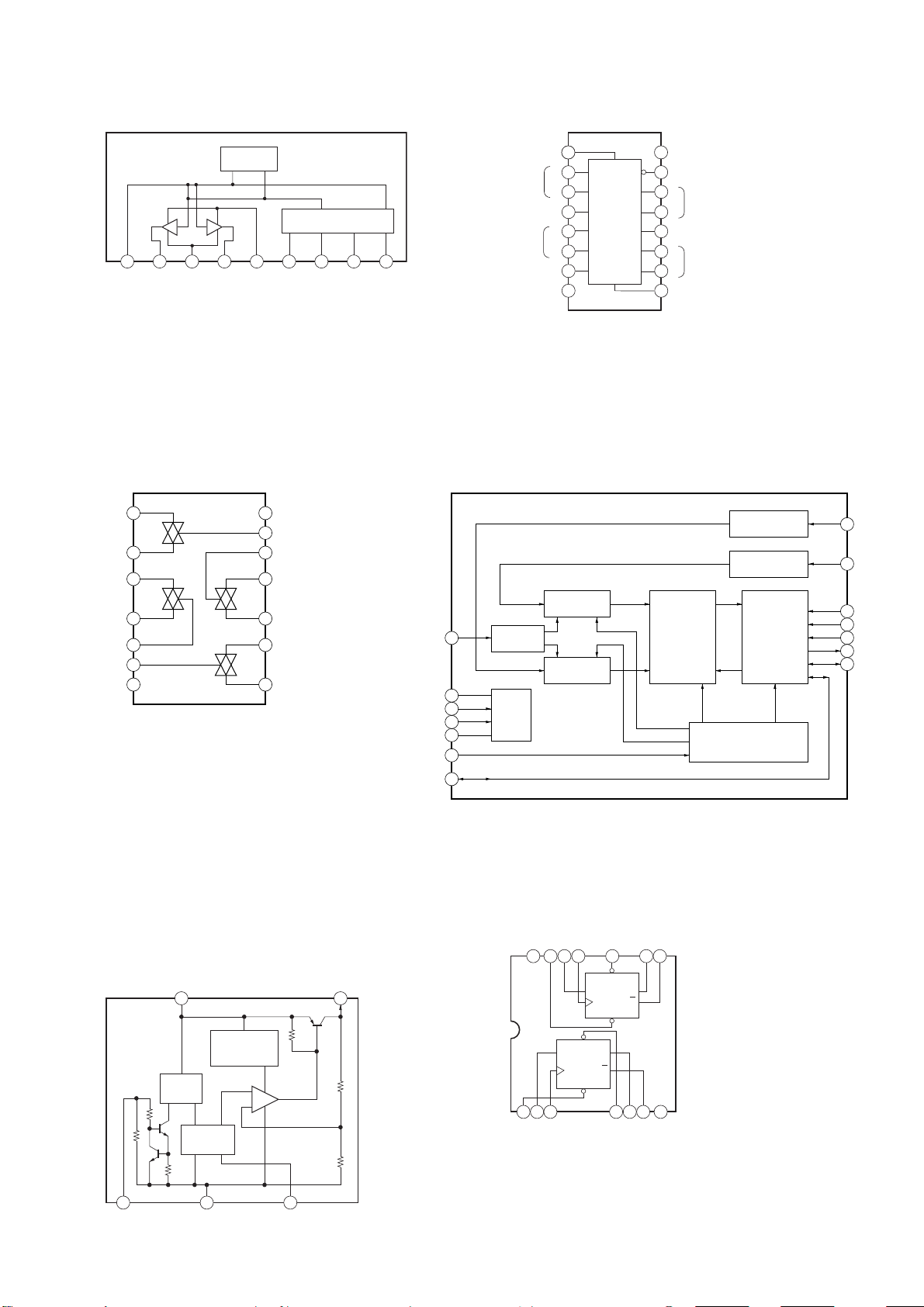

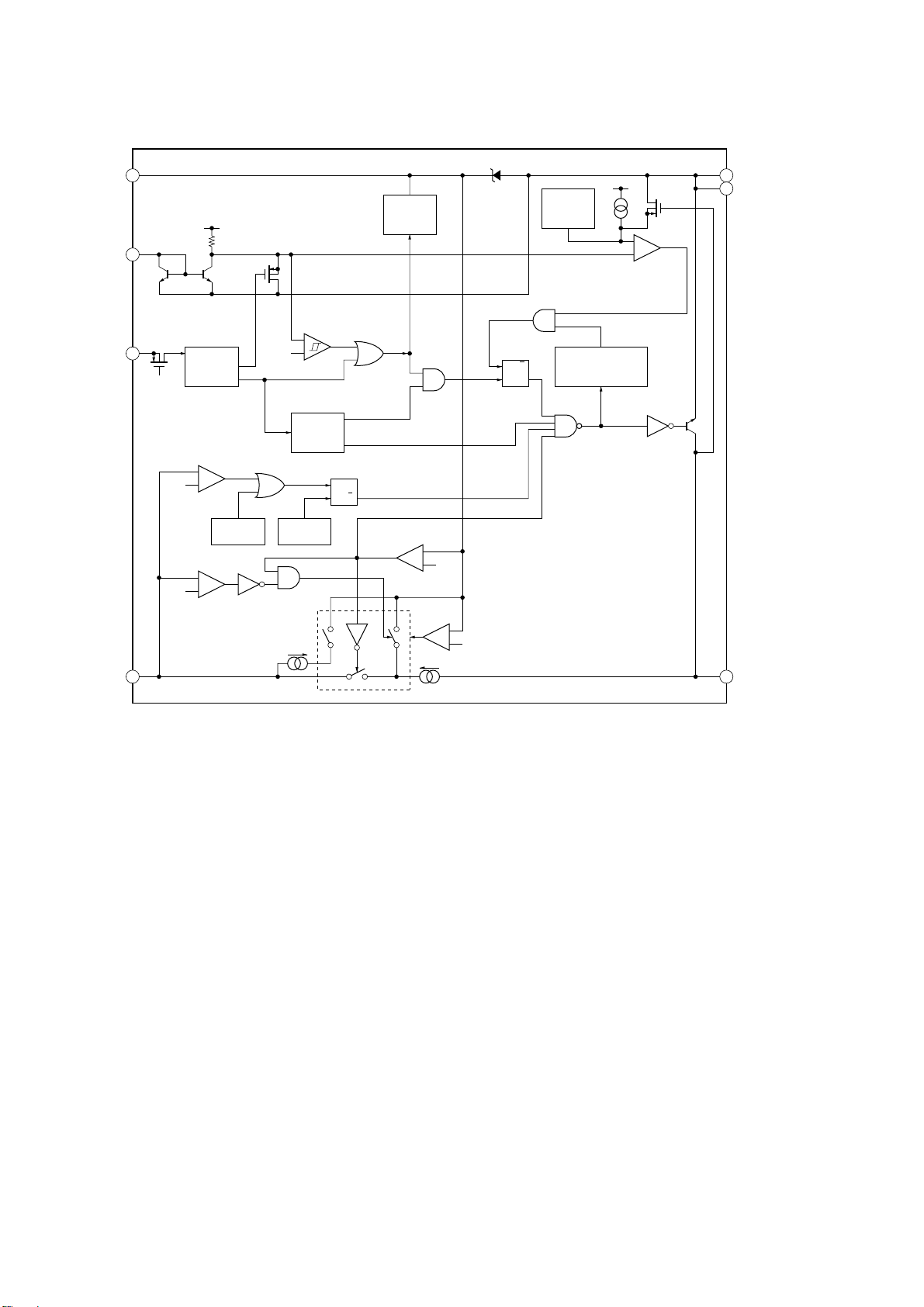

• IC Block Diagrams
– CD Board –
IC201 TK63115SCL-G@GT
IC401 BA5826SFP-E2
– USB Board –
IC915 R5523N001B-TR-F
– BT Board –
IC903 XC6213B332MR
CONTROL
CIRCUIT
BANDGAP
REFERENCE
+
–
OVER HEAT &
OVER CURRENT
PROTECTION
1
VCONT
3
NP
2
GND
4
VOUT
5
VIN
1A1
18 BCB1
17 BCA1
16 BCA2
20 SB2
19 OUT2
22 SB1
21 SR
24 VCC
23 OUT1
26
SDA
25
SCL
28 FIL
27 GND
15 BCB2
2A2
3B1
5C1
6C2
4
B2
11
VOL1
12
VOL2
13TC2
14TC1
7D1
8D2
9SEL2
10SEL1
INPUT
SELECTOR
TREBLE/
BASS
INVERTER
VOLUME
INPUT
GAIN
SURROUND
PC BUS
LOGIC
VCC
VCC
2
GND
3
C
5
OUT
4
CTL
1
–
+
VREF
DRIVER
OCPTSDOVP
– DAB Board –
IC801 TK11133CSCL-G IC802 MM3291CNRE
– MAIN Board –
IC501 BD3499FV-E2 IC503 MC14052BDTR2
IC510 MC14052BDTR2
IC506 BA00BC0WT-V5 IC507 TK11150CSCL-G
1
VIN
THERMAL &
OVER CURRENT
PROTECTION
GND 2
VCONT
3NC4
VOLTAGE
REFERENCE
ON/OFF
CONTROL
–
+
VOUT
5
1
VO1(–)
VO1(+)
RESET
D.BUFF
2
D.BUFF
3
IN1
4
THERMAL
SHUT-DOWN
REGULATOR
BIAS TRAP
LEVEL
SHIFT
LEVEL
SHIFT
D.BUFF
D.BUFF
28
GND
27
VO4(–)
VO4(+)
26
25
IN4
24
IN4'
VDD 1
GND
CE
REGULATOR
2
3
5
VOUT
NC
4
UVLO
GATE
CONTROL
1EN
2GND
THERMAL
SHUTDOWN
3FLG
CURRENT
LIMIT
FLAG
DELAY
5OUT
4IN
REGB
REGOUT
MUTE
GND
IN2'
IN2
VO2(+)
VO2(–)
GND
OPOUT
LEVEL
SHIFT
REGULATOR
VCC
VCC
LEVEL
SHIFT
5
6
MUTE
7
8
9
10
D.BUFF
11
D.BUFF
12
13
14
D.BUFF
D.BUFF
23
22
21
20
19
18
17
16
15
BIAS
VCC
VCC
IN3'
IN3
VO3(+)
VO3(–)
RESETt
OPIN
1
2Y0
2Y2
2
3
2-COM
2Y3
4
5
2Y1
6
INH
7
GND
GND
8
16
VCC
15
1Y2
1Y1
14
1-COM
13
12
1Y0
11
1Y3
A
10
9
B
VIN 1
VSS
CE
2
3
ON/OFF
CONTROL
CURRENT
LIMIT
+
–
REFERENCE
VOLTAGE
VOUT
5
4
NC
1
VCONT
VIN
5
CONTROL
CIRCUIT
REFERENCE
OVER CURRENT
BANDGAP
2
GND
OVER HEAT &
PROTECTION
–
+
3
NP
VOUT
4
Page 45
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
IC701 BA6956AN IC751 TC74VHC157FT (EKJ)
TSD
CONTROL LOGIC
1 2 3 4 5 6 7 8 9
OUT2
RNF
OUT1
VREF
1I/O VCC1 14
2
1O/I
3
2O/I
4
2I/O
5
2C
3C
6
7
GND
VM
1C13
4C12
11
4I/O
10
4O/I
3O/I9
3I/O8
VCC
FIN
GND
RIN
– AMP Board –
IC701 PCM1808PWRIC753, 754 TC74HC4066AFT (EL)
VREF
AGND
VCC
VDD
DGND
SCKI
LRCK
111
SELECT
2
1A
INPUT
OUTPUT
INPUT
OUTPUT
GND
1
REFERENCE
2
3
4
5
6
7
POWER
SUPPLY
3
1B
4
1Y
5
2A
6
2B
7
2Y
8
DELTA-SIGMA
MODULATOR
DELTA-SIGMA
MODULATOR
1A
1B
1Y
2A
2B
2Y
16
G
4A
4B
4Y
3A
3B
VCC
15
STROBE
4A
14
INPUT
4B
13
12
11
4Y
OUTPUT
3A
11
INPUT
3B
10
3Y
OUTPUT
9
× 1/64
DECIMATION
FILTER
WITH
HIGH-PASS
FILTER
CLOCK & TIMING CONTROL
ANTIALIAS
LOW-PASS FILTER
ANTIALIAS
LOW-PASS FILTER
SERIAL
INTERFACE
&
MODE/FORMAT
CONTROL
VINR
14
VINL
13
12
FMT
11
MD1
MD0
10
DOUT
9
BCK
8
S
3Y
IC702 TK11133CSCL-G
IC704 TK11118CSCL-G
VIN
5
OVER HEAT &
OVER CURRENT
PROTECTION
CONTROL
CIRCUIT
BANDGAP
REFERENCE
1
VCONT
2
GND
IC703 MC74VHC74DTR2
14
13 12 11 10 9 8
VOUT
4
–
+
3
NP
VCC
D
1 2 3 4 5 6 7
PR
Q
D
CK
Q
CLR
PR
Q
Q
CK
CLR
GND
45
Page 46
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
IC705 CXD9788AR
FSOCKO
XFSOIN
48
47
XVDD
HPVDDL
46 45
HPOUTL1
HPVSSL
44 43
HPOUTL2
HPVDDR
42 41
HPOUTR1
FSOI
HPVSSR40HPOUTR2
37
38
39
XVSS
VSUBC
VSSR
OUTR2
VDDR
OUTR1
VSSR
VSSL
OUTL2
VDDL
OUTL1
VSSL
CLOCK
GENERATOR
XOVSS
14
XFSOOUT
15
(SECONDARY)
LINER
INTERPOLATOR
16
17
DVDD
XOVDD
DVSS
MUTE
18
NSPMUTE
CONTROL
INIT/
19
SOFTMUTE
GAIN
20
PGMUTE
FILTER &
LOW CUT
FILTER
SERIAL
CONTROLLER
21
22
SCDT
SCSHIFT
SAMPLING
RATE
CONVERTER
23
24
SCLATCH
OVFFLAGR
1
2
3
4
5
6
7
8
9
10
11
12
PWM
Δ Σ
13
CLOCK
GENERATOR
(PRIMARY)
S H P
36
35
34
33
32
31
30
29
28
27
26
25
XFSIIN
DVDD
TEST
BFVSS
BFVDD
DATA
BCK
LRCK
MCKSEL
INIT
SFLAG
OVFFLAGL
46
Page 47
IC707, 708 CXD9774M (HX70BTR)
DVDD DREG DREG
1
GND
PWM BP 2
GND
RESET 4
DREG RTN
GVDD
DREG
DGND 9
DVDD
DGND
OTW
GND
PWM AP
GND 18
3
5
6
7
M3
8
M1
10
M2
11
12
SD
13
14
15
16
17
PWM
RECEIVER
DGND
DIGITAL
REGULATOR
PROTECTION
LOGIC
OT
UVP
DVDD DREG
PWM
RECEIVER
DGND
DREG
&
DREG
GVDD
TIMING
CONTROL
PROTECTION
TIMING
CONTROL
PROTECTION
DREG
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
36
GVDD B
GVDD
OCH
GATE
DRIVE
&
GATE
DRIVE
OCL
OCL
GATE
DRIVE
&
GATE
DRIVE
OCH
GVDD
34
33
32
31
30
29
28
27
26
25
24
23
21
20
19
GVDD B35
GND
BST B
PVDD B
PVDD B
OUT B
OUT B
GND
GND
OUT A
OUT A
PVDD A
PVDD A
BST A22
GND
GVDD A
GVDD A
47
Page 48
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
IC707 CXD9845AM (HX50BTR/HX80R/HX90BTR)
GVDD_B
/OTW 2
/SD
PWM_A
/RESET_AB
PWM_B
OC_ZDJ
GND
GND
VREG
GND
M2
M1
PWM_C
/RESET_CD 15
35
34
33
32
31
29
28
26
25
24
GVDD_A36
BST_A
PVDD_A
OUT_A
GND
GND
OUT_B30
PVDD_B
BST_B
BST_C27
PVDD_C
OUT_C
GND
1
VREG
3
4
5
6
7
8
9
10
11
12
13
14
VREG
GVDD_A
GVDD_B
GVDD_C
GVDD_D
PROGRAMMABLE
CURRENT SENSE
UNDER
VOLTAGE
PROTECTION
PROTECTION
&
RESET LOGIC
OLP
OTP
CB3C
2
4
4
4
4
4
/UVP
POWER-UP
RESET
TEMPERATURE
WARNING/ERROR
/HIZ_HS
/HIZ_LS
/OCH
/OCL
/RESET
STUCK
DETECT
STUCK
DETECT
STUCK
DETECT
GVDD_B
/HIZ_HS
/HIZ_LS
TIMING
CONTROL
/OCH
/OCL
/RESET
/RESET
/OCL
/OCH
CONTROL
TIMING
TIMING
CONTROL
/HIZ_LS
/HIZ_HS
/HIZ_HS
/HIZ_LS
TIMING
CONTROL
/OCH
/OCL
/RESET
PROTECTION
LOGIC
PROTECTION
LOGIC
PROTECTION
LOGIC
GVDD_A
/UVP
/UVP
/UVP
GATE
DRIVE
GATE
DRIVE
GATE
DRIVE
GATE
DRIVE
GATE
DRIVE
GATE
DRIVE
OVER CURRENT
FAULT
OVER CURRENT
FAULT
OVER CURRENT
FAULT
OVER CURRENT
FAULT
OVER CURRENT
FAULT
OVER CURRENT
FAULT
48
PWM_D
VDD
GVDD_C
OVER CURRENT
FAULT
23
22
20
19
GND
OUT_D
PVDD_D21
BST_D
GVDD_D
/RESET
/OCL
/OCH
CONTROL
TIMING
16
STUCK
DETECT
17
18
REGULATOR
VREG
TIMING
CONTROL
/HIZ_LS
/HIZ_HS
GVDD_C
PROTECTION
LOGIC
/UVP
GVDD_D
GATE
DRIVE
GATE
DRIVE
OVER CURRENT
FAULT
Page 49
– SW POWER Board –
IC51 MIP2F20MS1SO
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
1VDD
CONSTANT
CURRENT
CLAMP CIRCUIT
VCL.OUT
ICL.LOW
+
–2.4V
OVERHEAT
PROTECTION
+
–
(ILIMIT SETTING)
VCL
27%
22%
FOR LIGHT LOAD
DETECTION INTERMITTENT
OSCILLATION CONTROL
+
–
GENERATOR
CLOCK
12kHz
MAXDC
SRQ
RESTARTING
TRIGGER
2FB
3CL
IN
ILIMIT VARIABLE
CIRCUIT
VCC OVP
VCC UV
7.2V
SOURCE
Q
VDD UV
+
5.7V
–
5.0V
6.6V
VDD CLAMP
CIRCUIT
RSQ
CORRECTION
Q
ILIMIT
CIRCUIT
AT TURNING ON
BLANKING PULSE
GENERATION CIRCUIT
–
+
FOR
DRAIN CURRENT
DETECT
GATE DRIVER
POWER
MOSFET
8 SOURCE
7 SOURCE
REGULATOR
–
+
5.7V
4VCC 5 DRAIN
49
Page 50
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
• IC Pin Function Description
CD BOARD IC101 TC94A70FG-101 (CD-MP3 PROCESSOR)
Pin No. Pin Name I/O Description
1 AVSS3 - Ground terminal
2 RFZi I RF ripple zero crossing signal input terminal
3 RFRP O RF ripple signal output terminal
4 SBAD/RFDC O Sub beam addition signal or RF peak detection signal output terminal Not used
5 FEi O Focus error signal output terminal Not used
6 TEi O Tracking error signal output terminal
7 TEZi I Tracking error zero crossing signal input terminal
8 AVDD3 - Power supply terminal (+3.3 V)
9 FOo O Focus coil drive signal output terminal
10 TRo O Tracking coil drive signal output terminal
11 VREF I Reference voltage (+1.65V) input terminal
12 FMO O Sled motor drive signal output terminal
13 DMO O Spindle motor drive signal output terminal
14 VSSP3 - Ground terminal
15 VCOi I VCO control voltage input terminal
16 VDDP3 - Power supply terminal (+3.3 V)
17 VDD1 - Power supply terminal (+1.5 V)
18 VSS1 - Ground terminal
19 FGiN I FG signal input terminal Not used
20 IO0 (/HSO) I Disc inner position detection signal input terminal
21 IO1 (/UHSO) O Not used
22 XVSS3 - Ground terminal
23 XI I System clock input terminal (16.9344 MHz)
24 XO O System clock output terminal (16.9344 MHz)
25 XVDD3 - Power supply terminal (+3.3 V)
26 DVSS3 - Ground terminal
27 RO O Analog audio (R-ch) signal output terminal
28 DVDD3 - Power supply terminal (+3.3 V)
29 DVR O Reference voltage (+1.65V) output terminal
30 LO O Analog audio (L-ch) signal output terminal
31 DVSS3 - Ground terminal
32 VDDT3 - Power supply terminal (+3.3 V)
33 VSS1 - Ground terminal
34 VDD1 - Power supply terminal (+1.5 V)
35 VDDM1 - Power supply terminal (+1.5 V)
36 SRAMSTB I S-RAM standby mode control signal input terminal Fixed at "L" in this set
37 XRST I Reset signal input from the system controller "L": reset
38, 39 BUS0, BUS1 I Serial data input from the system controller or USB controller
40 BUS2 (SO) I Serial data input from the system controller or USB controller
41 BUS3 (SI) I Serial data input from the system controller or USB controller
42 BUCK (CLK) I Serial data transfer clock signal input from the system controller or USB controller
43 XCCE I Chip enable signal input from the system controller or USB controller
44 TEST I Setting terminal for test mode Normally fi xed at "L"
45 IRQ I Interrupt request signal input terminal
46 AoUT3 (PO4) O Not used
47 AoUT2 (PO5) O Audio data output to the USB controller
48 PIO0 O Request signal output to the system controller or USB controller
49 PIO1 O Request signal output to the USB controller
50 PIO2 O Not used
51 PIO3 I Gate signal input from the USB controller
52 VSS1 - Ground terminal
53 VDDT3 - Power supply terminal (+3.3 V)
54 SBSY O Subcode block sync signal output to the system controller
55 SBOK/FOK O Not used
50
Page 51
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Pin No. Pin Name I/O Description
56 IPF O Not used
57 SFSY/LOCK O Not used
58 ZDET O Zero detection signal output terminal Not used
59 GPIN I Not used
60 MS I Microcomputer interface mode selection signal input terminal Fixed at "H" in this set
61 DOUT (PO6) O Digital audio data output terminal Not used
62 AOUT (PO7) O Audio data output terminal Not used
63 BCK (PO8) O Bit clock signal output to the USB controller
64 LRCK (PO9) O L/R sampling clock signal output terminal
65 AIN (PI4) I Digital audio data input from USB controller
66 BCKi (PI5) I Bit clock signal input from the USB controller
67 LRCKi (PI6) I L/R sampling clock signal input from the USB controller
68 VDD1 - Power supply terminal (+1.5 V)
69 VSS1 - Ground terminal
70 AWRC - Not used
71 PVDD3 - Power supply terminal (+3.3 V)
72 PDo O Phase error margin signal between EFM signal and PLCK signal output terminal
73 TMAXS O TMAX detection signal output terminal Not used
74 TMAX O TMAX detection signal output terminal
75 LPFN I Inverted signal input from the operation amplifi er for PLL loop fi lter
76 LPFo O Signal output from the operation amplifi er for PLL loop fi lter
77 PVREF I Reference voltage (+1.65V) input terminal
78 VCOF O VCO fi lter output terminal
79 PVSS3 - Ground terminal
80 SLCo O EFM slice level output terminal
81 RFi I RF signal input terminal
82 RFRPi I RF ripple signal input terminal
83 RFEQo O EFM slice level output terminal
84 VRo O Reference voltage (+1.65V) output terminal
85 RESiN O External resistor connection terminal
86 VMDiR O Reference voltage (+1.65V) output terminal for automatic power control circuit
87 TESTR O Low-pass fi lter terminal for RFEQO offset correction
88 AGCi I RF signal amplitude adjustment amplifi cation input terminal
89 RFo O RF signal generation amplifi cation output terminal
90 RVDD3 - Power supply terminal (+3.3 V)
91 LDo O
92 MDi I Light amount monitor input from the laser diode of optical pick-up block
93 RVSS3 - Ground terminal
94 FNi2 (C) I Main beam (C) input from the optical pick-up block
95 FNi1 (A) I Main beam (A) input from the optical pick-up block
96 FPi2 (D) I Main beam (D) input from the optical pick-up block
97 FPi1 (B) I Main beam (B) input from the optical pick-up block
98 TPi (F) I Sub beam (F) input from the optical pick-up block
99 TNPC O External capacitor connection terminal
100 TNi (E) I Sub beam (E) input from the optical pick-up block
Laser diode on/off control signal output to the automatic power control circuit
"H": laser diode on
51
Page 52
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
USB BOARD IC901 TMP92CD28AFG-6VD8 (USB CONTROLLER)
Pin No. Pin Name I/O Description
1 /RESET I Reset signal input from the system controller "L": reset
2 DI I Ready to send signal input from the system controller
3, 4 NO USE O Not used
5 G-3 I Function selection signal input terminal Fixed at "L" in this set
6 DVCC - Power supply terminal (+3.3 V)
7 to 9 NO USE O Not used
10 DVSS - Ground terminal
11 DVCC - Power supply terminal (+3.3 V)
12 RVOUT1 O Reference voltage (+3.3 V) output terminal
13, 14 RVIN I Reference voltage (+3.3 V) input terminal
15 RVOUT2 O Reference voltage (+3.3 V) output terminal
16 DVCC - Power supply terminal (+3.3 V)
17 DVSS - Ground terminal
18 to 25 D0 to D7 I/O Two-way data bus with the S-RAM
26 DVSS - Ground terminal
27 DVCC - Power supply terminal (+3.3 V)
28 to 35 D8 to D15 I/O Two-way data bus with the S-RAM
36 A0 O Address signal output terminal Not used
37 to 43 A1 to A7 O Address signal output to the S-RAM
44 DVSS - Ground terminal
45 DVCC - Power supply terminal (+3.3 V)
46 to 54 A8 to A16 O Address signal output to the S-RAM
55 to 58 BUS0 to BUS3 O Serial data output to the CD-MP3 processor
59 /BUCK O Serial data transfer clock signal output to the CD-MP3 processor
60 /CCE O Chip enable signal output to the CD-MP3 processor
61 NO USE O Not used
62 DVSS - Ground terminal
63 DVCC - Power supply terminal (+3.3 V)
64 RD O Output enable signal output to the S-RAM
65 WR O Write enable signal output to the S-RAM
66 SRLLB O Lower-byte control signal output to the S-RAM
67 SRLUB O Upper-byte control signal output to the S-RAM
68 NO USE O Not used
69 BOOT I Boot mode selection signal input terminal "L": boot mode
70 CS2 O Chip select signal output to the S-RAM
71 LRCK O L/R sampling clock signal output to the CD-MP3 processor
72 AM1 I Function mode selection signal input terminal Fixed at "H" in this set
73 X2 O System clock output terminal (9 MHz)
74 DVSS - Ground terminal
75 X1 I System clock input terminal (9 MHz)
76 DVCC - Power supply terminal (+3.3 V)
77 USBOC I Over current detection signal input terminal
78 USBPON O USB VBUS power on/off control signal output terminal "H": power on
79 D+ I/O Two-way data (positive) bus with the USB connector
80 D- I/O Two-way data (negative) bus with the USB connector
81 AM0 I Function mode selection signal input terminal Fixed at "H" in this set
82 NO USE O Not used
83 DVSS - Ground terminal
84 DO O Clear to send signal output to the system controller
85 DATA I Audio data input from the CD-MP3 processor
86 CLOCK I Audio data transfer clock signal input from CD-MP3 processor
87 TXD1 O Serial data output to the system controller
88 RXD1 I Serial data input from the system controller
89 NO USE O Not used
52
Page 53
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Pin No. Pin Name I/O Description
90 SDA I/O Two-way EEPROM IIC data bus terminal Not used
91 SCL I/O Two-way EEPROM IIC clock bus terminal Not used
92 BCK O Bit clock signal output to the CD-MP3 processor
93 DATA O Audio data output to the CD-MP3 processor
94 GATE O Gate signal output to the CD-MP3 processor
95 DVCC - Power supply terminal (+3.3 V)
96 REQ I Request signal input from the CD-MP3 processor
97 ST-REQ I Request signal input from the CD-MP3 processor
98, 99 G-1, G-2 I Function selection signal input terminal Fixed at "L" in this set
100 DVSS - Ground terminal
53
Page 54
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
MAIN BOARD IC301 (SYSTEM CONTROLLER) R5F3640DDFAR (HX50BTR/HX70BTR/HX80R)
R5F3640MDFAR (HX90BTR)
Pin No. Pin Name I/O Description
1 to 3 CD BUS2 to CD BUS0 O Serial data output to the CD-MP3 processor
4 SIRCS I SIRCS signal input from the remote control receiver
5 USB_RESET O Reset signal output to the USB controller "L": reset
6 USB_CST I Clear to send signal input from the USB controller
7 MP3 IREQ I Request signal input from the CD-MP3 processor
8 BYTE I External data bus width selection signal input terminal Fixed at "L" in this set
9 CNVss I Processor mode switch input terminal (for test) Fixed at "L" in this set
10 XCIN I Sub system clock input terminal (32.768 kHz)
11 XCOUT O Sub system clock output terminal (32.768 kHz)
12 RESET I
13 XOUT O Main system clock output terminal (5 MHz)
14 Vss - Ground terminal
15 XIN I Main system clock input terminal (5 MHz)
16 Vcc - Power supply terminal (+3.3 V)
17 NMI I Non-maskable interrupt signal input terminal Not used
18 RDS-INT I
19 SBSY I Subcode block sync signal input from the CD-MP3 processor
20 AC-CUT I AC cut on/off detection signal input terminal "L": AC cut on
21 CD CCE O Chip enable signal output to the CD-MP3 processor
22 AMP IIC_CLK O Serial data transfer clock signal output to the electrical volume
23 CD CLK O Serial data transfer clock signal output to the CD-MP3 processor
24 AMP IIC_SDA O Serial data output to the electrical volume
25 DEC BUS SEL O Bus selection signal output terminal
26 S-MASTER SD I Shut down signal input terminal "L": shut down
27 S-MASTER PG MUTE O PG muting control signal output to the stream processor
28
29 IIC_CLK I/O Two-way IIC clock bus terminal Fixed at "H" in this set
30 IIC_DATA I/O Two-way IIC data bus terminal Fixed at "H" in this set
31 BT TXD_OUT O Serial data output to the bluetooth module (HX50BTR/HX70BTR/HX90BTR)
32 BT RXD_IN I Serial data input from the bluetooth module (HX50BTR/HX70BTR/HX90BTR)
33 BT CTS I Clear to send signal input from the bluetooth module (HX50BTR/HX70BTR/HX90BTR)
34 BT RTS O Ready to send signal output to the bluetooth module (HX50BTR/HX70BTR/HX90BTR)
35 USB TXD_OUT O Serial data output to the USB controller
36 USB RXD_IN I Serial data input from the USB controller
37 S-MASTER RST O Reset signal output to the digital power amplifi er "L": reset
38 USB RTS O Ready to send signal output to the USB controller
39 S-MASTER DATA O Serial data output to the stream processor
40 S-MASTER SHIFT O Serial data transfer clock signal output to the stream processor
41 PULL DOWN I Connected to the ground
42 S-MASTER LATCH O Serial data latch pulse signal output to the stream processor
43 S-MASTER NSP MUTE O NSP muting control signal output to the stream processor
44 S-MASTER INIT O Initialize signal output to the stream processor
45 BT AV ROLE O
46 PULL UP I Connected to the power supply
47 DAB TXD_OUT O Serial data output to the DAB tuner module (HX80R/HX90BTR)
48 DAB RXD_IN I Serial data input from the DAB tuner module (HX80R/HX90BTR)
49 BT RESET O Reset signal output to the bluetooth module "L": reset (HX50BTR/HX70BTR/HX90BTR)
50 BT POWER O
51 CDM OPEN SW I Disc tray open position detection signal input terminal "L": disc tray is opened
52 CDM CLOSE SW I Disc tray close position detection signal input terminal "L": disc tray is closed
S-MASTER SOFT
MUTE
System reset signal input from the reset signal generator "L": reset
For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H"
RDS data transfer clock signal input the tuner (FM/AM)
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
O Soft muting control signal output to the stream processor
Transmission/reception mode notifi cation signal output to the bluetooth module
(HX50BTR/HX70BTR/HX90BTR)
Power on/off control signal output terminal for bluetooth section
"H": power on (HX50BTR/HX70BTR/HX90BTR)
54
Page 55
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Pin No. Pin Name I/O Description
53 CDM LOAD IN O Loading motor control signal output terminal (for loading in)
54 CDM LOAD OUT O Loading motor control signal output terminal (for loading out)
55 FL POWER ON O Power on/off control signal output terminal for fl uorescent indicator tube "H": power on
56 FL SCLK O Shift clock signal output to the fl uorescent indicator tube
57 FL CS O Chip select signal output to the fl uorescent indicator tube
58 FL SD O Serial data output to the fl uorescent indicator tube
59 FL RESET O Reset signal output to the fl uorescent indicator tube "L": reset
60 STANDBY LED O LED drive signal output terminal for STANDBY indicator "H": LED on
61 USB LED O Not used
62 Vcc - Power supply terminal (+3.3 V)
63 BT LED O
64 Vss - Ground terminal
65 VOLUME JOG I Jog dial pulse input from the rotary encoder (VOLUME)
66 to 68 KEY 1 to KEY 3 I Top and front panel key input terminal
69 AC DET I AC power detection signal input terminal
70 SEL A O Input selection control signal output terminal
71 SEL B O Input selection control signal output terminal (HX80R/HX90BTR)
72 SEL INH O Input selection control signal output terminal
73 DAB-POWER_3.3 O
74 KEY WAKE UP I Wake up signal input terminal
75 DAB-POWER_1.2 O
76 ST TUNDE I Tuning detection signal input from the tuner (FM/AM)
77 CLINK_TXD_ OUT O Serial data output to the DMPORT connector
78 CLINK_RXD_IN I Serial data input from the DMPORT connector
79 ST CE O Chip enable signal output to the tuner (FM/AM)
80 ST DATA OUT O Serial data output to the tuner (FM/AM)
81 ST CLK O Serial data transfer clock signal output to the tuner (FM/AM)
82 ST DATA IN/STEREO I Serial data and stereo detection signal input from the tuner (FM/AM)
83 RDS DATA I RDS data input from the tuner (FM/AM) (HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
84 DMPORT DET I Plug insert detection signal input terminal for DMPOT connector "L": plug insert
85 AUDIO IN DET I Plug insert detection signal input terminal for AUDIO IN jack "L": plug insert
86 HP DET I Plug insert detection signal input terminal for PHONES jack "L": plug insert
87 HP MUTE O Headphone muting on/off control signal output terminal "H": muting on
88 BT AUDIO OUT MUTE O
89 TA-LINE MUTE O Line muting on/off control signal output terminal "H": muting on
90 STBY-RELAY O Sub power on/off control signal output terminal "H": power on
91 DMPORT POWER O
92 USB POWER O Power on/off control signal output terminal for USB section "H": power on
93 CD ON O Power on/off control signal output terminal for CD section "H": power on
94 CD XRST O Reset signal output to the CD-MP3 processor "L": reset
95 CD DRIVER MUTE O Muting signal output to the coil/motor driver
96 AVss - Ground terminal
97 SPEC-IN I Setting terminal for the destination
98 VREF I Reference voltage (+3.3V) input terminal
99 AVcc - Power supply terminal (+3.3 V)
100 CD BUS3 O Serial data output to the CD-MP3 processor
LED drive signal output terminal for BLUETOOTH indicator "H": LED on
(HX50BTR/HX70BTR/HX90BTR)
DAB power supply (+3.3V) on/off control signal output terminal "H": power on
(HX80R/HX90BTR)
DAB power supply (+1.2V) on/off control signal output terminal "H": power on
(HX80R/HX90BTR)
Blutetooth muting on/off control signal output terminal "H": muting on
(HX50BTR/HX70BTR/HX90BTR)
DMPORT power supply (+5V) on/off control signal output terminal "H": power on
(HX80R/HX90BTR)
55
Page 56
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SW POWER BOARD IC11 CXD9841P (POWER CONTROL)
Pin No. Pin Name I/O Description
1 VSENSE I AC line voltage detection signal input terminal
2 F/B I Feed back signal input terminal for frequency modulation of oscillator
3 CT I Connected to the external capacitor for oscillator duty/frequency setting
4 RT I Connected to the external resistor for oscillator frequency setting
5 GND - Ground terminal
6 PROTECT I
7 SS I Connected to the external capacitor for soft start timing
8 VC1 I Power supply terminal for control circuit "L": stop
9 OCP I Over current detection signal and didt protection signal input terminal
10 VC2 O Power supply output terminal for driver
11 P-GND - Ground terminal for low voltage side driver
12 VG (L) O Low voltage side driver drive signal output terminal
13 - - Not used
14 VB O Power supply output terminal for high voltage side driver
15 VS I High voltage side driver reference voltage input terminal
16 VG (H) O High voltage side driver drive signal output terminal
17 - - Not used
18 VD I
Connected to the external capacitor for determines intermittent operation period when abnormal detection state
Terminal for drain-kick starting
When starting, current is supplied directly from the rectifi cation diode to VC1
56
Page 57
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SECTION 7
EXPLODED VIEWS
Ver. 1.1
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• Accessories are given in the last of the
electrical parts list.

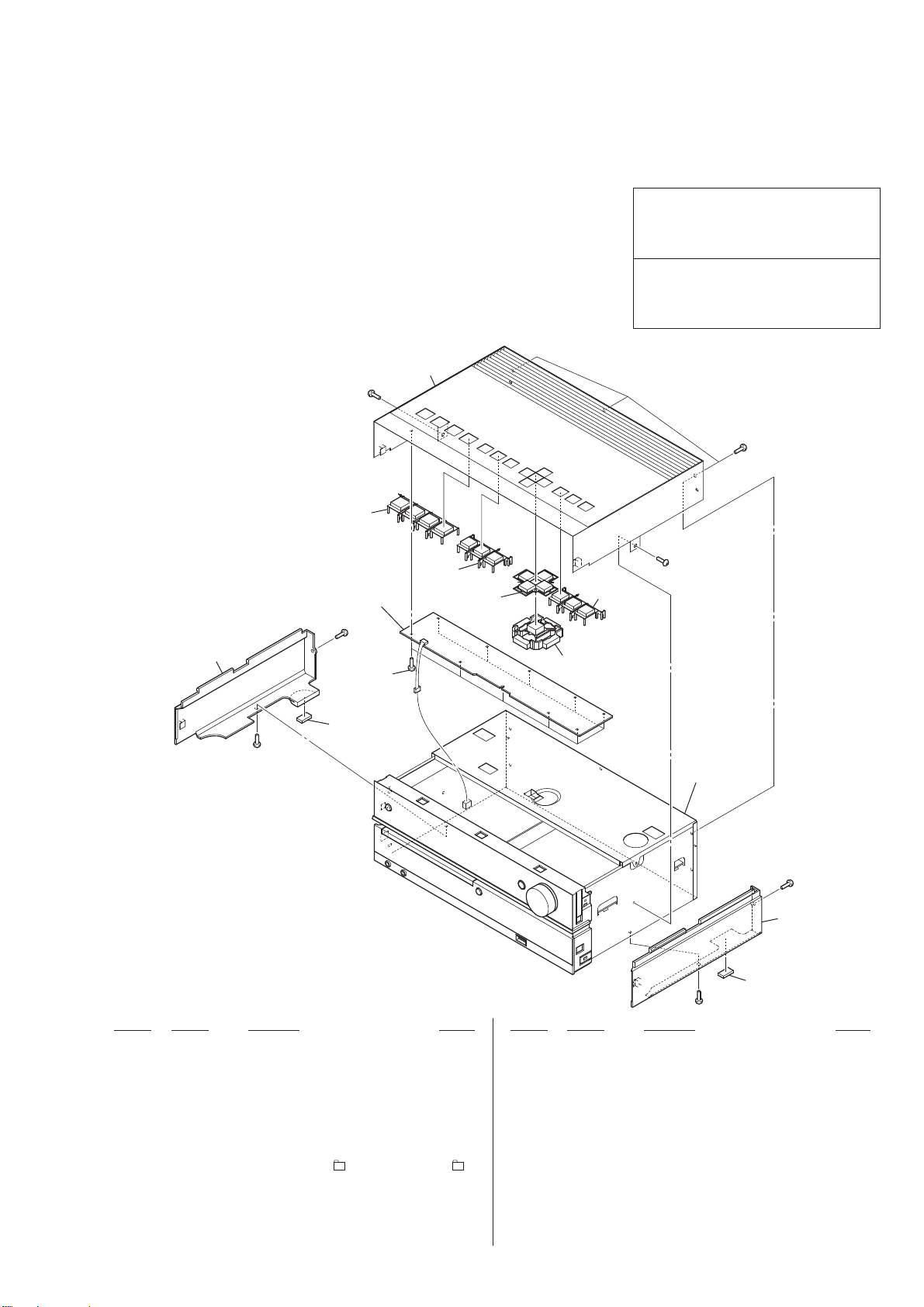

7-1. PANEL (TOP) SECTION
not supplied
(TOP PANEL board)
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
R R
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND : Canadian model
E51 : Chilean and Peruvian model
Parts Color Cabinet’s Color
10
#1
9
8
7
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
#1
#1
5
1
#1
4
6
2
#1
chassis (top)
section
#1
3
2
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-284-477-01 PANEL (SIDE L)
2 3-198-753-11 FOOT (FELT)
3 3-284-478-01 PANEL (SIDE R)
4 3-087-053-01 +BVTP2.6 (3CR)
5 3-284-491-01 BUTTON (FUNCTION R) (CD-USB SYNC/REC1,
USB MENU, DSGX)
6 3-282-738-01 BUTTON (ENTER)
7 3-282-739-01 BUTTON (TUNE) ( +, M L TUNE +, –,
l m TUNE –)
8 3-284-490-01 BUTTON (FUNCTION L) (FUNCTION, x CANCEL,
SEARCH) (HX50BTR/HX70BTR)
8 3-284-490-11 BUTTON (FUNCTION L) (FUNCTION, x CANCEL,
SEARCH/DAB AUTO SCAN) (HX80R/HX90BTR)
9 3-284-489-01 BUTTON (PLAY) (BLUETOOTH u, USB u,
CD u, TUNER/BAND) (HX50BTR/HX70BTR/
HX90BTR)
9 3-284-489-11 BUTTON (PLAY) (DMPORT u, USB u,
CD u TUNE/BAND) (HX80R)
10 X-2190-799-1 PANEL (TOP) ASSY (HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR)
10 X-2190-800-1 PANEL (TOP) ASSY (HX50BTR: CND, RU, E51,
MX, BR, SP, AR, KR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
57
Page 58
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
p

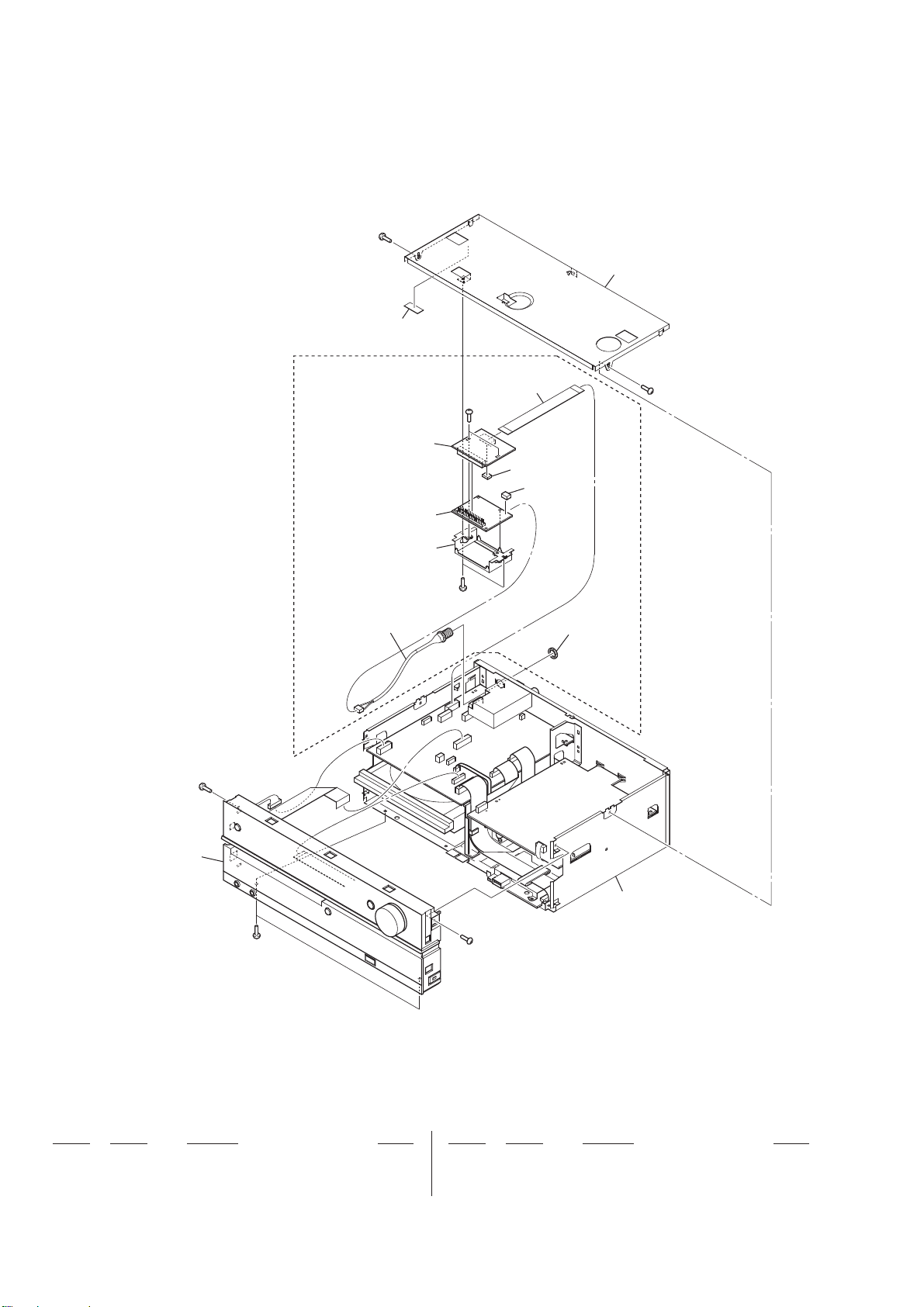

7-2. CHASSIS (TOP) SECTION
#1
not supplied
not supplied
#1
(HX80R/HX90BTR)
not supplied
not supplied
53
52
#1
#1
54
not supplied
51
not supplied
#1
anel (front) section
main section
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 1-821-551-11 PIN, CONNECTOR 2P (HX80R/HX90BTR)
52 1-480-340-41 MODULE (DAB TUNER) (HX80R/HX90BTR)
53 A-1471-470-A DAB BOARD, COMPLETE (HX80R/HX90BTR)
#1
54 1-832-825-21 CABLE, FLEXIBLE FLAT (11 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
58
(HX80R/HX90BTR)
Page 59

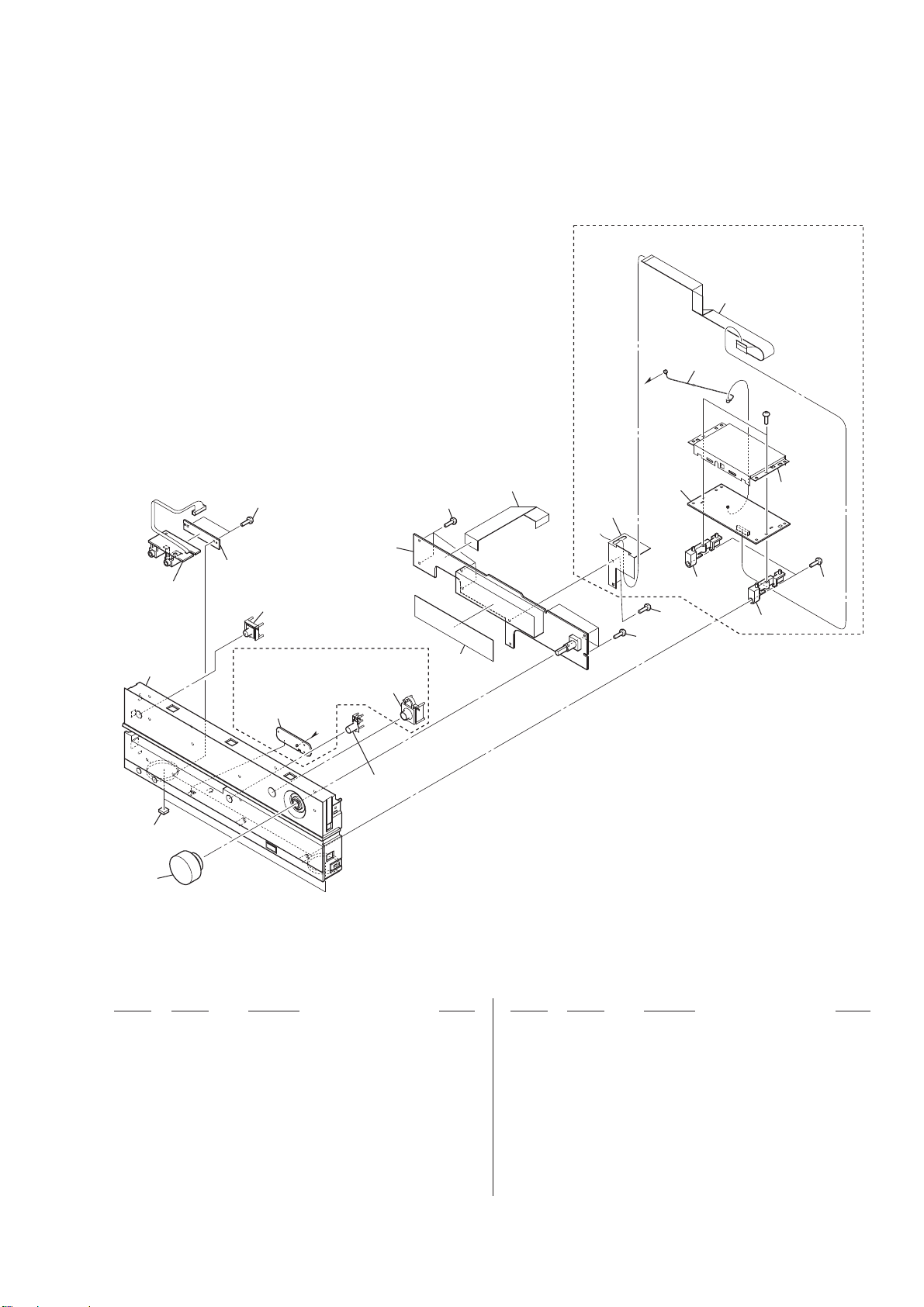

7-3. PANEL (FRONT) SECTION
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
(HX50BTR/HX70BTR/HX90BTR)
110
111
#1
not supplied
(JACK board)
103
102
101
104
not supplied
(PANEL board)
not supplied
(JACK SUPPORT board)
105
(HX50BTR/HX70BTR/HX90BTR)
not supplied
(ANT board)
107
106
104
108
109
not
supplied
112
not supplied
104
104
not supplied
104
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-2190-798-1 KNOB ASSY
102 3-198-753-01 FOOT (FELT)
103 X-2190-792-1 PANEL (FRONT) ASSY (HX50BTR)
103 X-2190-793-1 PANEL (FRONT) ASSY (HX70BTR)
103 X-2190-794-1 PANEL (FRONT) ASSY (HX90BTR)
103 X-2190-795-1 PANEL (FRONT) ASSY (HX80R)
104 3-087-053-01 +BVTP2.6 (3CR)
105 X-2190-796-1 BUTTON (POWER) ASSY
106 3-284-487-01 BUTTON (EJECT) (Z)
107 X-2190-797-1 BUTTON (BT) ASSY (HX50BTR/HX70BTR/
HX90BTR)
108 3-284-506-01 SHEET (FL)
109 1-835-397-21 CABLE, FLEXIBLE FLAT (15 CORE)
110 1-835-400-21 CABLE, FLEXIBLE FLAT (15 CORE) (HX50BTR/
HX70BTR/HX90BTR)
111 1-964-881-11 CABLE, COAXIAL (WITH U.F.L CONNECTOR)
(HX50BTR/HX70BTR/HX90BTR)
112 A-1518-779-A BT BOARD, COMPLETE (HX50BTR/HX70BTR/
HX90BTR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
59
Page 60
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1

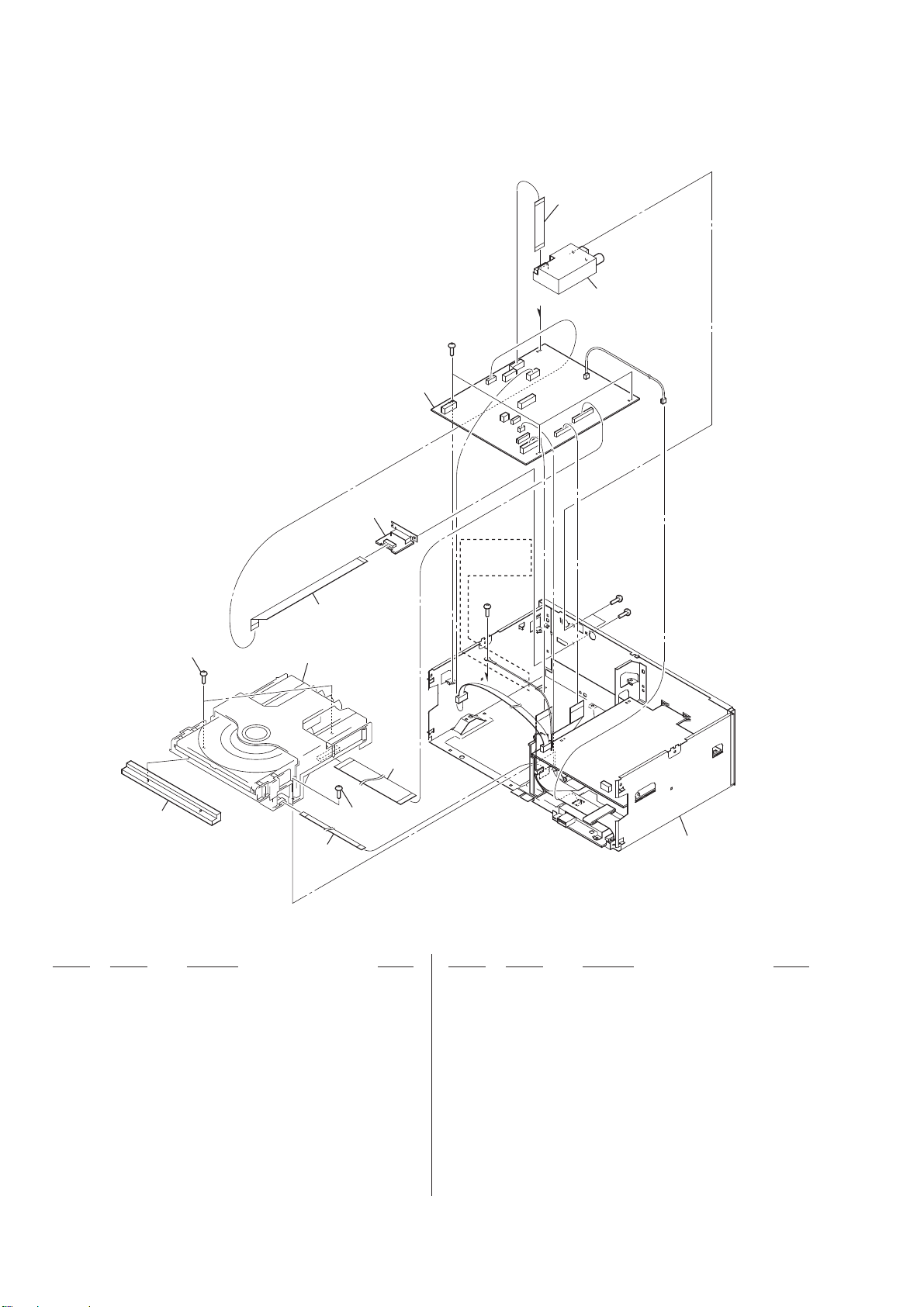

7-4. MAIN SECTION
#1
157
158
159
151
155
not supplied
(DMP board)
156
loading mechanism section
154
153
152
(HX80R/
HX90BTR)
#1
#1
#1
chassis section
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-284-479-01 PANEL (CD)
152 1-832-535-21 CABLE, FLEXIBLE FLAT (5 CORE)
153 3-077-331-31 +BV3 (3-CR)
154 1-832-645-21 CABLE, FLEXIBLE FLAT (27 CORE)
155 3-077-331-21 +BV3 (3-CR)
156 1-835-401-21 CABLE, FLEXIBLE FLAT (11 CORE)
157 A-1471-264-A MAIN BOARD, COMPLETE (HX50BTR: CND)
157 A-1471-266-A MAIN BOARD, COMPLETE (HX50BTR: AEP)
157 A-1471-268-A MAIN BOARD, COMPLETE (HX50BTR: RU)
157 A-1471-270-A MAIN BOARD, COMPLETE (HX50BTR: SP, KR)
157 A-1471-272-A MAIN BOARD, COMPLETE
(HX50BTR: E51, MX, AR)
157 A-1471-276-A MAIN BOARD, COMPLETE (HX50BTR: BR)
157 A-1471-278-A MAIN BOARD, COMPLETE (HX70BTR)
157 A-1471-280-A MAIN BOARD, COMPLETE (HX90BTR)
157 A-1539-382-A MAIN BOARD, COMPLETE (HX80R)
158 1-831-706-21 CABLE, FLEXIBLE FLAT (11 CORE) (HX50BTR:
AEP/HX70BTR/HX80R/HX90BTR)
158 1-835-398-21 CABLE, FLEXIBLE FLAT (9 CORE) (HX50BTR:
CND, RU, E51, MX, BR, SP, AR, KR)
159 1-693-759-11 TUNER (FM/AM) (HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR)
159 1-693-760-11 TUNER (FM/AM) (HX50BTR: RU, KR)
159 1-693-762-21 TUNER (FM/AM) (HX50BTR: CND, BR)
159 1-693-764-21 TUNER (FM/AM) (HX50BTR: E51, MX, SP, AR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
60
Page 61

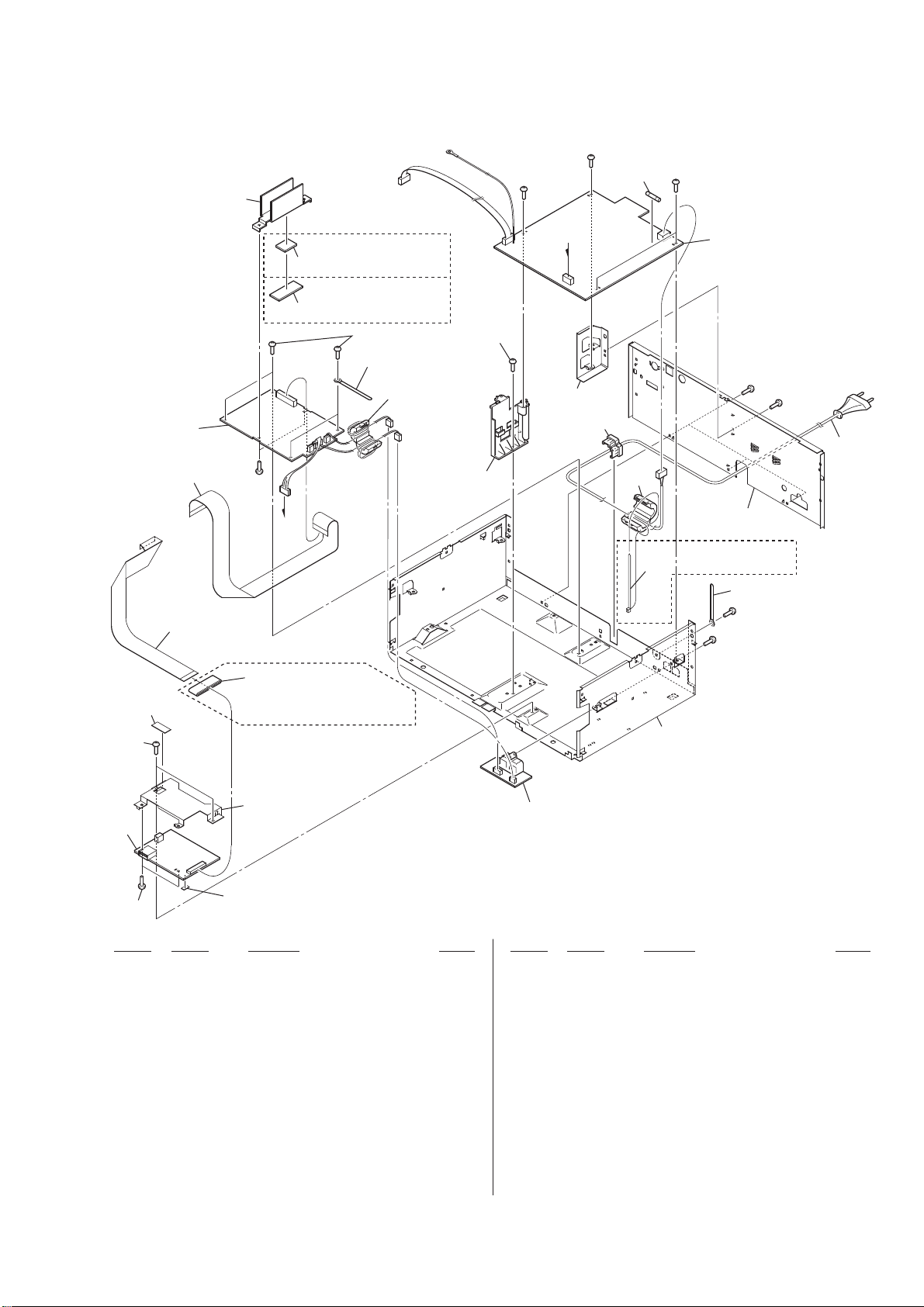

7-5. CHASSIS SECTION
not supplied
(HX50BTR/HX80R/
HX90BTR)
208
208
(HX70BTR)
202
not supplied
205
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
#1
#1
#1
202
not supplied
F1
not supplied
(SW POWER board)
#1
#1
not supplied
202
201
206
207
204
#1
203
(HX50BTR: AEP, RU, SP, KR/
HX70BTR/HX80R/HX90BTR)
not supplied
not supplied
210
not supplied
(SP TERMINAL board)
209
213
not supplied
211
not supplied
(HX50BTR: CND)
not supplied
#1
#1
212
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 A-1444-800-A USB BOARD, COMPLETE
202 3-077-331-21 +BV3 (3-CR)
203 1-457-413-11 CORE, FERRITE (HX50BTR: AEP, RU, SP, KR/
HX70BTR/HX80R/HX90BTR)
204 1-835-399-21 CABLE, FLEXIBLE FLAT (21 CORE)
205 1-400-932-11 FILTER, CLAMP
206 A-1243-637-A AMP BOARD, COMPLETE (HX50BTR/HX80R/
HX90BTR)
206 A-1486-589-A AMP BOARD, COMPLETE (HX70BTR)
207 1-835-396-21 CABLE, FLEXIBLE FLAT (19 CORE)
208 2-514-691-01 SHEET, RADIATION (HX70BTR)
208 2-597-972-91 SHEET, RADIATION (HX50BTR/HX80R/HX90BTR)
209 1-457-368-11 CORE, FERRITE
210 3-703-244-00 BUSHING (2104), CORD (EXCEPT HX50BTR: MX)
* 210 3-703-571-12 BUSHING (S) (4516), CORD (HX50BTR: MX)
0 211 1-769-079-41 CORD, POWER (HX50BTR: KR)
0 211 1-827-226-31 CORD, POWER (HX50BTR: MX)
0 211 1-832-227-11 CORD, POWER (HX50BTR: AR)
0 211 1-833-218-11 CORD, POWER (HX50BTR: BR)
0 211 1-834-965-11 CORD, POWER (HX50BTR: CND)
0 211 1-834-966-21 CORD, POWER (HX50BTR: AEP, RU, E51, SP/
HX70BTR/HX80R)
0 211 1-835-078-21 CORD, POWER (HX90BTR)
212 3-087-053-01 +BVTP2.6 (3CR)
213 3-701-748-00 CLAMP (HX50BTR: CND)
0 F1 1-576-232-51 FUSE (H.B.C) (5A/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
61
Page 62
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR

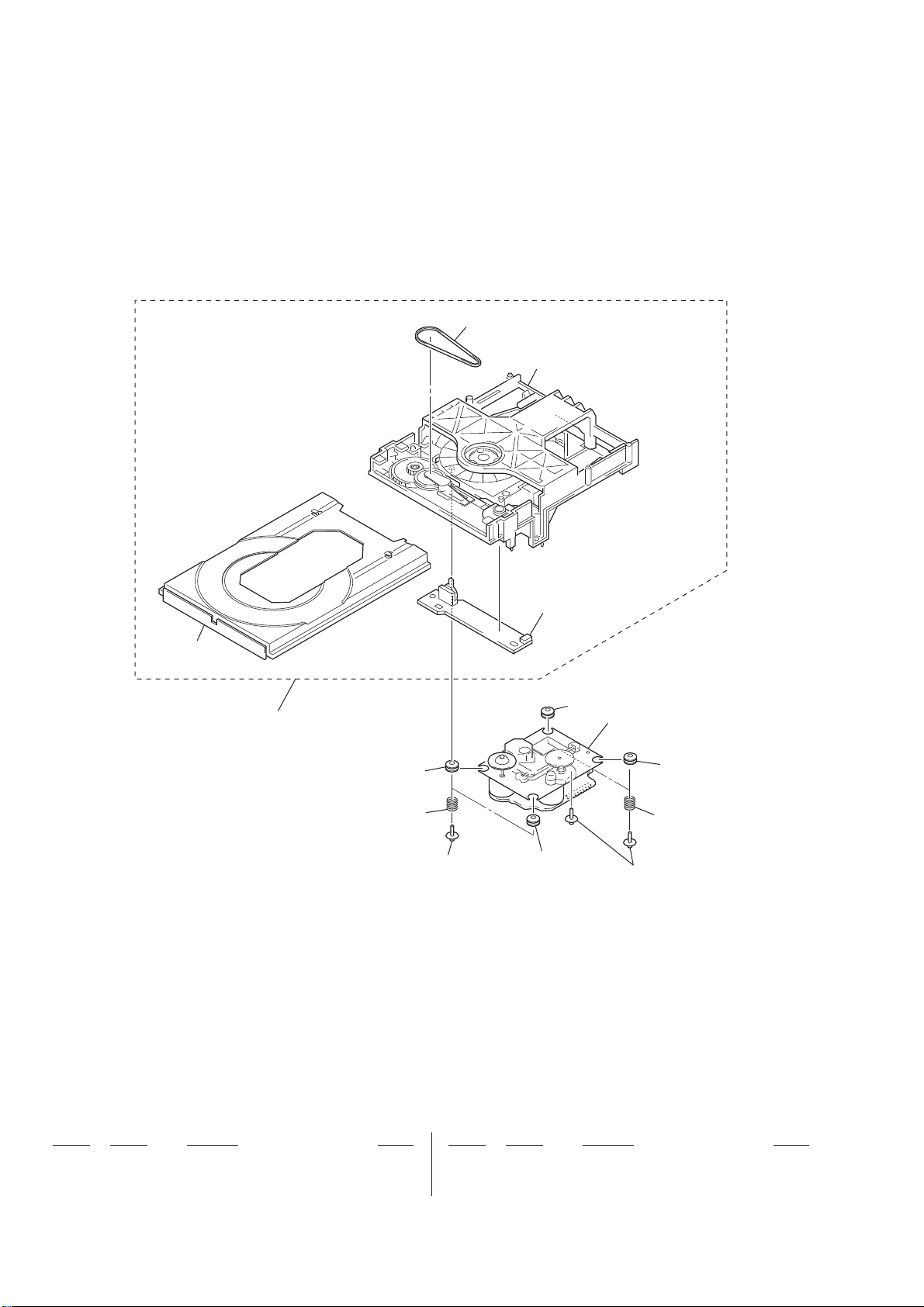

7-6. LOADING MECHANISM SECTION
302
not supplied
not supplied
301
305
304
303
not supplied
(MOTOR board)
305
305
base unit section
305
304
303
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 A-1242-967-A LOADING (BK) ASSY
302 3-080-478-01 BELT
303 4-985-672-01 SCREW, FLOATING (+PTPWHM2.6)
304 4-227-045-41 SPRING (INSULATOR)
305 4-229-005-41 INSULATOR
62
Page 63
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
7-7. BASE UNIT SECTION (BU-K6BD91UR2-WOD)
351
(including sled motor (M402),
spindle motor (M401))
spindle motor (M401)
S201
sled motor (M402)
352
353
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 351 A-4735-357-A BASE ASSY, OP (KSM-213D)
352 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
353 A-1439-296-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
63
Page 64
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
AMP
ELECTRICAL PARTS LIST
SECTION 8
Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS
uF: μF
• COILS
uH: μH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1243-637-A AMP BOARD, COMPLETE
A-1486-589-A AMP BOARD, COMPLETE (HX70BTR)
********************
< CAPACITOR >
C701 1-126-961-11 ELECT 2.2uF 20% 50V
C702 1-136-497-81 FILM 0.1uF 5% 50V
C703 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C704 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C706 1-100-717-91 CERAMIC CHIP 1uF 16V
C706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C707 1-112-245-21 ELECT 47uF 20% 35V
C707 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C708 1-112-245-21 ELECT 47uF 20% 35V
• RESISTORS
All resistors are in ohms.
METAL: Metal-fi lm resistor .
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND : Canadian model
E51 : Chilean and Peruvian model
KR : Korean model
(HX50BTR/HX80R/HX90BTR)
(HX70BTR)
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
(HX50BTR/HX80R/HX90BTR)
(HX70BTR)
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
C717 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
C717 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
C718 1-100-756-91 CERAMIC CHIP 0.047uF 50V
C719 1-100-924-21 ELECT 2200uF 20% 35V
C719 1-137-806-21 ELECT 1800uF 20% 35V
C720 1-131-704-11 FILM 1uF 5% 50V
C722 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C723 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C724 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C725 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C726 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C728 1-131-704-11 FILM 1uF 5% 50V
C729 1-126-767-11 ELECT 1000uF 20% 16V
C730 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C731 1-104-658-91 ELECT 100uF 20% 10V
C732 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C733 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
MX : Mexican model
RU : Russian model
SP : Singapore model
When indicating parts by reference number, please include the board name.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
(HX50BTR/HX80R/HX90BTR)
C709 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX70BTR)
C709 1-112-245-21 ELECT 47uF 20% 35V
(HX50BTR/HX80R/HX90BTR)
C710 1-112-245-21 ELECT 47uF 20% 35V
(HX50BTR/HX80R/HX90BTR)
C711 1-126-767-11 ELECT 1000uF 20% 16V
(HX70BTR)
C712 1-100-717-91 CERAMIC CHIP 1uF 16V
(HX70BTR)
C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C713 1-100-756-91 CERAMIC CHIP 0.047uF 50V
C714 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C714 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
(HX50BTR/HX80R/HX90BTR)
C715 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C715 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
(HX50BTR/HX80R/HX90BTR)
C716 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C716 1-164-739-11 CERAMIC CHIP 560PF 5% 50V
(HX50BTR/HX80R/HX90BTR)
C735 1-126-964-11 ELECT 10uF 20% 50V
C736 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C737 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C738 1-126-964-11 ELECT 10uF 20% 50V
C739 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C740 1-126-923-91 ELECT 220uF 20% 10V
C741 1-126-961-11 ELECT 2.2uF 20% 50V
C742 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C743 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C744 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C745 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C746 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C747 1-104-658-91 ELECT 100uF 20% 10V
C751 1-126-961-11 ELECT 2.2uF 20% 50V
C752 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C753 1-104-658-91 ELECT 100uF 20% 10V
C754 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C756 1-100-717-91 CERAMIC CHIP 1uF 16V
(HX70BTR)
C756 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C757 1-126-964-11 ELECT 10uF 20% 50V
(HX50BTR/HX80R/HX90BTR)
64
Page 65
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
AMP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C757 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
(HX70BTR)
C758 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C759 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX70BTR)
C760 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C761 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C797 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C798 1-126-964-11 ELECT 10uF 20% 50V
C799 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C804 1-163-205-00 CERAMIC CHIP 0.001uF 10% 50V
C806 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C831 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C762 1-100-717-91 CERAMIC CHIP 1uF 16V
(HX70BTR)
C762 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C763 1-100-756-91 CERAMIC CHIP 0.047uF 50V
C764 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
(HX50BTR/HX80R/HX90BTR)
C764 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C765 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
(HX50BTR/HX80R/HX90BTR)
C765 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C766 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
(HX50BTR/HX80R/HX90BTR)
C766 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C767 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
(HX50BTR/HX80R/HX90BTR)
C767 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V
(HX70BTR)
C768 1-100-756-91 CERAMIC CHIP 0.047uF 50V
C769 1-100-924-21 ELECT 2200uF 20% 35V
(HX70BTR)
C769 1-137-806-21 ELECT 1800uF 20% 35V
(HX50BTR/HX80R/HX90BTR)
C770 1-131-704-11 FILM 1uF 5% 50V
C772 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C773 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C774 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C775 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C777 1-131-704-11 FILM 1uF 5% 50V
C778 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C779 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C780 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C781 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX70BTR)
C781 1-126-964-11 ELECT 10uF 20% 50V
(HX50BTR/HX80R/HX90BTR)
C832 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C844 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C845 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C846 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C847 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C851 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C854 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C855 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C856 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN700 1-784-780-11 CONNECTOR, FFC 19P
< DIODE >
D705 6-500-260-01 DIODE P6SMB39AT3 (HX70BTR)
D706 6-500-260-01 DIODE P6SMB39AT3 (HX70BTR)
D713 6-501-159-01 DIODE UDZW-TE17-2.4B (HX70BTR)
D755 6-500-260-01 DIODE P6SMB39AT3 (HX70BTR)
D756 6-500-260-01 DIODE P6SMB39AT3 (HX70BTR)
< EARTH TERMINAL >
EP701 1-537-771-21 TERMINAL BOARD, GROUND
EP702 1-537-771-21 TERMINAL BOARD, GROUND
EP703 1-537-771-21 TERMINAL BOARD, GROUND
< IC >
IC701 6-710-554-01 IC PCM1808PWR
IC702 6-702-302-01 IC TK11133CSCL-G
IC703 6-701-261-01 IC MC74VHC74DTR2
IC704 6-702-300-01 IC TK11118CSCL-G
IC705 6-705-979-01 IC CXD9788AR
IC707 6-704-802-01 IC CXD9774M (HX70BTR)
IC707 6-710-134-01 IC CXD9845AM (HX50BTR/HX80R/HX90BTR)
IC708 6-704-802-01 IC CXD9774M (HX70BTR)
IC709 6-701-189-01 IC MC74VHC1GU04DFT1
< COIL/JUMPER RESISTOR >
C782 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX70BTR)
C783 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C784 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C785 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C786 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C787 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C788 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C790 1-126-933-11 ELECT 100uF 20% 16V
(HX50BTR/HX80R/HX90BTR)
C791 1-136-497-81 FILM 0.1uF 5% 50V
C793 1-126-964-11 ELECT 10uF 20% 50V
(HX70BTR)
C794 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V
C795 1-126-964-11 ELECT 10uF 20% 50V
(HX70BTR)
C796 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
L701 1-216-295-91 SHORT CHIP
L702 1-216-295-91 SHORT CHIP 0
L703 1-216-295-91 SHORT CHIP 0
L704 1-216-295-91 SHORT CHIP 0
L705 1-412-939-11 INDUCTOR 1uH
L708 1-456-813-11 COIL, AIR-CORE (HX70BTR)
L709 1-456-813-11 COIL, AIR-CORE (HX70BTR)
L710 1-457-235-11 CHOKE, COIL 10uH
L711 1-457-235-11 CHOKE, COIL 10uH
L758 1-456-813-11 COIL, AIR-CORE (HX70BTR)
L759 1-456-813-11 COIL, AIR-CORE (HX70BTR)
L760 1-457-235-11 CHOKE, COIL 10uH
L761 1-457-235-11 CHOKE, COIL 10uH
< TRANSISTOR >
Q701 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
0
6565
Page 66
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
AMP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q702 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
(HX70BTR)
Q702 8-729-600-22 TRANSISTOR 2SA1235-F
(HX50BTR/HX80R/HX90BTR)
Q703 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
(HX70BTR)
Q703 8-729-600-22 TRANSISTOR 2SA1235-F
(HX50BTR/HX80R/HX90BTR)
Q707 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q752 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
(HX70BTR)
Q752 8-729-600-22 TRANSISTOR 2SA1235-F
(HX50BTR/HX80R/HX90BTR)
Q753 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
(HX70BTR)
Q753 8-729-600-22 TRANSISTOR 2SA1235-F
(HX50BTR/HX80R/HX90BTR)
< RESISTOR >
R701 1-216-809-11 METAL CHIP 100 5% 1/10W
R702 1-216-837-11 METAL CHIP 22K 5% 1/10W
(HX70BTR)
R704 1-216-816-11 METAL CHIP 390 5% 1/10W
(HX70BTR)
R706 1-216-809-11 METAL CHIP 100 5% 1/10W
R707 1-216-798-11 METAL CHIP 12 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R735 1-216-797-11 METAL CHIP 10 5% 1/10W
R736 1-216-797-11 METAL CHIP 10 5% 1/10W
R737 1-216-797-11 METAL CHIP 10 5% 1/10W
R738 1-216-821-11 METAL CHIP 1K 5% 1/10W
R739 1-216-833-11 METAL CHIP 10K 5% 1/10W
R740 1-216-833-11 METAL CHIP 10K 5% 1/10W
R741 1-216-809-11 METAL CHIP 100 5% 1/10W
R742 1-216-833-11 METAL CHIP 10K 5% 1/10W
R743 1-216-809-11 METAL CHIP 100 5% 1/10W
R744 1-216-864-11 SHORT CHIP 0
R745 1-216-809-11 METAL CHIP 100 5% 1/10W
R746 1-216-809-11 METAL CHIP 100 5% 1/10W
R747 1-216-817-11 METAL CHIP 470 5% 1/10W
R748 1-216-841-11 METAL CHIP 47K 5% 1/10W
R749 1-216-864-11 SHORT CHIP 0
R750 1-216-841-11 METAL CHIP 47K 5% 1/10W
R751 1-216-809-11 METAL CHIP 100 5% 1/10W
R752 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R752 1-216-837-11 METAL CHIP 22K 5% 1/10W
(HX70BTR)
(HX70BTR)
(HX70BTR)
(HX70BTR)
(HX70BTR)
(HX70BTR)
R708 1-216-798-11 METAL CHIP 12 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R708 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R709 1-216-798-11 METAL CHIP 12 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R709 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R710 1-216-798-11 METAL CHIP 12 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R711 1-216-809-11 METAL CHIP 100 5% 1/10W
R712 1-216-809-11 METAL CHIP 100 5% 1/10W
R713 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R714 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R714 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX70BTR)
R715 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX70BTR)
R716 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX70BTR)
R717 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX70BTR)
R718 1-216-833-11 METAL CHIP 10K 5% 1/10W
R719 1-220-942-11 METAL CHIP 3.3 1% 1/4W
R720 1-220-942-11 METAL CHIP 3.3 1% 1/4W
R721 1-216-833-11 METAL CHIP 10K 5% 1/10W
R722 1-216-841-11 METAL CHIP 47K 5% 1/10W
R724 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R725 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R726 1-216-849-11 METAL CHIP 220K 5% 1/10W
R727 1-216-845-11 METAL CHIP 100K 5% 1/10W
R728 1-216-849-11 METAL CHIP 220K 5% 1/10W
R731 1-216-817-11 METAL CHIP 470 5% 1/10W
R733 1-216-817-11 METAL CHIP 470 5% 1/10W
R734 1-216-797-11 METAL CHIP 10 5% 1/10W
R754 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R754 1-216-816-11 METAL CHIP 390 5% 1/10W
(HX70BTR)
R755 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R756 1-216-809-11 METAL CHIP 100 5% 1/10W
R757 1-220-942-11 METAL CHIP 3.3 1% 1/4W
(HX50BTR/HX80R/HX90BTR)
R758 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R759 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R759 1-216-835-11 METAL CHIP 15K 5% 1/10W
(HX50BTR/HX80R/HX90BTR)
R761 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R762 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX70BTR)
R764 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX70BTR)
R765 1-216-864-11 SHORT CHIP 0
R768 1-216-833-11 METAL CHIP 10K 5% 1/10W
R769 1-220-942-11 METAL CHIP 3.3 1% 1/4W
R770 1-220-942-11 METAL CHIP 3.3 1% 1/4W
R771 1-216-833-11 METAL CHIP 10K 5% 1/10W
R772 1-216-833-11 METAL CHIP 10K 5% 1/10W
R773 1-216-833-11 METAL CHIP 10K 5% 1/10W
R774 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R775 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R776 1-216-849-11 METAL CHIP 220K 5% 1/10W
R777 1-216-845-11 METAL CHIP 100K 5% 1/10W
R778 1-216-849-11 METAL CHIP 220K 5% 1/10W
R780 1-216-801-11 METAL CHIP 22 5% 1/10W
R781 1-216-809-11 METAL CHIP 100 5% 1/10W
R782 1-216-857-11 METAL CHIP 1M 5% 1/10W
R783 1-216-801-11 METAL CHIP 22 5% 1/10W
66
Page 67
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
AMP ANT BT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R784 1-216-809-11 METAL CHIP 100 5% 1/10W
R785 1-216-809-11 METAL CHIP 100 5% 1/10W
R786 1-216-809-11 METAL CHIP 100 5% 1/10W
R787 1-216-809-11 METAL CHIP 100 5% 1/10W
R788 1-216-809-11 METAL CHIP 100 5% 1/10W
R789 1-216-809-11 METAL CHIP 100 5% 1/10W
R790 1-216-809-11 METAL CHIP 100 5% 1/10W
R792 1-216-864-11 SHORT CHIP 0
R793 1-216-841-11 METAL CHIP 47K 5% 1/10W
R794 1-216-864-11 SHORT CHIP 0 (HX70BTR)
R795 1-216-864-11 SHORT CHIP 0 (HX70BTR)
R800 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX70BTR)
R801 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX70BTR)
R802 1-216-813-11 METAL CHIP 220 5% 1/10W
R803 1-216-813-11 METAL CHIP 220 5% 1/10W
R804 1-216-813-11 METAL CHIP 220 5% 1/10W
R805 1-216-813-11 METAL CHIP 220 5% 1/10W
R807 1-216-837-11 METAL CHIP 22K 5% 1/10W
R808 1-216-801-11 METAL CHIP 22 5% 1/10W
R809 1-216-837-11 METAL CHIP 22K 5% 1/10W
< VIBRATOR >
X702 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz)
************************************************************
ANT BOARD (HX50BTR/HX70BTR/HX90BTR)
**********
< CAPACITOR >
C914 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V
C931 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C932 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C941 1-126-189-11 ELECT CHIP 0.22uF 20% 50V
C942 1-126-189-11 ELECT CHIP 0.22uF 20% 50V
C945 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C946 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C951 1-126-193-11 ELECT CHIP 1uF 20% 50V
C952 1-126-193-11 ELECT CHIP 1uF 20% 50V
C953 1-126-193-11 ELECT CHIP 1uF 20% 50V
C954 1-126-193-11 ELECT CHIP 1uF 20% 50V
C957 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C958 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C965 1-126-189-11 ELECT CHIP 0.22uF 20% 50V
C966 1-126-189-11 ELECT CHIP 0.22uF 20% 50V
C967 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C968 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
< CONNECTOR >
CN901 1-784-374-51 CONNECTOR, FFC/FPC 15P
CN902 1-573-806-21 PIN, CONNECTOR (1.5MM) (SMD) 6P
CN903 1-573-806-21 PIN, CONNECTOR (1.5MM) (SMD) 6P
< DIODE >
D901 6-500-335-01 DIODE MC2838-T112-1
D902 6-500-335-01 DIODE MC2838-T112-1
< FERRITE BEAD/JUMPER RESISTOR >
FB901 1-216-864-11 SHORT CHIP 0
FB902 1-216-864-11 SHORT CHIP 0
FB903 1-216-864-11 SHORT CHIP 0
FB904 1-216-864-11 SHORT CHIP 0
FB905 1-216-864-11 SHORT CHIP 0
< CONNECTOR >
CN904 1-818-381-11 CONNECTOR, COAXIAL
************************************************************
A-1518-779-A BT BOARD, COMPLETE
(HX50BTR/HX70BTR/HX90BTR)
********************
< CAPACITOR >
C901 1-126-395-11 ELECT CHIP 22uF 20% 16V
C902 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C903 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C904 1-126-398-11 ELECT CHIP 4.7uF 20% 35V
C905 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C906 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C907 1-126-204-11 ELECT CHIP 47uF 20% 16V
C908 1-126-204-11 ELECT CHIP 47uF 20% 16V
C912 1-126-204-11 ELECT CHIP 47uF 20% 16V
C921 1-126-193-11 ELECT CHIP 1uF 20% 50V
C922 1-126-193-11 ELECT CHIP 1uF 20% 50V
C923 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C924 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C925 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C926 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C927 1-126-601-11 ELECT CHIP 2.2uF 20% 50V
C928 1-126-601-11 ELECT CHIP 2.2uF 20% 50V
C929 1-126-601-11 ELECT CHIP 2.2uF 20% 50V
C930 1-126-601-11 ELECT CHIP 2.2uF 20% 50V
FB906 1-216-864-11 SHORT CHIP 0
FB907 1-400-684-21 INDUCTOR, FERRITE BEAD
FB908 1-216-864-11 SHORT CHIP 0
FB909 1-216-864-11 SHORT CHIP 0
FB910 1-216-864-11 SHORT CHIP 0
FB911 1-216-864-11 SHORT CHIP 0
FB913 1-216-864-11 SHORT CHIP 0
FB914 1-216-864-11 SHORT CHIP 0
< IC >
IC901 6-702-945-01 IC NJM14558V-TE2
IC902 6-702-945-01 IC NJM14558V-TE2
IC903 6-710-962-01
IC904 (Not supplied) CXN1404-3BGL (BLUETOOTH MODULE)
< JUMPER RESISTOR >
JR902 1-216-864-11 SHORT CHIP 0
< RESISTOR >
R900 1-216-809-11 METAL CHIP 100 5% 1/10W
R901 1-216-809-11 METAL CHIP 100 5% 1/10W
R902 1-216-809-11 METAL CHIP 100 5% 1/10W
R903 1-216-809-11 METAL CHIP 100 5% 1/10W
R904 1-216-809-11 METAL CHIP 100 5% 1/10W
R905 1-216-809-11 METAL CHIP 100 5% 1/10W
R906 1-216-809-11 METAL CHIP 100 5% 1/10W
R907 1-216-817-11 METAL CHIP 470 5% 1/10W
R908 1-216-817-11 METAL CHIP 470 5% 1/10W
Note: When IC904 cannot exchange with single. When IC904 is
damaged, exchange the entire mounted board.
IC XC6213B332MR
6767
Page 68
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
BT CD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R909 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R972 1-216-817-11 METAL CHIP 470 5% 1/10W
R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R911 1-216-864-11 SHORT CHIP 0
R913 1-216-841-11 METAL CHIP 47K 5% 1/10W
R914 1-216-864-11 SHORT CHIP 0
R915 1-216-841-11 METAL CHIP 47K 5% 1/10W
R916 1-216-841-11 METAL CHIP 47K 5% 1/10W
R917 1-216-841-11 METAL CHIP 47K 5% 1/10W
R918 1-216-841-11 METAL CHIP 47K 5% 1/10W
R921 1-216-809-11 METAL CHIP 100 5% 1/10W
R922 1-216-809-11 METAL CHIP 100 5% 1/10W
R923 1-216-813-11 METAL CHIP 220 5% 1/10W
R924 1-216-813-11 METAL CHIP 220 5% 1/10W
R925 1-216-813-11 METAL CHIP 220 5% 1/10W
R926 1-216-813-11 METAL CHIP 220 5% 1/10W
R927 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R928 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R929 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R930 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R931 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R932 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R934 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R935 1-216-809-11 METAL CHIP 100 5% 1/10W
R936 1-216-809-11 METAL CHIP 100 5% 1/10W
R937 1-216-809-11 METAL CHIP 100 5% 1/10W
R938 1-216-809-11 METAL CHIP 100 5% 1/10W
R939 1-216-809-11 METAL CHIP 100 5% 1/10W
R940 1-216-809-11 METAL CHIP 100 5% 1/10W
R941 1-216-809-11 METAL CHIP 100 5% 1/10W
R942 1-216-809-11 METAL CHIP 100 5% 1/10W
R943 1-216-845-11 METAL CHIP 100K 5% 1/10W
R944 1-216-845-11 METAL CHIP 100K 5% 1/10W
R945 1-216-845-11 METAL CHIP 100K 5% 1/10W
R946 1-216-845-11 METAL CHIP 100K 5% 1/10W
R947 1-216-841-11 METAL CHIP 47K 5% 1/10W
R948 1-216-841-11 METAL CHIP 47K 5% 1/10W
R949 1-216-821-11 METAL CHIP 1K 5% 1/10W
R950 1-216-821-11 METAL CHIP 1K 5% 1/10W
R951 1-216-821-11 METAL CHIP 1K 5% 1/10W
R952 1-216-821-11 METAL CHIP 1K 5% 1/10W
R953 1-216-841-11 METAL CHIP 47K 5% 1/10W
R954 1-216-841-11 METAL CHIP 47K 5% 1/10W
R955 1-216-845-11 METAL CHIP 100K 5% 1/10W
R956 1-216-845-11 METAL CHIP 100K 5% 1/10W
R957 1-216-857-11 METAL CHIP 1M 5% 1/10W
R958 1-216-857-11 METAL CHIP 1M 5% 1/10W
R959 1-216-809-11 METAL CHIP 100 5% 1/10W
R960 1-216-809-11 METAL CHIP 100 5% 1/10W
R961 1-216-809-11 METAL CHIP 100 5% 1/10W
R962 1-216-809-11 METAL CHIP 100 5% 1/10W
R963 1-216-845-11 METAL CHIP 100K 5% 1/10W
R964 1-216-845-11 METAL CHIP 100K 5% 1/10W
R965 1-216-809-11 METAL CHIP 100 5% 1/10W
R966 1-216-809-11 METAL CHIP 100 5% 1/10W
R967 1-216-845-11 METAL CHIP 100K 5% 1/10W
R968 1-216-845-11 METAL CHIP 100K 5% 1/10W
R969 1-216-817-11 METAL CHIP 470 5% 1/10W
R970 1-216-817-11 METAL CHIP 470 5% 1/10W
R971 1-216-817-11 METAL CHIP 470 5% 1/10W
R973 1-216-817-11 METAL CHIP 470 5% 1/10W
R974 1-216-817-11 METAL CHIP 470 5% 1/10W
************************************************************
A-1439-296-A CD BOARD, COMPLETE
*******************
< CAPACITOR/RESISTOR >
C100 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C101 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C102 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C103 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C104 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C105 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C106 1-128-995-21 ELECT CHIP 100uF 20% 10V
C107 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C110 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C112 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C113 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C115 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C116 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C117 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C119 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C122 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C123 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C124 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C125 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C127 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C128 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C130 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C132 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C136 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C138 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C139 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C140 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C141 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C145 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C146 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C147 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C148 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C149 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C151 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C152 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C201 1-128-995-21 ELECT CHIP 100uF 20% 10V
C202 1-128-995-21 ELECT CHIP 100uF 20% 10V
C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V
68
Page 69
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
CD DAB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C206 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C207 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C212 1-216-845-11 METAL CHIP 100K 5% 1/10W
C217 1-216-845-11 METAL CHIP 100K 5% 1/10W
C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C302 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C303 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C306 1-128-995-21 ELECT CHIP 100uF 20% 10V
C307 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C401 1-128-394-11 ELECT CHIP 220uF 20% 10V
C403 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V
< CONNECTOR >
CN202 1-784-835-51 CONNECTOR, FFC (LIF (NON-ZIF)) 27P
CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P
R153 1-216-857-11 METAL CHIP 1M 5% 1/10W
R154 1-216-857-11 METAL CHIP 1M 5% 1/10W
R155 1-216-805-11 METAL CHIP 47 5% 1/10W
R156 1-216-809-11 METAL CHIP 100 5% 1/10W
R157 1-216-809-11 METAL CHIP 100 5% 1/10W
R201 1-216-295-91 SHORT CHIP 0
R202 1-216-295-91 SHORT CHIP 0
R203 1-216-809-11 METAL CHIP 100 5% 1/10W
R204 1-216-809-11 METAL CHIP 100 5% 1/10W
R205 1-216-809-11 METAL CHIP 100 5% 1/10W
R206 1-216-809-11 METAL CHIP 100 5% 1/10W
R207 1-216-809-11 METAL CHIP 100 5% 1/10W
R208 1-216-809-11 METAL CHIP 100 5% 1/10W
R209 1-216-809-11 METAL CHIP 100 5% 1/10W
R210 1-216-809-11 METAL CHIP 100 5% 1/10W
R211 1-216-809-11 METAL CHIP 100 5% 1/10W
R212 1-216-809-11 METAL CHIP 100 5% 1/10W
R213 1-216-809-11 METAL CHIP 100 5% 1/10W
< IC >
IC101 6-712-082-01 IC TC94A70FG-101
IC201 6-710-808-01 IC TK63115SCL-G@GT
IC401
< TRANSISTOR >
Q301 6-551-120-01 TRANSISTOR 2SA2119K
R101 1-216-813-11 METAL CHIP 220 5% 1/10W
R102 1-216-833-11 METAL CHIP 10K 5% 1/10W
R104 1-216-295-91 SHORT CHIP 0
R105 1-216-857-11 METAL CHIP 1M 5% 1/10W
R106 1-216-821-11 METAL CHIP 1K 5% 1/10W
R108 1-500-445-21 FERRITE, EMI (SMD) (2012)
R109 1-216-809-11 METAL CHIP 100 5% 1/10W
R110 1-216-833-11 METAL CHIP 10K 5% 1/10W
R111 1-216-809-11 METAL CHIP 100 5% 1/10W
R112 1-216-809-11 METAL CHIP 100 5% 1/10W
R114 1-216-833-11 METAL CHIP 10K 5% 1/10W
R118 1-216-845-11 METAL CHIP 100K 5% 1/10W
R119 1-216-864-11 SHORT CHIP 0
R121 1-216-809-11 METAL CHIP 100 5% 1/10W
R128 1-216-853-11 METAL CHIP 470K 5% 1/10W
R129 1-216-821-11 METAL CHIP 1K 5% 1/10W
R130 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R134 1-216-857-11 METAL CHIP 1M 5% 1/10W
R135 1-216-853-11 METAL CHIP 470K 5% 1/10W
R136 1-216-837-11 METAL CHIP 22K 5% 1/10W
R139 1-216-841-11 METAL CHIP 47K 5% 1/10W
R140 1-216-864-11 SHORT CHIP 0
R142 1-216-837-11 METAL CHIP 22K 5% 1/10W
R143 1-216-841-11 METAL CHIP 47K 5% 1/10W
R144 1-216-837-11 METAL CHIP 22K 5% 1/10W
R145 1-216-864-11 SHORT CHIP 0
R146 1-216-864-11 SHORT CHIP 0
R147 1-216-864-11 SHORT CHIP 0
R148 1-216-864-11 SHORT CHIP 0
R149 1-216-864-11 SHORT CHIP 0
R150 1-216-864-11 SHORT CHIP 0
R151 1-216-864-11 SHORT CHIP 0
6-710-637-01 IC BA5826SFP-E2
< RESISTOR/FERRITE BEAD >
R214 1-216-809-11 METAL CHIP 100 5% 1/10W
R216 1-216-809-11 METAL CHIP 100 5% 1/10W
R218 1-216-845-11 METAL CHIP 100K 5% 1/10W
R219 1-216-845-11 METAL CHIP 100K 5% 1/10W
R220 1-216-845-11 METAL CHIP 100K 5% 1/10W
R221 1-216-845-11 METAL CHIP 100K 5% 1/10W
R222 1-216-845-11 METAL CHIP 100K 5% 1/10W
R223 1-216-845-11 METAL CHIP 100K 5% 1/10W
R224 1-216-809-11 METAL CHIP 100 5% 1/10W
R301 1-216-845-11 METAL CHIP 100K 5% 1/10W
R302 1-216-864-11 SHORT CHIP 0
R303 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R304 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R405 1-216-833-11 METAL CHIP 10K 5% 1/10W
R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R415 1-216-841-11 METAL CHIP 47K 5% 1/10W
< VIBRATOR >
X102 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz)
************************************************************
A-1471-470-A DAB BOARD, COMPLETE (HX80R/HX90BTR)
********************
< CAPACITOR >
C802 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C803 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C804 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C805 1-124-584-00 ELECT 100uF 20% 6.3V
C806 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C807 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C808 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C811 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C812 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C813 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C814 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C815 1-126-160-11 ELECT 1uF 20% 50V
C816 1-126-160-11 ELECT 1uF 20% 50V
C817 1-126-160-11 ELECT 1uF 20% 50V
C818 1-126-160-11 ELECT 1uF 20% 50V
6969
Page 70
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
MAINJACKDMPDAB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C820 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C821 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C823 1-126-518-11 ELECT 470uF 20% 4V
C824 1-126-518-11 ELECT 470uF 20% 4V
C825 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
R909 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
************************************************************
JACK BOARD
***********
< CONNECTOR >
CN800 1-821-719-11 P.W.B CONNECTOR 30P
CN801 1-568-854-11 CONNECTOR, FFC 11P
< DIODE >
D804 6-501-582-01 DIODE 1N4002-B5
D805 6-501-582-01 DIODE 1N4002-B5
D806 6-501-582-01 DIODE 1N4002-B5
< IC >
IC801 6-702-302-01 IC TK11133CSCL-G
IC802 6-711-132-01 IC MM3291CNRE
IC803 8-759-100-96
< JUMPER RESISTOR >
JR801 1-216-864-11 SHORT CHIP
JR802 1-216-864-11 SHORT CHIP 0
< FERRITE BEAD >
L802 1-469-981-21 INDUCTOR, FERRITE BEAD
< RESISTOR >
R800 1-216-833-11 METAL CHIP 10K 5% 1/10W
R801 1-216-841-11 METAL CHIP 47K 5% 1/10W
R803 1-216-809-11 METAL CHIP 100 5% 1/10W
R804 1-216-809-11 METAL CHIP 100 5% 1/10W
R805 1-216-837-11 METAL CHIP 22K 5% 1/10W
R806 1-216-837-11 METAL CHIP 22K 5% 1/10W
R807 1-216-837-11 METAL CHIP 22K 5% 1/10W
R808 1-216-837-11 METAL CHIP 22K 5% 1/10W
R809 1-216-837-11 METAL CHIP 22K 5% 1/10W
R810 1-216-837-11 METAL CHIP 22K 5% 1/10W
R819 1-216-864-11 SHORT CHIP 0
R820 1-216-864-11 SHORT CHIP 0
R823 1-216-837-11 METAL CHIP 22K 5% 1/10W
R824 1-216-837-11 METAL CHIP 22K 5% 1/10W
R825 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R826 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R830 1-216-809-11 METAL CHIP 100 5% 1/10W
R832 1-216-809-11 METAL CHIP 100 5% 1/10W
R833 1-216-809-11 METAL CHIP 100 5% 1/10W
************************************************************
DMP BOARD
**********
IC uPC4558G2
0
< CAPACITOR >
C982 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C984 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C987 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C989 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C990 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C991 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C997 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C999 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
< JACK >
J981 1-815-629-21 JACK (AUDIO IN)
J982 1-815-629-21 JACK (PHONES)
< JUMPER RESISTOR >
L982 1-216-864-11 SHORT CHIP 0
L983 1-216-864-11 SHORT CHIP 0
< RESISTOR >
R931 1-216-821-11 METAL CHIP 1K 5% 1/10W
R932 1-216-845-11 METAL CHIP 100K 5% 1/10W
R941 1-216-821-11 METAL CHIP 1K 5% 1/10W
R942 1-216-845-11 METAL CHIP 100K 5% 1/10W
************************************************************
A-1471-264-A MAIN BOARD, COMPLETE (HX50BTR: CND)
A-1471-266-A MAIN BOARD, COMPLETE (HX50BTR: AEP)
A-1471-268-A MAIN BOARD, COMPLETE (HX50BTR: RU)
A-1471-270-A MAIN BOARD, COMPLETE (HX50BTR: SP, KR)
A-1471-272-A MAIN BOARD, COMPLETE
(HX50BTR: E51, MX, AR)
A-1471-276-A MAIN BOARD, COMPLETE (HX50BTR: BR)
A-1471-278-A MAIN BOARD, COMPLETE (HX70BTR)
A-1471-280-A MAIN BOARD, COMPLETE (HX90BTR)
A-1539-382-A MAIN BOARD, COMPLETE (HX80R)
********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C104 1-126-961-11 ELECT 2.2uF 20% 50V
C105 1-126-961-11 ELECT 2.2uF 20% 50V
C106 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX80R/HX90BTR)
C106 1-126-963-11 ELECT 4.7uF 20% 50V
(HX70BTR)
C107 1-126-960-11 ELECT 1uF 20% 50V
< CONNECTOR >
CN901 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) (DMPORT)
CN902 1-784-863-51 CONNECTOR, FFC (LIF (NON-ZIF)) 11P
< RESISTOR/CAPACITOR >
R904 1-216-864-11 SHORT CHIP 0
R905 1-216-864-11 SHORT CHIP 0
R906 1-216-864-11 SHORT CHIP 0
R908 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
70
C108 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C112 1-126-923-91 ELECT 220uF 20% 10V
C113 1-126-160-11 ELECT 1uF 20% 50V
C114 1-126-960-11 ELECT 1uF 20% 50V
(HX80R/HX90BTR)
C115 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
C147 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
Page 71
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C148 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
C149 1-126-963-11 ELECT 4.7uF 20% 50V
C150 1-126-963-11 ELECT 4.7uF 20% 50V
C151 1-126-963-11 ELECT 4.7uF 20% 50V
C152 1-126-963-11 ELECT 4.7uF 20% 50V
C153 1-126-961-11 ELECT 2.2uF 20% 50V
C159 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C160 1-136-497-81 FILM 0.1uF 5% 50V
(HX50BTR/HX80R/HX90BTR)
C160 1-137-190-91 FILM 0.22uF 5% 50V
(HX70BTR)
C163 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C167 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
(HX50BTR/HX80R/HX90BTR)
C167 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(HX70BTR)
C168 1-136-497-81 FILM 0.1uF 5% 50V
C204 1-126-961-11 ELECT 2.2uF 20% 50V
C205 1-126-961-11 ELECT 2.2uF 20% 50V
C206 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX80R/HX90BTR)
C206 1-126-963-11 ELECT 4.7uF 20% 50V
(HX70BTR)
C207 1-126-960-11 ELECT 1uF 20% 50V
C208 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C212 1-126-923-91 ELECT 220uF 20% 10V
C213 1-126-160-11 ELECT 1uF 20% 50V
C214 1-126-960-11 ELECT 1uF 20% 50V
(HX80R/HX90BTR)
C215 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
C247 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
C248 1-126-960-11 ELECT 1uF 20% 50V
(HX50BTR/HX70BTR/HX90BTR)
C249 1-126-963-11 ELECT 4.7uF 20% 50V
C250 1-126-963-11 ELECT 4.7uF 20% 50V
C251 1-126-963-11 ELECT 4.7uF 20% 50V
C252 1-126-963-11 ELECT 4.7uF 20% 50V
C253 1-126-961-11 ELECT 2.2uF 20% 50V
C259 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(HX50BTR/HX80R/HX90BTR)
C260 1-136-497-81 FILM 0.1uF 5% 50V
(HX50BTR/HX80R/HX90BTR)
C260 1-137-190-91 FILM 0.22uF 5% 50V
(HX70BTR)
C263 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C267 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
(HX50BTR/HX80R/HX90BTR)
C267 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
(HX70BTR)
C268 1-136-497-81 FILM 0.1uF 5% 50V
C301 1-115-456-21 DOUBLE LAYER 0.22F 5.5V
C304 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C310 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C311 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C312 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C316 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C320 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C326 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C355 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C356 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C361 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C362 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C369 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C390 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C398 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C401 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C402 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C465 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C466 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C467 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C468 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C501 1-126-925-91 ELECT 470uF 20% 10V
(HX50BTR/HX70BTR)
C501 1-126-929-11 ELECT 4700uF 20% 10V
(HX80R/HX90BTR)
C502 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C504 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C506 1-126-933-11 ELECT 100uF 20% 16V
C507 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C508 1-126-925-91 ELECT 470uF 20% 10V
C510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C516 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(HX50BTR/HX70BTR/HX90BTR)
C519 1-126-923-91 ELECT 220uF 20% 10V
C520 1-126-925-91 ELECT 470uF 20% 10V
C521 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C532 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C533 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C537 1-126-947-11 ELECT 47uF 20% 35V
C543 1-126-923-91 ELECT 220uF 20% 10V
C544 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C562 1-126-923-91 ELECT 220uF 20% 10V
C563 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C564 1-126-923-91 ELECT 220uF 20% 10V
C566 1-126-933-11 ELECT 100uF 20% 16V
C701 1-126-925-91 ELECT 470uF 20% 10V
C702 1-126-925-91 ELECT 470uF 20% 10V
C706 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C715 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C716 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C722 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C751 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C753 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C754 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< LEAD PIN >
CLP301 1-537-584-11 PIN, LEAD
CLP302 1-537-584-11 PIN, LEAD
< CONNECTOR >
CN501 1-815-449-11 PIN, CONNECTOR (PWB) 8P
CN502 1-784-776-11 CONNECTOR, FFC 15P
CN504 1-819-133-11 PIN, CONNECTOR
CN507 1-815-444-11 PIN, CONNECTOR (PWB) 3P
CN510 1-784-780-11 CONNECTOR, FFC 19P
7171
Page 72
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CN512 1-568-830-11 CONNECTOR, FFC 11P (HX80R/HX90BTR)
CN514 1-779-279-11 CONNECTOR, FFC (LIF (NON-ZIF)) 11P
CN518 1-784-770-11 CONNECTOR, FFC 9P
CN518 1-568-830-11 CONNECTOR, FFC 11P
CN609 1-779-283-11 CONNECTOR, FFC (LIF (NON-ZIF)) 15P
CN701 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P
CN720 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P
CN751 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
< DIODE >
D401 6-500-334-01 DIODE MC2836-T112-1
D402 6-501-193-01 DIODE 1SS355WTE-17
D474 6-501-193-01 DIODE 1SS355WTE-17
D509 6-501-582-01 DIODE 1N4002-B5
D541 6-501-164-01 DIODE UDZW-TE17-3.9B
D551 6-501-193-01 DIODE 1SS355WTE-17
< EARTH TERMINAL >
EP501 1-537-771-21 TERMINAL BOARD, GROUND
< IC >
IC301 A-1550-197-A IC R5F3640DDFAR (for SERVICE) (HX50BTR)
IC301 A-1550-198-A IC R5F3640DDFAR (for SERVICE) (HX70BTR)
IC301 A-1550-199-A IC R5F3640MDFAR (for SERVICE) (HX90BTR)
IC301 A-1550-200-A IC R5F3640DDFAR (for SERVICE) (HX80R)
IC401 6-702-038-11 IC PST3628NR
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR)
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
JR513 1-216-296-11 SHORT CHIP 0
JR514 1-216-864-11 SHORT CHIP 0
JR515 1-216-864-11 SHORT CHIP 0
JR516 1-216-296-11 SHORT CHIP 0
JR517 1-216-864-11 SHORT CHIP 0 (HX50BTR/HX70BTR)
JR518 1-216-864-11 SHORT CHIP 0
JR519 1-216-296-11 SHORT CHIP 0
(HX50BTR/HX70BTR/HX90BTR)
JR520 1-216-864-11 SHORT CHIP 0
JR521 1-216-864-11 SHORT CHIP 0
JR522 1-216-864-11 SHORT CHIP 0
JR523 1-216-296-11 SHORT CHIP 0
JR524 1-216-296-11 SHORT CHIP 0
JR525 1-216-864-11 SHORT CHIP 0
JR526 1-216-864-11 SHORT CHIP 0
JR527 1-216-864-11 SHORT CHIP 0
JR528 1-216-296-11 SHORT CHIP 0
JR701 1-216-864-11 SHORT CHIP 0
(HX50BTR/HX70BTR/HX90BTR)
< FERRITE BEAD/JUMPER RESISTOR >
L301 1-469-981-21 INDUCTOR, FERRITE BEAD
L316 1-469-981-21 INDUCTOR, FERRITE BEAD
L362 1-469-981-21 INDUCTOR, FERRITE BEAD
L399 1-216-864-11 SHORT CHIP 0
L502 1-469-981-21 INDUCTOR, FERRITE BEAD
L511 1-469-981-21 INDUCTOR, FERRITE BEAD
< TRANSISTOR >
IC501 6-712-055-01 IC BD3499FV-E2
IC502 6-700-830-01 IC KIA7809API
IC503 8-759-430-37 IC MC14052BDTR2
IC505 8-759-646-52 IC KIA7805API
IC506 6-708-659-01 IC BA00BC0WT-V5
IC507 6-705-337-01 IC TK11150CSCL-G
IC510 8-759-430-37 IC MC14052BDTR2
(HX50BTR/HX70BTR/HX90BTR)
IC521 8-759-100-96 IC uPC4558G2
IC551 8-759-656-83 IC NJM4580MD- (TE2)
IC701 8-759-598-69 IC BA6956AN
IC751 6-707-870-01 IC TC74VHC157FT (EKJ)
IC753 8-759-523-03 IC TC74HC4066AFT (EL)
IC754 8-759-523-03 IC TC74HC4066AFT (EL)
< JUMPER RESISTOR >
JR101 1-216-864-11 SHORT CHIP 0 (HX80R)
JR201 1-216-864-11 SHORT CHIP 0 (HX80R)
JR301 1-216-864-11 SHORT CHIP 0
JR501 1-216-864-11 SHORT CHIP 0
JR502 1-216-864-11 SHORT CHIP 0
JR503 1-216-864-11 SHORT CHIP 0
JR504 1-216-864-11 SHORT CHIP 0
JR505 1-216-864-11 SHORT CHIP 0
JR506 1-216-864-11 SHORT CHIP 0
JR507 1-216-296-11 SHORT CHIP 0
JR508 1-216-864-11 SHORT CHIP 0
JR509 1-216-864-11 SHORT CHIP 0
JR510 1-216-864-11 SHORT CHIP 0
JR511 1-216-864-11 SHORT CHIP 0
JR512 1-216-864-11 SHORT CHIP 0
Q312 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q316 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q325 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q326 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q370 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q371 8-729-027-43 TRANSISTOR DTC114EKA-T146
(HX80R/HX90BTR)
Q372 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q387 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q388 8-729-027-43 TRANSISTOR DTC114EKA-T146
(HX50BTR/HX70BTR/HX90BTR)
Q389 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q390 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q392 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q393 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q399 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q426 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q504 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q511 6-551-960-01 TRANSISTOR RT3X99M
Q513 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q551 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q554 6-551-960-01 TRANSISTOR RT3X99M
Q555 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
(HX50BTR/HX70BTR/HX90BTR)
Q606 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF
(HX50BTR/HX70BTR/HX90BTR)
Q624 8-729-027-43 TRANSISTOR DTC114EKA-T146
(HX50BTR/HX70BTR/HX90BTR)
Q702 8-729-028-54 TRANSISTOR KTC3205
Q703 8-729-036-86 TRANSISTOR KTC3203Y-AT
72
Page 73
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q704 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q706 8-729-036-86 TRANSISTOR KTC3203Y-AT
Q707 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q716 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
< RESISTOR >
R224 1-216-845-11 METAL CHIP 100K 5% 1/10W
R225 1-216-845-11 METAL CHIP 100K 5% 1/10W
R226 1-216-845-11 METAL CHIP 100K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R228 1-216-845-11 METAL CHIP 100K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R101 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R102 1-216-841-11 METAL CHIP 47K 5% 1/10W
R103 1-216-821-11 METAL CHIP 1K 5% 1/10W
R105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R106 1-216-841-11 METAL CHIP 47K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R107 1-216-833-11 METAL CHIP 10K 5% 1/10W
R108 1-216-813-11 METAL CHIP 220 5% 1/10W
R111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R112 1-216-845-11 METAL CHIP 100K 5% 1/10W
R113 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R115 1-216-837-11 METAL CHIP 22K 5% 1/10W
R116 1-216-805-11 METAL CHIP 47 5% 1/10W
R117 1-216-845-11 METAL CHIP 100K 5% 1/10W
R119 1-216-845-11 METAL CHIP 100K 5% 1/10W
R124 1-216-845-11 METAL CHIP 100K 5% 1/10W
R125 1-216-845-11 METAL CHIP 100K 5% 1/10W
R126 1-216-845-11 METAL CHIP 100K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R128 1-216-845-11 METAL CHIP 100K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R129 1-216-845-11 METAL CHIP 100K 5% 1/10W
R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R132 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R133 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R134 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R135 1-216-841-11 METAL CHIP 47K 5% 1/10W
R137 1-216-845-11 METAL CHIP 100K 5% 1/10W
R138 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R139 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R140 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R141 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R144 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX80R/HX90BTR)
R146 1-216-809-11 METAL CHIP 100 5% 1/10W
R160 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R201 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R202 1-216-841-11 METAL CHIP 47K 5% 1/10W
R203 1-216-821-11 METAL CHIP 1K 5% 1/10W
R205 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R206 1-216-841-11 METAL CHIP 47K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R207 1-216-833-11 METAL CHIP 10K 5% 1/10W
R208 1-216-813-11 METAL CHIP 220 5% 1/10W
R211 1-216-821-11 METAL CHIP 1K 5% 1/10W
R212 1-216-845-11 METAL CHIP 100K 5% 1/10W
R213 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R215 1-216-837-11 METAL CHIP 22K 5% 1/10W
R216 1-216-805-11 METAL CHIP 47 5% 1/10W
R217 1-216-845-11 METAL CHIP 100K 5% 1/10W
R219 1-216-845-11 METAL CHIP 100K 5% 1/10W
R229 1-216-845-11 METAL CHIP 100K 5% 1/10W
R231 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R232 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R233 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R234 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R235 1-216-841-11 METAL CHIP 47K 5% 1/10W
R237 1-216-845-11 METAL CHIP 100K 5% 1/10W
R238 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R239 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R240 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R241 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R244 1-216-809-11 METAL CHIP 100 5% 1/10W
(HX80R/HX90BTR)
R246 1-216-809-11 METAL CHIP 100 5% 1/10W
R260 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R301 1-216-809-11 METAL CHIP 100 5% 1/10W
R302 1-216-809-11 METAL CHIP 100 5% 1/10W
R303 1-216-809-11 METAL CHIP 100 5% 1/10W
R304 1-216-821-11 METAL CHIP 1K 5% 1/10W
R305 1-216-809-11 METAL CHIP 100 5% 1/10W
R306 1-216-809-11 METAL CHIP 100 5% 1/10W
R307 1-216-809-11 METAL CHIP 100 5% 1/10W
R308 1-216-809-11 METAL CHIP 100 5% 1/10W
R309 1-216-833-11 METAL CHIP 10K 5% 1/10W
R311 1-216-849-11 METAL CHIP 220K 5% 1/10W
R313 1-216-864-11 SHORT CHIP 0
R316 1-216-841-11 METAL CHIP 47K 5% 1/10W
R318 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
R319 1-216-809-11 METAL CHIP 100 5% 1/10W
R320 1-216-841-11 METAL CHIP 47K 5% 1/10W
R321 1-216-809-11 METAL CHIP 100 5% 1/10W
R322 1-216-817-11 METAL CHIP 470 5% 1/10W
R323 1-216-809-11 METAL CHIP 100 5% 1/10W
R324 1-216-817-11 METAL CHIP 470 5% 1/10W
R325 1-216-809-11 METAL CHIP 100 5% 1/10W
R326 1-216-821-11 METAL CHIP 1K 5% 1/10W
R327 1-216-809-11 METAL CHIP 100 5% 1/10W
R328 1-216-809-11 METAL CHIP 100 5% 1/10W
R331 1-216-809-11 METAL CHIP 100 5% 1/10W
R332 1-216-809-11 METAL CHIP 100 5% 1/10W
R333 1-216-809-11 METAL CHIP 100 5% 1/10W
R334 1-216-809-11 METAL CHIP 100 5% 1/10W
R335 1-216-809-11 METAL CHIP 100 5% 1/10W
R336 1-216-809-11 METAL CHIP 100 5% 1/10W
R337 1-216-809-11 METAL CHIP 100 5% 1/10W
R338 1-216-809-11 METAL CHIP 100 5% 1/10W
R339 1-216-809-11 METAL CHIP 100 5% 1/10W
R340 1-216-809-11 METAL CHIP 100 5% 1/10W
R341 1-216-833-11 METAL CHIP 10K 5% 1/10W
R342 1-216-809-11 METAL CHIP 100 5% 1/10W
R343 1-216-809-11 METAL CHIP 100 5% 1/10W
7373
Page 74
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R344 1-216-809-11 METAL CHIP 100 5% 1/10W
R345 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R346 1-216-805-11 METAL CHIP 47 5% 1/10W
R347 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX80R/HX90BTR)
R348 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX80R/HX90BTR)
R349 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R350 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R351 1-216-821-11 METAL CHIP 1K 5% 1/10W
R352 1-216-821-11 METAL CHIP 1K 5% 1/10W
R353 1-216-821-11 METAL CHIP 1K 5% 1/10W
R354 1-216-821-11 METAL CHIP 1K 5% 1/10W
R355 1-216-817-11 METAL CHIP 470 5% 1/10W
R356 1-216-817-11 METAL CHIP 470 5% 1/10W
R357 1-216-817-11 METAL CHIP 470 5% 1/10W
R358 1-216-817-11 METAL CHIP 470 5% 1/10W
R359 1-216-817-11 METAL CHIP 470 5% 1/10W
R360 1-216-809-11 METAL CHIP 100 5% 1/10W
R362 1-216-809-11 METAL CHIP 100 5% 1/10W
R363 1-216-821-11 METAL CHIP 1K 5% 1/10W
R365 1-216-821-11 METAL CHIP 1K 5% 1/10W
R366 1-216-821-11 METAL CHIP 1K 5% 1/10W
R367 1-216-821-11 METAL CHIP 1K 5% 1/10W
R368 1-216-821-11 METAL CHIP 1K 5% 1/10W
R369 1-216-833-11 METAL CHIP 10K 5% 1/10W
R373 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX80R/HX90BTR)
R375 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX80R/HX90BTR)
R376 1-216-821-11 METAL CHIP 1K 5% 1/10W
R377 1-216-809-11 METAL CHIP 100 5% 1/10W
R378 1-216-809-11 METAL CHIP 100 5% 1/10W
R379 1-216-821-11 METAL CHIP 1K 5% 1/10W
R380 1-216-821-11 METAL CHIP 1K 5% 1/10W
R381 1-216-821-11 METAL CHIP 1K 5% 1/10W
R382 1-216-821-11 METAL CHIP 1K 5% 1/10W
R383 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
R384 1-216-821-11 METAL CHIP 1K 5% 1/10W
R385 1-216-821-11 METAL CHIP 1K 5% 1/10W
R386 1-216-821-11 METAL CHIP 1K 5% 1/10W
R390 1-216-821-11 METAL CHIP 1K 5% 1/10W
R391 1-216-833-11 METAL CHIP 10K 5% 1/10W
R394 1-216-809-11 METAL CHIP 100 5% 1/10W
R424 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R426 1-216-845-11 METAL CHIP 100K 5% 1/10W
R429 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R430 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R446 1-216-833-11 METAL CHIP 10K 5% 1/10W
R447 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR)
R448 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR)
R451 1-216-833-11 METAL CHIP 10K 5% 1/10W
R452 1-216-833-11 METAL CHIP 10K 5% 1/10W
R466 1-216-833-11 METAL CHIP 10K 5% 1/10W
R467 1-216-833-11 METAL CHIP 10K 5% 1/10W
R468 1-216-833-11 METAL CHIP 10K 5% 1/10W
R469 1-216-845-11 METAL CHIP 100K 5% 1/10W
R474 1-216-857-11 METAL CHIP 1M 5% 1/10W
R483 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR)
R484 1-216-833-11 METAL CHIP 10K 5% 1/10W
R485 1-216-833-11 METAL CHIP 10K 5% 1/10W
R486 1-216-833-11 METAL CHIP 10K 5% 1/10W
R490 1-216-857-11 METAL CHIP 1M 5% 1/10W
R491 1-216-841-11 METAL CHIP 47K 5% 1/10W
R492 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R497 1-216-813-11 METAL CHIP 220 5% 1/10W
(HX50BTR: RU)
R497 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX50BTR: E51, MX, AR)
R497 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR: CND, BR)
R497 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
R502 1-216-864-11 SHORT CHIP 0
R503 1-216-821-11 METAL CHIP 1K 5% 1/10W
R504 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R507 1-216-833-11 METAL CHIP 10K 5% 1/10W
R508 1-216-833-11 METAL CHIP 10K 5% 1/10W
(HX80R/HX90BTR)
R509 1-216-833-11 METAL CHIP 10K 5% 1/10W
R510 1-216-833-11 METAL CHIP 10K 5% 1/10W
R519 1-217-806-11 RES-CHIP 1 5% 1/8W
R521 1-216-833-11 METAL CHIP 10K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R522 1-216-797-11 METAL CHIP 10 5% 1/10W
R523 1-216-837-11 METAL CHIP 22K 5% 1/10W
R524 1-216-817-11 METAL CHIP 470 5% 1/10W
R527 1-216-841-11 METAL CHIP 47K 5% 1/10W
R395 1-216-821-11 METAL CHIP 1K 5% 1/10W
R397 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR)
R399 1-216-845-11 METAL CHIP 100K 5% 1/10W
R400 1-216-809-11 METAL CHIP 100 5% 1/10W
R401 1-216-841-11 METAL CHIP 47K 5% 1/10W
R402 1-216-841-11 METAL CHIP 47K 5% 1/10W
R412 1-216-833-11 METAL CHIP 10K 5% 1/10W
R416 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R417 1-216-833-11 METAL CHIP 10K 5% 1/10W
R418 1-216-821-11 METAL CHIP 1K 5% 1/10W
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR)
R420 1-216-833-11 METAL CHIP 10K 5% 1/10W
R422 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
74
R528 1-216-841-11 METAL CHIP 47K 5% 1/10W
R529 1-216-845-11 METAL CHIP 100K 5% 1/10W
R530 1-216-845-11 METAL CHIP 100K 5% 1/10W
R541 1-216-813-11 METAL CHIP 220 5% 1/10W
R542 1-216-821-11 METAL CHIP 1K 5% 1/10W
R543 1-216-833-11 METAL CHIP 10K 5% 1/10W
R544 1-216-805-11 METAL CHIP 47 5% 1/10W
R561 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R575 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R577 1-216-837-11 METAL CHIP 22K 5% 1/10W
R578 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R584 1-216-821-11 METAL CHIP 1K 5% 1/10W
R585 1-216-833-11 METAL CHIP 10K 5% 1/10W
Page 75
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
MAIN MOTOR PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R603 1-216-817-11 METAL CHIP 470 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R604 1-216-837-11 METAL CHIP 22K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R605 1-216-833-11 METAL CHIP 10K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R705 1-216-821-11 METAL CHIP 1K 5% 1/10W
R707 1-216-821-11 METAL CHIP 1K 5% 1/10W
R708 1-216-864-11 SHORT CHIP 0
R709 1-216-158-00 RES-CHIP 22 5% 1/8W
C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C954 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C962 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< DIODE >
D903 6-501-193-01 DIODE 1SS355WTE-17
D905 6-501-579-01 DIODE MC2837
D906 6-501-579-01 DIODE MC2837
D907 6-501-579-01 DIODE MC2837
D909 6-501-582-01 DIODE 1N4002-B5
R710 1-216-158-00 RES-CHIP 22 5% 1/8W
R711 1-216-158-00 RES-CHIP 22 5% 1/8W
R713 1-216-845-11 METAL CHIP 100K 5% 1/10W
R715 1-216-845-11 METAL CHIP 100K 5% 1/10W
R731 1-216-837-11 METAL CHIP 22K 5% 1/10W
R732 1-216-837-11 METAL CHIP 22K 5% 1/10W
R751 1-216-809-11 METAL CHIP 100 5% 1/10W
R752 1-216-833-11 METAL CHIP 10K 5% 1/10W
R761 1-216-845-11 METAL CHIP 100K 5% 1/10W
R764 1-216-845-11 METAL CHIP 100K 5% 1/10W
< VIBRATOR >
X301 1-814-067-11 OSCILLATOR, CRYSTAL (32.768kHz)
X302 1-814-062-21 VIBRATOR, CERAMIC (5MHz)
************************************************************
MOTOR BOARD
*************
< CONNECTOR >
CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P
< SWITCH >
S001 1-786-509-11 SWITCH, ROTARY
(DISC TRAY OPEN/CLOSE DETECT)
************************************************************
PANEL BOARD
************
< CAPACITOR >
C901 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C902 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C903 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C904 1-126-964-11 ELECT 10uF 20% 50V
C905 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C906 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C907 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C912 1-126-964-11 ELECT 10uF 20% 50V
C913 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C916 1-126-964-11 ELECT 10uF 20% 50V
C917 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C920 1-126-964-11 ELECT 10uF 20% 50V
C921 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C922 1-126-964-11 ELECT 10uF 20% 50V
C923 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C924 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C925 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C926 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
D911 6-501-168-01 DIODE UDZW-TE17-5.6B
D951 6-501-483-01 LED SLR-325VCT31P (STANDBY)
D953 6-501-539-01 LED SELK5E20C-DTP15 (BLUETOOTH)
< FLUORESCENT INDICATOR TUBE >
FL901 1-519-939-12 INDICATOR TUBE, FLUORESCENT
< IC >
IC901 8-759-100-96 IC uPC4558G2
IC951 6-600-349-31 IC NJL24H400A
< JUMPER RESISTOR >
JR901
JR902 1-216-864-11 SHORT CHIP 0
JR903 1-216-864-11 SHORT CHIP 0
JR904 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q901 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q902 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q903 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q904 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q905 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q906 8-729-047-62 TRANSISTOR 2SC3440-T12-1F
Q907 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF
Q908 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q951 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q952 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q953 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R901 1-216-841-11 METAL CHIP 47K 5% 1/10W
R902 1-216-845-11 METAL CHIP 100K 5% 1/10W
R903 1-216-841-11 METAL CHIP 47K 5% 1/10W
R904 1-216-845-11 METAL CHIP 100K 5% 1/10W
R905 1-216-841-11 METAL CHIP 47K 5% 1/10W
R906 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R907 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R908 1-216-797-11 METAL CHIP 10 5% 1/10W
R909 1-216-797-11 METAL CHIP 10 5% 1/10W
R910 1-216-833-11 METAL CHIP 10K 5% 1/10W
R911 1-216-833-11 METAL CHIP 10K 5% 1/10W
R917 1-216-837-11 METAL CHIP 22K 5% 1/10W
R918 1-216-817-11 METAL CHIP 470 5% 1/10W
R919 1-216-837-11 METAL CHIP 22K 5% 1/10W
R920 1-216-821-11 METAL CHIP 1K 5% 1/10W
R921 1-216-833-11 METAL CHIP 10K 5% 1/10W
R923 1-216-821-11 METAL CHIP 1K 5% 1/10W
1-216-864-11 SHORT CHIP 0
(HX50BTR/HX70BTR/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
7575
Page 76
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
PANEL SW POWERSP TERMINAL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R924 1-216-841-11 METAL CHIP 47K 5% 1/10W
R926 1-216-841-11 METAL CHIP 47K 5% 1/10W
R927 1-216-821-11 METAL CHIP 1K 5% 1/10W
SP TERMINAL BOARD
*****************
R928 1-216-833-11 METAL CHIP 10K 5% 1/10W
R929 1-216-833-11 METAL CHIP 10K 5% 1/10W
R930 1-216-833-11 METAL CHIP 10K 5% 1/10W
R933 1-216-837-11 METAL CHIP 22K 5% 1/10W
R934 1-216-837-11 METAL CHIP 22K 5% 1/10W
R935 1-216-821-11 METAL CHIP 1K 5% 1/10W
R936 1-216-833-11 METAL CHIP 10K 5% 1/10W
R937 1-216-833-11 METAL CHIP 10K 5% 1/10W
R939 1-216-805-11 METAL CHIP 47 5% 1/10W
R940 1-216-805-11 METAL CHIP 47 5% 1/10W
R943 1-216-805-11 METAL CHIP 47 5% 1/10W
R944 1-216-833-11 METAL CHIP 10K 5% 1/10W
R945 1-216-833-11 METAL CHIP 10K 5% 1/10W
R947 1-216-817-11 METAL CHIP 470 5% 1/10W
R948 1-216-805-11 METAL CHIP 47 5% 1/10W
R949 1-216-833-11 METAL CHIP 10K 5% 1/10W
R950 1-216-813-11 METAL CHIP 220 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R951 1-216-821-11 METAL CHIP 1K 5% 1/10W
R952 1-216-805-11 METAL CHIP 47 5% 1/10W
R953 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R954 1-216-809-11 METAL CHIP 100 5% 1/10W
R955 1-216-833-11 METAL CHIP 10K 5% 1/10W
(HX50BTR/HX70BTR/HX90BTR)
R956 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R957 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R958 1-216-142-00 RES-CHIP 4.7 5% 1/8W
< CAPACITOR >
C851 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C852 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C853 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C854 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
< CONNECTOR >
CN850 1-819-131-11 PIN, CONNECTOR 3P
CN870 1-819-130-11 PIN, CONNECTOR 2P
< TERMINAL BOARD >
J860 1-780-634-11 TERMINAL BOARD (SPEAKER) 2P (SPEAKER)
************************************************************
SW POWER BOARD
****************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
0 C1 1-165-529-11 MYLAR 0.22uF 10 275V
0 C2 1-165-529-11 MYLAR 0.22uF 10 275V
0 C4 1-112-876-51 CERAMIC 470PF 10% 250V
(HX50BTR: CND, MX)
0 C4 1-119-886-51 CERAMIC 470PF 10% 250V
(HX50BTR: AEP, RU, E51, BR, SP, AR, KR/
HX70BTR/HX80R/HX90BTR)
R959 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R970 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R979 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R980 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R981 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R982 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R983 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R984 1-216-142-00 RES-CHIP 4.7 5% 1/8W
R985 1-216-809-11 METAL CHIP 100 5% 1/10W
R989 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R990 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R991 1-216-821-11 METAL CHIP 1K 5% 1/10W
R992 1-216-833-11 METAL CHIP 10K 5% 1/10W
< ROTARY ENCODER >
RV952 1-418-725-41 ENCODER, ROTARY (12 TYPE) (VOLUME)
< SWITCH >
S951 1-762-875-21 SWITCH, KEYBOARD (I/1) (HX50BTR: CND,
AEP, RU/HX70BTR/HX80R/HX90BTR)
S951 1-771-410-21 SWITCH, TACTILE (I/1)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S952 1-762-875-21 SWITCH, KEYBOARD (BLUETOOTH OPR)
(HX50BTR: CND, AEP, RU/HX70BTR/HX90BTR)
S952 1-771-410-21 SWITCH, TACTILE (BLUETOOTH OPR)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S954 1-762-875-21 SWITCH, KEYBOARD (Z) (HX50BTR: CND, AEP,
RU/HX70BTR/HX80R/HX90BTR)
S954 1-771-410-21 SWITCH, TACTILE (Z)
(HX50BTR: E51, MX, BR, SP, AR, KR)
************************************************************
0 C5 1-112-876-51 CERAMIC 470PF 10% 250V
0 C5 1-119-886-51 CERAMIC 470PF 10% 250V
0 C6 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V
0 C11 1-100-858-11 ELECT 390uF 20% 250V
0 C11 1-100-923-21 ELECT 100uF 20% 450V
0 C11 1-114-237-21 ELECT 130uF 20% 450V
0 C12 1-100-858-11 ELECT 390uF 20% 250V
0 C13 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V
0 C14 1-163-275-91 CERAMIC CHIP 0.001uF 5% 50V
0 C15 1-124-247-91 ELECT 10uF 20% 35V
0 C16 1-126-963-91 ELECT 4.7uF 20% 50V
0 C17 1-162-964-91 CERAMIC CHIP 0.001uF 10% 50V
0 C18 1-115-339-91 CERAMIC CHIP 0.1uF 10% 50V
0 C19 1-162-970-91 CERAMIC CHIP 0.01uF 10% 25V
0 C20 1-126-947-91 ELECT 47uF 20% 35V
C21 1-115-340-91 CERAMIC CHIP 0.22uF 10% 25V
0
0 C22 1-107-824-81 CERAMIC 220PF 5% 1KV
0 C23 1-107-824-81 CERAMIC 220PF 5% 1KV
0 C24 1-100-400-11 FILM 39000PF 3% 1KV
0 C24 1-165-610-11 FILM 33000PF 3% 800V
0 C25 1-126-949-91 ELECT 220uF 20% 35V
C31 1-128-946-31 ELECT 2200uF 20% 10V
(HX50BTR: AEP, RU, E51, BR, SP, AR, KR/
(HX50BTR: AEP, RU, SP, AR, KR/HX80R/
(HX50BTR: CND, MX)
HX70BTR/HX80R/HX90BTR)
(HX50BTR: CND, E51, MX, BR)
HX90BTR)
(HX70BTR)
(HX50BTR: CND, E51, MX, BR)
(HX70BTR)
(HX50BTR/HX80R/HX90BTR)
76
Page 77
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
SW POWER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C32 1-100-924-21 ELECT 2200uF 20% 35V
(HX70BTR)
C32 1-137-806-21 ELECT 1800uF 20% 35V
(HX50BTR/HX80R/HX90BTR)
C33 1-165-732-31 ELECT 47uF 20% 25V
C34 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C35 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C37 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C38 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C39 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C41 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C42 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C43 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C47 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C48 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
0 C51 1-165-908-91 CERAMIC CHIP 1uF 10% 10V
0 C52 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
0 C53 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V
0 C54 1-126-960-91 ELECT 1uF 20% 50V
< FERRITE BEAD >
0 FB11 1-410-397-31 FERRITE 1.1uH
FB51 1-410-397-21 FERRITE 1.1uH
FB52 1-410-397-21 FERRITE 1.1uH
FB53 1-410-397-21 FERRITE 1.1uH
FB54 1-410-397-21 FERRITE 1.1uH
< FUSE HOLDER >
FH1 1-533-233-31 FUSE HOLDER
FH2 1-533-233-31 FUSE HOLDER
< IC >
0 IC11 6-707-749-01 IC CXD9841P
0 IC51 6-708-726-01 IC MIP2F20MS1SO
IC71
< JUMPER RESISTOR >
JR10 1-216-864-11 SHORT CHIP
6-705-280-01 IC FAN431AZXA
0
C60 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C62 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C72 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C73 1-137-649-31 ELECT 220uF 20% 10V
C74 1-126-923-91 ELECT 220uF 20% 10V
C81 1-126-964-11 ELECT 10uF 20% 50V
C82 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
0 CN1 1-564-321-11 PIN, CONNECTOR (3.96mm PITCH) 2P
CN31 1-819-132-11 PIN, CONNECTOR 4P
< DIODE >
0 D1 8-719-077-77 DIODE D3SB60F3
0 D2 8-719-081-58 DIODE S2V60-TA (HX50BTR: E51, BR)
0 D3 8-719-081-58 DIODE S2V60-TA (HX50BTR: E51, BR)
0 D11 8-719-979-64 DIODE UF4005/23
0 D14 6-500-567-31 DIODE 10ERB20-TB3
0 D15 6-501-178-01 DIODE UDZW-TE17-15B
0 D16 6-501-178-01 DIODE UDZW-TE17-15B
0 D17 8-719-060-48 DIODE RB751V-40TE-17
D31 8-719-510-09 DIODE D10SC6M
D32 6-501-518-01 DIODE RB085T-90
D33 8-719-983-22 DIODE MTZJ-T-77-27A
(HX50BTR/HX80R/HX90BTR)
D33 8-719-982-15 DIODE MTZJ-27B (HX70BTR)
D43 6-500-567-31 DIODE 10ERB20-TB3
D44 6-500-567-31 DIODE 10ERB20-TB3
0 D51 6-500-567-31 DIODE 10ERB20-TB3
0 D52 8-719-073-23 DIODE ST02D-200TA
D72 6-500-567-31 DIODE 10ERB20-TB3
D81 6-501-174-01 DIODE UDZW-TE17-10B
< EARTH TERMINAL >
EP11 1-537-771-21 TERMINAL BOARD, GROUND
EP12 1-537-771-21 TERMINAL BOARD, GROUND
< COIL/FERRITE BEAD >
L53 1-469-981-21 INDUCTOR, FERRITE BEAD
L54 1-469-981-21 INDUCTOR, FERRITE BEAD
L72 1-412-525-31 INDUCTOR 10uH
< PHOTO COUPLER >
0 PH11 6-600-438-01 PHOTO COUPLER TLP421F (D4-GRJ)
0 PH12 6-600-438-01 PHOTO COUPLER TLP421F (D4-GRJ)
0 PH51 6-600-438-01 PHOTO COUPLER TLP421F (D4-GRJ)
< TRANSISTOR >
0 Q2 8-729-600-91 TRANSISTOR 2SC1623-L5L6
0 Q11 6-551-302-11 FET 2SK3561
0 Q12 6-551-302-11 FET 2SK3561
0 Q51 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q60 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q61 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q62 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q63 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q64 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q71 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q72 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q81 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q82 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q83 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q84 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
< RESISTOR >
0 R2 1-219-512-91 METAL 2.2M 5% 1/2W F
0 R3 1-219-759-91 METAL 1M 5% 1/2W F
(HX50BTR: E51, BR)
0 R4 1-219-759-91 METAL 1M 5% 1/2W F
(HX50BTR: E51, BR)
0 R5 1-218-905-91 METAL CHIP 270K 0.5% 1/10W
(HX50BTR/HX80R/HX90BTR)
0 R5 1-218-907-91 METAL CHIP 330K 0.5% 1/10W
(HX70BTR)
< FUSE >
0 F1 1-576-232-51 FUSE (5A/250V)
0 R7 1-218-899-91 METAL CHIP 150K 0.5% 1/16W
(HX50BTR/HX80R/HX90BTR)
0 R7 1-218-901-91 METAL CHIP 180K 0.5% 1/10W
(HX70BTR)
0 R8 1-216-821-91 METAL CHIP 1K 5% 1/10W
7777
Page 78
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
SW POWER TOP PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 R10 1-218-899-91 METAL CHIP 150K 0.5% 1/16W
(HX70BTR)
0 R11 1-216-864-91 SHORT CHIP 0
R89 1-216-821-11 METAL CHIP 1K 5% 1/10W
< SWITCH >
0 R12 1-245-502-21 METAL 4.7M 2% 1/4W F
0 R13 1-245-502-21 METAL 4.7M 2% 1/4W F
0 R14 1-218-911-91 METAL CHIP 470K 0.5% 1/10W
0 R15 1-218-875-91 METAL CHIP 15K 0.5% 1/10W
(HX50BTR/HX80R/HX90BTR)
0 R15 1-218-877-91 METAL CHIP 18K 0.5% 1/10W
(HX70BTR)
0 R16 1-218-823-91 METAL CHIP 100 0.5% 1/10W
0 R17 1-211-991-91 METAL CHIP 82 0.5% 1/10W
(HX70BTR)
0 R17 1-218-823-91 METAL CHIP 100 0.5% 1/10W
(HX50BTR/HX80R/HX90BTR)
0 R18 1-216-833-91 METAL CHIP 10K 5% 1/10W
0 R20 1-216-833-91 METAL CHIP 10K 5% 1/10W
0 R22 1-249-417-91 CARBON 1K 5% 1/4W F
0 R23 1-243-661-71 METAL 0.1 2% 2W F
0 R24 1-216-821-91 METAL CHIP 1K 5% 1/10W
0 R25 1-247-694-91 CARBON 33 5% 1/4W F
0 R27 1-216-797-91 METAL CHIP 10 5% 1/10W
0 R29 1-216-797-91 METAL CHIP 10 5% 1/10W
R32 1-216-821-11 METAL CHIP 1K 5% 1/10W
R33 1-216-817-11 METAL CHIP 470 5% 1/10W
R41 1-216-845-11 METAL CHIP 100K 5% 1/10W
0 R51 1-245-494-21 METAL 2.2M 2% 1/4W F
0 R52 1-245-494-21 METAL 2.2M 2% 1/4W F
0 R53 1-216-849-91 METAL CHIP 220K 5% 1/10W
0 R54 1-249-401-61 CARBON 47 5% 1/4W F
0 R55 1-216-835-91 METAL CHIP 15K 5% 1/10W
0 R56 1-249-381-61 CARBON 1 5% 1/4W F
0 R57 1-216-864-91 SHORT CHIP 0
0 R58 1-216-845-91 METAL CHIP 100K 5% 1/10W
0 R60 1-216-853-91 METAL CHIP 470K 5% 1/10W
0 R62 1-243-504-31 METAL OXIDE 0.1 5% 1W F
R63 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R64 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R65 1-216-833-11 METAL CHIP 10K 5% 1/10W
R66 1-216-833-11 METAL CHIP 10K 5% 1/10W
R67 1-216-841-11 METAL CHIP 47K 5% 1/10W
R68 1-216-817-11 METAL CHIP 470 5% 1/10W
R70 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R71 1-216-821-11 METAL CHIP 1K 5% 1/10W
R72 1-216-817-11 METAL CHIP 470 5% 1/10W
R73 1-216-805-11 METAL CHIP 47 5% 1/10W
R74 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R75 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R76 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R77 1-216-805-11 METAL CHIP 47 5% 1/10W
R78 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
R79 1-216-833-11 METAL CHIP 10K 5% 1/10W
0 R80 1-243-504-31 METAL OXIDE 0.1 5% 1W F
R81 1-216-817-11 METAL CHIP 470 5% 1/10W
R82 1-216-833-11 METAL CHIP 10K 5% 1/10W
R83 1-216-841-11 METAL CHIP 47K 5% 1/10W
R84 1-216-833-11 METAL CHIP 10K 5% 1/10W
R85 1-216-833-11 METAL CHIP 10K 5% 1/10W
R86 1-216-821-11 METAL CHIP 1K 5% 1/10W
R87 1-216-821-11 METAL CHIP 1K 5% 1/10W
R88 1-216-821-11 METAL CHIP 1K 5% 1/10W
0 S1 1-762-753-11 SWITCH, VOLTAGE SELECTION
(VOLTAGE SELECTOR) (HX50BTR: E51, BR)
< TRANSFORMER >
0 T1 1-445-048-21 TRANSFORMER, LINE FILTER (HX50BTR: AEP,
RU, SP, AR, KR/HX80R/HX90BTR)
0 T1 1-457-326-21 COIL, LINE FILTER
(HX50BTR: CND, E51, MX, BR/HX70BTR)
0 T31 1-445-162-21 TRANSFORMER, CONVERTER (HX70BTR)
0 T31 1-445-163-21 TRANSFORMER, CONVERTER
(HX50BTR/HX80R/HX90BTR)
0 T51 1-443-942-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR >
0 TH1 1-802-075-11 THERMISTOR, NTC (HX50BTR: AEP, RU, SP, AR,
KR/HX70BTR/HX80R/HX90BTR)
0 TH1 1-805-901-11 THERMISTOR, NTC
(HX50BTR: CND, E51, MX, BR)
0 TH2 1-805-901-11 THERMISTOR, NTC
(HX50BTR: CND, E51, MX, BR)
< VARISTOR >
0 VR001 1-805-481-21 VARISTOR (HX50BTR: CND, MX)
0 VR001 1-805-482-11 VARISTOR (HX50BTR: AEP, RU, E51, BR, SP, AR,
KR/HX70BTR/HX80R/HX90BTR)
0 VR002 1-802-094-21 VARISTOR (HX50BTR: E51, BR)
0 VR003 1-802-094-21 VARISTOR (HX50BTR: E51, BR)
************************************************************
TOP PANEL BOARD
***************
< RESISTOR >
R960 1-216-821-11 METAL CHIP 1K 5% 1/10W
R961 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R963 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R965 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R966 1-216-833-11 METAL CHIP 10K 5% 1/10W
R967 1-216-835-11 METAL CHIP 15K 5% 1/10W
R972 1-216-821-11 METAL CHIP 1K 5% 1/10W
R973 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R974 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R975 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R976 1-216-833-11 METAL CHIP 10K 5% 1/10W
R977 1-216-835-11 METAL CHIP 15K 5% 1/10W
R978 1-216-841-11 METAL CHIP 47K 5% 1/10W
< SWITCH >
S953 1-762-875-21 SWITCH, KEYBOARD (l m, TUNE –)
(HX50BTR: CND, AEP, RU/HX70BTR/HX80R/
HX90BTR)
S953 1-771-410-21 SWITCH, TACTILE (l m, TUNE –)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S961 1-762-875-21 SWITCH, KEYBOARD (DSGX) (HX50BTR: CND,
AEP, RU/HX70BTR/HX80R/HX90BTR)
S961 1-771-410-21 SWITCH, TACTILE (DSGX)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S962 1-762-875-21 SWITCH, KEYBOARD (USB MENU) (HX50BTR:
CND, AEP , RU/HX70BTR/HX80R/HX90BTR)
78
Page 79
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
TOP PANEL USB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
S962 1-771-410-21 SWITCH, TACTILE (USB MENU)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S963 1-762-875-21 SWITCH, KEYBOARD (CD-USB SYNC/REC1)
(HX50BTR: CND, AEP, RU/HX70BTR/HX80R/
HX90BTR)
S963 1-771-410-21 SWITCH, TACTILE (CD-USB SYNC/REC1)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S965 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) (HX50BTR:
CND, AEP , RU/HX70BTR/HX80R/HX90BTR)
S965 1-771-410-21 SWITCH, TACTILE (FUNCTION)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S966 1-762-875-21 SWITCH, KEYBOARD (FOLDER +) (HX50BTR:
CND, AEP , RU/HX70BTR/HX80R/HX90BTR)
S966 1-771-410-21 SWITCH, TACTILE (FOLDER +)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S967 1-762-875-21 SWITCH, KEYBOARD (ENTER) (HX50BTR:
CND,AEP, RU/HX70BTR/HX80R/HX90BTR)
S967 1-771-410-21 SWITCH, TACTILE (ENTER)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S968 1-762-875-21 SWITCH, KEYBOARD (FOLDER –) (HX50BTR:
CND, AEP , RU/HX70BTR/HX80R/HX90BTR)
S968 1-771-410-21 SWITCH, TACTILE (FOLDER –)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S970 1-762-875-21 SWITCH, KEYBOARD (BLUETOOTH u)
(HX50BTR: CND, AEP, RU/HX70BTR/HX90BTR)
S970 1-762-875-21 SWITCH, KEYBOARD (USB u) (HX80R)
S970 1-771-410-21 SWITCH, TACTILE (BLUETOOTH u)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S971 1-762-875-21 SWITCH, KEYBOARD (USB u)
(HX50BTR: CND, AEP, RU/HX70BTR/HX90BTR)
S971 1-762-875-21 SWITCH, KEYBOARD (CD u) (HX80R)
S971 1-771-410-21 SWITCH, TACTILE (USB u)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S972 1-762-875-21 SWITCH, KEYBOARD (CD u)
(HX50BTR: CND, AEP, RU/HX70BTR/HX90BTR)
S972 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) (HX80R)
S972 1-771-410-21 SWITCH, TACTILE (CD u)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S973 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
(HX50BTR: CND, AEP, RU/HX70BTR/HX90BTR)
S973 1-762-875-21 SWITCH, KEYBOARD (DMPORT u) (HX80R)
S973 1-771-410-21 SWITCH, TACTILE (TUNER/BAND)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S974 1-762-875-21 SWITCH, KEYBOARD (M L, TUNE +)
(HX50BTR: CND, AEP, RU/HX70BTR/HX80R/
HX90BTR)
S974 1-771-410-21 SWITCH, TACTILE (M L, TUNE +)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S975 1-762-875-21 SWITCH, KEYBOARD (x/CANCEL) (HX50BTR:
CND, AEP , RU/HX70BTR/HX80R/HX90BTR)
S975 1-771-410-21 SWITCH, TACTILE (x/CANCEL)
(HX50BTR: E51, MX, BR, SP, AR, KR)
S976 1-762-875-21 SWITCH, KEYBOARD (SEARCH)
(HX50BTR: CND, AEP, RU/HX70BTR)
S976 1-762-875-21 SWITCH, KEYBOARD
(SEARCH/DAB AUTO SCAN) (HX80R/HX90BTR)
S976 1-771-410-21 SWITCH, TACTILE (SEARCH)
(HX50BTR: E51, MX, BR, SP, AR, KR)
************************************************************
A-1444-800-A USB BOARD, COMPLETE
********************
C902 1-124-779-00 ELECT CHIP 10uF 20% 16V
C903 1-124-779-00 ELECT CHIP 10uF 20% 16V
C904 1-124-779-00 ELECT CHIP 10uF 20% 16V
C905 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C906 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C907 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C908 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C909 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C910 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C912 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C913 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C914 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C915 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C916 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C917 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
C918 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C920 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C921 1-107-826-11 CERAMIC CHIP 0.1uF
C922 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C930 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN902 1-794-548-21 CONNECTOR, USB (A) (USB)
CN904 1-784-859-51 CONNECTOR, FFC (LIF (NON-ZIF)) 7P
CN907 1-784-833-51 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
CN908 1-770-469-21 PIN, CONNECTOR (PC BOARD) 2P
< DIODE >
D901 6-501-579-01 DIODE MC2837
D902 6-501-579-01 DIODE MC2837
D905 6-501-579-01 DIODE MC2837
< EARTH TERMINAL >
EP901 1-537-771-21 TERMINAL BOARD, GROUND
< JUMPER RESISTOR >
FB901 1-216-295-91 SHORT CHIP 0
FB902 1-216-295-91 SHORT CHIP 0
< IC >
IC901 6-808-061-01 IC TMP92CD28AFG-6VD8
IC915 6-710-887-01 IC R5523N001B-TR-F
IC921 6-704-832-01 IC IS61L
< JUMPER RESISTOR >
JR902 1-216-295-91 SHORT CHIP
< COIL >
L901 1-456-799-11 COIL, COMMON MODE CHOKE
< RESISTOR >
R901 1-216-833-11 METAL CHIP 10K 5% 1/10W
R902 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R903 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R904 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R905 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
V6416-10TLT
0
10% 16V
< CAPACITOR >
C901 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
R906 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R907 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R913 1-216-845-11 METAL CHIP 100K 5% 1/10W
7979
Page 80
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
Ver. 1.1
USB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R915 1-216-833-11 METAL CHIP 10K 5% 1/10W
R916 1-216-864-11 SHORT CHIP 0
R917 1-216-864-11 SHORT CHIP 0
R919 1-216-809-11 METAL CHIP 100 5% 1/10W
R920 1-216-833-11 METAL CHIP 10K 5% 1/10W
R921 1-216-845-11 METAL CHIP 100K 5% 1/10W
R922 1-216-845-11 METAL CHIP 100K 5% 1/10W
R923 1-216-802-11 METAL CHIP 27 5% 1/10W
R924 1-216-802-11 METAL CHIP 27 5% 1/10W
R925 1-216-835-11 METAL CHIP 15K 5% 1/10W
R926 1-216-835-11 METAL CHIP 15K 5% 1/10W
R928 1-216-864-11 SHORT CHIP 0
R932 1-216-809-11 METAL CHIP 100 5% 1/10W
R933 1-216-864-11 SHORT CHIP 0
R934 1-216-833-11 METAL CHIP 10K 5% 1/10W
R937 1-216-809-11 METAL CHIP 100 5% 1/10W
R938 1-216-809-11 METAL CHIP 100 5% 1/10W
R941 1-216-845-11 METAL CHIP 100K 5% 1/10W
R942 1-216-845-11 METAL CHIP 100K 5% 1/10W
R943 1-216-845-11 METAL CHIP 100K 5% 1/10W
R944 1-216-845-11 METAL CHIP 100K 5% 1/10W
R945 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R947 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R949 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R970 1-216-809-11 METAL CHIP 100 5% 1/10W
R971 1-216-809-11 METAL CHIP 100 5% 1/10W
R972 1-216-809-11 METAL CHIP 100 5% 1/10W
R973 1-216-809-11 METAL CHIP 100 5% 1/10W
R974 1-216-809-11 METAL CHIP 100 5% 1/10W
R975 1-216-809-11 METAL CHIP 100 5% 1/10W
R976 1-216-809-11 METAL CHIP 100 5% 1/10W
R977 1-216-809-11 METAL CHIP 100 5% 1/10W
111 1-964-881-11 CABLE, COAXIAL (WITH U.F.L CONNECTOR)
(HX50BTR/HX70BTR/HX90BTR)
152 1-832-535-21 CABLE, FLEXIBLE FLAT (5 CORE)
154 1-832-645-21 CABLE, FLEXIBLE FLAT (27 CORE)
156 1-835-401-21 CABLE, FLEXIBLE FLAT (11 CORE)
158 1-831-706-21 CABLE, FLEXIBLE FLAT (11 CORE) (HX50BTR:
AEP/HX70BTR/HX80R/HX90BTR)
158 1-835-398-21 CABLE, FLEXIBLE FLAT (9 CORE) (HX50BTR:
CND, RU, E51, BR, MX, SP, AR, KR)
159 1-693-759-11 TUNER (FM/AM) (HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR)
159 1-693-760-11 TUNER (FM/AM) (HX50BTR: RU, KR)
159 1-693-762-21 TUNER (FM/AM) (HX50BTR: CND, BR)
159 1-693-764-21 TUNER (FM/AM) (HX50BTR: E51, MX, SP, AR)
203 1-457-413-11 CORE, FERRITE (HX50BTR: AEP, RU, SP, KR/
HX70BTR/HX80R/HX90BTR)
204 1-835-399-21 CABLE, FLEXIBLE FLAT (21 CORE)
205 1-400-932-11 FILTER, CLAMP
207 1-835-396-21 CABLE, FLEXIBLE FLAT (19 CORE)
209 1-457-368-11 CORE, FERRITE
0 211 1-769-079-41 CORD, POWER (HX50BTR: KR)
0 211 1-827-226-31 CORD, POWER (HX50BTR: MX)
0 211 1-832-227-11 CORD, POWER (HX50BTR: AR)
0 211 1-833-218-11 CORD, POWER (HX50BTR: BR)
0 211 1-834-965-11 CORD, POWER (HX50BTR: CND)
0 211 1-834-966-21 CORD, POWER (HX50BTR: AEP, RU, E51, SP/
HX70BTR/HX80R)
0 211 1-835-078-21 CORD, POWER (HX90BTR)
301 A-1242-967-A LOADING (BK) ASSY
0 351 A-4735-357-A BASE ASSY, OP (KSM-213D)
352 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
*************************************************************
R978 1-216-809-11 METAL CHIP 100 5% 1/10W
R979 1-216-809-11 METAL CHIP 100 5% 1/10W
R981 1-216-809-11 METAL CHIP 100 5% 1/10W
R982 1-216-809-11 METAL CHIP 100 5% 1/10W
R983 1-216-809-11 METAL CHIP 100 5% 1/10W
R984 1-216-809-11 METAL CHIP 100 5% 1/10W
R985 1-216-809-11 METAL CHIP 100 5% 1/10W
R986 1-216-809-11 METAL CHIP 100 5% 1/10W
< COMPOSITION CIRCUIT BLOCK >
RB921 1-234-944-21 RES, NETWORK 47 (1005X4)
RB922 1-234-944-21 RES, NETWORK 47 (1005X4)
RB923 1-234-944-21 RES, NETWORK 47 (1005X4)
RB924 1-234-944-21 RES, NETWORK 47 (1005X4)
< VIBRATOR >
X901 1-813-931-21 VIBRATOR, CRYSTAL (9MHz)
************************************************************
MISCELLANEOUS
**************
51 1-821-551-11 PIN, CONNECTOR 2P (HX80R/HX90BTR)
52 1-480-340-41 MODULE (DAB TUNER) (HX80R/HX90BTR)
54 1-832-825-21 CABLE, FLEXIBLE FLAT (11 CORE) (HX80R/
HX90BTR)
109 1-835-397-21 CABLE, FLEXIBLE FLAT (15 CORE)
110 1-835-400-21 CABLE, FLEXIBLE FLAT (15 CORE) (HX50BTR/
HX70BTR/HX90BTR)
ACCESSORIES
************
0 1-569-008-22 ADAPTOR, CONVERSION 2P
(HX50BTR: E51, SP)
0 1-770-019-61 ADAPTOR, CONVERSION PLUG (HX80R)
80
Page 81
MEMO
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
81
Page 82
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2008.03 New
1.1 2008.06 Addition of Brazilian and Argentina models (HCD-HX50BTR)
Loading...
