Sony HCD-GPX555, HCD-GPX888 Schematic

HCD-GPX555/GPX888

SERVICE MANUAL

Ver. 1.1 2014.10

• HCD-GPX555 is the amplifi er, USB, CD player,
Bluetooth, NFC and tuner section in MHC-GPX555.

• HCD-GPX888 is the amplifi er, USB, CD player,
Bluetooth, NFC and tuner section in MHC-GPX888. Photo: HCD-GPX888

• “WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or

other countries.

• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of

such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft
subsidiary.

• The Bluetooth

• The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

• Android™ is a trademark of Google Inc.

• Google Play™ is a trademark of Google Inc.

• iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service

• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically

• All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not

®

marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

mark of Apple Inc.

to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is
not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone may affect wireless performance.

specified.

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such

CD Section

US Model

HCD-GPX555

E Model

HCD-GPX555/GPX888

Australian Model

HCD-GPX555

Model Name Using
Similar Mechanism

CD Mechanism Type CDM90-DVBU204//M

Optical Pick-up Name CMS-S76RFS7G

HCD-GPX33

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(USA model only)

With 4 ohm loads, both channels driven, from
120 – 10,000 Hz; rated 180 watts per channel
minimum RMS power, with no more than

0.7% total harmonic distortion from 250

milliwatts to rated output.

Amplifi er section

The following are measured at
USA model:
AC 120 V, 60 Hz
Mexican model:
AC 120 V – 240 V, 60 Hz
Chilean and Bolivian models:
AC 220 V – 240 V, 50 Hz
Other models:
AC 120 V – 240 V, 50/60 Hz

MHC-GPX888

Front speaker
Power Output (rated):
350 W + 350 W (at 4 ohms, 1 kHz,
1% THD)
RMS output power (reference):

600 W + 600 W (per channel at

4 ohms,

LBT-GPX555/MHC-GPX555

Front speaker
Power Output (rated):
350 W + 350 W (at 4 ohms, 1 kHz,
1% THD)
RMS output power (reference):
600 W + 600 W (per channel at 4 ohms,
1 kHz)
Subwoofer
RMS output power (reference):
600 W (4 ohms, 100 Hz)

1 kHz)

SPECIFICATIONS

Inputs

AUDIO IN 1/PARTY CHAIN IN L/R
Voltage 2 V, impedance 47 kilohms
AUDIO IN 2 L/R
Voltage 2 V, impedance 47 kilohms
MIC (MHC-GPX888 only)
Sensitivity 1 mV, impedance
10 kilohms

(USB) A, (USB) B, port

Type A

Outputs

AUDIO OUT/PARTY CHAIN OUT L/R
Voltage 2 V, impedance 1 kilohm

USB section

Supported bit rate
WMA:
48 kbps – 192 kbps, VBR, CBR
AAC:
48 kbps – 320 kbps, VBR, CBR
Sampling frequencies
WMA: 44.1 kHz
AAC: 44.1 kHz
Supported USB device
Mass Storage Class
Maximum current
500 mA

Disc/USB section

Supported bit rate
MPEG1 Layer-3:
32 kbps – 320 kbps, VBR
MPEG2 Layer-3:
8 kbps – 160 kbps, VBR
MPEG1 Layer-2:
32 kbps – 384 kbps, VBR
Sampling frequencies
MPEG1 Layer-3:
32 kHz/44.1 kHz/48 kHz
MPEG2 Layer-3:
16 kHz/22.05 kHz/24 kHz
MPEG1 Layer-2:
32 kHz/44.1 kHz/48 kHz

Disc player section

System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 W
* This output is the value measurement

at a distance of 200 mm from the
objective lens surface on the Optical

Pick-up Block with 7 mm aperture.
Frequency response
20 Hz – 20 kHz
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 88 dB

Tuner section

FM stereo, FM/AM superheterodyne tuner
Antenna:
FM lead antenna

AM loop antenna

FM tuner section

Tuning range
USA model:

87.5 MHz – 108.0 MHz
(100 kHz step)
Other models:

87.5 MHz – 108.0 MHz (50 kHz step)

AM tuner section

Tuning range
Pan American and Australian models:
531 kHz – 1,710 kHz (9 kHz step)
530 kHz – 1,710 kHz (10 kHz step)
Other models:
531 kHz – 1,602 kHz (9 kHz step)
530 kHz – 1,610 kHz (10 kHz step)

COMPACT DISC RECEIVER

Bluetooth section

Communication system
Bluetooth Standard version 3.1
Output
Bluetooth Standard Power Class 2
Maximum communication range
Line of sight approx. 10 m
Frequency band

2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method

FHSS (Freq Hopping Spread Spectrum)

Compatible Bluetooth profiles

A2DP (Advanced Audio Distribution
Profile)
AVRCP 1.3 (Audio Video Remote
Control Profile)
SPP (Serial Port Profile)
Supported codecs
SBC (Sub Band Codec)
AAC (Advanced Audio Coding)

1)

The actual range will vary depending on

factors such as obstacles between devices,
magnetic fields around a microwave oven,
static electricity, reception sensitivity,
antenna’s performance, operating system,
software application, etc.

2)

Bluetooth standard profiles indicate the

purpose of Bluetooth communication
between devices.

1)

2)

– Continued on next page –

9-890-651-02

2014J80-1

2014.10

©

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

HCD-GPX555/GPX888

5

Ver. 1.1

General

Power requirements
USA model:
AC 120 V, 60 Hz
Mexican model:
AC 120 V – 240 V, 60 Hz
Chilean and Bolivian models:
AC 220 V – 240 V, 50 Hz
Other models:
AC 120 V – 240 V, 50/60 Hz
Power consumption
MHC-GPX888: 360 W
LBT-GPX555/MHC-GPX555: 280 W
Dimensions (w/h/d) (excl. speakers)
(Approx.)
MHC-GPX888:
294 mm × 361 mm × 331 mm
(11

⁄8 in × 14 1⁄4 in × 13 1⁄8 in)

LBT-GPX555/MHC-GPX555:
294 mm × 361 mm × 325 mm
(11 5⁄8 in × 14 1⁄4 in × 12 7⁄8 in)
Mass (excl. speakers) (Approx.)

5.4 kg (11 lb 15 oz)
Supplied accessories
Remote control (1)
R6 (Size AA) batteries (2)
FM lead/AM loop antenna (1)
Spacer (2) (MHC-GPX888 only)
Speaker pads (16) (MHC-GPX888 only)

Design and specifi cations are subject to change without notice.

NOTES ON CHIP COMPONENT REPLACEMENT

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be
damaged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

• Keep the temperature of soldering iron around 270 °C during
repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the
following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)

This appliance is classified as a CLASS 1
LASER product by IEC60825-1:2007. This
marking is located on the rear exterior.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specifi ed herein may result in hazardous
radiation exposure.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

To Exposed Metal
Parts on Set

AC

1.5 kΩ0.15 μF

voltmeter
(0.75 V)

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

2

TABLE OF CONTENTS

HCD-GPX555/GPX888

1. SERVICING NOTES

................................................ 4

2. DISASSEMBLY

2-1. Disassembly Flow ........................................................... 7

2-2. Side-L Panel, Side-R Panel, Top Panel ........................... 8

2-3. Loading Panel ................................................................. 8

2-4. Front Panel Section ......................................................... 9

2-5. CD Mechanism Section (CDM90-DVBU204//M) ......... 9

2-6. Back Panel Section ......................................................... 10

2-7. MB Board, DAMP Board ............................................... 10

2-8. SWITCHING REGULATOR (3H401W) ....................... 11

2-9. Service Optical Device, Wire (Flat Type) ....................... 12

3. TEST MODE ............................................................. 13

4. ELECTRICAL CHECK .......................................... 16

5. TROUBLESHOOTING ........................................... 17

6. DIAGRAMS

6-1. Block Diagram - RS SERVO, USB Section - ................. 23

6-2. Block Diagram - MAIN Section - ................................... 24

6-3. Block Diagram - AMP Section - ..................................... 25

6-4. Block Diagram

- PANEL/POWER SUPPLY Section - ............................ 26

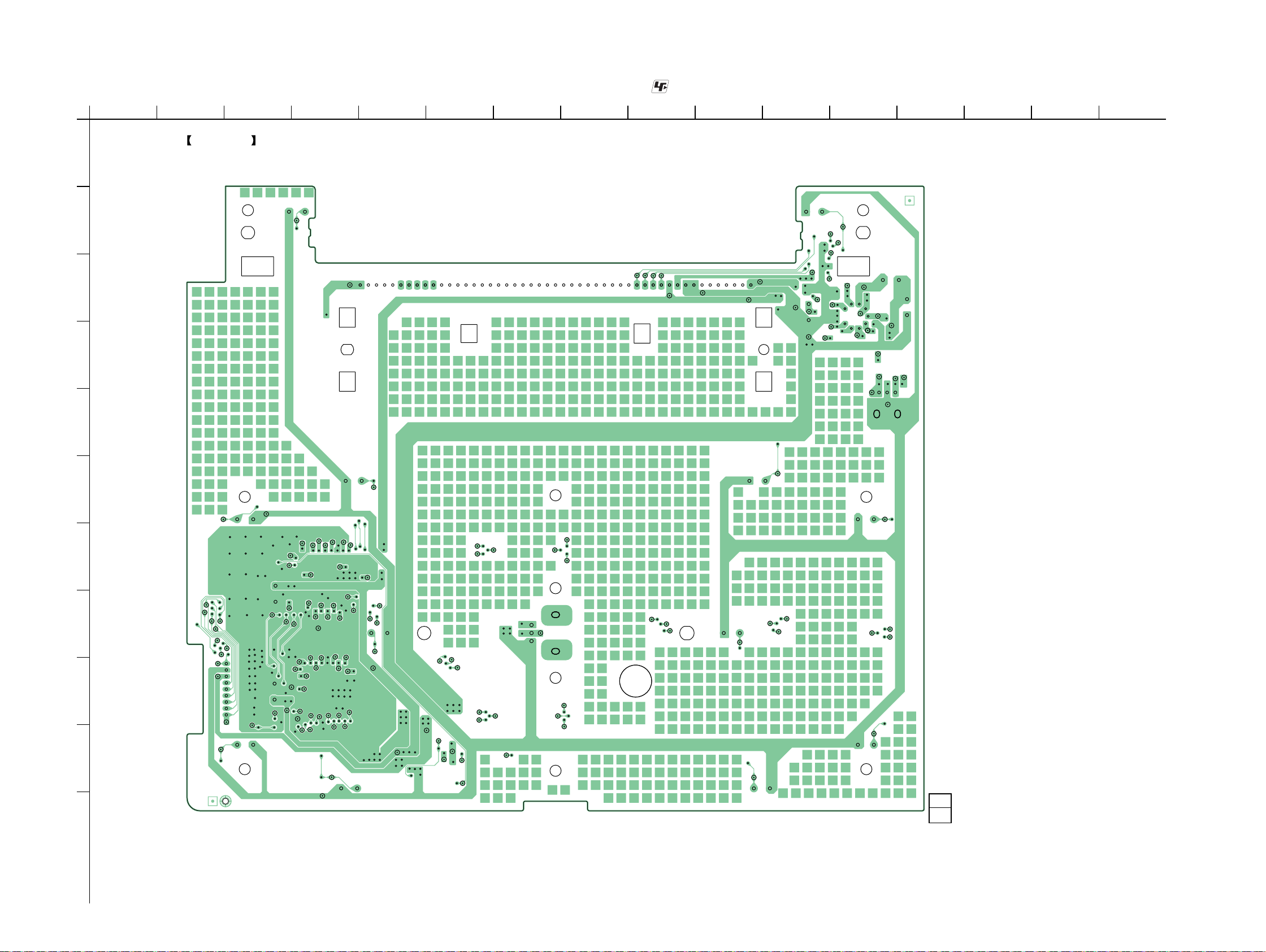

6-5. Printed Wiring Board

- MB Board (Component side) - ..................................... 28

6-6. Printed Wiring Board

- MB Board (Conductor side) - ....................................... 29

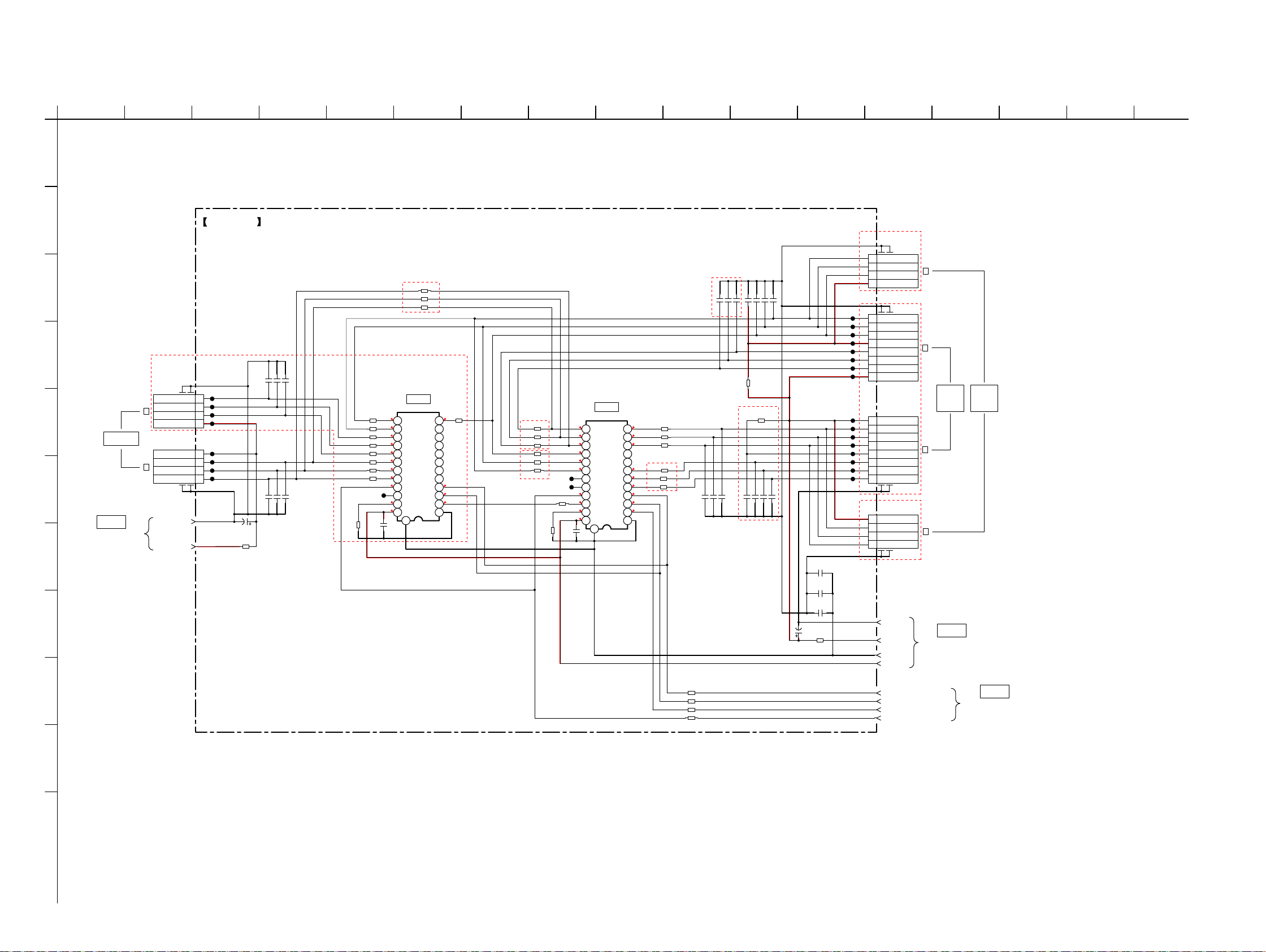

6-7. Schematic Diagram - MB Board (1/9) - ......................... 30

6-8. Schematic Diagram - MB Board (2/9) - ......................... 31

6-9. Schematic Diagram - MB Board (3/9) - ......................... 32

6-10. Schematic Diagram - MB Board (4/9) - ......................... 33

6-11. Schematic Diagram - MB Board (5/9) - ......................... 34

6-12. Schematic Diagram - MB Board (6/9) - ......................... 35

6-13. Schematic Diagram - MB Board (7/9) - ......................... 36

6-14. Schematic Diagram - MB Board (8/9) - ......................... 37

6-15. Schematic Diagram - MB Board (9/9) - ......................... 38

6-16. Printed Wiring Board - DAMP Board - .......................... 39

6-17. Schematic Diagram - DAMP Board (1/2) - .................... 40

6-18. Schematic Diagram - DAMP Board (2/2) - .................... 41

6-19. Printed Wiring Board

- FL Board (Component side) - ....................................... 42

6-20. Printed Wiring Board

- FL Board (Conductor side) -......................................... 43

6-21. Schematic Diagram - FL Board - .................................... 44

6-22. Printed Wiring Board - DJ KEYS Board - ..................... 45

6-23. Schematic Diagram - DJ KEYS Board - ........................ 46

6-24. Printed Wiring Board - USB Board - .............................. 47

6-25. Schematic Diagram - USB Board - ................................. 48

6-26. Printed Wiring Board - TUNER Board - ........................ 49

6-27. Schematic Diagram - TUNER Board - ........................... 50

7. EXPLODED VIEWS

7-1. Side Panel Section .......................................................... 65

7-2. Back Panel Section ......................................................... 66

7-3. Front Panel Section ......................................................... 67

7-4. MB Board Section .......................................................... 68

7-5. Chassis Section ............................................................... 69

7-6. CD Mechanism Section

(CDM90-DVBU204//M) ................................................ 70

8. ELECTRICAL PARTS LIST ............................... 71

3

HCD-GPX555/GPX888

Ver. 1.1

SECTION 1

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electro­static break-down because of the potential difference generated by
the charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead­free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C.
Caution: The printed pattern (copper foil) may peel away if

the heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to fl ow)

than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

MODEL IDENTIFICATION
– Back Panel –

FOR SERVICE

USE

PART No.

Model Part No.

GPX888: E2, E51

GPX555: E2, E51, EA3, AUS, E4

US

Mexican

4-479-110-0[]

4-479-110-1[]

4-479-110-2[]

4-479-110-3[]

NOTE OF REPLACING THE IC001, IC002, IC106 AND
IC302 ON THE MB BOARD

IC001, IC002, IC106 and IC302 on the MB board cannot exchange
with single. When these parts on the MB board are damaged,
exchange the entire mounted board.

RELEASING THE DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.

Releasing Procedure:

1. Press [

\/1] button to turn the power on.

2. Press the [CD] button to select CD function.

3. While pressing the [x] button, press the [BASS BAZUCA]
button for more 5 seconds).

4. The message “UNLOCKED” is displayed and the disc tray is
unlocked.

Note: When “LOCKED” is displayed, the slot lock is not released by

turning power on/off with the

[\/1] button.

4

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

Note 1: After the side panel (L, R) and top panel is removed, this work is done.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).

1 Remove the panel, side (L, R) and panel, top.
(Illustration of disassembly is omitted.)

– Side view –

hole

Insert the clip etc. processed
to the length of 8 cm or
more in the hole on the
side of the chassis
and push.

CD drive

HCD-GPX555/GPX888

tray

3

8 cm or more

2 Insert the clip etc.

Push after it inserts it in this hole well.

Note:

tray

– Top view –

CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION

SMPS 3H401W BOARD (Conductor side view)

In checking the SMPS 3H401W board, make 3 capacitor discharge of C221, C602 and C618 for electrical shock prevention.

800 :/5 W

800 :/5 W

C618

C221

800 :/5 W

C602

5

HCD-GPX555/GPX888

NOTE OF REPLACING MB BOARD OR BLUETOOTH
MODULE OR RC-S801/A (WW) BOARD

When the MB board or BLUETOOTH module or RC-S801/A
(WW) board are replaced, please execute the below service mode.

Pairing this system with a

1. Press the [\/1] button to turn the power on.

2. Place the Bluetooth device within 1 meter (3 feet) from the
system.

3. Press BLUETOOTH on the unit to select Bluetooth function.
“BLUETOOTH” appears in the display panel.

4. Hold down BLUETOOTH on the unit for 2 seconds or more.

“PAIRING” fl ashes in the display panel.

5. Perform the pairing procedure on the Bluetooth device.

6. Select the model number of the unit on the display of the
Bluetooth device.

For example, select “SONY:MHC-GPX888” (or LBT-

GPX555/MHC-GPX555).

If passkey is required on the Bluetooth device, enter “0000”.

7. Perform the Bluetooth connection on the Bluetooth device.

8. When pairing is completed and the Bluetooth connection is
established, Bluetooth device name appears in the display
panel.

Depending on the Bluetooth device, connection may start

automatically after pairing is completed.

You can check the Bluetooth device address by pressing

DISPLAY repeatedly.

9. To cancel pairing operation, hold down BLUETOOTH on the
unit for 2 seconds or more until “BLUETOOTH” appears in
the display panel.

Bluetooth

device

Connecting with a smartphone by one touch (NFC)

Note: The operation in this mode must use a NFC-compatible smartphone

(Smartphones with a built-in NFC function [OS: Android 2.3.3 or
later, excluding Android 3.x])

1. Press the [\/1] button to turn the power on.

2. Download and install the app “NFC Easy Connect”.

Download the free Android app from Google Play by searching

for “NFC Easy Connect”.

3. Start the app “NFC Easy Connect” on the smartphone.

Make sure that the application screen is displayed.

4. Touch the smartphone to the N-Mark on the system until the
smartphone vibrates.

Playing music from a

For a Bluetooth device

1. Press the [

2. Press BLUETOOTH on the unit to select Bluetooth function.
“BLUETOOTH” appears in the display panel.

3. Establish connection with the Bluetooth device.
Press BLUETOOTH on the unit to connect to the last

connected Bluetooth device.

Perform the Bluetooth connection from the Bluetooth device if

the device is not connected.

Once the connection is established, the Bluetooth device name

appears in the display panel.

4. Press N.
Depending on the Bluetooth device,
– you may have to press N twice.
– you may need to start playback of an audio source on the

Bluetooth device.

For an NFC-compatible smartphone

1. Press the [\/1] button to turn the power on.
Touch the smartphone to the N-Mark on the system to establish

the Bluetooth connection.

Start playback of an audio source on the smartphone. For

details on playback, refer to the operating instructions of your
smartphone.

To disconnect the Bluetooth device
For a Bluetooth device

Press BLUETOOTH on the unit.
“BLUETOOTH” appears in the display panel.

For an NFC-compatible smartphone

Touch the smartphone to the N-Mark on the system again.

To erase all the pairing registration information perform
COLD RESET test mode (Refer page 13).

\/1] button to turn the power on.

Bluetooth

device

Complete the connection by following the instructions

displayed on the smartphone.

5. When pairing is completed and the Bluetooth connection is
established, the Bluetooth device name appears in the display
panel.

6

DISASSEMBLY

• This set can be disassembled in the order shown below.

2-1. DISASSEMBLY FLOW

SET

2-2. SIDE-L PANEL, SIDE-R PANEL,
TOP PANEL
(Page 8)

HCD-GPX555/GPX888

SECTION 2

2-3. LOADING PANEL
(Page 8)

2-4. FRONT PANEL SECTION
(Page 9)

2-5. CD MECHANISM SECTION
(CDM90-DVBU204//M)
(Page 9)

2-6. BACK PANEL SECTION
(Page 10)

2-7. MB BOARD, DAMP BOARD
(Page 10)

SWITCHING REGULATOR

2-8.

(3H401W)

(Page 11)

2-9.

SERVICE OPTICAL DEVICE,

WIRE (FLAT TYPE)

(Page 12)

7

HCD-GPX555/GPX888

Note: Follow the disassembly procedure in the numerical order given.

2-2. SIDE-L PANEL, SIDE-R PANEL, TOP PANEL

1 one screw
(+BVTP 3 u 10)

5 panel, side (L)

1 one screw

(+BVTP 3 u 10)

2 one screw
(+BVTP 3 u 10)

4 two claws

A

4 claw

qs four hooks

2 one screw

(+BVTP 3 u 10)

3

A

qa

B

qd panel, top

9 two claws

8

7 one screw

(+BVTP 3 u 10)

B

0 panel, side (R)

6 one screw

(+BVTP 3 u 10)

2-3. LOADING PANEL

– Side view –

Insert the clip etc. processed
to the length of 8 cm or
more in the hole on the
side of the chassis
and push.

8 cm or more

7 one screw
(+BVTP 3 u 10)

9 claw

6 one screw

(+BVTP 3 u 10)

3 three claws

4 panel, loading assy

hole

CD drive

2

1 Insert the clip etc.

Push after it inserts it in this hole well.

Note:

– Top view –

tray

8

2-4. FRONT PANEL SECTION

(GPX888)

7 CN601 (4P)

8 front panel section

HCD-GPX555/GPX888

2 two screws
(+BVTP 3 u 8)

6 CN451 (10P)

5 wire (flat type)

(10 core) (CN102)

(GPX555: US)

3 wire (flat type)
(8 core) (CN105)

1 one screw
(+BVTP 3 u 8)

4 wire (flat type)
(23 core) (CN109)

1 two screws
(+BVTP 3 u 8)

2-5. CD MECHANISM SECTION (CDM90-DVBU204//M)

7 three screws
(+BVTP 3 u 8)

9 CD mechanism section
(CDM90-DVBU204//M)

:LUHVHWWLQJ

Process so that lead wire does not

Note:

contact with fan.

8 holder, CDM

DJ KEYS board

(US, EA, AUS)

3 core, ferrite

2 cushion, saranet

(30 u 50)

5 wire (flat type)
(5 core) (CN303)

4 wire (flat type)
(24 core) (CN302)

1 CN401 (6P)

6 one screw

(+BVTP 3 u 8)

• Abbreviation
AUS : Australian model
EA : Saudi Arabia model

9

HCD-GPX555/GPX888

2-6. BACK PANEL SECTION

7 back panel section

2 four screws

(+BVTP 3 u 8)

3 one screw
(+BVTP 3 u 8)

5 holder, wire

6 sheet, service cover

4 one screw

(+BVTP 3 u 8)

1 wire (flat type)
(9 core) (CN851)

2-7. MB BOARD, DAMP BOARD

0 heat sink (GSX8)

9 sheet, thermal

qa three screws

(+BVTP 3 u 8)

qf DAMP board

3 wire (flat type)

(21 core) (CN111) (GPX888)
wire (flat type)
(19 core) (CN112) (GPX555)

qd bracket, heat sink

7 CN1000 (10P)

8 three screws

(+PTPWH 2.6 u L (DIA8.0))

qa one screw
(+BVTP 3 u 8)

4 one screw
(+BVTP 3 u 8)

4 four screws
(+BVTP 3 u 8)

5 MB board

qs

10

6 CN1001 (2P)

1 Remove the wires

from hooks.

2 CN001 (6P)

2-8. SWITCHING REGULATOR (3H401W)

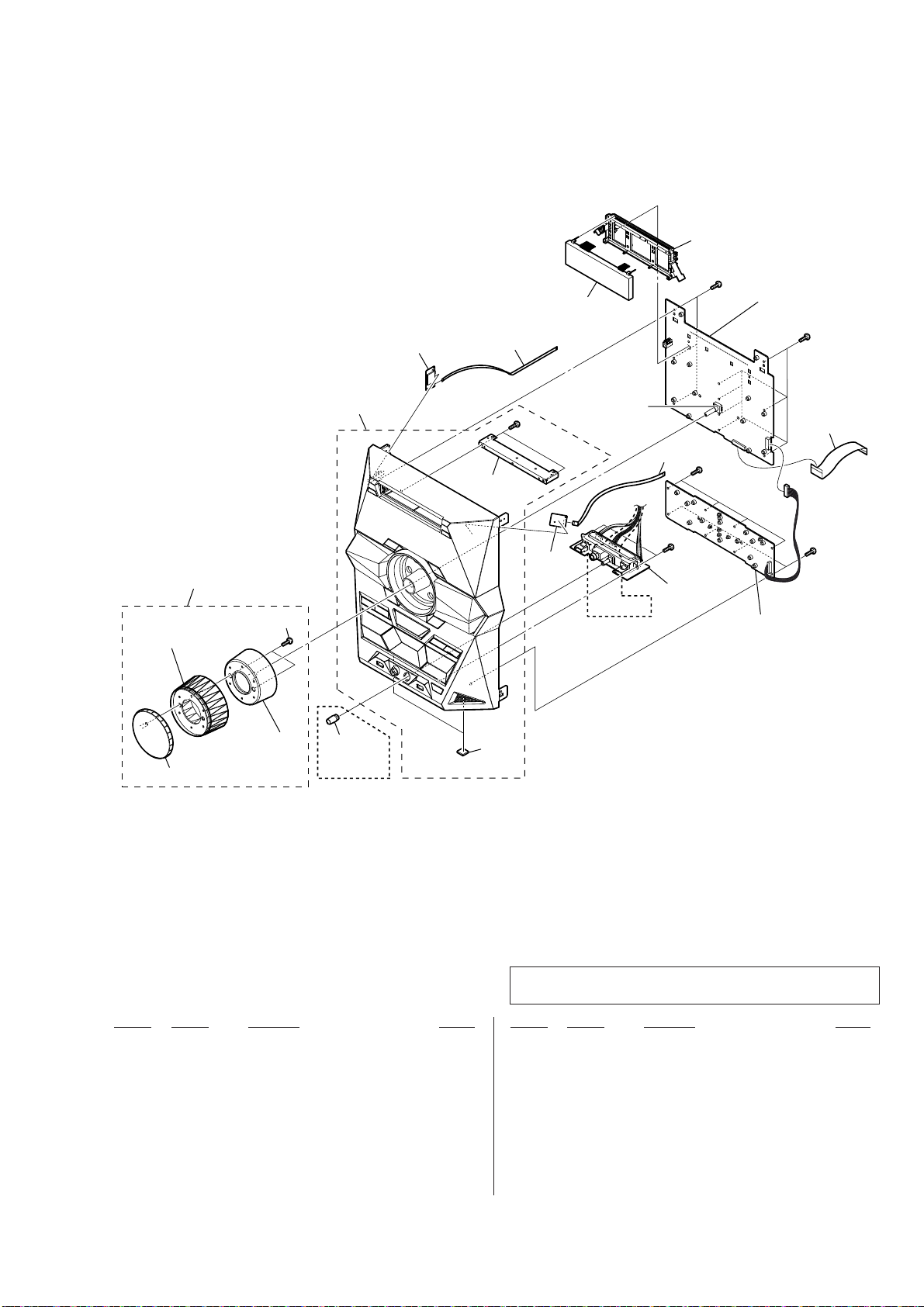

6 two screws
(+BVTP 3 u 8)

1 two screws
(+BVTP 3 u 8)

4 bracket, fan

HCD-GPX555/GPX888

7 sub, chassis

6 two screws

(+BVTP 3 u 8)

5 DC fan

0 nine screws
(+PWH 3 u 8 (SUMITITE))

qa REGULATOR,

SWITCHING (3H401W)

2 two screws
(+BVTP 3 u 8)

3 two screws
(+BVTP 3 u 8)

8 CN1 (2P)

9

qs chassis assy

11

HCD-GPX555/GPX888

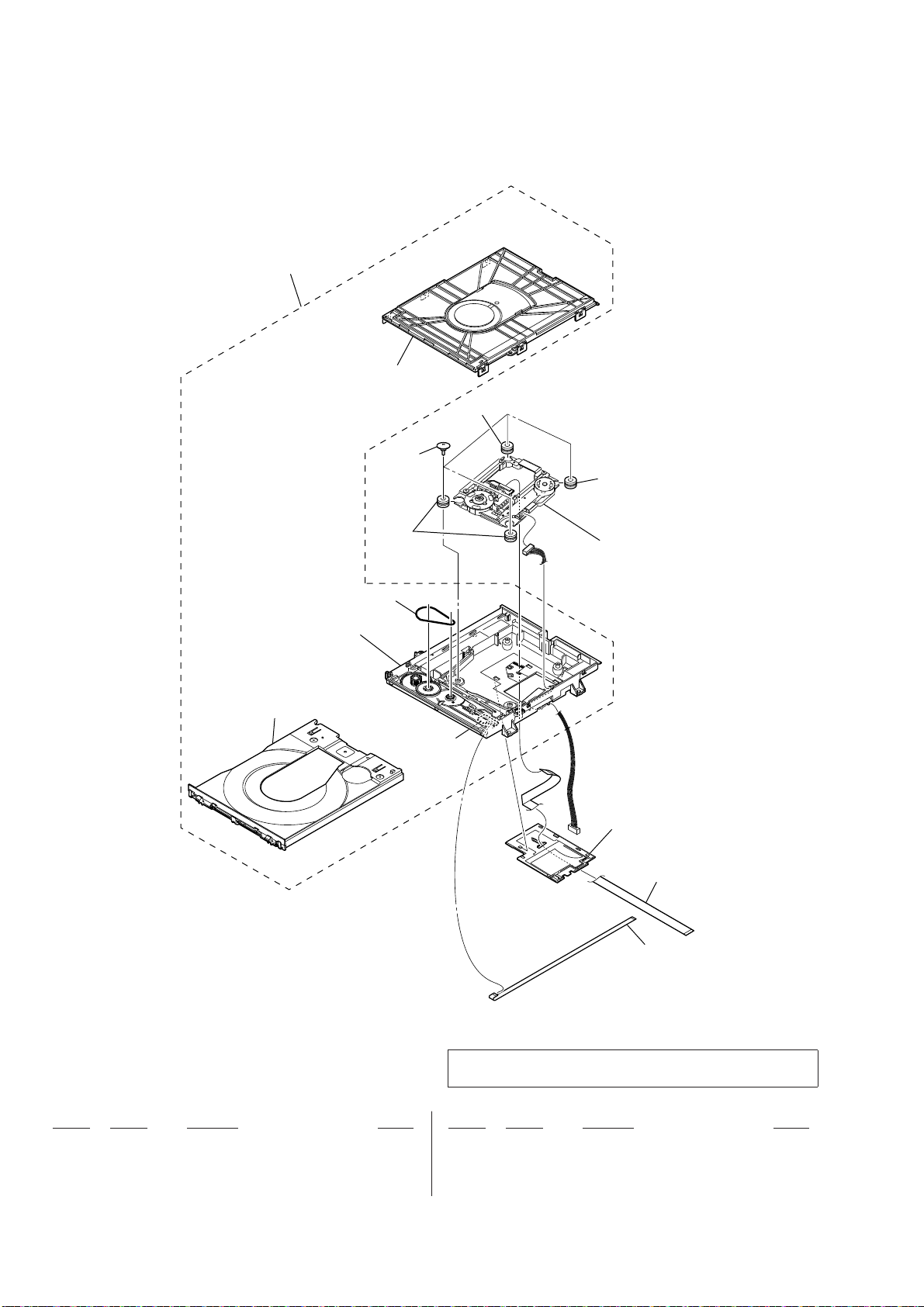

2-9. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE)

Note 1 : Before disconnecting the wire (fl at type) (24 core) of service optical device, solder the short-land.

8 four insulator screws

qs service,

optical device

3 Insert the thin
wire (clip etc.).

5 tray

1 six claws

qa insulator

6 belt

2 chuck holder assy (T)

qa insulator

qa insulator

0

9

qf wire (flat type)

(5 core)

qh holder, FFC

qj wire (flat type)

(24 core)

qg

7 connector

4

,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH

This illustration sees the loading assy (T) from bottom side.

Note:

1 wire (flat type) (24 core)

loading assy (T)

terminal face

2 Through the hole

qd base, lo assy

5 two claws

3 Through the hole

Under the guide
(Fold area)

loading assy (T)

– Bottom view –

5 three claws

6 holder, FFC

4

7 wire (flat type)

(24 core)

8 wire (flat type)
(5 core)

12

Under the guide

SECTION 3

TEST MODE

HCD-GPX555/GPX888

[PANEL TEST MODE]

This mode is used to check the fl uorescent indicator tube, LEDs,
keys, [VOLUME / DJ CONTROL] jog, model, destination and
software version.

Procedure:

1. Press [OPTIONS] button and [FOOTBALL] button simultane­ously and hold 3 seconds.

2. All LEDs and segments in fl uorescent indicator tube are light-
ed up. All RGB LEDs are lighted up in white color.

3. When you want to enter to the software version display mode,
press [+ / ] button.

The model information appears on the fl uorescent indicator

tube.

• “GNX5” is shown for XXX-GPX555.

• “GNX8” is shown for XXX-GPX888.

Press [+ / ] button again to view the destination informa-

tion.

4. During the destination information display, press [+ / ] but­ton. Each time [+ / ] button is pressed, the fl uorescent indi-
cator tube shows the version of each category software in the
following sequence: SC, MTK, OPU, UI, PF, SYS, CD, CDMA,
CDMB, ST, TA, TM, and return back to model information dis­play.

5. When [] button is pressed while the version numbers
are being displayed except model and destination, the
date of the software creation appears. When [] button
is pressed again, the display returns to the software ver­sion display.

6. Press [- / ] button, the key check mode is activated.

7. In the key check mode, the fl uorescent indicator tube displays
“K 0 V0”.

• Each time a button is pressed, “K” value increases.

However, once a button has been pressed, it is no
longer taken into account.

• “V” value increases in the manner of 0, 1, 2, 3... if

[VOLUME] knob is turned clockwise, or it decreases
in the manner of 0, 9, 8, 7... if [VOLUME] knob is
turned counterclockwise.

8. When [ENTER] button is pressed after all LEDs and segments
in fl uorescent indicator tube light up, alternate segments in
fl uorescent indicator tube and LEDs would light up, all RGB
LEDs would light up in red color. If you press [ENTER]
button again, another half of alternate segments in fl uorescent
indicator tube and LEDs would light up, all RGB LEDs would
light up in green color. Pressing [ENTER] button again would
cause all segments in fl uorescent indicator tube and LEDs
light up, all RGB LEDs would light up in blue color. Pressing
[ENTER] button again would turn off all segments in fl uores-
cent indicator tube and all LEDs including RGB LEDs.

9. To release from this mode, press the buttons in the same
manner as step 1, or disconnect the power cord.

[COLD RESET]

The cold reset clears all data including preset data stored in the
data fl ash to initial conditions included history mode data. Execute
this mode when returning the set to the customer.

Procedure:

1. Press [\/1] button to turn on the system.

2. Press [] button and [PAN] button simultaneously for 3
seconds.

3. “COLD RESET” appears on the fl uorescent indicator tube.
After that, the fl uorescent indicator tube becomes blank for a
while, and the system is reset.

[CD TRAY LOCK MODE]

This mode let you lock the disc tray. When this mode is activated,
the disc tray will not open when [OPEN/CLOSE] button is pressed.
The message “LOCKED” will be displayed on the fl uorescent
indicator tube. This mode only applied when there is disc(s) on
the tray.

Procedure:

1. Press [\/1] button to turn on the system.

2. Select CD function.

3. Press [] button and [BASS BAZUCA] button simultaneously
and hold down until “LOCKED” or “UNLOCKED” displayed
on the fl uorescent indicator tube (around 5 seconds).

[USER RESET]

The user reset clears all data including preset data stored in the data
fl ash to initial conditions exclude history mode data.

Procedure:

1. Press [

2. Press [] button and [MOVIE/GAME] button simultaneously

3. “RESET” appears on the fl uorescent indicator tube. After that,

\/1] button to turn on the system.

for 3 seconds.

the fl uorescent indicator tube becomes blank for a while, and
the system is reset.

13

HCD-GPX555/GPX888

[HISTORY MODE]

This mode is used to check important data stored in the system
when PROTECTOR happen.

Procedure:

1. During demo mode, press [OPTIONS] button and [FLANGER]
for 5 seconds to mode in to history mode.
Press the [M > / TUNING+] or [ .m / TUNING-]

2.
button to check history data stored.

Display on fl uorescent indicator tube Description

PROCOUNT

PROTYPE

T1

T2

FUNC

VOL

ATT

EQ LOW

EQ MI D

EQ H I GH

SW

SURR

DJ

BAZUCA

※※※※※H※※

※※※※※H※※

※※※※※※※

※※※※※※ ※※

※※

※※※※

※※※

※※※

※※※

※※※

※※※

※※※

※※※

※※※

Protector Count

Protector Type (refer to Protect Type Description)

Single Power On

M

Total Power On

M

Input Function

Volume

Actual Attenuation

Low EQ Level

Mid EQ Level

High EQ Level

Subwoofer Setting

Surround Setting

DJ Effect Setting

Bass Bazuca Setting

To release from this mode, press [\/1] button.

Protect Type Description:

Error Code Description

E01 The over current condition to MOSFET occurs

by defect of MOSFET or defect of PS output
line.

E03 Defect of power supply circuit to AMP.

There is possibility of unusual power supply of
any of the AMP IC or Pre-amplifi er.

E04 DC appears in SP terminal by defect of AMP

IC and MOSFET
or
Defect of DC FAN and DC FAN driver circuit.

E05 Unusual heat up of MOSFET by improper

assembly of heat sink, destruction of MOSFET
etc.

If speaker does not have output even if the set status is not in
PROTECT mode, the following defect might be possible:

Defects Possible cause

RESET defect Reset signal status from micom is not ‘H’.

14

[MODEL & DEST WRITE MODE]

This mode is used to set software model & destination.
This mode only available when no permanent model & destination
is stored.

Procedure:

1. Press [MOVIE/GAME] button & [LED PATTERN] button
simultaneously and hold for 5 seconds.

2. Fluorescent indicator tube display will show “M XXXXX”.

3. Press [/+] / [-/] button to select the model based on the
set’s model.

Product Code F. Tube display

HCD-GPX555 “M GNX5”

HCD-GPX888 “M GNX8”

4. Press [ENTER] button.

5. Fluorescent indicator tube display will show “D XXXXX”.

6. Press [/+] / [-/] button to select the destination based
on the set’s country.

Area Code Country F. Tube display

J1 Japan “D J”

JE1 Tourist “D JE”

U2/CA2 America, Canada “D NA”

CEL/CE1/
CE2

CEK U.K. “D CEK”

RU1/RU3 Russia “D RU”

AU1 Australia “D AU”

CN1 China “D CN”

E12 India, Pakistan, Morocco “D E12”

E3/E15 Middle East, Iran “D E3”

E4/ EA3/
E93/ SA2

HK1/
HK2/PL1/
SP1/SP2/
SP6/TH1

KR2 Korea “D KR”

TW2 Taiwan “D TW”

E2, E32,
E51, AR2

BR1 Brazil “D BR”

MX2,
MX4

Europe(general) “D CE2”

Saudi Arabia, Africa “D EA3”

Hong Kong, Philippines,
Singapore, Malaysia,
Thailand

Latin America(general),
Chile, Peru, Argentina

Mexico “D MX”

“D ASIA”

“D LATIN”

HCD-GPX555/GPX888

7. Press [ENTER] button to confi rm the selection.

8. “RESET” appears on the fl uorescent indicator tube. After that,
the fl uorescent indicator tube becomes blank for a while, and
the system is reset.

9. Mode in [PANEL TEST MODE] again to confi rm on the
model & destination.

15

HCD-GPX555/GPX888

SECTION 4

ELECTRICAL CHECK

CD SECTION

Note:

1. CD Block is basically constructed to operate without adjustment.

2. Use YEDS-18 disc (Part No. 3-702-101-01) unless otherwise indicat­ed.

3. Use an oscilloscope with more than 10 MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the

signal level is low than specifi ed value with the following checks.

5. Check the focus bias check when optical pick-up block is replaced.

FOCUS BIAS CHECK

oscilloscope

(DC range)

MB board

JL317 (RF Signal)

JL312 (Vc/Reference)

+
–

Procedure :

1. Connect the oscilloscope to JL317 (RF Signal) and JL312 (Vc/
Reference) on the MB board.

2. Press the [

STANDBY] button to turn the power on, and

?/1

press the [CD] button to select CD function.

3. Set disc (YEDS-18) and press the [u] button to playback.

4. Confi rm that oscilloscope waveform is as shown in the fi gure

below (eye pattern).
A good eye pattern means that the diamond shape () in the

center of the waveform can be clearly distinguished.

VOLT/DIV: 200 mV
TIME/DIV: 500 ns

level:

1.0 ± 0.25 Vp-p (CD)

TUNER SECTION

0 dB = 1 μV

FM AUTO STOP CHECK

signal

generator

set

+

75

–

Procedure:

1. Turn the power on.

2. Input the following signal from Signal Generator to FM an­tenna input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)

Note: Please use 75 ohm “coaxial cable” to connect SG and the

set. You cannot use video cable for checking.

Please use SG whose output impedance is 75 ohm.

3. Set to FM tuner function and scan the input FM signal with

automatic scanning.

4. Confi rm that input Frequency of A, B and C detected and
automatic scanning stops.

The stop of automatic scanning means “The station signal is
received in good condition”.

Checking Location:

-MB Board (Conductor Side)-

JL317

JL312

16

SECTION 5

TROUBLESHOOTING

Checks whether the state of a Cable and Outlet are normal.

If there are no problems, checks circumference circuit for

Main on/Sub on Output of Main mount side.

Replaces Switching regulator if it is not up to standard.

HCD-GPX555/GPX888

No

Yes

AC IN

The Output from Switching regulator is checked.

Is following power voltage up to standard?

(4)

The Power Control signal to Switching regulator is checked.

Is following power voltage OK?

Main on/Sub on Standby Demo mode Power On

CN 3 : pin6 Low (0V) Low (0V) Hi (3.3V)

(6)

Standby Demo mode Power On

No

0.5V
±

0.5V 13V
±

0.5V 13V
±

CN3 pin1 13V

5%
±

0V 61V

0V

CN2 pin10

2.5V
±

0V 24V

0V

pin7

2.5V
±

0V -24V

0V

pin5

5%
±

0V -61V

0V

pin4

0V 16-23V

Yes

END

0V

pin1

(3)

Switching Regulator Diagnosis Flow

(5)

(2)

(1)

pin1-2: 13V

pin3-4: GND

(1) AC input

(2) Fuse

(3) Sub Power transformer

(4) CN3 Connector

pin5: AC-DET

pin6: MAIN-ON

(5) MAIN Power transformer

(6) CN 2 Connector

pin1 : V3+(DC+16-23V)_(ref-V1)

pin2-4 : V1-(DC-61V)

pin5 : V2-(DC-24V)

pin6 : GND

pin7 : V2+(DC+24V)

pin8-10 : V1+(DC+61V)

17

HCD-GPX555/GPX888

Checks IC303 circumference circuit for +1.2V.

Check IC002 (JL040) circumference circuit for +3.3V.

No

Checks CL335 for +3.3V and +1.2V REG IC303.

Does it output the power voltage of 3.3V and 1.2V?

No

Checks circumference circuit for SL+/SL- of IC401.

Checks circumference circuit of IC301 FMO Signal.

No

Yes

Yes

Does it output the signal?

Checks CN401 SL+/SL- signal.

The Sled motor has a problem.

Replaces BU.

Checks circumference circuit of IC301 DMO Signal.

Checks circumference circuit for SP+/SP of IC401.

No

Does it output the signal?

Checks CN401 SP+/SP- signal.

No

Checks circumference circuit of IC301 FOO Signal.

Checks circumference circuit for FCS+/FCS- of IC401

No

Yes

The Spindle motor has a problem.

Replaces BU.

Yes

Does it output the signal?

Checks CN302 FCS+/FCS- signal.

No

The Optical pickup has a problem.

Replaces BU.

Yes

REMOVE TOP PANEL

TURN ON

TRAY IN

Does Optical pickup move to inner circumference?

Optical Block Diagnosis Flow (1/2)

(Visual check)

18

Yes

Does Spindle motor rotate?

(Visual check)

Yes

Does Optical pickup do focus search?

(Visual check)

A

HCD-GPX555/GPX888

Checks circumference circuit of Q402.

Checks circumference circuit of IC301 LD01.

No

Yes

The Optical pickup has a problems.

Does it output 2V when laser become luminous?

Checks JL306 (LD780) signal.

No

Replaces BU.

If it is not up to standard,

No

Replaces BU if it is not up to standard.

No

Yes

Lens cleaning is performed.

Is output level of RF signal (JL317) up to standard?

Yes

RF Level = 1.05 ±0.45 Vpp

Test CD:YEDS-18

No

The Optical pickup has a problems.

Replaces BU.

A

Optical Block Diagnosis Flow (2/2)

Yes

Does laser diode become luminous ?

(Visual check)

Yes

DISC IN

Yes

Test CD:YEDS-18

Is output level of RF signal (JL317) up to standard?

RF Level = 1.05 ±0.45 Vpp

Yes

Confirms that there is no sound skip.

Is there no problem with Long term Aging Test (60min)?

END

19

HCD-GPX555/GPX888

MB Board

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Switching Regulator Board.

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Main ON of MB Board side.

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Switching Regulator Board.

No

No

No

DAMP Board

Checks circumference circuit of REG IC1002.

If there are no problems, exchanges IC1002.

No

Yes

Checks 13V output of CN001 1pin(Main ON).

Is the power voltage OK?

No

Yes

PLAY MUSIC

DAMP/MB Mount Diagnosis Flow (1/2)

Is there audio output from DAMP Board?

Checks 3V output of CN001 6pin(Main ON).

Yes

Yes

Is the power voltage OK?

Checks 62.5V output of CN1000 10pin (+VH),

-62.5V output of CN1000 2pin (-VH) and -49V

output of CN1000 1pin (-49V).

Is the power voltage OK?

Yes

Checks OUT terminal -50.5V output of REG IC1002

Yes

Or, checks GND and OUT Terminal with Tester.

Is it shorted out?

B

A

20

DAMP Board

HCD-GPX555/GPX888

Checks circumference circuit of REG IC1000.

If there are no problems, exchanges IC1000.

No

B

Checks OUT Terminal 5V output of REG IC1000 or,

checks GND and OUT Terminal with Tester.

Is it shorted out?

Checks circumference circuit of REG IC1001.

If there are no problems, exchanges IC1001.

No

Yes

Checks OUT Terminal -5V output of REG IC1001 or,

Yes

checks GND and OUT Terminal with Tester.

Is it shorted out?

Replaces DAMP Board

No

Leave DAMP to a state of it only and, checks

Power Audio Driver (MOSFET) with Tester.

Replaces DAMP Board

No

Yes

Is it shorted out? (Refer to Page 22.)

Assembles into the unit again then, checks

Yes

whether there is the audio output from

DAMP Board.

A

DAMP/MB Mount Diagnosis Flow (2/2)

END

21

HCD-GPX555/GPX888

Ver. 1.1

CL1064

¾

CL1065

ÚGPX555

¾GPX888

MOSFET Confi rmation for DAMP Mount

C1526

CL1035

CL1034

CL1033

C1125

C1126

CL1029

C1122

C1112

CL1027

CL1028

C1164

C1163

C1160

C1157

CL1026

R1232

R1228

CL1063

R1253

CL1066

R1260

Tes te r Tes te r

CL1032

C1178C1184

R1227

CL1105

CL1106

R1263

CL1103

Tester

C1224C1232

CL1104

Tester

C1169

C1183

R1212
CL1107

CL1045

CL1042

C1182

C1191

C1223

C1237

R1275
CL1046

CL1050

CL1047

C1234

C1240

R1723

Ú

CL1036

C1180

C1190

R1234

C1236

C1239

R1286

R1197

CL1043

C1192

CL1044

R1213

R1223

R1237

CL1080

R1244

CL1048

C1241

R1278

CL1049

R1284

R1289

Tes te r

C1329

C1335

CL1020

C1323

C1325

CL1021

C1374

CL1022

C1369

C1363

C1362

CL1023

CL1069

R1326

¾

R1359

CL1072

Tes te r

C1255

R1330

CL1102

¾

CL1101

C1260

R1363

C1302

CL1099

CL1100

C1310

Tester

C1525

Tes te r

CL1108

CL1110

R1700

CL1071

R1699

C1517

C1247

C1259

CL1055

C1258

¾

C1268

C1303

C1314

CL1060

C1312

C1317

C1257

R1308

CL1053

C1267

CL1051

CL1052

R1333

¾

R1374

C1316

CL1056

CL1058

CL1057

R1385

R1294

C1269

CL1054

R1313

R1336

R1321

CL1090

C1313

R1350

C1318

R1376

CL1059

R1557

R1388

R1382

R1675

R1682

CL1012

R1681

CL1016

CL1013

CL1015

CL1014

CL1062

CL1061

R1316

R1208

CL1075

R1199

C1166

R1646

CL1074

CL1070

C1209

R1591

CL1079

R1250

R1271

R1352

CL1068

R1604

R1305

CL1085

R1296

C1243

R1592

CL1084

CL1083

CL1088

R1594

C1285

R1351

CL1089

R1372

R1609

CL1009

CL1007

CL1040

R1597

CL1041

R1601

CL1039

C1490 C1488

R1602

R1598

CL1038

CL1037

R1636

R1617

C1502

C1504

R1618

R1614

CL1008

CL1001

CL1006

CL1019

CL1067

CL1073

C1026

CL1010

CL1003

CL1002

CL1011

CL1004

CL1109

CL1005

CL1082

<Note>

Please check each channel’s resistance value for the Coil’s terminal and Capacitor’s + and – terminal.

These terminal is equal to resistance value for POWER AUDIO DRIVER terminal.

22

6-1. BLOCK DIAGRAM - RS SERVO, USB Section -

HCD-GPX555/GPX888

SECTION 6

DIAGRAMS

92$$
92%%
92&&
92''

'(9,&(237,&$/

&0665)6*

/2'9'+,&'06:

95

95

5)

9&

3'

$872

32:(5&75/

4

$872

32:(5&75/

4



5),3

5)B&



5)B%



5)B$

5)B'

5)B)92((*

5)B(92))+



9

0',



/'2/'

/'2/'

&'5)$03

)2&8675$&.,1*(5525$03

&'6<67(0352&(6625

',*,7$/6(592352&(6625

,&



06:

&'B95

'9'B95

;7$/2

;7$/,

86%B'0 

86%B'3 

6)B&6

6)B'2

6)B',

6)B&.



;

0+]



'0



'3



((3520

,&

B&6








62



6,



6&.





86%&21752//(5

5(6(7

;

0+]

;

,&



;

&1



'3

'0

'3

'0

'$

'$

9%86

'%

'%

9%86







&1







3/$<

A

9 P$

5(&3/$<

B

9 P$





+8%5(6(7

&211(&772

06%2$5'

)&6
)&6±

75.

75.±

6/ 
6/± 

63 
63± 

&1

/2$'



/2$'



75$<,1



75$<287



&+6<67(0

02725'5,9(5

,&











9275

9275

)2&86

&2,/'5,9(5

)2&86

&2,/'5,9(5

)2&86

&2,/'5,9(5

)2&86

&2,/'5,9(5

%,$6

087(

):'

5(9














)22

'*'4±'4

'02

)02

752

995()



087(





±±



5'±5'

06'5$0

,&

$±$

±

±





5$±5$

6<67(0

&21752//(5

,&



































%$ %$

%$ %$

5&/. &/.

'40 /'40

'40 8'40

5$6 5$6

&$6 &$6

5:( :(

,)6', 
,)6'2 
,)6&. 

3567

,)&6 
,)%6< 

07.6'2



07.6',



07.&/.








07.5(6(7

07.;,)&6

07.%86<

86%2&



&203$5$725



86%

,&





86%$9

86%%9

6LJQDOSDWK



&'02725



&'02725

&'3/$<

  86%

5FKLVRPLWWHGGXHWR

&'0/2$'6:
&'081/2$'6:

VDPHDV/FK

HCD-GPX555/GPX888

2323

HCD-GPX555/GPX888

6-2. BLOCK DIAGRAM - MAIN Section -

ANTENNA

FM/AM

AUDIO

IN 1

J602 (1/2)

CN3000

2

3

GPX888

MIC IN

J2300

PARTY

R

L

AUDIO IN 2

CHAIN IN

R-CH

RL

FM DRIVER

(FM RECEIVER)

IC3000

413

ARF1 L OUT

R OUT

12

ARF2

5

R-CH

SIGNAL SELECTOR

IC605

Y0

1

X3

11

Y3

4

X1

14

X2

15

B
9A10

ANALOG

SELECTOR

Q604

MIC AMP

IC2300

RV2600

MIC LEVEL
MIN MAX

13

X

1375

MIC DETECT

Q2300, Q2301

112

117

ACLK

ALRCK

113

ABCK

106

ADIN

118

ASDATA0

CD RF AMP

FOCUS/TRACKING ERROR AMP

CD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

IC301

(2/2)

X103

12.288MHz

STEREO A/D

CONVERTER

IC609

VINL

13

VINR

14

STEREO A/D
CONVERTER

VINL

13

SCKI

6

LRCK

7

BCK

8

A

1

SIGNAL SELECTOR

IC607

X102

13.333MHz

IC606

9

2
B

DOUT

BCK

DOUT

Y

5

8

9

X101

32.768kHz

STEREO A/D
CONVERTER

IC604

LRCKI

6

BCKI

5

SDIN

4

ASYNCHRONOUS

SAMPLE RATE

CONVERTER

IC610

VOUTL

VOUTR

DATA

BCK

LRCK

BCKO

LRCKO

SDOUT

AUDIO

L

OUT

OP AMP

+

3

+

5

ANALOG

SELECTOR

Q611

IC601

J602 (2/2)

OUT

OUT

1

7

MUTE

PROTECT

Q602

MUTE SW

Q606

SIGNAL

SELECTOR

4

11

1

12

VOUTL

VOUTR

VOUTL

VOUTR

IC602

Y3

Y

3

X3

X

13

Y0

A

10

X0

B

9

7

8

R-CH

7

8

R-CH

ANALOG
SELECTOR
Q605, Q607

OP AMP

IC603

+

OUT

7

8

2
1
3

25

24

23

3

5

1

+

OUT

7

STEREO D/A
CONVERTER

IC611

BCK

1

DATA

2

STEREO D/A
CONVERTER

IC615

BCK

1

DATA

2

R

MUTE SW

Q603

PARTY

CHAIN OUT

FRONT-L

>001B

AMP SECTION

(Page 25)

SW-L

X3000
12MHz

HCD-GPX555/GPX888

BLUETOOTH

16

17

X1

X2

CN102

4

5

9

8

IIC/RDSI

BT-RXD

BT-TXD

BT-RESET

3.3V

41

42

ANALOG-ASEL

ANALOG-BSEL

DA

11

CK

8

6

128

ST-DATA

127

ST-CLK

114

ST-RDS

BUS BUFFER

IC102 (1/2)

BLUETOOTH

POWER CONTROL

Q103, Q104

65

173

BT-RXD(MD-CLK)

65

133

MIC-DETECT

BT-RESET

BT-ON

BT-TXD

5

8

91 92

AUDIO-X1

70 71 68 67

AUDIO-X2

EXTAL

SYSTEM CONTROLLER

XTAL

IC101 (2/4)

RTC-X2

RTC-X1

CP-DATA

126

2

SDA

EPROM

IC105

125

6

CP-CLK

SCL

28

SSI3_DI

26

24

27

SSI3_BCKO

SSI3_LRCKO

32

55

59

SSI1_DI

LINK-DET

SSI3_DOUT3

4)ODVK&6

4)ODVK6,2

169

172

1

2

CS

SO/SIO1

EPROM

29

SSI0_DO

4)ODVK6,2

4)ODVK6,2

166

170

168

3

5

SI/SIO0

W P/SIO2

IC106

33

SSI2_DO

SSI0_BCKO

4)ODVK&/.

4)ODVK6,2

167

6

7

SCLK

HOLD/SIO3

LINK-OUT-B

LINK-OUT-A

/LINE-MUTE-FR

LINK-SET

51

176

96

175

6LJQDOSDWK

: AUDIO

: TUNER (FM/AM)
: CD PLAY

: MIC

5FKLVRPLWWHGGXHWR
VDPHDV/FK

2424

6-3. BLOCK DIAGRAM - AMP Section -

HCD-GPX555/GPX888

>001B

MAIN SECTION

(Page 24)

FRONT-L

SWL-L

R-CH

R-CH

OP AMP

IC1015

OP AMP

IC612

+

3

+

5

OP AMP

+

3

+

5

IC616

OUT

OUT

OUT

OUT

1

7

MUTE

PROTECTION

Q1035

GPX888

MUTE

PROTECTION

Q1042

1

7

+IN_1

3

+IN_2

5

OP AMP

IC1016

+IN_1

3

+IN_2

5

DUAL

OPERATIONAL

AMPLIFIER

IC1003

5

OUT_1

OUT_2

OUT_1

OUT_2

1

RESET

SWITCH

Q1026

7

1

RESET

SWITCH

Q1031

GPX888

7

RESET

SWITCH

Q1036

1

7

RESET

SWITCH

Q1041

POWER AMP

3

IN

CSD

5

POWER AMP

3

IN

CSD

5

POWER AMP

3

IN

CSD

5

POWER AMP

3

IN

CSD

5

IC1009

IC1011

IC1012

IC1014

COM

COM

COM

COM

+63V

14

HO

13

VS

11

LO

10

14

HO

13

VS

11

LO

10

14

HO

13

VS

11

LO

10

14

HO

13

VS

11

LO

10

DIGITAL AUDIO MOSFET

Q1023

DIGITAL AUDIO MOSFET

Q1025

-63V

+63V

DIGITAL AUDIO MOSFET

Q1028

DIGITAL AUDIO MOSFET

Q1030

-63V

+63V

DIGITAL AUDIO MOSFET

Q1032

DIGITAL AUDIO MOSFET

Q1034

-63V

+63V

DIGITAL AUDIO MOSFET

Q1038

DIGITAL AUDIO MOSFET

Q1039

-63V

TH1007 D1024

TH1008 D1024

TH1009 D1034

TH1010 D1034

DC DETECT

SWITCH

Q1027

DC DETECT

SWITCH

Q1037

PGND

FL

FR

PGND

PGND

SWL

SWR

PGND

PGND

SWR

TH-PROTECT

TB1000

TB1001

TB1002

AMP SECTION

FL+

FR+

-

L

+

-

R

+

-

L

+

-

R

+

-

+

,03('$1&(86(

>002B

(Page 26)

FRONT SPEAKERS

,03('$1&(86(

SUBWOOFER

,03('$1&(86(

SUBWOOFER

GPX888

GPX555

HCD-GPX555/GPX888

MUTE

SWITCH

Q109

96

/LINE-MUTE-FR

136

AMP-CLK-FR

AMP RESET

SWITCH

Q1008

120

/AMP-RESET

AMP

SWITCH

Q1058

131

/AMP-SD

SYSTEM CONTROLLER

IC101 (3/4)

THERMISTOR
PROTECTION
Q1067, Q1071

78

THERMISTOR-PROTECT

DC DETECT

SWITCH

Q1060

132

/DC-DET

D1011

FAN RESET

SWITCH

/AMP-RESET

INT- FAN-D ET

Q1073

120

6LJQDOSDWK

13V

: AUDIO

5FKLVRPLWWHGGXHWR
VDPHDV/FK

FAN DRIVER

Q1072

CN1001
DC FAN

FAN PROTECTION

82

(LOCK)

Q1075

2525

HCD-GPX555/GPX888

Ver. 1.1

6-4. BLOCK DIAGRAM - PANEL/POWER SUPPLY Section -

GPX555

LED SPEAKER

FRONT

SPEAKERS

GPX888

LED SPEAKER

FRONT

SPEAKERS

LED

SPEAKER

SUBWOOFERS

VACUUM

FLUORESCENT

DISPLAY

ND2000

D2000, D2002,
D2003, D2005,
D2011, D2200,

D2205

D2006 ~ D2010

CN501

2

L

3
4

CN502

2

R

3
4

CN505

6
7
8

L

2
3
4

CN506

2
3
4

R

6
7
8

CN503

2

L

3
4

CN504

2

R

3
4

VOLUME /

DJ CONTROL

S2200 ~ S2212

S2000 ~ S2009, S2100

S2100

OUT0

5 - 205 - 19

OUT15

OUT0

OUT15

16 - 18

13 - 15

10 - 12

5 - 7

18- 20

15 - 17

12 - 14

35

SI

36

CLK

37

LAT

38

BK

REMOTE CONTROL

LED DRIVE

IC2000

I

TRANS

PWMCLK

SOUT

LED DRIVE

IC2002

I

TRANS

PWMCLK

LED SELECTOR

IC502

PWMCLK

/OUT13

I

/OUT11

/OUT10

I

/OUT8

/OUT7

I

/OUT5

/OUT2

I

/OUT0

LED SELECTOR

IC501

/OUT15

I

/OUT13

PWMCLK

/OUT12

I

/OUT10

/OUT9

I

/OUT7

RECEIVER

SIN

SCK

SIN

SCK

SIN

SCK

TRANS

SOUT

SIN

SCK

TRANS

IC2100

S2101

ROTARY

ENCODER

2
3

4
21
22

2

3

4
21

2

3

21

4

22

2

3

21

4

FL-SOUT

40

FL-CLK

35

FL-LATCH

38

FL-BK

134

135

SIRCS

83

MASTER-VOLUME

AD-KEY1

85

AD-KEY0

84

POWER-KEY

45

SYSTEM CONTROLLER

IC101 (5/5)

RGB-SOUT

48

RGB-SCLK

137

RGB-PWM-CLK

118

RGB-TRANS-LED-SPK/SD_WP_0

112

PCONT-PSAVE-PROTECT

THERMISTOR-PROTECT

SPM-C-MON

PCONT-DAMP

PCONT-BTSTBY

RES

C-CONT

VBUS-OE

AC-CUT(MD-BOOT0)

MTK-POWER-CTRL

SPM-AMBIENT-TEMP

79

117

56

76

165

12

63

164

57

80

78

TD FL
TUBE

+1.2V

TH571

+1.2V REG.

1 8

IC303

LED+5.2V

D2004, D2012,
D2030 ~ D2031

+3.3V

+5V

D+3.3V

5.2V

USB+5V

+5V REG.

5 4

IC3001

POWER CONTROL

PROTECTION

Q006

POWER CONTROL

PROTECTION

Q007

POWER CONTROL

PROTECTION

Q009

POWER CONTROL

PROTECTION

Q008

VOLTAGE

4 2

DETECTOR

IC103

POWER CONTROL

PROTECTION

Q005

POWER CONTROL

PROTECTION

Q001

POWER CONTROL

PROTECTION

Q002

DC-DC CONVERTER

TRANSFORMER

T2000

+5V REG.

IC006

+9V

+3.3V

SWITCHING

TRANSISTOR

Q2000 ~ Q2001

+1.2V SW1

VOLTAGE REGULATOR

IC001

SW2

14

SW1

3

EN2

12

SW1

5

+9V REG.

IC004

VIN1
VIN2

PROTECTION CONTROL

+3.3V REG.

IC002

VIN1

3

SW2

14

1

16

1

VIN2

16

POWER

CONTROL

PROTECTION

Q004

POWER

CONTROL

PROTECTION

Q003

Q576

PROTECTION CONTROL

Q575

PROTECTION CONTROL

Q574

PROTECTION CONTROL

Q572

PROTECTION CONTROL

Q571

+VH

PROTECTION SWITCH

+18V

+5V

PROTECTION SWITCH

-18V

-5V

-VH

POTECTION

SWITCH

Q1003, Q1004, Q1007

XX

AC CUT SWITCH

Q107

Q1000

+18V REG.

Q1006

+5V REG.

IC1000

Q1002

-18V REG.
Q1005

-5V REG.
IC1001

-46V REG.
IC1002

REGULATOR,

SWITCHING

(3H401W)

AC DET

MAIN-ON

+VH

+VL

-VL

-VH

+13.5V

-46V
(AC IN)

>002B

AMP SECTION

(Page 25)

TH-PROTECT

THERMISTOR PROTECTION

Q1067

THERMISTOR PROTECTION

Q1071

-VH

P-CON

HCD-GPX555/GPX888

2626

HCD-GPX555/GPX888

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• Y : Parts extracted from the conductor side.

• f : Internal component.

• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)

Caution:

Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)

• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model

Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF) 50

WV or less are not indicated except for electrolytics and
tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise

specifi ed.

• f : Internal component.

• 2 : Nonfl ammable resistor.

• 5 : Fusible resistor.

• C : Panel designation.

Note: The components identifi ed by mark 0 or dotted

line with mark 0 are critical for safety.

Replace only with part number specifi ed.

• A

• B : B– Line.

• Voltages and waveforms are dc with respect to ground

no mark : TUNER (FM)
* : Impossible to measure

• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production

• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production

• Circled numbers refer to waveforms.

• Signal path.
F : AUDIO
f : TUNER (FM/AM)
N : MIC
J : CD PLAY
E : USB

• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model

: B+ Line.

under no-signal (detuned) conditions.

tolerances.

tolerances.

• Circuit Boards Location

DAMP board

TUNER board

MB board

REGULATOR, SWITCHING
(3H401W)

BLUETOOTH module

RC-S801/A (WW)

FL board

HCD-GPX555/GPX888

DJ KEYS board

USB board

2727

HCD-GPX555/GPX888

Ver. 1.1

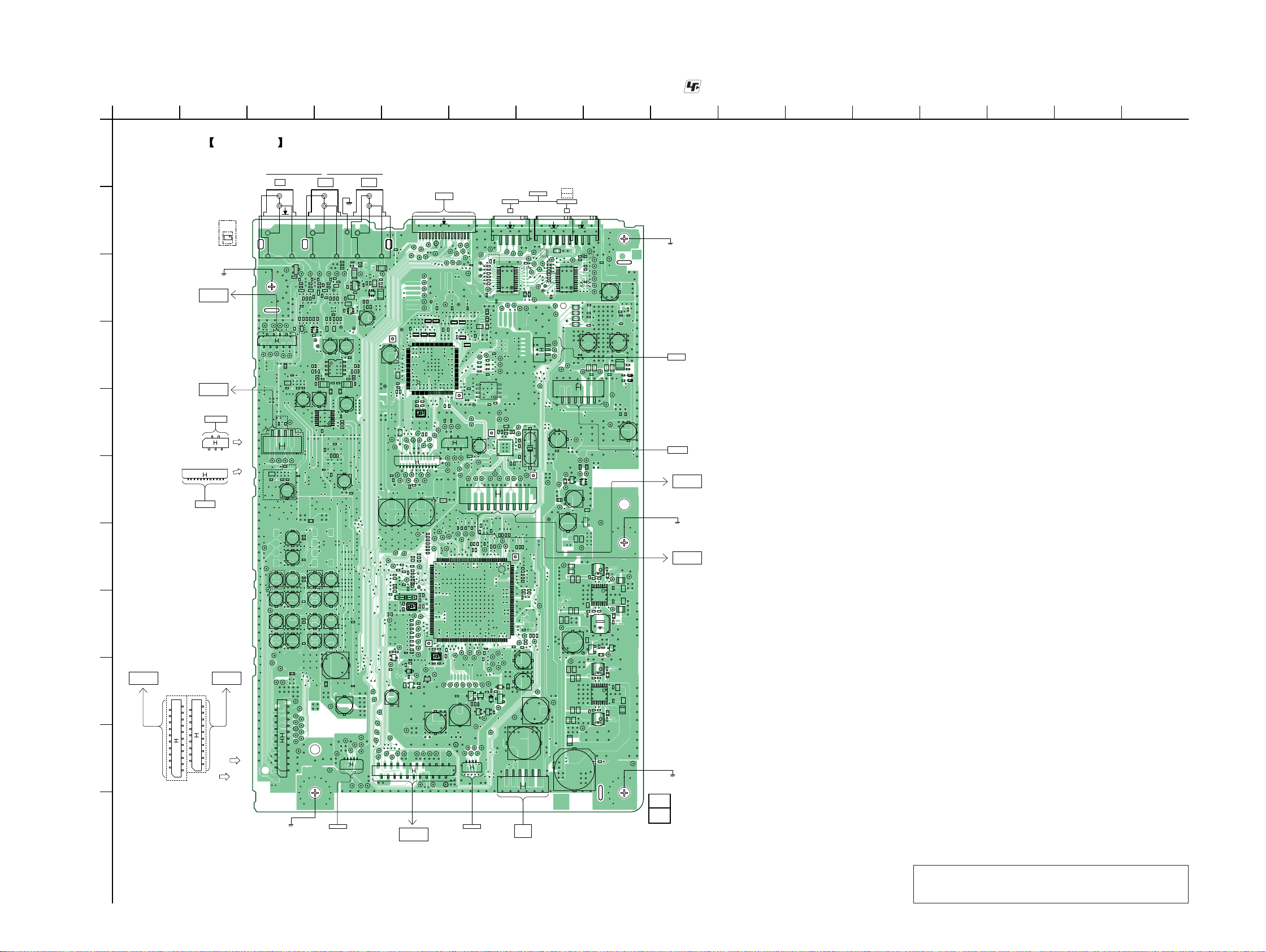

6-5. PRINTED WIRING BOARD - MB Board (Component Side) - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

A

B

C

D

E

F

G

H

J

K

I

1

DAMP
BOARD
CN1006

(Page 39)

>003P

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MB BOARD
(COMPONENT SIDE)

>001P

TUNER BOARD

CN3001

(Page 49)

USB BOARD

CN2301

(Page 47)

>002P

CONNECT TO
MS-476 BOARD

CN303

1245

123

CN302

224

SERVICE,

OPTICAL DEVICE

(Page 39)

Ú

¾

21

19

20

18

CN111

21p

CN112

19p

2

1

2

1

ÚGPX555
¾GPX888

Q001, Q602,
Q603, Q604,
Q607

B1C2 E1

B2E2 C1

(CHASSIS)

DAMP
BOARD
CN1007

>004P

AUDIO

IN 2

L

R

AK

JL057

A/K

C048

R673
C647

C638

C651

JL624

19

JL623

¾

C678

JL236

JL237

JL238

JL239

JL240

R684

JL628

JL630

JL626

R853

¾

2

8

CN851

JL627

JL625

JL629

JL631

R857

R677

C655

C649

C653

¾

R711

R716

JL612

14

CN601

JL616

JL613

JL614

JL615

R718

C679

C673

C674

C672

C913

C724

¾¾

C758

C761

C749

C756

C701

C704

C698

C690

JL241

JL618

R142

JL264

JL266

JL265

21

19

20

18

JL251

JL248

JL246

CN112

19p

JL244

JL242

JL257
JL258
JL259
JL260

CN111

21p

JL261
JL262

2

JL263

1

2

1

(CHASSIS)

J602

AUDIO IN 1

/ PARTY
CHAIN IN

L

R

D005

JL604

JL608

JL607

R671

R662

R672

R680

R669

R913

R676

R663

C650

C641

C636

C602

C643

C661

R666

R610

R911

R657

R664

R665

R681

R682

R683

R697

R698

R633

C610

C662

Q604

C656

JL609

JL611

R617

C608

R619

R609

R618
C604

C603

R614

C632

R620

C646

R643

C609

C645

R820

R725

R729

C675

R733

C914

R908

R907

C759

C737

R812

R811

C743

C702

C688

R765

R764

C697

R794

JL617

JL252

JL249

JL247

JL245

JL243

JL115

JL053

AUDIO OUT

/ PARTY

CHAIN OUT

L

R

(CHASSIS)

C284

JL204

C639

R628

R756

R750

C657

R752

C652

JL605

JL606

C620

JL610

JL619

R914

R641

R912

R624

C631

Q602

R627

JL601

R625

C917

R608

C606

R700

R611

R612

R613

C629

R616

C616

R692

Q607

R634

R636

R639

C605

R635

JL602

JL603

C625

C614

C618

C615

R638

C634

R654

R652

R640

IC603

C635

C633

R655

C624

C630

C619

R656

R629

C622

IC604

C617

R630
R631
R632

R734

C680

R741

C684

R728

C691

C695

C748

C742

C705

C753

C696

C726

C741

C072

JL112

JL114

JL106

JL105

JL104

JL107

CN102

10 2

91

JL108

JL109

C627

JL620

R653

R650

R753

C628

R751

Q603

C621

C607

JL339

C350

C341

CL335

C337

C334

R351

R349

SL301

JL301

JL303

224

JL302

C366

R305

JL304

C420

JL234

JL632

R169

JL161

R171
R133

JL149

R125

C109

R123

R136

R103

R132

C127

R176

R127

JL150

JL269

R117

R115

Q107

E

JL128

C104

JL136

C103

JL139

JL144

JL146

JL141

JL045

JL140

JL231

JL230

JL232

JL145

JL147

23

22

JL113

JL202

JL309

JL307

123

JL310

JL306

JL308

JL254

R165
R167

R172

C106

C102

X101

JL160

C126

R153

R160

R102
C110

R126

D102

AK

R122

C105

JL047

JL143

FOR

SERVICE USE

CN107

JL195

IC301

116

JL198

JL196

JL216
JL217

JL200

JL199

JL197

JL205

C539

JL110

JL103

JL111

JL508

JL622

JL621

JL904

JL905

R381

C357

RB301

44

C358

RB306

RB307

R379

R380

RB308

R369

65

RB309

64

JL338

R342

33

32

R340

R335

R337

CL308

JL330

C310

C309

JL326

JL329

JL331

JL318

JL328

JL321

CN303

1245

JL323

JL325

JL327

C463

JL324

JL455

JL454

JL322

JL462

JL463

JL451

R386

110

R215

R218

R219

R295

JL182

JL187

JL185

JL189

C139

JL222

JL181

JL183

R221

JL179

IC101

89

R200

JL186

X103

JL133

JL166

R207

R203

JL191

JL188

JL184

C132

JL171

JL172JL173JL174JL175JL176

D

R576

Q574

GS

R574

C571

C057

JL026

JL194
JL037

JL153

JL156

JL129

JL154

JL157

8

CN105

1

2

JL130
JL131
JL132

JL235

JL203

JL215

JL201

JL345

JL344

JL343

JL342

JL341

JL340

RB304

C364

RB305

RB302

RB303

96

97

128

1

R334

C322

C323

R332

X301

R308

R309

JL305

JL317

JL313

JL311

JL315

JL319

CN302

JL314

JL320

JL316

R307

JL312

C367

C423

R163

JL163

R198
R195
R193
R189
R201

R164

JL162

R181
R197
R168

45

R170

JL164

R101

C113

R173

R174

R120
R116

JL268

C279

C278

X102

R185

R188

R186

JL159

R154

JL158

R155

JL255

R156

R177

JL165

88
R178

R179

JL256

R196

R180

JL167

JL168

R128

C130

JL178

JL180

JL148

E

C107

Q109

R119

IC103

JL135

JL142

JL137

CN109

JL138

JL134

CN503

SUBWOOFERS FRONT SPEAKERS

L L

JL506

JL503

JL502

¾

R552

R553

JL509

R510

1324

R515

R518

R521

JL507

25

R525

IC501

R529

JL501

R533

JL348

C521

JL346

R385

R384

C362

R383

C363

JL337

R321

JL336

R356

JL334

R355

R354

R350

JL333

R347

R345

R344

IC302

R327

R331

JL468

JL466

JL467

C453

C452

R452

R453

R454

18 13

19 12

25

C462

1

6

IC451

JL452

JL470

JL460

JL461

JL458

JL459

CN451

R232

R235

R261

R265

R254

R257

R230

JL190

JL211

R234

R224

R229

R239

R247

JL209

R226

JL193

1

132

R233

JL192

JL208

JL227

R236

JL224

R166

JL207

JL228

JL225

R113

D571

KA

JL169

R571

JL170

R572

R575

KA

E

E

Q572

Q571

D572

C573

JL004

R578

E

E

C574

Q575

Q576

JL005

JL155

JL151

JL152

127

JL505

JL504

112

JL349

JL350

JL465

R451

C451

JL464

724

C457

R460

C459

JL456

JL457

R270

JL212

176

R111
R293

R292
R291

R284
R283

133

JL210
R241

JL006

14

R544

R542

C456

R458

JL469

R272

R271

R285

R281

JL213

R238

C149

C150

C024

CN001

Ú

CN501 (4P)

LED SPEAKER

¾

CN505 (8P)

1

4

¾

JL518

R505

R501
R508
R513

JL511

JL516

JL515

JL512

JL514

Ú

R517

JL513

R520
R524

JL510

JL527

JL526

R569

R534

JL206

JL351

JL347

JL335

CN301

13

JL404

JL332

C067

X451

C065

JL453

JL021

R053

JL032

JL048

R110

R274

R273

JL059

JL003

R278

R276

R279

R280

JL214

R255

JL066

JL046

C088

16

18

JL517

¾

JL056

C529C530

JL522

R560

JL519

1324

25

IC502

SL404

SL403

SL402

SL401

JL352

JL353

JL354

JL403

CN401

16

JL030

R040

JL029

C537

JL001

JC001

JC002

R561
R562

¾

R523

112

C408

JL402

JL033

JL024

R034

JL025

E

Q006

C073

R538

R546

JL061

C003

C005

C538

JL520

JL521

JL523

JL524

C532

JL525

C411

R415

C413

R418

C412

JL401

SL405

SL407

SL406

C418

C419

JL406

JL405

JL050

JL022

R030

JL023

Q001

C045

JL055

KA

A/K

D003

L001

C017

R014

R059

R002

C080

JL042

IC001

JL043

C035

C081

C049

C052

R031

R024

L006

R023

JC003

JC004

C083

R061

Q008

C084

E

R062

R063

JL049

JL041

JC007

JC006

R012

JL044

L007

C034

JC008

C053

C006

JC005

C023

R018

R043

R041

C050

C039

IC002

C014

R003 R006

C004

C078

R015

L002

C018

JL040

TH571

(CHASSIS)

R402

C402

C403

R401

R408

C401

FLASH

R409

R404

R410

C405

D401

SL408

C406

D402

C075

C074

C066

PROGRAMMING

SERVICE,

OPTICAL DEVICE

USB

BOARD

>007P

CN2303

(Page 47)

(CHASSIS)

USB

BOARD

>006P

CN2302

L003

JL267

C013

C019

C030

C040

L008

R017

C079

E

Q009

C032

C021

L004

JL054

(CHASSIS)

(Page 47)

12

(12)

Note: IC001, IC002 and IC302 on the MB board cannot exchange

with single. When these parts on the MB board are
damaged, exchange the entire mounted board.

>005P

FL BOARD

CN2001

(Page 42)

NFCBLUETOOTH

CONNECT TO
REGULATOR,
SWITCHING

(3H401W)

BOARD

1-889-489-

HCD-GPX555/GPX888

2828

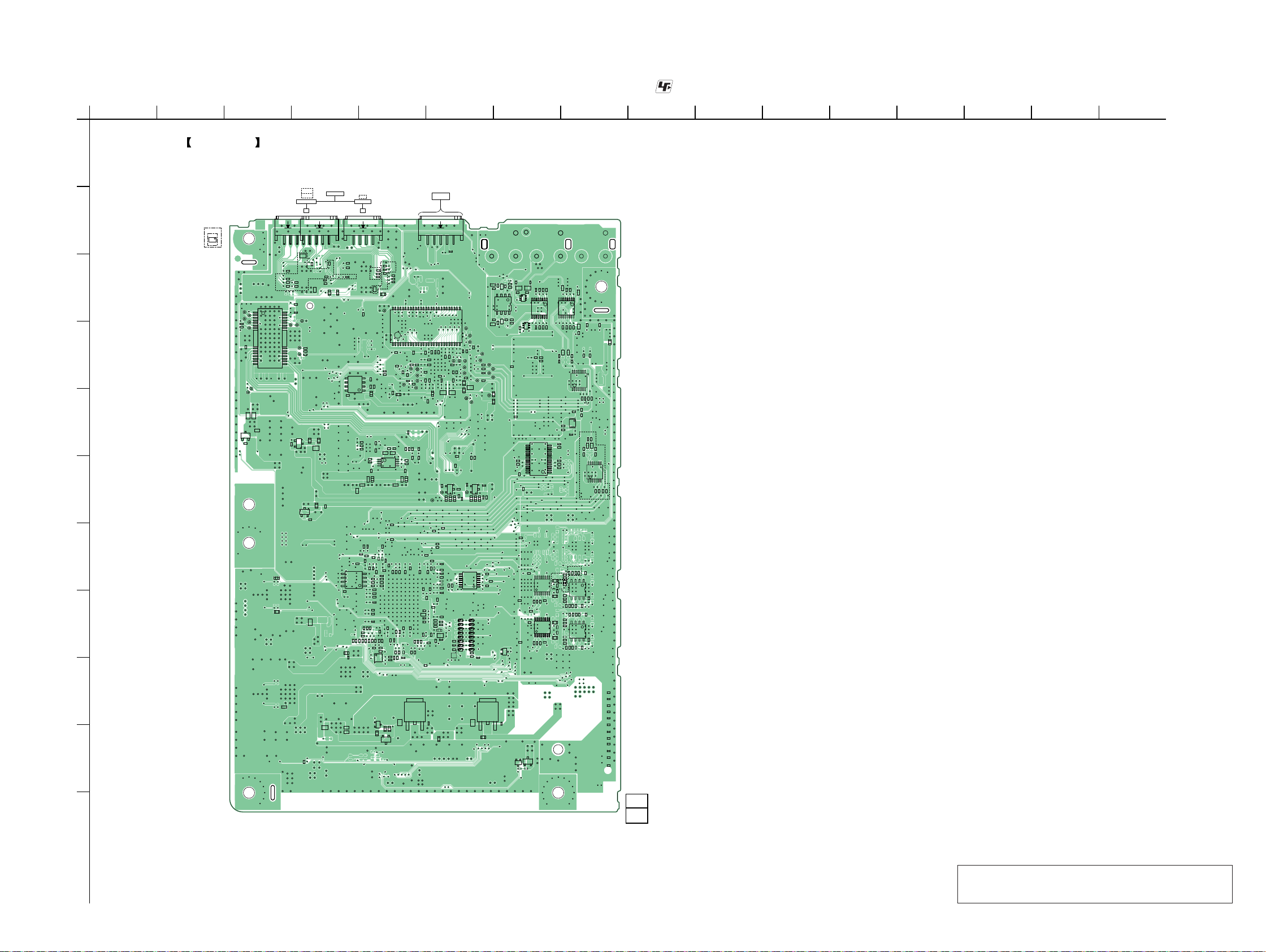

6-6. PRINTED WIRING BOARD - MB Board (Conductor Side) - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

Ver. 1.1

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MB BOARD

A

B

C

D

E

F

G

H

(CONDUCTOR SIDE)

ÚGPX555
¾GPX888

Q605, Q611

B1C2 E1

B2E2 C1

C535

C528

R564

CL402

CL401

CL404

CL403

R406
R407

CL405

C404

CL406

Q002

E

R028

28

781

222115

29

30

IC401

14

CL407

R052

R051

C064

R009

R020

Ú

CN502 (4P)

LED SPEAKER

¾

CN506 (8P)

¾

R502

C534

C525

R563

C520

C527

C519

C526

C511

R411

C407

CL412

CL408

CL409

CL410

C409
R302

CL411

R301

R047

Q005

R037

E

R433

R048

Q007

E

R039

JC009

¾

CN504

SUBWOOFERSFRONT SPEAKERS

RR

14

18

C524

R539

R541

R054

C071

14

C533

C312

C164

R114

¾

C516

C522

C523

IC303

R251

R183

IC106

C277

C161

C517

Ú

R568

R555

C518

C515

R556

C514
C513

C508

R543

CL339

54

R304

1

R319

R387

CL315

R346

R348

C314

R343

R352

CL311

C315

R323

C324

R324

R329

C454

R455

R456

R469

R472

C455

R457

C460

C465

R462

R463

C461

C464

C468

R263

R267

R242

C153

R259

R289

R290
R288

R253

R260

R264

R268

R262

R266

R277

R258

R470

R464

IC452

C466

R465

C467

R822

R821

R240

R099

R237

C143

R104

R105

C146

C148

R256

R112

C140

C142

C141

R294

R286

R287

C154

C155

C156

C157

C158

C159

C160

C144

R223

R225

R250

C147

R246

R282

R298

R244

C162

R248

R252

R243

R245

C165

R220

R227

R297

R217

C166

R222

R228

IC105

IC306

C360

C365

R359

R361

CL322

R362

R357

CL317

CL313

C326

C336

CL309

C311

C307

C308

R316

R317

R313

R312

R467

R468

R466

R208

R216

C137

C135

R139

C118

C117

C280

C282

C136

C138

C134

R206

R204

R202

R212

R214

R100

R191

FOR

SERVICE USE

CN101

51

C167

28

27

C352

R382

C359

C348

C344

C346

C347

CL333

CL334

C342

C343

C340

C339

R330

C331

C330

C325

R326

C316

C319

R378

CL312

R339

CL413

R205

C133

R143

R140

C281
C121
C123

R194

CL310

C302

C303

Q402

C424

R429

E

CL415

CL414

R432

R431

R427

R428

R430

R211

R213

R209

R210

C168

R300

R161

C111

R192

R162

R106

R135

R134

R107

C112

C114

C115

R175

C116

D114

C120

D112

C122

D110

FB101

C131

D118

C128

D116

R146

C129

R190

R145

R144

D104

D108

R157

D106

R606

R685

R686

R644

R642

C766

C601

R607

IC601

R649

R615

R600

C612

C767

CL338

CL337

CL336

R370

C345

CL330

CL329

CL332

R367

CL321

CL319

R360

CL316

R365

CL318

CL320

CL331

C338

R358

CL314

R328

C328

CL307

R325

R322

R306

R310

C421

Q401

R424

E

R421

R422

R423

R425

R426

R129

R131

IC102

R130

D115

D113

D111

D119
D117

D109

D107

D105
R158

R159

R605

R602

R603

R604

R659

C660

C665

R915

R689

R651

Q605

IC602

R916

Q611

R906

R621

R626

C626

R658

C637

C659

IC605

R855

R852

C658

R693

R694

R695

R696

R645

R646

R647

R648

R622

C613

R851

C640

C648

R661

C642

R859

R674

R854

R856

C644

IC606

R690

R687

R688

R691

R701

C664

141

1528

IC610

R740

R739

R738

R726

C754

R819

IC615

C744

C751

R795

R796

R797

R910

R817

IC611

C699

C752

Q606

R761

R762

R760

E

R699

R702

IC607

R712

¾

R715

R704

R705

C671

R721

C681

R731

R730

¾

R818
C764

R793

R825

R798

R800
C745

R747

C708

C685

R763

R744

C666

C667

R709

R708

C669

R732

C670

IC609

R719

R722

R723

R720

R813

R814

R815

R816

C763

Ú

C738

C765

C740

C747

IC616

C757

R806

R807

R809

C746

R799

R769

R770

R766

R767

R768

C707

C709

C689

C692

C687

IC612

C700

R743

R745

R746

C686

R749

I

J

K

HCD-GPX555/GPX888

C036

Q003

JC010

R577

E

C010

C011

R029

3

IC004

21

C085

C051

R033

R035

E

Q004

R151

3

IC006

21

C068

C062

R792

Q103

E

E

Q104

R109

R108

12

1-889-489-

(12)

Note: IC106 on the MB board cannot exchange with single. When

this part on the MB board is damaged, exchange the entire
mounted board.

2929

HCD-GPX555/GPX888

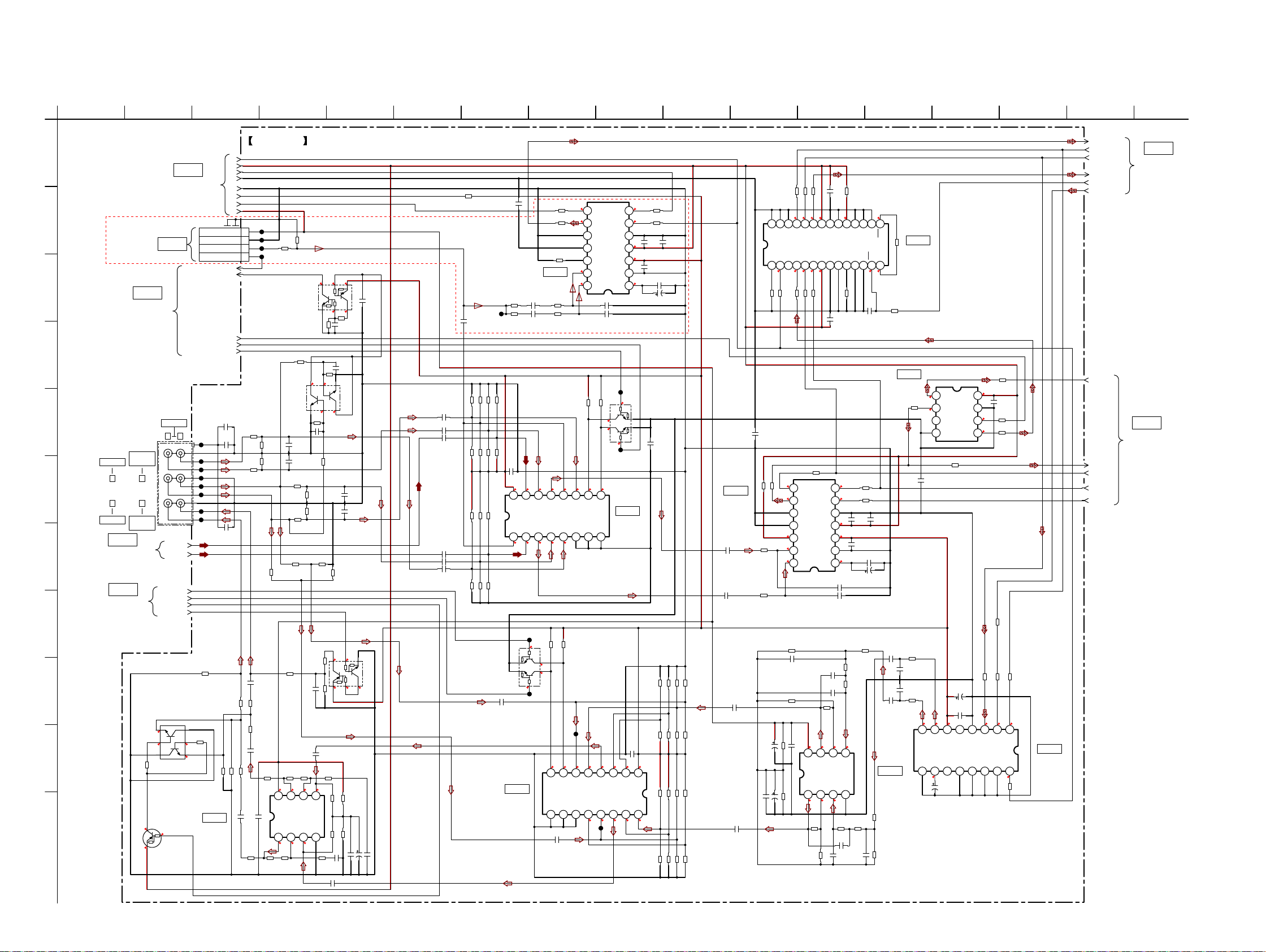

6-7. SCHEMATIC DIAGRAM - MB Board (1/9) - • See page 51 for IC Block Diagrams.

1

A

B

USB BOARD

CN2301

(Page 48)

C

D

E

AUDIO IN 1

L

F

L

AUDIO OUT

>004S

G

MB BOARD (2/9)

(Page 31)

>005S

MB BOARD

(8/9)

H

(Page 37)

I

J

K

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DIN1

ARAGON-BCK3

ARAGON-LRCK3

DIN3

SRC-RST0

DOUT3

ASDATA0

ADIN

MTK-BCK

MTK-LRCK

MTK-MCK

MB BOARD (2/9)

>003S

MB BOARD

(8/9)

(Page 37)

PART Y

CHAIN IN

R

R

PART Y

CHAIN OUT

MUTE PROTECT

0

0.7

R624

2.2k

3.1

3.3

LTA014EUBFS8TL

MUTE SW

(Page 31)

>002S

AUDIO IN 2

L

WHTWHTWHT

TUNER-L

TUNER-R

LINK-OUT-A
LINK-OUT-B

/LINE-MUTE

LINK-SET

Q602

IMX25T110

EB

C

0

Q606

>001S

ANALOG-CSEL/SD_D1_0

ANALOG-BSEL
ANALOG-ASEL

J602

R

6P

JL610

JL608

REDREDRED

JL607

JL606

JL605

JL604

JL620

JL619

R756

6.8k

C

R625

2.2k

B

0.7

E

0

IC601

OP AMP

A+9V

MIC GND

MIC SIGNAL

MIC DET

MIC-DET

LINK-DET

C657

0.1u

C652

0.001u

C639
220p

R752

R627 4.7k

MB BOARD (1/9)

1
3
2
4

6

5

7
8

CN601

4P

JL613

4

JL614

3

JL615

2

JL616

1

R

R680

R676

27k

120k

R673

R672

120k

27k

L

R

L

R913

68k

C627

10u

R753

100

100

R751

100

C621

47u

R621

R628 4.7k

0

R750 100

C606 0.1u

C620 47u

R606

R915

0

4.7k

R711

1k

R716

1k

Q607

RN4902(T5RSONY,D,F)

ANALOG SELECTOR

R685

82k

Q605

XP4501

ANALOG

SELECTOR

R651

68k

C650

22p

C647

22p

R671

56k

R662

56k

R914

68k

GUEST L

R653

6.8k

C612

4.7u

R649

R916

27k

4.7k

9

4.5 4.5 4.5

8

VCC

OUT

IC601

BA4558F

OUT2-3+4GND

1

4.5 4.5 4.5

R642

27k

GPX888

X X 5

C

E

R700

22k

R689

68k

X X

C

B

B

E

X X

C665

2.2u

R686

R669

680k

R663

680k

R912

470k

GUEST R

R650

22k

C628 2.2u

R641 15k

RN4902(T5RSONY,D,F)

R600

68k

5+6-7

R644

68k

C601 4.7u

BE

B

C

X X

R692

22k

C629

10u

C660

2.2u

E

C

82k

C643

10p

C641

10p

R911
470k

0 0

C

B

E

B

5 5 5

Q603

LINK SET

R615 470k

R616 4.7k

R608 4.7k

R607 470k

C766

C607 0.1u

4.7u

E

C

C605 47u 6.3V

JL612

R694 47k

R695 120k

R683 120k

R682 47k

R665 1M

R666 47k

R659 47k

R658 1M

RN1902

ANALOG

SELECTOR

Q611

R696 47k

R684 47k

C631

4.7u

C675

0.1u

R704

22

R705

22

C651

0.1u

1Y02Y23Y4Y35Y16

IC602

SIGNAL

SELECTOR

R722

R719

R718

IC609

STEREO A/D

CONVERTER

C666

4.7u
R708

R709

C667

4.7u

5 2.4 2.4 2.5 2.4

14X115X216

13

VCC

SN74LV4052APWR

2.5 2.4 2.5 2.4 2.5

JL603

0

R906 47k

EE

5

CC

5

BB

0

JL632

9B10

C602

1.4

10

BCK

LRCK

SCKI

DGND

VDD

VCC

AGND

VREF

0.001u

0.001u

IC609

R697 47k

CC

0

0

3.3

9

B

13X14X115

JL601

7

6

5

4

3

2

1

JL611

3.3

BB

EE

JL609

IC605

SIGNAL

SELECTOR

C616

0.1u

X2

Y23Y4Y35Y16INH7GND8GND

8

1

10

DOUT

9

MD0

10

MD1

11

0

FMT

12

2.4

VINL

13

2.4

VINR

14

47

C670

47

C669

PCM1808PWR

R698 47k

2.4 5 0

11X312

10

X

IC605

5 5 2.5 2.5 2.5 2.5 2.5 5

4.7u

X0

R639 47k

JL602

11X312

A

SN74LV4052APWR

INH7GND8GND

A

X0

IC602

2.5 2.5 2.5 2.5 2.5

1.5

1.4

3.3

5

2.4

16

VCC

1Y02

R723

R720

C678

0.1u

C674

0.1u

C673

C672

Q604

RN1902

ANALOG

SELECTOR

C656 0.1u

R645 47k

R633 47k

R602 47k

R610 47k

10

10

0.1u

10u 16V

L

R

R646 47k

R634 47k

R611 47k

R603 47k

C679

R738 10

R739 10

R740 100

C684 0.1u

23

R732 10

22

SDOUT

10

LRCK

SCKI

DGND

VDD

VCC

AGND

VREF

R638

1.5k

7

OUT

IC603

BA4558F

20

21

VDD

DGND

C680

0.1u

7

6

5

4

3

2

1

C644 10p

C642 10p

C634
820p

C633
680p

-

R618

2.7k

C608
820p

C603
680p

TDMI

R741 0

R725 0

1.6

1.6

3.3

5

2.5

R654

2.7k

R652

5+6

18

OFMT119OFMT0

C681

0.01u

R691 10

R688 10

C653

0.1u

C649

0.1u

C646 0.1u

C645

10u 16V

R656 3.3k

2.7k

R619

2.7k

C604

47p

16

15

OWL117OWL0

003.31.61.600

C655

10u

R620

3.3k

R614

10k

RDY

R721

C632

47u

C630
100p

C624
100p

C619

47u

IC603

OP AMP

IC610

SRC4182

IC610

ASYNCHRONOUS

SAMPLE RATE

R734 0

CONVERTER

0

IC607

SIGNAL

SELECTOR

R643

R629

TC7WH157FK

1

A

R702

0

10

2

B

1.2

3

_Y

4

GND Y

R699 22

C626

0.1u

0

0

0 0 5 1.7 0.4 1.7

7

8

VOUTL

VOUTR

AGND

VCOM11ZEROA12TEST13DEMP14MUTE15FMT16SCK

10

9

2.5 1.7

C609

10u 16V

IC607

VCC

C622

10u 16V

C617

0.1u

5NC6

R701

10

3.3

8

VCC

SEL

C671

0.1u

7

_ST

R712

100

0

6

0

5

R715

22

R631 10 R726 0

R632 10

R630 10

1

2

3

4

DGND

LRCK

DATA

BCK

R820

10

IC604

PCM1754DBQR

IC604

STEREO D/A

CONVERTER

1.7 1.7 0.4 3.3 3.3 0

24

25

26

27

28

BCKO

LRCKO

MODE0

MODE1

10u

IC606

PCM1808PWR

IC606

STEREO D/A

CONVERTER

C648

4.7u

C640

4.7u

R647 47k

R648 1M

R636 1M

R635 47k

R612 1M

R613 47k

R604 1M

R605 47k

C625

4.7u

C610

4.7u

MODE2

LGAP2RCKI3NC4SDIN5BCKI6LRCKI7VIO8DGND9BYPAS10IFMT011IFMT112IFMT213RST14MUTE

1

R729 10

R730 10

R731 10

R728 0

C664

0.1u

R690

1.6

BCK

8

1.2

R677 0

R687 22

DOUT

9

MD0

10

MD1

11

3.3

FMT

12

2.5

VINL

13

R674

2.5

R661

100

100

C613 0.1u

R655 10k

C635 47p

R640 4.7k

C618 10u 16V

R626 4.7k

R622 4.7k

C614 47u 6.3V

VINR

14

8

C615 0.1u

1

R609

9 4.5 4.5 4.5

VCC

OUT2-3+4GND

4.5 4.5 4.5

R617

1.5k

4.7k

R733

0

C917

10u

C662

4.7u

C661 4.7u

C659 4.7u
C658 4.7u

C638 4.7u
C637 4.7u
C636 4.7u

C767 4.7u

R693 1M

R681 1M

R664 120k

R657 120k

>006S

MB BOARD

(8/9)

(Page 37)

>007S

MB BOARD

(3/9)

(Page 32)

HCD-GPX555/GPX888

3030

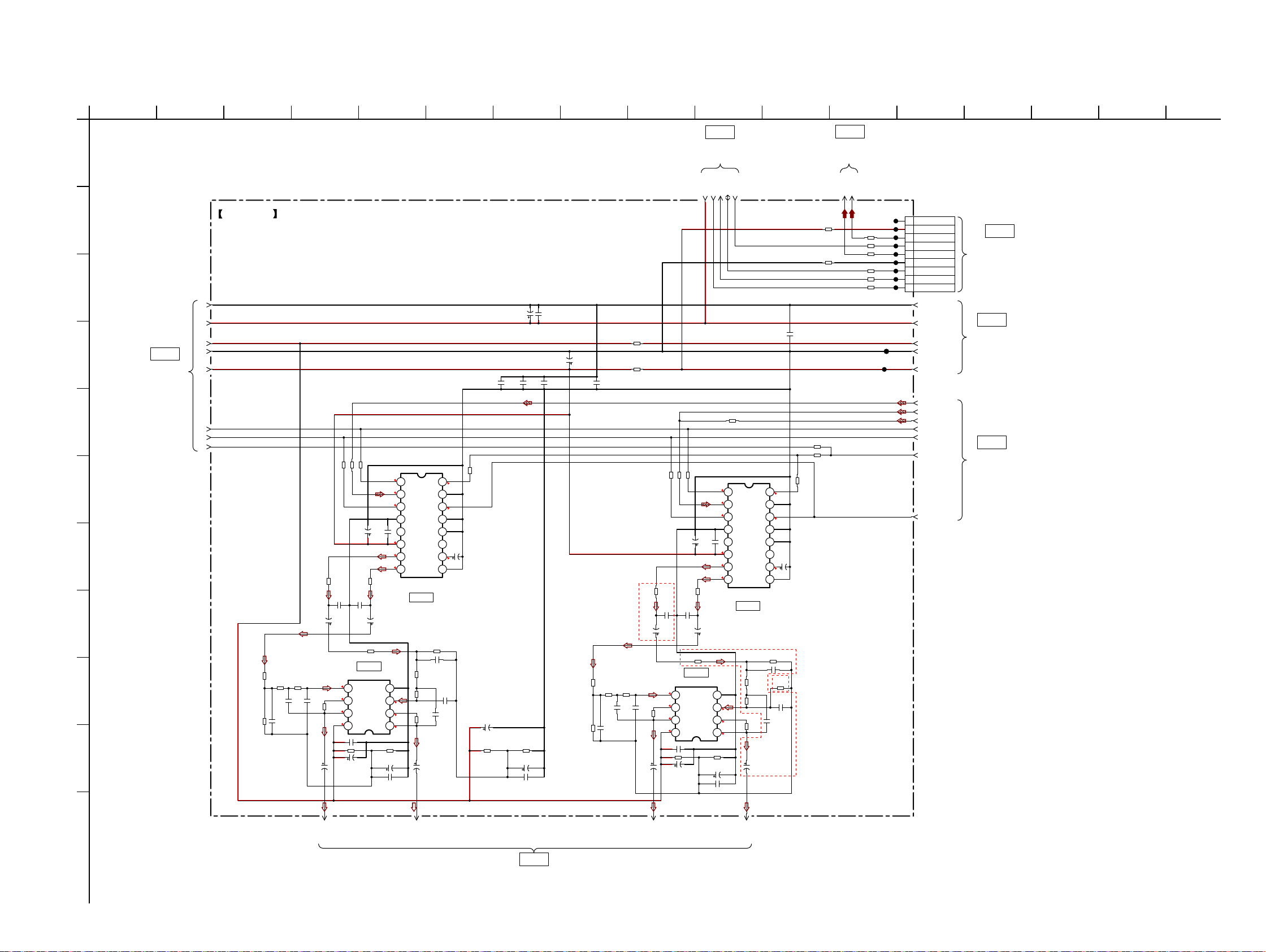

6-8. SCHEMATIC DIAGRAM - MB Board (2/9) - • See page 51 for IC Block Diagrams.

HCD-GPX555/GPX888

1

A

B

C

D

MB BOARD

(Page 30)

E

F

G

H

I

J

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

>004S

MB BOARD (1/9)

(Page 30)

TUNER-L

TUNER-R

R859

0

R851 0

R852 0

R853 0

R857

0

R854 0

R855 0

R856 0

JL617

JL618

JL623

JL624

JL625

JL626

JL627

JL628

JL629

JL630

JL631

CN851

9P

1

2

3

4

5

6

7

8

9

IISD (data audio)

VDD

AUDIO L/LRCK

CE (p con)

AUDIO R/BCK

GND

DA (for IIC)

IIC/RDSI

CK (for IIC)

GND (DGND)

D+3.3V

AVDD+9V

GND

AVDD+5V

DOUT0

DOUT1

DOUT2

ARAGON-BCK0

ARAGON-LRCK0

ARAGON-MCK

DAC-MUTE

>009S

TUNER BOARD

CN3001

(Page 50)

>010S

MB BOARD

(6/9)

(Page 35)

>011S

MB BOARD

(8/9)

(Page 37)

>001S

(1/9)

MB BOARD (2/9)

4

3

8

6

5

7

2

1

R743

R744

>008S

MB BOARD (8/9)

(Page 37)

ST-DATA

ST-RDS

ST-CE

ST-CLK

D+3.3V

C695

C691

0.1u

10u 16V

IC615

MUTE

DEMP

ZEROA

VCOM

R814

2.7k

R815

2.7k

R816

0

C761

10u
16V

TEST

16

SCK

15

FMT

14

13

12

11

10

R818 10k

C764 47p

C763

820p

C741

0.1u

1.5

1.4

2.5

R825

C765
470p

C748

10u
16V

GPX888

0

R822 10

R821 10

R819

10

GPX555

R792

0

C726

470u 6.3V

C751

0.1u

R817

R762 10

C696

10u
16V

R747

0

C688

10u
16V

R746

R745

100

10k

C686
820p

C685

2.7k

2.7k

C687
470p

R749

0

47p

C690

10u

16V

C689

100p

4.5

5

4.5

6

4.5

7

9

8

C700 0.1u

R764 4.7k

C698

10u 16V

C692
100p

R766 100

IC612

OP AMP

+

IC612

­BA4558F

OUT

VCC

1

BCK

1.1

2

DATA

1.4

3

LRCK

4

DGND

C699

5

NC

0.1u

5

VCC

6

2.5

7

VOUTL

2.5

89

VOUTR AGND

R763

0

C697

10u
16V

GND

OUT

R765 4.7k

47u 6.3V

C702 0.1u

IC611

PCM1754DBQR

IC611

STEREO D/A
CONVERTER

R767

4

R768

3

+

4.5

2

-

C701

R769

4.5

1

4.5

SCK

FMT

MUTE

DEMP

TEST

ZEROA

VCOM

R770 10k

C708 47p

2.7k

2.7k

0

C704

10u

16V

16

15

14

13

12

11

10

C709
470p

C707
820p

1.4

R760 10

R761 10

10

1.5

1.4

C705

10u
16V

2.5

C724

10u 16V

R907

4.7k

C754

0.1u

R908

4.7k

C913

47u 6.3V

C914 0.1u

C752

0.1u

R799

100

R800

10k

C753

0.1u

C746

R806

820p

C745

R794

0

R910

0

1.4

R795 10

R796 10

R797 10

C742

10u
16V

GPX888

R793

0

C737

10u

16V

R807

2.7k

2.7k

C747
470p

R809

0

47p

C749

10u
16V

C738
100p

4.5

5

4.5

6

4.5

7

9

8

C757 0.1u

R811 4.7k

C756

10u 16V

C740
100p

R813 100

IC616

OP AMP

+

IC616

­BA4558F

OUT

VCC

1

BCK

1.1

2

DATA

1.4

3

LRCK

4

DGND

C744

5

NC

0.1u

5

VCC

6

2.5

7

VOUTL

2.5

89

VOUTR AGND

R798

0

PCM1754DBQR

IC615

STEREO D/A

CONVERTER

C743

10u
16V

4

GND

3

+

4.5

2

-

4.5

1

OUT

4.5

R812 4.7k

C758

47u 6.3V

C759 0.1u

K

HCD-GPX555/GPX888

FRONT-R

FRONT-L

>012S

MB BOARD (7/9)

(Page 36)

SW-R

SW-L

3131

HCD-GPX555/GPX888

Ver. 1.1

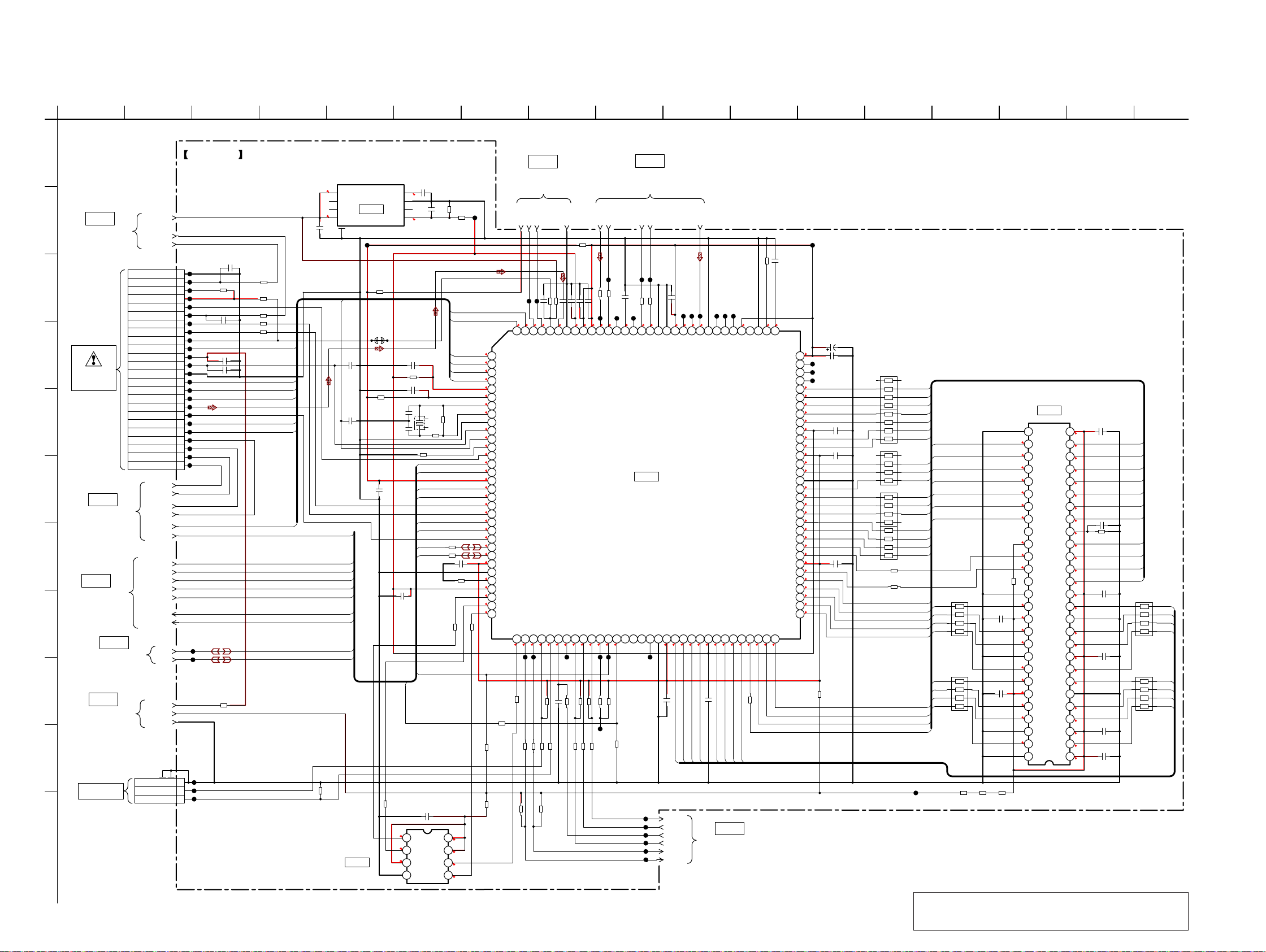

6-9. SCHEMATIC DIAGRAM - MB Board (3/9) - • See page 51 for IC Block Diagrams. • See page 58 for IC Pin Function Descriptions.

A

B

MB BOARD (4/9)

C

D

E

F

MB BOARD (4/9)

G

MB BOARD (4/9)

H

I

MB BOARD (6/9)

J

K

1

>014S

(Page 33)

SERVICE,

OPTICAL DEVICE

(1/2)

>015S

(Page 33)

>016S

(Page 33)

>017S

MB BOARD (5/9)

(Page 34)

>018S

(Page 35)

FLASH

PROGRAMMING

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DVDD3.3V

FE_LD_CD

FE_LD_DVD

GND (LD)

LD (650)

LD (780)

VR (650)

VR (780)

VOE/E+G

VCC

GND (PDIC)

VOF/F+H

VOB/B

VOA/A

(LO:DVD.HI:CD)MSW

VOD/D

VOC/C

TRK-

TRK+

FCS+

FCS-

FE_FCS-

FE_FCS+

FE_TRK+

FE_TRK-

FE_VREFO

FE_LIMIT

FE_DMO

FE_FMO

FE_TRO

FE_FOO

FE_MUTE

FE_CD_LDD

FE_DVD_LDD

USBM

USBP

FE_5V

DVDD3.3V

GND

GND

RXD

TXD

MB BOARD (3/9)

JL301

1

JL302

2

JL303

3

NC

JL304

4

5V

JL305

PD

5

JL306

6

JL307

7

JL308

8

JL309

9

NC

JL310

10

JL311

11

JL312

12

VC

JL313

13

JL314

14

JL315

15

JL316

16

JL317

17

RF

JL318

18

JL319

19

JL320

20

JL321

21

JL322

22

JL323

23

JL324

24

CN302

24P

JL330

JL331

JL352

3

JL353

2

JL354

1

CN301

3P

C367

C302

C303

C366

0.01u

0.01u

>013S

CL308

1.2

3.3.

0.8

0.6

1.4

3.3

3.3

3.3

1.4

1.4

1.4

3.3

0.8

1.2

3.3

0.2

2

1

0

2

0

3

0

4

5

6

7

8

9

2

10

11

0

12

13

0

14

15

16

17

0

18

0

19

0

20

21

22

0

23

0

24

0

25

26

27

28

29

30

31

0

32

10kR319

R329

0

MB BOARD (4/9)

(Page 33)

ASDATA0

GND

FE_OPO

FE_OP-

FE_3.3V

R325

0

C339 0.01u

AVDD12_1

IFSDI

R354 0

ADACVDD2

IFBSY

3.3kR387

R355 0

C340 1u

ADACVDD1

IFCS#

3.3kR357

R356 47

100R358

CL314

ASDATA0

MFISW

CL315

1kR359

JL338

0.01u

100

10k

CL312

CL310

C337 1u

C334

R349

R351

0.5 0.5 0.6 0.6 00.2 1.2 3.3 3.3 0 1.3 0 0 3.3 0 1.3 1.2 1.2 03.3

RF_B

RF_A

RF_C

RF_D

RF_E

RF_F

AVDD12_2

AVDD33_1

XTALI

XTALO

AGND33

V20

V14/VREF0

REXT

MDI1

LDO1

LDO2

AVDD33_2

DMO

FMO

CD_VR

DVD_VR

TRO

FOO

MSW

USB_DM

USB_DP

VDD33_USB

VSS33_USB

PAD_ VRT

VDD12_USB

SF_CS#

SF_DO

SF_DI

R321

100

SPFG/OP-

IFSDO

IFSCK

SF_CK

33 34 35 36 37 38 39 40 41 42 43 44 45

CL311

CL309

47R342

R345 100

R344 100

3.3kR343

C338 0.1u

RFIP

OPDIST

AGND12

IOPMON/OPO

NC

PRST#

TX

RX

3.3 0 3 0 03.3 3.3 2.50 3.31.2 3 3.3 1.1 0.83.3 1.4 2 1.5 1.2 1.2 1.1 1.1 2.6 1.1 1.1 1.1

CL313

4.7kR348

100R352

C336 0.01u

R350 0

R347 0

3.3kR346

C314

R327

GND

NC_2

VOUT

47

C322

C323

0.3

0.3

0.3

3.3

4

CNCONT

3

2

1

C328 10u

R328 12

C330 0.1u

10p

12p

C326

0.01u

FE_MUTE

1

2

3

4

0.01u

0.3

C315

1u

1.2

X301

27MHz

R332

330

15kR330

FE_CD_LDD

FE_DVD_LDD

FE_DMO

FE_FMO

FE_TRO

FE_FOO

USBM

USBP

FE_LIMIT

C324 0.1u

VCC

_CS

SO

_HOLD

_W

GND5SI

R323

1k

SCK

R324

0

FE_VOC

FE_VOB

FE_VOA

FE_VOD

FE_VOF

FE_VOE

R334
100k

0R335

0R337

C325 0.01u

R339 5.1k

47R331

8

3.3

7

3.3

6

1.4

0

47R340

3.3

5

IC303

6

MM1701CHBE

NC_6

7

NC_7

8

VIN

9

FE_VREFO

C316

10u

C319

10u

FE_LIMIT

FE_DMO

FE_FMO

FE_TRO

FE_FOO

FE_MUTE

USBM

USBP

W25Q16CVSSIG-R

IC302

EEPROM

IC302

IC303

+1.2V REG.

CL307

SL301

C331

0.1u

R322

R326

0

0

3.3

C312

1u

R305 0

10kR306

R310 4.7k

R307 0

R308 100

R309 100

FE_VOE

0.1u

0.1u

FE_VOF

FE_VOB

FE_VOA

FE_VOD

FE_VOC

FE_VREFO

FE_CD_LDD

FE_DVD_LDD

0R386

R304
100k

>007S

MB BOARD (1/9)

(Page 30)

MTK-LRCK

MTK-BCK

MTK-MCK

CL321

CL320

CL316

100R360

47R365

C341 10u

CL318

CL319

NC

NC

AVCM

ALRCK

CXD90013R

IC301

CD RF AMP

FOCUS/TRACKING ERROR AMP

CD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

SDA

EEWP

MUTE

LIMITSW

46 47 48 495051 52 53 54 55 56 57 58 59

CL317

4.7kR361

10kR362

JL337

JL336

JL335

JL334

JL333

JL332

IC301

ABCK

SCL

R367 100

CL322

ACLK

NC

C343 1u

ADACVSS2

ADACVSS1

DVDD33

DVSS33

C342 0.01u

RD0

XIFCS

XIFBSY

XSYSRST

IFSDI

IFSDO

IFSCK

CL329

AADVDD

RD0

RD1

CL330

NC

NC

RD2

RD1

RD2

ADIN

CL333

CL332

CL331

RD3

ADIN

RD3

AADVSS

DVDD12

C344 0.01u

RD4

CR/R

RD4

RD5

CL334

SY/Y/G

SC/CB/B

DACVDDB

RD7

RD6

RD5

60 61 62 63 64

RD7

RD6

>019S

MB BOARD (8/9)

(Page 37)

22R369

CVBS

DQM0

R370 560

FS

DACVSSC

RD14

RD15

C345 0.1u

97989910010110210310410510610710810911011111 211311411 511611 7118119120121122123124125126127128

VREF

DACVDDC

MFIDET

XMAMUTE

SPDIF

DVDD12

DVDD33

DVSS12

RWE#

DVDD33

DQM1

RD13

RA10

RAS#

CAS#

RA11

RCLK

RD10

RD11

RD12

CL335

47u 10V

C350

3.3

C352 0.1u

96

CL336

95

CL337

94

CL338

93

2

92

RA3

2

91

RA2

1.2

90

RA1

0.2

89

RA0

0.1

88

1.2

C346 0.01u

87

1.2

86

BA1

1.2

85

BA0

3.3

C347 0.01u

84

3.1

83

3

82

81

3.1

80

1.2

79

RA4

1.2

78

RA5

1.2

77

RA6

1.2

76

RA7

0

75

RA8

0

74

RA9

0

73

1.3

72

3.3

C348

71

70

RD8

69

RD9

68

67

66

65

0.01u

2.6

1

1

1

1

1

R378

0

RB302

RB301

22

RB304

RB303

22

RA3

RA2

RA1

RA0

RA10

BA1

BA0

RB305

22

22

22R380

R379

22

RA4

22

RA5

RAS

RA6

CAS

RWE

RA7

RA8

RA4

RA5

RA9

RA6

RA11

RA7

RA8

RA9

RA11

DRCLK

CL339

DQM1

RD10

RD11

RD12

RD13

RD14

RD15

DQM0

RD8

RD8

RD9

RD9

RD10

RD11

RB306

22

RD12

RD13

RD14

RD15

RB307

22

R385

0

R384

0

R381

10k

C357 0.1u

C358 0.1u

R383

0

28

1.4

29

2

30

1.6

31

1.6

32

0

33

0

34

0

35

36

3.3

37

1.4

38

2.9

39

40

41

0.9

42

3.3

43

0.8

44

0.8

45

46

1.1

47

1.1

48

3.3

49

1.4

50

1.4

51

52

0.8

53

54

IC306

EM638165TSD-6G

IC306

64M SDRAM

VDD

VSS

A4

A5

A6

A7

A10/AP

A8

BA1

A9

BA0

A11

NC

RAS

CLKE

CAS

CLK

WE

UDQM

LDQM

NC

VDD

VSS

DQ7

DQ8

VSSQ

VDDQ

DQ6

DQ9

DQ5

DQ10

VDDQ

VSSQ

DQ4

1

DQ1

DQ3

DQ12

VSSQ

VDDQ

DQ2

DQ13

DQ1

DQ14

VDDQ

VSSQ

DG0

DQ15

VDD

VSS

C364 0.1u

27

3.3

A3

26

1.4

A2

25

2.6

A1

24

2.6

A0

23

0

22

0

21

1.9

20

C359 0.01u

2.1

CS

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

3.1

3.1

3.3

2.9

3.3

0.6

0.6

0.7

3.3

0

1

0.6

0.5

3.3

1

3.3

10kR382

C360 0.1u

C365 0.1u

C363 0.1u

C362

10u

RA10

RWE

DQM0

RA3

RA2

RA1

RA0

BA1

BA0

RAS

CAS

RB308

22

RD7

RD6

RD5

RD4

RB309

22

RD3

RD2

RD1

RD0

HCD-GPX555/GPX888

Note: IC302 on the MB board cannot exchange with single. When

this part on the MB board is damaged, exchange the entire

3232

mounted board.

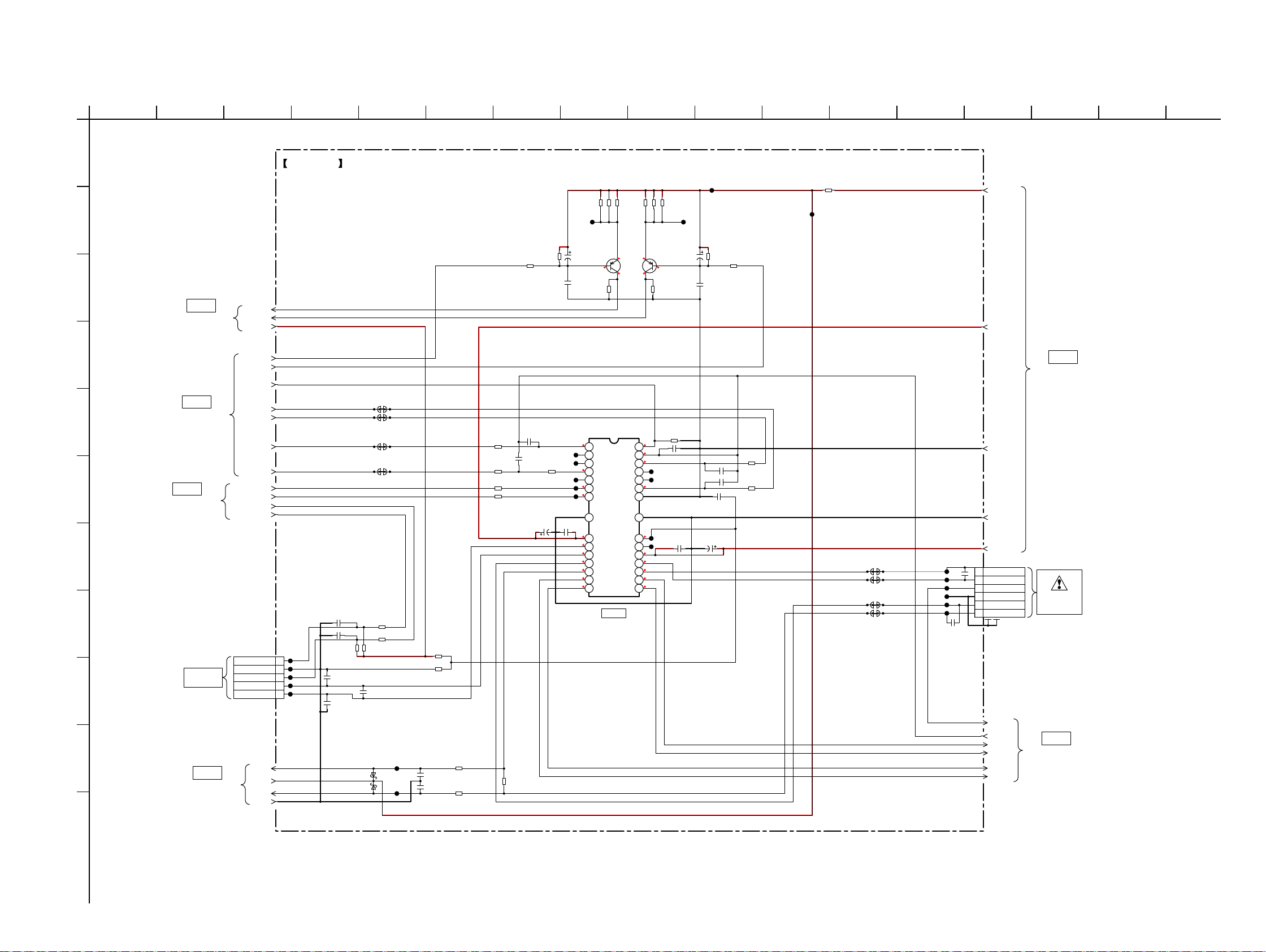

6-10. SCHEMATIC DIAGRAM - MB Board (4/9) - • See page 51 for IC Block Diagrams.

HCD-GPX555/GPX888

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

MB BOARD (4/9)

CL412

R433

0

FE_3.3V_1

FE_5.2V_TRAY

>021S

MB BOARD (6/9)

(Page 35)

GND

FE_GND_M

FE_5.2V_M

CN401

C419

6P

C418

6

5

4

3

2

1

SL+

SL-

NC(LIMIT)

NC(GND)

SP+

SP-

FE_LIMIT

FE_VREFO

FE_TRK+

FE_TRK-

FE_FCS+

FE_FCS-

SERVICE,

OPTICAL DEVICE

(2/2)

>015S

MB BOARD (3/9)

(Page 32)

0.1u

0.1u

SL405

SL406

SL407

SL408

JL401

JL402

JL403

JL404

JL405

JL406

CL413

15R423

15R425

15R426

15R427

15R428

15R430

C424

0.01u

CL401

CL402

CL403
CL404

CL405

C404

0.1u

C423

47u
35V

1.4

1.4

5.2

2.5

2.5

2.5

2.5

CL415

Q402

2SA2119K

AUTO POWER

CTRL

R429

1

VINFC

2

TRB_1

3

REGO2

4

VINSL+

5

REGO1

0

6

FWD

0

7

REV

29

PGND PGND

8

Vcc1

0

9

VOTR-

0

10

VOTR+

11

VOSL+

12

VOSL-

13

VOFC-

14

VOFC+ VOTK+

2.8

100k

IC401

AM5890S

IC401

5CH SYSTEM

MOTOR DRIVER

2.9

0

MUTE

BIAS

VINTK

TRB_2

RESET

VINLD

GND

VCTL

VCCD

Vcc2

VOLD-

VOLD+

VOTK-

2.9

0

28

27

26

25

24

23

22

30

21

20

19

18

17

16

15

B

R431

R432

47k

100

C

>014S

MB BOARD (3/9)

(Page 32)

D

>016S

E

F

MB BOARD (3/9)

(Page 32)

>020S

MB BOARD (8/9)

(Page 37)

G

H

CONNECT TO

MS-476 BOARD

I

J

>013S

MB BOARD (3/9)

(Page 32)

FE_LD_CD

FE_LD_DVD

DVDD3.3V

FE_CD_LDD

FE_DVD_LDD

FE_MUTE

FE_FMO

FE_TRO

FE_FOO

FE_DMO

FWD

LOAD_END_SW

UNLOAD_END_SW

TRAY-OUT

TRAY-IN

LOAD+

LOAD-

FE_OP-

FE_3.3V

FE_OPO

GND

C405

0.1u
C406

0.1u

R301

R302

3.3k

2.2k

FE_SLED_IN

FE_TRK_IN

FE_FCS_IN

FE_SPDL_IN

R409

10k

R410

10k

R402

R401

C402

330p

27k

C403

0.015u

R408

C401
100u

FE_LOAD-

FE_LOAD+

FE_SPDL+

FE_SPDL-

FE_FCS-

10k

10V

FE_FCS+

10k

0R406

0R407

R404

1

SL401

SL402

SL403

SL404

REV

GND

CN303

5

4

3

2

1

C307 0.001u

C308 0.001u

R3121kR313

5P

JL325

JL326

JL327

JL328

JL329

1k

C309

0.001u

C310

0.001u

D401

RB520S-30FJTE61

D402

RB520S-30FJTE61

C311

1kR316

1kR317

0.1u

CL406

CL407

2SA2119K

AUTO POWER

R424

100k

2.8

1.4

1.4

CL408

CL409

1.4

1.2

CL410

CL411

5.2

2.5

2.5

2.5

2.5

FE_TRK-

Q401

CTRL

2.8

R411 10k

C407 0.1u

FE_TRK_IN

C408

FE_TRK+

CL414

0.1u

C420

R422

47u

47k

35V

C421

0.01u

C411 330p

C413 0.1u

C409

0.1u

C412

100u 10V

R421

100

R415

R418

27k

15k

FE_SLED+

FE_SLED-

K

HCD-GPX555/GPX888

3333

HCD-GPX555/GPX888

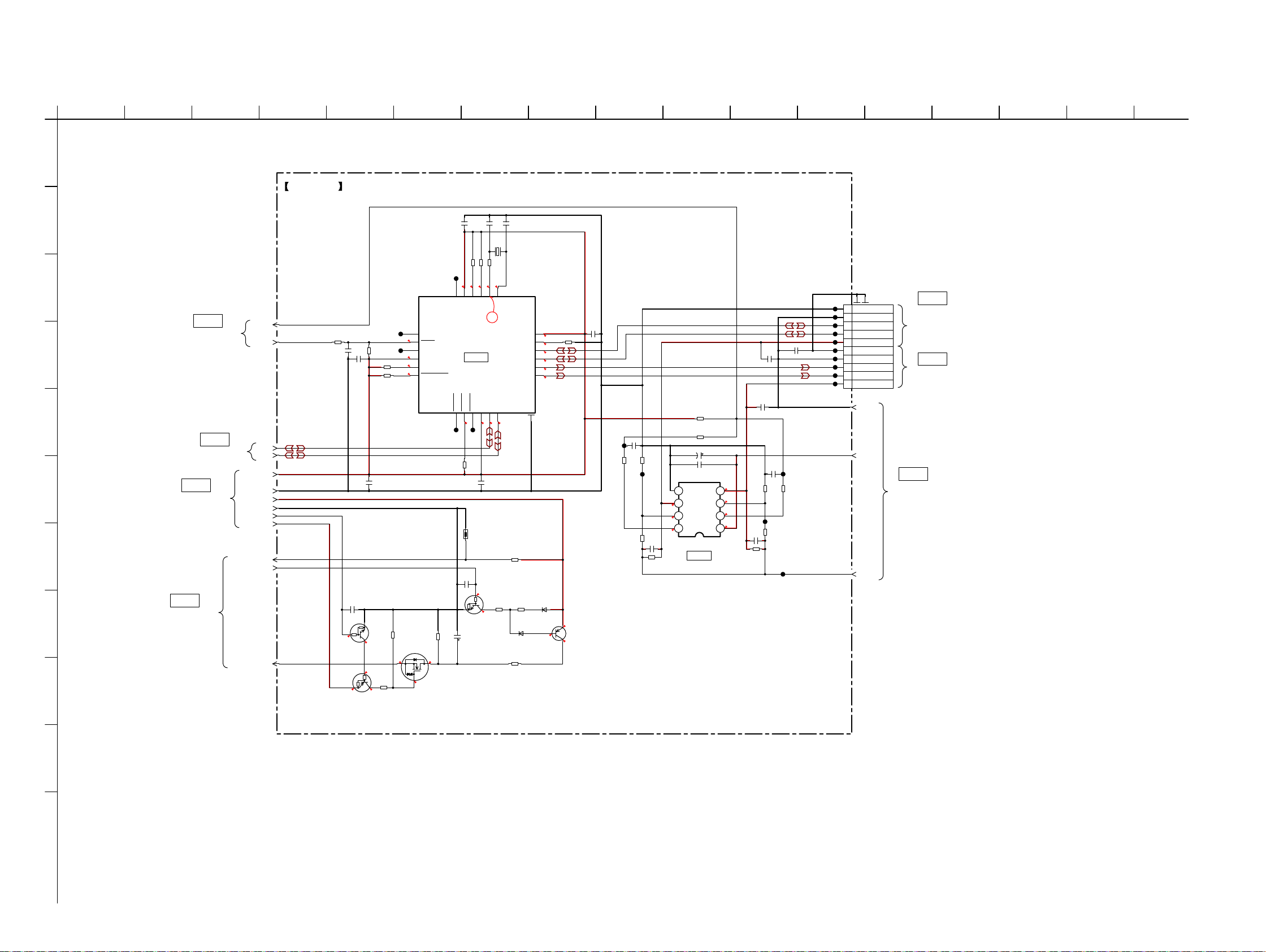

6-11. SCHEMATIC DIAGRAM - MB Board (5/9) - • See page 46 for Waveforms. • See page 51 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

MB BOARD (5/9)

C457

C456

DP4

RESET

TEST/SCL

DVDD

PGANG

OVCUR2/SMD

R576

2.2M

1.1

C454

0.1u

JL464

3.3 3.3 3.3 1.1 0

12

DM4

GL850G-OGY33

USB CONTROLLER

PWREN220OVCUR1/SMC21PWREN1/SDA

19

JL467

R455

10k

C573

PROTECTION

C571

470u

4V

27p

R456 1k

R457 1k

9

11

10

DP3

DM3

AVDD_11

IC451

IC451

AVDD_22

22

23

3.3 3.3 0 3

JL468

TH571

10k

0.1u

0

4.2

Q571

KRC402-RTK

CONTOL

C455

R458 0

0.1u

X451

12MHz

8

X2

5

DM024DP0

R572
220k

7

X1

27p

AVDD_6

RREF

R577

6.8k

R571
220k

D572

DA2J10100L

R575

1k

DP2

DM2

DP1

DM1

25

6

3.3

5

0.4

4

0

3

0

2

0

1

0

D571

DA2J10100L

4.4

R460 680

3.3

KTA1542T-RTK/P

0

C459

0.1u

Q572

PROTECTION

CONTOL

JL451

R462

JL469

10 SHIELD

JL456

9 USB BGND

JL457

8D+B

JL458

7D-B

JL459

C468 0.1u

C464

0.1u

C467

0.1u

R469 10k

R472 0

C460

R463

0.1u

100

R464

22k

JL452

C461

330

0.1u

R465

0.1

C462 10u 16V

C463

4

GND5+IN2

3

+IN1

5

2

-IN1

5

OUT1

1

3.3

BA2903FV-E2

USB COMPARATOR

IC452

IC452

0.1u

OUT2

C465

0.1u
JL455

R467

5

5

6

-IN2

3.3

7

13

VCC

8

C466

0.1u

R466

R470

100

22k

JL454

R468

330

0.1

JL453

JL470

JL460

JL461

JL462

JL463

6 USBB+5V

5SHIELD

4 USB AGND

3D+A

2D-A

1 USBA+5V

CN451

10P

GND

SW+13V

USB+5V

>025S

USB BOARD

CN2302

(Page 48)

>026S

USB BOARD

CN2303

(Page 48)

>027S

MB BOARD

(6/9)

(Page 35)

B

C

>022S

MB BOARD (8/9)

(Page 37)

D

USB-OC

HUB-RST

R451

13

0.1u

C452

0.1u

JL465

R452

JL466

10k

R453 100k

R454 10k

3.3

14

15

3.3

16

0

17

3.3

18

100

C451

E

>017S

MB BOARD (3/9)

(Page 32)

F

>023S

MB BOARD (6/9)

(Page 35)

G

>024S

MB BOARD (8/9)

H

(Page 37)

I

USBM

USBP

D+3.3V

E+3.3V

GND

PCONT-DAMP

EVER+13V

SPM-AMBIENT-TEMP

C-CONT

SPM-C-MON

GND

C574

0.1u

4.4

Q576

KRC402-RTK

PROTECTION

CONTOL

13

LTA014EUBFS8TL

PROTECTION

Q575

CONTOL

C453

10u

R578

10k

0

1.1

S

0

R574

1k

13

12.2

Q574

RHK005N03T146

PROTECTION

CONTOL

J

K

HCD-GPX555/GPX888

3434

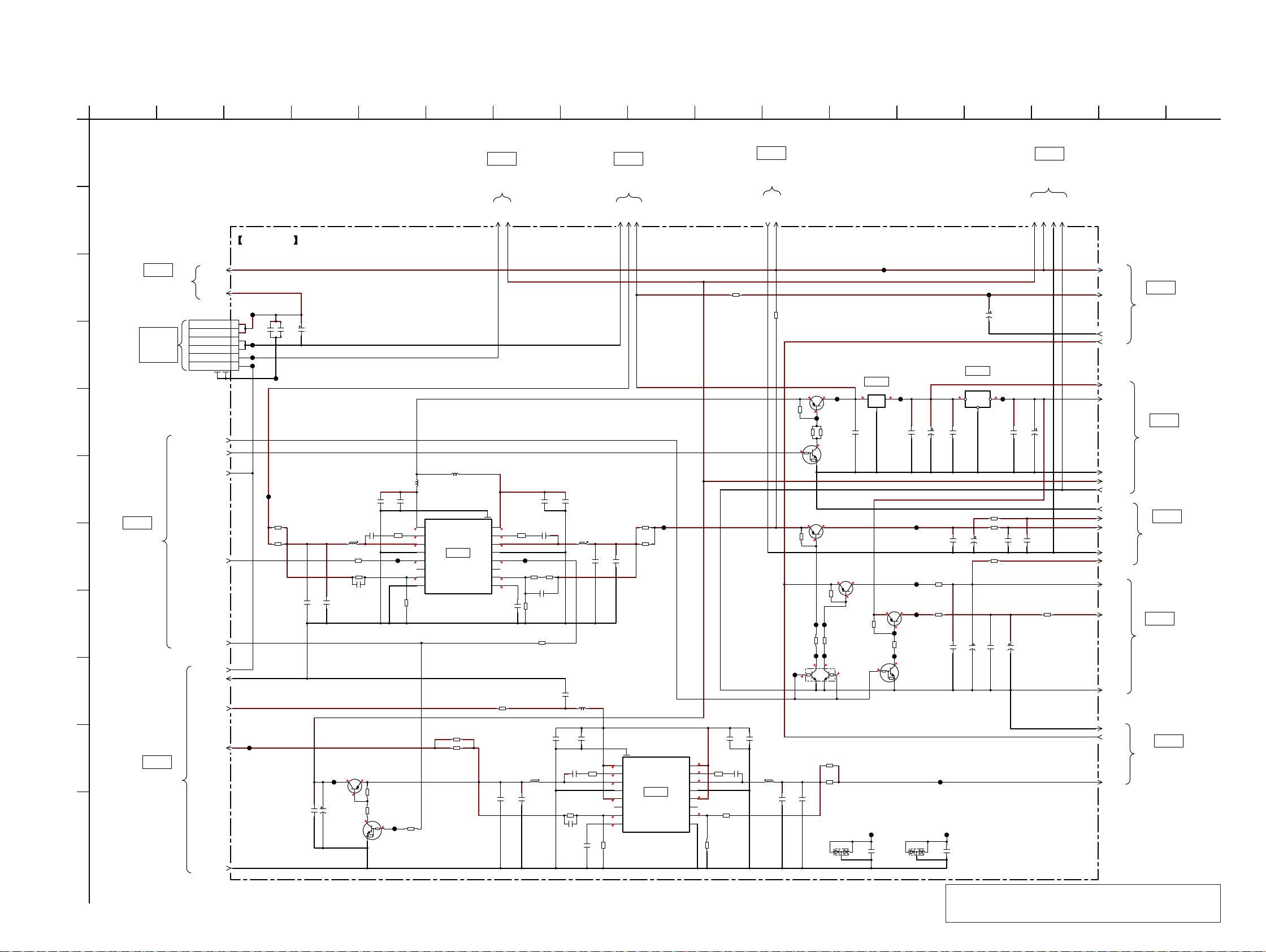

6-12. SCHEMATIC DIAGRAM - MB Board (6/9) -

HCD-GPX555/GPX888

Ver. 1.1

1

A

B

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

>028S

MB BOARD (7/9)

(Page 36)

AC_DET

D+3.3V

>027S

MB BOARD (5/9)

(Page 34)

SW+13V

USB+5V

GND

>029S

MB BOARD (9/9)

(Page 38)

LED+5.2V

FE_GND_M

>030S

MB BOARD (9/9)

(Page 38)

LED+5.2V

FE_GND_M

GND

D+3.3V

MB BOARD (6/9)

3.33.3

2.5

JL061

IC004

KIA7809AF/API

IC004

+9V REG.

OUT

IN

GND

C051

0.33u

KTA1542T-RTK/P

POWER CONTROL

R039

10k

3.3

PROTECTION

3.3

R040

470

JL030

913 59

JL047

C057
100u

16V

JL050

JL033

JL032

Q006

KRC402-RTK

PROTECTION

R047

R048

C062

0.33u

C064

0

0

C065

0.1u

0.1u

C085

0.1u

Q007

3.3

2.5

JL029

0.1

POWER CONTROL

JL059

C088
220u

25V

IC006

KIA7805AF-RTF/PW

IC006

+5V REG.

OI

G

R051 0

R052 0

C066

100u

10V

R054

0

C067

C071

100u

1u

10V 10V

C074

0.1u

JL048

C073
100u

C068

C072
100u

0.1u
10V

C075

0.1u

R053

0

>031S

C

D

MB BOARD (7/9)

(Page 36)

CONNECT TO
REGULATOR,

SWITCHING

(3H401W)

BOARD

E

F

>032S

MB BOARD

(8/9)

G

(Page 37)

H

I

LED+5.2V

EVER+13V

MTK-POWER-CTRL

PCONT-PSAVE-PROTECT

PCONT-DAMP

VBUS-OE

PCONT-BTSTBY

PCONT-DAMP

GND

EVER+13V

CN001

6P

113.5V

213.5V

3GND

4GND

5AC-DET

6MAIN ON

JL005

C010

JL006

JL045

JL004

100p

JL001

JC001

JC002

JC010

0

C024

C011

470u

0.1u
25V

JL037

L003

2.2uH

C019

C013

10u

0.1u

0

0

C003

C005

22u

22u

L001

4.7uH

R009

R059

56k

C080

22p

C017

R014

0.1u

0

0

JL042

R002 10k

L008 2.2uH

1

VIN1

13.5

2

VBST1

10.5

3

SW1

5

4

PGND1

5

EN1

3.3

6

PG1

7

VFB1

1.1

8

GND VREG5

TPS542941PWPR

IC001

+5.5V REG.

IC001

VBST2

PGND2

VFB2

VIN2

SW2

EN2

PG2

17

16

15

14

13

12

11

10

9

R012 0

C030

C040

10u

0.1u

JC003

JL003

C079

R017

0.1u

0

13.5

10.8

5.2

JL043

13.5

1.1

R024

2.2k

5.7

C081

22p

C035 1u

R031 10k

R020

0

R023

L006

4.7uH

E

C052

C049

22u

22u

56k

C023

L004

1000u

2.2uH

JC004

0

0

POWER CONTROL

Q001

RN1911

PROTECTION

JC009

0

KTA1542T-RTK/P

POWER CONTROL

PROTECTION

13.5

R029

68k

R033

3.3k

3.3

R028

10k

JL022

R030

JL023

JL021

3.3

Q004

2.5

2.5

680

0.1

B

CC

13

JL046

JL026

R035

3.3k

0.1

Q003

KRC402-RTK

POWER

CONTROL

PROTECTION

5.25.2

Q002

KTA1542T-RTK/P

POWER CONTROL

PROTECTION

KTA1542T-RTK/P

POWER CONTROL

PROTECTION

R037

10k

JL024

R034

220

JL025

0.1

3.3

B

EE

Q005

LED+5.2V

FL+13V

GND

E+3.3V

AVDD+9V

AVDD+5V

GND

D+3.3V

(DGND)GND

GND

FE_5.2V_M

FE_5.2V_TRAY

FE_GND_M

FE_3.3V_1

DVDD3.3V

FE_5V

GND

>033S

MB BOARD

(7/9)

(Page 36)

>010S

MB BOARD

(2/9)

(Page 31)

>021S

MB BOARD

(4/9)

(Page 33)

>018S

MB BOARD

(3/9)

(Page 32)

J

MB BOARD

K

HCD-GPX555/GPX888

>023S

(5/9)

(Page 34)

E+3.3V

GND

JL040

C083

0.1u

Q008

KTA1542T-RTK/P

POWER CONTROL

PROTECTION

3.3

JL049

2.6

C084

100u

16V

Q009

KRC402-RTK

POWER CONTROL

PROTECTION

GND

E+3.3V

E+1.18V

>034S

MB BOARD (8/9)

(Page 37)

C078

R003

C021

10u

C018

0.1u

33k

22p

16

R015

0

13.5

15

9

14

3.3

13

12

13.5

11

10

1.1

5.7

R006 10k

C036 1u

17

VIN2

VBST2

SW2

PGND2

EN2

PG2

VFB2

9

IC002

TPS542941PWPR

IC002

+3.3V REG.

VIN1

VBST1

PGND1

VFB1

GNDVREG5

SW1

EN1

PG1

C032

10u

13.5

1

R018

6.9

0

2

1.2

3

4

13.5

5

6

1.1

7

8

R043 22k

R041

12k

C034

C039

0.1u

JC007

C053

22u

D003

BAV99-215

JC008

0

JL057

C048

JL041

0.1u

0

JL055

C045

D005

0.1u
BAV99-215

0.1u
L007

2.2uH

C050

22u

L002

2.2uH

C014

0.1u

JC005 0

JC006 0

3.3

R061

10k

R062

680

0

R063

3.3

0

JL044

C004

C006

22u

22u

Note: IC001 and IC002 on the MB board cannot exchange with

single. When these parts on the MB board are damaged,
exchange the entire mounted board.

3535

HCD-GPX555/GPX888

Ver. 1.1

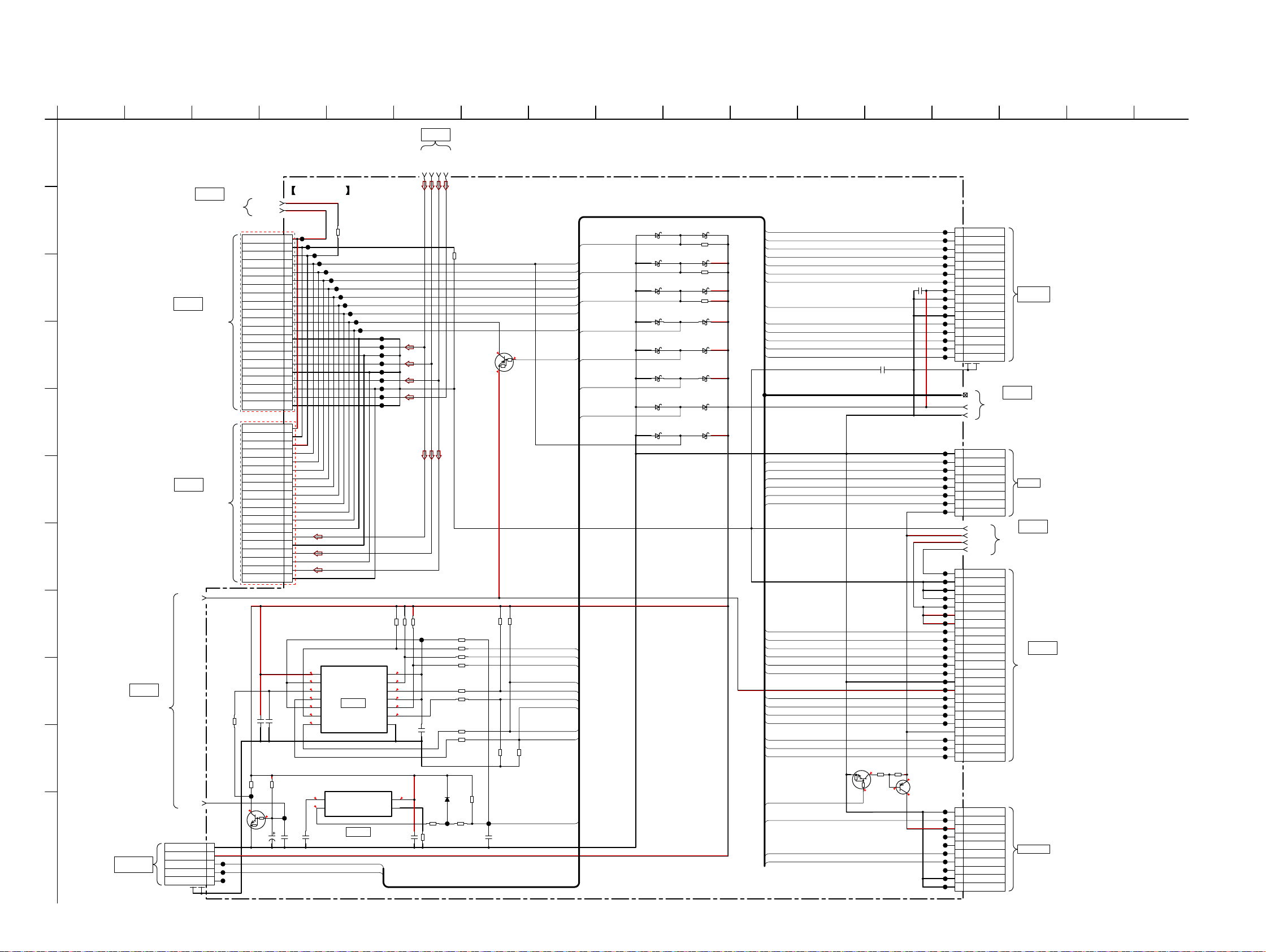

6-13. SCHEMATIC DIAGRAM - MB Board (7/9) - • See page 51 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MB BOARD (2/9)

>012S

(Page 31)

A

FRONT-R

FRONT-L

SW-R

SW-L

>031S

MB BOARD (6/9)

B

(Page 35)

C

>035S

DAMP BOARD (1/2)

CN1006

LED+5.2V

EVER+13V

GPX888

/TEMP-PROTECT

/DC-DETECT

AMP-CLK

INT-FA N-DE T

/PS-PROTECT

/AMP-SD

/AMP-RESET

LINE-MUTE

/SS-DET

(Page 40)

D

E

F

>036S

DAMP BOARD (1/2)

CN1007

(Page 40)

GPX555

/TEMP-PROTECT

/DC-DETECT

AMP-CLK

INT-FA N-DE T

/PS-PROTECT

/AMP-SD

/AMP-RESET

LINE-MUTE

/SS-DET

G

D+3.3V

H

I

>028S

MB BOARD

(6/9)

(Page 35)

C102 0.1u

R116 47k

J

R115

1k

JL110

JL111

JL103

JL269

3.3

C103

4.7u
35V

AC_DET

K

FOR

SERVICE USE

Q107

KRC402-RTK

AC CUT

SWITCH

CN101

5P

1GND

2MCU VCC

3TXD1

4RXD1

5CLK1

MB BOARD (7/9)

CN111

21P

13V

21

GND

20

M+5V

19

18

17

16

15

14

13

12

11

10

AGND

9

FR

8

AGND

7

FL

6

AGND

5

SWR

4

AGND

3

SWL

2

AGND

1

13V

19

GND

18

M+5V

17

16

15

14

13

12

11

10

9

8

AGND

7

FR

6

AGND

5

FL

4

AGND

3

SWR

2

AGND

1

CN112

C106 0.1u

R117

10k

0

JL128

C104

0.1u

R142

0

C105

JL252

JL251

14

VCC

13

4G

12

4A

11

4Y

10

3G

9

3A

8

3

4

0

JL249

JL248

JL247

JL246

JL245

JL244

IC102

TC74VHC126FT(EKJ)

IC102

BUS BUFFER

CT

BU4229F-TR

VOUT

IC103

VOLTAGE DETECTOR

JL243

JL242

IC103

DEBUG-TXD

DEBUG-RXD

AD-KEY1

R151

0

JL263

JL241

JL262

JL240

JL261

JL239

JL260

JL238

JL259

R125 47k

R123 10k

R120 47k

JL149

R127 10k

R129 100

R130 100

R119

R122

0

0

R132 47

R133 47

R134 47

R135 47

D102

DA2J10100L

JL148

R131 100

R126

3.3

1

1G

3.3

2

1A

3.3

3

1Y

3.3

4

2G

3.3

5

2A

3.3

6

2Y

7

GND3Y

C109

1u

3.3

2

VDD

1

GND

C107

0.1u

Q109

LTA014EUBFS8TL

MUTE

SWITCH

R128

1k

0

-5.7

JL150

3.3

C110

R136 22k

R139

22k

0.1u

3.3

R140 22k

DEBUG-RXD(MD-BOOT1)

R143

22k

/TEMP-PROTECT

/DC-DET

AMP-CLK

INT-FA N-DE T

/PS-PROTECT

/AMP-SD

/AMP-RESET

SS-DET

/LINE-MUTE-FR

DEBUG-RXD

SS-DET

BT-RXD

SS-DET(MD-CLKS)

BT-RXD(MD-CLK)

AC-CUT(MD-BOOT0)

RESET

AD-KEY0

MASTER-VOLUME

INT-FA N-DE T

MODEL-DEST-IN

SPM-AMBIENT-TEMP

SPM-C-MON

JL265

JL264

19P

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

0.0022u

D105

RB520SM-30T2R

D107

RB520SM-30T2R

D109

RB520SM-30T2R

D117

RB520SM-30T2R

D119

RB520SM-30T2R

D111

RB520SM-30T2R

D113

RB520SM-30T2R

D115

RB520SM-30T2R

D104

RB520SM-30T2R

R144 15k

D106

RB520SM-30T2R

R145 15k

D108

RB520SM-30T2R

R146 10k

D116

RB520SM-30T2R

D118

RB520SM-30T2R

D110

RB520SM-30T2R

D112

RB520SM-30T2R

D114

RB520SM-30T2R

DEBUG-RXD(MD-BOOT1)

TEST-MON0/SD_D2_0

AC-CUT(MD-BOOT0)

TEST-MON1/SD_D3_0

FL-CLK

TEST-MON2/SD_CMD_0

PCONT-BTSTBY

TEST-MON3/SD_CLK

TEST-MON4/SD_D0_0

FL-LATCH

ANALOG-CSEL/SD_D1_0

RGB-TRANS-LED/SD_CD_0

RGB-TRANS-LED-SPK/SD_WP_0

NFC-RF-DET

NFC-SW

NFC-IRQ

NFC-SEL

NFC-DATA

NFC-SPICLK

FL-CLK

FL-SOUT

FL-BK

FL-LATCH

AD-KEY0

AD-KEY1

RGB-SOUT

RGB-PWM-CLK

RGB-TRANS-LED/SD_CD_0

RGB-SCLK

SIRCS

POWER-KEY

MASTER-VOLUME

Q104
KRC402-RTK
BLUETOOTH

POWER CONTROL

BT-ON

BT-RESET

BT-TXD

BT-RXD

C284 0.1u

0

R109

2.2k

3.3

C167

0.1u

R108

10k

3.3

2.7

3.3

JL196

JL197

JL198

JL199

JL200

JL201

JL215

JL195

JL216

JL202

JL217

JL203

JL235

JL204

JL205

JL206

JL194

JL157

JL156

JL155

JL154

JL153

JL152

JL151

JL129

JL130

JL131

JL132

JL133

JL134

JL135

JL136

JL137

JL138

JL139

JL140

JL141

JL142

JL143

JL144

JL145

JL146

JL147

JL230

JL231

JL232

Q103

KTA1542T-RTK/P

BLUETOOTH

POWER

CONTROL

JL115

JL109

JL114

JL108

JL107

JL106

JL105

JL104

JL113

JL112

CN107

16P

1 MD BOOT1

2DAT2

3 MD BOOT0

4 CD/DAT3

5LED0

6CMD

7 PCONT-BTSTBY

8VDD

9GND

10 CLK

11 GN D

12 DAT0

13 LED1

14 DAT1

15 CD

16 WP

CN105

8P

8

GND

7

RF-DET

6

SW

5

IRQ

4

SEL

3

DATA

2

SPICLK

1

VDD

GND
E+3.3V

1

FL+13V

2

LED GND

3

LED GND

4

LED GND

5

LED+5.2V

6

LED+5.2V

7

LED+5.2V

8

FL-CLK

9

FL-SDO

10

FL-BK

11

FL-LAT

12

AD-KEY0

13

AD-KEY1

14

DGND

15

3.3V

16

RGB-SD

17

RGB-PWM

18

RGB-TRANS

19

RGB-SCLK

20

E+3.3V

21

SIRCS

22

POWER KEY

23

VOL

CN109

23P

CN102

10P

10

GND

9 BT-RESET

8 3.3V

7BT-RTS

6BT-CTS

5 BT-TXD

4BT-RXD

3GPIO

2GND

1GND

1

2

MB BOARD (8/9)

3

(Page 37)

LED+5.2V
FL+13V

FOR

SERVICE USE

>037S

NFC

>033S

MB BOARD (6/9)

(Page 35)

>038S

FL BOARD

CN2001

(Page 44)

BLUETOOTH

HCD-GPX555/GPX888

3636

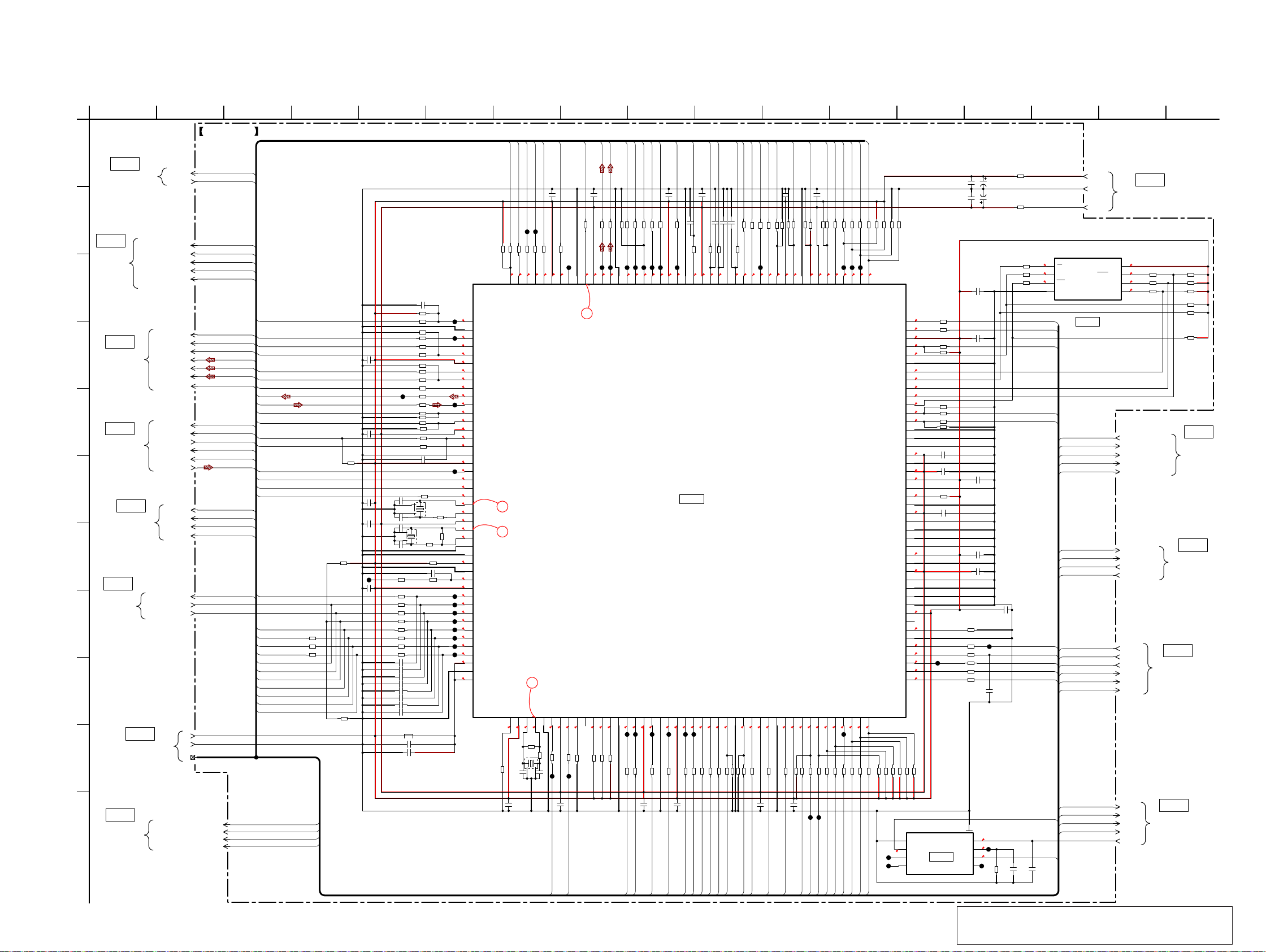

6-14. SCHEMATIC DIAGRAM - MB Board (8/9) - • See page 46 for Waveforms. • See page 51 for IC Block Diagrams. • See page 58 for IC Pin Function Descriptions.

HCD-GPX555/GPX888

A

MB BOARD (5/9)

(Page 34)

B

>032S

MB

BOARD

(6/9)

(Page 35)

C

>011S

D

MB BOARD

(Page 31)

E

>006S

MB BOARD

(Page 30)

F

MB BOARD

G

>024S

BOARD

(5/9)

H

(Page 34)

I

MB BOARD (7/9)

J

>039S

K

MB BOARD

(Page 38)

1

>022S

(2/9)

(1/9)

>005S

(1/9)

(Page 30)

MB

>037S

(Page 36)

(9/9)

HUB-RST

USB-OC

VBUS-OE

PCONT-BTSTBY

PCONT-PSAVE-PROTECT

MTK-POWER-CTRL

PCONT-DAMP

ARAGON-MCK

ARAGON-BCK0

ARAGON-LRCK0

DOUT0

DOUT1

DOUT2

DAC-MUTE

ARAGON-BCK3

ARAGON-LRCK3

DIN3

DOUT3

SRC-RST0

DIN1

LINK-OUT-A

LINK-OUT-B

LINK-SET

/LINE-MUTE

C-CONT

SPM-C-MON

SPM-AMBIENT-TEMP

RGB-TRANS-LED-SPK/SD_WP_0

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MB BOARD (8/9)

PCONT-PSAVE-PROTECT

2

3

1

RGB-PWM-CLK

RGB-SOUT

RGB-SCLK

HUB-RST

USB-OC

VBUS-OE

PCONT-BTSTBY

MTK-POWER-CTRL

PCONT-DAMP

ARAGON-MCK

ARAGON-BCK0

ARAGON-LRCK0

DOUT0

DOUT1

DOUT2

DAC-MUTE

ARAGON-BCK3

ARAGON-LRCK3

DIN3

DOUT3

SRC-RST0

DIN1

LINK-OUT-A

LINK-OUT-B

LINK-SET

/LINE-MUTE

C-CONT

POWER-KEY

USB-OC

RGB-SOUT

NFC-SW

LINK-OUT-B

NFC-SEL

NFC-RF-DET

DOUT1

DIN1

PCONT-BTSTBY

PCONT-PSAVE-PROTECT

LINK-DET

NFC-DATA

AC-CUT(MD-BOOT0)

DEBUG-RXD(MD-BOOT1)

BT-RXD(MD-CLK)

SS-DET(MD-CLKS)

/TEMP-PROTECT

INT-FA N-DE T

MASTER-VOLUME

AD-KEY0

AD-KEY1

SPM-C-MON

SPM-AMBIENT-TEMP

MODEL-DEST-IN

INT-FA N-DE T

MASTER-VOLUME

AD-KEY0

AD-KEY1

RGB-TRANS-LED-SPK/SD_WP_0

R157 1k

R158 470

R159 470

RGB-PWM-CLK

RGB-SOUT

RGB-SCLK

R160

R102

DIN3

ARAGON-BCK0

ARAGON-LRCK0

R211 100

R213 100

R216 10k

JL185

JL183

29

30

VSS

SSI0_BCKO

SSI0_LRCKO

VSS

TEST-MON0/SD_D2_0

TEST-MON1/SD_D3_0

103

104

JL186

JL184

R212 47

R214 47

TEST-MON0/SD_D2_0

TEST-MON1/SD_D3_0

DOUT3

R295 100

R215 100

JL187

JL222

27

28

SSI3_DI

SSI3_DOUT3

VCC

TEST-MON2/SD_CMD_0

105

106

JL188

R217 47

C136

0.1u

TEST-MON2/SD_CMD_0

26

107

FL-LATCH

R205 100

37

38

PVCC

FL-LATCH

/LINE-MUTE

VCC

96

95

R203 100

JL178

FL-CLK

C135

R208 100

JL179

35

36

VSS

CKIO

FL-CLK

1

/LINE-MUTE-FR

TRST98TDO99TDI

97

R207 100

R194 10k

JL180

/LINE-MUTE-FR

0.1u

R210 47

R209 47

JL181

JL182

31

32

33

34

VCC

SSI0_DO

SSI2_DO

TMS

TCK

102

100

101

10k

R202 10k

R206

R204 10k

FL-SOUT

DEBUG-TXD

NFC-SPICLK

ANALOG-BSEL

ANALOG-ASEL

C133

0.1u

JL254

JL234

R201 100

R198 0

R195 0

R193 100

R189 100

R192 220k

3.3

3 3.3 3.3 0.6 3.3 0.3 2.9 1.2 0.2 1.4 1.7 1.7 0.4 0.4 1.6 3.3 1.7 3.3 2.5 3.3 1.7 3.3 3.3 3.3 0 3.3 1.2 0 3.3 3.3 3.3 0 3.3

39

40

41

42

43

44

C168 0.1u

R300 10k

R181 100

R161 220k
R163 0

R164 100

JL161

C278

22p

C279

22p

C126

10p

C127

10p

R191 100

R153 10k

R154 100

R155 100

R156 100

R177 100

R178 100

R179 100

R180 100

C117 4.7u
C280 0.1u
C282 0.1u
C281 0.1u
C120 0.1u
C121 0.01u
C122 0.1u
C123 0.1u

FB101 0uH

C128 10u

C129 0.1u

R165

R162 220k
R197

R167

R168

R169

R170

R171

R106 10k
R172 100
R107 10k

R173 100

R174 100

C113 0.1u

R103 100

X102

13.333MHz

R186 0

R175 10k

C118 0.1u
R176 100

C111

0.1u

C112

0.1u

R101

10k

C114

0.1u
C115

0.1u

10k

C116

0.1u

10k

100

100

100

100

47

47

100

X101

32.768kHz

R185 0

JL162

JL163

JL164

JL268

JL160

JL159

JL158

JL255

JL165

JL256

JL167

JL168

R188

1M

3.3

45

POWER-KEY

46

VSS

3.3

47

USB-OC

0

48

RGB-SOUT

0

49

NFC-SW

3.3

50

PVCC

0

51

LINK-OUT-B

0

52

NFC-SEL

3.3

53

NFC-RF-DET

1.5

54

SSI1_DO

0

55

SSI1_DI

3.3

56

PCONT-BTSTBY

3.3

57

PCONT-PSAVE-PROTECT

1.2

58

VCC

1.6

59

LINK-DET

0

60

NFC-DATA

61

VSS

3.3

62

PVCC

3.3

63

AC-CUT(MD-BOOT0)

3.3

64

DEBUG-RXD(MD-BOOT1)

3.3

65

BT-RXD(MD-CLK)

3.3

66

SS-DET(MD-CLKS)

1.4

67

RTC-X1

1.6

68

RTC-X2

1.2

69

PLLVCC

1.7

70

EXTAL

1.7

71

XTAL

72

VSS

73

VSS

3.3

74

NMI

75

VSS

3.3

76

RES

3.3

77

PVCC

3.3

78

THERMISTOR-PROTECT

0.7

79

SPM-C-MON

1.9

80

SPM-AMBIENT-TEMP

1.7

81

MODEL-DEST-IN

0.8

82

INT-FA N-DE T

3.3

83

MASTER-VOLUME

3.3

84

AD-KEY0

3.3

85

AD-KEY1

3.3

86

AVCC

87

AVSS

3.3

88

AVRE F

NFC-SPICLK

2

3

BSCANP90PVCC

89

0.4 3.3 0 0 00 1.2 3.3 0 3.3 3.3 3.3 0 3.3 0 0 0 0 0.6 2.6 3.3 1.6 1.2 3.3 0 3.3 3.3 3.3 1.4 1.6 3.3 3.3 3.33.300 1.2 0

R190

100k

DEBUG-TXD

X103

12.288MHz

C130

10p

C131

0.1u

ANALOG-ASEL

ANALOG-BSEL

4

AUDIO-X192AUDIO-X2

91

R196

1M

C132

10p

C134

0.1u

FL-SOUT

VSS

93

R200 0

94

/LINE-MUTE

DOUT0

DOUT2

ARAGON-BCK3

ARAGON-LRCK3

C137

0.1u

R219 100

R218 100

JL189

JL190

23

24

25

VSS

PVCC

SSI3_BCKO

SSI3_LRCKO

IC101

R7S7200022CFP

IC101

SYSTEM CONTROLLER

VSS

TEST_MON3/SD_CLK

PVCC

TEST-MON4/SD_D0_0

110

108

109

JL166

JL191

R220 47

R100 47

C138

0.1u

TEST-MON3/SD_CLK

TEST-MON4/SD_D0_0

IFSDI

XIFCS

IFSDO

C140

0.1u

C142 47p

C141 47p

C139 47p

R224 0

R226 100

R221 100

3.2 1.2 1.2 3

22

MTK-SDO

ANALOG-CSEL/SD_D1_0

111

JL192

R222 47

ANALOG-CSEL/SD_D1_0

17

18

19

20

21

VSS

VCC

MTK-SDI

MTK-XIFCS

RGB-TRANS-LED-SPK/SD_WP_0

RGB-TRANS-LED/SD_CD_0

ST-RDS

ST-CE

112

113

114

115

116

100

R228 100

R223 100

R225 100

R227

R282 10k

RGB-TRANS-LED/SD_CD_0

ST-RDS

ST-CE

RGB-TRANS-LED-SPK/SD_WP_0

IFSCK

XIFBSY

C143 47p

R230 100

R229 100

16

MTK-CLK

MTK-BUSY

VSS

PCONT-DAMP

117

R298 10k

PCONT-DAMP

HUB-RST

XSYSRST

ARAGON-MCK

R235 100

R234 100

R232 47

JL193

13

14

15

MTK-RESET

AUDIO_CLK_OUT

RGB-PWM-CLK

VCC

118

119

120

R236 100

R166 100

R233 100

C144

0.1u

/AMP-RESET

RGB-PWM-CLK

VBUS-OE

C146

0.1u

10k

R105

R237 100

11

12

VBUS-OE

HUB-RESET

/AMP-RESET

VSS

121

122

R238 100

FWD

PVCC

CD-MOTOR+

C147

BT-ON

BT-RESET

LOAD_END_SW

UNLOAD_END_SW

R254 100

R251 100

JL209

JL211

3

4

BT-RESET

CDM-LOAD-SW

ST-DATA

NFC-IRQ

129

130

JL210

100

100

R252

R255

/PS-PROTECT

NFC-IRQ

SRC-RST0

VIDEO-MUTE

R265 100

R261 0

R257 100

JL212

1

2

SRC-RST0

VIDEO-MUTE

LINK-OUT-A

CDM-UNLOAD-SW

MIC-DETECT

Q-Flash-SIO1

Q-Flash-SIO0

Q-Flash-CLK

Q-Flash-SIO3

Q-Flash-SIO2

MTK-POWER-CTRL

USBAPVCC

USBAPVSS

USBDPVSS

USBDPVCC

USBDPVSS

USBDPVCC

AMP-CLK-FR

/PS-PROTECT

/AMP-SD

/DC-DET

131

132

100

100

100

R258

R262

R266

JL224

JL225

/AMP-SD

/DC-DET

R259 10k

R256 10k

LINK-SET

PVCC

Q-Flash-CS

C-CONT

USBUVSS

USBUVCC

USBAVSS

USBAVCC

REFIN

USBDVSS

USBDVCC

VBUSIN0

DM0

USBDVSS

USBDVCC

VBUSIN1

DM1

USB-X2

USB-X1

RGB-SCLK

SIRCS

FL-BK

BT-TXD

R250 4.7k

R246 4.7k

3.3

R267 10k

R263 10k

VSS

VSS

VSS

DP0

DP1

VSS

R253 4.7k

1

2

3

4

EVER+3.3V

EVER+1.18V

0

176

R270 100

0

175

R271 100

3.3

174

3.3

173

R272 100
R183 10k

1.2

172

171

1.2

170

1.2

169

1.2

168

1.2

167

1.2

166

R283 10k

0

165

R273 100

3.3

164

R274 100
R284 10k

163

162

161

1.2

160

C154 0.1u

159

1.2

158

C155 0.1u

3.3

157

156

3.3

155

R285 5.6k

154

1.2

C157 0.1u

153

152

151

150

149

3.3

148

147

1.2

146

145

144

143

142

3.3

141

140

0

139

138

0

137

1.6

136

3

135

JL213

0.8

134

3.3

133

R268 4.7k

R264 4.7k

R260 4.7k

GND

IC105

MFI337S3959

SDA

NC_3

IC105

EEPROM

NC_4 NC_5

C162

0.01u

C161

0.01u

C164 0.1u

C153 0.1u

C156 0.1u

C158 0.1u

C159 0.1u

R281 10k

R276 100

R277 47

R278 100

R279 100

R280 100

9

VCC

RST

SCL

8

7

6

5

JL228

100u 10V

100u 10V

3.3

0

JL227

3.3

C150

C149

JL214

C277

0.0015u

C160

R297

10k

0.1u

R113

0

R114

0

R288 47

R289 47

R290 47

LINK-OUT-A

MTK-POWER-CTRL

RGB-SCLK

C166

0.1u

0

1.4

1.2

LINK-SET

MIC-DET

C-CONT

AMP-CLK

SIRCS

FL-BK

BT-TXD

CP-DATA

CP-CLK

C165

0.1u

MX25L3235EM2I-10G

1

CS

2

SO/SIO1

3

W P/SIO2

4

GND

LINK-DET

MIC-DET

ANALOG-ASEL

ANALOG-BSEL

ANALOG-CSEL/SD_D1_0

REV

FWD

UNLOAD_END_SW

LOAD_END_SW

IFSCK

XIFCS

IFSDO

IFSDI

XIFBSY

XSYSRST

ST-CE

ST-CLK

ST-DATA

ST-RDS

IC106

IC106

EEPROM

E+3.3V

GND

E+1.18V

HOLD/SIO3

SCLK

SI/SIO0

>034S

MB BOARD (6/9)

(Page 35)

3.3

8

VCC

0.9

7

R291 47

0

6

R292 47

1.2

5

R293 47

LINK-DET

MIC-DET

ANALOG-ASEL

ANALOG-BSEL

ANALOG-CSEL/SD_D1_0

REV

FWD

UNLOAD_END_SW

LOAD_END_SW

IFSCK

XIFCS

IFSDO

IFSDI

XIFBSY

XSYSRST

ST-CE

ST-CLK

ST-DATA

ST-RDS

D+3.3V

R294 100k

R110 100k

R111 100k

R112 100k

R287 100k

R286 100k

BOARD

(Page 30)

>020S

MB BOARD

(Page 33)

>019S

MB BOARD

(3/9)

(Page 32)

>008S

MB BOARD

(2/9)

(Page 31)

>003S

MB

(1/9)

(4/9)

10k

R240

LINEOUT-SEL

PVCC

DAC-MUTE

C148

0.1u

10k

R104 10k

R247 100

R242 100

R099

R239 100

5

6

7

8

9

VSS

VCC

BT-ON

DAC-MUTE

CD-MOTOR-

CP-CLK

CP-DATA

ST-CLK

126

127

124

125

128

100

100

R244 4.7k

R241 100

R248

R245

R243 100

JL208

JL207

REV

ST-CLK

ST-DATA

CP-CLK

CP-DATA

LINEOUT-SEL

10

123

0.1u

HCD-GPX555/GPX888

Note: IC106 on the MB board cannot exchange with single. When

3737

this part on the MB board is damaged, exchange the entire
mounted board.

HCD-GPX555/GPX888

6-15. SCHEMATIC DIAGRAM - MB Board (9/9) - • See page 51 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

C

D

GREEN_LED

BLUE_LED

R

E

LED SPEAKER
SUBWOOFERS

RED_LED

L

BLUE_LED

GREEN_LED

F

>029S

MB BOARD (6/9)

(Page 35)

FE_GND_M GND

LED+5.2V

G

H

M+5.2V

M+5.2V

GPX888

CN504

4

3

2RED_LED

1

CN503

4P

1

2

3

4

4P

MB BOARD (9/9)

C537

16V

R546

C516 0.01u

C513 0.01u

47u

0

JL509

JL508

JL507

JL506

JL505

JL504

JL503

JL502

0.01u

C517

C514 0.01u

0.01u

C518

0.01u

C515

R533

GPX555

CN501

4P

4 GREEN_LED

JL510

JL511

JL512

JL513

JL514

JL515

JL516

JL517

JL518

JL519

JL520

JL521

JL522

JL523

JL524

JL525

GPX888

CN505

CN506

CN502

GPX555

8P

8P

4P

3 BLUE_LED

RED_LED

2

M+5.2V

1

8 GREEN_LED

7

BLUE_LED

6 RED_LED

5 M+5.2V

4 GREEN_LED

3 BLUE_LED

2 RED_LED

1 M+5.2V

1 M+5.2V

2 RED_LED

3 BLUE_LED

4 GREEN_LED

5 M+5.2V

6 RED_LED

7 BLUE_LED

8 GREEN_LED

1

M+5.2V

2 RED_LED

3 BLUE_LED

4 GREEN_LED

FE_GND_M

LED+5.2V

GND

D+3.3V

C535 0.01u

GPX888

C534 0.01u

0.01u

C525

C530 0.01u

0.01u

C524

0.01u

C523

GPX888

C529 0.01u

0.01u

C522

R501

C528 0.01u

0.01u

C533

0

R502

0.01u

0.01u

C520

C519

0

C526 0.01u

C527 0.01u

C521

0.1u

C539

0.1u

C538

0.1u

C532

47u
16V

R538

0

GPX555

R556 33

R555

33

R568 33

IC501

TC62D723FNG

IC501

LED SELECTOR

3.3

R553

33

/OUT8

13

3.3

R552

33

/OUT9

14

3.3

R510

33

/OUT10

15

0

R515

33

/OUT11

16

3.3

R518

33

/OUT12

17

3.3

R521

33

/OUT13

18

0

R525

33

/OUT14

19

0

R529

33

/OUT15

20

1.6

PWMCLK

21

TRANS

SOUT

JL501

22

1.1

REXT

23

3.3

VDD

24

C508

680

25

0.1u

/OUT7

/OUT6

/OUT5

/OUT4

/OUT3

/OUT2

/OUT1

/OUT0

SCK

GND

R544

33

2.5

12

11

10

9

8

7

6

5

0

4

0

3

0

2

SIN

1

GPX888

R505

R508

R513

R517 33

R520 33

R524 33

GPX555

R534

33

33

33

680

JL527

JL526

R539 0

C511

0.1u

3.3

3.3

3.3

0

3.3

3.3

1.6

0

1.1

3.3

TC62D723FNG

IC502

LED SELECTOR

/OUT8

13

/OUT9

14

/OUT10

15

/OUT11

16

/OUT12

17

/OUT13

18

/OUT14

19

/OUT15

20

PWMCLK

21

SOUT

22

REXT

23

VDD

24

25

IC502

/OUT7

/OUT6

/OUT5

/OUT4

/OUT3

/OUT2

/OUT1

/OUT0

TRANS

SCK

GND

2.5

R560 33

12

0

R561 33

11

2.5

R562 33

10

9

GPX888

8

2.5

R523

R563

R564

33

33

33

7

2.5

6

2.5

5

0

4

0

3

0

2

SIN

1

L

L

LED

SPEAKER

FRONT

SPEAKERS

R

R

>030S

MB BOARD (6/9)

(Page 35)

LED

SPEAKER

FRONT

SPEAKERS

I

J

K

HCD-GPX555/GPX888

R569 0

R542 0

R541

R543

0

0

RGB-TRANS-LED-SPK/SD_WP_0

RGB-SCLK

RGB-SOUT

RGB-PWM-CLK

>039S

MB BOARD (8/9)

(Page 37)

3838

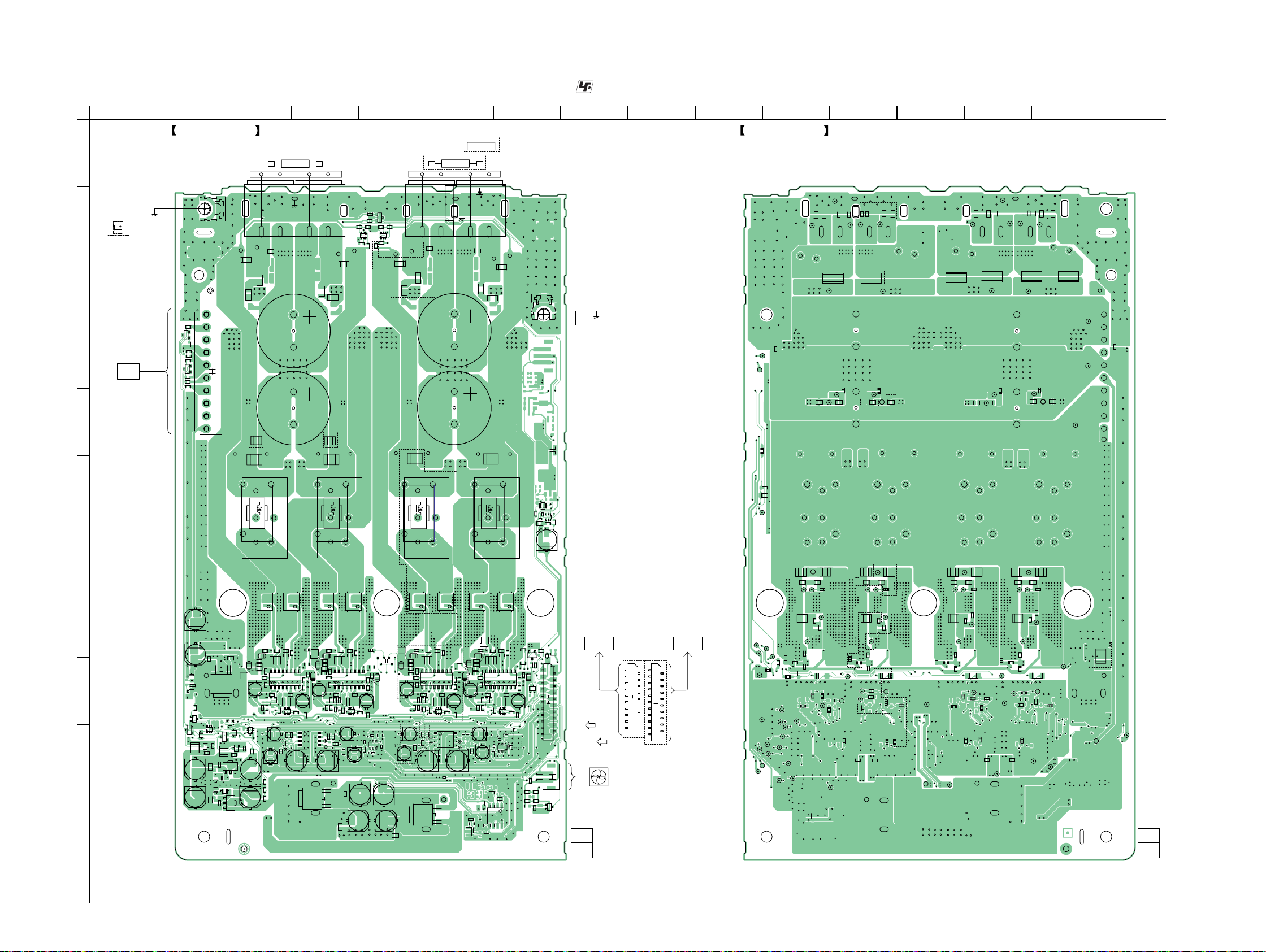

6-16. PRINTED WIRING BOARD - DAMP Board - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

Ver. 1.1

1

A

Q1007, Q1008,
Q1026, Q1027,
Q1031, Q1035,
Q1036, Q1037,
Q1041, Q1042,
Q1058, Q1060,
Q1073

B

(CHASSIS)

B1C2 E1

B2E2 C1

C

D

CONNECT TO
REGULATOR,

SWITCHING

(3H401W)

BOARD

E

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DAMP BOARD
(COMPONENT SIDE)

ÚGPX555
¾GPX888

ET1001

LP001

R1005

K

D1001

AA

R1001

R1002
R1006

R1007

A

D1000

KK

CN1000

R1003

R1004

R1008

1 10

TB1000

FRONT SPEAKERS

L R

IMPEDANCE USE 

+– +–

(CHASSIS)

C1196

R1713

C1193

C1194

C1198C1199

Ú Ú

C1189

C1188

Ú

TB1002

SUBWOOFER

TB1001

SUBWOOFER

IMPEDANCE USE 

(CHASSIS)

C1276 C1275

IMPEDANCE USE 

C1292

C1293

R1716

C1294

C1300

ET1000

(CHASSIS)

C1519

C1518

¾

L R

+– +–

R1684

K

D1011

AA

R1683

R1342

C1202

R1240

Q1027 Q1037

C1212

R1245

R1714

C1213

C1214

C1222

C1221

R1246

¾

C1281

R1340

R1343

C1272

R1715

C1270

C1271

¾

C1265

DAMP BOARD
(CONDUCTOR SIDE)

CL1065

C1362

C1363

C1369

CL1023

R1359

CL1072

C1525

CL1108

CL1110

CL1099

CL1100

C1302

C1310

R1700

¾

C1374

CL1021

CL1022

¾

R1363

C1260

C1329

C1335

C1325

C1323

CL1020

R1326

CL1069

¾

CL1101

R1330

C1255

CL1102

R1260

CL1064

C1125

C1157

C1160

C1164

C1163

CL1026

R1253

CL1066

R1263

CL1103

CL1104

C1224C1232

C1126

C1122

C1112

CL1027

CL1028

CL1029

R1228

CL1063

CL1106

R1232

R1227

CL1105

C1178C1184

CL1034

C1526

CL1033

CL1032

CL1035

F

L1011

L1014

L1017

L1020

Q1073

R1701

R1567

Q1060

R1562

C1515

R1561

R1568

C1468

G

Q1025

Q1023

R1032

D1009

Q1004

AK

E

R1038

E

Q1003

K

AA

R1000

C1497

C1021

D1007

R1027

KA

D1008

C1005C1006

C1023

21

Q1007

Q1000

E

R1009

D1004

D1005

C1008

IC1002

C1000

R1028

C1007

R1203

C1022

3

Q1008

A

KK

D1010

R1010

Q1005

AK

D1003

AK

A

D1006

KA

K

E

R1029

KA

D1026

KA

R1195

D1025

R1200

R1198
R1202

R1630

C1172

C1167

C1168

R1207

R1201

R1238

AK

Q1058

D1002

Q1002

C1004

E

R1040

R1017

E

C1019

C1020

Q1006

TH1007

R1205

R1211

R1221

R1242

D1030

R1249

R1261

R1214

KA

R1648

C1170

R1204

IC1009

C1185

C1175

R1215

R1216

C1174

C1261

JL1054

C1508

R1619

R1041R1042R1043

D1029

D1070

KA

R1225

R1251
R1632

R1629

C1171

R1224

C1173

R1210

Q1026

R1222

R1595

C1485

IC1015

R1596

JL1055

JL1053

C1514

1

IC1001

H

I

J

K

Q1030

Q1028

¾

TH1008

R1266

R1274

R1264

R1281

KA

R1279

C1218

R1265

IC1011

C1226

C1211

C1225

C1210

C1238

R1267

C1228

R1276

Q1031

R1252

R1290

R1280

R1277

C1231

R1600

C1493

C1286

JL1056

R1599

R1354

C1288

C1513

23

C1025

C1028

C1014

R1292
R1295

D1036

D1024 D1034

D1035

KK

KA

AKKA

R1649

R1299

KA

R1297

R1285

C1227

R1282

R1315

Q1035

R1346

R1338

R1643

R1634

D1071

R1631

C1244

R1283

¾

C1494

R1642

R1638

C1509

C1024

C1027

C1011C1012

C1013

Q1034

Q1032

R1300

R1307

R1302

KA

R1310

R1319

C1246

R1301

IC1012

C1248

C1249

C1245

C1262

R1304

C1252

R1309

Q1036 Q1041

R1337

R1298

R1311

C1251

R1314

R1611

C1499

JL1058

R1612

IC1016

JL1057

R1620

R1499

21

3

IC1000

Q1038

Q1039

MB BOARD

CN112

(Page 28)

R1347
R1348

R1366

R1365

D1040

TH1009

KA

D1039

KA

R1650

R1367

AK

D1072

R1323

R1353

R1637

R1633

C1304

C1290

C1289

R1324

R1371

C1250

R1355

R1389

R1320

C1507

R1616

C1510

JL1060

R1615

JL1059

C1498

R1610

C1511C1512

C1016

R1024

R1033

C1003

C1010

L1000

R1030

R1368

C1296

C1307

R1378

R1039

IC1003

R1603

IC1014

C1315

C1308

R1379

R1608

R1641

TH1010

R1373

R1377

C1297

R1606

R1036

R1044

R1677

R1380

R1375

R1640

Q1042

D1012

KA

E

Q1067

R1676

R1651

R1678

R1679

1

R1635

AK

2

R1384

D1073

Q1071

E

CN1007

R1383

R1680

C1305

R1381

CN1006

R1510

R1639

18

19

20

21

¾

CN1001

12

C1470

R1693

R1696
R1695

R1694

Q1075

E

R1563

C1466

1-889-443-

>004P

R1722

DC FAN

Ú¾

1

19

22

(22)

MB BOARD

CN111

(Page 28)

>003P

1

2

2

CN1007

CN1006

18

20

21

R1699

C1517

CL1071

¾

C1247

C1312

C1303

CL1060

C1314

C1317

R1374

CL1056

CL1057

R1385

CL1058

C1316

C1313

CL1013

CL1016

CL1014

R1681

CL1015

CL1067

CL1019

CL1005

CL1004

CL1109

CL1082

CL1059

CL1012

R1388

C1318

R1382

R1350

R1376

R1682

R1675

R1557

R1372

R1351

C1285

CL1089

R1609

CL1007

CL1009

CL1006

CL1008

CL1001

CL1002

CL1003

CL1010

CL1011

CL1073

C1026

C1258

CL1055

C1259

C1268

R1308

CL1051

CL1052

¾

CL1053

C1267

R1333

C1257

CL1054

C1269

R1336

R1321

R1294

R1313

CL1090

CL1085

R1296

CL1084

CL1083

C1243

R1604

CL1088

R1594

R1614

R1618

C1504

R1305

R1592

R1617

R1636

C1502

C1234

C1223

CL1050

C1237

C1240

R1275

CL1046

CL1047

R1286

C1236

C1239

CL1048

CL1049

C1241

R1289

R1284

R1244

R1278

CL1079

CL1068

CL1037

R1271

R1250

R1352

R1591

R1598

CL1038

CL1080

CL1070

C1209

R1602

C1490 C1488

CL1039

C1182

C1169

CL1045

C1183

C1191

CL1107

R1212

CL1042

R1234

C1180

C1190

CL1043

CL1044

R1237

C1192

R1223

R1197

R1213

CL1075

CL1074

R1199

C1166

R1316

R1208

R1646

R1601

R1597

CL1041

CL1040

Ú

R1723

CL1036

CL1062

CL1061

22

1-889-443-

(22)

HCD-GPX555/GPX888

3939

HCD-GPX555/GPX888

Ver. 1.1

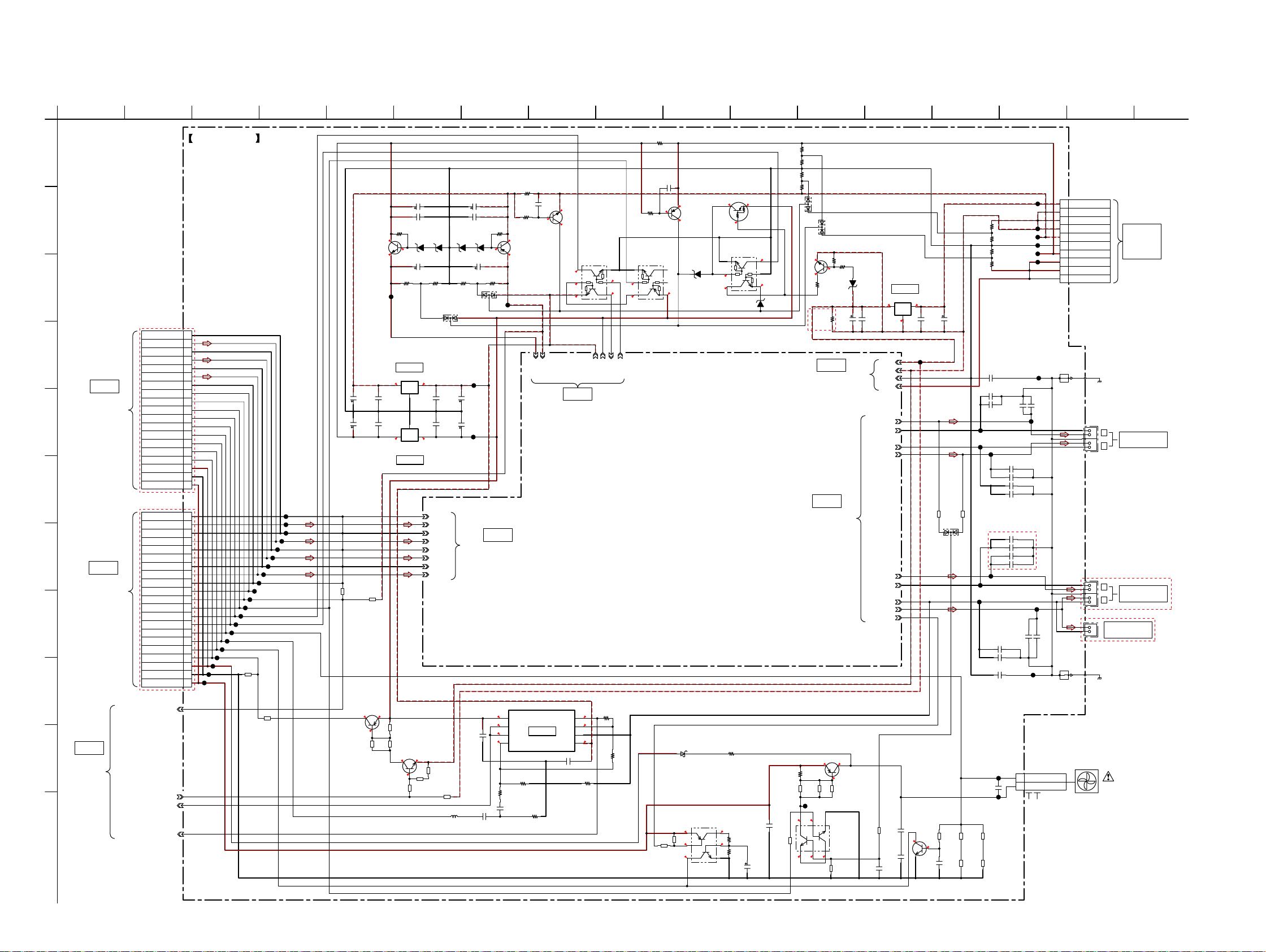

6-17. SCHEMATIC DIAGRAM - DAMP Board (1/2) -

A

B

C

D

E

F

G

H

K

J

I

1

>036S

MB BOARD

(7/9)

CN112

(Page 36)

>035S

MB BOARD

(7/9)

CN111

(Page 36)

>040S

DAMP

BOARD

(2/2)

(Page 41)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

GPX555

LINE MUTE

/AMP-RESET

/AMP-SD

/PS-PROTECT

INT FAN DET

AMP-CLK

/DC-DETECT

/TEMP-PROTECT

GPX888

/AMP-RESET

/AMP-SD

/PS-PROTECT

INT FAN DET

AMP-CLK

/DC-DETECT

/TEMP-PROTECT

LINE-MUTE

TH-PROTECT

CLK500KHZ_IN_PHASE

CLK500KHZ_INVERT_PHASE

AGND

SWR

AGND

AGND

AGND

M+5V

AGND

AGND

SWR

AGND

AGND

AGND

M+5V

GND

SWL

GND

CN1007

19

18

17

FL

16

15

FR

14

13

12

11

10

9

8

7

6

5

4

3

2

1

13V

21

20

19

18

17

FL

16

15

FR

14

13

12

11LINE MUTE

10

9

8

7

6

5

4

3

2

1

13V

CN1006

DAMP BOARD

19P

CL1011

CL1012

CL1013

CL1014

CL1015

CL1016

21P

CL1009

CL1010

CL1008

R1681

10k

CL1006

CL1007

CL1068

CL1005

R1682

(1/2)

CL1067

CL1004

5.6k

CL1070

CL1003

CL1041

CL1001

CL1019

CL1002

Q1006

2SC5053T100Q

+18V REG.

CL1039

C1012

22u
35V

C1011

22u
35V

R1510

47k

R1499

100k

Q1071

2SA1576A-T106-QR

THERMISTOR
PROTECTION

5

4.3

R1679

100k

*1 R1676

2.7k (GPX888)

2.2k (GPX555)

*2 R1677

0 (GPX888)
220 (GPX555)

R1010

1

C1006 22u 35V

C1008 0.47u C1007 0.47u

R1029

D1003, D1006

1k

DZ2J062M0L

23

D1006

18

18

C1020 47u 25V C1019 47u 25V

R1043

10k

IC1001

KIA7905F-RTF/PW

IC1001

-5V REG.

-23

OUT

IN

GND

C1014

0.47u

C1013

0.47u
GND

OUT

IN

23

IC1000

KIA7805AF-RTF/PW

IC1000

+5V REG.

5 0

R1680

10k

Q1067

2SC3722K-E

R1678

THERMISTOR

100k

PROTECTION

-63.3

-63.3

-62.8

R1676

R1675

*1

22k

-5

5

D1005

R1042

6.8k

AGND

SW-L

AGND

SW-R

AGND

FRONT-L

AGND

FRONT-R

R1677

*2

C1005 22u 35V

D1004, D1005

DZ2J120M0L

D1004

D1003

R1041

6.8k

D1010

BAW56
D1009
BAV70

CL1038

C1028

C1025

220u

0.1u

6.3V

C1027

C1024

220u

0.1u

6.3V

CL1037

DAMP BOARD (2/2)

C1026

0.1u

R1557

10k

L1000
220uH

R1028

1k

+18

R1040

10k

>042S

(Page 41)

5

0

0

0

C1003

0.001u

8

7

6

5

R1030

C1010

100p

1k

R1017

3.9k

-23

Q1005

DSA700300L

-18V REG.

-18

CL1040

V+

2OUT

2-IN

DUAL OPERATIONAL

2+IN

R1033

4.7k

R1024

C1004

4.7u

-23

-18V

+18V

IC1003

NJM8065M

IC1003

AMPLIFIER

470

-23

-7

0

5

-5

>041S

DAMP BOARD

(2/2)

(Page 41)

1

1OUT

2

1-IN

3

1+IN

4

V-

C1016 0.1u

Q1002

2SC4081-R

PROTECTION

SWITCH

Q1058

RN1902

AMP SWITCH

E

C

B

C

E

-5V

R1044

0

-5

R1039

0

2SA1576A-T106-QR

PROTECTION SWITCH

RN4902(T5RSONY,D,F)

AMP SWITCH

E

0

B

+5V

10k

B

0

3.3 5

5

OCP

AMP-ON

R1036

10k

R1009

3.9k

Q1008

C

R1000

Q1000

1

C1000

4.7u

23

C
B

E

RB520SM-30T2R

R1562

100k

R1567

47k

23

7

D1002

DZ2J068M0L

D1012

Q1060

HN1B01FU

DC DETECT SWITCH

13

EC

13

3.3

CE

Q1003

LTA014EUBFS8TL

PROTECTION SWITCH

0

5

Q1007

RN1902

PROTECTION SWITCH

E

B

0

C

5

D1008

DZ2J068M0L

R1722

0

0

R1561

0

270k

BB

R1568

15k

5

C

B

E

C1515

C1468

100u

6.3V

R1001

120k

R1002

47k

R1003

47k

R1004

120k

0

3.3

D1000

BAW56

-63.3

Q1004

5

GPX555

D1001
BAV70

R1723

820

R1038

120k

-63.3

Q1004

2SC3722K-E

POTECTION SWITCH

R1027

10k

R1032

10k

C1021

47u
16V

>043S

DAMP BOARD (2/2)

(Page 41)

D1007

DZ2J120M0L

C1023

0.1u

IC1002

KIA7812AF-RTF/PW

IC1002

-46V REG.

-49

OUT

IN

GND

-63.3

GVDD

-VH

PGND

+VH

FL

PGND

PGND

FR

-51.3

CL1036

C1022

0.47u

C1497

47u
25V

R1008

180k

R1007

22k

R1006

22k

R1005

180k

C1525

C1112

0.001u

C1122

0.015u

CL1028

CL1027

0.47u

CL1026

C1157 0.01u

C1160 0.001u

C1163 0.015u

C1164 0.001u

C1126

0.001u

CL1029

CL1035

CL1032

CL1061
CL1033

CL1062

CN1000

10P

CL1065

C1125

0.01u

CL1034

1 -46V

2

-VH

VH

3-

4-VH

5-VL

6P-GND

7+VL

8+VH

9+VH

10 +VH

ET1000

TB1000

4P

(CHASSIS)

­+

­+

L

R

CONNECT TO
REGULATOR,

SWITCHING

(3H401W)

BOARD

FRONT SPEAKERS

,03('$1&(86(

>044S

R1684

Q1075

(LOCK)

R1683

3.9k

3.9k

D1011
BAV70

R1563

22k

3.3

C1466

4.7u

R1695

R1694

3.3

3.3

GPX888

C1323 0.001u

C1325 0.015u

C1329 0.001u

C1335 0.01u

CL1020

CL1021

CL1022

C1369 0.015u

C1374 0.001u

C1526

0.47u

CL1082

C1470

0.1u

CL1109

R1696

1

R1693

1

CN1001

2P

CL1023

C1363 0.001u

CL1064

FAN-2

FAN+1

C1362 0.01u

TB1002

ET1001

TB1001

2P

4P

­L

+

­R

+

SUBWOOFER

-

+

,03('$1&(86(

(CHASSIS)

DC FAN

SUBWOOFER

,03('$1&(86(

GPX555

GPX888

DAMP BOARD

(2/2)

(Page 41)

SWL

PGND

PGND

SWR

DC-DETECT

13

3.3k

CL1071

0

13

1.4

R1710

3.3k

Q1073

XP4501

FAN RESET

SWITCH

R1699

47k

Q1072

DSA700300L

FAN

DRIVER

R1700

C1517

LSCR523UBFS8TL
FAN PROTECTION

C1518

150k

0.1u

0

C1519

0.1u

10u

R1697

10k

R1698

R1709

3.3k

13

R1701

1.5k

0.7

C

EEBBC

0 0.2

10u

HCD-GPX555/GPX888

4040

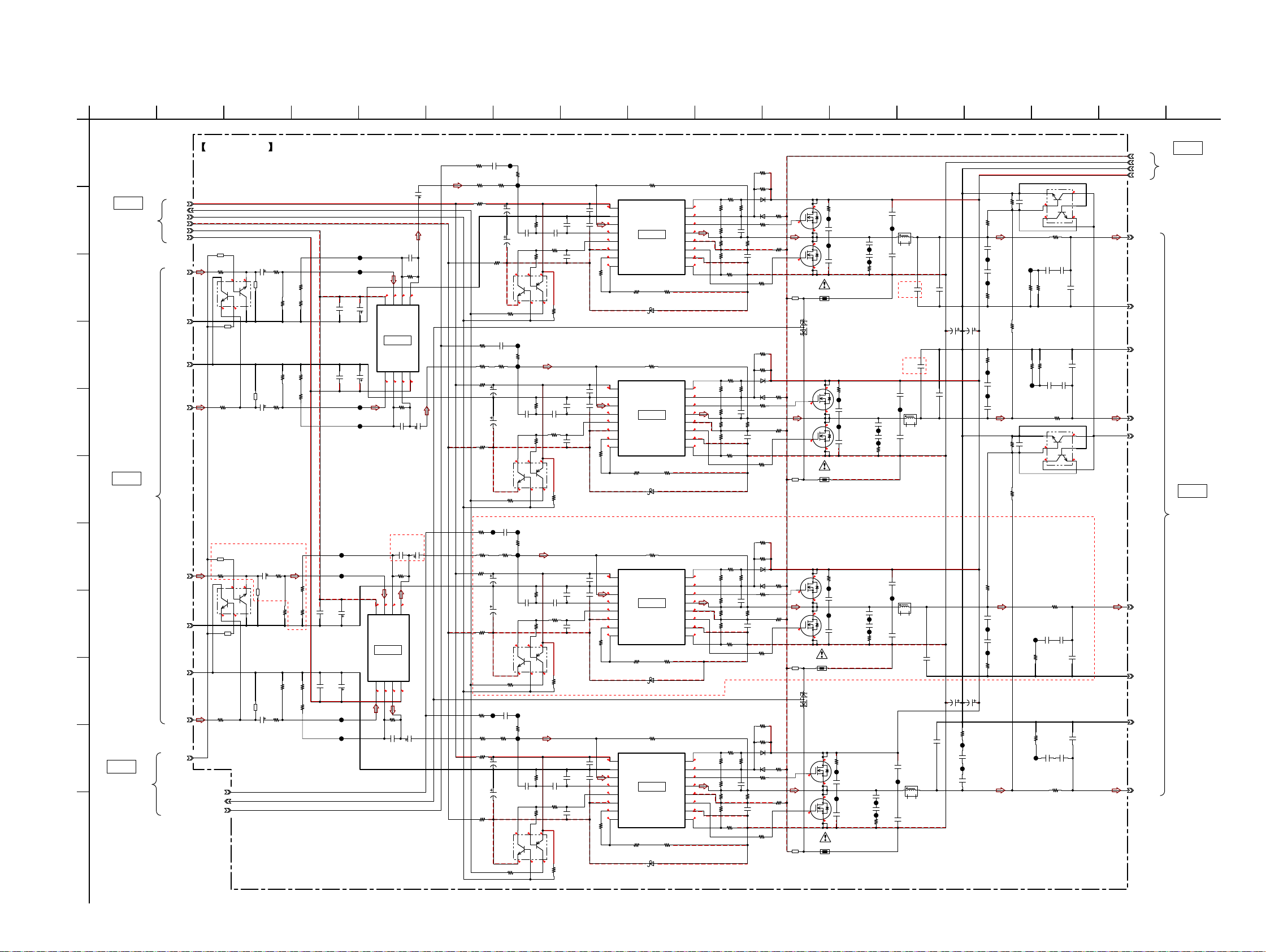

6-18. SCHEMATIC DIAGRAM - DAMP Board (2/2) - • See page 51 for IC Block Diagrams.

HCD-GPX555/GPX888

A

DAMP BOARD

B

C

D

E

F

DAMP BOARD

G

H

I

J

DAMP BOARD

K

1

>041S

(1/2)

(Page 40)

>042S

(1/2)

(Page 40)

>040S

(1/2)

(Page 40)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DAMP BOARD (2/2)

+5V

OCP

AMP-ON

-5V

-18V

+18V

FRONT-L

AGND

AGND

FRONT-R

SW-L

AGND

AGND

SW-R

LINE-MUTE

CLK500KHZ_INVERT_PHASE

TH-PROTECT

CLK500KHZ_IN_PHASE

R1315

2.2k

R1642

100

-5.6 0

C

EEBBC

0 -5.6

R1338

2.2k

R1643

100

GPX888

R1603

2.2k

R1640

100

-5.6 0

C

EEBBC

0 -5.6

R1606

2.2k

R1641

100

C1508

47u

6.3V

R1638

Q1035

IMX25T110

MUTE

POTECTION

R1346

C1288

47u

6.3V

C1509

6.3V

Q1042

IMX25T110

MUTE

POTECTION

R1608

C1498

47u

6.3V

4.7k

4.7k

47u

R1639

4.7k

4.7k

R1601

120k

R1602

120k

R1618

120k

R1619

R1354

R1620

R1617

R1610

C1261

10u
16V

C1485

-17.8

4

V-

IC1015

NJM2043M-D

IC1015

OP AMP

+IN_2

5

GPX888

0 0 0

-17.8

3

4

V-

+IN_1

IC1016

NJM2043M-D

IC1016

OP AMP

+IN_2

-IN_2

5

6

00 0 17.8

R1616

120k

C1507

10p

10p

R1595

120k

0 0 0

2

3

-IN_1

+IN_1

-IN_26OUT_27V+

00 0 17.8

R1600

120k

C1493

10p

C1499

10p

R1611

*3

1

2

-IN_1
OUT_1

OUT_27V+

8

C1510

10u
16V

1

OUT_1

8

C1286

16V

C1494

10u

16V

10u

JL1054

0

R1596

6.8k

R1597

15k

R1598

15k

R1599

6.8k

0

0

R1612

6.8k

R1636

*3

18k

R1614

18k

R1615

6.8k

0

JL1053

C1514

C1488

47u

0.1u
25V

C1513

C1490

47u

0.1u
25V

JL1055

JL1056

*3 R1611, R1617

120k (GPX888)
0 (GPX555)

JL1058

JL1057

C1512

C1502

0.1u

C1511

C1504

0.1u

JL1059

JL1060

47u
25V

47u
25V

R1646

0

R1316

100

R1201

4.7

R1591

R1352

100

R1252

4.7

C1227

47u

6.3V

R1282

4.7

GPX888

R1592

0

R1604

100

R1298

4.7

C1250

47u

6.3V

R1320

4.7

R1594

R1609

100

R1355

4.7

C1305

47u

6.3V

R1381

4.7

0

0

C1166

470p

C1168

47u 6.3V

C1173

47u

6.3V

R1222

CL1083

CL1088

R1208

3.3k

4.7

R1216

C1209

470p

R1271

3.3k

47u 6.3V

R1277

47u 6.3V

R1314

R1372

R1379

CL1074

C1211

C1243

470p

R1305

3.3k

C1244

C1285

470p

3.3k

C1290

47u 6.3V

R1199

2.2k

CL1075

R1207

150

C1175

0.0022u

R1210

220k

5 4.8 5

C

EB

-5 -5 0

0

CL1079

R1250

2.2k

CL1080

R1267

150

C1228

0.0022u

R1276

220k

5 4.8 5

C

EB

-5 -5 0

0

CL1084

R1296

2.2k

CL1085

R1304

150

C1252

0.0022u

R1309

220k

5 4.8 5

C

EB

-5 -5 0

0

CL1089

R1351

2.2k

CL1090

R1371

150

C1308

0.0022u

R1375

220k

5 4.8 5

C

EB

-5 -5 0

0

GVDD

Q1027

-VH
PGND
+VH

FL

PGND

PGND

FR

DC-DETECT

SWL

PGND

PGND

SWR

R1195

4.7k

R1202

C1170

22u

68k

5.6k

4.7k

4.7k

R1261

C1218

22u

68k

5.6k

4.7k

4.7k

R1299

C1246

22u

68k

5.6k

4.7k

4.7k

R1366

C1296

22u

68k

5.6k

4.7k

68k

R1198

68k

D1025

D1026

10k

R1205

10

R1214

82k

C1192

0.22u

R1221

10

R1242

68k

R1249

68k

D1029

D1030

10k

R1266

10

R1279

82k

C1241

0.22u

R1281

10

R1292

68k

R1295

68k

D1035

D1036

10k

R1302

10

R1310

82k

C1269

0.22u

R1319

10

R1347

68k

R1348

68k

D1039

D1040

10k

R1368

10

R1377

82k

C1318

0.22u

R1380

10

R1203

R1213

R1264

R1278

R1300

R1313

R1365

R1376

4.7

10

4.7

10

4.7

10

4.7

10

Q1023, Q1025

IRF6775MTR1PBF

DIGITAL AUDIO

MOSFET

Q1023

-2.3

Q1025

-55.4

R1648

4.7k

-55.4

R1649

4.7k

Q1032, Q1034

IRF6775MTR1PBF

DIGITAL AUDIO

MOSFET

Q1032

-2.3

Q1034

-55.4

R1650

4.7k

-2.3

-55.4

R1651

4.7k

R1212

60.1

CL1107

-6.7

S

-6.7

CL1042

60.1

S

TH1007

D1024

BAW56

Q1028, Q1030

IRF6775MTR1PBF

DIGITAL AUDIO

MOSFET

Q1028

60.1

-2.3

-6.7

S

Q1030

-6.7

60.1

S

TH1008

60.1

R1308

CL1051

-6.7

S

-6.7

CL1052

60.1

S

TH1009

D1034

BAW56

Q1038, Q1039

IRF6775MTR1PBF

DIGITAL AUDIO

MOSFET

Q1038

60.1

-6.7

S

Q1039

-6.7

60.1

S

TH1010

10

C1183

0.0022u

C1191

0.0022u

10

C1259

0.0022u

C1268

0.0022u

R1275

CL1046

C1237

0.0022u

CL1047

C1240

0.0022u

R1374

10

CL1056

C1314

0.0022u

CL1057

C1317

0.0022u

10

CL1043

CL1044

CL1053

CL1054

CL1048

CL1049

CL1058

CL1059

C1169

CL1045

C1180

220p

C1190

220p

R1234

10

C1247

CL1055

C1257

220p

C1267

220p

R1333

10

2.2u

CL1050

C1236

C1239

R1286

2.2u

C1303

CL1060

C1313

220p

C1316

220p

R1385

C1223

2.2u

220p

220p

10

2.2u

10

L1011
20uH

C1182

2.2u

C1189

GPX555

L1017
20uH

C1258

2.2u

0.22u

GPX555

C1222

0.22u

L1014

20uH

C1234

2.2u

L1020

20uH

C1312

2.2u

C1265

0.47u

C1188

C1221

C1300

0.47u

0.47u

0.47u

C1199
3300u

71V

C1276
3300u

71V

C1198
3300u

71V

C1275
3300u

71V

R1363

3.3

CL1099

C1302

0.01u

CL1100

C1310

0.01u

R1240

120k

C1178

0.01u

CL1105

C1184

0.01u

CL1106

R1227

3.3

R1263

3.3

CL1103

C1224

0.01u

CL1104

C1232

0.01u

R1340

120k

C1255

0.01u

CL1102

C1260

0.01u

CL1101

R1330

3.3

R1245

39k

R1342

39k

R1246

150k

R1228

R1343

150k

R1253

47

47

R1326

R1359

C1202

4.7u

CL1063

CL1066

C1281

4.7u

CL1069

22

22

CL1072

12.8

12.8

0

C1194

0.22u

R1232

C1214

0

C1271

0.22u

C1294

0.22u

R1260

0.22u

E
B

C

R1713

0

C1193

0.22u

47

47

R1714

0

E
B

C

Q1037

XP4501

DC DETECT

SWITCH

R1715

0

C1270

0.22u

C1293

0.22u

R1716

0

C1213

0.22u

12.8

C
B

XP4501

0

DC DETECT

E

SWITCH

C1196

0.01u

C1212

0.01u

12.8

C
B

0

E

C1272

0.01u

C1292

0.01u

R1197

47k

1

5

C1167

0.01u

C1172

C1171

0.001u

0.01u

C1174

0.0022u

C1185

R1215

10u

1k

E

B

Q1026

HN1B01FU

RESET

C

SWITCH

R1238

22k

C1210

0.01u

C1226

C1225

0.001u

0.01u

C1231

0.0022u

C1238

R1280

10u

1k

E

B

Q1031

HN1B01FU

RESET

SWITCH

C

R1290

22k

C1245

0.01u

C1249

C1248

0.001u

0.01u

C1251

0.0022u

C1262

R1311

10u

1k

E

B

Q1036

HN1B01FU

RESET

SWITCH

C

R1337

22k

C1289

0.01u

C1304

C1297

0.001u

0.01u

C1307

0.0022u

C1315

R1378

10u

1k

E

B

Q1041

HN1B01FU

RESET

SWITCH

C

R1389

22k

VAA

2

GND

0

3

IN-

0

4

COMP

5

5

CSD

-5

6

VSS

-55.2

7

VREF

-58

8

5.6k

OCSET DT

R1225

R1224

1

5

VAA

2

GND

0

3

IN-

0

4

COMP

5

5

CSD

-5

6

VSS

-55.2

7

VREF

-58

8

5.6k

OCSET DT

R1285

R1283

1

5

VAA

2

GND

0

3

IN-

0

4

COMP

5

5

CSD

-5

6

VSS

-55.2

7

VREF

-58

8

5.6kR1324

OCSET DT

R1323

1

5

VAA

2

GND

0

3

IN-

0

4

COMP

5

5

CSD

-5

6

VSS

-55.2

7

VREF

-58

8

5.6k

OCSET DT

R1384

R1383

IC1009

IRS2092STRPBF-CU

IC1009

POWER AMP

R1629

330

4.7k

D1070

RB578VAM100TR

R1244

47k

IC1011

IRS2092STRPBF-CU

IC1011

POWER AMP

R1631

4.7k

330

D1071

RB578VAM100TR

R1294

47k

IC1012

IRS2092STRPBF-CU

IC1012

POWER AMP

R1633

4.7k

330

D1072

RB578VAM100TR

R1350

47k

IC1014

IRS2092STRPBF-CU

IC1014

POWER AMP

R1635

4.7k

330

D1073

RB578VAM100TR

COM

COM

COM

COM

CSH

VB

HO

VS

VCC

LO

CSH

VB

HO

VS

VCC

LO

CSH

VB

HO

VS

VCC

LO

CSH

VB

HO

VS

VCC

LO

D1025 ~ D1026
RF05VAM2STR

R1200

-3.3

16

R1204

3.3k

4.8

15

-2.3

14

-6.7

R1630

13

0

-48.4

12

11

10

9

16

15

14

13

12

11

10

9

16

15

14

13

12

11

10

9

16

15

14

13

12

11

10

9

R1211

0

R1223

-60.3

-55

R1237

D1029 ~ D1030
RF05VAM2STR

R1251

-3.3

R1265

3.3k

4.8

-2.3

-6.7

R1632

0

-48.4

R1274

0

R1284

-60.3

-55

R1289

D1035 ~ D1036
RF05VAM2STR

R1297

-3.3

R1301

3.3k

4.8

-2.3

-6.7

R1634

0

-48.4

R1307

0

R1321

-60.3

-55

R1336

D1039 ~ D1040
RF05VAM2STR

R1353

-3.3

R1367

3.3k

4.8

-2.3

-6.7

R1637

0

-48.4

R1373

0

R1382

-60.3

-55

R1388

>043S

DAMP BOARD

(1/2)

(Page 40)

>044S

DAMP

BOARD

(1/2)

(Page 40)

HCD-GPX555/GPX888

4141

HCD-GPX555/GPX888

6-19. PRINTED WIRING BOARD - FL Board (Component Side) - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

FL BOARD

A

B

T2000

DC-DC CONVERTER

C

TRANSFORMER

D

D2000, D2002, D2003, D2005,
D2006, D2007, D2008, D2009,
D2010, D2011

BK

RK

E

F

GK

BA

RA

GA

RA

GA

BA

G

H

I

J

K

(COMPONENT SIDE)

L2000

C2026

C2017

Q2001

E

E

Q2000

R2025
R2078

R2063

C2061

31

IC2100

RK

GK

BK

R2000

D2003

R2002

S2002

x

S2000

NX

T2000

R2056

R2053

S2100

&/1

C2034

R2033

R2032

R2036

R2034

R2080

K

K

A

A

K

A

KA

KA

D2014

C2043

R2081

C2033

C2044

C2032

D2005

D2012

D2004

R2079

D2031

D2030

OPTIONS

C2040

R2046

S2003

S2009

LED

COLOR

R2031

R2006

S2001

. m

TUNING –

R2001

S2101

OPEN/

Z

CLOSE

R2077

C2000

ND2000

VACUUM FLUORESCENT DISPLAY

R2030

S2008

LED

PATTERN

R2071

R2075

R2015

R2017

C2063

C2011

C2007

C2058

C2045

C2054

R2060

C2015

C2002

13 24

C2013

R2014

R2012

R2054

C2050

R2055

R2058

C2016
C2003

25

C2006

C2005

C2010

R2016

R2049

R2051

C2056

C2057

C2048

C2047

25

13 24

C2053

C2051

R2052

R2050

C2055

R2009

R2019

112

R2021

R2047

R2048

R2022

D2002

112

C2021

C2023

R2045

C2031

R2073

D2006

S2011

VOLUME / DJ CONTROL

D2011

D2007

C2062R2064

D2008

S2006

M>

TUNING +

R2067

R2069

C2012

R2059

R2061

C2049

C2014

R2065
C2008

R2010

C2001

R2057

C2059

IC2002

C2052

D2010

D2009

CN2001

C2046

R2062

S2004

ENTER

231

R2018

C2028

R2043

C2022

R2024

IC2000

C2029

C2030

C2020
R2027

R2029

R2037

S2007

R2023

R2042

R2040

R2035

S2005

R2028

+

D2000

9

CN2000

>008P

DJ KEYS

1

BOARD
NO2200

(Page 45)

–

R2020

11

(11)

>005P

1-889-449-

MB BOARD

CN109

(Page 28)

HCD-GPX555/GPX888

4242

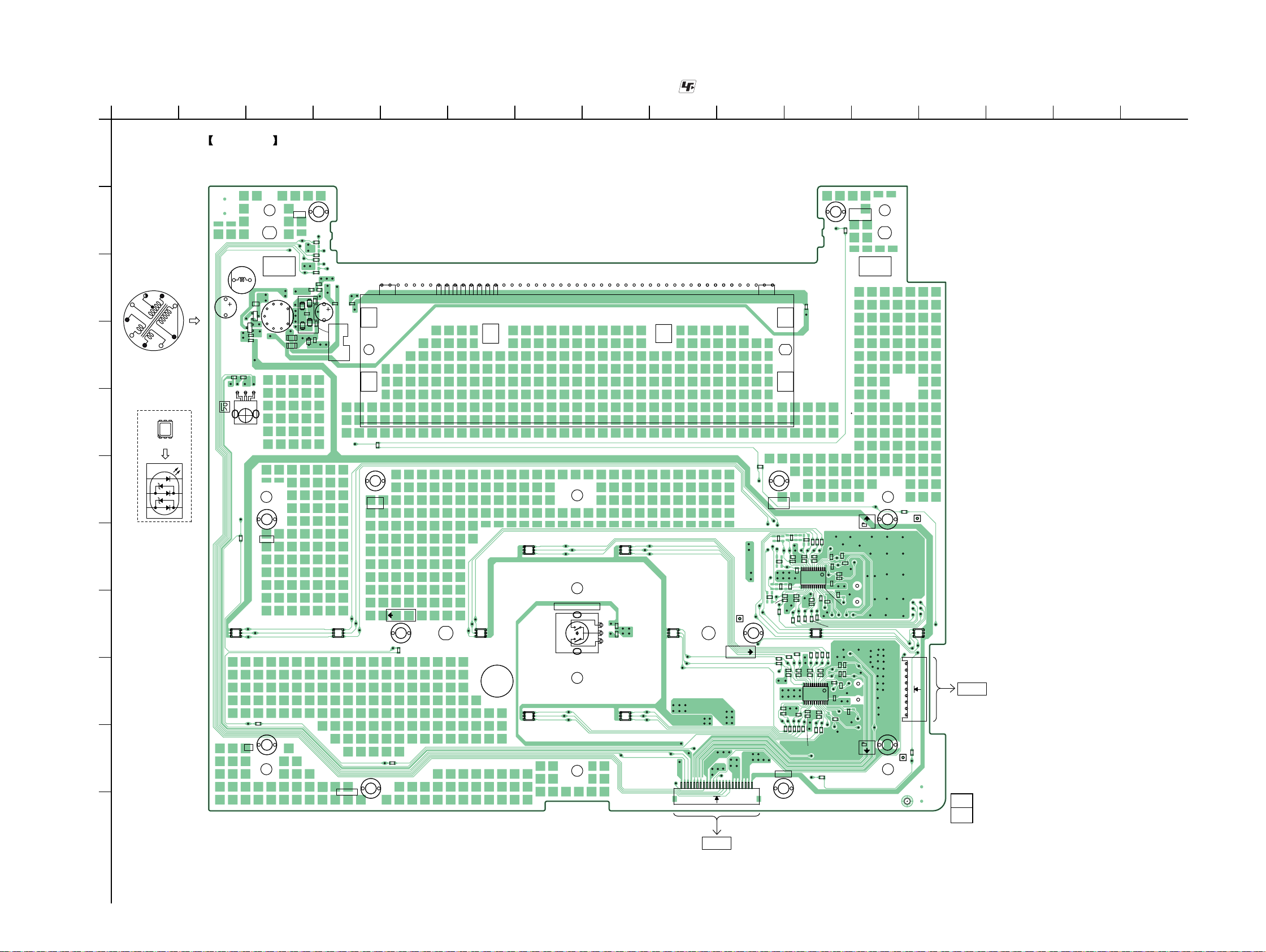

6-20. PRINTED WIRING BOARD - FL Board (Conductor Side) - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

FL BOARD

A

B

C

D

E

(CONDUCTOR SIDE)

JL2067

JL2037

JL2069

JL2071

JL2073

JL2076

JL2080

JL2089

JL2081

JL2108

JL2116

JL2079

JL2039

JL2084

JL2125

JL2072

JL2077

JL2114

JL2074

JL2147

JL2075

JL2068

JL2070

JL2065

JL2064

JL2103

JL2092

JL2048

JL2 111

JL2145

JL2057

JL2146

JL2087

JL2112

JL2144

JL2088

JL2066

F

JL2011

JL2016

JL2004

JL2023

JL2083

JL2056

JL2058

JL2024

JL2053

JL2062

JL2090

JL2060

JL2093

JL2115

JL2055

JL2086

JL2091

JL2052

JL2095

JL2082

JL2051

JL2059

JL2000

JL2124

JL2094

JL2050

JL2097

JL2085

JL2096

JL2123

JL2099

JL2049

JL2122

JL2098

JL2046

JL2041

JL2101

JL2104

JL2100

JL2061

G

JL2020

JL2019

JL2021

H

JL2022

JL2013

JL2018

JL2012

JL2005

JL2003

I

JL2017

JL2047

J

JL2043

JL2007

K

JL2045

JL2121

JL2120

JL2102

JL2118

JL2105

JL2044

JL2106

JL2109

JL2110

JL2107

JL2042

JL2119

JL2117

JL2063

JL2027

JL2028

JL2054

JL2014

JL2029

JL2078

JL2001

JL2132

JL2006

JL2031

JL2133

JL2034

JL2015

JL2129

JL2131

JL2134

JL2135

JL2137

JL2032

JL2130

JL2136

JL2033

JL2127

JL2113

JL2139

JL2126

JL2128

JL2138

JL2140

JL2143

JL2142

JL2141

JL2036

JL2040

JL2025

JL2030

JL2026

JL2008

JL2038

JL2035

JL2009

JL2010

1-889-449-

11

(11)

HCD-GPX555/GPX888

4343

HCD-GPX555/GPX888

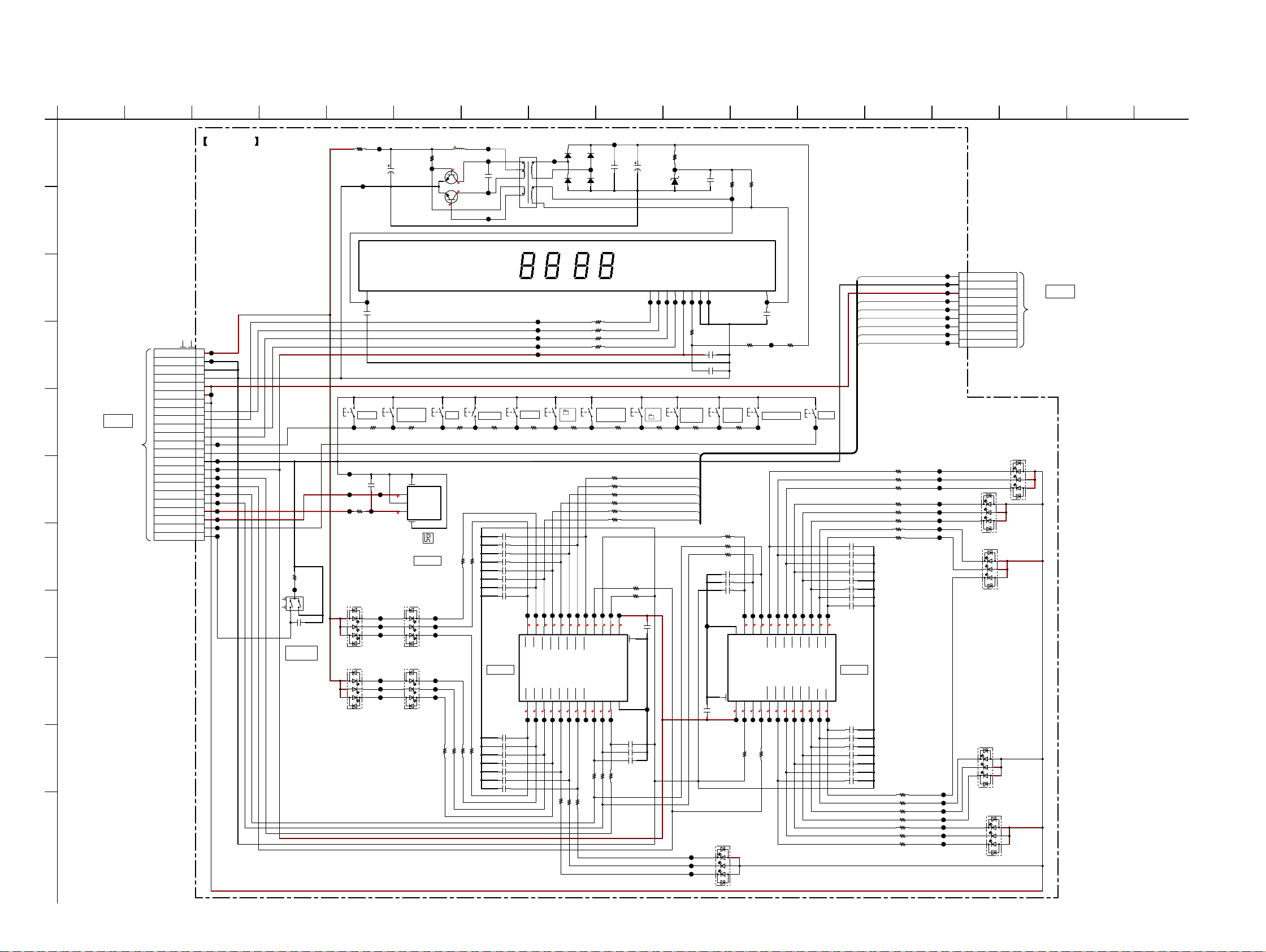

6-21. SCHEMATIC DIAGRAM - FL Board - • See page 51 for IC Block Diagrams.

1

A

B

C

D

E

>038S

MB BOARD

(7/9)

CN109

(Page 36)

F

G

H

I

J

K

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

D2004, D2012, D2030 ~ D2031

T2000

DC-DC

ONVERTER

TRANSFORMER

ND2000

VACUUM FLUORESCENT DISPLAY

JL2070

JL2072

JL2074

JL2077

JL2081

S2004

ENTER

IC2000

R2009

JL2043

2.2k

0.01u

JL2119

JL2118

JL2117

9.9 9 3.1 3.8 3.8 3.9 3.9 3.4 1.7 0 1.1 3.3

13

15

14

OUT8

OUT9

/OUT8

/OUT9

/OUT6

/OUT7

OUT6

OUT7

10

11

12

9

9.9 8.5 3.5 3.9 3.2 0 0.1 008.5

JL2041

JL2042

R2006

1.5k

C2011 0.01u

C2012 0.01u

IC2000

LED DRIVE

C2013 0.01u

C2001 0.01u

C2014 0.01u

C2002 0.01u

C2015 0.01u

C2003 0.01u

C2016 0.01u

JL2147

JL2047

16

OUT10

/OUT10

/OUT5

OUT5

9

JL2120

JL2044

17

OUT11

/OUT11

/OUT4

OUT4

8

JL2045

RF05VAM2STR

D2030 D2031

D2004

S2005

–

v

R2020

3.3k

JL2124

JL2123

JL2122

JL2121

18

19 20 21 22 23 24

OUT12

OUT13

OUT14

/OUT12

/OUT13

/OUT14

/OUT1

/OUT2

/OUT3

OUT1

OUT2

OUT3

5

7

6

JL2050

JL2046

JL2049

22R2019

22R2015

68R2017

JL2054

OUT15

/OUT15

/OUT0

OUT0

4

JL2075

D2012

JL2052

JL2051

100R2023

100R2032

100R2033

100R2034

100R2036

S2006

TUNING+

M>

JL2055

SOUT

PWMCLK

SOUT

PWMCLK

SCK

TRANS

TRANS

3

JL2053

100R2024

JL2079

C2032

0.01u

b

R2028

4.7k

68R2021

68R2018

68R2016

68R2014

68R2012

22R2010

R2022 0

JL2058

REXT

REXT

SIN

SIN

SCK

1

2

JL2056

JL2059

C2020 100p

C2021 100p

C2022 100p

100R2027

JL2060

VDD

VDD

GND

GND

JL2069

JL2061

C2023

0.1u

JL2062

1.5kR2029

C2033

10u

50V

S2007

V

R2030

R2046

33k

JL2114

D2014

DZ2J068M0L

JL2080

JL2076

JL2073

JL2071

S2008

+

PATTERN

JL2063

6.8k

AD-KEY1

BASS BAZUCCA LED

PHASER LED

ISOLATOR LED

FLANGER LED

S-FLASH LED

BLUETOOTH LED

JL2141

JL2142

JL2143

JL2116

JL2089

JL2084

R2080

10

C2040

C2034

LED

R2031

10k

C2029 100p

C2030 100p

C2031 100p

JL2115

SMLVN6RGB1U17QYB

BLU

RED

GRN

C2043

JL2066

C2028

0.1u

0.1u

0.1u

0.1u

D2011

25

JL2078

S2009

LED

COLOR

24

R2077

100R2037

100R2042

100R2040

1

R2053

100

JL2103

15k

GND

GND

VDD

VDD

23

2

R2081

10

JL2082

SIN

SIN

REXT

REXT

22

JL2083

1.5kR2035

JL2108

C2044

0.01u

JL2067

JL2085

3

JL2086

R2056

100

SCK

SCK

SOUT

SOUT

21

JL2125

Z OPEN/CLOSE

JL2093

JL2090

5

6

4

OUT0

TRANS

/OUT0

TRANS

/OUT15

PWMCLK

PWMCLK

OUT15

20

19

JL2094

JL2091

0R2043

S2101

JL2095

JL2096

R2079

JL2097

7

OUT1

/OUT1

/OUT14

OUT14

18

JL2098

0

JL2099

8

OUT2

/OUT2

/OUT13

OUT13

17

JL2100

JL2068

JL2101

9

OUT3

/OUT3

/OUT12

OUT12

16

JL2102

10

OUT4

/OUT4

/OUT11

OUT11

15

JL2104

9.98.53.53.93.200.10 0 8.5

11

OUT5

/OUT5

/OUT10

OUT10

14

JL2105

S2100

"/1

JL2106

9

12

OUT6

/OUT6

/OUT9

OUT9

13

9.993.13.83.83.93.93.41.701.13.3

JL2107

C2056 0.01u

C2047 0.01u

C2057 0.01u

C2048 0.01u

C2058 0.01u

C2045 0.01u

C2059 0.01u

C2049 0.01u

JL2109

OUT7

TC62D723FNG

/OUT7

/OUT8

OUT8

C2052 0.01u

JL2110

C2046 0.01u

C2054 0.01u

C2050 0.01u

C2055 0.01u

C2051 0.01u

C2053 0.01u

IC2002

IC2002

LED DRIVE

AD-KEY1

BASS BAZUCCA LED

PHASER LED

ISOLATOR LED

FLANGER LED

S-FLASH LED

BLUETOOTH LED

CN2000

9P

JL2005

9 AD-KEY1

JL2004

JL2003

JL2018

JL2019

JL2020

JL2021

JL2022

JL2017

JL2126

22R2045

68R2047

JL2127

22R2049

JL2128

22R2051

JL2129

68R2054

JL2130

22R2057

JL2131

22R2059

JL2132

JL2133

68R2061

JL2134

22R2062

JL2135

22R2060

68R2058

JL2136

22R2055

JL2137

JL2138

22R2052

JL2139

68R2050

JL2140

22R2048

DGND

8

LED+5.2V

7

6 BASS BAZUCCA LED

5 PHASER LED

4 ISOLATOR LED

3 FLANGER LED

2 S-FLASH LED

1 BLUETOOTH LED

SMLVN6RGB1U17QYB

BLU

RED

GRN

BLU

RED

GRN

D2007

SMLVN6RGB1U17QYB

BLU

RED

GRN

D2008

SMLVN6RGB1U17QYB

D2009

SMLVN6RGB1U17QYB

BLU

RED

GRN

D2010

SMLVN6RGB1U17QYB

BLU

RED

GRN

>045S

DJ KEY BOARD

NO2200

(Page 46)

D2006

FL +13V

LED GND

LED GND

LED GND

LED +5.2V

LED +5.2V

LED +5.2V

FL_CLK

FL_SDO

FL_BK

FL_LA

AD_KEY0

AD_KEY1

DGND

+3.3V

RGB_SD

RGB_PWM

RGB_TRANS

RGB_SCLK

E +3.3V

SIRCS

POWER KEY

T

VOL

FL BOARD

CN2001

23P

JL2048

23

JL2000

22

21

20

19

JL2001

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

JL2006

JL2007

JL2014

JL2015

JL2016

JL2023

JL2024

JL2031

JL2032

JL2033

JL2034

R2064

10k

JL2113

C2062

0.001u

S2011

VOLUME /

DJ CONTROL

S2011

R2078

1

JL2039

S2000

NX

R2000

JL2035

JL2087

C2061

0.22u

JL2092

R2063

22

JL2088

JL2112

D2003

SMLVN6RGB1U17QYB

GRN

RED

BLU

D2000

SMLVN6RGB1U17QYB

GRN

RED

BLU

JL2144

JL2037

C2000

0.01u

680

C2017

22u
50V

JL2111

JL2010

JL2008

JL2009

JL2011

JL2012

JL2013

R2025

JL2057

Q2000 ~ Q2001

PBSS4160T

SWITCHING

TRANSISTOR

S2001

.m

B

TUNING–

R2001

JL2036

1k

4

1

VO

3.3

2

GND

3

VCC

3.3

5

PNA4823M03S0

IC2100

REMOTE CONTROL

RECEIVER

D2005

SMLVN6RGB1U17QYB

D2002

SMLVN6RGB1U17QYB

6.8k

IC2100

GRN

RED

BLU

GRN

RED

BLU

JL2038

JL2030

JL2025

JL2026

JL2027

JL2028

JL2029

Q2000

-0.4

180R2075

S2002

x

L2000
220uH

-0.4

R2002

180R2071

JL2145

JL2065

C2026

0.0047u

12.6

JL2064

Q2001

JL2146

S2003

OPTIONS

JL2040

1.5k

C2005 0.01u

C2010

C2006 0.01u

180R2065

180R2067

C2007 0.01u

C2008 0.01u

C2063 0.01u

TC62D723FNG

180R2069

180R2073

HCD-GPX555/GPX888

4444

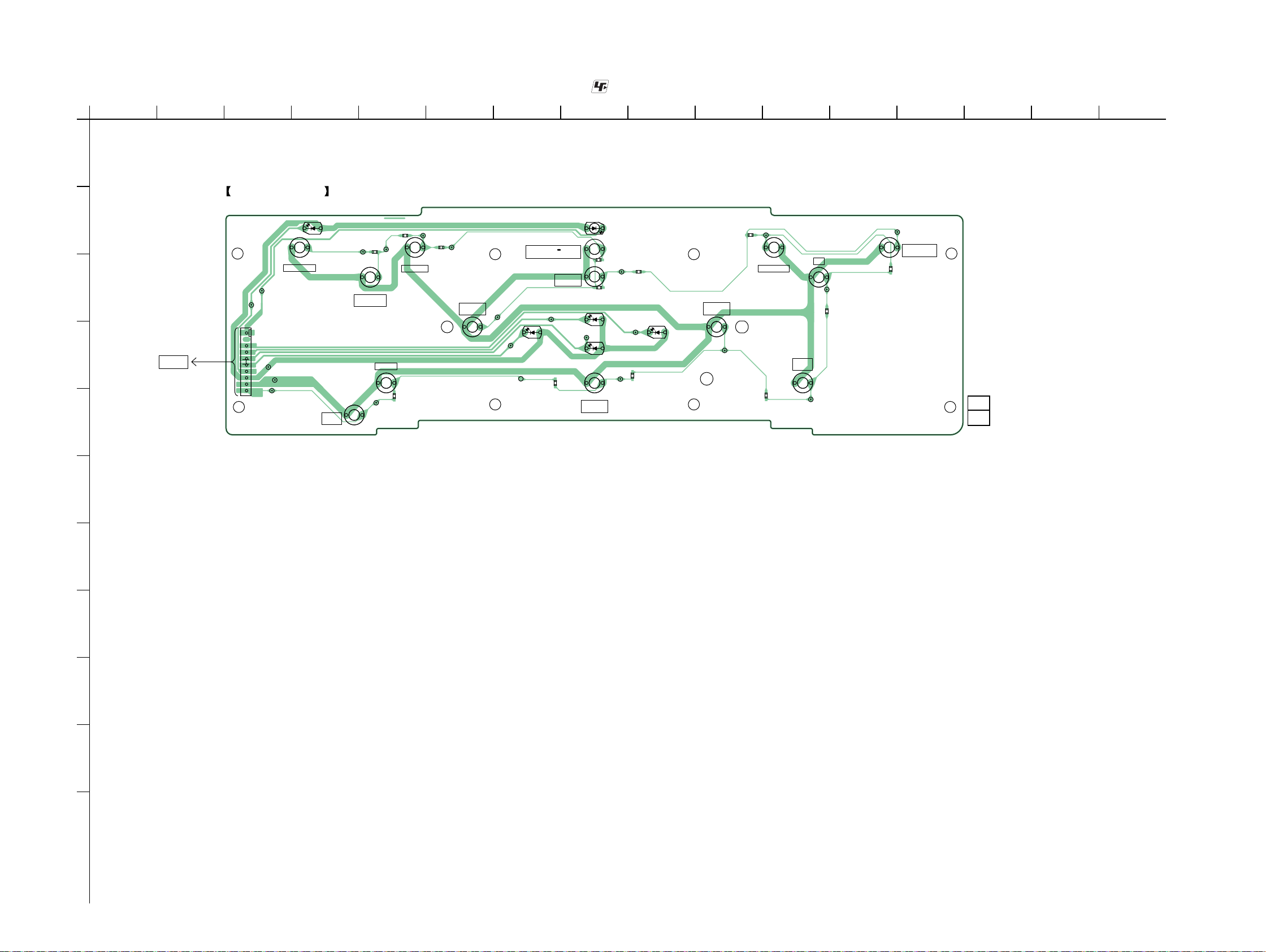

6-22. PRINTED WIRING BOARD - DJ KEYS Board - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

DJ KEYS BOARD

B

C

D

>008P

FL BOARD

CN2000

(Page 42)

JL2228

JL2223

10 13

E

NO2200

JL2222

JL2220

D2205

S2211

BASS BAZUCA

JL2221

S2208

REC TO

USB B

JL2213

R2212

S2210

USB/

USB SELECT

JL2200

JL2212

S2209

AUDIO IN

R2211

R2200

JL2211

S2212

FOOTBALL

R2210

JL2210

DJ EFFECT

S2207

WAH

JL2209

JL2224

JL2201

CONNECTION PAIRING

BLUETOOTH

DJ EFFECT

FLANGER

JL2226

D2204

R2201

D2200

S2213

S2205

JL2225

D2203

D2201

S2206

DJ EFFECT

ISOLATOR

R2209

R2208

JL2208

JL2202

JL2227

R2202

R2207

D2202

S2204

DJ EFFECT

PAN

JL2203

R2206

JL2206

S2201

MOVIE/GAME

R2203

S2203

TUNER/

BAND

JL2204

S2202

JL2205

CD

R2204

JL2207

R2205

S2200

– PARTY CHAIN

MUSIC

1-889-448-

11

(11)

F

G

H

I

J

K

HCD-GPX555/GPX888

4545

HCD-GPX555/GPX888

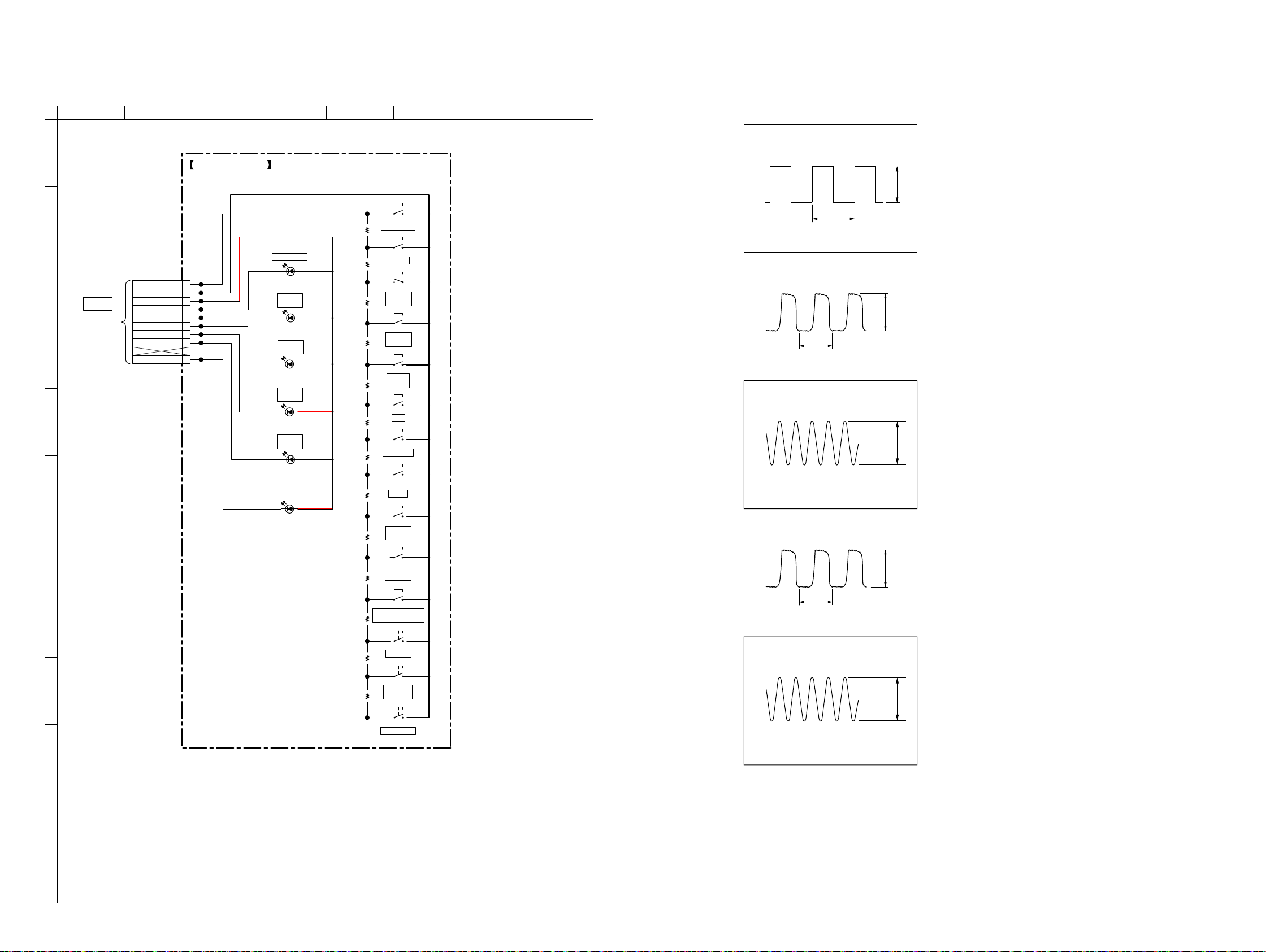

6-23. SCHEMATIC DIAGRAM - DJ KEYS Board -

1

2 3 4 5 6 78

A

DJ KEYS BOARD

B

D2205

1L0352V22F3MIT02

NO2200

10P

C

AD-KEY1

>045S

FL BOARD

CN2000

(Page 44)

D

FLANGER LED

S-FLASH LED

BLUETOOTH LED

JL2220

10

JL2221

9DGND

JL2222

8LED +5.2V

JL2223

7BASS BAZUCCA LED

JL2224

6PHASER LED

JL2225

5ISOLATOR LED

JL2226

4

JL2227

3

JL2228

1

E

F

BASS BAZUCA

D2204

1L0352V22F3MIT02

DJ EFFECT

WAH

D2203

1L0352V22F3MIT02

DJ EFFECT
ISOLATOR

D2201

1L0352V22F3MIT02

DJ EFFECT

FLANGER

D2202

1L0352V22F3MIT02

DJ EFFECT

PAN

D2200

1L0352B13F0MIT02

CONNECTION–PAIRING

BLUETOOTH

G

H

I

JL2200

R2200

JL2201

R2201

JL2202

R2202

JL2203

R2203

JL2204

R2204

JL2205

R2205

JL2206

R2206

JL2207

R2207

JL2208

R2208

JL2209

R2209

JL2210

R2210

JL2211

R2211

JL2212

R2212

JL2213

680

1k

1.5k

1.5k

2.2k

3.3k

4.7k

6.8k

10k

15k

22k

33k

68k

S2208

REC TO USB B

S2209

AUDIO IN

S2206

DJ EFFECT

ISOLATOR

S2204

DJ EFFECT

PAN

S2203

TUNER/

BAND

S2202

CD

S2201

MOVIE/GAME

S2200

-PARTY CHAIN

MUSIC

S2205

DJ EFFECT

FLANGER

S2207

DJ EFFECT

WAH

S2213

CONNECTION–PAIRING

BLUETOOTH

S2212

FOOTBALL

S2210

USB/

USB SELECT

S2211

BASS BAZUCA

• Waveforms

– MB Board –

1 IC101 eg (FL-CLK)

4.6 Ps

1 V/DIV, 5 Ps/DIV

2 IC101 yj (RTC-X1)

32.768 kHz

20 mV/DIV, 10 Ps/DIV

3 IC101 u; (EXTAL)

13.33 MHz

50 mV/DIV, 50 ns/DIV

4 IC101 os (AUDIO-X2)

12.28 MHz

200 mV/DIV, 25 ns/DIV

5 IC451 8 (X2)

12.0 MHz

3.52 V

75.2 mVp-p

928 mVp-p

1.06 Vp-p

348 mVp-p

J

K

HCD-GPX555/GPX888

100 mV/DIV, 25 ns/DIV

4646

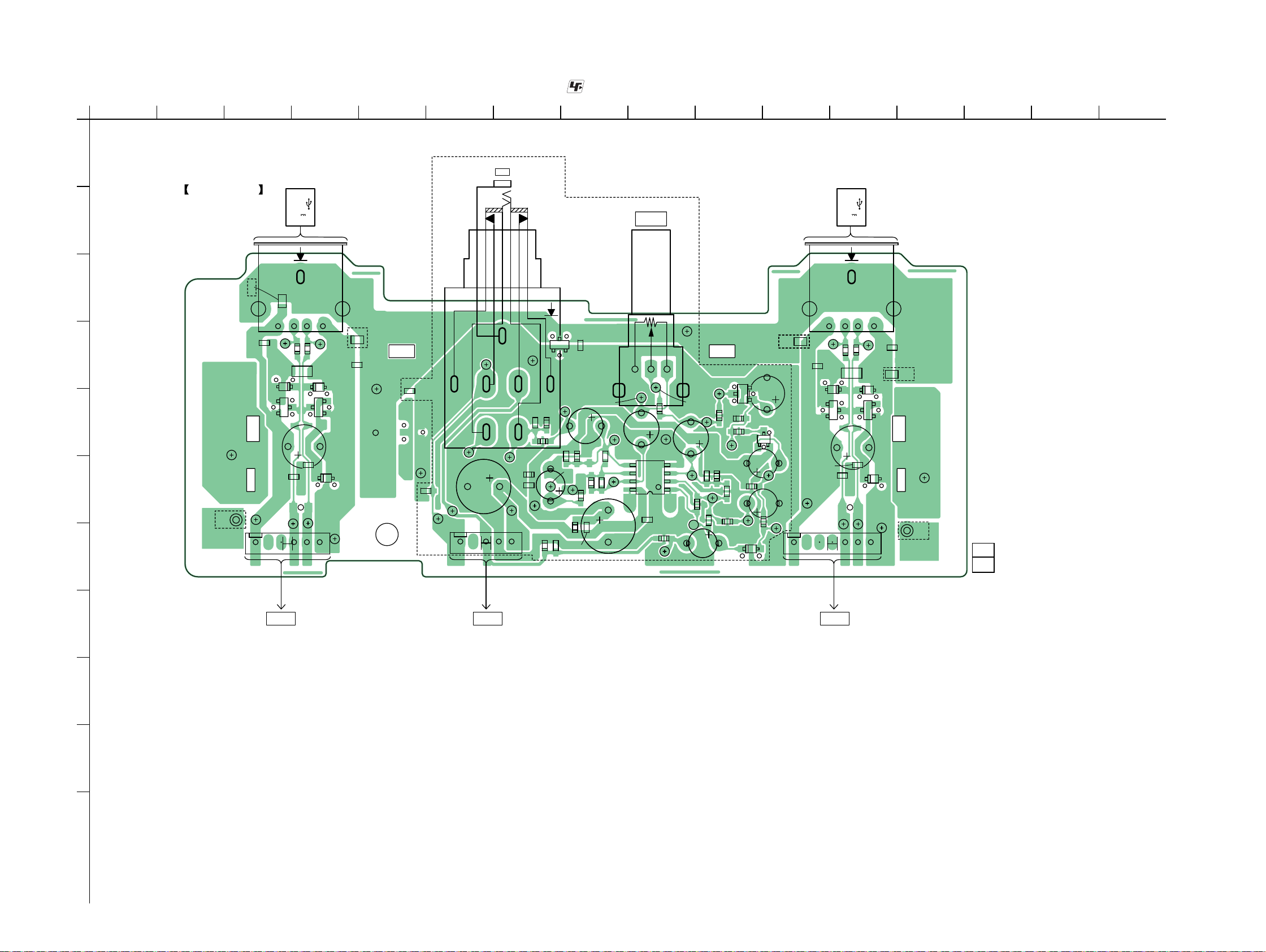

6-24. PRINTED WIRING BOARD - USB Board - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

1

A

B

C

D

E

F

G

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

USB BOARD

Ú GPX555
¾ GPX888

Ú

C2323

CL2333

Ú

LP001

CN2304

PLAY

A

5V
500mA

C2342

14

D2309

CL2307

163

CN2302

CL2337

R2315

JR2305

AK

AK

A/K

D2313

JR2303

JR

CL2305

JR

C2312

JR
JR2304

CL2303

CL2338

R2316

AK

KA

A/K

D2301

KA

D2304

D2311

Ú

CL2301

C2343

C2319

CL2319

C2338

CL2329

JL2300

¾

C2300

CL2330

JL2301

153

CN2301

C2309

CL2331

J2300

MIC

JL2303

CL2327

R2318

C2327

CL2328

C2336

CL2322

R2322

C2335

R2305

A/K

AK

D2317

CL2326

R2323

C2332

CL2325

CL2320

C2303

R2317

C2333

R2321

C2326

C2337

R2320

R2319

CL2323

C2329

C2330

CL2324

CL2321

C2328

RV2300

MIC LEVEL

MIN MAX

C2331

IC2300

C2322

CL2314

JL2302

R2306

R2312

CL2318

CL2316

CL2315

CL2334

C2314

R2308

CL2312

C2307

C2316

CL2317

CL2311

R2309

C2308

R2304

R2307

R2303

R2302

CL2310

C2315

Q2301

D

C2302

GS

Q2300

E

C2301

R2301

C2306

CL2308

CL2313

R2300

D2300

KA

Ú

C2340

CL2309

CL2300

173

CN2303

CN2300

REC/PLAY

B

5V
500mA

14

CL2335

C2339

AK

D2308

D2312

JR2300

JR2301

AK

A/K

CL2302

R2313

JR

CL2336

R2314

JR2302

JR

D2305

KA

A/K

C2310

JR

D2302

KA

CL2304

KA

D2310

CL2306

R2310

Ú

Ú

C2341

CL2332

LP002

1-889-447-

11

(11)

H

I

J

K

HCD-GPX555/GPX888

>006P

MB BOARD

CN451

(Page 28)

>002P

MB BOARD

CN601

(Page 28)

>007P

MB BOARD

CN451

(Page 28)

4747

HCD-GPX555/GPX888

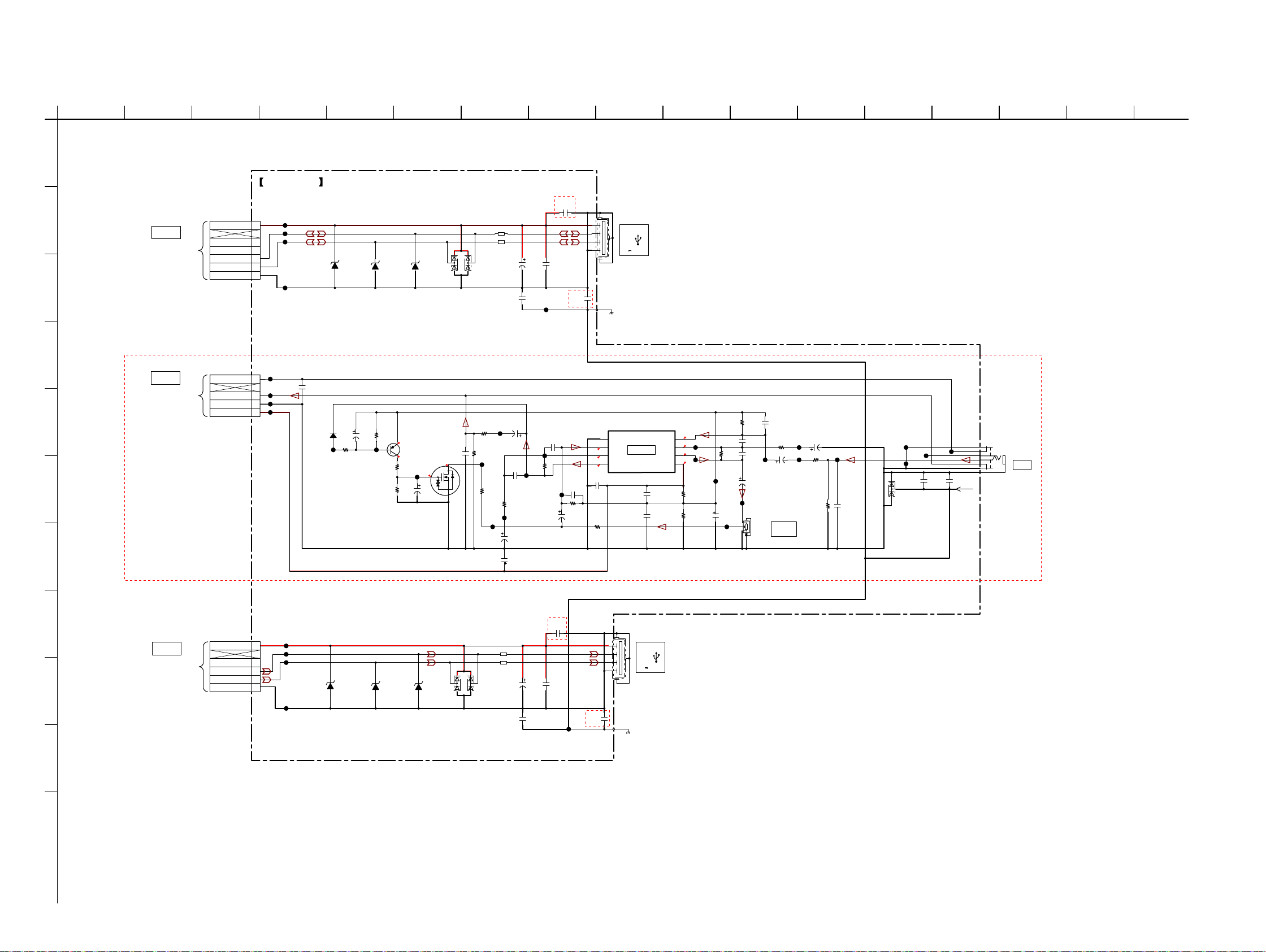

6-25. SCHEMATIC DIAGRAM - USB Board -

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

USB BOARD

CN2303

7P

B

>026S

MB BOARD (5/9)

CN451

(Page 34)

C

D

>002S

MB BOARD (1/9)

CN601

E

(Page 30)

MIC DET 1

MIC SIGNAL 3

MIC GND 4

A +9V 5

F

G

1USB B +5V

3NC

4NC

5D- B

6D+ B

7USB B GND

GPX888

CN2301

5P

JL2300

JL2301

JL2302

JL2303

CL2300

CL2302

CL2304

CL2306

D2302

DZ2J068M0L

C2300

0.1u

D2300

DA2J10100L

CL2308

DZ2J068M0L

C2301

0.1u
50V

R2300

1M

D2305

R2301

1M

CL2309

D2308

DZ2J068M0L

R2302

470

R2303

220k

4.5

Q2300

LSAR523UBFS8TL

MIC DETECT

4

CL2310

C2302

10u
50V

Q2301

RHK005N03T146

MIC DETECT

D2310

BAV99-215

4

R2313

0

R2314

0

D2312

BAV99-215

R2310

0.1u

C2307

2.2u

R2306

50V

CL2314

100

C2303

R2305

0.1u

4.5

S

100k

C2308

CL2311

68p

CL2315

R2304

3.3k

R2307

10k

CL2313

CL2312

C2306

0.1u
50V

C2309

220u

10V

C2310

100u

6.3V

CL2317

R2308

GPX555

CN2300

4P

C2340

10u

REC/PLAY

B

4.5

4.5

4.5

C2322

R2312

0.1u

10k

(CHASSIS)

4

VEE

3

+IN1

2

-IN1

1

OUT1

5V 500mA

IC2300

BA4558F-E2

IC2300

MIC AMP

C2326

0.1u

C2327

0.1u

+IN2

OUT2

VCC

R2320

CL2320

CL2322

C2328

220u

10V

R2319

CL2334

33k

C2331

2.2u
50V

33k

4.5

5

4.5

6

-IN2

4.5

7

9

8

CL2321

R2317

10k

R2318

10k

C2329

220p

C2330

0.001u

CL2323

CL2324

RV2300

50k

C2332

0.001u

R2321

1k

C2333

2.2u
50V

MIC LEVEL
MIN MAX

CL2325

CL2326

C2335

2.2u
50V

R2322

R2323

CL2327

1k

C2336

10k

0.001u

CL2328

CL2329

BAV99-215

D2317

CL2330

C2337

0.001u

CL2331

C2338

0.1u

W2300

J2300

MIC

C2339

0.01u

GPX555

C2341

10u

CL2318

C2315

220p

100k

C2316

680p

CL2316

R2309

C2314

100k

0.1u
50V

H

MB BOARD (5/9)

I

J

K

HCD-GPX555/GPX888

>025S

CN451

(Page 34)

CN2302

6P

1USB B +5V

3NC

4D- A

5D+ A

6USB A GND

CL2307

CL2305

CL2303

CL2301

D2301

DZ2J068M0L

D2304

DZ2J068M0L

D2309

DZ2J068M0L

D2311

BAV99-215

R2315

R2316

D2313

BAV99-215

C2319

0.1u

GPX555

C2342

10u

0

0

C2312

C2323

100u

0.01u

6.3V

CL2319

C2343

10u

GPX555

CN2304

4P

(CHASSIS)

PLAY

A

5V 500mA

4848

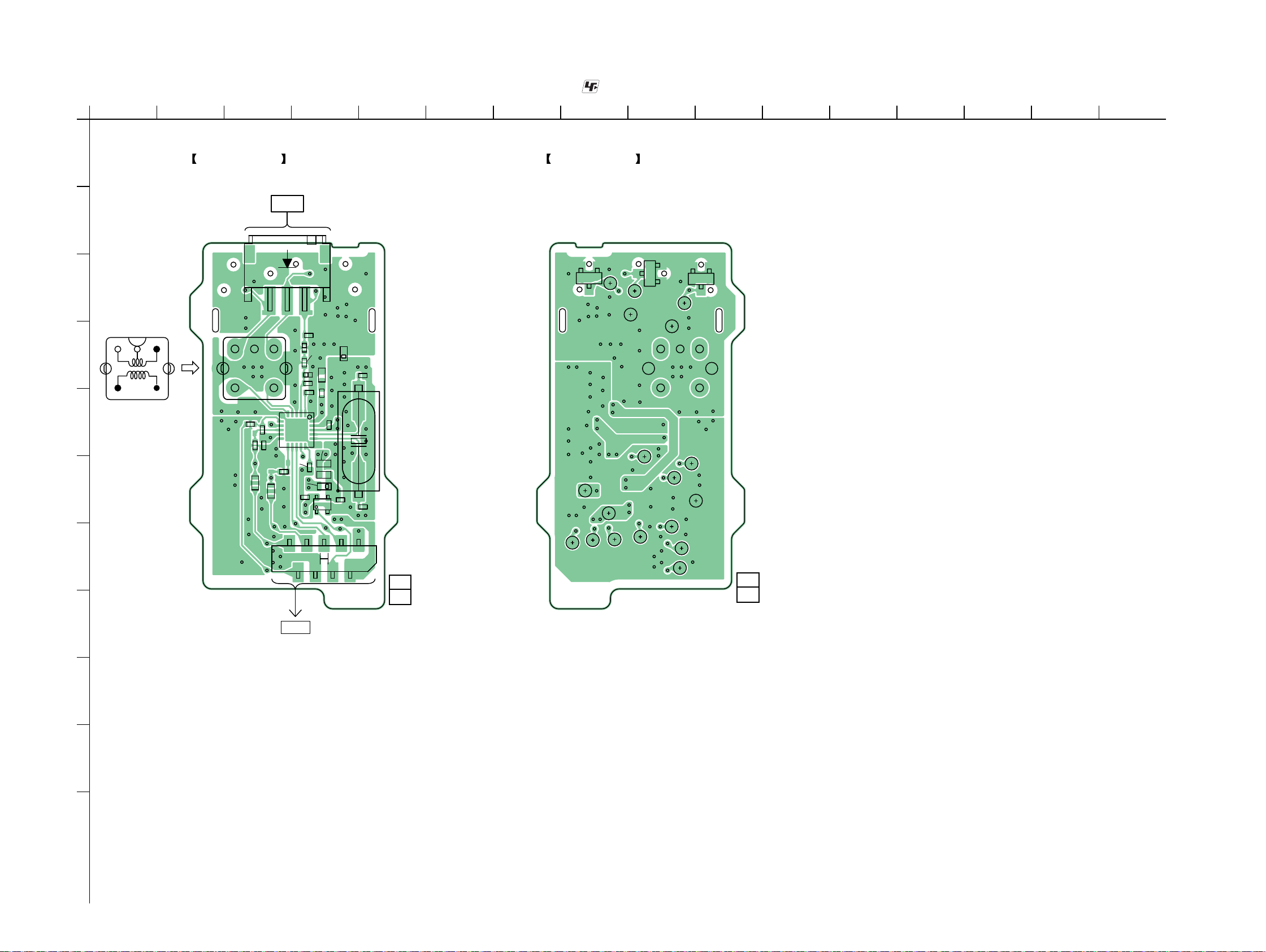

6-26. PRINTED WIRING BOARD - TUNER Board - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.

HCD-GPX555/GPX888

1

A

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

TUNER BOARD
(COMPONENT SIDE)

ANTENNA

FM/AM

TUNER BOARD
(CONDUCTOR SIDE)

B

CN3000

C

L3001

S1

D

S2

E

F

31

L3001

C3002

IC3000

R3005

R3009

R3010

R3004

C3006

R3008

R3011

6

10

11 15

C3013

L3002

21

L3004

R3000

L3000

15

R3006

R3007

L3003

C3000

R3003

C3001

C3003

20

C3004

16

C3008

C3011

C3005

X3000

C3007

IC3001

CL3005

D3000

KA

KA

CL3002

CL3006

CL3013

CL3014

D3002

A/K

CL3001

CL3017

D3001

A/K

AK

CL3004

CL3007

CL3000

A/K

CL3003

CL3009

G

CN3001

8

19

2

CL3008

CL3011

CL3010

CL3012

11

1-889-513-

H

>001P

(11)

CL3016

CL3015

1-889-513-

11

(11)

MB BOARD

CN851

(Page 28)

I

J

K

HCD-GPX555/GPX888

4949

HCD-GPX555/GPX888

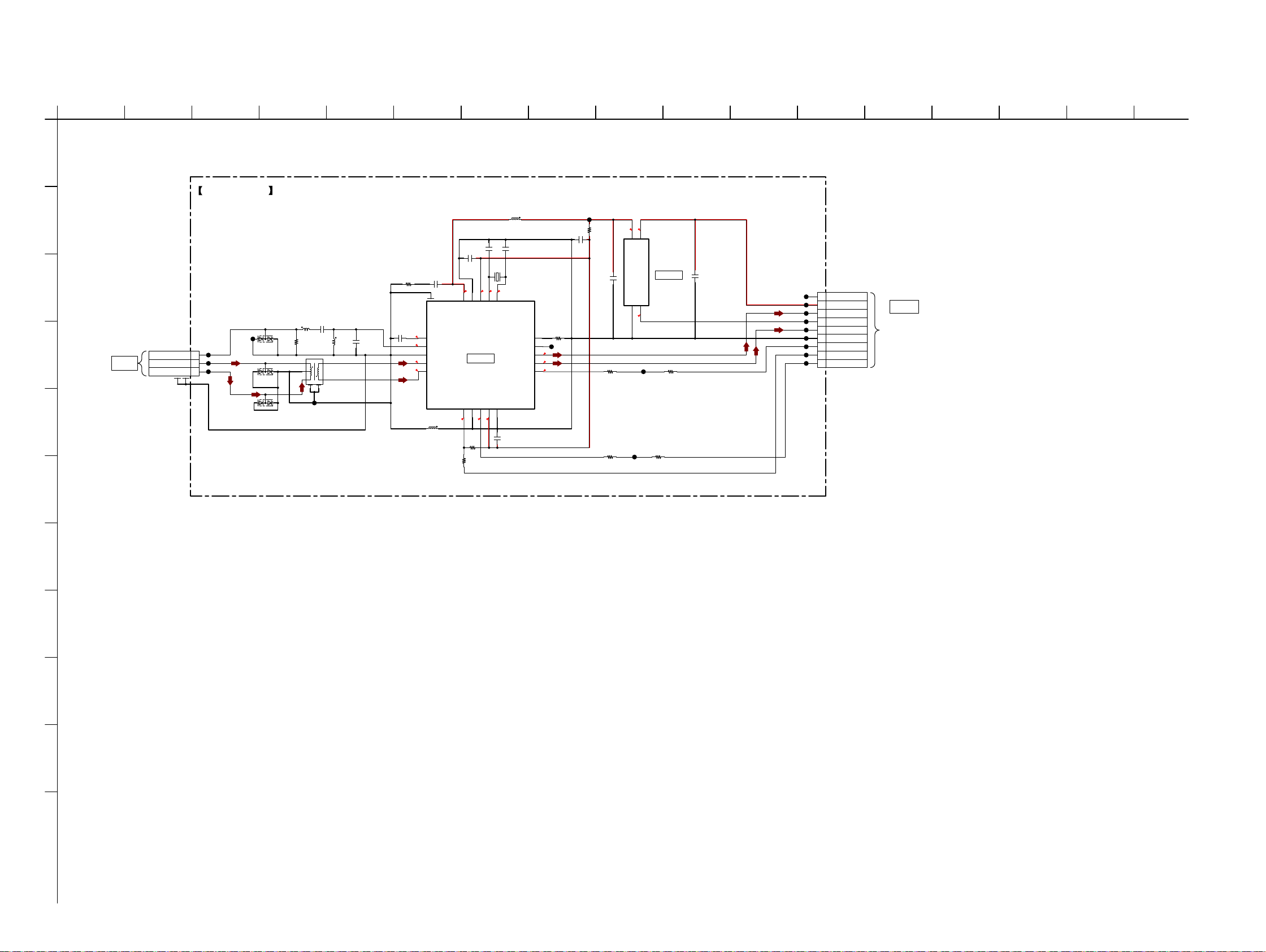

6-27. SCHEMATIC DIAGRAM - TUNER Board - • See page 51 for IC Block Diagrams.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

TUNER BOARD

R3006

0

CL3017

C3008

10u

CL3005

R3007

0

C3011

1u

R3008

R3009

3.3 5.5

3

4

VDD

VOUT

IC3001

MM3404A33URE

IC3001

+3.3V REG.

GND

1CE2

0

CL3007

R3010

R3011

0

22

CL3006

22

C3013

1u

0

CL3008

CL3009

CL3010

CL3011

CL3012

CL3013

CL3014

CL3015

CL3016

CN3001

9P

1

2

3 AUDIO L/LRCK

4 CE (p con)

5 AUDIO R/BCK

6GND

7 DA (for IIC)

8

9 CK (for IIC)

IISD (data audio)

VDD

IIC/RDSI

>009S

MB BOARD

(2/9)

CN851

(Page 31)

B

C3005

C3004

0.0022u

C3003

R3003

10p

C3002

0.047u

0

21

GND

VDDRF

0

1

CP2

0

2

FRF1

3

GNDRF

0.3

4

ARF1

0.3

5

ARF2

L3003

47nH

R3005

100

IC3000

RN5B801-0002

IC3000

FM DRIVER

(FM RECEIVER)

IIC/RDSI7LA

6

R3004

10k

C

C3000

L3000

68p

68nH

CL3000

CL3001

CL3002

CL3003

CN3000

3P

D

ANTENNA

FM/AM

1FM

2AM

3AM

E

D3000

BAV99-215

D3001

BAV99-215

D3002

BAV99-215

R3000

100

CL3004

L3002

68nH

L3001

C3001

47p

L3004

2.2nH

C3007

3p

3p

X3000
12MHz

003.33.3

16

17X2181920

X1

VDD

15

CP1

14

IISD

1.5

13

LRCK/LOUT

BCLK/ROUT

GND

VDD

CK

8

10

9

3.33.33.3

C3006

0.0022u

1.5

12

3.3

11

DA

F

G

H

I

J

K

HCD-GPX555/GPX888

5050

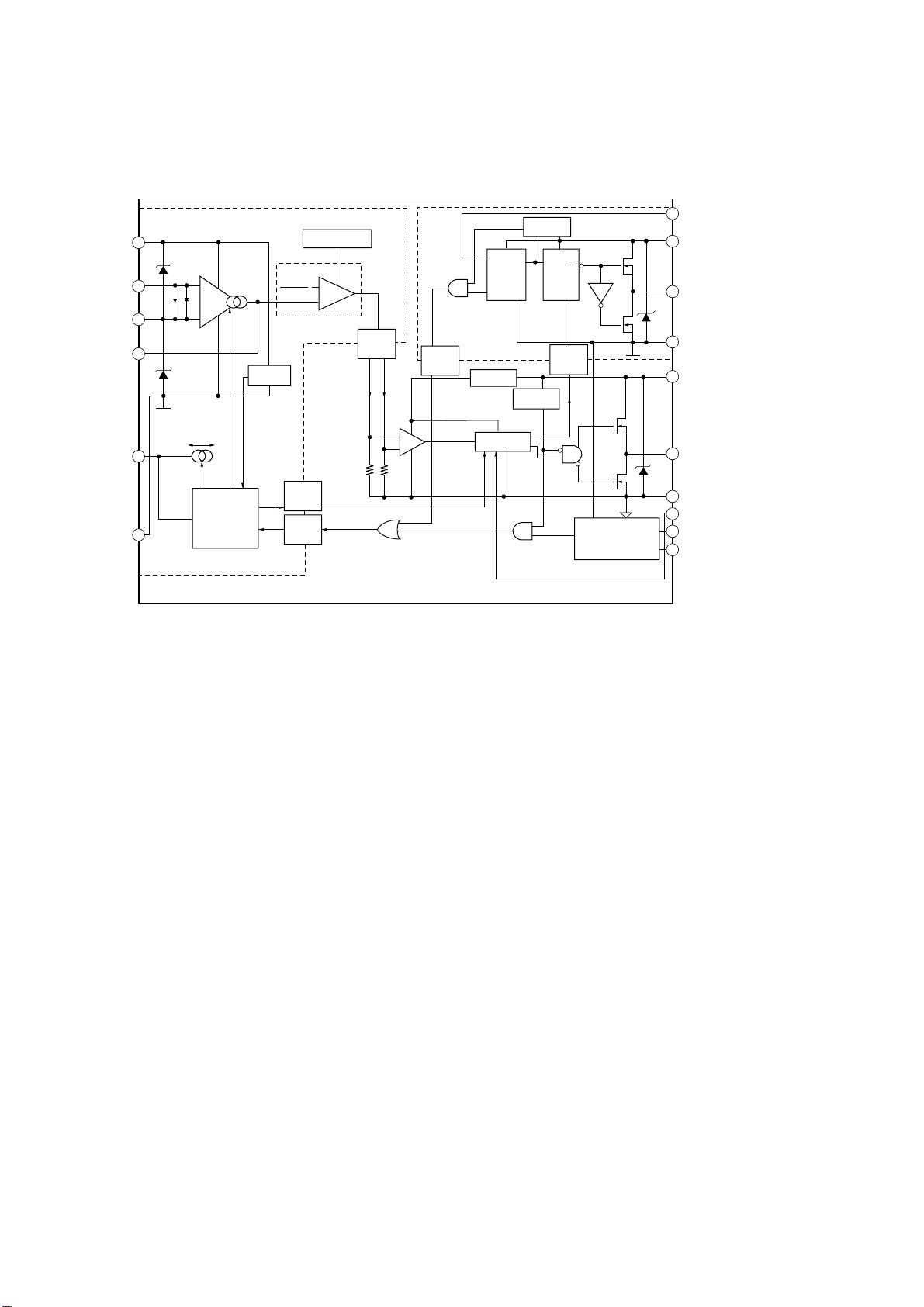

• IC Block Diagrams

IC1009, IC1011, IC1014 IRS2092STRPBF-CU (DAMP BOARD (2/2))
IC1012 IRS2092STRPBF-CU (DAMP BOARD (2/2)) (GPX888)

FLOATING INPUT

HIGH
SIDE

CS

DETECT

UV

DETECT

VAA

GND

COMP

CLICK NOISE

1

6V6V

2

3

IN-

+

OTA

–

ENABLE

4

UV

DETECT

ELLIMINATION

+

VAA+VSS

2

COMP

–

PWM MODULATOR

HV
LEVEL
SHIFT

HV

LEVEL

SHIFT

FLOATING HIGH SIDE

5V REG

HCD-GPX555/GPX888

16

20.4V

CSH

15

VB

14

HO

13

VS

12

VCC

UV

UV

Q

HV

LEVEL

SHIFT

CSD

VSS

5

CHARGE/

DISCHARGE

PROTECTION

6

CONTROL

HV

LEVEL

SHIFT

HV

LEVEL

SHIFT

SD

DT

LOW SIDE CS

DEAD TIME

20.4V

11

LO

10

COM

9

DT

8

OCSET

7

VREF

51

HCD-GPX555/GPX888

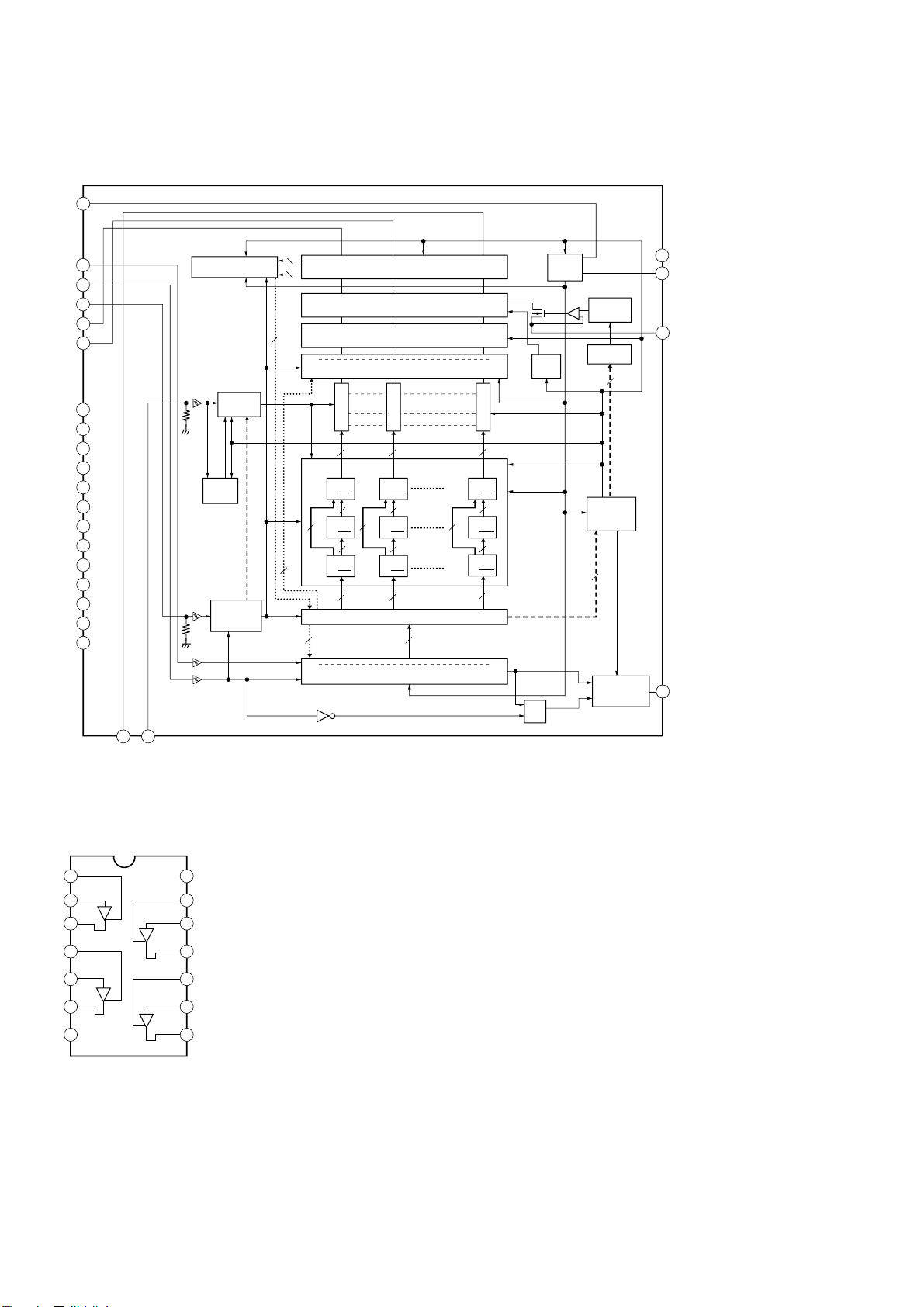

IC2000, IC2002 TC62D723FNG (FL BOARD)
IC501 TC62D723FNG (MB BOARD (9/9)) (GPX888)
IC502 TC62D723FNG (MB BOARD (9/9))

1GND

SIN

SCK

TRANS

/OUT0

/OUT1

/OUT2

/OUT3

/OUT4

/OUT5

/OUT6

/OUT7

/OUT8

/OUT9 14

/OUT10

/OUT11

/OUT12

/OUT13

/OUT14

2

Error detection result

data register

16

16

Output open/short detection circuit

POR

circuit

3

4

5

6

PWM

7

countor

16

0-bit 15-bit

Constant current output circuit

Output delay circuit

Output ON/OFF setting data register

Comparator

Comparator

Comparator

TSD

circuit

Reference

voltage

8-bit

DAC

25 GND

24 VDD

23 REXT

8

8

9

10

11

POD

circuit

12

13

15

16

17

18

Command

control

circuit

16-bit

PWM Data

for OUT0

16-bit

16

PWM Data

for OUT0

16-bit

PWM Data

16

for OUT0

16

19

0-bit 15-bit

16 1616

PWM data registor

16-bit

Registor 3

PWM Data

(for output)

for OUT1

16 1616

16-bit

PWM Data

for OUT1

16-bit

PWM Data

for OUT1

(for synchronous)

16 1616

Registor 2

Registor 1

16 16

16

Data transfer control circuit

1616

16-bit shift registor

16-bit
PWM Data
for OUT15

16-bit
PWM Data
for OUT15

16-bit
PWM Data
for OUT15

16-bit x 2

State setting

register

16

16

SOUT

selection

circuit

22 SOUT

F/F

20

21

/OUT15

PWMCLK

IC102 TC74VHC126FT (EKJ) (MB BOARD (7/9))

GND

1G

1

1A

2

1Y

3

2G

4

2A

5

2Y

6

7

Vcc

14

4G

13

4A

12

4Y

11

3G

10

3A

9

3Y

8

52

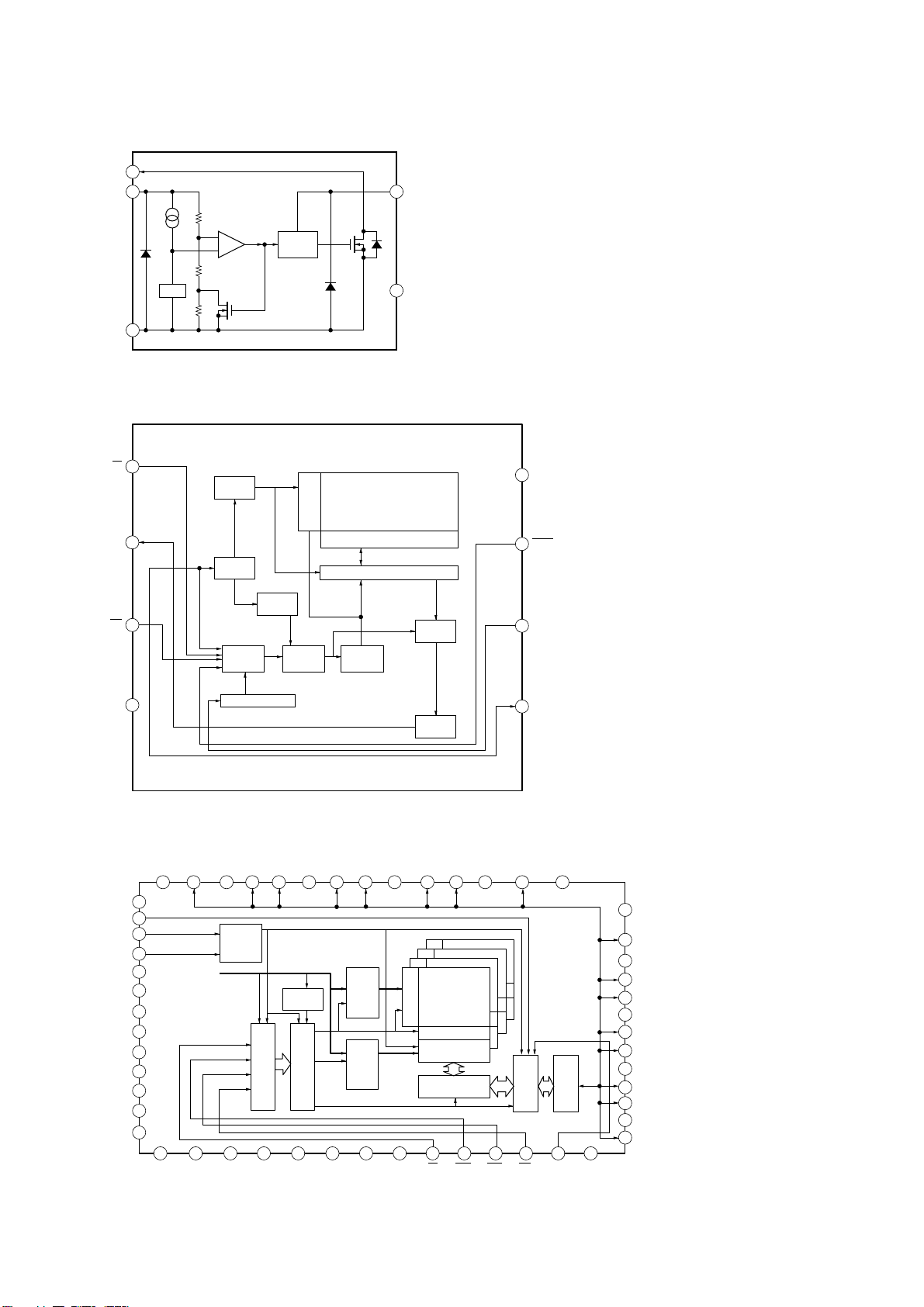

IC103 BU4229F-TR (MB BOARD (7/9))

OUT 1

VDD 2

HCD-GPX555/GPX888

Ver. 1.1

CD5

VSS

–
+

VREF

3

DELAY

CIRCUIT

4

IC106 MX25L3235EM2I-10G (MB BOARD (8/9))

1

CS

Address

Generator

2

DO

Data

Register

3

WP

Mode
Logic

X-Decoder

SRAM

Buffer

State

MachineHVGenerator

Memory Array

Page Buffer

Y-Decoder

NC

Sense

Amplifier

8

VCC

7

HOLD

6

CLK

GND

4

Clock Generator

IC306 EM638165TSD-6G (MB BOARD (3/9))

VSS41DQ842VDDQ43DQ944DQ1045VSSQ46DQ1147DQ1248VDDQ49DQ1350DQ1451VSSQ52DQ1553VSS

NC

40

UDQM

39

CLK

CKE

A11

VSS

38

37

NC

36

35

A9

34

A8

33

A7

32

A6

31

A5

30

A4

29

28

27

VDD

Clock
Generator

Control Logic

Row
Address
Buffer
&
Refresh
Counter

Column
Address
Buffer
&
Refresh
Counter

Address

Mode
Register

Command Decoder

A326A225A124A023A10/AP22BA121BA020CS19RAS18CAS17WE16LDQM15VDD

Output

Buffer

Bank C

Bank B

Bank A

Row Decoder

Sense Amplifier

Column Decoder

Data Control Circuit

Bank D

5

DI

Latch Circuit

54

Buffer

Input & Output

VDD

1

DQ0

2

VDDQ

3

DQ1

4

DQ2

5

VSSQ

6

DQ3

7

DQ4

8

VDDQ

9

DQ5

10

DQ6

11

VSSQ

12

DQ7

13

14

53

HCD-GPX555/GPX888

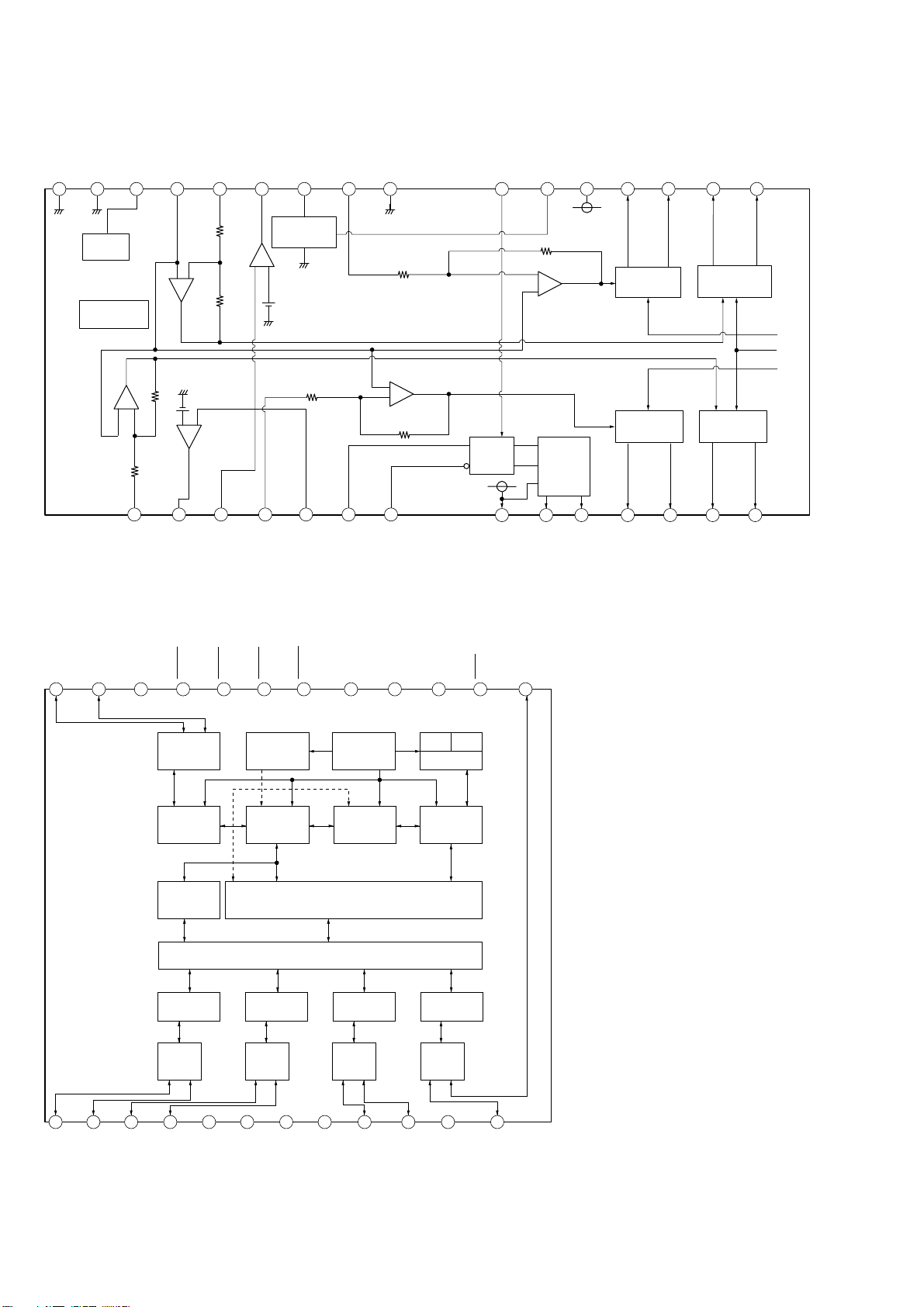

IC401 AM5890S (MB BOARD (4/9))

PGND29PGND

30

MUTE27BIAS26VINTK25TRB_224RESET23VINLD22GND

28

+

-

4

VINSL+

Voltage

Detection

10K

5

MUTE

Thermal

Shut down

10K

+

-

25K

25K

-

+

+

-

10K

1

2

3

VINFC

TRB_1

REGO2

IC451 GL850G-OGY33 (MB BOARD (5/9))

REGO1

VCTL20VCCD19Vcc218VOLD-17VOLD+16VOTK-15VOTK+

21

Vcc2

15K

10K

+

-

25K

Pre-DRV

6

7

REV

FWD

­+

TRAY

DRIVER

8

9

10

Vcc1

VOTR-

VOTR+

Spindle

Driver (4X)

Sled

Driver (4X)

11

VOSL+

12

VOSL-

Actuator

Driver (6X)

Actuator

Driver (6X)

13

VOFC-

Vcc2

Vcc2

Vcc1

14

VOFC+

DP023DM022AVDD_2221PWREN1/SDA20OVCUR1/SMC19PWREN2

24

USPORT

Transceiver

UTMI

REPEATER

DSPORT1 Logic DSPORT2 Logic DSPORT3 Logic DSPORT4 Logic

DSPORT

Transceiver

1

2

3

4

5

DM1

DP1

DM2

DP2

RREF

FRTIMER

USPORT

Logic

DSPORT

Transceiver

6

AVDD_6

OVCUR2/SMD17PGANG16DVDD15TEST/SCL

18

PLL

x40, x10

SIE

TT (Transaction Translator)

REPEATER / TT Routing Logic

DSPORT

Transceiver

7

X18X2

9

10

DP3

DM3

RAM ROM

CPU

Control/Status

Register

DSPORT

Transceiver

11

AVDD_11

RESET13DP4

14

12

DM4

54

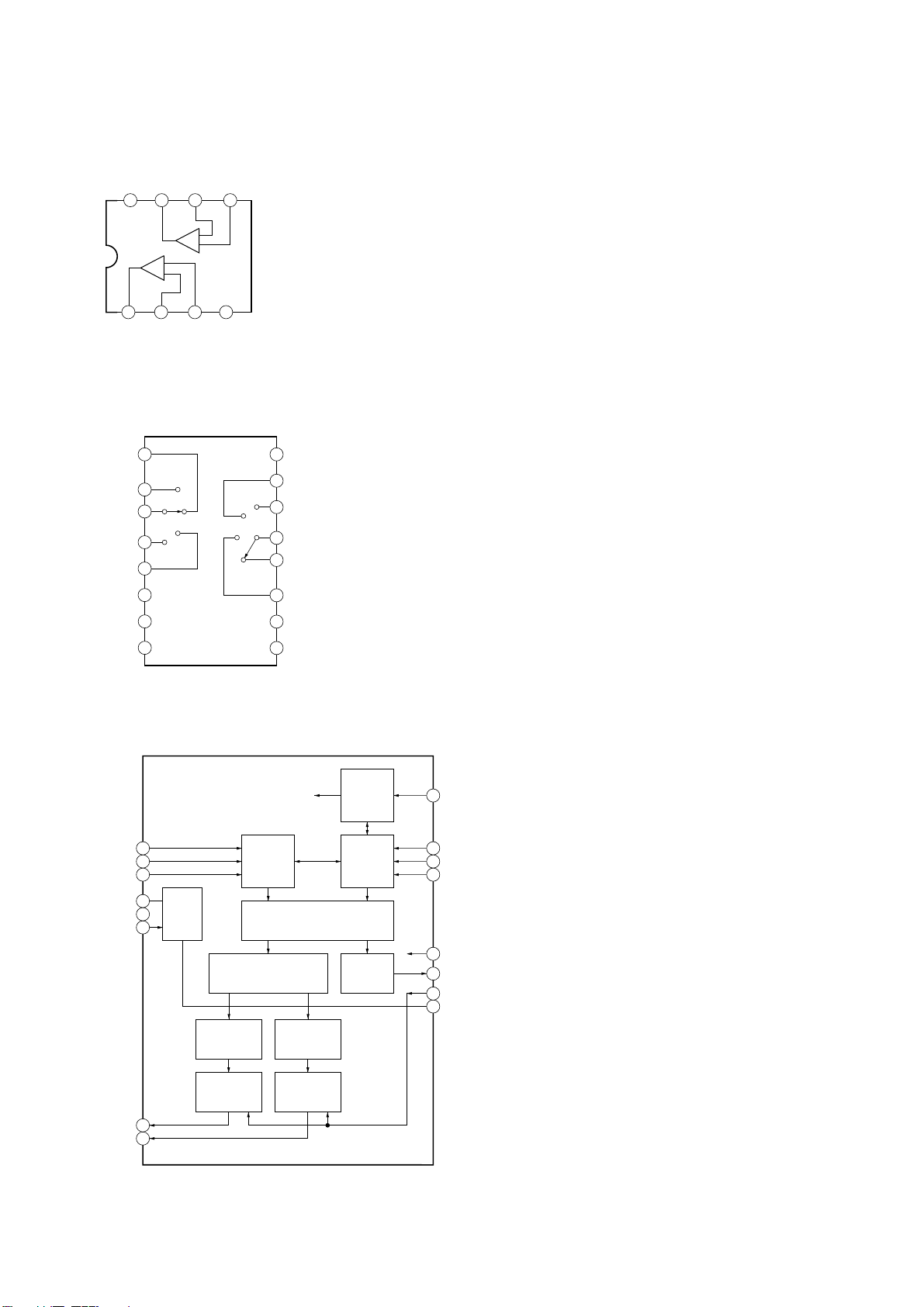

IC452 BA2903FV-E2 (MB BOARD (5/9))

B OUTPUT

B- INPUT

V+

8

VCC

7 6 5

+

–

B+ INPUT

–
+

HCD-GPX555/GPX888

1

A OUTPUT

2

A- INPUT

3

A+ INPUT

GND

4

V-

IC602, IC605 SN74LV4052APWR (MB BOARD (1/9))

16

2Y0

2Y2

2-COM

2Y3

GND

GND

2Y1

INH

1

2

3

4

5

6

7

8

VCC

15

1Y2

1Y1

14

1-COM

13

12

1Y0

11

1Y3

A

10

9

B

IC604 PCM1754DBQR (MB BOARD (1/9))
IC611, IC615 PCM1754DBQR (MB BOARD (2/9))

BCK

VLTUO

VRTUO

SYSTEM

CLOCK

1
2DATA
3LRCK

4DGND

POWER

5NC

SUPPLY

6VCC

CONVERTER

OUTPUT AMP

& LOW-PASS

7
8

AUDIO

SERIAL

PORT

4x/8x OVERSAMPLING DIGITAL
FILTER & FUNCTION CONTROL

ENHANCED MULTILEVEL

DELTA-SIGMA MODULATOR

D/A

FILTER

D/A

CONVERTER

OUTPUT AMP

& LOW-PASS

FILTER

SYSTEM

CLOCK

MANAGER

SERIAL

CONTROL

PORT

ZERO

DETECT

16 SCK

15

FMT

14

MUTE

13 DEMP

12 TEST

11

ZEROA

VCOM

10

9

AGND

55

HCD-GPX555/GPX888

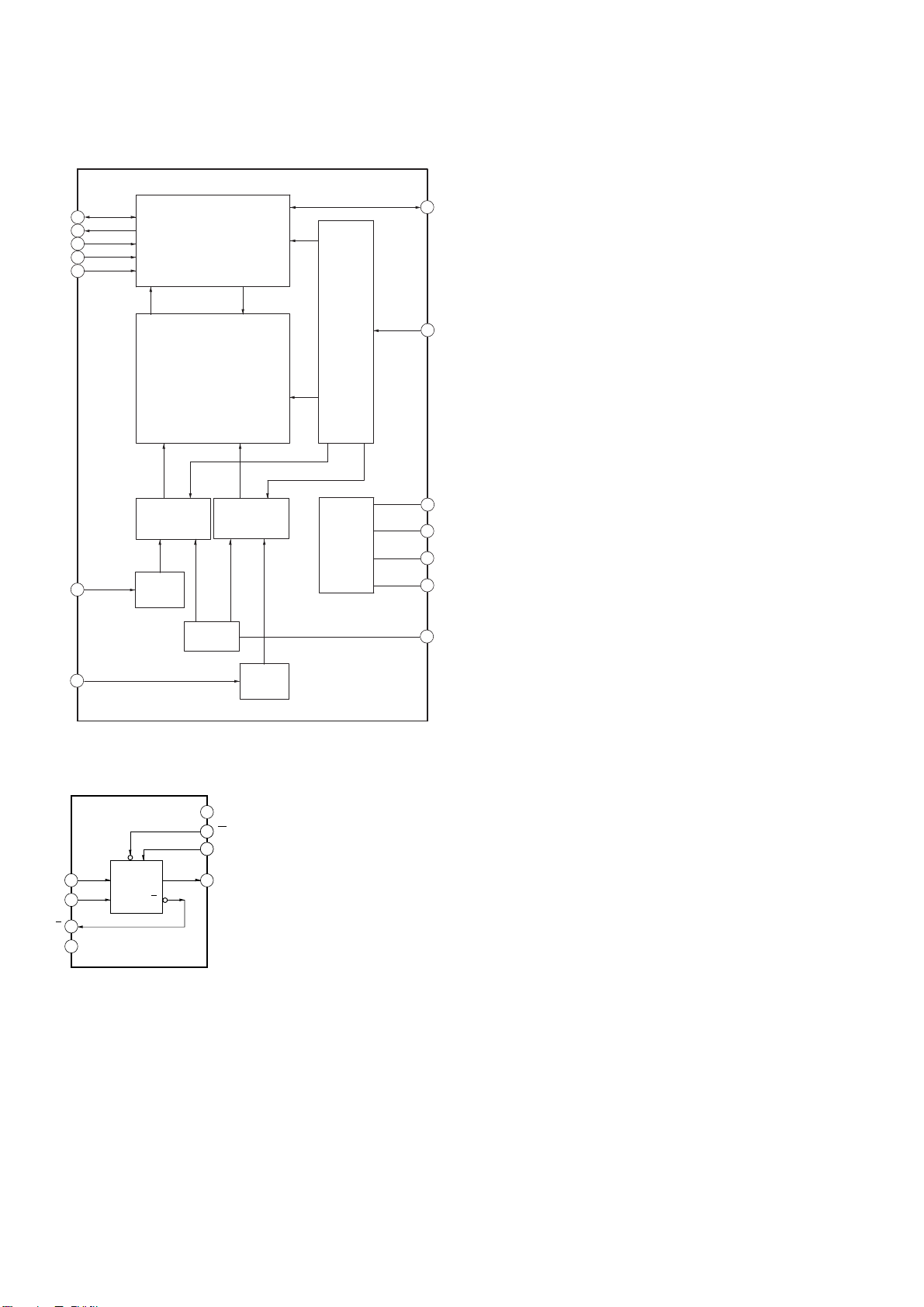

IC606 PCM1808PWR (MB BOARD (1/9))
IC609 PCM1808PWR (MB BOARD (1/9)) (GPX888)

BCK

SDO

MOD0

MOD1

FMT

8

9
10

11

12

Serial

Interface

Mode/
Format
Control

x1/64

Decimation

Filter

with

High Pass Filter

Clock

and
Timing
Control

7

LRCK

SCKI

6

AIN_L

IN_R

Delta Sigma

Modulator

13

14

Antialias

LPF

Reference

Delta Sigma

Modulator

Antialias

LPF

IC607 TC7WH157FK (MB BOARD (1/9))

8

VCC

117

ST

116

SELECT

A

B

EN G

Y

Y

5

Y

GND

1

A

2

B

3

Y

4

Power
Supply

5

DGND

DVDD

4

3

AVCC

AGND

2

VREF

1

56

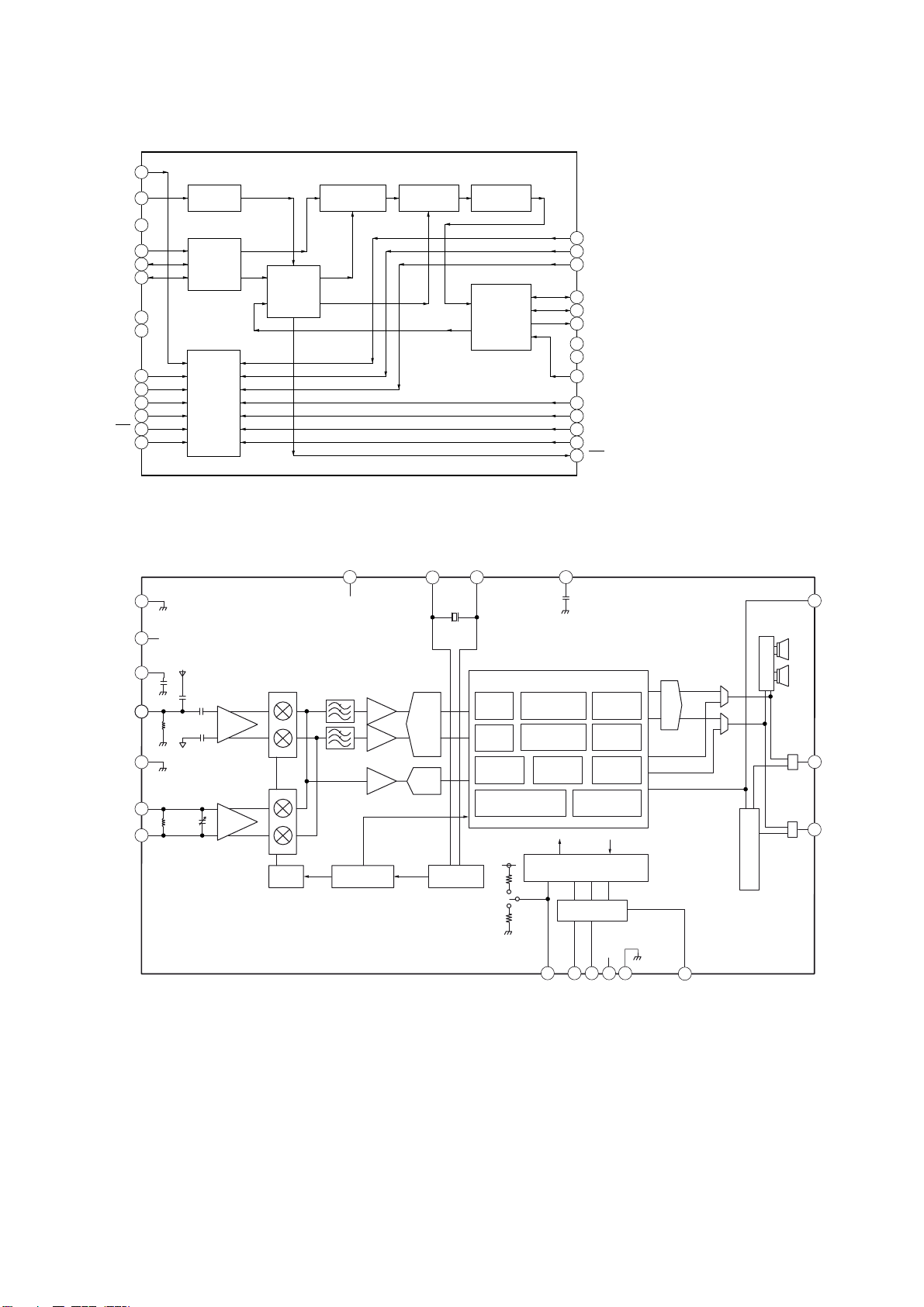

IC610 SRC4182 (MB BOARD (1/9))

PRGL1

2RCKI

3NC

4SDIN
5BCKI
6LRCKI

7VIO
8DGND

9BYPAS
10IFMT0
11IFMT1
12IFMT2
13RST
14MUTE

REFERENCE

CLOCK

AUDIO
INPUT

PORT

CONTROL

LOGIC

RATE

ESTIMATOR

INTERPOLATION

FILTERS

RE-SAMPLER

DECIMATION

FILTERS

AUDIO

OUTPUT

PORT

28

MODE2

27

MODE1

26 MODE0

25 BCKO
24 LRCKO
23 SDOUT

22 VDD
21 DGND

20 TDMI

19 OFMT0
18 OFMT1
17 OWL0
16 OWL1
15 RDY

HCD-GPX555/GPX888

IC3000 RN5B801-0002 (TUNER BOARD)

VDD

20

1

GND

1

VDDRF VDD

2

2

3

CP2

3

FRF1

4

4

GNDRF

5

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

AM

TUNE

FM LNA

AM LNA

LOSC

VDD

Filter

Clock

Generator

AGC
AMP

AGC
AMP

AMP

ADC

ADC

X2

X1

18

19

Digital Signal Process

Digital
MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

Calculation

HOST Controller

LA

CK

DSI

Decoder

Generator

RSSI

VDD

Stereo

RDS

IIS

VDD

IISD

IISD

16

Lch

Amplifier

LRCK

BCLK

IIS Controller

Rch

SW

SW

LRCK / LOUT

15

BCLK / ROUT

14

LOUT

DAC

ROUT

LRCK

BCLK

IISD

12111098

GND

13

DA

57

HCD-GPX555/GPX888

• IC Pin Function Descriptions

MB BOARD (8/9) IC101 R7S7200022CFP (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Description

1 SRC-RST0 O SRC Reset pin

2 VIDEO-MUTE O Muting Control for Video

3 CDM-UNLOAD-SW I CDM UNLOAD SW

4 CDM-LOAD-SW I CDM LOAD SW

5 BT-RESET O Reset signal output to Bluetooth section

6 NC - Not used

7 Vcc - Power supply terminal (+3.3V)

8 BT-ON O Bluetooth on/off control signal output terminal for bluetooth section

9 Vss - Ground terminal

10 LINEOUT-SEL O Signal out selection for Party Chain

11 PVcc - Power supply terminal (+3.3V)

12 VBUS-OE O MTK Vbus Output enable control pin

13 HUB-RESET O MTK Hub reset pin

14 AUDIO_CLK_OUT O Clock Signal from Aragon to MTK master clock

15 MTK-RESET O MTK Reset pin

16 MTK-BUSY O BUSY Signal communication between MTK

17 MTK-CLK I Clock Signal from MTK

18 Vss - Ground terminal

19 MTK-XIFCS I MTK CHIP SELECT

20 MTK-SDI I Data In Signal from MTK

21 Vcc - Power supply terminal (+3.3V)

22 MTK-SDO O Data Out Signal to MTK

23 Vss - Ground terminal

24 SSI3_BCKO O Clock signal from Aragon to DAC BIT

25 PVcc - Power supply terminal (+3.3V)

26 SSI3_LRCKO O Clock signal from Aragon to DAC LRCK

27 SSI3_DO O Data Out signal from Aragon to selector for Party Chain output

28 SSI3_DI I SRC from MTK to Aragon data in

29 SSI0_BCKO O Clock signal from Aragon to Wf DAC BCK

30 SSI0_LRCKO O Clock signal from Aragon to Wf DAC LRCK

31 Vss - Ground terminal

32 SSI0_DO O Data Out from Aragon to Wf DAC

33 SSI2_DO O Data Out from Aragon to Tw DAC

34 Vcc - Power supply terminal (+3.3V)

35 FL-CLK O Serial clock output to FL CIG

36 Vss - Ground terminal

37 NO USE - Not used

38 FL-LATCH O Data Latch signal to FL CIG

39 PVcc - Power supply terminal (+3.3V)

40 FL-SOUT O Serial data output to FL CIG

41 ANALOG-ASEL O Multiplexer selector A for Analog input

42 ANALOG-BSEL O Multiplexer selector B for Analog input

43 DEBUG-TxD O TxD (for Debug)

44 NFC-SPICLK O Serial data transfer clock signal output to the NFC

45 POWER-KEY I Power Key input terminal

46 Vss - Ground terminal

47 USB-OC I USB Overcurrent Detection input port

48 RGB-SOUT O Serial data output to RGB driver

49 NFC-SW O NFC standby control output terminal to the NFC section

50 PVcc - Power supply terminal (+3.3V)

51 LINK-OUT-B O Selector B for Party Chain Signal

52 NFC-SEL O NFC data read/write control output terminal to the NFC section

53 NFC-RF-DET I NFC RF signal detection signal input from the NFC section

58

HCD-GPX555/GPX888

Pin No. Pin Name I/O Description

54 SSI1_DO O Data Out signal from Aragon to Tw DAC

55 SSI1_DI I Data In Signal from ADC to Aragon

56 PCONT-BTSTBY O BT Standby Power Control Pin. “H”: ON

57

58 Vcc - Power supply terminal (+3.3V)

59 LINK-DET I Party Chain input bias detection pin

60 NFC-DATA I Two-way data bus with the NFC

61 Vss - Ground terminal

62 PVcc - Power supply terminal (+3.3V)

63 AC-CUT I AC off detection signal input from the reset signal IC “L”: AC Cut detected

64 DEBUG-RxD I RxD (for Debug)

65 BT-RxD I RX input signal from Bluetooth section

66 SS-DET I Speaker detection pin. “L”: Speaker detected

67 RTC-X1 - Not used

68 RTC-X2 - Not used

69 PLLVcc - Power supply terminal (+3.3V)

70 EXTAL - Not used

71 XTAL - Not used

72 Vss - Ground terminal

73 Vss - Ground terminal

74 NMI - Non-maskable interrupt input terminal

75 Vss - Ground terminal

76 RES - Reset signal

77 PVcc - Power supply terminal (+3.3V)

78 AMP-TEMP-MON I Temperature protect pin. “L”: Protect on

79 SPM-C-MON I Voice coil temperature monitor pin.

80 SPM-AMBIENT-TEMP I Ambient temperature monitor pin.

81 MODEL-DEST-IN I Model and Destination setting terminal (A/D input)

82 FAN-DET I Fan speed detection pin.

83 MASTER-VOLUME I Jog dial pulse input from the MASTER VOLUME encoder (A/D input)

84 AD-KEY0 I Key input terminal (A/D input)

85 AD-KEY1 I Key input terminal (A/D input)

86 AVcc - Power supply terminal (+3.3V)

87 AVss - Ground terminal

88 AVref - A/D Converter reference voltage input terminal (+3.3V)

89 BSCANP - Boundary scan setting pin

90 PVcc - Power supply terminal (+3.3V)

91 AUDIO-X1 - Not used

92 AUDIO-X2 - Not used

93 Vss - Ground terminal

94 /LINE-MUTE O Muting Control Switch for Party Chain. “L”: mute On

95 Vcc - Power supply terminal (+3.3V)

96 /LINE-MUTE-FR O Muting Control Switch for Speaker. “L”: mute On

97 TRST - Debugging interface: Initialization-signal input pin.

98 TDO - Debugging interface: Serial output pin for instructions and data.

99 TDI - Debugging interface: Serial input pin for instructions and data.

100 TMS - Debugging interface: Test-mode select signal input pin

101 TCK - Debugging interface: Test-clock input pin

102 Vss - Ground terminal

103 TEST-MON0/SD_D2_0 O Test port for software checking.

104 TEST-MON1/SD_D3_0 O Test port for software checking.

105 Vcc - Power supply terminal (+3.3V)

106

107 Vss - Ground terminal

108 TEST-MON3/SD_CLK O Test port for software checking.

PCONT-PSAVE-PRO-

TECT

TEST-MON2/SD_CMD_0

O Main power on/off control signal output “H”:power on

O Test port for software checking.

59

HCD-GPX555/GPX888

Pin No. Pin Name I/O Description

109 PVcc - Power supply terminal (+3.3V)

110 TEST-MON4/SD_D0_0 O Test port for software checking.

111

112

113

114 ST-RDS I Input for RDS Text Detect Signal (L: RDS Detect)

115 ST-CE O Tuner IC: Tuner enable input pin

116 Vss - Ground terminal

117 PCONT-DAMP O Digital Amp Module Power Control Pin. “H”: ON

118 RGB-PWM-CLK O PWM clock signal to RGB driver

119 Vcc - Power supply terminal (+3.3V)

120 /AMP-RESET O Digital Amp Reset Pin

121 Vss - Ground terminal

122 CD-MOTOR+ O CDM turning motor control signal output

123 PVcc - Power supply terminal (+3.3V)

124 CD-MOTOR- O CDM turning motor control signal output

125 CP-CLK O Clock signal for CP IC.

126 CP-DATA O Data signal for CP IC.

127 ST-CLK O Tuner IC: Clock signal for IIC communication

128 ST-DATA O Tuner IC: Data signal for IIC communication

129 NFC-IRQ I NFC wireless data receive signal input from the NFC section

130 /PS-PROTECT I Power Supply Protection Detection Pin. “L”: Protect on

131 /AMP-SD I Digital Amp over current protection pin. “L”: Protect on

132 /DC-DET I DC detection pin. “L”: Protect on

133 BT-TxD O TX signal output terminal for Bluetooth section

134 FL-BK O Blinking signal to FL CIG

135 SIRCS I Remote control signal input

136 AMP-CLK-FR O Clock to front Amp

137 RGB-SCLK O Serial clock output to RGB driver

138 Vss - Ground terminal

139 USB-X1 - Not used

140 USB-X2 - Not used

141 USBDPVcc - Power supply terminal (+3.3V)

142 USBDVss - Not used

143 DM1 - Not used

144 DP1 - Not used

145 VBUSIN1 - Not used

146 USBDVcc - Power supply terminal (+3.3V)

147 USBVss - Not used

148 USBDPVcc - Power supply terminal (+3.3V)

149 USBDPVss - Not used

150 DM0 - Not used

151 DP0 - Not used

152 VBUSIN0 - Not used

153 USBDVcc - Power supply terminal (+3.3V)

154 USBDVss - Not used

155 REFIN - Not used

156 USBAPVss - Not used

157 USBAPVcc - Power supply terminal (+3.3V)

158 USBAVcc - Power supply terminal (+3.3V)

159 USBAVss - Not used

160 USBUVcc - Power supply terminal (+3.3V)

161 USBUVss - Not used

ANALOG-CSEL/

SD_D1_0

RGB-TRANS-LED-SPK/

SD_WP_0

RGB-TRANS-LED/

SD_CD_0

O Multiplexer selector C for Analog input

O Transfer signal to RGB driver (driver for Speaker LED)

O Transfer signal to RGB driver

60

Pin No. Pin Name I/O Description

162 Vss - Ground terminal

163 Vss - Ground terminal

164 MTK-POWER-CTRL O Power Control pin for MTK

165 C-CONT O Trigger port to start charging of SPM

166 Q-Flash-SIO2 I QSPI: Data I/O pins for channel 0

167 Q-Flash-SIO3 I QSPI: Data I/O pins for channel 0

168 Q-Flash-CLK O Clock signal to QSPI

169 Q-Flash-CS O Slave select pin to QSPI

170 Q-Flash-SIO0 I QSPI: Data I/O pins for channel 0

171 Vss - Ground terminal

172 Q-Flash-SIO1 I QSPI: Data I/O pins for channel 0

173 MIC-DETECT I Mic Input Detection pin. “H”: Mic detected

174 PVcc - Power supply terminal (+3.3V)

175 LINK-SET O Party Chain output bias pin

176 LINK-OUT-A O Selector A for Party Chain Signal

HCD-GPX555/GPX888

61

HCD-GPX555/GPX888

MB BOARD (3/9) IC301 CXD90013R (CD RF AMP FOCUS/TRACKING ERROR AMP CD SYSTEM PROCESSOR
DIGITAL SERVO PROCESSOR)

Pin No. Pin Name I/O Description

1 RFC I RF main beam (A) input from the optical pick-up block

2 RFD I RF main beam (D) input from the optical pick-up block

3 RFE I RF sub beam (F) input from the optical pick-up block

4 RFF I RF sub beam (E) input from the optical pick-up block

5 AVDD12_2 - Power supply terminal (+1.2V)

6 AVDD33_1 - Power supply terminal (+3.3V)

7 XTALI I System clock input terminal (27 MHz)

8 XTALO O System clock output terminal (27 MHz)

9 AGND33 - Ground terminal

10 V20 O Reference voltage (+2V) output to the optical pick-up block

11 V14 O Reference voltage (+1.4V) output terminal

12 REXT I Current reference input terminal Fixed at “L” in this set

13 MDI1 I Laser power monitor input from the optical pick-up block

14 LDO1 O Laser diode drive signal output to the optical pick-up block

15 LDO2 O Laser diode drive signal output to the optical pick-up block

16 AVDD33_2 - Power supply terminal (+3.3V)

17 DMO O Spindle motor control signal output to the motor driver

18 FMO O Sled motor control signal output to the motor driver

19 TRAY_OPEN O Muting signal output to the coil/motor driver (for spindle motor)

20 TRAY_CLOSE O CD/DVD selection signal output terminal “L”: CD, “H”: DVD

21 TRO O Tracking coil control signal output to the coil driver

22 FOO O Focus coil control signal output to the coil driver

23 FG I Thermal shut down signal input from the coil/motor driver

24 USB_DM I/O Two-way audio serial data with the USB controller

25 USB_DP I/O Two-way audio serial data with the USB controller

26 VDD33_USB - Power supply terminal (+3.3V)

27 VSS33_USB - Ground terminal

28 PAD_VRT I/O USB generating reference current terminal

29 VDD12_USB - Power supply terminal (+1.2V)

30 SF_CS_ O Chip select signal output to the fl ash ROM

31 SF_DO O Serial data output to the fl ash ROM

32 SF_DI I Serial data input from the fl ash ROM

33 SF_CK O Serial clock signal output to the fl ash ROM

34 UP1_6 O Serial data transfer clock signal output to the system controller

35 UP1_7 O Serial data output to the system controller

36 GPIO11 - Not used

37 GPIO6 - Not used

38 PRST# I Reset signal input from the system controller “L”: reset

39 IR I IR control signal input terminal Not used

40 GPIO3 I Serial data input from the system controller

41 GPIO4 I Communication initialization request signal input from the system controller

42 GPIO13 O Communication initialization request acknowledge signal output to the system controller

43 GPIO9 - Not used

44 GPIO8 - Not used

45 GPIO7 O Muting signal output to the coil/motor driver (for focus/tracking coil and sled motor)

46 GPIO29 - Not used

47 GPIO30 - Not used

48 GPIO31 - Not used

49 GPIO32 - Not used

50 DVSS33 - Ground terminal

51 DVDD33 - Power supply terminal (+3.3V)

52 RD0 I/O Two-way data bus with the SD-RAM

53 RD1 I/O Two-way data bus with the SD-RAM

54 RD2 I/O Two-way data bus with the SD-RAM

62

Pin No. Pin Name I/O Description

55 RD3 I/O Two-way data bus with the SD-RAM

56 DVDD12 - Power supply terminal (+1.2V)

57 RD4 I/O Two-way data bus with the SD-RAM

58 RD5 I/O Two-way data bus with the SD-RAM

59 RD6 I/O Two-way data bus with the SD-RAM

60 RD7 I/O Two-way data bus with the SD-RAM

61 DQM0 O Data mask signal output to the SD-RAM

62 RD15 I/O Two-way data bus with the SD-RAM

63 RD14 I/O Two-way data bus with the SD-RAM

64 RD13 I/O Two-way data bus with the SD-RAM

65 RD12 I/O Two-way data bus with the SD-RAM

66 RD11 I/O Two-way data bus with the SD-RAM

67 RD10 I/O Two-way data bus with the SD-RAM

68 RD9 I/O Two-way data bus with the SD-RAM

69 RD8 I/O Two-way data bus with the SD-RAM

70 DQM1 O Data mask signal output to the SD-RAM

71 DVDD33 - Power supply terminal (+3.3V)

72 RCLK O Clock signal output to the SD-RAM

73 RA11 O Address signal output to the SD-RAM

74 RA9 O Address signal output to the SD-RAM

75 RA8 O Address signal output to the SD-RAM

76 RA7 O Address signal output to the SD-RAM

77 RA6 O Address signal output to the SD-RAM

78 RA5 O Address signal output to the SD-RAM

79 RA4 O Address signal output to the SD-RAM

80 RWE# O Write enable signal output to the SD-RAM

81 DVSS12 - Ground terminal

82 CAS# O Column address strobe signal output to the SD-RAM

83 RAS# O Row address strobe signal output to the SD-RAM

84 DVDD33 - Power supply terminal (+3.3V)

85 BA0 O Bank address signal output to the SD-RAM

86 BA1 O Bank address signal output to the SD-RAM

87 DVDD12 - Power supply terminal (+1.2V)

88 RA10 O Address signal output to the SD-RAM

89 RA0 O Address signal output to the SD-RAM

90 RA1 O Address signal output to the SD-RAM

91 RA2 O Address signal output to the SD-RAM

92 RA3 O Address signal output to the SD-RAM

93 SPDIF - Not used

94 GPIO10 - Not used

95 GPIO33 - Not used

96 DACVDDC - Power supply terminal (+3.3V)

97 VREF I Band gap reference voltage terminal

98 FS I Full scale adjustment terminal

99 DACVSSC - Ground terminal

100 CVBS O Composite video signal output terminal Not used

101 DACVDDB - Power supply terminal (+3.3V)

102 Y/G O Component video (Y) signal output terminal Not used

103 B/CB/PB O Component video (Pb/Cb) signal output terminal Not used

104 R/CR/PR O Component video (Pr/Cr) signal output terminal Not used

105 AADVSS - Ground terminal

106 AKIN2 I Audio data input from the A/D converter (for USB)

107 ADVCM - Not used

108 AKIN1 - Not used

109 AADVDD - Power supply terminal (+3.3V)

110 ADACVSS2 - Ground terminal

HCD-GPX555/GPX888

63

HCD-GPX555/GPX888

Pin No. Pin Name I/O Description

111 ADACVSS1 - Ground terminal

112 ARF/LFE O Master clock signal output to the A/D converter and D/A converter

113 ARS O Bit clock signal output to the A/D converter and D/A converter

114 AR - Not used

115 AVCM I Audio D/A converter reference voltage terminal

116 AL - Not used

117 ALS O L/R sampling clock signal output to the A/D converter and D/A converter

118 ALF/CENTER O Audio data output to the D/A converter

119 ADACVDD1 - Power supply terminal (+3.3V)

120 ADACVDD2 - Power supply terminal (+3.3V)

121 AVDD12_1 - Power supply terminal (+1.2V)

122 AGND12 - Ground terminal

123 RFIP I AC coupled RF signal input from the optical pick-up block

124 RFIN I AC coupled RF signal input from the optical pick-up block

125 RFG I Power monitor terminal

126 RFH I Spindle motor hall sensor input from the motor driver

127 RFA I RF main beam (C) input from the optical pick-up block

128 RFB I RF main beam (B) input from the optical pick-up block

64

Note:

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• Items marked “*” are not stocked since
they are seldom required for routine ser­vice. Some delay should be anticipated
when ordering these items.

• The mechanical parts with no reference
number in the exploded views are not sup­plied.

• Color Indication of Appearance Parts Ex­ample:

KNOB, BALANCE (WHITE) . . . (RED)
 

Parts Color Cabinet’s Color

7-1. SIDE PANEL SECTION

SECTION 7

EXPLODED VIEWS

• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model

HCD-GPX555/GPX888

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

not
supplied

5

not
supplied

#1

#1

3

#1

1

A

#1

A

B

back panel section

#1

B

#1

4

#1

2

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 4-479-069-01 PANEL, SIDE (L) (EXCEPT US)
1 4-479-069-11 PANEL, SIDE (L) (US)
2 4-479-070-01 PANEL, SIDE (R) (EXCEPT US)
2 4-479-070-11 PANEL, SIDE (R) (US)
3 4-479-068-01 PANEL, TOP (EXCEPT US)

3 4-479-068-11 PANEL, TOP (US)

4 X-2588-555-1 PANEL, LOADING ASSY (GNX8) (GPX888)
4 X-2588-559-1 PANEL, LOADING ASSY (GNX5)

(GPX555: EXCEPT US)
4 X-2588-568-1 PANEL, LOADING ASSY (GNX5 U2) (US)
5 4-295-431-01 SPRING, LOADING

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

65

HCD-GPX555/GPX888

7-2. BACK PANEL SECTION

#2

#2

not supplied

not supplied
(TUNER board)

not supplied

CD MECHANISM
section

(US, EA, AUS)

not
supplied

(GPX888)

52

53

not supplied

#2

#2

not supplied

#2

#2

#2

not
supplied

not
supplied

51

not supplied

(GPX555: US)

#2

Ref. No. Part No. Description Remark

51 1-500-082-11 CLAMP, SLEEVE FERRITE (GPX555: US)
52 1-469-829-11 CORE, FERRITE (US, EA, AUS)
53 1-848-333-21 WIRE (FLAT TYPE) (9 CORE)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

front panel section

#2

MB board section

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

66

7-3. FRONT PANEL SECTION

109

108

ND2000

HCD-GPX555/GPX888

not supplied

#2

not supplied
(FL board)

#2

101

not supplied

not supplied

102

not supplied

104

103

(GPX888)

#2

not
supplied

105

111

S2011

(GPX888)

110

#2

107

106

#2

#2

not supplied
(DJ KEYS board)

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 X-2588-524-1 KNOB VOLUME ASSY
102 3-087-053-01 +BVTP2.6 (3CR)
103 4-411-587-01 KNOB (MIC) (GPX888)
104 X-2588-518-2 PANEL, FRONT ASSY (GNX8) (GPX888)
104 X-2588-558-2 PANEL, FRONT ASSY (GNX5)

(GPX555: EXCEPT US)

104 X-2588-567-1 PANEL, FRONT ASSY (GNX5 U2) (US)
105 4-176-619-01 FOOT, RUBBER
106 1-848-389-61 WIRE (FLAT TYPE) (23 CORE)
107 A-1978-921-A USB BOARD, COMPLETE (GPX555)

107 A-1978-925-A USB BOARD, COMPLETE (GPX888)

108 1-848-334-61 WIRE (FLAT TYPE) (10 CORE)
109 1-492-699-11 BLUETOOTH MODULE
110 1-848-387-61 WIRE (FLAT TYPE) (8 CORE)
111 8-989-470-00 RC-S801/A (WW)
ND2000 1-483-465-51 VACUUM FLUORESCENT DISPLAY

S2011 1-786-417-11 ENCODER, ROTARY (VOLUME / DJ CONTROL)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

67

HCD-GPX555/GPX888

7-4. MB BOARD SECTION

153

not supplied

not supplied

#2

not supplied

154

#2

not supplied

#2

#2

#2

#2

151

152

chassis section

#2

155

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 1-828-356-21 WIRE (FLAT TYPE) (19 CORE) (GPX555)
151 1-828-366-21 WIRE (FLAT TYPE) (21 CORE) (GPX888)
152 A-2040-507-A MB BOARD, COMPLETE (for SERVICE)

(GPX888: E2, E51)
152 A-2040-508-A MB BOARD, COMPLETE (for SERVICE) (MX)
152 A-2040-510-A MB BOARD, COMPLETE (for SERVICE)

(GPX555: E2, E51)

152 A-2040-511-A MB BOARD, COMPLETE (for SERVICE) (US)

152 A-2040-512-A MB BOARD, COMPLETE (for SERVICE) (EA, E4)
152 A-2040-514-A MB BOARD, COMPLETE (for SERVICE) (AUS)
153 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)

154 A-1978-932-A DAMP BOARD, COMPLETE (GPX888)

0

154 A-1978-934-A DAMP BOARD, COMPLETE (GPX555)

0

155 1-855-340-11 DC FAN

0

#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

68

7-5. CHASSIS SECTION

HCD-GPX555/GPX888

Ver. 1.1

not
supplied

206

201

not
supplied

#2

not supplied

#2

(E2, E4)

205

204

203

202

not
supplied

not
supplied

#2

#2

#2

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 2-677-839-01 +PWH 3X8 (SUMITITE)
202 1-474-551-11 REGULATOR, SWITCHING (3H401W)

202 1-474-551-22 REGULATOR, SWITCHING (3H401W)

203 4-966-267-12 BUSHING (FBS001), CORD

204 1-835-068-21 CORD, POWER (AUS)

0

204 1-835-706-22 CORD, POWER-SUPPLY (E51)

0

(GPX555: EXCEPT US/GPX888)

(GPX555 : US)

206

204 1-837-308-11 CORD, POWER-SUPPLY (US)

0

204 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)

0

204 1-838-939-21 CORD, POWER (E4)

0

204 1-839-999-21 POWER-SUPPLY CORD (EA)

0

205 1-569-007-31 ADAPTOR, CONVERSION 2P (E2)

0

205 1-843-324-11 ADAPTOR, CONVERSION 2P (E4)

0

206 4-176-619-01 FOOT, RUBBER
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

69

HCD-GPX555/GPX888

7-6. CD MECHANISM SECTION (CDM90-DVBU204//M)

251 (including MS-476 board)

not supplied

253

252

253

not supplied

not supplied

not supplied

253

not supplied
(MS-476 board)

254

not supplied

256

255

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 A-1896-391-B LOADING COMPLETE ASSY (T)
252 3-087-599-01 INSULATOR SCREW
253 2-634-618-21 INSULATOR

254 A-2046-956-A SERVICE, OPTICAL DEVICE

0

255 1-828-293-21 WIRE (FLAT TYPE) (5 CORE)

256 1-848-388-21 WIRE (FLAT TYPE) (24 CORE)

70

HCD-GPX555/GPX888

SECTION 8

ELECTRICAL PARTS LIST

Note:

• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• Items marked “*” are not stocked since
they are seldom required for routine ser­vice. Some delay should be anticipated
when ordering these items.

• RESISTORS

All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

0 A-1978-932-A DAMP BOARD, COMPLETE (GPX888)
0 A-1978-934-A DAMP BOARD, COMPLETE (GPX555)

*********************

< CAPACITOR >

C1000 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C1003 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C1004 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C1005 1-126-400-11 ELECT CHIP 22uF 20% 35V
C1006 1-126-400-11 ELECT CHIP 22uF 20% 35V

C1007 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C1008 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C1010 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C1011 1-126-400-11 ELECT CHIP 22uF 20% 35V
C1012 1-126-400-11 ELECT CHIP 22uF 20% 35V

C1013 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C1014 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C1016 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1019 1-128-992-21 ELECT CHIP 47uF 20% 25V
C1020 1-128-992-21 ELECT CHIP 47uF 20% 25V

C1021 1-126-204-11 ELECT CHIP 47uF 20% 16V
C1022 1-116-739-11 CERAMIC CHIP 0.47uF 10% 50V
C1023 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V
C1024 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1025 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C1026 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1027 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
C1028 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
C1112 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C1122 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

C1125 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1126 1-100-245-21 CERAMIC CHIP 0.001uF 10% 250V
C1157 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1160 1-100-245-21 CERAMIC CHIP 0.001uF 10% 250V
C1163 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

C1164 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C1166 1-164-315-91 CERAMIC CHIP 470PF 5% 50V
C1167 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C1168 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1169 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

C1170 1-114-236-21 CERAMIC CHIP 22uF 10% 25V
C1171 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C1172 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C1173 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

• CAPACITORS
uF: μF

• COILS
uH: μH

• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .

• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model

C1174 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

C1175 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C1178 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1180 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C1182 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
* C1183 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V

C1184 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1185 1-100-703-91 CERAMIC CHIP 10uF 10% 25V
C1188 1-118-978-11 CERAMIC CHIP 0.47uF 10% 250V
C1189 1-116-908-21 CERAMIC CHIP 0.22uF 10% 250V

C1190 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

* C1191 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V
C1192 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C1193 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1194 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1196 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

C1198 1-118-933-11 ELECT (BLOCK) 3300uF 20% 71V
C1199 1-118-933-11 ELECT (BLOCK) 3300uF 20% 71V
C1202 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C1209 1-164-315-91 CERAMIC CHIP 470PF 5% 50V
C1210 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

C1211 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1212 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1213 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1214 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1218 1-114-236-21 CERAMIC CHIP 22uF 10% 25V

C1221 1-118-978-11 CERAMIC CHIP 0.47uF 10% 250V
C1222 1-116-908-21 CERAMIC CHIP 0.22uF 10% 250V

C1223 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
C1224 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1225 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

C1226 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C1227 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1228 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C1231 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C1232 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

C1234 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
C1236 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
* C1237 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V
C1238 1-100-703-91 CERAMIC CHIP 10uF 10% 25V
C1239 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

When indicating parts by reference num­ber, please include the board name.

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

Ver. 1.1

DAMP

(GPX555)

(GPX555)

71

HCD-GPX555/GPX888

Ver. 1.1

DAMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* C1240 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V
C1241 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C1243 1-164-315-91 CERAMIC CHIP 470PF 5% 50V

(GPX888)

C1244 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

(GPX888)

C1245 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

(GPX888)

C1246 1-114-236-21 CERAMIC CHIP 22uF 10% 25V

(GPX888)

C1247 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(GPX888)

C1248 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V

(GPX888)

C1249 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V

(GPX888)

C1250 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

(GPX888)

C1251 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

(GPX888)

C1252 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

(GPX888)

C1255 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

(GPX888)

C1257 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

(GPX888)

C1258 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V

(GPX888)

* C1259 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V

(GPX888)

C1260 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

(GPX888)
C1261 1-124-779-00 ELECT CHIP 10uF 20% 16V
C1262 1-100-703-91 CERAMIC CHIP 10uF 10% 25V

(GPX888)
C1265 1-118-978-11 CERAMIC CHIP 0.47uF 10% 250V

(GPX888)

C1267 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

(GPX888)
* C1268 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V

(GPX888)
C1269 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V

(GPX888)
C1270 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V

(GPX888)
C1271 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V

(GPX888)

C1272 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

(GPX888)
C1275 1-118-933-11 ELECT (BLOCK) 3300uF 20% 71V
C1276 1-118-933-11 ELECT (BLOCK) 3300uF 20% 71V
C1281 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C1285 1-164-315-91 CERAMIC CHIP 470PF 5% 50V

C1286 1-124-779-00 ELECT CHIP 10uF 20% 16V
C1288 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1289 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C1290 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1292 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

C1303 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
C1304 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C1305 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1307 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

C1308 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C1310 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1312 1-116-782-91 CERAMIC CHIP 2.2uF 10% 100V
C1313 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
* C1314 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V

C1315 1-100-703-91 CERAMIC CHIP 10uF 10% 25V
C1316 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
* C1317 1-100-925-21 CERAMIC CHIP 0.0022uF 10% 250V
C1318 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C1323 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

(GPX888)

C1325 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

(GPX888)

C1329 1-100-245-21 CERAMIC CHIP 0.001uF 10% 250V

(GPX888)

C1335 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

(GPX888)
C1362 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V
C1363 1-100-245-21 CERAMIC CHIP 0.001uF 10% 250V

C1369 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C1374 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C1466 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C1468 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C1470 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C1485 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C1488 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1490 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1493 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C1494 1-124-779-00 ELECT CHIP 10uF 20% 16V

(GPX888)

C1497 1-128-992-21 ELECT CHIP 47uF 20% 25V
C1498 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1499 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

(GPX888)
C1502 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1504 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C1507 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C1508 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
C1509 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

(GPX888)
C1510 1-124-779-00 ELECT CHIP 10uF 20% 16V
C1511 1-128-992-21 ELECT CHIP 47uF 20% 25V

C1512 1-128-992-21 ELECT CHIP 47uF 20% 25V
C1513 1-128-992-21 ELECT CHIP 47uF 20% 25V
C1514 1-128-992-21 ELECT CHIP 47uF 20% 25V
C1515 1-116-716-11 CERAMIC CHIP 10uF 10% 16V
C1517 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

C1518 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1519 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C1525 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C1526 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V

C1293 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1294 1-118-977-11 CERAMIC CHIP 0.22uF 10% 100V
C1296 1-114-236-21 CERAMIC CHIP 22uF 10% 25V
C1297 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C1300 1-118-978-11 CERAMIC CHIP 0.47uF 10% 250V

C1302 1-100-761-21 CERAMIC CHIP 0.01uF 10% 250V

72

< CONNECTOR >

CN1000 1-506-599-11 PIN, CONNECTOR (3.96mm PITCH) 10P
CN1001 1-843-885-11 PIN, CONNECTOR (PC BOARD) 2P
CN1006 1-820-119-51 CONNECTOR, FFC/FPC 21P (GPX888)
CN1007 1-820-117-51 CONNECTOR, FFC/FPC 19P (GPX555)

HCD-GPX555/GPX888

DAMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< DIODE >

D1000 6-503-857-01 DI BAW56
D1001 6-500-514-01 DIODE BAV70
D1002 6-502-970-01 DI DZ2J068M0L
D1003 6-502-968-01 DI DZ2J062M0L
D1004 6-503-026-01 DI DZ2J120M0L

D1005 6-503-026-01 DI DZ2J120M0L
D1006 6-502-968-01 DI DZ2J062M0L
D1007 6-503-026-01 DI DZ2J120M0L
D1008 6-502-970-01 DI DZ2J068M0L
D1009 6-500-514-01 DIODE BAV70

D1010 6-503-857-01 DI BAW56
D1011 6-500-514-01 DIODE BAV70
* D1012 6-503-578-01 DI RB520SM-30T2R
D1024 6-503-857-01 DI BAW56
D1025 6-503-987-01 DI RF05VAM2STR

D1026 6-503-987-01 DI RF05VAM2STR
D1029 6-503-987-01 DI RF05VAM2STR
D1030 6-503-987-01 DI RF05VAM2STR
D1034 6-503-857-01 DI BAW56
D1035 6-503-987-01 DI RF05VAM2STR (GPX888)

D1036 6-503-987-01 DI RF05VAM2STR (GPX888)
D1039 6-503-987-01 DI RF05VAM2STR
D1040 6-503-987-01 DI RF05VAM2STR
D1070 6-504-003-01 DI RB578VAM100TR
D1071 6-504-003-01 DI RB578VAM100TR

D1072 6-504-003-01 DI RB578VAM100TR (GPX888)
D1073 6-504-003-01 DI RB578VAM100TR

< IC >

IC1000 6-717-138-01 IC KIA7805AF-RTF/PW
IC1001 6-717-136-01 IC KIA7905F-RTF/PW
IC1002 6-717-191-01 IC KIA7812AF-RTF/PW
IC1003 6-721-284-01 IC NJM8065M
IC1009 6-720-389-01 IC IRS2092STRPBF-CU

IC1011 6-720-389-01 IC IRS2092STRPBF-CU
IC1012 6-720-389-01 IC IRS2092STRPBF-CU (GPX888)
IC1014 6-720-389-01 IC IRS2092STRPBF-CU
IC1015 8-759-700-09 IC NJM2043M-D
IC1016 8-759-700-09 IC NJM2043M-D

< COIL >

Q1027 8-729-427-72 TRANSISTOR XP4501
Q1028 6-552-698-01 TR IRF6775MTR1PBF
Q1030 6-552-698-01 TR IRF6775MTR1PBF
Q1031 8-729-013-28 TR HN1B01FU

Q1032 6-552-698-01 TR IRF6775MTR1PBF (GPX888)
Q1034 6-552-698-01 TR IRF6775MTR1PBF (GPX888)
* Q1035 6-551-959-01 TR IMX25T110
Q1036 8-729-013-28 TR HN1B01FU (GPX888)
Q1037 8-729-427-72 TRANSISTOR XP4501

Q1038 6-552-698-01 TR IRF6775MTR1PBF
Q1039 6-552-698-01 TR IRF6775MTR1PBF
Q1041 8-729-013-28 TR HN1B01FU
* Q1042 6-551-959-01 TR IMX25T110
Q1058 6-550-978-01 TR RN1902

Q1060 8-729-013-28 TR HN1B01FU
Q1067 8-729-924-99 TRANSISTOR 2SC3722K-E
Q1071 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR
Q1072 6-552-746-01 TR DSA700300L
Q1073 8-729-427-72 TRANSISTOR XP4501

Q1075 6-552-892-01 TR LSCR523UBFS8TL

< RESISTOR >

R1000 1-257-362-21 METAL CHIP 1 5% 1/2W
R1001 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1002 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1003 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1004 1-216-846-11 METAL CHIP 120K 5% 1/10W

R1005 1-216-848-11 METAL CHIP 180K 5% 1/10W
R1006 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1007 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1008 1-216-848-11 METAL CHIP 180K 5% 1/10W
R1009 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R1010 1-257-362-21 METAL CHIP 1 5% 1/2W
R1017 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R1024 1-216-817-11 METAL CHIP 470 5% 1/10W
R1027 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1028 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1029 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1030 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1032 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1033 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1036 1-216-833-11 METAL CHIP 10K 5% 1/10W

L1000 1-400-922-11 INDUCTOR 220uH
L1011 1-482-160-21 INDUCTOR 20uH
L1014 1-482-160-21 INDUCTOR 20uH
L1017 1-482-160-21 INDUCTOR 20uH (GPX888)
L1020 1-482-160-21 INDUCTOR 20uH

< TRANSISTOR >

Q1000 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR
Q1002 8-729-905-35 TRANSISTOR 2SC4081-R
Q1003 6-552-922-01 TR LTA014EUBFS8TL
Q1004 8-729-924-99 TRANSISTOR 2SC3722K-E
Q1005 6-552-746-01 TR DSA700300L

Q1006 8-729-056-46 TRANSISTOR 2SC5053T100Q
Q1007 6-550-978-01 TR RN1902
Q1008 6-551-039-01 TRANSISTOR RN4902 (T5RSONY, D, F)
Q1023 6-552-698-01 TR IRF6775MTR1PBF
Q1025 6-552-698-01 TR IRF6775MTR1PBF

Q1026 8-729-013-28 TR HN1B01FU

R1038 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1039 1-216-864-11 SHORT CHIP 0
R1040 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1041 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1042 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1043 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1044 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1195 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1197 1-216-238-91 METAL CHIP 47K 5% 1/8W
R1198 1-216-843-11 METAL CHIP 68K 5% 1/10W

R1199 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1200 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1201 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1202 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1203 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R1204 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R1205 1-216-797-11 METAL CHIP 10 5% 1/10W
R1207 1-218-827-11 METAL CHIP 150 0.5% 1/10W

73

HCD-GPX555/GPX888

DAMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1208 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1210 1-216-849-11 METAL CHIP 220K 5% 1/10W

R1297 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

(GPX888)

R1211 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1212 1-216-797-11 METAL CHIP 10 5% 1/10W
R1213 1-216-797-11 METAL CHIP 10 5% 1/10W
R1214 1-216-844-11 METAL CHIP 82K 5% 1/10W
R1215 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1216 1-216-864-11 SHORT CHIP 0
R1221 1-216-797-11 METAL CHIP 10 5% 1/10W
R1222 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1223 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R1224 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W

R1225 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1227 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R1228 1-257-604-11 RES-CHIP 47 5% 2W
R1232 1-257-604-11 RES-CHIP 47 5% 2W
R1234 1-250-312-21 METAL CHIP 10 5% 1/2W

R1237 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1238 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1240 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1242 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1244 1-216-238-91 METAL CHIP 47K 5% 1/8W

R1245 1-216-840-11 METAL CHIP 39K 5% 1/10W
R1246 1-216-847-11 METAL CHIP 150K 5% 1/10W
R1249 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1250 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1251 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

R1252 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1253 1-257-604-11 RES-CHIP 47 5% 2W
R1260 1-257-604-11 RES-CHIP 47 5% 2W
R1261 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1263 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R1264 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1265 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R1266 1-216-797-11 METAL CHIP 10 5% 1/10W
R1267 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R1271 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1274 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1275 1-216-797-11 METAL CHIP 10 5% 1/10W
R1276 1-216-849-11 METAL CHIP 220K 5% 1/10W
R1277 1-216-864-11 SHORT CHIP 0
R1278 1-216-797-11 METAL CHIP 10 5% 1/10W

R1279 1-216-844-11 METAL CHIP 82K 5% 1/10W
R1280 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1281 1-216-797-11 METAL CHIP 10 5% 1/10W
R1282 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1283 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W

R1284 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R1285 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1286 1-250-312-21 METAL CHIP 10 5% 1/2W
R1289 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1290 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1298 1-216-793-11 METAL CHIP 4.7 5% 1/10W

(GPX888)
R1299 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)
R1300 1-216-793-11 METAL CHIP 4.7 5% 1/10W

(GPX888)
R1301 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W

(GPX888)
R1302 1-216-797-11 METAL CHIP 10 5% 1/10W

(GPX888)

R1304 1-218-827-11 METAL CHIP 150 0.5% 1/10W

(GPX888)
R1305 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GPX888)
R1307 1-216-843-11 METAL CHIP 68K 5% 1/10W

(GPX888)
R1308 1-216-797-11 METAL CHIP 10 5% 1/10W

(GPX888)
R1309 1-216-849-11 METAL CHIP 220K 5% 1/10W

(GPX888)

R1310 1-216-844-11 METAL CHIP 82K 5% 1/10W

(GPX888)
R1311 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GPX888)
R1313 1-216-797-11 METAL CHIP 10 5% 1/10W

(GPX888)
R1314 1-216-864-11 SHORT CHIP 0 (GPX888)
R1315 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R1316 1-216-809-11 METAL CHIP 100 5% 1/10W
R1319 1-216-797-11 METAL CHIP 10 5% 1/10W

(GPX888)
R1320 1-216-793-11 METAL CHIP 4.7 5% 1/10W

(GPX888)
R1321 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W

(GPX888)
R1323 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

(GPX888)

R1324 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W

(GPX888)
R1326 1-257-605-11 RES-CHIP 22 5% 2W

(GPX888)
R1330 1-216-791-11 METAL CHIP 3.3 5% 1/10W

(GPX888)
R1333 1-250-312-21 METAL CHIP 10 5% 1/2W

(GPX888)
R1336 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

(GPX888)

R1337 1-216-837-11 METAL CHIP 22K 5% 1/10W

(GPX888)
R1338 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R1340 1-216-846-11 METAL CHIP 120K 5% 1/10W

(GPX888)
R1342 1-216-840-11 METAL CHIP 39K 5% 1/10W
R1343 1-216-847-11 METAL CHIP 150K 5% 1/10W

R1292 1-216-843-11 METAL CHIP 68K 5% 1/10W

(GPX888)

R1294 1-216-238-91 METAL CHIP 47K 5% 1/8W

(GPX888)

R1295 1-216-843-11 METAL CHIP 68K 5% 1/10W

(GPX888)

R1296 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GPX888)

74

R1346 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R1347 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1348 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1350 1-216-238-91 METAL CHIP 47K 5% 1/8W
R1351 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1352 1-216-809-11 METAL CHIP 100 5% 1/10W
R1353 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1354 1-216-864-11 SHORT CHIP 0

HCD-GPX555/GPX888

DAMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1355 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1359 1-257-605-11 RES-CHIP 22 5% 2W

R1363 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R1365 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1366 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1367 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R1368 1-216-797-11 METAL CHIP 10 5% 1/10W

R1371 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R1372 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1373 1-216-843-11 METAL CHIP 68K 5% 1/10W
R1374 1-216-797-11 METAL CHIP 10 5% 1/10W
R1375 1-216-849-11 METAL CHIP 220K 5% 1/10W

R1617 1-216-864-11 SHORT CHIP 0 (GPX555)

R1618 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1619 1-216-864-11 SHORT CHIP 0
R1620 1-216-864-11 SHORT CHIP 0 (GPX888)
R1629 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1630 1-216-864-11 SHORT CHIP 0

R1631 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1632 1-216-864-11 SHORT CHIP 0
R1633 1-218-835-11 METAL CHIP 330 0.5% 1/10W

(GPX888)
R1634 1-216-864-11 SHORT CHIP 0 (GPX888)
R1635 1-218-835-11 METAL CHIP 330 0.5% 1/10W

R1376 1-216-797-11 METAL CHIP 10 5% 1/10W
R1377 1-216-844-11 METAL CHIP 82K 5% 1/10W
R1378 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1379 1-216-864-11 SHORT CHIP 0
R1380 1-216-797-11 METAL CHIP 10 5% 1/10W

R1381 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1382 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R1383 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R1384 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1385 1-250-312-21 METAL CHIP 10 5% 1/2W

R1388 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1389 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1499 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1510 1-218-973-11 METAL CHIP 47K 5% 1/16W
R1557 1-218-871-11 METAL CHIP 10K 0.5% 1/10W

R1561 1-216-850-11 METAL CHIP 270K 5% 1/10W
R1562 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1563 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1567 1-218-973-11 METAL CHIP 47K 5% 1/16W
R1568 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1591 1-216-864-11 SHORT CHIP 0
R1592 1-216-864-11 SHORT CHIP 0 (GPX888)
R1594 1-216-864-11 SHORT CHIP 0
R1595 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1596 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1597 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1598 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1599 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1600 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1601 1-216-846-11 METAL CHIP 120K 5% 1/10W

R1602 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1603 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

(GPX888)

R1604 1-216-809-11 METAL CHIP 100 5% 1/10W

(GPX888)
R1606 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R1608 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R1609 1-216-809-11 METAL CHIP 100 5% 1/10W
R1610 1-216-864-11 SHORT CHIP 0
R1611 1-216-846-11 METAL CHIP 120K 5% 1/10W

(GPX888)
R1611 1-216-864-11 SHORT CHIP 0 (GPX555)
R1612 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(GPX888)

R1614 1-216-836-11 METAL CHIP 18K 5% 1/10W
R1615 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R1616 1-216-846-11 METAL CHIP 120K 5% 1/10W
R1617 1-216-846-11 METAL CHIP 120K 5% 1/10W

(GPX888)

R1636 1-216-836-11 METAL CHIP 18K 5% 1/10W

(GPX888)
R1637 1-216-864-11 SHORT CHIP 0
R1638 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R1639 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

(GPX888)
R1640 1-216-809-11 METAL CHIP 100 5% 1/10W

(GPX888)

R1641 1-216-809-11 METAL CHIP 100 5% 1/10W
R1642 1-216-809-11 METAL CHIP 100 5% 1/10W
R1643 1-216-809-11 METAL CHIP 100 5% 1/10W
R1646 1-216-864-11 SHORT CHIP 0
R1648 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

R1649 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1650 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W

(GPX888)
R1651 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R1675 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R1676 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

(GPX555)

R1676 1-218-857-11 METAL CHIP 2.7K 0.5% 1/10W

(GPX888)
R1677 1-216-864-11 SHORT CHIP 0 (GPX888)
R1677 1-218-831-11 METAL CHIP 220 0.5% 1/10W

(GPX555)
R1678 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
R1679 1-218-895-11 METAL CHIP 100K 0.5% 1/10W

R1680 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1681 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1682 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R1683 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R1684 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R1693 1-218-446-11 METAL CHIP 1 5% 1/10W
R1694 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R1695 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R1696 1-218-446-11 METAL CHIP 1 5% 1/10W
R1697 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1698 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1699 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1700 1-216-847-11 METAL CHIP 150K 5% 1/10W
R1701 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R1709 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1710 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1713 1-216-296-11 SHORT CHIP 0
R1714 1-216-296-11 SHORT CHIP 0
R1715 1-216-296-11 SHORT CHIP 0 (GPX888)
R1716 1-216-296-11 SHORT CHIP 0

R1722 1-216-864-11 SHORT CHIP 0

75

HCD-GPX555/GPX888

Ver. 1.1

DAMP DJ KEYS FL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1723 1-220-272-91 RES,SQUARE TYPE CHIP
820 5% 1/2W

(GPX555)

S2213 1-762-875-21 SWITCH, TACTILE

(CONNECTION

*************************************************************

PAIRING BLUETOOTH)

< TERMINAL >

TB1000 1-854-003-11 TERMINAL BOARD

TB1001 1-854-001-11 TERMINAL BOARD (SPEAKER)

TB1002 1-854-002-11 TERMINAL BOARD (SPEAKER)

< THERMISTOR >

0 TH1007 1-804-045-11 THERMISTOR
0 TH1008 1-804-045-11 THERMISTOR
0 TH1009 1-804-045-11 THERMISTOR (GPX888)
0 TH1010 1-804-045-11 THERMISTOR

*************************************************************

DJ KEYS BOARD
*************

< DIODE >

D2200 6-503-388-01 DI 1L0352B13F0MIT02
D2201 6-503-224-02 DI 1L0352V22F3MIT02
D2202 6-503-224-02 DI 1L0352V22F3MIT02
D2203 6-503-224-02 DI 1L0352V22F3MIT02
D2204 6-503-224-02 DI 1L0352V22F3MIT02

D2205 6-503-224-02 DI 1L0352V22F3MIT02

< RESISTOR >

R2200 1-216-819-11 METAL CHIP 680 5% 1/10W
R2201 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2202 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R2203 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R2204 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R2205 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2206 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2207 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R2208 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2209 1-216-835-11 METAL CHIP 15K 5% 1/10W

R2210 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2211 1-216-839-11 METAL CHIP 33K 5% 1/10W
R2212 1-216-843-11 METAL CHIP 68K 5% 1/10W

< SWITCH >

S2200 1-762-875-21 SWITCH, TACTILE (
S2201 1-762-875-21 SWITCH, TACTILE (MOVIE/GAME)
S2202 1-762-875-21 SWITCH, TACTILE (CD)
S2203 1-762-875-21 SWITCH, TACTILE (TUNER/BAND)
S2204 1-762-875-21 SWITCH, TACTILE (DJ EFFECT PAN)

S2205 1-762-875-21 SWITCH, TACTILE (DJ EFFECT FLANGER)
S2206 1-762-875-21 SWITCH, TACTILE (DJ EFFECT ISOLATOR)
S2207 1-762-875-21 SWITCH, TACTILE (DJ EFFECT WAH)
S2208 1-762-875-21 SWITCH, TACTILE (REC TO USB B)
S2209 1-762-875-21 SWITCH, TACTILE (AUDIO IN)

S2210 1-762-875-21 SWITCH, TACTILE (USB/USB SELECT)
S2211 1-762-875-21 SWITCH, TACTILE (BASS BAZUCA)
S2212 1-762-875-21 SWITCH, TACTILE (FOOTBALL)

(FRONT SPEAKERS IMPEDANCE USE L/R 4Ω)

(SUBWOOFER IMPEDANCE USE L/R 4Ω)

(GPX888)

(SUBWOOFER IMPEDANCE USE 4Ω) (GPX555)

PARTY CHAIN MUSIC)

FL BOARD
********

< CAPACITOR >

C2000 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C2001 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2002 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2003 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2005 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2006 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2007 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2008 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2010 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2011 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2012 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2013 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2014 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2015 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2016 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2017 1-126-796-11 ELECT 22uF 20% 50V
C2020 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C2021 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C2022 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C2023 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2026 1-112-723-21 CERAMIC CHIP 0.0047uF 10% 250V
C2028 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C2029 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C2030 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C2031 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C2032 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C2033 1-126-795-11 ELECT 10uF 20% 50V
C2034 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
* C2040 1-118-360-11 CERAMIC CHIP 0.1uF 25V
C2043 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2044 1-118-373-11 CERAMIC CHIP 0.01uF 10% 50V
C2045 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2046 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2047 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2048 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2049 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2050 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2051 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2052 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2053 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2054 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2055 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2056 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2057 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2058 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C2059 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2061 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C2062 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C2063 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

< CONNECTOR >

* CN2000 1-564-725-11 PIN, CONNECTOR (SMALL TYPE) 9P
CN2001 1-794-835-51 CONNECTOR, FFC/FPC 23P

76

HCD-GPX555/GPX888

Ver. 1.1

FL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< DIODE >

D2000 6-503-944-51 DI SMLVN6RGB1U17QYB
D2002 6-503-944-51 DI SMLVN6RGB1U17QYB
D2003 6-503-944-51 DI SMLVN6RGB1U17QYB
D2004 6-503-987-01 DI RF05VAM2STR
D2005 6-503-944-51 DI SMLVN6RGB1U17QYB

D2006 6-503-944-51 DI SMLVN6RGB1U17QYB
D2007 6-503-944-51 DI SMLVN6RGB1U17QYB
D2008 6-503-944-51 DI SMLVN6RGB1U17QYB
D2009 6-503-944-51 DI SMLVN6RGB1U17QYB
D2010 6-503-944-51 DI SMLVN6RGB1U17QYB

D2011 6-503-944-51 DI SMLVN6RGB1U17QYB
D2012 6-503-987-01 DI RF05VAM2STR
D2014 6-502-970-01 DI DZ2J068M0L
D2030 6-503-987-01 DI RF05VAM2STR
D2031 6-503-987-01 DI RF05VAM2STR

< IC >

IC2000 6-719-142-01 IC TC62D723FNG
IC2002 6-719-142-01 IC TC62D723FNG
IC2100 6-600-768-01 IC PNA4823M03S0 (

< COIL >

L2000 1-412-541-21 INDUCTOR 220uH

< VACUUM FLUORESCENT DISPLAY >

ND2000 1-483-465-51 VACUUM FLUORESCENT DISPLAY

< TRANSISTOR >

Q2000 6-553-083-01 TR PBSS4160T
Q2001 6-553-083-01 TR PBSS4160T

< RESISTOR >

)

R2034 1-216-809-11 METAL CHIP 100 5% 1/10W
R2035 1-216-822-11 RES, CHIP 1.5K
R2036 1-216-809-11 METAL CHIP 100 5% 1/10W
R2037 1-216-809-11 METAL CHIP 100 5% 1/10W

R2040 1-216-809-11 METAL CHIP 100 5% 1/10W
R2042 1-216-809-11 METAL CHIP 100 5% 1/10W
R2043 1-216-864-11 SHORT CHIP 0
R2045 1-216-801-11 METAL CHIP 22 5% 1/10W
R2046 1-216-839-11 METAL CHIP 33K 5% 1/10W

R2047 1-216-807-11 METAL CHIP 68 5% 1/10W
R2048 1-216-801-11 METAL CHIP 22 5% 1/10W
R2049 1-216-801-11 METAL CHIP 22 5% 1/10W
R2050 1-216-807-11 METAL CHIP 68 5% 1/10W
R2051 1-216-801-11 METAL CHIP 22 5% 1/10W

R2052 1-216-801-11 METAL CHIP 22 5% 1/10W
R2053 1-257-172-91 METAL CHIP 100 5% 1/3W
R2054 1-216-807-11 METAL CHIP 68 5% 1/10W
R2055 1-216-801-11 METAL CHIP 22 5% 1/10W
R2056 1-257-172-91 METAL CHIP 100 5% 1/3W

R2057 1-216-801-11 METAL CHIP 22 5% 1/10W
R2058 1-216-807-11 METAL CHIP 68 5% 1/10W
R2059 1-216-801-11 METAL CHIP 22 5% 1/10W
R2060 1-216-801-11 METAL CHIP 22 5% 1/10W
R2061 1-216-807-11 METAL CHIP 68 5% 1/10W

R2062 1-216-801-11 METAL CHIP 22 5% 1/10W
R2063 1-216-801-11 METAL CHIP 22 5% 1/10W
R2064 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2065 1-216-812-11 RES, CHIP 180
R2067 1-216-812-11 RES, CHIP 180

R2069 1-216-812-11 RES, CHIP 180
R2071 1-216-812-11 RES, CHIP 180
R2073 1-216-812-11 RES, CHIP 180
R2075 1-216-812-11 RES, CHIP 180
R2077 1-216-835-11 METAL CHIP 15K 5% 1/10W

R2000 1-216-819-11 METAL CHIP 680 5% 1/10W
R2001 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2002 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R2006 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R2009 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R2010 1-216-801-11 METAL CHIP 22 5% 1/10W
R2012 1-216-807-11 METAL CHIP 68 5% 1/10W
R2014 1-216-807-11 METAL CHIP 68 5% 1/10W
R2015 1-216-801-11 METAL CHIP 22 5% 1/10W
R2016 1-216-807-11 METAL CHIP 68 5% 1/10W

R2017 1-216-807-11 METAL CHIP 68 5% 1/10W
R2018 1-216-807-11 METAL CHIP 68 5% 1/10W
R2019 1-216-801-11 METAL CHIP 22 5% 1/10W
R2020 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2021 1-216-807-11 METAL CHIP 68 5% 1/10W

R2022 1-216-864-11 SHORT CHIP 0
R2023 1-216-809-11 METAL CHIP 100 5% 1/10W
R2024 1-216-809-11 METAL CHIP 100 5% 1/10W
R2025 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R2027 1-216-809-11 METAL CHIP 100 5% 1/10W

R2028 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2029 1-216-822-11 RES, CHIP 1.5K
R2030 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R2031 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2032 1-216-809-11 METAL CHIP 100 5% 1/10W

R2033 1-216-809-11 METAL CHIP 100 5% 1/10W

R2078 1-218-446-11 METAL CHIP 1 5% 1/10W
R2079 1-216-864-11 SHORT CHIP 0
R2080 1-216-797-11 METAL CHIP 10 5% 1/10W
R2081 1-216-797-11 METAL CHIP 10 5% 1/10W

< SWITCH >

S2000 1-762-875-21 SWITCH, TACTILE (NX)
S2001 1-762-875-21 SWITCH, TACTILE (.m TUNING–
S2002 1-762-875-21 SWITCH, TACTILE (x)
S2003 1-762-875-21 SWITCH, TACTILE (OPTIONS)
S2004 1-762-875-21 SWITCH, TACTILE (ENTER)

S2005 1-762-875-21 SWITCH, TACTILE ( ― )
S2006 1-762-875-21 SWITCH, TACTILE (M> TUNING+
S2007 1-762-875-21 SWITCH, TACTILE (
S2008 1-762-875-21 SWITCH, TACTILE (LED PATTERN)
S2009 1-762-875-21 SWITCH, TACTILE (LED COLOR)

S2011 1-786-417-11 ENCODER, ROTARY (VOLUME / DJ CONTROL)
S2100 1-762-875-21 SWITCH, TACTILE (&/1)
S2101 1-762-875-21 SWITCH, TACTILE (Z OPEN/CLOSE)

< TRANSFORMER >

T2000 1-697-233-11 DC-DC CONVERTER TRANSFORMER

*************************************************************

+)

)

)

77

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-2040-507-A MB BOARD, COMPLETE (for SERVICE)

(GPX888: E2, E51)
A-2040-508-A MB BOARD, COMPLETE (for SERVICE) (MX)
A-2040-510-A MB BOARD, COMPLETE (for SERVICE)

(GPX555: E2, E51)
A-2040-511-A MB BOARD, COMPLETE (for SERVICE) (US)
A-2040-512-A MB BOARD, COMPLETE (for SERVICE) (EA, E4)

A-2040-514-A MB BOARD, COMPLETE (for SERVICE) (AUS)
*******************

< CAPACITOR >

* C003 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
* C004 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
* C005 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
* C006 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V

C010 1-118-358-11 CERAMIC CHIP 100PF 1% 50V

C011 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C013 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C014 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C017 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C018 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C019 1-116-716-11 CERAMIC CHIP 10uF 10% 16V
C021 1-116-716-11 CERAMIC CHIP 10uF 10% 16V
C023 1-120-025-11 ELECT CHIP 1000uF 20% 16V
C024 1-112-797-11 ELECT CHIP 470uF 20% 25V
C030 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

C032 1-116-716-11 CERAMIC CHIP 10uF 10% 16V
C034 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C035 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C036 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C039 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C040 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C045 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C048 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

* C049 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
* C050 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V

C051 1-114-814-11 CERAMIC CHIP 0.33uF 10% 25V

* C052 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
* C053 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V

C057 1-117-681-11 ELECT CHIP 100uF 20% 16V
C062 1-114-814-11 CERAMIC CHIP 0.33uF 10% 25V

C064 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
* C065 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C066 1-165-492-21 ELECT CHIP 100uF 20% 10V
C067 1-165-492-21 ELECT CHIP 100uF 20% 10V
* C068 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C071 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C072 1-165-492-21 ELECT CHIP 100uF 20% 10V
C073 1-165-492-21 ELECT CHIP 100uF 20% 10V
C074 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C075 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C078 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C079 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C080 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C081 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C083 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C084 1-117-681-11 ELECT CHIP 100uF 20% 16V
* C085 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C088 1-100-768-21 ELECT CHIP 220uF 20% 25V
* C102 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C103 1-126-603-11 ELECT CHIP 4.7uF 20% 35V

C104 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C105 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

* C106 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C107 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C109 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

* C110 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C111 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C112 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C113 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C114 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C115 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C116 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C117 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

* C118 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C120 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C121 1-118-391-11 CERAMIC CHIP 0.01uF 10% 50V

* C122 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C123 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C126 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C127 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V

C128 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
* C129 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C130 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
* C131 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C132 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V

* C133 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C134 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C135 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C136 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C137 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C138 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C139 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
* C140 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C141 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C142 1-164-866-11 CERAMIC CHIP 47PF 5% 50V

C143 1-164-866-11 CERAMIC CHIP 47PF 5% 50V

* C144
* C146 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C147 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C148 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C149 1-165-492-21 ELECT CHIP 100uF 20% 10V
C150 1-165-492-21 ELECT CHIP 100uF 20% 10V

* C153 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C154 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C155 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C156 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C157 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C158 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C159 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C160 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C161 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C162 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

* C164 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C165 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C166 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C167 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C168 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C277 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V
C278 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C279 1-164-858-11 CERAMIC CHIP 22PF 5% 50V

1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

78

HCD-GPX555/GPX888

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* C280 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C281 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C282 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C284 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C302 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C412 1-165-492-21 ELECT CHIP 100uF 20% 10V

* C413 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C418 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C419 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C420 1-128-403-11 ELECT CHIP 47uF 20% 35V

C303 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C307 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C308 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C309 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C310 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

C311 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C312 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C314 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C315 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C316 1-116-717-11 CERAMIC CHIP 10uF 20% 10V

C319 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C322 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C323 1-164-852-11 CERAMIC CHIP 12PF 5% 50V
C324 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C325 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C326 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C328 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C330 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C331 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C334 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C336 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C337 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C338 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C339 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C340 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

C341 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C342 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C343 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C344 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C345 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C346 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C347 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C348 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C350 1-128-994-21 ELECT CHIP 47uF 20% 10V
C352 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C357 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C358 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C359 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C360 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C362 1-116-717-11 CERAMIC CHIP 10uF 20% 10V

C363 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C364 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C365 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C366 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C367 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C401 1-165-492-21 ELECT CHIP 100uF 20% 10V
C402 1-100-904-11 CERAMIC CHIP 330PF 10% 50V
C403 1-114-807-11 CERAMIC CHIP 0.015uF 10% 25V

* C404 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C405 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C406 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C407 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C408 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C409 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C411 1-100-904-11 CERAMIC CHIP 330PF 10% 50V

C421 1-118-391-11 CERAMIC CHIP 0.01uF 10% 50V
C423 1-128-403-11 ELECT CHIP 47uF 20% 35V
C424 1-118-391-11 CERAMIC CHIP 0.01uF 10% 50V

* C451 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C452 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C453 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C454 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C455 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C456 1-164-860-11 CERAMIC CHIP 27PF 5% 50V
C457 1-164-860-11 CERAMIC CHIP 27PF 5% 50V

* C459 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C460 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C461 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C462 1-124-779-00 ELECT CHIP 10uF 20% 16V
C463 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C464 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C465 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C466 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C467 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C468 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C508 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(GPX888)
C511 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C513 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C514 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C515 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C516 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C517 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C518 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C519 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C520 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C521 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C522 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C523 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C524 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C525 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)

C526 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C527 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C528 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C529 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

(GPX888)
C530 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C532 1-137-765-21 ELECT CHIP 47uF 20% 16V
C533 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C534 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C535 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C537 1-137-765-21 ELECT CHIP 47uF 20% 16V

C538 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

79

HCD-GPX555/GPX888

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C539 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C571 1-100-582-21 ELECT CHIP 470uF 20% 4V

* C573 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C574 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C601 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C602 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C603 1-164-936-11 CERAMIC CHIP 680PF 10% 50V
C604 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C605 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

* C606 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C607 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C608 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
C609 1-124-779-00 ELECT CHIP 10uF 20% 16V
C610 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

C612 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
* C613 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C614 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

* C615 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C616 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C617 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C618 1-124-779-00 ELECT CHIP 10uF 20% 16V
C619 1-116-707-11 CERAMIC CHIP 47uF 20% 10V
C620 1-116-707-11 CERAMIC CHIP 47uF 20% 10V
C621 1-116-707-11 CERAMIC CHIP 47uF 20% 10V

C622 1-124-779-00 ELECT CHIP 10uF 20% 16V
C624 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C625 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C626 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C627 1-116-865-11 CERAMIC CHIP 10uF 10% 25V

* C628 1-116-727-11 CERAMIC CHIP 2.2uF 10% 16V
C629 1-116-716-11 CERAMIC CHIP 10uF 10% 16V
C630 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C631 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C632 1-116-707-11 CERAMIC CHIP 47uF 20% 10V

C633 1-164-936-11 CERAMIC CHIP 680PF 10% 50V
C634 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
C635 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C636 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C637 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

C638 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C639 1-164-933-11 CERAMIC CHIP 220PF 10% 50V
C640 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C641 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C642 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V

C643 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C644 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C645 1-124-779-00 ELECT CHIP 10uF 20% 16V
C646 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C647 1-164-858-11 CERAMIC CHIP 22PF 5% 50V

C648 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C649 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C650 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
* C651 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C652 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

* C660 1-116-727-11 CERAMIC CHIP 2.2uF 10% 16V
C661 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C662 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

(GPX888)

C664 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

* C665 1-116-727-11 CERAMIC CHIP 2.2uF 10% 16V
C666 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

(GPX888)

C667 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

(GPX888)

C669 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

(GPX888)

C670 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

(GPX888)

C671 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C672 1-124-779-00 ELECT CHIP 10uF 20% 16V

(GPX888)

C673 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(GPX888)

C674 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(GPX888)

C675 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C678 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(GPX888)

C679 1-116-717-11 CERAMIC CHIP 10uF 20% 10V

(GPX888)
C680 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C681 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C684 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C685 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C686 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
* C687 1-118-407-11 CERAMIC CHIP 470PF 10% 50V
C688 1-124-779-00 ELECT CHIP 10uF 20% 16V
C689 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

C690 1-124-779-00 ELECT CHIP 10uF 20% 16V
C691 1-124-779-00 ELECT CHIP 10uF 20% 16V
C692 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C695 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C696 1-124-779-00 ELECT CHIP 10uF 20% 16V

C697 1-124-779-00 ELECT CHIP 10uF 20% 16V
C698 1-124-779-00 ELECT CHIP 10uF 20% 16V
C699 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
* C700 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C701 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

* C702 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C704 1-124-779-00 ELECT CHIP 10uF 20% 16V
C705 1-124-779-00 ELECT CHIP 10uF 20% 16V
C707 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
C708 1-164-866-11 CERAMIC CHIP 47PF 5% 50V

* C709 1-118-407-11 CERAMIC CHIP 470PF 10% 50V
C724 1-124-779-00 ELECT CHIP 10uF 20% 16V
C726 1-128-392-11 ELECT CHIP 470uF 20% 6.3V
C737 1-124-779-00 ELECT CHIP 10uF 20% 16V

(GPX888)
C738 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

(GPX888)

C653 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C655 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
* C656 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C657 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C658 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

C659 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V

80

C740 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C741 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C742 1-124-779-00 ELECT CHIP 10uF 20% 16V
C743 1-124-779-00 ELECT CHIP 10uF 20% 16V
C744 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C745 1-164-866-11 CERAMIC CHIP 47PF 5% 50V

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C746 1-117-949-81 CERAMIC CHIP 820PF 10% 50V
* C747 1-118-407-11 CERAMIC CHIP 470PF 10% 50V
C748 1-124-779-00 ELECT CHIP 10uF 20% 16V
C749 1-124-779-00 ELECT CHIP 10uF 20% 16V

C751 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C752 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C753 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C754 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C756 1-124-779-00 ELECT CHIP 10uF 20% 16V

* C757 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C758 1-165-708-11 ELECT CHIP 47uF 20% 6.3V
* C759 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C761 1-124-779-00 ELECT CHIP 10uF 20% 16V

C763 1-117-949-81 CERAMIC CHIP 820PF 10% 50V

C764 1-164-866-11 CERAMIC CHIP 47PF 5% 50V

* C765 1-118-407-11 CERAMIC CHIP 470PF 10% 50V

C766 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C767 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
C913 1-165-708-11 ELECT CHIP 47uF 20% 6.3V

* C914 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C917 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

< CONNECTOR >

CN001 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P
CN101 1-844-158-11 PIN, CONNECTOR (PC BOARD) 5P

CN102 1-820-825-81 CONNECTOR, FFC/FPC (LIF) 10P (BLUETOOTH)
CN105 1-820-384-31 CONNECTOR, FFC/FPC (LIF) 8P
CN107 1-778-384-51

CN109 1-820-121-51 CONNECTOR, FFC/FPC 23P
CN111 1-820-119-51 CONNECTOR, FFC/FPC 21P (GPX888)
CN112 1-820-117-51 CONNECTOR, FFC/FPC 19P (GPX555)
CN301 1-844-159-11 PIN, CONNECTOR (1.5MM) (SMD) 3P
CN302 1-843-557-11 FFC ST CONNECTOR (NON-ZIF) 24P

CN303 1-794-362-51 CONNECTOR, FFC/FPC 5P
CN401 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P
CN451 1-843-884-11 PIN, CONNECTOR (PC BOARD) 10P

* CN501 1-843-881-11 PIN, CONNECTOR (PC BOARD) 4P

* CN502 1-843-881-11 PIN, CONNECTOR (PC BOARD) 4P

* CN503 1-843-881-11 PIN, CONNECTOR (PC BOARD) 4P

* CN504 1-843-881-11 PIN, CONNECTOR (PC BOARD) 4P

CN505 1-843-882-11 PIN, CONNECTOR (PC BOARD) 8P

CN506 1-843-882-11 PIN, CONNECTOR (PC BOARD) 8P

CN601 1-764-250-21 PIN, CONNECTOR (PC BOARD) 4P (GPX888)

CN851 1-820-112-51 CONNECTOR, FFC/FPC 9P

< DIODE >

D003 6-500-400-01 DIODE BAV99-215
D005 6-500-400-01 DIODE BAV99-215
D102 6-502-961-01 DI DA2J10100L

* D104 6-503-578-01 DI RB520SM-30T2R
* D105 6-503-578-01 DI RB520SM-30T2R

CONNECTOR, FFC/FPC 16P (FOR SERVICE USE)

(LED SPEAKER FRONT SPEAKERS L) (GPX555)

(LED SPEAKER FRONT SPEAKERS R) (GPX555)

(LED SPEAKER SUBWOOFERS L)

(LED SPEAKER SUBWOOFERS R) (GPX888)

(LED SPEAKER FRONT SPEAKERS L) (GPX888)

(LED SPEAKER FRONT SPEAKERS R) (GPX888)

(FOR SERVICE USE)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

* D106 6-503-578-01 DI RB520SM-30T2R
* D107 6-503-578-01 DI RB520SM-30T2R
* D108 6-503-578-01 DI RB520SM-30T2R
* D109 6-503-578-01 DI RB520SM-30T2R
* D110 6-503-578-01 DI RB520SM-30T2R

* D111 6-503-578-01 DI RB520SM-30T2R
* D112 6-503-578-01 DI RB520SM-30T2R
* D113 6-503-578-01 DI RB520SM-30T2R
* D114 6-503-578-01 DI RB520SM-30T2R
* D115 6-503-578-01 DI RB520SM-30T2R

* D116 6-503-578-01 DI RB520SM-30T2R
* D117 6-503-578-01 DI RB520SM-30T2R
* D118 6-503-578-01 DI RB520SM-30T2R
* D119 6-503-578-01 DI RB520SM-30T2R

D401 8-719-069-29 DIODE RB520S-30FJTE61

D402 8-719-069-29 DIODE RB520S-30FJTE61
D571 6-502-961-01 DI DA2J10100L
D572 6-502-961-01 DI DA2J10100L

< FERRITE BEAD >

FB101 1-481-515-11 BEAD, FERRITE (1608)

< IC >

IC001 (Not supplied) IC TPS542941PWPR
IC002 (Not supplied) IC TPS542941PWPR
IC004 6-715-078-01 IC KIA7809AF/API
IC006 6-717-138-01 IC KIA7805AF-RTF/PW
IC101 6-721-336-01 IC R7S7200022CFP

IC102 6-707-866-01 IC TC74VHC126FT (EKJ)
IC103 6-719-856-01 IC BU4229F-TR
IC105 6-718-324-01 IC MFI337S3959
IC106 (Not supplied) IC MX25L3235EM2I-10G
IC301 6-718-440-01 IC CXD90013R

IC302 (Not supplied) IC W25Q16CVSSIG-R
IC303 6-712-033-01 IC MM1701CHBE
IC306 6-720-801-01 IC EM638165TSD-6G
IC401 6-720-195-01 IC AM5890S
* IC451 6-721-151-01 IC GL850G-OGY33

IC452 6-718-580-01 IC BA2903FV-E2
IC501 6-719-142-01 IC TC62D723FNG (GPX888)
IC502 6-719-142-01 IC TC62D723FNG
IC601 8-759-909-71 IC BA4558F
IC602 8-759-596-39 IC SN74LV4052APWR

IC603 8-759-909-71 IC BA4558F
IC604 6-705-973-01 IC PCM1754DBQR
IC605 8-759-596-39 IC SN74LV4052APWR
IC606 6-710-554-01 IC PCM1808PWR
IC607 8-759-680-48 IC TC7WH157FK

IC609 6-710-554-01 IC PCM1808PWR (GPX888)
IC610 6-707-800-01 IC SRC4182
IC611 6-705-973-01 IC PCM1754DBQR
IC612 8-759-909-71 IC BA4558F
IC615 6-705-973-01 IC PCM1754DBQR

IC616 8-759-909-71 IC BA4558F

< JACK >

J602 1-774-411-11 JACK 6P (AUDIO OUT L, PARTY CHAIN OUT R,

AUDIO IN 1 L, PARTY CHAIN IN R, AUDIO IN 2 L/R)

Note: IC001, IC002, IC106 and IC302 on the MB board cannot

exchange with single. When these parts on the MB board
are damaged, exchange the entire mounted board.

81

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< JUMPER >

R020 1-216-864-11 SHORT CHIP 0

JC001 1-216-295-91 SHORT CHIP 0
JC002 1-216-295-91 SHORT CHIP 0
JC003 1-216-295-91 SHORT CHIP 0
JC004 1-216-295-91 SHORT CHIP 0
JC005 1-216-295-91 SHORT CHIP 0

JC006 1-216-295-91 SHORT CHIP 0
JC007 1-216-295-91 SHORT CHIP 0
JC008 1-216-295-91 SHORT CHIP 0
JC009 1-216-295-91 SHORT CHIP 0
JC010 1-216-295-91 SHORT CHIP 0

< COIL >

L001 1-460-359-11 INDUCTOR 4.7uH
L002 1-460-358-11 INDUCTOR 2.2uH
L003 1-400-789-21 INDUCTOR 2.2uH
L004 1-400-789-21 INDUCTOR 2.2uH
L006 1-457-439-11 INDUCTOR 4.7uH

L007 1-460-358-11 INDUCTOR 2.2uH
L008 1-400-789-21 INDUCTOR 2.2uH

< TRANSISTOR >

Q001 6-550-987-01 TR RN1911
Q002 6-553-509-01 TR KTA1542T-RTK/P
Q003 8-729-054-16 TRANSISTOR KRC402-RTK
Q004 6-553-509-01 TR KTA1542T-RTK/P
Q005 6-553-509-01 TR KTA1542T-RTK/P

Q006 8-729-054-16 TRANSISTOR KRC402-RTK
Q007 6-553-509-01 TR KTA1542T-RTK/P
Q008 6-553-509-01 TR KTA1542T-RTK/P
Q009 8-729-054-16 TRANSISTOR KRC402-RTK
Q103 6-553-509-01 TR KTA1542T-RTK/P

Q104 8-729-054-16 TRANSISTOR KRC402-RTK
Q107 8-729-054-16 TRANSISTOR KRC402-RTK
Q109 6-552-922-01 TR LTA014EUBFS8TL
Q401 6-551-120-01 TRANSISTOR 2SA2119K
Q402 6-551-120-01 TRANSISTOR 2SA2119K

Q571 8-729-054-16 TRANSISTOR KRC402-RTK
Q572 6-553-509-01 TR KTA1542T-RTK/P
Q574 6-552-967-01 TR RHK005N03T146
Q575 6-552-922-01 TR LTA014EUBFS8TL
Q576 8-729-054-16 TRANSISTOR KRC402-RTK

* Q602 6-551-959-01 TR IMX25T110
Q603 6-551-039-01 TRANSISTOR RN4902 (T5RSONY, D, F)
Q604 6-550-978-01 TR RN1902
Q605 8-729-427-72 TRANSISTOR XP4501
Q606 6-552-922-01 TR LTA014EUBFS8TL

Q607 6-551-039-01 TRANSISTOR RN4902 (T5RSONY, D, F)
Q611 6-550-978-01 TR RN1902

< RESISTOR >

R023 1-218-974-11 METAL CHIP 56K 5% 1/16W
R024 1-208-895-81 METAL CHIP 2.2K 0.5% 1/16W
R028 1-218-965-11 METAL CHIP 10K 5% 1/16W
R029 1-216-843-11 METAL CHIP 68K 5% 1/10W
R030 1-218-843-11 METAL CHIP 680 0.5% 1/10W

R031 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R033 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R034 1-216-813-11 METAL CHIP 220 5% 1/10W
R035 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R037 1-218-965-11 METAL CHIP 10K 5% 1/16W

R039 1-218-965-11 METAL CHIP 10K 5% 1/16W
R040 1-216-817-11 METAL CHIP 470 5% 1/10W
R041 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R043 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R047 1-216-864-11 SHORT CHIP 0

R048 1-216-864-11 SHORT CHIP 0
R051 1-216-295-91 SHORT CHIP 0
R052 1-216-295-91 SHORT CHIP 0
R053 1-216-864-11 SHORT CHIP 0
R054 1-216-864-11 SHORT CHIP 0

R059 1-218-974-11 METAL CHIP 56K 5% 1/16W
R061 1-218-965-11 METAL CHIP 10K 5% 1/16W
R062 1-218-951-11 METAL CHIP 680 5% 1/16W
R063 1-216-864-11 SHORT CHIP 0
R099 1-218-965-11 METAL CHIP 10K 5% 1/16W

R100 1-218-937-11 METAL CHIP 47 5% 1/16W
R101 1-218-965-11 METAL CHIP 10K 5% 1/16W
R102 1-218-965-11 METAL CHIP 10K 5% 1/16W
R103 1-218-941-81 METAL CHIP 100 5% 1/16W
R104 1-218-965-11 METAL CHIP 10K 5% 1/16W

R105 1-218-965-11 METAL CHIP 10K 5% 1/16W
R106 1-218-965-11 METAL CHIP 10K 5% 1/16W
R107 1-218-965-11 METAL CHIP 10K 5% 1/16W
R108 1-218-965-11 METAL CHIP 10K 5% 1/16W
R109 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R110 1-218-977-11 METAL CHIP 100K 5% 1/16W
R111 1-218-977-11 METAL CHIP 100K 5% 1/16W
R112 1-218-977-11 METAL CHIP 100K 5% 1/16W
R113 1-216-864-11 SHORT CHIP 0
R114 1-216-864-11 SHORT CHIP 0

R115 1-218-953-11 METAL CHIP 1K 5% 1/16W
R116 1-218-973-11 METAL CHIP 47K 5% 1/16W
R117 1-218-965-11 METAL CHIP 10K 5% 1/16W
R119 1-218-990-81 SHORT CHIP 0
R120 1-218-973-11 METAL CHIP 47K 5% 1/16W

R122 1-218-990-81 SHORT CHIP 0
R123 1-218-965-11 METAL CHIP 10K 5% 1/16W
R125 1-218-973-11 METAL CHIP 47K 5% 1/16W
R126 1-218-990-81 SHORT CHIP 0
R127 1-218-965-11 METAL CHIP 10K 5% 1/16W

R002 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R003 1-208-923-11 METAL CHIP 33K 0.5% 1/16W
R006 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R009 1-216-864-11 SHORT CHIP 0
R012 1-216-296-11 SHORT CHIP 0

R014 1-216-864-11 SHORT CHIP 0
R015 1-216-864-11 SHORT CHIP 0
R017 1-216-864-11 SHORT CHIP 0
R018 1-216-864-11 SHORT CHIP 0

82

R128 1-218-953-11 METAL CHIP 1K 5% 1/16W
R129 1-218-941-81 METAL CHIP 100 5% 1/16W
R130 1-218-941-81 METAL CHIP 100 5% 1/16W
R131 1-218-941-81 METAL CHIP 100 5% 1/16W
R132 1-218-937-11 METAL CHIP 47 5% 1/16W

R133 1-218-937-11 METAL CHIP 47 5% 1/16W
R134 1-218-937-11 METAL CHIP 47 5% 1/16W
R135 1-218-937-11 METAL CHIP 47 5% 1/16W
R136 1-218-969-11 METAL CHIP 22K 5% 1/16W

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R139 1-218-969-11 METAL CHIP 22K 5% 1/16W

R209 1-218-937-11 METAL CHIP 47 5% 1/16W

R140 1-218-969-11 METAL CHIP 22K 5% 1/16W
R142 1-216-864-11 SHORT CHIP 0
R143 1-218-969-11 METAL CHIP 22K 5% 1/16W
R144 1-218-967-11 METAL CHIP 15K 5% 1/16W
R145 1-218-967-11 METAL CHIP 15K 5% 1/16W

R146 1-218-965-11 METAL CHIP 10K 5% 1/16W
R151 1-216-864-11 SHORT CHIP 0
R153 1-218-965-11 METAL CHIP 10K 5% 1/16W
R154 1-218-941-81 METAL CHIP 100 5% 1/16W
R155 1-218-941-81 METAL CHIP 100 5% 1/16W

R156 1-218-941-81 METAL CHIP 100 5% 1/16W
R157 1-218-953-11 METAL CHIP 1K 5% 1/16W
R158 1-218-949-11 METAL CHIP 470 5% 1/16W
R159 1-218-949-11 METAL CHIP 470 5% 1/16W
R160 1-218-965-11 METAL CHIP 10K 5% 1/16W

R161 1-218-981-81 METAL CHIP 220K 5% 1/16W
R162 1-218-981-81 METAL CHIP 220K 5% 1/16W
R163 1-218-990-81 SHORT CHIP 0
R164 1-218-941-81 METAL CHIP 100 5% 1/16W
R165 1-218-941-81 METAL CHIP 100 5% 1/16W

R166 1-218-941-81 METAL CHIP 100 5% 1/16W
R167 1-218-941-81 METAL CHIP 100 5% 1/16W
R168 1-218-941-81 METAL CHIP 100 5% 1/16W
R169 1-218-937-11 METAL CHIP 47 5% 1/16W
R170 1-218-937-11 METAL CHIP 47 5% 1/16W

R171 1-218-941-81 METAL CHIP 100 5% 1/16W
R172 1-218-941-81 METAL CHIP 100 5% 1/16W
R173 1-218-941-81 METAL CHIP 100 5% 1/16W
R174 1-218-941-81 METAL CHIP 100 5% 1/16W
R175 1-218-965-11 METAL CHIP 10K 5% 1/16W

R210 1-218-937-11 METAL CHIP 47 5% 1/16W
R211 1-218-941-81 METAL CHIP 100 5% 1/16W
R212 1-218-937-11 METAL CHIP 47 5% 1/16W
R213 1-218-941-81 METAL CHIP 100 5% 1/16W
R214 1-218-937-11 METAL CHIP 47 5% 1/16W

R215 1-218-941-81 METAL CHIP 100 5% 1/16W
R216 1-218-965-11 METAL CHIP 10K 5% 1/16W
R217 1-218-937-11 METAL CHIP 47 5% 1/16W
R218 1-218-941-81 METAL CHIP 100 5% 1/16W
R219 1-218-941-81 METAL CHIP 100 5% 1/16W

R220 1-218-937-11 METAL CHIP 47 5% 1/16W
R221 1-218-941-81 METAL CHIP 100 5% 1/16W
R222 1-218-937-11 METAL CHIP 47 5% 1/16W
R223 1-218-941-81 METAL CHIP 100 5% 1/16W
R224 1-218-990-81 SHORT CHIP 0

R225 1-218-941-81 METAL CHIP 100 5% 1/16W
R226 1-218-941-81 METAL CHIP 100 5% 1/16W
R227 1-218-941-81 METAL CHIP 100 5% 1/16W
R228 1-218-941-81 METAL CHIP 100 5% 1/16W
R229 1-218-941-81 METAL CHIP 100 5% 1/16W

R230 1-218-941-81 METAL CHIP 100 5% 1/16W
R232 1-218-937-11 METAL CHIP 47 5% 1/16W
R233 1-218-941-81 METAL CHIP 100 5% 1/16W
R234 1-218-941-81 METAL CHIP 100 5% 1/16W
R235 1-218-941-81 METAL CHIP 100 5% 1/16W

R236 1-218-941-81 METAL CHIP 100 5% 1/16W
R237 1-218-941-81 METAL CHIP 100 5% 1/16W
R238 1-218-941-81 METAL CHIP 100 5% 1/16W
R239 1-218-941-81 METAL CHIP 100 5% 1/16W
R240 1-218-965-11 METAL CHIP 10K 5% 1/16W

R176 1-218-941-81 METAL CHIP 100 5% 1/16W
R177 1-218-941-81 METAL CHIP 100 5% 1/16W
R178 1-218-941-81 METAL CHIP 100 5% 1/16W
R179 1-218-941-81 METAL CHIP 100 5% 1/16W
R180 1-218-941-81 METAL CHIP 100 5% 1/16W

R181 1-218-941-81 METAL CHIP 100 5% 1/16W
R183 1-218-965-11 METAL CHIP 10K 5% 1/16W
R185 1-218-990-81 SHORT CHIP 0
R186 1-218-990-81 SHORT CHIP 0
R188 1-218-989-11 METAL CHIP 1M 5% 1/16W

R189 1-218-941-81 METAL CHIP 100 5% 1/16W
R190 1-218-977-11 METAL CHIP 100K 5% 1/16W
R191 1-218-941-81 METAL CHIP 100 5% 1/16W
R192 1-218-981-81 METAL CHIP 220K 5% 1/16W
R193 1-218-941-81 METAL CHIP 100 5% 1/16W

R194 1-218-965-11 METAL CHIP 10K 5% 1/16W
R195 1-218-990-81 SHORT CHIP 0
R196 1-250-567-11 METAL CHIP 1M 1% 1/16W
R197 1-218-941-81 METAL CHIP 100 5% 1/16W
R198 1-218-990-81 SHORT CHIP 0

R200 1-218-990-81 SHORT CHIP 0
R201 1-218-941-81 METAL CHIP 100 5% 1/16W
R202 1-218-965-11 METAL CHIP 10K 5% 1/16W
R203 1-218-941-81 METAL CHIP 100 5% 1/16W
R204 1-218-965-11 METAL CHIP 10K 5% 1/16W

R205 1-218-941-81 METAL CHIP 100 5% 1/16W
R206 1-218-965-11 METAL CHIP 10K 5% 1/16W
R207 1-218-941-81 METAL CHIP 100 5% 1/16W
R208 1-218-941-81 METAL CHIP 100 5% 1/16W

R241 1-218-941-81 METAL CHIP 100 5% 1/16W
R242 1-218-941-81 METAL CHIP 100 5% 1/16W
R243 1-218-941-81 METAL CHIP 100 5% 1/16W
R244 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R245 1-218-941-81 METAL CHIP 100 5% 1/16W

R246 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R247 1-218-941-81 METAL CHIP 100 5% 1/16W
R248 1-218-941-81 METAL CHIP 100 5% 1/16W
R250 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R251 1-218-941-81 METAL CHIP 100 5% 1/16W

R252 1-218-941-81 METAL CHIP 100 5% 1/16W
R253 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R254 1-218-941-81 METAL CHIP 100 5% 1/16W
R255 1-218-941-81 METAL CHIP 100 5% 1/16W
R256 1-218-965-11 METAL CHIP 10K 5% 1/16W

R257 1-218-941-81 METAL CHIP 100 5% 1/16W
R258 1-218-941-81 METAL CHIP 100 5% 1/16W
R259 1-218-965-11 METAL CHIP 10K 5% 1/16W
R260 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R261 1-218-990-81 SHORT CHIP 0

R262 1-218-941-81 METAL CHIP 100 5% 1/16W
R263 1-218-965-11 METAL CHIP 10K 5% 1/16W
R264 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R265 1-250-471-11 METAL CHIP 100 1% 1/16W
R266 1-218-941-81 METAL CHIP 100 5% 1/16W

R267 1-218-965-11 METAL CHIP 10K 5% 1/16W
R268 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R270 1-218-941-81 METAL CHIP 100 5% 1/16W
R271 1-218-941-81 METAL CHIP 100 5% 1/16W

83

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R272 1-218-941-81 METAL CHIP 100 5% 1/16W

R345 1-218-941-81 METAL CHIP 100 5% 1/16W

R273 1-218-941-81 METAL CHIP 100 5% 1/16W
R274 1-218-941-81 METAL CHIP 100 5% 1/16W
R276 1-218-941-81 METAL CHIP 100 5% 1/16W
R277 1-218-937-11 METAL CHIP 47 5% 1/16W
R278 1-218-941-81 METAL CHIP 100 5% 1/16W

R279 1-218-941-81 METAL CHIP 100 5% 1/16W
R280 1-218-941-81 METAL CHIP 100 5% 1/16W
R281 1-218-965-11 METAL CHIP 10K 5% 1/16W
R282 1-218-965-11 METAL CHIP 10K 5% 1/16W
R283 1-218-965-11 METAL CHIP 10K 5% 1/16W

R284 1-218-965-11 METAL CHIP 10K 5% 1/16W
R285 1-208-905-11 METAL CHIP 5.6K 0.5% 1/16W
R286 1-218-977-11 METAL CHIP 100K 5% 1/16W
R287 1-218-977-11 METAL CHIP 100K 5% 1/16W
R288 1-218-937-11 METAL CHIP 47 5% 1/16W

R289 1-218-937-11 METAL CHIP 47 5% 1/16W
R290 1-218-937-11 METAL CHIP 47 5% 1/16W
R291 1-218-937-11 METAL CHIP 47 5% 1/16W
R292 1-218-937-11 METAL CHIP 47 5% 1/16W
R293 1-218-937-11 METAL CHIP 47 5% 1/16W

R294 1-218-977-11 METAL CHIP 100K 5% 1/16W
R295 1-218-941-81 METAL CHIP 100 5% 1/16W
R297 1-218-965-11 METAL CHIP 10K 5% 1/16W
R298 1-218-965-11 METAL CHIP 10K 5% 1/16W
R300 1-218-965-11 METAL CHIP 10K 5% 1/16W

R301 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R302 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R304 1-218-977-11 METAL CHIP 100K 5% 1/16W
R305 1-218-990-81 SHORT CHIP 0
R306 1-218-965-11 METAL CHIP 10K 5% 1/16W

R346 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R347 1-218-990-81 SHORT CHIP 0
R348 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R349 1-218-941-81 METAL CHIP 100 5% 1/16W
R350 1-218-990-81 SHORT CHIP 0

R351 1-218-965-11 METAL CHIP 10K 5% 1/16W
R352 1-218-941-81 METAL CHIP 100 5% 1/16W
R354 1-218-990-81 SHORT CHIP 0
R355 1-218-990-81 SHORT CHIP 0
R356 1-218-937-11 METAL CHIP 47 5% 1/16W

R357 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R358 1-218-941-81 METAL CHIP 100 5% 1/16W
R359 1-218-953-11 METAL CHIP 1K 5% 1/16W
R360 1-218-941-81 METAL CHIP 100 5% 1/16W
R361 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R362 1-218-965-11 METAL CHIP 10K 5% 1/16W
R365 1-218-937-11 METAL CHIP 47 5% 1/16W
R367 1-218-941-81 METAL CHIP 100 5% 1/16W
R369 1-218-933-11 METAL CHIP 22 5% 1/16W
* R370 1-250-489-11 METAL CHIP 560 1% 1/16W

R378 1-216-864-11 SHORT CHIP 0
R379 1-218-933-11 METAL CHIP 22 5% 1/16W
R380 1-218-933-11 METAL CHIP 22 5% 1/16W
R381 1-218-965-11 METAL CHIP 10K 5% 1/16W
R382 1-218-965-11 METAL CHIP 10K 5% 1/16W

R383 1-216-864-11 SHORT CHIP 0
R384 1-216-864-11 SHORT CHIP 0
R385 1-216-864-11 SHORT CHIP 0
R386 1-216-295-91 SHORT CHIP 0
R387 1-218-959-11 METAL CHIP 3.3K 5% 1/16W

R307 1-218-990-81 SHORT CHIP 0
R308 1-218-941-81 METAL CHIP 100 5% 1/16W
R309 1-218-941-81 METAL CHIP 100 5% 1/16W
R310 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R312 1-218-953-11 METAL CHIP 1K 5% 1/16W

R313 1-218-953-11 METAL CHIP 1K 5% 1/16W
R316 1-218-953-11 METAL CHIP 1K 5% 1/16W
R317 1-218-953-11 METAL CHIP 1K 5% 1/16W
R319 1-218-965-11 METAL CHIP 10K 5% 1/16W
R321 1-218-941-81 METAL CHIP 100 5% 1/16W

R322 1-216-864-11 SHORT CHIP 0
R323 1-218-953-11 METAL CHIP 1K 5% 1/16W
R324 1-216-864-11 SHORT CHIP 0
R325 1-216-864-11 SHORT CHIP 0
R326 1-216-864-11 SHORT CHIP 0

R327 1-218-937-11 METAL CHIP 47 5% 1/16W
R328 1-216-798-11 METAL CHIP 12 5% 1/10W
R329 1-216-864-11 SHORT CHIP 0
R330 1-218-967-11 METAL CHIP 15K 5% 1/16W
R331 1-218-937-11 METAL CHIP 47 5% 1/16W

R332 1-250-483-11 METAL CHIP 330 1% 1/16W
* R334 1-250-543-11 METAL CHIP 100K 1% 1/16W
R335 1-218-990-81 SHORT CHIP 0
R337 1-218-990-81 SHORT CHIP 0
R339 1-250-512-11 METAL CHIP 5.1K 1% 1/16W

R340 1-218-937-11 METAL CHIP 47 5% 1/16W
R342 1-218-937-11 METAL CHIP 47 5% 1/16W
R343 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R344 1-218-941-81 METAL CHIP 100 5% 1/16W

R401 1-218-965-11 METAL CHIP 10K 5% 1/16W
R402 1-218-970-81 METAL CHIP 27K 5% 1/16W
R404 1-257-362-21 METAL CHIP 1 5% 1/2W
R406 1-218-990-81 SHORT CHIP 0
R407 1-218-990-81 SHORT CHIP 0

R408 1-218-965-11 METAL CHIP 10K 5% 1/16W
R409 1-218-965-11 METAL CHIP 10K 5% 1/16W
R410 1-218-965-11 METAL CHIP 10K 5% 1/16W
R411 1-218-965-11 METAL CHIP 10K 5% 1/16W
R415 1-218-970-81 METAL CHIP 27K 5% 1/16W

R418 1-218-967-11 METAL CHIP 15K 5% 1/16W
R421 1-218-941-81 METAL CHIP 100 5% 1/16W
R422 1-218-973-11 METAL CHIP 47K 5% 1/16W
* R423 1-250-572-11 METAL CHIP 15 1% 1/10W
R424 1-218-977-11 METAL CHIP 100K 5% 1/16W

* R425 1-250-572-11 METAL CHIP 15 1% 1/10W
* R426 1-250-572-11 METAL CHIP 15 1% 1/10W
* R427 1-250-572-11 METAL CHIP 15 1% 1/10W
* R428 1-250-572-11 METAL CHIP 15 1% 1/10W

R429 1-218-977-11 METAL CHIP 100K 5% 1/16W

* R430 1-250-572-11 METAL CHIP 15 1% 1/10W
R431 1-218-973-11 METAL CHIP 47K 5% 1/16W
R432 1-218-941-81 METAL CHIP 100 5% 1/16W
R433 1-216-295-91 SHORT CHIP 0
R451 1-218-941-81 METAL CHIP 100 5% 1/16W

R452 1-218-965-11 METAL CHIP 10K 5% 1/16W
R453 1-218-977-11 METAL CHIP 100K 5% 1/16W
R454 1-218-965-11 METAL CHIP 10K 5% 1/16W
R455 1-218-965-11 METAL CHIP 10K 5% 1/16W

84

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R456 1-218-953-11 METAL CHIP 1K 5% 1/16W

R457 1-218-953-11 METAL CHIP 1K 5% 1/16W
R458 1-218-990-81 SHORT CHIP 0
* R460 1-250-491-11 METAL CHIP 680 1% 1/16W
R462 1-218-941-81 METAL CHIP 100 5% 1/16W
R463 1-218-969-11 METAL CHIP 22K 5% 1/16W

R464 1-218-947-11 METAL CHIP 330 5% 1/16W
R465 1-248-311-11 RES-CHIP 0.1 1% 1/4W
R466 1-248-311-11 RES-CHIP 0.1 1% 1/4W
R467 1-218-969-11 METAL CHIP 22K 5% 1/16W
R468 1-218-947-11 METAL CHIP 330 5% 1/16W

R469 1-218-965-11 METAL CHIP 10K 5% 1/16W
R470 1-218-941-81 METAL CHIP 100 5% 1/16W
R472 1-218-990-81 SHORT CHIP 0
R501 1-216-295-91 SHORT CHIP 0
R502 1-216-295-91 SHORT CHIP 0 (GPX888)

R505 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R508 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R510 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R513 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R515 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R517 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)

R518 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R520 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)

R521 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R523 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R562 1-218-935-11 METAL CHIP 33 5% 1/16W
R563 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R564 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R568 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)
R569 1-216-864-11 SHORT CHIP 0
R571 1-218-981-81 METAL CHIP 220K 5% 1/16W
R572 1-218-981-81 METAL CHIP 220K 5% 1/16W

R574 1-218-953-11 METAL CHIP 1K 5% 1/16W
R575 1-218-953-11 METAL CHIP 1K 5% 1/16W
R576 1-220-804-11 METAL CHIP 2.2M 5% 1/16W
R577 1-250-515-11 METAL CHIP 6.8K 1% 1/16W
R578 1-218-965-11 METAL CHIP 10K 5% 1/16W

R600 1-208-931-11 METAL CHIP 68K 0.5% 1/16W
R602 1-218-973-11 METAL CHIP 47K 5% 1/16W
R603 1-218-973-11 METAL CHIP 47K 5% 1/16W
R604 1-218-989-11 METAL CHIP 1M 5% 1/16W
R605 1-218-973-11 METAL CHIP 47K 5% 1/16W

R606 1-218-990-81 SHORT CHIP 0
R607 1-218-985-11 METAL CHIP 470K 5% 1/16W
R608 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R609 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R610 1-218-973-11 METAL CHIP 47K 5% 1/16W

R611 1-218-973-11 METAL CHIP 47K 5% 1/16W
R612 1-218-989-11 METAL CHIP 1M 5% 1/16W
R613 1-218-973-11 METAL CHIP 47K 5% 1/16W
R614 1-218-965-11 METAL CHIP 10K 5% 1/16W
R615 1-218-985-11 METAL CHIP 470K 5% 1/16W

R616 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R617 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R618 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R619 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R620 1-218-959-11 METAL CHIP 3.3K 5% 1/16W

R524 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)

R525 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R529 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)

R533 1-218-951-11 METAL CHIP 680 5% 1/16W

(GPX888)

R534 1-218-951-11 METAL CHIP 680 5% 1/16W

R538 1-216-295-91 SHORT CHIP 0
R539 1-216-864-11 SHORT CHIP 0
R541 1-216-864-11 SHORT CHIP 0
R542 1-216-864-11 SHORT CHIP 0
R543 1-216-864-11 SHORT CHIP 0

R544 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)
R546 1-216-295-91 SHORT CHIP 0
R552 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)
R553 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX888)
R555 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)

R556 1-218-935-11 METAL CHIP 33 5% 1/16W

(GPX555)
R560 1-218-935-11 METAL CHIP 33 5% 1/16W
R561 1-218-935-11 METAL CHIP 33 5% 1/16W

R621 1-218-990-81 SHORT CHIP 0
R622 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R624 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R625 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R626 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R627 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R628 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R629 1-216-864-11 SHORT CHIP 0
R630 1-218-929-11 METAL CHIP 10 5% 1/16W
R631 1-218-929-11 METAL CHIP 10 5% 1/16W

R632 1-218-929-11 METAL CHIP 10 5% 1/16W
R633 1-218-973-11 METAL CHIP 47K 5% 1/16W
R634 1-218-973-11 METAL CHIP 47K 5% 1/16W
R635 1-218-973-11 METAL CHIP 47K 5% 1/16W
R636 1-218-989-11 METAL CHIP 1M 5% 1/16W

R638 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R639 1-218-973-11 METAL CHIP 47K 5% 1/16W
R640 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R641 1-218-967-11 METAL CHIP 15K 5% 1/16W
R642 1-218-970-11 METAL CHIP 27K 5% 1/16W

R643 1-216-864-11 SHORT CHIP 0
R644 1-208-931-11 METAL CHIP 68K 0.5% 1/16W
R645 1-218-973-11 METAL CHIP 47K 5% 1/16W
R646 1-218-973-11 METAL CHIP 47K 5% 1/16W
R647 1-218-973-11 METAL CHIP 47K 5% 1/16W

85

HCD-GPX555/GPX888

Ver. 1.1

MB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R648 1-218-989-11 METAL CHIP 1M 5% 1/16W
R649 1-218-970-11 METAL CHIP 27K 5% 1/16W
R650 1-218-969-11 METAL CHIP 22K 5% 1/16W
R651 1-218-975-11 METAL CHIP 68K 5% 1/16W
R652 1-218-958-11 METAL CHIP 2.7K 5% 1/16W

R653 1-250-515-11 METAL CHIP 6.8K 1% 1/16W
R654 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R655 1-218-965-11 METAL CHIP 10K 5% 1/16W
R656 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R657 1-218-978-11 METAL CHIP 120K 5% 1/16W

R658 1-218-989-11 METAL CHIP 1M 5% 1/16W
R659 1-218-973-11 METAL CHIP 47K 5% 1/16W
R661 1-218-941-81 METAL CHIP 100 5% 1/16W
R662 1-218-974-11 METAL CHIP 56K 5% 1/16W
R663 1-218-987-11 METAL CHIP 680K 5% 1/16W

R664 1-218-978-11 METAL CHIP 120K 5% 1/16W
R665 1-218-989-11 METAL CHIP 1M 5% 1/16W
R666 1-218-973-11 METAL CHIP 47K 5% 1/16W
R669 1-218-987-11 METAL CHIP 680K 5% 1/16W
R671 1-218-974-11 METAL CHIP 56K 5% 1/16W

R672 1-218-970-81 METAL CHIP 27K 5% 1/16W
R673 1-218-978-11 METAL CHIP 120K 5% 1/16W
R674 1-218-941-81 METAL CHIP 100 5% 1/16W
R676 1-218-978-11 METAL CHIP 120K 5% 1/16W
R677 1-218-990-81 SHORT CHIP 0

R680 1-218-970-81 METAL CHIP 27K 5% 1/16W
R681 1-218-989-11 METAL CHIP 1M 5% 1/16W
R682 1-218-973-11 METAL CHIP 47K 5% 1/16W
R683 1-218-978-11 METAL CHIP 120K 5% 1/16W
R684 1-218-973-11 METAL CHIP 47K 5% 1/16W

R685 1-218-976-11 METAL CHIP 82K 5% 1/16W
R686 1-218-976-11 METAL CHIP 82K 5% 1/16W
R687 1-218-933-11 METAL CHIP 22 5% 1/16W
R688 1-218-929-11 METAL CHIP 10 5% 1/16W
R689 1-218-975-11 METAL CHIP 68K 5% 1/16W

R690 1-218-929-11 METAL CHIP 10 5% 1/16W
R691 1-218-929-11 METAL CHIP 10 5% 1/16W
R692 1-218-969-11 METAL CHIP 22K 5% 1/16W
R693 1-218-989-11 METAL CHIP 1M 5% 1/16W
R694 1-218-973-11 METAL CHIP 47K 5% 1/16W

R695 1-218-978-11 METAL CHIP 120K 5% 1/16W
R696 1-218-973-11 METAL CHIP 47K 5% 1/16W
R697 1-218-973-11 METAL CHIP 47K 5% 1/16W
R698 1-218-973-11 METAL CHIP 47K 5% 1/16W
R699 1-218-933-11 METAL CHIP 22 5% 1/16W

R700 1-218-969-11 METAL CHIP 22K 5% 1/16W
R701 1-218-929-11 METAL CHIP 10 5% 1/16W
R702 1-218-929-11 METAL CHIP 10 5% 1/16W
R704 1-218-933-11 METAL CHIP 22 5% 1/16W

(GPX888)

R705 1-218-933-11 METAL CHIP 22 5% 1/16W

(GPX888)

R708 1-218-937-11 METAL CHIP 47 5% 1/16W

(GPX888)

R709 1-218-937-11 METAL CHIP 47 5% 1/16W

(GPX888)

R711 1-218-953-11 METAL CHIP 1K 5% 1/16W

(GPX888)
R712 1-218-941-81 METAL CHIP 100 5% 1/16W
R715 1-218-933-11 METAL CHIP 22 5% 1/16W

R716 1-218-953-11 METAL CHIP 1K 5% 1/16W

(GPX888)

R718 1-218-990-81 SHORT CHIP 0 (GPX888)
R719 1-218-929-11 METAL CHIP 10 5% 1/16W

(GPX888)

R720 1-218-929-11 METAL CHIP 10 5% 1/16W

(GPX888)

R721 1-218-990-81 SHORT CHIP 0

R722 1-218-929-11 METAL CHIP 10 5% 1/16W

(GPX888)

R723 1-218-929-11 METAL CHIP 10 5% 1/16W

(GPX888)
R725 1-218-990-81 SHORT CHIP 0
R726 1-218-990-81 SHORT CHIP 0
R728 1-218-990-81 SHORT CHIP 0

R729 1-218-929-11 METAL CHIP 10 5% 1/16W
R730 1-218-929-11 METAL CHIP 10 5% 1/16W
R731 1-218-929-11 METAL CHIP 10 5% 1/16W
R732 1-218-929-11 METAL CHIP 10 5% 1/16W
R733 1-216-864-11 SHORT CHIP 0

R734 1-218-990-81 SHORT CHIP 0
R738 1-218-929-11 METAL CHIP 10 5% 1/16W
R739 1-218-929-11 METAL CHIP 10 5% 1/16W
R740 1-218-941-81 METAL CHIP 100 5% 1/16W
R741 1-218-990-81 SHORT CHIP 0

R743 1-218-941-81 METAL CHIP 100 5% 1/16W
R744 1-218-965-11 METAL CHIP 10K 5% 1/16W
R745 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R746 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R747 1-216-864-11 SHORT CHIP 0

R749 1-218-990-81 SHORT CHIP 0
R750 1-218-941-81 METAL CHIP 100 5% 1/16W
R751 1-218-941-81 METAL CHIP 100 5% 1/16W
R752 1-218-941-81 METAL CHIP 100 5% 1/16W
R753 1-218-941-81 METAL CHIP 100 5% 1/16W

R756 1-250-515-11 METAL CHIP 6.8K 1% 1/16W
R760 1-218-929-11 METAL CHIP 10 5% 1/16W
R761 1-218-929-11 METAL CHIP 10 5% 1/16W
R762 1-218-929-11 METAL CHIP 10 5% 1/16W
R763 1-216-864-11 SHORT CHIP 0

R764 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R765 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R766 1-218-941-81 METAL CHIP 100 5% 1/16W
R767 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R768 1-218-958-11 METAL CHIP 2.7K 5% 1/16W

R769 1-218-990-81 SHORT CHIP 0
R770 1-218-965-11 METAL CHIP 10K 5% 1/16W
R792 1-216-864-11 SHORT CHIP 0
R793 1-216-864-11 SHORT CHIP 0 (GPX888)
R794 1-216-864-11 SHORT CHIP 0

R795 1-218-929-11 METAL CHIP 10 5% 1/16W
R796 1-218-929-11 METAL CHIP 10 5% 1/16W
R797 1-218-929-11 METAL CHIP 10 5% 1/16W
R798 1-216-864-11 SHORT CHIP 0
R799 1-218-941-81 METAL CHIP 100 5% 1/16W

R800 1-218-965-11 METAL CHIP 10K 5% 1/16W
R806 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R807 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R809 1-218-990-81 SHORT CHIP 0
R811 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R812 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R813 1-218-941-81 METAL CHIP 100 5% 1/16W

(GPX888)

86

HCD-GPX555/GPX888

Ver. 1.1

MB USBTUNER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R814 1-218-958-11 METAL CHIP 2.7K 5% 1/16W

(GPX888)

R815 1-218-958-11 METAL CHIP 2.7K 5% 1/16W

(GPX888)

R816 1-218-990-81 SHORT CHIP 0

R817 1-218-929-11 METAL CHIP 10 5% 1/16W
R818 1-218-965-11 METAL CHIP 10K 5% 1/16W

(GPX888)
R819 1-218-929-11 METAL CHIP 10 5% 1/16W
R820 1-218-929-11 METAL CHIP 10 5% 1/16W
R821 1-218-929-11 METAL CHIP 10 5% 1/16W

R822 1-218-929-11 METAL CHIP 10 5% 1/16W
R825 1-218-990-81 SHORT CHIP 0 (GPX555)
R851 1-218-990-81 SHORT CHIP 0
R852 1-218-990-81 SHORT CHIP 0
R853 1-218-990-81 SHORT CHIP 0

R854 1-218-990-81 SHORT CHIP 0
R855 1-218-990-81 SHORT CHIP 0
R856 1-218-990-81 SHORT CHIP 0
R857 1-216-864-11 SHORT CHIP 0
R859 1-216-864-11 SHORT CHIP 0

R906 1-218-973-11 METAL CHIP 47K 5% 1/16W
R907 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R908 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R910 1-218-990-81 SHORT CHIP 0
R911 1-218-985-11 METAL CHIP 470K 5% 1/16W

R912 1-218-985-11 METAL CHIP 470K 5% 1/16W
R913 1-218-975-11 METAL CHIP 68K 5% 1/16W
R914 1-218-975-11 METAL CHIP 68K 5% 1/16W
R915 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R916 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W

C3004 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V

C3005 1-117-739-81 CERAMIC CHIP 3PF 0.1PF 16V
C3006 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V
C3007 1-117-739-81 CERAMIC CHIP 3PF 0.1PF 16V

* C3008 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3011 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V

* C3013 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V

< CONNECTOR >

CN3000 1-844-161-11 PIN, CONNECTOR (PC BOARD) 3P

(ANTENNA FM/AM)

CN3001 1-820-112-51 CONNECTOR, FFC/FPC 9P

< DIODE >

D3000 6-500-400-01 DIODE BAV99-215
D3001 6-500-400-01 DIODE BAV99-215
D3002 6-500-400-01 DIODE BAV99-215

< IC >

IC3000 6-720-234-01 IC RN5B801-0002
IC3001 6-715-134-01 IC MM3404A33URE

< COIL >

L3000 1-469-187-21 INDUCTOR 68nH
L3001 1-457-998-11 COIL, AM ANTENNA
L3002 1-469-187-21 INDUCTOR 68nH
L3003 1-414-576-41 INDUCTOR 47nH
L3004 1-414-455-11 INDUCTOR 2.2nH

< RESISTOR >

< COMPOSITION CIRCUIT BLOCK >

RB301 1-234-370-21 RES, NETWORK 22 (1005X4)
RB302 1-234-370-21 RES, NETWORK 22 (1005X4)
RB303 1-234-370-21 RES, NETWORK 22 (1005X4)
RB304 1-234-370-21 RES, NETWORK 22 (1005X4)
RB305 1-234-370-21 RES, NETWORK 22 (1005X4)

RB306 1-234-370-21 RES, NETWORK 22 (1005X4)
RB307 1-234-370-21 RES, NETWORK 22 (1005X4)
RB308 1-234-370-21 RES, NETWORK 22 (1005X4)
RB309 1-234-370-21 RES, NETWORK 22 (1005X4)

< THERMISTOR >

TH571 1-804-949-11 THERMISTOR, NTC (SMD)

< VIBRATOR >

X101 1-814-273-11 QUARTZ CRYSTAL UNIT (32.768kHz)
X102 1-814-767-11 QUARTZ CRYSTAL UNITS (13.333MHz)
X103 1-814-466-11 QUARTZ CRYSTAL UNITS (12.288MHz)
X301 1-814-023-11 QUARTS CRYSTAL UNIT (27MHz)
X451 1-814-365-11 QUARTZ CRYSTAL UNITS (12MHz)

*************************************************************

TUNER BOARD
************

< CAPACITOR >

C3000 1-164-870-11 CERAMIC CHIP 68PF 5% 50V
C3001 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C3002 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C3003 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V

R3000 1-218-941-81 METAL CHIP 100 5% 1/16W
R3003 1-216-864-11 SHORT CHIP 0
R3004 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3005 1-218-941-81 METAL CHIP 100 5% 1/16W
R3006 1-218-990-81 SHORT CHIP 0

R3007 1-216-864-11 SHORT CHIP 0
R3008 1-218-933-11 METAL CHIP 22 5% 1/16W
R3009 1-218-933-11 METAL CHIP 22 5% 1/16W
R3010 1-216-864-11 SHORT CHIP 0
R3011 1-216-864-11 SHORT CHIP 0

< VIBRATOR >

X3000 1-814-365-11 QUARTZ CRYSTAL UNITS (12MHz)

*************************************************************

A-1978-921-A USB BOARD, COMPLETE (GPX555)
A-1978-925-A USB BOARD, COMPLETE (GPX888)
********************

< CAPACITOR >

C2300 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(GPX888)

C2301 1-115-867-11 ELECT 0.1uF 20% 50V

(GPX888)

C2302 1-126-795-11 ELECT 10uF 20% 50V

(GPX888)

C2303 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

(GPX888)

C2306 1-115-867-11 ELECT 0.1uF 20% 50V

(GPX888)

C2307 1-115-872-11 ELECT 2.2uF 20% 50V

(GPX888)

87

HCD-GPX555/GPX888

Ver. 1.1

USB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C2308 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C2309 1-126-176-11 ELECT 220uF 20% 10V

C2310 1-124-584-00 ELECT 100uF 20% 6.3V
C2312 1-124-584-00 ELECT 100uF 20% 6.3V

C2314 1-126-956-91 ELECT 0.1uF 20% 50V

C2315 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C2316 1-162-963-11 CERAMIC CHIP 680PF 10% 50V

C2319 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C2322 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2323 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2326 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2327 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2328 1-126-176-11 ELECT 220uF 20% 10V

C2329 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C2330 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C2331 1-126-961-11 ELECT 2.2uF 20% 50V

C2332 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C2333 1-126-961-11 ELECT 2.2uF 20% 50V

C2335 1-115-872-11 ELECT 2.2uF 20% 50V

C2336 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C2337 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C2338 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2339 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C2340 1-165-989-11 CAP, CERAMIC 10uF 10.00% 6.3V

C2341 1-165-989-11 CAP, CERAMIC 10uF 10.00% 6.3V

C2342 1-165-989-11 CAP, CERAMIC 10uF 10.00% 6.3V

C2343 1-165-989-11 CAP, CERAMIC 10uF 10.00% 6.3V

< CONNECTOR >

CN2300 1-822-423-11 CONNECTOR, USB (A)

(REC/PLAY B

CN2304 1-822-423-11 CONNECTOR, USB (A) (PLAY A

< DIODE >

D2300 6-502-961-01 DI DA2J10100L (GPX888)
D2301 6-502-970-01 DI DZ2J068M0L
D2302 6-502-970-01 DI DZ2J068M0L
D2304 6-502-970-01 DI DZ2J068M0L
D2305 6-502-970-01 DI DZ2J068M0L

D2308 6-502-970-01 DI DZ2J068M0L
D2309 6-502-970-01 DI DZ2J068M0L
D2310 6-500-400-01 DIODE BAV99-215

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX888)

(GPX555)

(GPX555)

(GPX555)

(GPX555)

5V 500mA)

5V 500mA)

D2311 6-500-400-01 DIODE BAV99-215
D2312 6-500-400-01 DIODE BAV99-215

D2313 6-500-400-01 DIODE BAV99-215
D2317 6-500-400-01 DIODE BAV99-215 (GPX888)

< IC >

IC2300 8-759-909-71 IC BA4558F (GPX888)

< JACK >

J2300 1-822-757-11 JACK (LARGE TYPE) (MIC) (GPX888)

< JUMPER RESISTOR >

JR2300 1-216-864-11 SHORT CHIP 0
JR2301 1-216-864-11 SHORT CHIP 0
JR2302 1-216-296-11 SHORT CHIP 0
JR2303 1-216-864-11 SHORT CHIP 0
JR2304 1-216-864-11 SHORT CHIP 0

JR2305 1-216-296-11 SHORT CHIP 0

< TRANSISTOR >

Q2300 6-552-891-01 TR LSAR523UBFS8TL (GPX888)
Q2301 6-552-967-01 TR RHK005N03T146 (GPX888)

< RESISTOR/FERRITE BEAD >

R2300 1-216-857-11 METAL CHIP 1M 5% 1/10W

(GPX888)

R2301 1-216-857-11 METAL CHIP 1M 5% 1/10W

(GPX888)

R2302 1-216-817-11 METAL CHIP 470 5% 1/10W

(GPX888)

R2303 1-216-849-11 METAL CHIP 220K 5% 1/10W

(GPX888)

R2304 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GPX888)

R2305 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GPX888)

R2306 1-216-809-11 METAL CHIP 100 5% 1/10W

(GPX888)

R2307 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)

R2308 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GPX888)

R2309 1-216-845-11 METAL CHIP 100K 5% 1/10W

(GPX888)

R2310 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
R2312 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)
R2313 1-500-283-11 INDUCTOR, FERRITE BEAD
R2314 1-500-283-11 INDUCTOR, FERRITE BEAD
R2315 1-500-283-11 INDUCTOR, FERRITE BEAD

R2316 1-500-283-11 INDUCTOR, FERRITE BEAD
R2317 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)
R2318 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)
R2319 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GPX888)
R2320 1-216-839-11 METAL CHIP 33K 5% 1/10W

(GPX888)

R2321 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GPX888)

88

Ref. No. Part No. Description Remark

R2322 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GPX888)

R2323 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GPX888)

< VARIABLE RESISTOR >

HCD-GPX555/GPX888

Ver. 1.1

USB

RV2300 1-227-452-11 RES, VAR, CARBON 50K

*************************************************************

MISCELLANEOUS
**************

51 1-500-082-11 CLAMP, SLEEVE FERRITE (GPX555: US)
52 1-469-829-11 CORE, FERRITE (US, EA, AUS)
53 1-848-333-21 WIRE (FLAT TYPE) (9 CORE)
106 1-848-389-61 WIRE (FLAT TYPE) (23 CORE)
108 1-848-334-61 WIRE (FLAT TYPE) (10 CORE)

109 1-492-699-11 BLUETOOTH MODULE
110 1-848-387-61 WIRE (FLAT TYPE) (8 CORE)
111 8-989-470-00 RC-S801/A (WW)
151 1-828-356-21 WIRE (FLAT TYPE) (19 CORE) (GPX555)
151 1-828-366-21 WIRE (FLAT TYPE) (21 CORE) (GPX888)

0 155 1-855-340-11 DC FAN
202 1-474-551-11 REGULATOR, SWITCHING (3H401W)

202 1-474-551-22 REGULATOR, SWITCHING (3H401W)

0 204 1-835-068-21 CORD, POWER (AUS)
0 204 1-835-706-22 CORD, POWER-SUPPLY (E51)

0 204 1-837-308-11 CORD, POWER-SUPPLY (US)
0 204 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0 204 1-838-939-21 CORD, POWER (E4)
0 204 1-839-999-21 POWER-SUPPLY CORD (EA)
0 205 1-569-007-31 ADAPTOR, CONVERSION 2P (E2)

(MIC LEVEL MIN MAX) (GPX888)

(GPX555: US)

(GPX555: EXCEPT US/GPX888)

0 205 1-843-324-11 ADAPTOR, CONVERSION 2P (E4)
251 A-1896-391-B LOADING COMPLETE ASSY (T)
0 254 A-2046-956-A SERVICE, OPTICAL DEVICE
255 1-828-293-21 WIRE (FLAT TYPE) (5 CORE)
256 1-848-388-21 WIRE (FLAT TYPE) (24 CORE)

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

89

HCD-GPX555/GPX888

REVISION HISTORY

Ver. Date Description of Revision

1.0 2014.02 New

1.1 2014.10 Add R1723 (GPX555) in DAMP board.

Change of DAMP Board (Suffi x 22).

Change P/N of C1188, C1193, C1194, C1213, C1214, C1221, C1293, C1294 and C1300 in DAMP board.

Change P/N of C1265, C1270 and C1271 (GPX888) in DAMP board.

Change P/N of CN101, CN301, CN451 and CN503 in MB board.

Change P/N of CN501 and CN502 (GPX555) in MB board.

Change P/N of CN504, CN505 and CN506 (GPX888) in MB board.

Change P/N of CN1001 in DAMP board.

Change P/N of CN3000 in TUNER board.

Change P/N of REGULATOR, SWITCHING (3H401W) (GPX555: EXCEPT US/GPX888)

in page 69 and 89.

Change P/N and description of C023 in MB board.

Change P/N and description of IC306 in MB board.

Change sentence for CLASS 1 LASER product in page 2.

Delete Q011, Q012, Q013, Q014, Q017, R064, R065, R066, R067, R069, R070, R074 and R075

in MB board.

How to search for a contact point of signal lines or the like in DIAGRAMS SECTION

If a contact point of a BLOCK DIAGRAM, PRINTED WIRING BOARD or SCHEMATIC DIAGRAM is shown in a different page, use
the PDF fi le search function to fi nd one.

e.g.) If a contact point is shown as

Procedure:

1. Press the [F] key while pressing the [Ctrl] key.

2. Input “>001Z” in the search box and press the [Enter] key.

3. The relevant part (page), where the contact point is shown, appears.

Note: If you still see the original page, press the [Enter] key again.

, follow the procedure below.
