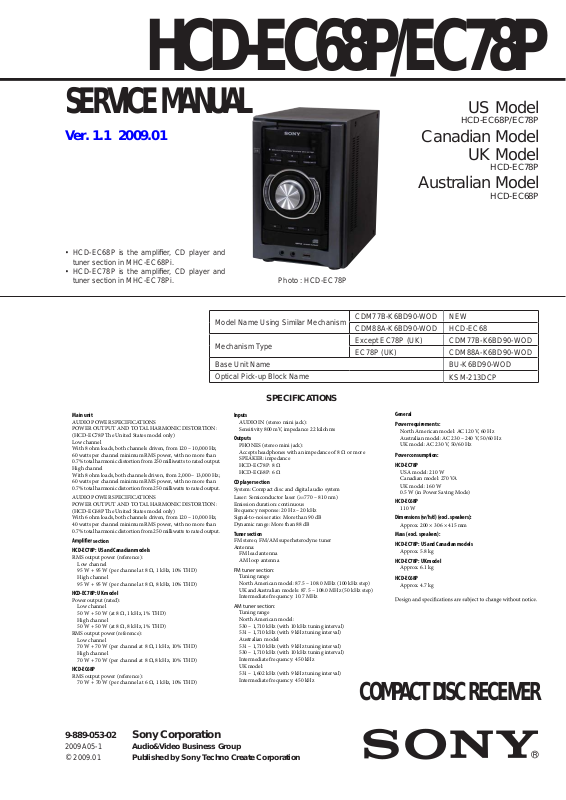

Sony HCD-EC68/78P Schematic

HCD-EC68P/EC78P

SERVICE MANUAL

Ver. 1.1 2009.01

• HCD-EC68P is the ampliﬁ er, CD player and tuner section in MHC-EC68Pi.

• HCD-EC78P is the ampliﬁ er, CD player and tuner section in MHC-EC78Pi.

Model Name Using Similar Mechanism

Mechanism Type Base Unit Name

Optical Pick-up Block Name

Photo : HCD-EC78P

US Model

HCD-EC68P/EC78P

Canadian Model

UK Model

HCD-EC78P

Australian Model

HCD-EC68P

CDM77B-K6BD90-WOD NEW CDM88A-K6BD90-WOD HCD-EC68 Except EC78P (UK) CDM77B-K6BD90-WOD EC78P (UK) CDM88A-K6BD90-WOD

BU-K6BD90-WOD KSM-213DCP

Main unit

AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTALHARMONIC DISTORTION: (HCD-EC78P e United States model only) Low channel With 8 ohm loads, both channels driven, from 120 – 10,000 Hz; 60 watts per channel minimum RMS power, with no more than

0.7% total harmonic distortion from 250 milliwatts to rated output. High chann el With 8 ohm loads, both channels driven, from 2,000 – 13,000 Hz; 60 watts per channel minimum RMS power, with no more than

0.7% total harmonic distortion from 250 milliwatts to rated output.

AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTALHARMONIC DISTORTION: (HCD-EC68P e United States model only) With 6 ohm loads, both channels driven, from 120 – 10,000 Hz; 40 watts per channel minimum RMS power, with no more than

0.7% total harmonic distortion from 250 milliwatts to rated output.

section

HCD-EC78P: US and Canadian models

RMS output power (reference):

Low channel 95 W + 95 W (per channel at 8 Ω, 1 kHz, 10% THD) High chann el 95 W + 95 W (per channel at 8 Ω, 8 kHz, 10% THD)

HCD-EC78P: UK model

Power output (rated):

Low channel 50 W + 50 W (at 8 Ω, 1 kHz, 1% THD) High chann el 50 W + 50 W (at 8 Ω, 8 kHz, 1% THD)

RMS output power (reference):

Low channel 70 W + 70 W (per channel at 8 Ω, 1 kHz, 10% THD) High chann el 70 W + 70 W (per channel at 8 Ω, 8 kHz, 10% THD)

HCD-EC68P

RMS output power (reference):

70 W + 70 W (per channel at 6 Ω, 1 kHz, 10% THD)

SPECIFICATIONS

Inputs

AUDIO IN (stereo mini jack): Sensitivity 800 mV, impedance 22 kilohms

Outputs

PHONES (stereo mini jack): Accepts headphones with an impedance of 8 Ω or more SPEAKER: impedance HCD-EC78P: 8 Ω HCD-EC68P: 6 Ω

CD player section

System: Compact disc and digital audio system

Laser: Semiconductor laser (λ=770 – 810 nm) Emission duration: continuous Frequency response: 20 Hz – 20 kHz Signal-to-noise ratio: More than 90 dB Dynamic range: More than 88 dB

Tuner section

FM stereo, FM/AM superheterodyne tuner Antenna:

FM lead antenna AM loop antenna

FM tuner section:

Tuning range North American model: 87.5 – 108.0 MHz (100 kHz step) UK and Aust ralia n mod els: 87.5 – 108.0 MHz (50 kHz step) Intermediate frequency: 10.7 MHz

AM tuner section:

Tuning range North American model: 530 – 1,710 kHz (with 10 kHz tuning interval) 531 – 1,710 kHz (with 9 kHz tuning interval) Australian model: 531 – 1,710 kHz (with 9 kHz tuning interval) 530 – 1,710 kHz (with 10 kHz tuning interval) Intermediate frequency: 450 kHz UK model: 531 – 1,602 kHz (with 9 kHz tuning interval) Intermediate frequency: 450 kHz

General

Power requirements:

North American model: AC 120 V, 60 Hz Australian model: AC 230 – 240 V, 50/60 Hz UK model: AC 230 V, 50/60 Hz

Power consumption:

HCD-EC78P

USA model: 210 W Canadian model: 270 VA

UK model: 160 W

0.5 W (in Power Saving Mode)

HCD-EC68P

110 W

Dimensions (w/h/d) (excl. speakers):

Approx. 200 × 306 × 415 mm

Mass (excl. speakers):

HCD-EC78P: US and Canadian models

Approx. 5.8 kg

HCD-EC78P: UK model

Approx. 6.1 kg

HCD-EC68P

Approx. 4.7 kg

COMPACT DISC RECEIVER

9-889-053-02

2009A05-1

2009.01

©

Sony Corporation

Audio&Video Business Group Published by Sony Techno Create Corporation

HCD-EC68P/EC78P

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270 °C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures other than those speciﬁ ed herein may result in hazardous radiation exposure.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments.

2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter . The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)

To Exposed Metal Parts on Set

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

AC

1.5 kΩ0.15 μF

Earth Ground

voltmeter (0.75 V)

Fig. A. Using an AC voltmeter to check AC leakage.

ATTENTION AU COMPOSANT AYANT RAPPORT

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

À LA SÉCURITÉ!

2

HCD-EC68P/EC78P

SECTION 1

SERVICING NOTES

The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The ﬂ exible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reﬂ ective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C. Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscou-s (sticky, less prone to ﬂ ow)

than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

RELEASING THE DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration disc in the store is equipped.

Releasing Procedure:

1. Press [I/

2. Press the [FUNCTION] button to select CD function.

3. While pressing the [ seconds).

4. The message “UNLOCKED” is displayed and the disc tray is unlocked.

Note: When “LOCKED” is displayed, the slot lock is not released by

] button to turn the power on.

1

] button, press the [Z] button for more 5

x

turning power on/off with the [I/1] button.

8. ELECTRICAL PARTS LIST .............................. 53

3

HCD-EC68P/EC78P

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF

Pull the tray by the hand.



(EXCEPT EC78P: UK)

boss

Slide the boss by a driver.



HOW TO REMOVE THE KNOB (VOL)

knob (VOL)



(EC78P: UK)

gear

front panel block (back view)

lever

Turn a gear by a driver



till a lever falls down to the position of the figure.

hole

Push the knob (VOL) by the flat head driver.



4

CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION

N

In checking the MAIN board, make a capacitor discharge of C622 and C626 for electric shock prevention.

800 Ω/2W

HCD-EC68P/EC78P

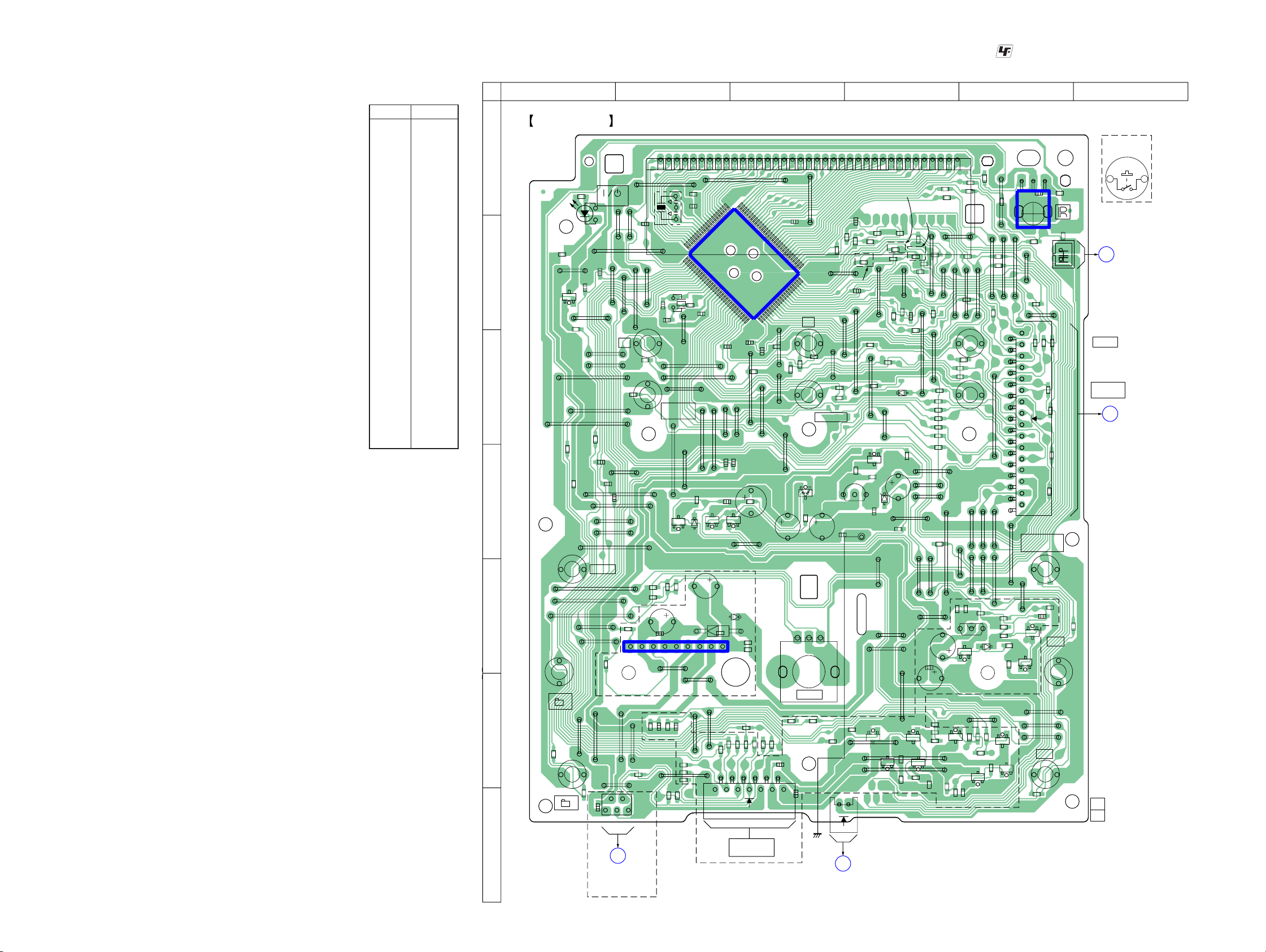

MAIN board

800 Ω/2W

C626

C622

MAIN board

MODEL IDENTIFICATION – Back Panel –

POWER VOLTAGE INDICATIO

Model Power Voltage Indication

EC68P: US/EC78P: US and Canadian models

EC68P: Australian model EC78P: UK model AC 230 V, 50/60 Hz

AC 120 V, 60 Hz

AC 230 - 240 V, 50/60 Hz

5

HCD-EC68P/EC78P

HCD-EC68P/EC78P: US and Canadian models:

Basic Operations



  

 







remote,butthesameoperationscanalsobeperformed usingthebuttonsonthe unithavingthesameor similar names.

Before using the system

To use the remote

Slide and remove the battery compartment lid ,and insert the two R6 (size AA) batteries (supplied),  side

Notes on using the remote

• Withnormal use, the batteries should last for about six months.

•

batteries.

• Ifyou do not use the remote for a long period of time, remove the batteries to avoid damage frombattery le akage and corrosion.

• Batteries installed devicesshall not be exposed to excessive heat such

To set the clock

1 Turn on the system.

Press  (on/standby)

2 Select the clock set mode.

Press TIMER MENU

select “CLOCK,” and then press

3 Set the time.

Press /

(enter)

Use the same procedure to set the minutes.

Note

power failure occurs.







repeatedlytosetthehour,thenpress



   

 

 







to turn on the system.

/repeatedly to

(enter).

Adjusting the sound

To adjust the volume

Press VOLUME +/− (orturn the VOLUME control on



.

the unit)

To Press

Generate a more dynamic sound (Dynamic Sound Generator X-tra)

Playing a CD/MP3 disc

1 Select the CD function.

Press FUNCTION +/− (or FUNCTION on the unit)



repeatedly.

2 Place a disc.

Press  (open/close) with the label side up on the disc tray. Toclosethe disctray,press (open/close) unit.

this may damage the unit.

3 Start playback.

Press  (play)

To Press

Pause play back

Stop playback

Select a folder on an MP3 disc

Find a point in a

Select RepeatPlay

To change the play mode

Press PLAY MODErepeatedly while the player is stopped. You can select normal play (no display or “

(“SHUF” or “ play (“PGM”).

* When playing a CD-DA disc, (SHUF)Play performs the same

operation as normal (SHUF) Play.

Notes on Repeat Play

•

it.

Notes on playing MP3 discs

•

the disc.

•

“.MP3”.

•

malfunction.

•

− folders is 150 (including the root folder).

−

•

device, and recording media cannot be guaranteed.Incompatible MP3 discs may produce noise or interrupted audioor may not play at all.

Notes on playing multisession discs

• Ifthe disc begins with a CD-DA (or MP3) session, it is recognized as a CD-DA (or MP3) disc, and playback continues untilanother session is encountered.

• A discwith a mixed CD format is recognized as a CD-DA (audio) disc.



on the unit, and place a disc



.

 (pause) press the button again.

 (stop)

+/− (select folder).

/

(or/on the unit)

Hold down/ (rewind/fast forward) release the button at the desired point.

REPEAT “REP” or “REP1” appears.

SECTION 2

GENERAL



on the unit.

DSGX

EQ.



on the



.Toresumeplay,



.

(go back/go forward)







during playback, and

repeatedly until

.

Listening to the radio

1 Select “TUNER FM” or“TUNER AM.”

Press FUNCTION +/− (or FUNCTION ont he unit)



repeatedly.

2 Select the tuning mode.

Press TUNING MODE appears.

3 Tune in the desired station.

Press +/− (or TUNING +/− on the unit) Scanning stops automatically when a stationis tuned in, and then “TUNED” and “ST” (for stereo programs) appear.

To stop automatic scanning

Press  (stop).

To tune in a station with a weak signal

If “TUNED” does not appear and the scanning does not stop, press TUNING MODE “MANUAL” appears, and then press +/− (or TUNING +/− on the unit) station.

To reduce static noise on a weakFM stereo station

Press FM MODErepeatedly until “MONO” appears



repeatedly until “AUTO”

.



repeatedly until

 repeatedly to tune in the desired

Changing the display

To Press

Change information on the display* Change Display mode (See below.)

* For example,you can view CD/MP3 disc information, such as;

−

− ”) duringnormal play.

− artist name (“

− album or folder name (“

− total pl aying time while the player is stopped.

Display mode

Power Saving

1)

Mode

2)

Clock

1)

Youcannot set the clock in Power Saving Mode.

2)

eight seconds.

Notes on the display information

• Charactersthat cannot be displayed appear as “_”.

•

− total playing time for an MP3 disc.

−

•

−

bit rate).

−

Level 2 or Joliet in the expansion format.

•

− total playing time for a CD-DA disc during normal play.

− remaining playing time for a track.

−

version 2 tags are used (ID3 version 2 tag information displayhas priority when both ID3 version 1 and version 2 tagsare used for a

− up to 15 characters of ID3 tag information using uppercase letters (A to Z), numbers (0 to 9), and symbols (‘< > * + , – / @ [ \ ] _).

 repeatedly when the

DISPLAY system is turned on.

 repeatedly when the

DISPLAY

”) during normal play.

”) duringnormal play.

to operate.

This section is extracted from instruction manual.

Using optional audio components

To connect an optional headphones

ConnectheadphonestothePHONESjackon the unit.

To connect an optional component

Connect additional audio source componentsto the AUDIO IN jack cord (not supplied). Turn down the volume on the system, and then select the AUDIO IN function.

To connect a DIGITAL MEDIA PORT adaptor

Connect the DIGITAL MEDIA PORT adaptor to the DMPORT DIGITAL MEDIA PORT adaptor to an optionalaudio device (portable audio player, etc.).

Notes on DIGITAL MEDIA PORT adaptor

• Available DIGITAL MEDIA PORT adaptors vary in each area.

• Donot connect an adaptor other than the DIGITAL MEDIA PORT

adaptor.

• Donot connect or disconnect the DIGITAL MEDIA PORT adaptor to/from the DMPORT

• Whenusing a DIGITAL MEDIA PORT adaptorthat has video output function, connect the adaptor directlyto the TV.

• For detailsabout the DIGITAL MEDIA PORT adaptor, refer to the operating instructions supplied with yourDIGITAL MEDIA PORT adaptor.

1,



on the unit using an analog audio



on the unit. You need to connect the



while the system is on.

6

HCD-EC68P/EC78P

Other Operations

Creating your own CD program (Program Play)

Usebuttonsontheremoteto createyourownprogram.

1 Press FUNCTION +/− repeatedly to select the CD

function.

2 Press PLAY MODE

while the player is stopped.

3 Press /

track number appears.

repeatedly to select the desired folder,and then select

4 Press

5 Repeat steps 3 through 5 to program additional

6 

tray. To play the same program again, select the CD function, and then press 

Tocancel Program Play

Press PLAY MODErepeated ly until “PGM” disappears whilethe player is stopped.

Press CLEAR

To view program information, such as total track number of the program

Press DISPLAYrepeatedly.

Presetting radio stations

Youcan preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number.

1 Tune in the desired station (See “Listening to the

radio”).

2 Press TUNER MEMORY

3 Press +/− (or TUNING +/− on the unit) 

repeatedly to select your desired preset number.

Ifanotherstationisalreadyassignedtotheselected preset number, the stationis replaced by the new stations.

4 Press

5 Repeat steps 1 through 4 to store other stations.

preset stations are retained forabout half a day even if you disconnect the power cord or if a power failure occurs.

6 To call up a preset radio station, press TUNING

MODE then press +/− (or TUNING +/− on the unit) repeatedly to select the desired preset number.



repeatedly until“PGM” appears



repeatedly until the desired

Total playing time of the selected track





.



while the player is stopped.



.

Preset number



.



repeatedly until“PRESE T” appears, and

+/−





Using the timers

timers, the Sleep Timer has priority.

Use buttonson the remote to use the timer functions.

Sleep Timer:

the clock is not set.

 repeatedly. If you select “AUTO,” the

Press SLEEP

or in 100 minutes.

Play Timer:

Youcan wake up to CD or tuner at a preset time.

Make sure you have set the clock.

1 Prepare the sound source.

Press VOLUME +/−

your own CD program.

2 Press TIMER MENU 3 Press /  repeatedly to select “PLAY SET,” then

press

4 Set the time to start playback.

Press /



above to set the minutes.



5 Use the same procedure as in step 4 to set the time

.

to stop playback.

6 Select the sound source.

Press / want appears, and then press shows the timer settings.

7 Press 

If the system is on at the preset time, the Play Timer will not play.

To activate or check the timer again

1 Press TIMER MENU

2 Press

3 Press

/

press

To cancel the timer

Repeatthesameprocedureasabove until“OFF”appears in step 3, and then press

To change the setting

Start over from step 1.

Tip

manually.

 to adjust the volume.



.



.

 repeatedly to set the hour, then press

.

 repeatedly until the sound source you





.



.



repeatedly to select “PLAY SEL,” then



.



.

Troubleshooting

1 Make sure the power cord and speaker cords are

2 Find your problem in the checklist below, and take

the indicated corrective action.

If the issue persists, contact your nearest Sony dealer.

If “PROTECT” appears on the display

Immediately unplug the power cord,and check the

• Are the + and − speaker cords short-circuited?

• Is anything blocking the ventilation holes on the top

or back of the system?

tobeallright,reconnectthepower cord,andturnon the system. If the issue persists, contact your nearest Sony dealer.

General

The system does not turn on.

• Is the power cord plugged in?

There is no sound.

• Are the + and − speaker cords short-circuited?

• Are you using only the supplied speakers?

• Is anything blocking the ventilationholes on the top or

back of the system?

Sound comes from one channel, or the left and right volumes are unbalanced.

• Place the speakers as symmetrically as possible.



• Connect only the supplied speakers.

Severe hum or noise.

• Move the system away fromsources of noise.

•

cord.

The remote does not function.

• Remove any obstacles betwee n the remote and the

• Point the remote atthe system’s sensor.

• Move the remote closer to the system.

remote sensor



on the unit, and po sition the unit

CD/MP3 player

The sound skips, or the disc will not play.

• Wipe the disc clean, and replace it.

• Move the system to a location awayfrom vibration (for

example, on top of a stable stand).

• Move the speakers away fromt he system, orplace them on separate stands. At high volume, speaker vibration may cause the sound to skip.

• Return to Normal Play by pressingPL AY MODE repeatedly until both “PGM” and“SHUF” disappear.

Starting playback takes more time than usual.

− a disc recorded with a complicatedtree structure.

− a disc recorded in multisession mode.

−

can be added).

− a disc that has many folders.

The disc tray does not open and“LOCKED” appears.

• Contact your Sony dealer or local authorizedSony service facility.

To change the AM tuning interval

10 kHz. Use buttons onthe unit to change the AM tuning interval.

1

system.

2 Press DISPLAY

3 While holding down TUNING +

All the AM preset stations are erased. Toreset the interval to the factory preset, repeat the procedure.



to display the clock.

To improve tuner reception

management function. By default, CD power is turned on.

1 Press FUNCTION +/− (or FUNCTION on the unit) 

repeatedly to select the CD function.



2 Press 

3

to display the clock, and then press  while holding down 

“CD POWER OFF” appears. With CD player power

CD player power,repeat the procedure until “CD POWER ON” appears.

To reset the system to factory settings

If the system still does not operate properly, reset the system to factory settings. Use buttons on the unitto reset t he unitto its factor y default settings.

1 Disconnect and reconnect the power cord, and then

turn on the system.

2 Press 

time.

stations, timer, and the clock, are deleted.



.



, FUNCTION, and at the same

Messages

CANNOT LOCK :

you have done the procedure of “Whencarr ying this system.”

COMPLETE : FULL :

(steps).

LOCKED :

nearest Sony dealer.

NO DISC :

loaded a disc that cannot be played.

NO STEP : All of the programmed tracks have been

erased.

OVER : Youhave reached the end of the disc while

PUSH STOP : Youpressed PLAY MODE



PROTECT :

READING :

TIME NG :



pressing 

playback.

− Speaker cords may be short-circuited.

−

See “If “PROTECT” appears on the display” to check what to do if this message appears.

disc. Some buttons are not avai lable.

thesametime.

during playback or pause.



, press .





during

Tuner

Severe hum or noise, or stations cannot be

display.)

• Connecttheantennaproperly.

• Find a location and an orientation that provide good

reception, and then set up the antenna again.

• Keep the antennas away fromt he speaker cordsand the power cord to avoid picking up noise.

•

7

HCD-EC68P/EC78P

HCD-EC78P: UK model:

Basic Operations

remote,butthesameoperationscanalsobeperformed usingthebuttonsonthe unithavingthesameor similar names.

Before using the system

To use the remote

Slide and remove the battery compartment lid ,and insert the two R6 (size AA) batteries (supplied),  side

Notes on using the remote

• Withnormal use, the batteries should last for about six months.

•

batteries.

• Ifyou do not use the remote for a long period of time, remove the batteries to avoid damage frombattery le akage and corrosion.

• Batteries installed devicesshall not be exposed to excessive heat such

To set the clock

1 Turn on the system.

Press  (on/standby)

2 Select the clock set mode.

Press TIMER MENU

select “CLOCK,” and then press

3 Set the time.

Press /

(enter)

Use the same procedure to set the minutes.

Note

power failure occurs.



to turn on the system.



/repeatedly to

(enter).



repeatedlytosetthehour,thenpress



Adjusting the sound

To adjust the volume

Press VOLUME +/− (orturn the VOLUME control on



.

the unit)

To Press

Generate a more dynamic sound (Dynamic Sound Generator X-tra)

DSGX

EQ.



on the unit.

Playing a CD/MP3 disc

1 Select the CD function.

Press FUNCTION +/− (or FUNCTION on the unit)



repeatedly.

2 Place a disc.

Press  (open/close) disc with the label side up on the disc tray.To place

shown below. Toclos e the disc tray, press  (open/close) unit.

this may damage the unit.

3 Select a disc.

If the discs are currently stopped, press DISC SKIP Tochange discs while in other func tions,press DISC 1 − 3

4 Start playback.

Press  (play) To exchange other discs during playback, press EX-CHANGE

To Press

Pause playback

Stop playback

Select a folder on an MP3 disc

Find a point in a

Select RepeatPlay

To change the play mode

Press PLAY MODErepeatedly while the player is stopped. You can select normal play (no display for all discs or “1 DISC” for a disc or “

or “ (“PGM”).

* When playing a CD-DA disc, (SHUF)Play performs the same

operation as 1 DISC (SHUF) Play.

Notes on Repeat Play

•

time.

•

it.

Notes on playing MP3 discs

•

the disc.

•

“.MP3”.

•

malfunction.

•

− folders is 150 (including the root folder).

−

•

device, and recording media cannotbe guaranteed. Incompatible MP3 discs may produce noise or interrupted audioor may not play at all.

Notes on playing multisession discs

• Ifthe disc begins with a CD-DA (or MP3) session, it is recognized as a CD-DA (or MP3) disc, and playback continues untilanother session is encountered.

• A discwith a mixed CD format is recognized as a CD-DA (audio) disc.



on the unit, and place a

 on the unit.



.



on the unit.



 (pause)

.Toresumeplay,

press the button again.



.

 (stop)

+/− (select folder).

(go back/go forward)

/

(or/on the unit)

Hold down/ (rewind/fast



during playback, and

forward) release the button at the desired point.



repeatedly until

REPEAT “REP” or “REP1” appears.



on the



Listening to the radio

1 Select “TUNER FM” or“TUNER AM.”

Press FUNCTION +/− (or FUNCTION on the unit)



repeatedly.

2 Select the tuning mode.

Press TUNING MODE appears.

3 Tune in the desired station.

Press +/− (or TUNING +/ on the unit) Scanning stops automatically when a stationis tuned in, and then “TUNED” and “ST” (for stereo programs) appear.

To stop automatic scanning

Press  (stop).

To tune in a station with a weak signal

If “TUNED” does not appear and the scanning does not stop, press TUNING MODE “MANUAL” appears, and then press +/− (or TUNING +/− on the unit) station.

To reduce static noise on a weakFM stereo station

Press FM MODErepeatedly until“MONO” appears



 repeatedly to tune in the desired

Changing the display

To Press

Change information on the display* Change Display



.

mode (See below.)

* For example,you can view CD/MP3 disc information, such as;

−

− ”) duringnormal play.

− artist name (“

− album or folder name (“

− total playing t ime while the player is stopped.

Display mode

Power Saving

1)

Mode

2)

Clock

1)

Youcannot set the clock in Power Saving Mode.

2)

eight seconds.

.

Notes on the display information

• Charactersthat cannot be displayed appear as “_”.

•

− total playing time for an MP3 disc.

−

•

−

bit rate).

−

Level 2 or Joliet in the expansion format.

•

− total playing time for a CD-DA disc when the play mode is “1 DISC”.

− remaining playing time for a track.

−

version 2 tags are used (ID3 version 2 tag information displayhas priority when both ID3 version 1 and version 2 tagsare used for a

− up to 15 characters of ID3 tag information using uppercase letters (A to Z), numbers (0 to 9), and symbols (‘< > * + , – / @ [ \ ] _).

 repeatedly when the

DISPLAY system is turned on.

 repeatedly when the

DISPLAY

”) during normal play.

”) duringnormal play.

to operate.

repeatedly until “AUTO”

.



repeatedly until

Using optional audio components

To connect an optional headphones

Connect headphones to the PHONES jackon the unit.

To connect an optional component

Connect additional audio source componentsto the AUDIO IN jack cord (not supplied). Turn down the volume on the system, and then select the AUDIO IN function.

To connect a DIGITAL MEDIA PORT adaptor

Connect the DIGITAL MEDIA PORT adaptor to the DMPORT DIGITAL MEDIA PORT adaptor to an optionalaudio device (portable audio player, etc.).

Notes on DIGITAL MEDIA PORT adaptor

• Available DIGITAL MEDIA PORT adaptors vary in each area.

• Donot connect an adaptor other than the DIGITAL MEDIA PORT

adaptor.

• Donot connect or disconnect the DIGITAL MEDIA PORT adaptor to/from the DMPORT

• Whenusing a DIGITAL MEDIA PORT adaptorthat has video output function, connect t he adaptor directly to the TV.

• For detailsabout the DIGITAL MEDIA PORT adaptor, refer to the operating instructions supplied with yourDIGITAL MEDIA PORT adaptor.

1,



on the unit using an analog audio



on the unit. You need to connect t he



while the system is on.

8

HCD-EC68P/EC78P

Other Operations

Creating your own CD program (Program Play)

Use buttons on the remoteto create your own program.

1 Press FUNCTION +/− (or FUNCTION on the unit) 

repeatedly to select the CD function.

2 Press PLAY MODE

while the player is stopped.

3 Press DISC SKIP 4 Press / (or

repeatedly until the desired track number appears.

repeatedly to select the desired folder,and then selec t

5 Press

6 Repeat steps 3 through 5 to program additional

7 

tray. To play the same program again, select the CD function, and then press 

Tocancel Program Play

Press PLAY MODErepeated ly until “PGM” disappears whilethe player is stopped.

Press CLEAR

To view program information, such as total track number of the program

Press DISPLAYrepeatedly.

Presetting radio stations

Youcan preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number.

1 Tune in the desired station (See “Listening to the

radio”).

2 Press TUNER MEMORY

3 Press +/− (or TUNING +/− on the unit) 

repeatedly to select your desired preset number.

Ifanotherstationisalreadyassignedtotheselected preset number, the stationis replaced by the new stations.

4 Press

5 Repeat steps 1 through 4 to store other stations.

preset stations are retainedfor about half a day even if you disconnect the power cord or if a power failure occurs.

6 To call up a preset radio station, press TUNING

MODE then press +/− (or TUNING +/− on the unit) repeatedly to select the desired preset number.



repeatedly until“PGM” appears



to select a disc.

on the unit)

/

Total playing time of the selected track





.



while the player is stopped.



.

Preset number



.



repeatedly until“PRESE T” appears, and

+/−







Using the timers

timers, the Sleep Timer has priority.

Usebuttonsontheremotetousethetimerfunctions.

Sleep Timer:

the clock is not set.

XK

Press SLEEP

or in 100 minutes.

Play Timer:

Youcan wake up to CD or tuner at a preset time.

Make sure you have set the clock.

1 Prepare the sound source.

2 Press TIMER MENU 3 Press /

4 Set the time to start playback.

5 Use the same procedure as in step 4 to set the time



.

6 Select the sound source.

7 Press 

To activate or check the timer again

1 Press TIMER MENU

2 Press 3 Press /

To cancel the timer

Repeat the same pro cedure as above until “OFF” appears in step 3, and then press

To change the setting

Start over from step 1.

Tip

manually.

repeatedly.If you select “AUTO,” the

Press VOLUME +/− (or turn VOLUME onthe unit)



to adjust the volume.

your own CD program.

press

Press /



above to set the minutes.

to stop playback.

Press / want appears, and then press shows the timer settings.

If the system is on at the preset time, the Play Timer will not play.

then press



.



repeatedly to select“PLAY SET,” then



.



repeatedly to set the hour, then press

.



repeatedly untilthe sound source you





.



.



repeatedly to select“PLAY SEL,” and



.



.

Troubleshooting

1 Make sure the power cord and speaker cords are

2 Find your problem in the checklist below, and take

the indicated corrective action.

If the issue persists, contact your nearest Sony dealer.

If “PROTECT” appears on the display

Immediately unplug the power cord,and check the

• Are the + and − speaker cords short-circuited?

• Is anything blocking the ventilation holes on the top

or back of the system?

tobeallright,reconnectthepower cord,andturnon the system. If the issue persists, contact your nearest Sony dealer.

General

The system does not turn on.

• Is the power cord plugged in?

There is no sound.

• Are the + and − speaker cords short-circuited?

• Are you using only the suppliedsp eakers?

• Is anything blockingt he ventilation holes on the top or

back of the system?

Sound comes from one channel, or the left and right volumes are unbalanced.

• Place the speakers as symmetrically as possible.

• Connect only the supplied speakers.



Severe hum or noise.

• Move the system awayf romsources of noise.

•

cord.

The remote does not function.

• Remove any obstacles between the remote and the

• Point the remote atthe system’s sensor.

• Move the remote closer to the system.

remote sensor



on the unit, and po sition the unit

CD/MP3 player

The sound skips, or the disc will not play.

• Wipe the disc clean, and replace it.

• Move the system to a locationaway from vibration (for

example, on top of a stable stand).

• Move the speakers awayf romthe system, or place them on separate stands. At high volume,spea kervibration may cause the sound to skip.

• Return to Normal Play by pressing PLAY MODE repeatedly until both “PGM” and“SHUF” disappear.

Starting playback takes more time than usual.

•

− a disc recorded with a complicated treestr ucture.

− a disc recorded in multisession mode.

−

can be added).

− a disc that has many folders.

The disc tray does not open and“LOCKED” appears.

• Contact your Sony dealer or local authorized Sony service facility.

To change the AM tuning interval

10 kHz. Use buttons onthe unit to change the AM tuning interval.

1

system.

2 Press DISPLAY

3 While holding down TUNING +

All the AM preset stations are erased. Toreset the interval to the factory preset, repeat the procedure.



to display the clock.

To improve tuner reception

management function. By default, CD power is turned on.

1 Press FUNCTION +/− (or FUNCTION on the unit)

repeatedly to select the CD function.



2 Press 

3

to display the clock, and then press  while holding down 

“CD POWER OFF” appears. With CD player power

CD player power,repeat the procedure until “CD POWER ON” appears.

To reset the system to factory settings

If the system still does not operate properly, reset the system to factory settings. Use buttons on the unitto reset t he unitto its factor y default settings.

1 Disconnect and reconnect the power cord, and then

turn on the system.

2 Press 

time.

stations, timer, and the clock, are deleted.



.



, FUNCTION, and at the same

Messages

CANNOT LOCK :

you have done the procedure of“When carr ying this system.”

COMPLETE : FULL :

(steps).

LOCKED :

nearest Sony dealer.

NO DISC :

loaded a disc that cannot be played.

NO STEP : All of the programmed tracks have been

erased.

OVER : Youhavereachedthe endofthe discwhile

PUSH STOP : Youpressed PLAY MODE



PROTECT :

READING :

TIME NG :



pressing 

playback.

− Speaker cords may be short-circuited.

−

disc. Some buttons are not availabl e.

the same time.

during playback or pause.

See “If “PROTECT” appears on the display” to check what to do if this message appears.



, press .







during

Tuner

Severe hum or noise, or stations cannot be

display.)

• Connecttheantennaproperly.

• Find a location and an orientation that provide good

reception, and then set up the antenna again.

• Keep the antennas away fromt he speaker cordsand the power cord to avoid picking up noise.

•

9

HCD-EC68P/EC78P

• This set can be disassembled in the order shown below.

3-1. DISASSEMBLY FLOW

SET

3-2. SIDE PANEL (L)/(R) (Page 11)

3-3. PANEL (TOP) (Page 11)

SECTION 3

DISASSEMBLY

3-5. FRONT PANEL BLOCK (EC78P: UK) (Page 12)

3-8. 3 CD MECHANISMBLOCK (EC78P: UK) (Page 14)

3-9. BASE UNIT (EC78P: UK) (Page 14)

3-14. OP BASE ASSY (KSM-213D) (Page 17)

(EC78P: UK)

3-4. MAIN BOARD (Page 12)

3-13. BELT (EC78P: UK) (Page 16)

3-6. FRONT PANEL BLOCK (EC68P/EC78P: US, Canadian) (Page 13)

3-10. 1 CD MECHANISM BLOCK (EC68P/EC78P: US, Canadian) (Page 15)

3-11. BASE UNIT (EC68P/EC78P: US, Canadian) (Page 15)

3-12. BELT (EC68P/EC78P: US, Canadian) (Page 16)

3-14. OP BASE ASSY (KSM-213D) (Page 17)

(EC68P/EC78P: US, Canadian)

3-7. BACK PANEL BLOCK (Page 13)

10

Note: Follow the disassembly procedure in the numerical order given.

3-2. SIDE PANEL (L)/(R)

four screws



(case3 TP)

side panel (L)



two screws



(BVTP3 × 10)

HCD-EC68P/EC78P

two screws



(BVTP3 × 10)

3-3. PANEL (TOP)



(KTP3 × 10)

screw

panel (top)



two claws



two screws



(BVTP3 × 10)



side panel (R)



four screws



(case3 TP)

two screws



(BVTP3 × 10)

screw



(KTP3 × 10)

11

HCD-EC68P/EC78P

3-4. MAIN BOARD

two screws

RG

(BVTP3 × 6)

screw

RB

(BVTP3 × 10)

flexible flat cable (31 core)



(CN803)

flexible flat cable (9 core)



(CN605)

flexible flat cable (11 core)



(CN609)

connector (CN604)



MAIN board

RH

connector (CN151) (EC78P)



flexible flat cable (5 core)



(CN603)

flexible flat cable (5 core)



(CN602) (EC78P)

connector (CN633)



connector (CN601)



two screws

RE

(BVTP3 × 10) (EC78P)

two screws

RT

(BVTP3 × 10)

flexible flat cable (21 core)



(CN608)

3-5. FRONT PANEL BLOCK (EC78P: UK)

flexible flat cable



(11 core) (CN609)

flexible flat cable (31 core)



(CN803)

front panel block



flexible flat cable (13 core)



(CN302)

lever

12

door (CD)



flexible flat cable



(9 core) (CN605)

pull the tray by hand.



two screws



(BVTP3 × 10)

gear

Turn a gear by a driver



till a lever falls down to the position of the figure.

3-6. FRONT PANEL BLOCK (EC68P/EC78P: US, Canadian)

flexible flat cable



(11 core) (CN609)

flexible flat cable (31 core)



(CN803)

front panel block



HCD-EC68P/EC78P

door (1 CD)



flexible flat cable



(5 core) (CN001)

3-7. BACK PANEL BLOCK

connector (power cord)



(CN053)

screw



(BVTP3 × 10)

flexible flat cable



(9 core) (CN605)

pull the tray by hand.



two screws



(BVTP3 × 10)

connector (CN601)



Slide the boss by a driver.



two screws



(BVTP3 × 10) (EC78)

two screws



(BVTP3 × 10)

four screws



(BVTP3 × 10)

boss

two screws



(BVTP3 × 10)

back panel block



Cut the clamp.



Note: Please do not forget fixation by clamping when you install the power cord.

13

HCD-EC68P/EC78P

3-8. 3 CD MECHANISM BLOCK (EC78P: UK)

flexible flat cable



(21 core) (MAIN board: CN608/ CD board: CN201)

3 CD mechanism block





flexible flat cable



(13 core)

two screws (BVWH)



3-9. BASE UNIT (EC78P: UK)

 two screws (PTPWHM2.6)

 two springs (insulator)

 insulator

cover (DLM3)



 insulator

four screws



(BVTP3 × 10)

two tapes



Note: When installing the CD mechanism section, install two tapes for prevention of noise.

 two screws (PTPWHM2.6)

 two springs

(insulator)

 insulator



 base unit

14

3 CD mechanism block

– Bottom view –

3-10. 1 CD MECHANISM BLOCK (EC68P/EC78P: US, Canadian)

PT block



two screws



(BVTP4 × 12)

three screws



(BVTP3 × 10)

1 CD mechanism block



flexible flat cable



(21 core) (CN201)

HCD-EC68P/EC78P

connector



(CN053)

two screws



(BVTP4 × 12)

flexible flat cable (5 core)



(CN001)

3-11. BASE UNIT (EC68P/EC78P: US, Canadian)

 floating screw

 two floating screws

 two springs (insulator)

 insulator

 two floating screws

 two springs

(insulator)

 insulator

– Bottom view –



 base unit

loading (BK) assy

15

HCD-EC68P/EC78P

3-12. BELT (EC68P/EC78P: US, Canadian)

position of belt

belt



claw





belt

tray (AU)



3-13. BELT (EC78P: UK)

position of belt

belt



claw

16

belt

two belts (DLM3A)





cover

four screws



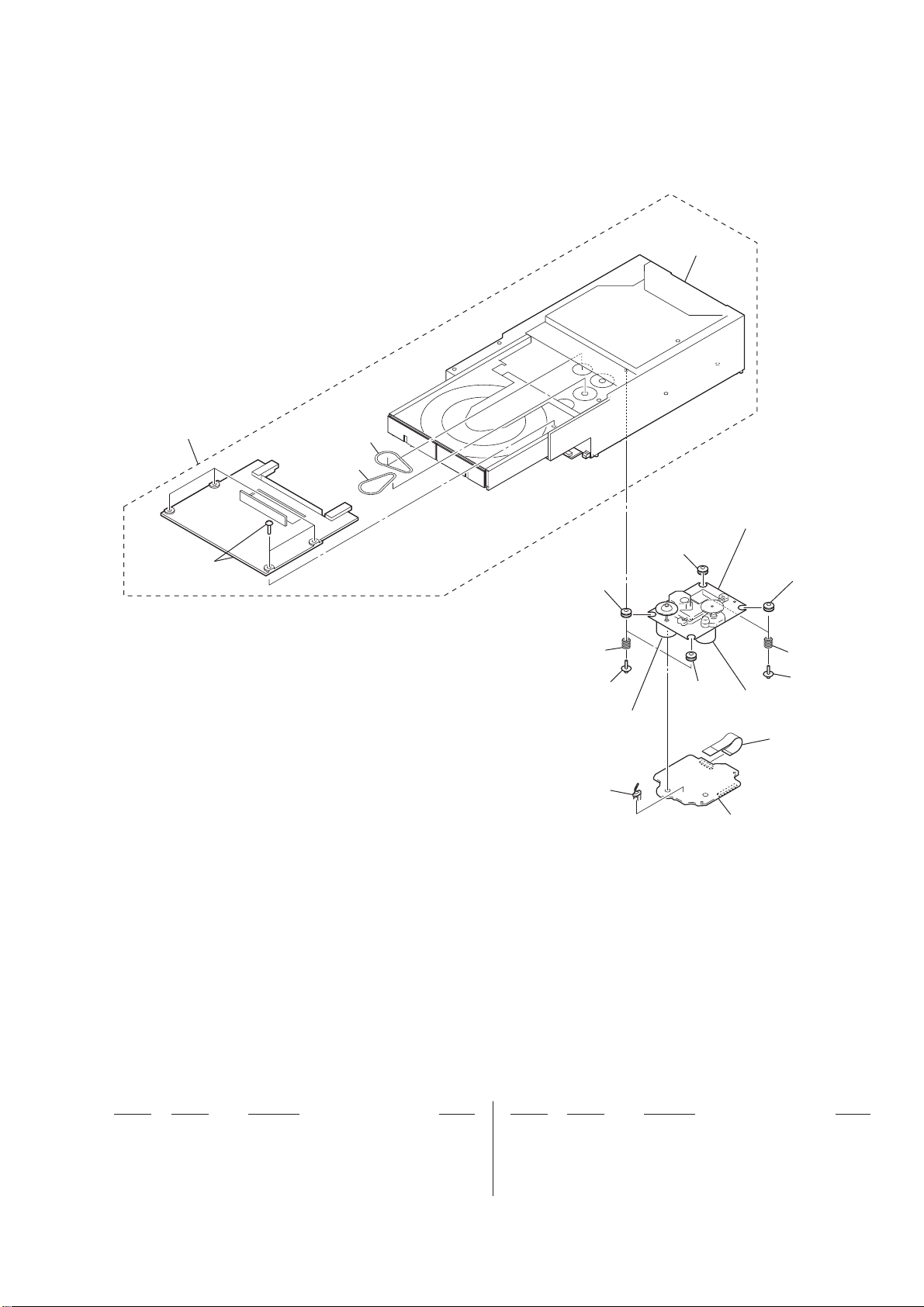

3-14. OP BASE ASSY (KSM-213D)

op base assy



(KSM-213D)

flexible flat cable (16 core)



(CN301)

CD board



HCD-EC68P/EC78P

Remove four solders.



17

HCD-EC68P/EC78P

SECTION 4

TEST MODE

COLD RESET

The cold reset clears all data including preset data stored in the memory to initial conditions. Execute this mode when returning the set to the customer.

Procedure:

1. In the standby status, press the [ on.

2. Press three buttons of [x], [FUNCTION] and at last [ multaneously.

3. When “RESET” appears, the set enters standby status.

] button to turn the power

I/1

] si-

PANEL TEST MODE

Enter The Panel Test Mode

Procedure:

1. In the standby status, press the [ on.

2. Press three buttons of [DISPLAY], [x], and [FUNCTION] simultaneously.

3. When the panel test mode is activated, LEDs and segments of the liquid crystal display are all turned on.

Version Check

Procedure:

1. In the panel test mode (all LEDs and segments of the liquid crystal display are turned on), press the [FUNCTION] button.

2. On the liquid crystal display, date and version are displayed “xxxxxxxx”. For example, “1114V102”.

3. From this status, press the [X] button, and the destination and model name are displayed. For example, “CE2” and “ESLO–”.

4. To release from this mode, press three buttons of [DISPLAY], [x], and [FUNCTION] simultaneously.

Key Test Mode

Procedure:

1. In the panel test mode (all LEDs and segments of the liquid crystal display are turned on), press the [DISPLAY] button.

2. The message “KEY0 0 0”displayed. Whenever any buttons are pressed and the [VOLUME] dial is turned, the value is changed.

3. To release from this mode, press three buttons of [DISPLAY], [

], and [FUNCTION] simultaneously.

x

] button to turn the power

I/1

CD REPEAT 5 LIMIT CANCEL MODE

Number of repeats for CD playback is 5 times when the repeat mode is “REPEAT”. This mode enables CD to repeat playback for limitless times.

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function.

3. Press three buttons of [DISPLAY], [ ING] simultaneously.

4. It enters the CD repeat 5 limit cancel mode and displays “NO LIMIT”

5. To release this mode, press the [

] button to turn the power on.

I/1

], and [

x

] button to turn the power off.

l m

– TUN-

CD SHIP MODE

This mode can run the CD sled motor optionally. Use this mode, for instance, when cleaning the optical pick-up.

Procedure:

1. Press the [

2. Conﬁ rm there is no disc in all trays.

3. Press the [FUNCTION] button to select CD function.

4. Press two buttons of [CD N] and [

5. Set to the CD ship mode. (chucking on)

6. After blink “STANDBY”, “LOCK” is displayed, disconnect the AC plug.

] button to turn the power on.

I/1

] simultaneously.

I/1

CD TRAY LOCK

This mode is for the antitheft of CD disc in shop. (not for transport)

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function.

3. Insert a disc.

4. While pressing the [ seconds.

5. The message “LOCKED” is displayed and the disc tray is locked. (Even if exiting from this mode, the disc tray is still locked)

6. If press the [Z] button to eject the disc, the message “LOCKED” is displayed and can not eject the disc.

7. To release this lock, while pressing the [

] button for 5 seconds again.

[

Z

8. The message “UNLOCKED” is displayed and the disc tray is unlocked.

] button to turn the power on.

I/1

] button, press the [Z] button for more 5

x

] button, press the

x

CD POWER MANAGE

This mode is for switch the CD power supply on/off. Even if this state pulls out AC plug, it is held.

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function.

3. Press the [

4. After pressing the [DISPLAY] button, while pressing the [ button, press the [

5. It turns power on and display “CD POWER”, then display “ON” or “OFF”.

] button to turn the power on.

I/1

] button again to turn the power off (standby).

I/1

] button.

I/1

]

x

CHANGE-OVER THE AM TUNING INTERVAL

(Except EC78P: UK model)

The AM tuning interval can be changed over 9 kHz or 10 kHz.

Procedure:

1. Press the [

2. Press the [TUNER/BAND] button to select TUNER (AM) function.

3. Press the [

4. After pressing the [DISPLAY] button, while pressing the [TUNING +

5. It turns power on and display “9k STEP” or “10k STEP”, and thus the tuning interval is changed over.

] button to turn the power on.

I/1

] button again to turn the power off (standby).

I/1

M L

] button, press the [

I/1

] button.

CD SHIP AND COLD RESET

Procedure:

1. Press the [

2. Conﬁ rm there is no disc in all trays.

3. Press the [FUNCTION] button to select CD function.

4. Press three buttons of [PLAY MODE/TUNING MODE], [

l m

5. After blink “STANDBY”, “RESET” is displayed, disconnect the AC plug.

] button to turn the power on.

I/1

– TUNING] and [

] simultaneously.

I/1

COMMON TEST MODE

Procedure:

1. Press the [

2. Press three buttons of [PLAY MODE/TUNING MODE], [TUNING +

3. It enters the common test mode and displays “COMMON”.

4. Each time the [VOLUME] dial is turned, “VOL MIN”, “VOL 16”, and “VOL MAX” are displayed.

5. To release from this mode, press three buttons of [PLAY MODE/TUNING MODE], [TUNING + PLAY] simultaneously.

] button to turn the power on.

I/1

M L

], and [DISPLAY] simultaneously.

M L

], and [DIS-

18

HCD-EC68P/EC78P

[CD SERVO TEST MODE]

This mode can check the servo system operations of the optical pick-up system (= optical unit + CD board).

Note1: Do not enter the [CD SERVO TEST MODE] while any other test

mode is in progress.

Note2: Do not enter any other test mode while the [CD SERVO TEST

MODE] is in progress.

How to Enter the CD Servo Test Mode

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function.

3. Press three buttons of [CD N], [ [DISPLAY] simultaneously.

4. It enters the CD servo test mode and displays “BDT S CU”.

How to Exit from the CD Servo Test Mode

Procedure:

1. Press three buttons of [CD N], [ [DISPLAY] simultaneously.

2. It releases from the CD Servo Test Mode and returns to the ordinary CD function.

Key Operation:

[

+], [ –]:

Use these keys to move between the ﬁ ve modes

[DSGX] , [EQ]: Use these keys to move between the different layers

[TUNING + Use these keys to move the cursor to the right digit

Press [TUNING +

] button to turn the power on.

I/1

l m

– TUNING] and

contained in the CD Servo Test Mode, that are the S-Curve Mode, the RAM Read Mode, the RAM Write Mode, the Command Out Mode and the Error Rate Mode as described below. Also, use these keys to move between the menus within the respective ﬁ ve modes. When [

+] is pressed, the screen advances to the next menu or to the next mode. When [ –] is pressed, the screen returns back to the previous menu or to the previous mode. Use these keys also to increase or decrease the numeric value when changing the numeric value. Pressing [ +] increases the value and pressing [ –] decreases the value.

of the hierarchy of the CD Servo Test Mode shown below. Press [DSGX] to move down to the lower layer, and press [EQ] to move up to the higher layer.

M L

], [

l m

– TUNING]:

or to the left digit in the six-digit number, when changing the numeric value.

M L

to the right, and press [

] to move the cursor

l m

– TUNING] to

return the cursor to the left.

CD Servo Test Mode Tree:

S Curve Mode LD ON (BDT S CU) (LD ON)

RAM Read Mode (BDTRAM R) (DISCTYPE) (AL: 0000, RW: 0001) Gain Index value indication (GAININDX) (0001) RFO GAIN value indication (RFO_GAIN) (0009) FEO GAIN value indication (FEO_GAIN) (0005) SBAD GAIN value indication (SBAD_GAI) (0007) TEO GAIN value indication (TEO_GAIN) (000A) Disc Size value indication (DISCSIZE) (0000: Non disc, 0001: 8cm, 0002: 12cm)

(OPABRKER) (0000) SBBT Data value indication (SBBT DAT) (006C) FEOOCD value indication (FEOOCD) (0440)

RAM Write Mode (BDTRAM W) (00 SPG) (Non mask:00, Mask:01) Fix RF Gain value edit (00 FIX) (Non Fix:00, AL Fix:01, RW Fix:02) TMAX ON value edit (00 TMA) Driver Mute OFF value edit (00 D_M) (Normal:00, Forced OFF:01)

Command Out Mode (BDT COMO) (COMOUT6X) (000000) (OK) READ2X value edit command out (READ2X) (60) (50) REG READ value edit command out (REG_READ) (00) (0000) FEBC? command out (FEBC?) (00) FGADD? command out (FGADD?) (10) TEBC? command out (TEBC?) (00) TGADD? command out (TGADD?) (00) RFGC? command out (RFGC?) (00) FEOF? command out (FEOF?) (FFC0) TEOF? command out (TEOF?) (FFC0) TEIOCD1? command out (TEIOCD1?) (FE80) TEIOCD2? command out (TEIOCD2?) (FF40) TEIOCD3? command out (TEIOCD3?) (FFC0) TEOOCD? command out (TEOOCD?) (FD00) FEOOCD? command out (FEOOCD?) (F780) MONITOR value edit command out (MONITOR) (570A00) (OK) Error Rate Mode Error rate indication (BDT ERR) (00000000)

Higher layer Lower layer of menu hierarchy

Disc Type value indication

Op ABRAKE Error

SPG Mask value edit

COMOUT6X value edit command out

value indication

[FUNCTION]: Use this key to execute Command Out in the Com-

mand Out Mode.

19

HCD-EC68P/EC78P

CD SERVICE MODE

This mode can move the SLED of the optical pick-up, and also can turn the optical pick-up laser power on and off.

Procedure:

1. Press the [

2. Press three buttons of [CD N], [TUNING + DISPLAY simultaneously.

3. Press the [FUNCTION] button to select CD function.

4. It enters the CD service mode and displays “SERVICE”.

5. To exit from this mode, press three buttons of [CD N], [TUN- ING +

Key Operation:

[TUNING + Use these keys to move the SLED. When [TUN-

When [

[DISPLAY]: Use this key to turn the optical pick-up laser power

] button to turn the power on.

I/1

M L

] and DISPLAY simultaneously.

M L

], [

l m

ING +

M L

moves to outer circumference and the message “SLED OUT” is displayed.

l m

mode, the SLED moves to inner circumference and the message “SLED IN” is displayed.

on and off. When the laser power is turned on, the message “LD ON” is displayed. When the laser power is turned off, the message “LD OFF” is displayed.

– TUNING]:

] is pressed in this mode, the SLED

– TUNING] is pressed in this

], and

CD ERROR CODE

The past errors of the CD mechanism (CDM) are displayed as the CDM Errors, and those of the optical pick-up system (= optical unit + CD board) are displayed as the BD Errors as shown below.

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function.

3. Press three buttons of [TUNING + PLAY] simultaneously.

4. Then, the CDM error code is displayed as “M0xxxxxx” (x means hexadecimal number) on the liquid crystal display as shown below.

5. Every pressing of the [TUNING + mode increments the number after “M” starting from “M0” up to “M9”, and then returns to “M0”. Every pressing of the [

m

– TUNING] button in this mode decrements the number after “M”. The smaller the error code number is, the newer the error content is.

6. When the [PLAY MODE/TUNING MODE] button is pressed then, the BD error code is displayed as “D0xxxxxx” (x means hexadecimal number) on the liquid crystal display as shown below. In the same way as the CDM error code, use of the [TUNING + tons in this mode enables tracing of the error history.

7. To release from this mode, press the [ power off.

] button to turn the power on.

I/1

M L

] and the [

M L

l m

I/1

], [x] and [DIS-

] button in this

l

– TUNING] but-

] button to turn the

Contents of “CDM Errors”

Error display example

M 0 FF 11 42 1 2 3 4

1 It indicates the error history number 0 to 9: The error code number 0 indicates the newest error.

2 It indicates whether the CDM error occurs in the normal opera-

tions or during the initialization operation. FF : The error has occurred in the normal opera-

tions.

Other than FF : The error has occurred during the initialization

operation.

3 It indicates the processing during which the trouble has oc-

curred. 01: The disc EJECT processing is in progress. 02: The disc INSERTION-WAITING processing is in prog-

ress.

03: Processing of the disc INSERTION-REQUEST for the up-

per CD tray is in progress.

04: Processing of the disc EJECTION-REQUEST for the up-

per CD tray is in progress. 05: The disc pulling-in operation is in progress. 06: The disc chucking processing is in progress. 07: The disc re-chucking processing is in progress. 08: The disc chucking-release completion operation is in prog-

ress.

4 It indicates the operation during which the trouble has oc-

curred. 00 : Waiting for the operation. 10 to 13 : The disc EJECT operation is in progress. 20 : The disc pulling-in operation is in progress. 30 : The disc chucking-release operation is in progress. 40 to 43 : The disc EJECT operation due to error is in prog-

ress.

Contents of “BD Errors”

Error display example

0 02 09

D 1 2 3 4

1 It indicates the error history number 0 to 9: The error code number 0 indicates the newest error.

2 It indicates the error content

01: The focus servo cannot lock-in. 02: GFS is no good (NG). 03: The startup time exceeds the speciﬁ ed period of time (time

over) 04: The focus servo is unlocked continuously. 05: Q code cannot be obtained within the speciﬁ ed period of

time. 06: The tracking servo cannot lock-in. 07: Blank disc

01

20

HCD-EC68P/EC78P

3 It indicates the on-going processing of optical pick-up system

(= optical unit + BD board) when the trouble has occurred. 01: The CD SHIP mode processing is in progress. 02: The POWER OFF processing is in progress. 03: The INITIALIZE processing is in progress. 04: The optical pick-up system (= optical unit + BD board) is

in the stop state. 05: The STOP operation is in progress. 06: The startup processing is in progress. 07: The TOC read-in processing is in progress. 08: The SEARCH operation is in progress. 09: The PLAY operation is in progress. 0A: The PAUSE operation is in progress. 0B: The PLAY – MANUAL SEARCH operation is in prog-

ress. 0C: The PAUSE – MANUAL SEARCH operation is in prog-

ress.

4 It indicates the operation that is being processed when the trou-

ble has occurred.

It indicates the step number of each processing speciﬁ ed by 3.

Because the numbers of steps are different in each processing, this number is different in each processing.

CD FACTORY MODE

Note1: Do not enter the [CD FACTORY MODE] while any other test-

mode is in progress.

Note2: Do not enter any other test mode while the [CD FACTORY

MODE] is in progress.

Key Operation:

[DISPLAY]: The display changes in the following order when-

ever the button is pressed.

[DSGX]: RF gain setting changes whenever the button is

“–”: No gain ﬁ xation. “AL”: Fix to the gain for AL disc. “RW”: Fix to the gain for RW disc.

[EQ]: Tracking servo setting changes whenever the but-

“ON”: Tracking servo ON. “OFF”: Tracking servo OFF.

[FUNCTION]: S character mode setting changes whenever the but-

“ ”: S character mode OFF. “S”: S character mode ON.

(Initial display) fcsAG ** (**: Focus AGC value) trkAG ** (**: Track AGC value) RF-AG ** (**: RF AGC value)

pressed.

ton is pressed.

Procedure:

1. Press the [

2. Press the [FUNCTION] button to select CD function

3. Press three buttons of [CD N], [FUNCTION], and [DISPLAY] simultaneously.

4. It enters the CD factory mode and displays the following message.

] button to turn the power on.

I/1

–X1ON

S character mode setting Tracking servo setting RF gain setting

5. To release from this mode, press the [ power off.

] button to turn the

I/1

21

HCD-EC68P/EC78P

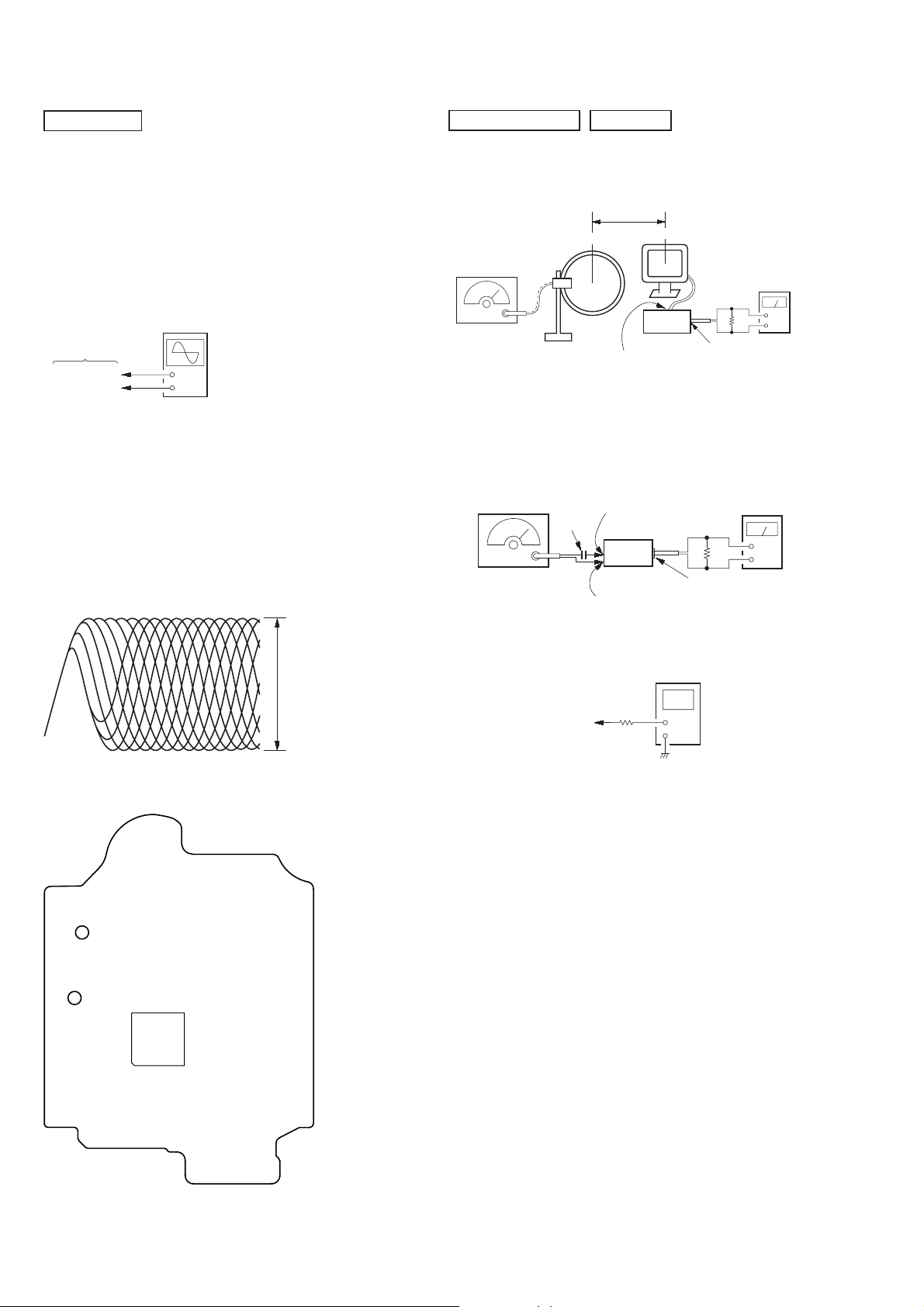

SECTION 5

ELECTRICAL ADJUSTMENTS

CD SECTION

Note:

1. CD Block is basically constructed to operate without adjustment.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10 MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the signal level is low than speciﬁ ed value with the following checks.

5. Check the focus bias check when optical pick-up block is replaced.

FOCUS BIAS CHECK

oscilloscope

(DC range)

CD board

TP121 (RFI)

TP124 (VC)

+ –

Procedure :

1. Connect the oscilloscope to TP121 (RFI) and TP124 (VC) on the CD board.

2. Press the [

] button to turn the power ON, and press the [Z]

?/1

button to open the CD disc tray.

3. Set disc (YEDS-18) on the trey and press the [CD N] button to playback.

4. Conﬁ rm that oscilloscope waveform is as shown in the ﬁ gure below. (eye pattern)

A good eye pattern means that the diamond shape (◊) in the

center of the waveform can be clearly distinguished.

VOLT/DIV: 200 mV TIME/DIV: 500 ns

TUNER SECTION

0 dB = 1 µV

[AM]

Setting:

FUNCTION: AM

loop antenna A

AM RF signal generator

30% amplitude modulation by 400 Hz signal

Output level: 54 dBuV

MAIN board ANTENNA CN801 pin 

[FM]

Setting:

FUNCTION: FM

FM RF signal

generator

0.01 F

75kHz frequency deviation by 1K Hz signal Output level: as low as possible (8dBuV)

MAIN board ANTENNA CN801 pin 

60 cm

loop antenna B

set

MAIN board ANTENNA CN801 pin 

set

level meter

32 Ω

JACK board PHONES jack (J492)

32 Ω

JACK board PHONES jack (J492)

+ –

level meter

+ –

Checking Location:

– CD Board (Conductor Side) –

TP124

(VC)

TP121

(RFI)

IC101

level:

1.2 ± 0.3 Vp-p

digital voltmeter

MAIN board

IC801 pin XL (TUNER VT)

100 kΩ

• Repeat the procedures in each adjustment several times.

22

HCD-EC68P/EC78P

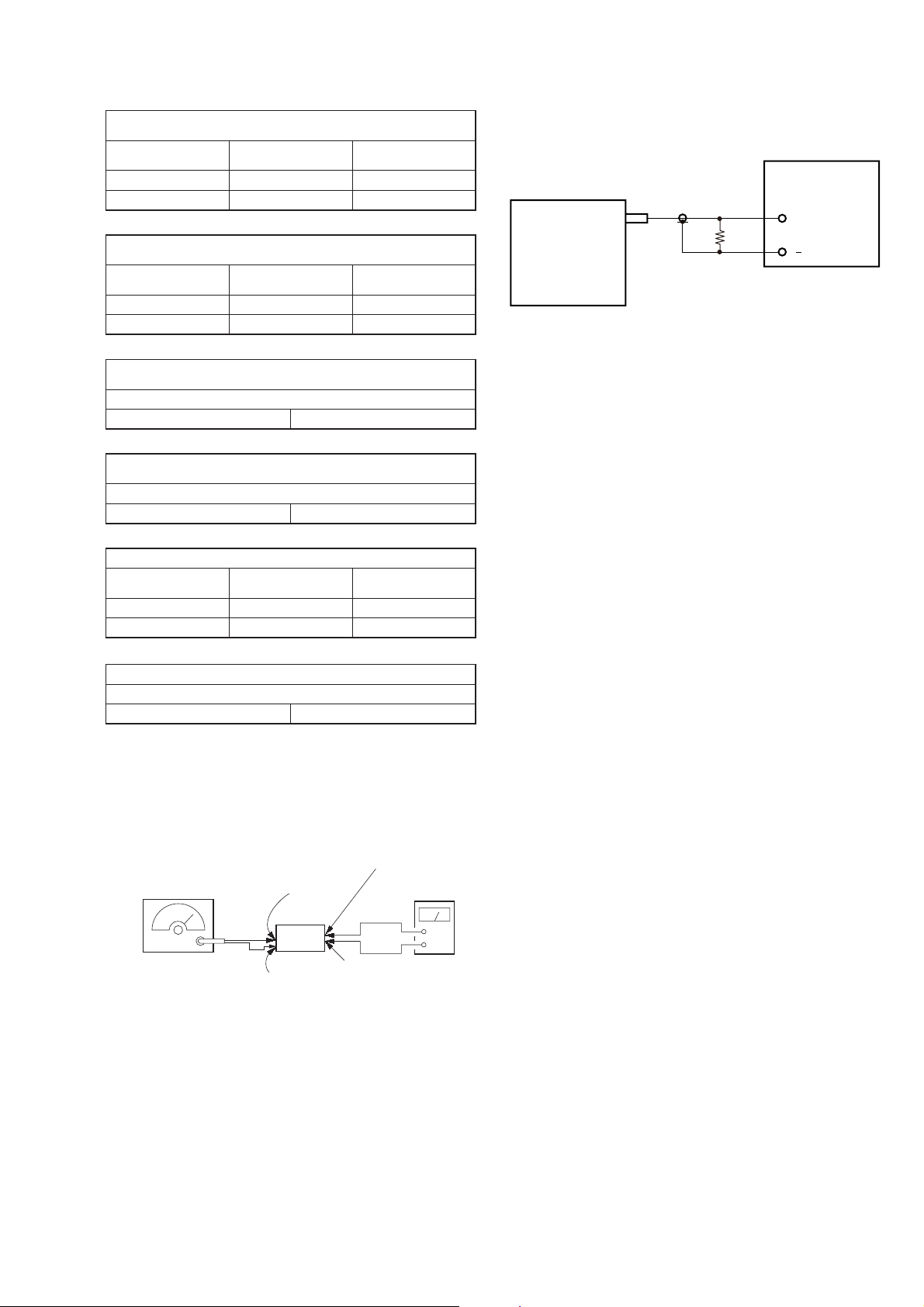

AM FREQUENCY COVERAGE ADJUSTMENT

Adjustment Part Frequency Display

L801 530 kHz 1.5 ± 0.1 V

Conﬁ rmation 1,710 kHz 8 ± 0.5 V

AM FREQUENCY COVERAGE ADJUSTMENT

Adjustment Part Frequency Display

L801 531 kHz 1.5 ± 0.1 V

Conﬁ rmation 1,602 kHz 7.2 ± 0.5 V

FM FREQUENCY COVERAGE ADJUSTMENT

Adjustment Part Frequency Display

L803 87.5 kHz 1.75 ± 0.1 V

Conﬁ rmation 108 kHz 6.2 ± 0.5 V

(Except EC78P: UK model)

Reading on Digital

Voltmeter

(EC78P: UK model)

Reading on Digital

Voltmeter

AM TRACKING ADJUSTMENT

(Except EC78P: UK model)

Adjust for a maximum reading on level meter

L805 530 kHz

AM TRACKING ADJUSTMENT

(EC78P: UK model)

Adjust for a maximum reading on level meter

L805 531 kHz

Reading on Digital

Voltmeter

FM TRACKING ADJUSTMENT

Adjust for a minimum reading on level meter

L804 98 MHz

FM AUTO STOP CHECK

generator

SET

+

75 Ω

Procedure :

1. Turn the power on.

2. Input the following signal from Signal Generator to FM antenna input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF)

Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You

cannot use video cable for checking.

Please use SG whose output impedance is 75 ohm.

3. Set to FM tuner function and scan the input FM signal with automatic scanning.

4. Conﬁ rm that input Frequency of A, B and C detected and auto- matic scanning stops.

The stop of automatic scanning means “The station signal is received in good condition”.

Adjustment Location: MAIN board (See page 24)

FM DETECTOR ADJUSTMENT

Setting:

FUNCTION: FM

FM RF signal

generator

Carrier frequency: 98MHz Modulation: deviation by FM 75 kHz Output level: 60 dBuV

MAIN board ANTENNA CN801 pin 

set

MAIN board ANTENNA CN801 pin 

MAIN board IC801 pin RT (TUNER OUT L-ch)

level meter

+ –

MAIN board JW801 (TUNER-GND)

1. Turn the set to 98 MHz.

2. Adjust L802 so that modulation distortion may become the best in the vicinity of the maximum value where the tuner out level becomes –15dBuV or more.

23

HCD-EC68P/EC78P

Adjustment Location and Connecting Points:

– MAIN Board (Component Side) –

L801

L804 AM Tracking

Adjustment

FM Frequency Coverage Adjustment

L802

FM Detector Adjustment

L803

FM Frequency Coverage Adjustment

L805

AM Tracking Adjustment

– MAIN Board (Conductor Side) –

3

CN801 ANTENNA

1

36

IC801

1

IC801 pin RT (TUNER OUT L-ch)

IC801 pin XL (TUNER VT)

19

18

JW801 (TUNER-GND)

24

HCD-EC68P/EC78P

2525

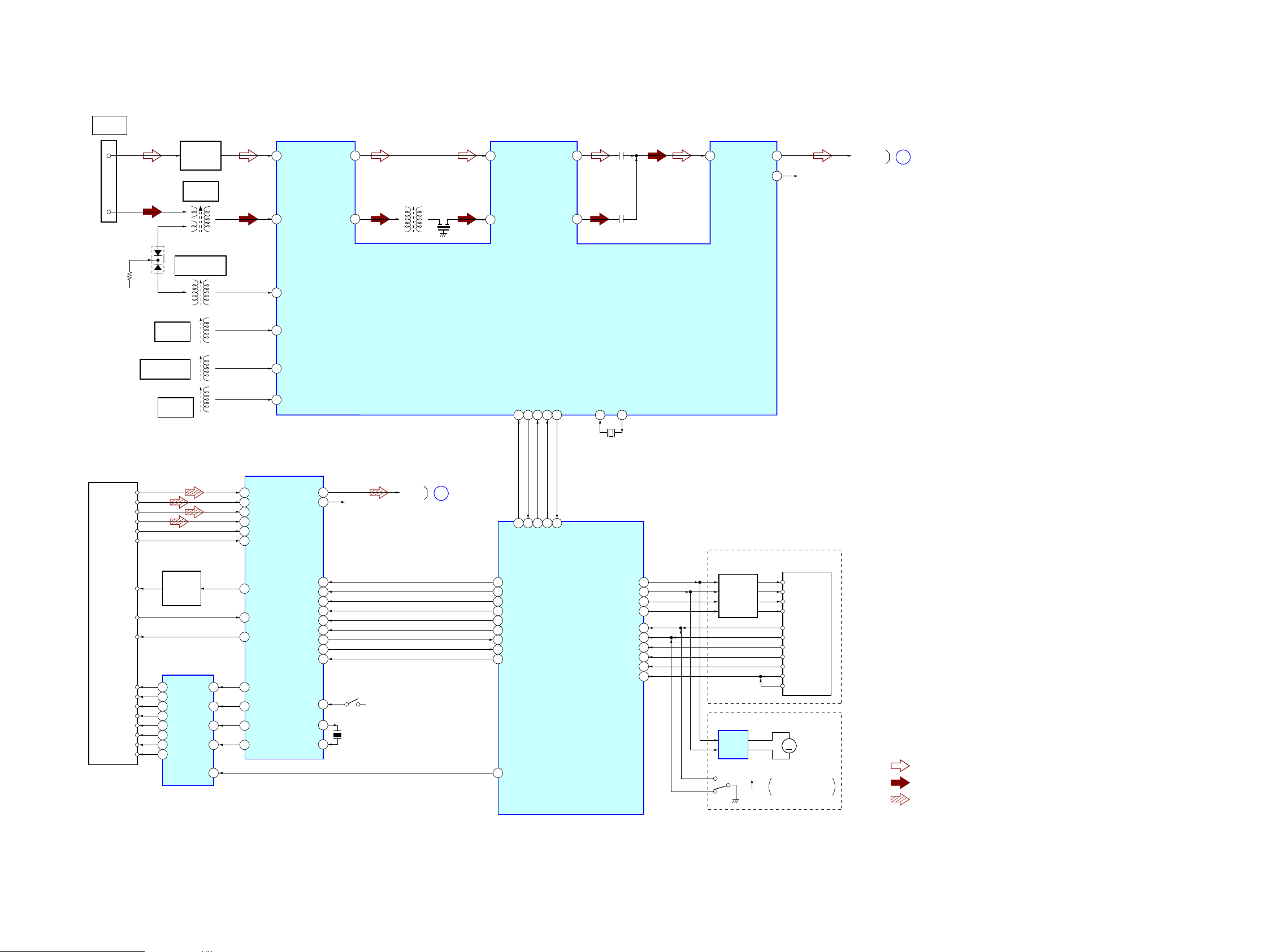

6-1. BLOCK DIAGRAM - CD SERVO, TUNER Section -

SECTION 6

DIAGRAMS

OPTICAL PICK-UP BLOCK

(KSM-213DCP)

B C D E

A

F

SP+

SP-

LD

PD

VC

AUTOMATIC

POWER

CONTROL

Q301

FOCUS/TRACKING COIL DRIVE,

SLED/SPINDLE MOTOR DRIVE

IC401

CD-MP3 PROCESSOR

IC101

VO1+2 VO1-

1

IN1

3

SL+

SL-

VO2-

12

VO2+

11

IN2’

9

T+

T-

VO3+

18

VO3-

17

IN3’

20

F+

F-

CD MECHANISM

DECK

M1M2+ M2-

M1+

VO4+

26

VO4-

27

IN4’

24

MUTE

7

97 FPi1 (B) 94 FNi2 (C) 96 FPi2 (D)

100

TNi (E)

95 FNi1 (A)

98 TPi (F)

91 LDo

MDi

84 VRo

13 DMo

92

12 FMo

10 TRo

9FOo

XO

XI

X102

16.9344MHz

S201

(LIMIT)

24

23

IO0 (/HSO)

20

LO CD-L30

RO R-CH

27

BUS0

38

BUS1

39

I/O-CD-BUS0

17

I/O-CD-BUS1

18

BUS2 (SO) 40

BUS3 (SI)

41

BUCK (CLK)

42

XCCE

43

PIO0

48

I/O-CD-BUS2

19

I/O-CD-BUS3

20

O-CD-BUCK

25

O-CD-CCE

26

XRST 37 O-CD-RST27

O-DR-MUTE

23

I-REQ

24

SBSY

54

O-3CD-M1+/O-CDM-M1+

8

O-3CD-M1-/O-CDM-M1- 10

O-3CD-M2+/NC

11

O-3CD-M2-/NC

12

O-CD-SBSY

43

B

A

MM

MOTOR DRIVER

IC303

S001

DISC TRAY

OPEN/CLOSE DETECT

CLOSE

OPEN

M001

(LOADING)

(EC68P/EC78P: US, Canadian)

(EC78P: UK)

MOTOR

DRIVE

Q311 - 318

SW3 SW2 I-CHACK

SW1

I-3CD-SW1/O-CDM-OPEN

7

I-3CD-SW3/O-CDM-CLOSE

5

I-3CD-SW2/NC 6

I-3CD-CHACK

21

I-STOCK I-OPEN I-CLOSE

I-3CD-STOCK

22

I-1CD-CLOSE_OPEN/NC

48

AM/FM-DET, OSC, MIX, PLL, IF AMP

IC801

36

FM RF-IN

8

FM IF-IN

22

MPX-IN

1

AM RF-IN

31

AM-OSC

33

I-TU-DO

56

O-TU-CLK

55

O-TU-CE

57

O-TU-DI

39

I-TU-ANSD

X801

75kHz

2019

XIN

XOUT

16DI17CL15

CE

18DO25

AGC

3

CN801

ANTENNA

FM/AM

1

BAND-PASS

FILTER

FL803

AM

TRACKING

L805

AM FREQUENCY

COVERAGE

L801

D801

7

AM IF-IN

T801

AM IF

34

FM RF-OUT

FM

TRACKING

L804

32

FM-OSC

FM FREQUENCY

COVERAGE

L803

+9V

11

FM-DET

FM

DETECTOR

L802

3FM-MIX 23FM DET-OUT 12L-OUT

13

R-OUT R-CH

TUNER-L

5

AM-MIX

24

AM DET-OUT

CF801

• SIGNAL PATH

: AM : CD PLAY

• R-ch is omitted due to same as L-ch.

: FM

SYSTEM CONTROLLER

IC301 (1/2)

HCD-EC68P/EC78P

2626

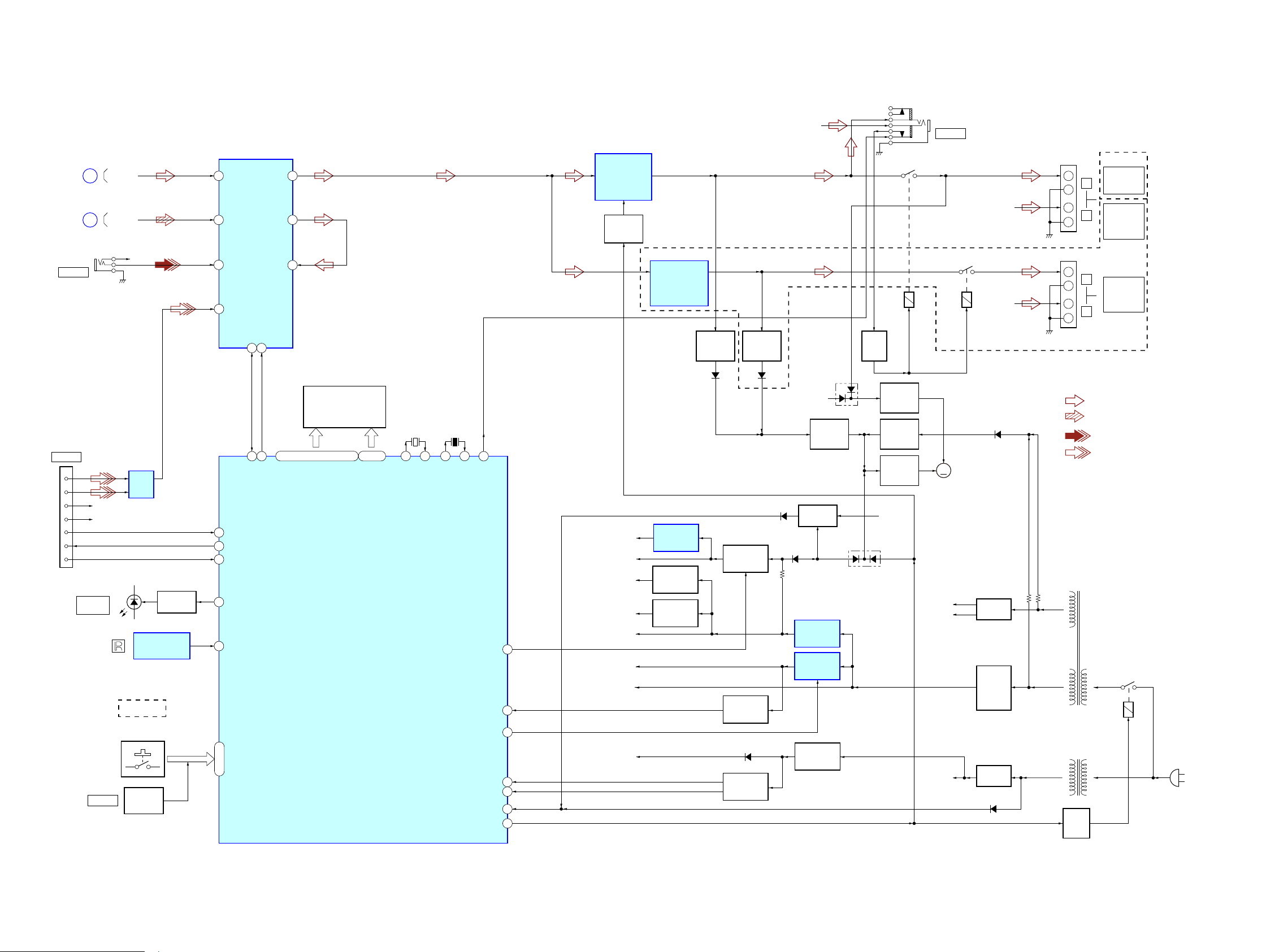

6-2. BLOCK DIAGRAM - MAIN Section -

SYSTEM CONTROLLER

IC301 (2/2)

INPUT SELECTOR,

ELECTRICAL VOLUME

IC602

4 19TUNER-L OUT-L

9SEL-L

12VOL-L

TUNER-L

31 O-USB-RXD/O-DMP-RXD 45 I-DMP-DET/O-USB-RST

29 I-USB-TXD/I-DMP-TXD

2 TC/DMP-L

A

6 CD-L

8 AUDIO-L

CD-L

B

M601 (FAN)

I-RST

54

I-USB-DO/I-DMP-5V-DET

30

I-HOLD

42

49

I/O-I2C-DATA

50

I/O-I2C-CLK

26

SDATA25SCLK

3O-POWER

• SIGNAL PATH

: CD PLAY

• R-ch is omitted due to same as L-ch.

: FM

: DMPORT

: AUDIO IN

FAN MOTOR

DRIVE

Q601, 602

PROTECT

DETECT

Q603

34O-USB-DI/5V-ON/O-TP-REC-MUTE

4O-CD-ON

RELAY DRIVE

Q619

PROTECT

DETECT

Q611, 612

PROTECT

DETECT

Q605, 606

OVER LOAD

DETECT

Q101, 102

D103

OVER LOAD

DETECT

Q151, 152

POWER AMP

IC101

(EC68P/EC78P: UK)

IC102

(EC78P: US, CND)

POWER AMP

IC151

(EC78P: UK)

IC152

(EC78P: US, CND)

+1.5V

REGULATOR

IC201

CD +1.5V

+9V

REGULATOR

IC601

+9V

+5V

REGULATOR

IC701

DMPORT +5V

RELAY B+

+3.3V

REGULATOR

Q622, 624

VOLTAGE

DETECT

Q305, 306

VOLTAGE

DETECT

Q761, 762

+4V

REGULATOR

Q302 - 304

D631

+9V

CD +3.3V

+3V

REGULATOR

Q801

TUNER +3V

+5V

REGULATOR

Q802

TUNER +5V

SYSTEM +3.3V

D152

D601

R-CH

D303

D055

D617

D628

D602, 606

MM

DC DETECT

Q618

STANDBY

SWITCH

Q608

J492

RY602

R-CH

PHONES

J491

AUDIO IN

CN901

DMPORT

SPEAKER

IMPEDANCE

USE 6Ω

SPEAKER

LOW FREQ.

IMPEDANCE

USE 8Ω

SPEAKER HIGH FREQ. IMPEDANCE

USE 8Ω

+ –

–

+

R

L

TB602

R-CH

+ –

–

+

R

L

TB601

R-CH

2

O-AMP-ON

RY601

(EC68P)

(EC78P: UK)

(EC78P)

RY001

(EC68P: US/EC78P)

RY002

(EC68P: AUS)

PT001 (EC68P: US/EC78P)

PT002 (EC68P: AUS)

SUB POWER TRANSFORMER

PT003 (EC68P) PT004 (EC78P)

MAIN POWER

TRANSFORMER

VSTBY

+VH

-VH

(AC IN)

RECT

D051, 052

RECT

D607 - 610

RECT

D611, 612

(EC78P)

D629, 630

(EC68P)

I-P-MONI

36

RELAY DRIVE

Q604

5 7

6

11

13

L+

L-

12

14

R+

R-

R-CH

R-CH TXD RXD DET

LINE AMP

IC770

• Abbreviation AUS : Australian CND : Canadian

X302

6MHz

X1

X0

92 93

X301

32.768kHz

X1A

X0A

14 13

I-RMC

9

REMOTE CONTROL

RECEIVER

IC302

LED DRIVE

Q301

LED301

O-LED-STBY

28

LCD301

LIQUID

CRYSTAL

DISPLAY

ROTARY

ENCODER

S301

VOLUME

SW301, 303 - 308,

SW309, 310 SW311 - 319

(FRONT PANEL KEYS)

I-KEY1, I-KEY2, I-KEY-WAKEUP/VOL

37, 38, 41

COM0 - COM1

59 - 62

SEG0 - SEG32

63, 64, 67 - 89, 94 - 100, 1

I/

STANDBY

HCD-EC68P/EC78P

2727

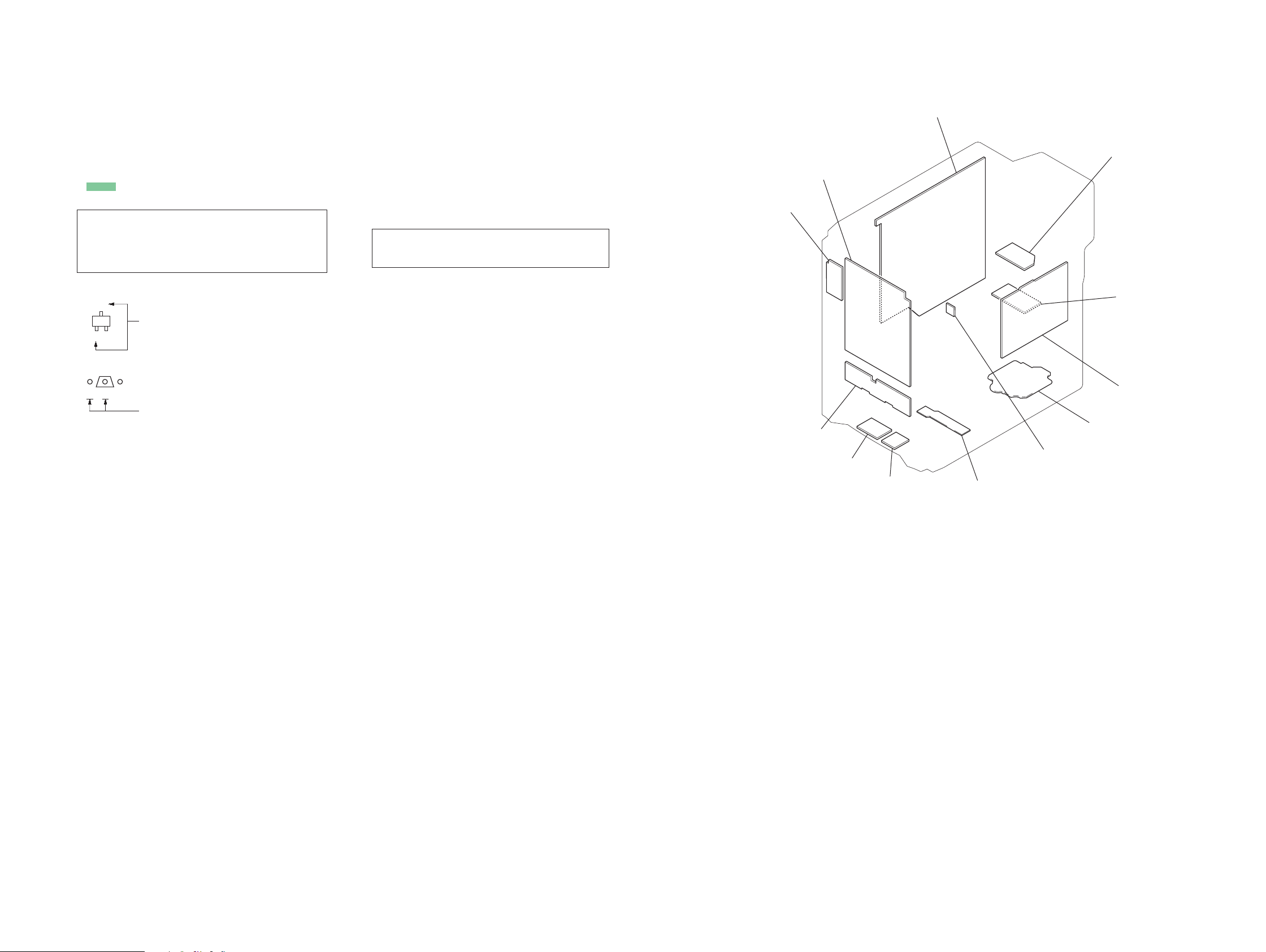

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise speciﬁ ed.

• f : internal component.

• 2 : nonﬂ ammable resistor.

• C : panel designation.

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

• A : B+ Line.

• B : B– Line.

• C : adjustment for repair.

• Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.

– CD Board –

no mark

: CD PLAY

– Other Boards –

no mark

: TUNER (FM/AM)

• Voltages are taken with a VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal production

tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : FM f : AM J : CD PLAY i : AUDIO IN g : DMPORT

• Abbreviation

AUS : Australian model CND : Canadian model

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• Y : Parts extracted from the conductor side.

• W : indicated side identiﬁ ed with part number.

• f : Internal component.

• : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.)

• Indication of transistor.

• Circuit Boards Location

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Caution:

Parts face side: (Conductor Side) Pattern face side: (Component Side)

Parts on the parts face side seen from the pattern face are indicated. Parts on the pattern face side seen from the parts face are indicated.

C Q

B

E

Q

B

CE

These are omitted.

PANEL board

KEY POWER board

KEY CD board

JACK board

MAIN board

HI AMP board (EC78P)

LOW AMP board

PT board

CD board

REG board

DMP board

MOTOR board (EXCEPT EC78P: UK)

HCD-EC68P/EC78P

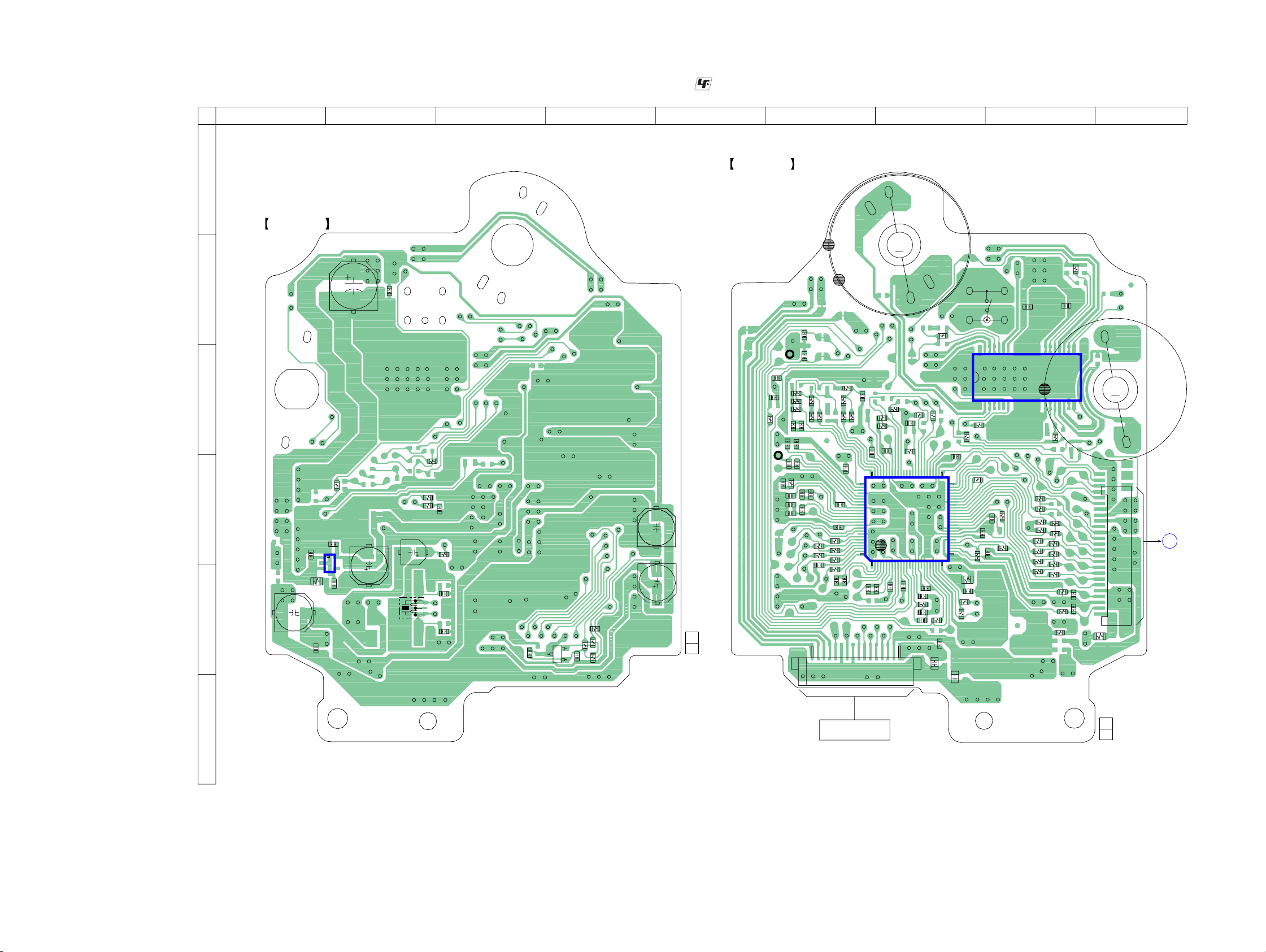

6-3. PRINTED WIRING BOARD - CD Board -

123456789

A

CD BOARD (COMPONENT SIDE)

B

C401

C405

C

R212

R211

D

C207

IC201

5

C206

314

R201

E

C202

C204

C201

C205

R112

R111

C115

X102

• See page 27 for Circuit Boards Location.

C133

R155

C130

C128

C309

Q301

R303

R302

E

C307

R304

R301

C106

C306

1-872-135-

• : Uses unleaded solder.

CD BOARD (CONDUCTOR SIDE)

C125

TP124

(VC)

C122

C123

R142

R151

TP121

(RFI)

C144

C148

C149

11

(11)

C143

C140

C141

R144

R140

R143

C138

C124

R136

R135

C137

C139

C142

C146

C145

C147

R146

R148

C150

R134

C105

C104

C118

R139

R130

C100

R145

R147

R149

R150

R129

76

C117

CN301

M

C136

R126

R127

R128

R125

C107

C112

IC101

100

1

C101

C120

C119

M401

(SPINDLE)

C403

R405

M402

(SLED)

R402

S201

(LIMIT)

C404

28 22 21 15

IC401

M

R118

C153

R114

C102

C103

C126

C127

161

R120

5175

25

C113

R101

R102

C303

17 814

R415

R414

C108

R113

50

R210

R110

R209

C110

R218

R219

R220

R153

R221

R222

C116

R223

C301

C302

26

R104

R106

C109

R154

C132

R105

R157

R156

R108

R408

R208

R207

R206

R205

R204

R203

C151

C152

1

21

R202

CN201

M

MAIN

BOARD

CN608

(Page 30)

HCD-EC68P/EC78P

F

OPTICAL PICK-UP BLOCK

(KSM-213DCP)

1-872-135-

11

(11)

2828

HCD-EC68P/EC78P

2929

R108

R154

R153

C201

R304

R201

R110

R303

R203

R204

R205

R206

R207

R208

R209

R210

R219

R223

R222

R221

R218

R112

R202

R211

Q301

R301

C202

R157

TP121 (RFI)

TP124 (VC)

R156

CN301

R101

C401

R415

R102

R128

R129

R143

R142 R139

R114

R140

R151

R220

R150

R212

IC101

R105

R106

R125

R126

R127

IC201

X102

C301

C307

C309

C100

C138

C153

C151

C204

C130

C128

C113

C127

C126

C103

C102

C120

C118

C117

C101

C124

C125

R145 R146 R147 R148 R149

C149

C105

C143

C146 C145

C148

C104

C405

C404

C403

C205

C116

C133

CN201

C110

R113

R111

C115

R155

C109

C132

R104

C123

C122

C139

C150

R136 R135

R134

C112 C108

R120

R118

C136

C107

R130

R144

C144

C147

C140

C137

C141 C142

C106

R302

C306

C303C302

R405

R402

R408

R414

C207

C152

C206

IC401

0

1M

100 10V

2.2

0

10k

2.2

100

100k

100

0

100

2SA2119K

100k

100 10V

100 100

16P

220

220 10V

47k

10k

470k

1k

47k

22k 47k

10k

0

100k

0

TK63115SCL-G@GT

0.1

1

0.001

0.1

470p

0.1

470p

0.1

0.0022

0.1

0.01

0.022 C119

0.022

0.1

0.0047

0 0 0 0 0

22p

0.1

0.01

470p

0.01

47p

0.1

10k

100

22

6.3V

47

0.1

0

470p

0.01

0.001

22k 470k

1M

0.1 0.1

47p

0.1

4.7k

22k

0.1

0.01

0.0022

0.1

100

10V

0

100 10V

1010

10k

2.2k

4.7k

1

470p

1

BA5826SFP-E2

SP-

SP+

SL+

SL-

100

1M

1k

0

16.9344MHz

TC94A70FG-006

5p

21P

0

100k

IC101

CD-MP3 PROCESSOR

IC401

FOCUS/TRACKING COIL DRIVE,

SLED/SPINDLE MOTOR DRIVE

IC201

+1.5V REGULATOR

SPSP+

SL+

SL-

M401

(SPINDLE)

M402

(SLED)

AUTOMATIC POWER

CONTROL

S201

(LIMIT)

(BX5BT/CBX1)

IC B/D

M

MAIN

BOARD

(2/3)

CN608

2

1

IC B/D

OPTICAL PICK-UP

BLOCK

(KSM-213DCP)

M

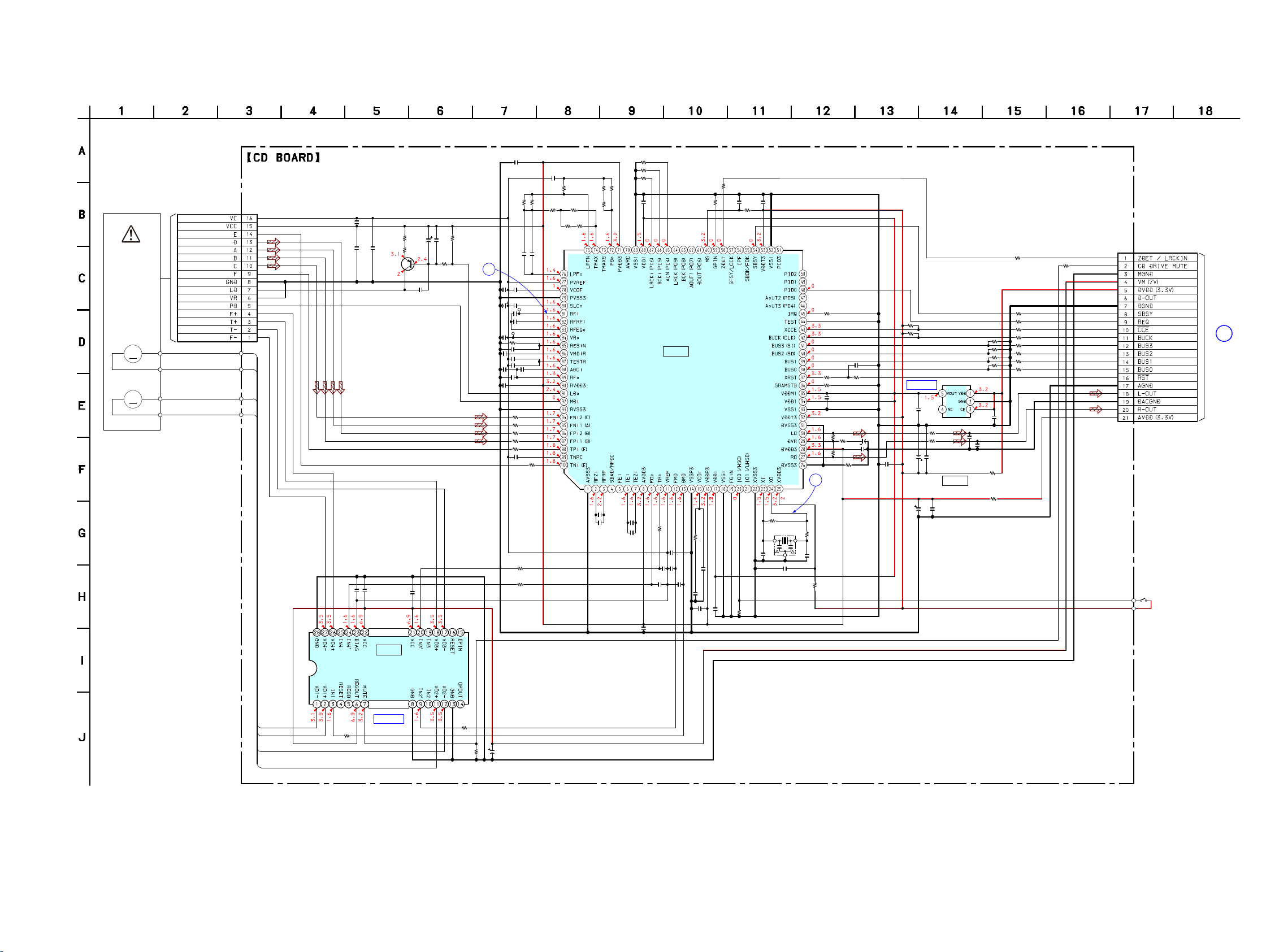

6-4. SCHEMATIC DIAGRAM - CD Board -

• See page 39 for waveforms. • See page 42 for IC Block Diagrams. • See page 43 for IC Pin Function Description.

(Page 32)

HCD-EC68P/EC78P

• Semiconductor Location

Ref. No. Location

D601 E-2 D602 E-6 D603 E-3 D604 G-3 D605 D-5 D606 E-6 D607 G-5 D608 F-5 D609 G-5 D610 F-5 D611 H-6 D612 H-6 D614 B-6 D615 D-7 D617 D-6 D618 E-6 D619 E-6 D620 E-7 D621 D-5 D622 D-5 D628 D-7 D629 H-6 D630 H-6 D631 E-7 D701 F-7 D791 E-5 D801 B-3 D802 A-4 D803 B-4 D804 B-3 D805 B-2 D806 A-2

IC602 B-7 IC701 F-7 IC770 G-8 IC801 C-4

Q601 D-4 Q602 D-5 Q603 D-5 Q604 G-3 Q605 D-6 Q606 D-5 Q608 B-6 Q611 D-5 Q612 D-6 Q618 D-7 Q619 G-6 Q622 E-6 Q624 E-7 Q761 G-7 Q762 G-7 Q801 B-5 Q802 B-5

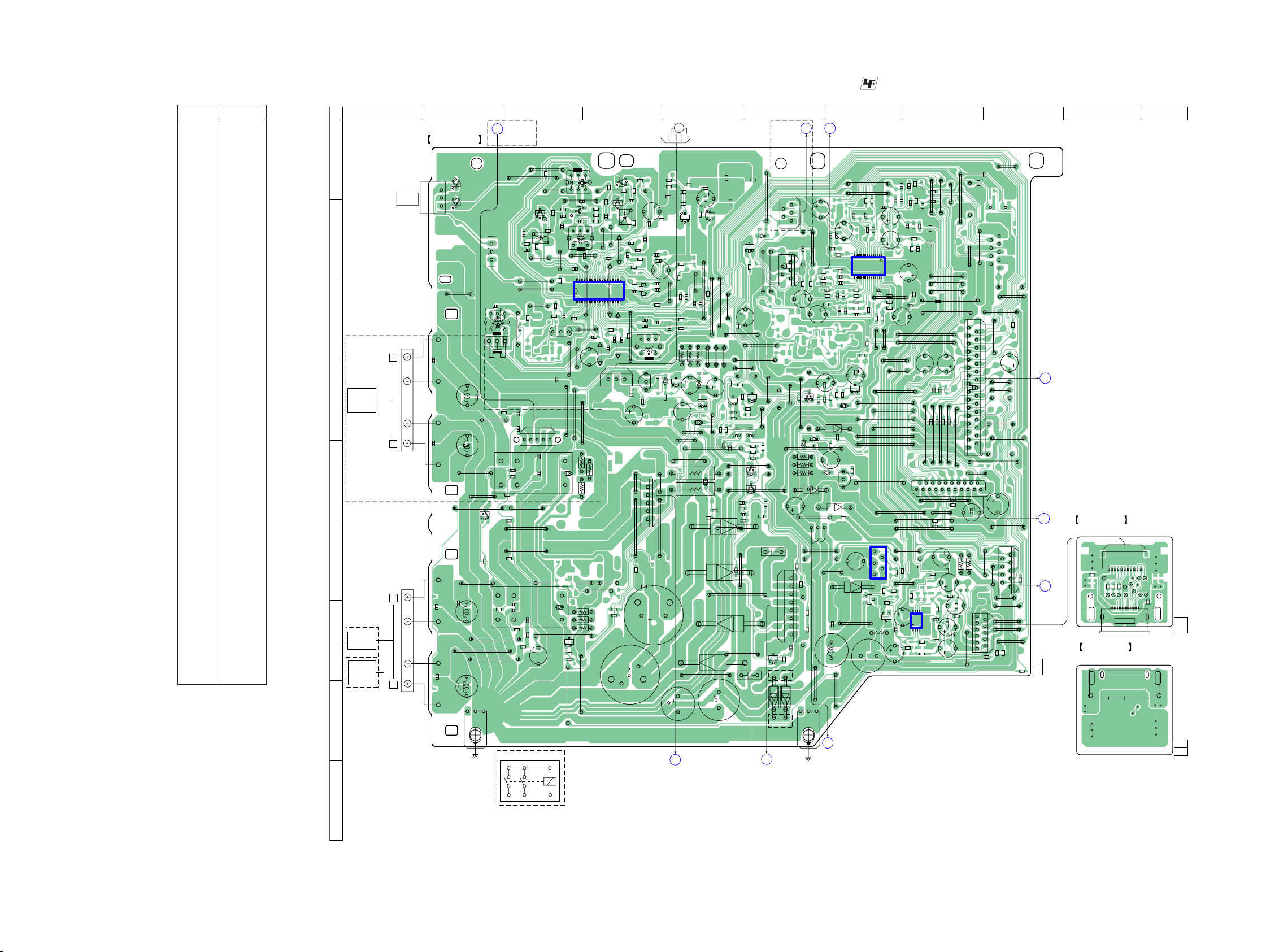

6-5. PRINTED WIRING BOARDS - MAIN Section -

1234567891011

MAIN BOARD

A

CN801

ANTENNA

FM/AM

13

B

C

(EC78P)

SPEAKER

HIGH FREQ.

D

IMPEDANCE

USE 8Ω

TB601

L

R

C606

E

F

TB602

L

C609

(EC68P)

SPEAKER

IMPEDANCE

G

USE 6Ω

SPEAKER

LOW FREQ.

IMPEDANCE

USE 8Ω

(EC78P)

R

C610

H

(EC78P)

D806

D805

JW682

C603

L601

R608

L602

JW652

D601

JW654

R611

L603

R612

L604

ET601

(CHASSIS)

R606

JW662

JW651

JW653

C848

CF801

JW650

R609

HI AMP BOARD

E

CN151

(Page 34)

FL803

T801

R607

R633

R632

R631

R639

R640

C617

R610

JW659

JW660

C847

R846 C846

C604

C618

R647

RY601,RY602

R615

JR602

JW725

C605

R832

RY601

JW672

JW657

JW658

JW743

RY602

C607

C608

D804

JW739

JW729

JW728

JW726

CN632

C620

L805

JW744

R847

JW742

R838

R843

TP690

C836

C841

L804

C835

R842

JW738

R844

R845

C845

JR601

C850

JW655

15

C615

D603

C616

JW661

D604

JW665

R645

FL801

JW723

BE

R643

JW670

R826

JW741

C837

D801

C834

C819

C820

L801

JW737

R829

R839

C844

36

IC801

1

C843

JW730

JW724

C830

JW722

C833

JW779

JW656

R634

R635

R636

JW666

R638

R641

R642

Q604

JW667

• See page 27 for Circuit Boards Location.

R804

R808

R672

JW752

JR614

JR615

C696

C695

D610

D607

C627

R666

JW640

C630

JW674

JW641

JW706

R670

R637

Q611

BE

C619

R628

BE Q606

R614

JW765

D606

D602

C612

JW766

R616

R622

JW683

JW689

(Page 40)

Q608

B

C629

BE Q605

JW764

R621

C611 R620

JW690

C623

BOARD

CN051

R802

JW703

BE

R652

PT

(EC78P)

JW609

E

Q612

R669

R667

D614 JW613

JW620

R613

JW780

R646

R827

R837

JW803

C826

JW736

C832 C829

3

JW673

D802

JW801

R830

R648

CN601

R649

D803

JW735

JW804

M601

M

(FAN)

1

3

R801

R831

JW740

R841

C838 C840

C823

L803

R840

C824

C828

R823

JW802

C827

C821

C805

R819

R818

R817

C804

19

18

C807

X801

JW721

C817

C816

L802

R836

C831

Q601

E

1

B

R603

R605

R604

C601

5

JW669

1

JW719

CN633

R651

R728

C622

R806

R825

C806

C822

C808

R626

R601

R650

C626

LOW AMP

BOARD

CN104

C815

R627

R815

D622

JW663

JW708

R822

R727

R824

JW731

C814

Q602

BE

G

R803

R810

C803

R812

BE

R814

R816

R820

R821

R726

C602

C628

Q801

R805 JW732

C809

JW760

JW720

C802

R811

R807

R809

BE

Q802

R813

JW733

JW647

JR613

C811

C810

JW734

JW750

R724

JW751

R725

R629

C614

C613

R630

D621

Q603

BE

JW649

D605

R692

JW677

JW781

R662

D791

R658

R792

R791

D608

D609

JW684

(Page 35)

JW685

R625

J

R619

Q619

BE

(Page 34)

CN602

CN603

JW612

JW702

JW705

R718

C621

C642 R691

(EC68P)

D629

D630

D611

D612

(EC78P)

HI AMP

BOARD

CN152

2

4

2

TP619

JW701

R717

4

8

1

JW611

1

5

C631

R617

5

JW763

F

C699

R732

C663

JW678

R693

D618

R719

R623

CN604

ET602

(CHASSIS)

JW610

R731

C684

D617

R690

JW675

JW775

D619

JW770

3

R618

R624

H

C636

C639

C700

R684 C637 C638

R752

R754

C664

C641

R689

R686

Q622

BE

C669

D631

C704

1

JW762

JW761

JW788

R770

JW686

D

(Page 38)

• : Uses unleaded solder.

LOW AMP

(Page 35)

BOARD

CN102

C646

C665

JW771

C648

JR610

JW631

JW768

JW767

R761

C762

C658

C645

C659

JW632

JW773

R762

C787

C652

C657

JR605

JR606

C654

R696

C667

C661

JW710

JW715

JR612

R769

JW691

C786

IC770

C776

R776

R701

R741

R742

R702

JW606

R697

R709

JR608

C666

R708

R715

C713

JW627

JW628

C675

C694

JW783

JR611

JW782

2

1

JW704

JW712

JW716

R775

5

8

JR616

14

R778

R774

JR607

C692

R779

R771

R773

JW777

C682

JR617

JR609

C680

R777

JW605

C693

JW784

C690

JW774

C775

JR618

CN608

JW607

JW608

R704

C647

R700

C655

C649

C644

R787

C640

R788

R681

C634

C788

C685

C789

C687

R687

R685

D628

D615

R720

Q624

D620

R759

L701

JW639

REG

BOARD

W610

C656

C650

1

14

IC602

28

15

C633

C662

R751

R749

JW625

C674

R750

C660

R753

R707

C686

R706

JW630

R676

JW629

R673

R677

C632

R729

Q618

BE

R678

R716

B

E

D701

JW687

JW769

JW718

JW717

R722

JW711

IC701

5

C760

24

1

R768

Q761

R763

E

Q762

R767

C761

JW619

JW787

JW621

C676

C681

C771

C774

JW604

JW603

JW624

JW626

C689

R675

JW785

C691

R780

R784

JW616

JW786

C683

R772

R786

C773

CN803

C679

C772

R785

JW700

JW615

C703

C671

R783

JR604

JW602

31

1

JW713

R674

CN609

JW601

JR603

JW617

JW618

JW622

TP657

30

2

20

21

JW681

1

11

R660

JW623

C714

1

R663

R644

L

PANE L BOARD

CN301

(Page 36)

CD BOARD

CN201

M

(Page 28)

C

JACK

BOARD

(Page 38)

14

(14)

DMP BOARD

(COMPONENT SIDE)

CN902

1

R907

TP909

TP908

R904

R905

R906

TP906

TP902

TP905

TP904

TP903

118

CN901

DMPORT

DMP BOARD

(CONDUCTOR SIDE)

A901

TP907

11

TP911

TP910

TP913

TP912

R908

1-875-502-

11, 1 2

(11, 12)

11, 1 2

(11, 12)

JW633

JW634

JW635

JW636

JW637

JW638

JW697

C673

JW709

CN605

2

JW680

8

9

JW664

JW679

2

JW676

JW668

JW699

10

R782

C791

R781

1-875-488-

HCD-EC68P/EC78P

I

3030

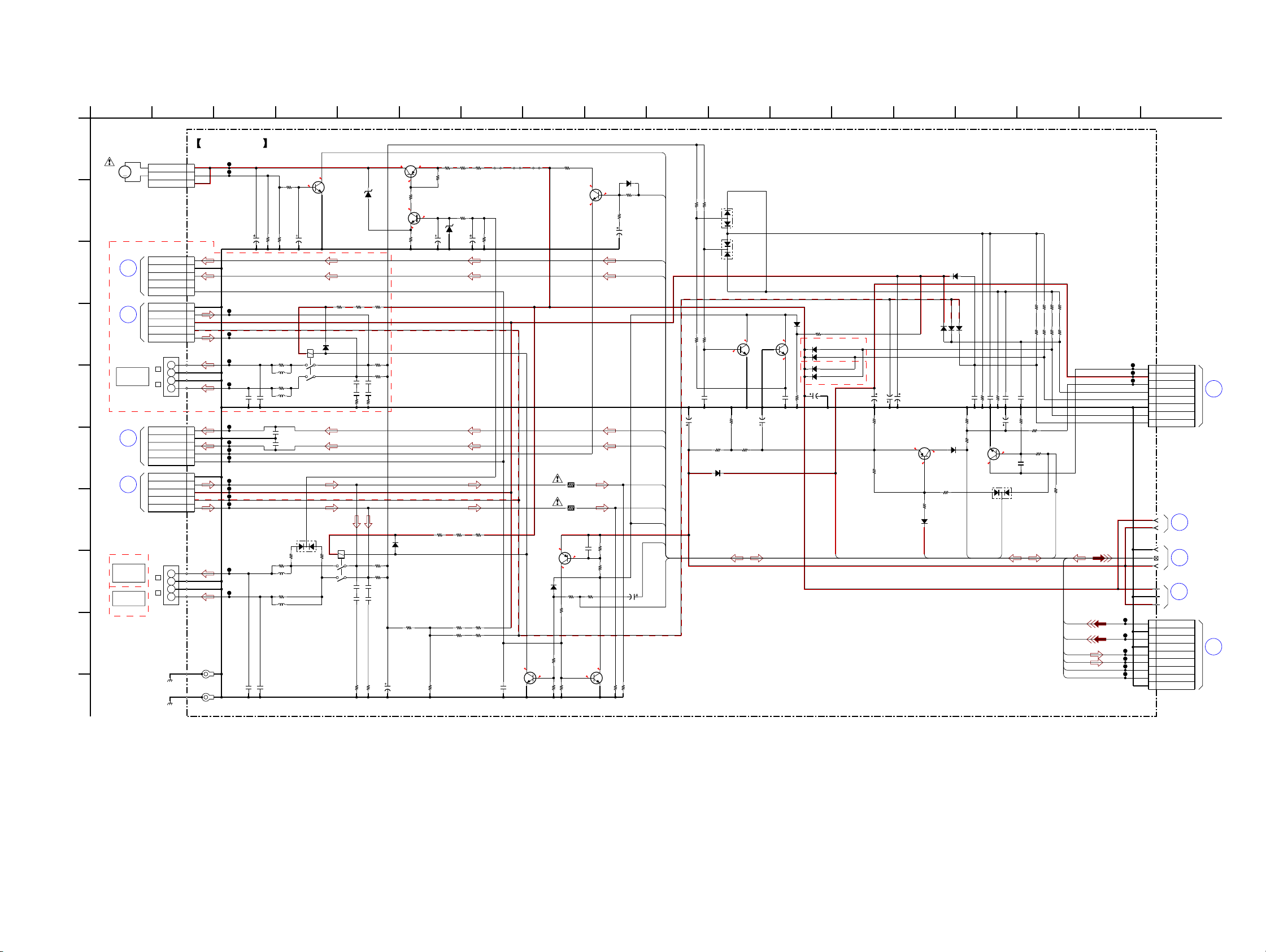

6-6. SCHEMATIC DIAGRAM - MAIN Section (1/3) -

HCD-EC68P/EC78P

711

R725

R724

15

JW750

JW751 JW752

R629

4.7k

C614

4.7 R630 47k

50V

R642

R728

4.7k

R727

4.7k

0.8

C619

0.01

2SC3052F-T1-LF

RELAY DRIVE

MA2J1110GLS0

Q604

8

2SC3052F-T1-LF

Q612

ISA1235AC1TP-1EF

8.9

D605

R645

2.2k

0.7

R643

10k

R672

10k

Q608

STANDBY

SWITCH

R658

470

R662

470

0

R644

R670

10k

R628

10k

2W

1k

Q611, 612

PROTECT

DETECT

10.8

2.3

C629

4700p

8.8

R663

0

2SC3052F-T1-LF

PROTECT

D614

MA2J1110GLS0

2.9

R669 100k

R637

4.7k

1k

8.8

R675

47

Q611

O-POWER

R667

47k

R666

1k

C630

47

10V

AMP-R

AMP-L

AMP-R

AMP-L

PROTECT

AMP-ON

C714

47

10V

R674

47

R614

10k

R652

100

C695

1

C631

100 16V

HP-R

HP-L

SP-RELAY

R613

10k

MC2836

Q605

2SC3052F-T1-LF

R646

100

0

Q605, 606

PROTECT DETECT

R677

10k

R676

10k

D615

1N4002B

D606

D602

MC2838-T112-1

R673

0

Q606

2SC3052F-T1-LF

∗C622, 626 2200 50V (EC68P) 3300 50V (EC78P: UK) 3300 63V (EC78P: US, CND)

R791 100k

D791

8.88.8

MA2J1110GLS0

0

220kR792

C696

1

C627

C632

4.7

50V

2200 25V

(EC78P)

2A02MD612

2A02MD611

D630

1N4002B

D629

1N4002B

(EC68P)

C628 1000

25V

R729 100k

R678

47k

VSTBY

∗C626

C622 ∗

Q618

ISA1235AC1TP-1EF

DC DETECT

MA2J1110GLS0

142

D609

1N5402-F46

1N5402-F46D607

1N5402-F46D608

1N5402-F46D610

100V

C623 0.1

C611 0.22

C612 0.22

R620 4.7k

R621 4.7k

C641

R689

3.3

27k

50V

R690

D628

MA2J1110GLS0

4.2

0

4.7

R687

22k

D631

CD-AVR

2.2k

0.7

0.4

Q619

2SC3052F-T1-LF

I-P-MONI

RELAY DRIVE

MC2838-T112-1

PROTECT

R685

4.7k

PROTECT

R634

RY602

Q603

DETECT

56

C604

C605

R607

5 153

Q601

KTA1266GR-AT

0.4 16.6

16.7

D622

16.7

MAZ8082GMLS0

R601

470

R636

R635

56

R632

100k

R633

100k

C615

0.1

C616

0.1

R631

10

MA2J1110GLS0

R640

100k

R639

100k

C617

C607

0.1

C618

C608

0.1

R648 47k

10

C620

R615

100

10

R647

10V

R627

4.7k

2SC3052F-T1-LF

0

C613

10 50V

D604

R726

15

R626

10k

FAN MOTOR DRIVE

Q602

MAZ8043GMLS0

0

R638

68 68 68

R651

R649 2.2k

Q601, 602

D621

R641

R650

4.7k

1 1812

A

M601

M

(FAN)

B

(EC78P)

C

F

HI AMP BOARD

CN152

(Page 34)

AMP-ON

PROTECT

PA-GN D

E

HI AMP BOARD

D

CN151

(Page 34)

SPEAKER HIGH FREQ. IMPEDANCE

USE 8Ω

TB601

R

L

E

(Page 35)

H

LOW

F

AMP

BOARD

CN102

AMP-ON

PROTECT

G

LOW

AMP

BOARD

CN104

(Page 35)

G

(EC78P)

SPEAKER

LOW FREQ.

IMPEDANCE

SPEAKER

IMPEDANCE

(EC68P)

USE 8Ω

USE 6Ω

H

TB602

R

L

MAIN BOARD (1/3)

CN601

3P

VDD+

1

GND

2

VDD+

3

∗R605 15 (EC78P: US, CND) 56 (EC68P/EC78P: UK)

CN602

5P

IN-R

1

A-GND

2

IN-L

3

4

5

1

OUT-R

2

+VH

3

-VH

4

OUT-L

5

CN632

5P

+

-

+

CN603

5P

IN-R

1

A-GND

2

IN-L

3

4

5

PA-GN D

1

OUT-R

2

+VH

3

-VH

4

OUT-L

5

CN633

5P

+

-

+

TP601

TP602

∗

C601

R605

47

25V

TP609

TP612

TP614

TP613

C603 4700p

C606 4700p

TP615

TP617

TP618

TP619

TP621

TP622

TP623

TP624

TP626

TP625

4 13

8.8

R604

100k

4.7

R603

R608

10

L602

10

R606

L601

C700 1000p

C699 1000p

D601

MC2838-T112-1

R612

10

L604

10R611

L603

R610

2SC3052F-T1-LF

0

C602

22

25V

RY601

D603

MA2J1110GLS0

R609

4.7k

I

ET601

E

C610

(CHASSIS)

J

(CHASSIS)

ET602

4700p

E

C609

4700p

1669 1710

∗

R616 ∗

R622 33k

R693

1k

R616, 619

3.9k (EC68P) 10k (EC78P: UK) 15k (EC78P: US, CND)

TP627

TP628

TP629

CN604

8P

1

2

3

4

5

6

7

8

RELAY ON/OFF

V STBY

AC DETECT

VH(AC)

VL(AC)

GND

VL(AC)

VH(AC)

7

3

6

MAIN

BOARD

(3/3)

J

PT

BOARD

CN051

(Page

41)

10k

R619

∗

R617

R618 10k

R625

33k

R623 10k

R624 10k

100V

C621 0.1

R691

10k

R686

56k

R692

4.7k

C642

0.022

D617

(Page 33)

GND

CN605

1

MAIN

2

BOARD

1

(Page 32)

D

(Page 38)

(2/3)

REG

BOARD

W610

C

JACK

BOARD

(Page

38)

3

1

IN

OUT

3

9P

AUDIO-L

1

A-GND

2

AUDIO-R

3

HP-GND

4

HP-L

5

HP-R

6

AMP-ON

7

SP-RELAY

8

GND

9

O-POWER

AUDIO-L

AUDIO-R

HP-L

HP-R

AMP-ON

SP-RELAY

TP630

TP631

TP632

TP633

TP634

TP635

HCD-EC68P/EC78P

3131

HCD-EC68P/EC78P

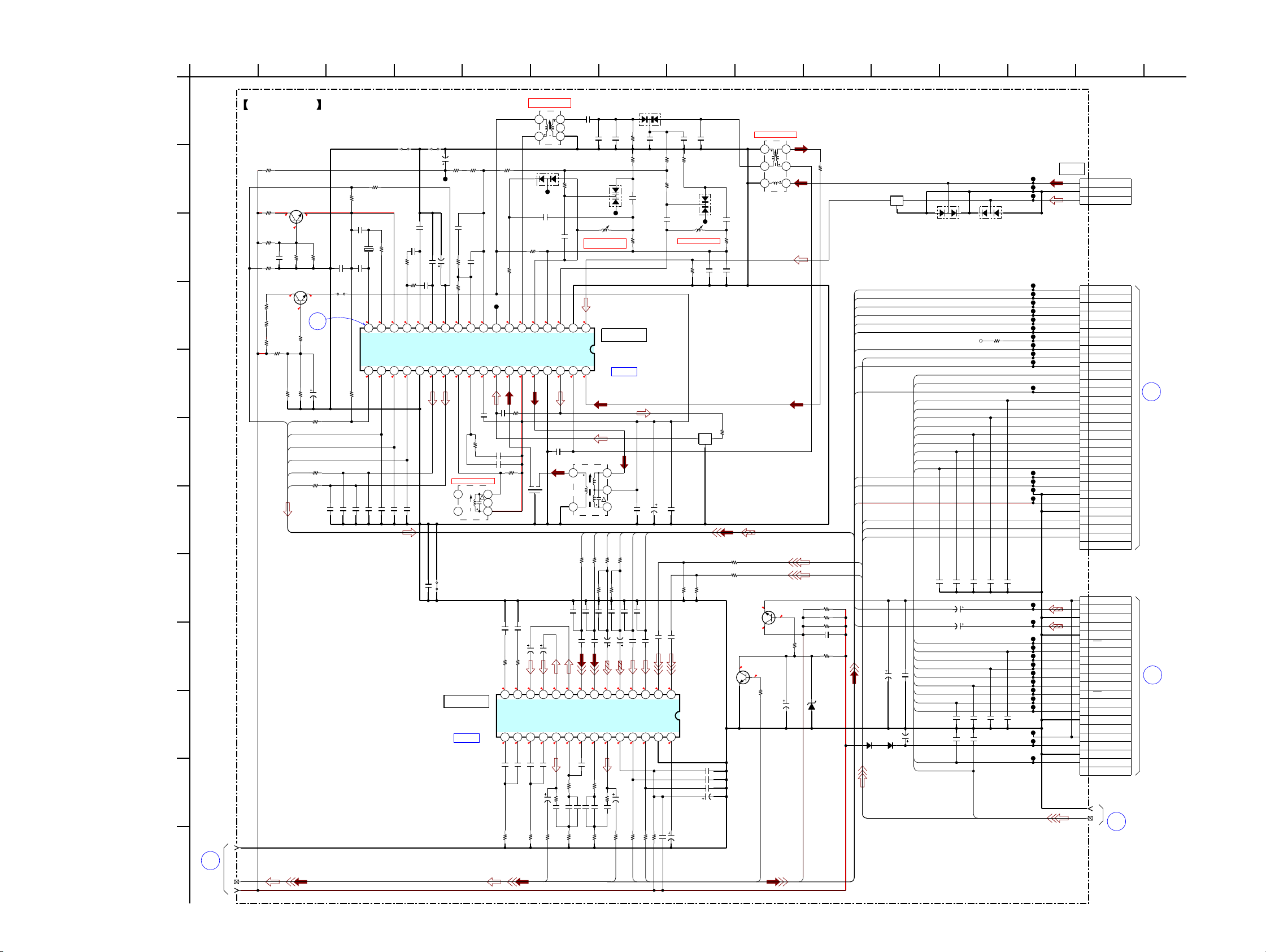

6-7. SCHEMATIC DIAGRAM - MAIN Section (2/3) -

1 12

A

MAIN BOARD (2/3)

R822

100

B

Q801

2SC3052F-T1-LF +3V REGULATOR

R801

8.8 2.9

100

3.4

R806

47k

C

D

E

F

C803

1

R805 470k

TU-ANSD

R808

22

R804

22

R802

22

R803

2.2k

R807

22k

R811

R812

100k

47k

Q802

2SC3052F-T1-LF

+5V REGULATOR

5.5

R809

100

R810 4.7k

TU-DO

TU-CLK

TU-DI

TU-CE

TUNER-R

TUNER-L

4.86.9

21

R816 1k

R820

R821

4.7k

C814

∗

C802

100 16V

G

∗

C814, 815

4700p (EC68P: AUS/EC78P: UK)

0.01 (EC68P: US/EC78P: US, CND)

H

3

R814

22k

R813 470k

C804

18p

X801

R817 47k

75MHz

C807

1

C808

18p

JW803

1.40

21 22 23 24 25

2019

XIN

XOUT

CL

DO

161718

2.9 1.2

R815

10k

4.7k

0.01

C810 1000p

C809 1000p

C817 0.01

C816

C815 ∗

4 13

JW801

JW802

C823

220 10V

TP686

C806

470p

C805

0.47

C821 2200p

33k

2.20

MPX-IN

C822 22 50V

C827

0.047

1.7

02.3

1.62.3

AGC

FM DET-OUT

AM DET-OUT

VSS

CE

R-OUT

12131415

JW804

C850

0.1

10k

R818

R819

2.90

VDD

DI

C811 1000p

I

J

ELECTRICAL VOLUME

K

1

L

MAIN

BOARD

2

(1/3)

3

(Page

31)

• See page 39 for waveforms. • See page 42 for IC Block Diagrams.

711

D801

SVC347A-TL-E

R837

C834

100k

10p

TP689

L803

AM/FM DET, OSC,

MIX, PLL, IF AMP

R841

10k

IC801

LV23003VA

C835

0.047

R838

22k

R843 100k

C840

0.1

C841

1000p

R840

0

C836

0.022

R844

2.2k

8

R842

0

SV230-TB-E

TP690

L804

FM TRACKING

C844

0.1

C837

10p

D804

C847

0.1

R846

10

C846

0.01

IC B/D

FL801

R845

0

I

CF

G

R741

1k

R742

1k

10kR702

Q622, 624

+3.3V

REGULATOR

2SC3052F-T1-LF

C667

100 16V

34

2

C848

1

CD-L

CD-R

4.7k

1k

R697

R704

10kR696

10kR708

C645 1000p

C666 1000p

50V1C646

50V1C665

3.6

54321

CD-L

CD-R

OUT-R

SB-R

2322

3.6

7.4

C664

5.6k

R753

50V

C686

C687

0.068

R706

R731

220

100

AMP-R

0.1

VCC

1

1k

R709

TUNER-L

2200pC647

1C648

3.6

3.3

I2C-CLK

TUNER-L

SCLK

R707

C833

220 10V

1C658

220

TUNER-R

2200pC657

3.6

TUNER-R

3.3

I2C-DATA

SDATA

C652 1

100

R715

C843

0.1

3.6

TC/DMP-L

470pC713

GND

1

C654

3.6

2827262524

3.6

TC/DMP-R

FIL

C661

10

50V

O

10kR701

1000pC662

10pC659

10pC660

R824

R825

470

4.7k

C824

1

C828 100p

R823 10k

4.7k

R829

1.80

1.83.6

PD

LP-IN

FM-DET

P-COMP

L-OUT

C829

C832 0.47

L802

FM DETECTOR

6

IC602

INPUT SELECTOR,

IC602

BD3499FV-E2

IC B/D

5 15

R826

1k

R839

2.2k

R831

TP687

33.7

4.22.2

4.84.8

31 32 33 34 35 36

3029282726

BO2

BO1

0.47

R830

3.3k

LP-OUT

34

2

1

2200p

P-DET

C640

FM IF-IN

8791011

2.2

2p

C830

C831

0.47

R788

15k

C633

R681

22k

AM-OSC

VCC1

AM IF-IN

1M

R832

R836

6.8k

50V1

C639

2200p

C644

15k

R787

3.63.6

13 12 11 10 89

14

TRE-L

TRE-R

BASSB-L

BASSA-L

15

3.6 3.6

C637

C634

0.047

R684

22k

6910

L801

AM FREQUENCY

1PS226-115

10

4.74.8

FM-OSC

3.6

VOL-L

BASSA-R

3.6

0.047

C663

50V

R732

COVERAGE

6

D802

TP688

C838

1000p

AM-MIX

CF801

50V1

C636

3.6

C638

0.047

1

100

1000p

4.7

VCC2

VOL-R

AMP-L

C826

BASSB-R

GND1

C684

C845

0.22

3.6

0.068

R752

34

2

1

4.72.4

FM RF-OUT

FM-MIX

SEL-R

OUT-L

R751

C685

5.6k

C819 470p

C820

5p

100k

R827

D803

SV230-TB-E

FM FREQUENCY

COVERAGE

0.92.2

GND

FM RF-IN

REG

AM RF-IN

123456

2.2

T801 AM IF

6

4.7k

AUDIO-L

AUDIO-R

R700

220p

C649

C655

1C656

1C650

3.6

76

SEL-L

AUDIO-L

AUDIO-R

SB-L

SURR

212016 17 18 19

3.6

C674

0.022

R750

4.7k

R749

4.7k

5.6k

C789

C788

0.015

0.068

0.015

R754

5.6k

3232

KTC3203Y-AT

3.2

7.2

Q622

3.8

R720

22k

L805

AM TRACKING

16

2

34

Q624

0

C669

220 10V

O-CD-ON

142

CN801

3P

5

3.8

R722

100

R847

0

FL803

IO

BPF

G

D805

1PS226-115

TU-CE

TU-DI

TU-CLK

TU-ANSD

TU-DO

I2C-DATA

I2C-CLK

5V-ON/TP-REC-MUTE

O-POWER

AMP-ON

I-P-MONI

O-CD-ON

VSTBY

DMP-TXD

DMP-5V-DET

DMP-RXD

DMP-L

DMP-R

68R717

68R718

68R719

470pC704

1kR716

D618

MAZ8039GHLS0

CD-AVR

CD-R

CD-L

D619

1N4002B

C671

100 16V

1N4002B

DMP-DET/USB-RST

O-CD-M-MUTE

O-CD-SBSY

O-CD-REQ

O-CD-CCE

O-CD-BUCK

I/O-BUS3

I/O-BUS2

I/O-BUS1

I/O-BUS0

O-CD-RST

C679

0.1

O-CD-RST

I/O-BUS0

I/O-BUS1

I/O-BUS2

I/O-BUS3

C703

2200p

O-CD-BUCK

O-CD-CCE

O-CD-REQ

O-CD-SBSY

C691

0.1

D620

C673

470 10V

C693

O-CD-M-MUTE

DMP-DET/USB-RST

0.1

1PS226-115

C683

C690

C681

2200p

C675

1

50V

C676

1

50V

470p

C689

C682

C694

0.1

DMP-DET/USB-RST

D806

2200p

R660 0

C692

0.01

2200p

C680

TP683

TP684

TP685

TP656

TP657

TP658

TP659

TP660

TP661

TP662

TP663

TP664

TP665

TP666

TP667

TP668

TP669

TP670

TP637

TP639

TP641

TP642

TP643

TP644

TP645

TP646

TP647

TP648

TP649

TP651

TP652

TP654

ANTENNA

FM/AM

CN803

31P

CN608

21P

AM

1

GND

2

FM

3

O-TU-CE

31

O-TU-DI

30

O-TU-CLK

29

I-TU-ANSD

28

27

I-TU-DO

26

I/O-I2C-DATA

25

O-SW-ON/I-TP-STATE

24

I/O-I2C-CLK

23

5V-ON/TP-REC-MUTE

22

O-POWER

21

I-DMP-DET/O-USB-RST

20

O-CD-M-MUTE

19

O-AMP-ON

18

O-CD-SBSY

17

O-CD-REQ

16

O-CD-CCE

15

O-CD-BUCK

14

I/O-BUS3

13

I/O-BUS2

12

I/O-BUS1

11

I/O-BUS0

10

O-CD-RST

9

I-P-MONI

8

O-CD-ON

7

D-GND

6

V-STBY

5

M-GND

4

I-DMP-TXD

3

I-DMP-5V-DET

2

O-DMP-RXD

1

NC

AVDD (3.3V)

1

R-OUT

2

DACGND

3

L-OUT

4

AGND

5

RST

6

BUS0

7

BUS1

8

BUS2

9

BUS3

10

BUCK

11

CCE

12

REQ

13

SBSY

14

DGND

15

D-OUT

16

DVDD (3.3V)

17

VM (7V)

18

MGND

19

CD DRIVE MUTE

20

ZDET/LRCKIN

21

5

4

(Page 33)

2

MAIN

BOARD

(3/3)

L

PANE L BOARD

CN301

(Page 37)

M

CD BOARD CN201

(Page 29)

HCD-EC68P/EC78P

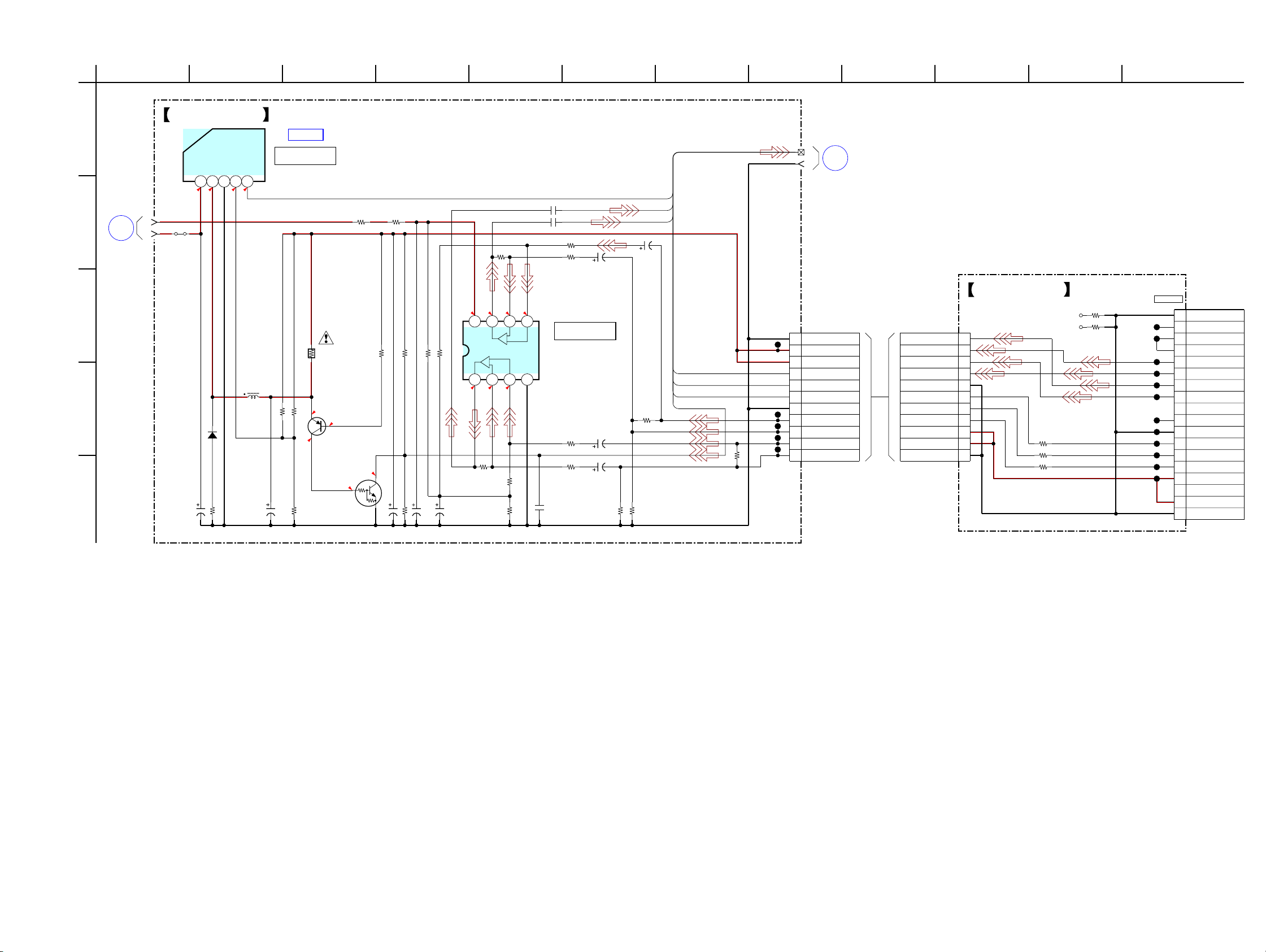

6-8. SCHEMATIC DIAGRAM - MAIN Section (3/3) -

2

MAIN BOARD (3/3)

A

VCC

OUT

GND

INV

STBY

12345

18

B

BOARD

(Page 31)

3

MAIN

(1/3)

6

JW788

7

1

5.1

3.2

IC B/D

IC701

+5V REGULATOR

IC701

IC BD9701CP-V5

C

R767

0.47 2W

L701 100uH

D

E

C760

100 25V

RK36LF-A4D701

R770 0

C761

470 16V

4.7kR761

33kR762

0

R763

ISA1235AC1TP-1EF

5.1

1k

Q761

5

Q761, 762

VOLTAGE DETECT

0

Q762

DTC114EKA

• See page 42 for IC Block Diagrams.

R759

R769

47

R768

10k

3.2

10V100C762

47

8.64.3

4.3

8765

-

V+

33kR781

56kR782

25V22C776

4.7kR779

22kR777

C775

47

10V

+

-

4.3

22kR776

R778

22k

R780

4.7k

6910531 12

22kR772

C771

1

50V

5V-ON/TP-REC-MUTE

C772

1

50V

DMP-R

DMP-L

1C787

1C786

22kR775

R771

22k

4.3

IC770

LINE AMP

IC770

NJM4558V-TE2

V-

4321

C791

0.01

R773

22k

R774

22k

C773

50V

C774

50V

1

R786 100k

R784 100k

100kR783

711

84

4

2

5

MAIN

BOARD

(2/3)

(Page 32)

CN901

TP913

TP912

TP911

TP910

TP909

TP908

TP907

TP906

TP905

TP904

TP903

TP902

18P

DMPORT

VGND

18

VIDEO

17

WM TX

16

WM AX

15

R+

14

L+

13

R-

12

L-

11

NC

10

WM DET

9

DGND

8

DET

7

TXD

6

RXD

5

VBUS(5V)

4

NC

3

VBUS(5V)

2

PGND

1

DMP-RXD

DMP-TXD

DMP-DET/USB-RST

DMP-5V-DET

R785

100k

TP706

TP712

TP713

TP714

TP715

CN609

11P

DMP BOARD

CN902

11P

11

DGND

DMP-DET

DMP-TXD

DMP-RXD

VBUS(5V)

PGND

R-

10

R+

L-

9

L+

8

7

6

5

4

3

2

1

0R906

0R905

0R904

1

PGND

2

VBUS(5V)

3

VBUS(5V)

4

DMP-RXD

5

DMP-TXD

6

DMP-DET

7

DGND

8

L+

9

L-

10

R+

11

R-

0R908

0R907

HCD-EC68P/EC78P

3333

HCD-EC68P/EC78P

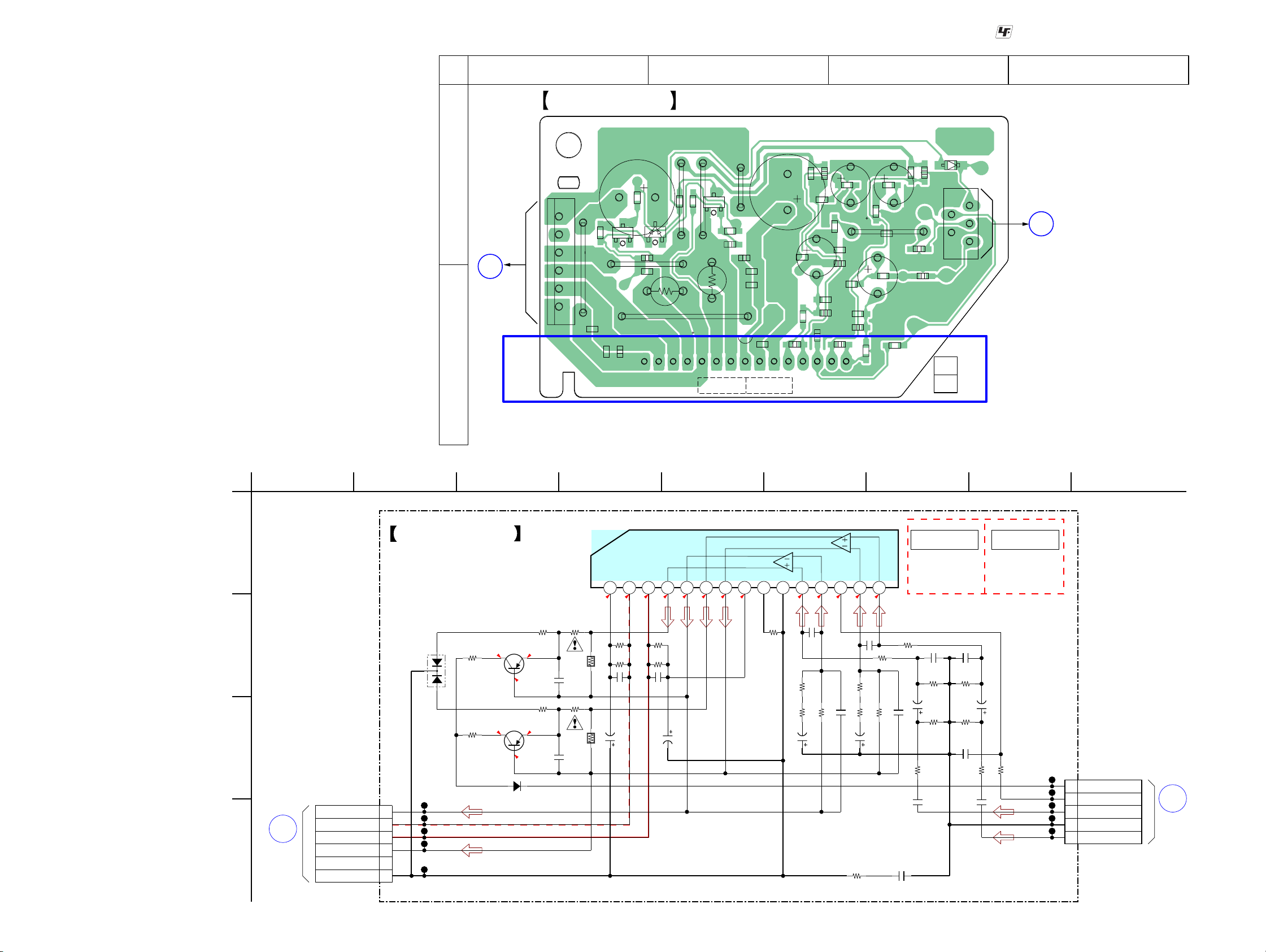

6-9. PRINTED WIRING BOARD - HI AMP Board (EC78P) -

1234

HI AMP BOARD

JW157

A

B

E

MAIN

BOARD

CN632

(Page 30)

CN151

1

6

R176

R183

JW152

R178

Q151

B

C174

C170

R185

C175

R181

R179

JW151

R182

R186

E

D151

JW155

JW156

1

JW154

Q152

BE

R184

C176

C173

R175

R177

R180

IC151 IC152

• See page 27 for Circuit Boards Location.

R164

C160

R162

C158

C161

C162

R173

R171

(EC78P: US, CND)(EC78P: UK)

C159

R163

C169

R159

C151

R172

R155

R195

C178

C155 C156

R151

C153

R161

R153

C166

R154

15

C157

JR151

R196

R160

JW153

C152

R152

R156 C154

1-875-496-

D152

14

(14)

• : Uses unleaded solder.

1

2

F

4

5

CN152

MAIN

BOARD

CN602

(Page 30)

6-10. SCHEMATIC DIAGRAM - HI AMP Board (EC78P) -

2

HI AMP BOARD

A

Q151,152

OVER LOAD DETECT

D151

MC2838-T112-1

B

C

D

E

MAIN

BOARD

(1/3)

CN632

(Page 31)

OUT-L

-VH

+VH

OUT-R

PA-GND

CN151

6P

6

5

4

3

NC

2

1

TP151

TP152

TP153

TP154

TP155

R185

2.2k

00

Q151

2SA2026

R186

2.2k

Q152

2SA2026

MA2J1110GLS0

0

D152

R183

R184

22k

00

69531

-PRE

-VCC

+VCC

LO+

198765432151413121110

0.1

-36.8

100 6.3V

C170

R176

R178

36.7

220

C173

R181

1.2k

22k

R179

0.22 2W

C175

0.1

R182 1.2k

R180

0.22 2W

C176

0.1

-35.2

C174

LO-

0

220

R175

220

R177

0.1

C169

100 6.3V

RO+

0

RO-

0

+PRE

35.2

SUB

R171

LI+

LI-

ST-BY

RI-

R172

0

C159 3p

100

RI+

0

C156

R195

1k

R160

470

R162

50V

C158

1

∗

220 (EC78P: US, CND)

1.8k (EC78P: UK)

GND

2

0

C155

0

100p

1k

R159

47k

470

R161

R163

50V

C157

1

7

IC151

POWER AMP

IC151

STK433-070 (EC78P:UK)

(EC78P:UK) (EC78P:US,CND)

470

R196

100p

470

C153

C154

470p

R155

R156

47k

3p

C160

47k

C151

50V

R153

R151

C161

0.01

C152

1

50V

R154

22k

C178

0.1

∗

C162

0.01

47k

R164

R151. 152

C166

4700p

IC152

POWER AMP

IC152

STK433-090-F

(EC78P:US,CND)

R173

1k

∗

R152

84

TP156

TP157

TP158

TP159

TP160

CN152

5P

PROTECT

1

AMP-ON

2

IN-L

3

A-GND

4

IN-R

5

F

MAIN

BOARD

(1/3)

CN602

(Page 31)

HCD-EC68P/EC78P

3434

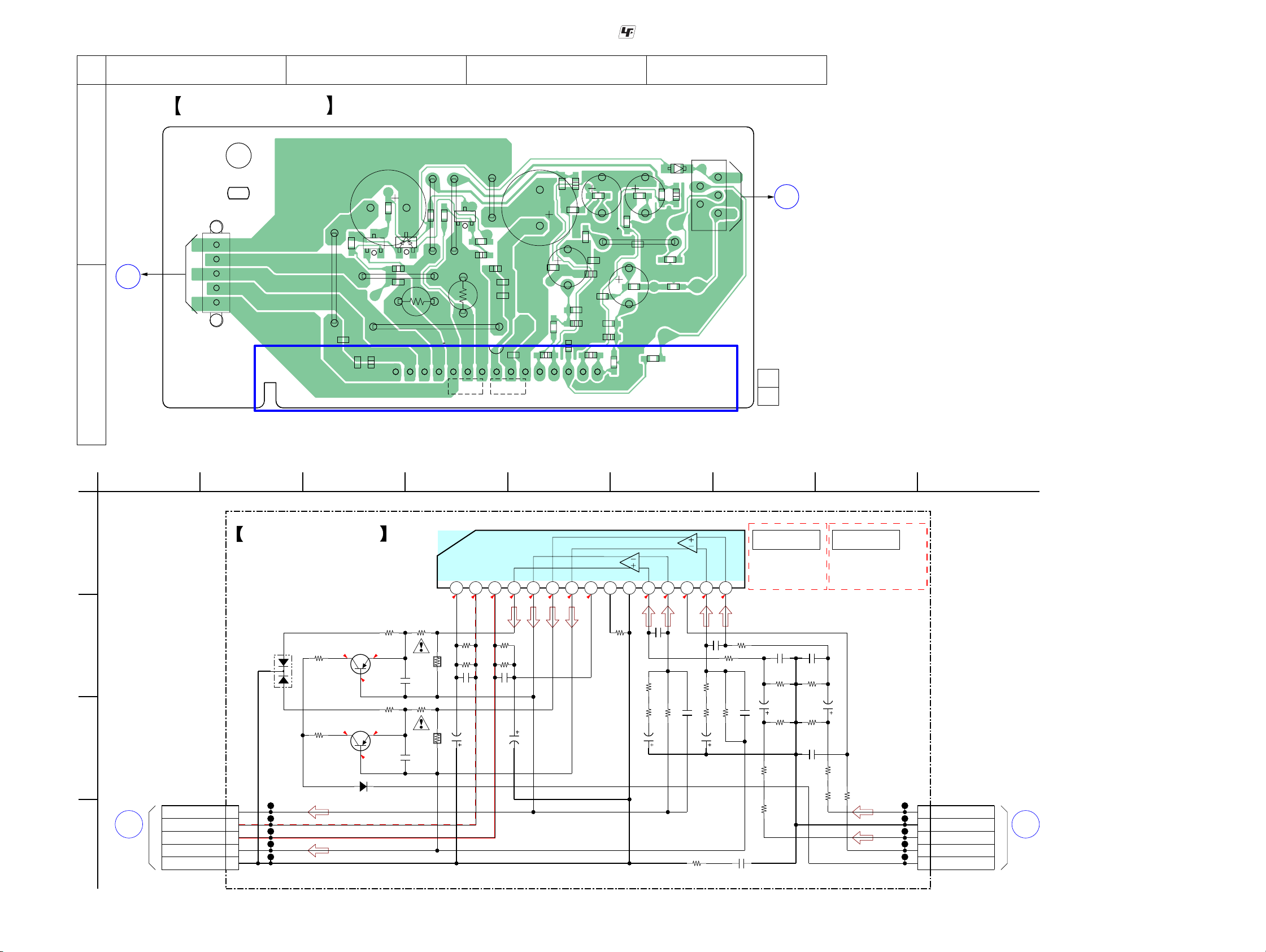

6-11. PRINTED WIRING BOARD - LOW AMP Board -

1234

LOW AMP BOARD

A

R133

R126

G

MAIN

BOARD

CN633

(Page 30)

15

CN104

JW136

B

• See page 27 for Circuit Boards Location.

JW132

JW131

JW133

C120

Q102

Q101

R135

R136

R132

B

E

C119

R134

E

C125

R131

R129

D101

JW135

R130

C126

R125

C123

R127

JW134

R113

R145

R109

R122

C101

C109

R107

C128

• : Uses unleaded solder.

D103

C110

R110

JW137

R105

C102

R104

R108

C108

R112

JR132

R114

R101

R102

C107

R111

R103

C116

R106

C103

C104

CN102

2

4

HCD-EC68P/EC78P

1

H

5

MAIN

BOARD

CN603

(Page 30)

B

R128

6-12. SCHEMATIC DIAGRAM - LOW AMP Board -

LOW AMP BOARD

A

Q101,102

OVER LOAD DETECT

D101

MC2838-T112-1

B

C

D

CN104

-VH

+VH

5P

5

4

3

2

1

OUT-L

G

MAIN MAIN

BOARD

(1/3)

CN633

(Page 31)

OUT-R

PA- GND

TP105

TP104

TP103

TP102

TP101

R135

2.2k

R136

2.2k

Q101

2SA2026

Q102

2SA2026

0

MA2J1110GLS0

D103

C124

0

1

IC101 IC102

(EC68P/EC78P: UK) (EC78P: US,CND)

-PRE

-VCC

C124

0.1

C120

-36.8

∗

R126

R128

+VCC

36.7

220

C123

0.1

∗C119, 120 100 50V (EC68P) 100 63V (EC78P)

R133

22k

00

R134

22k

0

R131

1.2k

R129

0.22

C125

R130

0.22

C126

198765432151413121110

-35.2

2W

0.1

1.2kR132

2W

0.1

R142

LO+

0

R125

R127

C119

220

LO-

0

∗

C105

RO+

0

RO-

0

C106

+PRE

35.2

15

R146

SUB

R142

R123

14

(14)

1-875-495-

769531 842

(EC78P: US, CND)(EC68P/EC78P: UK)

IC101

POWER AMP

IC101

LI-

LI+

ST-BY

GND

0

C105

0

100p

1k

R109

470

R111

25V47

C107

RI-

2

0

R110

3p

47k

R113

C109

R112

C108

R122

100

RI+

0

C106

R145

1k

470

25V47

R146

47k

R114

C116

4700p

STK433-060 (EC68P) STK433-070 (EC78P: UK)

470

100p

470

C103 470p

R107

47k

3p

C101

1

50V

C110

R105

∗

R103

∗

R101

0

C104 470p

R108

C102

50V

R106

C128

47k

1

∗

0.1

R104

∗

IC102

POWER AMP

IC102

STK433-090-E (EC78P: US, CND)

∗R105, 106

4.7k (EC68P) 22k (EC78P)

∗R103, 104 220 (EC78P: US, CND)

1.8k (EC78P: UK)

3.3k (EC68P)

R123

0

1k

R102

TP111

TP110

TP109

TP108

TP107

CN102

5P

IN-R

5

A-GND

4

IN-L

3

AMP-ON

2

PROTECT

1

H

BOARD

(1/3)

CN603

(Page 31)

HCD-EC68P/EC78P

3535

HCD-EC68P/EC78P

• Semiconductor Location

Ref. No. Location

D301 D-4 D302 D-2 D303 D-3 D304 C-4 D305 E-5 D306 E-2 D307 E-3

IC301 B-3 IC302 A-5 IC303 E-2

LED301 A-1 Q301 B-1

Q302 D-4 Q303 D-4 Q304 D-3 Q305 D-2 Q306 D-2 Q307 E-5 Q308 E-5 Q309 E-5 Q310 E-5 Q311 F-5 Q312 F-5 Q313 F-4 Q314 F-4 Q315 F-5 Q316 F-4 Q317 F-4 Q318 F-4

6-13. PRINTED WIRING BOARD - PANEL Board -

123456

PANEL BOARD

A

JW382

80

81

IC301

R326

JW320

R327

LED301

STANDBY

JW342

C355

JW330

JW364

C317

37

JW347

FB301

C342

X302

100

1

B

JW336

Q301

C354

BE

JW329

JW344

R328

C

R422

R325

SCR1

D

E

SW314

+

F

JW393

R415

SW315

–

SW313

JW325

JW332

JW385

R406

JW317

JW311

R414

C314

C315

JW387

C316

JW365

JW358

JW405

SW319

DISPLAY

JW403

JW337

JW404

JW398

JW397

R444

(EC68P/EC78P:US,CND)

JW361

JW392

JW352

R416

24

C353

15

CN311

Y

JW377

JW324

R445

JW372

R413

R376

C351

9

IC303

R368

JW356

JR308

JW339

R377

C319

C320

JW333

C352

C344

JW362

R362

X301

SW305

TUNING +

.-

B

Q306

R379

R378

JW402

R366

R363

JW357

JW315

E

C345

R367

JW353

JW303

JW383

JW340

R336

D302

JW401

JW394

R365

R364

R396

C321

C357

B

Q305

D306

JW328

JW313

E

1

JW395

R375

13

C346

R374

C347

C304

JW343

JW326

BE

Q304

D307

R443 R441 R442

R373

C348

C328

JW307

JR311

R372

R371

CN302

• See page 27 for Circuit Boards Location.

LCD301

LIQDID CRYSTAL DISPLAY

JR305

R401

JW366

C338

JW388

JW360

R405

R384

B

C356

R361

R360

CN303

12

(EC68P/EC78P:US,CND)

C340

JR303

R400

JR310

R391

JW348

JW338

JW375

R419

R386

JR315

R387

JW370

JW386

Q303

E

B

R332

R331

Q302

E

D301

C301

W301

JW406

JW400

JW399

JW396

Q318

JW351

Q314

BE

R392

R389

R330

JR301

R420

R309

D304

R329

C302

JW350

R353 JW368

R352

R447

R390

JR307

C332

JW376

JW381

Q317

JW304

BE

R351

C306

R334

30

C330

R448

R370

31

JR309

JW310

R369

C312

JW318

R383

JW331

R426

212

1

C341

50

JW306

JW314

51

(EC68P:AUS/EC78P:UK)

SW312

9

JR313

R412

SW304

FUNCTION

D303

R333

C303C305

3 1

S301

ROTARY ENCODER

VOLUME

R428

C311

(EC78P)

R429

R319 R320 R321

R322

R324

JW374

JW378

R335

JW335

BEBE

R337

JR302

JW380

JW373

C310

C309

JR304

R358 R359

Q313

R350

R301

JW354

R446

JW379

JW355

R323

R318

JW316

C343

R347

JW308

R317 R316

SW303

JW305

Q316

R346

1

R302 R303

JW301

JW312

JW321

JW389

R338

• : Uses unleaded solder.

B

E

R402

R343

JW384

JW322

R434

R435

JW345

JW391

R340

R345

Q315

Q311

B

30

JW369

R344

R421

BE

E

IC302

32

R385

JW341

JW359

11

2

R307

R310

CN301

31

PLAY MODE/

TUNING MODE

JW371

Q307

E

B

E

Q308

C313

R306

SW318

R417

CN306

JW349

R308

C308

B

JW302

JW323

JW334

SW316

EQ

1

R380

R382

R311

R314

R313

R315

R341

DSGX

SW317

1-875-490-

R305

SW311

R339

E

B

Q310

BE

R348

Q309

E

R357

R312

B

Q312

R381

R433

JW363

JW319

JW309

JW390

R342

D305

JW346

R356

R354 R349

JW367

R304

R355

112

R418

SW303 - 305, SW311 - 319

B

KEY POWER BOARD

W401

(Page 38)

SW311

/

CD

SW303

-TUNING

L

MAIN

BOARD

CN803

(Page 30)

14

(14)

.-

HCD-EC68P/EC78P

G

MOTOR BOARD

Q

CN001

(Page 39)

(EC68P/EC78P:US,CND)

3636

(EC78P:UK)

CD MECHANISM

DECK

(CHASSIS)

KEY CD

A

BOARD

(Page 38)

HCD-EC68P/EC78P

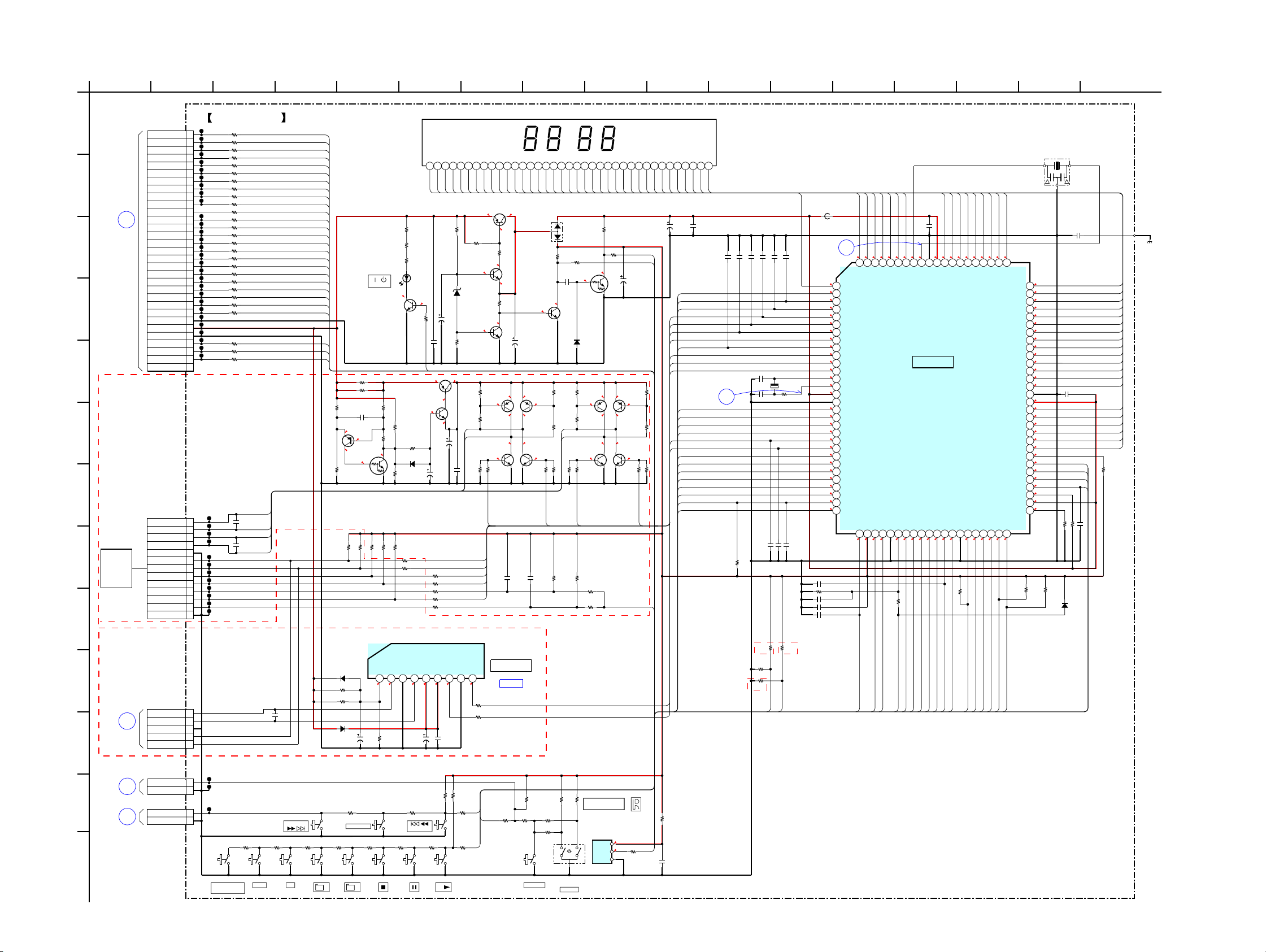

6-14. SCHEMATIC DIAGRAM - PANEL Board -

3

PANEL BOARD

100R301

R302 100

R303 100

R304 100

R305 100

R306 100

R307

100

R308

100

R309 100

R310 100

R311 100

R312 100

R313 100

R314 100

R315 100

R316 100

R317 100

R318 100

R319 100

R320 100

R321 100

R322 100

100

R323

R324 100

R433 470

470

R434

R435 470

TP328

TP329

TP330

TP331

TP333

TP334

TP335

TP336

TP337

TP339

TP340

TP38

M2-

C311

0.1 M2+

M1-

C312

0.1 M1+

O-SW-ON/I-TP-STATE

5V-ON/O-TP-REC-MUTE

I-DMP-DET/O-USB-RST

I-DMP-5V-DET

C353

0.1

4 13

O-TU-CE

O-TU-DI

O-TU-CLK

I-TU-ANSD

I-TU-DO

I/O-I2C-DATA

I/O-I2C-CLK

O-POWER

O-DR-MUTE

O-AMP-ON

O-CD-SBSY

I-REQ

O-CD-CCE

O-CD-BUCK

I/O-BUS3

I/O-BUS2

I/O-BUS1

I/O-BUS0

O-CD-RST

I-P-MONI

O-CD-ON

I-DMP-TXD

O-DMP-TXD

A

B

C

D

E

F

G

H

I

J

K

1 12

CN301

31P

M2+

M1+

SW3

SW1

SW2

DGND

TP301

1

TP302

2

TP303

3

TP304

4

TP305

5

TP306

6

TP307

7

TP308

8

TP309

9

TP310

10

11

TP312

12

TP313

13

TP314

14

TP315

15

TP316

16

TP317

17

TP318

18

TP319

19

TP320

20

TP321

21

TP322

22

TP323

23

TP324

24

TP325

25

TP326

26

TP327

27

TP344

28

TP345

29

TP346

30

31

CN302

13P

M2-

1

2

M1-

3

4

5

6

7

8

9

10

11

12

NC

13

CN311

5P

1

M+

2

M-

3

4

5

L

MAIN

BOARD

(2/3)

CN803

(Page 32)

(EC78P: UK)

CD

MECHANISM

DECK

(EC68P/EC78P: US, CND)

Q

MOTOR

BOARD

CN001

(Page 39)

O-TU-CE

O-TU-DI

O-TU-CLK

I-TU-ANSD

I-TU-DO

I/O-I2C-DATA

O-SW-ON/I-TP-STATE

I/O-I2C-CLK

5V-ON/TP-REC-MUTE

O-POWER

I-DMP-DET/O-USB-RST

O-CD-M-MUTE

O-AMP-ON

O-CD-SBSY

O-CD-REQ

O-CD-CCE

O-CD-BUCK

I/O-BUS3

I/O-BUS2

I/O-BUS1

I/O-BUS0

O-CD-RST

I-P-MONI

O-CD-ON

D-GND

V-STBY

M-GND

I-DMP-TXD

I-DMP-5V-DET

O-DMP-RXD

NC

SW-COM

I-CHACK

I-CLOSE

I-STOCK

I-OPEN

CLOSE SW

OPEN SW

• See page 39 for waveforms. • See page 42 for IC Block Diagrams. • See page 43 for IC Pin Function Description.

5 15

178910111256 14 19181713 16 2015 23

234

COM1

COM2

COM3

COM0

+4V REGULATOR

R338

R340

4.7k

R341

33k

22k

R362

D307

MA2J1110GLS0

R441 39k

R442 22k

D306

1N4002B

1L0341Y23E0CA602

2.2

R339 2.2

C308

0.1

7.1

Q307

ISA1235

0

Q308

RT1N441C

22k

R363

LED301

/

STANDBY

Q301

2SC3052F-T1-LF

LED DRIVE

5.1

22k

R364

12 9876543

3

C357

22

50V

22k

R365

VREF

R443

10k

R325

10

0.1

Q307-310

REGULATOR

220k

R342

R344

2.7k

470k

R343

MA2J1110GLS0

R345

4.7k

22k

R367

OUT2

4.5

RNF

R421

D305

R326

2SC3052

10k

R369

R370

100

R327

100

R328

10k

Q309

KTA1273

Q310

5.1

1k

IC303

BA6956AN

OUT1VMVCC

4.5

C352

10

50V

R329

2.2k

0.7

C302

50V

0.1

R330

680

C301

LED-STBY

8.1 4.9

7.7

4.9

C309

22

50V

C343

22

50V

I-SW3/CDM-CLOSE

R371

1k

R372

1k

R373

0

R374

1k

R375

0

7.5

C351

0.1

D301

MAZ8043GMLS0

10

I-SW1/CDM-OPEN

FIN

0

711

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

Q302-304

2SC3052F-T1-LF

R346

47k

R347

470

C310 0.1

I-CHACK

I-SW2

I-STOCK

GND

Q302

KTA1271Y-AT

R331

100k

4.5

Q303

0.7

Q304

M2-

M2+

47k

R354

RIN

0

R445

4.7k

R444

4.7k

3.9

8.1

7.5

R332

10k

5.7

3.9

R333 100k

0

4.8 4.8 4.8

Q311

2SA1365

4.8 4.8 4.84.8

Q315

2SC3440

R355

1k

Q311-318

MOTOR DRIVE

O-M2-

C345

C344

0.047

IC303

MOTOR DRIVER

IC B/D

8

LCD301

LIQUID CRYSTAL DISPLAY

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

D303

MC2836

R334

R335

10k

C304

0.1

3.3

0

Q305

2SC3052F-T1-LF

C303

10

50V

Q312

2SA1365

4.8 4.84.8 4.8

Q316

2SC3440

R356

D302

R348

R350

47k

4.8

R351

470

R349

M1-

470

M1+

47k

1k

R357 47k

R358

O-M2+

R368

R366

10k

SEG15

22k

0

MA2J1110GLS0

Q313

2SA1365

2SC3440

R359

O-M1-/CDM-M-

SEG16

Q317

1k

R428

R426

24 2721282625

22

SEG17

SEG18

SEG19

SEG20

SEG21

R336

10k

R337

220

3.1

Q306

RT1N441C-TP-1

Q305,306

VOLTAGE DETECT

4.94.9

2SA1365

Q318

2SC3440

R360

47k

100k

I-CLOSE/OPEN

O-M1-/CDM-M-

O-M1+/CDM-M+

SEG22

C305

10

50V

Q314

1k

SEG23

I-RST

I-HOLD

R352

47k

R353

470

0000

O-M1+/CDM-M+

SEG24

47k

R361

SEG25

31 33 3530 32 363429

SEG26

SEG27

C306

470

6.3V

SEG28

SEG29

C321

0.1

O-AMP-ON

O-POWER

O-CD-ON

I-SW3/CDM-CLOSE

I-SW2

I-SW1/CDM-OPEN

O-M1+/CDM-M+

I-RMC

O-M1-/CDM-M-

O-M2+

O-M2-

I/O-BUS0

I/O-BUS1

I/O-BUS2

I/O-BUS3

I-CHACK

I-STOCK

O-DR-MUTE

I-REQ

O-CD-BUCK

O-CD-CCE

O-CD-RST

LED-STBY

I-DMP-TXD

I-DMP-5V-DET

37

SEG30

SEG31

SEG32

C317

1000p

(EC68P: AUS/EC78P: UK)

0

1

0

C338 1000p

C332 0.01

C330 0.1

C348 470p

SEG31

32

1.3

100

SEG31

SEG32

12345678

O-AMP-ON

O-POWER

O-CD-ON

I-3CD-SW3/O-CDM-CLOSE

I-3CD-SW2/NC

I-3CD-SW1/O-CDM-OPEN

O-3CD-M1+/O-CDM-M1+

I-RMC

9101112131415161718192021222324252627282930

O-3CD-M1-/O-CDM-M1-

O-3CD-M2+/NC

O-3CD-M2-/NC

X0A

X1A

VCC

VSS

I/O-CD-BUS0

I/O-CD-BUS1

I/O-CD-BUS2

I/O-CD-BUS3

I-3CD-CHACK

I-3CD-STOCK

O-DR-MUTE

I-REQ

O-CD-BUCK

O-CD-CCE

O-CD-RST

O-LED-STBY I-USB-TXD/ I-DMP-TXD I-USB-DO/ I-DMP-5V-DET

O-USB-RXD/ O-DMP-RXD

31

3.1

100kR420

O-DMP-RXD

SEG30

1.3

99

32 33

3.3

FB301

SEG32

C354

4700p

C315

C314

C316

31

0.047

10k

R448

C355

0.047 4700p

X301

32.768kHz

C319

18p

R396

C320 22p

0.047C346

470pC347

C328

0.047

(EC78P)

R390

R392

10k

R389

∗

R391

∗

I-MODEL

I-SUFIX

∗R389 1k (EC68P/EC78P: US, CND)

5.6k (EC78P: UK)

∗R391 1k (EC78P: UK)

2.2k (EC68P: AUS)

330k

(EC68P/EC78P: US, CND)

10k

1.3

3.1

3.3

3.1

1.4

3.1

3.3

3.1

3.3

SEG28

SEG29

1.3

98

97

SEG28

SEG29

SEG30

AVCC

O-USB-DI/5V-ON/O-TP-REC-MUTE

I-TU-DO

34 35 363738 39

3

2.9

5V-ON/O-TP-REC-MUTE

I-TU-DO

SEG27

1.3

SEG27

AVSS

SEG26

SEG25

1.3

94

9596

SEG25

SEG26

SYSTEM CONTROLLER

I-P-MONI

I-KEY1

1.5

3.3

27k

R419

I-KEY1

I-P-MONI

1.1

X0

MB90F831PF-G-SPE1

I-KEY2

3.3

I-KEY2

142

C342

1000p

1.3

9293

91

X1

IC301

I-TU-ANSD

40

0

0.9

I-TU-ANSD

O-SW-ON/I-TP-STATE

VSS

O-USB-SEL1_2/O-SW-ON/I-TP-STATE

SEG24

3.1

1.3

90

89

VCC

I-KEY-WAKE-UP/VOL

42

41

3.3

I-KEY-WAKE-UP/VOL

I-HOLD

SEG21

SEG22

SEG23

1.3

85868788

SEG21

SEG22

SEG23

SEG24

GND

I-DMP-DET/O-USB-RST

I-HOLD

O-CD-SBSY

434445 464748

0

3.3

10k

R429

O-CD-SBSY

I-DMP-DET/O-USB-RST

SEG20

1.3

SEG20

I-MODEL

3

I-MODEL

SEG19

1.3

84

2.813.3

I-SUFIX

SEG17

SEG18

1.3

8283

81

SEG17

SEG18

SEG19

I-1CD-CLOSE_OPEN/NC

I-SUFFIX

I/O-I2C-DATA

49 50

I-CLOSE/OPEN

I/O-I2C-DATA

SEG16

1.3

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

SEG0

CMO3

CMO2

COM1

COM0

VLCD

O-TU-DI

O-TU-CLK

O-TU-CE

I/O-I2C-CLK

3.3

R446

I/O-I2C-CLK

1669 1710

X302 6MHz

C356

0.1

1.3

C341

D304

O-TU-DI

O-TU-CLK

O-TU-CE

R400 1k

0.1

I-RST

R401 1k

C340 0.1

VSS

3.1

VCC

1.3

2.6

58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

0

3.1

I-RST

3.1

MD0

3.1

MD1

0

MD2

51 52 53 54 55 56 57

R447

4.7k

MA2J1110GLS0

W301

(CHASSIS)

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

SEG0

COM3

COM2

COM1

COM0

100k

R402

(Page 38)

KEY

POWER

B

BOARD

W401

L

KEY CD

A

BOARD

(Page 38)

M

HCD-EC68P/EC78P

KEY-0

KEY-1

CN306

2P

TP341

1

CN303

TP348

2

2P

TP343

1

2

R418

15k

PLAY MODE

TUNING MODE

DSGX EQ

SW305

TUNING +

R416

R417

3.9k

6.8k

R406

1.5k

SW304

FUNCTION

R414

R413R415

2.2k

2.7k

-

+

1.5k

R405

1.2k

SW303

- TUNING

R384

R383

10k

I-KEY2

R387

1k

R412

1.2k

I-KEY1

R386

1k

SW311SW312SW313SW314SW315SW316SW317SW318

CD

R385

1k

I-KEY-WAKE-UP/VOL

R376

10k

R379

68k

R378

33k

ROTARY ENCODER

R377

10k

31

2

S301

VOLUME

IC302

REMOTE CONTROL

RECEIVER

IC302

NJL24H400B

VCC

OUT

GND

R380

470

3.1

1

3.1

I-RMC

3

R381

10k

2

C313

0.22

R382

R422

4.7k

SW319

DISPLAY

GND

3737

HCD-EC68P/EC78P

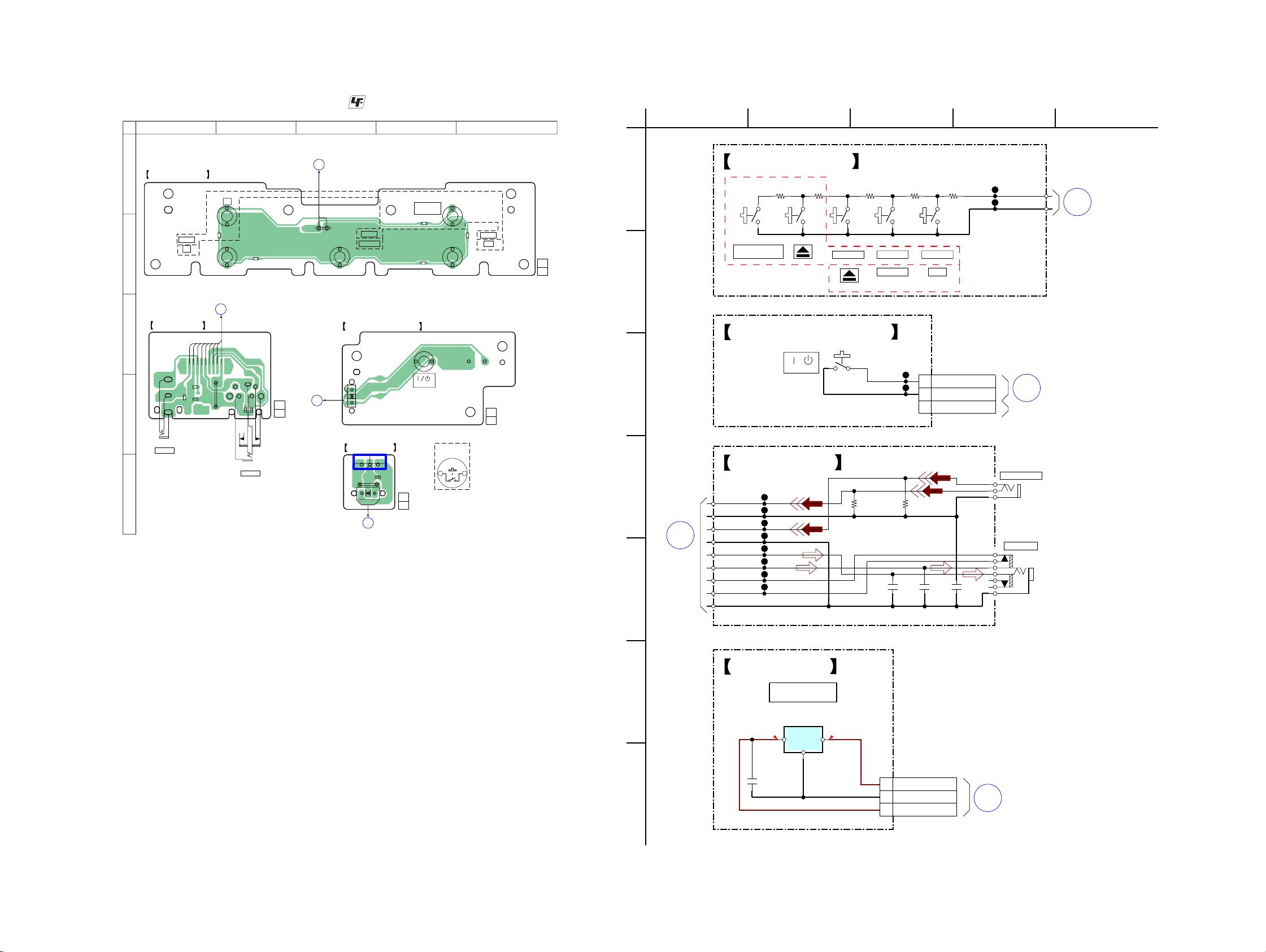

6-15. PRINTED WIRING BOARDS - KEY Section -

• See page 27 for Circuit Boards Location.

1234 5

A

KEY CD BOARD

B

JACK BOARD

(EC68P/EC78P:US,CND)

SW308

DISC 3

(EC78P:UK)

SW309

;

R410

;

SW309

R409

MAIN

C

BOARD

CN605

(Page 30)

C

19

R491

R492

C491

D

JW491

C496

14

C495

(14)

1-875-493-

(Page 36)

J491

AUDIO IN

J492

PHONES

E

• : Uses unleaded solder.

PANE L BOARD

A

CN303

(Page 36)

SW307

DISC 2

SW307

DMPORT CD

(EC68P/EC78P:US,CND)

KEY POWER BOARD

3

(NC)

W401

1

REG BOARD

2

1

3

IC601

C698

JW614

W610

13

1-875-489-

MAIN

D

BOARD

(Page 30)

PANE L

BOARD

CN306

12

B

6-16. SCHEMATIC DIAGRAM - KEY Section -

2

4

531

KEY CD BOARD

(EC78P: UK)

DISC SKIP/

EX-CHANGE

R411

15k

SW306SW307

DISC 1

R407

TP415

2.2k

TP416

CDDMPORT

KEY-1

GND12

A

PAN EL BOARD

CN303

(Page 37)

R408

2.7k

DISC 2

(EC68P/EC78P: US, CND)

SW308

DISC 3

R409

3.9k

R410

6.8k

SW309SW310

SW310

DISC SKIP/

EX-CHANGE

R411

R408

SW306

R407

DISC 1

(EC68P/EC78P:US,CND)

1-875-492-

A

14

(14)

B

KEY POWER BOARD

SW301

STANDBY

SW301,

SW306 - 310

1-875-491-

SW301

/

STANDBY

TP409

C

14

(14)

TP410

W401

3P

1

2

3

KEY-0

GND

KEY-SW-ON

JACK BOARD

(Page 37)

PAN EL

BOARD

CN306

(NC)

J491

AUDIO IN

B

D

14

(14)

C

MAIN

BOARD

(1/3)

CN605

(Page 31)

E

1

AUDIO-L

A-GND

AUDIO-R

HP-GND

HP-L

HP-R

AMP-ON

SP-RELAY

9GND

TP491

TP492

TP493

TP494

TP495

TP496

TP497

TP498

R492

R491

C496

1000p

22k

C495

1000p

C491

J492

PHONES

0.1

22k

HCD-EC68P/EC78P

REG BOARD

F

G

3838

IC601

+9V REGULATOR

IC601

TA7809S

17.1 8.9

C698

0.1

IO

1

3

G

2

W610

3P

OUT

3

GND

2

IN

1

D

MAIN

BOARD

(1/3)

(Page 31)

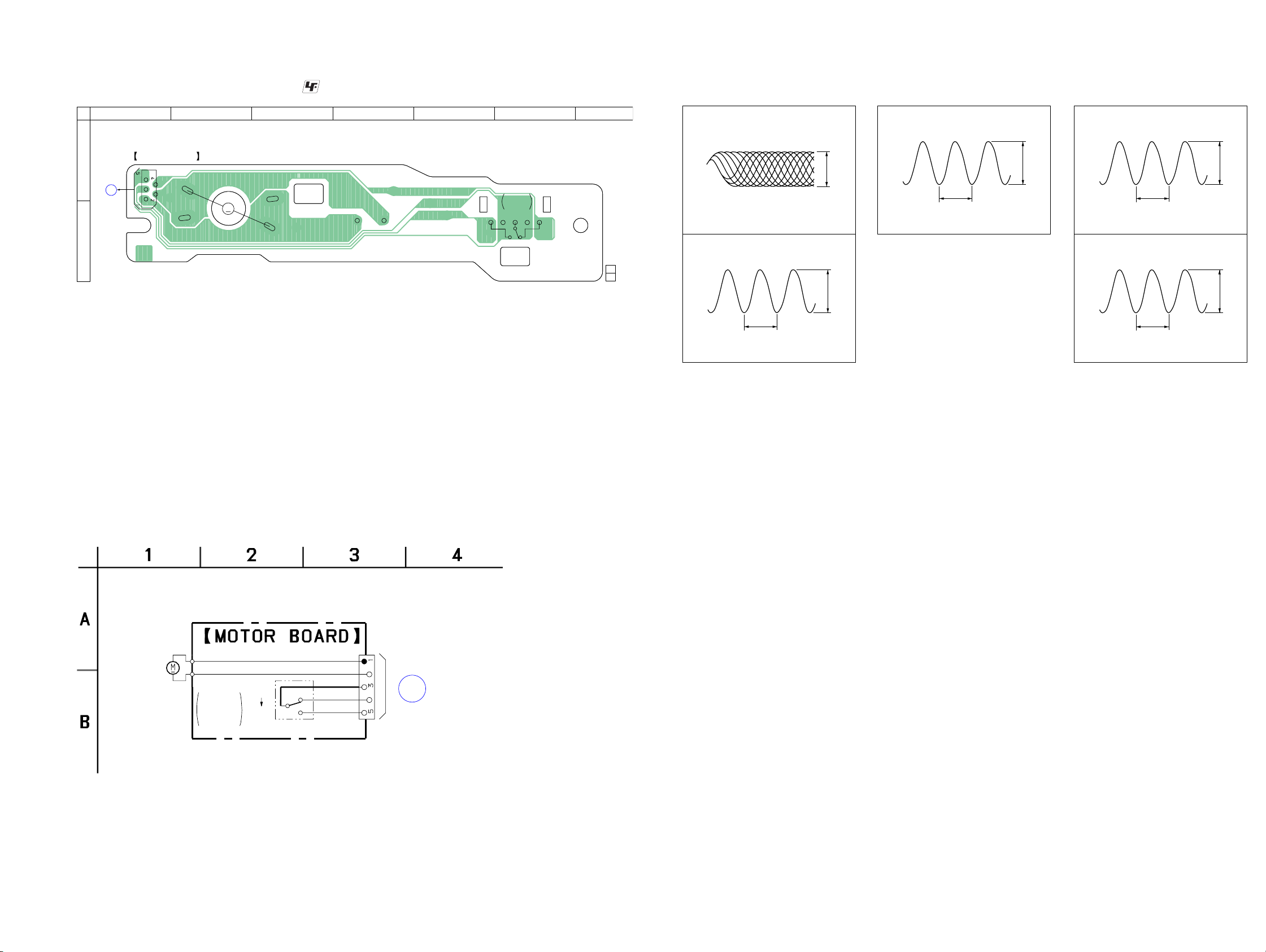

6-17. PRINTED WIRING BOARD - MOTOR Board (EC68P/EC78P: US, Canadian models) -

• See page 27 for Circuit Boards Location.

1234567

• : Uses unleaded solder.

• Waveforms – CD Board –

IC101 JB (RFi)



(CD play mode)

– MAIN Board –

IC801 RM (XIN)

XB

HCD-EC68P/EC78P

– PANEL Board –

IC301 RG (X1A)

FB

A

B

Q

PANEL BOARD

CN311

(Page 36)

MOTOR BOARD

CN001

M

M001

(LOADING)

S001

DISC TRAY

OPEN/CLOSE

DETECT

OPEN

5CLOSE

1-866-548-

0.5 to 1.3 Vp-p

13.3 µs

200 mV/DIV, 500 ns/DIV

IC101 XG (XO)



21

(21)

(CD play mode)

500 mV/DIV, 5 µs/DIV

1 Vp-p

IC301 PT (X1)

FT

30.5 µs

1 V/DIV, 10 µs/DIV

3.3 Vp-p

59.1 ns

1 V/DIV, 20 ns/DIV

166 ns

1 V/DIV, 50 ns/DIV

3 Vp-p

6-18. SCHEMATIC DIAGRAM - MOTOR Board (EC68P/EC78P: US, Canadian models) -

M001

(LOADING)

S001

CD TRAY

OPEN/CLOSE

DETECT

CLOSE

OPEN

CLOSE

DGND

CLOSE SW

OPEN SW

OPEN

CN001

Q

PAN EL

BOARD

5P

CN311

(Page 37)

HCD-EC68P/EC78P

3939

HCD-EC68P/EC78P

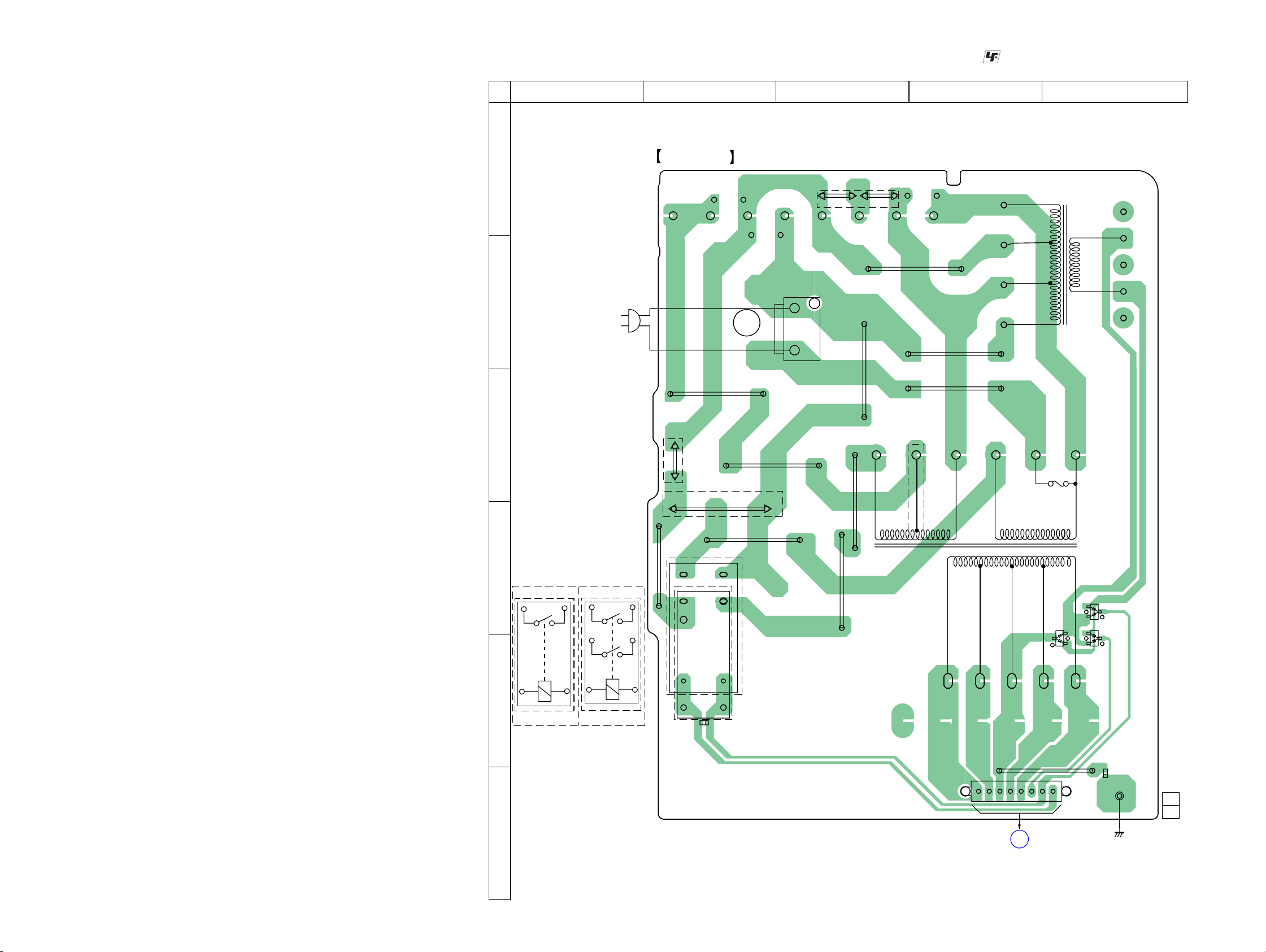

6-19. PRINTED WIRING BOARD - PT Board -

12345

PT BOARD

A

B

(AC IN)

JW010

• See page 27 for Circuit Boards Location.

(EC68P:AUS)

JW009

13

CN053

JW004

JW016

JW014

• : Uses unleaded solder.

PT001 (EC68P:US/EC78P)

JW013

JW015

PT002 (EC68P:AUS)

SUB POWER TRANSFORMER

C

D

E

(EC68P:US/EC78P)

RY001

(EC68P:AUS)

RY002

(EC68P:AUS)

JW007

(EC68P:AUS)

JW019

JW008

RY002

RY001

C051

(EC68P:US/EC78P)

JW011

(EC68P:US/EC78P)

JW017

JW012

JW018

(EC68P:AUS)

PT003(EC68P) PT004(EC78P)

MAIN POWER

TRANSFORMER

∗

NOT REPLACEABLE: BUILD IN TRANSFORMER

D051

D052D055

HCD-EC68P/EC78P

JW020

MAIN

BOARD

CN604

1

CN051

C052

W001

(CHASSIS)

1-875-494-

14

(14)

8

F

J

(Page 30)

4040

HCD-EC68P/EC78P

4141

(1/3)

J

MAIN

BOARD

CN604

C051

0.1

MC2836

D051

MC2838-T112-1

D052

RY001

1 2 3 4 5 6 7 8

8P

CN051

RELAY ON/OFF V STBY AC DETECT VH(AC) VL(AC) GND VL(AC) VH(AC)

RY002

MC2838-T112-1

D055

JW004

JW009

JW007

JW008

1 3

3P

CN053

LIVE

NEUTRAL

PT002

PT003

3

11

12

13

14

5

10

2

4

6

PT004

3

11

12

13

14

1

5

10

2

4

6

1

3

4

5

6

7

8

9

2

PT001

0.1

C052

PT BOARD

(EC68P: AUS)

(EC68P:AUS)

(EC68P: US/EC78P)

(AC IN)

SUB POWER TRANSFORMER

MAIN POWER TRANSFORMER

(EC68P)

(EC78P)

∗

∗NOT REPLACEABLE:

BUILD IN TRANSFORMER

W001

(CHASSIS)

711

D

B

6910

F

53

G

1 12

C

E

84 13

A

2

1

3

4

5

6

7

8

9

2

1

(EC68P: AUS)

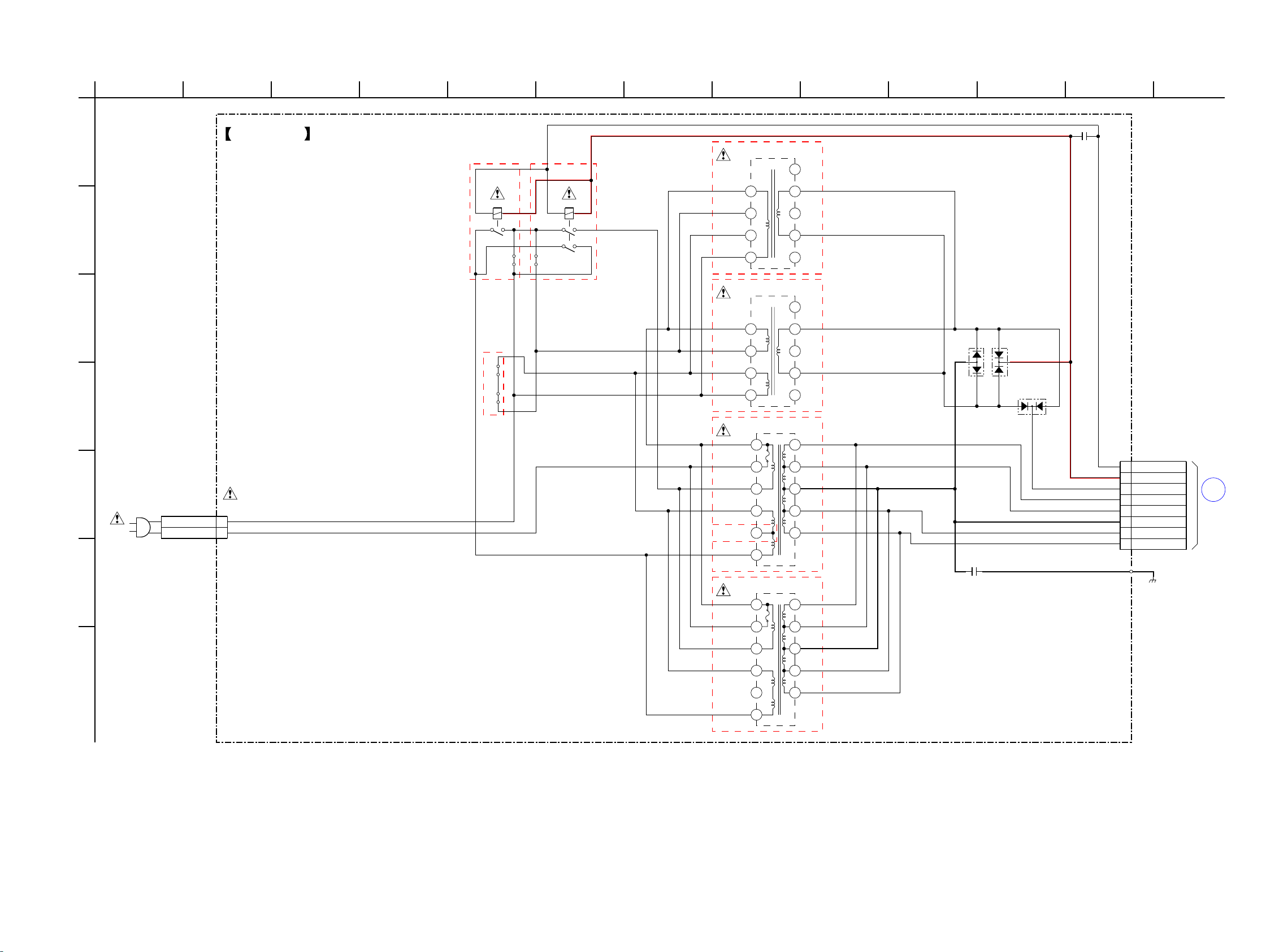

6-20. SCHEMATIC DIAGRAM - PT Board -

(Page 31)

HCD-EC68P/EC78P

4242

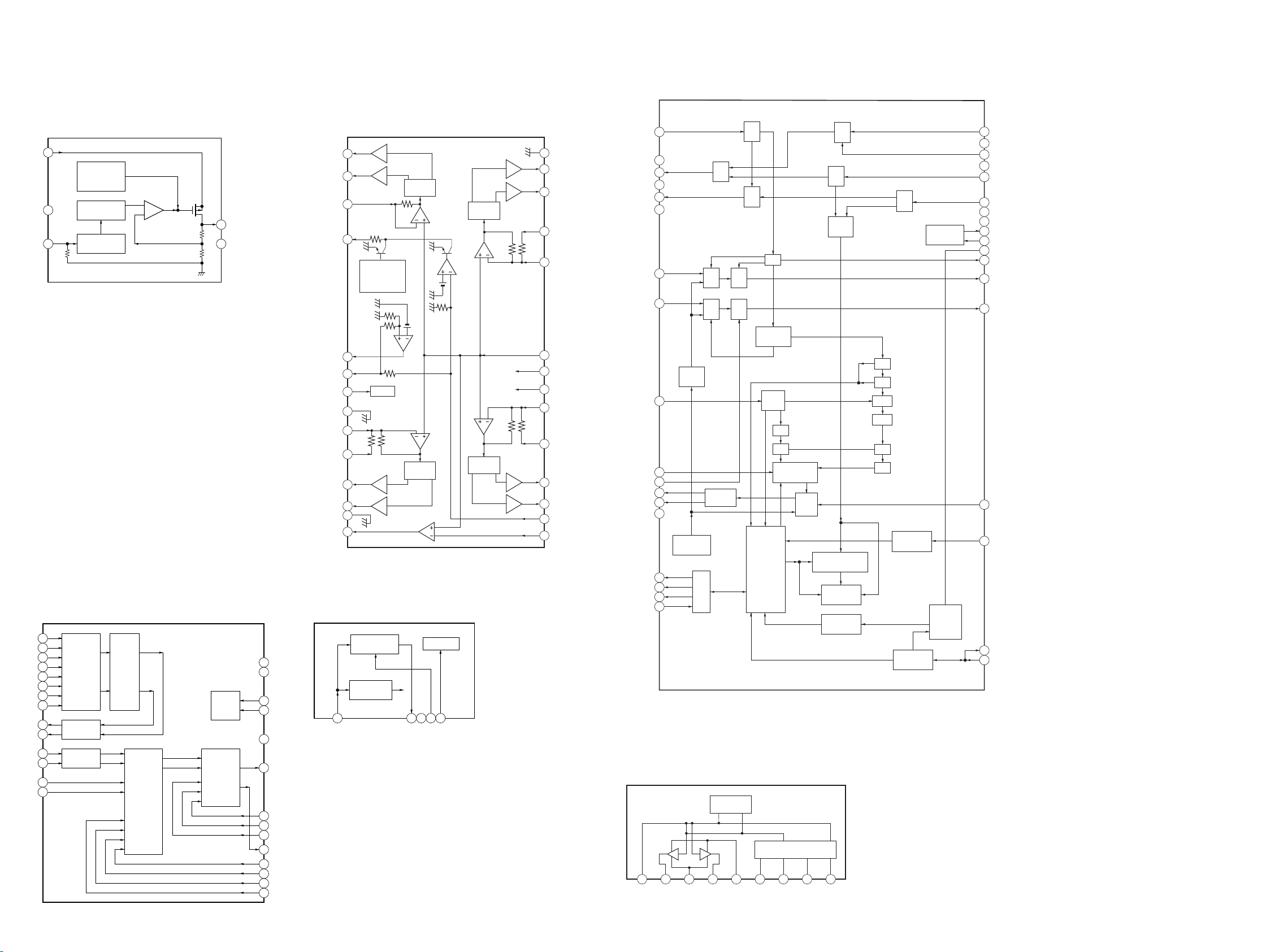

• IC Block Diagrams – CD Board –

IC201 TK63115SCL-G@GT

IC401 BA5826SFP-E2

– MAIN Board –

IC602 BD3499FV-E2

IC701 BD9701CP-V5

IC801 LV23003VA

1

AM RF-IN

3

FM-MIX

2

REG

6

VCC1

4

GND1

AM

RF

AM MIX

AM

DET

AM

IF

FM

DET

FM

IF

SD

FF

VCO

FF

ST

TRIG

STSW

FM

MIX

FM

OSC

AM

OSC

BUFFER

FM

S-METER

DECODER

PHASE

COMPARATOR

MUTE

PROGRAMMABLE

DIVIDER

REFERENCE

DIVIDER

UNLOCK

DETECTOR

SWALLOW COUNTER

POWER ON

RESET

DATA SHIFT

REGISTER

LATCH

PHASE

DETECTOR

CHARGE

PUMP

UNIVERSAL

COUNTER

5

AM-MIX

7

AMIF-IN

8

FMIF-IN

9

P-DET

10

P-COMP

11

FM-DET

12

L-OUT

13

R-OUT

14

VSS

FM RF

36

FM RF-IN

35

GND2

34

FMRF-OUT

33

VCC2

30

BO2

29

BO1

32

FM-OSC

31

AM-OSC

28

LP-OUT

27

LP-IN

23

FMDET-OUT

15

CE

16

DI

17

CL

18

DO

22

MPX-IN

19

XIN

20

XOUT

21

VDD

26

PD

25

AGC

24

AMDET-OUT

LOW-PASS

FILTER

AGC

IF

BUFFER

PIROT

DET

CCB

I/F

1 2 3 4 5 6 7 8 9

CONTROL LOGIC

TSD

VREF

OUT2

OUT1

RNF

VM

VCC

FIN

GND

RIN

– PANEL Board –

IC303 BA6956AN

1

VIN

THERMAL &

OVER CURRENT

PROTECTION

VOLTAGE

REFERENCE

ON/OFF

CONTROL

2

GND

3NC4

VCONT

28 27

26

25

24

23 22

21

20

19

18

17 16

15

GND VO4(–)

VO4(+)

IN4

IN4'

BIAS VCC

VCC

IN3'

IN3

VO3(+)

VO3(–) RESETt

OPIN

1

VO1(–)

VO1(+)

– +

VOUT

5

RESET

REGB

REGOUT

MUTE

VO2(+)

VO2(–)

OPOUT

GND

IN2'

GND

D.BUFF

2

D.BUFF

3

IN1

4

THERMAL SHUT-DOWN REGULATOR

BIAS TRAP

5

6

MUTE

7

8

9

IN2

10

D.BUFF

11

D.BUFF

12 13

14

LEVEL

SHIFT

LEVEL

SHIFT

LEVEL

SHIFT

REGULATOR

LEVEL SHIFT

D.BUFF

VCC

D.BUFF

1A1

VOL1 VOL2

2A2 3B1 4

B2

5C1 6C2 7D1 8D2

9SEL2

10SEL1

11 12

13TC2 14TC1

SELECTOR

INVERTER

VOLUME

INPUT

GAIN

TREBLE/

BASS

PC BUS

SURROUND

LOGIC

28 FIL 27 GND

26

SDA

25

SCL

24 VCC

23 OUT1

22 SB1 21 SR 20 SB2

19 OUT2 18 BCB1

17 BCA1 16 BCA2 15 BCB2

REGULATOR

VOLTAGE

REFERENCE

1

VCC

STANDBY

2

3

4

5

INV

OUT

GND

STBY

HCD-EC68P/EC78P

• IC Pin Function Description CD BOARD IC101 TC94A70FG-006 (CD-MP3 PROCESSOR)

Pin No. Pin Name I/O Description

1 AVSS3 - Ground terminal 2 RFZi I RF ripple zero crossing signal input terminal 3 RFRP O RF ripple signal output terminal 4 SBAD/RFDC O Sub beam addition signal or RF peak detection signal output terminal Not used 5 FEi O Focus error signal output terminal Not used 6 TEi O Tracking error signal output terminal 7 TEZi I Tracking error zero crossing signal input terminal 8 AVDD3 - Power supply terminal (+3.3 V) 9 FOo O Focus coil drive signal output terminal

10 TRo O Tracking coil drive signal output terminal

11 VREF I Reference voltage (+1.65V) input terminal 12 FMo O Sled motor drive signal output terminal 13 DMo O Spindle motor drive signal output terminal 14 VSSP3 - Ground terminal 15 VCOi I VCO control voltage input terminal 16 VDDP3 - Power supply terminal (+3.3 V) 17 VDD1 - Power supply terminal (+1.5 V) 18 VSS - Ground terminal 19 FGiN I FG signal input terminal Not used 20 IO0 (/HSO) I Disc inner position detection signal input terminal 21 IO1 (/UHSO) O Not used 22 XVSS3 - Ground terminal 23 XI I System clock input terminal (16.9344 MHz) 24 XO O System clock output terminal (16.9344 MHz) 25 XVDD3 - Power supply terminal (+3.3 V) 26 DVSS3 - Ground terminal 27 RO O Audio data (R-ch) output to the input selector 28 DVDD3 - Power supply terminal (+3.3 V) 29 DVR O Reference voltage (+1.65V) output terminal 30 LO O Audio data (L-ch) output to the input selector 31 DVSS3 - Ground terminal 32 VDDT3 - Power supply terminal (+3.3 V) 33 VSS1 - Ground terminal 34 VDD1 - Power supply terminal (+1.5 V) 35 VDDM1 - Power supply terminal (+1.5 V) 36 SRAMSTB I S-RAM standby mode control signal input terminal Fixed at "L" in this set 37 XRST I Reset signal input from the system controller "L": reset

38, 39 BUS0, BUS1 I Serial data input from the system controller

40 BUS2 (SO) I Serial data input from the system controller 41 BUS3 (SI) I Serial data input from the system controller 42 BUCK (CLK) I Serial data transfer clock signal input from the system controller 43 XCCE I Chip enable signal input from the system controller 44 TEST I Setting terminal for test mode Normally ﬁ xed at "L" 45 IRQ I Interrupt request signal input terminal Not used 46 AoUT3 (PO4) O Request signal output terminal Not used 47 AoUT2 (PO5) O Audio data output terminal Not used 48 PIO0 O Request signal output to the system controller

49, 50 PIO1, PIO2 O Not used

51 PIO3 I Gate signal input terminal Not used 52 VSS1 - Ground terminal 53 VDDT3 - Power supply terminal (+3.3 V) 54 SBSY O Subcode block sync signal output to the system controller 55 SBOK/FOK O Not used 56 IPF O Not used 57 SFSY/LOCK O Not used 58 ZDET O Zero detection signal output terminal Not used 59 GPIN I Not used 60 MS I Microcomputer interface mode selection signal input terminal Fixed at "H" in this set

43

HCD-EC68P/EC78P

Pin No. Pin Name I/O Description

61 DOUT (PO6) O Digital audio data output terminal Not used 62 AOUT (PO7) O Audio data output terminal Not used 63 BCK (PO8) O Bit clock signal output terminal Not used 64 LRCK (PO9) O L/R sampling clock signal output terminal Not used 65 AIN (PI4) I Digital audio data input terminal Not used 66 BCKi (PI5) I Bit clock signal input terminal Not used 67 LRCKi (PI6) I L/R sampling clock signal input terminal Not used 68 VDD1 - Power supply terminal (+1.5 V) 69 VSS - Ground terminal 70 AWRC - Not used 71 PVDD3 - Power supply terminal (+3.3 V) 72 PDO O Phase error margin signal between EFM signal and PLCK signal output terminal 73 TMAXS O TMAX detection signal output terminal Not used 74 TMAX O TMAX detection signal output terminal 75 LPFN I Inverted signal input from the operation ampliﬁ er for PLL loop ﬁ lter 76 LPFo O Signal output from the operation ampliﬁ er for PLL loop ﬁ lter 77 PVREF I Reference voltage (+1.65V) input terminal 78 VCOF O VCO ﬁ lter output terminal 79 PVSS3 - Ground terminal 80 SLCo O EFM slice level output terminal 81 RFi I RF signal input terminal 82 RFRPi I RF ripple signal input terminal 83 RFEQo O EFM slice level output terminal 84 VRo O Reference voltage (+1.65V) output terminal 85 RESiN O External resistor connection terminal 86 VMDiR O Reference voltage (+1.65V) output terminal for automatic power control circuit 87 TESTR O Low-pass ﬁ lter terminal for RFEQO offset correction 88 AGCi I RF signal amplitude adjustment ampliﬁ cation input terminal 89 RFo O RF signal generation ampliﬁ cation output terminal 90 RVDD3 - Power supply terminal (+3.3 V)

91 LDo O 92 MDi I Light amount monitor input from the laser diode of optical pick-up block

93 RVSS3 - Ground terminal 94 FNi2 (C) I Main beam (C) input from the optical pick-up block 95 FNi1 (A) I Main beam (A) input from the optical pick-up block 96 FPi2 (D) I Main beam (D) input from the optical pick-up block 97 FPi1 (B) I Main beam (B) input from the optical pick-up block 98 TPi (F) I Sub beam (F) input from the optical pick-up block 99 TNPC O External capacitor connection terminal

100 TNi (E) I Sub beam (E) input from the optical pick-up block

Laser diode on/off control signal output to the automatic power control circuit "H": laser diode on

44

HCD-EC68P/EC78P

PANEL BOARD IC301 MB90F831PF-G-SPE1 (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Description

1 SEG32 O Segment drive signal output to the liquid crystal display 2 O-AMP-ON O Relay drive signal output terminal (for speaker) 3 O-POWER O Main power on/off control signal output terminal "H": on 4 O-CD-ON O CD power on/off control signal output terminal "H": on

I-3CD-SW3/O-CDM-

5 to 7

8 9 I-RMC I Remote control signal input from the remote control receiver

10

11, 12

13 X0A I Sub system clock input terminal (32.768 kHz) 14 X1A O Sub system clock output terminal (32.768 kHz) 15 VCC - Power supply terminal (+3.1V) 16 VSS - Ground terminal

17 to 20

21 I-3CD-CHACK I Disc chucking detection switch input from the CD mechanism deck (EC78P: UK model) 22 I-3CD-STOCK I Disc stocking detection switch input from the CD mechanism deck (EC78P: UK model) 23 O-DR-MUTE O Muting signal output to the motor/coil driver 24 I-REQ I Request signal input from the CD-MP3 processor 25 O-CD-BUCK O Serial data transfer clock signal output to the CD-MP3 processor 26 O-CD-CCE O Chip enable signal output to the CD-MP3 processor 27 O-CD-RST O System reset signal output to the CD-MP3 processor "L": reset 28 O-LED-STBY O LED drive signal output terminal for STANDBY indicater 29 I-USB-TXD/I-DMP-TXD I Serial data input from the DMPORT connector

30

31 32 AVCC - Power supply terminal (+3.1V)

33 I-TU-DO I Serial data input from the AM/FM DET 34 35 AVSS - Ground terminal

36 I-P-MONI I Power monitor signal input terminal

37, 38 I-KEY1, I-KEY2 I Front panel key input terminal (A/D input)

39 I-TU-ANSD I Power monitor signal input terminal 40 41 I-KEY-WAKE-UP/VOL I System wake up signal input terminal

42 I-HOLD I Hold signal input terminal 43 O-CD-SBSY I Subcode block sync signal input from the CD-MP3 processor 44 GND - Ground terminal

45 46 I-MODEL I Model setting terminal

47 I-SUFFIX I Sufﬁ x setting terminal 48 49 I/O-I2C-DATA I/O Two-way serial data bus with the electrical volume

50 I/O-I2C-CLK O Serial data transfer clock signal output to the electrical volume

51 to 53 MD2 to MD0 - Not used

54 I-RST I 55 O-TU-CE O Chip enable signal output to the FM/AM DET

56 O-TU-CLK O Serial data transfer clock signal output to the FM/AM DET

CLOSE, I-3CD-SW2/

NC, I-3CD-SW1/

O-CDM-OPEN

O-3CD-M1+/ O-CDM-M1+

O-3CD-M1-/ O-CDM-M1-

O-3CD-M2+/NC,

O-3CD-M2-/NC

I/O-CD-BUS0 to

I/O-CD-BUS3

I-USB-DO/

I-DMP-5V-DET

O-USB-RXD/

O-DMP-RXD

O-USB-DI/5V-ON/

O-TP-REC-MUTE

O-USB-SEL1_2/O-SW-

ON/I-TP-STATE

I-DMP-DET/ O-USB-RST

I-1CD-CLOSE_OPEN/

NC

I Detection switch input terminal

O Motor drive signal output terminal

O Serial data output to the CD-MP3 processor

I Power voltage detection signal input terminal

O Serial data output to the DMPORT connector

O Power on/off control signal output terminal

I Tape syate detection signal input terminal Not used

I DMPORT connector detection signal input terminal

I CD table open/close detection signal input terminal (EC78P: UK model)

Reset signal input from the voltage detect "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H"

45

HCD-EC68P/EC78P

Pin No. Pin Name I/O Description

57 O-TU-DI O Serial data output to the FM/AM DET 58 VLCD -

59 to 62

63, 64 SEG0, SEG1 O Segment drive signal output to the liquid crystal display

65 VCC - Power supply terminal (+3.1V) 66 VSS - Ground terminal

67 to 89 SEG2 to SEG24 O Segment drive signal output to the liquid crystal display

90 VCC - Power supply terminal (+3.1V) 91 VSS - Ground terminal 92 X1 I Main system clock output terminal (6 MHz) 93 X0 O Main system clock input terminal (6 MHz)

94 to 100 SEG25 to SEG31 O Segment drive signal output to the liquid crystal display

COM0, COM1, CMO2,

CMO3

Terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage

O Common drive signal output to the liquid crystal display

46

Note:

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

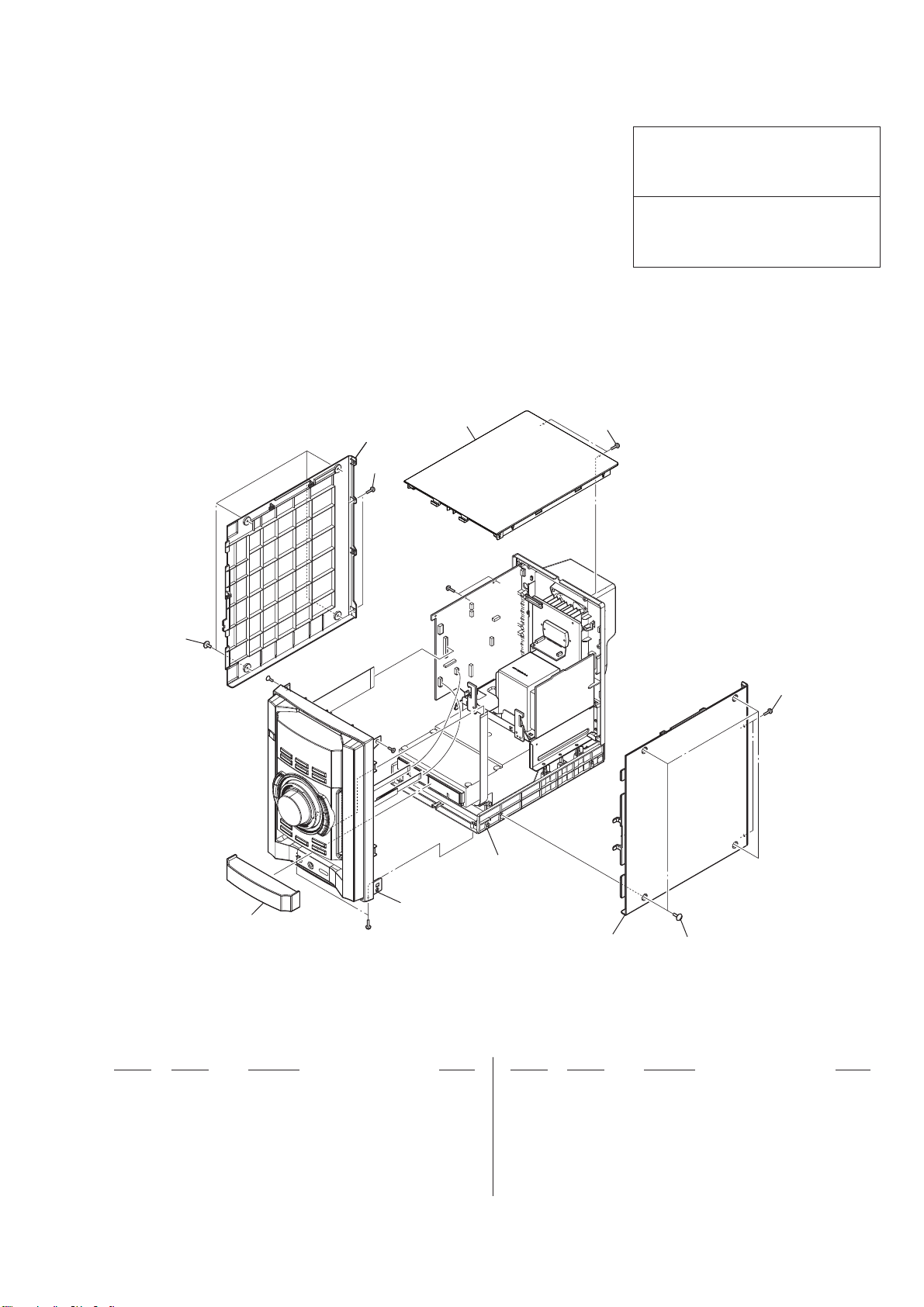

7-1. PANEL SECTION

SECTION 7

EXPLODED VIEWS

• Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE) . . . (RED) R R

• Accessories are given in the last of the electrical parts list.

• Abbreviation

AUS : Australian model CND : Canadian model

Parts of Color Cabinet’s Color

HCD-EC68P/EC78P

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é.

3

5

6

#1

2

#5

6

#5

chassis section

front panel section

1

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-276-203-01 DOOR (CD) (EC78P: UK)

1 3-283-114-01 DOOR (1CD) (EC68P/EC78P: US, CND) 2 3-363-099-32 SCREW (CASE 3 TP2) 3 2-890-831-01 PANEL (L), SIDE (EC68P: US/EC78P: US, CND) 3 2-890-831-11 PANEL (L), SIDE (EC68P: AUS/EC78P: UK)

4 2-890-830-01 PANEL (R), SIDE (EC68P: US) 4 2-890-830-11 PANEL (R), SIDE (EC68P: AUS/EC78P: UK)

4 2-890-830-21 PANEL (R), SIDE (EC78P: US, CND) 5 2-890-829-01 PANEL (TOP) (EC68P: US/EC78P: US, CND) 5 2-890-829-11 PANEL (TOP) (EC68P: AUS/EC78P: UK)

6 3-254-143-11 SCREW (B3), (+) BV TAPPING #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #5 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT

4

2

47

HCD-EC68P/EC78P

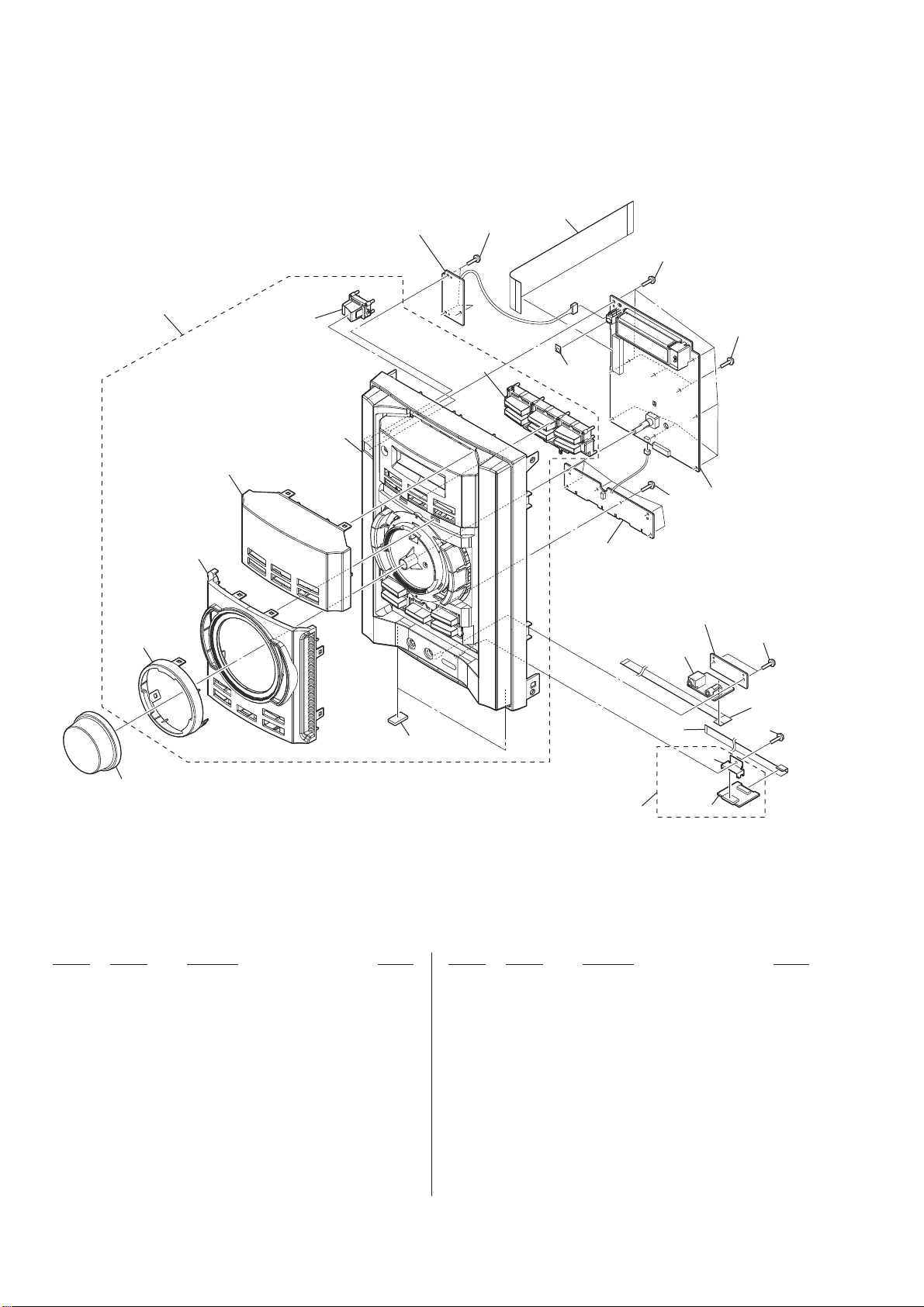

7-2. FRONT PANEL SECTION

52

55

53

not supplied

54

not supplied (KEY POWER board)

not supplied

56

57

58

not supplied (KEY CD board)

not supplied (JACK HOLD board)

not supplied (JACK board)

56

59

56

60

56

61

62

64

51

DMP board

63

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-276-202-01 KNOB (VOL)

52 3-276-204-01 RING (VOL) (EC78P: UK) 52 3-276-204-11 RING (VOL) (EC68P/EC78P: US, CND) 53 3-276-201-01 PLATE, ORNAMENTAL (EC78P: UK) 53 3-285-284-01 PLATE, ORNAMENTAL (1CD)

(EC68P/EC78P: US, CND)

54 3-276-198-01 WINDOW (EC68P: AUS) 54 3-276-198-31 WINDOW (EC68P: US) 54 3-276-198-11 WINDOW (EC78P: US, CND) 54 3-276-198-71 WINDOW (EC78P: UK) 55 A-1452-956-A FRONT PANEL ASSY (EC68P: US)

55 A-1452-957-A FRONT PANEL ASSY (EC68P: AUS) 55 A-1418-862-A PANEL ASSY, FRONT (EC78P: UK)

55 A-1418-863-A PANEL ASSY, FRONT (EC78P: US, CND) 56 4-951-620-01 SCREW (2.6X8), +BVTP 57 1-835-338-21 CABLE, FLEXIBLE FLAT (31 CORE)

58 3-297-298-01 SHEET (RM) 59 A-1379-659-A PANEL BOARD, COMPLETE (EC78P: US, CND) 59 A-1379-717-A PANEL BOARD, COMPLETE (EC68P: US) 59 A-1426-107-A PANEL BOARD, COMPLETE (EC78P: UK) 59 A-1426-165-A PANEL BOARD, COMPLETE (EC68P: AUS)

60 1-831-774-21 CABLE, FLEXIBLE FLAT (9 CORE) 61 4-225-252-01 CUSHION (FOOT) 62 1-835-336-21 CABLE, FLEXIBLE FLAT (11 CORE) 63 A-1379-815-A DMP BOARD, COMPLETE 64 3-276-209-01 BRACKET (DMPORT)

48

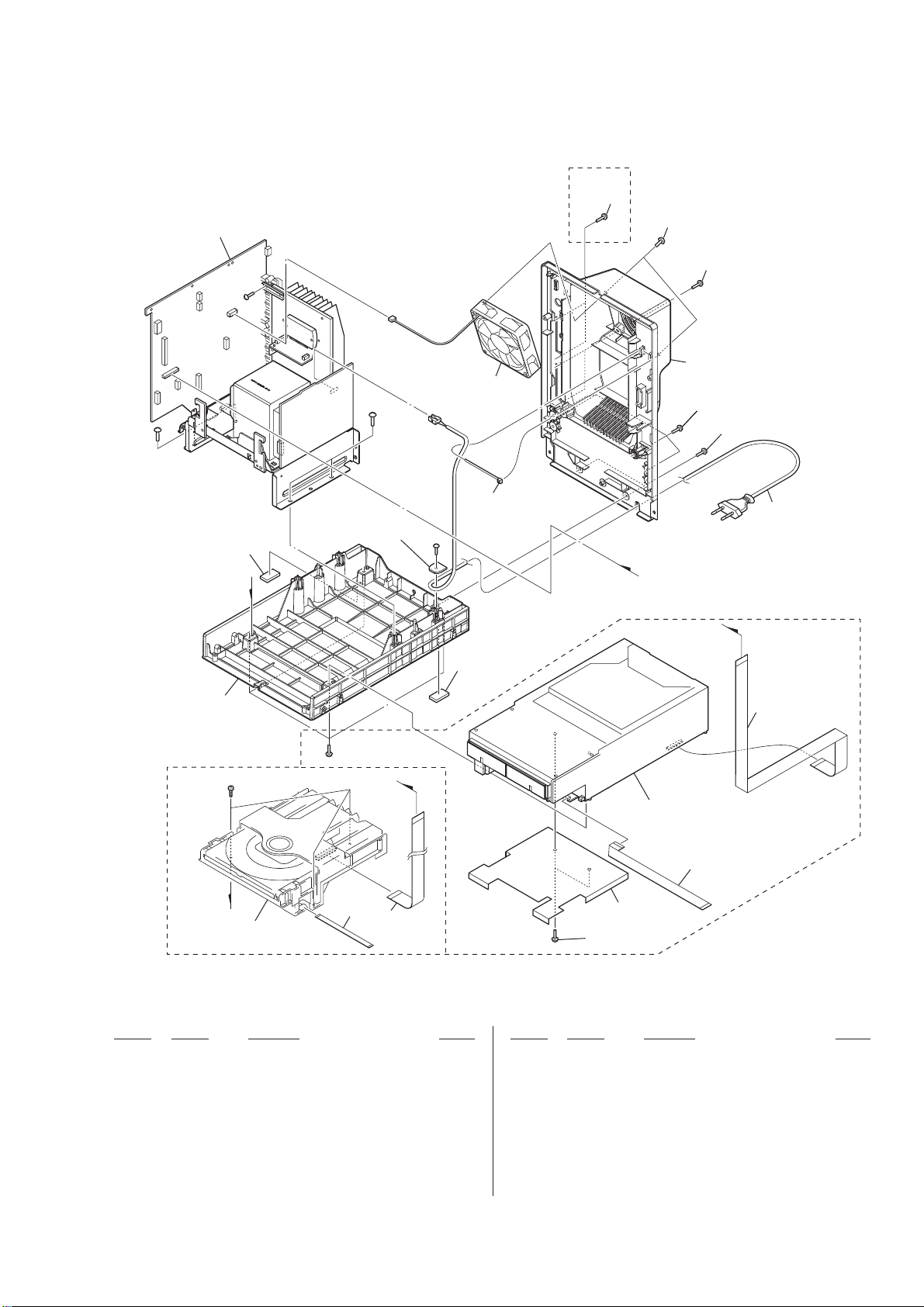

7-3. CHASSIS SECTION

main section

#1

#2

HCD-EC68P/EC78P

(EC78P)

105

not supplied

M601

105

not supplied (AC HOLD board)

102

"

not supplied

#1

"

1 CD mechanism section

(EXCEPT EC78P: UK) (EC78P: UK)

108

107

#1

102

104

106

107

3 CD mechanism section

101

not supplied

101

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE) (EC78P: UK)

102 4-225-252-01 CUSHION (FOOT) 104 3-701-748-00 CLAMP 105 3-254-143-11 SCREW (B3), (+) BV TAPPING

0 106 1-769-744-81 0 106 1-834-967-21 CORD, POWER (EC68P: AUS)

0 106 1-834-978-11 CORD, POWER (EC68P: US/EC78P: US, CND)

107 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE) (EC78P: UK) 107 1-835-334-21 CABLE, FLEXIBLE FLAT (21 CORE)

CORD, POWER (EC78P: UK)

108 1-832-666-21 CABLE, FLEXIBLE FLAT (5 CORE)

109 3-229-336-11 SCREW, +BVWH TAPPING (EC78P: UK) M601 1-787-400-11 D.C. FAN (EC68P/EC78P: UK) M601 1-787-631-11 FAN, DC (EC78P: US, CND) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-661-14 SCREW +BVTP 4X12 TYPE2 N-S

(EC68P/EC78P: US, CND) (EC68P/EC78P: US, CND)

49

HCD-EC68P/EC78P

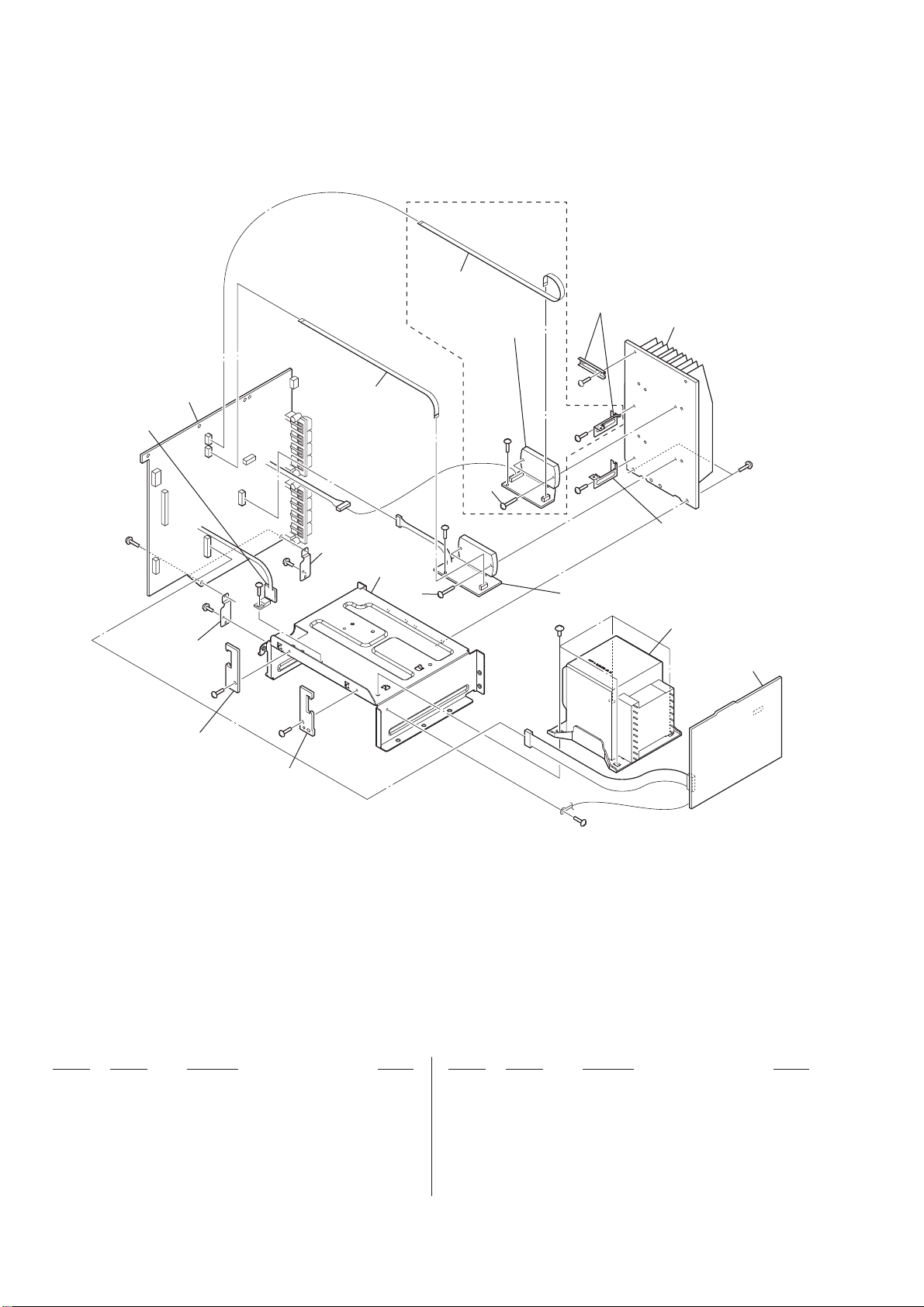

7-4. MAIN SECTION

153

not supplied (HI AMP board)

(EC78P)

not supplied

not supplied (REG board)

#4

not supplied

not supplied (HOLD board)

151

#4

#1

not supplied (HOLD (PT) board)

#1

#4

152

not supplied

154

#1

154

#1

not supplied (LOW AMP board)

#3

#1

not supplied

PT003: EC68P/ PT004: EC78P

not supplied (PT board)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 A-1379-655-A MAIN BOARD, COMPLETE (EC78P: US, CND)

151 A-1379-713-A MAIN BOARD, COMPLETE (EC68P: US) 151 A-1426-105-A MAIN BOARD, COMPLETE (EC78P: UK) 151 A-1426-163-A MAIN BOARD, COMPLETE (EC68P: AUS) 152 1-831-744-21 CABLE, FLEXIBLE FLAT (5 CORE)

153 1-835-276-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC78P) 154 3-905-609-31 SCREW (TRANSISTOR)

0 PT003 1-445-346-11 TRANSFORMER, POWER (EC68P: AUS) 0 PT003 1-445-476-11 TRANSFORMER, POWER (EC68P: US) 0 PT004 1-445-343-11 TRANSFORMER, POWER (EC78P: UK)

0 PT004 1-445-345-11 TRANSFORMER, POWER (EC78P: US, CND)

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #3 7-685-880-09 SCREW +BVTT 4X6 (S) #4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3

50

7-5. 3 CD MECHANISM SECTION (EC78P: UK) (CDM88A-K6BD90-WOD)

HCD-EC68P/EC78P

not supplied

201

not supplied

202

204

203

205

spindle motor (M401)

S201

206

(including sled motor (M402), spindle motor (M401))

204

sled motor (M402)

208

204

203

205

207

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 1-797-193-12 MECHANICAL, CD (DLM3A)

202 2-632-062-11 BELT (DLM3A) 203 4-227-045-31 SPRING (INSULATOR), COIL 204 4-227-549-31 INSULATOR 205 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING

0 206 A-4735-357-A BASE ASSY, OP (KSM-213D) 207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 208 A-1217-914-A CD BOARD, COMPLETE S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

51

HCD-EC68P/EC78P

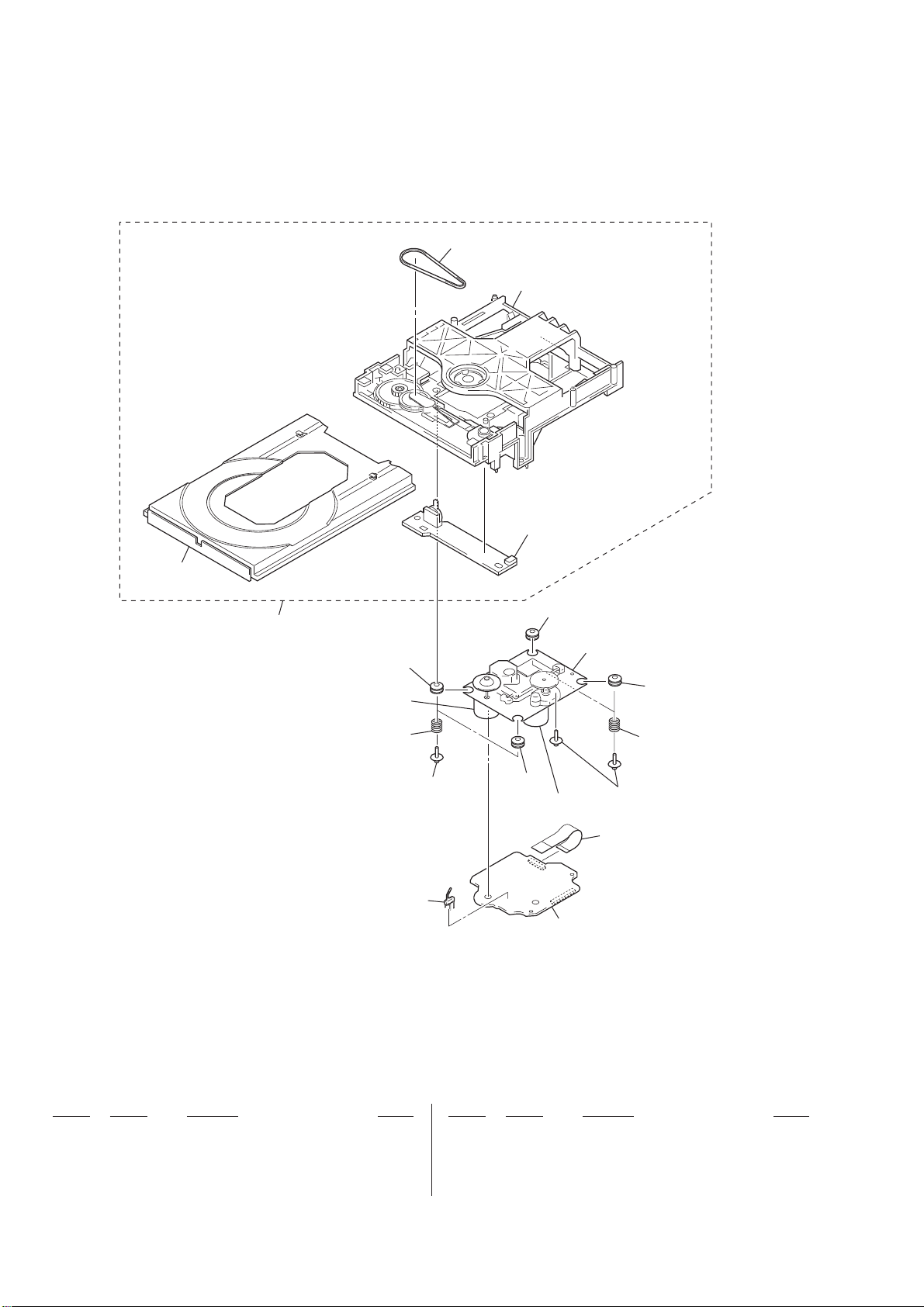

7-6. 1 CD MECHANISM SECTION (EXCEPT EC78P: UK) (CDM77B-K6BD90-WOD)

252

not supplied

251

spindle motor (M401)

255

254

253

S201

not supplied (MOTOR board)

255

256

(including sled motor (M402), spindle motor (M401))

255

sled motor (M402)

258

255

254

253

257

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 A-1242-967-A LOADING (BK) ASSY

252 3-080-478-01 BELT 253 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 254 4-227-045-41 SPRING (INSULATOR) 255 4-229-005-41 INSULATOR

0 256 A-4735-357-A BASE ASSY, OP (KSM-213D) 257 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 258 A-1217-914-A CD BOARD, COMPLETE S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

52

SECTION 8

ELECTRICAL PARTS LIST

HCD-EC68P/EC78P

CD

Note:

• Due to standardization, replacements in the parts list may be different from the parts speciﬁ ed in the diagrams or the com- ponents used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• CAPACITORS

uF: μF

• COILS

uH: μH

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1217-914-A CD BOARD, COMPLETE

*******************

< CAPACITOR > C100 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C101 1-164-360-11 CERAMIC CHIP 0.1uF 16V C102 1-164-360-11 CERAMIC CHIP 0.1uF 16V C103 1-164-360-11 CERAMIC CHIP 0.1uF 16V C104 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C105 1-164-360-11 CERAMIC CHIP 0.1uF 16V C106 1-128-995-21 ELECT CHIP 100uF 20% 10V C107 1-164-360-11 CERAMIC CHIP 0.1uF 16V C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V

• RESISTORS All resistors are in ohms. METAL: Metal-ﬁ lm resistor. METAL OXIDE: Metal oxide-ﬁ lm resistor. F: nonﬂ ammable

• SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. .

• Abbreviation AUS : Australian model CND : Canadian model

C148 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C149 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C151 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C152 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C202 1-128-995-21 ELECT CHIP 100uF 20% 10V C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C206 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C207 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V C302 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V

When indicating parts by reference number, please include the board name.

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é.

C110 1-164-360-11 CERAMIC CHIP 0.1uF 16V C112 1-164-360-11 CERAMIC CHIP 0.1uF 16V C113 1-164-360-11 CERAMIC CHIP 0.1uF 16V C115 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C116 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C117 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C122 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C123 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C124 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C125 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C128 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C130 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C132 1-164-360-11 CERAMIC CHIP 0.1uF 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C136 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C138 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C139 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C140 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C141 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C145 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C146 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C147 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C303 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V C306 1-128-995-21 ELECT CHIP 100uF 20% 10V C307 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C401 1-128-394-11 ELECT CHIP 220uF 20% 10V

C403 1-164-360-11 CERAMIC CHIP 0.1uF 16V C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V

< CONNECTOR > CN201 1-784-833-51 CONNECTOR, FFC (LIF (NON-ZIF)) 21P

CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P < IC >

IC101 6-709-624-01 IC TC94A70FG-006 IC201 6-710-808-01 IC TK63115SCL-G@GT IC401 6-710-637-01 IC BA5826SFP-E2

< TRANSISTOR > Q301 6-551-120-01 TRANSISTOR 2SA2119K < RESISTOR > R101 1-216-813-11 METAL CHIP 220 5% 1/10W

R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R104 1-216-295-91 SHORT CHIP 0 R105 1-216-857-11 METAL CHIP 1M 5% 1/10W R106 1-216-821-11 METAL CHIP 1K 5% 1/10W

R108 1-216-864-11 SHORT CHIP 0 R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W

53

HCD-EC68P/EC78P

CD DMP HI AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R113 1-216-833-11 METAL CHIP 10K 5% 1/10W

< VIBRATOR >

R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R118 1-216-845-11 METAL CHIP 100K 5% 1/10W R120 1-216-864-11 SHORT CHIP 0 R125 1-216-864-11 SHORT CHIP 0 R126 1-216-864-11 SHORT CHIP 0

R127 1-216-864-11 SHORT CHIP 0 R128 1-216-853-11 METAL CHIP 470K 5% 1/10W R129 1-216-821-11 METAL CHIP 1K 5% 1/10W R130 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R134 1-216-857-11 METAL CHIP 1M 5% 1/10W

R135 1-216-853-11 METAL CHIP 470K 5% 1/10W R136 1-216-837-11 METAL CHIP 22K 5% 1/10W R139 1-216-841-11 METAL CHIP 47K 5% 1/10W R140 1-216-864-11 SHORT CHIP 0 R142 1-216-837-11 METAL CHIP 22K 5% 1/10W

R143 1-216-841-11 METAL CHIP 47K 5% 1/10W R144 1-216-837-11 METAL CHIP 22K 5% 1/10W R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0

R148 1-216-864-11 SHORT CHIP 0 R149 1-216-864-11 SHORT CHIP 0 R150 1-216-864-11 SHORT CHIP 0 R151 1-216-864-11 SHORT CHIP 0 R153 1-216-857-11 METAL CHIP 1M 5% 1/10W

R154 1-216-857-11 METAL CHIP 1M 5% 1/10W R155 1-216-805-11 METAL CHIP 47 5% 1/10W R156 1-216-809-11 METAL CHIP 100 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R201 1-216-295-91 SHORT CHIP 0

R202 1-216-295-91 SHORT CHIP 0 R203 1-216-809-11 METAL CHIP 100 5% 1/10W R204 1-216-809-11 METAL CHIP 100 5% 1/10W R205 1-216-809-11 METAL CHIP 100 5% 1/10W R206 1-216-809-11 METAL CHIP 100 5% 1/10W

R207 1-216-809-11 METAL CHIP 100 5% 1/10W R208 1-216-809-11 METAL CHIP 100 5% 1/10W R209 1-216-809-11 METAL CHIP 100 5% 1/10W R210 1-216-809-11 METAL CHIP 100 5% 1/10W R211 1-216-809-11 METAL CHIP 100 5% 1/10W

R212 1-216-809-11 METAL CHIP 100 5% 1/10W R218 1-216-845-11 METAL CHIP 100K 5% 1/10W R219 1-216-845-11 METAL CHIP 100K 5% 1/10W R220 1-216-845-11 METAL CHIP 100K 5% 1/10W R221 1-216-845-11 METAL CHIP 100K 5% 1/10W

R222 1-216-845-11 METAL CHIP 100K 5% 1/10W R223 1-216-845-11 METAL CHIP 100K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-864-11 SHORT CHIP 0 R303 1-216-789-11 METAL CHIP 2.2 5% 1/10W

R304 1-216-789-11 METAL CHIP 2.2 5% 1/10W R402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R405 1-216-833-11 METAL CHIP 10K 5% 1/10W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

X102 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz)

************************************************************

A-1379-815-A DMP BOARD, COMPLETE

********************

3-276-209-01 BRACKET (DMPORT) < CONNECTOR > CN901 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) (DMPORT)

CN902 1-784-863-51 CONNECTOR, FFC (LIF (NON-ZIF)) 11P < JUMPER RESISTOR > R904 1-216-864-11 SHORT CHIP 0

R905 1-216-864-11 SHORT CHIP 0 R906 1-216-864-11 SHORT CHIP 0 R907 1-216-864-11 SHORT CHIP 0 R908 1-216-864-11 SHORT CHIP 0

************************************************************

HI AMP BOARD (EC78P)

************

< CAPACITOR > C151 1-126-960-11 ELECT 1uF 20% 50V

C152 1-126-960-11 ELECT 1uF 20% 50V C153 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C154 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C155 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C156 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C157 1-126-960-11 ELECT 1uF 20% 50V C158 1-126-960-11 ELECT 1uF 20% 50V C159 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C160 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V

C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C166 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C169 1-128-576-11 ELECT 100uF 20% 63V C170 1-128-576-11 ELECT 100uF 20% 63V

C173 1-165-621-91 CERAMIC CHIP 0.1uF 50V C174 1-165-621-91 CERAMIC CHIP 0.1uF 50V C175 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C176 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C178 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR > CN151 1-819-134-11 PIN, CONNECTOR 6P

CN152 1-784-766-11 CONNECTOR, FFC 5P < DIODE > D151 6-500-335-01 DIODE MC2838-T112-1

D152 6-501-817-01 DIODE MA2J1110GLS0 < IC >

IC151 6-705-621-01 IC STK433-070 (EC78P: UK) IC152 6-600-580-01 IC STK433-090-E (EC78P: US, CND)

R415 1-216-841-11 METAL CHIP 47K 5% 1/10W

54

< JUMPER RESISTOR > JR151 1-216-864-11 SHORT

CHIP 0

HCD-EC68P/EC78P

LOW AMPKEY POWERKEY CDJACKHI AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSISTOR >

Q151 6-551-270-01 TRANSISTOR 2SA2026 Q152 6-551-270-01 TRANSISTOR 2SA2026

KEY CD BOARD

*************

< RESISTOR > < RESISTOR > R151 1-216-813-11 METAL CHIP 220 5% 1/10W

(EC78P: US, CND)

R151 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

(EC78P: UK)

R152 1-216-813-11 METAL CHIP 220 5% 1/10W

(EC78P: US, CND)

R152 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

(EC78P: UK)

R153 1-216-837-11 METAL CHIP 22K 5% 1/10W R154 1-216-837-11 METAL CHIP 22K 5% 1/10W

R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-841-11 METAL CHIP 47K 5% 1/10W R159 1-216-821-11 METAL CHIP 1K 5% 1/10W R160 1-216-821-11 METAL CHIP 1K 5% 1/10W

R161 1-216-817-11 METAL CHIP 470 5% 1/10W R162 1-216-817-11 METAL CHIP 470 5% 1/10W R163 1-216-841-11 METAL CHIP 47K 5% 1/10W R164 1-216-841-11 METAL CHIP 47K 5% 1/10W R171 1-216-864-11 SHORT CHIP 0

R172 1-216-809-11 METAL CHIP 100 5% 1/10W R173 1-216-821-11 METAL CHIP 1K 5% 1/10W R175 1-216-813-11 METAL CHIP 220 5% 1/10W R176 1-216-813-11 METAL CHIP 220 5% 1/10W R177 1-216-813-11 METAL CHIP 220 5% 1/10W

R178 1-216-813-11 METAL CHIP 220 5% 1/10W

0 R179 1-216-361-31 METAL OXIDE 0.22 5% 2W F 0 R180 1-216-361-31 METAL OXIDE 0.22 5% 2W F

R181 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R182 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R183 1-216-837-11 METAL CHIP 22K 5% 1/10W R184 1-216-837-11 METAL CHIP 22K 5% 1/10W R185 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R186 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R195 1-216-817-11 METAL CHIP 470 5% 1/10W

R196 1-216-817-11 METAL CHIP 470 5% 1/10W

************************************************************

JACK BOARD

***********

< CAPACITOR > C491 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C495 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C496 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< JACK > J491 1-566-822-51 JACK (AUDIO IN)

J492 1-815-629-21 JACK (PHONES) < RESISTOR > R491 1-216-837-11 METAL CHIP 22K 5% 1/10W

R492 1-216-837-11 METAL CHIP 22K 5% 1/10W

************************************************************

R407 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R408 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R409 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R410 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

(EC78P: UK)

R411 1-216-835-11 METAL CHIP 15K 5% 1/10W

(EC78P: UK) < SWITCH > SW306 1-771-410-21 SWITCH, TACTILE (CD) (EC68P/EC78P: US, CND)

SW306 1-771-410-21 SWITCH, TACTILE (DISC 1) (EC78P: UK) SW307 1-771-410-21 SWITCH, TACTILE (DMPORT)

(EC68P/EC78P: US, CND) SW307 1-771-410-21 SWITCH, TACTILE (DISC 2) (EC78P: UK) SW308 1-771-410-21 SWITCH, TACTILE (Z) (EC68P/EC78P: US, CND)

SW308 1-771-410-21 SWITCH, TACTILE (DISC 3) (EC78P: UK) SW309 1-771-410-21 SWITCH, TACTILE (Z) (EC78P: UK) SW310 1-771-410-21 SWITCH, TACTILE (DISC SKIP/EX-CHANGE)

(EC78P: UK)

************************************************************

KEY POWER BOARD

****************

< SWITCH > SW301 1-771-410-21 SWITCH, TACTILE (I/1, STANDBY) < CABLE HOLDER > W401 1-824-027-21 HOLDER, CABLE 3P

************************************************************

LOW AMP BOARD

**************

< CAPACITOR > C101 1-126-960-11 ELECT 1uF 20% 50V

C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C104 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C105 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C106 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C107 1-126-947-11 ELECT 47uF 20% 35V C108 1-126-947-11 ELECT 47uF 20% 35V C109 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C110 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V

C116 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C119 1-126-968-11 ELECT 100uF 20% 50V

(EC68P)

C119 1-128-576-11 ELECT 100uF 20% 63V

(EC78P)

C120 1-126-968-11 ELECT 100uF 20% 50V

(EC68P)

C120 1-128-576-11 ELECT 100uF 20% 63V

(EC78P)

C123 1-165-621-91 CERAMIC CHIP 0.1uF 50V C124 1-165-621-91 CERAMIC CHIP 0.1uF 50V C125 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C126 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C128 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

5555

HCD-EC68P/EC78P

MAINLOW AMP

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< CONNECTOR > CN102 1-784-766-11 CONNECTOR, FFC 5P

CN104 1-824-030-21 HOLDER, CABLE 5P < DIODE >

R132 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R133 1-216-837-11 METAL CHIP 22K 5% 1/10W

R134 1-216-837-11 METAL CHIP 22K 5% 1/10W R135 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R136 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R142 1-216-864-11 SHORT CHIP 0

D101 6-500-335-01 DIODE MC2838-T112-1 D103 6-501-817-01 DIODE MA2J1110GLS0

< IC >

IC101 6-705-620-01 IC STK433-060 (EC68P) IC101 6-705-621-01 IC STK433-070 (EC78P: UK) IC102 6-600-580-01 IC STK433-090-E (EC78P: US, CND)

< JUMPER RESISTOR > JR132 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q101 6-551-270-01 TRANSISTOR 2SA2026

Q102 6-551-270-01 TRANSISTOR 2SA2026 < RESISTOR > R101 1-216-864-11 SHORT CHIP 0

R102 1-216-864-11 SHORT CHIP 0 R103 1-216-813-11 METAL CHIP 220 5% 1/10W

(EC78P: US, CND)

R103 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

(EC78P: UK)

R103 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(EC68P)

R104 1-216-813-11 METAL CHIP 220 5% 1/10W

(EC78P: US, CND)

R104 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

(EC78P: UK)

R104 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(EC68P)

R105 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC68P)

R105 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC78P)

R106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC68P)

R106 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC78P) R107 1-216-841-11 METAL CHIP 47K 5% 1/10W R108 1-216-841-11 METAL CHIP 47K 5% 1/10W R109 1-216-821-11 METAL CHIP 1K 5% 1/10W

R110 1-216-821-11 METAL CHIP 1K 5% 1/10W R111 1-216-817-11 METAL CHIP 470 5% 1/10W R112 1-216-817-11 METAL CHIP 470 5% 1/10W R113 1-216-841-11 METAL CHIP 47K 5% 1/10W R114 1-216-841-11 METAL CHIP 47K 5% 1/10W

R122 1-216-809-11 METAL CHIP 100 5% 1/10W R123 1-216-821-11 METAL CHIP 1K 5% 1/10W R125 1-216-813-11 METAL CHIP 220 5% 1/10W R126 1-216-813-11 METAL CHIP 220 5% 1/10W R127 1-216-813-11 METAL CHIP 220 5% 1/10W

R128 1-216-813-11 METAL CHIP 220 5% 1/10W

0 R129 1-216-361-31 METAL OXIDE 0.22 5% 2W F 0 R130 1-216-361-31 METAL OXIDE 0.22 5% 2W F

R131 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R145 1-216-817-11 METAL CHIP 470 5% 1/10W R146 1-216-817-11 METAL CHIP 470 5% 1/10W

************************************************************

A-1379-655-A MAIN BOARD, COMPLETE (EC78P: US, CND) A-1379-713-A MAIN BOARD, COMPLETE (EC68P: US) A-1426-105-A MAIN BOARD, COMPLETE (EC78P: UK) A-1426-163-A MAIN BOARD, COMPLETE (EC68P: AUS)

*********************

7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C601 1-126-947-11 ELECT 47uF 20% 35V

C602 1-104-662-91 ELECT 22uF 20% 25V C603 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(EC78P)

C604 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

(EC78P)

C605 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

(EC78P)

C606 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(EC78P) C607 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C608 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C609 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C610 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C611 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C612 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C613 1-126-964-11 ELECT 10uF 20% 50V C614 1-126-963-11 ELECT 4.7uF 20% 50V C615 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

(EC78P) C616 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

(EC78P) C617 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C618 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C620 1-104-658-91 ELECT 100uF 20% 10V

C621 1-137-749-11 MYLAR 0.1uF 100V C622 1-114-471-51 ELECT 3300uF 20% 63V

(EC78P: US, CND)

C622 1-126-974-11 ELECT 3300uF 20% 50V

(EC78P: UK)

C622 1-128-550-11 ELECT 2200uF 20% 50V

(EC68P) C623 1-137-749-11 MYLAR 0.1uF 100V

C626 1-114-471-51 ELECT 3300uF 20% 63V

(EC78P: US, CND)

C626 1-126-974-11 ELECT 3300uF 20% 50V

(EC78P: UK)

C626 1-128-550-11 ELECT 2200uF 20% 50V

(EC68P) C627 1-126-943-11 ELECT 2200uF 20% 25V C628 1-126-942-61 ELECT 1000uF 20% 25V

C629 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C630 1-126-947-11 ELECT 47uF 20% 35V

56

HCD-EC68P/EC78P

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C631 1-126-933-11 ELECT 100uF 20% 16V

C632 1-126-963-11 ELECT 4.7uF 20% 50V C633 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C713 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C714 1-126-947-11 ELECT 47uF 20% 35V C760 1-104-665-11 ELECT 100uF 20% 25V

C634 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C636 1-126-960-11 ELECT 1uF 20% 50V C637 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C638 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C639 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C640 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C641 1-126-962-11 ELECT 3.3uF 20% 50V C642 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C644 1-126-960-11 ELECT 1uF 20% 50V C645 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C646 1-126-960-11 ELECT 1uF 20% 50V C647 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C648 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C649 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C650 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C652 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C654 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C655 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C656 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C657 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C658 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C659 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C660 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C661 1-126-964-11 ELECT 10uF 20% 50V C662 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V

C663 1-126-960-11 ELECT 1uF 20% 50V C664 1-126-960-11 ELECT 1uF 20% 50V C665 1-126-960-11 ELECT 1uF 20% 50V C666 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C667 1-126-933-11 ELECT 100uF 20% 16V

C669 1-126-923-91 ELECT 220uF 20% 10V C671 1-126-933-11 ELECT 100uF 20% 16V C673 1-126-925-91 ELECT 470uF 20% 10V C674 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C675 1-126-960-11 ELECT 1uF 20% 50V

C676 1-126-960-11 ELECT 1uF 20% 50V C679 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C680 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C681 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C682 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C683 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C684 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C685 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C686 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C687 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

C689 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C690 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C691 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C692 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C693 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C694 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C695 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C696 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C699 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C700 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C703 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C704 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C761 1-126-935-11 ELECT 470uF 20% 16V C762 1-104-658-91 ELECT 100uF 20% 10V C771 1-126-960-11 ELECT 1uF 20% 50V C772 1-126-960-11 ELECT 1uF 20% 50V C773 1-126-960-11 ELECT 1uF 20% 50V

C774 1-126-960-11 ELECT 1uF 20% 50V C775 1-126-947-11 ELECT 47uF 20% 35V C776 1-104-662-91 ELECT 22uF 20% 25V C786 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C787 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C788 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C789 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C791 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-126-933-11 ELECT 100uF 20% 16V C803 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C804 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C805 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C806 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C807 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C808 1-162-918-11 CERAMIC CHIP 18PF 5% 50V

C809 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C810 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C811 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C814 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(EC68P: AUS/EC78P: UK)

C814 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(EC68P: US/EC78P: US, CND)

C815 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(EC68P: AUS/EC78P: UK)

C815 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(EC68P: US/EC78P: US, CND) C816 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C817 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C819 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C820 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C821 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C822 1-126-965-91 ELECT 22uF 20% 50V C823 1-126-923-91 ELECT 220uF 20% 10V C824 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C826 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C827 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C828 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C829 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C830 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V

C831 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C832 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C833 1-126-923-91 ELECT 220uF 20% 10V C834 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C835 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C836 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C837 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C838 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C840 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C841 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C843 1-164-156-11 CERAMIC CHIP 0.1uF 25V C844 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C845 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C846 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

5757

HCD-EC68P/EC78P

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C847 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

< FILTER >

C848 1-164-156-11 CERAMIC CHIP 0.1uF 25V C850 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< FILTER > CF801 1-781-962-21 FILTER, CERAMIC < CONNECTOR > CN601 1-819-131-11 PIN, CONNECTOR 3P

CN602 1-784-766-11 CONNECTOR, FFC 5P (EC78P) CN603 1-784-766-11 CONNECTOR, FFC 5P CN604 1-819-136-11 PIN, CONNECTOR 8P CN605 1-784-770-11 CONNECTOR, FFC 9P

CN608 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN609 1-779-279-11 CONNECTOR, FFC (LIF (NON-ZIF)) 11P CN632 1-824-030-21 HOLDER, CABLE 5P (EC78P) CN633 1-819-133-11 PIN, CONNECTOR * CN801 1-506-680-11 PLUG, CONNECTOR (2.5mm) 3P

(ANTENNA FM/AM) CN803 1-784-792-11 CONNECTOR, FFC 31P < DIODE > D601 6-500-335-01 DIODE MC2838-T112-1

D602 6-500-335-01 DIODE MC2838-T112-1 D603 6-501-817-01 DIODE MA2J1110GLS0 (EC78P) D604 6-501-817-01 DIODE MA2J1110GLS0 D605 6-501-817-01 DIODE MA2J1110GLS0

D606 6-500-334-01 DIODE MC2836-T112-1 D607 6-501-046-01 DIODE 1N5402-F46 D608 6-501-046-01 DIODE 1N5402-F46 D609 6-501-046-01 DIODE 1N5402-F46 D610 6-501-046-01 DIODE 1N5402-F46

D611 8-719-046-07 DIODE 2A02M (EC78P) D612 8-719-046-07 DIODE 2A02M (EC78P) D614 6-501-817-01 DIODE MA2J1110GLS0 D615 8-719-063-79 DIODE 1N4002B D617 6-500-335-01 DIODE MC2838-T112-1

D618 6-501-719-01 DIODE MAZ8039GHLS0 D619 8-719-063-79 DIODE 1N4002B D620 8-719-063-79 DIODE 1N4002B D621 6-501-722-01 DIODE MAZ8043GMLS0 D622 6-501-752-01 DIODE MAZ8082GMLS0

FL801 1-760-393-11 FILTER, CERAMIC FL803 1-236-711-21 FILTER, BAND PASS

< IC >

IC602 6-712-055-01 IC BD3499FV-E2 IC701 6-712-088-01 IC BD9701CP-V5 IC770 8-759-278-58 IC NJM4558V-TE2 IC801 6-708-840-01 IC LV23003VA

< JUMPER RESIST JR601 1-216-864-11 SHORT CHIP 0

JR602 1-216-864-11 SHORT CHIP 0 JR603 1-216-864-11 SHORT CHIP 0 JR604 1-216-864-11 SHORT CHIP 0 JR605 1-216-864-11 SHORT CHIP 0

JR606 1-216-864-11 SHORT CHIP 0 JR607 1-216-864-11 SHORT CHIP 0 JR608 1-216-864-11 SHORT CHIP 0 JR609 1-216-864-11 SHORT CHIP 0 JR610 1-216-864-11 SHORT CHIP 0

JR611 1-216-864-11 SHORT CHIP 0 JR612 1-216-864-11 SHORT CHIP 0 JR613 1-216-864-11 SHORT CHIP 0 JR614 1-216-864-11 SHORT CHIP 0 JR615 1-216-864-11 SHORT CHIP 0

JR616 1-216-864-11 SHORT CHIP 0 JR617 1-216-864-11 SHORT CHIP 0 JR618 1-216-864-11 SHORT CHIP 0

< COIL > L601 1-456-107-11 COIL, AIR-CORE (EC78P)

L602 1-456-107-11 COIL, AIR-CORE (EC78P) L603 1-456-107-11 COIL, AIR-CORE L604 1-456-107-11 COIL, AIR-CORE L701 1-456-467-11 INDUCTOR 100uH

L801 1-456-596-11 COIL, MW OSC L802 1-457-168-11 COIL, DET L803 1-457-162-11 COIL, AIR-CORE L804 1-457-163-11 COIL, AIR-CORE L805 1-457-161-11 COIL, AM ANTENNA

< TRANSISTOR >

OR >

D628 6-501-817-01 DIODE MA2J1110GLS0 D629 8-719-063-79 DIODE 1N4002B (EC68P) D630 8-719-063-79 DIODE 1N4002B (EC68P) D631 6-501-817-01 DIODE MA2J1110GLS0 D701 8-719-079-47 DIODE RK36LF-A4

D791 6-501-817-01 DIODE MA2J1110GLS0 D801 6-501-142-01 DIODE SVC347A-TL-E D802 8-719-062-51 DIODE 1PS226-115 D803 6-501-369-01 DIODE SVC230-TB-E D804 6-501-369-01 DIODE SVC230-TB-E

D805 8-719-062-51 DIODE 1PS226-115 D806 8-719-062-51 DIODE 1PS226-115

< GROUND TERMINAL > ET601 1-537-771-21 TERMINAL BOARD, GROUND

ET602 1-537-771-21 TERMINAL BOARD, GROUND

58

Q601 8-729-037-03 TRANSISTOR KTA1266GR-AT Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q603 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q605 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q606 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q608 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q611 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q612 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q618 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q619 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q622 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q624 8-729-036-86 TRANSISTOR KTC3203Y-AT Q761 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q762 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q801 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6

HCD-EC68P/EC78P

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< RESISTOR > R601 1-216-817-11 METAL CHIP 470 5% 1/10W

R603 1-216-793-11 METAL CHIP 4.7 5% 1/10W R604 1-216-845-11 METAL CHIP 100K 5% 1/10W R605 1-216-799-11 METAL CHIP 15 5% 1/10W

(EC78P: US, CND)

R605 1-216-806-11 METAL CHIP 56 5% 1/10W

(EC68P/EC78P: UK)

R606 1-216-797-11 METAL CHIP 10 5% 1/10W

(EC78P)

R607 1-216-797-11 METAL CHIP 10 5% 1/10W

(EC78P)

R608 1-216-797-11 METAL CHIP 10 5% 1/10W

(EC78P) R609 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R610 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R641 1-249-403-11 CARBON 68 5% 1/4W R642 1-249-403-11 CARBON 68 5% 1/4W

R643 1-216-833-11 METAL CHIP 10K 5% 1/10W R644 1-216-821-11 METAL CHIP 1K 5% 1/10W R645 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R646 1-216-809-11 METAL CHIP 100 5% 1/10W

R647 1-216-797-11 METAL CHIP 10 5% 1/10W R648 1-216-841-11 METAL CHIP 47K 5% 1/10W R649 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R650 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R652 1-216-809-11 METAL CHIP 100 5% 1/10W 0 R658 1-215-890-51 METAL OXIDE 470 5% 2W F R660 1-216-864-11 SHORT CHIP 0 0 R662 1-215-890-51 METAL OXIDE 470 5% 2W F R663 1-216-821-11 METAL CHIP 1K 5% 1/10W

R611 1-216-797-11 METAL CHIP 10 5% 1/10W R612 1-216-797-11 METAL CHIP 10 5% 1/10W R613 1-216-833-11 METAL CHIP 10K 5% 1/10W R614 1-216-833-11 METAL CHIP 10K 5% 1/10W R615 1-216-797-11 METAL CHIP 10 5% 1/10W

R616 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

(EC68P) R616 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P: UK)

R616 1-216-835-11 METAL CHIP 15K 5% 1/10W

(EC78P: US, CND) R617 1-216-833-11 METAL CHIP 10K 5% 1/10W R618 1-216-833-11 METAL CHIP 10K 5% 1/10W

R619 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

(EC68P)

R619 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P: UK)

R619 1-216-835-11 METAL CHIP 15K 5% 1/10W

(EC78P: US, CND) R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R621 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R622 1-216-839-11 METAL CHIP 33K 5% 1/10W R623 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-839-11 METAL CHIP 33K 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W

R627 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R628 1-216-833-11 METAL CHIP 10K 5% 1/10W R629 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-797-11 METAL CHIP 10 5% 1/10W

(EC78P)

R632 1-216-845-11 METAL CHIP 100K 5% 1/10W

(EC78P)

R633 1-216-845-11 METAL CHIP 100K 5% 1/10W

(EC78P)

R634 1-249-402-11 CARBON 56 5% 1/4W

(EC78P)

R635 1-249-402-11 CARBON 56 5% 1/4W

(EC78P)

R636 1-249-402-11 CARBON 56 5% 1/4W

(EC78P)

R666 1-216-821-11 METAL CHIP 1K 5% 1/10W R667 1-216-841-11 METAL CHIP 47K 5% 1/10W R669 1-216-845-11 METAL CHIP 100K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R672 1-216-833-11 METAL CHIP 10K 5% 1/10W

R673 1-216-864-11 SHORT CHIP 0 R674 1-249-401-11 CARBON 47 5% 1/4W R675 1-249-401-11 CARBON 47 5% 1/4W R676 1-216-833-11 METAL CHIP 10K 5% 1/10W R677 1-216-833-11 METAL CHIP 10K 5% 1/10W

R678 1-216-841-11 METAL CHIP 47K 5% 1/10W R681 1-216-837-11 METAL CHIP 22K 5% 1/10W R684 1-216-837-11 METAL CHIP 22K 5% 1/10W R685 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R686 1-216-842-11 METAL CHIP 56K 5% 1/10W

R687 1-216-837-11 METAL CHIP 22K 5% 1/10W R689 1-216-838-11 METAL CHIP 27K 5% 1/10W R690 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R691 1-216-833-11 METAL CHIP 10K 5% 1/10W R692 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R693 1-216-821-11 METAL CHIP 1K 5% 1/10W R696 1-216-833-11 METAL CHIP 10K 5% 1/10W R697 1-216-821-11 METAL CHIP 1K 5% 1/10W R700 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R701 1-216-833-11 METAL CHIP 10K 5% 1/10W

R702 1-216-833-11 METAL CHIP 10K 5% 1/10W R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R706 1-216-813-11 METAL CHIP 220 5% 1/10W R707 1-216-813-11 METAL CHIP 220 5% 1/10W R708 1-216-833-11 METAL CHIP 10K 5% 1/10W

R709 1-216-821-11 METAL CHIP 1K 5% 1/10W R715 1-216-809-11 METAL CHIP 100 5% 1/10W R716 1-216-821-11 METAL CHIP 1K 5% 1/10W R717 1-249-403-11 CARBON 68 5% 1/4W R718 1-249-403-11 CARBON 68 5% 1/4W

R719 1-249-403-11 CARBON 68 5% 1/4W R720 1-216-837-11 METAL CHIP 22K 5% 1/10W R722 1-216-809-11 METAL CHIP 100 5% 1/10W R724 1-249-395-11 CARBON 15 5% 1/4W R725 1-249-395-11 CARBON 15 5% 1/4W

R637 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R638 1-249-403-11 CARBON 68 5% 1/4W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-845-11 METAL CHIP 100K 5% 1/10W

R726 1-249-395-11 CARBON 15 5% 1/4W R727 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R728 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R729 1-216-845-11 METAL CHIP 100K 5% 1/10W

5959

HCD-EC68P/EC78P

MOTOR

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R731 1-216-809-11 METAL CHIP 100 5% 1/10W

R732 1-216-809-11 METAL CHIP 100 5% 1/10W R741 1-216-821-11 METAL CHIP 1K 5% 1/10W R742 1-216-821-11 METAL CHIP 1K 5% 1/10W R749 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R750 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R751 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R752 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R753 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R754 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R759 1-216-805-11 METAL CHIP 47 5% 1/10W

R761 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R762 1-216-839-11 METAL CHIP 33K 5% 1/10W R763 1-216-821-11 METAL CHIP 1K 5% 1/10W 0 R767 1-216-365-61 METAL OXIDE 0.47 5% 2W F R768 1-216-833-11 METAL CHIP 10K 5% 1/10W

R769 1-216-805-11 METAL CHIP 47 5% 1/10W R770 1-216-864-11 SHORT CHIP 0 R771 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R772 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R773 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

PANELMAIN

R823 1-216-833-11 METAL CHIP 10K 5% 1/10W R824 1-216-817-11 METAL CHIP 470 5% 1/10W

R825 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R826 1-216-821-11 METAL CHIP 1K 5% 1/10W R827 1-216-845-11 METAL CHIP 100K 5% 1/10W R829 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R830 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R831 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R832 1-216-857-11 METAL CHIP 1M 5% 1/10W R836 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R837 1-216-845-11 METAL CHIP 100K 5% 1/10W

R838 1-216-837-11 METAL CHIP 22K 5% 1/10W R839 1-216-797-11 METAL CHIP 10 5% 1/10W R840 1-216-864-11 SHORT CHIP 0 R841 1-216-833-11 METAL CHIP 10K 5% 1/10W R842 1-216-864-11 SHORT CHIP 0

R843 1-216-845-11 METAL CHIP 100K 5% 1/10W R844 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R845 1-216-864-11 SHORT CHIP 0 R846 1-216-797-11 METAL CHIP 10 5% 1/10W R847 1-216-864-11 SHORT CHIP 0

R774 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R775 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R776 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R777 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R778 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R779 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R780 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R781 1-216-839-11 METAL CHIP 33K 5% 1/10W R782 1-216-842-11 METAL CHIP 56K 5% 1/10W R783 1-216-845-11 METAL CHIP 100K 5% 1/10W

R784 1-216-845-11 METAL CHIP 100K 5% 1/10W R785 1-216-845-11 METAL CHIP 100K 5% 1/10W R786 1-216-845-11 METAL CHIP 100K 5% 1/10W R787 1-216-835-11 METAL CHIP 15K 5% 1/10W R788 1-216-835-11 METAL CHIP 15K 5% 1/10W

R791 1-216-845-11 METAL CHIP 100K 5% 1/10W R792 1-216-849-11 METAL CHIP 220K 5% 1/10W R801 1-216-809-11 METAL CHIP 100 5% 1/10W R802 1-216-801-11 METAL CHIP 22 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R804 1-216-801-11 METAL CHIP 22 5% 1/10W R805 1-216-853-11 METAL CHIP 470K 5% 1/10W R806 1-216-841-11 METAL CHIP 47K 5% 1/10W R807 1-216-837-11 METAL CHIP 22K 5% 1/10W R808 1-216-801-11 METAL CHIP 22 5% 1/10W

R809 1-216-809-11 METAL CHIP 100 5% 1/10W R810 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R811 1-216-845-11 METAL CHIP 100K 5% 1/10W R812 1-216-841-11 METAL CHIP 47K 5% 1/10W R813 1-216-853-11 METAL CHIP 470K 5% 1/10W

< RELAY > RY601 1-755-307-21 RELAY (EC78P)

RY602 1-755-307-21 RELAY < TRANSFORMER > T801 1-433-741-11 TRANSFORMER, IF < TERMINAL > TB601 1-780-381-11 TERMINAL BOARD, PUSH (ANTENNA) 4P

(SPEAKER HIGH FREQ. IMPEDANCE USE 8Ω)

(EC78P)

TB602 1-536-708-81 TERMINAL BOARD, PUSH (4P)

(SPEAKER IMPEDANCE USE 6Ω) (EC68P)

TB602 1-536-708-81 TERMINAL BOARD, PUSH (4P) (SPEAKER LOW

FREQ. IMPEDANCE USE 8Ω) (EC78P) < VIBRATOR > X801 1-813-917-11 VIBRATOR, CRYSTAL (75MHz)

************************************************************

MOTOR BOARD (EC68P/EC78P: US, CND)

*************

< CONNECTOR > CN001 1-779-542-21 CONNECTOR, FFC (LIF (NON-ZIF)) 5P < SWITCH > S001 1-786-514-21 SWITCH, LEVER (SLIDE)

************************************************************

R814 1-216-837-11 METAL CHIP 22K 5% 1/10W R815 1-216-833-11 METAL CHIP 10K 5% 1/10W R816 1-216-821-11 METAL CHIP 1K 5% 1/10W R817 1-216-841-11 METAL CHIP 47K 5% 1/10W R818 1-216-833-11 METAL CHIP 10K 5% 1/10W

R819 1-216-839-11 METAL CHIP 33K 5% 1/10W R820 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R821 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R822 1-216-809-11 METAL CHIP 100 5% 1/10W

60

A-1379-659-A PANEL BOARD, COMPLETE (EC78P: US, CND) A-1379-717-A PANEL BOARD, COMPLETE (EC68P: US) A-1426-107-A PANEL BOARD, COMPLETE (EC78P: UK) A-1426-165-A PANEL BOARD, COMPLETE (EC68P: AUS)

**********************

2-649-178-01 PLATE, LIGHT GUIDE 2-649-179-01 SHEET (LCD) 2-665-175-01 SHEET (REFLECTOR)

HCD-EC68P/EC78P

Ver. 1.1

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CAPACITOR >

< DIODE >

C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V C302 1-126-964-11 ELECT 10uF 20% 50V C303 1-126-964-11 ELECT 10uF 20% 50V C304 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C305 1-126-964-11 ELECT 10uF 20% 50V

C306 1-104-655-91 ELECT 470uF 20% 6.3V C308 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

(EC78P: UK)

C309 1-126-965-91 ELECT 22uF 20% 50V

(EC78P: UK)

C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EC78P: UK)

C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EC78P: UK)

C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EC78P: UK) C313 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C314 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C315 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C316 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C319 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C320 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C328 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C330 1-164-156-11 CERAMIC CHIP 0.1uF 25V C332 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C338 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C340 1-164-156-11 CERAMIC CHIP 0.1uF 25V C341 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C342 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C343 1-126-965-91 ELECT 22uF 20% 50V

(EC78P: UK) C344 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

(EC78P: UK) C345 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

(EC78P: UK) C346 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

D301 6-501-722-01 DIODE MAZ8043GMLS0 D302 6-501-817-01 DIODE MA2J1110GLS0 D303 6-500-334-01 DIODE MC2836-T112-1 D304 6-501-817-01 DIODE MA2J1110GLS0 D305 6-501-817-01 DIODE MA2J1110GLS0 (EC78P: UK)

D306 8-719-063-79 DIODE 1N4002B (EC68P/EC78P: US, CND) D307 6-501-817-01 DIODE MA2J1110GLS0

< FERRITE BEAD > FB301 1-500-329-21 INDUCTOR, FERRITE BEAD < IC >

IC301 A-1551-183-A IC MB90F831PF-G-SPE1 (for service) IC301 A-1551-185-A IC MB90F831PF-G-SPE1 (for service) IC302 6-711-556-01 IC NJL24H400B-SA

IC303 8-759-598-69 IC BA6956AN (EC68P/EC78P: US, CND)

< JUMPER RESISTOR > JR301 1-216-864-11

JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0 JR304 1-216-864-11 SHORT CHIP 0 JR305 1-216-864-11 SHORT CHIP 0

JR307 1-216-864-11 SHORT CHIP 0 JR308 1-216-864-11 SHORT CHIP 0 JR309 1-216-864-11 SHORT CHIP 0 JR310 1-216-864-11 SHORT CHIP 0 JR311 1-216-864-11 SHORT CHIP 0

JR313 1-216-864-11 SHORT CHIP 0 JR315 1-216-864-11 SHORT CHIP 0

< LIQUID CRYSTAL DISPLAY > LCD301 1-802-584-11 DISPLAY PANEL, LIQUID

SHORT CHIP 0

(EC68P/EC78P: US, CND)

(EC78P: UK)

C347 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C348 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C351 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EC68P/EC78P: US, CND)

C352 1-126-964-11 ELECT 10uF 20% 50V

(EC68P/EC78P: US, CND)

C353 1-164-156-11 CERAMIC CHIP 0.1uF 25V

(EC68P/EC78P: US, CND)

C354 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C355 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C356 1-164-156-11 CERAMIC CHIP 0.1uF 25V C357 1-126-965-91 ELECT 22uF 20% 50V

(EC68P/EC78P: US, CND) < CONNECTOR > CN301 1-784-753-11 CONNECTOR, FFC 31P

CN302 1-784-735-11 CONNECTOR, FFC 13P (EC78P: UK) CN303 1-815-550-11 PIN, CONNECTOR (PWB) 2P CN306 1-815-443-11 PIN, CONNECTOR (PWB) 2P CN311 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P

(EC68P/EC78P: US, CND)

< LED > LED301 6-501-479-01 LED 1L0341Y23E0CA602 (I/1, STANDBY) < TRANSISTOR > Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q302 8-729-037-13 TRANSISTOR KTA1271Y Q303 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q305 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q306 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q307 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

(EC78P: UK) Q308 8-729-038-28 TRANSISTOR RT1N441C-TP-1 (EC78P: UK) Q309 8-729-040-76 TRANSISTOR KTA1273-Y-AT (EC78P: UK) Q310 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (EC78P: UK)

Q311 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF

(EC78P: UK) Q312 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF

(EC78P: UK) Q313 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF

(EC78P: UK)

6161

HCD-EC68P/EC78P

PANEL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q314 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF

(EC78P: UK)

Q315 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (EC78P: UK) Q316 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (EC78P: UK)

Q317 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (EC78P: UK) Q318 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (EC78P: UK)

< RESISTOR > R301 1-216-809-11 METAL CHIP 100 5% 1/10W

R302 1-216-809-11 METAL CHIP 100 5% 1/10W R303 1-216-809-11 METAL CHIP 100 5% 1/10W R304 1-216-809-11 METAL CHIP 100 5% 1/10W R305 1-216-809-11 METAL CHIP 100 5% 1/10W

R306 1-216-809-11 METAL CHIP 100 5% 1/10W R307 1-216-809-11 METAL CHIP 100 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-809-11 METAL CHIP 100 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W

R346 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R347 1-216-817-11 METAL CHIP 470 5% 1/10W

(EC78P: UK)

R348 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R349 1-216-817-11 METAL CHIP 470 5% 1/10W

(EC78P: UK)

R350 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R351 1-216-817-11 METAL CHIP 470 5% 1/10W

(EC78P: UK)

R352 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R353 1-216-817-11 METAL CHIP 470 5% 1/10W

(EC78P: UK)

R354 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R355 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK)

R311 1-216-817-11 METAL CHIP 470 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-809-11 METAL CHIP 100 5% 1/10W R314 1-216-809-11 METAL CHIP 100 5% 1/10W R315 1-216-809-11 METAL CHIP 100 5% 1/10W

R316 1-216-809-11 METAL CHIP 100 5% 1/10W R317 1-216-809-11 METAL CHIP 100 5% 1/10W R318 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-809-11 METAL CHIP 100 5% 1/10W R320 1-216-809-11 METAL CHIP 100 5% 1/10W

R321 1-216-809-11 METAL CHIP 100 5% 1/10W R322 1-216-809-11 METAL CHIP 100 5% 1/10W R323 1-216-809-11 METAL CHIP 100 5% 1/10W R324 1-216-809-11 METAL CHIP 100 5% 1/10W R325 1-216-797-11 METAL CHIP 10 5% 1/10W

R326 1-216-809-11 METAL CHIP 100 5% 1/10W R327 1-216-809-11 METAL CHIP 100 5% 1/10W R328 1-216-833-11 METAL CHIP 10K 5% 1/10W R329 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R330 1-216-819-11 METAL CHIP 680 5% 1/10W

R331 1-216-845-11 METAL CHIP 100K 5% 1/10W R332 1-216-833-11 METAL CHIP 10K 5% 1/10W R333 1-216-845-11 METAL CHIP 100K 5% 1/10W R334 1-216-833-11 METAL CHIP 10K 5% 1/10W R335 1-216-837-11 METAL CHIP 22K 5% 1/10W

R336 1-216-833-11 METAL CHIP 10K 5% 1/10W R337 1-216-813-11 METAL CHIP 220 5% 1/10W R338 1-216-789-11 METAL CHIP 2.2 5% 1/10W

(EC78P: UK)

R339 1-216-789-11 METAL CHIP 2.2 5% 1/10W

(EC78P: UK)

R340 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC78P: UK)

R341 1-216-839-11 METAL CHIP 33K 5% 1/10W

(EC78P: UK)

R342 1-216-849-11 METAL CHIP 220K 5% 1/10W

(EC78P: UK)

R343 1-216-853-11 METAL CHIP 470K 5% 1/10W

(EC78P: UK)

R344 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

(EC78P: UK)

R345 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC78P: UK)

R356 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK)

R357 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R358 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK)

R359 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK)

R360 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK)

R361 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK) R362 1-216-837-11 METAL CHIP 22K 5% 1/10W R363 1-216-837-11 METAL CHIP 22K 5% 1/10W R364 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC78P: UK) R365 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC78P: UK) R366 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P: UK) R367 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC78P: UK) R368 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P: UK) R369 1-216-821-11 METAL CHIP 1K 5% 1/10W R370 1-216-821-11 METAL CHIP 1K 5% 1/10W

R371 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK) R372 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK) R373 1-216-864-11 SHORT CHIP 0 (EC78P: UK) R374 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK) R375 1-216-864-11 SHORT CHIP 0 (EC78P: UK)

R376 1-216-833-11 METAL CHIP 10K 5% 1/10W R377 1-216-833-11 METAL CHIP 10K 5% 1/10W R378 1-216-839-11 METAL CHIP 33K 5% 1/10W R379 1-216-843-11 METAL CHIP 68K 5% 1/10W R380 1-216-817-11 METAL CHIP 470 5% 1/10W

R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R382 1-216-833-11 METAL CHIP 10K 5% 1/10W R383 1-216-833-11 METAL CHIP 10K 5% 1/10W R384 1-216-833-11 METAL CHIP 10K 5% 1/10W R385 1-216-821-11 METAL CHIP 1K 5% 1/10W

62

HCD-EC68P/EC78P

PANEL PT REG

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R386 1-216-821-11 METAL CHIP 1K 5% 1/10W

R387 1-216-821-11 METAL CHIP 1K 5% 1/10W R389 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC68P/EC78P: US, CND)

R389 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

(EC78P: UK)

R390 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P)

R391 1-216-821-11 METAL CHIP 1K 5% 1/10W

(EC78P: UK)

R391 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(EC68P: AUS)

R392 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC68P/EC78P: US, CND) R396 1-216-851-11 METAL CHIP 330K 5% 1/10W R400 1-216-821-11 METAL CHIP 1K 5% 1/10W

R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-845-11 METAL CHIP 100K 5% 1/10W R405 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R406 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R412 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

SW313 1-771-410-21 SWITCH, TACTILE (x) SW314 1-771-410-21 SWITCH, TACTILE (FOLDER +) SW315 1-771-410-21 SWITCH, TACTILE (FOLDER −) SW316 1-771-410-21 SWITCH, TACTILE (EQ) SW317 1-771-410-21 SWITCH, TACTILE (DSGX)

SW318 1-771-410-21 SWITCH, TACTILE (PLAY MODE/TUNING MODE) SW319 1-771-410-21 SWITCH, TACTILE (DISPLAY)

< VIBRATOR > X301 1-814-067-11 OSCILLATOR, CRYSTAL (32.768kHz)

X302 1-813-548-21 VIBRATOR, CERAMIC (6MHz)

************************************************************

PT BOARD

*********

< CAPACITOR > C051 1-165-621-91 CERAMIC CHIP 0.1uF 50V

C052 1-164-156-11 CERAMIC CHIP 0.1uF 25V

R413 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R414 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R415 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R416 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R417 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R418 1-216-835-11 METAL CHIP 15K 5% 1/10W R419 1-216-838-11 METAL CHIP 27K 5% 1/10W R420 1-216-845-11 METAL CHIP 100K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC78P: UK)

R422 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R426 1-216-845-11 METAL CHIP 100K 5% 1/10W

(EC78P: UK)

R428 1-216-841-11 METAL CHIP 47K 5% 1/10W

(EC78P: UK) R429 1-216-833-11 METAL CHIP 10K 5% 1/10W R433 1-216-817-11 METAL CHIP 470 5% 1/10W R434 1-216-817-11 METAL CHIP 470 5% 1/10W

R435 1-216-817-11 METAL CHIP 470 5% 1/10W R441 1-216-840-11 METAL CHIP 39K 5% 1/10W

(EC68P/EC78P: US, CND)

R442 1-216-837-11 METAL CHIP 22K 5% 1/10W

(EC68P/EC78P: US, CND)

R443 1-216-833-11 METAL CHIP 10K 5% 1/10W

(EC68P/EC78P: US, CND)

R444 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC68P/EC78P: US, CND)

< CONNECTOR > CN051 1-819-972-11 HOLDER, CABLE 8P

0 CN053 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P < DIODE > D051 6-500-334-01 DIODE MC2836-T112-1

D052 6-500-335-01 DIODE MC2838-T112-1 D055 6-500-335-01 DIODE MC2838-T112-1

< TRANSFORMER > 0 PT001 1-443-846-11 TRANSFORMER, POWER

(EC68P: US/EC78P: US, CND)

0 PT001 1-443-912-11 TRANSFORMER, POWER (EC78P: UK) 0 PT002 1-445-105-11 TRANSFORMER, POWER (EC68P: AUS)

< RELAY >

0 RY001 1-755-334-11 RELAY, AC POWER (EC68P: US/EC78P) 0 RY002 1-755-496-11 RELAY (EC68P: AUS)

************************************************************

REG BOARD

**********

< CAPACITOR > C698 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

R445 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(EC68P/EC78P: US, CND) R446 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R447 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R448 1-216-833-11 METAL CHIP 10K 5% 1/10W

< ROTARY ENCODER > S301 1-786-417-11 ENCODER, ROTARY (VOLUME) < SWITCH > SW303 1-771-410-21 SWITCH, TACTILE (l m − TUNING)

SW304 1-771-410-21 SWITCH, TACTILE (FUNCTION) SW305 1-771-410-21 SWITCH, TACTILE (TUNING + M L) SW311 1-771-410-21 SWITCH, TACTILE (CD N) SW312 1-771-410-21 SWITCH, TACTILE (X)

< IC >

IC601 8-759-231-56 IC TA7809S

< CABLE HOLDER > W610 1-824-027-21 HOLDER, CABLE 3P

************************************************************

6363

HCD-EC68P/EC78P

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MISCELLANEOUS

**************

57 1-835-338-21 CABLE, FLEXIBLE FLAT (31 CORE) 60 1-831-774-21 CABLE, FLEXIBLE FLAT (9 CORE) 62 1-835-336-21 CABLE, FLEXIBLE FLAT (11 CORE) 101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE) (EC78P: UK)

0 106 1-769-744-81 CORD, POWER (EC78P: UK) 0 106 1-834-967-21 CORD, POWER (EC68P: AUS)

0 106 1-834-978-11 CORD, POWER (EC68P: US/EC78P: US, CND)

107 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE) (EC78P: UK) 107 1-835-334-21 CABLE, FLEXIBLE FLAT (21 CORE)

108 1-832-666-21 CABLE, FLEXIBLE FLAT (5 CORE)

152 1-831-744-21 CABLE, FLEXIBLE FLAT (5 CORE) 153 1-835-276-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC78P) 201 1-797-193-12 MECHANICAL, CD (DLM3A) (EC78P: UK) 0 206 A-4735-357-A BASE ASSY, OP (KSM-213D) (EC78P: UK) 207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) (EC78P: UK)

251 A-1242-967-A LOADING (BK) ASSY (EC68P/EC78P: US, CND) 0 256 A-4735-357-A BASE ASSY, OP (KSM-213D)

257 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) M601 1-787-400-11 D.C. FAN (EC68P/EC78P: UK)

M601 1-787-631-11 FAN, DC (EC78P: US, CND)

(EC68P/EC78P: US, CND) (EC68P/EC78P: US, CND)

0 PT003 1-445-346-11 TRANSFORMER, POWER (EC68P: AUS) 0 PT003 1-445-476-11 TRANSFORMER, POWER (EC68P: US) 0 PT004 1-445-343-11 TRANSFORMER, POWER (EC78P: UK) 0 PT004 1-445-345-11 TRANSFORMER, POWER (EC78P: US, CND)

S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

*************************************************************

ACCESSORY

***********

0 1-770-019-61 ADAPTOR, CONVERSION PLUG (EC78P: UK)

64

MEMO

HCD-EC68P/EC78P

65

HCD-EC98P

REVISION HISTORY

Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2008.04 New

1.1 2009.01 Change of destination for Ref. No. IC301 on PANEL board

(SMR-08206)

Sony HCD-EC68/78P Schematic

SERVICING NOTES

TABLE OF CONTENTS

GENERAL

3-1. DISASSEMBLY FLOW

DISASSEMBLY

3-2. SIDE PANEL (L)/(R)

3-3. PANEL (TOP)

3-4. MAIN BOARD

3-5. FRONT PANEL BLOCK (EC78P: UK)

3-6. FRONT PANEL BLOCK (EC68P/EC78P: US, Canadian)

3-7. BACK PANEL BLOCK

3-8. 3 CD MECHANISM BLOCK (EC78P: UK)

3-9. BASE UNIT (EC78P: UK)

3-10. 1 CD MECHANISM BLOCK (EC68P/EC78P: US, Canadian)

3-11. BASE UNIT (EC68P/EC78P: US, Canadian)

3-12. BELT (EC68P/EC78P: US, Canadian)

3-13. BELT (EC78P: UK)

3-14. OP BASE ASSY (KSM-213D)

TEST MODE

ELECTRICAL ADJUSTMENTS

6-1. BLOCK DIAGRAM - CD SERVO, TUNER Section -

DIAGRAMS

6-2. BLOCK DIAGRAM - MAIN Section -

6-3. PRINTED WIRING BOARD - CD Board -

6-4. SCHEMATIC DIAGRAM - CD Board -

6-5. PRINTED WIRING BOARDS - MAIN Section -

6-6. SCHEMATIC DIAGRAM - MAIN Section (1/3) -

6-7. SCHEMATIC DIAGRAM - MAIN Section (2/3) -

6-8. SCHEMATIC DIAGRAM - MAIN Section (3/3) -

6-9. PRINTED WIRING BOARD - HI AMP Board (EC78P) -

6-10. SCHEMATIC DIAGRAM - HI AMP Board (EC78P) -

6-11. PRINTED WIRING BOARD - LOW AMP Board -

6-12. SCHEMATIC DIAGRAM - LOW AMP Board -

6-13. PRINTED WIRING BOARD - PANEL Board -

6-14. SCHEMATIC DIAGRAM - PANEL Board -

6-15. PRINTED WIRING BOARDS - KEY Section -

6-16. SCHEMATIC DIAGRAM - KEY Section -

6-17. PRINTED WIRING BOARD - MOTOR Board (EC68P/EC78P: US, Canadian models) -

6-18. SCHEMATIC DIAGRAM - MOTOR Board (EC68P/EC78P: US, Canadian models) -

6-19. PRINTED WIRING BOARD - PT Board -

6-20. SCHEMATIC DIAGRAM - PT Board -

7-1. PANEL SECTION

EXPLODED VIEWS

7-2. FRONT PANEL SECTION

7-3. CHASSIS SECTION

7-4. MAIN SECTION

7-5. 3 CD MECHANISM SECTION (EC78P: UK) (CDM88A-K6BD90-WOD)

7-6. 1 CD MECHANISM SECTION (EXCEPT EC78P: UK) (CDM77B-K6BD90-WOD)

ELECTRICAL PARTS LIST

CD DMP HI AMP

LOW AMPKEY POWERKEY CDJACKHI AMP

MAINLOW AMP

MOTOR

PANELMAIN

REVISION HISTORY
