FR=A255 U

RADIO RECEIVER
RECEPTOR DE RADIO

OWNER’S RECORD

For your convenience, record the model number (you will find it
at the botlom of the unit) and serial number (you will find it in the
battery compartment) in the space provided below. Please refer
to them when you contact your AIWA dealer in case of difficulty.

Model No.

Serial No.

FR-A255

,

●

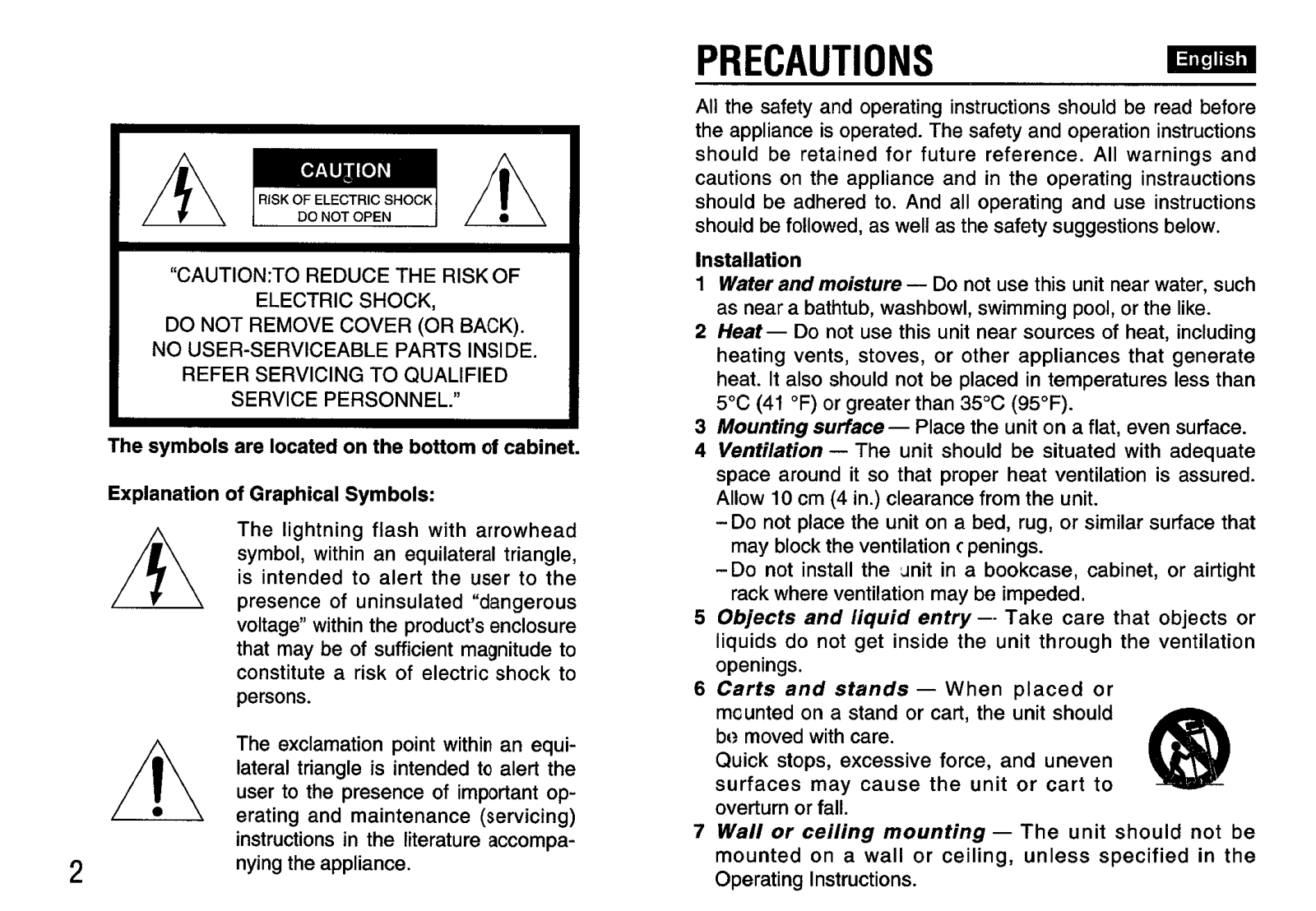

RISKOF ELECTRICSHOCK

1A e-

“CAUTION:TO REDUCE THE RISK OF

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

The symbols are located on the bottom of cabinat.

Explanation of Graphical Symbols:

A

●

A

2

DO NOTOPEN

ELECTRIC SHOCK,

SERVICE PERSONNEL.”

The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

The exclamation point within an equi­lateral triangle is intended to alert the
user to the presence of important op­crating and maintenance (servicing)
instructions in the literature accompa­nying the appliance.

Al

PRECAUTIONS

All the safety and operating instructions should be read before
the appliance is operated. The safety and operation instructions
should be retained for future reference. All warnings and
cautions on the appliance and in the operating instructions

●

should be adhered to. And all operating and use instructions
should be followed, as well as the safety suggestions below.

Installation

Water and moisture — Do not use this unit near water, such

1

as near a bathtub, waahbowl, swimming pool, or the like.
Heat— Do not use this unit near sources of heat, including

2

heating vents, stoves, or other appliances that generate
heat. It also should not be placed in temperatures less than
5°C (41 “F) or greater than 35°C (95”F).
Mounting surface — Place the unit on a flat, even surface.

3

Venfi/ation — The unit should be situated with adequate

4

space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the unit.

- Do not place the unit on a bed, rug, or similar sutface that
may block the ventilation cpenings.

- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded,

Ob]ects and liquid entry –- Take care that objects or

5

liquids do not get inside the unit through the ventilation
openings.

6

Carts and stands — When placed or
mcunted on a stand or cart, the unit should
be moved with care.

Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to
overturn or fall.

7

Wall or ceiling mounting — The unit should not be
mounted on a wall or ceiling, unless specified in the
Operating Instructions.

mm

m

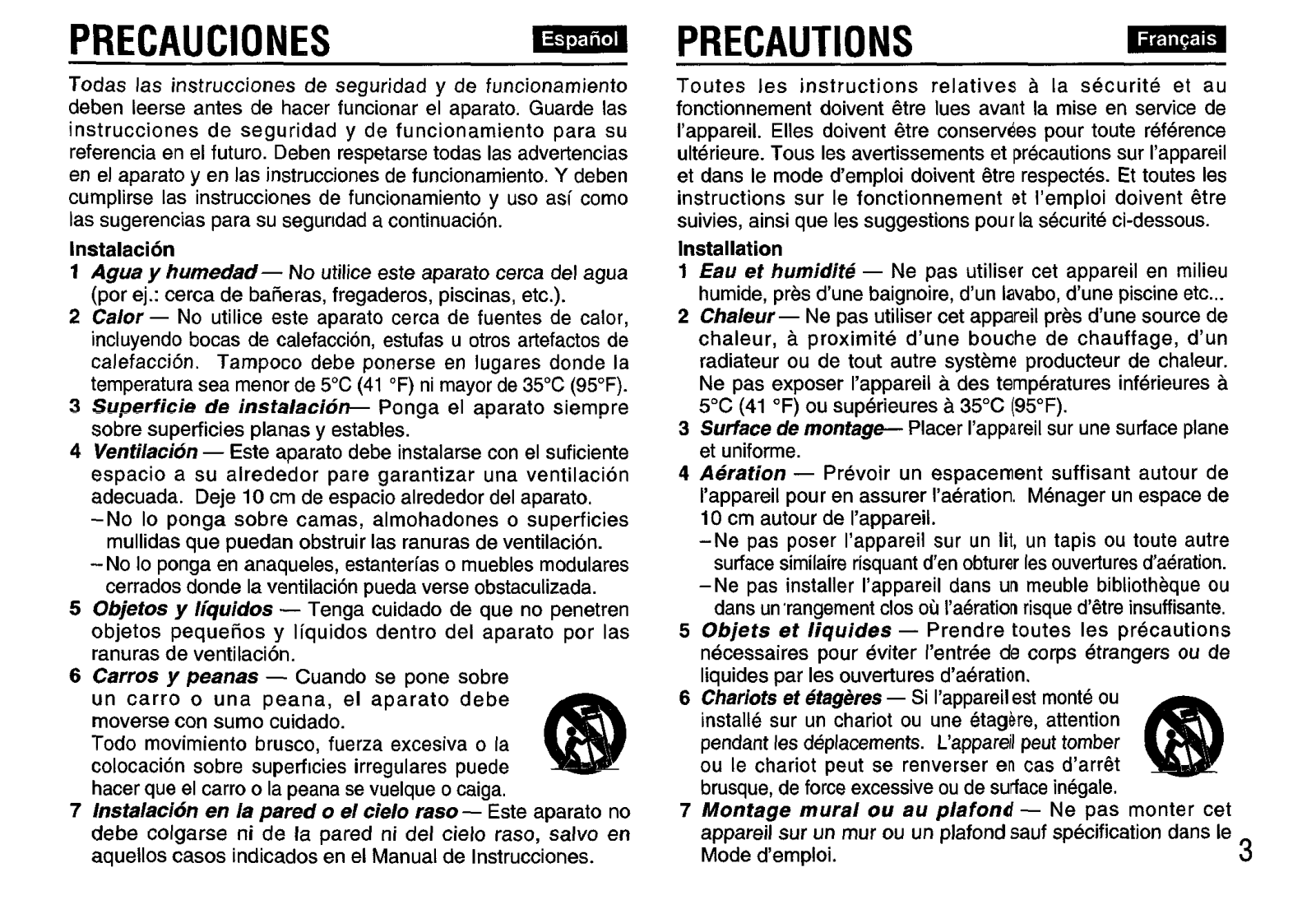

PRECAUCIONES

Todas Ias instrucciones deseguridad yde funcionamiento
deben Ieerseantesde hacerfuncionarel aparato. Guarde Ias
instrucciones de seguridad y de funcionamiento para su
referencia en el future. Deben respetarse todas Ias advertencias
en el aparato y en Ias instrucciones de funcionamiento. Y deben
cumpiirse Ias instrucciones de funcionamiento y uso as( como
Ias sugerencias para su segundad a continuation.

Instalacion

1

Agw y humedad— No utilice este aparato cerca del agua
(per ej.: cerca de baiieras, fregaderos, piscinas, etc.).

2

Ca/or — No utilice este aparato cerca de fuentes de calor,

incluyendo bocas de calefaccion, estufas u otros artefactos de
calefaccibn. Tampoco debe ponerse en Iugares donde la
temperature sea menor de YC (41 “F) ni mayor de 35°C (95”F).

3

Superficie de insta/aci6n- Ponga el aparato siempre

sobre superficies planas y estables.

4

Ventilation — Este aparato debe instalarse con el suficiente

espacio a su alrededor pare garantizar una ventilation
adecuada. Deje 10 cm de espacio alrededor del aparato,

- No 10 ponga sobre camas, almohadones o superficies
mullidas que puedan obstruir Ias ranuras de ventilation.

- No 10ponga en anaqueles, estanterias o muebles modulares
cerrados donde la ventilaci6n pueda verse obstaculizada.

5

Objetoa y liquidoa — Tenga cuidado de que no penetren

objetos pequehos y Iiquidos dentro del aparato por Ias
ranuras de venti Iacion.

6

Carroa y peanas — Cuando se pone sobre

un carro o una peana, el aparato debe
moverse con sumo cuidado.
Todo movimiento brusco, fuerza excesiva o la
colocacion sobre superhcies irregulars puede
hater que el carro o la peana se vuelque o caiga,

7

lnstalacion en la pared o el cielo raso — Este aparato no

debe colgarse ni de la pared ni del cielo raso, salvo en
aquellos cases indicados en el Manual de Instrucciones.

- PRECAUTIONS

@l!!

-

Toutes les instructions relatives a la securite et au
fonctionnement doivent &re Iues avant la mise en service de
I’appareil. Elles doivent i?Sreconserves pour toute reference
ulterieure. Tous Ies avertissements et precautions sur I’appareil
et clans Ie mode d’emploi doivent &tre respectes. Et toutes Ies
instructions sur Ie fonctionnement et I’emploi doivent ~tre
suivies, ainsi que Ies suggestions pour la securite ci-dessous.

Installation
1 Eau et humidite — Ne pas utiliser cet appareil en milieu

humide, pres d’une baignoire, d’un Iavabo, d’une piscine etc...

2 Cha/eur — Ne pas utiliser cet appareil pres dune source de

chaleur, a proximite d’une bouche de chauffage, d’un
radiateur ou de tout autre systeme producteur de chaleur.
Ne Das exDoser I’amareil a des temperatures inferieures a

5“C’ (41 ‘Fi ou sup&eures a 35°C (9&F).

3

Surface de montage- Placer I’appareil sur une surface plane
et uniforme.

4

Aeration — Prevoir un espacement suffisant autour de
~appareil pour en assurer I’aeration. Menager un espace de
10 cm autour de I’appareil.

- Ne pas poser I’appareil sur un lit, un tapis ou toute autre
surface similaire risquant den obturer Iesouverfures daeration.

- Ne pas installer I’appareil clans un meuble bibliotheque ou
clans un‘rangement CIOSou I’aeration risque d’&re insuffisante.

5

Objets et Iiquides — Prendre toutes Ies precautions
necessaires pour eviter I’entree de corps etrangers ou de
Iiquides par Ies overtures d’aeration.

6

Chariots et etsgerea — Si I’appareil est monte ou
installe sur un chariot ou une etagere, attention
pendant Ies replacements. L’appareil paut tomber
ou Ie chariot peut se renverser en cas d’arr&
brusque, de force excessive ou de swface inegale.
Montage mura/ ou au plafond — Ne pas monter cet

7

appareil sur un mur ou un plafond sauf specification clans Ie
Mode demploi.

@!!l!

3

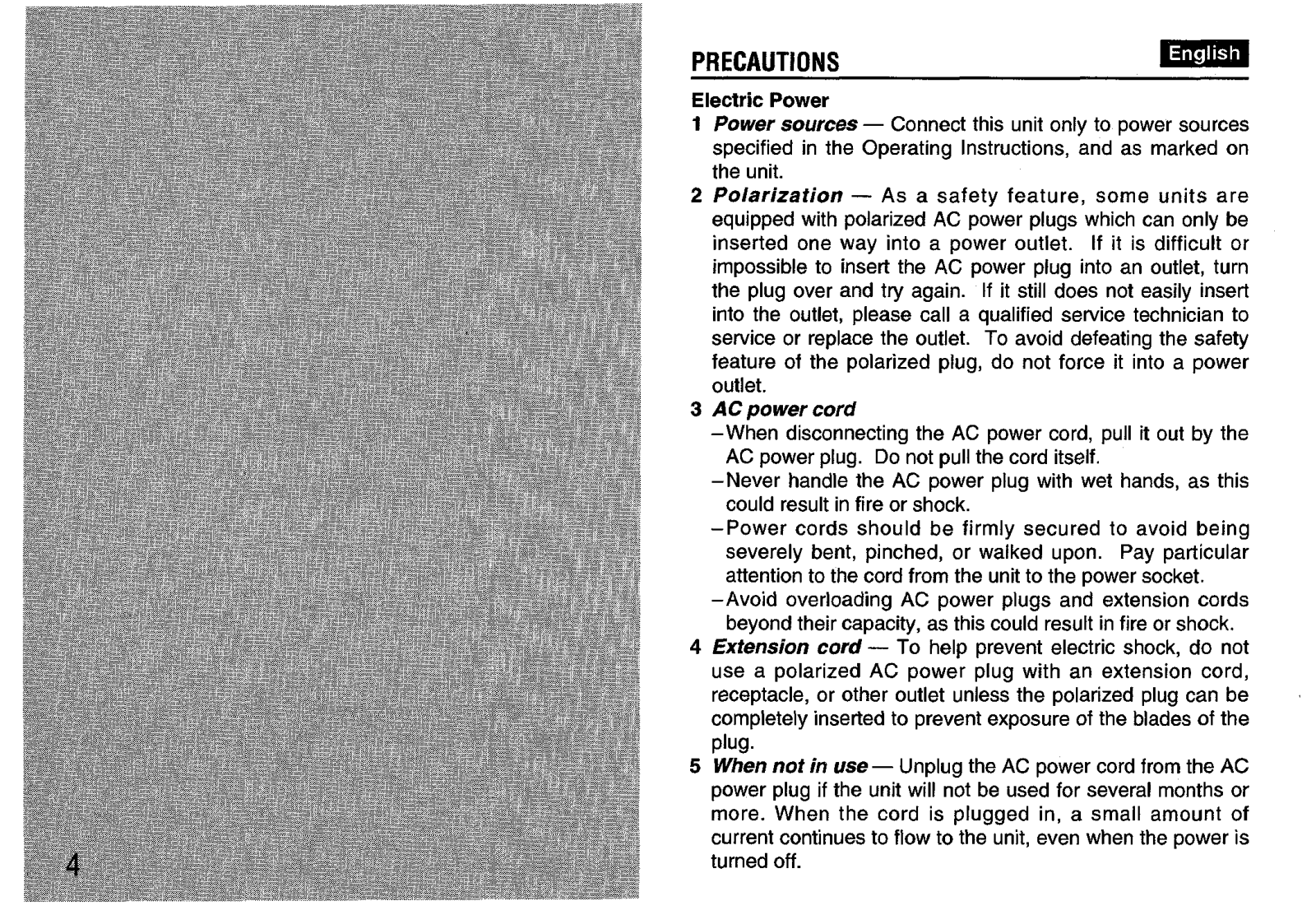

PRECAUTIONS

Electric Power
1 Power sources — Connect this unit only to power sources

specified in the Operating Instructions, and as marked on

the unit.

2 Polarization — As a safety feature, some units are

equipped with polarized AC power plugs which can only be
inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the safety
feature of the polarized plug, do not force it into a power
outlet.

3 AC power cord

–When disconnecting the AC power cord, pull it out by the

AC power plug. Do not pull the cord itself.

–Never handle the AC power plug with wet hands, as this

could result in fire or shock.

-Power cords should be firmly secured to avoid being
severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the power socket.

–Avoid overloading AC power plugs and extension cords

beyond their capacity, as this could result in fire or shock.

4 Extension cord”— To help prevent electric shock, do not

use a polarized AC powe’r plug with an extension cord,
receptacle, or other outlet unless the polarized plug can be
completely inserted to prevent exposure of the blades of the
plug.

5 When not in use — Unplug the AC power cord from the AC

power plug if the unit will not be used for several months or
more. When the cord is plugged in, a small amount of
current continues to flow to the unit, even when the power is
turned off.

mm

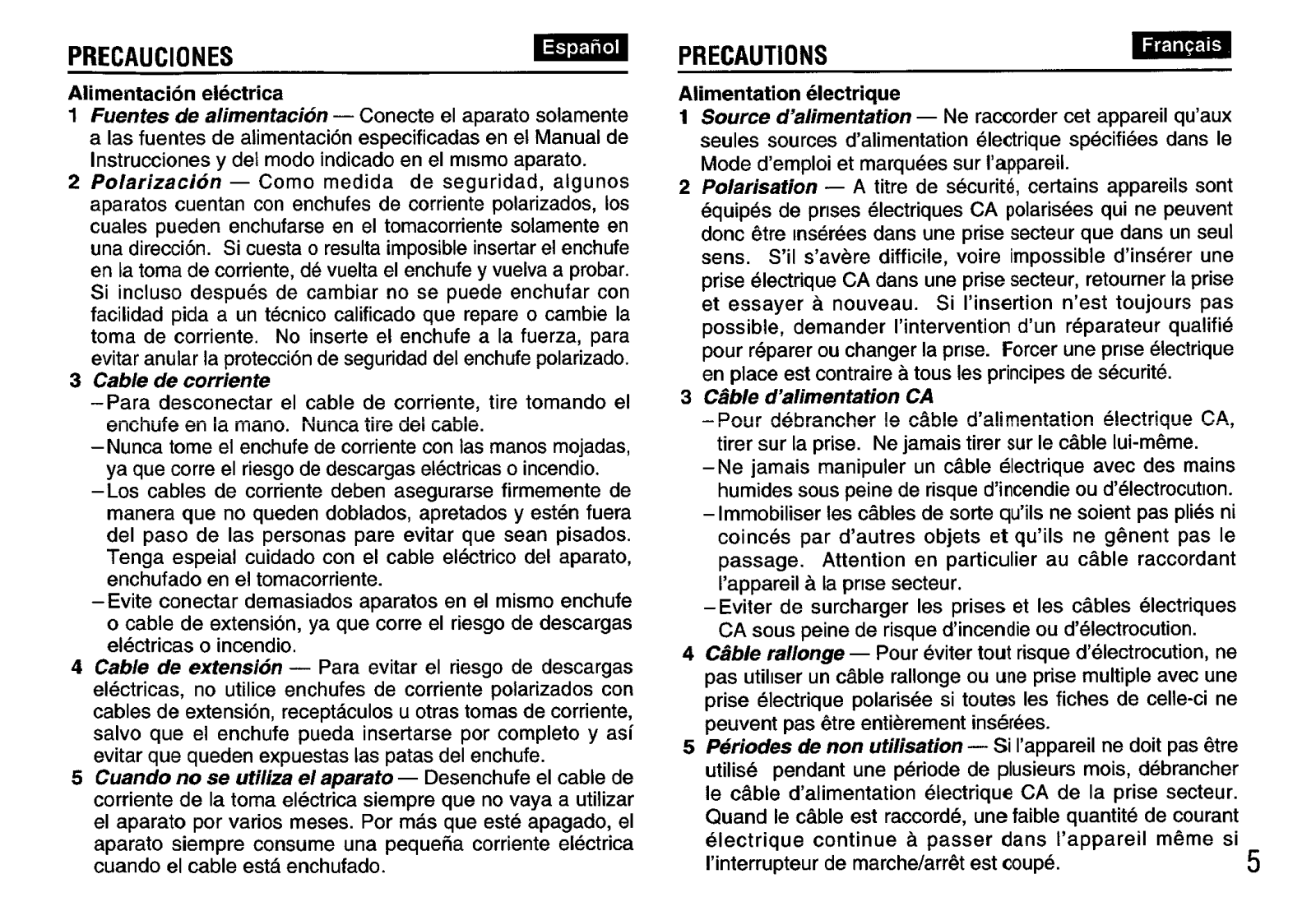

PRECAUCIONES

Alimentacion electrica
1 Fuentes de a/imentaciofr — Conecte el aparato solamente

a Ias fuentes de alimentacion esDecificadas en el Manual de

Instrucciones y del modo indicado en el mlsmo aparato.

2

Po/arizacion — Como medida de seguridad, algunos
aparatos cuentan con enchufes de corriente polarizados, Ios
cuales pueden enchufarse en el tomacorriente solamente en
una direcci6n. Si cuesta o results imposible insertar el enchufe
en la toma de corriente, de vuelta el enchufe y vuelva a probar.
Si incluso despues de cambiar no se puede enchufar con
facilidad pida a un tecnico calificado que repare o cambie la
toma de corriente. No inserte el enchufe a la fuerza, para
evitar anular la protection de seguridad del enchufe polarizado.

Cable de corriente

3

– Para desconectar el cable de corriente, tire tomando el

--- L..._ -- ,- —---

elltillule erl Id.Illdllu. lNurltid
Nunca tome el enchufe de corriente con Ias manes mojadas,

–

ya que corre el riesgo de descargas electrical o incendio.

– Los cables de corriente deben asegurarse firmemente de

manera que no queden doblados, apretados y esten fuera
del paso de Ias personas pare evitar que scan pisados.
Tenga espeial cuidado con el cable electrico del aparato,
enchufado en el tomacorriente.

– Evite conectar demasiados aparatos en el mismo enchufe

o cable de extension, ya que corre el riesgo de descargas
electrical o incendio,

4

Cable de extension — Para evitar el riesgo de descargas
electrical, no utilice enchufes de corriente polarizados con
cables de extension, receptaculos u otras tomas de corriente,
salvo que el enchufe pueda insertarse por completo y asi
evitar que queden expuestas Ias patas del enchufe.

5

Cuando no se utiliza el aparato — Desenchufe el cable de
corriente de la toma electrica siempre que no vaya a utilizar
el aparato por varies meses. Por mas que este apagado, el
aparato siempre consume una pequefia corriente electrica
cuando el cable esta enchufado.

., ----- .:. - _I-, -- 1-,-

tile Uel LAxJle.

- PRECAUTIONS

-

Alimentation electriuue
1

Source d’alirnente_tion — Ne raccorder cet appareil qu’aux
seules sources d’alimentation electrique specifiers clans Ie
Mode d’emploi et marquees sur I’appareil.

2

Polarisation — A titre de securite, certains appareils sent
equipes de prises electriques CA polarisees qui ne peuvent
done &re Ins@reesclans une prke secteur que clans un seul
sens. S’il s’avere difficile, voire impossible d’inserer une
prise electrique CA clans une prise secteur, retourner la prise
et essayer a nouveau. Si I’insertion n’est toujours pas
possible, demander I’intervention d’un reparateur qualifie
pour reparer ou changer la prise. Forcer une prise electrique
en place est contraire a tous Ies principes de securite.

3

CSble dalimentation CA

Dnt tr ,+Ahrarwhc.w la Ahla ti’alimantatinn SInctriri! ICI f!A

—

! ““, ““-. .-.!O”! s”! !“ “-”. ” “ -.. !!!-...-..”.. -.-- . ...4-- -. .,

tirer sur la prise. Ne jamais tirer sur Ie cable lui-m~me.

– Ne jamais manipuler un ciible electrique avec des mains

humides sous peine de risque d’incendie ou d’electrocution.

- Immobiliser Ies c~bles de sorte qu’ils ne soient pas plies ni
coinces par d’autres objets et qu’ils ne gtment pas Ie

passage. Attention en particulier au cable raccordant
I’appareil a la prise secteur.

- Eviter de surcharge Ies prises et Ies ciibles electriques

CA sous peine de risque dincendie ou d’electrocution.

4

Ciib/e rallonge — Pour eviter tout risque d’electrocution, ne
pas utilser un cable rallonge ou une prise multiple avec une
prise electrique polarisee si toutes Ies fiches de celle-ci ne
peuvent pas &re entierement inserees.
/Jeriodes de non utilisation — S I’appareil ne doit pas 6tre

5

utilise pendant une periode de plusieurs mois, debrancher
Ie cable d’alimentation electrique CA de la prise secteur.
Quand Ie cable est raccorde, une faible quantite de courant
electrique continue a passer clans I’appareil m~me si
I’interrupteur de marche/arr6t est coupe.

5

PRECAUTIONS

Maintenance

Clean the unit only as recommended in the Operating

Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if

–The AC power cord or plug has been damaged

-Foreign objects or liquid have gotten inside the unit
–The unit has been exposed to rain or water
–The unit does not seem to operate normally
–The unit exhibits a marked change in performance
–The unit has been dropped, or the cabinet has been

damaged

DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

Servicing – The user should not attempt to service the
appliance beyond that described in the operating instruction.
All other servicing should be referred to qualified service

personnel.
