Sony FDR-X1000V, HDR-AS200V Help Guide

Digital 4K Video Camera Recorder/Digital HD Video Camera Recorder
FDR-X1000V/HDR-AS200V

How to use

Read This First

Identifying the parts

Identifying the parts [1]

Screen display

Screen display [2]

Getting Started

Checking the bundled items

Checking the bundled items [3]

Inserting the battery pack

Inserting the battery pack [4]

Charging the battery pack

Charging the battery pack [5]

Inserting a memory card

Inserting a memory card [6]

The memory cards that can be used with the camera [7]

Using the Tripod Adaptor

Using the tripod adaptor (HDR-AS200V only) [8]

Using the Waterproof Case

Identifying the parts (Waterproof case) [9]
Using the waterproof case [10]
On waterproof performance of the waterproof case [11]
Notes on use for the waterproof case [12]
Water leakage [13]
Waterproof packing [14]
How to check for water leaks [15]
Maintenance [16]

Using Adhesive Mount

Using the adhesive mount [17]

Shooting

Shooting movies and still images

About the REC HOLD (lock) switch [18]
Shooting movies (Movie mode) [19]
Shooting still images (Photo mode) [20]
Loop recording mode [21]
Interval photo recording mode [22]
Notes on long-time recording [23]

Changing the Settings

List of setting items

List of setting items [24]

How to set the setting items [25]

Shooting settings

Image quality setting [26]
SteadyShot [27]
Flip [28]
Scene [29]
White balance [30]
AE shift [31]
Color mode [32]
Movie format [33]
Audio recording setting [34]
Wind noise reduction [35]
Loop recording time [36]
Still image angle of view [37]
Still image mode switching [38]
Still image shooting interval [39]
Self-timer [40]
Interval photo recording [41]

Camera settings

Wi-Fi connection [42]
GPS log [43]
Airplane mode [44]
Mount [45]
Time Code/User Bit [46]
IR-Remote Control [47]
HDMI settings [48]
USB Power Supply [49]
Auto power off [50]
Beep [51]

Date & time/area setting [52]

Daylight Saving Time (Summer time) setting [53]
Language setting [54]
Switching NTSC/PAL [55]
Version [56]
Format [57]
Resetting the settings [58]

Viewing

Viewing images on a TV

Viewing images on a TV [59]

Deleting images

Delete [60]

Create your movie

Highlight Movie Maker

Creating the highlight movie [61]
Importing the BGM [62]
Mount [63]

Stream real-time movie to a movie streaming site

Live Streaming with your camera (Real time movie streaming)

Live Streaming [64]
Preparing for Live Streaming [65]
Performing Live Streaming [66]
Restrictions [67]

Using the camera connected to other devices via Wi-Fi

Effective use of the battery pack [82]

Connecting to your smartphone

Preparation for connecting to your smartphone [68]
Sample smartphone screen display [69]
Using One-touch Functions to Connect to an NFC-enabled Android Smartphone [70]
Connecting to a smartphone without using NFC [71]

Connecting to the Live-View Remote

Connecting a single camera to Live-View Remote (Single connection) [72]
Connecting multiple cameras to Live-View Remote (Multi connection) [73]

Connecting to Handycam

Connecting a single camera to Handycam (Single connection) [74]
Connecting multiple cameras to Handycam (Multi connection) [75]

Editing images imported to your computer

Using the Action Cam Movie Creator

Useful functions of Action Cam Movie Creator [76]
Installing Action Cam Movie Creator on your computer [77]

Others

Recordable time

Estimated duration of recording and playback for supplied battery pack [78]
Estimated recording time of movies [79]
Estimated number of recordable still images [80]

Battery pack

On charging the battery pack [81]

About the remaining battery charge [83]
How to store the battery pack [84]
On battery pack life [85]

Using the camera abroad

On TV color systems [86]
Countries and regions where you can view images when [V.SYS] is set to [NTSC] [87]
Countries and regions where you can view images when [V.SYS] is set to [PAL] [88]
The list of time differences for world capitals [89]

Precautions

Do not use/store the camera in the following places [90]
On carrying [91]
Care and storage of the lens [92]
On cleaning [93]
On operating temperatures [94]
On moisture condensation [95]
Notes on optional accessories [96]
Note on disposal/transfer of the memory card [97]
On GPS [98]
On GPS errors [99]
On GPS use restriction [100]

Specifications

Specifications [101]

Trademarks

Trademarks [102]

Notes on License

On GNU GPL/LGPL applied software [103]

Troubleshooting

List of Default Setting

List of Default Setting

List of Default Setting [104]

Troubleshooting

Troubleshooting

Troubleshooting [105]

Battery pack and power

Cannot turn on the camera. [106]
The power turns off suddenly. [107]
Battery life is short. [108]
Cannot charge the camera. [109]
The remaining charge indicator is incorrect. [110]

Memory card

Operations using the memory card cannot be performed. [111]

Shooting images

Cannot record images. [112]
Cannot insert dates on images. [113]

Viewing images

Cannot playback images. [114]
The image does not appear on the TV. [115]

GPS

The camera is not receiving a GPS signal. [116]
Excessive error in location information. [117]
It takes time to triangulate although the GPS assist data is taken in. [118]
The location information has not been recorded. [119]

Computers

Your computer does not recognize the camera. [120]
Cannot import images. [121]
Action Cam Movie Creator cannot be installed. [122]
Action Cam Movie Creator does not work correctly. [123]
Cannot play back images on your computer. [124]

Wi-Fi

It takes too much time to transfer an image. [125]

Others

The lens gets fogged. [126]
The camera becomes warm when you use it for a long time. [127]
The date or time is incorrect. [128]

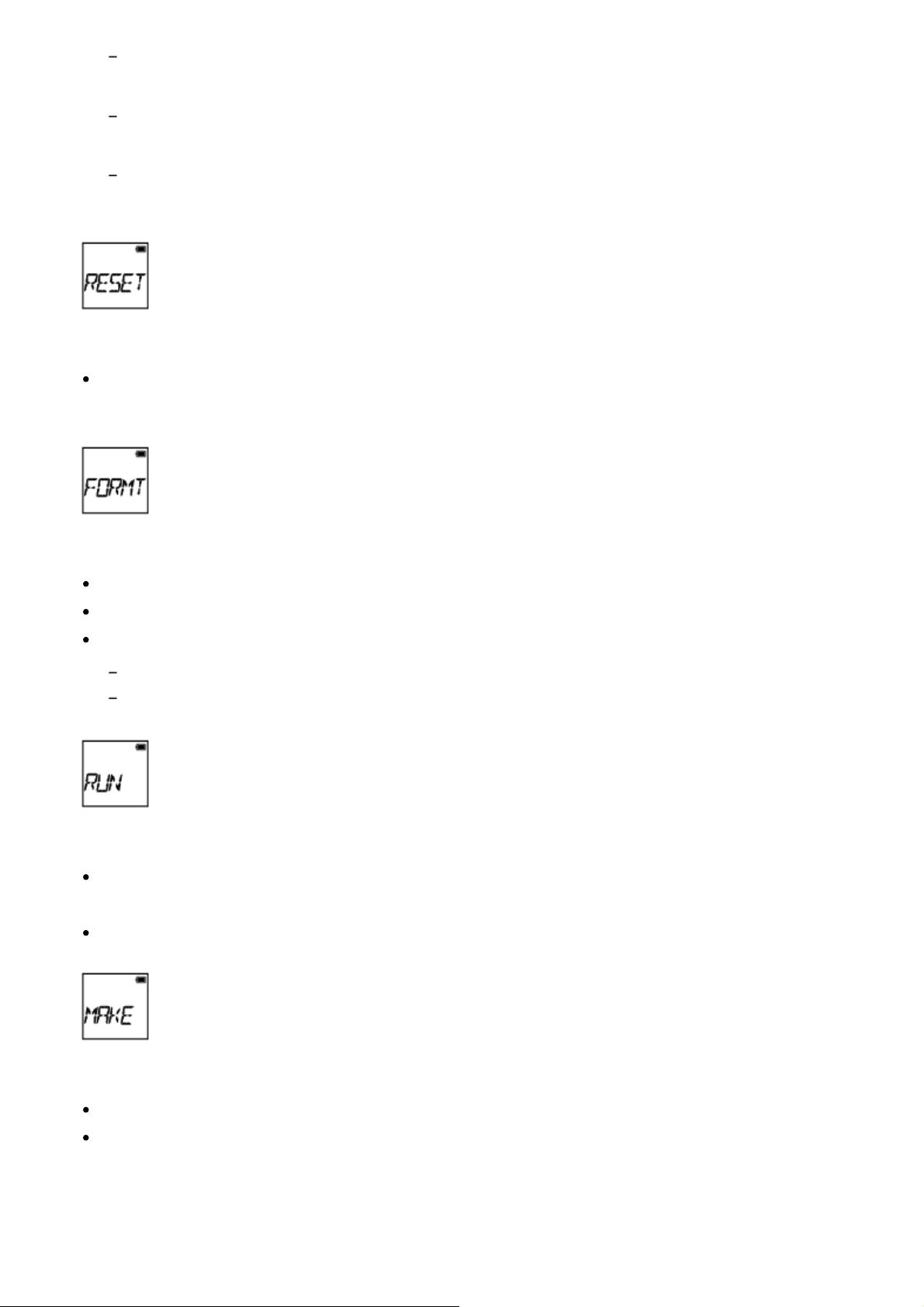

Warning indicators and messages

Warning indicators and error messages

Warning indicators and error messages [129]

[1] How to use Read This First Identifying the parts

Identifying the parts

FDR-X1000V

HDR-AS200V

1. REC HOLD switch

2. REC (Movie/Photo) button/ENTER (Menu execute) button

3. (N Mark)

4. PREV (previous menu) button

5. NEXT (next menu) button

6. Display panel

7. Speaker

8. GPS sensor

9. REC/LIVE lamp

10. IR remote receiver

11. Lens

12. Microphones

13. Connector cover (HDMI OUT jack, Multi/Micro USB Terminal) (FDR-X1000V only)

14. REC/access/CHG (Charge) lamp

15. Lock lever

16. Battery pack/memory card cover

17. Connector cover (Mic jack) (FDR-X1000V only)

18. Attachment screw hole for the accessory (FDR-X1000V only)
Tripod adaptor attachment hole (HDR-AS200V only)

19. Mic jack

20. Screw of the Tripod Adaptor (FDR-X1000V only)

21. Battery ejection lever

22. Battery insertion slot

23. Multi/Micro USB Terminal

24. Memory card insertion slot

25. HDMI OUT jack

26. Connector cover (HDMI OUT jack, Expansion connector, Mic jack) (HDR-AS200V only)

27. Expansion connector (HDR-AS200V only)

28. Connector cover (Multi/Micro USB Terminal) (HDR-AS200V only)

*

When an external microphone (sold separately) is connected, audio cannot be recorded through

the built-in microphone.

[2] How to use Read This First Screen display

*

*

Screen display

The indicators described below are displayed on this camera.

Display icon at 1

: Wi-Fi function enabled

: Location information cannot be received because the camera is searching for GPS

satellites to receive GPS signals.

: Recording location information available while triangulating

: Airplane mode enabled

: SteadyShot enabled

: Memory card is not inserted or cannot record to memory card.

: Battery level indicator of this unit

: Movie setting with XAVC S

(FDR-X1000V only): Movie setting with 4K

: Movie setting in the loop recording mode

: Audio recording OFF

Display value at 2

Resolution and frame rate during movie recording

Display items at 3

Selected setting items or setting value

Display icons at 4

: Movie mode
: Photo mode
: Interval photo recording mode
: Live streaming mode

Hint

The mode icon of the setting target will blink, when changing the settings.

[3] How to use

Getting Started Checking the bundled items

Checking the bundled items

Make sure that you have following bundled items.
The number in parentheses indicates the quantity of that item bundled.

Camera (1)
Camera is set in the Waterproof Case. Open the cover of the case as illustrated below.

FDR-X1000V

HDR-AS200V

Micro USB cable (1)

Rechargeable battery pack (NP-BX1) (1)

Waterproof Case (1)

FDR-X1000V

HDR-AS200V

Attachment Buckle (1)

Flat Adhesive Mount (1)

Curved Adhesive Mount (1)

Tripod adaptor (1) (HDR-AS200V only)

Startup Guide (1)
Reference Guide (1)

[4] How to use Getting Started Inserting the battery pack

Inserting the battery pack

1. Slide the lock lever to open the battery pack cover.

FDR-X1000V

HDR-AS200V

2. Insert the battery pack.

FDR-X1000V

HDR-AS200V

：Align the mark as illustrated.

3. Close the cover.
Confirm that the yellow mark on the lock lever is not visible.

To remove the battery pack

Open the cover and slide the battery ejection lever, then remove the battery pack.

To set auto power off function

Select [A.OFF] from the [SETUP] - [CONFG] screen, then set the auto power off function.
The default setting is [60sec]. Change the setting as necessary. For details, see “Auto power
off”.

[5] How to use Getting Started Charging the battery pack

Charging the battery pack

1. Turn off the power of the camera.
Charging is not possible when the camera is turned on.

2. Open the connector cover, connect the camera to an activated computer with the micro

USB cable (supplied).

The REC/access/CHG (Charge) lamp lights in amber.

FDR-X1000V

HDR-AS200V

: Connector cover
: Micro USB cable
: REC/access/CHG (Charge) lamp

3. When charging is finished, delete the USB connection between the camera and the

computer.

Charging is complete when the REC/access/CHG (Charge) lamp turns off (full
charge).

The charging time*1 of the battery pack NP-BX1 (supplied) is as follows

Via a computer: Approx. 245 minutes
Via AC-UD10*2 (sold separately): Approx. 175 minutes

*1

Time required to charge a fully depleted battery pack at a temperature of 25°C (77°F). Charging may

take longer under certain circumstances or conditions.

*2

Rapid charging is possible by using the USB charger AC -UD10 (sold separately). To connect to the

charger, use the micro USB cable (supplied).

Checking the remaining battery charge

A remaining charge indicator appears on the upper right of the display panel.

The displayed remaining charge indicator may not be correct under certain
circumstances.
It takes about one minute until the correct remaining charge indicator appears.

Note

You can use only type X battery with this camera.
Turn off the camera while charging the battery.
Do not apply force to the camera, when you connect the camera to a computer. This may
cause damage to the camera or the computer.
When you connect the camera to a notebook computer that is not connected to an AC

power source, the battery of the notebook computer may be depleted rapidly. Do not

leave the camera connected to the computer for a long time.
Charging the battery pack or the connection with customized or hand-built computers is
not guaranteed. Depending on the type of USB device used, charging may not function
properly.
Operation with all computers is not assured.
If you do not intend to use the camera for an extended period, charge the camera once
every 6 to 12 months to maintain battery performance.

[6] How to use

Getting Started Inserting a memory card

Inserting a memory card

1. Open the cover.

2. Insert the memory card until it clicks.
microSD card: Insert in the direction of .
Memory Stick Micro™ (M2) media: Insert in the direction of .

FDR-X1000V

HDR-AS200V

1: microSD card
2: Memory Stick Micro (Mark2) media

: Terminal side
: Printed side

3. Close the cover.

To eject the memory card

Open the cover, then lightly push the memory card once.

Note

Insert the memory card properly, confirming each side is facing the correct direction.
Confirm the direction of the memory card. If you forcibly insert the memory card in the
wrong direction, the memory card, memory card slot, or image data may be damaged.
Format the memory card before use.
Save important data on the memory card on other media such as a computer, before
formatting the memory card.
Do not insert anything other than the compliant size of memory card into the memory card
slot. Otherwise, a malfunction may result.
When inserting or ejecting the memory card, be careful to prevent the memory card from
popping out and dropping.

[7] How to use

Getting Started Inserting a memory card

The memory cards that can be used with the camera

The memory cards that can be used with the camera are listed below.

SD card

In this guide, microSD memory cards are referred to as microSD card. The microSD memory

card that can be used with the camera are as follows.

microSD memory card
microSDHC memory card
microSDXC memory card

Memory Stick media

In this guide, Memory Stick media is referred to as Memory Stick Micro (Mark2) media card.
The Memory Stick Micro (Mark2) media that can be used with the camera is as follows.

Memory Stick Micro (Mark2) media

Note

Operation with all memory cards is not assured.
Use an SDXC card faster than Class10 when recording movies in XAVC S.
Use an SDXC UHS-I memory card (U3) when recording movies with 100 Mbps (FDR­X1000V only).
The capacity of the memory card is up to 64GB.

[8] How to use

Getting Started Using the Tripod Adaptor

Using the tripod adaptor (HDR-AS200V only)

By attaching the tripod adaptor to the camera, you can attach accessories to the camera
without using the waterproof case.

1. Fix the screw of the tripod adaptor in the tripod adaptor attachment hole of the camera.

2. Match the bottom of the camera and fix firmly with the tripod screw in the direction of

the arrow.

To remove the tripod adaptor

Loosen the screw of the tripod adaptor in the direction of the arrow and remove the tripod
adaptor from the camera.

Note

Attach the waterproof case to the camera when using in water.

[9] How to use

Getting Started Using the Waterproof Case

Identifying the parts (Waterproof case)

SPK-X1 (supplied with FDR-X1000V)

SPK-AS2 (supplied with HDR-AS200V)

1. REC HOLD (lock) switch

2. Leash attachment hole

3. REC (Movie/Photo) button/ENTER (Menu execute) button

4. Case body

5. Case cover

6. NEXT (next menu) button

7. PREV (previous menu) button

8. Tripod screw hole

9. Buckle lock

10. Buckle

11. Cord

12. Waterproof packing

[10] How to use Getting Started Using the Waterproof Case

Using the waterproof case

By inserting the camera in the waterproof case, you can shoot movies at a waterfront.

1. Slide the buckle lock in the direction of and hold it, then hold the circled parts and

swing out the buckle in the direction of .

FDR-X1000V (SPK-X1)

HDR-AS200V (SPK-AS2)

2. Open the case cover.

3. Insert the camera in the case body.
Release the REC HOLD (lock) switch on the camera.

FDR-X1000V (SPK-X1)

HDR-AS200V (SPK-AS2)

4. Insert the tab of the case body into the slot of the case cover.

FDR-X1000V (SPK-X1)

HDR-AS200V (SPK-AS2)

5. Hook the buckle over the tab on the lower part of the case cover , then close the

buckle in the direction of , until it clicks into place.

Make sure the buckle is locked by the buckle lock.

FDR-X1000V (SPK-X1)

HDR-AS200V (SPK-AS2)

Note

You cannot operate the REC button when the REC HOLD switch is set to the lock
position. Release the lock in the direction of the arrow below, before operation.

FDR-X1000V (SPK-X1)

HDR-AS200V (SPK-AS2)

Since the camera in the waterproof case fails to focus underwater, it is not suitable to
shoot images underwater.
You can record audio while the camera is in the waterproof case, but the sound level is
reduced.
Thread a suitable cord through the leash attachment hole of the waterproof case, then
attach the cord to an item you intend to use with the camera.

[11] How to use

Getting Started Using the Waterproof Case

On waterproof performance of the waterproof case

When the camera is inserted in the supplied waterproof case, the waterproof performance
is as follows.

FDR-X1000V (SPK-X1) is operable up to a water depth of 10 m for 60 minutes.
HDR-AS200V (SPK -AS2) is operable up to a water depth of 5 m for 30 minutes.

The waterproof performance is based on the testing standards of our company.
Do not subject the waterproof case to pressurized water, such as from a tap.
Do not use the waterproof case in hot springs.
Use the waterproof case in the recommended operating water temperature range of -10
°C to +40 °C (14 °F to 104 °F).
Sometimes waterproof performance is lost if the waterproof case is subjected to a strong
shock such as from being dropped. We recommend the waterproof case be inspected at
an authorized repair shop (chargeable).
Not to withstand continuous submersion or harsh environmental situations.

Using an anti-fog sheet (AKA-AF1 (sold separately))

Insert the anti-fog sheet indoors with low humidity.

Insert the anti-fog sheet in the camera a couple of hours before shooting.
If you do not use the anti-fog sheet, place it in a bag and keep the top sealed.
By drying the anti-fog sheet sufficiently, you can use it approximately 200 times
repeatedly.

SPK-X1 (supplied with FDR-X1000V)

When using the optional anti-fog sheet (AKA-AF1), place it in the gap on the opposite
side of the camera display.

: Anti-fog sheet

SPK-AS2 (supplied with HDR-AS200V)

When using the optional anti-fog sheet (AKA-AF1), place it in the gap on the bottom of
the camera.

: Anti-fog sheet

[12] How to use Getting Started Using the Waterproof Case

Notes on use for the waterproof case

Do not throw the waterproof case into the water.

Avoid using the waterproof case under the following situations. In these situations
moisture condensation or water leakage may occur and damage the camera.

In a very hot or humid place
In water hotter than +40°C (104°F)
At temperatures lower than –10°C (14°F)

Do not leave the waterproof case under direct sunlight or in a very hot and humid place
for a long period of time. If you cannot avoid leaving the waterproof case under direct
sunlight, be sure to cover the waterproof case with a towel or other protection.
When the camera overheats, it may be automatically turned off or recording may
malfunction. To use the camera again, leave it in the cool place for a while to cool down.
If sun oil is on the waterproof case, be sure to wash it off thoroughly using lukewarm
water. If the waterproof case is left with sun oil on its body, the surface of the waterproof
case may become discolored or damaged (such as cracks on the surface).

[13] How to use Getting Started Using the Waterproof Case

Water leakage

In the unlikely event that a malfunction of the waterproof case causes damage due to water
leakage, Sony does not guarantee against damages to the equipment contained in it
(camera, battery pack, etc.) and the recorded contents, nor expenses entailed in the
photography.

[14] How to use Getting Started Using the Waterproof Case

Waterproof packing

This unit uses an waterproof packing to maintain its water resistance. The waterproof
packing maintenance is very important. Failure to do waterproof packing maintenance
according to the instructions may lead to water leaks and cause this unit to sink.

Inspect the waterproof packing

Carefully check that there is any dirt, sand, hair, dust, salt, threads, etc., on the waterproof
packing. If found, be sure to wipe off with a soft cloth.
Lightly run your fingertip around the waterproof packing to check for any invisible dirt.
Be careful not to leave any cloth fibers on the waterproof packing after wiping it.
Check the waterproof packing for cracks, skewing, distortion, fine splitting, scratches,

embedded sand, etc. Replace the waterproof packing if you find any of these.

Inspect the waterproof packing contact surface on the case body in the same way.

[15] How to use

Getting Started Using the Waterproof Case

How to check for water leaks

Before installing the camera, always close the waterproof case and immerse it in water to
make sure no water leaks in.

When finding a malfunction of waterproof case

If a malfunction is found by inspection of the waterproof packing or check for water leaks,
stop using this unit immediately and take it to the nearest Sony dealer.

[16] How to use Getting Started Using the Waterproof Case

Maintenance

After recording in a location with a sea breeze, wash this unit thoroughly in fresh water
with the buckle fastened to remove salt and sand, then wipe with a soft dry cloth. It is
recommended that you submerge the waterproof case in fresh water for about 30
minutes. If it is left with salt on it, metal portions may be damaged or rust may form and
cause water leakage.
If sun oil is on the waterproof case, be sure to wash it off thoroughly using lukewarm
water.
Wipe the inside of the waterproof case with a soft dry cloth. Do not wash it with water.

Be sure to perform the above maintenance each time you use the waterproof case. Do not
use any type of solvent such as alcohol, benzine or thinner for cleaning, as this might
damage the surface finish of the waterproof case.

When storing the waterproof case

To prevent deterioration of the waterproof packing, store the waterproof case in a cool,
well-ventilated location. Do not fasten the buckle.
Prevent dust from collecting on the waterproof packing.
Avoid storing the waterproof case in a cold, very hot or humid place, or together with
naphthalene or camphor, as these conditions might damage the waterproof case.

[17] How to use Getting Started Using Adhesive Mount

Using the adhesive mount

The adhesive mount is used for fixing the waterproof case or tripod adaptor to an item you
intend to use. The adhesive mount is a general term for the attachment buckle, flat adhesive
mount, and curved adhesive mount. Before attaching, insert the camera in the waterproof
case or attach the tripod adaptor.

The adhesive mount can be attached to the FDR-X1000V without attaching the
waterproof case or the tripod adaptor.

The procedure for fixing the adhesive mount to the waterproof case is explained here.

1. Align the tripod screw hole in the bottom of the waterproof case with the tripod screw

hole of the attachment buckle, and fix firmly with the tripod screw.
Match the bottom of the camera and fix firmly with the tripod screw.

2. Attach the attachment buckle (with the waterproof case set in step 1) to the flat

adhesive mount or curved adhesive mount by sliding it until it clicks into place.

3. Remove dust, moisture and oily substances completely from the surface where the

adhesive mount is to be attached.

4. Peel off the release paper on the back, and fix the adhesive mount in the desired

location.
Adhesive power reaches its maximum strength 24 hours after the adhesive mount is
attached to the desired location.

To attach to or detach from the attachment buckle
