Sony FDM700DN Operation Manual

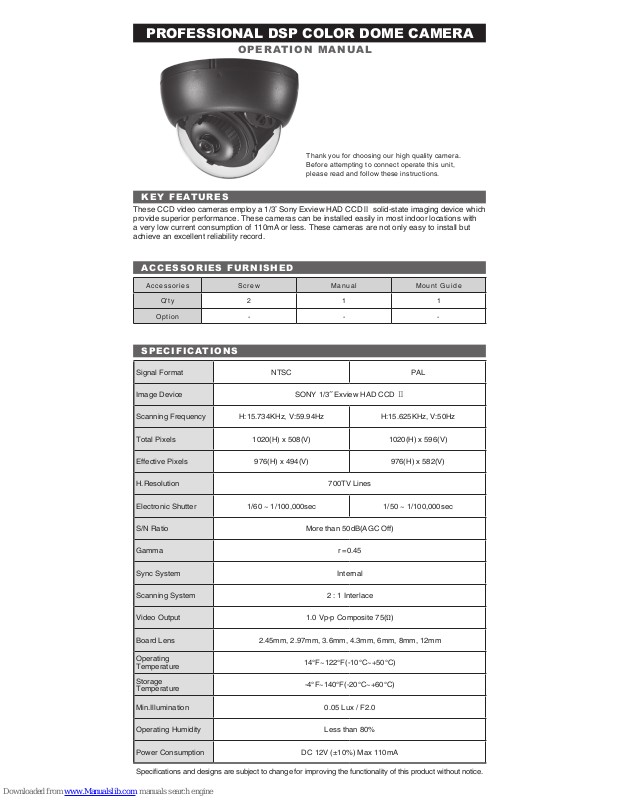

PROFESSIONAL DSP COLOR DOME CAMERA
OPERATION MANUAL
Signal Format NTSC PAL
Image Device SONY 1/3˝ Exview HAD CCD
Ⅱ
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1020(H) x 508(V) 1020(H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
H.Resolution 700TV Lines
Electronic Shutter 1/60 ~ 1/100,000sec 1/50 ~ 1/100,000sec
S/N Ratio More than 50dB(AGC Off)
Gamma r =0.45
Sync System Internal
Scanning System 2 : 1 Interlace
Video Output 1.0 Vp-p Composite 75(Ω)
Board Lens 2.45mm, 2.97mm, 3.6mm, 4.3mm, 6mm, 8mm, 12mm
Operating
Temperature
14°F~122°F(-10°C~+50°C)
Storage
Temperature
-4°F~140°F(-20°C~+60°C)
Min.Illumination 0.05 Lux / F2.0
Operating Humidity Less than 80%
Power Consumption DC 12V (±10%) Max 110mA
Specications and designs are subject to change for improving the functionality of this product without notice.
KEY FEATURES
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit,
please read and follow these instructions.
These CCD video cameras employ a 1/3
"
Sony Exview HAD CCDⅡ solid-state imaging device which
provide superior performance. These cameras can be installed easily in most indoor locations with
a very low current consumption of 110mA or less. These cameras are not only easy to install but
achieve an excellent reliability record.
ACCESSORIES FURNISHED
SPECIFICATIONS
Accessories Screw Manual Mount Guide
Q'ty 2 1 1
Option - - -
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
1. A regulated DC12V 300mA power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be
out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassmble the camera to gain access to the internal conponets.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reflective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
DIMENSIONS
CONNECTION
INSTALLATION / OVERVIEW
Unit : mm
◀
When using a wide angle lens
of 2.45mm, Tilt is not available
over 50°.
1 2 3 4 6 7 85
5
5
5
①
CASE HOUSING TOP
②
CASE HOUSING COVER
③
HOLDER ROTATION
④
LENS
⑤
SCREW
⑥
HOLDER TILTING
⑦
HOLDER PANNING
⑧
CASE HOUSING BOTTOM
3-AXIS Gimbal Bracket
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Caution
Any changes or modifications in construction of this device which are not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
DC12V REGULATED POWER
BNC FEMALE
VIDEO IN
TV MONITOR
