COLOR VIDEO CAMERA

DXC-D35 DXC-D35P DXC-D35WS DXC-D35WSP

SERVICE MANUAL

Volume 1 1st Edition

! WARNING

This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

! WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt. Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung dazu besitzen.

! AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement.

DXC-D35/D35WS (UC)

DXC-D35P/D35WSP (CE) V1

CAUTION

ADVARSEL

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instr uctions.

Vorsicht!

Explosionsgefahr bei unsachgemäßem Austausch

der Batterie.

Ersatz nur durch denselben oder einen vom

Hersteller empfohlenen ähnlichen Typ. Entsorgung

gebrauchter Batterien nach Angaben des

Herstellers.

ATTENTION

Il y a danger d’explosion s’il y a remplacement

incorrect de la batterie.

Remplacer uniquement avec une batterie du même

type ou d’un type équivalent recommandé par le

constructeur.

Mettre au rebut les batteries usagées conformément

aux instructions du fabricant.

Lithiumbatteri - Eksplosjonsfare.

Ved utskifting benyttes kun batteri som

anbefalt av apparatfabrikanten.

Brukt batteri returneres

apparatleverandøren.

VARNING

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en likvärdig typ

som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt gällande

föreskrifter.

VAROITUS

Paristo voi räjähtää jos se on virheellisesti

asennettu.

Vaihda par isto ainoastaan laitevalmistajan

suosittelemaan tyyppiin.

Hävitä käytetty paristo valmistajan ohjeiden

mukaisesti.

Lithiumbatteri-Eksplosionsfare ved fejlagtig

Udskiftning må kun ske med batteri

Levér det brugte batteri tilbage til leverandøren.

DXC-D35/D35WS (UC) DXC-D35P/D35WSP (CE) V1

ADVARSEL!

håndtering.

af samme fabrikat og type.

1 (P)

For the customers in the U.S.A. and Canada

RECYCLING NICKEL-CADMIUM BATTERIES

Nickel Cadmium batteries are recyclable. You can help preserve our environment by returning your unwanted batteries to your nearest point for collection, recycling or proper disposal. Note: In some areas the disposal of nickel cadmium batteries in household or business trash may be prohibited.

RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery collection by the following phone number.

Call toll free number: 1-800-822-8837 (United States and Canada only)

Caution: Do not handle damaged or leaking nickelcadmium batteries.

For the customers in the Netherlands Voor de klanten in Nederland

Dit apparaat bevat een MnO

2-Li en Li-ion batterij voor

memory back-up.

Raadpleeg uw leverancier over de verwijdering van de batterij op het moment dat u het apparaat bij einde levensduur afdankt.

Gooi de batterij niet weg. maar lever hem in als KCA.

Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Für Kunden in Deutschland

Entsorgungshinweis: Bitte werfen Sie nur entladene Batterien in die Sammelboxen beim Handel oder den Kommunen. Entladen sind Batterien in der Regel dann, wenn das Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien “nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel.

X-RAY RADIATION WARNING

Be sure that parts replacement in the high voltage block and adjustments made to the high voltage circuits are carried out precisely in accordance with the procedures given in this manual.

2 (P)

DXC-D35/D35WS (UC)

DXC-D35P/D35WSP (CE) V1

Manual Structure

Purpose of this manual .............................................................................................. 3

Related manuals......................................................................................................... 3

1. Operating Instructions

2. Service Overview

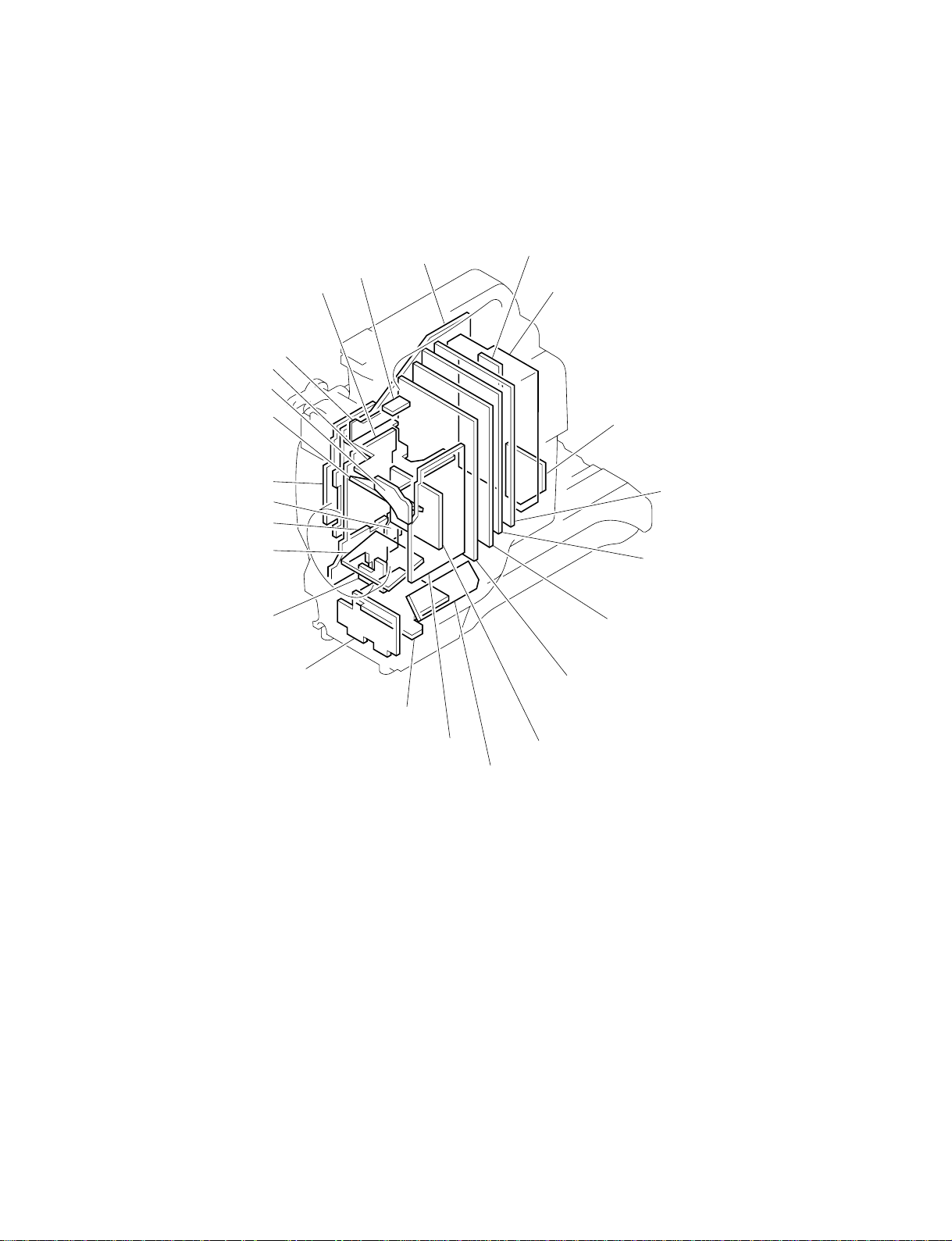

2-1. Board Layout............................................................................................... 2-1

2-2. Removal/Attachment of Cabinet.................................................................2-2

2-2-1. Removal of Side Plate ................................................................2-2

2-2-2. Removal/Attachment of Top Chassis......................................... 2-3

2-3. Replacement of CCD Unit .......................................................................... 2-5

2-4. Connectores and Cables .............................................................................. 2-7

2-4-1. Connector Input/Output Signals.................................................2-7

2-4-2. Connection Connector..............................................................2-11

2-5. How to Attach of the Extension Board EX-591........................................2-11

2-6. Replacement Way of ROM (IC102) ......................................................... 2-12

2-7. Switch Settings on Boards ........................................................................2-12

2-8. DC-DC Converter Voltage........................................................................ 2-13

2-9. Recommended Replacement Parts............................................................2-14

2-10. Attaching the 4-type or 5-type Viewfinder ............................................... 2-15

2-11. Disconnecting/Connecting the Flexible Card Wire ..................................2-16

2-12. Service Mode Operation ...........................................................................2-17

2-12-1. Service Menu ...........................................................................2-18

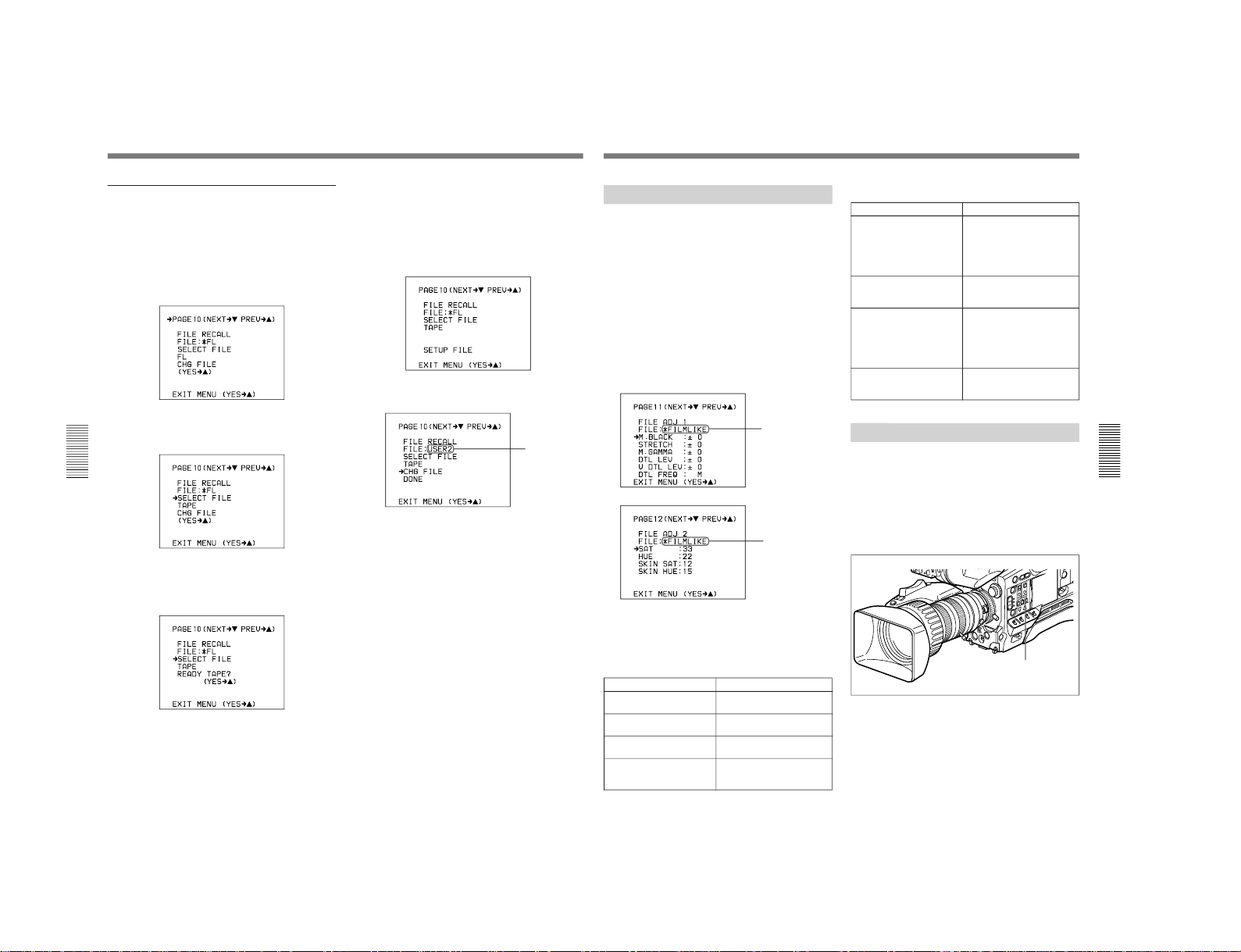

2-12-2. File Menu .................................................................................2-30

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

3. Electrical Alignment

3-1. Preparation ..................................................................................................3-1

3-1-1. Equipment Required................................................................... 3-1

3-1-2. Connection .................................................................................3-1

3-1-3. Setting Before Adjustment .........................................................3-2

3-1-4. Notes on Adjustment..................................................................3-2

3-1-5. Maintaining the Grayscale Chart ...............................................3-3

3-2. Before Adjustment ...................................................................................... 3-5

3-2-1. Color Bar Signal Confirmation .................................................. 3-5

3-2-2. Sensitivity Measurement Confirmation .....................................3-5

3-3. Camera Adjustment .....................................................................................3-6

3-3-1. Sub-Carrier Frequency Adjustment ...........................................3-6

3-3-2. INT SC-H Phase Adjustment .....................................................3-6

3-3-3. Y/R-Y/B-Y CLP Level Adjustment...........................................3-7

3-3-4. Y/SYNC/R-Y/B-Y Level Adjustment .......................................3-7

3-3-5. Carrier Balance Adjustment .......................................................3-8

3-3-6. Chroma (VBS) Level Adjustment..............................................3-9

3-3-7. Y (VBS) Level Adjustment......................................................3-10

3-3-8. Y (YC) Level Adjustment ........................................................3-10

3-3-9. Chroma (YC) Level Adjustment ..............................................3-11

3-3-10. VF SYNC/BLKG Level Adjustment .......................................3-11

3-3-11. CCD Output Level Adjustment................................................3-12

3-3-12. Carrier Adjustment at DPR (Double Pixel Reading) ON ........3-13

3-3-13. Shading Adjustment .................................................................3-13

3-3-14. Flare Adjustment ......................................................................3-14

3-3-15. MIC Level/MIC Level IND Adjustment.................................. 3-15

3-3-16. Character Position Adjustment ................................................3-16

3-3-17. 4 : 3 Title Adjustment (Only for DXC-D35WS/D35WSP) .....3-17

3-4. Changing the Standard Setting Values (Video Level) .............................. 3-18

3-4-1. Setting Status before Changing the Setting.............................. 3-18

3-4-2. Changing the Setting Value of Black Level............................. 3-18

3-4-3. Changing the Flare Compensation Setting Value .................... 3-19

3-4-4. Changing the Gamma Correction Setting Value......................3-19

3-4-5. Changing the Manual Knee/White Clip Setting Value ............3-20

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

Purpose of this manual

Related manuals

Manual Structure

This is the Service Manual Volume 1 of the color video camera DXC-D35/D35P and DXC-D35WS/D35WSP. Contains the operation manual related to the operations of this equipment, the replacement of the parts and adjustments.

Besides this Service Manual Volume 1, the following manuals are availabel for color video camera DXC-D35/D35P and DXC-D35WS/D35WSP.

. Service Manual Volume 2 (Available on request)

Part No. 9-955-214-21 This manual describes parts list, semiconductor pin assignments, block diagrams, schematic diagrams and board layouts. For obtaining, contact your local Sony Sales Office/Service Center.

. Service Manual DXF-801/801CE (Available on request)

Part No. 9-955-212-01 This manual describes the replacement of the parts, alignments, parts list, semiconductor pin assignments, block diagrams, schematic diagrams and board layouts of the viewfinder. For obtaining, contact your local Sony Sales Office/Service Center.

. Service Manual VCT-U14 (Available on request)

Part No. 9-977-221-01 This manual describes exploded view and parts list of the tripod adaptor. For obtaining, contact your local Sony Sales Office/Service Center.

. Service Manual VCL-918BY (Available on request)

Part No. 9-977-329-01 This manual describes exploded view and parts list of the zoom lens. For obtaining, contact your local Sony Sales Office/Service Center.

. “Semiconductor Pin Assignments” CD-ROM (Available on request)

This “Semiconductor Pin Assignments” CD-ROM allows you to search for semiconductors used in Communication System Solutions Network Company equipment. Semiconductors that cannot be searched for on this CD-ROM are listed in the service manual for the corresponding unit. The service manual contains a complete list of all semiconductors and their ID Nos., and thus should be used together with the CD-ROM. Part number: 9-968-546-XX

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

 2000 by Sony Corporation

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

3-203-895-11(1)

Color Video Camera

DXC-D35K/D35PK DXC-D35L/D35PL DXC-D35WSL/D35WSPL DXC-D35H/D35PH

DXC-D35P/D35WSP(CE) V1

Operating Instructions

Section 1

1-1

This section is extracted

from operation manual.

1-2

WARNING

Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.

Note

Keep the lithium battery out of the reach of children. Should the battery be swallowed, consult a doctor immediately.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og

type.

Levér det brugte batteri tilbage til laverandøren.

ADVARSEL

Lithiumbatteri - Eksplosjonsfare.

Ved utskifting benyttes kun batteri som anbefalt av

apparatfabrikanten.

Brukt batteri returneres apparatleverandøren.

VARNING

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en likvärdig typ som

rekommenderas av apparattillverkaren.

Kassera använt batteri enligt gällande föreskrifter.

VAROITUS

Paristo voi räjähtää jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan

tyyppiin.

Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

For the customers in the USA and Canada

RECYCLING NICKEL-CADMIUM BATTERIES

cadmium batteries in household or business trash may be prohibited.

RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery collection by the following phone number.

Call toll free number: 1-800-822-8837 (United States and Canada only)

Caution: Do not handle damaged or leaking nickel-cadmium

batteries.

For safety reasons, be sure to discharge the battery before discarding it.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located on the top. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.

Serial No.

LITHIUM BATTERY

Replace the battery with a Sony CR2032 lithium battery. Use of another battery may present a risk of fire or explosion.

For customers in the USA (for DXC-D35K/D35L/D35WSL/ D35H)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For the customers in Europe (for DXC-D35PK/D35PL/ D35WSPL/D35PH)

This product with the CE marking complies with the EMC Directive (89/336/EEC) issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European standards:

• EN55103-1: Electromagnetic Interference (Emission)

• EN55103-2: Electromagnetic Susceptibility (Immunity) This product is intended for use in the following Electromagnetic Environment(s): E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors) and E4 (controlled EMC environment, ex. TV studio).

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Table of Contents

Chapter 2

Fitting and Connection

Chapter 1

Overview

Table of Contents

Product Configurations ....................................................7

Features .............................................................................9

Features on the DXC-D35/D35P/D35WSL/D35WSPL ..... 9

Features on the DXC-D35WSL/D35WSPL...................... 12

Location and function of Parts ......................................13

Camera Head ..................................................................... 13

VCL-918BY Zoom Lens................................................... 19

DXF-801/801CE Viewf inder............................................. 21

Replacing the Lithium Battery .......................................23

Fitting a VTR ....................................................................25

Using the Camcorder Grip ................................................ 27

Fitting the Lens ...............................................................30

Using Accessories ..........................................................32

Using the Viewfinder ......................................................... 32

Using an Optional Microphone ......................................... 33

Fitting to a Tripod.............................................................. 34

Using the Optional CAC-4 Chest Pad............................... 34

Using the Carrying Case ................................................... 35

Connections ....................................................................36

Connecting a Portable VTR............................................... 36

Connecting a Number of Cameras (Using a Camera

Control Unit) ................................................................ 37

Connecting a Number of Cameras (Without Using

a Camera Control Unit)................................................ 39

Power Supply...................................................................40

Using Battery Packs .......................................................... 40

Camera Adaptor Power Supply......................................... 41

Table of Contents

Chapter 4

Viewfinder Screen Indications and Menus

Table of Contents

Basic Procedure for Shooting........................................43

Using the DynaLatitude Function ..................................... 45

Shooting with the DSR-1/1P...........................................46

Using the ClipLink Function............................................. 46

Using the Edit Search Function While Back Space

Editing .......................................................................... 48

Using the Freeze Mix Function......................................... 49

Viewfinder Screen Indications .......................................51

Changing the Viewfinder Display ..................................... 51

Viewfinder Normal Indications.......................................54

Status Indications .............................................................. 57

Viewfinder Basic Menu ...................................................58

Basic Menu Operations ..................................................... 58

Contents and Settings of Each Page .................................. 58

Viewfinder Advanced Menu............................................64

Advanced Menu Operations.............................................. 64

Contents and Settings of Each Page .................................. 64

Video Output and Viewfinder Picture

(For DXC-D35WSL/D35WSPL)................................. 70

Setup Files .......................................................................71

Calling up a Setup File ...................................................... 71

Changing File Settings ...................................................... 73

Saving File Settings........................................................... 73

Using SetupNavi and SetupLog with the DSR-1/1P.....76

Setting up the Camera Using Data Recorded on Tape...... 76

Recording the Menu Settings onto a Tape......................... 77

Viewing SetupLog Data .................................................... 78

Chapter 3

Shooting

DXC-D35P/D35WSP(CE) V1

1-3

1-4

Table of Contents

Appendix

Chapter 5

Adjustments and Settings

White Balance Adjustment.............................................79

Saving an Appropriate White Balance Value

in Memory.................................................................... 79

Using the Preset White Balance Settings .......................... 81

Light Sources and Color Temperatures............................. 81

Using the ATW (Auto Tracing White Balance)

Function........................................................................ 81

Black Balance Adjustment .............................................83

Shutter Settings ..............................................................84

Setting the Clock and Timestamping Recordings........ 86

Viewfinder Screen Adjustments ....................................88

Adjusting the Lens..........................................................89

Flange Focal Length Adjustment ...................................... 89

Iris Adjustments................................................................. 90

Adjusting the Iris Sensitivity............................................. 91

Macrophotography ............................................................ 91

Settings for Special Cases .............................................92

Skin Detail Correction....................................................... 93

Adjusting Color in the Specified Area .............................. 93

Important Notes on Operation .......................................95

Characteristics of CCD Sensors ........................................ 96

Warning Indications........................................................97

Specifications..................................................................98

Related Products................................................................ 99

Chart of Optional Components and Accessories ......101

What Is ClipLink? ..........................................................102

How ClipLink Changes Video Production Techniques ... 102

ClipLink Operation Flow...............................................103

Example System Configuration....................................... 103

Data Generated When Shooting...................................... 104

Chapter 1 Overview

Chapter

Overview

Product Configurations

The eight models, DXC-D35K, DXC-D35L/D35WSL, DXC-D35H, DXC-D35PK, DXC-D35PL/D35WSPL, and DXC-D35PH, comprise both NTSC and PAL

versions and the components as shown in the figure on next page. The operation of the basic camera unit is the same in all cases.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 1 Overview

VCT-U14 Tripod Adaptor

Microphone

DXF-801/801CE Viewfinder

DXC-D35H/D35PH

Test chart for flange focal length adjustment

DXC-D35/D35P/D35WS

D35WSP

Camera Head

VCL-918BY Zoom Lens

DXC-D35K/D35PK

DXC-D35L/D35PL

RM-LG1 Remote Control Unit

a) DXC-D35WSL/D35WSPL only b) Illustration: DXC-D35WS/D35WSP

Camera adaptor

The product kit does not include a camera adaptor: to use a camera adaptor, you will need to purchase a model CA-537/537P or CA-327/327P.

Product Configurations

Chapter 1 Overview

Features

Features on the DXC-D35/D35P/ D35WSL/D35WSPL

The DXC-D35WSL/S35WSPL is a 16:9 wide-screen type (4:3-16:9 switchable) digital video camera while the DXC-D35/D35P is a 4:3 standard-screen type digital video camera. Common features on both types are described in this section. See also “Features on the DXC-D35WSL/D35WSPL” (page 12) for using the DXC-D35WSL/S35WSPL.

/3-inch IT type Power HAD (WS) CCD

The DXC-D35/D35P Color Video Camera uses

/3inch IT type Power HAD CCDs. (For the DXCD35WSL/D35WSPL, Power HAD WS CCDs are used. ) It outperforms most of the exiting FIT type CCD cameras for high-end use, in both picture quality and sensitivity.

•Smear: –125 dB (DXC-D35/D35P) or –120 dB

(DXC-D35WSL/D35WSPL)

•Sensitivity: F11.0 (at 3200 K, 2000 lux)

•S/N: 63 dB (DXC-D35/D35WSL) or 61 dB (DXC-

D35P/D35WSPL)

Sophisticated image processing

TruEye™ processing makes possible the following performance features. This new digital signal processing has brought reproduction of natural colors to the level achieved by the human eye.

DynaLatitude™

Enables detailed adjustment of contrast control in each pixel in accordance with a histogram of luminance signal levels (see page 45).

DCC+ (dynamic contrast control plus)

Prevents white breakup when shooting a high intensity subject, and also prevents color faults in high intensity subject.

Black stretch and compress

Enables control of luminance signal levels in black areas without changing the hue.

Variety of detail corrections

•Skin detail function: this function gives a slightly softer appearance to the subject’s face. The target skin color can be automatically set.

•Black halo correction

•Red/green vertical detail correction: this function performs vertical detail compensation for both red and green signals.

•Horizontal detail frequency control

Recording and managing setup data

In addition to the setup menu that is displayed in the viewfinder screen, the DXC-D35/D35P/D35WSL/ D35WSPL is equipped with the following functions to facilitate camera head setup.

Setup file system

You can use setup files when making adjustments or settings. The DXC-D35/D35P/D35WSL/D35WSPL comes with factory preset files that contain shipped settings and you can freely create user files as well.

Automatic recording of setup data (when using DSR-1/1P)

When the DXC-D35/D35P/D35WSL/D35WSPL is connected to the DSR-1/1P VTR, two types of setup data can be recorded.

SetupLog™: Shooting-related environment settings

are recorded onto the tape at intervals of a few seconds. This recorded data can then be used to reproduce the same shooting conditions in subsequent shots. It also makes it easier to identify the causes of problems in previous shots.

SetupNavi™: The setup conditions selected with the

setup menu and setup files are recorded onto the tape. The recorded setup data can be copied to other camera heads so that the same setup can be shared among several camera heads.

DXC-D35P/D35WSP(CE) V1

1-5

1-6

Chapter 1 Overview

ClipLink™ Function (when using DSR1/1P)

The ClipLink function can be used at every step from acquisition to editing. Information necessary for editing is recorded when shooting to ensure fast and efficient editing operations. When you set a recording start (Rec IN) point or when you press the TAKE button to set a Mark IN point, the video image at that point is recorded on the tape in compressed form as an Index Picture. In addition, the time codes for such editing points (Mark IN/Mark OUT points or cue points) are recorded along with other editing point data (such as the cassette number and scene number) into cassette memory (as ClipLink log data). Unsuccessful scenes containing faults can also be marked in cassette memory as “NG”, so that only the good scenes are taken up from cassette memory when editing.

Dockable with various types of VTRs

The DXC-D35/D35P/D35WSL/D35WSPL docks with the DSR-1/1P DVCAM VTR to configure

digital camcorder. It also docks with the PVV-3/3P Betacam SP VTR to configure a Betacam SP camcorder. In addition, the DXC-D35/D35P/D35WSL/D35WSPL docks with the EVV-9000/9000P Hi-8 VTR. Using an adaptor (not supplied), it is also able to dock with a variety of existing S-VHS VTRs.

New Functions boost operability

EZ (easy) mode function

When there isn’t time to check the camera head settings, simply press the EZ mode button to start the auto adjustment function using standard settings. There is no need to lose a shot for lack of setup time.

EZ (easy) focus

Press the EZ focus button before shooting to ensure a quick and accurate focus.

..........................................................................................................................................................................................................

1) DPR = Dual Pixel Readout

Programmable gain

The amount of gain relative to the GAIN switch setting (H, M, or L) can be programmed as –3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 18 dB, 18 dB+DPR

, 24 dB, 24 dB+DPR and hyper gain.

Hyper gain

Hyper gain (36 dB or 42dB, i.e. about 60 times or 120 times greater than 0 dB) can be easily set via one switch setting. This can also be done from remote equipment.

Auto tracing white balance

This function automatically traces the white balance, which constantly changes as lighting conditions change. Auto tracing white balance is especially useful when there is no time to manually adjust the white balance or when shooting moves between indoor and outdoor locations.

Total level control system (TLCS)

Even if the incoming light exceeds the range in which the standard auto iris can control exposure, the auto gain control (AGC) or auto exposure (AE) backs up to ensure proper exposure.

Dual pixel readout (DPR)

When the gain is set to either 18 dB or 24 dB, the gain setting can be doubled (6 dB up) without increasing the noise level.

Recording time display

Recording time can be displayed in either of the following modes.

•Total recording time for all cuts

•Total recording time for current cut

Viewfinder super detail

Video signals for the viewfinder are mixed with DTL signals to make focusing easier.

Features

Chapter 1 Overview

Dual zebra pattern display

Two types of zebra patterns, zebra 1 and zebra 2 can be displayed simultaneously or independently. The zebra 1 can be set to the levels ranging from 70 to 90 IRE on the DXC-D35/D35WSL (or from 70 to 90% on the DXC-D35P/D35WSPL) and the zebra 2 indicates the levels of 100 IRE for the DXC-D35/D35WSL or more (or the levels of 100% or more for the DXCD35P/D35WSPL).

Color temperature display

When reading the white balance, the color temperature is displayed on the viewfinder screen.

Switching the color temperatures for the preset white balance

You can select the preset white balance at 3200 K (default) or 5600 K (default) by setting the FILTER control. The preset white balance can be changed to other value through menu setting (see page 59).

Video monitor output with text

The video signal with text superimposed that is shown in the viewfinder can also be output to an external video monitor.

Camera head microphone output indicator

An indication 9 appears in the viewfinder whenever a signal is being output from the camera head’s microphone.

1-kHz reference signal output

Along with a color bar, a 1-kHz reference signal can also be output.

Freeze mix function (when using DSR-1/1P)

The freeze mix function superimposes any previously recorded still picture on the viewfinder screen to facilitate framing the subject when reshooting the scene.

Edit Search Function (when using DSR-1/1P)

When using the DXC-D35/D35P/D35WSL/D35WSPL with the DSR-1/1P, pressing the EDIT SEARCH buttons allow the tape to play back in search mode. Set either of two playback speeds.

Designed for ease of operation

Dynafit Pad

Thanks to the Dynafit Pad which fits well to the shoulder, the camera is stable on the shoulder.

Slide cover

The slide cover can hide the switches and buttons that are seldom used during shooting. The cover can be locked so as not to open during shooting.

High-performance viewfinder (DXF-801/ 801CE)

•High resolution (600 TV lines of horizontal resolution)

•Large-diameter eye cup for easier viewing and focusing

•PEAKING potentiometer for vertical and horizontal detail control

•Two indicators can be used as TALLY indicators.

•Tough die-cast aluminum body

•DISPLAY switch that can turn the character display on and off

•Light that can light the lens control elements

•Switching the aspect ratio automatically between 16:9 (wide screen) and 4:3 (standard screen) when used with the DXC-D35WSL/D35WSPL

VTR data display

When connected to a VTR, the DXC-D35/D35P/ D35WSL/D35WSPL is able to display the following data on the viewfinder screen.

•Time values (counter, time code, or user bit vales)

•VTR audio levels

•Remaining tape time

•VTR operation mode

•Remaining battery capacity (when using an Anton Bauer Intelligent Battery System)

•ClipLink information (when using the DSR-1/1P)

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 1 Overview

Features on the DXC-D35WSL/ D35WSPL

Features only on the DXC-D35WSL/S35WSPL is described in this section. See “Features on the DXCD35/D35P/D35WSL/D35WSPL” (page 9) for common features on a 4:3 standard-screen type digital video camera and 16:9 wide-screen type digital video camera.

Switchable between 16:9 and 4:3 aspect ratios

A simple menu operation provides instant switching between the 16:9 and 4:3 aspect ratios. In 4:3 mode, a screen equivalent to a 4:3 screen is obtained through digital processing of the 16:9 video signals produced by the WS CCD. (See page 68.)

Wide-aspect ID signals

A menu setting is available to add wide-aspect ID signals

to 16:9-mode video signals.

(See page 68.)

Selection of the safety zone size in 16:9 mode

When the aspect ratio is 16:9, you can change the safety zone size through menu setting (see page 65.)

1) ID signals complying with EIAJ CPR-1204 (DXCD35WSL) or complying with ETS WSS (DXCD35WSPL).

2) Video signals refer to the following:

• Video signals output from the VIDEO OUT connector and MONITOR OUT connector.

• The Y component of Y/C separate signals and the Y component of component signals output from the VTR connector.

Features

Chapter 1 Overview

Location and Function of Parts

Camera Head

Right side view

TTL DUR OFF

OFF

TTL RESET SET

REC TIME SKIN DTL

OFF

FILE STD

OFF

ZEBRA HYPER

GAIN

SETUP

DOWN/OFF UP/ON

qf REC TIME switch

qg TTL RESET button

qh SKIN DTL switch

qj SKIN DTL SET button

qk SET UP switch ql HYPER GAIN switch w; ZEBRA switch

wa UP/ON button ws DOWN/OFF button

1 EZ MODE button and indicator

2 EZ FOCUS button

3 EDIT SEARCH buttons

4 Slide cover lock

5 A.IRIS MODE switch and indicator

6 ATW button and indicator

7 POWER switch 8 MENU/STATUS switch

9 W. BAL switch

q; OUTPUT/DL/DCC+ switch

qa GAIN switch

qs NG button

qd Breaker switch

Illustration: DXC-D35WS/D35WSP

DXC-D35P/D35WSP(CE) V1

1-7

1-8

Chapter 1 Overview

1 EZ (“easy”) MODE button and indicator

Depress this button (EZ mode on) when you want to be able to shoot immediately, with automatic adjustment of the camera settings to standard values. (See page 68.) When this function is used, the iris and the white balance are adjusted automatically. (The total level control system functions.) Press this button again to return the camera to the previous settings (EZ mode off).

Note

When connecting the CCU-M5/M7 (or CCU-M5P/ M7P) Camera Control Unit or the RM-M7G Remote Control Unit, the “easy mode” function is disabled.

2 EZ FOCUS button

Press this button to turn the “easy focus” function on. This opens the iris, to make it easier to focus before beginning shooting. The indication “EZ FOCUS” appears in the viewfinder while the function is on; to turn it off, press the EZ FOCUS button again. If left on, the function automatically turns off after about ten seconds.

Note

If the “easy focus” function is still on when you press the VTR button, it turns off automatically and recording starts about one second later.

3 EDIT SEARCH buttons (for operation with DSR-1/1P)

When using the DSR-1/1P to record, you can see the search playback while pressing either of these buttons at recording pause mode to quickly find the next recording start point. Two playback speeds are available, and press either of the buttons to the inner position to increase the speed.

4 Slide cover lock

This lock keeps the slide cover closed.

5 A.IRIS (auto iris) MODE switch and indicator

When you use the auto iris function (by setting the iris selector on the lens to A), set this switch to suit the shooting conditions. Selecting BACK L gives more light to back-lit subjects, and selecting SPOT L adjusts for high contrast in spot-lit subjects. For normal shooting, set this switch to STD.

6 ATW (auto tracing white balance) button and indicator

Press this button, turning the indicator on, when you want the white balance to be adjusted automatically to follow changes in lighting conditions. (See page 81.)

7 POWER switch

This powers the camera on and off. There are two different ON settings as follows.

ON STBY: This puts the VTR on standby. In this

state, pressing the VTR button on the camera head, the lens or a camera adaptor starts recording immediately.

ON SAVE: This puts the VTR in the power-saving

state, with the video head drum stationary. In this state, it takes a few seconds to start recording after pressing the VTR button.

Note

The VTR state when this switch is in the ON STBY or ON SAVE position may depend on the VTR model.

8 MENU/STATUS switch

When you press this switch to the MENU position, the basic menu is displayed. Keep pressing it to the MENU position to cycle through the various menu displays. When you press the switch to the STATUS position, the DXC-D35/D35P/D35WSL/D35WSPL’s status (of current settings) is displayed.

9 W. BAL (white balance) switch

This selects the white balance setting from the preset value, the value in memory A or the value in memory B. (See page 79.)

0 OUTPUT/DL/DCC+ (DynaLatitude/dynamic contrast control plus) switch

Use this switch to select the DCC+ function, the DynaLatitude function, or color bar output. Select the CAM/DCC+ position in most cases.

CAM/DCC+: This activates the DCC+ function.

This prevents color faults when shooting highintensity subjects.

LOCK FREE

EDIT SEARCH EDIT SEARCH

Unlocked position Locked position

Pull the upper panel forward and then lift it up.

Location and Function of Parts

Chapter 1 Overview

CAM/DL: This setting uses the DynaLatitude

function, which finely adjusts the contrast of each pixel according to a histogram of luminance signal levels. Access advanced menu page 2 to set the DynaLatitude function ON or OFF. The DynaLatitude effect can be set to any of three levels, Low, STD (standard), and High with basic menu page 2.

BARS: This setting displays color bars.

For details of menu operation, see Chapter 4 “Viewfinder Screen Displays and Menus” (page 51).

qa GAIN switch

This selects one of the three gain settings, high, medium or low. You can choose the gain values assigned to the H, M and L settings from values from –3 dB to 24 dB + DPR and HYPER GAIN. (See page

64.) The factory default selections are 18 dB (H), 9 dB (M) and 0 dB (L).

Note

When the HYPER GAIN switch ql is in the ON position, the GAIN switch has no effect.

qs NG button

When using the ClipLink function during shooting, you can designate a particular scene as “NG” (No Good) by pressing this button before shooting the next scene. Press the button again to cancel the NG setting.

qd Breaker switch

If there is a fault in the camera power supply, the breaker trips, and the camera power supply is disconnected. Correct the fault in the power supply, then press this switch.

qf REC (recording) TIME switch

This selects the recording time indication in the viewfinder.

TTL: Displays the total recording time.

The total recording time is not reset even when you stop the VTR and power off the camera, for example, to replace the battery pack.

DUR: Displays the recording time of the current cut. OFF/TC: Switches off the recording time display.

If, however, a PVV-3/3P is connected, and in the advanced menus you set the time code display item (TC IND) to ON (see page 67), then the VTR time data (time code, CTL count, or user bit value) is displayed.

Note

The recording time displayed when this switch is set to the TTL or DUR position is obtained by counting the duration of the internal reference signal input to the camera. The value may not agree exactly with the value derived from the time code values. Furthermore, the value displayed may not be correct when another manufacturer’s VTR is connected to the camera.

qg TTL (total) RESET button

Pressing this button resets the total recording time (TTL selection) to zero.

qh SKIN DTL (skin detail) switch

Set this switch to ON to use the skin detail correction function.

For details, see “Skin Detail Correction” (page 93).

qj SKIN DTL (skin detail set) SET button

Press this button with the SKIN DTL button qh to display the area detect cursor on the viewfinder screen. Place the cursor on the target and press this button to perform skin detail correction.

For details, see “Skin Detail Correction” (page 93).

qk SET UP switch

Use this switch to select the camera head setup method.

STD: Set up using the setup menu. Setup file data is

not displayed.

FILE: Set up using setup files and the setup menu.

ql HYPER GAIN switch

Setting this switch to the ON position increases the gain by a factor of about 60 or 120 with respect to 0 dB (a 30 or 36 dB increase by electronic amplification and a 6 dB increase for DPR, bringing about a total gain increase of 36 or 42 dB). When this switch is in the ON position, the indication “HYPER” appears in the viewfinder, and the GAIN UP indicator in the viewfinder also lights. When finished shooting, return this switch to the OFF position. The “HYPER” indication disappears and the GAIN UP indicator goes out.

Note

Increasing the gain with this switch reduces the horizontal resolution by 50%.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 1 Overview

wa UP/ON button

Use this button to open displays and to make “ON” settings. When using the advanced menus, use this button to change menu pages or to switch to the ordinary screen display.

ws DOWN/OFF button

Use this button to close displays and to make “OFF” settings. You can also use this button to change menu pages when using the advanced menus.

Location and Function of Parts

w; ZEBRA switch

Set this switch to the ON position to display a zebra pattern (diagonal stripes) in the viewfinder. Depending on the zebra setting in advanced menu page 4 (page 65), the zebra 1 for video levels between 70 to 90 IRE (or 70 to 90%) and the zebra 2 for video levels 100 IRE or more (or 100% or more) can be displayed independently or simultaneously.

Front view

1 MIC IN +48 V connector

2 VF connector

3 MIC LOW CUT switch

4 FILTER control

5 Lens mount

6 SHUTTER switch

7 TAKE button 8 AUDIO LEVEL knob 9 WHT/BLK switch 0 VTR button

1 MIC (microphone) IN +48 V connector (XLR 3-

pin, female)

Connect the supplied microphone or an optional microphone (operable with a 48 V supply).

2 VF (viewfinder) connector (20-pin)

This is the connector for the DXF-801/801CE viewfinder.

Note

When using this connector, do not connect a DXF-41/ 51 viewfinder to the VF connector on the left side.

3 MIC LOW CUT switch

Set this switch to the ON position to insert a high-pass filter in the microphone circuit, reducing wind noise. Normally leave the switch in the OFF position.

4 FILTER control

Select the color temperature conversion filter appropriate to the lighting conditions. (See page 43.)

5 Lens mount

Attach the zoom lens here.

Illustration: DXC-D35WS/D35WSP

Chapter 1 Overview

6 SHUTTER switch

Use this switch to set the shutter speed, CLS (clear scan), or EVS setting (see page 84). Usually, set this switch to OFF.

7 TAKE button

Press this button to specify an editing point (Mark IN/ OUT or cue point) at the current tape position during shooting.

8 AUDIO LEVEL knob

When the DSR-1/1P is attached, you can use this knob to manually adjust the channel 1 audio recording level.

9 WHT/BLK (white/black) switch

This switch is used for automatic adjustment of the white balance and black balance. (See pages 79 to 83.)

0 VTR button

Pressing this button starts and stops recording on the VTR.

Left and upper view

1 Fitting for optional microphone holder

You can fit an optional CAC-12 Microphone Holder here. (See page 33.)

2 Accessory fitting shoe and screw hole

Attach optional video lights or other accessories here.

3 Shoulder strap fixture

To use the supplied shoulder strap, fix one end here and the other end to the VTR.

4 Viewfinder fitting shoe

Fix the DXF-801/801CE Viewfinder here.

5 Viewfinder left-to-right position fixing ring

Loosen this ring to adjust the left-to-right position of the viewfinder. (See page 32.)

6 Viewfinder front-to-back position locking catch

Release this catch to adjust the front-to-back position of the viewfinder. (See page 32.)

1 Fitting for optional microphone holder

2 Accessory fitting shoe and screw hole

3 Shoulder strap fitting

4 Viewfinder fitting shoe

5 Viewfinder left-to-right positioning ring

6 Viewfinder front-to-back position locking lever 7 REMOTE connector 1

8 MONITOR OUT connector 9 VIDEO OUT connector

0 REMOTE connector 2 qa LENS connector qs VF connector

qd VTR connector

DXC-D35P/D35WSP(CE) V1

1-9

1-10

Chapter 1 Overview

7 REMOTE connector 1 (mini-jack)

Connect the RM-LG1 Remote Control Unit to enable remote operation of the ClipLink function.

8 MONITOR OUT connector (BNC)

Outputs both the camera video and the character information as displayed on the viewfinder screen. You can connect an optional LCD color monitor to this connector.

9 VIDEO OUT connector (BNC)

This outputs the video signal captured by the camera.

0 REMOTE connector 2 (10-pin)

Connect the optional RM-M7G Remote Control Unit to this connector. Set the CAMERA HEAD SELECT switch on the bottom of RM-M7G to 1.

Note

When using the RM-M7G, note the following points.

•When operating the camera head from the camera control unit, connect the RM-M7G to the camera control unit.

•EZ mode cannot be used if the RM-M7G is connected to the camera head.

Location and Function of Parts

qa LENS connector (12-pin, for

/3-inch lens)

Connect the lens connector.

qs VF (viewfinder) connector (8-pin)

This is the connector for the DXF-41/51 viewfinder.

Note

When using this connector, do not connect a DXF-801/ 801CE viewfinder to the VF connector on the front of the camera head.

qd VTR connectors (PRO 76-pin DIGITAL and PRO 50-pin)

Connect a dockable VTR. A PRO 76-pin DIGITAL connector is for the DSR-1/1P and a PRO 50-pin connector is for the PVV-3/3P or a camera adaptor.

Chapter 1 Overview

VCL-918BY Zoom Lens

1 Iris ring

4 M button

5 F.B adjustment ring

and F.B fixing screw

6 MACRO ring

7 ZOOM selector

8 Zoom remote control

connector

9 Lens connector

qa VTR button

0 RET button

2 Zoom ring

Lens hood

3 Focus ring

qd IRIS selector qf Motorized zoom lever

qs Instant automatic iris adjustment

button

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 1 Overview

Location and Function of Parts

1 Iris ring

For manual iris control, set the IRIS selector qd to the “M” position, and turn this ring.

2 Zoom ring

For direct manual zoom control, set the ZOOM selector 7 to the “MANU.” position, and turn this ring.

3 Focus ring

Turn this ring to focus the lens on the subject.

4 M (close-up) button

For close-up work, turn the MACRO ring 6 while holding this button down. (See page 91.)

5 F.B (flange focal length) adjustment ring and F.B fixing knob

F.B adjustment ring : To adjust the flange focal

length, loosen the F.B fixing knob, then turn the ring. (See page 89.)

F.B fixing knob: Fixes the F.B adjustment ring.

6 MACRO (close-up) ring

For close-up, turn this ring while holding the M button 4 down. (See page 91.)

7 ZOOM selector

This selects the mode of zoom operation.

SERVO: power zoom MANU. (manual): manual zoom

8 Zoom remote control connector (8-pin)

Connect the optional LO-26 lens remote control unit for remote control of zooming.

9 Lens connector (12-pin)

Connect to the LENS connector (qa on page 18) of the Camera Head.

0 RET (return) button

This allows you to check the video signal as follows.

When operating with a portable VTR connected via other equipment: when the VTR is in

recording, pressing this button connects the E-E video signal1) from the VTR to the viewfinder.

When operating with a DSR-1/1P or PVV-3/3P mounted on the camera head: when the VTR is in

recording pause mode, press this button to review the last few seconds of the recording in the viewfinder (recording review).

When operating with a CCU-M5/M5P/M7/M7P Camera Control Unit connected: pressing this

button connects the return video signal from the camera control unit to the viewfinder. When this button is not pressed, the viewfinder displays the video signal captured by the camera.

qa VTR button

When operating with a VTR: this button starts and

stops recording, and once more to stop.

When operating with a CCU-M5/M5P/M7/M7P Camera Control Unit connected: pressing this

button connects the return video signal from the camera control unit to the viewfinder. (Starting and stopping recording is controlled on the VTR.)

qs Instant automatic iris adjustment button

While using manual iris control, press this button to switch temporarily to the automatic iris control setting. The automatic setting is maintained as long as you hold the button down.

qd IRIS selector

This selects the mode of iris operation. (See page 14.)

A (automatic): automatic iris M (manual): manual iris

qf Motorized zoom lever

Use this to carry out a power zoom. Pressing the lever harder increases the zoom speed.

W end: zoom toward wide angle T end: zoom toward telephoto

1) E-E video signal: “electric-to-electric” video signal.

This is the input video signal which has passed through internal electrical circuits, but has not been converted to a magnetic signal.

Chapter 1 Overview

DXF-801/801CE Viewfinder

SHUTTER GAIN UP

TAKE BATTREC

TALLY

HIGH LOW OFF

LIGHT

3 LIGHT switch and light

4 TAKE/TALLY indicator

5 BATT indicator

6 REC/TALLY indicators

7 GAIN UP indicator

8 SHUTTER indicator

9 PEAKING control 0 CONTRAST control qa Tally lamp qs BRIGHT control

qd Eyepiece release catch

qf TALLY switch qg DISPLAY switch

qh Viewfinder connector

Eye cup

1 Eyepiece focusing knob

2 Stopper

Microphone holding screw

Microphone holder

1 Eyepiece focusing knob

Turn this to adjust the viewfinder focus to match your eyesight. (See page 88.)

2 Stopper

Lift up when detaching the viewfinder (See page 32).

3 LIGHT switch and light

The light lights the lens and the switch controls the light as follows.

HIGH/LOW: Turn the light on and control the

brightness.

OFF: Turns the lights off.

4 TAKE/TALLY indicator (orange)

When using the ClipLink function while shooting, this indicator lights when the TAKE button (7 on page

17) has been pressed to set a Mark IN point and goes out when a Mark OUT point is set.

5 BATT (battery) indicator (red)

This lights when the battery capacity is low.

Note

When using a camera control unit, this indicator flashes when

you operate the controls, but this is not a malfunction.

You can switch the scan size of the DXF-801/801CE in accordance with the aspect ratio selected on the camera or camcorder.

Microphone

DXC-D35P/D35WSP(CE) V1

1-11

1-12

Chapter 1 Overview

Location and Function of Parts

6 REC/TALLY (recording/tally) indicators (red)

•This flashes from the time when you press the VTR button (0 on page 17 and qa on page 20) on the lens or camcorder until recording starts, then stays on continuously during recording.

•When using a camera control unit, this lights when the video from the camera is selected.

•This is also used to indicate a fault. (See page 97.)

•The lower indicator can be disabled by menu setting.

(See page 66.)

7 GAIN UP indicator (orange)

This lights when the gain is 3 dB or more.

8 SHUTTER indicator (red)

This lights when the SHUTTER switch (6 on page

17) is in the ON position. (If the EVS is selected, the

indicator will not light.)

9 PEAKING control

This adjusts the outline intensity of the viewfinder image. (See page 88.)

0 CONTRAST control

This adjusts the contrast of the viewfinder image. (See page 88.)

qa Tally lamp

When the TALLY switch qf is in the ON position, this operates in the same way as the REC/TALLY indicators 6.

qs BRIGHT (brightness) control

This adjusts the brightness of the viewfinder image.

(See page 88.)

qd Eyepiece release catch

To view the viewfinder screen directly, press this catch, and hinge up the eyepiece.

qf TALLY switch

Set this switch to the ON position to use the tally lamp

qa.

qg DISPLAY switch

Set this switch to OFF when you want to remove the character data from the viewfinder and the monitor connected to the MONITOR OUT connector. However, items which are set to OFF in advanced menu page 5 and page 6 are not displayed even when this switch is set to ON.

qh Viewfinder connector (20-pin) Connect this to the VF connector (2 on page 16).

Chapter 2 Fitting and Connections

Chapter

Fitting and Connections

Replacing the Lithium Battery

The camera head uses a lithium battery (CR2032) to retain date and time data. When the lithium battery’s voltage falls, the clock indication dose not appear. Replace the lithium battery and set the clock (see page 86).

Notes

•Carefully read the instructions for replacing the

lithium battery. Lithium batteries may explode if misused.

•Use only CR2032-type lithium batteries. Other types of lithium batteries may come loose when the camcorder is moved. If you have difficulty finding CR2032-type lithium batteries, contact your Sony dealer.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 2 Fitting and Connections

Press down and pull out toward you.

Rear of the camera head

Battery cover

Pull the upper part of the battery cover (on the rear of the camera head) forward and turn the cover clockwise.

For detaching the VTR or camera adaptor, see “Fitting a VTR” next page.

Take out the lithium battery.

Reverse step 2 to insert a replacement lithium battery. Make sure that the + symbol on the battery is facing you.

Close the battery cover.

Replacing the Lithium Battery

Chapter 2 Fitting and Connections

Fitting a VTR

Set the PRO 76-pin DIGITAL connector on the DSR-1/1P. (The camera connector on the PVV-3/3P is PRO 50-pin.)

For details, see the operating instructions for the DSR-1/1P.

Loosen the two screws and remove the shoulder pad.

Align the projection on the bottom of the DSR-1/1P with the slot on the camera head.

This section explains how to attach the DSR-1/1P to the camera head. The method for attaching a PVV-3/ 3P is similar.

When replacing the camera head grip with a camcorder grip, see “Using the Camcorder Grip” (page 27).

Camera connector (PRO 76-pin DIGITAL)

DSR-1/1P

Projection

Camera head

Slot

Groove

(continued)

Screws

DXC-D35P/D35WSP(CE) V1

1-13

1-14

Chapter 2 Fitting and Connections

Slide the DSR-1/1P and the camera head together in the groove as far as possible.

Tighten the two screws in the grip connector and the two screws in the shoulder pad section.

Screws

Attach the shoulder pad.

To remove the VTR

Reverse the fitting procedure.

To fit a camera adaptor

Follow the same procedure as when fitting a VTR.

Fitting a VTR

Chapter 2 Fitting and Connections

Using the Camcorder Grip

When using the camera head with a VTR as a camcorder, you can replace the camera head’s grip with a camcorder grip (not supplied). The type of

camcorder grip and the method for attaching it differ slightly depending on the type of VTR.

Attaching a camcorder grip to the DSR-1/1P

If the viewfinder is attached,

adjust the viewfinder to the full-forward position.

For details, see “Adjusting the viewfinder position” on page 32.

Remove the camera head grip’s three screws, then pull up the grip to remove it.

Remove the VTR connection plate.

Remove the DSR-1/1P’s shoulder strap fitting and the camera head connection plate.

VTR connection plate

Camera head connection plate

Shoulder strap fitting

(continued)

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 2 Fitting and Connections

Perform the first three steps in “Fitting a VTR”.

Screw the connection plate (supplied with the grip for the DVCAM camcorder) which straddles the connection between the camera head and the DSR-1/1P. Also, tighten the two screws in the shoulder pad section. (See step

page 26.)

Screw the grip for the DVCAM camcorder.

Grip for the DVCAM camcorder

Connection plate

Attaching a camcorder grip to the PVV-3/3P

Perform steps 2 to 4 in “Fitting a VTR”.

If the viewfinder is attached, adjust the viewfinder to the full-forward position.

For details, see “Adjusting the viewfinder position” on page 32.

Fitting a VTR

Chapter 2 Fitting and Connections

Shoulder strap fitting

Grip for the Betacam camcorder

Remove the grip’s three screws, then pull up the grip to remove it.

Remove the PVV-3/3P’s shoulder strap fitting.

Screw the grip for the Betacam camcorder.

DXC-D35P/D35WSP(CE) V1

1-15

1-16

Chapter 2 Fitting and Connections

Fitting the Lens

In the case of the DXC-D35K/D35PK model, the lens is already fitted. In other cases, use the following procedure to fit the lens.

Remove the retaining rubber

which prevents the lens mount from coming loose, then raise the lens fixing lever, and remove the lens mount cap.

With the lens fixing lever

turned fully counterclockwise, push in the lens, aligning the projection on the lens with the cutout on the camera.

Supporting the lens, turn the lens fixing lever fully clockwise. Replace the retaining rubber on the lens mount.

Retaining rubber

Lens mount cap

Lens fixing lever

Align and push in.

Chapter 2 Fitting and Connections

Using the triangular mark as a guide, push the lens connector into the LENS connector on the camera head, until it clicks into place. Fasten the cable with the clamps.

LENS connector

Triangular mark

Fitting optional filters

Remove lens hood

Lens hood fixing screw

Filter (optional)

Loosen the lens hood fixing screw to remove the lens hood, then attach the filter.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 2 Fitting and Connections

Using the Viewfinder

Removing the Viewfinder

Remove any microphone from the viewfinder before beginning.

Pull the viewfinder connector out of the VF connector on the front of the camera head.

Loosen the viewfinder left-toright position fixing ring, then pulling up the retaining catch, slide the viewfinder out.

VF connector

Retaining catch

To fit the viewfinder

Reverse the removal procedure.

Adjusting the viewfinder position

To adjust the viewfinder left-to-right position, loosen the left-to-right fixing ring, and to adjust the front-toback position loosen the front-to-back position locking catch.

Viewfinger front-to-back position locking catch

Using Accessories

Viewfinder left-to-right position fixing ring

Chapter 2 Fitting and Connections

Left eye adaptor

By fitting a left eye adaptor, you can use the camera with your left eye to the viewfinder.

Screws removed from the camera

CAC-12

Fitting an optional microphone

Use the following procedure to attach an optional ECM-670 Microphone.

Loosen the screw of the CAC12 Microphone Holder, then open the holder and replace the microphone adaptor with the one supplied with the ECM670 Microphone.

Insert the microphone in the microphone holder, close the holder, and tighten the screw. Connect the microphone cable to the MIC IN +48 V connector.

Microphone adaptor

MIC IN +48 V connector

Mark

Note

You cannot stow the camera attached with a left eye adaptor in the LC-421 Carrying Case.

For details, consult your Sony dealer.

Using an Optional Microphone

To use a long microphone such as the optional ECM670/672, fit an optional CAC-12 Microphone Holder to the camera, then mount the microphone in this holder.

Fitting the optional CAC-12 Microphone Holder

Remove the two retaining screws (M3 × 8) for the optional microphone holder, then use these screws to attach the CAC-12 Microphone Holder.

DXC-D35P/D35WSP(CE) V1

1-17

1-18

Chapter 2 Fitting and Connections

Fitting optional microphones (operable with a 48 V supply) other than the ECM-670

Use the same fitting procedure as for the ECM-670, but note the following differences with respect to the microphone adaptor.

ECM-672: no microphone adaptor required. Slender microphones (19 mm (

/4 inch) diameter):

use the microphone adaptor supplied with the CAC-12.

Fitting to a Tripod

First fit the VCT-U14 Tripod Adaptor to the tripod, then mount the camera on the tripod adaptor.

Removal

VCT-U14 Tripod Adaptor

Side the camera forward along the slot, until it clicks firmly into place.

Tripod

Hold down the red button and pull the lever in the direction of the arrow.

Note

After removing the camera, if the tripod adaptor pin has not returned to its original position, hold down the red button and move the lever in the direction of the arrow to return the pin to its original position. It is not possible to mount a camera with the pin left out.

Using the Optional CAC-4 Chest Pad

When using the camera on your shoulder, attaching the optional CAC-4 Chest Pad reduces the load on your right hand supporting the zoom lens, and makes operation easier.

For details see the instructions provided with the CAC-4.

Using Accessories

Chapter 2 Fitting and Connections

Using the Carrying Case

Stowing the camera

Align the camera with the base of the case, and slide the camera in forward. Checking that the pin at the rear engages correctly, push forward until it locks into place.

Notes

•Bring the viewfinder into the horizontal position, slide it fully rearward and to the left, then fix before stowing.

•When an optional microphone (ECM-670/672, C-74, etc.) is attached, loosen the microphone fixing screws, move the microphone to the lowest position, and fix before stowing.

Example of fully-stowed carrying case

Align the camera with the base of the carrying case.

Lever

Base

VCT-U14 Tripod Adaptor Fasten straps.

LC-421 Carrying Case

NP-1A/1B Battery Packs (maximum two) - Fasten straps.

DXC-D35/D35P/D35WS/D35WSP Color Video Camera This can be stored with the following system component fitted.

• CA-537/537P/327/327P/325A/325AP/325B Camera Adaptor or DSR-1/1P, PVV-3/3P or EVV-9000/9000P

• DXF-801/801CE Viewfinder

• ECM-670/ECM-672/C-74 Microphone

• Zoom lens (VCL-918BYetc.) (Largest lens which can be stowed is Canon J18 X 8.5BI-B.)

• CAC-12 Microphone Holder

• CAC-4 Chest Pad

Cassettes, camera cables, etc.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 2 Fitting and Connections

Connections

Connecting a Portable VTR

Using the optional CA-537/537P or CA-327/327P Camera Adaptor and a camera cable, you can connect a portable VTR. Set the VTR selector switch on the camera adaptor according to the VTR connected.

If using a VTR from another manufacturer, consult your Sony dealer.

Checks before making connections

Check first that the video camera, camera adaptor, VTR, and other devices are all powered off.

Making connections

Using a camera cable, connect the VTR/CCU/CMA connector on the camera adaptor to the camera input connector of the VTR.

Camera cable

•Select a camera cable to fit the camera input connector on the VTR you are using.

•The maximum camera cable extent is 10 m (33 ft).

For details, consult your Sony dealer.

Video monitor

•If using an S-VHS VTR, using a video monitor with an S-video input connector and connecting it to the Svideo connector of the VTR will allow you to monitor a clear picture, with no flecking.

•The output video signal from the VIDEO OUT connector of this unit is a composite video signal. Connect the VIDEO OUT connector of this unit to a composite video signal input connector of the monitor.

Setting the VTR selector switch on the camera adaptor

When using the camera with a CA-537/537P/327/327P Camera Adaptor, it is essential to correctly set the VTR selector switch on the camera adaptor according to the VTR connected. This switch determines the type of video signal output from the VTR/CCU/CMA connector and the audio output signal level.

Example: Connecting a BVW-50/50P Portable VTR to a CA-537/ 537P Camera Adaptor

26-pin connector

VTR/CCU/CMA

DXC-D35/D35P/ D35WS/D35WSP

CCZ-A Camera Cable

26-pin connector

CAMERA IN

BVW-50/50P Portable VTR

CA-537/537P Camera Adaptor

Example: When using a CA-537/537P

VTR SELECT switch

Chapter 2 Fitting and Connections

VTR selector settings on the CA-537/537P

a) Set the audio input level on the VO-6800/6800PS to –60

dB.

b) When the BVV-5/5PS is used as a portable VTR, a VA-

5/5P VTR Composite/Component Adaptor is required.

c) Set the input selector switch on the AG-7400 to Y/C.

VTR selector settings on the CA-327/327P

a) Set the audio input level on the VO-6800/6800PS to –60

dB.

b) Set the input selector switch on the AG-7400 to Y/C.

Connected VTR

VTR selector switch setting

Video output signal

Audio output signal level

Sony broadcast and professional VTRs: BVU-150/150P and VO-6800/6800PS

1 Composite –60 dB

Sony professional VTRs: VO-8800/8800P and EVV-9000/9000P

3 Y/C –60 dB

Panasonic AG-6400 VHS VTR

Connected VTR VTR

selector switch setting

Video output signal

Audio output signal level

Sony broadcast and professional VTRs: BVU-150/150P, VO6800/6800PS

, BVW50/50P and BVV-5/ 5PS

1 Composite

(BVU-150/ 150P and VO6800/6800PS) or component (BVW-50/50P and BVV-5/ 5PS)

–60 dB

Sony professional VTRs: VO-8800/ 8800P and EVV-9000/ 9000P

3 Y/C –60 dB

2 Composite –20 dB

Panasonic AG-7400 SVHS VTR

and JVC

BR-S405 S-VHS VTR

3 Y/C

–20 dB

Connecting a Number of Cameras (Using a Camera Control Unit)

When using a number of cameras in the studio, it may be necessary to use a CCU-M5/M5P/M7/M7P Camera Control Unit to provide video and color sync between cameras, and special effects and other devices to allow switching, wipes and so forth. In the studio it may also be convenient to use a DXF41/51 Viewfinder.

The figure in the next page shows an example studio configuration.

For details, consult your Sony dealer.

Notes

•When using a camera control unit, put the camera head into the EZ mode off state beforehand (see page

14). (Otherwise, it is impossible to access the advanced menu.)

•With the DXC-D35/D35P/D35WSL/D35WSPL, color matrix switching on the CCU-M5/M5P is invalid.

•When the DL in advanced menu page 2 is set to ON (see page 64) and the OUTPUT/DL/DCC+ switch is set to DL, knee adjustment does not function on the CCU-M7/M7P.

Panasonic AG-6400 VHS VTR

2 Composite –20 dB

Panasonic AG-7400 SVHS VTR

4 Y/C –20 dB

DXC-D35P/D35WSP(CE) V1

1-19

1-20

Chapter 2 Fitting and Connections

INTERCOM

VIDEO IN

PGM OUT

TALLY/INTERCOM

PGM OUT

VBS OUT

RETURN VIDEO IN

GEN LOCK IN

TALLY/INTERCOM

VIDEO IN

GEN LOCK OUT

RETURN VIDEO OUT

VBS OUT

CAMERA

TALLY/INTERCOMVBS OUT

GEN LOCK IN

RETURN VIDEO IN

TALLY/INTERCOM

DXC-D35/D35P/D35WS/D35WSP

CA-537/537P

Headset

VTR

Switcher, special efects unit, etc.

75Ω termination switch to ON

CA-537/537P

DXF-41 or DXF-51

Headset

INTERCOM (on the front)

CCU-M5/M5P Camera Control Unit

To AC power supply

DXC-D35/D35P/D35WS/ D35WSP

To AC power supply

Cables used

1 Power cord (supplied) 2 CCZ-A Camera Cable 3 BNC cable 4 DIN 4-way cable

DXF-41 or DXF-51

75Ω

termination

switch to OFF

Connections

Chapter 2 Fitting and Connections

Connecting a Number of Cameras (Without Using a Camera Control Unit)

When using two or more synchronized cameras without a camera control unit, connect an external sync signal to the GEN LOCK IN connector on the camera adaptor (CA-537/537P etc.), supplying a VBS or BS

signal. The camera will then operate synchronized to this signal. You can adjust the synchronization using the basic menus. (See page 59.)

VTR/CCU/CMA

VIDEO OUT VIDEO OUT

GEN LOCK IN

VIDEO OUT

GEN LOCK IN

VIDEO OUT

GEN LOCK IN

Example 1: Camera 2 synchronized to the signal from camera 1

CA-537/537P

Camera 1

DXC-D35/D35P/ D35WS/D35WSP

CCZ-A Camera Cable

BNC cable

Portable VTR

To camera connector

To video input connector

CA-537/537P

Camera 2

DXC-D35/D35P/ D35WS/D35WSP

Example 2: Cameras 1 and 2 synchronized to the signal from a special effects unit or similar

Special effects unit or similar

Video input connector

BNC cable

Sync signal output connector

CA-537/537P

DXC-D35/D35P/D35WS/ D35WSP

BNC cable

Video input connector BNC cable

CA-537/537P

Camera 2

Camera 1

DXC-D35/D35P/D35WS/ D35WSP

Sync signal output connector

BNC cable

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 2 Fitting and Connections

Power Supply

This unit operates on either a battery pack or an AC supply (using the optional CMA-8A/8ACE AC Adaptor).

For details of the power supplies which can be used, refer to the documentation supplied with the VTR connected to this unit or the camera adaptor.

Using an Anton Bauer Intelligent Battery System and Ultralight System

Fitting the special battery mount made by Anton Bauer Corporation to this unit allows you to use their Intelligent Battery System and Ultralight System.

For details, consult your Anton Bauer products supplier or Sony dealer.

Using Battery Packs

Always fully charge a battery pack before using it.

Notes

•Be careful that other metal objects do not come in contact with the metal parts of the battery pack, as this could cause a short.

•Do not leave the battery pack in the camera if it is not going to be used for a long time.

•If the battery pack is recharged after use while still hot, it may not be possible to obtain a full charge.

Fitting a battery pack (NP-1B)

Open the lid of the battery case, insert a fully-charged battery pack, and close the lid.

Battery pack operating times

The following table shows approximate continuous operating times, when operating the camera and 1.5inch viewfinder at normal temperatures, with a camera adaptor and an DSR-1/1P or PVV-3/3P connected.

Approximate operating times with

a fully-charged battery pack

DXC-D35/D35P

DXC-35WSL/D35WSPL

a) Requires the special-purpose DC-500 Battery Case.

Cannot be used with a camera adaptor.

Battery low indications

When the voltage of the supply to the camera head lowers to or below 11.0 V, the battery voltage indication appears in the viewfinder. At this time, the BATT indicator in the viewfinder flashes when operating with the DSR-1/1P or PVV-3/3P. If you continue using the camera head, the BATT indicator lights up. When the battery pack is low, replace it with a fullycharged battery pack.

Press and lift

Battery case

NP-1B Battery Pack

With DSR-1/ 1P

With camera adaptor

Battery pack With PVV-3/

NP-1B 110 minutes 60 minutes 60 minutes NP-1A 85 minutes 45 minutes 50 minutes BP-90A

— 130 minutes 140 minutes

Battery pack

With camera adaptor

With DSR-1/1P or PVV-3/3P

NP-1B 95 minutes 50 minutes NP-1A

70 minutes 35 minutes

BP-90A

–

105 minutes

Chapter 2 Fitting and Connections

Battery pack charging

Before using a battery pack, charge it as shown in the following table.

For details of battery charger operation, refer to the instructions provided with the battery charger to be used.

Camera Adaptor Power Supply

The camera adaptor automatically operates on power supplied to the VTR/CCU/CMA connector from the portable VTR, CCU-M7/M7P Camera Control Unit, CMA-8A/8ACE AC Adaptor or other connected device.

Note

Before use, check that the device connected to the VTR/CCU/CMA connector is able to provide the power required by the camera. If it is not able to provide the necessary power, or when it is necessary to prolong the operating time, use the camera with a separate power supply.

Approximate charging time (normal temperature)

Battery chargerBattery pack

NP-1A BC-1WD/1WDCE,

BC-410/410CE

70 minutes

NP-1B BC-1WD/1WDCE,

BC-410/410CE

95 minutes

BP-90A BC-410/410CE 160 minutes

DXC-D35P/D35WSP(CE) V1

1-21

1-22

Chapter 3 Shooting

Chapter

Shooting

Basic Procedure for Shooting

FILTER control

Focusing ring

RET button

VTR button

ZEBRA switch

POWER switch

Attach the VTR or camera adaptor to the camera head, then turn each device’s power on.

Set the FILTER control appropriately for the lighting conditions.

(continued)

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 3 Shooting

1) Hunting: This occurs if the automatic iris function is not

able to reach a stable state, and as a result the image brightness keeps changing, alternately lighter and darker.

2) Depth of field: This is the range over which the subject

is sharply in focus.

Filter setting

Lighting conditions

1 (3200K) Studio halogen lighting (incandescent),

sunrise and sunset.

2 (5600K +

ND)

Sunlight. This setting includes a

/8 neutral density filter (reducing the exposure by the equivalent of three stops). Use it to prevent hunting

or to reduce the depth of field

3 (5600K) Cloudy or rainy outdoor shooting, and

fluorescent lighting.

4 (5600K +

/64ND)

Sunlight. This setting includes a

/64 neutral density filter (reducing the exposure by the equivalent of six stops). Use it to prevent hunting

or to reduce the depth of field

Check the switch settings on the camera head.

(See pages 13 to 18.)

If there is not sufficient time to check the camera settings, you can use “easy mode” by setting the EZ MODE switch to the ON position. The camera is automatically adjusted to standard settings, and the iris and the white balance are adjusted automatically. (See page 68.)

Check the settings in the basic menu (page 58) and advanced menu (page 64).

Check the lens settings (pages 30 and 31) and flange focal length adjustment (page 89).

Adjust the eyepiece focus, and the contrast and brightness of the viewfinder image (page 88).

Check the sound system settings.

•Microphone connections

•Settings on the VTR (refer to the VTR instructions)

If required, switch on the center marker and/or safety zone (basic menu page 5 and advanced menu page 4) and zebra pattern (ZEBRA switch) in the viewfinder image.

Adjust the white balance (page 79) and black balance (page 83).

Turn the focusing ring so that the subject is sharply in focus. It may be convenient to use the EZ FOCUS button for the “easy focus” function (see page 14).

Set up the VTR according to your shooting objectives, then start recording.

If a camera control unit is not connected: Press

the VTR button on the camera head or on the lens.

If a camera control unit is connected: Press the

VTR’s record button to begin recording.

For details of VTR setup and operations, see your VTR’s operating instructions.

•During recording, the REC/TALLY indicator(s)

in the viewfinder light(s), and “REC” appears on the viewfinder screen.

•Depending on the setting of the REC TIME

switch (See page 15), you can display the total recording time or the length of the camera cut on the viewfinder screen.

•When recording on the DSR-1/1P, you can use

the AUDIO LEVEL knob on the front of the camera head to manually adjust the channel 1 audio level. To do this, you must first set up the DSR-1/1P to enable manual adjustment of the audio recording level.

For details of this operation, see the operating instructions for the DSR-1/1P.

To pause recording, press the VTR button again.

Basic Procedure for Shooting

Chapter 3 Shooting

Reviewing the recording

It is possible to review the last few seconds of the recording on the tape (recording review). Press the VTR button to pause recording, then press the RET button on the lens. Depending on how long the button is pressed, the tape is automatically rewound over the last two to ten seconds from the paused position, and then this part is played back in the viewfinder. If the RET button is kept pressing, about ten seconds of the recording review is possible. The VTR then returns to the paused state.

Note

This function may not be provided by some VTRs. Refer to the instructions for the VTR.

Using the DynaLatitude Function

This function detects the bright and dark parts of the subject and automatically adjusts for the appropriate contrast. The DynaLatitude function enables finegrained contrast adjustment according to the luminance level of each pixel. It is effective when shooting scenes with mixed light and dark parts.

However, the brightness of the subject on the screen may change if the subject moves during shooting. Also, for some subjects, there may be increased noise in dark sections of the picture.

For information on turning this function on and off, see page 64. For information on setting effect levels, see page

59.

DL OFF

DL ON

DXC-D35P/D35WSP(CE) V1

1-23

1-24

Chapter 3 Shooting

Shooting with the DSR-1/1P

The DXC-D35/D35P/D35WS/D35WSP docks with the DSR-1/1P to configure a DVCAM Camcorder. The following describes how to shoot using a DVCAM camcorder.

Using the ClipLink Function

The ClipLink function can be used at all stages from shooting to editing. This function makes editing operations more efficient by automatically recording index pictures (Mark IN point images) that provide a searchable index of recorded scenes, along with other data such as time code and scene numbers.

For concept of the ClipLink function, see the section “What Is ClipLink”(page 102).

Dock the DSR-1/1P to the camera head and turn on the power, then perform steps 2 to 10 from “Basic Procedure for Shooting” (page 43).

Insert a cassette into the DSR-1/1P and set ClipLink mode to ON by menu setting.

For details of this operation, see the operating instructions for the DSR-1/1P.

The following display appears on the viewfinder screen.

 TCG 12:34:56:00 

W:A  CLIPM 198

F5.6 

56ND 99 04 01 10:10

AM  

a) For details, see “Basic menu page 6” (page 60).

To record the cassette name/number

Access basic menu page 6 to specify a name or number for the inserted cassette.

For details, see “Basic menu page 6” (page 60).

ClipLink mode indication: CLIP M or C

Clip remaining: Indicates the number of available Index pictures (198 max.)

Press the VTR button on the camera head or the lens.

The DSR-1/1P starts recording, and the REC/ TALLY indicator lights in the viewfinder. Meanwhile, the time code at the recording start point (Rec IN) is recorded (HH:MM:SS) in the DSR-1/1P’s internal memory.

When a shooting of the scene completes, press the VTR button on the camera head or the lens.

This pauses recording. To continue recording the next scene, repeat steps 3 and 4. The scene number will be automatically incremented.

To set/clear NG (No Good)

If you press the NG button before you start shooting the next scene, the previous scene will be designated as “NG” (the “NG” display appears in the viewfinder). Once NG has been set, you can cancel it by pressing the NG button again before you start shooting the next scene (the “NG” display in the viewfinder disappears, which means that the previous scene has been re-designated as “OK”). Each time you press the NG button before starting shooting the next scene, the status of the previous scene toggles between “NG” and “OK”. It is always the last selected status that will take effect and be stored in the cassette memory.

To finish recording, press the STOP button on the DSR-1/1P.

This stops recording.

Note

When using the ClipLink function while shooting, if you continue shooting after stopping or if you change the tape’s recording position, your subsequent shots may overwrite and erase the previously recorded ClipLink log data (time codes, scene number, etc.) or index pictures. To avoid this problem, press the DSR-1/1P’s ClipLink CONTINUE button before restart of shooting.

For details, see the operating instructions for the DSR-1/1P.

Chapter 3 Shooting

Setting Mark IN/OUT points as you shoot

Instead of continuing shots from scene to scene, you can specify Mark IN and Mark OUT points as you shoot and set scene numbers (ranging from 001 to

198).

Perform steps 1 and 2 from “Using the ClipLink Function” (page 46).

Access basic menu page 6 and perform the following operations.

1) Set MARK/CUE to MARK.

The ClipLink mode indication “CLIP M” appears on the viewfinder screen.

2) Set the cassette name or number if necessary.

For details of menu operations, see “Basic Menu Operations” (page 58).

Press the VTR button on the camera head or the lens.

The DSR-1/1P starts recording, and the REC/ TALLY indicator(s) light(s) in the viewfinder.

Press the TAKE button when you find a shot where you would like to set a Mark IN point.

The TAKE/TALLY indicator (orange) lights in the viewfinder and “TAKE” appears on the screen.

Press the TAKE button when you find a shot where you would like to set a Mark OUT point.

The TAKE/TALLY indicator (orange) goes out in the viewfinder and the “TAKE” disappears from the screen. At this time, the time code (HH:MM:SS) at the Mark IN/OUT point for scene 001 is recorded to the DSR-1/1P’s internal memory, and then recorded to the cassette memory.

To set/clear NG

If you press the NG button before you set the next Mark IN point, the previous scene will be designated as “NG” (the “NG” display appears in the viewfinder). Once NG has been set, you can cancel it by pressing the NG button again before you set the next Mark IN point (the “NG” display in the viewfinder disappears).

Repeat steps 4 and 5 as needed to record (to cassette memory) time codes at Mark IN/OUT points, scene numbers, and NG designations to the cassette memory.

The scene number is automatically incremented each time you specify a Mark OUT point.

To finish shooting, press the VTR button on the camera head or the lens, then press the DSR-1/1P’s STOP button.

This stops the recording operation. The index pictures of each Mark IN point are recorded onto the tape.

TAKE button

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 3 Shooting

Setting cue points as you shoot

You can make edit search operations easier by specifying cue points to highlight scenes.

Perform steps 1 and 2 in “Using the ClipLink Function” (page 46).

Access basic menu page 6 and perform the

following operations.

1) Set MARK/CUE to CUE.

The ClipLink mode indication “CLIP C” appears on the viewfinder screen.

2) Set the cassette name or number if necessary.

For details of menu operations, see “Basic Menu Operations” (page 58).

Press the VTR button on the camera head or the

lens.

The DSR-1/1P starts recording, and the REC/ TALLY indicator lights in the viewfinder. Meanwhile, the recording start point (Rec IN) is recorded in the DSR-1/1P’s internal memory.

Press the TAKE button when you find a shot where you would like to set a cue point.

The “CUE” indication appears (for about 1 second) on the viewfinder screen. At this point, the time code (HH:MM:SS:frame) at the cue point is recorded into the cassette memory.

Repeat step 4 to specify more cue points.

To finish shooting, press the VTR button on the camera head or the lens, then press the DSR-1/1P’s STOP button.

This stops recording operation. Time codes (HH:MM:SS) and scene number (scene 001) are recorded to the cassette memory and the index picture of the Rec IN point is recorded onto the tape.

Shooting with the DSR-1/1P

Using the Edit Search Function While Back Space Editing

While the DSR-1/1P is in recording pause mode, press and hold the EDIT SEARCH buttons to activate the search playback function for as long as you hold down the button. You can use the edit search function to find the desired tape location after a recording stop during back space editing or when continuing to record from any other location on the tape.

Dock the DSR-1/1P to the camera head and turn on the power, then insert a cassette into the DSR-1/1P.

Perform steps 2 to 12 in “Basic Procedure for Shooting” (page 43).

Press and hold either of the EDIT SEARCH buttons (REV or FWD)

The tape is moved in reverse or forward search mode for as long as you hold down the REV or FWD button, and the image is shown in the viewfinder.

To change the playback speed

Press the REV or FWD button down firmly into the inner position to make the tape move at the faster speed. Press the button down lightly to make the tape move at the slower speed.

Note

Do not shut off the camera head’s power while using the edit search function. The DSR-1/1P may not be able to find the continue point.

REV button

FWD button

Chapter 3 Shooting

Release the REV or FWD button when you find the tape location where you wish to continue shooting.

The DSR-1/1P enters recording pause mode.

Press the VTR button on the camera head or the lens.

The DSR-1/1P starts recording.

Using the Freeze Mix Function

The freeze mix function superimposes a freeze-frame image of a previously recorded shot on the shooting image displayed on the viewfinder screen. You can use this function to easily frame a subject within the same framework from a previous shot.

Note

When the camera head is in EZ mode, the freeze mix function is disabled. Release the EZ mode beforehand.

(See page 14.)

Dock the DSR-1/1P to the camera head and connect a color monitor to the MONITOR OUT connector.

Perform steps 2 to 10 from “Basic Procedure for Shooting” (page 43).

Play back the tape on which the image to be used for framework alignment has been recorded.

For playback operation, refer to the operating instructions for the DSR-1/1P.

Press the MENU/STATUS switch down.

The following indication appears on the screen.

PLAY    

FREEZE MIX(ONcv)      EXIT MENU (YES

Press the UP/ON button when you see the image you want to freeze.

The frozen playback image is displayed, mixed with the shooting image, in monochrome. The indication “FREEZE MIX ON” appears on the screen.

 FREEZE MIX ON          MIX OFF (YES

To release the freeze mix mode, press the UP/ON button again.

To change the freeze-frame image

Press the DSR-1/1P’s PLAY button. This returns to the screen shown in step 3 above, and color playback mode begins.

Use the DSR-1/1P’s tape transport buttons to find the desired image and then perform steps 4 and 5 again.

Once you have framed your subject, press the UP/ ON button to cancel the freeze function.

Find the recording start point or insert a new cassette for recording, then begin recording.

Note

If you use the DSR-1/1P’s tape transport buttons during back space editing, the back space editing mode will be stopped. When you were using the ClipLink function when shooting, If you simply restart the recording you will lose any ClipLink data that was recorded. To avoid this, press the DSR-1/1P’s ClipLink CONTINUE button before restarting recording.

For details, see the operating instructions for the DSR-1/1P.

DXC-D35P/D35WSP(CE) V1

1-25

1-26

Chapter 4 Viewfinder Screen Indications and Menus

Chapter

Viewfinder Screen Indications and Menus

Viewfinder Screen Indications

There are four types of indication screen which appear in the viewfinder, as follows.

•Normal indications

These show the operating state of the camera and connected VTR. (See page 54.)

•Status indications

Pressing the MENU/STATUS switch up while the normal indications are present calls a display of current settings. (See page 57.)

•Basic menu

These provide settings for the lens iris, shutter speed and so forth, and also a titling screen. (See the

section “Viewfinder Basic Menu” page 58.)

•Advanced menu

These provide settings for the center marker, zebra pattern, viewfinder screen indications, and so forth.

(See the section “Viewfinder Advanced Menu” page

64.)

Changing the Viewfinder Display

Use the buttons and switches shown in the following figure to switch the viewfinder display among the normal indications, basic menu pages and advanced menu pages.

Displaying the normal indications and switching to the basic menu

To display the normal indications, move the POWER switch to the ON position. To switch to and from the basic menu, use the MENU/ STATUS switch.

STATUS

DOWN/OFF button

UP/ON button

MENU/STATUS switch

POWER switch

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

Displaying the advanced menu and switching to the normal indications

Use the following procedure to display the advanced menu. 1 Move the POWER switch to the ON position while

holding down the UP/ON button to display the advanced menu selection screen.

2 To display advanced menu page 2

immediately, move the cursor to the menu

number and then press the DOWN/OFF button.

To reinitialize all settings in the advanced menu to their factory defaults

1 Align the cursor to ALL RESET and press the UP/

ON button. (The indication changes to “ALL RESET SURE?”.)

2 Press the UP/ON button again. (The indication

changes to “ALL RESET OK” and reinitialization completes.) To cancel the reinitialization, move the cursor instead of pressing the UP/ON button.

Display by moving the POWER switch to the ON position.

Normal indications

Page 1

Page 2

Page 8

Switch by pressing the MENU/STATUS switch up.

Switch by pressing the MENU/STATUS switch down.

Basic menu

Display by holding the MENU/STATUS switch up while the normal indications are present.

a) The menu configuration differs according to the camera

head’s switch settings, the connected VTR, and the type of input signal. An eight-page configuration results when all of the basic menu pages are displayed.

  

TITLE IND?

(YEScv)

       

   

A.IRIS : ± 0 DTL LEV: ± 0 M.BLACK: ± 0 STRETCH: ± 0 SHUTTER: OFF

   

SKIN DTL: OFF DL LEV : STD PRE.WHT : 3200

REC

TAKE

TCG 12:34:56:00



W:A NG CLIPM



198

F5.6

0dB

56ND :LOW LIGHT 99 04 01 SS :1/100 10:00

    WHITE : AUTO/A A.IRIS: STD FILE : STD DCC+ : OFF   SS :OFF BATT:13.0V

Status indications

Viewfinder Screen Indications

Chapter 4 Viewfinder Screen Indications and Menus

 cPAGE 1(NEXTcVPREVcv)  ALL RESET (YEScv)        EXIT MENU (YEScv)

 PAGE 1(NEXTcV PREVcv)  cALL RESET SURE?  (YEScv)      EXIT MENU (YEScv)

 cPAGE15(NEXTcV PREVcv)  SETUP NAVI CAMERAcTAPE STORE DATA (YEScv)     EXIT MENU (YEScv)

 cPAGE2 (NEXTcV PREVcv)  GAIN HIGH: 18dB  MID : 9dB  LOW : OdB  DL : ON   EXIT MENU (YEScv)

 cPAGE3 (NEXTcV PREVcv)  AWB MEM : 2 TONE : OFF  BARS : SMPTE  REMOTE1 : REC REMOTE2 : MARK BAUD RATE: 9600  EXIT MENU (YEScv)

 PAGE1 (NEXTcV PREVcv)  cALL RESET OK!        EXIT MENU (YEScv)



TCG 12:34:56:00 

W:A  CLIPM



198

F5.6

0dB

3200 99 04 01 SS :1/100 10:00

a) Set the cursor to the page number and press the UP/ON or

DOWN/OFF button.

b) The menu configuration differs according the camera head’s

switch settings, the connected VTR, and the type of input signal. A 15-page configuration results when all of the advanced menu pages are displayed.

c) Set the cursor to EXIT MENU and press the UP/ON button.

Move the POWER switch to the ON position with the UP/ON button held down

UP/ON button

Align the cursor to ALL RESET and press the UP/ON button.

Confirmation screen

DOWN/OFF button

UP/ON button

Normal indications

UP/ON button

UP/ON or DOWN/ OFF button

page 3

page 2

page 15

UP/ON button

DOWN/OFF button

UP/ON or DOWN/ OFF button

Advanced menu page 1

UP/ON button

Press the UP/ ON button.

Move the cursor.

DXC-D35P/D35WSP(CE) V1

1-27

1-28

Chapter 4 Viewfinder Screen Indications and Menus

Viewfinder Normal Indications

During normal operation, the following items can be indicated in the viewfinder.

The significance of each of the indications shown in the figure is as follows.

1 VTR operation status indication

This indicates the VTR’s current operation status (REC, PLAY, etc.).

2 TAKE/CUE indication

This displays a TAKE or CUE indicator when using the ClipLink function and recording with the DSR-1/ 1P.

TAKE: When recording in Mark mode, this

indication appears when a Mark IN point is set and disappears when the next Mark OUT point is set.

CUE: When recording in Cue mode, this indication

appears for about 1 second when a cue point is set.

3 Recording time or time data indication

This shows the following values.

•When the REC TIME switch on the camera is in the TTL position: The total recording time

•When the REC TIME switch on the camera is in the DUR position: The duration of the current recording cut

•With a VTR connected, when the REC TIME switch on the camera head is in the OFF position and the item TC IND in advanced menu page 6 is set to “ON”: A time data value from the VTR depending on the DISPLAY switch settings on the VTR as shown in the following table

When using the DSR-1/1P, time data values appear during playback, fast forward, rewind, or recording review.

4 NG indication

An “NG” (No Good) indicator appears if you designate a recorded scene as “NG” when using the ClipLink function and recording with the DSR-1/1P.

REC TAPE NEAR END  TAKE

TCG 12:34:56:00 



W:A

NG AUTO BLACK

SKIN

CLIPM

-OK-

EVS

198

F5.6

DRP 18dB

EZ FOCUS

56ND :LOW LIGHT 99 04 01 SS :1/100 10:00

AM

30-25 BATT:14.4V

a) Displayed only when a DSR-1/1P is connected. b) Displayed only when a PVV-3/3P is connected. c) Whether or not to display can be selected by menu setting. d) This is recorded over the picture being shot.

qd VTR warning indication

a), b)

qh EVS indication qj Lens f-stop indication

qk Gain indication

ql Filter setting indication

w; Clock indication

a), b), c), d)

wa Voltage/error indication ws Shutter setting indication

qf White balance indication

qg SK/N DTL indication

1 VTR operation status indication

a), b)

2 TAKE/CUE indication

3 Recording time or time data

indication

a), b), c)

4 NG indication

5 Clip mode indication

6 Clip remaining

indication

7 Status display area 8 EZ FOCUS indication

9 LOW LIGHT indication

0 Camera microphone output

indication

qa Audio recording level indicators

a), b), c)

qs Tape remaining indication

a), b), c)

DISPLAY switch setting

Time data displayed

COUNTER CNT: Tape transport time TC TCG: a time code from the time code

generator

TCR: a time code from the time code

reader

UBG: a user bit value from the user

bit generator

U-BIT

Chapter 4 Viewfinder Screen Indications and Menus

5 Clip mode indication

A “CLIP M” or “CLIP C” indication appears when you use the ClipLink function and record using the DSR-1/1P.

CLIP M: Indicates shooting in Mark mode CLIP C: Indicates shooting in Cue mode

6 Clip remaining indication

The number of available index pictures remaining is displayed when you use the ClipLink function with the DSR-1/1P.

7 Status display area

One of the following values or messages is displayed to indicate the camera head’s current status or its operation status.

•New values when changing camera head’s settings

•Messages indicating progress or results of adjustments

•The camera head’s current settings

•SetupLog data recorded to tape during shooting (see

page 78)

Note

The status indication is not shown while the EZ FOCUS indication 8 appears.

8 EZ FOCUS indication

This appears when the EZ FOCUS button is pressed, enabling the “easy focus” function.

9 LOW LIGHT indication

This warning appears if the lighting level is inadequate.

0 Camera microphone output indication

This appears when there is an input from the camera microphone.

Note

This indication serves as a check on whether the camera microphone is operating correctly, but it does not provide confirmation that the VTR is recording sound. Check that the audio recording levels on the VTR are set correctly.

qa Audio recording level indicators

These show the recording levels of audio channels 1 and 2 on the VTR.

qs Tape remaining indication

This shows the tape remaining in the VTR as follows.

qd VTR warning indication

This shows warning indications about operation or status of the connected VTR.

When connecting the DSR-1/1P or PVV-3/3P

Channel 1

Channel 2

–20 dB –

∞

+3 dB

0 dB

–2 dB

PVV-3/3P DSR-1/1P

Indication Tape remaining

F-30 At least 30 minutes 30-25 25 - 30 minutes 25-20 20 - 25 minutes 20-15 15 - 20 minutes 15-10 10 - 15 minutes 10-5 5 - 10 minutes 5-0 2 - 5 minutes 5-0 (flashing) 0 - 2 minutes

Indication

Meaning

NO TAPE There is no tape loaded. REC INHIBIT

The tape is in the recording inhibited state.

LOW BATT.

The battery is almost exhausted.

BATT. END

The battery is exhausted. TAPE NEAR END The tape is near the end. TAPE END The tape is at the end. CHECK REMOTE

(PVV-3/3P only)

A device other than a remote control

unit (e.g. headphones) is connected to

the REMOTE connector. SERVO The servo lock has been lost. HUMID

SLACK OXIDE TAPE

(PVV-3/3P only)

An oxide tape has been loaded. (The

tape is automatically ejected.)

There is condensation.

The video heads are clogged, or there

is some other fault in the recording

system.

The tape is not wound properly.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

Only when connecting the DSR-1/1P

qf White balance indication

The following indications appear.

qg SKIN DTL indication

This appears when the skin detail function is activated (The SKIN DTL switch is set ON.)

qh EVS indication

This appears when the EVS (Enhanced Vertical definition System) function is enabled. (See page 84.)

qj Lens f-stop indication

This shows the f-stop of the lens.

Note

Depending on the lens being used, this indication may differ slightly from the actual f-stop on the lens.

qk Gain indication

This shows the gain value, and the settings of the HYPER GAIN switch and the DPR (Dual Pixel Readout) function (see page 64) as shown in the following table.

ql Filter setting indication

This shows the setting of the FILTER control.

w; Clock indication

The clock indication is shown in one of the following ways (according to the CLOCK IND setting of CAM, BARS, or OFF in advanced menu page 8).

CAM: Always displayed. BARS: Displayed whenever color bars are

displayed.

OFF: Not displayed.

If the clock indication is displayed during recording, it is recorded onto the image.

Indication

Meaning

50P CONNECT Connection with the PRO 50-pin

connector on the DSR-1/1P. (Freeze mix function is disabled.)

MP TAPE An incorrect type of cassette has

been loaded. (The cassette is automatically ejected and the indication disappears in about two seconds.)

CLIP DATA ERR Abnormality of the cassette memory

data.

AUDIO 48kHz? (4 flashes/s)

At back space editing, audio recording mode has changed from 32 kHz mode (4-channel mode) to 48 kHz mode (2-channel mode).

AUDIO 32kHz? (4 flashes/s)

At back space editing, audio recording mode has changed from 48 kHz mode (2-channel mode) to 32 kHz mode (4-channel mode).

ERROR:91-13F Failure in loading or saving the

cassette memory data. When other error indication appears, refer to the operating instructions for the DSR-1/1P.

CLIP CONT?

Asking whether you will continue shooting in ClipLink mode or not when the cassette contains ClipLink data. (The indication disappears when you press the ClipLink CONTINUE button on the DSR-1/ 1P or start the next shooting without pressing it.)

CLIP NEAR END

CLIP END Impossible to record any more clip

shots.

At back space editing in ClipLink mode, capacity for only 1 to 3 index pictures remains.

Indication Meaning

EZ Operating in EZ mode (The ATW function is

selected.)

ATW The ATW function is selected. (The ATW

button was pressed and the indicator is lit.) W:A White balance memory A is selected. W:B White balance memory B is selected. W:P Preset white balance is selected. W:M Manual adjustment is performed remotely.

Example indication Meaning

18dB Gain setting is 18 dB. DPR 18dB The DPR function is enabled.

In this case the DPR function approximately doubles the gain (an increase of 6 dB) over the current gain setting (in this case 18 dB).

HYPER The HYPER GAIN switch is in the

ON position. In this case the hyper gain function increases the gain by a factor of about 60 or 120 with respect to 0 dB regardless of the current gain setting (that is, increased to 36 or 42 dB).

Indication Filter setting

3200 1 (3200K) 56ND 2 (5600K +

/8ND) 5600 3 (5600K) 56ND 4 (5600K +

/64ND)

Viewfinder Normal Indications

Chapter 4 Viewfinder Screen Indications and Menus

wa Voltage/error indication

The current voltage is displayed whenever the camera head’s power supply voltage dips below 11.0 V DC. However, you can also display the current voltage at any time by pressing and holding the MENU/STATUS switch in the upward position (the display is shown for as long as you hold the switch upward). An error message is displayed when an abnormality has been detected by the auto diagnostic function

(page 62).

If an error message appears, contact your Sony dealer.

If using a VTR and an Anton Bauer Intelligent Battery System

The remaining battery capacity is shown as a percentage.

ws Shutter setting indication

When the SHUTTER switch has been set to ON, the shutter speed, CLS frequency or EVS set in basic menu page 1 is displayed here.

Status Indications

If you set the MENU/STATUS switch to STATUS while a menu is being displayed, the camera head’s current setting status will be shown in this display area.

a) When both the DCC+ and DynaLatitude

functions are set to OFF

Display

Description

WHITE White balance adjustment method

selection (PRE/A/B) and color temperature during auto white balance adjustment

A.IRIS

FILE STD (when not using the setup files),

or a selected file name (when using the setup files) (see page 71).

Iris adjustment method selection (STD/SPOT L/BACK L)

For DCC+ indication: ON with the OUTPUT/DL/DCC+ switch set to CAM/DCC+ (DCC+ON), and OFF with the switch set to CAM/DL and DL in advanced menu page 2 (page 64) set to OFF (both DCC+ and DynaLatitude OFF). For DL indication: When setting the OUTPUT/DL/DCC+ switch to DL and DL in advanced menu page 2 to OFF (DynaLatitude OFF), LOW, STD or HIGH is displayed according to DL LEV setting in basic menu page 2 (page 59).

DCC+ or DL

DXC-D35P/D35WSP(CE) V1

1-29

1-30

Chapter 4 Viewfinder Screen Indications and Menus

Viewfinder Basic Menu

To display the basic menu pages, press the MENU/ STATUS switch downward while the normal indications are being shown in the viewfinder. The basic menu configuration can include up to eight pages (the configuration depends on the switch settings and the type of connected VTR).

Basic Menu Operations

The common operations on all basic menu pages are described below.

To change the page or item

The cursor is moved downward each time you press the MENU/STATUS switch down. Once the cursor has reached the last item on a page, press down the MENU/STATUS switch to go to the next page. When the last page is being displayed, pressing down the MENU/STATUS switch returns the display to the normal indications. The cursor is moved upward each time you press up the MENU/STATUS switch. Once the cursor has reached the first item on a page, pressing up the MENU/STATUS switch returns the display to the normal indications.

To change settings

After using the MENU/STATUS switch to move the cursor to the item on which you will change the setting, press either the UP/ON button or the DOWN/ OFF button to select the desired value. To reset any item to its shipped settings, press the UP/ ON button and the DOWN/OFF button at the same time.

Contents and Settings of Each Page

Each page’s contents and settings are described below.

On the DXC-D35WSL/D35WSPL, when the MENU MODE is set to 2 in advanced menu page 9, a page for aspect ratio settings (16:9/4:3) is added before basic menu page 1.

Basic menu page 1

Item

Settings

A. IRIS

Sets a base value for auto adjustment of lens iris.

–1.0, –0.5, ±0 (normal value), +0.5, +1.0

Negative adjustment values set a narrower lens iris and positive values set a wider lens iris.

DTL LEV

Sets the detail (edge) emphasis.

–99 to ±0 (normal value) to +99

Negative adjustment values soften the image’s edges and positive values sharpen them.

M. BLACK

Sets the master pedestal level.

–99 to ±0 (normal value) to +99

Negative adjustment values make dark areas of the picture darker and increase the contrast. Positive adjustment values dark areas of the picture lighter and reduce the contrast.

DXC-D35/D35WSL: 1/100 (normal

value), 1/250, 1/500, 1/1000, 1/ 2000, EVS, CLS (60.4 Hz to 200.3 Hz)

DXC-D35P/D35WSPL: 1/60 (normal

value), 1/250, 1/500, 1/1000, 1/ 2000, EVS, CLS (50.3 Hz to 201.4

Hz) This selects either the shutter speed or the scan frequency or EVS for the clear scan function.

STRETCH

Sets black stretch/ compress value.

–16 to ±0 (normal value) to +15

This function adjusts the intensity of dark areas of the screen. Negative values make these areas darker (black compress) and positive values make these areas brighter (black stretch).

SHUTTER

Sets shutter speed or CLS/EVS setting

(see page 84)

Chapter 4 Viewfinder Screen Indications and Menus

Basic menu page 2

Basic menu page 3

This is displayed when the SET UP switch has been set to FILE.

For details of this operation, see “Setup Files” (page 71).

Basic menu page 4

This menu is displayed only when an external sync signal is input to the camera adaptor or VTR connected to the camera head.

a) This applies when using an external sync signal to

synchronize operation of several cameras (see page

39).

Basic menu page 5

Item Settings SKIN DTL

Sets the amount of skin detail correction.

0.0 (normal value) to 1.0

Smaller values set a softer skin detail.

LOW, STD (normal value), HIGH

Set the amount of DynaLatitude effects as high level, standard level (STD), or low level.

DL LEV

Sets the DynaLatitude level.

PRE.WHT

Sets the color temperature of the preset white balance.

When the FILTER control is set to 1 (3200K): 2200 to 3200 (normal value)

to 4300

When the FILTER control is set to 2 (5600K +

/8 ND), 3 (5600K) or 4

(5600K +

ND): 4600 to 5600

(normal value) to 12000

Item Settings SC PHASE

Sub carrier phase adjustment for when camera is genlocked.

000 (normal value) to 999

H PHASE

Horizontal phase adjustment for when camera is genlocked.

000 to 135 (normal value) to 199

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

Setting the recording time in seconds

Move the cursor to DUR TIME, then press the UP/ON button or DOWN/OFF button.

A value of seconds is displayed under “SS”.

Basic menu page 6

The following display is shown when the DSR-1/1P is connected.

To set the cassette name/number (when using DSR-1/1P)

Connect the DSR-1/1P and load a cassette.

Press the MENU/STATUS switch to move the cursor to CHG REEL NO, then press the UP/ON button.

The cursor (→) changes to the text entry arrow (↓) and the current cassette name/number is displayed. (“NO TAPE” is displayed if you neglected to load a cassette.)

Item Settings MARKER

Sets MARKER display ON/OFF.

ON (normal value), OFF

MARKER is displayed when this setting is ON and is not displayed when it is OFF. When the setting is ON, go to Advanced Menu 4 to select the type of marker

(see page 65)

DUR TIME

Sets the recording time Setting the recoriding time before shooting helps you with making scenes of equal duration. When shooting with displaying the recording time of the current cut in the viewfinder (with the REC TIME switch set to DUR), the recording time indication flashes to remind you that the recording time has passed.

00:00 to 59:59 (minute to second)

See “Setting the recording time in seconds” below.

Item

Settings

MARK/CUE

Selects MARK mode or CUE mode

MARK (normal value), CUE

See “Using the ClipLink Function” (page 46).

CHG REEL NO

Sets the cassette name/number

See “To set the cassette name/ number” below.

Current cassette name/number

Viewfinder Basic Menu

Chapter 4 Viewfinder Screen Indications and Menus

Press the MENU/STATUS switch to move the text entry arrow.

Press the MENU/STATUS switch upward to move the cursor to the right or downward to move it to the left. The character cycles through the following sequence.



Press the UP/ON button or DOWN/OFF button to enter the desired characters.

The displayed character changes each time the UP/ ON button is pressed. It changes in reverse order each time the DOWN/OFF button is pressed.

Return to step 2 and repeat the text entry procedure.

After completing text entry, move the text entry cursor to the parenthesis position.

The display changes as follows.

Check your cassette name/number setting, and press the UP/ON button if no more changes are required. (To make changes or to abort the procedure for this setting, return to step 2.)

This writes the new cassette name/number to the cassette memory, after which the display changes as follows.

Basic menu pages 7 and 8

You can create a title of up to four lines, each of twelve alphanumeric or punctuation characters, and then save it. It is then possible to record the title over the picture while shooting.

Entering the title (page 7)

Press the MENU/STATUS switch as necessary to display basic menu page 7 (title setting display) in the viewfinder.

If a title is already present, it appears on this screen. To delete the displayed title, press the UP/ ON and DOWN/OFF buttons simultaneously.

Press the UP/ON button. This brings up the cursor on the screen (flashing), and switches to title editing mode.

Press the DOWN/OFF button to move the cursor to the position where you wish to insert a character.

To move the cursor back

With the DOWN/OFF button held down, press the UP/ON button.

Initial cursor position

(continued)

(Space)

DXC-D35P/D35WSP(CE) V1

1-31

1-32

Chapter 4 Viewfinder Screen Indications and Menus

Press the UP/ON button to select the required character. Each time you press the UP/ON button, the character cycles through the following sequence.



To reverse the character sequence

With the UP/ON button held down, press the DOWN/OFF button.

Press the DOWN/OFF button to confirm the character selection. The cursor advances to the next character position.

To change a character after confirming it

Return to step 3, and input the character again.

Repeat steps 4 and 5 until the title is complete.

When the title is complete, press the MENU/ STATUS switch as necessary to return to the normal viewfinder indications. The title created is retained, even when you power the camera off.

To record a title (page 8)

Press the MENU/STATUS switch as necessary to access basic menu page 8 (title display).

Press the UP/ON button once.

The title is superimposed to the picture displayed on the viewfinder screen.

Start shooting.

To stop the title recording, press the MENU/ STATUS switch to clear the title display.

Note on using the CCU-M5/M5P Camera Control Unit

When the CCU-M5/M5P has a function switch setting of “TITLE ON”, the title display takes precedence, and the status display (see page 57) do not appear in the normal incidations. However, when you press the MENU/STATUS switch up, for as long as you hold it up the status indications appear in place of the title.

When “CHECK DIAG” is displayed

The “CHECK DIAG” indication appears in the status display area whenever the camcorder’s automatic self diagnostic function detects an abnormality. Access this page and perform error checking. (This page is displayed as basic menu page 1.) “CHECK DIAG” will also be displayed if there is a problem on the sync signal input to the GEN LOCK IN connector. Input a proper sync signal and then perform error checking.

To perform error checking

Press the UP/ON button.

The error checking performs on the digital signal processing (DSP) and memory circuits and the results are displayed. When no error is detected, “OK” appears.

Viewfinder Basic Menu

(Space)

Chapter 4 Viewfinder Screen Indications and Menus

Example: If an abnormality is detected in the DSP circuit.

    DIAGNOSIS  DSP : ERROR MEMORY: OK     DIAG ERROR

The error message “DIAG ERROR” appears when the normal indications are displayed. If this message appears, contact your Sony dealer.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

Viewfinder Advanced Menu

Bring up the advanced menu pages by setting the POWER switch to ON while pressing the UP/ON button up (see page 52). There are up to 15 advanced menu pages (the number displayed depends on the switch settings and the type of connected VTR).

Note on EZ mode

When the camera is in EZ mode, the advanced menu does not appear. Release the EZ mode beforehand.

(See page 14.)

Advanced Menu Operations

To change the page

Move the cursor to the menu number, then press the UP/ON button or the DOWN/OFF button.

Pressing the UP/ON button displays the previous page and pressing the DOWN/OFF button displays the next page. Pressing the DOWN/OFF button when the last page is being displayed returns the display to the first page.

To select items in a page

Press the MENU/STATUS switch to move the cursor among the menu items.

To change settings

This operation is the same as for the basic menus.

For a description of basic menu operations, see page 58.

To return to the normal indications

Move the cursor to EXIT MENU, then press the UP/ ON button.

Contents and Settings of Each Page

Each page’s contents and settings are described below.

Advanced menu page 1

Use this page to return all advanced menu settings to their factory preset values.

For details of this operation, see “Displaying the advanced menu and switching to the normal indications” (page 52).

Advanced menu page 2

Item

Settings

GAIN

This sets gain values for the positions of the GAIN switch. The HIGH, MID, and LOW values must be set so that LOW < MID < HIGH.

MID

Sets the M position.

0 dB, 3 dB, 6 dB, 9 dB (normal value), 12 dB, 18 dB, 18 dB + DPR, 24 dB, 24 dB + DPR

LOW

Sets the L position.

–3 dB, 0 dB (normal value), 3 dB, 6 dB, 9 dB, 12 dB, 18 dB, 18 dB + DPR, 24 dB

HIGH

Sets the H position.

3 dB, 6 dB, 9 dB, 12 dB, 18 dB (normal value), 18 dB + DPR, 24 dB, 24 dB + DPR, HYPER GAIN

HYPER

Sets gain value when the HYPER GAIN is selected.

36 dB (normal value), 42 dB

Sets DynaLatitude function ON/OFF. This setting is valid only when the OUTPUT/DL/ DCC+ switch has been set to DL.

ON (normal value), OFF

When set to ON, the amount of DynaLatitude effects is set in basic menu page 3

(see page 59).

Chapter 4 Viewfinder Screen Indications and Menus

Advanced menu page 3

a) For DXC-D35P/D35WSPL: EBU75

Item AWB MEM

Selects whether or not to make the FILTER knob settings (1 to 4) correspond to separate white balance adjustment values stored in memory.

2 (normal value): No correspondence with FILTER knob settings. Only two adjustment values (A and B) are stored in memory. 2 × 4FL: Correspondence with FILTER knob settings. Each of the four knob settings can be used to set A and B adjustment values, for a total of eight settings.

TONE

Selects whether or not to output a 1-kHz audio signal with the color bars when the OUTPUT/DL/DCC+ has been set to BARS.

ON (normal value): Output audio signal. OFF: Do not output audio signal.

BARS

Selects normal width or narrower width for color bars.

SMPTE (normal value for DXC-D35/D35WSL):

Normal width

EBU75 (normal value for DXC-D35P/D35WSPL): EBU

75%

EBU100 (for DXC-D35P/ D35WSPL): EBU 100% SPLIT (for DXC-D35P/ D35WSPL): Not for normal

operation SNG: Narrower than normal (used for satellite communications, etc.)

REMOTE1

Sets a function for position 1 of a switch connected to the REMOTE1 connector.

REC (normal value):

Specifies recording start/stop MARK: Specifies a Mark IN/ OUT point.

CUE: Specifies a cue point. NG: Specifies NG/OK.

REMOTE2

Sets a function for position 2 of a switch connected to the REMOTE1 connector.

9600, 38400 (normal value)

REC: Specifies recording

start/stop.

MARK (normal value):

Specifies a Mark IN/OUT point.

CUE: Specifies a cue point NG: Specifies NG/OK.

Settings

BAUD RATE

Sets a baud rate for a computer connected to the REMOTE connector 2 (to be supported in future version).

Advanced menu page 4



PAGE4 (NEXTcV

PREVcv

)  MARKER : CENT/90% LIMITS : OFF ZEBRA : 1  ZEBRA1 : 70IRE  VF S DTL: ±0 VF TALLY:

2 VF PLAY : Y LENS SEL: 1  EXIT MENU (YES



a) For DXC-D35P/D35WSPL: 70%

Item MARKER

Selects ON/OFF setting for center marker, size setting (percentage of viewfinder screen area), and display ON/OFF setting.

CENT/90% (normal value):

Displays center marker and safety zone marker at 90% size. CENT/80%: Displays center marker and safety zone marker at 80% size. 90%: Displays only safety zone marker at 90% size. 80%: Displays only safety zone marker at 80% size. CENT: Displays only center marker.

ZEBRA

Selects type of zebra pattern display.

1 (normal value): Displays the zebra pattern over parts having a video level. between 70 and 90 IRE (or 70 and 90%). Use the next item (ZEBRA1) to select the base level. 2: Displays the zebra pattern over parts having video levels of 100 IRE or above ( or 100% or above). 1/2: Dual display (both 1 and 2)

ZEBRA1

Sets base level for zebra pattern 1.

70 IRE (normal value) to 90 IRE or 70% (normal value) to 90%

Can be set for each IRE step or 1% step.

VF S DTL

Sets the detail level of images on the viewfinder screen (displayed only when a viewfinder other than the DXF-701/701CE/701WS/ 701WSCE/801/801CE is attached).

–99 to ±0 (normal value) to +99

Negative values set softer edges and positive values set sharper edges.

Settings

(continued)

LIMITS (For DXC-D35WSL/ D35WSPL) Selects the safety zone size when the scan size is 16:9.

OFF (normal value):FDepends on the

scan size.

4:3, 13:9, 14:9, 15:9

DXC-D35P/D35WSP(CE) V1

1-33

1-34

Chapter 4 Viewfinder Screen Indications and Menus

Item

Settings

×1: Uses only the upper REC/TALLY indicator. ×2 (normal value): Uses two REC/TALLY indicators.

VF TALLY

Selects whether or not to use more than one REC/TALLY indicators in the viewfinder (displayed only when the DXF-701/701CE/701WS/ 701WSCE/801/801CE viewfinder is attached).

VF PLAY

Selects the video signal displayed in the viewfinder during playback of the DSR1/1P (displayed only when the DSR-1/1P is connected)

Y (normal value): Y signal VBS: Composite video

signal

LENS SEL

Selects the types of the lens.

1 (normal value), 2, 3, 4

For details, see “Designating the lens” on page 90.

Advanced menu page 5

Item

Settings

SS IND

Selects the mode for showing the shutter setting when displaying the normal indications.

3SEC: Displays shutter setting for three seconds only when the setting has been changed.

ALWAYS (normal value):

Displays the shutter setting at all times.

LL IND

Selects whether or not to show the LOW LIGHT indication on the normal indications when inadequate lighting is detected.

ON (normal value):

Displays.

OFF: Not display.

MIC IND

Selects whether or not to show the camera microphone output indication on the normal indications.

ON (normal value):

Displays.

OFF: Not display.

IRIS IND

Selects whether or not to show the lens’s F-stop value (iris indication) on the normal indications. The Fstop value is always displayed when in EZ mode.

ON (normal value):

Displays. OFF: Not display.

a) When the viewfinder’s DISPLAY switch is set to OFF,

indications related to these items are not displayed even when menu settings are set to ON.

GAIN IND

Selects whether or not to always show the gain setting indication on the normal indications.

ON (normal value): Always displays. OFF: displays for two seconds only when the setting has been changed.

FILTER IND

Selects whether or not to always show the FILTER knob setting indication on the normal indications. The FILTER knob setting indicator is always displayed when in EZ mode.

ON (normal value): Always displays. OFF: Displays for two seconds only when the setting has been changed.

Item

Settings

WHITE IND

Selects whether or not to show the setting of the white balance switch.

ON (normal value): Displays. OFF: Not display.

SKIN IND

Selects whether or not to show the setting for skin detail correction.

ON (normal value): Displays. OFF: Not display.

Advanced menu page 6

a) When the viewfinder’s DISPLAY switch is set to OFF,

indications related to these items are not displayed even when menu settings are set to ON.

Item Settings AUDIO IND

Selects whether or not to show the audio level indication on the normal indications (valid only when the DSR-1/1P or PVV-3/3P is connected).

ON (normal value):

Displays.

OFF: Not display.

TAPE IND

Selects whether or not to show the VTR’s remaining tape indication on the normal indications. (valid only when the DSR-1/1P or PVV-3/3P is connected).

ON (normal value):

Displays.

OFF: Not display.

Viewfinder Advanced Menu

Chapter 4 Viewfinder Screen Indications and Menus

a) When the viewfinder’s DISPLAY switch is set to OFF,

indications related to these items are not displayed even when menu settings are set to ON.

To set the camera ID

Press the MENU/STATUS switch to move the cursor to ID SET.

The cursor (→) changes to the text entry arrow (↓).

Press the MENU/STATUS switch to move the text entry arrow.

Press the MENU/STATUS switch upward to move the cursor to the right or downward to move it to the left.

Press the UP/ON button or DOWN/OFF button to enter the desired characters.

The displayed character changes each time the UP/ ON button is pressed. It changes in reverse order each time the DOWN/OFF button is pressed.

Return to step 2 and repeat the text entry procedure.

TC IND

Selects whether or not to show the time data indication on the normal indications (valid only when the DSR-1/ 1P or PVV-3/3P is connected).

ON (normal value):

Displays.

OFF: Not display.

ID IND

Selects whether or not to display the camera ID when displaying color bars.

ON (normal value):

Displays.

OFF: Not display.

ID SET

Sets the camera ID (up to eight characters, including alphanumerics, symbols, and spaces).

See “To set the camera ID”

below.

Item Settings

Current camera ID

When you have finished entering the text, move the cursor to the parenthesis position.

This clears the displayed menu and returns to the normal indications.

Advanced menu page 7

a) At shipping, the EZ MODE is set to STD.

Item

Settings

EZ MODE

When the EZ MODE button has been set to EZ mode ON, this selects whether or not to change the settings of other switches and menus to the standard settings. (The EZ mode function cannot be used during remote operation.)

STD (normal value):

Changes settings to standard settings. CUSTOM: Changes only some settings to standard settings.

For details of the settings when STD or CUSTOM is specified, see “EZ mode settings” on next page.

A.IRIS-AGC

Selects auto iris adjustment which sets an F-stop value that can be switched to AGC (displayed only when the EZ MODE is set to CUSTOM).

F1.8, F 2.8 (normal value), F4, F5.6

A.IRIS-AE

Selects auto iris adjustment which sets an F-stop value that can be switched to AE (displayed only when the EZ MODE is set to CUSTOM).

F5.6 , F8, F11, F16 (normal value)

0 dB, 3 dB, 6 dB, 9 dB, 12 dB (normal value)

AGC LIMIT

Sets an upper limit value for AGC adjustment (displayed only when the EZ MODE is set to CUSTOM).

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

EZ mode settings

The following settings are set for the camera head when EZ mode has been selected.

Advanced menu page 8

Item

Setting STD CUSTOM

Setup file STD

Selectable Detail level ±0 Selectable Master black ±0 Selectable Black stretch ±0 Selectable Skin detail OFF OFF Shutter OFF (AE mode) OFF (AE mode)

ATW

Iris control method

Freeze mix OFF OFF Gain AGC mode AGC mode Hyper gain OFF OFF

Automatic Automatic

Auto iris control mode

STD STD

Iris override ±0 Selectable Color bar output Not output Not output AGC upper limit 12dB Selectable AGC’s F stop value F2.8 Selectable AE’s F stop value F16 Selectable

ON DynaLatitude OFF DCC+ F-stop value

indication

ON OFF

Filter indication Clock indication

ON ON

OFF OFF

Advanced menu page 9



PAGE9 (NEXTcV

PREVcv

)  16:9/4:3 : 16:9 WIDE ID : ON  VF SCAN : AUTO MENU MODE: 1     EXIT MENU (YES

cv)

a) Compared to 16:9 mode, the 4:3 mode video appears as

if a zoom lens has been adjusted slightly toward the telephoto end (see figure on page 70).

b) When the camera is in 16:9 mode, the viewfinder picture

appears stretched vertically (see figure on page 70).

Item Setting CLOCK IND

Selects whether or not to display the date/time on the normal indications.

OFF (normal value): Not display.

CAM: Displays. BARS: Displays only when

color bars are displayed.

CLOCK SET

Sets date/time.

See “Setting the Clock and Timestamping Recordings” (page 86).

Item

Settings

16:9/4:3

Selects whether to put the camera in 16:9 mode or 4:3 mode.

16:9 (normal value) 4:3

WIDE ID

Selects whether or not to add a wide aspect ID signal to video output signals in 16:9 mode.

ON (normal value): Adds. OFF: Does not add.

VF SCAN

Selects 16:9 or 4:3 as the viewfinder scan size when using the supplied DXF-801/801CE Viewfinder.

AUTO (normal value):

Automatically switch to 16:9 size when the camera is in 16:9 mode, and automatically switch to 4:3 size when the camera is in 4:3 mode.

FULL: Regardless of camera’s mode (16:9

or 4:3), the viewfinder picture completely fills the display area.

MENU MODE

Selects whether or not switch the mode (16:9/ 4:3) on the basic menu.

1 (normal value): Selects the 16:9 or 4:3 mode only with the advanced menu. 2: Selects the 16:9 or 4:3 mode with both the basic and advanced menus.

Viewfinder Advanced Menu

Chapter 4 Viewfinder Screen Indications and Menus

Advanced menu pages 10 to 13

These pages are displayed only when the SET UP switch has been set to FILE.

For details of this operation, see “Setup Files” (page 71).

Advanced menu pages 14 and 15

These pages are displayed only when a DSR-1/1P has been connected and the SET UP switch is set to FILE.

For details of this operation, see “Using SetupNavi and SetupLog with the DSR-1/1P” (page 76).

DXC-D35P/D35WSP(CE) V1

1-35

1-36

Chapter 4 Viewfinder Screen Indications and Menus

Video Output and Viewfinder Picture (For DXC-D35WSL/D35WSPL)

Subject

/3-inch optics

4:3 effective area

16:9 effective area

Item Settings

16:9/4:3 16:9 VF SCAN AUTO

The camera outputs 16:9 video. The scan size of the viewfinder picture is 16:9 size.

Viewfinder picture

Item Settings

16:9/4:3 16:9 VF SCAN FULL

The camera outputs 16:9 video. The viewfinder picture is 16:9 video that has been stretched vertically to completely fill the display area.

Viewfinder picture

Item Settings

16:9/4:3 4:3 VF SCAN AUTO or FULL

The camera outputs 4:3 video that has been electronically extracted from the effective area of the 16:9 aspect ratio. Compared to 16:9 video, this video appears as if a zoom lens has been adjusted slightly toward the telephoto end. The picture in the viewfinder is 4:3 video, which completely fills the display area.

Viewfinder picture

Viewfinder Advanced Menu

The video output and viewfinder picture of this camera vary as shown below according to the settings of the 16:9/4:3 item and the VF SCAN item of the advanced menu page 9.

Chapter 4 Viewfinder Screen Indications and Menus

Setup Files

You can use setup files to reproduce a particular configuration of settings. You can also revise the contents of setup files. There are eight types of setup files, of which five are factory preset setup files and the other three are user files.

Calling up a Setup File

This describes how to call up a setup file and use it to replace the current menu settings.

Set the SET UP switch to FILE.

The camera head is set according to the currentlyselected file data.

Access basic menu page 3.

a)An asterisk (*) appears in front of any factory

preset file whose contents have been revised at least once.

SET UP switch

Current file

Selected file

Move the cursor to SELECT FILE and use the UP/ ON button or the DOWN/OFF button to select the desired file.

Press the UP/ON button or DOWN/OFF button repeatedly until the desired file name is displayed.

Move the cursor to CHG FILE and press the UP/ ON button.

The display changes as shown below and the selected file is called up.

You can also call up these files via a similar operation in advanced menu page 10. In this page, a file recorded onto a tape can also be called up (when using the DSR-1/1P).

For details, see “To call up files recorded onto a tape (when using the DSR-1/1P)” (page 72).

USER1 to USER3 User setup files (set to STD at

shipping)

File

Description

STD

Settings for shooting under standard conditions

HI SAT Settings for making pictures

vivid

FL Settings for shooting under

fluorescent lighting

FILMLIKE Settings for making pictures like

ones shot by film camera Settings to optimize camera

image for recording and playback characteristics of SVHS, VHS, or Hi-8 tape

SVHS/VHS

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

To call up files recorded onto a tape (when using the DSR-1/1P)

First, connect the DSR-1/1P to the camera head and load the cassette that contains the recorded files.

Set the SET UP switch to FILE.

Access advanced menu page 10.

Move the cursor to SELECT FILE and use the UP/ ON button or the DOWN/OFF button to select TAPE.

Move the cursor to CHG FILE and press the UP/ ON button.

The screen appears as shown below.

Press the UP/ON button to call up the file. To abort the call up operation, press the DOWN/OFF button (the display returns to the one shown in step

3).

During the call up operation, the following display appears.

When the call up operation ends, the display changes as shown below.

The settings of the camera head are now replaced by the settings in the called file.

Name of file recorded onto tape

Setup Files

Chapter 4 Viewfinder Screen Indications and Menus

Changing File Settings

When using advanced menu page 11 or 12, you can change the settings about picture quality in setup files. (In basic menu page 1, a part of items are changeable.) The changes are accepted only until another file is called up, after which the original settings are restored. If you save the changes, store the modified file as one of the user files or record it in a cassette. (See the

following section “Saving File Settings”.)

Perform the steps described in “To call up files recorded onto a tape (when using the DSR-1/1P)” above to call up the selected file.

Access advanced menu page 11 or 12.

a) An asterisk (*) appears in front of any factory preset

file whose contents have been revised at least once.

Make the desired changes.

Page 11

See “Basic menu page 1” (page 58).

Item

Settings

M.BLACK, STRETCH and DTL LEV

M.GAMMA

Adjusts the gamma curve.

V DTL LEV

Adjusts the vertical detail.

–99 to ±0 (normal value) to +99

DTL FREQ

Adjusts the central frequency of the detail.

LL, L, M (normal value), H, HH

–99 to ±0 (normal value) to +99

Currently selected file

Page 12

Saving File Settings

Files whose settings have been changed for certain shooting conditions can be saved as a user file or onto a tape (when using the DSR-1/1P).

For details, see “To save setup files to a tape (when using the DSR-1/1P)” (page 74).

Set the SET UP switch to FILE.

Call up a setup file whose settings approximate the desired shooting conditions and then change some of the settings.

For details of this operation, see “Calling up a Setup File” (page 71), “Changing File Settings” (in the left column on this page), “Basic Menu Operations” (page

58), and “Advanced Menu Operations” (page 64).

Item

Settings

SAT

Adjusts the saturation of the image.

–99 to ±0 (normal value) to +99

Negative adjustment values decrease the saturation and positive adjustment values increase the saturation.

HUE

Adjusts the hue of the image.

–99 to ±0 (normal value) to +99

SKIN SAT

Adjusts the saturation in the specified area of the image.

–99 to ±0 (normal value) to +99

Negative adjustment values decrease the saturation and positive adjustment values increase the saturation.

SKIN HUE

Adjusts the hue in the specified area of the image.

–99 to ±0 (normal value) to +99

SET UP switch

(continued)

DXC-D35P/D35WSP(CE) V1

1-37

1-38

Chapter 4 Viewfinder Screen Indications and Menus

Access advanced menu page 13.

a) An asterisk (*) appears in front of any factory

preset file whose contents have been revised at least once.

Move the cursor to DESTINATION FILE and repeatedly press the UP/ON button or the DOWN/ OFF button to select USER1, USER2, or USER3.

Press the UP/ON button to move the cursor to STORE FILE?.

The display changes as shown below.

Press the UP/ON button to store the file. To abort the save operation, press the DOWN/OFF button (the display returns to the one shown at step 4).

When the save operation is finished, the display changes as shown below.

To save setup files to a tape (when using the DSR-1/1P)

Connect the DSR-1/1P to the camera head and load the tape onto which the file will be recorded.

Perform steps 1 to 4 of “Saving File Settings” and select TAPE as the file saving destination.

Press the UP/ON button to move the cursor to STORE FILE?.

The display changes as shown below.

Currently selected file

File in which current settings are to be stored

Setup Files

Chapter 4 Viewfinder Screen Indications and Menus

Press the UP/ON button to store the file. To abort the save operation, press the DOWN/OFF button (the screen returns to the screen shown in step 2).

The tape automatically rewinds and recording starts. The display changes as shown below, which includes color bars. (“CAN NOT WRITE” appears on the screen if no tape is loaded or if the loaded tape is write-protected.)

After the settings are stored, the following display appears.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 4 Viewfinder Screen Indications and Menus

Using SetupNavi and SetupLog with the DSR-1/1P

The SetupNavi function records the setup menu and setup files onto a tape, so that the same settings can be called up and used again or copied to another camera. The SetupLog function records a camera settings every few seconds at shooting and displays the recorded data in the viewfinder during playback.

Note on using an RM-M7G Remote Control Unit

When an RM-M7G is connected to the camera head, you cannot use the SetupNavi function. To make it possible to use the function, power OFF the camera head after disconnecting the RM-M7G, then power ON the camera head again.

Setting up the Camera Using Data Recorded on Tape

The procedure to replace camera’s menu settings with settings recorded onto video tape is described here.

Connect the DSR-1/1P and insert the cassette onto which the data was recorded. Set the SETUP switch to FILE, then set the POWER switch to ON while holding down the UP/ON button.

Advanced menu page 1 appears.

Repeatedly press down on the MENU/STATUS switch until advanced menu 14 appears.

For details of menu operation, see “Advanced Menu Operations” (page 64).

”NO TAPE” is displayed if you neglected to load a cassette.

Press the UP/ON button to call up the data recorded on the tape. (Press the DOWN/OFF button to cancel).

The display changes as follows and the call up operation begins.

To abort the call up operation while in progress

Press the DOWN/OFF button.

The following display appears.

Press the UP/ON button.

After the data has been read, the following display appears.

The previous menu settings are overwritten by the data recorded on the tape.

Change the menu settings if necessary.

Name of data being called up

Chapter 4 Viewfinder Screen Indications and Menus

The cursor (→) changes to the text entry cursor (↓).

Enter a name for the data. Moving the text entry cursor: Press the MENU/

STATUS switch up to move the cursor to the right, and press the MENU/STATUS switch down to move the cursor to the left.

Selecting the character: Press the UP/ON or

DOWN/OFF button repeatedly until the desired character appears.

After completing text entry, move the cursor to the parenthesis position.

The display changes as follows.

Move the cursor to “SURE TO STORE?” and press the UP/ON button to record the menu settings onto the tape (press the MENU/STATUS switch to cancel).

The display changes as follows and the data recording begins.

Name of data being recorded

Recording the Menu Settings onto a Tape

Connect the DSR-1/1P and load the tape onto which the settings are to be recorded. Turn the camera power on.

Make your basic menu settings.

For details of this operation, see “Basic Menu Operations” (page 58).

Again, set the POWER switch to ON while holding down the UP/ON button.

Make your advanced menu settings.

For details of this operation, see “Advanced Menu Operations” (page 64).

Access advanced menu page 15.

“NO TAPE” appears if you neglected to load a cassette.

Press the UP/ON button.

The following display appears.

Set the cursor to “NAME SET” and press the UP/ ON button to record the menu setting onto the tape. (Press the MENU/STATUS switch to cancel.)

DXC-D35P/D35WSP(CE) V1

1-39

1-40

Chapter 4 Viewfinder Screen Indications and Menus

To abort the data recording while in progress

Press the DOWN/OFF button.

After the data has been recorded, the following display appears.

Viewing SetupLog Data

Connect the DSR-1/1P and load the tape that contains the recording to be viewed. Turn the camera power on.

Play back the tape.

For details of playback operation, see the operating instructions for the DSR-1/1P.

Press the MENU/STATUS switch up to the STATUS side.

The display changes to page 1 of the status display.

PLAY TCR 12:34:56:00

  SETUP LOG 1/3

W:A WHITE : A 3200 A.IRIS : STD FILE : STD

F5.6 DCC+ : ON

0dB



SKIN DTL : OFF

3200

Each time you press upward the MENU/STATUS switch, the status display cycles through the status pages and playback display in the order: page 2, page 3, the playback display (containing the current settings), and page 1.

Status display (page 2)

PLAY TCR 12:34:56:00

  SETUP LOG 2/3

W:A

A.IRIS : ± 0 DTL LEV : ± 0 M.BLACK : ± 0

F5.6

STRETCH : ± 0

0dB



SS :1/100

3200

Status display (page 3)

PLAY TCR 12:34:56:00

  SETUP LOG 3/3

W:A

M.GAMMA : ± 0 V DTL LEV: ± 0 DTL FREQ : M

F5.6

SKIN SAT : ± 0

0dB



SKIN HUE : ± 0

3200

SAT : ± 0 HUE : ± 0

Notes

•SetupLog data is not recorded while SetupNavi data or a setup file is being recorded onto a tape. (If you play back a tape containing SetupNavi data or a setup file, the data displayed in the setup display is not the SetupLog data of the playback picture.)

•In the following cases, changed settings that were not recorded may appear as blank settings. – SetupLog data is overwritten at intervals of a few

seconds during recording. If the settings are changed frequently for certain items, it may not always be recorded in time.

– If the recording time is very short, recording may

be ended before all of the data has been overwritten.

Settings during recording

Using SetupNavi and SetupLog with the DSR-1/1P

Chapter 5 Adjustments and Settings

Chapter

Adjustments and Settings

Make the following settings on the camera.

•POWER switch: ON SAVE

•OUTPUT/DL/DCC+ switch: one of the CAM positions

•Lens iris selector: A (automatic)

•ATW button: off

Set the FILTER control according to the lighting conditions. (See page 43.)

Set the W. BAL switch to A or B.

Adjusting the white balance ensures that as lighting conditions change white objects remain white in the image and tones remain natural. The color of light emitted varies from one light source to another, and as the lighting changes the apparent color of an illuminated subject changes. It is therefore necessary to adjust the white balance each time the principal lighting source changes.

Saving an Appropriate White Balance Value in Memory

You can save two white balance values in separate memories, A and B. Unless changed, the saved values are retained for approximately ten years, even when the camera is powered off. Once a value is saved, you can automatically restore the adjustment by moving the W. BAL switch to the A or B position. This makes shooting under alternating lighting conditions easy.

Separate white balance values for each FILTER control setting

In the default case, as described above, the same two A and B white balance values apply to all four settings of the FILTER control. It is possible, however, to change the AWB MEM menu setting is advanced menu page 3 (see page 65) so that there are eight possibly different values for the A and B positions and for the four FILTER control settings.

White Balance Adjustment

513

(continued)

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 5 Adjustments and Settings

Arrange a white subject (paper, cloth, etc.) under the same lighting conditions as for shooting, and zoom in on it so that as far as possible the whole screen is white. The minimum white area requirements for the adjustment are shown in the following figure.

Push the WHT/BLK switch in the WHT direction and release. The white balance adjustment is carried out. During the adjustment the legend “AUTO WHITE

-OP-” appears in the viewfinder. After a few seconds the adjustment is complete, and the legend in the viewfinder changes to “AUTO WHITE -OK-” plus a color temperature, as shown in the following figure.

AUTO WHITE

-OK-

3200K

The adjustment value is automatically saved in memory A or B as selected above.

To save the white balance adjustment for different lighting conditions, repeat steps 2 to 4 above. You can save two different values for the white balance, in memories A and B.

Note

When using a camera control unit or remote control unit, if the W/B BALANCE switch of the control unit is set to PRESET or MANUAL, it is not possible to carry out white balance adjustment on the camera.

To recall a white balance value from memory

Before beginning shooting, set the W. BAL switch to the A or B position. This automatically sets the camera to the white balance adjustment saved in the corresponding memory.

If white balance adjustment cannot be completed automatically

The warning message “AUTO WHITE -NG-” appears in the viewfinder. Make the necessary corrections, then carry out the process again.

Warning messages for white balance adjustment

White Balance Adjustment

Center of the screen

Area of white within this rectangle should be equivalent to at least 10% of the image area.

approximately 70% of the height of the image

approximately 70% of the width of the image

AUTO WHITE

-NG-

:C.TEMP.LOW

CHG.FILTER

TRY AGAIN

The color temperature is too low. Try the following, in this order of precedence. (1) If the FILTER control is in position 2,

3 or 4, change it to position 1, then retry the adjustment.

(2) Check that the subject is completely

white, then retry the adjustment.

(3) The color temperature may be

outside the range of the camera. Fit an appropriate color temperature conversion filter, then retry the adjustment.

AUTO WHITE

-NG-

:C.TEMP.HI

CHG.FILTER

TRY AGAIN

The color temperature is too high. Try the following, in this order of precedence. (1) If the FILTER control is in position 1,

change it to position 2, 3 or 4, then retry the adjustment.

(2) Check that the subject is completely

white, then retry the adjustment.

(3) The color temperature may be

outside the range of the camera. Fit an appropriate color temperature conversion filter, then retry the adjustment.

Message

Meaning and corrections to be made

AUTO WHITE

-NG-

:LOW LIGHT

TRY AGAIN

Light level is too low.

• Increase the illumination level, open the iris, or use the GAIN switch to increase the video signal level.

• Check the setting of the FILTER control.

• After these checks, retry the adjustment.

AUTO WHITE

-NG-

: ??

TRY AGAIN

The subject is not white, or the lighting level is too high.

• Use a white subject.

• Lower the illumination level, stop down the iris, or use the GAIN switch to decrease the video signal level.

• Check the setting of the FILTER control.

• After these checks, retry the adjustment.

Chapter 5 Adjustments and Settings

Using the Preset White Balance Settings

The camera provides two preset white balance settings, for instant shooting with approximately the correct adjustment. The preset white balance can be selected between 2200 K and 4300 K when the FILTER control is set to 1 and between 4600 K and 12000 K when the FILTER control is set to 2, 3 or 4 (see page 59). There are also particular shooting conditions under which the preset values may give better results than the human eye adjustment.

Set the W. BAL switch to PRESET.

Set the FILTER control.

The white balance is automatically adjusted for the preset white balance selected in basic menu page 2 (see page 59).

Light Sources and Color Temperature

Adjustment of the white balance to match the light source is essential to ensure correct color rendering. The color of a light source is indicated as a color temperature in kelvins (K). It is higher for bluish light, and lower for reddish light. When the camera is shipped it is adjusted for use with video lights (halogen lamps with a color temperature of 3200 K). For use with other light sources, therefore, adjustment is required. First use the FILTER control to set the approximate color temperature, then carry out white balance adjustment. The following table shows typical color temperature values for different light sources.

WHITE:PRESET

The W. BAL switch is in the PRESET position. Move the W. BAL switch to the A or B position.

The camera is outputting a color bar signal. Move the OUTPUT/DL/DCC+ switch to one of the CAM positions.

Message

Meaning and corrections to be made

BARS

Light source

Natural Artificial

Color temperature (K)

Clear sky 10,000 Light cloud 8,000 Cloudy or rainy

skies

Blue light 7,000

6,000

Fluorescent light (daylight white)

5,000

Direct sunlight, noon

Mercury lighting Fluorescent light

(white)

White light

One hour after

sunrise or

before sunset

Fluorescent light (warm white)

4,000

3,500 Studio lighting 3,200 Halogen lamps

and video lights

Yellow light 3,000

2,500

Thirty minutes after sunrise or before sunset

Incandescent lighting

Sodium streetlighting

Sunrise or sunset

Candlelight Red light 2,000

Color temperatures of different light sources

Using the ATW (Auto Tracing White Balance) Function

The ATW function continuously adjusts the white balance automatically to adapt to changes in lighting conditions.

Note

Depending on the shooting conditions, automatic adjustment may not necessarily give optimum results. For the best possible results, use the W. BAL switch.

To use the ATW function

Press the ATW button turning the indicator on. This activates the ATW function, and the ATW indication appears in the viewfinder. To disable the ATW function, press the ATW button again, turning the indicator off.

DXC-D35P/D35WSP(CE) V1

1-41

1-42

Chapter 5 Adjustments and Settings

If the ATW function does not operate correctly

A warning massage appears in the viewfinder as shown in the table below.

Message

Meaning and corrections to be made

If the FILTER control is in position 2, 3 or 4, change it to position 1, then retry the ATW operation.

:C.TEMP.LOW

If the FILTER control is in position 1, change it to position 2, 3 or 4, then retry the ATW operation.

:C.TEMP.HIGH

White Balance Adjustment

Chapter 5 Adjustments and Settings

Note

When using a camera control unit or remote control unit, if the W/B BALANCE switch of the control unit is set to MANUAL, it is not possible to carry out black balance adjustment on the camera.

If black balance adjustment cannot be completed automatically

The warning message “AUTO BLACK -NG-” appears in the viewfinder. Make the necessary corrections, then carry out the process again.

Warning messages for black balance adjustment

Message

Meaning and corrections to be made

AUTO BLACK

-NG-

: IRIS

NOT CLOSED

TRY AGAIN

The lens iris did not close fully. Check whether the lens cable is connected properly, and whether there is a fault in the lens. If a second attempt to carry out the adjustment fails, consult your Sony dealer.

AUTO BLACK

-NG-

:??

TRY AGAIN

The iris opened during adjustment or there is a hardware error. Close the iris and try again. If this fails, consult your Sony dealer.

Black Balance Adjustment

BARS The camera is outputting a color bar

signal. Move the OUTPUT/DL/DCC+ switch to one of the CAM positions.

Correct adjustment of the black balance is important for optimum operation of a video camera. It is necessary when using the camera for the first time or after a significant period out of use, and also when there has been a sudden change in temperature. The adjustment value is saved in memory, and readjustment is not normally necessary after powering the camera off or simply when lighting conditions change.

Move the POWER switch to the ON SAVE position, and check that the OUTPUT/DL/DCC+ switch is in one of the CAM positions.

Push the WHT/BLK switch in the BLK direction and release. The lens iris closes, and black balance adjustment is carried out. During the adjustment the legend “AUTO BLACK

-OP-” appears in the viewfinder.

AUTO BLACK

-OP-

After a few seconds the adjustment is complete, and the legend in the viewfinder changes to “AUTO BLACK -OK-”.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 5 Adjustments and Settings

Set the SHUTTER switch to the ON position.

The SHUTTER indicator in the viewfinder comes on, and it is now possible to change the shutter speed or clear scan frequency setting and to set the EVS function. (If the EVS is already selected, the SHUTTER indicator will not light.)

Operate the MENU/STATUS switch to align the cursor with the item “SHUTTER” in basic menu page 1.

Press the UP/ON button or DOWN/OFF button to select the required shutter speed, scan frequency or EVS. Each time you press the UP/ON button or DOWN/ OFF botton, the shutter speed or clear scan frequency setting changes in the following order:

200.3Hz

• • •

60.4Hz

1/100

EVS

1/60

1/250

1/500

1/1000 1/2000

DXC-D35/D35WSL

201.4Hz

• • •

50.3Hz

DXC-D35P/D35WSPL

DXC-D35/D35WSL

DXC-D35P/D35WSPL

(Value when shipped)

Shutter Settings

This section covers the settings for electronic shutter speed, CLS (clear scan ) and EVS function. The new value for the shutter speed or clear scan frequency and EVS setting remains set until changed, even when the camera is powered off.

Shutter speeds

There are five shutter speeds, from

100

s (DXC-D35/

D35WSL) or

s (DXC-D35P/D35WSPL) to

2000

s. Increasing the shutter speed reduces blurring when shooting a fast-moving subject. It is also possible to reduce flicker when shooting under fluorescent lighting by changing the shutter speed.

CLS (Clear Scan) function

When shooting a computer screen or projected image, horizontal bands may appear in the camera image. This is because the vertical scan frequency of the computer-generated image is different from the vertical scan frequency of the video system. The clear scan function allows you to select a vertical scan frequency to reduce this interference.

EVS (Enhanced Vertical Scan)

This function enhances the vertical scan resolution from 400 to 450 lines (or 450 to 530 lines) to reduce flicker. However, this increases the aliasing.

Setting the shutter speed, CLS and EVS function

Notes on setting the shutter speed

•The faster you make the shutter speed, the darker the

image becomes. Check the brightness in the viewfinder, and if necessary increase the lighting level or adjust the iris.

•When the shutter speed is very fast, shooting a high

intensity subject may cause long vertical tails to appear on the highlights (smear).

Note on setting the CLS function

The vertical scan frequencies of computer screens vary, and it may not be possible to eliminate the interference patterns entirely. Note also that the vertical scan frequency may change depending on the software being run.

21 3

Chapter 5 Adjustments and Settings

When using the clear scan function

Watching the monitor screen, adjust the frequency to give minimum interference. If there is a black band in the monitor image, reduce the frequency, and if there is a white band, increase the frequency.

To return from the basic menu to the normal indications

Press the MENU/STATUS switch as many times as necessary until the normal indications appear. The new setting of the shutter speed or clear scan frequency appears in the normal screen display.

When shooting is finished

Set the SHUTTER switch to the OFF position. The SHUTTER indicator in the viewfinder goes off.

DXC-D35P/D35WSP(CE) V1

1-43

1-44

Chapter 5 Adjustments and Settings

Setting the Clock and Timestamping Recordings

Use advanced menu page 8 to set the camera head’s internal clock and record the date and time.

Note

If the following date/time setting procedure for the internal clock does not cause the date/time information to be displayed in advanced menu page 8, it may be due to a worn-out lithium battery in the camera head. See page 23 and replace the lithium battery.

How to set the date and time

Access advanced menu page 8.

For details of menu operations, see “Advanced Menu Operations” (page 64).

Move the cursor to CLOCK SET, then press the UP/ON button.

The following display appears, in which the year indication is flashing.

Press the MENU/STATUS switch and the UP/ON button to set the desired date and time.

1) Press the MENU/STATUS switch up or down

until the item to be changed starts flashing.

2) Press the UP/ON button to change the number.

Repeat 1) and 2) until you have completed your date and time settings.

Select whether to display a 12-hour clock (showing AM and PM hours) or a 24-hour clock.

1) Press the MENU/STATUS switch up or down

to select the desired setting (12-hour clock display or 24-hour clock display).

Example of 12-hour clock display: 6:49 PM (“6” and “PM” are flashing)

Example of 24-hour clock display: 18:49 (“18” is flashing)

2) Press the UP/ON button.

Press the UP/ON button to select the date display format.

Each press of the UP/ON button cycles through the following options.

•Year-month-day: YY MM DD 99 10 27

•Month-day-year: MM DD YY 10 27 99

•Day-month-year: DD MM YY 27 10 99

Press the MENU/STATUS switch down.

The cursor is shown at the CLOCK SET position.

Press the UP/ON button (to a time signal).

The clock starts from 00 seconds. The clock display can be viewed if CLOCK IND has been set to ON.

Flashing

Chapter 5 Adjustments and Settings

Timestamping recordings

You can timestamp recordings by superimposing the current date and time.

Before shooting, set the CLOCK IND to CAM in advanced menu page 8.

The date and time appear in the viewfinder, and are superimposed on the video signal output from the camera.

To stop superimposing the date and time, set the CLOCK IND to OFF.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 5 Adjustments and Settings

Viewfinder Screen Adjustments

The following adjustments are provided to improve the visibility of the viewfinder screen. Although these adjustment may make the viewfinder image clearer, they have no effect on the output video signal from the camera.

Adjusting the eyepiece focus

Depending on the eyesight of the camera operator — whether longsighted or shortsighted — the optimal position of the viewfinder image varies. Adjust the eyepiece focus to get the clearest viewfinder image for your eyesight. First focus the image with the lens, then adjust the eyepiece focusing knob. The adjustment range is from –3 to 0 diopters

(default when shipped is 0 diopters). Using an optional part allows you to modify the adjustment range to –2 to +1 diopters or –0.5 to +3 diopters.

For details, consult your Sony dealer.

Contrast and brightness adjustment

Carry out these adjustments with the color bars displayed.

Set the OUTPUT/DL/DCC+ switch to the BARS position. The color bars appear in the viewfinder.

Watching the color bars, turn the CONTRAST and BRIGHT controls to adjust the contrast and brightness.

Return the OUTPUT/DL/DCC+ switch to its original position.

Outline emphasis adjustment

Turning the PEAKING control changes the degree of outline emphasis in the viewfinder image, to make focusing easier.

1) Diopter: A unit to indicate the degree of convergence or

divergence of a bundle of rays.

PEAKING control

CONTRAST control

BRIGHT control

Eyepiece focusing knob

OUTPUT/DL/ DCC+ switch

Chapter 5 Adjustments and Settings

RET

IRIS

ZOOM

MANU.SERVO

4,11 2 1

86 57

Adjusting the Lens

Flange Focal Length Adjustment

It is necessary to adjust the flange focal length (the distance from the lens flange to the plane of the image along the optical axis) in the following cases.

•When a lens is fitted for the first time

•After changing lenses

•When during zoom operations the focus does not match properly from telephoto to wide angle

Set the iris selector to the M position.

Turn the iris ring to f/1.8 (fully open).

Place the supplied flange focal length adjustment test chart at a range of about 3 meters (10 feet), and adjust the lighting so that an appropriate video output level is obtained with the iris at f/1.8.

Loosen the F.B fixing screw.

Set the ZOOM selector to the MANU. position.

Move the manual zoom control to the telephoto position.

Turn the focusing ring so that the test chart is in focus.

Move the manual zoom control to the wide angle position.

Turn the F.B adjustment ring so that the test chart is in focus. Do not move the focusing ring.

Repeat steps 6 to 9 until the image stays in focus

from telephoto to wide angle.

After adjustment, tighten the F.B fixing screw.

About 3 m (10 feet)

Flange focal length adjustment test chart

DXC-D35P/D35WSP(CE) V1

1-45

1-46

Chapter 5 Adjustments and Settings

There are three ways of adjusting the iris: automatically, manually, and with the instant automatic iris adjustment function.

Iris adjustment

To make the image lighter when shooting against the light

In the automatic iris adjustment mode, set the A.IRIS MODE switch to BACK L, turning the indicator on.

Iris Adjustments

RET

IRIS

Iris ring

Instant automatic iris button

Iris selector

ZEBRA switch

A.IRIS MODE switch

To make the image clearer when shooting a subject lit by a spotlight

In the automatic iris adjustment mode, set the A.IRIS MODE switch to SPOT L, turning the indicator on.

Using the zebra pattern in manual adjustment mode

To use the zebra pattern as a guideline for iris adjustment in manual adjustment mode, set the ZEBRA switch to the ON position. Select the zebra pattern to be displayed in advenced menu page 4 (see page 65).

•When the subject is a person Adjust the iris manually so that the zebra pattern appears on the highlights of the subject’s face.

•For other subjects Adjust the iris manually so that the zebra pattern appears on the most important parts of the subject.

Designating the lens

You have to designate the lens number according to the types of your lens. If the number is not designated properly, other colors may appear on the upper and lower of the screen when shooting a white subject. Set the number in advanced menu page 4 (page 65) according to the following table.

Adjustment method Operation Automatic adjustment mode

The iris is adjusted automatically to adapt to changes in the brightness of the subject. This is the mode for normal shooting.

Set the iris selector to the A position.

Manual adjustment mode

Use this mode in the following cases:

• For special effects

• When filming a person with a very bright sky background

• When shooting a subject with extreme contrast

The zebra pattern can be used as a guideline for iris adjustment.

Set the iris selector to the M position and turn the iris ring as required.

With the iris selector in the M position, hold down the instant automatic iris button for as long as necessary.

Instant automatic adjustment function

While in manual adjustment mode, this function makes a temporary automatic adjustment.

Adjusting the Lens

Chapter 5 Adjustments and Settings

Product

Fujinon: VCL-916BYA, A16X9 BRM,

A12X6.8 BRM

Canon: VCL-918BY, YJ18X9B KRS Fujinon: A10X4.8 BEVM/BERD, A15X8

BERM/BERD, A16X9 BERM, A20X8 BEVM/BERD, A19X8.7 BERM, A19X8.7 BRM Canon: J9aX5.2B IRS/IAS, J15aX8B IRS/ IAS

Canon: J21aX7.8B IRS/IAS, YJ18X9B IRS

Set up the data with Sony dealer.

If you use the lens that is not mentioned above, set the lens number as follows:

•When using a lens without an extender, set it to 1.

•When using a lens with an extender, set it to 2.

•When using a lens with a ratio converter, set it to 2.

You can also ask a Sony dealer more precise settings according to your lens. In this case, set it to 4.

Adjusting the Iris Sensitivity

You usually need not adjust the iris sensitivity because lenses are equipped with iris sensitivity adjustment function. In auto iris mode, if hunting or response delay happens, adjust the iris sensitivity using the iris sensitivity trimmer.

You can see the iris sensitivity trimmer when removing the gum cap on the front of the lens driving unit. Use a mini-screwdriver to turn the trimmer. If you turn it clockwise, the sensitivity increases, and if you turn it counterclockwise, the sensitivity decreases. It is recommended that you confirm the iris sensitivity after replacing the lens.

ZOOM

MANU.SERVO

IRIS

GAIN

Iris sensitivity trimmer (S or IRIS GAIN is indicated.)

Lens number

For more information, refer to the operating instructions for the lens (or consult the lens maker).

Macrophotography

Use the macro function when the subject is less than about 90 cm (3 feet) (for the VCL-918BY) from the front of the lens. It is possible to shoot close-ups down to a range of 10 mm (wide angle, f = 9 mm).

Bring the lens up to the subject so that the image is the required size.

Move the focusing ring to the closest focus position.

Slide the M button toward the rear of the camera, and turn the MACRO ring fully in the direction shown by the arrow.

Move the ZOOM selector to the MANU. position, and turn the manual zoom control to focus the image.

Ending close-up shooting

Return the MACRO ring to its original position (turn fully in the opposite direction to the arrow in the figure).

Reducing the size of the image

After completing steps 1 to 4 above, if you wish to reduce the size of the image, turn the MACRO ring back slightly, then use the manual zoom control again to focus the image.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Chapter 5 Adjustments and Settings

Settings for special cases

The background is very bright, and the subject is too dark.

Settings for Special Cases

Setting Effect

Set the A.IRIS MODE switch to BACK L, turning the indicator on.

This lightens the foreground.

The subject is under a spotlight. Set the A.IRIS MODE switch tp SPOT L,

turning the indicator on.

This prevents white burn-out in highlights of faces and clothes.

The subject is completely still (e.g. when shooting documents, drawings, etc.).

Enable the EVS (Enhanced Vertical definition System) function.

(See page

84.)

Note

Enabling the EVS function tends to increase the occurrence of aliasing problems (moiré patterns). Therefore, normally leave the function disabled.

This enhances the vertical resolution.

When you wish to give a lush effect, as when shooting a wedding or similar occasion.

Use the HI SAT file. (Access advanced menu page 10 with the SET UP switch set to FILE.)

This increases the saturation of primary colors.

Shooting under fluorescent lighting. Use the FL file. (Access advanced menu

page 10 with the SET UP switch set to FILE.)

This eliminates the blue-green cast, and restores natural hues.

Shooting conditions

When shooting bright areas mixed with dark areas (Example: A person indoors looking through a window at a bright landscape outdoors)

Set DL to ON in the advanced menu page 2 and, then set the OUTPUT/DL/ DCC+ switch to CAM DL.

Prevents white breakup and color faults in bright areas.

When adjusting for skin detail or tone (Example: When shooting to hide skin details)

See “Skin Detail Correction” or “Adjusting Color in the Specified Area”

(page 93)

Adjusts the skin detail or tone to a designated active area.

When you wish to give pictures a natural taste created by film camera.

Use the FILMLIKE file. (Access advanced menu page 10 with the SET UP switch set to FILE.)

The “filmlike” effect is added to the picture.

To make focusing before shooting easier.

Press the EZ FOCUS button, turning the “easy focus” function on.

This opens the iris, to make it easier to focus before beginning shooting.

To begin shooting immediately when there is no time to make adjustments.

Set the EZ MODE switch to the ON position.

This provides automatic adjustment to a set of standard values, to allow immediate shooting.

Chapter 5 Adjustments and Settings

Skin Detail Correction

The DXC-D35/D35P/D35WSL/D35WSPL provides an easy push-button function that designates an active skin tone area.

Set the SKIN DTL switch to ON.

The indication “SKIN AREA: ±0” appears in the viewfinder.

Press the SKIN DTL SET button.

This causes the area detect cursor to be shown in the viewfinder (for 10 seconds).

Place the area detect cursor on the target, then press the SKIN DTL SET button.

This designates the correction area, which is indicated by a zebra pattern, and the indication “SKIN AREA: ±0” appears again. If the area detect cursor disappears before designating the area, press the SKIN DTL SET button again to display the cursor. (Return to step 2.)

Press the UP/ON or DOWN/OFF button to change the SKIN AREA value (–99 to +99)so that the zebra pattern may be displayed in the target area. Use basic menu page 2 to set the correction level (see page 59).

You can also change color in the designated area (see the following section).

2,3

OFF

SET

SKIN DTL

Adjusting Color in the Specified Area

You can adjust the specified color using setup files. Perform the same procedure with the skin detail correction to designate the target area .

Turn the POWER switch on with holding down the UP/ON button.

Perform steps 1 and 2 in “Changing File Settings”

(page 73) and display advanced menu page 12 in the most suitable file for shooting.

Perform the procedure for the skin detail correction to designate the area to which you apply color adjustment.

While this procedure is being performed, the menu is not displayed.

When advanced menu page 12 appears, change the value of the SKIN SAT or SKIN HUE to adjust color in the area designated in step 3.

Note

Set the SKIN DTL to 1.0 in basic menu page 2 if the skin detail correction is unnecessary.

DXC-D35P/D35WSP(CE) V1

1-47

1-48

Appendix

Important Notes on Operation

Fitting the zoom lens

It is important to fit the lens correctly, as otherwise damage may result. Be sure to refer to the section “Fitting the Lens” (See page 30).

Do not cover the unit while operating

Putting a cloth, for example, over the unit can cause excessive internal heat build-up.

Operation and storage

Avoid storing or operating the unit in the following conditions.

•In excessive heat or cold (operating temperature range: –10 °C to +45 °C (14 °F to 113 °F)) Remember that in summer in warm climates the temperature inside a car with the windows closed can easily exceed 50 °C (122 °F).

•In damp or dusty locations

•Locations where the unit may be exposed to rain

•Locations subject to violent vibration

•Close to radio or TV transmitters producing strong electromagnetic fields.

Viewfinder

•Do not leave the camera with the eyepiece pointing directly at the sun. The eyepiece lens can concentrate the sun’s rays and melt the interior of the viewfinder.

•Do not use the viewfinder close to strong magnetic fields. This can cause picture distortion.

Shipping

Use the optional LC-421 Carrying Case for optimal shipping. If sending the camera by truck, ship, air or other transportation service, first store it in the carrying case, then pack the carrying case in the supplied carton (or an equivalent).

Care of the unit

Remove dust and dirt from the surfaces of the lenses or optical filters using a blower. If the body of the camera is dirty, clean it with a soft, dry cloth. In extreme cases, use a cloth steeped in a little neutral detergent, then wipe dry. Do not use organic solvents such as alcohol or thinners, as these may cause discoloration or other damage to the finish of the unit.

In the event of operating problems

If you should experience problems with the unit, contact your supplier or Sony service representative.

DXC-D35P/D35WSP(CE) V1

DXC-D35/D35WS(UC)

Appendix

Vertical tail on the image

Bright object (electric light, sun, etc.)

Monitor screen

Characteristics of CCD Sensors

The following effects may appear in the image. They are characteristic of cameras using CCDs (chargecoupled devices), and do not indicate a malfunction.

Vertical smear

When shooting a very bright object, such as a light, the highlight tends to produce vertical tails. This effect is much reduced in this camera.

White flecks

If the camera is operated at a high temperature, white flecks may appear in the image.

Important Notes on Operation

Appendix

Warning indications

Continuous Flashing once per second

Flashing four times per second

Four beeps per second

One beep per second

Continuous

For the warnings appearing in the viewfinder when a VTR is connected, see the section “Viewfinder Normal Indications” (page

54).

Warning Indications

If a fault occurs during operation, a warning is given by the REC/TALLY and BATT indicators in the viewfinder and the tally lamp lighting or flashing, and also by warning indications on the viewfinder screen. When you are using a DSR-1/1P or PVV-3/3P, the

WARNING indicator on the VTR also lights or flashes, and warning indications appear in the display window. There is also a warning tone in the earphone.

Camera REC/

TALLY indicator and tally lamp

What to do

BATT indicator

Viewfinder screen indication

VTR WARNING

indicator

Display window

Warning tone

Fault

VTR action

Carry out head cleaning, referring to the instruction manual for the VTR. If the problem persists after cleaning the heads, disconnect the power and consult your Sony dealer.

—— RF

(during recording only)

(During recording only)

The video heads are clogged, or there is some other fault in the recording system.

The VTR emits a warning tone when it detects head clogging.

Disconnect the power and consult your Sony dealer. (The SERVO indication may flash momentarily when the tape transport starts, but this does not indicate a problem.)

— — SERVO The servo

lock has been lost.

Recording continues, but the recording may not be satisfactory.

Stop the tape transport. Wait until the HUMID indication does not appear when you power the unit on.

— — HUMID There is

condensation.

Press the EJECT button to eject the cassette. Close the cassette compartment and check that the top panel has descended before powering off. Then consult your Sony dealer. (Do not attempt to insert any cassette.)

SLACK——

— — TAPE

(flashing, during recording only)

The tape is near the end.

Change the cassette if necessary.

— — TAPE

(flashing)

The tape is at the end.

Change the cassette.

BATT

11.0V

BATT (flashing)

The battery is almost exhausted.

Change the battery when possible.

Recording continues, but if the tape sticks to the drum, recording stops. Playback, rewind, or fast forward stops.

The operation stops. (Refer to the service manual or maintenance manual.)

Operation continues.

Recording, playback, and fast forward all stop.

Operation continues.

(During recording only)

(During recording)

BATT

10.5V

BATT (flashing)

The battery is exhausted.

Change the battery.

Operation continues.

The tape is not wound properly.

(During recording)

(During playback, rewind, or fast forward)

DXC-D35P/D35WSP(CE) V1

1-49

1-50

Appendix

Specifications

DXC-D35/D35P/D35WS/D35WSP Camera Head

Imaging element Three-chip interline transfer CCD Pixel resolution DXC-D35: 768 (horizontal) × 494

(vertical)

DXC-D35P: 752 (horizontal) × 582

(vertical)

DXC-D35WS: 980 (horizontal) × 494

(vertical)

DXC-D35WSP: 980 (horizontal) × 582

(vertical) mm

Imaging area DXC-D35/D35P: 8.8 × 6.6 mm (

/3-

inch, 4:3 optical system)

DXC-D35WS/D35WSP: 9.6 × 5.4

mm (

/3-inch, 16:9 optical

system)

Built-in filter settings

1: 3200K 2: 5600K +

/8ND 3: 5600K 4: 5600K +

/64ND

Lens mount Bayonet mount Signal standards EIA standard signal (NTSC color

system) (DXC-D35/D35WS)

CCIR standard signal (PAL color

system) (DXC-D35P/D35WSP)

Scanning system 525 lines, 2:1 interlace (DXC-D35/

D35WS)

625 lines, 2:1 interlace

(DXC-D35P/D35WSP)

Scanning frequencies

Horizontal:

15.734 kHz (DXC-D35/D35WS)

15.625 kHz (DXC-D35P/ D35WSP)

Vertical: 59.94 Hz (DXC-D35/

D35WS)

50.00 Hz (DXC-D35P/ D35WSP)

Synchronization Internal sync

External sync, using signal input

(VBS or BS) to the GEN LOCK IN connector of an optional camera adaptor or input from the GEN LOCK connector of a camera control unit to the VTR/ CCU/CMA connector of an optional camera adaptor.

Horizontal resolution (center)

DXC-D35/D35P: 880 TV lines DXC-D35WS/D35WSP: 850 TV

lines (4:3 mode), 800 TV lines (16:9 mode)

Minimum illumination

0.25 lux (at f/1.4, +42 dB)

0.4 lux (at f/1.8, +42 dB) Sensitivity 2000 lux (f/11.0 standard, 3200 K) Gain levels Selectable –3 dB, 0 dB, 3 dB, 6 dB,

9 dB, 12 dB, 18 dB, 18 dB + DPR, 24 dB, 24 dB + DPR, hyper gain (30 dB + DPR or 36 dB + DPR)

Video output Composite signal

1.0 Vp-p, sync negative, 75 Ω, unbalanced

Y/C separate signals

Y: 1.0 Vp-p, sync negative,

unbalanced

C: burst level 0.286 Vp-p, no

sync

Video S/N ratio 63 dB (typical) (DXC-D35/

D35WS)

61 dB (typical) (DXC-D35P/

D35WSP) Registration 0.05% for all zones, without lens Input/output connectors

VIDEO OUT connector: BNC,

75 Ω, unbalanced

LENS connector: 12-pin, for

/3-

inch lens VF connector (front): 20-pin VF connector (left side): 8-pin REMOTE connector 1: Stereo

mini-jack REMOTE connector 2: 10-pin MONITOR OUT connector: BNC,

75 Ω, unbalanced

Power supply 12 V DC Power consumption

DXC-D35/D35P: 12 W (12.7 W

when the DSR1/1P is

connected) DXC-D35WS/WSP: 14.9 W (15.3

W when the DSR-1/1P is connected)

Operating temperature

–10 °C to +45 °C (14 °F to 113 °F)

Storage temperature

–20 °C to +60 °C (–4 °F to 140 °F)

Mass DXC-D35/D35P: 2.4 kg approx.

(5 lb 4 oz)

DXC-D35WS/D35WSP: 2.5 kg

approx. (5 lb 8 oz)

Appendix

External dimensions in millimeters (inches)

VCL-918BY Zoom Lens

Focal length 9.0 to 162 mm Zoom Manual or power, selectable; zoom

ratio: ×18

Maximum aperture

1:1.8

Iris Manual or automatic, selectable; f/

1.4 to f/16 and C (closed)

Subject area (at 0.9 m (3 feet))

Wide angle: 789 × 592 mm

(31

/8 × 233/8 inches)

Telephoto: 45 × 34 mm

/16 × 13/8 inches) Focusing range Infinity to 0.9 m Filter attachment threads

82 mm dia., 0.75 mm pitch

Mounting Sony

/2-inch bayonet mount Mass 1.3 kg approx. (2 lb 13 oz)

(excluding lens hood)

External dimensions

122 × 120 × 219.7 mm (4

/8 × 43/

× 83/4 inches) (with lens hood, without lens grip)

3) When connecting a CA-512/512P, remove the blank panel on the CA-512/512P.

DXF-801/801CE Viewfinder

Picture tube 1.5-inch monochrome Indicators REC/TALLY (×2), BATT,

SHUTTER, GAIN UP Resolution 600 TV lines Power supply 12 V DC Power consumption

2.1 W Mass 620 g approx. (1 lb 5 oz) Maximum external dimensions

241 (W) × 91 (H) × 203 (D) mm

/2 × 35/8 × 8 inches)

Scan size Switchable between 4:3 and 16:9

Supplied accessories

RM-LG1 Remote Control Unit

(1)

VCL-918BY Zoom Lens

(1)

DXF-801/801CE Viewfinder

(1)

Microphone

(1)

Wind screen

(1)

VCT-U14 Tripod Adaptor

(1) Lens mount cap (1) Flange focal length adjustment test chart (1) Operating Instructions (1)

Design and specifications are subject to change without notice.

2-1. Board Layout

Section 2

Service Overview

TG-222/222(P) board

TG-223 board

CN-1595 board

CN-1594 board

SE-366 board

PA-254 board

PA-254A board

*1 *2

AT-144 board

CN-1410 board CN-1684 board

PA-256 board

PA-256A board

*1 *2

CN-1194 board

MB-629 board MB-785 board

CN-1349 board

*1 *2

CN-1294 board

DC-DC converter

BP-30 board

ES-32/32(P) board ES-33/33(P) board

IF-532 board IF-700 board

PR-216 board PR-240 board

*1 *2

SW-792 board

*1 : DXC-D35/D35P *2 : DXC-D35WS/D35WSP

SW-793 board

SW-790 board

SW-791 board

VA-169A board VA-185A board

PA-255 board PA-255A board

*1 *2

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-1

2-2. Removal/Attachment of Cabinet

2-2-1. Removal of Side Plate

Slacken the eight screws as shown in the figure and remove the right and left side plates.

2-2

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-2. Removal/Attachment of Cabinet

2-2-2. Removal/Attachment of Top Chassis

1. Remove the right and left side plates. (Refer to Section 2-2-1.)

2. Remove the two screws of the rear plate to remove the DC/DC converter.

3. Remove the VA, PR, IF and ES boards.

Rear plate

Screws (B3 x 6)

DC-DC converter

ES board

IF board

PR board

VA board

5. Remove the two screws and take off the AT board in the horizontal direction.

6. Disconnect the four flexible card wires from the three connectors (CN805, CN806 and CN807) on the CN board and from the connector (CN103) on the MB board.

When disconnecting flexible card wires, refer to Section 2-11.

7. Disconnect the eleven harness connectors from the connectors on the MB board (CN2, CN105, CN106, CN107, CN117, CN118, CN119, CN120, CN121, CN122 and CN123).

8. Remove the two screws and two supports on the MB board and take off the MB board in the horizontal direction.

CN805

MB board

CN806

Screws (B3 x 4)

CN807

AT board

4. Remove the three screws and take off the SW board in the horizontal direction.

Screw (B3 x 4)

SW board

Screws (B3 x 4)

Supports

Screws (B3 x 4)

Connector layout on the MB-629/785 boards

CN117

CN120

CN119 CN121 CN123 CN122

CN2 CN105 CN106 CN107

CN1

CN103

CN118

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-3

2-2. Removal/Attachment of Cabinet

9. Remove the two screws of the front unit assembly shown in the figure and the two screws of the rear plate, and then remove the top chassis.

Screw (K3 x 6)

Rear plate

Screw (B3 x 10)

Front unit assembly

m . Be sure to route the harnesses as shown in the figure

when reattaching the MB board.

. When reinstalling the VA, PR, IF and ES boards, use

care to insert securely the connectors on each board to the connectors of the MB board as far as they will go.

. When reconnecting the flexible card wires, refer to

Section 2-11.

MB board

10. To reattach, perform in the reverse order of steps 1 to

Diagram of harness routing on the MB board

2-4

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-3. Replacement of CCD Unit

Description on CCD Block Number

Every CCD unit has its own ID number called CCD block number. It shown the CCD block type and serial number for the CCD block. The CCD block number label is put in the CCD unit.

GUA xxxxx : DXC-D35 (NTSC) GVA xxxxx : DXC-D35P (PAL) HDA xxxxx : DXC-D35WS (NTSC) HEA xxxxx : DXC-D35WSP (PAL)

Serial number for the CCD unit CCD block type

1. Remove the lens and viewfinder. (Refer to the instruction manual.)

To protect the prism block, be sure to cover the lens mount portion with the mount cap.

2. Remove the left side plate. (Refer to Section 2-2-1.)

3. Remove the AT board. (Refer to Section 2-2-2.)

4. Disconnect the harness connectors from the four connectors (CN2, CN105, CN106 and CN107) and the flexible card wire from the connector (CN103) on the MB board.

When disconnecting the flexible card wire, refer to Section 2-11.

5. Remove the four screws to remove the front unit assembly.

Front unit assembly

Screws with washer (B3 x 10)

6. Remove the setscrew shown in the figure and take off the filter knob.

7. Remove the four screws and four washers of the front panel to remove the CCD unit.

Use great care to avoid any pressure on the PA board when handling the CCD unit.

MB board

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

CN103

CN2

CN105 CN106

CN107

CN123

Washer (SW3)

Screw (B3 x 8)

Screws (B3 x 8)

CCD unit

Front panel

Setscrew (3 x 4)

Washers (SW3)

Filter knob

2-5

2-3. Replacement of CCD Unit

8. Take a new CCD unit out of a transport holder and install it to the unit in the reverse order of steps 1 to 7.

CCD unit

Screws (P3 x 6)

Transport holder

9. Perform the pedestal alignment (in Section 3-3-12), the shading alignment (in Section 3-3-13) and the flare alignment (in Section 3-3-14).

m . Before performing alignment, be sure to read each

item in Section 3-1-4 “Note on Alignment”.

. Reuse the transport holder to transport the CCD unit

removed from the unit.

2-6

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-4. Connectores and Cables

2-4-1. Connector Input/Output Signals

The main connector input/output signals are as follows:

MONITOR OUT (BNC) ; 1.0 V p-p ±0.1 V, sync negative 75 Z VIDEO OUT (BNC) ; 1.0 V p-p ±0.1 V, sync negative 75 Z

CAMERA/CA (50P, MALE)

12345678910111213141516171819202122232425

(EXTERNAL VIEW)

2-4. Connectores and Cables

No. Signal I/O Specifications

A1 MODE ID IN OPEN : COMP, GND : R/G/B B1 GND (CHASSIS) _ A2 MIC (Y OUT _60 dBm B2 MIC (X) OUT A3 MIC (G) _ B3 EAR (G) _ A4 REC TALLY IND IN Zi > 600 Z B4 EAR (X) IN _6 dBu A5 VTR TRIG OUT B5 REC RESET IN A6 S.D (V/C) IN H : 5 V B6 S.D (V/C) OUT L : 0 ±0.5 V A7 CS VTR IN Zi > 47 kZ B7 SCL VTR IN Zo < 1 kZ A8

GENLOCK VIDEO (G)

GENLOCK VIDEO (X) IN

A9 SYNC (G) _ H : 4.0 to 5.5 V p-p

B9 SYNC (X) OUT L : 0 ±0.4 V dc

A10 PB RET VIDEO (G) _ 1.0 V p-p B10 PB RET VIDEO (X) IN Zi > 10 kZ A11 CF/V RESET I/O H : 4.0 to 5.5 V p-p Zo < 2 kZ

B11 VF VIDEO CONT IN CAM : OPEN

A12 VBS (CA) (G) _ 1.0 V p-p, SYNC NEGATIVE B12 VBS (CA) (X) OUT Zo = 75 Z ±5 % A13 STBY/SAVE OUT STBY :

B13 VTR/CCU CONT OUT VTR : 0 ±0.25 V Zo < 1 kZ

A14 CHROMA (G) _ NTSC : 0.286 V p-p ±10 % B14 CHROMA (X) OUT PAL : 0.300 V p-p ±10 %

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

_ VBS : 1.0 V p-p

Zi > 1 kZ

: NEGATIVE

Zo > 2 kZ

L : 0 ±0.4 V dc

Zi > 1 kZ, PB : 0 V

4.0 to 5.5 V p-p Zo < 100 Z

SAVE : 0 ±0.25 V

CCU : 5.0 ±0.5 V

Zo < 75 ±5 %

No. Signal I/O Specifications

A15 Y (G) _ 1.0 V p-p, SYNC NEGATIVE B15 Y (X) OUT Zo < 75 Z ±5 % A16 COMP (CA) GND _ R/G/B B16 R/R-Y (CA) OUT 1.4 V p-p, POSITIVE A17 G/Y (CA) OUT Zo < 75 Z ±5 % B17 B/B-Y (CA) OUT COMPONENT OUT A18 BATT ALARM/S. DATA B18

REC REVIEW CONT OUT A19 (SPARE) B19 (SPARE) A20 +8.5 V OUT 8.3 V to 9.1 V B20 +5 V OUT 5 V ±0.1 V A21 _5 V OUT _5 V ±0.1 V B21 AGND _ REG, GND A22 POWER EXT DC IN 10.6 V to 17.0 V dc B22 POWER EXT DC IN A23

POWER

EXT DC

GND

B23

POWER

EXT DC

GND A24 (SPARE) B24 (SPARE) A25 GND (CHASSIS) _ CHASSIS GND B25 GND (CHASSIS) _

GND ; REC REVIEW

_ GND for EXT DC _

UC CE

Y 0.714 V p-p 0.700 V p-p R-Y 0.756 V p-p 0.525 V p-p B-Y 0.756 V p-p 0.525 V p-p

2-7

2-4. Connectores and Cables

CAMERA/CA (76P, MALE)

76 57 38 19

(EXTERNAL VIEW)

No. Signal I/O Specifications

1 REC TALLY IN Zi > 600 Z 2 S.D. (V/C) IN H : 5 V

L : 0 ±0.5 V

3 SCL VTR IN Zi > 47 kZ

Zo < 1 kZ 4 GENLOCK (G) _ GND for GENLOCK (X) 5 SYNC (G) _ GND for SYNC (X) 6 PB (G) _ GND for PB (VBS) (X) 7 PB (Y) (X) IN

1.0 V p-p, NEGATIVE, Zi > 1 kZ 8 VBS (CA) (G) _ GND for VBS (CA) (X) 9 VTR/CCU OUT VTR : 0 ±0.25 V, Zo < 1 kZ

CCU : 5.0 ±0.5 V

10 C (X) OUT NTSC : 0.286 V p-p ±10 %

PAL : 0.300 V p-p ±10 % Zo < 75 Z ±5 %

11 Y (X) OUT 1.0 V p-p, SYNC NEGATIVE

Zo < 75 Z ±5 %

12 R/R-Y (CA) OUT R/G/B

1.4 V p-p, POSITIVE 13 B/B-Y (CA) OUT Zo < 75 Z ±5 %

COMPONENT OUT

14 SKIN GATE OUT Gate area (H : 4 to 5.5 V dc)

Non gate area (L : 0 ±0.2 V dc) 15 +5.0V OUT 5 V ±0.1 V 16 AGND _ REG, GND 17 EXT DC IN 10.6 V to 17.0 V dc 18 EXT DC GND _ GND for EXT DC 19 DCLK (X) OUT 20 VTR TRIG OUT 21 S.D. (C/V) OUT H : 5 V

L : 0 ±0.5 V 22 CS VTR IN Zi > 47 kZ

Zo < 1 kZ 23 GENLOCK (X) IN VBS : 1.0 V p-p

Zi > 1 kZ 24 SYNC (X IN H: 4.0 to 5.5 V p-p

: NEGATIVE L: 0 ±0.4 V dc Zo < 2 kZ

25 PB (VBS) (X) IN 1.0 V p-p, SYNC NEGATIVE

Zo < 75 Z ±5 %

26 CF/V RESET I/O H : 4.0 to 5.5 V p-p, Zo < 2 kZ

L : 0 ±0.4 V dc

58 39 20

No. Signal I/O Specifications

27 VBS (CA) (X) OUT 1.0 V p-p, SYNC NEGATIVE

Zo = 75 Z ±5 % 28 C (G) _ GND for C (X) 29 Y (G) _ GND for Y (X) 30 COMP GND _ GND for G/Y (CA) 31 G/Y (CA) OUT R/G/B

1.4 V p-p, POSITIVE

Zo < 75 Z ±5 %

COMPONENT OUT

32 BATT S.DATA IN 33 +9.0 V OUT 8.3 V to 9.1 V 34 _5.0 V OUT _5 V ±0.1 V 35 EXT DC IN 10.6 V to 17.0 V dc 36 EXT DC GND _ GND for EXT DC 37 DCF OUT 38 DCLK GND _ 39 MODE ID IN OPEN : COMP, GND : R/G/B 40 MIC1 (G) _ 41 AUDIO LEV OUT H : 4 to 5.5 V dc

L : 0 ±0.2 V dc, 1 kZ 42 (SPARE) 43 DIGI/ANA IN H : Analog

L : Digital 44 (SPARE) 45 (SPARE) 46 (SPARE) 47 (SPARE) 48 (SPARE) 49 (SPARE) 50 (SPARE) 51 (SPARE) 52 DCLK GND _ GND for DCLK (X) 53 BYRY (0) OUT H : 3 ±0.2 V dc 54 BYRY (2) OUT L : 0 ±0.2 V dc 55 BYRY (4) OUT 56 BYRY (6) OUT 57 BYRY (8) OUT 58 MIC1 (X) OUT _20 dBm, Zo < 100 Z 59 MIC1 (Y) OUT

2-8

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

REMOTE (10P, FEMALE)

7 6

2-4. Connectores and Cables

910

No. Signal I/O Specifications

60 (SPARE) 61 (SPARE) 62 76P ID 63 (SPARE) 64 (SPARE) 65 (SPARE) 66 (SPARE) 67 (SPARE) 68 (SPARE) 69 (SPARE) 70 (SPARE) 71 (SPARE) 72 BYRY (1) OUT H : 3 ±0.2 V dc 73 BYRY (3) OUT L : 0 ±0.2 V dc 74 BYRY (5) OUT 75 BYRY (7) OUT 76 BYRY (9) OUT

(EXTERNAL VIEW)

No. Signal I/O Specifications

1 (SPARE) 2 VBS (RM) OUT 1.0 V p-p, SYNC NEGATIVE 3 VBS (RM) OUT 4 RS232C (C/RM) IN 5 VTR START/STOP IN Zi > 10 kZ

........

OPEN (4.5 ±0.5 V)

.........

0 ±0.5 V 6 S. DATA (X) 0 to 5 V Zi > 10 kZ 7 RS232C (RM/C) OUT GND for S. DATA 8 REC TALLY IND OUT Zo > 600 Z 9

POWER EXT DC GND

10 POWER

EXT

DC OUT 10.6 V to 17.0 V dc

GND for

EXT

VF (8P, FEMALE)

UC CE

Y 0.714 V p-p 0.700 V p-p R-Y 0.756 V p-p 0.525 V p-p B-Y 0.756 V p-p 0.525 V p-p

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

(WIRING SIDE)

No. Signal I/O Specifications

POWER EXT DC GND

_ GND for

EXT

DC 2 REC TALLY IND OUT Zo < 1.1 kZ 3 SHUTTER IND OUT Zo < 1.1 kZ 4 VF VIDEO (G) OUT GND for VF VIDEO 5 BATT IND OUT Zo < 1.1 kZ 6 VF VIDEO (X) OUT V = 1 V p-p 7 POWER

EXT

DC OUT 10.6 V to 17.0 V dc

8 GAIN UP IND OUT Zo < 1.1 kZ

2-9

6 11 16

5 10 15 20

2-4. Connectores and Cables

LENS (12P, FEMALE)

1112

(EXTERNAL VIEW)

No. Signal I/O Specifications

1 RET SW IN ON : 0 ±0.5 V dc 2 VTR START/STOP IN TRIG : 0 ±0.5 V 3

POWER EXT DC GND

_ GND for EXT DC

4 COMPULSORY OUT AUTO : 4.5 ±0.5 V

AUTO IRIS CONT MANU : 0 +0.5 V or OPEN

5 IRIS CONT OUT F16 : 3.4 V dc

F2.8 : 6.2 V dc

6 POWER

EXT

DC OUT 10.6 V to 17.0 V dc

7 IRIS POSI IN F16 : 3.4 ±0.1 V dc

F2.8 : 6.2 ±0.1 V dc

8 REMOTE/LOCAL OUT REMOTE : 5 V

LOCAL : 0 V 9 EXTND ON/OFF IN 10 ZOOM POSI IN 11 (SPARE) 12 (SPARE)

MIC (3P, FEMALE)

2 1

VF (20P, FEMALE)

(EXTERNAL VIEW)

No. Signal I/O Specifications

1 PEAKING CONT IN Zi > 5 kZ 2 POWER EXT DC OUT 10.5 V to 17.0 V dc, 2 A 3 REC TALLY IND OUT Zo < 500 Z 4 BATT IND OUT Zo < 1.1 kZ 5 ZEBRA SW IN ON : 0 ±0.5 V 6 VF VIDEO (X) OUT V = 1.0 V p-p 7 POWER EXT DC OUT 10.5 V to 17.0 V dc, 2 A 8 (SPARE) 9 (SPARE) 10 SDA (VF) OUT Zo < 500 Z, 5 V p-p 11 VF VIDEO (G) OUT GND for VF VIDEO 12 EXT DC GND _ GND for EXIT DC 13 (SPARE) 14 DISPLAY SW IN ON : 4.5 ±0.5 or OPEN

OFF : 0 +0.5 V 15 SCL (VF) OUT Zo < 500 Z, 5 V p-p 16 R-Y (VF) OUT V = 830 mV 17 EXT DC GND _ GND for EXIT DC 18 B-Y (VF) OUT V = 830 mV 19 SYNC (VF) OUT V = 5 V p-p 20 LD (VF) OUT Zo < 500 Z, 5 V p-p

(EXTERNAL VIEW)

No. Signal I/O Specifications

1 MIC (G) IN GND for MIC 2 MIC (X) IN _60 dB 3 MIC (Y) IN BALANCED

(0 dB = 0.775 V)

2-10

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

MB board

AT-144 board

EX board

CN2

2-5. How to Attach of the Extension Board EX-591

2-4. Connectores and Cables

2-4-2. Connection Connector

Connections made with the connector panels during installation or service, should be made with the connectors or complete cable assemblies specified in the following list, or equivalent parts.

Connector Name

REMOTE 1-506-522-11

(10P, FEMALE) or CCA-7-20 Cable assembly

VIDEO OUT 1-560-661-11 (BNC) PLUG, BNC

MONITOR OUT 1-560-661-11 (BNC) PLUG, BNC

VF 9-994-797-01 (8P, FEMALE) CABLE, VF

LENS 1-564-360-11

(12P, FEMALE) HIROSE HR 10-10PA-12P equality MIC 1-508-084-31

(3P, FEMALE) CANNON XLA-3-12C equality VF 1-778-661-11

(20P, FEMALE) HIROSE HR 12-14PA-20PC equality

Parts No. and name of connector with cable

CONNECTOR, ROUND 10P, MALE HIROSE HR 10A-10P-10P equality

(optional)

CONNECTOR, 12P, MALE

CONNECTOR, 3P, MALE

CONNECTOR, 20P, MALE

2-5. How to Attach of the Extension

Board EX-591

When using the extension board EX-591, attach as follows.

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-11

2-6. Replacement Way of ROM (IC102) 2-7. Switch Settings on Boards

2-6. Replacement Way of ROM (IC102)

Perform “RESET” of PAGE 1 in the SERVICE menu after replacing a ROM.

1. Slide the IC socket cover in the arrow A direction until it clicks and remove the IC socket cover.

2. Replace a new ROM (IC102).

3. Place the IC socket cover with a clearance at the arrow A side. (Refer to Fig.1)

4. For attachment, press the IC socket cover in the reverse direction of arrow A until it clicks while holding the ROM.

– With ROM mounted –

IC socket cover

AT-144 board

S101

ROM

– How to attach (Fig. 1) –

Push

ROM

S102

Clearance

2-7. Switch Settings on Boards

Do avoid changing settings of switches designated as “For factory adjustment”.

AT-114 board

S101: Camera mode setting ON or OFF

ON OFF

S101-1 NTSC PAL S101-2 DXC-D35WS DXC-D35

S102: For factory adjustment Use always with the setting OFF

AT-144 board

S101

S102

OFF

IC102

ROM

2-12

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-8. DC-DC Converter Voltage

Voltage values can be check as following 1 to != points on MB board and MIC connector.

2-8. DC-DC Converter Voltage

. MB board

. MIC connector

2 1

(EXTERNAL VIEW)

8 9

4 5 6 7

GND.

11321

No. CHECK POINT VOLTAGE VALUE

1 CN117-2 pin EXT. DC OUT 2 CN117-1 pin EXT. DC GND 3 CN114-20 pin +3.1 V 4 CN103-25 pin +5.3 V 5 CN103-23 pin _5 V 6 CN103-22 pin +9 V

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

No. CHECK POINT VOLTAGE VALUE

7 CN103-21 pin _10 V 8 CN103-28 pin +6.5 V 9 CN103-27 pin +16 V !/ CN103-26 pin +32 V !- E1 (GND) --- != MIC 2 pin/1 pin(GND) +48 V

2-13

2-9. Recommended Replacement Parts

Parts listed below are recommended replacement parts. Optical filter unit may be turned cloudy with the lapse of time. If using a cloudy filter, the performance of the camera will not be delivered. Replace it according to necessary. Parts made of rubber used in the unit are subject to cracks with the lapse of time. Visually check them sometimes and replace them according to necessary.

Fig No. Description Sony P/N Remarks

1 PAD ASSY A-8278-807-C rubber 2 FILTER UNIT, OPTICAL 1-547-985-11 for DXC-D35

FILTER UNIT, OPTICAL 1-547-985-21 for DXC-D35P FILTER UNIT, OPTICAL 1-758-131-11 for DXC-D35WS/D35WSP

3 RACKING, CONTROL 3-672-221-02 rubber

2-14

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-10. Attaching the 4-type or 5-type Viewfinder

2-10. Attaching the 4-type or 5-type

Viewfinder

An optional 4-type viewfinder (DXF-40 series) or 5-type viewfinder (DXF-50 series) can be attached in accordance with the following procedures:

Parts Required (sold separately)

Name Sony Part No.

. Accessory shoe kit A-8274-968-B

Shoe 3-664-218-0X Plate spring 3-664-228-0X Stop screw 3-664-213-0X Screw K3 x 6 (4 pcs) 7-682-247-0X Screw K3 x 12 (4pcs)

*1 : These screws are not used.

Attaching Procedure

1. Remove a screw and remove the blind pate.

2. Tighten the shoe with four screws (K3 x 6).

3. Fix the plate spring in the shoe in the arrow direction and tighten it with the stop screw.

7-682-250-0X

4. Fit the guide plate in the shoe and tighten the fixing ring.

5. Connect the VF connection cable.

VF connection cable (20pin)

Shoe

Stop screw

Fixing ring Guide plate

Screws K3 x 6

Stop screw

Plate spring

Blind plate

Screws K3 x 6

Shoe

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-15

2-11. Disconnecting/Connecting the Flexible Card Wire

The flexible card wires are used among the CN-1294 board and the MB board, the MB board and the TG board. Be careful not to bend these wires. This shortens the wire life.

Disconnecting

1. Turn off the power of the camera.

Type A

(between the MB board and CN-1294 board.)

2. Disconnect the flexible card wire.

Type B

(between the MB board and TG board)

2. Slide portion A in the direction of the arrow and disconnect the flexible card wire.

Type A Type B

Contact surface

Connecting

m . Be careful not to insert the flexible card wires obliquely. . Check that the contact surface of the flexible card wire is not soiled with dust.

Type A

1. Insert the flexible card wire as far as it will go into connector with the contact surface of the wire faced to the board.

Type B

1. Slide portion A in the direction of the arrow and insert the flexible card wire as far as it will go into connector with the contact surface of the wire put down.

2. Slide portion A in the opposite direction of the arrow and lock.

2-16

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-12. Service Mode Operation

This unit has the BASIC menu, ADVANCE menu, SERVICE menu to be operated in the service mode, and FILE menu.

. SERVICE mode

To enter the service mode, set the S105 (OPE ↔ ADJ) on the SW-791 board to ADJ.

. Menu select screen

When the S105 on the SW-791 board is set to ADJ, the menu select screen is displayed.

OPEN MENU (YES ) SERVICE

. Operating method

Move the cursor to the menu items by the MENU/STATUS switch, select the menu by UP/ON button or DOWN/OFF button. (The menu changes in turn SERVICE ↔ BASIC ↔ ADVANCE ↔ FILE ↔ SERVICE.) Under displaying the menu item to be operated, move the cursor to “OPEN MENU” and press the UP/ON button to go to the selected menu page.

When the page of the selected menu is displayed, the normal operation for the menu is available. When exiting from the menu, the screen returns to the menu select screen.

[R[R

eference]eference]

eference]

[R[R

eference]eference]

The menu screen can be seen on the viewfinder or MONITOR OUT of this camera unit.

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-17

2-12. Service Mode Operation

2-12-1. Service Menu

Reset items and standard values to be set.

Page Item Standard set value

UC PAL

4 M.PKNEE1 65 65

M.PKNEE2 120 120 M.PKNEE3 160 160 M.PKNEE4 215 215 R PKNEE 128 128 B PKNEE 128 128

9 NTSC SETUP ON _

READ OUT FD _ V BLKG 20H _

PAL COMP LEV _ 525

READ OUT _ FD

10 TEST OFF OFF

R-Y ON ON B-Y ON ON

13 GAMMA ON ON

MATRIX ON ON DETAIL ON ON APERTURE ON ON FLARE ON ON

14 R TITLE 75 75

G TITLE 75 75 B TITLE 75 75 R EDGE 0 0 G EDGE 0 0 B EDGE 0 0

15 M.GAMMA 132 132

R GAMMA ±0 ±0 B GAMMA ±0 ±0 M.BLACK 2070 2075

16 WHT CLIP 255 255

HI L.SAT 152 152 IRIS GAIN 128 128 IRIS MODE 100 100 IRIS SET 144 144 LOW LIGHT 144 160

Page Item Standard set value

UC PAL

18 FILTER1 3200k 3200k

FILTER2 5600k 5600k

+ 1/8ND + 1/8ND FILTER3 5600k 5600k FILTER4 5600k 5600k

+ 1/64ND + 1/64ND

19 DIAG ERROR RESET __

MEMORY BACKUP __

20 21 22

Self-diagnosis result display1 Self-diagnosis result display2 Self-diagnosis result display3

26 OPTION1 OFF OFF

OPTION2 OFF OFF

* : for DXC-D35WSP

2-18

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 1 RESET

(For DXC-D35/D35WS)

2-12. Service Mode Operation

PAGE1 (NEXT PREV ) RESET

(YES ) DEST : UC ROM VER : ***

EXIT MENU (YES )

(For DXC-D35P/D35WSP )

PAGE1 (NEXT PREV ) RESET

(YES ) ROM VER : ***

EXIT MENU (YES )

. Page 2 Shading Correction

Adjusting values such as the electronic volume control of each board except the values differ in every unit can be restored to their standard setting values.

Move the cursor to “DEST” position, select “UC,” and move the cursor to “RESET,” then press UP/ON button twice.

PAGE2 (NEXT PREV ) EXTENDER

AUTO SHAD (YES ) R W. SHAD G W. SHAD B W. SHAD

EXIT MENU (YES )

. Page 3 Flare Adjustment

PAGE3 (NEXT PREV ) R FLARE

G FLARE B FLARE

EXIT MENU (YES )

OFF

128

EXTENDER Current LENS EXTENDER status display AUTO SHAD Performing of AUTO SHADING correction R W.SHAD/G W.SHAD/B W.SHAD

White shading correction of V Standard (correct.on 0) = 128

R FLARE Rch flare correction (0 = no correction) amount adjust-

ment

G FLARE Gch flare correction (0 = no correction) amount adjust-

ment

B FLARE Bch flare correction (0 = no correction) amount adjust-

ment

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-19

2-12. Service Mode Operation

. Page 4 Pre Knee Setting

PAGE4 (NEXT PREV ) M.PKNEE1

M.PKNEE2 M.PKNEE3 M.PKNEE4 R PKNEE B PKNEE

EXIT MENU (YES )

. Page 5 Camera COMPONENT Level Adjustment

120

160

: 215

128

M.PKNEE2 Master pre-knee point in GAIN _3 dB adjustment M.PKNEE3 Master pre-knee point in flame read out mode adjustment M.PKNEE4 Master pre-knee point in GAIN _3dB & flame read out

P PKNEE Fine adjustment for the R channel’s pre-knee point B PKNEE Fine adjustment for the B channel’s pre-knee point

WY LEV 16:9 Y level adjustment

M.PKNEE1 Usual master pre-knee point adjustment

PAGE5 (NEXT PREV ) W Y LEV

W R-Y LEV W B-Y LEV Y LEV R-Y LEV B-Y LEV SYNC LEV SETUP LEV EXIT MENU (YES )

120

100

120

111

100

135

W R-Y LEV 16:9 R-Y level adjustment W B-Y LEV 16:9 B-Y level adjustment Y LEV 4:3 Y level adjustment R-Y LEV 4:3 R-Y level adjustment B-Y LEV 4:3 B-Y level adjustment SYNC LEV SYNC level adjustment SETUP LEV SETUP level adjustment

* : Adjustable only for DXC-D35WS/D35WSP

mode adjustment

(NTSC model only adjustable when setup is on.)

. Page 6 Camera CLAMP Level Adjustment

Y CLP Y clamp level adjustment

PAGE6 (NEXT PREV ) Y CLP

R-Y CLP B-Y CLP

EXIT MENU (YES )

. Page 7 Chroma/VF Adjustment

128

120

R-Y CLP R-Y clamp level adjustment B-Y CLP B-Y clamp level adjustment

R-Y C/B R-Y carrier balance adjustment

PAGE7 (NEXT PREV ) R-Y C/B

R-Y BST B-Y C/B B-Y BST VF SYNC VF BLKG

EXIT MENU (YES )

110

170

135

R-Y BST R-Y burst level adjustment B-Y C/B B-Y carrier balance adjustment B-Y BST B-Y burst level adjustment VF SYNC Viewfinder video sync level adjustment VF BLKG Viewfinder video blanking level adjustment

2-20

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 8 Chroma SC Adjustment

2-12. Service Mode Operation

PAGE8 (NEXT PREV ) SC FREQ

SC-H

EXIT MENU (YES )

. Page 9 Various Setting 1

2550

450

(For DXC-D35/D35WS)

PAGE9 (NEXT PREV ) SETUP

READ OUT V BLKG

EXIT MENU (YES )

OFF

20H

SC FREQ SC frequency adjustment SC-H SC-H phase adjustment

SETUP ON/OFF control of setup READ OUT FD (Field): CCD switches to Field read mode

FM (Frame): CCD switches to Frame read mode

V BLKG V blanking width setting (19/20/21H)

[Reference][Reference]

[Reference]

[Reference][Reference]

In frame read out, higher vertical resolution can be obtained, however, in such a case image lag is increasing. If shutter function is on in frame read out, sensitivity drops in half against the normal.

(For DXC-D35P/D35WSP )

PAGE9 (NEXT PREV ) SETUP

READ OUT V BLKG

EXIT MENU (YES )

. Page 10 TEST MODE

PAGE10 (NEXT PREV ) TEST

R-Y B-Y

EXIT MENU (YES )

OFF

20H

OFF

COMP LEV 525/700 selection of color difference output

(pin 26)

READ OUT FD (Field): CCD switches to Field read mode

FM (Frame): CCD switches to Frame read mode

TEST TEST OFF: TEST SAW

TEST: 1 Displays 100 % TEST SAW. TEST: 2 Displays 226 % TEST SAW. TEST: 3 Displays 226 % TEST SAW

in the lower side of screen. R-Y ON/OFF control of R-Y output B-Y ON/OFF control of B-Y output

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-21

2-12. Service Mode Operation

. Page 11 CCD BLOCK No. Information

PAGE11 (NEXT PREV ) HEAD 1

HEAD 2 HEAD 3 HEAD 4 HEAD 5 HEAD 6 HEAD 7

EXIT MENU (YES )

. Page 12 Sub-Voltage Information

HEAD1 to 7 CCD block number

Be sure to input the CCD block number which is shown on the side of CCD unit after the replacement of TG board or the EEPROM (IC1) on the TG board.

PAGE12 (NEXT PREV )

R RG G RG B RG R SUB G SUB B SUB TPC

EXIT MENU (YES )

. Page 13 Various Setting 2

PAGE13 (NEXT PREV ) GAMMA

MATRIX DETAIL APERTURE FLARE

EXIT MENU (YES )

128

±0

R RG R RG-voltage setting G RG G RG-voltage setting B RG B RG-voltage setting R SUB R channel sub-voltage setting G SUB G channel sub-voltage setting B SUB B channel sub-voltage setting TPC NR temperature compensation constant setting

Values shown on the screen depend on each CCD unit. Never change the value.

GAMMA ON/OFF control of GAMMA MATRIX ON/OFF control of MATRIX DETAIL ON/OFF control of DETAIL APERTURE ON/OFF control of APERTURE FLARE ON/OFF control of FLARE correction

. Page 14 TITLE Color Setting

PAGE14 (NEXT PREV ) R TITLE

G TITLE B TITLE R EDGE G EDGE B EDGE

ABC123

EXIT MENU (YES )

2-22

When displaying the title in the video signal, title color can be set manually. Besides, edge color of title character can be set manually.

R TITLE Title’s R level (0/25/50/75) G TITLE Title’s G level (0/25/50/75) B TITLE Title’s B level (0/25/50/75) R EDGE Title edge’s R level (0/25/50/75) G EDGE Title edge’s G level (0/25/50/75) B EDGE Title edge’s B level (0/25/50/75) ABC123 Indication for checking actual title color

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 15 Various Setting 3

2-12. Service Mode Operation

PAGE15 (NEXT PREV ) M.GAMMA

R.GAMMA B.GAMMA M.BLACK

EXIT MENU (YES )

. Page 16 CLIP/IRIS Related Setting

PAGE16 (NEXT PREV )

WHT CLIP HI L.SAT IRIS GAIN IRIS MODE IRIS SET LOW LIGHT

EXIT MENU (YES )

132 : : :

2083

255

152

128

100

144

152

± 0 ± 0

M.GAMMA Standard value setting of master GAMMA R.GAMMA R channel’s GAMMA offset setting B.GAMMA B channel’s GAMMA offset setting M.BLACK Standard value setting of master BLACK

WHT CLIP Standard value setting of WHITE CLIP level HI L.SAT Setting of saturation in the high-light portion IRIS GAIN Setting of auto iris following speed IRIS MODE

Setting of auto iris’s peak and average values. IRIS SET Setting of the target value of auto iris LOW LIGHT Setting of LOW LIGHT warning indication level

For DXC-D35/D35WS : 152

For DXC-D35P/D35WSP : 160

. Page 17 Color Temperature Calculation Reference Setting

COLOR TEMP CAL. Captures the reference value of color temperature

PAGE17 (NEXT PREV ) COLOR TEMP CAL.

(YES PUSH)

128

MIC ADJ : 130

128::

R R channel's color temperature indication ;

B B channel's color temperature indication ;

EXIT MENU (YES )

In COLOR TEMP CAL., it captures the color temperature calculation reference value during operating of White Balance auto adjusment. Normally, it is not necessary to perform this adjustment. If the color temperature value, which is indicated on the screen, differs from an actual value, perform CCD OUT level adjustment and etc. and to capture the reference value as follows:

1. Shoot the pattern (color temperature = 3200 K).

2. Set the WHT BAL switch to A or B, and perform Auto White adjust-

ment.

3. Move the cursor on the COLOR TEMP CAL. position and push the UP

/ON button.

indication

. Reference value setting . Result of capturing the reference value

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

MIC ADJ Setting of musical note mark indication level

2-23

2-12. Service Mode Operation

. Page 18 FILTER Display Setting

PAGE18 (NEXT PREV ) FILTER1

FILTER2 FILTER3 FILTER4

EXIT MENU (YES )

. Page 19 Self Diagnosis 1

PAGE19 (NEXT PREV ) DIAG ERROR RESET

MEMORY BACKUP

EXIT MENU (YES )

(YES )

3200

5600+1/8ND

5600

5600+1/64ND

FILTER 1 to 4 Make this setting in accordance with a kind of filter attached.

When changing the filter, be sure to make a set.

DIAG ERROR RESET

This item is used for erasing an error check results and a history of error items.

MEMORY BACKUP

This item is used when back up the EEPROMs data on the TG, IF, and ES boards to EEPROM on the MB board.

Backup is needed when the TG, IF, or ES board has been replaced.

[Reference][Reference]

[Reference]

[Reference][Reference]

If there is a communication error between the TG, IF, or ES board’s EEPROM and microcomputer when the power is turned on, the backed up data in EEPROM on the MB board is used. The “DIAG ERROR RESET” and “MEMORY BACKUP” will be also carried out when the RESET in Service Menu Page 1 is executed.

2-24

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 20 Selfdiagnosis 2

2-12. Service Mode Operation

PAGE20 (NEXT PREV ) ERROR DISP 1/3

DISP SELECT

PP-PMPD1: PR-PMPD1 000H PR-PMPD2 : PR-G2 PR-R2 :

EXIT MENU (YES )

: :

000H 000H

DISP SELECT The contents of the defective item display are switched.

1: The result of latest error check is displayed. 2: This selfdiagnosis is automatically carried out, and the defective

items diagnosed in the past are displayed.

PP-PMPD

The details of check result for the synchronization signal input and the internal RAM in PP LSI are displayed. 800H: The internal RAM of PP LSI is abnormal. 002H: The input HD signal (PR board IC405, pin 102) to the PP LSI is

abnormal.

001H: The input VD signal (PR board IC405, pin 101) to the PP LSI is

abnormal.

PR-PMPD1

The details of check result for the synchronization signal input in RP LSI are displayed. 002H: The input HD signal (PR board IC411, pin74) to the PR LSI is

abnormal.

001H: The input VD signal (PR board IC411, pin73) to the PR LSI is

abnormal.

. Page 21 Selfdiagnosis 3

PAGE21 (NEXT PREV )

ERROR DISP 2/3 DISP SELECT

PR-G1 000H PR-R1 000H: PR-G0 000H: PR-R0 000H: PR-B1 000H:

EXIT MENU (YES )

PR-PMPD2

The details of check result for the internal RAM in PR LSI are displayed. 800H: The internal RAM of PR LSI is abnormal.

PR-G2

This display item is not used.

PR-R2

This display item is not used.

[Reference][Reference]

[Reference]

[Reference][Reference]

When the plurality of abnormality is occurs, the hexadecimal numbers of three digits are displayed for indiacating the total value of each error codes. Example :When both HD and VD signals input to the PP LSI are abnor-

mal, the PP-PMPD displays is 003H.

PR-G1

This display item is not used.

PR-R1

This display item is not used.

PR-G0

This display item is not used.

PR-R0

This display item is not used.

PR-B1

This display item is not used.

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-25

2-12. Service Mode Operation

. Page 22 Selfdiagnosis 4

PAGE22 (NEXT PREV )

ERROR DISP 3/3 DISP SELECT

RC- PMPD 000H RC- CY 000H: RC- CCR 000H: RC- CCB 000H: DSP COM. 000H: MEMORY 000H:

EXIT MENU (YES )

RC-PMPD

The details of check result for synchronization signal input and the internal RAM in RC LSI are displayed. 800H: The internal RAM of RC LSI is abnormal. 004H: The input CF signal (IF board IC520, pin63) to the RC LSI is

abnormal.

002H: The input HD signal (IF board IC520, pin64) to the RC LSI is

abnormal.

001H: The input VD signal (IF board IC520, pin65) to the RC LSI is

abnormal.

RC-CY

The details of check result for the connection regarding the Y signal between PR LSI and RC LSI are displayed. 400H: The connection between PR board IC411 pin94 and IF board

IC520 pin97 is abnormal. (The No.10 of Y signal)

200H: The connection between PR board IC411 pin93 and IF board

IC520 pin98 is abnormal. (The No.9 of Y signal)

100H: The connection between PR board IC411 pin92 and IF board

IC520 pin99 is abnormal. (The No.8 of Y signal)

080H: The connection between PR board IC411 pin91 and IF board

IC520 pin100 is abnormal. (The No.7 of Y signal)

040H: The connection between PR board IC411 pin90 and IF board

IC520 pin101 is abnormal. (The No.6 of Y signal)

020H: The connection between PR board IC411 pin89 and IF board

IC520 pin103 is abnormal. (The No.5 of Y signal)

010H: The connection between PR board IC411 pin88 and IF board

IC520 pin104 is abnormal. (The No.4 of Y signal)

008H: The connection between PR board IC411 pin86 and IF board

IC520 pin105 is abnormal. (The No.3 of Y signal)

004H: The connection between PR board IC411 pin85 and IF board

IC520 pin106 is abnormal. (The No.2 of Y signal)

002H: The connection between PR board IC411 pin84 and IF board

IC520 pin107 is abnormal. (The No.1 of Y signal)

001H *: The connection between PR board IC411 pin83 and IF board

IC520 pin108 is abnormal. (The No.0 of Y signal)

2-26

*: DXC-D35WS/D35WSP do not have this function.

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-12. Service Mode Operation

RC-CCR (DXC-D35WS/D35WSP do not have this function.)

The details of check result for the connection regarding the CR signal between PR LSI and RC LSI are displayed. 400H: The connection between PR board IC411 pin108 and IF board

IC520 pin84 is abnormal. (The No.10 of CR signal)

200H: The connection between PR board IC411 pin107 and IF board

IC520 pin85 is abnormal. (The No.9 of CR signal)

100H: The connection between PR board IC411 pin106 and IF board

IC520 pin86 is abnormal. (The No.8 of CR signal)

080H: The connection between PR board IC411 pin104 and IF board

IC520 pin87 is abnormal. (The No.7 of CR signal)

040H: The connection between PR board IC411 pin103 and IF board

IC520 pin88 is abnormal. (The No.6 of CR signal)

020H: The connection between PR board IC411 pin102 and IF board

IC520 pin89 is abnormal. (The No.5 of CR signal)

010H: The connection between PR board IC411 pin101 and IF board

IC520 pin92 is abnormal. (The No.4 of CR signal)

008H: The connection between PR board IC411 pin100 and IF board

IC520 pin93 is abnormal. (The No.3 of CR signal)

004H: The connection between PR board IC411 pin99 and IF board

IC520 pin94 is abnormal. (The No.2 of CR signal)

002H: The connection between PR board IC411 pin98 and IF board

IC520 pin95 is abnormal. (The No.1 of CR signal)

001H: The connection between PR board IC411 pin95 and IF board

IC520 pin96 is abnormal. (The No.0 of CR signal)

RC-CCB (DXC-D35WS/D35WSP do not have this function.)

The details of check result for the connection regarding the CB signal between PR LSI and RC LSI are displayed. 400H: The connection between PR board IC411 pin121 and IF board

IC520 pin70 is abnormal. (The No.10 of CB signal)

200H: The connection between PR board IC411 pin120 and IF board

IC520 pin71 is abnormal. (The No.9 of CB signal)

100H: The connection between PR board IC411 pin119 and IF board

IC520 pin72 is abnormal. (The No.8 of CB signal)

080H: The connection between PR board IC411 pin118 and IF board

IC520 pin75 is abnormal. (The No.7 of CB signal)

040H: The connection between PR board IC411 pin117 and IF board

IC520 pin76 is abnormal. (The No.6 of CB signal)

020H: The connection between PR board IC411 pin116 and IF board

IC520 pin77 is abnormal. (The No.5 of CB signal)

010H: The connection between PR board IC411 pin115 and IF board

IC520 pin78 is abnormal. (The No.4 of CB signal)

008H: The connection between PR board IC411 pin112 and IF board

IC520 pin79 is abnormal. (The No.3 of CB signal)

004H: The connection between PR board IC411 pin111 and IF board

IC520 pin80 is abnormal. (The No.2 of CB signal)

002H: The connection between PR board IC411 pin110 and IF board

IC520 pin82 is abnormal. (The No.1 of CB signal)

001H: The connection between PR board IC411 pin109 and IF board

IC520 pin83 is abnormal. (The No.0 of CB signal)

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-27

2-12. Service Mode Operation

[Reference][Reference]

[Reference]

[Reference][Reference]

If the input of synchronization signal to the PR LSI or RC LSI is abnormal, the connection check between PR LSI and RC LSI also detects the abnormality. RC LSI relation check is carried out only when the digital output of DXCD35/D35P is used for connecting DSR-1/1P and so on.

DSP COM

The details of check result for the communication between each LSI and microcomputer are displayed. 004H: The communication between RC LSI and microcomputer is

abnormal. (IF IC520)

002H: The communication between PR LSI and microcomputer is

abnormal. (PR IC411)

001H: The communication between PP LSI and microcomputer is

abnormal. (PR IC405)

[Reference][Reference]

[Reference]

[Reference][Reference]

The RC LSI communicates with the microcomputer by six pins of pin26(CS), pin25(SCK), pin24(SDA0), pin23(SDA1), pin22(SDA2) and pin21(SDA3). The PR LSI communicates with the microcomputer by six pins of pin58(CS), pin57(SCK), pin56(SDA0), pin55(SDA1), pin54(SDA2) and pin53(SDA3). The PP LSI communicates with the microcomputer by six pins of pin41(CS), pin40(SCK), pin39(SDA0), pin38(SDA1), pin37(SDA2) and pin36(SDA3).If the communication between LSI and the microcomputer is abnormal, the abnormality of other item may be detected at the same time.

MEMORY

The details of check result for the communication between each EEPROM and microcomputer are displayed. 080H: The communication between EEPROM of ES and microcom-

puter is abnormal.

040H: The communication between EEPROM of IF and microcomput-

er is abnormal.

020H: The communication between EEPROM of TG and microcom-

puter is abnormal.

010H: The communication between EEPROM of MB and microcom-

puter is abnormal.

[Reference][Reference]

[Reference]

[Reference][Reference]

The corresponding display for the data of each EEPROM on the service menu becomes a blank column, when the EEPROM on the TG, IF, ES and MB boards is abnormal.

2-28

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 23 Current Status Display

2-12. Service Mode Operation

PAGE23 (NEXT PREV ) POWER

TIS R GAIN B GAIN IRIS POS KWC

EXIT MENU (YES )

. Page 24 TG ROM Operation

PAGE24 (NEXT PREV )

TG ROM

EXIT MENU (YES )

13.0V

250h

800h

Information for production.

Not in use

. Page 25 Carrier Adjustment When DPR (Dual Pixel Readout) is on.

R D.DARK R Carrier balance adjustment at DPR ON

PAGE25 (NEXT PREV ) R D.DARK

G D.DARK B D.DARK

EXIT MENU (YES )

. Page 26 Option

: : :

128 128 128

G D.DARK G Carrier balance adjustment at DPR ON B D.DARK B Carrier balance adjustment at DPR ON

Normally this item setting is OFF.

PAGE26 (NEXT PREV ) OPTION1

OPTION2

EXIT MENU (YES )

: : :

OFF OFF

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-29

2-12. Service Mode Operation

2-12-2. File Menu

DXC-D35/D35P

Reset items and standard values to be set.

Standard set value NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 to 8

ITEM STD HISAT FL FILMLIKE SVHS/VHS USER1 to 3 M.BLACK ±0 ±0 ±0 ±0 ±0 ±0 STRETCH ±0 ±0 ±0 ±0 ±0 ±0 M.GAMMA ±0 ±0 ±0 _33 ±0 ±0 DTL LEV ±0 +10 ±0 _99 _40 ±0 V DTL LEV ±0 ±0 ±0 ±0 _10 ±0 DTL FREQ M M M M L M SAT ±0 ±0 ±0 ±0 _5 ±0 HUE ±0 ±0 ±0 ±0 ±0 ±0 SKIN SAT ±0 ±0 ±0 ±0 ±0 ±0 SKIN HUE ±0 ±0 ±0 ±0 ±0 ±0 M.KNEE P 310 310 310 310 310 310 M.KNEE S 90 90 90 90 90 90 GAMMA TBL B B B A B B COMB OFF OFF OFF OFF OFF OFF R_G LEV NTSC 65 80 99 12 65 65

PAL 38 50 50 12 38 38

R_B LEV NTSC 12 20 _15 9 12 12

PAL 10 24 10 9 10 10

G_R LEV NTSC 14 23 25 _61414

PAL 6 10 14 _66 6

G_B LEV NTSC 32 46 _9373232

PAL 15 30 12 37 15 15

B_R LEV NTSC 10 11 0 _810 10

PAL 6 10 10 _86 6

B_G LEV NTSC 3 5 0 24 3 3

PAL 7 12 _2247 7 T_G WIDTH 40 40 40 40 40 40 R_B WIDTH 20 20 20 20 20 20 G_R WIDTH 20 20 20 20 20 20 G_B WIDTH _40 _40 _40 _40 _40 _40 B_R WIDTH _20 _20 _20 _20 _20 _20 B_G WIDTH _20 _20 _20 _20 _20 _20 LEVEL DEP 52 52 52 52 52 52 V DTL LIM 20 20 20 20 20 20 CRISP 10 10 10 10 10 10 APERTURE 128 128 128 63 35 128 AFT DTL 10 10 10 10 40 10

2-30

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-12. Service Mode Operation

Standard set value NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 to 8

KNEE APT 24 24 24 63 24 24 HIGH DTL 63 63 63 63 63 63 CCS LEV 5 5 5 5 5 5 STRP1 20 20 20 20 20 20 STRP2 45 45 45 45 45 45 PRSP1 8 8 8 8 8 8 PRSP2 63 63 63 63 63 63

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-31

2-12. Service Mode Operation

DXC-D35WS/D35WSP

Reset items and standard values to be set.

Standard set value NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 to 8

ITEM STD HISAT FL FILMLIKE SVHS/VHS USER1 to 3 M.BLACK ±0 ±0 ±0 ±0 ±0 ±0 STRETCH ±0 ±0 ±0 ±0 ±0 ±0 M.GAMMA ±0 ±0 ±0 _33 ±0 ±0 DTL LEV ±010±0 _80 _50 ±0 V DTL LEV ±0 ±0 ±0 ±0 _10 ±0 DTL FREQ M M M M L M SAT ±0 ±0 ±0 ±0 _5 ±0 HUE ±0 ±0 ±0 ±0 ±0 ±0 SKIN SAT ±0 ±0 ±0 ±0 ±0 ±0 SKIN HUE ±0 ±0 ±0 ±0 ±0 ±0 M.KNEE P 310 310 310 310 310 310 M.KNEE S 90 90 90 90 90 90 GAMMA TBL B B B A B B COMB OFF OFF OFF OFF OFF OFF R_G LEV NTSC 65 80 99 12 65 65

PAL 38 50 50 12 38 38

R_B LEV NTSC 12 20 _15 9 12 12

PAL 10 24 10 9 10 10

G_R LEV NTSC 14 23 25 _61414

PAL 6 10 14 _66 6

G_B LEV NTSC 32 46 _9373232

PAL 15 30 12 37 15 15

B_R LEV NTSC 10 11 0 _810 10

PAL 6 10 10 _86 6

B_G LEV NTSC 3 5 0 24 3 3

PAL 7 12 _224 7 7

R_G WIDTH 40 40 40 40 40 40 R_B WIDTH 20 20 20 20 20 20 G_R WIDTH 20 20 20 20 20 20 G_B WIDTH _40 _40 _40 _40 _40 _40 B_R WIDTH _20 _20 _20 _20 _20 _20 B_G WIDTH _20 _20 _20 _20 _20 _20 LEVEL DEP 52 52 52 52 52 52 V DTL LIM 20 20 20 20 20 20 CRISP 10 10 10 10 10 10 APERTURE 145 145 145 128 128 145 AFT DTL 10 10 10 10 40 10

2-32

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

2-12. Service Mode Operation

Standard set value NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 to 8

KNEE APT 24 24 24 63 24 24 HIGH DTL 63 63 63 63 63 63 CCS LEV 5 5 5 5 5 5 STRP1 20 20 20 20 20 20 STRP2 45 45 45 45 45 45 PRSP1 8 8 8 8 8 8 PRSP2 63 63 63 63 63 63

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-33

2-12. Service Mode Operation

. Page 1 All Reset

(For DXC-D35/D35WS)

PAGE1 (NEXT PREV )

ALL RESET (YES ) DEST : UC

EXIT MENU (YES )

(For DXC-D35P/D35WSP)

PAGE1 (NEXT PREV )

ALL RESET (YES )

EXIT MENU (YES )

. Page 2 File Name Change/File Reset

Each item value in all FILE can be restored to their standard setting (factory setting).

PAGE 2 (NEXT PREV ) FILE NO.

FILE NAME (STD )

FILE RESET (YES )

EXIT MENU (YES )

. Page 3 File Recall

PAGE3 (NEXT PREV ) FILE RECALL

:*HISAT

FILE SELECT FILE STD CHG FILE (YES )

EXIT MENU (YES )

: :

FILE NO. File No. of operation item FILE NAME File name of operation item file FILE RESET Performing of FILE RESET

FILE File name which is recalled SELECT FILE Select file to be recalled CHG FILE Performing of FILE RECALL

2-34

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 4 File Basic Setting

PAGE4 (NEXT PREV ) M.BLACK

STRETCH M.GAMMA DTL LEV V DTL LEV DTL FREQ

: : : : : :

± 0 ± 0 ± 0 ± 0 _ 10

2-12. Service Mode Operation

M.BLACK Master black level setting STRETCH Black stretch level setting M GAMMA Master GAMMA level setting DTL LEV Detail level setting V DTL LEV V detail level setting DTL FREQ Detail center frequency setting

EXIT MENU (YES )

. Page 5 File HUE Setting

PAGE5 (NEXT PREV )

SAT HUE SKIN SAT SKIN HUE

EXIT MENU (YES )

. Page 6 File Knee /GAMMA Setting

PAGE6 (NEXT PREV ) M.KNEE P

M.KNEE S GAMMA TBL COMB

EXIT MENU (YES )

: : : :

± 0 ± 0 ± 0 ± 0

: : :

OFF

300

FILE DATA selected with SET UP switch is displayed on the PAGE 4 to

11. When data value is changed, the data in the FILE DATA selected with SET UP switch is also rewriten. When the SET UP switch is switched while any of PAGE 4 to 11 is displayed, the display is changed in response to the SET UP switch position.

SAT Chroma setting HUE HUE setting SKIN SAT Chroma setting for the skin tone area SKIN HUE HUE setting for the skin tone area

M.KNEE P Standard value setting of master knee point M.KNEE S Standard value setting of master knee slope GAMMA TBL Selection of GAMMA table A/B COMB A : Rising gain 3.5-fold

B : Rising gain 4.0-fold COMB Filter selection (OFF/GR/R/G)

. Page 7 File Matrix Center Value Setting

PAGE7 (NEXT PREV ) R-G LEV

R-B LEV G-R LEV G-B LEV B-R LEV B-G LEV

EXIT MENU (YES )

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

R-G LEV R-G coefficient center value setting R-B LEV R-B coefficient center value setting G-R LEV G-R coefficient center value setting G-B LEV G-B coefficient center value setting B-R LEV B-R coefficient center value setting B-G LEV B-G coefficient center value setting

2-35

2-12. Service Mode Operation

. Page 8 File Matrix Variable Width Setting

PAGE8 (NEXT PREV )

R-G WIDTH R-B WIDTH G-R WIDTH G-B WIDTH B-R WIDTH B-G WIDTH

EXIT MENU (YES )

. Page 9 File Core Related Setting

PAGE9 (NEXT PREV ) LEVEL DEP

V DTL LIM CRISP

EXIT MENU (YES )

_ 40

_ 20

R-G WIDTH HUE variable width of R-G coefficient setting R-B WIDTH HUE variable width of R-B coefficient setting G-R WIDTH HUE variable width of G-R coefficient setting G-B WIDTH HUE variable width of G-B coefficient setting B-R WIDTH HUE variable width of B-R coefficient setting B-G WIDTH HUE variable width of B-G coefficient setting

LEVEL DEP Level depend level setting V DTL LIM V detail compression setting CRISP CRISPENING level setting

. Page 10 File Detail Related Setting

PAGE10 (NEXT PREV ) APERTURE

AFT DTL KNEE APT HIGH DTL CCS LEV

EXIT MENU (YES )

. Page 11 File Stretch Setting

PAGE11 (NEXT PREV )

STRP1 STRP2 PRSP1 PRSP2

EXIT MENU (YES )

145

APERTURE Aperture level setting AFT DTL Setting of the detail amount to be added after the

gamma circuit KNEE APT Setting of the detail amount higher than the knee point HIGH DTL Setting of the detail amount in the high light area CCS LEV Cross color supress level setting

STRP1 BLACK STRETCH Point1 setting STRP2 BLACK STRETCH Point2 setting PRSP1 BLACK COMPRESS Point1 setting PRSP2 BLACK COMPRESS Point2 setting

2-36

DXC-D35/D35WS(UC)

DXC-D35P/D35WSP(CE) V1

. Page 12 File Store

2-12. Service Mode Operation

PAGE12 (NEXT PREV ) FILE STORE

:*HISAT

FILE DISTINATION FILE USER1 STORE FILE (YES )

EXIT MENU (YES )

FILE File name to be recalled DESTINATION FILE Selection of FILE STORE destination STORE FILE Performing of FILE STORE

DXC-D35/D35WS(UC) DXC-D35P/D35WSP(CE) V1

2-37
