Sony DVP-FX825 Users guide [en, fr]

Portable CD/DVD Player
3-294-108-21(1)
Mode d’emploi
US
FR
DVP-FX825
©2008 Sony Corporation
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
The AC power cord must be changed only at a qualified service shop.
Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
This label is located on the bottom of the unit.
This symbol is intended to alert the user to the presence
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Precautions
• Install this system so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.
• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.
• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
For Customers in Canada
If this product is not working properly, please call 1-877-602­2008 for Peace of Mind
Warranty Replacement service.
For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6
of uninsulated
This symbol is intended to alert the user to the presence of important
RECYCLING LITHIUM­ION BATTERIES
Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
US
us
2
Precautions
Road safety
Do not use the monitor unit and headphones while driving, cycling, or operating any motorized vehicle. Doing so may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.
On safety
Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.
On power sources
• The power requirements of this unit are indicated on the AC adaptor. Check that the unit’s operating voltage is identical with your local power supply.
• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• Do not touch the AC power cord or the AC adaptor with wet hands. Doing so may cause shock hazard.
On temperature increases
Heat may build up inside the player during charging or if it is being used for a long time. This is not a malfunction.
On placement
• Place the player in a location with adequate ventilation to prevent heat build-up in the player.
• Do not place the player in a confined space such as a bookshelf or similar unit.
• Do not cover the ventilation of the player with newspapers, tablecloths, curtains, etc. And do not place the player on a soft surface, such as a rug.
• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, sand, moisture, rain, or mechanical shock, or in a car with its windows closed.
• Do not place the player in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the player and discs away from equipment with strong magnet, such as microwave ovens, or large loudspeakers.
• Do not place heavy objects on the player.
On operation
• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.
• Keep the lens on the player clean and do not touch it. Touching the lens may damage the lens and cause the player to malfunction. Leave the disc lid closed except when you insert or remove discs.
On Liquid Crystal Display
• Although manufactured with high precision technology, the LCD may occasionally display dots of various colors. That is not a malfunction.
• Do not wipe the LCD surface with wet cloth. If water enters, a malfunction may result.
• Do not place or drop any object onto the LCD surface. Also, do not apply pressure from hands or elbows.
• Do not damage the LCD surface with a sharp edged tool.
• Do not close the LCD panel with a pen, etc., on the disc lid.
• If the player is brought directly from a cold to a warm location, moisture may condense over the LCD surface. In which case, wipe out the moisture with tissue paper, etc., before use. However, moisture condensation will continue if the LCD surface is cold. Wait until the surface warms to room temperature.
On AC adaptor
•Use the supplied AC adaptor for this player, as other adaptors may cause a malfunction.
• Do not disassemble or reverse­engineer.
• Do not drop or apply shock.
• Do not confine the AC adaptor in a closed place such as a bookshelf or an AV cabinet.
• Do not connect the AC adaptor to a traveler’s electric transformer, which may generate heat and cause a malfunction.
On battery pack
• Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority.
• Because of the battery’s limited life, its capacity gradually deteriorates over time and repeated use. Purchase a new one when the battery holds about only half the normal period.
• The battery may not be charged to its fullest capacity when charged for the first time, or when it has not been used for a long time. The capacity recovers after being charged and discharged several times.
• Do not leave the battery pack in a car or direct sunlight, where temperature goes up above 60 ºC (140°F).
• Do not expose to water.
• Avoid short-circuiting the battery connecting jacks (A) located on the bottom of the player and the connecting jacks (C) on the battery pack with metal objects such as a necklace.
• Make sure dust or sand does not enter the battery connecting jacks (A) and the guide holes (B) located on the bottom of the player, and the connecting jacks (C) and the guide holes (D) on the battery pack.
US
,continued
US
3
A
Bottom of the player B
Battery pack D
C
On car adaptor
• Use the supplied car adaptor for this player, as other adaptors may cause a malfunction.
• Do not dissemble or reverse­engineer.
• Do not drop or apply shock.
• Do not touch the metal parts, as it may cause a short and damage the car adaptor, especially if touched by other metal objects.
• Do not place the car adaptor in a location near heat sources, or in a place subject to direct sunlight or mechanical shock, or in a car with its windows closed.
On adjusting volume
Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.
On headphones
Preventing hearing damage
Avoid using headphones at high volumes. Hearing experts advice against continuous, loud, and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
Showing consideration for
others
Keep the volume at a moderate level. This will allow you to hear outside sounds and still be considerate to the people around you.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
On cleaning discs, disc/ lens cleaners
Do not use cleaning discs or disc/ lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.
IMPORTANT NOTICE
Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.
If you have any questions or problems concerning your player, please consult your nearest Sony dealer.
US
us
4
Table of Contents
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
This Player Can Play the Following Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Checking the Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting the AC Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using with the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using with the Car Battery Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using the Playback Settings Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Searching for a Particular Point on a Disc (Search, Scan, Slow Play,
Repeat Play, Random Play). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Playing MP3 Audio Tracks or JPEG Image Files . . . . . . . . . . . . . . . . . . . . . 24
Adjusting the Picture Size and Quality
Enjoying DivX® Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing DivX Video Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
About DivX Video Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using the Setup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Settings for the Display (General Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Settings for the Sound (Audio Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting the Display or Sound Track Language (Language Setup). . . . . . . . . 34
Parental Control Settings (Parental Control) . . . . . . . . . . . . . . . . . . . . . . . . . 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

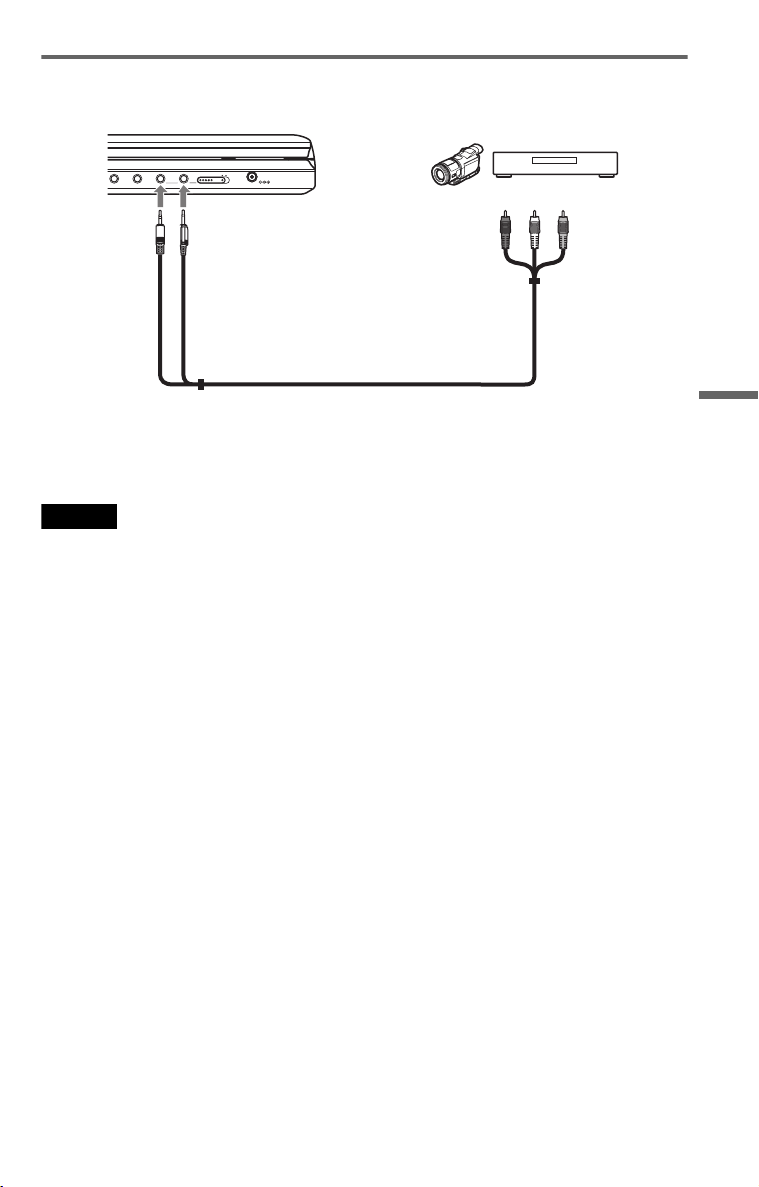

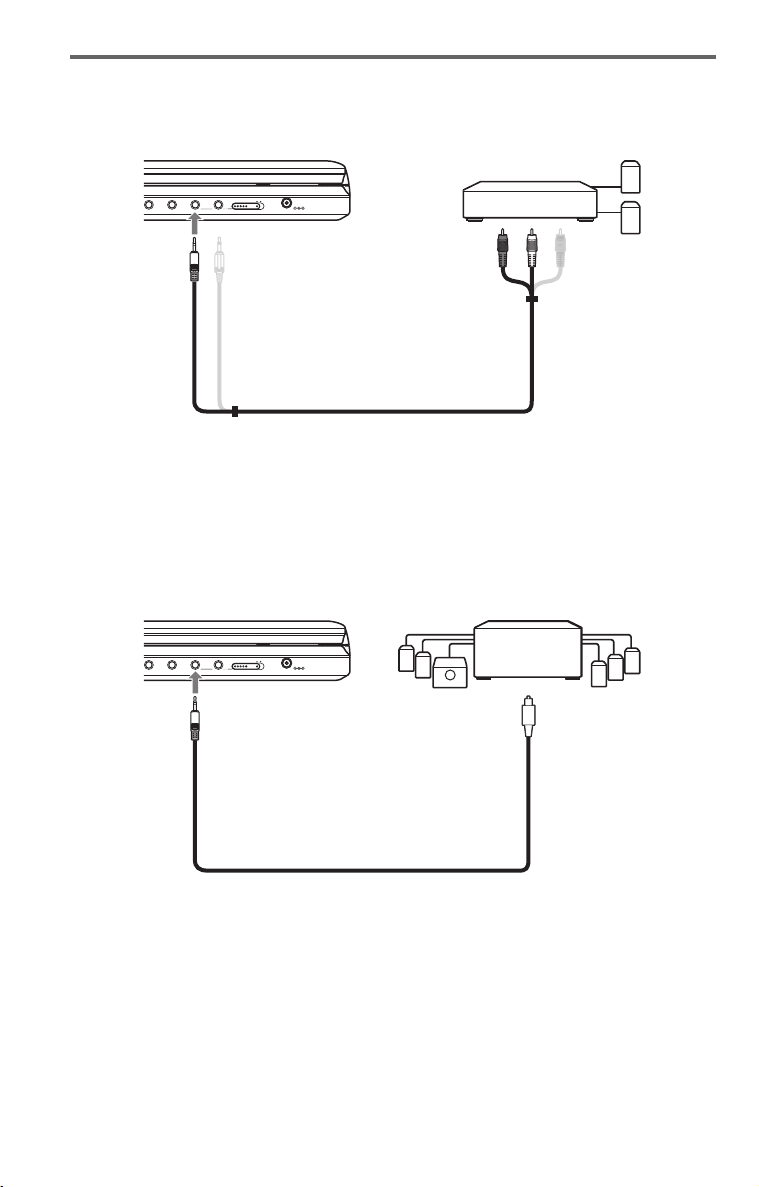

Connecting to another device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
About MP3 Audio Tracks and JPEG Image Files . . . . . . . . . . . . . . . . . . . . . 42
Notes About the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Index to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
US
5
About This Manual
• Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote.
• “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs (+VR mode) and DVD-RWs/DVD-Rs (video mode).
• The meaning of the icons used in this manual is described below:
Icons Meaning
Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/DVD-Rs in video mode
Functions available for music CDs or CD-Rs/CD-RWs in music CD format
Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3
Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs containing MP3
*2*3
DivX
*1 MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for
Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio
data. *2 DivX® is a video file compression technology, developed by DivX, Inc. *3 DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under licence.
*1
audio tracks, JPEG image files, and DivX
*1
video files)
*2*3
video files)
audio tracks, JPEG image files, and
US
6
us
This Player Can Play the Following Discs
Format of discs
DVD VIDEO
DVD-RW/-R (finalized disc)
DVD+RW/+R (finalized disc)
Example of discs that the player cannot play
The player cannot play the following discs:
• Blu-ray discs.
• Discs recorded in AVCHD format.
• HD DVDs.
•DVD-RAMs.
• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page.
• CD-ROMs recorded in PHOTO CD format.
• Data part of CD-Extras.
• DVD Audio discs.
• DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files.
• HD layer on Super Audio CDs.
Music CD
CD-RW/-R
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.
Note about CDs/DVDs
The player can play CD-ROMs/CD-Rs/CD­RWs recorded in the following formats: – music CD format – MP3 audio tracks, JPEG image files, and
DivX video files of format conforming to ISO 9660* Level 1, or its extended format, Joliet
– KODAK Picture CD format
* A logical format of files and folders on CD-
ROMs, defined by ISO (International Organization for Standardization).
The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following format: – MP3 audio tracks, JPEG image files, and
DivX video files of format conforming to UDF (Universal Disk Format).
Also, the player cannot play the following discs:
• A DVD VIDEO with a different region code.
• A disc recorded in a color system other than NTSC, such as PAL or SECAM.
• A disc that has a non-standard shape (e.g., card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape or a sticker still left on it.
Notes
Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs
Some DVD+RWs/DVD+Rs, DVD-RWs/DVD­Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
The disc will not play if it has not been correctly finalized. For more information, refer
to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format or multiple sessions cannot be played.
Notes about DVD+R DLs/DVD-R DLs MP3 and JPEG files recorded on the second layer of a DVD+R DL/-R DL (double layered) may not be playable.
,continued
7US
Music discs encoded with copyright protection
technologies
This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
• Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.
Region code
It is the system that is used to protect copyrights. The region code is shown on the DVD VIDEO packages according to the region of sale. DVD VIDEOs labeled “ALL” or “1” will play on this player.
ALL
Note on playback operations of DVDs
Some playback operations of DVDs may be intentionally set by software producers. Since this player plays DVDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs.
Trademarks
• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. ©1996-2007 DTS, Inc. All Rights Reserved.
Copyrights
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
US
8
us
Preparations
Checking the Accessories
Check that you have the following items:
• Audio/video cord (mini plug × 2 y phono plug × 3) (1)
• AC power cord (1)
• AC adaptor (1)
• Car battery adaptor (1)
• Battery pack (NP-FX110) (1)
• Remote (with battery) (1)
Using the Remote
When operating, point it at the remote sensor on the player.
To replace the remote control battery
Insert a lithium battery CR2025 matching the 3 and # ends of the battery.
1 Pull out the battery holder (2) while
pressing the lock lever (1).
2 Remove the old battery.
Notes
• Do not expose the remote sensor to direct sunlight or a lighting apparatus. Doing so may cause a malfunction.
• No button operation can be made, when the battery drains. If the remote does not work at all, change the battery and check the status.
3 Insert the new battery in the battery
holder with the 3 side up and then push the holder fully.
Preparations
WARNING
Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
US
9
Using the LCD Panel
The LCD panel of the player can rotate a maximum of 180 degrees clockwise and still be used. After rotation of the LCD panel, it can be folded down on the main body of the player and still function.
Rotating the LCD panel
1 Place the player on a table or other flat stable surface. 2 Push the LCD panel up with your thumbs until it is open to the vertical position.
3 Slowly rotate the LCD panel 180 degrees in the direction indicated by the arrow
(clockwise).
Rotating and folding down the LCD panel
After rotating the LCD panel 180 degrees clockwise push the LCD panel down onto the main body of the player. In this position the panel is facing up.
To return the LCD panel to its original position
Open the LCD panel to the vertical position and rotate the LCD panel counter-clockwise slowly.
Notes
• Do not rotate the LCD panel over 180 degrees. In addition, do not rotate in the opposite direction. Doing so will break the LCD panel.
• If the LCD panel does not fully open, do not further rotate it. The LCD panel may become damaged.
• Return the LCD panel to its original positions after use. The LCD screen can be damaged by sudden shocks or similar treatment.
US
10
us
Connecting the AC Adaptor
Connect the AC adaptor (supplied) in the order of 1 to 3 below. To disconnect, follow the steps in reverse order.
Preparations
PHONES
AB
AUDIO VIDEO OPTICAL OUT
LINE SELECT
DC plug
IN OUT
DC IN
9.5V
To DC IN 9.5 V jack
2
AC Adaptor (supplied)
AC power cord (supplied)
1
To a wall outlet
3
Note
Stop playback before disconnecting the AC power cord. Failure to do so may cause a malfunction.
11
US
Using with the Battery Pack
When an AC power connection is not available, the player can be enjoyed with the battery pack (supplied) installed. Please charge the battery pack before using it.
Installing the battery pack
1 Aligning the battery pack with the lines on the player’s bottom, engage the hooks of
the battery pack in the holes on the bottom of the player.
2 Slide the battery pack in the direction of the arrow until it clicks into place.
Battery pack
Bottom of the player
To remove the battery pack
Push the release knob and slide the battery pack in the direction of the arrow.
Release knob
Notes
• Turn the player off before installing the battery pack.
• Do not remove the battery pack during playback.
• Do not touch the connecting points of the player and the battery pack. Doing so may cause a malfunction.
• Be careful not to drop the battery pack when installing and removing it.
US
12
us
Charging the battery pack
POWER CHARGE
1 Attach the battery pack to the player (page 12). 2 Connect the AC adaptor to the player, and then connect the AC power cord into a wall
outlet (page 11).
CHARGE indicator
DC IN 9.5 V jack
Preparations
HOLD
Player Battery pack
PHONES
AB
AUDIO VIDEO OPTICAL OUT
LINE SELECT
IN OUT
DC IN
9.5V
When charging begins, the CHARGE indicator turns on. When charging ends, the CHARGE indicator turns off.
3 After charging is finished, disconnect the AC power cord from the wall outlet and
remove the AC adaptor.
To check the battery level
When the player is stopped, a battery indicator is displayed on the screen. Recharge the battery, when is displayed or the CHARGE indicator flashes.
Full Exhausted
The battery indicator is not displayed when a DVD or JPEG file are being played. Stop the player and check the battery level.
Charging time and maximum playing time
Charging time (with the player turned off) Playing time (with the display turned on)
Approx. 6 hours
* This is the indication of the longest continuous playback on the following conditions. – normal temperature (20°C (68°F)) – Headphone Use – Set Backlight Adjustment to the Minimum – Set “Digital Output” to “Off” in “Audio Setup.” Battery condition may reduce operating time.
Approx. 6 hours*
Notes
• The battery indicator does not appear on the screen when the AC adaptor is used or when inputting from external sources.
• Charging times may differ from that indicated above due to conditions of use, environment, and other factors. The recommended charge up surrounding temperature is in the 10-30°C (50-86°F) range.
13
US
Using with the Car Battery Adaptor
Use the car battery adaptor (supplied) to supply power from the cigarette lighter socket to the player. The adaptor is for a 12V car battery. Do not use it with a 24V car battery. The adaptor is also for use with negatively grounded cars. Do not use it with cars grounded positively.
AUDIO VIDEO
PHONES
AB
OPTICAL OUT
LINE SELECT
To DC IN 9.5V jack
IN OUT
DC IN
9.5V
To cigarette lighter socket
Car battery adaptor (supplied)
z Hint
If the car adaptor interferes with car operation, use a commercial cigarette lighter extension cord.
Notes
• Do not use the car adaptor if it has been dropped or damaged.
• Arrange the cord so as not to interfere with the driver. Also, do not place the LCD panel where the driver can watch.
• If the picture is not clear, keep the player away from the car battery adaptor.
• Use the car battery adaptor with the car engine running. If it is used with the car engine off, the car battery may become unusable.
• If the cigarette lighter socket is dirty with ash, etc, a bad connection may cause the plug to heat up. Always clean well before use.
• The car battery adaptor may heat up while charging or after a long period of use. That is not a malfunction.
After using the car battery adaptor
After turning the player off, disconnect the car battery adaptor from the cigarette lighter socket.
Notes
• Do not turn off the car engine while the player is turned on. Doing so stops the power supply and may cause damage to the player.
• Disconnect the car battery adaptor after use. Since some cars supply power to the cigarette lighter socket even when the engine is turned off, the car battery may discharge over time.
• When disconnecting the car battery adaptor, hold the plug to pull it out.
• When listening to the car radio, disconnect the car battery adaptor from the cigarette lighter socket to avoid noise.
US
14
us
Playing Discs
HOLD
OPEN
CHARGEPOWER
Playing Discs
Depending on the DVD, some operations may be different or restricted. Refer to the operating instructions supplied with the disc. Connect the AC adaptor or install the battery pack.
x
2 Press [/1 on the remote or slide
the [/1/HOLD switch of the player to “[/1.”
The player turns on and the power indicator lights up in green.
3 Press OPEN to open the disc lid.
Playing Discs
4 Insert the disc to be played.
Push with the playback side down until it clicks.
H
VOL DISPLAY MENU RETURN OPTIONS
OPEN \/1/HOLD
123
456
7809
1 Open the player’s LCD panel.
Set the LINE SELECT switch on the player’s right side to “OUT.”
\/1
H
x
CHARGEPOWER
Playback side facing down
5 Push the PUSH CLOSE on the
player to shut the disc lid.
6 Press H.
Playback starts.
• Some discs may start playing automatically after the disc lid is shut.
• Depending on the disc, a menu may appear on the screen. See page 17 for details.
• After all titles have been played, the player will stop itself and the display will return to the menu screen.
Notes
• If the disc is inserted with playback side up, a “No Disc” or “Cannot play this disc.” message appears.
• Discs created on DVD recorders must be correct ly finalized to play on this player. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder.
• The disc may be still spinning when the disc lid is opened. Wait until the spinning stops before removing the disc.
,continued
15
US
• Durin g operation, “ ” may appear on the screen. This symbol indicates that a function explained in this operating instruction is not available on the current DVD VIDEO.
Additional playback operations
To stop playback
Press x. Pressing H again will start playback from the point you stopped (Resume Play). See page 17 for details. To play from the beginning, press x twice, then press H.
To turn off the power
Press the remote’s \/1 button or slide the player’s \/1/HOLD switch to “\/1.”
To avoid accidental button operation on the player
Set the player’s \/1/HOLD switch to “HOLD.” All the buttons on the player are locked, while the button on the remote remains operable.
To play DTS sound tracks on a DVD VIDEO
• The player’s speaker does not output DTS sound. When you play DTS sound tracks on a DVD VIDEO, connect the player to an AV amplifier (receiver) (page 38) and set up “DTS” in “Audio Setup” (page 34).
• If you connect the player to audio equipment such as an AV amplifier (receiver) without a DTS decoder, do not set “DTS” to “On” in “Audio Setup” (page 34). A loud noise may come out from the speakers, which may affect your ears or cause speaker damage.
123
456
7809
.
X
>
x
To Operation
Stop Press x Pause Press X Go to the next chapter,
Press >
track, or scene in continuous play mode
Go back to the
Press .
previous chapter, track, or scene in continuous play mode
Briefly fast forward the current scene*
* DVD VIDEOs only.
The above functions may not be used for some scenes.
Press during playback.
Notes
• A screen saver image appears when you leave the player in pause or stop without operation for more than 15 minutes. The image disappears when you press H. See page 33 for details.
• The player turns off, 15 minutes after starting the screen saver function (Auto Power Off).
US
16
us
Resuming playback from the point where you stopped the disc (Resume Play)
When you stop playback, the player remembers the stop point and displays a message on the screen. You can resume from the same point by pressing H again. Resume Play works even after the player is turned off, as long as the disc lid is kept closed.
Using the DVD’s menu
A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD containing several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button.
Playing Discs
123
456
7809
H
x
1 While playing a disc, press x to stop
playback.
A message appears.
2 Press H.
The player starts playback from the point you stopped in step 1.
z Hints
• To play from the beginning of the disc, press x twice, then press H.
• When turning power on again after power off, resume play starts automatically.
Notes
• Depending on the stop point, Resume play may not start from exactly the same point.
• The point where you stopped playing is cleared when: – you open the disc lid. – you disconnect the battery pack and the AC
adaptor.
– you change the LINE SELECT switch setting.
123
Number
buttons
TOP MENU
C/X/x/c
ENTER
456
7809
MENU
1 Press TOP MENU or MENU.
The disc’s menu appears on the screen. The contents of the menu vary from disc to disc.
2 Press C/X/x/c or the number buttons
to select the item you want to play or change.
3 Press ENTER.
Note
Depending on the disc, you may not be able to use
C/c of the player for the disc menu. In this case, use C/c on the remote.
,continued
17
US
Changing the sound
When playing a DVD VIDEO recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.
123
456
7809
AUDIO
Notes
• Depending on the disc, you may not be able to change the audio format, even if it is recorded in multiple audio formats.
• If “DTS” in “Audio Setup” is set to “Off” (page 34), the DTS track selection option will not appear on the screen even if the disc contains DTS tracks.
• When playing DTS sound tracks on a CD, you cannot change the sound.
1 Press AUDIO repeatedly to select the
desired audio signal.
The default setting is underlined.
When playing a DVD VIDEO
Depending on the DVD VIDEO, the choice of language varies. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.
When playing a CD
•Stereo
: the standard stereo sound
• Left: the sound of the left channel (monaural)
• Right: the sound of the right channel (monaural)
z Hints
• You can check of the current audio format (Dolby Digital, DTS, PCM, etc.) by pressing AUDIO repeatedly while playing a DVD VIDEO.
• You can swi tch the sound in the Playback Settings Display while playing a DVD (page 20).
US
18
us
Displaying the subtitles
If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD.
123
456
7809
SUBTITLE
1 Press SUBTITLE repeatedly to select a
setting.
Depending on the disc, the choice of language varies.
Changing the angles
If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears on the screen. This means that you can change the viewing angle.
123
456
7809
ANGLE
1 Press ANGLE repeatedly to select an
angle number.
The scene changes to the selected angle.
Playing Discs
To turn off the subtitles
Select “Subtitle Off” in step 1.
z Hint
You can switch the subtitles in the Playback Settings Display while playing a DVD (page 20).
Notes
• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.
• While you play a disc with subtitles, the subtitle may disappear when you press .
Notes
• Some DVD VIDEOs prohibit changing angles even when multi-angles are recorded.
• You cannot change angles during Slow Play or Scan Play.
• “ ” (angle mark) does not appear when “Angle Mark” in “General Setup” is set to “Off” (page 33).
19
US
Using the Playback Settings Display
While playing a DVD, you can check the current playback settings on the screen. The Playback Settings Display also allows you to change sound, subtitle, and angle or search for a title or track by inputting numbers.
DISPLAY
O
123
456
7809
Number
buttons
C/X/x/c
ENTER
1 Press DISPLAY while playing a
DVD.
The Playback Settings Display appears. Example: When playing a DVD VIDEO
Current playback settingsItems
Menu
Title Chapter Audio Subtitle
The corresponding icon for Play, Pause, Search, or Slow Play is displayed in the upper right corner of the screen.
02/07 03/20 02 2CH DOLBY DIGITAL English 01 English
Title Elapsed 00:12:01
Elapsed or remaining timeBattery status
2 Press X/x to select the desired
item and press ENTER.
• Title
• Chapter
• Audio
• Subtitle
• Angle
US
20
us
•T.Time
•C.Time
• Repeat
•Time Disp.
3 Press X/x to select the setting,
and press ENTER.
To enter numbers, use the number buttons or X/x.
Note
Depending on the disc, you may not be able to set some options.
To turn off the display
Press DISPLAY or O RETURN.
Searching for a title/chapter, etc.
By entering the number or the time code, you can search a DVD by title or chapter.
1 Press X/x to select the search method
on the Playback Settings Display, and press ENTER.
• Title
• Chapter
•T.Time*
•C.Time*
* You can search the title or chapter of a DVD
VIDEO by entering the time code.
2 Press the number buttons or X/x to
select the title or chapter number, and press ENTER.
The player starts playback from the
selected number. When you select “T.Time” or “C.Time” in step 1, “00:00:00” will appear on the screen. Enter the desired time code using the number buttons, and press ENTER. Playback starts from the entered time code. Elapsed or remaining time appears on the footer of the Playback Settings Display.
z Hints
• You can use direct search without displaying the
control menu. See page 22 for details.
• See page 22 for details about searching for a CD.
Notes
• The displayed title/chapter number is the same as the number recorded on the disc.
• Depending on the disc, you may not be able to use the time code.
Playing a DVD VIDEO repeatedly (Repeat Play)
You can play all of the titles on a DVD VIDEO, or a single title or chapter repeatedly.
1 Select “Repeat” on the Playback
Settings Display, and press ENTER.
2 Press X/x to select the setting, and
press ENTER.
Chapter: repeats the current
chapter.
Title: repeats the current title.
All: repeats all of the titles.
To return to normal play
Select “Off” in step 2.
Checking the playing time and remaining time
You can check the playing time and remaining time of the current title or chapter.
1 Select “Time Disp.” on the Playback
Settings Display, and press ENTER.
Time Disp.
Title Elapsed Title Remain Chapter Elapsed Chapter Remain
Title Elapsed 00:12:48
2 Press X/x to select the time
information setting, and press ENTER.
• Title Elapsed
• Title Remain
• Chapter Elapsed
•Chapter Remain
Playing Discs
z Hint
When playing a CD repeatedly, use MENU (page 23).
Note
Depending on the disc, the Repeat function may not be available.
z Hint
See page 24 for details about displaying the elapsed time of a CD.
Note
The default setting for “Time Disp.” is “Title Elapsed.” After selecting an other option of “Time Disp.” and exiting from the Playback Settings Display, the “Title Elapsed” appears when the Playback Settings Display is re-entered.
21
US
Searching for a Particular Point on a Disc (Search, Scan, Slow Play,
Repeat Play, Random Play)
You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.
DISPLAY
.
Notes
• Depending on the disc, you may not be able to perform some of the operations described.
• For DATA CDs/DATA DVDs, y ou can search for a particular point only on an MP3 audio track.
Locating a point quickly using the ./> PREV (previous)/ NEXT buttons (Search)
During playback, press > or . to go to the next or previous chapter/track.
H
123
456
7 809
MENU
>
Mm
Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)
Press m or M to fast reverse or fast forward during playback. To return to normal play, press H. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below.
Playback direction
H t 1M t 2M t 3M
Opposite direction
H t 1m t 2m t 3m
The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.”
z Hint
C/c on the player works the same as m/M on the remote, and ENTER on the player works the same as H on the remote. This function is effective when you play back a DVD.
Notes
• No sound is output during Scan play for a DVD.
• Scan speed differs depending on the disc type.
z Hint
When you know the chapter or track number, you can search directly by entering these numbers using the number buttons.
– While playing a DVD VIDEO, you can search
for a title or chapter using the number buttons and ENTER. Press C/c to switch between title and chapter.
– While playing a CD, you can search for a track
using the number buttons and ENTER.
US
22
us
Watching frame by frame (Slow Play)
Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow Play, the playback speed changes. With each press the indication changes as follows:
Playback direction
H t 1 t 2 t 3
Opposite direction
H t 1 t 2 t 3
The “3 ”/“3 ” playback speed is slower than “2 ”/“2 ” and the “2 ”/“2 ” playback speed is slower than “1 ”/“1 .”
Note
Slow speed differs depending on the disc type.
Playing CD repeatedly or in random order (Repeat Play, Random Play)
You can play all of the tracks on a disc, or a single track repeatedly (Repeat Play). Also, you can play the tracks in random order, too (Random Play).
1 Press MENU repeatedly during
playback to select the playback mode.
Track: repeats the current track.
All: repeats all tracks on the disc.
Random: plays all tracks on the disc
randomly.
To return to normal play
Select “ Off” in step 1.
z Hint
During Random Play, you can start playing other randomly selected track by pressing >.
Notes
• Depending on the disc, Random Play may not be available.
• The same track may be repeated several times in Random Play.
Playing Discs
,continued
23
US
Checking the play information of the disc
When playing a DVD
Press DISPLAY while playing a DVD, and then use the Playback Settings Display (page 20).
When playing a CD
Press DISPLAY. The playing track number/the total number of tracks and the elapsed time of the current track appear. Press DISPLAY repeatedly to switch the time information as below.
• Track Elapsed
• Track Remain
• Disc Elapsed
•Disc Remain
Note
The player does not display “Disc Elapsed” or “Disc Remain” on the screen when playing a CD in Random Play.
Playing MP3 Audio Tracks or JPEG Image Files
You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD­Rs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs). For playable MP3 audio files and JPEG image files, see page 42. When you insert DATA CDs and DATA DVDs, the list of albums appears.
123
C/X/x/c ENTER
.
Note
DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted.
456
7809
MENU
>
X
H
x
24
US
us
Playing an MP3 audio track
Playing a JPEG image file
1 Press X/x to select an album on the
list, and press ENTER.
The list of tracks in the album appears.
Dir:001
MY BEST
. . 01 Stardust 02 Fire 03 Wing
• To go to the next or previous page,
press > or ..
• To return to the list of albums, press X/ x to select and press ENTER.
2 Press X/x to select the track you want
to play, and press ENTER.
Playback starts from the selected track.
To go to the next or previous MP3 audio track
Press > or ..
To stop playback
Press x.
To pause playback
Press X. To restart playback, press X again.
1 Press X/x to select an album on the
list, and press ENTER.
The list of files in the album appears.
Dir:001
HAWAII
. . DSC00001 DSC00002 DSC00003 DSC00004 DSC00005
• To go to the next or previous page,
press > or ..
• To return to the list of albums, press X/ x to select and press ENTER.
2 Press X/x to select the image you
want to view, and press ENTER.
The selected image appears. Example:
Playing Discs
Notes
• The total albums and files the player can recognize is about 648.
• The number of albums in a disc the player can recognize is about 299.
To display the list of thumbnails
Press MENU when a file is displayed on the screen. The image files in the album appear in 12 subscreens with the displayed file in the lead.
1234
5678
9 101112
• To move to the previous or next page of the thumbnail list display, select “bPrev” or “NextB” under the screen.
,continued
25
US
• To exit the list of thumbnails, press MENU.
To go to the next or previous JPEG image file
Press > or ..
To rotate a JPEG image
Press C/X/x/c while viewing the image. X: Reverses the image vertically (up and
down). x: Reverses the image horizontally (left and right).
c: Rotates the image 90 degrees clockwise. C: Rotates the image 90 degrees counter
clockwise. Note that the view also returns to normal if you press ./> to go to the next or previous image. Example: when C is pressed once.
Enjoying JPEG Images as a Slide Show
You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show.
1 While displaying the file you want
to start a slideshow, press MENU.
The list of thumbnails appears.
1234
5678
9101112
2 Press C/X/x/c to select “Slide
Show” at the bottom of the screen, and press ENTER.
A slideshow starts from the displayed file.
To stop viewing the JPEG image
Press x. The display returns to the list of files.
Notes
• Images may take time to appear due to the number of recorded files or the size of the folders. If no image appears after a few minutes, some of the files included may be too large.
• Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others.
• The p layer cannot play the JPEG image file that is larger than 3078 (width) x 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the size is within this specified capacity.)
• The total albums and files the player can recognize is about 648.
• The number of albums in a disc the player can recognize is about 299.
US
26
us
To pause slideshow
Press X. By pressing X again or H, you can return to slideshow.
To stop slideshow
Press x or MENU.
Adjusting the Picture Size and Quality
You can adjust the picture displayed on the LCD screen. See “General Setup” (page 32), when outputting the video signal to TV, etc.
123
456
7809
C/X/x/c
ENTER
OPTIONS
1 Press OPTIONS.
The Option Menu appears.
2 Press X/x to select “LCD Mode”
and press ENTER.
The items for “LCD Mode” appear.
* In “Normal,” the pictures are displayed in the
original configuration, retaining the aspect ratio. For example, a 4:3 picture will have black bands on both sides, and the letterbox pictures recorded either in 16:9 or 4:3 will have black bands on all sides. In “Full,” a 16:9 picture will be adjusted to fill the entire screen.
To turn off the Option Menu
Press OPTIONS or O RETURN.
z Hints
• The screen turns off automatically when the LCD panel is closed.
• You can see the settings for the display in “General Setup” (page 32).
Notes
Depending on the disc, the screen size you can select differs.
Playing Discs
3 Press X/x to select items and
press ENTER.
• LCD Aspect: Change the picture size. Select “Normal” or “Full” by pressing
x
*.
• Backlight: Adjust the brightness of the LCD screen by pressing C
• Contrast: Adjust the difference between light and dark areas by pressing C
• Hue: Adjust the red and green color balance by pressing C
• Color: Adjust the richness of colors by pressing C
• Default: Returns all settings to the factory defaults.
/
c.
/
c.
/
c.
X
/
/
c.
US
27
Enjoying DivX® Videos
Playing DivX Video Files
You can play DivX video files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) and DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs). When you insert DATA CDs and DATA DVDs, the list of albums appears.
DISPLAY
C/X/x/c
ENTER
.
Notes
• When the selected file is not supported, “Data Error (DivX)” displays on the screen and the file will not be played.
• Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format. Note, however, this player does not conform to WMA (Windows Media Audio) format.
• Because of the compression technology used for DivX video files, it may take some time after you press H (play) for the picture to appear.
• Depending on the DivX video file, the sound may not match the pictures on the screen.
• The player’s speaker does not output DTS sound. When you play DTS sound tracks on a DivX video file, connect the player to an AV amplifier (receiver) (page 38) and set up “DTS” in “Audio Setup” (page 34).
• Depend ing on the DivX video file, you may not be able to perform some operations.
m
123
456
7809
AUDIO
SUBTITLE
>
M x
Playing a DivX video file
1 Press X/x to select an album on the
list, and press ENTER.
A list of files in the album appears.
Dir:001
MY FAVORITE
. . 01 HAWAII 02 VENUS
• To go to the next or previous page,
press > or ..
• To return to the list of albums, press X/ x to select and press ENTER.
2 Press X/x to select the file you want to
play, and press ENTER.
Playback starts from the selected file.
To go to the next or previous DivX video file
Press > or ..
To locate a point quickly by playing DivX video files in fast forward or fast reverse (Scan)
Press M/m repeatedly to select the required speed for the search mode during playback.
To watch frame by frame (Slow Play)
Press M repeatedly in pause mode to select the required slow motion speed.
To display the playback information
Press DISPLAY repeatedly. The playback information changes as follow order, “Title Elapsed,” “Title Remain,” “Display Off,” and “Subtitle.”
To change the sound
Press AUDIO repeatedly during playback to select the desired audio signal. If “No Audio” appears, the player does not support the audio signal format contained in the disc.
28
US
us
To change the subtitles
Press SUBTITLE during playback. Press X/x, and ENTER during displaying the subtitle information.
To stop playback
Press x.
z Hint
If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted: – when the player is turned off. This includes when
the player is automatically turned off by the Auto Power Off function. Press X instead of x to stop
viewing. – when the disc lid is opened. – when another file is played.
Note
The slow reverse function is prohibited.
About DivX Video Files
DivX® is a video file compression technology, developed by DivX, Inc. This product is an official DivX product. You can play DATA CDs and DATA DVDs that contain DivX video files.
DATA CDs and DATA DVDs that the player can play
This player only plays DATA CDs whose logical format is ISO 9660 Level 1 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.
Note
The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format or multiple sessions.
DivX video files that the player can play
The player can play data that is recorded in DivX format, and which has the extension “.AVI,” or “.DIVX.” The player will not play files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video.
®
Certified
Enjoying DivX
Videos
®
Notes
• The player may not play a DivX video file when the file consists of two or more DivX video files combined.
• The player cannot play a DivX video file of size more than 720 (width) × 576 (height)/2 GB.
• Depending on the DivX video file, the picture may be unclear or the sound may skip.
• The player cannot play some DivX video files that are longer than 3 hours.
• The player can display a file name up to 14 characters. Any characters after th e 14th character do not appear on the screen.
• Characters that are not displayable appear as “*.”
• Depending on the disc, a file name that is not displayable appears as “*.”
• You cannot display correctly the CD-R/CD-RW file names written in the UDF file system.
,continued
29
US
About playback order of DivX video files
Note that the playback order may not be applicable, depending on the software used for creating the DivX video file, or if there are more than 299 albums and 648 DivX video files in each album. See “About playback order of albums, tracks, and files” (page 43).
30
US
us
Loading...
+ 70 hidden pages
