FM/AM Digital Media Player

FM/AM

masterpage:Right

4-190-902-31(2)

Digital Media Player

Operating Instructions

Mode d’emploi

Manual de instrucciones

Owner’s Record

The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. DSX-S300BTX Serial No.

To cancel the demonstration (Demo) display, see page 8. Pour annuler l’affichage de démonstration (Demo), reportez-vous à la page 8. Para cancelar la pantalla de demostración (Demo), consulte la página 8.

DSX-S300BTX

4-190-902-31(2)

E:\DATA\4190902312\4190902312DSXS300BTXU\01US01INT-U.fm masterpage:Left

00US+00COV-U.book Page 2 Friday, June 4, 2010 3:24 PM

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/ connections manual.

Warning

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

For the state of california, USA only

Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains

perchlorate

HD RadioTM is a proprietary trademark of iBiquity Digital Corp.

The “SAT Radio Ready” logo indicates that this product will control a satellite

radio tuner module (sold separately). Please see your nearest authorized Sony dealer for details on the satellite radio tuner module. “SAT Radio,” “SAT Radio Ready,” the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius XM Radio Inc. and XM Satellite Radio Inc.

ZAPPIN and Quick-BrowZer are trademarks of Sony Corporation.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

DSX-S300BTX

4-190-902-31(2)

E:\DATA\4190902311\01US01INT-U.fm masterpage:Right

00US+00COV-U.book Page 3 Monday, May 10, 2010 2:22 PM

12 TONE ANALYSIS and its logo are trademarks of Sony Corporation.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

SensMe and the SensMe logo are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.

Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD and music-related data from Gracenote, Inc., copyright © 2000-2010 Gracenote. Gracenote Software, copyright © 2000-2010 Gracenote. This product and service may practice one or more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued or pending. Some services supplied under license from Open Globe, Inc. for U.S. Patent: #6,304,523.

Gracenote and CDDB are registered trademarks of Gracenote. The Gracenote logo and logotype, and the “Powered by Gracenote” logo are trademarks of Gracenote.

Apple, Macintosh and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Warning if your car’s ignition has no ACC position

Be sure to set the Auto Off function (page 40). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold (SOURCE/OFF) until the display disappears each time you turn the ignition off.

Microsoft, Windows, Windows Vista and Windows Media and logos are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US+00COV-UTOC.fm masterpage:Right

00US+00COV-U.book Page 4 Monday, May 10, 2010 2:22 PM

Table of Contents

Getting Started

Notes on Bluetooth . . . . . . . . . . . . . . . . . . . . . . 7

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . . . 7

Canceling the Demo mode . . . . . . . . . . . . . . . . 8

Preparing the card remote commander . . . . . . . 8

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 8

Detaching the front panel . . . . . . . . . . . . . . . . . 8

Attaching the front panel . . . . . . . . . . . . . . . 9

Quick Guide for Bluetooth function

3 steps to Bluetooth function. . . . . . . . . . . . . . 10

Buttons and icons . . . . . . . . . . . . . . . . . . . . . . 11

1 Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2 Connecting . . . . . . . . . . . . . . . . . . . . . . . . . 12

3 Handsfree calling and Music streaming. . . 13

Location of controls and basic operations

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RM-X306 Card Remote Commander. . . . . 16

Radio

Storing and receiving stations . . . . . . . . . . . . . 18

Storing automatically — BTM . . . . . . . . . . 18

Storing manually. . . . . . . . . . . . . . . . . . . . . 18

Receiving the stored stations . . . . . . . . . . . 18

Tuning automatically . . . . . . . . . . . . . . . . . 18

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Selecting PTY. . . . . . . . . . . . . . . . . . . . . . . 19

Setting CT. . . . . . . . . . . . . . . . . . . . . . . . . . 19

USB devices

Playing back a USB device. . . . . . . . . . . . . . . 20

Playing back via the USB (internal)

connector . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Playing back via the USB (external)

connector . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Display items . . . . . . . . . . . . . . . . . . . . . . . 21

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . 22

Shuffle play . . . . . . . . . . . . . . . . . . . . . . . . 22

Enjoying music according to your mood

— SensMe™. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Before using the SensMe™ function . . . . . 22

Installing “SensMe™ Setup” and “Content

Transfer” in your computer . . . . . . . . . . . . 23

Registering a USB device using “SensMe™

Setup”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Transferring tracks to the USB device using

“Content Transfer”. . . . . . . . . . . . . . . . . . . 23

Playing tracks in the channel

— SensMe™ channels. . . . . . . . . . . . . . . . 24

iPod

Playing back iPod . . . . . . . . . . . . . . . . . . . . . . 25

Playing back via the USB (internal)

connector . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Playing back via the USB (external)

connector . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Display items . . . . . . . . . . . . . . . . . . . . . . . 27

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . 27

Shuffle play . . . . . . . . . . . . . . . . . . . . . . . . 28

Operating an iPod directly

— Passenger control. . . . . . . . . . . . . . . . . . . . 28

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US+00COV-UTOC.fm masterpage:Right

00US+00COV-U.book Page 5 Monday, May 10, 2010 2:22 PM

Searching for a track

Searching a track by name

— Quick-BrowZer™. . . . . . . . . . . . . . . . . . . . 28

Searching by skip items

— Jump mode. . . . . . . . . . . . . . . . . . . . . . . 28

Searching by alphabetical order

— Alphabet search . . . . . . . . . . . . . . . . . . . 29

Searching a track by listening to track passages

— ZAPPIN™ . . . . . . . . . . . . . . . . . . . . . . . . . 29

In the case of “SensMe™ channels”

playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Bluetooth (Handsfree calling and Music streaming)

Bluetooth Operations. . . . . . . . . . . . . . . . . . . . 30

About Bluetooth icons . . . . . . . . . . . . . . . . 30

Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting a cellular phone . . . . . . . . . . . . 31

Connecting an audio device . . . . . . . . . . . . 32

Handsfree calling. . . . . . . . . . . . . . . . . . . . . . . 32

Making calls . . . . . . . . . . . . . . . . . . . . . . . . 32

Receiving calls . . . . . . . . . . . . . . . . . . . . . . 33

Operations during a call . . . . . . . . . . . . . . . 33

Call transfer. . . . . . . . . . . . . . . . . . . . . . . . . 33

Phonebook management. . . . . . . . . . . . . . . 33

Preset dial . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Voice dial activation. . . . . . . . . . . . . . . . . . 34

SMS indicator . . . . . . . . . . . . . . . . . . . . . . . 35

Music streaming . . . . . . . . . . . . . . . . . . . . . . . 35

Listening to music from an audio

device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Operating an audio device with this

unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Other settings. . . . . . . . . . . . . . . . . . . . . . . . . . 36

Initializing Bluetooth Settings . . . . . . . . . . 36

Using optional equipment . . . . . . . . . . . . . . . . 36

External microphone XA-MC10 . . . . . . . . 36

Sound Settings and Setup Menu

Changing the sound settings. . . . . . . . . . . . . . 37

Adjusting the sound characteristics . . . . . . 37

Enjoying sophisticated sound functions

— Advanced Sound Engine . . . . . . . . . . . . . . 37

Selecting the sound quality

— EQ7 Preset. . . . . . . . . . . . . . . . . . . . . . . 37

Customizing the equalizer curve

— EQ7 Parametric Tune . . . . . . . . . . . . . . 38

Optimizing sound by Time Alignment

— Listening Position . . . . . . . . . . . . . . . . . 38

Precisely calibrating by Time Alignment

— Listening Position Custom Tune. . . . . . 39

DM+ Advanced . . . . . . . . . . . . . . . . . . . . . 39

Using rear speakers as subwoofer

— Rear Bass Enhancer. . . . . . . . . . . . . . . . 39

Compensating volume level

— Dynamic Loudness . . . . . . . . . . . . . . . . 40

Adjusting setup items — MENU . . . . . . . . . . 40

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Playback order of MP3/WMA/

AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . 41

About Device Inside Alert . . . . . . . . . . . . . 41

About iPod . . . . . . . . . . . . . . . . . . . . . . . . . 42

About Bluetooth function. . . . . . . . . . . . . . 42

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Removing the unit. . . . . . . . . . . . . . . . . . . . . . 44

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 44

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 46

Error displays/Messages. . . . . . . . . . . . . . . 48

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US+00COV-UTOC.fm masterpage:Right

00US+00COV-U.book Page 6 Monday, May 10, 2010 2:22 PM

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

http://esupport.sony.com http://www.sony.com/mobileAV

Provides information on:

• Models and manufacturers of compatible digital audio players

• Supported MP3/WMA/AAC files

• Models and manufacturers of compatible cellular phones and the FAQ about Bluetooth function

• System requirements for the software in the supplied CD-ROM

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 7 Monday, May 10, 2010 2:22 PM

Getting Started

Notes on Bluetooth

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

IMPORTANT NOTICE!

Safe and efficient use

Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product.

Driving

Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.

Connecting to other devices

When connecting to any other device, please read its user guide for detailed safety instructions.

Radio frequency exposure

RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly.

Emergency calls

This Bluetooth car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength. Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Detach the front panel (page 8) and press the RESET button (page 14) with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 8 Monday, May 10, 2010 2:22 PM

Canceling the Demo mode

You can cancel the demonstration display which appears during turning off.

1 Press and hold the multi way encoder.

The setup display appears.

2 Rotate the multi way encoder to select

“Demo,” then press it.

3 Rotate the multi way encoder to select

“off.”

4 Press and hold the multi way encoder.

The setup is complete and the display returns to normal reception/play mode.

Preparing the card remote commander

Remove the insulation film.

Tip

For how to replace the battery, see page 43.

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold the multi way encoder. 2 Rotate the multi way encoder to select

“Clock Adjust,” then press it.

The clock adjustment display appears.

3 Rotate the multi way encoder to set

the hour and minute.

To move the digital indication, push the multi way encoder left/right.

4 After setting the minute, press the

multi way encoder.

The clock starts.

Tip

You can set the clock automatically with the RDS feature (page 19).

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press and hold (SOURCE/OFF).

The unit is turned off.

2 Press (OPEN).

The front panel is flipped down.

3 Slide the front panel to the right, then

gently pull out the left end of the front panel.

Notes

• Do not drop or put excessive pressure on the front panel and display window.

• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

• Do not detach the front panel during playback of the USB device, otherwise USB data may be damaged.

• If “Device Inside” (page 41) appears in the display or the Device Inside Alert LED flashes, detach the front panel and remove the USB device or iPod.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 9 Monday, May 10, 2010 2:22 PM

Attaching the front panel

Place the hole A of the front panel onto the spindle B on the unit, then lightly push the left side in. Press (SOURCE/OFF) on the unit to operate the unit.

Note

Do not put anything on the inner surface of the front panel.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 10 Monday, May 10, 2010 2:22 PM

Quick Guide for Bluetooth function

For full details on operation, see “Bluetooth (Handsfree calling and Music streaming)” (page 30) and the Bluetooth device operating instructions.

3 steps to Bluetooth function

Pairing

First, register (“pair”) the Bluetooth device (cellular phone, etc.) with this unit. Pairing is no longer required after the first time.

Connecting

After pairing is made, connect this unit and the Bluetooth device. Depending on the device, connection is automatically made along with the pairing.

Handsfree calling/Music streaming

You can make/receive a handsfree call, or listen to audio through this unit.

Support site

http://esupport.sony.com http://www.sony.com/mobileAV

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 11 Monday, May 10, 2010 2:22 PM

Buttons and icons

Icons

Multi way encoder

Icon status descriptions

Lit Bluetooth signal is on.

Flashing Pairing is in standby mode.

None Bluetooth signal is off.

Lit Connected to a cellular phone.

Flashing Connection is in progress.

None No cellular phone is connected for handsfree calling.

Lit Connected to a device.

Flashing Connection is in progress.

None No device is connected for music streaming.

Lit Some unread SMS messages exist.

Flashing A new SMS message has been received.

None No unread SMS messages exist.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 12 Monday, May 10, 2010 2:22 PM

1 Pairing

Operated device

Operation

Press and hold (BLUETOOTH) for 2 or more seconds. t

Search for this unit.

DR-BT30Q

Sony

Automotive XXXXXXX

If passkey input is required on the display of the device to be connected, input “0000.”

Follow the display directions.

Select “Sony Automotive.”

(Pairing successful)

2 Connecting

Operated device

Operation

Press (BLUETOOTH). t

Connect to this unit using a cellular phone. t

Connect to this unit using an audio device. t

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 13 Monday, May 10, 2010 2:22 PM

Note

You can connect from this unit to a Bluetooth device (page 31). If you cannot connect from this unit to the Bluetooth device, start pairing again.

3 Handsfree calling and Music streaming

Handsfree calling

To Operation

Receive a call/end a call Press the multi way encoder.

Reject a call Press (SOURCE/OFF).

Redial 1 Press (SOURCE/OFF) repeatedly until “Bluetooth Phone”

Transfer a call Press (MODE).

appears.

2 Press and hold the multi way encoder for 2 or more

seconds.

Music streaming

To Operation

Listen 1 Press (SOURCE/OFF) repeatedly until “Bluetooth Audio”

Play back/pause* Press (PAUSE).

appears.

2 Start playback on the audio device.

Skip tracks* Push the multi way encoder left/right.

* The operation may differ depending on the audio device.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 14 Monday, May 10, 2010 2:22 PM

Location of controls and basic operations

Main unit

Front panel removed

This section contains instructions on the location of controls and basic operations. For details, see the respective pages.

A SOURCE/OFF button*

Press to turn on the power/change the source (Radio/USB/SensMe™* Bluetooth Phone). Press for 1 second to turn off the power. Press for 2 seconds or more to turn off the power and the display disappears.

B (BROWSE) button*

31, 32, 34

To list up (Radio); enter the QuickBrowZer™ mode (USB); list the phonebook (Bluetooth Phone).

C PAUSE button

To pause playback. To cancel, press again.

D (SensMe™) button page 24

/Bluetooth Audio/

page 18, 28,

E Multi way encoder (ENTER/SOUND/

MENU/ (handsfree)/ (end call) button)

Rotate to: Adjust the volume/select a menu item. Push up/down/left/right to: Select a menu item. Press to: Enter sound setting/apply a setting. Press and hold to: Enter menu. Radio: Push up/down to: – Receive stored station. Push left/right to: – Tune in stations automatically (push). – Find a station manually (push and hold). USB: Push up/down to: – Skip albums (push). – Skip albums continuously (push and hold). Push left/right to: – Skip tracks (push). – Skip tracks continuously (push, then push

again within about 2 seconds and hold).

– Reverse/fast-forward a track (push and

hold).

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 15 Monday, May 10, 2010 2:22 PM

Bluetooth Audio*4:

Push left/right to: – Skip tracks (push). – Reverse/fast-forward a track (push and

hold). Bluetooth Phone: Press to receive/end a call. Press and hold to redial.

F Receptor for the card remote

commander

G Display window H OPEN button page 8 I USB (external) connector page 21, 26

To connect to the USB device.

J (BACK)/MODE button

Press to: Select the radio band (FM/AM)* switch the USB device (internal/external)/ return to the previous display. Press and hold to: Enter/cancel the passenger

control*

K BLUETOOTH button page 30

For Bluetooth signal on/off, pairing.

L ZAP/SHUF button page 22, 28, 29

To enter ZAPPIN™ mode (press); select shuffle play mode (press and hold).

M PTY/CAT button*

page 19

To s elect PTY in R D S.

N DSPL (display)/SCRL (scroll) button

page 21, 27

To change display items (press); scroll the display item (press and hold).

O Microphone page 33

Note

Do not cover the microphone, or the handsfree function may not work properly.

P USB (internal) connector page 20, 25

To connect to the USB device.

Q TUNE TRAY page 20, 25

Tray unit to place a USB device or an iPod.

R Device Inside Alert LED page 41

S RESET button page 7

*1 If an HD Radio tuner or SAT tuner is

connected:when (SOURCE/OFF) is pressed, the connected device (“HD,” “XM” or “SR”) will appear in the display. Furthermore, if (MODE) is pressed, you can switch the HD Radio tuner band or SAT tuner band.

*2 When a USB device set up for the SensMe™

function is connected.

*3 If an HD Radio tuner or SAT tuner is connected: the

list will include HD Radio or SAT Radio accordingly.

*4 When a Bluetooth audio device (supports AVRCP

of Bluetooth technology) is connected. Depending on the device, certain operations may not be available.

*5 When an iPod is connected to the USB (external)

connector.

*6 When the SAT tuner is connected.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 16 Monday, May 10, 2010 2:22 PM

RM-X306 Card Remote Commander

1 2 3

4 5 6

0 qa qs

qf qg qh

Remove the insulation film before use (page 8).

A CALL/ (handsfree) button

To change the source (Bluetooth Phone). Bluetooth Phone: To receive a call.

B SRC (source) button*

To turn on the power; change the source (Radio/USB/SensMe™* Bluetooth Phone).

C ENTER button

To apply a setting.

D MODE button

Press to: Select the radio band (FM/AM)* switch the USB device (internal/external). Press and hold to: Enter/cancel the passenger

control*

E MENU button

To enter menu.

F (BROWSE)/CAT*

To list up (Radio); enter the QuickBrowZer™ mode (USB); list the phonebook (Bluetooth Phone).

G DSPL (display) button

To change display items.

H Number buttons

Radio:

(1) to (6):

USB:

(1): REP page 22, 27 (2): SHUF page 22, 28 (6): PAU SE

Bluetooth Audio*

(1): REP page 36 (2): SHUF page 36 (6): PAUS E page 36

Bluetooth Phone: To input numbers (phone number, etc.).

To receive stored stations (press); store stations (press and hold).

To pause playback. To cancel, press again.

/Bluetooth Audio/

button

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 17 Monday, May 10, 2010 2:22 PM

I button page 32, 33 J OFF/ (end call) button

To turn off the power; stop the source; end or reject a call.

K BLUETOOTH button page 30

For Bluetooth signal on/off, pairing.

L M (+)/m (–) buttons

The same as pushing the multi way encoder up/down on the unit.

M < (.)/, (>) buttons

The same as pushing the multi way encoder left/right on the unit.

N SCRL (scroll) button

To scroll the display item.

O SOUND button

To enter sound setting.

P ATT (attenuate) button

To attenuate the sound. To cancel, press again.

Q VOL (volume) +/– button

To adjust volume.

R button page 32, 33

*1 If an HD Radio tuner or SAT tuner is

connected:when (SRC) is pressed, the connected device (“HD,” “XM” or “SR”) will appear in the display. Furthermore, if (MODE) is pressed, you can switch the HD Radio tuner band or SAT tuner band.

*2 When a USB device set up for the SensMe™

function is connected.

*3 When an iPod is connected to the USB (external)

connector.

*4 When the SAT tuner is connected. *5 When a Bluetooth audio device (supports AVRCP

of Bluetooth technology) is connected. Depending on the device, certain operations may not be available.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless (SOURCE/OFF) on the unit is pressed to activate the unit first.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 18 Monday, May 10, 2010 2:22 PM

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press (SOURCE/OFF) repeatedly until

“TUNER” appears.

To change the band, press (MODE) repeatedly. You can select from FM1, FM2, FM3, AM1 or AM2.

2 Press and hold the multi way encoder. 3 Rotate the multi way encoder to select

“BTM,” then press it.

The unit stores stations in order of frequency in the preset list. A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you

want to store, press (BROWSE).

The preset list appears.

2 Push the multi way encoder up/down

to select the preset number.

3 Press and hold the multi way encoder

until “MEM” appears.

(with the card remote commander)

1 While receiving the station that you

want to store, press and hold a number button ((1) to (6)) until “MEM” appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Receiving the stored stations

You can list up the frequency.

1 Select the band, then press

(BROWSE).

The preset list appears.

2 Push the multi way encoder up/down

to select the desired station.

3 Press the multi way encoder to receive

the station.

The display returns to normal reception mode.

(with the card remote commander)

1 Select the band, then press a number

button ((1) to (6)).

Tuning automatically

1 Select the band, then push the multi

way encoder left/right to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, push and hold the multi way encoder left/right to quickly locate the approximate frequency, then push the multi way encoder left/right repeatedly to fine adjust to the desired frequency (manual tuning).

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 19 Monday, May 10, 2010 2:22 PM

RDS

Overview

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

A Radio band B Clock C Preset number D Frequency* (Program service name), RDS

data

* While receiving the RDS station, “RDS” is displayed

on the left of the frequency indication.

RDS services

This unit automatically provides RDS services as follows:

PTY (Program Types)

Displays the currently received program type. Also searches your selected program type.

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Notes

• Depending on the country/region, not all RDS functions may be available.

• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

3 Press the multi way encoder.

The unit starts to search for a station broadcasting the selected program type.

Type of programs

News (News), Information (Information), Sports (Sports), Talk (Talk), Rock (Rock), Classic Rock (Classic Rock), Adult Hits

(Adult Hits), Soft Rock (Soft Rock), Top 40 (Top 40), Country (Country), Oldies (Oldies), Soft (Soft), Nostalgia (Nostalgia), Jazz (Jazz), Classical (Classical), Rhythm and Blues (Rhythm and Blues), Soft R&B (Soft Rhythm and Blues), Foreign Language (Foreign Language), Religious Music (Religious Music), Religious Talk (Religious Tal k) , Personality (Personality), Public (Public), College (College), Weather (Weather)

Notes

• You cannot use this function in countries/regions where no PTY data is available.

• You may receive a different radio program from the one you select.

Setting CT

1 Set “CT on” in setup (page 40).

Notes

• The CT function may not work even though an RDS station is being received.

• There might be a difference between the time set by the CT function and the actual time.

Selecting PTY

1 Press (PTY) during FM reception.

The current program type name appears if the station is transmitting PTY data.

2 Rotate the multi way encoder to select

the desired program type.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 20 Monday, May 10, 2010 2:22 PM

USB devices

For details on the compatibility of your USB device, visit the support site.

Support site

http://esupport.sony.com http://www.sony.com/mobileAV

• MSC (Mass Storage Class) type USB devices compliant with the USB standard can be used.

• Corresponding codec is MP3 (.mp3), WMA (.wma), AAC (.m4a) and AAC (.mp4).

• Backup of data in a USB device is recommended.

Notes

• Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.

• Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.

• Do not leave a USB device in a parked car, as malfunction may result.

Playing back a USB device

A USB device can be connected to the internal/ external or both USB connectors. To switch between USB devices, press (MODE).

Playing back via the USB (internal) connector

1 Press (OPEN).

The front panel is flipped down.

2 Press PUSH OPEN on the TUNE TRAY.

The TUNE TRAY opens slowly.

3 Connect the USB device to the USB

connector.

4 Slide in the TUNE TRAY by pressing

PUSH CLOSE on the TUNE TRAY until it locks shut.

5 Close the front panel. 6 Press (SOURCE/OFF) repeatedly until

“USB” appears, and then press (MODE) to switch the USB device.

“USB Internal” appears, and playback starts.

If a USB device is already connected, to start playback, repeat step 6.

Press and hold (SOURCE/OFF) for 1 second to stop playback.

Removing the USB device

1 Stop the USB device playback. 2 Press (OPEN). 3 Press PUSH OPEN on the TUNE TRAY. 4 Remove the USB device. 5 Slide in the TUNE TRAY, and close the front

panel.

TUNE TRAY

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 21 Monday, May 10, 2010 2:22 PM

Playing back via the USB (external) connector

1 Slide the USB cover.

2 Connect the USB device to the USB

connector.

When using a cable, use the one supplied with the USB device to connect.

3 Press (SOURCE/OFF) repeatedly until

“USB” appears, and then press (MODE) to switch the USB device.

“USB External” appears, and playback starts.

If a USB device is already connected, to start playback, repeat step 3.

Press and hold (SOURCE/OFF) for 1 second to stop playback.

Removing the USB device

1 Stop the USB device playback. 2 Remove the USB device.

Notes for USB devices

• Do not remove the USB device during playback,

otherwise USB data may be damaged.

• Do not place non-USB devices on the TUNE TRAY,

or foreign objects, such as coins, keys, cards, liquids, etc.

• Do not place a flammable object such as a lighter on

the TUNE TRAY, as this may cause smoke, fire, or other accident.

• Capacity of the tray: Approx. 65 × 17 × 118 mm

/16 × 21/32 × 45/8 in) (w/h/d)

• If the size of the USB device alone or combined with

the USB cable cannot be placed easily in the TUNE TRAY, the device may be exceeding the tray capacity. Do not slide in the TUNE TRAY or the USB cable forcefully.

• For “WALKMAN” users, use of the optional adaptor XA-50WM is recommended. It is designed for use with this unit (in the TUNE TRAY) only, and should not be used with the other USB devices.

• This unit cannot recognize USB devices via a USB hub.

• Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the car, etc.

• If the front panel does not fully open because of the dashboard shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 8.

• It is extremely dangerous to connect or remove the USB device while driving.

• Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.

• If the USB is disconnected during playback, “NO Device” appears in the display of the unit.

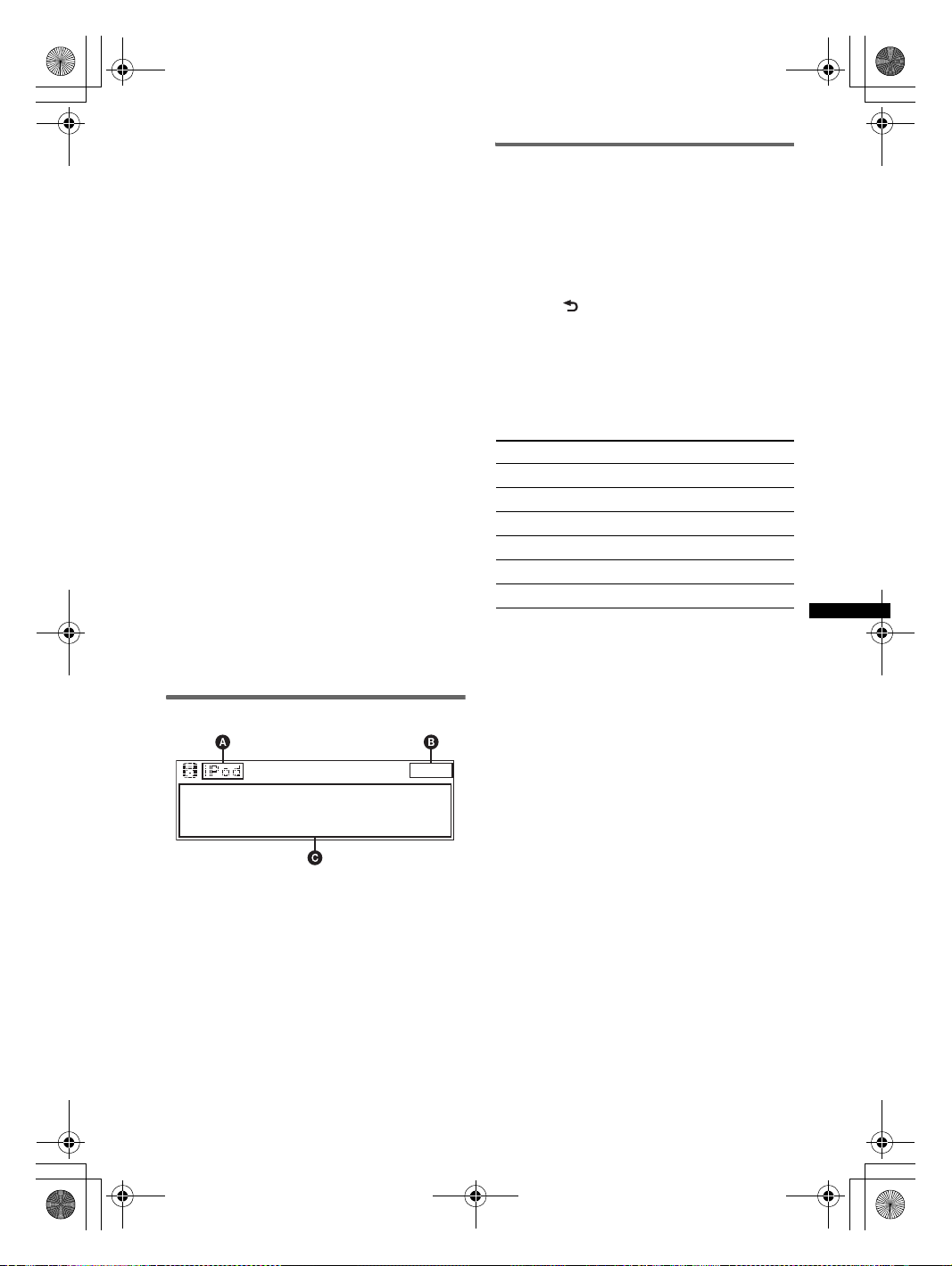

Display items

A Source (MP3/WMA/AAC) indication B Clock C Artist name/Album name, Track name, Folder

number/Track number/Elapsed playing time

To change display items C, press (DSPL).

Notes

• Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.

• The maximum number of displayable data is as follows. – folders (albums): 65,535* – files (tracks): 5,000

• Do not leave a USB device in a parked car, as malfunction may result.

• It may take time for playback to begin, depending on the amount of recorded data.

• DRM (Digital Rights Management) files may not be played.

• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.

• Playback of the following MP3/WMA/AAC files is not supported. – lossless compression – copyright-protected

* The maximum recommended number of folders is

5,000. If the number of folders exceeds 5,000, it may take a long time to search for folders or files. The number of folders may not be displayed correctly beyond 9,999.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 22 Monday, May 10, 2010 2:22 PM

Repeat play

1 Press and hold the multi way encoder. 2 Rotate the multi way encoder to select

“Repeat,” then press it.

3 Rotate the multi way encoder to select

the setting, then press it.

The setting is complete.

4 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

(with the card remote commander)

1 During playback, press (1) (REP)

repeatedly until the desired setting appears.

Select To play

Repeat Track track repeatedly. Repeat Album album repeatedly. Repeat Artist artist repeatedly.

After 3 seconds, the setting is complete. To return to normal play mode, select “Repeat

off.”

Shuffle play

1 During playback, press and hold

(ZAP/SHUF).

2 Press (ZAP/SHUF) repeatedly until the

desired setting appears.

Enjoying music according to your mood — SensMe™

Sony’s unique “SensMe™ channels” features automatically group tracks by channel, and allow you to enjoy music intuitively.

Before using the SensMe™ function

The following is the basic procedure required to enjoy the SensMe™ function on the unit.

1Installing “SensMe™ Setup” and

“Content Transfer” in your computer

First install “SensMe™ Setup” and “Content Transfer” from the supplied CD-ROM.

™

Content

SensMe

Transfer

Setup

2Registering a USB device using

“SensMe™ Setup”

Connect a USB device to your computer, and perform registration using “SensMe™ Setup” to enable the SensMe™ function on this unit.

™

SensMe

Setup

(with the card remote commander)

1 During playback, press (2) (SHUF)

repeatedly until the desired setting appears.

Select To play

Shuffle Album album in random order. Shuffle Artist artist in random order. Shuffle Device device in random order.

After 3 seconds, the setting is complete. To return to normal play mode, select “off. ”

Note

Playing tracks on shuffle play is selected from a current USB device.

Tip

Registration can be performed either along with the installation procedure or after installation.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 23 Monday, May 10, 2010 2:22 PM

3 Transferring tracks to the USB device

using “Content Transfer”

In order to group tracks by channel, track sound patterns need to be analyzed by 12 TONE ANALYSIS™, which is loaded in “Content Transfer.” With the USB device connected to your computer, drag and drop tracks from Windows Explorer or iTunes, etc., to “Content Transfer.” Both analysis and transfer of tracks will be performed by “Content Transfer.”

Content Transfer

4 Connecting the USB device and

enjoying the SensMe™ function on the unit

Connect the set up USB device. You can then enjoy “SensMe™ channels” on this unit.

Installing “SensMe™ Setup” and “Content Transfer” in your computer

Use of the supplied software (“SensMe™ Setup” and “Content Transfer”) is required to enable the SensMe™ function on this unit. Install the software in your computer from the supplied CD-ROM.

1 Insert the supplied CD-ROM into your

computer.

The Installation Wizard runs automatically.

2 Follow the on-screen instructions to

complete the installation.

Registering a USB device using “SensMe™ Setup”

USB device registration is required to enable the SensMe™ function on the unit.

If registration is not performed along with the installation procedure, follow the steps below.

1 Start “SensMe™ Setup” on your

computer.

2 Connect a USB device to your

computer.

3 Complete registration following the

on-screen instructions.

Tip

If you connect a registered USB device containing analyzed tracks, the USB device can be unregistered again.

Transferring tracks to the USB device using “Content Transfer”

To enable the SensMe™ function on this unit, tracks need to be analyzed and transferred to the registered USB device, using “Content Transfer.”

1 Connect the registered USB device to

your computer.

For USB devices, connect with the MSC mode. “Content Transfer” starts automatically. If a message appears, follow the on-screen instructions to proceed.

2 Drag and drop tracks from Windows

Explorer or iTunes, etc., to “Content Transfer.”

The analysis and transfer of tracks start.

For details on operations, see the Help of “Content Transfer.”

Note

The track analysis by 12 TONE ANALYSIS™ may take time, depending on the computer environment.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 24 Monday, May 10, 2010 2:22 PM

Playing tracks in the channel — SensMe™ channels

“SensMe™ channels” automatically group tracks into channels by their tunes. You can select and play a channel that fits your mood, activity, etc.

This function works for USB devices connected to the internal/external or both USB connector. To switch the USB device, press (MODE).

1 Connect a USB device set up for the

SensMe™ function.

2 Press (SensMe™).

The channel list appears, and the most melodic or rhythmical sections* of tracks are shuffle played.

* May not be detected correctly.

3 Selecting a track from the channel list

using the multi way encoder.

• Change the channel

Push the multi way encoder up/down to select the desired channel.

• Change the track

Push the multi way encoder left/right until the desired track appears, then press it. Playback starts from the beginning of the current track.

If you do not operate anything for 10 seconds, the display returns to normal play mode.

Notes

• Depending on the track, it may not be detected correctly or may be grouped in a channel not suited to the track’s mood.

• If the connected USB device contains many tracks, it may take time for “SensMe™ channels” to start, due to data reading.

Tip

Tracks are played in random order. The order will vary at each channel selection.

Channel list

x Recommended, Shuffle All

“Morning” (5:00 AM – 9:59 AM) “Daytime” (10:00 AM – 3:59 PM) “Evening” (4:00 PM – 6:59 PM) “Night” (7:00 PM – 11:59 PM) “Midnight” (12:00 AM – 4:59 AM)

Tracks recommended for each time of day. Set the clock (page 8) for the channel to be displayed accurately.

“Shuffle All”: Plays all analyzed tracks in random order.

x Basic channels

Plays tracks according to the music type.

“Energetic”: High-spirit tracks. “Relax”: Calm tracks. “Mellow”: Mellow, melancholy tracks. “Upbeat”: Happy tracks to improve your

mood.

“Emotional”: Ballad tracks. “Lounge”: Lounge music. “Dance”: Rhythm and rap, rhythm and blues

tracks. “Extreme”: Intense rock tracks.

x In-car channels

Plays tracks that are suitable while driving.

“Freeway”: Speedy, high-spirit tracks. “Chillout Drive”: Intoned, healing ballad

tracks. “Weekend Trip”: Delightful, bright and happy

tracks. “Midnight Cruise”: Jazz or piano-featured

tracks with mature mood.

“Party Ride”: Up-tempo and alive tracks. “Morning Commute”: Bright and breezy

tracks. “Goin’ Home”: Warm and relaxing tracks.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 25 Monday, May 10, 2010 2:22 PM

iPod

For details on the compatibility of your iPod, see “About iPod” (page 42) or visit the support site.

In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.

Support site

http://esupport.sony.com http://www.sony.com/mobileAV

Notes

• Do not place a cellular phone or a device with

wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.

• Do not leave an iPod in a parked car, as malfunction

may result.

Playing back iPod

The iPod can be connected to the internal/ external or both USB connectors. To switch between USB devices, press (MODE).

Playing back via the USB (internal) connector

Before connecting the iPod, turn down the volume of the unit.

1 Press (OPEN).

The front panel is flipped down.

2 Press PUSH OPEN on the TUNE TRAY.

The TUNE TRAY opens slowly.

3 Connect the supplied adaptor to the

USB connector.

4 Connect the iPod to the supplied

adaptor.

5 Slide in the TUNE TRAY by pressing

PUSH CLOSE on the TUNE TRAY until it locks shut.

TUNE TRAY

6 Close the front panel.

continue to next page t

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 26 Monday, May 10, 2010 2:22 PM

7 Press (SOURCE/OFF) repeatedly until

“USB” appears, and then press (MODE) to switch the USB device.

“USB Internal” appears. The iPod will turn on automatically, and the display will appear on the iPod screen as below.*

The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, repeat step 7. (“iPod” appears in the display when iPod is recognized.)

* Display differs depending on the iPod, or may not

appear in the case of an iPod touch being connected.

8 Adjust the volume.

Press and hold (SOURCE/OFF) for 1 second to stop playback.

Removing the iPod

1 Stop the iPod playback. 2 Press (OPEN). 3 Press PUSH OPEN on the TUNE TRAY. 4 Remove the iPod. 5 Slide in the TUNE TRAY, and close the front

panel.

Playing back via the USB (external) connector

Before connecting the iPod, turn down the volume of the unit.

1 Slide the USB cover.

2 Connect the iPod to the USB

connector via the dock connector to USB cable.

3 Press (SOURCE/OFF) repeatedly until

“USB” appears, and then press (MODE) to switch the USB device.

“USB External” appears. The iPod will turn on automatically, and the display will appear on the iPod screen as below.*

Tip

We recommend the RC-100IP USB cable (not supplied) to connect the dock connector.

The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start playback, repeat step 3. (“iPod” appears in the display when iPod is recognized.)

* In the case of an iPod touch or iPhone being

connected, or that the iPod was last played back using passenger control, the logo will not appear on the screen.

4 Adjust the volume.

Press and hold (SOURCE/OFF) for 1 second to stop playback.

Removing the iPod

1 Stop the iPod playback. 2 Remove the iPod.

Caution for iPhone

When you connect an iPhone via USB, telephone volume is controlled by iPhone itself. In order to avoid sudden loud sound after a call, do not increase the volume on the unit during a telephone call.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 27 Monday, May 10, 2010 2:22 PM

Notes

• Do not remove the iPod during playback, otherwise

data may be damaged.

• Do not place non-USB devices on the TUNE TRAY,

or foreign objects, such as coins, keys, cards, liquids, etc.

• Do not place a flammable object such as a lighter on

the TUNE TRAY, as this may cause smoke, fire, or other accident.

• For iPod users, use the supplied adaptor XA-50IP. It

is designed for use with this unit (in the TUNE TRAY) only, and should not be used with the other USB devices.

• This unit cannot recognize iPod via a USB hub.

• Slide in the TUNE TRAY and close the front panel

before playback, as damage may result in the case of an obstruction in the car, etc.

• If the front panel does not fully open because of the

dashboard shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 8.

• It is extremely dangerous to connect or remove the

iPod while driving.

Tips

• When the ignition key is turned to the ACC position,

and the unit is on, the iPod will be recharged.

• If the iPod is disconnected during playback, “NO

Device” appears in the display of the unit.

Resuming mode

When the iPod is connected to the dock connector, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod. In Resuming mode, repeat/shuffle play does not function.

Repeat play

1 Press and hold the multi way encoder. 2 Rotate the multi way encoder to select

“Repeat,” then press it.

3 Rotate the multi way encoder to select

the setting, then press it.

The setting is complete.

4 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

(with the card remote commander)

1 During playback, press (1) (REP)

repeatedly until the desired setting appears.

Select To play

Repeat Track track repeatedly. Repeat Album album repeatedly. Repeat Podcast podcast repeatedly. Repeat Artist artist repeatedly. Repeat Playlist playlist repeatedly. Repeat Genre genre repeatedly.

After 3 seconds, the setting is complete. To return to normal play mode, select “Repeat

off.”

Display items

A Source (iPod) indication B Clock C Artist name/Album name, Track name,

Album number/Track number/Elapsed playing time

To change display items C, press (DSPL).

Tip

When album/podcast/genre/artist/playlist is changed, its item number appears momentarily.

Notes

• Playing tracks in shuffle play is selected from a

current iPod.

• Some letters stored in iPod may not be displayed

correctly.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 28 Monday, May 10, 2010 2:22 PM

Shuffle play

1 During playback, press and hold

(ZAP/SHUF).

2 Press (ZAP/SHUF) repeatedly until the

desired setting appears.

(with the card remote commander)

1 During playback, press (2) (SHUF)

repeatedly until the desired setting appears.

Select To play

Shuffle Album album in random order. Shuffle Podcast podcast in random order. Shuffle Artist artist in random order. Shuffle Playlist playlist in random order. Shuffle Genre genre in random order. Shuffle Device device in random order.

After 3 seconds, the setting is complete. To return to normal play mode, select “off.”

Operating an iPod directly — Passenger control

You can operate an iPod connected to the dock connector directly. This function works when the iPod is connected to the USB (external) connector only.

1 During playback, press and hold

(MODE).

“Mode iPod” appears and you will be able to operate the iPod directly.

To exit the passenger control

Press and hold (MODE). Then “Mode Audio” will appear and the play mode will change to “Resuming.”

Notes

• The volume can be adjusted only by the unit.

• If this mode is canceled, the repeat setting will be

turned off.

Searching for a track

Searching a track by name — Quick-BrowZer™

You can search for a track in a USB device easily by category.

1 Press (BROWSE).

The unit enters the Quick-BrowZer mode, and the list of search categories appears.

2 Rotate the multi way encoder to select

the desired search category, then press it to confirm.

3 Repeat step 2 until the desired track is

selected.

Playback starts.

To return to the previous display

Press (BACK).

To exit the Quick-BrowZer mode

Press (BROWSE).

Note

When entering the Quick-BrowZer mode, the repeat/ shuffle setting is canceled.

Searching by skip items — Jump mode

When many items are in a category, you can search for a desired item quickly.

1 Push the multi way encoder right in

Quick-BrowZer mode.

The following display appears.

A Current item number B Total item number in the current layer C Item name

Then the item name will appear.

2 Rotate the multi way encoder until the

desired item or one near the desired item appears.

It skips in steps of 10% of the total item number.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 29 Monday, May 10, 2010 2:22 PM

3 Press the multi way encoder.

The display returns to the Quick-BrowZer mode and the selected item appears.

Searching a track by listening to track passages — ZAPPIN™

4 Push the multi way encoder up/down

to select the desired item, then press it.

Playback starts if the selected item is a track.

To cancel Jump mode

Press (BACK) or push the multi way encoder left. A list of the search categories appears.

Searching by alphabetical order — Alphabet search

When an iPod or USB device containing song information is connected to the unit, you can search for a desired item by alphabetical order. While this unit is reading song information, “ ” appears on the display. You can use the Alphabet search function when “ ” disappears. For a USB device, the maximum number of searchable files (tracks) is 5,000.

1 Push the multi way encoder right in

Quick-BrowZer mode.

An alphabet list appears.

While playing back short track passages in a USB device in sequence, you can search for a track you want to listen to. ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode.

1 Press (ZAP/SHUF) during playback.

After “ZAPPIN” appears in the display, playback starts from a passage of the next track. The passage is played for the set time, then a click sounds and the next passage starts.

Tra ck

(ZAP/SHUF) pressed.

The part of each track to playback in ZAPPIN mode.

2 Press the multi way encoder or

(ZAP/SHUF) when a track you want to listen is played back.

The track that you select returns to normal play mode from the beginning. To search a track by ZAPPIN mode again, repeat steps 1 and 2.

2 Rotate the multi way encoder to select

the first letter of the desired item, then press it.

A list of items in the selected category appears in alphabetical order. If there is no song beginning with the desired letter, “Not Found” appears.

3 Push the multi way encoder up/down

to select the desired item, then press it.

Playback starts if the selected item is a track.

To cancel Alphabet search

Press (BACK) or push the multi way encoder left. A list of the search categories appears.

Notes

• For a USB device, it may take time to read song

information after connecting to the unit. While reading song information, “ ” appears in the top left of the display.

• Only the song information of the USB device last

connected can be stored.

• If replacing the car battery, changing connections or

resetting the unit, the stored song information will be erased.

In the case of “SensMe™ channels” playback

If the track being searched is transferred by “Content Transfer,” the most melodic or rhythmical sections* of tracks are played. For details on the SensMe™ function, see page 22.

* May not be detected correctly.

Tips

• You can select the playback time from about 6 seconds/15 seconds/30 seconds (page 40). You cannot select the passage of the track to playback.

• Push the multi way encoder left/right in ZAPPIN mode to skip a track.

• Push the multi way encoder up/down in ZAPPIN mode to skip album.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 30 Monday, May 10, 2010 2:22 PM

Bluetooth (Handsfree calling and Music streaming)

Bluetooth Operations

To use the Bluetooth function, the following procedure is necessary.

1 Pairing

When connecting Bluetooth devices for the first time, mutual registration is required. This is called “pairing.” This registration (pairing) is required only for the first time, as this unit and the other devices will recognize each other automatically from the next time. You can pair up to 9 devices.

2 Connecting

After pairing is made, connect this unit and the Bluetooth device. Depending on the device, connection is automatically made along with the pairing.

3 Handsfree calling/Music streaming

You can make/receive a handsfree call, or listen to audio through this unit.

For details of usable devices, visit the following support site.

Support site

http://esupport.sony.com http://www.sony.com/mobileAV

About Bluetooth icons

The following icons are used by this unit.

Lit: Flashing: None:

Lit:

Flashing: None:

Lit: Flashing: None:

Lit:

Flashing:

None:

* Turns gray without handsfree connection. Differs in

the case of a cellular phone.

Bluetooth signal is on. Pairing is in standby mode. Bluetooth signal is off.

Connected to a cellular phone. Connection is in progress. No cellular phone is connected for handsfree calling.

Connected to a device. Connection is in progress. No device is connected for music streaming.

Some unread SMS messages exist. A new SMS message has been received. No unread SMS messages exist.

Signal strength status of connected cellular phone.*

Remaining battery status of connected cellular phone.*

Pairing

First, register (“pair”) a Bluetooth device (cellular phone, etc.) and this unit with each other. You can pair up to 9 devices. Once pairing is established, there is no need for pairing again.

1 Press and hold (BLUETOOTH).

“ ” flashes (pairing is in standby mode).

2 Set the Bluetooth device to search for

this unit.

A list of detected devices appears in the display of the device to be connected. This unit is displayed as “Sony Automotive” on the device to be connected.

DR-BT30Q

Sony

Automotive

XXXXXXX

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 31 Monday, May 10, 2010 2:22 PM

3 If passkey* input is required on the

display of the device to be connected, input “0000.”

Input passkey.

XXXX

“0000”

This unit and the Bluetooth device memorize each other’s information, and when pairing is made, this unit is ready for connection to the device.

4 Set the Bluetooth device to connect to

this unit.

“Connection Complete” appears and connection is complete. “ ” or “ ” appears when the connection is made.

* Passkey may be called “passcode,” “PIN code,” “PIN

number” or “password,” etc., depending on the device. If the device supports Bluetooth version 2.1, passkey input is not required.

Notes

• While connecting to a Bluetooth device, this unit cannot be detected from another device. To enable detection, enter the pairing mode and search for this unit from another device.

• It may take time to search or connect.

• Depending on the device, the confirmation display of

the connection appears before inputting the passkey.

• The time limit for inputting the passkey differs depending on the device.

• This unit cannot be connected to a device that supports only HSP (Head Set Profile).

Connecting

If pairing has already been achieved, start operation from here.

Connecting a cellular phone

1 Be sure that both this unit and the

cellular phone are switched to Bluetooth signal on.

2 Connect to this unit using the cellular

phone.

“ ” appears when the connection is made. If you select the Bluetooth Phone source after the connection is made, the network name and the connected cellular phone name also appear in the display.

Connecting to the cellular phone last-connected from this unit

1 Be sure that both this unit and the cellular

phone are switched to Bluetooth signal on.

2 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

3 Press the multi way encoder.

“ ” flashes while the connection is being made. “ ” stays lit when the connection is made.

Notes

• Some cellular phones require permission to access their phonebook data during handsfree connection to this unit. Obtain permission via the cellular phone.

• While streaming Bluetooth audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead. A connecting noise may be heard over playback sound.

Tips

• With Bluetooth signal on: when the ignition is switched to on, this unit reconnects automatically to the last-connected cellular phone. But automatic connection also depends on the cellular phone’s specification. If this unit does not reconnect automatically, connect manually.

• You can also select the Bluetooth Phone source by pressing and holding (BROWSE) on this unit for 2 or more seconds, or pressing (CALL) on the card remote commander.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 32 Monday, May 10, 2010 2:22 PM

Connecting an audio device

1 Be sure that both this unit and the

audio device are switched to Bluetooth signal on.

2 Connect to this unit using the audio

device.

“ ” appears when the connection is made.

Connecting to the audio device lastconnected from this unit

1 Be sure that both this unit and the audio device

are switched to Bluetooth signal on.

2 Press (SOURCE/OFF) repeatedly until

“Bluetooth Audio” appears.

3 Press (PAUSE).

“ ” flashes while the connection is being made. “ ” stays lit when the connection is made.

Handsfree calling

Once the unit is connected to the cellular phone, you can make/receive handsfree calls by operating this unit.

Making calls

Calling from the phonebook

You need to make sure the appropriate phonebook has been selected. For details on how to select a phonebook, see “Selecting a phonebook” (page 34).

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press (BROWSE).

The phonebook appears.

3 Rotate the multi way encoder to select an

initial from the initial list, then press it.

4 Rotate the multi way encoder to select a name

from the name list, then press it.

5 Rotate the multi way encoder to select a

number from the number list, then press it. The phone call starts.

Calling from the call history

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press and hold (BROWSE) for 2 or more

seconds. A list of the call history appears.

3 Rotate the multi way encoder to select a name

and phone number from the call history, then press it. The phone call starts.

Note

You can call from the call history (up to 20).

Calling by direct phone number input

You can call by direct phone number input using only the card remote commander.

1 Press (CALL) on the card remote commander

to select the Bluetooth Phone source.

2 Press the number buttons (0-9, or ) on the

card remote commander to enter the phone number.

3 Press (ENTER) on the card remote

commander. The phone call starts.

To input “+,” press and hold the 0 button on the card remote commander.

Calling by preset number

You can store up to 6 contacts in the preset dial. For details on how to store, see “Preset dial” (page 34).

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Push the multi way encoder up/down to select

the contact you want to call, then press it. The phone call starts.

To end a call

Press the multi way encoder again, or (SOURCE/OFF).

Note

Even if the call is ended, the Bluetooth connection is not canceled.

Calling by redial

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press and hold the multi way encoder for 2 or

more seconds. The phone call starts.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 33 Monday, May 10, 2010 2:22 PM

Receiving calls

When receiving a call, a ringtone is output from your car speakers. The name and the phone number appear in the display.

1 Press the multi way encoder when a

call is received with a ringtone.

The phone call starts.

Notes

• Only the phone number may appear, depending on the cellular phone.

• The built-in microphone of this unit is located on the rear of the front panel (page 15). Do not cover the microphone with tape, etc.

Auto Answer setting

You can select an auto answer setting from “off,” “Short” or “Long” (page 41).

Ringtone setting

You can switch the ringtone from “Default” or “Cellular” (page 41).

* Depending on the cellular phone, this unit’s ringtone

may be output even if set to “Cellular.”

To reject a call

Press (SOURCE/OFF).

Operations during a call

Presetting the volume of the ringtone and talker’s voice

You can preset the volume level of the ringtone and talker’s voice.

To adjust the ringtone volume:

Rotate the multi way encoder while receiving a call. “Ring Volume” appears and ringtone volume can be adjusted.

To adjust the talker’s voice volume:

Rotate the multi way encoder during a call. “Talk Volume” appears and the talker’s voice volume can be adjusted.

Note

If the Bluetooth Phone source is selected, rotating the multi way encoder will only adjust the talker’s volume.

EC/NC Mode (Echo Canceller/Noise Canceller Mode)

You can reduce echo and noise. Push the multi way encoder left/right to set to “EC/NC Mode 1” or “EC/NC Mode 2.”

Note

Configurable during a call.

Sending DTMF (Dual Tone Multiple Frequency) tones

You can send DTMF tones. Press the required number buttons (0 – 9, or

) on the card remote commander to send

DTMF tones.

MIC Gain adjustment

You can adjust the volume for other party. Push the multi way encoder up/down to adjust the volume levels (“MIC Gain LOW,” “MIC Gain MID,” “MIC Gain HI”).

Note

Configurable during a call.

Call transfer

To activate/deactivate the appropriate device (this unit/cellular phone), check the following.

1 Press (MODE) or use your cellular

phone.

For details on cellular phone operation, refer to your cellular phone manual.

Note

Depending on the cellular phone, handsfree connection may be cut off when call transfer is attempted.

Phonebook management

Notes on phonebook data

• Prior to disposal or changing ownership of your car with this unit still installed, be sure to press the RESET button to erase all the phonebook data in this unit to prevent possible unauthorized access. Disconnecting the power supply lead will also erase all the phonebook data.

• Downloaded phonebook data from a cellular phone cannot be overwritten by subsequent data. However, some data (name, etc.,) may be duplicated as a result.

• If you press the RESET button, the stored phonebook data will be erased.

• Phonebook data may be lost if this unit is damaged.

• When disposing of this unit, phonebook data should

be deleted with “BT Initialize” (page 36).

• Up to 500 contacts can be stored in the phonebook. If you try to register more than 500 contacts, “Memory Full” appears.

continue to next page t

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 34 Monday, May 10, 2010 2:22 PM

Selecting a phonebook

Before making a call, make sure the appropriate phonebook has been selected: cellular phone or this unit. If you select “Cellular,” you can access the phonebook in a cellular phone via this unit*.

* If the cellular phone does not support PBAP, the

phonebook in the cellular phone cannot be selected.

1 Press and hold (SOURCE/OFF) for 1 second. 2 Press and hold the multi way encoder. 3 Rotate the multi way encoder until

“PhoneBook Select” appears, then press it.

4 Rotate the multi way encoder to select

“Cellular” or “Head Unit,” then press it.

5 Press (BACK).

Receiving phonebook data from a cellular phone

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press (BROWSE).

The phonebook appears.

3 Rotate the multi way encoder to select “Add

Contact,” then press it. “Waiting…” appears.

4 Send the phonebook data by operating the

cellular phone. “Data Receiving…” appears while receiving the phonebook data. “Complete” appears when the phonebook data is stored on this unit.

Notes

• When connecting to this unit, depending on the cellular phone, you may be asked to give this unit permission to access the phonebook in the cellular phone. Permission is required from the cellular phone.

• Before receiving phonebook data, disconnect any cellular phone or audio device.

• To cancel the transfer of phonebook data, operate the cellular phone.

• If the power supply lead is disconnected, the stored phonebook data will be erased.

Deleting from the phonebook in this unit

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press (BROWSE).

The phonebook appears.

3 Rotate the multi way encoder to select an

initial from the initial list, then press it.

4 Rotate the multi way encoder to select a name

from the name list, then press it.

5 Rotate the multi way encoder to select “Delete

Contact” from the number list, then press it.

6 Rotate the multi way encoder to select “Yes,”

then press it.

To clear all phonebook data, select “Delete All” in step 3. After clearing, confirm that all phonebook data has been cleared properly.

Preset dial

Contacts (up to 6) of the phonebook in a cellular phone can be stored in the preset dial.

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Push the multi way encoder up/down

to select the preset number (“Preset 1” to “Preset 6”) to store.

3 Push the multi way encoder right to

enter storing mode.

“Waiting…” appears.

4 Send the phonebook data by

operating the cellular phone.

The contact is stored in the selected preset number.

Voice dial activation

You can activate voice dialing with a cellular phone connected to this unit by saying the voice tag stored on the cellular phone, then make a call.

1 Press (SOURCE/OFF) repeatedly until

“Bluetooth Phone” appears.

2 Press the multi way encoder.

“Please say the name…” appears.

3 Say the voice tag stored on the cellular

phone.

Your voice is recognized, and the call is made.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 35 Monday, May 10, 2010 2:22 PM

Notes

• Check that unit and cellular phone are connected

beforehand.

• Store a voice tag on your cellular phone beforehand.

• If you activate voice dialing with a cellular phone

connected to this unit, this function may not work in some cases.

• Noises such as the engine running may interfere

with sound recognition. In order to improve recognition, operate under conditions where noise is minimized.

• Voice dialing may not work in some situations,

depending on the effectiveness of the cellular phone’s recognition function. For details, see the support site.

• Do not use voice dialing on the cellular phone during

handsfree device connection.

Tips

• Speak in the same way as you did when you stored

the voice tag.

• Store a voice tag while seated in the car, via this unit

with Bluetooth Phone source selected.

Music streaming

Listening to music from an audio device

You can listen to music of an audio device on this unit if the audio device supports A2DP (Advanced Audio Distribution Profile) of Bluetooth technology.

1 Connect this unit and the Bluetooth

audio device (page 32).

“ ” appears during connection.

2 Turn down the volume on this unit. 3 Press (SOURCE/OFF) repeatedly until

“Bluetooth Audio” appears.

4 Operate the audio device to start

playback.

5 Adjust the volume on this unit.

SMS indicator

While connecting a cellular phone to this unit, the SMS indicator informs you of any incoming or unread SMS messages.

If you receive a new SMS message, the SMS indicator flashes.

If there are any unread SMS messages, the SMS indicator stays lit.

Adjusting the volume level

The volume level is adjustable for any difference between the unit and the Bluetooth audio device.

1 Start playback of the Bluetooth audio device at

a moderate volume.

2 Set your usual listening volume on the unit. 3 Press the multi way encoder. 4 Rotate the multi way encoder until “Bluetooth

Audio Level” appears, then press it.

5 Rotate the multi way encoder to adjust the

input level (“+ 18dB” – “0dB” – “– 8dB”).

Note

Function of the SMS indicator may depend on the cellular phone.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 36 Monday, May 10, 2010 2:22 PM

Operating an audio device with this unit

You can perform the following operations on this unit if the audio device supports AVRCP (Audio Video Remote Control Profile) of Bluetooth technology. (The operation differs depending on the audio device.)

To Do this

Play Press (PAUSE).* Pause Press (PAUSE).* Skip tracks Push the multi way encoder

left/right [once for each track].

Reverse/ Fastforward

Push and hold the multi way encoder left/right.

Repeat play Press (REP) on the card

remote commander.*

Shuffle play Press (SHUF) on the card

remote commander.*

Skip albums Push the multi way encoder up/

down.

*1 Depending on the device, it may be necessary to

press twice.

*2 Press repeatedly until the desired setting appears. *3 You can also shuffle play by pressing and holding

(ZAP/SHUF) on this unit.

Operations other than the above should be performed on the audio device.

Notes

• Depending on the audio device, its information, such as title, track number/time, playback status, etc., may not be displayed on this unit. The information is displayed during Bluetooth Audio playback only.

• Even if the source is changed on this unit, playback of the audio device does not stop.

Tip

You can connect a cellular phone that supports A2DP (Advanced Audio Distribution Profile) as an audio device and listen to music.

2*3

2 Rotate the multi way encoder to select

“BT Initialize,” then press it.

The confirmation appears.

3 Rotate the multi way encoder to select

“Yes.”

“Initializing...” appears while initializing the Bluetooth settings.

4 Press (BACK).

The display returns to normal reception/play mode.

Note

When disposing of this unit, phonebook data should be deleted with “BT Initialize.”

Using optional equipment

External microphone XA-MC10

By connecting an external microphone to the microphone input connector, you can improve audio quality while talking through this unit.

Installing on the sun visor

External microphone

Connecting cord

Clamps

Installing on the dashboard

Clamps

Connecting cord

Other settings

Initializing Bluetooth Settings

You can initialize all the Bluetooth-related settings from this unit.

1 Press and hold the multi way encoder.

The menu list appears.

External microphone

Note

If you connect the external microphone, you cannot use the built-in microphone.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 37 Monday, May 10, 2010 2:22 PM

Sound Settings and Setup Menu

Changing the sound settings

Adjusting the sound characteristics

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until the

desired menu item appears, then press it.

3 Use the multi way encoder to select

the setting, then press it.

4 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

The following items can be set: The operation of the multi way encoder will differ depending on the items.

: Push the multi way encoder up/down : Push the multi way encoder left/right : Rotate the multi way encoder

EQ7 Preset (page 37) EQ7 Parametric Tune (page 38) Listening Position Front/Rear (page 38) Listening Position Subwoofer (page 38) Listening Position Custom Tune (page 39) Fader & Balance

Front/Rear/Center () Adjusts the relative level. Right/Left/Center () Adjusts the sound balance.

Subwoofer Tune & LPF

Phase () Selects the phase: “Normal,” “Reverse.” FREQ () Selects the subwoofer cut-off frequency: “50Hz,” “60Hz,” “80Hz,” “100Hz,” “120Hz.” Slope () Selects the LPF slope: ”1,” ”2,” ”3.”

Subwoofer Level ()

Adjusts the subwoofer volume: “+10 dB” – “0 dB” – “–10 dB.” (“– ∞” is displayed at the lowest setting.)

HPF

FREQ () Selects the cut-off frequency: “off,” “50Hz,” “60Hz,” “80Hz,” “100Hz,” “120Hz.” Slope () Select the HPF slope: ”1,” ”2,” ”3.”

DM+ Advanced (page 39) Rear Bass Enhancer (page 39) Dynamic Loudness (page 40) Bluetooth Audio Level (page 35)

Enjoying sophisticated sound functions — Advanced Sound Engine

Advanced Sound Engine, Sony’s new sound engine, creates an ideal in-car sound field with digital signal processing. Advanced Sound Engine contains the following features: EQ7, Listening Position, DM+ Advanced, Rear Bass Enhancer, Dynamic Loudness.

Selecting the sound quality — EQ7 Preset

You can select an equalizer curve from 7 equalizer curves (“Xplod,” “Vocal,” “Edge,” “Cruise,” “Space,” “Gravity,” “Custom” or “off”).

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until

“EQ7 Preset” appears, then press it.

3 Push the multi way encoder up/down

until the desired equalizer curve appears, then press it.

4 Press (BACK).

The display returns to normal reception/play mode.

To cancel the equalizer curve, select “off” on step

Tip

Adjusted equalizer curve settings can be memorized separately for Tuner, USB (SensMe™) and Bluetooth Audio sources.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 38 Monday, May 10, 2010 2:22 PM

Customizing the equalizer curve — EQ7 Parametric Tune

“Custom” of EQ7 allows you to make your own equalizer settings. Select “Custom” of EQ7 Preset. If you set “off” for EQ7 Preset, “EQ7 Parametric Tune” does not appear in the sound settings menu.

1 Select a source, then press the multi

way encoder.

2 Rotate the multi way encoder until

“EQ7 Parametric Tune” appears, then press it.

3 Setting the equalizer curve.

• Frequency range Rotate the multi way encoder to select “Band1” to “Band7.”

• Center frequency Push the multi way encoder left/right to select the center frequency. Selectable center frequency in each band: Band1: “40 Hz” or “63 Hz” Band2: “100 Hz” or “160 Hz” Band3: “250 Hz” or “400 Hz” Band4: “630 Hz” or “1.0 kHz” Band5: “1.6 kHz” or “2.5 kHz” Band6: “4.0 kHz” or “6.3 kHz” Band7: “10.0 kHz” or “16.0 kHz”

• Volume level Push the multi way encoder up/down to adjust the equalizer curve. The volume level is adjustable in 1 dB steps, from –6 dB to +6 dB.

4 Press the multi way encoder when you

finish all equalizer settings.

5 Press (BACK).

The display returns to normal reception/play mode.

To restore the factory-set equalizer curve, select “Initialize” and “Yes” in step 3.

Tip

Other equalizer curves are also adjustable.

Optimizing sound by Time Alignment — Listening Position

The unit can change the localization of sound by delaying the sound output from each speaker to suit your position, and simulate a natural sound field with the feeling of being in the center of it wherever you sit in the car. The options for “Listening Position Front/Rear” are indicated below.

“Front R” (1): Front right “Front L” (2): Front left “Front” (3): Center front “All” (4): In the center of

your car “Custom”: Precisely

calibrated position (page 39) “off”: No position set

You can also set the approximate subwoofer position from your listening position if: – the subwoofer is connected – the listening position is set to “Front R,” “Front

L,” “Front” or “All.”

The options for “Listening Position Subwoofer” are indicated below.

“Near” (A): Near “Normal” (B): Normal “Far” (C): Far

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until

“Listening Position Front/Rear” appears, then press it.

3 Push the multi way encoder up/down

to select from “Front R,” “Front L,” “Front,” “All” or “Custom,” then press it.

4 Rotate the multi way encoder until

“Listening Position Subwoofer” appears, then press it.

If you select “Front R,” “Front L,” “Front” or “All” in step 3 above, you can set the subwoofer position. Push the multi way encoder up/down to select from “Near,” “Normal” or “Far,” then press it.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 39 Monday, May 10, 2010 2:22 PM

5 Press (BACK).

The display returns to normal reception/play mode.

To cancel listening position, select “off” on step

Note

If you select “Custom” in step 3 above, you cannot set the subwoofer position.

Precisely calibrating by Time Alignment — Listening Position Custom Tune

You can precisely calibrate your listening position from each speaker so that the sound delay reaches the listener more correctly.

Before starting, measure the distance between your listening position and each speaker.

Select “Custom” of Listening Position Front/ Rear.

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until

“Listening Position Custom Tune” appears, then press it.

3 Setting for the listening position.

• Speaker Select

Push the multi way encoder left/right to select the speaker.

• Distance

Push the multi way encoder up/down to set the distance between your listening position and speakers. The distance is adjustable in 2 cm ( between 30 and 300 cm (0.99 and 9.9 ft).

/5 in) steps,

DM+ Advanced

DM+ Advanced improves digitally compressed sound by restoring high frequencies lost in the compression process. This function works when the USB, SensMe™ or Bluetooth Audio source is selected only.

1 During playback, press the multi way

encoder.

2 Rotate the multi way encoder until

“DM+ Advanced” appears, then press it.

3 Push the multi way encoder up/down

to select “on,” then press it.

4 Press (BACK).

The display returns to normal reception/play mode.

Tip

Adjusted DM+ settings can be memorized separately for USB (SensMe™) and Bluetooth Audio sources.

Using rear speakers as subwoofer — Rear Bass Enhancer

Rear Bass Enhancer enhances the bass sound by applying the low pass filter setting (page 37) to the rear speakers. This function allows the rear speakers to work as a subwoofer if one is not connected.

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until

“Rear Bass Enhancer” appears, then press it.

3 Push the multi way encoder up/down

to select from “Level 1,” “Level 2” or “Level 3,” then press it.

4 Press (BACK).

The display returns to normal reception/play mode.

4 Press the multi way encoder when you

complete all settings.

5 Press (BACK).

The display returns to normal reception/play mode.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 40 Monday, May 10, 2010 2:22 PM

Compensating volume level — Dynamic Loudness

“Dynamic Loudness” refers to compensating for volume level and signal gain.

1 During reception/playback, press the

multi way encoder.

2 Rotate the multi way encoder until

“Dynamic Loudness” appears, then press it.

3 Push the multi way encoder up/down

to select “on,” then press it.

4 Press (BACK).

The display returns to normal reception/play mode.

Adjusting setup items — MENU

1 Press and hold the multi way encoder. 2 Rotate the multi way encoder to select

the desired menu item, then press it.

3 Push the multi way encoder up/down

to select the setting, then press it.

The setting is complete.

4 Press (BACK).

The setting is complete and the display returns to normal reception/play mode.

The following items can be set (follow the page reference for details):

Setup

Clock Adjust (page 8) CT (Clock Time) (page 19) Beep

Activates the beep sound: “on,” “off.”

RM (Rotary Commander)

Changes the operative direction of the rotary commander controls: “NORM,” “REV.”

Auto Off

Shuts off automatically after a desired time when the unit is turned off: “NO,” “30sec (seconds),” “30min (minutes),” “60min (minutes).”

DEV Inside Alert

Activates the Device Inside Alert function: “off,” ”on.”

Display

Demo

(Demonstration)

Activates the demonstration: “on,” “off.”


Sets various display images. – “All”: to display all images. – “Movie”: to display a movie. – “SA 1 – 3, All”: to display the Spectrum

Analyzer. – “Wall.P 1 – 4, All”: to display a wallpaper. – “off”: to not display any image.

Information

Displays the items (depending on the source, etc.): “on,” “off.”

Dimmer

Changes the display brightness. – “Auto”: to dim the display automatically when

you turn lights on. (Available only when the

illumination control lead is connected.) – “on”: to dim the display. – “off”: deactivate the dimmer.

Illumination

Changes the illumination color: “Blue,” “Red.”

Auto Scroll

Scrolls long items automatically: “on,” “off.”

Play Mode

Repeat (page 22, 27) ZAPPIN Tone*

Has the beep sound between track passages: “on,” “off.”

ZAPPIN Time*

Selects the playback time for the ZAPPIN function: “1 (about 6 seconds),” “2 (about 15 seconds),” “3 (about 30 seconds).”

Local (Local Seek Mode)

– “on”: to only tune into stations with stronger

signals. – “off”: to tune normal reception.

Mono*

Selects monaural reception mode to improve poor FM reception: “on,” “off.”

BTM (page 18)

(Monaural Mode)

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 41 Monday, May 10, 2010 2:22 PM

Bluetooth

PhoneBook Select

Select the phonebook : “Cellular,” “Head Unit.”

Ringtone

Uses the ringtone of this unit or the connected cellular phone: “Default,” “Cellular.”

Auto Answer

Answers an incoming call automatically. – “off”: to not answer automatically until the

multi way encoder is pressed.

– “Short”: to answer automatically after 3

seconds.

– “Long”: to answer automatically after 10

seconds.

BT Initialize*

*1 When USB/SensMe™/iPod source is activated. *2 When FM is received. *3 When the unit is turned off.

(page 36)

Additional Information

Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.

• Power antenna (aerial) extends automatically.

Playback order of MP3/WMA/AAC files

MP3/WMA/AAC

About Device Inside Alert

If you turn the ignition switch to the OFF position without removing the USB device or iPod, “Device Inside” will appear in the display.

Folder (album)

MP3/WMA/ AAC file (track)

Open the front panel to remove the USB device or iPod.

If the front panel is detached when the ignition is turned off.

The Device Inside Alert LED flashes.

Tip

For how to remove the USB device or iPod, see page 20 (USB), 26 (iPod).

Notes

• The Device Inside Alert will only sound if the built-in amplifier is used.

• For how to disable the Device Inside Alert function, see page 40.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 42 Monday, May 10, 2010 2:22 PM

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Made for – iPod touch (2nd generation) – iPod touch (1st generation) – iPod classic – iPod with video* – iPod nano (5th generation) – iPod nano (4th generation) – iPod nano (3rd generation) – iPod nano (2nd generation) – iPod nano (1st generation)* – iPhone 3GS – iPhone 3G – iPhone

* Passenger control is not available for iPod nano

(1st generation) or iPod with video.

• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet Apple performance standards.

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

About Bluetooth function

What is Bluetooth technology?

• Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. Bluetooth wireless technology operates within a range of about 10 m (about 33 feet). Connecting two devices is common, but some devices can be connected to multiple devices at the same time.

• You do not need to use a cable for connection since Bluetooth technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.

• Bluetooth technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide.

On Bluetooth communication

• Bluetooth wireless technology operates within a range of about 10 m. Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.

• The following conditions may affect the sensitivity of Bluetooth communication. – There is an obstacle such as a person, metal, or

wall between this unit and Bluetooth device.

– A device using 2.4 GHz frequency, such as a

wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.

• Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following. – Use this unit at least 10 m away from the

wireless LAN device.

– If this unit is used within 10 m of a wireless

LAN device, turn off the wireless LAN device.

– Install this unit and Bluetooth device as near to

each other as possible.

• Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident. – where inflammable gas is present, in a hospital,

train, airplane, or petrol station

– near automatic doors or a fire alarm

• This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.

• We do not take any responsibility for the leakage of information during Bluetooth communication.

• Connection with all Bluetooth devices cannot be guaranteed. – A device featuring Bluetooth function is

required to conform to the Bluetooth standard specified by Bluetooth SIG, and be authenticated.

– Even if the connected device conforms to the

above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device.

– While talking on the phone handsfree, noise may

occur, depending on the device or communication environment.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 43 Monday, May 10, 2010 2:22 PM

• Depending on the device to be connected, it may require some time to start communication.

Others

• Using the Bluetooth device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used.

• If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

+ side up

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10 A)

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 8) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Main unit Back of the front

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.

• Never touch the connectors directly with your fingers or with any metal device.

panel

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a good contact.

• Be sure to observe the correct polarity when installing the battery.

• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 44 Monday, May 10, 2010 2:22 PM

Removing the unit

1 Remove the protection collar.

1Detach the front panel (page 8). 2Pinch both edges of the protection collar,

then pull it out.

2 Remove the unit.

1Insert both release keys simultaneously

until they click.

Hook facing inwards.

Specifications

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

AUDIO POWER SPECIFICATIONS

CEA2006 Standard Power Output: 17 Watts RMS 4 Ohms < 1% THD+N SN Ratio: 80 dBA (reference: 1 Watt into 4 Ohms)

Tuner section

Tuning range: 87.5 – 107.9 MHz Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz Usable sensitivity: 10 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 70 dB (mono) Separation: 40 dB at 1 kHz Frequency response: 20 – 15,000 Hz

Tuning range: 530 – 1,710 kHz Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz Sensitivity: 26 µV

4 at

2Pull the release keys to unseat the unit.

3Slide the unit out of the mounting.

USB Player section

Interface: USB (High-speed) Maximum current: 500 mA

Wireless Communication

Communication System:

Bluetooth Standard version 2.1 + EDR

Output:

Bluetooth Standard Power Class 2 (Max. +4 dBm)

Maximum communication range:

Line of sight approx. 10 m (33 ft)*

Frequency band:

2.4 GHz band (2.4000 – 2.4835 GHz)

Modulation method: FHSS Compatible Bluetooth Profiles*

A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio Video Remote Control Profile) 1.3 HFP (Handsfree Profile) 1.5 PBAP (Phone Book Access Profile) OPP (Object Push Profile)

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 45 Monday, May 10, 2010 2:22 PM

*1 The actual range will vary depending on factors

such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.

*2 Bluetooth standard profiles indicate the purpose of

Bluetooth communication between devices.

Power amplifier section

Output: Speaker outputs Speaker impedance: 4 – 8 ohms Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (front/rear) Subwoofer output terminal (mono) Power antenna (aerial) relay control terminal Power amplifier control terminal

Inputs:

Remote controller input terminal Antenna (aerial) input terminal Telephone ATT control terminal Illumination control terminal BUS control input terminal BUS audio input terminal USB signal input connector (internal/external) MIC input terminal

Power requirements: 12 V DC car battery

(negative ground (earth))

Dimensions: Approx. 178 × 50 × 180 mm

/8 × 2 × 71/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 163 mm

/4 × 21/8 × 61/2 in) (w/h/d)

Mass: Approx. 1.1 kg (2 lb 7 oz) Supplied accessories:

Card remote commander: RM-X306 USB connector for iPod: XA-50IP Parts for installation and connections (1 set) CD-ROM (Application disc)

Optional accessories/equipment:

Source selector: XA-C40 USB connection cable for iPod: RC-100IP HD Radio Walkman adaptor: XA-50WM External microphone: XA-MC10

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

tuner: XT-100HD

Windows XP, Windows Vista, Windows 7 For details on compatible editions or Service Pack, visit

the following support site: http://esupport.sony.com http://www.sony.com/mobileAV

Monitor

High color (16-bit) or more, 800 × 600 dots or more

Other

Internet connection

Notes

• The following system environments are not supported. – Non IBM PC type computers, such as Macintosh,

etc. – Homemade computers – OS upgraded computers – Multi-display environment – Multi-boot environment – Virtual machine environment

• Depending on the computer condition, operation may not be possible even with the recommended environment.

System requirements for the software in the supplied CD-ROM

Computer

•CPU/RAM – IBM PC/AT compatible machine – CPU: Intel Pentium III Processor 450 MHz or

higher

– RAM: 256 MB or more (For Windows XP), 512

MB or more (For Windows Vista or later)

• CD-ROM drive

•USB port

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 46 Monday, May 10, 2010 2:22 PM

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

If the problem is not solved, visit the following support site.

Support site

http://esupport.sony.com http://www.sony.com/mobileAV

General

No power is being supplied to the unit.

• Check the connection or fuse.

• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.

t Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.

• The position of the fader control “Fader & Balance” is not set for a 2-speaker system.

No beep sound.

• The beep sound is canceled (page 40).

• An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed.

t Store again into the memory.

• The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown. Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the car’s accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with “Demo on” set, demonstration mode starts. t Set “Demo off” (page 40).

The display disappears from/does not appear in the display window.

• The dimmer is set “Dimmer on” (page 40).

• The display disappears if you press and hold (SOURCE/OFF).

tPress (SOURCE/OFF) on the unit until the

display appears.

• The connectors are dirty (page 43).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit. t Turn off the unit.

Radio reception

The stations cannot be received. The sound is hampered by noises.

• The connection is not correct.

tConnect a power antenna (aerial) control lead

(blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster (only when your car has built-in FM/AM antenna (aerial) in the rear/side glass).

tCheck the connection of the car antenna (aerial). tIf the auto antenna (aerial) will not go up, check

the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.

tTuning stops too frequently:

Set “Local on” (page 40).

tTuning does not stop at a station:

Set “Local off” (page 40).

• The broadcast signal is too weak.

tPerform manual tuning.

During FM reception, the “ST” indication flashes.

• Tune in the frequency accurately.

• The broadcast signal is too weak.

tSet “Mono on” (page 40).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode. t Set “Mono off” (page 40).

RDS

PTY displays “- - - - - - - -.”

• The current station is not an RDS station.

• RDS data has not been received.

• The station does not specify the program type.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 47 Monday, May 10, 2010 2:22 PM

USB playback

You cannot play back items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

Cannot play back items.

A USB device does not work. t Reconnect it.

The USB device takes longer to play back.

The USB device contains files with a complicated tree structure.

The display items do not scroll.

• A large number of characters may not scroll.

• “Auto Scroll” is set to “off.”

t Set “Auto Scroll on” (page 40). t Press and hold (DSPL) (SCRL).

A beep sounds.

During playback, the USB device has been disconnected. t Before disconnecting a USB device, make sure to

stop playback first for data protection.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate of more than 320 kbps.

Bluetooth function

The connecting device cannot detect this unit.

• Before the pairing is made, set this unit to pairing standby mode.

• While connected to a Bluetooth device, this unit cannot be detected from another device. Disconnect the current connection and search for this unit from another device.

• When the device pairing is made, set the Bluetooth signal output to on (page 31).

Connection is not possible.

Check the pairing and connection procedures in the manual of the other device, etc., and perform the operation again.

The name of the detected device does not appear.

Depending on the status of the other device, it may not be possible to obtain the name.

No ringtone.

• Adjust the volume in “Ring Volume” level.

• Depending on the connecting device, the ringtone may not be sent properly.

t Set “Ringtone” to “Default” (page 33).

The talker’s voice volume is low.

Adjust the volume in “Talk Volume” level.

A call partner says that the volume is too low or high.

Adjust the volume accordingly using MIC Gain adjustment (page 33).

Echo or noise occurs in phone call conversations.

• Lower the volume.

• Set “EC/NC Mode” to “EC/NC Mode 1” or “EC/NC Mode 2” (page 33).

• If the ambient noise other than the phone call sound is loud, try reducing this noise. E.g.: If a window is open and road noise, etc., is loud, shut the window. If the air conditioner is loud, lower the air conditioner.

The phone is not connected.

When the Bluetooth audio is played back, the phone is not connected even if you press the multi way encoder. tConnect from the phone.

The phone sound quality is poor.

Phone sound quality depends on reception conditions of cellular phone. tMove your car to a place where you can enhance

the cellular phone's signal if the reception is poor.

The volume of the connected audio device is low (high).

Volume level will differ depending on the audio device. tAdjust the volume of the connected audio device or

this unit.

No sound is heard from the Bluetooth audio device.

The audio device is paused. tCancel pause of the audio device.

The sound skips during playback of a Bluetooth audio device.

• Reduce the distance between the unit and the Bluetooth audio device.

• If the Bluetooth audio device is stored in a case which interrupts the signal, remove the audio device from the case while using.

• Several Bluetooth devices or other devices which emit radio waves are used nearby.

t Turn off the other devices. t Reduce the distance from the other devices.

• The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction.

The connected Bluetooth audio device cannot be controlled.

Check that the connected Bluetooth audio device supports AVRCP.

Some functions do not work.

Check that the connecting device supports the functions in question.

The name of the other party does not appear when a call is received.

• The other party is not stored in the phonebook.

t Store in the phonebook (page 34).

• The calling phone is not set to send the phone number.

continue to next page t

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Left

00US+00COV-U.book Page 48 Monday, May 10, 2010 2:22 PM

A call is answered unintentionally.

• The connecting phone is set to start a call automatically.

• “Auto Answer” of this unit is set to “Short” or “Long” (page 33).

Pairing failed due to time out.

Depending on the connecting device, the time limit for pairing may be short. Try completing the pairing within the time.

Bluetooth function cannot operate.

Turn off the unit by pressing (SOURCE/OFF) for 2 seconds, then turn the unit on again.

No sound is output from the car speakers during handsfree call.

If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers.

The external microphone does not work.

The setting of the microphone is not correct.

Error displays/Messages

Busy now... Please try later

This unit is busy. t After waiting a moment, try again.

Checking

The unit is confirming the connection of a USB device. t Wait until confirming the connection is finished.

Connection Failed

Accessing the phonebook was terminated from the cellular phone. t Access the phonebook in the cellular phone again.

Device Inside

If you turn the ignition switch to the OFF position without removing the USB device or iPod, “Device Inside” will appear in the display.

Empty

• The call history is empty.

• The phonebook is empty.

Error

• USB device was not automatically recognized. t Reconnect it again.

• Phonebook content was changed while accessing the cellular phone.

t Access the phonebook in the cellular phone again.

Failure (Illuminates until any button is pressed.)

The connection of speakers/amplifiers is incorrect. t See the installation guide manual of this model to

check the connection.

Failure (Illuminates for about 1 second.)

When the SAT tuner is connected, storing an SAT radio channel into a preset failed. t Be sure to receive the channel that you want to

store, then try it again.

HF Device is not available

A cellular phone is not connected. t Connect to a cellular phone.

Hubs Not Supported

USB hub is not supported on this unit.

Invalid channel file

A file in the music folder may have been edited without using “Content Transfer.” t Perform “SensMe™ Setup” for the USB device or

Walkman again. For details on “SensMe™ Setup”, see page 22.

Local Seek +/–

The local seek mode is on during automatic tuning.

NO Device

USB is selected as source without a USB device connected. A USB device or a USB cable has been disconnected during playback. t Be sure to connect a USB device and USB cable.

NO Music

The USB device does not contain a music file. t Connect a USB device with a music file in it.

NO Name

An album/artist/track name is not written in the track.

DSX-S300BTX

4-190-902-31(1)

E:\DATA\4190902311\01US02CD-U.fm masterpage:Right

00US+00COV-U.book Page 49 Monday, May 10, 2010 2:22 PM

No SensMe™ data on device.

The connected USB device does not contain data for the SensMe™ function, or the data has been moved to an improper location in the USB device.

NO Track

The selected item in the USB device does not contain an album/track.

Not Found

There is no item beginning with the desired letter in Alphabet search.

Not Supported

The connected USB device is not supported. t For details on the compatibility of your USB

device, visit the support site.

Offset

There may be an internal malfunction. t Check the connection. If the error indication

remains on in the display, consult your nearest Sony dealer.

Overload

USB device is overloaded. t Disconnect the USB device, then change the source

by pressing (SOURCE/OFF).

t Indicates that the USB device is out of order, or an

unsupported device is connected.

Read

The unit is reading all track and album information on the USB device. t Wait until reading is complete and playback starts

automatically.

Push Reset

USB device cannot be operated due to a problem. t Press the RESET button (page 7).

“” or “”

During reverse or fast-forward, you have reached the beginning or the end of the USB device and you cannot go any further.

“”

The character cannot be displayed with the unit.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

DSX-S300BTX

4-190-902-31(1)

04US+03BCO-U.fm masterpage:Right

00US+00COV-U.book Page 50 Monday, May 10, 2010 2:22 PM

If you have any questions/problems

regarding this product, try the following:

Read Troubleshooting in these

Operating Instructions.

Reset the unit.

Note: Stored data may be erased.

Please contact (U.S.A. only);

Call URL

1-800-222-7669 http://www.SONY.com

http://www.sony.net/

Sony Corporation

Printed in Thailand

DSX-S300BTX

4-190-902-31(1)
