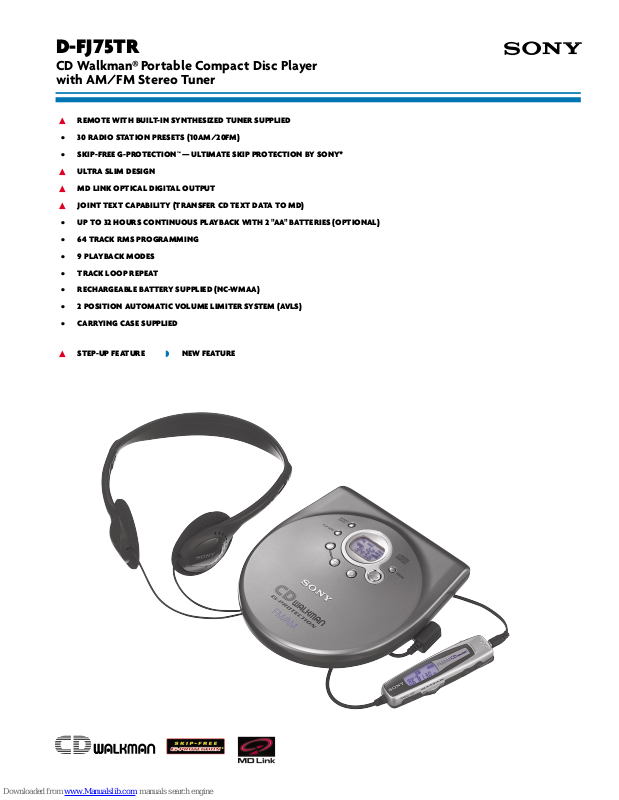

Page 1
D-FJ75TR
CD Walkman®Portable Compact Disc Player
with AM/FM Stereo Tuner
▲ REMOTE WITH BUILT-IN SYNTHESIZED TUNER SUPPLIED
• 30 RADIO STATION PRESETS (10AM/20FM)
• SKIP-FREE G-PROTECTION™— ULTIMATE SKIP PROTECTION BY SONY*
▲ ULTRA SLIM DESIGN
▲ MD LINK OPTICAL DIGITAL OUTPUT
▲ JOINT TEXT CAPABILITY (TRANSFER CD TEXT DATA TO MD)
• UP TO 32 HOURS CONTINUOUS PLAYBACK WITH 2 "AA" BATTERIES (OPTIONAL)
• 64 TRACK RMS PROGRAMMING
• 9 PLAYBACK MODES
• TRACK LOOP REPEAT
• RECHARGEABLE BATTERY SUPPLIED (NC-WMAA)
• 2 POSITION AUTOMATIC VOLUME LIMITER SYSTEM (AVLS)
• CARRYING CASE SUPPLIED
▲ STEP-UP FEATURE ◗ NEW FEATURE
Page 2
D-FJ75TR
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
features
▲
REMOTE WITH BUILT-IN SYNTHESIZED TUNER SUPPLIED
provides super
convenient access to CD player and radio functions on the Remote
Commander®unit, with digital synthesized tuning to precisely lock in the
most powerful signal for accurate, drift-free reception; all circuitry of the
tuner is built into Remote Commander unit which helps to improve
reception of tuner frequency
• 30 RADIO STATION PRESETS (10AM/20FM)
offers convenient one-
button tuning of your choice of 20 FM stations and 10 AM stations
• SKIP-FREE G-PROTECTION™— ULTIMATE SKIP PROTECTION BY SONY*
makes the CD Walkman®player an ideal on-the-go companion, with
greatly advanced digital-based system that provides 10-times faster shock
recovery compared to conventional systems, ensuring virtually skip-free
playing performance even during such active uses as jogging
▲
ULTRA SLIM DESIGN
is attractive and functional, yet less than
one inch thick
▲
JOINT TEXT CAPABILITY (TRANSFER CD TEXT DATA TO MD)
lets you
transfer compact disc text information such as title and track name to a
MiniDisc when dubbing from CD to Sony's new MD (if the CD software
has text data on it)
▲
MD LINK OPTICAL DIGITAL OUTPUT
permits digital connection to
MiniDisc recorder (requires optional digital cable)
• UP TO 32 HOURS CONTINUOUS PLAYBACK WITH 2 "AA" BATTERIES
(OPTIONAL)
is a result of advanced Sony engineering and new IC chip
set and new mechanism, providing very long battery life in continuous
playback use
• 64 TRACK RMS PROGRAMMING
offers extraordinary ability for you to
customize the order in which tracks on a CD are played
• 9 PLAYBACK MODES
give you many predetermined choices in the
playback of CDs, including hearing one track over and over, or a selection
of tracks in a desired order, or tracks in Shuffle (random) order, and more
• TRACK LOOP REPEAT
provides seamless access to all tracks
• RECHARGEABLE BATTERY SUPPLIED (NC-WMAA)
offers great savings and
convenience over conventional batteries
• 2 POSITION AUTOMATIC VOLUME LIMITER SYSTEM (AVLS)
maintains
volume output at levels below distortion threshold, for cleaner sound
reproduction
• CARRYING CASE SUPPLIED
allows CD Walkman player to be protected
while carried
specifications
DIGITAL-ANALOG CONVERSION:
1 Bit
D/A CONVERSION:
1 Bit quartz time-axis control
FREQUENCY RESPONSE:
20-20000Hz, ± 3dB
INPUTS:
DC-In 4.5V
OUTPUTS:
Headphone (stereo mini jack)
POWER REQUIREMENTS:
DC 4.5V "AA" x 2 batteries
BATTERY LIFE (APPROX.):
32 hours with Sony alkaline batteries
COLOR:
Silver
DIMENSIONS (WHD):
5 1⁄8" x 1" x 5 1⁄2" (131.6 x 25 x 141mm)
WEIGHT:
6 1⁄2oz (185g) w/out batteries
SUPPLIED ACCESSORIES:
AC-E455 AC Adaptor, MDR-24SP Stereo Headphones,
RM-CDF7L Remote with Tuner, Carrying Case, NC-WMAA Rechargeable
Battery x 2
OPTIONAL ACCESSORIES:
AC-E45HG AC Adaptor, DCC-E245 Car Battery Cord,
RK-G129HG/G136HG Connecting Cord, SRS-Z500/T1 Active Speakers,
CPA-9 Car Connecting Pack, DCC-E26CP Car Battery Cord, NH-WM2AA
Rechargeable Battery x 2, POC-5B/10B/15B/5AB/10AB/15AB Optical Cable,
MDR-A44SP/A105SP/E868SP/EX70SL Stereo Headphones
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, Walkman, Mega Bass, G-Protection and Remote Commander are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
* Reduces or eliminates skipping during many active uses
