Sony D-EJ711, D-E770, D-EJ715 User Manual

3-868-101-22 (1)

Portable CD Player

Operating Instructions

About the area code

The area code of the location in which you purchased the CD player is shown on upper left of the bar code label on the package. For accessories supplied with your CD player, check the area code of your model and see “Accessories (supplied/optional).”

D-E770 D-EJ711 D-EJ715

 2000 Sony Corporation

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Owner’s Record

The model and the serial numbers are located at the rear. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ___________________ Serial No. ___________________

Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority.

For the customers in the USA and Canada This mark is available in the USA and Canada

only RECYCLING NICKEL-CADMIUM BATTERIES

Nickel-Cadmium batteries are recyclable. You can help preserve our environment by returning your unwanted batteries to your nearest point for collection, recycling or proper disposal. Note: In some areas the disposal of

nickel-cadmium batteries in household or business trash may be prohibited.

RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery collection by the following phone number.

Call toll free number: 1-800-822-8837 (United States and Canada only)

Caution: Do not handle damaged or leaking nickel-

cadmium batteries.

INFORMATION

Listening for many hours at maximum volume may damage your hearing.

For the customers in the USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For the customers in Australia

The supply cord of the AC power adaptor cannot be replaced; if the cord is damaged, the AC power adaptor should be discarded.

Table of Contents

Getting started

Locating the Controls .................................. 4

Playing a CD

1.Connect your CD player.......................... 7

2.Insert a CD. ............................................. 7

3.Play a CD. ............................................... 8

Playback options

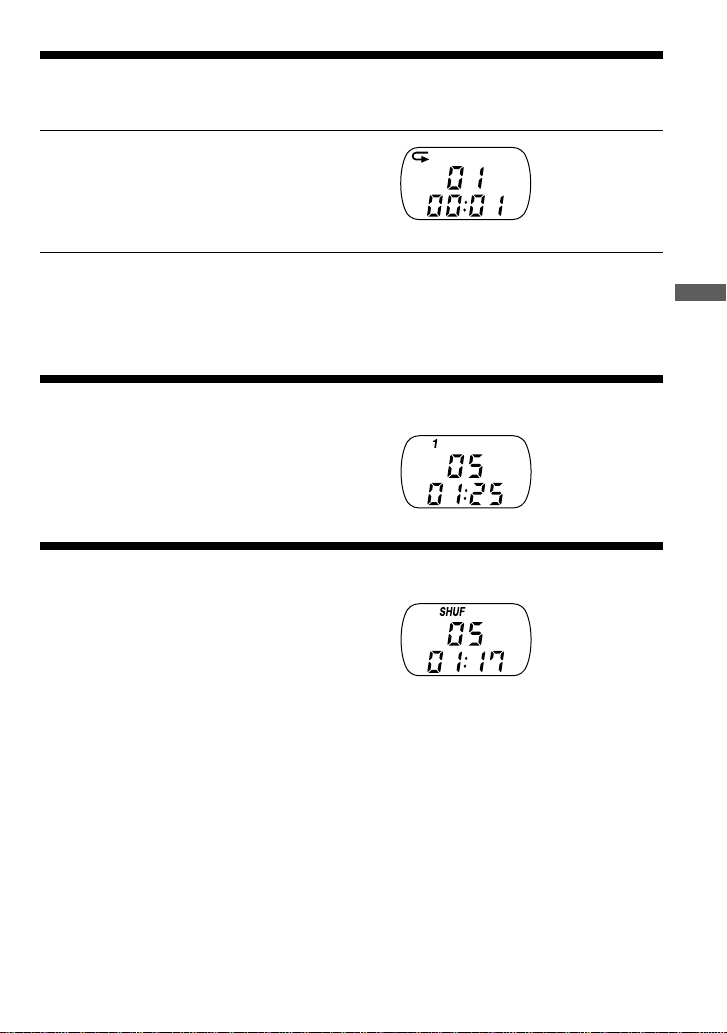

Playing tracks repeatedly (Repeat play) .... 11

Playing a single track (Single play)........... 11

Playing tracks in random order

(Shuffle play)......................................... 11

Playing tracks in your favorite order

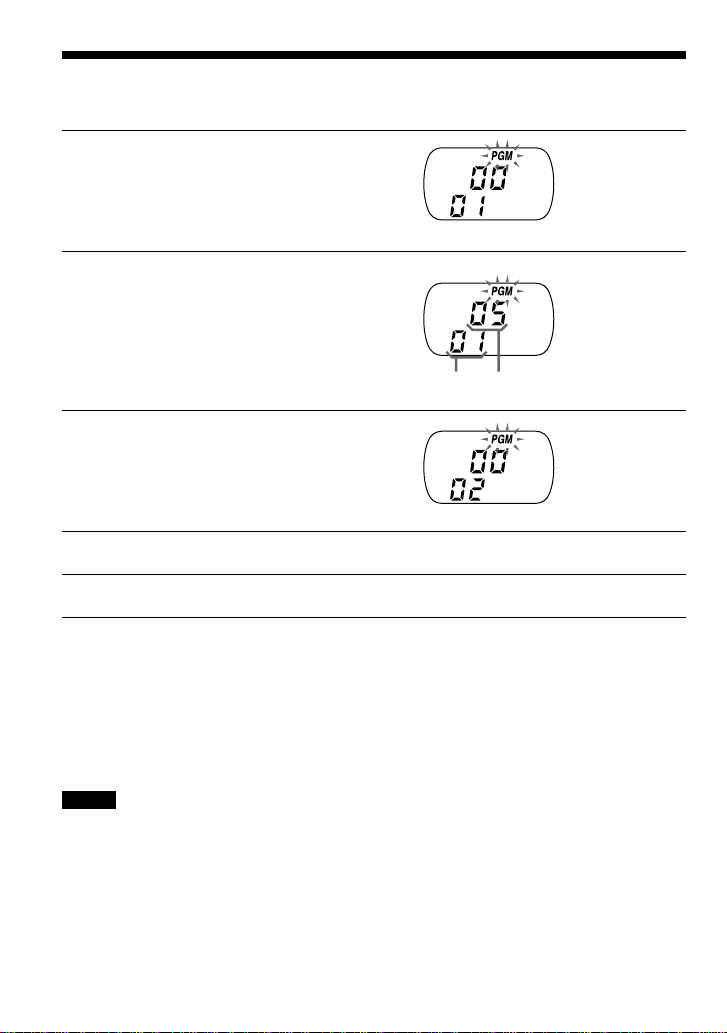

(PGM play)............................................ 12

Available features

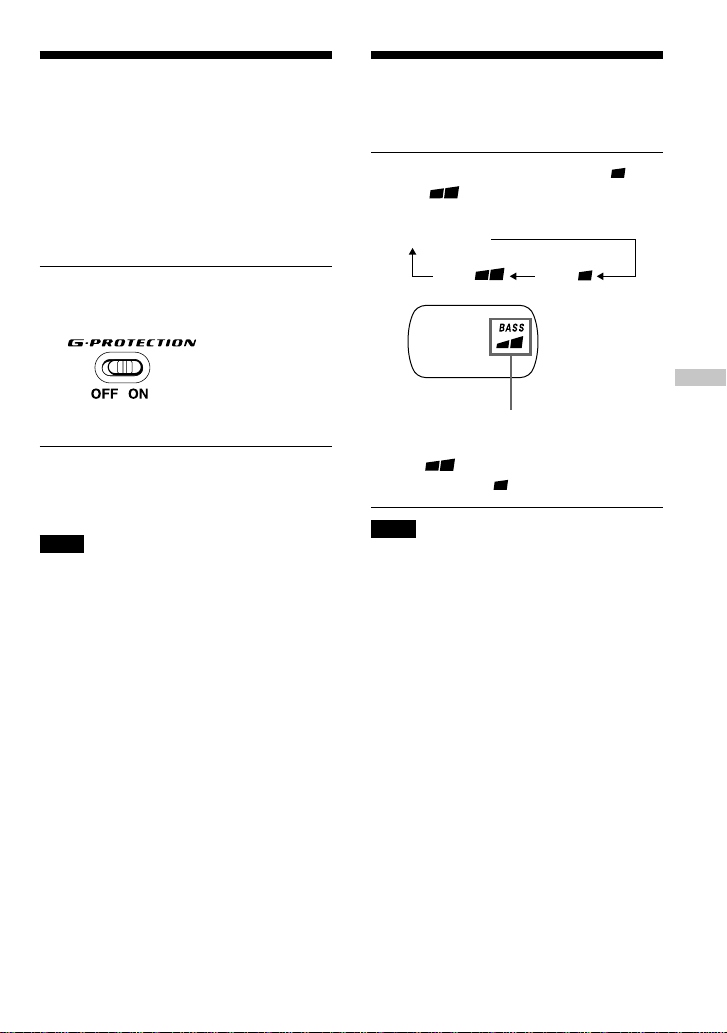

G-PROTECTION function........................ 13

Emphasizing the bass sound (SOUND) .... 13

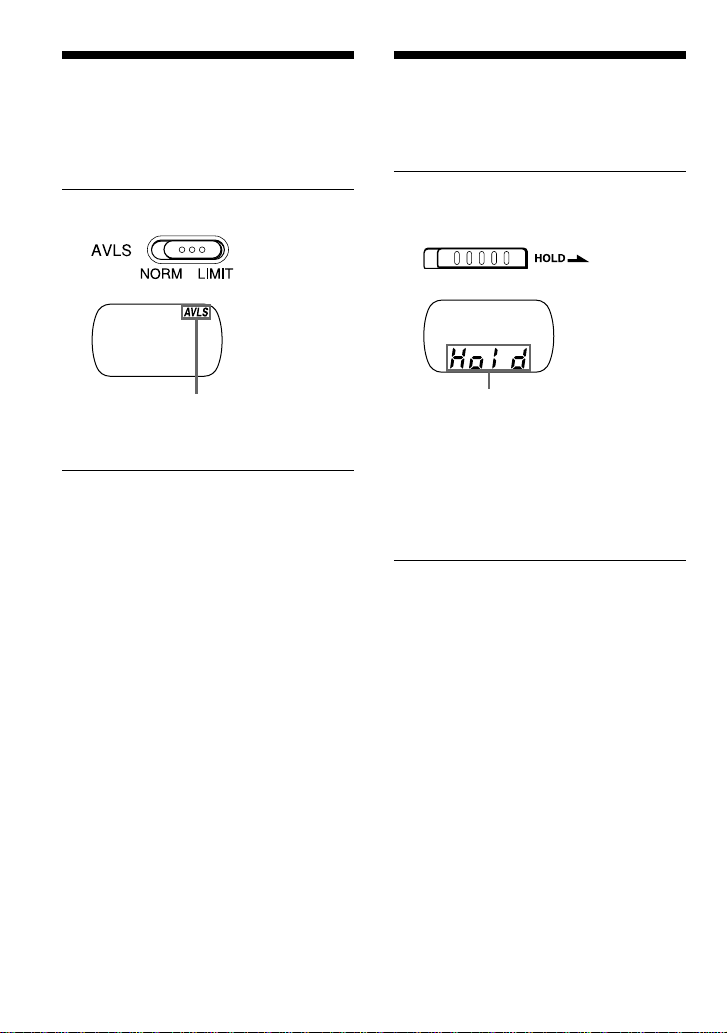

Protecting your hearing (AVLS)................ 14

Locking the controls (HOLD) ................... 14

Turning off the operation beep sound........ 15

Connecting a power source

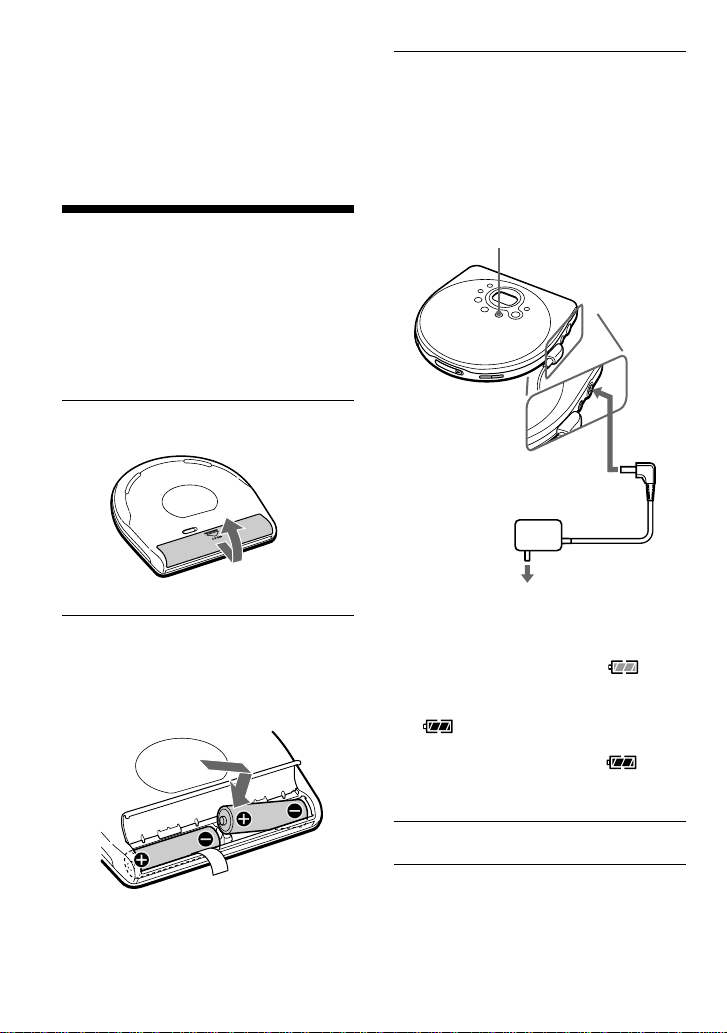

Using the rechargeable batteries................ 18

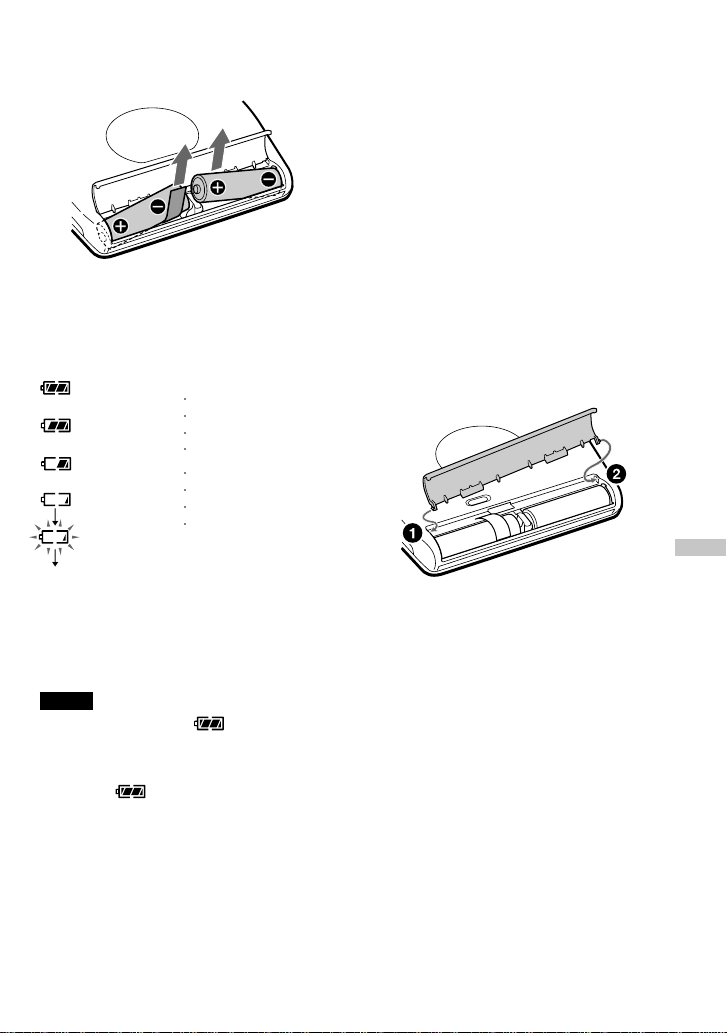

Using dry batteries..................................... 20

Notes on the power source ........................ 20

Additional information

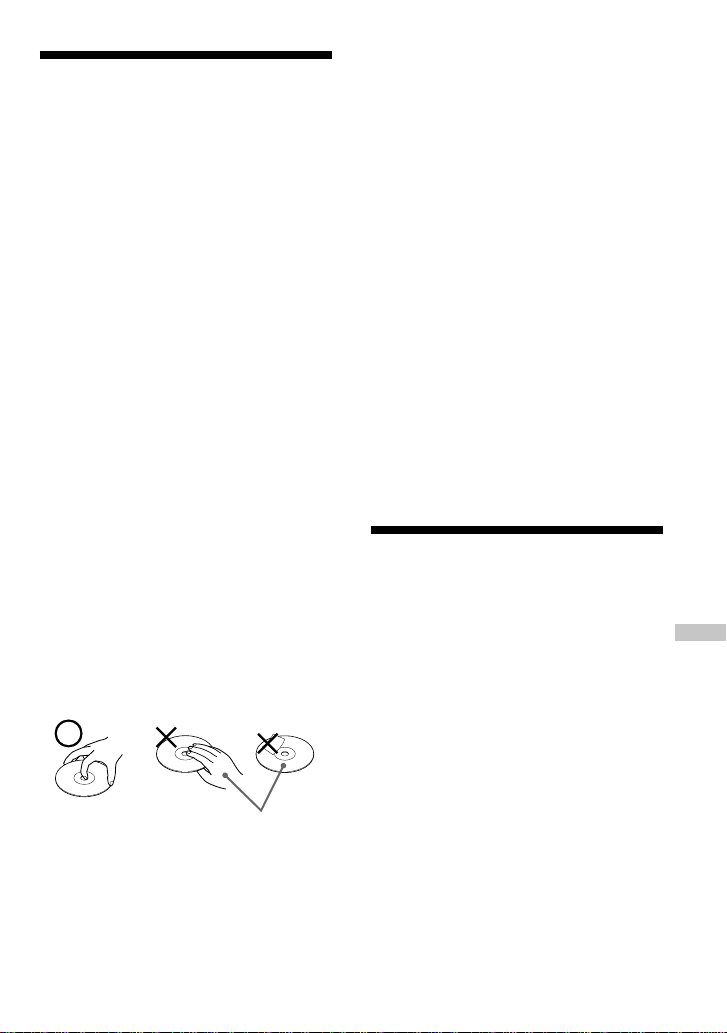

Precautions ................................................ 21

Maintenance .............................................. 21

Troubleshooting......................................... 22

Specifications ............................................ 24

Accessories (supplied/optional) ................ 25

Connecting your CD player

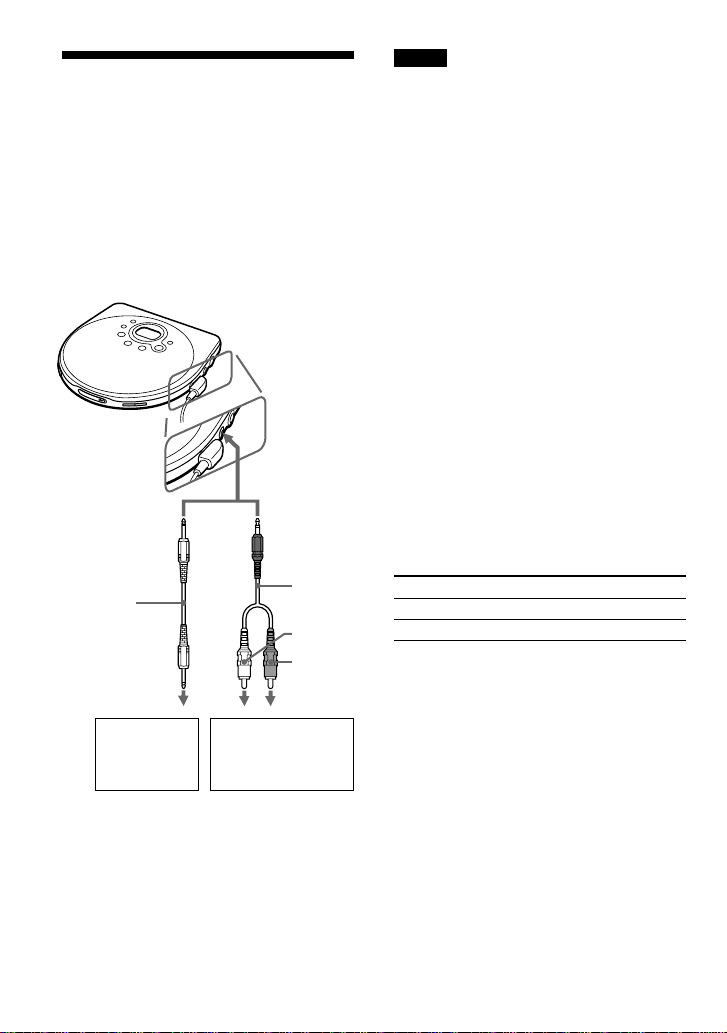

Connecting a stereo system ....................... 16

Using your CD player in a car ................... 17

Getting started

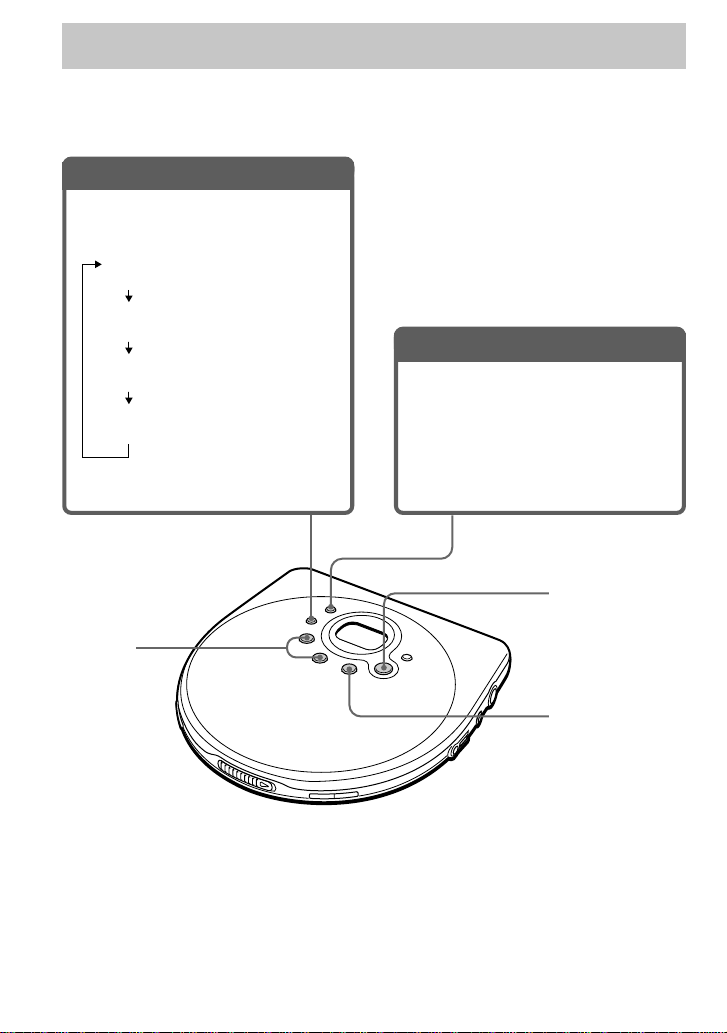

Locating the Controls

For details, see pages in parentheses.

CD player (front)

1 Display

(pages 9, 11 - 14)

2 REPEAT/ENTER button

(pages 10 - 12)

3 PLAY MODE

button (pages 10 - 12)

4 ./>

(AMS/search) buttons (pages 8, 11, 12)

5 HOLD switch

(page 14)

6 OPEN switch

(page 7)

7 x (stop)/CHG (charge)

button (pages 8, 15, 18)

CD player (inside)

8 SOUND button

(page 13)

9 u (play/pause)

button (pages 8, 12)

q; DC IN 4.5 V

(external power input) jack (pages 7, 18)

qa LINE OUT

(OPTICAL) jack (page 16)

qs i/REMOTE jack

(page 7)

qd VOLUME +/–

buttons (page 8)

CD player (rear)

qf G-PROTECTION

switch (page 13)

qg AVLS switch

(page 14)

qh Battery compartment

(page 18)

Remote control (for the customers supplied with the RM-CD11L remote

control)

(Front)

qjHOLD switch

(page 14)

qk x (stop) button

(pages 8, 15)

ql Jog lever

u: play/pause (pages 8, 12) ./>: AMS/search

(pages 8, 11, 12) Press or slide the lever to operate your CD player.

(Rear)

ws P (play) MODE button

(pages 10 - 12)

wd RPT (repeat)/ENT

(enter) button (pages 10 - 12)

Getting started

w; Display

(pages 9, 11 - 14)

wa VOLUME +/–

tab (page 8)

wg SOUND button

(page 13)

wh DISPLAY button

Press to check the remaining time on the CD and the number of the tracks left.

wf Clip

You can turn and change the angle of the clip.

Note

Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players.

(Continued)

Remote control (for the customers supplied with the RM-CD6 remote

control)

wj x (stop) button

(pages 8, 15)

wk VOL (volume)

+/– button (page 8)

Note

Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players.

wl N(play)•>

(AMS/search) button (pages 8, 11, 12)

e; HOLD switch

(page 14)

ea .(AMS/

search) button (pages 8, 11, 12)

Playing a CD

You can also use rechargeable batteries, dry batteries and a car battery as a power source.

. Connect your CD player.

1 Connect the AC power adaptor. 2 Connect the headphones/earphones.

For models supplied with the AC plug adaptor

If the AC power adaptor does not fit the AC outlet, use the AC plug adaptor.

For models supplied with the remote control.

• Connect the plug of the headphones/ earphones to the remote control.

• Connect the headphones/earphones to the remote control firmly. A loose connection may cause noise during playback.

u button

to i/ REMOTE

to an AC outlet

AC power adaptor

to DC IN

4.5V

Headphones or Earphones

Playing a CD

. Insert a CD.

1 Slide OPEN and raise the lid. 2 Place the CD on the tray and close

OPEN switch

the lid.

Label side up

(Continued)

. Play a CD.

Press u.

Adjust the volume by pressing VOLUME + or –.

To Press

Play/Pause u Stop x/CHG*

Find the beginning of the current track (AMS*1) .once quickly* Find the beginning of the previous tracks (AMS) .repeatedly* Find the beginning of the next track (AMS) > once quickly* Find the beginning of the succeeding tracks (AMS) > repeatedly* Go backwards quickly Hold down .* Go forward quickly Hold down >*

*1Automatic Music Sensor

These operations can be done during both play and pause.

About the display

• When you press u after changing the CD or turning off and on the player, the total number of tracks in the CD and total playing time appear for about two seconds.

• During play, the track number and the elapsed playing time of the current track appear.

• Between tracks, the time to the beginning of the next track appears with the “-” indication.

• During pause, the elapsed playing time flashes.

If the volume level does not increase

Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “Protecting your hearing (AVLS).”

Playback starts from the point you stopped

Your CD player can recall the playback point where you stopped and then resume playing from the same place (resume function). There is no ON/OFF switch of the resume function on this CD player.

Removing the CD

Remove the CD while pressing the pivot in the center of the tray.

Playing a CD
