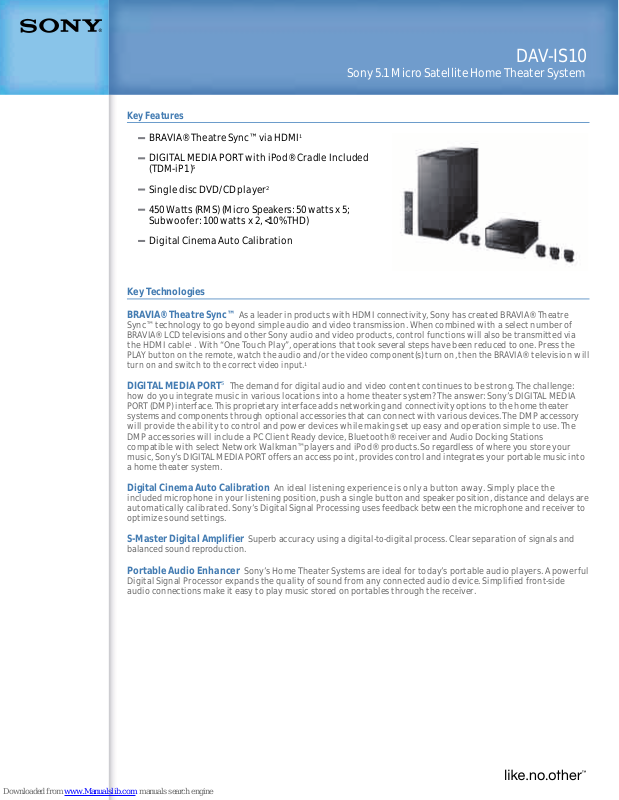

DAV
-IS10
Sony 5.1 Micro Satellite Home Theater System
Key Features
BRAVIA® Theatre Sync™ via HDMI
1
DIGITAL MEDIA PORT with iPod® Cradle Included
(TDM-iP1)
5
Single disc DVD/CD player
2
450 Watts (RMS) (Micro Speakers: 50 watts x 5;
Subwoofer: 100 watts x 2, <10%THD)
Digital Cinema Auto Calibration
Key Technologies
BRAVIA® Theatre Sync
™
As a leader in products with HDMI connectivity, Sony has created BRAVIA®
Theatre
Sync™ technology to go beyond simple audio and video transmission. When combined with a select number of
BRAVIA
® LCD televisions and other Sony audio and video products, control functions will also be transmitted via
the HDMI cable . With “ One Touch Play”, operations that took several steps have been reduced to one. Press the
PLAY button on the remote, watch the audio and/or the video component(s) turn on, then the BRAVIA
® television will
turn on and switch to the correct video input.
1
1
DIGITAL MEDIA PORT
The demand for digital audio and video content continues to be strong. The challenge:
how do you integrate music in various locations into a home theater system? The answer: Sony’s DIGITAL MEDIA
PORT (DMP) interface. This proprietary interface adds networking and connectivity options to the home theater
systems and components through optional accessories that can connect with various devices. The DMP accessory
will provide the ability to control and power devices while making set up easy and operation simple to use. The
DMP accessories will include a PC Client Ready device, Bluetooth® receiver and Audio Docking Stations
compatible with select Network Walkman™players and iPod® products. So regardless of where you store your
music, Sony’s DIGITAL MEDIA PORT offers an access point, provides control and integrates your portable music into
a home theater system.
5
Digital Cinema Auto Calibration
An ideal listening experience is only a button away. Simply place the
included microphone in your listening position, push a single button and speaker position, distance and delays are
automatically calibrated. Sony’s Digital Signal Processing uses feedback between the microphone and receiver to
optimize sound settings.
S
-Master Digital Amplifier
Superb accuracy using a digital-to-digital process. Clear separation of signals and
balanced sound reproduction.
Portable Audio Enhancer
Sony’s Home Theater Systems are ideal for today’s portable audio players. A powerful
Digital Signal Processor expands the quality of sound from any connected audio device. Simplified front-side
audio connections make it easy to play music stored on portables through the receiver.
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 08/21/2007
DAV
-IS10
Sony 5.1 Micro Satellite Home Theater System
Please visit the Dealer Network for current
information at www.sony.com/dn
Specifications
General
Inputs and Outputs
HDMI™ Connection Input(s): Yes
DVD, VCD, CD Player
Audio
Surround/Effects: Dolby® Prologic, Dolby®
Prologic II, Dolby® Digital, DTS, AV SYNC (Lip
Sync), OMNI-
DIRECTIONAL SOUND
Amplifier
General
Function: DVD, FM/AM, SAT/CABLE, TV,
DMPORT
Audio
Digital Amplifier:
Yes (S-Master®
Digital
Amplifier)
Equalizer:
Bass/Middle/Treble control, Night
Mode, AUDIO DRC, Portable Audio Enhancer
Audio Power Output: 450 Watts (RMS) (Micro
Speakers: 50 watts x 5 [Front Left, Front
Right, Center, Surround Left, Surround
Right]; Subwoofer: 100 watts x 2) <10%THD
Inputs and Outputs
Coaxial Audio Digital Input(s): 1
Component Video (Y/Pb/Pr) Output(s): 1
Composite Video Output(s): 1
Headphone Input(s): no
HDMI™ Connection Output(s): 1 (Rear) -
Upscale 720p/1080i for DVD
Optical Audio Input(s): 1
DIGITAL MEDIA PORT (Connector): 1 (Rear)
Power
Power Requirements: AC120V, 60Hz
Power Consumption (in Operation): 130W
Power Consumption (in Standby): Less than
0.3W
Tuner
Audio
Station Preset(s):
FM20 / AM10
Tuner Type: AM/FM
5
Front Speaker
Speaker
Woofer Size(s): 2 way: 12cm / 16cm; active
closed bass reflex
Audio
Impedance: 10 ohm
Weights and Measurements
Dimensions (Approx.): 1 3/4” x 2 3/16” x 1
9/16" (45 x 50 x 40mm)
Weight (Approx.): 2 oz (0.07kg)
Center Speaker
Audio
Impedance: 10 ohm
Weights and Measurements
Dimensions (Approx.): 1 3/4” x 2 3/16” x 1
9/16" (45 x 50 x 40mm)
Weight (Approx.): 2 oz (0.07kg)
Surround Speaker
Audio
Impedance: 10 ohm
Weights and Measurements
Dimensions (Approx.): 1 3/4” x 2 3/16” x 1
9/16" (45 x 50 x /40mm)
Weight (Approx.): 2 oz (0.07kg)
Subwoofer Speaker
Audio
Impedance: 4 ohm
Weights and Measurements
Dimensions (Approx.): 7 1/2” x 17 3/4” x 17
3/4" (190 x 450 x 450mm)
Weight (Approx.): 29 lbs, 3 oz (13.5 Kg)
Dimensions
Weight:
Control Unit: 6 lbs, 10oz (3 Kg) Front
Speaker: 0 lb, 2 oz (0.07kg) Center Speaker: 0
lb, 2 oz (0.07kg) Surround Speaker: 0 lb, 2 oz
(0.07kg) Subwoofer: 29 lbs, 3 oz (13.5 Kg)
Measurements: Control Unit: 8 7/16 x 4 1/8 x 18
1/8" (215 x 105 x 207mm) Center Speaker: 1 3/4
x 2 3/16 x 1 9/16" (45 x 50 x 40mm) Front
Speaker: 1 3/4 x 2 3/16 x 1 9/16" (45 x 50 x
40mm) Surround Speaker: 1 3/4 x 2 3/16 x 1
9/16" (45 x 50 x /40mm) Subwoofer:7 1/2 x 17
3/4 x 17 3/4" (190 x 450 x 450mm)
Supplied Accessories
RM-ADP018 Remote
TDM-iP1 Cradle for iPod®
Optional Accessories
WS-IS10F Speaker Stand
1. Each product must include BRAVIA® Theatre Sync™ feature. Please
refer to owner’s manual for compatibility.
2. CD and DVD Media/Formats are not universally compatible.
3. Playback depends on recording conditions
4. DVD Media/Formats are not universally compatible.
5. Requires Digital Media Port accessory compatible with the device (sold
separately).
