DVD Home Theatre System

Operating Instructions

DAV-HDX274

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Caution – The use of optical instruments with this product will increase eye hazard.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

In door use only.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to cons titute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located at the rear exterior of the control unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DAV-HDX274

Serial No.______________

Date of Manufacture Marking is located on the bottom exterior.

The following FCC statement applies only to the version of this model manufactured for sale in the USA. Other versions may not comply with FCC technical regulations.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna (aerial).

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Precautions

On power sources

• The unit is not disconnected from the AC power

source (mains) as long as it is connected to the wall outlet (mains), even if the unit itself has been turned off.

• Install this system so that the AC power cord (mains

lead) can be unplugged from the wall socket immediately in the event of trouble.

About This Operating Instructions

• The instructions in this Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• The Control Menu items may vary depending on the area.

• “DVD” may be used as a general term for a DVD VIDEO, DVD+RW/DVD+R, and DVDRW/DVD-R.

• Measurements are expressed in feet (ft) for North American models.

• The default setting is underlined.

Table of Contents

About This Operating Instructions..........3

Playable Discs......................................... 5

Getting Started

Step 1: Positioning the System ...10 Step 2: Connecting the System ...13 Step 3: Performing the Quick

Setup ........................................21

Step 4: Enjoying Sound from all the

Speakers ..................................24

Sound Adjustment

Enjoying Surround Sound by Using

Decoding Mode ..............................26

Selecting the Sound Mode....................28

Enjoying Multiplex Broadcast Sound... 28

Disc

Playing a Disc ....................................... 29

Using Play Mode...................................35

Searching/Selecting a Disc ...................37

Playing MP3 Files/JPEG Image Files... 39 Adjusting the Delay Between the Picture

and Sound ....................................... 42

Restricting Playback of the Disc...........43

Using the Setup Display........................45

Tuner

Presetting Radio Stations ...................... 52

Listening to the Radio...........................53

Control for HDMI/External Audio Device

Using the Control for HDMI Function for

“BRAVIA” Sync ............................ 55

Using the DIGITAL MEDIA PORT

Adapter ........................................... 58

Other Operations

Getting Optimal Surround Sound for a

Room .............................................. 59

Calibrating the Appropriate Settings

Automatically................................. 60

Controlling the TV with the Supplied

Remote ........................................... 61

Using the Sound Effect......................... 62

Using the Sleep Timer .......................... 62

Changing the Brightness of the Front

Panel Display.................................. 63

Viewing Information About the Disc... 63

Returning to the Default Settings ......... 65

Additional Information

Precautions ........................................... 67

Notes about the Discs ........................... 68

Troubleshooting.................................... 69

Self-diagnosis Function ........................ 75

Specifications ....................................... 76

Glossary................................................ 77

Language Code List.............................. 80

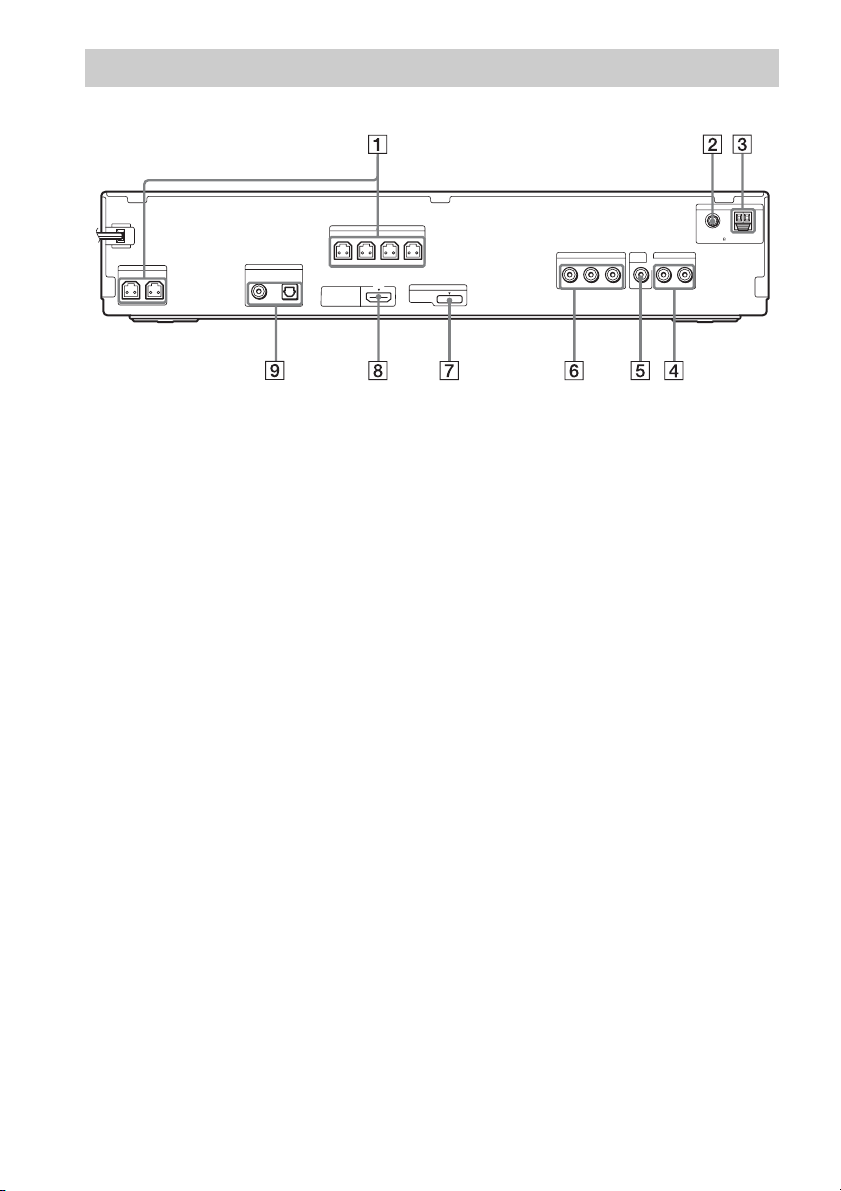

Index to Parts and Control .................... 81

Guide to the Control Menu Display ..... 85

Index ..................................................... 88

Playable Discs

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO format or video mode

• DVD+R/DVD+RW in DVD VIDEO format

VR (Video Recording) mode

Super Audio CD • Super Audio CD

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

CD • Audio CD

DATA CD – • CD-R/CD-RW/CD-ROM in

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

• DVD-R/DVD-RW in VR (Video Recording) mode (except for DVD-R DL)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD format or Super VCD format

• CD-R/CD-RW in audio CD format

DATA CD format, containing MP3 files1) and JPEG image files2), and conforming to ISO 9660 Level 2, or Joliet (extended format)

DVD+R/DVD+RW in DATA DVD format, containing MP3 files1) and JPEG image files2), and conforming to UDF (Universal Disk Format)

Level 1/

JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association (JEITA).)

A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

“DVD-RW,” “DVD+RW,” “DVD+R,”“DVD VIDEO,” and the “CD” logos are trademarks.

Example of discs that the system cannot play

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA DVD that does not contain MP3 files or JPEG image files

•DVD-RAM

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 7)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

About Multi Session CD

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played back.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first session, only the first session will be played back.

Region code

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with the same region code.

A DVD VIDEO labeled will also play on this system. If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions.

ALL

Note about playback operations of a DVD or VIDEO CD

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers. Since this system will play a DVD or VIDEO CD according to the disc contents the software producers designed, some playback features may not be available. Be sure to read the operating instructions supplied with the DVD or VIDEO CD.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license from DTS, Inc.

“DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

This system incorporates High-Definition Multimedia Interface (HDMITM) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

“BRAVIA” and are trademarks of Sony Corporation.

Getting Started

Unpacking

• Front speakers (2) and surround speakers (2)

Getting Started

• Center speaker (1)

• Subwoofer (1)

• AM loop antenna (aerial) (1)

• FM wire antenna (aerial) (1)

• Speaker cords (6, red/white/ green/gray/blue/purple)

•Video cord (1)

• HDMI cable (1)

• Remote commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Foot pads (1 set)

• DIGITAL MEDIA PORT adapter (TDM-iP10) (1)

• Operating Instructions

• Speaker and TV connections (card)

Inserting batteries into the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment. To use the remote, point it at the remote sensor on the unit.

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Attaching the foot pads to the subwoofer

Attach the foot pads (supplied) to the bottom of the subwoofer to stabilize the subwoofer and prevent it from slipping.

Getting Started

Remove the foot pads from the mount seat.

Step 1: Positioning the System

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A). However, this system allows you to place the center speaker up to 1.5 meters (5 ft) closer (B) and the surround speakers up to 4.8 meters (16 ft) closer (C) to the front speakers. The front speakers can be placed from 0.9 to 6.9 meters (3 to 23 ft) (A) from the listening position.

Getting Started

Place the system as illustrated below.

A Front speaker (L (left)) B Front speaker (R (right)) C Center speaker D Surround speaker (L (left)) E Surround speaker (R (right)) F Subwoofer G Unit

Top view

C C

* Not supplied.

Note

• Do not set the speakers in an inclined position.

• Do not place the speakers in locations that are:

– Extremely hot or cold

– Dusty or dirty

– Very humid

– Subject to vibrations

– Subject to direct sunlight

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

• Do not lean or hang on the speaker, as the speaker may fall down.

• When you change the positions of the speakers, Sony recommends that you change the settings. For details, see “Getting Optimal Surround Sound f or a Room” (page 59) and “Cal ibrating the Appropriate Settings Automatically ” (page 60).

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #.

Color tube Front speaker (L): White Front speaker (R): Red Center speaker: Green Surround speaker (L): Blue Surround speaker (R): Gray

1 Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

Getting Started

4 mm (

/32 inch)

30 mm (1 3/16 inches)

2 Fasten the screws to the wall.

For the center speaker

145 mm

/4 inches)

8 to 10 mm

(

/32 to 13/32

inch

)

3 Hang the speakers on the screws.

5 mm

/32 inch)

(

10 mm

/32 inch)

(

For the other speakers

/32 to 13/32

(

Hole on the back of the speaker

5 mm

/32 inch)

(

10 mm

(

/32 inch)

8 to 10 mm

inch

)

Hole on the back of the speaker

Rear of the speaker

Note

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

Getting Started

Step 2: Connecting the System

See the connection diagram below, and read the additional information from 1 to 5 on the following pages.

Note

• Be sure to make connections securely to avoid hum and noise.

• When you connect another component with a volume control, turn up the volume of the other components to a level where sound is not distorted.

Getting Started

3 DIGITAL MEDIA PORT adapter

2 TV

1 Front speaker (L)

3 Portable audio source

1 Center speaker

1 Subwoofer

3 VCR, digital satellite receiver,

or PlayStation, etc.

4 AM loop antenna (aerial)

4 FM wire antenna (aerial)

5 AC power cord (mains lead)

1 Front speaker (R)

1 Surround speaker (L)

:Signal flow

1 Surround speaker (R)

1 Connecting the Speakers

The connector and color tube of the speaker cords are the same color as the label of the jacks to be connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord insulation in the speaker terminals.

Getting Started

Color tube

Rear of speaker

(+)

Connector

(–)

When connecting to the unit, insert the connector until it clicks.

Rear panel

SUBWOOFER

TV/VIDEO

DIGITAL IN

COAXIAL OPTICAL

SPEAKER

CENTER SUBWOOFER

SPEAKER

CENTER

To the center speaker (green)

To the subwoofer (purple)

SPEAKER

FRONT R FRONT L SUR R SUR L

HDMI OUT

DMPORT

DC5V

0.7A MAX

COMPONENT VIDEO OUT

To the surround speaker (R) (gray)

FRONT R

TV/VIDEO

VIDEO OUT

B/CBPR/CR

AUDIO INYRL

To the surround speaker (L) (blue)

SPEAKER

FRONT L

To the front speaker (R) (red)

To the front speaker (L) (white)

ANTENNA

COAXIAL 75

2 Connecting the TV

Use the parts as follows:

•Video cord (1)

• HDMI cable (1)

To listen to TV sound from the six speakers of the system, connect the TV and the system with the audio cord (not supplied) (A). For video output to your TV, check the video input jacks of the TV, and select connection method A, B, or C. Picture quality improves in order from A (standard) to C (HDMI). When the TV has the digital optical or coaxial output jack, you can improve sound quality by connecting with the digital cord (B).

Digital optical cord (not supplied)

Audio cord (not supplied)

Digital coaxial cord (not supplied)

To the digital coaxial output jack of the TV

To the digital optical output jack of the TV

SPEAKER

CENTER SUBWOOFER

TV/VIDEO

DIGITAL IN

COAXIAL OPTICAL

SPEAKER

FRONT R FRONT L SUR R SUR L

HDMI OUT

DC5V

0.7A MAX

TV/VIDEO

To the AUDIO OUT jacks of the TV

ANTENNA

COMPONENT VIDEO OUT

B/CBPR/CR

DMPORT

COAXIAL 75

TV/VIDEO

VIDEO

OUT

AUDIO INYRL

White Red

Rear panel

Getting Started

HDMI** cable (supplied)

Component video cord (not supplied)*

Green Blue Red

Video cord (supplied)

VIDEO

OUT

To the VIDEO IN jack of

To the HDMI IN jack of the TV

the TV

To the COMPONENT VIDEO IN jacks of the TV

* If your TV accepts progressive format signals, use this connection and set the output signal of the system to

progressive format (page 23).

** HDMI (High-Definition Multimedia Interface)

If your TV has the HDMI jack, use this connection and select the type of output signal (page 23).

Note

• During the “ DMPORT” function, video signal is not output from the HDMI OUT and COMPONENT VIDEO OUT jacks.

• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.

Getting Started

• You can connect another component, such as a VCR, digital satellite receiver, or PlayStation, to the TV/VIDEO jacks (A or B) instead of the TV.

3 Connecting the other components

You can enjoy the connected component using the six speakers of the system.

• Portable audio source: A

• DIGITAL MEDIA PORT adapter: B

• VCR, digital satellite receiver, or PlayStation, etc.: C

Stereo mini-plug cord (not supplied)

To the portable audio source

Front panel

ANTENNA

SPEAKER

CENTER SUBWOOFER

TV/VIDEO

DIGITAL IN

COAXIAL OPTICAL

SPEAKER

FRONT R FRONT L SUR R SUR L

HDMI OUT

COMPONENT VIDEO OUT

DMPORT

DC5V

0.7A MAX

B/CBPR/CR

TV/VIDEO

VIDEO

OUT

AUDIO INYRL

COAXIAL 75

Rear panel

Getting Started

• You can connect another

DC5V

0.7A MAX

DMPORT

component, such as VCR, instead of the TV. For connection details, s ee pa ge

15.

DIGITAL MEDIA PORT adapter

To connect the DIGITAL MEDIA PORT adapter

Connect a DIGITAL MEDIA PORT adapter (TDM-iP10 is supplied) to the DMPORT jack. For details, see “Using the DIGITAL MEDIA PORT Adapter” (page 58).

Note

• Connect the DIGITAL MEDIA PORT adapter so that the V marks are aligned. When disconnecting, pull out while

pressing A.

If your TV has multiple audio/video inputs

You can enjoy the sound with the speakers of the system through the connected TV. Connect the components as follows.

VCR, digital satellite receiver or PlayStation, etc.

Getting Started

System

VCR, digital satellite receiver or PlayStation, etc.

:Signal flow

Select the component on the TV. For details, refer to the operating instructions of the TV. If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive the sound from more than two components.

4 Connecting the antenna (aerial)

AM loop antenna (aerial) (supplied)

Note

• Cord (A) or cord (B) can be connected to either terminal.

SPEAKER

CENTER SUBWOOFER

TV/VIDEO

DIGITAL IN

COAXIAL OPTICAL

SPEAKER

FRONT R FRONT L SUR R SUR L

HDMI OUT

DMPORT

DC5V

0.7A MAX

COMPONENT VIDEO OUT

ANTENNA

COAXIAL 75

TV/VIDEO

VIDEO

OUT

B/CBPR/CR

AUDIO INYRL

FM wire antenna (aerial) (supplied)

Getting Started

Rear panel

Note

• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial) as shown below.

Outdoor FM antenna (aerial)

Unit

COAXIAL 75

ANTENNA

5 Connecting the AC power cords (mains leads)

Before connecting the AC power cord (mains lead) of the unit to a wall outlet (mains), connect all the speakers to the unit.

Rear panel

Getting Started

SPEAKER

CENTER SUBWOOFER

To the wall outlet (mains)

TV/VIDEO

DIGITAL IN

COAXIAL OPTICAL

SPEAKER

FRONT R FRONT L SUR R SUR L

HDMI OUT

COMPONENT VIDEO OUT

B/CBPR/CR

DMPORT

DC5V

0.7A MAX

COAXIAL 75

TV/VIDEO

VIDEO

OUT

AUDIO INYRL

ANTENNA

About the demonstration

After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.

Setting the demonstration mode to on/off

1 Press [/1 on the unit.

The system turns on.

2 Press SYSTEM MENU. 3 Press X/x repeatedly until “DEMO” appears in the front panel display, then press or

4 Press X/x to select a setting.

• “DEMO ON”: On.

• “DEMO OFF”: Off.

5 Press .

The setting is made.

6 Press SYSTEM MENU.

The system menu turns off.

• When you purchase the system from new, or if the system is at its factory default settings (ex., after performing

“COLD RESET” (page 65)), you can turn off the demonstration simply by pressing [/1 on the remote.

Step 3: Performing the Quick Setup

Follow the Steps below to make the basic adjustments for using the system.

Note

• When you connect the system and the TV with the component video cord (not supplied) or HDMI cable (supplied), you need to set the typ e of video output for matching your TV. For details, see “Setting the type of video output to match your TV” (page 23).

"/1

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Press X/x to select a language.

The system displays the menu and subtitles in the selected language.

6 Press .

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

Getting Started

C/X/x/c,

DISPLAY

1 Turn on the TV. 2 Press [/1 on the unit.

Note

• Make sure that the function is set to “DVD” (page 24).

3 Switch the input selector on your TV so

that the signal from the system appears on the TV screen.

[Press [ENTER] to run QUICK SETUP.] appears at the bottom of the TV screen. If this message does not appear, recall the Quick Setup display (page 22) and perform again.

4 Press without inserting a disc.

The Setup Display for selecting the language used in the on-screen display appears.

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: BLACK LEVEL: BLACK LEVEL PAUSE MODE:

(COMPONENT OUT)

4:3 LETTER BOX

(COMPONENT OUT)

16:9 16:9

4:3 PAN SCAN

OFF

AUTO

7 Press X/x to select the setting that

matches your TV type.

x If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode

[16:9] (page 46)

x If you have a 4:3 standard TV

[4:3 LETTER BOX] or [4:3 PAN SCAN] (page 46)

8 Press .

The Setup Display for selecting the speaker formation appears.

9 Press C/c to select the speaker

formation image as the speakers are actually positioned.

For details, see “Getting Optimal Surround Sound for a Room” (page 59).

SPEAKER FORMATION

STANDARD

10 Press .

11 Connect the calibration mic to the

A.CAL MIC jack on the front panel.

Set up the calibration mic at the ear level using a tripod, etc. (not supplied). The front of each speaker should face the calibration mic, and there should be no obstruction

Getting Started

between the speakers and the calibration mic.

• Avoid being in the measurement area and making noise during the measurement (which takes about 3 minutes), as it may interfere with measurement.

14 Unplug the calibration mic and press C/

c to select [YES].

Note

• The environment of the room in which the system is installed may affect measurements.

• If measurement fails, follow the message then retry [AUTO CALIBRATION].

15 Press .

Quick Setup is finished. All connections and setup operations are complete.

AUDIO IN / A.CAL MIC

Calibration mic

12 Press C/c to select [YES].

Note

• Make sure that the headphones are not connected to the unit. You cannot operate following Steps with the headphones connected.

13 Press .

[AUTO CALIBRATION] starts. Be quiet during the measurement.

Note

• Loud test sound is output when [AUTO CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

To quit the Quick Setup

Press DISPLAY in any Step.

• If you change the position of the speakers, reset the speaker settings. See “Getting Optimal Surround Sound for a Room” (page 59) and “Calibrating the Appropriate Settings Automatically” (page 60).

• If you want to change any of the settings, see “Using the Setup Display” (page 45).

To recall the Quick Setup display

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the TV screen.

3 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

94( 99) 1( 1) T 0: 01: 08

CUSTOM

CUSTOM QUICK

DVD VIDEO

4 Press X/x to select [QUICK], then press

The Quick Setup display appears.

Setting the type of video output to match your TV

Depending on the connection of the TV (page 15), select the type of video output of the system.

To select the type of video signal output from the HDMI OUT jack

When you connect the unit and the TV with the HDMI cable (supplied), select the type of video signals output from the HDMI OUT jack. For details, refer also to the operating instructions supplied with the TV/projector, etc.

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the TV screen.

3 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4 Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5 Press X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

6 Press X/x to select [HDMI

RESOLUTION], then press .

7 Press X/x to select the desired setting,

then press .

• [AUTO (1920 outputs the optimal video signal for the connected TV.

• [1920 × 1080i* video signals.

• [1280 720p* video signals.

× 480p]**: The system outputs 720 ×

•[720 480p* video signals.

* i: interlace, p: progressive

× 1080p)]: The system

× 1080i]: The system outputs 1920

× 720p]: The system outputs 1280 ×

** Depending on the country model, [720 × 576p]

may appear.

Does your TV accept progressive signals?

Progressive is the method for displaying TV images which reduces flickering and sharpens the image. To use this method, you need to connect to a TV that accepts progressive signals.

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the TV screen.

3 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4 Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5 Press X/x to select [VIDEO SETUP],

then press .

The options for [VIDEO SETUP] appear.

6 Press X/x to select [PROGRESSIVE

(COMPONENT OUT)], then press .

7 Press X/x to select the desired setting,

then press .

[OFF]: The system does not output progressive signals. Select this setting when:

– your TV does not accept progressive

signals, or,

– your TV is connected to jacks other than

the COMPONENT VIDEO OUT jacks. [ON]: The system outputs progressive signals. Select this setting when:

– your TV accepts progressive signals,

and,

– the TV is connected to the

COMPONENT VIDEO OUT jacks. When you select [ON], the confirmation display appears. Follow the Steps below.

8 Press C/c to select [START], then

press .

Getting Started

The system outputs the progressive signal for 5 seconds. Check that the screen is displayed correctly.

9 Press C/c to select [YES], then press

The system outputs the progressive signal. When you select [NO], the system does not

Getting Started

output the progressive signal.

Step 4: Enjoying Sound from all the Speakers

You can enjoy DVD, TV, or VCR sound from all the speakers in this system.

FUNCTION +/–

SYSTEM MENU

X/x/c,

1 Press FUNCTION +/– repeatedly until

the desired function appears in the front panel display.

Each time you press FUNCTION +/–, the function changes as follows.

“DVD” t “TUNER FM” t “TUNER AM” t “TV/VIDEO” t “DMPORT” t “AUDIO” t …

Function Source

“DVD” Disc that is played by the

“TUNER FM”/ “TUNER AM”

“TV/VIDEO” TV (or the component that

“DMPORT” DIGITAL MEDIA PORT

“AUDIO” Portable audio source (that

system

FM/AM radio (page 52)

is connected to the TV/ VIDEO jacks on the rear panel)

adapter (page 58)

is connected to the AUDIO IN jack on the front panel)

Note

• When you use both the TV/VIDEO (AUDIO IN) jacks (analog connection) and TV/VIDEO (COAXIAL or OPTICAL DIGITAL IN) jack (digital connection) at the same time, the digital connection takes priority.

2 Press SYSTEM MENU. 3 Press X/x repeatedly until “DEC.

MODE” appears in the front panel display, then press or c.

4 Press X/x repeatedly until the

decoding mode you want appears in the front panel display.

When you want to output the TV sound or stereo sound of a 2 channel source from the six speakers, select the “PRO LOGIC,” “PLII MOVIE,” or “PLII MUSIC” decoding mode.

For details, see page 26.

5 Press .

The setting is made.

6 Press SYSTEM MENU.

The system menu turns off.

Note

• Depending on your TV, you ma y need to turn off your TV’s speaker to enjoy surround sound of the system.

• When listening to audio files using a portable audio source, you can enhance the sound. Press FUNCTION +/– to select “AUDIO.” Connect the portable audio source. Select “A.F.D. STD” for “DEC. MODE.” To cancel, select other than “A.F.D. STD.”

1 Press FUNCTION +/– repeatedly until

“TV/VIDEO” or “AUDIO” appears in the front panel display.

2 Press SYSTEM MENU. 3 Press X/x repeatedly until

“ATTENUATE” appears in the front panel display, then press or c.

4 Press X/x to select a setting.

• “ATT ON”: You can attenuate the input level. The output level is changed.

• “ATT OFF”: Normal input level.

5 Press .

The setting is made.

6 Press SYSTEM MENU.

The system menu turns off.

Getting Started

Changing the input level of the sound from connected components

Distortion may occur when you listen to a component connected to the TV/VIDEO jacks on the rear panel, or to the AUDIO IN jack on the front panel. Distortion is not a malfunction and will depend on the component connected. To prevent distortion, reduce the input level on the unit.

Sound Adjustment

Enjoying Surround Sound by Using Decoding Mode

You can enjoy surround sound simply by selecting one of the system’s pre-programmed decoding modes. They bring exciting and powerful sound of movie theaters into your home.

SYSTEM

X/x/c,

1 Press SYSTEM MENU. 2 Press X/x repeatedly until “DEC. MODE” appears in the front panel display, then press

or c.

3 Press X/x repeatedly until the decoding mode you want appears in the front panel

display.

Display Decoding mode Effect

“A.F.D. STD” AUTO FORMAT

“A.F.D. MULTI” AUTO FORMAT

“PRO LOGIC” Dolby Pro Logic Performs Pro Logic decoding to the input signal and simulates

DIRECT STANDARD

DIRECT MULTI

Presents sound as it was recorded/encoded.

Depending on the source, the speakers that output sound will vary.

2 channel source: Sound that is recorded in 2 channel (front left and right channel) is also assigned to the surround left and right channel. This mode outputs sound from the front left and right speakers, surround left and right speakers, and subwoofer. The center speaker does not output any sound.

Multi channel source: Depending on the source, speakers that output the sound will vary.

surround sound from 2 channel sources.

This mode outputs sound from all the speakers and subwoofer. Sound may not be output from all speakers depending on the source.

Display Decoding mode Effect

“PLII MOVIE” Dolby Pro Logic II

MOVIE

“PLII MUSIC” Dolby Pro Logic II

MUSIC

“2CH STEREO” 2 CHANNEL

STEREO

“HP 2CH” HEADPHONE

2 CHANNEL STEREO

“HP VIRTUAL” HEADPHONE

VIRTUAL

Performs Pro Logic II movie mode decoding to the input signal and produces five full-ba ndwidth output channels from 2 channe l sources. This setting is ideal for watching videos of overdubbed or old movies.

This mode outputs sound from all the speakers and subwoofer. Sound may not be output from all speakers depending on the source.

Performs Pro Logic II music mode decoding to the input signal and produces five full-ba ndwidth output channels from 2 channe l sources. This setting is ideal for normal stereo sources such as a CD.

This mode outputs sound from all the speakers and subwoofer. Sound may not be output from all speakers depending on the source.

Outputs the sound from the front left and right speakers and subwoofer. Multi channel surround formats are downmixed to 2 channels.

Outputs the sound from headphone left and right. Multi channel surround formats are downmixed to 2 channels.

Outputs the sound as surround from headphone left and right. This mode is effective only when a multi channel source is played.

4 Press .

The setting is made.

5 Press SYSTEM MENU.

The system menu turns off.

To turn the surround effect off

Select “A.F.D. STD” or “2CH STEREO” for “DEC. MODE.”

Note

• When the input signal is multi channel source, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are canceled and the multi channel source is output directly.

• When the bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.

• Depending on the input stream, the decoding mode may not be effective.

• When you select “A.F.D. MULTI,” the surround or stereo effect may not be effective. In this case, select “A.F.D. STD,” “PRO LOGIC,” “PLII MOVIE,” or “PLII MUSIC.”

Sound Adjustment

Selecting the Sound

Enjoying Multiplex

Mode

You can select a suitable sound mode for movies or music.

SOUND MODE

Press SOUND MODE repeatedly during playback until the desired mode appears in the front panel display.

• “AUTO”: The system selects “MOVIE” or “MUSIC” automatically to produce the sound effect depending on the disc.

• “MOVIE”: The system provides the sound for movies.

• “MUSIC”: The system provides the sound for music.

Note

• You cannot operate these setup items when you

connect headphones to the unit.

Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when the system receives or plays the Dolby Digital multiplex broadcast signal.

Note

• To receive the Dolby Digital signal, you need to connect a TV or other component to the unit with an optical or coaxial digital cord (page 15) and set the digital output mode of the TV or other component to Dolby Digital.

AUDIO

Press AUDIO repeatedly until the desired signal appears in the front panel display.

•“MAIN”: Sound of the main language will be

output.

• “SUB”: Sound of the sub language will be

output.

• “MAIN+SUB”: Mixed sound of both the main

and sub languages will be output.

+ 64 hidden pages
