Sony DAV-DZ910W Users guide

Download

Page 1

4-165-488-11(1)

DVD Home Theatre System

Operating Instructions

DAV-DZ910W

Page 2

WARNING

Caution – The use of optical instruments with this product will increase eye hazard.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ven tilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Indoor use only.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.

For the customers in Singapore

Precautions

On power sources

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license

from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are t rademarks of Dolby Laboratories.

** Manufactured under license

under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,48 7,535 & other U.S. and worldwide patents issued & pending. DTS

This system incorporates HighDefinition Multimedia Interface (HDMITM) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trad emarks of HDMI Licensing LLC.

“DVD-RW,” “DVD-R,” “DVD+RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.

“BRAVIA” is a trademark of Sony Corporation.

“PLAYSTATION” is a trademark of Sony Computer Entertainment Inc.

ABOUT DIVX VIDEO:

DivX

is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ONDEMAND: This DivX Certified

device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to www.divx.com/vod with this code to complete the

Page 3

registration process and learn more about DivX VOD.

DivX

is a registered trademark of DivX, Inc., and is used under license.

About These Operating Instructions

“S-AIR” and its logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

About MPEG-4 Visual

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR DECODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP:// WWW.MPEGLA.COM

• The instructions in these Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• The Control Menu items may vary depending on the area.

• “DVD” may be used as a general term for a DVD VIDEO, DVD+RW/ DVD+R, and DVD-RW/ DVD-R.

• Measurements are expressed in feet (ft) for North American models.

• The default setting is underlined.

• The system is compatible with the S-AIR function, which allows transmission of sound between S-AIR products wirelessly. For details of S-AIR produc ts, see “Using an S-AIR Product” (page 61).

• Notes or instructions for the surround amplifier or S-AIR receiver in these Operating Instructions refer only to when the surround amplifier or S-AIR receiver is used.

Page 4

Table of Contents

Precautions.............................................. 2

About These Operating Instructions ....... 3

Playable Discs/Files on a USB

Device............................................... 5

Package Contents..................................10

Index to Parts and Control .................... 12

Guide to the Control Menu ...................19

Getting Started

Step 1: Installing the System .......23

Step 2: Connecting the System ...28 Step 3: Setting up the Surround

Amplifier...................................34

Step 4: Setting up the System .....35

Playback

Playing a Disc ....................................... 39

Playing Files on a Disc/USB Device ....39

Other Playback Operations ................... 42

Selecting the Playback Mode................45

Enjoying Karaoke ................................. 48

Displaying the Information of a Disc/

USB Device .................................... 51

Enjoying the Audio/Video of the

Connected Component ...................52

Tuner

Presetting Radio Stations ...................... 54

Listening to the Radio...........................54

Sound Effect

Enjoying Surround Sound..................... 56

Selecting the Sound Effect....................58

Convenient Functions

Using the Control for HDMI Function for

“BRAVIA” Sync ............................ 59

Using an S-AIR Product ....................... 61

Transferring Songs onto a USB

Device............................................. 63

Using the sleep timer ............................66

Adjusting the Delay Between the Picture

and Sound ....................................... 67

Enjoying Multiplex Broadcast

Sound..............................................67

Changing the Input Level of the Sound

from Connected Components ......... 67

Settings

Changing the Brightness of the Front

Panel Display.................................. 68

Setting the Demonstration Mode to

On/Off ............................................ 68

Reperforming the Quick Setup ............. 68

Set the System to Standby Mode

Automatically................................. 68

Performing Further Settings ................. 69

Additional Information

Precautions ........................................... 77

Troubleshooting.................................... 79

Specifications ....................................... 87

Index ..................................................... 92

Page 5

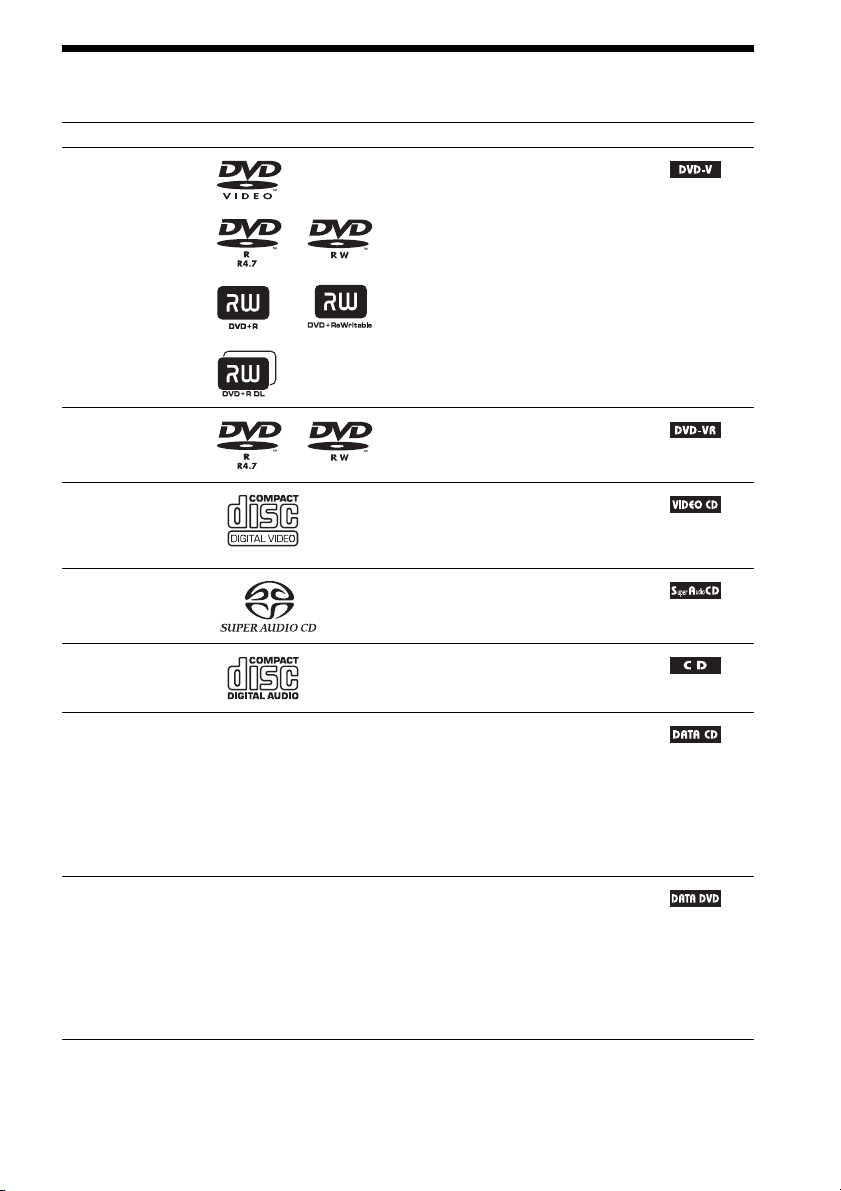

Playable Discs/Files on a USB Device

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO format or video mode

• DVD+R/DVD+RW in DVD VIDEO format

VR (Video Recording) mode

• DVD-R/DVD-RW in VR (Video Recording) mode (except for DVD-R DL)

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD format or Super VCD format

Super Audio CD • Super Audio CD

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD – • CD-R/CD-RW/CD-ROM in DATA CD

format that contains the following kinds of files and conforms to ISO 9660

Level 1/Level 2, or Joliet (extended format).

files

2)3)

–MP3

– JPEG image files

– DivX/MPEG4 video files

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA DVD format that contains the following kinds of files and conforms to UDF (Universal Disk Format).

2)3)

files

–MP3

– JPEG image files

– DivX/MPEG4 video files

Page 6

Type Disc logo Characteristics Icon

USB device – • USB device that contains the following

A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG for compressed audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

Files with copyright protection (Digital Rights Management) cannot be played by the system.

JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association (JEITA).)

kinds of files.

– MP3 files

– JPEG image files

– DivX/MPEG4 video files

2)3)

or WMA/AAC files

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be compatible with this product.

Example of discs that the system cannot play

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA CD/DATA DVD that does not contain MP3 files, JPEG image files, DivX video files, or MPEG4 video files

• DATA CD/DATA DVD that is created in Packet Write format

•DVD-RAM

•Blu-ray Disc

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 7)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker stuck on it

Notes about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device.

Page 7

Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

Notes about Multi Session CD

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first session, only the first session will be played.

Region code

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with the same region code. A DVD VIDEO labeled will also play on this system. If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions.

ALL

Notes about playback operations of a DVD or VIDEO CD

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers. Since this system will play a DVD or VIDEO CD according to the disc contents the software producers designed, some playback features may not be available. Be sure to read the operating instructions of the DVD or VIDEO CD.

Notes about playable files

• The system can recognize up to 200 folders, including albums (folders) that do not contain audio files, JPEG image files, or video files. When more than 200 folders are on the DATA CD/DATA DVD/ USB device or more than 150 files are in a folder, folders/files that are recognized by the system differ depending on the folder configuration.

• The system can play the following files.

File Extension of the file

MP3 file “.mp3”

WMA file* “.wma”

AAC file* “.m4a”

JPEG image file “.jpg” or “.jpeg”

DivX video file “.avi” or “.divx”

MPEG4 video file “.mp4” or “.m4v”

* USB device only.

Page 8

The system will attempt to play any data with the extensions above, even if it is not in MP3/WMA/ AAC/JPEG/DivX/MPEG4 format. Playing this data may generate a loud noise which could damage your speaker system.

• The following can increase the time it takes to start playback:

– when a DATA CD/DATA DVD/USB device is recorded with a complicated tree structure.

– when the audio files, JPEG image files, or video files in another folder have just been played.

• Some files on DATA CDs/DATA DVDs/USB devices cannot be played by the system depending on the file format.

• The system can play to a depth of 8 folders only.

• The system may not be able to play an audio file, JPEG image file, or video file depending on the file type.

• Files recorded by a device such as a computer may not be played in the order in which they were recorded.

• Folders that have no audio files, JPEG image files, or video files are skipped.

• Compatibility with all MP3/WMA/AAC encoding/writing software, recording devices, and recording media cannot be guaranteed.

• Compatibility with all MPEG4 video encoding/writing software, recording devices, and recording media cannot be guaranteed.

• The playback order may not be applicable depending on the software used for creating the audio file, JPEG image file, or video file, or if there are more than 200 folders or 150 files in each folder.

About DivX video files

•DivX® is a video file compression technology, developed by DivX, Inc. This product is an official

Certified product.

DivX

• You can play a DATA CD/DATA DVD/USB device that contains DivX

Note

• The system may not play a DivX video file when the file has been combined from two or more DivX video files.

• The system cannot play a DivX video file larger than 720 (width) × 576 (height) or 4GB.

• Depending on the DivX video file, sound may skip or not match the pictures on the TV screen.

• The system cannot play some DivX video files that are longer than 3 hours.

• Depending on the DivX video file, the picture may pause or be unclear, in which case it is recommended that you

create the file at a lower bit rate. If the sound is noisy, MP3 is the recommended audio format.

• Because of the compression technology used for DivX video files, it may take some time after you press N for

the picture to appear.

video files.

Notes about USB devices

• This system supports Mass Storage Class (MSC) devices.

• This system is not guaranteed to operate with all USB devices or memories.

• Although there are variety of complex functions for USB devices, the playable contents of USB devices connected to the system are music, photo, and video contents only. For details, refer to the operating instructions of the USB device.

• When a USB device is inserted, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.

• Do not connect the system and the USB device through a USB hub.

• With some connected USB devices, there may be a delay before an operation is performed by this system.

Page 9

• The playback order for the system may differ from the playback order of the connected USB device.

• Always turn off the system before removing the USB device. Removing the USB device while the system is on may corrupt the data on the USB device.

• Before using a USB device, make sure that no virus-ridden files are on the USB device.

Page 10

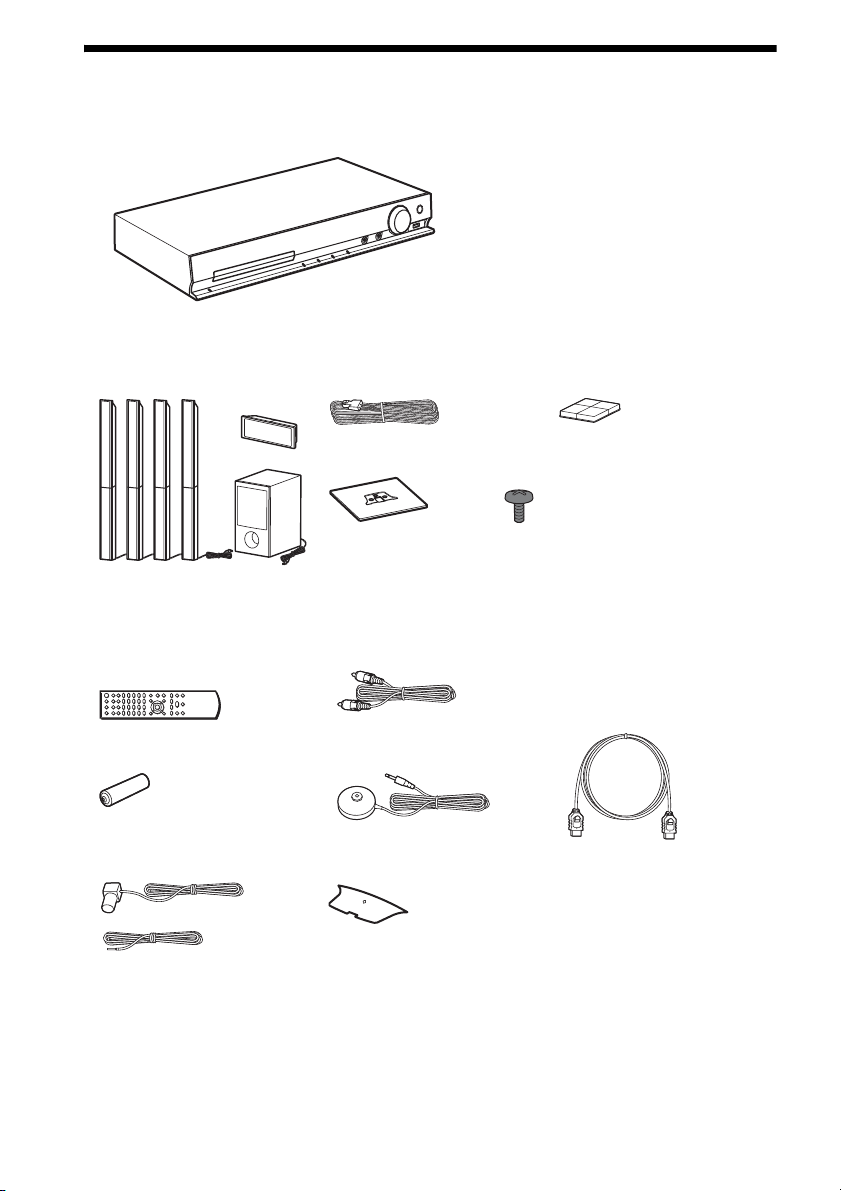

Package Contents

Main unit

Speaker package

• Speakers

• Speaker cords (green) (1) • Foot pads (1 set)

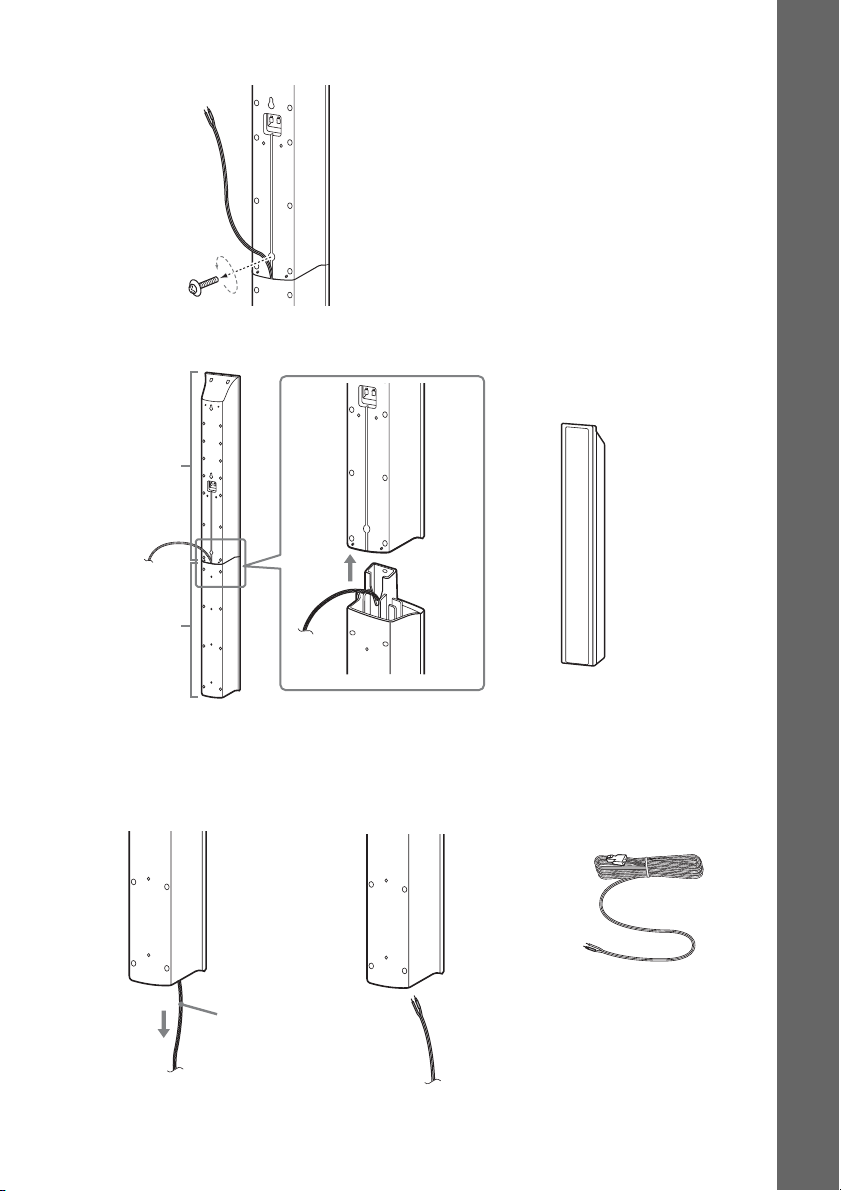

• Speaker assembly parts for the tall speakers

(4) (12)

Accessories

• Remote commander (remote) (1)

• R6 (size AA) batteries (2) • Calibration mic (1)

• FM wire antenna (aerial) (1) • Speaker-bottom covers (4) • Operating Instructions

• Video cord (1) • HDMI cable (1) (Singapore, Indonesian, Malaysian, Chinese, and Thai models only)

• Quick Setup Guide

• Speaker Installation Guide

Page 11

Surround amplifier (for S-AIR)

• Surround amplifier (1) • Wireless transceivers (2)

Page 12

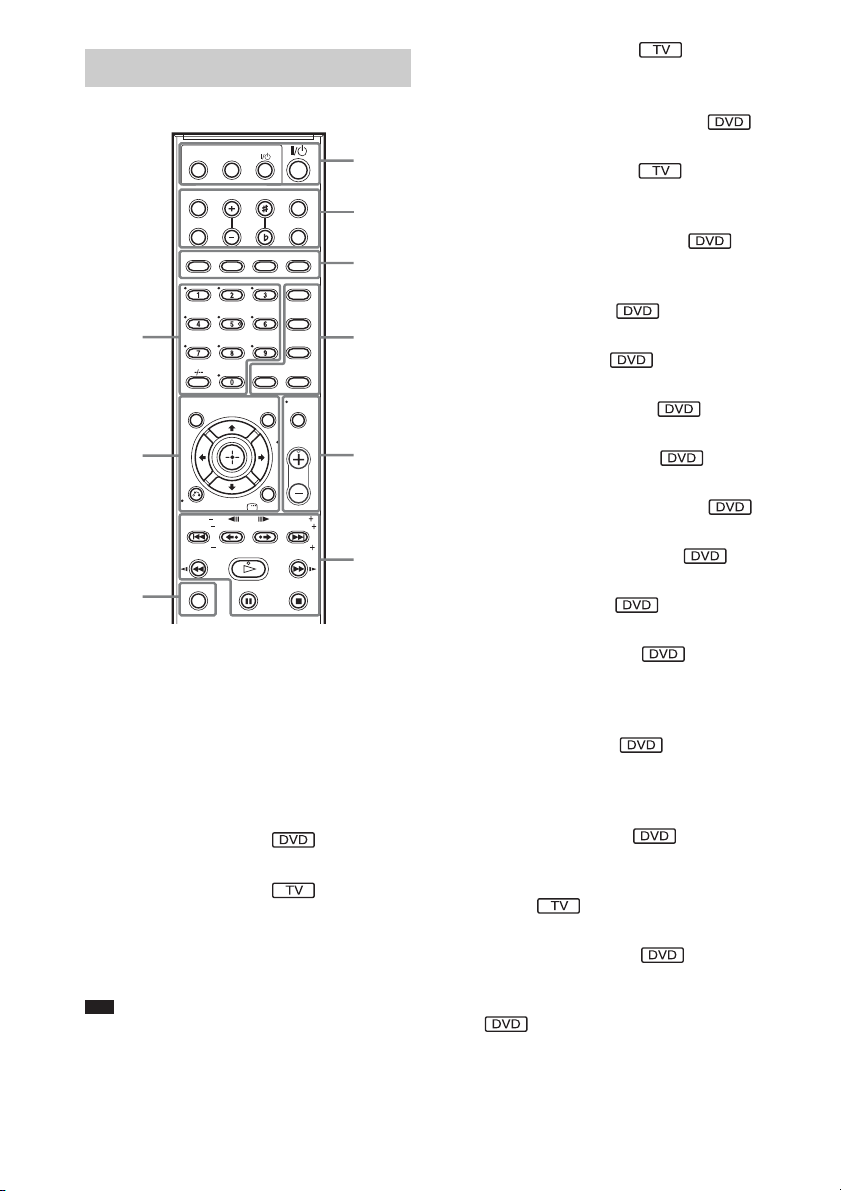

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

Front panel

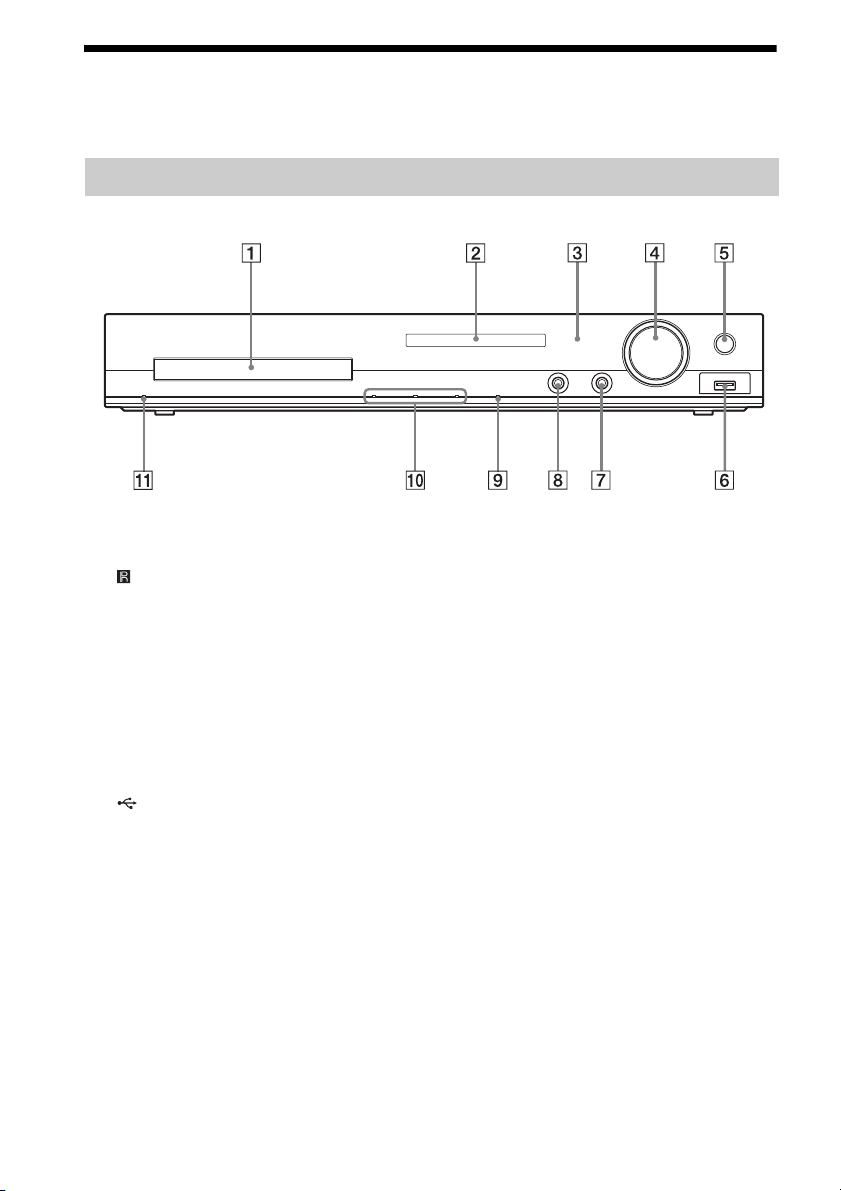

A Disc tray B Front panel display (page 13) C (remote sensor)

Receives the remote signal. Point the remote toward here when using the remote.

D MASTER VOLUME control

Adjusts the system’s volume.

E REC TO USB (page 63)

Transfers tracks/MP3 files/radio programs onto a USB device. Lights up during transfer of tracks/MP3 files/radio programs.

F (USB) port (pages 31, 39)

Used for connecting a USB device.

G AUDIO IN jack (page 31)

Used for connecting other components, such as a portable audio source.

H MIC/A.CAL MIC jack (pages 35, 48)

Used for connecting a microphone or the calibration mic.

I FUNCTION

Selects the playback source.

J Play operation buttons

Z (open/close)

Opens or closes the disc tray.

N (play)

Starts or re-starts playback.

x (stop)

Stops playback and remembers the stop point (resume point).

K "/1 (on/standby)

Turns on the unit, or sets it to standby mode.

Page 13

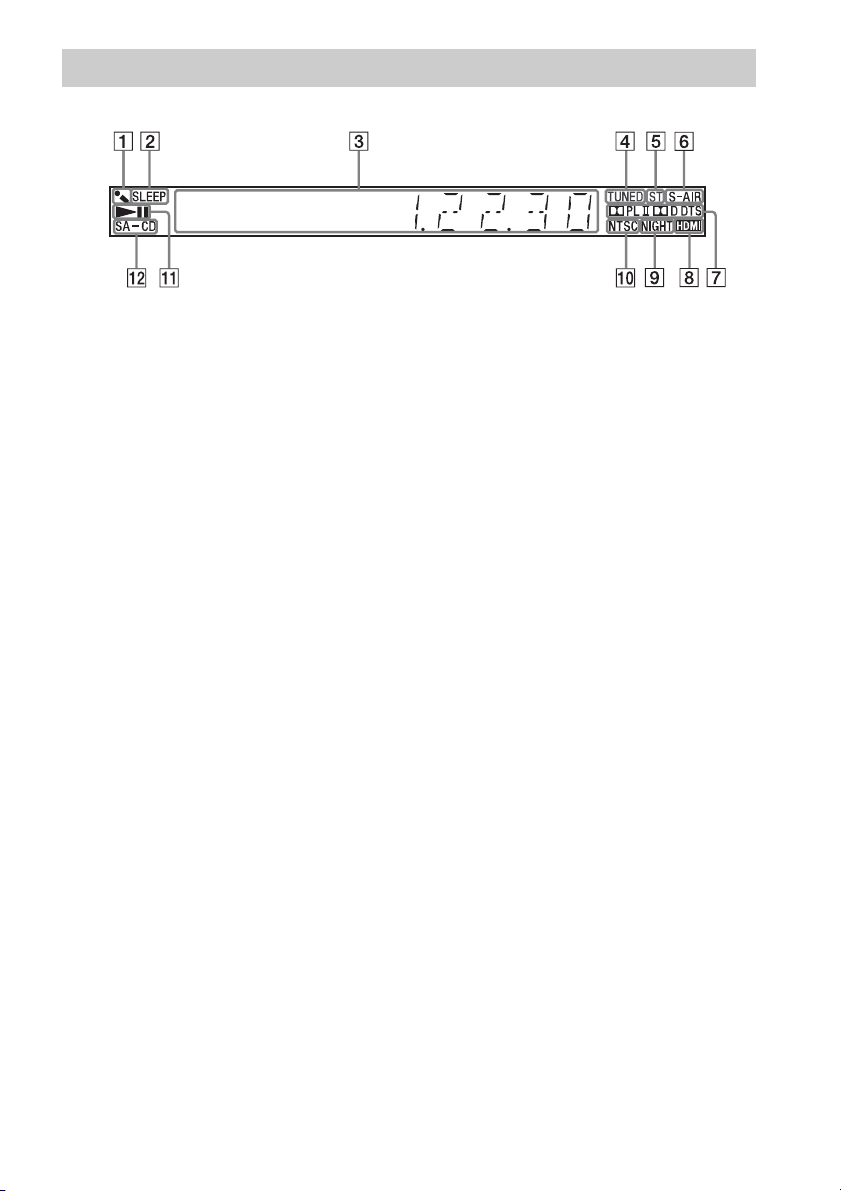

Front panel display

A Karaoke indicator

Lights up when the karaoke mode is on.

B SLEEP indicator

Flashes when the sleep timer is set.

C System status display D TUNED indicator (Radio only)

Lights up when a station is received.

E ST indicator (Radio only)

Lights up when stereo sound is received.

F S-AIR indicator (only when the wireless

transceiver is inserted into the unit)

Lights up during wireless transmission. Flashes when “S-AIR STBY” is set to

“STBY ON” and the system is in standby mode while wireless transmission between the unit and S-AIR receiver is not activated.

G Surround format indicator H HDMI indicator

Lights up when a signal is established between a TV and the unit via HDMI.

I NIGHT indicator

Lights up when the night mode is on.

J NTSC indicator

Lights up when the color system is set to NTSC. (Asian, Australian, Middle Eastern, and South African models only)

K Playing status indicator L SA-CD indicator

Lights up when a Super Audio CD/CD is loaded.

Page 14

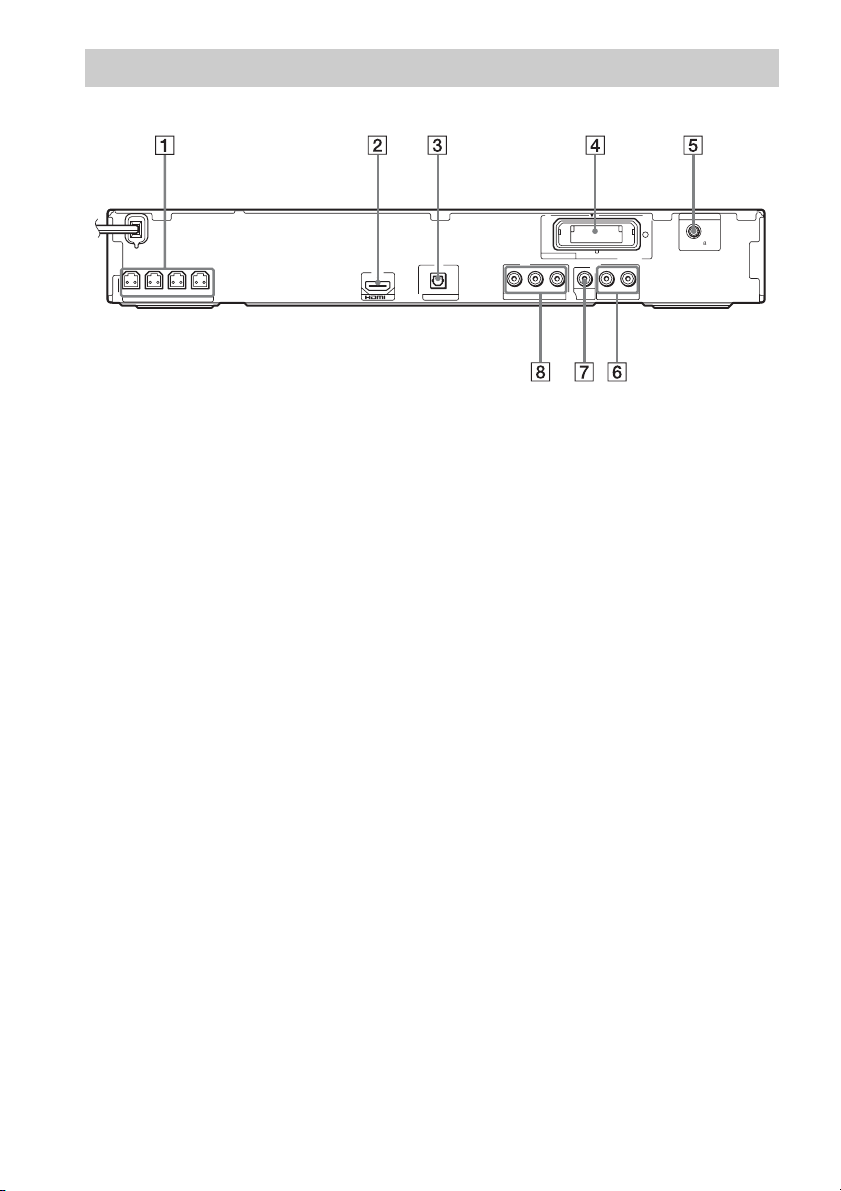

Rear panel

SUBWOOFER

FRONT LFRONT R

SPEAKERS

CENTER

ANTENNA

COAXIAL 75

DIGITAL IN

ARC

OPTICAL

OUT

EZW-RT10

B/CBPR/CR

COMPONENT VIDEO OUT

VIDEO

AUDIO IN

OUT

A SPEAKERS jacks (page 28) B HDMI OUT jack (page 29) C TV (DIGITAL IN OPTICAL) jack

(page 29)

D EZW-RT10 slot (page 32) E ANTENNA (COAXIAL 75Ω FM) jack

(page 32)

F TV (AUDIO IN R/L) jacks (page 29) G VIDEO OUT jack (page 29) H COMPONENT VIDEO OUT jacks

(page 29)

Page 15

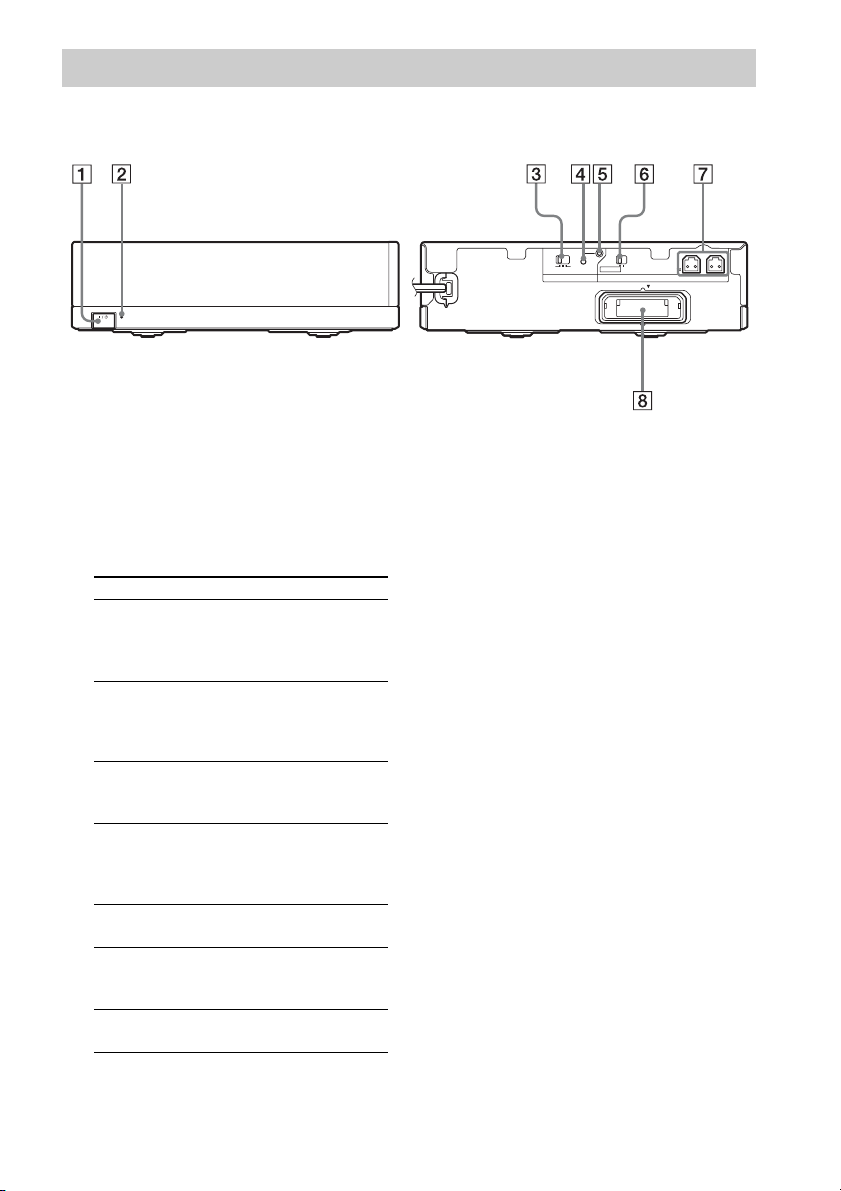

Surround amplifier

Front panel

S-AIR/STANDBY

A "/1 (Power)

Turns the surround amplifier on/off.

B S-AIR/STANDBY indicator

You can check the status of wireless transmission between the main unit and surround amplifier.

Indicator Status

Turns green. The system is turned on,

Flashes green quickly.

Flashes green slowly.

Turns red. The surround amplifier is in

Turns off. The surround amplifier is

Flashes orange. The wireless transceiver is not

Flashes red. The surround amplifier’s

wireless transmission is activated and surround signals are transmitting.

The system is turned on and wireless transmission is activated, but surround signals are not transmitting.

The system is turned on and wireless transmission is deactivated.

standby mode while the system is in standby mode or wireless transmission is deactivated.

turned off.

connected to the surround amplifier.

protection is active.

Rear panel

ABC

S-AIR ID

PAIRING

SURROUND SELECTOR

SURROUND

EZW-RT10

SURROUND BACK

IMPEDANCE USE

SPEAKERS

L R

3-16

C S-AIR ID switch

Selects the S-AIR ID.

D PAIRING button

Starts pairing.

E PAIRING indicator

Indicates the pairing status.

F SURROUND SELECTOR switch

Selects the mode for the surround amplifier.

G SPEAKERS jacks H Wireless transceiver (EZW-RT10) slot

Page 16

Remote control

ONE-TOUCH

THEATRE

PLAY

BRAVIA Sync

SLEEP

MIC VOL

KEYCON

FUNCTION

ECHO

AUDIO

INPUT

CLEAR

DVD

TOP MENU

SUBTITLE

D.TUNING

ANGLE

MEMORY SELECT

SYSTEM

ENTER

DVD

KARAOKE PON

DISPLAY

SOUND

MODE

DYNAMIC

BASS

NIGHT


NAVI

MUTING

VOLUME

TOOLS

DISPLAY

STEP

REPLAY ADVANCE

PRESET

RETURN

PROG PROG

PRESET

TUNING TUNING

SLOW SLOW

Number 5, VOLUME +, and H buttons have a tactile dot. Use the tactile dot as a reference when operating the remote.

About the operation of the supplied remote

You can operate this system and a Sony TV with the supplied remote.

x System operation

Press buttons marked with .

x Sony TV operation

Press buttons marked with while pressing the TV 7 button. THEATRE 1 and TV "/1 1 buttons are operated directly without pressing the TV 7 button.

Note

• Depending on your TV, you may not be able to control your TV or to use some of the buttons.

A THEATRE (page 59)

Switches to the optimum video mode for watching movies automatically.

ONE-TOUCH PLAY (page 59)

Activates One-Touch Play.

TV "/1 (on/standby)

Turns on your TV or sets it to standby mode.

"/1 (on/standby) (page 34)

Turns on the system or sets it to standby mode.

B SLEEP (page 66)

Sets the sleep timer.

ECHO (page 48)

Adjusts the level of the echo effect.

MIC VOL +/– (page 48)

Adjusts the microphone volume.

KEYCON #/2 (page 49)

Changes the key of a song.

FUNCTION (pages 39, 52, 54)

Selects the playback source.

KARAOKE PON (page 49)

Turns Karaoke Pon mode on/off.

C AUDIO (page 43)

Selects the audio format/track.

SUBTITLE (page 43)

Selects the subtitle language when multilingual subtitles are recorded on a DVD VIDEO.

ANGLE (page 43)

Switches to other viewing angles when multi-angles are recorded on a DVD VIDEO.

DISPLAY (page 51)

Changes the information in the front panel display.

INPUT

Switches your TV’s input source.

D.TUNING (page 54)

Selects the radio frequencies.

MEMORY SELECT (pages 39, 63)

Selects the USB device’s memory number for playback or transfer.

Page 17

D SOUND MODE (page 58)

Selects the sound mode.

DYNAMIC BASS (page 58)

Reinforces bass frequencies.

NIGHT (page 58)

Activates the night mode function.

PICTURE NAVI (page 40)

Displays the image browser for JPEG file selection.

SYSTEM MENU (pages 54, 56, 61, 66,

68)

Enters the system menu.

ENTER

Enters the selected item.

E MUTING

Turns off the sound temporarily.

VOLUME +/– (page 39)

Adjusts the volume.

F Playback operation buttons

See “Other Playback Operations” (page 42).

./> (previous/next)

/ STEP

REPLAY/ADVANCE

m/M (fast reverse/fast forward)

/ SLOW

H (play) X (pause) x (stop)

C/X/x/c

Moves the highlight to a displayed item.

(ENTER)

Enters the selected item.

O RETURN (page 40)

Returns to the previous display.

DISPLAY (pages 19, 35, 39, 42, 45,

48, 59, 63, 69)

Displays the playback information on the TV screen.

Displays the menu of your TV.

TOOLS

Displays the operation menu for the current display.

I Number buttons (pages 42, 54)

Enters the title/chapter numbers, radio frequencies, etc.

CLEAR (pages 42, 45, 66)

Clears the entry field.

Selects a channel number greater than 10.

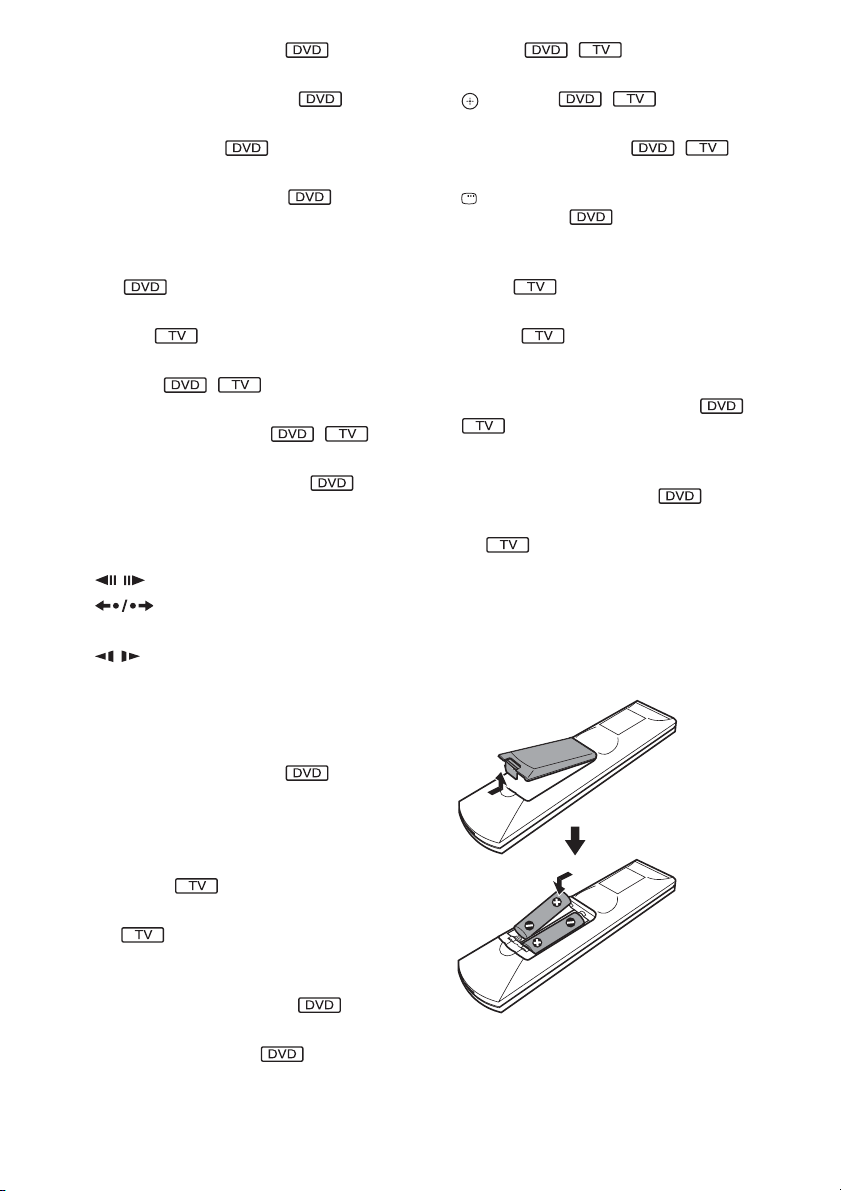

To insert the batteries

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment.

Radio operation buttons

See “Listening to the Radio” (page 54).

PRESET +/–

TUNING +/–

PROG +/–

Select the TV channel.

G TV

Changes to the TV operation mode for the remote.

H DVD TOP MENU (page 44)

Opens or closes the DVD’s Top Menu.

DVD MENU (page 44)

Opens or closes the DVD’s menu.

Page 18

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any for eign object into the remote casing, particularly when replacing the batteries.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Page 19

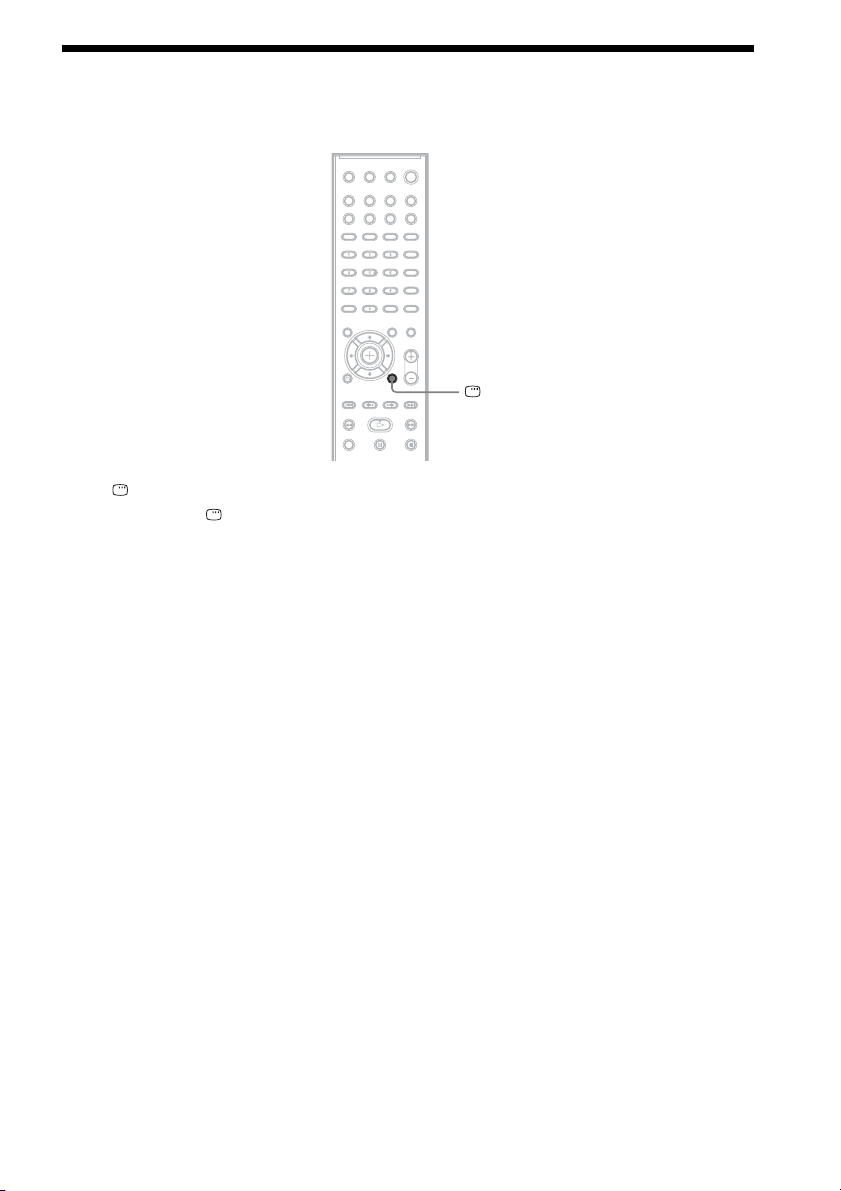

Guide to the Control Menu

You can use the Control Menu to select a function and to view related information.

DISPLAY

Press DISPLAY while using the “DVD/CD” or “USB” function.

Each time you press DISPLAY, the Control Menu changes:

1 t 2 t 3 t 1 t ...

1 Control Menu 1 2 Control Menu 2 (appears when available) 3 Control Menu off

Page 20

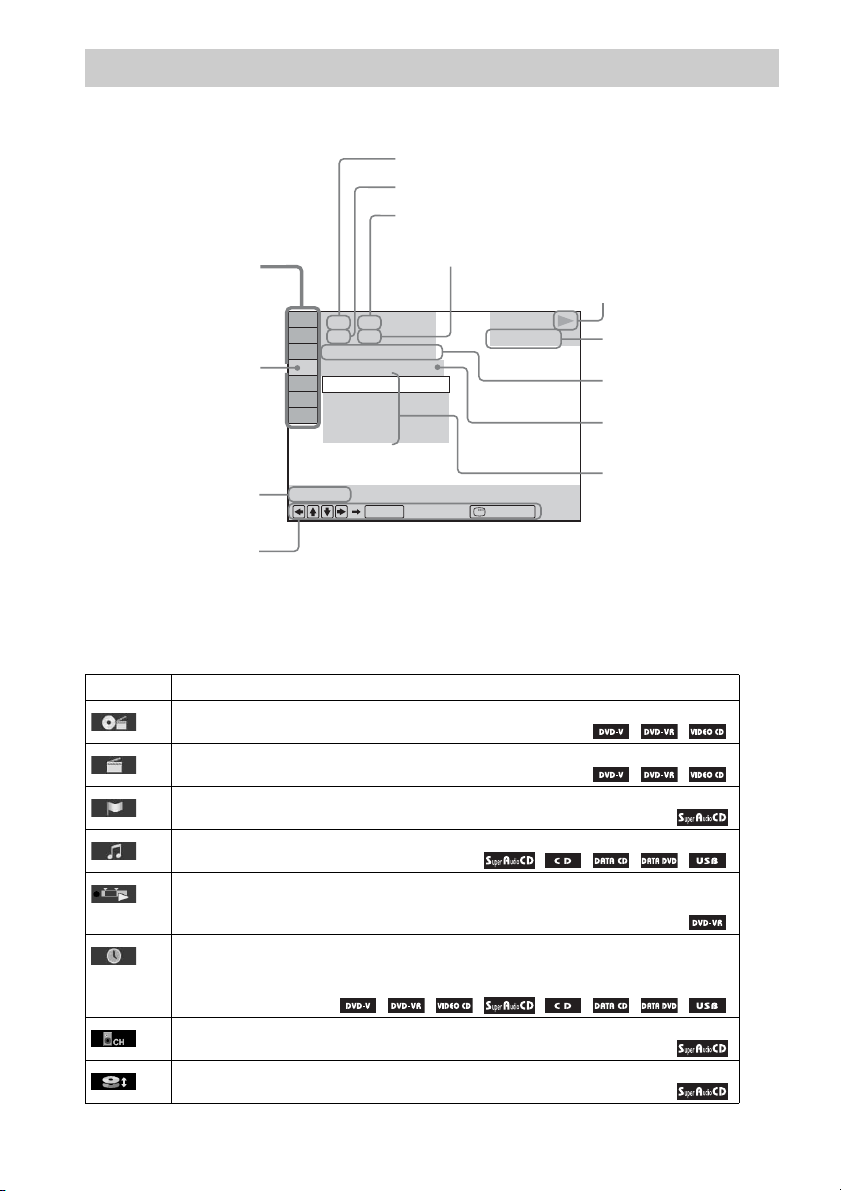

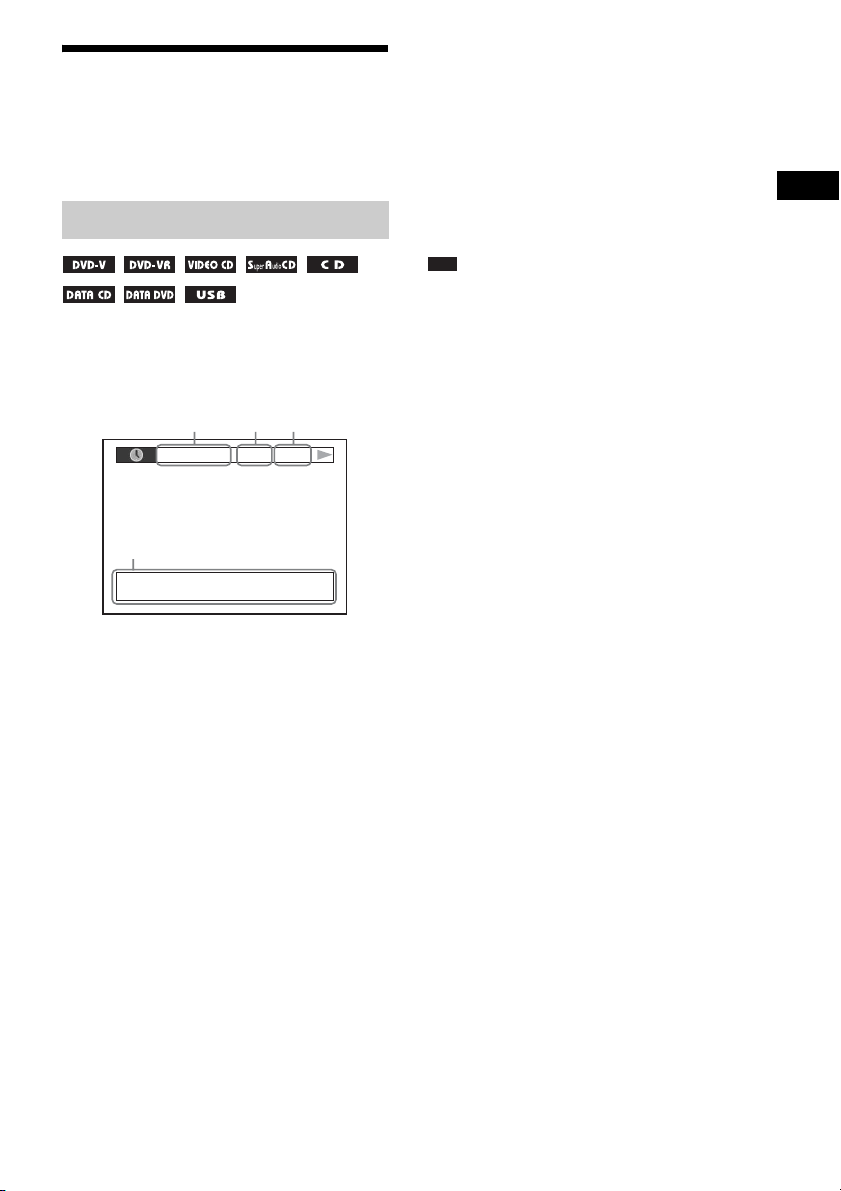

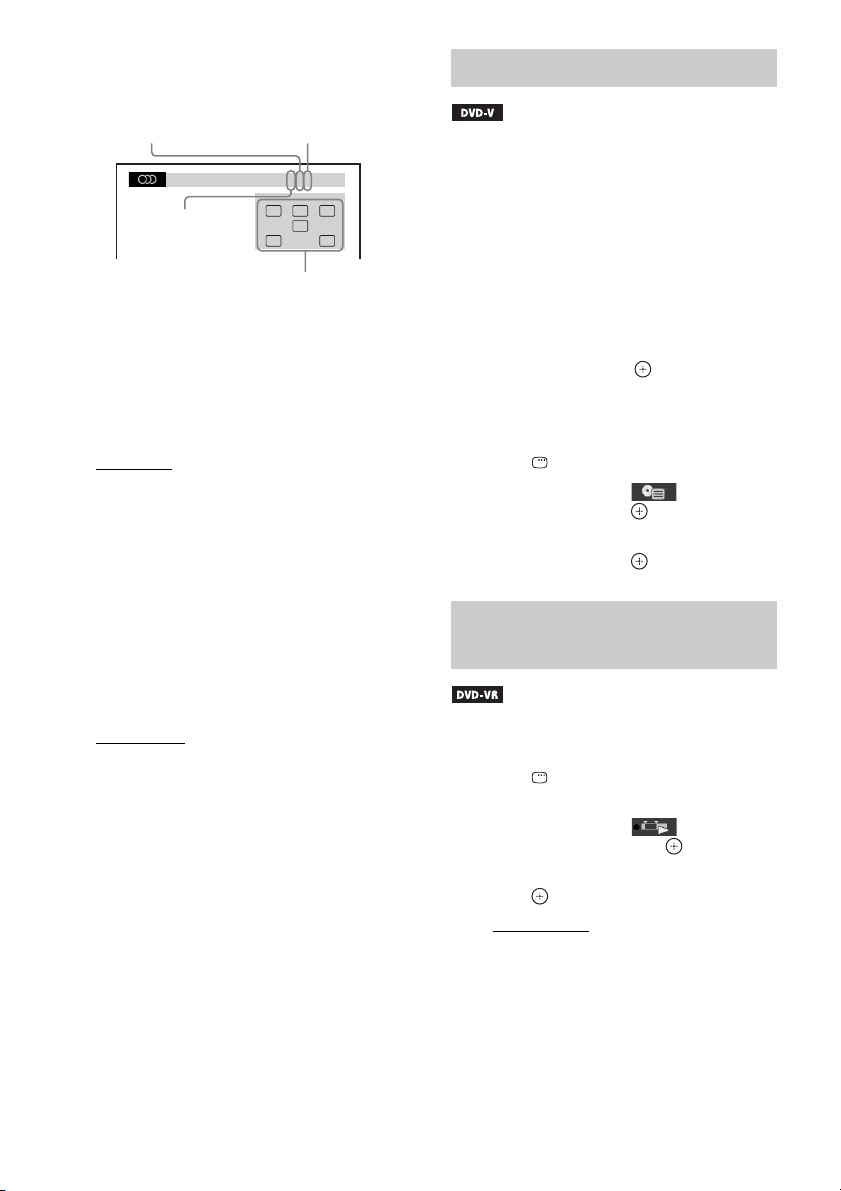

Control Menu

Example: Control Menu 1 when playing a DVD VIDEO.

Currently playing title number

Currently playing chapter number

Total number of titles

Control Menu items

Selected item

OFF

Total number of chapters

98( 99) 13( 99) T 0: 04: 17

DVD VIDEO

OFF DISC TITLE CHAPTER

Function name of selected

Control Menu item

Operation message

REPEAT

ENTER DISPLAY

Quit:

List of Control Menu items

The Control Menu 1 and 2 will show different items depending on the source. For details, see the pages in parentheses in the chart below.

Playback status (N Playback,

X Pause, x Stop, etc.)

Type of source being played

Playing time

Current setting

Options

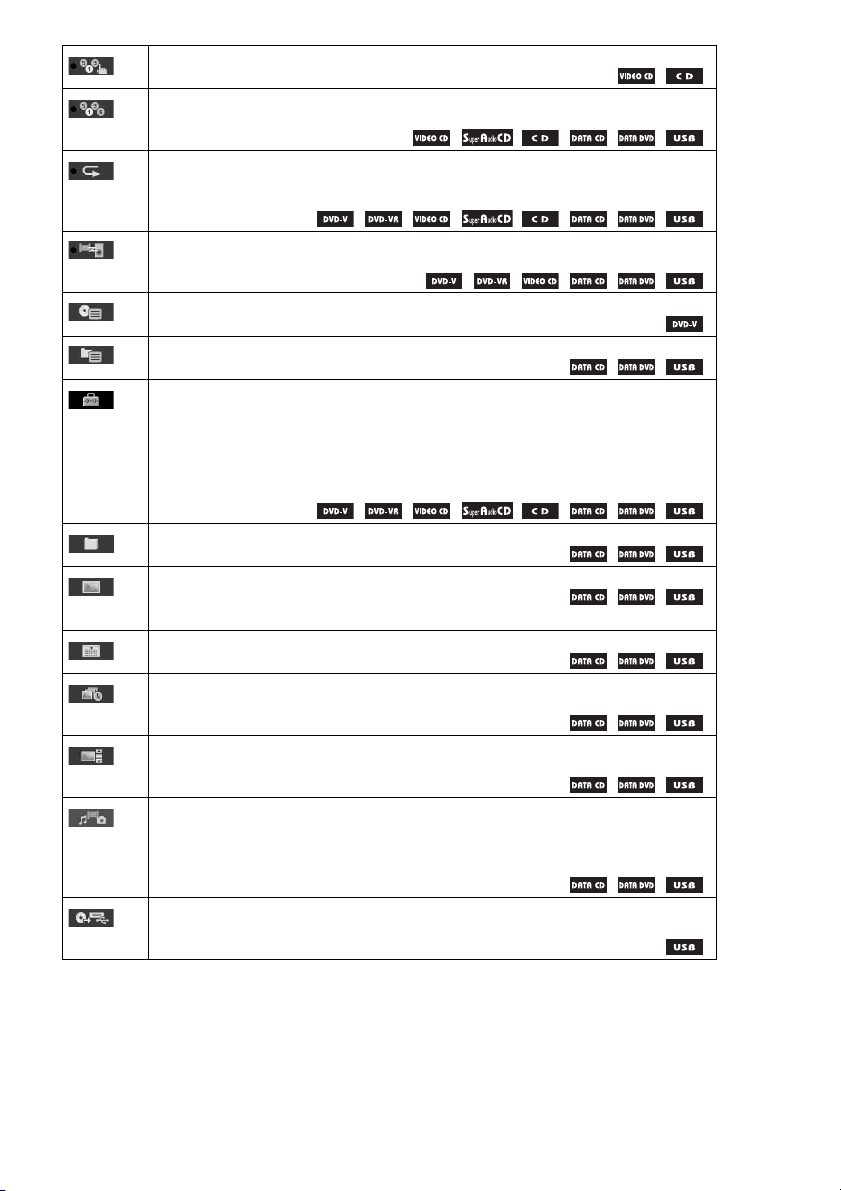

Item Item Name, Function, Relevant Source

[TITLE] (page 42)/[SCENE] (page 42)/[TRACK] (page 42)

You can select the title, scene, or track to be played.

[CHAPTER] (page 42)/[INDEX] (page 42)

You can select the chapter or index to be played.

[INDEX] (page 42)

You can display the index and select the index to be played.

[TRACK] (page 42)

You can select the track to be played.

[ORIGINAL/PLAY LIST] (page 44)

You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or an edited [PLAY LIST].

[TIME] (page 43)

You can check the elapsed time and the remaining playback time.

You can play from a desired point by inputting the time code (DVD VIDEO/DVD-VR only).

[MULTI/2CH] (page 45)

You can select the playback area on a Super Audio CD when available.

[SUPER AUDIO CD/CD LAYER] (page 45)

You can select the playback layer on a Super Audio CD when available.

Page 21

[PROGRAM] (page 45)

You can select the track to play in the order you want.

[SHUFFLE] (page 46)

You can play the tracks/files in random order.

[REPEAT] (page 47)

You can play the entire disc/USB device (all titles/all tracks/all folders/all files) repeatedly or one title/chapter/track/folder/file repeatedly.

[A/V SYNC] (page 67)

You can adjust the delay between the picture and sound.

[DISC MENU] (page 44)

You can display the DVD’s menu.

[BROWSING] (page 40)

You can display the list of folders/JPEG image files.

[SETUP] (page 69)

[CUSTOM] In addition to the Quick Setup setting, you can adjust various other settings.

[QUICK] (page 35)

You can make basic adjustments. Use the Quick Setup to select the desired language of the on-screen display, the aspect ratio of your TV, and start the Auto Calibration.

[FOLDER] (page 42)

You can select the folder to be played.

[FILE] (page 42)

You can select the JPEG image file or video file to be played.

[DATE] (page 52)

You can display the date the picture was taken by a digital camera.

[INTERVAL] (page 47)

You can select the duration for which the slides are displayed on the TV screen.

[EFFECT] (page 47)

You can select the effects to be used for changing slides during a slide show.

[MEDIA] (page 41)

You can select the playback priority of different types of media (MP3/AAC2)/WMA2) file, JPEG image file, video file, or both MP3 and JPEG image files

) to be played on a DATA

CD/DATA DVD/USB device.

[USB TRANSFER] (page 63)

You can transfer tracks on an audio CD or MP3 files on a DATA CD/DATA DVD onto a USB device.

These items are not displayed when playing a DATA CD/DATA DVD/USB device with video files.

USB device only.

DATA CD/DATA DVD only.

Page 22

List of Control Menu Items for karaoke

Item Item Name, Function, Relevant Source

[KARAOKE MODE] (page 48)

Set karaoke mode to on/off.

[VOCAL SELECT] (page 50)

Selects different kind of vocals recorded in the disc.

Tip

• The Control Menu icon indicator lights up in yellow t when you select any item except [OFF]

([PROGRAM], [SHUFFLE], [REPEAT], [A/V SYNC], [KARAOKE MODE], and [VOCAL SELECT] only). The [ORIGINAL/PLAY LIST] indicator lights up in yellow when you select [PLAY LIST] (default setting). The [MULTI/2CH] indicator lights up in yellow when you select the multi-channel playback area on a Super Audio CD.

Page 23

Getting Started

Step 1: Installing the System

How to position the system

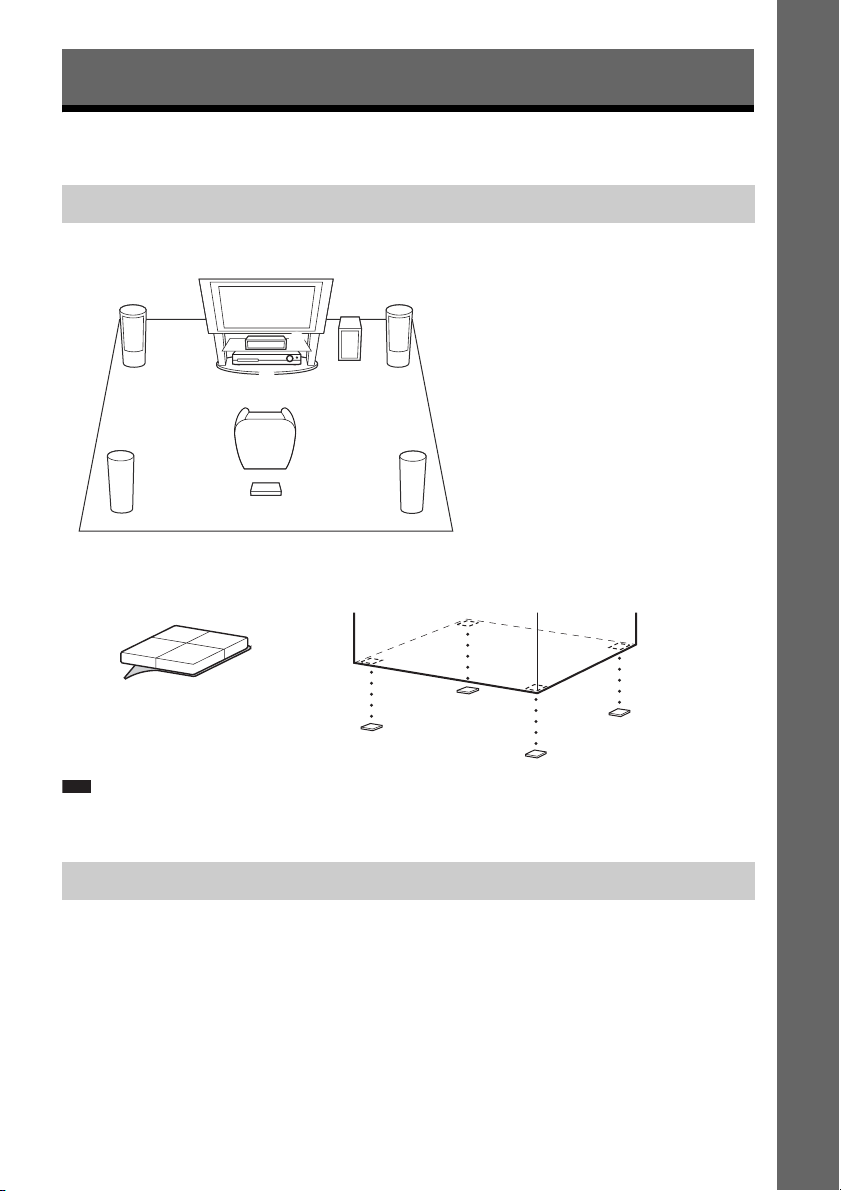

Install the system by referring to the illustration below.

To attach the foot pads to the subwoofer

A Front speaker (L (left)) B Front speaker (R (right)) C Center speaker D Surround speaker (L (left)) E Surround speaker (R (r ight)) F Subwoofer G Unit H Surround amplifier

Getting Started

Remove the foot pads from the protective cover.

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

Assembling the speakers

For assembling the speakers refer to “Speaker Installation Guide” (supplement).

Page 24

When installing the speakers on a wall

Caution

• Contact a screw shop or installer for information regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

Getting Started

Before installing the tall speaker on a wall

You cannot install the tall speaker with the lower part attached. Be sure to remove the lower part of the tall speaker before installing the tall speaker on a wall.

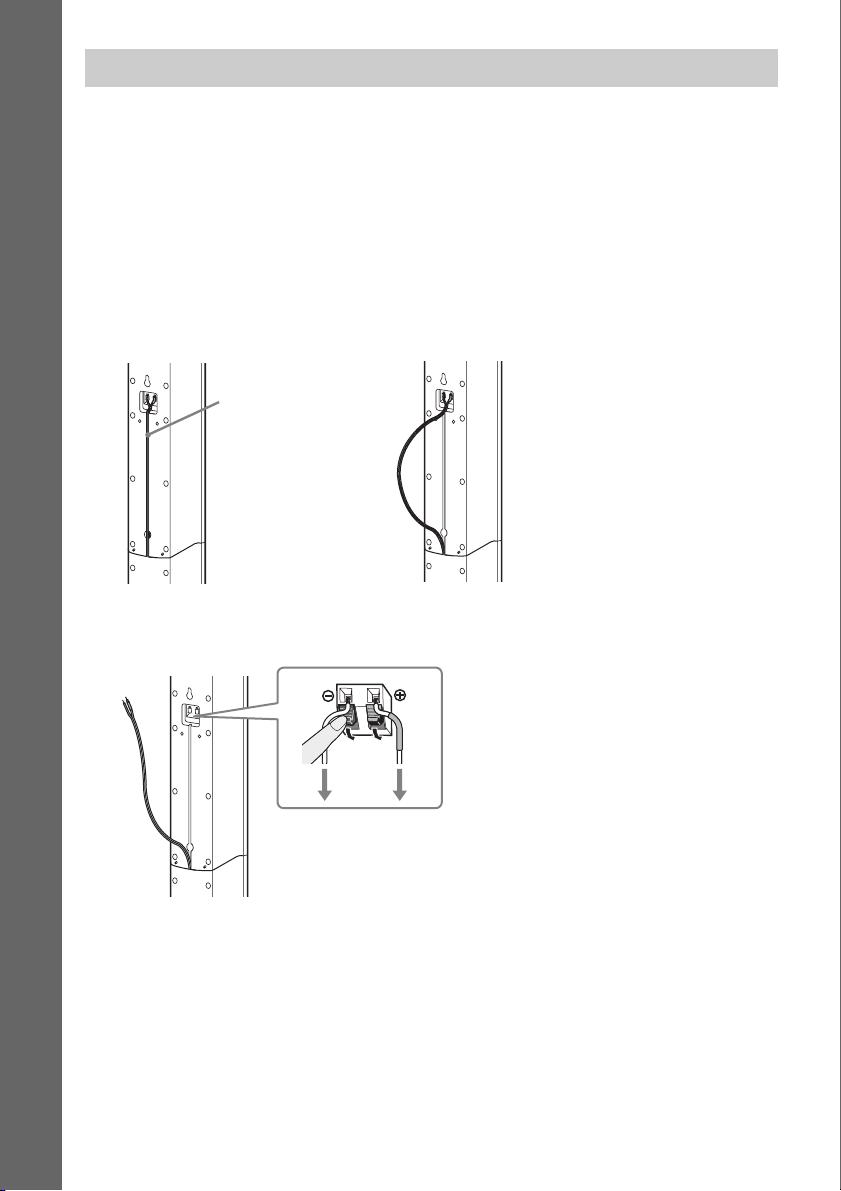

1 Pull out the speaker cord from the slot of the rear of the speaker.

Speaker cord

Rear of the speaker

2 Disconnect the speaker cords from the speaker.

Rear of the speaker

Page 25

3 Remove the screw (pre-installed) at the rear of the speaker.

Getting Started

Screw

Rear of the speaker

4 Lift the upper part of the speaker.

Upper part of

Upper part

the speaker

Lower part

Rear of the speaker

5 Pull out the speaker cord from the bottom of the lower part of the speaker.

The removed speaker cord is used when installing the speaker on a wall.

Lower part of the speaker

Speaker cord

Page 26

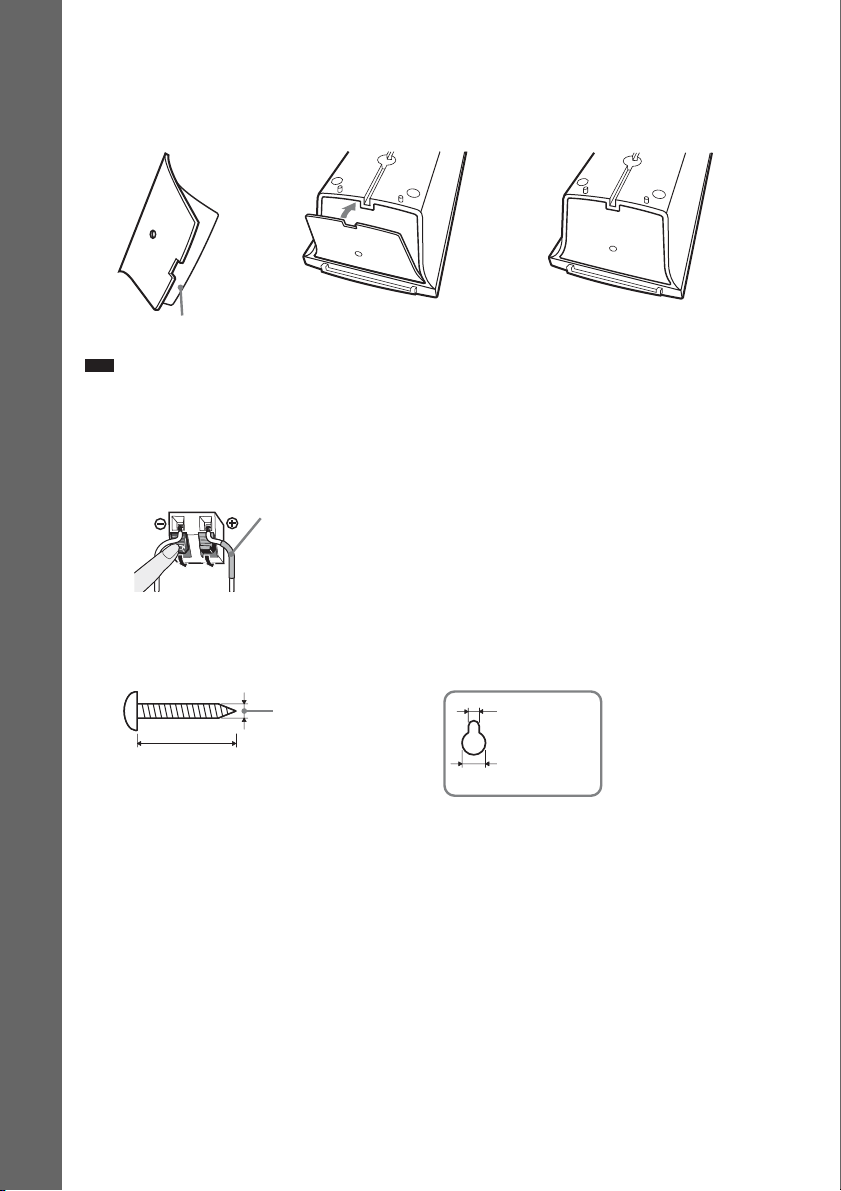

6 Remove the protection paper from the speaker-bottom cover, then attach the speaker-

bottom cover to the bottom of the upper part of the speaker.

Bottom of the upper part of

Speaker-bottom cover

the speaker

Getting Started

Protection paper

Note

• When removing the protection paper, pull it off via the section exposed by the notch in the speaker-bottom cover.

To hang the speaker on a wall

1 Connect the speaker cord with the color tube to 3, and the speaker cord without the

color tube to #.

Color tube Front left speaker (L): White Front right speaker (R): Red Center speaker: Green Surround left speaker (L): Blue Surround right speaker (R): Gray

2 Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

Hole on the back of the speaker

30 mm (1 3/16 inches)

4 mm (

/16 inch)

5 mm (7/32 inch)

10 mm

/32 inch)

(

Page 27

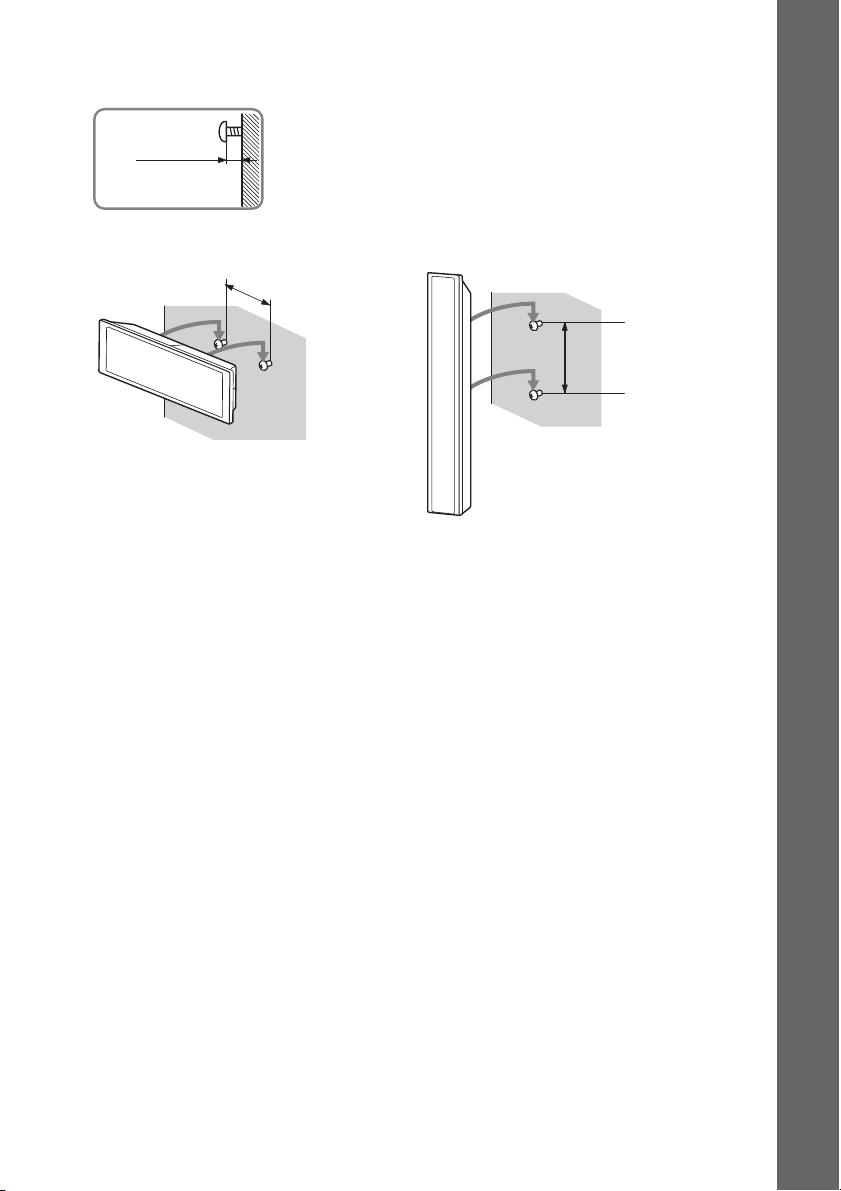

3 Fasten the screws to the wall, then hang the speaker on the wall.

Depth of fastened screw

8 to 10 mm

/32 to 13/32

(

inch

)

Getting Started

For the center speaker

145 mm

/4 inches)

For the other speakers

210 mm

inches

)

Page 28

Step 2: Connecting the System

Connecting the speakers

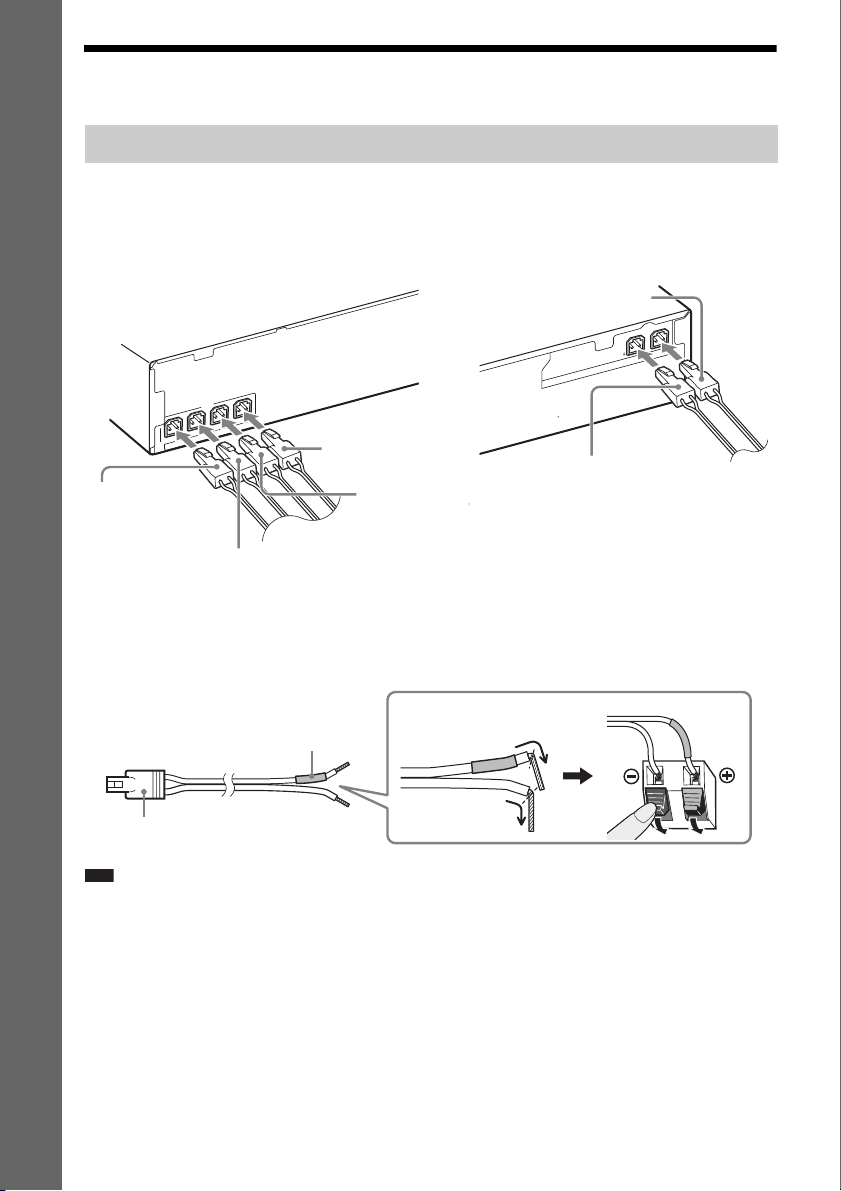

1 Insert the connectors of the speaker cords to match the color of the SPEAKERS jacks

Getting Started

of the unit until they click.

Rear panel of the unit

FRONT L

FRONT R

Red (Front right speaker (R))

CENTER

SUBWOOFER

White (Front left speaker (L))

Green (Center speaker)

Purple (Subwoofer)

Rear panel of the surround amplifier

Gray (Surround right speaker (R))

3-16

SPEAKERS

Blue (Surround left speaker (L))

2 Connect the speaker cord with the color tube to 3, and the speaker cord without the

color tube to #.

The subwoofer speaker cord is fixed to the subwoofer.

Color tube

Connector

(+)

(–)

Note

• Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

Rear of the speaker

Page 29

Connecting your TV/set-top box

When connecting to a TV only

Getting Started

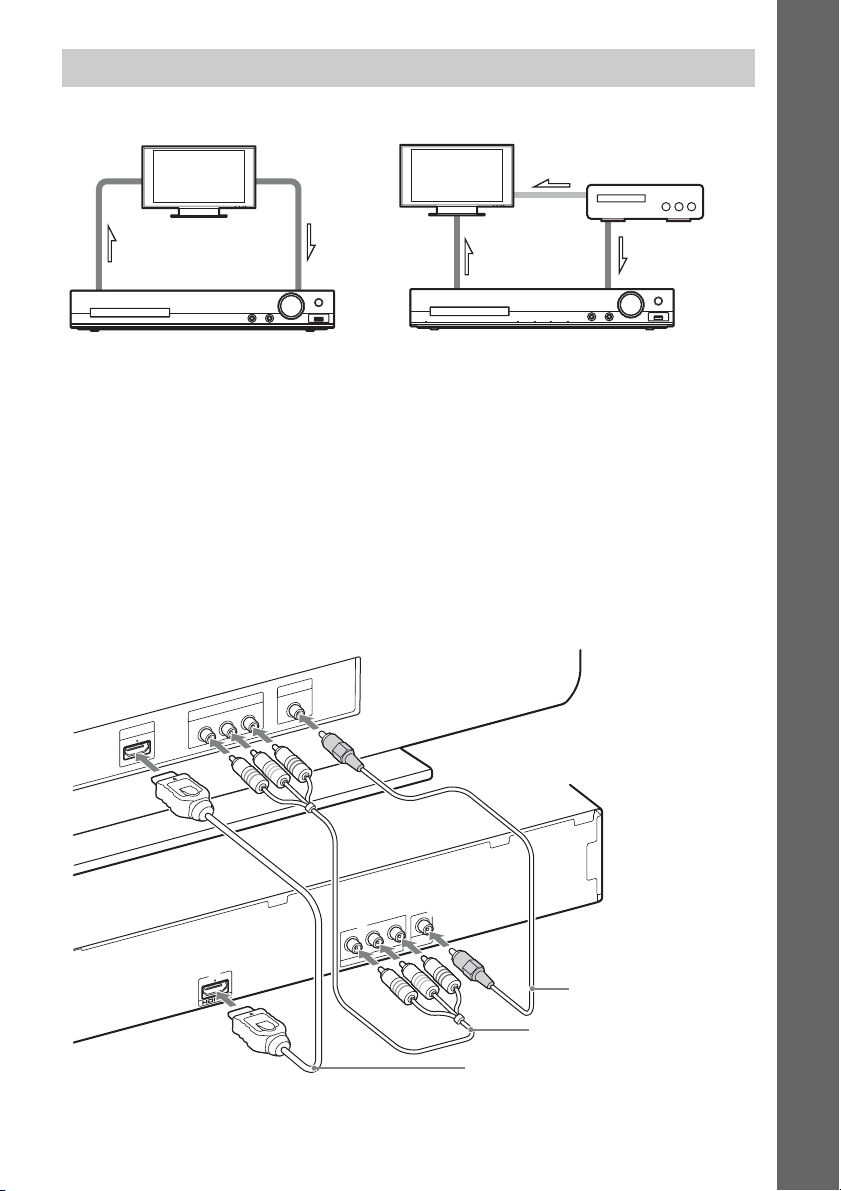

When connecting to a TV and set-top box

Video

1 Video 2 Audio

1 Video

2 Audio

1 Connecting the video to your TV

Depending on the jacks on your TV, select one of the connection methods.

x Method 1: Video cord (supplied) connection

This is the basic connection.

x Method 2: HDMI cable* connection

Picture quality will be improved compared to Method 1. If your TV is compatible with the Audio Return Channel function, this connection also sends a digital audio signal from the TV. You do not need to make a separate audio connection for listening to TV sound. For details of the Audio Return Channel function, see “Receiving the digital audio signal of your TV” (page 60).

x Method 3: Component video cable connection (not supplied)

Picture quality will be improved compared to Method 1.

VID

ENT VID

I IN

VIDEO

OUT

COMPONENT VIDEO

Method 1 (supplied)

Method 3 (not supplied)

Method 2*

* The HDMI cable is supplied with Singapore, Indonesian, Malaysian, Chinese, and Thai models only.

Page 30

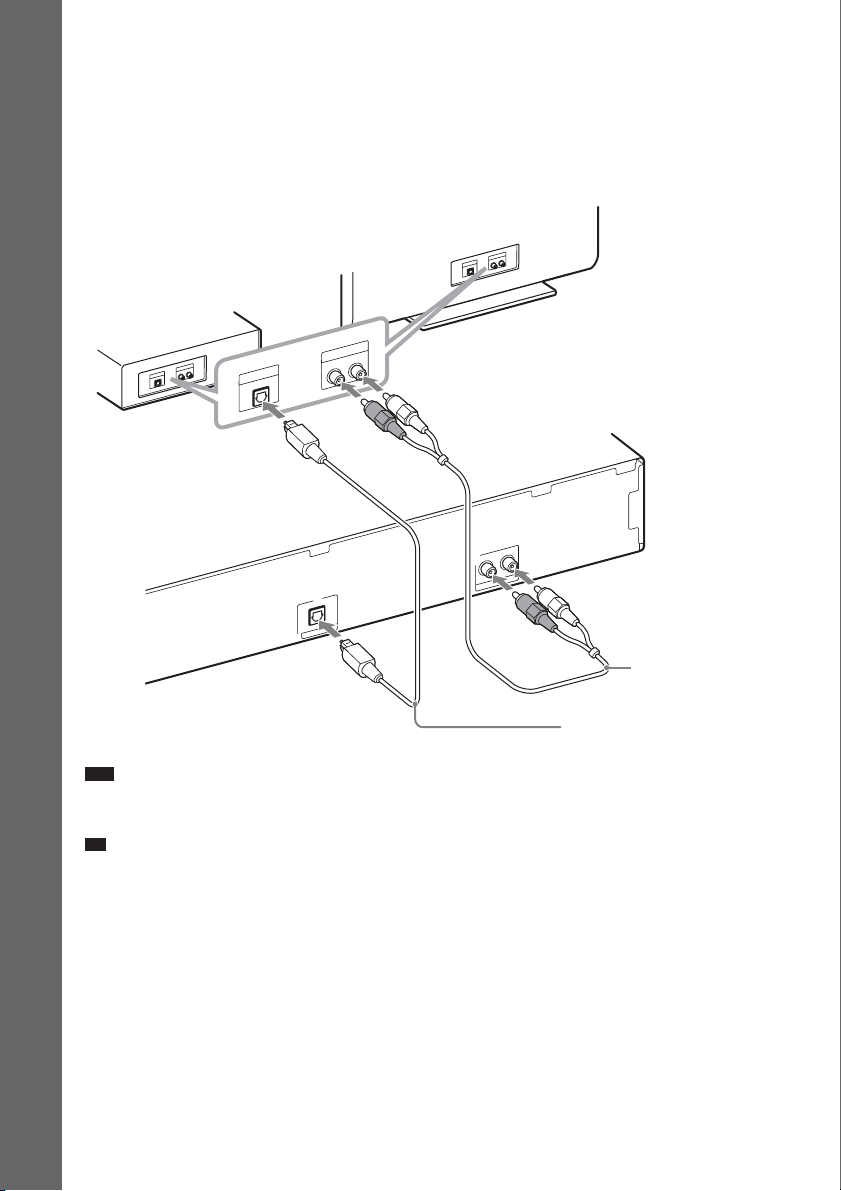

2 Connecting the audio from your TV/set-top box

To listen to TV or set-top box sound via the system, select one of the connection methods.

x Method 1: Audio cord (not supplied) connection

This is the basic connection and sends an analog audio signal.

x Method 2: Digital optical cord (not supplied) connection

Sound quality will be improved compared to Method 1.

Getting Started

DIO

ITAL O

OPTICAL

DIGITAL IN

OPTICAL

Method 1 (not supplied)

Method 2 (not supplied)

Note

• The syste m can accept both digital and analog signals. Digital signals have priority o ver analog signals. If the digital signal ceases, the analog signal will be processed after a few seconds.

Tip

• You can connect another component, such as a VCR, digital satellite receiver, or PlayStation, to the TV jacks instead of your TV.

Page 31

To change the color system (PAL or NTSC) (Asian, Australian, Middle Eastern, and South African models only)

Depending on your TV, you may be required to select either PAL or NTSC for the color system. The initial setting for Australian, Middle Eastern, and South African models is PAL. The initial setting for Asian models is NTSC.

1 Turn off the system by pressing "/1. 2 Turn on the system by pressing "/1 on the unit while pressing FUNCTION on the unit.

Each time you perform this operation, the color system toggles between PAL and NTSC. “NTSC” lights up in the front panel display when the color system is set to NTSC.

Connecting the other components

You can enjoy connected components via the system’s speakers.

Connected component Required cord for connection

Portable audio source (not supplied) A Stereo mini-plug cord (not supplied)

USB device (not supplied)

B USB connector (not supplied)

Getting Started

To a portable audio source.

Page 32

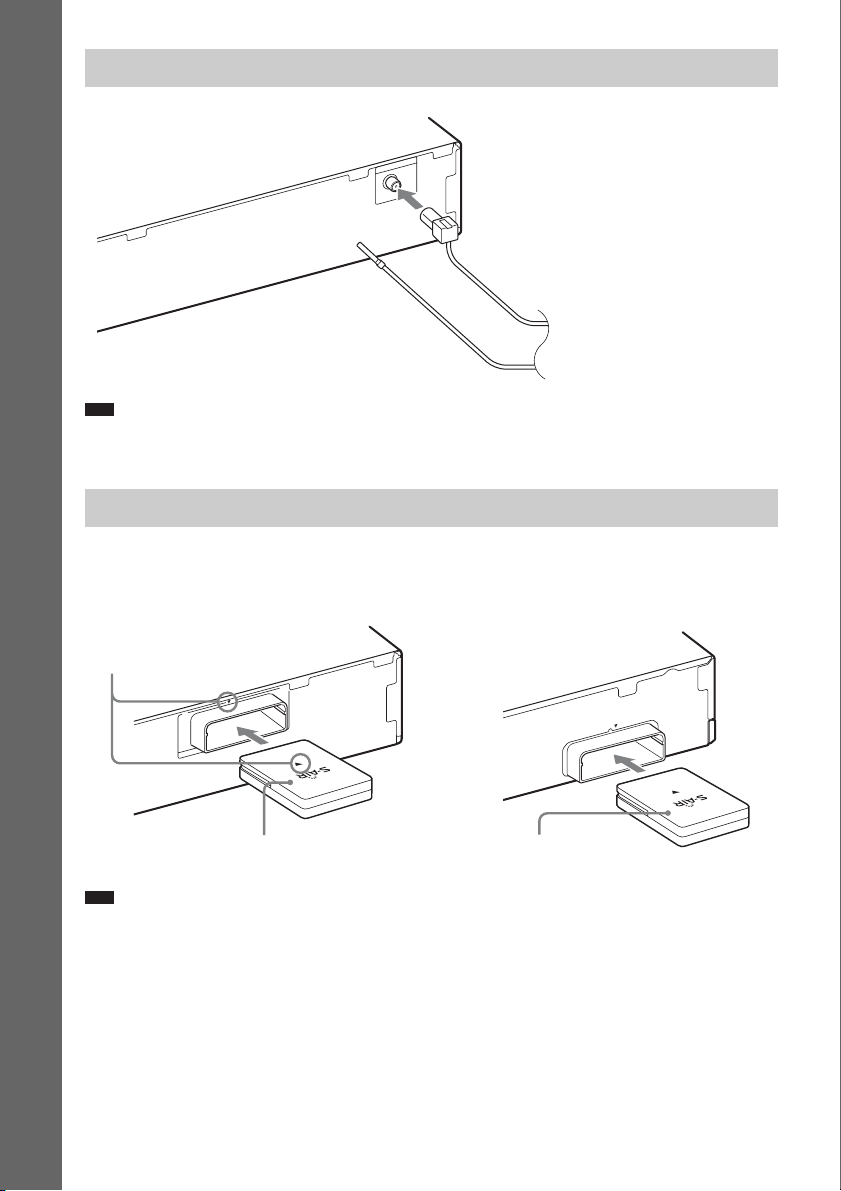

Connecting the antenna (aerial)

ANTENNA

Getting Started

FM wire antenna (aerial) (supplied)

Note

• After connecting the FM wire antenna (aerial), extend and keep it as horizontal as possible.

Inserting the wireless transceivers

To transmit sound from the unit, you need to insert the wireless transceivers into the unit and surround amplifier.

Rear panel of the unit

Match the direction of the V marks.

Rear panel of the surround amplifier

-R

T10

-R

EZW

Wireless transceiver

Note

• When you insert the wireless transceiver, make sure that the AC power cord (mains lead) is not connected to a wall outlet (mains).

• Do not touch the terminals of the wireless transceiver.

• Do not insert anything other than the wireless transceiver into the EZW-RT10 slot.

Page 33

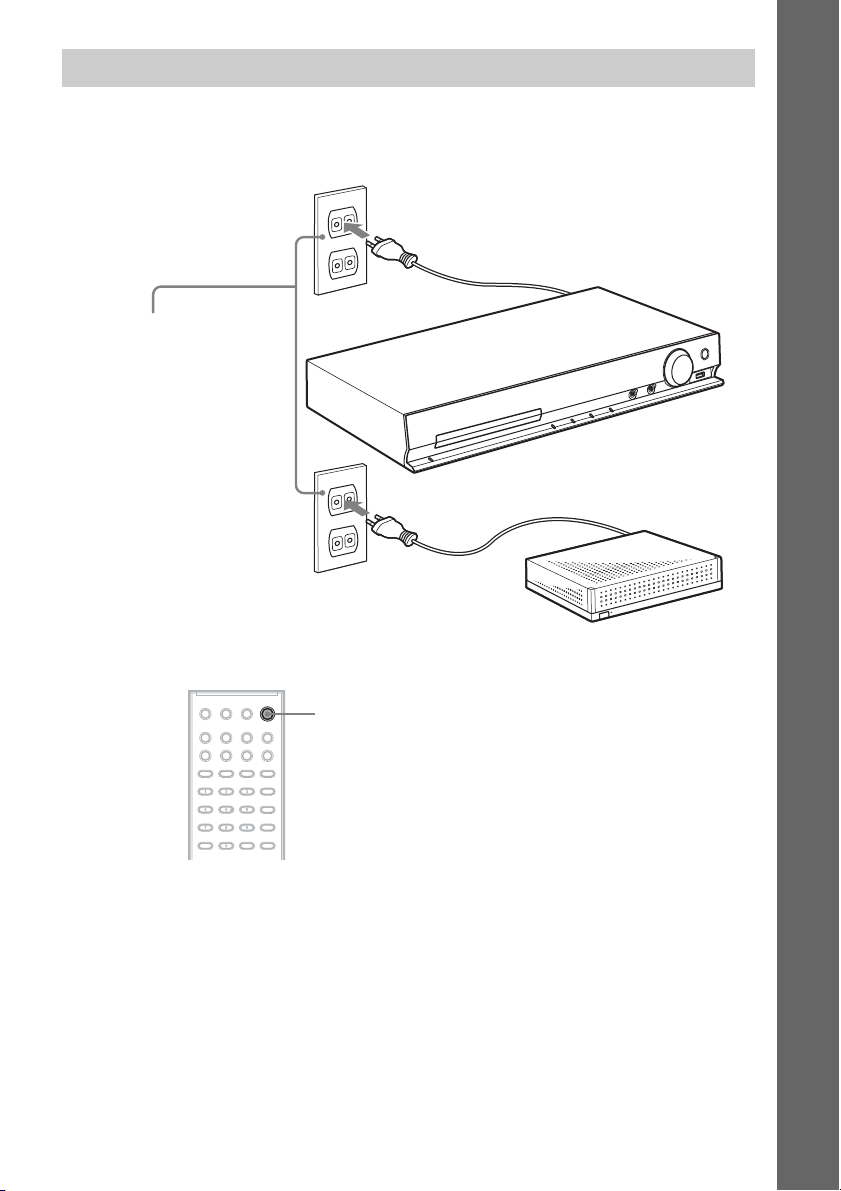

Connecting the AC power cords (mains leads)

1 Connect the AC power cords (mains leads).

The demonstration appears in the front panel display.

Wall outlet (mains): The shape of the wall outlet (mains) differs depending on the area.

Getting Started

2 Press "/1 to turn the system on, then press "/1 again to turn off the demonstration.

"/1

Page 34

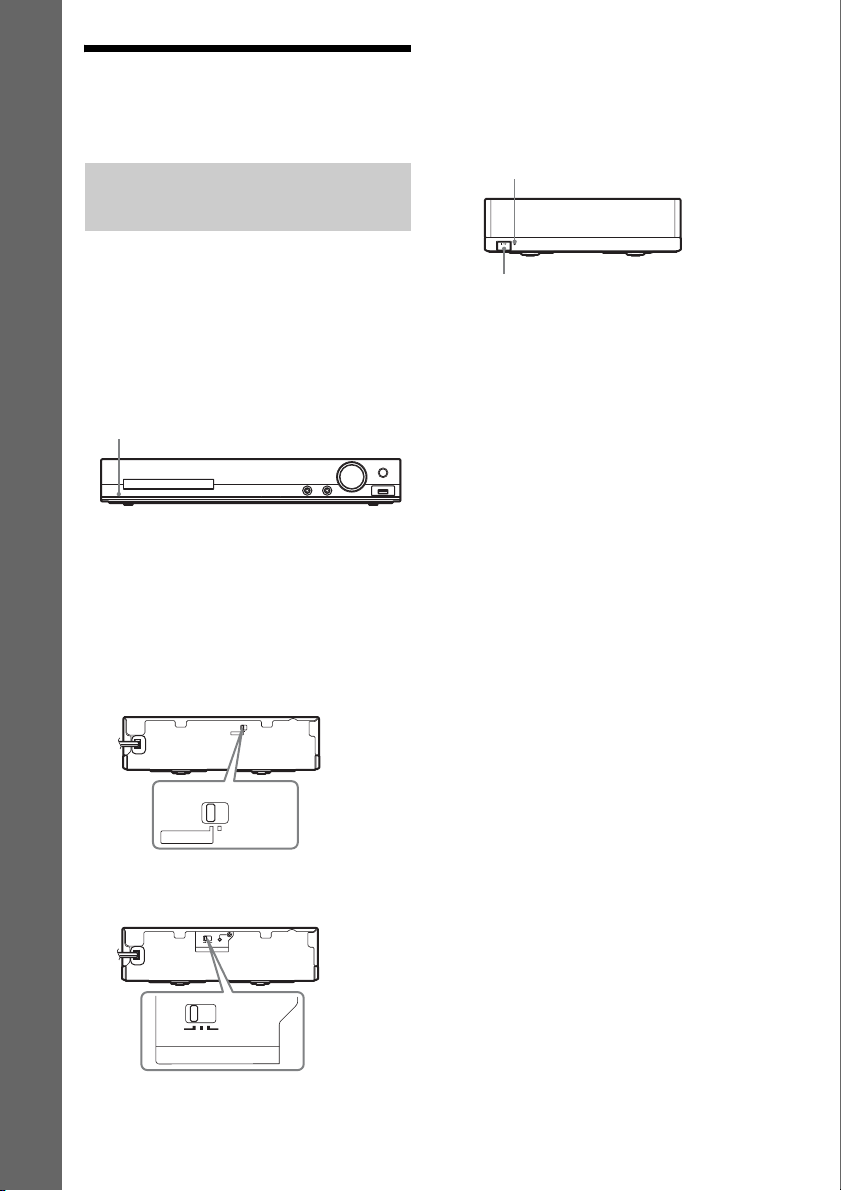

Step 3: Setting up the Surround Amplifier

Activating wireless transmission

Getting Started

To use the wireless system, you need to set up the surround amplifier. The unit transmits sound to the surround amplifier that is connected to the surround speakers. To activate wireless transmission, perform the following Steps.

1 Press "/1 to turn the system on.

"/1

Make sure that “S-AIR” lights up in the front panel display. When “S-AIR” does not light up, make sure that the wireless transceiver is inserted into the unit correctly (page 32).

2 Set the SURROUND SELECTOR switch

of the surround amplifier to SURROUND.

SURROUND SELECTOR

SURROUND

SURROUND BACK

4 Press "/1 to turn the surround amplifier

on.

When wireless transmission is activated, the S-AIR/STANDBY indicator turns green.

S-AIR/STANDBY indicator

S-AIR/STANDBY

"/1

If the S-AIR/STANDBY indicator does not turn green, see “Surround amplifier” (page 15) and “Troubleshooting” (page 82).

For details of the S-AIR function, see “Using an S-AIR Product” (page 61).

About the standby mode

The surround amplifier enters standby mode automatically (the S-AIR/STANDBY indicator turns red) when the main unit is in standby mode or wireless transmission is deactivated. The surround amplifier is turned on automatically (the S-AIR/STANDBY indicator turns green) when the system is turned on and wireless transmission is activated.

SURROUND SELECTOR

SURROUND

SURROUND BACK

3 Set the S-AIR ID switch of the surround

amplifier to A.

PAIRIN G

ABC

S-AIR ID

ABC

S-AIR ID

Page 35

Step 4: Setting up the System

Performing the Quick Setup

Displayed items vary depending on the area.

4 Press X/x to select a language, then

press .

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

5 Press X/x to select the setting that

matches your TV type, then press .

Getting Started

C/X/x/c,

DISPLAY

1 Turn on your TV. 2 Switch the input selector on your TV so

that the signal from the system appears on the TV screen.

3 Press without inserting a disc or

connecting a USB device.

Home Theatre System

ENTER

Press to run QUICK SETUP.

CLEAR

Press to erase this message.

Note

• If this message does not appear, press

FUNCTION repeatedly to select “DVD/CD.” If this message still does not appear, recall the Quick Setup display (page 68).

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

(COMPONENT OUT)

4:3 LETTER BOX

(VIDEO CD)

16:9 16:9

4:3 PAN SCAN

AUTO

• [16:9]: This aspect ratio is for a widescreen TV or a 4:3 standard TV with a wide-screen mode (page 70)

• [4:3 LETTER BOX] or [4:3 PAN SCAN]: This aspect ratio is for a 4:3 standard TV (page 70)

6 Press X/x to select the Control for

HDMI setting, then press .

HDMI SETUP

HDMI RESOLUTION: CONTROL FOR HDMI: VOLUME LIMIT: AUDIO RETURN CHANNEL: YCBCR/RGB(HDMI): AUDIO(HDMI): JPEG RESOLUTION:

• [ON]: The Control for HDMI function is set to on.

• [OFF]: The Control for HDMI function is set to off.

AUTO

(1920x1080p)

ON ON

OFF

BCR

OFF

Page 36

7 Press C/c to select the speaker

formation image as the speakers are actually positioned, then press .

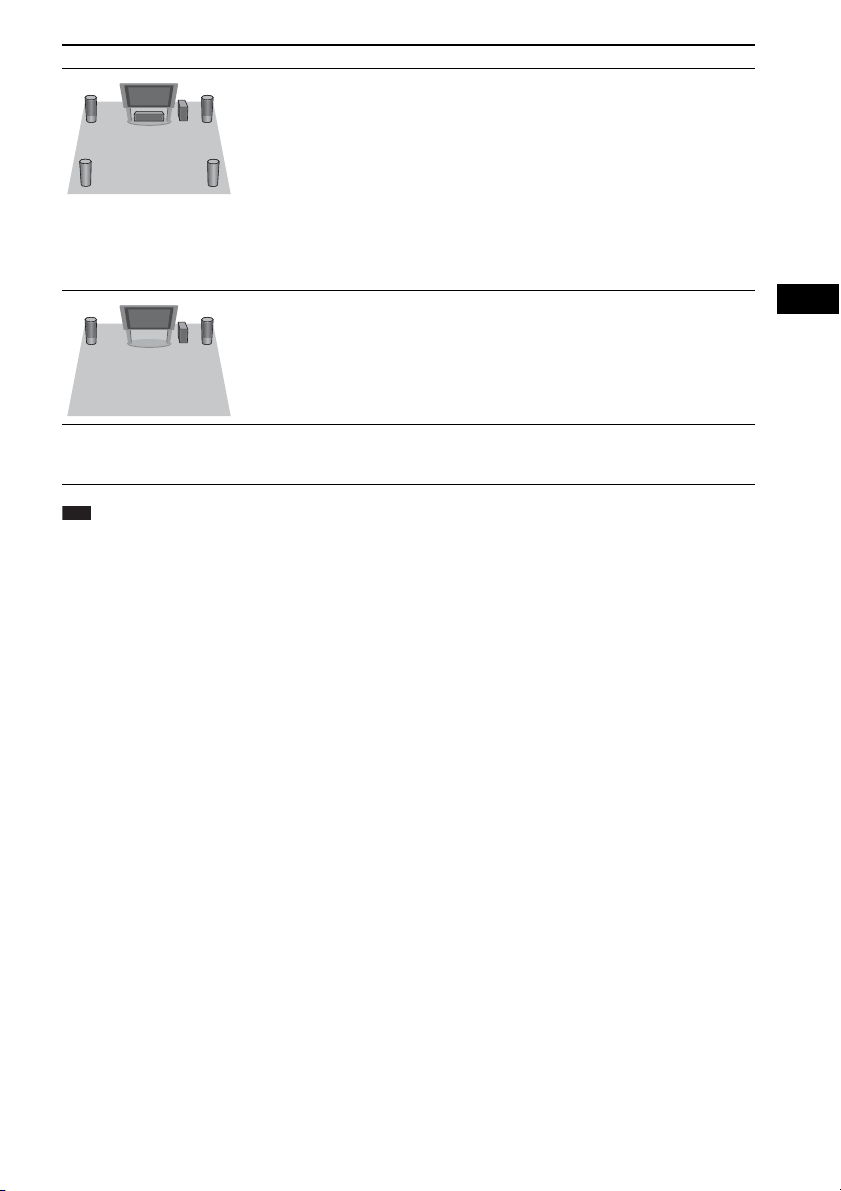

SPEAKER FORMATION

Getting Started

• [STANDARD]: Select this when you install all the speakers normally.

• [NO CENTER]: Select this when you install the front and surround speakers only.

• [NO SURROUND]: Select this when you install the center and front speakers only.

• [FRONT ONLY]: Select this when you install the front speakers only.

• [ALL FRONT]: Select this when you install all the speakers in front of the listening position.

• [ALL FRONT - NO CENTER]: Select this when you install the front and surround speakers in front of the listening position.

STANDARD

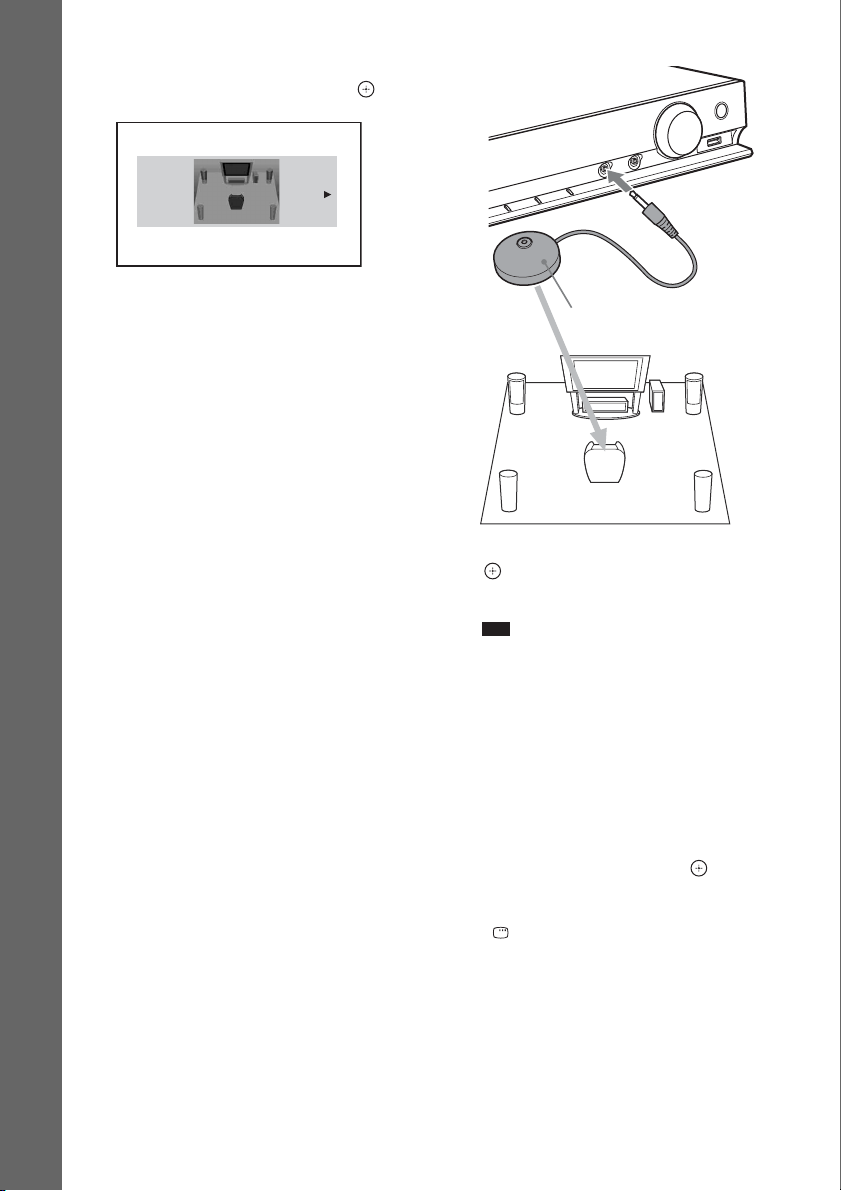

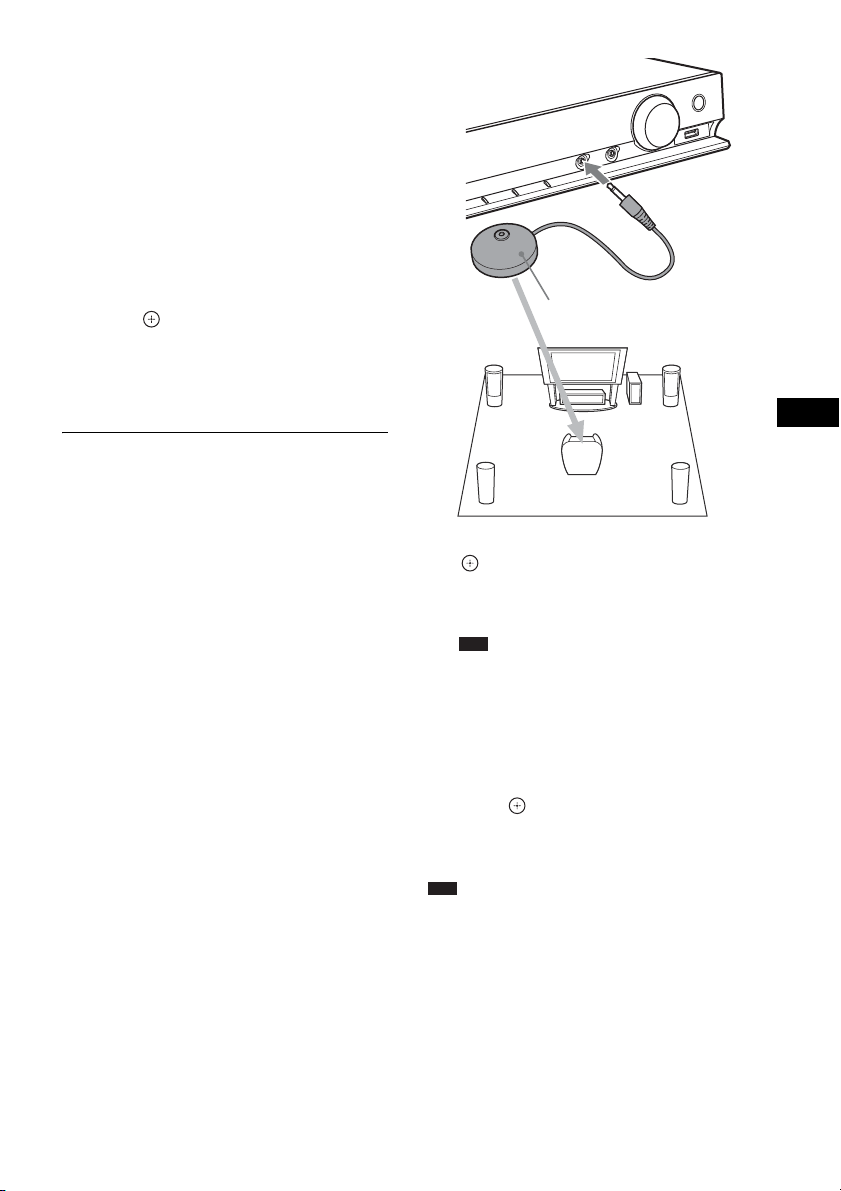

8 Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front panel.

Set up the calibration mic at ear level using a tripod, etc. (not supplied).

The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic.

Calibration mic

9 Press C/c to select [YES], then press

Be quiet during the measurement.

Note

• Loud test sounds are output when [AUTO CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

• The environment of the room in which the system is installed may affect measurements. When the measurements differ considerably from the status of the speaker installation, perform the speaker settings manually by following “Settings for the speakers” (page 75).

10 Unplug the calibration mic, press C/c

to select [YES], then press .

To quit the Quick Setup

Press DISPLAY in any Step.

Page 37

Setting the type of video output to match your TV

Depending on the connection of your TV (page 29), select the type of video output of the system.

To select the type of video signal output from the HDMI OUT jack

When you connect the unit and your TV with an HDMI cable, select the type of video signals output from the HDMI OUT jack.

1 Press FUNCTION repeatedly to select

“DVD/CD.”

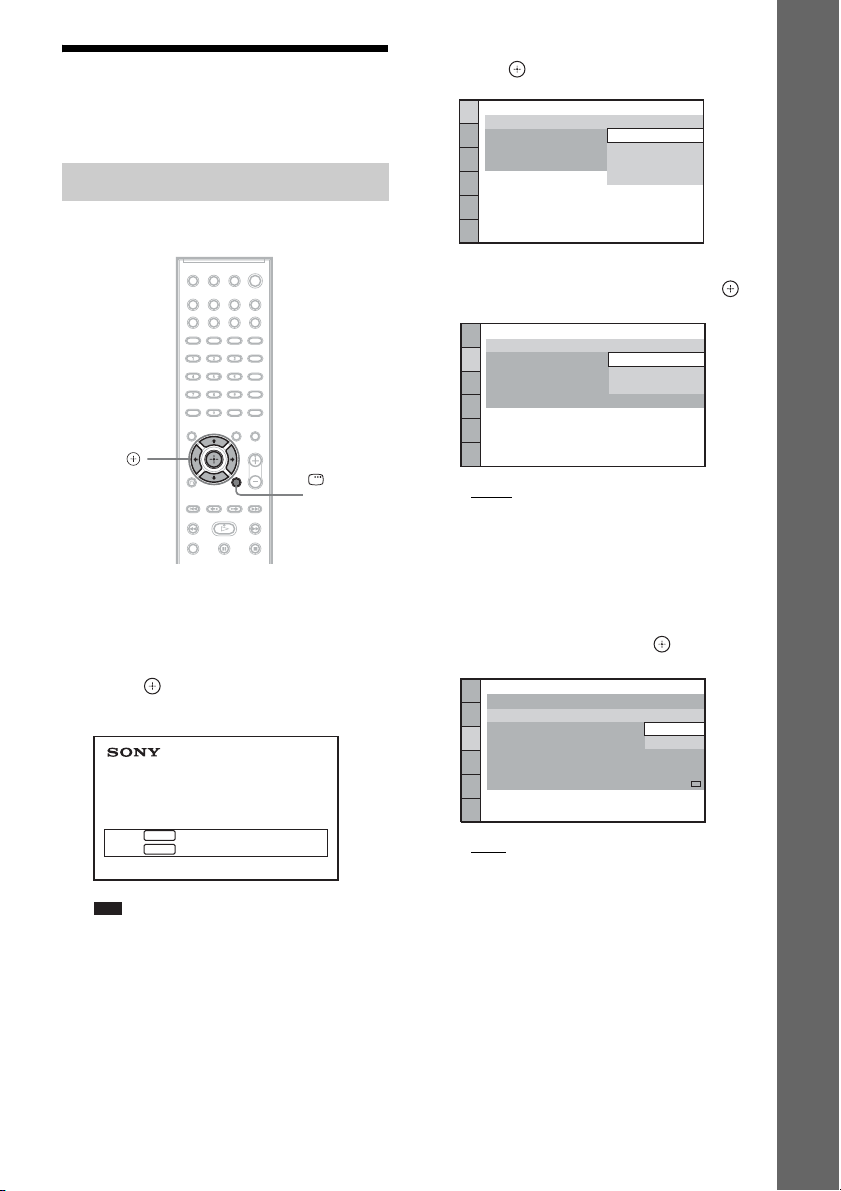

2 Press DISPLAY while the system is

in stop mode.

3 Press X/x to select [SETUP],

then press .

5 Press X/x to select [HDMI SETUP], then

press .

HDMI SETUP

HDMI RESOLUTION: CONTROL FOR HDMI: VOLUME LIMIT: AUDIO RETURN CHANNEL: YCBCR/RGB(HDMI): AUDIO(HDMI): JPEG RESOLUTION:

AUTO

(1920x1080p)

OFF

AUTO

BCR

OFF

6 Press X/x to select [HDMI

RESOLUTION], then press .

HDMI SETUP

HDMI RESOLUTION: CONTROL FOR HDMI: VOLUME LIMIT: AUDIO RETURN CHANNEL: YCBCR/RGB(HDMI): AUDIO(HDMI): JPEG RESOLUTION:

AUTO

(1920x1080p)

OFF

AUTO

BCR

OFF

7 Press X/x to select the desired setting,

then press .

Getting Started

CUSTOM

4 Press X/x to select [CUSTOM], then

press .

CUSTOM

CUSTOM QUICK

HDMI SETUP

HDMI RESOLUTION: CONTROL FOR HDMI: VOLUME LIMIT: AUDIO RETURN CHANNEL: YCBCR/RGB(HDMI): AUDIO(HDMI): JPEG RESOLUTION:

AUTO AUTO

1920x1080i

1280x720p

720x480p

(1920x1080p) (1920x1080p)

OFF

LEVEL2

AUTO

BCR

OFF

• [AUTO (1920 × 1080p)]: The system outputs the optimal video signal for the connected TV.

• [1920 ×

1080i]: The system outputs 1920

× 1080i* video signals.

• [1280 ×

720p]: The system outputs 1280

× 720p* video signals.

• [720 ×

480p]**: The system outputs 720

× 480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may

appear and the system may output 720 × 576p video signals.

Page 38

To select the type of video signal output from the COMPONENT VIDEO OUT jacks

When you connect the unit and your TV with a component video cable, select the type of video signals output from the COMPONENT VIDEO OUT jacks.

1 Press FUNCTION repeatedly to select

Getting Started

“DVD/CD.”

2 Press DISPLAY while the system is

in stop mode.

3 Press X/x to select [SETUP],

then press .

CUSTOM

4 Press X/x to select [CUSTOM], then

press .

CUSTOM

CUSTOM QUICK

5 Press X/x to select [VIDEO SETUP],

then press .

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

(COMPONENT OUT)

(VIDEO CD)

16:9 OFF

FULL AUTO AUTO

6 Press X/x to select [PROGRESSIVE

(COMPONENT OUT)], then press .

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

(COMPONENT OUT)

(VIDEO CD)

16:9

OFF

FULL

AUTO

7 Press X/x to select the desired setting,

then press .

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

(COMPONENT OUT)

(VIDEO CD)

16:9 OFF

OFF

FULL

AUTO

[OFF]: The system does not output progressive signals. Select this setting when:

– your TV does not accept progressive

signals, or,

– your TV is connected via jacks other than

the COMPONENT VIDEO OUT jacks. [ON]: The system outputs progressive signals. Select this setting when:

– your TV accepts progressive signals,

and,

– your TV is connected via the

COMPONENT VIDEO OUT jacks. When you select [ON], the confirmation display appears. Follow the Steps below.

8 Press C/c to select [START], then

press .

The system outputs a progressive signal for about 5 seconds. Check that the screen is displayed correctly.

9 Press C/c to select [YES], then press

The system outputs a progressive signal. When you select [NO], the system does not output a progressive signal.

Page 39

Playback

Playing a Disc

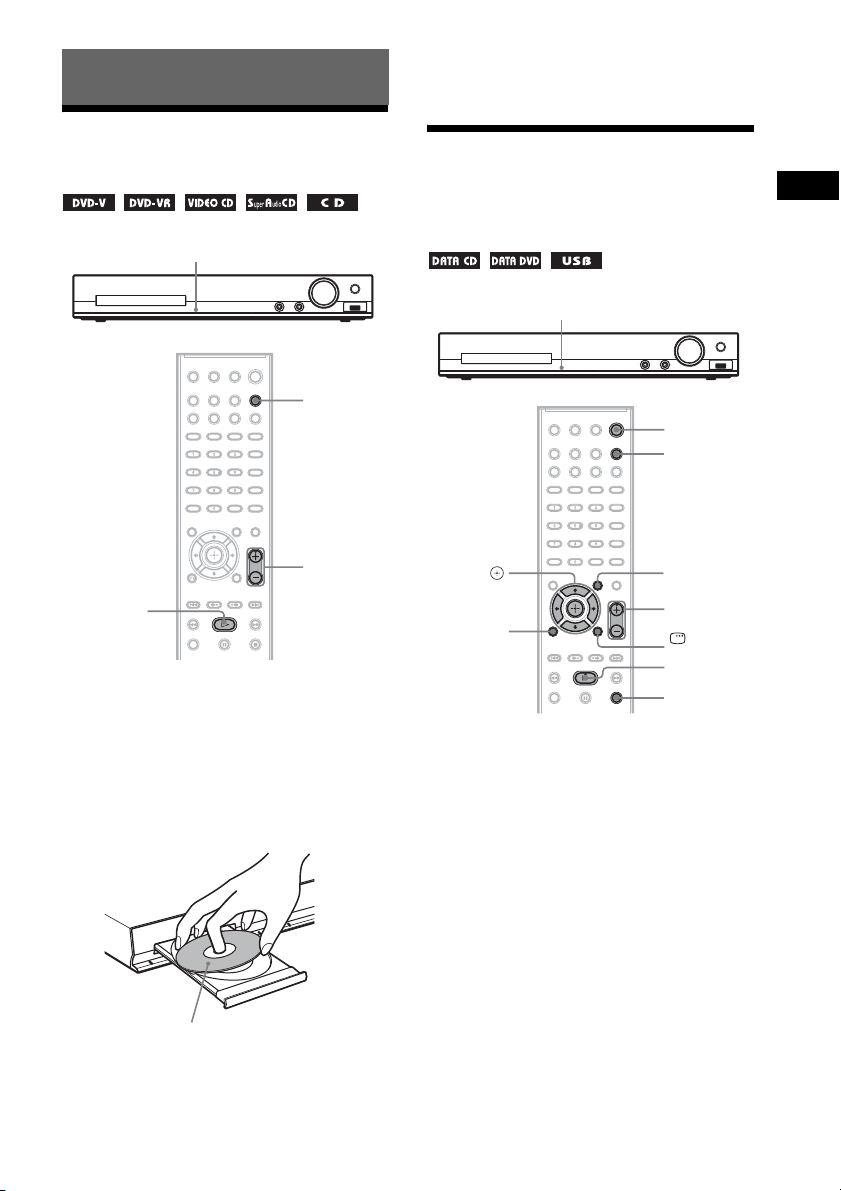

5 Press VOLUME +/– to adjust the

volume.

Playing Files on a Disc/

FUNCTION

VOLUME +/–

1 Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel display.

2 Press Z to open the disc tray. 3 Place a disc on the tray, then press Z.

USB Device

"/1

FUNCTION

C/X/x/c,

RETURN

1 Press FUNCTION repeatedly to select

the source you want to play.

The selected item appears in the front panel display.

• “DVD/CD”: For a disc.

• “USB”: For a USB device.

DVD MENU

VOLUME +/–

DISPLAY

Playback

With the label side up.

4 Press N to start playback.

Page 40

2 Load the source.

x For a disc

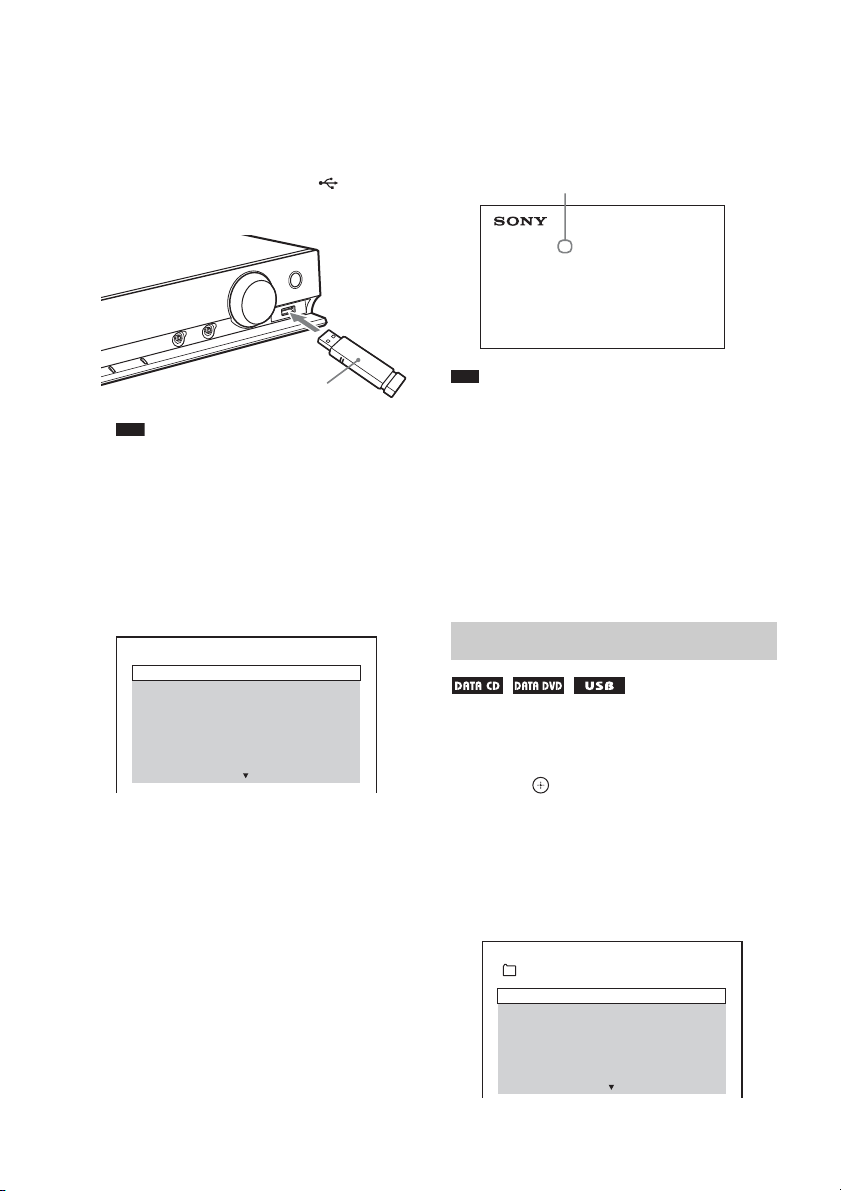

Place a disc on the tray by pressing Z to open/close the disc tray.

x For a USB device

Connect a USB device to the (USB) port.

To select the playback source of the USB device

You can select the memory number for playback depending on the USB device.

Press MEMORY SELECT.

Selected memory number

USB Memory 2 selected.

Home Theatre System

USB device

Note

• It may take about 10 seconds before “READING” appears in the front panel display depending on the type of USB device.

[FOLDER LIST] appears on the TV screen. If [FOLDER LIST] does not appear, press DVD MENU.

3 Press X/x to select a folder.

FOLDER LIST

01 Let's Talk About Love (1985) 02 1st Album (1986) 03 In the Middle of Nowhere (1986) 04 Ready for Romance (1986) 05 In the Garden of Venus (1987) 06 Romantic Warriors (1987) 07 Back for Good (1988) 08 Alone (1999)

4 Press N to start playback.

x For video or audio files

The system starts playback of files in the selected folder.

x For JPEG image files

The system starts a slide show of files in the selected folder.

5 Press VOLUME +/– to adjust the

volume.

Note

• When the memory cannot be selected, [Operation not possible.] appears on the TV screen.

• The memory number changes depending on the USB device.

To remove the USB device

1 Press x to stop playback. 2 Press [/1 to turn off the system. 3 Remove the USB device.

Playing a specific file

1 Select a folder by following Steps in

“Playing Files on a Disc/USB Device” (page 39).

2 Press to display the file list. 3 Select a file.

To return to the folder list, press O RETURN.

x For video or audio files

Press X/x to select a file.

TRACK LIST

03 In the Middle of Nowher...

01_Geronimo_s_Cadillac 02_Riding_On_A_White_Swan 03_Give_Me_Peace_On_Earth 04_Sweet_Little_Shella 05_Ten_Thousand_Lonely_Drums 06_Lonely_Tears_In_Chinatown 07_In_Shaire

Page 41

x For JPEG files

Press C/X/x/c to select an image.

1234

When different file types are on a disc/USB device

5678

9101112

13 14 15 16

4 Start playback.

x For video or audio files

Press N to start playback from the selected file.

x For JPEG image files

Press N to start a slide show beginning with the selected file. Press to display only the selected file.

To display the thumbnail list of JPEG image files

Press PICTURE NAVI.

To turn on/off the list of folders/ files

Press DVD MENU.

To display the list of folders/files using the Control Menu

1 Press DISPLAY. 2 Press X/x to select

[BROWSING], then press .

3 Press X/x to select the desired list,

then press .

• [FOLDER LIST]: A list of folders

appears. To display a list of files, press X/ x to select a folder, then press .

• [PICTURE LIST] (JPEG image files only): A thumbnail list of the JPEG image files in the folder appears.

You can select the file type that is played with priority when mixed media (audio files, JPEG image files, or video files) are on the disc/USB device.

1 Press DISPLAY. 2 Press X/x to select [MEDIA],

then press .

3 Press X/x to select a setting, then

press .

• [MUSIC/PHOTO] (DATA CD/DATA DVD only): You can play both JPEG image files and MP3 files in the same folder as a slide show.

• [MUSIC]: Audio file playback has priority.

• [VIDEO]: Video file playback has priority.

• [PHOTO]: JPEG image file playback has priority. You can play JPEG image files as a slide show.

The default setting differs depending on the source. For details of the playback priority of file types under the [MEDIA] setting, see “Playback Priority of File Types” (page 90).

Playback

Page 42

Other Playback Operations

Playback operation buttons on the remote

Depending on the type of disc/file, the function may not work.

To Press

Stop x Pause X

Return to normal playback or resume playback after pause

Cancel the resume point

Skip the current chapter, track, file, or scene

Skip the current JPEG image file

Locate a point quickly

Watch frame by frame

x twice.

. or >.

• .: go to the beginning.

•Press . twice in a second to

go to the previous item.

• >: go to the next item. C or c during playback.

• C: go to the previous file.

• c: go to the next item.

/m or M/ while

playing a disc.

•/m: fast reverse scan.

• M/ : fast forward scan. Each time you press /m or M/ during scan, the scan speed changes.

X, then press /m or M/

•/m: slow-motion play

(reverse).

• M/ : slow-motion play

(forward).

Each time you press /m or M/ during slow-motion play, the playback speed changes.

To Press

Play one frame at a time (Freeze Frame)

Replay the previous scene or briefly fast forward the current scene

Go to the previous or next page when a list of folders/files has multiple pages

Rotate a JPEG image file

Tip

• When playing files, you can select the next folder by

continuing to press > (c for JPEG image files) after the last file on the current folder, but you cannot return to the previous folder by pressing .(C for JPEG image files). To return to the previous folder, select the folder from the folder list.

• You cannot rotate the JPEG image file when you set [JPEG RESOLUTION] in [HDMI SETUP] to [(1920 × 1080i) HD ] or [(1920 × 1080i) HD] (page 71).

X, then press STEP or STEP.

• STEP: go to the preceding frame.

• STEP: go to the next frame.

or during playback.

• : 10 seconds before.

• : 30 seconds ahead.

or .

X/x while viewing a JPEG image file.

Press CLEAR to return to normal view.

Playing a specific title/ chapter/track/scene, etc.

To select the title/chapter/track/ scene/index/folder/file number for playback

1 Press DISPLAY. 2 Press X/x to select the search method,

then press .

• [TITLE/SCENE/TRACK]

• [CHAPTER/INDEX]

• [TRACK]

• [INDEX]

• [FOLDER]

Page 43

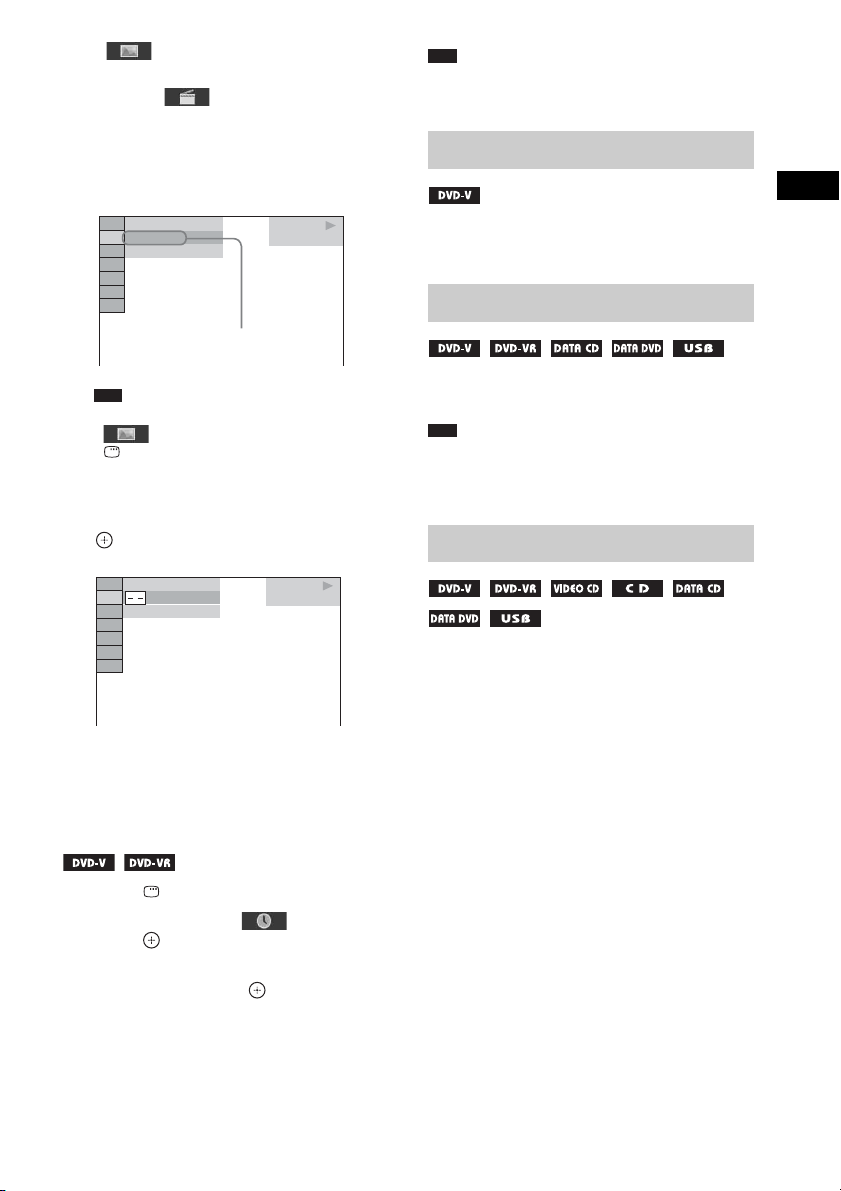

• [FILE]

Example: [CHAPTER] [** (**)] is selected (** refers to a number). The number in parentheses indicates the

total number of titles, chapters, tracks, indexes, scenes, folders, or files.

98( 99) 13( 99) T 0: 03: 17

Selected row

DVD VIDEO

Note

• You cannot search for a scene on a DVD+RW using the time code.

Changing angles

Playback

Press ANGLE during playback to select the desired angle.

Displaying subtitles

Note

• If [MEDIA] is set to [MUSIC/PHOTO] and [FILE] does not appear, press

DISPLAY again.

3 Press X/x or the number buttons to

select the desired number of the title, chapter, track, scene, etc., then press

98( 99)

13( 99) T 0: 03: 17

DVD VIDEO

If you make a mistake, press CLEAR to cancel the number.

To select a scene using the time code

1 Press DISPLAY. 2 Press X/x to select [TIME], then

press .

3 Input the time code using the number

buttons, then press .

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds after the beginning: press 2, 1, 0, 2, 0 ([2:10:20]).

Press SUBTITLE during playback to select the desired subtitle language.

Note

• You can select the subtitles if the DivX video file has an “.avi” or “.divx” extension and contains subtitle information within the same file.

Changing the audio

Press AUDIO repeatedly during playback to select the sound.

x DVD VIDEO

You can toggle audio format or language when the source contains multiple audio formats or multilingual audio. When 4 digits are displayed, they indicate a language code. See “Language Code List” (page 91) to confirm which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

Page 44

Example:

Dolby Digital 5.1 channel

LFE (Low

Surround (L/R)

1: ENGLISH

Front (L/R) + Center

Currently playing program format

x DVD-VR

You can toggle audio tracks when a disc contains multiple audio tracks.

x VIDEO CD/CD/DATA CD (MP3 file)/DATA DVD (MP3 file)/USB device (audio file)

You can change the sound track.

• [STEREO]

• [1/L]: The sound of the left channel (monaural).

• [2/R]: The sound of the right channel (monaural).

x DATA CD (DivX video file)/DATA DVD (DivX video file)/USB device (DivX video file)

You can toggle audio tracks when a video file contains multiple audio tracks.

x Super VCD

You can change the sound track.

• [1:STEREO]

• [1:1/L]: The sound of the left channel of audio track 1 (monaural).

• [1:2/R]: The sound of the right channel of audio track 1 (monaural).

• [2:STEREO]: The stereo sound of audio track

• [2:1/L]: The sound of the left channel of audio track 2 (monaural).

• [2:2/R]: The sound of the right channel of audio track 2 (monaural).

: The stereo sound.

: The stereo sound of audio track

Frequency Effect)

DOLBY DIGITAL 3 / 2 . 1

CL R

LFE

LS RS

Using the DVD’s menu

When you play a DVD which contains several titles, you can select the title you want using DVD TOP MENU. When you play a DVD that allows you to select items such as the language for the subtitles and the language for the sound, select these items using DVD MENU.

1 Press DVD TOP MENU or DVD MENU. 2 Press C/X/x/c or the number buttons to

select the item you want to play or change, then press .

To display the DVD’s menu on the Control Menu

1 Press DISPLAY. 2 Press X/x to select [DISC

MENU], then press .

3 Press X/x to select [MENU] or [TOP

MENU], then press .

Selecting an original title or edited title on a DVD-VR

This function is only available for DVD-VRs with a playlist created.

1 Press DISPLAY while the system is

in stop mode.

2 Press X/x to select [ORIGINAL/

PLAY LIST], then press .

3 Press X/x to select a setting, then

press .

• [PLAY LIST]: You can play the titles in the order of the existing playlist.

• [ORIGINAL]: You can play the titles as they were originally recorded.

Page 45

Selecting a playback area for a Super Audio CD

Some Super Audio CDs consist of a 2 channel playback area and a multi-channel playback area. You can select the playback area you want to listen to.

1 Press DISPLAY while the system is

in stop mode.

2 Press X/x to select [MULTI/

2CH], then press .

3 Press X/x to select the setting, then

press .

• [MULTI]: You can play the multi-channel playback area.

• [2CH]: You can play the 2 channel playback area.

Changing a playback layer for a hybrid Super Audio CD

Some Super Audio CDs consist of a Super Audio CD layer and a CD layer. You can change the playback layer you want to listen to.

1 Press DISPLAY while the system is

in stop mode.

2 Press X/x to select [SUPER

AUDIO CD/CD LAYER], then press .

x When the current layer is the CD layer

[SUPER AUDIO CD] appears.

x When the current layer is the Super Audio CD layer

[CD] appears.

3 Press to change the layer.

• [SUPER AUDIO CD]: You can play the Super Audio CD layer. When the system is playing a Super Audio CD layer, “SA-CD” lights up in the front panel display.

• [CD]: You can play the CD layer. When the system is playing a CD layer, “CD” lights up in the front panel display.

Note

• Super Audio C D audio signals are not output from the HDMI OUT jack.

Selecting the Playback Mode

Playing in programmed order

(Program Play)

You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 99 tracks.

1 Press DISPLAY. 2 Press X/x to select [PROGRAM],

then press .

3 Press X/x to select [SET t], then

press .

Total time of the programmed tracks

PROGRAM 0: 00:00

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– – – – – – – – – – – – – – – –

Tracks recorded on a disc

01 02 03 04 05 06

Playback

Page 46

4 Press c.

The cursor moves to the track row [T] (in this case, [01]).

PROGRAM 0: 00:00

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– – – – – – – – – – – – – – – –

01 02 03 04 05 06

5 Select the track you want to program.

Ex. To set track 2 as the first programmed track

Press X/x to select [02] under [T], then press .

Selected track

PROGRAM 0: 03:51

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Total time of the programmed tracks

Track number [T]

02 – – – – – – – – – – – – – –

01 02 03 04 05 06

6 To program other tracks, repeat Steps

4 to 5.

7 Press N to start Program Play.

To return to normal playback

Press CLEAR when the display for the program setting is not displayed on the TV screen, or select [OFF] in Step 3. To play the same program again, select [ON] in Step 3 and press

To change or cancel a program

1 Follow Steps 1 to 3 of “Playing in

programmed order.”

2 Press X/x to select the program

number of the track you want to change or cancel.

If you want to delete the track from the program, press CLEAR.

3 Follow Step 5 of “Playing in

programmed order” for new programming.

To cancel a program, select [--] under [T], then press .

To cancel all of the tracks in the programmed order

1 Follow Steps 1 to 3 of “Playing in

programmed order.”

2 Press X and select [ALL CLEAR], then

press .

Playing in random order

(Shuffle Play)

Note

• The same song may be played repeatedly when you are playing MP3 files.

1 Press DISPLAY during playback. 2 Press X/x to select [SHUFFLE],

then press .

3 Press X/x to select the item to be

shuffled.

x VIDEO CD/Super Audio CD/CD

• [OFF]: Off.

• [TRACK]: You can shuffle tracks on the disc.

x During Program Play

• [OFF]: Off.

• [ON]: You can shuffle tracks selected in Program Play.

x DATA CD (audio files only)/DATA DVD (audio files only)/USB device (audio files only)

• [OFF]: Off.

• [ON (MUSIC)]: You can shuffle audio files in the folder on the current disc/USB device. When no folder is selected, the audio files in the first folder are shuffled.

4 Press to start Shuffle Play.

Page 47

To return to normal playback

Press CLEAR, or select [OFF] in Step 3.

Note

• You cannot use Shuffle Play with a VIDEO CD or Super VCD with PBC playback.

To return to normal playback

Press CLEAR, or select [OFF] in Step 3.

Note

• You cannot use Repeat Play with a VIDEO CD or Super VCD with PBC playback.

Playing repeatedly

(Repeat Play)

1 Press DISPLAY during playback. 2 Press X/x to select [REPEAT],

then press .

3 Press X/x to select the item to be

repeated, then press .

x DVD VIDEO/DVD-VR

•[OFF]: Off.

• [DISC]: You can repeat all of the titles on the disc.

• [TITLE]: You can repeat the current title on a disc.

• [CHAPTER]: You can repeat the current chapter on a disc.

x VIDEO CD/Super Audio CD/CD

•[OFF]: Off.

• [DISC]: You can repeat all of the tracks on the disc.

• [TRACK]: You can repeat the current track.

x DATA CD/DATA DVD/USB device

•[OFF]: Off.

• [DISC] (DATA CD/DATA DVD only): You can repeat all of the folders on the disc.

• [MEMORY] (USB device only): You can repeat all of the folders on the USB device.

• [FOLDER]: You can repeat the current folder.

• [TRACK] (audio files only): You can repeat the current file.

• [FILE] (video files only): You can repeat the current file.

4 Press N to start Repeat Play.

Selecting an effect for the slide show

1 Press DISPLAY repeatedly until

[EFFECT] appears on the

control menu.

2 Press X/x to select [EFFECT],

then press .

3 Press X/x to select a setting, then

press .

• [MODE 1]: The JPEG image file sweeps in from the top to the bottom of the TV screen.

• [MODE 2]: The JPEG image file stretches out from the left to the right of the TV screen.

• [MODE 3]: The JPEG image file stretches out from the center of the TV screen.

• [MODE 4]: The JPEG image files randomly cycle through the effects.

• [MODE 5]: The next JPEG image file slides over the previous image.

• [OFF]: Off.

Note

• The [EFFECT] setting is not effective when you set [JPEG RESOLUTION] in [HDMI SETUP] to [(1920 × 1080i) HD ] or [(1920 × 1080i) HD] (page 71).

• The [EFFECT] setting cannot be selected when you are playing a disc that does not contain JPEG image files or a USB device, or when you set [MEDIA] to a setting that cannot play JPEG image files.

Selecting the slide show duration

1 Press DISPLAY repeatedly until

[INTERVAL] appears on the

control menu.

Playback

Page 48

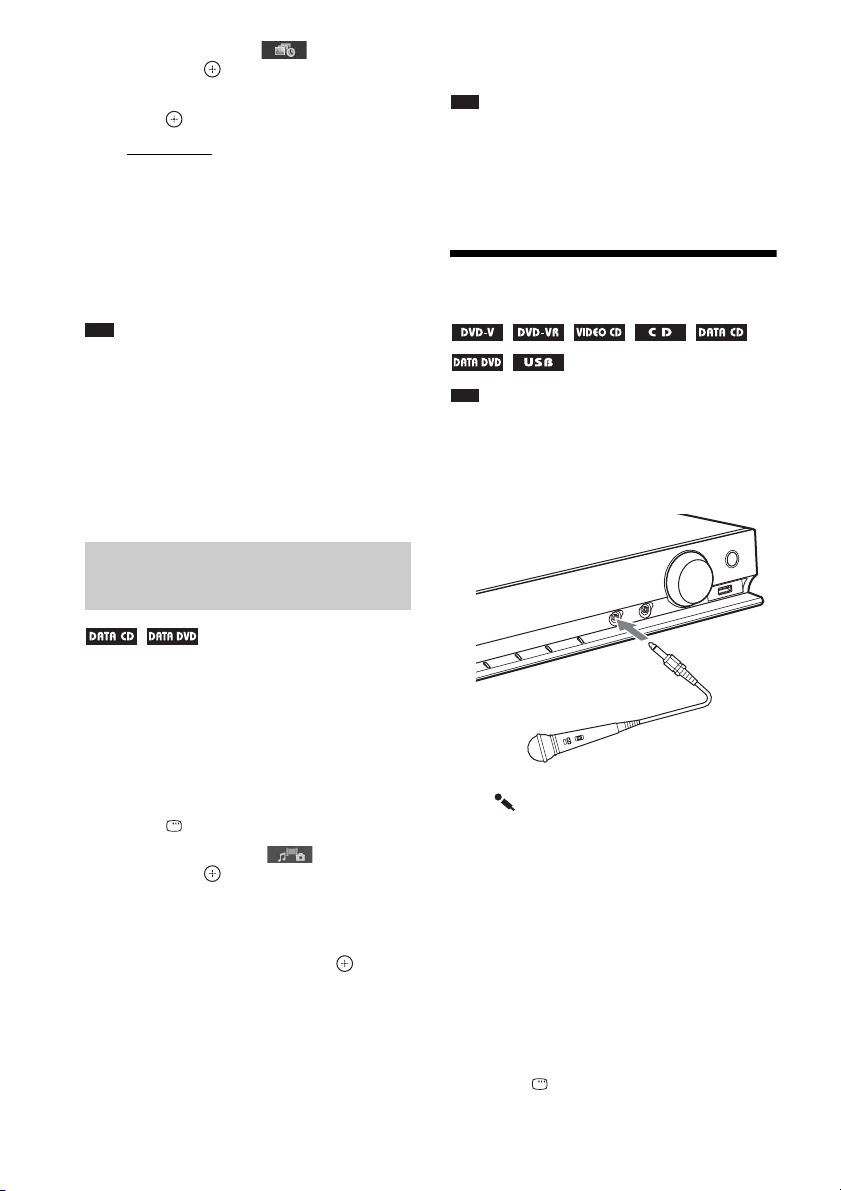

2 Press X/x to select [INTERVAL],

then press .

3 Press X/x to select a setting, then

press .

• [NORMAL]: You can set to the standard duration.

• [FAST]: You can set the duration shorter than [NORMAL].

• [SLOW 1]: You can set the duration longer than [NORMAL].

• [SLOW 2]: You can set the duration longer than [SLOW 1].

Note

• Some JPEG image files may take longer to display than the option you selected, especially progressive JPEG image files or JPEG image files of 3,000,000 pixels or more.

• The [INTERVAL] setting cannot be selected when you are playing a disc that does not contain JPEG image files or a USB device, or when you set [MEDIA] to a setting that cannot play JPEG image files.

Playing a slide show with sound

6 Press X/x to select the desired folder

and press N.

Note

• If you play a large MP3 file and JPEG image file at the same time, the sound may skip. Sony recommends that you set th e MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, reduce the size of the JPEG image file.

Enjoying Karaoke

Note

• You cannot use the karaoke function with the S-AIR receiver. When using the karaoke function, turn the S-AIR receiver off.

1 Plug a microphone into the MIC jack.

L M

1 Prepare a folder on a disc which

contains both MP3 files and JPEG image files.

The MP3 files and JPEG image files must not be in separate folders. For details of making the disc, refer to the instructions of your PC, software, etc.

2 Press DISPLAY. 3 Press X/x to select [MEDIA],

then press .

4 When [MUSIC/PHOTO] is selected, go

to Step 5. When other than [MUSIC/ PHOTO] is selected, press X/x to select [MUSIC/PHOTO], then press .

5 If the folder list does not appear, press

DVD MENU.

You can turn the folder list on/off by pressing DVD MENU repeatedly.

The system enters karaoke mode, and “ ” lights up in the front panel display.

2 Start audio playback following the

Steps in “Playing a Disc” (page 39) or “Playing Files on a Disc/USB Device” (page 39).

3 Sing along to the audio.

Press MIC VOL +/– to adjust the microphone volume.

To set the system to karaoke mode without the microphone connected

1 Press DISPLAY.

Page 49

Note

• The Control Menu will not appear if no disc/ USB device is inserted into the unit.

2 Press X/x repeatedly to select

[KARAOKE MODE], then press .

3 Press X/x to select [ON], then press

To cancel karaoke mode

Disconnect the microphone, or set [KARAOKE MODE] to [OFF].

Note

• Before connecting, press MIC VOL – to set the microphone volume to minimum.

• If you play the Super Audio CD layer of a Super Audio CD (page 45), karaoke mode will be set to off automatically. In this case, the beginning of the sound may be cut off. To avoid the sound cutting, play the Super Audio CD after you set [KARAOKE MODE] to [OFF].

• Microphone sound is not output when:

– the microphone is not connected to the unit

properly.

– the microphone volume is set to minimum.

– you use a microphone other than the monaural

dynamic type.

• When you set the system to karaoke mode while playing a VIDEO CD/CD/MP3 file, the sound track (page 43) is set to [1/L] automatically.

Tip

• The karaoke play i s performed with the audio channel you selected using AUDIO (page 43).

To add the echo effect

Press ECHO repeatedly.

Each time you press ECHO, the echo level changes as follows:

“ECHO OFF” t “ECHO 1”

“ECHO 3” T “ECHO 2”

Changing the key of a song (Key Control)

You can change the key to suit your vocal range, except when the system is in stop mode.

Press KEYCON #/2 to suit your vocal range in karaoke mode.

You can adjust the key lower or higher in 13 steps (

Note

• Depending on the source, you may not be able to

• The key may return to the original key automatically

26 – #6).

change the key.

if you operate the system or the status of the system is changed.

Reducing the vocal sound of a non-karaoke source (Karaoke Pon)

You can enjoy karaoke with a stereo-recorded source, even if it is a non-karaoke source, by reducing the sound of the vocals.

Press KARAOKE PON in karaoke mode.

To cancel Karaoke Pon mode

Press KARAOKE PON again.

Note

• This function may not work well depending on the source.

• Karaoke Pon mode may be canceled automatically if you operate the system.

Playback

To cancel the echo effect, select “ECHO OFF.”

Note

• If howling occurs:

– move the microphone away from the speakers.

– lower the microphone volume or echo level.

– lower the overall volume.

Page 50

Selecting the vocals (Vocal Select)

About karaoke DVDs recorded in Dolby Digital format

When playing a karaoke DVD recorded in Dolby Digital format in karaoke mode, you can turn on or off the guide vocal recorded in the karaoke track. When playing a VIDEO CD/CD in karaoke mode, you can listen to the vocals. You can also change the guide vocal channel to select different kinds of vocals.

1 Press DISPLAY in karaoke mode. 2 Press X/x repeatedly to select

[VOCAL SELECT], then press .

3 Press X/x repeatedly to select the

desired vocal channel.

x DVD VIDEO

•[OFF]: The guide vocal is canceled.

• [1+2]: Guide vocal 1+2 is output.

• [1]: Guide vocal 1 is output.

• [2]: Guide vocal 2 is output.

x VIDEO CD/CD

•[OFF]: The guide vocal is canceled.

• [L+R]: Same sound is output from both speakers.

• [STEREO]: The standard stereo sound is output.

x Super VCD

•[OFF]: The guide vocal is canceled.

• [1:L+R]: Same sound of the audio track 1 is output from both speakers.

• [1:STEREO]: The stereo sound of the audio track 1 is output.

• [2:L+R]: Same sound of the audio track 2 is output from both speakers.

• [2:STEREO]: The stereo sound of the audio track 2 is output.

4 Press .

Note

• Depending on the disc, you may not be able to change the guide vocal channel.

• The channel may return to the default setting if you operate the system.

On karaoke DVDs recorded in Dolby Digital format, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select an accompaniment, guide melody, or guide vocal track when the system is in karaoke mode.

Accompaniment

Front

(L)

Surround

Guide vocal 1

You can select any of these. These are output from the respective speakers.

Center

Guide melody

(L)

Accompaniment

Surround

(R)

Guide vocal 2

Front

(R)

You can check the audio information by pressing AUDIO (page 43). When playing a Karaoke DVD, “ ” appears as the current audio format.

Example:

1: ENGLISH

2/0: Recorded only with

accompaniment. 3/0: Recorded with guide melody. 3/1: Recorded with guide melody and

one guide vocal. 3/2: Recorded with guide melody and

two guide vocals.

DOLBY DIGITAL 3 / 2

Page 51

Displaying the

Information of a Disc/ USB Device

Viewing playback information

Press DISPLAY repeatedly during playback.

Information on the TV screen

192k MP3T 0: 13

4, 5

Dvorak/Tchaikovsky/NedPho/Kreizberg Adagio - Allegro molto

1 [T **:**:**/C **:**:**/D **:**:**]

Playing time of the current title, track/ chapter/disc

[T-**:**:**/C-**:**:**/D-**:**:**]

Remaining time of the current title, track/ chapter/disc

[**:**:**]

Playing time of the current scene/video file

2 Bit rate

Appears when playing an audio file.

3 File type

Appears when playing an audio/video file.

4 Folder/file name

Appears when playing an audio file/JPEG image file/video file.

If an MP3 file has an ID3 tag, the system will display an album name/title name from the ID3 tag information. The system can support ID3 ver 1.0/1.1/2.2/

2.3. ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver

2.2/2.3 tags are used for a single MP3 file.

5 Text information

The DVD/Super Audio CD/CD text appears only when text is recorded on the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears.

Note

• Depending on the source being played, the system can only display a limited numb er of characters. Also, depending on the source, not all text characters will be displayed.

Information in the front panel display

Each time you press DISPLAY during playback, the following information appears. Some displayed items may disappear after a few seconds.

x DVD VIDEO/DVD-VR

1 Playing time of the current title 2 Remaining time of the current title 3 Playing time of the current chapter 4 Remaining time of the current chapter 5 Disc name 6 Title and chapter

x VIDEO CD (with PBC functions)/Super VCD (with PBC functions)

1 Playing time of the current item 2 Disc name 3 Scene number

x VIDEO CD (without PBC functions)/ Super Audio CD/CD

1 Playing time of the current track 2 Remaining time of the current track 3 Playing time of the disc 4 Remaining time of the disc 5 Track name 6 Track and index*

* VIDEO CD/Super Audio CD only.

x Super VCD (without PBC functions)

1 Playing time of the current track 2 Track text 3 Track and index number

Playback

Page 52

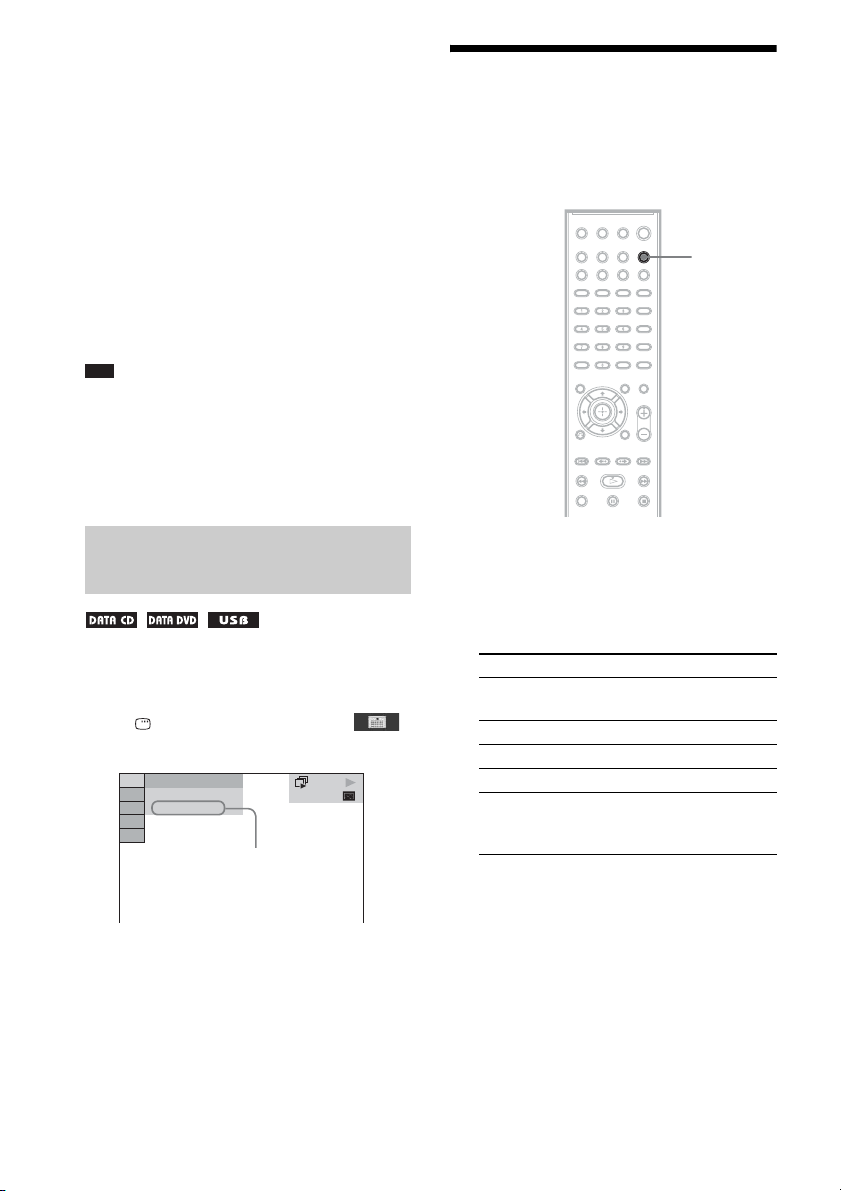

x DATA CD/DATA DVD/USB device (audio file)

1 Playing time and current track number 2 Track (file) name*

* If an MP3 file has an ID3 tag, the system will

display a title name from the ID3 tag information. The system can support ID3 ver 1.0/1.1/2.2/2.3. ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are used for a single MP3 file.

x DATA CD (video file)/DATA DVD (video file)/USB device (video file)

1 Playing time of the current file 2 Current file name 3 Current album and file number

Note

• The system can only display the first level of the DVD/CD text, such as the disc name or title.

• The disc name or track name may not be displayed depending on the text.

• Playing time of MP3 files and video files may not be displayed correctly.

Enjoying the Audio/Video of the Connected Component

FUNCTION

Viewing the date information of a JPEG image file

You can check the date information during playback when the Exif* tag is recorded in the JPEG image file.

Press DISPLAY repeatedly until [DATE] appears on the control menu.

5( 8) 10( 15) 18/9/2002

Date information

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan Electronics and Information Technology Industries Association (JEITA).

DATA CD

1 Press FUNCTION repeatedly to select

the desired function.

The selected item appears in the front panel display.

Function Source

“DVD/CD” Disc that is played by the

system

“TUNER FM” FM radio

“USB” USB device

“TV” TV or set-top box

“AUDIO IN” Portable audio source that

is connected to the AUDIO IN jack on the front panel

Page 53

2 Prepare the source.

• “DVD/CD”: Insert the disc into the unit

(page 39).

• “TUNER FM”: Select the radio program

(page 54).

• “USB”: Connect the USB device directly

(page 39).

• “TV”: Select the channel on the TV or set-

top box.

• “AUDIO IN”: Connect the portable audio

source via an audio cord (stereo mini-plug cord) (page 31).

3 Operate the connected component.

To enjoy a set-top box, select the input of the set-top box via the TV to which it is connected.

Playback

Page 54

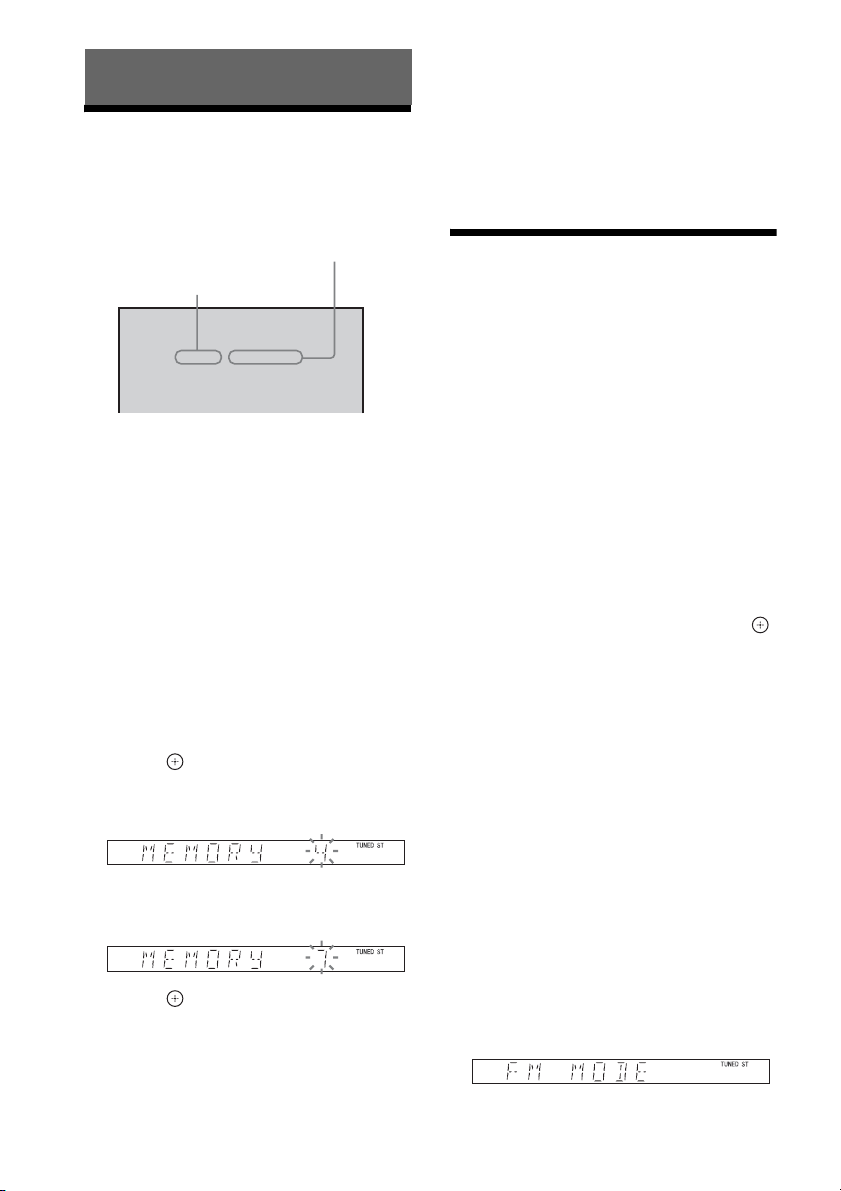

Tuner

Presetting Radio Stations

You can preset 20 FM stations.

Current station

Current band and preset number

FM 10 : 88.00 MHz

1 Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel display.

2 Press and hold TUNING +/– until the

auto scanning starts.

Scanning stops when the system tunes in a station. “TUNED” appears in the front panel display. When a stereo program is received, “ST” also appears in the front panel display.

3 Press SYSTEM MENU. 4 Press X/x to select “MEMORY.” 5 Press or c.

A preset number appears in the front panel display.

6 Press X/x to select the preset number

you want.

7 Press .

“COMPLETE” appears in the front panel display, and the station is stored.

8 Repeat Steps 2 to 7 to store other

stations.

9 Press SYSTEM MENU.

To change the preset number

Select the desired preset number by pressing PRESET +/– (page 54), then perform the procedure from Step 3.

Listening to the Radio

Preset radio stations in the system’s memory first (see “Presetting Radio Stations” (page 54)).

1 Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel display.

2 Press PRESET +/– repeatedly to select

the preset station.

3 Adjust the volume by pressing

VOLUME +/–.

To listen to radio stations when you know the frequencies

Press D.TUNING in Step 2, press the number buttons to select the frequencies, then press .

To listen to non-preset radio stations

Use manual or automatic tuning in Step 2. For manual tuning, press TUNING +/– repeatedly. For automatic tuning, press and hold TUNING +/–. The automatic tuning stops automatically when the system receives the radio station. To stop the automatic tuning manually, press TUNING +/– or x.

If an FM program is noisy

If an FM program is noisy, you can select monaural reception. There will be no stereo effect, but reception will improve.

1 Press SYSTEM MENU. 2 Press X/x to select “FM MODE.”

Page 55

3 Press or c. 4 Press X/x to select “MONO.”

• “STEREO”: Stereo reception.

• “MONO”: Monaural reception.

5 Press . 6 Press SYSTEM MENU.

Tuner

Page 56

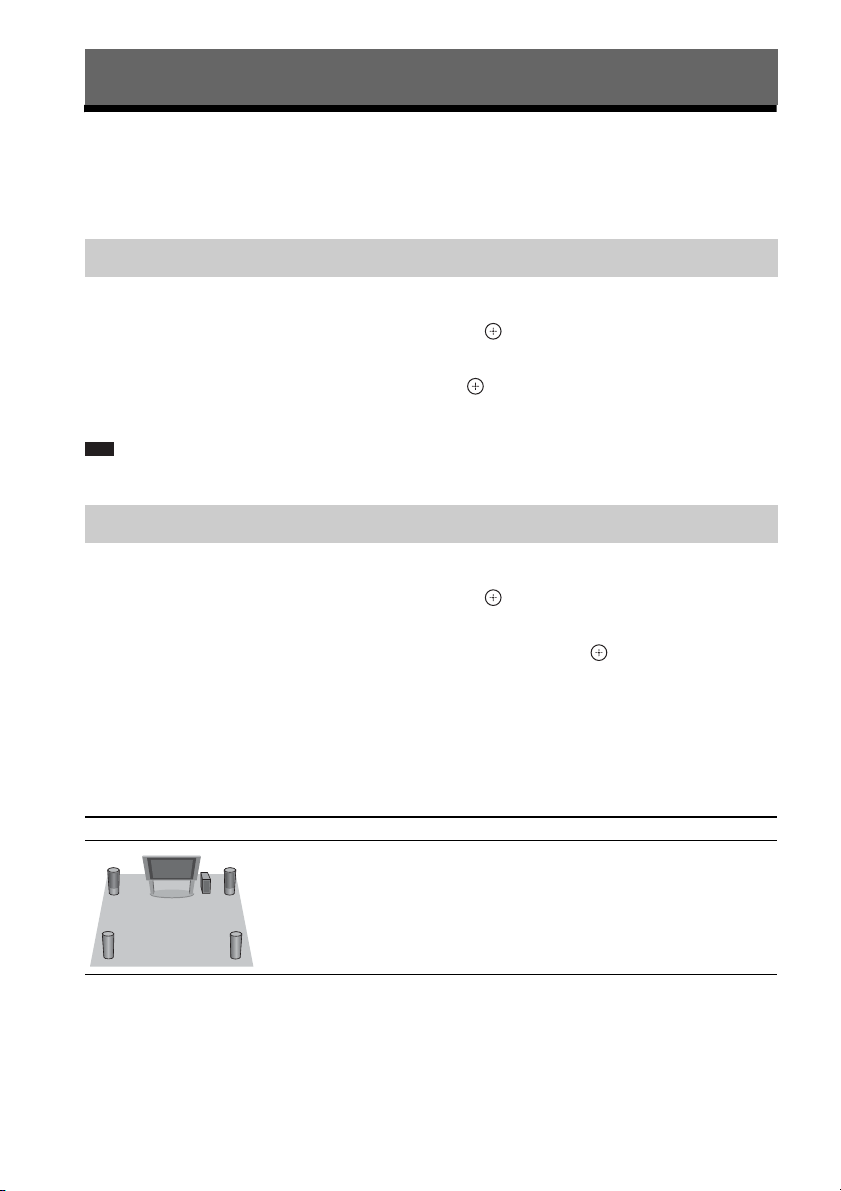

Sound Effect

Enjoying Surround Sound

You can enjoy surround sound simply by selecting one of the system’s pre-programmed surround settings.

Enjoying TV sound with the 5.1 channel surround sound effect

1 Press SYSTEM MENU. 2 Press X/x to select “SUR.SETTING,” then press or c.

The selected item appears in the front panel display.

3 Press X/x to select “PRO LOGIC,” then press . 4 Press SYSTEM MENU.

Note

• When TV program sound is monaural, sound is output only from the center speaker.

Selecting surround settings based on your listening preference

1 Press SYSTEM MENU. 2 Press X/x to select “SUR.SETTING,” then press or c.

The selected item appears in the front panel display.

3 Press X/x to select the surround setting you want, then press .

See the table below for surround setting descriptions.

4 Press SYSTEM MENU.

About speaker output

The table below describes the options when you connect all the speakers to the unit and you set [SPEAKER FORMATION] to [STANDARD] (page 72).

Sound from Surround setting Effect

“A.F.D. MULTI”

(AUTO FORMAT DIRECT MULTI)

• 2 channel source: The system outputs 2 channel sound from the front and surround speakers by assigning the 2 channel sound to the surround left and right channels.

• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.

Page 57

Sound from Surround setting Effect

“PRO LOGIC”

“PLII MOVIE”

“PLII MUSIC”

• 2 channel source: The system simulates surround sound from 2 channel sources and outputs sound from all the speakers.

– “PRO LOGIC” performs Dolby Pro Logic decoding.

– “PLII MOVIE” performs Dolby Pro Logic II movie

– “PLII MUSIC” performs Dolby Pro Logi c II music mode

• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.

“2CH STEREO” The system outputs the sound from the front speakers and

subwoofer regardless of sound format or number of channels. Multi-channel surround formats are downmixed to 2 channels.

mode decoding.

decoding.

Sound Effect

Depending on the source. “A.F.D. STD”

(AUTO FORMAT DIRECT STANDARD)

Note

The system discriminates the sound format of the source and presents sound as it was recorded/encoded.

• You cannot select the surround settings while the system is loading a disc.

• Depending on the input stream, the surround settings may not be effective.

Page 58

Selecting the Sound Effect

Selecting the effect to suit the source

Press SOUND MODE repeatedly during playback until the desired mode appears in the front panel display.

• “AUTO”: The system automatically selects “MOVIE” or “MUSIC” to produce the sound effect depending on the source. “AUTO” appears in the front panel display.

• “MOVIE”: The system provides the sound for movies. “MOVIE” appears in the front panel display.

• “MUSIC”: The system provides the sound for music. “MUSIC” appears in the front panel display.

Note

• When you play a Super Audio CD, this function does

not work.

Enhancing compressed sound

Reinforcing bass frequencies

Press DYNAMIC BASS.

“D. BASS ON” appears in the front panel display.

To turn off the sound effect

Press DYNAMIC BASS again.

Enjoying the sound at low volume

You can enjoy sound effects or dialogue, as you would in a movie theater, even at low volume. It is useful for watching movies at night.

Press NIGHT.

“NIGHT” lights up in the front panel display.

Note

• This effect does not work for a Super Audio CD. When you load a Super Audio CD while this function is activated, the sound effect turns off automatically.

To turn off the sound effect

Press NIGHT again.

You can enhance compressed sound such as an MP3 file. This effect is activated automatically when all the following conditions are satisfied:

– The function is set to “AUDIO IN” or “USB.”

– “SUR.SETTING” is set to “A.F.D. STD” or

“A.F.D. MULTI” (page 56).

To turn off the sound effect

Select other than “A.F.D. STD” or “A.F.D. MULTI” for “SUR.SETTING” (page 56).

Page 59

Convenient Functions

Using the Control for HDMI Function for “BRAVIA” Sync

This function is available on TVs with the “BRAVIA” Sync function. By connecting Sony components that are compatible with the Control for HDMI function with an HDMI cable, operation is simplified as below:

– System Power Off (page 59)

– One-Touch Play (page 60)

– Theatre Mode (page 60)

– System Audio Control (page 60)

– Volume Limit (page 60)

– Audio Return Channel (page 60)

– Remote Easy Control (page 60)

– Language Follow (page 61)

Control for HDMI is a mutual control function standard used by CEC (Consumer Electronics Control) for HDMI (High-Definition Multimedia Interface).

Note

• Depending on the connected component, the Control for HDMI function may not work. Refer to the operating instructions of the component.

Preparing the Control for HDMI function

(Control for HDMI - Easy Setting)

If your TV is compatible with the Control for HDMI - Easy Setting function, you can set the system’s [CONTROL FOR HDMI] function automatically by setting your TV. For details, refer to the operating instructions of your TV.

If your TV is not compatible with the Control for HDMI - Easy Setting function, set the Control for HDMI function of the system and TV manually.

1 Make sure that the system and your TV

are connected with an HDMI cable.

2 Turn on your TV and press [/1 to turn

on the system.

3 Switch the input selector on your TV so

that the signal from the system through the HDMI input appears on the TV screen.

4 Set the Control for HDMI function of

your TV.

For details of the setting of your TV, refer to the operating instructions of your TV.

5 On the system, press FUNCTION

repeatedly to select “DVD/CD.”

The selected item appears in the front panel display.

6 Press DISPLAY while the system is

in stop mode.

7 Press X/x to select [SETUP],

then press .

8 Press X/x to select [CUSTOM], then

press .

9 Press X/x to select [HDMI SETUP], then

press .

10Press X/x to select [CONTROL FOR

HDMI], then press .

11Press X/x to select [ON], then press

Turning the system off in sync with your TV

(System Power Off)

When you turn your TV off by using the POWER button on your TV’s remote or TV [/1 on the system’s remote, the system turns off automatically.

Note

• This function depends on the settings of your TV. For details, refer to the operating instructions of your TV.

• Depending on the status of the system (ex. while playing a CD), the system may not turn off automatically.

Convenient Functions

Page 60

Watching a DVD by a single button press

(One-Touch Play)

Press ONE-TOUCH PLAY

Your TV turns on, your TV’s function is set to the HDMI input to which the system is connected, and the system starts playing a disc automatically. The System Audio Control function is also activated automatically.

Using the Theatre Mode

(Theatre Mode)

If your TV is compatible with the Theatre Mode, you can enjoy optimal image and sound quality suited for mo vies, and the System Aud io C ontrol function is activated automatically.

Press THEATRE.

Enjoying TV sound from the speakers by this system

(System Audio Control)

To use this function, connect the system and your TV with an audio cord and an HDMI cable (page 29).

Press [/1 to turn on the system while your TV is turned on.

The System Audio Control function is activated. TV sound is output from the system speakers, and the volume of your TV’s speakers is minimized automatically.

Note

• While your TV is in PAP (picture and picture) mode, the System Audio Control function will not work. When your TV exits PAP mode, the output method of your TV returns to the one before PAP mode.

• Depending on the TV, when you adjust the system’s volume, the volume level appears on the TV screen. In this case, the volume levels that appear on the TV screen and the front panel display of the system may differ.

Tip

• You can also operate the System Audio Control function via the TV menu.

• You can operate the volume and mute control of the system via the TV remote.

Limiting the volume level of TV sound from the system’s speakers

(Volume Limit)

When the System Audio Control function is activated and TV sound is output from the system’s speakers, the volume level is limited to the level that is set in [VOLUME LIMIT]. For details, see [VOLUME LIMIT] (page 72).

Receiving the digital audio signal of your TV

(Audio Return Channel)

The system can receive the digital audio signal of your TV via an HDMI cable when your TV is compatible with the Audio Return Channel function. You can enjoy TV sound via the system by using just one HDMI cable. For details, see [AUDIO RETURN CHANNEL] (page 72).

Operating the system via the TV remote

(Remote Easy Control)

You can control the basic functions of the system via the TV remote when the system’s video output is displayed on the TV screen. For details, refer to the operating instructions of the TV.

Page 61

Changing the language for the system’s on-screen display in sync with your TV

(Language Follow)

When you change the language for the on-screen display of your TV, the system’s on-screen display language is also changed.

Note

• When the system’s on-screen display is displayed, this function does not work.

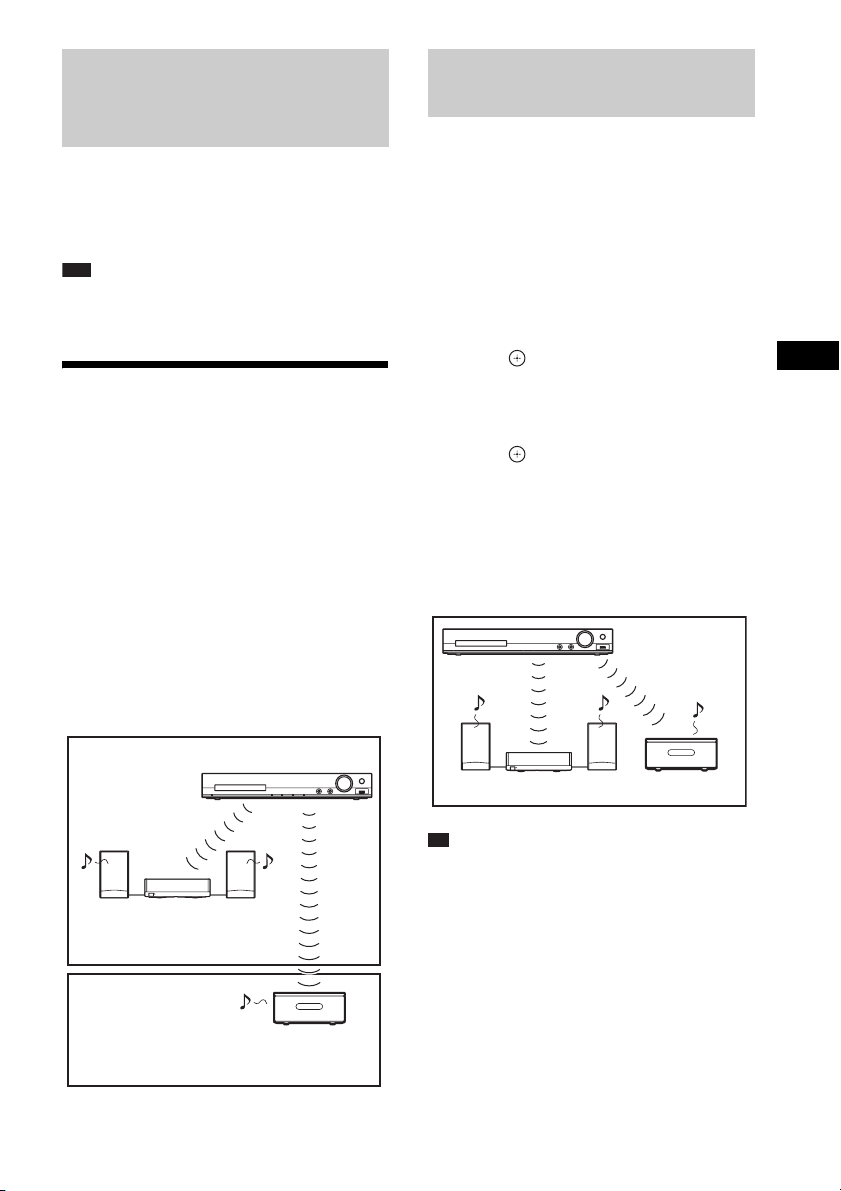

Using an S-AIR Product

About S-AIR products

There are two types of S-AIR products.

• S-AIR main unit (this unit): This is for

transmitting sound. You can use up to three S-AIR main units. (The number of usable S-AIR main units depends on the use environment.)

• S-AIR sub unit: This is for receiving sound.

– Surround amplifier (supplied): You

can enjoy surround speaker sound wirelessly.

– S-AIR receiver (optional): You can

enjoy system sound in another room.

Setting the S-AIR ID to activate wireless transmission

For the surround amplifier For the S-AIR receiver

Simply by matching the ID of the main unit and the S-AIR sub unit, you can activate wireless transmission.

To set the ID of the unit

1 Press SYSTEM MENU. 2 Press X/x to select “S-AIR ID,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select the desired ID, then

press .

You can select any ID (A, B, or C).

4 Press SYSTEM MENU. 5 Set the S-AIR sub unit to the same ID.

Wireless transmission is activated as follows (example):

ID A

Convenient Functions

Room A

S-AIR sub unit

(surround amplifier)

Room B

S-AIR main unit

S-AIR sub unit

(S-AIR receiver)

ID A ID A

Tip

• To confirm the current ID, perform Steps 1 to 3 above. When you pair the unit with an S-AIR sub unit (page 62), “(PAIRING)” appears beside ID in the front panel display.

To set the ID of the surround amplifier

1 Make sure that the SURROUND

SELECTOR switch is set to SURROUND.

2 Set the S-AIR ID switch to match the ID

(A, B, or C) of the unit.

Page 62

3 Press "/1 to turn the surround amplifier

on.

When wireless transmission is activated, the S-AIR/STANDBY indicator of the surround amplifier turns green. For details of the S-AIR/STANDBY indicator, see “Surround amplifier” (page 15).

To set the ID of the S-AIR receiver

Refer to the operating instructions of the S-AIR receiver.

Enjoying sound by the S-AIR receiver while the main unit is in standby mode

For the S-AIR receiver

You can receive the system’s sound by the S-AIR receiver while the main unit is in standby mode by setting “S-AIR STBY” to “STBY ON.”

1 Press SYSTEM MENU. 2 Press X/x to select “S-AIR STBY,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select the desired setting,

then press .

• “STBY ON”: You can receive the system’s sound by the S-AIR receiver while the unit is in standby mode or turned on.

• “STBY OFF” system’s sound by the S-AIR receiver while the unit is in standby mode.

: You cannot receive the

4 Press SYSTEM MENU.

Note

• When you turn the system off while “S-AIR STBY” is set to “STBY ON,” “S-AIR” flashes (when wireless transmission between the unit and S-AIR receiver is not activated), or lights up (when wireless transmission between the unit and S-AIR receiver is activated) in the front panel display.

Identifying the unit with a specific S-AIR sub unit (Pairing operation)

For the surround amplifier For the S-AIR receiver

When using S-AIR products, neighbors may also receive your system’s sound if IDs are the same, or you may receive sound from neighbors. To prevent this, you can identify the unit with a specific S-AIR sub unit by performing the pairing operation. When you perform pairing, wireless transmission is activated between the paired main unit and S-AIR sub unit only.

1 Place the S-AIR sub unit that you want

to pair near the unit.

2 Match the IDs of the unit and the S-AIR

sub unit.

• To set the ID of the unit, see “To set the ID of the unit” (page 61).

• To set the ID of the surround amplifier, see “To set the ID of the surround amplifier” (page 61).

• To set the ID of the S-AIR receiver, refer to the operating instructions of the S-AIR receiver.

3 Press SYSTEM MENU. 4 Press X/x to select “PAIRING,” then

press or c.

The selected item appears in the front panel display.

5 After “START” appears in the front

panel display, press .

The unit starts pairing and “SEARCH” flashes in the front panel display. To cancel pairing, press SYSTEM MENU.

6 Start pairing of the S-AIR sub unit.

x For the surround amplifier

Press "/1 on the surround amplifier to turn on the surround amplifier and press PAIRING on the rear panel of the surround amplifier. (To press PAIRING, a slim

Page 63

instrument, such as a paper clip, can be used.) The PAIRING indicator of the surround amplifier flashes when pairing starts. When wireless transmission is activated, the PAIRING indicator of the surround amplifier turns on and “PAIRING” and “COMPLETE” appear alternately in the front panel display.

x For the S-AIR receiver

Refer to the operating instructions of the S-AIR receiver. When wireless transmission is activated, “PAIRING” and “COMPLETE” appear alternately in the front panel display.

Note

• Perform pairing within several minutes of Step

5. If you do not do so, “PAIRING” and “INCOMPLETE” appear alternately in the front panel display. To continue pa iring, press and start again from Step 5. To cancel pairing, press SYSTEM MENU.

7 Press SYSTEM MENU.

To cancel pairing

Change the ID of the main and sub unit (page 61).

If wireless transmission is unstable

For the surround amplifier For the S-AIR receiver

If you use multiple wireless systems, such as wireless LAN or Bluetooth, the transmission of S-AIR signals or other wireless signals may be unstable. In this case, the transmission may be improved by changing the following “RF CHANGE” setting.

1 Press SYSTEM MENU. 2 Press X/x to select “RF CHANGE,”

then press or c.

The selected item appears in the front panel display.

3 Press X/x to select the desired setting,

then press .

• “AUTO”: Normally select this. The system changes “RF CHANGE” to “ON” or “OFF” automatically.

• “ON”: The system transmits sound by searching for the better channel for transmitting.

• “OFF”: The system transmits sound by fixing the channel for transmitting.

4 Press SYSTEM MENU. 5 When you set “RF CHANGE” to “OFF,”

select the ID so that wireless transmission is most stable (page 61).

Note

• In most cases, you will not need to change this setting.

– If “RF CHANGE” is set to “OFF,” transmission

between the unit and S-AIR sub unit can be performed using one of the following channels.

– S-AIR ID A: equivalent channel for IEEE

802.11b/g channel 1

– S-AIR ID B: equivalent channel for IEEE

802.11b/g channel 6

– S-AIR ID C: equivalent channel for IEEE

802.11b/g channel 11

• The transmission may be improved by changing the transmission channel (frequency) of the other wireless system(s). For details, refer to the operating instructions of the other wireless system(s).

Transferring Songs onto a USB Device

You can transfer songs on an audio CD or radio programs onto a USB device by encoding to MP3 format. You can also transfer MP3 files on a DATA CD/DATA DVD onto a USB device. For connecting the USB device, see “Playing Files on a Disc/USB Device” (page 39).

The transferred music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.

Convenient Functions

Page 64

Notes on USB transferring

• Do not connect the unit and the USB device through a USB hub.

• Make sure there is enough space in the USB device for transferring.

• Do not remove the USB device during transferring.

• When you are transferring tracks from an audio CD, the tracks are recorded as 128 kbps MP3 files.

• When you are transferring MP3 files from a DATA CD/DATA DVD, the MP3 files are transferred with the same bit rate as the original MP3 files.

• When you are transferring a radio program, the audio is recorded as a 128 kbps MP3 file.

• CD text information is not transferred in the created MP3 files.

• If you stop a transfer from an audio CD halfway, the MP3 file that was being created is deleted.

• Transferring stops automatically if:

– the USB device runs out of space during

transfer.

– the number of folders on the USB device

reaches the limit for the number that the system can recognize.

• You can store up to 150 files in a folder.

• You can store up to 199 folders in a single USB device.

• If a folder or file that you are trying to transfer already exists on the USB device with the same name, a sequential number is added after the name without overwriting the original folder or file.

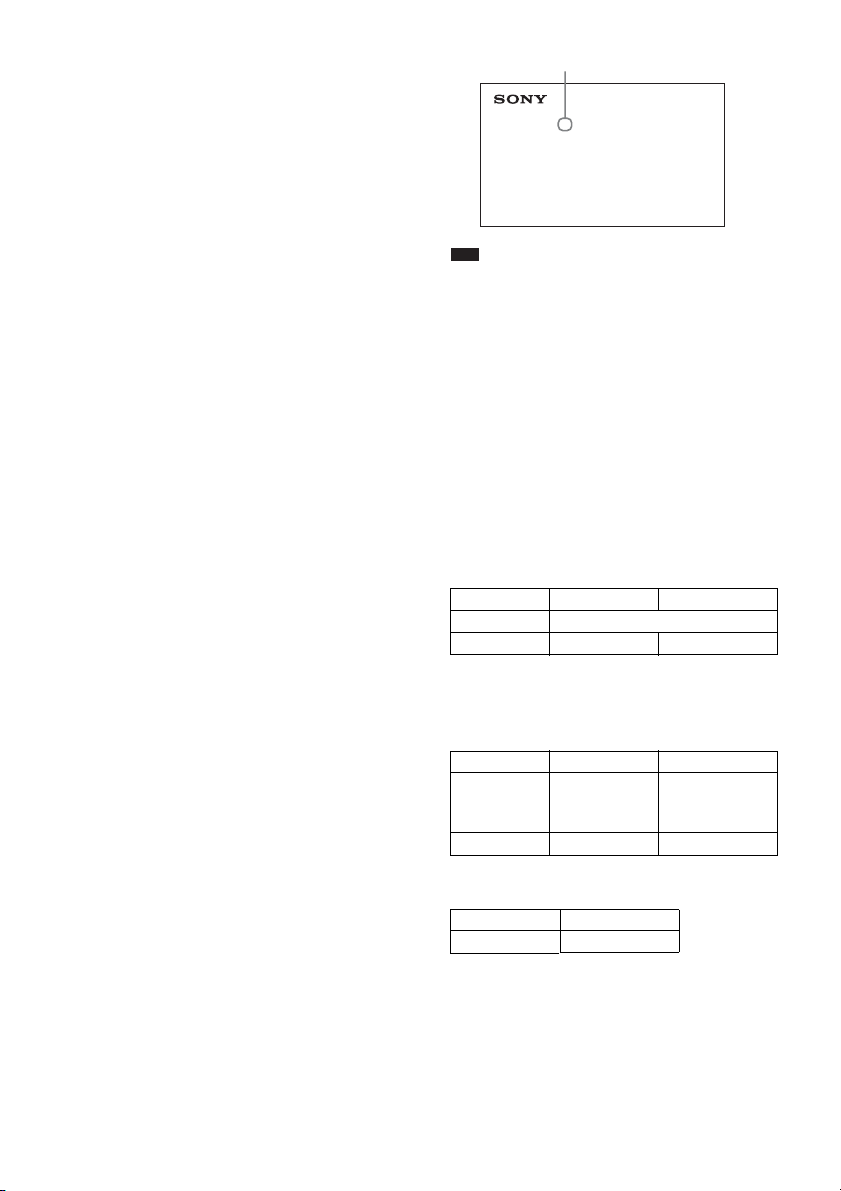

To select the transfer destination of the USB device

You can select the memory number for transfer depending on the USB device.

Press MEMORY SELECT.

Selected memory number

USB Memory 2 selected.

Home Theatre System

Note

• When the memory cannot be selected, [Operation not possible.] appears on the TV screen.

• The memory number changes depending on the USB device.

• Select a transfer destination before transfer.

Folder and file generation rules

When transferring onto a USB device, a “MUSIC” folder is created directly below the “ROOT”. Folders and files are generated within this “MUSIC” folder as follows according to the transferring method and source.

• When transferring multiple tracks on an audio

CD or multiple MP3 files on a DATA CD/ DATA DVD

Source Folder name File name

MP3 Same as the transferring source

Audio CD “FLDR001”2)“TRACK001”

• When transferring a single track on an audio

CD or a single MP3 file on a DATA CD/ DATA DVD

Source Folder name File name

MP3 “REC1-MP3”4)Same as the

Audio CD “REC1-CD”4)“TRACK001”

transferring

source

• When transferring a radio program

Folder name File name

“FM001”

Up to 64 characters of the name are assigned

(including the extension).

Folders are assigned in numeric order thereafter.

Files are assigned in numeric order thereafter.

“TRACK001”

Page 65

A new file is transferred in the “REC1-MP3” or

“REC1-CD” folder each time single-track transferring is performed.

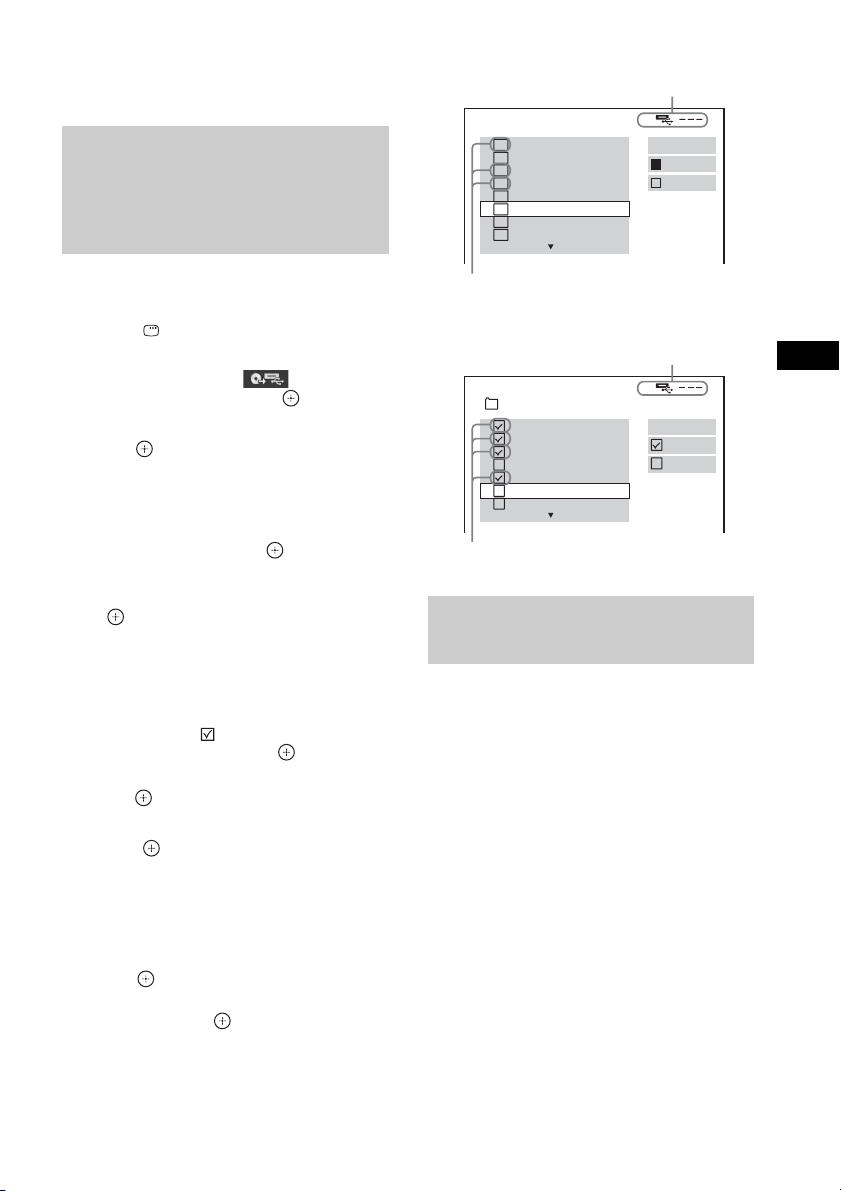

Transferring tracks on an audio CD or MP3 files on a DATA CD/DATA DVD onto a USB device

x For an audio CD

Remaining space of the USB device

USB TRANSFER

TRACK 01 TRACK 02

TRACK 03

TRACK 04 TRACK 05 TRACK 06 TRACK 07 TRACK 08

START

ALL

1 Load an audio CD/DATA CD/DATA

DVD.

2 Press DISPLAY while the system is

in stop mode.

3 Press X/x to select [USB

TRANSFER], then press .

x For an audio CD

Press and skip to Step 5.

x For a DATA CD/DATA DVD

Follow the next Step.

4 Press X/x to select [TRACK] or

[FOLDER], then press .

• [TRACK]: The folder list appears. Press

X/x to select the desired folder, then press

• [FOLDER]: The folders recorded on the DATA CD/DATA DVD appear. You can transfer all MP3 files in the folder.

5 Press C/X/x/c to select [x ALL] (for an

audio CD) or [ ALL] (for a DATA CD/ DATA DVD), then press .

To deselect all tracks, select [s ALL], then press .

6 Press C/X/x/c to select [START], then

press .

To cancel transferring, press x.

To select individual tracks/MP3 files/folders

Press X/x to highlight the track/MP3 file/folder, then press to add a check in Step 5. To cancel the selection, highlight the track/MP3 file/folder, then press to remove the check.

Tracks to be transferred.

x For a DATA CD/DATA DVD

Remaining space of the USB device

USB TRANSFER

2002_Remixes

01_Back_Seat_O... 02_One_Nights_... 03_Are_You_Ma... 04_I_Can_Lose_... 05_Soul_Survivo... 06_Strangers_B... 07_Stay_maxi_ve...

MP3 files/folders to be transferred.

START

ALL

Transferring by single button press

You can transfer tracks/MP3 files simply onto a USB device by using REC TO USB.

1 Load an audio CD/DATA CD/DATA

DVD.

2 Press x.

To transfer all tracks, skip to Step 4. To transfer a single track, follow the next Step.

3 Select the desired track/MP3 file, then

press N.

4 Press REC TO USB on the unit.

REC TO USB lights up and “READING” appears in the front panel display. Then, “PUSH PLAY” and the remaining space of the USB device appear alternately in the front panel display.

5 Press N to start transferring.

Convenient Functions

Page 66

When transferring is completed, “COMPLETE” appears in the front panel display and playback of the disc and USB device stops automatically. To cancel transferring, press x.

Transferring a radio program

You can transfer a radio program you are listening to onto a USB device.

1 Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel display.

2 Select the radio station by pressing

PRESET +/– or TUNING +/–.

3 Press REC TO USB on the unit.

REC TO USB lights up and “PLEASE” and “WAIT” appear alternately in the front panel display. Then, “PUSH PLAY” and the remaining space of the USB device appear alternately in the front panel display.

4 Press N to start transferring. 5 Press x to stop transferring.

To create a new MP3 file while transferring

Press REC TO USB while transferring.

“NEW TRACK” appears in the display and transferring continues in a new MP3 file right after you press REC TO USB. If you press REC TO USB again within a few seconds, a new MP3 file cannot be created.

Note

• When a new MP3 file is created, transferring is temporarily disabled.

Tip

• A new MP3 file is created automatically after approximately 1 hour of transferring.

Erasing audio files on a USB device

You can erase audio files (“.mp3,” “.wma,” or “.m4a”) on the USB device.

1 Press FUNCTION repeatedly to select

“USB.”

The selected item appears in the front panel display.

2 Press X/x to select a folder. 3 Select the audio file(s).

x To erase all audio files in a folder

Press CLEAR.

x To erase an audio file

Press and press X/x to select the desired audio file, then press CLEAR.

4 Press C/c to select [YES], then press

To cancel, select [NO], then press .

Note

• Do not remove the USB device while erasing.

• If the folder to be erased contains non-audio format files or sub folders, these are erased from the list on the TV screen, but are not erased from the USB device.

Using the sleep timer

You can set the system to turn off at a preset time, so you can fall asleep listening to music.

Press SLEEP.

Each time you press SLEEP, the minutes display (the remaining time) changes by 10 minutes. When you set the sleep timer, “SLEEP” flashes in the front panel display.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired time.

To cancel the sleep timer

Press SLEEP repeatedly until “SLEEP OFF” appears in the front panel display.

To set the sleep timer using the system menu

1 Press SYSTEM MENU.

Page 67

2 Press X/x to select “SLEEP,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select a setting, then

press .

The minutes display (the remaining time) changes by 10 minutes.

4 Press SYSTEM MENU.

Adjusting the Delay Between the Picture and Sound

[A/V SYNC]

When the sound does not match the pictures on the TV screen, you can adjust the delay between the picture and sound.

1 Press DISPLAY. 2 Press X/x to select [A/V SYNC],

then press .

3 Press X/x to select a setting, then

press .

•[OFF]: Off.

• [ON]: You can adjust the delay between the picture and sound.

Note

• Depending on th e input st ream, [A/V SYNC] may not be effective.

Enjoying Multiplex Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when the system receives or plays a Dolby Digital multiplex broadcast signal.

Note

• To receive a Dolby Digital signal, you need to connect a TV or other component to the unit with a digital optical cord (page 29). If your TV is compatible with the Audio Return Channel function (page 60), you can receive a Dolby Digital signal via an HDMI cable.

Press AUDIO repeatedly to select the audio signal.

The selected item appears in the front panel display.

•“MAIN”

output.

• “SUB”: Sound of the sub language will be

output.

• “MAIN+SUB”: Mixed sound of both the main

and sub languages will be output.

: Sound of the main language will be

Changing the Input Level of the Sound from Connected Components

The sound distortion of the connected component may be improved by reducing the input level.

1 Press FUNCTION repeatedly to select

“TV” or “AUDIO IN.”

The selected item appears in the front panel display.

2 Press SYSTEM MENU. 3 Press X/x to select “ATTENUATE,”

then press or c.

4 Press X/x to select a setting, then

press .

• “ATT ON”: You can attenuate the input level.

• “ATT OFF”: Normal input level.

This setting is made separately for each function.

5 Press SYSTEM MENU.

Convenient Functions

Page 68

Settings

Changing the Brightness of the Front Panel Display

1 Press SYSTEM MENU. 2 Press X/x to select “DIMMER,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select the brightness of

the front panel display, then press .

• “DIMMER OFF”: The front panel display is bright.

• “DIMMER ON”: The front panel display is dim.

4 Press SYSTEM MENU.

Setting the Demonstration Mode to On/Off

You can turn on/off the demonstration in the front panel display while the system is in standby mode.

1 Press SYSTEM MENU. 2 Press X/x to select “DEMO,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select a setting, then

press .

• “DEMO OFF”: Off.

• “DEMO ON”: On.

4 Press SYSTEM MENU.

Reperforming the Quick Setup

1 Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

3 Press X/x to select [SETUP],

then press .

4 Press X/x to select [QUICK], then press

Perform the Quick Setup following the procedure of “Performing the Quick Setup” (page 35).

Set the System to Standby Mode Automatically

The system enters standby mode automatically when you do not operate the system for about 30 minutes and the system is not outputting sound for about 30 minutes. “AUTO STBY” begins to flash in the front panel display about 2 minutes before the system enters standby mode. You can turn the auto standby function on/off.

1 Press SYSTEM MENU. 2 Press X/x to select “AUTO STBY,” then

press or c.

The selected item appears in the front panel display.

3 Press X/x to select the setting, then

press .

•“ON”: On.

• “OFF”: Off.

4 Press SYSTEM MENU.

Page 69

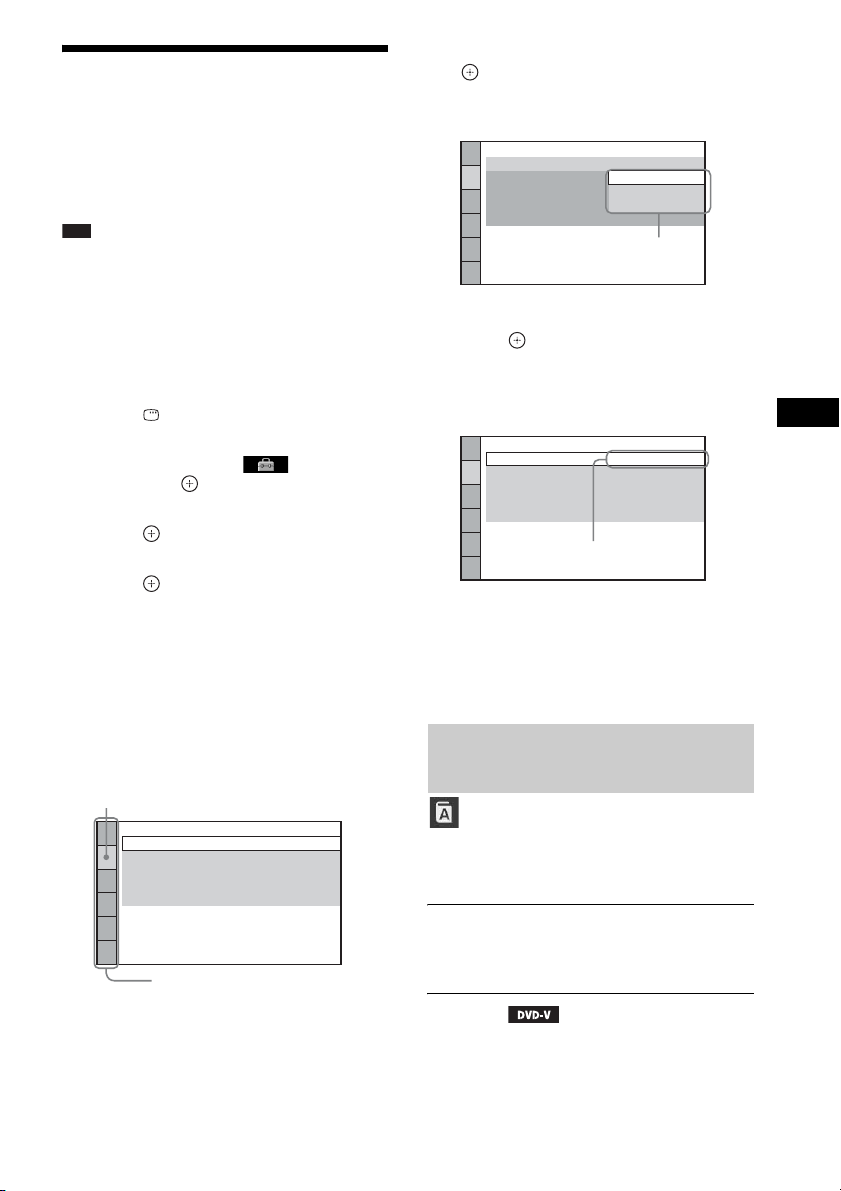

Performing Further Settings

You can make various adjustments to items such as picture and sound. Displayed items vary depending on the area.

Note

• Playback settings stored in the disc take priority over the Setup Display settings and not all the functions described may work.

1 Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel display.

2 Press DISPLAY while the system is

in stop mode.

3 Press X/x to select [SETUP],

then press .

4 Press X/x to select [CUSTOM], then

press .

5 Press X/x to select the setup item, then

press .

• [LANGUAGE SETUP] (page 69)

• [VIDEO SETUP] (page 70)

• [HDMI SETUP] (page 71)

• [AUDIO SETUP] (page 72)

• [SYSTEM SETUP] (page 74)

• [SPEAKER SETUP] (page 75)

Example: [VIDEO SETUP]

Selected item

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

Setup items

(COMPONENT OUT)

(VIDEO CD)

16:9

OFF

FULL

AUTO

6 Press X/x to select an item, then press

The options for the selected item appear. Example: [TV TYPE]

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

(COMPONENT OUT)

4:3 LETTER BOX

(VIDEO CD)

16:9 16:9

OFF

FULL

AUTO

4:3 PAN SCAN

AUTO

Options

7 Press X/x to select a setting, then

press .

The setting is selected and setup is complete.

Example: [4:3 LETTER BOX]

VIDEO SETUP

TV TYPE: PROGRESSIVE 4:3 OUTPUT: COLOR SYSTEM PAUSE MODE:

To reset all of the [SETUP] settings

To reset all of the [SETUP] settings, see [RESET] (page 75).

Setting the display or sound track language

[LANGUAGE SETUP]

Set various languages for the on-screen display or sound track.

x [OSD] (On-Screen Display)

You can switch the display language on the TV screen.

4:3 LETTER BOX

(COMPONENT OUT)

(VIDEO CD)

Selected setting

OFF

FULL

AUTO AUTO

Settings

x [MENU]

You can switch the language for the disc’s menu.

Page 70

x [AUDIO]

You can switch the language of the sound track. When you select [ORIGINAL], the language given priority on the disc is selected.

x [SUBTITLE]

You can switch the language of the subtitles recorded on the DVD VIDEO. When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.

Note

• When you select a language in [MENU], [AUDIO], or [SUBTITLE] that is not recorded on the DVD VIDEO, one of the recorded languages will be automatically selected (depending on the disc, the language may not be selected automatically).

Tip

• If you select [OTHERS t] in [MENU], [AUDIO], and [SUBTITLE], select and enter a language code from “Language Code List” (page 91) using the number buttons.

Settings for the display

[VIDEO SETUP]

Select settings according to your TV.

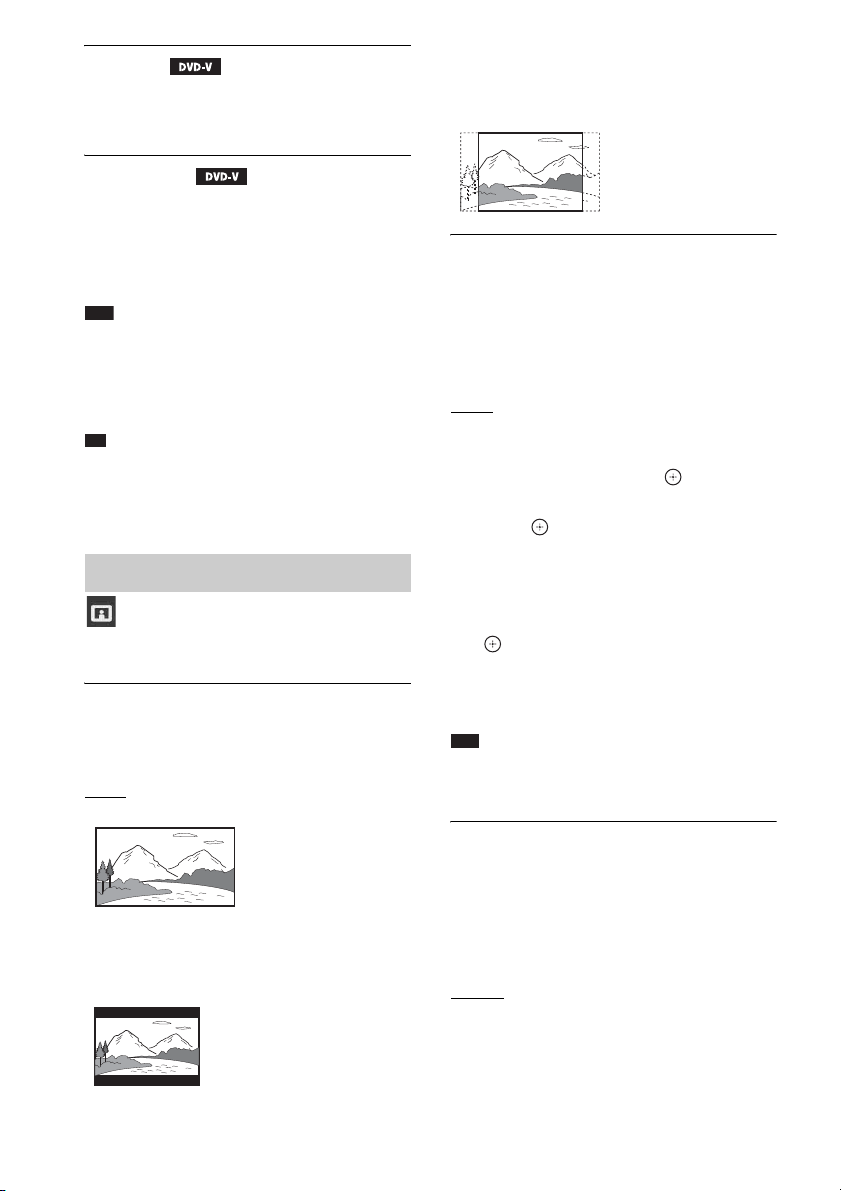

x [TV TYPE]

You can select the aspect ratio of the connected TV.

[16:9]

: Select this when you connect a wide-

screen TV or a TV with a wide-screen mode.

[4:3 PAN SCAN]: Select this when you connect a 4:3 standard TV. The system automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

x [PROGRESSIVE (COMPONENT OUT)]

You can set the progressive signal that is output from the COMPONENT VIDEO OUT jacks to on/off. For details, see “To select the type of video signal output from the COMPONENT VIDEO OUT jacks” (page 38).

[OFF]: The system outputs interlace signals. [ON]: The system outputs progressive signals. When you select [ON], follow the Steps below.

1 Select [ON], then press . 2 Press C/c to select [START], then

press .

The system outputs a progressive signal for about 5 seconds. Check that the screen is displayed correctly.

3 Press C/c to select [YES], then press

The system outputs a progressive signal. If you select [NO], the system will not output a progressive signal.

Note

• [PROGRESSIVE (COMPONENT OUT)] is effective only when you con nect the unit and TV with a component video cable (page 29).

[4:3 LETTER BOX]: Select this when you connect a 4:3 standard TV. The system displays a wide picture with bands on the upper and lower portions of the TV screen.

x [4:3 OUTPUT]

When you use a 16:9 aspect ratio TV, you can adjust the aspect ratio to watch 4:3 aspect ratio signals. If you can change the aspect ratio on your TV, change the setting on your TV, not the system.

[FULL]: Select this when you can change the aspect ratio on your TV. [NORMAL]: Select this when you cannot change the aspect ratio on your TV. A 16:9 aspect ratio signal with black bands on left and right sides of the image appears.

Page 71

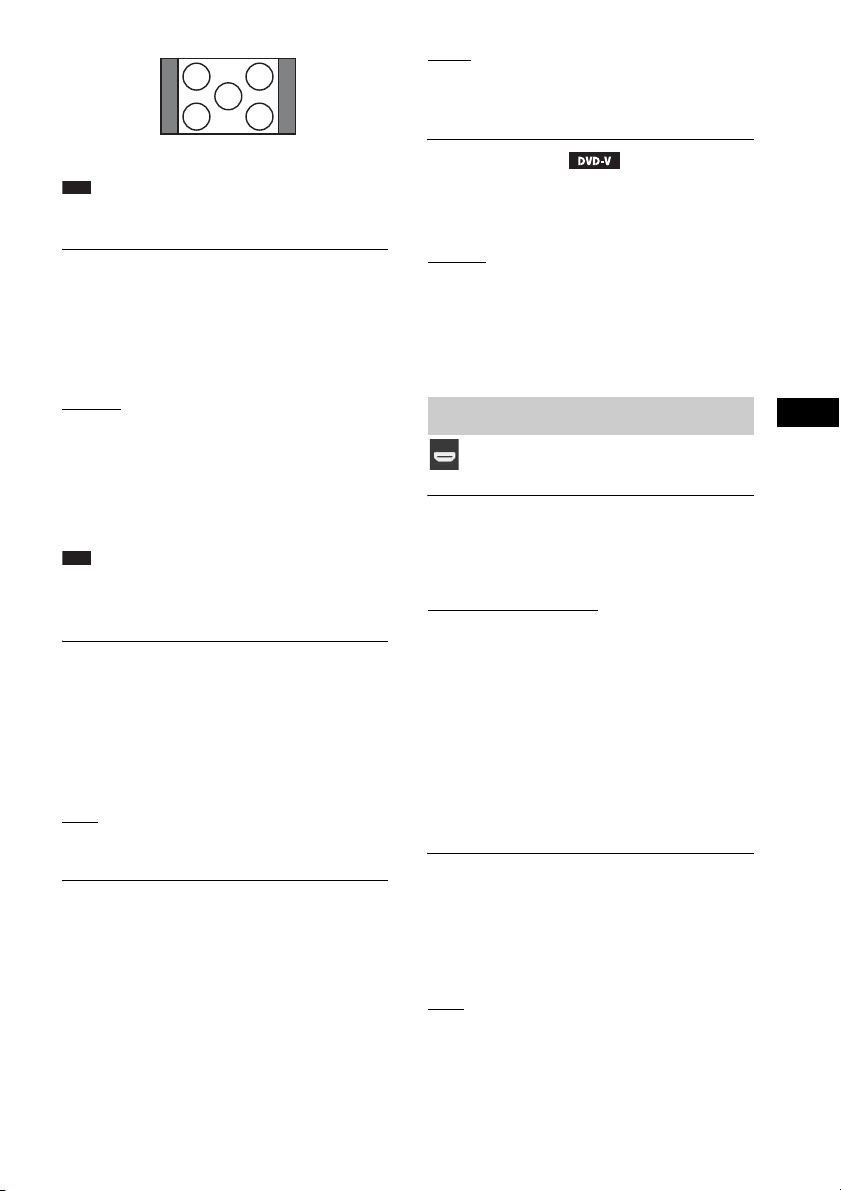

16:9 aspect ratio TV

Note

• [4:3 OUTPUT] is effective only when you set [TV TYPE] in [VIDEO SETUP] to [16:9].

x [COLOR SYSTEM (VIDEO CD)]

(Asian, Australian, Middle Eastern, and South African models only)

You can select the color system when you play a VIDEO CD.

: The system outputs the disc’s video

[AUTO] signal, either PAL or NTSC. If your TV uses a DUAL system, select [AUTO]. [PAL]: The system changes the video signal of an NTSC disc and outputs it in the PAL system. [NTSC]: The system changes the video signal of a PAL disc and outputs it in the NTSC system.

Note

• You cannot change the color system of the disc itself.

• You can change the color system of this system according to the connected TV (page 29).

x [BLACK LEVEL]

(North American, Mexican, Latin American, and taiwan models only)

You can select the black level (setup level) for the video signals output from the jacks other than COMPONENT VIDEO OUT/HDMI OUT.

[ON]: The standard level. [OFF]: You can lower the standard black level. Use this when the picture becomes too white.

x [BLACK LEVEL (COMPONENT OUT)]

(North American, Mexican, Latin American, and taiwan models only)

You can select the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select this and the setting is not effective when the system outputs a progressive signal.

[OFF]

: You can set the black level of the output signal to the standard level. [ON]: You can raise the standard black level. Use this when the picture becomes too black.

x [PAUSE MODE]

(DVD VIDEO/DVD-R/DVD-RW only)

You can select the picture in pause mode.

[AUTO]: The picture, including subjects that move dynamically, is output with no jitter. This setting is for normal usage. [FRAME]: The picture, including subjects that do not move dynamically, is output in high resolution.

Settings for HDMI

[HDMI SETUP]

x [HDMI RESOLUTION]

You can select the type of video signal that is output from the HDMI OUT jack.

[AUTO (1920 the optimal video signal for the connected TV. [1920 × 1080i]: The system outputs 1920 × 1080i* video signals. [1280 × 720p]: The system outputs 1280 × 720p* video signals. [720 × 480p]**: The system outputs 720 × 480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may

appear.

x [CONTROL FOR HDMI]

This function is available when you connect the system and TV that is compatible with the Control for HDMI function with an HDMI cable.

[ON]

: On. You can operate mutually between components that are connected with an HDMI cable. [OFF]: Off.

× 1080p)]: The system outputs

Settings

Page 72

x [VOLUME LIMIT]

When the System Audio Control (page 60) is activated, loud sound may be output depending on the volume level of the system. You can prevent this by limiting the maximum level of the volume when the System Audio Control function activates.

: Off.

[OFF] [LEVEL3]: Maximum volume level is set to 10. [LEVEL2]: Maximum volume level is set to 15. [LEVEL1]: Maximum volume level is set to 20.

Note

• This function is available only when [CONTROL FOR HDMI] is set to [ON].

x [AUDIO RETURN CHANNEL]

This function is available when you connect the system and TV that is compatible with the Audio Return Channel function.

[AUTO]: The system can receive the digital audio signal of your TV via an HDMI cable automatically. [Off]: Off.

Note

• This function is available only when [CONTROL FOR HDMI] is set to [ON].

the HDMI OUT jack even if you set [AUDIO (HDMI)] to [ON].

x [JPEG RESOLUTION]

You can select the resolution of JPEG image files output from the HDMI OUT jack.

]: The system outputs standard

[SD resolution with a black frame. [HD ]: The system outputs HD resolution with a black frame. [HD]: The system outputs the HD resolution without a black frame. [(1920 × 1080i) HD ]: The system outputs full size HD resolution with a black frame. [(1920 × 1080i) HD]: The system outputs full size HD resolution without a black frame.

Note

• [JPEG RESOLUTION] is effective only when you set [TV TYPE] in [VIDEO SETUP] to [16:9], and you set [HDMI RESOLUTION] in [HDMI SETUP] to other than [720 × 480p] or [720 × 480/576p].

• You can select [(1920 × 1080i) HD ] or [(1920 × 1080i) HD] only when you set [HDMI RESOLUTION] in [HDMI SETUP] to [1920 × 1080i].

• The HDMI signal will stop momentarily when:

– the system is loading or unloading a DATA CD or

DATA DVD.

– you connect or remove a USB device.

x [YCBCR/RGB (HDMI)]

You can select the type of HDMI signal output from the HDMI OUT jack.

YCBCR]: The system outputs YCBCR signals.

[ [RGB]: The system outputs RGB signals.

x [AUDIO (HDMI)]

You can select the audio output status from the HDMI OUT jack.

[OFF]

: The system does not output sound from the HDMI OUT jack. [ON]: The system outputs audio signals by converting Dolby Digital, DTS, or 96 kHz/24bit PCM signals to 48 kHz/16-bit PCM.

Note

• When you set the function to other than “DVD/CD”

or “USB,” the system does not output the sound from

Settings for the audio

[AUDIO SETUP]

x [SPEAKER FORMATION]

Depending on the shape of the room, you may not be able to install some speakers. For better surround sound, Sony recommends that first you decide the position of the speakers.

1 Press C/c to select a setting, then

press .

• [STANDARD]: Select this when you install all the speakers normally.

• [NO CENTER]: Select this when you install the front and surround speakers only.

Page 73

• [NO SURROUND]: Select this when you install the center and front speakers only.

• [FRONT ONLY]: Select this when you install the front speakers only.

• [ALL FRONT]: Select this when you install all the speakers in front of the listening position.

• [ALL FRONT - NO CENTER]: Select this when you install the front and surround speakers in front of the listening position.

2 Press C/c to select [YES] or [NO], then

press .

• [YES]: Continue with [AUTO CALIBRATION]. Follow the Steps of [AUTO CALIBRATION] below.

• [NO]: Exit [SPEAKER FORMATION].

x [AUTO CALIBRATION]

D. C. A. C. (Digital Cinema Auto Calibration) can set the appropriate surround sound automatically.

1 Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front panel.

Set up the calibration mic at ear level using a tripod, etc. (not supplied). The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic.

Calibration mic

Settings

2 Press C/c to select [YES], then press

[AUTO CALIBRATION] starts. Be quiet during the measurement.

Note

3 Press C/c to select [YES] or [NO], then

press .

4 Disconnect the calibration mic when

the measurement completes correctly.

Note

• The system outputs a loud test sound when [AUTO CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

• The measurement for [SUBWOOFER] is always [YES] and [SPEAKER SETUP] returns to the default setting when you perform [AUTO CALIBRATION].

Page 74

x [AUDIO DRC]

You can compress the dynamic range of the sound track. [AUDIO DRC] is useful for watching movies at low volume late at night.

[OFF]: No compression of dynamic range. [STANDARD]: The system reproduces the sound track with the kind of dynamic range that the recording engineer intended. [MAX]: The system compresses dynamic range fully.

Note

• [AUDIO DRC] works only for Dolby Digital.

x [TRACK SELECTION]

You can give the sound track which contains the highest number of channels priority when multiple audio formats (PCM, DTS, Dolby Digital, or MPEG audio) are recorded.

[OFF]

: Off. [AUTO]: The system selects the sound track automatically according to the priority.

Note

• When you set the item to [AUTO], the language may

change. The [TRACK SELECTION] setting has higher priority than the [AUDIO] settings in [LANGUAGE SETUP] (page 69). (Depending on the disc, this function may not work.)

Other Settings

[SYSTEM SETUP]

x [SCREEN SAVER]

You can reduce the (ghosting). Press any button (e.g., the screen saver.

[ON]

: The screen saver image appears if you do not operate the system for about 15 minutes. [OFF]: Off.

x [BACKGROUND]

You can select the background color or picture on the TV screen.

damage to the display device

) to cancel

[JACKET PICTURE] picture) appears, but only when the jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, a preset picture stored in the system appears. [GRAPHICS]: A preset picture stored in the system appears. [BLUE]: The background is blue. [BLACK]: The background is black.

x [PARENTAL CONTROL]

The [PARENTAL CONTROL] function allows you to restrict playback of DVDs that have ratings. Scenes may be blocked or replaced with different scenes.

: The jacket picture (still

1 Enter or re-enter your 4-digit password

using the number buttons, then press

2 Press X/x to select [STANDARD], then

press .

3 Press X/x to select a geographic area

as the playback limitation level, then press .

When you select [OTHERS t], select and enter a standard code from “Parental Control Area Code List” (page 91) using the number buttons.

4 Press X/x to select [LEVEL], then press

5 Press X/x to select the desired level,

then press .

The lower the value, the stricter the limitation.

To turn off the [PARENTAL CONTROL] function

Set [LEVEL] to [OFF] in Step 5.

To play a disc for which [PARENTAL CONTROL] is set

When you load the disc and press N, the display for entering your password appears. Enter your 4-digit password using the number buttons, then press .

Tip

• If you forget your password, enter “199703” using the number buttons, then press . The display will ask you to enter a new 4-digit password. After you

Page 75

enter a new 4-digit password, replace the disc in the unit and press N. When the display for e ntering your password appears, enter your new password.

Changing the password

1 Enter your 4-digit password using the

number buttons, then press .

2 Press X/x to select [CHANGE

PASSWORD t], then press .

3 Enter a new 4-digit password using the

number buttons, then press .

If you make a mistake entering your password, press C before you press , then input the correct number.

4 To confirm your password, re-enter it

using the number buttons, then press

x [DivX (R) VOD]

You can display the registration or deactivation code for this system, or deactivate this system after activation.

To display the registration code

Press X/x to select [Registration Code c], then press .

To deactivate the system

Press C/c to select [YES] or [NO], then press

• [YES]: The system is deactivated and the deactivation code is displayed.

• [NO]: The system returns to the previous display.

To display the deactivation code again after deactivation

Press X/x to select [Deactivation Code c], then press .

For more information, go to http://www.divx.com on the Internet.

x [MULTI-DISC RESUME]

This system recalls the point where you stopped the disc the last time it was played and resumes playback from that point the next time you insert the same disc.

: The system stores the resume points in

[ON] memory for up to 10 discs. [OFF]: The system does not store the resume points in memory. Playback restarts at the resume point only for the current disc in the unit.

Note

• When the resume playback memory is full, the resume playback point for the earliest disc is deleted.

x [RESET]

You can return the [SETUP] settings other than [PARENTAL CONTROL] to the default settings.

Press C/c to select [YES], then press .

You can also quit the process and return to the Control Menu by selecting [NO] here. Do not press [/1 while resetting the system as it takes a few seconds to complete.

Note

• The [MEDIA], [INTERVAL], [EFFECT], and [MULTI/2CH] settings also return to the default settings.

Settings for the speakers

[SPEAKER SETUP]

You can adjust the speaker settings manually without performing the Quick Setup. Select the speakers you will use, set the speaker distance from your listening position, and then adjust the sound level for each speaker. You can adjust the sound level by using the [TEST TONE] function.

x [CONNECTION]

[FRONT]

[YES]

[CENTER]

[YES]: Normally select this. [NONE]: Select this if no center speaker is used.

[SURROUND]

[YES]: Normally select this. [NONE]: Select this if no surround speakers are used.

Settings

Page 76

[SUBWOOFER]

[YES]

Note

• When you change the [CONNECTION] setting, the [STANDARD] of [SPEAKER FORMATION] setting remains the same, but the other settings of [SPEAKER FORMATION] return to [STANDARD].

x [LEVEL (FRONT)]

You can adjust the sound level of the front speakers, center speaker, and subwoofer. You can set the parameters from –6.0 dB to 0 dB for [L/R], and from –6.0 dB to +6.0 dB for [CENTER] and [SUBWOOFER]. Be sure to set [TEST TONE] to [ON] for easy adjustment.

x [DISTANCE (FRONT)]

Set the distance of the front and center speakers from the listening position. For the best possible surround sound, place all speakers at the same distance from the listening position. The distance can be between 1.0 to 7.0

meters

(3 to 23 ft) for the front speakers, and

0.0 to 7.0 meters

(0 to 23 ft) for the center speaker. If you cannot place the center speaker at the same distance, you can move the center speaker up to 1.6 meters closer to the listening position.

[L/R] 3.0 m/10 ft: Set the front speaker distance. [CENTER] 3.0 m/10 ft

: Set the center speaker

distance.

0.9 to 6.9 meters for North American models.

0.0 to 6.9 meters for North American models.

x [DISTANCE (SURROUND)]

Set the distance for the surround speakers from the listening position. For the best possible surround sound, place all speakers at the same distance from the listening position. The distance can be between 1.0 to 7.0 meters* (0 to 23 ft). If you cannot place surround speakers at the same distance, you can move the surround speakers up to 5.0 meters (16 ft) closer to the listening position.

[L/R] 0.0 dB [CENTER] 0.0 dB [SUBWOOFER] +2.0 dB

: Set the front speaker level.

: Set the center speaker level.

: Set the subwoofer

level.

x [LEVEL (SURROUND)]

You can adjust the sound level of the surround speakers. You can set the parameter from –6.0 dB to +6.0 dB. Set [TEST TONE] to [ON] for easy adjustment.

[L/R] 0.0 dB

x [TEST TONE]

: Set the surround speaker level.

You can adjust the sound level of the speakers by using the [TEST TONE] function.

[OFF]

: The test tone is not emitted from the speakers. [ON]: The test tone is emitted from each speaker in sequence while adjusting the level. Adjust the sound level as follows.

1 Set the [TEST TONE] to [ON]. 2 Press C/X/x/c repeatedly to select the

desired speaker and the level, then press .

3 Repeat Step 2. 4 Press C/X/x/c to set [TEST TONE] to

[OFF] after adjusting the speaker level.

[L/R] 3.0 m/10 ft

: Set the surround speaker

distance.

* 0.0 to 6.9 meters for North American models.

Note

• Depending on the input stream, the [DISTANCE] setting may not be effective.

Page 77

Additional Information

Precautions

On power sources

• Unplug the unit from the wall outlet (mains) if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

On placement

• Place the system in a location with adequate ventilation to prevent heat build-up in the system.

• At high volume, over long periods of ti me, the cabinet becomes hot to the touch. This is not a malfunction. However, touching the cabin et shou ld be avoided. Do not place the system in a confined space where ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots are blocked, the system can overheat and malfunction.

• Do not place the system on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the system near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

• Do not install the system in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the system and discs away from components with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the system.

On operation

• If the system is b rought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the unit. Should this occur, the system may not operate properly. In this case, remove the disc and leave the system turned on for about half an hour until the moisture evaporates.

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is suddenly played.

On cleaning

• Clean the cabine t, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. If you have any questions or problems concerning your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens cleaners

• Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On your TV’s color

• If the speakers should cause your TV screen to have color irregularity, turn off the TV then turn it on after 15 to 30 minutes. If color irregularity should persist, place the speakers further away from your TV set.

IMPORTANT NOTICE

Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

On moving the system

• Before moving the system, make sure that there is no disc inserted, and remove the AC power cord (mains lead) from the wall outlet (mains).

About S-AIR function

• As the S-AIR products transmit sound by radio waves, sound may skip when radio waves are obstructed. This is a characteristic of radio waves and is not malfunction.

• As the S-AIR products transmit sound by radio waves, equipment that generates electromagnetic energy, such as a microwave oven, may prevent wireless transmission.

• As the S-AIR products use the radio waves that share the same frequency as other wireless systems, such a s wireless LAN or Bluetooth devices, interference or poor transmission may occur. In this case, take the

Additional Information

Page 78

following steps to enhance the transmission of signals:

– Avoid placing the S-AIR products near other

wireless systems.

– Avoid using the S-AIR products and the other

wireless systems simultaneously.

– The transmission may be improved by changing

the transmission channel (frequency) of the other wireless system(s). For details, refer to the operating instructions of the other wireless system(s).

• The transmission distance differs depending on the usage environment. Find locations where transmission between the S-AIR main unit and sub unit is most effective, and install the S-AIR main unit and sub unit there.

• Place the S-AIR products on a stable surface.

• Poor transmission may occur and the transmission distance may be too short if the following conditions exist:

– There is a wall/floor made of reinforced concrete

or stone between the S-AIR products.

– There is an iron divider/door or furniture/electric

product made of fireproof glass, metal, etc., between the S-AIR products.

Notes about the Discs

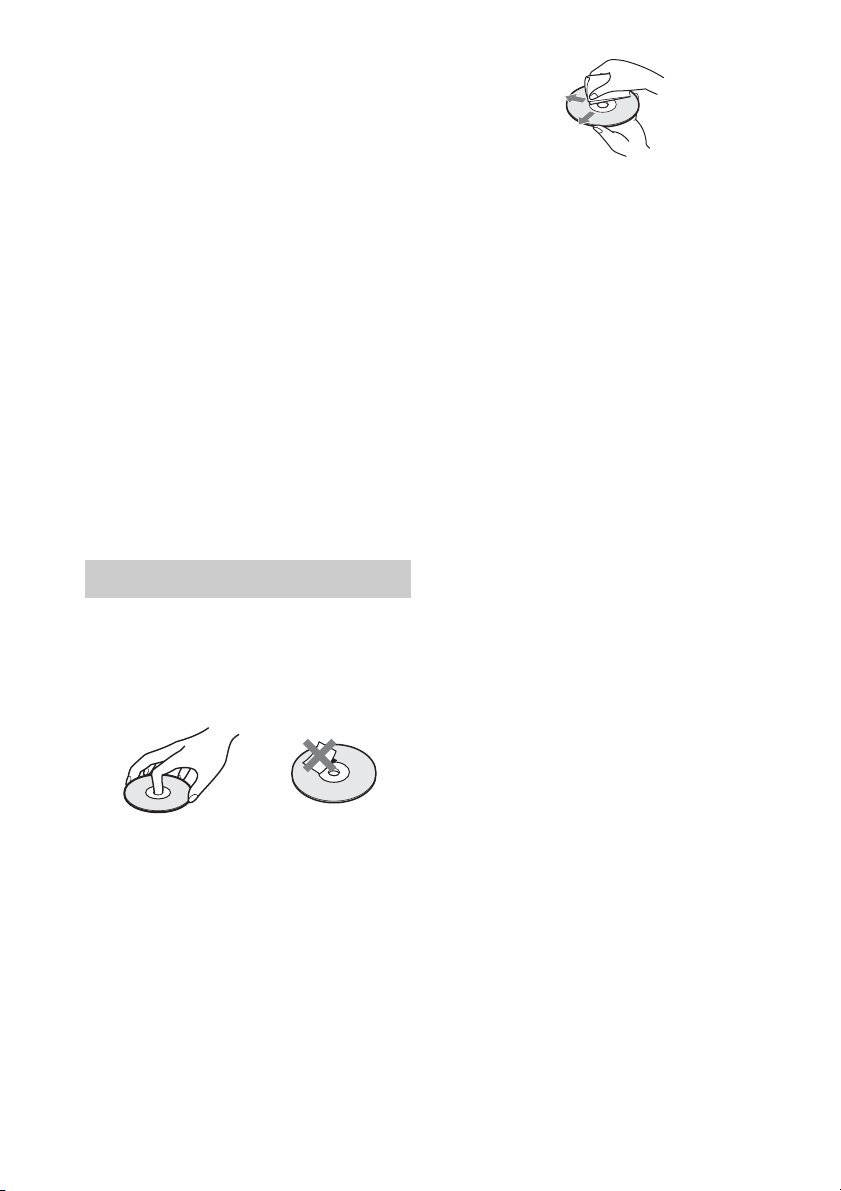

On handling discs

• To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.

This system can only play a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star shape) may cause a malfunction.

Do not use a disc that has a commercially available accessory attached, such as a label or ring.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

Page 79

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. Note that if service personnel changes some parts during repair, these parts may be retained. In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together (main unit and S-AIR sub unit).

General

Symptom Problems and solutions

The power is not turned on. • Check that the AC power cord (mains lead) is connected securely.

The remote does not function. • The distance between the remote and the unit is too far.

• The batteries in the remote are weak.

The system does not work normally.

After performing [AUTO CALIBRATION], [NONE] appears in the [Measurement Complete.] display.


• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.

• Perform the following procedure. (Note that the system parameters, such as preset stations, return to the default settings.)

1 Press "/1 to turn on the system. 2 Press N, FUNCTION, and "/1 on the unit at the same time. “COLD

RESET” appears in the front panel display.

• Check the speaker connection (page 28).

• Do not install the speaker in another room.

Additional Information

Symptom Problems and solutions

There is no picture. • The video input on your TV is not set so that you can view pictures from the

There is no picture when you make an HDMI cable connection.

system.

• Check the output method on your system.

• The unit is connected to an input device that is not HDCP (High-bandwidth Digital Content Protection) compliant (“HDMI” on the front panel does not light up).

• If the HDMI OUT jack is used for video output, change the type of video signal output from the HDMI OUT jack (page 71). Connect your TV and the unit using a video jack other than HDMI OUT, and switch your TV’s input to the connected video input so that you can see the onscreen displays. Change the type of video signal output from the HDMI OUT jack, and switch your TV’s input back to HDMI. If the picture still does not appear, repeat the Steps and try other options.

Page 80

Symptom Problems and solutions

There is no picture when you make a component video cable connection.

• You have set progressive format but your TV cannot accept the signal in progressive format. In this case, return the setting to interlace format (the default setting) (pages 37, 70).

• You have set [PROGRESSIVE (COMPONENT OUT)] in [VIDEO SETUP] to [ON] (page 70) even though your TV cannot accept the progressive signal. In this case, disconnect the HDMI cable from the unit and then set to [OFF].

• Even if your TV is compatible with progressive format (525p/625p) signals, the image may be affected when you set progressive format. In this case, return the setting to interlace format (the default setting) (pages 37, 70).

Picture noise appears. • If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some DVD programs could affect picture quality. Connect the unit directly to your TV.

An image is not displayed on the entire TV screen.

Color irregularity occurs on the TV screen.

• Check the setting of [TV TYPE] in [VIDEO SETUP] (page 70).

• The aspect ratio on the disc is fixed.

The system’s speakers contain magnet parts, so magnetic distortion may occur. When color irregularity occurs on the TV screen, check the following items.

• Install the speakers at least 0.3 meters (1.0 ft) from your TV set.

• If the color irregularity persists, turn off your TV set once, then turn it on after 15 to 30 minutes.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care device, toy, etc.) is placed near the speakers.

• Reposition the speakers farther away from your TV set.

Playback picture becomes

•Set [YC

BCR] in [YCBCR/RGB (HDMI)] to [RGB] (page 72).

distorted.

Sound

Symptom Problems and solutions

There is no sound. • The speaker cord is not connected securely.

• Check the speaker settings (page 75).

There is no sound when the component (digital satellite receiver, PlayStation 3, etc.) is connected directly to your TV via HDMI.

There is no sound from the DIGITAL IN OPTICAL jack.

There is no digital sound from the HDMI OUT jack when using the Audio Return Channel function.

The system does not output sound correctly when connected to a set-top box.

Severe hum or noise is heard. • Move your TV away from the audio components.

• Check the following status.

– Connect an audio cable from the AUDIO OUT (audio out) jack of your TV

to the system (page 29) and select the “TV” function.

– Disable your TV’s speakers.

• The sampling frequency of the input stream is more than 48 kHz.

• Set [AUDIO RETURN CHANNEL] in [HDMI SETUP] to [AUTO] (page 72).

• Set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 71).

• Make sure that your TV is compatible with the Audio Return Channel function.

• Make sure that an HDMI cable is connected to a jack on your TV that is compatible with the Audio Return Channel function.

• The sampling frequency of the input stream is more than 48 kHz.

• Set [AUDIO RETURN CHANNEL] in [HDMI SETUP] to [OFF] (page 72).

• Clean the disc.

Page 81

Symptom Problems and solutions

The sound loses stereo effect when you play a VIDEO CD, a CD, or an audio file.

There is no sound or the volume level is very low from a certain speaker or all the speakers.

The sound comes from the center speaker only.

There is no system sound from your TV.

The sound of files played from a DATA CD/DATA DVD/USB device is distorted.

There is noise or the sound skips while playing a USB device.

• Select stereo sound by pressing AUDIO (page 43).

• Check the surround setting (page 56).

• Check the speaker connections and settings (pages 28, 75).

• Depending on the DVD, the output signal may not be the entire 5.1 channel.

• A 2 channel source is being played.

• Check the wireless setting (pages 34, 61).

• Depending on the disc, the sound may come from the center speaker only.

• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 72).

• The HDMI OUT jack does not output Super Audio CD sound.

• Perform the following procedure.

1 Turn the system off and on again. 2 Turn the connected component off and on again. 3 Disconnect and then connect the HDMI cable again.

• The bit rate used when encoding the audio files was low. Transfer audio files encoded with higher bit rates onto the DATA CD/DATA DVD/USB device.

• Copy the files to your computer, format the USB device in FAT12, FAT16, or FAT32 format, and transfer the files to the USB device again.

Additional Information

Page 82

Symptom Problems and solutions

There is no sound from the surround speakers.

Check the status of the S-AIR/STANDBY indicator on the surround amplifier.

• Turns off.

– Check that the AC power cord (mains lead) of the surround amplifier is

connected securely.

– Turn the surround amplifier on by pressing "/1 on the surround amplifier.

• Flashes orange.

– Check that the wireless transceiver is inserted into the surround amplifier

correctly (page 32).

• Flashes green quickly.

– Change the S-AIR ID settings of the S-AIR main unit and surround amplifier

(page 61).

– Set the SURROUND SELECTOR switch of the surround amplifier to

SURROUND (page 34).

•Flashes red.

– Press "/1 to turn off the surround amplifier, and check the following items.

1 Are the + and – speaker cords short-circuited? 2 Is anything blocking the ventilation holes of the surround amplifier?

After checking the above items and fixing any problems, turn on the surround amplifier. If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

• Flashes green slowly or turns red.

– Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 61).

– Confirm the pairing setting (page 62).

– See “If wireless transmission is unstable” (page 63).

– Sound transmission is poor. Move the surround amplifier so that the S-AIR/

STANDBY indicator turns green.

– Move the system away from other wireless devices.

– Avoid using any other wireless devices.

• Turns green.

– Check the speaker connections and settings.

– Depending on the source or the settings of the S-AIR main unit, the effect of

the speakers may be less noticeable.

Disc playback

Symptom Problems and solutions

A disc does not play. • The region code on the DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses. Remove the disc and leave the unit turned on for about half an hour.

The language for the sound track or subtitle cannot be changed.

A disc does not start playing from the beginning.

A DATA CD/DATA DVD cannot be played.

• Set the language via the disc’s menu.

• While in stop mode, press x on the unit or the remote and then start playback (page 42).

• The DATA CD is not recorded in ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in UDF (Universal Disk Format).

Page 83

Symptom Problems and solutions

A file cannot be played. • The extension of the file name or file format is not correct. See “Playable Discs/

A JPEG image file cannot be viewed.

A video file cannot be played. • The video file is larger than 720 (width) × 576 (height).

The titles of folders/files/file names are not displayed correctly.

File names are not displayed properly.

Files on a USB Device” (page 5).

• Check the [MEDIA] setting (page 41).

• The system can play to a depth of 8 folders only.

• Check that the number of folders is 200 or less.

• Check that the number of audio files/JPEG image files in the folder is 150 or less.

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) pixels in normal format, or more than 2,000,000 pixels in progressive format which is mainly used on Internet Web sites.

• The system can only display numbers and letters of the alphabet. Other characters are displayed as [_].

• The character c odes that can be displayed by this system are number s and letters of the alphabet only. Other characters are not displayed correctly.

USB playback

Symptom Problems and solutions

A USB device does not start playing from the beginning.

A USB device cannot be played. • USB devices formatted with file systems other than FAT12, FAT16, or FAT32

A file cannot be played. • The extension of the file name or file format is not correct. See “Playable Discs/

A JPEG image file cannot be viewed.

A video file cannot be played. • The video file is larger than 720 (width) × 576 (height).

A WMA file cannot be played. • A WMA file that is in WMA DRM, WMA Lossless, or WMA PRO format

An AAC file cannot be played. • An AAC file that is in AAC DRM or AAC Lossless format cannot be played.

The titles of folders/files/file names are not displayed correctly.

File names are not displayed properly.

• While in stop mode, press x on the unit or the remote and then start playback (page 42).

are unsupported.*

* This system supports FAT12, FAT16, and FAT32, but some USB devices

may not support all of these. For details, refer to the operating instructions of the USB device or contact the manufacturer.

• If you use a partitioned USB device, only audio files on the first partition can be played.

Files on a USB Device” (page 5).

• Check the [MEDIA] setting (page 41).

• The system can play to a depth of 8 folders only.

• Check that the number of folders is 200 or less.

• Check that the number of audio files/JPEG image files in the folder is 150 or less.

• Files that are encrypted or protected by passwords, etc. cannot be played.

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) pixels in normal format, or more than 2,000,000 pixels in progressive format which is mainly used on Internet Web sites.

cannot be played.

• The system can only display numbers and letters of the alphabet. Other characters are displayed as [_].

• The character c odes that can be displayed by this system are number s and letters of the alphabet only. Other characters are not displayed correctly.

Additional Information

Page 84

Symptom Problems and solutions

It takes time until playback starts.

A USB device which has been used on another device does not work.

• After the system reads all files on the USB device, playback may take more time than usual if:

– there are many folders or files on the USB device.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the file size is extremely large.

– the internal memory is fragmented.

• The system is playing an audio file in AAC format.

• It may be recorded in an unsupported format. If so, first take the precaution of backing up important files on the USB device by copying them to your computer hard disk. Next, format the USB device in FAT12, FAT16, or FAT32 format, and transfer the files to the USB device again.

Audio track/file transfer

Symptom Problems and solutions

You cannot start transferring onto a USB device.

Transferring stops before it is finished.

Transferring to a USB device results in an error.

Audio files or folders on the USB device cannot be erased.

• The following problems may have occurred.

– The USB device is full.

– The number of audio files and folders on the USB device has reached the

upper limit.

– The USB device is write-protected.

• The communication speed of the USB device is extremely slow. Connect a USB device that this system can play.

• If the transferring and erasing operations are repeated multiple times, the file structure within the USB device becomes complex. Follow the procedure in the operating instructions of the USB device to format the USB device. If the problem persists, contact your nearest Sony dealer.

• The USB device is full.

• The number of audio files and folders on the USB device has reached the upper limit.

• The USB device was disconnected or the power was turned off during erasing. Delete the partially-erased file. If this does not fix the problem, the USB device may be broken. Follow the procedure in the operating instructions of the USB device to format the USB device. If the problem persists, contact your nearest Sony dealer.

• Check if the USB device is write-protected.

Tuner

Symptom Problems and solutions

Radio stations cannot be tuned in.

FM reception is poor. • Use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

• Check that the antenna (aerial) is connected securely. Adjust the antenna (aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.

antenna (aerial).

Page 85

S-AIR

Symptom Problems and solutions

Wireless transmission is not activated. (The indicator of the S-AIR sub unit flashes green slowly or turns red.)

There is no sound or noise is heard from the S-AIR sub unit, or sound skips.

The S-AIR function on the system menu cannot be operated.

• See “If wireless transmission is unstable” (page 63).

• Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 61).

• Confirm the pairing setting (page 62).

• Sound transmission is poor. Move the S-AIR sub unit so that the indicator turns green.

• Move the system away from other wireless devices.

• Avoid using any other wireless devices.

• If you use another S-AIR main unit, place it more than 8 m (about 25 feet) away from the other S-AIR main unit you are using.

• Place the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a microwave oven.

• Place the S-AIR main unit and S-AIR sub unit away from other wireless devices.

• See “If wireless transmission is unstable” (page 63).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn off the system and S-AIR sub unit, then turn them on.

• Check that the wireless transceiver is inserted into the unit correctly (page 32).

Control for HDMI

Symptom Problems and solutions

The Control for HDMI function does not work.

No sound is output from the system and TV while using the System Audio Control function.

• Set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 71).

• Make sure that the connected component is compatible with the [CONTROL FOR HDMI] function.

• Check the connected component’s setting for the Control for HDMI function. Refer to the operating instructions of the component.

• If you change the HDMI connection, connect and disconnect the AC power cord (mains lead), or have a power failure, set [CONTROL FOR HDMI] in [HDMI SETUP] to [OFF], then set to [ON] (page 71).

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync” (page 59).

• Make sure that the connected TV is compatible with the System Audio Control function.

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync” (page 59).

Additional Information

Karaoke

Symptom Problems and solutions

Microphone sound is not output. • Set the karaoke mode to on (page 48).

• Connect the microphone to the unit properly.

• Connect a monaural dynamic microphone.

Page 86

Messages

Symptom Problems and solutions

“PROTECTOR” and “PUSH POWER” appear alternately.

“OVERLOAD,” “REMOVE USB,” then “PUSH POWER” appear.

“LOCKED” appears and a disc cannot be ejected.

“DATA ERROR” appears. • The file you want to play is broken.

“READING” is displayed for a long time while playing.

•Press "/1 to turn off the system, and check the following items after

“STANDBY” disappears.

– Are the + and – speaker cords short-circuited?

– Is anything blocking the ventilation holes of the system?

– After checking the above items and fixing any problems, turn on the system.

If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

• A problem has been detected with the level of electrical current from the (USB) port. Turn off the system and remove the USB device from the (USB) port. Make sure there is no problem with the USB device. If this display pattern persists, contact your nearest Sony dealer.

• Contact your Sony dealer or local authorized Sony service facility.

• The file format does not match the extension of the file name. See “Playable Discs/Files on a USB Device” (page 5).

• The JPEG image file format does not conform to DCF.

• The reading process can take a long time if:

– there are many folders or files on the USB device.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the internal memory is fragmented.

Page 87

Self-diagnosis Function

Specifications

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the TV screen o r front panel displa y. In this case, check the following table.

C:13:50

First 3 characters of the service number

C 13 The disc is dirty.

E XX

(XX is a number)

Cause and/or corrective action

,Clean the disc with a soft cloth

(page 78).

To prevent a malfunction, the system has performed the selfdiagnosis function. ,Contact your nearest Sony

dealer or local authorized Sony service facility and give the 5character service number.

Example: E 61 10

When the version number appears on the TV screen

When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate.

VER.X.XX

Amplifier Section

POWER OUTPUT (rated): Front L + Fro nt R 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

POWER OUTPUT (reference):

Front L/Front R/Center: 167 watts (per channel at 3 ohms, 1 kHz) Subwoofer: 165 watts (at 3

ohms, 80 Hz) Inputs (Analog) TV (AUDIO IN) Sensitivity: 450/250 mV AUDIO IN Sensitivity: 250/125 mV MIC Sensitivity: 1 mV Inputs (Digital) TV (Audio Return Channel/OPTICAL IN)

Input Stream: Dolby

Digital 5.1ch/DTS 5.1ch/

Linear PCM 2ch

(Sampling Frequency: less

than 48 kHz)

Super Audio CD/DVD System

Laser Diode Properties Emission Duration:

Continuous

Laser Output: Less than

44.6 μW

* This output is the value measurement at a distance

of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.

Signal format system Mexican and Latin American models:

NTSC Other models: NTSC/PAL

USB Section

(USB) port:

Maximum current: 500 mA

Tuner Section

System PLL quartz-locked digital

synthesizer Tuning range North American models: 87.5 MHz - 108.0 MHz

(100 kHz step) Other models: 87.5 MHz - 10 8.0 MHz (50

kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz

Additional Information

Page 88

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT: Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p 75 ohms

HDMI OUT: Type A (19 pin)

Speakers

Front (SS-TS105)

Speaker system 2-Way 2-Driver Bass

reflex

Speaker unit Tweeter: 20 mm dome

type

Woofer: 65 mm cone type Rated impedance 3 ohms Dimensions (approx.) 255 mm × 1,185 mm × 255

mm (speaker only: 113

mm × 645 mm × 77 mm)

(w/h/d) Mass (approx.) 3.2 kg

Center (SS-CT101)

Speaker system Full range Bass reflex,

Magnetically Shielded Speaker unit 65 mm cone type Rated impedance 3 ohms Dimensions (approx.) 265 mm × 94 mm × 70 mm

(w/h/d) Mass (approx.) 0.6 kg

Surround (SS-TS104)

Speaker system Full range Bass reflex Speaker unit 65 mm cone type Rated impedance 3 ohms Dimensions (approx.) 255 mm × 1,185 mm × 255

mm (speaker only: 113

mm × 645 mm × 77 mm)

(w/h/d) Mass (approx.) 3.1 kg

Subwoofer (SS-WS102)

Speaker system Subwoofer Bass reflex Speaker unit 180 mm cone type Rated impedance 3 ohms Dimensions (approx.) 225 mm × 395 mm × 315

mm (w/h/d) Mass (approx.) 6.5 kg

General

Power requirements North American and Mexican models:

120 V AC, 60 Hz Taiwan models: 120 V AC, 50/60 Hz Argentine models: 220 V - 240 V AC,

50/60 Hz

Latin American models: 110 V - 240 V AC,

50/60 Hz

Other models: 220 V - 240 V AC,

50/60 Hz

Power consumption On: 125 W

Standby: 0.25 W*

* Valid when the system is in the following status:

– “DEMO” is set to “OFF.”

– [CONTROL FOR HDMI] is set to [OFF].

– “S-AIR STBY” is set to “STBY OFF.”

Dimensions (approx.) 430 mm × 66 mm × 390

mm (w/h/d) incl. projecting parts 430 mm × 66 mm × 420 mm (w/h/d) with the wireless transceiver inserted

Mass (approx.) 4.4 kg

Surround amplifier (TA-SA200WR)

Amplifier Section POWER OUTPUT (rated): Surround L + Surround R 80 W + 80 W (at 3 ohms, 1

kHz, 1% THD)

POWER OUTPUT (reference):

Surround L/Surround R: 167 W (per channel at 3 ohms, 1 kHz)

Rated impedance: 3 - 16 Ω

General Power requirements North American and Mexican models:

120 V AC, 60 Hz Taiwan models: 120 V AC, 50/60 Hz Argentine models: 220 V - 240 V AC,

50/60 Hz Latin American models: 110 V - 240 V AC,

50/60 Hz Other models: 220 V - 240 V AC,

50/60 Hz Power consumption 50 W Standby power consumption

1.0 W (standby mode)

0.18 W (turned off)

Dimensions (approx.) 206 mm × 60 mm × 256

mm (w/h/d) with the

wireless transceiver

inserted Mass (approx.) 1.3 kg

Wireless transceiver (EZW-RT10)

Communication system S-AIR Specification

version 1.0 Output 12.0 mW Frequency band 2.4000 GHz - 2.4835 GHz

Page 89

Modulation method DSSS Power requirements DC 3.3 V, 350 mA Dimensions (approx.) 50 mm × 13 mm × 60 mm

(w/h/d)

Mass (approx.) 24 g

Supported file format

MP3 (MPEG 1 Audio Layer-3)

File Extension: mp3 Bitrate: 32 kbps - 320 kbps Sampling frequencies: 32/44.1/48 kHz

WMA (USB device only)

File Extension: wma Bitrate: 48 kbps - 192 kbps Sampling frequencies: 44.1 kHz

AAC (USB device only)

File Extension: m4a Bitrate: 48 kbps - 320 kbps Sampling frequencies: 44.1 kHz

DivX

File Extension: avi/divx Video codec: DivX video Bitrate: 10.08 Mbps (MAX) Frame rate: 30 fps Resolution: 720 × 576 Audio codec: MP3

MPEG4

File format: MP4 File Format File Extension: mp4/m4v Video codec: MPEG4 Simple Profile

(AVC is not compatible.) Bitrate: 4 Mbps Frame rate: 30 fps Resolution: 720 × 576 Audio codec: AAC-LC (HE-AAC is not

compatible.) DRM: Not compatible

Additional Information

Design and specifications are subject to change without notice.

• Standby power consumption

Main unit (HBD-DZ910W): 0.25 W Surround amplifier (TA-SA200WR): 0.18 W

• Halogenated flame retardants are not used in the

certain printed wiring boards.

• Over 85% power efficiency of amplifier block is

achieved with the full digital amplifier, S-Master.

Page 90

Playback Priority of File Types

The table below describes the playback priority of file types under the [MEDIA] setting.

File type on a disc or USB device

Video files only Video files Video files Video files Video files Video files

JPEG image files only JPEG image

Audio files only MP3 files Audio files MP3 files Audio files* Audio files*

Video files and JPEG im age files

Video files and audio files Video files Video files MP3 files Audio files* Audio files*

Audio files and JPEG image files

Video files, audio files, and JPEG image files

* When using a disc, you can play MP3 files only.

[VIDEO] [MUSIC/

Disc USB device Disc Disc/USB

files

Video files Video files JPEG image

MP3 files and JPEG image files with slide show

Video files Video files MP3 files and

JPEG image files

Audio files MP3 files and

[MEDIA] setting

PHOTO]

JPEG image files

files

JPEG image files with slide show

[PHOTO] [MUSIC]

device

JPEG image files

Disc/USB device

JPEG image files

Video files

Audio files*

Page 91

Language Code List

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali;

Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian

1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian;

Lettish

1345 Malagasy

1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto;

Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-

Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-

Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian

1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703 Not specified

Additional Information

Parental Control Area Code List

Code Area Code Area Code Area Code Area

2044 Argentina 2047 Australia 2046 Austria 2057 Belgium 2070 Brazil 2079 Canada 2090 Chile 2092 China 2115 Denmark

2165 Finland 2174 France 2109 Germany 2248 India 2238 Indonesia 2254 Italy 2276 Japan 2304 Korea 2363 Malaysia

2362 Mexico 2376 Netherlands 2390 New Zealand 2379 Norway 2427 Pakistan 2424 Philippines 2436 Portugal 2489 Russia 2501 Singapore

2149 Spain 2499 Sweden 2086 Switzerland 2528 Thailand 2184 United

Kingdom

Page 92

Index

Numerics

4:3 OUTPUT 70

A/V SYNC 67 ANGLE 43 ATT E N U AT E 67 AUDIO 70 AUDIO (HDMI) 72 AUDIO DRC 74 AUDIO RETURN CHANNEL

72 AUDIO SETUP 72 AUTO CALIBRATION 73 AUTO ST BY 68

BACKGROUND 74 BLACK LEVEL 71 BLACK LEVEL

(COMPONENT OUT) 71

COLOR SYSTEM (VIDEO

CD) 71 CONTROL FOR HDMI 71 Control for HDMI 59 Control Menu 19 CUSTOM 69

D. C. A. C. (Digital Cinema

Auto Calibration) 73 DEMO 68 DIMMER 68 DivX® 8, 75 DUAL MONO 67 DVD’s menu 44 DYNAMIC BASS 58

EFFECT 47

FM MODE 54 Front panel 12 Front panel display 13

HDMI

BCR/RGB (HDMI) 72

YC HDMI RESOLUTION 71 HDMI SETUP 71

INTERVAL 48

JPEG RESOLUTION 72

Karaoke 48

ECHO 49

Karaoke Pon 49

Key Control 49

Vocal Select 50

Language Code List 91 LANGUAGE SETUP 69

MEDIA 41, 48 MENU 69 Multi Session CD 7 MULTI-DISC RESUME 75 Multiplex broadcast sound 67

NIGHT 58

OSD 69

PAIRING 62 PARENTAL CONTROL 74 PAUSE MODE 71 Playable discs 5 Program Play 45 PROGRESSIVE

(COMPONENT OUT) 70

Quick Setup 35

Rear panel 14 Region code 7 Repeat Play 47 RESET 75 RF CHANGE 63

S-AIR ID 61 S-AIR receiver 61 S-AIR STBY 62 SCREEN SAVER 74 SETUP 69 Shuffle Play 46 SLEEP 66, 67 SPEAKER FORMATION 72 SPEAKER SETUP 75

CONNECTION 75 DISTANCE 76

LEVEL 76 SUBTITLE 43, 70 Super Audio CD 45 Surround amplifier 15, 61 SYSTEM MENU 54, 56, 61,

62, 63, 66, 67, 68 SYSTEM SETUP 74

TEST TONE 76 TIME 43 TRACK SELECTION 74 TV TYPE 70

VIDEO SETUP 70 VOLUME LIMIT 72

Sony Corporation

(1)

Printed in China
