Page 1
Radio Cassette-Corder
CFM-104
3-756-687-22(1) A7<
Operating Instructions
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
Precautions
• operate the unit only on 6 V DC. For AC operation, use
the AC power adaptor supplied with this unit. Do not use
any other AC power adaptor. For car battery operation,
use the car battery cord recommended for this unit. For
battery operation, use four size C (R14) batteries.
• The nameplate indicating operating voltage is located on
the bottom of the unit.
• Disconnect the AC power adaptor from the wall outlet
when it is not to be used for an extended period of time.
• When the operational batteries are not to be used, remove
them to avoid damage caused by battery leakage and
corrosion.
• Do not leave the unit in a location near heat sources, or in
a place subject to direct sunlight, excessive dust,
mechanical vibration or shock.
• Should any solid object or liquid fall into the unit, unplug
the AC power adaptor and remove the batteries, and have
the unit checked by qualified personnel before operating it
any further.
• If the unit has not been used for a long time, set it in
playback mode and warm it up for a few minutes before
inserting a cassette.
• The use of a cassette tape longer than 90 minutes is not
recommended except for long continuous recording or
playback.
DO NOT IMMERSE IN WATER
This product is not meant to be immersed in water or
come in continuous contact with water.
• Before opening or shutting the cassette holder or battery
compartment lid, be sure to wipe off water, dust or sand
on the outside of the unit.
• Water in the earphone jack may cause rusting. Cover the
jade with the attached rubber cap when the earphone is
not used.
• If the unit is splashed with salt water, wipe dean with a
damp doth, then dry with a soft dry cloth. Do NOT wash
under running water; do NOT use soap or detergent; do
NOT dry with an electric hair dryer.
• The supplied AC power adaptor is not water resistant. To
prevent shock hazard, avoid using the set near water
during AC operation.
If you have any question or problem concerning your unit
(that is not covered in this manual), please consult your
nearest Sony dealer.
Owner’s Record
The model number is located at the bottom of the Radio
Cassette-Corder, and the serial number is located in the
battery compartment.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony
dealer regarding this product.
Model No. CFM-104 Serial No
------------------------
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
REFER SERVICINO TO QUAUFIEO SERVICE PERSONNEL.
A
You are cautioned that any changes or modifications not
expressly approved In this manual could void your
authority to operate this equipment.
OONOTOPEN I
DO NOT REMOVE COVER fOR BACK»
NO USER-SERVICEABLE PARTS INSIDE.
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of elec
tric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and mainte
nance (servicing) instructions in the literature
accompanying the appliance.
® 1993 by Sony Corporation Printed in Malaysia
Page 2
Ryouwantio
play
fast forward the tape
lewMtape
stopplayirrg
pause for a moment
resume playing attar a pause
letnoife a Cassatts
Press
**■
m
m
H
■ (twice)
When the unit to In UM
OPR/BATT (opecationAaneiy) indicator lights up.
IntaneHy oi gkiw shows battwy teval.
For private Itotenlng
Connect an eaiphone to • Jack.
•elAAVisp
Page 3

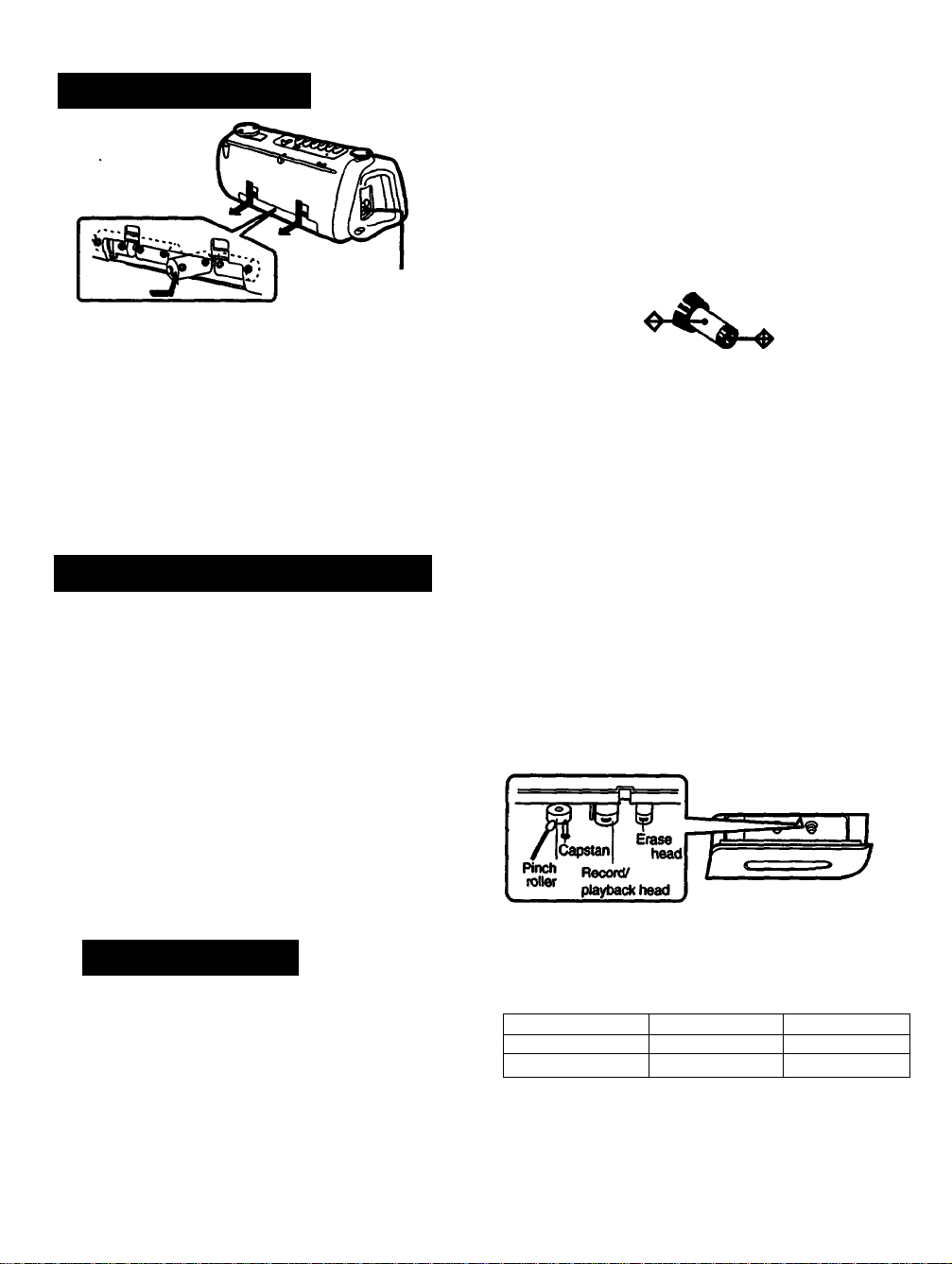

Power sources
DC IN 6 V jack
Batteries
Insert four size C (R14) batteries.
Notes
• The unit cannot be operated on the operational batteries
(vhen the AC power adaptor or car battery cord is
connected to the unit.
• When the batteries become weak, the OPR/BATT
(operation/battery) indicator will glow faintly. In this case,
replace all batteries with new ones.
Troubleshooting Guide
House Current
Connect the supplied AC power adaptor to the DC IN 6 V
jack.
Note on the AC power adaptor
Use only the AC power adaptor supplied. Do not use any
other AC power adaptor.
Polarity of the plug
12 V Car Battery
Connect Sony DCC-E160L car battery cord (not supplied)
to DC IN 6 V jack and to a car cigarette lighter.
Note on the car battery cord
For car battery operation, use the car battery cord
recommended for this unit. Do not use any other car
battery cord.
The unit does not operate.
• The supplied AC power adaptor is not connected, and no
batteries are in the battery compartment.
• Batteries are installed incorrectly.
Cassette cannot be inserted.
• Improper tape insertion. (Insert with exposed tape side
up.)
• ◄ PLAY is depressed.
Tape does not play when PLAY is pressed.
• II PAUSE is engaged.
• ПЕС cannot be depressed.
• No cassette in the holder.
• The cassette inserted has its tab removed. If so, cover the
slot with plastic tape.
IFF or tete REW has been depressed.
pecifications
Tuner frequency range
Frequency response
Speaker
Power output
Output
Power requirements
FM 87.6-108 MHz
AM 530-1,710 kHz
100 - 8,000 Hz
10 cm (4 in.) (Ua. lull range
1W (at 10% harmonic
distortion in OC operation)
Eaqjhone jack lor 8 ohm
impedance earphone
6 V DC, four size C (R14) batteries
DC IN 6 V jack accepts:
Supplied AC power adaptor for
use with:
120 VAC, 60 Hz
DCC€160L car battery cord (not
supplied) for use with 12Vcar
batterv
No sound from speaker.
• An earphone is plugged in.
• The VOL control is turned down completely.
• The FUNCTION selector setting is incorrect.
Poor playback, recording or erase quality.
• Dirty heads. Clean the illustrated portions with a cotton
swab moistened with cleaning fluid or denatured alcohol.
Battery life
Batteries
Sony SUM-2 (NS)
Sony AM2 elkaline Approx. 21 hours Approx. 19 hours
Dimensions
Mass
Design and specifications are subject to change without notice.
FM recording Tape playing
Approx. 7 hours Approx. 6 hours
387 X152 X136 mm (w/h/d)
(ISkxdxSX inches) incl.
projecting parts and controls
Approx. 1.6 kg (3 lb 8 oz.) ind.
batteries
AC power adaptor (1)Accessory supplied
