Sony CFD-Z120 User Manual

3-859-139-11(1)

CD Radio
Cassette-Corder

Operating Instructions

CFD-Z110
CFD-Z120
CFD-Z130

1996 by Sony Corporation

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

Warning

To prevent fire or shock hazard, do
not expose the player to rain or
moisture.

This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.

This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.

Information

For customers in the United States

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the

equipment and receiver.

—Connect the equipment into an outlet on a

circuit different from that to which the
receiver is connected.

—Consult the dealer or an experienced

radio/TV technician for help.

You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.

WARNING

Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.

The FUNCTION selector is located at the
front.

When you turn on the player, the OPR/BATT
indicator lights up.

CAUTION

The use of optical instruments with this
product will increase eye hazard.

For customers in Canada

To prevent electric shock, match wide blade
of plug to wide slot, fully insert.

Introduction2

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

Owner's Record

The model number is located at the rear and
the serial number is located in the battery
compartment.
Record the model number and serial number
in the space provided below. Refer to these
numbers whenever you call your Sony dealer
regarding this product.

Model No.

Serial No.

About this manual

The instructions in this manual are for
CFD-Z110, CFD-Z120 and CFD-Z130.
Before you start reading, check your
model number. The CFD-Z130 is used
for illustration purposes.

Table of contents

Basic Operations

4 Playing a CD

6 Listening to the radio

8 Playing a tape

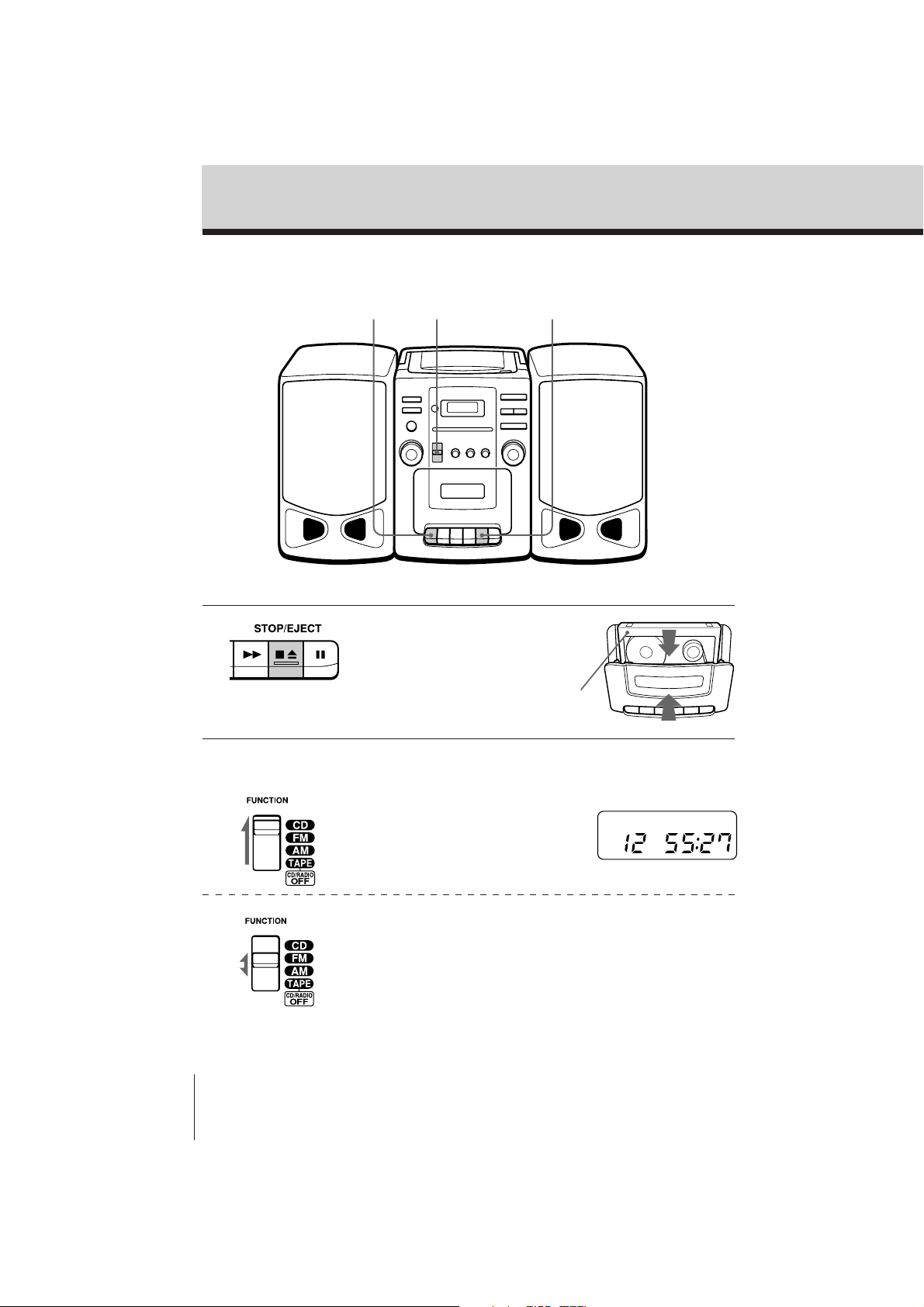

10 Recording on a tape

The CD Player

12 Using the display
13 Locating a specific track
14 Playing tracks repeatedly

(Repeat Play)

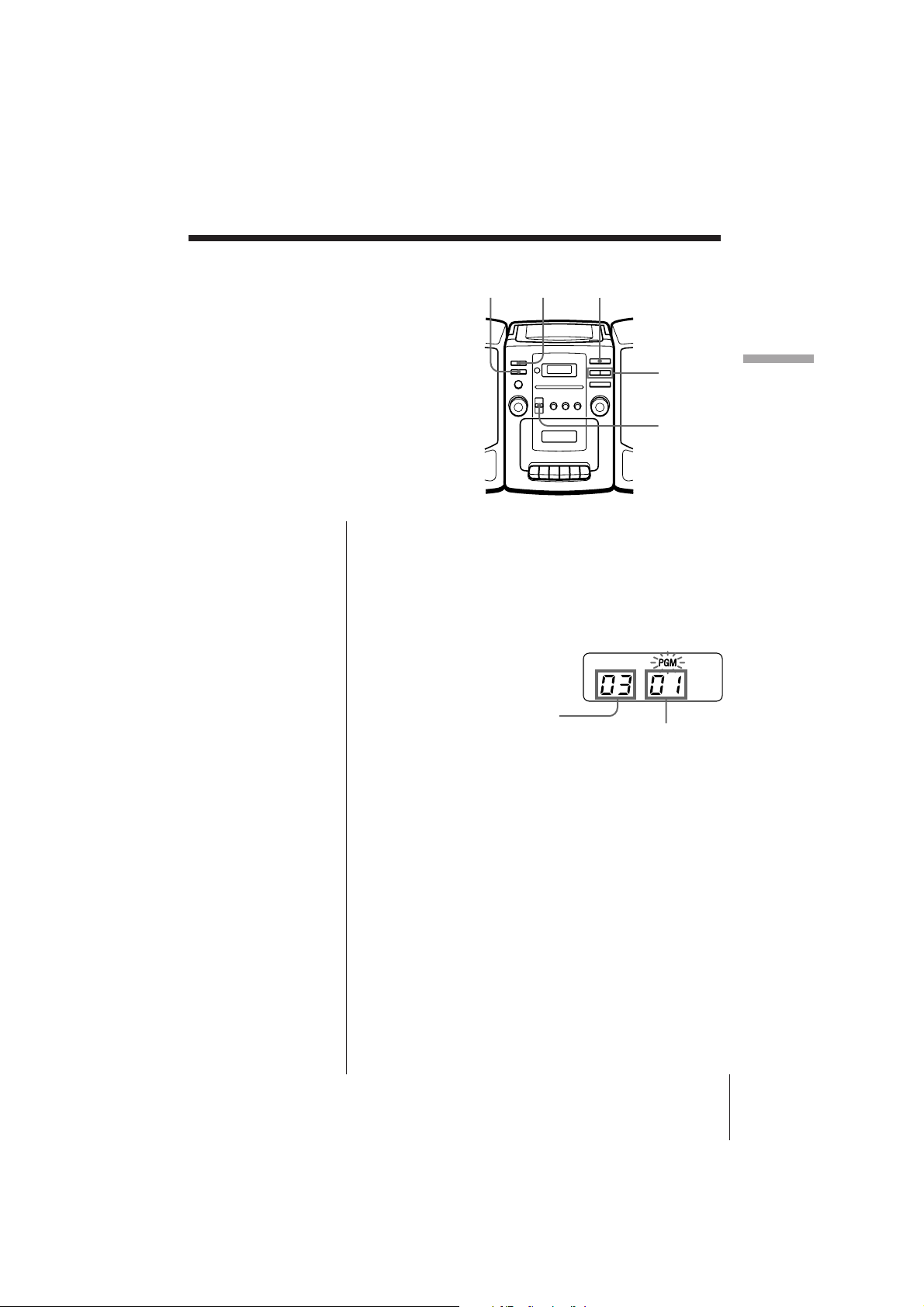

15 Creating your own program

(Program Play)

Setting Up

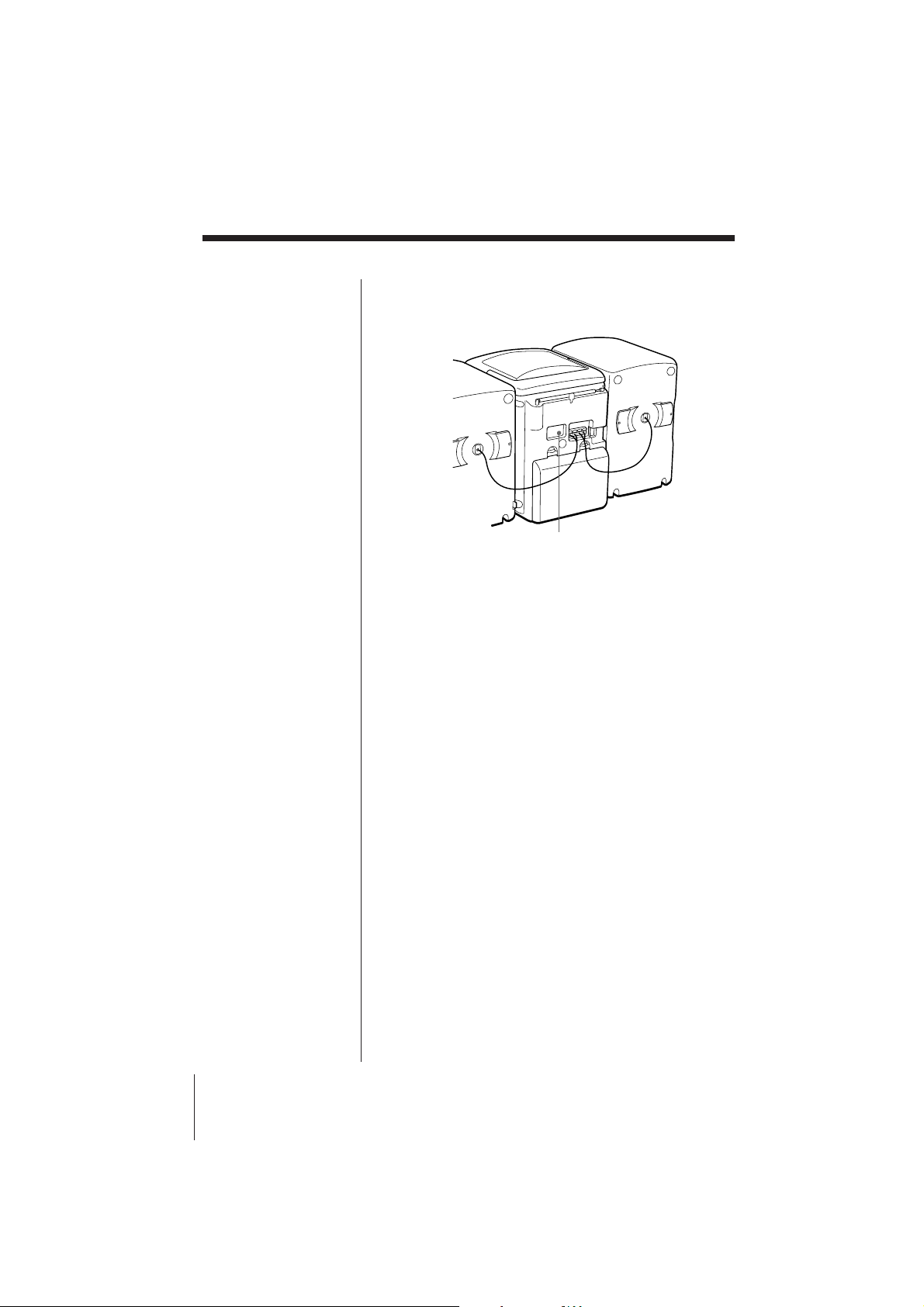

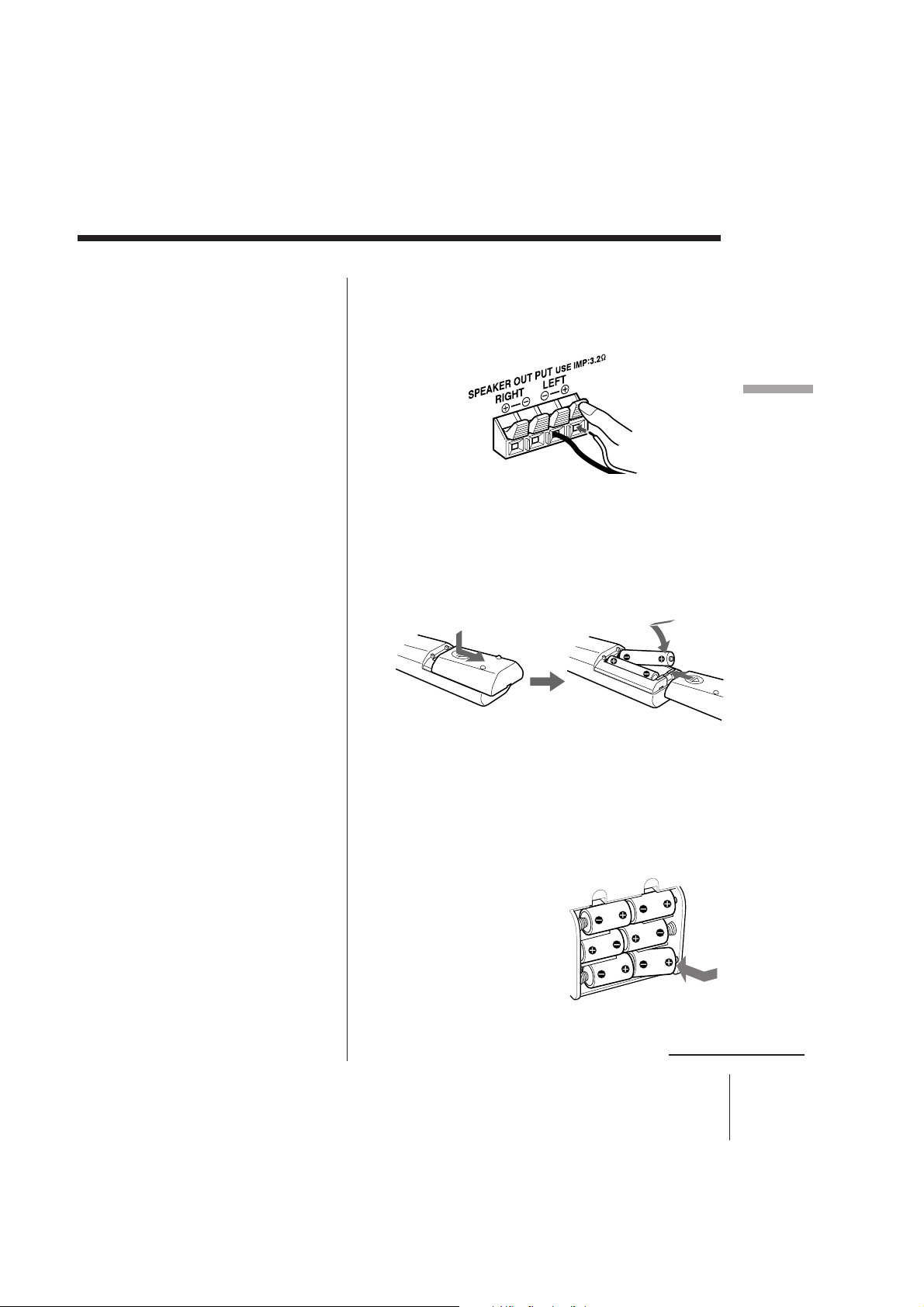

16 Hooking up the system
19 Adjusting the audio emphasis

(ROTARY EQUALIZER/
MEGA BASS/SURROUND)

Basic Operations

Additional Information

20 Precautions
22 Troubleshooting

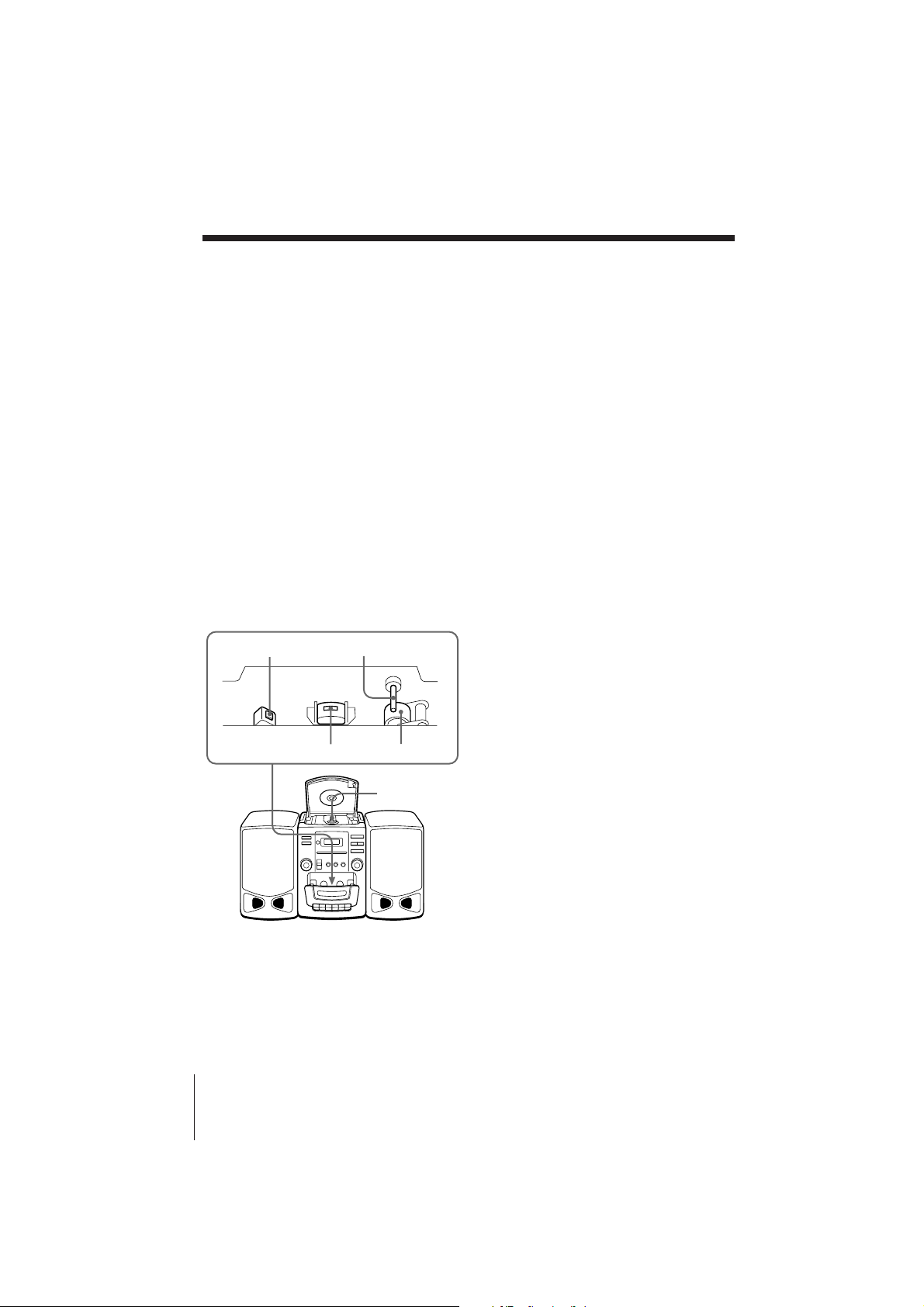

24 Maintenance
25 Specifications
26 Index

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

3Introduction

Basic Operations

Playing a CD

For hookup instructions, see pages 16-18.

1 2,3 4

1 Set FUNCTION to CD.

2 Press OPEN/CLOSE to open the

CD compartment and place the
CD on the CD compartment.

With the label side up

3 Close the CD compartment.

4 Press ^ .

The player plays all the tracks
once.

Display

Track number Playing time

Basic Operations4

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

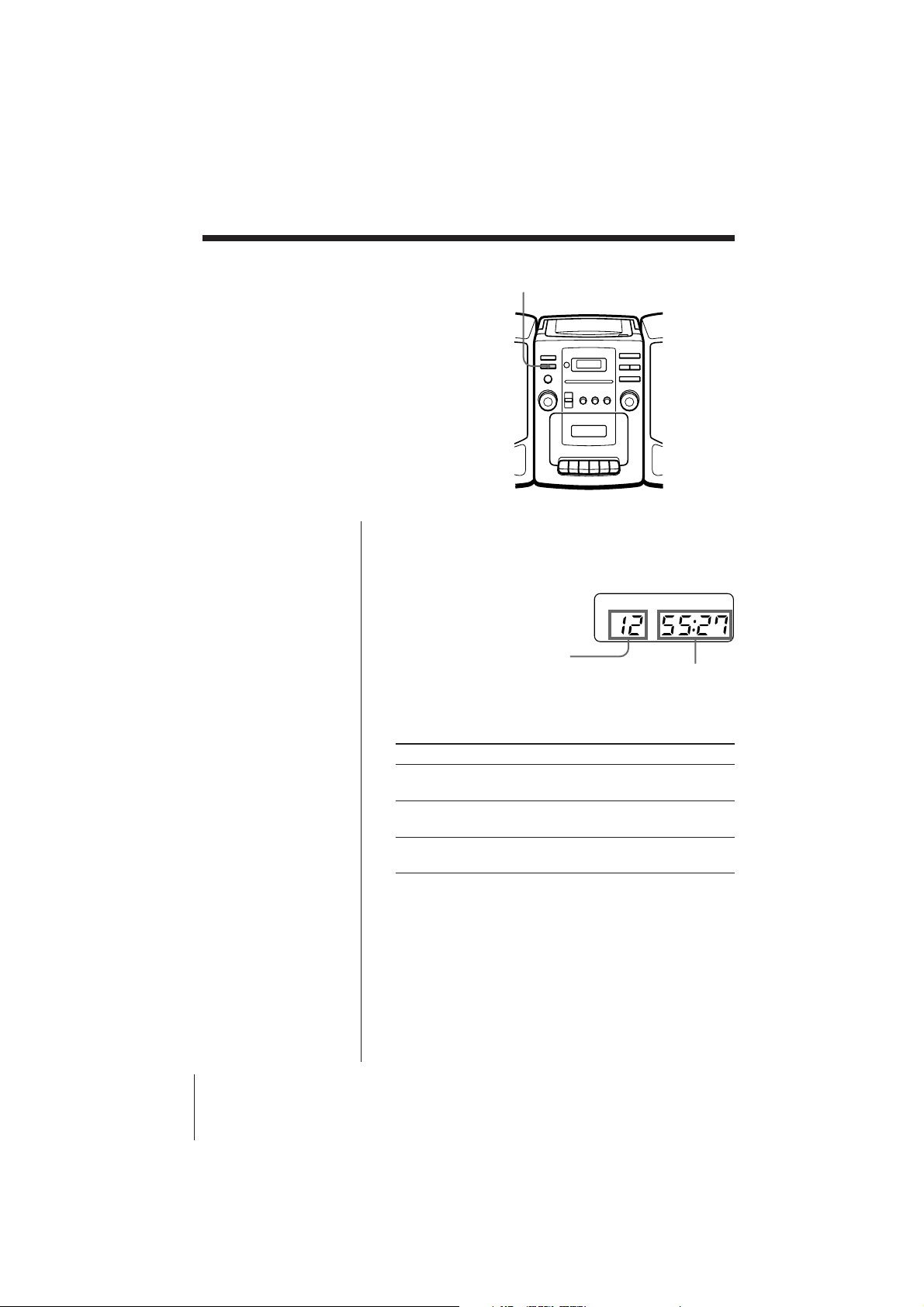

Use these buttons for additional operations

VOLUME OPEN/CLOSEFUNCTION

^

= / +

p

To Do this

Adjust the volume Turn VOLUME.

Stop playback Press p..

Pause playback Press ^.

Press the button again to
resume play after pause.

Go back to the previous track Press =.

Go to the next track Press +.

Remove the CD Press OPEN/CLOSE.

Turn off the player Set FUNCTION to

TAPE (CD/RADIO OFF) .

Basic Operations

Basic Operations

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

5

Listening to the radio

12

For hookup instructions, see pages 16-18.

1 Set FUNCTION to FM or AM to

select the band you want.

2 Turn TUNING to tune in a radio

station.

If the received FM stereo is too
weak, the reception becomes
monaural.

Basic Operations6

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

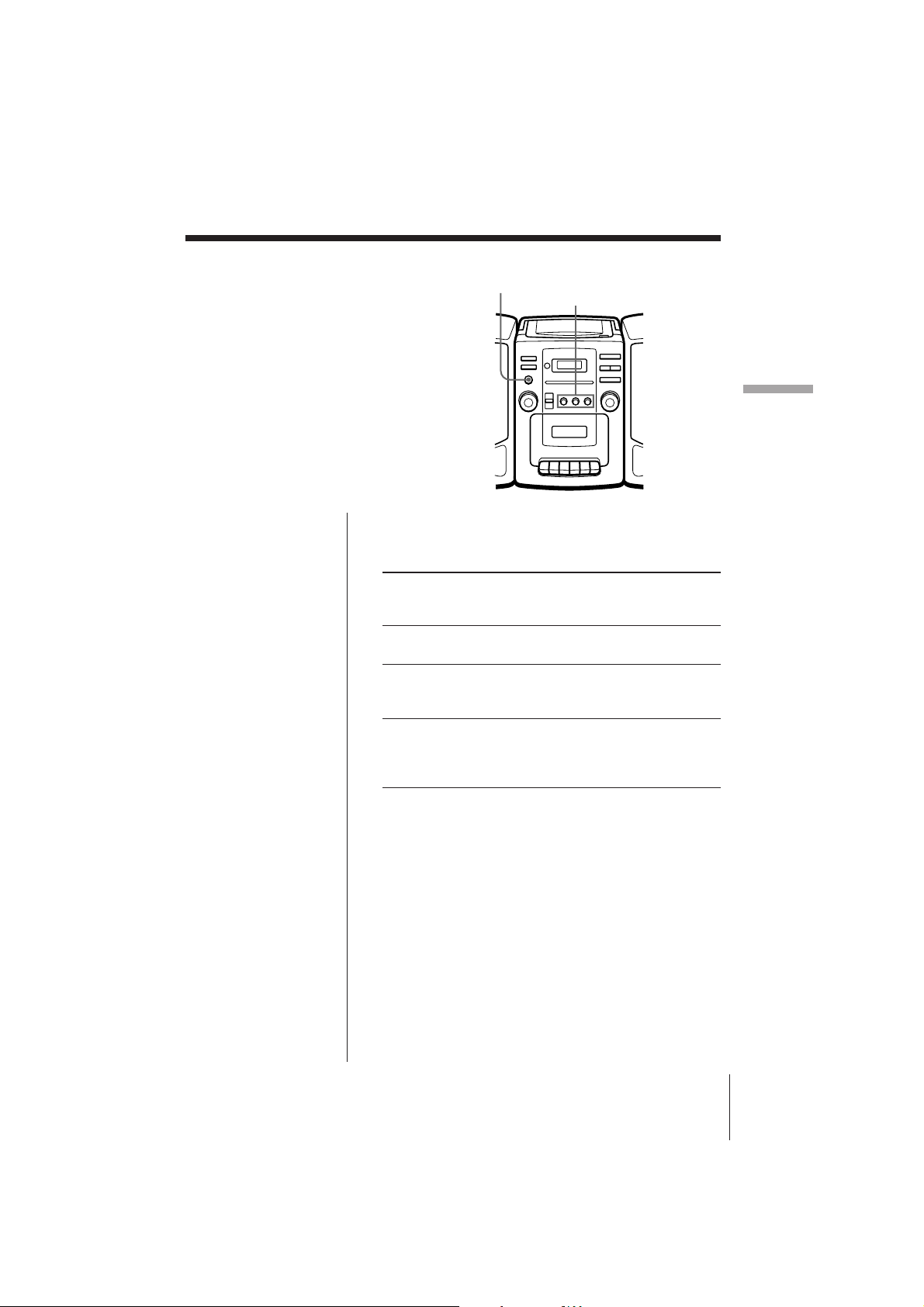

Use these buttons for additional operations

VOLUME FUNCTION

To Do this

Adjust the volume Turn VOLUME .

Turn off the radio Set FUNCTION to

TAPE (CD/RADIO OFF) .

To improve broadcast reception

Reorient the antenna for FM. Reorient the player itself
for AM.

Basic Operations

For FM For AM

Basic Operations

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

7

Playing a tape

123

For hookup instructions, see pages 16-18.

1 Set FUNCTION to

TAPE (CD/RADIO OFF) .

2 Press p6 to open the tape

compartment and insert a
recorded tape. Use TYPE I
(normal) tape only. Close the
compartment.

With the side you want
to play facing forward

3 Press (.

The player starts playing.

Basic Operations8

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

Use these buttons for additional operations

VOLUME

0/)
p6

P

To Do this

Adjust the volume Turn VOLUME.

Stop playback Press p6.

Fast-forward or rewind the tape Press ) or 0.

Pause playback Press P.

Press the button again to
resume play after pause.

Eject the cassette Press p6.

Basic Operations

Basic Operations

CFD-Z110/Z120/Z130.E.3-859-139-1X.U/CA/AU6/E92

9
