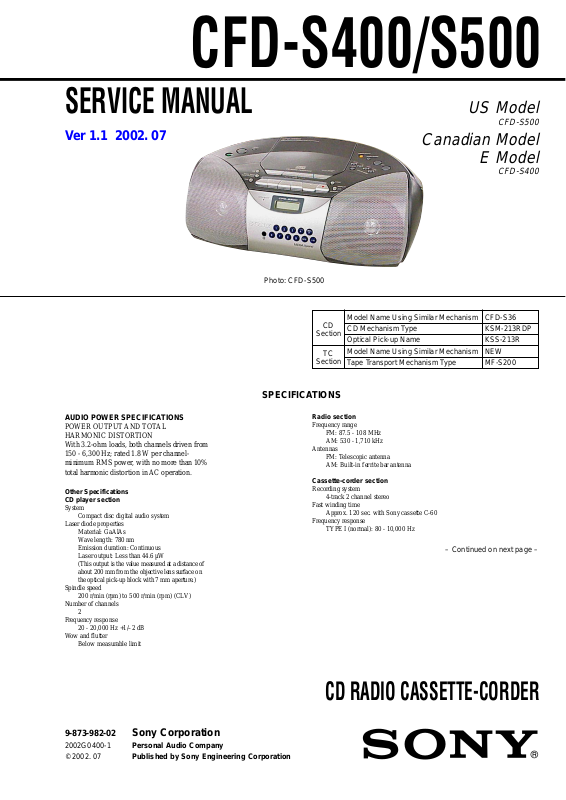

Page 1

CFD-S400/S500

SERVICE MANUAL

Ver 1.1 2002. 07

Photo: CFD-S500

Section

US Model

CFD-S500

Canadian Model

E Model

CFD-S400

Model Name Using Similar Mechanism CFD-S36 CD Mechanism Type KSM-213RDP Optical Pick-up Name KSS-213R Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MF-S200

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION With 3.2-ohm loads, both channels driven from 150 - 6,300 Hz; rated 1.8 W per channelminimum RMS power, with no more than 10% total harmonic distortion in AC operation.

Other Specifications CD player section

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs Wave length: 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.)

Spindle speed

200 r/min (rpm) to 500 r/min (rpm) (CLV)

Number of channels

Frequency response

20 - 20,000 Hz +1/–2 dB

Wow and flutter

Below measurable limit

SPECIFICATIONS

Radio section

Frequency range

FM: 87.5 - 108 MHz AM: 530 - 1,710 kHz

Antennas

FM: Telescopic antenna AM: Built-in ferrite bar antenna

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 120 sec. with Sony cassette C-60

Frequency response

TYPE I (normal): 80 - 10,000 Hz

– Continued on next page –

9-873-982-02

CD RADIO CASSETTE-CORDER

Sony Corporation

Personal Audio Company Published by Sony Engineering Corporation

Page 2

CFD-S400/S500

General

Speaker

Full range: 10 cm dia.,

3.2 ohms, cone type (2)

Outputs

Headphones jack (stereo minijack) For 16 - 68 ohms impedance headphones

Power output

2.3 W + 2.3 W (at 3.2 ohms, 10% harmonic distortion)

Power requirements

For CD radio cassette-corder: US, CND, E92, MX model: 120 V AC, 60 Hz KR model: 220 V AC, 60 Hz SP model: 230 V AC, 50 Hz 9 V DC, 6 size D (R20) batteries For remote control: 3 V DC, 2 size AA (R6) batteries

Power consumption

AC 20 W

Battery life

For CD radio cassette-corder:

FM recording

Sony R20P: approx. 13.5 h Sony alkaline LR20: approx. 20 h

Tape playback

Sony R20P: approx. 7.5 h Sony alkaline LR20: approx. 15 h

CD playback

Sony R20P: approx. 2.5 h Sony alkaline LR20: approx. 7 h

Dimensions

Approx. 386 × 166 × 252 mm (w/h/d)

1/4 × 6 5/8 × 10 inches) (incl. projecting parts)

(15

Mass

Approx. 3.3 kg (7 lb. 4 oz.) (incl. batteries)

Supplied accessories

AC power cord (1) Remote control (RMT-CS400A) (1) Headphones (1) (CFD-S500 only)

Design and specifications are subject to change without notice.

•Abbreviation CND : Canadian model E92 : AC 120V area in E model MX : Mexican model SP : Singapore model KR : Korean model

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270˚C during

repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

Notes on Chip Component Replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY P ARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMA TIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

Page 3

1. SERVICING NOTES......................................................... 4

2. GENERAL............................................................................ 5

3. DISASSEMBLY

3-1. Cabinet Top Assy ................................................................ 7

3-2. Cabinet Front Assy, Cabinet Rear Assy .............................. 7

3-3. Wires ................................................................................... 8

3-4. MD Block............................................................................ 8

3-5. Cassette Door Assy ............................................................. 9

3-6. LCD Board, Control (4) Board ........................................... 9

3-7. Main Board ....................................................................... 10

3-8. Tuner Board....................................................................... 10

3-9. Power Board...................................................................... 11

3-10. CD Lid............................................................................... 11

3-11. CD Block Assy.................................................................. 12

3-12. Optical Pick-up ................................................................. 12

3-13. R/P Head (HRP301), TC Board ........................................ 13

3-14. Motor Assy (M801), Main Belt (B), Sub Belt (B) ............ 13

CFD-S400/S500

4. MECHANICAL ADJUSTMENTS............................... 14

5. ELECTRICAL ADJUSTMENTS

Tape Section ..........................................................................14

Tuner Section......................................................................... 15

CD Section ............................................................................ 16

6. DIAGRAMS

6-1. IC Pin Description............................................................. 17

6-2. Circuit Boards Location .................................................... 17

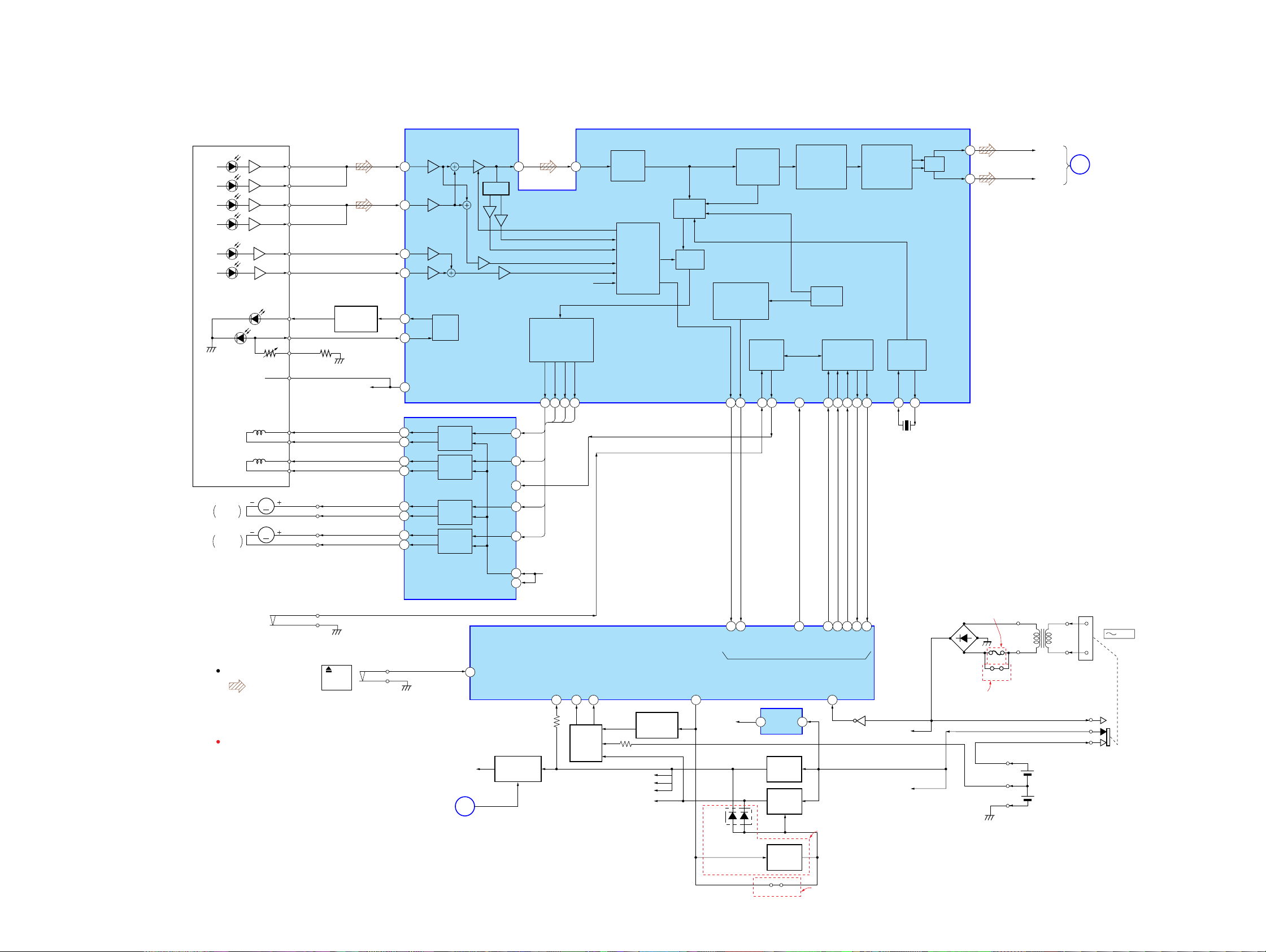

6-3. Block Diagram – CD Section –......................................... 18

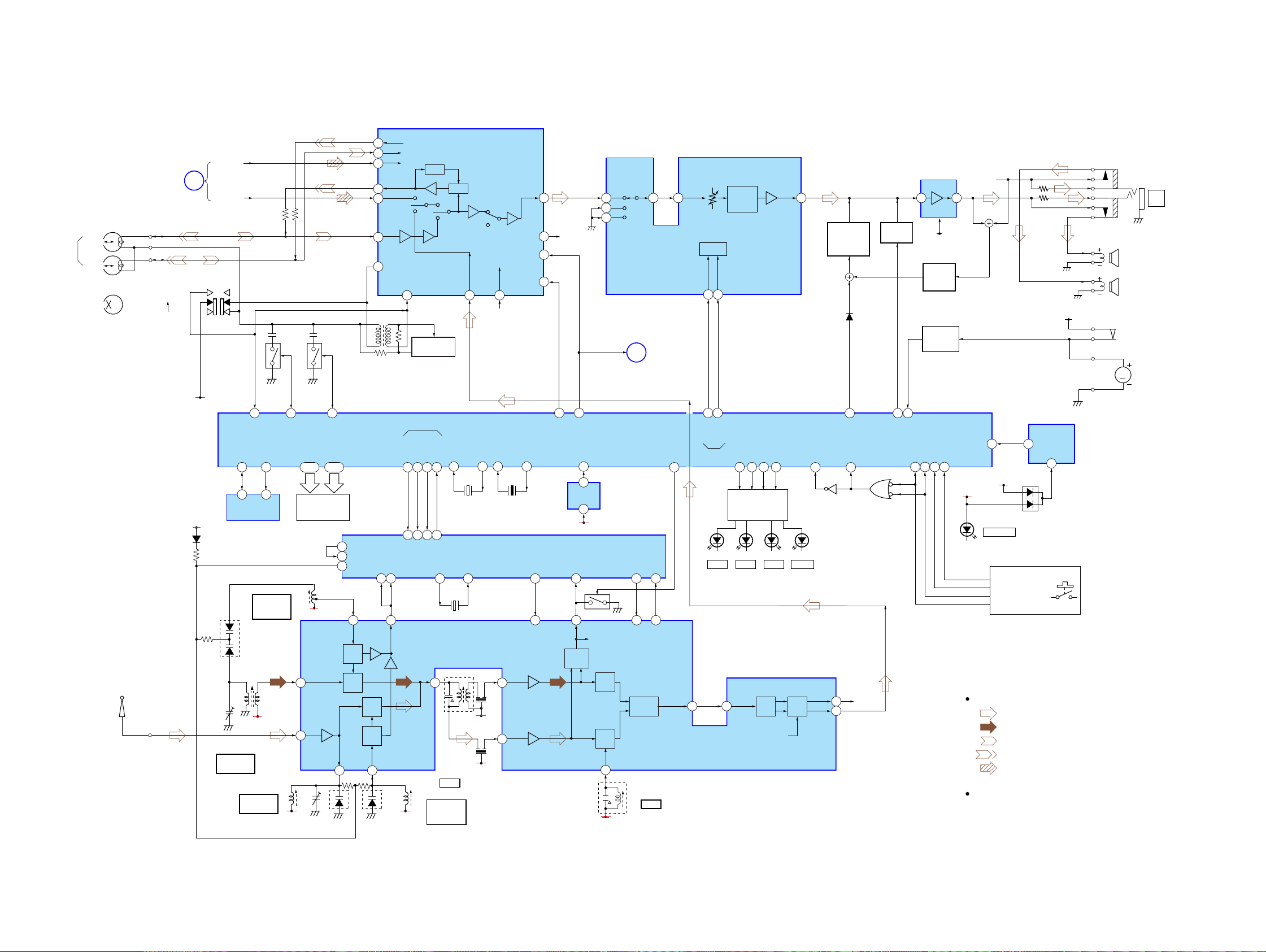

6-4. Block Diagram – Main Section –...................................... 19

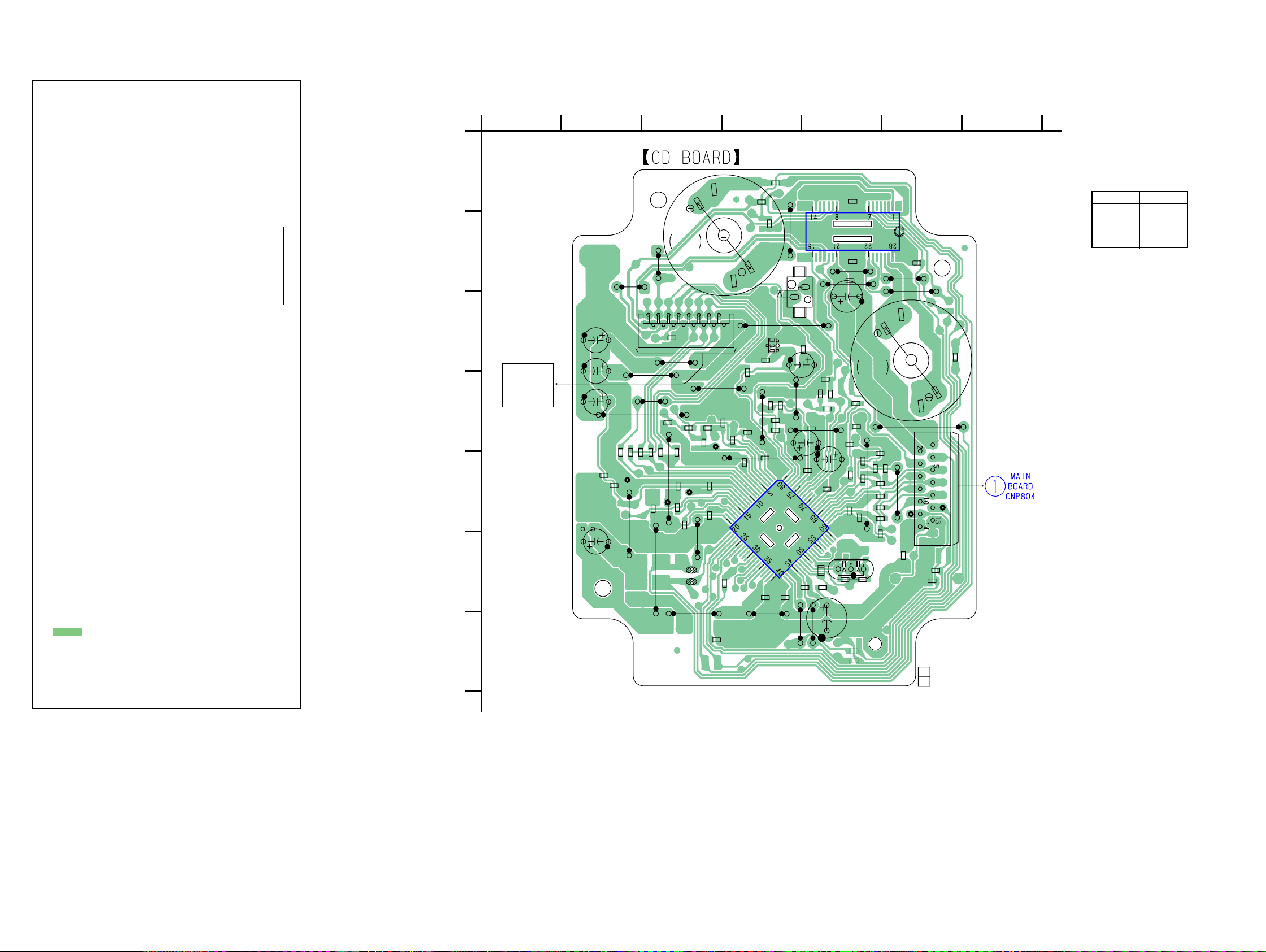

6-5. Printed Wiring Board – CD Section –............................... 20

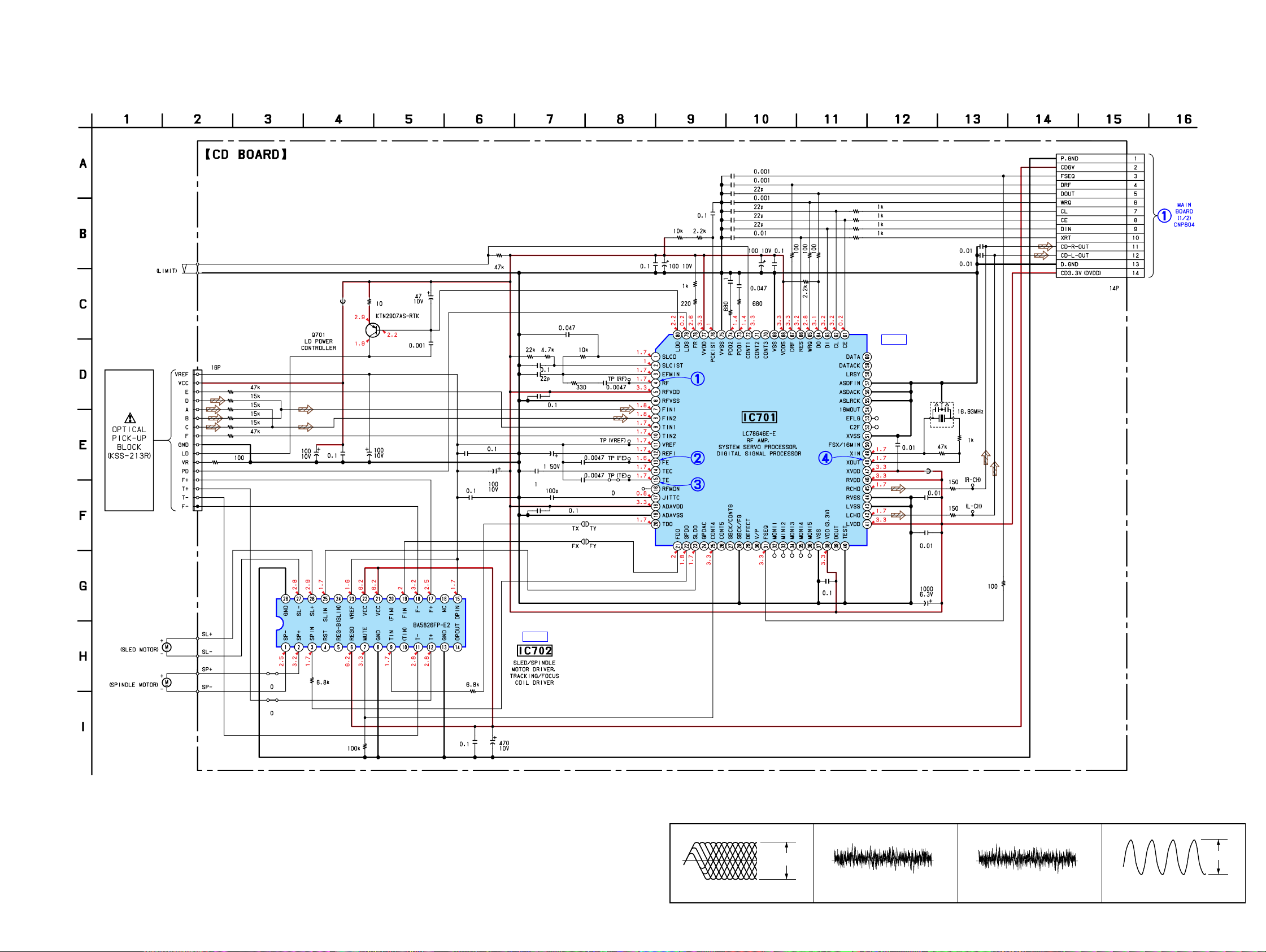

6-6. Schematic Diagram – CD Section –.................................. 21

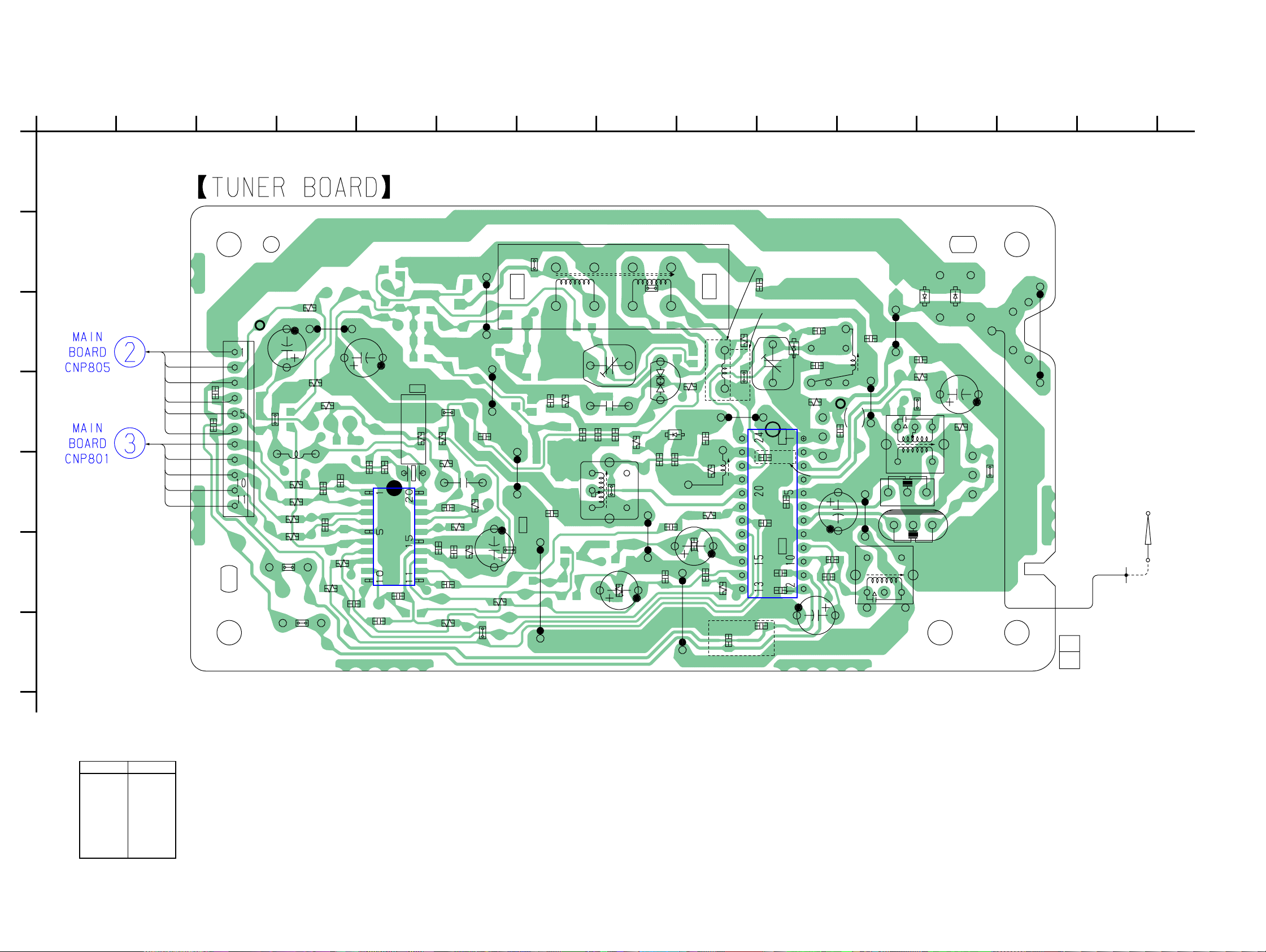

6-7. Printed Wiring Board – Tuner Section –........................... 22

6-8. Schematic Diagram – Tuner Section –.............................. 23

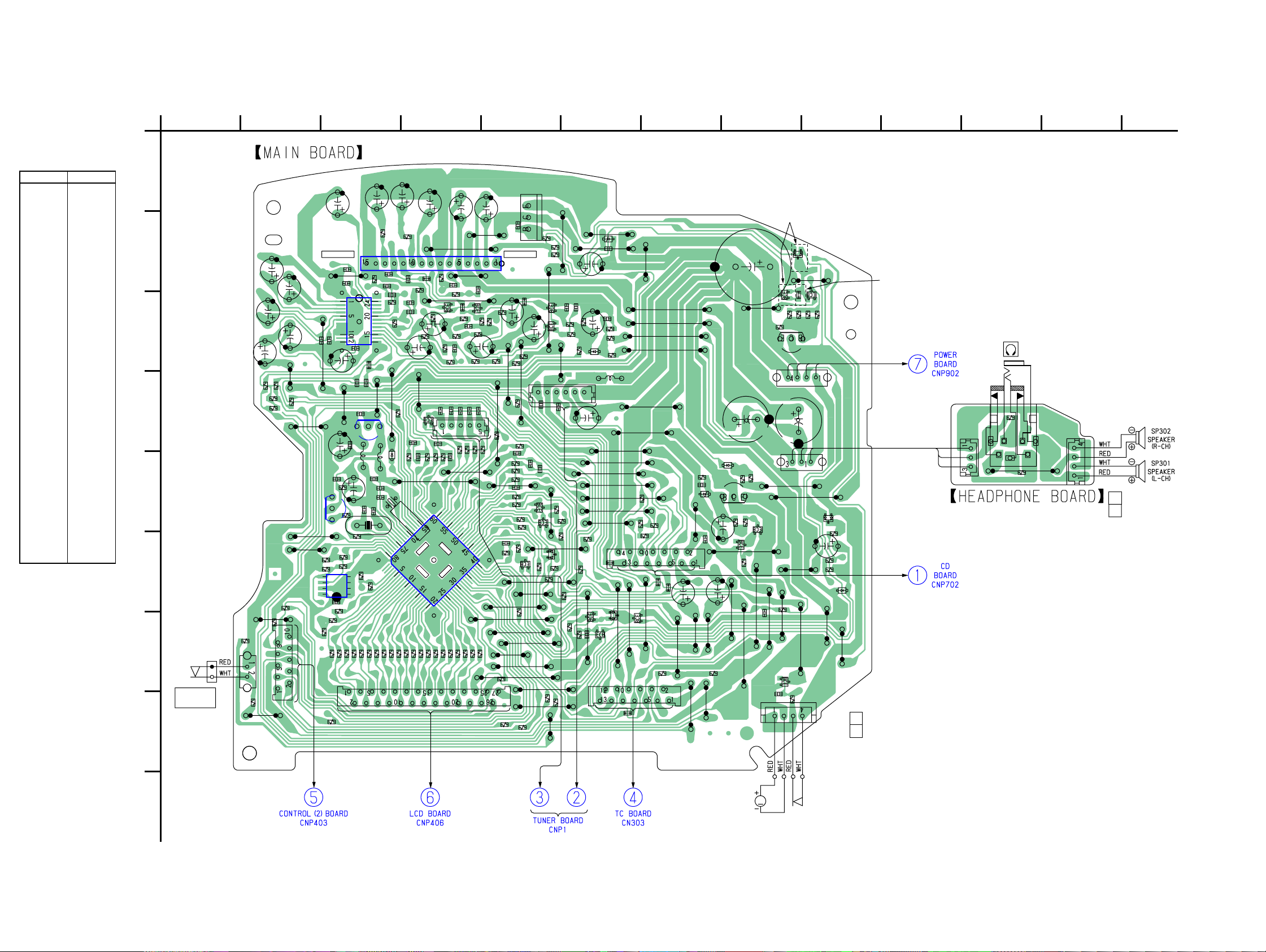

6-9. Printed Wiring Boards – Main Section – .......................... 24

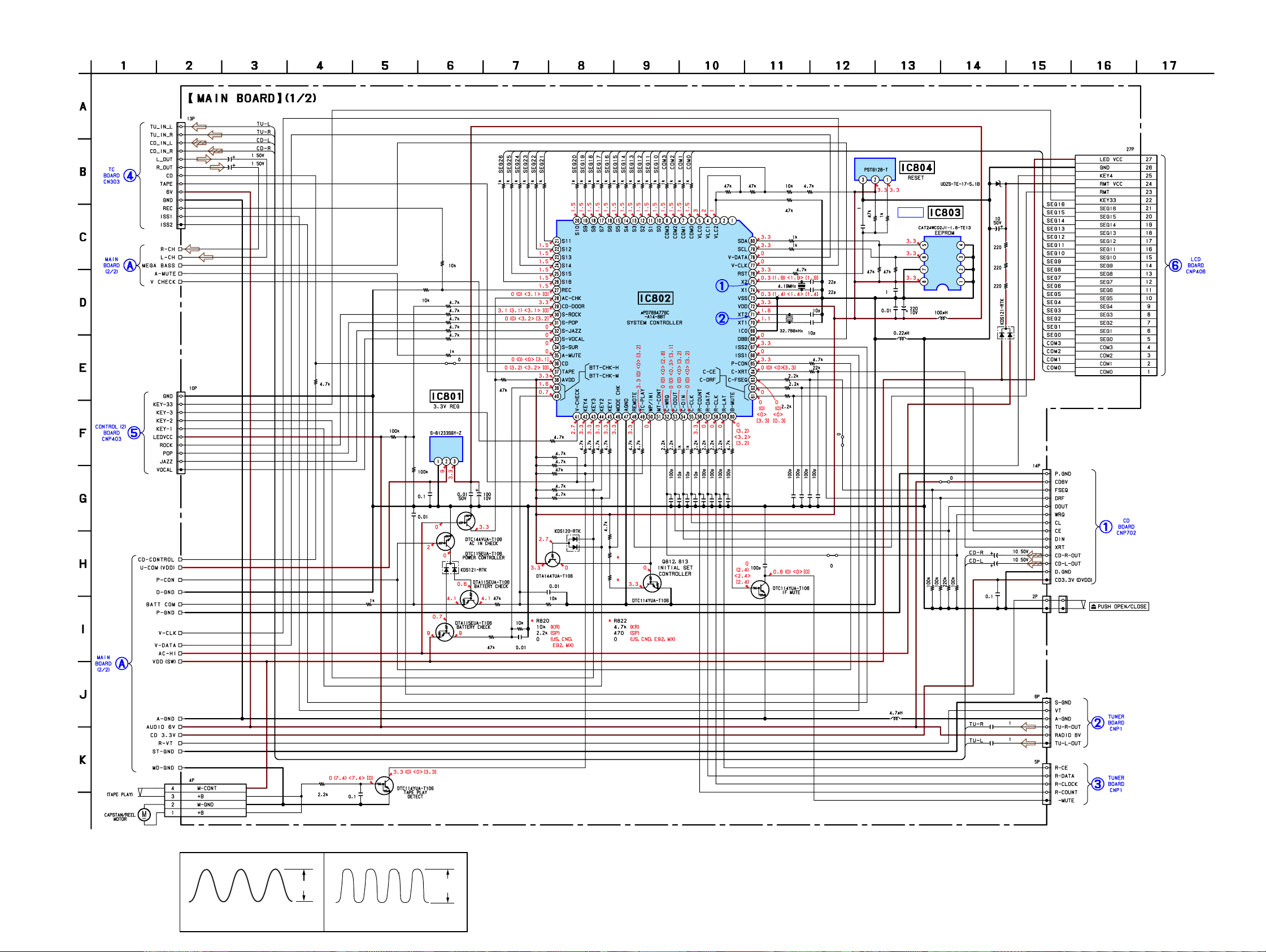

6-10. Schematic Diagram – Main Section (1/2) – ...................... 25

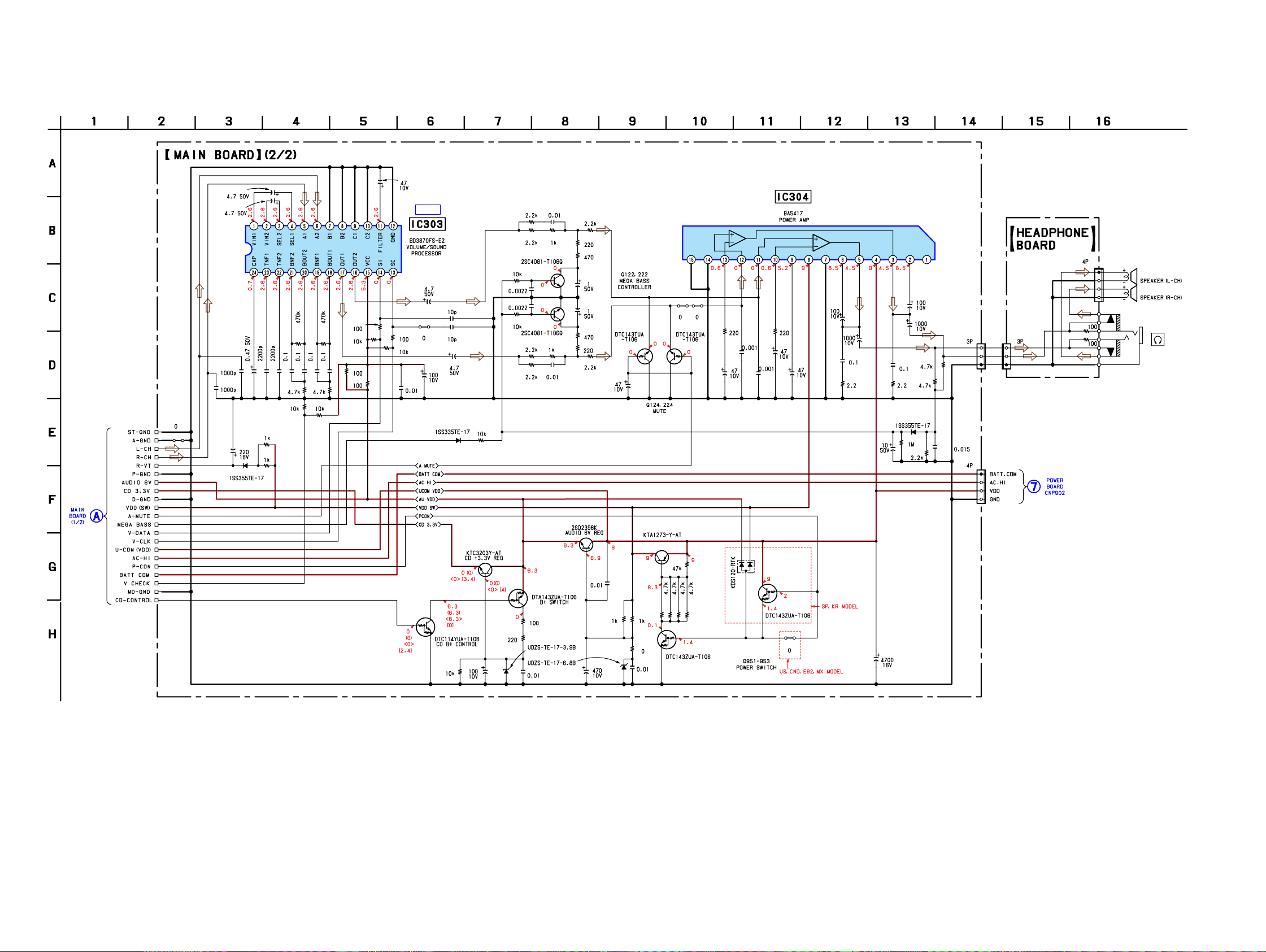

6-11. Schematic Diagram – Main Section (2/2) – ...................... 26

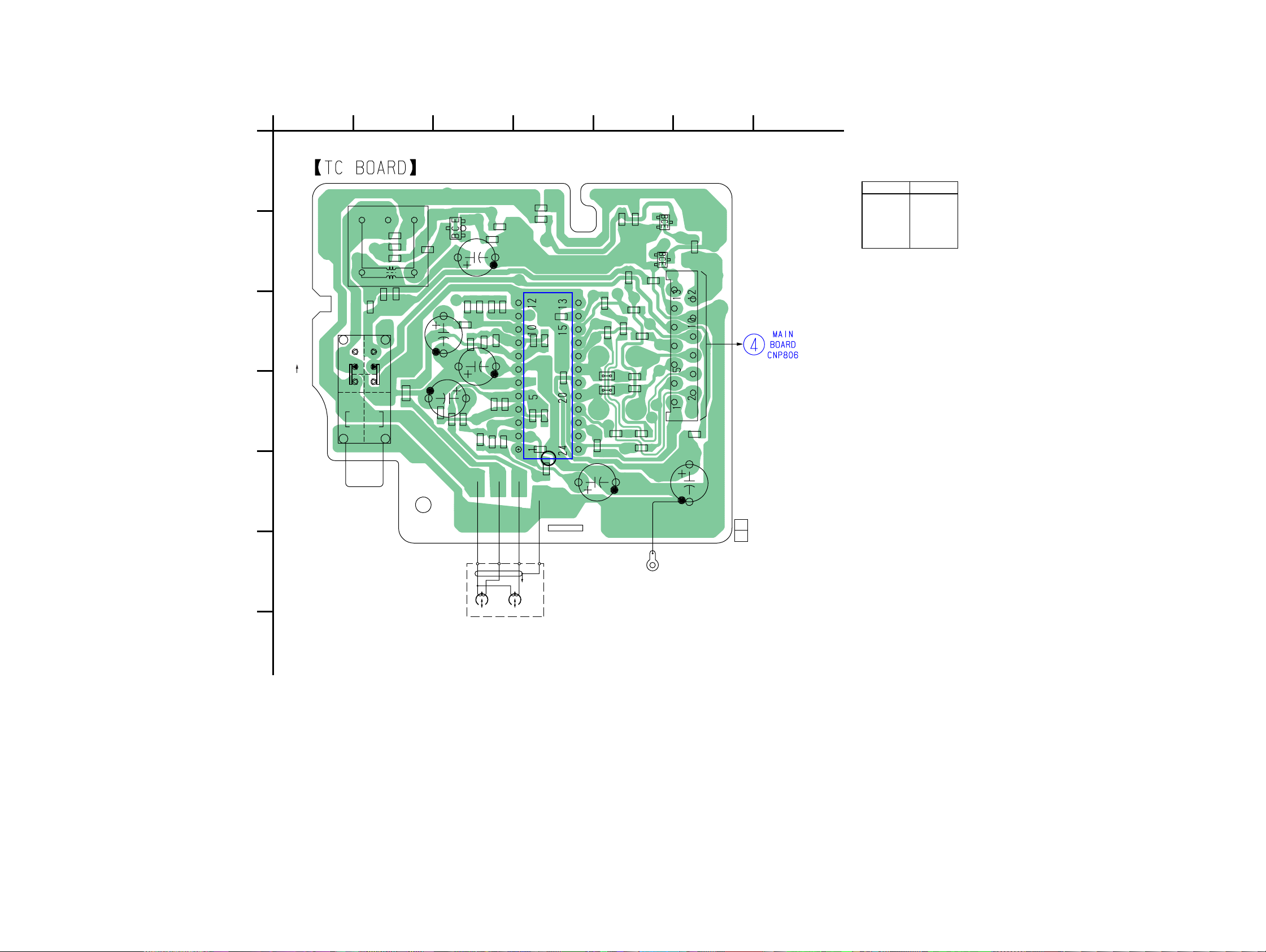

6-12. Printed Wiring Board – TC Section – ............................... 27

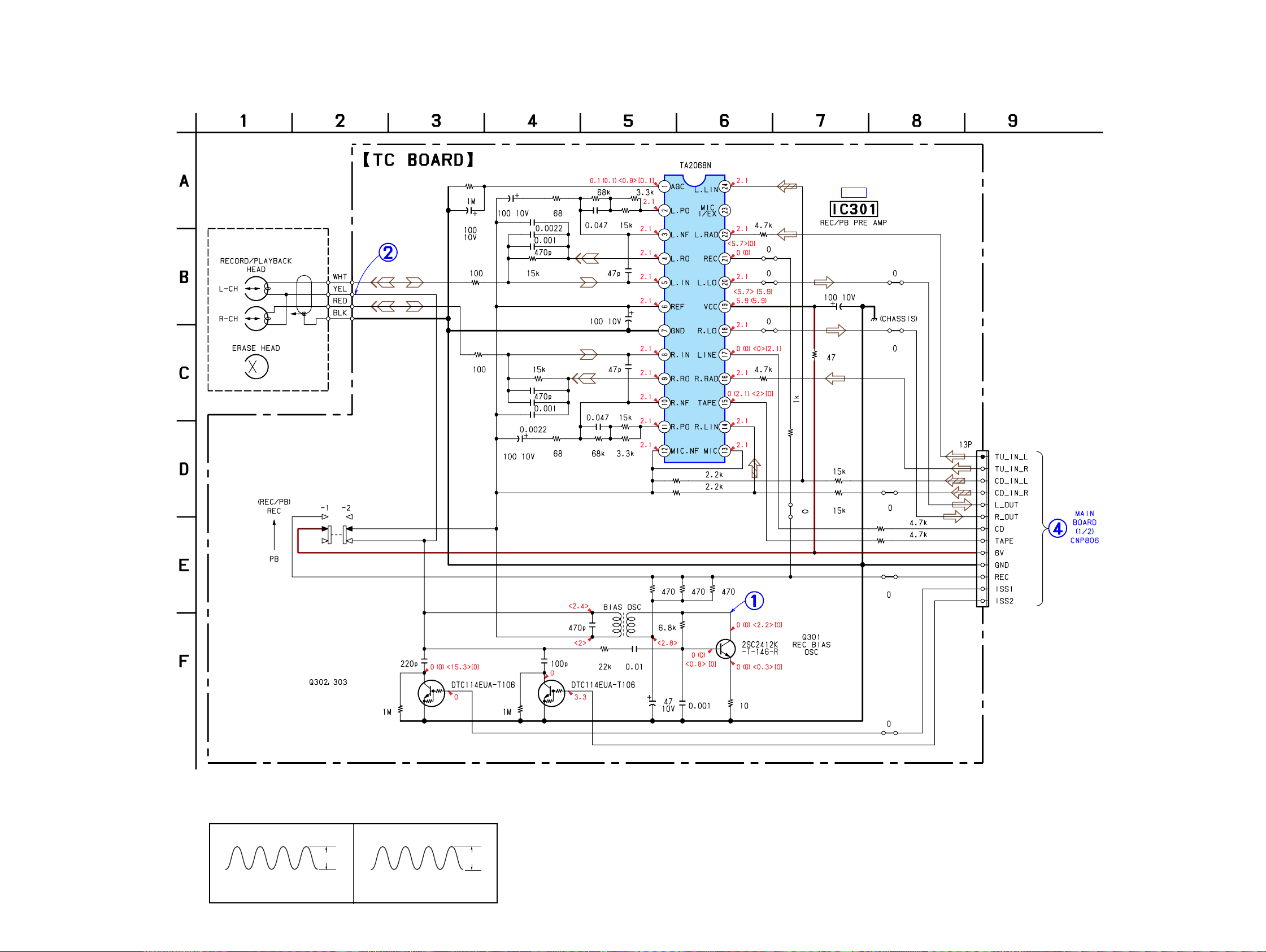

6-13. Schematic Diagram – TC Section – .................................. 28

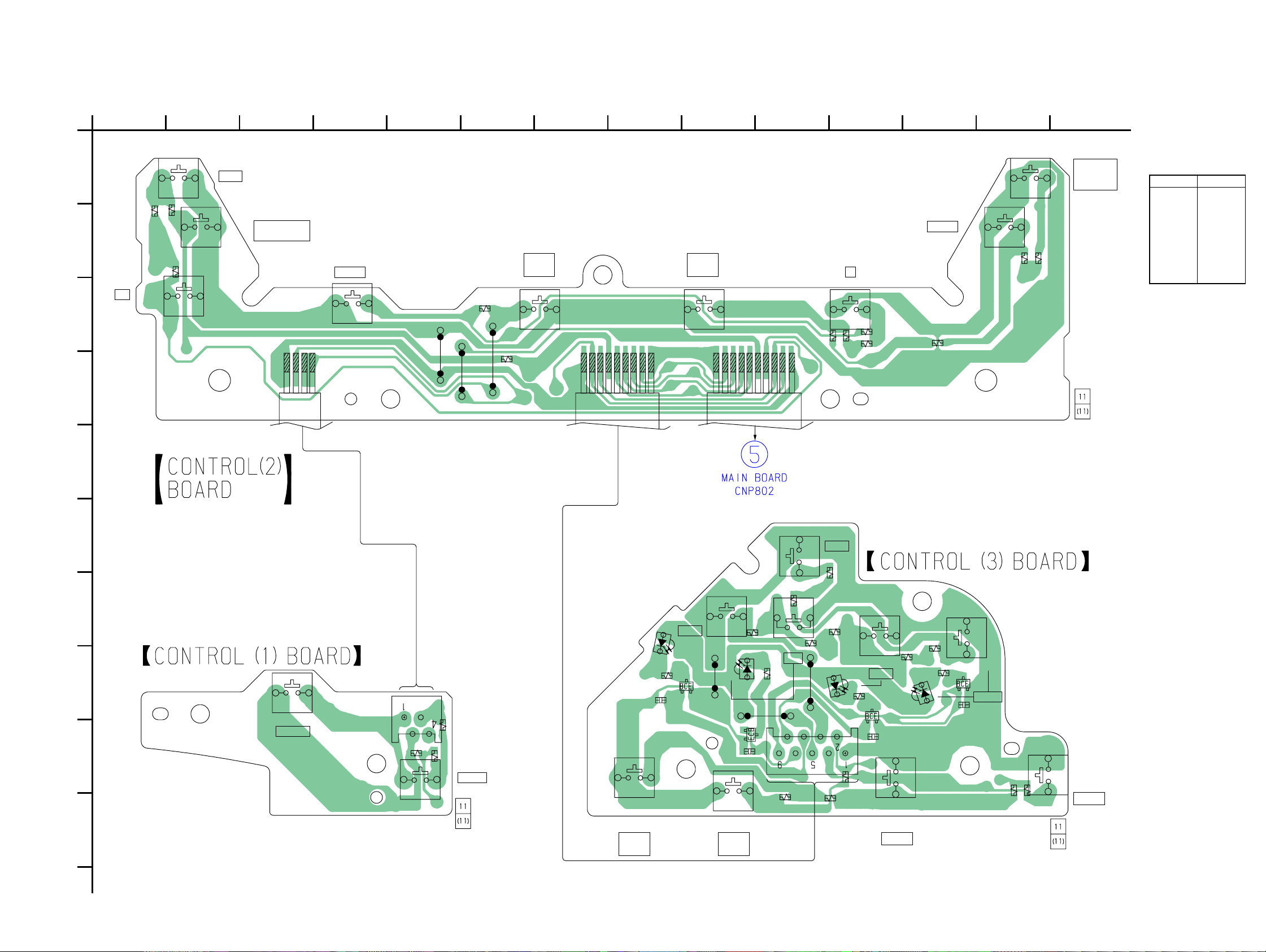

6-14. Printed Wiring Boards – Control Section –....................... 29

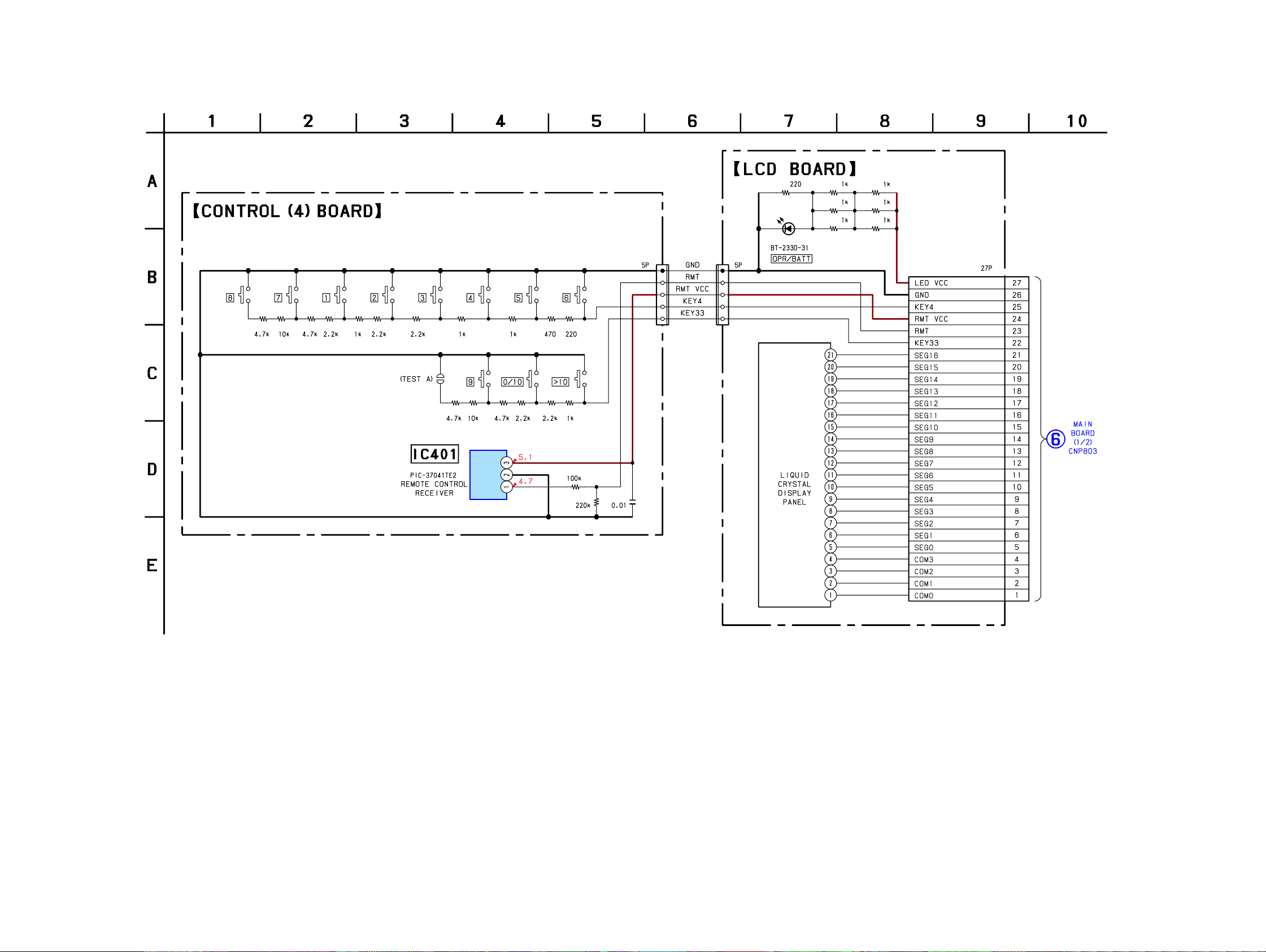

6-15. Schematic Diagram – Control Section – ........................... 30

6-16. Printed Wiring Boards – Display Section – ...................... 31

6-17. Schematic Diagram – Display Section –........................... 32

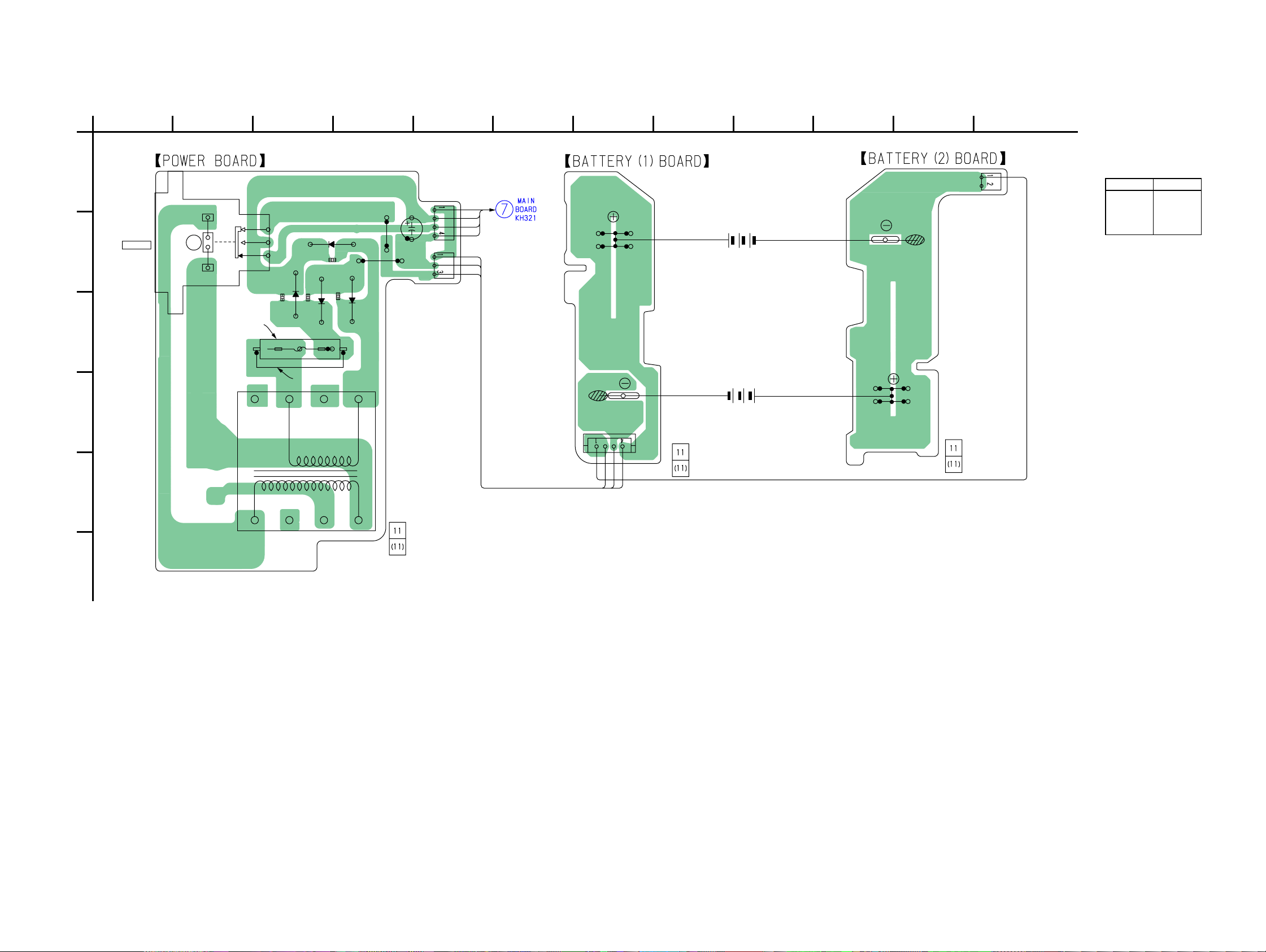

6-18. Printed Wiring Boards – Power Supply Section – ............ 33

6-19. Schematic Diagram – Power Supply Section –................. 34

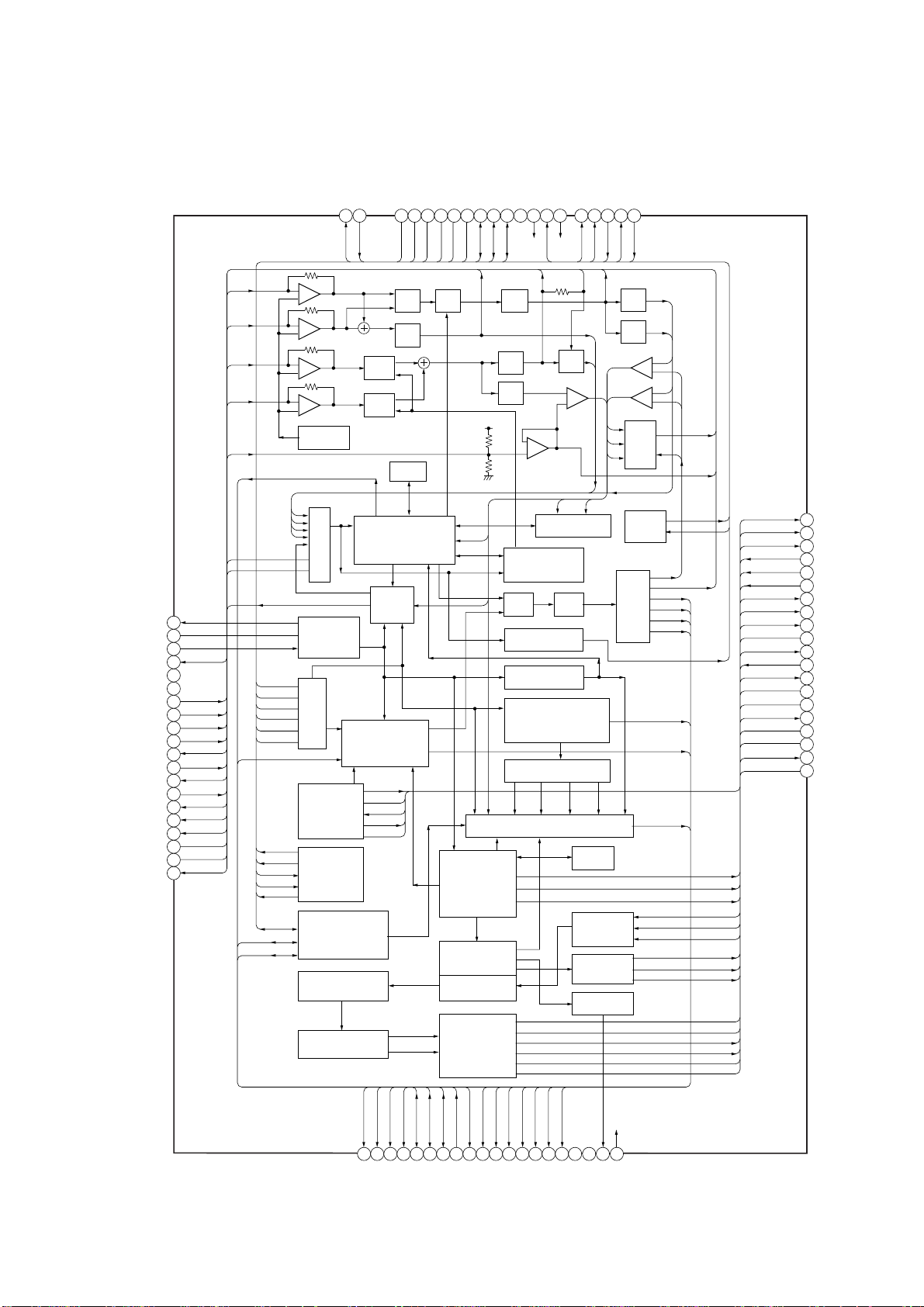

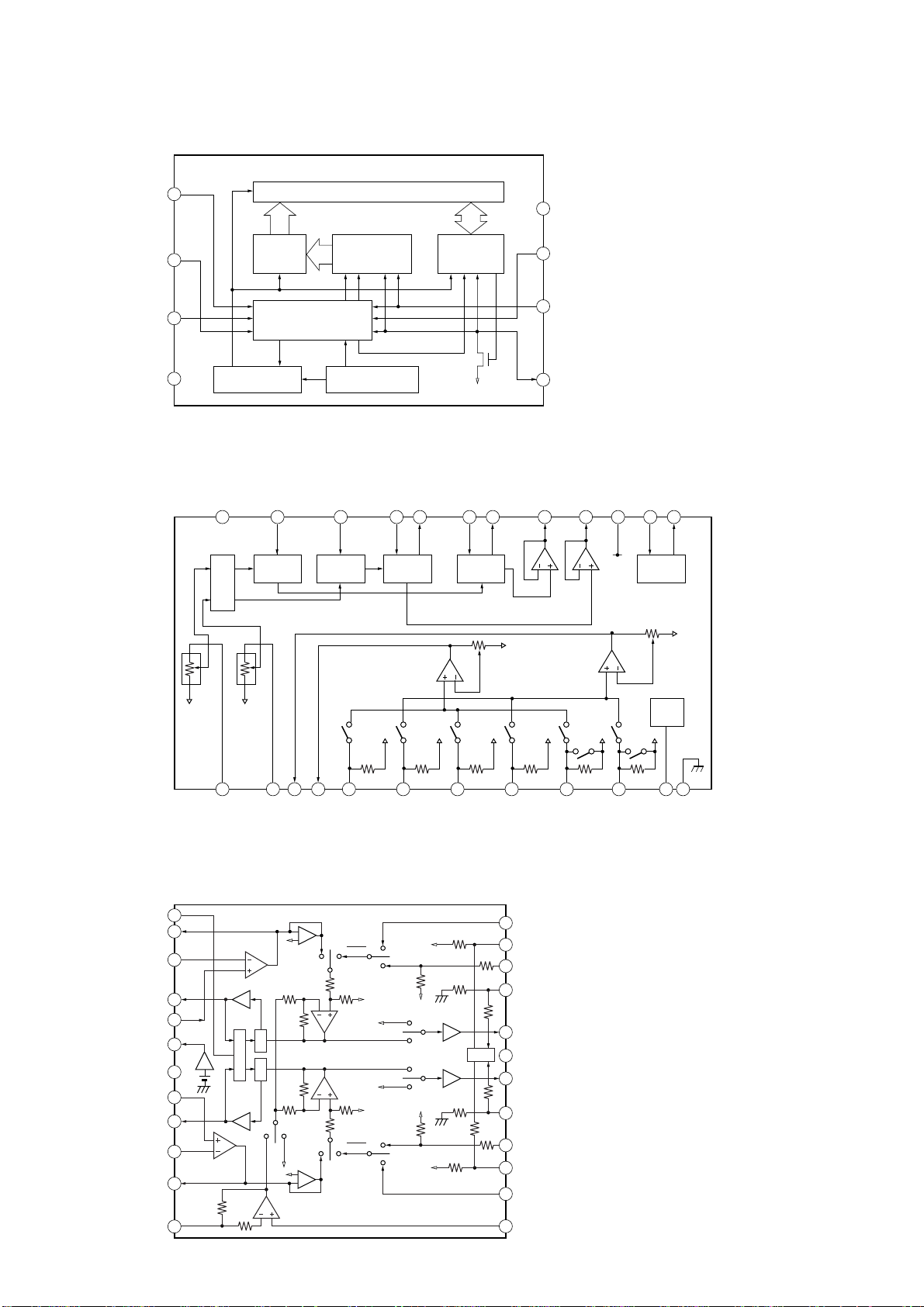

6-20. IC Block Diagrams............................................................ 35

7. EXPLODED VIEWS

7-1. Main Section ..................................................................... 38

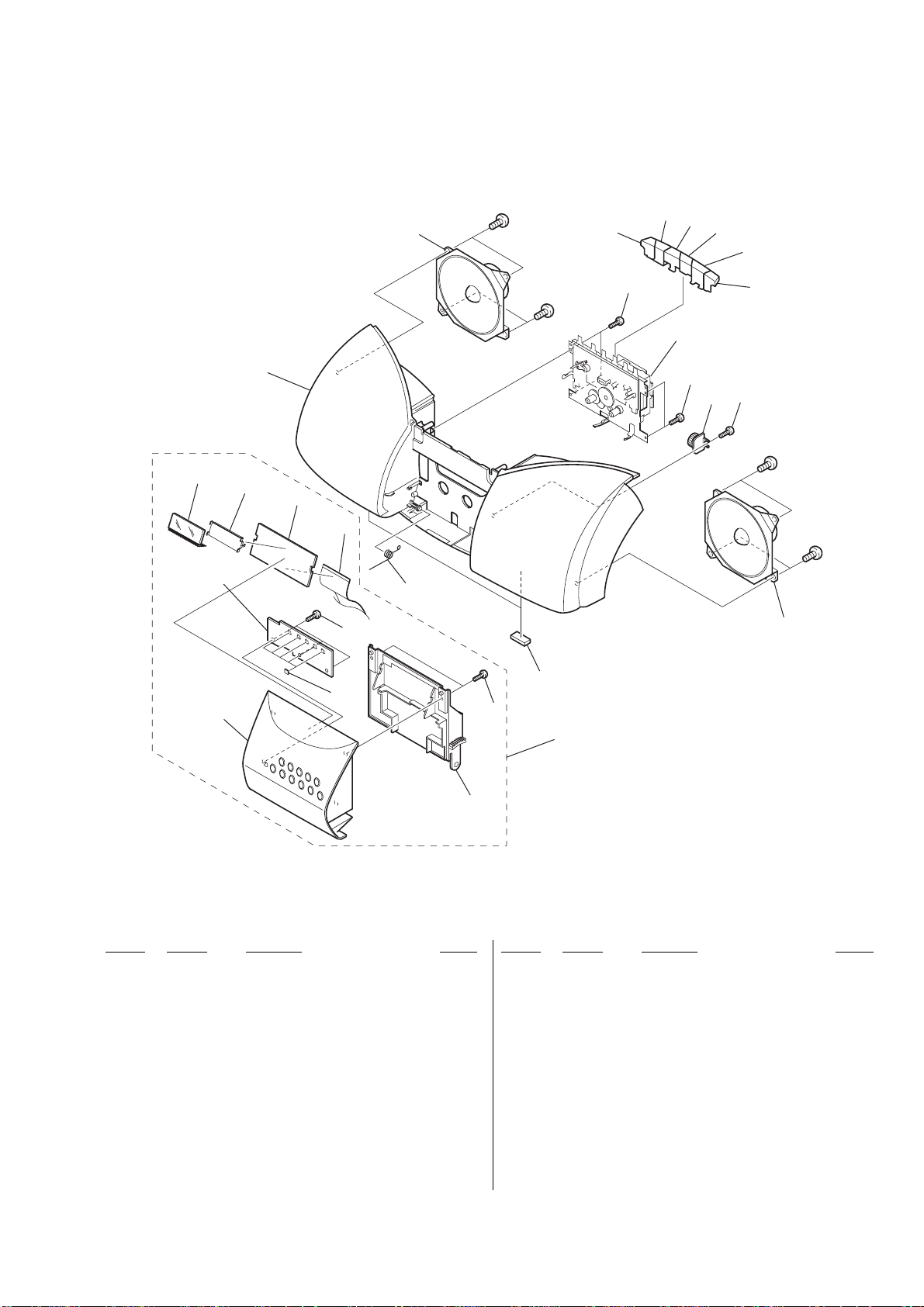

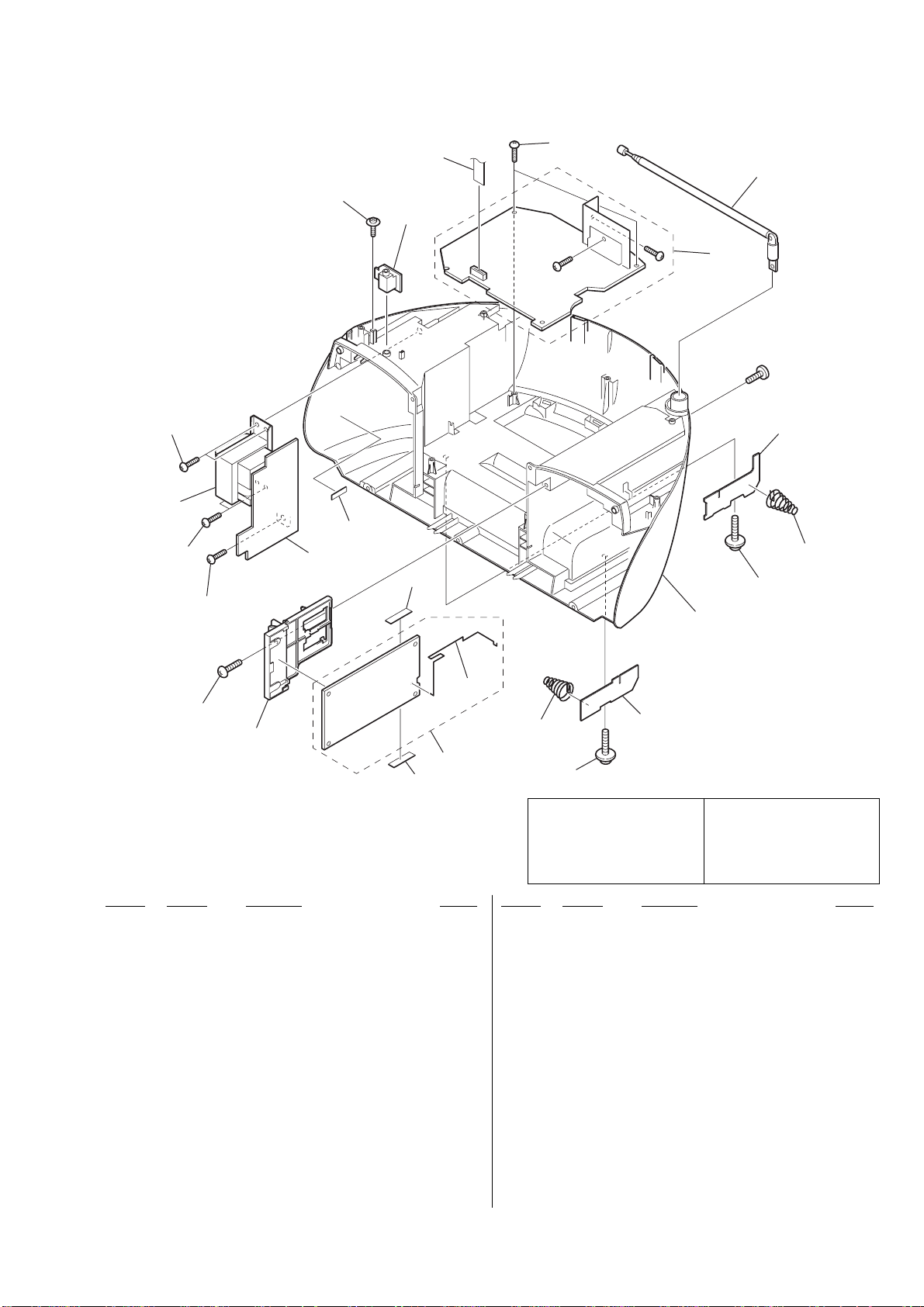

7-2. Cabinet Front Section........................................................ 39

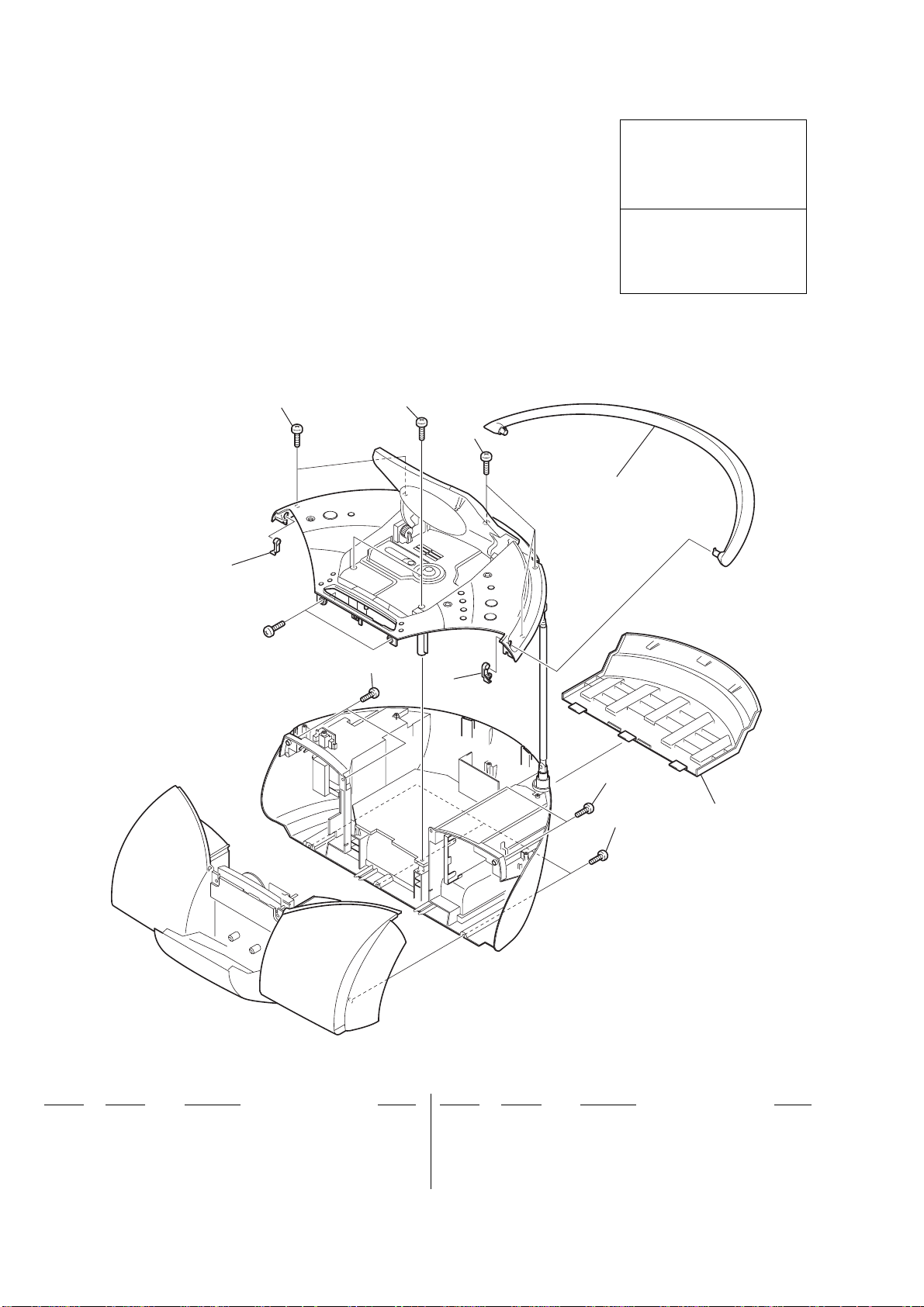

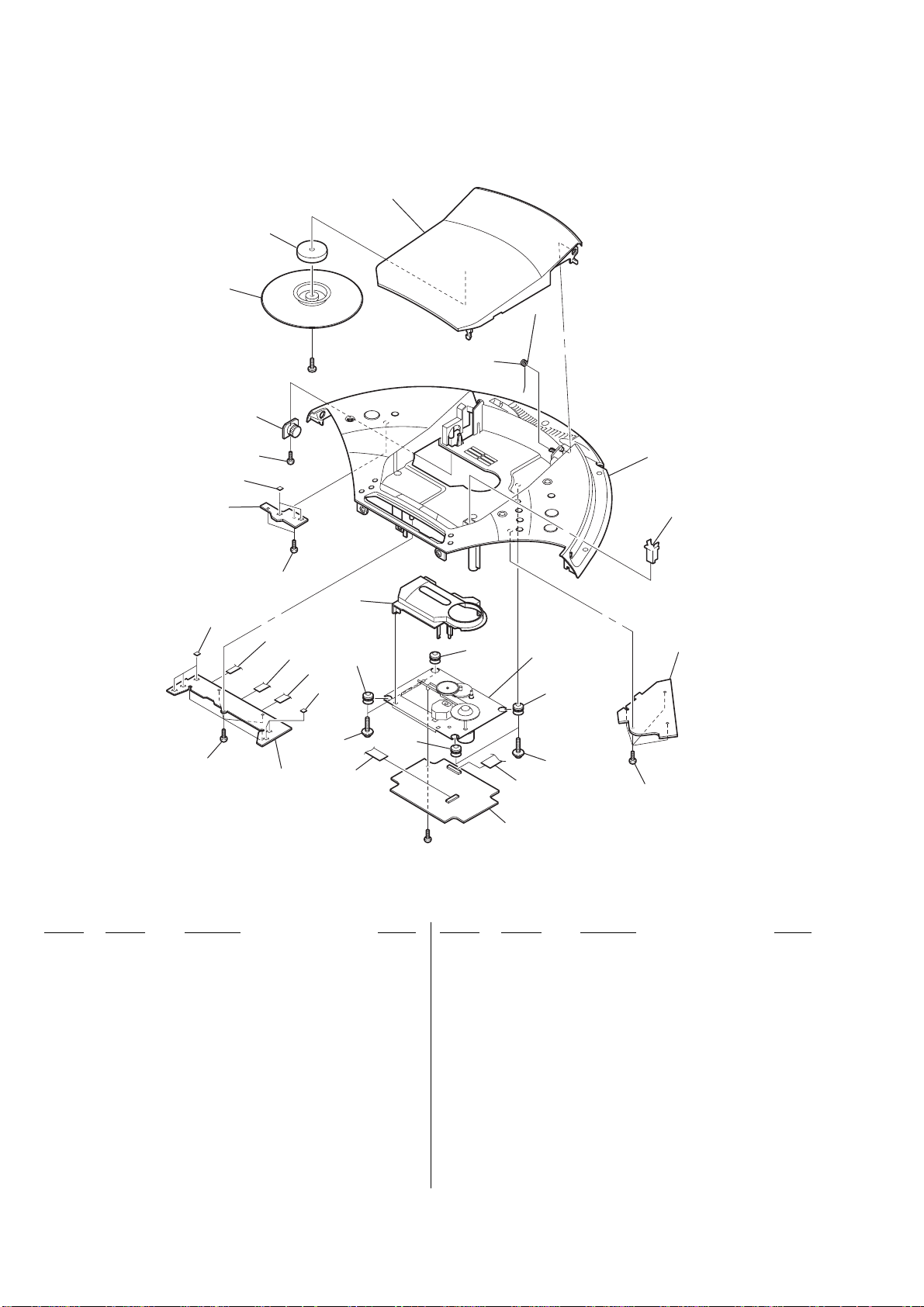

7-3. Cabinet Top Section .......................................................... 40

7-4. Cabinet Rear Section......................................................... 41

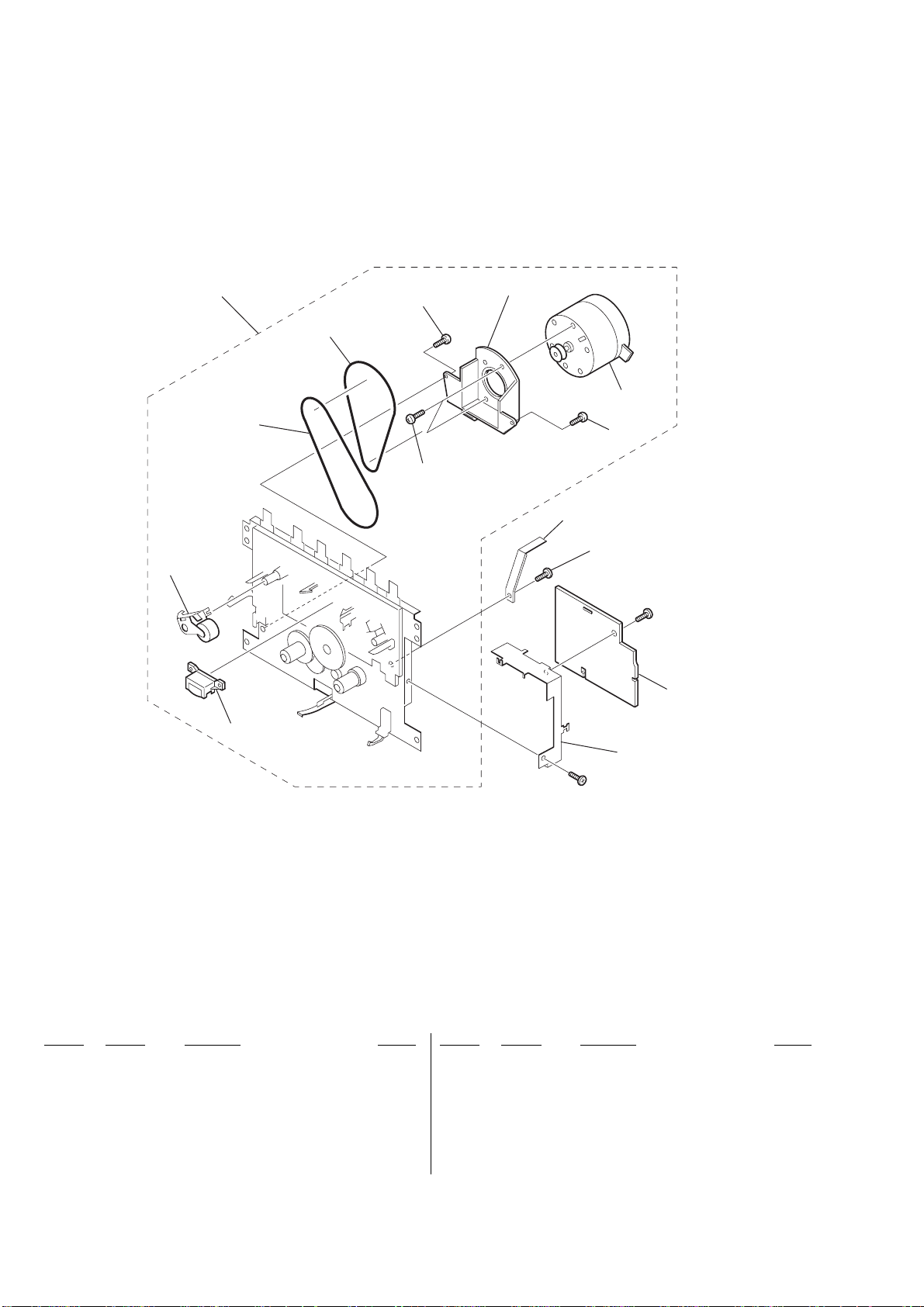

7-5. Tape Mechanism Section .................................................. 42

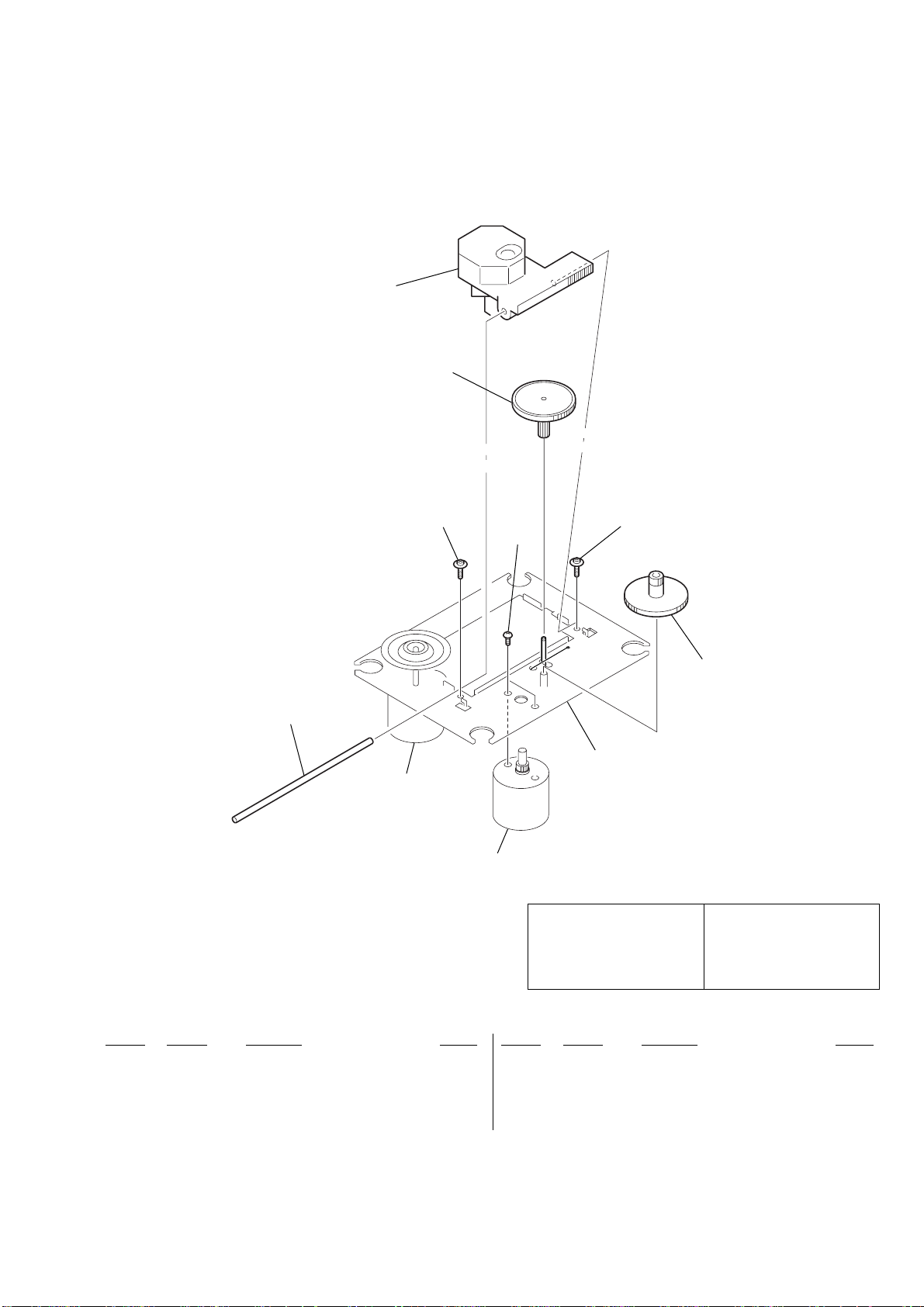

7-6. CD Mechanism Section .................................................... 43

8. ELECTRICAL PARTS LIST......................................... 44

Page 4

CFD-S400/S500

SECTION 1

SERVICING NOTES

CHUCK PLATE JIG ON REPAIRING

On repairing CD section, playing a disc without the lid (CD), use Chuck Plate Jig.

• Code number of Chuck Plate Jig: X-4918-255-1

LASER DIODE AND FOCUS SEARCH OPERATION CHECK

1. Turn ON the [POWER] button and press [CD] button to CD position.

2. Open the CD lid.

3. Turn on S801 with screwdriver, etc. as following figure.

4. Press the N X (CD) button.

5. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto P ower Control circuit or Optical Pick-up is broken. Objective lens moves up and do wn three times for focus search.

S801

Page 5

SECTION 2

Remote Control

Location of controls

FUNCTION

BAND

POWER

VOL +,–

.,>

Loading a CD

With the labeled side up

Inserting a cassette

With the side you want to play facing you

Total track number Programmed track Playing orderTotal playing time

Display

MEGA BASS

Z PUSH OPEN/CLOSE

VOL +*, –

., > TUNE –, +

DISPLAY ENT MEMORY

MODE

Number buttons

POWER

SLEEP

OPR/BATT

RADIO BAND AUTO PRESET

TAPE

Display

Remote sensor

SOUND MODE

SLEEP

Number buttons

MODE

TUNE –, +

MEGA Xpand

MEGA BASS

SOUND

*The button has a tactile dot.

GENERAL

CFD-S400/S500

This section is extracted from instruction manual.

Page 6

CFD-S400/S500

SECTION 3

DISASSEMBLY

• The equipment can be removed using the following procedure.

SET

3-1. CABINET T OP ASSY

(Page 7)

3-2. CABINET FRONT ASSY,

CABINET REAR ASSY (Page 7)

3-3. WIRES

(Page 8)

3-4. MD BLOCK

(Page 8)

3-5. CASSETTE DOOR ASSY

(Page 9)

3-6. LCD BOARD,

CONTROL (4) BOARD (Page 9)

3-7. MAIN BOARD

(Page 10)

3-10. CD LID

(Page 11)

3-8. TUNER BOARD

3-13. R/P HEAD (HRP301),

TC BOARD (Page 13)

3-11. CD BLOCK ASSY

3-12. OPTICAL PICK-UP

(Page 10)

(Page 12)

3-9. POWER BOARD

(Page 11)

3-14. MOTOR ASSY (M801),

MAIN BELT (B), SUB BELT (B) (Page 13)

Page 7

Note : Follow the disassembly procedure in the numerical order given.

3-1. CABINET TOP ASSY

BTP 2.6x10

screw (2.6)

CNP804

handle

screw (2.6)

CD lid

screw (2.6)

cabinet top assy

CNP802

CFD-S400/S500

claw

cassette door assy

3-2. CABINET FRONT ASSY, CABINET REAR ASSY

PWH 2.6x10

HEADPHONE board

CNP323

screw (2.6)

connector

(S801)

battery lid

CNP302

CNP806

CNP803

cabinet front assy

cabinet rear assy

screw (2.6)

Page 8

CFD-S400/S500

3-3. WIRES

Put flat cable and wires between the cabinets and push them in the grooves located at A to E in the figure to prevent disconnection before assembling the set.

from HEADPHONE board

cabinet front

3-4. MD BLOCK

cabinet rear

BVTP 2.6x10

MD block

BVTP 2.6x10

Page 9

3-5. CASSETTE DOOR ASSY

cassette spring

damper

CFD-S400/S500

BVTP 2.6x1

cassette door assy

3-6. LCD BOARD, CONTROL (4) BOARD

LCD board

claws

flexible flat cable

BVTP 2.6x10

BVTP (2.6)

claw

CONTROL (4) board

claw

cassette door sub assy

cassette holder

Page 10

CFD-S400/S500

3-7. MAIN BOARD

PWH 2.6x10

HEADPHONE board

CNP322

CNP902

MAIN board

BVTP 2.6x10

3-8. TUNER BOARD

CNP1

telescopic antenna

B 3x

BVTP 2.6x10

claws

CNP1

TUNER board

Page 11

3-9. POWER BOARD

BVTP 2.6x10

CFD-S400/S500

3-10. CD LID

CNP901

CNP902

BVTP 2.6x10

CD lid

POWER board

claw

CD spring

claw

Page 12

CFD-S400/S500

)

3-11. CD BLOCK ASSY

CD cover

3-12. OPTICAL PICK-UP

sled shaft

PWH 2.6x10

optical pick-up

claws

PWH 2.6x10

claw

gear (A)

CD block ass

PWB tapping (M2

PWB tapping (M2)

Page 13

3-13. R/P HEAD (HRP301), TC BOARD

)

claws

Removal the solders.

BVTP 2x4

TC board

CFD-S400/S500

R/P head (HRP301)

3-14. MOTOR ASSY (M801), MAIN BELT (B), SUB BELT (B)

main belt (B)

sub belt (B)

bind DT M2x6

motor assy (M801

pan M2.6x4.5

bind DT M2x6

Page 14

CFD-S400/S500

)

SECTION 4

MECHANICAL ADJUSTMENTS

SECTION 5

ELECTRICAL ADJUSTMENTS

PRECAUTION

1. Clean the following parts with a denatured-alcohol-moistened swab :

record/playback head pinch roller erase head rubber belts capstan idlers

2. Demagnetize the record/playback head with a head demagnetizer. (Do not bring the head magnetizer close to the erase head.)

3. Do not use a magnetized screwdriver for the adjustments.

4. The adjustments should be performed with the rated power supply voltage (9V) unless otherwise noted.

Torque Measurement

Mode Torque meter Meter reading

2.95 – 6.86 mN • m

FWD CQ-102C (30 – 70 g • cm)

(0.42 – 0.97 oz • inch)

FWD Back Tension

FF CQ-201B (more than 60 g • cm)

REW CQ-201B (more than 60 g • cm)

CQ-102C (1.5 – 5.5 g • cm)

0.15 – 0.53 mN • m

(0.021 – 0.076 oz • inch)

more than 5.88 mN • m

(more than 0.83 oz • inch)

more than 5.88 mN • m

(more than 0.83 oz • inch)

TAPE SECTION 0 dB = 0.775 V

• Standard Output Level Output terminal HP OUT

load impedance 32 Ω

output signal level 0.25 V (–10 dB)

• Test T ape

Type Signal Used for

WS-48A 3 kHz, 0 dB tape speed adjustment

Tape Speed Adjustment

Procedure:

Mode: playback

test tape WS-48A (3 kHz, 0 dB)

set

ack (J321

Adjust so that the value on the digital frequency counter is 3,000 Hz.

digital frequency counter

32 Ω

Tape Tension Measurement

Mode Tension meter Meter Reading

FWD CQ-403A

more than 100 g

(more than 3.53 oz)

Specification Value:

Digital frequency counter

2,940 to 3,060 Hz

Adjust so that the frequency at the beginning and that at the end of tape winding are between 2,970 to 3,030 Hz.

Adjustment Location:

Tape speed adjustment control inside motor

Page 15

CFD-S400/S500

)

TUNER SECTION 0 dB = 1 µV

• FM Section

Setting:

RADIO BAND•AUTO PRESET button: FM

FM RF signal generator

TP (FM IN)

0.01

75 kHz frequency deviation by 1 kHz signal output level : as low as possible

• AM Section

Setting:

RADIO BAND•AUTO PRESET button: AM

AM RF signal generator

30% amplitude modulation by 400 Hz signal

• Connecting Level Meter (FM and AM)

set

Put the lead-wire antenna close to the set.

level meter (range: 0.5–5 V ac

32 Ω

set

FM IF ADJUSTMENT

Adjust for a maximum reading on level meter.

10.7 MHz

FM FREQUENCY COVERAGE

ADJUSTMENT

Frequency Display 87.5 MHz 108 MHz Reading on Digital voltmeter 1.3 ± 0.3 V 3.0 ± 0.2 V Adjustment Part <confirmation> L2

FM TRACKING ADJUSTMENT

Adjust for a maximum reading on level meter.

L1 CT1

87.5 MHz 108 MHz

AM IF ADJUSTMENT

Adjust for a maximum reading on level meter.

450 kHz

AM FREQUENCY COVERAGE

ADJUSTMENT

Frequency Display 530 kHz 1,710 kHz Reading on Digital voltmeter 1.0 ± 0.05 V 5.3 ± 0.7 V Adjustment Part L4 <confirmation>

AM TRACKING ADJUSTMENT

Adjust for a maximum reading on level meter.

L3 CT3

620 kHz 1,400 kHz

i jack (J321)

• Connecting Digital Voltmeter (FM and AM)

digital voltmeter

100 kΩ

TP (VT)

•Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors.

Adjustment Location: See page 16.

Page 16

CFD-S400/S500

Adjustment Location:

– MAIN board (component side) –

TP (FM IN)

(CONDUCTOR SIDE)

ADJUSTMENT

CT1

IC1

CT1, L1

TRACKING

ADJUSTMENT

FREQUENCY

COVERAGE

ADJUSTMENT

CT3, L3

TRACKING

ADJUSTMENT

CT3

TP (VT)

(CONDUCTOR SIDE)

FREQUENCY

COVERAGE

ADJUSTMENT

IC2

CD SECTION

CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias.

FOCUS BIAS CHECK

1. Connect the oscilloscope between IC701 pin 4 and pin qa (or TP (RF) and TP (VREF)).

2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01)

3. Press the N X (CD) button.

4. Confirm that the oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished.

• RF signal reference waveform (eye pattern)

VOLT/DIV : 50 mV (10 : 1 probe in use) TIME/DIV : 500 nS

RF level :

0.85 ± 0.2 Vp-p

When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity.

Test Point:

– CD board (conductor side) –

C738

C739

C732

(VREF)

R706

JW709

R701

(VREF)

R709

R705

C707

(TE)

R703

(TE)

JW706

R702

JW708

R710

C736

R704

(FE)

JC703

C708

R711

C705

JW707

(RF)

C734

C742

R708

R723

C731

C743

C703

C709

R729

JW726

IC701

C711

C746

C744

C716

C730

JW724

C747

C745

C717

FB701

Page 17

CONTROL (4) board

TUNER board

TC board

BATTERY (1) board

BATTERY (2) board

MAIN board

LCD board

HEADPHONE board

POWER board

CONTROL (1) board

CONTROL (3) board

CONTROL (2) board

CD board

SECTION 6 DIAGRAMS

6-1. IC PIN DESCRIPTION

• IC802 uPD789477GC-A14-8BT (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Pin Description

1, 2 NC — Not used. (Open) 3 to 5 VLC2 to 0 I LCD drive bias voltage output 6 to 9 COM0 to 3 O LCD drive common output

10 to 26 S0 to 16 O LCD drive segment output

27 REC I Tape record signal input H: REC 28 AC-CHK I AC power supply detection signal input L: AC in 29 CD-DOOR I CD door open/close switch input L: Close 30 S-ROCK O ROCK LED control signal output 31 S-POP O POP LED control signal output 32 S-JAZZ O JAZZ LED control signal output 33 S-VOCAL O VOCAL LED control signal output 34 S-SUR O SURROUND LED control signal output Not used. (Open) 35 A-MUTE O Audio mute output H: Mute 36 CD O CD function output H: CD 37 TAPE O Tape function output H: Tape 38 AVDD — Analog power supply pin for A/D converter (+3.3 V) 39 BTT-CHK-H I Battery check input for Hi-voltage 40 BTT-CHK-M I Battery check input for Mid-voltage 41 V-CHECK I Voltage transaction check input

42 to 45 KEY4 to 1 I Key input

46 MODE CHK I Destination setting input 47 AGND — Analog ground for A/D converter 48 REMOTE I Sircs receiver data input 49 TC-PLAY I Tape play switch input L: Play 50 WP/INI O Wake-up/Initial setting read signal output 51 MT-CONT O Motor control signal output Not used. (Open) 52 C-WRQ I CD write request data input 53 C-DOUT I CD digital signal processor data input 54 C-DIN O CD digital signal processor data output 55 C-CLK I CD serial data transfer clock signal input 56 R-COUNT I Tuner PLL IF count input 57 R-DATA O Tuner PLL data output 58 R-CLK O Tuner PLL clock output 59 R-LAT O Tuner PLL latch output 60 B-MUTE O Tuner mute signal output H: Mute 61 C-DRF I CD DRF signal input 62 C-CE O CD chip enable output 63 C-FSEQ I CD frame SYNC input 64 C-XRT O CD system reset output 65 P-CON O System power control output H: PCON 66 ISS1 O ISS1 output 67 ISS2 O ISS2 output 68 DBB O MEGA BASS control output H: MEGA BASS off, L: MEGA BASS on 69 ICO I Connected to VSS. 70 XT1 I Sub system oscillation input (32.768 kHz) 71 XT2 O Sub system oscillation output (32.768 kHz) 72 VDD — Main power supply pin for A/D converter (+3.3 V) 73 VSS — Main ground 74 X1 I Main system oscillation input (4.19 MHz)

CFD-S400/S500

Pin No. Pin Name I/O Pin Description

75 X2 O Main system oscillation output (4.19 MHz) 76 RST I System reset input 77 V-CLK O Volume clock output 78 V-DATA O Volume data output 79 SCL O EEPROM clock output 80 SDA I/O EEPROM input/output

6-2. CIRCUIT BOARDS LOCATION

17 17

Page 18

CFD-S400/S500

6-3. BLOCK DIAGRAM — CD SECTION —

VREF

OPTICAL PICK-UP

BLOCK

(KSS-213R)

TRACKING

COIL

FOCUS

COIL

M702 SLED

MOTOR

M701

SPINDLE

MOTOR

(LIMIT)

S701

VREF

T+ T–

F+ F–

Signal path : CD

Abbreviation CND: Canadian model E92 : AC 120V area in E model SP : Singapore model MX : Mexican model KR : Korean model

LD POWER

CONTROLLER

SL+ SL–

SP+ SP–

S801

PUSH

OPEN/ CLOSE

Q701

VREF

12 11

17 18

26 27

1 2

FIN2

FIN1

TIN1

TIN2

LDD

LDS

VREF

T+ T–

F+ F–

SL+ SL–

SP+

SP–

SLED/SPINDLE

MOTOR DRIVER,

TRACKING/FOCUS

COIL DRIVER

APC

TRACKING

COIL

DRIVE

FOCUS

COIL

DRIVE

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

IC702

CD 3.3V

(Page 19)

PH/BH

MUTE

CD DOOR

CD-CONT

TIN

FIN

SLIN

SPIN

VREF

OPIN

CD +3.3V

REG

Q857-859,D957

D/A

CONVERTER

TDDTD

FDD

SPDO

21 22 23

VREF

V-CHECK

EFMIN

AGC

HFL PH(RFENV)

FE TE

VREF

SLDO

BTT-CHK-M

BATTERY

CHECK

Q804,806

BTT-CHK-H

SLICE LEVEL

CONTROL

A/D

CONVERTER,

SERVO

PROCESSOR

RADIO 6V AUDIO 6V

CD 6V

VDD (SW)

CONTROL

SYSTEM CONTROLLER

IC802 (1/2)

POWER

CONTROLLER

Q819,D802

CLV,CAV

SWITCH

P-CON

D951

CONT4

+3.3V REG

IC801

AUDIO+6V

REG

Q955,D953

POWER

SWITCH

Q952,953

INTERPOLATION

MUTE

& ATTENUATION DEEMPHASIS

RES

C-XRT

SP,KR MODEL

ERROR

CORRECTION

AUDIO CD

FRAME SYNC

DETECT,PROTECT

INSERT

EFM DECODER

GENERAL PURPOSE

PORT

CONT1

FSEQ

DRF

31 72 25 66 63 61 62 49 4865 64

61 63 54 62 55 52 5364

C-DRF

C-FSEQ

3.3V

8FS

DIGITAL

FILTER

1-bit DAC

RF AMP, SYSTEM SERVO PROCESSOR, DIGITAL SIGNAL PROCESSOR

IC701

PLL

VCEC

COMMAND INTERFACE

DICECL

C-CE

C-DIN

AC-CHK

BATT COM

VDD

C-CLK

Q801

WRQ

C-WRQ

C-DOUT

GENERATOR

16.93MHz

AC-HI

V-COM

(VDD)

CLOCK

XIN

X701

LPF

XOUT

LCHO

RCHO

CND,SP,KR MODEL

D901 – 904

RECT

US,E92 MODEL

F902

JW902

CNP702 (2/2)

TRANSFORMER

CD_IN_ L

CD_IN_R

T901

POWER

4.5V

DRY BATTERY

SIZE " D "

(IEC DESIGNATION R20)

6PCS,9V

4.5V

(Page 19)

J901

AC IN

POWER

SWITCH

Q951

JC301

US,CND,E92,MX MODEL

1818

Page 19

6-4. BLOCK DIAGRAM — MAIN SECTION —

CD_IN_R

HRP301

RECORD/PLAYBACK

HEAD

L-CH

R-CH

HE301

ERASE HEAD

ANT1

TELESCOPIC

ANTENNA

(Page 18)

S301

(REC/PB)

REC

AUDIO 6V

VDD (SW)

CD_IN_L

-1 -2

D324

CT3

TRACKING

SAD

EEPROM

IC803

FERRITE-ROD

ANTENNA

RADIO 6V

CT3,L3

TRACKING

Q302

REC

SCL

7980

FREQUENCY

COVERAGE

L3 AM

CT1,L1

ISS1

LIQUID CRYSTAL

RADIO 6V

22 4 6

RADIO 6V

Q303

ISS2

COM0|COM3

26–106 – 9

DISPLAY PANEL

LCD801

AM OSC

AM RF-IN

FM RF-IN

FM RF-OUT

D1 D2

17 18

S16

PD LP-IN LP-OUT

OSC

MIX

OSC

R.RO

R.IN

R.LINE

L.RO

L.LINE

L.IN

REF

REC

21 22 16

T301

REC BIAS OSC

TUNER

R-LAT

R-DATA

5759 58 56

1 2 3 4

CEDICL

AM IN

FM IN

11 12

1920

OSC-OUT

MIX-OUT

FM OSC

2124

L2L1 CT1

RADIO 6V

DET

ALC 2

RADIO L

Q301

SYSTEM CONTROLLER

R-CLK

R-COUNT

32.768kHz

XOUT

20 19

FM/AM FRONT END, IF AMP,

AM IF

FREQUENCY

COVERAGE

L.RAD

TU_IN_R

TU_IN_L

IC802 (2/2)

XT171XT2

X801

FM/AM PLL

XIN

75kHz

FM MPX

IC1

RADIO 6V

PRE AMP

CF4

CF2

REC/PB

IC301

R.RAD

74X175

X802

4.19MHz

IC2

AM IF-IN

FM IF-IN

L.LO

R.LO

LINE

TAPE

R-CH

TAPE

CD-CONT

(Page 18)

TAPE

RESET

IC804

3.3V

BUFFER

RST

IF-OUT

Q814

IF CUT

DET

RADIO 6V

QUAD

MO/ST10IF IN

14 17 13 18

LPF2/MO-ST

SEL2

3 2

BAND8ST-IND

LPF1/BAND

BUFFER

FM IF

ST-IND

DET-OUT

VOLUME/SOUND PROCESSOR

VIN2

LOGIC

13SC14

7736 78

V-CLK

V-DATA

VOL

B-MUTE

D401

ROCK

16 15

IC303

TREBLE/

BASS

CONTROL

S-ROCK

DRIVER

Q401-404

D402

POP

MPX-IN

S-POP

LED

3230

MPX

VOUT2

S-JAZZ

3331

D403 JAZZ

IF CUT

S-VOCAL

VOCAL

MUTE

D404

R-OUT L-OUT

MEGA BASS

CONTROLLER

Q122

D322

DBB

MODE CHK50WP/INI

Q813

Q812,D807

TU_IN_R

MUTE Q124

A-MUTE

TC-PLAY

POWER AMP

IC304

11 5

U-COM

(VDD)

LEVEL

DETECT

D323

TAPE PLAY

DETECT

Q808

KEY145KEY244KEY343KEY4

R-CH

VDD(SW)

REMOTE

VDD (SW)

KEY4 KEY3

KEY2 KEY1

48 1

AC-HI

D405

OPR/BATT

S416-423 S424-427,S412-414 S409-411,S428-432 S401-408

CONTROL RECEIVER

IC401

D804

KEY NETWORK

Signal path : FM : AM : TAPE PLAY : TAPE REC : CD

R-ch is omitted due to same as L-ch.

CFD-S400/S500

J321

SP301

SPEAKER

(L-CH)

SP302

SPEAKER

(R-CH)

S802

(TAPE PLAY)

M801

CAPSTAN/REEL

MOTOR

19 19

Page 20

CFD-S400/S500

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

Common Note on Schematic Diagrams:

• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and 1/ specified.

•

: internal component.

W or less unless otherwise

• C : panel designation.

Note:

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Note:

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

• A : B+ Line.

• H : adjustment for repair.

•Total current is measured with no cassette installed.

•Power voltage is dc 9V and fed with regulated dc power supply from battery terminal.

•Voltages are taken with a VOM (Input impedance 10 M Ω). Voltage variations may be noted due to normal production tolerances.

•Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : FM f : AM E : PB a : REC J : CD

•Abbreviation CND : Canadian model. E92 : AC 120V area in E model. MX : Mexican model. SP : Singapore model. KR : Korean model.

Common Note on Printed Wiring Boards:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

•

: internal component.

• : Pattern from the side which enables seeing.

•Abbreviation CND : Canadian model. E92 : AC 120V area in E model. MX : Mexican model. SP : Singapore model. KR : Korean model.

6-5. PRINTED WIRING BOARD — CD SECTION — • Refer to page 17 for Circuit Boards Location.

234567

JC702

JC701

OPTICAL PICK-UP

BLOCK

(KSS-213R)

C733

C750

C706

C732

C738

C739

M701

SPINDLE

MOTOR

JW716

JW715

CNP701

115

R712

JW714

JW713

JW711

JW710

R706

JW709

R701

(VREF)

R709

R705

R703

(TE)

C707

JW706

R702

JW708

R710

R704

C736

JC703

JW705

10216

JW712

C704

R711

R708

C705

(RF)

C734

(FE)

C742

C708

JW707

C727

C751

C731

R723

(LIMIT)

C743

S701

JW722

Q701

C701

JW725

R729

C703

IC701

C709

JW703

R741

R727

R730

JW726

R728

C711

JW717

C702

C746

C744

C716

JW702

R707

JW723

C730

JW701

JW718

JW721

C728

C729

R726

JW724

C747

C745

C717

FB701

C740

R732

R714 R715

IC702

C741

R725

R731

C721

C735

R724

C726

R722

X701

M702 SLED

MOTOR

C723

R721

C725

R719

R720

R717

R718

JW727

R716

C720

JC704

1-684-506- (11)

JW728

C722

JW719

JW720

C724

(L-CH)

R744

JW729

L706

C754

(R-CH)

C755

R743

CNP702

• Semiconductor Location

Ref. No. Location IC701 E-4

IC702 B-5 Q701 C-4

(Page 24)

2020

Page 21

6-6. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 35 for IC Block Diagrams.

C727 C726 C724 C725 C721 R717 C720 C722 C723

C745

C746

R720

R719

R722

C728

C729

R725

R731

R726

IC701

S701

CNP701

R712

R701 R702 R703 R704 R705 R706

C750

L706

C751

R707

C733

Q701

C702

C701

C738

C739

C732

R724

R709 R710

C703 C704

C743

C706

C707

C708

C742

C731

R711

C734

C736

R708

C705

JC703

C744

C730

R727R728

C747

R730

R729

R716 R718 R721

IC B/D

C717

FB701

C716

R732

R715

R714

CFD-S400/S500

(Page 25)

C755

C754

CNP702

X701

JC704

M702

M701

JC702

JC701

R743

•Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : CD PLAY

R744

IC702

C741

R741

C740

IC B/D

• Waveforms (Mode: PLAY)

500mV/div 0.5µsec/div

0.85±0.2Vp-p

C709

100mV/div 20µsec/div

C711

C735

R723

100mV/div 20µsec/div

1.8V 1.8V

1V/div 0.05µsec/div

3.2Vp-p

IC7014 (RF)

21 21

Approx. 100mVp-p

IC701qd (FE)

Approx. 100mVp-p

IC701qg (TE)

16.93MHz

IC701rk (XOUT)

Page 22

CFD-S400/S500

6-7. PRINTED WIRING BOARD — TUNER SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

(Page 24)

234567891011 12 13 14

L3 AM FERRITE-ROD ANTENNA

US,CND,E92,MX MODEL

C32

SP,KR MODEL

R32

JC24

CT1

C13

IC1

C11

C80

C14

C15

C78

C34

C35

US,CND,E92, MX MODEL

C12

TP FM

C18

JW12

JW11

JW13

D10

JC13

CF4

C10

CF2

D11

CNP2

JW2

JC6

1-680-952- (11)

WHT

BLK

BLK BLK

BLK

WHT

BLK

BLK BLK

BLK

C26

C27

(VT)

CNP1

JC1

R61

R60

R59

R58

C65

L21

JC33

R63

JC34

R10

JW3

C62

C63

R13

R65

R94

C60

C29

C61

C51

C66

C52

IC2

C68

R56

C59

JC2

R50

R52

R53

C55

C57

C53

C95

JW5

C37

R54

JC5

JW4

R51

C54

R91

JW6

JC4

JC11

C47

C39

JW7

R40

C41

CT3

C49

C42

R11

C21

C43

JC3

JC12

R30

JW9

C22

C30

C56

R41

C31

R24

C24

C23

JW10

L11

JW8

C33

R31

C20

R92

C77

SP,KR MODEL

ANT1

TELESCOPIC

ANTENNA

• Semiconductor Location

Ref. No. Location D1 C-10

D2 D-8 D3 D-8 D10 B-12 D11 B-12

IC1 E-10 IC2 E-5

2222

Page 23

6-8. SCHEMATIC DIAGRAM — TUNER SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 36 for IC Block Diagrams.

CFD-S400/S500

ANT1

CNP2

C34

CT3

R41 C49 C47R40

CT1

C35 C33

JC12 JC11

L11JC24

C41

C42

C43

R30R32 C80

C31

C30

R31

JC3

C39

C37

C24

R11

C21 C22

R50

R91

C51 C52

R52 R65

C53 C65

R51

C59

R53

C54

R54

C95

C55

R63

C56

C57

IC B/D

R24 C20

C13

C23

IC2

IC B/D

JC4

C61

C62

C63

R60R61 R59 R58

R92

C66

IC1

JC6

CF4

C12

JC13

C11

C68

C60

R94

R13

JC5

R56

L21

CNP1

(Page 25)

C32 C4 C8

D11D10

•Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (): AM

C10

CF2

C18

C14 C15

C77 C78

JC33

JC2

JC34

C29

R10

JC1

C27 C26

(Page 25)

• Wavef orm

0.5V/div 5µsec/div

1.5Vp-p

75kHz

IC2 w; (XOUT)

23 23

Page 24

CFD-S400/S500

6-9. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

• Semiconductor Location

Ref. No. Location D322 E-3

D323 C-6 D324 E-8 D801 F-9 D802 G-6 D804 E-9 D807 F-5 D951 B-8 D953 B-6 D957 E-7

IC303 C-3 IC304 B-4 IC801 D-3 IC802 F-4 IC803 F-3 IC804 E-3

Q122 C-5 Q124 C-4 Q222 C-5 Q224 C-4 Q801 G-6 Q804 G-6 Q806 F-5 Q808 G-8 Q812 E-5 Q813 E-5 Q814 D-4 Q819 G-6 Q951 C-8 Q952 C-8 Q953 C-9 Q955 A-5 Q957 E-8 Q958 E-8 Q959 F-8

S801

Z PUSH

OPEN/CLOSE

R877

23456789101112

Q955

C129

C139

C239

C800

123

R850

R856

R842

R843

C824

R835

R899

R898

CNP803

C352

C801

R836

R897

JC304

IC801

C822

X802

R896

R133

C350

L801

C820

C816

R895

C229

C135

C814

C815

R230

C228

C817

R832

R894

354 JW

C146

R135

R235

L802

R893

C328

375

R816

C247

376 JW

C327

R362

378

304

R860

R845

CNP802

IC303

C222

C122

377

C321

353 JW

C802

C821

R849

IC804

305

584

IC803

R844

R839

R818

R857

C147

C206

C106

R332

R331

R360

R361

302

R815

KH803

R876

301

355 JW

R892

R130

D322

X801

R891

IC304

C235

C246

C233

R125

R867

C813

R890

C128

C133

R838

JC302

Q814

C818

C819

R889

C322

R233

R140

356 JW

R888

R846

IC802

R887

351

372

R225

R827

R837

R886

R149

R150

C839

R885

374

R244

R250

C807

CNP801

C812

R884

C232

R144

Q124

C250

C150

R883

C809

R866

352

C130

JC307

R148

C808

R833

R882

R240

C126

R831

R881

C230

R249

C810

R880

373

C132

Q224

R830

R128

379

R248

R847

R825 C803

R817

R819

C951

R960

R955

R954

370

C226

R228

357 JW

R848

R813

R834

R826

C832

R809

313

R858

358 JW

R829

317

311

JC305

Q222

R227

Q122

R363

R828

Q806

312

R863

R334

359 JW

R803

309

CNP805

C806

C805

315

R865

C331

R335

350

306

310

R127

360 JW

C148

C248

C804

349

Q813

R822

R820

Q812

380

D807

R824

R823

R814

314

308

R864

307

R862

316 JW

371 JW

C225

R821

R802

R322

R854

C125

R323

C326

R870

R807

C953

318 JW

368

D323

R861

C323

C831

Q801

C952

C324

JC306

Q804

367

R231

R131

340

CNP804

JC303

341

D953

R324

346

345

344

343

342

D802

319 JW

CNP806

L301

320 JW

R808

R810

347

Q819

321 JW

369 JW

348

R812

R811

JW361

JC308

R805

SP,KR MODEL

D951

366

331 JW

Q808

R957

Q952

339

329 JW

Q951

KH301

336

R859

JC301

Q953

R952

R953

KH321

C231

338

332 JW

R855

1-683-852-

R956

D804

C825

334 JW

R852 R853

D801

R851

JW335

(11)

US,CND,E92,MX MODEL

(Page 33)

(Page 20)

CNP322

J321

232 R

R132

CNP323

101

1-683-858-

C325

364

363

362

D324

R333

JC309

325 JW

C957

D957

C271

JW337

323 JW

326 JW

C960

R804

C171

327 JW

324 JW

Q957

C959

322 JW

R806

C131

R325

R958

381

JW328

R326

R959

Q959

330 JW

365

R951

Q958

C830

C811

CNP302

(11)

M801

CAPSTAN/

(Page 29)

(Page 31)

(Page 22)

(Page 27)

REEL

MOTOR

S802

(TAPE PLAY)

2424

Page 25

6-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 20 for Common Note on Schematic Diagrams and page 37 for IC Block Diagrams.

CNP806

C106

(Page 28)

(Page 26)

CNP802

C206

R806

R804

R862 R857 R858 R863 R864

R861

JC303

R805

R880

R865

R881

R882

R883

R884

R885

R886

R887

R888

R889

R890

R891

R892

R893

R894

R895

IC802

R896

R897

R898

R899

R818

R832

R835 R844

R836

R843 R842

R856

X802

X801

R846

R837

R827

R839

C815

R867 R838

C816

C817

C814

IC804

C821

R849

R845 R860

R850

C824

C820

IC B/D

L801

C822

L802

IC803

D801

C825

R853

R852

R851

CFD-S400/S500

CNP803

(Page 32)

D804

(Page 30)

(Page 26)

S802

M801

CNP302

R855

C811

R859

R876

Q808

R877

C800

C830

IC801

C801 C802

Q801

Q819

D802

Q804

R802

Q806

R803

R807

C831

C832

R809

R870

R815 R816 R854

R814 R824

Q812

D807

R819

R823

R826

R834

R821

R820

R822

R813

R817

Q813

R825

R847

C803

R848

C804

R828

C805

R829

C806

R830

C807

R831

C808

R833

C809

R866

C810

C839

Q814

C812

C818

C819

C813

JC309

JC308

L301

JC306

R808

R810

R811

R812

C960

C248

C148

C271 C171

CNP804

KH803

CNP805

CNP801

(Page 21)

S801

(Page 23)

• Waveforms

2V/div 10µsec/div

4.19MHz

IC802 ug (X2)

3.2Vp-p

2V/div 10µsec/div

32.768kHz

IC802 ua (XT2)

3.2Vp-p

•Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (): PB <>: REC []: CD PLAY

25 25

Page 26

CFD-S400/S500

6-11. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 20 for Common Note on Schematic Diagrams and page 37 for IC Block Diagrams.

C327

C147

JC305

C122

C222

C247

C326

D324

C328

C139

R325

R326

C239

C146

R363 R362

R135

C135

C246

R233R133

R235

C235

R332

R360

R334

R335

R331

R361

C329

IC B/D

IC303

C133

JC304

C321

C352

C350

C233

D322

R322

R150 C150

R125 R149

R127

C125

C225

R227

R225 R249

R250 C250

Q122

Q222

R140

R148

R128

C126

C226

R228

R248

R240

Q124 Q224

C331

JC307 JC302

R230

C228

C229

C128

IC304

R130

C129

C322

C130

C131

C132

R144

C323

C232

R244

D323

R323

R324

C230

C231

R231

R131

KH301 CNP322

C324

KH321

CNP323

R232

R132

SP301

SP302

J321

(Page 25)

R333

Q959

C959

Q957

R958

R959

C957

Q958

D957

D953

Q955

C951

C953

R955 R954

R960

C952

Q952

R951

R952

R953

R956

Q953

R957

D951

Q951

JC301

(Page 34)

C325

•Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM (): PB <>: REC []: CD PLAY

2626

Page 27

6-12. PRINTED WIRING BOARD — TC SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

CFD-S400/S500

S301

(REC/PB)

REC

234567

• Semiconductor Location

Ref. No. Location IC301 C-4

Q301 B-3 Q302 B-5 Q303 B-5

R305

S301

-1-2

C305

R308

C306

T301

R314

R315

R210

R306

C102

Q301

C104

R202

C202

R110

C304

R203

C302

R102

C203

C204

R103

C207

C307

R204

C201

C107

C103

R307

R212

C101

R104

C308

C310

R206

C205

C105

R301

IC301

R201

R112

R106

R101

JC306

JC308

R111

C301

R205

R211

R310

JC302

JC303

R302

JC301

R303

R304

R105

R311

JC304

JC305

JC307

Q303

BLK

Q302

JC309

CN303

(Page 24)

R309

C303

YEL

RED

WHT

R-CH

L-CH

HRP301

RECORD/PLAYBACK

HEAD

1-681-594- (12)

BLK

(CHASSIS)

27 27

Page 28

CFD-S400/S500

6-13. SCHEMATIC DIAGRAM — TC SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 37 for IC Block Diagrams.

IC301

HRP301

HE301

S301

R301

C102

C301

R110 R101

C104

C101 C107

C207 C201

C202

C204

R102

R103

C103

C203

R203R202

C302

C105

C205R201R210

R112

R104

R204

R212

R106

R206

R111

JC302

JC306

JC308

R211

R304

JC303

C303

R309

R105

R205

IC B/D

JC305

JC307

CN303

JC301

R303

R302

(Page 25)

• Wavef orm

0.1V/div 5µsec/div

Q301 C (REC)

19.5µsec

ISS1/ISS2

SWITCH

4Vp-p

C310

10V/div 5µsec/div

19.5µsec

T301, HRP301 (YEL)

Q302

40Vp-p

R314 R315

R305

T301

C306

R306

C304

Q301

R307C307

C305

C308

R311R310

R308

Q303

JC304

JC309

•Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (): PB <>: REC []: CD PLAY

2828

Page 29

6-14. PRINTED WIRING BOARDS — CONTROL SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

CFD-S400/S500

S409

R413

234567891011121314

S408

DISPLAY •

ENT•

MEMORY

R414

R412

S410

TAPE

S411

RADIO BAND • AUTO PRESET

CNP402

S404

N X

JW405

R404

JW402

JW401

R415

S403

TUNE -

S406

> /

TUNE +

CNP404

S405

110

R408

R407

CNP403

R405 R406

S407

MODE

R409

R410

R411

1-683-854-

• Semiconductor Location

Ref. No. Location D401 G-8

D402 H-9 D403 H-11 D404 H-12

Q401 H-9 Q402 I-9 Q403 I-11 Q404 H-12

(Page 24)

S432

FLAT

R422

R421

S428

ROCK

R416

D401

R440

C401

S401

POWER

CNP401

R401

R403

R402

S402

SLEEP

Q401

D402

JW403

JW406

Q402

C402

S402

1-683-853-

S426

MEGA

Xpand

S427

MEGA BASS

S429

POP

R441

R426

R417

JW407

CNP405

R425

R418

D403

R442

C403

R427

S430

JAZZ

R419

Q403

S425

VOL +

R420

D404

R449

Q404

C404

S431

VOCAL

R423

R424

1-683-855-

S424

VOL -

29 29

Page 30

CFD-S400/S500

6-15. SCHEMATIC DIAGRAM — CONTROL SECTION — • Refer to page 20 for Common Note on Schematic Diagrams.

(Page 25)

S401

S402

R403

R401

R402

CNP401

CNP402

R404

R405

R406

R407

R408

R409

R410

CNP403

S403

S404

S405

S406

S407

S408

S409

S410

S411

R415

R412

R413

R414

CNP404

CNP405

R423

R424

R425

R427

R426

S424

S425

S426

S427

R416

R417

R418

R419

R420

R421

R422

S428

S429

S430

S431

S432

D401

D402

D403

D404

R440

R441

R442

R449

Q401

Q402

Q403

Q404

C401

C402

C403

C404

R411

•Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM

3030

Page 31

6-16. PRINTED WIRING BOARDS — DISPLAY SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

CFD-S400/S500

2345678910

• Semiconductor Location

Ref. No. Location D405 A-8

IC401 H-9

LIQUID CRYSTAL DISPLAY PANEL

LCD801

15 10 15 21

CNP406

271

CNP406

R445

R438

R444

R437

BLK

R448

BLK

JW404

R439

R443

KH401

BLK

D405

OPR/BATT

WHT

1-683-857-

(Page 24)

BLK

S417 S418 S419 S420 S421

R434

S412 S413 S414 S423 S422 S416

>10 0/10 9 8 7 6

54 3 21

R452

R453

R456

R455

R457

R429

R428

R435

R430

R436

R431

R450

R432

R451

(TEST A)

R433

BLK

KH402

R454

C405

WHT

R446

R447

123

IC401

31 31

1-683-856-

Page 32

CFD-S400/S500

6-17. SCHEMATIC DIAGRAM — DISPLAY SECTION — • Refer to page 20 for Common Note on Schematic Diagrams.

S423 S422 S421 S420 S419 S418 S417 S416

R456R457 R455 R454 R453 R452 R451 R450 R436 R435 R434

S414 S413 S412

R429 R428R430R431R433 R432

IC401

R447

R446

C405

R448

D405

KH401KH402

LCD801

R438 R445

R437

R439

R444

R443

CNP406

(Page 25)

•Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM

3232

Page 33

6-18. PRINTED WIRING BOARDS — POWER SUPPLY SECTION — • Refer to page 17 for Circuit Boards Location and page 20 for Common Note on Printed Wiring Boards.

CFD-S400/S500

J901

~ AC IN

2345678910 11 12

RED

CND,SP,KR

MODEL

D902

C902

F902

JW902

US,E92 MODEL

D901

C901

C904

D904

C903

D903

JW905

904 JW

C906

CNP902

CNP901

(Page 24)

DRY BATTERY

SIZE " D "

(IEC DESIGNATION R20)

6PCS, 9V

CNP905

914

913

• Semiconductor Location

Ref. No. Location D901 B-3

D902 B-3 D903 C-4 D904 C-3

T901

POWER

TRANSFORMER

1-683-861-

RED

1-683-859-

1-683-860-

33 33

Page 34

CFD-S400/S500

6-19. SCHEMATIC DIAGRAM — POWER SUPPLY SECTION — • Refer to page 20 for Common Note on Schematic Diagrams.

(Page 26)

CNP902

J901

T901

F902

JW902

C904

D904

D903

C903

C902

D902

D901

C901

CNP905

C906

CNP901

CNB901

3434

Page 35

6-20. IC BLOCK DIAGRAMS

IC701 LC78646E-E (CD Board)

FIN1

FIN2

TIN1

TIN2

REFI

DEFECT

+ –

LEVEL SET

LDS80LDD

VVDD

PCKIST

VVSS

VVDD

PCKIST

VVSS

AGC

PDO2

PDO1

79 78 77 76 75 74 73 72 71

LDS

LDD

MIX

LPF

TBAL

RAM

VSS

PDO1

CONT1

CONT2

VDD5

CONT2

CONT3

69 68 67 66 65 64 63 62 61

CONT3

LPF

– +

DRF

RES

WRQDODICLCE

TEC

+ –

CFD-S400/S500

–

MONI CONT

RFMON

VREF

SLCO

SLCIST

EFMIN

RFVDD RFVSS

FIN1 FIN2 TIN1 TIN2

VREF

REFI

TEC

RFMON

JITTC

ADAVDD

ADAVSS

TDO

DRF

EFLG

ASDFIN

DATA

LRSY

LVDD

LVSS LCHO RCHO RVDD RVSS

C2F

DATA DATACK LRSY ASDFIN ASDACK ASLRCK 16MOUT EFLG C2F XVSS FSX/16MIN XIN XOUT XVDD RVDD RCHO RVSS LVSS LCHO LVDD

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

DATA DATACK LRSY ASDFIN ASDACK ASLRCK 16MOUT EFLG C2F XVSS FSX/16MIN XIN XOUT XVDD RVDD RCHO RVSS LVSS LCHO LVDD

FDO SPDO SLDO

GPDAC

FSEQ

V/P

LDD LDS

TDO

FSX/16MIN

ASDACK ASLRCK

DATACK

TRACK JUMP

AUTO ADJUST

RUPTURE DEFECT

DETECT,PROTECT,INSERT,

SUBCODE DECODE CRC

D/A

DRF

FRAME SYNC

EFM DECODE

RAM

EXTERNAL

AUDIO IN

SERIAL

AUDIO OUT

PORTS

8FS

1BIT DAC

SERVO PROCESSOR

JITTER

DETECT

CLV,CAV

CONTROL

16MOUT XVSS XIN XOUT XVDD

MONITOR SIGNAL SELECTOR

ERROR

CORRECTION

AUDIO CD

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

LPF

ADAVDD ADAVSS

JITTC

SLCO

SLCIST

EFMIN

5 6

FIN1

FIN2

TIN1

TIN2

VREF

REFI

14 15 16 17 18 19 20

TEC

RFMON

JITTC ADAVDD ADAVSS

TDO

PDO1 PDO2

FR PCKIST VVDD VVSS

SBCK/FG

WRQ CL CE DI DO

CONT1-3

SBCK/CONT6 CONT4,5

A/D

SLICE LEVEL

CONTROL

PLL

VCEC

CLOCK

GENERATOR

COMMAND INTERFACE

GENERAL PURPOSE

DIGITAL FILTER

APC

S/H

MONI1-5

OUT

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

FDO

SLDO

SPDO

CONT4

CONT5

GPDAC

DEFECT

SBCK/FG

SBCK/CONT6

DEFECT

SBCK/FG

SBCK/CONT6

V/P

FSEQ

MONI1

MONI2

MONI1

MONI3

MONI2

MONI4

MONI3

MONI4

MONI5

VSS

39 40

DOUT

VDD(3.3V)

TEST

Page 36

CFD-S400/S500

IC702 BA5826FP-E2 (CD Board) IC1 TA2149BN (TUNER Board)

SP–

SP+

SPIN

RST

REG–B

REGO

MUTE

GND

TIN

(TIN)

GND

OPOUT

OSC

1/1 OR

1/16

FM RF-OUT

VCC1 AM RF-IN

FM OSC

AM OSC

OSC-OUT

ST-IND

IF-OUT

DET-OUT

MPX- IN

LPF2/MO-ST

LPF1/BAND

GND1

D.BUFF

THERMAL

SHUT-DOWN

MONITOR

D.BUFF

T–

D.BUFF

T+

12 13

DRIVER

MUTE

LEVEL SHIFT

REGULATOR

LEVEL SHIFT

D.BUFF

VCC

D.BUFF

GND

SL–

SL+

SLIN

(SLIN)

VREF

VCC

(FIN)

FIN

F–

F+

OPIN

FM RF-IN

AM LOW CUT

MIX OUT

VCC2

AF IF-IN

FM IF-IN

GND2

AGC

QUAD

R-OUT

L-OUT

FM RF

FM IF

AGC

MUTE

AM IF

MIX

LEVEL

DET

ST/MO FM/AM

OSC

BUFF

AF BUFF

VCO

DIVIDE

DECODE

IF REQ

IF BUFF

1/8

IC2 LC72137M-TLM (TUNER Board)

CCB

3 4

I/F

UNIVERSAL

COUNTER

PROGRAMMABLE

LATCH

DATA SHIFT REGISTER

12BITS

DIVIDER

DETECTOR

SWALLOW

COUNTER 1/16,1/17

4BITS

MUTE

FM/AM

BAND

ST-IND

BAND

UNLOCK

REFERENCE

DIVIDER

PHASE

DETECTOR

CHARGE

PUMP

POWER ON

RESET

1/2

XOUT

XIN

LP-OUT

LP-IN PD

VSS

VDD

MO/ST

FM IN

AM IN

IF IN

Page 37

IC803 CAT24WC02JI-1.8-TE13 (MAIN Board)

CFD-S400/S500

1K BIT EEPROM ARRAY

7BIT

START STOP

VOLTAGE DETECTION

GND

7BIT

ADDRESS

DECODER

CONTROL CIRCUIT

HIGH VOLTAGE

OCCURENCE CIRCUIT

IC303 BD3870FS-E2 (MAIN Board)

CAP

SURROUND

TNF1

TREBLE1

=8kHz

TREBLE2

=8kHz

SLAVE • WORD

ADDRESS REGISTER

POWER SUPPLY

TNF2

VCC/2

VCC

SCL

SDA

OUT1

OUT2

VCC

LOGIC

8BIT

DATA

ACK

BNF2

BOUT2

21 20 19 18 17 16 15 14 13

BASS2

f0=80Hz

BNF1

BASS1

=80Hz

BOUT1

VCC/2

VCC/2 VCC/2

1 2 3 4

VIN1

IC301 TA2068N (TC Board)

AGC

L.PO

L.NF

L.RO

L.IN

REF

GND

R.IN

R.RO

R.NF

R.PO

MIC.NF

REF AMP

REC

AMP1

2.1

NAB

AMP2

26dB

REC

AMP2

26dB

MIC

AMP1

DET

NAB

AMP1

ALC2 ALC1

VIN2

BUF AMP

MUTE

BUF AMP

SEL2

5 6 7 8 9 10 11 12

SEL1

TAPE

BUF AMP

TAPE

LINE

RADIO

MUTE

RADIO

LINE

MONITOR

AMP

7dB

MONITOR

AMP

LOGIC

L.RAD

MIC I/EX

L.LINE

REC

L.LO

VCC

R.LO

LINE

R.LINE

TAPE

R.RAD

MIC

VCC/2

FILTER

GND

Page 38

CFD-S400/S500

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

•Abbreviation CND : Canadian model E92 : AC 120V area in E model MX : Mexican model SP : Singapore model KR : Korean model

7-1. MAIN SECTION

SECTION 7

EXPLODED VIEWS

• Color Indication of Appearance Parts Example :

KNOB, BALANCE (WHITE) ... (RED)

Parts Color Cabinet’s Color

• Accessories are given in the last of this parts list.

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

Ref. No. Part No. Description Remark

1 3-237-699-11 LID, BATTERY 2 3-237-726-01 PLATE (L) (S500) 2 3-237-726-11 PLATE (L) (S400) 3 3-237-727-01 PLATE (R) (S500) 3 3-237-727-11 PLATE (R) (S400)

Ref. No. Part No. Description Remark

4 3-237-700-01 HANDLE (S500) 4 3-237-700-11 HANDLE (S400) 5 4-951-620-81 SCREW (2.6) #1 7-685-535-19 SCREW +BTP 2.6X10 TYPE2 N-S

Page 39

7-2. CABINET FRONT SECTION

SP301

CFD-S400/S500

LCD801

MD block

SP302

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 X-3381-559-1 DOOR SUB ASSY, CASSETTE 52 3-237-694-31 HOLDER, CASSETTE 53 3-040-916-01 FOOT (FRONT), RUBBER

* 54 X-3381-555-1 FRONT SUB ASSY, CABINET (S500)

54 X-3381-810-1 FRONT SUB ASSY, CABINET (S400)

55 3-237-717-01 HOLDER, LCD

* 56 1-683-857-11 LCD BOARD

57 1-824-037-11 CABLE, FLEXIBLE FLAT 27P (CNP406) 58 3-237-725-01 SPRING, CASSETTE 59 4-951-620-11 SCREW (2.6X10), +BVTP

60 3-922-112-41 DAMPER 61 4-951-620-31 SCREW (2.6), +BVTP 62 4-951-620-01 SCREW (2.6X8), +BVTP

* 63 A-3174-265-A DOOR ASSY, CASSETTE

64 3-237-707-31 BUTTON, REC 65 3-237-706-31 BUTTON, PLAY 66 3-237-704-31 BUTTON, REW 67 3-237-705-31 BUTTON, FF

68 3-237-703-31 BUTTON, S/E 69 3-237-702-31 BUTTON, PAUSE

* 70 1-683-856-11 CONTROL (4) BOARD

71 3-831-441-11 CUSHION (B) LCD801 1-804-550-11 DISPLAY PANEL, LIQUID CRYSTAL

SP301 1-825-031-11 SPEAKER (10cm) (L-CH) SP302 1-825-031-11 SPEAKER (10cm) (R-CH) #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S

Page 40

CFD-S400/S500

7-3. CABINET TOP SECTION

108

106

110

109

111

105

121

107

122

107

104

101

103

102

121

116

114

118

115

117

115

KSM-213RDP

117

116

119

113

112

S801

120

107

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 1-683-854-11 CONTROL (2) BOARD

102 1-824-038-11 CABLE, FLEXIBLE FLAT 10P (CNP403) 103 1-824-039-11 CABLE, FLEXIBLE FLAT 9P (CNP404) 104 1-824-035-11 CABLE, FLEXIBLE FLAT 4P (CNP402)

* 105 1-683-853-11 CONTROL (1) BOARD

106 3-922-112-41 DAMPER 107 4-951-620-01 SCREW (2.6X8), +BVTP 108 3-019-395-01 PLATE, CHUCKING 109 1-452-899-11 MAGNET 110 3-237-701-71 LID, CD

111 3-237-723-01 SPRING, CD

* 112 X-3381-563-1 TOP SUB ASSY, CABINET (S500)

112 X-3381-811-1 TOP SUB ASSY, CABINET (S400)

* 113 A-3178-122-A CD BOARD, COMPLETE

114 3-923-736-01 COVER, CD 115 3-931-379-21 RUBBER, VIBRATION PROOF 116 3-921-725-11 SCREW (2.6X10), +PWH 117 3-931-379-31 RUBBER, VIBRATION PROOF 118 1-757-689-11 CABLE, FLEXIBLE FLAT (16 CORE)

119 1-824-034-11 CABLE, FLEXIBLE FLAT 14P

* 120 1-683-855-11 CONTROL (3) BOARD

121 3-220-756-01 CUSHION (BUTTON) 122 3-831-441-11 CUSHION (B) S801 1-692-960-11 SWITCH, PUSH (1 KEY)

(Z PUSH OPEN/CLOSE)

#3 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #4 7-685-853-04 SCREW +BVTT 2X6 (S)

Page 41

CFD-S400/S500

7-4. CABINET REAR SECTION

157

T901

157

158

157

159

165

160

166

164

157

ANT1

161

162

153

152

163

154

157

156

153

151

155

166

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 151 1-683-859-11 BATTERY (1) BOARD

152 4-960-167-01 SCREW (3X8) (DIA.10), +WH 153 3-240-561-01 TERMINAL (–), BATTERY 154 3-237-724-01 TERMINAL, ANTENNA (CNP2)

* 155 A-3323-778-A TUNER BOARD, COMPLETE (US,CND,E92,MX)

* 155 A-3323-815-A TUNER BOARD, COMPLETE (SP,KR)

156 3-237-716-01 CHASSIS, TU 157 4-951-620-11 SCREW (2.6X10), +BVTP

* 158 1-683-861-11 POWER BOARD

159 3-921-725-11 SCREW (2.6X10), +PWH

* 160 1-683-858-11 HEADPHONE BOARD * 161 A-3178-147-A MAIN BOARD, COMPLETE (US) * 161 A-3178-445-A MAIN BOARD, COMPLETE (CND) * 161 A-3178-512-A MAIN BOARD, COMPLETE (E92,MX) * 161 A-3178-773-A MAIN BOARD, COMPLETE (SP)

* 162 1-683-860-11 BATTERY (2) BOARD

* 165 3-703-044-26 LABEL, CAUTION (CND)

0 T901 1-435-917-11 TRANSFORMER, POWER (US,E92,MX) 0 T901 1-435-918-11 TRANSFORMER, POWER (SP,KR)

0 T901 1-437-540-11 TRANSFORMER, POWER (CND)

152

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

163 3-237-697-31 REAR, CABINET (S500) 163 3-237-697-51 REAR, CABINET (CND,E92,MX) 163 3-240-597-41 REAR, CABINET (SP,KR) 164 1-824-031-11 CABLE, FLEXIBLE FLAT 13P

166 3-831-441-99 SPACER ANT1 1-754-241-11 ANTENNA, TELESCOPIC (FM)

#5 7-682-548-04 SCREW +B 3X8 #6 7-685-646-79 SCREW, TAPPING +BV 3X8

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

* 161 A-3323-945-A MAIN BOARD, COMPLETE (KR)

Page 42

CFD-S400/S500

7-5. TAPE MECHANISM SECTION

201

210

202

HRP301

204

not supplied

203

M801

204

205

206

209

207

208

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 3-244-086-01 ARM ASSY, PINCH ROLLER 202 3-244-079-01 BELT (B), SUB 203 3-244-080-01 BELT (B), MAIN 204 3-244-083-01 SCREW BIND DT M2X6 205 3-244-084-01 SCREW PAN M2.6X4.5

206 3-237-718-01 LEVER, REC

* 207 A-3323-806-A TC BOARD, COMPLETE

208 3-237-719-01 CHASSIS, TC 209 3-030-741-01 SCREW (M2X2) 210 A-3013-956-A MF-S200 HRP301 3-244-085-01 HEAD, R/P (REC/PB) M801 3-244-082-01 MOTOR ASSY (CAPSTAN/REEL)

#7 7-685-851-04 SCREW +BVTT 2X4 (S)

Page 43

7-6. CD MECHANISM SECTION

(KSM-213RDP)

CFD-S400/S500

Ver 1.1

253

254

251

255 255

257

M701

M702

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

252

256

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

Ref. No. Part No. Description Remark

251 2-626-908-01 SHAFT, SLED

* 252 2-647-408-02 GEAR (B) 0 253 8-820-161-02 PICK-UP, OPTICAL KSS-213R/C2RP * 254 2-169-065-01 GEAR (A)

255 2-169-388-01 TAPPING (M2), +PWB

Ref. No. Part No. Description Remark

256 X-2162-707-1 CHASSIS ASSY (RDP) (RP), MOTOR (SPINDLE)

(including M701) 257 3-713-786-51 SCREW (M2X3) M702 X-2162-712-1 GEAR ASSY (R) (RP), MOTOR (SLED)

Page 44

CFD-S400/S500

BA TTERY (1)

SECTION 8

ELECTRICAL P ARTS LIST

BA TTERY (2)

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable

•Abbreviation CND : Canadian model E92 : AC 120V area in E model MX : Mexican model KR : Korean model SP : Singapore model

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-683-859-11 BATTERY (1) BOARD

3-240-561-01 TERMINAL (–), BATTERY

*************************************************************

* 1-683-860-11 BATTERY (2) BOARD

3-240-561-01 TERMINAL (–), BATTERY

* CNP905 1-815-550-11 PIN, CONNECTOR (PC BOARD) 2P *************************************************************

* A-3178-122-A CD BOARD, COMPLETE

C701 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C702 1-126-947-11 ELECT 47uF 20% 10V C703 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C704 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C705 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

*****************

< CONNECTOR >

*******************

< CAPACITOR >

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

C735 1-126-916-11 ELECT 1000uF 20% 6.3V C736 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C738 1-164-156-11 CERAMIC CHIP 0.1uF 25V C739 1-164-156-11 CERAMIC CHIP 0.1uF 25V C740 1-126-935-11 ELECT 470uF 20% 10V

C741 1-164-156-11 CERAMIC CHIP 0.1uF 25V C742 1-164-156-11 CERAMIC CHIP 0.1uF 25V C743 1-164-156-11 CERAMIC CHIP 0.1uF 25V C744 1-164-156-11 CERAMIC CHIP 0.1uF 25V C745 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C746 1-104-665-11 ELECT 100uF 20% 10V C747 1-104-665-11 ELECT 100uF 20% 10V C750 1-104-665-11 ELECT 100uF 20% 10V C751 1-164-156-11 CERAMIC CHIP 0.1uF 25V C754 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C755 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

CNP701 1-779-466-11 CONNECTOR, FFC/FPC 16P

* CNP702 1-784-736-11 CONNECTOR, FFC 14P

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

< CONNECTOR >

< FERRITE BEAD >

C706 1-126-960-11 ELECT 1uF 20% 50V C707 1-115-156-11 CERAMIC CHIP 1uF 10V C708 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C709 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C716 1-162-974-11 CERAMIC CHIP 0.01uF 50V C717 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C720 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C721 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C722 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C723 1-162-974-11 CERAMIC CHIP 0.01uF 50V C724 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C725 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C726 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C727 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C728 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C729 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C730 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C731 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C732 1-104-665-11 ELECT 100uF 20% 10V

C733 1-104-665-11 ELECT 100uF 20% 10V C734 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

FB701 1-469-701-21 FERRITE, EMI (SMD)

< IC >

IC701 6-701-796-01 IC LC78646E-E IC702 6-701-787-11 IC BA5826FP-E2

< JUMPER RESISTOR >

JC701 1-216-864-11 METAL CHIP 0 5% 1/10W JC702 1-216-864-11 METAL CHIP 0 5% 1/10W JC703 1-216-864-11 METAL CHIP 0 5% 1/10W JC704 1-216-821-11 METAL CHIP 1K 5% 1/10W

< FERRITE BEAD >

L706 1-414-445-11 FERRITE, EMI (SMD)

< TRANSISTOR >

Q701 8-729-054-57 TRANSISTOR KTN2907AS-RTK

< RESISTOR >

R701 1-216-841-11 METAL CHIP 47K 5% 1/10W R702 1-216-835-11 METAL CHIP 15K 5% 1/10W

Page 45

CFD-S400/S500

CD CONTROL (1) CONTROL (2) CONTROL (3)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R703 1-216-835-11 METAL CHIP 15K 5% 1/10W R704 1-216-835-11 METAL CHIP 15K 5% 1/10W R705 1-216-835-11 METAL CHIP 15K 5% 1/10W R706 1-216-841-11 METAL CHIP 47K 5% 1/10W R707 1-216-797-11 METAL CHIP 10 5% 1/10W

S402 1-786-050-21 SWITCH, KEYBOARD (SLEEP)

*************************************************************

* 1-683-854-11 CONTROL (2) BOARD

******************

R708 1-216-833-11 METAL CHIP 10K 5% 1/10W R709 1-216-837-11 METAL CHIP 22K 5% 1/10W R710 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R711 1-216-815-11 METAL CHIP 330 5% 1/10W R712 1-216-809-11 METAL CHIP 100 5% 1/10W

R714 1-216-811-11 METAL CHIP 150 5% 1/10W R715 1-216-811-11 METAL CHIP 150 5% 1/10W R716 1-216-821-11 METAL CHIP 1K 5% 1/10W R717 1-216-821-11 METAL CHIP 1K 5% 1/10W R718 1-216-821-11 METAL CHIP 1K 5% 1/10W

R719 1-216-809-11 METAL CHIP 100 5% 1/10W R720 1-216-809-11 METAL CHIP 100 5% 1/10W R721 1-216-821-11 METAL CHIP 1K 5% 1/10W R722 1-216-809-11 METAL CHIP 100 5% 1/10W R723 1-216-809-11 METAL CHIP 100 5% 1/10W

R724 1-216-841-11 METAL CHIP 47K 5% 1/10W R725 1-216-819-11 METAL CHIP 680 5% 1/10W R726 1-216-819-11 METAL CHIP 680 5% 1/10W R727 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R728 1-216-833-11 METAL CHIP 10K 5% 1/10W

R729 1-216-813-11 METAL CHIP 220 5% 1/10W R730 1-216-821-11 METAL CHIP 1K 5% 1/10W R731 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R732 1-216-841-11 METAL CHIP 47K 5% 1/10W R741 1-218-867-11 RES-CHIP 6.8K 5% 1/10W

R743 1-218-867-11 RES-CHIP 6.8K 5% 1/10W R744 1-216-845-11 METAL CHIP 100K 5% 1/10W

< SWITCH >

S701 1-571-936-11 SWITCH, LEAF (LIMIT)

< VIBRATOR >

1-824-035-11 CABLE, FLEXIBLE FLAT 4P (CNP402) 1-824-038-11 CABLE, FLEXIBLE FLAT 10P (CNP403) 1-824-039-11 CABLE, FLEXIBLE FLAT 9P (CNP404)

< RESISTOR >

R404 1-216-821-11 METAL CHIP 1K 5% 1/10W R405 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R406 1-216-821-11 METAL CHIP 1K 5% 1/10W R407 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R409 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R410 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R412 1-216-813-11 METAL CHIP 220 5% 1/10W R413 1-216-817-11 METAL CHIP 470 5% 1/10W

R414 1-216-821-11 METAL CHIP 1K 5% 1/10W R415 1-216-821-11 METAL CHIP 1K 5% 1/10W

< SWITCH >

S403 1-786-050-21 SWITCH, KEYBOARD (./TUNE –) S404 1-786-050-21 SWITCH, KEYBOARD (N X) S405 1-786-050-21 SWITCH, KEYBOARD (x) S406 1-786-050-21 SWITCH, KEYBOARD (>/TUNE +) S407 1-786-050-21 SWITCH, KEYBOARD (MODE)

S408 1-786-050-21 SWITCH, KEYBOARD (DISPLAY•ENT•MEMORY) S409 1-786-050-21 SWITCH, KEYBOARD (CD) S410 1-786-050-21 SWITCH, KEYBOARD (TAPE) S411 1-786-050-21 SWITCH, KEYBOARD (RADIO BAND•

AUTO PRESET)

*************************************************************

* 1-683-855-11 CONTROL (3) BOARD

******************

X701 1-781-801-21 VIBRATOR, CERAMIC (16.93MHz)

*************************************************************

* 1-683-853-11 CONTROL (1) BOARD

******************

3-831-441-11 CUSHION (B)

< CONNECTOR >

CNP401 1-784-726-11 CONNECTOR, FFC 4P

< RESISTOR >

R401 1-216-813-11 METAL CHIP 220 5% 1/10W R402 1-216-817-11 METAL CHIP 470 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W

< SWITCH >

S401 1-786-050-21 SWITCH, KEYBOARD (POWER)

3-831-441-11 CUSHION (B)

< CAPACITOR >

C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-164-156-11 CERAMIC CHIP 0.1uF 25V C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CNP405 1-784-731-11 CONNECTOR, FFC 9P

< DIODE >

D401 6-500-199-01 LED BT-333D-31 (ROCK) D402 6-500-199-01 LED BT-333D-31 (POP) D403 6-500-199-01 LED BT-333D-31 (JAZZ) D404 6-500-199-01 LED BT-333D-31 (VOCAL)

Page 46

CFD-S400/S500

LCDHEADPHONECONTROL (4)CONTROL (3)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< TRANSISTOR >

Q401 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q402 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q403 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q404 8-729-029-13 TRANSISTOR DTC143ZUA-T106

< RESISTOR >

R416 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R417 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R418 1-216-821-11 METAL CHIP 1K 5% 1/10W R419 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R423 1-216-813-11 METAL CHIP 220 5% 1/10W R424 1-216-817-11 METAL CHIP 470 5% 1/10W R425 1-216-821-11 METAL CHIP 1K 5% 1/10W

R426 1-216-821-11 METAL CHIP 1K 5% 1/10W R427 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R440 1-216-817-11 METAL CHIP 470 5% 1/10W R441 1-216-817-11 METAL CHIP 470 5% 1/10W R442 1-216-817-11 METAL CHIP 470 5% 1/10W

R449 1-216-817-11 METAL CHIP 470 5% 1/10W

< SWITCH >

R433 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R434 1-216-813-11 METAL CHIP 220 5% 1/10W R435 1-216-817-11 METAL CHIP 470 5% 1/10W R436 1-216-821-11 METAL CHIP 1K 5% 1/10W R446 1-216-849-11 METAL CHIP 220K 5% 1/10W

R447 1-216-845-11 METAL CHIP 100K 5% 1/10W R450 1-216-821-11 METAL CHIP 1K 5% 1/10W R451 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R452 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W

R454 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R455 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R456 1-216-833-11 METAL CHIP 10K 5% 1/10W R457 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

< SWITCH >

S412 1-786-050-21 SWITCH, KEYBOARD (>10) S413 1-786-050-21 SWITCH, KEYBOARD (0/10) S414 1-786-050-21 SWITCH, KEYBOARD (9) S416 1-786-050-21 SWITCH, KEYBOARD (6) S417 1-786-050-21 SWITCH, KEYBOARD (5)

S418 1-786-050-21 SWITCH, KEYBOARD (4) S419 1-786-050-21 SWITCH, KEYBOARD (3) S420 1-786-050-21 SWITCH, KEYBOARD (2) S421 1-786-050-21 SWITCH, KEYBOARD (1) S422 1-786-050-21 SWITCH, KEYBOARD (7)

S424 1-786-050-21 SWITCH, KEYBOARD (VOL –) S425 1-786-050-21 SWITCH, KEYBOARD (VOL +) S426 1-786-050-21 SWITCH, KEYBOARD (MEGA Xpand) S427 1-786-050-21 SWITCH, KEYBOARD (MEGA BASS) S428 1-786-050-21 SWITCH, KEYBOARD (ROCK (SOUND MODE))

S429 1-786-050-21 SWITCH, KEYBOARD (POP (SOUND MODE)) S430 1-786-050-21 SWITCH, KEYBOARD (JAZZ (SOUND MODE)) S431 1-786-050-21 SWITCH, KEYBOARD (VOCAL (SOUND MODE)) S432 1-786-050-21 SWITCH, KEYBOARD (FLAT (SOUND MODE))

*************************************************************

* 1-683-856-11 CONTROL (4) BOARD

******************

< CAPACITOR >

C405 1-162-974-11 CERAMIC CHIP 0.01uF 50V

< IC >

IC401 6-600-070-01 IC PIC-37041TE2

< CABLE HOLDER >

KH402 1-824-030-11 HOLDER, CABLE 5P

< RESISTOR >

R428 1-216-821-11 METAL CHIP 1K 5% 1/10W R429 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R430 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R431 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R432 1-216-833-11 METAL CHIP 10K 5% 1/10W

S423 1-786-050-21 SWITCH, KEYBOARD (8)

*************************************************************

* 1-683-858-11 HEADPHONE BOARD

*****************

< CONNECTOR >

* CNP322 1-815-444-11 PIN, CONNECTOR 3P

CNP323 1-815-445-11 PIN, CONNECTOR 4P

< JACK >

J321 1-815-325-11 JACK (i)

< RESISTOR >

R132 1-216-809-11 METAL CHIP 100 5% 1/10W R232 1-216-809-11 METAL CHIP 100 5% 1/10W

*************************************************************

* 1-683-857-11 LCD BOARD

**********

1-824-037-11 CABLE, FLEXIBLE FLAT 27P (CNP406) 3-237-717-01 HOLDER, LCD

< DIODE >

D405 6-500-198-01 LED BT-233D-31 (OPR/BATT)

< CABLE HOLDER >

KH401 1-824-030-11 HOLDER, CABLE 5P

Page 47

CFD-S400/S500

LCD

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< LIQUID CRYSTAL DISPLAY >

LCD801 1-804-550-11 DISPLAY PANEL, LIQUID CRYSTAL

< RESISTOR >

R437 1-216-821-11 METAL CHIP 1K 5% 1/10W R438 1-216-821-11 METAL CHIP 1K 5% 1/10W R439 1-216-821-11 METAL CHIP 1K 5% 1/10W R443 1-216-821-11 METAL CHIP 1K 5% 1/10W R444 1-216-821-11 METAL CHIP 1K 5% 1/10W

R445 1-216-821-11 METAL CHIP 1K 5% 1/10W R448 1-216-813-11 METAL CHIP 220 5% 1/10W

*************************************************************

* A-3178-147-A MAIN BOARD, COMPLETE (US) * A-3178-445-A MAIN BOARD, COMPLETE (CND) * A-3178-512-A MAIN BOARD, COMPLETE (E92,MX) * A-3178-773-A MAIN BOARD, COMPLETE (SP) * A-3323-945-A MAIN BOARD, COMPLETE (KR)

*********************

7-685-646-79 SCREW, TAPPING +BV 3X8

< CAPACITOR >

C106 1-126-960-11 ELECT 1uF 20% 50V C122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C125 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C126 1-126-960-11 ELECT 1uF 20% 50V C128 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C129 1-126-947-11 ELECT 47uF 20% 10V C130 1-104-665-11 ELECT 100uF 20% 10V C131 1-126-926-11 ELECT 1000uF 20% 10V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-126-963-11 ELECT 4.7uF 20% 50V

C135 1-164-156-11 CERAMIC CHIP 0.1uF 25V C139 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C146 1-164-156-11 CERAMIC CHIP 0.1uF 25V C147 1-126-963-11 ELECT 4.7uF 20% 50V C148 1-115-156-11 CERAMIC CHIP 1uF 10V

C150 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-126-964-11 ELECT 10uF 20% 50V C206 1-126-960-11 ELECT 1uF 20% 50V C222 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C225 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C226 1-126-960-11 ELECT 1uF 20% 50V C228 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C229 1-126-947-11 ELECT 47uF 20% 10V C230 1-104-665-11 ELECT 100uF 20% 10V C231 1-126-926-11 ELECT 1000uF 20% 10V

C232 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C233 1-126-963-11 ELECT 4.7uF 20% 50V C235 1-164-156-11 CERAMIC CHIP 0.1uF 25V C239 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C246 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C247 1-126-963-11 ELECT 4.7uF 20% 50V C248 1-115-156-11 CERAMIC CHIP 1uF 10V C250 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C271 1-126-964-11 ELECT 10uF 20% 50V C321 1-104-665-11 ELECT 100uF 20% 10V C322 1-126-947-11 ELECT 47uF 20% 10V C323 1-126-964-11 ELECT 10uF 20% 50V C324 1-162-245-11 CERAMIC CHIP 0.015uF 10% 25V

C325 1-126-937-11 ELECT 4700uF 20% 16V C326 1-126-934-11 ELECT 220uF 20% 16V C327 1-126-947-11 ELECT 47uF 20% 10V C328 1-126-959-11 ELECT 0.47uF 20% 50V C329 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C331 1-126-947-11 ELECT 47uF 20% 10V C350 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C352 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C802 1-104-665-11 ELECT 100uF 20% 10V C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C804 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C805 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C806 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C807 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C808 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C809 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C810 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C812 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C813 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C814 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C815 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C816 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C817 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C818 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C819 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C820 1-162-974-11 CERAMIC CHIP 0.01uF 50V C821 1-115-156-11 CERAMIC CHIP 1uF 10V

C822 1-126-934-11 ELECT 220uF 20% 10V C824 1-115-156-11 CERAMIC CHIP 1uF 10V C825 1-126-964-11 ELECT 10uF 20% 50V C830 1-162-974-11 CERAMIC CHIP 0.01uF 50V C831 1-162-974-11 CERAMIC CHIP 0.01uF 50V

C832 1-162-974-11 CERAMIC CHIP 0.01uF 50V C839 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C951 1-162-974-11 CERAMIC CHIP 0.01uF 50V C952 1-162-974-11 CERAMIC CHIP 0.01uF 50V C953 1-126-935-11 ELECT 470uF 20% 10V

C957 1-162-974-11 CERAMIC CHIP 0.01uF 50V C959 1-104-665-11 ELECT 100uF 20% 10V C960 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CNP302 1-815-445-11 PIN, CONNECTOR 4P CNP802 1-695-371-31 CONNECTOR, FFC 10P CNP803 1-784-788-11 CONNECTOR, FFC 27P CNP804 1-784-775-11 CONNECTOR, FFC 14P CNP806 1-784-774-11 CONNECTOR, FFC 13P

MAIN

Page 48

CFD-S400/S500

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< DIODE >

D322 8-719-988-61 DIODE 1SS355TE-17 D323 8-719-988-61 DIODE 1SS355TE-17 D324 8-719-988-61 DIODE 1SS355TE-17 D801 8-719-069-54 DIODE UDZS-TE-17-5.1B D802 8-719-082-07 DIODE KDS121-RTK

D804 8-719-082-07 DIODE KDS121-RTK D807 8-719-083-93 DIODE KDS120-RTK D951 8-719-083-93 DIODE KDS120-RTK (SP,KR) D953 8-719-978-33 DIODE DTZ-TT11-6.8B D957 8-719-083-58 DIODE UDZS-TE-17-3.9B

< IC >

IC303 6-701-824-11 IC BD3870FS-E2 IC304 8-759-426-51 IC BA5417 IC801 8-759-658-46 IC S-81233SGY-Z IC802 6-801-838-01 IC uPD789477GC-A14-8BT IC803 6-700-336-01 IC CAT24WC02JI-1.8-TE13

IC804 8-759-645-87 IC PST9128-T

< JUMPER RESISTOR >

JC301 1-216-864-11 METAL CHIP 0 5% 1/10W

(US,CND,E92,MX) JC302 1-216-864-11 METAL CHIP 0 5% 1/10W JC303 1-216-864-11 METAL CHIP 0 5% 1/10W JC304 1-216-864-11 METAL CHIP 0 5% 1/10W JC305 1-216-864-11 METAL CHIP 0 5% 1/10W

JC306 1-216-864-11 METAL CHIP 0 5% 1/10W JC307 1-216-864-11 METAL CHIP 0 5% 1/10W JC308 1-216-864-11 METAL CHIP 0 5% 1/10W JC309 1-216-864-11 METAL CHIP 0 5% 1/10W

< CABLE HOLDER >

KH301 1-824-027-11 HOLDER, CABLE 3P KH321 1-824-029-11 HOLDER, CABLE 4P KH803 1-824-028-11 HOLDER, CABLE 2P

< COIL >

L301 1-410-324-11 INDUCTOR 4.7uH L801 1-414-137-31 INDUCTOR 0.22uH L802 1-410-521-11 INDUCTOR 100uH

< TRANSISTOR >

Q122 8-729-905-34 TRANSISTOR 2SC4081-Q Q124 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q222 8-729-905-34 TRANSISTOR 2SC4081-Q Q224 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q801 8-729-029-16 TRANSISTOR DTC144VUA-T106

Q804 8-729-028-77 TRANSISTOR DTA115EUA-T106 Q806 8-729-028-77 TRANSISTOR DTA115EUA-T106 Q808 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q812 8-729-028-92 TRANSISTOR DTA144TUA-T106 Q813 8-729-028-99 TRANSISTOR DTC114YUA-T106

Q814 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q819 8-729-029-00 TRANSISTOR DTC115EUA-T106

Q951 8-729-029-13 TRANSISTOR DTC143ZUA-T106 (SP,KR) Q952 8-729-040-76 TRANSISTOR KTA1273-Y-AT Q953 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q955 8-729-021-82 TRANSISTOR 2SD2396K Q957 8-729-212-02 TRANSISTOR 2SC2120-Y

Q958 8-729-028-90 TRANSISTOR DTA143ZUA-T106 Q959 8-729-028-99 TRANSISTOR DTC114YUA-T106

< RESISTOR >

R125 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R127 1-216-833-11 METAL CHIP 10K 5% 1/10W R128 1-216-817-11 METAL CHIP 470 5% 1/10W R130 1-216-813-11 METAL CHIP 220 5% 1/10W R131 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R133 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R135 1-216-853-11 METAL CHIP 470K 5% 1/10W R140 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R144 1-216-789-11 METAL CHIP 2.2 5% 1/10W R148 1-216-813-11 METAL CHIP 220 5% 1/10W

R149 1-216-821-11 METAL CHIP 1K 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R225 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R227 1-216-833-11 METAL CHIP 10K 5% 1/10W R228 1-216-817-11 METAL CHIP 470 5% 1/10W

R230 1-216-813-11 METAL CHIP 220 5% 1/10W R231 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R233 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R235 1-216-853-11 METAL CHIP 470K 5% 1/10W R240 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R244 1-216-789-11 METAL CHIP 2.2 5% 1/10W R248 1-216-813-11 METAL CHIP 220 5% 1/10W R249 1-216-821-11 METAL CHIP 1K 5% 1/10W R250 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R322 1-216-833-11 METAL CHIP 10K 5% 1/10W

R323 1-216-857-11 METAL CHIP 1M 5% 1/10W R324 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R325 1-216-821-11 METAL CHIP 1K 5% 1/10W R326 1-216-821-11 METAL CHIP 1K 5% 1/10W R331 1-216-809-11 METAL CHIP 100 5% 1/10W

R332 1-216-809-11 METAL CHIP 100 5% 1/10W R333 1-216-833-11 METAL CHIP 10K 5% 1/10W R334 1-216-805-11 METAL CHIP 47 5% 1/10W R335 1-216-809-11 METAL CHIP 100 5% 1/10W R360 1-216-833-11 METAL CHIP 10K 5% 1/10W

R361 1-216-833-11 METAL CHIP 10K 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-833-11 METAL CHIP 10K 5% 1/10W R802 1-216-841-11 METAL CHIP 47K 5% 1/10W R803 1-216-841-11 METAL CHIP 47K 5% 1/10W

R804 1-216-833-11 METAL CHIP 10K 5% 1/10W R805 1-216-833-11 METAL CHIP 10K 5% 1/10W R806 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R807 1-216-833-11 METAL CHIP 10K 5% 1/10W R808 1-216-845-11 METAL CHIP 100K 5% 1/10W

R809 1-216-833-11 METAL CHIP 10K 5% 1/10W

Page 49

CFD-S400/S500

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R810 1-216-845-11 METAL CHIP 100K 5% 1/10W R811 1-216-849-11 METAL CHIP 220K 5% 1/10W R812 1-216-845-11 METAL CHIP 100K 5% 1/10W R813 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R814 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R858 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R859 1-216-821-11 METAL CHIP 1K 5% 1/10W R860 1-216-841-11 METAL CHIP 47K 5% 1/10W R861 1-216-821-11 METAL CHIP 1K 5% 1/10W R862 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R815 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R816 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R817 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R818 1-216-821-11 METAL CHIP 1K 5% 1/10W R819 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R820 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R820 1-216-833-11 METAL CHIP 10K 5% 1/10W

R820 1-216-864-11 METAL CHIP 0 5% 1/10W

(US,CND,E92,MX) R821 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R822 1-216-817-11 METAL CHIP 470 5% 1/10W

R822 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R822 1-216-864-11 METAL CHIP 0 5% 1/10W

(US,CND,E92,MX) R823 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R824 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R825 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R826 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R827 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R828 1-216-821-11 METAL CHIP 1K 5% 1/10W R829 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R830 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(SP)

(KR)

(SP)

(KR)

R863 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R864 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R865 1-216-841-11 METAL CHIP 47K 5% 1/10W R866 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R867 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R870 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R876 1-216-845-11 METAL CHIP 100K 5% 1/10W R877 1-216-845-11 METAL CHIP 100K 5% 1/10W R880 1-216-821-11 METAL CHIP 1K 5% 1/10W R881 1-216-821-11 METAL CHIP 1K 5% 1/10W

R882 1-216-821-11 METAL CHIP 1K 5% 1/10W R883 1-216-821-11 METAL CHIP 1K 5% 1/10W R884 1-216-821-11 METAL CHIP 1K 5% 1/10W R885 1-216-821-11 METAL CHIP 1K 5% 1/10W R886 1-216-821-11 METAL CHIP 1K 5% 1/10W

R887 1-216-821-11 METAL CHIP 1K 5% 1/10W R888 1-216-821-11 METAL CHIP 1K 5% 1/10W R889 1-216-821-11 METAL CHIP 1K 5% 1/10W R890 1-216-821-11 METAL CHIP 1K 5% 1/10W R891 1-216-821-11 METAL CHIP 1K 5% 1/10W

R892 1-216-821-11 METAL CHIP 1K 5% 1/10W R893 1-216-821-11 METAL CHIP 1K 5% 1/10W R894 1-216-821-11 METAL CHIP 1K 5% 1/10W R895 1-216-821-11 METAL CHIP 1K 5% 1/10W R896 1-216-821-11 METAL CHIP 1K 5% 1/10W

R831 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R832 1-216-841-11 METAL CHIP 47K 5% 1/10W R833 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R834 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R835 1-216-841-11 METAL CHIP 47K 5% 1/10W

R836 1-216-841-11 METAL CHIP 47K 5% 1/10W R837 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R838 1-216-837-11 METAL CHIP 22K 5% 1/10W R839 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R842 1-216-821-11 METAL CHIP 1K 5% 1/10W

R843 1-216-821-11 METAL CHIP 1K 5% 1/10W R844 1-216-833-11 METAL CHIP 10K 5% 1/10W R845 1-216-841-11 METAL CHIP 47K 5% 1/10W R846 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R847 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R848 1-216-821-11 METAL CHIP 1K 5% 1/10W R849 1-216-841-11 METAL CHIP 47K 5% 1/10W R850 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-813-11 METAL CHIP 220 5% 1/10W R852 1-216-813-11 METAL CHIP 220 5% 1/10W

R853 1-216-813-11 METAL CHIP 220 5% 1/10W R854 1-216-841-11 METAL CHIP 47K 5% 1/10W R855 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R856 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R857 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R897 1-216-821-11 METAL CHIP 1K 5% 1/10W R898 1-216-821-11 METAL CHIP 1K 5% 1/10W R899 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-841-11 METAL CHIP 47K 5% 1/10W R952 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R953 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R954 1-216-821-11 METAL CHIP 1K 5% 1/10W R955 1-216-821-11 METAL CHIP 1K 5% 1/10W R956 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R957 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R958 1-216-813-11 METAL CHIP 220 5% 1/10W R959 1-216-809-11 METAL CHIP 100 5% 1/10W R960 1-216-864-11 METAL CHIP 0 5% 1/10W

< VIBRATOR >

X801 1-795-267-11 VIBRATOR, CRYSTAL (32.768kHz) X802 1-781-775-21 VIBRATOR, CERAMIC (4.19MHz)

*************************************************************

Page 50

CFD-S400/S500

POWER TC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* 1-683-861-11 POWER BOARD

*************

1-533-233-11 HOLDER, FUSE (CND,SP,KR)

< CAPACITOR >

C901 1-162-995-11 CERAMIC CHIP 0.022uF 50V C902 1-162-995-11 CERAMIC CHIP 0.022uF 50V C903 1-162-995-11 CERAMIC CHIP 0.022uF 50V C904 1-162-995-11 CERAMIC CHIP 0.022uF 50V C906 1-126-964-11 ELECT 10uF 20% 50V

C303 1-104-665-11 ELECT 100uF 20% 10V C304 1-126-947-11 ELECT 47uF 20% 10V C305 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C307 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C308 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C310 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

< CONNECTOR >

CN303 1-784-774-11 CONNECTOR, FFC 13P

< CONNECTOR >

* CNP901 1-815-551-11 PIN, CONNECTOR (PC BOARD) 3P * CNP902 1-815-552-21 PIN, CONNECTOR (PC BOARD) 4P

< DIODE >

D901 8-719-063-79 DIODE 1N4002B D902 8-719-063-79 DIODE 1N4002B D903 8-719-063-79 DIODE 1N4002B D904 8-719-063-79 DIODE 1N4002B

< FUSE >

0 F902 1-533-469-21 FUSE, GLASS TUBE (DIA.5) (T2.5AL/250V)

(SP,KR)

0 F902 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/125V)

(CND)

< AC INLET >

0 J901 1-526-818-11 INLET, AC (- AC IN) (E92,MX) 0 J901 1-526-838-11 INLET, AC 2P (- AC IN) (SP,KR) 0 J901 1-540-009-11 INLET, AC (- AC IN) (US,CND)

< TRANSFORMER >

0 T901 1-435-917-11 TRANSFORMER, POWER (US,E92,MX) 0 T901 1-435-918-11 TRANSFORMER, POWER (SP,KR) 0 T901 1-437-540-11 TRANSFORMER, POWER (CND)

*************************************************************

* A-3323-806-A TC BOARD, COMPLETE

*******************

< CAPACITOR >

< IC >

IC301 8-759-264-71 IC TA2068N

< JUMPER RESISTOR >

JC301 1-216-864-11 METAL CHIP 0 5% 1/10W JC302 1-216-864-11 METAL CHIP 0 5% 1/10W JC303 1-216-864-11 METAL CHIP 0 5% 1/10W JC304 1-216-864-11 METAL CHIP 0 5% 1/10W JC305 1-216-864-11 METAL CHIP 0 5% 1/10W

JC306 1-216-295-11 SHORT CHIP 0 JC307 1-216-864-11 METAL CHIP 0 5% 1/10W JC308 1-216-295-11 SHORT CHIP 0 JC309 1-216-864-11 METAL CHIP 0 5% 1/10W

< TRANSISTOR >

Q301 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q302 8-729-907-00 TRANSISTOR DTC114EU Q303 8-729-907-00 TRANSISTOR DTC114EU

< RESISTOR >

R101 1-216-835-11 METAL CHIP 15K 5% 1/10W R102 1-216-807-11 METAL CHIP 68 5% 1/10W R103 1-216-843-11 METAL CHIP 68K 5% 1/10W R104 1-216-835-11 METAL CHIP 15K 5% 1/10W R105 1-216-835-11 METAL CHIP 15K 5% 1/10W

R106 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R110 1-216-809-11 METAL CHIP 100 5% 1/10W R111 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R112 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R201 1-216-835-11 METAL CHIP 15K 5% 1/10W

C101 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C102 1-104-665-11 ELECT 100uF 20% 10V C103 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C104 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C105 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C107 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-104-665-11 ELECT 100uF 20% 10V C203 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C204 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C205 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C207 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C301 1-104-665-11 ELECT 100uF 20% 10V C302 1-104-665-11 ELECT 100uF 20% 10V

R202 1-216-807-11 METAL CHIP 68 5% 1/10W R203 1-216-843-11 METAL CHIP 68K 5% 1/10W R204 1-216-835-11 METAL CHIP 15K 5% 1/10W R205 1-216-835-11 METAL CHIP 15K 5% 1/10W R206 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R210 1-216-025-11 RES-CHIP 100 5% 1/10W R211 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R212 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R301 1-216-857-11 METAL CHIP 1M 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R303 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R304 1-216-821-11 METAL CHIP 1K 5% 1/10W R305 1-216-817-11 METAL CHIP 470 5% 1/10W R306 1-218-867-11 RES-CHIP 6.8K 5% 1/10W

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

Page 51

CFD-S400/S500

TUNERTC

Ref. No. Part No. Description Remark

R307 1-216-797-11 METAL CHIP 10 5% 1/10W R308 1-216-837-11 METAL CHIP 22K 5% 1/10W R309 1-216-805-11 METAL CHIP 47 5% 1/10W R310 1-216-857-11 METAL CHIP 1M 5% 1/10W R311 1-216-857-11 METAL CHIP 1M 5% 1/10W

R314 1-216-817-11 METAL CHIP 470 5% 1/10W R315 1-216-817-11 METAL CHIP 470 5% 1/10W

< SWITCH >

S301 1-786-126-11 SWITCH, SLIDE (REC/PB)

< TRANSFORMER >

T301 1-416-041-11 TRANSFORMER, BIAS OSCILLATION

*************************************************************

* A-3323-778-A TUNER BOARD, COMPLETE (US,CND,E92,MX) * A-3323-815-A TUNER BOARD, COMPLETE (SP,KR)

***********************

3-237-724-01 TERMINAL, ANTENNA (CNP2)

< CAPACITOR >

C1 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C4 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C7 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C8 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C9 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C10 1-126-960-11 ELECT 1uF 20% 50V C11 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C12 1-126-963-11 ELECT 4.7uF 20% 50V C13 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(US,CND,E92,MX) C14 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(SP,KR)

Ref. No. Part No. Description Remark

C41 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C42 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C43 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C47 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C49 1-161-051-00 CERAMIC 0.01uF 10% 50V

C51 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C52 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C53 1-136-169-00 FILM 0.22uF 5% 50V C54 1-126-934-11 ELECT 220uF 20% 10V C55 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C56 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C57 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C59 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C60 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C61 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C62 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C63 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C65 1-126-963-11 ELECT 4.7uF 20% 50V C66 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C68 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C77 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(SP,KR)

C78 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

(SP,KR) C80 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C95 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< FILTER >

CF2 1-760-023-11 FILTER, CERAMIC CF4 1-781-962-21 FILTER, CERAMIC

< CONNECTOR >

* CNP1 1-785-663-11 PIN, CONNECTOR (PC BOARD) 11P

C14 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

(US,CND,E92,MX)

C15 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(SP,KR)

C15 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

(US,CND,E92,MX) C18 1-126-934-11 ELECT 220uF 20% 10V C20 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C21 1-126-960-11 ELECT 1uF 20% 50V C22 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C23 1-126-960-11 ELECT 1uF 20% 50V C24 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C26 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C27 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C29 1-104-665-11 ELECT 100uF 20% 10V C30 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C31 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C32 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C33 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C34 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C35 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C37 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C39 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

< TRIMMER >

CT1 1-141-603-11 CAP, ADJ 20PF CT3 1-141-601-11 CAP, ADJ 10PF

< DIODE >

D1 8-719-078-48 DIODE KV1471ETR1-3 D2 8-719-078-48 DIODE KV1471ETR1-3 D3 8-719-050-69 DIODE KV1520N D10 8-719-988-61 DIODE 1SS355TE-17 D11 8-719-988-61 DIODE 1SS355TE-17

< IC >

IC1 6-700-512-01 IC TA2149BN IC2 8-759-483-40 IC LC72137M-TLM

< JUMPER RESISTOR >

JC1 1-216-864-11 METAL CHIP 0 5% 1/10W JC2 1-216-864-11 METAL CHIP 0 5% 1/10W JC3 1-216-864-11 METAL CHIP 0 5% 1/10W JC4 1-216-864-11 METAL CHIP 0 5% 1/10W JC5 1-216-864-11 METAL CHIP 0 5% 1/10W

Page 52

CFD-S400/S500

TUNER

Ref. No. Part No. Description Remark

JC6 1-216-864-11 METAL CHIP 0 5% 1/10W JC11 1-216-864-11 METAL CHIP 0 5% 1/10W JC12 1-216-864-11 METAL CHIP 0 5% 1/10W JC13 1-216-864-11 METAL CHIP 0 5% 1/10W JC24 1-216-864-11 METAL CHIP 0 5% 1/10W

(SP,KR)

JC33 1-216-864-11 METAL CHIP 0 5% 1/10W JC34 1-216-864-11 METAL CHIP 0 5% 1/10W

< COIL >

L1 1-409-775-11 COIL, AIR-CORE L2 1-416-509-11 COIL, AIR-CORE L3 1-754-117-11 ANTENNA, FERRITE-ROD (AM) L4 1-411-234-21 COIL, AM OSC L11 1-414-142-11 INDUCTOR 1uH (US,CND,E92,MX)

L21 1-410-509-61 INDUCTOR 10uH

< RESISTOR >

R1 1-216-815-11 METAL CHIP 330 5% 1/10W R2 1-216-817-11 METAL CHIP 470 5% 1/10W R3 1-216-833-11 METAL CHIP 10K 5% 1/10W R4 1-216-833-11 METAL CHIP 10K 5% 1/10W R10 1-216-805-11 METAL CHIP 47 5% 1/10W

Ref. No. Part No. Description Remark

MISCELLANEOUS

***************

109 1-452-899-11 MAGNET 118 1-757-689-11 CABLE, FLEXIBLE FLAT (16 CORE) 119 1-824-034-11 CABLE, FLEXIBLE FLAT 14P 164 1-824-031-11 CABLE, FLEXIBLE FLAT 13P

0 253 8-848-483-05 PICK-UP, OPTICAL KSS-213R/C2N

ANT1 1-754-241-11 ANTENNA, TELESCOPIC (FM) HRP301 3-244-085-01 HEAD, R/P (REC/PB) M801 3-244-082-01 MOTOR ASSY (CAPSTAN/REEL) S801 1-692-960-11 SWITCH, PUSH (1 KEY)

(Z PUSH OPEN/CLOSE)

SP301 1-825-031-11 SPEAKER (10cm) (L-CH)

SP302 1-825-031-11 SPEAKER (10cm) (R-CH)

*************************************************************

ACCESSORIES

************

1-542-489-11 HEADPHONE (S500)

0 1-557-287-11 CORD, POWER (E92,MX) 0 1-575-131-11 CORD, POWER (SP) 0 1-690-952-11 CORD, POWER (CND) 0 1-776-985-11 CORD, POWER (KR)

R11 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R13 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R24 1-216-813-11 METAL CHIP 220 5% 1/10W R30 1-216-835-11 METAL CHIP 15K 5% 1/10W R31 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R32 1-216-845-11 METAL CHIP 100K 5% 1/10W R40 1-216-849-11 METAL CHIP 220K 5% 1/10W R41 1-216-833-11 METAL CHIP 10K 5% 1/10W R50 1-216-821-11 METAL CHIP 1K 5% 1/10W R51 1-216-833-11 METAL CHIP 10K 5% 1/10W

R52 1-216-864-11 METAL CHIP 0 5% 1/10W R53 1-216-835-11 METAL CHIP 15K 5% 1/10W R54 1-216-817-11 METAL CHIP 470 5% 1/10W R56 1-216-815-11 METAL CHIP 330 5% 1/10W R58 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R59 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R60 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R61 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R63 1-216-833-11 METAL CHIP 10K 5% 1/10W R65 1-216-833-11 METAL CHIP 10K 5% 1/10W

R91 1-216-813-11 METAL CHIP 220 5% 1/10W R92 1-216-813-11 METAL CHIP 220 5% 1/10W R94 1-216-821-11 METAL CHIP 1K 5% 1/10W

< TRANSFORMER >

0 1-783-878-11 CORD, POWER (US)

3-027-153-11 LID, BATTERY CASE (for RMT-CS400A) 3-238-274-11 MANUAL, INSTRUCTION (ENGLISH)

(US,CND,E92,MX) 3-238-274-21 MANUAL, INSTRUCTION (FRENCH) (CND) 3-238-274-31 MANUAL, INSTRUCTION (SPANISH) (E92,MX)

3-238-274-41 MANUAL, INSTRUCTION (ENGLISH,SPANISH)

(SP,KR) 3-240-554-31 MANUAL, INSTRUCTION (KOREAN) (KR) A-3013-974-A REMOTE COMMANDER (RMT-CS400A)

T1 1-433-741-11 TRANSFORMER, IF T2 1-419-465-11 COIL (DET)

< VIBRATOR >

X1 1-795-449-11 VIBRATOR, CRYSTAL (75kHz)

*************************************************************

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

Page 53

MEMO

CFD-S400/S500

Page 54

CFD-S400/S500

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2001. 04 New

1.1 2002. 07 Repair parts change of CD mechanism. (SPM-02027)

Sony CFD-S500, CFD-S400 User Manual [en, fr]

TABLE OF CONTENTS

SERVICING NOTES

GENERAL

DISASSEMBLY

cabinet top assy

MD block

cassette door assy

MAIN board

TUNER board

CD lid

POWER board

optical pick-up

MECHANICAL ADJUSTMENTS

ELECTRICAL ADJUSTMENTS

CD SECTION

EXPLODED VIEWS

BA TTERY (1)

ELECTRICAL P ARTS LIST

BA TTERY (2)

CD CONTROL (1) CONTROL (2) CONTROL (3)

LCDHEADPHONECONTROL (4)CONTROL (3)

MAIN

POWER TC

TUNERTC

REVISION HISTORY
