Sony CFD-E77L, CFD-E75L, CFD-E70L User Manual

3-228-965-33 (1)

CD Radio Cassette-Corder

Operating Instructions page 2 Manual de instrucciones página 2

CFD-E70L CFD-E75

CFD-E75L CFD-E77L

Warning

To prevent fire or shock hazard, do not expose the player to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Information

For customers in Europe

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located at the rear.

Warning

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

About this manual

The instructions in this manual are for the CFDE70L, CFD-E75, CFD-E75L and CFD-E77L. Before you start reading, check your model number. The CFD-E75L is the model used for illustration purpose.

Note

The name of the switch to turn on/off this player is indicated as below: “OPERATE”: CFD-E70L/E75L/E77L “POWER”: CFD-E75

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the appliance.

Notice for customers in the United Kingdom

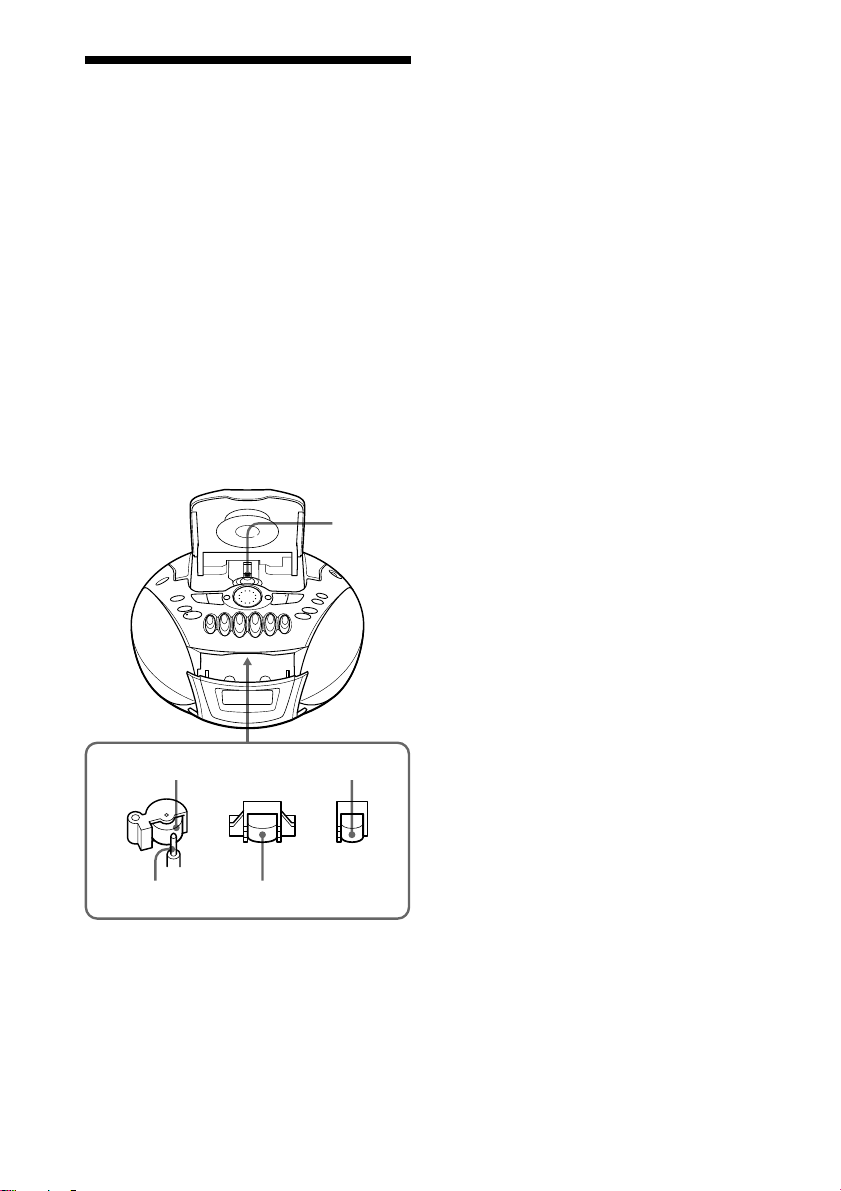

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, same rating fuse approved by ASTA or BSI to BS 1362, (i.e. marked with or mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Basic Operations

Playing a CD .................................................. 4

Listening to the radio...................................... 6

Playing a tape ................................................. 8

Recording on a tape ...................................... 10

The CD Player

Using the display .......................................... 12

Locating a specific point in a track .............. 12

Playing tracks repeatedly

(Repeat Play) ............................................ 13

Playing tracks in random order

(Shuffle Play) ........................................... 14

Creating your own programme

(Programme Play)..................................... 15

The Radio

Presetting radio stations................................ 16

Playing preset radio stations ......................... 17

The Audio Emphasis

Selecting the audio emphasis

(MEGA BASS)......................................... 18

Basic Operations

The Timer

Setting the clock ........................................... 19

Waking up to music...................................... 20

Falling asleep to music ................................. 21

Using the countdown timer .......................... 22

Setting Up

Choosing the power sources ......................... 24

Additional Information

Precautions ................................................... 26

Troubleshooting............................................ 27

Maintenance ................................................. 30

Specifications ............................................... 31

Index ............................................................. 32

Basic Operations

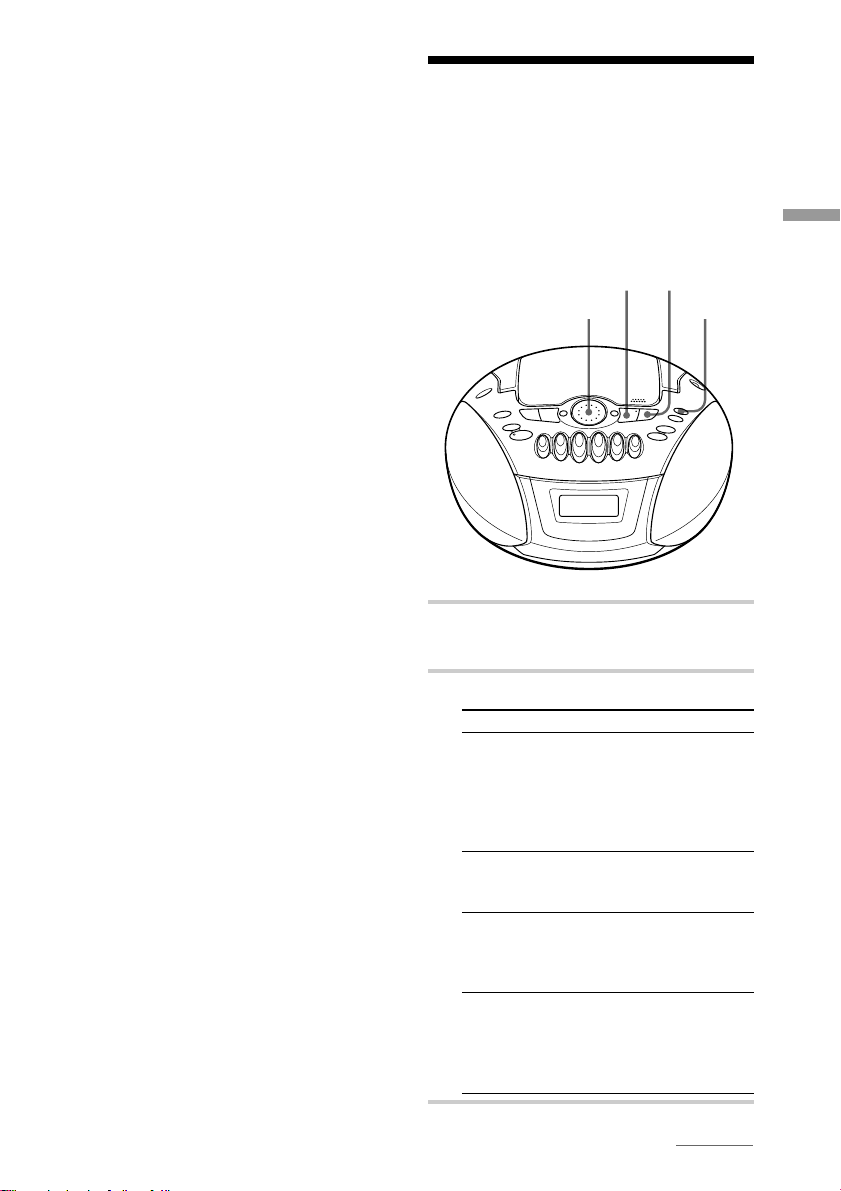

Playing a CD

1, 2

Connect the supplied mains lead (see page 24).

1 Press ZPUSH OPEN/CLOSE down

to open the CD compartment and

PUSH OPEN/CLOSE

place the CD on the CD compartment.

2 Close the lid of the CD compartment.

PUSH OPEN/CLOSE

3 Press u (N on the remote, CFD-

E75/E75L/E77L only). The player turns on (direct power-on)

and plays all the tracks once.

With the label side up

Display

Playing timeTrack number

Use these buttons for additional operations

Jog dial ZPUSH

OPEN/CLOSE

VOLUME +, –

OPERATE (or POWER)

To Do this

adjust the volume Press VOLUME +, – (VOL +, – on

the remote, CFD-E75/E75L/E77L

only). stop playback Press x. pause playback Press u (X on the remote, CFD-

E75/E75L/E77L only).

Press the button again to resume

play after pause. go to the next track Turn the jog dial clockwise.

(On the remote, press >, CFD-

E75/E75L/E77L only.) go back to the previous track Turn the jog dial counterclockwise.

(On the remote, press ., CFD-

E75/E75L/E77L only.) remove the CD Press ZPUSH OPEN/CLOSE. turn on/off the player Press OPERATE (or POWER, see

page 2).

Basic Operations

About CD-Rs/CD-RWs

This player is compatible with CD-Rs/CD-RWs but playback capability may vary depending on the quality of the disc, the recording device and application software.

Listening to the radio

Connect the supplied mains lead (see page 24).

1 Press RADIO BAND•AUTO

RADIO

BAND

AUTO PRESET

PRESET until the band you want appears in the display (direct poweron).

Each time you press the button, the band changes as follows:

CFD-E75: “FM” t “AM” CFD-E70L/E75L/E77L: “FM” t “MW” t “LW”

2 Hold down TUNE + or – until the

frequency digits begin to change in the display.

The player automatically scans the radio frequencies and stops when it finds a clear station.

If you can't tune in a station, press the button repeatedly to change the frequency step by step.

Display

Indicates an FM stereo broadcast

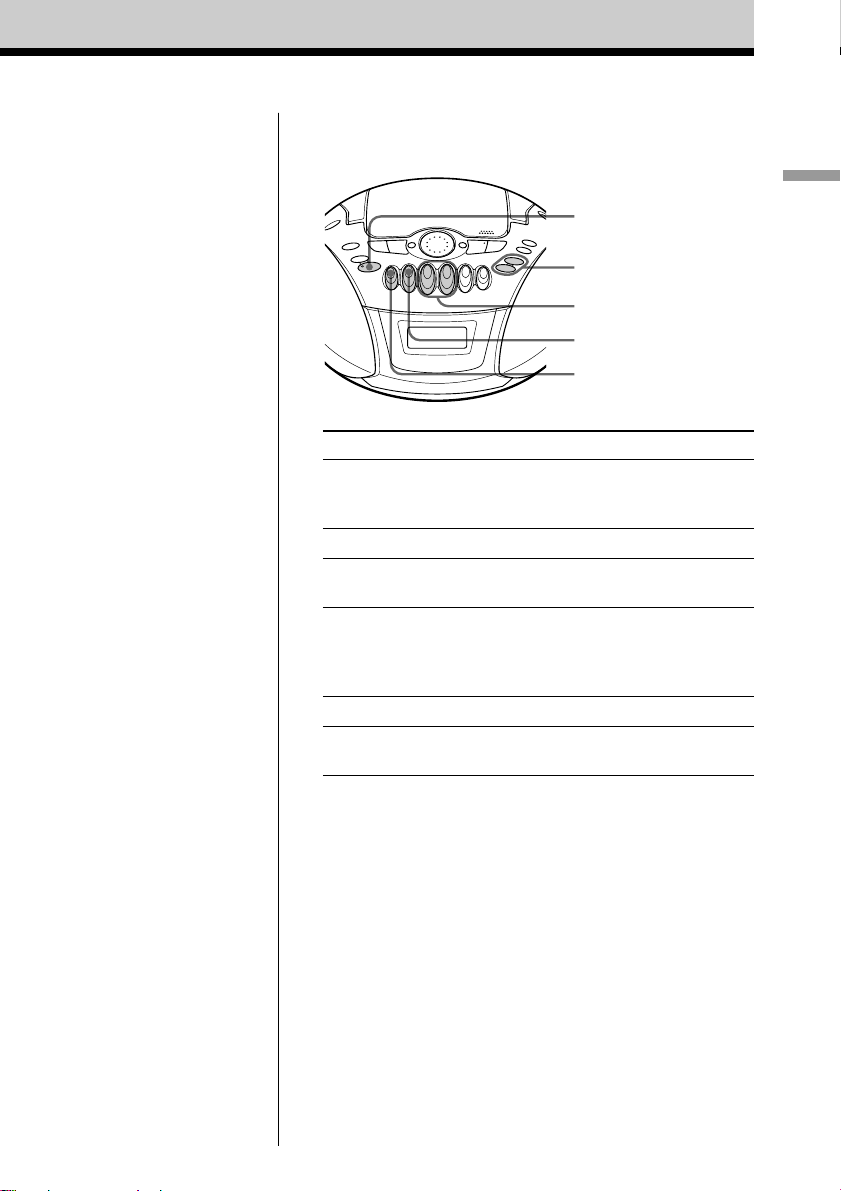

Use these buttons for additional operations

OPERATE (or POWER)

MODE VOLUME +, –

Basic Operations

Tips

• If the FM broadcast is noisy, press MODE until “Mono” appears in the display and the radio will play in monaural.

• If you need to change the AM/MW tuning interval, see page 25.

To Press

adjust the volume VOLUME +, –

(VOL +, – on the remote, CFD-E75/ E75L/E77L only)

turn on/off the radio OPERATE (or POWER, see page 2)

To improve broadcast reception

Reorient the aerial for FM. Reorient the player itself for AM or MW/LW.

for FM for AM/MW/LW

Playing a tape

Connect the supplied mains lead (see page 24).

1 Press xZ to open the tape

compartment and insert a recorded tape. Use TYPE I (normal) tape only. Close the compartment.

2 Press n.

The player turns on (direct power-on) and starts playing.

With the side you want to play facing you

Display

Use these buttons for additional operations

OPERATE (or POWER)

VOLUME +, –

m, M

To Press

adjust the volume VOLUME +, –

(VOL +, – on the remote, CFD-

E75/E75L/E77L only) stop playback xZ fast-forward or rewind the tape m or M pause playback X

Press the button again to

resume play after pause. eject the cassette xZ turn on/off the player OPERATE (or POWER, see

page 2)

Basic Operations

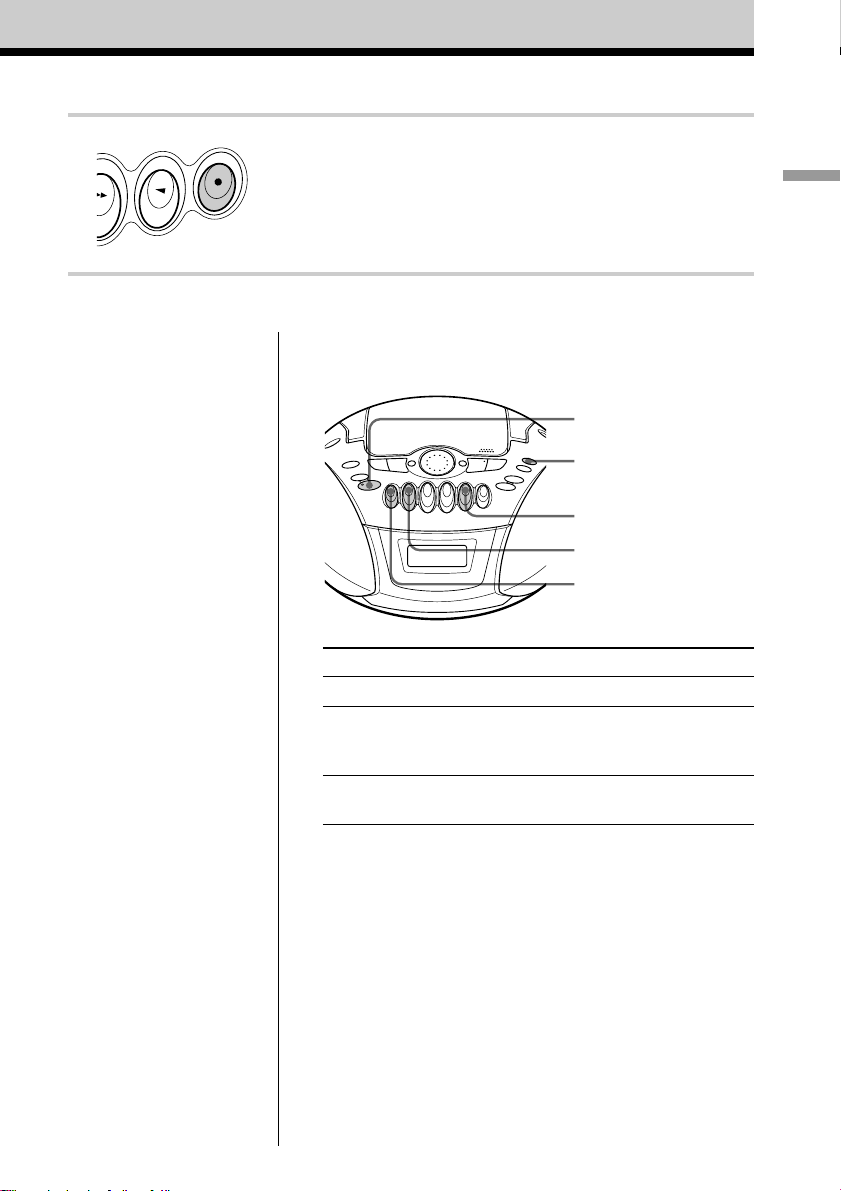

Recording on a tape

Connect the supplied mains lead (see page 24).

1 Press xZ to open the tape

compartment and insert a blank tape. Use TYPE I (normal) tape only.

With the side you want to record on facing you

2 Select the programme source you

want to record. To record from the CD player, insert

a CD (see page 4) and press x on the CD section.

RADIO

BAND

AUTO PRESET

To record from the radio, tune in the station you want (see page 6).

Display

3 Press z to start recording

(n is depressed automatically).

Use these buttons for additional operations

Basic Operations

OPERATE (or POWER)

MODE

Tips

• Adjusting the volume or the audio emphasis (see page

18) will not affect the recording level.

• If the AM/MW/LW programme makes a whistling sound after you've pressed z in step 3, press MODE to select the position of ISS (Interference Suppress Switch) that most decreases the noise.

• For the best results, use the AC power as a power source.

• To erase a recording, proceed as follows: 1 Insert the tape whose

recording you want to

erase. 2 Press X. 3 Press n. 4 Press z. 5 Press X.

To Press

stop recording xZ pause recording X

Press the button again to resume recording.

turn on/off the player OPERATE (or POWER, see page 2)

The CD Player

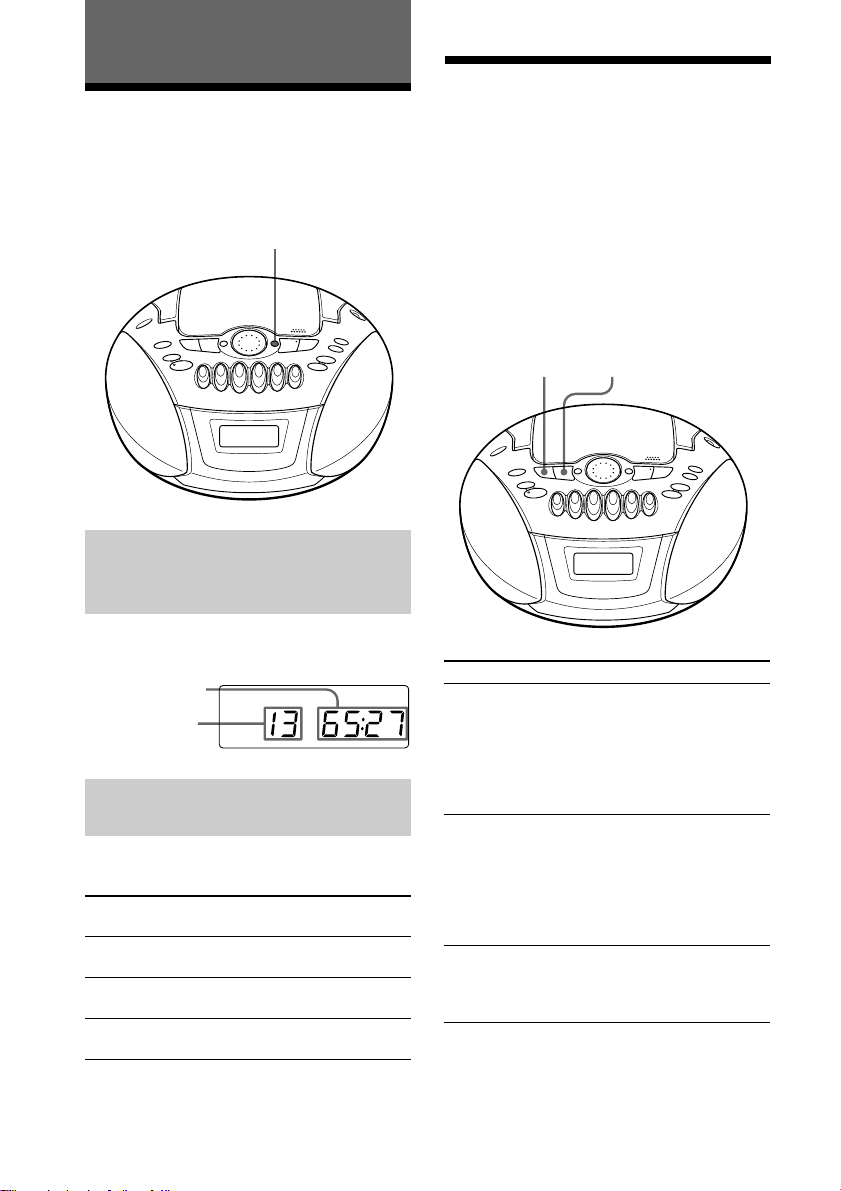

Using the display

You can check information about the CD using the display.

DSPL ENT MEM

Checking the total track number and playing time

Press DSPL•ENT MEM in stop mode.

Total playing

time

Total track number

Checking the remaining time

Press DSPL•ENT MEM while playing a CD.

To display

the current track number once and remaining time on the current track*

the number of tracks left twice and remaining time on the CD

the current track number three times and playing time

* For a track whose number is more than 20, the

remaining time appears as “– –:– –”.

Press

DSPL•

ENT MEM

Locating a specific point in a track

You can quickly find a specific point in a track while playing a CD. You can also locate any track on a CD using the number buttons on the remote (CFDE75/E75L/E77L only).

m M

To locate Press

a point while listening to M (forward) or m the sound (backward) while

playing and hold down until you find the point. (On the remote, use > or ., CFDE75/E75L/E77L only.)

a point while observing M (forward) or m the display (backward) in pause

and hold down until you find the point. (On the remote, use > or ., CFDE75/E75L/E77L only.)

a specific track directly the number button of (CFD-E75/E75L/E77L the track. only)

Note

You cannot locate a specific track if “SHUF” or "PGM" is lit in the display. Turn off the indication by pressing x (CFD-E75/E75L/E77L only).

Playing tracks repeatedly (Repeat Play)

Tip

When you locate a track numbered over 10, press >10 first, then the corresponding number buttons. Example:To play track number 23, press >10 first, then 2 and 3 (CFD-E75/E75L/E77L only).

You can play tracks repeatedly in normal, shuffle or programme play modes (see pages 14 - 15).

MODEJog dial

1 Press x.

“Cd” appears in the display.

2 Proceed as follows.

To repeat

a single track

all the tracks

tracks in random order

programmed tracks

Do this

1 Press MODE until

“REPEAT 1” appears.

2 Turn the jog dial to select

the track that you want to repeat.

3 Press u. 1 Press MODE until

“REPEAT ALL” appears.

2 Press u. 1 Press MODE until “SHUF

REPEAT” appears.

2 Press u. 1 Press MODE until “PGM

REPEAT” appears.

2 Programme tracks (see step

3 on page 15).

3 Press u.

The CD Player

continued

Playing tracks repeatedly (Repeat Play) (continued)

To cancel Repeat Play

Press MODE until “REPEAT” disappears from the display.

Playing tracks in random order (Shuffle Play)

You can play tracks in random order.

On the remote (CFD-E75/E75L/E77L only)

• Use N instead of u.

• When you’ve selected “REPEAT 1”, select the

track by pressing the number buttons.

xu MODE

1 Press x.

“Cd” appears in the display.

2 Press MODE until “SHUF” appears in

the display.

3 Press u to start shuffle play.

To cancel Shuffle Play

Press MODE until “SHUF” disappears from the display.

On the remote (CFD-E75/E75L/E77L only)

Use N instead of u.

Creating your own programme (Programme Play)

You can arrange the playing order of up to 20 tracks on a CD.

DSPL ENT MEM

Jog dial u

1 Press x.

“Cd” appears in the display.

MODE

On the remote (CFD-E75/E75L/E77L only)

1 Press x. 2 Press MODE until “PGM” appears in the

display.

3 Press the number buttons for the tracks you want

to programme in the order you want.

4 Press N.

The CD Player

To cancel Programme Play

Press MODE until “PGM” disappears from the display.

To check the order of tracks before play

Press DSPL•ENT MEM. Every time you press the button, the track

number appears in the programmed order.

To change the current programme

Press x once if the CD is stopped and twice if the CD is playing. The current programme will be erased. Then create a new programme following the programming procedure.

2 Press MODE until “PGM” appears in

the display.

3 Turn the jog dial to select the track you

want to programme, and press DSPL• ENT MEM.

Repeat this step.

Programmed track Playing order

4 Press u to start programme play.

Tips

• You can play the same programme again, since the programme is saved until you open the CD compartment.

• You can record your own programme. After you’ve created the programme, insert a blank tape and press z to start recording.

The Radio

Presetting radio stations

You can store radio stations into the player’s memory. You can preset up to 30 radio stations (CFD-E75), 20 for FM and 10 for AM in any order or 40 radio stations (CFDE70L/E75L/E77L), 20 for FM and 10 for MW and LW in any order.

RADIO BAND AUTO PRESET

Jog dial

1 Press RADIO BAND•AUTO PRESET

to select the band.

DSPL ENT MEM

If a station cannot be preset automatically

You need to preset a station with a weak signal manually.

1 Press RADIO BAND•AUTO PRESET to

select the band.

2 Tune in a station you want. 3 Hold down DSPL•ENT MEM for 2

seconds.

4 Select the preset number you want to

preset the new station on by turning the jog dial.

5 Press DSPL•ENT MEM.

The new station replaces the old one.

On the remote (CFD-E75/E75L/E77L only)

1 Press BAND until the band you want appears in

the display.

2 Press TUNE + or – until you tune in the station

you want.

3 Hold down the number button that you want to

preset the new station on for 2 seconds. To select the preset number over 10, press >10 first, then the corresponding number buttons. You need to hold down the last number button to enter for about 2 seconds. (Example: To select 12, press >10 and 1 first, then hold down 2 for about 2 seconds.)

2 Hold down RADIO BAND•AUTO

PRESET for 2 seconds until “AUTO” appears in the display.

3 Press DSPL•ENT MEM.

The stations are stored in memory from the lower frequencies to the higher ones.

Playing preset radio stations

Once you've preset the stations, use the jog dial on the player or the number buttons on the remote to tune in to your favourite stations.

RADIO BAND AUTO PRESET Jog dial

1 Press RADIO BAND•AUTO PRESET

to select the band.

The Radio

2 Turn the jog dial to tune in the stored

station.

On the remote (CFD-E75/E75L/E77L only)

1 Press BAND until the band you want appears in

the display.

2 Press the number button to tune in a stored

station. To tune in a preset station over 10, press >10 first, then the corresponding number buttons. (Example: To tune in a preset station 12, press >10 and 1 first , and then press 2.)

The Audio Emphasis

Selecting the audio emphasis (MEGA BASS)

You can adjust the audio emphasis of the sound you are listening to.

MEGA BASS

Reinforcing the bass sound

Press MEGA BASS. “MEGA BASS” appears in the display. To return to normal sound, press the button

again.

The Timer

Setting the clock

“– –:– –” indication appears in the display until you set the clock.

MENU ALARM

Before you set the clock, connect the power source (see page 24).

1 Press MENU•ALARM until “CLOCK”

appears in the display, then press DSPL•ENT MEM. The hour digit flashes.

DSPL ENT MEMJog dial

3 Press DSPL•ENT MEM.

The clock starts from 00 seconds.

Tip

The time display system: CFD-E75: 12-hour system CFD-E70L/E75L/E77L: 24-hour system

The Timer

2 Turn the jog dial to set the current hour.

Then press DSPL•ENT MEM. The minute digits flash. Set the minutes

by turning the jog dial until the correct minute is displayed.

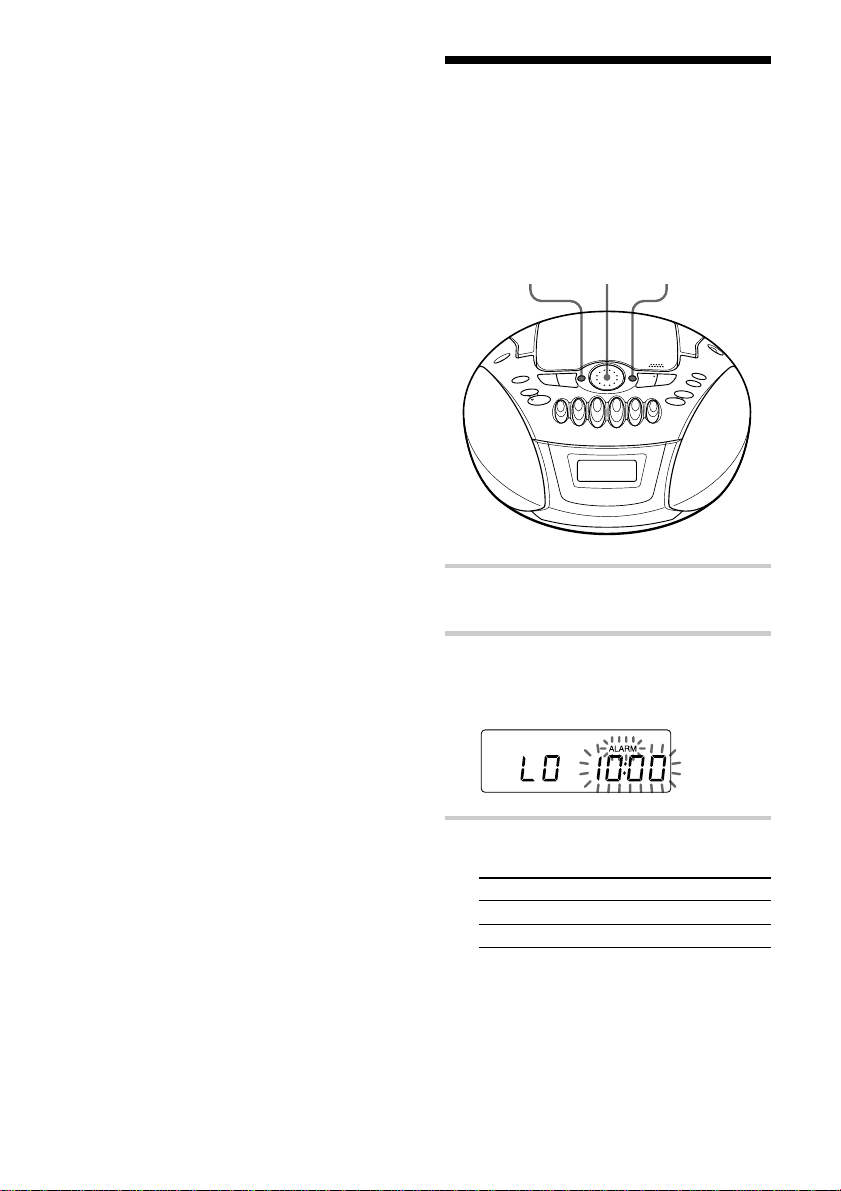

Waking up to music

You can wake up to music or a radio programme at a preset time. Make sure you have set the clock (“Setting the clock” on page 19).

4 Set the timer to the hour you want the

music to start by turning the jog dial, then press DSPL•ENT MEM.

MENU ALARM

STANDBY

Before you begin, make sure the indication is not lit in the display. If it is lit, press STANDBY.

DSPL ENT MEMJog dial

(clock)

1 Prepare the music source you want to

play.

To play Do this

the radio Tune in a station. a CD Insert a CD.

2 Press MENU•ALARM until “TIMER”

appears in the display, then press DSPL•ENT MEM. The

(clock) and the music source

(“Cd” or “RAdIO”) flash.

Set the minutes, then press DSPL•ENT MEM.

5 Set the timer to the hour and the

minutes you want the music to go off. (Do as step 4.)

6 Turn the jog dial to set the volume, then

press DSPL•ENT MEM.

7 Press STANDBY.

The

indication lights up and the

power goes off. At the preset time, the power will go on,

and the music will play. Then the power will go off at the preset time, and the player will enter into the standby mode.

To check/change when the playback will start

Press MENU•ALARM until “TIMER” appears in the display, then DSPL•ENT MEM. Each time you press DSPL•ENT MEM, a stored setting is displayed in the set order. To change the setting, display the setting you want to change and re-enter it.

3 Select the music source (“Cd” or

“RAdIO”) by turning the jog dial, then press DSPL•ENT MEM.

+ 44 hidden pages

Sony CFD-E77L, CFD-E75L, CFD-E70L User Manual

Table of contents

Basic Operations

Playing a CD

Listening to the radio

Playing a tape

Recording on a tape

The CD Player

Using the display

Locating a specific point in a track

Playing tracks repeatedly (Repeat Play)

Playing tracks in random order (Shuffle Play)

Creating your own programme (Programme Play)

The Radio

Presetting radio stations

Playing preset radio stations

The Audio Emphasis

Selecting the audio emphasis (MEGA BASS)

The Timer

Setting the clock

Waking up to music
