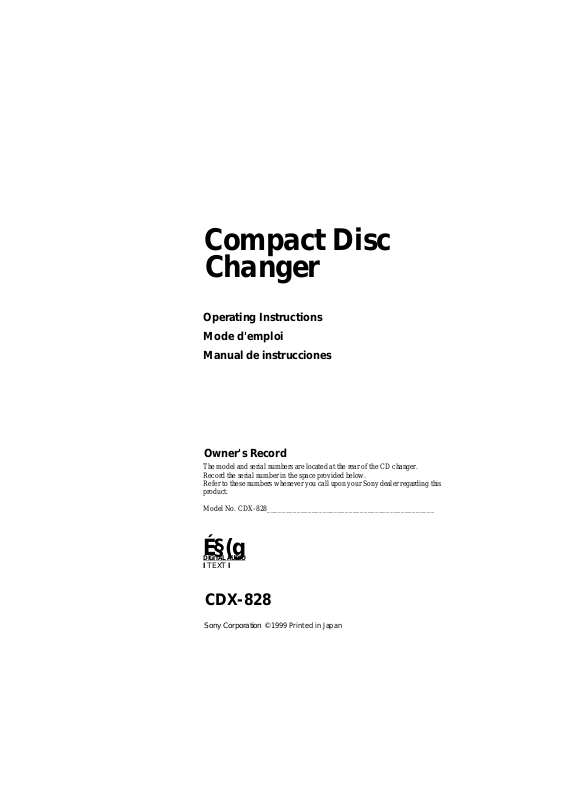

Compact Disc
Changer

Operating Instructions Mode d'emploi Manual de instrucciones

Owner's Record

The model and serial numbers are located at the rear of the CD changer.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.

Model No. CDX-828

ɧ(g

DIGITAL AUDIO

I TEXT I

_____________________________________________

CDX-828

Sony Corporation © 1999 Printed in Japan

For the customers in the USA

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with t№"instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.

^UTION

The use of optical instruments with this product will increase eye hazard.

Parts for Installation and Connections Pièces de montage et de raccordement Componentes de montaje y conexiones

The numbers in the list are keyed to those in the instructions.
Les numéros de la liste correspondent à ceux des instructions.
Los números de la lista corfesponden a los de las instrucciones.

11 (1)

Installatioir

Installation

Precautions

• Choose the mounting location carefully, observing
the following:
— The unit is not subject to temperatures exceeding

55°C (131°F) (such as in a car parked in direct

sunlight).
— The unit is not subject to direct sunlight.
— The unit is not near heat sources (such as heaters).
— The unit is not exposed to rain or moisture.
— The unit is not exposed to excessive dust or dirt.
— The unit is not subject to excessive vibration.
— The fuel tank should not be damaged by the

tapping screws.
— There should be no wire harnesses or pipes under

the place where you are going to install the unit.
— The spare tire, tools or other equipment in or

under the trunk should not be interfered with or

damaged by the screws or the unit itself.

• Be sure to use only the supplied mounting hardware
for a safe and secure installation.

• Use only the supplied screws..

• Make holes of 0 3.5 mm (^/32 in.) only after making
sure there is nothing on the other side of the
mounting surface.

Précautions

• Choisir remplacement de montage en tenant compte
des observations suivantes:
— Appareil non soumis à des températures

dépassant 55°C (131°F) (comme dans une voiture
parquée au soleil).

— Appareil non soumis au rayonnement solaire

direct.

— Appareil à l'écart de sources de chaleur (comme

des radiateurs).
— Appareil non exposé à la pluie ou à l'humidité.
— Appareil non exposé à des poussières ou à des

souillures en excès.
— Appareil non exposé à des vibrations excessives.
— Vérifier que le réservoir d'essence ne risque pas

d'être endommagé par les vis taraudeuses.
— Il ne doit pas y avoir de faisceau de fils ou de

tuyaux à l'emplacement du montage.
— Vérifier que l'appareil ou les vis ne risquent pas

d'endommager ou de gêner la roue de secours, les

outils, ou autre objet dans le coffre.

• Pour garantir la sécurité de l'installation, utiliser
uniquement le matériel de montage fourni.

• Utiliser uniquement les vis fournies.

• Ne percez les trous de 3,5 mm (^/32 po.) 0 qu'après
vous être assuré qu'il n'y avait rien de l'autre côté de
la surface de montage.

How to install the unit

Horizontal installation

1

Installation de l'appareil

Installation horizontale

Vertical installation

Installation verticale

1

Suspended installation

When the unit is to be installed under the rear tray etc.
in the trunk compartment, make sure the following
provisions are made.

• Choose the mounting location carefully so that the
unit can be installed horizontally.

• Make sure the unit does not hinder the movement of
the torsion bar spring etc. of the trunk lid.

r—

û Align with the marked position.

Aligner sur ie repère.

(( I J) Alinee en la posición marcada.

>-

Installation suspendue

Si l'appareil doit être installé sous la plage arrière dans
le coffre par exemple, observer les précautions
suivantes.

• Bien choisir l'emplacement pour pouvoir installer
l'appareil à l'horizontale.

• Vérifier que l'appareil ne gêne pas les mouvements
du ressort de fermeture du coffre, entre autres.

Instalación

Precauciones

• Elija cuidadosamente el lugar de montaje, teniendo
en cuenta lo siguiente:
— La unidad no queda sometida a temperaturas

superiores a los 55°C (como en un automóvil
aparcado a la luz solar directa).

— La unidad np queda sometida a la luz solar

directa.

— La unidad no queda cercana a fuentes térmicas

(como aparatos de calefacción).

— La unidad no queda expuesta a la lluvia o a la

humedad.

— La unidad no queda expuesta a polvo o suciedad

excesivos.

— La unidad no queda sometida a vibraciones

excesivas.

— El depósito de combustible no deberá dañarse con

los tornillos autorroscantes.

— No deberá haber mazos de conductores ni tubos

debajo del lugar donde vaya a instalar la imidad.

— La rueda de repuesto, las herramientas, u otros

equipos situados dentro o debajo del
portaequipajes no deberán verse interferidos ni
dañados por los tomillos lú por la propia unidad.

• Para realizar una instalación segura, emplee
solamente la ferretería de montaje suministrada.

• Utilice sólo los tomillos suministrados.

• Antes de hacer los orificios de 0 33 mm, compruebe
que no haya nada en el otro lado de la superficie de
montaje.

шттш1±ш

- 55’c йга*

3.5 mm ftfL ■>

Forma de instalar la uqidad

Instalación horizontal

тшшшт

Instalación suspendida

Cuando desee instalar la unidad debajo de la bandeja
trasera, etc. en el interior del portaequipajes, tenga en
cuenta lo siguiente:

• Elija cuidadosamente el lugar de montaje de forma
que la unidad pueda instalarse horizontalmente.

• Cerciórese de que la unidad no impida el movimiento

del resorte de la barra de torsión, etc., de la tapa del
portaequipajes.
