Sony CDX-535RF User Manual

3-867-769-11 (1)

Compact Disc Changer System

Operating Instructions Manual de instrucciones

¤ˇ¥˛»¡'œﬁ

For installation and connections, see the supplied installation/connections manual.

Con respecto a la instalación y a las conexiones, consulte el manual de instalación/conexiones suministrado.

ˆ ' ¥» “”ƒw‚¸⁄˛‰u‚ ⁄§‡s– ¡M‰— ‹ ¡uƒw‚¸¡ ‰u‚ ⁄§‡s– ¡v»¡'œﬁ-

GB ES CT

CDX-535RF

Welcome!

Thank you for purchasing the Sony CD changer system. This unit lets you enjoy CD sound with the changer.

The CDX-535RF is a compact disc changer system comprised of the wired and wireless remote commanders, the relay box, and the CD changer. The CD changer modulates the audio signal into the RF (Radio Frequency) signal so that it can be received by the existing FM tuner of your car audio. Therefore you will be able to enjoy CD play with your car audio even if it has no input terminals for a compact disc player.

•Compact and space saving CD changer for vertical, horizontal, suspended, or inclined installation in your car.

•Supplied wired remote enables you to control the CD changer installed in the trunk room of your car.

•Repeat play function for playing a track or a disc repeatedly.

•Shuffle play function for playing tracks of one disc or of all discs in random order.

•CD TEXT function* for displaying the CD TEXT information on the display of the supplied wired remote.

•Supplied wireless remote (RM-X89) which can be operated almost like the wired remote (RM-X87).

* Only available when playing back a CD TEXT disc

Table of contents

Getting Started

Resetting the unit ................................................. 4

Preparing the CD changer .................................. 4

Preparing the wireless remote............................ 5

Changing the transmitting frequency ...............6

CD Changer

Listening to a CD ................................................. 6

Playing tracks in random order

— Shuffle Play ................................................. 7

Playing tracks repeatedly

— Repeat Play ................................................. 7

Labelling a CD

— Disc Memo .................................................. 8

Changing the output level .................................. 9

Additional Information

Precautions............................................................ 9

Notes on compact discs .......................................9

Maintenance........................................................ 10

Location of controls ........................................... 11

Specifications ...................................................... 13

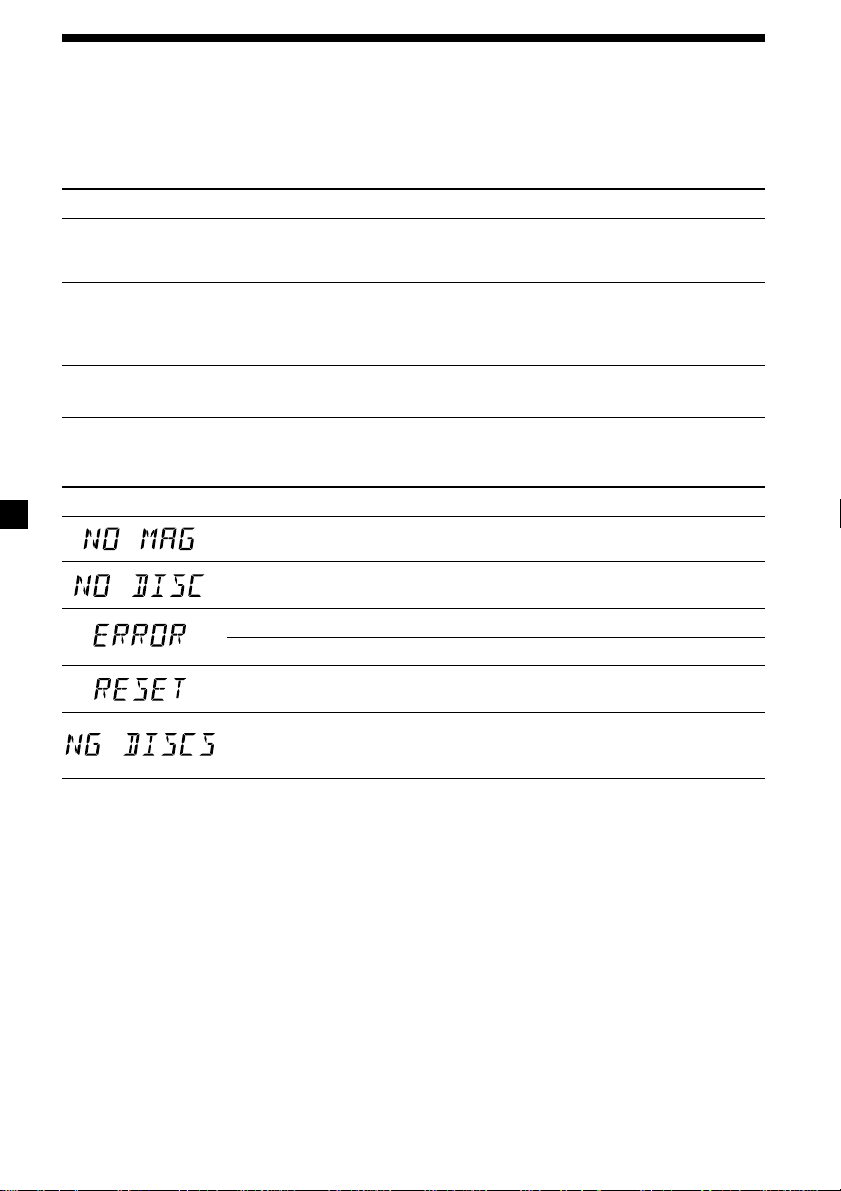

Troubleshooting guide ...................................... 14

Getting Started

Resetting the unit

Before operating the unit for the first time or after replacing the car battery, you must reset the unit. Press the reset button with a pointed object, such as a ball-point pen, etc.

Unlock.

Release, and slide open.

Reset button

Preparing the CD changer

With the arrow side facing up

Tab

Labeled surface up

Disc magazine

To remove

Z (EJECT)

Use the supplied disc magazine or the disc magazine XA-250. The disc magazine XA-10B cannot be used with this unit. If you use any other disc magazine, it may cause a malfunction.

10 discs, one in each tray

Notes

• To listen to an 8 cm CD, use the optional Sony CD adaptor CSA-8. Be sure to always use the specified adaptor, as failing to do so may cause a malfunction of the unit. If you use any other adaptor, the unit may not operate properly. When using the Sony CD adaptor, make sure that the three catches on the adaptor are firmly latched onto the 8 cm CD.

• Do not insert the Sony CD adaptor CSA-8 in the disc magazine without a disc, malfunction may result.

If the disc magazine does not lock properly

Take out the disc magazine, press Z, and reinsert it.

Use the unit with the door closed

Otherwise, foreign matter may enter the unit and contaminate the lenses inside the CD changer.

Notes on the disc magazine

•Do not leave the disc magazine in locations with high temperature and high humidity, such as on a car dashboard or in the rear window where the disc magazine will be subject to direct sunlight.

•Do not place more than one disc at a time onto a tray, otherwise the CD changer and the discs may be damaged.

•Do not drop the disc magazine or subject it to a violent shock.

Preparing the wireless remote

Mounting the wireless remote

Use the supplied velcro tapes and mount the wireless remote to a suitable location where it will not interfere with your driving.

Velcro tapes

to where it is going to be mounted

When the tray comes out

Normally, the trays will not come out of the disc magazine. However, if they are pulled out of the disc magazine, it is easy to re-insert them.

With the cut-away portion of the tray facing you, insert the right corner of the tray in the slot, then push in the left corner until it clicks.

Note

Do not insert the tray upside down or in the wrong direction.

Changing the transmitting frequency

Because this unit processes CD playback sound through an FM tuner, there may be interference noise during CD playback. In such a case, change the frequency of the modulated RF signal transmitted from the unit. The initial setting is 88.3 MHz.

CD Changer

Listening to a CD

1 Turn on the FM tuner of your car audio.

1 Press (SHUF/REP) for two seconds until

frequency appears.

2 Press or repeatedly to

select the frequency.

Each time you press or , the frequency changes as follows:

88.3 MHz t 89.9 MHz t 89.7 MHz t

89.5 MHz t 89.3 MHz t 89.1 MHz t

88.9 MHz t 88.7 MHz t 88.5 MHz t

88.3 MHz :

88.3 MHz t 88.5 MHz t 88.7 MHz t

88.9 MHz t 89.1 MHz t 89.3 MHz t

89.5 MHz t 89.7 MHz t 89.9 MHz t

88.3 MHz

3 Press (SHUF/REP) for two seconds.

Using on the wireless remote

1 Press (SHUF) for two seconds until

frequency appears.

2 Press or repeatedly to

select the frequency.

3 Press (SHUF) for two seconds.

Notes

• When you change the transmitting frequency on the unit, be sure to tune your FM tuner to the newly selected one.

• Press u on the wired remote before changing the frequency if the power to the unit is turned off.

2 Tune in the selected transmitting

frequency* with the FM tuner of your car audio.

* The frequency of the unit is set to 88.3 MHz

at the factory.

You can change the frequency. (See “Changing the transmitting frequency” above.)

3 Press u.

CD playback starts.

4 Adjust the volume with the volume

control on your car audio.

All the tracks play from the beginning.

Stopping CD play

Press (OFF).

Notes

• When CD playback stops, you may hear some noise from the speakers. To prevent this from happening, turn the volume down before stopping CD playback.

• If you turn off the ignition switch of your car without stopping CD playback, it will automatically resume CD playback from where it was stopped when you turn on the ignition switch again.

Locating a specific track

— Automatic Music Sensor (AMS)

During CD playback, push down either side of (AMS) once for each track you wish to skip.

To locate previous tracks

To locate succeeding tracks

Locating a specific point in a track

— Manual Search

During CD playback, push down and hold either side of (AMS). Release the control when you have found the desired point.

To search backward

To search forward

Locating a specific disc

— Disc Select

During CD playback, press or

once for each disc you wish to

skip.

To locate succeeding discs

Playing tracks in random order — Shuffle Play

You can select:

•SHUF 1 to play the tracks on the current disc

in random order.

•SHUF 2 to play all the discs in random order.

Press (SHUF/REP) repeatedly until the desired setting appears (SHUF 1 or SHUF 2).

After five seconds, the shuffle play starts.

Each time you press (SHUF/REP), the display changes as follows:

B SHUF 1 B SHUF 2 B REP 1* B REP 2*

Cancel (SHUF off) b

* These indications do not appear in operation

with the wireless remote.

To go back to the normal playback mode, press (SHUF/REP) repeatedly until “SHUF” or “REP” disappears.

To locate previous discs

Listening to the radio or a tape

Be sure to stop CD playback before you start listening to the radio or a tape.

Note

Be sure to stop CD playback, otherwise there may be some interference with radio reception.

Using on the wireless remote

Press (SHUF) repeatedly until the desired setting appears.

Playing tracks repeatedly

— Repeat Play

You can select:

•REP 1 to repeat the track.

•REP 2 to repeat the disc.

Press (SHUF/REP) repeatedly until the desired setting appears (REP 1 or REP 2).

After five seconds, the repeat play starts.

Each time you press (SHUF/REP), the display changes as follows:

B SHUF 1* B SHUF 2* B REP 1 B REP 2

Cancel (REP off) b

* These indications do not appear in operation

with the wireless remote.

To go back to the normal playback mode, press (SHUF/REP) repeatedly until “REP” or “SHUF” disappears.

Using on the wireless remote

Press (REP) repeatedly until the desired setting appears.

Labelling a CD — Disc Memo

(CD changer with custom file function)

You can label each disc with a personalised label. Use the wireless remote to enter and erase the characters.

1 Press (DSPL/-EDIT) for two seconds until

the first character flashes.

2 Input the characters.

1 Press NAME or to select the

desired characters. (A t B t C t ... Z t 0 t 1 t 2 t

... 9 t + t – t * t / t \ t > t < t . t _ t ...)

Press NAME to display the available characters. If you press NAME , the characters will appear in reverse order. If you wish to put a blank space after a character, select “_” (under-bar).

An alternative method to erase a title

You can erase a title by selecting eight “_”s (under-bar).

2 Press (ENTER/-DELETE) after locating

the desired character.

The next character flashes.

Displaying the disc memo

Press (DSPL-SCRL) during CD playback.

Each time you press (DSPL-SCRL) during CD playback, the display changes as follows:

B Elapsed playback time B Disc name

Track name b

Using on the wireless remote

Press (DSPL/-EDIT) to change the display.

Notes

• If a disc has not been assigned a personalised label, "********" or "NO NAME" will appear on the display.

• The CD TEXT information appears only when a CD TEXT disc is played back.

• If you use personalised labels, they will always take priority over the original CD TEXT information when such information is displayed.

•“**WAIT**“ appears in the display while the system is reading the data.

• The system shows the CD TEXT information with alphabetic characters, numbers, and symbols. (The lowercase characters contained in the CD TEXT disc are automatically converted to uppercase.)

Erasing the disc memo

1 Play the CD and press (DSPL/-EDIT) for

two seconds.

2 Press (ENTER/-DELETE) for two seconds

until DISC NAME indication flashes.

3 Repeat steps 1 and 2 to enter the

entire title. Up to eight characters can be entered per disc.

3 To return to the normal CD playback

mode, press (DSPL/-EDIT) for two seconds.

3 Press NAME or to select the title

that you wish to erase.

4 Press (ENTER/-DELETE) to make DISC

NAME indication and the disc name flash.

5 Press (ENTER/-DELETE) again.

The title is erased. Repeat steps 2 through 4 if necessary.

6 Press (DSPL/-EDIT) for two seconds.

The unit returns to the normal CD playback mode.

Changing the output level

You can select the output level from the unit. Normally the unit is used in the initial output level; change the level if necessary.

Additional Information

1 Press (SHUF/REP) for two seconds. 2 Press (SHUF/REP) momentarily.

Initial setting

3 Press or repeatedly to

select the output level.

To decrease the output level

: ,

To increase the output level

: ,

4 Press (SHUF/REP) for two seconds.

Using on the wireless remote

1 Press (SHUF) for two seconds. 2 Press (SHUF) again momentarily. 3 Press or to select the

output level.

4 Press (SHUF) for two seconds.

Note

When you select level 4 or 5, the CD playback sound may be distorted or you may hear some noise. In such a case, select a lower output level on the unit and turn down the overall volume on your car audio.

Precautions

•This unit cannot be used with a car audio

without FM tuner.

•If your car was parked in direct sunlight

resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in order, check the fuse.

•Avoid installing the CD changer, wireless

remote, and wired remote in places: — subject to temperature exceeding 55°C. — subject to direct sunlight. — near heat sources (such as heaters). — exposed to rain or moisture. — exposed to excessive dust or dirt. — subject to excessive vibration.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Notes on compact discs

A dirty or defective disc may cause sound drop-outs during CD playback. To enjoy optimum sound, handle the disc as follows.

Handle the disc by its edge, and do not touch the unlabelled surface.

This way

Do not stick paper or tape on the discs.

Not this way

Do not expose the discs to direct sunlight or heat sources such as hot air-ducts. Do not leave discs in a car parked in direct sunlight where there can be a considerable rise in temperature inside the car.

Not this way

Moisture condensation

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit, and the unit will not operate properly. In such a case, remove the disc

magazine and wait for about an hour until the moisture has evaporated.

Maintenance

Before playing, clean the discs with an optional cleaning cloth. Wipe each disc in the direction of the arrows.

This way

Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.

Notes on discs

If you use the discs explained below, the sticky residue can cause the CD to stop spinning and may cause malfunction or ruin your discs.

Do not use second-hand or rental CDs that have a sticky residue on the surface (for example, from peeled-off stickers or from ink, or glue leaking from under the stickers).

There are paste residue. Ink is sticky.

Do not use rental CDs with old labels that are beginning to peel off.

Fuse replacement

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Use the specified amperage fuse. Use of a higher amperage fuse may cause serious damage.

Stickers that are beginning to peel away, leaving a sticky residue.

Do not use your CDs with labels or stickers attached.

Labels are attached.

Location of controls

Wired remote (RM-X87)

Refer to the pages for details.

1 AMS (Automatic Music Sensor/manual

search) control 6, 7

2 REP (repeat play) indication 3 SHUF (shuffle play) indication 4 DISC NAME (disc number/disc name)

indication

The indicated disc number matches the disc number in the disc magazine.

5 TRACK NAME (track number/track

name) indication

6 MIN (minute) indication 7 SEC (second) indication 8 DISC (disc select) buttons 6, 7, 9

9 u (play/pause) button 6

If pressed during CD playback, the CD will pause. If pressed again, CD playback will continue.

0 Infrared receptor for the wireless

remote

qa OFF button 6 qs Play/pause indication

Turns around during CD playback and flashes when the pause button is pressed.

qd DSPL-SCRL (indication change/name

scroll) button

qf SHUF/REP (shuffle play/repeat play/

control mode set) button 6, 7, 9

Location of controls

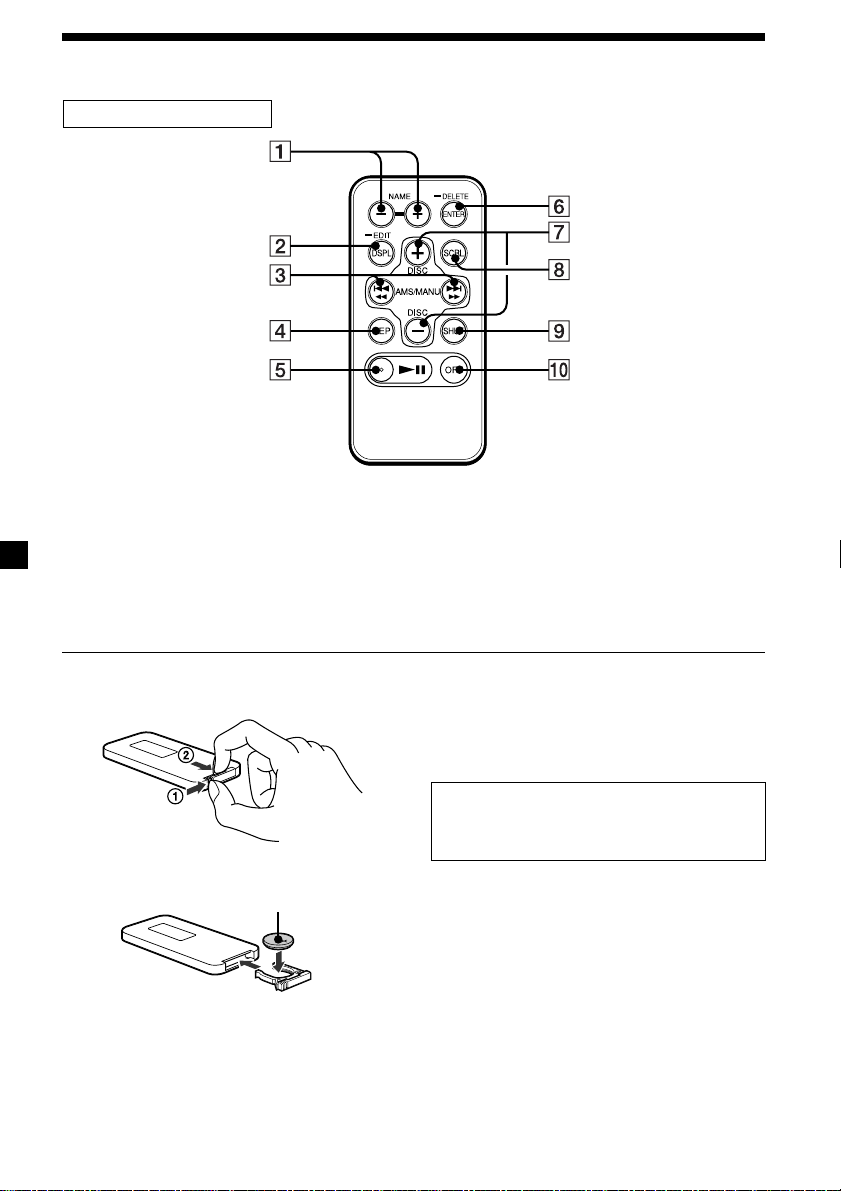

Wireless remote (RM-X89)

1 NAME (character select) buttons 8 2 DSPL/-EDIT (display/name edit) button

3 AMS/MANU (Automatic Music Sensor/

manual search) buttons

4 REP (repeat play) button 7

Installing the battery

+ side up

Replace the battery with a Sony CR2025 or Duracell DL-2025 lithium battery. Use of another battery may present a risk of fire or explosion.

5 u (play/pause) button 6 ENTER/-DELETE button 8 7 DISC (disc select) buttons 6, 7, 9 8 SCRL (scroll) button 9 SHUF (shuffle play) button 6, 7, 9 0 OFF button

Lithum battery life

When the battery becomes weak, you will not be able to operate the unit with the wireless remote. Battery life is approx. six months depending on the conditions of use.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.

Notes on the lithium battery

•Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a good contact.

•Be sure to observe the correct polarity when installing the battery.

•Do not hold the battery with metallic tweezers, otherwise a short circuit may occur.

Specifications

CD changer (CDX-535RF)

System Compact disc digital audio

Transmitting frequency 88.3 MHz/88.5 MHz/

Input/output terminals Wired remote control

Current drain 800 mA (at playback)

Operating temperature –10°C to +55°C Dimensions Approx. 262 × 90 ×

Mass Approx. 2.1 kg

system

88.7 MHz/88.9 MHz/

89.1 MHz/89.3 MHz/

89.5 MHz/89.7 MHz/

89.9 MHz (switchable)

(8 pin) RF signal (FM) output Power input (3 pin)

800 mA (at disc loading / ejecting)

181.5 mm (w/h/d)

Relay box

Input/output Aerial input terminal

Dimensions Approx.

Mass Approx. 140 g

Aerial output cord CD changer input cord

40 × 40 × 27 mm (w/h/d)

Wired remote (RM-X87)

Dimensions Approx.

Mass Approx. 255 g

122 × 36.5 × 15.5 mm (w/h/d)

Wireless remote (RM-X89)

Dimensions Approx.

Mass Approx. 20 g not incl.

Battery

40 × 6.5 × 86 mm (w/h/d)

battery Lithium battery (CR2025)

General

Supplied accessories Disc magazine (1)

Optional accessories CD single adaptor CSA-8

Design and specifications are subject to change without notice.

Parts for installation and connections (1 set)

Disc magazine XA-250

Troubleshooting guide

The following checklist will assist in the correction of most problems which you may encounter with your unit. Before going through the checklist below, refer to the connection and operating procedures.

General

Problem

The unit does not function.

The sound skips.

The disc magazine is not locked in the CD changer.

Error displays

The following indication will flash for about five seconds.

Display Cause

The disc magazine is not inserted in the CD changer.

No CD is inserted in the disc magazine.

The CD is dirty. The CD is inserted upside down. The CD changer cannot be operated

because of some problem. One or more CDs from the CD

changer will not play because of some problem.

Cause/Solution

•The built-in micro computer has malfunctioned.

t Press the reset button of the CD changer.

•The connecting cords are not connected properly.

•The CD changer is installed in an unstable location.

t Re-install it in a stable location.

•The CD is dirty or defective.

t Clean or replace it.

Take out the disc magazine, press Z, and re-insert the disc magazine until it is locked securely.

Solution

Insert the disc magazine with CDs into the CD changer.

Take out the disc magazine and insert CDs.

Clean the CD. Insert the CD correctly. Press the reset button of the CD

changer. Insert another CD.

If the solutions mentioned above do not help to improve the situation, consult your nearest Sony dealer.

+ 30 hidden pages
