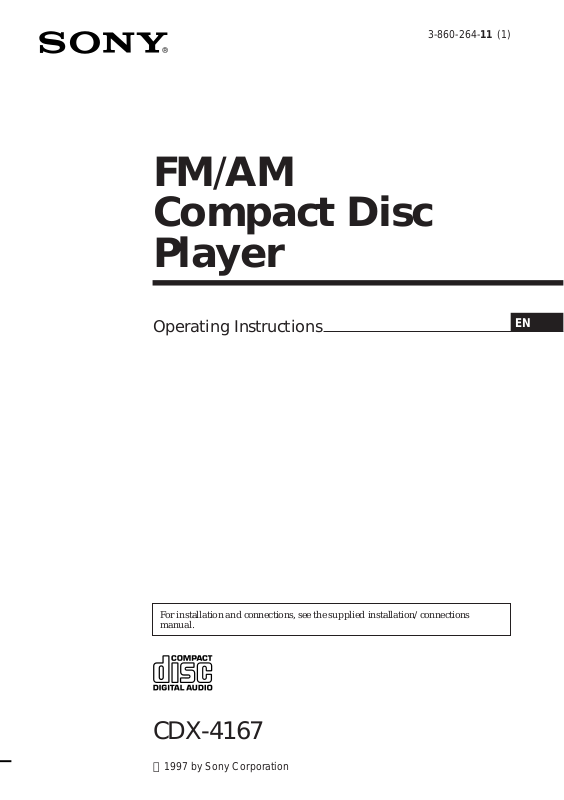

FM/AM
Compact Disc
Player
3-860-264-11 (1)
Operating Instructions
For installation and connections, see the supplied installation/connections
manual.
EN
CDX-4167
1997 by Sony Corporation
EN
Welcome !
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety
of features. You can use an optional rotary
remote (RM-X2S).
2
Table of Contents
Getting Started
Resetting the unit ................................................ 4
Detaching the front panel .................................. 4
Setting the clock .................................................. 5
CD Player
Listening to a CD ................................................ 5
Playing a CD in various modes ........................ 6
Radio
Memorizing stations automatically
— Automatic Memory .................................. 6
Memorizing only the desired stations ............. 7
Receiving the memorized stations.................... 7
Other Functions
Adjusting the sound characteristics ................. 8
Muting the sound................................................ 8
Changing the sound and beep tone ................. 8
Turning on the clock display
— Power Select Function .............................. 8
Additional Information
Precautions ........................................................... 9
Maintenance......................................................... 9
Dismounting the unit ....................................... 10
Attaching the label to the rotary remote ........ 10
Location of controls .......................................... 11
Specifications ..................................................... 12
Troubleshooting guide ..................................... 13
Index ................................................................... 14
EN
3
EN
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object,
such as a ball-point pen.
Reset button
Notes
• Pressing the reset button will erase all the memorized
program and memory functions.
• When you connect the power supply cord to the unit or
reset the unit, wait for about 10 seconds before you insert
a disc. Do not insert a disc within these 10 seconds,
otherwise, the unit will not be reset, and you will have to
press the reset button again.
Detaching the front panel
You can detach the front panel of this unit to
prevent the unit from being stolen.
Attaching the front panel
Align part A of the front panel to part B of
the unit as illustrated, and push until it clicks.
A
B
Notes
• Be sure not to attach the front panel upside down.
•Do not press the front panel hard against the unit when
attaching it. Press it lightly against the unit.
•Do not press hard or put excessive pressure on the
display window of the front panel.
•Do not expose the front panel to direct sunlight, heat
sources such as hot air ducts, and do not leave it in a
humid place. Never leave it on the dashboard of a car
parked in direct sunlight where there may be a
considerable rise in temperature.
Caution alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will be activated and a beep tone
will be heard for a few seconds (only for cars
with an accessory position on the ignition key
switch). If you connect an optional power
amplifier and do not use the built-in amplifier,
the beep tone will be disabled.
1 Press (OFF).
2 Press (RELEASE) to open up the front
panel. Then slide the front panel a little
to the left, and pull it off towards you.
(OFF)
(RELEASE)
Notes
• Be sure not to drop the panel when detaching it from the
unit.
• If you press (RELEASE) to detach the panel while the
unit is still on, the unit will turn off automatically to
prevent the speakers from being damaged.
• When you carry the front panel with you, put it in the
4
supplied front panel case.
Setting the clock
SEEK
AMS
The clock has a 12-hour digital indication.
Example: Set the clock to 10:08
1 Press (OFF) or (DSPL) during operation.
2 Press (DSPL) for two seconds.
100
The hour digit flashes.
1 Set the hour digits.
To go forward
To go back
1000
2 Press (SEL) momentarily.
1000
The minute digits flash.
3 Set the minute digits.
To go forward
To go back
CD Player
Listening to a CD
Simply insert the CD.
Playback starts automatically.
Labelled side up
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears.
MIN SEC
215
Elapsed playing time
Note
To play back an 8 cm CD, use the optional Sony compact
disc single adapter (CSA-8).
To Press
Stop playback 6 or (OFF)
Eject the CD 6
EN
Getting Started/CD Player
1008
3 Press (DSPL) momentarily.
1008
The clock is activated.
Note
If the car has no accessory position on the ignition key
switch, the clock cannot be set unless the power is turn on.
Set the clock after you have turned on the radio, or started
CD playback.
Changing the displayed items
Each time you press (DSPL), the item changes
as follows:
z Elapsed playing time z Track number
Time Z
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, press either side of
(SEEK/AMS) momentarily.
To locate succeeding tracks
To locate preceding tracks
5
