SONY BDP-BX18, BDP-S185, BDP-S186 Diagram

Sony Corporation

Home Entertainment Business Group

SERVICE MANUAL

9-890-762-11

2011H6900-1

© 2011.08

Published by Design Engineering Dept.

BLU-RA Y

DISC / DVD PLAYER

BDP-BX18/S185/S186

RMT-B118A/B118P/B109C

SPECIFICATIONS

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

HDMI OUT:

HDMI 19-pin standard connector

LINE OUT VIDEO:

Phono jack/1.0 Vp-p/75 ohms

LAN (100):

100BASE-TX Terminal

USB:

USB jack Type A maximum current 500mA

General

Power requirements:

120V AC, 60

Hz (BDP-S185:US, CND/BX18)

220 – 240V AC, 50/60Hz (AEP,UK, AUS,RUS,CN)

Power consumption:

10 W

Dimensions (approx.):

290mm × 188mm × 42.5mm
(width/depth/height) incl. projecting parts

Mass (approx.):

1.1kg

Operating temperature:

5 ºC to 35 ºC(41 F to 95 F)

Operating humidity:

25 %

to 80 %

Supplied accessories

Specifications and design are subject to change
without notice.

 Audio/video cable (phono plug ×3) (1)(AUS,RUS,US,CND)

 Remote commander (remote) (1)
 Size AA (R6) batteries (2)

Photo: BDP-S185
Remote : RMT-B118A



HDMI cable (1) (

BDP-S185:CN/BX18)

(BDP-S185:US/BX18:US)

ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. ENERGY STAR is a
registered mark owned by the U.S. government.

US Model

Canadian Model

Australian/NZ

Model

Chinese Model

Russian Model

AEP Model

UK Model

LINE OUT R-AUDIO-L:

Phone jack/2 Vrms/10 kilohms

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

BDP-S185

BDP-S185/BX18

BDP-S185/S186

º

º

TM

Ver. 1.0 2011.08

(For connecting a USB device)

– 2 –

SAFETY CHECK-OUT

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

1. Check

the

area

of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.

5. Check the line cord for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.

6. Check the B+ voltage to see it is at the values specified.

7. Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.

After correcting the original service

problem, perform the following

safety checks before releasing the set to the customer:

1.5k

Ω

0.15µF

(0.75 V)

Parts on Set

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead­free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.



Unleaded solder melts at a temperature about 40°C higher than

ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350°C.

Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!



Strong viscosity

Unleaded solder is more viscous (sticky, less prone to flow) than

ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.



Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

CAUTION:

The use of optical instrument with this product will increase eye
hazard.

CAUTION

Use of controls or adjustments or perform anc e of proc e dur es
other than those specified herein may result in hazardous radia­tion exposure.

This label is located on the laser
protective housing inside the
enclosure.

WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE F ROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE OBJEC­TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

For customers in European countries

product. The CLASS 1 LASER PRODUCT
MARKING is located on the rear exterior.

SAFETY-REL ATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK

OR DOTTED LINE WITH

MARK

ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE­MENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE

SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

BDP-BX18/S185/S186

– 3 –

TABLE OF CONTENTS

1. SERVICE NOTE

1-1. Disc Removal Procedure If The Tray Cannot Be

Ejected (Forced Ejection) ............................................. 1-1

1-2. Work when optical device are replaced ........................ 1-1

1-3. Test Disc ....................................................................... 1-2

1-3-1. Operation and Display ............................................. 1-2

1-4. Drive Repairing............................................................. 1-15

1-4-1. Preparation .............................................................. 1-15

1-4-2. Checking Flow ~ Drive (BU) section ~ .................... 1-15

1-4-3. BU Check Flow [zz] ~ .............................................. 1-16

1-4-4. BU (Optical Block) Repair Guide ............................. 1-16

1-4-5. BU Adjustment Flow [yy] ~ ...................................... 1-17

1-4-6. KEM-470AAA/C2RP Packing Spec. ....................... 1-17

1-4-7. KEM-470AAA/C2RP Packing .................................. 1-18

1-4-8. BU Data Decode Jig ................................................ 1-19

1-4-9.

Loading For Service

.........................................

1-20

1-4-10. Laser Caution Label ................................................ 1-20

2. DISASSEMBLY

2-1. Disassembly Flow ........................................................ 2-1

2-2. ......................................................... 2-1

2-3.

Tray Cover

Assy

.......................................................... 2-2

2-4.

FR-316 Board, Switching Regulator..............................

2-4

2-5.

MB-143 Board...............................................................

2-4
2-6. 2-5
2-7.

...................................................................

2-5

2-8. ............................................. 2-6E

3. BLOCK DIAGRAMS

3-1. Overall Block Diagram.................................................. 3-1

3-2. DSP Block Diagram ...................................................... 3-2

3-3. AV OUT Block Diagram ................................................ 3-3

3-4. USB/ETHER, Block Diagram .................................. 3-4

3-5. Power Block Diagram .......................................... 3-5E

4. SCHEMATIC DIAGRAMS

4-1. This Note Is Common For Schematic Diagrams .......... 4-1

4-2. Frame Schematic Diagram........................................... 4-2

4-3. FR-316 Board (FRONT LEFT) Schematic Diagram ... 4-3
4-4.

FR-316 Board (USB FRONT) Schematic Diagram ......

4-4

4-6.

MB-143 Board (DDR 3 A)

Schematic Diagram (1/14)............................................ 4-5

4-7.

MB-143 Board (DDR 3 B)

Schematic Diagram (2/14)............................................ 4-6

4-13. MB-143 Board (AUDIO)

Schematic Diagram (9/14)............................................ 4-13

4-14. MB-143 Board (VIDEO)

Schematic Diagram (10/14).......................................... 4-14

4-15. MB-143 Board (GPIO/JTAG)

Schematic Diagram (11/14) .......................................... 4-15

4-16. MB-143 Board (IF CON)

Schematic Diagram (12/14).......................................... 4-16

4-17. MB-143 Board (FE_POWER/OP/GIO)

Schematic Diagram (13/14).......................................... 4-17

4-18. MB-143 Board (FE_POWER/MOTOR DRIVE)

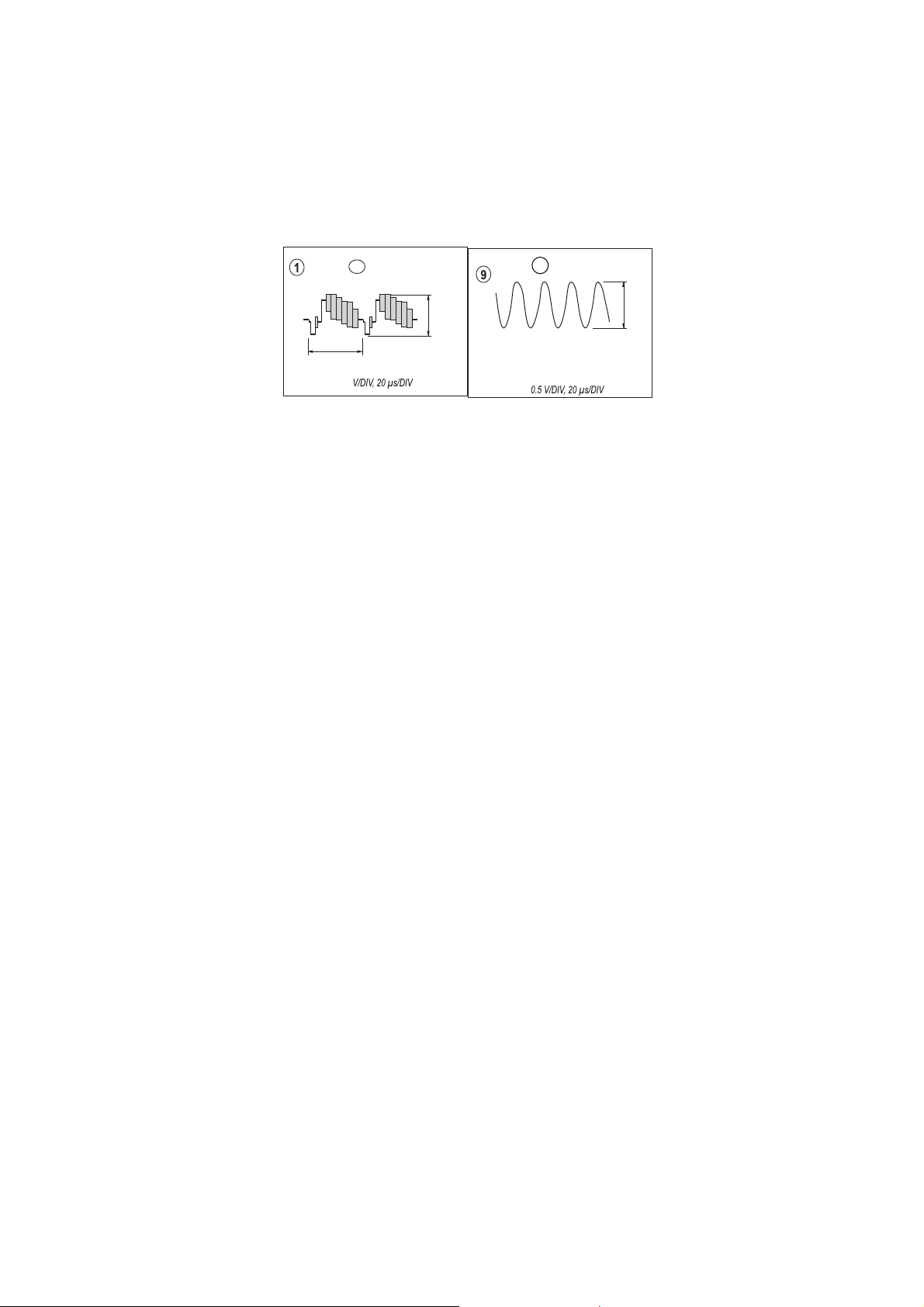

4-19. Waveforms ................................................................... 4-19E

5. PRINTED WIRING BOARDS

5-1. This Note Is Common For Printed Wiring Boards ........ 5-1

5-2. FR-316 Board (FRONT LEFT) Printed Wiring Board..... 5-2

5-3. MB-138 Board(MAIN)

Printed Wiring Board (Side A) ..................................... 5-3

5-4. MB-138 Board (MAIN)

Printed Wiring Board (Side B) ...................................... 5-4E

6. IC PIN FUNCTION DESCRIPTION ................... 6-1

7. SERVICE MODE ..................................................... 7-1

8. ERROR LOG LIST ................................................. 8-1

9. TROUBLESHOOTING ............................................. 9-1

10. REPAIR PARTS LIST

10-1. Exploded Views ............................................................ 10-1

10-1-1. Case Section ........................................................... 10-1

10-1-2. ........................................... 10-2

10-1-3.

Main Chassis Section

.............................................................

10-3

10-1-4.

BD Section

.......................................................... 10-4

Accessories

10-2. Electrical Parts List ....................................................... 10-5

BDP-BX18/S185/S186

Schematic Diagram (14/14) ........................................ 4-18

MB-143 Board (USB) Schematic Diagram (6/14)......... 4-10

4-11. MB-143 Board (HDMI)

Schematic Diagram (7/14)............................................ 4-11

4-12. MB-143 Board (ETHERNET)

Schematic Diagram (8/14)............................................ 4-12

Circuit Boards Location

1-5. Rear Panel Assembly Caution...................................

1-23E

egaP eltiT noitceS egaP eltiT noitceS

1-3-2. Main functions ......................................................... 1-9

4-9.

MB-143 Board (CLK/POWER)

Schematic Diagram (4/14)............................................ 4-8

4-10.

MB-143 Board (FLASH/HOST)

Schematic Diagram (5/14)............................................ 4-9

4-8.

MB-143 Board (POWER)

Schematic Diagram (3/14)............................................ 4-7

4-5.

Top Panel ...........

Switching Regulator. ....................................................

Drive..........

1-1

BDP-BX18/S185/S186

SECTION 1

SERVICE NOTE

1-1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)

1. Remove the upper case. (Refer to page 2-1)

2. Insert a clip in the hole of a drive and open a tray.

1-2. Work when optical device are replaced

Note:

Please do the following work when you replace the optical device.

1. Install it in PC after downloading two set of software from following URL.
(Refer to “1-4-8. BU Data Decode Jig” on page 1-19)

STEP 1
Microsoft .NET Framework Version 2.0 Redistributable Package (x86)

http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=0856eacb-4362-4b0d-8edd-aab15c5e04f5

STEP 2
Microsoft .NET Framework 2.0 Service Pack 1 (x86)

http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=79bc3b77-e02c-4ad3-aacf-a7633f706ba5

2. Take a photograph of the bar code on the optical device. The valid bar code photo as shown in Fig.2

3. Drag-and-drop the bar code photograph to the icon of decode software (BDPRdec).
* The decode software is a complete set of “BDPRdec”, “Tasman.Bars.dll”, and “SavePath”.
* Because decode software cannot be attached, it separately distributes it.

4. Input the password when you start decode software.
* Inquire of each service headquarters because the password cannot be disclosed.

5. Write the decode data to the set.
(Refer to “1-4-4. BU (Optical Block) Repair Guide” on page 1-16 and “1-4-5. BU Adjustment Flow [yy]” on page 1-17)

Fig.2

1

Insert paper clip inside hole

tray

3 Tray cover assy

2

1-2

1-3. TEST DISC

Part No. Description Layer

J-6090-199-A BLX-104 Single Layer
J-6090-200-A BLX-204 Dual Layer
J-2501-307-A CD (HLX-A1)
J-2501-305-A HLX-513 Single Layer (NTSC)
J-2501-306-A HLX-514 Dual Layer (NTSC)
J-6090-077-A HLX-506 Single Layer (PAL)
J-6090-078-A HLX-507 Dual Layer (PAL)

1-3-1. Operation and Display

Check Items

1) BLX-104

1. Select 23.976Hz/1080p

2. Play “4.Motion pictures”

3. Check whether player can play back or not

4. Check each outputs
Video:
Composite/component/HDMI
Audio:
Digital out (Coaxial/Optical)/Audio out/5.1Ch output
* When 1080/24p monitor is nothing, 1080i (59.94Hz or 50Hz) can use instead of 1080/24p.
However this is temporary correspondence.

2) BLX-204

1. Select 1080i (59.94Hz or 50Hz)

2. Play “4.Motion pictures”

3. Check whether player can play back or not
(Check the picture and sound output)

3) CD (HLX-A1)
Check whether player can play back or not
(Check the sound output)

4) HLX-513/514 (NTSC), HLX-506/507 (PAL)

1. After displayed Main Menu, select “1.Video”

2. Play “1.Color Bar 100%”
(Check the picture and sound output)

3. Return to Menu

4. Play “Demonstration 4:3” or “5.Demonstration 16:9”
(Check the picture and sound output)

BDP-BX18/S185/S186

1-3

1-3-1-1. BLX-104 Menu Function (1)
Main Menu

X
X
X
X

X
X
X
X

X

X X X

X

X

X

X

1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.

1-3-1-2. BLX-104 Menu Function (2)
Main Menu

Sub_menu1 is displayed

To Main Menu after playback from T2_C1 to T19_C1

To Main Menu after playback of T20_C1

To Main Menu after playback of T21_C1

Sub_menu3 is displayed

To Main Menu after playback from T54_C1 to T60_C1

To Main Menu after playback of T61_C1

To Main Menu after playback of T62_C1

* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-

played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.
* 5. AV Sync does not operate.

Note:

Txx_ Cxx
Chapter No.
Title No.

BDP-BX18/S185/S186

1-4

1-3-1-3. BLX-104 Menu Function (3)
Main Menu

To Main Menu after playback from T23_C1 to T40_C1

To Main Menu after playback of T41_C1

To Main Menu after playback of T42_C1

Sub_menu2 is displayed

To Main Menu after playback from T44_C1 to T50_C1

To Main Menu after playback of T51_C1

To Main Menu after playback of T52_C1

Sub_menu4 is displayed

* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-

played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively

displayed.
* 5. AV Sync does not operate.

BDP-BX18/S185/S186

1-5

1-3-1-4. BLX-104 Menu Function (4)
Sub menu1

X

X

X

X

X

X

1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-

tively displayed on Sub menu1 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively

displayed on Sub menu1 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu1, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/1080i

is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.

8) Selection of Motion Picture

t

Return to Sub menu1 after playback of T21_C1. 1. ColorBar 100% is selectively displayed on Sub

menu1 screen.

9) At the selection of Main Menu, 1. VideoSignal of 1080/59.94i of Main Menu is selectively displayed.

10) AV Sync does not operate.

BDP-BX18/S185/S186

1-6

1-3-1-5. BLX-104 Menu Function (5)
Sub menu2

X

X

X

X

X

X

1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100%

t

Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is

selectively displayed on Sub menu2 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu2 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu2, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of

23.976Hz/1080P is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.

8) Selection of Motion Picture

t

Return to Sub menu2 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub

menu2 screen.

9) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.

10) AV Sync does not operate.

BDP-BX18/S185/S186

1-7

1-3-1-6. BLX-104 Menu Function (6)
Sub menu3

X

X

X

X

X

X

1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100%

t

Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is

selectively displayed on Sub menu3 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu3 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu3, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i

is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T54_C1 to T60_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.

8) Selection of Motion Picture

t

Return to Sub menu3 after playback of T62_C1. 1. Color Bar 100% is selectively displayed on Sub

menu3 screen.

9) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.

10) AV Sync does not operate.

BDP-BX18/S185/S186

1-8

1-3-1-7. BLX-104 Menu Function (7)
Sub menu4

X

X

X

X

X

X

1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is

selectively displayed on Sub menu4 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu4 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu4, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/720P

is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.

8) Selection of Motion Picture

t

Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub

menu4 screen.

9) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.

10) AV Sync does not operate.

BDP-BX18/S185/S186

1-9

1-3-2-1. BLX-204 Menu Function (1)
Main Menu

X
X
X

X

X
X
X

X

X

X X X X

X

X

X

X

X

1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.

1-3-2-2. BLX-204 Menu Function (2)
Main Menu

Sub_menu1 is displayed

To Main Menu after playback from T2_C1 to T19_C1

To Main Menu after playback of T20_C1

To Main Menu after playback of T21tT63tT64tT65tT66

Sub_menu3 is displayed

To Main Menu after playback of T54_C1-T60_C1tT83_C1-T94_C1

To Main Menu after playback of T61_C1

To Main Menu after playback of T62tT82

To Main Menu after playback of T67_C1

To Main Menu after playback of T83_C1

* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-

played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.

Note:

Txx_ Cxx
Chapter No.
Title No.

1-3-2

Menu Function

BDP-BX18/S185/S186

1-10

1-3-2-3. BLX-204 Menu Function (3)
Main Menu

Sub_menu4 is displayed

To Main Menu after playback from T23_C1 to T40_C1

To Main Menu after playback of T41_C1

To Main Menu after playback of T42_C1

Sub_menu2 is displayed

To Main Menu after playback of T44_C1-T50_C1t T71_C1-T81_C1

To Main Menu after playback of T51_C1

To Main Menu after playback of T52_C1t T69

To Main Menu after playback of T68_C1

To Main Menu after playback of T70_C1

* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-

played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively

displayed.

BDP-BX18/S185/S186

1-11

1-3-2-4. BLX-204 Menu Function (4)
Sub menu 1

X

X

X

X

X

X

1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100%

t

Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-

tively displayed on Sub menu1 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively

displayed on Sub menu1 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu1, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of

59.94Hz/1080i is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.

8) Selection of Motion Picture

t

Return to Sub menu1 after playback of T21_C1. 1. Color Bar 100% is selectively displayed on Sub

menu1 screen.

9) Selection of AV Sync

t

Return to Sub menu1 after playback of T67_C1. 1. Color Bar 100% is selectively displayed on Sub menu1

screen.

10) At the selection of Main Menu, 1. Video Signal of 1080/59.94i of Main Menu is selectively displayed.

BDP-BX18/S185/S186

1-12

1-3-2-5. BLX-204 Menu Function (5)
Sub menu 2

X

X

X

X

X

X

1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is

selectively displayed on Sub menu2 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu2 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu2, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of

23.976Hz/1080P is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T44_C1 to T50_C1 and from T71_C1 to T81_C1. SubPic that corresponds to Audio stream

1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.

8) Selection of Motion Picture

t

Return to Sub menu2 after playback of T52_C1 and T69. 1. Color Bar 100% is selectively displayed on

Sub menu2 screen.

9) Selection of AV Sync

t

Return to Sub menu2 after playback of T70_C1. 1. Color Bar 100% is selectively displayed on Sub menu2

screen.

10) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.

BDP-BX18/S185/S186

1-13

1-3-2-6. BLX-204 Menu Function (6)
Sub menu 3

X

X

X

X

X

X

1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100%

t

Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is

selectively displayed on Sub menu3 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu3 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu3, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i

is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T54_C1 to T60_C1 and from T84_C1 to T94_C1. SubPic that corresponds to Audio stream

1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.

8) Selection of Motion Picture

t

Return to Sub menu3 after playback of T62_C1 and T82. 1. Color Bar 100% is selectively displayed on

Sub menu3 screen.

9) Selection of AV Sync

t

Return to Sub menu3 after playback of T83_C1. 1. Color Bar 100% is selectively displayed on Sub menu3

screen.

10) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.

BDP-BX18/S185/S186

1-14

1-3-2-7. BLX-204 Menu Function (7)
Sub menu 4

X

X

X

X

X

X

1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.

2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is

selectively displayed on Sub menu4 screen.

3) Selection of 2. Color Bar 75%

t

Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-

lectively displayed on Sub menu4 screen.

4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.

5) At the display of Sub menu4, Main Menu is selected

t

Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/720P

is selectively displayed.

6) Selection of LPCM Audio

t

Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.

7) Selection of Dolby AC-3 Audio

t

Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.

During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to

Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.

8) Selection of Motion Picture

t

Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub

menu4 screen.

9) Selection of AV Sync

t

Return to Sub menu4 after playback of T68_C1. 1. Color Bar 100% is selectively displayed on Sub menu4

screen.

10) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.

BDP-BX18/S185/S186

1-15

.4-1

DRIVE REPAIRING

1-4-1. Preparation

1-4-2.

Checking Flow ~ Drive (BU) section ~

 ESD Measures

It is necessary to check the working space ESD condition
before starting the Drive Part (BU) repairs

The ESD-resistance of BD Laser is weaker than DVD/CD Laser

To prevent ESD destruction, please make sure the working

space and human ESD.

Drive flowchart

BDP-S185 can play the BD-disc

BLX-104

BDP-S185 can play the DVD/CD-disc

Check Drive Power Supply

Q301 Pin 6: 12V

Q302 Pin 6: 5V

Check PS301, PS302

Replace PS when open

Check / replace the FFC cable, then check

BDP-S185 operates normally

OP FFC cable (1-839-257-11)

Check the Optical Block Unit (BU) by

service mode. (Flowchart zz)

BU IOP is OK?

Replace the Optical Block Unit (BU)

Optical Block Unit (BU) replace

(Flowchart yy)

OK

DVD: HLX-513
CD: HLX-A1

NO

YES

NO

YES

YES

NO

NO

NO

SPD FFC cable (1-839-258-11)



How to open FFC Holder. Refer below picture.

1

2

1

2

1

2

BDP-BX18/S185/S186

1-16

1-4-3. BU Check Flow [zz] ~

Before

BU Replacement ~

1-4-4. BU (Optical Block) Repair Guide

BDP 6.9G (B D P-S1 8 5 ) s

e

ries component structure is as same as conventional DVD Players.
However BD player requires precise read out functions and also secure contents Protection
system.
Since above requirement, it is necessary to set/adjust BU data to EEPROM.

The following cases need Adjustments;

(1)Replace BU (MB is original)
(2)Replace MB (BU is original)
(3)Replace both BU and MB

-,G Requirement

Digital camera (recommend with macro mode)

Barcode decoder (BDPRdec_ver2.0

) installed in -,G PC’s
USB memory
ESD work bench

3URFHGure (all cases)

Refer the diagram

Remarks:
The servo adjustment procedure will be carried out during OP data Writing.
There is no manual adjustment procedure. LD ON TIME history doesn’t carry over.
Do not touch any optical block parts, Turn Table and during replacing. BD Laser diode
is very sensitive!

Optical Block Unit (BU) IOP check flow (zz) ~ [Before BU Replacement]

Enter Service Mode

Press

<OPEN/CLOSE>., <PLAY>,<STOP>

and plug in AC Power

,nside *Service Mode Menu

Select [8] Drive

,nside *Drive

Select [7] OP Check Menu

,nside *OP Check Menu

Select [2] d,OP then press 'ENTER'

Specification d,OP

BD: 6mA

DVD, CD: 9mA

,OP out of specification need BU

replacement

Optical Block Unit (BU) replace

(Flowchart yy)

AC Power OFF

NO

YES

+

­+

-

BDP-BX18/S185/S186

1-17

1-4-5. BU Adjustment Flow [yy] ~

1-4-6. KEM-470AAA/C2RP Packing Spec.

KEM-430AAA/C2RP Packing Spec.

Optical Block Unit (BU) OP Data Write Flow (yy) ~ [After BU/MB Replacement]

Remove the defective BU from Loading

Assy and also remove BU insulator (4pcs)

Unpack new BU and take OP Data Barcode

photo by camera

Assemble BU with Insulators to Loading

Assy (tighten screw with 2kgf)

Decode the OP Data Barcode photo

u

s

i

ng

BDPRdec.exe

and save the test data to

USB memory

(File Name: BuData.txt)

Enter Service Mode and insert USB memory

to USB connector

Select [8] Drive -->

Select [1] Drive OP data Write

Press ENTER

After Finishing ReWrite OP data

--> Turn AC Power OFF

And confirm dIOP by select [7] OP Check

Menu to verify IOP in specification

IOP in specification --> Turn AC Power OFF

Turn Power ON and check playback

performance using BD, DVD and CD

BLX-104

DVD: HLX-513
CD: HLX-A1

The following cases need

OP Data Write:
(1) Replace BU (MB is original)
(2) Replace MB (BU is original)
(3) Replace both BU and

MB

JIG requ

irement

Digital camera (with macro mode

)
Barcode decoder (BDPRdec.exe)
installed in jig
PC's (jig purpose)
USB memory
ESD free work ben

ch

BDP-BX18/S185/S186

1-18

1-4-7. KEM-470AAA/C2RP Packing

1) Store it in Cushion Carton

2) Store it in Individual Carton

Individual Carton (4-272-629-0)

Antistatic Bag

Instruction
Manual

Cushion Carton

Antistatic Bag

Lid foam tray

2) Store the Cushion carton in the individual carton

C surface cut facing front

3) Store it in Master Carton

4) Master carton is sealed
with the PP tape.

Individual Carton (E430-BU-RP)

Stic

kit

toH.

PPTape

Store 10 individual cartons 1 step X 2 steps
= 20 individual cartons in the master carton.
Master Carton (E430-BU-RP)

Shipment Label
(Care Mark 3)

BDP-BX18/S185/S186

1-19

1-4-8. BU Data Decode Jig

BU Data Decode Jig

¶JIG Name: BDPRdec. exe
¶Version : 2.0.0.0

¶Software Contents:

BDPRdec.exe ; Software
SavePath.ini ; decoded file destination setting file (initial destination is C:¥BuData.txt

)
Tasman.Bars.dll ; decode dll
Uninst.exe ; unistall BDPRdec.exe from PC

¶Installations

STEP 1
Microsoft .NET Framework Version 2.0 Redistributable Package (x86)

http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=0856eacb-4362-4

b0d-

8edd-aab15c5e04f5

STEP 2
Microsoft .NET Framework 2.0 Service Pack 1 (x86)

http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=79bc3b77-e02c-4

ad3-

aacf-a7633f706ba5

*Hou to use
Case1
Drag-and-drop 2Dcode photo onto BDPRdec.exe

Case2
Drag-and-drop BU data file onto BDPRdec.exe
Data file name be changed to specify format and end of 7 character are defined
Player : ****BDP.txt
Recoder: ****BRD.txt

#You can also enter the file path at the prompt.

*Remarks
Do not change the decoded file name “BuData.txt”.

Release : 2010.11.26

¶

1.Unzip files to any PC Folder

2.Check the attached 2D code photo(OK_sample.JPG) drag-and-drop onto BDPRdec.exe, the
Password will be required at first time only, no need P/W from second time.

3.If there is the error message (.NET frame work requirements) please apply
Microsoft .NET Framework 2.0 (or 2.0 SP1) from Microsoft download site.

BDP-BX18/S185/S186

1-20

1-4-10. Laser Caution Label

The Loading Ass’y service parts does not have Laser Caution Label.
So that please reuse the original Laser Caution label and paste it on top of
new Loading Ass’y.

Limit Sample

Following peel off condition are acceptable

1-4-9. Loading For Service

BDP 6G Loading Ass’y service parts consists from 3 parts.

rHolder, Clamper Assy
sLoading Assy
tHolder FFC

Currently these parts are producing 2 vendors. But the THERE IS NO COMPATIBILITY

.

So, please

DO NOT MIX

the r and s of Loading for service and original Loading.

“Loading for service” A-1750-926-A

sLoading Assy

Laser Caution Label

Holder, Clamper Assy

r

t Holder, FFC

4-167-321-01

(FFC Holder can be used

both service parts and original

parts)

1-839-258-11

FFC

1-839-259-11

FFC

1-839-257-11

FFC

BDP-BX18/S185/S186

1-21

In case of BU assy replacement:

1. OP related data for new assy is controlled by BU factory

2. All of data is recorded into a barcode label

3. The label is put on the assy

4. Service parts will be followed

5. In service, the data should be read out from problem assy

6. The read data should be saved to new assy

Fact finding:

1. The label is “DATA MATRIX” format

2. The number of data is 91 words

3. The method of reading and saving is required when BU and
main board are replaced.

New service method

1. All of BU data on the barcode label is shot by digital camera in
order to make a JPEG file of BU data.

2. Application software in the PC makes digital data from JPEG file.

3. The converted data is stored to USB memory.

4. The USB memory is connected to BDP 6G unit.

5. In service mode, there is a command to save the data from USB
memory to board memory.

BDP-BX18/S185/S186

1-22E

Shoot the barcode
Format is JPEG

Application Software
Data convert from
JPEG

TEXT

Save the TEXT data

USB device is connected
to symbol on the
rear unit, and the TEXT
data as new data is
loaded to unit by service
mode.

Description: BDPRdec.exe

When instruction to PC, password is required.

The password will be supplied to only service HQ, and service center
name, q’ty and all of software registered information should be
maintained by service HQ, and Video will ask to report the registration
information.

BDP-BX18/S185/S186

2-1

BDP-BX18/S185/S186

SECTION 2

DISASSEMBLY



This set can be disassembled in the order shown below.

Note:

Follow the disassembly procedure in the numerical order given.

2-2. TRAY COVER ASSY

1

Insert paper clip inside hole

2-1. DISASSEMBLY FLOW

2-2.

TOP PANEL

(Page 2-1)

2-3.

TRAY COVER ASSY

(Page 2-2)

SET

(Page 2-5)

2-7.

(Page 2-5)

2-5.

SWITCHING
REGULATOR

(Page 2-4)

2-6. MB-143 BOARD

BD DRIVE

2-4.

(Page 2-4)

FR-316 boards

tray

3 Tray cover assy

2

2-2

BDP-BX18/S185/S186

2-3. TOP PANEL (1/2)

(2/2)

2-3

BDP-BX18/S185/S186

2-3. TOP PANEL (2/2)

(1/2)

2-4. FR-316 BOARD

FR-316 board

4

One screws+BV3(3-CR)

1

2-4

2-5. SWITCHING REGULATOR

Switching regulator

flexible flat

3

3 harness

(CN101)

6

BDP-BX18/S185/S186

cable (FIM-032)

(CN701)

4 harness PM-168

(CN201)

Two screws +BV3(3-CR)

5

PS insulator

2

USB shield case

2

ESD Shield

1

2-7. DRIVE

2-5

2-6. MB-143 BOARD

Three screw s +BV3(3-CR)

MB-143 board

(CN2270)

3

Harness(PM-168)
(CN301)

4

Flexibl e fla t
(CN1101)

5

Flexibl e fla t

6

(CN1002)

Flexibl e fla t

7

1

2 Flexible flat cable

(FIM-032)

cable (LDG-003)

cable (OPT-003)

cable (SPD-003)

(CN2260)

BDP-BX18/S185/S186

1

Two screws +BV3(3-CR)

(tightening torque = 5.0

t

o

6.0

NJIFP

5 BD drive

4

Loading flexible flat cable (LDG-003)

(CN2270)

3

Splindle flexible flat cable (OPT-003)
(CN1101)

2

Optical flexible flat cable (SPD-003)
(CN2260)

BDP-BX18/S185/S186

2-8.

CIRCUIT BOARDS LOCA TION

MB-143boa rd

FR-316 board

Switching Regulator

2-6E

L

R

C

N801

L

A

N

(

1

0

0

)

I

C

3

07

(AC IN)

3-1

BDP-BX18/S185/S186

SECTION 3

BLOCK DIAGRAMS

3-1. OVERALL BLOCK DIAGRAM

PS301

PS302

The components identifi ed by

mark

or dotted line with mark

are critical for safety.

Replace only with part number

specifi ed.

IC902

AUDIO LINE

DRIVER

HDMI

USB

ETHERNET

VIDEO

AUDIO

(ANALOG OUTPUT)

(DIGITAL OUTPUT)

AUDIO

MB-143 BOARD

CN701

HDMI OUT

COAXIAL

AUDIO

REGULATOR

I

C

3

06

I

C

3

02

I

C

3

01

I

C

3

10

I

C

601

I

C

704

I

C

703

I

C

803

I

C

804

VIDEO

LINE OUT

DIGITAL OUT

PCM/DTS/DOLBY

DIGITAL

SATA I/F, MEMORY CONTROL,

A/V OUT, HDMI, ETHERNET I/F,

USB I/F

MAIN SYSTEM CONTROL, DSP

CXD90007G-AA

IC101

J901

B-BUS

A-BUS

IC206

IC106

IC501

2G NAND

FLASH

X401

27MHZ

CN201

IC710

REMOTE

CONTROL

RECEIVER

Blu-ray

DVD

DRIVE

BD DRIVE

FR-316 BOARD

D720

(WHITE)

SWITCHING

REGULATOR

1.2V

3.3V

UNSW5V

UNSW3.3V

IC1271

IC2201

SA

DRIVE

MOTOR

DRIVE

S701

STOP

S702

OPEN/CLOSE

S703

PLAY

DDR3 SDRAM

I

C

603

S700

POWER

LED

IR

KEY

1Gb DDR3

2Gb DDR3

1.5V

Q720

LED DRIVER

3-2

AC22

IC106

2Gb DDR3

SDRAM

X401

27MHZ

IC101

MAIN SYSTEM CONTROL,

DSP,SATA I/F,MEMORY CONTROL

A/V OUT,HDMI,ETHERNET I/F

USB I/F,

W24

RRAS

DODQ0-DODQ15

DOA0-DOA12

RCAS

R

WE

RODT

RCLK0

RCLKB

RCLKE

RCS

RBA0

RBA1

RBA2

W25

AE23

H24

AE25

H25

L3

J3

/CAS

/WE

ODT

CK

/CK

CKE

/CS

/RAS

BA0

K3

K9

J7

K1

K7

L2

MB-143 BOARD

IC206

1Gb DDR3

SDRAM

RRAS_B

DIDQ0-DIDQ15

DIA0-DIA12

RCAS_B

RWE_B

RODT_B

RCLK0_B

RCLK0_B

RCKE_B

RCS_B

RBA0_B

RBA1_B

RBA2_B

Y12

AA6

AD22

AD10

AE22

AE10

/CAS

/WE

ODT

CK

/CK

CKE

/CS

/RAS

BA0

AA12

AE11

A12

RF IP

G1

BD_ R F+

23

MOTOR DRIVE

IC2201

RF IN

G2

BD_ R F-

22

RFIP2

H1

DVD_RF +

26

RF IN2

H2

DVD_RF-

32

INA

C3

A

25

INB

B1

B

28

INC

C2

C

20

IND

C1

D

17

INE

E2

E

34

INF

E1

F

8

ING

D1

G

7

INH

D2

H

6

FCS_P
2740

FCS_N
2841

TRK_P
2942

TRK_N
30

FD1

43

TLT_P
24

FR1

44

TLT_N
25

FD2

45

FR2

TD

TR

LOAD_N
33

LOAD-

1

LOAD_ P
32

LOAD+

2

FE_TRAYIN

TRAY-OUT

3

TRAY-IN

5

U
42

U

4

V
44

V

W
46

W

2

SLED2_P
55

B+

8

SLED2_N
56

B-

9

SLED1_P
52

A

6

SLED1_N
53

A-

7

FECF REQ

L4

SDIO

39

FECMOD

K3

THER MO

5

FE FMO4

10

38

FE FMO3

37

FE GAINSW2

M3

36

VFCS

21 FE_F

OO

H4

VTRK

20 FE_TRO

J2

FE_TLO

J3VTLT

22

MONITOR

12

FE _ G109

R5

VSLED2

17

FE_FMO

N1

VSLED1

16

FE FMO2

N2

VSPIN

18

FE_DM0

VLOAD

19

FEOSCEN

L3

303133

19

SCLK

LDD_SEN

SA_B+

SA_B-

SA_A+

SA_A-

F5

N3

M2

987

2

3

FE_CO_B+

STEP_ENA

SA_B

SA_A

IC1271

SA_DRIVE

FE _

TYPWM

SPDL

B12

T2

U4

P2

IC501

16

18

8

CPU_NFD0 - CPU_NFD7

19

17

7

9

3-2. DSP BLOCK DIAGRAM

A2T

B24

A24

E23

C24

B25

CPU_NFCEN

CPU_NFCLE

CPU_NFALE

CPU_NFWEN

CPU_NFREN

CPU_NFRBN

nCE

ALE

cLE

nRE

RY/BY

WE

NFWP#

IC503 pin 1

2Gb

NAND FLASH

NS_XTALO

NS_XTALI

P3

3

CXD90007G-AA

BD DRIVE

CN1101

DVD

Blu-ray

DRIVE

CN2260CN2270

BA1

BA2

/RESET

N8

M2

M3

K1

Y24

AC25

AB24

AD24

Y23

RRESET

N8

M2

M3

K1

W8

ABB

AC11

AE7

BA1

BA2

/RESET

L3

J3

K3

K9

J7

K1

K7

L2

RRESET_B

AUX1

BDP-BX18/S185/S186

FE_CO_B-

FE_CO_A+

FE_CO_A-

IN2

IN1

ENA

FE_TRAYOUT

CEC PULL-UP

ISOLATING SWITCH

I

C

1

01

IC902

C10

A7

B13

A13

B14

A14

B15

B16

A16

C20

A15

L

R

T

X

2

P

1

346

7

9

1

0

1

2

1

9

1

3

CEC

Q702

UNSW3-3V

3-3. AV

OUT BLOCK DIAGRAM

3-3

VIDEO

AUDIO

LINE OUT

COAXIAL

DIGITAL OUT

PCM/DTS/DOLBY

DIGITAL

CN701

J

9

01

AUDIO LINE

DRIVER

OUTL

OUTR

MUTE

INL

INR

Q901

TX2N

TX1P

TX1N

TX0P

TX0N

TCKP

TCKN

TMDS DATA2+

TMDS DATA2-

TMDS DATA1+

TMDS DATA1-

TMDS DATA0+

TMDS DATA0-

TMDS CLOCK+

TMDS CLOCK-

HPD

CEC

HDMI OUT

T

X

2

P

TX2N

TX1P

TX1N

TX0P

TX0N

TCKP

TCKN

CH2_P

CH2_M

CH1_P

CH1_M

CH0_P

CH0_M

CLK_P

CLK_M

HTPLG

SPDIF

AOLRCK_R

ARO-R

ALO_R

LORTNOC YROMEM F/I ATAS

F/I TENREHTE IMDH ,TUO V/A

F/I BSU

90007G-AADXC

PSD ,LORTNOC METSYS NIAM

XAMUTE

MB-143 BOARD

4P JACK

A1 0

B1 0

1

10

119

2

7

BDP-BX18/S185/S186

VDACX_OUT

81B

CVBS

LINE OUT

1

3

MB-143 BOARD

LAN (100)

A5

B5

A6

B6

B22

B23

A23

A22

D20

AA5

VCLK

GPIO 3

GPIO 0

GPIO4

GPIO5

J22

J23

FR-316 BOARD

3

6

5

4

IC710

REMOTE

CONTROL

RECEIVER

Q720

LED DRIVER

D720

(WHITE)

CN701

CN801

16

15

2

3

CN201

DM

DP

3-4. USB /ETHER BLOCK DIA GRA M

3-4

USB

EXT

4

7

8

9

10

S701

S702

S703

DM0

DP0

TXVN_0

TXVP_0

TXVN_1

TXVP_1

Y2

Y1

CXD90007G-AA

AC4

AA5

BDP-BX18/S185/S186

3

6

5

4

16

15

9

10

S700

IR

VSTB

VDATA

CN 1001

The components identifi ed by

mark

or dotted line with mark

are critical for safety .

Replace only with part number

specifi ed.

1

5

3

5

3

6

6

C

N

301

1

2

1

SWITCHING REGULATOR :

IC 2201

IC 601

+5V

FE_SW12V

FE_SW5V

O

P

T

NISECON

ICE

3.3V
UNSW3.3V

3.3V

MB-143 BOARD

3-5E

3-5. PO WER BLOCK DIAGRAM

8

1

(AC IN)

UNSW12V

FE_GND_M

CN301

GND

FE-UNSW 12V

PS301

FE-UNSW 12V

PCONT1#

Q311

MOTOR

DRIVER

CN1003

CN1001

HIGH SIDE

SWITCH

USB_VBUS

CN1101

IC106

IC206

DDR3(A)

DDR3(B)

12

12

8

1

D720

LED WHITE

Q720

LED DRIVE

IC710

REMOTE CONTROL

RECEIVER

1

EXT

CN201

UNSW3.3V

SRV2253EK(EXCEPT:US,CND,CN)

SRV2252UC(US,CND)

FR-316 BOARD

PS302

CN701

CN1002

USB

4

4

2

2

IC302

1.5V

PCONT1#

1.5V

HDMI OUT

IC 705

+5V

REGULATOR

HDMI 5V

CN701

PCONT1

USB_PCONT

13

13

IC310

UNSW5V

IC1271

DRIVER

MOTOR

BDP-BX18/S185/S186

UNSW5V

UNSW12V

1

9

CN801

7

ETHERNET

IC306

3.3V

IC307

1.2V

IC 101

PCONT1#

POWER/CLOCK/PLL(1.2V)

1.2V

1.2V

1.2V

HDMI

ETHER

PCONT1#

3.3V

DDR3(AVDD33-MEMPLL)

(CLOCK)

DVCC3.3_IO

(USB)

AVDD33_USB

(HDMI)

AVDD33_HDMI

(ETHER)

AVDD33_LD

(ETHER)

AVDD33_COM

(VIDEO)

AVDD33_VDAC_R

24

6

IC902

AUDIO/

VIDEO

IC503

IC501

NAND FLASH

Q310

IC 1161

+8V

REGULATOR

FE_8VFE_SW12V

AVD33_DAC

AVD33_LDO

AVD33_IO_STB

AVD33_PLLGP

RESET_

IC301

UNSW3.3V

IC1001

SYSCON_RST

SYSCON_RST

45

FE_SW5V

Q302

Q312

SRV2254WW(CN)

9

9

GPIO3

LED_POWER

NFWP#

USB_OCO

4-1

BDP-BX18/S185/S186

SECTION 4

SCHEMATIC DIAGRAMS

All capacitors are in F unless otherwise noted. pF : F.

50V or less are not indicated except for electrolytics and tantalums.

All resistors are in ohms, 1/4 W (Chip resistors : 1 /10 W) un-less

otherwise specified.

k

=1000 , M =1000k .
% : indicates tolerance.
Caution when replacing chip parts.

New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum capacitor, because

it is damaged by the heat.

Constants of resistors, capacitors, ICs and etc with XX indicate

that they are not used.

In such cases, the unused circuits may be indicated.

All variable and adjustable resistors have characteristic curve B,

unless otherwise noted.
: nonflammable resistor
: fusible resistor
: panel designation

f : internal component.

: adjustment for repair.
: B+ Line

: B– Line
Circled numbers refer to waveforms.
Voltages are dc between measurement point.
Readings are taken with a color-bar signals on Blu-ray disc.
Readings are taken with a digital multimeter (DC 10M ).
Voltage variations may be noted due to normal production tolerances.

Note:
The components identified
by mark

or dotted line

with mark

are critical for
safety.
Replace only with part num­ber specified.

Note:
Les composants identifiés par
une marque

sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci­fié.

When indicating parts by reference number, please include the
board name.

4-1. THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

BDP-BX18/S185/S186

4-2

4-2.

FRAME SCHEMATIC DIAGRAM

4-3

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-3. BOARD (FRONT LEFT ) SCHEMATIC DIAGRAM  See page 5-3 for p rinted wiring board.

- Ref. No.: board; 20,000 series -

BDP-BX18/S185/S186

by mark or dotted line with

mark

are critical for safety.

Replace only with part number

FR-316

FR-316

4-4. FR-316 BOARD (USB FRONT) SCHEMATIC DIAGRAM

- Ref. No.: FR-316 board; 20,000 series -

6HHSDJHIRUSULQWHGZLULQJERDUG

4-4

BDP-BX1866186

2

FR-316 BOARD

3

1

A

B

4

4 5

BDP-BX18/S185/S186

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-5. MB-143 B OARD (DDR 3 A ) SCHEMATIC DIA GRAM (1/12)  Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

4-6

BDP-BX18/S185/S186

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-6. MB-143 B OARD (DDR 3 B) SCHEMATIC DIA GRAM (2/12)  Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

4-7

BDP-BX18/S185/S186

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-7. MB-143 B OARD (POWER) SCHEMATIC DIAGRAM (3/12)  Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

4-8

BDP-BX18/S185/S185

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

The components identifi ed

by mark

or dotted line with

mark

are critical for safety.

Replace only with part number

specifi ed.

4-8. MB-143 B OARD (

CLK/POWER)

SCH

EMATIC DIAGRAM (4/12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

BDP-BX18/S185/S186

4-9

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-9. MB-143 B OARD (FLASH/HOST) SCHEMATIC DIAGRAM (5/12)  Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

IC503

4-10

BDP-BX18/S185/S186

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-10. .MB-143 BOARD (USB)

SCHEMATIC DIAGRAM (6/12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

4-11

BDP-BX18/S185/S186

4-11. MB-143 BOARD (HDMI)

SCHEMATIC DIAGRA M (7/12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

B

C

D

E

F

G

H

I

J

2

12

11

10

98765

43

1

A

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-12

BDP-BX18/S185/S186

4-12. MB-143 BOARD (

ETHERNET)

SC

HEMATIC DIAGRAM (8/12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 serie

s

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-13

BDP-BX18/S185/S186

4-13. MB-143 BOARD (AUDIO VIDEO)

SCHEMATIC DIAGRA M (9/12)  Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

1

1

4-14

BDP-BX18/S185/S186

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

-

4-14. MB-143 BOARD (GPIO/JIAG

)
SCHEMATIC DIAGRAM (

10

/

12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 ser ies

BDP-BX18/S185/S186

4-15

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-15.MB-143 BOARD (FE_POWER/GIO) SCHEMATIC DIAGRA M (11/

12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

BDP-BX18/S185/S186

4-16

1

A

B

C

D

E

F

G

H

I

J

2

12

13

11

10

98765

43

14

4-16. MB-143 BOARD (

FE_POWER/MOTOR_DRIVE)

SCHEMATIC DIAGRAM (12/

12)

 Se

e page 5-4 for printed wiring board.

- Ref. No.: MB-143 board; 10,000 series

MB-143 BOARD

H

2.4Vp-p

B18

(VDACX_OUT)

IC101

IC101

(NS_XTAL_I)

27 MHz

3.3 Vp-p

Vpp

BDP-BX18/S185/S186

4-20E

4-20. WAVEFORMS

A12

1.0

5-1

SECTION 5

PRINTED WIRING BOARDS

5-1. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS

2 132 132 1

3

3 4 5

2 1

1 2 3

6 5 4

E BC3 1

5

524 6

1 2 3

5 4

Transistor Diode



 8VHVXQOHDGHGVROGHUV



3DWWHUQIURPWKHVLGHZKLFKHQDEOHVVHHLQJ

 7KHRWKHUOD\HUV’SDWWHUQVDUHQRWLQGLFDWHG

 7KURXJKKROHLVRPLWWHG

 7KHUHareIHZFDVHVWKDWWKHSDUWSULQWHGonGLDJUDPisn’tPRXQWHG

LQWKLVPRGHO



SDQHOGHVLJQDWLRQ

 &KLSSDUWV

Caution:

3attern IaFe side

6,'(%
3DUWVIDFHVLGH

(SIDE$

3DUWVonWKHSDWWHUQIDFHsideseenIURP

WKHSDWWHUQIDFHDUHLQGLFDWHG

3DUWVon WKHSDUWVIDFH side seenIURP

WKHSDUWVIDFHDUHLQGLFDWHG

BDP-BX18/S185/S186

There are a few cases that the part isn’t mounted in this model is printed on this diagram.

: Uses unleaded solder.

5-2. FR-316 BOARD (FRONT RIGHT) PRINTED WIRING BOARD (SIDE A)

6HHSDJHIRUFLUFXLWERDUGVORFDWLRQ

- Ref. No.: FR-316 board; 20,000 series -

FR-316 BOARD (SIDE A)

CN201 A-6

D720 B-5

IC710 B-3

FR-316 BOARD (SIDE A)

A

B

1

2

5

43

7

6

5-2

CN701 A-3

1

2

5

43

7

6

A

B

FR-316 BOARD (SIDE B)

11

11

BDP-BX18/S185/S186

1-884-342-

1-884-342-

FR-316 BOARD (SIDE B)

Q720 B-3

There are a few cases that the part isn’t mounted in this model is printed on this diagram.

: Uses unleaded solder.

5-3. MB-143 BOARD (MAIN) PRINTED WIRING BOARD (SIDE $6HHSDJHIRUFLUFXLWERDUGVORFDWLRQ

- Ref. No.: MB-143 board; 10,000 series -

B

5-3

A

B

C

D

E

F

1

2

5

43

6

MB-143 BOARD (SIDE A)

CN301 A-3

CN801 E-3

CN2260 D-1

CN1101 A-1

CN1002

A-4

CN1001 B-6

D605 A-5

D608

A-5

IC106 C-4

IC307 B-3

IC101 C-3

IC501 C-5

IC302 B-4

IC306 B-4

IC310 B-5

IC1001 C-6

X401 D-3

CN2270 A-2

IC2201 D-2

IC1271 B-2

Q90 1 E-5

MB-143 BOARD (SIDE A)

DP-BX18/S185/S186

11

1-883-981-

Q70

2

D-4

D315

A-4

Q50 2 D-6

Q50

1

D-6

Q31

2

A-1

There are a few cases that the part isn’t mounted in this model is printed on this diagram.

: Uses unleaded solder.

- Ref. No.: MB-143 board; 10,000 series -

5-4E

MB-143 BOARD (SIDE B)

BDP-BX18/S185/S186

5-4. MB-143 BOARD (MAIN) PRINTED WIRING BOARD (SIDE B)

6HHSDJHIRUFLUFXLWERDUGVORFDWLRQ

MB-143 BOARD (SIDE B)

B

C

D

E

1

23456

A

IC303 1-D

IC314 4-E

11

1-883-981-

IC314

IC303

CN1003 1-D

CN1191 6-A

Pin Symbol Type Description

K9 DVCC12_K Power 1.2V digital power
K11 DVCC12_K Power 1.2V digital power
K12 DVCC12_K Power 1.2V digital power
K15 DVCC12_K Power 1.2V digital power
K17 DVCC12_K Power 1.2V digital power
K18 DVCC12_K Power 1.2V digital power

L9 DVCC12_K Power 1.2V digital power
L17 DVCC12_K Power 1.2V digital power
L18 DVCC12_K Power 1.2V digital power
N17 DVCC12_K Power 1.2V digital power
N18 DVCC12_K Power 1.2V digital power

P9 DVCC12_K Power 1.2V digital power
P18 DVCC12_K Power 1.2V digital power
R17 DVCC12_K Power 1.2V digital power

T9 DVCC12_K Power 1.2V digital power
T11 DVCC12_K Power 1.2V digital power
T12 DVCC12_K Power 1.2V digital power
T14 DVCC12_K Power 1.2V digital power
T16 DVCC12_K Power 1.2V digital power
T17 DVCC12_K Power 1.2V digital power

U9 DVCC12_K Power 1.2V digital power
U11 DVCC12_K Power 1.2V digital power
U12 DVCC12_K Power 1.2V digital power
U14 DVCC12_K Power 1.2V digital power
U15 DVCC12_K Power 1.2V digital power
U16 DVCC12_K Power 1.2V digital power
H14 DGND12_K Ground Digital ground
H21 DGND12_K Ground Digital ground
J22 DGND12_K Ground Digital ground
K21 DGND12_K Ground Digital ground

L5 DGND12_K Ground Digital ground

L6 DGND12_K Ground Digital ground

L7 DGND12_K Ground Digital ground
L10 DGND12_K Ground Digital ground
L11 DGND12_K Ground Digital ground
L12 DGND12_K Ground Digital ground
L13 DGND12_K Ground Digital ground
L14 DGND12_K Ground Digital ground
L15 DGND12_K Ground Digital ground
L16 DGND12_K Ground Digital ground
L21 DGND12_K Ground Digital ground
M10 DGND12_K Ground Digital ground
M12 DGND12_K Ground Digital ground
M14 DGND12_K Ground Digital ground
M16 DGND12_K Ground Digital ground

N4 DGND12_K Ground Digital ground
N10 DGND12_K Ground Digital ground
N11 DGND12_K Ground Digital ground
N13 DGND12_K Ground Digital ground
N15 DGND12_K Ground Digital ground
N16 DGND12_K Ground Digital ground
N22 DGND12_K Ground Digital ground
N23 DGND12_K Ground Digital ground
P10 DGND12_K Ground Digital ground
P12 DGND12_K Ground Digital ground
P14 DGND12_K Ground Digital ground
P1

6 DGND12_

K Ground Digital ground

R4 DGND12_K Ground Digital ground
R10 DGND12_K Ground Digital ground
R11 DGND12_K Ground Digital ground
R12 DGND12_K Ground Digital ground
R13 DGND12_K Ground Digital ground
R14 DGND12_K Ground Digital ground
R15 DGND12_K Ground Digital ground
T21 DGND12_K Ground Digital ground

U6 DGND12_K Ground Digital ground
U22 DGND12_K Ground Digital ground

V5 DGND12_K Ground Digital ground
Y13 DGND12_K Ground Digital ground
Y15 DGND12_K Ground Digital ground
Y17 DGND12_K Ground Digital ground
Y19 DGND12_K Ground Digital ground

A

A19 DGND12_K Ground Digital ground

MAIN SYSTEM CONTROL PIN FUNCTION (MB-143 BOARD IC 101 : CXD90007G-AB)

BDP-BX18/S285/S286

IC PIN FUNCTION DESCRIPTION

SECTION 6

6-1

A

B13 DGND12_K Ground Digital ground

A

C18 DGND12_K Ground Digital ground
F21 DVCC33_IO Power 3.3V Digital IO power
G20 DVCC33_IO Power 3.3V Digital IO power

J9 DVCC33_IO Power 3.3V Digital IO power

J11 DVCC33_IO Power 3.3V Digital IO power

K8 DVCC33_IO Power 3.3V Digital IO power

L8 DVCC33_IO Power 3.3V Digital IO power

A

B4 DVCC33_IO Power 3.3V Digital IO power

A

C5 DVCC33_IO Power 3.3V Digital IO power
D21 DVCC33_IO_S TB Power 3.3V Digital IO power for Stand-By Module
E22 DVCC33_IO_S TB Power 3.3V Digital IO power for Stand-By Module
J20 DDRVCCIO Power 1.5V Digital IO power
K19 DDRVCCIO Power 1.5V Digital IO power
L19 DDRVCCIO Power 1.5V Digital IO power
L20 DDRVCCIO Power 1.5V Digital IO power
N19 DDRVCCIO Power 1.5V Digital IO power
N20 DDRVCCIO Power 1.5V Digital IO power
P19 DDRVCCIO Power 1.5V Digital IO power
R20 DDRVCCIO Power 1.5V Digital IO power
T18 DDRVCCIO Power 1.5V Digital IO power
V14 DDRVCCIO Power 1.5V Digital IO power
V16 DDRVCCIO Power 1.5V Digital IO power
V17 DDRVCCIO Power 1.5V Digital IO power
V18 DDRVCCIO Power 1.5V Digital IO power

W15 DDRVCCIO Power 1.5V Digital IO power
W16 DDRVCCIO Power 1.5V Digital IO power
W18 DDRVCCIO Power 1.5V Digital IO power

Y14 DDRVCCIO Power 1.5V Digital IO power

XTAL/PLL

A

A21

A

VDD33_MEM PLL Power 3.3V Analog Power for MEMPLL

A

B19

A

VSS33_MEM PLL Ground

A

nalog Ground for MEMPLL

A

A22 TN_MEMPLL

A

nalog Test Pin

A

B23 TP_MEMPLL

A

nalog Test Pin

H16

A

VDD12_LDO Power 1.2V standby power

F17

A

VDD33_LDO Power 3.3V power for standby

G16

A

VSS33_LDO Ground

A

nalog ground for standby

C12

A

VDD33_PLLG P Power 3.3V Analog Power for PLL Group

C13

A

VSS33_PLLG P Power

A

nalog ground for PLL Group

A

11 NS_XTALI I 27MHz Crystal In

B11 NS_XTALO O 27MHz Crystal Ou

t

A

UDIO PWM DAC interface

D12

A

VDD33_DAC Power 3.3V Analog Power

E11

A

VSS33_DAC Ground

A

nalog Ground
Multiple function:
(1) Audio output bit clock
(2) Audio PWM output
(3) GPIO
Multiple function:
(1) Audio output master clock
(2) Audio PWM output
(3) GPIO

A

udio Interface

Multiple function:
(1) 1st Audio DAC mute
(2) GPIO
Multiple function:
(1) Audio output left-right clock
(2) 2nd Audio DAC mute
(3) Video out DE signal
(4) 2nd RS232 TX
(5) External Interrupt 4
(6) Slave I2C clock
(7) PWM control signal output
(8) Ethernet Activity LED
(9) GPIO
Multiple function:
(1) Audio output serial data 0
(2) 2nd Audio DAC mute
(3) Video out DE signal
(4) 2nd RS232 RX
(5) External Interrupt 2
(6) Slave I2C clock
(7) PWM control signal output
(8) Ethernet Duplex LED
(9) GPIO

I/OAL0A10

B10

C10 AOLRCK I/O

AR0 I/O

U5 AMUTE I/O

D10 AOSDATA0 I/O

BDP-BX18/S285/S286

6-2

(1) Audio output serial data 1
(2) Audio output master clock
(3) Microphone input master clock
(4) Video out DE signal
(5) External Interrupt 1
(6) 3th RS232 TX
(7) Slave I2C clock
(8) PWM control signal output
(9) Ethernet Activity LED
(10) GPIO

Multiple function:
(1) Audio output serial data 2
(2) Audio output bit clock
(3) Microphone input bit clock
(4) Video out DE signal
(5) External Interrupt 4
(6) 3th RS232 RX
(7) Slave I2C clock
(8) PWM control signal output
(9) External Duplex LED
(10) 1st Audio DAC mute
(11) GPIO

Multiple function:
(1) Audio output serial data 3
(2) Audio output left-right clock
(3) Microphone input left-right clock
(4) Video out DE signal
(5) External Interrupt 2
(6) 2nd RS232 TX
(7) Slave I2C clock
(8) PWM control signal output
(9) External Speed LED
(10) GPIO

Multiple function:
(1) Audio output serial data 4

(3) Microphone input data
(4) Video out DE signal
(5) External Interrupt 1
(6) 2nd RS232 RX
(7) Slave I2C clock
(8) PWM control signal output
(9) Ethernet Link LED
(10) GPIO

Multiple function:
(1) SPDIF digital audio output
(2) GPIO

Analog Video Out Interface

E16

A

VDD33_VDA C Power

3.3 V Analog Power

D16

A

VDD33_VDA C_R Power

3.3 V Analog Power

G14

A

VSS33_VDAC Ground

A

nalog Ground

F14

A

VSS33_VDAC_R Ground

A

nalog Ground

A

18 VDACB_OUT

A

nalo

g

DAC output

C18 VDACG

_

OUT

A

nalo

g

DAC output

C17 VDACR

_

OUT

A

nalo

g

DAC output

B18 VDACX_OUT Analog

DAC output

Digital Video Output Interface

Multiple function:

(1) Video out mode:CLOCK

(2) 2nd RS232 TX
(3) Slave I2C clock
(4) PWM control signal output
(5) Ethernet Activity LED
(6) NAND Flash Data input/output bit 5
(7) Secure Disk interface clock
(8) GPIO

Multiple function:
(1) Video out mode: HSYNC
(2) 2nd RS232 RX
(3) Slave I2C data
(4) External Interrupt 1
(5) Ethernet Duplex LED
(6) NAND Flash Data input/output bit 7
(7) Secure Disk interface command
(8) GPIO

VOUTCLKF22

I/OVOUTHSYNCH22

I/OAOSDATA2C8

I/OSPDIFA7

AOSDATA3D7

I/O, 5VAOSDATA4

C9 AOSDATA1 I/O

C7

I/O, 5V

I/O, 5V

Multiple function:

Multiple function:

6-3

BDP-BX18/S285/S286

Multiple function:
(1) Video out mode: VSYNC
(2) 3th RS232 TX
(3) External interrupt 2
(4) Ethernet Speed LED
(5) NAND Flash Data input/output bit 6
(6) Secure Disk interface data bit 0
(7) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C0
(2) External Interrupt 4
(3) 3th RS232 RX
(4) Ethernet Link LED
(5) NAND Flash Data input/output bit 4
(6) Secure Disk interface data bit 1
(7) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C1
(2) Slave I2C clock
(3) NAND Flash Data input/output bit 3
(4) Secure Disk interface data bit 2
(5) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C2
(2) Slave I2C clock
(3) NAND Flash Data input/output bit 2
(4) Secure Disk interface data bit 3
(5) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C3
(2) JTAG ICE data out
(3) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C4
(2) JTAG ICE clock
(3) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C5
(2) JTAG ICE data in
(3) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C6
(2) JTAG ICE data in
(3) GPIO

Multiple function:
(1) Video out 16-bit 422 mode:C7
(2) Audio line input data
(3) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y0
(2) Microphone input master clock
(3) 2nd RS232 TX
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Activity LED
(7) NAND Flash Data input/output bit 1
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y1
(2) Microphone input bit clock
(3) 2nd RS232 RX
(4) Slave I2C clock
(5) External Interrupt 1
(6) Ethernet Duplex LED
(7) NAND Flash Data input/output bit 0
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y2
(2) Microphone input left-right clock
(3) 3th RS232 TX
(4) Slave I2C clock
(5) External Interrupt 2
(6) Ethernet Speed LED
(7) NAND Flash ready/busy

B25

I/OVOUTD5F24

I/OVOUTD7E24

I/OVOUTD8C25

I/OVOUTD9D24

I/O, 5VVOUTD10

I/OVOUTD6D25

I/OVOUTD3G23

I/OVOUTD4E25

I/OVOUTD1G24

I/OVOUTD2F25

I/OVOUTVSYNCG21

I/OVOUTDOG25

6-4

BDP-BX18/S285/S286

(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y3
(2) Microphone input data
(3) 3th RS232 RX
(4) Slave I2C data
(5) External Interrupt 4
(6) Ethernet Link LED
(7) NAND Flash ready enable
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y4
(2) SPDIF input master clock
(3) 2nd RS232 TX
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Activity LED
(7) NAND Flash chip enable
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y5
(2) SPDIF input bit clock
(3) 2nd RS232 RX
(4) Slave I2C data
(5) External Interrupt 1
(6) Ethernet Duplex LED
(7) NAND Flash command latch enable
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y6
(2) SPDIF input left-right clock
(3) 3th RS232 RX
(4) Slave I2C clock
(5) External Interrupt 2
(6) Ethernet Speed LED
(7) NAND Flash address latch enable
(8) GPIO

Multiple function:
(1) Video out 16-bit 422 mode: Y7
(2) SPDIF input data
(3) 3th RS232 RX
(4) Slave I2C data
(5) External Interrupt 4
(6) Ethernet Link LED
(7) NAND Flash write enable
(8) GPIO

HDMI TX

C16

A

VDD12_HDMI_C Power

1.2V Analog Power

C15

A

VDD12_HDMI_D Power

1.2V Analog Power

D14

A

VDD33_HDMI Power

3.3V Analog Power

E14

A

VSS33_HDMI Ground

A

nalog Ground

A

15 CH0_M

A

nalo

g

HDMI TX data 0 differential pair (M)

B15 CH0

_PA

nalo

g

HDMI TX data 0 differential pair (P)

A

14 CH1_M

A

nalo

g

HDMI TX data 1 differential pair (M)

B14 CH1

_PA

nalo

g

HDMI TX data 1 differential pair (P)

A13 CH2_M Analog

HDMI TX data 2 differential pair (M)

B13 CH2

_PA

nalo

g

HDMI TX data 2 differential pair (P)

A

16 CLK_M

A

nalo

g

HDMI TX clock differential pair (M)

B16 CLK_P Analog

HDMI TX clock differential pair (P)

NAND Flash Interface

Multiple function:
(1) NAND Flash address latch enable
(2) GPO
Multiple function:
(1) NAND Flash chip enable
(2) GPO

Multiple function:
(1) NAND Flash 2

n

d

chip enable
(2) 2nd RS232 TX
(3) External interrupt 2
(4) 3th RS232 TX
(5) Slave I2C clock
(6) PWM control signal output
(7) GPO

Multiple function:

AC6 NFALE I/O

AD4 NFCEN I/O

I/ONFCEN2AE5

I/O, 5VVOUTD14A24

I/OVOUTD15E23

I/O, 5VVOUTD12A25

I/O, 5VVOUTD13B24

I/O, 5VVOUTD11C24

6-5

BDP-BX18/S285/S286

(1) NAND Flash command latch enable
(2) GPO

I/O

A

D5 NFCLE

Multiple function:
(1) NAND Flash Data input/output bit 0
(2) GPIO
Multiple function:
(1) NAND Flash Data input/output bit 1
(2) GPIO
Multiple function:
(1) NAND Flash Data input/output bit 2
(2) GPIO
Multiple function:
(1) NAND Flash Data input/output bit3
(2) GPIO
Multiple function:
(1) NAND Flash Data input/output bit4
(2) GPIO

Multiple function:
(1) NAND Flash Data input/output bit5
(2) GPIO
Multiple function:
(1) NAND Flash Data input/output bit6
(2) GPIO

Multiple function:
(1) NAND Flash Data input/output bit7
(2) GPIO
Multiple function:
(1) NAND Flash ready/busy
(2) GPIO

Multiple function:
(1) NAND Flash 2

n

d

ready/busy
(2) 2nd RS232 RX
(3) External interrupt 1
(4) 3th RS232 RX
(5) Slave I2C data
(6) PWM control signal output
(7) GPO

Multiple function:
(1) NAND Flash read enable
(2) GPO
Multiple function:
(1) NAND Flash write enable
(2) GPO

Dram Channel

AA25 RA0 O

Memory address bit 0

U21 RA1 O

Memory address bit 1

A

B25 RA2 O Memory address bit 2

A

A23 RA3 O Memory address bit 3

W21 RA4 O Memory address bit 4

A

A24 RA5 O Memory address bit 5

W22 RA6 O Memory address bit 6

A

B24 RA7 O Memory address bit 7

W20 RA8 O Memory address bit 8

A

C24 RA9 O Memory address bit 9

A

D23 RA10 O Memory address bit 10

V22 RA11 O Memory address bit 11

A

A20 RA12 O Memory address bit 12

A

D25 RA13 O Memory address bit 13

Y24 RBA0 O Memory bank address bit 0

A

E24 RBA1 O Memory bank address bit 1

A

D24 RBA2 O Memory bank address bit 2

A

C22 RCAS_ O Memory column address strobe

A

E23 RCKE O Memory clock enable
H24 RCLK0 O Memory clock 0 positive
H25 RCLK0

_

O Memory clock 0 negative

Y23 RCS

_

O Memory chip select
V24 RDQ0 I/O Memory data bit 0
V23 RDQ1 I/O Memory data bit 1
U25 RDQ2 I/O Memory data bit 2
U23 RDQ3 I/O Memory data bit 3
K22 RDQ4 I/O Memory data bit 4
J23 RDQ5 I/O Memory data bit 5
K23 RDQ6 I/O Memory data bit 6
J24 RDQ7 I/O Memory data bit 7
T23 RDQ8 I/O Memory data bit 8

AD3 NFRBN I/O

AE3 NFRBN2 I/O

AC2 NFD4 I/O

AD1 NFD5 I/O

AD2 NFD2 I/O

AE1 NFD3 I/O

AC3 NFD0 I/O

AE2 NFD1 I/O

AE4 NFREN I/O

AD6 NFWEN I/O

AB3 NFD6 I/O

AC1 NFD7 I/O

6-6

BDP-BX18/S285/S286

T22 RDQ9 I/O Memory data bit 9
R24 RDQ10 I/O Memory data bit 10
T24 RDQ11 I/O Memory data bit 11
M24 RDQ12 I/O Memory data bit 12
L23 RDQ13 I/O Memory data bit 13
L22 RDQ14 I/O Memory data bit 14
M23 RDQ15 I/O Memory data bit 15
R23 RDQM0 O Memory data mask bit 0
R22 RDQM1 O Memory data mask bit 1
P24 RDQS0 I/O Memory positive data strobe bit 0
P25 RDQS0

_

I/O Memory negative data strobe bit 0
N25 RDQS1 I/O Memory positive data strobe bit 1
N24 RDQS1

_

I/O Memory negative data strobe bit 1

W24 RODT O Memory on die termination enable
W25 RRAS O Memory row address strobe

T19 RVREF0 I Memory VREF

A

E25 RWE O Memory write enable

A

C25 RRESET O Memory reset

DRAM Channel B

A

C10 RA0_B O Memory address bit 0

Y10 RA1_B O Memory address bit 1

A

E8 RA2_B O Memory address bit 2

A

B10 RA3_B O Memory address bit 3

A

A10 RA4_B O Memory address bit 4

A

C8 RA5_B O Memory address bit 5

A

A8 RA6_B O Memory address bit 6

A

D8 RA7_B O Memory address bit 7

W10 RA8_B O Memory address bit 8

A

D7 RA9_B O Memory address bit 9

A

B6 RA10_B O Memory address bit 10

W12 RA11_B O Memory address bit 11

Y8 RA12_B O Memory address bit 12

A

B11 RA13_B O Memory address bit 13

A

B8 RBA0_B O Memory bank address bit 0

W8 RBA1_B O Memory bank address bit 1

A

C11 RBA2_B O Memory bank address bit 2

Y12 RCAS_ B O Memory column address strobe

A

A6 RCKE_B O Memory clock enable

A

D22 RCLK0_B O Memory clock 0 positive

A

E22 RCLK0__B O Memory clock 0 negative

A

E10 RCS__B O Memory chip select

A

C12 RDQ0_B I/O Memory data bit 0

A

C13 RDQ1_B I/O Memory data bit 1

A

D13 RDQ2_B I/O Memory data bit 2

A

E13 RDQ3_B I/O Memory data bit 3

A

D21 RDQ4_B I/O Memory data bit 4

A

C21 RDQ5_B I/O Memory data bit 5

A

D20 RDQ6_B I/O Memory data bit 6

A

C20 RDQ7_B I/O Memory data bit 7

A

C15 RDQ8_B I/O Memory data bit 8

A

C16 RDQ9_B I/O Memory data bit 9

A

B15 RDQ10_B I/O Memory data bit 10

A

B14 RDQ11_B I/O Memory data bit 11

A

C19 RDQ12_B I/O Memory data bit 12

A

E18 RDQ13_B I/O Memory data bit 13

A

E19 RDQ14_B I/O Memory data bit 14

A

D18 RDQ15_B I/O Memory data bit 15

A

B16 RDQM0_B O Memory data mask bit 0

A

A15 RDQM1_B O Memory data mask bit 1

A

D16 RDQS0_B I/O Memory positive data strobe bit 0

A

E16 RDQS0_B I/O Memory negative data strobe bit 0

A

D17 RDQS1_B I/O Memory positive data strobe bit 1

A

C17 RDQS1__B I/O Memory negative data strobe bit 1

A

D10 RODT_B O Memory on die termination enable

A

E11 RRAS__B O Memory row address strobe

Y18 RVREF0_B I Memory VREF

A

A12 RWE__B O Memory write enable

A

E7 RRESET_B O Memory reset

MISC

Multiple function:
(1) HDMI CEC
(2) GPIO
(3) JTAG ICE data in

Multiple function:
(1) Serial interface control line
(2) Slave I2C clock

GPIO0 D20

I/O, 5V CEC A19

I/O, 5V

6-7

BDP-BX18/S285/S286

(3) External Interrupt 3
(4) GPIO

Multiple function:
(1) Serial interface data line
(2) Slave I2C clock
(3) External Interrupt 3
(4) GPIO

Multiple function:
(1) Video output DE signal
(2) 2nd RS232 TX
(3) External Interrupt 1
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Speed LED
(7) GPIO

Multiple function:
(1) Audio line input data
(2) 2nd RS232 RX
(3) External Interrrupt 2
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Link LED
(7) GPIO

Multiple function:
(1) Microphone input data
(2) 2nd RS232 TX
(3) External Interrupt 4
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Activity LED
(7) GPIO

Multiple function:
(1) Microphone left-right clock
(2) 2nd RS232 RX
(3) External Interrupt 1
(4) Slave I2C data
(5) PWM control signal output
(6) Ethernet Duplex LED
(7) GPIO

Multiple function:
(1) Microphone input bit clock
(2) 3th RS232 TX
(3) External Interrupt 2
(4) Slave I2C clock
(5) PWM control signal output
(6) Ethernet Speed LED
(7) GPIO

Multiple function:
(1) Microphone input master clock
(2) 3th RS232 RX
(3) External Interrupt 4
(4) Slave I2C data
(5) PWM control signal output
(6) Ethernet Link LED
(7) GPIO

Multiple function:
(1) HDMI I2C Clock
(2) GPIO
(2) JTAG ICE clock

Multiple function:
(1) HDMI I2C Data
(2) GPIO
(3) JTAG ICE mode select

Multiple function:
(1) HDMI Hot Plug
(2) GPIO
(3) JTAG ICE data out

Multiple function:
(1) Infrared input
(2) GPIO

Multiple function:
(1) LCD read strobe
(2) GPIO

E6 RSTI I Front-End Power on reset

V5 ,O/I 02C HTPLG

I/O, 5VIRB22

I/O, 5V LCDRD D22

I/O, 5VHDMISCKB20

I/O, 5VHDMISDB19

I/O, 5V

I/O, 5VGPIO6AB2

GPIO4 AA4

I/O, 5VGPIO7Y6

I/O, 5V GPIO5 AB1

GPIO1E18

I/O, 5VGPIO3AA5

I/O, 5VGPIO2C22

I/O, 5V

6-8

BDP-BX18/S285/S286

K24 OPWRSB I/O, 5V Power Control

A

21 RESET_ I, 5V Power on reset

Reserved for debug-only Uart pins
(1) 1st RS232 RX
(2) T8032 RS232 RX

Reserved for debug-only Uart pins
(1) 1st RS232 TX
(2) T8032 RS232 TX

Multiple function:
(1) VFD clock
(2) GPIO
(3) Slave I2C data
(4) Serial interface data line

Multiple function:
(1) VFD data
(2) GPIO
(4) External Interrupt 3

Multiple function:
(1) VFD strobe
(2) GPIO
(3) Slave I2C clock
(4) Serial interface slave control line

Multiple function:
(1) Serial interface control line
(2) Slave I2C clock
(3) GPIO

Multiple function:
(1) Serial interface data line
(3) Slave I2C data
(4) GPIO

USB

AA3A

VDD33_USB Power 3.3V Analog power for USB

W4

A

VSS33_USB Ground

A

nalog ground for USB

W2 USB_DM_P0

Analo

g

USB port0 differential serial data bus (minus)

W1 USB_DP_P0

Analo

g

USB port0 differential serial data bus (plus)

Y2 USB_DM_P1

A

nalo

g

USB port1 differential serial data bus (minus)

Y1 USB_DP_P1

A

nalo

g

USB port1 differential serial data bus (plus)

V2 USB_DM_P2

A

nalo

g

USB port2 differential serial data bus (minus)

V1 USB_DP_P2

A

nalo

g

USB port2 differential serial data bus (plus)

U3 USB_VRT

A

nalog

USB reference resistor

E-fuse

W7 EFPWRQ Power 2.5V power for E-fuse programming

Ethernet PHY

G9

A

VDD33_LD Power Line driver 3.3V analog power

F9

A

VDD33_COM Power PLL/BG 3.3V analog power

F13

A

VSS33_LD Ground Line driver analog ground

E9

A

VSS33_PLL Ground PLL/BG analog ground

G11

A

VDD12_REC Power

A

DC analog power

F11

A

VSS12_REC Ground

A

DC analog ground

B5 TXVP_0

A

nalog Ethernet TD+

B6 TXVP_1

A

nalog Ethernet RD+

A

5 TXVN_0

A

nalog Ethernet TD-

B7 REXT

A

nalog External reference resistor

A

6 TXVN_1

A

nalog Ethernet RD-

SERVO

F6

A

GND33_1

A

nalog GroundAnalog Ground

K7

A

GND33_2

A

nalog GroundAnalog Ground

F7

A

GND33_3

A

nalog GroundAnalog Ground

H5

A

GND12_1

A

nalog GroundAnalog Ground

H7

A

GND12_2

A

nalog GroundAnalog Ground

A

uxiliary Input

A

lternative Function : Signal Monitoring

K5

A

VDD12_1

A

nalog Power(1.2V) Power Pin

J4

A

VDD12_2

A

nalog Power(1.2V) Power Pin

E3

A

GND33_1

A

nalog Power(3.3V) Power Pin

J6

A

GND33_3

A

nalog Power(3.3V) Power Pin

3.3V LVTTL Frequency selection signal output, or LDD serial
I/O interface data or I2C SDA. The pin is spike-free at

5V-tolerence, power-on stage

Slow slew,

2,4,6,8mA

PDR,

75K pull-up

(3.3V)

I/O, 5VSDAAA2

B23

I/O, 5VSCLAA1

A22

I/O, 5VVDATAA23

I/O, 5V VCLK

I/O, 5VVSTB

I/O, 5VUARXD

I/O, 5VUATXDE20

F19

Analog I/OAUXF5

FECFREQL4

6-9

BDP-BX18/S285/S286

I/O, LDD serial interface command enable. The pin is spike-free at

5V-tolerance, power-on stage.

Slow slew,

2, 4, 6, 8mA

PDR,

75K pull-down (0V)

P3 FEDMO

A

nalog Output Disk motor control output. DAC output.

T1 FEEJECT_ 3.3V LVTTL Eject/stop key input, active low. The pin is spike-free at poweron

I/O, stage.

5V-tolerance,

A

lternate function :

6 mA PDR, General IO.

75K pull-up (3.3V)

R1 FEFG 3.3V LVTTL Motor Hall sensor input. The pin is spike-free at power-on

I/O, stage.

5V-tolerance,

6 mA PDR,

75K pull-up (3.3V)

N1 FEFMO

A

nalog Output Feed motor 1 control. DAC output.

N2 FEFMO2

A

nalog Output Feed motor 2 control. DAC output.

Feed motor 3 control. DAC output.

A

lternative Function : Auxiliary servo input

Feed motor 4 control. DAC output.

A

lternative Function : Auxiliary servo input

H4 FOO

A

nalog Output Focus servo output. PDM output of focus servo compensator.

A

3 FPDOCD

A

nalog Input Laser Power Monitor Input for CD APC / Differential negative input

C4 FPDODVD

A

nalog Input Laser Power Monitor Input for DVD APC / Differential positive input

L2 FEGAINSW1

A

nalog Output Read gain switch. 1

M2 FEGAINSW2

A

nalog Output Read gain switch 2.

L1 FEGAINSW3

A

nalog Output Read gain switch 3.

3.3V LVTTL LDD serial interface data. The pin is spike-free at power-on

I/O, stage. The pin is not allowed to pull-up in circuit layout.

5V-tolerance,

A

lternate function:

2,4,6,8 mA 1. Internal monitored signal output

DR, 75K pulldown (0V)2. General IO

R3 FEGIO1 3.3V LVTTL LDD serial interface CLK. The pin is spike-free at power-on

I/O, stage. The pin is not allowed to pull-up in circuit layout.

5V-tolerance,

A

lternate function:

2,4,6,8 mA 1. Internal monitored signal output

PDR,75K pulldown (0V

)

2. General IO

T3 FEGIO10 3.3V LVTTL PC RS232 serial receive data. The pin is spike-free at poweron

I/O, stage

5V-tolerance,

A

lternate function:

2,4,6,8 mA 1. High speed serial output port. (CLOCK)

PDR, 2. Internal monitored signal output

75K pull-up (3.3V) 3. LED Control Output. Initial “0” Output

4. General IO.

U1 FEGIO11 3.3V LVTTL PC RS232 serial transmit data. The pin is spike-free at poweron

I/O, stage.

5V-tolerance,

A

lternate function:

2,4,6,8 mA 1. High speed serial output port (Data)

PDR, 2. Internal monitored signal output

75K pull-up (3.3V) 3. General IO.

U2 FEGIO3 3.3V LVTTL LED Control Output. Initial 0 Output. The pin is spike-free at

I/O, power-on stage.

5V-tolerance,

A

lternate function : .

2,4,6,8 mA 1. Internal monitored signal output

PDR, 2. General IO

75K pull-down (0V)

R6 FEGIO4

A

nalog Output Read gain switch 4

A

lternate function :

1. LCD serial interface command enable.

2. LCD_DRV: Square wave output for LCD control.

3. Internal monitored signal output

4. General IO.

N5 FEGIO5

A

nalog Output Read gain switch 5

A

lternate function :

1. SIDM

2. LCD serial interface command enable.

3. Internal monitored signal output

4. General IO.

N7 FEGIO6

A

nalog Output Read/Write gain switch 6. The pin is not allowed to pull-up in

circuit layout.

A

lternate function :

1. SIDM

2. LCD serial interface command enable.

3. Internal monitored signal output

4. General IO.

Analog I/ON3 FEFMO3

M3 FEFMO4 Analog I/O

R2 FEGIO0

6-10

BDP-BX18/S285/S286

L3 FECMOD 3.3V LVTTL High frequency modulation mode selection signal output, or

N6 FEGIO7 3.3V LVTTL General IO. The pin is spike-free at power-on stage. The pin is

I/O, not allowed to pull-up in circuit layout.

5V-tolerance,

2,4,6,8 mA

PDR,

75K pull-down (0V)

R5 FEGIO9 3.3V LVTTL General IO. The pin is spike-free at power-on stage.

I/O,

A

lternate function :

5V-tolerance, 1. Internal monitored signal output

2,4,6,8 mA 2. Spoke input.

PDR, 3. Power on reset input, high active.

75K pull-down (0V) 4. General IO.

E4 HAVC

A

nalog Output Decoupling Pin for Reference Voltage of Main and Sub Beams

C3 INA

A

nalog Input Input of Main Beam Signal (A)
B1 INB Analog Input Input of Main Beam Signal (B)
C2 INC

A

nalog Input Input of Main Beam Signal (C)

C1 IND

A

nalog Input Input of Main Beam Signal (D)
E2 INE Analog Input Input of Sub-Beam Signal (E)
E1 INF

A

nalog Input Input of Sub-Beam Signal (F)
D1 ING Analog Input Input of Sub-Beam Signal (G)
D2 INH Analog Input Input of Sub-Beam Signal (H)

Multiplexer Output 1 for Signal Monitoring. The pin is not
allowed to pull-up in circuit layout.

A

lternate function: Internal monitored signal output / General
output.
Multiplexer Output 2 for Signal Monitoring. The pin is not
allowed to pull-up in circuit layout.

A

lternate function: Internal monitored signal output / General
output.
Multiplexer Output 3 for Signal Monitoring. The pin is not
allowed to pull-up in circuit layout.

A

lternate function : Internal monitored signal output / General
output.

3.3V LVTTL High frequency modulation enable signal output, or LDD serial
I/O, interface CLK or I2C SCL. The pin is spike-free at power-on

5V-tolerance, stage

Slow slew,

2, 4, 6, 8mA

PDR,

75K pull-up (3.3V)

G2 RFIN

A

nalog Input Differential Input of AC Coupling RF SUM Signal (Negative)

H2 RFIN2

A

nalog Input Differential Input of AC Coupling RF SUM Signal (Negative)

G11 RFIP

A

nalog Input Differential Input of AC Coupling RF SUM Signal (Positive)

H1 RFIP2 Analog Input Differential Input of AC Coupling RF SUM Signal (Positive)

J3 TLO

A

nalog Output Tilt servo output

3.3V LVTTL Tray_is_in Input, A Logical Low Indicates the Tray is IN. Feedback
I/O, Flag is from Tray Connector. The pin is spike-free at power-on

5V-tolerance, stage

Slow slew,

2, 4, 6, 8mA

PDR,

75K pull-up (3.3V)

3.3V LVTTL Tray_is _out input. A Logical Low Indicates the Tray is OUT.
I/O, Feedback Flag is from Tray Connector. The pin is spike-free

5V-tolerance, at power-on stage

Slow slew,

A

lrenate function:

2, 4, 6, 8mA General IO

PDR,

75K pull-up (3.3V)

P2 FETRAYPWM

A

nalog Output Tray DAC/PWM contol output. Controlled by up.

A

2 TRIN

A

A

nalog Input Input of Tracking Signal (A)

B3 TRINB

A

nalog Input Input of Tracking Signal (B)

A

1 TRINC

A

nalog Output Input of Tracking Signal (C)

B2 TRIND

A

nalog Output Input of Tracking Signal (D)

J2 TRO

A

nalog Output Tracking servo output. PDM output of tracking servo compensator

H3 V14

A

nalog Output Output of Voltage Reference (1.4V)

E5 VDAC0

A

nalog Output Output of General DAC

B4 FVREF

A

nalog Output Output Voltage Reference

C6 VWDC2O

A

nalog Output Output Voltage 2 of Laser Diode Control on APC

A

4 VWDC3O

A

nalog Output Output Voltage 3 of Laser Diode Control on APC

F4 MPXOUT1 Analog Output

Analog Output

F1 MPXOUT3 Analog Output

U4 FETRAYOUT__

MPXOUT2F2

K3 FEOSCEN

T2 FETRAYIN_

6-11E

BDP-BX18/S285/S286

Main function

9 Enter Service Mode

[OPTION 1]

The set disconnect AC, and Push front panel key (

[OPEN/CLOSE] + [PLAY] + [STOP]) and AC IN

The keys will be released if the screen in service mode is displayed on a monitor.

Control via Remote Controller

[OPTION 2]

Connect the set to AC, and wait initialization cycle complete .

POWER ON SET INTO NORMAL MODE. WHEN CROSS MEDIA BAR

APPEAR.

Use Sony BDP remote controller, key in the following SIRCS code.

[DISPLAY] -> [ 0 ] -> [ 2 ] -> [ 1 ] -> [SUBTITLE]

While sending of SIRCS code, wait time between each key code could not send later then 3 second.

If

3 se

cond waiting is exceeded user have to re-key in the SIRCS code.

If SIRCS enter is successful, set will auto boot up. The screen of service mode is

displayed on a monitor.

Control via Remote Controller

SECTION 7

SERVICE MODEVICE MODE

BX18/S185/S186

7-1

Main function

9 Diag

The unit test of the device mounted on the MainBoard.

9 Display Error Log

Error log is displayed.

The displayed logs can be saved in a USB memory.

9 Factory Initialize

Return all of the player setting to their factory defaults.

9 Network

Confirm Wired Network connection.

9 Version Up

The set updates by Update DISC.

9 System Information

System information of the set is displayed.

The Information on a soft version and drive information, etc. is displayed.

9 EMC Test Mode

Not used.

9 Drive

Write Drive OP Data and check drive.

9 HDD Mode

Not used.

BX18/S185/S186

7-2

Function Support List

Service Mode Menu

(Top)

category

Device

BDP6.9G Comment

1

Diag

1

Device Test

1

USB

;

(FRONT ONLY)

2

D/A Converter

;

3

IFCON

*FDP all ON

*

*Show Strings

*

*LED Sequantial ON;*Fan Control ON

*

4

MIC

*

5

MFI

*

6

IPC

*

7

External HDMI

*

8

Transcoder

*

2

Video Test

;

3

Audio Output Test

;

4

Audio Input Test

*

5

Wireless LAN Test

*

6

Mic Test

*

7

HDMI Input Test

*

8

Transcoder Test

*

2

Log

1

Error Log

;

2

HDD Log

*

3

Factory Initialize

;

4 Network;5 Version Up

;

6 System Information;7

EMC Test Mode

*

8

Drive

1OP data write;2Servo Parameter check

S

C

3

Servo Level check

S

C

4S-curve check

S

C

5

Readability check

SC

6

OP Position check

SC

7

OP Check

SC

8Load/Eject Aging modeSC9Spindle control

S

C

10

FA Test mode

SC

9

HDD Mode

1

HDD Info

*

2

Performance Check

*

3

ReAuth HDD

*

4

Format

*

5

Factory Check

*

6

Set Replace Board

*

7

Set Replace HDD

*

8

HDD Spin Down

*

;

Support

*

Not Support

S

C Special Control

BX18/S185/S186

7-

3

Menu

*Service Mode Menu

[1]Diag

[2]Log

[3]Factory Initialize

[4]Network

[5]Version Up

[6]System Information

[7]EMC Test Mode

[8]Drive

[9]HDD Mode

*Service Mode Menu

[1]Diag

[2]Log

[3]Factory Initialize

[4]Network

[5]Version Up

[6]System Information

[7]EMC Test Mode

[8]Drive

[9]HDD Mode

Version Up

n

DISC update

Version Up

n

DISC update

Drive

n

Write Drive OP Data and check drive

Drive

n

Write Drive OP Data and check drive

*Factory Initialize

n

Initialize default setting

*Factory Initialize

n

Initialize default setting

*Log

view Error Log

*Log

view Error Log

Error Log

n

view Error log

Error Log

n

view Error log

*Diag

n

Diag Test

*Diag

n

Diag Test

*Network

n

Network diagnosis for wired

*Network

n

Network diagnosis for wired

Ping

n

confirm Network connection

Ping

n

confirm Network connection

Ifconfig

n

view Network Status

Ifconfig

n

view Network Status

Device Test

n

USB/DAC/IFCon/ test

Device Test

n

USB/DAC/IFCon/ test

Video Test

n

Video Output Test

Video Test

n

Video Output Test

Audio Test

n

Audio Output Test

Audio Test

n

Audio Output Test

Wireless LAN Test

n

Not used

Wireless LAN Test

n

Not used

Audio input Test

n

Not used

Audio input Test

n

Not used

Start Initialize

n

Initialize default setting for BD-Player

Start Initialize

n

Initialize default setting for BD-Player

System Information

n

display System Information

System Information

n

display System Information

EMC Test Mode

n

Not used

EMC Test Mode

n

Not used

Mic Test

n

Not used

Mic Test

n

Not used

HDMI Input test

n

Not used

HDMI Input test

n

Not used

Start Update for BDV

n

Not used

Start Update for BDV

n

Not used

Start Update for BDP

n

Start disc upgrade for BDP

Start Update for BDP

n

Start disc upgrade for BDP

Transcoder test

n

Not used

Transcoder test

n

Not used

HDD Mode

n

Not used

HDD Mode

n

Not used

BX18/S185/S186

7-4

ÿ" ù ù!

*Service Mod

e

Me

n

u

[1] Diag

[2] Log

[

3

] Facto

r

y

In

it

i

aliz

e

[

4

] Ne

t

wo

rk

[

5

] Ve

r

si

on Up

[6] System Information

[7] EMC Test Mode

[

8

]

Drive

[

9

]

HDD mode

H

E

LP : [

DOWN][

EN

T

]

[

(N

UM)]

Outlineæ

Service Mode Top Menu

It selects to each function from here.

output HDMI/Component 480p forcibly.

Operationæ

[1] Select and Activate Diag Menu.

[2] Select and Activate Log Menu,

[3] Select and Activate Factory Initialize Menu.,

[4] Select and Activate Network Menu

[5] Select and Act ivate Version Up

Ô

DISC version Up

Õ

Menu,

[6] Select and Activate System Information Menu.

[7] Select and Activate EMC Test Mode Menu.

(not Used)

[8] Select and Activate Drive Menu.

[9] Select and Acti vate HDD mode.

(not Used)

[UP] Move Up cursor

[DOWN] Move Down cursor

[ENT] Activate

the selected

cursor.

*The cursor is not displayed when i nitial.

Display Hint

(The key in which the present use is possible)

[

1] Diag

BX18/S185/S186

7-5

ðù! (Device Test)

OutlineæThe device carried in the substrate is tested.

(Window 1) Select test category

Operation

æ

[LEFT] [RIGHT] Select Category

[DOWN][ENT] Activate the selected Category.

[RET] Return to Service Top Menu.

(Window 2) Device Test

After “Device Test” selects in wi ndow 1, the device to test is chosen.

Operation:

[LEFT][RIGHT] Select Device

[ENT] Activate and Start Test

[UP] Return to test category selection.

IF select IFCON, Move Up cursor. (see windows 3)

[DOWN] IF select IFCON, Move Up cur sor. ( see window s 3)

[RET] Return to test category selecti on.

>Test category list

Device Test

Video Test

Audio Test

Audio Input Test

(not Used)

Wireless LAN Test

(not Used)

Mic Test

(not Used)

HDMI Input Test

(not Used)

Transcoder Test

(not Used)

>Device Test :Device List

USB Host æUSB Media Check

(Front only)

Only one time.

D/A Converter æDAC write check (non-verificat ion)

IFCON æIFCON Test (see windows 3)

FDP all ON

Show Strings

LED Sequential

FAN Control ON

Fan State (Display)

)4 wodniw ees( kcehc tcennoc CIM :CIM

kcehC etirw/daer IFM :IFM

(not used)

kcehc DI eciveD :CPI

(only used)

kc

ehc noisiveR :IMDH lanretxE

(only used)

noisreV/noisiveR :redocsnarT

(not used)

(wind

o

w

1

)

* Diag

Category:

(

Wi

ndow 2)

* Diag

Category: Device Test

Device:

R

ea

r US

B

M

edia c

hec

k

.

.. O

K

Front USB Media check ... OK

Check

ing.

..

HELP: [RIGHT][UP][ENT][RET]

USB Host

D

e

vice Test

(Wi

n

dow 3)

* D

i

ag

Category: Device Test

Device: IFCON

FD

P all O

N

Sh

ow s

t

r

ings

LE

D S

eq

u

enti

a

l O

N

Fan Control ON

FanState:OFF

HELP: [LEFT][RIGHT][UP][DOWN][ENT][RET]

IFCON

(W

i

ndow 4)

* Diag

Category: Device Test

Device: MIC

M

i

c c

onnect c

he

c

k .

..

OK

Checking...

HELP: [RIGHT][UP][ENT][RET]

BX18/S185/S186

7-6

ðù! (Video Test/ Audio Test)

Outline:

Activate Video Test and Audio Test

(Window 1)Select Video Test Category

Operation:

[ENT] Activate and display Color Bar

[UP][RET] Return to test category selection.

(Window 2)Display Color Bar

Operationæ

[ENT] Return to Select Video Test Category.

(Window3 ) Select Audio Test Category

Operationæ

[ENT] Play TONE Sound/Stop

[UP][RET] Return to Select Audio Test Category

>Video Test:

Color Bar output S terminal & composite & Component & HDMI.

>Audio Test;

TONE sound output ineOut(2ch)&/ SPDIF & HDMI.

(

W

i

n

d

ow 1)

* Diag

Category: Video Test

H

E

LP:

[

U

P][ENT

]

[

RE

T]

(Window 3)

* Diag

Cate

gor

y

:

Audio

T

e

s

t

HELP: [UP][ENT][RET]

[ENT] Show Color Bar

[ENT] Generate TONE Sound

(Window 2)

[ENT]

[ENT]

BX18/S185/S186

7-7

Log Menu

OutlineæDisplay each contents of the log,

(Window 1) select log.

Operation

æ

[1] Activate and Display Error log

[2] Activate and Display Command Log

[UP] Move Up cursor

[DOWN] Move Down cursor

[ENT] Activate the selected cursor.

[RET] Return to Service Top Menu.

(Window 2)

æ

Display HDD Log

.

(Not supported)

Operation

æ

[LEFT] Next Page

[RIGHT] Previous Page

[RET] Return to select log (window 1)

[RED] Write the contents of an error log on a USB memory.

>Log contents

See P16.

**Write the contents of a log on a USB memory**

[RED] is pushed where a USB memory is inserted in a set in log display screen.

Error Log:

“HDD_Text” file is outputted in a USB memory.

(

Window 1)

* Select Log

[2

] HDD L

o

g

HE

LP :

[

D

OWN

]

[E

NT][(

NU

M

)

]

(

W

i

ndow 2)

* HDD Log

0

8

/01/01 00:53:19: [ErrC

od

e:090200023A

0

0]

0

8

/01/01 00

:

53:45: [E

r

rC

od

e:0902000

2

3A

0

0]

08/01/01 00:54:00: [ErrCode:090200023A00]

:

:

[

1

] Er

ror

L

o

g

BX18/S185/S186

7-8

Factory Initialize

ÔWindow 1Õ

* Factory Initialize

[R

ET] R

eturn t

o

To

p M

enu

Outline:

Return all of the player setting to their factory defaults.

(Window 1) select initialize.

Operationæ

When you return a set to the factory defaults, push [1] on this screen.

[ENT] Start Factory I nitialize

[RET] Return to Service Top Menu.

(Window 2)

It is a screen of the end of initial ization.

[RET] Return to Service Top Menu.

Please disconnect AC power supply, and connect AC again.

- The operation of other service mode menu can be continued.

ÔWindow 2Õ

* Factory

I

nitialize

Re

boot t

o co

m

pl

ete.

[RET] Return to Top Menu

HELP : [RET]

[

E

NT] S

tart In

iti

a

li

ze

BX18/S185/S186

7-9

Network Ô0GVYQTM6GUV: +HEQPHKIÕ

(

Window 1)

* Network

Test: Ping

Outlineæ

Network Menu for the wired Ethernet.

(Window1)Ifconfig Test

Operationæ

[ENT] Activate Ifconfig

Ô

Display network setting

Õ

[RIGHT] Select Ping Test.

[RET] Return to Service Top Menu.

(Window 2)Ping Test

Operation:

[LEFT] Select Ifconfig Test.

[RET] Retur n to Servi ce Top Menu.

(The details of a Ping test are nest page)

(Window 3)Ifconfig Test Active

Display Ifconfig command results.

Operation

:

[ENT] Ifconfig retry

[RIGHT] Select Ping Test.

[RET] Retur n to Servi ce Top Menu.

(W

ind

ow

2

)

* Network

Test: Ifconfig

Ping To :

[START]

Ping To :

Ping

Ifcon

f

i

g

(Window 3)

*

N

etw

o

rk

Test: Ping

IP 1

9

2.16

8

.11

.

2 MA

C

00

-

16-0

1

-85

-

21-A

3

H

E

L

P

:

[ENT]:

R

e

/Ex

e [RIGHT]

Ifconf

ig

BX18/S185/S186

7-10

Network Ô0GVYQTM6GUV: 2KPIÕ

OutlineæPing Test for the wired Ethernet.

(Window 1)Ping Test

Operation:

[LEFT] Select Ifconf ig Test.

[DOWN] Ping execution preparation.

[RET] Return to Service Top Menu.

(Window 2) The IP address of the Ping point is set up.

Ô

IP address input mode

Õ

When “Ping to :>” is reversed, [ ENT] is pushed and IP is inputted.

Operation:

[ENT] Finish to input.

[RET] Fin i sh to input.

[LEFT] Finish to input and Select Ifconfig Test.

[(NUM)] Input Character sting ‘0-9’

[TIME] Input Character sting ’.’

[CLEAR] Backspace

(Windows3): Ping Test Active

When [START] is reversed, [ENT] is pushed and execute ping .

Operation:

[ENT] Activate Ping Test

[UP] The IP address of the Ping point is set up.

[RET] Return to Service Top Menu.

(Window 1)* Network

Test: Ifconfig

Pi

ng To

:

[ST

A

R

T]

P

i

ng T

o

:

Ping

(Window 2)

* Network

T

est: I

f

c

onf

ig

Ping To

:

[ENT]

:

Release

[RET] : Release

[LEFT] : Ifconfig Test

[(NUM)]: ‘0-9’

[TIME] : ‘.’

[

C

LEAR

]

:

Bac

kspace

Ping To :> 192.168.200.13

P

in

g

(Windo

w

3

)

* Network

Tes

t

: Ifconfig

Ping To : 192.168.200.13

P

I

N

G

19

2.

168

.

2

0

0

.1

3 O

K

!

[HELP

]

: [ENT]:Star

t [

UP][LEFT]

Pi

ng

[START]

BX18/S185/S186

7-11

Version Up ÔWUKPI7RFCVG&+5%Õ

(Window 1)

* Version Update

[

1] S

t

ar

t U

p

d

ate fo

r BD

P

[

2] S

t

ar

t U

p

d

ate fo

r BD

V

[RET] Return to Top Menu

HELP : [ENT][RET][(NUM)]

Outline:

update software using DISC

(Window 1)Version Up Menu

Operation:

[1] Start Update for BDP

È

(Tray Open and go to window 2)

[2] Start Update for BDV

(not used)

[UP] Move Up cursor

[DOWN] Move Down cursor

[ENT] Activate the selected cur sor.

[RET] Return to Service Top Menu.

(Window 2)Place the Update Disc

Operationæ

[ENT] Tray Close and check DISC.

[RET] Cancel Update (Tray Close and return to w indow 1)

(Window 3) Disc Check and OK (Right DISC)

Operation

: start update sequence automatically and reboot.

After reboot, please open tray and eject Update Disc manuall y.

(Window 4) Disc Check and NG (not update DISC)

Operation:

[Error]

///Ô

error message

Õ

and wait.

open tray automatically.

(Window 2)* Versio

n

Update

Insert update DISC ...

[E

N

T

]

Tray Clo

s

e

an

d Check s

tar

t

[RET] Cancel

HEL

P: [E

NT][RET

]

(Window 3)

* Ver

si

o

n

Update

Now, mounting and checking... OK

(Windo

w

4)

* Vers

i

on Update

Inse

r

t update DISC

.

..

[ENT] Tray Close and Check start

[RET] Cancel

[Erro

r] C

annot mo

u

n

t t

his DIS

C!

HELP: [ENT][RET]

BX18/S185/S186

7-12

System Information

Outline:

Display System Information

(Window 1)Basic Information Menu

Operation:

[RIGHT] Drive Information (delta IOP of a drive is measured ) and

Wireless device Informat ion (only wireless model)

displayed. (go to window 2)

[RET] Retur n to Servi ce Top Menu.

(Window 2)Drive and Wireless Information Menu

Operation:

[LEFT] Basic Information displayed. (go to window 1)

[RET] Retur n to Servi ce Top Menu.

When delta IOP is measured, it becomes impossible to use the Version Up function.

Contents List:

Model

Destination

Sequence Number

MAC

IP

IFCON IFCON Version

Bootloader Bootloader Vers

ion

Host Main Host Main Version

Host Sub Host Sub Version

Middleware Middleware Version

WLAN module Serial

(only wireless model)

WLAN module hw version

(only wireless model)

WLAN module MAC Address

(only wireless model)

Drive Firm Revision

CD DIOP Delta IOP

DVD DIOP Delta IOP

BD DIOP Delta IOP

CD LD TIME LD Time

DVD LD TIME LD Time

BD LD TIME LD Time

(Wi

n

dow 1)

* System Information

Model : BDP6G-A1

Destination : US

Sequence Number : *********

Mac : 00-1a-80-d0-47-65

IP : 192.168.102.32

IF–con Block0 version;0x86, Block1 version:0x0*

Bootloader version:**

Host Main version:M03.R.***

Host Sub version:2009******

Middleware version:****

HELP: [RET][RIGHT]

(Window 2)

* System Information

WLAN module Serial:201011300000335

WLAN module hw version:04

WLAN module MAC Address:00:1a:80:d0:47:65

Drive Firm Version: FG1910

CD DIOP:0x****

DVD DIOP:0x****

BD DIOP:0x****

CD LD TIME 0x****************

DVD LD TIME 0x****************

BD LD TIME 0x****************

HELP: [RET][LEFT]

BX18/S185/S186

7-13

Drive Test

Outlineæ

Activate Drive test

(Window 1) Select Drive test categor y

Operationæ

[LEFT] [RIGHT] Select Category

[DOWN][ENT] Activate the selected Category.

[RET] Return to Service Top Menu.

[1] Drive OP data Write

[2] Servo Parameter Check Menu

(Not Used)

[3] Servo Signal Check Menu

(Not Used)

[4] S-Curve Check Menu

(Not Used)

[5] Readability Check Menu

(Not Used)

[6] OP Position Check Menu

(Not Used)

[7] OP Check Menu

(Not Used)

[8] Load Eject Aging

(Not Used)

[9] Spindle Control Check Menu

(Not Used)

[10] FA Test Mode

(Not Used)

(Window 2) To start OP data Write

Operation :

[E

NT] S

tart

(Window 3) Show OP data Write result

Operation :

NG - USB is not find

NG – File(Budata.txt) is not find

OK – OP data write

>Drive Test:

For drive operating check. Service is only use Drive OP data wr ite to re wr ite

OP data after change of new OPU.

(

window 1)

* Diag

[1] Drive OP data Write

[2] Ser

v

o

Pa

rameter

Chec

k Menu

[3] Se

rv

o

Si

gnal

C

h

eck M

en

u

[4] S-

Curv

e

C

hec

k

M

enu

[5] Readability Check Menu

[6] OP Position Check Menu

[7]

OP Che

c

k

Men

u

[8

]

Load E

j

e

c

t Aging

[9] Spindle Control Check Menu

[10] FA Test Mode

He

lp: [UP

][D

O

WN

][ENT

][

R

ET]

[(

N

U

M

)]

(Wi

n

d

ow 2)

* D

r

i

ve O

P

d

ata W

ri

t

e

Insert USB StorageDevice . . .

R

e

mov

e

DISC a

n

d

C

lose tra

y

.

[ENT] Start

HELP: ENT][RET]

(

W

indow 3

)

*

D

ri

ve

O

P dat

a

W

r

ite

In

s

ert USB S

t

orageDevi

c

e .

.

.

R

emove DISC and Close tray

.

[ENT] S

t

ar

t

NG – US

B is n

ot fin

d

NG – File(Budata.txt) is not find

OK – OP data write

HE

L

P: ENT][RET]

BX18/S185/S186

7-14E

Error Log Information

Categ ory ErrorC ode ErrorInfo_0 ErrorInfo_ 1 ErrorInf o_2 ErrorInfo_3

CXD 90007 E rror 0x01

20x0rorrE 3RDD

Ifcon transmi tion time out 0x03 0x 01 0x00 0x00 0x00 0x 00 N o res pons e from Ifcon

30x0rorrE nocfI Other Error

eliaf noitazilaitini DNAN00x000x000x000x000x040x0liaF tinI DNAN d

NA N D F las h rea d Error 0x04 Other Error

evird lacitpo tceted tonnaC10x060x0rorrE EVIRD

detcennocsid elbac ATAS20x060x0rorrE EVIRD

RORRE FI ATAS30x060x0ror

rE EVIRD

60x0rorrE EVIRD Oth

er Error

hgih oot si erutarepmeT00x000x000x010x010x070x0rorre naF

etats naf egnahc ton naC00x000x000x020x010x070x0rorre naF

rre noitazilaitini eludom00x000x000x000x010x080x0rorrE tenrehtE or

rorrE kniL00x000x000x000x020x080x0rorrE tenrehtE

rorre daer csiD10x090x0CSID LACITPO - AIDEM

rorre daer sdnammoc rehtOdmC20x090x0CSID LACITPO - AIDEM

USB medi a read error 0x0A 0x01 0x1 0x 1 0x00 0x00

Er

rorInfo_ 0: LUN num ber

ErrorInfo_1: LB A a dd res s

USB medi a w rite error 0x 0A 0x02 0x 1 0 x1 0x00 0x00

ErrorInfo_0: LU N number

ErrorInfo_1: LB A a dd res s

Unsu pported U SB dev ice 0x0A 0xFF 0x 1 0x1 0x1 0x1

ErrorInfo_0: D ev ice Cl ass

ErrorInfo_1: bDevi ceSubClas s

ErrorInfo_2: bDevi ceProtocol

ErrorInfo_3: bNumConfi gurations

A0x0rorre BSU Other Error

Error Se ns e Key

Error Code

Error Code

SCR Diag F ie ld(Sim ul taneous error)

0x**

is sue

Error Log Code

note

Read E rror LB A

0

x**

0x**

0x**

0x**

0x**

BX18/S185/S186

8-1

SECTION 8

ERROR LOG LIST

History

ver 0.10 2011.06.21 Manaka/Kong First release

BX18/S185/S186

8-2E

9-1

SECTION 9

TROUBLESHOOTING

Main Flow ............................................................................... 9-2

Power (System) Flow ............................................................. 9-3

Audio section flowchart........................................................... 9-4

Video section flowchart ........................................................... 9-5

FR-316 Board flowchart ......................................................... 9-6

Drive flowchart

........................................................................

9-9

Ethernet flowchart................................................................... 9-10

USB (Front) Device Flow........................................................ 9-11E

Remote does not operate....................................................... 9-7

BDP-BX18/S185/S186

White LED

..............................................................................

9-8

9-2

Main Flowchart

No No

Yes Yes

No

Yes

Yes

No

Yes

No No No

Yes Yes Yes

No

Yes Yes

No

Yes

No No

Yes Yes

No

Yes

Power ON by power switch on front or remote

control.

Has system reset (CPU_XRST) been

cancelled?

Measurement point JL1018

To Video section flowchart

Start (and return from each flowchart)

Approximately 10 seconds after the AC is

applied, the WAIT display flashes several

times and the power is turned OFF

automatically.

Are the power supply voltages on the MB

board normal?

To Power Supply (System) flowchart.

END

Replace the MB board.

To Drive flowchart

BU Adjustment Flow [yy] ~ After BU/MB

Replacement ~

To Drive flowchart

To FL/FR board flowchart

Check the parts and mounting around X401.

Replace the MB board.

To Drive flowchart

BU Adjustment Flow [yy] ~ After BU/MB

Replacement ~

Is OPEN or CLOSE displayed on the

fluorescent tube?

Is there any problem in the FFC connection to

CN2470 which connects the drives?

To FR board flowchart

Is XMB or the SETUP screen displayed on the

video output screen?

Do the up, down, left, and right arrow keys of

the remote control permit operations on the

XMB?

Is the main clock (X401) oscillating properly at

27 MHz?

Check the flexible cable of the drive.

Are CN2470,CN2462 or CN1401

disconnected?

Check the connections of the connectors.

If there is no improvement, replace the MB

board.

To Drive flowchart

BU Adjustment Flow [yy] ~ After BU/MB

Replacement ~

SYS ERR display appears on fluorescent tube.

To Drive flowchart

Is the sound reproduced properly when a BD,

DVD, or other disc is played?

To Audio section flowchart

Is the picture reproduced properly when a BD,

DVD, or other disc is played?

To Video section flowchart

Are BD, DVD, or other discs that are loaded on

the drive recognized correctly?

BDP-BX18/S185/ S186

9-3

Power (System) Flow

AC IN

Check the output voltages from the power

supply block.

CN201 pin 1: +12V (UNSW12V)

CN201 pin 2: +12V (UNSW12V)

CN201 pin 3: +12V (FE_UNSW12V)

-

-

No

Yes

Check the fuses

Have any of the below fuses blown?

No

MB board: PS301,

PS302

Yes

Check the following power control signals

while the power is ON

PCONT_CORE: MB board R327

PCONT2: MB board

R1236

PCONT3: MB board

R305,R307,R309,R343

ATA_PCONT: MB board R376

Yes

Check the voltages based on the schematic

diagram

No

Voltage lines that are not output are shorted

to GND

No

Failure of power supply IC -> Replace the IC

Replace the MB board if there is no improvement

Check that the harness has been inserted

properly. If there is no problem, replace the

power supply block.

Replace blown fuses

Replace the MB board if there is no

improvement

BDP-BX18/S185/S186

BDP-BX18/S185/S186

9-4

Audio section flowchart

Audio does not sound right

No

Video is output properly

No

To Video section flowchart

To Main flowchart

Yes

Is the drive operating properly?

No

To Drive flowchart

Yes

Is each power supply supplied to the AUDIO

Block?

No

To Power Supply (System) flowchart

IC306 pin3:

3.3V

Yes

Only Analog 2ch L/R Audio affected?

No Only Digital Audio (HDMI,

Coax)

affected?

No

Replace the MB board

Yes

Yes

Is there HDMI output?

No

Replace the MB board

Is there Coaxial output?

Is there audio system digital signal input to

IC902?

IC902 pin1: A

LO_R

IC902 pin10:ARO_R

No

Replace the MB board

Yes

Are control signals input to IC902?

IC902pin7: MUTE

No

Replace the MB board

Yes

Is there a problem with mount condition of

IC902

No

Replace IC902 or replace MB board

Check output resistor/capasitors

(R922,R923,C920,C918)

No

9-5

Video section flowchart

Reproduced video does not appear right

Yes

Is the FL display/LED display correct?

No

To Main flowchart

Yes

Is the drive operating properly?

No

To Drive flowchart

Yes

Check the input power

No

IC101 pin D16 & E16 : +3.3V

Yes

Is a video signal output from IC101

?

No

Check the writing from IC101

Yes

Is a signal output from each Video output

connector?

No

Check output inductors (L902)

BDP-BX18/S185/S186

To Power (System) flowchart

Pin B18 : VDACX_OUT

IC101 pin D12 : +3.3V

Check output resistors (R920)

Key1 does not operate

Is there voltage of about 3.3V at pin

of

CN701 without

p

ressin

g

the ke

y

s?

No

Yes

Check the potential voltage CN701

pin3 change from +3.3V to near 0V

when pressing the stop button.

9-6

BDP-BX18/S185/S186

FR-316 IF board flow chart

Does symptom improve when replace

FR-316

board?

Yes

Which row of keys do not operate?

STOP buttons -> Key1 does not operate

Reference: Relationship of Buttons and Voltages

OPEN/CLOSE button ->

Key2 does not operate

PLAY button -> Key3 does not operate

Input

2.90-3.30

0.00-0.40

KEY0

Key_OFF

POWER

KEY1

Key_OFF

STOP

KEY2

Key_OFF

OPEN/CLOSE

KEY3

Key_OFF

PLAY

Reconnect FFC, if symtoms

donot improve, replace

FFC

Does FFC disconnected

CN702 or broken

from

Yes

No

Disconnected FFC or

FR-316

board

replace

Reconnect FFC, if symtoms

do not improve, replace

FFC

Does FFC disconnected

CN701 or broken

from

Yes

Check IC101,

B23

Check pattern and S701

might be broken

Yes

Is there voltage of about 3.3V at pin 2

of CN701 without

p

ressin

g

the ke

y

s?

Yes

Check the potential voltage CN702

pin2 change from +3.3V to near 0V

when pressing the stop button.

Disconnected FFC or

FR-316

board

replace

Reconnect FFC, if symtoms

do not improve, replace

FFC

Does FFC disconnected

CN701 or broken

from

Yes

No

Check pattern and S702

might be broken

Yes

Key2 does not operate

Is there voltage of about 3.3V at pin 2

of CN701 without

p

ressin

g

the ke

y

s?

Check IC101

Yes

Check the potential voltage CN701

pin2 change from +3.3V to near 0V

when pressing the stop button.

Disconnected FFC or

FR-316 board

replace

Reconnect FFC, if symtoms

do not improve, replace

FFC

Does harness disconnected

CN701 or broken

from

Yes

No

Check pattern and S701

might be broken

Yes

Key0 does not operate

No

No

No

No

CHECK IC101

button ->

Key0 does not operatePOWER

Is there voltage of about 3.3V at pin 2

of CN701 without

p

ressin

g

the ke

y

s?

Yes

Check the potential voltage CN702

pin2 change from +3.3V to near 0V

when pressing the stop button.

Disconnected FFC or

FR-316 board

replace

Reconnect FFC, if symtoms

do not improve, replace

FFC

Does harness disconnected

CN701 or broken

from

Yes

No

Check pattern and S703

might be broken

Yes

Key3 does not operate

No

Check IC101,

A23

No

Check IC101,

A22

9-7

BDP-BX18/S185/S186

Remote control does not operate

Check of +3.3V voltage at IC710 pin1?

No

(MB board)

No

To Power supply flow chart

Yes

No

Check FFC disconnected from

CN701 or broken?

Yes

To IFcon section flowchart

Check of appearance waveform during

pressing remote control at IC703 pin2

No

Yes

Check of +3.3V voltage at CN1002 pin 3?

Check of +3.3V voltage at CN701 pin 2?

No

Replace FFC

If symptoms do not improve,

Change FR board

Check of appearance waveform during

pressing remote control at CN1002

pin3 (MB board)

Yes

Yes

Change IF Board

No

Check of appearance waveform

during pressing remote control

at CN701 pin3

No

Replace IC1002

If symptoms do not improve,

Change IF board

Check pattern along SIRCS line

If symptom do not improve,

Change IF board

Check FFC disconnected from

CN701 or broken?

No

Reconnect

FFC

If symptoms do not improve,

Change FFC

Yes

Yes

Change FR Board

Yes

Check pattern around IC710

If symptom do not improve,

Change IF board

White LED does not light

Yes

Is there voltage of about 3.3V voltage at

Base Q720?

No

Yes

Check +5V voltage at CN1002 pin9?

No

Yes

Check if FFC broken or disconnected from CN701

No

Yes

Reconnect FFC. If symptoms do not improve,

replace FFC

Check of +3.3V voltage at CN701 pin1?

No

Yes

Yes

Yes

Replace IF Board.

No

Chech IC101 AA5

Check pattern around CN1002 of MB Board.

If symptoms do not improve, replace MB board.

9-8

BDP-BX18/S185/S186

Check +5V voltage at CN701 pin9?

Check if FFC broken or disconnected from CN701

Yes

Reconnect FFC. If symptoms do not improve,

replace FFC

Check of +3.3V voltage at R720?

No

Replace R720. If symptoms do not improve,

replace FR board

Check polarity of D720(LED)

Is reverse polarity occurs?

No

Check pattern around D720(LED),

If symptoms do not improve, change IF board.

Replace D720. If symptoms do not improve,

replace IF board

Check pattern around D720(LED),If symptoms

do not improves, change IF board

Replace Q720. If symptoms do not improve,

replace IF board

Is there voltage of about 3.3V voltage at

Collector Q720?

Check polarity of D720(LED)

Is reverse polarity occurs?

Replace D720

If symptoms do not improve, change IF board

Yes

Yes

No

No

No

9-9

Optical Block Unit (BU) IOP check flow (zz) ~ [Before BU Replacement] Optical Block Unit (BU) OP Data Write Flow (yy) ~ [After BU/MB Replacement]

BDP-S185 can play the BD-disc

BLX-104

BDP-S185 can play the DVD/CD-disc

Check Drive Power Supply

CN301 Pin 3: 12V /

IC309 P

in 1: 5V

Check PS301, PS302

Replace PS when open

Check / replace the FFC cable, then check

BDP-S

185 operates normally

OPT-001

F

FC cable (1-838-615-11)

SPD-001 FFC cable (1-838-617-11)

Check the Optical Block Unit (BU) by

service mode. (Flowchart zz)

BU IOP is OK?

Replace the Optical Block Unit (BU)

Optical Block Unit (BU) replace

(Flowchart yy)

OK

Optical Block or BU no problem

DVD: HLX-513

CD: HLX-A1

NO

YES

NO

YES

YES

NO

NO

YES

NO

YES

Enter Service Mode

Press

<OPEN/CLOSE>., <PLAY>,<STOP>

and plug in AC Power

Inside *Service Mode Menu

Select [8] Drive

Inside *Drive

Select [7] OP Check Menu

Inside *OP Check Menu

Select [2] dIOP then press 'ENTER'

Specification dIOP

BD: 6mA

DVD, CD: 9mA

IOP out of specification need BU

replacement

Optical Block Unit (BU) replace

(Flowchart yy)

AC Power OFF

NO

YES

Remove the defective BU from Loading

Assy and also remove BU insulator (4pcs)

Unpack new BU and take OP Data

Barcode photo by camera

Assemble BU with Insulators to Loading

Assy (tighten screw with 2kgf)

Decode the OP Data Barcode photo using

BDPRdec.exe

and save the test data to

USB memory

(File Name: BuData.txt)

Enter Service Mode and insert USB

memory to USB connector

Select [8] Drive -->

Select [1] Drive OP data Write

Press ENTER

After Finishing ReWrite OP data

--> Turn AC Power OFF

And confirm dIOP by select [7] OP Check

Menu to verify IOP in specification

IOP in specification --> Turn AC Power

OFF

Turn Power ON and check playback

performance using BD, DVD and CD

BLX-104

DVD: HLX-513

CD: HLX-A1

The following cases need OP Data Write:

(1) Replace BU (MB is original)

(2) Replace MB (BU is original)

(3) Replace both BU and MB

JIG requirement

Digital camera (with macro mode)

Barcode decoder (BDPRdec.exe)

installed in jig

PC's (jig purpose)

USB memory

ESD free work bench

l

Drive flowchart

-

+

-

+

BDP-BX18/S185/ S186

Ethernet flowchart

Cannot connect with the network, cannot

update through the network

Is the LAN cable plugged in properly?

No

Plug in the LAN cable firmly

Yes

Is the LED of the hub router lit?

(LINK LED)

No

Is power supplied to the MB board?

No

To Power Supply (System) flowchart

Yes Yes

Replace the MB board.

Are the network settings of the menu

correct?

No

Make the correct network settings.

Yes

Replace the MB board

9-10

BDP-BX18/S185/S186

USB (Front) Device Flow

USB device is not reco

g

nized

Insert the USB device again.

Is it recognized when the power is

turned OFF and then ON again?

No

Is 5V present at CN201(FR-316)

board

) pin1?

No Is 5V present at

CN1002

(MB board) Pin 12 or pin 13?

No

Is 5V present at C601 pin1

(MB board)?

No

Power supply IC310 (MB board -

defective

Yes Yes Yes Yes

Poor contact of the USB device

Defective FFC between the IF

board and the MB board.

Does replacing IC601(MB board)

improve the symptoms?

No Replace the MB board

Yes

Replace the FFC between th

e

MB board and the IF board.

Do the symptoms improve?

No Replace the MB board. IC601 (MB board) defective

Yes

Defective FFC between the IF

board and the MB board

9-11E

BDP-BX18/S185/S186

BDP-BX18/ S185/S186

10-1

SECTION 10

REPAIR PARTS LIST

The components identified by mark or dotted
line with mark

are critical for safety.

Replace only with part number specified.
Les composants identifiés par une marque

sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.

The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

Les composants identifiés par la marque

con­tiennent des informations confidentielles.
Suivre scrupuleusement l es instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.

10-1. EXPLODED VIEWS

NOITCES ESAC .1-1-01

NOTE:

-XX and -X mean standardized parts, so they
may have som e difference from the original
one.

Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)

Parts Color Cabinet’s Color

Items marked “*” are not stocked since they

are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

The mechanical parts with no reference number

in the exploded views are not supplied.

Accessories and packing materials are given in

the last of the electrical parts list.

Ref. No. Part No. Description Remark

Ab breviation
AEP : AEP Model
AR : Argentina Model
AUS : Australia New Zealand Model
BR : Brazilia n Model
CND : Canadian Model
E : Latin America Model
EA : Middle East Model
IN : India Model

AEP : AEP

Model

RUS : Russia n Model

CND : Canadian Model

CN : China Model
US : USA Model
UK : UK Model

AU

S

: Australia/NZ Model

1
1
1

2
2

3

5
5

ns

ns: not supplied

4

X-2582-717-1 PANEL ASSY, TOP (BDP-S185:US,CND)
X-2582-020-1 PANEL ASSY, TOP (BDP-S185:AEP,CN,RUS,UK-)
X-2582-812-1 PANEL ASSY, TOP (BDP-S186)

X-2582-811-1 COVER TRAY ASSY (BDP-S186)
X-2582-128-1 COVER TRAY ASSY (BDP-S185/BX18)

3-077-331-21 +BV3 (3-CR)
3-077-331-41 +BV3 (3-CR)
A-1844-234-A SERVICE ASSY, FR (BDP-S185/BX18)
A-1848-283-A SERVICE ASSY, FR (BDP-S186)

3

3

3

1

X-2582-612-1 PANEL ASSY, TOP (BDP-BX18)

4

3

5

2

1

BDP-BX18 /

S185/S186

10-1-2. MAIN CHASSIS SECTION

Ref. No. Part No.

Description

Remark

The components identified by mark

or dotted line with mark are
critical for safety.
Replace only w ith part number
specified.

Les composants identifiés par une
marque

sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

103

101

102

104

10-2

not supplied

101
103

102
102

102
102

102

104
104
104
104
104
104

105
105
105

3-077-331-21 +BV3 (3-CR)
A-1750-926-B LOADING FOR SERVICE

A-1844-233-A SERVICE ASSY, MB

(BDP-S186)

A-1844-260-A SERVICE ASSY, MB

(BDP-S185:US/BX18:US)

A-1844-269-A SERVICE ASSY, MB

(BDP-S185:CND/BX18:CND)

A-1845-241-A SERVICE ASSY, MB

(BDP-S185:RUS)

A-1845-267-A SERVICE ASSY, MB

(BDP-S185:CN)

A-1845-262-A SERVICE ASSY, MB

(BDP-S185:AUS)

A-1844-233-A SERVICE ASSY, MB

(BDP-S1

85:AEP,UK/S186)

1-839-443-11 POWER-SUPPLY CORD

(BDP-S186)

1-839-445-11 POWER-SUPPLY CORD

(BDP-S185:US,CND/BX18:US,CND)

1-839-443-11 POWER-SUPPLY CORD

(BDP-S185:AEP,RUS)

1-839-446-11 POWER-SUPPLY CORD

(BDP-S185:CN)

1-839-447-11 POWER-SUPPLY CORD

(BDP-S185:AUS)

1-839-444-11 POWER-SUPPLY CORD

(BDP-S185:UK)

1-474-364-11 SWITCHING REGULATOR

(BDP-S185:US,CND/BX18:US,CND)

1-474-363-11 SWITCHING REGULATOR

(BDP-S185:AEP,AUS,RUS,U

K/S186)

1-474-365-11 SWITCHING REGULATOR

(BDP-S185:CN)

102

102

105

101

10-3

BDP-BX18/S185/S186

NOITCES DB .3-1-01

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 A-1750-926-B LOADING FOR SERVICE
152 4-167-321-01 HOLDER, FFC (RIGHT)
153 3-087-053-11 +BVTP2.6 (3CR)

154

155 DEVICE,OPTICAL KEM-470AAA/C2RP

151

152

156

155

not supplied

not supplied

not supplied

not supplied

not supplied

not supplied

153

The components identified by mark

or dotted line with mark are
critical for safety.
Replace only with part number
specified.

Les composants identifiés par une
marque

sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

157

154

156
157

8-820-445-04

1-839-259-11 FLEXIBLE FLAT CABLE (LDG-003)

1-839-257-11

FLEXIBLE FLAT CABLE (OPT-003)

1-839-258-11

FLEXIBLE FLAT CABLE (SPD-003)

BDP-BX18/S185/S186

10-4

Part No.

Part Description

Rema r ks

The components identified by mark

or dotted line with mark

are
critical for safety.
Replac e only with p art number
specified.

Les composants identifiés par une
marque

sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

10-1-4. ACCESSORIES

152

150

Audio/Video Cable (Phono Plug x3)

151

HDMI Cable

/

/

Y

T

PAUSE

STOP

PLAY

II

I

Remote Commander

4-290-281-11 MANUAL, INSTRUCTION

(BDP-S185:US,CND/BX18)

(ENGLISH)

4-290-281-21 MANUAL, INSTRUCTION

(BDP-S185:CND/BX18:CND)

(FRENCH)

4-290-281-31 MANUAL, INSTRUCTION

(BDP-S185:CN)

(CHINESE SIMPLIFIED)

4-290-282-21 MANUAL, INSTRUCTION

(BDP-S185:AE1/S186:AE1)

(FRENCH)

4-290-282-31 MANUAL, INSTRUCTION

(BDP-S185:AE1/S186:AE1)

(GERMAN)

4-290-282-41 MANUAL, INSTRUCTION

(BDP-S185:AE1/S186:AE1)

(ITALIAN)

4-290-282-51 MANUAL, INSTRUCTION

(BDP-S185:AE1/S186:AE1)

(DUTCH)

4-290-283-11 MANUAL, INSTRUCTION

(BDP-S185:AE2/S186:AE2)

(SPANISH)

4-290-283-21 MANUAL, INSTRUCTION

(BDP-S185:AE2/S186:AE2)

(PORTUGUESE)

4-290-283-31 MANUAL, INSTRUCTION

(BDP-S185:AE2/S186:AE2)

(SWEDISH)

4-290-283-41 MANUAL, INSTRUCTION

(BDP-S185:AE2/S186:AE2)

(DANISH)

4-290-283-51 MANUAL, INSTRUCTION

(BDP-S185:AE2/S186:AE2)

(FINNISH)

4-290-283-61 MANUAL, INSTRUCTION

(BDP-S185:RUS)

(RUSSIAN)

4-290-283-71 MANUAL, INSTRUCTION

(BDP-S185:RUS)

1-474-364-11 SWITCHING REGULATOR (BDP-S185:US,CND/BX18)

1-474-363-11 SWITCHING REGULATOR (BDP-S185:AEP,UK,RUS,AUS)

1-489-401-11 REMOTE COMMANDER (RMT-B109C) (BDP-S185:CN)
1-489-959-11 REMOTE COMMANDER (RMT-B118A) (BDP-S185:US,CND/BX18)
1-489-960-11 REMOTE COMMANDER (RMT-B118P) (BDP-S185:AUS,AEP,UK,RUS/S186)

1-837-797-21

CORD, CONNECTION (AV)

1-834-169-22

CORD, CONNECTION (HDMI CABLE)

(BDP-S185:CN)

150
151

152
152
152

*
*
*
*
*

*
*
*
*

*

*
*

*

*

4-290-282-11 MANUAL, INSTRUCTION

(BDP-S185:UK,AUS)

(ENGLISH)

*

(UKRAINIAN)

1-474-365-11 SWITCHING REGULATOR (BDP-S185:CN)

BDP-BX18/S185/S186

10-5

NOTE:

Due to standardization, replacements in the

used on the set.

-XX and -X mean standardized parts, so
original one.

RESISTORS
All resistors are in ohms.

Not all of the parts for SWITCHING
REGULATOR are l i sted.
Items marked * are not st ocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these i tems.
SEMICONDUCTORS
In each case, u: µ, for example:

uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
CAPACITORS
uF: µF
COILS
uH: µH

Abbrevi ation

AEP : AEP Model

AUS : Australia New Zealand Model
CND : Canadi an Model

8-2. ELECTRICAL PARTS LIST

RUS : Russian Model

CN : China Model

US : USA Model
UK : UK Model

or dot ted line with mark are critical
for safety.
Replace only with part number

When indicating parts by reference
number, please include the b oard.

Strictly follow the instructions
whenever the component s are repaired
and/or replaced.

A-1844-234-A SERVICE ASSY,FR

(BDPS185/BX18)

* * * * * * * * * * * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** *

Re f - N o. P art N o. Part Description E

< C APAS ITO R >
C 7 1 2 1 -1 62 -9 7 0- 9 1 CER AMIC C HIP 0 .0 1UF 10 .00 % 25V
C 7 1 1 1 -1 00 - 90 9 -1 1 CERAM IC CH IP 10 UF 10% 6 .3V
C 2 0 1 1 -1 1 2 -2 98 -9 1 CER AMIC CHIP 1UF 10% 16V
C 2 0 2 1 -1 62 -9 1 0- 9 1 CERA MIC CHI P 5PF 0.2 5PF 5 0V
C 2 0 3 1 -1 62 -9 1 0- 9 1 CERA MIC CHI P 5PF 0.2 5PF 5 0V

<C O N N E CT O R>
CN 701 1-7 8 5- 73 1- 5 1 C ON NE CT OR , FF C /F PC 1 7P
CN 201 1- 81 9- 8 66 -11 CO NN EC TO R, US B ( A )

< D IO D E >
D 7 2 0 6- 50 3- 6 61 -0 1 DI 1 L 0 35 2 W3 4 A 0C IT 0 1

C 2 0 4 1 -1 25 -9 7 2- 9 1 ELECT 100UF 2 0.00% 16V

<I C >
I C 71 0 6-6 0 0- 6 6 5- 0 1 I C G P1 UE 27 XK 0V F
I C 71 0 6-6 0 0- 7 8 6- 0 1 IC H M2 14 0 RS T - 1 2M 2

< R ES I S T O R>
R 7 1 0 1- 2 1 6-80 9 -9 1 ME TAL CHIP 100 5% 1 /10W
R 7 2 0 1- 2 1 6-80 9 -9 1 ME TAL CHIP 100 5% 1 /10W
R 2 0 1 1- 2 1 6-29 5 -9 1 SH ORT CHI P 0
R 2 0 2 1- 2 1 6-86 4 -9 1 SH ORT CHI P 0
R 2 0 3 1- 2 1 6-86 4 -9 1 SH ORT CHI P 0

<S WI T C H >
S 7 0 0 1- 7 7 1- 8 74 - 1 1 SWI T C H, T AC TI L E
S 7 0 1 1- 7 7 1- 8 74 - 1 1 SWI T C H, T AC TI L E
S 7 0 2 1- 7 7 1- 8 74 - 1 1 SWI T C H, T AC TI L E
S 7 0 3 1- 7 7 1- 8 74 - 1 1 SWI T C H, T AC TI L E

< T R AN SIST O R>
Q 7 2 0 8 - 7 2 9 - 0 3 8-26 T RA NS I S T OR R T1 N 43 0 C -T P- 1

C N2 0 1 1- 8 4 3 - 0 9 9 - 1 1 USB CO NN EC TO R (A)

* * * * * * * * * * * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * *** * * ** *

<C APA SIT OR>
C1 0 1 1-1 16- 3 90-9 1 CERAMIC CHIP 2.2UF 20% 6.3V
C1 0 2 1-10 0-90 9-1 1 CERAMIC CHIP 10UF 10% 6.3V
C114 1-1 00- 91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C115 1-1 00- 91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C118 1-1 00- 91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V

C119 1-1 00- 91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 0 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 1 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 2 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 3 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V

C1 2 4 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 5 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 2 8 1-10 0-90 9-1 1 CERAMIC CHIP 10UF 10% 6.3V
C1 2 9 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C1 5 9 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V

C2 0 2 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C2 0 3 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C2 0 4 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C2 0 6 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C2 0 7 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V

C2 1 1 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C2 1 4 1-10 0-90 9-1 1 CERAMIC CHIP 10UF 10% 6.3V
C2 1 5 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C3 0 4 1-10 0-91 6-1 1 CERAMIC CHIP 0.1UF 10% 16V
C3 0 7 1-1 12 -777 -1 1 CERAMIC CHIP 0.01UF 10% 25V

C3 0 9 1-16 5-90 8-9 1 CERAMIC CHIP 1UF 10% 10V
C3 1 0 1-1 12 -777 -1 1 CERAMIC CHIP 0.01UF 10% 25V
C3 2 1 1-1 14 -553 -1 1 CERAMIC CHIP 10UF 10% 16V
C3 2 3 1-1 12 -777 -1 1 CERAMIC CHIP 0.01UF 10% 25V
C3 2 4 1-10 0-90 9-1 1 CERAMIC CHIP 10UF 10% 6.3V

C3 2 5 1-1 12 -777 -1 1 CERAMIC CHIP 0.01UF 10% 25V

A-1848-283-A SERVICE ASSY,FR

(BDPS186)

< C O NN EC TO R >

MB-413

FR-316

*

A-1844-260-A SERVICE ASSY, MB

(BDP-S185:US/BX18:US)

A-1844-269-A SERVICE ASSY, MB

(BDP-S185:CND/BX18:CND)

A-1845-241-A SERVICE ASSY, MB

(BDP-S185:RUS)

A-1845-267-A SERVICE ASSY, MB

(BDP-S185:CN)

A-1845-262-A SERVICE ASSY, MB

(BDP-S185:AUS)

A-1844-233-A SERVICE ASSY, MB

(BDP-S185:AEP,UK/S186)
